三星173P PLUS液晶显示器维修手册和原理图

分类：电子电工日期：2023-03-24 点击：0

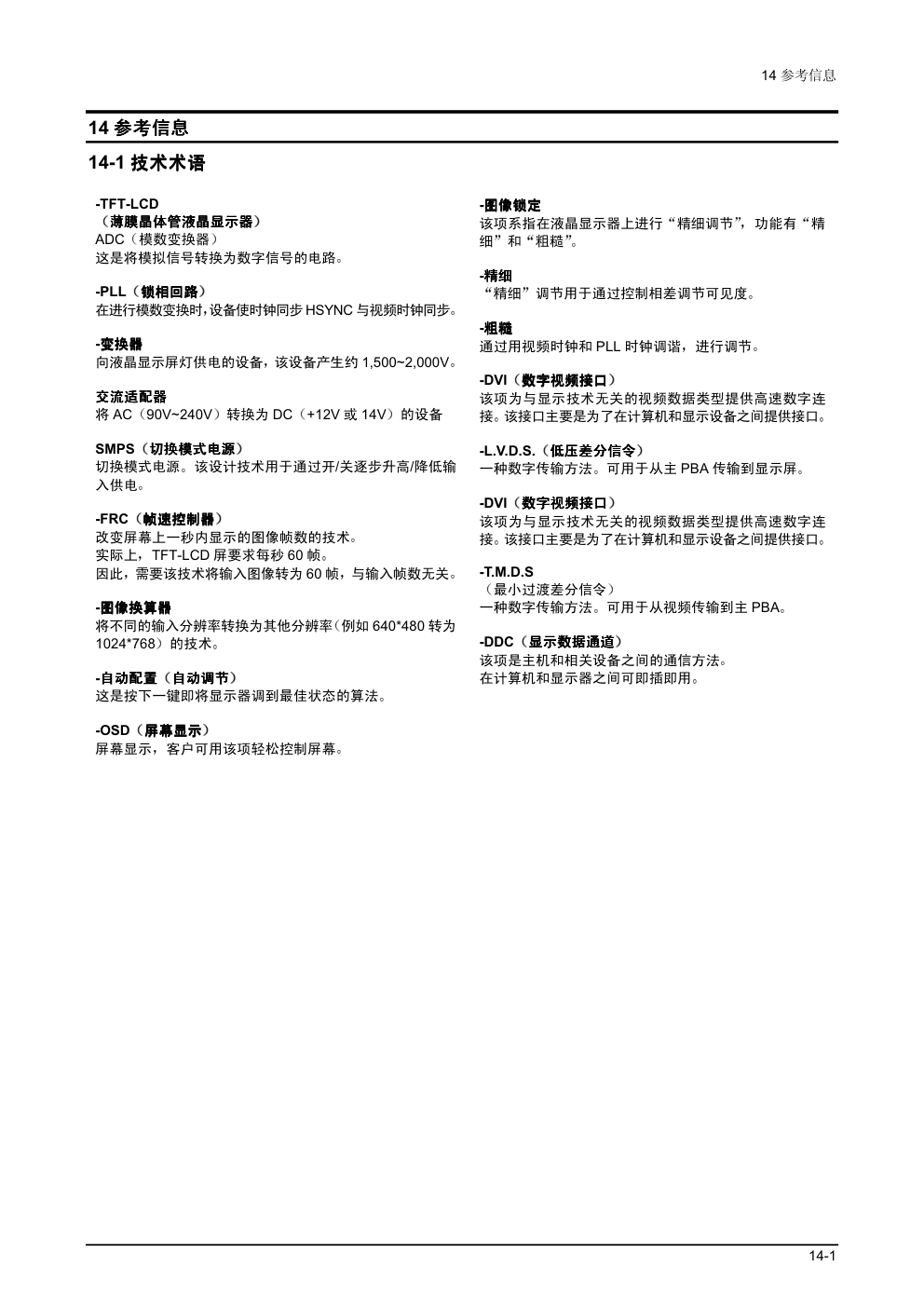

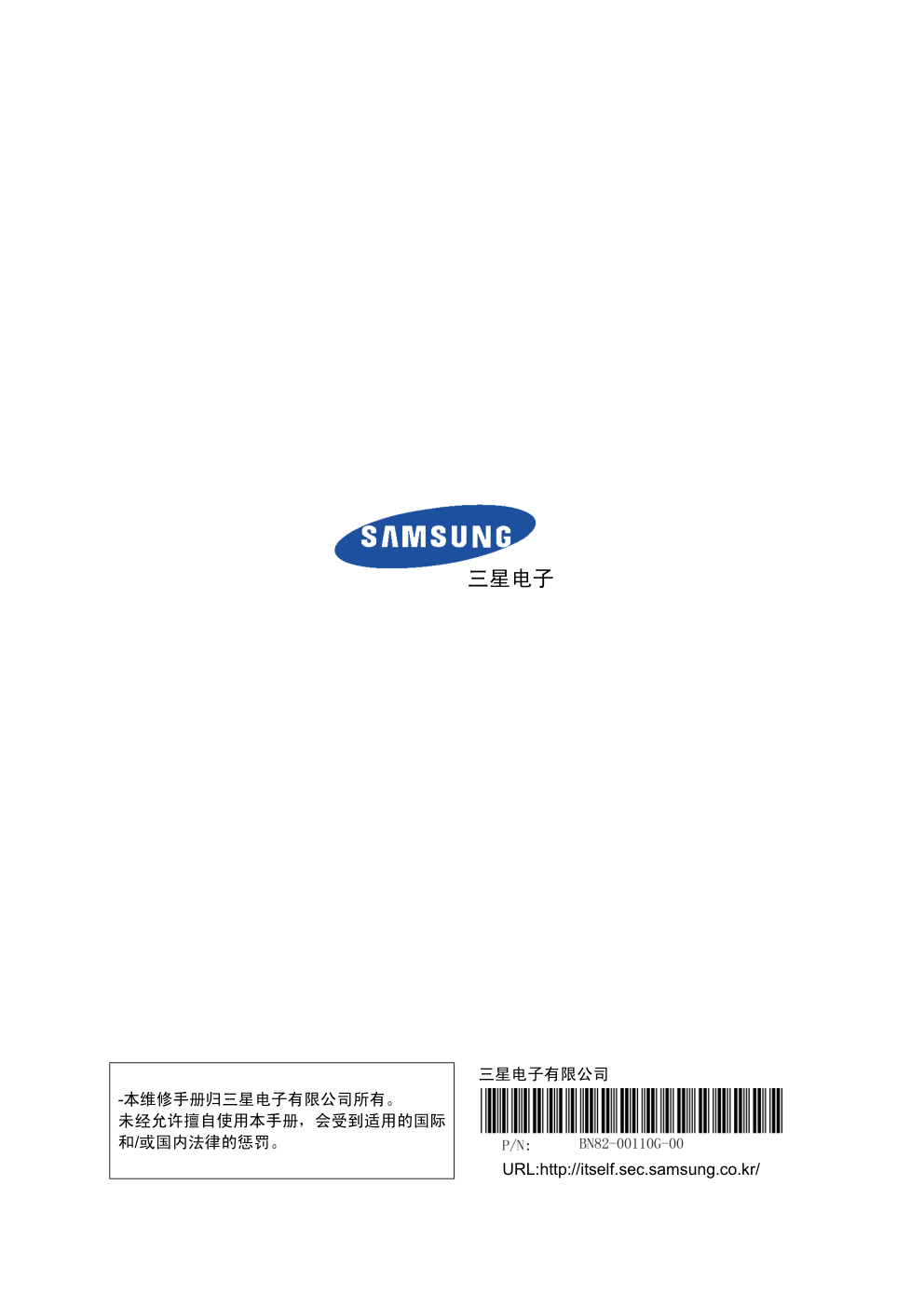

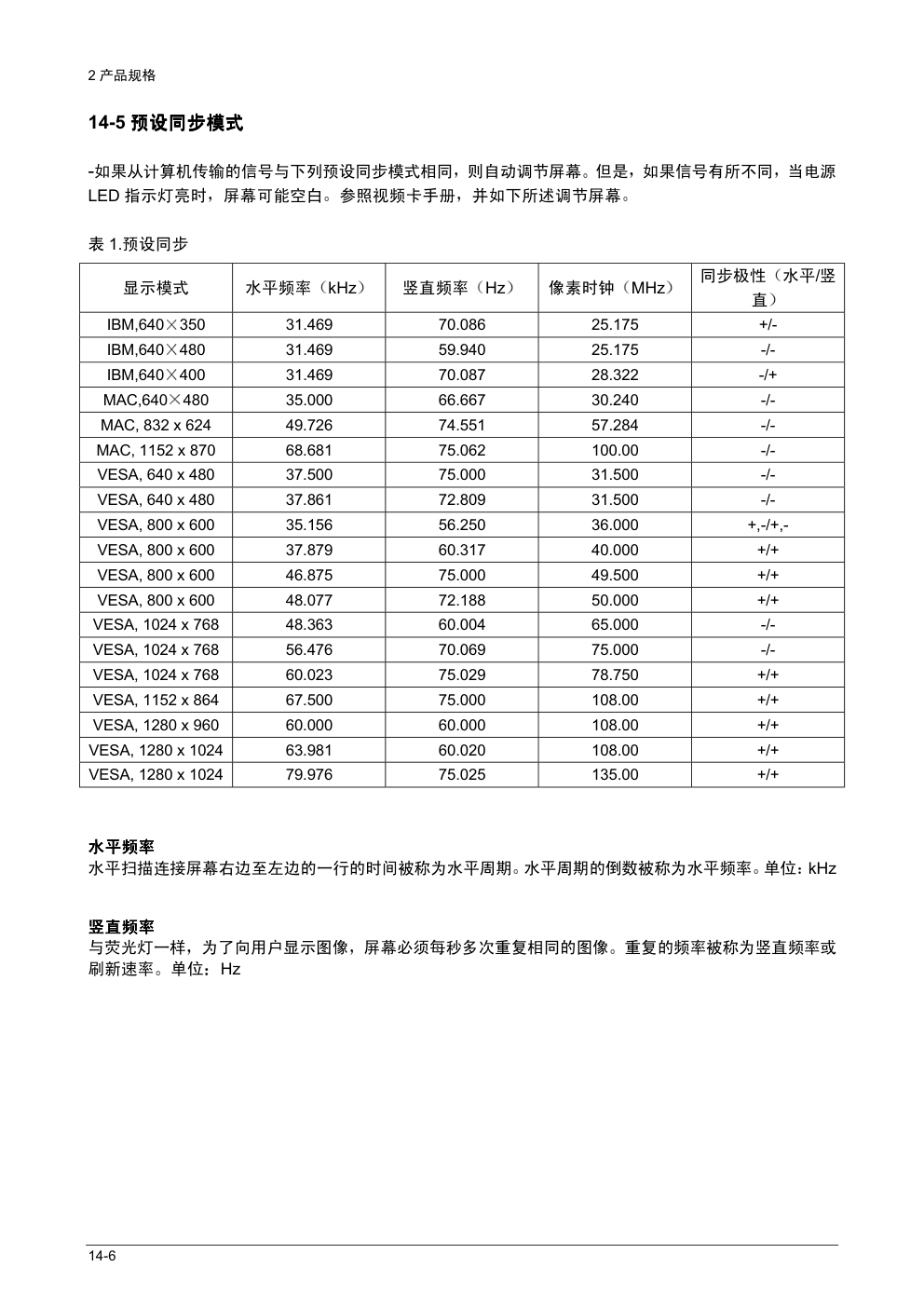

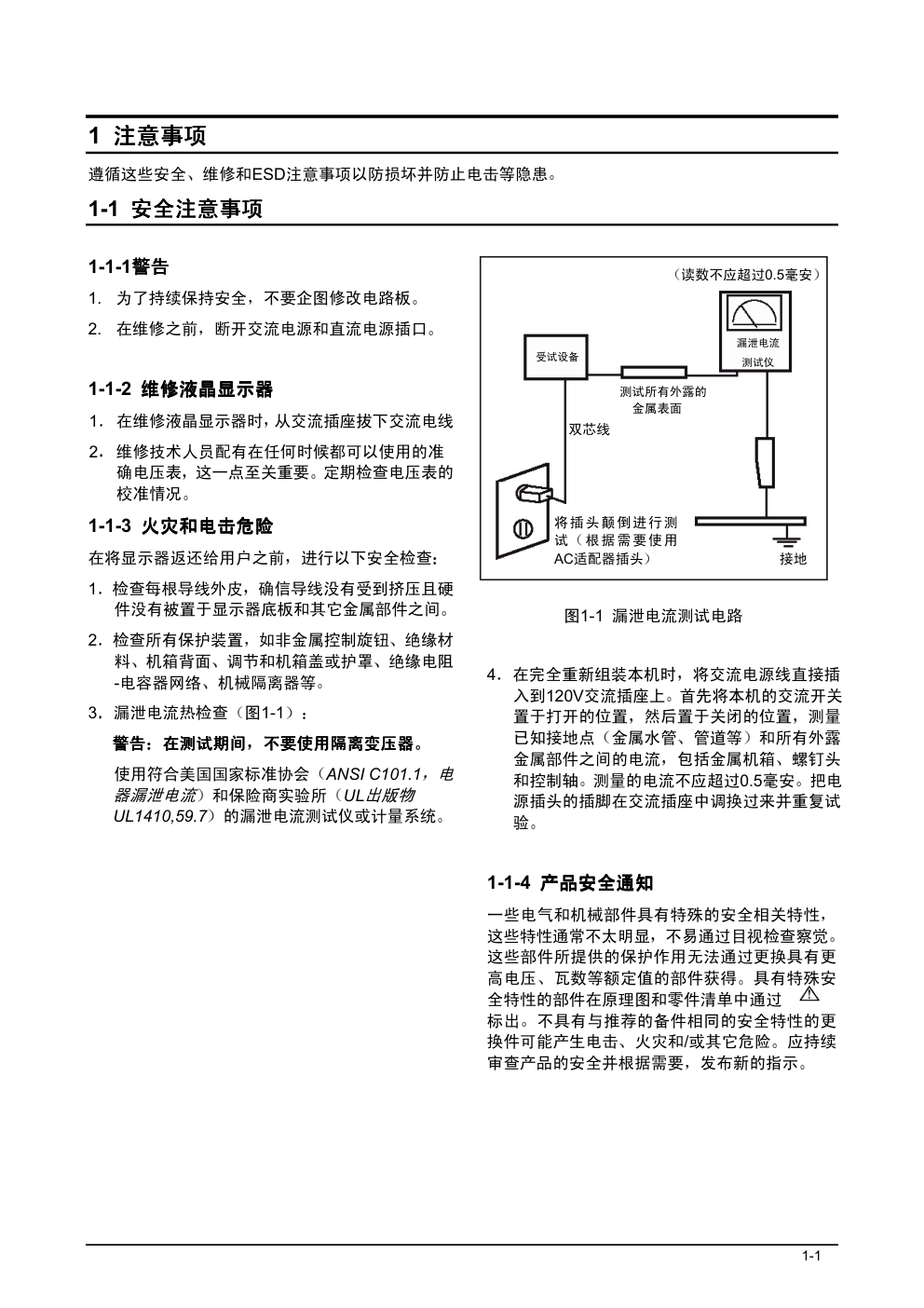

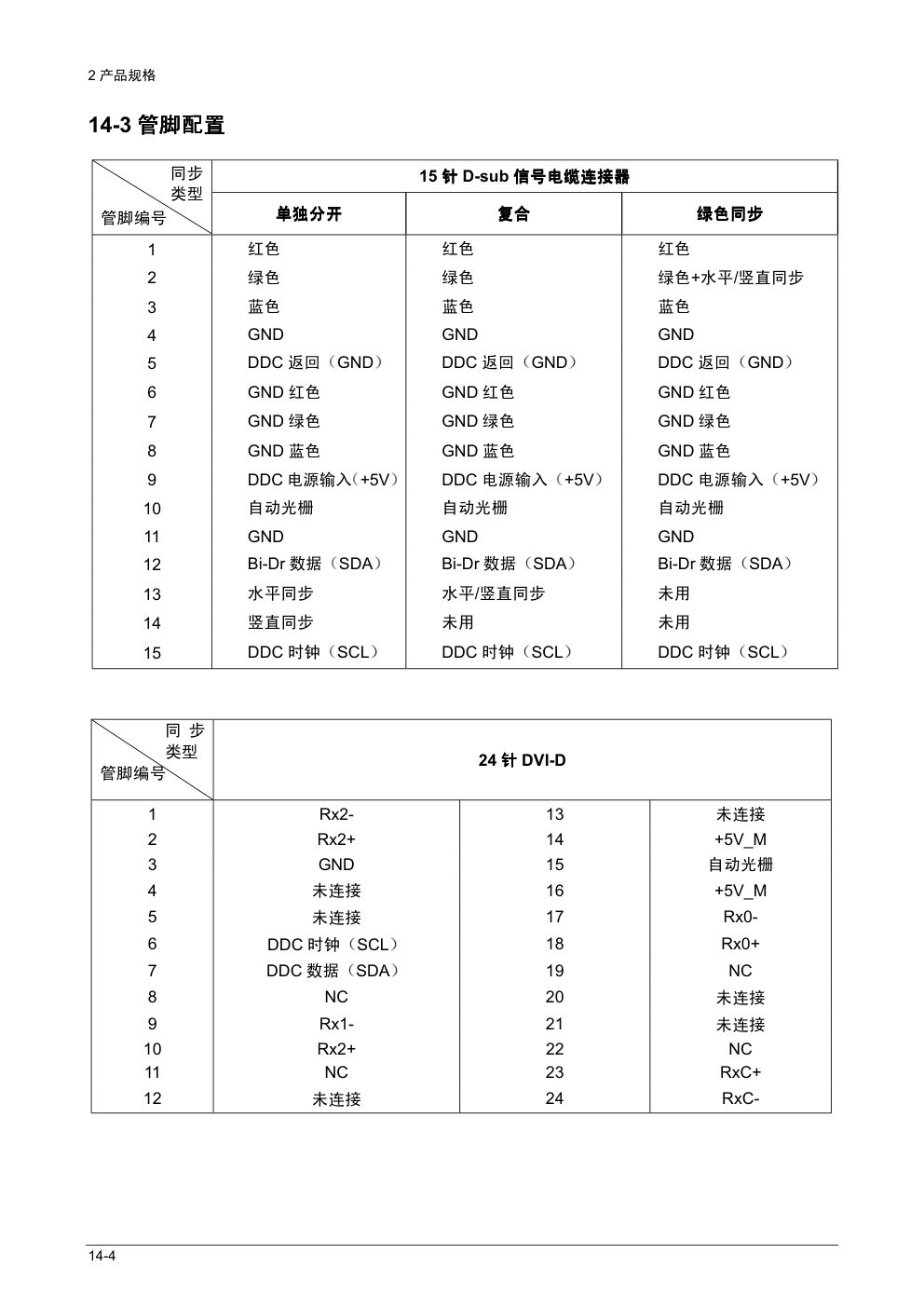

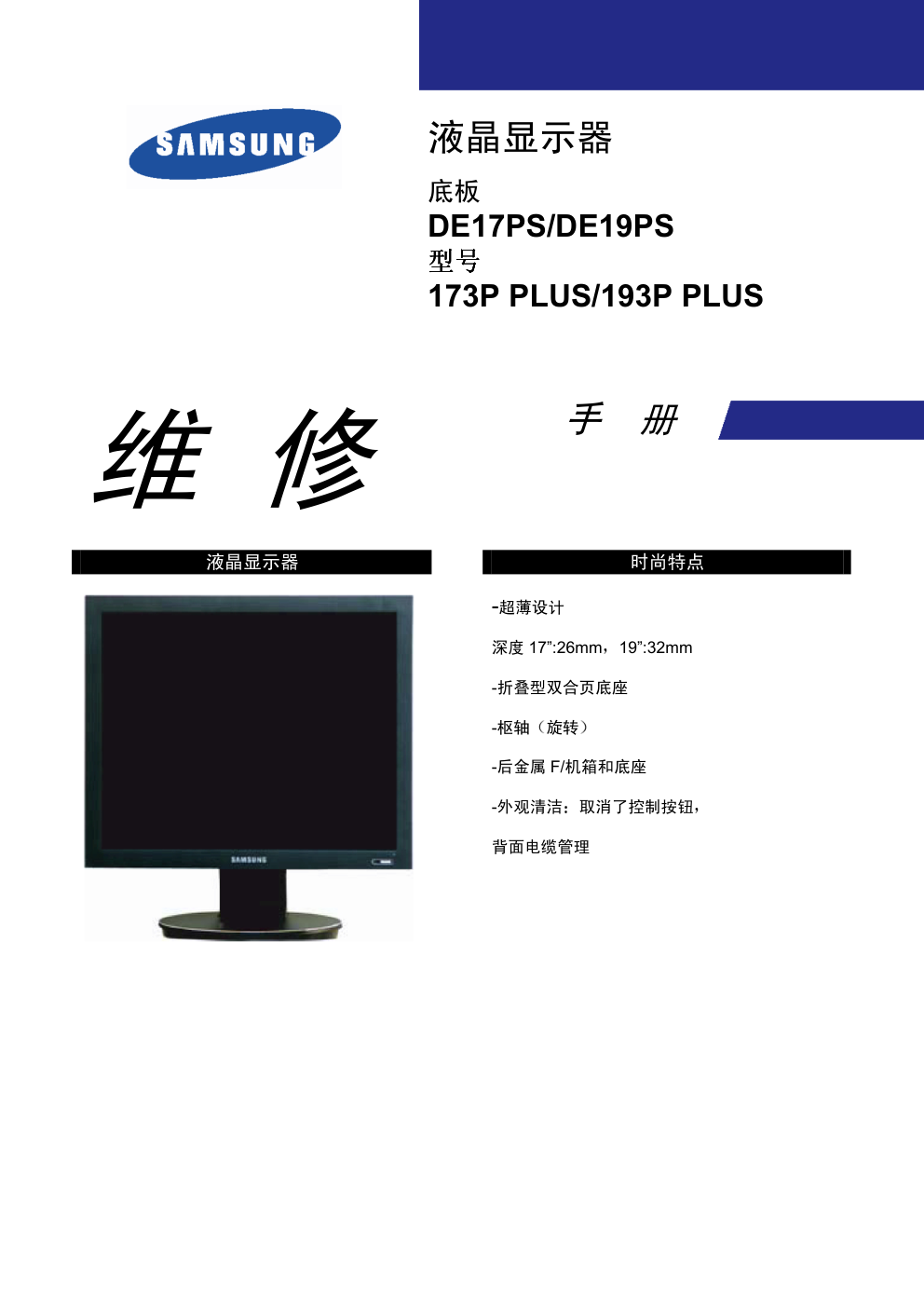

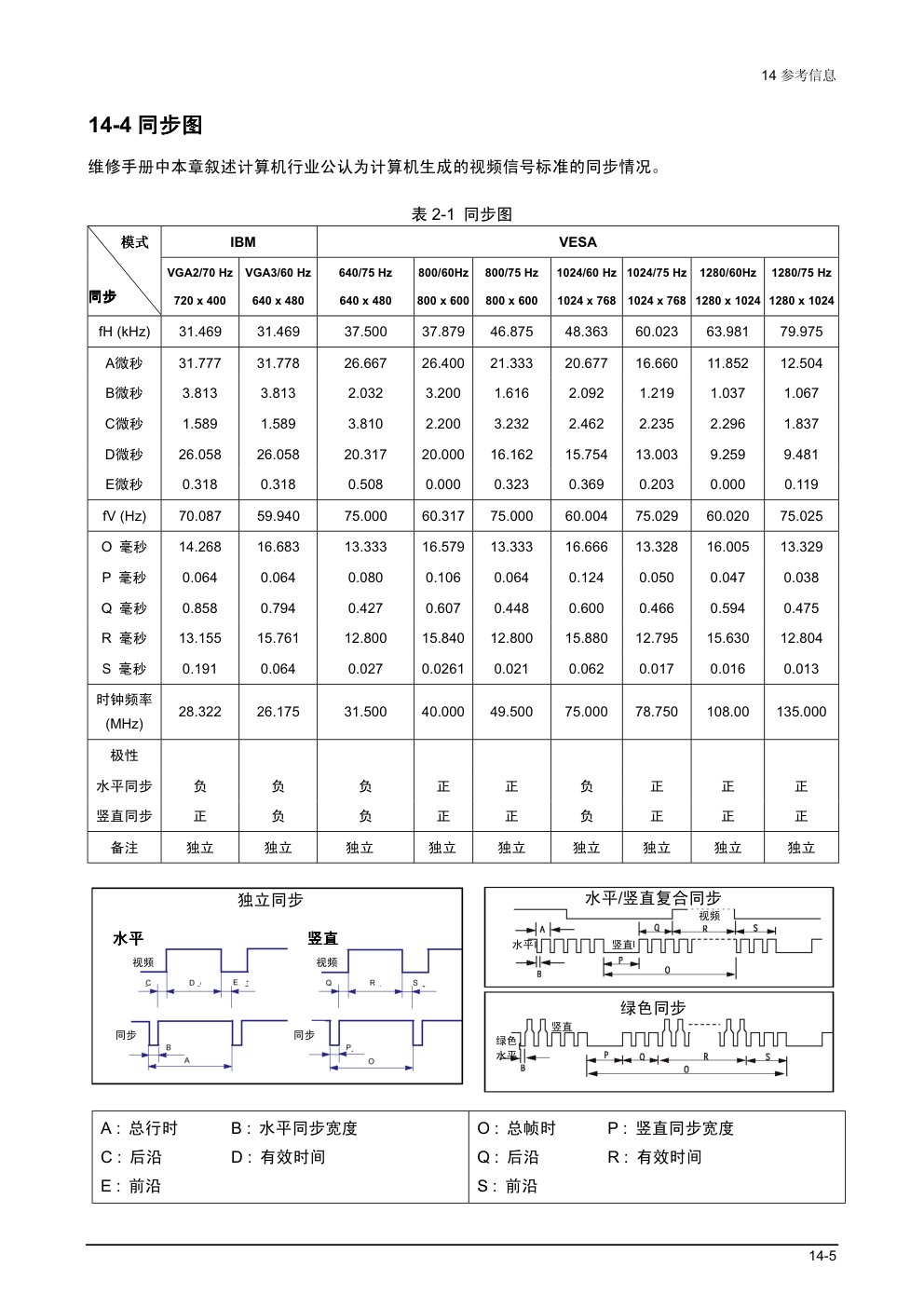

维修液晶显示器时尚特点 -超薄设计深度 17”:26mm 19”:32mm -折叠型双合页底座 -枢轴旋转 -后金属 F/机箱和底座 -外观清洁取消了控制按钮背面电缆管理液晶显示器底板 DE17PS/DE19PS 型号型号型号型号 173P PLUS/193P PLUS 手册三星电子 -本维修手册归三星电子有限公司所有未经允许擅自使用本手册会受到适用的国际和/或国内法律的惩罚三星电子有限公司 URL:http://itself.sec.samsung.co.kr/ 1-1 1 注意事项注意事项注意事项注意事项遵循这些安全维修和ESD注意事项以防损坏并防止电击等隐患 1-1 安全注意事项安全注意事项安全注意事项安全注意事项读数不应超过0.5毫安受试设备漏泄电流测试仪测试所有外露的金属表面双芯线将插头颠倒进行测试根据需要使用 AC适配器插头接地 1-1-1警告警告警告警告 1. 为了持续保持安全不要企图修改电路板 2. 在维修之前断开交流电源和直流电源插口 1-1-2 维修液晶显示器维修液晶显示器维修液晶显示器维修液晶显示器 1 在维修液晶显示器时从交流插座拔下交流电线 2 维修技术人员配有在任何时候都可以使用的准确电压表这一点至关重要定期检查电压表的校准情况 1-1-3 火灾和电击危险火灾和电击危险火灾和电击危险火灾和电击危险在将显示器返还给用户之前进行以下安全检查 1 检查每根导线外皮确信导线没有受到挤压且硬件没有被置于显示器底板和其它金属部件之间 2 检查所有保护装置如非金属控制旋钮绝缘材料机箱背面调节和机箱盖或护罩绝缘电阻 -电容器网络机械隔离器等 3 漏泄电流热检查图1-1 警告警告警告警告在测试期间在测试期间在测试期间在测试期间不要使用隔离变压器不要使用隔离变压器不要使用隔离变压器不要使用隔离变压器使用符合美国国家标准协会 ANSI C101.1 电器漏泄电流和保险商实验所 UL出版物 UL1410,59.7 的漏泄电流测试仪或计量系统图1-1 漏泄电流测试电路 4 在完全重新组装本机时将交流电源线直接插入到120V交流插座上首先将本机的交流开关置于打开的位置然后置于关闭的位置测量已知接地点金属水管管道等和所有外露金属部件之间的电流包括金属机箱螺钉头和控制轴测量的电流不应超过0.5毫安把电源插头的插脚在交流插座中调换过来并重复试验 1-1-4 产品安全通知产品安全通知产品安全通知产品安全通知一些电气和机械部件具有特殊的安全相关特性这些特性通常不太明显不易通过目视检查察觉这些部件所提供的保护作用无法通过更换具有更高电压瓦数等额定值的部件获得具有特殊安全特性的部件在原理图和零件清单中通过标出不具有与推荐的备件相同的安全特性的更换件可能产生电击火灾和/或其它危险应持续审查产品的安全并根据需要发布新的指示 1 注意事项 1-2 1-2 维修注意事项维修注意事项维修注意事项维修注意事项警告安装极性错误的电解电容器会发生爆炸小心维修本维修手册中叙述的设备前请阅读并遵循本手册中安全注意事项一节注意如果无法预见的情况在维修注意事项和安全注意事项之间造成冲突要遵守安全注意事项 1-2-1通用维修注意事项通用维修注意事项通用维修注意事项通用维修注意事项 1 在准备进行以下操作之前要将本机的交流电源线从交流电源拔下来并断开直流电源插口的连接 (a)拆除或重新安装任何部件或组件 (b)拔下印刷电路板插头或连接器 c 连接与电解电容器并联的所有测试部件 2 为了安全起见一些部件被抬高高过印刷电路板有时使用绝缘管或胶带有时内部接线被夹起来目的是为了防止与致热部件接触把所有此类元件重新安装到其原来的位置 3 在维修后要检查螺钉部件和接线是否正确地重新安装要保证维修过的部件周围区域没有损坏 4 检查交流插头的插片和易碰到的导电部件如金属盘输入端子和耳机塞孔之间的绝缘情况 5 绝缘检查步骤由交流电源断开电源线并把电源开关转到打开的位置将绝缘电阻表 500伏连接到交流插头的插片上交流插头的各插片和易碰到的导电部件之间的绝缘电阻见上面应大于1兆欧 6 在连接正极性导线之前应把测试仪接地线接到仪表底板上始终最后拆除仪表的接地线 1-3 静电敏感器件静电敏感器件静电敏感器件静电敏感器件 (ESD) 注意事项注意事项注意事项注意事项一些半导体固态设备很容易被静电损坏此类部件一般被称为静电敏感器件 ESD 典型的ESD器件有集成电路和一些场效应晶体管下列方法会减少静电造成的部件损坏事件的发生率 1 在处理任何半导体部件或组件之前要立即通过接触已知的接地点将静电从身体上放掉另外一种办法是戴上放电的腕带装置为了避免电击的危险在给显示器加电之前务必取下腕带 2 在拆除配有ESD的组件后将其放到导电平面如铝箔以防积聚静电 3 不要使用带有氟里昂的化学品这会产生足以破坏ESD的电荷 4 仅使用接地的烙铁焊接或焊开ESD 5 仅使用防静电除焊装置一些不属于防静电类的除焊装置可能产生足以破坏ESD的电荷 6 在准备安装之前不要将备用ESD由保护包装中取出绝大多数备用ESD均包装有导线这些导线通过导电泡沫铝箔或其它导电材料短接 7 即将由备用ESD导线上除去保护材料之前应使保护材料与安装器件的底板和电路组件接触注意注意注意注意不要给底板或电路加电并遵守其它安全不要给底板或电路加电并遵守其它安全不要给底板或电路加电并遵守其它安全不要给底板或电路加电并遵守其它安全注意事项注意事项注意事项注意事项 8 在处理没有包装的备用ESD时要尽量减少身体的运动一些运动如摩擦衣服或由铺地毯的地板上抬起脚都会产生足以破坏ESD的静电 �� 6 Exploded View & Parts List 5-1 5 Exploded View and Parts List -You can search for updated part codes through ITSELF web site. URL : http://itself. sec. samsung.co.kr 5-1 DE17PS Exploded View 8 10 9 1 2 3 4 5 6 7 5 Exploded View & Parts List 5-2 5-2 DE17PS Parts List No. DESCRIPTION CODE No. SPECIFICATION Q'ty REMARKS 1 ASSY, COVER-FRONT BN96-00778A AL 1 SNA 2 AMLCD-PANEL BN07-00158A LTM170E8-L01 1 SNA 3 ASS'Y SHIELD-PCB BN63-00837A SECC T1.0 1 SNA 4 ASS'Y PBA - DI17PS 1 SNA 5 COVER-REAR BN63-01035A ABS HB WH12 1 SNA 6 ASS'Y STAND BN96-01998A AL 1 SNA 7 ASS'Y STAND / CAP BN07-00195A LTM240M1-L01,Bbit,PVA HPD 1 SNA 8 HOLDER-SUB / PCB BN61-00890A DE17PS,ABS HB,T1.8,IV16,DALI-2 1 SNA 9 INVERTER BN44-00103B RL17,SIC842,13.0~14.5V,2.0mA,7.4mA,100*71*8mm,4Lamp 1 SNA 10 ASSY CHASSIS BN91-00836T DE17PS 1 SNA 6 Exploded View & Parts List 5-3 5-3 DE19PS Exploded View 1 2 3 4 5 6 7 8 10 9 5 Exploded View & Parts List 5-4 No. DESCRIPTION CODE No. SPECIFICATION Q'ty REMARKS 1 ASS'Y, COVER-FRONT BN96-00932A AL 1 SNA 2 AMLCD-PANEL BN07-00145A LTM190E4-L01 1 SNA 3 ASS'Y SHIELD-PCB BN96-00974A SECC T1.0 1 SNA 4 ASS'Y PBA - DI17PS 1 SNA 5 COVER-REAR BN63-01093A ABS HB WH12 1 SNA 6 ASS'Y STAND BN96-01999A AL 1 SNA 7 ASS'Y STAND/ CAP BN96-00890A LTM240M1-L01,Bbit,PVA HPD 1 SNA 8 HOLDER-SUB/PCB BN61-01599A DE19PS,ABS HB,IV16 1 SNA 9 INVERTER BN44-00103B RL17,SIC842,13.0~14.5V,2.0mA,7.4mA,100*71*8mm,4Lamp 1 SNA 10 ASSY CHASSIS BN91-00836U DE19PS 1 SNA 5-4 DE19PS Parts List 6 Electrical Parts List 6-1 E19-DE17PSQAQ/EDC 1 SEC,SEC,LTM170E8-L01 (ZPD) 1 - BN94-00642Q ASSY PCB MAIN-E19 DE17PSQAQ/EDC,DALI2 1 SNA BZ201 3002-001123 BUZZER-PIEZO 85DB,9VDC,8MA ,4.4KHZ +/- 0.5KHZ,BULK 1 SA CN101 3711-005506 CONNECTOR-HEADER BOX,22P,2R,2mm,STRAIGHT,SN,BLK 1 SA CN102 3711-005507 CONNECTOR-HEADER BOX,20P,2R,2mm,STRAIGHT,SN,BLK 1 SA CIS2 BN60-00011A FASTENER-PEM/NUT MINERVA,SUM24L(SN),M3,-,7.0,6.8,WHT 4 SNA CIS1 BN63-01079A GASKET ,CONDUCTIVE FAB,4MM,10MM,10MM,GRAY,32K,71TSSK-10-4-10-13 1 SNA BN97-00512H ASSY SMD DE17PSQAQ/EDC,DALI2 1 SNA D100 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D101 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D102 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D103 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D104 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D105 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D106 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D107 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D108 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D109 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D110 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D600 0402-000553 DIODE-RECTIFIER SS24,40V,2.0A,DO-214AA 1 SA ZD100 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD101 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD102 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD103 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD104 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD105 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD106 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD107 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD108 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD109 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD110 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD111 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD112 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD113 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD114 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD115 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD116 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD201 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD202 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA Q201 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 1 SA Q600 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 1 SA Q601 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 1 SA Q602 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 1 SA IC605 0505-001170 FET-SILICON SI9933ADY-T1,P,-20V,3.4A,0.06ohm,2W,SO-8 1 SA IC700 1003-001538 IC-LCD CONTROLLER S5D2542X,LQFP,208P,28X28MM,1,-,TR,PLASTIC,3.3V,0TO+70C,-,-,- 1 SA IC400 1003-001789 IC-LCD CONTROLLER SE59AWJ-LF,PQFP,128P,23.20x17.20 mm,-,-,TR,PLASTIC,3.3V,0to+70C,-,-,Lead-Free/Ma 1 SA IC100 1103-000129 IC-EEPROM 24C02,256x8,SOP,8P,5x4mm,4.5/5.5V,0to+70C 1 SA IC101 1103-000129 IC-EEPROM 24C02,256x8,SOP,8P,5x4mm,4.5/5.5V,0to+70C 1 SA IC201 1103-001023 IC-EEPROM 24C08,1Kx8,SOP,8P,5x4mm,2.5/5.5V,0to+70C 1 SA IC704 1105-001165 IC-DRAM 416S1020,512Kx16BITx2,TSOP,50P 1 SA IC705 1105-001165 IC-DRAM 416S1020,512Kx16BITx2,TSOP,50P 1 SA IC706 1105-001165 IC-DRAM 416S1020,512Kx16BITx2,TSOP,50P 1 SA IC604 1202-000164 IC-VOLTAGE COMP. 393,SOP,8P,150MIL,DUAL,36V,CMO 1 SA IC601 1203-002425 IC-POSI.FIXED REG. AP1117,SOT-223,3P,138MIL,PLASTIC,3.3V,-,0TO+150C,1A,-,TP 1 SA IC603 1203-002842 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P,6.7X5.6MM,PLASTIC,3.235/3.365V,-,0TO+150C,1A,-,TP 1 SA IC607 1203-002842 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P,6.7X5.6MM,PLASTIC,3.235/3.365V,-,0TO+150C,1A,-,TP 1 SA IC608 1203-002842 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P,6.7X5.6MM,PLASTIC,3.235/3.365V,-,0TO+150C,1A,-,TP 1 SA IC602 1203-002844 IC-POSI.FIXED REG. AP1117D-18A,TO-252-3L,3P,6.7X5.6MM,PLASTIC,1.764/1.836V,-,0TO+150C,1A,-,TP 1 SA IC606 1203-002844 IC-POSI.FIXED REG. AP1117D-18A,TO-252-3L,3P,6.7X5.6MM,PLASTIC,1.764/1.836V,-,0TO+150C,1A,-,TP 1 SA IC600 1203-003059 IC-SWITCH VOL. REG. MP1583,SOIC,8P,4.9x3.9mm,PLASTIC,1.22/21V,-,-40to+85CC,3A,1.194/1.25V,TP 1 SA Code No. Loc. No. Description Specification EA SA/SNA Remarks 6 Electrical Parts List 6-1 DE17PS Main PCB Parts IC401 1205-002412 IC-TRANSMITTER DTC34LM85A,TSSOP,56P,14x6.1mm,PLASTIC,3.3V,1.4W,0to+70C,TP,LVDS TRANSMITTER 1 SA IC402 1205-002412 IC-TRANSMITTER DTC34LM85A,TSSOP,56P,14x6.1mm,PLASTIC,3.3V,1.4W,0to+70C,TP,LVDS TRANSMITTER 1 SA R608 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 SA R708 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R709 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R710 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R711 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R712 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R713 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R701 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R702 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R704 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R705 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R706 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R707 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R121 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 SA R123 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 SA R402 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 SA R107 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R109 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R118 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R119 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R200 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R201 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R217 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R219 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R220 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R222 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R228 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R229 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R231 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R232 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R233 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R234 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R235 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R236 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R237 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R238 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R239 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R240 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R241 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R242 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R248 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R250 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R221 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 SA R213 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 SA R101 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 SA R120 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 SA R700 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 SA R703 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 SA R125 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R126 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R205 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R206 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R207 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R208 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R209 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R212 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R214 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R215 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R223 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R224 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R225 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA 6 Electrical Parts List 6-2 Code No. Loc. No. Description Specification EA SA/SNA Remarks 6 Electrical Parts List 6-3 R226 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R227 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R230 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R100 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R202 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R216 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R218 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R243 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R244 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R245 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R246 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R247 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R603 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R604 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R606 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R607 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R609 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R612 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R115 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 SA R116 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 SA R210 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 SA R211 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 SA R104 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 SA R105 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 SA R401 2007-000118 R-CHIP 390ohm,5%,1/10W,TP,1608 1 SA R610 2007-000208 R-CHIP 1.1Kohm,1%,1/10W,TP,1608 1 SA R102 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R106 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R110 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R111 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R112 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R114 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R122 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R124 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R127 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R128 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R129 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R130 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R131 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R132 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R400 2007-000821 R-CHIP 390ohm,1%,1/10W,TP,1608 1 SA R605 2007-000842 R-CHIP 3Kohm,1%,1/10W,TP,1608 1 SA R602 2007-000962 R-CHIP 5.1Kohm,1%,1/10W,TP,1608 1 SA R601 2007-000965 R-CHIP 5.1Kohm,5%,1/10W,TP,1608 1 SA R117 2007-001002 R-CHIP 510ohm,5%,1/10W,TP,1608 1 SA R203 2007-001002 R-CHIP 510ohm,5%,1/10W,TP,1608 1 SA R204 2007-001002 R-CHIP 510ohm,5%,1/10W,TP,1608 1 SA R103 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 SA R108 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 SA R113 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 SA R600 2007-007841 R-CHIP 16.2Kohm,1%,1/10W,TP,1608 1 SA RA700 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA701 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA702 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA703 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA704 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA705 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA706 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA707 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA708 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA709 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA710 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA711 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA712 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA Code No. Loc. No. Description Specification EA SA/SNA Remarks RA713 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA714 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA715 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA716 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA717 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA718 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA719 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA720 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA721 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA722 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA723 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA724 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA725 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA726 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA727 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA728 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA729 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA730 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA731 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA732 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA733 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA734 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA735 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA736 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA737 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA738 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA739 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA740 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA C427 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C428 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C429 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C431 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C432 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C433 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C434 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C437 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C438 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C439 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C603 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C607 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C700 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C701 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C702 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C703 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C704 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C705 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C706 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C707 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C708 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C709 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C710 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C711 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C712 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C713 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C714 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C715 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C716 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C717 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C718 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C719 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C720 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C721 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C722 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA 6 Electrical Parts List 6-4 Code No. Loc. No. Description Specification EA SA/SNA Remarks 6 Electrical Parts List 6-5 C723 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C724 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C725 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C726 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C727 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C728 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C729 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C118 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 SA C608 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 SA C409 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C423 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C600 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C604 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C605 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C623 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C424 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,TP,1608 1 SA C425 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,TP,1608 1 SA C731 2203-000783 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,1608 1 SA C114 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608 1 SA C100 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C101 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C102 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C103 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C104 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C106 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C107 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C108 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C109 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C110 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C111 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C112 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C113 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C115 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C116 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C117 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C119 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C201 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C400 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C402 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C403 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C404 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C405 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C406 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C407 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C408 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C411 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C412 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C413 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C414 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C415 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C416 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C417 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C418 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C419 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C420 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C421 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C422 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C436 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C612 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C613 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C616 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C617 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C625 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA Code No. Loc. No. Description Specification EA SA/SNA Remarks C627 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C630 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C203 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SA C204 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SA C621 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SA C622 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SA C200 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C202 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C401 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C410 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C426 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C430 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C614 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C615 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C618 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C619 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C620 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C626 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C628 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C629 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C631 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C632 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C730 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C606 2203-006036 C-CER,CHIP 680NF,+80-20%,16V,Y5V,TP,1608 1 SA C611 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4 1 SA C435 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm 1 SA C610 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm 1 SA C105 2402-001044 C-AL,SMD 100UF,20%,25V,GP,TP,8.3X8.3X6.3MM 1 SA C601 2402-001044 C-AL,SMD 100UF,20%,25V,GP,TP,8.3X8.3X6.3MM 1 SA C609 2409-001051 C-ORGANIC 82UF,20%,6.3V,WT,TP,6.3*5.9MM,2.1 1 SA C624 2409-001065 C-ORGANIC 82UF,20%,16V,WT,TP,8X6.9MM,- 1 SA C602 2409-001086 C-ORGANIC 10uF,20%,20V,WT,TP,5.3x5.3x6.0mm,1.4 1 SA X400 2801-003773 CRYSTAL-SMD 12MHZ,30PPM,28-AAN,20PF,50OHM,TP 1 SA BD701 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA BD702 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA BD703 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA BD704 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA BD705 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA CN400 3711-005470 CONNECTOR-HEADER BOX,30P,1R,1.25mm,SMD-A,Sn+Pb,IVR 1 SA CN601 3711-005471 CONNECTOR-HEADER BOX,12P,1R,1.25mm,SMD-A,Sn+Pb,IVR 1 SA CN200 3711-005509 CONNECTOR-HEADER BOX,4P,1R,1.25mm,SMD-A,Sn+Pb,IVR 1 SA L601 BN27-00009A COIL CHOKE SMD 12X12X6,EOS,33UH,15%,-,0.12§Ù MAX,2A,DR10X5.0MM,18.5TS,12X12X6,1.8MM,1UEW 0. 1 SA S201 BN32-00005A SENSOR SW-TILT SPSF100100,DC5V,1mA,-10 ~ +50 1 SA MP1.0 BN41-00586A PCB MAIN DALI-2,FR4,4L,MP1.0,1.0T,145*110,2A,MAIN 1 SNA MICOM BN97-00489N ASSY MICOM DE17PS*,W/W 1 SA IC200 0903-001402 IC-MICROCONTROLLER NT68F632ALG,8Bit,PLCC,44P,16.59x16.59,24MHz,ST,-,PLASTIC,3.3V,-,0 to+70C,128K,-, 1 SA BN91-00841N ASSY LCD-E19(DALI2) DE17PSQAQ/EDC 1 SNA LCD 0203-001330 TAPE-AL FOIL DK100-50-90,T0.07,W50,L90,SIL 1 SNA LCD BN07-00158A LCD LTM170E8-L01,1703,8bit,358.5*296.5*17.5,16.7M,70,0.264*0.264,0~50,5V,PVA 1 SA BN92-00956A ASSY P/MATERIAL DI17PS,BASIC 1 SNA P/M 6902-000604 BAG WRAPPING LDPE,T0.02,W500,L10000,TRP,-,- 3 SNA P/M 6902-000642 BAG PE HD/NITR/HD(DOUBLE),T0.015/T0.5/T0.015,W700,L700,TRP,28,2 1 SNA CIS BN69-00300C CUSHION EPS DI17PS,EPE,T5.0,BLUE,D/LAMINATE 1 SNA P/M BN69-00647A CUSHION DALI,EPS 1 SNA CIS BN96-00838A ASSY MISC P-WALL MOUNTING DI17PS,TEXTURE DS-01,PP#4636,BLK,SECC T2.0 1 SA CIS BN61-00934A BRACKET-WALL FRONT DALI17",SECC,T2.0 1 SNA CIS BN61-00935A BRACKET-WALL REAR DALI17",SECC,T2.0 1 SNA CIS BN61-01043A BRACKET-WALL MOUNT DI17PS/DI19PS,SK-5,T0.8 1 SNA CIS BN68-00473H MANUAL INSTALL-CARD Dali Wall Mount,SyncMaster,en,W/W 1 SNA CIS BN96-00196A ASSY MISC P-SCREW MODIGLIANI ,SCREW-WOOD,SCREWTAPTITE,ANCHOR 1 SA 6 Electrical Parts List 6-6 Code No. Loc. No. Description Specification EA SA/SNA Remarks 6 Electrical Parts List 6-7 BN90-00602A ASSY COVER FRONT DI17PS,BASIC 1 SNA C/F BN96-00778A ASSY COVER P-FRONT DL17PS,AL 1 SA C/F 6003-001522 SCREW-TAPTITE CH,+,B,M3,L8,ZPC(YEL),SWRCH18A,- 4 SNA C/F BN61-00809A HOLDER-COVER LOCK DALI 17,ABS 1 SNA C/F BN63-01032A COVER-FRONT DALI 17,ALUMINIUM 1 SNA C/F BN63-01033A COVER-MIDDLE DALI 17,ABS 1 SNA C/F BN63-01142A SHEET-PROTECT DI17PS,PC,T0.125,6,6,WHITE 1 SNA C/F BN64-00221A DECORATION-LED DALI 17,PC CLEAR 1 SNA C/F BN64-00225A KNOB-FUNCTION DALI 17,ABS HB 1 SNA C/F BN68-00434B LABEL-TCO03 LCD,TCO'03,PE CLAER,T0.05,20*17,6DO SILK 1 SNA C/F BN73-00061A RUBBER-PROTECT DALI 17,RUBBER 1 SNA C/F BN96-00848A ASSY BOARD P-FUNCTION DI17PS,FUNCTION 1 SA BN90-00603A ASSY COVER REAR DI17PS,BASIC 1 SNA C/R BN63-01035A COVER-REAR DALI 17,ABS HB,WH12 1 SA BN90-00706K ASSY STAND DE17PSQAQ/EDC,DALI2 1 SNA C/F BN68-00831L LABEL-00,POP DE17PS,173P,PET(ANT100C),T0.18,146,146,EXPORT 1 SNA STD BN96-01998A ASSY STAND P DE17P,ABS HB,WH12 1 SA BN91-00493A ASSY MISC-ADAPTOR MT17BO,MT17BO-SXV2/8384 1 SNA CIS BN44-00071A ADAPTOR APO04214-UV,LCDTM,90~264V,47 - 63 HZ,+14VDC,3.0A,AC/DC,0 TO +40 C,120*55*31 1 SA BN91-00752A ASSY SHIELD DI17PS,BASIC 1 SNA SH/PAN+PAN 6001-000346 SCREW-MACHINE FH,+,M3,L4,ZPC(YEL),SWRCH18A,-,- 4 SNA STD/CAP+STD 6001-000347 SCREW-MACHINE FH,+,M3,L5,NI PLT,SWRCH18A,-,- 1 SNA C/F+STD 6003-001238 SCREW-TAPTITE FH,+,S,M4,L8,ZPC(BLK),SWRCH18A 4 SNA M/PCB+SH/COV 6003-001336 SCREW-TAPTITE CH,+,S,M3,L5.5,ZPC(YEL),SWRCH18A,- 4 SNA CIS BN96-00837A ASSY MISC P-SHIELD PCB DI17PS,SECC T1.0 1 SNA CIS BH68-30003C LABEL-00,HIGH,VOLTAGE SS,ART 100G,30*33,YEL 1 SNA CIS BN63-01034A SHIELD-PCB DALI 17,SECC,T1.0 1 SNA CIS BN96-00890A ASSY STAND P-CAP DI17PS,ABS HB,WH12 1 SA BN63-01038A COVER-REARCAP TOP DALI 17,ABS 1 SNA BN63-01039A SHIELD-CAP DALI 17,SECC 1 SNA BN91-00836T ASSY CHASSIS-E19 DE17PSQAQ/EDC,DALI2 1 SA CIS BN39-00419A LEAD CONNECTOR DS17BS,UL1571#30,UL/CSA,12P,70MM,#30,12507HS-12L,12507HS-12L,BK,1571#30,SJ03-01- 1 SA CIS BN39-00431A LEAD CONNECTOR DI17PS,UL1571#30,UL/CSA,30P,50mm,#30,12507HS-30L,HS-30-BB-100,BK,50mm,1571#30,AT 1 SA CIS BN39-00446A LEAD CONNECTOR DI17PS,UL1061#28,UL/CSA,4P,210MM,#28,12505HS-04,12505HS-04,BK,1061#28 1 SA CIS BN44-00103B INVERTER RL17,SIC842,13.0~14.5V,2.0mA,7.4mA,100*71*8mm,4Lamp,45Khz 1 SA CIS BN61-01598A HOLDER-SUB PCB DI17PS,ABS HB,T1.8,IV16,DALI-2 1 SNA BN92-01091B ASSY LABEL DI17PSQAQ/XTP,SEIT,INDIA 1 SNA LABEL BN68-00219M LABEL RATING-01 W/W(OEM),PE,T0.05,60*35,PE NATURE 1 SNA LABEL BN68-00412F LABEL-01,BARCODE ALL MODEL,PE,T0.05,60*35,POLYESTER,NO SILK 1 SNA LABEL BN68-00460H LABEL RATING-00 DI17PS(GH17GS),SS,PE,T0.05,90,30,BLK,POLYESTER,EDC 1 SNA LABEL BN68-00615A LABEL RATING-00 ALL,SS,PE,T0.05,90*30,BLK,POLYESTER,NO SILK 1 SNA BN92-01322W ASSY BOX DE17PSQAQ/EDC 1 SNA BOX BH68-00530C LABEL BOX-01 LABEL-BARCODE,CE+PIVOT+TCO03,MOJO 90G,WHT 1 SNA BOX BH75-10529A UNIT-HANDLE PACKING LXA410TLMU,PE,-,WHITE,- 1 SNA CIS BN72-60001A LEVER-TOP LSD210TL,PE-LD,WHITE,TFT_LCD 1 SNA CIS BN72-60002A LEVER-BOTTOM LSD210TL,PE-LD,WHITE,TFT-LCD 1 SNA BN92-01325W ASSY ACCESSORY DE17PSQAQ/EDC,EDC,NETHERLANDS 1 SNA ACCESSORY BN39-00246F CBF SIGNAL-DVI(D) 1703FP,24P/24P,20276-D(1.0GHz),2000mm,UL20276,BLACK,DVI/MALE,DET. TYPE 1 SA UNIT/ACCESSORY BN96-01907Z ASSY ACCESSORY DE17PSQAQ/EDC 1 SA ACCESSORY 3903-000042 CBF-POWER CORD DT,EU,FP3/YES,IEC320 C13/C14,250/250V,10-16/10A,BLK,1830MM,-,H05VV-F 3X0.75MM^2, 1 SA ACCESSORY 6902-000110 BAG PE LDPE,T0.05,L356,W240,TRP,28,2,PE MARK 1 SNA ACCESSORY BH68-70438A CARD-10,BLOC WARRANTY TFT LCD,BASIC,EU,MOJO,100G,W21 1 SNA ACCESSORY BH68-70448A CARD-01 TFT LCD,SRC,RUSSIA,S/W,120,W210*L120,INSTALL CARD 1 SNA ACCESSORY BN39-00244B CBF SIGNAL MO15PS,15P/15P,20276-N,1830MM,UL20276,BLACK,D-SUB/MALE,DET. TYPE 1 SA ACCESSORY BN68-00830A MANUAL-02,WARRANTY CARD LCD ZPD WARRANTYCARD,SYNCMASTER,EDC,MOJO100G,A2 1 SNA ACCESSORY BN96-00881K ASSY MANUAL P-IB+QSG DE17PS,DE19PS,SYNCMASTER,W/W,BN59-00395K+BH68-376L 1 SNA QUICKSETUP BH68-00376L MANUAL-04 LCDQUICK SETUP GUIDE,SYNCMASTER,E/F/S/G/P/I..13LANGS,W/W,MOJO100G,298,420 1 SNA IB BN59-00395K S/W DRIVER-00,IB DE17PS,DE19PS,W/W,SYNCMASTER,W/W 1 SNA MAGICTUNE BN68-00847B MANUAL-QSG MagicTune paper,SyncMaster,S_C/Eng,Mojo120g,A4 1 SNA E25-DE19PSQAQ/EDC 1 SEC,LTM190E4-L01(ZPD) 1 - Code No. Loc. No. Description Specification EA SA/SNA Remarks 6-2 Others BN94-00642R ASSY PCB MAIN-E25 DE19PSQAQ/EDC,DALI2 1 SNA BZ201 3002-001123 BUZZER-PIEZO 85DB,9VDC,8MA ,4.4KHZ +/- 0.5KHZ,BULK 1 SA CN101 3711-005506 CONNECTOR-HEADER BOX,22P,2R,2mm,STRAIGHT,SN,BLK 1 SA CN102 3711-005507 CONNECTOR-HEADER BOX,20P,2R,2mm,STRAIGHT,SN,BLK 1 SA CIS2 BN60-00011A FASTENER-PEM/NUT MINERVA,SUM24L(SN),M3,-,7.0,6.8,WHT 4 SNA CIS1 BN63-01079A GASKET ,CONDUCTIVE FAB,4MM,10MM,10MM,GRAY,32K,71TSSK-10-4-10-13 1 SNA BN97-00512J ASSY SMD DE19PSQAQ/EDC,DALI2 1 SNA D100 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D101 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D102 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D103 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D104 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D105 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D106 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D107 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D108 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D109 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D110 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP 1 SA D600 0402-000553 DIODE-RECTIFIER SS24,40V,2.0A,DO-214AA 1 SA ZD100 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD101 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD102 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD103 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD104 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD105 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD106 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD107 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD108 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD109 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD110 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD111 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD112 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD113 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD114 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD115 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD116 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD201 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA ZD202 0403-000258 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP 1 SA Q201 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 1 SA Q600 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 1 SA Q601 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 1 SA Q602 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 1 SA IC605 0505-001170 FET-SILICON SI9933ADY-T1,P,-20V,3.4A,0.06ohm,2W,SO-8 1 SA IC700 1003-001538 IC-LCD CONTROLLER S5D2542X,LQFP,208P,28X28MM,1,-,TR,PLASTIC,3.3V,0TO+70C,-,-,- 1 SA IC400 1003-001789 IC-LCD CONTROLLER SE59AWJ-LF,PQFP,128P,23.20x17.20 mm,-,-,TR,PLASTIC,3.3V,0to+70C,-,-,Lead-Free/Ma 1 SA IC100 1103-000129 IC-EEPROM 24C02,256x8,SOP,8P,5x4mm,4.5/5.5V,0to+70C 1 SA IC101 1103-000129 IC-EEPROM 24C02,256x8,SOP,8P,5x4mm,4.5/5.5V,0to+70C 1 SA IC201 1103-001023 IC-EEPROM 24C08,1Kx8,SOP,8P,5x4mm,2.5/5.5V,0to+70C 1 SA IC704 1105-001165 IC-DRAM 416S1020,512Kx16BITx2,TSOP,50P 1 SA IC705 1105-001165 IC-DRAM 416S1020,512Kx16BITx2,TSOP,50P 1 SA IC706 1105-001165 IC-DRAM 416S1020,512Kx16BITx2,TSOP,50P 1 SA IC604 1202-000164 IC-VOLTAGE COMP. 393,SOP,8P,150MIL,DUAL,36V,CMO 1 SA IC601 1203-002425 IC-POSI.FIXED REG. AP1117,SOT-223,3P,138MIL,PLASTIC,3.3V,-,0TO+150C,1A,-,TP 1 SA IC603 1203-002842 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P,6.7X5.6MM,PLASTIC,3.235/3.365V,-,0TO+150C,1A,-,TP 1 SA IC607 1203-002842 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P,6.7X5.6MM,PLASTIC,3.235/3.365V,-,0TO+150C,1A,-,TP 1 SA IC608 1203-002842 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P,6.7X5.6MM,PLASTIC,3.235/3.365V,-,0TO+150C,1A,-,TP 1 SA IC602 1203-002844 IC-POSI.FIXED REG. AP1117D-18A,TO-252-3L,3P,6.7X5.6MM,PLASTIC,1.764/1.836V,-,0TO+150C,1A,-,TP 1 SA IC606 1203-002844 IC-POSI.FIXED REG. AP1117D-18A,TO-252-3L,3P,6.7X5.6MM,PLASTIC,1.764/1.836V,-,0TO+150C,1A,-,TP 1 SA IC600 1203-003059 IC-SWITCH VOL. REG. MP1583,SOIC,8P,4.9x3.9mm,PLASTIC,1.22/21V,-,-40to+85CC,3A,1.194/1.25V,TP 1 SA IC401 1205-002412 IC-TRANSMITTER DTC34LM85A,TSSOP,56P,14x6.1mm,PLASTIC,3.3V,1.4W,0to+70C,TP,LVDS TRANSMITTER 1 SA IC402 1205-002412 IC-TRANSMITTER DTC34LM85A,TSSOP,56P,14x6.1mm,PLASTIC,3.3V,1.4W,0to+70C,TP,LVDS TRANSMITTER 1 SA R608 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 SA R708 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R709 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA 6 Electrical Parts List 6-8 Code No. Loc. No. Description Specification EA SA/SNA Remarks 6-3 DE19PS Main PCB Parts 6 Electrical Parts List 6-9 R710 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R711 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R712 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R713 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA R701 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R702 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R704 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R705 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R706 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R707 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 SA R121 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 SA R123 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 SA R402 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 SA R107 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R109 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R118 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R119 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R200 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R201 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R217 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R219 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R220 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R222 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R228 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R229 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R231 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R232 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R233 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R234 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R235 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R236 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R237 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R238 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R239 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R240 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R241 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R242 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R248 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R250 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 SA R221 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 SA R213 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 SA R101 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 SA R120 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 SA R700 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 SA R703 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 SA R125 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R126 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R205 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R206 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R207 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R208 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R209 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R212 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R214 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R215 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R223 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R224 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R225 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R226 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R227 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R230 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 SA R100 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R202 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA Code No. Loc. No. Description Specification EA SA/SNA Remarks R216 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R218 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R243 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R244 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R245 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R246 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R247 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R603 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R604 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R606 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R607 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R609 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R612 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 SA R115 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 SA R116 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 SA R210 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 SA R211 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 SA R104 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 SA R105 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 SA R401 2007-000118 R-CHIP 390ohm,5%,1/10W,TP,1608 1 SA R610 2007-000208 R-CHIP 1.1Kohm,1%,1/10W,TP,1608 1 SA R102 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R106 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R110 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R111 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R112 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R114 2007-000287 R-CHIP 100OHM,1%,1/10W,TP,1608 1 SA R122 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R124 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R127 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R128 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R129 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R130 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R131 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R132 2007-000659 R-CHIP 27ohm,5%,1/10W,TP,1608 1 SA R400 2007-000821 R-CHIP 390ohm,1%,1/10W,TP,1608 1 SA R605 2007-000842 R-CHIP 3Kohm,1%,1/10W,TP,1608 1 SA R602 2007-000962 R-CHIP 5.1Kohm,1%,1/10W,TP,1608 1 SA R601 2007-000965 R-CHIP 5.1Kohm,5%,1/10W,TP,1608 1 SA R117 2007-001002 R-CHIP 510ohm,5%,1/10W,TP,1608 1 SA R203 2007-001002 R-CHIP 510ohm,5%,1/10W,TP,1608 1 SA R204 2007-001002 R-CHIP 510ohm,5%,1/10W,TP,1608 1 SA R103 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 SA R108 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 SA R113 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 SA R600 2007-007841 R-CHIP 16.2Kohm,1%,1/10W,TP,1608 1 SA RA700 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA701 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA702 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA703 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA704 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA705 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA706 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA707 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA708 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA709 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA710 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA711 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA712 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA713 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA714 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA715 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA716 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA717 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA 6 Electrical Parts List 6-10 Code No. Loc. No. Description Specification EA SA/SNA Remarks 6 Electrical Parts List 6-11 RA718 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA719 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA720 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA721 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA722 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA723 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA724 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA725 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA726 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA727 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA728 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA729 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA730 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA731 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA732 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA733 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA734 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA735 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA736 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA737 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA738 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA739 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA RA740 2011-001262 R-NET 22OHM,5%,1/16W,L,CHIP,8P,TP,2.0X1.0X0.35MM 1 SA C427 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C428 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C429 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C431 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C432 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C433 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C434 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C437 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C438 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C439 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C603 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C607 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C700 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C701 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C702 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C703 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C704 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C705 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C706 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C707 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C708 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C709 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C710 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C711 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C712 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C713 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C714 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C715 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C716 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C717 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C718 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C719 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C720 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C721 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C722 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C723 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C724 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C725 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C726 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C727 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C728 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA Code No. Loc. No. Description Specification EA SA/SNA Remarks C729 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, 1 SA C118 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 SA C608 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 SA C409 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C423 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C600 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C604 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C605 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C623 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 SA C424 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,TP,1608 1 SA C425 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,TP,1608 1 SA C731 2203-000783 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,1608 1 SA C114 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608 1 SA C100 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C101 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C102 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C103 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C104 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C106 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C107 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C108 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C109 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C110 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C111 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C112 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C113 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C115 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C116 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C117 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C119 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C201 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C400 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C402 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C403 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C404 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C405 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C406 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C407 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C408 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C411 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C412 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C413 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C414 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C415 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C416 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C417 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C418 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C419 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C420 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C421 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C422 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C436 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C612 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C613 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C616 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C617 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C625 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C627 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C630 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 SA C203 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SA C204 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SA C621 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SA C622 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SA C200 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA 6 Electrical Parts List 6-12 Code No. Loc. No. Description Specification EA SA/SNA Remarks 6 Electrical Parts List 6-13 C202 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C401 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C410 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C426 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C430 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C614 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C615 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C618 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C619 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C620 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C626 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C628 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C629 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C631 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C632 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C730 2203-005437 C-CER,CHIP 10000nF,+80-20%,10V,Y5V,TP,3216 1 SA C606 2203-006036 C-CER,CHIP 680NF,+80-20%,16V,Y5V,TP,1608 1 SA C611 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4 1 SA C435 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm 1 SA C610 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm 1 SA C105 2402-001044 C-AL,SMD 100UF,20%,25V,GP,TP,8.3X8.3X6.3MM 1 SA C601 2402-001044 C-AL,SMD 100UF,20%,25V,GP,TP,8.3X8.3X6.3MM 1 SA C609 2409-001051 C-ORGANIC 82UF,20%,6.3V,WT,TP,6.3*5.9MM,2.1 1 SA C624 2409-001065 C-ORGANIC 82UF,20%,16V,WT,TP,8X6.9MM,- 1 SA C602 2409-001086 C-ORGANIC 10uF,20%,20V,WT,TP,5.3x5.3x6.0mm,1.4 1 SA X400 2801-003773 CRYSTAL-SMD 12MHZ,30PPM,28-AAN,20PF,50OHM,TP 1 SA BD701 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA BD702 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA BD703 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA BD704 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA BD705 3301-000314 BEAD-SMD 120ohm,1.6x0.8x0.8mm,150mA,,,,40000ohm 1 SNA CN400 3711-005470 CONNECTOR-HEADER BOX,30P,1R,1.25mm,SMD-A,Sn+Pb,IVR 1 SA CN601 3711-005471 CONNECTOR-HEADER BOX,12P,1R,1.25mm,SMD-A,Sn+Pb,IVR 1 SA CN200 3711-005509 CONNECTOR-HEADER BOX,4P,1R,1.25mm,SMD-A,Sn+Pb,IVR 1 SA L601 BN27-00009A COIL CHOKE SMD 12X12X6,EOS,33UH,15%,-,0.12§Ù MAX,2A,DR10X5.0MM,18.5TS,12X12X6,1.8MM,1UEW 0. 1 SA S201 BN32-00005A SENSOR SW-TILT SPSF100100,DC5V,1mA,-10 ~ +50 1 SA MP1.0 BN41-00586A PCB MAIN DALI-2,FR4,4L,MP1.0,1.0T,145*110,2A,MAIN 1 SNA MICOM BN97-00489P ASSY MICOM DE19PS*,W/W 1 SA IC200 0903-001402 IC-MICROCONTROLLER NT68F632ALG,8Bit,PLCC,44P,16.59x16.59,24MHz,ST,-,PLASTIC,3.3V,-,0 to+70C,128K,-, 1 SA BN92-00982A ASSY P/MATERIAL DI19PS 1 SNA P/M 6902-000604 BAG WRAPPING LDPE,T0.02,W500,L10000,TRP,-,- 3 SNA P/M 6902-000642 BAG PE HD/NITR/HD(DOUBLE),T0.015/T0.5/T0.015,W700,L700,TRP,28,2 1 SNA P/M BN69-00300C CUSHION EPS DI17PS,EPE,T5.0,BLUE,D/LAMINATE 1 SNA P/M BN69-00674A CUSHION-L/R DALI19",EPS 1 SNA P/M BN96-00838A ASSY MISC P-WALL MOUNTING DI17PS,TEXTURE DS-01,PP#4636,BLK,SECC T2.0 1 SA CIS BN61-00934A BRACKET-WALL FRONT DALI17",SECC,T2.0 1 SNA CIS BN61-00935A BRACKET-WALL REAR DALI17",SECC,T2.0 1 SNA CIS BN61-01043A BRACKET-WALL MOUNT DI17PS/DI19PS,SK-5,T0.8 1 SNA CIS BN68-00473H MANUAL INSTALL-CARD Dali Wall Mount,SyncMaster,en,W/W 1 SNA CIS BN96-00196A ASSY MISC P-SCREW MODIGLIANI ,SCREW-WOOD,SCREWTAPTITE,ANCHOR 1 SA Code No. Loc. No. Description Specification EA SA/SNA Remarks BN90-00618A ASSY COVER REAR DI19PS 1 SNA C/R BN63-01093A COVER-REAR DI19PS,ABS HB,WH12 1 SA BN90-00629E ASSY COVER FRONT DI19PS 1 SNA C/F BN96-00932A ASSY COVER P-FRONT DI19PS,AL 1 SA C/F 6003-001522 SCREW-TAPTITE CH,+,B,M3,L8,ZPC(YEL),SWRCH18A,- 4 SNA C/F BN61-00809A HOLDER-COVER LOCK DALI 17,ABS 2 SNA C/F BN63-01091A COVER-FRONT dali 19",ALUMINUM 1 SNA C/F BN63-01092A COVER-MIDDLE dali 19",ABS HB 1 SNA C/F BN63-01142A SHEET-PROTECT DI17PS,PC,T0.125,6,6,WHITE 1 SNA C/F BN64-00221A DECORATION-LED DALI 17,PC CLEAR 1 SNA C/F BN64-00225A KNOB-FUNCTION DALI 17,ABS HB 1 SNA C/F BN68-00434B LABEL-TCO03 LCD,TCO'03,PE CLAER,T0.05,20*17,6DO SILK 1 SNA C/F BN73-00061A RUBBER-PROTECT DALI 17,RUBBER 1 SNA C/F BN96-00848A ASSY BOARD P-FUNCTION DI17PS,FUNCTION 1 SA BN90-00706L ASSY STAND DE19PSQAQ/EDC,DALI2 1 SNA C/F BN68-00831H LABEL-00,POP DE19PS,PET(ANT100C),T0.18,146,146,EXPORT 1 SNA STD BN96-01999A ASSY STAND P DE19P,ABS HB,WH12 1 SA BN91-00493A ASSY MISC-ADAPTOR MT17BO,MT17BO-SXV2/8384 1 SNA CIS BN44-00071A ADAPTOR APO04214-UV,LCDTM,90~264V,47 - 63 HZ,+14VDC,3.0A,AC/DC,0 TO +40 C,120*55*31 1 SA BN91-00772E ASSY SHIELD DI19PS 1 SNA STD/CAP+STD 6001-000347 SCREW-MACHINE FH,+,M3,L5,NI PLT,SWRCH18A,-,- 1 SNA SH/PAN+PAN 6003-000269 SCREW-TAPTITE BH,+,S,M3,L6,ZPC(YEL),SWRCH18A 4 SNA C/F+SH/PCB 6003-000282 SCREW-TAPTITE BH,+,B,M3,L8,ZPC(BLK),SWCH10 11 SNA C/F+STD 6003-001238 SCREW-TAPTITE FH,+,S,M4,L8,ZPC(BLK),SWRCH18A 4 SNA M/PCB+SH/COV 6003-001336 SCREW-TAPTITE CH,+,S,M3,L5.5,ZPC(YEL),SWRCH18A,- 4 SNA CIS BN96-00890A ASSY STAND P-CAP DI17PS,ABS HB,WH12 1 SA BN63-01038A COVER-REARCAP TOP DALI 17,ABS 1 SNA BN63-01039A SHIELD-CAP DALI 17,SECC 1 SNA CIS BN96-00974A ASSY MISC P-SHIELD PCB DI19PS,SECC T1.0 1 SNA CIS BH68-30003C LABEL-00,HIGH,VOLTAGE SS,ART 100G,30*33,YEL 1 SNA CIS BN61-00251A FOOT-RUBBER GH17BS,RUBBER,T1.6 2 SNA CIS BN63-01094A SHIELD-PCB DALI19",SECC,T1.0 1 SNA BN91-00777L ASSY LCD DI19PS 1 SNA LCD 0203-001330 TAPE-AL FOIL DK100-50-90,T0.07,W50,L90,SIL 1 SNA CIS BN07-00145B LCD LTM190E4-L01,1703,8Bit,404.2*330*20,16.7M,70,0.098*0.294,0~50,5V,PVA 1 SA BN91-00836U ASSY CHASSIS-E25 DE19PSQAQ/EDC,DALI2 1 SA CIS BN39-00395B LEAD CONNECTOR DS17BS,UL1571#30,UL/CSA,30P,90mm,#30,12507HS-30,HS-30-BB100,BK,90mm,1571#30,SJ03 1 SA CIS BN39-00419A LEAD CONNECTOR DS17BS,UL1571#30,UL/CSA,12P,70MM,#30,12507HS-12L,12507HS-12L,BK,1571#30,SJ03-01- 1 SA CIS BN39-00465A LEAD CONNECTOR DI19PS,UL1061#28,UL/CSA,4P,270MM,#28,12505HS-04,12507HS-04L,BK,1061#28,TAPE 1 SA CIS BN44-00103B INVERTER RL17,SIC842,13.0~14.5V,2.0mA,7.4mA,100*71*8mm,4Lamp,45Khz 1 SA CIS BN61-01599A HOLDER-SUB PCB DI19PS,ABS HB,T1.8,IV16,DALI-2 1 SNA BN92-01091M ASSY LABEL DI19PSQFV/EDC,EDC,NETHERLANDS 1 SNA LABEL BN68-00412F LABEL-01,BARCODE ALL MODEL,PE,T0.05,60*35,POLYESTER,NO SILK 1 SNA LABEL BN68-00570D LABEL RATING-00 DI19PS(GH19GS),SS,PE,T0.05,90*30,BLK,POLYESTER,EDC 1 SNA LABEL BN68-00615A LABEL RATING-00 ALL,SS,PE,T0.05,90*30,BLK,POLYESTER,NO SILK 1 SNA LABEL BN68-00719D LABEL-00,BARCODE DI19PS(GH19GS),EDC,PE,T0.05,60,35,POLYESTER 1 SNA BN92-01322X ASSY BOX DE19PSQAQ/EDC 1 SNA BOX BH68-00530C LABEL BOX-01 LABEL-BARCODE,CE+PIVOT+TCO03,MOJO 90G,WHT 1 SNA BOX BH75-10529A UNIT-HANDLE PACKING LXA410TLMU,PE,-,WHITE,- 1 SNA CIS BN72-60001A LEVER-TOP LSD210TL,PE-LD,WHITE,TFT_LCD 1 SNA CIS BN72-60002A LEVER-BOTTOM LSD210TL,PE-LD,WHITE,TFT-LCD 1 SNA BN92-01325W ASSY ACCESSORY DE17PSQAQ/EDC,EDC,NETHERLANDS 1 SNA ACCESSORY BN39-00246F CBF SIGNAL-DVI(D) 1703FP,24P/24P,20276-D(1.0GHz),2000mm,UL20276,BLACK,DVI/MALE,DET. TYPE 1 SA UNIT/ACCESSORY BN96-01907Z ASSY ACCESSORY DE17PSQAQ/EDC 1 SA ACCESSORY 3903-000042 CBF-POWER CORD DT,EU,FP3/YES,IEC320 C13/C14,250/250V,10-16/10A,BLK,1830MM,-,H05VV-F 3X0.75MM^2, 1 SA ACCESSORY 6902-000110 BAG PE LDPE,T0.05,L356,W240,TRP,28,2,PE MARK 1 SNA ACCESSORY BH68-70438A CARD-10,BLOC WARRANTY TFT LCD,BASIC,EU,MOJO,100G,W21 1 SNA ACCESSORY BH68-70448A CARD-01 TFT LCD,SRC,RUSSIA,S/W,120,W210*L120,INSTALL CARD 1 SNA ACCESSORY BN39-00244B CBF SIGNAL MO15PS,15P/15P,20276-N,1830MM,UL20276,BLACK,D-SUB/MALE,DET. TYPE 1 SA ACCESSORY BN68-00830A MANUAL-02,WARRANTY CARD LCD ZPD WARRANTYCARD,SYNCMASTER,EDC,MOJO100G,A2 1 SNA ACCESSORY BN96-00881K ASSY MANUAL P-IB+QSG DE17PS,DE19PS,SYNCMASTER,W/W,BN59-00395K+BH68-376L 1 SNA 6 Electrical Parts List 6-14 Code No. Loc. No. Description Specification EA SA/SNA Remarks 6-4 Others 6 Electrical Parts List 6-15 QUICKSETUP BH68-00376L MANUAL-04 LCDQUICK SETUP GUIDE,SYNCMASTER,E/F/S/G/P/I..13LANGS,W/W,MOJO100G,298,420 1 SNA IB BN59-00395K S/W DRIVER-00,IB DE17PS,DE19PS,W/W,SYNCMASTER,W/W 1 SNA MAGICTUNE BN68-00847B MANUAL-QSG MagicTune paper,SyncMaster,S_C/Eng,Mojo120g,A4 1 SNA Code No. Loc. No. Description Specification EA SA/SNA Remarks 6 Electrical Parts List 6-16 Memo 7 Block Diagrams 7-1 7 Block Diagram 7 Block Diagrams 7-2 Memo 12 PCB Layout 12-1 12 PCB Diagram 12 PCB Layout 12-2 Memo 8 Wiring Diagram 8-1 8 Wiring Diagram 8 Wiring Diagram 8 Wiring Diagram 8-2 Memo 11 Schematic Diagrams 9-1 9 Schematic Diagrams - This Document can not be used without Samsung� s authorization. 2 3 Digital Input Sensor IC Analog Input Scaler IC400 1.8V Vcc Scaler IC400 3.3V Vcc Function Connector Invertor Connector 2 3 4 5 6 7 3 2 1 TMDS WAVEFORMS 9-1 Schematic Diagrams 11 Schematic Diagrams 9-2 LVDS IC401, 402 3.3V VCC RTA IC700 3.3V /1.8V VCC Panel VCC +5V LVDS Cable for Panel Connection LVDS Cable for Panel Connection 9-2 Schematic Diagrams 11 Schematic Diagrams 9-3 1 2 3 5 4 6 7 Memo 11 Schematic Diagrams 9-4
