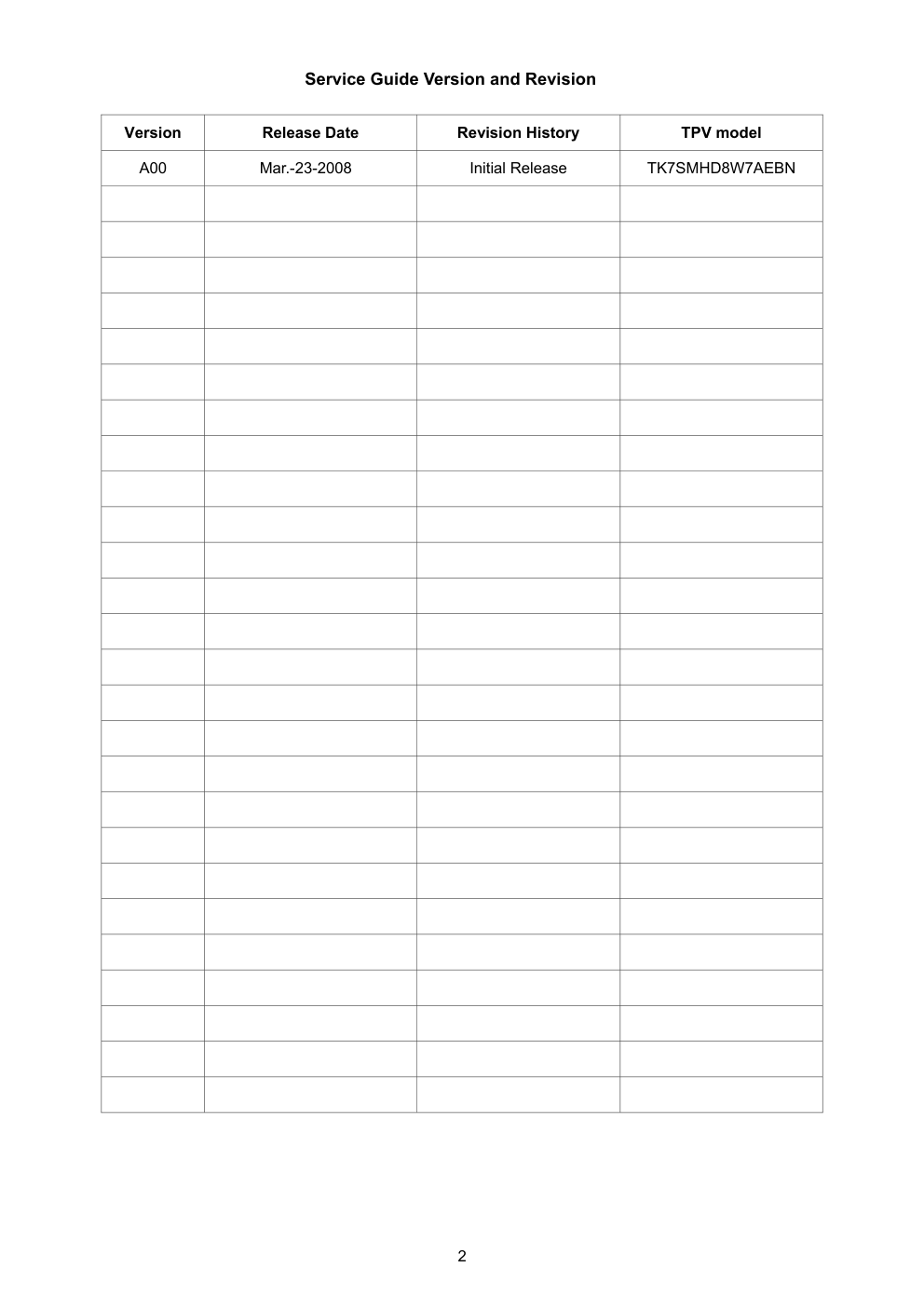

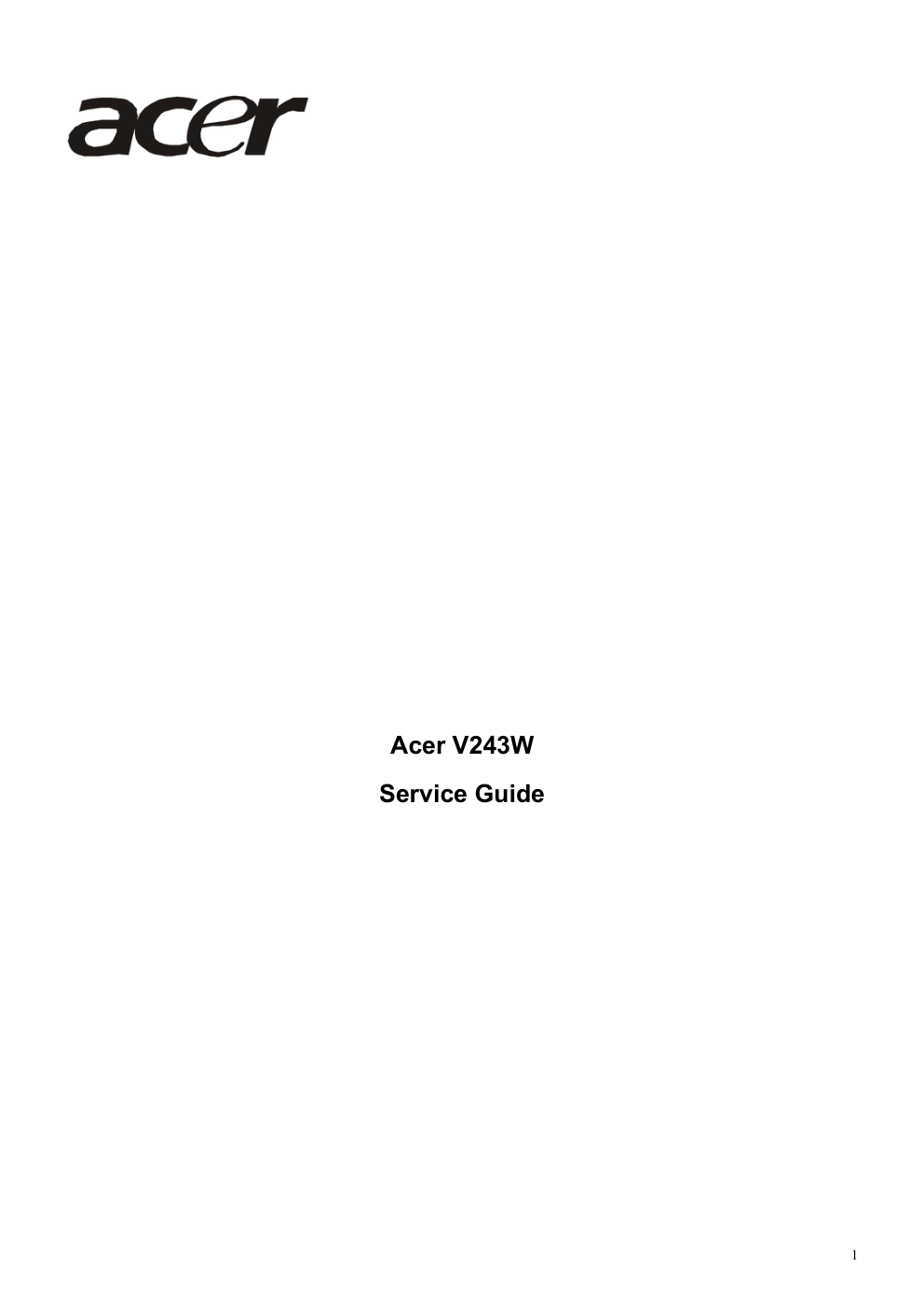

1 Acer V243W Service Guide 2 Service Guide Version and Revision Version Release Date Revision History TPV model A00 Mar.-23-2008 Initial Release TK7SMHD8W7AEBN 3 Copyright Copyright © 2003 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, Transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated. Disclaimer The information in this guide is subject to change without notice. Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Intel is a registered trademark of Intel Corporation. Pentium and Pentium II/III are trademarks of Intel Corporation. Other brand and product names are trademarks and/or registered trademarks of their respective holders. Trademarks Acer is a registered trademark of Acer Incorporated. All other trademarks are property of their respective owners. Conventions The following conventions are used in this manual: Screen messages Denotes actual messages that appear on screen. Note Gives bits and pieces of additional information related to the current topic. Warning Alerts you to any damage that might result from doing or not doing specific actions. Caution Gives precautionary measures to avoid possible hardware or software problems. Important Remind you to do specific actions relevant to the accomplishment of procedures. 4 Preface Before using this information and the product it supports, please read the following general information. 1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office may have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details. 2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines. Warning: (For FCC Certified Models) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Notice: 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. 3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibility of the user to correct such interference. As ENERGY STAR® Partner our company has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Warning: To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerous high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only. 5 Precautions � Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. � Do not place the monitor on an unstable trolley, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a trolley or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, uses a mounting kit approved by the manufacturer and follow the kit instructions. � Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided. � The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. � The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug. � Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges. � Do not overload power strips and extension cords. Overloading can result in fire or electric shock. � Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the monitor. � Do not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel � To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A. � The wall socket shall be installed near the equipment and shall be easily accessible. Special Notes On LCD Monitors The following symptoms are normal with LCD monitor and do not indicate a problem. Notes � Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. � You may find slightly uneven brightness on the screen depending on the desktop pattern you use. � The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time. � Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours. 6 Table Of Contents Chapter 1 Monitor Features ………………………………………… 7 Introduction ……………………………………… 7 Electrical Requirements ……………………………………… 8 LCD Monitor General Specification ……………………………………… 9 LCD Panel Specification ……………………………………… 10 Support Timing ……………………………………… 13 Monitor Block Diagram ……………………………………… 14 Main Board Diagram ……………………………………… 15 Software Flow chart ……………………………………… 16 Main Board Layout ……………………………………… 18 Installation ……………………………………… 19 Attaching/Removing the base ……………………………………… 20 Chapter 2 Operating Instructions ……………………………………… 21 External Controls ……………………………………… 21 Front Panel Controls ……………………………………… 21 eColor Management (OSD) ……………………………………… 22 How to Adjust a Setting ……………………………………… 23 LOGO ……………………………………… 27 Chapter 3 Machine Disassembly ……………………………………… 28 Chapter 4 Troubleshooting ……………………………………… 31 Chapter 5 Connector Information ……………………………………… 37 Chapter 6 FRU (Field Replacement Unit) List ……………………………………… 39 Exploded Diagram ……………………………………… 39 Chapter 7 Schematic Diagram ……………………………………… 43 7 Monitor Features Introduction Scope This specification defines the requirements for the 24” MICROPROCESSOR based Multi-mode supported high resolution color LCD monitor. This monitor can be directly connected to general 15-pin D-sub VGA connector and 24-pin DVI connector, also supports VESA DPMS power management and plug & play function. Description The LCD monitor is designed with the latest LCD technology to provide a performance oriented product with no radiation. This will alleviate the growing health concerns. It is also a space saving design, allowing more desktop space, and comparing to the traditional CRT monitor, it consumes less power and gets less weight in addition MTBF target is 50k hours or more. Chart of V243W Panel LTM240CT01 801(A01) Signal Interface D-Sub 15-pin/ DVI 24-pin Sync Type Separate / Compatible Color Temp User Adjust Support DDC DDC2B Speaker No Headphone Jack No Microphone Jack No USB Hub Not support Tilt / Swivel Yes / No Chapter 1 8 Electrical Requirements Standard Test Conditions All tests shall be performed under the following conditions, unless otherwise specified. Ambient light Dark room (< 1 cd/m2) Viewing distance 35-50cm Warm up time ＞30 minutes Analog Input signal 700 mVss Control temperature 6500° K Brightness control Set to Factory preset value (cut off raster) User contrast control Set to The value under user mode, which allows that the brightest two of 32 linear distributed gray-scales (0～ 700mv) can be distinguished. Picture position and size Factory preset value Viewing angle 90°+/-20 ° H and 90°+/-10° V AC Supply voltage 230V± 5％, 50±3Hz Ambient temperature 20+5℃ Humidity 65% ± 20% Display mode 1920x1200, 60 Hz, all white e-color mode Set to “User” mode Measurement systems The units of measure stated in this document are listed below: 1 gamma = 1 nano tesla 1 tesla = 10,000 gauss cm = in x 2.54 Lb = kg x 2.2 Degrees F = [°C x 1.8] + 32 Degrees C = [°F - 32]/1.8 u' = 4x/(-2x + 12y + 3) v' = 9y/(-2x + 12y + 3) x = (27u'/4)/[(9u'/2) - 12v' + 9] y = (3v')/[(9u'/2) - 12v' + 9] nits = cd/(m2) = Ft-L x 3.426 lux = foot-candle x 10.76 9 LCD Monitor General Specification Driving system TFT Color LCD Active Display Area 518.4(H) x 324.0(V) Pixel pitch 0.270(H) x 0.270(W) Contrast Ratio 1000 : 1 Response time 5ms LCD Panel Luminance of White 400(Typ.) cd/㎡ Separate Sync. H/V TTL H-Frequency 30kHz – 80kHz Input V-Frequency 56-76Hz Viewing angle (H)160 (V) 160(Type) Display Colors 16.7M Display mode 1920 x 1200 @60Hz ON Mode < 65W EPA ENERGY STAR® OFF Mode < 1W Contrast control Set to factory preset value, which allows that the brightest two of 32 linear distributed gray-scales (0～ 700mv) can be distinguished. Power Source 90 V ~ 240 V，50 ± 3Hz, 60 ± 3Hz Environmental Considerations Operating Temp: 0° to 40°C Storage Temp: -30° to 65°C Operating Humidity: 0% to 90% Storage Humidity: 0% to 90% Peak surge current < 100 A peak at 230 VAC and cold starting&25℃ & DC Output at Full-load Power line surge No advance effects (no loss of information or defect) with a maximum of 1 half-wave missing per second 10 LCD Panel Specification LTM240CT01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 24.0” is 1920 x 1200 and this model can display up to 16.7 millions colors. General Specifications Mechanical Information 11 Electrical Characteristics 12 Optical Specifications 13 Support Timing VESA MODES Horizontal Vertical Mode Resolution Total Nominal Frequency +/- 0.5KHz Sync Polarity Nominal Freq. +/- 1 Hz Sync Polarity Nominal Pixel Clock (MHz) 640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175 640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500 VGA 640x480@75Hz 840 x 500 37.500 N 75.00 N 31.500 800x600@56Hz 1024 x 625 35.156 N/P 56.250 N/P 36.000 800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000 800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000 SVGA 800x600@75Hz 1056x625 46.875 P 75.000 P 49.500 1024x768@60Hz 1344x806 48.363 N 60.004 N 65.000 1024x768@70Hz 1328x806 56.476 N 70.069 N 75.000 1024x768@72Hz 1304x798 57.7 P 72 P 78.4 XGA 1024x768@75Hz 1312x800 60.023 P 75.029 P 78.750 1152x864@75Hz 1600X900 67.5 P 75 P 108.000 1280x1024@60Hz 1688x1066 63.981 P 60.020 P 108.000 1280x1024@70Hz 1688x1066 74.4 P 70 P 124.9 1280x1024@72Hz 1688x1066 77.9 P 72 P 134.6 1280x1024@75Hz 1688x1066 79.976 P 75.025 P 135.000 SXGA 1280x960@60Hz 1800x1000 60 P 60 P 108 1440x900@60Hz 1904x934 55.93 P 60 P 106.5 WSXGA 1680x1050@60Hz 2240x1089 65.29 N 59.95 P 146.25 WUXGA 1920*1200@60HZ 2080*1235 74.038 P 59.95 N 154.00 UXGA 1600x1200@60Hz 2160x1250 75 P 60 P 162 14 Monitor Block Diagram The LCD MONITOR will contain a main board, an inverter board, an adapter board and key board which house the flat panel control logic, brightness control logic and DDC. The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage. Main Board Flat Panel and CCFL Backlight Video Signal, DDC Adapter Board RS232 Connector For white balance adjustment in factory mode HOST Computer CCFL Drive Key Board Inverter Board AC input 15 Main Board Diagram MCU MTV416GMV (U407) Scalar IC MST9200HA-LF-165 (Include ADC, OSD) (U403) EEPROM M24C16 (U408) D-Sub Connector (CN402) EEPROM M24C02 (U402) H sync V sync RGB DB15_SDA, DB15_SCL EPR_SDA EPR_SCL LCD Interface (CN703) Key Board Control (CN405) DVI Connector (CN401) EEPROM M24C02 (U401) Digital Video Signal FRAME MEMORY (U404) Crystal 14.318MHz (X401) Crystal 24MHZ/30PF/49US (X402) 16 Software Flow Chart N Y 1 2 N Y 5 Y N 10 Y N 12 Y N 7 Y N 6 4 3 8 9 14 11 13 Y N 15 Y N 16 17 19 Y N 18 17 Remark: 1) MCU initializes. 2) Is the EEPROM blank? 3) Program the EEPROM by default values. 4) Get the PWM value of brightness from EEPROM. 5) Is the power key pressed? 6) Clear all global flags. 7) Are the AUTO and SELECT keys pressed? 8) Enter factory mode. 9) Save the power key status into EEPROM. Turn on the LED and set it to green color. Scalar initializes. 10) In standby mode? 11) Update the lifetime of back light. 12) Check the analog port, are there any signals coming? 13) Does the scalar send out an interrupt request? 14) Wake up the scalar. 15) Are there any signals coming from analog port? 16) Display "No connection Check Signal Cable" message. And go into standby mode after the message disappears. 17) Program the scalar to be able to show the coming mode. 18) Process the OSD display. 19) Read the keyboard. Is the power key pressed? 18 Main Board Layout Symbol Description Symbol Description CN402 D-SUB 15PIN U403 IC MST9200HA-LF-165 PQFP-208 CN401 DVI 24PIN CONN F U701 IC AIC1084-33PMTR-R AIC CN703 WAFER 30P 2.0MM DIP DUAL ROW U702 IC AIC1084-33PMTR-R AIC CN701 WAFER 14P RIGHT ANGLE PITCH U404 IC EM636165TS-5G 16M TSOPII-50 ETRON CN405 WAFER 6P RIGHT ANGLE PITCH 2.0 U405 IC EM636165TS-5G 16M TSOPII-50 ETRON U407 MTV416GMV U401 M24C02-WMN6TP U402 M24C02-WMN6TP U408 M24C16-WMN6TP X402 24MHZ/30PF/49US X401 XAT01431AFI1H-3OHX AT-49 14.31818MHZ 19 Installation To install the monitor on your host system, please follow the steps below: Steps 1 Connect the video cable A：Make sure both the monitor and computer are switched off. B：Connect the VGA video cable to the computer. 2 Connect the power cord Connect the power cord to the monitor, then to a properly grounded AC outlet. 3 Turn on the monitor and computer Turn on the monitor first, then the computer. This sequence is very important. 4 If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem. 20 Attaching/Removing the Base Attaching: Align the release button on the bottom of the monitor with the corresponding slots on the bottom of the base. Removing: Press the release button as indicated, then pull in the direction of the arrow to remove the base. 21 Operating Instructions Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor. By changing these settings, the picture can be adjusted to your personal preferences. • The power cord should be connected. • Connect the video cable from the monitor to the video card. • Press the power button to turn on the monitor position. The power indicator will light up. External Controls Front panel controls 1 Power LED: Lights up to indicate the power is turned on. 2 Power Switch: Turn the power on or off. 3.4 < / > : Press < or > to navigate to the desired function, press Enter to select the function. Press < or > to change the settings of the current function. 5 Menu/Enter: Activate the OSD menu when the OSD is off or activate deactivate the adjustment function when the OSD is on. 6 Auto adjust button/Exit: a. When the OSD menu is active, this button will act as the exit key exit OSD menu). b. When the OSD menu is inactive, press this button for two seconds to activate the Auto Adjustment function. The Auto Adjustment function s used to set the HPos, VPos, Clock and Focus. 7 Empowering Key/Exit: a. When the OSD menu is active, this button will act as the exit key exit OSD menu). b. When the OSD menu is inactive, press this button to select scenario mode. Chapter 2 22 eColor Management (OSD) 23 How to Adjust a Setting 24 Adjusting the picture 25 26 OSD Message a. Outline b. The Description For OSD Message Item Description Auto Config Please Wait When Analog signal input, if User Press Hot-Key “Auto”, will show this message, and the monitor do the auto config function. Input Not Supported When the Hsync Frequency, Vsync Frequency or Resolution is out of the monitor support range, will show this message. This message will be flying. Cable Not Connected Analog-Only Model: When the video cable is not connected, will show this message. This message will be flying. No Signal Analog-Only Model: When the video cable is connected, but there is no active signal input, will show this message, then enter power saving. 27 Logo When the monitor is power on, the LOGO will be showed in the center, and disappear slowly. How To Optimize The DOS-Mode Plug And Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bi-directional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel. This monitor will appear to be non-functional if there is no video input signal. In order for this monitor to operate properly, there must be a video input signal. This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA) and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees (NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal present. When there is no video input signals this monitor, following a time-out period, will automatically switch to an OFF mode. This reduces the monitor's internal power supply consumption. After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a "Screen Saver" feature except the display is completely off. Pressing a key on the keyboard, or clicking the mouse restores the display. Using The Right Power Cord The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL listed and CSA labeled. The voltage rating for the power cord shall be 125 volts AC. Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type attachment plug, rated 10A, 250V, and CEE-22 male configuration. The other end terminates with a molded-on type connector body, rated 10A, 250V, having standard CEE-22 female configuration. Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European counties. 28 Machine Disassembly This chapter contains step-by-step procedures on how to disassemble the monitor for maintenance. Disassembly Procedure 1. Remove the cover hinge as the following indicator. (Fig 1) Fig 1 2. Remove the screws as following indicate to release base stand. (Fig 2) Fig 2 Chapter 3 29 3. Remove the back cover and bezel. (Fig 3) Fig 3 4. Release the shield inverter and lamp connectors. (Fig 4-5) Fig 4 Fig 5 30 5. Remove the screws to remove the panel. Pay attention to the LVDS cable.(Fig 6-7) Fig 6 Fig 7 6. Remove the screws to remove the main board, adapter board and inverter board.( Fig 8) Fig 8 31 Troubleshooting This chapter provides troubleshooting information for the V243W: 1. No Power Chapter 4 No power Press power key and look if the picture is normal Please reinsert and make sure the AC of 100-240 is normal Reinsert or check the power section Check if X401,X402 oscillate waveforms are normal Measure U701, U702 Pin2=3.3V, U703 Pin1=1.8V OK OK NG NG NG Measure CN701 Pin1=12V?Pin5＝5V? Replace U403 Replace X401,X402 OK NG Replace Power section Replace U701,U702,U703 NG OK 32 2. No Picture (LED is orange) No picture The button if under control X401 oscillate waveform is normal Replace U407 Replace X401 Measure U701, U702 Pin2=3.3V, U703 Pin1=1.8V Check Correspondent component Replace U701,U702, U703 OK OK OK OK NG NG NG NG Check reset circuit of U407 is normal Check HS/VS from CN402 is normal Check Correspondent component NG OK Replace U403 33 3. White screen White screen Measure Q707 base is low level? X402 oscillate waveform is normal Check Q705,Q706,Q707 is broken or CN703 solder? Check Correspondent component. Replace PANEL Replace U403/U407 OK OK Replace X402 NG NG Check U403/U407 NG OK NG 34 4. Key Board OSD is unstable or not working Is Key Pad Board connecting normally? Connect Key Board Is Button Switch normally? Replace Button Switch Y NG NG Is Key Pad Board normally? Replace Key Board Y NG Y Check Main Board 35 5. Adapter/Inverter Board No power Check CN902 Pin3~7 = 24 V OK Check Interface board Check AC line volt 120V or 220V Check F901,NR901,power cable Check the voltage of C914 (+) Check bridge retified circuit Check start voltage for the Pin6 of IC903 Change IC903,IC951,ZD901,Q903,Q904,PS_ON OK Check T901,T902,IC901,IC902,Q901,Q902 OK NG No power NG NG OK Repearing the start voltage Check D953, IC955,IC954,C964,C965,C966,IC950,IC953,ZD950,Q950 ReplaceT901,T902,IC901,IC902,Q901,Q902 Check OLP circuit NG OK NG 36 W/LED No Backlight Check the 24V voltage input Check the adapter Check ON/OFF signal Check Interface board Check the voltage of IC801 pin2 Change Q805.Q806 or Q807 Check the pin1&15 of IC801 have PWM wave Replace IC801 Check Q802,Q804,Q808,Q809 Drain wave Check the output of PT801~PT812 Replace Q802,Q804,Q808,Q809 Check connecter & lamp OK Change PT801~PT812 OK OK OK OK OK NG NG NG NG NG NG 37 Connector Information The following figure shows the connector locations on the monitor: D-SUB connector Chapter 5 38 DVI Connector 39 FRU (Field Replaceable Unit) List This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of V243W.Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization). NOTE: Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel (http://aicsl.acer.com.tw/spl/). For whatever reasons a part number change is made, it will not be noted in the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines. NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it. Exploded Diagram (Model: V243W) Chapter 6 40 Part List Above picture show the description of the following component. Item Picture Description 1 Base＋Hinge 2 Main Frame 3 Panel 41 4 Adapter Board 5 Inverter Board 42 6 Main Board 7 LVDS Cable 43 Schematic Diagram Main Board Q704 AO3401 VCPU 6 +3.3V 4 R702 4K7 1/10W 5% +5V C720 0.001uF SOT-263 FOR SCALER POWER R719 31.6K 1% 1/10W 　 +5V R710 100K 1/10W 5% HI HI +12V +12V GND R712 100K 1/10W 5% R707 1K 1/10W 5% R706 1K 1/10W 5% GND +3.3V_SD +3.3AVDD 4 C716 0.001uF C723 NC PS_ON PS_ON/OFF + C724 NC R711 10K 1/10W 5% POWER INPUT REV:C BKLT-PWM 4 R705 4K7 1/10W 5% +5V Q706 2N3904S-RTK/PS PANEL_EN USB CTRL HI +12V REV:C +5V BKLT-EN 6 + C705 1000uF/16V R708 4K7 1/10W 5% BKLT-PWM REV:C R703 10K 1/10W 5% R717 4K7 1/10W 5% PS_ON/OFF 6 U703 LM3485 1 4 5 8 2 3 6 7 ISENSE FB ADJ VIN AGND N.C PWGND PGATE +3.3AVDD + C714 470UF 16V POWER OFF C708 0.1uF R714 NC REV:C Q705 AO4403 1 2 3 4 8 7 6 5 S1 S1 S1 G1 D1 D1 D1 D1 LOW LOW C715 0.001uF CN701 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 +12V C704 22uF 16V D701 SSM54PT PANEL_EN 6 REV:C REV:C C709 0.1uF HI +VLCD 7 R701 10K 1/10W 5% +12V Dimming NC C702 0.1uF FB701 120 OHM 1 2 C706 0.1uF SOT-252 +VLCD C719 0.001uF +5V Q707 2N3904S-RTK/PS C710 22uF 16V C727 0.1uF NC C721 0.22uF /NC VCPU +5V 3,6 REV:C REV:C + C703 1000uF/16V R716 15K 1/10W 5% GND +5V GND FOR USB POWER Q701 2N3904S-RTK/PS L701 22uH C712 0.1uF +5V +1.8V 4 +5V NC C713 22uF 16V POWER SAVING REV:C +5V +12V 6 Q702 2N3904S-RTK/PS Q703 2N3904S-RTK/PS R709 22R 1/10W 5% POWER OFF R713 33K 1/10W 5% REV:C CN702 NC 1 2 3 4 5 U701 AIC1084-33PM 3 1 2 VIN ADJ VOUT GND USB_CTRL 6 + NC C701 1000uF/16V +3.3V REV:C ON_OFF R704 1K 1/10W 5% HI REV:C U702 AIC1084-33PE 1 2 3 ADJ Vo2 Vin LOW POWER ON +5V +5V POWER ON +5V REV:C +3.3V_SD 4,5 C707 0.1uF +1.8V Q708 2N3906S-RTK/PS /NC C718 0.068uF Chapter 7 44 DVI_CONNECT_MCU +5V R441 10K 1/10W 5% LOW REV:C RX1-IN SDA_DB D421 UDZS5.6B NC Q405 2N7002E D406 BAV99 3 1 2 TX_SDA 6 RXC-IN VGA_CON NC R427 47R 1/10W VGA_CONNECT_MCU 6 R463 2K2 1/10W 5% R407 0R 1/10W 5% CN402 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 HPD_CTRL 6 SOG 4 RED+ C497 NC SCL_DVI HS 4 D414 BAV70 3 1 2 R451 4K7 1/10W 5% D412 BAV99 3 1 2 R412 10K 1/10W 5% +5V G+ 4 +5V +5V R447 10K 1/10W 5% NC R406 47R 1/10W R439 100R 1/10W 5% RX1-IN D404 UDZS5.6B NC R402 4K7 1/10W 5% FB401 0R05 1/10W 5% D409 BAV99 3 1 2 Q401 2N3906S-RTK/PS C408 0.1uF REV:C HDCP_CLK 4 R452 4K7 1/10W 5% R428 0R 1/10W 5% R432 4K7 1/10W 5% R425 10R 1/10W 5% B- 4 C416 0.047uF R454 75R 1/10W 5% SDA_DVI SCL_DB R446 470R 1/10W 5% R420 10R 1/10W 5% R414 10R 1/10W 5% CN401 JACK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 26 25 RX2- RX2+ GND RX4- RX4+ SCL SDA VS RX1- RX1+ GND RX3- RX3+ 5V GND HP RX0- RX0+ GND RX5- RX5+ GND RXC+ RXC- GND GND NC R419 47R 1/10W RXCP 4 D413 UDZS5.6B NC Q403 2N7002E ESD R449 75R 1/10W 5% C407 0.1uF REV:C C412 0.047uF R461 1K 1/10W 5% CABLE NOT CONNECTION REV:C HDCP_DATA 4 D408 BAV99 3 1 2 DVI_SCL 6 GREEN- R438 100R 1/10W 5% HI C402 0.1uF DVI_DDC2_SCL NC R404 47R 1/10W D426 UDZS5.6B PC5V BLUE- SCL_DB LOW NC R416 4K7 1/10W 5% RX2-IN R453 75R 1/10W 5% D401 UDZS5.6B ESD NC R408 47R 1/10W CABLE NOT CONNECTION DVI_DDC2_SDA RX1+IN +5V VS 4 R429 1K 1/10W 5% SDA_DVI NC Q404 2N7002E R450 75R 1/10W 5% LOW G- 4 D420 BAV99 3 1 2 CABLE CONNECTION PC5V R442 10K 1/10W 5% HI RX2-IN Q406 2N3904S-RTK/PS R434 4K7 1/10W 5% R403 100R 1/10W 5% CABLE NOT CONNECTION REV:C REV:C FB403 0R05 1/10W 5% R413 10R 1/10W 5% RXC+IN R401 10K 1/10W 5% REV:C +5V RX0+IN REV:C D405 BAV99 3 1 2 R455 75R 1/10W 5% NC R421 4K7 1/10W 5% RX0+IN C419 0.047uF R424 10R 1/10W 5% U402 M24C02-WMN6TP 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL WP VCC RX0N 4 RX1N 4 RX0-IN R410 1K 1/10W 5% R440 100R 1/10W 5% R448 75R 1/10W 5% D410 BAV99 3 1 2 PC5V RX1P 4 B+ 4 C423 220pF C413 0.047uF C417 0.22uF R+ 4 R423 0R 1/10W 5% R444 33R 1/10W RXCN 4 C415 0.047uF NC R422 47R 1/10W R459 100R 1/10W 5% REV:C D423 UDZS5.6B DVI_5V C414 0.001uF NC R409 47R 1/10W C421 0.047uF C405 0.1uF D407 BAV99 3 1 2 C422 22pF C420 0.047uF R433 10K 1/10W 5% REV:C +5V RX2P 4 REV:C C403 0.1uF C404 0.1uF R437 100R 1/10W 5% DDC_WP 6 R462 2K2 1/10W 5% +5V D418 BAV99 3 1 2 R460 1K 1/10W 5% R- 4 R445 33R 1/10W R417 10R 1/10W 5% RX_SCL 6 R411 0R 1/10W 5% VSI SCL_DVI C410 0.1uF DVI_CONNECT_MCU 6 VGA_CONNECT_MCU D422 UDZS5.6B REV:C REV:C D403 UDZS5.6B CABLE CONNECTION RX0-IN FB417 430 OHM +5V CABLE CONNECTION RX2N 4 U401 M24C02-WMN6TP 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL WP VCC C409 0.22uF RX2+IN NC Q402 2N7002E DVI_DDC2_SDA NC R405 4K7 1/10W 5% R458 100R 1/10W 5% D411 BAV99 3 1 2 DVI_5V DVI_SDA 6 R456 100R 1/10W 5% D419 BAV99 3 1 2 GREEN+ C498 NC D424 UDZS5.6B REV:C C411 0.047uF C418 0.047uF D417 BAV70 3 1 2 R443 33R 1/10W RX1+IN SDA_DB D402 UDZS5.6B NC R426 47R 1/10W HI +5V 2,6 D425 UDZS5.6B FB402 0R05 1/10W 5% R457 10K 1/10W 5% RX0P 4 FB404 430 OHM DDC_WP REV:C RX2+IN RED- R418 10R 1/10W 5% R415 10R 1/10W 5% HSI C499 NC DVI_DDC2_SCL BLUE+ C401 0.1uF C406 0.1uF 45 VDDC CKE 5 X401 14.31818MHz AVDD_DVI SOG 3 RXOIN3- 7 MDATA22 AR6 C427 0.1uF MVref MDATA18 ALE 6 RXEIN0- 7 RD 6 MDATA28 LVB0N MDATA19 HDCP_CLK 3 LVACKN RXEIN2+ 7 AD2 C447 0.1uF +3.3AVDD VDDM +3.3V 2 C463 NC AVDD_PLL2 C446 22uF 16V +3.3V_SD B+ 3 LVA1P MVref MDATA25 C430 22uF 16V AVDD_PLL +3.3V MDATA7 R470 560R 1/10W C454 0.1uF MDATA3 AR1 RXOIN3+ 7 RXECKIN- 7 MDATA21 C438 0.1uF AD3 DQM1 LVA1N C460 NC AVDD_ADC VDDM +3.3AVDD SBA0 5 RXEIN3+ 7 AR5 WR AVDD_MPLL RXOIN0- 7 CAS 5 RXEIN1- 7 VOLUME 6 AR9 C453 0.1uF R471 4K7 1/10W 5% AVDD_PLL MDATA20 FB411 120 OHM 1 2 RX1N 3 MDATA30 AR3 RXOIN0+ 7 AR4 MDATA24 RXOIN1+ 7 C461 NC AR4 G- 3 AR7 AR5 C440 0.1uF MDATA31 MST9200A-LF 168 167 166 165 164 161 160 180 179 178 177 176 175 174 156 205 191 44 43 42 41 40 39 38 37 18 15 14 11 9 8 6 5 26 25 24 23 22 21 20 19 1 208 2 3 207 36 33 32 31 30 29 28 27 45 46 47 48 80 51 54 55 4 17 79 34 49 196 113 195 154 56 204 125 131 58 59 60 61 13 16 12 50 57 157 64 183 184 132 155 172 162 182 158 169 63 139 10 87 170 171 192 193 108 159 140 7 62 67 68 69 70 71 72 73 74 75 76 77 201 135 136 137 138 141 142 143 144 145 146 147 148 149 150 151 152 133 105 107 110 111 112 115 116 117 118 119 120 121 122 123 124 127 128 129 35 181 186 187 188 189 197 198 199 185 190 202 203 163 65 66 52 53 103 78 81 82 83 84 85 86 114 88 89 90 91 92 93 126 102 94 95 96 97 98 99 100 101 106 104 130 134 153 200 173 206 194 109 LVA1P LVA2M LVA2P LVACKM LVACKP LVA3M LVA3P LVB1P LVB2M LVB2P LVBCKM LVBCKP LVB3M LVB3P VDDC GND NC NC NC NC NC REFM REFP RMID VSYNC0 HSYNC1 DDCD_CK DDCD_DA REXT DVI_CK- DVI_CK+ DVI_B- DVI_B+ RIN1M RIN1P GIN1M GIN1P SOGIN1 BIN1M BIN1P VSYNC1 GND DVI_R- DVI_G+ DVI_G- DVI_R+ HSYNC0 RIN0P RIN0M SOGIN0 GIN0P GIN0M BIN0P BIN0M NC NC NC NC GND GPIO[5] NC NC AVDD_DVI AVDD_ADC VDDC AVDD_ADC VDDC NC VDDM VDDC VDDM NC AVDD_MPLL VDDM VDDC NC NC NC NC GND GND AVDD_PLL GND NC GND GND GND GND GND GND GND VDDP VDDP BYPASS LVA1M VDDC VDDM AVDD_DVI GND LVA0P LVA0M NC NC GND GND GND GND VCTRL HWRESET INT ALE RDZ WRZ DBUS[0] DBUS[1] DBUS[2] DBUS[3] GPIO[3] GPIO[2] PWM1 NC/MDATA[15] NC/MDATA[14] NC/MDATA[13] NC/MDATA[12] NC/MDATA[11] NC/MDATA[10] NC/MDATA[9] NC/MDATA[8] NC/MDATA[7] NC/MDATA[6] NC/MDATA[5] NC/MDATA[4] NC/MDATA[3] NC/MDATA[2] NC/MDATA[1] NC/MDATA[0] DQM[0] MCLKE MCLK BADR[1] BADR[0] RASZ CASZ WEZ MADR[0] MADR[1] MADR[2] MADR[3] MADR[4] MADR[5] MADR[6] MADR[7] MADR[8] MADR[9] MADR[10] GND LVB1M LVB0P LVB0M NC NC NC NC NC VDDC NC XOUT XIN GND GND VDDP GPIO[4] NC GND GPIO[1] DQS[3] MDATA[31] MDATA[30] MDATA[29] MDATA[28] VDDM GND MDATA[27] MDATA[26] MDATA[25] MDATA[24] MDATA[23] MDATA[22] GND VDDM MDATA[21] MDATA[20] MDATA[19] MDATA[18] MDATA[17] MDATA[16] DQS[2] DQM[1] MCLKZ MVREF MADR[11] DQS[1] DQS[0] PWM0 VDDC GND GND AVDD_PLL2 WE 5 C424 22uF 16V C448 0.1uF AR7 AD1 LVA0N RX0P 3 RXEIN2- 7 LVB2P R464 4K7 1/10W 5% AR[0..10] 5 AR10 AUDIO_MUTE 6 MDATA0 +1.8V 2 RXOIN2+ 7 AR8 C445 0.1uF AVDD_MPLL +3.3AVDD LVB3N REV:C MDATA6 MDATA15 C500 0.1uF RXOIN2- 7 MDATA5 ALE R465 390R 1/10W AVDD_DVI +3.3AVDD RX2P 3 LVB0P MDATA8 FB410 120 OHM 1 2 MDATA[0..31] 5 MDATA12 LVB3P MDATA9 C439 22uF 16V AD0 RXEIN1+ 7 LVA3N C452 22uF 16V FB405 120 OHM 1 2 R550 1K 1/10W 5% AVDD_ADC MDATA29 MDATA26 VDDP RXEIN0+ 7 RXOCKIN- 7 LVACKP R466 NC VDDP R- 3 LVA2P FB407 120 OHM 1 2 B- 3 DQM0 5 AR0 MDATA13 LVB2N MDATA2 R549 1K 1/10W 5% C451 0.1uF C458 0.1uF RX1P 3 R469 560R 1/10W RXOIN1- 7 C426 22uF 16V AR10 R468 560R 1/10W AVDD_PLL2 INT FB406 120 OHM 1 2 HWRESET +3.3AVDD INT 6 LVA2N VDDP DQM1 5 AR8 C456 0.1uF C429 0.1uF RAS 5 LVB1P FB409 120 OHM 1 2 C431 0.1uF AD[0..3] 6 C450 0.1uF C442 0.1uF MDATA14 C457 22pF C436 0.1uF +1.8V HDCP_DATA 3 AR1 WR 6 DQM0 R723 22R 1/10W 5% C433 0.1uF BKLT-PWM 2 LVBCKN C443 0.1uF C432 0.1uF AR0 MDATA27 C428 22uF 16V C437 0.1uF R+ 3 RXOCKIN+ 7 MDATA4 G+ 3 +3.3V AR2 LVB1N FB408 120 OHM 1 2 VS 3 MDATA11 C444 0.1uF AR9 AR2 AR3 HS 3 RXEIN3- 7 RXECKIN+ 7 C459 0.1uF RXCN 3 R467 100R 1/10W 5% C435 0.1uF +3.3AVDD MDATA17 C462 NC MCLK 5 +3.3V_SD 2,5 C455 22pF RXCP 3 MDATA10 LVA3P MDATA16 AR6 FB412 120 OHM 1 2 RD C449 22uF 16V AVDD_DVI MDATA1 RX0N 3 HWRESET 6 MDATA23 VDDC LVBCKP C425 0.1uF C434 0.1uF VDDM +3.3AVDD 2 LVA0P RX2N 3 46 DQM1 4 MDATA8 CKE MDATA28 AR5 WE 4 R478 47R 1/10W C474 0.1uF REV:C +3.3V_MQ AR3 AR10 C466 0.1uF CAS 4 MDATA21 WE MDATA18 MDATA0 MDATA12 MCLK AR1 +3.3V_MC WE MDATA7 AR3 MDATA26 DQM1 R474 47R 1/10W R477 22R 1/10W 5% AR2 C464 22uF 16V AR8 MDATA16 CKE 4 MDATA29 AR1 +3.3V_MC MDATA1 DQM0 FB413 120 OHM 1 2 C476 0.1uF AR[0..10] 4 MDATA12 +3.3V_MQ MDATA22 MDATA22 AR5 MDATA0 AR6 +3.3V_MC MDATA5 MDATA14 AR9 MDATA2 CKE MDATA19 +3.3V_MQ AR7 R476 47R 1/10W MDATA31 MDATA[0..31] 4 MDATA31 CKE MDATA25 MDATA23 AR6 +3.3V_MQ +3.3V_MQ MDATA9 AR0 R472 4K7 1/10W 5% MDATA29 MDATA3 MDATA19 C465 0.1uF MDATA3 C475 0.1uF MDATA6 U404 EM636165TS-6G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 VDD DQ0 DQ1 VSSQ DQ2 DQ3 VDDQ DQ4 DQ5 VSSQ DQ6 DQ7 VDDQ LDQM WE# CAS# RAS# CS# A11 A10 A0 A1 A2 A3 VDD VSS A4 A5 A6 A7 A8 A9 NC CKE CLK UDQM NC VDDQ DQ8 DQ9 VSSQ DQ10 DQ11 VDDQ DQ12 DQ13 VSSQ DQ14 DQ15 VSS MDATA13 MDATA21 +3.3V_MQ AR10 CAS MCLK 4 AR3 MDATA1 R480 47R 1/10W C473 0.1uF AR10 REV:C +3.3V_MC AR4 C469 0.1uF +3.3V_SD 2,4 MDATA14 MDATA11 DQM0 MDATA24 AR0 AR7 C467 0.1uF MDATA10 AR2 DQM1 MDATA7 AR2 U405 EM636165TS-6G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 VDD DQ0 DQ1 VSSQ DQ2 DQ3 VDDQ DQ4 DQ5 VSSQ DQ6 DQ7 VDDQ LDQM WE# CAS# RAS# CS# A11 A10 A0 A1 A2 A3 VDD VSS A4 A5 A6 A7 A8 A9 NC CKE CLK UDQM NC VDDQ DQ8 DQ9 VSSQ DQ10 DQ11 VDDQ DQ12 DQ13 VSSQ DQ14 DQ15 VSS R479 22R 1/10W 5% MDATA30 MDATA20 MDATA26 CAS MDATA11 MDATA15 MDATA2 MCLK1 MDATA18 MDATA10 +3.3V_MC SBA0 4 MDATA4 MDATA27 AR9 MDATA30 RAS 4 MCLK MDATA23 MDATA25 R473 4K7 1/10W 5% DQM1 AR4 +3.3V_MC C477 22uF 16V C478 NC AR0 C471 0.1uF +3.3V_MC AR8 1M X 16bit =512K X 2Bank MDATA17 MDATA16 AR5 C470 0.1uF DQM0 4 MDATA13 MDATA6 MDATA17 C472 0.1uF AR9 MDATA9 AR7 FB414 120 OHM 1 2 +3.3V_SD +3.3V_MQ MDATA28 MDATA24 AR8 MDATA5 AR4 MCLK0 MDATA8 MDATA4 RAS MDATA20 R481 47R 1/10W RAS MDATA27 SBA0 SBA0 R475 47R 1/10W C479 NC AR6 C468 0.1uF AR1 MDATA15 DQM0 1M X 16bit =512K X 2Bank 47 D427 UDZS5.6B ALE 4 X402 24mhz R508 4K7 1/10W 5% R517 4K7 1/10W 5% R497 220R 1/10W VCPU MSCL C496 NC REV:C R506 4K7 1/10W 5% R510 22R 1/10W 5% AD0 C483 0.1uF HDCP_WP OUT_L+ LEFT_KEY C486 22pF HDCP_SDA C490 0.001uF VCPU AUDIO_MUTE 4 R531 470R 1/10W 5% VOLUME 4 AUDIO_STDBY LED_G R511 100R 1/10W 5% R526 NC R520 22R 1/10W 5% R500 4K7 1/10W 5% BKLT-EN 2 R503 4K7 1/10W 5% RX_SCL 3 INT 4 HPD_CTRL 3 C492 0.001uF REV:C VCPU 2 LEFT_KEY VOL D433 UDZS5.6B VCPU AD2 R490 4K7 1/10W 5% R544 220R 1/10W DVI_SDA 3 R482 4K7 1/10W 5% FB415 NC 1 2 R501 10K 1/10W 5% MSDA R488 220R 1/10W R534 4K7 1/10W 5% WR 4 POWER_KEY OUT_R- R504 4K7 1/10W 5% LOW R522 NC AUDIO CONNECT +5V 2,3 HDCP_SCL Q407 NC R518 22R 1/10W 5% OUT_L- R498 220R 1/10W VCPU TX_SDA 3 USB_CTRL 2 HDCP_SCL D431 UDZS5.6B VCPU AD1 OUT_L- REV:C R519 4K7 1/10W 5% AD[0..3] 4 AUTO_KEY R535 4K7 1/10W 5% +5V MSDA LED_G INT R546 220R 1/10W R496 4K7 1/10W 5% C481 0.1uF REV:C R533 4K7 1/10W 5% +5V R525 NC R536 4K7 1/10W 5% R489 4K7 1/10W 5% AUTO_KEY C495 0.001uF VCPU LED_R MUTE HI HWRESET 4 C491 0.001uF R545 220R 1/10W R537 4K7 1/10W 5% CN404 NC 2 4 6 8 10 12 14 1 3 5 7 9 11 13 NC CN403 CONN 1 2 3 4 5 POWER ON DVI_SCL 3 R529 100R 1/10W 5% C488 0.22uF AD3 STANDBY WR R505 4K7 1/10W 5% R524 NC C489 NC VCPU DDC_WP 3 R492 4K7 1/10W 5% U409 CAT24WC08W 4 8 5 6 1 2 3 7 GND VCC SDA SCL A0 A1 A2 WP Q408 2N3906S-RTK/PS R512 4K7 1/10W 5% D430 UDZS5.6B LOW OUT_R+ FB416 NC 1 2 R485 4K7 1/10W 5% R528 100R 1/10W 5% KEY PAD CONNECT WP R486 4K7 1/10W 5% C493 0.001uF VCPU ALE U408 M24C16 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL WP VCC C482 22uF 16V R523 NC VCPU VCPU PANEL_EN 2 RESET R724 4K7 1/10W 5% R487 4K7 1/10W 5% AUDIO_STDBY C487 0.22uF R539 4K7 1/10W 1% R483 0R05 1/10W 5% PS_ON/OFF 2 HDCP_WP SOURCE_KEY D428 UDZS5.6B C494 0.001uF MENU_KEY Q409 2N3906S-RTK/PS R532 560R 1/10W 5% VCPU +5V MSDA CN406 CONN 2 4 6 8 10 12 14 1 3 5 7 9 11 13 U407 MTV416GMV 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 P4.2/AD2 P1.0/ET2 P1.1/DA0 P1.2/DA1 P1.3/DA2 P1.4/DA3 HSYNC/P1.5 VSYNC/P1.6 P1.7/SOGI RST HSCL1/RXD/P3.0 P4.3/AD3 HSDA1/TXD/P3.1 P3.2/INT0 P3.3/INT1 ISDA/P3.4 ISCL/P7.5 HSDA2/P7.4 HSCL2/P7.3 X2 X1 VSS P4.0/AD0 P6.0/CLKO1 P6.1 P6.2 P6.3 P6.4 P6.5 P6.6 P6.7 P7.2/HCLAMP P7.1/VBLANK P4.1/AD1 P7.0/HBLANK P5.7 P5.6 P5.5 P5.4 P5.3 P5.2 P5.1 P5.0 VDD D432 UDZS5.6B AUDIO_STDBY R484 0R05 1/10W 5% R513 22R 1/10W 5% R495 4K7 1/10W 5% OUT_R- R514 100R 1/10W 5% R538 4K7 1/10W 5% R491 4K7 1/10W 5% R541 4K7 1/10W 5% VCPU C484 22pF For HDCP R547 220R 1/10W WP +5V AUDIO_MUTE +5V RD 4 R509 4K7 1/10W 5% R722 0R05 1/10W 5% RESET POWER_KEY R502 4K7 1/10W 5% R515 4K7 1/10W 5% RIGHT_KEY R494 4K7 1/10W 5% VGA_CONNECT_MCU 3 +12V 2 SOURCE_KEY OUT_R+ R507 4K7 1/10W 5% REV:C POWER SAVING/OFF LED_R MSCL R548 220R 1/10W R527 NC C480 NC MENU_KEY C485 10uF/10V REV:C RD R540 4K7 1/10W 1% VCPU LED_ORANGE OUT_L+ R542 4K7 1/10W 5% CN405 CONN 1 2 3 4 5 6 MSCL RIGHT_KEY LED_GREEN R530 100R 1/10W 5% R543 220R 1/10W D429 UDZS5.6B R521 NC HWRESET HI DVI_CONNECT_MCU 3 HDCP_SDA HWRESET R493 4K7 1/10W 5% +12V R499 NC R516 100R 1/10W 5% U406 MAX810STRG 1 2 3 GND RESET VCC 48 . RXEIN0- RXEIN0+ RXECKIN+ 4 RXE1+ RXECKIN- R720 220R 1/4W RXO3+ RXOIN2+ RXOIN1- 4 RXEIN3- RXEIN3- FB702 120 OHM 1 2 RXEIN3+ RXOC- RXOCKIN- 4 R721 220R 1/4W RXO2+ RXEIN1- 4 RXEIN0+ RXOCKIN+ RXECKIN+ RXEIN1+ RXEIN3+ RXECKIN- 4 RXEC+ RXEIN3+ 4 RXECKIN- RXOIN0+ RXEIN2- 4 RXEIN2- RXE2- RXOIN0- RXO0- RXE0- LVDS INTERFACE CONNECT RXOIN0+ 4 RXEIN0+ 4 RXOIN3- 4 RXOCKIN- RXOIN1+ RXO1- RXE2+ RXOCKIN+ RXOIN0- 4 REV:C RXOIN1+ RXEIN2+ RXO0+ RXOIN3+ 4 RXOIN2- 4 RXOIN2- RXOIN2- RXOIN3+ RXEIN1+ RXOIN3- RXOIN1+ 4 RXOIN1- +VLCD + C725 22uF/16V CN703 CONN 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 RXEC- RXEIN1+ 4 RXOCKIN- RXOIN3+ RXEIN1- RXOIN2+ RXO2- C726 0.1uF RXEIN1- RXE3- REV:C RXE3+ RXEIN3- 4 RXOIN1- RXOC+ +VLCD 2 RXEIN2+ 4 RXOIN0- RXEIN2+ RXEIN2- RXE0+ RXOIN3- RXOIN0+ REV:C RXE1- RXOCKIN+ 4 RXO1+ RXEIN0- RXOIN2+ 4 RXO3- RXECKIN+ RXEIN0- 4 49 Adapter board R943 NC + C965 1000uF/35V R947 470R 1/8W F902 FUSE CN903 Wire Harness 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C967 0.1uF VCC2 R971 100Ω 1/4W 5V IC903 NCP1377BDR2G 1 2 3 4 5 6 8 Dmg FB CS GND Drv Vcc HV R9464 2.2 1/4W 　 C931 NC R975 10K 1/8W ON/OFF T5A 250VAC R973 1.2KΩ 1/4W R9462 2.2 1/4W 　 R9463 2.2 1/4W 　 IC954 AP431VLA +24V C968 0.1uF/25V IC955 PC123X2YFZOF 1 2 4 3 R972 1.2KΩ 1/4W C937 2200pF R970 100Ω 1/4W T901 POWER X'FMR 6 7 8 9 10 11 12 1 2 4 R9107 100KOHM 1/4W R978 75KΩ 1% 1/8W C933 220PF/25V C963 0.001uF 12V R976 1K 1/4W B+ Q905 FQPF8N80C C972 L952 3.3uH + C966 470uF/35V D910 LL4148 C934 1000PF 50V R9461 2.2 1/4W 　 D909 US1M D954 NC 1 2 3 CN902 Wire Harness 1 2 3 4 5 6 7 8 9 10 11 12 C970 0.1uF + C964 1000uF/35V R979 2.4KΩ 1% 1/8W R974 1K 1/4W NC R944 10R 1/8W R9106 100KOHM 1/4W + C932 47uF/50V PS_ON R977 20KΩ 1% 1/8W R9105 100KOHM 1/4W C930 2200pF D953 YG868C15R 1 2 3 R9108 100KOHM 1/4W C971 0.1uF DIM R945 10K 1/8W R942 56K 1/8W 50 R954 1K 1/4W In SVT Add it R919 1M 1/4W 　 R917 13K 1/8W L902 12.0mH 1 2 4 3 Q903 PMBS3906 C919 0.33uF/50V R902 680KΩ 1/4W +24V R920 1M 1/4W 　 R963 10K 1/8W - + BD901 KBJ608G 2 1 3 4 R924 150KΩ 1/4W C922 0.01uF CN901 SOCKET 1 2 3 R930 51K 1/8W +5V L903 120uH +5V1 R9109 100K 1/4W C905 0.001uF/250V R908 220KΩ 1/8W C917 1000PF 50V COMP C907 1uF L904 PFC CHOKE 1 2 4 5 11 12 Q904 2N3904S-RTK/PS D952 LL4148 R9116 NC R951 100Ω 1/4W C958 0.1uF R935 10K 1/8W R907 56KΩ 1/8W R929 470R 1/8W D950 MBRF10100CT 1 2 3 C929 10nF +12V R925 150KΩ 1/4W Q950 2N3904S-RTK/PS NR901 NTCR + C957 470uF/16V R911 10K 1/8W R950 100Ω 1/4W Q951 2N3904S-RTK/PS PS_ON +12V R9110 100K 1/4W D908 US1D R921 1M 1/4W 　 Improve EMI R965 2.4K OHM 1% 1/8W R961 2.4KΩ 1% 1/8W R959 3.6K OHM 1% 1/8W + C955 1000uF/16V R980 200 OHM 1/4W R9101 1.0R 1/4W R926 150KΩ 1/4W R934 4.7Ω 1/4W R981 200 OHM 1/4W C916 NC R962 1K 1/4W R915 680K 1/4W R928 10K 1/8W + C950 470uF/25V Q901 STW20NM60 2 1 3 C959 0.1uF R9115 1R 1/4W C923 2200pF L950 3.5uH C960 0.1uF/25V B+ ZD901 RLZ15B 1 2 C906 2200PF/250V C902 0.22uF/275V R918 NC L901 10.0mH 1 4 2 3 R914 680K 1/4W L951 3.5uH R913 470R 1/8W +5V ZD951 RLZ12B 1 2 D904 LL4148 D903 LL4148 R909 15KΩ 1/8W R958 33KOHM +-1% 1/8W Vcc1 R9102 1R 1/4W BNO + C925 10uF/50V R9103 1R 1/4W R956 62KΩ 1/8W Vcc2 F901 FUSE R957 10K 1/8W + C927 47uF/50V R937 1K 1/4W R912 10R 1/8W R9111 100K 1/4W C928 0.001uF/250V R901 680KΩ 1/4W C908 0.001uF/250V Q902 FQPF8N80C C920 0.01uF C911 1uF/450V R9113 1R 1/4W IC953 AZ431AZ-AE1 + C954 1000uF/25V R933 4.7Ω 1/4W D951 FME-220A 1 2 3 COMP C903 470pF/250V R923 150K 1/8W R960 200KΩ 1/8W R964 470R 1/8W C969 0.1uF IC902 LD7522PS 1 2 3 4 5 6 7 8 BNO COMP (-)LATCH CS GND OUT VCC OVP D901 FMX-G26S T902 POWER X'FMR 1 2 3 5 6 7 8 9 10 11 12 R9104 1R 1/4W C901 0.47uF/275V R9114 1R 1/4W C915 56pF IC950 PC123X2YFZOF 1 2 4 3 THE SOLUTION FOR EMI C909 0.001uF/250V +5V1 R922 240KΩ 1% 1/8W R955 47Ω 1/4W C910 0.047uF C962 0.1uF/25V C912 1uF IC951 PC123X2YFZOF 1 2 4 3 C961 0.1uF RV901 Varistor R905 0.1 ohm ZD950 RLZ27B 1 2 +5V C935 2200pF D907 US1D Vcc1 C904 470pF/250V C918 1000PF 50V D906 US1M C953 0.001uF R916 680K 1/4W IC901 FAN7529MX 1 2 3 4 5 6 7 8 INV COMP MOT CS ZCD GND OUT VCC + C914 120uF/450V R953 100Ω 1/4W THE PIN ADDED FERRITE BEAD R9112 100K 1/4W C924 0.1uF 50V R903 680KΩ 1/4W 400V R936 1K 1/4W + C926 47uF/50V R952 100Ω 1/4W R927 22R 1/8W + C936 47uF/50V C921 220pF D905 LL4148 R948 1K 1/4W R932 10K 1/8W BNO C913 10nF + C956 1000uF/16V C951 0.001uF D902 LL4148 51 Inverter board DRV2 C807 1uF50V C814 1uF +5V R819 5.1K 1/4W R817 27K 1/10W Q811 MMBT3904 D812 LL4148 R816 10KOHM 1/10W +5V D816 SCS140V 1 2 R832 10KOHM 1/8W R818 10K 1/8W Q813 MMBT3904 D827 SM340A R834 10K 1/10W R830 3.3M OHM 1/14W VIN R803 120K 1/8W F804 0 OHM +-5% 1/4W Q802 FDS4897C 1 2 3 4 8 7 6 5 S G S G D D D D D815 LL4148 R833 100K 1/8W R831 71.5KOHM+-1% 1/8W OVP (Over Voltage Protation) Q804 FDS4897C 1 2 3 4 8 7 6 5 S G S G D D D D TD F802 0 OHM +-5% 1/4W TC OVPT Q810 MMBT3904 R845 51KOHM +-5% 1/8W D820 SM340A R847 510 1/10W P1 R824 10K 1/8W R820 1M 1/8W D810 LL4148 C825 270pF50V D808 LL4148 Q801 RK7002 C820 0.047UF DRV1 D821 SM340A +5V R843 NC R804 10KOHM 1/8W Q805 SST2222A DRV2 Q809 FDS4897C 1 2 3 4 8 7 6 5 S G S G D D D D R849 510 1/8W Q812 MMBT3906 D822 SM340A D825 SM340A R844 1KOHM +-5% 1/10W R805 100 OHM 1/8W +5V R837 56K 1/4W FS C828 0.022uF C809 0.047uF R848 510 1/10W R823 10K 1/8W 5% + C813 220uF/35V R807 20K 1/10W C811 0.022uF VIN R802 100 OHM 1/8W R814 100 OHM 1/8W D817 SCS140V 1 2 CN801 CONN 1 2 3 4 5 6 7 8 9 10 11 12 R815 10KOHM 1/10W R813 10KOHM 1/8W R861 10KOHM +-5% 1/8W P2 R854 510 1/10W R851 510 1/10W R806 10K 1/10W SST R841 1KOHM +-5% 1/4W C808 10NF 25V R864 10KOHM 1/8W D818 SCS140V 1 2 R840 5.1K 1/8W IC801 OZ9938GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DRV1 VDDA TIMER DIM ISEN VSEN OVPT NC1 NC2 ENA LCT SSTCMP CT GNDA DRV2 PGND OLP+ P4 + C801 220uF/35V C806 10NF 25V R846 510 1/10W DRV1 + C838 220uF/35V D824 SM340A 24V +5V C812 0.1uF/25V R808 47 OHM 1/4W ZD805 RLZ5.6B 1 2 R838 680KOHM +-5% 1/10W R853 510 1/10W SST TB DRV2 P5 P6 R812 300KOHM +-5% 1/10W OVPT R862 100 OHM +-5% 1/8W D823 SM340A R829 1 MOHM +-5% 1/10W TA R811 34KOHM +-1% 1/10W 1V - + U801A BA10393F 3 2 1 8 4 Q807 144WN3/S JP801 0 OHM +-5% 1/10W C815 2.2uF/25V D826 SM340A ZD803 RLZ5.1B 1 2 C824 0.047uF D811 LL4148 R855 510 1/8W C817 10NF 25V Q808 FDS4897C 1 2 3 4 8 7 6 5 S G S G D D D D + C804 470uF 35V R809 10K 1/8W ZD801 RLZ5.6B 1 2 C821 2.2uF/25V R826 300K 1/10W C823 560K +-5% 1/10W D807 BAV99 3 1 2 0.27V ENA R822 27K 1/10W R828 1M 1/4W D814 LL4148 R865 NC D803 SCS140V 1 2 ZD804 RLZ5.6B 1 2 R852 510 OHM +-5% 1/10W D805 AZ431AN 2 1 3 C819 0.001uF R842 442 OHM +-1% 1/10W R858 10KOHM +-5% 1/8W R801 300K 1/10W C822 10NF 25V R827 NC C826 NC F801 FUSE 5A 125V R859 100 OHM +-5% 1/8W R857 100 1/10W R810 100 OHM 1/8W IS - + U801B BA10393F 5 6 7 8 4 D809 LL4148 R850 510 1/10W P3 C810 0.022uF ZD802 RLZ5.6B 1 2 D813 LL4148 Vo2 ON/OFF C805 1uF R839 1 MOHM +-5% 1/10W ON/OFF R863 100 OHM +-5% 1/8W D802 SCS140V 1 2 C818 10NF 25V OLP+ C836 0.047uF C802 1uF R825 100K 1/10W FS C827 2.2uF/25V Q803 RK7002 R856 510 1/10W R860 100 OHM +-5% 1/8W C837 0.047uF ENA Q806 MMBT3904 D801 SCS140V 1 2 DRV1 D819 SCS140V 1 2 D804 SCS140V 1 2 R835 NC C803 0.047uF R836 10KOHM +-5% 1/10W 52 PT803 X'FMR 564uH 4 1 2 6 PT809 X'FMR 564uH 4 1 2 6 PT812 X'FMR 564uH 4 1 2 6 C832 2U2 25V CN806 CONN 1 2 3 4 5 6 7 CN807 CONN 1 2 3 4 5 6 7 PT808 X'FMR 564uH 4 1 2 6 CN802 CONN 1 2 3 4 5 6 7 TD P6 C833 2U2 25V PT805 X'FMR 564uH 4 1 2 6 P3 PT804 X'FMR 564uH 4 1 2 6 TC C834 2U2 25V P2 P1 TB PT810 X'FMR 564uH 4 1 2 6 PT806 X'FMR 564uH 4 1 2 6 CN805 CONN 1 2 3 4 5 6 7 IS C829 2U2 25V CN803 CONN 1 2 3 4 5 6 7 TA C831 2U2 25V PT811 X'FMR 564uH 4 1 2 6 PT802 X'FMR 564uH 4 1 2 6 C830 2U2 25V PT801 X'FMR 564uH 4 1 2 6 P5 P4 PT807 X'FMR 564uH 4 1 2 6 CN804 CONN 1 2 3 4 5 6 7 53 Key board C004 NC LED001 LED 3 4 1 2 C003 NC LBADC1 MENU VOL+ CN001 POWER AUTO 0 V C008 NC LED_RED# C006 NC ECOLOR ECOLOR R002 2K OHM 1/16W VOL+ ECOLOR (GND) LBADC1 LED C005 NC AUTO LED_RED# POWER_Key ZD002 UDZSNP5.6B 1 2 MENU 0 V C001 NC C002 NC POWER_Key LBADC2 VOL+ LBADC2 MENU CONNECTOR (GND) VOL- AUTO R003 1K 1/16W 5% LED_BLUE# CN001 CONN 1 2 3 4 5 6 C007 NC SW001 JB41-03521 1 2 3 4 5 6 7 8 9 10 11 12 LED_BLUE# ZD001 UDZSNP5.6B 1 2 add ZD001 and ZD002 for ESD solution R001 2K OHM 1/16W VOL- VOL-
