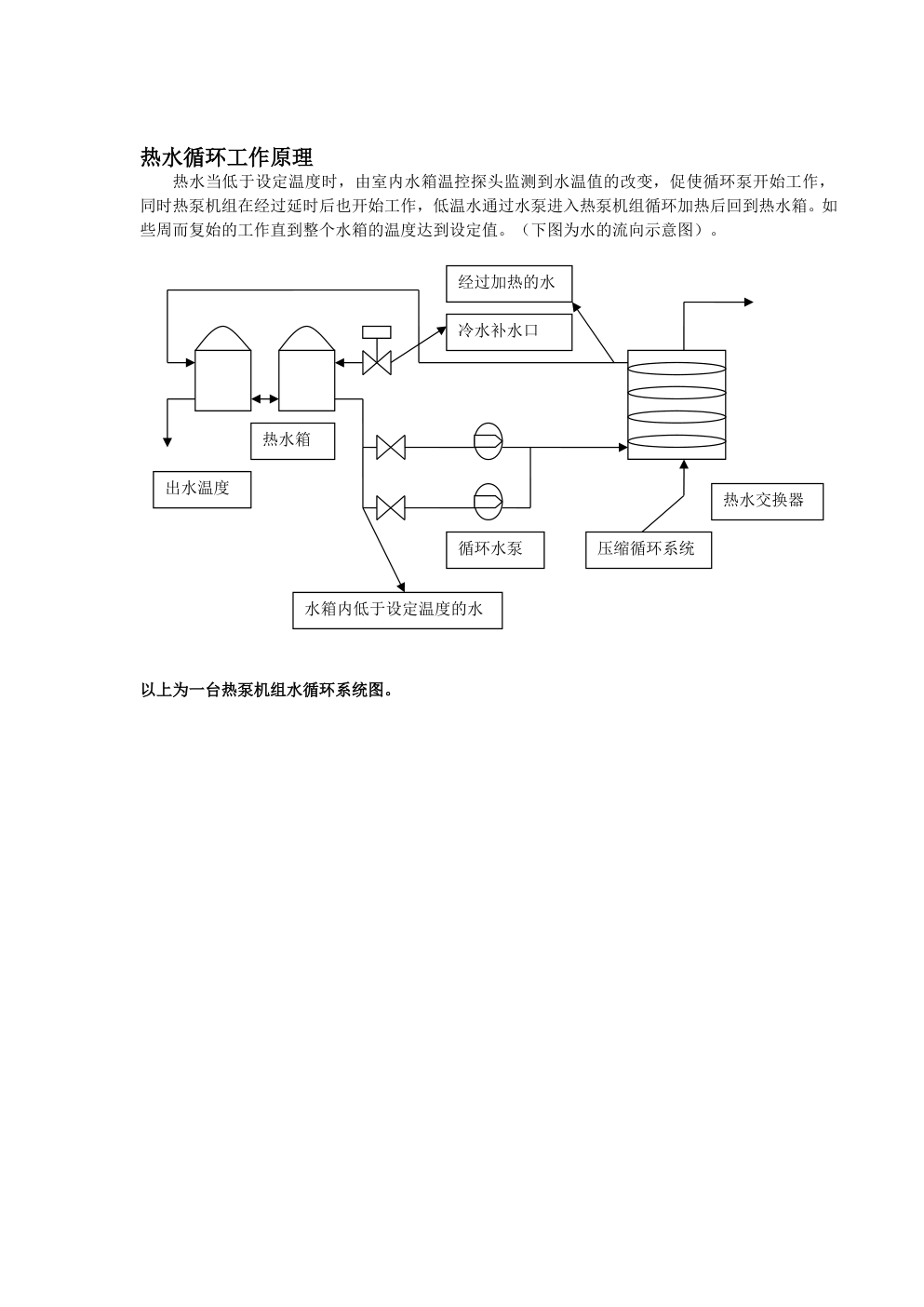

'热水循环工作原理
热水当低于设定温度时，由室内水箱温控探头监测到水温值的改变，促使循环泵开始工作，
同时热泵机组在经过延时后也开始工作，低温水通过水泵进入热泵机组循环加热后回到热水箱。如
些周而复始的工作直到整个水箱的温度达到设定值。（下图为水的流向示意图）。
以上为一台热泵机组水循环系统图。
热水交换器
热水箱
循环水泵
压缩循环系统
水箱内低于设定温度的水
经过加热的水
出水温度
冷水补水口

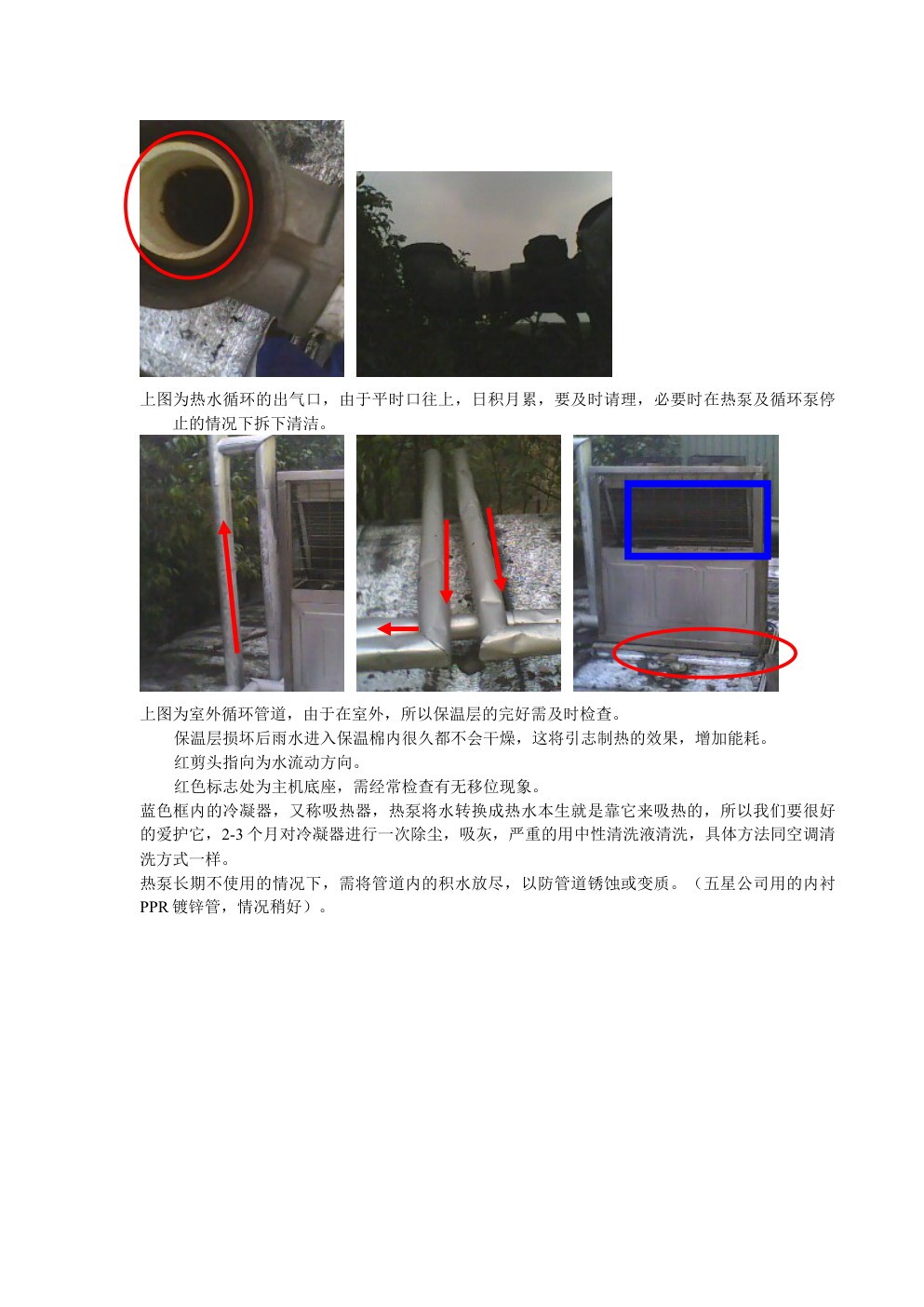

上图为热水循环的出气口，由于平时口往上，日积月累，要及时请理，必要时在热泵及循环泵停
止的情况下拆下清洁。


上图为室外循环管道，由于在室外，所以保温层的完好需及时检查。
保温层损坏后雨水进入保温棉内很久都不会干燥，这将引志制热的效果，增加能耗。
红剪头指向为水流动方向。
红色标志处为主机底座，需经常检查有无移位现象。
蓝色框内的冷凝器，又称吸热器，热泵将水转换成热水本生就是靠它来吸热的，所以我们要很好
的爱护它，2-3 个月对冷凝器进行一次除尘，吸灰，严重的用中性清洗液清洗，具体方法同空调清
洗方式一样。
热泵长期不使用的情况下，需将管道内的积水放尽，以防管道锈蚀或变质。（五星公司用的内衬
PPR 镀锌管，情况稍好）。

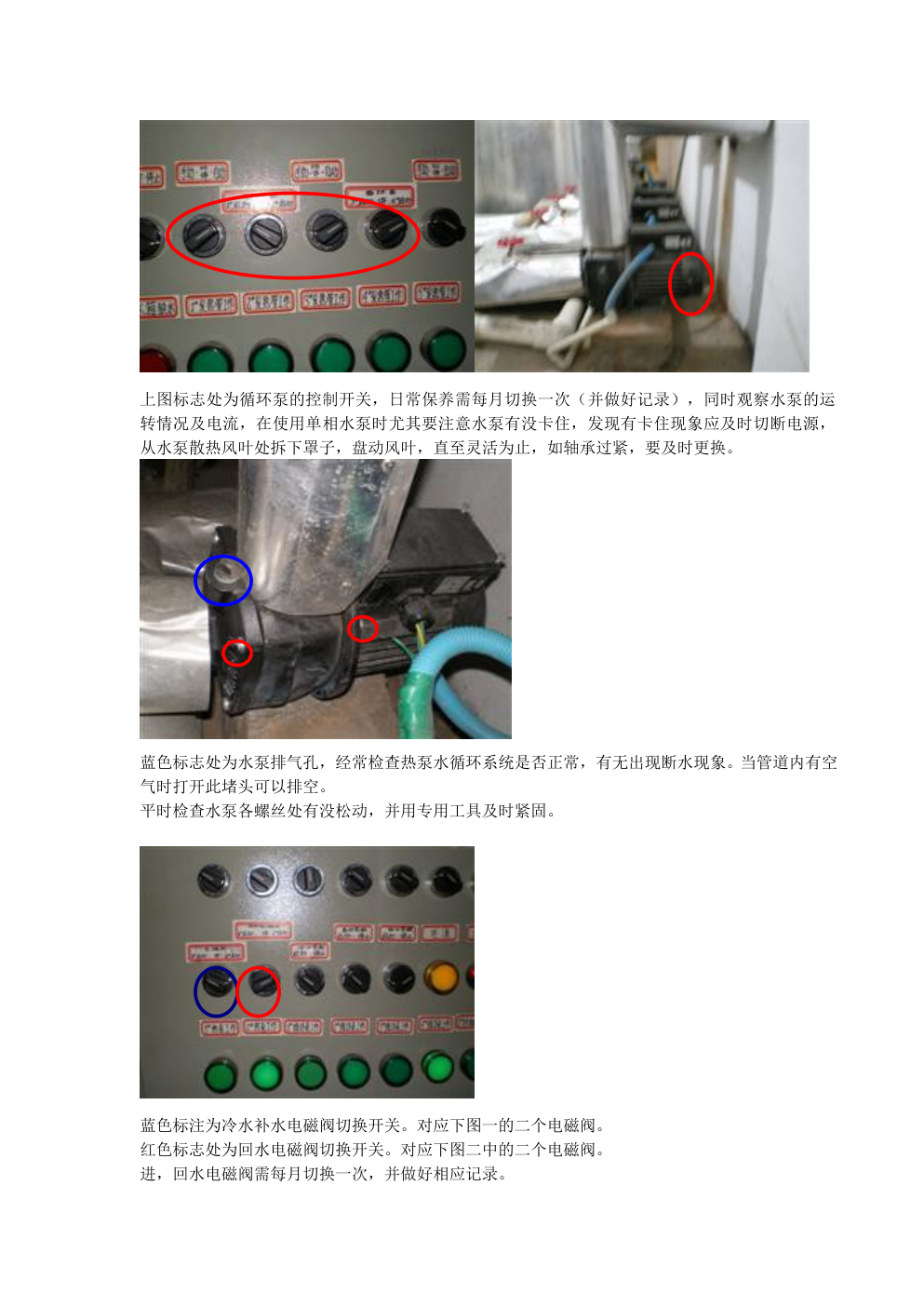

上图标志处为循环泵的控制开关，日常保养需每月切换一次（并做好记录），同时观察水泵的运
转情况及电流，在使用单相水泵时尤其要注意水泵有没卡住，发现有卡住现象应及时切断电源，
从水泵散热风叶处拆下罩子，盘动风叶，直至灵活为止，如轴承过紧，要及时更换。
蓝色标志处为水泵排气孔，经常检查热泵水循环系统是否正常，有无出现断水现象。当管道内有空
气时打开此堵头可以排空。
平时检查水泵各螺丝处有没松动，并用专用工具及时紧固。
蓝色标注为冷水补水电磁阀切换开关。对应下图一的二个电磁阀。
红色标志处为回水电磁阀切换开关。对应下图二中的二个电磁阀。
进，回水电磁阀需每月切换一次，并做好相应记录。

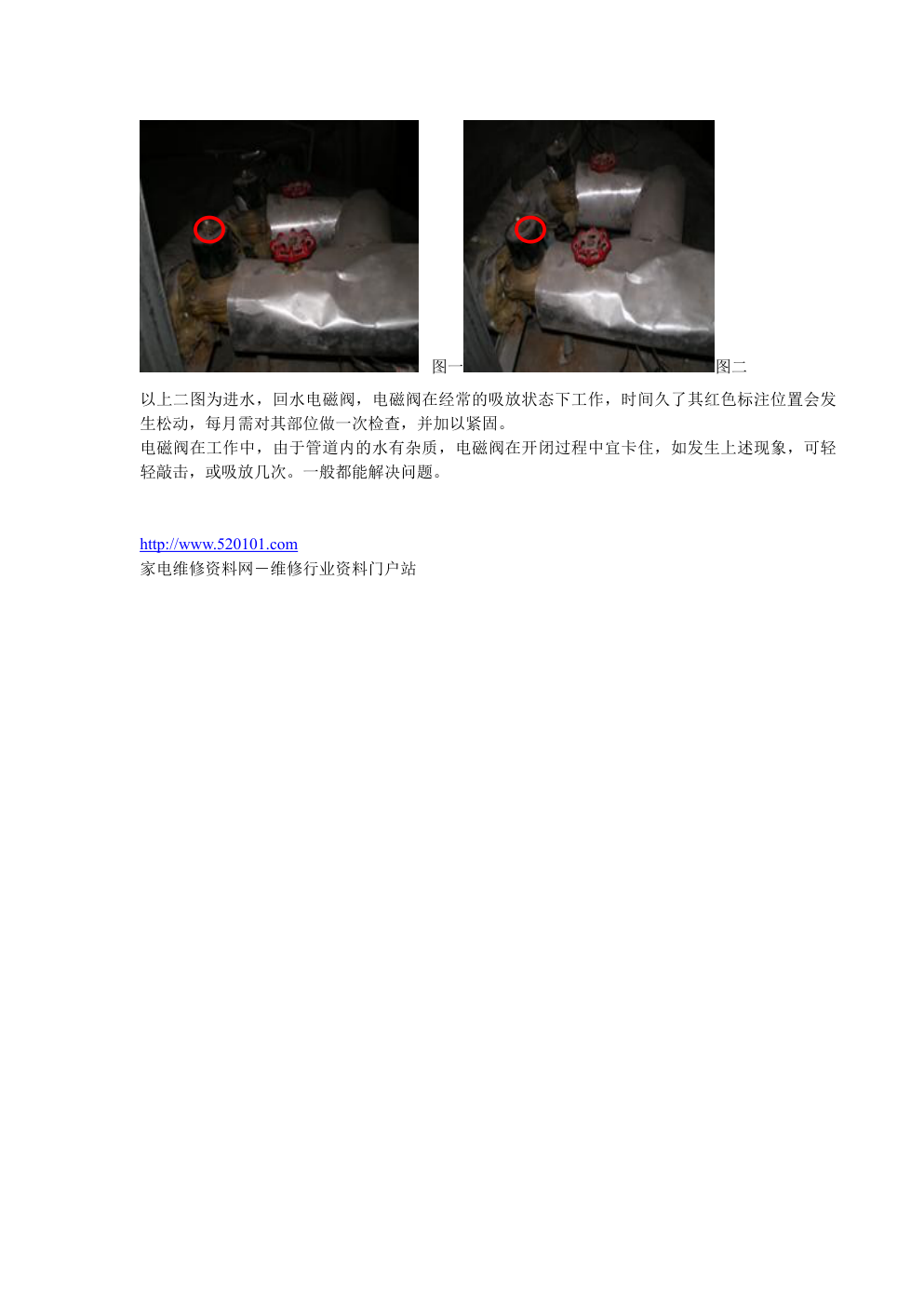

   图一
图二
以上二图为进水，回水电磁阀，电磁阀在经常的吸放状态下工作，时间久了其红色标注位置会发
生松动，每月需对其部位做一次检查，并加以紧固。
电磁阀在工作中，由于管道内的水有杂质，电磁阀在开闭过程中宜卡住，如发生上述现象，可轻
轻敲击，或吸放几次。一般都能解决问题。
