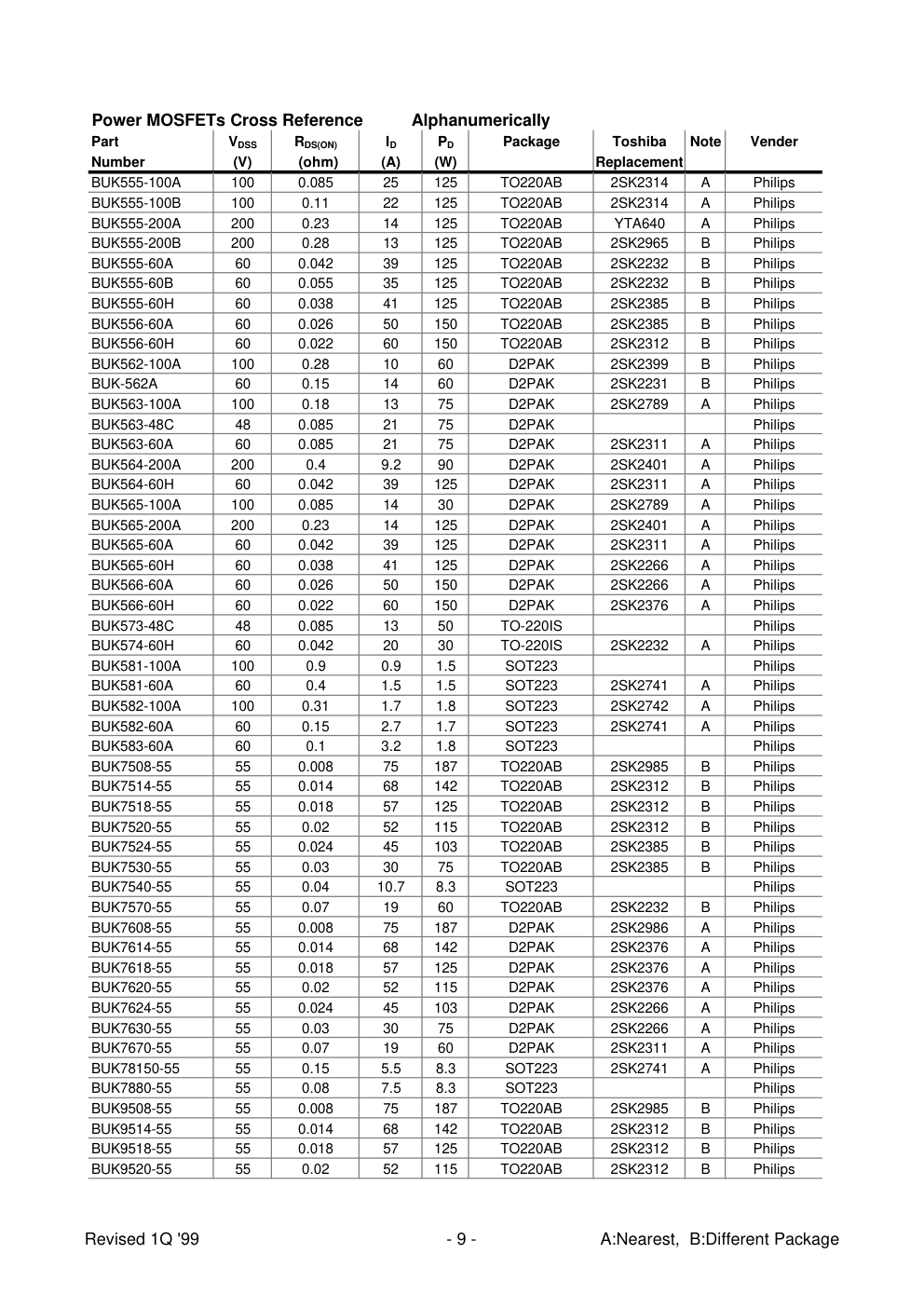

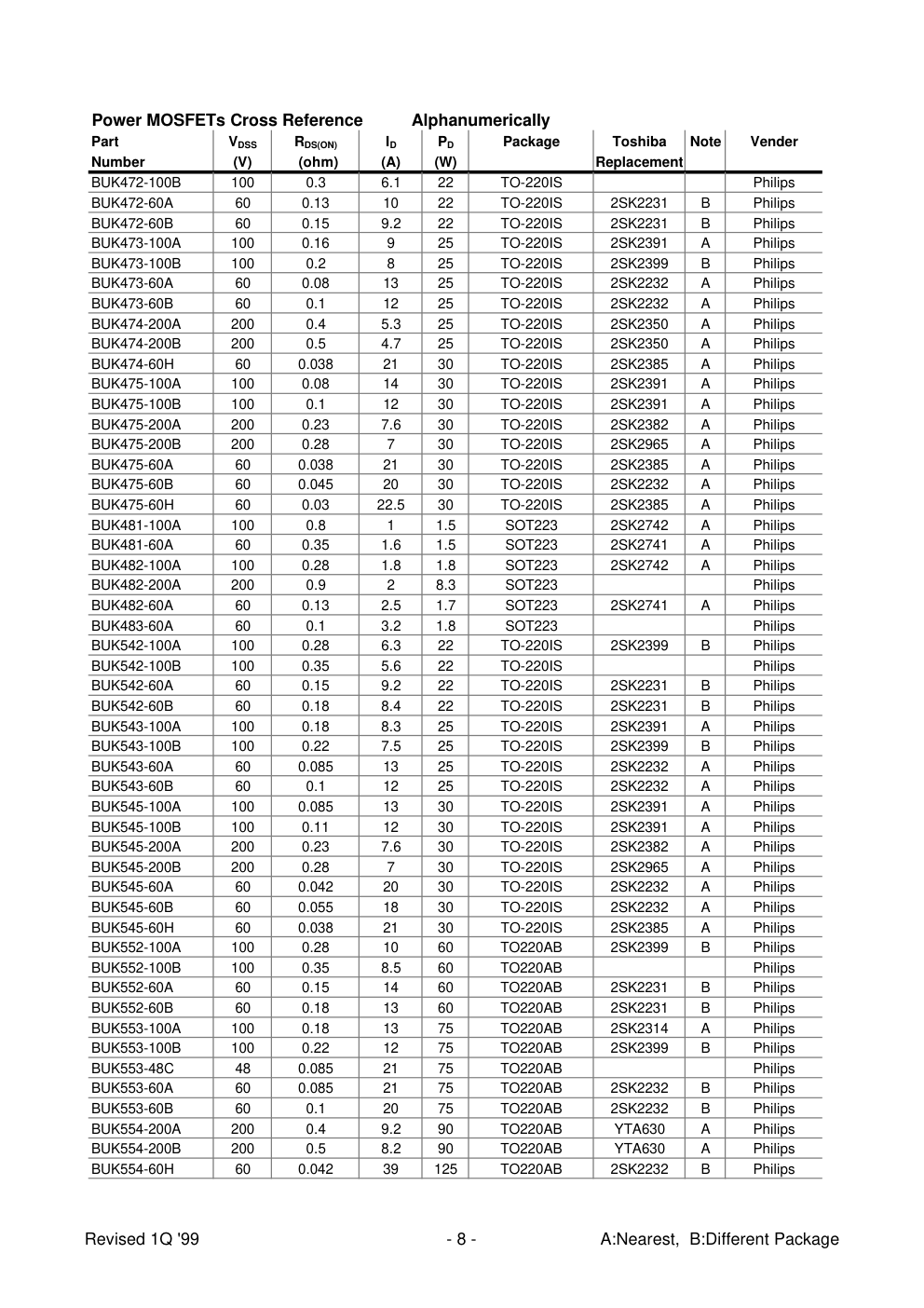

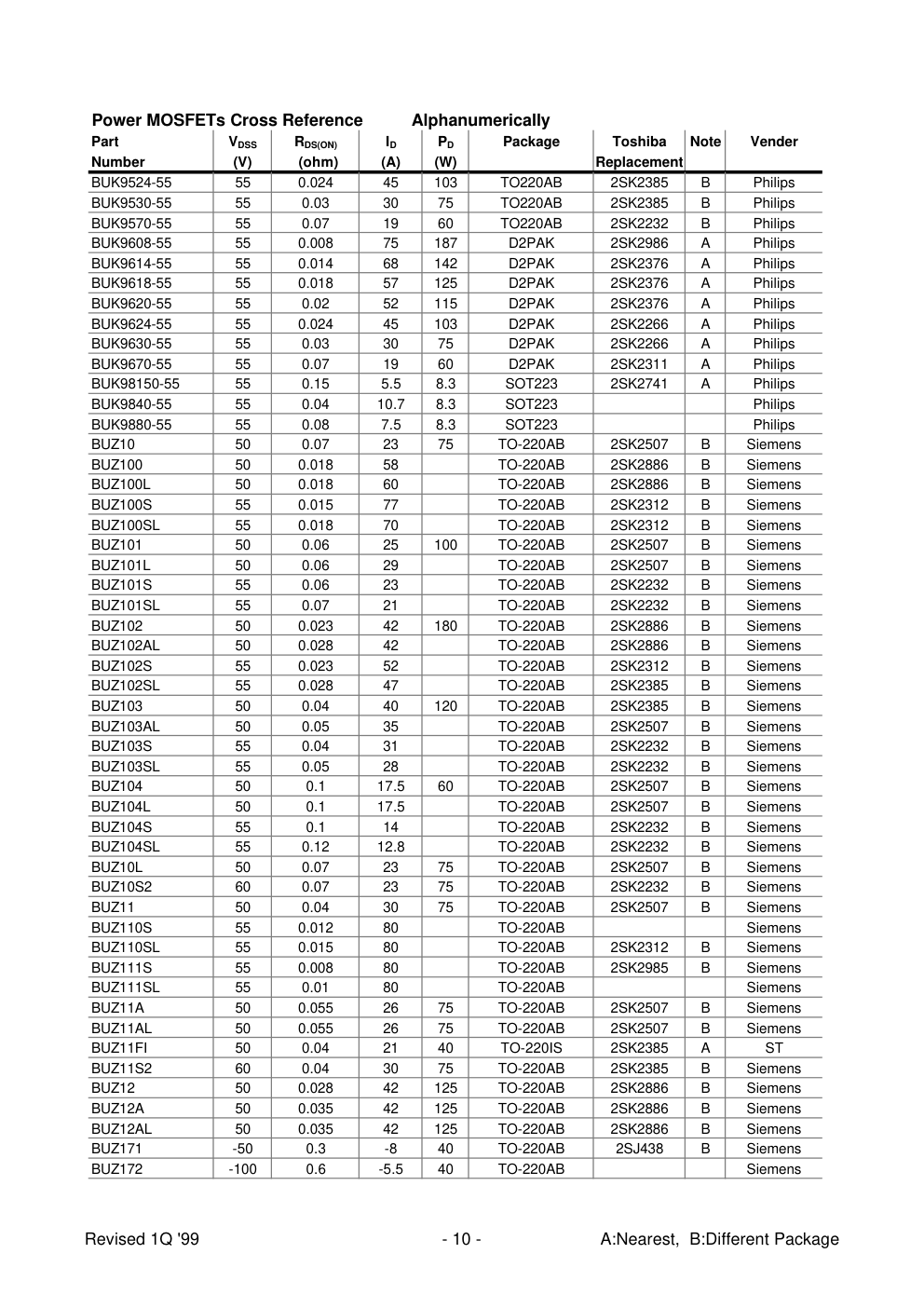

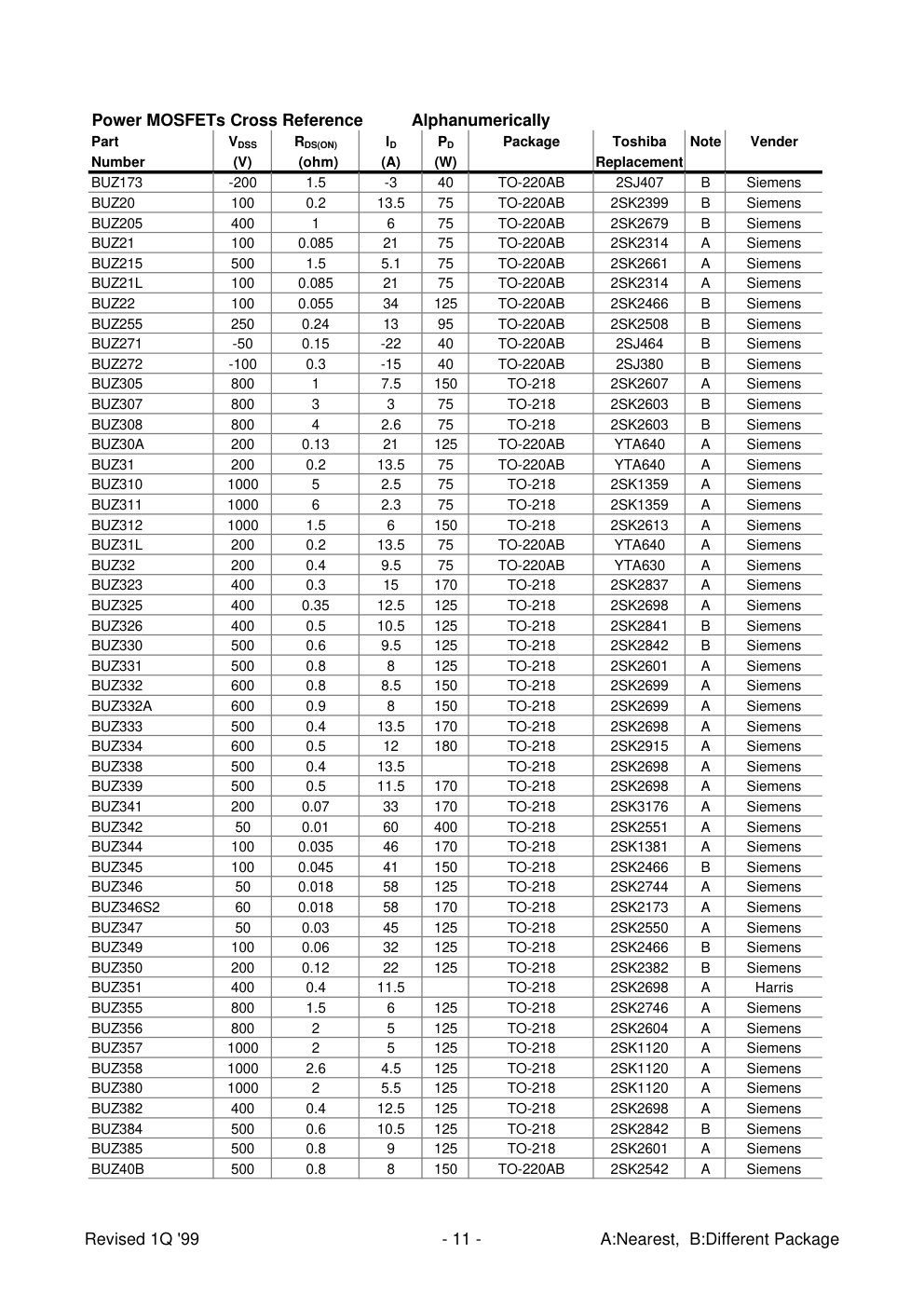

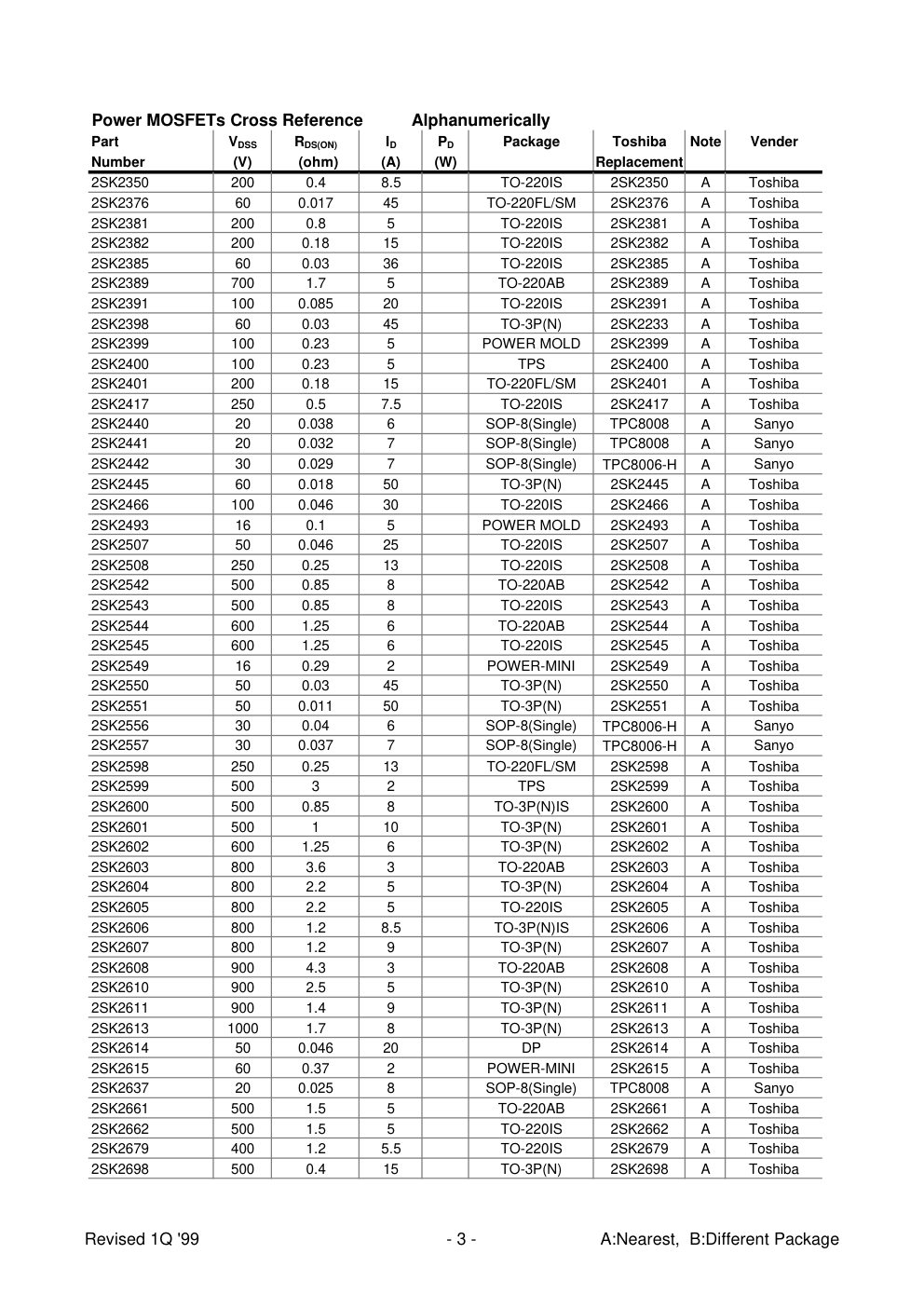

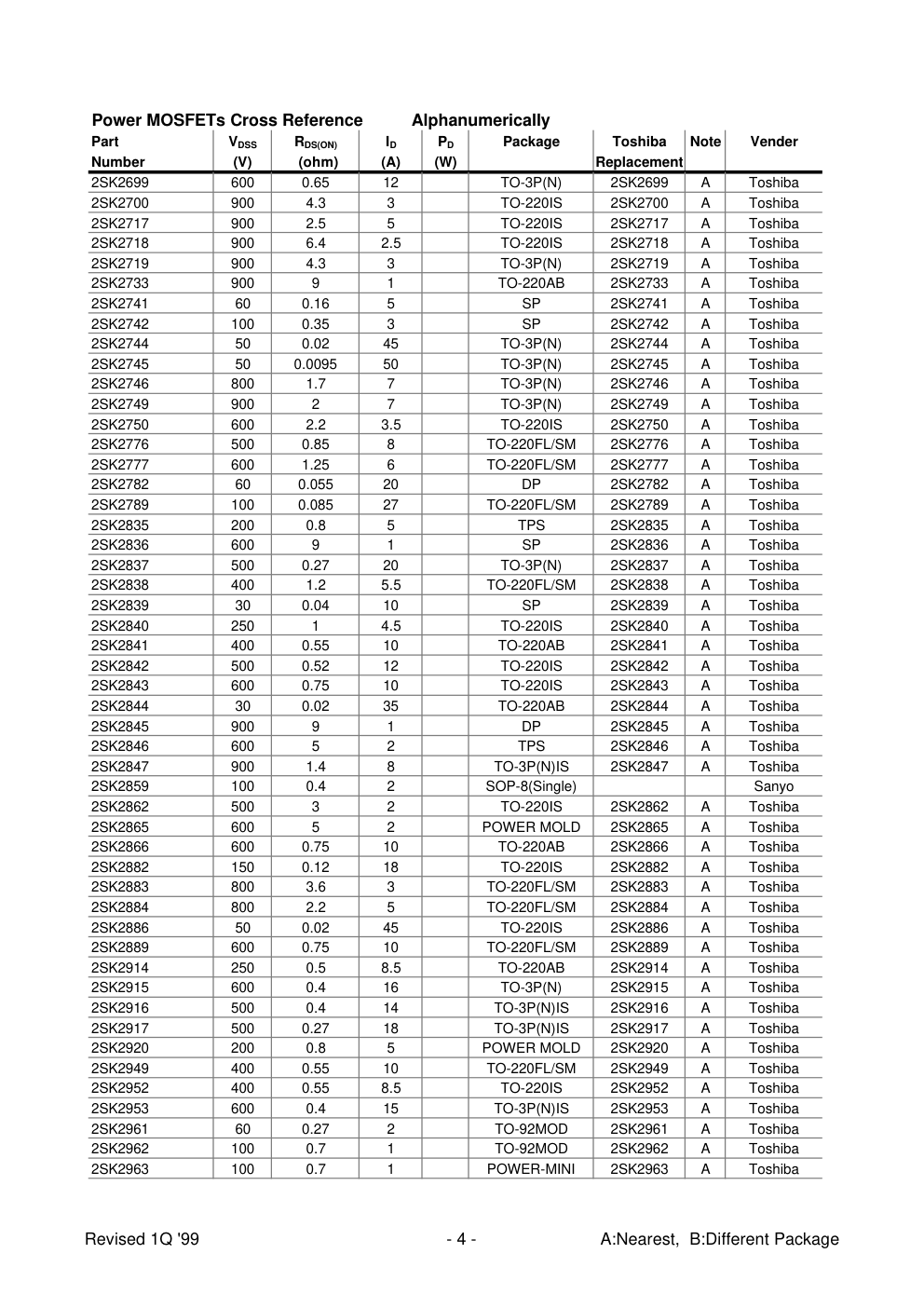

Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement 2N7000 60 5 0.2 0.4 TO-92 Fairchild 2N7002 60 7.5 0.115 0.2 SOT-23 Fairchild 2SJ377 -60 0.19 -5 POWER MOLD 2SJ377 A Toshiba 2SJ378 -60 0.19 -5 TPS 2SJ378 A Toshiba 2SJ380 -100 0.21 -12 TO-220IS 2SJ380 A Toshiba 2SJ401 -60 0.045 -20 TO-220FL/SM 2SJ401 A Toshiba 2SJ402 -60 0.038 -30 TO-220FL/SM 2SJ402 A Toshiba 2SJ407 -200 1 -6 TO-220IS 2SJ407 A Toshiba 2SJ412 -100 0.21 -16 TO-220FL/SM 2SJ412 A Toshiba 2SJ419 -12 0.082 -4 SOP-8(Single) Sanyo 2SJ420 -12 0.063 -5 SOP-8(Single) Sanyo 2SJ421 -30 0.058 -5 SOP-8(Single) TPC8104-H A Sanyo 2SJ438 -60 0.19 -5 TO-220IS 2SJ438 A Toshiba 2SJ439 -16 0.2 -5 POWER MOLD 2SJ439 A Toshiba 2SJ464 -100 0.09 -18 TO-220IS 2SJ464 A Toshiba 2SJ465 -16 0.71 -2 POWER-MINI 2SJ465 A Toshiba 2SJ468 -30 0.1 -4 SOP-8(Single) TPC8104-H A Sanyo 2SJ469 -30 0.075 -5 SOP-8(Single) TPC8104-H A Sanyo 2SJ482 -60 0.19 -5 SP 2SJ482 A Toshiba 2SJ507 -60 0.7 -1 TO-92MOD 2SJ507 A Toshiba 2SJ508 -100 1.9 -1 POWER-MINI 2SJ508 A Toshiba 2SJ509 -100 1.9 -1 TO-92MOD 2SJ509 A Toshiba 2SJ511 -30 0.45 -2 POWER-MINI 2SJ511 A Toshiba 2SJ512 -250 1.25 -5 TO-220IS 2SJ512 A Toshiba 2SJ513 -200 0.5 -9.5 TO-220IS 2SJ513 A Toshiba 2SJ514 -250 0.625 -7.5 TO-220IS 2SJ514 A Toshiba 2SJ515 -200 0.64 -7 TO-220IS 2SJ515 A Toshiba 2SJ516 -250 0.8 -6.5 TO-220IS 2SJ516 A Toshiba 2SJ525 -30 0.12 -5 TPS 2SJ525 A Toshiba 2SJ537 -50 0.19 -5 TO-92MOD 2SJ537 A Toshiba 2SK1119 1000 3.8 4 TO-220AB 2SK1119 A Toshiba 2SK1120 1000 1.8 8 TO-3P(N) 2SK1120 A Toshiba 2SK1359 1000 3.8 5 TO-3P(N) 2SK1359 A Toshiba 2SK1365 1000 1.8 7 TO-3P(N)IS 2SK1365 A Toshiba 2SK1489 1000 1 12 TO-3P(L) 2SK1489 A Toshiba 2SK1930 1000 3.8 4 TO-220FL/SM 2SK1930 A Toshiba 2SK2173 60 0.017 50 TO-3P(N) 2SK2173 A Toshiba 2SK2200 100 0.35 3 TPS 2SK2200 A Toshiba 2SK2201 100 0.35 3 POWER MOLD 2SK2201 A Toshiba 2SK2229 60 0.16 5 TPS 2SK2229 A Toshiba 2SK2231 60 0.16 5 POWER MOLD 2SK2231 A Toshiba 2SK2232 60 0.046 25 TO-220IS 2SK2232 A Toshiba 2SK2233 60 0.03 45 TO-3P(N) 2SK2233 A Toshiba 2SK2266 60 0.03 45 TO-220FL/SM 2SK2266 A Toshiba 2SK2267 60 0.011 60 TO-3P(L) 2SK2267 A Toshiba 2SK2274 700 1.7 5 TO-220IS 2SK2274 A Toshiba 2SK2311 60 0.046 25 TO-220FL/SM 2SK2311 A Toshiba 2SK2312 60 0.017 45 TO-220IS 2SK2312 A Toshiba 2SK2313 60 0.011 60 TO-3P(N) 2SK2313 A Toshiba 2SK2314 100 0.085 27 TO-220AB 2SK2314 A Toshiba Revised 1Q '99 - 2 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement 2SK2350 200 0.4 8.5 TO-220IS 2SK2350 A Toshiba 2SK2376 60 0.017 45 TO-220FL/SM 2SK2376 A Toshiba 2SK2381 200 0.8 5 TO-220IS 2SK2381 A Toshiba 2SK2382 200 0.18 15 TO-220IS 2SK2382 A Toshiba 2SK2385 60 0.03 36 TO-220IS 2SK2385 A Toshiba 2SK2389 700 1.7 5 TO-220AB 2SK2389 A Toshiba 2SK2391 100 0.085 20 TO-220IS 2SK2391 A Toshiba 2SK2398 60 0.03 45 TO-3P(N) 2SK2233 A Toshiba 2SK2399 100 0.23 5 POWER MOLD 2SK2399 A Toshiba 2SK2400 100 0.23 5 TPS 2SK2400 A Toshiba 2SK2401 200 0.18 15 TO-220FL/SM 2SK2401 A Toshiba 2SK2417 250 0.5 7.5 TO-220IS 2SK2417 A Toshiba 2SK2440 20 0.038 6 SOP-8(Single) TPC8008 A Sanyo 2SK2441 20 0.032 7 SOP-8(Single) TPC8008 A Sanyo 2SK2442 30 0.029 7 SOP-8(Single) TPC8006-H A Sanyo 2SK2445 60 0.018 50 TO-3P(N) 2SK2445 A Toshiba 2SK2466 100 0.046 30 TO-220IS 2SK2466 A Toshiba 2SK2493 16 0.1 5 POWER MOLD 2SK2493 A Toshiba 2SK2507 50 0.046 25 TO-220IS 2SK2507 A Toshiba 2SK2508 250 0.25 13 TO-220IS 2SK2508 A Toshiba 2SK2542 500 0.85 8 TO-220AB 2SK2542 A Toshiba 2SK2543 500 0.85 8 TO-220IS 2SK2543 A Toshiba 2SK2544 600 1.25 6 TO-220AB 2SK2544 A Toshiba 2SK2545 600 1.25 6 TO-220IS 2SK2545 A Toshiba 2SK2549 16 0.29 2 POWER-MINI 2SK2549 A Toshiba 2SK2550 50 0.03 45 TO-3P(N) 2SK2550 A Toshiba 2SK2551 50 0.011 50 TO-3P(N) 2SK2551 A Toshiba 2SK2556 30 0.04 6 SOP-8(Single) TPC8006-H A Sanyo 2SK2557 30 0.037 7 SOP-8(Single) TPC8006-H A Sanyo 2SK2598 250 0.25 13 TO-220FL/SM 2SK2598 A Toshiba 2SK2599 500 3 2 TPS 2SK2599 A Toshiba 2SK2600 500 0.85 8 TO-3P(N)IS 2SK2600 A Toshiba 2SK2601 500 1 10 TO-3P(N) 2SK2601 A Toshiba 2SK2602 600 1.25 6 TO-3P(N) 2SK2602 A Toshiba 2SK2603 800 3.6 3 TO-220AB 2SK2603 A Toshiba 2SK2604 800 2.2 5 TO-3P(N) 2SK2604 A Toshiba 2SK2605 800 2.2 5 TO-220IS 2SK2605 A Toshiba 2SK2606 800 1.2 8.5 TO-3P(N)IS 2SK2606 A Toshiba 2SK2607 800 1.2 9 TO-3P(N) 2SK2607 A Toshiba 2SK2608 900 4.3 3 TO-220AB 2SK2608 A Toshiba 2SK2610 900 2.5 5 TO-3P(N) 2SK2610 A Toshiba 2SK2611 900 1.4 9 TO-3P(N) 2SK2611 A Toshiba 2SK2613 1000 1.7 8 TO-3P(N) 2SK2613 A Toshiba 2SK2614 50 0.046 20 DP 2SK2614 A Toshiba 2SK2615 60 0.37 2 POWER-MINI 2SK2615 A Toshiba 2SK2637 20 0.025 8 SOP-8(Single) TPC8008 A Sanyo 2SK2661 500 1.5 5 TO-220AB 2SK2661 A Toshiba 2SK2662 500 1.5 5 TO-220IS 2SK2662 A Toshiba 2SK2679 400 1.2 5.5 TO-220IS 2SK2679 A Toshiba 2SK2698 500 0.4 15 TO-3P(N) 2SK2698 A Toshiba Revised 1Q '99 - 3 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement 2SK2699 600 0.65 12 TO-3P(N) 2SK2699 A Toshiba 2SK2700 900 4.3 3 TO-220IS 2SK2700 A Toshiba 2SK2717 900 2.5 5 TO-220IS 2SK2717 A Toshiba 2SK2718 900 6.4 2.5 TO-220IS 2SK2718 A Toshiba 2SK2719 900 4.3 3 TO-3P(N) 2SK2719 A Toshiba 2SK2733 900 9 1 TO-220AB 2SK2733 A Toshiba 2SK2741 60 0.16 5 SP 2SK2741 A Toshiba 2SK2742 100 0.35 3 SP 2SK2742 A Toshiba 2SK2744 50 0.02 45 TO-3P(N) 2SK2744 A Toshiba 2SK2745 50 0.0095 50 TO-3P(N) 2SK2745 A Toshiba 2SK2746 800 1.7 7 TO-3P(N) 2SK2746 A Toshiba 2SK2749 900 2 7 TO-3P(N) 2SK2749 A Toshiba 2SK2750 600 2.2 3.5 TO-220IS 2SK2750 A Toshiba 2SK2776 500 0.85 8 TO-220FL/SM 2SK2776 A Toshiba 2SK2777 600 1.25 6 TO-220FL/SM 2SK2777 A Toshiba 2SK2782 60 0.055 20 DP 2SK2782 A Toshiba 2SK2789 100 0.085 27 TO-220FL/SM 2SK2789 A Toshiba 2SK2835 200 0.8 5 TPS 2SK2835 A Toshiba 2SK2836 600 9 1 SP 2SK2836 A Toshiba 2SK2837 500 0.27 20 TO-3P(N) 2SK2837 A Toshiba 2SK2838 400 1.2 5.5 TO-220FL/SM 2SK2838 A Toshiba 2SK2839 30 0.04 10 SP 2SK2839 A Toshiba 2SK2840 250 1 4.5 TO-220IS 2SK2840 A Toshiba 2SK2841 400 0.55 10 TO-220AB 2SK2841 A Toshiba 2SK2842 500 0.52 12 TO-220IS 2SK2842 A Toshiba 2SK2843 600 0.75 10 TO-220IS 2SK2843 A Toshiba 2SK2844 30 0.02 35 TO-220AB 2SK2844 A Toshiba 2SK2845 900 9 1 DP 2SK2845 A Toshiba 2SK2846 600 5 2 TPS 2SK2846 A Toshiba 2SK2847 900 1.4 8 TO-3P(N)IS 2SK2847 A Toshiba 2SK2859 100 0.4 2 SOP-8(Single) Sanyo 2SK2862 500 3 2 TO-220IS 2SK2862 A Toshiba 2SK2865 600 5 2 POWER MOLD 2SK2865 A Toshiba 2SK2866 600 0.75 10 TO-220AB 2SK2866 A Toshiba 2SK2882 150 0.12 18 TO-220IS 2SK2882 A Toshiba 2SK2883 800 3.6 3 TO-220FL/SM 2SK2883 A Toshiba 2SK2884 800 2.2 5 TO-220FL/SM 2SK2884 A Toshiba 2SK2886 50 0.02 45 TO-220IS 2SK2886 A Toshiba 2SK2889 600 0.75 10 TO-220FL/SM 2SK2889 A Toshiba 2SK2914 250 0.5 8.5 TO-220AB 2SK2914 A Toshiba 2SK2915 600 0.4 16 TO-3P(N) 2SK2915 A Toshiba 2SK2916 500 0.4 14 TO-3P(N)IS 2SK2916 A Toshiba 2SK2917 500 0.27 18 TO-3P(N)IS 2SK2917 A Toshiba 2SK2920 200 0.8 5 POWER MOLD 2SK2920 A Toshiba 2SK2949 400 0.55 10 TO-220FL/SM 2SK2949 A Toshiba 2SK2952 400 0.55 8.5 TO-220IS 2SK2952 A Toshiba 2SK2953 600 0.4 15 TO-3P(N)IS 2SK2953 A Toshiba 2SK2961 60 0.27 2 TO-92MOD 2SK2961 A Toshiba 2SK2962 100 0.7 1 TO-92MOD 2SK2962 A Toshiba 2SK2963 100 0.7 1 POWER-MINI 2SK2963 A Toshiba Revised 1Q '99 - 4 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement 2SK2964 30 0.17 2 POWER-MINI 2SK2964 A Toshiba 2SK2965 200 0.26 11 TO-220IS 2SK2965 A Toshiba 2SK2966 250 0.32 10 TO-220IS 2SK2966 A Toshiba 2SK2967 250 0.07 30 TO-3P(N) 2SK2967 A Toshiba 2SK2968 900 1.25 10 TO-3P(N) 2SK2968 A Toshiba 2SK2985 60 0.0058 45 TO-220IS 2SK2985 A Toshiba 2SK2986 60 0.0058 45 TO-220FL/SM 2SK2986 A Toshiba 2SK2987 60 0.0058 70 TO-3P(N) 2SK2987 A Toshiba 2SK2989 50 0.15 5 TO-92MOD 2SK2989 A Toshiba 2SK2991 500 1.5 5 TO-220FL/SM 2SK2991 A Toshiba 2SK2992 200 3.5 1 POWER-MINI 2SK2992 A Toshiba 2SK2993 250 0.11 20 TO-220FL/SM 2SK2993 A Toshiba 2SK2995 250 0.07 30 TO-3P(N)IS 2SK2995 A Toshiba 2SK2996 600 1 10 TO-220IS 2SK2996 A Toshiba 2SK2997 800 8 1.5 DP 2SK2997 A Toshiba 2SK2998 500 18 0.5 TO-92MOD 2SK2998 A Toshiba 2SK3017 900 1.25 8 TO-3P(N)IS 2SK3017 A Toshiba 2SK3051 60 0.03 45 TO-220FL/SM 2SK2266 A Toshiba 2SK3067 600 5 2 TO-220IS 2SK3067 A Toshiba 2SK3068 500 0.52 12 TO-220FL/SM 2SK3068 A Toshiba 2SK3085 600 2.2 3.5 TO-220AB 2SK3085 A Toshiba 2SK3088 900 4.3 3 TO-220FL/SM 2SK3088 A Toshiba 2SK3089 30 0.03 40 TO-220FL/SM 2SK3089 A Toshiba 2SK3090 30 0.02 45 TO-220FL/SM 2SK3090 A Toshiba 2SK3117 500 0.27 20 TO-3P(SM) 2SK3117 A Toshiba 2SK3125 30 0.007 60 TO-3P(SM) 2SK3125 A Toshiba 2SK3126 450 0.65 10 TO-220IS 2SK3126 A Toshiba 2SK3127 30 0.011 45 TO-220FL/SM 2SK3127 A Toshiba 2SK3128 30 0.011 60 TO-3P(N) 2SK3128 A Toshiba 2SK3176 200 0.052 30 TO-3P(N) 2SK3176 A Toshiba BS107 200 26 0.13 TO-92 Siemens BS170 60 5 0.5 0.83 TO-92 Fairchild BS170 60 5 0.3 TO-92 Siemens BS270 60 2 0.4 0.625 TO-92 Fairchild BSO307N 30 0.075 4.2 SOP-8(Single) TPC8004 A Siemens BSO615N 60 0.15 2.6 SOP-8(Single) Siemens BSO615NV 60 0.12 3.1 SOP-8(Single) Siemens BSP123 100 6.00 0.38 1.7 SOT223 Siemens BSP125 600 45.00 0.11 1.5 SOT223 2SK2836 A Siemens BSP129 240 20.00 0.19 1.5 SOT223 2SK2836 A Siemens BSP135 600 60.00 0.1 1.5 SOT223 2SK2836 A Siemens BSP149 200 3.50 0.44 1.5 SOT223 Siemens BSP17 50 0.10 2.9 1.5 SOT223 2SK2741 A Siemens BSP170 -60 0.35 1.7 SOT-223 2SJ482 A Siemens BSP171 -60 0.35 1.7 1.5 SOT223 2SJ482 A Siemens BSP295 50 0.30 1.7 1.5 SOT223 2SK2741 A Siemens BSP296 100 0.80 1 1.5 SOT223 2SK2742 A Siemens BSP297 200 2.00 0.6 1.5 SOT223 Siemens BSP298 400 3.00 0.45 1.5 SOT223 Siemens BSP299 500 4.00 0.4 1.5 SOT223 Siemens Revised 1Q '99 - 5 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BSP300 800 20 0.19 SOT-223 Siemens BSP315 -50 0.80 1 1.5 SOT223 Siemens BSP316 -100 2.20 0.6 1.5 SOT223 2SJ508 B Siemens BSP317 -200 6.00 0.34 1.5 SOT223 Siemens BSP318 60 0.15 2.4 1.5 SOT223 2SK2741 A Siemens BSP318S 60 0.15 2.6 SOT-223 2SK2741 A Siemens BSP319 50 0.07 3.8 1.5 SOT223 2SK2741 A Siemens BSP320S 60 0.12 2.9 SOT-223 2SK2741 A Siemens BSP324 400 25.00 0.16 1.5 SOT223 2SK2836 A Siemens BSP372 100 0.30 1.7 1.8 SOT223 2SK2742 A Siemens BSP373 100 0.30 1.7 1.8 SOT223 2SK2742 A Siemens BSP88 240 8 0.32 SOT-223 2SK2836 A Siemens BSP89 240 6 0.36 SOT-223 2SK2836 A Siemens BSP92 -240 20 0.2 SOT-223 Siemens BSS100 100 6 0.22 0.63 TO-92 Fairchild BSS100 100 6 0.22 TO-92 Siemens BSS101 240 16 0.13 TO-92 Siemens BSS110 -50 10 -0.17 0.63 TO-92 Fairchild BSS110 -50 10 0.1 TO-92 Siemens BSS119 100 6 0.17 SOT-23 Siemens BSS123 100 6 0.17 0.36 SOT-23 Fairchild BSS123 100 6 0.17 SOT-23 Siemens BSS124 400 28 0.12 TO-92 Siemens BSS125 600 45 0.1 TO-92 Siemens BSS129 240 20 0.15 TO-92 Siemens BSS131 240 16 0.1 SOT-23 Siemens BSS135 600 60 0.08 TO-92 Siemens BSS138 50 3.5 0.22 0.36 SOT-23 Fairchild BSS138 50 3.5 0.22 SOT-23 Siemens BSS139 250 100 0.04 SOT-23 Siemens BSS145 65 3.5 0.22 SOT-23 Siemens BSS149 200 3.5 0.35 TO-92 Siemens BSS159 50 8 0.16 SOT-23 Siemens BSS169 100 12 0.12 SOT-23 Siemens BSS192 -240 20.00 0.15 1 SOT89 Siemens BSS229 250 100 0.07 TO-92 Siemens BSS284 -50 10 0.13 SOT-23 Siemens BSS295 50 0.3 1.4 TO-92 Siemens BSS296 100 0.8 0.8 TO-92 Siemens BSS297 200 2 0.48 TO-92 Siemens BSS7728 60 7.5 0.15 SOT-23 Siemens BSS84 -50 10 -0.13 0.36 SOT-23 Fairchild BSS84 -50 10 0.13 SOT-23 Siemens BSS87 240 6.00 0.29 1 SOT89 Siemens BSS92 -240 20 0.1 TO-92 Siemens BSS98 50 3.5 0.3 TO-92 Siemens BUK444-200A 200 0.4 5.3 25 TO-220IS 2SK2350 A Philips BUK444-200B 200 0.5 4.7 25 TO-220IS 2SK2350 A Philips BUK444-800A 800 6 1.4 30 TO-220IS 2SK2603 B Philips BUK444-800B 800 8 1.2 30 TO-220IS 2SK2997 B Philips Revised 1Q '99 - 6 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUK445-200A 200 0.23 7.6 30 TO-220IS 2SK2382 A Philips BUK445-200B 200 0.28 7 30 TO-220IS 2SK2965 A Philips BUK446-1000B 1000 5 1.5 30 TO-220IS 2SK1119 B Philips BUK446-800A 800 3 2 30 TO-220IS 2SK2603 B Philips BUK446-800B 800 4 1.7 30 TO-220IS 2SK2603 B Philips BUK452-100A 100 0.25 11 60 TO220AB 2SK2399 B Philips BUK452-100B 100 0.3 10 60 TO220AB Philips BUK452-60A 60 0.13 15 60 TO220AB 2SK2231 B Philips BUK452-60B 60 0.15 14 60 TO220AB 2SK2231 B Philips BUK453-100A 100 0.16 14 75 TO220AB 2SK2314 A Philips BUK453-100B 100 0.2 13 75 TO220AB 2SK2399 B Philips BUK453-60A 60 0.08 22 75 TO220AB 2SK2232 B Philips BUK453-60B 60 0.1 20 75 TO220AB 2SK2232 B Philips BUK454-200A 200 0.4 9.2 90 TO220AB YTA630 A Philips BUK454-200B 200 0.5 8.2 90 TO220AB YTA630 A Philips BUK454-60H 60 0.038 41 125 TO220AB 2SK2385 B Philips BUK454-800A 800 6 2.4 100 TO220AB 2SK2603 A Philips BUK454-800B 800 8 2 100 TO220AB 2SK2997 B Philips BUK455-100A 100 0.08 26 125 TO220AB 2SK2314 A Philips BUK455-100B 100 0.1 23 125 TO220AB 2SK2314 A Philips BUK455-200A 200 0.23 14 125 TO220AB YTA640 A Philips BUK455-200B 200 0.28 13 125 TO220AB 2SK2965 B Philips BUK455-60A 60 0.038 41 125 TO220AB 2SK2385 B Philips BUK455-60B 60 0.045 38 125 TO220AB 2SK2232 B Philips BUK455-60H 60 0.03 43 125 TO220AB 2SK2385 B Philips BUK456-1000B 1000 5 3.1 125 TO220AB 2SK1119 A Philips BUK456-100A 100 0.057 34 150 TO220AB 2SK2466 B Philips BUK456-100B 100 0.065 32 150 TO220AB 2SK2314 A Philips BUK456-200A 200 0.16 19 150 TO220AB YTA640 A Philips BUK456-200B 200 0.2 17 150 TO220AB YTA640 A Philips BUK456-60A 60 0.028 52 150 TO220AB 2SK2385 B Philips BUK456-60B 60 0.03 51 150 TO220AB 2SK2385 B Philips BUK456-60H 60 0.02 60 150 TO220AB 2SK2312 B Philips BUK456-800A 800 3 4 125 TO220AB 2SK2603 A Philips BUK456-800B 800 4 3.5 125 TO220AB 2SK2603 A Philips BUK462-100A 100 0.25 11 60 D2PAK 2SK2399 B Philips BUK462-60A 60 0.13 15 60 D2PAK 2SK2231 B Philips BUK463-100A 100 0.16 14 75 D2PAK 2SK2789 A Philips BUK463-60A 60 0.08 22 75 D2PAK 2SK2311 A Philips BUK464-200A 200 0.4 9.2 90 D2PAK 2SK2401 A Philips BUK464-60H 60 0.038 41 125 D2PAK 2SK2266 A Philips BUK465-100A 100 0.08 26 125 D2PAK 2SK2789 A Philips BUK465-200A 200 0.23 14 125 D2PAK 2SK2401 A Philips BUK465-60A 60 0.038 41 125 D2PAK 2SK2266 A Philips BUK465-60H 60 0.03 43 125 D2PAK 2SK2266 A Philips BUK466-100A 100 0.057 34 150 D2PAK 2SK2466 B Philips BUK466-200A 200 0.16 19 150 D2PAK 2SK2401 A Philips BUK466-60A 60 0.028 52 150 D2PAK 2SK2266 A Philips BUK466-60H 60 0.02 60 150 D2PAK 2SK2376 A Philips BUK472-100A 100 0.25 6.6 22 TO-220IS 2SK2399 B Philips Revised 1Q '99 - 7 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUK472-100B 100 0.3 6.1 22 TO-220IS Philips BUK472-60A 60 0.13 10 22 TO-220IS 2SK2231 B Philips BUK472-60B 60 0.15 9.2 22 TO-220IS 2SK2231 B Philips BUK473-100A 100 0.16 9 25 TO-220IS 2SK2391 A Philips BUK473-100B 100 0.2 8 25 TO-220IS 2SK2399 B Philips BUK473-60A 60 0.08 13 25 TO-220IS 2SK2232 A Philips BUK473-60B 60 0.1 12 25 TO-220IS 2SK2232 A Philips BUK474-200A 200 0.4 5.3 25 TO-220IS 2SK2350 A Philips BUK474-200B 200 0.5 4.7 25 TO-220IS 2SK2350 A Philips BUK474-60H 60 0.038 21 30 TO-220IS 2SK2385 A Philips BUK475-100A 100 0.08 14 30 TO-220IS 2SK2391 A Philips BUK475-100B 100 0.1 12 30 TO-220IS 2SK2391 A Philips BUK475-200A 200 0.23 7.6 30 TO-220IS 2SK2382 A Philips BUK475-200B 200 0.28 7 30 TO-220IS 2SK2965 A Philips BUK475-60A 60 0.038 21 30 TO-220IS 2SK2385 A Philips BUK475-60B 60 0.045 20 30 TO-220IS 2SK2232 A Philips BUK475-60H 60 0.03 22.5 30 TO-220IS 2SK2385 A Philips BUK481-100A 100 0.8 1 1.5 SOT223 2SK2742 A Philips BUK481-60A 60 0.35 1.6 1.5 SOT223 2SK2741 A Philips BUK482-100A 100 0.28 1.8 1.8 SOT223 2SK2742 A Philips BUK482-200A 200 0.9 2 8.3 SOT223 Philips BUK482-60A 60 0.13 2.5 1.7 SOT223 2SK2741 A Philips BUK483-60A 60 0.1 3.2 1.8 SOT223 Philips BUK542-100A 100 0.28 6.3 22 TO-220IS 2SK2399 B Philips BUK542-100B 100 0.35 5.6 22 TO-220IS Philips BUK542-60A 60 0.15 9.2 22 TO-220IS 2SK2231 B Philips BUK542-60B 60 0.18 8.4 22 TO-220IS 2SK2231 B Philips BUK543-100A 100 0.18 8.3 25 TO-220IS 2SK2391 A Philips BUK543-100B 100 0.22 7.5 25 TO-220IS 2SK2399 B Philips BUK543-60A 60 0.085 13 25 TO-220IS 2SK2232 A Philips BUK543-60B 60 0.1 12 25 TO-220IS 2SK2232 A Philips BUK545-100A 100 0.085 13 30 TO-220IS 2SK2391 A Philips BUK545-100B 100 0.11 12 30 TO-220IS 2SK2391 A Philips BUK545-200A 200 0.23 7.6 30 TO-220IS 2SK2382 A Philips BUK545-200B 200 0.28 7 30 TO-220IS 2SK2965 A Philips BUK545-60A 60 0.042 20 30 TO-220IS 2SK2232 A Philips BUK545-60B 60 0.055 18 30 TO-220IS 2SK2232 A Philips BUK545-60H 60 0.038 21 30 TO-220IS 2SK2385 A Philips BUK552-100A 100 0.28 10 60 TO220AB 2SK2399 B Philips BUK552-100B 100 0.35 8.5 60 TO220AB Philips BUK552-60A 60 0.15 14 60 TO220AB 2SK2231 B Philips BUK552-60B 60 0.18 13 60 TO220AB 2SK2231 B Philips BUK553-100A 100 0.18 13 75 TO220AB 2SK2314 A Philips BUK553-100B 100 0.22 12 75 TO220AB 2SK2399 B Philips BUK553-48C 48 0.085 21 75 TO220AB Philips BUK553-60A 60 0.085 21 75 TO220AB 2SK2232 B Philips BUK553-60B 60 0.1 20 75 TO220AB 2SK2232 B Philips BUK554-200A 200 0.4 9.2 90 TO220AB YTA630 A Philips BUK554-200B 200 0.5 8.2 90 TO220AB YTA630 A Philips BUK554-60H 60 0.042 39 125 TO220AB 2SK2232 B Philips Revised 1Q '99 - 8 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUK555-100A 100 0.085 25 125 TO220AB 2SK2314 A Philips BUK555-100B 100 0.11 22 125 TO220AB 2SK2314 A Philips BUK555-200A 200 0.23 14 125 TO220AB YTA640 A Philips BUK555-200B 200 0.28 13 125 TO220AB 2SK2965 B Philips BUK555-60A 60 0.042 39 125 TO220AB 2SK2232 B Philips BUK555-60B 60 0.055 35 125 TO220AB 2SK2232 B Philips BUK555-60H 60 0.038 41 125 TO220AB 2SK2385 B Philips BUK556-60A 60 0.026 50 150 TO220AB 2SK2385 B Philips BUK556-60H 60 0.022 60 150 TO220AB 2SK2312 B Philips BUK562-100A 100 0.28 10 60 D2PAK 2SK2399 B Philips BUK-562A 60 0.15 14 60 D2PAK 2SK2231 B Philips BUK563-100A 100 0.18 13 75 D2PAK 2SK2789 A Philips BUK563-48C 48 0.085 21 75 D2PAK Philips BUK563-60A 60 0.085 21 75 D2PAK 2SK2311 A Philips BUK564-200A 200 0.4 9.2 90 D2PAK 2SK2401 A Philips BUK564-60H 60 0.042 39 125 D2PAK 2SK2311 A Philips BUK565-100A 100 0.085 14 30 D2PAK 2SK2789 A Philips BUK565-200A 200 0.23 14 125 D2PAK 2SK2401 A Philips BUK565-60A 60 0.042 39 125 D2PAK 2SK2311 A Philips BUK565-60H 60 0.038 41 125 D2PAK 2SK2266 A Philips BUK566-60A 60 0.026 50 150 D2PAK 2SK2266 A Philips BUK566-60H 60 0.022 60 150 D2PAK 2SK2376 A Philips BUK573-48C 48 0.085 13 50 TO-220IS Philips BUK574-60H 60 0.042 20 30 TO-220IS 2SK2232 A Philips BUK581-100A 100 0.9 0.9 1.5 SOT223 Philips BUK581-60A 60 0.4 1.5 1.5 SOT223 2SK2741 A Philips BUK582-100A 100 0.31 1.7 1.8 SOT223 2SK2742 A Philips BUK582-60A 60 0.15 2.7 1.7 SOT223 2SK2741 A Philips BUK583-60A 60 0.1 3.2 1.8 SOT223 Philips BUK7508-55 55 0.008 75 187 TO220AB 2SK2985 B Philips BUK7514-55 55 0.014 68 142 TO220AB 2SK2312 B Philips BUK7518-55 55 0.018 57 125 TO220AB 2SK2312 B Philips BUK7520-55 55 0.02 52 115 TO220AB 2SK2312 B Philips BUK7524-55 55 0.024 45 103 TO220AB 2SK2385 B Philips BUK7530-55 55 0.03 30 75 TO220AB 2SK2385 B Philips BUK7540-55 55 0.04 10.7 8.3 SOT223 Philips BUK7570-55 55 0.07 19 60 TO220AB 2SK2232 B Philips BUK7608-55 55 0.008 75 187 D2PAK 2SK2986 A Philips BUK7614-55 55 0.014 68 142 D2PAK 2SK2376 A Philips BUK7618-55 55 0.018 57 125 D2PAK 2SK2376 A Philips BUK7620-55 55 0.02 52 115 D2PAK 2SK2376 A Philips BUK7624-55 55 0.024 45 103 D2PAK 2SK2266 A Philips BUK7630-55 55 0.03 30 75 D2PAK 2SK2266 A Philips BUK7670-55 55 0.07 19 60 D2PAK 2SK2311 A Philips BUK78150-55 55 0.15 5.5 8.3 SOT223 2SK2741 A Philips BUK7880-55 55 0.08 7.5 8.3 SOT223 Philips BUK9508-55 55 0.008 75 187 TO220AB 2SK2985 B Philips BUK9514-55 55 0.014 68 142 TO220AB 2SK2312 B Philips BUK9518-55 55 0.018 57 125 TO220AB 2SK2312 B Philips BUK9520-55 55 0.02 52 115 TO220AB 2SK2312 B Philips Revised 1Q '99 - 9 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUK9524-55 55 0.024 45 103 TO220AB 2SK2385 B Philips BUK9530-55 55 0.03 30 75 TO220AB 2SK2385 B Philips BUK9570-55 55 0.07 19 60 TO220AB 2SK2232 B Philips BUK9608-55 55 0.008 75 187 D2PAK 2SK2986 A Philips BUK9614-55 55 0.014 68 142 D2PAK 2SK2376 A Philips BUK9618-55 55 0.018 57 125 D2PAK 2SK2376 A Philips BUK9620-55 55 0.02 52 115 D2PAK 2SK2376 A Philips BUK9624-55 55 0.024 45 103 D2PAK 2SK2266 A Philips BUK9630-55 55 0.03 30 75 D2PAK 2SK2266 A Philips BUK9670-55 55 0.07 19 60 D2PAK 2SK2311 A Philips BUK98150-55 55 0.15 5.5 8.3 SOT223 2SK2741 A Philips BUK9840-55 55 0.04 10.7 8.3 SOT223 Philips BUK9880-55 55 0.08 7.5 8.3 SOT223 Philips BUZ10 50 0.07 23 75 TO-220AB 2SK2507 B Siemens BUZ100 50 0.018 58 TO-220AB 2SK2886 B Siemens BUZ100L 50 0.018 60 TO-220AB 2SK2886 B Siemens BUZ100S 55 0.015 77 TO-220AB 2SK2312 B Siemens BUZ100SL 55 0.018 70 TO-220AB 2SK2312 B Siemens BUZ101 50 0.06 25 100 TO-220AB 2SK2507 B Siemens BUZ101L 50 0.06 29 TO-220AB 2SK2507 B Siemens BUZ101S 55 0.06 23 TO-220AB 2SK2232 B Siemens BUZ101SL 55 0.07 21 TO-220AB 2SK2232 B Siemens BUZ102 50 0.023 42 180 TO-220AB 2SK2886 B Siemens BUZ102AL 50 0.028 42 TO-220AB 2SK2886 B Siemens BUZ102S 55 0.023 52 TO-220AB 2SK2312 B Siemens BUZ102SL 55 0.028 47 TO-220AB 2SK2385 B Siemens BUZ103 50 0.04 40 120 TO-220AB 2SK2385 B Siemens BUZ103AL 50 0.05 35 TO-220AB 2SK2507 B Siemens BUZ103S 55 0.04 31 TO-220AB 2SK2232 B Siemens BUZ103SL 55 0.05 28 TO-220AB 2SK2232 B Siemens BUZ104 50 0.1 17.5 60 TO-220AB 2SK2507 B Siemens BUZ104L 50 0.1 17.5 TO-220AB 2SK2507 B Siemens BUZ104S 55 0.1 14 TO-220AB 2SK2232 B Siemens BUZ104SL 55 0.12 12.8 TO-220AB 2SK2232 B Siemens BUZ10L 50 0.07 23 75 TO-220AB 2SK2507 B Siemens BUZ10S2 60 0.07 23 75 TO-220AB 2SK2232 B Siemens BUZ11 50 0.04 30 75 TO-220AB 2SK2507 B Siemens BUZ110S 55 0.012 80 TO-220AB Siemens BUZ110SL 55 0.015 80 TO-220AB 2SK2312 B Siemens BUZ111S 55 0.008 80 TO-220AB 2SK2985 B Siemens BUZ111SL 55 0.01 80 TO-220AB Siemens BUZ11A 50 0.055 26 75 TO-220AB 2SK2507 B Siemens BUZ11AL 50 0.055 26 75 TO-220AB 2SK2507 B Siemens BUZ11FI 50 0.04 21 40 TO-220IS 2SK2385 A ST BUZ11S2 60 0.04 30 75 TO-220AB 2SK2385 B Siemens BUZ12 50 0.028 42 125 TO-220AB 2SK2886 B Siemens BUZ12A 50 0.035 42 125 TO-220AB 2SK2886 B Siemens BUZ12AL 50 0.035 42 125 TO-220AB 2SK2886 B Siemens BUZ171 -50 0.3 -8 40 TO-220AB 2SJ438 B Siemens BUZ172 -100 0.6 -5.5 40 TO-220AB Siemens Revised 1Q '99 - 10 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUZ173 -200 1.5 -3 40 TO-220AB 2SJ407 B Siemens BUZ20 100 0.2 13.5 75 TO-220AB 2SK2399 B Siemens BUZ205 400 1 6 75 TO-220AB 2SK2679 B Siemens BUZ21 100 0.085 21 75 TO-220AB 2SK2314 A Siemens BUZ215 500 1.5 5.1 75 TO-220AB 2SK2661 A Siemens BUZ21L 100 0.085 21 75 TO-220AB 2SK2314 A Siemens BUZ22 100 0.055 34 125 TO-220AB 2SK2466 B Siemens BUZ255 250 0.24 13 95 TO-220AB 2SK2508 B Siemens BUZ271 -50 0.15 -22 40 TO-220AB 2SJ464 B Siemens BUZ272 -100 0.3 -15 40 TO-220AB 2SJ380 B Siemens BUZ305 800 1 7.5 150 TO-218 2SK2607 A Siemens BUZ307 800 3 3 75 TO-218 2SK2603 B Siemens BUZ308 800 4 2.6 75 TO-218 2SK2603 B Siemens BUZ30A 200 0.13 21 125 TO-220AB YTA640 A Siemens BUZ31 200 0.2 13.5 75 TO-220AB YTA640 A Siemens BUZ310 1000 5 2.5 75 TO-218 2SK1359 A Siemens BUZ311 1000 6 2.3 75 TO-218 2SK1359 A Siemens BUZ312 1000 1.5 6 150 TO-218 2SK2613 A Siemens BUZ31L 200 0.2 13.5 75 TO-220AB YTA640 A Siemens BUZ32 200 0.4 9.5 75 TO-220AB YTA630 A Siemens BUZ323 400 0.3 15 170 TO-218 2SK2837 A Siemens BUZ325 400 0.35 12.5 125 TO-218 2SK2698 A Siemens BUZ326 400 0.5 10.5 125 TO-218 2SK2841 B Siemens BUZ330 500 0.6 9.5 125 TO-218 2SK2842 B Siemens BUZ331 500 0.8 8 125 TO-218 2SK2601 A Siemens BUZ332 600 0.8 8.5 150 TO-218 2SK2699 A Siemens BUZ332A 600 0.9 8 150 TO-218 2SK2699 A Siemens BUZ333 500 0.4 13.5 170 TO-218 2SK2698 A Siemens BUZ334 600 0.5 12 180 TO-218 2SK2915 A Siemens BUZ338 500 0.4 13.5 TO-218 2SK2698 A Siemens BUZ339 500 0.5 11.5 170 TO-218 2SK2698 A Siemens BUZ341 200 0.07 33 170 TO-218 2SK3176 A Siemens BUZ342 50 0.01 60 400 TO-218 2SK2551 A Siemens BUZ344 100 0.035 46 170 TO-218 2SK1381 A Siemens BUZ345 100 0.045 41 150 TO-218 2SK2466 B Siemens BUZ346 50 0.018 58 125 TO-218 2SK2744 A Siemens BUZ346S2 60 0.018 58 170 TO-218 2SK2173 A Siemens BUZ347 50 0.03 45 125 TO-218 2SK2550 A Siemens BUZ349 100 0.06 32 125 TO-218 2SK2466 B Siemens BUZ350 200 0.12 22 125 TO-218 2SK2382 B Siemens BUZ351 400 0.4 11.5 TO-218 2SK2698 A Harris BUZ355 800 1.5 6 125 TO-218 2SK2746 A Siemens BUZ356 800 2 5 125 TO-218 2SK2604 A Siemens BUZ357 1000 2 5 125 TO-218 2SK1120 A Siemens BUZ358 1000 2.6 4.5 125 TO-218 2SK1120 A Siemens BUZ380 1000 2 5.5 125 TO-218 2SK1120 A Siemens BUZ382 400 0.4 12.5 125 TO-218 2SK2698 A Siemens BUZ384 500 0.6 10.5 125 TO-218 2SK2842 B Siemens BUZ385 500 0.8 9 125 TO-218 2SK2601 A Siemens BUZ40B 500 0.8 8 150 TO-220AB 2SK2542 A Siemens Revised 1Q '99 - 11 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUZ41A 500 1.5 4.5 75 TO-220AB 2SK2661 A Siemens BUZ42 500 2 4 75 TO-220AB 2SK2661 A Siemens BUZ50A 1000 5 2.5 75 TO-220AB 2SK1119 A Siemens BUZ50B 1000 8 2 75 TO-220AB 2SK1119 A Siemens BUZ50C 1000 6 2.3 75 TO-220AB 2SK1119 A Siemens BUZ51 1000 4 3.4 125 TO-220AB 2SK1119 A Siemens BUZ60 400 1 5.5 75 TO-220AB 2SK2679 B Siemens BUZ60B 400 1.5 4.5 TO-220AB 2SK2679 B Harris BUZ61 400 0.4 12.5 150 TO-220AB 2SK2841 A Siemens BUZ61A 400 0.5 11 150 TO-220AB 2SK2841 A Siemens BUZ70 60 0.15 12 40 TO-220AB 2SK2231 B Siemens BUZ70L 60 0.15 12 40 TO-220AB 2SK2231 B Siemens BUZ71 50 0.1 14 40 TO-220AB 2SK2507 B Siemens BUZ71A 50 0.12 13 40 TO-220AB 2SK2507 B Siemens BUZ71AFI 50 0.12 11 35 TO-220IS 2SK2507 A ST BUZ71AL 50 0.12 13 40 TO-220AB 2SK2507 B Siemens BUZ71FI 50 0.1 12 35 TO-220IS 2SK2507 A ST BUZ71L 50 0.1 14 40 TO-220AB 2SK2507 B Siemens BUZ71S2 60 0.1 14 40 TO-220AB 2SK2232 B Siemens BUZ72 100 0.2 10 40 TO-220AB 2SK2399 B Siemens BUZ72A 100 0.25 9 40 TO-220AB 2SK2399 B Siemens BUZ72A 100 0.25 11 TO-220 2SK2399 B ST BUZ72AL 100 0.25 9 40 TO-220AB 2SK2399 B Siemens BUZ72L 100 0.2 10 40 TO-220AB 2SK2399 B Siemens BUZ73 200 0.4 7 40 TO-220AB YTA630 A Siemens BUZ73A 200 0.6 5.8 40 TO-220AB YTA630 A Siemens BUZ73AL 200 0.6 5.8 40 TO-220AB YTA630 A Siemens BUZ73L 200 0.4 7 40 TO-220AB YTA630 A Siemens BUZ74 500 3 2.4 40 TO-220AB 2SK2862 B Siemens BUZ74A 500 4 2.1 40 TO-220AB 2SK2862 B Siemens BUZ76 400 1.8 3 40 TO-220AB 2SK2679 B Siemens BUZ76A 400 2.5 2.6 40 TO-220AB 2SK2862 B Siemens BUZ77A 600 4 2.7 75 TO-220AB 2SK3067 B Siemens BUZ77B 600 3.5 2.9 75 TO-220AB 2SK3085 A Siemens BUZ78 800 8 1.5 40 TO-220AB 2SK2997 B Siemens BUZ80 800 4 2.6 75 TO-220AB 2SK2603 A Siemens BUZ80A 800 3 3 75 TO-220AB 2SK2603 A Siemens BUZ80AFI 800 3 2.4 40 TO-220IS 2SK2603 B ST BUZ80FI 800 4 2.1 40 TO-220IS 2SK2603 B ST BUZ81 800 2.5 4 125 TO-220AB 2SK2605 B Siemens BUZ90 600 1.6 4.5 75 TO-220AB 2SK2544 A Siemens BUZ90A 600 2 4 75 TO-220AB 2SK3085 A Siemens BUZ91 600 0.8 8.5 150 TO-220AB 2SK2866 A Siemens BUZ91A 600 0.9 8 150 TO-220AB 2SK2866 A Siemens BUZ92 600 3 3.2 75 TO-220AB 2SK3085 A Siemens BUZ93 600 2.5 3.6 75 TO-220AB 2SK2750 B Siemens F10H3N* 30 0.015 10 SOP-8(Single) TPC8005-H A Shindengen F2H3ND 30 0.18 2.5 SOP-8(Dual) Shindengen F3H3C 30/-30 0.18/0.2 2.5/-2.5 SOP-8(P&N) Shindengen F3H3ND 30 0.11 3 SOP-8(Dual) TPC8201 A Shindengen Revised 1Q '99 - 12 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement F3H3P -30 0.2 -2.5 SOP-8(Single) Shindengen F3H3PD -30 0.2 -2.5 SOP-8(Dual) Shindengen F4H3C 30/-30 0.07/0.15 4/-3.5 SOP-8(P&N) TPC8401 A Shindengen F4H3N 30 0.07 4 SOP-8(Single) TPC8004 A Shindengen F4H3ND 30 0.07 4 SOP-8(Dual) TPC8201 A Shindengen F4H3P -30 0.15 -3.5 SOP-8(Single) Shindengen F4H3PD -30 0.15 -3.5 SOP-8(Dual) TPC8301 A Shindengen F5H2ND 20 0.04 5 SOP-8(Dual) TPC8202 A Shindengen F5H3N 30 0.05 5 SOP-8(Single) TPC8004 A Shindengen F5H3ND 30 0.05 5 SOP-8(Dual) TPC8201 A Shindengen F5H3P -30 0.09 -4.5 SOP-8(Single) TPC8104-H A Shindengen F7H2N 20 0.022 7 SOP-8(Single) TPC8008 A Shindengen F7H3P* -30 0.05 -6.5 SOP-8(Single) TPC8105-H A Shindengen F8H3N 30 0.03 8 SOP-8(Single) TPC8006-H A Shindengen F9H4N 40 0.03 9 SOP-8(Single) Shindengen FA38SA50LC 500 0.13 38 500 SOT-227 IR FA57SA50LC 500 0.08 57 625 SOT-227 IR FDC6301N 25 4 0.22 0.9 SSOT-6(Dual) Fairchild FDC6302P -25 10 -0.12 0.9 SSOT-6(Dual) Fairchild FDC6303N 25 0.45 0.68 0.9 SSOT-6(Dual) Fairchild FDC6304P -25 1.1 -0.46 0.9 SSOT-6(Dual) Fairchild FDC6306P -20 0.16 -1.9 0.9 SSOT-6(Dual) Fairchild FDC6320C 25/-25 4/10 0.22/-0.12 0.9 SSOT-6(P&N) Fairchild FDC6321C 25/-25 0.045/1.1 0.68/-0.46 0.9 SSOT-6(P&N) Fairchild FDC6322C 25/-25 4/1.1 0.22/-0.46 0.9 SSOT-6(P&N) Fairchild FDC633N 30 0.042 5.2 1.6 SSOT-6(Single) Fairchild FDC634P -20 0.08 -3.5 1.6 SSOT-6(Single) Fairchild FDC636P -20 0.13 -2.8 1.6 SSOT-6(Single) Fairchild FDC638P -20 0.05 -4.5 1.6 SSOT-6(Single) Fairchild FDC6506P -30 0.165 -1.8 0.9 SSOT-6(Dual) Fairchild FDC653N 30 0.035 5 1.6 SSOT-6(Single) Fairchild FDC654P -30 0.075 -3.6 1.6 SSOT-6(Single) Fairchild FDC655AN 30 0.027 6.3 1.6 SSOT-6(Single) Fairchild FDC6561AN 30 0.095 2.5 0.9 SSOT-6(Dual) Fairchild FDC658P -30 0.05 -4 1.6 SSOT-6(Single) Fairchild FDG6301N 25 4 0.22 0.3 SC70-6(Dual) Fairchild FDG6302P -25 10 -0.14 0.3 SC70-6(Dual) Fairchild FDG6303N 25 0.45 0.5 0.3 SC70-6(Dual) Fairchild FDG6304P -25 1.1 -0.41 0.3 SC70-6(Dual) Fairchild FDG6320C 25/-25 4/10 0.22/-0.14 0.3 SC70-6(P&N) Fairchild FDG6321C 25/-25 0.45/1.10 0.50/-0.41 0.3 SC70-6(P&N) Fairchild FDG6322C 25/-25 4/1.10 0.22/-0.41 0.3 SC70-6(P&N) Fairchild FDN336P -20 0.2 -1.3 0.5 SOT-23 Fairchild FDN337N 30 0.065 2.2 0.5 SOT-23 Fairchild FDN338P -20 0.13 -1.6 0.5 SOT-23 Fairchild FDN340P -20 0.07 -2 0.5 SOT-23 Fairchild FDN357N 30 0.06 2.2 0.5 SOT-23 Fairchild FDN358P -30 0.125 -1.5 0.5 SOT-23 Fairchild FDN359AN 30 0.044 2.7 0.5 SOT-23 Fairchild FDN360P -30 0.085 -2 0.5 SOT-23 Fairchild Revised 1Q '99 - 13 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement FDP4030L 30 0.035 20 37.5 TO-220AB 2SK2844 A Fairchild FDP6030L 30 0.0135 52 75 TO-220AB 2SK3127 B Fairchild FDP6035AL 30 0.0125 48 58 TO-220AB 2SK3127 B Fairchild FDP6035L 30 0.011 58 75 TO-220AB 2SK3127 B Fairchild FDP603AL 30 0.022 33 50 TO-220AB 2SK2844 A Fairchild FDP6670AL 30 0.0065 80 75 TO-220AB Fairchild FDP7030BL 30 0.009 60 65 TO-220AB 2SK3127 B Fairchild FDP7030L 30 0.007 100 125 TO-220AB Fairchild FDP8030L 30 0.0035 80 187 TO-220AB Fairchild FDPNDP6030 30 0.018 46 75 TO-220AB 2SK2844 A Fairchild FDR4410 30 0.013 9.3 1.8 SSOT-8(Single) Fairchild FDR4420A 30 0.009 11 1.8 SSOT-8(Single) Fairchild FDR8308P -20 0.05 -3.2 0.8 SSOT-8(Dual) Fairchild FDR835N 30 0.015 8.7 1.8 SSOT-8(Single) Fairchild FDR836P -20 0.03 -6.1 1.8 SSOT-8(Single) Fairchild FDR838P -20 0.017 -8.1 1.8 SSOT-8(Single) Fairchild FDR8508P -30 0.052 -3 0.8 SSOT-8(Dual) Fairchild FDR856P -30 0.025 -6.3 1.8 SSOT-8(Single) Fairchild FDR858P -30 0.019 -8 1.8 SSOT-8(Single) Fairchild FDR9410A 30 0.028 5.8 1.8 SSOT-8(Single) Fairchild FDS4435 -30 0.02 -9 2.5 SOP-8(Single) TPC8106-H A Fairchild FDS4953 -30 0.053 -4.9 2 SOP-8(Dual) TPC8303 A Fairchild FDS6575 -20 0.013 -10 2.5 SOP-8(Single) TPC8103 A Fairchild FDS6612A 30 0.022 8.4 SOP-8(Single) TPC8001 A Fairchild FDS6670A 30 0.008 13 SOP-8(Single) TPC8007-H A Fairchild FDS6675 -30 0.014 -11 2.5 SOP-8(Single) TPC8103 A Fairchild FDS6680 30 0.01 11.5 SOP-8(Single) TPC8007-H A Fairchild FDS6680A 30 0.0095 12.5 SOP-8(Single) TPC8007-H A Fairchild FDS6690A 30 0.0125 11 SOP-8(Single) TPC8005-H A Fairchild FDS6875 -20 0.03 -6 2 SOP-8(Dual) Fairchild FDS6912A 30 0.028 6 2 SOP-8(Dual) TPC8203 A Fairchild FDS6930A 30 0.042 4.6 2 SOP-8(Dual) TPC8201 A Fairchild FDS6961A 30 0.09 3.5 2 SOP-8(Dual) TPC8201 A Fairchild FDS6975 -30 0.032 -6 2 SOP-8(Dual) TPC8303 A Fairchild FDS6990A 30 0.018 7.5 2 SOP-8(Dual) TPC8203 A Fairchild FDS8926A 30 0.03 5.5 2 SOP-8(Dual) TPC8203 A Fairchild FDS8928A 30/-20 0.03/0.055 5.5/-4 2 SOP-8(P&N) Fairchild FDS8934A -20 0.055 -4 SOP-8(Dual) Fairchild FDS8936A 30 0.028 6 SOP-8(Dual) TPC8203 A Fairchild FDS8936S 30 0.04 5 SOP-8(Dual) TPC8201 A Fairchild FDS8947A -30 0.052 -4 2 SOP-8(Dual) TPC8303 A Fairchild FDS8958A 30/-30 0.028/0.052 7/-5 2 SOP-8(P&N) TPC8401 A Fairchild FDS9412 30 0.022 7.9 SOP-8(Single) TPC8001 A Fairchild FDS9435A -30 0.045 -5.3 SOP-8(Single) TPC8105-H A Fairchild FDS9933A -20 0.075 -3.8 2 SOP-8(Dual) Fairchild FDS9936A 30 0.04 5.5 2 SOP-8(Dual) TPC8201 A Fairchild FDT457N 30 0.06 5 3 SOT-223 2SK2839 A Fairchild FDT459N 30 0.04 6.5 3 SOT-223 2SK2839 A Fairchild FDT5060 60 0.05 7 3 SOT-223 Fairchild FDT5060L 60 0.04 6 3 SOT-223 Fairchild Revised 1Q '99 - 14 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement FDV301N 25 4 0.22 0.35 SOT-23 2SK2009 A Fairchild FDV302P -25 10 -0.12 0.35 SOT-23 Fairchild FDV303N 25 0.45 0.68 0.35 SOT-23 SSM3K02F A Fairchild FDV304P -25 1.1 -0.46 0.35 SOT-23 Fairchild FSS101 20 0.058 5 SOP-8(Single) Sanyo FSS201 20 0.034 7 SOP-8(Single) TPC8008 A Sanyo FSS202 30 0.032 7 SOP-8(Single) TPC8006-H A Sanyo FSS206 30 0.018 9 SOP-8(Single) TPC8005-H A Sanyo FSS208 30 0.0125 10 SOP-8(Single) TPC8002 A Sanyo FTS1001 -20 -4 TSSOP-8(Single) Sanyo FTS1002 -30 -3 TSSOP-8(Single) TPCS8101 A Sanyo FTS2001 20 5 TSSOP-8(Single) TPCS8002 A Sanyo FTS2002 30 5 TSSOP-8(Single) TPCS8001-H A Sanyo FTS2003 20 4 TSSOP-8(Single) TPCS8002 A Sanyo FTS2004 30 4 TSSOP-8(Single) TPCS8001-H A Sanyo FW101 -12 0.115 -3 SOP-8(Dual) Sanyo FW102 -20 0.1 -3 SOP-8(Dual) TPC8302 A Sanyo FW103 -30 0.125 -3 SOP-8(Dual) TPC8301 A Sanyo FW104 -12 0.4 -2 SOP-8(Dual) Sanyo FW106 -30 0.16 -3 SOP-8(Dual) TPC8301 A Sanyo FW107 -60 0.31 -2 SOP-8(Dual) TPC8304 A Sanyo FW108 -60 0.33 -2 SOP-8(Dual) TPC8304 A Sanyo FW111 -20 0.058 -5 SOP-8(Dual) Sanyo FW201 20 0.05 5 SOP-8(Dual) TPC8202 A Sanyo FW202 20 0.04 5 SOP-8(Dual) TPC8203 A Sanyo FW203 30 0.046 5 SOP-8(Dual) TPC8201 A Sanyo FW204 20 0.2 2 SOP-8(Dual) Sanyo FW206 30 0.074 5 SOP-8(Dual) TPC8201 A Sanyo FW207 60 0.135 3 SOP-8(Dual) TPC8205 A Sanyo FW208 60 0.145 3 SOP-8(Dual) TPC8205 A Sanyo FW211 20 0.035 6 SOP-8(Dual) TPC8204 A Sanyo FW213 30 0.032 6 SOP-8(Dual) TPC8203 A Sanyo FW214 20 0.05 5 SOP-8(Dual) TPC8202 A Sanyo FW215 30 0.046 5 SOP-8(Dual) TPC8201 A Sanyo FW306 30/-30 0.065/0.16 5/-3 SOP-8(P&N) TPC8401 A Sanyo FY10AAJ-03 30 0.0135 10 SOP-8(Single) TPC8005-H A Mitsubishi FY3ABJ-03 -30 0.1 -3 SOP-8(Single) TPC8104-H A Mitsubishi FY5ACH-03A* 30 0.05 5 SOP-8(Single) TPC8004 A Mitsubishi FY6ACH-02A* 20 0.03 6 SOP-8(Single) TPC8008 A Mitsubishi FY7AAJ-03 30 0.03 7 SOP-8(Single) TPC8006-H A Mitsubishi FY8ABJ-03 -30 0.02 -8 SOP-8(Single) TPC8106-H A Mitsubishi HAT1001F -20 0.07 -3.5 SOP-8(Single) Hitachi HAT1002F -30 0.07 -3 SOP-8(Single) TPC8104-H A Hitachi HAT1004F -20 - -3 SOP-8(Single) Hitachi HAT1005F -30 - -3 SOP-8(Single) Hitachi HAT1006F -60 0.14 -2.5 SOP-8(Single) Hitachi HAT1007F -20 - -3.5 SOP-8(Single) Hitachi HAT1008F -30 - -2.5 SOP-8(Single) Hitachi HAT1016R -30 0.09 -4.5 SOP-8(Dual) TPC8301 A Hitachi HAT1020R -30 0.07 -5 SOP-8(Single) TPC8104-H A Hitachi Revised 1Q '99 - 15 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement HAT1021R -20 0.06 -5.5 SOP-8(Single) Hitachi HAT1023R -20 0.04 -7 SOP-8(Single) Hitachi HAT1024R -30 0.34 -3.5 SOP-8(Dual) TPC8301 A Hitachi HAT1025R -20 0.095 -4.5 SOP-8(Dual) TPC8302 A Hitachi HAT1026R -30 0.037 -7 SOP-8(Single) TPC8105-H A Hitachi HAT1030T -12 -3 TSSOP-8(Dual) Hitachi HAT1031T -20 -2.5 TSSOP-8(Dual) Hitachi HAT1033T -20 -2.5 TSSOP-8(Single) Hitachi HAT1036R -30 0.014 -12 SOP-8(Single) TPC8103 A Hitachi HAT2001F 30 0.04 5 SOP-8(Single) TPC8006-H A Hitachi HAT2002F 30 0.04 5 SOP-8(Single) TPC8006-H A Hitachi HAT2003F 30 - 3 SOP-8(Single) Hitachi HAT2004F 15 0.06 4 SOP-8(Dual) Hitachi HAT2005F 15 0.055 5 SOP-8(Single) Hitachi HAT2006F 60 0.06 4 SOP-8(Single) Hitachi HAT2007F 20 0.053 4 SOP-8(Single) Hitachi HAT2016R 30 0.045 6.5 SOP-8(Dual) TPC8201 A Hitachi HAT2019R 30 0.027 8 SOP-8(Single) TPC8006-H A Hitachi HAT2020R 30 0.028 8 SOP-8(Single) TPC8006-H A Hitachi HAT2022R 30 0.015 11 SOP-8(Single) TPC8005-H A Hitachi HAT2024R 30 0.065 5.5 SOP-8(Single) TPC8004 A Hitachi HAT2025R 30 0.026 8 SOP-8(Single) TPC8006-H A Hitachi HAT2026R 20 0.015 11 SOP-8(Single) TPC8008 A Hitachi HAT2027R 20 0.038 7 SOP-8(Dual) TPC8202 A Hitachi HAT2029R 20 0.028 8 SOP-8(Dual) TPC8204 A Hitachi HAT2031T 20 4 TSSOP-8(Dual) TPCS8201 A Hitachi HAT2032T -12 -4 TSSOP-8(Single) Hitachi HAT2036R 30 0.015 12 SOP-8(Single) TPC8005-H A Hitachi HAT2037T 28 4.5 TSSOP-8(Single) TPCS8002 A Hitachi HAT2040R 30 0.008 15 SOP-8(Single) TPC8003 A Hitachi HAT2042T 20 5 TSSOP-8(Dual) TPCS8201 A Hitachi HAT3004R 30/-30 0.045/0.09 5.5/3.5 SOP-8(P&N) TPC8401 A Hitachi HAT3006R 30/-30 0.046/0.09 6.5/4.5 SOP-8(P&N) TPC8401 A Hitachi HRF3205 55 0.008 100 TO-220AB 2SK2985 B Harris HRF3205L 55 0.008 100 TO-262 2SK2986 A Harris HRF3205S/T 55 0.008 100 TO-263 2SK2986 A Harris HUF75307D3 55 0.09 13 TO-251 2SK2782 A Harris HUF75307D3S/T 55 0.09 13 TO-252 2SK2782 A Harris HUF75307P3 55 0.09 13 TO-220AB 2SK2232 B Harris HUF75307T3ST 55 0.09 3.5 SOT-223 Harris HUF75309D3 55 0.07 17 TO-251 2SK2782 A Harris HUF75309D3S/T 55 0.07 17 TO-252 2SK2782 A Harris HUF75309P3 55 0.07 17 TO-220AB 2SK2232 B Harris HUF75309T3ST 55 0.07 4 SOT-223 Harris HUF75321D3 55 0.036 20 TO-251 Harris HUF75321D3S/T 55 0.036 20 TO-252 Harris HUF75321P3 55 0.034 31 TO-220AB 2SK2385 B Harris HUF75321S3 55 0.034 31 TO-262 2SK2266 A Harris HUF75321S3S/T 55 0.034 31 TO-263 2SK2266 A Harris HUF75329D3 55 0.026 20 TO-251 Harris Revised 1Q '99 - 16 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement HUF75329D3S/T 55 0.026 20 TO-252 Harris HUF75329G3 55 0.024 42 TO-247 2SK2233 A Harris HUF75329P3 55 0.024 42 TO-220AB 2SK2385 B Harris HUF75329S3 55 0.024 42 TO-262 2SK2266 A Harris HUF75329S3S/T 55 0.024 42 TO-263 2SK2266 A Harris HUF75332G3 55 0.019 52 TO-247 2SK2173 A Harris HUF75332P3 55 0.019 52 TO-220AB 2SK2312 B Harris HUF75332S3 55 0.019 52 TO-262 2SK2376 A Harris HUF75332S3S/T 55 0.019 52 TO-263 2SK2376 A Harris HUF75333G3 55 0.016 56 TO-247 2SK2173 A Harris HUF75333P3 55 0.016 56 TO-220AB 2SK2312 B Harris HUF75333S3 55 0.016 56 TO-262 2SK2376 A Harris HUF75333S3S/T 55 0.016 56 TO-263 2SK2376 A Harris HUF75337G3 55 0.014 62 TO-247 2SK2173 A Harris HUF75337P3 55 0.014 62 TO-220AB 2SK2312 B Harris HUF75337S3 55 0.014 62 TO-262 2SK2376 A Harris HUF75337S3S/T 55 0.014 62 TO-263 2SK2376 A Harris HUF75339G3 55 0.012 70 TO-247 2SK2313 A Harris HUF75339P3 55 0.012 70 TO-220AB Harris HUF75339S3 55 0.012 70 TO-262 Harris HUF75339S3S/T 55 0.012 70 TO-263 Harris HUF75343G3 55 0.009 75 TO-247 2SK2313 A Harris HUF75343P3 55 0.008 75 TO-220AB 2SK2985 B Harris HUF75343S3 55 0.009 75 TO-262 Harris HUF75343S3S/T 55 0.009 75 TO-263 Harris HUF75344G3 55 0.008 75 TO-247 2SK2987 A Harris HUF75344PS 55 0.008 75 TO-220AB 2SK2985 B Harris HUF75344S3 55 0.008 75 TO-262 2SK2986 A Harris HUF75344S3S/T 55 0.008 75 TO-263 2SK2986 A Harris HUF75345G3 55 0.007 75 TO-247 2SK2987 A Harris HUF75345P3 55 0.007 75 TO-220 2SK2985 B Harris HUF75345S3 55 0.007 75 TO-262 2SK2986 A Harris HUF75345S3S/T 55 0.007 75 TO-263 2SK2986 A Harris IRC530 100 0.16 14 88 TO-220 5PIN IR IRC540 100 0.077 28 150 TO-220 5PIN IR IRC630 200 0.4 9 74 TO-220 5PIN IR IRC634 250 0.45 8.1 74 TO-220 5PIN IR IRC640 200 0.18 18 125 TO-220 5PIN IR IRC644 250 0.28 14 125 TO-220 5PIN IR IRC730 400 1 5.5 74 TO-220 5PIN IR IRC740 400 0.55 10 125 TO-220 5PIN IR IRC830 500 1.5 4.5 74 TO-220 5PIN IR IRC840 500 0.85 8 125 TO-220 5PIN IR IRCP054 60 0.014 70 230 TO-3P 5PIN IR IRCZ24 60 0.1 17 60 TO-220 5PIN IR IRCZ34 60 0.05 30 88 TO-220 5PIN IR IRCZ44 60 0.028 50 150 TO-220 5PIN IR IRF1010 55 0.014 75 150 TO-220AB 2SK2312 B IR IRF1010E 60 0.012 81 170 TO-220AB 2SK2985 B IR IRF1010EL 60 0.012 83 170 TO-262 2SK2986 A IR Revised 1Q '99 - 17 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRF1010ES 60 0.012 83 170 D2PAK 2SK2986 A IR IRF1010N 55 0.012 72 130 TO-220AB IR IRF1010NL 55 0.011 84 170 TO-262 IR IRF1010NS 55 0.011 84 3.8 D2PAK IR IRF1010S 55 0.014 75 150 D2PAK 2SK2376 A IR IRF1310 100 0.04 43 150 TO-220AB 2SK2466 B IR IRF1310N 100 0.036 36 120 TO-220AB IR IRF1310NS 100 0.036 36 120 D2PAK IR IRF1310S 100 0.04 43 150 D2PAK 2SK2466 B IR IRF2807 75 0.013 71 150 TO-220AB IR IRF2807L 75 0.013 71 150 TO-262 IR IRF2807S 75 0.013 71 150 D2PAK IR IRF3205 55 0.008 98 150 TO-220AB 2SK2985 B IR IRF3205L 55 0.008 110 200 TO-262 2SK2986 A IR IRF3205S 55 0.008 110 200 D2PAK 2SK2986 A IR IRF3315 150 0.082 21 94 TO-220AB IR IRF3315L 150 0.082 21 94 TO-262 IR IRF3315S 150 0.082 21 94 D2PAK IR IRF3415 150 0.042 37 150 TO-220AB IR IRF3415S 150 0.042 37 150 D2PAK IR IRF3710 100 0.028 46 150 TO-220AB IR IRF3710S 100 0.028 46 150 D2PAK IR IRF4905 -55 0.02 64 150 TO-220AB IR IRF4905L -55 0.02 -74 200 TO-262 IR IRF4905S -55 0.02 -74 3.8 D2PAK IR IRF510 100 0.54 5.6 43 TO-220AB 2SK2399 B IR IRF510A 100 0.4 5.6 33 TO-220AB 2SK2399 B Samsung IRF510S 100 0.54 5.6 43 D2PAK 2SK2399 B IR IRF511(R) 80 0.54 5.6 TO-220AB 2SK2399 B Harris IRF512(R) 100 0.74 4.9 TO-220AB 2SK2399 B Harris IRF513(R) 80 0.74 4.9 TO-220AB 2SK2399 B Harris IRF520 100 0.27 9.2 60 TO-220AB 2SK2399 B IR IRF520 100 0.27 10 TO-220AB 2SK2399 B ST IRF520A 100 0.2 9.2 45 TO-220AB 2SK2399 B Samsung IRF520FI 100 0.27 7 TO-220FP 2SK2399 B ST IRF520N 100 0.2 9.5 47 TO-220AB 2SK2399 B IR IRF520NS 100 0.2 9.5 47 D2PAK 2SK2399 B IR IRF520S 100 0.27 9.2 60 D2PAK 2SK2399 B IR IRF521(R) 80 0.27 9.2 TO-220AB 2SK2399 B Harris IRF5210 -100 0.06 -35 150 TO-220AB IR IRF5210S -100 0.06 -35 150 D2PAK IR IRF522(R) 100 0.36 8 TO-220AB Harris IRF523(R) 80 0.36 8 TO-220AB 2SK2399 B Harris IRF530 100 0.16 14 88 TO-220AB 2SK2314 A IR IRF530 100 0.16 16 TO-220AB 2SK2314 A ST IRF5305 -55 0.06 -31 110 TO-220AB 2SJ349 B IR IRF5305L -55 0.06 -31 110 TO-262 2SJ401 A IR IRF5305S -55 0.06 -31 110 D2PAK 2SJ401 A IR IRF530A 100 0.11 14 55 TO-220AB 2SK2314 A Samsung IRF530FI 100 0.16 10 TO-220FP 2SK2391 A ST Revised 1Q '99 - 18 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRF530N 100 0.11 15 60 TO-220AB 2SK2314 A IR IRF530NS 100 0.11 15 63 D2PAK 2SK2789 A IR IRF530S 100 0.16 14 88 D2PAK 2SK2789 A IR IRF531(R) 80 0.16 14 TO-220AB 2SK2314 A Harris IRF532(R) 100 0.23 12 TO-220AB 2SK2399 B Harris IRF533(R) 80 0.23 12 TO-220AB 2SK2314 A Harris IRF540 100 0.077 28 150 TO-220AB 2SK2314 A IR IRF540 100 0.077 30 TO-220AB 2SK2314 A ST IRF540A 100 0.052 28 107 TO-220AB 2SK2466 B Samsung IRF540FI 100 0.077 16 TO-220FP 2SK2391 A ST IRF540N 100 0.052 27 94 TO-220AB 2SK2466 B IR IRF540NS 100 0.052 27 110 D2PAK 2SK2466 B IR IRF540S 100 0.077 28 150 D2PAK 2SK2789 A IR IRF541(R) 80 0.077 28 TO-220AB 2SK2314 A Harris IRF542(R) 100 0.1 25 TO-220AB 2SK2314 A Harris IRF543(R) 80 0.1 25 TO-220AB 2SK2314 A Harris IRF550A 100 0.04 40 167 TO-220AB 2SK2466 B Samsung IRF610 200 1.5 3.3 36 TO-220AB 2SK2381 B IR IRF610A 200 1.5 3.3 38 TO-220AB 2SK2381 B Samsung IRF610S 200 1.5 3.3 36 D2PAK 2SK2920 B IR IRF611(R) 150 1.5 3.3 TO-220AB 2SK2381 B Harris IRF612(R) 200 2.4 2.6 TO-220AB 2SK2381 B Harris IRF613(R) 150 2.4 2.6 TO-220AB 2SK2381 B Harris IRF614 250 2 2.7 36 TO-220AB 2SK2840 B IR IRF614A 250 2 2.8 40 TO-220AB 2SK2840 B Samsung IRF614S 250 2 2.7 36 D2PAK IR IRF620 200 0.8 5.2 50 TO-220AB 2SK2381 B IR IRF620 200 0.8 7 TO-220AB 2SK2381 B ST IRF620A 200 0.8 5 47 TO-220AB 2SK2381 B Samsung IRF620FI 200 0.8 4.3 TO-220FP 2SK2381 B ST IRF620S 200 0.8 5.2 50 D2PAK 2SK2920 B IR IRF621(R) 150 0.8 5 TO-220AB 2SK2381 B Harris IRF6215 -150 0.29 -11 83 TO-220AB IR IRF622(R) 200 1.2 4 TO-220AB 2SK2381 B Harris IRF623(R) 150 1.2 4 TO-220AB 2SK2381 B Harris IRF624 250 1.1 4.4 50 TO-220AB 2SK2840 B IR IRF624A 250 1.1 4.1 49 TO-220AB 2SK2840 B Samsung IRF624S 250 1.1 4.4 50 D2PAK IR IRF625 250 1.1 3.8 TO-220AB 2SK2840 B Harris IRF626 275 0.68 6.5 TO-220AB Harris IRF627 275 1.1 3.8 TO-220AB Harris IRF630 200 0.4 9 74 TO-220AB YTA630 A IR IRF630A 200 0.4 9 72 TO-220AB YTA630 A Samsung IRF630S 200 0.4 9 74 D2PAK 2SK2401 A IR IRF631(R) 150 0.4 9 TO-220AB 2SK2350 B Harris IRF632(R) 200 0.4 9 TO-220AB YTA630 A Harris IRF633(R) 150 0.6 8 TO-220AB 2SK2350 B Harris IRF634 250 0.45 8.1 74 TO-220AB 2SK2914 A IR IRF634A 250 0.45 8.1 74 TO-220AB 2SK2914 A Samsung IRF634S 250 0.45 8.1 74 D2PAK 2SK2598 A IR Revised 1Q '99 - 19 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRF635 250 0.45 8.1 TO-220AB 2SK2914 A Harris IRF636 275 0.34 13 TO-220AB Harris IRF637 275 0.45 8.1 TO-220AB Harris IRF640 200 0.18 18 125 TO-220AB YTA640 A IR IRF640A 200 0.18 18 139 TO-220AB YTA640 A Samsung IRF640S 200 0.18 18 125 D2PAK 2SK2401 A IR IRF641(R) 150 0.18 18 TO-220AB 2SK2382 B Harris IRF642(R) 200 0.18 18 TO-220AB 2SK2382 B Harris IRF643(R) 150 0.22 16 TO-220AB 2SK2382 B Harris IRF644 250 0.28 14 125 TO-220AB 2SK2508 B IR IRF644A 250 0.28 14 139 TO-220AB 2SK2508 B Samsung IRF644S 250 0.28 14 125 D2PAK 2SK2598 A IR IRF645 250 0.28 14 TO-220AB 2SK2508 B Harris IRF646 275 0.28 15 TO-220AB Harris IRF647 275 0.28 14 TO-220AB Harris IRF650A 200 0.085 28 156 TO-220AB Samsung IRF654A 250 0.14 21 156 TO-220AB Samsung IRF710 400 3.6 2 36 TO-220AB 2SK2862 B IR IRF7101 20 0.1 3.5 2 SOP-8(Dual) TPC8202 A IR IRF7102 50 0.3 2 2 SOP-8(Dual) TPC8205 A IR IRF7103 50 0.13 3 2 SOP-8(Dual) TPC8205 A IR IRF7104 -20 0.25 2.3 2 SOP-8(Dual) TPC8302 A IR IRF7105 25 0.1/0.25 3.5/-2.3 2 SOP-8(P&N) IR IRF7106 20 0.125/0.25 3/-2.5 2 SOP-8(P&N) IR IRF7107 20 0.125/0.16 3/-2.8 2 SOP-8(P&N) IR IRF710A 400 3.6 2 36 TO-220AB 2SK2679 B Samsung IRF710S 400 3.6 2 36 D2PAK IR IRF711(R) 350 3.6 2 TO-220AB 2SK2862 B Harris IRF712(R) 400 5 1.7 TO-220AB 2SK2862 B Harris IRF713(R) 350 5 1.7 TO-220AB 2SK2862 B Harris IRF720 400 1.8 3.3 50 TO-220AB 2SK2679 B IR IRF7201 30 0.03 7 2.5 SOP-8(Single) TPC8001 A IR IRF7202 -20 0.25 2.5 2.5 SOP-8(Single) TPC8102 A IR IRF7203 -20 0.1 4.3 2.5 SOP-8(Single) TPC8102 A IR IRF7204 -20 0.06 5.3 2.5 SOP-8(Single) TPC8102 A IR IRF7205 -30 0.07 -4.6 2.5 SOP-8(Single) TPC8102 A IR IRF7205 -30 0.07 5.3 2.5 SOP-8(Single) TPC8104-H A IR IRF720A 400 1.8 3.3 46 TO-220AB 2SK2679 B Samsung IRF720S 400 1.8 3.3 50 D2PAK 2SK2838 A IR IRF721(R) 350 1.8 3.3 TO-220AB 2SK2679 B Harris IRF722(R) 400 2.5 2.8 TO-220AB 2SK2862 B Harris IRF723(R) 350 2.5 2.8 TO-220AB 2SK2862 B Harris IRF730 400 1 5.5 74 TO-220AB 2SK2679 B IR IRF7301 20 0.05 4.3 1.4 SOP-8(Dual) TPC8202 A IR IRF7303 30 0.05 4 1.4 SOP-8(Dual) TPC8201 A IR IRF7304 -20 0.09 3.6 1.4 SOP-8(Dual) TPC8302 A IR IRF7306 -30 0.1 3 1.4 SOP-8(Dual) TPC8301 A IR IRF7307 20/-20 0.05/0.09 4.3/3.6 1.4 SOP-8(P&N) IR IRF7309 30/-30 0.05/0.1 4.0/3.0 1.4 SOP-8(P&N) TPC8401 A IR IRF730A 400 1 5.5 73 TO-220AB 2SK2679 B Samsung Revised 1Q '99 - 20 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRF730S 400 1 5.5 74 D2PAK 2SK2838 A IR IRF731(R) 350 1 5.5 TO-220AB 2SK2679 B Harris IRF7311 20 0.029 6.6 2 SOP-8(Dual) TPC8204 A IR IRF7313 30 0.029 6.5 2 SOP-8(Dual) TPC8203 A IR IRF7314 -20 0.058 -5.3 2 SOP-8(Dual) TPC8302 A IR IRF7316 -30 0.058 -4.9 2 SOP-8(Dual) TPC8303 A IR IRF7317 20/-20 0.029/0.058 6.6/-5.3 2 SOP-8(P&N) IR IRF7319 30/-30 0.029/0.058 6.5/-4.9 2 SOP-8(P&N) IR IRF732(R) 400 1.5 4.5 TO-220AB 2SK2679 B Harris IRF733(R) 350 1.5 4.5 TO-220AB 2SK2679 B Harris IRF7333 30 0.1/0.05 3.5/4.9 2 SOP-8(Dual) IR IRF734 450 1.2 4.9 74 TO-220AB 2SK2542 A IR IRF7343 55/-55 0.06/0.105 4.7/3.4 SOP-8(P&N) IR IRF737LC 300 0.75 6.1 74 TO-220AB IR IRF7389 30/-30 0.029/0.058 7.3/-5.3 SOP-8(P&N) TPC8401 A IR IRF740 400 0.55 10 125 TO-220AB 2SK2841 A IR IRF7401 20 0.022 8.7 2.5 SOP-8(Single) TPC8001 A IR IRF7403 30 0.022 8.5 2.5 SOP-8(Single) TPC8001 A IR IRF7404 -20 0.04 -6.7 2.5 SOP-8(Single) TPC8102 A IR IRF7406 -30 0.045 4.7 1.6 SOP-8(Single) TPC8105-H A IR IRF740A 400 0.55 10 134 TO-220AB 2SK2841 A Samsung IRF740LC 400 0.55 10 125 TO-220AB 2SK2841 A IR IRF740S 400 0.55 10 125 D2PAK 2SK2949 A IR IRF741(R) 350 0.55 10 TO-220AB 2SK2841 A Harris IRF7413 30 0.011 13 2.5 SOP-8(Single) TPC8003 A IR IRF7413A 30 0.0135 12 2.5 SOP-8(Single) TPC8005-H A IR IRF7416 -30 0.02 8.8 1 SOP-8(Single) TPC8106-H A IR IRF742(R) 400 0.8 8 TO-220AB 2SK2841 A Harris IRF7421D1 30 0.035 6.4 SOP-8(N&SBD) IR IRF7422D2 -20 0.09 -4.6 SOP-8(P&SBD) IR IRF743(R) 350 0.8 8 TO-220AB 2SK2542 A Harris IRF744 450 0.63 8.8 125 TO-220AB 2SK2542 A IR IRF7501 20 0.135 1.7 0.63 Micro-8 IR IRF7503 30 0.135 1.7 0.63 Micro-8 IR IRF7504 -20 0.27 1.2 0.63 Micro-8 SSM8J01FU A IR IRF7506 -30 0.27 1.2 0.63 Micro-8 IR IRF7507 20/-20 0.135/0.27 1.7/1.3 0.63 Micro-8 IR IRF7509 30/-30 0.135/0.27 1.7/1.2 0.63 Micro-8 IR IRF750A 400 0.3 15 156 TO-220AB Samsung IRF7601 20 0.035 3.8 0.78 Micro-8 IR IRF7603 30 0.035 3.7 0.78 Micro-8 IR IRF7604 -20 0.09 2.4 0.78 Micro-8 IR IRF7606 -30 0.09 2.4 0.78 Micro-8 IR IRF7805 30 0.011 13 SOP-8(Single) TPC8007-H A IR IRF7807 30 0.025 8.3 SOP-8(Single) TPC8001 A IR IRF820 500 3 2.5 50 TO-220AB 2SK2862 B IR IRF820A 500 3 2.5 49 TO-220AB 2SK2661 A Samsung IRF820S 500 3 2.5 50 D2PAK IR IRF821(R) 450 3 2.5 TO-220AB 2SK2862 B Harris IRF822 500 4 2.8 75 TO-220AB 2SK2862 B ST Revised 1Q '99 - 21 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRF822(R) 500 4 2.2 TO-220AB 2SK2862 B Harris IRF822FI 500 4 1.9 35 TO-220IS 2SK2862 A ST IRF823(R) 450 4 2.2 TO-220AB 2SK2862 B Harris IRF830 500 1.5 4.5 74 TO-220AB 2SK2661 A IR IRF830A 500 1.5 4.5 73 TO-220AB 2SK2661 A Samsung IRF830S 500 1.5 4.5 74 D2PAK 2SK2991 A IR IRF831 450 1.5 4.5 100 TO-220AB 2SK2661 A ST IRF831(R) 450 1.5 4.5 TO-220AB 2SK2661 A Harris IRF831FI 450 1.5 3 35 TO-220IS 2SK2662 A ST IRF832(R) 500 2 4 TO-220AB 2SK2661 A Harris IRF833(R) 450 2 4 TO-220AB 2SK2661 A Harris IRF840 500 0.85 8 125 TO-220AB 2SK2542 A IR IRF840A 500 0.85 8 134 TO-220AB YTA840 A Samsung IRF840LC 500 0.85 8 125 TO-220AB 2SK2542 A IR IRF840S 500 0.85 8 125 D2PAK 2SK2776 A IR IRF841 450 0.85 8 125 TO-220AB 2SK2542 A ST IRF841(R) 450 0.85 8 TO-220AB 2SK2542 A Harris IRF841FI 450 0.85 4.5 40 TO-220IS 2SK2543 A ST IRF842(R) 500 1.1 7 TO-220AB 2SK2542 A Harris IRF843(R) 450 1.1 7 TO-220AB 2SK2542 A Harris IRF9410 30 0.03 7 2.5 SOP-8(Single) TPC8001 A IR IRF9510 -100 1.2 4 43 TO-220AB IR IRF9510S -100 1.2 4 43 D2PAK IR IRF9511 -60 1.2 3 TO-220AB 2SJ438 B Harris IRF9512 -100 1.2 3 TO-220AB Harris IRF9513 -60 1.9 2.5 TO-220AB 2SJ438 B Harris IRF9520 -100 0.6 6.8 60 TO-220AB IR IRF9520NL -100 0.48 -6.7 47 TO-262 IR IRF9520NS -100 0.48 -6.7 47 D2PAK IR IRF9520S -100 0.6 6.8 60 D2PAK IR IRF9521 -60 0.6 6 TO-220AB 2SJ438 B Harris IRF9522 -100 0.8 5 TO-220AB Harris IRF9523 -60 0.8 5 TO-220AB 2SJ438 B Harris IRF9530 -100 0.3 12 88 TO-220AB 2SJ380 B IR IRF9530N -100 0.2 -13 75 TO-220AB 2SJ380 B IR IRF9530NL -100 0.2 -14 75 TO-262 2SJ380 B IR IRF9530NS -100 0.2 -14 75 D2PAK IR IRF9530S -100 0.3 12 88 D2PAK 2SJ412 A IR IRF9531 -60 0.3 12 TO-220AB 2SJ304 B Harris IRF9532 -100 0.4 10 TO-220AB 2SJ380 B Harris IRF9533 -60 0.4 10 TO-220AB 2SJ304 B Harris IRF9540 -100 0.2 19 150 TO-220AB 2SJ380 B IR IRF9540N -100 0.117 -19 94 TO-220AB 2SJ464 B IR IRF9540NS -100 0.117 -19 94 D2PAK IR IRF9540S -100 0.2 19 150 D2PAK 2SJ412 A IR IRF9541 -60 0.2 19 TO-220AB 2SJ349 B Harris IRF9542 -100 0.3 15 TO-220AB 2SJ380 B Harris IRF9543 -60 0.3 15 TO-220AB 2SJ304 B Harris IRF9610 -200 3 1.8 20 TO-220AB 2SJ407 B IR IRF9610S -200 3 1.8 20 D2PAK IR Revised 1Q '99 - 22 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRF9620 -200 1.5 3.5 40 TO-220AB 2SJ407 B IR IRF9620S -200 1.5 3.5 40 D2PAK IR IRF9621 -150 1.5 3.5 TO-220AB 2SJ407 B Harris IRF9622 -200 2.4 3 TO-220AB 2SJ407 B Harris IRF9623 -150 2.4 3 TO-220AB 2SJ407 B Harris IRF9630 -200 0.8 6.5 74 TO-220AB 2SJ407 B IR IRF9630S -200 0.8 6.5 74 D2PAK IR IRF9631 -150 0.8 6.5 TO-220AB 2SJ407 B Harris IRF9632 -200 1.2 5.5 TO-220AB 2SJ407 B Harris IRF9633 -150 1.2 5.5 TO-220AB 2SJ407 B Harris IRF9640 -200 0.5 11 125 TO-220AB 2SJ513 B IR IRF9640S -200 0.5 11 125 D2PAK 2SJ513 B IR IRF9641 -150 0.5 11 TO-220AB 2SJ513 B Harris IRF9642 -200 0.7 9 TO-220AB 2SJ515 B Harris IRF9643 -150 0.7 9 TO-220AB 2SJ515 B Harris IRF9952 30/-30 0.1/0.25 3.5/-2.3 2 SOP-8(P&N) IR IRF9953 -30 0.25 -2.3 2 SOP-8(Dual) IR IRF9956 30 0.1 3.5 2 SOP-8(Dual) IR IRF9Z14 -60 0.5 6.7 43 TO-220AB 2SJ438 B IR IRF9Z14S -60 0.5 6.7 43 D2PAK 2SJ377 B IR IRF9Z24 -60 0.28 11 60 TO-220AB 2SJ438 B IR IRF9Z24N -55 0.175 -12 45 TO-220AB 2SJ438 B IR IRF9Z24S -60 0.28 11 60 D2PAK 2SJ312 A IR IRF9Z34 -60 0.14 18 88 TO-220AB 2SJ349 B IR IRF9Z34N -55 0.1 -17 56 TO-220AB IR IRF9Z34S -60 0.14 18 88 D2PAK 2SJ401 A IR IRFBC10LC 600 10 1.2 36 TO-220AB 2SK3067 B IR IRFBC20 600 4.4 2.2 50 TO-220AB 2SK3067 B IR IRFBC20L 600 4.4 2.2 50 TO-262 2SK2865 B IR IRFBC20S 600 4.4 2.2 50 D2PAK 2SK2865 B IR IRFBC30 600 2.2 3.6 74 TO-220AB 2SK3085 A IR IRFBC30L 600 2.2 3.6 74 TO-262 2SK2777 A IR IRFBC30S 600 2.2 3.6 74 D2PAK 2SK2777 A IR IRFBC40 600 1.2 6.2 125 TO-220AB 2SK2544 A IR IRFBC40L 600 1.2 6.2 130 TO-262 2SK2777 A IR IRFBC40LC 600 1.2 6.2 125 TO-220AB 2SK2544 A IR IRFBC40S 600 1.2 6.2 130 D2PAK 2SK2777 A IR IRFBC42R 600 1.6 5.4 TO-220AB 2SK2544 A Harris IRFBE20 800 6.5 1.8 54 TO-220AB 2SK2603 A IR IRFBE30 800 3 4.1 125 TO-220AB 2SK2603 A IR IRFBF20 900 8 1.7 54 TO-220AB 2SK2733 A IR IRFBF20L 900 8 1.7 54 TO-262 2SK2845 A IR IRFBF20S 900 8 1.7 54 D2PAK IR IRFBF30 900 3.7 3.6 125 TO-220AB 2SK2608 A IR IRFBG20 1000 11 1.4 54 TO-220AB 2SK1119 A IR IRFBG30 1000 5 3.1 125 TO-220AB 2SK1119 A IR IRFD014 60 0.2 1.7 1.3 DIP IR IRFD014 60 0.2 1.7 1.3 HEXDIP IR IRFD024 60 0.1 2.5 1.3 DIP IR IRFD024 60 0.1 2.5 1.3 HEXDIP IR Revised 1Q '99 - 23 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFD110 100 0.54 1 1.3 DIP IR IRFD110 100 0.54 1 1.3 HEXDIP IR IRFD111(R) 80 0.6 1 DIP Harris IRFD112(R) 100 0.8 0.8 DIP Harris IRFD113(R) 80 0.8 0.8 DIP Harris IRFD120 100 0.27 1.3 1.3 DIP IR IRFD120 100 0.27 1.3 1.3 HEXDIP IR IRFD121(R) 80 0.3 1.3 DIP Harris IRFD122(R) 100 0.4 1.1 DIP Harris IRFD123(R) 80 0.4 1.1 DIP Harris IRFD1Z0 100 2.4 0.5 1.3 DIP IR IRFD1Z1 60 2.4 0.5 DIP Harris IRFD1Z2 100 3.2 0.4 DIP Harris IRFD1Z3 60 3.2 0.4 DIP Harris IRFD210 200 1.5 0.6 1.3 DIP IR IRFD210 200 1.5 0.6 1.3 HEXDIP IR IRFD211(R) 150 1.5 0.6 DIP Harris IRFD212(R) 200 2.4 0.45 DIP Harris IRFD213(R) 150 2.4 0.45 DIP Harris IRFD214 250 2 0.57 1.3 DIP IR IRFD214 250 2 0.57 1.3 HEXDIP IR IRFD220 200 0.8 0.8 1 DIP IR IRFD220 200 0.8 0.8 1.3 HEXDIP IR IRFD221(R) 150 0.8 0.8 DIP Harris IRFD222(R) 200 1.2 0.7 DIP Harris IRFD223(R) 150 1.2 0.7 DIP Harris IRFD224 250 1.1 0.76 1.3 DIP IR IRFD224 250 1.1 0.76 1.3 HEXDIP IR IRFD2Z0 200 5 0.32 DIP Harris IRFD2Z1 150 5 0.32 DIP Harris IRFD2Z2 200 6.5 0.3 DIP Harris IRFD2Z3 150 6.5 0.3 DIP Harris IRFD310 400 3.6 0.42 1.3 DIP IR IRFD310 400 3.6 0.42 1.3 HEXDIP IR IRFD311(R) 350 3.6 0.4 DIP Harris IRFD312(R) 400 5 0.3 DIP Harris IRFD313(R) 350 5 0.3 DIP Harris IRFD320 400 1.8 0.6 1.3 DIP IR IRFD320 400 1.8 0.6 1.3 HEXDIP IR IRFD321(R) 350 1.8 0.5 DIP Harris IRFD322(R) 400 2.5 0.4 DIP Harris IRFD323(R) 350 2.5 0.4 DIP Harris IRFD420 500 3 0.46 1.3 DIP IR IRFD420 500 3 0.46 1.3 HEXDIP IR IRFD620 600 4.4 0.32 1.3 DIP IR IRFD9014 -60 0.5 1.1 1.3 DIP 2SJ360 B IR IRFD9024 -60 0.28 1.6 1.3 DIP 2SJ377 B IR IRFD9110 -100 1.2 0.7 1.3 DIP IR IRFD9113 -60 1.6 0.6 DIP Harris IRFD9120 -100 0.6 1 1.3 DIP IR Revised 1Q '99 - 24 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFD9123 -60 0.8 0.8 DIP Harris IRFD9210 -200 3 0.4 1 DIP IR IRFD9220 -200 1.5 0.56 1 DIP IR IRFD9223 -150 2.4 0.45 DIP Harris IRFDC10LC 600 10 0.25 1.3 DIP IR IRFDC20 600 4.4 0.32 1.3 HEXDIP IR IRFI1010G 55 0.14 43 50 TO-220IS IR IRFI1010N 55 0.012 44 47 TO-220IS IR IRFI1310G 100 0.04 21 50 TO-220IS 2SK2466 A IR IRFI1310N 100 0.036 22 45 TO-220IS IR IRFI3205 55 0.008 56 48 TO-220IS 2SK2985 A IR IRFI3710 100 0.025 28 48 TO-220IS IR IRFI4905 -55 0.02 -41 63 TO-220IS IR IRFI510A 100 0.4 5.6 33 I2-PAK 2SK2399 B Samsung IRFI510G 100 0.54 4.5 27 TO-220IS 2SK2399 B IR IRFI510G 100 0.54 4.5 27 TO-220IS IR IRFI520A 100 0.2 9.2 45 I2-PAK 2SK2399 B Samsung IRFI520G 100 0.27 4.2 37 TO-220IS 2SK2399 B IR IRFI520N 100 0.2 7.2 27 TO-220IS 2SK2399 B IR IRFI5210 -100 0.06 -20 48 TO-220IS IR IRFI530A 100 0.11 14 55 I2-PAK 2SK2789 A Samsung IRFI530G 100 0.16 9.7 42 TO-220IS 2SK2391 A IR IRFI530N 100 0.11 11 33 TO-220IS 2SK2391 A IR IRFI540A 100 0.052 28 107 I2-PAK 2SK2466 B Samsung IRFI540G 100 0.077 17 48 TO-220IS 2SK2391 A IR IRFI540N 100 0.052 18 42 TO-220IS 2SK2466 A IR IRFI550A 100 0.04 40 167 I2-PAK 2SK2466 B Samsung IRFI610A 200 1.5 3.3 38 I2-PAK 2SK2920 B Samsung IRFI614A 250 2 2.8 40 I2-PAK Samsung IRFI614G 250 2 2.1 23 TO-220IS 2SK2840 A IR IRFI620A 200 0.8 5 47 I2-PAK 2SK2920 B Samsung IRFI620G 200 0.8 4.1 30 TO-220IS 2SK2381 A IR IRFI624A 250 1.1 4.1 49 I2-PAK Samsung IRFI624G 250 1.1 3.4 30 TO-220IS 2SK2840 A IR IRFI630A 200 0.4 9 72 I2-PAK 2SK2401 A Samsung IRFI630G 200 0.4 5.9 35 TO-220IS 2SK2350 A IR IRFI634A 250 0.45 8.1 74 I2-PAK 2SK2598 A Samsung IRFI634G 250 0.45 5.6 35 TO-220IS 2SK2417 A IR IRFI640A 200 0.18 18 139 I2-PAK 2SK2401 A Samsung IRFI640G 200 0.18 9.8 40 TO-220IS 2SK2382 A IR IRFI644A 250 0.28 14 139 I2-PAK 2SK2598 A Samsung IRFI644G 250 0.28 7.9 40 TO-220IS 2SK2508 A IR IRFI710A 400 3.6 2 36 I2-PAK 2SK2838 A Samsung IRFI720A 400 1.8 3.3 46 I2-PAK 2SK2838 A Samsung IRFI720G 400 1.8 2.6 30 TO-220IS 2SK2679 A IR IRFI730A 400 1 5.5 73 I2-PAK 2SK2838 A Samsung IRFI730G 400 1 3.7 35 TO-220IS 2SK2679 A IR IRFI734G 450 1.2 3.4 35 TO-220IS 2SK2543 A IR IRFI740A 400 0.55 10 134 I2-PAK 2SK2949 A Samsung IRFI740G 400 0.55 5.4 40 TO-220IS 2SK2952 A IR Revised 1Q '99 - 25 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFI740GLC 400 0.55 6 40 TO-220IS 2SK2952 A IR IRFI744G 450 0.63 4.9 40 TO-220IS 2SK2952 A IR IRFI820A 500 3 2.5 49 I2-PAK Samsung IRFI820G 500 3 2.1 30 TO-220IS 2SK2862 A IR IRFI830A 500 1.5 4.5 73 I2-PAK 2SK2991 A Samsung IRFI830G 500 1.5 3.1 35 TO-220IS 2SK2662 A IR IRFI840A 500 0.85 8 134 I2-PAK 2SK2776 A Samsung IRFI840G 500 0.85 4.6 40 TO-220IS 2SK2543 A IR IRFI840GLC 500 0.85 4.8 40 TO-220IS 2SK2543 A IR IRFI9520G -100 0.6 5.2 37 TO-220IS IR IRFI9530G -100 0.3 7.7 42 TO-220IS 2SJ380 A IR IRFI9540G -100 0.2 11 48 TO-220IS 2SJ380 A IR IRFI9620G -200 1.5 3 30 TO-220IS 2SJ407 A IR IRFI9630G -200 0.8 4.3 35 TO-220IS 2SJ407 A IR IRFI9634G -250 1 -4.1 35 TO-220IS 2SJ512 A IR IRFI9640G -200 0.5 6.1 40 TO-220IS 2SJ513 A IR IRFI9Z14G -60 0.5 5.3 27 TO-220IS 2SJ438 A IR IRFI9Z24G -60 0.28 8.5 37 TO-220IS 2SJ438 A IR IRFI9Z24N -55 0.175 -9.5 29 TO-220IS 2SJ438 A IR IRFI9Z34G -60 0.14 12 42 TO-220IS 2SJ304 A IR IRFI9Z34N -55 0.1 -14 37 TO-220IS IR IRFIBC20G 600 4.4 1.7 30 TO-220IS 2SK3067 A IR IRFIBC30G 600 2.2 2.5 35 TO-220IS 2SK2750 A IR IRFIBC40G 600 1.2 3.5 40 TO-220IS 2SK2545 A IR IRFIBC40GLC 600 1.2 4 40 TO-220IS 2SK2545 A IR IRFIBE20G 800 6.5 1.4 30 TO-220IS 2SK2603 B IR IRFIBE30G 800 3 2.1 35 TO-220IS 2SK2603 B IR IRFIBF20G 900 8 1.2 30 TO-220IS 2SK2733 B IR IRFIBF30G 900 3.7 1.9 35 TO-220IS 2SK2700 B IR IRFIP044 60 0.028 43 100 TO-247IS 2SK2233 B IR IRFIP054 60 0.014 64 120 TO-247IS 2SK2313 B IR IRFIP140 100 0.077 23 100 TO-247IS 2SK2391 B IR IRFIP150 100 0.055 31 120 TO-247IS 2SK2466 B IR IRFIP240 200 0.18 14 83 TO-247IS 2SK2382 B IR IRFIP244 250 0.28 11 83 TO-247IS 2SK2508 B IR IRFIP250 200 0.085 22 96 TO-247IS 2SK2995 A IR IRFIP254 250 0.14 17 96 TO-247IS 2SK2995 A IR IRFIP340 400 0.55 8 83 TO-247IS 2SK2952 B IR IRFIP350 400 0.3 11 96 TO-247IS 2SK2917 A IR IRFIP440 500 0.85 6.4 83 TO-247IS 2SK2600 A IR IRFIP448 500 0.6 7.4 89 TO-247IS 2SK2600 A IR IRFIP450 500 0.4 10 96 TO-247IS 2SK2916 A IR IRFIP9140 -100 0.2 15 100 TO-247IS 2SJ412 B IR IRFIP9240 -200 0.5 8.9 83 TO-247IS 2SJ513 B IR IRFIZ14A 60 0.14 10 30 I2-PAK 2SK2231 B Samsung IRFIZ14G 60 0.2 8 27 TO-220IS 2SK2231 B IR IRFIZ24A 60 0.07 17 44 I2-PAK 2SK2311 A Samsung IRFIZ24E 60 0.071 14 29 TO-220IS 2SK2232 A IR IRFIZ24G 60 0.1 14 37 TO-220IS 2SK2232 A IR IRFIZ24N 55 0.07 13 26 TO-220IS 2SK2232 A IR Revised 1Q '99 - 26 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFIZ34A 60 0.04 30 77 I2-PAK 2SK2311 A Samsung IRFIZ34E 60 0.042 21 37 TO-220IS 2SK2232 A IR IRFIZ34G 60 0.05 20 42 TO-220IS 2SK2232 A IR IRFIZ34N 55 0.04 19 31 TO-220IS 2SK2232 A IR IRFIZ44A 60 0.024 50 126 I2-PAK 2SK2376 A Samsung IRFIZ44G 60 0.028 30 48 TO-220IS 2SK2385 A IR IRFIZ44N 55 0.024 28 38 TO-220IS 2SK2385 A IR IRFIZ46N 55 0.02 31 40 TO-220IS 2SK2312 A IR IRFIZ48G 60 0.018 37 50 TO-220IS 2SK2312 A IR IRFIZ48N 55 0.016 36 42 TO-220IS 2SK2312 A IR IRFL014 60 0.2 2.7 3.1 SOT-223 2SK2741 A IR IRFL110 100 0.54 1.5 3.1 SOT-223 2SK2742 A IR IRFL210 200 1.5 0.96 3.1 SOT-223 IR IRFL214 250 2 0.79 3.1 SOT-223 IR IRFL4105 55 0.045 3.7 2.1 SOT-223 IR IRFL4310 100 0.2 1.6 2.1 SOT-223 2SK2742 A IR IRFL9014 -60 0.5 1.8 3.1 SOT-223 IR IRFL9110 -100 1.2 1.1 3.1 SOT-223 IR IRFM014A 60 0.14 2.8 2.1 SOT-223 2SK2741 A Samsung IRFM110A 100 0.4 1.5 2 SOT-223 2SK2742 A Samsung IRFM120A 100 0.2 2.3 2.4 SOT-223 2SK2742 A Samsung IRFM210A 200 1.5 0.77 2 SOT-223 Samsung IRFM214A 250 2 0.64 2.1 SOT-223 Samsung IRFM220A 200 0.8 1.13 2.4 SOT-223 Samsung IRFM224A 250 1.1 0.92 2.5 SOT-223 Samsung IRFP044 60 0.028 57 180 TO-247 2SK2233 A IR IRFP044N 55 0.02 49 100 TO-247 2SK2173 A IR IRFP048 60 0.018 70 190 TO-247 2SK2173 A IR IRFP048N 55 0.016 62 130 TO-247 2SK2173 A IR IRFP054 60 0.014 70 230 TO-247 2SK2313 A IR IRFP054N 55 0.012 72 130 TO-247 2SK2313 A IR IRFP064 60 0.009 70 300 TO-247 2SK2313 A IR IRFP064N 55 0.008 98 150 TO-247 2SK2987 A IR IRFP140 100 0.077 31 180 TO-247 2SK2466 B IR IRFP140A 100 0.052 31 131 TO-3P 2SK2466 B Samsung IRFP140N 100 0.052 27 94 TO-247 2SK2466 B IR IRFP141R 80 0.077 31 TO-247 2SK2466 B Harris IRFP142R 100 0.099 27 TO-247 2SK2314 B Harris IRFP143R 80 0.099 27 TO-247 2SK2466 B Harris IRFP150 100 0.055 41 230 TO-247 2SK2466 B IR IRFP150A 100 0.04 43 193 TO-3P 2SK2466 B Samsung IRFP150N 100 0.036 39 140 TO-247 2SK1381 A IR IRFP151(R) 60 0.055 40 TO-247 2SK2398 A Harris IRFP152(R) 100 0.085 34 TO-247 2SK2314 B Harris IRFP153(R) 60 0.085 34 TO-247 2SK2232 B Harris IRFP240 200 0.18 20 150 TO-247 2SK2382 B IR IRFP240A 200 0.18 20 180 TO-3P 2SK2382 B Samsung IRFP241(R) 150 0.18 18 TO-247 2SK2382 B Harris IRFP242R 200 0.22 16 TO-247 2SK2382 B Harris IRFP243R 150 0.22 16 TO-247 2SK2382 B Harris Revised 1Q '99 - 27 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFP244 250 0.28 15 150 TO-247 2SK2508 B IR IRFP244A 250 0.28 16 180 TO-3P 2SK2508 B Samsung IRFP245 250 0.28 14 TO-247 2SK2508 B Harris IRFP246 275 0.17 20 TO-247 2SK1486 B Harris IRFP247 275 0.28 14 TO-247 Harris IRFP250 200 0.085 30 190 TO-247 2SK3176 A IR IRFP250A 200 0.085 32 204 TO-3P 2SK3176 A Samsung IRFP251(R) 150 0.085 33 TO-247 2SK2967 A Harris IRFP252(R) 200 0.085 30 TO-247 2SK3176 A Harris IRFP253(R) 150 0.12 27 TO-247 2SK2882 B Harris IRFP254 250 0.14 23 23 TO-247 2SK2967 A IR IRFP254A 250 0.14 25 221 TO-3P 2SK2967 A Samsung IRFP255 250 0.14 22 TO-247 2SK2967 A Harris IRFP256 275 0.14 23 TO-247 2SK1486 B Harris IRFP257 275 0.14 22 TO-247 2SK1486 B Harris IRFP260 200 0.055 46 280 TO-247 2SK3176 A IR IRFP264 250 0.075 38 280 TO-247 2SK2967 A IR IRFP340 400 0.55 11 150 TO-247 2SK2841 B IR IRFP340A 400 0.55 11 162 TO-3P 2SK2841 B Samsung IRFP341R 350 0.55 11 TO-247 2SK2841 B Harris IRFP342R 400 0.8 8.3 TO-247 2SK2841 B Harris IRFP343R 350 0.8 8.7 TO-247 2SK2841 B Harris IRFP344 450 0.63 9.5 150 TO-247 2SK2601 A IR IRFP350 400 0.3 16 190 TO-247 2SK2837 A IR IRFP350A 400 0.3 17 202 TO-3P 2SK2837 A Samsung IRFP350LC 400 0.3 18 190 TO-247 2SK2837 A IR IRFP351(R) 350 0.3 15 TO-247 2SK2837 A Harris IRFP352(R) 400 0.4 14 TO-247 2SK2698 A Harris IRFP353(R) 350 0.4 14 TO-247 2SK2698 A Harris IRFP354 450 0.35 14 190 TO-247 2SK2698 A IR IRFP360 400 0.2 23 280 TO-247 2SK1544 B IR IRFP360LC 400 0.2 23 280 TO-247 2SK1544 B IR IRFP362 400 0.25 20 TO-247 2SK2837 A Harris IRFP3710 100 0.028 51 180 TO-247 2SK1381 A IR IRFP440 500 0.85 8.8 150 TO-247 2SK2601 A IR IRFP440A 500 0.85 8.5 162 TO-3P 2SK2601 A Samsung IRFP441R 450 0.85 8 TO-247 2SK2601 A Harris IRFP442(R) 500 1.1 7 TO-247 2SK2600 B Harris IRFP443R 450 1.1 7 TO-247 2SK2600 B Harris IRFP448 500 0.6 11 180 TO-247 2SK2601 A IR IRFP450 500 0.4 14 190 TO-247 2SK2698 A IR IRFP450A 500 0.4 14 205 TO-3P 2SK2698 A Samsung IRFP450LC 500 0.4 16 190 TO-247 2SK2698 A IR IRFP451(R) 450 0.4 14 TO-247 2SK2698 A Harris IRFP452(R) 500 0.5 12 TO-247 2SK2601 A Harris IRFP453(R) 450 0.5 12 TO-247 2SK2601 A Harris IRFP460 500 0.27 20 280 TO-247 2SK2837 A IR IRFP460LC 500 0.27 20 280 TO-247 2SK2837 A IR IRFP462 500 0.35 17 TO-247 2SK2837 A Harris IRFP9140 -100 0.2 21 180 TO-247 2SJ464 B IR Revised 1Q '99 - 28 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFP9140N -100 0.117 -21 120 TO-247 2SJ464 B IR IRFP9141 -50 0.2 19 TO-247 2SJ401 B Harris IRFP9142 -100 0.3 16 TO-247 2SJ412 B Harris IRFP9143 -50 0.3 16 TO-247 2SJ401 B Harris IRFP9150 -100 0.15 25 TO-247 2SJ464 A Harris IRFP9151 -50 0.15 25 TO-247 2SJ402 B Harris IRFP9240 -200 0.5 12 150 TO-247 2SJ513 B IR IRFP9241 -150 0.5 12 TO-247 2SJ513 B Harris IRFP9242 -200 0.7 10 TO-247 2SJ515 B Harris IRFP9243 -150 0.7 10 TO-247 2SJ515 B Harris IRFPC30 600 2.2 4.3 100 TO-247 2SK2602 A IR IRFPC40 600 1.2 6.8 150 TO-247 2SK2602 A IR IRFPC42R 600 1.6 5.9 TO-247 2SK2602 A Harris IRFPC48 600 0.82 8.9 170 TO-247 2SK2699 A IR IRFPC50 600 0.6 11 180 TO-247 2SK2699 A IR IRFPC50LC 600 0.6 13 180 TO-247 2SK2699 A IR IRFPC60 600 0.4 16 280 TO-247 2SK2915 A IR IRFPC60LC 600 0.4 16 280 TO-247 2SK2915 A IR IRFPE30 800 3 4.1 125 TO-247 2SK2603 B IR IRFPE40 800 2 5.4 150 TO-247 2SK2604 A IR IRFPE50 800 1.2 7.8 190 TO-247 2SK2607 A IR IRFPF30 900 3.7 3.6 125 TO-247 2SK2719 A IR IRFPF40 900 2.5 4.7 150 TO-247 2SK2610 A IR IRFPF50 900 1.6 6.7 190 TO-247 2SK2611 A IR IRFPG30 1000 5 3.1 125 TO-247 2SK1359 A IR IRFPG40 1000 3.5 4.3 150 TO-247 2SK1359 A IR IRFPG42 1000 4.2 3.9 TO-247 2SK1359 A Harris IRFPG50 1000 2 6.1 190 TO-247 2SK1365 A IR IRFR014 60 0.2 7.7 25 D-PAK 2SK2231 A IR IRFR014A 60 0.14 8.2 18 D-PAK 2SK2231 A Samsung IRFR024 60 0.1 14 42 D-PAK 2SK2782 A IR IRFR024A 60 0.07 15 30 D-PAK 2SK2782 A Samsung IRFR024N 55 0.075 16 38 D-PAK 2SK2782 A IR IRFR034A 60 0.04 23 40 D-PAK Samsung IRFR110 100 0.54 4.3 25 D-PAK 2SK2201 A IR IRFR110A 100 0.4 4.7 20 D-PAK 2SK2201 A Samsung IRFR120 100 0.27 7.7 42 D-PAK 2SK2399 A IR IRFR1205 55 0.027 37 69 D-PAK IR IRFR120A 100 0.2 8.4 32 D-PAK 2SK2399 A Samsung IRFR120N 100 0.21 9.1 39 D-PAK 2SK2399 A IR IRFR121 80 0.27 8.4 TO-252 2SK2399 A Harris IRFR130A 100 0.11 13 41 D-PAK Samsung IRFR210 200 1.5 2.6 25 D-PAK 2SK2920 A IR IRFR210A 200 1.5 2.7 26 D-PAK 2SK2920 A Samsung IRFR214 250 2 2.2 25 D-PAK IR IRFR214A 250 2 2.2 25 D-PAK Samsung IRFR220 200 0.8 4.8 42 D-PAK 2SK2920 A IR IRFR220A 200 0.8 4.6 40 D-PAK 2SK2920 A Samsung IRFR221 150 0.8 4.6 TO-252 2SK2920 A Harris IRFR222 200 1.2 3.8 TO-252 2SK2920 A Harris Revised 1Q '99 - 29 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFR224 250 1.1 3.8 42 D-PAK IR IRFR224A 250 1.1 3.8 42 D-PAK Samsung IRFR230A 200 0.4 7.5 50 D-PAK Samsung IRFR234A 250 0.45 6.6 49 D-PAK Samsung IRFR310 400 3.6 1.7 25 D-PAK 2SK2599 B IR IRFR310A 400 3.6 1.7 26 D-PAK 2SK2599 B Samsung IRFR320 400 1.8 3.1 42 D-PAK IR IRFR320A 400 1.8 3.1 41 D-PAK Samsung IRFR321 350 1.8 3.1 TO-252 2SK2679 B Harris IRFR322 400 2.5 2.6 TO-252 2SK2599 B Harris IRFR3303 30 0.031 33 57 D-PAK IR IRFR330A 400 1 4.5 48 D-PAK Samsung IRFR3910 100 0.11 15 52 D-PAK IR IRFR410 500 7 1.5 D-PAK 2SK2865 A Harris IRFR4105 55 0.045 25 48 D-PAK 2SK2782 A IR IRFR420 500 3 2.4 42 D-PAK 2SK2599 B IR IRFR420A 500 3 2.3 41 D-PAK 2SK2599 B Samsung IRFR421 450 3 2.5 TO-252 2SK2599 B Harris IRFR422 500 4 2.2 TO-252 2SK2599 B Harris IRFR430A 500 1.5 3.5 48 D-PAK Samsung IRFR5305 -55 0.065 -28 89 D-PAK IR IRFR5505 -55 0.11 -18 57 D-PAK IR IRFR9014 -60 0.5 5.1 25 D-PAK 2SJ377 A IR IRFR9024 -60 0.28 8.8 42 D-PAK 2SJ377 A IR IRFR9110 -100 1.2 3.1 25 D-PAK IR IRFR9120 -100 0.6 5.6 42 D-PAK IR IRFR9120N -100 0.48 -6.5 39 D-PAK IR IRFR9210 -200 3 1.9 25 D-PAK IR IRFR9214 -250 3 -2.7 50 D-PAK 2SJ512 B IR IRFR9220 -200 1.5 3.6 42 D-PAK IR IRFR9310 -400 7 -1.8 50 D-PAK IR IRFRC20 600 4.4 2 42 D-PAK 2SK2865 A IR IRFS140A 100 0.052 23 72 TO-3PIS 2SK2466 B Samsung IRFS150A 100 0.04 31 100 TO-3PIS 2SK2466 B Samsung IRFS1Z0 100 2.4 0.82 3.6 SOT-89 2SK2963 A IR IRFS240A 200 0.18 12.8 73 TO-3PIS 2SK2382 B Samsung IRFS244A 250 0.28 10.2 73 TO-3PIS 2SK2508 B Samsung IRFS250A 200 0.085 21.3 90 TO-3PIS 2SK2995 A Samsung IRFS254A 250 0.14 16 90 TO-3PIS 2SK2995 A Samsung IRFS340A 400 0.55 8 85 TO-3PIS 2SK2952 B Samsung IRFS350A 400 0.3 11.5 92 TO-3PIS 2SK2917 A Samsung IRFS440A 500 0.85 6.2 85 TO-3PIS 2SK2600 A Samsung IRFS450A 500 0.4 9.6 96 TO-3PIS 2SK2916 A Samsung IRFS510A 100 0.4 4.5 21 TO-220IS 2SK2399 B Samsung IRFS520A 100 0.2 7.2 28 TO-220IS 2SK2399 B Samsung IRFS530A 100 0.11 10.7 32 TO-220IS 2SK2391 A Samsung IRFS540A 100 0.052 17 39 TO-220IS 2SK2466 A Samsung IRFS550A 100 0.04 21 46 TO-220IS 2SK2466 A Samsung IRFS610A 200 1.5 2.5 22 TO-220IS 2SK2381 A Samsung IRFS614A 250 2 2.1 22 TO-220IS 2SK2840 A Samsung Revised 1Q '99 - 30 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFS620A 200 0.8 4.1 32 TO-220IS 2SK2381 A Samsung IRFS624A 250 1.1 3.4 34 TO-220IS 2SK2840 A Samsung IRFS630A 200 0.4 6.5 38 TO-220IS 2SK2350 A Samsung IRFS634A 250 0.45 5.8 38 TO-220IS 2SK2417 A Samsung IRFS640A 200 0.18 9.8 43 TO-220IS YTAF630 A Samsung IRFS644A 250 0.28 7.9 43 TO-220IS 2SK2508 A Samsung IRFS650A 200 0.085 15.8 50 TO-220IS Samsung IRFS654A 250 0.14 12 50 TO-220IS Samsung IRFS710A 400 3.6 1.6 23 TO-220IS 2SK2862 B Samsung IRFS720A 400 1.8 2.8 33 TO-220IS 2SK2679 A Samsung IRFS730A 400 1 3.9 38 TO-220IS 2SK2679 A Samsung IRFS740A 400 0.55 5.7 44 TO-220IS 2SK2952 A Samsung IRFS750A 400 0.3 8.4 49 TO-220IS Samsung IRFS820A 500 3 2.1 33 TO-220IS 2SK2862 A Samsung IRFS830A 500 1.5 3.1 38 TO-220IS 2SK2662 A Samsung IRFS840A 500 0.85 4.6 44 TO-220IS 2SK2662 A Samsung IRFSZ14A 60 0.14 8 19 TO-220IS 2SK2231 B Samsung IRFSZ24A 60 0.07 14 30 TO-220IS 2SK2232 A Samsung IRFSZ34A 60 0.04 20 34 TO-220IS 2SK2385 A Samsung IRFSZ44A 60 0.024 30 45 TO-220IS 2SK2312 A Samsung IRFU014 60 0.2 7.7 25 I-PAK 2SK2231 A IR IRFU014A 60 0.14 8.2 18 I-PAK 2SK2231 A Samsung IRFU024 60 0.1 14 42 I-PAK 2SK2782 A IR IRFU024A 60 0.07 15 30 I-PAK 2SK2782 A Samsung IRFU024N 55 0.075 16 38 I-PAK 2SK2782 A IR IRFU034A 60 0.04 23 40 I-PAK Samsung IRFU110 100 0.54 4.3 25 I-PAK 2SK2201 A IR IRFU110A 100 0.4 4.7 20 I-PAK 2SK2201 A Samsung IRFU120 100 0.27 7.7 42 I-PAK 2SK2399 A IR IRFU1205 55 0.027 37 69 I-PAK IR IRFU120A 100 0.2 8.4 32 I-PAK 2SK2399 A Samsung IRFU120N 100 0.21 9.1 39 I-PAK 2SK2399 A IR IRFU121 80 0.27 8.4 TO-251 2SK2399 A Harris IRFU130A 100 0.11 13 41 I-PAK Samsung IRFU210 200 1.5 2.6 25 I-PAK 2SK2920 A IR IRFU210A 200 1.5 2.7 26 I-PAK 2SK2920 A Samsung IRFU214 250 2 2.2 25 I-PAK IR IRFU214A 250 2 2.2 25 I-PAK Samsung IRFU220 200 0.8 4.8 42 I-PAK 2SK2920 B IR IRFU220A 200 0.8 4.6 40 I-PAK 2SK2920 A Samsung IRFU221 150 0.8 4.6 TO-251 2SK2920 A Harris IRFU222 200 1.2 3.8 TO-251 2SK2920 A Harris IRFU224 250 1.1 3.8 42 I-PAK IR IRFU224A 250 1.1 3.8 42 I-PAK Samsung IRFU230A 200 0.4 7.5 50 I-PAK Samsung IRFU234A 250 0.45 6.6 49 I-PAK Samsung IRFU310 400 3.6 1.7 25 I-PAK 2SK2599 B IR IRFU310A 400 3.6 1.7 26 I-PAK 2SK2599 B Samsung IRFU320 400 1.8 3.1 42 I-PAK 2SK2679 B IR IRFU320A 400 1.8 3.1 41 I-PAK Samsung Revised 1Q '99 - 31 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFU321 350 1.8 3.1 TO-251 2SK2679 B Harris IRFU322 400 2.5 2.6 TO-251 2SK2599 B Harris IRFU3303 30 0.031 33 57 I-PAK IR IRFU330A 400 1 4.5 48 I-PAK Samsung IRFU3910 100 0.11 15 52 I-PAK IR IRFU4105 55 0.045 25 48 I-PAK 2SK2782 A IR IRFU420 500 3 2.4 42 I-PAK 2SK2599 B IR IRFU420A 500 3 2.3 41 I-PAK 2SK2599 B Samsung IRFU421 450 3 2.5 TO-251 2SK2599 B Harris IRFU422 500 4 2.2 TO-251 2SK2599 B Harris IRFU430A 500 1.5 3.5 48 I-PAK Samsung IRFU5305 -55 0.065 -28 89 I-PAK IR IRFU5505 -55 0.11 -18 57 I-PAK IR IRFU9014 -60 0.5 -5.1 25 I-PAK 2SJ377 A IR IRFU9014 -60 0.5 5.1 25 I-PAK 2SJ377 A IR IRFU9024 -60 0.28 8.8 42 I-PAK 2SJ377 A IR IRFU9110 -100 1.2 3.1 25 I-PAK IR IRFU9120 -100 0.6 5.6 42 I-PAK IR IRFU9120N -100 0.48 -6.5 39 I-PAK IR IRFU9210 -200 3 1.9 25 I-PAK IR IRFU9214 -250 3 -2.7 50 I-PAK 2SJ512 B IR IRFU9220 -200 1.5 3.6 42 I-PAK IR IRFU9310 -400 7 -1.8 50 I-PAK IR IRFUC20 600 4.4 2 42 I-PAK 2SK2865 A IR IRFW450 500 0.4 14 180 TO-247 2SK2698 A ST IRFW510A 100 0.4 5.6 33 D2-PAK 2SK2399 B Samsung IRFW520A 100 0.2 9.2 45 D2-PAK 2SK2399 B Samsung IRFW530A 100 0.11 14 55 D2-PAK 2SK2789 A Samsung IRFW540A 100 0.052 28 107 D2-PAK 2SK2466 B Samsung IRFW550A 100 0.04 40 167 D2-PAK 2SK2466 B Samsung IRFW610A 200 1.5 3.3 38 D2-PAK 2SK2920 B Samsung IRFW614A 250 2 2.8 40 D2-PAK Samsung IRFW620A 200 0.8 5 47 D2-PAK 2SK2920 B Samsung IRFW624A 250 1.1 4.1 49 D2-PAK Samsung IRFW630A 200 0.4 9 72 D2-PAK 2SK2401 A Samsung IRFW634A 250 0.45 8.1 74 D2-PAK 2SK2598 A Samsung IRFW640A 200 0.18 18 139 D2-PAK 2SK2401 A Samsung IRFW644A 250 0.28 14 139 D2-PAK 2SK2598 A Samsung IRFW710A 400 3.6 2 36 D2-PAK 2SK2838 A Samsung IRFW720A 400 1.8 3.3 46 D2-PAK 2SK2838 A Samsung IRFW730A 400 1 5.5 73 D2-PAK 2SK2838 A Samsung IRFW740A 400 0.55 10 134 D2-PAK 2SK2949 A Samsung IRFW820A 500 3 2.5 49 D2-PAK Samsung IRFW830A 500 1.5 4.5 73 D2-PAK 2SK2991 A Samsung IRFW840A 500 0.85 8 134 D2-PAK 2SK2776 A Samsung IRFWZ14A 60 0.14 10 30 D2-PAK 2SK2231 B Samsung IRFWZ24A 60 0.07 17 44 D2-PAK 2SK2311 A Samsung IRFWZ34A 60 0.04 30 77 D2-PAK 2SK2311 A Samsung IRFWZ44A 60 0.024 50 126 D2-PAK 2SK2376 A Samsung IRFZ14 60 0.2 10 43 TO-220AB 2SK2231 B IR Revised 1Q '99 - 32 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRFZ14A 60 0.14 10 30 TO-220AB 2SK2231 B Samsung IRFZ14S 60 0.2 10 43 D2PAK 2SK2231 B IR IRFZ24 60 0.1 17 60 TO-220AB 2SK2232 B IR IRFZ24A 60 0.07 17 44 TO-220AB 2SK2232 B Samsung IRFZ24N 55 0.07 17 45 TO220AB 2SK2232 B IR IRFZ24NL 55 0.07 17 45 TO-262 2SK2311 A IR IRFZ24NS 55 0.07 17 45 D2PAK 2SK2311 A IR IRFZ24S 60 0.1 17 60 D2PAK 2SK2782 B IR IRFZ34 60 0.05 30 88 TO-220AB 2SK2232 B IR IRFZ34A 60 0.04 30 77 TO-220AB 2SK2385 B Samsung IRFZ34E 60 0.042 28 68 TO-220AB 2SK2232 B IR IRFZ34N 55 0.04 26 56 TO-220AB 2SK2232 B IR IRFZ34NL 55 0.04 29 68 TO-262 2SK2311 A IR IRFZ34NS 55 0.04 29 68 D2PAK 2SK2311 A IR IRFZ34S 60 0.05 30 88 D2PAK 2SK2266 A IR IRFZ40 50 0.028 50 150 TO-220AB 2SK2886 B ST IRFZ40FI 50 0.028 27 45 TO-220IS 2SK2886 A ST IRFZ44 60 0.028 50 150 TO-220AB 2SK2385 B IR IRFZ44A 60 0.024 50 126 TO-220AB 2SK2312 B Samsung IRFZ44E 60 0.023 48 110 TO-220AB 2SK2312 B IR IRFZ44ES 60 0.023 48 110 D2PAK 2SK2376 A IR IRFZ44N 55 0.024 41 83 TO-220AB 2SK2385 B IR IRFZ44NL 55 0.022 49 110 TO-262 2SK2376 A IR IRFZ44NS 55 0.022 49 110 D2PAK 2SK2376 A IR IRFZ44S 60 0.028 50 150 D2PAK 2SK2266 A IR IRFZ46 50 0.024 50 150 TO-220AB 2SK2886 B IR IRFZ46N 55 0.02 46 88 TO-220AB 2SK2312 B IR IRFZ46NL 55 0.02 53 120 TO-262 2SK2376 A IR IRFZ46NS 55 0.02 53 120 D2PAK 2SK2376 A IR IRFZ46S 50 0.024 50 150 D2PAK 2SK3051 A IR IRFZ48 60 0.018 50 190 TO-220AB 2SK2312 B IR IRFZ48N 55 0.016 53 94 TO-220AB 2SK2312 B IR IRFZ48NL 55 0.016 64 140 TO-262 2SK2376 A IR IRFZ48NS 55 0.016 64 140 D2PAK 2SK2376 A IR IRFZ48S 60 0.018 50 190 D2PAK 2SK2376 A IR IRL2203 30 0.01 92 150 TO-220AB 2SK3127 B IR IRL2203N 30 0.007 100 130 TO-220AB IR IRL2203NL 30 0.007 116 170 TO-262 IR IRL2203NS 30 0.007 116 170 D2PAK IR IRL2203S 30 0.01 92 150 D2PAK 2SK3127 A IR IRL2505 55 0.008 104 200 TO-220AB 2SK2985 B IR IRL2505L 55 0.008 104 200 TO-262 2SK2986 A IR IRL2505S 55 0.008 104 200 D2PAK 2SK2986 A IR IRL2703 30 0.04 24 45 TO-220AB 2SK2844 A IR IRL2703S 30 0.04 24 45 D2PAK 2SK3089 A IR IRL2910 100 0.026 48 150 TO-220AB IR IRL2910S 100 0.026 48 150 D2PAK IR IRL3102 20 0.013 61 89 TO-220AB IR IRL3102S 20 0.013 61 89 D2PAK IR IRL3103 30 0.014 56 83 TO-220AB IR Revised 1Q '99 - 33 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRL3103L 30 0.014 64 110 TO-262 IR IRL3103S 30 0.014 64 110 D2PAK IR IRL3202 20 0.016 48 69 TO-220AB IR IRL3202S 20 0.016 48 69 D2PAK IR IRL3302 20 0.02 39 57 TO-220AB IR IRL3302S 20 0.02 39 57 D2PAK IR IRL3303 30 0.026 34 56 TO-220AB 2SK2844 A IR IRL3303L 30 0.026 38 68 TO-262 2SK3089 A IR IRL3303S 30 0.026 38 68 D2PAK 2SK3089 A IR IRL3402 20 0.01 85 110 TO-220AB IR IRL3402S 20 0.01 85 110 D2PAK IR IRL3502 20 0.007 110 140 TO-220AB IR IRL3502S 20 0.007 110 140 D2PAK IR IRL3705 50 0.012 80 150 TO-220AB IR IRL3705N 55 0.01 77 130 TO-220AB IR IRL3705NL 55 0.01 89 170 TO-262 IR IRL3705NS 55 0.01 89 170 D2PAK IR IRL3705S 50 0.012 80 150 D2PAK IR IRL3803 30 0.006 120 150 TO-220AB IR IRL3803L 30 0.006 140 200 TO-262 IR IRL3803S 30 0.006 140 200 D2PAK IR IRL510 100 0.54 5.6 43 TO-220AB IR IRL510S 100 0.54 5.6 43 D2PAK IR IRL520 100 0.27 9.2 60 TO-220AB 2SK2399 B IR IRL520N 100 0.18 10 47 TO-220AB 2SK2314 A IR IRL520S 100 0.27 9.2 60 D2PAK 2SK2399 B IR IRL530 100 0.16 15 88 TO-220AB 2SK2314 A IR IRL530N 100 0.1 15 63 TO-220AB 2SK2314 A IR IRL530NS 100 0.1 15 63 D2PAK 2SK2789 A IR IRL530S 100 0.16 15 88 D2PAK 2SK2789 A IR IRL540 100 0.077 28 150 TO-220AB 2SK2314 A IR IRL540N 100 0.044 30 94 TO-220AB 2SK2466 A IR IRL540S 100 0.077 28 150 D2PAK 2SK2789 A IR IRL620 200 0.8 5.2 50 TO-220AB 2SK2381 B IR IRL620S 200 0.8 5.2 50 D2PAK 2SK2920 B IR IRL630 200 0.4 9 74 TO-220AB YTA630 A IR IRL630S 200 0.4 9 74 D2PAK 2SK2401 A IR IRL640S 200 0.18 18 125 D2PAK 2SK2401 A IR IRLD014 60 0.2 1.7 1.3 DIP IR IRLD024 60 0.1 2.5 1.3 DIP IR IRLD110 100 0.54 1 1.3 DIP IR IRLD120 100 0.27 1.3 1.3 DIP IR IRLI2203G 30 0.01 49 48 TO-220IS IR IRLI2203N 30 0.007 61 47 TO-220IS IR IRLI2505 55 0.008 58 63 TO-220IS 2SK2985 A IR IRLI2910 100 0.026 27 48 TO-220IS IR IRLI3705G 50 0.012 45 48 TO-220IS IR IRLI3705N 55 0.01 47 47 TO-220IS IR IRLI3803 30 0.006 67 48 TO-220IS IR IRLI520G 100 0.27 7.2 37 TO-220IS 2SK2399 B IR Revised 1Q '99 - 34 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRLI520N 100 0.18 7.7 27 TO-220IS 2SK2391 A IR IRLI530G 100 0.16 9.7 42 TO-220IS 2SK2391 A IR IRLI530N 100 0.1 11 33 TO-220IS 2SK2391 A IR IRLI540G 100 0.077 12 48 TO-220IS 2SK2391 A IR IRLI540N 100 0.044 20 42 TO-220IS 2SK2466 B IR IRLI620G 200 0.8 4.1 30 TO-220IS 2SK2381 A IR IRLI630G 200 0.4 5.9 32 TO-220IS 2SK2350 A IR IRLI640G 200 0.18 9.8 40 TO-220IS YTAF640 A IR IRLIZ14G 60 0.2 8 27 TO-220IS 2SK2231 B IR IRLIZ24G 60 0.1 14 37 TO-220IS 2SK2232 A IR IRLIZ24N 55 0.06 14 26 TO-220IS 2SK2232 A IR IRLIZ34G 60 0.05 20 42 TO-220IS 2SK2232 A IR IRLIZ34N 55 0.035 20 31 TO-220IS 2SK2385 A IR IRLIZ44G 60 0.028 30 48 TO-220IS 2SK2385 A IR IRLIZ44N 55 0.022 28 38 TO-220IS 2SK2312 A IR IRLL014 60 0.2 2.7 3.1 SOT-223 2SK2741 A IR IRLL014N 55 0.14 2 2.1 SOT-223 2SK2741 A IR IRLL110 100 0.54 1.5 3.1 SOT-223 2SK2742 A IR IRLL2705 55 0.04 5.2 2.1 SOT-223 IR IRLL3303 30 0.031 6.5 2.1 SOT-223 2SK2839 A IR IRLML2402 20 0.25 0.93 0.34 Micro-3 IR IRLML2803 30 0.25 0.91 0.34 Micro-3 IR IRLML5103 -30 0.6 0.6 0.28 Micro-3 IR IRLML6302 -20 0.6 0.61 0.28 Micro-3 SSM3J01F IR IRLMS1503 30 0.1 3.2 1.7 MICRO6 IR IRLMS1902 20 0.1 3.2 1.7 MICRO6 IR IRLMS5703 -30 0.2 -2.3 1.7 MICRO6 IR IRLMS6702 -20 0.2 -2.3 1.7 MICRO6 IR IRLR014 60 0.2 7.7 25 D-PAK 2SK2231 A IR IRLR024 60 0.1 14 42 D-PAK 2SK2232 A IR IRLR024N 55 0.065 17 38 D-PAK 2SK2782 A IR IRLR110 100 0.54 4.3 25 D-PAK 2SK2201 A IR IRLR120 100 0.27 7.7 42 D-PAK 2SK2399 A IR IRLR120N 100 0.185 11 39 D-PAK 2SK2399 A IR IRLR2703 30 0.045 22 38 D-PAK IR IRLR2705 55 0.04 24 46 D-PAK IR IRLR2905 55 0.027 36 69 D-PAK IR IRLR3103 30 0.019 46 69 D-PAK IR IRLR3303 30 0.031 33 57 D-PAK IR IRLR3410 100 0.1 15 52 D-PAK IR IRLU014 60 0.2 7.7 25 I-PAK 2SK2231 A IR IRLU024 60 0.1 14 42 I-PAK 2SK2782 A IR IRLU024N 55 0.065 17 38 I-PAK 2SK2782 A IR IRLU110 100 0.54 4.3 25 I-PAK 2SK2201 A IR IRLU120 100 0.27 7.7 42 I-PAK 2SK2399 A IR IRLU120N 100 0.185 11 39 I-PAK 2SK2399 A IR IRLU2703 30 0.045 22 38 I-PAK IR IRLU2705 55 0.04 24 46 I-PAK IR IRLU2905 55 0.027 36 69 I-PAK IR IRLU3103 30 0.019 46 69 I-PAK IR Revised 1Q '99 - 35 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement IRLU3303 30 0.031 33 57 I-PAK IR IRLU3410 100 0.1 15 52 I-PAK IR IRLZ14 60 0.2 10 43 TO-220AB 2SK2231 B IR IRLZ14S 60 0.2 10 43 D2PAK 2SK2231 B IR IRLZ24 60 0.1 17 60 TO-220AB 2SK2232 B IR IRLZ24N 55 0.06 18 45 TO-220AB 2SK2232 B IR IRLZ24NL 55 0.06 18 45 TO-262 2SK2311 A IR IRLZ24NS 55 0.06 18 45 D2PAK 2SK2311 A IR IRLZ24S 60 0.1 17 60 D2PAK 2SK2782 B IR IRLZ34 60 0.05 30 88 TO-220AB 2SK2232 B IR IRLZ34N 55 0.035 27 56 TO-220AB 2SK2385 B IR IRLZ34NL 55 0.035 30 68 TO-262 2SK2266 A IR IRLZ34NS 55 0.035 30 68 D2PAK 2SK2266 A IR IRLZ34S 60 0.05 30 88 D2PAK 2SK2311 A IR IRLZ44 60 0.028 50 150 TO-220AB 2SK2385 B IR IRLZ44N 55 0.022 41 83 TO-220AB 2SK2312 B IR IRLZ44NL 55 0.022 47 110 TO-262 2SK2376 A IR IRLZ44NS 55 0.022 47 110 D2PAK 2SK2376 A IR IRLZ44S 60 0.028 50 150 D2PAK 2SK2266 A IR MLP1N06CL 60 0.75 1 TO-220AB Motorola MLP2N06CL 62 0.4 2 TO-220AB Motorola MMBF170 60 5 0.5 0.3 SOT-23 Fairchild MMDF1300R2 25/-25 0.1/0.21 2/2 SOP-8(P&N) Motorola MMDF1N05E 50 0.18 1 SOP-8(Dual) TPC8205 A Motorola MMDF2C01HD 20/-12 0.045/0.18 5.2/3.4 SOP-8(P&N) Motorola MMDF2C02E 25/-25 0.1/0.25 3.6/2.5 SOP-8(P&N) Motorola MMDF2C02HD 20/-20 0.09/0.16 3.8/-3.3 SOP-8(P&N) Motorola MMDF2C03HD 30/-30 0.07/0.2 4.1/-3 SOP-8(P&N) TPC8401 A Motorola MMDF2N02E 25 0.1 3.6 SOP-8(Dual) Motorola MMDF2N05Z 50 0.3 2 1.6 SOP-8(Dual) TPC8205 A Motorola MMDF2P01HD -12 0.18 -3.4 SOP-8(Dual) Motorola MMDF2P02E -25 0.25 -2.5 SOP-8(Dual) TPC8303 A Motorola MMDF2P02HD -20 0.16 -3.3 SOP-8(Dual) TPC8302 A Motorola MMDF2P03HD -30 0.2 -3 SOP-8(Dual) TPC8301 A Motorola MMDF3200* 20 0.02 SOP-8(Dual) TPC8204 A Motorola MMDF3200D 20 0.015 7.1 SOP-8(Dual) TPC8204 A Motorola MMDF3200Z 20 0.015 7.1 SOP-8(Dual) TPC8204 A Motorola MMDF3201* 20 0.015 7.1 SOP-8(Dual) TPC8204 A Motorola MMDF3207* -20 0.03 SOP-8(Dual) Motorola MMDF3301* -30 0.04 SOP-8(Dual) TPC8303 A Motorola MMDF3303* 30/-30 0.025/0.04 SOP-8(P&N) TPC8401 A Motorola MMDF3304* 30 0.025 SOP-8(Dual) TPCT8203 A Motorola MMDF3N02HD 20 0.09 3.8 SOP-8(Dual) TPC8202 A Motorola MMDF3N03HD 30 0.07 4.1 SOP-8(Dual) TPC8201 A Motorola MMDF3N04HD 40 0.08 3.4 2 SOP-8(Dual) Motorola MMDF3N06HD 60 0.1 3.3 SOP-8(Dual) Motorola MMDF4N01HD 12 0.1 4 SOP-8(Dual) Motorola MMDF4N02Z 20 0.04 4.5 SOP-8(Dual) TPC8202 A Motorola MMDF5N02Z 20 0.04 5 SOP-8(Dual) TPC8202 A Motorola MMDF6N02HD 20 0.035 6 SOP-8(Dual) TPC8204 A Motorola Revised 1Q '99 - 36 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement MMFT1N10E 100 0.3 1 SOT-223 2SK2742 A Motorola MMFT2955E -60 0.3 1.2 SOT-223 2SJ482 A Motorola MMFT2N02EL 20 0.15 2 0.8 SOT-223 2SK2839 A Motorola MMFT3055E 60 0.15 1.7 SOT-223 2SK2741 A Motorola MMFT3055EL 60 0.18 1.5 SOT-223 2SK2741 A Motorola MMFT3055V 60 0.13 1.7 0.8 SOT-223 2SK2741 A Motorola MMFT3055VL 60 0.14 1.5 0.8 SOT-223 2SK2741 A Motorola MMSF10N02Z 20 0.015 10. SOP-8(Single) TPC8008 A Motorola MMSF2P02E -20 0.25 -2.5 SOP-8(Single) Motorola MMSF3203* -20 0.02 SOP-8(Single) Motorola MMSF3205 -20 0.015 -8.6 SOP-8(Single) Motorola MMSF3207 -20 0.033 -4.8 SOP-8(Dual) Motorola MMSF3300 30 0.0125 SOP-8(Single) TPC8007-H A Motorola MMSF3305* -30 0.02 SOP-8(Single) TPC8106-H A Motorola MMSF3P02HD -20 0.075 -5.6 SOP-8(Single) Motorola MMSF3P03HD -30 0.1 -4.6 SOP-8(Single) TPC8104-H A Motorola MMSF4N01HD 12 0.045 4 1.5 SOP-8(Single) Motorola MMSF4P01HD -12 0.08 -5.1 SOP-8(Single) Motorola MMSF5N02HD 20 0.025 8.2 SOP-8(Single) TPC8008 A Motorola MMSF5N03HD 30 0.04 6.5 SOP-8(Single) TPC8006-H A Motorola MMSF5N03Z 30 0.035 5 1.6 SOP-8(Single) TPC8001 A Motorola MMSF6N01HD 12 0.045 6 SOP-8(Single) Motorola MMSF6N02Z 20 0.022 6 1.6 SOP-8(Single) TPC8001 A Motorola MMSF7N02Z 20 0.022 7 SOP-8(Single) TPC8008 A Motorola MMSF7N03HD 30 0.028 8.2 2.5 SOP-8(Single) TPC8006-H A Motorola MMSF7N03Z 30 0.03 7.5 SOP-8(Single) TPC8006-H A Motorola MPM3002 100 0.4/0.15 8 ICePAK(H-B) Motorola MPM3003 60 0.28/0.15 10 ICePAK(FULL) Motorola MPM3004 60 0.28/0.15 10 ICePAK(H-B) Motorola MPM3008 60 0.15/0.04 16 ICePAK(H-B) Motorola MPM3010 60 0.15/0.15 12 ICePAK(H-B) Motorola MPM3017 60 0.15/0.04 25 ICePAK(H-B) Motorola MTA1N60E 600 3.8 1 TO-220IS 2SK3067 A Motorola MTA2955E -60 0.3 8 TO-220IS 2SJ438 A Motorola MTA2N60E 600 2.2 2 TO-220IS 2SK2750 A Motorola MTA3055E 60 0.15 9 TO-220IS 2SK2231 B Motorola MTA30N06E 60 0.025 30 TO-220IS 2SK2312 A Motorola MTA4N40E 400 1 4 TO-220IS 2SK2679 A Motorola MTA4N50E 500 1.5 4 TO-220IS 2SK2662 A Motorola MTA4N60E 600 1.2 4 TO-220IS 2SK2545 A Motorola MTA5N50E 500 0.8 5 TO-220IS 2SK2662 A Motorola MTA6N40E 400 0.55 6 TO-220IS 2SK2952 A Motorola MTA8N10E 100 0.25 8 TO-220IS 2SK2399 B Motorola MTAJ10P10 -100 0.3 10 40 TO-220IS 2SJ438 A Motorola MTAJ15P06 -60 0.12 15 45 TO-220IS 2SJ304 A Motorola MTAJ23N06HDL 60 0.03 23 40 TO-220IS 2SK2385 A Motorola MTAJ25N06EL 60 0.05 25 40 TO-220IS 2SK2232 A Motorola MTAJ27N06E 60 0.04 27 40 TO-220IS 2SK2385 A Motorola MTAJ3055E 60 0.15 10 30 TO-220IS 2SK2231 B Motorola MTAJ3055EL 60 0.18 12 30 TO-220IS 2SK2231 B Motorola Revised 1Q '99 - 37 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement MTAJ30N06E 60 0.028 30 50 TO-220IS 2SK2385 A Motorola MTAJ30N06EL 60 0.028 30 50 TO-220IS 2SK2385 A Motorola MTAJ30N06HD 60 0.021 30 35 TO-220IS 2SK2312 A Motorola MTAJ8N10E 100 0.25 8 35 TO-220IS 2SK2399 B Motorola MTB10N40E 400 0.55 10 D2-PAK 2SK2949 A Motorola MTB15N06E 60 0.12 15 D2-PAK 2SK2782 B Motorola MTB15N06V 60 0.12 15 D2-PAK 2SK2782 B Motorola MTB16N25E 250 0.25 16 D2-PAK 2SK2598 A Motorola MTB1N100E 1000 9 1 D2-PAK 2SK1930 A Motorola MTB20N20E 200 0.16 20 D2-PAK 2SK2401 A Motorola MTB23P06E -60 0.12 23 D2-PAK 2SJ401 A Motorola MTB23P06V -60 0.12 23 D2-PAK 2SJ401 A Motorola MTB2N40E 400 3.5 2 D2-PAK 2SK2838 A Motorola MTB2N60E 600 4.16 2 D2-PAK 2SK2865 B Motorola MTB2P50E -500 6 2 D2-PAK Motorola MTB30N06EL 60 0.05 30 D2-PAK 2SK2311 A Motorola MTB30N06VL 60 0.05 30 D2-PAK 2SK2311 A Motorola MTB30P06V -60 0.08 30 D2-PAK 2SJ401 A Motorola MTB33N10E 100 0.06 33 D2-PAK 2SK2466 B Motorola MTB35N06ZL 60 0.026 35 D2-PAK 2SK2266 A Motorola MTB36N06E 60 0.04 36 D2-PAK 2SK2311 A Motorola MTB36N06V 60 0.04 32 D2-PAK 2SK2311 A Motorola MTB3N100E 1000 4 3 D2-PAK 2SK1930 A Motorola MTB3N120E 1200 5 3 D2-PAK Motorola MTB4N80E 800 3 4 D2-PAK 2SK2883 A Motorola MTB50N06E 60 0.025 50 D2-PAK 2SK2376 A Motorola MTB50N06EL 60 0.028 50 D2-PAK 2SK2266 A Motorola MTB50N06V 60 0.028 42 D2-PAK 2SK2266 A Motorola MTB50N06VL 60 0.032 42 D2-PAK 2SK2266 A Motorola MTB50P03HDL -30 0.03 50 D2-PAK Motorola MTB52N06VL 60 0.024 52 D2-PAK 2SK2376 A Motorola MTB55N06Z 60 0.018 55 D2-PAK 2SK2376 A Motorola MTB56N06V 60 0.022 52 D2-PAK 2SK2376 A Motorola MTB60N06HD 60 0.014 60 D2-PAK 2SK2376 A Motorola MTB6N60E 600 1.2 6 D2-PAK 2SK2777 A Motorola MTB75N03HDL 30 0.007 75 D2-PAK Motorola MTB75N05HD 50 0.0095 75 D2-PAK 2SK2986 A Motorola MTB75N06HD 60 0.01 75 D2-PAK 2SK2986 A Motorola MTB8N50E 500 0.8 8 D2-PAK 2SK2776 A Motorola MTB9N25E 250 0.5 9 D2-PAK Motorola MTD10N05E 50 0.1 10 D-PAK 2SK2614 A Motorola MTD10N10EL 100 0.22 10 D-PAK 2SK2399 A Motorola MTD12N06EZL 60 0.18 12 D-PAK 2SK2231 A Motorola MTD14N10E 100 14 D-PAK Motorola MTD15N06V 60 0.12 15 D-PAK 2SK2782 A Motorola MTD15N06VL 60 0.085 15 D-PAK 2SK2782 A Motorola MTD1N50E 500 5 1 D-PAK 2SK2865 A Motorola MTD1N60E 600 8 1 D-PAK 2SK2865 A Motorola MTD1N80E 800 12 1 D-PAK 2SK2997 A Motorola MTD1P50E -500 15 1 D-PAK Motorola Revised 1Q '99 - 38 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement MTD20N03HDL 30 0.035 20 D-PAK 2SK2614 A Motorola MTD20N06HD 60 0.045 20 D-PAK Motorola MTD20N06HDL 60 0.045 20 D-PAK Motorola MTD20N06V 60 0.08 20 D-PAK 2SK2782 A Motorola MTD20P03HDL -30 0.099 19 D-PAK 2SJ401 Motorola MTD20P06HDL -60 0.15 15 D-PAK 2SJ377 A Motorola MTD2955E -60 0.3 12 D-PAK 2SJ312 B Motorola MTD2955V -60 0.3 12 D-PAK 2SJ377 A Motorola MTD2N40E 400 3.5 2 D-PAK Motorola MTD2N50E 500 3.6 2 D-PAK 2SK2599 B Motorola MTD3055E 60 0.15 8 D-PAK 2SK2231 A Motorola MTD3055EL 60 0.18 12 D-PAK 2SK2231 A Motorola MTD3055V 60 0.15 8 D-PAK 2SK2231 A Motorola MTD3055VL 60 0.18 12 D-PAK 2SK2231 A Motorola MTD3N20E 200 1.5 3 D-PAK 2SK2920 A Motorola MTD3N25E 250 1.4 3 D-PAK Motorola MTD4N20 200 0.7 4 D-PAK 2SK2920 A Motorola MTD4N20E 200 1.2 4 D-PAK 2SK2920 A Motorola MTD5N25E 250 1 5 D-PAK Motorola MTD5P06E -60 0.55 5 D-PAK 2SJ377 A Motorola MTD5P06V -60 0.45 5 D-PAK 2SJ377 A Motorola MTD6N10E 100 0.4 6 D-PAK 2SK2201 A Motorola MTD6N15 150 0.3 6 D-PAK Motorola MTD6N20E 200 0.7 6 D-PAK 2SK2920 A Motorola MTD6P10E -100 0.66 6 D-PAK Motorola MTD8N06E 60 0.12 8 D-PAK 2SK2782 A Motorola MTD9N10E 100 0.25 9 D-PAK 2SK2399 A Motorola MTDF1N02HD 20 0.135 1.5 Micro-8(DUAL) Motorola MTDF1N03HD 30 0.135 1.5 Micro-8(DUAL) Motorola MTDF1P02HD -20 0.175 -1.3 Micro-8(Dual) Motorola MTE125N20E 200 0.015 125 ISOTOP Motorola MTE215N10E 100 0.0055 215 ISOTOP Motorola MTE30N50E 500 0.15 30 250 ISOTOP Motorola MTE53N50E 500 0.08 53 ISOTOP Motorola MTM12P10 -100 0.3 12 TO-3(METAL) Motorola MTM15N40E 400 0.3 15 TO-3(METAL) Motorola MTP10N10E 100 0.25 10 TO-220AB 2SK2399 B Motorola MTP10N10EL 100 0.22 10 40 TO-220AB 2SK2399 B Motorola MTP10N15 150 0.3 10 TO-220AB 2SK2382 B Motorola MTP10N40E 400 0.55 10 TO-220AB 2SK2841 A Motorola MTP12N10E 100 0.16 12 TO-220AB 2SK2314 A Motorola MTP12N20 200 0.35 12 TO-220AB 2SK2382 B Motorola MTP12P06 -60 0.3 12 TO-220AB 2SJ304 B Motorola MTP12P10 -100 0.3 12 TO-220AB 2SJ380 B Motorola MTP13P06V -60 0.2 13 TO-220AB 2SJ438 B Motorola MTP15N05E 50 0.1 15 TO-220AB 2SK2507 B Motorola MTP15N05EL 50 0.1 15 TO-220AB 2SK2507 B Motorola MTP15N06E 60 0.12 15 TO-220AB 2SK2232 B Motorola MTP15N06V 60 0.12 15 TO-220AB 2SK2232 B Motorola MTP15N06VL 60 0.085 15 60 TO-220AB 2SK2232 B Motorola Revised 1Q '99 - 39 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement MTP15N15 150 0.25 15 TO-220AB 2SK2382 B Motorola MTP16N25E 250 0.25 16 125 TO-220AB 2SK2508 B Motorola MTP16P06V -60 0.16 17 TO-220AB 2SJ349 B Motorola MTP1N100E 1000 9 1 TO-220AB 2SK1119 A Motorola MTP1N50E 500 5 1 TO-220AB 2SK2661 A Motorola MTP1N60E 600 8 1 TO-220AB 2SK3067 B Motorola MTP1N80E 800 12 1 48 TO-220AB 2SK2997 B Motorola MTP20N06 60 0.085 20 TO-220AB 2SK2232 B Motorola MTP20N06V 60 0.085 20 TO-220AB 2SK2232 B Motorola MTP20N20E 200 0.16 20 TO-220AB 2SK2382 B Motorola MTP23P06 -60 0.12 23 TO-220AB 2SJ349 B Motorola MTP23P06V -60 0.12 23 125 TO-220AB 2SJ349 B Motorola MTP25N06V 60 0.06 25 TO-220AB 2SK2232 B Motorola MTP25P06V -60 0.09 25 TO-220AB 2SJ349 B Motorola MTP27N10E 100 0.07 27 125 TO-220AB 2SK2314 A Motorola MTP2955E -60 0.3 12 TO-220AB 2SJ438 B Motorola MTP2955V -60 0.3 10 TO-220AB 2SJ438 B Motorola MTP2N20 200 1.8 2 TO-220AB 2SK2381 B Motorola MTP2N40E 400 3.5 2 TO-220AB 2SK2679 B Motorola MTP2N50E 500 3.6 2 TO-220AB 2SK2862 B Motorola MTP2N60E 600 3.8 2 TO-220AB 2SK3085 A Motorola MTP2P50E -500 6 2 TO-220AB Motorola MTP3055E 60 0.15 12 TO-220AB 2SK2231 B Motorola MTP3055EL 60 0.18 12 TO-220AB 2SK2231 B Motorola MTP3055V 60 0.15 12 TO-220AB 2SK2231 B Motorola MTP3055VL 60 0.18 12 48 TO-220AB 2SK2231 B Motorola MTP30N06EL 60 0.05 30 TO-220AB 2SK2232 B Motorola MTP30N06VL 60 0.05 30 90 TO-220AB 2SK2232 B Motorola MTP30P06V -60 0.06 34 TO-220AB 2SJ349 B Motorola MTP33N10E 100 0.06 33 TO-220AB 2SK2466 B Motorola MTP35N06ZL 60 0.026 35 94 TO-220AB 2SK2385 B Motorola MTP36N06E 60 0.04 36 TO-220AB 2SK2385 B Motorola MTP36N06V 60 0.04 32 TO-220AB 2SK2385 B Motorola MTP3N100E 1000 4 3 TO-220AB 2SK1119 A Motorola MTP3N120E 1200 5 1.5 TO-220AB Motorola MTP3N25E 250 1.4 3 TO-220AB 2SK2840 B Motorola MTP3N50E 500 3 3 TO-220AB 2SK2862 B Motorola MTP3N60E 600 2.2 3 TO-220AB 2SK3085 A Motorola MTP4N40E 400 1.8 4 TO-220AB 2SK2679 B Motorola MTP4N50E 500 1.5 4 TO-220AB 2SK2661 A Motorola MTP4N80E 800 3 4 TO-220AB 2SK2603 A Motorola MTP50N05E 50 0.028 50 TO-220AB 2SK2886 B Motorola MTP50N06E 60 0.025 50 TO-220AB 2SK2312 B Motorola MTP50N06EL 60 0.028 50 TO-220AB 2SK2385 B Motorola MTP50N06V 60 0.028 45 TO-220AB 2SK2385 B Motorola MTP50N06VL 60 0.032 42 150 TO-220AB 2SK2385 B Motorola MTP50P03HDL -30 0.03 50 TO-220AB Motorola MTP52N06V 60 0.022 52 150 TO-220AB 2SK2312 B Motorola MTP52N06VL 60 0.024 52 150 TO-220AB 2SK2312 B Motorola MTP55N06Z 60 0.018 55 136 TO-220AB 2SK2312 B Motorola Revised 1Q '99 - 40 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement MTP5N40E 400 1 5 TO-220AB 2SK2679 B Motorola MTP5P06V -60 0.45 5 40 TO-220AB 2SJ438 B Motorola MTP5P25 -250 3 5 TO-220AB 2SJ512 B Motorola MTP60N06HD 60 0.014 60 TO-220AB 2SK2312 B Motorola MTP6N10 100 0.8 6 TO-220AB Motorola MTP6N60E 600 1.2 6 TO-220AB 2SK2544 A Motorola MTP6P20E -200 1 6 TO-220AB 2SJ407 B Motorola MTP75N03HDL 30 0.007 75 TO-220AB Motorola MTP75N05HD 50 0.0095 75 TO-220AB 2SK2985 B Motorola MTP75N06HD 60 0.01 75 TO-220AB 2SK2985 B Motorola MTP7N20 200 0.7 7 TO-220AB 2SK2381 B Motorola MTP7N20E 250 0.7 7 75 TO-220AB 2SK2914 A Motorola MTP7P06 -60 0.6 7 TO-220AB 2SJ438 B Motorola MTP7P06V -60 0.5 7 TO-220AB 2SJ438 B Motorola MTP8N20 200 0.4 8 TO-220AB YTA630 A Motorola MTP8N50E 500 0.8 8 TO-220AB 2SK2542 A Motorola MTP8P10 -100 0.4 8 TO-220AB 2SJ380 B Motorola MTP8P20 -200 0.4 8 TO-220AB 2SJ513 B Motorola MTP9N25E 250 0.5 9 75 TO-220AB 2SK2914 A Motorola MTSF1P02HD 20 0.16 1.1 Micro-8 Motorola MTSF2P02HD -20 -3 Micro-8 Motorola MTSF2P03HD -30 0.09 -2.7 Micro-8 Motorola MTSF3N02HD 20 0.04 4 Micro-8 Motorola MTSF3N03HD 30 0.045 3 Micro-8 Motorola MTV10N100E 1000 1.3 10 250 D3-PAK Motorola MTV16N50E 500 0.4 16 250 D3-PAK 2SK2698 B Motorola MTV20N50E 500 0.24 20 250 D3-PAK 2SK3117 A Motorola MTV25N50E 500 0.2 25 250 D3-PAK 2SK3117 A Motorola MTV32N20E 200 0.075 32 180 D3-PAK Motorola MTV32N25E 250 0.08 32 250 D3-PAK 2SK2967 B Motorola MTV6N100E 1000 1.5 6 178 D3-PAK Motorola MTW10N100E 1000 1.3 10 TO-247 2SK1489 B Motorola MTW10N40E 400 0.55 10 TO-247 2SK2841 B Motorola MTW14N50E 500 0.32 14 TO-247 2SK2698 A Motorola MTW14P20 -200 0.5 14 TO-247 2SJ513 B Motorola MTW15N25E 250 0.28 15 TO-247 2SK2508 B Motorola MTW16N40E 400 0.3 16 TO-247 2SK2837 A Motorola MTW20N20E 200 0.15 20 TO-247 YTA640 B Motorola MTW20N50E 500 0.24 20 TO-247 2SK2837 A Motorola MTW20P10 -100 0.15 20 TO-247 2SJ464 B Motorola MTW23N25E 250 0.14 23 TO-247 2SK2967 A Motorola MTW24N40E 400 0.16 24 TO-247 2SK1544 B Motorola MTW26N15E 150 0.095 13 TO-247 Motorola MTW32N20E 200 0.075 32 TO-247 2SK3176 A Motorola MTW32N25E 250 0.1 32 TO-247 2SK2967 A Motorola MTW33N10E 100 0.058 33 TO-247 2SK2466 B Motorola MTW35N15E 150 0.065 35 TO-247 Motorola MTW45N10E 100 0.035 45 TO-247 2SK1381 A Motorola MTW4N80E 800 3 4 TO-247 2SK2603 B Motorola MTW54N05E 50 0.014 54 TO-247 2SK2551 A Motorola Revised 1Q '99 - 41 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement MTW6N100E 1000 1.5 6 TO-247 2SK2613 A Motorola MTW6N60E 600 1.2 6 TO-247 2SK2602 A Motorola MTW7N80E 800 1 7 TO-247 2SK2607 A Motorola MTW8N50E 500 0.6 8 TO-247 2SK2600 B Motorola MTW8N60E 600 0.5 8 TO-247 2SK2915 A Motorola MTY100N10E 100 0.01 100 TO-264 Motorola MTY10N100E 1000 1.3 10 TO-264 2SK1489 A Motorola MTY14N100E 1000 0.8 14 568 TO-264 2SK1489 A Motorola MTY16N80E 800 0.5 16 568 TO-264 Motorola MTY20N50E 500 0.26 20 300 TO-264 2SK2837 B Motorola MTY25N60E 600 0.5 25 TO-264 2SK2915 B Motorola MTY30N50E 500 0.14 30 TO-264 2SK1544 A Motorola MTY55N20E 200 0.028 55 TO-264 Motorola NDC631N 20 0.06 4.1 1.6 SSOT-6(Single) Fairchild NDC632P -20 0.14 -2.7 1.6 SSOT-6(Single) Fairchild NDC651N 30 0.06 3.2 1.6 SSOT-6(Single) Fairchild NDC652P -30 0.11 -2.4 1.6 SSOT-6(Single) Fairchild NDC7001C 50/-50 2/5 0.51/-0.34 0.96 SSOT-6(P&N) Fairchild NDC7002N 50 2 0.51 0.96 SSOT-6(Dual) Fairchild NDC7003P -50 5 -0.34 0.96 SSOT-6(Dual) Fairchild NDF0610 -60 10 -0.18 0.8 TO-92 Fairchild NDH8301N 20 0.06 3 0.8 SSOT-8(Dual) Fairchild NDH8302P -20 0.13 -2 0.8 SSOT-8(Dual) Fairchild NDH8303N 20 0.035 3.8 0.8 SSOT-8(Dual) Fairchild NDH8304P -20 0.07 -2.7 0.8 SSOT-8(Dual) Fairchild NDH831N 20 0.03 5.8 1.8 SSOT-8(Single) Fairchild NDH8320C 20/-20 0.06/0.13 3/-2 0.8 SSOT-8(P&N) Fairchild NDH8321C 20/-20 0.035/0.07 3.8/-2.7 0.8 SSOT-8(P&N) Fairchild NDH832P -20 0.06 -4.2 1.8 SSOT-8(Single) Fairchild NDH833N 20 0.02 7.1 1.8 SSOT-8(Single) Fairchild NDH834P -20 0.035 -5.6 1.8 SSOT-8(Single) Fairchild NDH8436 30 0.03 5.8 1.8 SSOT-8(Single) Fairchild NDH8447 -30 0.053 -4.4 1.8 SSOT-8(Single) Fairchild NDH8501N 30 0.07 2.8 0.8 SSOT-8(Dual) Fairchild NDH8502P -30 0.11 -2.2 0.8 SSOT-8(Dual) SSM8J01FU B Fairchild NDH8503N 30 0.033 3.8 0.8 SSOT-8(Dual) Fairchild NDH8504P -30 0.07 -2.7 0.8 SSOT-8(Dual) Fairchild NDH8520C 30/-30 0.07/0.11 2.8/-2.2 0.8 SSOT-8(P&N) Fairchild NDH8521C 30/-30 0.033/0.07 3.8/-2.7 0.8 SSOT-8(P&N) Fairchild NDH853N 30 0.017 7.6 1.8 SSOT-8(Single) Fairchild NDH854P -30 0.032 -5.1 1.8 SSOT-8(Single) Fairchild NDM3000 30/-30 0.09/0.16 3/-3 2.5 SOIC-16(3NP) Fairchild NDM3001 30/-30 0.115/0.24 2.9/-2.9 2.5 SOIC-16(3NP) Fairchild NDP4050 50 0.1 15 50 TO-220AB Fairchild NDP4050L 50 0.18 15 50 TO-220AB Fairchild NDP4060 60 0.1 15 50 TO-220AB 2SK2232 B Fairchild NDP4060L 60 0.08 15 50 TO-220AB 2SK2232 B Fairchild NDP408A 80 0.16 12 50 TO-220AB Fairchild NDP410A 100 0.25 9 50 TO-220AB 2SK2399 B Fairchild NDP5060 60 0.05 26 60 TO-220AB 2SK2232 B Fairchild Revised 1Q '99 - 42 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement NDP5060L 60 0.035 26 60 TO-220AB 2SK2385 B Fairchild NDP508A 80 0.08 19 75 TO-220AB Fairchild NDP510A 100 0.12 15 75 TO-220AB 2SK2314 A Fairchild NDP6020 20 0.023 35 50 TO-220AB Fairchild NDP6020P -20 0.05 -24 50 TO-220AB Fairchild NDP6030L 30 0.0135 52 75 TO-220AB 2SK3127 B Fairchild NDP6030PL -30 0.025 -30 75 TO-220AB Fairchild NDP603AL 30 0.022 25 50 TO-220AB 2SK2844 A Fairchild NDP6050 50 0.025 48 100 TO-220AB 2SK2886 B Fairchild NDP6050L 50 0.02 48 100 TO-220AB 2SK2886 B Fairchild NDP6051 50 0.022 48 100 TO-220AB 2SK2886 B Fairchild NDP6051L 50 0.018 48 100 TO-220AB 2SK2886 B Fairchild NDP6060 60 0.025 48 100 TO-220AB 2SK2312 B Fairchild NDP6060L 60 0.02 48 100 TO-220AB 2SK2312 B Fairchild NDP608A 80 0.042 36 100 TO-220AB 2SK2466 B Fairchild NDP610A 100 0.065 26 100 TO-220AB 2SK2314 B Fairchild NDP7050 50 0.013 75 150 TO-220AB Fairchild NDP7050L 50 0.01 75 150 TO-220AB Fairchild NDP7051 50 0.013 70 130 TO-220AB Fairchild NDP7051L 50 0.0115 67 130 TO-220AB Fairchild NDP7052 50 0.01 75 150 TO-220AB Fairchild NDP7052L 50 0.0075 75 150 TO-220AB 2SK2985 B Fairchild NDP7060 60 0.013 75 150 TO-220AB 2SK2985 B Fairchild NDP7060L 60 0.01 75 150 TO-220AB 2SK2985 B Fairchild NDP7061 60 0.016 64 130 TO-220AB 2SK2312 B Fairchild NDP7061L 60 0.013 60 130 TO-220AB 2SK2985 B Fairchild NDP708A 80 0.022 60 150 TO-220AB Fairchild NDP710A 100 0.038 42 150 TO-220AB Fairchild NDS0605 -60 5 -0.18 0.36 SOT-23 2SJ168 A Fairchild NDS0610 -60 10 -0.12 0.36 SOT-23 2SJ168 A Fairchild NDS331N 20 0.16 1.3 0.5 SOT-23 SSM3K01F A Fairchild NDS332P -20 0.3 -1 0.5 SOT-23 SSM3J01F A Fairchild NDS335N 20 0.11 1.7 0.5 SOT-23 SSM3K01F A Fairchild NDS336P -20 0.2 -1.2 0.5 SOT-23 Fairchild NDS351AN 30 0.16 1.2 0.5 SOT-23 SSM3K01F A Fairchild NDS351N 30 0.16 1.1 0.5 SOT-23 SSM3K01F A Fairchild NDS352AP -30 0.3 -0.9 0.5 SOT-23 SSM3J01F A Fairchild NDS352P -20 0.35 -0.85 0.5 SOT-23 SSM3J01F A Fairchild NDS355AN 30 0.085 1.7 0.5 SOT-23 Fairchild NDS355N 30 0.085 1.6 0.5 SOT-23 Fairchild NDS356AP -30 0.2 -1.1 0.5 SOT-23 Fairchild NDS356P -20 0.21 -1.1 0.5 SOT-23 Fairchild NDS7002A 60 2 0.28 0.3 SOT-23 2SK1062 A Fairchild NDS8330 -20 0.03 -6.5 SOP-8(Single) Fairchild NDS8410 30 0.015 10 SOP-8(Single) TPC8005-H A Fairchild NDS8410A 30 0.012 10.8 SOP-8(Single) TPC8007-H A Fairchild NDS8410S 30 0.02 8.6 SOP-8(Single) TPC8001 A Fairchild NDS8425 20 0.025 7.4 SOP-8(Single) TPC8008 A Fairchild NDS8426 20 0.015 9.9 SOP-8(Single) TPC8008 A Fairchild NDS8426A 20 0.0135 10.5 SOP-8(Single) TPC8008 A Fairchild Revised 1Q '99 - 43 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement NDS8433 -20 0.055 -5.2 SOP-8(Single) Fairchild NDS8434 -20 0.035 -6.5 SOP-8(Single) Fairchild NDS8434A -20 0.024 -7.8 SOP-8(Single) Fairchild NDS8435 -30 0.028 -7 SOP-8(Single) TPC8106-H A Fairchild NDS8435A -30 0.023 -7.9 SOP-8(Single) TPC8106-H A Fairchild NDS8839H 30/-30 0.045/0.09 5.7/4 SOP-8(P&N) TPC8401 A Fairchild NDS8852H 30 0.08 4.3 SOP-8(Single) TPC8004 A Fairchild NDS8852H 30/-30 0.11/0.2 4.3/-3.4 2.5 SOP-8(P&N) Fairchild NDS8858H 30/-30 0.035/0.065 6.3/-4.8 SOP-8(P&N) TPC8401 A Fairchild NDS8926 20 0.035 5.5 SOP-8(Dual) TPC8204 A Fairchild NDS8928 20/-20 0.035/0.07 5.5/3.8 SOP-8(P&N) Fairchild NDS8934 -20 0.07 -3.8 SOP-8(Dual) Fairchild NDS8936 30 0.035 5.3 SOP-8(Dual) TPCT8203 A Fairchild NDS8947 -30 0.065 -4 SOP-8(Dual) TPC8303 A Fairchild NDS8958 30/-30 0.035/0.065 5.3/-4 SOP-8(P&N) TPC8401 A Fairchild NDS8961 30 0.1 3.1 SOP-8(Dual) TPC8201 A Fairchild NDS8963 30 0.16 2.5 SOP-8(Dual) Fairchild NDS9400A -30 0.13 -3.4 SOP-8(Single) Fairchild NDS9405 -20 0.1 -4.3 SOP-8(Single) Fairchild NDS9407 -60 0.15 -3 SOP-8(Single) Fairchild NDS9410A 30 0.028 7.3 SOP-8(Single) TPC8006-H A Fairchild NDS9410S 30 0.03 7 SOP-8(Single) TPC8006-H A Fairchild NDS9430 -20 0.06 -5.3 SOP-8(Single) Fairchild NDS9435 -30 0.07 -4.6 SOP-8(Single) TPC8104-H A Fairchild NDS9435A -30 0.05 -5.3 SOP-8(Single) TPC8105-H A Fairchild NDS9925A 20 0.06 4.2 SOP-8(Dual) TPC8202 A Fairchild NDS9933 -20 0.11 -3.2 SOP-8(Dual) TPC8302 A Fairchild NDS9933A -20 0.14 -2.7 SOP-8(Dual) TPC8302 A Fairchild NDS9936 30 0.05 5 SOP-8(Dual) TPC8201 A Fairchild NDS9942 20/-20 0.125/0.2 3/-2.5 SOP-8(P&N) Fairchild NDS9943 20/-25 0.125/0.16 3/-2.8 SOP-8(P&N) Fairchild NDS9945 60 0.1 3.5 SOP-8(Dual) Fairchild NDS9947 -20 0.1 -3.5 SOP-8(Dual) TPC8302 A Fairchild NDS9948 -60 0.25 -2.3 SOP-8(Dual) TPC8304 A Fairchild NDS9952A 30/-30 0.08/0.13 3.7/-2.9 SOP-8(P&N) TPC8401 A Fairchild NDS9952A 30/-30 0.08/0.13 3.7/-2.9 2 SOP-8(P&N) TPC8401 A Fairchild NDS9953A -30 0.13 -2.9 SOP-8(Dual) TPC8301 A Fairchild NDS9955 50 0.13 3 SOP-8(Dual) TPC8205 A Fairchild NDS9956A 30 0.08 3.7 SOP-8(Dual) TPC8201 A Fairchild NDS9957 60 0.16 2.6 SOP-8(Dual) TPC8205 A Fairchild NDS9958 20/-20 0.1/0.1 3.5/-3.5 SOP-8(P&N) Fairchild NDS9958 20/-20 0.1/0.1 3.5/-3.5 2 SOP-8(P&N) Fairchild NDS9959 50 0.3 2 SOP-8(Dual) TPC8205 A Fairchild NDT014 60 0.2 2.7 3 SOT-223 2SK2741 A Fairchild NDT014L 60 0.16 2.8 3 SOT-223 2SK2741 A Fairchild NDT2955 -60 0.3 -2.5 3 SOT-223 2SJ482 A Fairchild NDT3055 60 0.1 4 3 SOT-223 Fairchild NDT3055L 60 0.1 3.7 3 SOT-223 Fairchild NDT410EL 100 0.25 2.1 3 SOT-223 Fairchild NDT451AN 30 0.035 7.2 3 SOT-223 2SK2839 A Fairchild Revised 1Q '99 - 44 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement NDT451N 30 0.05 5.5 3 SOT-223 2SK2839 A Fairchild NDT452AP -30 0.065 -5 3 SOT-223 Fairchild NDT452P -30 0.18 -3 3 SOT-223 Fairchild NDT453N 30 0.028 8 3 SOT-223 Fairchild NDT454P -30 0.05 -5.9 3 SOT-223 Fairchild NDT455N 30 0.015 11.5 3 SOT-223 Fairchild NDT456P -30 0.03 -7.5 3 SOT-223 Fairchild PHB36N06E 60 0.038 41 125 D2PAK 2SK2266 A Philips PHP10N10E 100 0.038 41 125 TO220AB Philips PHP10N40E 400 0.55 10 125 TO220AB 2SK2841 A Philips PHP12N10E 100 0.16 14 75 TO220AB 2SK2314 A Philips PHP15N06E 60 0.13 15 60 TO220AB 2SK2231 B Philips PHP18N20E 200 0.18 18 136 TO220AB YTA640 A Philips PHP1N50E 500 5 2 50 TO220AB 2SK2862 B Philips PHP1N60E 600 6 1.9 50 TO220AB 2SK3067 B Philips PHP20N06E 60 0.08 22 75 TO220AB 2SK2232 B Philips PHP26N10E 100 0.08 26 125 TO220AB 2SK2314 A Philips PHP2N40E 400 3.5 2.5 50 TO220AB 2SK2862 B Philips PHP2N60E 600 4.4 2.6 75 TO220AB 2SK3067 B Philips PHP3055E 60 0.15 12 40 TO220AB 2SK2231 B Philips PHP3055L 60 0.18 12 40 TO220AB 2SK2231 B Philips PHP33N10 100 0.057 34 150 TO220AB 2SK2466 B Philips PHP36N06E 60 0.038 41 125 TO220AB 2SK2385 B Philips PHP3N20E 200 1.5 3.5 20 TO220AB 2SK2381 B Philips PHP3N50E 500 3 3.2 75 TO220AB 2SK2862 B Philips PHP3N60E 600 2.2 4.3 100 TO220AB 2SK3085 A Philips PHP4N40E 400 1.8 4.2 75 TO220AB 2SK2679 B Philips PHP4N50E 500 1.5 5.3 100 TO220AB 2SK2661 A Philips PHP50N06 60 0.028 52 150 TO220AB 2SK2385 B Philips PHP5N20E 200 0.8 5 40 TO220AB 2SK2381 B Philips PHP5N40E 400 1 6.5 100 TO220AB 2SK2679 B Philips PHP6N60E 600 1.2 6.5 125 TO220AB 2SK2544 A Philips PHP8N20E 200 0.4 9.2 90 TO220AB YTA630 A Philips PHP8N50E 500 0.8 8 125 TO220AB Philips PHX15N06E 60 0.08 13 25 TO-220IS 2SK2232 A Philips PHX1N40E 400 3.5 1.75 25 TO-220IS 2SK2862 A Philips PHX1N50E 500 5 1.4 25 TO-220IS 2SK2862 A Philips PHX1N60E 600 6 1.3 25 TO-220IS 2SK3067 A Philips PHX2N40E 400 1.8 2.4 25 TO-220IS 2SK2679 A Philips PHX2N50E 500 3 1.9 25 TO-220IS 2SK2862 A Philips PHX2N60E 600 2.2 2.4 30 TO-220IS 2SK2750 A Philips PHX4N40E 400 1 3.6 30 TO-220IS 2SK2679 A Philips PHX4N50E 500 1.5 2.9 30 TO-220IS 2SK2662 A Philips PHX4N60E 600 1.2 3.2 30 TO-220IS 2SK2545 A Philips PHX5N40E 400 0.55 4.9 30 TO-220IS 2SK2952 A Philips PHX5N50E 500 0.8 4 30 TO-220IS Philips RF1K49086 30 0.06 3.5 SOP-8(Dual) TPC8201 A Harris RF1K49088 30 0.06 3.5 SOP-8(Dual) TPC8201 A Harris RF1K49090 12 0.05 3.5 SOP-8(Dual) Harris RF1K49092 12/-12 0.05/0.13 3.5/-2.5 SOP-8(P&N) Harris Revised 1Q '99 - 45 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement RF1K49092 12/-12 0.05/0.13 3.5/2.5 SOP-8(P&N) Harris RF1K49093 -12 0.13 -2.5 SOP-8(Dual) Harris RF1K49093 -12 0.13 -3.5 SOP-8(Single) Harris RF1K49154 60 0.13 2 SOP-8(Dual) TPC8205 A Harris RF1K49156 30 0.03 6.3 SOP-8(Single) TPC8001 A Harris RF1K49156 30 0.03 6.3 SOP-8(Single) TPC8006-H A Harris RF1K49157 30 0.03 6.3 SOP-8(Single) TPC8006-H A Harris RF1K49211 12 0.02 7 SOP-8(Single) Harris RF1K49221 60 0.13 2.5 SOP-8(Dual) TPC8205 A Harris RF1K49223 -30 0.15 -2.5 SOP-8(Dual) TPC8301 A Harris RF1K49224 30/-30 0.06/0.15 3.5/-2.5 SOP-8(P&N) TPC8401 A Harris RF1S15N06SM 60 0.014 15 D2-PAK 2SK2376 A Harris RF1S17N06LSM 60 0.1 17 D2-PAK 2SK2782 B Harris RF1S22N10SM 100 0.08 22 D2-PAK 2SK2789 A Harris RF1S23N06LESM 60 0.065 23 D2-PAK 2SK2311 A Harris RF1S25N06SM 60 0.047 25 D2-PAK 2SK2311 A Harris RF1S30N06LESM 60 0.047 30 D2-PAK 2SK2311 A Harris RF1S30P05SM -50 0.065 -30 D2-PAK 2SJ401 A Harris RF1S30P06SM -60 0.075 -30 D2-PAK 2SJ401 A Harris RF1S40N10SM 100 0.04 30 D2-PAK 2SK2466 B Harris RF1S45N03LSM 30 0.022 45 D2-PAK 2SK3090 A Harris RF1S45N06LESM 60 0.028 45 D2-PAK 2SK2266 A Harris RF1S45N06SM 60 0.028 45 D2-PAK 2SK2266 A Harris RF1S4N100SM 1000 3.5 4.3 D2-PAK 2SK1930 A Harris RF1S50N06LESM 60 0.022 50 D2-PAK 2SK2376 A Harris RF1S50N06SM 60 0.022 50 D2-PAK 2SK2376 A Harris RF1S530SM 100 0.16 14 D2-PAK 2SK2789 A Harris RF1S540SM 100 0.077 28 D2-PAK 2SK2789 A Harris RF1S60P03SM -30 0.027 -60 D2-PAK Harris RF1S630SM 200 0.4 9 D2-PAK 2SK2401 A Harris RF1S640SM 200 0.18 18 D2-PAK 2SK2401 A Harris RF1S70N03SM 30 0.01 70 D2-PAK 2SK3127 A Harris RF1S70N06SM 60 0.014 70 D2-PAK 2SK2376 A Harris RF1S9530SM 100 0.3 12 D2-PAK Harris RF1S9540SM 100 0.2 19 D2-PAK 2SK2399 B Harris RF1S9630SM 200 0.8 6.5 D2-PAK 2SK2920 B Harris RF1S9640SM 200 0.5 11 D2-PAK 2SK2350 B Harris RFA100N05E 50 0.01 100 MO-093 Harris RFB18N10CS 100 0.1 18 TO-220 5PIN Harris RFD10P03LSM -30 0.2 -10 D-PAK Harris RFD12N06LESM 60 0.135 12 TO-252 2SK2231 A Harris RFD12N06RLE 60 0.135 12 TO-251 2SK2231 A Harris RFD14N05 50 0.1 14 TO-251 2SK2231 A Harris RFD14N05L 50 0.1 14 TO-251 2SK2231 A Harris RFD14N05LSM 50 0.1 14 TO-252 2SK2231 A Harris RFD14N05SM 50 0.1 14 TO-252 2SK2231 A Harris RFD14N06LSM 60 0.1 14 D-PAK 2SK2782 A Harris RFD14N06SM 60 0.1 14 D-PAK 2SK2782 A Harris RFD15N06LESM 60 0.065 15 D-PAK 2SK2782 A Harris RFD15P05 -50 0.15 15 TO-251 2SJ377 A Harris Revised 1Q '99 - 46 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement RFD15P05SM -50 0.15 15 TO-252 2SJ377 A Harris RFD15P06SM -60 0.15 -15 D-PAK 2SJ377 A Harris RFD16N03LSM 30 0.022 16 D-PAK Harris RFD16N05 50 0.047 16 TO-251 2SK2231 A Harris RFD16N05L 50 0.047 16 TO-251 2SK2231 A Harris RFD16N05LSM 50 0.047 16 TO-252 2SK2231 A Harris RFD16N05SM 50 0.047 16 TO-252 2SK2231 A Harris RFD16N06LESM 60 0.047 16 D-PAK 2SK2782 A Harris RFD16N06SM 60 0.047 16 D-PAK 2SK2782 A Harris RFD3055LESM 60 0.15 12 D-PAK 2SK2231 A Harris RFD3055RLE 60 0.16 12 TO-251 2SK2231 A Harris RFD3055RLESM 60 0.16 12 TO-252 2SK2231 A Harris RFD3055SM 60 0.15 12 D-PAK 2SK2231 A Harris RFD3N08L 80 0.8 3 TO-251 2SK2201 A Harris RFD3N08LSM 80 0.8 3 TO-252 2SK2201 A Harris RFD4N06L 60 0.6 4 TO-251 2SK2231 A Harris RFD4N06LSM 60 0.6 4 TO-252 2SK2231 A Harris RFD7N10LEEM 100 0.3 7 D-PAK 2SK2201 A Harris RFD8P03L -30 0.3 8 TO-251 Harris RFD8P03LSM -30 0.3 8 TO-252 Harris RFD8P05 -50 0.3 8 TO-251 2SJ377 A Harris RFD8P05SM -50 0.3 8 TO-252 2SJ377 A Harris RFD8P06ESM -60 0.3 -8 D-PAK 2SJ377 A Harris RFG30P05 -50 0.065 30 TO-247 2SJ402 A Harris RFG30P06 -50 0.075 30 TO-247 2SJ402 A Harris RFG40N10 100 0.04 40 TO-247 2SK2466 B Harris RFG50N05 50 0.022 50 TO-247 2SK2445 A Harris RFG50N05L 50 0.022 50 TO-247 2SK2551 A Harris RFG60P05E -50 0.026 60 TO-247 Harris RFG60P06E -50 0.03 60 TO-247 Harris RFG70N06 60 0.014 70 TO-247 2SK2313 A Harris RFH10N45 450 0.6 10 TO-218 2SK2601 A Harris RFH10N50 500 0.6 10 TO-218 2SK2601 A Harris RFH12N35 350 0.5 12 TO-218 2SK2698 A Harris RFH12N40 400 0.5 12 TO-218 2SK2841 B Harris RFH25N18 180 0.15 25 TO-218 2SK2382 B Harris RFH25N20 200 0.12 27 TO-218 2SK2382 B Harris RFH25P08 -80 0.15 25 TO-218 Harris RFH25P10 -100 0.15 25 TO-218 2SJ464 B Harris RFH30N12 120 0.075 30 TO-218 Harris RFH30N15 150 0.075 30 TO-218 Harris RFH35N08 80 0.055 35 TO-218 2SK2466 B Harris RFH35N10 100 0.055 35 TO-218 2SK2466 B Harris RFH45N05 50 0.04 45 TO-218 2SK2398 A Harris RFH45N06 60 0.04 45 TO-218 2SK2398 A Harris RFH75N05E 50 0.01 75 TO-218 2SK2551 A Harris RFP10N12 120 0.3 10 TO-220AB 2SK2314 A Harris RFP10N12L 120 0.3 10 TO-220AB 2SK2314 A Harris RFP10N15 150 0.3 10 TO-220AB 2SK2382 B Harris RFP10N15L 150 0.3 10 TO-220AB 2SK2382 B Harris Revised 1Q '99 - 47 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement RFP10P12 -120 0.5 10 TO-220AB 2SJ407 B Harris RFP10P15 -150 0.5 10 TO-220AB 2SJ513 B Harris RFP12N06RLE 60 0.135 12 TO-220AB 2SK2231 B Harris RFP12N08 80 0.2 12 TO-220AB 2SK2314 A Harris RFP12N08L 80 0.2 12 TO-220AB 2SK2314 A Harris RFP12N10 100 0.2 12 TO-220AB 2SK2399 B Harris RFP12N10L 100 0.2 12 TO-220AB 2SK2399 B Harris RFP12N18 180 0.25 12 TO-220AB 2SK2382 B Harris RFP12N20 200 0.2 12.5 TO-220AB YTA640 A Harris RFP12P08 -80 0.3 12 TO-220AB 2SJ380 B Harris RFP12P10 -100 0.3 12 TO-220AB 2SJ380 B Harris RFP14N05 50 0.1 14 TO-220AB 2SK2507 B Harris RFP14N05L 50 0.1 14 TO-220AB 2SK2507 B Harris RFP15N05 50 0.14 15 TO-220AB 2SK2232 B Harris RFP15N05L 50 0.14 15 TO-220AB 2SK2232 B Harris RFP15N06 60 0.14 15 TO-220AB 2SK2231 B Harris RFP15N06L 60 0.14 15 TO-220AB 2SK2231 B Harris RFP15N08L 80 0.14 15 TO-220AB 2SK2314 A Harris RFP15N12 120 0.15 15 TO-220AB 2SK2401 A Harris RFP15N15 150 0.15 15 TO-220AB 2SK2401 A Harris RFP15P05 -50 0.15 15 TO-220AB 2SJ349 A Harris RFP17N06L 60 0.1 17 TO-220AB 2SK2232 B Harris RFP18N08 80 0.1 18 TO-220AB 2SK2391 B Harris RFP18N10 100 0.1 18 TO-220AB 2SK2314 A Harris RFP22N10 100 0.08 22 TO-220AB 2SK2314 A Harris RFP25N05 50 0.047 25 TO-220AB 2SK2507 B Harris RFP25N05L 50 0.047 25 TO-220AB 2SK2507 B Harris RFP2N08 80 1.05 2 TO-220AB 2SK2201 B Harris RFP2N08L 80 1.05 2 TO-220AB 2SK2201 B Harris RFP2N10 100 1.05 2 TO-220AB 2SK2201 B Harris RFP2N10L 100 1.05 2 TO-220AB 2SK2201 B Harris RFP2N12 120 1.75 2 TO-220AB 2SK2381 B Harris RFP2N12L 120 1.75 2 TO-220AB 2SK2381 B Harris RFP2N15 150 1.75 2 TO-220AB 2SK2381 B Harris RFP2N15L 150 1.75 2 TO-220AB 2SK2381 B Harris RFP2N18 180 3.5 2 TO-220AB 2SK2381 B Harris RFP2N18L 180 3.5 2 TO-220AB 2SK2381 B Harris RFP2N20 200 3.5 2 TO-220AB 2SK2381 B Harris RFP2N20L 200 3.5 2 TO-220AB 2SK2381 B Harris RFP2P08 -80 3.5 2 TO-220AB 2SJ380 B Harris RFP2P10 -100 3.5 2 TO-220AB Harris RFP3055RLE 60 0.16 12 TO-220AB 2SK2231 B Harris RFP30P05 -50 0.065 30 TO-220AB 2SJ334 B Harris RFP30P06 -60 0.075 30 TO-220AB 2SJ349 B Harris RFP3N45 450 3 3 TO-220AB 2SK2862 B Harris RFP3N50 500 3 3 TO-220AB 2SK2862 B Harris RFP40N10 100 0.04 40 TO-220AB 2SK2466 B Harris RFP4N05 50 0.95 4 TO-220AB 2SK2231 B Harris RFP4N05L 50 0.6 4 TO-220AB 2SK2231 B Harris RFP4N06 60 0.8 4 TO-220AB Harris Revised 1Q '99 - 48 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement RFP4N06L 60 0.6 4 TO-220AB Harris RFP4N100 1000 3.5 4.3 TO-220AB 2SK1119 A Harris RFP4N35 350 2 4 TO-220AB 2SK2679 B Harris RFP4N40 400 2 4 TO-220AB 2SK2679 B Harris RFP50N05 50 0.022 50 TO-220AB 2SK2886 B Harris RFP50N05L 50 0.022 50 TO-220AB 2SK2551 B Harris RFP5P12 -120 1 5 TO-220AB 2SJ407 B Harris RFP5P15 -150 1 5 TO-220AB 2SJ407 B Harris RFP6N45 450 1.25 6 TO-220AB 2SK2542 A Harris RFP6N50 500 1.25 6 TO-220AB 2SK2542 A Harris RFP6P08 -80 0.6 6 TO-220AB 2SJ380 B Harris RFP6P10 -100 0.6 6 TO-220AB Harris RFP70N06 60 0.014 70 TO-220AB 2SK2312 B Harris RFP7N35 350 0.75 7 TO-220AB 2SK2542 A Harris RFP7N40 400 0.75 7 TO-220AB 2SK2841 A Harris RFP8N18 180 0.5 8 TO-220AB 2SK2467 B Harris RFP8N18L 180 0.5 8 TO-220AB 2SK2467 B Harris RFP8N20 200 0.6 8 TO-220AB YTA630 A Harris RFP8N20L 200 0.65 8 TO-220AB YTA630 A Harris RFP8P03L -30 0.3 8 TO-220AB Harris RFP8P05 -50 0.3 8 TO-220AB 2SJ438 B Harris RFP8P08 -80 0.4 8 TO-220AB 2SJ380 B Harris RFP8P10 -100 0.4 8 TO-220AB 2SJ380 B Harris RFW2N06RLE 60 0.16 2 DIP Harris RLP1N06CLE 60 0.75 1 TO-220AB Harris RLP1N08LE 80 0.75 1 TO-220AB Harris RLP5N08LE 80 0.12 5.5 TO-220AB 2SK2314 A Harris Si2301DS -12 0.13 2.3 SOT-23 Siliconix Si2302DS 20 0.085 2.8 SOT-23 Siliconix Si2303DS -30 0.24 -1.7 1.25 SOT-23 Siliconix Si2304DS 30 0.117 2.5 1.25 SOT-23 Siliconix Si2305DS -8 0.052 -3.5 1.25 SOT-23 Siliconix Si2306DS 30 0.057 3.5 1.25 SOT-23 Siliconix Si2307DS -30 0.08 3 1.25 SOT-23 Siliconix Si2308DS 60 0.16 2 1.25 SOT-23 Siliconix Si2315DS -12 0.055 -3.5 1.25 SOT-23 Siliconix Si3441DV -20 0.1 3.3 TSOP-6 Siliconix Si3442DV 20 0.07 4 TSOP-6 Siliconix Si3443DV -20 0.065 4.4 TSOP-6 Siliconix Si3445DV -8 0.042 5.6 2 TSOP-6 Siliconix SI3446DV 20 0.045 5.3 TSOP-6 Siliconix Si3447DV -12 0.05 5.2 2 TSOP-6 Siliconix Si3454DV 30 0.065 4.2 TSOP-6 Siliconix Si3455DV -30 0.1 3.5 TSOP-6 Siliconix Si3456DV 30 0.045 5.1 TSOP-6 Siliconix Si3457DV -30 0.065 4.3 TSOP-6 Siliconix Si3801DV -12 0.22 2.3 2 TSOP-6 Siliconix Si3831DV -7 0.17 2.4 1.5 TSOP-6 Siliconix Si3850DV 20/-20 0.5/1.00 1.2/0.85 1.25 TSOP-6(P&N) Siliconix Si4410DY 30 0.0135 10 SOP-8(Single) TPC8005-H A Siliconix Revised 1Q '99 - 49 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement Si4412DY 30 0.028 7 SOP-8(Single) TPC8006-H A Siliconix Si4416DY 30 0.018 9 SOP-8(Single) TPC8005-H A Siliconix Si4420DY 30 0.009 12.5 SOP-8(Single) TPC8007-H A Siliconix Si4425DY -30 0.014 -11 SOP-8(Single) TPC8103 A Siliconix Si4431DY -30 0.04 -5.8 SOP-8(Single) TPC8105-H A Siliconix Si4435DY -30 0.02 -8 SOP-8(Single) TPC8106-H A Siliconix Si4450DY 60 0.024 7.5 SOP-8(Single) Siliconix Si4463DY -20 0.014 -10 SOP-8(Single) Siliconix Si4465DY -8 0.009 14 2.5 SOP-8(Single) Siliconix Si4466DY 20 0.009 13.2 SOP-8(Single) Siliconix Si4467DY -12 0.011 12 2.5 SOP-8(Single) Siliconix Si4480DY 80 0.035 6 SOP-8(Single) Siliconix Si4482DY 100 0.06 4.6 SOP-8(Single) Siliconix Si4532DY 30/-30 0.065/0.085 3.9/-3.5 SOP-8(P&N) TPC8401 A Siliconix Si4539DY 30/-30 0.037/0.053 5.8/-4.9 SOP-8(P&N) TPC8401 A Siliconix Si4542DY 30/-30 0.025/0.032 6.9/-6.1 SOP-8(P&N) TPC8401 A Siliconix Si4544DY 30/-30 0.035/0.045 6.5/-5.7 SOP-8(P&N) TPC8401 A Siliconix Si4558DY 30/-30 0.04/0.06 6/-6 SOP-8(P&N) TPC8401 A Siliconix Si4559EY 60/-60 0.055/0.12 4.5/-3.1 SOP-8(P&N) Siliconix Si4562DY 20/-20 0.025/0.033 7.1/-6.2 SOP-8(P&N) Siliconix Si4652DY 20/-20 0.025/0.033 7.1/6.2 2 SOP-8(P&N) Siliconix Si4806DY 30 0.022/0.25 7.7/2 SOP-8(Dual Gate) Siliconix Si4807DY -30 0.035/1.3 6.0/0.9 SOP-8(Dual Gate) Siliconix Si4810DY 30 0.0135 10 2.5 SOP-8(Single) TPC8005-H A Siliconix Si4812DY 30 0.018 9 2.5 SOP-8(Single) TPC8005-H A Siliconix Si4812DY 30 0.018 9 SOP-8(N&SBD) Siliconix Si4820DY 30 0.0135 10 2.5 SOP-8(Single) TPC8005-H A Siliconix Si4822DY 30 0.01 12 SOP-8(Single) TPC8007-H A Siliconix Si4824DY 30 0.04/0.0175 4.7/9.0 SOP-8(Dual) Siliconix Si4832DY 30 0.018 9 2.5 SOP-8(Single) TPC8005-H A Siliconix Si4833DY -30 0.085 3.5 SOP-8(P&SBD) Siliconix Si4902DY 30/30 0.065/0.028 3.9/5.6 SOP-8(Dual) Siliconix Si4920DY 30 0.025 6.9 SOP-8(Dual) TPC8203 A Siliconix Si4920DY 30 0.025 6.9 2 SOP-8(Dual) Siliconix Si4925DY -30 0.032 -6.1 SOP-8(Dual) TPC8303 A Siliconix Si4927DY -30 0.028 7.4 2.5 SOP-8(Dual) Siliconix Si4936DY 30 0.037 5.8 SOP-8(Dual) TPC8201 A Siliconix Si4936DY 30 0.037 5.8 2 SOP-8(Dual) Siliconix Si4946EY 60 0.055 4.5 SOP-8(Dual) Siliconix Si4947DY -30 0.085 -3.5 SOP-8(Dual) TPC8301 A Siliconix Si4948EY -60 0.12 -3.1 SOP-8(Dual) Siliconix Si4949DY 60/-30 0.055/0.053 4.5/5.1 SOP-8(P&N) Siliconix Si4953DY -30 0.053 -4.9 SOP-8(Dual) TPC8303 A Siliconix Si4963DY -20 0.033 -6.2 SOP-8(Dual) Siliconix Si4965DY -8 0.021 8 2 SOP-8(Dual) Siliconix Si4966DY 20 0.025 7.1 SOP-8(Dual) TPC8204 A Siliconix Si4967DY -12 0.023 7.5 2 SOP-8(Dual) Siliconix Si4980DY 80 0.075 3.7 SOP-8(Dual) Siliconix Si4982DY 100 0.15 2.6 SOP-8(Dual) Siliconix Si6331DQ 30 0.028 5.6 TSSOP-28(Triple) Siliconix Revised 1Q '99 - 50 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement Si6332DQ -30 0.04 4.5 TSSOP-28(Triple) Siliconix Si6361DQ 30/-30 0.065/0.085 3.6/3.1 TSSOP-28 Siliconix Si6410DQ 30 0.014 7.8 TSSOP-8(Dual) TPCS8003 A Siliconix Si6415DQ -30 0.019 6.5 TSSOP-8(Single) TPCS8101 A Siliconix Si6426DQ 20 0.035 5.4 TSSOP-8(Single) TPCS8002 A Siliconix Si6433DQ -12 0.06 4 TSSOP-8(Single) Siliconix Si6434DQ 30 0.028 5.6 TSSOP-8(Single) TPCS8001-H A Siliconix Si6435DQ -30 0.04 4.5 TSSOP-8(Single) TPCS8101 A Siliconix Si6436DQ 30 0.045 4.4 TSSOP-8(Single) TPCS8001-H A Siliconix Si6447DQ -20 0.09 3.2 TSSOP-8(Single) Siliconix Si6459DQ -60 0.12 2.6 TSSOP-8(Single) Siliconix Si6463DQ -20 0.02 6.5 TSSOP-8(Single) Siliconix Si6465DQ -8 0.012 8.8 1.5 TSSOP-8(Single) Siliconix SI6466DQ 20 0.014 7.8 TSSOP-8(Single) TPCS8002 A Siliconix Si6467DQ -12 0.014 8 1.5 TSSOP-8(Single) Siliconix Si6542DQ 20/-20 0.090/0.170 2.5/1.9 TSSOP-8(P&N) Siliconix Si6543DQ 30/-30 0.065/0.085 3.9/2.5 TSSOP-8(P&N) Siliconix Si6544DQ 30/-30 0.035/0.045 4/3.5 TSSOP-8(P&N) Siliconix Si6552DQ 20/-12 0.080/0.100 2.8/2.5 TSSOP-8(P&N) Siliconix Si6562DQ 20/-20 0.035/0.045 4.5/3.5 TSSOP-8(P&N) Siliconix Si6801DQ 20/-20 0.160/0.190 1.9/1.7 TSSOP-8(P&N) Siliconix Si6802DQ 20 0.075 3.3 TSSOP-8(Single) Siliconix Si6803DQ 20/-20 0.095/0.11 2.5/2.3 TSSOP-8(P&N) Siliconix Si6820DQ 20 0.16 1.9 1.2 TSSOP-8(N&SBD) Siliconix Si6820DQ 20 1.9 SOP-8(N&SBD) Siliconix Si6821DQ -20 0.19 1.7 1.2 TSSOP-8(P&SBD) Siliconix Si6821DQ -20 -1.7 SOP-8(P&SBD) Siliconix Si6923DQ -20 0.05 3.5 1.2 TSSOP-8(P&SBD) Siliconix Si6923DQ -20 -3.5 SOP-8(P&SBD) Siliconix Si6925DQ 20 0.05 3.4 TSSOP-8(Dual) TPCS8201 A Siliconix Si6926DQ 20 0.035 4 TSSOP-8(Dual) TPCS8201 A Siliconix Si6928DQ 30 0.035 4 TSSOP-8(Dual) TPCS8202 A Siliconix Si6933DQ -30 0.045 3.5 TSSOP-8(Dual) TPCS8301 A Siliconix Si6943DQ -12 0.1 2.5 TSSOP-8(Dual) Siliconix Si6946DQ 20 0.08 2.8 TSSOP-8(Dual) Siliconix Si6953DQ -20 0.17 1.9 TSSOP-8(Dual) Siliconix Si6954DQ 30 0.065 3.9 TSSOP-8(Dual) TPCS8202 A Siliconix Si6955DQ -30 0.085 2.5 TSSOP-8(Dual) Siliconix Si6956DQ 20 0.09 2.5 TSSOP-8(Dual) Siliconix Si6963DQ -20 0.05 3.5 TSSOP-8(Dual) Siliconix Si6965DQ -20 0.35 -5 TSSOP-8(Dual) Siliconix Si6966DQ 20 0.035 4.5 TSSOP-8(Dual) TPCS8201 A Siliconix Si6967DQ -8 0.03 5 1.1 TSSOP-8(Dual) Siliconix Si6968DQ 20 0.022 6.5 TSSOP-8(Dual) TPCS8201 A Siliconix Si6969DQ -12 0.034 4.6 1.1 TSSOP-8(Dual) Siliconix Si9400DY -20 0.25 -2.5 SOP-8(Single) Siliconix Si9405DY -20 0.1 -4.3 SOP-8(Single) Siliconix Si9407AEY -60 0.12 -3.5 SOP-8(Single) Siliconix Si9407DY -60 0.15 -3 SOP-8(Single) Siliconix Si9410DY 30 0.03 7 SOP-8(Single) TPC8006-H A Siliconix Revised 1Q '99 - 51 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement Si9420DY 200 1 1 SOP-8(Single) Siliconix Si9422DY 200 0.42 1.7 SOP-8(Single) Siliconix Si9424ADY -20 0.025 -7.7 SOP-8(Single) Siliconix Si9424DY -12 0.025 -7.7 SOP-8(Single) Siliconix Si9426DY 20 0.0135 10 SOP-8(Single) TPC8008 A Siliconix Si9428DY 20 0.03 6 2.5 SOP-8(Single) Siliconix Si9430DY -20 0.05 -5.8 SOP-8(Single) Siliconix Si9431DY -12 0.05 5.5 SOP-8(Single) Siliconix Si9433DY -20 0.045 -5.4 SOP-8(Single) Siliconix Si9434ADY -20 0.033 6.9 SOP-8(Single) TPC8102 A Siliconix Si9434DY -12 0.04 -6.4 SOP-8(Single) Siliconix Si9435DY -30 0.055 -5.1 SOP-8(Single) TPC8105-H A Siliconix Si9529DY 20/-12 0.03/0.05 6/5 SOP-8(P&N) Siliconix Si9801DY 20/-20 0.055/0.045 4.5/4.0 SOP-8(P&N) Siliconix Si9802DY 20 0.055 4.5 SOP-8(Dual) TPC8202 A Siliconix Si9803DY -25 0.04 -5.9 SOP-8(Single) TPC8105-H A Siliconix Si9803DY -20 0.04 5.9 SOP-8(Single) TPC8102 A Siliconix Si9804DY 25 0.023 7.8 SOP-8(Single) TPC8006-H A Siliconix Si9806DY 25 0.027 7 SOP-8(Dual G) Siliconix Si9902DY 20/20 0.08/0.035 2.8/5.4 SOP-8(Dual) Siliconix Si9925DY 20 0.05 5 SOP-8(Dual) TPC8202 A Siliconix Si9926DY 20 0.03 6 SOP-8(Dual) TPC8204 A Siliconix Si9928DY 20/-20 0.05/0.11 5.0/3.4 2 SOP-8(P&N) Siliconix Si9933ADY -20 0.075 -3.4 SOP-8(Dual) Siliconix Si9933DY -20 0.075 -3.4 SOP-8(Dual) TPC8302 A Siliconix Si9934DY -12 0.05 -5 SOP-8(Dual) Siliconix Si9936DY 30 0.05 5 SOP-8(Dual) TPC8201 A Siliconix Si9939DY 30/-30 0.05/0.1 3.5/-3.5 SOP-8(P&N) TPC8401 A Siliconix Si9940DY 50 0.05 5.3 SOP-8(Dual) Siliconix Si9942DY 20/-20 0.125/0.2 3/2.5 SOP-8(P&N) Siliconix Si9943DY 20/-20 0.125/0.16 3/2.8 SOP-8(P&N) Siliconix Si9944DY 240 6 0.4 SOP-8(Dual) Siliconix Si9945AEY 60 0.08 3.7 SOP-8(Dual) Siliconix Si9945DY 60 0.1 3.3 SOP-8(Dual) Siliconix Si9947DY -20 0.1 -3.5 SOP-8(Dual) TPC8302 A Siliconix Si9948AEY -60 0.17 -2.6 SOP-8(Dual) TPC8304 A Siliconix Si9948DY -60 0.28 -2 SOP-8(Dual) TPC8304 A Siliconix Si9952DY 25/-25 0.1/0.25 3.5/2.3 SOP-8(P&N) Siliconix Si9953DY -20 0.25 -2.3 SOP-8(Dual) TPC8302 A Siliconix Si9955DY 50 0.13 3 SOP-8(Dual) TPC8205 A Siliconix Si9956DY 20 0.1 3.5 SOP-8(Dual) TPC8202 A Siliconix Si9958DY 20/-20 0.1/0.1 3.5/3.5 SOP-8(P&N) Siliconix Si9959DY 50 0.3 2 SOP-8(Dual) TPC8205 A Siliconix SMB60N03-10L 30 0.01 60 125 D2-PAK 2SK3127 A Siliconix SMD10P05 -50 0.28 10 40 D-PAK 2SJ377 A Siliconix SMD10P06 -60 0.28 10 42 D-PAK 2SJ377 A Siliconix SMD10P06L -60 0.28 10 40 D-PAK 2SJ377 A Siliconix SMD15N05 50 0.1 15 40 D-PAK 2SK2614 A Siliconix SMD25N05-45L 50 0.045 25 50 D-PAK 2SK2614 A Siliconix SMD30N03-30L 30 0.03 30 50 D-PAK Siliconix Revised 1Q '99 - 52 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement SMP40P06 -60 0.045 40 125 TO-220AB 2SJ349 A Siliconix SMP50N06-25 60 0.025 50 131 TO-220AB 2SK2312 B Siliconix SMP60N03-10L 30 0.01 60 105 TO-220AB 2SK3127 B Siliconix SMP60N06-18 60 0.018 60 125 TO-220AB 2SK2312 B Siliconix SMU10P05 -50 0.28 10 40 TO-251 2SJ377 A Siliconix SMU15N05 50 0.1 15 40 TO-251 2SK2614 A Siliconix SMU25N05-45L 50 0.045 25 50 TO-251 2SK2614 A Siliconix SMU30N03-30L 30 0.03 30 50 TO-251 Siliconix SN7000 60 5 0.25 TO-92 Siemens SN7002 60 5 0.19 SOT-23 Siemens SP0610T -60 10 0.13 SOT-23 2SJ168 A Siemens SPA02N60S5 600 2.5 2 TO-220IS 2SK2750 A Siemens SPA03N60S5 600 1.4 3 TO-220IS 2SK2545 A Siemens SPA04N60S5 600 0.95 4 TO-220IS 2SK2843 A Siemens SPA07N60S5 600 0.6 7 TO-220IS Siemens SPA20N60S5 600 0.19 20 TO-220IS Siemens SPB02N60S5 600 2.5 2 TO-220SM 2SK2777 A Siemens SPB03N60S5 600 1.4 3 TO-220SM 2SK2777 A Siemens SPB04N60S5 600 0.95 4 TO-220SM 2SK2889 A Siemens SPB07N60S5 600 0.6 7 TO-220SM Siemens SPB20N60S5 600 0.19 20 TO-220SM Siemens SPB30N03 30 0.023 30 D2-PAK 2SK3090 A Siemens SPB30N03L 30 0.028 30 D2-PAK 2SK3089 A Siemens SPB46N03 30 0.015 46 D2-PAK 2SK3127 A Siemens SPB46N03L 30 0.018 46 D2-PAK 2SK3090 A Siemens SPB80N03 30 0.006 80 D2-PAK Siemens SPB80N03L 30 0.008 80 D2-PAK Siemens SPD01N60S5 600 6 1 D-PAK 2SK2865 A Siemens SPD02N60 600 5.5 2 D-PAK 2SK2865 A Siemens SPD02N60S5 600 2.5 2 D-PAK Siemens SPD03N60S5 600 1.4 3 D-PAK Siemens SPD04N60S5 600 0.95 4 D-PAK Siemens SPD07N20 200 0.4 7 D-PAK Siemens SPD07N60S5 600 0.6 7 D-PAK Siemens SPD08N05L 55 0.18 8 D-PAK 2SK2231 A Siemens SPD08N10 100 0.3 8.4 D-PAK 2SK2201 A Siemens SPD08P05 -50 0.3 8 D-PAK 2SJ377 A Siemens SPD09N05 55 0.15 9 D-PAK 2SK2231 A Siemens SPD10N10 100 0.2 10 D-PAK 2SK2399 A Siemens SPD13N05L 55 0.12 12.8 D-PAK 2SK2782 A Siemens SPD14N05 55 0.1 14 D-PAK 2SK2782 A Siemens SPD21N05L 55 0.07 21 D-PAK 2SK2782 A Siemens SPD23N05 55 0.06 23 D-PAK 2SK2782 A Siemens SPD28N03 30 0.023 28 D-PAK Siemens SPD28N03L 30 0.028 28 D-PAK Siemens SPD28N05L 55 0.05 28 D-PAK 2SK2782 A Siemens SPD30N03 30 0.015 30 D-PAK Siemens SPD30N03L 30 0.018 30 D-PAK Siemens SPD31N05 55 0.04 31 D-PAK Siemens SPN01N60S5 600 6 1 SOT-223 Siemens Revised 1Q '99 - 53 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement SPN02N60S5 600 2.5 2 SOT-223 Siemens SPN03N60S5 600 1.4 3 SOT-223 Siemens SPN04N60S5 600 0.95 4 SOT-223 Siemens SPO01N60S5 600 6 1 SOP-8(Single) Siemens SPO02N60S5 600 2.5 2 SOP-8(Single) Siemens SPO03N60S5 600 1.4 3 SOP-8(Single) Siemens SPO04N60S5 600 0.95 4 SOP-8(Single) Siemens SPP02N60S5 600 2.5 2 TO-220AB 2SK3085 A Siemens SPP03N60S5 600 1.4 3 TO-220AB 2SK2544 A Siemens SPP04N60S5 600 0.95 4 TO-220AB 2SK2866 A Siemens SPP07N60S5 600 0.6 7 TO-220AB Siemens SPP20N60S5 600 0.19 20 TO-220AB Siemens SPP30N03 30 0.023 30 TO-220AB 2SK2844 A Siemens SPP30N03L 30 0.028 30 TO-220AB 2SK2844 A Siemens SPP46N03 30 0.015 46 TO-220AB Siemens SPP46N03L 30 0.018 46 TO-220AB 2SK2844 A Siemens SPP80N03 30 0.006 80 TO-220AB Siemens SPP80N03L 30 0.008 80 TO-220AB Siemens SPU01N60S5 600 6 1 I-PAK 2SK2865 A Siemens SPU02N60 600 5.5 2 I-PAK 2SK2865 A Siemens SPU02N60S5 600 2.5 2 I-PAK Siemens SPU03N60S5 600 1.4 3 I-PAK Siemens SPU04N60S5 600 0.95 4 I-PAK Siemens SPU07N20 200 0.4 7 I-PAK Siemens SPU07N60S5 600 0.6 7 I-PAK Siemens SPU08N05L 55 0.18 8 I-PAK 2SK2231 A Siemens SPU08N10 100 0.3 8.4 I-PAK 2SK2201 A Siemens SPU08P05 -50 0.3 8 I-PAK 2SJ377 A Siemens SPU09N05 55 0.15 9 I-PAK 2SK2231 A Siemens SPU10N10 100 0.2 10 I-PAK 2SK2399 A Siemens SPU13N05L 55 0.12 12.8 I-PAK 2SK2782 A Siemens SPU14N05 55 0.1 14 I-PAK 2SK2782 A Siemens SPU21N05L 55 0.07 21 I-PAK 2SK2782 A Siemens SPU23N05 55 0.06 23 I-PAK 2SK2782 A Siemens SPU28N03 30 0.023 28 I-PAK Siemens SPU28N03L 30 0.018 28 I-PAK Siemens SPU28N05L 55 0.05 28 I-PAK 2SK2782 A Siemens SPU30N03 30 0.015 30 I-PAK Siemens SPU30N03L 30 0.018 30 I-PAK Siemens SPU31N05 55 0.04 31 I-PAK Siemens SPW20N60S5 600 0.19 20 TO-247 Siemens SS1N50A 500 5.5 1.5 36 I2-PAK 2SK2865 B Samsung SSD2005 -25 0.25 -2.3 SOP-8(Single) TPC8106-H A Samsung SSD2007 50 0.3 2 SOP-8(Dual) TPC8205 A Samsung SSD2101 30 0.03 7 SOP-8(Single) TPC8006-H A Samsung SSD2102 -20 0.06 -5.3 SOP-8(Single) Samsung SSF10N60A 600 0.8 6.9 90 TO-3PIS 2SK2699 B Samsung SSF10N80A 800 0.95 7 100 TO-3PIS Samsung SSF10N90A 900 1.2 7 100 TO-3PIS 2SK3017 A Samsung SSF17N60A 600 0.45 9 100 TO-3PIS 2SK2953 A Samsung Revised 1Q '99 - 54 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement SSF22N50A 500 0.25 12.4 100 TO-3PIS 2SK2917 A Samsung SSF25N40A 400 0.2 14.3 100 TO-3PIS 2SK1544 B Samsung SSF45N20A 200 0.065 26.4 100 TO-3PIS 2SK2995 A Samsung SSF4N80AS 800 3 3.5 85 TO-3PIS 2SK2603 B Samsung SSF4N90AS 900 3.7 3.5 85 TO-3PIS 2SK2719 B Samsung SSF5N80A 800 2.2 4 85 TO-3PIS 2SK2604 B Samsung SSF5N90A 900 2.9 4 85 TO-3PIS 2SK2610 B Samsung SSF6N70A 700 1.8 5 85 TO-3PIS 2SK2274 B Samsung SSF6N80A 800 2 4.2 90 TO-3PIS 2SK2604 B Samsung SSF6N90A 900 2.3 4.2 90 TO-3PIS 2SK2610 B Samsung SSF70N10A 100 0.023 44 120 TO-3PIS Samsung SSF7N60A 600 1.2 5.4 86 TO-3PIS 2SK2602 B Samsung SSF7N80A 800 1.8 5 90 TO-3PIS 2SK2746 B Samsung SSF7N90A 900 1.8 5 90 TO-3PIS 2SK2847 A Samsung SSF8N80A 800 1.5 5.6 95 TO-3PIS 2SK2606 A Samsung SSF8N90A 900 1.6 5.6 95 TO-3PIS 2SK2847 A Samsung SSF9N80A 800 1.3 6.3 95 TO-3PIS 2SK2606 A Samsung SSF9N90A 900 1.4 6.3 100 TO-3PIS 2SK2847 A Samsung SSH10N60A 600 0.8 10 193 TO-3P 2SK2699 A Samsung SSH10N80A 800 0.95 10 280 TO-3P Samsung SSH10N90A 900 1.2 10 280 TO-3P 2SK2968 A Samsung SSH17N60A 600 0.45 17 278 TO-3P 2SK2915 A Samsung SSH22N50A 500 0.25 22 278 TO-3P 2SK2837 A Samsung SSH25N40A 400 0.2 25 278 TO-3P 2SK1544 B Samsung SSH45N20A 200 0.065 45 278 TO-3P 2SK3176 A Samsung SSH4N80AS 800 3 4.5 140 TO-3P 2SK2603 B Samsung SSH4N90AS 900 3.7 4.5 140 TO-3P 2SK2719 A Samsung SSH5N80A 800 2.2 5 160 TO-3P 2SK2604 A Samsung SSH5N90A 900 2.9 5 160 TO-3P 2SK2610 A Samsung SSH6N70A 700 1.8 6 140 TO-3P 2SK2389 B Samsung SSH6N80AS 800 2 6 200 TO-3P 2SK2604 A Samsung SSH6N90A 900 2.3 6 200 TO-3P 2SK2610 A Samsung SSH70N10A 100 0.023 70 300 TO-3P Samsung SSH7N60A 600 1.2 7.3 160 TO-3P 2SK2602 A Samsung SSH7N80A 800 1.8 7 200 TO-3P 2SK2746 A Samsung SSH7N90A 900 1.8 7 240 TO-3P 2SK2611 A Samsung SSH8N80A 800 1.5 8 240 TO-3P 2SK2746 A Samsung SSH8N90A 900 1.6 8 240 TO-3P 2SK2611 A Samsung SSH9N80A 800 1.3 9 240 TO-3P 2SK2607 A Samsung SSH9N90A 900 1.4 9 280 TO-3P 2SK2611 A Samsung SSI1N60A 600 12 1 34 I2-PAK 2SK2865 B Samsung SSI2N60A 600 5 2 54 I2-PAK 2SK2865 B Samsung SSI2N80A 800 6 2 80 I2-PAK 2SK2883 A Samsung SSI2N90A 900 7 2 80 I2-PAK Samsung SSI3N80A 800 4.8 3 100 I2-PAK 2SK2884 A Samsung SSI3N90A 900 6.2 3 100 I2-PAK Samsung SSI4N60A 600 2.5 4 100 I2-PAK 2SK2777 A Samsung SSI4N80A 800 4 4 120 I2-PAK 2SK2884 A Samsung SSI4N80AS 800 3 4.5 130 I2-PAK 2SK2883 A Samsung SSI4N90A 900 5 4 120 I2-PAK 2SK3088 A Samsung Revised 1Q '99 - 55 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement SSI4N90AS 900 3.7 4.5 130 I2-PAK 2SK3088 A Samsung SSI5N80A 800 2.2 5 140 I2-PAK 2SK2884 A Samsung SSI5N90A 900 2.9 5 140 I2-PAK Samsung SSI6N70A 700 1.8 6 130 I2-PAK Samsung SSI7N60A 600 1.2 7 147 I2-PAK 2SK2777 A Samsung SSP10N60A 600 0.8 9 156 TO-220AB 2SK2866 A Samsung SSP1N50A 500 5.5 1.5 36 TO-220AB 2SK2661 A Samsung SSP1N60A 600 12 1 34 TO-220AB 2SK3067 B Samsung SSP2N60A 600 5 2 54 TO-220AB 2SK3067 B Samsung SSP2N80A 800 6 2 80 TO-220AB 2SK2603 A Samsung SSP2N90A 900 7 2 80 TO-220AB 2SK2718 B Samsung SSP3N80A 800 4.8 3 100 TO-220AB 2SK2603 A Samsung SSP3N90A 900 6.2 3 100 TO-220AB 2SK2718 B Samsung SSP45N20A 200 0.065 35 176 TO-220AB Samsung SSP4N60AS 600 2.5 4 100 TO-220AB 2SK2750 B Samsung SSP4N80A 800 4 4 120 TO-220AB 2SK2603 A Samsung SSP4N80AS 800 3 4.5 130 TO-220AB 2SK2603 A Samsung SSP4N90A 900 5 4 120 TO-220AB 2SK2608 A Samsung SSP4N90AS 900 3.7 4.5 130 TO-220AB 2SK2608 A Samsung SSP5N80A 800 2.2 5 140 TO-220AB 2SK2605 B Samsung SSP5N90A 900 2.9 5 140 TO-220AB 2SK2717 B Samsung SSP6N70A 700 1.8 6 130 TO-220AB 2SK2997 B Samsung SSP6N80A 800 2 6 160 TO-220AB 2SK2605 B Samsung SSP6N90A 900 2.3 6 160 TO-220AB 2SK2717 B Samsung SSP70N10A 100 0.023 55 188 TO-220AB Samsung SSP7N60A 600 1.2 7 147 TO-220AB 2SK2544 A Samsung SSP7N80A 800 1.8 7 160 TO-220AB Samsung SSR1N50A 500 5.5 1.3 26 D-PAK 2SK2865 A Samsung SSR1N60A 600 12 0.9 28 D-PAK 2SK2865 A Samsung SSR2N60A 600 5 1.8 44 D-PAK 2SK2865 A Samsung SSR3055A 60 0.15 8 18 D-PAK 2SK2231 A Samsung SSR4N60A 600 2.5 2.8 49 D-PAK Samsung SSS10N60A 600 0.8 5.1 50 TO-220IS 2SK2843 A Samsung SSS1N50A 500 5.5 1.2 23 TO-220IS 2SK2662 A Samsung SSS1N60A 600 12 0.7 17 TO-220IS 2SK3067 A Samsung SSS2N60A 600 5 1.3 23 TO-220IS 2SK3067 A Samsung SSS2N80A 800 6 1.5 30 TO-220IS 2SK2603 B Samsung SSS2N90A 900 7 1.5 30 TO-220IS 2SK2718 A Samsung SSS3N80A 800 4.8 2 35 TO-220IS 2SK2603 B Samsung SSS3N90A 900 6.2 2 35 TO-220IS 2SK2718 A Samsung SSS4N60AS 600 2.5 2.3 33 TO-220IS 2SK2750 A Samsung SSS4N80A 800 4 2.5 40 TO-220IS 2SK2603 B Samsung SSS4N80AS 800 3 2.8 40 TO-220IS 2SK2603 B Samsung SSS4N90A 900 5 2.5 40 TO-220IS 2SK2700 A Samsung SSS4N90AS 900 3.7 2.8 40 TO-220IS 2SK2700 A Samsung SSS5N80A 800 2.2 3 45 TO-220IS 2SK2605 A Samsung SSS5N90A 900 2.9 3 45 TO-220IS 2SK2717 A Samsung SSS6N70A 700 1.8 4 40 TO-220IS 2SK2274 A Samsung SSS6N80A 800 2 3.5 50 TO-220IS 2SK2605 A Samsung SSS6N90A 900 2.3 3.5 50 TO-220IS 2SK2717 A Samsung Revised 1Q '99 - 56 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement SSS70N10A 100 0.023 28 49 TO-220IS Samsung SSS7N60A 600 1.2 4 48 TO-220IS 2SK2545 A Samsung SSS7N80A 800 1.8 4 50 TO-220IS Samsung SSU1N50A 500 5.5 1.3 26 I-PAK 2SK2865 A Samsung SSU1N60A 600 12 0.9 28 I-PAK 2SK2865 A Samsung SSU2N60A 600 5 1.8 44 I-PAK 2SK2865 A Samsung SSU2N80A 800 6 1.7 45 I-PAK Samsung SSU2N90A 900 7 1.7 45 I-PAK Samsung SSU3055A 60 0.15 8 18 I-PAK 2SK2231 A Samsung SSU3N80A 800 4.8 2.5 50 I-PAK Samsung SSU3N90A 900 6.2 2.5 50 I-PAK Samsung SSU4N60A 600 2.5 2.8 49 I-PAK Samsung SSW1N50A 500 5.5 1.5 36 D2-PAK 2SK2865 B Samsung SSW1N60A 600 12 1 34 D2-PAK 2SK2865 B Samsung SSW2N60A 600 5 2 54 D2-PAK 2SK2865 B Samsung SSW4N60A 600 2.5 4 100 D2-PAK 2SK2777 A Samsung SSW7N60A 600 1.2 7 147 D2-PAK 2SK2777 A Samsung STB11NB40 400 0.55 10 D2PAK 2SK2949 A ST STB16NB25 250 0.25 16 D2PAK 2SK2598 A ST STB19NB20 200 0.18 19 D2PAK 2SK2401 A ST STB40NE03L-20 30 0.02 40 D2PAK 2SK3090 A ST STB50NE08 80 0.024 50 D2PAK ST STB50NE10 100 0.028 50 D2PAK ST STB50NE10L 100 0.025 50 D2PAK ST STB55NE06 60 0.022 55 D2PAK 2SK2376 A ST STB55NE06L 60 0.022 55 D2PAK 2SK2376 A ST STB5NB60 600 2 5 D2PAK 2SK2777 A ST STB60NE03L-10 30 0.01 60 D2PAK 2SK3127 A ST STB60NE06-16 60 0.016 60 D2PAK 2SK2376 A ST STB60NE06L-16 60 0.016 60 D2PAK 2SK2376 A ST STB6NB50 500 1.5 6 D2PAK 2SK2991 A ST STB7NB40 400 0.9 7 D2PAK 2SK2949 A ST STB7NB60 600 1.2 7.2 D2PAK 2SK2777 A ST STB80NE03L-06 30 0.006 80 D2PAK ST STB80NE06-10 60 0.01 80 D2PAK 2SK2986 A ST STB9NB50 500 0.85 8.6 D2PAK 2SK2776 A ST STB9NB60-1 600 0.75 9 D2PAK 2SK2889 A ST STD12N05 50 0.15 12 45 D-PAK 2SK2030 A ST STD12N05L 50 0.15 12 45 D-PAK 2SK2231 A ST STD12N06 60 0.15 12 45 D-PAK 2SK2231 A ST STD12N06L 60 0.15 12 45 D-PAK 2SK2231 A ST STD12N10L 100 0.16 12 D-PAK ST STD12NE06 60 0.12 12 DPAK 2SK2782 A ST STD12NE06L 60 0.12 12 DPAK 2SK2782 A ST STD16NE06 60 0.085 16 DPAK 2SK2782 A ST STD16NE06L 60 0.085 16 DPAK 2SK2782 A ST STD16NE10 100 0.1 16 DPAK ST STD17N05 50 0.085 17 55 D-PAK 2SK2614 A ST STD17N05L 50 0.085 17 55 D-PAK 2SK2614 A ST STD17N06 60 0.085 17 55 D-PAK 2SK2782 A ST Revised 1Q '99 - 57 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STD17N06L 60 0.085 17 55 D-PAK 2SK2782 A ST STD17NE03L 30 0.05 18 D-PAK ST STD1NA60-1 600 8 1.6 DPAK 2SK2865 A ST STD1NB50-1 500 9 1.5 DPAK 2SK2865 A ST STD1NB50S-1 500 16 1 DPAK 2SK2998 B ST STD1NB52-1 520 10 1.4 DPAK 2SK2865 A ST STD1NB80 800 20 0.87 DPAK ST STD20NE03L 30 0.02 20 D-PAK ST STD20NE06 60 0.04 20 D-PAK ST STD2N50-1 500 5.5 2.2 45 I-PAK 2SK2865 A ST STD2NA50 500 4 2.2 DPAK 2SK2599 B ST STD2NB25-1 250 2 2 DPAK ST STD2NB60 600 3.6 2 DPAK ST STD2NB80-1 800 6.5 2 DPAK 2SK2997 A ST STD30NE06 60 0.03 30 DPAK ST STD30NE06L 60 0.03 30 DPAK ST STD3N30-1 300 1.4 3 50 I-PAK ST STD3N30L 250 1.1 4 50 I-PAK ST STD3N30L-1 300 1.4 3 50 I-PAK ST STD3NB30 300 2 3.2 DPAK ST STD3NB50 500 2.8 3 DPAK ST STD4N20 200 1.5 4 D-PAK 2SK2920 A ST STD4NB25 250 1.1 4 DPAK ST STD4NB40 400 1.8 3.7 DPAK ST STD5N20-1 200 0.8 5 D-PAK 2SK2920 A ST STD5NB30 300 0.9 5 DPAK ST STD7NB20 200 0.4 7.5 D-PAK ST STD8N10 100 0.3 8 45 D-PAK 2SK2201 A ST STD8N10L 100 0.3 8 45 D-PAK 2SK2201 A ST STD9N10 100 0.27 9 D-PAK 2SK2399 A ST STD9N10L 100 0.27 9 D-PAK 2SK2399 A ST STE100N20 200 0.021 100 450 ISOTOP ST STE110NA20 200 0.019 110 ISOTOP ST STE150N10 100 0.009 150 410 ISOTOP ST STE15N100 1000 0.77 15 400 ISOTOP ST STE15NA100 1000 0.77 15 ISOTOP ST STE16N100 1000 0.7 16 400 ISOTOP ST STE180N05 50 0.006 180 360 ISOTOP ST STE180N10 100 0.007 180 450 ISOTOP ST STE22N80 800 0.4 22 400 ISOTOP ST STE24NA100 1000 0.375 24 ISOTOP ST STE250N05 50 0.004 250 450 ISOTOP ST STE250N06 60 0.004 250 ISOTOP ST STE26N50 500 0.2 26 300 ISOTOP ST STE26NA90 900 0.3 26 ISOTOP ST STE36N50 500 0.14 36 410 ISOTOP ST STE38N60 600 0.15 38 450 ISOTOP ST STE38NB50 500 0.13 38 ISOTOP ST STE40N55 550 0.12 40 450 ISOTOP ST STE40NA60 600 0.12 40 ISOTOP ST Revised 1Q '99 - 58 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STE45N50 500 0.11 45 450 ISOTOP ST STE47N50 500 0.1 47 450 ISOTOP ST STE50N40 400 0.075 50 450 ISOTOP ST STE53NA50 500 0.085 53 ISOTOP ST STH10NA50 500 0.8 9.6 150 TO-218 2SK2601 A ST STH10NA50FI 500 0.8 5.6 60 TO-218IS 2SK2600 A ST STH12N60 600 0.6 12 180 TO-218 2SK2699 A ST STH12N60FI 600 0.6 7 70 TO-218IS 2SK2699 B ST STH13NB60FI 600 0.55 7 ISOWATT218 2SK2953 A ST STH14N50 500 0.45 14.1 180 TO-218 2SK2698 A ST STH14N50FI 500 0.45 8.8 70 TO-218IS 2SK2698 B ST STH15N50 500 0.4 15 180 TO-218 2SK2698 A ST STH15N50FI 500 0.4 9.3 70 TO-218IS 2SK2916 A ST STH15NB50FI 500 0.36 9.3 ISOWATT218 2SK2916 A ST STH18NB40FI 400 0.3 10 ISOWATT218 2SK2837 A ST STH26N25 250 0.11 26 180 TO-218 2SK2967 A ST STH26N25FI 250 0.11 16 70 TO-218IS 2SK2995 A ST STH33N20 200 0.085 33 180 TO-218 2SK3176 A ST STH33N20FI 200 0.085 20 70 TO-218IS 2SK2995 A ST STH45N10 100 0.04 45 180 TO-218 2SK2466 B ST STH45N10FI 100 0.04 27 65 TO-218IS 2SK2466 B ST STH4N80 800 3 4.3 125 TO-218 2SK2603 B ST STH4N80FI 800 3 2.8 55 TO-218IS 2SK2603 B ST STH4N90 900 3.2 4.2 125 TO-218 2SK2610 A ST STH4N90FI 900 3.2 2.7 55 TO-218IS 2SK2719 B ST STH55N10 100 0.03 55 200 TO-218 2SK1381 A ST STH55N10FI 100 0.03 34 80 TO-218IS 2SK1381 A ST STH5N90 900 2.4 5.3 150 TO-218 2SK2610 A ST STH5N90FI 900 2.4 3.5 60 TO-218IS 2SK2610 B ST STH5NA100FI 1000 3.5 2.9 ISOWATT218 2SK1365 A ST STH60N10 100 0.025 60 200 TO-218 ST STH60N10FI 100 0.025 38 80 TO-218IS ST STH65N05 50 0.02 65 180 TO-218 2SK2445 A ST STH65N05FI 50 0.02 38 65 TO-218IS 2SK2744 B ST STH65N06 60 0.02 65 180 TO-218 2SK2173 A ST STH65N06FI 60 0.02 38 65 TO-218IS 2SK2173 B ST STH6N100 1000 2 6 180 T0-218 2SK1120 A ST STH6N100FI 1000 2 3.7 70 TO-218IS 2SK1365 A ST STH6NA80 800 2.4 5.8 150 TO-218 2SK2604 A ST STH6NA80FI 800 2.4 3.7 60 TO-218IS 2SK2604 B ST STH75N06 60 0.014 75 200 TO-218 2SK2313 A ST STH75N06FI 60 0.014 50 80 TO-218IS 2SK2313 B ST STH7N90 900 1.4 7.5 180 TO-218 2SK2611 A ST STH7N90FI 900 1.4 4.5 70 TO-218IS 2SK2611 A ST STH7NA100FI 1000 1.7 4.3 ISOWATT218 2SK2613 B ST STH7NA60 600 1.2 7.2 150 TO-218 2SK2602 A ST STH7NA60FI 600 1.2 4.6 60 TO-218IS 2SK2602 B ST STH7NA80 800 1.9 6.5 150 TO-218 2SK2746 A ST STH7NA80FI 800 1.9 4 ISOWATT218 2SK2604 B ST STH80N05 50 0.012 80 200 TO-218 2SK2551 A ST Revised 1Q '99 - 59 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STH80N05FI 50 0.012 52 70 TO-218IS 2SK2551 B ST STH8N80 800 1.2 8.2 180 TO-218 2SK2607 A ST STH8N80FI 800 1.2 5.1 70 TO-218IS 2SK2606 A ST STH8NA60 600 1 8 150 TO-218 2SK2602 A ST STH8NA60FI 600 1 4.3 45 TO-218IS 2SK2602 B ST STH8NA80FI 800 1.5 4.5 ISOWATT218 2SK2746 B ST STH9N80 800 1 9 180 TO-218 2SK2607 A ST STH9N80FI 800 1 5.6 70 TO-218IS 2SK2606 A ST STHV102 1000 3.5 4.2 150 TO-218 2SK1359 A ST STHV102FI 1000 3.5 2.6 60 TO-218IS 2SK1359 B ST STHV82 800 2 5.5 150 TO-218 2SK2604 A ST STHV82FI 800 2 3.6 60 TO-218IS 2SK2604 B ST STK12N05L 50 0.15 12 50 SOT-82 ST STK12N06L 60 0.15 12 50 SOT-82 ST STK14N05 50 0.12 14 50 SOT-82 ST STK14N06 60 0.12 14 50 SOT-82 ST STK14N10 100 0.14 14 65 SOT-82 ST STK16N10L 100 0.12 16 65 SOT-82 ST STK17N10 100 0.11 17 65 SOT-82 ST STK18N05 50 0.085 18 60 SOT-82 2SK2614 B ST STK18N05L 50 0.085 18 60 SOT-82 2SK2614 B ST STK18N06 60 0.085 18 60 SOT-82 ST STK18N06L 60 0.085 18 60 SOT-82 ST STK22N05 50 0.065 22 65 SOT-82 ST STK22N06 60 0.065 22 65 SOT-82 ST STK23N05L 50 0.055 23 65 SOT-82 ST STK23N06L 60 0.05 23 65 SOT-82 ST STK2N50 500 6 2 50 SOT-82 ST STK2N60 600 8 1.7 50 SOT-82 ST STK2N80 800 7 2.1 70 SOT-82 ST STK3055E 60 0.15 12 50 SOT-82 ST STK3N50 500 3.8 2.7 60 SOT-82 ST STK4N25 250 1.1 4 50 SOT-82 ST STK4N30 300 1.4 4.2 50 SOT-82 ST STK4N30L 300 1.4 4.2 50 SOT-82 ST STK4N40 400 2.2 3.7 60 SOT-82 ST STK6N20 200 0.7 6 60 SOT-82 ST STK9N10 100 0.3 9 50 SOT-82 ST STN1N20 200 1.5 1 SOT-223 ST STN1NB80 800 20 0.2 SOT-223 ST STN2N10 100 0.27 2 SOT-223 2SK2742 A ST STN2NE10L 100 0.45 2 SOT-223 2SK2742 A ST STN3NE06 60 0.12 3 SOT-223 2SK2741 A ST STN3NE06L 60 0.12 3 SOT-223 2SK2741 A ST STN4NE03 30 0.06 4 SOT-223 2SK2839 A ST STN4NE03L 30 0.05 4 SOT-223 2SK2839 A ST STP10NA40 400 0.55 10 125 TO-220AB 2SK2841 A ST STP10NA40FI 400 0.55 6 45 TO-220IS 2SK2952 A ST STP10NB20 200 0.4 10 TO-220 ST STP10NB20FP 200 0.4 6 TO-220FP 2SK2350 A ST Revised 1Q '99 - 60 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STP11NB40 400 0.55 10.7 TO-220AB 2SK2841 A ST STP11NB40FP 400 0.55 6 TO-220FP 2SK2952 A ST STP12NB30 300 0.4 12 TO-220 ST STP12NB30FP 300 0.4 6.5 TO-220FP ST STP15N05L 50 0.15 15 70 TO-220AB 2SK2507 B ST STP15N05LFI 50 0.15 10 35 TO-220IS 2SK2507 A ST STP15N06L 60 0.15 15 70 TO-220AB 2SK2231 B ST STP15N06LFI 60 0.15 10 35 TO-220IS 2SK2231 B ST STP16N10L 100 0.16 16 TO-220AB 2SK2314 A ST STP16NB25 250 0.25 16 TO-220AB 2SK2508 B ST STP16NE06 60 0.12 16 TO-220AB 2SK2232 B ST STP16NE06FP 60 0.12 10 TO-220FP 2SK2232 B ST STP16NE06L 60 0.12 16 TO-220AB 2SK2232 B ST STP16NE06LFP 60 0.12 10 TO-220FP 2SK2232 B ST STP18N10 100 0.14 18 90 TO-220AB 2SK2314 A ST STP18N10FI 100 0.14 11 40 TO-220IS 2SK2391 A ST STP19NB20 200 0.18 19 TO-220AB YTA640 A ST STP19NB20FP 200 0.18 10 TO-220FP 2SK2382 A ST STP20N06 60 0.085 20 80 TO-220AB 2SK2232 B ST STP20N06FI 60 0.085 13 35 TO-220IS 2SK2232 A ST STP20N10 100 0.12 20 105 TO-220AB 2SK2314 A ST STP20N10FI 100 0.12 12 40 TO-220IS 2SK2391 A ST STP20N10L 100 0.12 20 105 TO-220AB 2SK2314 A ST STP20N10LFI 100 0.12 12 40 TO-220IS 2SK2391 A ST STP20NE06 60 0.085 20 TO-220AB 2SK2232 B ST STP20NE06FP 60 0.085 13 TO-220FP 2SK2232 A ST STP20NE06L 60 0.085 20 TO-220AB 2SK2232 B ST STP20NE06LFP 60 0.085 13 TO-220FP 2SK2232 A ST STP20NE10 100 0.1 20 TO-220AB 2SK2314 A ST STP21N05L 50 0.085 21 80 TO-220AB 2SK2507 B ST STP21N05LFI 50 0.085 14 35 TO-220IS 2SK2507 A ST STP21N06L 60 0.085 21 80 TO-220AB 2SK2232 B ST STP21N06LFI 60 0.085 14 35 TO-220IS 2SK2232 A ST STP22NE03L 30 0.05 22 TO-220AB 2SK2844 A ST STP25N05 50 0.065 25 90 TO-220AB 2SK2507 B ST STP25N05FI 50 0.065 16 40 TO-220IS 2SK2507 A ST STP25N06 60 0.065 25 90 TO-220AB 2SK2232 B ST STP25N06FI 60 0.065 16 40 TO-220IS 2SK2232 A ST STP2N60 600 3.5 2.9 70 TO-220AB 2SK3085 A ST STP2N60FI 600 3.5 2.2 35 TO-220IS 2SK3067 A ST STP2N80 800 7 2.4 90 TO-220AB 2SK2997 B ST STP2N80FI 800 7 1.5 35 TO-220IS 2SK2997 B ST STP2NA50 500 4 2.8 TO-220AB 2SK2862 B ST STP30N05 50 0.05 30 105 TO-220AB 2SK2507 B ST STP30N05FI 50 0.05 19 40 TO-220IS 2SK2507 A ST STP30N06 60 0.05 30 105 TO-220AB 2SK2232 B ST STP30N06FI 60 0.05 19 40 TO-220IS 2SK2232 A ST STP30N10 100 0.06 33 TO-220AB 2SK2466 B ST STP30NE06 60 0.05 30 TO-220AB 2SK2232 B ST STP30NE06FP 60 0.05 17 TO-220FP 2SK2232 A ST Revised 1Q '99 - 61 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STP30NE06L 60 0.055 30 TO-220AB 2SK2232 B ST STP30NE06LFP 60 0.055 17 TO-220FP 2SK2232 A ST STP32N05L 50 0.055 32 105 TO-220AB 2SK2507 B ST STP32N05LFI 50 0.055 19 40 TO-220IS 2SK2507 A ST STP32N06L 60 0.05 32 105 TO-220AB 2SK2232 B ST STP32N06LFI 60 0.05 19 40 TO-220IS 2SK2232 A ST STP33N10 100 0.06 33 150 TO-220AB 2SK2466 B ST STP33N10FI 100 0.06 18 45 TO-220IS 2SK2466 A ST STP36N05L 50 0.04 36 120 TO-220AB 2SK2720 B ST STP36N05LFI 50 0.04 21 40 TO-220IS 2SK2385 A ST STP36N06 60 0.04 36 120 TO-220AB 2SK2385 B ST STP36N06FI 60 0.04 21 40 TO-220IS 2SK2385 A ST STP36N06L 60 0.04 36 120 TO-220AB 2SK2385 B ST STP36N06LFI 60 0.04 21 40 TO-220IS 2SK2385 A ST STP36NE06 60 0.04 36 TO-220AB 2SK2385 B ST STP36NE06FP 60 0.04 20 TO-220FP 2SK2385 A ST STP3N100 1000 5 3.5 100 TO-220AB 2SK1119 A ST STP3N100FI 1000 5 2 40 TO-220IS 2SK1119 B ST STP3N100XI 1000 6 1.6 30 ISOWATT221 ST STP3N50XI 500 4 1.7 25 ISOWATT221 2SK2599 B ST STP3N60FI 600 2.2 2.7 35 TO-220IS 2SK2750 A ST STP3N60XI 600 2.5 2.4 28 ISOWATT221 ST STP3N80XI 800 4.5 1.7 28 ISOWATT221 ST STP3N90 900 4.5 3.2 100 TO-220AB 2SK2608 A ST STP3N90FI 900 4.5 1.9 40 TO-220IS 2SK2700 A ST STP3NA100 1000 5 3.5 TO-220AB 2SK1119 A ST STP3NA100FP 1000 5 2 TO-220FP 2SK1119 B ST STP3NA80 800 4.5 3 100 TO-220AB 2SK2603 A ST STP3NA80FI 800 4.5 2 40 TO-220IS 2SK2603 B ST STP3NA90 900 5.3 3 TO-220AB 2SK2608 A ST STP3NA90FI 900 5.3 1.9 TO-220FP 2SK2700 A ST STP3NB100 1000 5.5 3 TO-220AB 2SK1119 A ST STP3NB100FP 1000 5.5 1.8 TO-220FP 2SK1119 B ST STP3NB60 600 3.6 3.3 TO-220AB 2SK3085 A ST STP3NB60FP 600 3.6 2.1 TO-220FP 2SK3067 A ST STP3NB80 800 6.5 2.6 TO-220 2SK2603 A ST STP3NB80FP 800 6.5 1.6 TO-220FP 2SK2603 B ST STP3NB90 900 4.4 3.4 TO-220AB 2SK2608 A ST STP3NB90FP 900 4.4 2 TO-220FP 2SK2700 A ST STP40N05 50 0.035 40 125 TO-220AB 2SK2385 B ST STP40N05FI 50 0.035 23 40 TO-220IS 2SK2886 A ST STP40N10 100 0.04 40 150 TO-220AB 2SK2466 B ST STP40N10FI 100 0.04 22 45 TO-220IS 2SK2466 A ST STP40NE03L-20 30 0.02 40 TO-220AB 2SK2844 A ST STP45NE06 60 0.028 45 TO-220AB 2SK2385 B ST STP45NE06FP 60 0.028 25 TO-220FP 2SK2385 A ST STP45NE06L 60 0.028 45 TO-220AB 2SK2385 B ST STP45NE06LFP 60 0.028 25 TO-220FP 2SK2385 A ST STP4N100 1000 3.5 4 125 TO-220AB 2SK1119 A ST STP4N100FI 1000 3.5 2.2 40 TO-220IS 2SK1119 B ST Revised 1Q '99 - 62 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STP4N100XI 1000 4 2 35 ISOWATT221 ST STP4N40 400 2.1 4 75 TO-220AB 2SK2679 B ST STP4N40FI 400 2.1 3 35 TO-220IS 2SK2662 A ST STP4N80XI 800 3.5 2 30 ISOWATT221 ST STP4N90 900 3.5 3.6 100 TO-220AB 2SK2717 B ST STP4N90FI 900 3.5 2.3 40 TO-220IS 2SK2700 A ST STP4NA60 600 2.2 4.3 100 TO-220AB 2SK3085 A ST STP4NA60FI 600 2.2 2.7 40 TO-220IS 2SK2750 A ST STP4NA80 800 3.5 3.8 100 TO-220AB 2SK2603 A ST STP4NA80FI 800 3.5 2.4 40 TO-220IS 2SK2603 B ST STP4NA90 900 4 3.6 TO-220AB 2SK2608 A ST STP4NA90FI 900 4 2.4 TO-220FP 2SK2700 A ST STP4NB100 1000 4.4 3.8 TO-220AB 2SK1119 A ST STP4NB30 300 2 4.3 TO-220 ST STP4NB30FP 300 2 2.7 TO-220FP ST STP4NB50 500 2.8 3.8 TO-220AB 2SK2862 B ST STP4NB50FP 500 2.8 2.3 TO-220FP 2SK2862 A ST STP4NB80 800 3.3 4 TO-220AB 2SK2603 A ST STP4NB80FP 800 3.3 2.3 TO-220FP 2SK2603 B ST STP4NB90 900 2.9 4 TO-220AB 2SK2717 B ST STP4NB90FP 900 2.9 2.5 TO-220FP 2SK2717 A ST STP50N05L 50 0.028 50 200 TO-220AB 2SK2886 B ST STP50N05LFI 50 0.028 24 40 TO-220IS 2SK2886 A ST STP50N06 60 0.028 50 150 TO-220AB 2SK2385 B ST STP50N06FI 60 0.028 27 45 TO-220IS 2SK2385 A ST STP50N06L 60 0.028 50 200 TO-220AB 2SK2385 B ST STP50N06LFI 60 0.028 24 40 TO-220IS 2SK2385 A ST STP50NE08 80 0.024 50 TO-220 ST STP50NE10 100 0.028 50 TO-220 ST STP50NE10L 100 0.025 50 TO-220 ST STP53N05 50 0.025 53 150 TO-220AB 2SK2886 B ST STP53N06 60 0.025 53 150 TO-220AB 2SK2312 B ST STP55N05L 50 0.023 55 150 TO-220AB 2SK2886 B ST STP55N05LFI 50 0.023 30 45 TO-220IS 2SK2886 A ST STP55N06L 60 0.023 55 150 TO-220AB 2SK2312 B ST STP55N06LFI 60 0.023 30 45 TO-220IS 2SK2312 A ST STP55NE06 60 0.022 55 TO-220AB 2SK2312 B ST STP55NE06FP 60 0.022 30 TO-220FP 2SK2312 A ST STP55NE06L 60 0.022 50 TO-220AB 2SK2312 B ST STP5N25L 250 1.1 5 70 TO-220AB 2SK2840 B ST STP5N25LFI 250 1.1 3.5 35 TO-220IS 2SK2840 A ST STP5N30 300 1.4 5 75 TO-220AB ST STP5N30FI 300 1.4 3 35 TO-220IS ST STP5N30L 300 1.4 5 75 TO-220AB ST STP5N30LFI 300 1.4 3.5 35 TO-220IS ST STP5N50 500 1.6 4.5 100 TO-220AB 2SK2661 A ST STP5N50FI 500 1.6 3 35 TO-220IS 2SK2662 A ST STP5N60 600 1.6 5.6 100 TO-220AB 2SK2544 A ST STP5N60FI 600 1.6 3.4 40 TO-220IS 2SK2545 A ST STP5N80 800 2 5.5 125 TO-220AB 2SK2605 B ST Revised 1Q '99 - 63 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STP5N80FI 800 2 3.1 40 TO-220IS 2SK2605 A ST STP5N80XI 800 2.4 2.6 35 ISOWATT221 ST STP5N90 900 2.4 5 125 TO-220AB 2SK2717 B ST STP5N90FI 900 2.4 2.8 40 TO-220IS ST STP5NA50 500 1.6 5 100 TO-220AB 2SK2661 A ST STP5NA50FI 500 1.6 3.1 35 TO-220IS 2SK2662 A ST STP5NA60 600 1.6 5.3 110 TO-220AB 2SK2544 A ST STP5NA60FI 600 1.6 3.4 45 TO-220IS 2SK2545 A ST STP5NA80 800 2.2 4.7 TO-220 2SK2605 B ST STP5NA80FI 800 2.2 2.8 TO-220FP 2SK2605 A ST STP5NB40 400 1.8 4.7 TO-220AB 2SK2679 B ST STP5NB40FP 400 1.8 2.8 TO-220FP 2SK2679 A ST STP5NB60 600 2 5.3 TO-220AB 2SK3085 A ST STP5NB60FP 600 2 3 TO-220FP 2SK2750 A ST STP5NB80 800 2.2 5 TO-220 2SK2605 B ST STP5NB80FP 800 2.2 3 TO-220FP 2SK2605 A ST STP5NB90 900 2.5 5 TO-220AB 2SK2717 B ST STP60N05 50 0.02 60 150 TO-220AB 2SK2886 B ST STP60N05-16 50 0.016 60 150 TO-220AB 2SK2312 B ST STP60N05FI 50 0.02 32 45 TO-220IS 2SK2886 A ST STP60N06 60 0.02 60 150 TO-220AB 2SK2312 B ST STP60N06-16 60 0.016 60 150 TO-220AB 2SK2312 B ST STP60N06FI 60 0.02 32 45 TO-220IS 2SK2312 A ST STP60NE03L-10 30 0.01 60 TO-220AB 2SK3127 B ST STP60NE06-16 60 0.016 60 TO-220AB 2SK2312 B ST STP60NE06L-16 60 0.016 60 TO-220AB 2SK2312 B ST STP60NE08 80 0.016 60 TO-220 ST STP60NS04Z 40 0.015 60 TO-220AB ST STP6N25 250 1.1 6 75 TO-220AB 2SK2840 B ST STP6N25FI 250 1 4 35 TO-220IS 2SK2840 A ST STP6N50 500 1.1 6 100 TO-220AB 2SK2542 A ST STP6N50FI 500 1.1 3.8 40 TO-220IS 2SK2543 A ST STP6N60FI 600 1.2 3.8 40 TO-220IS 2SK2545 A ST STP6NA50 500 1.1 6 110 TO-220AB 2SK2542 A ST STP6NA50FI 500 1.1 4 45 TO-220IS 2SK2543 A ST STP6NA60 600 1.2 6.5 125 TO-220AB 2SK2544 A ST STP6NA60FI 600 1.2 3.9 45 TO-220IS 2SK2545 A ST STP6NA80FI 800 1.9 3.4 45 TO-220IS ST STP6NB25 250 1.1 6 TO-220AB 2SK2840 B ST STP6NB25FP 250 1.1 3.7 TO-220FP 2SK2840 A ST STP6NB50 500 1.5 5.8 TO-220AB 2SK2661 A ST STP6NB50FP 500 1.5 3.4 TO-220FP 2SK2662 A ST STP6NB80 800 1.9 5.7 TO-220AB ST STP6NB90 900 1.9 6 TO-220 ST STP6NS80 800 1.9 5.7 125 TO-220AB ST STP7N20 200 0.65 7 75 TO-220AB YTA630 A ST STP7N20FI 200 0.65 4.5 30 TO-220IS 2SK2350 A ST STP7NA40 400 1 6.5 100 TO-220AB 2SK2679 B ST STP7NA40FI 400 1 4.1 40 TO-220IS 2SK2679 A ST STP7NA60 600 1 7.2 125 TO-220AB 2SK2544 A ST Revised 1Q '99 - 64 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STP7NA60FI 600 1 4.3 45 TO-220IS 2SK2545 A ST STP7NB30 300 0.9 7 TO-220 ST STP7NB30FP 300 0.9 4 TO-220FP ST STP7NB40 400 0.9 7 TO-220AB 2SK2841 A ST STP7NB40FP 400 0.9 4.4 TO-220FP 2SK2952 A ST STP7NB60 600 1.2 7.2 TO-220AB 2SK2544 A ST STP7NB60FP 600 1.2 4.1 TO-220FP 2SK2545 A ST STP7NB80 800 1.6 6.5 TO-220 ST STP80NE03L-06 30 0.006 80 TO-220AB ST STP80NE06-10 60 0.01 80 TO-220AB 2SK2985 B ST STP80NS04Z 40 0.008 80 TO-220AB ST STP8N50XI 500 0.85 4.5 35 ISOWATT221 ST STP8NA50 500 0.85 8 125 TO-220AB 2SK2542 A ST STP8NA50FI 500 0.85 4.5 40 TO-220IS 2SK2543 A ST STP9N30 300 0.55 9 100 TO-220AB ST STP9NA50 500 0.8 8.8 125 TO-220AB 2SK2542 A ST STP9NA50FI 500 0.8 5 45 TO-220IS 2SK2543 A ST STP9NB50 500 0.85 8.6 TO-220AB 2SK2542 A ST STP9NB50FP 500 0.85 4.5 TO-220FP 2SK2543 A ST STP9NB60 600 0.75 9 TO-220 2SK2866 A ST STP9NB60FP 600 0.75 5.2 TO-220FP 2SK2843 A ST STU10NB80 800 0.85 9.7 MAX220 ST STU11NB60 600 0.65 10.7 MAX220 2SK2843 B ST STU13NB50 500 0.45 13 MAX220 2SK2842 B ST STU13NB60 600 0.45 12.6 MAX220 ST STU13NB60I 600 0.45 8 MAX220 ST STU16NB50 500 0.33 15.6 MAX220 ST STU16NB50I 500 0.33 10 MAX220 ST STU6NA100 1000 1.7 6 MAX220 ST STU6NA90 900 2 5.8 MAX220 ST STU7NA80 800 1.5 6.5 MAX220 ST STU7NA90 900 1.3 7.3 MAX220 ST STU7NB90 900 1.45 7.4 MAX220 ST STU8NA80 800 1 8.3 MAX220 ST STU8NB90 900 1 MAX220 ST STU9NB80 800 1.1 8.5 MAX220 ST STV10NA40 400 0.55 10 125 SO-10 ST STV12N20 200 0.3 12 100 SO-10 ST STV18N20 200 0.18 18 125 SO-10 ST STV33N10 100 0.06 33 150 SO-10 ST STV36N06 60 0.04 36 120 SO-10 ST STV3NA80 800 4.5 3.2 100 SO-10 ST STV40N05 50 0.035 40 125 SO-10 ST STV40N10 100 0.04 40 150 SO-10 ST STV4N100 1000 3.5 4 125 SO-10 ST STV4NA60 600 2.2 4.4 100 SO-10 ST STV4NA80 800 3 3.8 110 SO-10 ST STV50N05 50 0.028 50 150 SO-10 ST STV50N06 60 0.028 50 150 SO-10 ST STV55N05L 50 0.023 55 150 SO-10 ST Revised 1Q '99 - 65 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STV55N06L 60 0.023 5.5 150 SO-10 ST STV5NA50 500 1.6 4.5 100 SO-10 ST STV5NA80 800 2.4 4.7 125 SO-10 ST STV60N03L-12 30 0.012 60 150 SO-10 ST STV60N05 50 0.02 60 150 SO-10 ST STV60N05-16 50 0.016 60 150 SO-10 ST STV60N06 60 0.02 60 150 SO-10 ST STV6NA60 600 1.2 6.5 110 SO-10 ST STV7NA40 400 1 6.5 100 SO-10 ST STV7NA60 600 1 6.5 125 SO-10 ST STV8NA50 500 0.85 8 125 SO-10 ST STW10NB60 600 0.55 10 TO-247 2SK2915 A ST STW11NB80 800 0.85 10.6 TO-247 ST STW12N60 600 0.6 12 180 TO-247 2SK2699 A ST STW12NB60 600 0.65 12 TO-247 2SK2699 A ST STW13NB60 600 0.55 12.5 TO-247 2SK2915 A ST STW14N50 500 0.45 14.1 180 TO-247 2SK2698 A ST STW14NB50 500 0.45 14 TO-247 2SK2698 A ST STW15N50 500 0.4 15 180 TO-247 2SK2698 A ST STW15NB50 500 0.36 14.6 TO-247 2SK2698 A ST STW16N40 400 0.3 16 180 TO-247 2SK2837 A ST STW16NA60 600 0.4 16 TO-247 2SK2915 A ST STW18NB40 400 0.3 18 TO-247 2SK2837 A ST STW20NA50 500 0.27 20 250 TO-247 2SK2837 A ST STW20NB50 500 0.27 20 TO-247 2SK2837 A ST STW33N20 200 0.085 33 180 TO-247 2SK3176 A ST STW34NB20 200 0.075 34 TO-247 2SK3176 A ST STW50NB20 200 0.05 50 TO-247 2SK3176 A ST STW55N10 100 0.03 55 200 TO-247 2SK1381 A ST STW5NB100 1000 4.4 4.3 TO-247 2SK1359 A ST STW5NB90 900 2.5 5 TO-247 2SK2610 A ST STW60N10 100 0.025 60 200 TO-247 ST STW6NA80 800 2.2 5.4 TO-247 2SK2604 A ST STW6NA90 900 2 6 TO-247 2SK2749 A ST STW6NB90 900 1.9 6.5 TO-247 2SK2749 A ST STW75N06 60 0.014 75 200 TO-247 2SK2313 A ST STW7NA100 1000 1.7 7 TO-247 2SK2613 A ST STW7NA80 800 1.9 6.5 TO-247 2SK2746 A ST STW7NA90 900 1.3 7.7 TO-247 2SK2611 A ST STW7NB80 800 1.9 6.5 TO-247 2SK2746 A ST STW80N05 50 0.012 80 200 TO-247 2SK2551 A ST STW80NE06-10 60 0.01 80 TO-247 2SK2313 A ST STW8N80 800 1.2 8.2 180 TO-247 2SK2607 A ST STW8NA80 800 1.5 7.2 TO-247 2SK2746 A ST STW8NB80 800 1.6 7.2 TO-247 2SK2746 A ST STW8NB90 900 1.45 8 TO-247 2SK2611 A ST STW9NA80 800 1 9.1 TO-247 2SK2607 A ST STW9NB80 800 1.1 9.3 TO-247 2SK2607 A ST STW9NB90 900 1 9.7 TO-247 2SK2968 A ST STY15NA100 1000 0.77 15 MAX247 ST Revised 1Q '99 - 66 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement STY16NA90 900 0.54 16 MAX247 ST STY25NA60 600 0.24 25 MAX247 ST STY34NB50 500 0.13 34 MAX247 ST STY60NA20 200 0.032 60 MAX247 ST SUB40N06-25L 60 0.022 40 90 D2-PAK 2SK2376 A Siliconix SUB60N06-18 60 0.018 60 120 D2-PAK 2SK2376 A Siliconix SUB65P06-20 -60 0.02 65 187 D2-PAK Siliconix SUB70N06-14 60 0.014 70 100 D2-PAK 2SK2376 A Siliconix SUB75N05-06 50 0.006 75 187 D2-PAK 2SK2986 A Siliconix SUB75N06-08 60 0.008 75 187 D2-PAK 2SK2986 A Siliconix SUD25N06-45L 60 0.045 25 50 D-PAK Siliconix SUD30N03-30 30 0.045 30 50 D-PAK Siliconix SUD40N06-25L 60 0.022 34 75 D-PAK Siliconix SUD45N05-20L 50 0.018 43 83 D-PAK Siliconix SUD45P03-15 -30 0.015 45 50 D-PAK Siliconix SUD50N03-10 30 0.01 15 83 D-PAK Siliconix SUP40N06-25L 60 0.025 40 90 TO-220AB 2SK2312 B Siliconix SUP60N06-18 60 0.018 60 120 TO-220AB 2SK2312 B Siliconix SUP65P06-20 -60 0.02 65 187 TO-220AB Siliconix SUP70N06-14 60 0.014 70 142 TO-220AB 2SK2312 B Siliconix SUP75N05-06 50 0.006 75 187 TO-220AB 2SK2985 B Siliconix SUP75N06-08 60 0.008 75 187 TO-220AB 2SK2985 B Siliconix TPC8001 30 0.02 8 SOP-8(Single) TPC8001 A Toshiba TPC8001 30 0.02 8 SOP-8(Single) TPC8001 A Toshiba TPC8002 30 0.014 11 SOP-8(Single) TPC8002 A Toshiba TPC8003 30 0.007 13 SOP-8(Single) TPC8003 A Toshiba TPC8004 30 0.05 5 SOP-8(Single) TPC8004 A Toshiba TPC8005-H 30 0.016 11 SOP-8(Single) TPC8005-H A Toshiba TPC8006-H 30 0.027 7 SOP-8(Single) TPC8006-H A Toshiba TPC8007-H 30 0.01 13 SOP-8(Single) TPC8007-H A Toshiba TPC8008 20 0.02 6 SOP-8(Single) TPC8008 A Toshiba TPC8102 -30 0.04 -6 SOP-8(Single) TPC8102 A Toshiba TPC8103 -30 0.013 -11 SOP-8(Single) TPC8103 A Toshiba TPC8104-H -30 0.07 -5 SOP-8(Single) TPC8104-H A Toshiba TPC8105-H -30 0.04 -7 SOP-8(Single) TPC8105-H A Toshiba TPC8106-H -30 0.02 -8 SOP-8(Single) TPC8106-H A Toshiba TPC8201 30 0.05 5 SOP-8(Dual) TPC8201 A Toshiba TPC8202 20 0.05 5 SOP-8(Dual) TPC8202 A Toshiba TPC8203 30 0.021 6 SOP-8(Dual) TPC8203 A Toshiba TPC8204 20 0.02 6 SOP-8(Dual) TPC8204 A Toshiba TPC8205 50 0.15 5 SOP-8(Dual) TPC8205 A Toshiba TPC8301 -30 0.1 -3.5 SOP-8(Dual) TPC8301 A Toshiba TPC8302 -20 0.12 -3.5 SOP-8(Dual) TPC8302 A Toshiba TPC8303 -30 0.035 -4.5 SOP-8(Dual) TPC8303 A Toshiba TPC8304 -50 0.19 -5 SOP-8(Dual) TPC8304 A Toshiba TPC8401 30/-30 0.021/0.039 4.5/-4.5 SOP-8(P&N) TPC8401 A Toshiba TPCS8001-H 30 0.027 5 TSSOP-8(Single) TPCS8001-H A Toshiba TPCS8002 20 0.02 6 TSSOP-8(Single) TPCS8002 A Toshiba TPCS8003 30 0.013 8 TSSOP-8(Single) TPCS8003 A Toshiba TPCS8101 -30 0.025 -6 TSSOP-8(Single) TPCS8101 A Toshiba Revised 1Q '99 - 67 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement TPCS8201 20 0.03 5 TSSOP-8(Dual) TPCS8201 A Toshiba TPCS8202 30 0.03 4 TSSOP-8(Dual) TPCS8202 A Toshiba TPCS8301 -30 0.071 -3 TSSOP-8(Dual) TPCS8301 A Toshiba TPCT8203 30 0.021 6 TSOP-8(Dual) TPCT8203 A Toshiba uPA1700 30 0.027 7 SOP-8(Single) TPC8001 A NEC uPA1700A* 30 0.027 7 SOP-8(Single) TPC8006-H A NEC uPA1701 20 0.027 7 SOP-8(Single) TPC8001 A NEC uPA1701A* 30 0.027 7 SOP-8(Single) TPC8006-H A NEC uPA1702 30 0.015 8 SOP-8(Single) TPC8002 A NEC uPA1702A 30 0.015 8 SOP-8(Single) TPC8005-H A NEC uPA1703 30 0.0105 10 SOP-8(Single) TPC8007-H A NEC uPA1704* 30 0.014 10 SOP-8(Single) TPC8005-H A NEC uPA1705* 30 0.05 7 SOP-8(Single) TPC8004 A NEC uPA1710 -30 0.07 5 SOP-8(Single) TPC8102 A NEC uPA1710A -30 0.07 5 SOP-8(Single) TPC8102 A NEC uPA1711 -30 0.04 7 SOP-8(Single) TPC8102 A NEC uPA1712 -30 0.02 -8 SOP-8(Single) TPC8106-H A NEC uPA1713* -30 0.07 -5 SOP-8(Single) TPC8104-H A NEC uPA1714* -30 0.04 -7 SOP-8(Single) TPC8105-H A NEC uPA1750 -20 0.09 3.5 SOP-8(Dual) TPC8302 A NEC uPA1751 30 0.037 5 SOP-8(Dual) TPC8203 A NEC uPA1752 20 0.046 5 SOP-8(Dual) TPC8202 A NEC uPA1752A 20 0.046 5 SOP-8(Dual) TPC8202 A NEC uPA1753 20 0.035 8 SOP-8(Dual) TPC8203 A NEC uPA1754* 30 0.032 7 SOP-8(Dual) TPC8203 A NEC uPA1755* 30 0.032 7 SOP-8(Dual) TPC8203 A NEC uPA1756* 20 0.03 6 SOP-8(Dual) TPC8204 A NEC uPA1757* 20 0.023 7 SOP-8(Dual) TPC8204 A NEC uPA1758* 30 0.03 6 SOP-8(Dual) TPC8203 A NEC uPA1800 30 5 TSSOP-8(Single) NEC uPA1801 20 6 TSSOP-8(Single) TPCS8002 A NEC uPA1802* 20 7 TSSOP-8(Single) TPCS8002 A NEC uPA1810 -12 -4 TSSOP-8(Single) NEC uPA1811 -20 -4 TSSOP-8(Single) NEC uPA1812 -30 -5 TSSOP-8(Single) NEC uPA1850 -12 -2.5 TSSOP-8(Dual) NEC uPA1851 -20 -2.5 TSSOP-8(Dual) NEC uPA1852 20 - TSSOP-8(Dual) TPCS8201 A NEC uPA1853 -30 -2.5 TSSOP-8(Dual) TPCS8301 A NEC YTA630 200 0.4 10 TO-220AB YTA630 A Toshiba YTA640 200 0.18 15 TO-220AB YTA640 A Toshiba YTA830 500 1.5 5 TO-220AB YTA830 A Toshiba YTA840 500 0.85 8 TO-220AB YTA840 A Toshiba YTAF620 200 0.8 5 TO-220IS YTAF620 A Toshiba YTAF630 200 0.4 10 TO-220IS 2SK2350 A Toshiba YTAF640 200 0.18 15 TO-220IS YTAF640 A Toshiba Revised 1Q '99 - 68 - A:Nearest, B:Different Package
