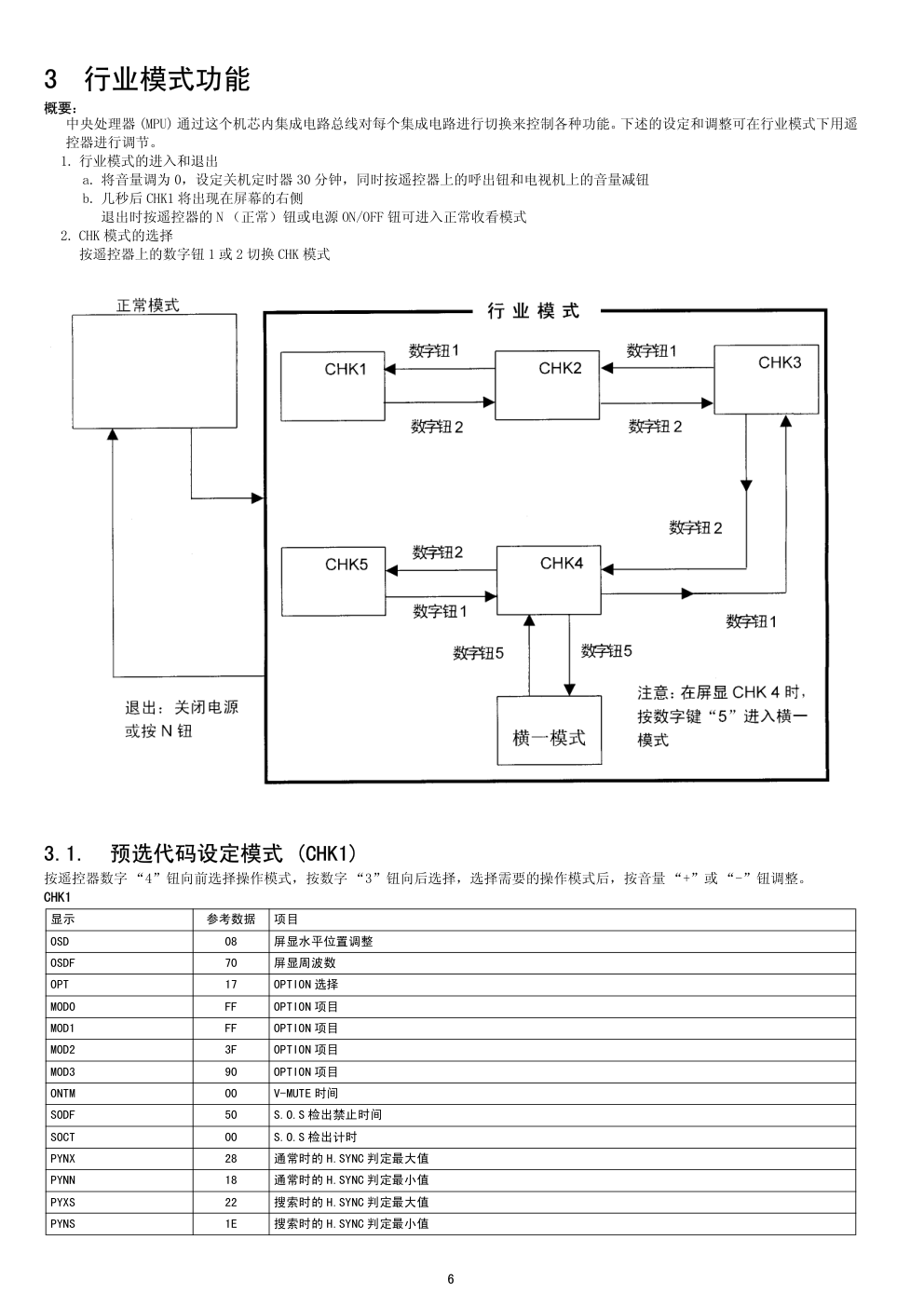

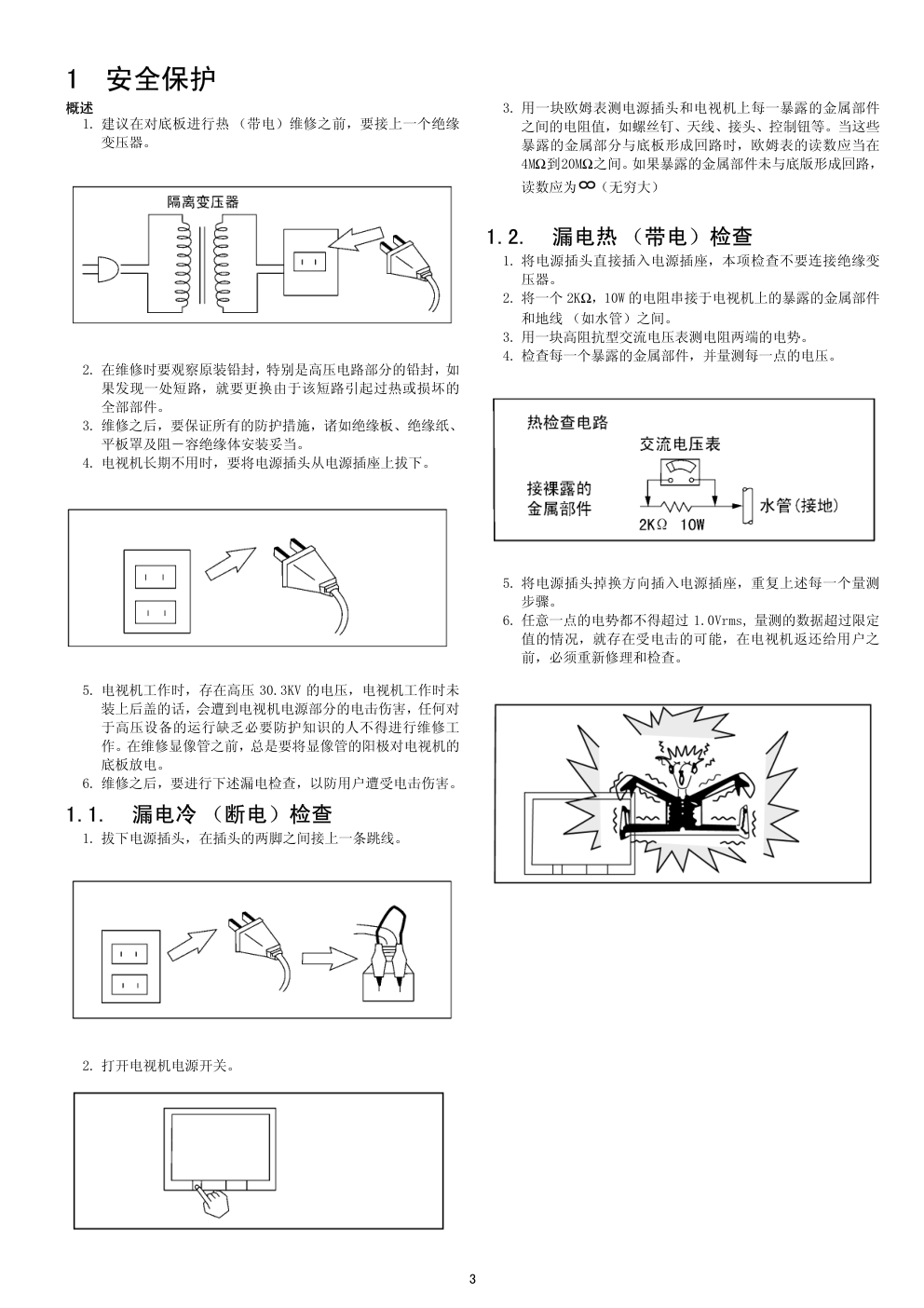

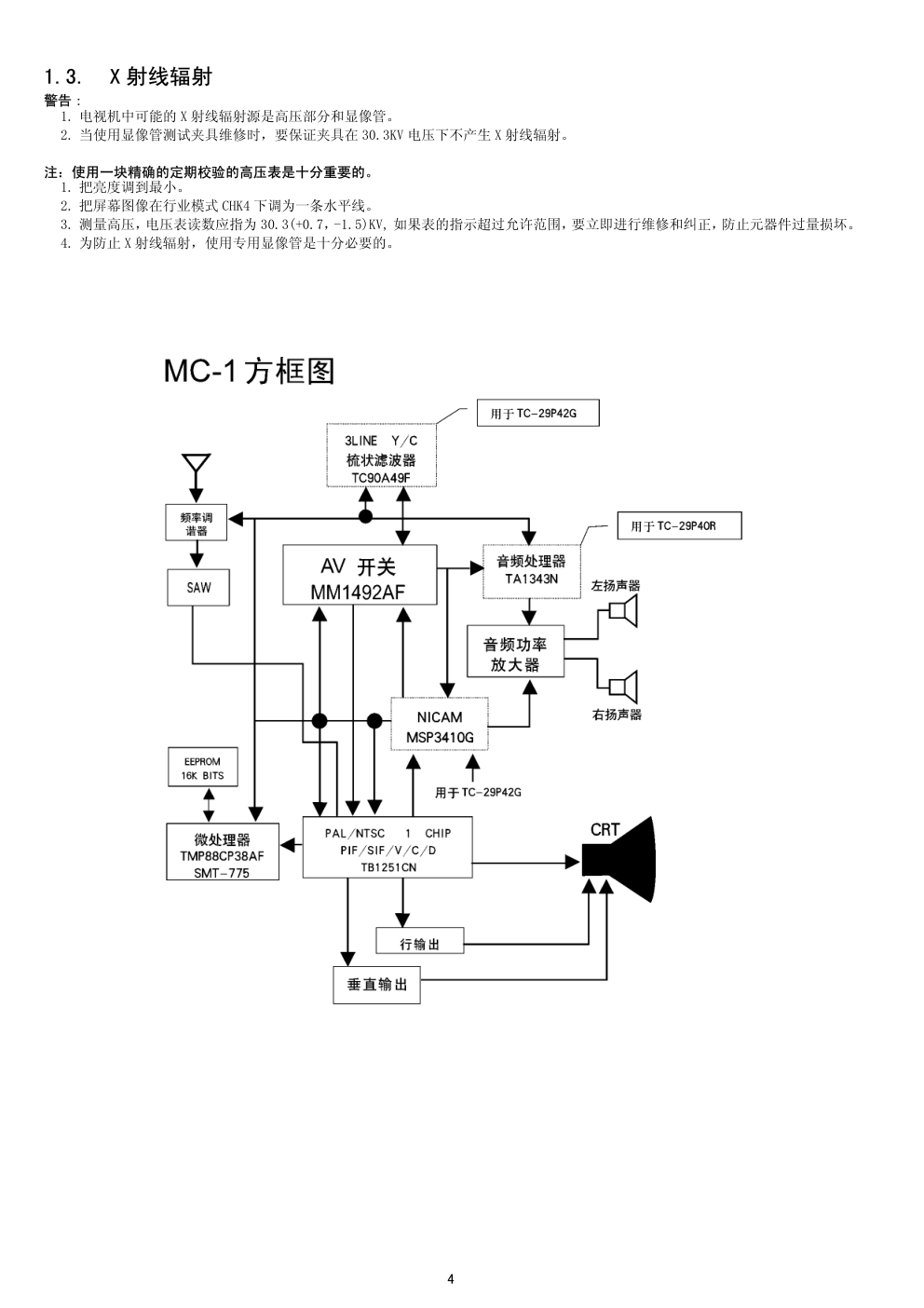

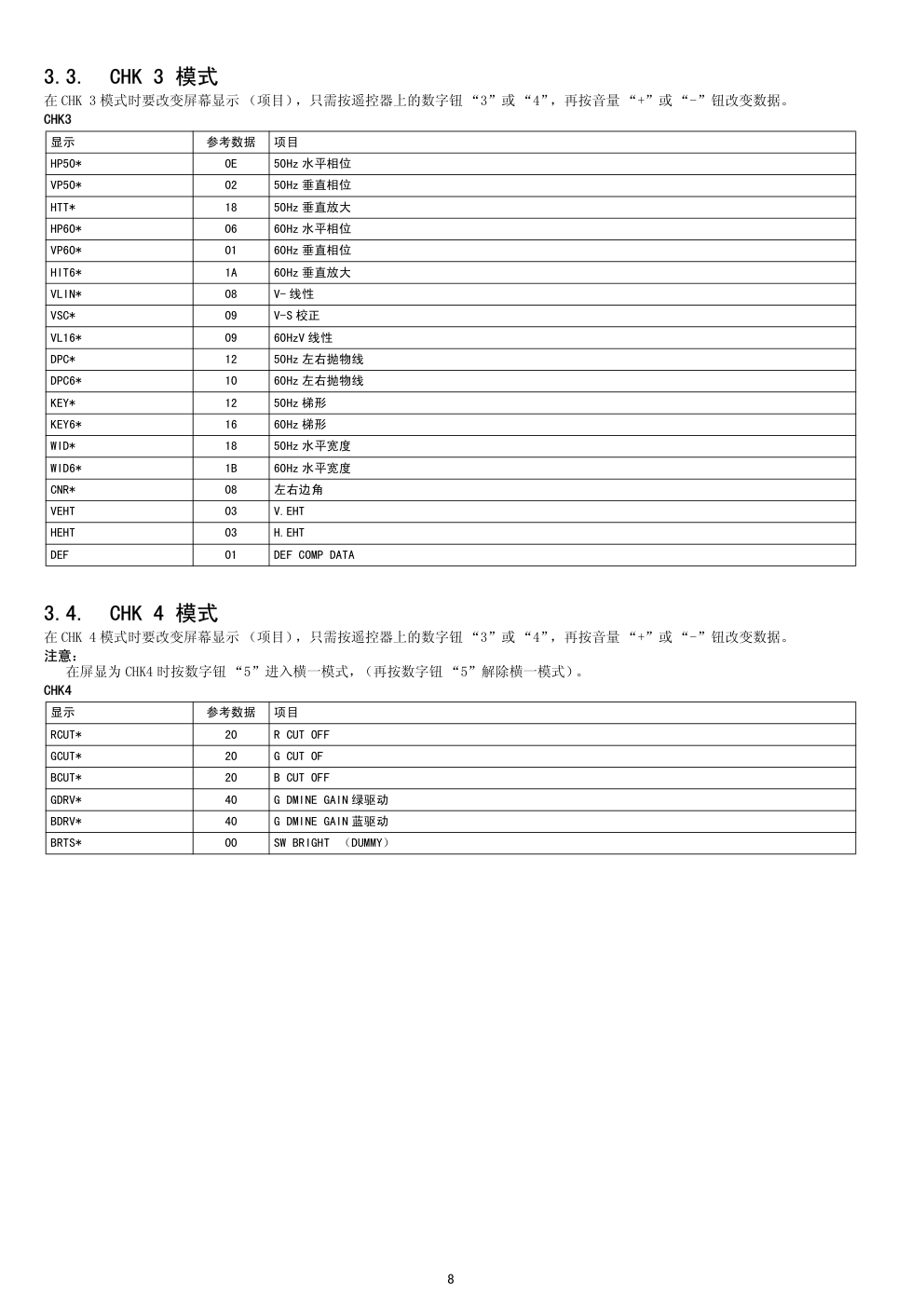

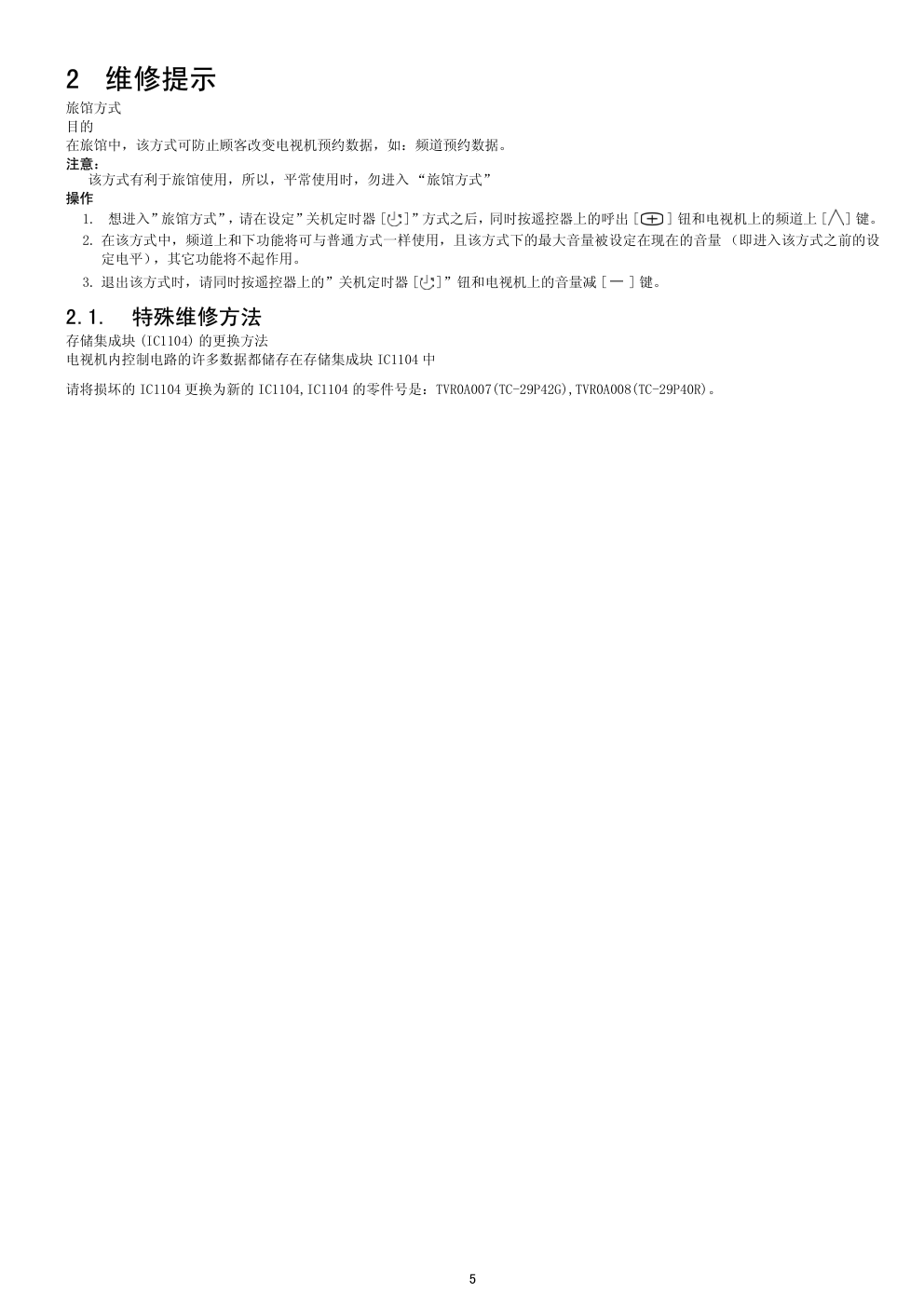

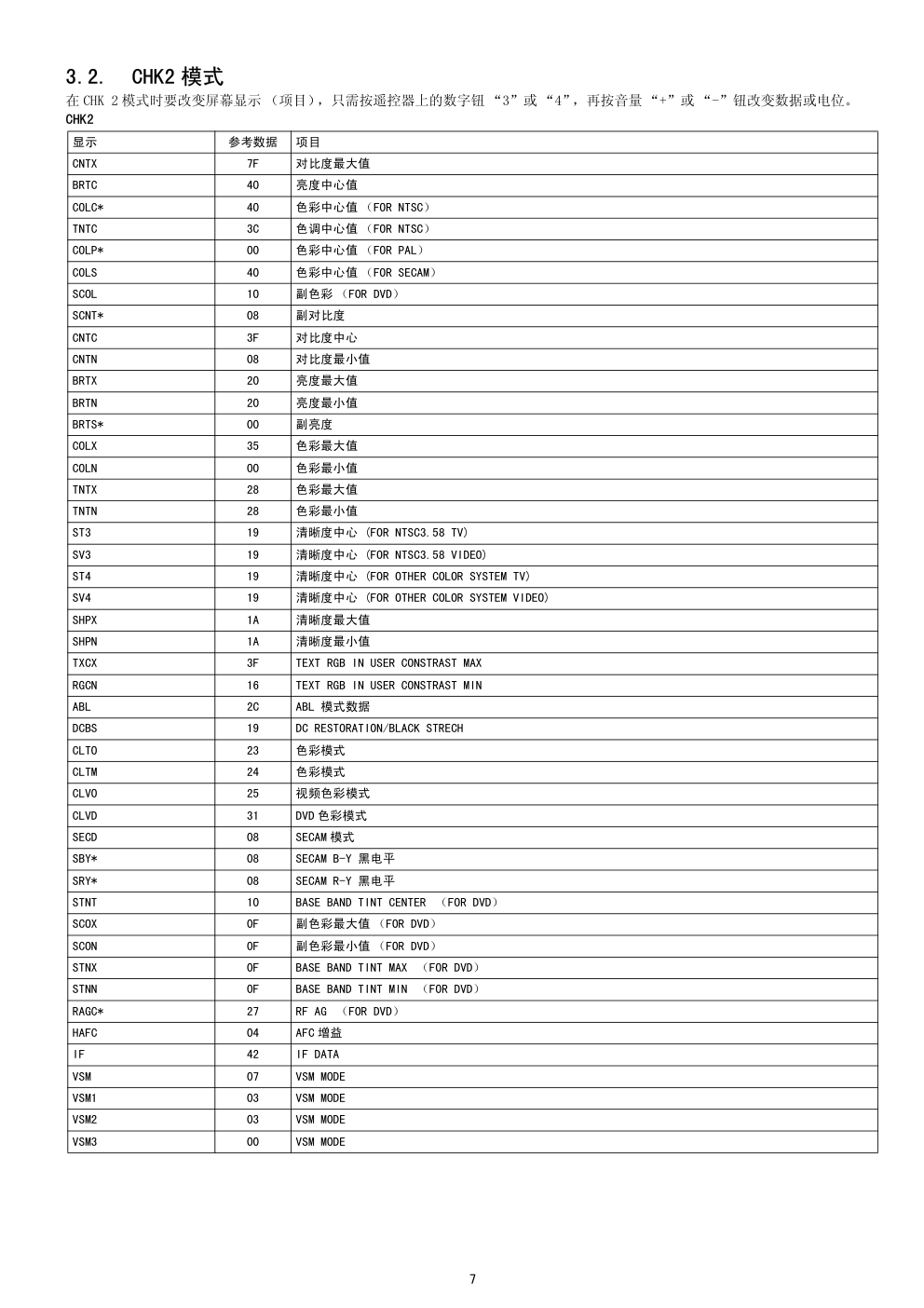

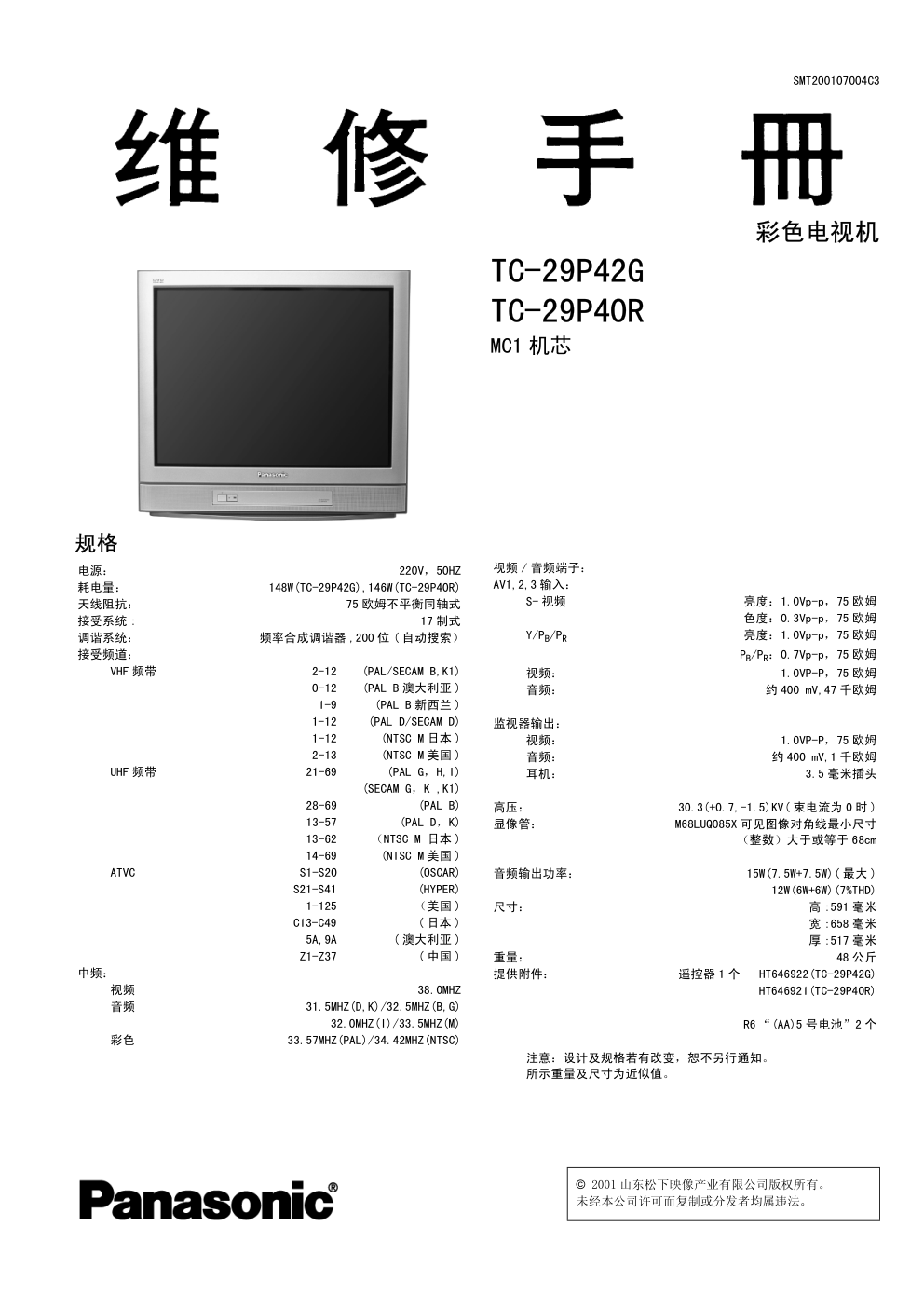

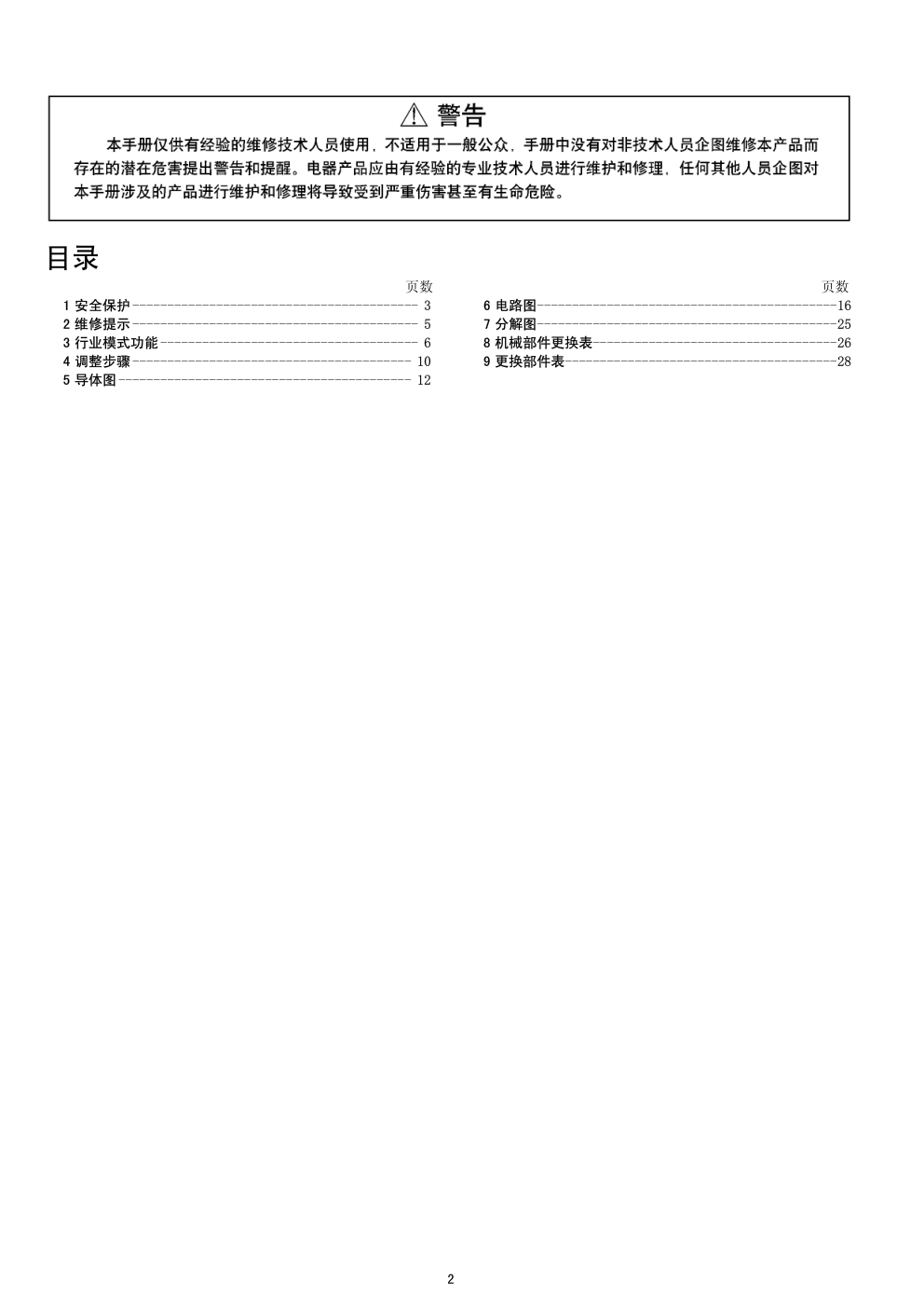

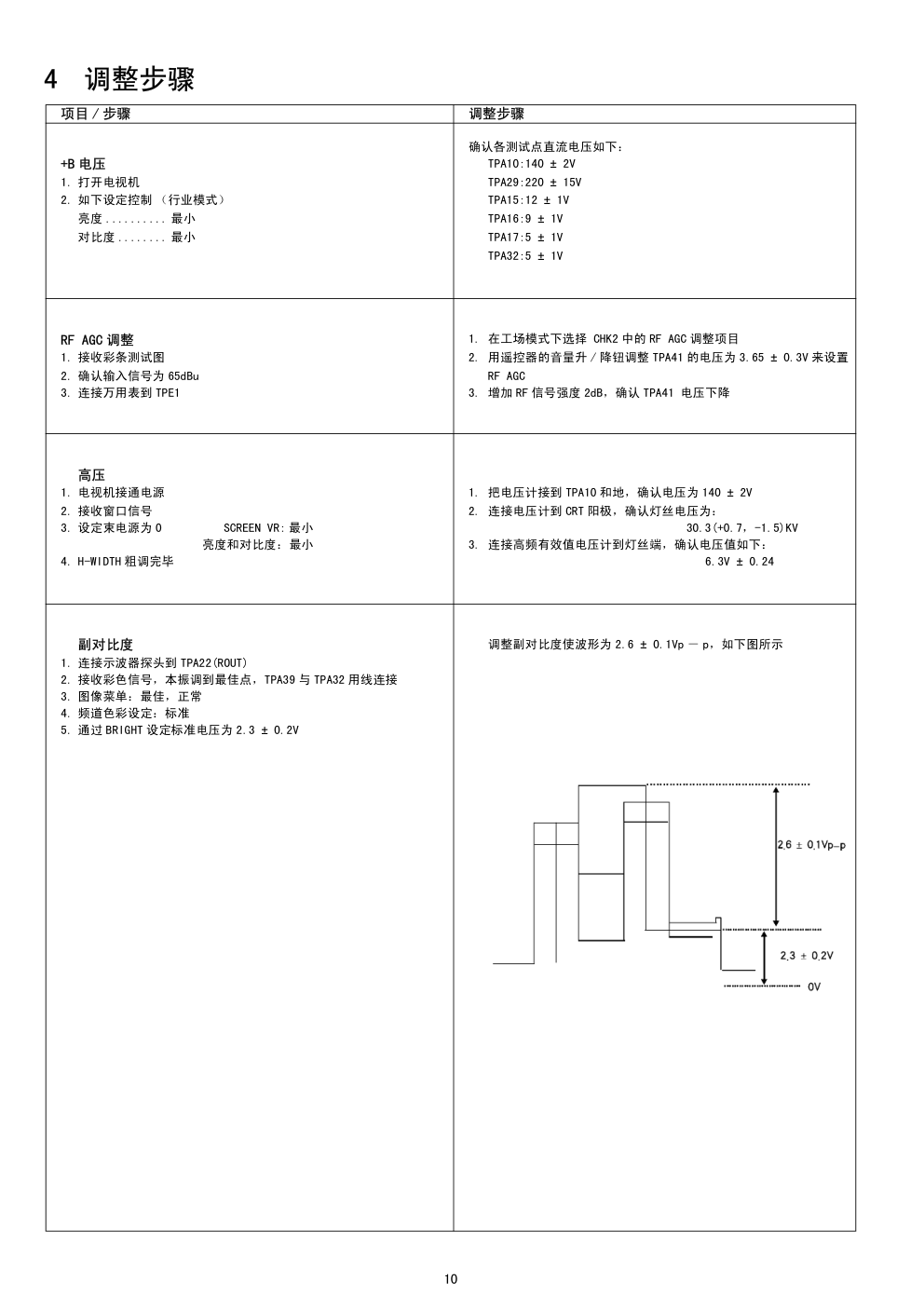

© 2001 山东松下映像产业有限公司版权所有。 未经本公司许可而复制或分发者均属违法。 SMT200107004C3 彩色电视机 TC-29P42G TC-29P40R MC1 机芯 规格 电源： 220V，50HZ 耗电量： 148W(TC-29P42G),146W(TC-29P40R) 天线阻抗： 75 欧姆不平衡同轴式 接受系统 : 17 制式 调谐系统： 频率合成调谐器 ,200 位 ( 自动搜索） 接受频道： VHF 频带 2-12 (PAL/SECAM B,K1) 0-12 (PAL B 澳大利亚 ) 1-9 (PAL B 新西兰 ) 1-12 (PAL D/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF 频带 21-69 (PAL G，H,I) (SECAM G，K ,K1) 28-69 (PAL B) 13-57 (PAL D，K) 13-62 （NTSC M 日本 ) 14-69 (NTSC M 美国 ) ATVC S1-S20 (OSCAR) S21-S41 (HYPER) 1-125 （美国 ) C13-C49 ( 日本 ) 5A,9A ( 澳大利亚 ) Z1-Z37 ( 中国 ) 中频： 视频 38.0MHZ 音频 31.5MHZ(D,K)/32.5MHZ(B,G) 32.0MHZ(I)/33.5MHZ(M) 彩色 33.57MHZ(PAL)/34.42MHZ(NTSC) 视频 / 音频端子： AV1,2,3 输入： S- 视频 亮度：1.0Vp-p，75 欧姆 色度：0.3Vp-p，75 欧姆 Y/PB/PR 亮度：1.0Vp-p，75 欧姆 PB/PR：0.7Vp-p，75 欧姆 视频： 1.0VP-P，75 欧姆 音频： 约 400 mV,47 千欧姆 监视器输出： 视频： 1.0VP-P，75 欧姆 音频： 约 400 mV,1 千欧姆 耳机： 3.5 毫米插头 高压： 30.3(+0.7,-1.5)KV( 束电流为 0 时 ) 显像管： M68LUQ085X 可见图像对角线最小尺寸 （整数）大于或等于 68cm 音频输出功率： 15W(7.5W+7.5W)( 最大 ) 12W(6W+6W)(7%THD) 尺寸： 高 :591 毫米 宽 :658 毫米 厚 :517 毫米 重量： 48 公斤 提供附件： 遥控器 1 个 HT646922(TC-29P42G) HT646921(TC-29P40R) R6 “(AA)5 号电池”2 个 注意：设计及规格若有改变，恕不另行通知。 所示重量及尺寸为近似值。 2 目录 页数 页数 1 安全保护----------------------------------------- 3 2 维修提示----------------------------------------- 5 3 行业模式功能------------------------------------- 6 4 调整步骤---------------------------------------- 10 5 导体图------------------------------------------ 12 6 电路图-------------------------------------------16 7 分解图-------------------------------------------25 8 机械部件更换表-----------------------------------26 9 更换部件表---------------------------------------28 3 1 安全保护 概述 1. 建议在对底板进行热 （带电）维修之前，要接上一个绝缘 变压器。 2. 在维修时要观察原装铅封，特别是高压电路部分的铅封，如 果发现一处短路，就要更换由于该短路引起过热或损坏的 全部部件。 3. 维修之后，要保证所有的防护措施，诸如绝缘板、绝缘纸、 平板罩及阻－容绝缘体安装妥当。 4. 电视机长期不用时，要将电源插头从电源插座上拔下。 5. 电视机工作时，存在高压 30.3KV 的电压，电视机工作时未 装上后盖的话，会遭到电视机电源部分的电击伤害，任何对 于高压设备的运行缺乏必要防护知识的人不得进行维修工 作。在维修显像管之前，总是要将显像管的阳极对电视机的 底板放电。 6. 维修之后，要进行下述漏电检查，以防用户遭受电击伤害。 1.1. 漏电冷 （断电）检查 1. 拔下电源插头，在插头的两脚之间接上一条跳线。 2. 打开电视机电源开关。 3. 用一块欧姆表测电源插头和电视机上每一暴露的金属部件 之间的电阻值，如螺丝钉、天线、接头、控制钮等。当这些 暴露的金属部分与底板形成回路时，欧姆表的读数应当在 4MΩ到20MΩ之间。如果暴露的金属部件未与底版形成回路， 读数应为 （无穷大） 1.2. 漏电热 （带电）检查 1. 将电源插头直接插入电源插座，本项检查不要连接绝缘变 压器。 2. 将一个 2KΩ，10W 的电阻串接于电视机上的暴露的金属部件 和地线 （如水管）之间。 3. 用一块高阻抗型交流电压表测电阻两端的电势。 4. 检查每一个暴露的金属部件，并量测每一点的电压。 5. 将电源插头掉换方向插入电源插座，重复上述每一个量测 步骤。 6. 任意一点的电势都不得超过 1.0Vrms, 量测的数据超过限定 值的情况，就存在受电击的可能，在电视机返还给用户之 前，必须重新修理和检查。 4 1.3. X 射线辐射 警告 : 1. 电视机中可能的 X 射线辐射源是高压部分和显像管。 2. 当使用显像管测试夹具维修时，要保证夹具在 30.3KV 电压下不产生 X 射线辐射。 注：使用一块精确的定期校验的高压表是十分重要的。 1. 把亮度调到最小。 2. 把屏幕图像在行业模式 CHK4 下调为一条水平线。 3. 测量高压，电压表读数应指为 30.3(+0.7，-1.5)KV, 如果表的指示超过允许范围，要立即进行维修和纠正，防止元器件过量损坏。 4. 为防止 X 射线辐射，使用专用显像管是十分必要的。 5 2 维修提示 旅馆方式 目的 在旅馆中，该方式可防止顾客改变电视机预约数据，如：频道预约数据。 注意： 该方式有利于旅馆使用，所以，平常使用时，勿进入 “旅馆方式” 操作 1. 想进入”旅馆方式”，请在设定”关机定时器 [ ]”方式之后，同时按遥控器上的呼出 [ ] 钮和电视机上的频道上 [ ] 键。 2. 在该方式中，频道上和下功能将可与普通方式一样使用，且该方式下的最大音量被设定在现在的音量 （即进入该方式之前的设 定电平），其它功能将不起作用。 3. 退出该方式时，请同时按遥控器上的”关机定时器 [ ]”钮和电视机上的音量减 [ ] 键。 2.1. 特殊维修方法 存储集成块 (IC1104) 的更换方法 电视机内控制电路的许多数据都储存在存储集成块 IC1104 中 请将损坏的 IC1104 更换为新的 IC1104,IC1104 的零件号是：TVR0A007(TC-29P42G),TVR0A008(TC-29P40R)。 6 3 行业模式功能 概要： 中央处理器 (MPU) 通过这个机芯内集成电路总线对每个集成电路进行切换来控制各种功能。下述的设定和调整可在行业模式下用遥 控器进行调节。 1. 行业模式的进入和退出 a. 将音量调为 0，设定关机定时器 30 分钟，同时按遥控器上的呼出钮和电视机上的音量减钮 b. 几秒后 CHK1 将出现在屏幕的右侧 退出时按遥控器的 N （正常）钮或电源 ON/OFF 钮可进入正常收看模式 2. CHK 模式的选择 按遥控器上的数字钮 1 或 2 切换 CHK 模式 3.1. 预选代码设定模式 (CHK1) 按遥控器数字 “4”钮向前选择操作模式，按数字 “3”钮向后选择，选择需要的操作模式后，按音量 “+”或 “-”钮调整。 CHK1 显示 参考数据 项目 OSD 08 屏显水平位置调整 OSDF 70 屏显周波数 OPT 17 OPTION 选择 MOD0 FF OPTION 项目 MOD1 FF OPTION 项目 MOD2 3F OPTION 项目 MOD3 90 OPTION 项目 ONTM 00 V-MUTE 时间 SODF 50 S.O.S 检出禁止时间 SOCT 00 S.O.S 检出计时 PYNX 28 通常时的 H.SYNC 判定最大值 PYNN 18 通常时的 H.SYNC 判定最小值 PYXS 22 搜索时的 H.SYNC 判定最大值 PYNS 1E 搜索时的 H.SYNC 判定最小值 7 3.2. CHK2 模式 在 CHK 2 模式时要改变屏幕显示 （项目），只需按遥控器上的数字钮 “3”或 “4”，再按音量 “+”或 “-”钮改变数据或电位。 CHK2 显示 参考数据 项目 CNTX 7F 对比度最大值 BRTC 40 亮度中心值 COLC* 40 色彩中心值 （FOR NTSC） TNTC 3C 色调中心值 （FOR NTSC） COLP* 00 色彩中心值 （FOR PAL） COLS 40 色彩中心值 （FOR SECAM） SCOL 10 副色彩 （FOR DVD） SCNT* 08 副对比度 CNTC 3F 对比度中心 CNTN 08 对比度最小值 BRTX 20 亮度最大值 BRTN 20 亮度最小值 BRTS* 00 副亮度 COLX 35 色彩最大值 COLN 00 色彩最小值 TNTX 28 色彩最大值 TNTN 28 色彩最小值 ST3 19 清晰度中心 (FOR NTSC3.58 TV) SV3 19 清晰度中心 (FOR NTSC3.58 VIDEO) ST4 19 清晰度中心 (FOR OTHER COLOR SYSTEM TV) SV4 19 清晰度中心 (FOR OTHER COLOR SYSTEM VIDEO) SHPX 1A 清晰度最大值 SHPN 1A 清晰度最小值 TXCX 3F TEXT RGB IN USER CONSTRAST MAX RGCN 16 TEXT RGB IN USER CONSTRAST MIN ABL 2C ABL 模式数据 DCBS 19 DC RESTORATION/BLACK STRECH CLTO 23 色彩模式 CLTM 24 色彩模式 CLVO 25 视频色彩模式 CLVD 31 DVD 色彩模式 SECD 08 SECAM 模式 SBY* 08 SECAM B-Y 黑电平 SRY* 08 SECAM R-Y 黑电平 STNT 10 BASE BAND TINT CENTER （FOR DVD） SCOX 0F 副色彩最大值 （FOR DVD） SCON 0F 副色彩最小值 （FOR DVD） STNX 0F BASE BAND TINT MAX （FOR DVD） STNN 0F BASE BAND TINT MIN （FOR DVD） RAGC* 27 RF AG （FOR DVD） HAFC 04 AFC 增益 IF 42 IF DATA VSM 07 VSM MODE VSM1 03 VSM MODE VSM2 03 VSM MODE VSM3 00 VSM MODE 8 3.3. CHK 3 模式 在 CHK 3 模式时要改变屏幕显示 （项目），只需按遥控器上的数字钮 “3”或 “4”，再按音量 “+”或 “-”钮改变数据。 CHK3 3.4. CHK 4 模式 在 CHK 4 模式时要改变屏幕显示 （项目），只需按遥控器上的数字钮 “3”或 “4”，再按音量 “+”或 “-”钮改变数据。 注意： 在屏显为 CHK4 时按数字钮 “5”进入横一模式，（再按数字钮 “5”解除横一模式）。 CHK4 显示 参考数据 项目 HP50* 0E 50Hz 水平相位 VP50* 02 50Hz 垂直相位 HTT* 18 50Hz 垂直放大 HP60* 06 60Hz 水平相位 VP60* 01 60Hz 垂直相位 HIT6* 1A 60Hz 垂直放大 VLIN* 08 V- 线性 VSC* 09 V-S 校正 VL16* 09 60HzV 线性 DPC* 12 50Hz 左右抛物线 DPC6* 10 60Hz 左右抛物线 KEY* 12 50Hz 梯形 KEY6* 16 60Hz 梯形 WID* 18 50Hz 水平宽度 WID6* 1B 60Hz 水平宽度 CNR* 08 左右边角 VEHT 03 V.EHT HEHT 03 H.EHT DEF 01 DEF COMP DATA 显示 参考数据 项目 RCUT* 20 R CUT OFF GCUT* 20 G CUT OF BCUT* 20 B CUT OFF GDRV* 40 G DMINE GAIN 绿驱动 BDRV* 40 G DMINE GAIN 蓝驱动 BRTS* 00 SW BRIGHT （DUMMY） 9 3.5. CHK 5 模式 在 CHK 5 模式时要改变屏幕显示 （项目），只需按遥控器上的数字钮 “3”或 “4”，再按音量 “+”或 “-”钮改变数据。 CHK5 注意：带 * 的项目，其数据是可调的；不带 * 的项目，其数据是固定的。 显示 参考数据 项目 V1 09 音量为 1 时，音量输出数据 （START POINT） V16 24 音量为 16 时，音量输出数据 （25%） V32 41 音量为 32 时，音量输出数据 （50%） V63 7F 音量为 63 时，音量输出数据 （100%） FVOL 15 PRESCAL FM （FOR MSP3410） NVOL 48 FRESCAL NICAM （FOR MSP3410） EVOL 11 PRESCAL SCART （FOR MSP3410） NICL 0A NICAM 开时电平 （FOR MSP3410） NICH 17 NICAM 关时电平 （FOR MSP3410） IDL 40 不确认 IDH A0 不确认 FVDK 2A PRESCAL FM （PK WIDE）（FOR MSP3410） WCTL 0C APRO 方式数据 （FOR MSP3410） SUR1 1F 单声环绕声 （FOR MSP3410） SUR2 0F 立体声环绕声 （FOR MSP3410） BASC 40 BASS 中心 TREC 40 TREBLE 中心 COM1 44 D-COM DATA1 COM2 17 D-COM DATA2 PWCO 00 为了保护 CRT，对比度数据逐步增加 VLAT 7F V/C/J VOLUME ATT DATA FOR APRO 10 4 调整步骤 项目 / 步骤 调整步骤 确认各测试点直流电压如下： +B 电压 TPA10:140 ± 2V 1. 打开电视机 TPA29:220 ± 15V 2. 如下设定控制 （行业模式） TPA15:12 ± 1V 亮度 .......... 最小 TPA16:9 ± 1V 对比度 ........ 最小 TPA17:5 ± 1V TPA32:5 ± 1V RF AGC 调整 1. 在工场模式下选择 CHK2 中的 RF AGC 调整项目 1. 接收彩条测试图 2. 用遥控器的音量升 / 降钮调整 TPA41 的电压为 3.65 ± 0.3V 来设置 2. 确认输入信号为 65dBu RF AGC 3. 连接万用表到 TPE1 3. 增加 RF 信号强度 2dB，确认 TPA41 电压下降 高压 1. 电视机接通电源 1. 把电压计接到 TPA10 和地，确认电压为 140 ± 2V 2. 接收窗口信号 2. 连接电压计到 CRT 阳极，确认灯丝电压为： 3. 设定束电源为 0 SCREEN VR: 最小 30.3(+0.7，-1.5)KV 亮度和对比度：最小 3. 连接高频有效值电压计到灯丝端，确认电压值如下： 4. H-WIDTH 粗调完毕 6.3V ± 0.24 副对比度 调整副对比度使波形为 2.6 ± 0.1Vp － p，如下图所示 1. 连接示波器探头到 TPA22(ROUT) 2. 接收彩色信号，本振调到最佳点，TPA39 与 TPA32 用线连接 3. 图像菜单：最佳，正常 4. 频道色彩设定：标准 5. 通过 BRIGHT 设定标准电压为 2.3 ± 0.2V 11 PAL 色输出电平调整 1. 接收 PALD 彩条信号，本振调整到最佳 1. 连接示波器探头到 TPA22(R OUT), 调整 COLOUR( 色中心 FOR PAL), 2. TPA39 与 TPA32 用线连接 使图中的波形幅度为 2.2 ± 0.1Vp-p 3. 图像菜单：最佳，正常 4. 频道色彩设定：标准 5. 通过亮度 （BRIGHT）设定基准电平为 2.3 ± 0.2V 6. 设定 G-DRIVE 增益和 B-DRIVE 增益为 3FH AV NTSC 副色调调整 1. 连接示波器探头到 TPA22(R OUT) 调整 CHK2 中的 TNTC 项，使电平如下图： 2. 用 AV/TV 键选择 AV 模式，从视频输入端子输入 NTSC3.58 的虹条信号 3. TPA39 与 TPA32 用线连接 4. 图像菜单：最佳，正常 项目 / 步骤 调整步骤 12 5 导体图 5.1. A- 板 (TC-29P42G/TC-29P40R) A B C D E F G H I 6 5 4 3 2 1 TNP0A9009AA/TNP0A9009AB (TC-29P42G, TC29P40R) A-BOARD/A- 13 5.2. X- 板 / H- 板 (TC-29P42G/TC-29P40R) A B C D E F G H I 6 5 4 3 2 1 TNP0A0037AA/TNP0A0037AB (TC-29P42G, TC29P40R) H-BOARD/H- TNP0A0028AD (TC-29P42G, TC29P40R) X-BOARD/X- 14 5.3. G1- 板 (TC-29P42G/TC-29P40R) 1 A B C D E F 2 2 3 TNP0A0034AA/TNP0A0034AB (TC-29P42G, TC29P40R) G1-BOARD/G1- 15 5.4. L- 板 (TC-29P42G/TC-29P40R) 1 A B C D 2 2 3 4 5 TNP0A0040AA (TC-29P42G, TC29P40R) L-BOARD/L- 16 6 电路图 6.1. 电路图注意事项 17-1 17-2 17-3 6.2. A- 板电路图 (TC-29P42G) A B C D E F G H I J K L M N 6 5 4 3 2 1 TNP0A9009AA (FOR TC-29P42G) A-BOARD 18-1 18-2 18-3 6.3. A- 板电路图 (TC-29P40R) A B C D E F G H I J K L M 6 5 4 3 2 1 TNP0A9009AB (FOR TC-29P40R) A-BOARD 19 6.4. G1- 板电路图 (TC-29P42G) A B C D E F G H I 6 5 4 3 2 1 TNP0A0034AA (FOR TC-29P42G) G1-BOARD 20 6.5. G1- 板电路图 (TC-29P40R) A B C D E F G H I 6 5 4 3 2 1 TNP0A0034AB (FOR TC-29P40R) G1-BOARD 21 6.6. H- 板电路图 (TC-29P42G) A B C D E F G H I 6 5 4 3 2 1 TNP0A0037AA (FOR TC-29P42G) H-BOARD 22 6.7. H- 板电路图 (TC-29P40R) A B C D E F G H I 6 5 4 3 2 1 TNP0A0037AB (FOR TC-29P40R) H-BOARD 23 6.8. L- 板电路图 (TC-29P42G/TC-29P40R) A B C D E F G H I 6 5 4 3 2 1 TNP0A0040AA (FOR TC-29P42G/TC-29P40R) L - BOARD 24 6.9. X- 板电路图 (TC-29P42G/TC-29P40R) A B C D E F G H I 6 5 4 3 2 1 TNP0A0028AD (FOR TC-29P42G/TC-29P40R) X - BOARD 25 7 分解图 7.1. 分解图 (TC-29P42G/TC-29P40R) 26 8 机械部件更换表 8.1. 机械部件更换表 (TC-29P42G) 8.2. 其他 (TC-29P42G) 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 1 DIF2914MA DY 2 FC84 磁条 ( 色纯磁铁 ) 3 HT646922 遥控器 4 M68LUQ085X 显像管 R6PPTT/2STA 电池 5 SB-29A 磁条 ( 会聚校正片 ) T5E624-K 纸胶带 T5E75030 透明胶带 TBL0A8405 防划垫 6 TBM0A0130 后铭牌 7 TBM0A0136 门内牌 8 TBMA059 商标标牌 9 TBX0A82200 电源键 10 TEK6940 门开关 11 TES0A201 地线弹簧 12 TES0A204 电源键弹簧 13 TKK0A8308 导光板 14 TKK0A8508 扬声器支架 15 TKP0AA3701 装饰板 16 TKP0AA3801 受光窗 TKP0AA3901 门 17 TKP0AA4001 后 AV 支架 18 TKR0A0701-2 把手 （涂装 L） TKR0A0801-2 把手 （涂装 R） 19 TKU0A2301-1 后盖 20 TKX0A1201 CRT 支架 21 TSPA133 消磁线圈 22 TLK0A9028 消磁线圈 TMK0A045 无纺布 (OR TMK4G131) TMK0A050 无纺布 (OR TMK4G132) 23 TMM27523X 橡胶楔子 (DY) TPC0A43201 包装箱 TPC0A43301 包装箱 TPD0A1026 缓冲材 ( 上 ) TPD0A2030 缓冲材 ( 下 ) TPD0A9002L 包装箱扣 TPD0A9014 垫板 TPE0A4006 保护纸 TPE0A4010 塑料袋 TQB0A1080 说明书部件 TQD0A12002 合格票 TQD0A18001-3 保修证 TQE0A502 塑料袋 24 TSX0A124Y 电源线 TSX0A117H TSX0A124H TSX0A124Y 25 TTP0A0001 中门完成品 26 TTY0A0075 前壳完成品 XTB4+20AFZ 自攻钉 27 YDT0613-26AP 扬声器 28 TMM0A401-2 高压隔圈 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks A1 TJSF20316 连接器 A2 TJSF20316 连接器 A6 TJSF53708 连接器 A10 TJS3A9650 连接器 A11 TJSF17335 连接器 A20 TJS4G8020 连接器 A22 TJS4G8020 连接器 A41 TJS3A9890 连接器 A42 TJS3A9640 连接器 A43 TJS3A9640 连接器 A50 S6B-EH 连接器 G1 TJSF20216 连接器 G2 TJSF20216 连接器 G5 TJS3A9880 连接器 G6 TJSF53708 连接器 H5 TJS1A8140 连接器 H11 TJSF17435 连接器 L1 TJS3A9890 连接器 L2 TJS118590 连接器 L3 TJS3A9680 连接器 X20 TJS4G8010 连接器 X22 TJS4G8010 连接器 X23 TJS3A9680 连接器 S801 ESB92DA1B 开关 S1001 EVQ21405R 开关 S1002 EVQ21405R 开关 S1003 EVQ21405R 开关 S1004 EVQ21405R 开关 S1005 EVQ21405R 开关 S1006 EVQ21405R 开关 X101 K7256M 滤波器 X102 EFCKK9351M 陶瓷滤波器 X180 EFCT6M65MW5 陶瓷滤波器 X181 XT5.5MBC 陶瓷滤波器 X182 XT4.5MBC 陶瓷滤波器 X183 EFCS4R5MS5 陶瓷滤波器 X630 TSS816TN1 晶体振荡器 X1101 CSA16M0X55B0 陶瓷振荡器 X2001 TSSA128 晶体 F801 XBAT2C50TR0 保险丝 F801-L EYF52BC/L 保险丝支架 F801-R EYF52BC/L 保险丝支架 JK1 TJB0A631 前 AV 端子 JK351 TJSC01200 显像管管座 JK3152 TJB0A612 AV 端子 TNR001 TEDE9-254A 高频头 RTL TNP0A0028AD X 板 RTL TNP0A0034AA G1 板 RTL TNP0A0037AA H 板 RTL TNP0A0040AA L 板 RTL TNP0A9009AA A 板 27 8.3. 机械部件更换表 (TC-29P40R) 8.4. 其他 (TC-29P40R) 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 1 DIF2914MA DY 2 FC84 磁条 ( 色纯磁铁 ) 3 HT646921 遥控器 4 M68LUQ285X CRT R6PPTT/2STA 电池 5 SB-29A 磁条 ( 会聚校正片 ) T5E624-K 纸胶带 T5E75030 透明胶带 TBL0A8402 防划垫 TBL0A8405 防划垫 6 TBM0A0131 后铭板 7 TBM0A0136 门内牌 8 TBMA059 商标标牌 9 TBX0A82200 电源键 10 TEK6940 门开关 11 TES0A201 地线弹簧 12 TES0A204 电源键弹簧 13 TKK0A8308 导光板 14 TKK0A8508 扬声器支架 15 TKP0AA3701 装饰板 16 TKP0AA3801 受光窗 TKP0AA3902 门 17 TKP0AA4001 后 AV 支架 18 TKR0A0701-2 把手 （涂装 L） TKR0A0801-2 把手 （涂装 R） 19 TKU0A2301-1 后盖 20 TKX0A1201 CRT 支架 21 TSPA133 消磁线圈 22 TLK0A9028 消磁线圈 23 TMM27523X 橡胶楔子 (DY) TPC0A43202 29P40 包装箱 TPC0A43301 包装箱 TPD0A1026 缓冲材 ( 上 ) TPD0A2030 缓冲材 ( 下 ) TPD0A9002L 包装箱扣 TPD0A9014 垫板 TPE0A4006 保护纸 TPE0A4010 塑料袋 TQB0A1081 说明书部件 TQD0A12002 合格票 TQD0A18001-3 保修证 TQE0A502 塑料袋 24 TSX0A124Y 电源线 TSX0A117H TSX0A124H TSX0A124Y 25 TTP0A0002 中门完成品 26 TTY0A0076 前壳完成品 XTB4+20AFZ 自攻钉 27 YDT0613-26AP 扬声器 28 TMM0A401-2 高压隔圈 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks A1 TJSF20316 连接器 A2 TJSF20316 连接器 A6 TJSF53708 连接器 A10 292056-4 插头座 A11 TJSF17335 连接器 A20 TJS4G8020 连接器 A22 TJS4G8020 连接器 A41 292035-9 插头座 A42 292056-3 插头座 A43 292056-3 插头座 A50 S6B-EH 连接器 G1 TJSF20216 连接器 G2 TJSF20216 连接器 G5 292056-8 插头座 G6 TJSF53708 连接器 L1 292035-9 插头座 L2 292056-2 插头座 L3 292056-7 插头座 H5 TJS1A8140 连接器 H11 TJSF17435 连接器 X20 TJS4G8010 连接器 X22 TJS4G8010 连接器 X23 292056-7 插头座 S801 ESB92DA1B 开关 S1001 EVQ21405R 开关 S1002 EVQ21405R 开关 S1003 EVQ21405R 开关 S1004 EVQ21405R 开关 S1005 EVQ21405R 开关 S1006 EVQ21405R 开关 X101 K7256M 滤波器 X180 EFCT6M65MW5 陶瓷滤波器 X181 XT5.5MBC 陶瓷滤波器 X182 XT4.5MBC 陶瓷滤波器 X183 EFCS6R5MS5 陶瓷滤波器 X630 TSS816TN1 晶体振荡器 X1101 CSA16M0X55B0 陶瓷振荡器 F801 XBAT2C50TR0 保险丝 F801-L EYF52BC/L 保险丝支架 F801-R EYF52BC/L 保险丝支架 JK1 TJB0A631 前 AV 端子 JK351 TJSC01200 显像管管座 JK3152 TJB0A612 AV 端子 TNR001 TEDE9-254A 高频头 RTL TNP0A0028AD X 板 RTL TNP0A0034AB G1 板 RTL TNP0A0037AB H 板 RTL TNP0A0040AA L 板 RTL TNP0A9009AB A 板 28 9 更换部件表 9.1. 注意事项 29 9.2. 电子部件更换表 (TC-29P42G) 9.2.1. 表 1 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 集成电路 IC351 TDA6103Q-N3 集成电路 IC420 BA225 集成电路 IC451 LA7833S 集成电路 IC601 TB1251CN 集成电路 IC701 NJM4565L 集成电路 IC801 STRF6668B-53 集成电路 IC860 SE140N 集成电路 IC881 AN7812LB 集成电路 IC882 AN7809LB 集成电路 IC884 PQ05RD1B 集成电路 IC885 AN78L05TA 集成电路 IC1051 GP1U252Q 集成电路 IC1101 88CP38AF3G66 集成电路 IC1102 TVSTC4052BP 集成电路 IC1103 S-80741AL-Z 集成电路 IC1104 TVR0A007 集成电路 IC2001 MSP3410GP0B8 集成电路 IC2002 AN78L08TA 集成电路 IC2801 TDA2616/N1 集成电路 IC3001 MM1492AF 集成电路 IC3002 TC90A49F 集成电路 IC4801 PUB4301 集成电路 IC4802 AN6564NS-E1 集成电路 三 极 管 Q115 2SC4787TA 三极管 Q116 2SD601ATX 三极管 Q140 2SC1047TA 三极管 Q141 2SD601ATX 三极管 Q160 2SD601ATX 三极管 Q369 2SA564AQRTA 三极管 Q420 2SD601ATX 三极管 Q501 2SB709ATX 三极管 Q502 2SD601ATX 三极管 Q541 2SC4212HLB 三极管 Q551 2SD2553LB306 三极管 Q585 2SB709ATX 三极管 Q620 2SB709ATX 三极管 Q621 2SB709ATX 三极管 Q660 2SD601ATX 三极管 Q701 2SK2538000LB 三极管 Q702 2SC945AQR-T 三极管 Q750 2SA1018QTA 三极管 Q860 2SD601ATX 三极管 Q862 2SC1815TPE2 三极管 Q863 2SD601ATX 三极管 Q864 2SD601ATX 三极管 Q880 2SD601ATX 三极管 Q881 2SD601ATX 三极管 Q902 2SB709ATX 三极管 Q904 2SB709ATX 三极管 Q905 2SB709ATX 三极管 Q906 2SD601ATX 三极管 Q907 2SD601ATX 三极管 Q908 2SD601ATX 三极管 Q951 2SC945AQR-T 三极管 Q952 2SC945AQR-T 三极管 Q953 2SC1318TA 三极管 Q954 2SB1030ATA 三极管 Q955 2SB1569AF51 三极管 Q956 2SD2400AF51 三极管 Q957 2SA564AQRTA 三极管 Q958 2SC945AQR-T 三极管 Q961 2SC945AQR-T 三极管 Q962 2SC945AQR-T 三极管 Q1051 2SC945AQR-T 三极管 Q1151 2SD601ATX 三极管 Q1152 2SB709ATX 三极管 Q1161 2SD601ATX 三极管 Q1168 2SB709ATX 三极管 Q1169 2SD601ATX 三极管 Q1170 2SD601ATX 三极管 Q1171 2SD601ATX 三极管 Q1172 2SD601ATX 三极管 Q2003 2SB709ATX 三极管 Q2004 2SB709ATX 三极管 Q2330 2SB709ATX 三极管 Q2801 2SD601ATX 三极管 Q3001 2SB709ATX 三极管 Q3002 2SB709ATX 三极管 Q3003 2SD601ATX 三极管 Q3004 2SB709ATX 三极管 Q3005 2SB709ATX 三极管 Q3006 2SD601ATX 三极管 Q3007 2SB709ATX 三极管 Q3009 2SB709ATX 三极管 Q3070 2SD601ATX 三极管 Q3071 2SD601ATX 三极管 二 极 管 D110 MTZJT-7716A 二极管 D111 MTZJT-7716A 二极管 D120 MA858TA5 二极管 D170 MTZJT-775.6B 二极管 D354 MA165TA5VT 二极管 D355 MA165TA5VT 二极管 D356 MA165TA5VT 二极管 D357 MTZJT-7715B 二极管 D360 ERA22-04V3 二极管 D361 ERA22-04V3 二极管 D362 ERA22-04V3 二极管 D363 MA165TA5VT 二极管 D365 MTZJT-7710C 二极管 D375 MA165TA5VT 二极管 D456 MA29W-BTA 二极管 D457 MA29W-BTA 二极管 D463 MTZJT-7739E 二极管 D464 MTZJT-7739E 二极管 D465 MTZJT-7739E 二极管 D466 ERA15-01V3 二极管 D470 MTZJT-7712B 二极管 D511 MA152KTX 二极管 D512 MA182TA5 二极管 D513 AU02V0 二极管 D515 TVSEU2V1 二极管 D530 MA4104JTA 二极管 D531 MA171TA5 二极管 D551 MTZJT-7711A 二极管 D552 RH3FLFS1 二极管 D553 RU3ANLFA10 二极管 D580 MTZJT-7710C 二极管 D582 MA4082HTA 二极管 D613 MA3068MTX 二极管 D614 MA3068MTX 二极管 D615 MA3068MTX 二极管 D620 MA152KTX 二极管 D645 MTZJT-775.6B 二极管 D660 MA29W-BTA 二极管 D661 MA29W-BTA 二极管 D701 AU02V0 二极管 D750 1SS133T77 二极管 D751 MA4104JTA 二极管 D752 1SS133T77 二极管 D801 ERZV10D621CS 二极管 D803 D4SB80 二极管 D804 T702B11 消磁电阻 D805 T702B11 消磁电阻 D806 ERA22-10G1 二极管 D815 ERA15-04V3 二极管 D816 ERA15-01V3 二极管 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 30 9.2.2. 表 2 D817 ERA15-01V3 二极管 D818 MA2240-BLFS 二极管 D819 AM01AV0 二极管 D820 MA2082-ALFS 二极管 D821 MA2082-ALFS 二极管 D823 ERA15-01V3 二极管 D824 MA167TA5 二极管 D850 FMGG2CSLF665 二极管 D851 FMLG12S 二级管 D853 FMLG12S 二级管 D854 FMLG12S 二级管 D855 AU02AV0 二极管 D856 D1NL20UV70 二极管 D857 TF361MALF3 二极管 D860 TLP721FD4GRT 光电耦合器 D861 MTZJT-7720D 二极管 D862 MTZJT-776.2C 二极管 D863 MTZJT-7718C 二极管 D865 D1NL20UV70 二极管 D866 MTZJT-776.8C 二极管 D1051 EL333ID-F45R 发光二极管 D1145 MTZJT-775.6A 二极管 D1160 MA152KTX 二极管 D1167 MA152KTX 二极管 D1170 MTZJT-775.6A 二极管 D1171 MTZJT-775.6A 二极管 D2001 MA3075MTX 二极管 D2330 MA4047MTA 二极管 D2331 MA152KTX 二极管 D2332 MA152KTX 二极管 D2334 MA152KTX 二极管 D3001 MA4140MTA 二极管 D3002 MA4140MTA 二极管 D3005 MA4140MTA 二极管 D3006 MA4140MTA 二极管 D3012 MA4140MTA 二极管 线 圈 L101 LF7.5NFT100J 线圈 L111 LF7.5NFTR56M 校正线圈 L140 LF7.5NFT8R2K 校正线圈 L141 LF7.5NFT8R2K 校正线圈 L142 LF7.5NFT1R0K 校正线圈 L143 LF7.5NFT150J 线圈 L144 LF7.5NFT8R2K 校正线圈 L145 LF7.5NFT470J 线圈 L150 LF7.5NFT8R2K 校正线圈 L160 LF7.5NFT120J 线圈 L161 EQV7EL521Q 线圈 L352 BDC0206-903 扼流线圈 L511 EXCELSA39E 线圈 L512 EXCELSA39E 线圈 L515 BDC0306M-904 扼流线圈 L551 BDC0306M-904 扼流线圈 L552 BDC0306-904 扼流线圈 L553 BDC0306-904 扼流线圈 L665 LF7.5NFT151J 线圈 L701 ELEIN682KA 线圈 L702 45H-0003 线圈 L703 TLH15731M 线圈 L704 ELEIN682KA 线圈 L705 MT17650 线性线圈 L706 BDC0306-904 扼流线圈 L707 45H-0004 线圈 L801 45H-9827 陶瓷滤波器 L802 45H-9749 线路滤波器 L815 EXCELSA39E 线圈 L816 EXCELDR25V 扼流线圈 L817 EXCELDR25V 扼流线圈 L820 EXCELSA39E 线圈 L822 BDC0306-904 扼流线圈 L850 BDC0306M-904 扼流线圈 L851 BDC0306M-904 扼流线圈 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks L852 BDC0306-904 扼流线圈 L858 TALL08N820KA 线圈 L860 ETQR45T001B 线圈 L920 LF7.5NFT151J 线圈 L951 BDC0206-903 扼流线圈 L953 BDC0206-903 扼流线圈 L954 BDC0206-903 扼流线圈 L955 BDC0206-903 扼流线圈 L1145 LF7.5NFT100J 线圈 L1160 LF7.5NFT4R7J 线圈 L2002 LF7.5NFT4R7J 线圈 L2003 BDC0306-904 扼流线圈 L2004 BDC0306M-904 扼流线圈 L2005 LF7.5NFT180J 线圈 L2801 TALL08T100KA 线圈 L2802 TALL08T100KA 线圈 L2830 BDC0306M-904 扼流线圈 L2831 BDC0306M-904 扼流线圈 L3031 LF7.5NFT101J 线圈 L3032 LF7.5NFT101J 线圈 L3201 LF7.5NFT220J 校正线圈 L3202 LF7.5NFT100J 线圈 L3203 LF7.5NFT100J 线圈 L3204 LF7.5NFT100J 线圈 L3205 LF7.5NFT100J 线圈 L3209 BDC0306-904 扼流线圈 L3210 BDC0306-904 扼流线圈 L3211 BDC0306-904 扼流线圈 L3212 BDC0306-904 扼流线圈 L4810 BDC0306-904 扼流线圈 变 压 器 T501 BSC29-0180E 行输出变压器 T551 MT17589 行推动变压器 T801 MT21082 变压器 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 电 阻 R106 ERJ6GEYJ823V M, 82K OHM, J, 1/10W R108 ERJ6GEYJ183V M, 18K OHM, J, 1/10W R110 ERJ6GEYJ100V M, 10 OHM, J, 1/10W R115 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R116 ERJ6GEYJ470V M, 47 OHM, J, 1/10W R117 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R118 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R119 ERJ6GEYJ680V M, 68 OHM, J, 1/10W R120 ERJ6GEYJ682V M, 6.8K OHM, J, 1/10W R121 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R125 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R126 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R127 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R128 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R140 ERJ6GEYJ391V M, 390 OHM, J, 1/10W R141 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R142 ERJ6GEYJ121V M, 120 OHM, J, 1/10W R143 ERJ6GEYJ470V M, 47 OHM, J, 1/10W R150 ERJ6GEYJ563V M, 56K OHM, J, 1/10W R151 ERJ6GEYJ563V M, 56K OHM, J, 1/10W R161 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R162 ERJ6GEYJ102V M, 1K OHM, J , 1/10W R163 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R164 ERJ6GEYJ333V M, 33K OHM, J , 1/10W R166 ERJ6GEYJ822V M, 8.2K OHM, J , 1/10W R168 ERJ6GEYJ272V M, 2.7K OHM, J , 1/10W R351 EROS2THF1001 M, 1KOHM, F, 1/4W R352 EROS2THF1001 M, 1KOHM, F, 1/4W R353 EROS2THF1001 M, 1KOHM, F, 1/4W R354 EROS2THF1501 M, 1.5KOHM, F, 1/4W R355 EROS2THF1501 M, 1.5KOHM, F, 1/4W R356 EROS2THF1501 M, 1.5KOHM, F, 1/4W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 31 R357 EROS2THF1001 M, 1KOHM, F, 1/4W R358 ERG12DJ124V M, 120K OHM, J, 1/2W R359 ERG12DJ124V M, 120K OHM, J, 1/2W R360 ERG12DJ124V M, 120K OHM, J, 1/2W R361 SNK2CT8451F M, 8.45K OHM, F, 1/4W R362 EROS2THF1431 M, 1.43KOHM, F, 1/4W R363 ERC12GK222D S, 2.2K OHM, K, 1/2W R364 ERC12GK222D S, 2.2K OHM, K, 1/2W R365 ERC12GK222D S, 2.2K OHM, K, 1/2W R369 RD16ST103J C, 10K OHM, J, 1/4W R371 EROS2THF1001 M, 1KOHM, F, 1/4W R372 EROS2THF1001 M, 1KOHM, F, 1/4W R374 ERQ12AJ181P F, 180 OHM, J, 1/2W R401 ERJ6ENF1001V M, 1K OHM, 1/10W R403 ERJ6ENF5601V M, 5.6K OHM, 1/10W R420 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R421 ERJ6GEYJ683V M, 68K OHM, J, 1/10W R422 ERJ6ENF1183V M, 118K OHM, 1/10W R423 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R450 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R451 ERJ6GEYJ393V M, 39K OHM, J, 1/10W R452 ERX1SJ1R8P M, 1.8 OHM, J, 1W R453 ERX1SJ1R8P M, 1.8 OHM, J, 1W R456 ERJ6GEYJ753V M, 75K OHM, J, 1/10W R457 RDF50SST1R0J C, 1 OHM, J, 1/2W R461 RSS1L331J M, 330 OHM, J, 1W R463 ERJ6GEYJ624V M, 620K OHM, J, 1/10W R464 ERJ6GEYJ154V M, 150K OHM, J, 1/10W R467 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R468 RSS1L471J M, 470 OHM, J, 1W R470 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R471 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R472 ERJ6GEYJ333V M, 33K OHM, J, 1/10W R474 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R501 RD16ST102J C, 1K OHM, J, 1/4W R502 ERJ6GEYJ123V M, 12K OHM, J, 1/10W R504 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R507 ERJ6GEYJ124V M, 120K OHM, J, 1/10W R508 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R509 ERJ6GEYJ105V M, 1M OHM, J, 1/10W R510 ERJ6GEYJ824V M, 820K OHM, J, 1/10W R511 ERO50PHF7322 M, 73.2K OHM, F, 1/10W R512 RD16ST223J C, 22K OHM, J, 1/4W R513 ERQ14AJ2R0P F, 2 OHM, J, 1/4W R514 RD50SST394J C, 390K OHM, J, 1/2W R515 BMF1L201R0J F, 1 OHM, J, 1W R530 ERQ14AJ100E F, 10 OHM, J, 1/4W R531 EROS2THF1132 M, 11.3KOHM, F, 1/4W R532 SNK2CT1052F M, 10.5KOHM, F, 1/4W R533 EROS2THF1002 M, 10KOHM, F, 1/4W R540 RD16ST101J C, 100 OHM, J, 1/4W R541 RD16ST221J C, 220 OHM, J, 1/4W R542 ERG3FJ392H M, 3.9K OHM, J, 3W R544 ERG3FJ152 M, 1.5KOHM, J, 3W R554 RD16ST102J C, 1K OHM, J, 1/4W R580 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R581 ERJ6GEYJ681V M, 680 OHM, J, 1/10W R584 ERJ6GEYJ272V M, 2.7K OHM, J, 1/10W R585 ERJ6GEYJ392V M, 3.9K OHM, J, 1/10W R586 ERJ6GEYJ183V M, 18K OHM, J, 1/10W R587 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R588 ERJ6GEYJ513V M, 51K OHM, J, 1/10W R589 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R608 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R609 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R613 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R614 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R615 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R624 ERJ6GEYJ272V M, 2.7K OHM, J, 1/10W R625 ERJ6GEYJ271V M, 270 OHM, J, 1/10W R626 ERJ6GEYJ271V M, 270 OHM, J, 1/10W R627 ERJ6GEYJ271V M, 270 OHM, J, 1/10W R632 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R633 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R634 ERJ6GEYJ151V M, 150 OHM, J, 1/10W R635 ERJ6GEYJ224V M, 220K OHM, J, 1/10W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks R638 RD50SST271J C, 270 OHM, J, 1/2W R640 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R641 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R649 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R660 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R661 ERJ6GEYJ223V M, 22K OHM, J, 1/10W R662 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R663 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R664 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R665 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R700 BMF2L251R0J F, 1 OHM, J, 2W R701 RD16ST103J C, 10K OHM, J, 1/4W R702 BGR5Z121J W, 120 OHM, J, 5W R703 RDF50SST122J C, 1.2K OHM, J, 1/2W R704 RD16ST331J C, 330 OHM, J, 1/4W R705 RD16ST822J C, 8.2K OHM, J, 1/4W R706 ERQ14AJ4R7E F, 4.7 OHM, J, 1/4W R708 BMF1151J F, 150 OHM, J, 1W R709 BMF2L25102J F, 1K OHM, J, 2W R711 RD16ST101J C, 100 OHM, J, 1/4W R712 RD16ST822J C, 8.2K OHM, J, 1/4W R714 RD16ST272J C, 2.7K OHM, J, 1/4W R715 RD16ST222J C, 2.2K OHM, J, 1/4W R716 RD16ST103J C, 10K OHM, J, 1/4W R717 RD16ST103J C, 10K OHM, J, 1/4W R718 RD16ST103J C, 10K OHM, J, 1/4W R750 RD16ST243J C, 24 K OHM, J, 1/4W R751 RD25ST104J C, 100K OHM, J, 1/4W R752 RD16ST103J C, 10K OHM, J, 1/4W R753 RD16ST821J C, 820 OHM, J, 1/4W R755 SNK2CT1503F M, 150K OHM, F, 1/4W R756 EROS2THF1152 M, 11.5KOHM, F, 1/4W R758 BGR10Z2R7J W, 2.7 OHM, J, 10W R801 BGR15Z3R3K W, 3.3 OHM, K, 15W R808 RSF3B333J F, 33KOHM, J, 3W R810 RD50SST155J C, 1.5M OHM, J, 1/2W R814 BGR5Z121J W, 120 OHM, J, 5W R816 ERQ12AJ100P F, 10 OHM, J, 1/2W R817 RD50SST100J C, 10 OHM, J, 1/2W R818 ERG5FJ123 M, 12KOHM, J, 5W R820 ERX12SJR22P M, 0.22 OHM, J, 1/2W R821 ERX12SJR22P M, 0.22 OHM, J, 1/2W R822 RD16ST681J C, 680 OHM, J, 1/4W R824 RD16ST222J C, 2.2K OHM, J, 1/4W R830 RD16ST332J C, 3.3K OHM, J, 1/4W R840 RCR100TAJ825 C, 8.2M OHM, J, 3/4W R850 RSS3GT472J M, 4.7 K OHM, J, 3W R851 BMF1M20R33J F, 0.33 OHM, J, 1W R853 BMF1L20R33J F, 0.33 OHM, J, 1W R854 BMF1L20R33J F, 0.33 OHM, J, 1W R855 ERX2FJ6R8H M, 6.8 OHM, J, 2W R858 ERX3ANJ4R7 M, 4.7 OHM, J, 3W R859 ERX3ANJ4R7 M, 4.7 OHM, J, 3W R861 RD50SST271J C, 270 OHM, J, 1/2W R862 ERJ6GEYJ562V M, 5.6K OHM, J, 1/10W R864 RSF3B153J F, 15KOHM, J, 3W R865 RD50SST102J C, 1K OHM, J, 1/2W R867 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R868 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R869 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R870 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R871 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R881 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R882 ERJ6GEYJ223V M, 22K OHM, J, 1/10W R883 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R904 ERJ6GEYJ151V M, 150 OHM, J, 1/10W R905 ERJ6GEYJ183V M, 18K OHM, J, 1/10W R906 ERJ6GEYJ622V M, 6.2K OHM, J, 1/10W R909 ERJ6GEYJ561V M, 560 OHM, J, 1/10W R910 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R911 ERJ6GEYJ822V M, 8.2K OHM, J, 1/10W R912 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R913 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R914 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R915 ERJ6GEYJ822V M, 8.2K OHM, J, 1/10W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 32 R917 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R919 ERJ6GEYJ561V M, 560 OHM, J, 1/10W R923 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R924 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R925 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R926 ERJ6GEYJ751V M, 750 OHM, J, 1/10W R927 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R928 ERJ6GEYJ202V M, 2K OHM, J, 1/10W R930 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R931 ERJ6GEYJ392V M, 3.9K OHM, J, 1/10W R933 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R934 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R951 RD16ST821J C, 820 OHM, J, 1/4W R952 RD16ST223J C, 22K OHM, J, 1/4W R953 RD16ST332J C, 3.3K OHM, J, 1/4W R954 RD16ST331J C, 330 OHM, J, 1/4W R956 RD16ST510J C, 51 OHM, J, 1/4W R958 RD16ST391J C, 390 OHM, J, 1/4W R959 RD16ST101J C, 100 OHM, J, 1/4W R960 ERQ14AJ100E F, 10 OHM, J, 1/4W R961 BMF1L20331J F, 330 OHM, J, 1W R962 RD16ST330J C, 33 OHM, J, 1/4W R963 RD16ST330J C, 33 OHM, J, 1/4W R964 ERQ14AJ471E F, 470 OHM, J, 1/4W R965 RD16ST223J C, 22K OHM, J, 1/4W R966 RSS1L471J M, 470 OHM, J, 1W R967 RD16ST223J C, 22K OHM, J, 1/4W R968 RD16ST471J C, 470 OHM, J, 1/4W R969 RD16ST390J C, 39 OHM, J, 1/4W R970 RD16ST2R7J C, 2.7 OHM, J, 1/4W R971 RD16ST2R7J C, 2.7 OHM, J, 1/4W R972 RD16ST390J C, 39 OHM, J, 1/4W R973 RD16ST101J C, 100 OHM, J, 1/4W R974 RD16ST333J C, 33K OHM, J, 1/4W R975 RD16ST101J C, 100 OHM, J, 1/4W R976 RD16ST101J C, 100 OHM, J, 1/4W R977 RD16ST561J C, 560 OHM, J, 1/4W R978 RD16ST101J C, 100 OHM, J, 1/4W R987 RD16ST471J C, 470 OHM, J, 1/4W R988 RD16ST331J C, 330 OHM, J, 1/4W R989 RD16ST682J C, 6.8K OHM, J, 1/4W R990 RD16ST471J C, 470 OHM, J, 1/4W R993 RD16ST471J C, 470 OHM, J, 1/4W R1016 SNK2CT2201F M, 2.2K OHM, F, 1/4W R1017 SNK2CT2201F M, 2.2K OHM, F, 1/4W R1018 SNK2CT3301F M, 3.3K OHM, F, 1/4W R1019 SNK2CT4701F M, 4.7K OHM, F, 1/4W R1020 EROS2THF1002 M, 10KOHM, F, 1/4W R1051 RD16ST102J C, 1K OHM, J, 1/4W R1053 RD16ST470J C, 47 OHM, J, 1/4W R1054 RD16ST152J C, 1.5K OHM, J, 1/4W R1055 RD16ST102J C, 1K OHM, J, 1/4W R1056 RD16ST102J C, 1K OHM, J, 1/4W R1101 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1102 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1103 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1106 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1107 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1108 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1109 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1110 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1112 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1114 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1115 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1116 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1117 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1118 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R1120 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1121 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1122 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1123 ERJ6GEYJ152V M, 1.5K OHM, J, 1/10W R1124 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1125 ERJ6GEYJ564V M, 560K OHM, J, 1/10W R1126 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1127 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1128 ERJ6GEYJ102V M, 1K OHM, J, 1/10W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks R1130 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1132 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1134 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1135 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1136 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1137 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1138 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1139 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1142 ERJ6GEYJ223V M, 22K OHM, J, 1/10W R1143 ERJ6GEYJ332V M, 3.3K OHM, J, 1/10W R1144 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R1145 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1146 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1147 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1148 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1149 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R1150 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R1151 ERJ6GEYJ392V M, 3.9K OHM, J, 1/10W R1152 ERJ6GEYJ392V M, 3.9K OHM, J, 1/10W R1153 ERJ6GEYJ123V M, 12K OHM, J, 1/10W R1154 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R1155 ERJ6GEYJ683V M, 68K OHM, J, 1/10W R1156 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R1157 ERJ6GEYJ681V M, 680 OHM, J, 1/10W R1160 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1161 ERJ6GEYJ273V M, 27K OHM, J, 1/10W R1162 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R1165 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R1166 ERJ6GEYJ223V M, 22K OHM, J, 1/10W R1170 ERJ6GEYJ560V M, 56 OHM, J, 1/10W R1171 ERJ6GEYJ560V M, 56 OHM, J, 1/10W R1172 ERJ6GEYJ332V M, 3.3K OHM, J, 1/10W R1173 ERJ6GEYJ332V M, 3.3K OHM, J, 1/10W R1174 ERJ6GEYJ470V M, 47 OHM, J, 1/10W R1177 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1180 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1181 ERJ6GEYJ333V M, 33K OHM, J, 1/10W R1182 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R1183 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R1184 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R1185 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R1186 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R1231 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1232 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1287 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1288 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1289 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1290 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1291 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R2001 ERQ12AJ5R6P F, 5.6 OHM, J, 1/2W R2003 ERQ12AJ5R6P F, 5.6 OHM, J, 1/2W R2004 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2005 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R2006 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R2007 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2014 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R2015 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R2016 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R2017 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R2022 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R2024 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R2025 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R2026 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R2131 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R2132 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R2157 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R2160 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R2161 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R2162 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2163 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2330 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2331 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R2801 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2802 ERJ6GEYJ393V M, 39K OHM, J, 1/10W R2803 RD16ST8R2J C, 8.2 0HM, J, 1/4W R2804 ERJ6GEYJ123V M, 12K OHM, J, 1/10W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 33 9.2.3. 表 3 R2810 RD16ST471J C, 470 OHM, J, 1/4W R2811 RD16ST471J C, 470 OHM, J, 1/4W R2813 RD16ST8R2J C, 8.2 0HM, J, 1/4W R3003 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3004 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3006 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3007 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3008 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3009 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3010 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3011 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3012 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3013 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3017 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R3018 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3021 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3022 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3023 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3024 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3027 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R3028 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3029 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R3031 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R3032 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3033 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3034 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3035 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3036 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3037 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3038 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3039 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3040 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3042 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3043 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3046 ERJ6GEYJ680V M, 68 OHM, J, 1/10W R3047 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3048 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3051 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3053 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R3064 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3066 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3067 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3068 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3069 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3070 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3071 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3072 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R3073 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R3076 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3077 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R3078 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R3079 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3080 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R3082 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3083 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R3084 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3085 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R3089 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R3101 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R3106 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R3110 RD16ST820J C, 82 OHM, J, 1/4W R3111 RD16ST750J C, 75 OHM, J, 1/4W R3112 RD16ST750J C, 75 OHM, J, 1/4W R3201 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3202 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3203 ERJ6GEYJ332V M, 3.3K OHM, J, 1/10W R3204 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3205 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3206 ERJ6GEYJ821V M, 820 OHM, J, 1/10W R3207 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3212 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R3217 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3218 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3219 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3220 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R3221 ERJ6GEYJ101V M, 100 OHM, J, 1/10W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks R3222 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3223 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3224 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3225 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R3226 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3227 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R3228 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3229 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3230 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R4803 ERX12SJ2R7P M, 2.7 OHM, J, 1/2W R4804 ERJ6GEYJ272V M, 2.7K OHM, J, 1/10W R4805 ERJ6ENF1331V M, 1.33K OHM, 1/10W R4806 ERJ6ENF3320V M, 332 OHM, 1/10W R4807 ERJ6ENF1001V M, 1K OHM, 1/10W R4808 ERJ6ENF3832V M, 38.3K OHM, 1/10W R4809 ERJ6ENF9091V M, 9.09K OHM, 1/10W R4810 ERJ6ENF2213V M, 221K OHM, 1/10W R4811 ERJ6ENF6651V M, 6.65K OHM, 1/10W R4812 SNK2CT5621F M, 5.62K OHM, F, 1/4W R4815 RDF50SST180J C, 18 OHM, J, 1/2W R4816 RDF50SST390J C, 39 OHM, J, 1/2W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 电 容 C101 NE1HHW4R7B E, 4.7UF, 50V C103 ECQB1H224JF3 P, 0.22UF, J, 50V C110 MCJ2VF1H104Z C, 0.1UF, Z, 50V C111 ECA1CM101B E, 100UF, 16V C112 NE1HHW010B E, 1 UF, 50V C113 MCJ2VF1H103Z C, 0.01UF, Z, 50V C114 MCJ2VF1H103Z C, 0.01UF, Z, 50V C115 MCJ2VF1H103Z C, 0.01UF, Z, 50V C116 MCJ2VF1H103Z C, 0.01UF, Z, 50V C126 MCJ2VF1H103Z C, 0.01UF, Z, 50V C128 MCJ2VF1H103Z C, 0.01UF, Z, 50V C140 MCJ2VF1H103Z C, 0.01UF, Z, 50V C141 MCJ2VF1H103Z C, 0.01UF, Z, 50V C142 MCJ2VF1H103Z C, 0.01UF, Z, 50V C144 MCJ2VF1H103Z C, 0.01UF, Z, 50V C150 MCJ2VF1H103Z C, 0.01UF, Z, 50V C151 MCJ2VF1H103Z C, 0.01UF, Z, 50V C152 MCJ2VF1H103Z C, 0.01UF, Z, 50V C160 ECA1CM101B E, 100UF, 16V C161 MCJ2VF1H103Z C, 0.01UF, Z, 50V C162 NE1CHW100B E, 10 UF, 16V C163 NE1HHW2R2B E, 2.2UF, 50V C164 MCJ2VB1H222K C, 2200PF, K, 50V C165 ECA1HHGR22B E, 0.22UF, 50V C166 NE1HHW010B E, 1 UF, 50V C167 MCJ2VB1H822K C, 8200PF, K, 50V C168 NE1CHW220B E, 22 UF, 16V C169 NE1HHW010B E, 1 UF, 50V C170 MCJ2VF1H103Z C, 0.01UF, Z, 50V C354 TACCQ330T50V C, 33PF, J, 50V C355 TACCQ330T50V C, 33PF, J, 50V C356 TACCQ330T50V C, 33PF, J, 50V C359 ECQM4104KZB P, 0.1 UF, K, 400V C368 ECQV1H224JL3 P, 0.22UF, J, 50V C370 ECKW3D102KBR C, 1000 PF, K, 2KV C371 NE1CHWN100B E, 10 UF, 16V C373 ECA2EM100B E, 10UF, 250V C377 ECA1CM101B E, 100UF, 16V C401 NE1CHW100B E, 10 UF, 16V C402 ECQV1H474JL3 P, 0.47UF, J, 50V C403 MCJ2VB1H222K C, 2200PF, K, 50V C405 ECJ2VC1H102J C, 1000PF, J, 50V C420 MCJ2VB1H103K C, 0.01UF, K, 50V C421 MCJ2VF1H103Z C, 0.01UF, Z, 50V C454 ECQV1H105JL3 P, 1UF, J, 50V C458 BC5121KH C, 120PF, K, 500V C459 ECQB1104JF3 P, 0.1 UF, J, 100V C460 ECQB1H473JF3 P, 0.047UF, J, 50V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 34 C461 ECA1VM332E E, 3300UF, 35V C462 ECA1VM221B E, 220UF, 35V C463 ECQB1473JF3 P, 0.047UF, J, 100V C467 ECQB1224JF3 P, 0.22UF, J, 100V C470 SMKB2H102KRC C, 1000PF, K, 500V C471 MCJ2VF1H103Z C, 0.01UF, Z, 50V C472 MCJ2VF1H104Z C, 0.1UF, Z, 50V C473 ECJ2VC1H181J C, 180PF, J, 50V C475 MCJ2VF1H104Z C, 0.1UF, Z, 50V C501 MCJ2VF1H104Z C, 0.1UF, Z, 50V C512 ECEA2CNR47SB E, 0.47UF, 160V C513 ECA2EM220B E, 22UF, 250V C514 BC5331KH C, 330PF, K, 500V C515 BC5471KH C, 470PF, K, 500V C516 ECA1VM102E E, 1000 UF, 35V C530 NE1HHW100B E, 10 UF, 50V C531 BC5271KH C, 270PF, K, 500V C533 ECA1VM470B E, 47UF, 35V C534 ECQV1H104JL3 P, 0.1UF, J, 50V C535 ECA160V33UE E, 33UF, 160V C543 BC8222KH C, 2200PF, K, 500V C544 BC8222KH C, 2200PF, K, 500V C551 ECKW3D391KBR C, 390PF, K, 2KV C552 ECKW3D331KBR C, 330 PF, K, 2KV C553 ECQP1183JZ3 P, 0.018UF, J, 100V C555 ECKW3D122KBR C, 1200 PF, K, 2KV C556 ECKW3D152KBR C, 1500 PF, J, 2KV C558 ECKW3D122KBR C, 1200 PF, K, 2KV C561 ECQM4682JZW P, 6800PF, M, 400V C562 ECQF6273JZH P, 0.027 UF, J, 630V C563 ECWH16103JVB P, 0.01UF, J, 1.6KV C580 MCJ2VF1H103Z C, 0.01UF, Z, 50V C581 ECA1CM471B E, 470UF, 16V C583 ECJ2VC1H120J C, 12PF, J, 50V C585 NE1HHW4R7B E, 4.7UF, 50V C586 NE1HHW470B E, 47 UF, 50V C614 MCJ2VF1H103Z C, 0.01UF, Z, 50V C615 ECA1CM101B E, 100UF, 16V C623 ECA1CM101B E, 100UF, 16V C625 MCJ2VF1H104Z C, 0.1UF, Z, 50V C626 MCJ2VF1H104Z C, 0.1UF, Z, 50V C627 MCJ2VF1H104Z C, 0.1UF, Z, 50V C630 ECJ2VC1H090D C, 9 PF, D, 50V C637 NE1HHW010B E, 1 UF, 50V C638 MCJ2VF1H103Z C, 0.01UF, Z, 50V C639 NE1CHW100B E, 10 UF, 16V C645 MCJ2VF1H103Z C, 0.01UF, Z, 50V C646 MCJ2VF1H104Z C, 0.1UF, Z, 50V C647 MCJ2VF1H104Z C, 0.1UF, Z, 50V C648 NE1HHW0R1B E, 0.1UF, 50V C650 MCJ2VF1H103Z C, 0.01UF, Z, 50V C653 ECEA1HKN010B E, 1UF, 50V C661 ECEA1HKNR22B E, 0.22UF, 50V C662 ECQV1H105JL3 P, 1UF, J, 50V C663 MCJ2VF1H103Z C, 0.01UF, Z, 50V C664 ECA1CM101B E, 100UF, 16V C670 ECA1CM221B E, 220UF, 16V C671 ECA1CM221B E, 220UF, 16V C701 ECQV1H684JL3 P, 0.68UF, J, 50V C702 ECQE1685KFB P, 6.8UF, K, 100V C703 ECWF2394JSB P, 0.39UF, J, 250V C704 ECWF2394JSB P, 0.39UF, J, 250V C705 ECWF2684JS P, 0.68UF, J, 250V C708 ECQE2824KFB P, 0.82 UF, K, 250V C709 ECQM4682JZW P, 6800PF, M, 400V C710 BC5101KH C, 100PF, K, 500V C711 ECQB1H392JF3 P, 3900PF, J, 50V C712 ECQB1H272JF3 P, 2700PF, J, 50V C713 ECQB1H333JF3 P, 0.033UF, J, 50V C714 TACCW332T50V C, 3300PF, J, 50V C715 ECA1VM470B E, 47UF, 35V C716 BU5181KH C, 180PF, K, 50V C750 NE1HHW100B E, 10 UF, 50V C751 ECQB1H393JF3 P, 0.039UF, J, 50V C752 NE1HHW100B E, 10 UF, 50V C753 BU5101KH C, 100PF, K, 50V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks C801 ECQU2A224ML P, 0.22UF, M, 250V C802 ECQU2A224ML P, 0.22UF, M, 250V C806 ECKWAE472ZED C, 4700PF, P, 500V C807 ECKWAE472ZED C, 4700PF, P, 500V C808 ECKWAE472ZED C, 4700PF, P, 500V C809 ECKWAE472ZED C , 4700PF, P, 500V C810 EETUQ2W471K E, 470UF, J, 400V C811 ECKZ3A682MEH C, 6800PF, M, 1KV C815 EEUFC1H4R7B E, 4.7 UF, 50V C816 EEUFC1E470B E, 47UF, 25V C820 ECKW3D331KBR C, 330 PF, K, 2KV C821 ECKW3D102KBR C, 1000 PF, K, 2KV C825 BU5471KH C, 470PF, K, 50V C826 ECQB1H681JF3 P, 680PF, J, 50V C840 ECKCNA221MB7 C, 220 PF, M, C841 ECKCNA332ME7 C, 3300PF, M, C842 ECKCNA332ME7 C, 3300PF, M, C843 ECKCNA221MB7 C, 220 PF, M, C850 ECKW3D331KBP C, 330PF, K, 2KV C851 BC5221KH C, 220PF, K, 500V C852 ECA1EM102B E, 1000UF, 25V C853 SMKB2H681KRC C, 680PF, K, 500V C854 ECKW3D101KBP C, 100 PF, K, 2KV C855 ECOS2CA471BB E, 470UF, 160V C856 ECA1EHG102B E, 1000UF, 25V C857 ECOS2PA221BB E, 220 UF, 180V C858 NE1EHW102E E, 1000UF, 25V C859 SMKB2H681KRC C, 680PF, K, 500V C860 ECJ2VF1H224Z C, 0.22UF, Z, 50V C861 ERJ6GEY0R00V M, 0OHM, J, 1/10W C862 ECKW3D221KBR C, 220PF, K, 2KV C865 ECQB1H104JF3 P, 0.1UF, J, 50V C866 ECA1EHG222E E, 2200UF, 25V C880 ECA1EM101B E, 100UF, 25V C881 ECA1EM101B E, 100UF, 25V C882 ECA1CM221B E, 220UF, 16V C884 ECA1CM101B E, 100UF, 16V C885 ECA1CM101B E, 100UF, 16V C886 ECA1EM101B E, 100UF, 25V C887 ECA1CM101B E, 100UF, 16V C889 NE1CHW470B E, 47 UF, 16V C904 FU6103ZH C, 0.01UF, Z, 50V C911 MCJ2VF1H103Z C, 0.01UF, Z, 50V C912 MCJ2VF1H103Z C, 0.01UF, Z, 50V C913 MCJ2VF1H103Z C, 0.01UF, Z, 50V C915 MCJ2VF1H103Z C, 0.01UF, Z, 50V C916 MCJ2VF1H103Z C, 0.01UF, Z, 50V C917 MCJ2VF1H103Z C, 0.01UF, Z, 50V C921 MCJ2VF1H103Z C, 0.01UF, Z, 50V C923 ECJ2VC1H220J C, 22PF, J, 50V C925 ECA1CM101B E, 100UF, 16V C952 ECA1HHG100B E, 10UF, 50V C953 FU6103ZH C, 0.01UF, Z, 50V C958 ECA2CM470E E, 47UF, 160V C959 SMKF2H103ZJJ C, 0.01UF, Z, 500V C960 ECCR2H151J5 C, 150 PF, J, 500V C961 ECA2AM100B E, 10 UF, 100V C962 SMKF2H103ZJJ C, 0.01UF, Z, 500V C963 SLU6151JH C, 150 PF, J, 50V C964 ECA1CHG101B E, 100UF, 16V C966 ECA1CHG101B E, 100UF, 16V C967 ECA1CM221B E, 220UF, 16V C968 FU6103ZH C, 0.01UF, Z, 50V C969 FU6103ZH C, 0.01UF, Z, 50V C971 FU6103ZH C, 0.01UF, Z, 50V C1002 FU6103ZH C, 0.01UF, Z, 50V C1051 SLU5101JH C, 100 PF, J, 50V C1052 FU6103ZH C, 0.01UF, Z, 50V C1053 ECA1CM221B E, 220UF, 16V C1101 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1102 ECJ2VC1H471J C, 470PF, J, 50V C1103 ECJ2VC1H101J C, 100PF, J, 50V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 35 C1104 ECJ2VC1H101J C, 100PF, J, 50V C1106 ECJ2VC1H101J C, 100PF, J, 50V C1107 ECJ2VC1H330J C, 33PF, J, 50V C1108 ECJ2VC1H330J C, 33PF, J, 50V C1109 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1112 NE1HHW4R7B E, 4.7UF, 50V C1113 ECJ2VC1H470J C, 47PF, J, 50V C1114 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1115 ECJ2VC1H470J C, 47PF, J, 50V C1116 MCJ2VF1H104Z C, 0.1UF, Z, 50V C1117 NE1CHW470B E, 47 UF, 16V C1120 ECJ2VC1H101J C, 100PF, J, 50V C1121 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1122 ECJ2VC1H270J C, 27PF, J, 50V C1145 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1146 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1147 NE1CHW220B E, 22 UF, 16V C1148 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1151 MCJ2VB1H272K C, 2700PF, K, 50V C1152 MCJ2VB1H152K C, 1500PF, K, 50V C1153 ECJ2VC1H181J C, 180PF, J, 50V C1154 NE1HHW330B E, 33 UF, 50V C1155 NE1HHW010B E, 1 UF, 50V C1160 ECJ2VC1H121J C, 120PF, J, 50V C1170 ECJ2VC1H101J C, 100PF, J, 50V C1171 ECJ2VC1H101J C, 100PF, J, 50V C1172 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1173 NE1HHW100B E, 10 UF, 50V C2001 MCJ2VF1H104Z C, 0.1UF, Z, 50V C2002 NE1HHW101B E, 100UF, 50V C2003 NE1HHW100B E, 10 UF, 50V C2004 MCJ2VF1H104Z C, 0.1UF, Z, 50V C2005 ECA1CM101B E, 100UF, 16V C2006 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2007 ECJ2VC1H102J C, 1000PF, J, 50V C2008 ECJ2VC1H102J C, 1000PF, J, 50V C2009 ECA1CM101B E, 100UF, 16V C2010 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2011 ECA1CM101B E, 100UF, 16V C2017 NE1HHW100B E, 10 UF, 50V C2018 NE1HHW100B E, 10 UF, 50V C2021 MCJ2VF1H104Z C, 0.1UF, Z, 50V C2022 NE1HHW3R3B E, 3.3UF, 50V C2031 MCJ2VF1H104Z C, 0.1UF, Z, 50V C2032 NE1HHW100B E, 10 UF, 50V C2034 ECJ2VC1H070D C, 7 PF, D, 50V C2035 ECJ2VC1H470J C, 47PF, J, 50V C2036 ECJ2VC1H560J C, 56PF, J, 50V C2037 ECJ2VC1H560J C, 56PF, J, 50V C2039 ECJ2VC1H470J C, 47PF, J, 50V C2042 MCJ2VF1H104Z C, 0.1UF, Z, 50V C2043 NE1HHW100B E, 10 UF, 50V C2044 ECJ2VC1H010C C, 1 PF, C, 50V C2045 ECJ2VC1H010C C, 1 PF, C, 50V C2048 ECJ2VC1H102J C, 1000PF, J, 50V C2049 ECJ2VC1H102J C, 1000PF, J, 50V C2060 ECJ2YF1E474Z C, 0.47UF, Z, 16V C2131 ECEA1HKN010B E, 1UF, 50V C2132 ECEA1HKN010B E, 1UF, 50V C2156 NE1HHW010B E, 1 UF, 50V C2157 NE1HHW010B E, 1 UF, 50V C2160 ECJ2VC1H102J C, 1000PF, J, 50V C2161 ECJ2VC1H102J C, 1000PF, J, 50V C2330 ECA1CM101B E, 100UF, 16V C2801 FU6103ZH C, 0.01UF, Z, 50V C2802 FU6103ZH C, 0.01UF, Z, 50V C2803 NE1HHW010B E, 1 UF, 50V C2804 NE1HHW4R7B E, 4.7UF, 50V C2805 NE1EHW4R7B E, 4.7 UF, 25V C2806 ECA1EM222E E, 2200UF, 25V C2807 ECA1EM222E E, 2200UF, 25V C2812 ECJ2VF1H224Z C, 0.22UF, Z, 50V C2814 MCJ2VF1H104Z C, 0.1UF, Z, 50V C2820 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2821 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3005 NE1CHW220B E, 22 UF, 16V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks C3006 NE1HHW100B E, 10 UF, 50V C3008 NE1HHW100B E, 10 UF, 50V C3013 NE1HHW010B E, 1 UF, 50V C3015 NE1HHW100B E, 10 UF, 50V C3016 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3017 NE1HHW100B E, 10 UF, 50V C3019 ECJ2VC1H181J C, 180PF, J, 50V C3020 MCJ2VB1H682K C, 6800F, K, 50V C3022 ECEA1HKAR47B E, 0.47UF, 50V C3023 ECEA1HKAR47B E, 0.47UF, 50V C3025 MCJ2VB1H682K C, 6800F, K, 50V C3026 MCJ2VB1H682K C, 6800F, K, 50V C3027 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3028 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3029 MCJ2VB1H682K C, 6800F, K, 50V C3030 MCJ2VB1H102K C, 1000PF, K, 50V C3031 MCJ2VB1H102K C, 1000PF, K, 50V C3033 ECA1EM471B E, 470UF, 25V C3034 ECA1EM471B E, 470UF, 25V C3035 NE1HHW010B E, 1 UF, 50V C3036 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3037 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3038 NE1HHWN4R7B E, 4.7UF, 50V C3040 NE1HHW010B E, 1 UF, 50V C3041 ECA1CM101B E, 100UF, 16V C3042 ECA1CM101B E, 100UF, 16V C3044 MCJ2VB1H102K C, 1000PF, K, 50V C3046 MCJ2VB1H102K C, 1000PF, K, 50V C3048 ECEA1HKN010B E, 1UF, 50V C3049 NE1HHW010B E, 1 UF, 50V C3050 ECEA1HKN010B E, 1UF, 50V C3063 NE1HHW010B E, 1 UF, 50V C3064 NE1HHW010B E, 1 UF, 50V C3065 NE1HHWR47B E, 0.47UF, 50V C3070 ECA1VM470B E, 47UF, 35V C3071 ECA1VM470B E, 47UF, 35V C3081 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3082 NE1HHW100B E, 10 UF, 50V C3083 ECEA1HKAR47B E, 0.47UF, 50V C3203 ECJ2VC1H470J C, 47PF, J, 50V C3204 NE1CHW100B E, 10 UF, 16V C3205 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3206 ECJ2VC1H100D C, 10 PF, D, 50V C3207 MCJ2VF1H104Z C, 0.1UF, Z, 50V C3209 ECJ2VC1H220J C, 22PF, J, 50V C3210 ECJ2VC1H100D C, 10 PF, D, 50V C3211 ECJ2VC1H220J C, 22PF, J, 50V C3212 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3213 MCJ2VF1H104Z C, 0.1UF, Z, 50V C3214 NE1CHW100B E, 10 UF, 16V C3215 ECJ2VC1H470J C, 47PF, J, 50V C3216 ECQV1H474JL3 P, 0.47UF, J, 50V C3217 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3218 ECJ2VC1H470J C, 47PF, J, 50V C3220 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3221 ECJ2VC1H122J C, 1200 PF, J, 50V C3222 NE1CHW100B E, 10 UF, 16V C3223 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3224 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3225 NE1CHW100B E, 10 UF, 16V C3226 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3227 ECJ2VC1H470J C, 47PF, J, 50V C3228 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3229 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3230 NE1CHW100B E, 10 UF, 16V C3231 ECJ2VC1H100D C, 10 PF, D, 50V C3232 ECJ2VC1H470J C, 47PF, J, 50V C3233 ECJ2VC1H470J C, 47PF, J, 50V C3245 ECJ2VC1H100D C, 10 PF, D, 50V C4801 NE1HHW4R7B E, 4.7UF, 50V C4803 ECQV1H334JL3 P, 0.33UF, J, 50V C4804 ECQV1H334JL3 P, 0.33UF, J, 50V C4805 ECA1VM470B E, 47UF, 35V C4806 NE1HHW4R7B E, 4.7UF, 50V C4808 NE1HHW330B E, 33 UF, 50V C4810 MCJ2VF1H103Z C, 0.01UF, Z, 50V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 36 9.3. 电子部件更换表 (TC-29P40R) 9.3.1. 表 1 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 集成电路 IC351 TDA6103Q-N3 集成电路 IC420 BA225 集成电路 IC451 LA7833S 集成电路 IC601 TB1251CN 集成电路 IC701 NJM4565L 集成电路 IC801 STRF6668B-53 集成电路 IC860 SE140N 集成电路 IC881 AN7812LB 集成电路 IC882 AN7809LB 集成电路 IC884 PQ05RD1B 集成电路 IC885 AN78L05TA 集成电路 IC1051 GP1U252Q 集成电路 IC1101 88CP38AF3G66 集成电路 IC1102 TVSTC4052BP 集成电路 IC1103 S-80741AL-Z 集成电路 IC1104 TVR0A008 集成电路 IC2201 TA1343N 集成电路 IC2801 TDA2616/N1 集成电路 IC3001 MM1492AF 集成电路 IC4801 PUB4301 集成电路 IC4802 AN6564NS-E1 集成电路 三 极 管 Q115 2SC4787TA 三极管 Q116 2SD601ATX 三极管 Q160 2SD601ATX 三极管 Q369 2SA564AQRTA 三极管 Q420 2SD601ATX 三极管 Q501 2SB709ATX 三极管 Q502 2SD601ATX 三极管 Q541 2SC4212HLB 三极管 Q551 2SD2553LB306 三极管 Q585 2SB709ATX 三极管 Q621 2SB709ATX 三极管 Q660 2SD601ATX 三极管 Q701 2SK2538000LB 三极管 Q702 2SC945AQR-T 三极管 Q750 2SA1018QTA 三极管 Q860 2SD601ATX 三极管 Q862 2SC1815TPE2 三极管 Q863 2SD601ATX 三极管 Q864 2SD601ATX 三极管 Q880 2SD601ATX 三极管 Q881 2SD601ATX 三极管 Q902 2SB709ATX 三极管 Q904 2SB709ATX 三极管 Q905 2SB709ATX 三极管 Q906 2SD601ATX 三极管 Q907 2SD601ATX 三极管 Q908 2SD601ATX 三极管 Q951 2SC945AQR-T 三极管 Q952 2SC945AQR-T 三极管 Q953 2SC1318TA 三极管 Q954 2SB1030ATA 三极管 Q955 2SB1569AF51 三极管 Q956 2SD2400AF51 三极管 Q957 2SA564AQRTA 三极管 Q958 2SC945AQR-T 三极管 Q961 2SC945AQR-T 三极管 Q962 2SC945AQR-T 三极管 Q1051 2SC945AQR-T 三极管 Q1151 2SD601ATX 三极管 Q1152 2SB709ATX 三极管 Q1161 2SD601ATX 三极管 Q1168 2SB709ATX 三极管 Q1169 2SD601ATX 三极管 Q1170 2SD601ATX 三极管 Q1171 2SD601ATX 三极管 Q1172 2SD601ATX 三极管 Q2330 2SB709ATX 三极管 Q2801 2SD601ATX 三极管 Q3009 2SB709ATX 三极管 Q3070 2SD601ATX 三极管 Q3071 2SD601ATX 三极管 二 极 管 D110 MTZJT-7716A 二极管 D111 MTZJT-7716A 二极管 D120 MA858TA5 二极管 D170 MTZJT-775.6B 二极管 D354 MA165TA5VT 二极管 D355 MA165TA5VT 二极管 D356 MA165TA5VT 二极管 D357 MTZJT-7715B 二极管 D360 ERA22-04V3 二极管 D361 ERA22-04V3 二极管 D362 ERA22-04V3 二极管 D363 MA165TA5VT 二极管 D365 MTZJT-7710C 二极管 D375 MA165TA5VT 二极管 D456 MA29W-BTA 二极管 D457 MA29W-BTA 二极管 D463 MTZJT-7739E 二极管 D464 MTZJT-7739E 二极管 D465 MTZJT-7739E 二极管 D466 ERA15-01V3 二极管 D470 MTZJT-7712B 二极管 D511 MA152KTX 二极管 D512 MA182TA5 二极管 D513 AU02V0 二极管 D515 TVSEU2V1 二极管 D530 MA4104JTA 二极管 D531 MA171TA5 二极管 D551 MTZJT-7711A 二极管 D552 RH3FLFS1 二极管 D553 RU3ANLFA10 二极管 D580 MTZJT-7710C 二极管 D582 MA4082HTA 二极管 D613 MA3068MTX 二极管 D614 MA3068MTX 二极管 D615 MA3068MTX 二极管 D620 MA152KTX 二极管 D645 MTZJT-775.6B 二极管 D660 MA29W-BTA 二极管 D661 MA29W-BTA 二极管 D701 AU02V0 二极管 D750 1SS133T77 二极管 D750 MA165TA5VT 二极管 D751 MA4104JTA 二极管 D752 1SS133T77 二极管 D752 MA165TA5VT 二极管 D801 ERZV10D621CS 二极管 D803 D4SB80 二极管 D804 T702B11 消磁电阻 D805 T702B11 消磁电阻 D806 ERA22-10G1 二极管 D815 ERA15-04V3 二极管 D816 ERA15-01V3 二极管 D817 ERA15-01V3 二极管 D818 MA2240-BLFS 二极管 D819 AM01AV0 二极管 D820 MA2082-ALFS 二极管 D821 MA2082-ALFS 二极管 D823 ERA15-01V3 二极管 D824 MA167TA5 二极管 D850 FMGG2CSLF665 二极管 D851 FMLG12S 二级管 D853 FMLG12S 二级管 D854 FMLG12S 二级管 D855 AU02AV0 二极管 D856 D1NL20UV70 二极管 D857 TF361MALF3 二极管 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 37 9.3.2. 表 2 D860 TLP721FD4GRT 光电耦合器 D861 MTZJT-7720D 二极管 D862 MTZJT-776.2C 二极管 D863 MTZJT-7718C 二极管 D865 D1NL20UV70 二极管 D866 MTZJT-776.8C 二极管 D1051 EL333ID-F45R 发光二极管 D1145 MTZJT-775.6A 二极管 D1160 MA152KTX 二极管 D1167 MA152KTX 二极管 D1170 MTZJT-775.6A 二极管 D1171 MTZJT-775.6A 二极管 D2330 MA4047MTA 二极管 D2331 MA152KTX 二极管 D2332 MA152KTX 二极管 D2334 MA152KTX 二极管 D3001 MA4140MTA 二极管 D3002 MA4140MTA 二极管 D3005 MA4140MTA 二极管 D3006 MA4140MTA 二极管 D3012 MA4140MTA 二极管 线 圈 L101 LF7.5NFT100J 线圈 L111 LF7.5NFTR56M 校正线圈 L140 LF7.5NFT8R2K 校正线圈 L141 LF7.5NFT8R2K 校正线圈 L142 LF7.5NFT1R0K 校正线圈 L143 LF7.5NFT150J 线圈 L144 LF7.5NFT8R2K 校正线圈 L145 LF7.5NFT470J 线圈 L160 LF7.5NFT120J 线圈 L161 EQV7EL521Q 线圈 L352 BDC0206-903 扼流线圈 L511 EXCELSA39E 线圈 L512 EXCELSA39E 线圈 L515 BDC0306M-904 扼流线圈 L551 BDC0306M-904 扼流线圈 L552 BDC0306-904 扼流线圈 L553 BDC0306-904 扼流线圈 L665 LF7.5NFT151J 线圈 L701 ELEIN682KA 线圈 L702 45H-0003 线圈 L703 TBFI-858774 线圈 L703 TLH15731M 线圈 L704 ELEIN682KA 线圈 L705 MT17650 线性线圈 L706 BDC0306-904 扼流线圈 L707 45H-0004 线圈 L801 45H-9827 陶瓷滤波器 L802 45H-9749 线路滤波器 L815 EXCELSA39E 线圈 L816 EXCELDR25V 扼流线圈 L817 EXCELDR25V 扼流线圈 L820 EXCELSA39E 线圈 L822 BDC0306-904 扼流线圈 L850 BDC0306M-904 扼流线圈 L851 BDC0306M-904 扼流线圈 L852 BDC0306-904 扼流线圈 L858 TALL08N820KA 线圈 L860 ETQR45T001B 线圈 L920 LF7.5NFT151J 线圈 L951 BDC0206-903 扼流线圈 L953 BDC0206-903 扼流线圈 L954 BDC0206-903 扼流线圈 L955 BDC0206-903 扼流线圈 L1145 LF7.5NFT100J 线圈 L1160 LF7.5NFT4R7J 线圈 L2801 TALL08T100KA 线圈 L2802 TALL08T100KA 线圈 L2830 BDC0306M-904 扼流线圈 L2831 BDC0306M-904 扼流线圈 L3031 LF7.5NFT101J 线圈 L3032 LF7.5NFT101J 线圈 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks L4810 BDC0306-904 扼流线圈 变 压 器 T501 BSC29-0180E 行输出变压器 T551 MT17589 行推动变压器 T801 MT21082 变压器 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 电 阻 R106 ERJ6GEYJ823V M, 82K OHM, J, 1/10W R108 ERJ6GEYJ183V M, 18K OHM, J, 1/10W R110 ERJ6GEYJ100V M, 10 OHM, J, 1/10W R115 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R116 ERJ6GEYJ470V M, 47 OHM, J, 1/10W R117 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R118 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R119 ERJ6GEYJ680V M, 68 OHM, J, 1/10W R120 ERJ6GEYJ682V M, 6.8K OHM, J, 1/10W R121 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R125 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R126 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R127 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R128 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R161 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R162 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R163 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R164 ERJ6GEYJ333V M, 33K OHM, J, 1/10W R166 ERJ6GEYJ822V M, 8.2K OHM, J, 1/10W R168 ERJ6GEYJ272V M, 2.7K OHM, J, 1/10W R351 EROS2THF1001 M, 1KOHM, F, 1/4W R352 EROS2THF1001 M, 1KOHM, F, 1/4W R353 EROS2THF1001 M, 1KOHM, F, 1/4W R354 EROS2THF1501 M, 1.5KOHM, F, 1/4W R355 EROS2THF1501 M, 1.5KOHM, F, 1/4W R356 EROS2THF1501 M, 1.5KOHM, F, 1/4W R357 EROS2THF1001 M, 1KOHM, F, 1/4W R358 ERG12DJ124V M, 120K OHM, J, 1/2W R359 ERG12DJ124V M, 120K OHM, J, 1/2W R360 ERG12DJ124V M, 120K OHM, J, 1/2W R361 SNK2CT8451F M, 8.45K OHM, F, 1/4W R362 EROS2THF1431 M, 1.43KOHM, F, 1/4W R363 ERC12GK222D S, 2.2K OHM, K, 1/2W R364 ERC12GK222D S, 2.2K OHM, K, 1/2W R365 ERC12GK222D S, 2.2K OHM, K, 1/2W R369 RD16ST103J C, 10K OHM, J, 1/4W R371 EROS2THF1001 M, 1KOHM, F, 1/4W R372 EROS2THF1001 M, 1KOHM, F, 1/4W R374 ERQ12AJ181P F, 180 OHM, J, 1/2W R401 ERJ6ENF1001V M, 1K OHM, 1/10W R403 ERJ6ENF5601V M, 5.6K OHM, 1/10W R420 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R421 ERJ6GEYJ683V M, 68K OHM, J, 1/10W R422 ERJ6ENF1183V M, 118K OHM, 1/10W R423 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R450 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R451 ERJ6GEYJ393V M, 39K OHM, J, 1/10W R452 ERX1SJ1R8P M, 1.8 OHM, J, 1W R453 ERX1SJ1R8P M, 1.8 OHM, J, 1W R456 ERJ6GEYJ753V M, 75K OHM, J, 1/10W R457 RDF50SST1R0J C, 1 OHM, J, 1/2W R461 RSS1L331J M, 330 OHM, J, 1W R463 ERJ6GEYJ624V M, 620K OHM, J, 1/10W R464 ERJ6GEYJ154V M, 150K OHM, J, 1/10W R467 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R468 RSS1L471J M, 470 OHM, J, 1W R470 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R471 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R472 ERJ6GEYJ333V M, 33K OHM, J, 1/10W R474 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R501 RD16ST102J C, 1K OHM, J, 1/4W R502 ERJ6GEYJ123V M, 12K OHM, J, 1/10W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 38 R504 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R507 ERJ6GEYJ124V M, 120K OHM, J, 1/10W R508 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R509 ERJ6GEYJ105V M, 1M OHM, J, 1/10W R510 ERJ6GEYJ824V M, 820K OHM, J, 1/10W R511 ERO50PHF7322 M, 73.2K OHM, F, 1/10W R512 RD16ST223J C, 22K OHM, J, 1/4W R513 ERQ14AJ2R0P F, 2 OHM, J, 1/4W R514 RD50SST394J C, 390K OHM, J, 1/2W R515 BMF1L201R0J F, 1 OHM, J, 1W R530 ERQ14AJ100E F, 10 OHM, J, 1/4W R531 EROS2THF1132 M, 11.3KOHM, F, 1/4W R532 SNK2CT1052F M, 10.5KOHM, F, 1/4W R533 EROS2THF1002 M, 10KOHM, F, 1/4W R540 RD16ST101J C, 100 OHM, J, 1/4W R541 RD16ST221J C, 220 OHM, J, 1/4W R542 ERG3FJ392H M, 3.9K OHM, J, 3W R544 ERG3FJ152 M, 1.5KOHM, J, 3W R554 RD16ST102J C, 1K OHM, J, 1/4W R580 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R581 ERJ6GEYJ681V M, 680 OHM, J, 1/10W R584 ERJ6GEYJ272V M, 2.7K OHM, J, 1/10W R585 ERJ6GEYJ392V M, 3.9K OHM, J, 1/10W R586 ERJ6GEYJ183V M, 18K OHM, J, 1/10W R587 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R588 ERJ6GEYJ513V M, 51K OHM, J, 1/10W R589 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R608 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R609 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R613 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R614 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R615 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R624 ERJ6GEYJ272V M, 2.7K OHM, J, 1/10W R625 ERJ6GEYJ271V M, 270 OHM, J, 1/10W R626 ERJ6GEYJ271V M, 270 OHM, J, 1/10W R627 ERJ6GEYJ271V M, 270 OHM, J, 1/10W R635 ERJ6GEYJ224V M, 220K OHM, J, 1/10W R638 RD50SST271J C, 270 OHM, J, 1/2W R640 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R641 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R649 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R660 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R661 ERJ6GEYJ223V M, 22K OHM, J, 1/10W R662 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R663 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R664 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R665 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R700 BMF2L251R0J F, 1 OHM, J, 2W R701 RD16ST103J C, 10K OHM, J, 1/4W R702 BGR5Z121J W, 120 OHM, J, 5W R703 RDF50SST122J C, 1.2K OHM, J, 1/2W R704 RD16ST331J C, 330 OHM, J, 1/4W R705 RD16ST822J C, 8.2K OHM, J, 1/4W R706 ERQ14AJ4R7E F, 4.7 OHM, J, 1/4W R708 BMF1151J F, 150 OHM, J, 1W R709 BMF2L25102J F, 1K OHM, J, 2W R711 RD16ST101J C, 100 OHM, J, 1/4W R712 RD16ST822J C, 8.2K OHM, J, 1/4W R714 RD16ST272J C, 2.7K OHM, J, 1/4W R715 RD16ST222J C, 2.2K OHM, J, 1/4W R716 RD16ST103J C, 10K OHM, J, 1/4W R717 RD16ST103J C, 10K OHM, J, 1/4W R718 RD16ST103J C, 10K OHM, J, 1/4W R750 RD16ST243J C, 24 K OHM, J, 1/4W R751 RD25ST104J C, 100K OHM, J, 1/4W R752 RD16ST103J C, 10K OHM, J, 1/4W R753 RD16ST821J C, 820 OHM, J, 1/4W R755 SNK2CT1503F M, 150K OHM, F, 1/4W R756 EROS2THF1152 M, 11.5KOHM, F, 1/4W R758 BGR10Z2R7J W, 2.7 OHM, J, 10W R801 BGR15Z3R3K W, 3.3 OHM, K, 15W R808 RSF3B333J F, 33KOHM, J, 3W R810 RD50SST155J C, 1.5M OHM, J, 1/2W R814 BGR5Z121J W, 120 OHM, J, 5W R816 ERQ12AJ100P F, 10 OHM, J, 1/2W R817 RD50SST100J C, 10 OHM, J, 1/2W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks R818 ERG5FJ123 M, 12KOHM, J, 5W R820 ERX12SJR22P M, 0.22 OHM, J, 1/2W R821 ERX12SJR22P M, 0.22 OHM, J, 1/2W R822 RD16ST681J C, 680K OHM, J, 1/4W R824 RD16ST222J C, 2.2K OHM, J, 1/4W R830 RD16ST332J C, 3.3K OHM, J, 1/4W R840 RCR100TAJ825 C, 8.2M OHM, J, 3/4W R850 RSS3GT472J M, 4.7 K OHM, J, 3W R851 BMF1M20R33J F, 0.33 OHM, J, 1W R853 BMF1L20R33J F, 0.33 OHM, J, 1W R854 BMF1L20R33J F, 0.33 OHM, J, 1W R855 ERX2FJ6R8H M, 6.8 OHM, J, 2W R858 ERX3ANJ4R7 M, 4.7 OHM, J, 3W R859 ERX3ANJ4R7 M, 4.7 OHM, J, 3W R861 RD50SST271J C, 270 OHM, J, 1/2W R862 ERJ6GEYJ562V M, 5.6K OHM, J, 1/10W R864 RSF3B153J F, 15KOHM, J, 3W R865 RD50SST102J C, 1K OHM, J, 1/2W R867 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R868 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R869 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R870 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R871 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R881 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R882 ERJ6GEYJ223V M, 22K OHM, J, 1/10W R883 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R904 ERJ6GEYJ151V M, 150 OHM, J, 1/10W R905 ERJ6GEYJ183V M, 18K OHM, J, 1/10W R906 ERJ6GEYJ622V M, 6.2K OHM, J, 1/10W R909 ERJ6GEYJ561V M, 560 OHM, J, 1/10W R910 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R911 ERJ6GEYJ822V M, 8.2K OHM, J, 1/10W R912 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R913 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R914 ERJ6GEYJ104V M, 100K OHM, J, 1/10W R915 ERJ6GEYJ822V M, 8.2K OHM, J, 1/10W R917 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R919 ERJ6GEYJ561V M, 560 OHM, J, 1/10W R923 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R924 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R925 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R926 ERJ6GEYJ751V M, 750 OHM, J, 1/10W R927 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R928 ERJ6GEYJ202V M, 2K OHM, J, 1/10W R930 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R931 ERJ6GEYJ392V M, 3.9K OHM, J, 1/10W R933 ERJ6GEYJ122V M, 1.2K OHM, J, 1/10W R934 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R951 RD16ST821J C, 820 OHM, J, 1/4W R952 RD16ST223J C, 22K OHM, J, 1/4W R953 RD16ST332J C, 3.3K OHM, J, 1/4W R954 RD16ST331J C, 330 OHM, J, 1/4W R956 RD16ST510J C, 51 OHM, J, 1/4W R958 RD16ST391J C, 390 OHM, J, 1/4W R959 RD16ST101J C, 100 OHM, J, 1/4W R960 ERQ14AJ100E F, 10 OHM, J, 1/4W R961 BMF1L20331J F, 330 OHM, J, 1W R962 RD16ST330J C, 33 OHM, J, 1/4W R963 RD16ST330J C, 33 OHM, J, 1/4W R964 ERQ14AJ471E F, 470 OHM, J, 1/4W R965 RD16ST223J C, 22K OHM, J, 1/4W R966 RSS1L471J M, 470 OHM, J, 1W R967 RD16ST223J C, 22K OHM, J, 1/4W R968 RD16ST471J C, 470 OHM, J, 1/4W R969 RD16ST390J C, 39 OHM, J, 1/4W R970 RD16ST2R7J C, 2.7 OHM, J, 1/4W R971 RD16ST2R7J C, 2.7 OHM, J, 1/4W R972 RD16ST390J C, 39 OHM, J, 1/4W R973 RD16ST101J C, 100 OHM, J, 1/4W R974 RD16ST333J C, 33K OHM, J, 1/4W R975 RD16ST101J C, 100 OHM, J, 1/4W R976 RD16ST101J C, 100 OHM, J, 1/4W R977 RD16ST561J C, 560 OHM, J, 1/4W R978 RD16ST101J C, 100 OHM, J, 1/4W R987 RD16ST471J C, 470 OHM, J, 1/4W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 39 R988 RD16ST331J C, 330 OHM, J, 1/4W R989 RD16ST682J C, 6.8K OHM, J, 1/4W R990 RD16ST471J C, 470 OHM, J, 1/4W R993 RD16ST471J C, 470 OHM, J, 1/4W R1016 SNK2CT2201F M, 2.2K OHM, F, 1/4W R1017 SNK2CT2201F M, 2.2K OHM, F, 1/4W R1018 SNK2CT3301F M, 3.3K OHM, F, 1/4W R1019 SNK2CT4701F M, 4.7K OHM, F, 1/4W R1020 EROS2THF1002 M, 10KOHM, F, 1/4W R1051 RD16ST102J C, 1K OHM, J, 1/4W R1053 RD16ST470J C, 47 OHM, J, 1/4W R1054 RD16ST152J C, 1.5K OHM, J, 1/4W R1055 RD16ST102J C, 1K OHM, J, 1/4W R1056 RD16ST102J C, 1K OHM, J, 1/4W R1101 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1102 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1103 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1106 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1107 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1108 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1109 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1110 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1112 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1114 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1115 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1116 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1117 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1118 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R1120 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1121 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1122 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1123 ERJ6GEYJ152V M, 1.5K OHM, J, 1/10W R1124 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1125 ERJ6GEYJ564V M, 540K OHM, J, 1/10W R1126 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1127 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1128 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1130 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1132 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1134 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1135 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1136 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1137 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1138 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R1139 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1142 ERJ6GEYJ223V M, 22K OHM, J, 1/10W R1143 ERJ6GEYJ332V M, 3.3K OHM, J, 1/10W R1144 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R1145 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1146 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1147 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1148 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1149 ERJ6GEYJ473V M, 47K OHM, J, 1/10W R1150 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R1151 ERJ6GEYJ392V M, 3.9K OHM, J, 1/10W R1152 ERJ6GEYJ392V M, 3.9K OHM, J, 1/10W R1153 ERJ6GEYJ123V M, 12K OHM, J, 1/10W R1154 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R1155 ERJ6GEYJ683V M, 68K OHM, J, 1/10W R1156 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R1157 ERJ6GEYJ681V M, 680 OHM, J, 1/10W R1160 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R1161 ERJ6GEYJ273V M, 27K OHM, J, 1/10W R1162 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R1165 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R1166 ERJ6GEYJ223V M, 22K OHM, J, 1/10W R1170 ERJ6GEYJ560V M, 56 OHM, J, 1/10W R1171 ERJ6GEYJ560V M, 56 OHM, J, 1/10W R1172 ERJ6GEYJ332V M, 3.3K OHM, J, 1/10W R1173 ERJ6GEYJ332V M, 3.3K OHM, J, 1/10W R1174 ERJ6GEYJ470V M, 47 OHM, J, 1/10W R1177 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1180 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1181 ERJ6GEYJ333V M, 33K OHM, J, 1/10W R1182 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R1183 ERJ6GEYJ331V M, 330 OHM, J, 1/10W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks R1184 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R1185 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R1186 ERJ6GEYJ182V M, 1.8K OHM, J, 1/10W R1231 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1232 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R1287 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1288 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1289 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R1290 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R1291 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R2001 ERQ12AJ5R6P F, 5.6 OHM, J, 1/2W R2003 ERQ12AJ5R6P F, 5.6 OHM, J, 1/2W R2131 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R2132 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R2155 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2156 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2157 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R2158 ERJ6GEYJ472V M, 4.7K OHM, J, 1/10W R2201 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R2202 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R2330 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2331 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R2801 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R2802 ERJ6GEYJ393V M, 39K OHM, J, 1/10W R2803 RD16ST8R2J C, 8.2 0HM, J, 1/4W R2804 ERJ6GEYJ123V M, 12K OHM, J, 1/10W R2810 RD16ST471J C, 470 OHM, J, 1/4W R2811 RD16ST471J C, 470 OHM, J, 1/4W R2813 RD16ST8R2J C, 8.2 0HM, J, 1/4W R3003 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3004 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3006 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3007 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3008 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3009 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3010 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3011 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3012 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3013 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3017 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R3018 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3021 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3022 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3023 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3024 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3027 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R3028 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3029 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R3031 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R3032 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3033 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3034 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3035 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3036 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3037 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3038 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3039 ERJ6GEYJ101V M, 100 OHM, J, 1/10W R3040 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3042 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3043 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3046 ERJ6GEYJ680V M, 68 OHM, J, 1/10W R3047 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3048 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3051 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3053 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R3064 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3066 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3067 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3068 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3069 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3070 ERJ6GEYJ184V M, 180K OHM, J, 1/10W R3071 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3072 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R3073 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R3076 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3077 ERJ6GEYJ153V M, 15K OHM, J, 1/10W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 40 9.3.3. 表 3 R3078 ERJ6GEYJ153V M, 15K OHM, J, 1/10W R3079 ERJ6GEYJ221V M, 220 OHM, J, 1/10W R3080 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R3082 ERJ6GEYJ750V M, 75 OHM, J, 1/10W R3083 ERJ6GEYJ331V M, 330 OHM, J, 1/10W R3084 ERJ6GEYJ102V M, 1K OHM, J, 1/10W R3085 ERJ6GEYJ103V M, 10K OHM, J, 1/10W R3089 ERJ6GEYJ471V M, 470 OHM, J, 1/10W R3101 ERJ6GEYJ222V M, 2.2K OHM, J, 1/10W R3106 ERJ6GEY0R00V M, 0 OHM, J, 1/10W R3110 RD16ST820J C, 82 OHM, J, 1/4W R3111 RD16ST750J C, 75 OHM, J, 1/4W R3112 RD16ST750J C, 75 OHM, J, 1/4W R4803 ERX12SJ2R7P M, 2.7 OHM, J, 1/2W R4804 ERJ6GEYJ272V M, 2.7K OHM, J, 1/10W R4805 ERJ6ENF1331V M, 1.33K OHM, 1/10W R4806 ERJ6ENF3320V M, 332 OHM, 1/10W R4807 ERJ6ENF1001V M, 1K OHM, 1/10W R4808 ERJ6ENF3832V M, 38.3K OHM, 1/10W R4809 ERJ6ENF9091V M, 9.09K OHM, 1/10W R4810 ERJ6ENF2213V M, 221K OHM, 1/10W R4811 ERJ6ENF6651V M, 6.65K OHM, 1/10W R4812 SNK2CT5621F M, 5.62K OHM, F, 1/4W R4815 RDF50SST180J C, 18 OHM, J, 1/2W R4816 RDF50SST390J C, 39 OHM, J, 1/2W 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 电 容 C101 NE1HHW4R7B E, 4.7UF, 50V C103 ECQB1H224JF3 P, 0.22UF, J, 50V C110 MCJ2VF1H104Z C, 0.1UF, Z, 50V C111 ECA1CM101B E, 100UF, 16V C112 NE1HHW010B E, 1 UF, 50V C113 MCJ2VF1H103Z C, 0.01UF, Z, 50V C114 MCJ2VF1H103Z C, 0.01UF, Z, 50V C115 MCJ2VF1H103Z C, 0.01UF, Z, 50V C116 MCJ2VF1H103Z C, 0.01UF, Z, 50V C126 MCJ2VF1H103Z C, 0.01UF, Z, 50V C128 MCJ2VF1H103Z C, 0.01UF, Z, 50V C142 MCJ2VF1H103Z C, 0.01UF, Z, 50V C152 MCJ2VF1H103Z C, 0.01UF, Z, 50V C160 ECA1CM101B E, 100UF, 16V C161 MCJ2VF1H103Z C, 0.01UF, Z, 50V C162 NE1CHW100B E, 10 UF, 16V C163 NE1HHW2R2B E, 2.2UF, 50V C164 MCJ2VB1H222K C, 2200PF, K, 50V C165 ECA1HHGR22B E, 0.22UF, 50V C166 NE1HHW010B E, 1 UF, 50V C167 MCJ2VB1H822K C, 8200PF, K, 50V C168 NE1CHW220B E, 22 UF, 16V C169 NE1HHW010B E, 1 UF, 50V C170 MCJ2VF1H103Z C, 0.01UF, Z, 50V C354 TACCQ330T50V C, 33PF, J, 50V C355 TACCQ330T50V C, 33PF, J, 50V C356 TACCQ330T50V C, 33PF, J, 50V C359 ECQM4104KZB P, 0.1 UF, K, 400V C368 ECQV1H224JL3 P, 0.22UF, J, 50V C370 ECKW3D102KBR C, 1000 PF, K, 2KV C371 NE1CHWN100B E, 10 UF, 16V C373 ECA2EM100B E, 10UF, 250V C377 ECA1CM101B E, 100UF, 16V C401 NE1CHW100B E, 10 UF, 16V C402 ECQV1H474JL3 P, 0.47UF, J, 50V C403 MCJ2VB1H222K C, 2200PF, K, 50V C405 ECJ2VC1H102J C, 1000PF, J, 50V C420 MCJ2VB1H103K C, 0.01UF, K, 50V C421 MCJ2VF1H103Z C, 0.01UF, Z, 50V C454 ECQV1H105JL3 P, 1UF, J, 50V C458 BC5121KH C, 120PF, K, 500V C459 ECQB1104JF3 P, 0.1 UF, J, 100V C460 ECQB1H473JF3 P, 0.047UF, J, 50V C461 ECA1VM332E E, 3300UF, 35V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks C462 ECA1VM221B E, 220UF, 35V C463 ECQB1473JF3 P, 0.047UF, J, 100V C467 ECQB1224JF3 P, 0.22UF, J, 100V C470 SMKB2H102KRC C, 1000PF, K, 500V C471 MCJ2VF1H103Z C, 0.01UF, Z, 50V C472 MCJ2VF1H104Z C, 0.1UF, Z, 50V C473 ECJ2VC1H181J C, 180PF, J, 50V C475 MCJ2VF1H104Z C, 0.1UF, Z, 50V C501 MCJ2VF1H104Z C, 0.1UF, Z, 50V C512 ECEA2CNR47SB E, 0.47UF, 160V C513 ECA2EM220B E, 22UF, 250V C514 BC5331KH C, 330PF, K, 500V C515 BC5471KH C, 470PF, K, 500V C516 ECA1VM102E E, 1000 UF, 35V C530 NE1HHW100B E, 10 UF, 50V C531 BC5271KH C, 270PF, K, 500V C533 ECA1VM470B E, 47UF, 35V C534 ECQV1H104JL3 P, 0.1UF, J, 50V C535 ECA160V33UE E, 33UF, 160V C543 BC8222KH C, 2200PF, K, 500V C544 BC8222KH C, 2200PF, K, 500V C551 ECKW3D391KBR C, 390PF, K, 2KV C552 ECKW3D331KBR C, 330 PF, K, 2KV C553 ECQP1183JZ3 P, 0.018UF, J, 100V C555 ECKW3D122KBR C, 1200 PF, K, 2KV C556 ECKW3D152KBR C, 1500 PF, J, 2KV C558 ECKW3D122KBR C, 1200 PF, K, 2KV C561 ECQM4682JZW P, 6800PF, M, 400V C562 ECQF6273JZH P, 0.027 UF, J, 630V C563 ECWH16103JVB P, 0.01UF, J, 1.6KV C580 MCJ2VF1H103Z C, 0.01UF, Z, 50V C581 ECA1CM471B E, 470UF, 16V C583 ECJ2VC1H120J C, 12PF, J, 50V C585 NE1HHW4R7B E, 4.7UF, 50V C586 NE1HHW470B E, 47 UF, 50V C614 MCJ2VF1H103Z C, 0.01UF, Z, 50V C615 ECA1CM101B E, 100UF, 16V C625 MCJ2VF1H104Z C, 0.1UF, Z, 50V C626 MCJ2VF1H104Z C, 0.1UF, Z, 50V C627 MCJ2VF1H104Z C, 0.1UF, Z, 50V C630 ECJ2VC1H090D C, 9 PF, D, 50V C637 NE1HHW010B E, 1 UF, 50V C638 MCJ2VF1H103Z C, 0.01UF, Z, 50V C639 NE1CHW100B E, 10 UF, 16V C645 MCJ2VF1H103Z C, 0.01UF, Z, 50V C646 MCJ2VF1H104Z C, 0.1UF, Z, 50V C647 MCJ2VF1H104Z C, 0.1UF, Z, 50V C648 NE1HHW0R1B E, 0.1UF, 50V C650 MCJ2VF1H103Z C, 0.01UF, Z, 50V C653 ECEA1HKN010B E, 1UF, 50V C661 ECEA1HKNR22B E, 0.22UF, 50V C662 ECQV1H105JL3 P, 1UF, J, 50V C663 MCJ2VF1H103Z C, 0.01UF, Z, 50V C664 ECA1CM101B E, 100UF, 16V C670 ECA1CM221B E, 220UF, 16V C671 ECA1CM221B E, 220UF, 16V C701 ECQV1H684JL3 P, 0.68UF, J, 50V C702 ECQE1685KFB P, 6.8UF, K, 100V C703 ECWF2394JSB P, 0.39UF, J, 250V C704 ECWF2394JSB P, 0.39UF, J, 250V C705 ECWF2684JS P, 0.68UF, J, 250V C708 ECQE2824KFB P, 0.82 UF, K, 250V C709 ECQM4682JZW P, 6800PF, M, 400V C710 BC5101KH C, 100PF, K, 500V C711 ECQB1H392JF3 P, 3900PF, J, 50V C712 ECQB1H272JF3 P, 2700PF, J, 50V C713 ECQB1H333JF3 P, 0.033UF, J, 50V C714 TACCW332T50V C, 3300PF, J, 50V C715 ECA1VM470B E, 47UF, 35V C716 BU5181KH C, 180PF, K, 50V C750 NE1HHW100B E, 10 UF, 50V C751 ECQB1H393JF3 P, 0.039UF, J, 50V C752 NE1HHW100B E, 10 UF, 50V C753 BU5101KH C, 100PF, K, 50V C801 ECQU2A224ML P, 0.22UF, M, 250V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 41 C802 ECQU2A224ML P, 0.22UF, M, 250V C806 ECKWAE472ZED C, 4700PF, P, 500V C807 ECKWAE472ZED C, 4700PF, P, 500V C808 ECKWAE472ZED C, 4700PF, P, 500V C809 ECKWAE472ZED C, 4700PF, P, 500V C810 EETUQ2W471K E, 470UF, J, 400V C811 ECKZ3A682MEH C, 6800PF, M, 1KV C815 EEUFC1H4R7B E, 4.7 UF, 50V C816 EEUFC1E470B E, 47UF, 25V C820 ECKW3D331KBR C, 330 PF, K, 2KV C821 ECKW3D102KBR C, 1000 PF, K, 2KV C825 BU5471KH C, 470PF, K, 50V C826 ECQB1H681JF3 P, 680PF, J, 50V C840 ECKCNA221MB7 C, 220 PF, M, C841 ECKCNA332ME7 C, 3300PF, M, C842 ECKCNA332ME7 C, 3300PF, M, C843 ECKCNA221MB7 C, 220 PF, M, C850 ECKW3D331KBP C, 330PF, K, 2KV C851 BC5221KH C, 220PF, K, 500V C852 ECA1EM102B E, 1000UF, 25V C853 SMKB2H681KRC C, 680PF, K, 500V C854 ECKW3D101KBP C, 100 PF, K, 2KV C855 ECOS2CA471BB E, 470UF, 160V C856 ECA1EHG102B E, 1000UF, 25V C857 ECOS2PA221BB E, 220 UF, 180V C858 NE1EHW102E E, 1000UF, 25V C859 SMKB2H681KRC C, 680PF, K, 500V C860 ECJ2VF1H224Z C, 0.22UF, Z, 50V C861 ERJ6GEY0R00V M, 0OHM, J, 1/10W C862 ECKW3D221KBR C, 220PF, K, 2KV C865 ECQB1H104JF3 P, 0.1UF, J, 50V C866 ECA1EHG222E E, 2200UF, 25V C880 ECA1EM101B E, 100UF, 25V C881 ECA1EM101B E, 100UF, 25V C882 ECA1CM221B E, 220UF, 16V C884 ECA1CM101B E, 100UF, 16V C885 ECA1CM101B E, 100UF, 16V C886 ECA1EM101B E, 100UF, 25V C887 ECA1CM101B E, 100UF, 16V C889 NE1CHW470B E, 47 UF, 16V C904 FU6103ZH C, 0.01UF, Z, 50V C911 MCJ2VF1H103Z C, 0.01UF, Z, 50V C912 MCJ2VF1H103Z C, 0.01UF, Z, 50V C913 MCJ2VF1H103Z C, 0.01UF, Z, 50V C915 MCJ2VF1H103Z C, 0.01UF, Z, 50V C916 MCJ2VF1H103Z C, 0.01UF, Z, 50V C917 MCJ2VF1H103Z C, 0.01UF, Z, 50V C921 MCJ2VF1H103Z C, 0.01UF, Z, 50V C923 ECJ2VC1H220J C, 22PF, J, 50V C925 ECA1CM101B E, 100UF, 16V C952 ECA1HHG100B E, 10UF, 50V C953 FU6103ZH C, 0.01UF, Z, 50V C958 ECA2CM470E E, 47UF, 160V C959 SMKE2H103ZJJ C, 0.01UF, Z, 500V C960 ECCR2H151J5 C, 150 PF, J, 500V C961 ECA2AM100B E, 10 UF, 100V C962 SMKE2H103ZJJ C, 0.01UF, Z, 500V C963 SLU6151JH C, 150 PF, J, 50V C964 ECA1CHG101B E, 100UF, 16V C966 ECA1CHG101B E, 100UF, 16V C967 ECA1CM221B E, 220UF, 16V C968 FU6103ZH C, 0.01UF, Z, 50V C969 FU6103ZH C, 0.01UF, Z, 50V C971 FU6103ZH C, 0.01UF, Z, 50V C1002 FU6103ZH C, 0.01UF, Z, 50V C1051 SLU5101JH C, 100 PF, J, 50V C1052 FU6103ZH C, 0.01UF, Z, 50V C1053 ECA1CM221B E, 220UF, 16V C1101 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1102 ECJ2VC1H471J C, 470PF, J, 50V C1103 ECJ2VC1H101J C, 100PF, J, 50V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks C1104 ECJ2VC1H101J C, 100PF, J, 50V C1106 ECJ2VC1H101J C, 100PF, J, 50V C1107 ECJ2VC1H330J C, 33PF, J, 50V C1108 ECJ2VC1H330J C, 33PF, J, 50V C1109 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1112 NE1HHW4R7B E, 4.7UF, 50V C1113 ECJ2VC1H470J C, 47PF, J, 50V C1114 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1115 ECJ2VC1H470J C, 47PF, J, 50V C1116 MCJ2VF1H104Z C, 0.1UF, Z, 50V C1117 NE1CHW470B E, 47 UF, 16V C1120 ECJ2VC1H101J C, 100PF, J, 50V C1121 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1122 ECJ2VC1H270J C, 27PF, J, 50V C1145 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1146 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1147 NE1CHW220B E, 22 UF, 16V C1148 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1151 MCJ2VB1H272K C, 2700PF, K, 50V C1152 MCJ2VB1H152K C, 1500PF, K, 50V C1153 ECJ2VC1H181J C, 180PF, J, 50V C1154 NE1HHW330B E, 33 UF, 50V C1155 NE1HHW010B E, 1 UF, 50V C1160 ECJ2VC1H121J C, 120PF, J, 50V C1170 ECJ2VC1H101J C, 100PF, J, 50V C1171 ECJ2VC1H101J C, 100PF, J, 50V C1172 MCJ2VF1H103Z C, 0.01UF, Z, 50V C1173 NE1HHW100B E, 10 UF, 50V C2001 MCJ2VF1H104Z C, 0.1UF, Z, 50V C2002 NE1HHW101B E, 100UF, 50V C2131 ECEA1HKN010B E, 1UF, 50V C2132 ECEA1HKN010B E, 1UF, 50V C2152 NE1HHW010B E, 1 UF, 50V C2153 NE1HHW010B E, 1 UF, 50V C2154 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2155 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2158 NE1HHW010B E, 1 UF, 50V C2159 NE1HHW010B E, 1 UF, 50V C2201 NE1HHW100B E, 10 UF, 50V C2202 MCJ2VB1H393K C, 0.39PF, K, 50V C2203 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2204 MCJ2VB1H393K C, 0.39PF, K, 50V C2205 MCJ2VB1H393K C, 0.39PF, K, 50V C2209 NE1EHWN4R7B E, 4.7UF, 25V C2210 ECJ2VB1H273K C, 0.027UF, K, 50V C2211 MCJ2VB1H822K C, 8200PF, K, 50V C2212 NE1HHW100B E, 10 UF, 50V C2214 MCJ2VB1H822K C, 8200PF, K, 50V C2215 ECJ2VB1H273K C, 0.027UF, K, 50V C2217 MCJ2VB1H333K C, 0.33UF, K, 50V C2218 ECJ2YB1H473K C, 0.047PF, K, 50V C2219 MCJ2VB1H223K C, 0.22UF, K, 50V C2220 ECA1EM101B E, 100UF, 25V C2221 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2222 NE1EHWN3R3B E, 3.3UF, 25V C2223 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2330 ECA1CM101B E, 100UF, 16V C2801 FU6103ZH C, 0.01UF, Z, 50V C2802 FU6103ZH C, 0.01UF, Z, 50V C2803 NE1HHW010B E, 1 UF, 50V C2804 NE1HHW4R7B E, 4.7UF, 50V C2805 NE1EHW4R7B E, 4.7 UF, 25V C2806 ECA1EM222E E, 2200UF, 25V C2807 ECA1EM222E E, 2200UF, 25V C2812 ECJ2VF1H224Z C, 0.22UF, Z, 50V C2814 MCJ2VF1H104Z C, 0.1UF, Z, 50V C2820 MCJ2VF1H103Z C, 0.01UF, Z, 50V C2821 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3005 NE1CHW220B E, 22 UF, 16V C3006 NE1HHW100B E, 10 UF, 50V C3008 NE1HHW100B E, 10 UF, 50V C3013 NE1HHW010B E, 1 UF, 50V C3015 NE1HHW100B E, 10 UF, 50V C3016 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3017 NE1HHW100B E, 10 UF, 50V C3020 MCJ2VB1H682K C, 6800F, K, 50V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks 42 07/01 Printed in China C3022 ECEA1HKAR47B E, 0.47UF, 50V C3023 ECEA1HKAR47B E, 0.47UF, 50V C3025 MCJ2VB1H682K C, 6800F, K, 50V C3026 MCJ2VB1H682K C, 6800F, K, 50V C3027 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3028 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3029 MCJ2VB1H682K C, 6800F, K, 50V C3030 MCJ2VB1H102K C, 1000PF, K, 50V C3031 MCJ2VB1H102K C, 1000PF, K, 50V C3033 ECA1EM471B E, 470UF, 25V C3034 ECA1EM471B E, 470UF, 25V C3035 NE1HHW010B E, 1 UF, 50V C3036 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3040 NE1HHW010B E, 1 UF, 50V C3041 ECA1CM101B E, 100UF, 16V C3042 ECA1CM101B E, 100UF, 16V C3043 NE1HHW010B E, 1 UF, 50V C3044 MCJ2VB1H102K C, 1000PF, K, 50V C3045 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3046 MCJ2VB1H102K C, 1000PF, K, 50V C3048 ECEA1HKN010B E, 1UF, 50V C3049 NE1HHW010B E, 1 UF, 50V C3050 ECEA1HKN010B E, 1UF, 50V C3063 NE1HHW010B E, 1 UF, 50V C3064 NE1HHW010B E, 1 UF, 50V C3065 NE1HHWR47B E, 0.47UF, 50V C3070 ECA1VM470B E, 47UF, 35V C3071 ECA1VM470B E, 47UF, 35V C3081 MCJ2VF1H103Z C, 0.01UF, Z, 50V C3082 NE1HHW100B E, 10 UF, 50V C3083 ECEA1HKAR47B E, 0.47UF, 50V C4801 NE1HHW4R7B E, 4.7UF, 50V C4803 ECQV1H334JL3 P, 0.33UF, J, 50V C4804 ECQV1H334JL3 P, 0.33UF, J, 50V C4805 ECA1VM470B E, 47UF, 35V C4806 NE1HHW4R7B E, 4.7UF, 50V C4808 NE1HHW330B E, 33 UF, 50V C4810 MCJ2VF1H103Z C, 0.01UF, Z, 50V 回路号 部品品番 部品品名 注意 Ref. No. Part No. Part Name & Description Remarks
