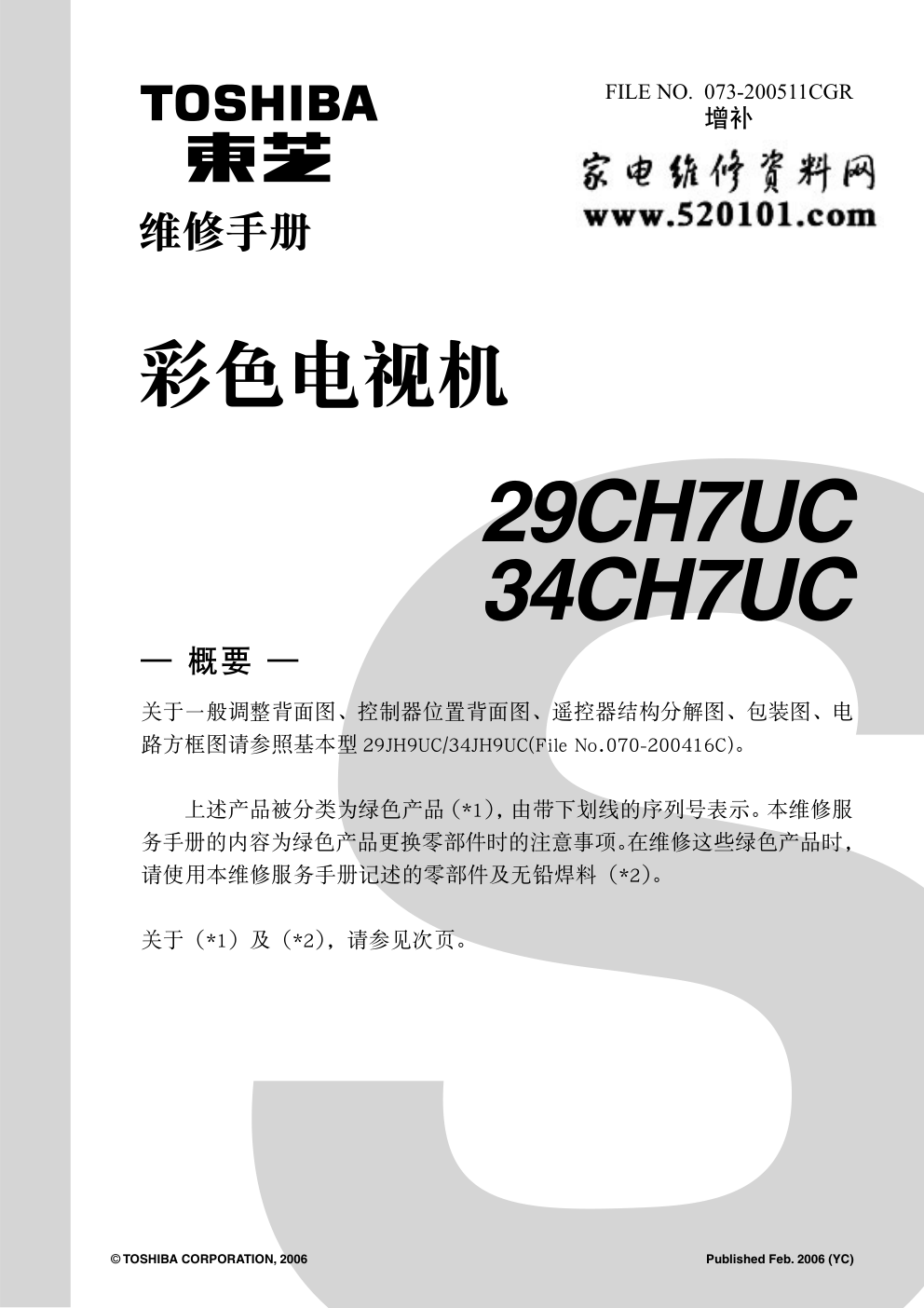

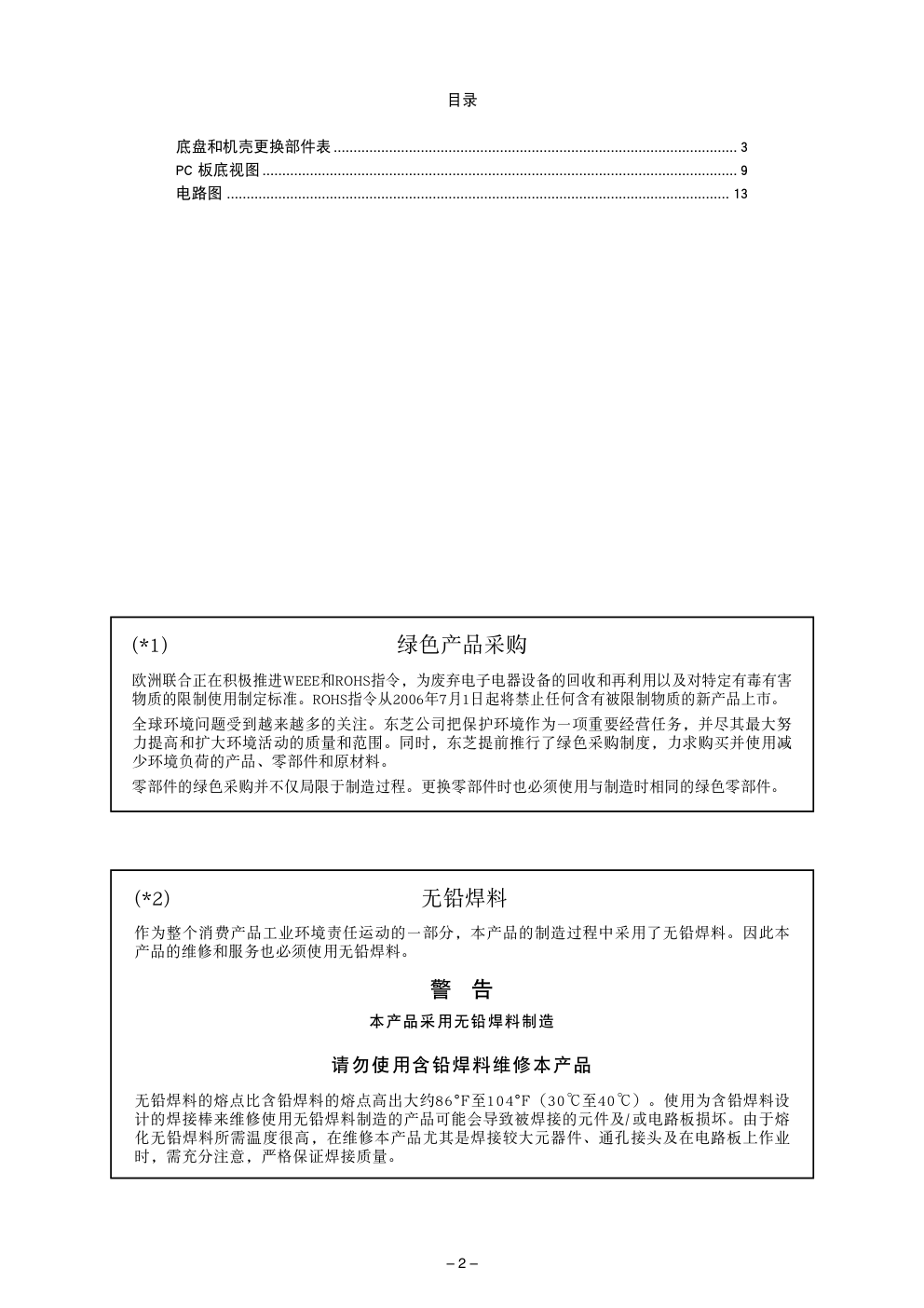

维修手册 彩色电视机 29CH7UC 34CH7UC FILE NO. 073-200511CGR 增补 Published Feb. 2006 (YC) TOSHIBA CORPORATION, 2006 关于一般调整背面图、控制器位置背面图、遥控器结构分解图、包装图、电 路方框图请参照基本型 29JH9UC/34JH9UC(File No.070-200416C)。 上述产品被分类为绿色产品（*1），由带下划线的序列号表示。本维修服 务手册的内容为绿色产品更换零部件时的注意事项。在维修这些绿色产品时， 请使用本维修服务手册记述的零部件及无铅焊料（*2）。 关于（*1）及（*2），请参见次页。 — 概要 — – 2 – (*1) 绿色产品采购 欧洲联合正在积极推进WEEE和ROHS指令，为废弃电子电器设备的回收和再利用以及对特定有毒有害 物质的限制使用制定标准。ROHS指令从2006年7月1日起将禁止任何含有被限制物质的新产品上市。 全球环境问题受到越来越多的关注。东芝公司把保护环境作为一项重要经营任务，并尽其最大努 力提高和扩大环境活动的质量和范围。同时，东芝提前推行了绿色采购制度，力求购买并使用减 少环境负荷的产品、零部件和原材料。 零部件的绿色采购并不仅局限于制造过程。更换零部件时也必须使用与制造时相同的绿色零部件。 (*2) 无铅焊料 作为整个消费产品工业环境责任运动的一部分，本产品的制造过程中采用了无铅焊料。因此本 产品的维修和服务也必须使用无铅焊料。 警 告 本产品采用无铅焊料制造 请勿使用含铅焊料维修本产品 无铅焊料的熔点比含铅焊料的熔点高出大约86°F至104°F（30℃至40℃）。使用为含铅焊料设 计的焊接棒来维修使用无铅焊料制造的产品可能会导致被焊接的元件及/ 或电路板损坏。由于熔 化无铅焊料所需温度很高，在维修本产品尤其是焊接较大元器件、通孔接头及在电路板上作业 时，需充分注意，严格保证焊接质量。 目录 底盘和机壳更换部件表...................................................................................................... 3 PC 板底视图........................................................................................................................ 9 电路图 ............................................................................................................................... 13 – 3 – 位置号 部件号 说明 位置号 部件号 说明 警告：在检修本底盘之前,请先阅读原维修手册上的“服务安全预防措施”。 注意：在原理图和部件表中的国际危险记号“ ” 表示具有安全方面的重要特性的元件,它们必须用与原电路中的元 件一致或在部件表中指定的元件进行更换。更换的安装位置必须与原位置相同。在更换任何这种元件之前,请先仔细阅 读“服务安全预防措施”。不要因为不适当的维修而降低接收机的安全性。 请注意： · 订购部件时必须注明部件号以便于处理,同时记入型号及种类。 · 带* 标记的PC 电路板组件在生产停止后即不再有货。 底盘和机壳更换部件表 缩写说明 型号：29CH7UC/34CH7UC 电容器..... CD ：陶瓷片电容 PF： 塑料膜电容 EL： 电解电容 电阻器..... CF ：碳膜电阻 CC： 合成碳电阻 MF： 金属膜电阻 OMF ： 金属氧化膜电阻 VR： 可变电阻 FR： 可熔电阻 （如未另外指出,所有CD 和PF 电容器均为 ±5%,50 伏,所有电阻器均为 ±5%,1/6 瓦。） #1:[29CH7UC] #2:[34CH7UC] 电容器 C101 76668479 ELECTROLYTIC, 35V 4.7UF M C102 76794221 ELECTROLYTIC, 16V 220UF M C103 76212103 CERAMIC DISC, 50V B 0.01UF K C104 76212103 CERAMIC DISC, 50V B 0.01UF K C105 76212102 CERAMIC DISC, 50V B 1000PF K C106 76669479 ELECTROLYTIC, 50V 4.7UF M C107 76794221 ELECTROLYTIC, 16V 220UF M C304 76503041 PLASTIC FILM , 63V 0.1UF J C307 76073038 ELECTROLYTIC, 16V 100UF M 3A C308 76669221 ELECTROLYTIC, 50V 220UF M C310 76073057 ELECTROLYTIC, 25V 1000UF M 3A C313 76082057 PLASTIC FILM, 100V 0.22UF J C315 76212472 CERAMIC DISC, 50V B 4700PF K C366 76082275 PLASTIC FILM, 100V 0.082UF J C370 76073034 ELECTROLYTIC, 16V 10UF M 3A C413 76214392 CERAMIC DISC, 500V B 3900PF K C416 76676330 ELECTROLYTIC, 100V 33UF M 3A C417 76214391 CERAMIC DISC, 500V B 390PF K C428 #1 76503190 PLASTIC FILM, 400V 0.12UF J #2 76503284 PLASTIC FILM CF92T 400V R224UFJ C439 76503457 PLASTIC FILM, 400V 0.056UF J C442 #1 76503251 PLASTIC FILM, 400V 0.18UF J #2 76503284 PLASTIC FILM CF92T 400V R224UFJ C443 #1 76503196 PLASTIC FILM, 1800VH 5600PF H #2 76503198 MT PLA T 1800VH 682H CF92T3Q682HA C444 #1 76503196 PLASTIC FILM, 1800VH 5600PF H #2 76503197 PLASTIC FILM, 1800VH 6200PF H C445 76503457 PLASTIC FILM, 400V 0.056UF J C446 76640020 ELECTROLYTIC, 250V 33UF M C448 76640908 ELECTROLYTIC, 160V 33UF M 3A LI C450 #1 76214471 CERAMIC DISC, 500V B 470PF K #2 76214222 CERAMIC DISC, 500V B 2200PF K C451 #1 76214471 CERAMIC DISC, 500V B 470PF K #2 76214222 CERAMIC DISC, 500V B 2200PF K C461 76820123 PLASTIC FILM, 630V 0.012UF J C464 76503149 PLASTIC FILM, 250V 3.3UF C465 #1 76567473 PLASTIC FILM, 50V 0.047UF J #2 76591563 PLASTIC FILM, 50V 0.056UF J C466 76679220 ELECTROLYTIC, 250V 22UF M 3A C467 76820123 PLASTIC FILM, 630V 0.012UF J C471 76073084 ELECTROLYTIC, 50V 4.7UF M C476 76214471 CERAMIC DISC, 500V B 470PF K C488 76073034 ELECTROLYTIC, 16V 10UF M 3A C499 76591122 PLASTIC FILM, 50V 1200PF J C602 76591272 PLASTIC FILM, 50V 2700PF J C603 76082057 PLASTIC FILM, 100V 0.22UF J C605 76591272 PLASTIC FILM, 50V 2700PF J C606 76082057 PLASTIC FILM, 100V 0.22UF J C607 76667220 ELECTROLYTIC, 25V 22UF M 3A C608 76617023 ELECTROLYTIC, 16V 330UF M C610 76503041 PLASTIC FILM , 63V 0.1UF J C611 76503041 PLASTIC FILM , 63V 0.1UF J C612 76668102 ELECTROLYTIC, 35V 1000UF M C613 76668102 ELECTROLYTIC, 35V 1000UF M C614 76796470 ELECTROLYTIC, 35V 47UF M C615 76212103 CERAMIC DISC, 50V B 0.01UF K C616 76794100 ELECTROLYTIC, 16V 10UF M C617 76794471 ELECTROLYTIC, 16V 470UF M C704 76591822 PLASTIC FILM, 50V 8200PF J C705 76232103 CERAMIC DISC, 50V F 0.01UF Z C707 76794470 ELECTROLYTIC, 16V 47UF M C712 76794470 ELECTROLYTIC, 16V 47UF M C713 76709100 ELECTROLYTIC, 200V 10UF M C714 76436101 CERAMIC DISC, 50V SL 100PF J C715 76214472 CERAMIC DISC, 500V B 4700PF K C716 76436101 CERAMIC DISC, 50V SL 100PF J C717 76214472 CERAMIC DISC, 500V B 4700PF K C718 76766470 ELECTROLYTIC, 50V 47UF M C719 76435560 CERAMIC DISC, 500V SL 56PF J C720 76709100 ELECTROLYTIC, 200V 10UF M C721 76766470 ELECTROLYTIC, 50V 47UF M C726 76212102 CERAMIC DISC, 50V B 1000PF K C800 76092555 CERAMIC DISC, AC250V E 1000PF M C801 76503507 PLASTIC FILM, AC275V 0.22UF K C803 76503507 PLASTIC FILM, AC275V 0.22UF K C804 76092281 CERAMIC DISC, AC250V E 4700PF C805 76092281 CERAMIC DISC, AC250V E 4700PF C810 76125034 ELECTROLYTIC 692J 450V 330UF M 3F C811 #1 76092569 CERAMIC DISC, AC250V E 2200PF M #2 76092572 CERAMIC DISC, AC250V E 4700PF M C812 76214471 CERAMIC DISC, 500V B 470PF K C813 76092563 CERAMIC DISC, AC250V B 220PF K C814 76092563 CERAMIC DISC, AC250V B 220PF K C816 76503041 PLASTIC FILM , 63V 0.1UF J C817 76666100 ELECTROLYTIC, 16V 10UF M 3A C818 76092482 CERAMIC DISC, 2KV 1000PF K C819 76212103 CERAMIC DISC, 50V B 0.01UF K C820 76669101 ELECTROLYTIC, 50V 100UF M C821 76591272 PLASTIC FILM, 50V 2700PF J C822 76591102 PLASTIC FILM, 50V 1000PF J C824 76214471 CERAMIC DISC, 500V B 470PF K C825 76214471 CERAMIC DISC, 500V B 470PF K – 4 – 位置号 部件号 说明 位置号 部件号 说明 C826 76214471 CERAMIC DISC, 500V B 470PF K C827 76667222 ELECTROLYTIC, 25V 2200UF M 3A C828 76667222 ELECTROLYTIC, 25V 2200UF M 3A C829 76668222 ELECTROLYTIC, 35V 2200UF M C830 76092341 CERAMIC DISC, 2KV R 470PF K C831 76567104 PLASTIC FILM, 50V 0.1UF J C832 76794102 ELECTROLYTIC, 16V 1000UF M C833 76794100 ELECTROLYTIC, 16V 10UF M C834 76503041 PLASTIC FILM , 63V 0.1UF J C835 76567103 PLASTIC FILM, 50V 0.01UF J C836 76794221 ELECTROLYTIC, 16V 220UF M C836Z 76794100 ELECTROLYTIC, 16V 10UF M C837 76794221 ELECTROLYTIC, 16V 220UF M C838 76795102 ELECTROLYTIC, 25V 1000UF M C839 76503049 PLASTIC FILM, 63V 0.47UF J C840 76797220 ELECTROLYTIC, 50V 22UF M C842 76794102 ELECTROLYTIC, 16V 1000UF M C843 76794471 ELECTROLYTIC, 16V 470UF M C844 76073084 ELECTROLYTIC, 50V 4.7UF M C847 76503041 PLASTIC FILM , 63V 0.1UF J C848 76503041 PLASTIC FILM , 63V 0.1UF J C849 76503041 PLASTIC FILM , 63V 0.1UF J C851 76503041 PLASTIC FILM , 63V 0.1UF J C852 76503041 PLASTIC FILM , 63V 0.1UF J C884 76073215 ELECTROLYTEC, 160V 220UF M C885 76503041 PLASTIC FILM , 63V 0.1UF J C902 76092353 CERAMIC DISC, 2KV 4700PF K C904 76436471 CERAMIC DISC, 50V SL 470PF J C905 76436391 CERAMIC DISC, 50V SL 390PF J C907 76436681 CERAMIC DISC, 50V SL 680PF J C909 76073120 ELECTROLYTIC, 250V 33UF C910 76669478 ELECTROLYTIC, 50V 0.47UF M 3A C911 76203100 ELECTORLYTIC, 16V 10UF M C912 76073042 ELECTROLYTIC, 16V 1000UF M 3A C913 76666102 ELECTROLYTIC, 16V 1000UF M 3A C914 76232103 CERAMIC DISC, 50V F 0.01UF Z C918 76539104 PLASTIC FILM, 50V 0.1UF J C919 76539104 PLASTIC FILM, 50V 0.1UF J C931 76214101 CERAMIC DISC, 500V B 100PF K C3100 76073057 ELECTROLYTIC, 25V 1000UF M 3A CA01 76590103 PLASTIC FILM, 50V 0.01UF J CA02 76590103 PLASTIC FILM, 50V 0.01UF J CB01 76794470 ELECTROLYTIC, 16V 47UF M CB02 76073084 ELECTROLYTIC, 50V 4.7UF M CB03 76073038 ELECTROLYTIC, 16V 100UF M 3A CC02 76212103 CERAMIC DISC, 50V B 0.01UF K CS01 76212102 CERAMIC DISC, 50V B 1000PF K CS02 76212102 CERAMIC DISC, 50V B 1000PF K CS03 76212102 CERAMIC DISC, 50V B 1000PF K CS04 76212102 CERAMIC DISC, 50V B 1000PF K CS05 76212102 CERAMIC DISC, 50V B 1000PF K CS06 76212102 CERAMIC DISC, 50V B 1000PF K CS07 76794100 ELECTROLYTIC, 16V 10UF M CS08 76212102 CERAMIC DISC, 50V B 1000PF K CS09 76794100 ELECTROLYTIC, 16V 10UF M CS10 76212102 CERAMIC DISC, 50V B 1000PF K CV01 76794471 ELECTROLYTIC, 16V 470UF M 电阻器 R102 76366101 CARBON FILM, 1/6W 100 OHM J R103 76366101 CARBON FILM, 1/6W 100 OHM J R216 76366103 CARBON FILM, 1/6W 10K OHM J R217 76366103 CARBON FILM, 1/6W 10K OHM J R218 76367183 CARBON FILM, 1/6W 18K OHM G R219 76367393 CARBON FILM, 1/6W 39K OHM J R227 76367273 CARBON FILM, 1/6W 27K OHM G R228 #1 76367223 CARBON FILM, 1/6W 22K OHM G #2 76367183 CARBON FILM, 1/6W 18K OHM G R301 76000366 METAL FILM, 1/4W 2.2K OHM F R302 76003898 METAL FILM, 1/4W 3.3K OHM J R303 76310109 OXIDE METAL FILM, 1/2W 1 OHM J R304 76366681 CARBON FILM, 1/6W 680 OHM J R305 76322109 OXIDE METAL FILM, 1W 1 OHM J R307 76366102 CARBON FILM, 1/6W 1K OHM J R327 76339229 OXIDE METAL FILM, 2W 2.2 OHM J R328 76339229 OXIDE METAL FILM, 2W 2.2 OHM J R335 76000368 METAL FILM, 1/4W 2.7K OHM F R336 #1 76554181 OXIDE METAL FILM, 2W 180 OHM J #2 76383391 OXIDE METAL FILM, 2W 390 OHM J R370 76366103 CARBON FILM, 1/6W 10K OHM J R371 76366103 CARBON FILM, 1/6W 10K OHM J R372 76366103 CARBON FILM, 1/6W 10K OHM J R377 76366220 CARBON FILM, 1/6W 22 OHM J R405 76553682 OXIDE METAL FILM, 1W 6.8K OHM J R411 76366101 CARBON FILM, 1/6W 100 OHM J R412 76323228 OXIDE METAL FILM, 2W 0.22 OHM J R415 76383271 OXIDE METAL FILM, 2W 270 OHM J R429 76382100 OXIDE METAL FILM, 1W 10 OHM J R441 76554181 OXIDE METAL FILM, 2W 180 OHM J R459 #1 76366133 CARBON FILM, 1/6W 13K OHM J #2 76366333 CARBON FILM, 1/6W 33K OHM J R459A 23965241 TAPE, CC #12 10MM L30M R460 76003898 METAL FILM, 1/4W 3.3K OHM J R461 #1 76366471 CARBON FILM, 1/6W 470 OHM J #2 76366331 CARBON FILM, 1/6W 330 OHM J R462 76366682 CARBON FILM, 1/6W 6.8K OHM J R463 76366473 CARBON FILM, 1/6W 47K OHM J R464 76366101 CARBON FILM, 1/6W 100 OHM J R465 #1 76366101 CARBON FILM, 1/6W 100 OHM J R466 76383220 OXIDE METAL FILM, 2W 22 OHM J R467 76383220 OXIDE METAL FILM, 2W 22 OHM J R468 76366113 CARBON FILM, 1/6W 11K OHM J R469 76366823 CARBON FILM, 1/6W 82K OHM J R470 76339518 OXIDE METAL FILM, 2W 0.51 OHM J R472 76381270 OXIDE METAL FILM, 1/2W 27 OHM J R474 76366472 CARBON FILM, 1/6W 4.7K OHM J R478 76338109 OXIDE METAL FILM, 1W 1 OHM J R491 76366122 CARBON FILM, 1/6W 1.2K OHM J R601 76366332 CARBON FILM, 1/6W 3.3K OHM J R604 76366392 CARBON FILM, 1/6W 3.9K OHM J R605 76366332 CARBON FILM, 1/6W 3.3K OHM J R607 76366392 CARBON FILM, 1/6W 3.9K OHM J R608 76366103 CARBON FILM, 1/6W 10K OHM J R609 76366103 CARBON FILM, 1/6W 10K OHM J R610 76366229 CARBON FILM, 1/6W 2.2 OHM J R611 76366229 CARBON FILM, 1/6W 2.2 OHM J R612 76366103 CARBON FILM, 1/6W 10K OHM J R613 76366224 CARBON FILM, 1/6W 220K OHM J R615 76366102 CARBON FILM, 1/6W 1K OHM J R616 76366102 CARBON FILM, 1/6W 1K OHM J R617 76366103 CARBON FILM, 1/6W 10K OHM J R618 76366102 CARBON FILM, 1/6W 1K OHM J R619 76366472 CARBON FILM, 1/6W 4.7K OHM J R620 76552122 OXIDE METAL FILM, 1/2W 1.2K OHM J R702 76552221 OXIDE METAL FILM, 1/2W 220 OHM J R709 76366563 CARBON FILM, 1/6W 56K OHM J R713 76366393 CARBON FILM, 1/6W 39K OHM J R715 76366273 CARBON FILM, 1/6W 27K OHM J R716 76366273 CARBON FILM, 1/6W 27K OHM J R717 76366333 CARBON FILM, 1/6W 33K OHM J R718 76366222 CARBON FILM, 1/6W 2.2K OHM J R719 76366101 CARBON FILM, 1/6W 100 OHM J R720 76366102 CARBON FILM, 1/6W 1K OHM J R721 76366102 CARBON FILM, 1/6W 1K OHM J R722 76552471 OXIDE METAL FILM, 1/2W 470 OHM J R723 76366101 CARBON FILM, 1/6W 100 OHM J R724 76366151 CARBON FILM, 1/6W 150 OHM J R725 76366182 CARBON FILM, 1/6W 1.8K OHM J R730 76552100 OXIDE METAL FILM, 1/2W 10 OHM J R731 76552331 OXIDE METAL FILM, 1/2W 330 OHM J – 5 – 位置号 部件号 说明 位置号 部件号 说明 R732 76366330 CARBON FILM, 1/6W 33 OHM J R733 76366683 CARBON FILM, 1/6W 68K OHM J R734 76366330 CARBON FILM, 1/6W 33 OHM J R735 76366683 CARBON FILM, 1/6W 68K OHM J R736 76553470 OXIDE METAL FILM, 1W 47 OHM J R737 76366681 CARBON FILM, 1/6W 680 OHM J R738 76366102 CARBON FILM, 1/6W 1K OHM J R739 76366681 CARBON FILM, 1/6W 680 OHM J R740 76553470 OXIDE METAL FILM, 1W 47 OHM J R741 76322229 OXIDE METAL FILM, 1W 2.2 OHM J R742 76322229 OXIDE METAL FILM, 1W 2.2 OHM J R743 76554181 OXIDE METAL FILM, 2W 180 OHM J R744 76366122 CARBON FILM, 1/6W 1.2K OHM J R745 76366122 CARBON FILM, 1/6W 1.2K OHM J R801 76004716 METAL GLAZE, 1/2W 2.2M OHM J R802 76382104 OXIDE METAL FILM, 1W 100K OHM J R803 76366225 CARBON FILM, 1/6W 2.2M OHM J R808 76019503 THERMISTOR, PTC, AC290V 4.5 OHM M R817 76552100 OXIDE METAL FILM, 1/2W 10 OHM J R818 76552681 OXIDE METAL FILM, 1/2W 680 OHM J R819 76552471 OXIDE METAL FILM, 1/2W 470 OHM J R821 76366222 CARBON FILM, 1/6W 2.2K OHM J R822 76366681 CARBON FILM, 1/6W 680 OHM J R823 76366222 CARBON FILM, 1/6W 2.2K OHM J R824 76366102 CARBON FILM, 1/6W 1K OHM J R825 76366102 CARBON FILM, 1/6W 1K OHM J R826 76366102 CARBON FILM, 1/6W 1K OHM J R827 76366102 CARBON FILM, 1/6W 1K OHM J R828 76366102 CARBON FILM, 1/6W 1K OHM J R829 76366102 CARBON FILM, 1/6W 1K OHM J R830 76366472 CARBON FILM, 1/6W 4.7K OHM J R831 76366103 CARBON FILM, 1/6W 10K OHM J R833 76366102 CARBON FILM, 1/6W 1K OHM J R834 76366471 CARBON FILM, 1/6W 470 OHM J R835 76366471 CARBON FILM, 1/6W 470 OHM J R836 76366471 CARBON FILM, 1/6W 470 OHM J R837 76366471 CARBON FILM, 1/6W 470 OHM J R838 76381271 OXIDE METAL FILM, 1/2W 270 OHM J R839 76381131 OXIDE METAL FILM, 1/2W 130 OHM J R840 76000221 METAL FILM, 1/4W 20K OHM F R841 76000247 METAL FILM, 1/4W 39K OHM F R842 76366242 CARBON FILM, 1/6W 2.4K OHM J R843 76382153 OXIDE METAL FILM, 1W 15K OHM J R844 76366102 CARBON FILM, 1/6W 1K OHM J R845 76366103 CARBON FILM, 1/6W 10K OHM J R846 76366102 CARBON FILM, 1/6W 1K OHM J R899 76004718 METAL GLAZE, 1/2W 8.2M OHM J R901 76946561 CARBON COMPOSITION, 1/2W 560 OHM K R902 76946561 CARBON COMPOSITION, 1/2W 560 OHM K R903 76946561 CARBON COMPOSITION, 1/2W 560 OHM K R904 76366472 CARBON FILM, 1/6W 4.7K OHM J R905 76366150 CARBON FILM, 1/6W 15 OHM J R912 76366102 CARBON FILM, 1/6W 1K OHM J R914 76366151 CARBON FILM, 1/6W 150 OHM J R915 76366470 CARBON FILM, 1/6W 47 OHM J R916 #1 76366330 CARBON FILM, 1/6W 33 OHM J #2 76366220 CARBON FILM, 1/6W 22 OHM J R917 76366331 CARBON FILM, 1/6W 330 OHM J R918 76366330 CARBON FILM, 1/6W 33 OHM J R919 76366102 CARBON FILM, 1/6W 1K OHM J R920 76000883 FUSIBLE, 1W 3.6 OHM J R921 76366151 CARBON FILM, 1/6W 150 OHM J R922 76366470 CARBON FILM, 1/6W 47 OHM J R924 76366330 CARBON FILM, 1/6W 33 OHM J R925 76366331 CARBON FILM, 1/6W 330 OHM J R926 76366102 CARBON FILM, 1/6W 1K OHM J R928 76366151 CARBON FILM, 1/6W 150 OHM J R929 76366470 CARBON FILM, 1/6W 47 OHM J R930 76366390 CARBON FILM, 1/6W 39 OHM J R932 76366332 CARBON FILM, 1/6W 3.3K OHM J R933 76545829 FUSIBLE, 1/4W 8.2 OHM J R934 76366391 CARBON FILM, 1/6W 390 OHM J R935 76366102 CARBON FILM, 1/6W 1K OHM J R937 76366331 CARBON FILM, 1/6W 330 OHM J R939 76366100 CARBON FILM, 1/6W 10 OHM J R942 76366392 CARBON FILM, 1/6W 3.9K OHM J R943 76366392 CARBON FILM, 1/6W 3.9K OHM J R944 76366392 CARBON FILM, 1/6W 3.9K OHM J R945 #1 76366330 CARBON FILM, 1/6W 33 OHM J #2 76366220 CARBON FILM, 1/6W 22 OHM J R946 #1 76366330 CARBON FILM, 1/6W 33 OHM J #2 76366220 CARBON FILM, 1/6W 22 OHM J R952 76366622 CARBON FILM, 1/6W 6.2K OHM J R953 76366622 CARBON FILM, 1/6W 6.2K OHM J R954 76366622 CARBON FILM, 1/6W 6.2K OHM J R960 76383153 OXIDE METAL FILM, 2W 15K OHM J R961 76383153 OXIDE METAL FILM, 2W 15K OHM J R962 76383153 OXIDE METAL FILM, 2W 15K OHM J R963 76383153 OXIDE METAL FILM, 2W 15K OHM J R964 76383153 OXIDE METAL FILM, 2W 15K OHM J R965 76383153 OXIDE METAL FILM, 2W 15K OHM J R977 76366561 CARBON FILM, 1/6W 560 OHM J R978 76383153 OXIDE METAL FILM, 2W 15K OHM J R979 76383153 OXIDE METAL FILM, 2W 15K OHM J R980 76366471 CARBON FILM, 1/6W 470 OHM J R981 76366471 CARBON FILM, 1/6W 470 OHM J R992 76366150 CARBON FILM, 1/6W 15 OHM J R993 76383153 OXIDE METAL FILM, 2W 15K OHM J R994 76383153 OXIDE METAL FILM, 2W 15K OHM J R995 76383153 OXIDE METAL FILM, 2W 15K OHM J R996 76383153 OXIDE METAL FILM, 2W 15K OHM J R3380 76366102 CARBON FILM, 1/6W 1K OHM J R4619 76366101 CARBON FILM, 1/6W 100 OHM J R4620 76366333 CARBON FILM, 1/6W 33K OHM J R4630 76366183 CARBON FILM, 1/6W 18K OHM J R4670 76367472 CARBON FILM, 1/6W 4.7K OHM G R4999 76366682 CARBON FILM, 1/6W 6.8K OHM J RA01 76366392 CARBON FILM, 1/6W 3.9K OHM J RA02 76366112 CARBON FILM, 1/6W 1.1K OHM J RA03 76366112 CARBON FILM, 1/6W 1.1K OHM J RA04 76366392 CARBON FILM, 1/6W 3.9K OHM J RA05 76366222 CARBON FILM, 1/6W 2.2K OHM J RA06 76366222 CARBON FILM, 1/6W 2.2K OHM J RA07 76366103 CARBON FILM, 1/6W 10K OHM J RB01 76366103 CARBON FILM, 1/6W 10K OHM J RB02 76366223 CARBON FILM, 1/6W 22K OHM J RB03 76366221 CARBON FILM, 1/6W 220 OHM J RB04 76366271 CARBON FILM, 1/6W 270 OHM J RB05 76366470 CARBON FILM, 1/6W 47 OHM J RB06 76366331 CARBON FILM, 1/6W 330 OHM J RC01 76366750 CARBON FILM, 1/6W 75 OHM J RS01 76366102 CARBON FILM, 1/6W 1K OHM J RS03 76366102 CARBON FILM, 1/6W 1K OHM J RS05 76366102 CARBON FILM, 1/6W 1K OHM J RS06 76366102 CARBON FILM, 1/6W 1K OHM J RS07 76366102 CARBON FILM, 1/6W 1K OHM J RS08 76366102 CARBON FILM, 1/6W 1K OHM J RS09 76366102 CARBON FILM, 1/6W 1K OHM J RS10 76366104 CARBON FILM, 1/6W 100K OHM J RS11 76366102 CARBON FILM, 1/6W 1K OHM J RS12 76366104 CARBON FILM, 1/6W 100K OHM J RS13 76366472 CARBON FILM, 1/6W 4.7K OHM J RS14 76366472 CARBON FILM, 1/6W 4.7K OHM J RV01 76366750 CARBON FILM, 1/6W 75 OHM J RV02 76366750 CARBON FILM, 1/6W 75 OHM J RV03 76366750 CARBON FILM, 1/6W 75 OHM J RV04 76366750 CARBON FILM, 1/6W 75 OHM J RV05 76366750 CARBON FILM, 1/6W 75 OHM J RV06 76366750 CARBON FILM, 1/6W 75 OHM J RV07 76366750 CARBON FILM, 1/6W 75 OHM J – 6 – 位置号 部件号 说明 位置号 部件号 说明 线圈与变压器 L101 23248398 COIL, CHOKE, TLN3278D L102 23221144 COIL, PEAKING, TRF4229AJ L103 23221144 COIL, PEAKING, TRF4229AJ L300 23103302 FERRITE CHOKE, TEM2011AH L302 23289043 COIL, PEAKING, TRF4100AU L441 #1 23233139 COIL, LINEARITY, TLN2228AH #2 23233162 COIL, HORIZ. LINEARITY TLN2215AT L442 23248379 COIL, CHOKE 18X24H 82MMHK 2.8A TLN3521AA L451 #2 23233138 COIL, WIDTH, TLN2232AH L461 23248433 COIL, CHOKE, TLN3500AH L463 23103302 FERRITE CHOKE, TEM2011AH L464 23103302 FERRITE CHOKE, TEM2011AH L491 23248413 COIL, CHOKE, TLN3351AD L702 23103323 FERRITE CORE, HC5-035 L704 23103302 FERRITE CHOKE, TEM2011AH L705 23103302 FERRITE CHOKE, TEM2011AH L706 23289043 COIL, PEAKING, TRF4100AU L801 23217680 TRANSFORMER, CHOKE, TPW2062AL L815 23103307 FERRITR CHOKE, TEM2014AA L816 23103307 FERRITR CHOKE, TEM2014AA L817 23103307 FERRITR CHOKE, TEM2014AA L818 23103307 FERRITR CHOKE, TEM2014AA L820 23248401 COIL, CHOKE, TLN3312D L821 23248401 COIL, CHOKE, TLN3312D L822 23248400 COIL, CHOKE, TLN3299D L823 23103307 FERRITR CHOKE, TEM2014AA L825 23248400 COIL, CHOKE, TLN3299D L826 23289043 COIL, PEAKING, TRF4100AU L827 23289043 COIL, PEAKING, TRF4100AU L829 23289043 COIL, PEAKING, TRF4100AU L829Z 23289043 COIL, PEAKING, TRF4100AU L901 #1 23200024 COIL, DEGAUSSING, TSB2389AH #2 23200191 COIL, DEGAUSSING, TSB2310AH L902 23289054 COIL, PEAKING, TRF4101AU L903 23289054 COIL, PEAKING, TRF4101AU L904 23289054 COIL, PEAKING, TRF4101AU L905 23289045 COIL, PEAKING, TRF4150AU L906 23289045 COIL, PEAKING, TRF4150AU L907 23289045 COIL, PEAKING, TRF4150AU L908 23289043 COIL, PEAKING, TRF4100AU L911 23289043 COIL, PEAKING, TRF4100AU LV06 23103306 EMI FILTER, TEM2028AA, 7.5X6.4X8 60MMH 0.5A LV07 23103306 EMI FILTER, TEM2028AA, 7.5X6.4X8 60MMH 0.5A LV08 23103306 EMI FILTER, TEM2028AA, 7.5X6.4X8 60MMH 0.5A T400 #2 23224403 TRANSFORMER, FOCUS, TLN2226AH T401 23224396 TRANSFORMER, TLN1080AH T461 #1 23236954 TRANSFORMER, FLY-BACK TFB4222AT T801 23211936 COIL, LINE FILTER, SQ2424 T802 23211936 COIL, LINE FILTER, SQ2424 T862 23217844 TRANSFORMER, TPW3587AH 半导体 Q220 23205317 TRANSISTOR, RN1204(F) Q301 23085439 IC, AN5523 Q370 23205315 TRANSISTOR, RN1206(F) Q371 23205313 TRANSISTOR, 2SC1815-Y(F) Q402 23205479 TRANSISTOR, FET, 2SK941(F) Q404 23205405 TRANSISTOR, 2SC5859(FA,Q) Q460 23205350 TRANSISTOR, FET, 2SK2920(Q) Q484 23205309 TRANSISTOR, 2SA1015-Y(F) Q485 23205313 TRANSISTOR, 2SC1815-Y(F) Q601 23089109 IC, TFA9843J Q602 23205316 TRANSISTOR, RN1205(F) Q603 23205320 TRANSISTOR, RN1201(F) Q604 23205320 TRANSISTOR, RN1201(F) Q605 23205309 TRANSISTOR, 2SA1015-Y(F) Q606 23205316 TRANSISTOR, RN1205(F) Q607 23205316 TRANSISTOR, RN1205(F) Q608 23205313 TRANSISTOR, 2SC1815-Y(F) Q705 23205313 TRANSISTOR, 2SC1815-Y(F) Q706 23205313 TRANSISTOR, 2SC1815-Y(F) Q707 23205314 TRANSISTOR, 2SC752(G)TM-Y(F) Q709 23205313 TRANSISTOR, 2SC1815-Y(F) Q710 23205309 TRANSISTOR, 2SA1015-Y(F) Q711 23205367 TRANSISTOR, 2SA1930 Q712 23205368 TRANSISTOR, 2SC5171(Q) Q719 23205313 TRANSISTOR, 2SC1815-Y(F) Q720 23205313 TRANSISTOR, 2SC1815-Y(F) Q801 23089112 IC, KA5Q1265RF Q815 23205313 TRANSISTOR, 2SC1815-Y(F) Q816 23205316 TRANSISTOR, RN1205(F) Q817 23205442 TRANSISTOR, 2SC3852 Q818 23085424 IC, KIA7805API-U/P Q819 23085424 IC, KIA7805API-U/P Q820 23085941 IC, KIA78R12API-U/P Q821 23085260 IC, KIA78R09API/P Q822 23205343 TRANSISTOR, 2SA949-Y(F) Q823 23205313 TRANSISTOR, 2SC1815-Y(F) Q824 23205313 TRANSISTOR, 2SC1815-Y(F) Q825 23205309 TRANSISTOR, 2SA1015-Y(F) Q826 23085431 IC, PHOTO COUPLER, PS2581L1(D) Q828 23205313 TRANSISTOR, 2SC1815-Y(F) Q829 23205339 TRANSISTOR, 2SC2655-Y(F) Q901 23205475 TRANSISTOR, 2SC4544(F) Q902 23205313 TRANSISTOR, 2SC1815-Y(F) Q903 23205475 TRANSISTOR, 2SC4544(F) Q904 23205313 TRANSISTOR, 2SC1815-Y(F) Q905 23205475 TRANSISTOR, 2SC4544(F) Q906 23205313 TRANSISTOR, 2SC1815-Y(F) Q907 23205340 TRANSISTOR, 2SA1020-Y(F) Q908 23205311 TRANSISTOR, 2SC2120-Y(F) Q910 23205313 TRANSISTOR, 2SC1815-Y(F) QB01 23205313 TRANSISTOR, 2SC1815-Y(F) QB02 23205309 TRANSISTOR, 2SA1015-Y(F) QB03 23205313 TRANSISTOR, 2SC1815-Y(F) QS01 23205337 TRANSISTOR, 2SC2878-A(TEM) QS02 23205337 TRANSISTOR, 2SC2878-A(TEM) D101 23357901 DIODE, ZENER, MTZJ33C D201 23357697 DIODE, 1SS133 D373 23357697 DIODE, 1SS133 D374 23357624 DIODE, ZENER, RD11ESA B1 D404 23357701 DIODE, FMQ-3GU D462 23357871 DIODE, ZENER, MTZJ15B D469 23357697 DIODE, 1SS133 D483 23357697 DIODE, 1SS133 D484 23357647 DIODE, ZENER, RD6.2ESA B2 D485 23357852 DIODE, ZENER, MTZJ9.1C D601 23357697 DIODE, 1SS133 D602 23357697 DIODE, 1SS133 D603 23357697 DIODE, 1SS133 D604 23357697 DIODE, 1SS133 D605 23357922 DIODE, 1SS120-7-E D606 23357922 DIODE, 1SS120-7-E D607 23357697 DIODE, 1SS133 D608 23357697 DIODE, 1SS133 D609 23357697 DIODE, 1SS133 D610 23357697 DIODE, 1SS133 D610A 23965241 TAPE, CC #12 10MM L30M D704 23357697 DIODE, 1SS133 D705 23357697 DIODE, 1SS133 D715 23357697 DIODE, 1SS133 D721 23357697 DIODE, 1SS133 D801 23357407 DIODE, LN6SB60-F05 D814 23357870 DIODE, ZENER, MTZJ15A D815 23357831 DIODE, ZENER, MTZJ4.7B D816 23357366 DIODE, FR105-B5 D817 23357104 DIODE, 1SS244 D818 23357104 DIODE, 1SS244 – 7 – 位置号 部件号 说明 位置号 部件号 说明 D821 23357508 DIODE, RU4Z D822 23357860 DIODE, RL2Z D823 23357860 DIODE, RL2Z D824 23357584 DIODE, RU4AM D825Z 23357842 DIODE, ZENER, MTZJ6.8B D826 23357697 DIODE, 1SS133 D827 23357838 DIODE, ZENER, MTZJ5.6C D828 23357912 DIODE, ZENER, MTZJ6.2C D829 23357904 DIODE, ZENER, MTZJ36B D831 23357697 DIODE, 1SS133 D832 23357854 DIODE, ZENER, MTZJ10B D833 23357697 DIODE, 1SS133 D833A 23965241 TAPE, CC #12 10MM L30M D898 76000656 VARISTOR, TNR15G471K D899 76000656 VARISTOR, TNR15G471K D901 23357697 DIODE, 1SS133 D904 23357697 DIODE, 1SS133 D905 23357697 DIODE, 1SS133 D906 23357697 DIODE, 1SS133 D907 23357697 DIODE, 1SS133 D908 23357697 DIODE, 1SS133 D909 23357697 DIODE, 1SS133 D931 23357697 DIODE, 1SS133 D932 23357697 DIODE, 1SS133 D933 23357697 DIODE, 1SS133 D934 23357697 DIODE, 1SS133 D941 23357697 DIODE, 1SS133 D942 23357697 DIODE, 1SS133 D943 23357697 DIODE, 1SS133 D946 23357697 DIODE, 1SS133 D963 23357697 DIODE, 1SS133 D964 23357697 DIODE, 1SS133 D965 23357697 DIODE, 1SS133 D966 23357697 DIODE, 1SS133 DA01 23357834 DIODE, ZENER, MTZJ5.1B DA02 23357834 DIODE, ZENER, MTZJ5.1B DB01 23358602 DIODE, LED RED-GRN, SPR-54MVWFLMN DB02 23357837 DIODE, ZENER, MTZJ5.6B DB03 23357697 DIODE, 1SS133 DB04 23357697 DIODE, 1SS133 DB05 23357826 DIODE, ZENER, MTZJ3.9B DB06 23357834 DIODE, ZENER, MTZJ5.1B DB07 23357697 DIODE, 1SS133 DB07A 23965241 TAPE, CC #12 10MM L30M DB08 23357840 DIODE, ZENER, MTZJ6.2B DV01 23357851 DIODE, ZENER, MTZJ9.1B DV02 23357851 DIODE, ZENER, MTZJ9.1B DV03 23357851 DIODE, ZENER, MTZJ9.1B DV04 23357851 DIODE, ZENER, MTZJ9.1B DV05 23357851 DIODE, ZENER, MTZJ9.1B 其他 B207 23738088 SCREW, BTBW3X12ECO B209 23738085 SCREW, BTB4X12 ECO B241 23845859 HOLDER, WIRE, PVC-C0AT, L=70MM B243 23845834 LEAD CLAMPER D404B 23717240 SCREW E505 23845564 CLAMPER F470 23144298 FUSE, CARTRIDGE, 250V 1.25A, 5.2X20 F801 23144303 FUSE, CARTRIDGE, 250V 5A, 5.2X20 G400 #2 76946561 CARBON COMPOSITION, 1/2W 560 OHM K G403 76381223 OX1DE METAL FILM, 1/2W 22K OHM J G404 23103302 FERRITE CHOKE, TEM2011AH G410 23357877 DIODE, ZENER, MTZJ18B G413 23103302 FERRITE CHOKE, TEM2011AH G416 76382470 OXIDE FILM 1W 47 J H002 23148453 IF MODULE, IFM-1B JD01B 23171404 WIRE, PVC, SOLDER-PLATED 300V 7 16 GRN UL CSA JH01A 23171404 WIRE, PVC, SOLDER-PLATED 300V 7 16 GRN UL CSA JS01D 23171404 WIRE, PVC, SOLDER-PLATED 300V 7 16 GRN UL CSA JS01F 23171404 WIRE, PVC, SOLDER-PLATED 300V 7 16 GRN UL CSA JV01G 23171404 WIRE, PVC, SOLDER-PLATED 300V 7 16 GRN UL CSA KB01 23089141 REMOCON RECEIVER, HRM138BB5100 M461A #1 23192244 CABLE, ANODE CAP ASSY, TCC5600BD #2 23192247 CABLE, ANODE CAP ASSY, TCC5602AT M461B #1 23507789 CABLE, FOCUS #2 23507792 CABLE, FOCUS M461C #1 23507817 CABLE, SCREEN #2 23507638 CABLE, FOCUS M461D #2 23507904 CABLE, SCREEN P601 23023488 JACK, PIN PLUG, TJC3-4Y-M701 P701A 23023488 JACK, PIN PLUG, TJC3-4Y-M701 P701B 23023488 JACK, PIN PLUG, TJC3-4Y-M701 P800 23023496 JACK, PIN PILU, P800 P801A 23023493 JACK, PIN PLUG, TJC1-3Y-M801 P801B 23023493 JACK, PIN PLUG, TJC1-3Y-M801 P902B 23023492 JACK, PIN PLUG, TJC3(SCN)-10Y-M902 P903A 23023489 JACK, PIN PLUG 29CH7UC M903 TJC3-5Y-M903 P903B 23023489 JACK, PIN PLUG 29CH7UC M903 TJC3-5Y-M903 PB01B 23023490 JACK, PIN PLUG, TJC37Y-MB01 PB02A 23023491 JACK, PIN PLUG, TJC3-5Y-PB02A PB02B 23023489 JACK, PIN PLUG 29CH7UC M903 TJC3-5Y-M903 PV01 23023300 JACK, Y/C YKF51-5560 PV02 23023498 JACK, AV 6P, AV6-16A203-01 PV03 23023499 JACK, AV 3P, AV3-31C-01H PV04 23023497 JACK, PIN 6P, AV6-16A204-16 Q301B 23717240 SCREW Q404C 23717240 SCREW Q601B 23717240 SCREW Q801B 23717240 SCREW Q819B 23717240 SCREW Q901B 23717241 SCREW, BITTB3X8ECO Q903B 23717241 SCREW, BITTB3X8ECO Q905B 23717241 SCREW, BITTB3X8ECO S801 23454016 OTHER BLOCK, POWER SWITCH SA01 23344505 SWITCH, PUSH 1C1P SA02 23344505 SWITCH, PUSH 1C1P SA03 23344505 SWITCH, PUSH 1C1P SA04 23344505 SWITCH, PUSH 1C1P SA05 23344505 SWITCH, PUSH 1C1P SA06 23344505 SWITCH, PUSH 1C1P SR81 23146586 RELAY, DG12D2-0(M) W660 23351362 SPEAKER, SPEAKER Z802 23144233 PROTECT0R, PRF3150, AC125V 3.15A Z815 23144715 FUSE, CARTRIDGE 5.2X20, 125V 5A Z816 23144715 FUSE, CARTRIDGE 5.2X20, 125V 5A Z817 23144715 FUSE, CARTRIDGE 5.2X20, 125V 5A PC 电路板组件 * U901A #1 23764872 PW UNIT CRTD/VM 29CH7UC * #2 23764883 PW UNIT CRTD/VM 34CH7UC * U901B #1 23764873 PW UNIT CONT/LED 29CH7UC * #2 23764884 PW UNIT CONT/LED 34CH7UC * U901C #1 23764874 PW UNIT AC IN 29CH7UC * #2 23764885 PW UNIT AC IN 34CH7UC * U901D #1 23764875 PW UNIT SIDE AV 29CH7UC * #2 23764886 PW UNIT SIDE AV 34CH7UC * U902 #1 23764876 PW UNIT MAIN 29CH7UC * #2 23764887 PW UNIT MAIN 34CH7UC * UD01 23920056 PC BOARD ASSEMBLED, DIGITAL BOARD 显像管 V901 #1 23324249 PICTURE TUBE, 29 BMCC ITC A68LZU185X37 #2 23324250 PICTURE TUBE, 34 D-COM ITC A80MAG183X30 调谐器 H001 23321560 TUNER, ENV59K12G3F 29CH7UC H001 附件 A701 #1 23015335 CARTON BOX, 29CH7UC – 8 – 位置号 部件号 说明 位置号 部件号 说明 A701A #2 23015342 CARTON BOX, TOP, 34CH7UC A701B #2 23015343 CARTON BOX, BOTTOM, 34CH7UC A702A #1 23580168 PACKING, PACKING TOP 29CH7UC;NONE #2 23580173 PACKING, PACKING TOP 34CH7UC;NONE A702B #1 23580169 PACKING, PACKING BOTTOM 29CH7UC;NONE #2 23580174 PACKING, PACKING BOTTOM 34CH7UC;NONE K902 23306633 REMOCON HAND UNIT IR, CT-90237 Y101 23566881 OWNERS MANUAL 机壳部件 A213 23445982 BUTTON, POWER BUTTON 29CH7UC A213A 23445975 BUTTON, POWER BUTTON 29CH7UC;NONE A215 23445983 KNOB, 6-KEY 29CH7UC A215A 23445976 KNOB, 6-KEY 29CH7UC;NONE A236 #2 23738086 SCREW, BTB4X16 ECO A410 #1 23571165 COVER, BACK COVER 29CH7UC #2 23571168 COVER, BACK COVER 34CH7UC A422 23929458 PIECE, WASHER T=1.5 ZP50 A423 23929457 PIECE, WASHER T=1.0 ZP50 A431 #2 23845800 HOLDER, WIRE, NYLON66 D6.8 A510 23717214 SCREW, BITTB3X12SBN A514 23738088 SCREW, BTBW3X12ECO A516 23738088 SCREW, BTBW3X12ECO A518 23738088 SCREW, BTBW3X12ECO A519 #2 23738085 SCREW, BTB4X12 ECO MAIN BOARD (U902) TOP (COMPONENT) SIDE – 9 – – 10 – CRTD/VM BOARD (U901A) BOTTOM (FOIL) SIDE SIDE AV BOARD (U901D) BOTTOM (FOIL) SIDE – 11 – – 12 – AC IN BOARD (U901C) BOTTOM (FOIL) SIDE CONT/LED BOARD (U901B) TOP (COMPONENT) SIDE – 13 – 电 路 图 型号 : 29CH7UC/34CH7UC 注意∶原理图和元件表中标有国际通用危险记号“ ”的项目表示具有特殊安全性能的元件。更换时应使用与原电路中完 全相同或元件表中指定的元件、并按其原来位置进行安装。在更换上述元件前、请仔细阅读第3页上的“产品安全 注意事项”、以免操作不当而影响电视机的安全性能。 关于电压和波形的应遵守事项 1. 用真空管电压表测量所示的测量点对机壳地线的电压、线电压220V、彩色条的信号。 2. 电压读数可以变化±20%。 3. 所示的原理图只是代表性的。 4. 所有的波形都是用一宽带示波器和一个低电容的探头测量的。 5. 为得到最佳图象、检查“精细调谐”、“AGC”“亮度”、“对比度”和“色彩”控制时、一定要把对比度和色彩旋钮调 在中间位置、“亮度”旋钮几乎放在最大位置。 6. 测量波形时、用了一个标准彩色条信号。 注∶ 1. 在原理图中表示了主要变压器的直流电阻值。这些值是把变压器与电路断开时测的。 2. 电路改变时、不予通知。 表示 电阻、电容、电感的值 1. 电阻用ohm(欧姆、Ω) 表示、K=1,000 M=1,000,000。 2. 除了在图中特别注明外、所有的电容值在数值小于1时、单位为µF(微法) 、数值大于1时、其单位PF (微微法拉) 。 3. 除了在图中特别注明外、图中的所有电感值在数字大于1时、单位为µH(微亨) 、在数值小于1时、单位H(亨利) 。 4. 电容器耐压值除非另有注明均为50伏。 MAIN main board signal (MP_ver05)................................................................................. 1/7 POWER/LOWB (MP_ver05) .................................................................................... 2/7 main board DEF (MP_ver05) ................................................................................... 3/7 CRT/SVM (MP_ver04) .......................................................................................................................................... 4/7 FRONT AV (MP_ver04)......................................................................................................................................... 5/7 AC IN (MP_ver04) ................................................................................................................................................. 6/7 SIDE AV (MP_ver04)............................................................................................................................................. 7/7 ■电路结构示意图∶ (1/7) 1 2 3 4 5 6 7 8 A B C D 8 7 6 5 4 3 2 1 D C B A PV02 JACK 1S6P Y C SW PV01 S-VIDEO PV04 JACK 1S6P 1 2 3 4 5 6 7 PB01B 7P 1 2 3 4 P601 4P 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 PD02 CB-IN CR-GND CR-IN Y-GND Y-IN Y-DET SIGNAL GND MUTE V-PROTECT AFC PULSE EHT IN ABCL IN ABL/SW VD OUT GND DEF GND DEF HD OUT E/W OUT VIDEO OUT E/W FB IF RST IF SW/B IF SW/A IF GND TV IN AFT P/N IF GND V3 GND V-3 IN SV-C GND SV-C IN SV-Y GND SV-Y IN SV-SW V1-GND V1 IN V2 GND V2 IN CB GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PD01 5V-2 GND 5V-3 GND 9V-1 GND 9V HVCC GND 5V-1 POWER GND GND GND GND GND STB/MUTE LED RMT IN KEY-1 KEY-2 SCL SDA NC NC GND GND GND GND GND POWER 5V-1 GND 9V HVCC GND 9V-1 GND 5V-3 GND 5V-2 C104 50V0.01uF C101 35V4.7uF GJ101 SHORT GJ102 KETSU L102 TEM2121M L103 TEM2121M C103 50V0.01uF C102 16V220uF 32V C106 50V4.7uF C105 50V1000PF D101 MTZJ33C L101 TLN3278 C107 16V220uF 5V-1 GND GND 5V-2 5V-3 9V-1 9V HVCC POWER TUNER GND RC01 75 RV02 75 DV02 MTZJ9.1B DV03 MTZJ9.1B LV01 KETSU LV02 KETSU LV03 KETSU LV04 KETSU LV05 KETSU GJ103 SHORT GJ104 SHORT GJ105 SHORT GJ106 SHORT GJ107 SHORT GJ108 SHORT CC01 SHORT LC01 KETSU CC02 0.01uF GJ109 SHORT GJ110 SHORT DV04 MTZJ9.1B RV03 75 RS05 1K RS06 1K CS03 1000pF CS04 1000pF GJ111 SHORT GJ112 SHORT DV05 MTZJ9.1B DV06 KETSU DV08 KETSU DV07 KETSU RV04 75 RS07 1K RS08 1K RV05 75 CS05 1000pF CS06 1000pF RV07 75 RV06 75 RA07 10K RS09 1K RS10 100K RS11 1K CV01 16V470uF CS08 1000pF CS10 1000pF RS12 100K CS07 16V10uF CS09 16V10uF QS01 2SC2878 QS02 2SC2878 RS13 4.7K RS14 4.7K C607 25V22uF C612 35V1000uF R602 KETSU R601 3.3K R604 3.9K R610 2.2 M C601 KETSU M C602 50V2700PF MC610 63V0.1uF R606 KETSU R605 3.3K R607 3.9K M C604 KETSU M C605 50V2700PF C613 35V1000uF C608 16V330uF C614 35V47uF C609 35V100UF R611 2.2 M C611 63V0.1uF 22V AUDIO AUDIO GND C615 50V0.01uF D601 1SS133 D602 1SS133 D603 1SS133 D604 1SS133 R609 10K R608 10K R615 1K R616 1K V-PROTECT AFC EHT ABCL ABL/SW VD OUT DEF GND DEF GND HD-OUT E/W OUT E/W EB Q605 2SA1015 R613 220K R612 10K D605 1SS120-7 C617 16V470uF C616 16V10uF D606 1SS120-7 15V GND TUNER GND VIDEO3-R VIDEO3-L VIDEO3-GND(DIGITAL GND) VIDEO3 C603 50V0.22uF C606 50V0.22uF TUNER GND TUNER GND TUNER GND TUNER GND AUDIO GND AUDIO GND AUDIO GND AUDIO GND AUDIO GND AUDIO GND AUDIO GND GND GND GND R102 100 R103 100 MUTE ROUT_M LOUT_M MONITOR L/R GND SIGNAL GND VIDEO OUT CR GND CR IN CB GND CB IN Y-DET Y GND Y IN VIDEO2_R VIDEO2-L/R GND VIDEO2_L VIDEO2-GND VIDEO2_V VIDEO1_R VIDEO1_L/R GND VIDEO1_L VIDEO1-GND VIDEO1_V SV-C GND SV-C IN SV-Y GND SV-Y IN SV-SW VIDEO3_V VIDEO3-GND VIDEO3_L VIDEO3_R VIDEO3-L/R GND 5V-3 P/N SCL SDA 9V-1 AFT TV_V SW_A Y-DET SW_B VIDEO1_L VIDEO1_R VIDEO1-L/R GND VIDEO2_L VIDEO2_R VIDEO2-L/R GND VIDEO3_L VIDEO3_R VIDEO3-L/R GND MONITOR OUT GND SCL SDA RST 5V-3 VIDEO-1 VIDEO-2 Y/CR/CB MONITOR OUT UD01 Q601A HEAT SINK Q601B SCREW(3*8) Q601C GREASE POWER DEG CPU GND 1 P805 1P D607 1SS133 LV06 TEM2028 LV07 TEM2028 LV08 TEM2028 D608 1SS133 1 2 3 4 5 PB02B 5P MUTE Q603 RN1201 Q604 RN1201 Q602 RN1205 Q606 RN1205 D609 1SS133 Q607 KETSU R617 KETSU R618 KETSU R619 KETSU R620 KETSU Q608 KETSU R614 SHORT D610 1SS133 L IN L OUT CIV R IN GND SVR MODE R OUT VCC 1 2 3 4 5 6 7 8 9 Q601 TFA9843J POWER/DEG DTB-1A 5V IF 32V SCL SDA AGC GND 1 VT 2 3 4 5 7 8 6 9 10 11 NC NC NC H001 ENV59K12G3SF SW_A GND L_IN1 AGC AFT IF P/N 1 9V 2 3 4 5 7 8 6 9 10 11 VIDEO SW_B R_IN1 12 13 14 15 16 17 18 19 20 21 24 23 22 25 26 27 L_IN2 R-IN2 L_IN3 LOUT_M R_IN3 GND GND ROUT_M GND GND SCL SDA LOUT NC ROUT NC IFM-1B H002 IFM-1B LV09 TEM2028 JP046 KETSU JP047KETSU 29/34CH7UC main board signal (MP_ver05) (2/7) 1 2 3 4 5 6 7 8 A B C D 8 7 6 5 4 3 2 1 D C B A 1 2 3 4 5 Q801 KA5Q1265RF Q826 PS2581L1(D) C821 50V2700PF C811 L815 TEM2014 C818 2KV1000PF M C819 63V/0.01UF M C816 63V/0.1uF R817 1/2W10 R818 1/2W680 R819 1/2W470 R899 1W8.2M L816 TEM2014 C830 2KV470PF L825 TLN3299 L818 TEM2014 C826 500V470 L824 TLN3312(KETSU) C825 500V470 L820 TLN3312D L823 TEM2014 L817 TEM2014 L819 TLN3312(KETSU) C824 500V470 133V 15V 22V 6.5V M C822 50V1000 B G C Q827 SE133 R820 SHORT R821 2.2K R816 KETSU R824 1K D820 KETSU C831 50V0.1uF F470 T1.25A L/250V R470 2W0.51 R839 1/2W130 R838 1/2W270 R840 1/4W20KF Q822 2SA949-Y R841 1/4W39KF R826 1K M C839 63V0.47 133V 22V AUDIO L822 TLN3299 GJ820 KETSU DEF GND GJ819 KETSU GJ818 SHORT GJ817 KETSU GJ815 SHORT L821 TLN3312D GJ816 KETSU AUDIO GND D821 RU4Z FL-F1 5V-2 1 2 3 Q818 KIA7805 D822 RL2Z 5V-1 TO DB BOARD 1 4 8 9 10 12 15 16 17 18 14 11 2 3 T862 TPW3587AH C823 KETSU D815 MTZJ4.7B D819 KETSU D816 FR105-FL D818 1SS244 D817 1SS244 D827 MTZJ5.6C D823 RL2Z D824 RU4AM D829 MTZJ36B 1 2 3 4 Q820 KA78R12 Q829 2SC2655 R822 680 C835 50V0.01uF 9V HVCC 1 2 3 4 Q821 KA78R09 1 2 3 Q819 KA7805 5V-3 9V-1 R842 2.4K R823 2.2K R833 1K 12V Q815 2SC1815-Y Q816 RN1205 R831 10K D826 1SS133 R830 4.7K R825 1K Q823 2SC1815 Q825 2SA1015 R834 470 R827 1K R837 470 R829 1K R835 470 R836 470 R828 1K POWER Q824 2SC1815 X-RAY 15V 1 2 3 P801B 3P HOT 12V 32V TUNER 12V 9V-1 R843 1W/15K DRA IN GND VCC FB SYNC Q817A HEAT SINK F470A FUSE HOLD F470B FUSE HOLD Q801A HEAT SINK Q801B SCREW(3*10) Q801C GREASE Q817B SCREW(3*8) Q820A HEAT SINK Q821A HEAT SINK Q820B SCREW(3*8) Q821B SCREW(3*8) POWER DEG CPU GND D825Z MTZJ6.8B GJ821 KETSU D814 MTZJ15A Q817 2SC3852 P Z802 PRF4000F003 P Z815 PRF50005491 P Z816 PRF50005491 P Z817 PRF50005491 C827 25V2200uF C833 16V10uF C832 16V1000uF C829 35V2200uF C828 25V2200uF C846 25V470uF(KETSU) D828 MTZJ6.2C C836 16V220uF M C847 50V0.1uF M C834 50V0.1uF C884 160V220uF M C848 50V0.1uF C838 25V1000uF M C849 50V0.1uF D832 MTJZ10B L826 TRF4100RF C837 16V220uF D830 KETSU M C851 50V0.1uF M C852 50V0.1uF L827 TRF4100RF C842 16V1000uF C843 16V470uF L829 TRF4100RF Q817C GREASE R846 1K C840 50V22uF C844 16V4.7uF C810 450V330uF C820 50V100uF(105) 1300mA 730mA 68mA 540mA 140mA 300mA 720mA 100mA 40mA R847 KETSU GJ822 SHORT GJ823 SHORT C812 500V470PF D825 SHORT AUDIO GND AUDIO GND 1 2 3 P802B 3P MAIN GND TO POWER AC IN M804 Q819A HEAT SINK Q819B SCREW(3*8) Q820C GREASE Q821C GREASE C817 16V10UF D833 1SS133 L829Z TRF4100RF C836Z 16V220uF 5V-1 PROTECT 29:AC250V/2200PF 34:AC250V/4700PF 29/34CH7UC POWER/LOWB (MP_ver05) (3/7) 1 2 3 4 5 6 7 8 A B C D 8 7 6 5 4 3 2 1 D C B A 1 3 2 10 9 4 5 7 6 8 13 16 27 14 15 17 SV FV2 FV1 HV T461 Q4021 KETSU Q4022 KETSU G416 1R47 R4111 KETSU C418 KETSU C416 100V33uF 3 2 1 4 6 T401 TLN1080 D G S Q402 SK941 R411 100 C417 500V390pF C413 500V3900pF R415 2R270 G410 MTZJ18B 15V HD DRIVE GND DEF R412 2R0.22 R429 1R10 M C463 KETSU Q404 2SC5859(FA) D404 FMQ-3GU G407 SHORT G404 TEM2011 G413 TEM2011 G406 SHORT C467 630V0.012uF C444 C443 C442 C461 630V0.012uF C428 C439 400V0.056uF C464 250VM3.3uF C451 C450 L442 TLN3521 D415 FR105-FL L441 R441 2R180 D G S Q460 2SK2920 R464 100 R463 47K R469 82K R462 6.8K R467 2R22 R466 2R22 G400 R460 1/4R3.3K R461 D462 MTZJ15B L464 TEM2011 D465 FR105-FL C466 250V22uF L463 TEM2011 C462 KETSU L491 TLN3351 1 2 3 4 6 L461 TLN3500 D469 1SS133 E/W OUT E/W FB GR402 SHORT M C465 M C468 KETSU C448 160V33uF L451 T400 Z401 133V VD DRIVE R3380 1K M C331 KETSU R327 2R2.2 R328 2R2.2 R307 1K R303 1/2R1.0 R301 2.2KF R335 2.7KF D302 FR105-FL C303 KETSU C3030 KETSU C315 50V4700PF C310 25V1000uF C3100 25V1000uF D303 FR105-FL D301 FR105-FL C308 50V220uF L300 TEM2011 M C313 100V0.22 L302 TRF4100AU 5V-3 M C304 50V0.1uF R305 1R1.0 R302 1/4W3.3K R304 680 M C366 100VM0.082 R336 D330 SA64A C307 16V100uF D406 FR105-FL D471 FR105-FL C476 500V470 C446 250V33uF R478 1R1.0 R472 1/2R27 C471 50V4.7uF X-RAY M C499 100V1200 R405 1R6.8K C491 KETSU R491 1.2K D485 MTZJ9.1C R4999 6.8K AFC C445 400V0.056uF R218 18KG R227 27KG R228 22KG R217 10K EHT ABL Q220 RN1204 R219 39KG ABL/SW R216 10K D201 1SS133 C201 KETSU 9V-1 EH FOCUS-1 FOCUS-2 SCREEN D374 RD11ESAB2 D373 1SS133 R377 22 R371 10K Q370 RN1406 C370 16V10uF R370 10K C312 KETSU 5V-1 V-PROTECT Q484 2SA1015 R468 11K R4630 18K D484 MTZJ6.2E R474 4.7K TP1 TP TP2 TP C488 16V10uF R4620 33K D483 1SS133 PK48 1 2 3 4 5 6 P401 6P 1 2 3 4 5 P903A 5P 200V HEATER HEATER GND 12V 1 2 3 4 P701A 4P Q371 2SC1815 R372 10K Q404A HEAT SINK Q404B AC261(SPACER) Q404C SCREW(3*10) Q404D GREASE D404B SCREW(3*10) D404C GREASE Q301B SCREW(3*8) Q301C GREASE R4670 4.7K_0.5% R465 G403 1/2W22K G407Z SHORT G413Z KETSU GJ406 SHORT Q485 2SC1815 R4619 100 29INCH 34INCH R465 1/6P100 SHORT 29INCH 34INCH R336 2R180 2R390 29INCH:KETSU 34INCH:TLN2232 29INCH:KETSU 34INCH:TLN2226AH 29INCH:KETSU 34INCH:1PIN 29INCH:KETSU 34INCH:SG99B3EN 29INCH:KETSU 34INCH:1/2RS560 29INCH:50V0.047uF 34INCH:50V0.056uF 29INCH:470 34INCH:330 29INCH:1/6P100 34INCH:SHORT 34INCH:2R390 29INCH:2R180 29INCH:TLN2228H 34INCH:TLN2215AT 29INCH:400V0.18uF 34INCH:400V0.22uF 29INCH:400V0.12uF 34INCH:400V0.22uF 29INCH:1800V5600 34INCH:1800V6200 29INCH:1800V5600 34INCH:1800V6800 34INCH:TFB4216AS 29INCH:TFB4222AS/TFB4222AT R459 29:1/6P13K 34:1/6P33K SAW IN VCC PUMP UP VEE OUT OUT VCC REF 1 2 3 4 5 6 7 Q301 AN5523 29INCH:500V470 34INCH:500V2200 29INCH:500V470 34INCH:500V2200 29/34CH7UC main board DEF (MP_ver05) (4/7) 1 2 3 4 5 6 7 8 A B C D 8 7 6 5 4 3 2 1 D C B A KR KG KB H H G1G2G3 V901 1 2 3 4 5 6 7 8 9 10 P902B 10P Q901 2SC4544 Q902 2SC1815 R949 KETSU R905 15 R914 150 R904 4.7K R912 1K R918 33 R906 KETSU R948 KETSU R917 330 D907 1SS133 D904 1SS133 M C918 M0.1uF C904 50V470pF R915 47 R916 Q903 2SC4544 Q904 2SC1815 R921 150 R919 1K R924 33 R925 330 D908 1SS133 D905 1SS133 C905 390 R922 47 R946 Q905 2SC4544 Q906 2SC1815 R928 150 R926 1K R930 39 R937 330 D909 1SS133 D906 1SS133 M C919 M0.1uF C907 50V680pF R929 47 R945 C917 KETSU C972 KETSU R974 KETSU C971 KETSU R973 KETSU C970 KETSU D970 KETSU Q917 KETSU Q918 KETSU Q920 KETSU Q919 KETSU R967 KETSU R968 KETSU R9701 KETSU R969 KETSU R971 KETSU R997 KETSU R970 KETSU R947 KETSU C926 KETSU R972 KETSU Q921 KETSU Q922 KETSU R998 KETSU R999 KETSU R718 2.2K R722 1/2R470 R975 KETSU R976 KETSU TP1 TP-46B TP2 TP-46G TP3 TP-46R R942 3.9K R978 2R15K R979 2R15K R960 2R15K R963 2R15K R901 1/2S560_K R902 1/2S560_K R903 1/2S560_K R933 1/4R8.2 R936 KETSU L902 TRF4101AT(100uH) R952 6.2K L905 15uH D963 1SS133 D964 1SS133 D965 1SS133 D966 1SS133 V901A CRT SOCKET R943 3.9K R961 2R15K R964 2R15K R993 2R15K R994 2R15K L903 TRF4101AT(100uH) R953 6.2K L906 15uH D941 1SS133 D942 1SS133 D943 1SS133 D946 1SS133 R944 3.9K R962 2R15K R965 2R15K R995 2R15K R996 2R15K L904 TRF4101AT(100uH) R954 6.2K L907 15uH D932 1SS133 D934 1SS133 D933 1SS133 D931 1SS133 TP5 TP-47G TP4 TP-47B TP6 TP-47R C909 250V33uF 1 2 3 4 5 P903B 5P L911 TRF4100AT(10uH) R920 1RF3.6(24000883L) D911 FR105-FL D921 FR105-FL C931 500V100pF R992 15 P905 1P 1 2 3 P900 3P C930 KETSU GJ02 KETSU GJ03 KETSU R950 KETSU G910 KETSU C902 2KV4700pF R933Z KETSU R977 560 R935 1K R934 390 R932 3.3K R980 470 R984 KETSU R939 10 R982 KETSU R983 KETSU R981 470 C912 16V1000uF C910 50V0.47uF C913 16V1000uF C911 7L16V10uF D901 1SS133 Q908 2SC2120-Y Q910 2SC1815 Q914 KETSU Q706 2SC1815 Q720 2SC1815 Q707 2SC752 Q705 2SC1815 Q911 KETSU Q719 2SC1815 L908 TRF4100AT(10uH) Q907 2SA1020-Y Q912 KETSU Q913 KETSU L910 KETSU M C920 KETSU M C921 KETSU C922 KETSU R985 KETSU R987 KETSU R986 KETSU R990 KETSU R991 KETSU R989 KETSU R988 KETSU GJ04 SHORT 9VA SVM SVM GND IK B OUT B OUT GND G OUT G OUT GND R OUT R OUT GND C923 KETSU C924 KETSU C925 KETSU C914 50V0.01uF HV SVM SVM GND 1 2 3 4 P701B 4P L706 PL-10uH L704 TEM2011AW L705 TEM2011AW C707 16V47uF C713 200V10uF C718 50V47uF C721 50V47uF C720 200V10uF C712 16V47uF M C704 50V8200pF R721 1K R724 150 R716 27K R719 100 R717 33K R713 39K R715 27K R725 1.8K R720 1K R723 100 C726 B1000pF C714 50V100pF C715 500V4700pF C723 KETSU C705 50V0.01uF C722 KETSU R709 56K R702 1/2R220 R742 1R2.2 R731 1/2RJ330 R733 68K R736 1R47 R730 1/2RJ10 R737 680 R744 1.2K R732 33 R735 68K Q709 2SC1815 Q712 2SC5171 Q711 2SA1930 Q710 2SA1015 D704 1SS133 D705 1SS133 D721 1SS133 D715 1SS133 R738 1K R741 1R2.2 R739 680 R740 1R47 R743 2RJ180 R745 1.2K C716 50V100pF C717 500V4700pF R734 33 L702 HC5035LNG 1 2 3 P705 3P C719 500V56pF SVM SVM GND 133V 12V GJ06 KETSU GJ05 KETSU Q901A HEAT SINK Q903A HEAT SINK Q905A HEAT SINK Q711A HEAT SINK Q712A HEAT SINK Q901B SCREW(3*8) Q903B SCREW(3*8) Q905B SCREW(3*8) Q711B SCREW(3*8) Q712B SCREW(3*8) 29CH7UC 33 34CH7UC 22 29CH7UC 33 34CH7UC 22 29CH7UC 33 34CH7UC 22 29/34CH7UC CRT/SVM (MP_ver04) (5/7) 1 2 3 4 A B C D 4 3 2 1 D C B A SA04 MENU SA01 VOL/DN SA05 CH/UP SA03 TV/AV SA06 CH/DN SA02 VOL/UP RA01 3.9K RA04 3.9K RA05 2.2K RA02 1.1K RA03 1.1K RB01 10K RB05 47 RA06 2.2K CA02 50V0.01UF CA01 50V0.01UF CB01 16V47uF QB01 2SC1815 QB02 2SA1015 DA01 MTZJ5.1B DA02 MTZJ5.1B DB02 MTZJ4.7B DB03 1SS133 DB04 1SS133 1 2 3 4 5 6 7 PB01A 7P RB04 270 RB02 22K RB03 220 RED GREEN KEY-2 KEY-1 5V-1 LED RMT DB01 SPR-54MVWFLMN QB03 2SC1815 RB06 330 DB05 MTZJ3.9B CB02 50V4.7uF CB03 16V100uF DB06 MTZJ5.1B DB07 1SS133 DB08 MTZJ6.2B VCC GND VOUT 1 2 3 KB01 HRM138BB5100(3.3V) 29/34CH7UC FRONT AV (MP_ver04) (6/7) 1 2 3 4 A B C D 4 3 2 1 D C B A S801 1 2 P800 2P F801 T5.0A L250V M805 CABLE R801 1/2W2.2M D899 TNR15G471K C801 AC275V0.22uF C802 KETSU T801 SQ2424 T802 SQ2424 TUNER GND C807 KETSU 1 6 2 3 4 5 SR81 RELAY 12V 0.53W 2A DEC C800 AC250V 1000PF 1 2 P910 2P R803 1/6P2.2M GJ801 KETSU GJ800 KETSU L901 12V D831 1SS133 R845 1/6P10K 1 2 3 4 D801 LN6SB60-F05 L801 TPW2062AL C803 AC275V0.22uF C813 AC250V220pF C814 AC250V220pF C804 AC250V4700 C805 AC250V4700 1 2 3 P801A 3P F801A FUSE HOLD F801B FUSE HOLD GJ802 KETSU GJ803 KETSU Q828 2SC1815 R844 1/6P1K POWER-DEG CPU GND COLD 2 1 3 R808 RZ92P2E4R5M2 R802 1R100K M C885 63V0.1uF P804 1 2 3 P802A 3P 1 P804 1P D898 TNR15G471K R800 KETSU 29/34CH7UC AC IN (MP_ver04) (7/7) 1 2 3 4 A B C D 4 3 2 1 D C B A PV03 JACK 1S3P RV01 75 RS01 1K RS02 KETSU RS04 KETSU RS03 1K CS01 1000PF CS02 1000PF 1 2 3 4 5 PB02A 5P DV01 MTZJ9.1B VIDEO3-V VIDEO3-L VIDEO3-R L/R GND(TUNER) VIDEO3-R VIDEO3-L VIDEO3-V GND(DIGITAL BOARD) VIDEO3-V 29/34CH7UC SIDE AV (MP_ver04) ����������������
