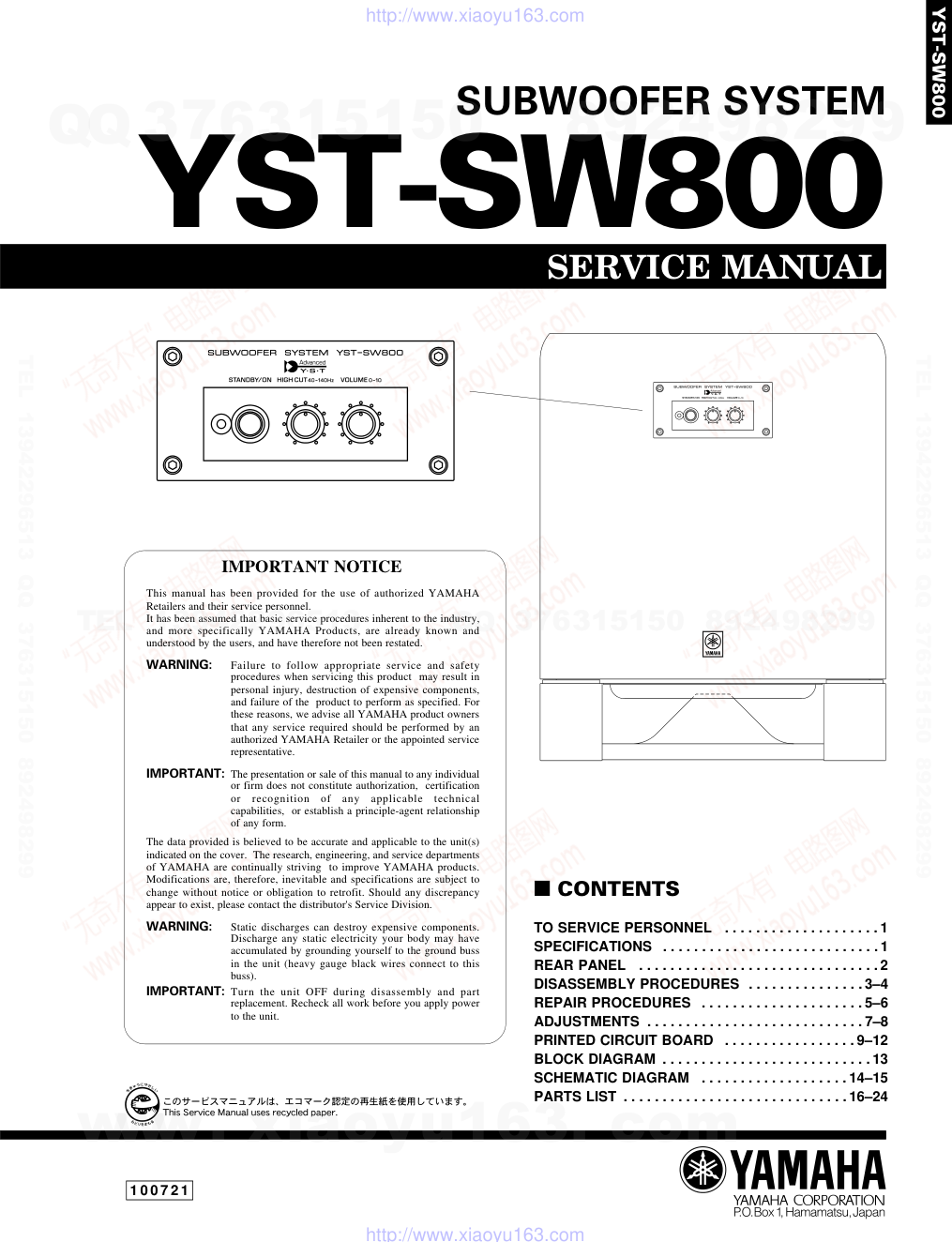

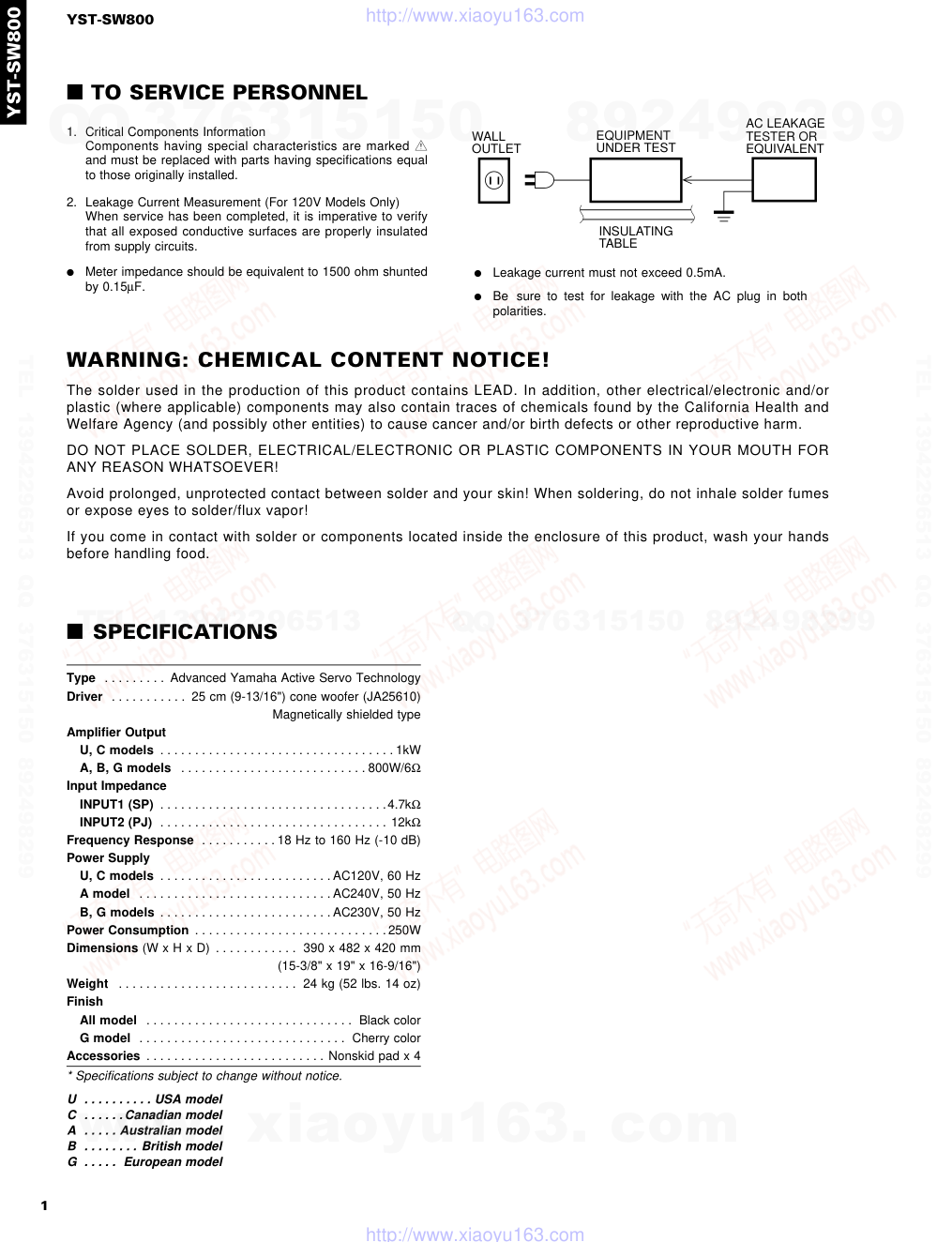

YST-SW800 YST-SW800 This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. IMPORTANT NOTICE 1 0 0 7 2 1 SERVICE MANUAL YST-SW800 SUBWOOFER SYSTEM I CONTENTS TO SERVICE PERSONNEL . . . . . . . . . . . . . . . . . . . . 1 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 REAR PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 DISASSEMBLY PROCEDURES . . . . . . . . . . . . . . . 3–4 REPAIR PROCEDURES . . . . . . . . . . . . . . . . . . . . . 5–6 ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8 PRINTED CIRCUIT BOARD . . . . . . . . . . . . . . . . . 9–12 BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . 14–15 PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 I TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. G Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. AC LEAKAGE TESTER OR EQUIVALENT EQUIPMENT UNDER TEST INSULATING TABLE WALL OUTLET WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. 1 G Leakage current must not exceed 0.5mA. G Be sure to test for leakage with the AC plug in both polarities. I SPECIFICATIONS U . . . . . . . . . . USA model C . . . . . . Canadian model A . . . . . Australian model B . . . . . . . . British model G . . . . . European model Type . . . . . . . . . Advanced Yamaha Active Servo Technology Driver . . . . . . . . . . . 25 cm (9-13/16") cone woofer (JA25610) Magnetically shielded type Amplifier Output U, C models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1kW A, B, G models . . . . . . . . . . . . . . . . . . . . . . . . . . . 800W/6Ω Input Impedance INPUT1 (SP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.7kΩ INPUT2 (PJ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12kΩ Frequency Response . . . . . . . . . . . 18 Hz to 160 Hz (-10 dB) Power Supply U, C models . . . . . . . . . . . . . . . . . . . . . . . . . AC120V, 60 Hz A model . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC240V, 50 Hz B, G models . . . . . . . . . . . . . . . . . . . . . . . . . AC230V, 50 Hz Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250W Dimensions (W x H x D) . . . . . . . . . . . . 390 x 482 x 420 mm (15-3/8" x 19" x 16-9/16") Weight . . . . . . . . . . . . . . . . . . . . . . . . . . 24 kg (52 lbs. 14 oz) Finish All model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Black color G model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cherry color Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . Nonskid pad x 4 * Specifications subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 I REAR PANEL 2 M U, C models M A model M B, G models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 3 I DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) 1. Removal of Front Panel Ass'y Remove 4 screws ( q ) and then remove the Front Panel Ass'y in Fig. 1. * Use an Allen wrench (3mm) to unscrew the Front Panel Ass'y. Fig. 2 Fig. 1 * When assembling the Rear Panel, check to ensure that the gasket is not damaged so as to prevent air leakage from occurring. Fig. 3 2. Removal of Loud Speaker a. Remove 8 screws ( w ) and then remove the Base Ass'y in Fig. 2. b. Remove 8 screws ( e ) and then remove the Loud Speaker in Fig. 2. 3. Removal of Rear Panel Ass'y Remove 16 screws ( r ) in Fig. 3. * Arrow marks ( ) are printed to identify the screws to be removed. G Installation of emblem 1. Put the emblem into the cabinet at the specified posi- tion. 2. Place a piece of cloth/wood on top of the emblem. 3. Using a mallet, hammer the emblem in place through the cloth/wood. * Use special care not to cause damage to the emblem or cabinet while hammering the emblem. q q Front Panel Ass'y Main (5) P.C.B. w w w w e e Loud Speaker Base Ass'y r Rear Panel Ass'y r www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 4 420 (16-9/16") 22 (7/8") 8 (5/16") 390 (15-3/8") 390 (15-3/8") 482 (19") 390 (15-3/8") G Installation of power switch Rapid cures bond (such as 5 minute epoxy) is required to fix the power switch. As shown in Fig. 4, apply rapid cures bond (such as 5 minute epoxy) to the power switch (the area which contacts the rear panel), insert it in the rear panel and make sure it is fixed. (Inserting the power switch in the rear panel only would not be sufficient for its secure installation.) G Precaution for installation of power cord After connecting the power cord, be sure to apply the rapid cures bond (such as 5 minute epoxy) to the cord stopper as shown in Fig. 4, Bond application diagram (Fig. 4) G Dimensions Units : mm (inch) Apply rapid cures bond Apply rapid cures bond between the switch and rear panel. Glue List Place Name Cord stopper 5 minute epoxy or 2051(Revertex Finewaters SDN.BHD.) or VYLOK 917DH (National Starch & Chemical (M) SDM.BHD.) Power switch 5 minute epoxy or Diabond 1620B Apply rapid cures bond before installing the P.C.B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 It is recommended to disconnect the SW power supply section and the power amplifier because it is highly possible that the SW power supply section has also broken down due to the overload caused by breakdown in the power amplifier. Repair Procedure 1) Remove CB201, CB202 and CB205. (Power (1) P.C.B.) Then the power supply circuit and the power amplifier circuit will be disconnected. 2) Repair the power amplifier as described below. (Main (1) P.C.B.) Replace the defective parts. Whether the major parts are defective or not can be checked as follows. Remove 3 screws fixing the heat sink to the rear panel and 4 screws fixing the support P.C.B. to the rear panel. FET (Q16~19, Q22~24): Measure the resistance value between GATE and SOURCE to determine whether a failure exists or not. If the measured resistance value is close to 0Ω, a failure exists. If the measured resistance value is close to the value of the resistor connected between GATE and SOURCE, no failure exists. Remove 3 screws fixing the Main (1) P.C.B. to the support P.C.B. TR (Q1~4): Check DIODE characteristics between BASE and EMITTER or between BASE and COLLECTOR to determine whether a failure exists or not. Check the operation as follows. a. Prepare a stabilized DC power source equipped with +30V and -30V outputs. b. Connect +B, -B and GND output terminals of the stabilized power source to +B, -B and GND lines of the power amplifier. c. Connect the terminal of the oscilloscope to the circuit between q in the figure and GND. d. Remove CB1. (Main (2) P.C.B.) e. Connect the output of the signal generator to the circuit between the lead on the (-) side of C1 and GND. f. Set the frequency of the signal generator to the 100Hz sine wave and the output level to the minimum level. g. Turn on the stabilized DC power source. h. Raise the output level of the signal generator gradually and check the output waveform on the oscilloscope. i. If nothing abnormal is found with the waveform until the output level reaches 40Vp-p, the check result is OK. After operation check Connect CB1. 3) Repair the SW power supply section as follows. (Power (1) P.C.B.) Follow the instruction described below to avoid any danger. High voltage maintained in C209 and C210 even after the power is turned off is dangerous. It is necessary to force this electric charge to be discharged before starting the repair work. For such forced discharge, connect a resistance of approximately 100Ω/5W to each of both terminals of the capacitor. Then check to make sure that the voltage between the capacitor terminals is 0V. Replace the defective parts. Whether the major parts are defective or not can be checked as follows. TR (Q202~205): It is highly possible that a failure occurs due to a short between COLLECTOR and EMITTER. R216, R217: It is highly possible that a failure occurs due to an open circuit. I REPAIR PROCEDURES 5 G DS BCE BCE BC E FET TR TR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 Check the operation and make adjustment as follows. a. Connect CB205. b. Connect the probe of the oscilloscope between TP201 and TP202. c. Turn on the power switch and the STANDBY/ON switch on the front panel. d. Check the waveform on the oscilloscope and adjust VR201 so that a = b is obtained. Permissible range: a/b = 1.0 ± 0.1 CAUTION Electric potential is always applied to the ground side of the oscilloscope. Be careful so that no other part comes in contact with it. Caution for operation check of the SW power supply section and the power amplifier As a high voltage is applied to the SW power supply section and the power amplifier, be careful not to receive an electric shock. V : 50V/div H : 10 µsec/div AC range 1 : 1 probe 0V a b 280Vp-p Power (1) P.C.B Q18 Q16 Q22 Q24 Q39 Q25 Q23 Q17 Q19 – B GND + B Main (1) P.C.B Main (2) P.C.B q 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 7 I ADJUSTMENTS G Idling Adjustment To stabilize operation of the amplifier, turn ON the power with no input signal and wait for 1 or 2 minutes in non loaded condition before the adjustment. Adjust VR1 so that the voltage between terminals TP1 and TP2 is DC 50mV to 250mV. Point A (Cathode of D27) V : 50V/div H : 2 msec/div DC range 1 : 1 probe 0V Point B (Anode of D24) V : 50V/div H : 2 msec/div DC range 1 : 1 probe 0V G Confirmation of Power Amp operation For the power amplifier which has been repaired, it is absolutely necessary to confirm that a correct waveform is obtained at points indicated by A and B in the schematic diagram according to the following procedure. Devices required Signal generator (100Hz sine wave) 8Ω or 6Ω load resistor Oscilloscope (dual trace type) Connection 1) Connect the output signal from the signal generator to the input terminal of YST-SW800. 2) Disconnect the connector terminal connected to the speaker unit and reconnect it to the load resistor. 3) Connect the HOT side of the oscilloscope CH1 probe to the point A or B indicated in the figure and the GND side to the GND of the main unit. 4) Connect the oscilloscope CH2 input to the red side of the connector cable, which is connected with the load resistor. At this time, the GND terminal of CH2 must be left unconnected. Setting 1) Set the signal generator to the sine wave, 100Hz and minimum output level settings. 2) Set the volume of YST-SW800 to the minimum position. 3) Turn on the power to YST-SW800. 4) Adjust the output level of the signal generator and the volume of YST-SW800 so that the output level observed at oscilloscope CH2 is 70Vp-p. Waveform observation With the settings made as described above, observe the waveform obtained at CH1 for judgment. Normal Abnormal +B or GND level Becomes constant Abnormal -B or GND level Becomes constant G Confirmation of AUTO STANDBY operation Setting 1) Turn off the power switch. 2) In order to shorten the time required for operation check; connect a 10kΩ resistor at both ends of R162 on the MAIN (2) P.C.B. 3) Connect the output signal from the signal generator to the L/MONO terminal of YST-SW800. 4) Set the signal generator for the sine wave of 100Hz, 8mV. 5) Turn on the power switch. Confirmation 1) Set the AUTO STANDBY switch to the LOW position. 2) Turn on the STANDBY/ON switch. The display LED lights up (green) and its color changes to red after 5 to 10 seconds. 3) Turn off the STANDBY/ON switch. The display LED goes off. 4) Set the AUTO STANDBY switch to the HIGH position. 5) Turn on the STANDBY/ON switch. The display LED lights up (green) and its color remains unchanged even after time have elapsed. 6) Turn off the STANDBY/ON switch. The display LED goes off. After confirmation 1) Turn off the power switch. 2) Disconnect the 10kΩ resistor connected to both ends of R162. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 8 G Schematic Diagram G Test Points Q18 Q16 Q22 Q24 Q39 Q25 Q23 Q17 Q19 – B GND + B Main (1) P.C.B DC 50mV to 250mV Point A Point B IDLING CURRENT ADJ. DC 50mV to 250mV A B RE WH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW800 I PRINTED CIRCUIT BOARD (Foil side) 9 8 1 RE BL RE TO : POWER (1) #201 BE BL BE TO : POWER (1) #202 B A Q19 Q17 Q23 Q25 Q39 Q24 Q22 Q16 Q18 MAIN ( 1 ) P. C. B. –12 +12 FROM : MAIN (2) –B1 E +B1 FROM : MAIN (2) FROM : MAIN (2) DR+ OUT DR– AYST +V1 RE WH TO : SPEAKER IDLING CURRENT ADJ. DC 50mV to 250mV IDLING TEST POINT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW800 I PRINTED CIRCUIT BOARD (Foil side) 10 8 1 9 1 9 1 9 1 MAIN ( 2 ) P. C. B. +B1 E —B1 TO : MAIN (1) #10 W10 FROM : MAIN (4) MA1 E TOVL +12 —12 LIM MA2 FROM : MAIN (5) TVOL E MAIN +V2 +12 —12 PWS VCC +12 —12 TO : MAIN (1) #12 W12 FROM : MAIN (4) SWL SWH2 SWH1 SO TO : POWER (1) #2 W2 VCC +V1 E DR+ OUT DR— AYST +V1 TO : MAIN (1) #11 W11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW800 I PRINTED CIRCUIT BOARD (Foil side) 11 8 1 1 9 MAIN ( 4 ) P. C. B. BASS PHASE AUTO STANDBY INPUT 2 B, G only R L + – – + OUTPUT INPUT 1 MA2 LIM –12 +12 TOVL E MA1 TO : MAIN (2) #1 W1 SWL SWH2 SWH1 SO TO : MAIN (3) #4 W4 1 9 VCC PWS –12 +12 +V2 MAIN E TOVL FROM : MAIN (2) VOLUME HIGH CUT STANDBY/ ON MAIN ( 5 ) P. C. B. OR GY TO : POWER (1) POWER ( 2 ) P. C. B. POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW800 I PRINTED CIRCUIT BOARD (Foil side) 12 TO : POWER (2) OR GY FROM : POWER CORD –B1 E +B1 FROM : MAIN (2) RE BL RE BE BL BE FROM : MAIN (1) POWER ( 1 ) P. C. B. C D J, U, C only A, B, G only A, B, G only Point C (Pin 1 of CB201) V : 50V/div H : 10 µsec/div DC range 1 : 1 probe 0V Point D (Pin 1 of CB202) V : 10V/div H : 10 µsec/div DC range 1 : 1 probe 0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW800 IC11A IC11B IC7A AUTO STANDBY SW3 AUTO POWER ON/OFF CIRCUIT VR3 VOLUME L.P.F. 6dB/oct B.P.F Q33—36 L.P.F. 12dB/oct 3 6 1 5 7 6 8 IC7B IC3 Q26, 27 4 2 D36 D40 D43 D39 Q37 2 HIGH CUT VR2 PROTECTION H/L OFF PWR R162 C84 TIMER IC5 MUSIC SENSOR IC4 8 4 6 3 7 Q41 PWR REGULATOR IC202 Q201 L R + – – + INPUT 1 L R INPUT 2 L R + – – + OUTPUT IC6A 4 3 2 SW2 PHASE SELECT IC6B L.P.F. 12dB/oct 6 8 BASS SELECT SW4 + – PRE DRIVE Q5—12 POWER DRIVE Q39, 3A/C Q16—19 A.N.I.C LIMITER RY3 IC1, 2 Q32 D32, 33, 35 Q28—31 D28—31 0.1 SPEAKER Q1C, 2C, 4A Q20, 22, 24, 40 Q1A, 2A, 4C Q15, 21, 23, 25 –B +B H.P.F. 12dB/oct + + +12 –12 REGULATOR POWER SUPPLY IC8 IC9 POWER SW201 +B –B POWER SUPPLY STANDBY/ON SW1 SUB POWER SUPPLY D203 RY201 T201 + D48 D47 D49 D50 F201 L201 SWITCHING POWER SUPPLY Q202—207 D201, 202 D205—209 T202 16 15 14 13 12 11 7 8 5 4 2 1 6 3 See page 15 See page 14 I BLOCK DIAGRAM 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 I J K 7 8 YST-SW800 I SCHEMATIC DIAGRAM VO1 2 –Vm1 3 +Vm1 4 VEE 5 +Vm2 6 –Vm2 7 VO2 8 VCC 9 VCC 1 1 – + – + 2 IC1, 2, 4, 6, 7 : µPC4570HA Dual OP-Amp IC5 : M51848L CR Timer * All voltage are measured with a 10MΩ/V DC electric volt meter. * Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. * Schematic diagram is subject to change without notice. 2SK304 (E) NJM4558L µPC1237HA M51848L µPC4570HA 1 9 1SS133 S2L20U EL02Z 1SR139-400 MTZJ2.0B MTZJ12.0B MTZJ24.0B Anode Cathode B C E 2SA970 (GR, BL) 2SA1015 (O, Y) 2SA1689 (E, F) 2SC1815 (Y, GR) 2SC2240 (GR, BL) 2SC4449 (E, F) 2SC2878 (A, B) D G S PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. 14 L.P.F. L.P.F. L.P.F. H.P.F. B.P.F. LIMITER PRE DRIVE POWER DRIVE PROTECTION POWER SUPPLY A.N.I.C AUTO POWER ON/OFF CIRCUIT 0 0 0 11.8 8.6 -4.4 11.8 7.9 8.5 0 0 4.1 0 0 0.7 0 0 0 -12.0 0 0 0 -12.0 0 0 0 11.8 0 0 1.8 0 0 0.6 7.8 7.2 0 0 0 -12.0 0 0 0 11.8 0 3.9 7.8 0 3.9 6.9 0 0 7.5 0 1.4 6.5 7.8 5.2 7.7 7.7 7.8 6.5 5.9 0 0 0 11.8 0 0 -0.3 -0.3 -12.0 -0.4 0 0 0 -12.0 0 0 0 0 11.8 0 0 -1.5 0 0 0 0.2 -0.1 -0.3 0.2 -12.0 11.8 0 0 0 0 0 0 -112 -111 -111 -111 -112 -111 -111 -110 -3.4 -111 -111 -111 0.2 0.2 0.7 0.7 110 112 112 111 110 110 111 3.4 -2.6 -3.4 3.4 3.4 2.9 6.0 112 111 5.5 2.9 5.5 2.3 2.3 0.1 2.3 4.7 2.3 111 111 111 110 110 111 111 111 4.7 4.7 111 0 0 111 0.1 0.1 0 -4.3 -4.9 -2.0 -0.1 -2.1 -2.1 -111 -5.2 -2.7 -2.7 -5.8 -111 -3.2 -111 -110 -110 -111 -111 -111 -110 -111 -4.3 -4.3 -4.3 -111 3.1 2.1 0.8 0 2.0 0 0 6.6 6.0 0.8 11.8 6.0 IDLING CURRENT ADJ. DC 50mV to 250mV A B 0.7 -110 0 0 0.1 2.9 111 5.1 5.1 5.1 111 4.7 4.7 110 0.1 110 4.7 4.7 4.7 4.7 111 4.7 4.7 4.7 0 111 -2.7 -4.9 -5.2 -4.9 -110 -110 -4.3 -4.3 -4.3 -4.3 -4.3 0 0.1 -4.3 0 -4.3 -111 112 -0.8 -1.5 -0.8 -1.5 112 -111 0 15.3 0 15.3 11.8 0 -12.0 -15.3 0 0 -15.3 0 CIRCUIT CHANGES BY MARKET. X : NOT USED RE WH BCE 2SA1837 2SC4793 1 8 IC11 : NJM4558L Dual OP-Amp –IN1 2 +IN1 3 –VCC 4 +IN2 5 –IN2 6 OUT2 7 +VCC 8 OUT1 1 – + – + IC3 : µPC1237HA Protector IC for Power Amplifier 1 2 5 3 4 7 8 6 Overload detect Mid-point potential detect Flip flop circuit Vcc on mute AC OFF detect Latch / automatic return select Relay drive circuit GND Vcc GND 6 4 1 2 3 TRIGGER OUT RESET REFERENCE VOLTAGE THRESHOLD DISCHARGE VCC 7 8 + – FLIP- FLOP + – 5 R R R 2SC1846S E C B 2SK237B 2SJ406 NJM78M12FA NJM79M12FA 1: OUTPUT 2: COMMON 3: INPUT 3 2 1 1:COMMON 2:INPUT 3:OUTPUT 3 2 1 G DS FMU-12R FMU-34R FMU-12S FMU-34S Point A (Cathode of D27) V : 50V/div H : 2 msec/div DC range 1 : 1 probe 0V Point B (Anode of D24) V : 50V/div H : 2 msec/div DC range 1 : 1 probe 0V 1 3 2 1:Cathode 2:Anode 3:Cathode 3 2 1 1 3 2 1:Anode 2:Cathode 3:Anode 3 2 1 SAME PAGE D-3 SAME PAGE E-7 P15 I-2 P15 I-4 P15 I-5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 I J K L 7 8 YST-SW800 I SCHEMATIC DIAGRAM * All voltage are measured with a 10MΩ/V DC electric volt meter. * Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. * Schematic diagram is subject to change without notice. 1SS133 1SR139-400 Anode Cathode B C E 2SC2240 (GR, BL) 2SD400 (F) RBV-606 2SC4140 PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. + – BCE 2SC4163 S1NB20 + – 1 2 3 1:OUTPUT 2:COMMON 3:INPUT NJM78L08A BC E -1.3 -1.3 -1.4 -1.4 -1.4 -1.3 -1.5 -1.5 -1.3 8.8 -1.3 0.1 8.8 8.8 0.4 9.3 9.3 0.4 9.4 9.4 10.2 10.2 9.3 -18.1 10.2 -0.5 -0.5 -0.5 -1.5 0.4 -0.6 -0.5 -0.5 -0.5 5.9 6.0 0 12.1 11.9 11.9 7.8 0 1.2 0 0.7 1.2 C D AC 12.8V CIRCUIT CHANGES BY MARKET. X : NOT USED O : USED TM1661S-L Point C (Pin 1 of CB201) V : 50V/div H : 10 µsec/div DC range 1 : 1 probe 0V Point D (Pin 1 of CB202) V : 10V/div H : 10 µsec/div DC range 1 : 1 probe 0V T1 T2 G T1 T2 G 15 P14 D-6 P14 H-6 P14 I-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 16 ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS : C.A.EL.CHP : CHIP ALUMI. ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR, BASE PIN CN.CANNON : CONNECTOR, CANNON CN.DIN : CONNECTOR, DIN CN.FLAT : CONNECTOR, FLAT CABLE CN.POST : CONNECTOR, BASE POST COIL.MX.AM : COIL, AM MIX COIL.AT.FM : COIL, FM ANTENNA COIL.DT.FM : COIL, FM DETECT COIL.MX.FM : COIL, FM MIX COIL.OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER ,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER, TEST POINT L.DTCT : LIGHT DETECTING MODULE Note) Those parts marked with “#” are not included in the P.C.B. ass'y. L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED, INFRARED MODUL.RF : MODULATOR, RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN, TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR : CARBON RESISTOR R.CAR.CHP : CHIP RESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.WW : WIRE WOUND RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW, TRANSISTOR SUPRT.PCB : SUPPORT, P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKER TERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWER TRANSFORMER ASS’y TUNER.AM : TUNER PACK, AM TUNER.FM : TUNER PACK, FM TUNER.PK : FRONT-END TUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDE POTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER I ELECTRICAL PARTS PARTS LIST I WARNING Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. G Carbon resistors (1/6W or 1/4W) are not included in the ELECTRICAL PARTS List. For the part Nos. of the carbon resistors refer to the last page. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 Schm Ref. PART NO. Description New Parts * Schm Ref. PART NO. Description New Parts * 17 P.C.B. MAIN * V5890800 P. C. B. MAI N( UCA) * V5890900 P. C. B. MAI N( BG) CB1 VB858600 CN. BS. PI N 7P CB3 VB858700 CN. BS. PI N 8P CB4 VB858300 CN. BS. PI N 4P CB9 VB858700 CN. BS. PI N 8P CB10 VL844700 CN. BS. PI N 3P CB11 VB390100 CN. BS. PI N 5P CB12 VB389800 CN. BS. PI N 2P * C1 VT721000 C. EL 100uF 16V C2 UA653100 C. MYLAR 1000pF 50V C3 V5877800 C. EL 47uF 160V C4 V5877800 C. EL 47uF 160V C5 UA654270 C. MYLAR 0. 027uF 50V C6 UA654100 C. MYLAR 0. 01uF 50V C7 UA654100 C. MYLAR 0. 01uF 50V C8 VT720600 C. EL 10uF 16V C9 VT727900 C. EL 47uF 100V C10 VT727900 C. EL 47uF 100V C11 VK534000 C. PP 220pF 200V C12 VK534000 C. PP 220pF 200V C13 UA655220 C. MYLAR 0. 22uF 50V C14 UA655220 C. MYLAR 0. 22uF 50V C15 UA654100 C. MYLAR 0. 01uF 50V C16 UA654100 C. MYLAR 0. 01uF 50V C17 V5058000 C. MYLAR 4. 7uF 250V C18 V5058000 C. MYLAR 4. 7uF 250V C19 V5058000 C. MYLAR 4. 7uF 250V C20 V5058000 C. MYLAR 4. 7uF 250V C21 UA654220 C. MYLAR 0. 022uF 50V C22 UA654220 C. MYLAR 0. 022uF 50V C23 UA652120 C. MYLAR 120pF 50V C24 UA652120 C. MYLAR 120pF 50V C27 V5877900 C. EL 100uF 160V C28 V5877900 C. EL 100uF 160V C29 UA655100 C. MYLAR 0. 1uF 50V * C30 VT720900 C. EL 47uF 16V * C31 VT720900 C. EL 47uF 16V C32 UA655470 C. MYLAR 0. 47uF 50V * C33 VT720600 C. EL 10uF 16V * C34 VT719700 C. EL 100uF 10V * C35 VT719800 C. EL 220uF 10V C36 UA655100 C. MYLAR 0. 1uF 50V C37 UA654100 C. MYLAR 0. 01uF 50V C38 UA654220 C. MYLAR 0. 022uF 50V C39 UA654100 C. MYLAR 0. 01uF 50V C40 UA654100 C. MYLAR 0. 01uF 50V C42 V5872500 C. EL 470uF 160V C43 V5872500 C. EL 470uF 160V C44 VT724900 C. EL 10uF 50V C45 VT722300 C. EL 100uF 25V * C46 VT720600 C. EL 10uF 16V * C47 VT722300 C. EL 100uF 25V C50 FG644100 C. CE 0. 01uF 50V C51 UA654470 C. MYLAR 0. 047uF 50V C52 UA654470 C. MYLAR 0. 047uF 50V * C53 VT720600 C. EL 10uF 16V C54 UA655470 C. MYLAR 0. 47uF 50V * C56 VT720600 C. EL 10uF 16V C57 FG644100 C. CE 0. 01uF 50V C58 FG613100 C. CE 1000pF 50V * C59 VT724500 C. EL 1uF 50V C60 UA654680 C. MYLAR 0. 068uF 50V C61 UA655820 C. MYLAR 0. 82uF 50V C62 UA655220 C. MYLAR 0. 22uF 50V C63 UA655220 C. MYLAR 0. 22uF 50V C64 UA655220 C. MYLAR 0. 22uF 50V * C65 VT724900 C. EL 10uF 50V C66 VT724900 C. EL 10uF 50V C67 FG612220 C. CE 220pF 50V * C68 VT724800 C. EL 4. 7uF 50V C69 UA654390 C. MYLAR 0. 039uF 50V * C70 VT720600 C. EL 10uF 16V C71 FG612220 C. CE 220pF 50V * C72 VT721100 C. EL 220uF 25V * C73 VT721100 C. EL 220uF 25V * C75 VT720600 C. EL 10uF 16V C76 UA654820 C. MYLAR 0. 082uF 50V C77 UA654390 C. MYLAR 0. 039uF 50V * C78 VT719600 C. EL 47uF 10V C79 VA777700 C. CE 220pF 50V( BG) C80 VA761000 C. CE 22pF 50V( BG) C81 UA655390 C. MYLAR 0. 39uF 50V C82 UA655220 C. MYLAR 0. 22uF 50V C83 FG644100 C. CE 0. 01uF 50V * C84 VT721200 C. EL 330uF 16V * C85 VT721100 C. EL 220uF 25V C86 UA654220 C. MYLAR 0. 022uF 50V D1 i F004600 DI ODE 1SS133 D2 i F004600 DI ODE 1SS133 D3 i F004600 DI ODE 1SS133 D4 VG435100 DI ODE. ZENR MTZJ 2. 0B 2. 0V D5 VG435100 DI ODE. ZENR MTZJ 2. 0B 2. 0V D6 VU264100 DI ODE 1SR139- 400 D7 VU264100 DI ODE 1SR139- 400 D8 VU264100 DI ODE 1SR139- 400 D9 VU264100 DI ODE 1SR139- 400 D10 VU264100 DI ODE 1SR139- 400 D11 VU264100 DI ODE 1SR139- 400 D12 VU264100 DI ODE 1SR139- 400 D13 VU264100 DI ODE 1SR139- 400 * D14 V6591600 DI ODE EL02Z * D15 V6591600 DI ODE EL02Z * D17 V6591600 DI ODE EL02Z D18 i F004600 DI ODE 1SS133 D19 i F004600 DI ODE 1SS133 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 Schm Ref. PART NO. Description New Parts * Schm Ref. PART NO. Description New Parts * 18 P.C.B. MAIN D20 VU264100 DI ODE 1SR139- 400 D21 VU264100 DI ODE 1SR139- 400 D22 VU264100 DI ODE 1SR139- 400 D23 VU264100 DI ODE 1SR139- 400 D24 VP779200 DI ODE S2L20U D25 VP779200 DI ODE S2L20U D26 VP779200 DI ODE S2L20U D27 VP779200 DI ODE S2L20U D28 i F004600 DI ODE 1SS133 D29 i F004600 DI ODE 1SS133 D30 i F004600 DI ODE 1SS133 D31 i F004600 DI ODE 1SS133 D32 i F004600 DI ODE 1SS133 D33 i F004600 DI ODE 1SS133 D34 VG440200 DI ODE. ZENR MTZJ 12B 12V D35 i F004600 DI ODE 1SS133 D36 i F004600 DI ODE 1SS133 * D39 VS079300 LED SPR- 39MVW D40 i F004600 DI ODE 1SS133 D43 i F004600 DI ODE 1SS133 * D44 V6591600 DI ODE EL02Z Z D47 V5877300 DI ODE FMU- 34S Z D48 V5877400 DI ODE FMU- 34R Z* D49 VN399400 DI ODE FMU- 12R 5A 200V Z* D50 VN399300 DI ODE FMU- 12S 5A 200V I C1 XB247A00 I C uPC4570HA I C2 XB247A00 I C uPC4570HA I C3 XF663A00 I C uPC1237HA I C4 XB247A00 I C uPC4570HA I C5 XP741A00 I C M51848L I C6 XB247A00 I C uPC4570HA I C7 XB247A00 I C uPC4570HA I C8 XJ 602A00 I C NJ M78M12FA I C9 XD343A00 I C NJ M79M12FA I C11 XM922A00 I C NJ M4558L L1 V5058100 COI L 120uH L2 V5058100 COI L 120uH L3 V5058100 COI L 120uH L4 V5058100 COI L 120uH L5 VU038200 COI L 0. 95uH PJ 1 V6415800 J ACK. PI N 2P RJ - 1060- 01- 0500 Q1 VQ116600 TR. PAI R 2SA1837/C4793 O, Y Q2 VQ116600 TR. PAI R 2SA1837/C4793 O, Y Q3 VQ116600 TR. PAI R 2SA1837/C4793 O, Y Q4 VQ116600 TR. PAI R 2SA1837/C4793 O, Y Q5 i A097030 TR 2SA970 GR, BL Q6 i C1815M0 TR 2SC1815 Y, GR Q7 i C1815M0 TR 2SC1815 Y, GR Q8 i A097030 TR 2SA970 GR, BL Q9 i A097030 TR 2SA970 GR, BL Q10 i A101590 TR 2SA1015 O, Y Q11 V5876800 TR 2SA1689 E, F Q12 V5876900 TR 2SC4449 E, F Q15 V5876800 TR 2SA1689 E, F # Q16 V5877200 FET 2SK2378 # Q17 V5877000 FET 2SJ 406 # Q18 V5877200 FET 2SK2378 # Q19 V5877000 FET 2SJ 406 Q20 i A097030 TR 2SA970 GR, BL Q21 i C224030 TR 2SC2240 GR, BL # Q22 V5877200 FET 2SK2378 # Q23 V5877000 FET 2SJ 406 # Q24 V5877200 FET 2SK2378 # Q25 V5877000 FET 2SJ 406 Q26 V5876900 TR 2SC4449 E, F Q27 V5876800 TR 2SA1689 E, F Q28 i A097030 TR 2SA970 GR, BL Q29 i A101590 TR 2SA1015 O, Y Q30 i C1815M0 TR 2SC1815 Y, GR Q31 i C224030 TR 2SC2240 GR, BL Q32 V3028000 FET 2SK304 E Q33 i A097030 TR 2SA970 GR, BL Q34 i A097030 TR 2SA970 GR, BL Q35 i C287820 TR 2SC2878 A, B Q36 i C287820 TR 2SC2878 A, B Q37 i C224030 TR 2SC2240 GR, BL # Q39 VC398100 TR 2SC1846 S Q40 V5876900 TR 2SC4449 E, F Q41 i C224030 TR 2SC2240 GR, BL R1 VF459100 R. MTL. FLM 2. 2KΩ 1/4W R3 HV755220 R. CAR. FP 220Ω 1/4W R4 HV755560 R. CAR. FP 560Ω 1/4W R5 HV755220 R. CAR. FP 220Ω 1/4W R6 HV754330 R. CAR. FP 33Ω 1/4W R9 VH009600 R. MTL. FLM 100KΩ 1/4W R10 HV755270 R. CAR. FP 270Ω 1/4W R11 HV755330 R. CAR. FP 330Ω 1/4W R12 HV755100 R. CAR. FP 100Ω 1/4W R13 HV755100 R. CAR. FP 100Ω 1/4W R14 HV756330 R. CAR. FP 3. 3KΩ 1/4W R15 HV755270 R. CAR. FP 270Ω 1/4W R20 HV756470 R. CAR. FP 4. 7KΩ 1/4W R23 HV754100 R. CAR. FP 10Ω 1/4W R24 HV754100 R. CAR. FP 10Ω 1/4W R25 HV754100 R. CAR. FP 10Ω 1/4W R26 HV754100 R. CAR. FP 10Ω 1/4W R27 HV755820 R. CAR. FP 820Ω 1/4W R28 HV755820 R. CAR. FP 820Ω 1/4W R29 HV754150 R. CAR. FP 15Ω 1/4W R30 V5875400 R. WW 0. 1Ω 5W R31 V5875400 R. WW 0. 1Ω 5W R32 HV754150 R. CAR. FP 15Ω 1/4W R33 HV755820 R. CAR. FP 820Ω 1/4W R34 HV755820 R. CAR. FP 820Ω 1/4W R35 V5875400 R. WW 0. 1Ω 5W R36 V5875400 R. WW 0. 1Ω 5W Note) Those parts marked with “#” are not included in the P.C.B. ass'y. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 Schm Ref. PART NO. Description New Parts * Schm Ref. PART NO. Description New Parts * 19 P.C.B. MAIN & POWER R37 HL223100 R. MTL. OXD 1Ω 2W R38 HL223100 R. MTL. OXD 1Ω 2W R39 HL223100 R. MTL. OXD 1Ω 2W R40 HL223100 R. MTL. OXD 1Ω 2W R41 HV754220 R. CAR. FP 22Ω 1/4W R42 HV754220 R. CAR. FP 22Ω 1/4W R47 HV754100 R. CAR. FP 10Ω 1/4W R54 HV756390 R. CAR. FP 3. 9KΩ 1/4W R55 HV755470 R. CAR. FP 470Ω 1/4W R56 HV755470 R. CAR. FP 470Ω 1/4W R57 HV754100 R. CAR. FP 10Ω 1/4W R58 HV754100 R. CAR. FP 10Ω 1/4W R59 HV754100 R. CAR. FP 10Ω 1/4W R60 HV754100 R. CAR. FP 10Ω 1/4W R61 HV755820 R. CAR. FP 820Ω 1/4W R63 HV755100 R. CAR. FP 100Ω 1/4W R64 HV755100 R. CAR. FP 100Ω 1/4W R65 HV756120 R. CAR. FP 1. 2KΩ 1/4W R71 HV754680 R. CAR. FP 68Ω 1/4W R73 HV755820 R. CAR. FP 820Ω 1/4W R74 HV755820 R. CAR. FP 820Ω 1/4W R75 HV755820 R. CAR. FP 820Ω 1/4W R81 VH007200 R. MTL. FLM 10KΩ 1/4W R82 VH007900 R. MTL. FLM 20KΩ 1/4W R83 VH007200 R. MTL. FLM 10KΩ 1/4W R84 VH007200 R. MTL. FLM 10KΩ 1/4W * R85 HL215150 R. MTL. OXD 150Ω 1W R97 V6146800 R. WW 0. 22Ω +0. 22Ω R98 HV753100 R. CAR. FP 1Ω 1/4W R99 HV753100 R. CAR. FP 1Ω 1/4W R105 HV756220 R. CAR. FP 2. 2KΩ 1/4W R106 HV756220 R. CAR. FP 2. 2KΩ 1/4W R110 HV756470 R. CAR. FP 4. 7KΩ 1/4W R111 HV756470 R. CAR. FP 4. 7KΩ 1/4W R131 HV755470 R. CAR. FP 470Ω 1/4W R132 HV755470 R. CAR. FP 470Ω 1/4W R163 HV755100 R. CAR. FP 100Ω 1/4W R164 HV755100 R. CAR. FP 100Ω 1/4W R171 HV753470 R. CAR. FP 4. 7Ω 1/4W Z RY3 V5876700 RELAY DC SDT- S- 112DMR ST1 BB071360 SCR. TERM 8. 3x13 SW1 VS066500 SW. PUSH SPPH13- W SW2 V5178000 SW. SLI DE SSSF12- P06NO SW3 V5178100 SW. SLI DE SSSU123- S09NO SW4 V5178000 SW. SLI DE SSSF12- P06NO TE3 V4811400 TERM. SP 8P( BG) TE3 VV003100 TERM. SP 8P( UCA) TP1 VT969000 PI N. TEST I RS- 2049 TP2 VT969000 PI N. TEST I RS- 2049 VR1 VJ 692800 VR. TRI M B470Ω VR2 VV954800 VR 10KΩ VR3 VV954700 VR A5KΩ BB070700 GND. MTL VN774800 GND. WSHR MEP1866 #11102 * V6667500 HEAT. SI NK OSH- 1035- WPL EG330050 SCR. BND. HD 3x8 FCRM3- BL * V5890500 P. C. B. POWER( UC) * V5890600 P. C. B. POWER( A) * V5890700 P. C. B. POWER( BG) CB201 LB932040 CN. BS. PI N 4P CB202 LB932030 CN. BS. PI N 3P * CB203 V6577400 HOLDER. FUS FUC- 04( UC) CB203 VT658200 HOLDER. FUS PC- FH1( ABG) * CB204 V6577400 HOLDER. FUS FUC- 04( UC) CB204 VT658200 HOLDER. FUS PC- FH1( ABG) CB205 VB389900 CN. BS. PI N 3P C201 V5877600 C. MYLAR 0. 47uF 250V( UC) C201 V5900200 C. MYLAR 1uF 250V( ABG) * C202 VY675100 C. CE. SAFTY 4700pF 250V( ABG) * C203 VY675100 C. CE. SAFTY 4700pF 250V( ABG) C204 V6146600 C. CE. SAFTY 2200pF 250V C205 V6146600 C. CE. SAFTY 2200pF 250V C206 V5877600 C. MYLAR 0. 47uF 250V( ABG) C206 V5877700 C. MYLAR 0. 22uF 250V( UC) C207 VS741700 C. CE. SAFTY 0. 01uF 275V * C208 VT721100 C. EL 220uF 25V * C209 V5873400 C. EL 1800uF 200V( UC) * C209 V5873800 C. EL 1200uF 250V( ABG) * C210 V5873400 C. EL 1800uF 200V( UC) * C210 V5873800 C. EL 1200uF 250V( ABG) * C211 VT722700 C. EL 1000uF 25V C212 VT718300 C. EL 100uF 6. 3V C213 VT718300 C. EL 100uF 6. 3V C214 V5878200 C. PP 1500pF 630V C215 V5878200 C. PP 1500pF 630V * C216 V5900300 C. MYLAR 2. 2uF 250V * C217 VT720600 C. EL 10uF 16V C218 UA654270 C. MYLAR 0. 027uF 50V C219 UA654270 C. MYLAR 0. 027uF 50V C220 UA655150 C. MYLAR 0. 15uF 50V C221 UA655150 C. MYLAR 0. 15uF 50V Z D201 VN932100 DI ODE RBV- 606 D202 VU264100 DI ODE 1SR139- 400 Z D203 VR253700 DI ODE. BRG S1NB20 1. 0A 200V D204 i F004600 DI ODE 1SS133 * D205 VN774600 THYRI STOR TM1661S- L 16. 00A D206 VU264100 DI ODE 1SR139- 400 D207 VU264100 DI ODE 1SR139- 400 D208 VU264100 DI ODE 1SR139- 400 D209 VU264100 DI ODE 1SR139- 400 Z F201 KB001540 FUSE 12A 250V( UC) Z F201 KB001890 FUSE T6. 3A 250V( ABG) I C202 i G160100 I C NJ M78L08A 8V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 20 Schm Ref. PART NO. Description New Parts * Schm Ref. PART NO. Description New Parts * P.C.B. POWER * L201 VN398100 COI L 2x44mH( ABG) * L201 VP234300 COI L 2x8. 2mH( UC) Q201 i C224030 TR 2SC2240 GR, BL Q202 VT574100 TR 2SC4140 Q203 VT574100 TR 2SC4140 Q204 V6018400 TR 2SC4163 Q205 V6018400 TR 2SC4163 Q206 VD493300 TR 2SD400 F Q207 VD493300 TR 2SD400 F R201 V6146900 R. WW 6. 8Ω 7W R202 HV756100 R. CAR. FP 1KΩ 1/4W R203 HV754220 R. CAR. FP 22Ω 1/4W R204 HV754220 R. CAR. FP 22Ω 1/4W R205 HV758220 R. CAR. FP 220KΩ 1/4W R206 HV758220 R. CAR. FP 220KΩ 1/4W R207 HV753220 R. CAR. FP 2. 2Ω 1/4W R214 HL217680 R. MTL. OXD 68KΩ 1W R215 HL217680 R. MTL. OXD 68KΩ 1W R216 HL223100 R. MTL. OXD 1Ω 2W R217 HL223100 R. MTL. OXD 1Ω 2W R218 HV753680 R. CAR. FP 6. 8Ω 1/4W R219 HV753680 R. CAR. FP 6. 8Ω 1/4W R220 HV753100 R. CAR. FP 1Ω 　 1/4W R221 HV753100 R. CAR. FP 1Ω 　 1/4W R222 HV753100 R. CAR. FP 1Ω 　 1/4W R223 HV753100 R. CAR. FP 1Ω 　 1/4W Z RY201 V5876700 RELAY DC SDT- S- 112DMR Z* T201 XV443A00 TRANS. PWR ( UC) Z* T201 XV445A00 TRANS. PWR ( ABG) Z* T202 XY913A00 TRANS. PWR ( UC) Z* T202 XY914A00 TRANS. PWR ( A) Z* T202 XY915A00 TRANS. PWR ( BG) TE201 VT658100 TERM. WRAP 352- TX119 TE202 VT658100 TERM. WRAP 352- TX119 TP201 VT969000 PI N. TEST I RS- 2049 TP202 VT969000 PI N. TEST I RS- 2049 * VR201 VJ 692700 VR. TRI M B330Ω VK195900 SHEET 19x24 VK173200 SCR. TR 3x15 SP FCM3 EP600830 SCR. BND. HD 3x8 FCRM3- BL VN774800 GND. WSHR MEP1866 #11102 V5901400 HEAT. SI NK OSV15100 V6093700 HEAT. SI NK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW800 21 I EXPLODED VIEW 34 34 34 26 33 33 27 1 21 31 28 31 31 27 27 35 32 32 35 35 2 35 27 5-1-11 5-1-4 5-1-6 5-1-12 5-1-12 5-1-5 5-1-7 5-1-12 11-1 11-2 11-10 11-10 12-10 1-12 1-12 1-12 1-12 1-12 5-24 5-11 5-31 5-31 5-31 5-17 5-35 5-37 5-33 5-33 5-17 5-16 5-34 5-34 5-31 5-34 5-34 5-23 5-2 5-34 5-9 4-5 4-7 4-8 4-6 5-31 4-15 4-15 5-22 5-21 5-34 5-15 5-20 5-31 5-17 5-2 5-31 5-37 5-19 5-14 5-8 5-6 1-7 1-8 1-12 12-10 12-1 12-1 12-1 12-10 12-10 12-1 1-11 11-10 (2) 5-1-1 (3) 5-1-1 (2) 5-1-1 (1) (1) 5-1-1 (4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 I MECHANICAL PARTS Ref. No. PART NO. Description Remarks Markets New Parts * 22 * 1 V5890000 CABINET ASS' Y BL * 1 V5890100 CABINET ASS' Y CH * 1- 7 V5859600 FRONT COVER * 1- 8 V5859700 GASKET 1- 11 CB070450 BINDING TIE L=100 1- 12 V5195800 FLANGE NUT B M6X15. 5 MFZN2 * 2 XY919A00 LOUD SPEAKER 25cm 6Ω * 4- 5 V5881900 FRONT PANEL 4- 6 V5860800 SHIELD SHEET * 4- 7 V5860900 SWITCH KNOB * 4- 8 V5861200 VOLUME KNOB 4- 15 EP600280 BIND HEAD P- TITE SCREW 3x8 ZMC2- Y * 5- 1- 1 V5890800 P. C. B. ASS' Y MAIN ( UCA) * 5- 1- 1 V5890900 P. C. B. ASS' Y MAIN ( BG) * 5- 1- 4 V5901700 HEAT SINK # * 5- 1- 5 V5877200 FET 2SK2378 Q16, Q18, Q22, Q24 # * 5- 1- 6 V5877000 FET 2SJ 406 Q17, Q19, Q23, Q25 # 5- 1- 7 VC398100 TRANSISTOR 2SC1846 S Q39 5-1-11 VT669300 PW HEAD B- TITE SCREW 3x8- 8 MFC2 5-1-12 VK697600 BIND HEAD B- TITE SCREW 3x10 SP ZMC2- Y * 5- 2 V5890500 P. C. B. ASS' Y POWER ( UC) * 5- 2 V5890600 P. C. B. ASS' Y POWER ( A) * 5- 2 V5890700 P. C. B. ASS' Y POWER ( BG) Z 5- 6 V3756200 POWER CORD 10A SPT- 2 2. 1m ( UC) Z 5- 6 VE371200 POWER CORD 2. 5A 250V 2m ( G) Z 5- 6 VQ790000 POWER CORD 5A 2m ( B) Z 5- 6 VT666200 POWER CORD ASS' Y ( A) 5- 8 VT665900 CORD STOPPER SR- 4K- 4 5- 9 CB069250 BINDING TIE BK- 1 * 5- 11 V5899200 REAR PANEL ( UC) * 5- 11 V5899300 REAR PANEL ( A) * 5- 11 V5899400 REAR PANEL ( BG) Z 5- 14 V2217000 SWITCH, SEESAW J W 5- 15 V5195200 COVER * 5- 16 V5860000 GASKET * 5- 17 V5901500 GASKET * 5- 19 V5901600 HEAT SINK 20BS220- L145- K 5- 20 VS755300 BUSH, B * 5- 21 V5901800 SUPPORT/PCB- L * 5- 22 V5901900 SUPPORT/PCB- R * 5- 23 V5906600 SUPPORT ASS' Y, L * 5- 24 V5906700 SUPPORT B * 5- 31 Ei 330086 BIND HEAD B- TITE SCREW 3x8 FCRM3- BL * 5- 33 EX601360 BIND HEAD P- TITE SCREW 3x10 FCRM3- BL 5- 34 VT669300 PW HEAD B- TITE SCREW 3x8- 8 MFC2 * 5- 35 EX601890 BIND HEAD BONDING SCREW 3x6 FCRM3- BL 5- 37 EP640170 SEMS BIND HEAD P- TITE SCREW 4x12 MFC2- BL * 11- 1 V5899500 BASE * 11- 2 V5836700 REFLECTOR * 11- 10 V5858900 FLAT HEAD TAPPING SCREW #1( + 4. 0x14 * 12- 1 V5859900 LEG 12- 10 03763040 FLANGE NUT D 6. 0X13 MFZN2Y 21 VS755300 BUSH, B Note) Those parts marked with “#” are not included in the P.C.B. ass'y. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 23 Ref. No. PART NO. Description Remarks Markets New Parts * 26 V2729700 EMBLEM A * 27 V5881600 SPACER * 28 V6512500 INSULATOR 31 EP040370 BINDING HEAD TAPPING SCREW 4x30 MFC2- BL * 32 V5901000 BIND HEAD TAPPING SCREW 4x35 MFC2BL * 33 V6018100 HEXAGON SOCKET TAPPING SCREW 4x16 MFCR33 34 VB131900 BIND HEAD SCREW 6x25 MFZN2- BL * 35 V5861300 BIND HEAD SCREW 6x50 ACCESSORIES * 203 V6626800 PAD 1pc. 203 X 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Parts List for Carbon Resistors 1/6W Type Part No. HF45 7100 HF45 7110 HF85 7120 HF45 7130 HF45 7150 HF45 7180 HF45 7220 HF45 7240 HF85 7270 HF45 7300 HF45 7330 HF45 7360 HF45 7390 HF45 7470 HF45 7510 HF45 7560 HF45 7620 HF45 7680 HF45 7820 HF45 7910 HF45 8100 HF45 8110 HF45 8120 HF45 8150 HF45 8180 HF85 8220 HF45 8270 HF45 8300 HF45 8330 HF85 8390 HF45 8470 HF85 8560 HF85 8680 HF85 8820 HF45 9100 ❊ HF85 9150 HF85 9180 HF85 9220 HF85 9330 ❊ HF85 9470 1/4W Type Part No. HF45 7100 HF45 7110 HJ35 7120 HF45 7130 HF45 7150 HF45 7180 HF45 7220 HF45 7240 HJ35 7270 HF45 7300 HF45 7330 HF45 7360 HF45 7390 HF45 7470 HF45 7510 HF45 7560 HF45 7620 HF45 7680 HF45 7820 HF45 7910 HF45 8100 HF45 8110 HF45 8120 HF45 8150 HF45 8180 HJ35 8220 HF45 8270 HF45 8300 HF45 8330 HJ35 8390 HF45 8470 HJ35 8560 HJ35 8680 HJ35 8820 HF45 9100 HJ35 9120 HJ35 9150 HJ35 9180 HJ35 9220 HJ35 9330 HJ35 9390 HJ35 9470 Value 10 kΩ 11 kΩ 12 kΩ 13 kΩ 15 kΩ 18 kΩ 22 kΩ 24 kΩ 27 kΩ 30 kΩ 33 kΩ 36 kΩ 39 kΩ 47 kΩ 51 kΩ 56 kΩ 62 kΩ 68 kΩ 82 kΩ 91 kΩ 100 kΩ 110 kΩ 120 kΩ 150 kΩ 180 kΩ 220 kΩ 270 kΩ 300 kΩ 330 kΩ 390 kΩ 470 kΩ 560 kΩ 680 kΩ 820 kΩ 1.0 MΩ 1.2 MΩ 1.5 MΩ 1.8 MΩ 2.2 MΩ 3.3 MΩ 3.9 MΩ 4.7 MΩ 1/6W Type Part No. HF85 3100 ❊ HF85 3220 HF85 3330 HF85 3470 HF85 3560 HF45 4100 HF85 4150 HF45 4220 HF85 4270 HF45 4330 HF85 4390 HF45 4470 HF45 4560 HF45 4680 HF45 4750 HF45 4820 HF45 4910 HF45 5100 HF85 5110 HF45 5120 HF45 5150 ❊ HF45 5180 HF45 5200 HF45 5220 HF45 5270 HF45 5330 HF45 5390 HF45 5430 HF45 5470 HF45 5510 HF45 5560 HF45 5680 HF45 5820 HF45 5910 HF45 6100 HF45 6120 HF45 6150 HF45 6180 HF85 6200 HF45 6220 HF85 6240 HF45 6270 HF45 6300 HF45 6330 HF85 6360 HF45 6390 HF45 6470 HF45 6510 HF45 6560 HF45 6680 HF45 6820 HF45 6910 1/4W Type Part No. HJ35 3100 HJ35 3180 HJ35 3220 HJ35 3330 HJ35 3470 HJ35 3560 HF45 4100 HJ35 4150 HF45 4220 HJ35 4270 HF45 4330 HJ35 4470 HF45 4470 HF45 4560 HF45 4680 HF45 4750 HF45 4820 HF45 4910 HF45 5100 HJ35 5110 HF45 5120 HF45 5150 HJ35 5160 HF45 5180 HF45 5200 HF45 5220 HF45 5270 HF45 5330 HF45 5390 HF45 5430 HF45 5470 HF45 5510 HF45 5560 HF45 5680 HF45 5820 HF45 5910 HF45 6100 HF45 6120 HF45 6150 HF45 6180 HJ35 6200 HF45 6220 HJ35 6240 HF45 6270 HF45 6300 HF45 6330 HJ35 6360 HF45 6390 HF45 6470 HF45 6510 HF45 6560 HF45 6680 HF45 6820 HF45 6910 Value 1.0 Ω 1.8 Ω 2.2 Ω 3.3 Ω 4.7 Ω 5.6 Ω 10 Ω 15 Ω 22 Ω 27 Ω 33 Ω 39 Ω 47 Ω 56 Ω 68 Ω 75 Ω 82 Ω 91 Ω 100 Ω 110 Ω 120 Ω 150 Ω 160 Ω 180 Ω 200 Ω 220 Ω 270 Ω 330 Ω 390 Ω 430 Ω 470 Ω 510 Ω 560 Ω 680 Ω 820 Ω 910 Ω 1.0 kΩ 1.2 kΩ 1.5 kΩ 1.8 kΩ 2.0 kΩ 2.2 kΩ 2.4 kΩ 2.7 kΩ 3.0 kΩ 3.3 kΩ 3.6 kΩ 3.9 kΩ 4.7 kΩ 5.1 kΩ 5.6 kΩ 6.8 kΩ 8.2 kΩ 9.1 kΩ 1992 1/4W Type HF45 1/6W Type HF85 1/4W Type HJ35 10mm 5mm YST-SW800 YST-SW800 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW800 YST-SW800 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
