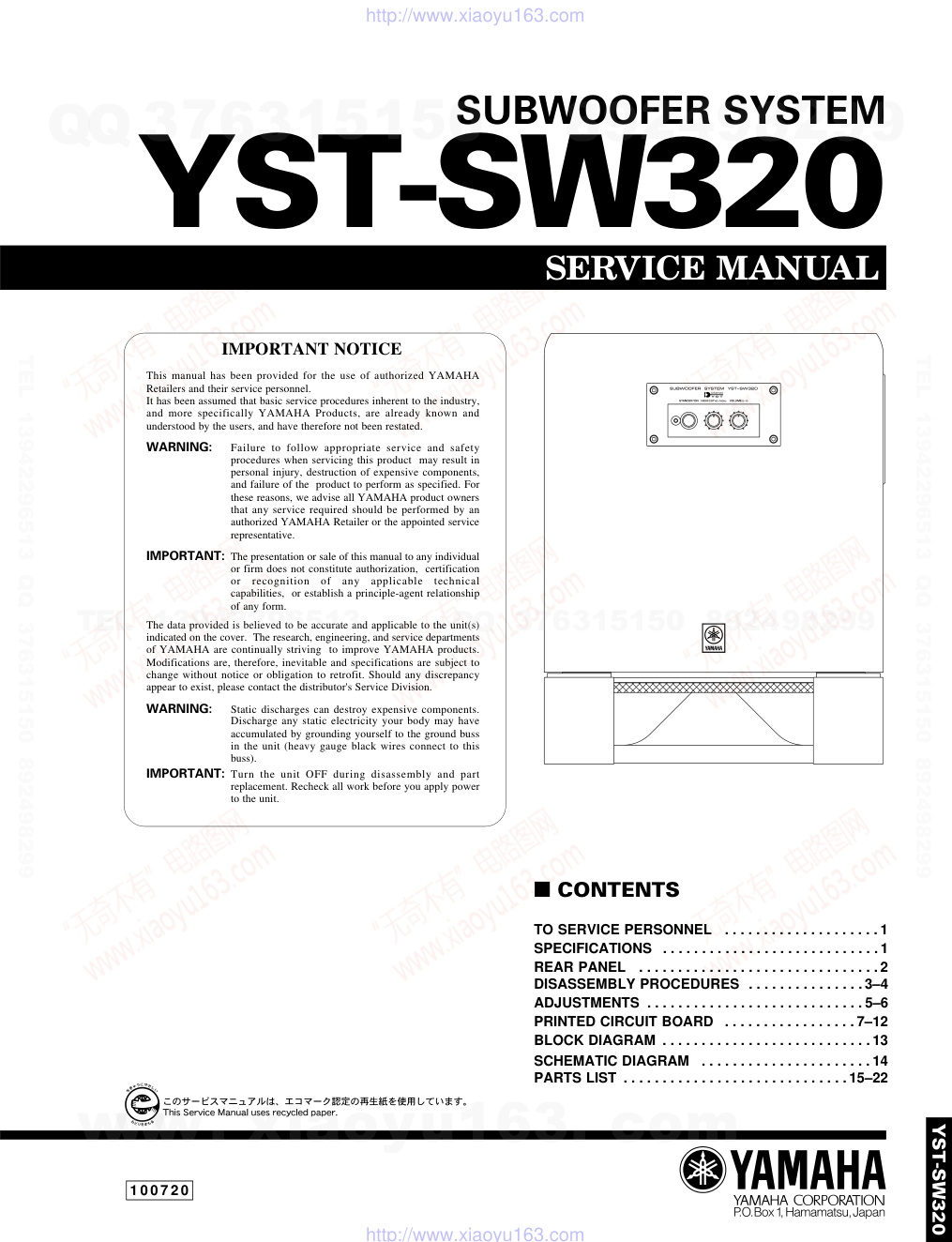

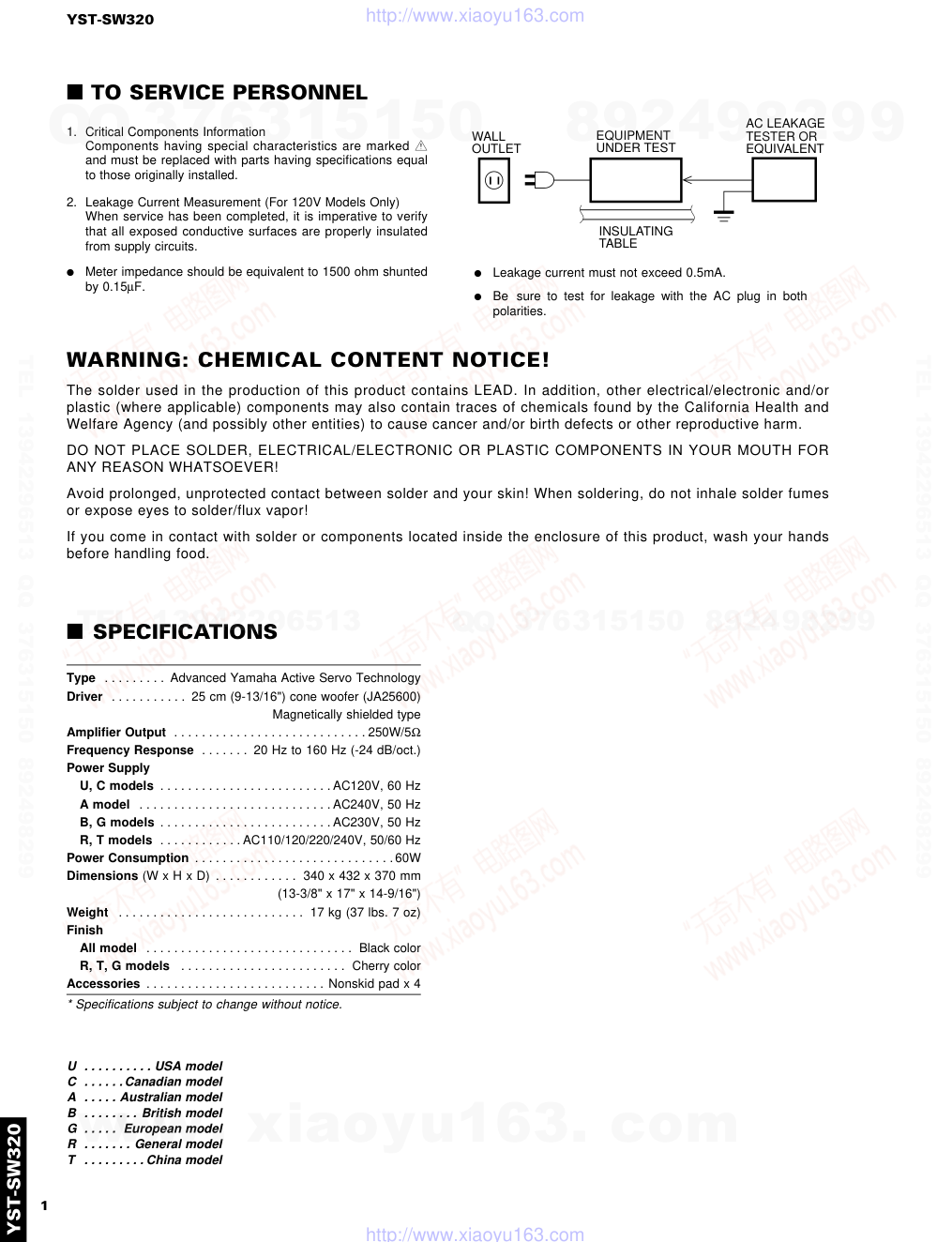

YST-SW320 YST-SW320 SERVICE MANUAL I CONTENTS TO SERVICE PERSONNEL . . . . . . . . . . . . . . . . . . . . 1 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 REAR PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 DISASSEMBLY PROCEDURES . . . . . . . . . . . . . . . 3–4 ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6 PRINTED CIRCUIT BOARD . . . . . . . . . . . . . . . . . 7–12 BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . 14 PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–22 This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. IMPORTANT NOTICE 1 0 0 7 2 0 SERVICE MANUAL YST-SW320 SUBWOOFER SYSTEM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 I TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. G Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. AC LEAKAGE TESTER OR EQUIVALENT EQUIPMENT UNDER TEST INSULATING TABLE WALL OUTLET WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. 1 G Leakage current must not exceed 0.5mA. G Be sure to test for leakage with the AC plug in both polarities. I SPECIFICATIONS Type . . . . . . . . . Advanced Yamaha Active Servo Technology Driver . . . . . . . . . . . 25 cm (9-13/16") cone woofer (JA25600) Magnetically shielded type Amplifier Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250W/5Ω Frequency Response . . . . . . . 20 Hz to 160 Hz (-24 dB/oct.) Power Supply U, C models . . . . . . . . . . . . . . . . . . . . . . . . . AC120V, 60 Hz A model . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC240V, 50 Hz B, G models . . . . . . . . . . . . . . . . . . . . . . . . . AC230V, 50 Hz R, T models . . . . . . . . . . . . AC110/120/220/240V, 50/60 Hz Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60W Dimensions (W x H x D) . . . . . . . . . . . . 340 x 432 x 370 mm (13-3/8" x 17" x 14-9/16") Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 kg (37 lbs. 7 oz) Finish All model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Black color R, T, G models . . . . . . . . . . . . . . . . . . . . . . . . Cherry color Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . Nonskid pad x 4 * Specifications subject to change without notice. U . . . . . . . . . . USA model C . . . . . . Canadian model A . . . . . Australian model B . . . . . . . . British model G . . . . . European model R . . . . . . . General model T . . . . . . . . . China model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 I REAR PANEL M U, C models M A model M B, G models M R model M T model 2 R, T models only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 I DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) 1. Removal of Front Panel Ass'y Remove 4 screws ( q ) and then remove the Front Panel Ass'y in Fig. 1. * Use an Allen wrench (3mm) to unscrew the Front Panel Ass'y. Fig. 2 Fig. 1 * When assembling the Rear Panel, check to ensure that the gasket is not damaged so as to prevent air leakage from occurring. Fig. 3 3 2. Removal of Loud Speaker a. Remove 8 screws ( w ) and then remove the Base Ass'y in Fig. 2. b. Remove 4 screws ( e ) and then remove the Loud Speaker in Fig. 2. 3. Removal of Rear Panel Ass'y Remove 12 screws ( r ) in Fig. 3. * Arrow marks ( ) are printed to identify the screws to be removed. G Installation of emblem 1. Put the emblem into the cabinet at the specified posi- tion. 2. Place a piece of cloth/wood on top of the emblem. 3. Using a mallet, hammer the emblem in place through the cloth/wood. * Use special care not to cause damage to the emblem or cabinet while hammering the emblem. q q Front Panel Ass'y Main (5) P.C.B. w w w w e e Loud Speaker Base Ass'y r r r Rear Panel Ass'y r www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 Glue List Place Name Cord stopper 5 minute epoxy or 2051(Revertex Finewaters SDN.BHD.) or VYLOK 917DH (National Starch & Chemical (M) SDM.BHD.) Power switch 5 minute epoxy or Diabond 1620B 4 370 (14-9/16") 22 8 340 (13-3/8") 432 (17") 340 (13-3/8") 340 (13-3/8") (5/16") (7/8") G Installation of power switch Rapid cures bond (such as 5 minute epoxy) is required to fix the power switch. As shown in Fig. A, apply rapid cures bond (such as 5 minute epoxy) to the power switch (the area which contacts the rear panel), insert it in the rear panel and make sure it is fixed. (Inserting the power switch in the rear panel only would not be sufficient for its secure installation.) G Precaution for installation of power cord After connecting the power cord, be sure to apply the rapid cures bond (such as 5 minute epoxy) to the cord stopper as shown in Fig. A, Bond application diagram (Fig. A) G Dimensions Units : mm (inch) Apply rapid cures bond Apply rapid cures bond www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 5 I ADJUSTMENTS G Idling Adjustment To stabilize operation of the amplifier, turn ON the power with no input signal and wait for 1 or 2 minutes in non loaded condition before the adjustment. Adjust VR1 so that the voltage between terminals TP11 and TP12 is DC 50mV to 250mV. Point A (Cathode of D29) V : 20V/div H : 2 msec/div DC range 1 : 1 probe 0V Point B (Anode of D30) V : 20V/div H : 2 msec/div DC range 1 : 1 probe 0V G Confirmation of Power Amp operation For the power amplifier which has been repaired, it is absolutely necessary to confirm that a correct waveform is obtained at points indicated by A and B in the schematic diagram according to the following procedure. Devices required Signal generator 8Ω or 6Ω load resistor Oscilloscope (dual trace type) Connection 1) Connect the output signal from the signal generator to the input terminal of YST-SW320. 2) Disconnect the connector terminal connected to the speaker unit and reconnect it to the load resistor. 3) Connect the HOT side of the oscilloscope CH1 probe to the point A or B indicated in the figure and the GND side to the GND of the main unit. 4) Connect the oscilloscope CH2 input to the red side of the connector cable, which is connected with the load resistor. At this time, the GND terminal of CH2 must be left unconnected. Setting 1) Set the signal generator to the sine wave, 100Hz and minimum output level settings. 2) Set the volume of YST-SW320 to the minimum position. 3) Turn on the power to YST-SW320. 4) Adjust the output level of the signal generator and the volume of YST-SW320 so that the output level observed at oscilloscope CH2 is 28Vp-p. Waveform observation With the settings made as described above, observe the waveform obtained at CH1 for judgment. Normal Normal Abnormal +B or GND level Becomes constant Abnormal -B or GND level Becomes constant G Confirmation of AUTO STANDBY Measuring Condition R60 = 1MΩ ➔1MΩ//10kΩ F = 100Hz Input Level = 4mV Load = Open Rating After 2 to 8 sec. STANDBY (LED become red) Don't STANDBY Remarks VOLUME: MAX HIGH CUT: MAX AUTO STANDBY: LOW VOLUME: MAX HIGH CUT: MAX AUTO STANDBY: HIGH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 6 IDLING CURRENT ADJ. DC 50mV to 250mV A B RE WH Main (1) P.C.B DC 50mV to 250mV TP11 (+) TP12 (-) VR1 D30 D29 Point A Point B G Schematic Diagram G Test Points www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW320 I PRINTED CIRCUIT BOARD (Foil side) 7 8 1 FROM : MAIN (2) RE WH W19 W20 TO : SPEAKER +V1 AYST DR– OUT DR+ –B1 E +B1 RE BL RE W7 W6 W5 TO : MAIN (6) FROM : MAIN (2) IDLING CURRENT ADJ. Q16C Q1C Q9 Q1A Q17C Q17A Q16A MAIN ( 1 ) P. C. B. A B DC 50mV to 250mV IDLING TEST POINT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW320 I PRINTED CIRCUIT BOARD (Foil side) 8 9 1 9 1 BE BL BE W16 W15 W14 TO : MAIN (6) TO : MAIN (1) DR+ OUT DR— AYST +V1 #17 W17 TO : MAIN (3) VCC VCC E E PWS +V1 #2 W2 FROM : MAIN (4) MA1 E TOVL +12 —12 LIM MA2 FROM : MAIN (5) TVOL E MAIN +V2 +12 —12 PWS VCC +B1 E —B1 #18 W18 TO : MAIN (1) MAIN ( 2 ) P. C. B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW320 I PRINTED CIRCUIT BOARD (Foil side) 9 8 9 1 1 MAIN ( 3 ) P. C. B. MAIN ( 7 ) P. C. B. FROM : MAIN (2) +V1 PWS E E VCC VCC FROM : MAIN (4) SWL SWH2 SWH1 SO G R, T models W11 GR W10 BR TO : VOLTAGE SELECTOR OR W12 GY W13 TO : MAIN (8) W9 BE GY BL OR WH BE RE W8 RE TO : POWER CORD TO : POWER TRANSFORMER TO : VOLTAGE SELECTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW320 I PRINTED CIRCUIT BOARD (Foil side) 10 8 1 9 1 MAIN ( 3 ) P. C. B. MAIN ( 7 ) P. C. B. OR W12 BE W9 WH W8 GY W13 TO : MAIN (8) FROM : POWER CORD TO : POWER TRANSFORMER FROM : MAIN (2) +V1 PWS E E VCC VCC FROM : MAIN (4) SWL SWH2 SWH1 SO G U, C, A, B, G models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW320 9 1 1 8 BASS PHASE AUTO STANDBY INPUT 2 R L + – – + OUTPUT INPUT 1 MA2 LIM –12 +12 TOVL E MA1 TO : MAIN (2) #1 W1 SWL SWH2 SWH1 SO TO : MAIN (3) #4 W4 MAIN ( 4 ) P. C. B. R, T, B, G ONLY 9 1 FROM : MAIN (2) TOVL E MAIN +V2 +12 –12 PWS VCC VOLUME HIGH CUT SATNDBY/ ON MAIN ( 5 ) P. C. B. 11 I PRINTED CIRCUIT BOARD (Foil side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW320 W7 W6 W5 W14 W15 W16 FROM : POWER TRANSFORMER RE BL RE BE BL BE TO : MAIN (2) TO : MAIN (1) MAIN ( 6 ) P. C. B. W12 W13 OR GY TO : MAIN (3) MAIN ( 8 ) P. C. B. POWER 12 I PRINTED CIRCUIT BOARD (Foil side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW320 IC11A IC11B IC7A AUTO STANDBY SW3 AUTO POWER ON/OFF CIRCUIT VR3 VOLUME L.P.F. 6dB/oct B.P.F Q33—36 L.P.F. 12dB/oct 3 6 1 5 7 6 8 IC7B IC3 Q22, 23 4 2 D8 D17 D9 D18 Q15 2 HIGH CUT VR2 PROTECTION H/L OFF PWR R60 C45 TIMER IC5 MUSIC SENSOR IC4 8 4 6 3 7 Q12 PWR REGULATOR IC12 Q11 L R + – – + INPUT 1 L R INPUT 2 L R + – – + OUTPUT IC1A 4 3 2 SW2 PHASE SELECT IC1B L.P.F. 12dB/oct 6 8 BASS SELECT SW4 + – PRE DRIVE Q2—8, 10 POWER DRIVE Q9, 16A/C, 26A/C, Q28, 29 A.N.I.C LIMITER RY1 IC8, 9 Q25 D12, 13, 19 Q18—21 D6, 14, 33, 34 0.1 SPEAKER Q1C, 17C, 24A Q27, 31 PS AMP Q1A, 17A, 24C Q30, 32 PS AMP –B +B H.P.F. 12dB/oct + + +12 –12 REGULATOR POWER SUPPLY D2 IC6 IC10 F1 POWER SW5 +B –B POWER SUPPLY D1 STANDBY/ON SW1 R, T ONLY REGULATOR Q13, 14 D15 SUB POWER SUPPLY D11 RY2 T1 + I BLOCK DIAGRAM 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 I J K 7 8 YST-SW320 I SCHEMATIC DIAGRAM VO1 2 –Vm1 3 +Vm1 4 VEE 5 +Vm2 6 –Vm2 7 VO2 8 VCC 9 VCC 1 1 – + – + 2 IC1, 4, 7—9 : µPC4570HA Dual OP-Amp IC5 : M51848L CR Timer * All voltage are measured with a 10MΩ/V DC electric volt meter. * Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. * Schematic diagram is subject to change without notice. 2SK304 (E, T) NJM4558L µPC1237HA M51848L µPC4570HA 1 9 1SS133 S2L20U 1SR139-400 MTZJ3.6B MTZJ12.0C MTZJ24.0B Anode Cathode B C E 2SA970 (GR, BL) 2SA1015 (Y) 2SA1145 (O, Y) 2SC1815 (Y, GR) 2SC2240 (GR, BL) 2SC2705 (O, Y) 2SC2878 (A, B) RBV-602 D G S 2SA1492Z (O, P, Y) 2SC3856Z (O, P, Y) 2SC4688 (R, O) PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. 14 L.P.F. L.P.F. L.P.F. H.P.F. B.P.F. LIMITER PRE DRIVE POWER DRIVE PS AMP PROTECTION POWER SUPPLY A.N.I.C POWER SUPPLY SUB POWER SUPPLY AUTO POWER ON/OFF CIRCUIT 0 0 0 11.8 3.4 3.4 2.7 5.9 -0.1 0 0 0.6 0 0 -0.1 0 0 0 -11.9 0 0 0 -11.9 0 0 0 11.8 0 0 1.8 0 0 0.6 7.9 7.3 0 0 0 -11.9 0 0 0 11.8 AC 97.6V AC 25.9V AC 11.2V 0 11.5 5.6 5.6 11.5 0.9 0 0.7 11.5 0 7.9 0 3.9 7.9 6.7 0 3.9 6.6 1.3 0 0 7.5 0 1.3 6.6 7.9 5.3 7.5 7.5 7.9 0 0 -16.4 16.4 0 16.4 11.8 0 -16.4 -11.9 6.6 6.0 0 0 0 11.8 0 0 -0.3 -0.3 -11.9 0 0 0 0 -11.9 0 0 0 0 11.8 0 0 -1.5 0 0 0 0 0.1 0.1 0.1 -11.9 11.8 0 0 0 0 0 0 -62.5 -61.9 -61.8 -61.9 -62.5 -61.4 -61.8 -61.4 -1.6 -61.4 -61.8 -61.8 0 0.2 0.7 0.7 61.6 62.1 62.9 62.4 61.6 61.6 62.1 1.7 -1.0 -1.6 1.7 1.7 1.1 4.2 63.1 63.1 3.6 1.1 3.6 0.6 0.6 2.6 3.2 62.6 0 63.1 63.0 62.6 62.7 62.7 63.1 62.4 63.1 2.6 2.6 63.1 0 0 63.1 62.4 62.4 0 0 0 -2.7 -62.3 -3.2 -0.5 -0.5 -1.0 -62.8 -3.6 -3.6 -1.0 -4.2 -62.8 -1.6 -62.8 -62.3 -62.9 -63.4 -62.8 62.8 -63.1 -63.4 -62.8 -2.6 -2.6 -2.7 0 -62.8 3.3 0 0.7 0 2.0 0 0 0 6.6 6.0 0.7 24.3 63.1 0 0 -62.8 4.2 IDLING CURRENT ADJ. DC 50mV to 250mV A B + – BCE 2SA1837 2SC4793 1 8 IC11 : NJM4558L Dual OP-Amp –IN1 2 +IN1 3 –VCC 4 +IN2 5 –IN2 6 OUT2 7 +VCC 8 OUT1 1 – + – + IC3 : µPC1237HA Protector IC for Power Amplifier 1 2 5 3 4 7 8 6 Overload detect Mid-point potential detect Flip flop circuit Vcc on mute AC OFF detect Latch / automatic return select Relay drive circuit GND Vcc GND 6 4 1 2 3 TRIGGER OUT RESET REFERENCE VOLTAGE THRESHOLD DISCHARGE VCC 7 8 + – FLIP- FLOP + – 5 R R R S1NB20 + – 2SC1846S E C B 1 2 3 1:OUTPUT 2:COMMON 3:INPUT NJM78L08A BC E NJM78M12FA NJM79M12FA 1: OUTPUT 2: COMMON 3: INPUT 3 2 1 1:COMMON 2:INPUT 3:OUTPUT 3 2 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 15 ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS : C.A.EL.CHP : CHIP ALUMI. ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR, BASE PIN CN.CANNON : CONNECTOR, CANNON CN.DIN : CONNECTOR, DIN CN.FLAT : CONNECTOR, FLAT CABLE CN.POST : CONNECTOR, BASE POST COIL.MX.AM : COIL, AM MIX COIL.AT.FM : COIL, FM ANTENNA COIL.DT.FM : COIL, FM DETECT COIL.MX.FM : COIL, FM MIX COIL.OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER ,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER, TEST POINT L.DTCT : LIGHT DETECTING MODULE Note) Those parts marked with “#” are not included in the P.C.B. ass'y. L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED, INFRARED MODUL.RF : MODULATOR, RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN, TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR : CARBON RESISTOR R.CAR.CHP : CHIP RESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.WW : WIRE WOUND RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW, TRANSISTOR SUPRT.PCB : SUPPORT, P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKER TERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWER TRANSFORMER ASS’y TUNER.AM : TUNER PACK, AM TUNER.FM : TUNER PACK, FM TUNER.PK : FRONT-END TUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDE POTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER I ELECTRICAL PARTS PARTS LIST I WARNING Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. G Carbon resistors (1/6W or 1/4W) are not included in the ELECTRICAL PARTS List. For the part Nos. of the carbon resistors refer to the last page. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 Schm Ref. PART NO. Description New Parts * Schm Ref. PART NO. Description New Parts * 16 P.C.B. MAIN * V5057600 P.C.B. MAIN(UC) * V5057700 P.C.B. MAIN(RT) * V5057800 P.C.B. MAIN(A) * V5057900 P.C.B. MAIN(BG) CB1 VB858600 CN.BS.PIN 7P CB2 VD004900 CN.BS.PIN 6P CB3 VB858700 CN.BS.PIN 8P CB4 VD004700 CN.BS.PIN 4P CB5 VT658200 HOLDER.FUS PC-FH1(RT) CB6 VT658200 HOLDER.FUS PC-FH1(RT) CB7 VT658200 HOLDER.FUS PC-FH1 CB8 VT658200 HOLDER.FUS PC-FH1 CB9 VB858700 CN.BS.PIN 8P CB17 VD004800 CN.BS.PIN 5P CB18 VL844700 CN.BS.PIN 3P C1 VT857900 C.POL 0.1uF 250V C2 VJ837200 C.EL 47uF 16V C3 VJ837200 C.EL 47uF 16V * C4 VT727600 C.EL 10uF 100V C5 VK534000 C.PP 220pF 200V C6 VE117600 C.EL 220uF 10V C7 UA655100 C.MYLAR 0.1uF 50V C8 UA655470 C.MYLAR 0.47uF 50V C9 UA655820 C.MYLAR 0.82uF 50V C10 UA655470 C.MYLAR 0.47uF 50V C11 UA655220 C.MYLAR 0.22uF 50V C12 Ui377470 C.EL 47uF 63V C13 Ui377470 C.EL 47uF 63V C14 VJ836900 C.EL 10uF 16V C15 VK534000 C.PP 220pF 200V C16 VT857900 C.POL 0.1uF 250V C17 UA655820 C.MYLAR 0.82uF 50V * C18 V6092500 C.EL 8200uF 80V * C19 V6092500 C.EL 8200uF 80V C20 UJ648470 C.EL 470uF 25V C21 UJ648470 C.EL 470uF 25V C22 VF964800 C.EL 100uF 16V C23 VF964800 C.EL 100uF 16V C24 VF760000 C.EL 100uF 10V C25 VF964800 C.EL 100uF 16V C26 UA653100 C.MYLAR 1000pF 50V C27 VT727600 C.EL 10uF 100V C28 UA655220 C.MYLAR 0.22uF 50V C29 UA655100 C.MYLAR 0.1uF 50V C30 UA655100 C.MYLAR 0.1uF 50V C31 UA654100 C.MYLAR 0.01uF 50V C32 UA654100 C.MYLAR 0.01uF 50V C33 UA654270 C.MYLAR 0.027uF 50V C34 VJ836900 C.EL 10uF 16V C35 V5058000 C.MYLAR 4.7uF 250V C36 V5058000 C.MYLAR 4.7uF 250V C37 UA654470 C.MYLAR 0.047uF 50V C38 FG251220 C.CE 22pF 50V C39 FG212120 C.CE 120pF 50V C40 VF606700 C.EL 1000uF 25V(BG) C40 VF606700 C.EL 1000uF 25V(UCABG) C40 VH620500 C.EL 10uF 25V(RT) C41 UA654470 C.MYLAR 0.047uF 50V C42 FG214100 C.CE 0.01uF 50V C43 FG213100 C.CE 1000pF 50V C44 VJ839100 C.EL 1uF 50V C45 UA654680 C.MYLAR 0.068uF 50V C46 UJ638330 C.EL 330uF 16V C47 UJ648220 C.EL 220uF 25V * C48 VT726600 C.EL 470uF 63V(RT) C49 VS741700 C.CE.SAFTY 0.01uF 275V C50 FG214100 C.CE 0.01uF 50V C51 UA654470 C.MYLAR 0.047uF 50V C52 VJ836900 C.EL 10uF 16V C53 VJ836900 C.EL 10uF 16V C54 FG212120 C.CE 120pF 50V C55 FG251220 C.CE 22pF 50V C56 VT728200 C.EL 330uF 100V C57 UA655100 C.MYLAR 0.1uF 50V C58 UA654220 C.MYLAR 0.022uF 50V C59 UA654220 C.MYLAR 0.022uF 50V * C60 VT728200 C.EL 330uF 100V C61 UA655820 C.MYLAR 0.82uF 50V C62 UA655220 C.MYLAR 0.22uF 50V C63 UA655220 C.MYLAR 0.22uF 50V C64 UA655220 C.MYLAR 0.22uF 50V C65 UM417100 C.EL 10uF 50V C66 UM417100 C.EL 10uF 50V C67 FG212220 C.CE 220pF 50V C68 VJ836900 C.EL 10uF 16V C69 UA654390 C.MYLAR 0.039uF 50V C70 VJ836900 C.EL 10uF 16V C71 FG212220 C.CE 220pF 50V C72 VF964800 C.EL 100uF 16V C73 VF964800 C.EL 100uF 16V C74 VJ836900 C.EL 10uF 16V C75 VJ836900 C.EL 10uF 16V C76 UA654820 C.MYLAR 0.082uF 50V C77 UA654390 C.MYLAR 0.039uF 50V C78 Vi531900 C.EL 47uF 10V C79 VA777700 C.CE 220pF 50V C79 VA777700 C.CE 220pF 50V(RTBG) C80 VA761000 C.CE 22pF 50V C80 VA761000 C.CE 22pF 50V(RTBG) C81 UA655390 C.MYLAR 0.39uF 50V C82 UA655220 C.MYLAR 0.22uF 50V C83 FG214100 C.CE 0.01uF 50V Z D1 Vi234100 DIODE.BRG RBV-602 Z D2 VR253700 DIODE.BRG S1NB20 1.0A 200V D3 iF004600 DIODE 1SS133 D4 iF004600 DIODE 1SS133 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 Schm Ref. PART NO. Description New Parts * Schm Ref. PART NO. Description New Parts * 17 P.C.B. MAIN D5 iF004600 DIODE 1SS133 D6 iF004600 DIODE 1SS133 D7 VG442500 DIODE.ZENR MTZJ24B 24V D8 iF004600 DIODE 1SS133 D9 iF004600 DIODE 1SS133 D10 iF004600 DIODE 1SS133 Z D11 VR253700 DIODE.BRG S1NB20 1.0A 200V D12 iF004600 DIODE 1SS133 D13 iF004600 DIODE 1SS133 D14 iF004600 DIODE 1SS133 D15 VU264100 DIODE 1SR139-400 D16 VG440300 DIODE.ZENR MTZJ12C 12V(RT) D17 iF004600 DIODE 1SS133 D18 VS079300 LED SPR-39MVW D19 iF004600 DIODE 1SS133 D20 VG436400 DIODE.ZENR MTZJ3.6B 3.6V D21 VU264100 DIODE 1SR139-400 D22 VG436400 DIODE.ZENR MTZJ3.6B 3.6V D23 VU264100 DIODE 1SR139-400 D24 VU264100 DIODE 1SR139-400 D25 VU264100 DIODE 1SR139-400 D26 VU264100 DIODE 1SR139-400 D27 iF004600 DIODE 1SS133 D28 VP779200 DIODE S2L20U D29 VP779200 DIODE S2L20U D30 VP779200 DIODE S2L20U D31 VP779200 DIODE S2L20U D32 iF004600 DIODE 1SS133 D33 iF004600 DIODE 1SS133 D34 iF004600 DIODE 1SS133 Z F1 KB001660 FUSE T1.6A 250V(ABG) Z F1 KB001660 FUSE T1.6A 250V(BG) Z F1 V5279400 FUSE 6A 250V(RT) Z F1 V5279400 FUSE 6A 250V(UCRT) Z F2 KB001660 FUSE T1.6A 250V(RT) IC1 XB247301 IC uPC4570HA IC3 XF663A00 IC uPC1237HA IC4 XB247301 IC uPC4570HA IC5 XP741A00 IC M51848L IC6 XJ602A00 IC NJM78M12FA IC7 XB247301 IC uPC4570HA IC8 XB247301 IC uPC4570HA IC9 XB247301 IC uPC4570HA IC10 XD343A00 IC NJM79M12FA IC11 XM922A00 IC NJM4558L IC12 iG160100 IC NJM78L08A 8V L1 V5058100 COIL 120uH L2 V5058100 COIL 120uH L3 VR906600 COIL 0.95uH * PJ1 V6415800 JACK,PIN 2P RJ-1060-01-0500 # Q1 iX632610 TR A1837/C4793 O,Y Q2 iC1815M0 TR 2SC1815 Y,GR Q3 iA097000 TR 2SA970 GR,BL Q4 iA097000 TR 2SA970 GR,BL Q5 iC1815M0 TR 2SC1815 Y,GR Q6 iA101590 TR 2SA1015 O,Y Q7 iA097000 TR 2SA970 GR,BL Q8 VE198700 TR 2SA1145 O,Y # Q9 VC398100 TR 2SC1846 S Q10 VE198800 TR 2SC2705 O,Y Q11 iC224030 TR 2SC2240 GR,BL Q12 iC224030 TR 2SC2240 GR,BL Q13 iC224030 TR 2SC2240 GR,BL(RT) Q14 VK801200 TR 2SC4688 R,O(RT) Q15 iC224030 TR 2SC2240 GR,BL # Q16 iX606460 TR A1492Z/C3856Z O,P,Y Q18 iC1815M0 TR 2SC1815 Y,GR Q19 iA101590 TR 2SA1015 O,Y Q20 iC224030 TR 2SC2240 GR,BL Q21 iA097000 TR 2SA970 GR,BL Q22 iA097000 TR 2SA970 GR,BL Q23 iC224030 TR 2SC2240 GR,BL Q24 iX632610 TR A1837/C4793 O,Y Q25 V3028000 FET 2SK304 E Q26 iX632610 TR A1837/C4793 O,Y Q27 VE198800 TR 2SC2705 O,Y Q28 VE198800 TR 2SC2705 O,Y Q29 VE198700 TR 2SA1145 O,Y Q30 VE198700 TR 2SA1145 O,Y Q31 iA097000 TR 2SA970 GR,BL Q32 iC224030 TR 2SC2240 GR,BL Q33 iA097000 TR 2SA970 GR,BL Q34 iA097000 TR 2SA970 GR,BL Q35 iC287820 TR 2SC2878 A,B Q36 iC287820 TR 2SC2878 A,B R2 HV455470 R.CAR.FP 470Ω 1/4W R3 HV455470 R.CAR.FP 470Ω 1/4W R4 HL236180 R.MTL.OXD 1.8KΩ 3W R10 HU597100 R.MTL.FLM 10KΩ 1/4W R11 HU597100 R.MTL.FLM 10KΩ 1/4W R12 HU597100 R.MTL.FLM 10KΩ 1/4W R16 HV453470 R.CAR.FP 4.7Ω 1/4W R17 VG730500 R.MTL.OXD 0.15Ω 3W R18 VG730500 R.MTL.OXD 0.15Ω 3W R19 HV455470 R.CAR.FP 470Ω 1/4W R20 HV453470 R.CAR.FP 4.7Ω 1/4W R23 HV455330 R.CAR.FP 330Ω 1/4W R27 HV453100 R.CAR.FP 1Ω 1/4W R28 HV453100 R.CAR.FP 1Ω 1/4W R31 HU576390 R.MTL.FLM 3.9KΩ 1/4W R32 HV454220 R.CAR.FP 22Ω 1/4W R33 HV455220 R.CAR.FP 220Ω 1/4W R39 HU578100 R.MTL.FLM 100KΩ 1/4W R40 HV455220 R.CAR.FP 220Ω 1/4W R41 HV454330 R.CAR.FP 33Ω 1/4W R44 HV756390 R.CAR.FP 3.9KΩ 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 Schm Ref. PART NO. Description New Parts * Schm Ref. PART NO. Description New Parts * 18 P.C.B. MAIN R45 HV456120 R.CAR.FP 1.2KΩ 1/4W * R46 V6022600 R.WW 0.1Ω 3W R47 HV453100 R.CAR.FP 1Ω 1/4W R48 HV453100 R.CAR.FP 1Ω 1/4W R62 HV453220 R.CAR.FP 2.2Ω 1/4W(BG) R62 HV453220 R.CAR.FP 2.2Ω 1/4W(UCABG) R66 HL213100 R.MTL.OXD 1Ω 1W R67 HL213100 R.MTL.OXD 1Ω 1W R68 HV455120 R.CAR.FP 120Ω 1/4W R69 HV456330 R.CAR.FP 3.3KΩ 1/4W R79 HV455680 R.CAR.FP 680Ω 1/4W R80 HV455150 R.CAR.FP 150Ω 1/4W R81 HV456220 R.CAR.FP 2.2KΩ 1/4W R82 HV456220 R.CAR.FP 2.2KΩ 1/4W R86 HV456470 R.CAR.FP 4.7KΩ 1/4W R87 HV456470 R.CAR.FP 4.7KΩ 1/4W R105 HV454100 R.CAR.FP 10Ω 1/4W R113 VH007900 R.MTL.FLM 20KΩ 1/4W R115 HV454220 R.CAR.FP 22Ω 1/4W R117 HV454220 R.CAR.FP 22Ω 1/4W R121 HV454220 R.CAR.FP 22Ω 1/4W R122 HV454220 R.CAR.FP 22Ω 1/4W R125 HV453220 R.CAR.FP 2.2Ω 1/4W R128 HV453470 R.CAR.FP 4.7Ω 1/4W R129 HV453470 R.CAR.FP 4.7Ω 1/4W R130 HV453470 R.CAR.FP 4.7Ω 1/4W R132 HV453220 R.CAR.FP 2.2Ω 1/4W R135 HV455560 R.CAR.FP 560Ω 1/4W R152 HV455470 R.CAR.FP 470Ω 1/4W Z RY1 VU161600 RELAY DC OSA-SS-224DM3 Z RY2 VU349800 RELAY DC SDT-SS-112DM ST1 BB071360 SCR.TERM 8.3x13 SW1 VS066500 SW.PUSH SPPH13-W SW2 V5178000 SW.SLIDE SSSF12-P06NO SW3 V5178100 SW.SLIDE SSSU123-S09NO SW4 V5178000 SW.SLIDE SSSF12-P06NO Z T1 XV443A00 TRANS.PWR (UC) Z T1 XV444A00 TRANS.PWR (RT) Z T1 XV445A00 TRANS.PWR (ABG) Z T1 XV445A00 TRANS.PWR (BG) TE1 VT658100 TERM.WRAP 352-TX119 TE2 VT658100 TERM.WRAP 352-TX119 TE3 V4811400 TERM.SP 8P(BG) TE3 VV003100 TERM.SP 8P(RT) TE3 VV003100 TERM.SP 8P(UCRTA) TP11 VT969000 PIN.TEST IRS-2049 TP12 VT969000 PIN.TEST IRS-2049 VR1 VJ692800 VR.TRIM B470Ω VR2 VV954800 VR 10KΩ VR3 VV954700 VR A5KΩ BB070700 GND.MTL VN774800 GND.WSHR MEP1866 #11102 * V6383100 ASSY,CABLE 2P 420MM RE/WH * V6406300 HOLDER.LED LE56217-0A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW320 I EXPLODED VIEW 19 34 34 34 1 34 21 32 32 32 26 33 33 5-1-1 5-1-11 5-1-1 5-1-1 5-1-1 5-1-1 5-1-1 5-1-4 5-1-8 5-1-12 5-1-6 5-1-12 5-1-13 5-1-5 5-1-7 5-9 4-1 4-6 4-15 5-24 5-34 5-34 5-12 1-8 5-17 5-18 5-18 5-11 5-37 5-37 5-33 5-19 1-7 5-14 5-8 5-6 5-15 5-16 5-20 5-36 5-5 5-21 5-22 5-31 5-32 5-31 5-17 5-31 5-35 5-34 5-34 35 32 32 27 2 35 27 27 35 35 12-1 12-10 12-1 12-10 12-10 12-1 12-10 4-15 5-23 5-11 5-38 1-12 1-12 1-12 1-12 1-12 1-12 4-12 11-1 4-11 1-11 5-31 11-2 11-10 11-10 11-10 11-10 R, T models (3) (8) (5) (1) (4) (2) 5-1-1 (6) 5-1-1 (1) Accessories www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 I MECHANICAL PARTS 20 Ref. No. PART NO. Description Remarks Markets New Parts * * 1 V6182200 CABINET ASS’Y CH * 1 V5866400 CABINET ASS’Y BL * 1-7 V5859600 FRONT COVER * 1-8 V5859700 GASKET 1-11 CB070450 BINDING TIE L=100 1-12 V5195800 FLANGE NUT B M6X15.5 MFZN2 * 2 XY889A00 LOUD SPEAKER 25cm 6Ω * 4-1 V5860400 FRONT PANEL * 4-6 V5860800 SHIELD SHEET * 4-11 V5860900 SWITCH KNOB * 4-12 V5861200 VOLUME KNOB 4-15 EP600280 BIND HEAD P-TITE SCREW 3x8 ZMC2-Y * 5-1-1 V5057900 P.C.B. ASS’Y MAIN (BG) * 5-1-1 V5057700 P.C.B. ASS’Y MAIN (RT) * 5-1-1 V5057800 P.C.B. ASS’Y MAIN (A) * 5-1-1 V5057600 P.C.B. ASS’Y MAIN (UC) 5-1-4 V5195000 HEAT SINK # 5-1-5 iX606460 PAIR TRANSISTOR A1492Z/C3856Z O,P,Y Q16A,Q16C # 5-1-6 VC398100 TRANSISTOR 2SC1846 S Q9 5-1-7 VK195900 SHEET 19x24 # 5-1-8 iX632610 PAIR TRANSISTOR A1837/C4793 O,Y Q1A,Q1C 5-1-11 VT669300 PW HEAD B-TITE SCREW 3x8-8 MFC2 5-1-12 Ei330086 BIND HEAD B-TITE SCREW 3x8 FCRM3-BL 5-1-13 VK173200 SCREW, TRANSISTOR 3x15 SP FCM3 Z* 5-5 XY291B00 POWER TRANSFORMER (A) Z* 5-5 XY292B00 POWER TRANSFORMER (BG) Z* 5-5 XY290B00 POWER TRANSFORMER (RT) Z* 5-5 XY289B00 POWER TRANSFORMER (UC) Z 5-6 V3756200 POWER CORD 10A SPT-2 2.1m (UC) Z 5-6 VQ790000 POWER CORD 5A 2.0m (B) Z 5-6 VT666200 POWER CORD ASS’Y (A) Z 5-6 VZ555600 POWER CORD 10A 250V 2.0m (RT) Z 5-6 VE371200 POWER CORD 2.5A 250V 2.0m (G) 5-8 VT665900 CORD STOPPER SR-4K-4 5-9 CB069250 BINDING TIE BK-1 * 5-11 V5194200 REAR PANEL (UC) * 5-11 V5194300 REAR PANEL (RT) * 5-11 V5194400 REAR PANEL (A) * 5-11 V5194500 REAR PANEL (G) 5-12 VY840200 PLATE D Z* 5-14 V5520700 ROCKER SWITCH JW-M11RKK UCS TV-5 * 5-15 V5195200 COVER * 5-16 V5860000 GASKET * 5-17 V5860100 GASKET * 5-18 V5860200 GASKET * 5-19 V5195100 HEAT SINK 20BS220-L85-K 5-20 VS755300 BUSH, B * 5-21 V5194600 SUPPORT,PCB L * 5-22 V6436000 SUPPORT,PCB 5-23 VS498200 GASKET F (RT) * 5-24 V6486500 MOUNTING PLATE 5-31 Ei330086 BIND HEAD B-TITE SCREW 3x8 FCRM3-BL 5-32 Ei340086 BIND HEAD TAPPING SCREW 4x8 FCRM3-BL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW320 YST-SW320 Ref. No. PART NO. Description Remarks Markets New Parts * 21 5-33 EX601360 BIND HEAD P-TITE SCREW 3x10 FCRM3-BL 5-34 VT669300 PW HEAD B-TITE SCREW 3x8-8 MFC2 5-35 EX601890 BIND HEAD BONDING SCREW 3x6 FCRM3-BL 5-36 EK396010 BIND HEAD S-TITE SCREW 4x8 FCRM3-BL 5-37 EP640170 SEMS BIND HEAD P-TITE SCREW 4x12 MFC2-BL 5-38 ED330086 BIND HEAD SCREW 3x8 FCRM3-BL (RT) * 11-1 V5858600 BASE * 11-2 V5836700 REFLECTOR 11-10 V5858900 FLAT HEAD TAPPING SCREW #1 4.0x14 * 12-1 V5859900 LEG 12-10 03763040 FLANGE NUT D 6.0X13 MFZN2Y 21 VS755300 BUSH, B 26 V2729700 EMBLEM A * 27 V5881400 SPACER 32 Ei340256 BIND HEAD TAPPING SCREW 4x25 ZMC2-BL * 33 V6018100 HEXAGON SOCKET TAPPING SCREW 4x16 MFCR33 34 VB131900 BIND HEAD SCREW 6x25 MFZN2-BL 35 V5861300 BIND HEAD SCREW 6x50 ACCESSORIES VV257100 LEG x4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Parts List for Carbon Resistors 1/6W Type Part No. HF45 7100 HF45 7110 HF85 7120 HF45 7130 HF45 7150 HF45 7180 HF45 7220 HF45 7240 HF85 7270 HF45 7300 HF45 7330 HF45 7360 HF45 7390 HF45 7470 HF45 7510 HF45 7560 HF45 7620 HF45 7680 HF45 7820 HF45 7910 HF45 8100 HF45 8110 HF45 8120 HF45 8150 HF45 8180 HF85 8220 HF45 8270 HF45 8300 HF45 8330 HF85 8390 HF45 8470 HF85 8560 HF85 8680 HF85 8820 HF45 9100 ❊ HF85 9150 HF85 9180 HF85 9220 HF85 9330 ❊ HF85 9470 1/4W Type Part No. HF45 7100 HF45 7110 HJ35 7120 HF45 7130 HF45 7150 HF45 7180 HF45 7220 HF45 7240 HJ35 7270 HF45 7300 HF45 7330 HF45 7360 HF45 7390 HF45 7470 HF45 7510 HF45 7560 HF45 7620 HF45 7680 HF45 7820 HF45 7910 HF45 8100 HF45 8110 HF45 8120 HF45 8150 HF45 8180 HJ35 8220 HF45 8270 HF45 8300 HF45 8330 HJ35 8390 HF45 8470 HJ35 8560 HJ35 8680 HJ35 8820 HF45 9100 HJ35 9120 HJ35 9150 HJ35 9180 HJ35 9220 HJ35 9330 HJ35 9390 HJ35 9470 Value 10 kΩ 11 kΩ 12 kΩ 13 kΩ 15 kΩ 18 kΩ 22 kΩ 24 kΩ 27 kΩ 30 kΩ 33 kΩ 36 kΩ 39 kΩ 47 kΩ 51 kΩ 56 kΩ 62 kΩ 68 kΩ 82 kΩ 91 kΩ 100 kΩ 110 kΩ 120 kΩ 150 kΩ 180 kΩ 220 kΩ 270 kΩ 300 kΩ 330 kΩ 390 kΩ 470 kΩ 560 kΩ 680 kΩ 820 kΩ 1.0 MΩ 1.2 MΩ 1.5 MΩ 1.8 MΩ 2.2 MΩ 3.3 MΩ 3.9 MΩ 4.7 MΩ 1/6W Type Part No. HF85 3100 ❊ HF85 3220 HF85 3330 HF85 3470 HF85 3560 HF45 4100 HF85 4150 HF45 4220 HF85 4270 HF45 4330 HF85 4390 HF45 4470 HF45 4560 HF45 4680 HF45 4750 HF45 4820 HF45 4910 HF45 5100 HF85 5110 HF45 5120 HF45 5150 ❊ HF45 5180 HF45 5200 HF45 5220 HF45 5270 HF45 5330 HF45 5390 HF45 5430 HF45 5470 HF45 5510 HF45 5560 HF45 5680 HF45 5820 HF45 5910 HF45 6100 HF45 6120 HF45 6150 HF45 6180 HF85 6200 HF45 6220 HF85 6240 HF45 6270 HF45 6300 HF45 6330 HF85 6360 HF45 6390 HF45 6470 HF45 6510 HF45 6560 HF45 6680 HF45 6820 HF45 6910 1/4W Type Part No. HJ35 3100 HJ35 3180 HJ35 3220 HJ35 3330 HJ35 3470 HJ35 3560 HF45 4100 HJ35 4150 HF45 4220 HJ35 4270 HF45 4330 HJ35 4470 HF45 4470 HF45 4560 HF45 4680 HF45 4750 HF45 4820 HF45 4910 HF45 5100 HJ35 5110 HF45 5120 HF45 5150 HJ35 5160 HF45 5180 HF45 5200 HF45 5220 HF45 5270 HF45 5330 HF45 5390 HF45 5430 HF45 5470 HF45 5510 HF45 5560 HF45 5680 HF45 5820 HF45 5910 HF45 6100 HF45 6120 HF45 6150 HF45 6180 HJ35 6200 HF45 6220 HJ35 6240 HF45 6270 HF45 6300 HF45 6330 HJ35 6360 HF45 6390 HF45 6470 HF45 6510 HF45 6560 HF45 6680 HF45 6820 HF45 6910 Value 1.0 Ω 1.8 Ω 2.2 Ω 3.3 Ω 4.7 Ω 5.6 Ω 10 Ω 15 Ω 22 Ω 27 Ω 33 Ω 39 Ω 47 Ω 56 Ω 68 Ω 75 Ω 82 Ω 91 Ω 100 Ω 110 Ω 120 Ω 150 Ω 160 Ω 180 Ω 200 Ω 220 Ω 270 Ω 330 Ω 390 Ω 430 Ω 470 Ω 510 Ω 560 Ω 680 Ω 820 Ω 910 Ω 1.0 kΩ 1.2 kΩ 1.5 kΩ 1.8 kΩ 2.0 kΩ 2.2 kΩ 2.4 kΩ 2.7 kΩ 3.0 kΩ 3.3 kΩ 3.6 kΩ 3.9 kΩ 4.7 kΩ 5.1 kΩ 5.6 kΩ 6.8 kΩ 8.2 kΩ 9.1 kΩ 1992 1/4W Type HF45 1/6W Type HF85 1/4W Type HJ35 10mm 5mm YST-SW320 YST-SW320 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
