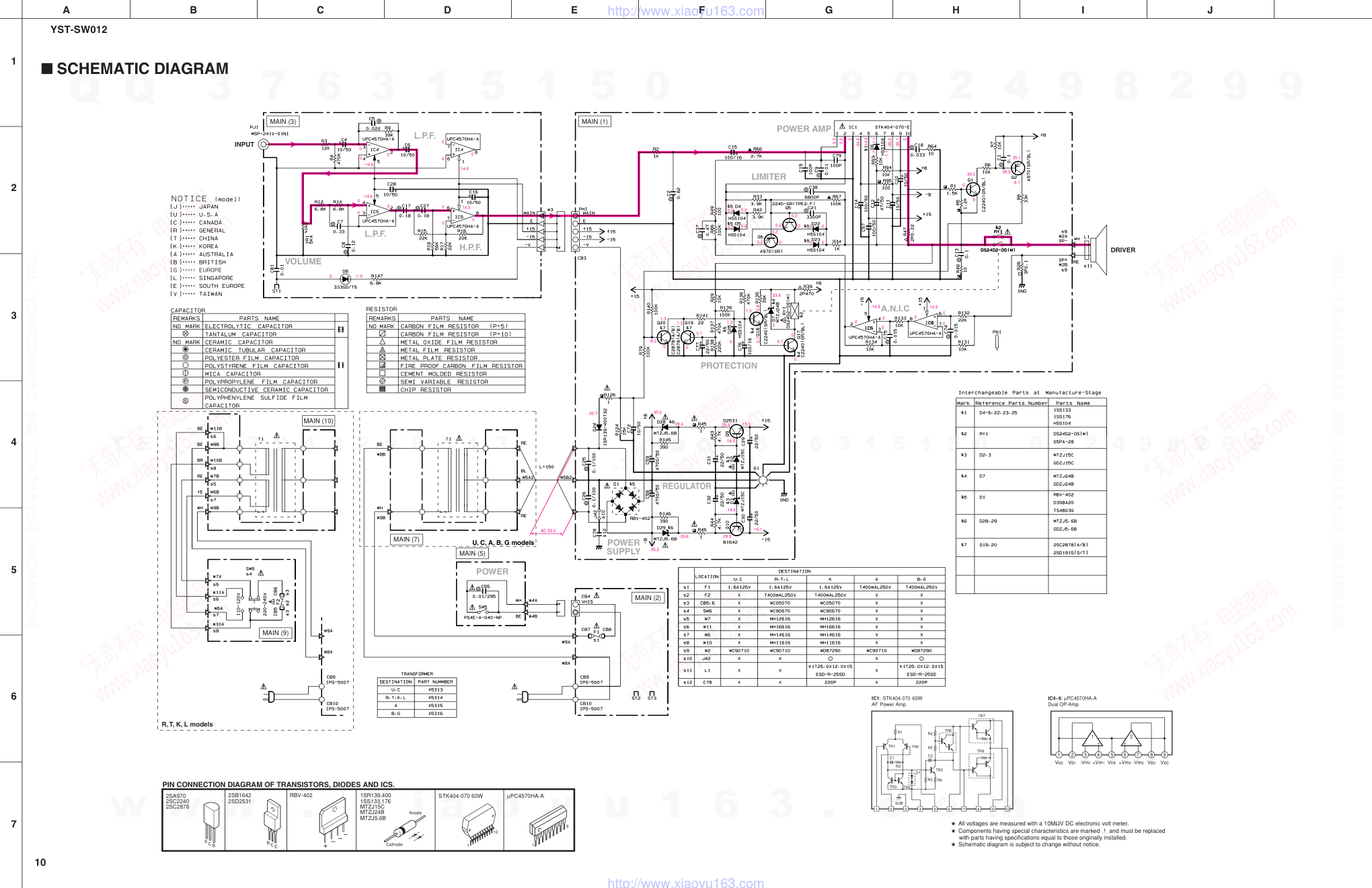

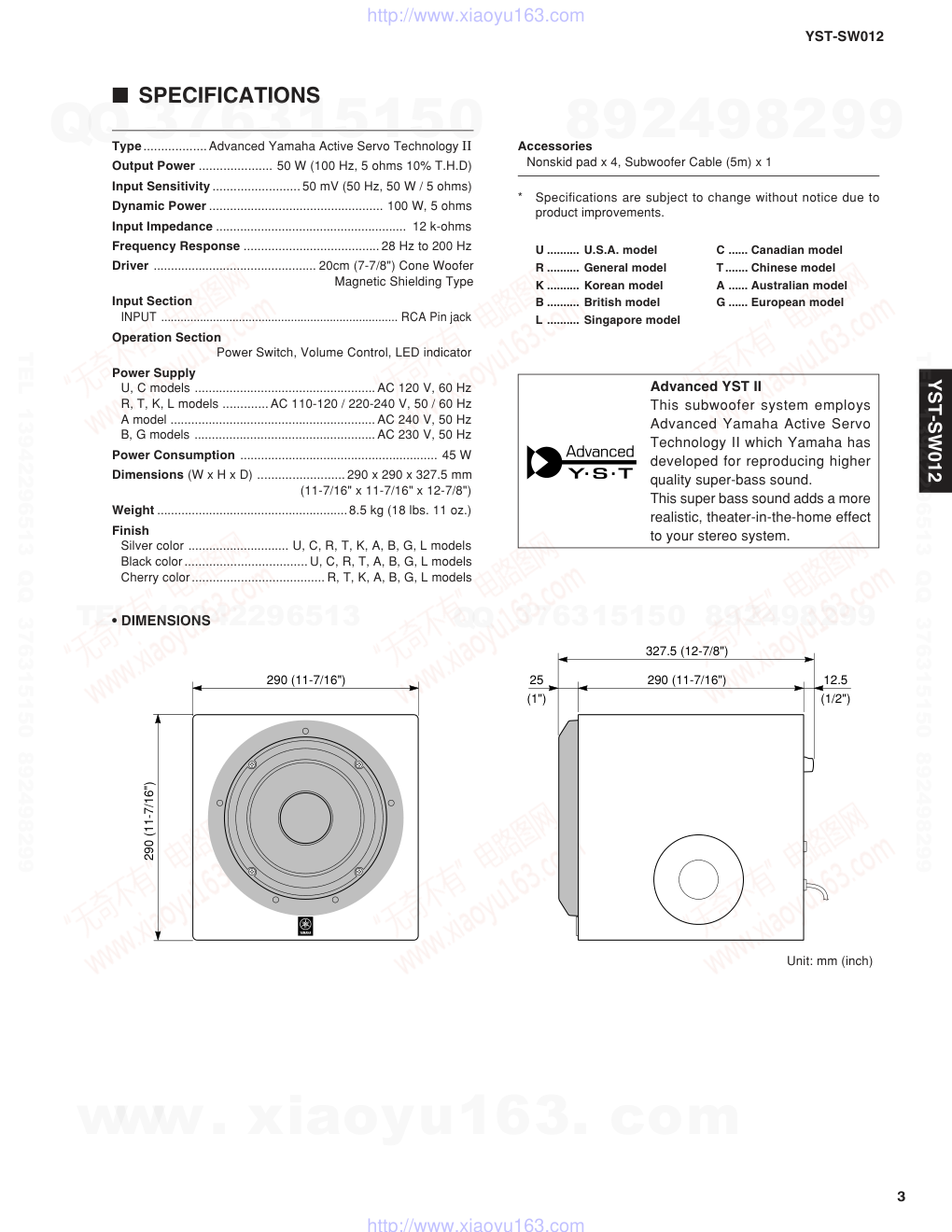

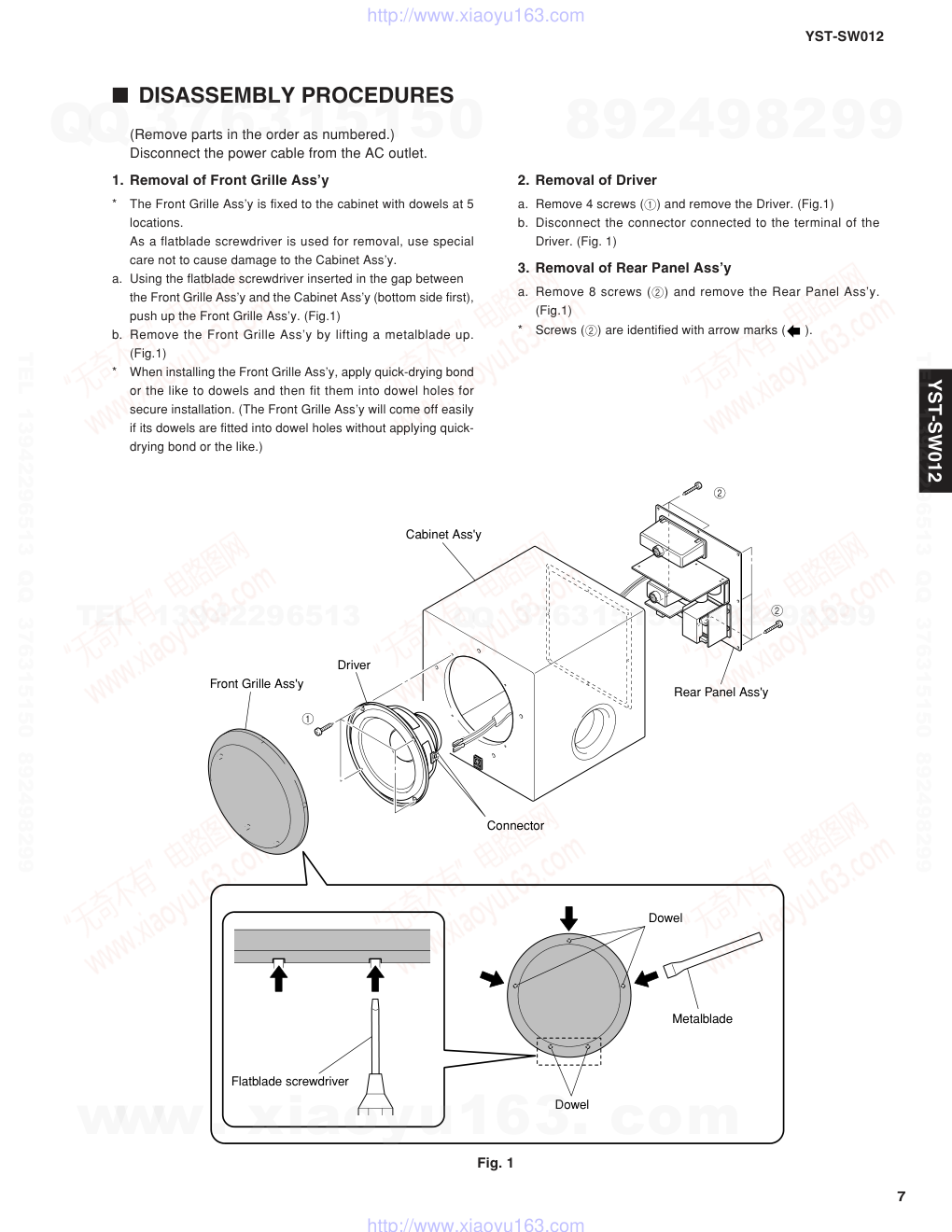

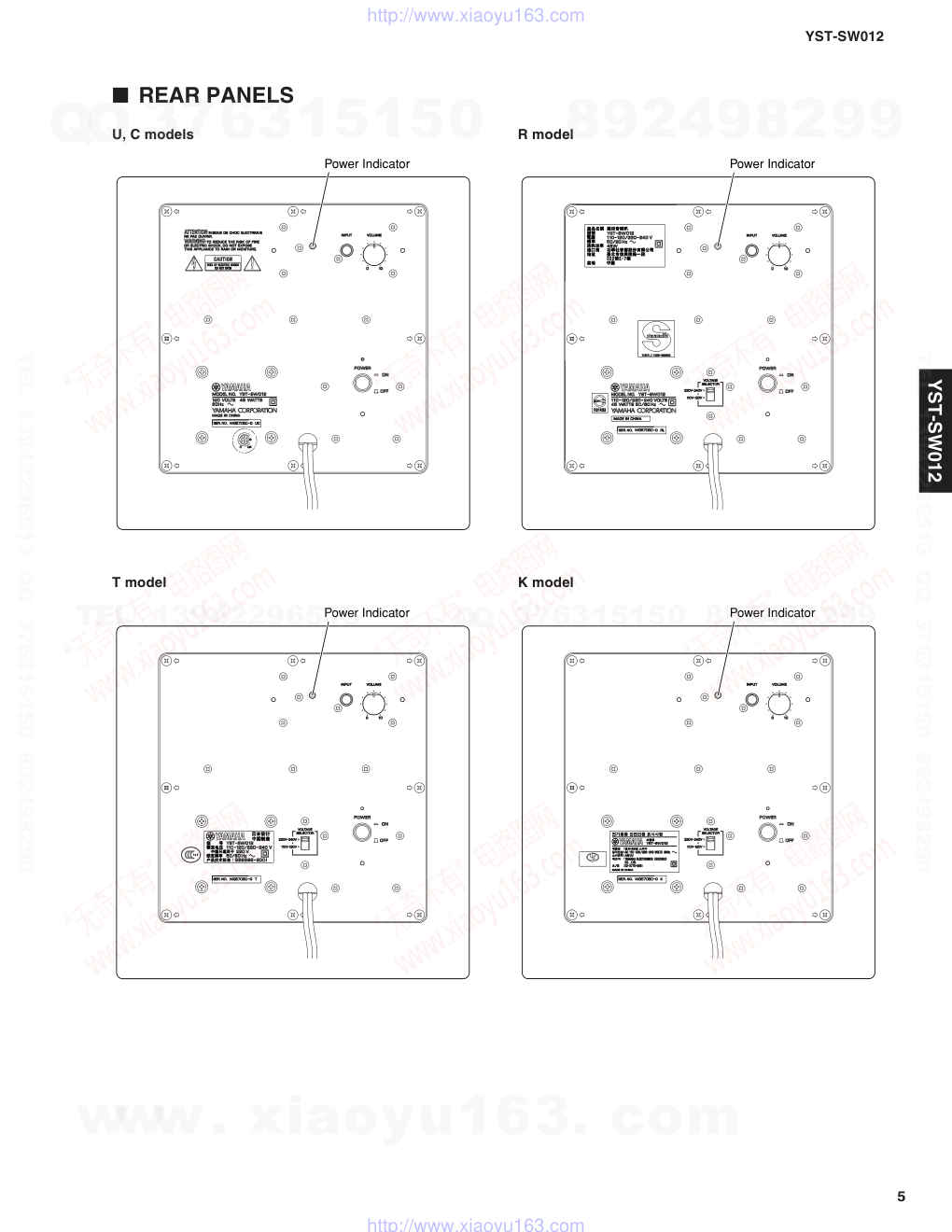

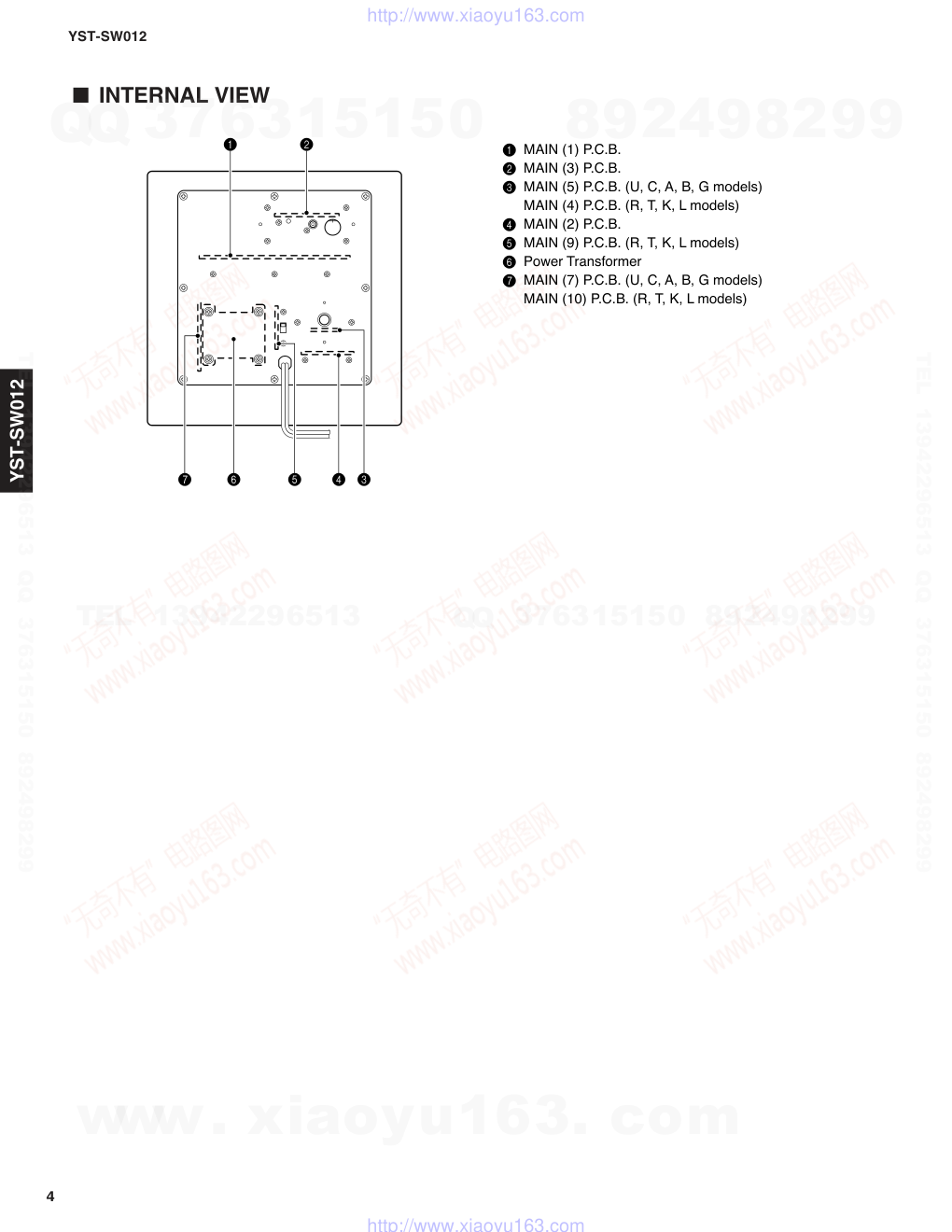

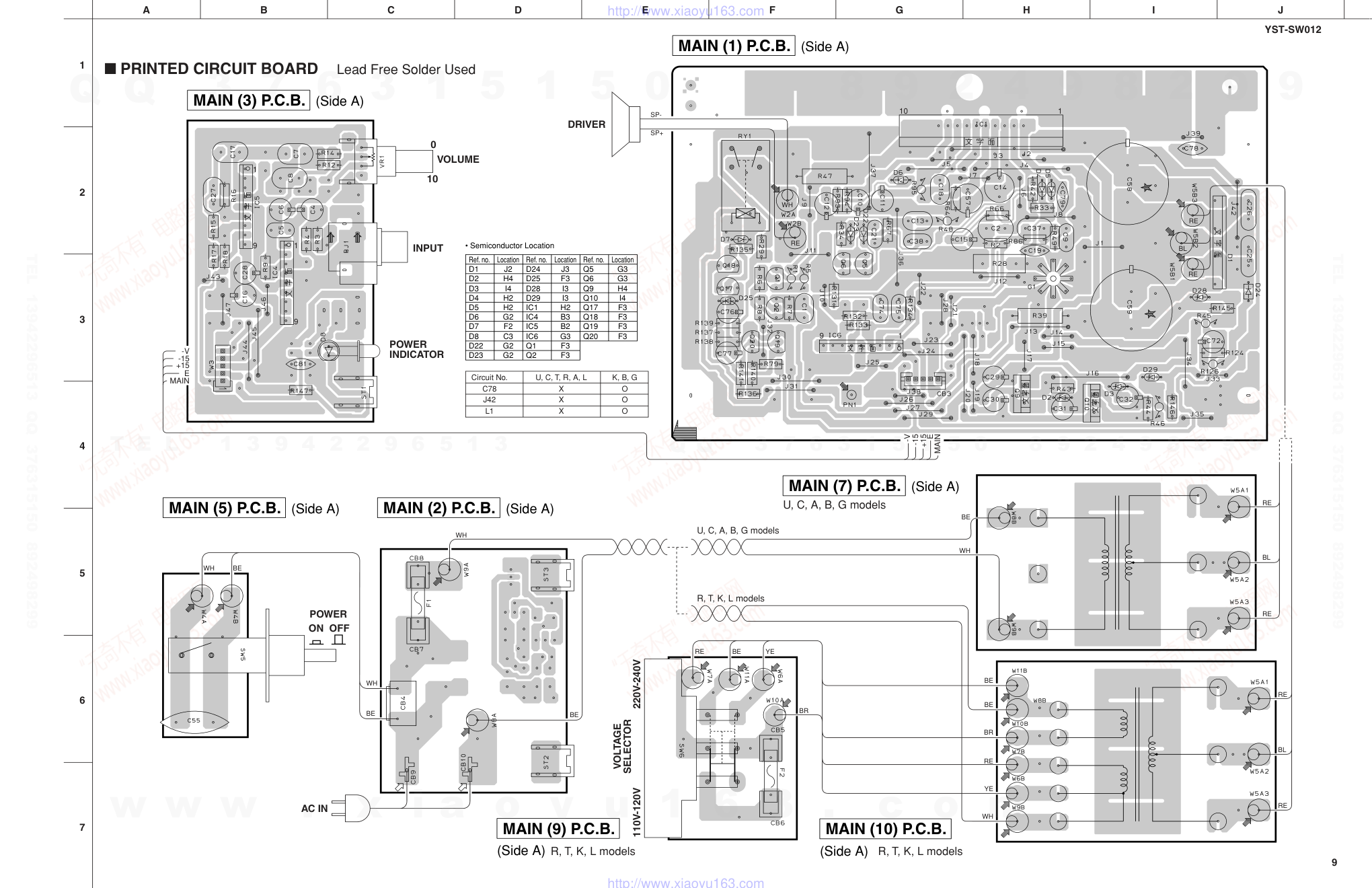

I CONTENTS TO SERVICE PERSONNEL .......................................... 2 SPECIFICATIONS.......................................................... 3 INTERNAL VIEW ........................................................... 4 REAR PANELS .......................................................... 5~6 DISASSEMBLY PROCEDURES ............................... 7~8 BLOCK DIAGRAM ......................................................... 8 PRINTED CIRCUIT BOARD .......................................... 9 SCHEMATIC DIAGRAM .............................................. 10 PARTS LIST ........................................................... 11~15 2005 All rights reserved. This manual is copyrighted by YAMAHA and may not be copied or redistributed either in print or electronically without permission. SUBWOOFER SYSTEM YST-SW012 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. YST-SW012 '05.12 1 0 0 9 9 4 P.O.Box 1, Hamamatsu, Japan SERVICE MANUAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 2 YST-SW012 WALL OUTLET EQUIPMENT UNDER TEST AC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE I TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. G Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF. “CAUTION” “F1: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 1.6A, 125V FUSE.” CAUTION F1: REPLACE WITH SAME TYPE 1.6A, 125V FUSE. ATTENTION F1: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 1.6A, 125V. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. G Leakage current must not exceed 0.5mA. G Be sure to test for leakage with the AC plug in both polarities. About Lead Free Solder Side A Side B SMT REFLOW Process MI FLOW Process Solder Dip Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work. • Sn + Ag + Cu (tin + silver + copper) • Sn + Cu (tin + copper) • Sn + Zn + Bi (tin + zinc + bismuth) Caution: 1. As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder. 2. If lead solder must be used, be sure to remove lead free solder from each terminal section of the parts to be replaced and from the area around it completely before soldering, or make sure that the lead free solder and lead solder melt together fully. The P.C.B.s installed in this unit are soldered using the following solder. MAIN P.C.B. Side A – Side B Lead Free Solder www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 3 YST-SW012 I SPECIFICATIONS Type.................. Advanced Yamaha Active Servo Technology II Output Power ..................... 50 W (100 Hz, 5 ohms 10% T.H.D) Input Sensitivity ......................... 50 mV (50 Hz, 50 W / 5 ohms) Dynamic Power .................................................. 100 W, 5 ohms Input Impedance ....................................................... 12 k-ohms Frequency Response ....................................... 28 Hz to 200 Hz Driver ............................................... 20cm (7-7/8") Cone Woofer Magnetic Shielding Type Input Section INPUT ......................................................................... RCA Pin jack Operation Section Power Switch, Volume Control, LED indicator Power Supply U, C models .................................................... AC 120 V, 60 Hz R, T, K, L models ............. AC 110-120 / 220-240 V, 50 / 60 Hz A model ........................................................... AC 240 V, 50 Hz B, G models .................................................... AC 230 V, 50 Hz Power Consumption ......................................................... 45 W Dimensions (W x H x D) ......................... 290 x 290 x 327.5 mm (11-7/16" x 11-7/16" x 12-7/8") Weight .......................................................8.5 kg (18 lbs. 11 oz.) Finish Silver color ............................. U, C, R, T, K, A, B, G, L models Black color ................................... U, C, R, T, A, B, G, L models Cherry color...................................... R, T, K, A, B, G, L models Advanced YST II This subwoofer system employs Advanced Yamaha Active Servo Technology II which Yamaha has developed for reproducing higher quality super-bass sound. This super bass sound adds a more realistic, theater-in-the-home effect to your stereo system. 290 (11-7/16") 290 (11-7/16") 290 (11-7/16") 327.5 (12-7/8") 12.5 (1/2") 25 (1") • DIMENSIONS Unit: mm (inch) Accessories Nonskid pad x 4, Subwoofer Cable (5m) x 1 * Specifications are subject to change without notice due to product improvements. U .......... U.S.A. model C ...... Canadian model R .......... General model T ....... Chinese model K .......... Korean model A ...... Australian model B .......... British model G ...... European model L .......... Singapore model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 4 YST-SW012 I INTERNAL VIEW 1 2 4 6 7 5 3 MAIN (1) P.C.B. MAIN (3) P.C.B. MAIN (5) P.C.B. (U, C, A, B, G models) MAIN (4) P.C.B. (R, T, K, L models) MAIN (2) P.C.B. MAIN (9) P.C.B. (R, T, K, L models) Power Transformer MAIN (7) P.C.B. (U, C, A, B, G models) MAIN (10) P.C.B. (R, T, K, L models) 1 2 3 4 5 6 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 5 YST-SW012 T model I REAR PANELS R model U, C models K model Power Indicator Power Indicator Power Indicator Power Indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 6 YST-SW012 A model B, G models L model Power Indicator Power Indicator Power Indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 7 YST-SW012 I DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) Disconnect the power cable from the AC outlet. 1. Removal of Front Grille Ass’y * The Front Grille Ass’y is fixed to the cabinet with dowels at 5 locations. As a flatblade screwdriver is used for removal, use special care not to cause damage to the Cabinet Ass’y. a. Using the flatblade screwdriver inserted in the gap between the Front Grille Ass’y and the Cabinet Ass’y (bottom side first), push up the Front Grille Ass’y. (Fig.1) b. Remove the Front Grille Ass’y by lifting a metalblade up. (Fig.1) * When installing the Front Grille Ass’y, apply quick-drying bond or the like to dowels and then fit them into dowel holes for secure installation. (The Front Grille Ass’y will come off easily if its dowels are fitted into dowel holes without applying quick- drying bond or the like.) 2. Removal of Driver a. Remove 4 screws (1) and remove the Driver. (Fig.1) b. Disconnect the connector connected to the terminal of the Driver. (Fig. 1) 3. Removal of Rear Panel Ass’y a. Remove 8 screws (2) and remove the Rear Panel Ass’y. (Fig.1) * Screws (2) are identified with arrow marks ( ). Fig. 1 1 2 2 Rear Panel Ass'y Cabinet Ass'y Front Grille Ass'y Flatblade screwdriver Metalblade Dowel Dowel Driver Connector www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 8 YST-SW012 I BLOCK DIAGRAM VR1 VOLUME IC4A - + + + IC5A IC5B IC1 2 3 4 - - + - L.P.F. 6dB/oct L.P.F. 12dB/oct H.P.F. 12dB/oct DRIVER INPUT PJ1 POWER AMP RY1 PROTECTION POWER SUPPLY D1 F1 T1 POWER SW5 4 8 2 2 6 1 9 8 10 +B +B -B -B IC6 Q5, 6 D4, 5, 22, 23 Q17- 20 D7, 25 R28 0.1 +15 -15 Q9, D2 REGULATOR Q10, D3 A.N.I.C LIMITER Fig. 2 When Checking the P.C.B.. • Connect all the connectors removed during disassembly back to the original positions. • Spread the Rubber Sheet and Cloth for insulation purpose and place the Rear Panel Ass’y on the Rubber Sheet and Cloth. (Fig. 2) Rubber Sheet and Cloth www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 9 A 1 2 3 4 5 6 7 B C D E F G H I J VOLUME 10 0 INPUT MAIN (3) P.C.B. (Side A) Circuit No. U, C, T, R, A, L K, B, G C78 X O J42 X O L1 X O DRIVER AC IN MAIN (1) P.C.B. POWER MAIN (5) P.C.B. BE BE BE WH YE YE RE RE BR BR U, C, A, B, G models R, T, K, L models MAIN (7) P.C.B. MAIN (10) P.C.B. (Side A) MAIN (9) P.C.B. (Side A) MAIN (2) P.C.B. WH BE BE WH BE WH BE WH U, C, A, B, G models R, T, K, L models R, T, K, L models VOLTAGE SELECTOR 220V-240V 110V-120V RE RE RE RE BL RE RE BL BL WH SP- SP+ RE Ref. no. Location D1 J2 D2 H4 D3 I4 D4 H2 D5 H2 D6 G2 D7 F2 D8 C3 D22 G2 D23 G2 • Semiconductor Location Ref. no. Location D24 J3 D25 F3 D28 I3 D29 I3 IC1 H2 IC4 B3 IC5 B2 IC6 G3 Q1 F3 Q2 F3 Ref. no. Location Q5 G3 Q6 G3 Q9 H4 Q10 I4 Q17 F3 Q18 F3 Q19 F3 Q20 F3 1 9 1 9 1 1 9 10 -V -15 +15 E MAIN -V -15 +15 E MAIN POWER INDICATOR (Side A) (Side A) (Side A) (Side A) ON OFF I PRINTED CIRCUIT BOARD Lead Free Solder Used w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 YST-SW012 6 10 I SCHEMATIC DIAGRAM # All voltages are measured with a 10MΩV DC electronic volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. IC1: STK404-070 60W AF Power Amp 1 3 2 4 5 6 7 8 9 10 R1 R4 R5 C1 C2 D1 TR3 TR5 R3 R6 TR4 SUB R2 TR1 TR2 TR6 TR7 TR8 1 10 STK404-070 60W 1 9 PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. 2SB1642 2SD2531 1SR139,400 1SS133,176 MTZJ15C MTZJ24B MTZJ5.6B 2SA970 2SC2240 2SC2878 µPC4570HA-A Anode Cathode E C B B C E RBV-402 IC4~6: µPC4570HA-A Dual OP-Amp Vcc Vo1 -Vm1 +Vm1 VEE +Vm2 -Vm2 Vo2 Vcc 1 2 3 4 5 6 7 8 9 + + - - 1 2 + – -35.2 AC 52.0 0.2 0.2 0.2 0.2 0.2 0 0 0 0 0 0 0.2 0.2 35.0 35.0 35.1 -8.1 0 0 0 0 14.5 -14.5 0 0 0 0 0 15.0 29.4 29.4 -30.7 35.0 14.5 -15.1 -14.5 -29.5 -29.6 0 0 23.6 1.3 0.1 -8.0 1.3 1.3 1.3 0 0.7 0.7 0.8 0 0 0.2 0.2 0.2 -34.9 -35.2 35.1 0 0 1.1 -1.1 1.7 14.5 0 0 0 -1.9 0 14.5 14.5 -14.6 -14.6 0 0 0 0 0 0 0 0 0 L.P.F. L.P.F. DRIVER R, T, K, L models MAIN (1) MAIN (3) MAIN (10) MAIN (7) MAIN (5) MAIN (2) MAIN (9) VOLUME H.P.F. POWER AMP A.N.I.C LIMITER PROTECTION POWER SUPPLY REGULATOR POWER INPUT U, C, A, B, G models w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 11 YST-SW012 ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS: PARTS LIST I ELECTRICAL PARTS C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR,BASE PIN CN.CANNON : CONNECTOR,CANNON CN.DIN : CONNECTOR,DIN CN.FLAT : CONNECTOR,FLAT CABLE CN.POST : CONNECTOR,BASE POST COIL.MX.AM : COIL,AM MIX COIL.AT.FM : COIL,FM ANTENNA COIL.DT.FM : COIL,FM DETECT COIL.MX.FM : COIL,FM MIX COIL,OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER,TEST POINT L.DTCT : LIGHT DETECTING MODULE L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED,INFRARED MODUL.RF : MODULATOR,RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN,TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR. : CARBON RESISTOR R.CAR.CHP : CHIP RESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.CEMENT : CEMENT RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW,TRANSISTOR SUPRT.PCB : SUPPORT,P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKER TERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWER TRANSFORMER ASS’Y TUNER.AM : TUNER PACK,AM TUNER.FM : TUNER PACK,FM TUNER.PK : FRONT-ENDTUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDE POTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER I WARNING G Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 12 YST-SW012 ✻ New Parts ✻ New Parts * WG587200 P.C.B. UC * WG587300 P.C.B. RTL * WG587400 P.C.B. K * WG587500 P.C.B. A * WG587600 P.C.B. BG CB3 VB390100 CN.BS.PIN 5P s CB4 VG879900 CN.BS.PIN 2P s CB5-6 WC050700 CLIP.FUSE EYF-52BCY RTKL s CB7-8 WC050700 CLIP.FUSE EYF-52BCY CB9-10 VT658100 TERM.WRAP 352-TX119 C1 VE326000 C.MYLAR 0.1uF 50V C2 VE327100 C.MYLAR 0.82uF 50V C4 UR867100 C.EL 10uF 50V C5 UA654220 C.MYLAR 0.022uF 50V J C6 UR867100 C.EL 10uF 50V C7 UA655330 C.MYLAR 0.33uF 50V J C8 UA655120 C.MYLAR 0.12uF 50V J C9 UA654100 C.MYLAR 0.01uF 50V J C10-11 UR867100 C.EL 10uF 50V C12 UR867470 C.EL 47uF 50V C13 VE326000 C.MYLAR 0.1uF 50V C14 UR868100 C.EL 100uF 50V C15 UR838100 C.EL 100uF 16V C16 UR867100 C.EL 10uF 50V C17 UA655180 C.MYLAR 0.18uF 50V J C18 UA654330 C.MYLAR 0.033uF 50V J C19 FG652100 C.CE 100pF 50V C21 UA653330 C.MYLAR 3300pF 50V J C25-26 VT898000 C.MYLAR 0.1uF 100V C27 UA655180 C.MYLAR 0.18uF 50V J C28 UR867100 C.EL 10uF 50V C29 UR867220 C.EL 22uF 50V C30-32 UR867220 C.EL 22uF 50V C37 UA655470 C.MYLAR 0.47uF 50V J C38 UA653680 C.MYLAR 6800pF 50V J s C55 WB121400 C.CE.SAFTY 0.01uF 295V C57 UR868100 C.EL 100uF 50V C58-59 V6476700 C.EL 4700uF 50V C72 UR867100 C.EL 10uF 50V C74-75 UA654150 C.MYLAR 0.015uF 50V J C76 UR838100 C.EL 100uF 16V C77 UR867220 C.EL 22uF 50V C78 FG652220 C.CE 220pF 50V KBG C79 FG652100 C.CE 100pF 50V C81 FG644100 C.CE 0.01uF 50V s D1 VC971500 DIODE.BRG RBV-402 4A 200V s D2 VG440900 DIODE.ZENR MTZJ15C 15V s D3 VG440900 DIODE.ZENR MTZJ15C 15V P.C.B. MAIN P.C.B. MAIN D4 VD631600 DIODE 1SS133,176 D5 VD631600 DIODE 1SS133,176 D6 VD631600 DIODE 1SS133,176 D7 VG442500 DIODE.ZENR MTZJ24B 24V * D8 WG613900 LED 333GD/T5 GREEN D22-23 VD631600 DIODE 1SS133,176 D24 VU264100 DIODE 1SR139,400 D25 VD631600 DIODE 1SS133,176 s D28-29 VG437700 DIODE.ZENR MTZJ5.6B 5.6V s F1 WC804600 FUSE 1.6A 125V UCRTKL s F1 VV335000 FUSE 0.4A 250V ABG s F2 VV335000 FUSE 0.4A 250V RTKL G1 V5995800 PLATE.GND s IC1 X3587A00 IC STK404-070 60W IC4-6 XB247A00 IC uPC4570HA-A PJ1 WC871000 JACK.PIN 1P MSP-241V-01NI PN1 WB213200 PIN L=70 WB21320 Q1 iC224030 TR 2SC2240 GR,BL Q2 iA097030 TR 2SA970 GR,BL Q5 WF612700 TR 2SC2240 GR Q6 iA097040 TR 2SA970 GR Q9 V6896700 TR 2SD2531 Q10 V6896500 TR 2SB1642 Q17-18 iC224030 TR 2SC2240 GR,BL Q19 iC287820 TR 2SC2878 A,B Q20 iC287820 TR 2SC2878 A,B R1 HV756150 R.CAR.FP 1.5KΩ 1/4W R5 HV756120 R.CAR.FP 1.2KΩ 1/4W R28 V6022600 R.CEMENT 0.1Ω 3W R39 VC760500 R.MTL.OXD 470Ω 2W s R45-46 HV753100 R.CAR.FP 1Ω 1/4W R47 VC751900 R.MTL.OXD 0.22Ω 2W R48 HV754100 R.CAR.FP 10Ω 1/4W * R66 WG727400 R.MTL.FLM 2.7KΩ 1/4W * R67 WG731200 R.MTL.FLM 100KΩ 1/4W R95 HV755100 R.CAR.FP 100Ω 1/4W s R126 HV753100 R.CAR.FP 1Ω 1/4W s RY1 V5966300 RELAY DS24D2-OS(M) ST1-3 WA789600 SCR.TERM M3 * s SW5 WG803400 SW.PUSH PS4E-A-040-NP s SW6 WC906700 SW.SLIDE SDKPA40300 RTKL VR1 WC595500 VR A 5KΩ WD192100 CUSHION Ref. No. Part No. Description Markets Ref. No. Part No. Description Markets www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 13 YST-SW012 10mm HJ35 1/4W Type 5mm HF85 1/6W Type HF45 1/4W Type Value 1/4W Type Part No. 1/6W Type Part No. 10 kΩ HF45 7100 HF45 7100 11 kΩ HF45 7110 HF45 7110 12 kΩ HJ35 7120 HF85 7120 13 kΩ HF45 7130 HF45 7130 15 kΩ HF45 7150 HF45 7150 18 kΩ HF45 7180 HF45 7180 22 kΩ HF45 7220 HF45 7220 24 kΩ HF45 7240 HF45 7240 27 kΩ HJ35 7270 HF85 7270 30 kΩ HF45 7300 HF45 7300 33 kΩ HF45 7330 HF45 7330 36 kΩ HF45 7360 HF45 7360 39 kΩ HF45 7390 HF45 7390 47 kΩ HF45 7470 HF45 7470 51 kΩ HF45 7510 HF45 7510 56 kΩ HF45 7560 HF45 7560 62 kΩ HF45 7620 HF45 7620 68 kΩ HF45 7680 HF45 7680 82 kΩ HF45 7820 HF45 7820 91 kΩ HF45 7910 HF45 7910 100 kΩ HF45 8100 HF45 8100 110 kΩ HF45 8110 HF45 8110 120 kΩ HF45 8120 HF45 8120 150 kΩ HF45 8150 HF45 8150 180 kΩ HF45 8180 HF45 8180 220 kΩ HJ35 8220 HF85 8220 270 kΩ HF45 8270 HF45 8270 300 kΩ HF45 8300 HF45 8300 330 kΩ HF45 8330 HF45 8330 390 kΩ HJ35 8390 HF85 8390 470 kΩ HF45 8470 HF45 8470 560 kΩ HJ35 8560 HF85 8560 680 kΩ HJ35 8680 HF85 8680 820 kΩ HJ35 8820 HF85 8820 1.0 MΩ HF45 9100 HF45 9100 1.2 MΩ HJ35 9120 ❊ 1.5 MΩ HJ35 9150 HF85 9150 1.8 MΩ HJ35 9180 HF85 9180 2.2 MΩ HJ35 9220 HF85 9220 3.3 MΩ HJ35 9330 HF85 9330 3.9 MΩ HJ35 9390 ❊ 4.7 MΩ HJ35 9470 HF85 9470 Value 1/4W Type Part No. 1/6W Type Part No. 1.0 Ω HJ35 3100 HF85 3100 1.8 Ω HJ35 3180 ❊ 2.2 Ω HJ35 3220 HF85 3220 3.3 Ω HJ35 3330 HF85 3330 4.7 Ω HJ35 3470 HF85 3470 5.6 Ω HJ35 3560 HF85 3560 10 Ω HF45 4100 HF45 4100 15 Ω HJ35 4150 HF85 4150 22 Ω HF45 4220 HF45 4220 27 Ω HJ35 4270 HF85 4270 33 Ω HF45 4330 HF45 4330 39 Ω HJ35 4470 HF85 4390 47 Ω HF45 4470 HF45 4470 56 Ω HF45 4560 HF45 4560 68 Ω HF45 4680 HF45 4680 75 Ω HF45 4750 HF45 4750 82 Ω HF45 4820 HF45 4820 91 Ω HF45 4910 HF45 4910 100 Ω HF45 5100 HF45 5100 110 Ω HJ35 5110 HF85 5110 120 Ω HF45 5120 HF45 5120 150 Ω HF45 5150 HF45 5150 160 Ω HJ35 5160 ❊ 180 Ω HF45 5180 HF45 5180 200 Ω HF45 5200 HF45 5200 220 Ω HF45 5220 HF45 5220 270 Ω HF45 5270 HF45 5270 330 Ω HF45 5330 HF45 5330 390 Ω HF45 5390 HF45 5390 430 Ω HF45 5430 HF45 5430 470 Ω HF45 5470 HF45 5470 510 Ω HF45 5510 HF45 5510 560 Ω HF45 5560 HF45 5560 680 Ω HF45 5680 HF45 5680 820 Ω HF45 5820 HF45 5820 910 Ω HF45 5910 HF45 5910 1.0 kΩ HF45 6100 HF45 6100 1.2 kΩ HF45 6120 HF45 6120 1.5 kΩ HF45 6150 HF45 6150 1.8 kΩ HF45 6180 HF45 6180 2.0 kΩ HJ35 6200 HF85 6200 2.2 kΩ HF45 6220 HF45 6220 2.4 kΩ HJ35 6240 HF85 6240 2.7 kΩ HF45 6270 HF45 6270 3.0 kΩ HF45 6300 HF45 6300 3.3 kΩ HF45 6330 HF45 6330 3.6 kΩ HJ35 6360 HF85 6360 3.9 kΩ HF45 6390 HF45 6390 4.7 kΩ HF45 6470 HF45 6470 5.1 kΩ HF45 6510 HF45 6510 5.6 kΩ HF45 6560 HF45 6560 6.8 kΩ HF45 6680 HF45 6680 8.2 kΩ HF45 6820 HF45 6820 9.1 kΩ HF45 6910 HF45 6910 Parts List for Carbon Resistors ❊ : Not available www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 YST-SW012 14 I EXPLODED VIEW R, T, K, L models 200 201 1 2 3 4-2 4-3 4-4 4-5 4-11 4-11 4-16 4-17 4-18 4-19 4-20 4-24 4-24 4-23 4-28 4-33 6 21 21 21 4-1 (2) 4-1 (1) 4-35 4-1 (9) 4-34 4-1 (3) 4-34 4-34 4-34 4-38 4-31 4-32 4-34 4-38 4-1 (7) 4-1 (10) U, C, A, B, G models R, T, K, L models 4-1 (5) 4-1 (4) U, C, A, B, G models R, T, K, L models 4-21 4-21 4-21 4-21 4-34 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 15 YST-SW012 I MECHANICAL PARTS * 1 WG568200 CABINET ASS'Y CH * 1 WG568100 CABINET ASS'Y BL * 1 WG568000 CABINET ASS'Y SI 2 X5399A00 DRIVER WOOFER 20cm 6Ω JA2025 * 3 WG569300 FRONT GRILLE ASS'Y CH,BL * 3 WG569200 FRONT GRILLE ASS'Y SI * 4-1 WG587200 P.C.B. ASS'Y UC * 4-1 WG587300 P.C.B. ASS'Y RTL * 4-1 WG587400 P.C.B. ASS'Y K * 4-1 WG587500 P.C.B. ASS'Y A * 4-1 WG587600 P.C.B. ASS'Y BG * s 4-2 X5313B00 POWER TRANSFORMER UC * s 4-2 X5314B00 POWER TRANSFORMER RTKL * s 4-2 X5315B00 POWER TRANSFORMER A * s 4-2 X5316B00 POWER TRANSFORMER BG s 4-3 WC906100 POWER CABLE 2m UC s 4-3 WD042000 POWER CABLE 2m R s 4-3 WC906200 POWER CABLE 2m T s 4-3 WC906300 POWER CABLE 2m K s 4-3 WC906400 POWER CABLE 2m A s 4-3 WC906500 POWER CABLE 2m B s 4-3 WC906600 POWER CABLE 2m GL 4-4 CB072750 CORD STOPPER SR-4N-4 4-5 WB408000 BINDING TIE GT-100M * 4-11 WG570500 REAR PANEL UC * 4-11 WG570600 REAR PANEL RTL * 4-11 WG570700 REAR PANEL A * 4-11 WG570800 REAR PANEL BG 4-16 WC738200 POWER KNOB 4-17 WC757900 VOLUME KNOB 4-18 WC738400 COVER P.SW 4-19 WC738100 COVER TERMINAL 4-20 WC738800 PACKING COVER TERMINAL 4-21 WC785200 PACKING 6x202 t=1 4-23 WC758000 PACKING COVER P.SW 4-24 WC739000 BUSH 4-28 WC869800 GASKET RTKL * 4-31 WF765200 PW HEAD S-TIGHT SCREW 4x8-10 MFZN2B3 4-32 WE774400 BIND HEAD B-TIGHT SCREW 3x8 MFZN2B3 4-33 WE774600 SCREW IC 3x18 MFZN2W3 4-34 WF268000 BIND HEAD P-TIGHT SCREW 3x10 MFZN2B3 4-35 VT669300 PW HEAD B-TIGHT SCREW 3x8-8 MFC2 4-38 WE983600 BIND HEAD SCREW 3x8 MFZN2B3 6 WC788700 EMBLEM 21 WE955200 BIND HEAD TAPPING SCREW 4x20 MFZN2B3 ACCESSORIES 200 WC731500 NONSKID PAD M32 t2 4pcs/set 201 WC947800 SUBWOOFER CABLE 1P 5m 1pc ✻ New Parts Ref. No. Part No. Description Remarks Markets www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-SW012 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
