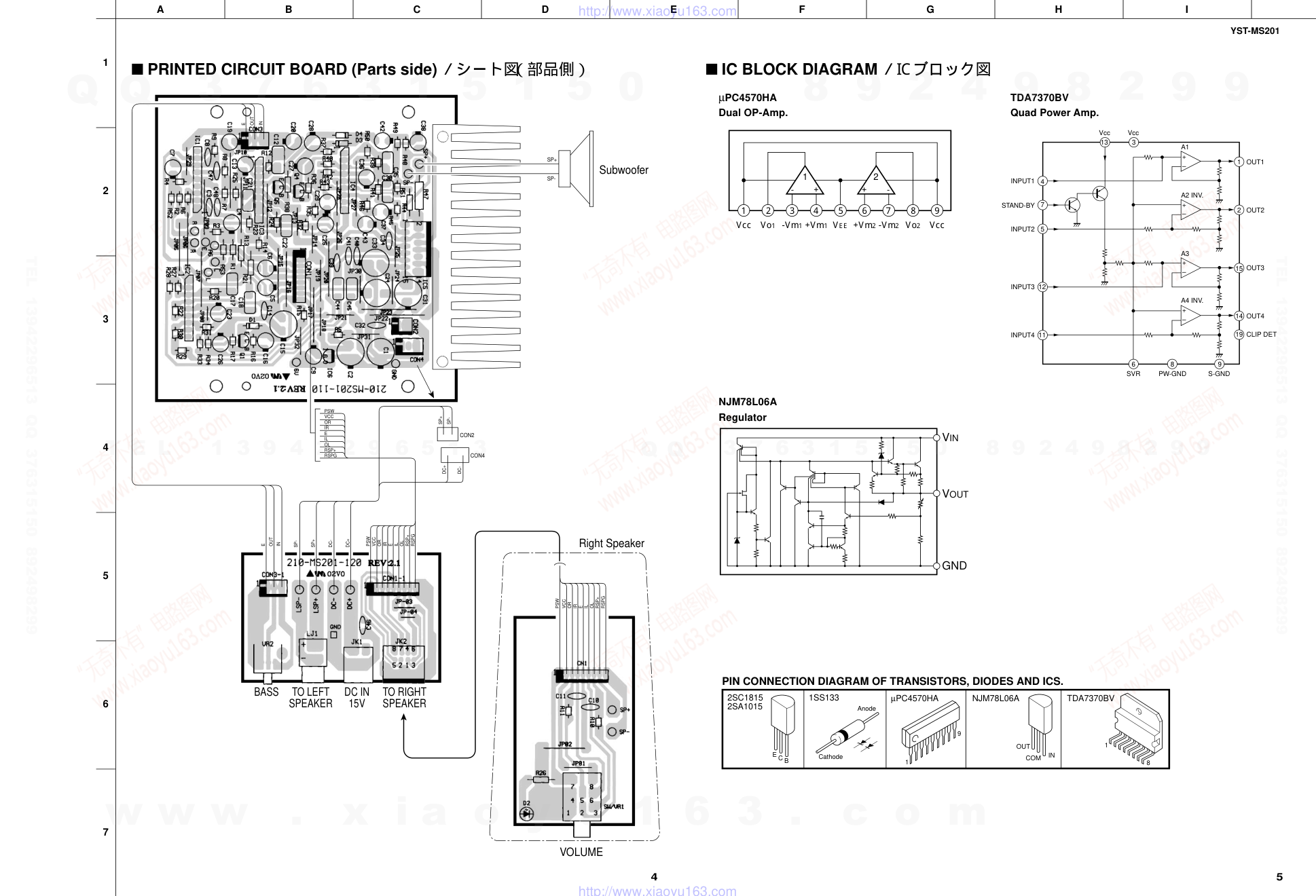

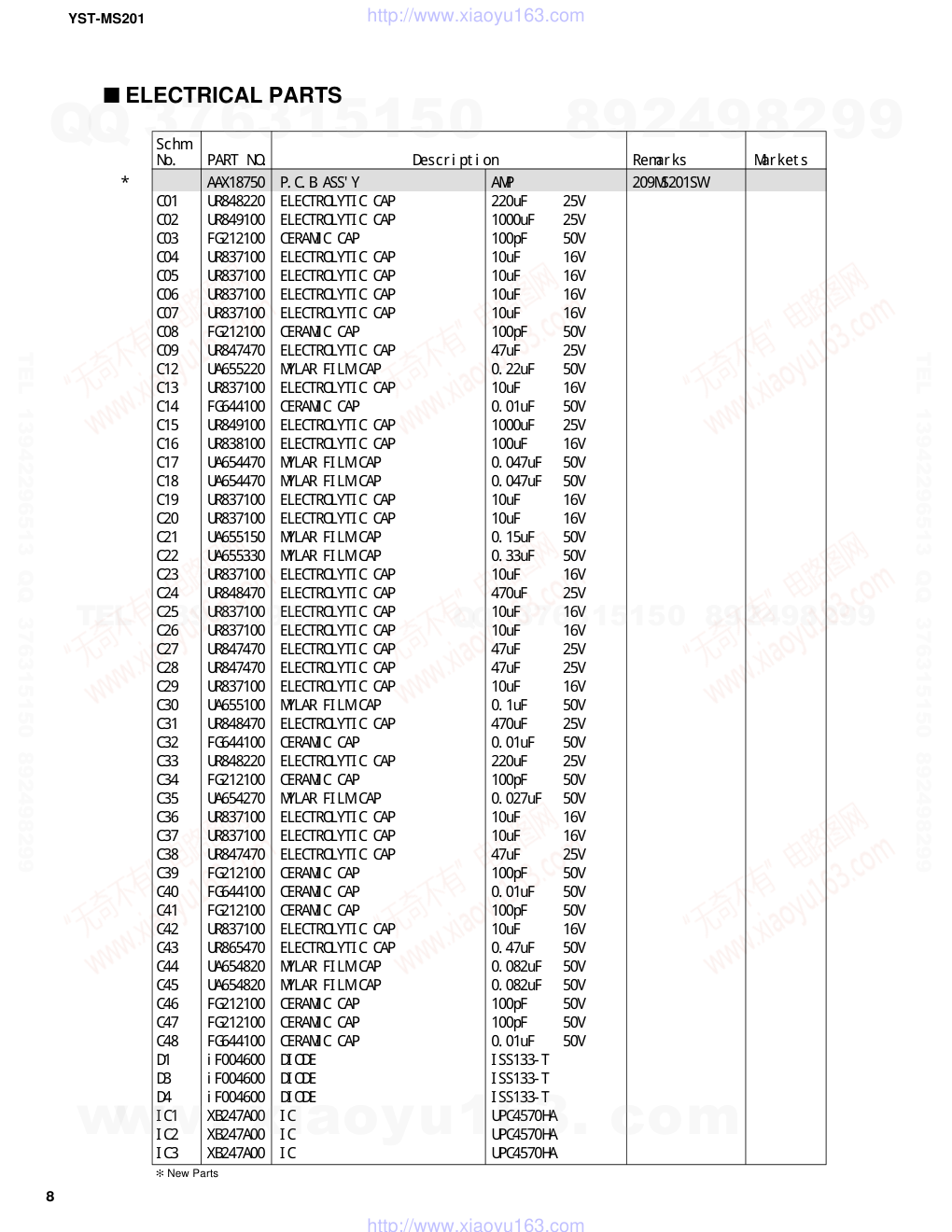

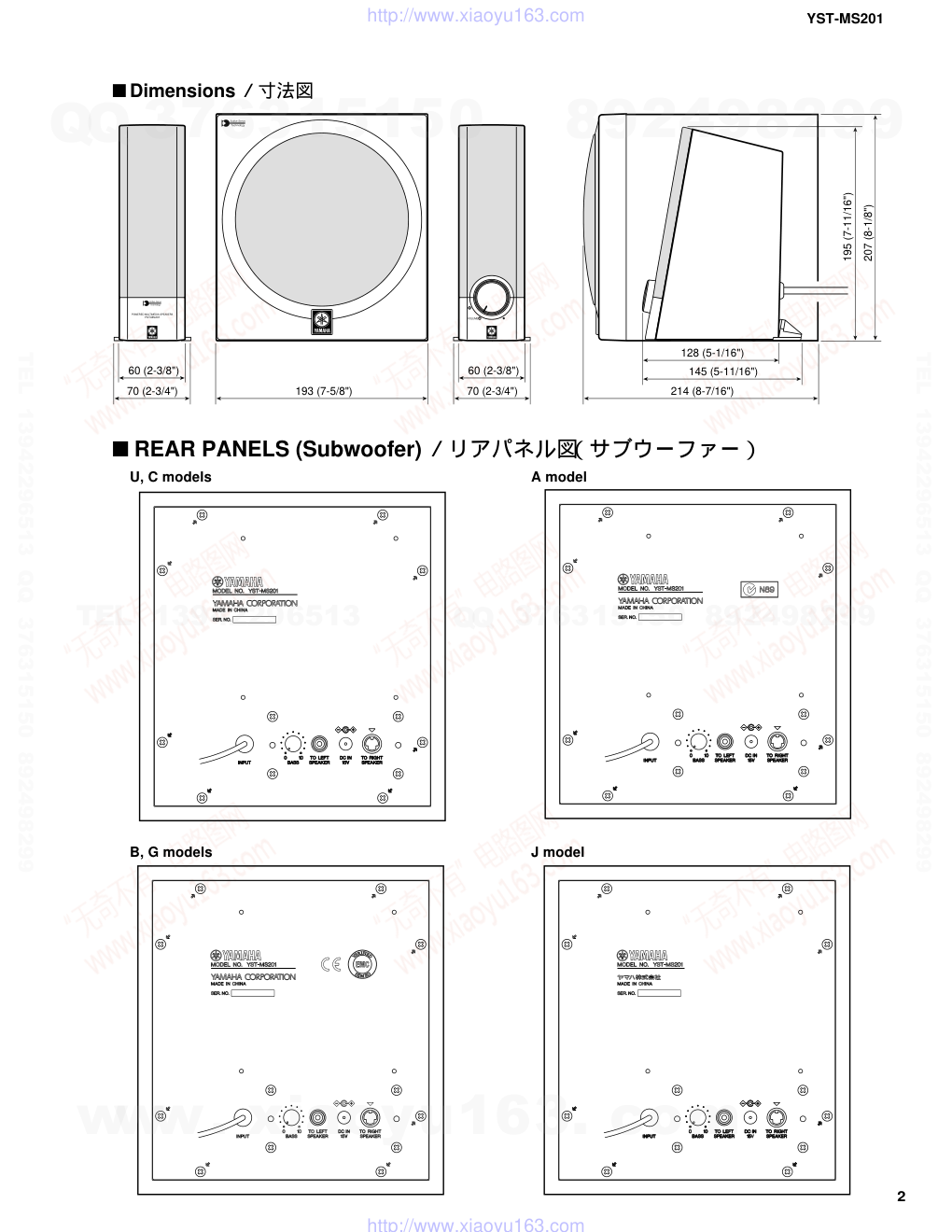

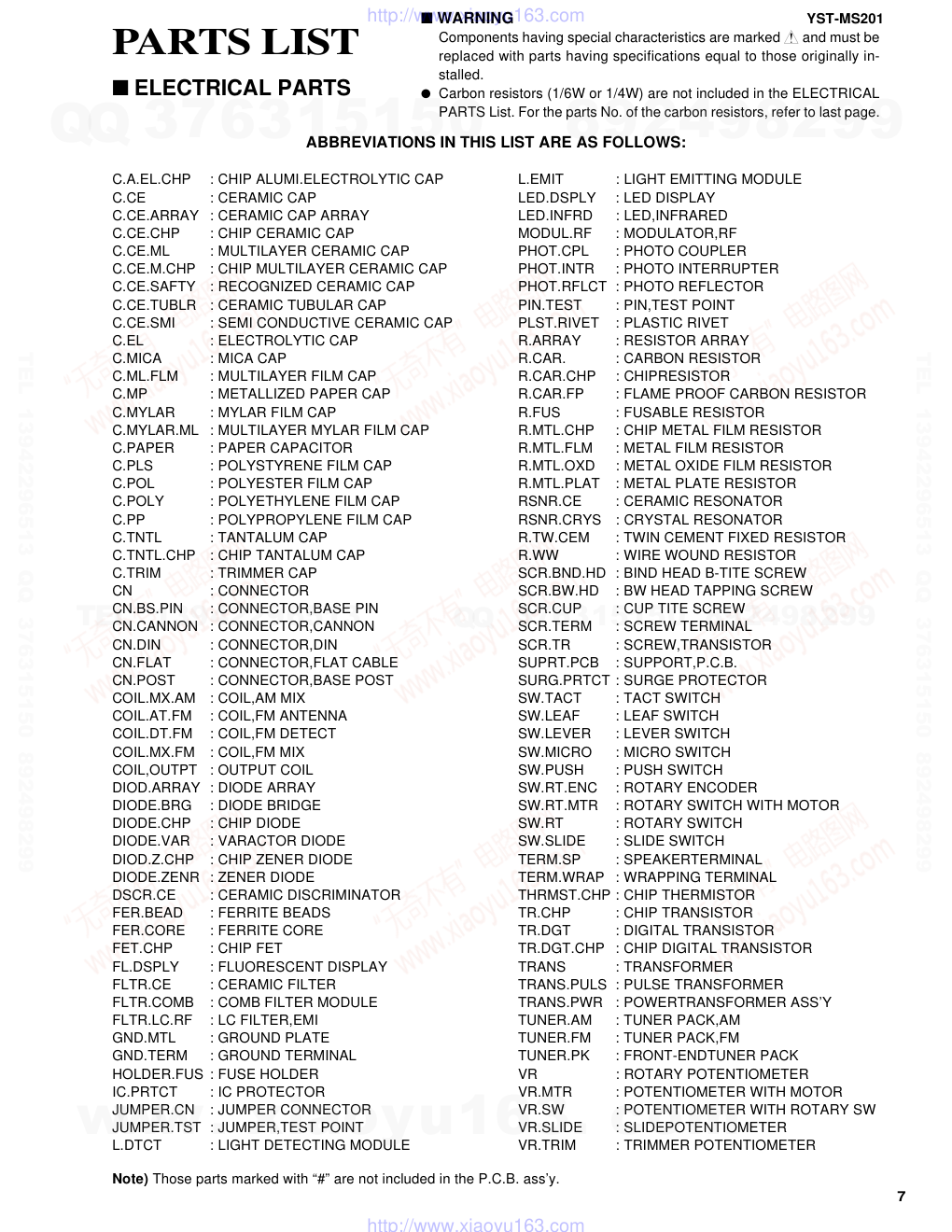

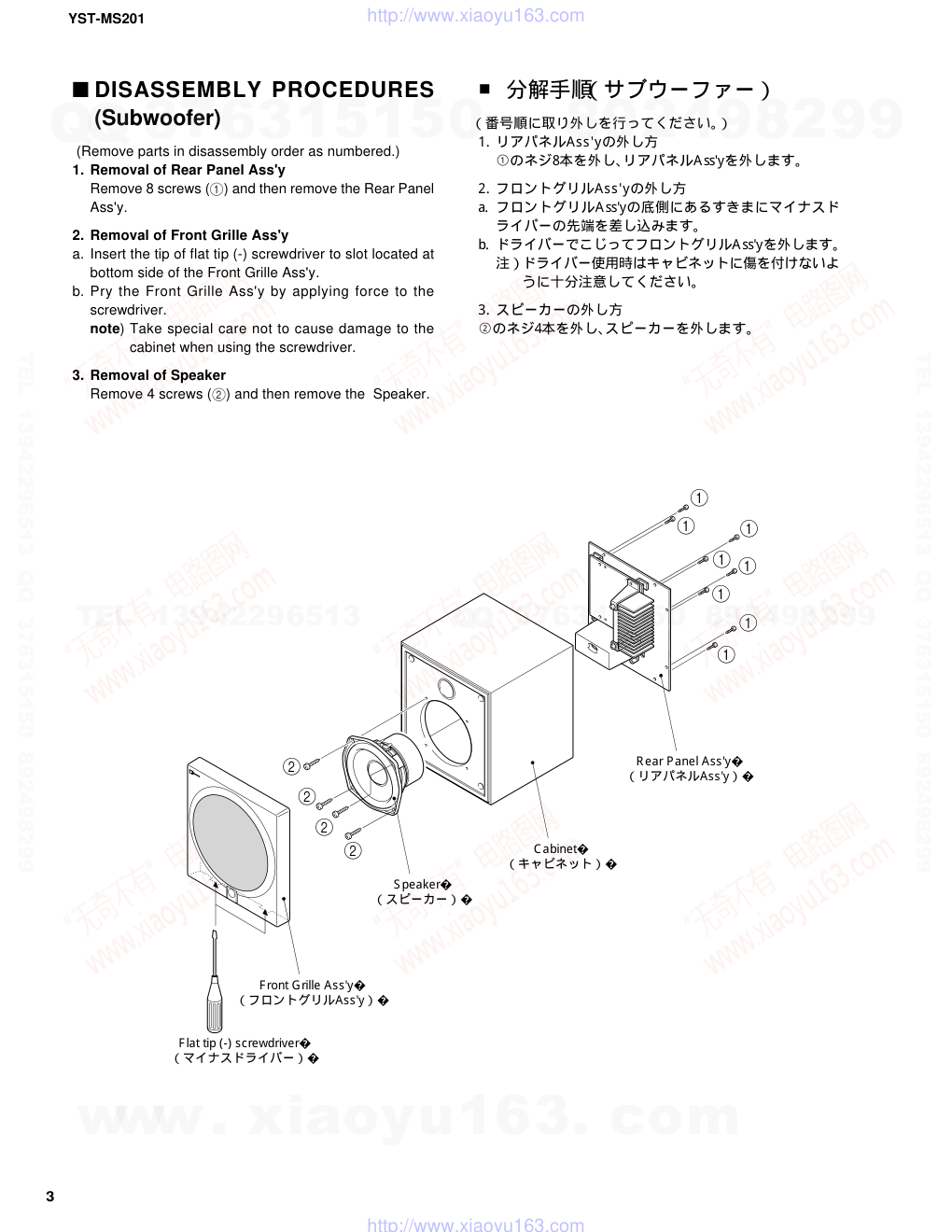

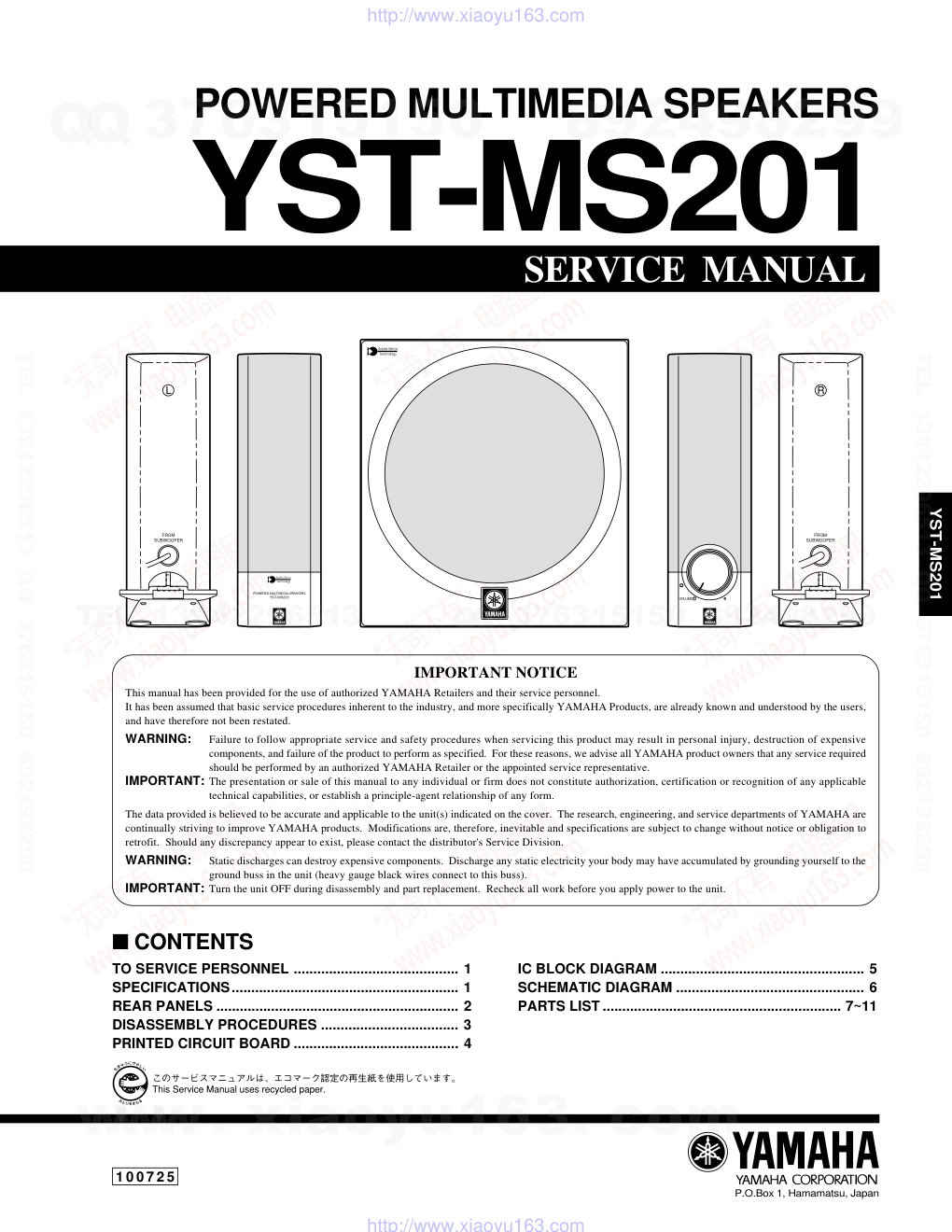

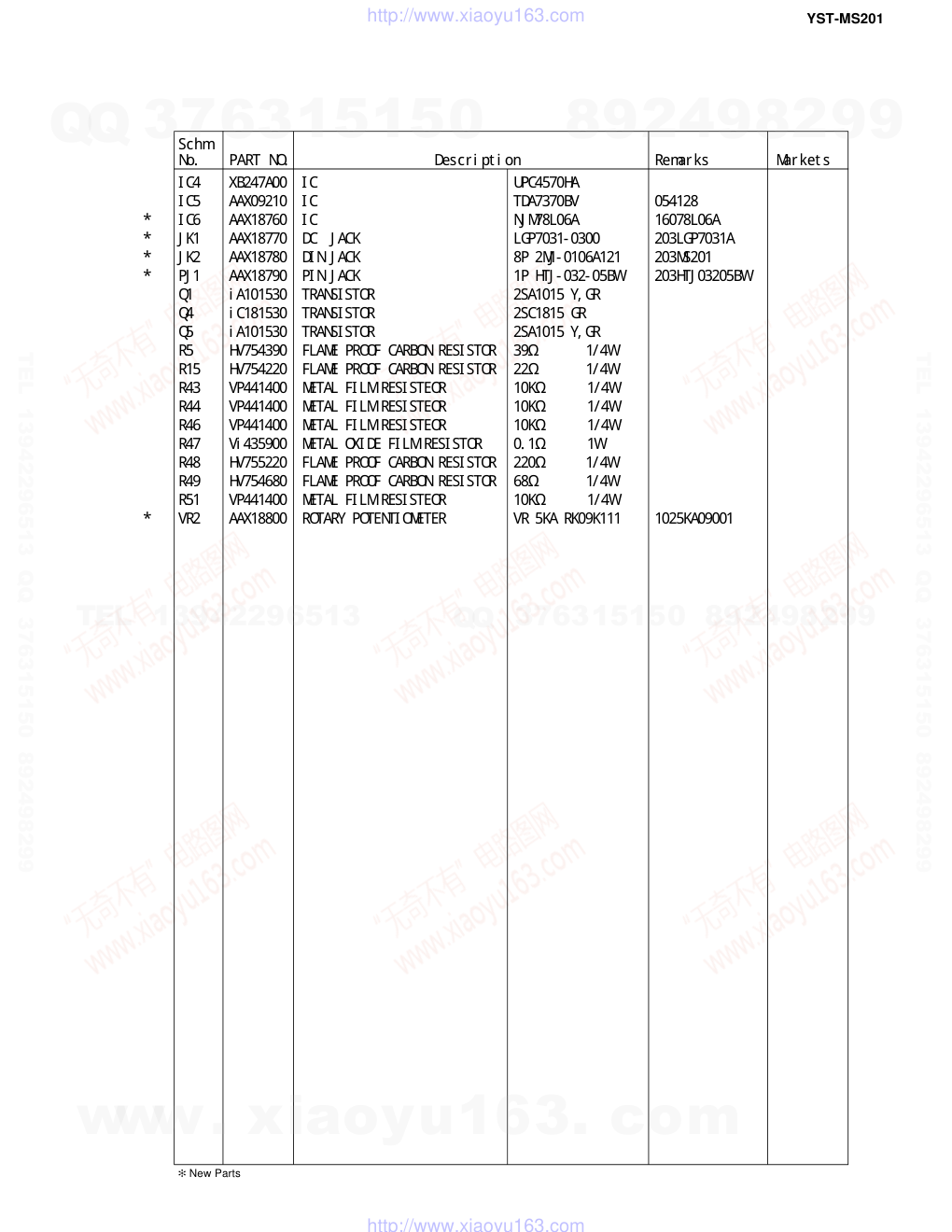

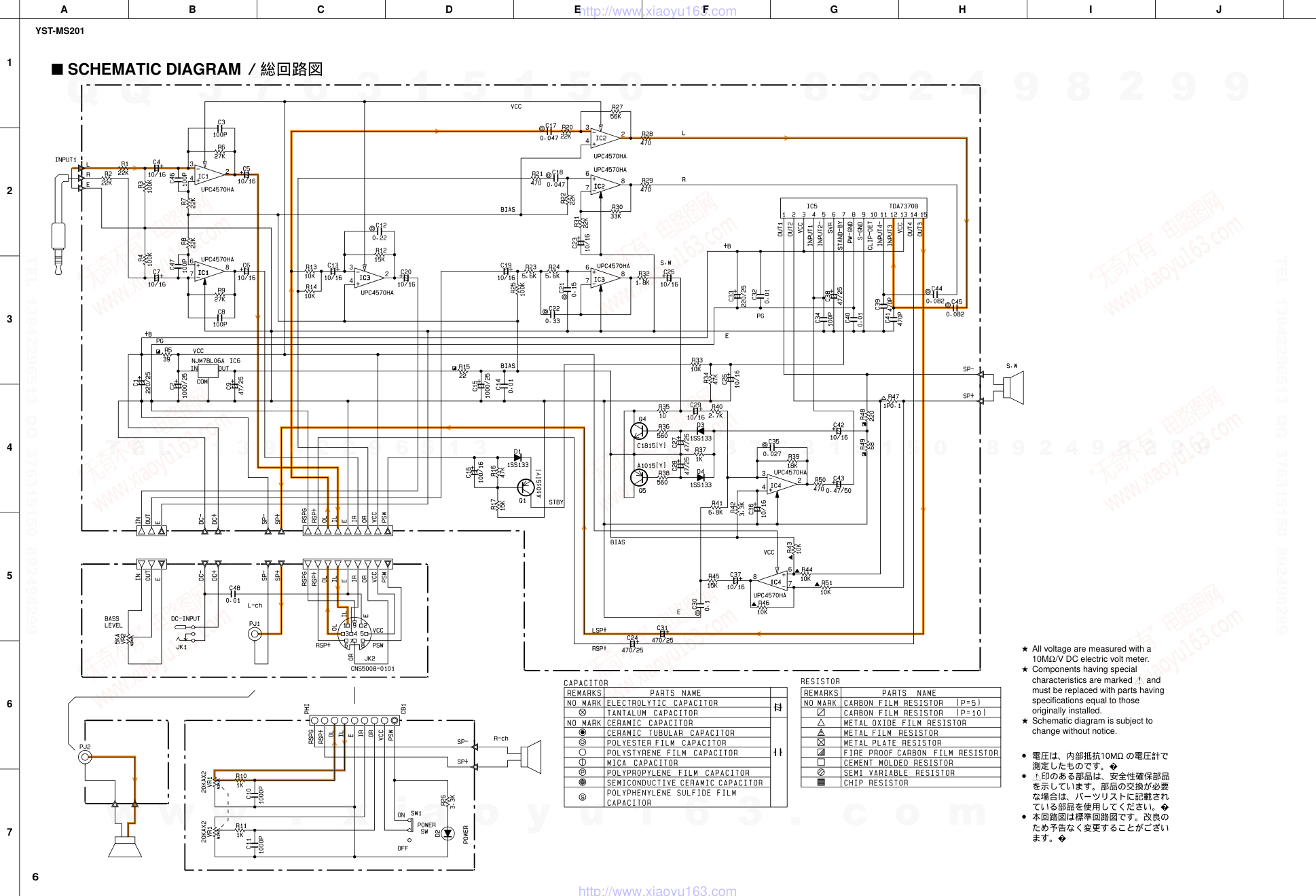

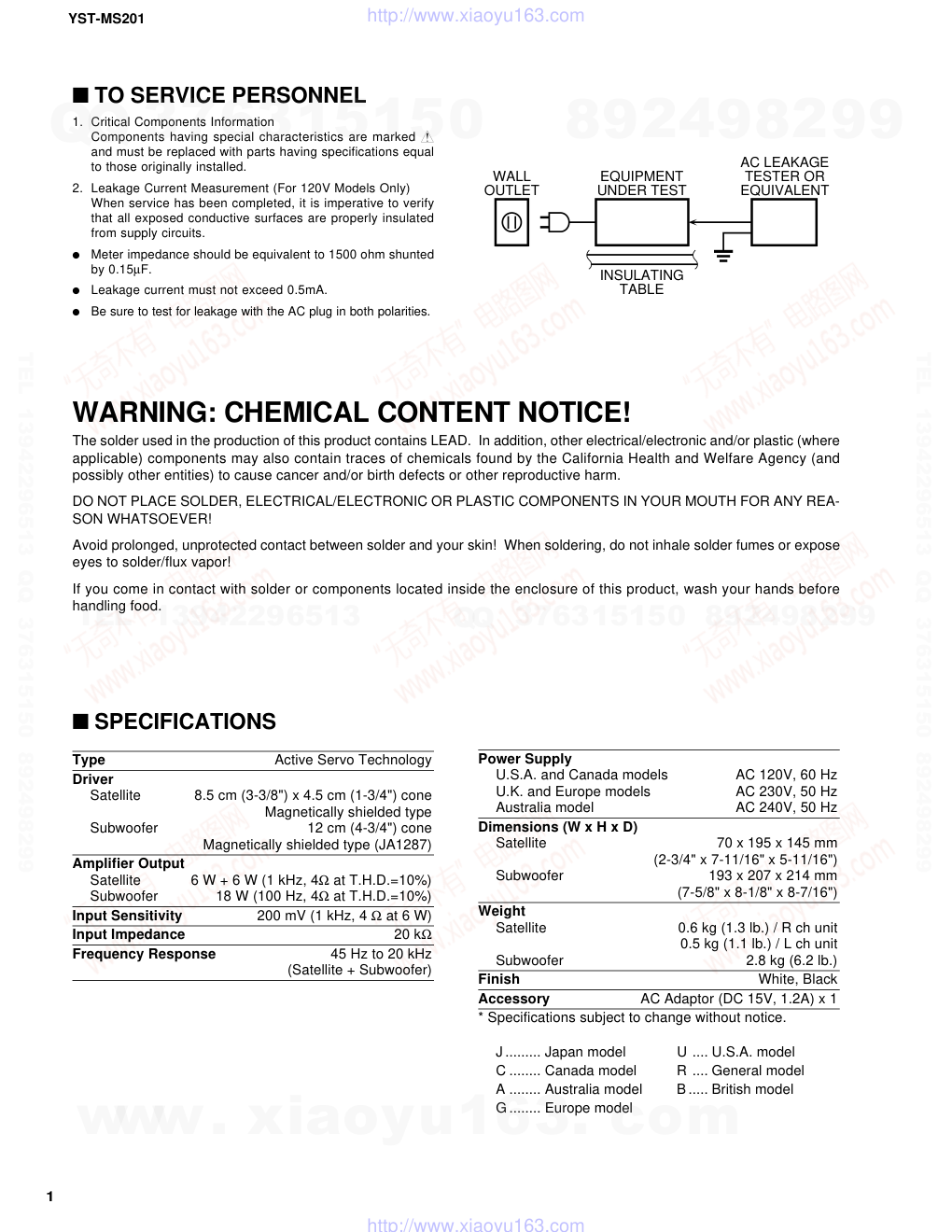

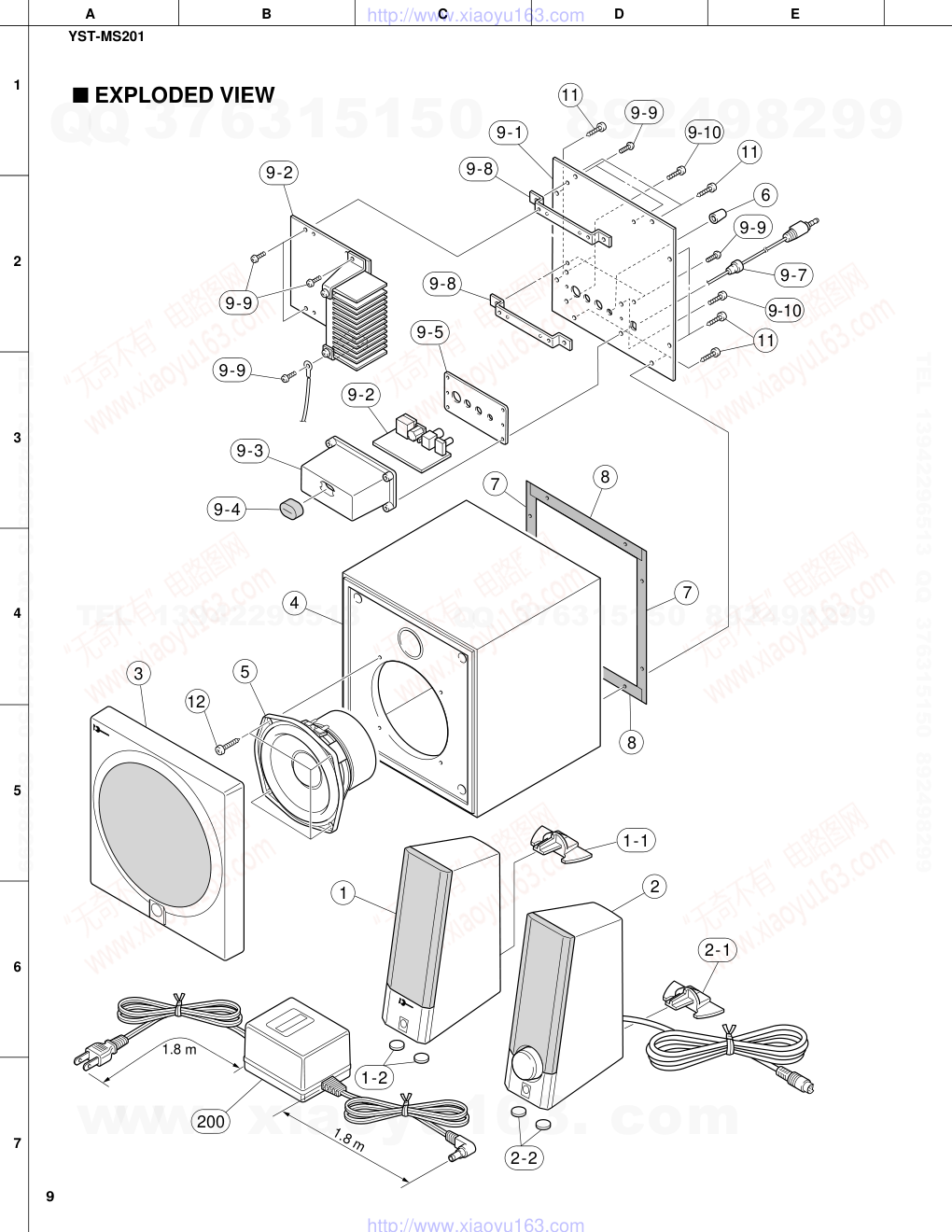

YST-MS201 FROM SUBWOOFER FROM SUBWOOFER VOLUME POWERED MULTIMEDIA SPEAKERS YST-MS201 R L P.O.Box 1, Hamamatsu, Japan SERVICE MANUAL POWERED MULTIMEDIA SPEAKERS YST-MS201 1 0 0 7 2 5 I CONTENTS TO SERVICE PERSONNEL .......................................... 1 SPECIFICATIONS.......................................................... 1 REAR PANELS .............................................................. 2 DISASSEMBLY PROCEDURES ................................... 3 PRINTED CIRCUIT BOARD .......................................... 4 IC BLOCK DIAGRAM .................................................... 5 SCHEMATIC DIAGRAM ................................................ 6 PARTS LIST ............................................................. 7~11 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. YST-MS201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 WALL OUTLET EQUIPMENT UNDER TEST AC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE 1 WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. I SPECIFICATIONS Type Active Servo Technology Driver Satellite 8.5 cm (3-3/8") x 4.5 cm (1-3/4") cone Magnetically shielded type Subwoofer 12 cm (4-3/4") cone Magnetically shielded type (JA1287) Amplifier Output Satellite 6 W + 6 W (1 kHz, 4Ω at T.H.D.=10%) Subwoofer 18 W (100 Hz, 4Ω at T.H.D.=10%) Input Sensitivity 200 mV (1 kHz, 4 Ω at 6 W) Input Impedance 20 kΩ Frequency Response 45 Hz to 20 kHz (Satellite + Subwoofer) I TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. G Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. G Leakage current must not exceed 0.5mA. G Be sure to test for leakage with the AC plug in both polarities. Power Supply U.S.A. and Canada models AC 120V, 60 Hz U.K. and Europe models AC 230V, 50 Hz Australia model AC 240V, 50 Hz Dimensions (W x H x D) Satellite 70 x 195 x 145 mm (2-3/4" x 7-11/16" x 5-11/16") Subwoofer 193 x 207 x 214 mm (7-5/8" x 8-1/8" x 8-7/16") Weight Satellite 0.6 kg (1.3 lb.) / R ch unit 0.5 kg (1.1 lb.) / L ch unit Subwoofer 2.8 kg (6.2 lb.) Finish White, Black Accessory AC Adaptor (DC 15V, 1.2A) x 1 * Specifications subject to change without notice. J ......... Japan model U .... U.S.A. model C ........ Canada model R .... General model A ........ Australia model B ..... British model G ........ Europe model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 VOLUME POWERED MULTIMEDIA SPEAKERS YST-MS201 195 (7-11/16") 207 (8-1/8") 214 (8-7/16") 70 (2-3/4") 193 (7-5/8") 60 (2-3/8") 70 (2-3/4") 60 (2-3/8") 145 (5-11/16") 128 (5-1/16") 2 I REAR PANELS (Subwoofer) ／リアパネル図（サブウーファー） U, C models A model I Dimensions ／寸法図 B, G models J model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 1 1 1 1 1 1 1 1 2 2 2 2 Rear Panel Ass'y� （リアパネルAss'y）� Cabinet� （キャビネット）� Speaker� （スピーカー）� Front Grille Ass'y� （フロントグリルAss'y）� Flat tip (-) screwdriver� （マイナスドライバー）� 3 I DISASSEMBLY PROCEDURES (Subwoofer) (Remove parts in disassembly order as numbered.) 1. Removal of Rear Panel Ass'y Remove 8 screws (1) and then remove the Rear Panel Ass'y. 2. Removal of Front Grille Ass'y a. Insert the tip of flat tip (-) screwdriver to slot located at bottom side of the Front Grille Ass'y. b. Pry the Front Grille Ass'y by applying force to the screwdriver. note) Take special care not to cause damage to the cabinet when using the screwdriver. 3. Removal of Speaker Remove 4 screws (2) and then remove the Speaker. ■ 分解手順（サブウーファー） （番号順に取り外しを行ってください。） 1. リアパネルAss'yの外し方 ①のネジ8本を外し、リアパネルAss'yを外します。 2. フロントグリルAss'yの外し方 a. フロントグリルAss'yの底側にあるすきまにマイナスド ライバーの先端を差し込みます。 b. ドライバーでこじってフロントグリルAss'yを外します。 注）ドライバー使用時はキャビネットに傷を付けないよ うに十分注意してください。 3. スピーカーの外し方 ②のネジ4本を外し、スピーカーを外します。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I 1 2 3 4 5 6 7 YST-MS201 VOLUME Right Speaker TO RIGHT SPEAKER TO LEFT SPEAKER BASS DC IN 15V PSW VCC OR IR E IL OL RSP+ RSPG PSW VCC OR IR E IL OL RSP+ RSPG SP+ SP- DC+ DC- SP- SP+ DC- DC+ E OUT IN E OUT IN PSW VCC OR IR E IL OL RSP+ RSPG SP+ SP- Subwoofer CON2 CON4 4 5 PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. 2SC1815 2SA1015 µPC4570HA 1SS133 Anode Cathode E C B NJM78L06A TDA7370BV OUT COM IN 1 9 1 8 VIN VOUT GND A1 A2 INV. A4 INV. A3 + – + – + – + – OUT1 Vcc Vcc OUT2 OUT3 OUT4 CLIP DET PW-GND SVR INPUT1 INPUT2 INPUT3 INPUT4 STAND-BY S-GND 12 11 5 7 4 13 3 9 8 6 1 2 15 14 19 Vcc Vo1 -Vm1 +Vm1 VEE +Vm2 -Vm2 Vo2 Vcc 1 2 3 4 5 6 7 8 9 + + - - 1 2 I IC BLOCK DIAGRAM ／ICブロック図 µPC4570HA TDA7370BV Dual OP-Amp. Quad Power Amp. NJM78L06A Regulator I PRINTED CIRCUIT BOARD (Parts side) ／シート図（部品側） w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J YST-MS201 1 2 3 4 5 6 7 # All voltage are measured with a 10MΩ/V DC electric volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. ● 電圧は、内部抵抗10MΩ の電圧計で 測定したものです。� ● s印のある部品は、安全性確保部品 を示しています。部品の交換が必要 な場合は、パーツリストに記載され ている部品を使用してください。� ● 本回路図は標準回路図です。改良の ため予告なく変更することがござい ます。� 3 4 2 3 4 2 3 4 2 6 7 8 3 4 2 6 7 8 6 7 8 8 6 7 6 I SCHEMATIC DIAGRAM ／総回路図 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 7 I WARNING Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally in- stalled. G Carbon resistors (1/6W or 1/4W) are not included in the ELECTRICAL PARTS List. For the parts No. of the carbon resistors, refer to last page. ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS: C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR,BASE PIN CN.CANNON : CONNECTOR,CANNON CN.DIN : CONNECTOR,DIN CN.FLAT : CONNECTOR,FLAT CABLE CN.POST : CONNECTOR,BASE POST COIL.MX.AM : COIL,AM MIX COIL.AT.FM : COIL,FM ANTENNA COIL.DT.FM : COIL,FM DETECT COIL.MX.FM : COIL,FM MIX COIL,OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER,TEST POINT L.DTCT : LIGHT DETECTING MODULE L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED,INFRARED MODUL.RF : MODULATOR,RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN,TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR. : CARBON RESISTOR R.CAR.CHP : CHIPRESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.WW : WIRE WOUND RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW,TRANSISTOR SUPRT.PCB : SUPPORT,P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKERTERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWERTRANSFORMER ASS’Y TUNER.AM : TUNER PACK,AM TUNER.FM : TUNER PACK,FM TUNER.PK : FRONT-ENDTUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDEPOTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER Note) Those parts marked with “#” are not included in the P.C.B. ass’y. PARTS LIST I ELECTRICAL PARTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 8 I ELECTRICAL PARTS * AAX18750 P. C. B ASS' Y AMP 209MS201SW C01 UR848220 ELECTROLYTIC CAP 220uF 25V C02 UR849100 ELECTROLYTIC CAP 1000uF 25V C03 FG212100 CERAMIC CAP 100pF 50V C04 UR837100 ELECTROLYTIC CAP 10uF 16V C05 UR837100 ELECTROLYTIC CAP 10uF 16V C06 UR837100 ELECTROLYTIC CAP 10uF 16V C07 UR837100 ELECTROLYTIC CAP 10uF 16V C08 FG212100 CERAMIC CAP 100pF 50V C09 UR847470 ELECTROLYTIC CAP 47uF 25V C12 UA655220 MYLAR FILM CAP 0. 22uF 50V C13 UR837100 ELECTROLYTIC CAP 10uF 16V C14 FG644100 CERAMIC CAP 0. 01uF 50V C15 UR849100 ELECTROLYTIC CAP 1000uF 25V C16 UR838100 ELECTROLYTIC CAP 100uF 16V C17 UA654470 MYLAR FILM CAP 0. 047uF 50V C18 UA654470 MYLAR FILM CAP 0. 047uF 50V C19 UR837100 ELECTROLYTIC CAP 10uF 16V C20 UR837100 ELECTROLYTIC CAP 10uF 16V C21 UA655150 MYLAR FILM CAP 0. 15uF 50V C22 UA655330 MYLAR FILM CAP 0. 33uF 50V C23 UR837100 ELECTROLYTIC CAP 10uF 16V C24 UR848470 ELECTROLYTIC CAP 470uF 25V C25 UR837100 ELECTROLYTIC CAP 10uF 16V C26 UR837100 ELECTROLYTIC CAP 10uF 16V C27 UR847470 ELECTROLYTIC CAP 47uF 25V C28 UR847470 ELECTROLYTIC CAP 47uF 25V C29 UR837100 ELECTROLYTIC CAP 10uF 16V C30 UA655100 MYLAR FILM CAP 0. 1uF 50V C31 UR848470 ELECTROLYTIC CAP 470uF 25V C32 FG644100 CERAMIC CAP 0. 01uF 50V C33 UR848220 ELECTROLYTIC CAP 220uF 25V C34 FG212100 CERAMIC CAP 100pF 50V C35 UA654270 MYLAR FILM CAP 0. 027uF 50V C36 UR837100 ELECTROLYTIC CAP 10uF 16V C37 UR837100 ELECTROLYTIC CAP 10uF 16V C38 UR847470 ELECTROLYTIC CAP 47uF 25V C39 FG212100 CERAMIC CAP 100pF 50V C40 FG644100 CERAMIC CAP 0. 01uF 50V C41 FG212100 CERAMIC CAP 100pF 50V C42 UR837100 ELECTROLYTIC CAP 10uF 16V C43 UR865470 ELECTROLYTIC CAP 0. 47uF 50V C44 UA654820 MYLAR FILM CAP 0. 082uF 50V C45 UA654820 MYLAR FILM CAP 0. 082uF 50V C46 FG212100 CERAMIC CAP 100pF 50V C47 FG212100 CERAMIC CAP 100pF 50V C48 FG644100 CERAMIC CAP 0. 01uF 50V D1 i F004600 DIODE ISS133-T D3 i F004600 DIODE ISS133-T D4 i F004600 DIODE ISS133-T IC1 XB247A00 IC UPC4570HA IC2 XB247A00 IC UPC4570HA IC3 XB247A00 IC UPC4570HA ✻ New Parts Schm No. PART NO. Descri pt i on Remarks Market s www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 ✻ New Parts Schm No. PART NO. Descri pt i on Remarks Market s IC4 XB247A00 IC UPC4570HA IC5 AAX09210 IC TDA7370BV 054128 * IC6 AAX18760 IC NJ M78L06A 16078L06A * J K1 AAX18770 DC J ACK LGP7031-0300 203LGP7031A * J K2 AAX18780 DIN J ACK 8P 2MJ -0106A121 203MS201 * PJ 1 AAX18790 PIN J ACK 1P HTJ -032-05BW 203HTJ 03205BW Q1 i A101530 TRANSISTOR 2SA1015 Y, GR Q4 i C181530 TRANSISTOR 2SC1815 GR Q5 i A101530 TRANSISTOR 2SA1015 Y, GR R5 HV754390 FLAME PROOF CARBON RESISTOR 39Ω 1/4W R15 HV754220 FLAME PROOF CARBON RESISTOR 22Ω 1/4W R43 VP441400 METAL FILM RESISTEOR 10KΩ 　　 1/4W　 R44 VP441400 METAL FILM RESISTEOR 10KΩ 　　 1/4W　 R46 VP441400 METAL FILM RESISTEOR 10KΩ 　　 1/4W　 R47 Vi 435900 METAL OXIDE FILM RESISTOR 0. 1Ω 　　 1W R48 HV755220 FLAME PROOF CARBON RESISTOR 220Ω 1/4W R49 HV754680 FLAME PROOF CARBON RESISTOR 68Ω 1/4W R51 VP441400 METAL FILM RESISTEOR 10KΩ 　　 1/4W　 * VR2 AAX18800 ROTARY POTENTIOMETER VR 5KA RK09K111 1025KA09001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 A B C D E 1 2 3 4 5 6 7 200 1.8 m 1.8 m 2-1 3 4 5 6 7 7 8 8 1 2 9-1 9-2 9-2 9-3 9-4 9-5 9-7 9-9 9-9 9-8 9-8 12 11 11 11 9-9 9-9 9-10 9-10 1-1 1-2 2-2 9 I EXPLODED VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 10 I MECHANICAL PARTS * 1 AAX18520 SATELLITE SPEAKER UNIT Lch WH YSTMS201SRWL * 1 AAX18530 SATELLITE SPEAKER UNIT Lch BL YSTMS201SRBL * 1-1 AAX19970 BRACKET WH 40B1MS201SR * 1-1 AAX19980 BRACKET BL 40B1MS201SRB * 1-2 AAX19990 PAD WH D14. 8x2t 2pcs 430SAMURAI * 1-2 AAX20000 PAD BL D14. 8x2t 2pcs 430SAMURAIB * 2 AAX18540 SATELLITE SPEAKER UNIT Rch WH YSTMS201SRWR * 2 AAX18550 SATELLITE SPEAKER UNIT Rch BL YSTMS201SRBR * 2-1 AAX19970 BRACKET WH 40B1MS201SR * 2-1 AAX19980 BRACKET BL 40B1MS201SRB * 2-2 AAX19990 PAD WH D14. 8x2t 2pcs 430SAMURAI * 2-2 AAX20000 PAD BL D14. 8x2t 2pcs 430SAMURAIB * 3 AAX18560 FRONT GRILLE ASS' Y WH 40BMS201SWW * 3 AAX18570 FRONT GRILLE ASS' Y BL 40BMS201SWB * 4 AAX18580 CABINET ASS' Y WH 505MS201SW * 4 AAX18590 CABINET ASS' Y BL 505MS201SWB * 5 XZ263A00 SPEAKER UNIT 12cm J A1287 XZ263A00 * 6 AAX18600 KNOB VOLUME BLACK 40B1K9933B * 7 AAX18610 PACKING 185x13x1t W/ADH 429MS201SWA * 8 AAX18620 PACKING 155x13x1t W/ADH 429MS201SWB * 9-1 AAX18630 REAR PANEL 350MS201SWUC ( UC) * 9-1 AAX18640 REAR PANEL 350MS201SWA ( A) * 9-1 AAX18650 REAR PANEL 350MS201SWBG ( BG) * 9-2 AAX18750 P. C. B ASS' Y AMP 209MS201SW * 9-3 AAX18670 BACK COVER 40B1CMS201SW * 9-4 AAX18680 RUBBER BUSH 22x10t 4301MSW10 * 9-5 AAX18690 PACKING 43x86x1t 429MS201SWC * 9-7 AAX18700 CORD BUSH 406SR2M1 * 9-8 AAX18710 BRACKET 350MS201SWB 9-9 EP600820 BIND HEAD B-TITE SCREW 3x6 FCRM3-BL * 9-10 AAX18720 BIND HEAD P-TITE SCREW 3. 5x14 BL 306B8351400 * 11 AAX18730 BIND HEAD WOOD SCREW M3. 5x14 BL 300B8351400 * 12 AAX18740 BIND HEAD WOOD SCREW M4x14 BL 300B8401400 ACCESSORIES 200 V4609500 AC ADAPTOR DC15V 1. 2A AC120V 054327 ( UC) ( DC 1. 8m, AC 1. 8m) 200 V4609800 AC ADAPTOR DC15V 1. 2A AC230V 054329 ( B) ( DC 1. 8m, AC 1. 8m) 200 V4609900 AC ADAPTOR DC15V 1. 2A AC230V 054330 ( G) ( DC 1. 8m, AC 1. 8m) 200 V4609700 AC ADAPTOR DC15V 1. 2A AC240V 054328 ( A) ( DC 1. 8m, AC 1. 8m) ✻ New Parts Ref . No. PART NO. Descri pt i on Remarks Market s www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YST-MS201 Value 1/4W Type Part No. 1/6W Type Part No. 10 kΩ HF45 7100 HF45 7100 11 kΩ HF45 7110 HF45 7110 12 kΩ HJ35 7120 HF85 7120 13 kΩ HF45 7130 HF45 7130 15 kΩ HF45 7150 HF45 7150 18 kΩ HF45 7180 HF45 7180 22 kΩ HF45 7220 HF45 7220 24 kΩ HF45 7240 HF45 7240 27 kΩ HJ35 7270 HF85 7270 30 kΩ HF45 7300 HF45 7300 33 kΩ HF45 7330 HF45 7330 36 kΩ HF45 7360 HF45 7360 39 kΩ HF45 7390 HF45 7390 47 kΩ HF45 7470 HF45 7470 51 kΩ HF45 7510 HF45 7510 56 kΩ HF45 7560 HF45 7560 62 kΩ HF45 7620 HF45 7620 68 kΩ HF45 7680 HF45 7680 82 kΩ HF45 7820 HF45 7820 91 kΩ HF45 7910 HF45 7910 100 kΩ HF45 8100 HF45 8100 110 kΩ HF45 8110 HF45 8110 120 kΩ HF45 8120 HF45 8120 150 kΩ HF45 8150 HF45 8150 180 kΩ HF45 8180 HF45 8180 220 kΩ HJ35 8220 HF85 8220 270 kΩ HF45 8270 HF45 8270 300 kΩ HF45 8300 HF45 8300 330 kΩ HF45 8330 HF45 8330 390 kΩ HJ35 8390 HF85 8390 470 kΩ HF45 8470 HF45 8470 560 kΩ HJ35 8560 HF85 8560 680 kΩ HJ35 8680 HF85 8680 820 kΩ HJ35 8820 HF85 8820 1.0 MΩ HF45 9100 HF45 9100 1.2 MΩ HJ35 9120 ❊ 1.5 MΩ HJ35 9150 HF85 9150 1.8 MΩ HJ35 9180 HF85 9180 2.2 MΩ HJ35 9220 HF85 9220 3.3 MΩ HJ35 9330 HF85 9330 3.9 MΩ HJ35 9390 ❊ 4.7 MΩ HJ35 9470 HF85 9470 Value 1/4W Type Part No. 1/6W Type Part No. 1.0 Ω HJ35 3100 HF85 3100 1.8 Ω HJ35 3180 ❊ 2.2 Ω HJ35 3220 HF85 3220 3.3 Ω HJ35 3330 HF85 3330 4.7 Ω HJ35 3470 HF85 3470 5.6 Ω HJ35 3560 HF85 3560 10 Ω HF45 4100 HF45 4100 15 Ω HJ35 4150 HF85 4150 22 Ω HF45 4220 HF45 4220 27 Ω HJ35 4270 HF85 4270 33 Ω HF45 4330 HF45 4330 39 Ω HJ35 4470 HF85 4390 47 Ω HF45 4470 HF45 4470 56 Ω HF45 4560 HF45 4560 68 Ω HF45 4680 HF45 4680 75 Ω HF45 4750 HF45 4750 82 Ω HF45 4820 HF45 4820 91 Ω HF45 4910 HF45 4910 100 Ω HF45 5100 HF45 5100 110 Ω HJ35 5110 HF85 5110 120 Ω HF45 5120 HF45 5120 150 Ω HF45 5150 HF45 5150 160 Ω HJ35 5160 ❊ 180 Ω HF45 5180 HF45 5180 200 Ω HF45 5200 HF45 5200 220 Ω HF45 5220 HF45 5220 270 Ω HF45 5270 HF45 5270 330 Ω HF45 5330 HF45 5330 390 Ω HF45 5390 HF45 5390 430 Ω HF45 5430 HF45 5430 470 Ω HF45 5470 HF45 5470 510 Ω HF45 5510 HF45 5510 560 Ω HF45 5560 HF45 5560 680 Ω HF45 5680 HF45 5680 820 Ω HF45 5820 HF45 5820 910 Ω HF45 5910 HF45 5910 1.0 kΩ HF45 6100 HF45 6100 1.2 kΩ HF45 6120 HF45 6120 1.5 kΩ HF45 6150 HF45 6150 1.8 kΩ HF45 6180 HF45 6180 2.0 kΩ HJ35 6200 HF85 6200 2.2 kΩ HF45 6220 HF45 6220 2.4 kΩ HJ35 6240 HF85 6240 2.7 kΩ HF45 6270 HF45 6270 3.0 kΩ HF45 6300 HF45 6300 3.3 kΩ HF45 6330 HF45 6330 3.6 kΩ HJ35 6360 HF85 6360 3.9 kΩ HF45 6390 HF45 6390 4.7 kΩ HF45 6470 HF45 6470 5.1 kΩ HF45 6510 HF45 6510 5.6 kΩ HF45 6560 HF45 6560 6.8 kΩ HF45 6680 HF45 6680 8.2 kΩ HF45 6820 HF45 6820 9.1 kΩ HF45 6910 HF45 6910 10mm HJ35 1/4W Type 5mm HF85 1/6W Type HF45 1/4W Type Parts List for Carbon Resistors ❊ : Not available 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
