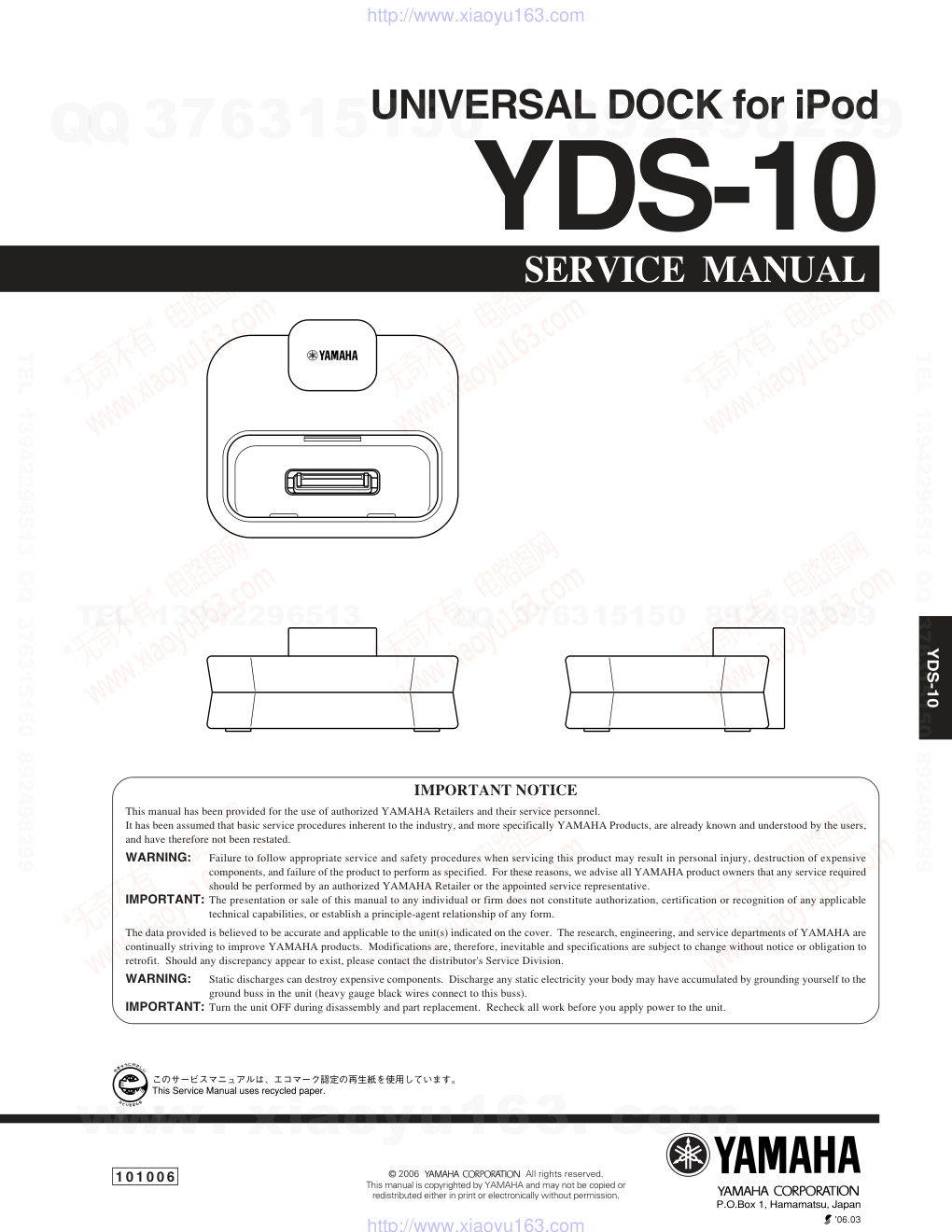

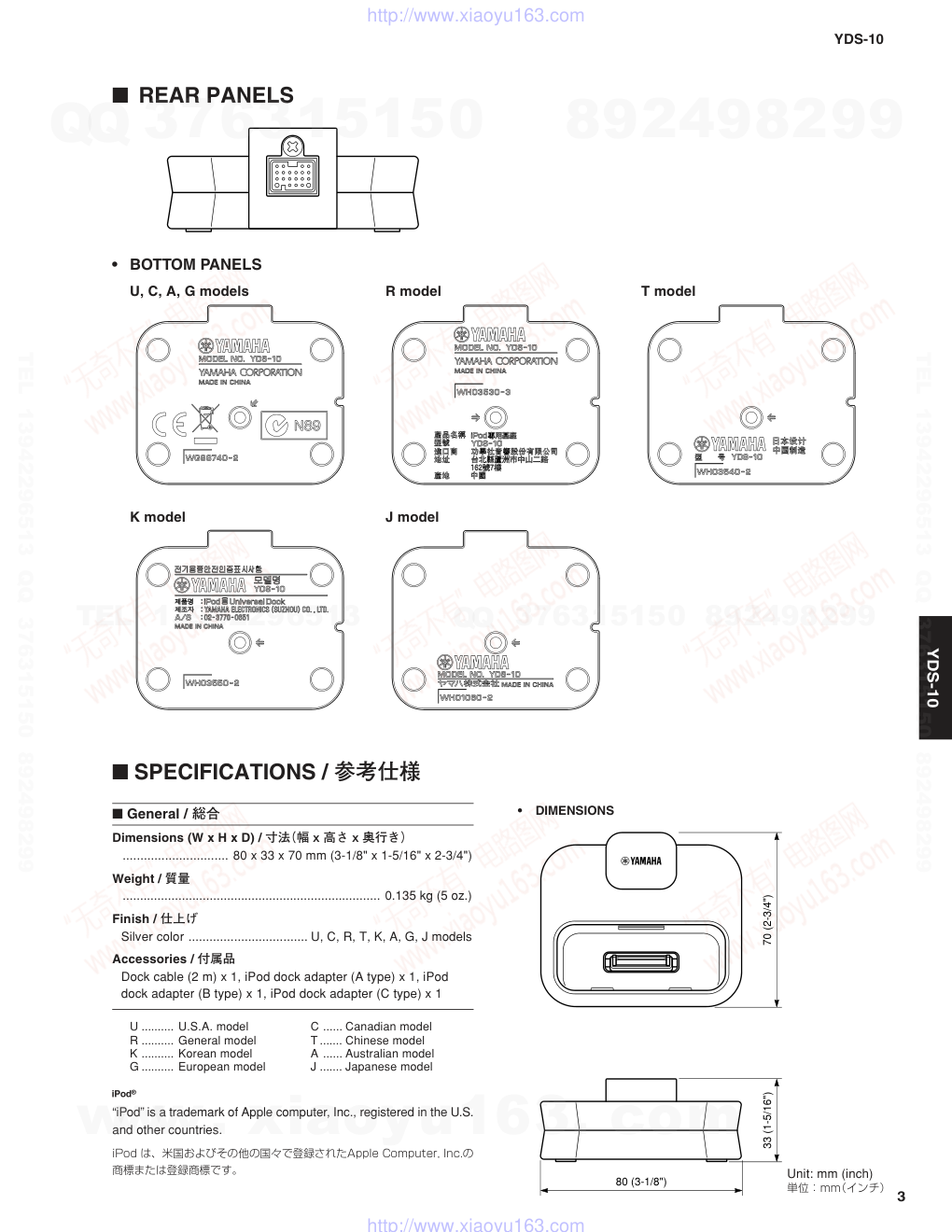

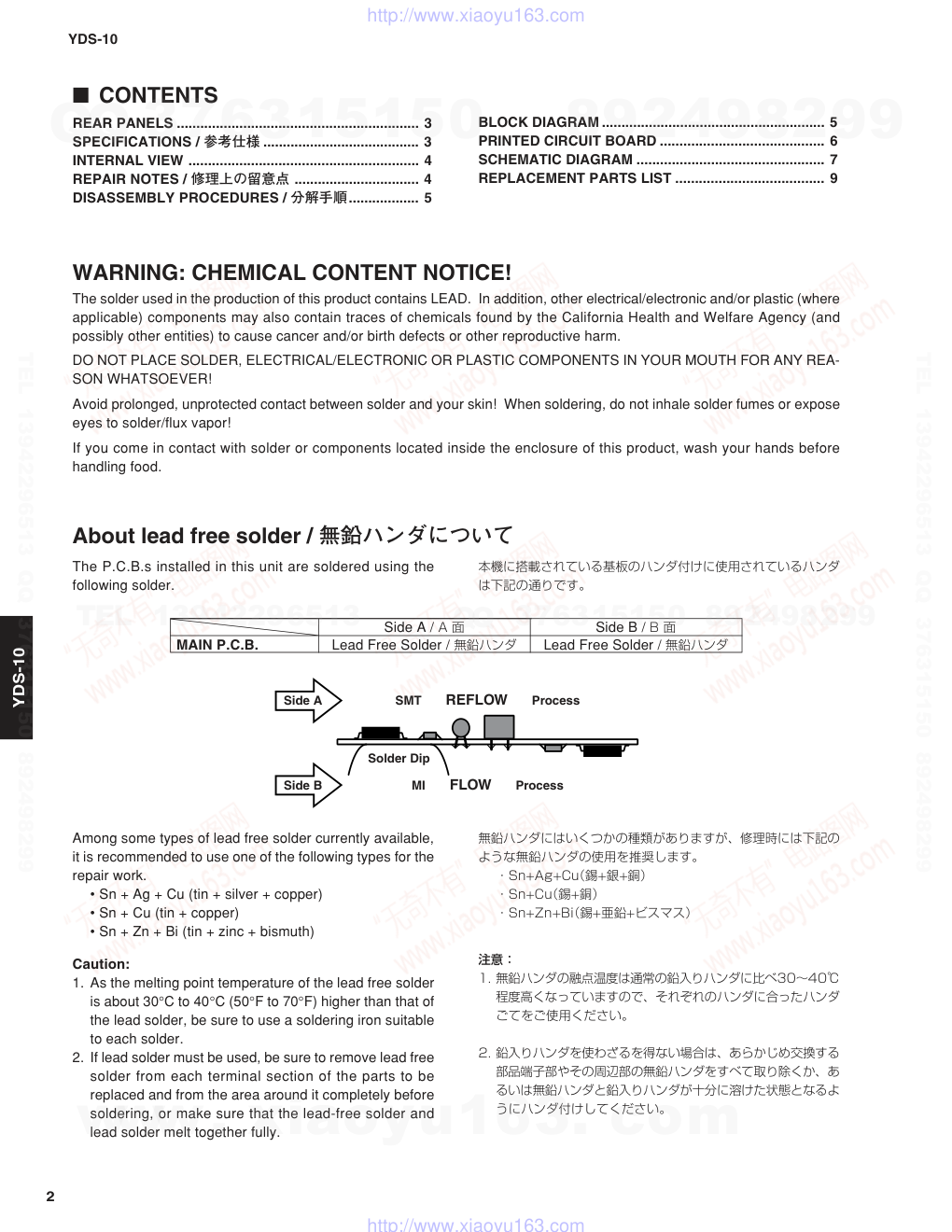

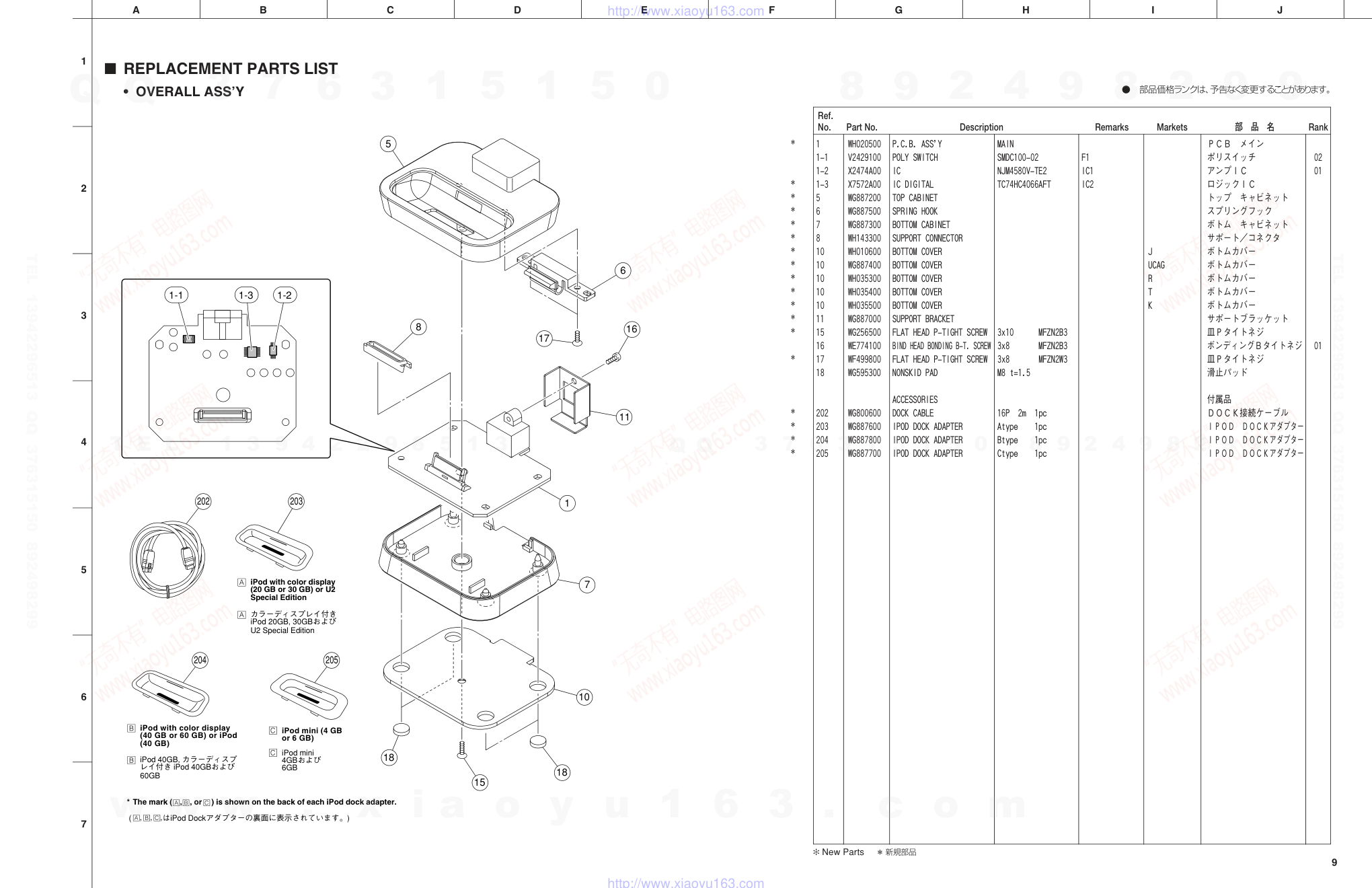

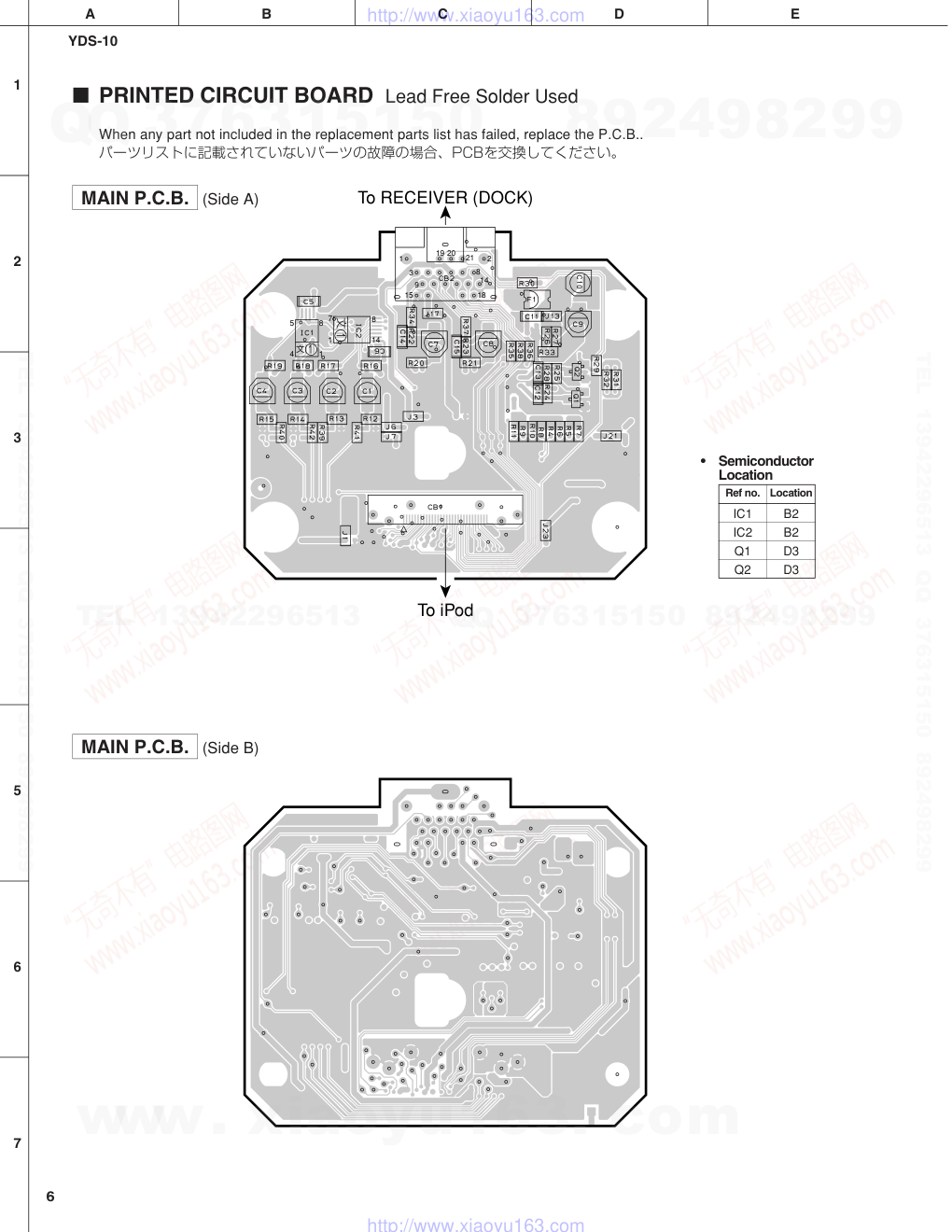

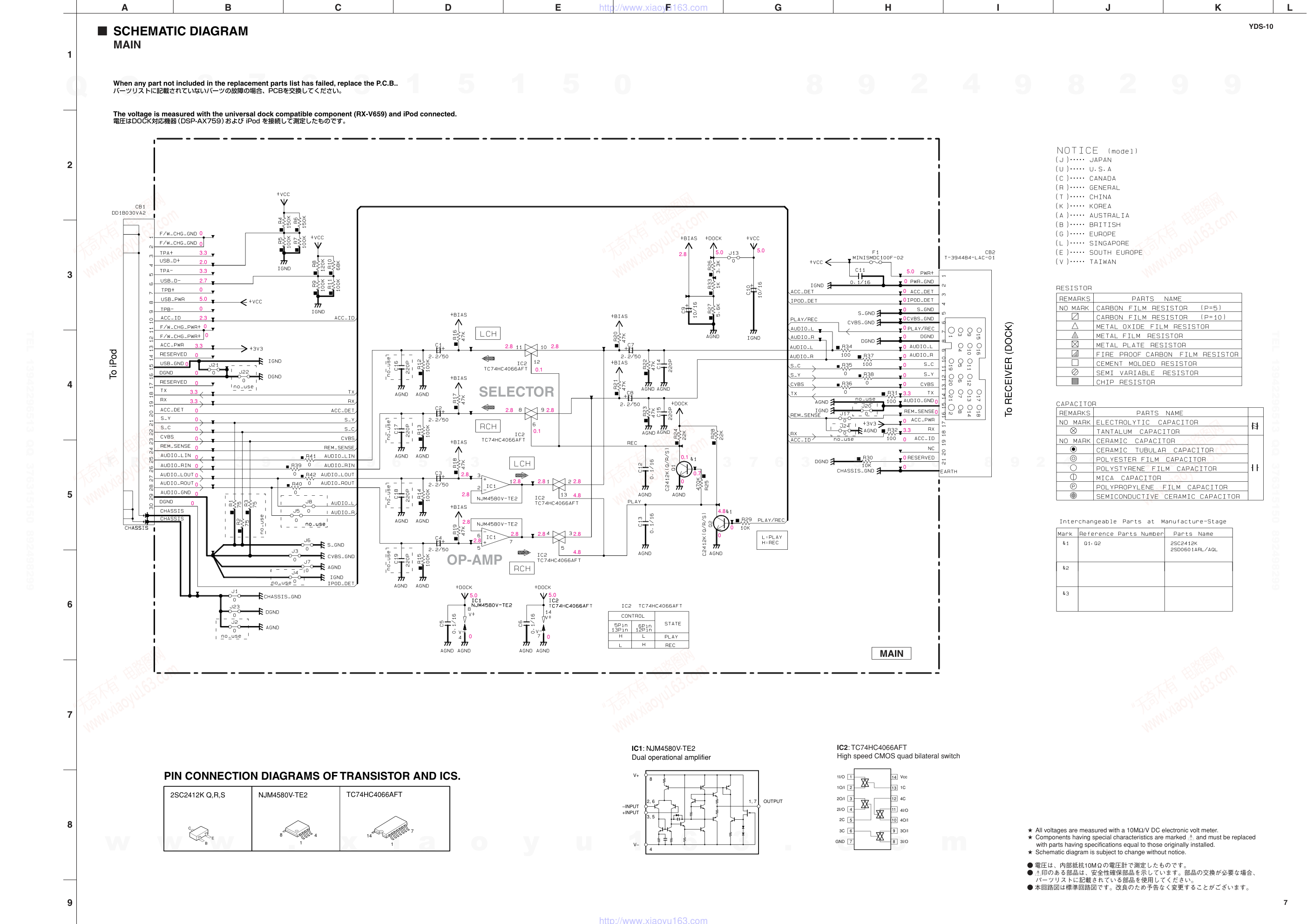

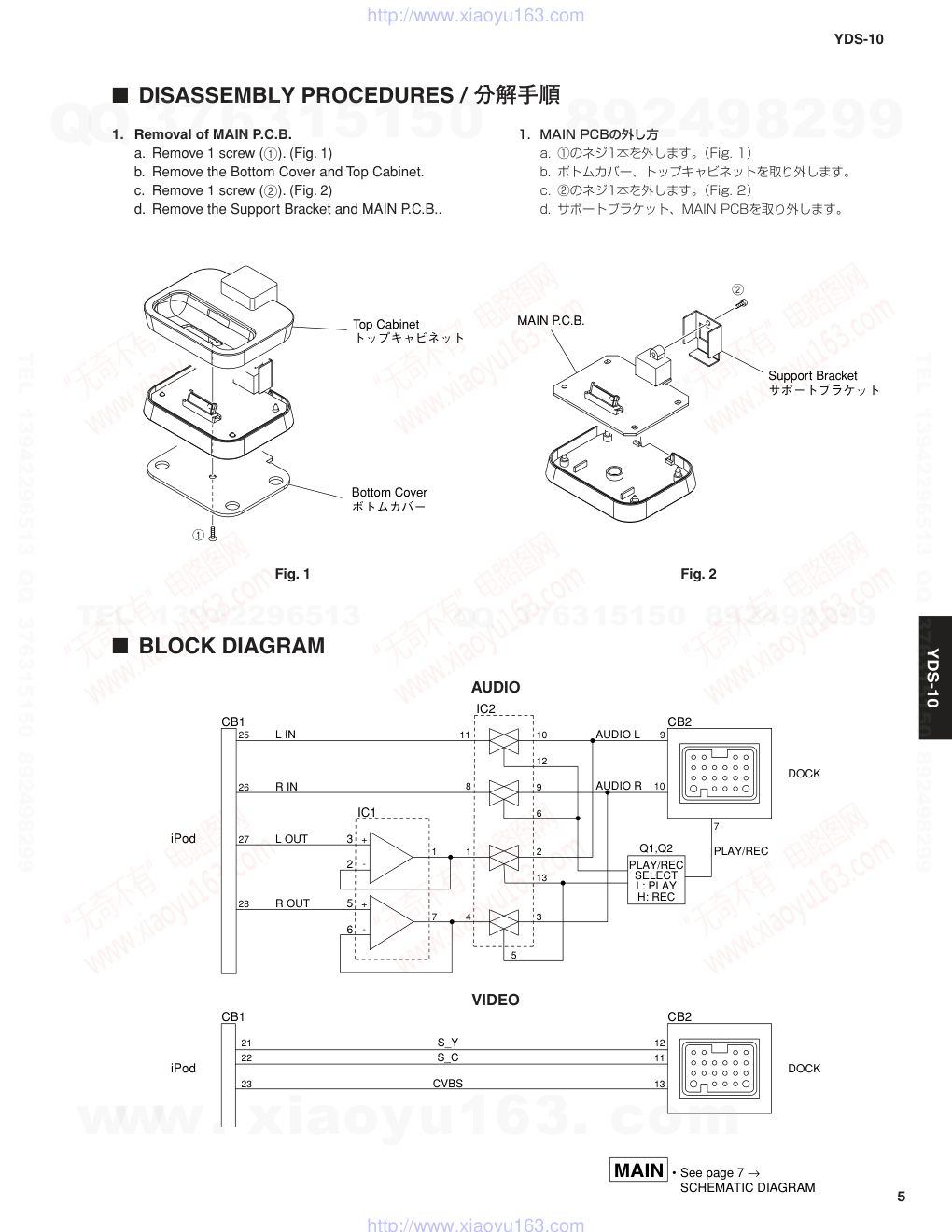

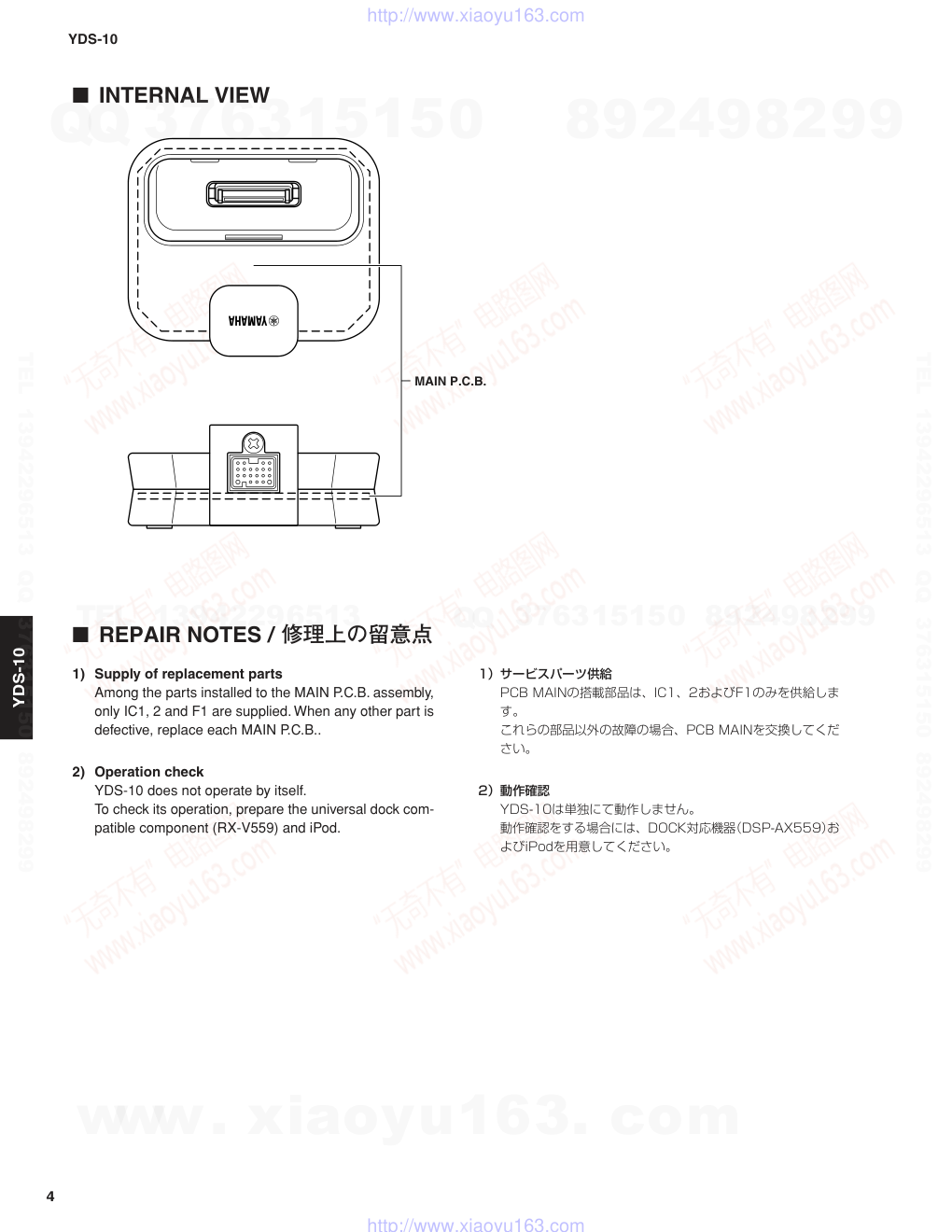

SERVICE MANUAL 1 0 1 0 0 6 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. UNIVERSAL DOCK for iPod YDS-10 P.O.Box 1, Hamamatsu, Japan 2006 All rights reserved. This manual is copyrighted by YAMAHA and may not be copied or redistributed either in print or electronically without permission. YDS-10 '06.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YDS-10 2 YDS-10 WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. About lead free solder / 無鉛ハンダについて The P.C.B.s installed in this unit are soldered using the following solder. 本機に搭載されている基板のハンダ付けに使用されているハンダ は下記の通りです。 Side A Side B SMT REFLOW Process MI FLOW Process Solder Dip 無鉛ハンダにはいくつかの種類がありますが、修理時には下記の ような無鉛ハンダの使用を推奨します。 ・Sn+Ag+Cu（錫+銀+銅） ・Sn+Cu（錫+銅） ・Sn+Zn+Bi（錫+亜鉛+ビスマス） 注意： 1. 無鉛ハンダの融点温度は通常の鉛入りハンダに比べ30～40℃ 程度高くなっていますので、それぞれのハンダに合ったハンダ ごてをご使用ください。 2. 鉛入りハンダを使わざるを得ない場合は、あらかじめ交換する 部品端子部やその周辺部の無鉛ハンダをすべて取り除くか、あ るいは無鉛ハンダと鉛入りハンダが十分に溶けた状態となるよ うにハンダ付けしてください。 Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work. • Sn + Ag + Cu (tin + silver + copper) • Sn + Cu (tin + copper) • Sn + Zn + Bi (tin + zinc + bismuth) Caution: 1. As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder. 2. If lead solder must be used, be sure to remove lead free solder from each terminal section of the parts to be replaced and from the area around it completely before soldering, or make sure that the lead-free solder and lead solder melt together fully. I CONTENTS REAR PANELS .............................................................. 3 SPECIFICATIONS / 参考仕様 ........................................ 3 INTERNAL VIEW ........................................................... 4 REPAIR NOTES / 修理上の留意点 ................................ 4 DISASSEMBLY PROCEDURES / 分解手順.................. 5 BLOCK DIAGRAM ......................................................... 5 PRINTED CIRCUIT BOARD .......................................... 6 SCHEMATIC DIAGRAM ................................................ 7 REPLACEMENT PARTS LIST ...................................... 9 MAIN P.C.B. Side A / A 面 Lead Free Solder / 無鉛ハンダ Side B / B 面 Lead Free Solder / 無鉛ハンダ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YDS-10 3 YDS-10 I REAR PANELS U, C, A, G models R model K model T model J model I General / 総合 Dimensions (W x H x D) / 寸法（幅 x 高さ x 奥行き） .............................. 80 x 33 x 70 mm (3-1/8" x 1-5/16" x 2-3/4") Weight / 質量 .......................................................................... 0.135 kg (5 oz.) Finish / 仕上げ Silver color .................................. U, C, R, T, K, A, G, J models Accessories / 付属品 Dock cable (2 m) x 1, iPod dock adapter (A type) x 1, iPod dock adapter (B type) x 1, iPod dock adapter (C type) x 1 U .......... U.S.A. model C ...... Canadian model R .......... General model T ....... Chinese model K .......... Korean model A ...... Australian model G .......... European model J ....... Japanese model “iPod” is a trademark of Apple computer, Inc., registered in the U.S. and other countries. iPod は、米国およびその他の国々で登録されたApple Computer, Inc.の 商標または登録商標です。 • DIMENSIONS I SPECIFICATIONS / 参考仕様 80 (3-1/8") 33 (1-5/16") 70 (2-3/4") • BOTTOM PANELS Unit: mm (inch) 単位：mm（インチ） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YDS-10 4 YDS-10 I REPAIR NOTES / 修理上の留意点 1) Supply of replacement parts Among the parts installed to the MAIN P.C.B. assembly, only IC1, 2 and F1 are supplied. When any other part is defective, replace each MAIN P.C.B.. 2) Operation check YDS-10 does not operate by itself. To check its operation, prepare the universal dock com- patible component (RX-V559) and iPod. 1）サービスパーツ供給 PCB MAINの搭載部品は、IC1、2およびF1のみを供給しま す。 これらの部品以外の故障の場合、PCB MAINを交換してくだ さい。 2）動作確認 YDS-10は単独にて動作しません。 動作確認をする場合には、DOCK対応機器（DSP-AX559）お よびiPodを用意してください。 I INTERNAL VIEW MAIN P.C.B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YDS-10 5 YDS-10 I DISASSEMBLY PROCEDURES / 分解手順 1. Removal of MAIN P.C.B. a. Remove 1 screw (1). (Fig. 1) b. Remove the Bottom Cover and Top Cabinet. c. Remove 1 screw (2). (Fig. 2) d. Remove the Support Bracket and MAIN P.C.B.. 1. MAIN PCBの外し方 a. ①のネジ1本を外します。（Fig. 1） b. ボトムカバー、トップキャビネットを取り外します。 c. ②のネジ1本を外します。（Fig. 2） d. サポートブラケット、MAIN PCBを取り外します。 Fig. 1 Fig. 2 1 Top Cabinet トップキャビネット� Bottom Cover ボトムカバー� 2 MAIN P.C.B. Support Bracket サポートブラケット� I BLOCK DIAGRAM IC2 CB1 CB2 25 L IN 11 10 AUDIO L 9 12 9 DOCK 26 R IN 8 AUDIO R 10 IC1 6 7 iPod 27 L OUT 3 + 1 7 1 2 Q1,Q2 PLAY/REC 2 6 13 28 R OUT 5 + 4 3 5 CB1 CB2 21 S_Y 12 22 S_C 11 iPod DOCK 23 CVBS 13 PLAY/REC SELECT L: PLAY H: REC - - MAIN • See page 7 → SCHEMATIC DIAGRAM AUDIO VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 5 6 7 YDS-10 6 I PRINTED CIRCUIT BOARD Lead Free Solder Used When any part not included in the replacement parts list has failed, replace the P.C.B.. パーツリストに記載されていないパーツの故障の場合、PCBを交換してください。 To iPod To RECEIVER (DOCK) 1 4 14 1 7 8 18 14 8 2 15 9 3 1 20 19 21 8 5 MAIN P.C.B. (Side B) Ref no. Location IC1 IC2 Q1 Q2 B2 B2 D3 D3 • Semiconductor Location MAIN P.C.B. (Side A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J K L YDS-10 7 SCHEMATIC DIAGRAM 1 2 3 4 5 6 7 8 9 # All voltages are measured with a 10MΩ/V DC electronic volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. MAIN 0 0 3.3 2.0 3.3 2.7 0 5.0 0 2.3 0 0 3.3 0 0 0 3.3 2.8 2.8 2.8 5.0 0 0 0 0 0 0 0 0 0 0 0 0 3.3 0 3.3 0 4.8 0 0 0.1 0 0.7 0 0 0 0 5.0 5.0 0.1 2.8 2.8 0.1 2.8 2.8 2.8 2.8 4.8 2.8 2.8 2.8 2.8 0 5.0 5.0 0 2.8 4.8 2.8 3.3 0 0 0 0 0 0 0 0 0 0 0 0 PIN CONNECTION DIAGRAMS OF TRANSISTOR AND ICS. V+ –INPUT +INPUT V– OUTPUT IC1: NJM4580V-TE2 Dual operational amplifier NJM4580V-TE2 8 2, 6 3, 5 1, 7 4 8 4 1 14 7 1 IC2: TC74HC4066AFT High speed CMOS quad bilateral switch TC74HC4066AFT 1 2 3 4 11 12 13 14 5 6 7 8 9 10 GND 3I/O 4I/O Vcc 4C 1C 3O/I 4O/I 3C 2I/O 2O/I 1O/I 1I/O 2C 2SC2412K Q,R,S C E B To iPod To RECEIVER (DOCK) MAIN OP-AMP SELECTOR When any part not included in the replacement parts list has failed, replace the P.C.B.. パーツリストに記載されていないパーツの故障の場合、PCBを交換してください。� � � The voltage is measured with the universal dock compatible component (RX-V659) and iPod connected. 電圧はDOCK対応機器（DSP-AX759）および iPod を接続して測定したものです。� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 9 Ref. No. Part No. Description Remarks Markets 部　品　名 Rank * 1 WH020500 P.C.B. ASS'Y MAIN ＰＣＢ　メイン 1-1 V2429100 POLY SWITCH SMDC100-02 F1 ポリスイッチ 02 1-2 X2474A00 IC NJM4580V-TE2 IC1 アンプＩＣ 01 * 1-3 X7572A00 IC DIGITAL TC74HC4066AFT IC2 ロジックＩＣ * 5 WG887200 TOP CABINET トップ　キャビネット * 6 WG887500 SPRING HOOK スプリングフック * 7 WG887300 BOTTOM CABINET ボトム　キャビネット * 8 WH143300 SUPPORT CONNECTOR サポート／コネクタ * 10 WH010600 BOTTOM COVER J ボトムカバー * 10 WG887400 BOTTOM COVER UCAG ボトムカバー * 10 WH035300 BOTTOM COVER R ボトムカバー * 10 WH035400 BOTTOM COVER T ボトムカバー * 10 WH035500 BOTTOM COVER K ボトムカバー * 11 WG887000 SUPPORT BRACKET サポートブラッケット * 15 WG256500 FLAT HEAD P-TIGHT SCREW 3x10 MFZN2B3 皿Ｐタイトネジ 16 WE774100 BIND HEAD BONDING B-T. SCREW 3x8 MFZN2B3 ボンディングＢタイトネジ 01 * 17 WF499800 FLAT HEAD P-TIGHT SCREW 3x8 MFZN2W3 皿Ｐタイトネジ 18 WG595300 NONSKID PAD M8 t=1.5 滑止パッド ACCESSORIES 付属品 * 202 WG800600 DOCK CABLE 16P 2m 1pc ＤＯＣＫ接続ケーブル * 203 WG887600 IPOD DOCK ADAPTER Atype 1pc ＩＰＯＤ　ＤＯＣＫアダプター * 204 WG887800 IPOD DOCK ADAPTER Btype 1pc ＩＰＯＤ　ＤＯＣＫアダプター * 205 WG887700 IPOD DOCK ADAPTER Ctype 1pc ＩＰＯＤ　ＤＯＣＫアダプター I REPLACEMENT PARTS LIST • OVERALL ASS’Y * The mark ( , , or ) is shown on the back of each iPod dock adapter. ( , , ,はiPod Dockアダプターの裏面に表示されています。) カラーディスプレイ付き� iPod 20GB, 30GBおよび� U2 Special Edition iPod 40GB, カラーディスプ� レイ付き iPod 40GBおよび� 60GB iPod mini 4GBおよび� 6GB iPod with color display (20 GB or 30 GB) or U2 Special Edition iPod with color display (40 GB or 60 GB) or iPod (40 GB) iPod mini (4 GB or 6 GB) 1-1 1-2 1-3 1 5 6 7 8 10 11 15 16 17 18 18 202 203 204 205 ●　部品価格ランクは、予告なく変更することがあります。 ✻ New Parts ＊ 新規部品 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com YDS-10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
