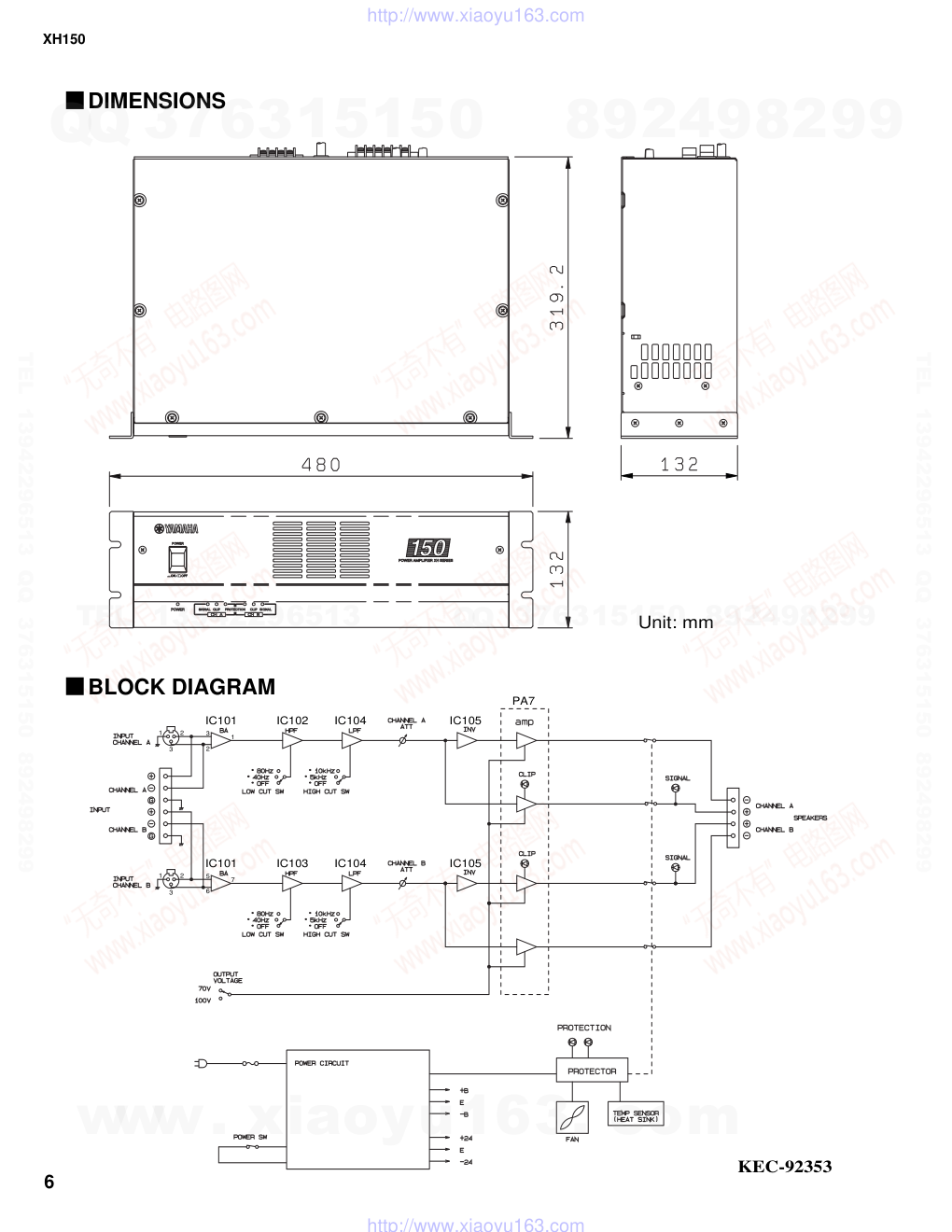

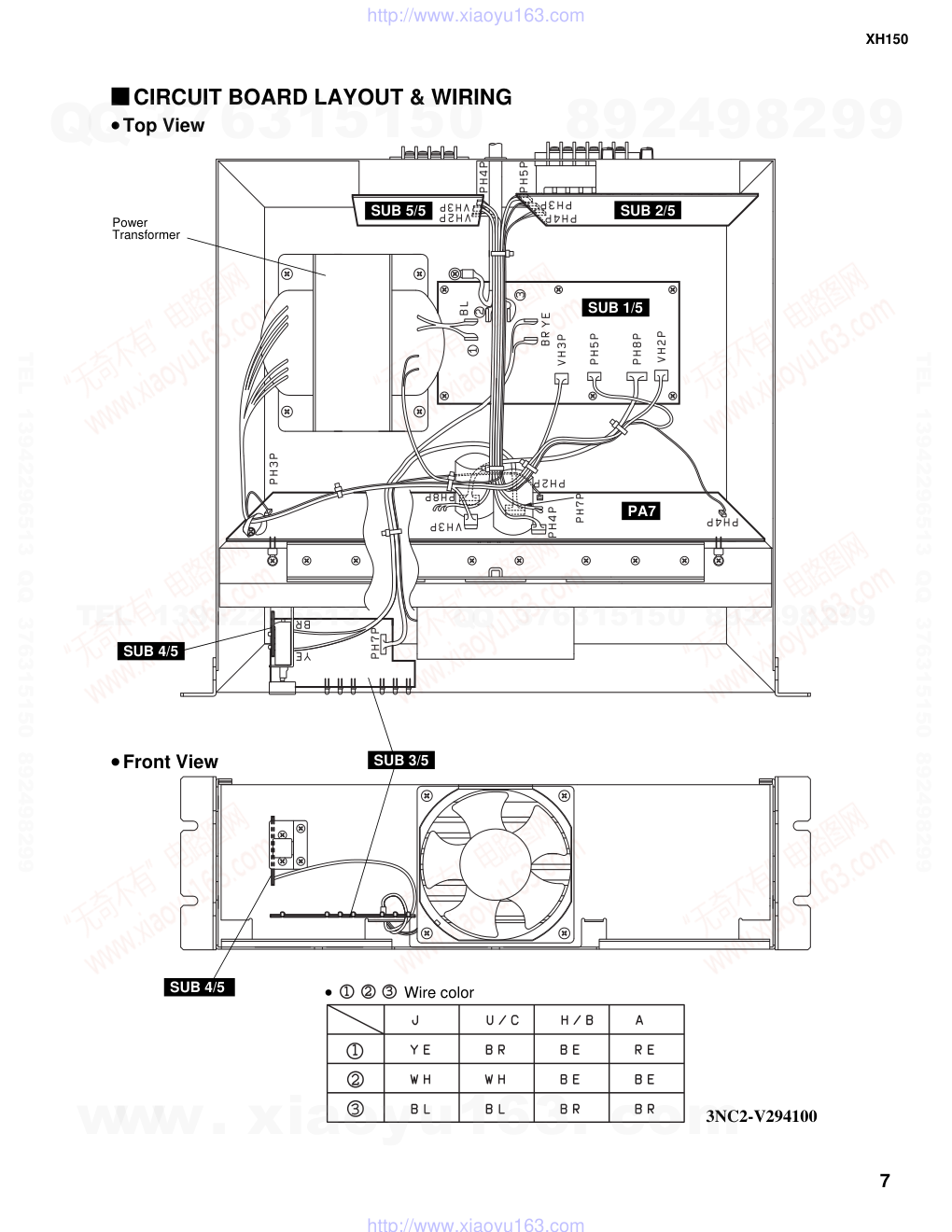

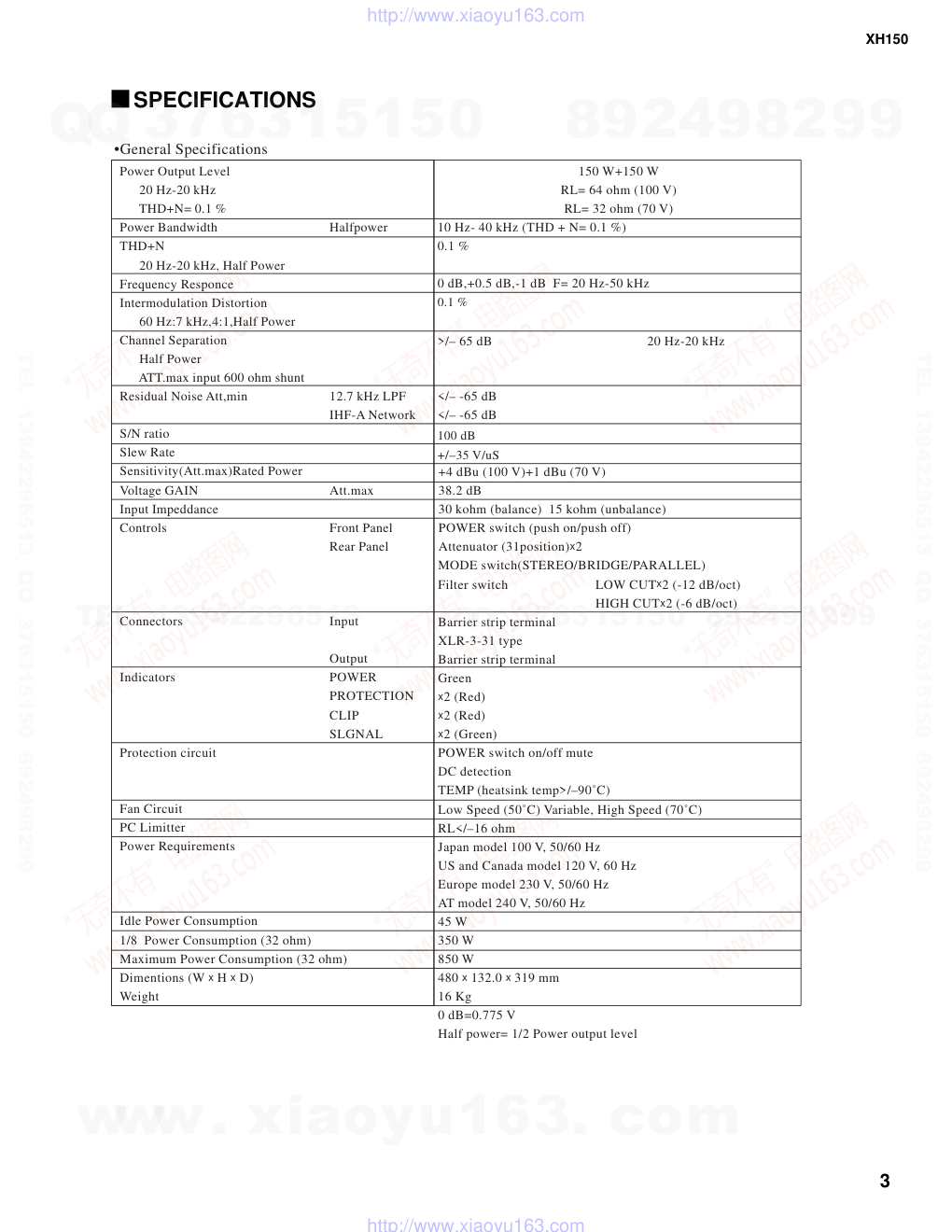

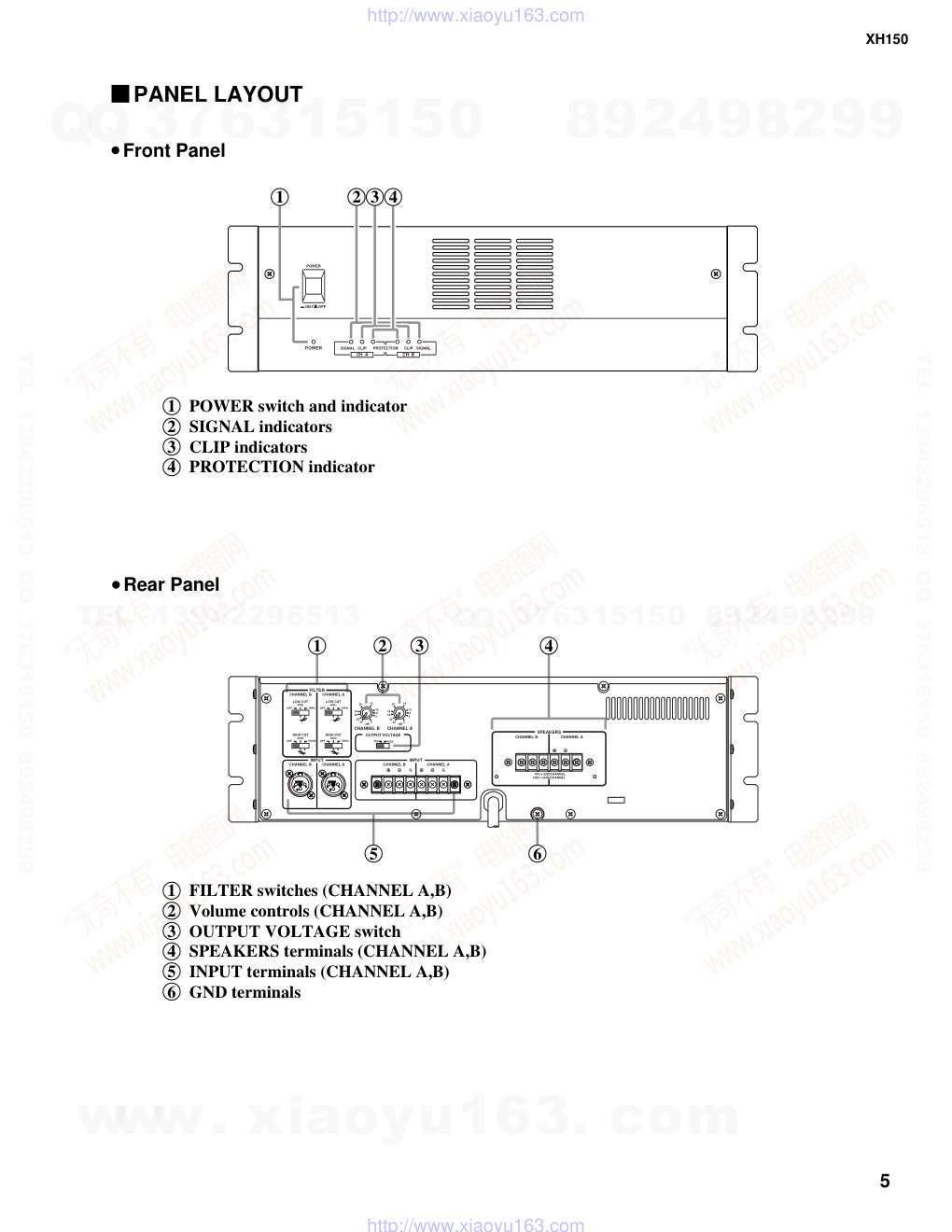

CONTENTS SPECIFICATIONS …………………………………………… 3/4 PANEL LAYOUT ……………………………………………… 5 DIMENSIONS ………………………………………………… 6 BLOCK DIAGRAM …………………………………………… 6 CIRCUIT BOARD LAYOUT & WRING …………………… 7 DISASSEMBLY PROCEDURE ……………………………… 8 IC BLOCK DIAGRAM ………………………………………… 12 CIRCUIT BOARDS …………………………………………… 13 INSPECTIONS …………………………………………… 15/17 PARTS LIST 1.97K-9636 1.92K-173 Printed in Japan '99.2 SERVICE MANUAL POWER AMPLIFIER XH150 PA 011441 19990210-140000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 XH150 IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT- SOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 XH150 •General Specifications Power Output Level 20 Hz-20 kHz THD+N= 0.1 % Power Bandwidth Halfpower THD+N 20 Hz-20 kHz, Half Power Frequency Responce Intermodulation Distortion 60 Hz:7 kHz,4:1,Half Power Channel Separation Half Power ATT.max input 600 ohm shunt Residual Noise Att,min 12.7 kHz LPF IHF-A Network S/N ratio Slew Rate Sensitivity(Att.max)Rated Power Voltage GAIN Att.max Input Impeddance Controls Front Panel Rear Panel Connectors Input Output Indicators POWER PROTECTION CLIP SLGNAL Protection circuit Fan Circuit PC Limitter Power Requirements Idle Power Consumption 1/8 Power Consumption (32 ohm) Maximum Power Consumption (32 ohm) Dimentions (W x H x D) Weight MODE switch(STEREO/BRIDGE/PARALLEL) Filter switch LOW CUTx2 (-12 dB/oct) HIGH CUTx2 (-6 dB/oct) Barrier strip terminal XLR-3-31 type Barrier strip terminal Green x2 (Red) x2 (Red) x2 (Green) POWER switch on/off mute DC detection TEMP (heatsink temp>/–90˚C) Low Speed (50˚C) Variable, High Speed (70˚C) RL/– 65 dB 20 Hz-20 kHz +4 dBu (100 V)+1 dBu (70 V) 38.2 dB 30 kohm (balance) 15 kohm (unbalance) POWER switch (push on/push off) Attenuator (31position)x2 150 W+150 W RL= 64 ohm (100 V) RL= 32 ohm (70 V) 10 Hz- 40 kHz (THD + N= 0.1 %) 0.1 % 0 dB,+0.5 dB,-1 dB F= 20 Hz-50 kHz 0.1 % When a sine wave of 5 kHz, - 10 dBu is applied to the INPUT, check that the output is - 3.5 +/- 1.0 dB using 1 kHz as a reference at the filter switch OFF. <10 kHz> When a sine wave of 10 kHz, - 10 dBu is applied to the INPUT, check that the output is - 3.0 +/- 1.0 dB using 1 kHz as a reference at the filter switch OFF. <40 Hz> When a sine wave of 40 Hz, - 10 dBu is applied to the INPUT, check that the output is - 3.0 +/- 1.0 dB using 1 kHz as a reference at the filter switch OFF. <80 Hz> When a sine wave of 80 Hz, - 10 dBu is applied to the INPUT, check that the output is - 3.5 +/- 1.0 dB using 1 kHz as a reference at the filter switch OFF. 7. Harmonic Distortion Test When a high quality sine wave is applied at 20 Hz, 1 kHz, or 20 kHz, the harmonic distortion should be as follows: *This test should be finished within 30 minutes. Power output level THD 20 Hz 1 kHz 20 kHz XH150 150 W + 150 W (39.0 dBu/ch, 32 ohm, switch=70V) 150 W + 150 W (42.0 dBu/ch, 64 ohm, switch=100V) <= 0.1 % <= 0.1 % <= 0.1 % <= 0.1 % <= 0.1 % <= 0.1 % www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 XH150 8. Channel Separation Test 8-1 Apply a - 5 dBu, 20kHz sine wave into the channel A input. 8-2 Short the input to channel B with a 600 ohm load. 8-3 Set the output of channel A at a reference of 0 dB. 8-4 If the channel B attenuator is set to the same as channel A, channel B output should be less than -65 dB. (RL = 64 ohm) 9. Noise Test 9-1 Set the input attenuator at maximum. 9-2 Short the input to the GROUND with a 600 ohm load. 9-3 The output noise level should be less than - 61 dBm. 9-4 Set the input attenuator at "oo," the noise level should be less than - 65 dBu. * Be careful that this is not affected by noise induced during the inspection. 10. Stability Test When a rectangular wave of 10 kHz, - 10 dBu is applied to the input and a capacitor of 10 pF - 0.47 µ F is connected with a 32 ohm load resistor in parallel, the overshoot and the ringing should be as follows. Overshoot: Vp/Vo <= 1.8 Ringing: less than 5 waves Next, when the 32 ohm load resistor is removed and the load is only the capacitor 10 pF - 0.47 µ F, the overshoot and the ringing should be as follows. Overshoot: Vp/Vo <= 2.5 Ringing: fades away in less than 7 waves and no oscillation 11. Protection Circuitry Test Check that the relay does not work when you apply a sine wave of + 3.0 dBu at 10 Hz to the input and adjust the input level to obtain a clipped output wave form. Next, check that when you apply a sine wave of 1 Hz, 6.3 dBu to the input, the signal is cut off within 2 seconds, and the PROTECTION indicator lights up. Finally, check that when no signal is applied, the amplifier resumes to normal operation within 10 seconds. 12. PC Limiter Circuitry Test Check with an oscilloscope that the OUTPUT is as follows when a sine wave of -14 dBu at 1 kHz is applied to the INPUT and the output is shorted with an 8 ohm load (+/- 5 %). At this time, check that the CLIP indicator lights up. Output level: Vp-p <= 30 V *This test should be finished within 30 minutes. 13. OUTPUT VOLTAGE Switch Check OUTPUT VOLTAGE switch 70V: Check that the OUTPUT is Vp-p <= 230 V, when a sine wave of 1 kHz at 6.0 dBu is applied to the INPUT. 14. Signal Indicator Test When a sine wave of 1 kHz, -23 dBu is applied to the input, the SIGNAL indicator should light up. Check the output terminal without load. B. Settings after the test The attenuator should be set to "oo." The MODE switch should be set at STEREO. OUTPUT VOLTAGE SWITCH: set to 70 V C. Others 0 dBu = 0.775 V When measuring the noise level, use a DIN audio filter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com POWER AMPLIFIER XH150 PARTS LIST } • The numbers in “QTY” shows quantities for each unit. • The parts with “--” in “Parts No.” are not available as spare parts. • The mark “ ” in the remarks column indicates that these parts are interchangeable. Notes: DESTINATION ABBREVIATIONS A : Australian model J : Japanese model B : British model U : U.S. model C : Canadian model V : General export model（110V） E : European model W : General export model（220V） H : North European model X : General export model I : Indonesian model Y : Export model WARINIG Conponents having special characteristics are marked and must be replaced with parts having specifications equal to those originally installed. XH150 CONTENTS OVERALL ASSEMBLY ............................................................. 2 PA UNIT .................................................................................... 4 ELECTRICAL PARTS............................................................... 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 2 OVERALL ASSEMBLY 15 410 390 430 440 260 260i 420 410 270 260i 260f 260c 260h 260g 100 190 130 130 120 140 150 160 170 210 205 180 110 220 220 360 380 375 370 350 380 360 250 10 30 40 20 60 70 80 260b 260e 200 6 6 450 UL only 260a 260d 260i 50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 XH150 3 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK 部 品 名� (V294100) (V294110) (V294120) (V294130) (V294140) (V294280) (V359170) * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * 10 15 20 30 30 30 30 40 50 60 60 60 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 205 210 220 230 240 250 260 260 260 260 260a 260a 260a 260a 260b 260b 260b 260c 260d 260e 260f 260g 260h 260i 270 280 290 300 330 340 350 360 370 375 380 390 410 420 -- -- -- -- -- -- V3200700 V2945100 V2943900 VZ021200 V2944000 VZ021600 VV103100 VP156800 XU906B00 XU907B00 XU908B00 XU909B00 VU688100 EP600190 -- V2941700 V2942900 V2945200 EG340190 V2945700 VB857700 03765330 ET500040 V2943000 VB659000 EP600190 VU859000 V2943100 EP600190 -- VV104600 VR779900 -- -- -- -- V2944700 V2944800 V2944900 V2945000 AAX00030 AAX00040 AAX00050 AAX00060 AAX00070 AAX00080 AAX00090 VU860400 VN413300 EP600190 VR779900 -- -- -- -- VV104600 V2943200 EG340190 V2943500 VU859100 EG340190 V2943600 EG340190 VP156800 Overall Assembly Overall Assembly Overall Assembly Overall Assembly Overall Assembly Main Chassis Protector Insulation Sheet AC Cord AC Cord AC Cord AC Cord Cord Strain Relief Bind Head Screw Power Transformer Power Transformer Power Transformer Power Transformer Bind Head Screw Bind Head Tapping Screw-B Connector Assembly PA Unit Angle, Fan Packing Bind Head Tapping Screw-B Fan Bind Head Screw Spring Washer Flat Washer Angle, PSW Bind Head Screw Bind Head Tapping Screw-B Power Switch Knob Angle, LED Bind Head Tapping Screw-B Connector Assembly Cord Holder Bonding Tapping Screw-B Rear Assembly Rear Assembly Rear Assembly Rear Assembly Rear Panel Rear Panel Rear Panel Rear Panel Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Knob Bonding Tapping Screw-B Bind Head Tapping Screw-B Bonding Tapping Screw-B Connector Assembly Connector Assembly Connector Assembly Connector Assembly Cord Holder Angle, Rack Bind Head Tapping Screw-B Front Panel Escutcheon, Power Switch Bind Head Tapping Screw-B Top Cover Bind Head Tapping Screw-B Bind Head Screw XH150 XH150 XH150 XH150 XH150 PP 94V-0 T=0.46 J VCTF 1.25X2 12A UC SJT 3X#18 10A H H05VV-F0.75X3 6A BS H05VV-F 13A SR-6P1 A4.0X8 MFZN2BL SP 5.0X10 MFZN2BL 3.0X8 MFZN2BL 2426&2426 8P 180L 4.0X8 MFZN2BL KDE2412PMS3-6A/A47 4.0X45 MFZN2BL #2 4.0 MFZN2BL 4.0X10X0.8 MFZN2BL 3.0X8 MFZN2BL 3.0X8 MFZN2BL SR200 3.0X8 MFZN2BL 2426&2426 7P 250L CV-100 4.0X8 MFZN2BL SUB7 1/5 SUB7 1/5 SUB7 1/5 SUB7 2/5 SUB7 3/5 SUB7 4/5 SUB7 5/5 RED/D-GRAY 3.0X8 MFZN2BL 3.0X8 MFZN2BL 4.0X8 MFZN2BL 2426&2426 5P 350L INA INB 2426&2426 4P 250L CV-100 4.0X8 MFZN2BL XH150 SR200 4.0X8 MFZN2BL XS,XH 4.0X8 MFZN2BL A4.0X8 MFZN2BL 総 組 立 � 総 組 立 � 総 組 立 � 総 組 立 � 総 組 立 � メ イ ン シ ャ ー シ � プ ロ テ ク タ ー � 絶 縁 シ ー ト � 電 源 コ ー ド � 電 源 コ ー ド � 電 源 コ ー ド � 電 源 コ ー ド � コ ー ド ス ト ッ パ ー � + バ イ ン ド 小 ネ ジ � 電源トランスＱＬＸ７０� 電源トランスＱＬＸ７０� 電源トランスＱＬＸ７０� 電源トランスＱＬＸ７０� + バ イ ン ド 小 ネ ジ � + バ イ ン ド Ｂ タ イ ト � 束 線 　 ＃ ２ ８ � Ｐ Ａ ユ ニ ッ ト � Ｆ Ａ Ｎ 　 ア ン グ ル � パ ッ キ ン � + バ イ ン ド Ｂ タ イ ト � Ｄ Ｃ フ ァ ン � + バ イ ン ド 小 ネ ジ � バ ネ 座 金 � 平 座 金 み が き 丸 � Ｐ Ｓ Ｗ 　 ア ン グ ル � + バ イ ン ド 小 ネ ジ � + バ イ ン ド Ｂ タ イ ト � Ｐ Ｓ Ｗ ノ ブ � Ｌ Ｅ Ｄ 　 ア ン グ ル � + バ イ ン ド Ｂ タ イ ト � 束 線 　 ＃ ２ ８ � イ ン シ ュ ロ ッ ク タ イ � ボ ン デ ィ ン グ Ｂ タ イ ト � リ ア Ａ ｓ ｓ ’ ｙ � リ ア Ａ ｓ ｓ ’ ｙ � リ ア Ａ ｓ ｓ ’ ｙ � リ ア Ａ ｓ ｓ ’ ｙ � リ ア パ ネ ル � リ ア パ ネ ル � リ ア パ ネ ル � リ ア パ ネ ル � シ ー ト � シ ー ト � シ ー ト � シ ー ト � シ ー ト � シ ー ト � シ ー ト � ノ ブ （ シ ョ ウ ） � ボ ン デ ィ ン グ Ｂ タ イ ト � + バ イ ン ド Ｂ タ イ ト � ボ ン デ ィ ン グ Ｂ タ イ ト � 束 線 　 ＃ ２ ８ � 束 線 � 束 線 � 束 線 　 ＃ ２ ８ � イ ン シ ュ ロ ッ ク タ イ � ラ ッ ク 　 ア ン グ ル � + バ イ ン ド Ｂ タ イ ト � フ ロ ン ト パ ネ ル � Ｐ Ｓ Ｗ エ ス カ ッ シ ョ ン � + バ イ ン ド Ｂ タ イ ト � ト ッ プ カ バ ー � + バ イ ン ド Ｂ タ イ ト � + バ イ ン ド 小 ネ ジ � J U,V H,W B A J U,V H,W,A B U,V,H,W,B,A J U,V H,W,B A (VV31190) J U,V H,W,B A J U,V H,W,B A J U,V H,W,B,A (XV420C0) (XV420C0) (XV420C0) (XV420C0) (V295090) (V295010) (V295020) (V295100) 4 6 4 8 4 4 4 2 2 4 2 4 2 8 4 6 5 2 6 4 9 06 08 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 02 01 01 01 (XV420C0) (XV420C0) (XV420C0) *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK 部 品 名� 430 440 450 VY938700 EP600190 VA039300 Cover, Speaker Terminal Bind Head Tapping Screw-B Label Q150/350/500 3.0X8 MFZN2BL Ｓ Ｐ タ ー ミ ナ ル カ バ ー � + バ イ ン ド Ｂ タ イ ト � ラ ベ ル � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � ＰＡユニット　　　　　　� U,V 2 03 01 03 (V294240) (V294250) (V294260) (V294270) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 XH150 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK 部 品 名� * * * 10 20 30 40 50 60 65 70 80 V2941700 -- V3303100 -- VV086500 V2899700 EG330290 -- -- VQ074600 PA Unit PA Unit Heat Sink Insulation Sheet Grease Support Circuit Board Bind Head Screw Cord Binder Holder Angle Bind Head Tapping Screw-B TBM51W T=0.15 G-746 H=7.4 B=5.5 PA7 SP 3.0X8 MFZN2Y WC-2L PIN GOOD XH 3.0X12 MFZN2BL ＰＡユニット　　　　　　� ＰＡユニット　　　　　　� ヒートシンク　　　　　　� 放熱シ－ト　　　　　　　� シリコングリス　　　　　� 支柱　　　　　　　　　　� シート　　　　　　　　　� + バ イ ン ド 小 ネ ジ � 束線止め　　　　　　　　� Ｔｒ押え金具　Ｂ　　　　� + バ イ ン ド Ｂ タ イ ト � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � PA 7 PA 7 (V294560) (0412125) (V362150) (V294380) 4 6 6 2 20 01 01 01 4 PA UNIT 80 20 20 20 70 80 40 40 40 60 80 40 80 10 6 50 90 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 5 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK (XV024B0) (XV420C0) (XV420C0) (XV420C0) (XV420C0) (XV420C0) (XV420C0) (XV420C0) ELECTRICAL PARTS * * * * * * * * C203 C204 C205 C206 C207 C208 C209 -211 C212 C213 C220 C221 C222 C223 C224 C225 C226 C227 C228 C229 C230 C231 C232 C233 C234 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C313 C320 C321 C322 C323 C324 C325 C326 C327 C328 C329 C330 C331 C332 C333 C334 C701 C702 C703 C704 C705 C706 D201 -204 V2899700 AAX00030 AAX00040 AAX00050 AAX00060 AAX00070 AAX00080 AAX00090 -- UJ828100 FU451330 VV060100 UJ847100 FU451220 FU451220 VZ354000 VZ354000 VZ004000 VZ004000 UJ847470 VZ353500 VF760000 FU451330 VV060100 UM417100 VZ354000 FU451220 FU451220 VZ354000 VZ354000 VZ004000 VZ004000 VZ353500 UJ847470 VF760000 FU451330 VV060100 FU451220 FU451220 VZ354000 UM417100 VZ354000 VZ354000 VZ004000 VZ004000 UJ847470 VZ353500 VF760000 FU451330 VV060100 UM417100 VZ354000 FU451220 FU451220 VZ354000 VZ354000 VZ004000 VZ004000 VZ353500 UJ847470 VZ004400 VZ004400 VY897100 VY897100 UM416470 UM416470 VD631600 VD631600 ELECTRCAL PARTS Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Jumper Wire Electrolytic Cap. Mica Capacitor Mylar Capacitor Electrolytic Cap. Mica Capacitor Mica Capacitor Ceramic Capacitor-F Ceramic Capacitor-F Electrolytic Cap. Electrolytic Cap. Electrolytic Cap. Ceramic Capacitor-SL Electrolytic Cap. Mica Capacitor Mylar Capacitor Electrolytic Cap. Ceramic Capacitor-F Mica Capacitor Mica Capacitor Ceramic Capacitor-F Ceramic Capacitor-F Electrolytic Cap. Electrolytic Cap. Ceramic Capacitor-SL Electrolytic Cap. Electrolytic Cap. Mica Capacitor Mylar Capacitor Mica Capacitor Mica Capacitor Ceramic Capacitor-F Electrolytic Cap. Ceramic Capacitor-F Ceramic Capacitor-F Electrolytic Cap. Electrolytic Cap. Electrolytic Cap. Ceramic Capacitor-SL Electrolytic Cap. Mica Capacitor Mylar Capacitor Electrolytic Cap. Ceramic Capacitor-F Mica Capacitor Mica Capacitor Ceramic Capacitor-F Ceramic Capacitor-F Electrolytic Cap. Electrolytic Cap. Ceramic Capacitor-SL Electrolytic Cap. Mylar Capacitor Mylar Capacitor Electrolytic Cap. Electrolytic Cap. Electrolytic Cap. Electrolytic Cap. Diode Diode PA7 SUB7 1/5 SUB7 1/5 SUB7 1/5 SUB7 2/5 SUB7 3/5 SUB7 4/5 SUB7 5/5 100.00 10.0V 33P 500V J 1500P 50V J 10µF/25V 22P 500V J 22P 500V J 0.0100 50V Z 0.0100 50V Z 2.2 200.0V 2.2 200.0V 47.00 25.0V 100P 50V J 100.00 10.0V 33P 500V J 1500P 50V J 10.00 25.0V 0.0100 50V Z 22P 500V J 22P 500V J 0.0100 50V Z 0.0100 50V Z 2.2 200.0V 2.2 200.0V 100P 50V J 47.00 25.0V 100.00 10.0V 33P 500V J 1500P 50V J 22P 500V J 22P 500V J 0.0100 50V Z 10.00 25.0V 0.0100 50V Z 0.0100 50V Z 2.2 200.0V 2.2 200.0V 47.00 25.0V 100P 50V J 100.00 10.0V 33P 500V J 1500P 50V J 10.00 25.0V 0.0100 50V Z 22P 500V J 22P 500V J 0.0100 50V Z 0.0100 50V Z 2.2 200.0V 2.2 200.0V 100P 50V J 47.00 25.0V 0.1000 400V M 0.1000 400V M 2200 160V 2200 160V 4.70 50.0V 4.70 50.0V 1SS133,176,HSS104 1SS133,176,HSS104 XH150 J U,V H,W,B,A (VV29140) 01 01 01 08 01 01 01 01 01 01 01 01 01 01 01 08 01 01 01 01 01 01 01 01 01 01 01 01 08 01 01 01 01 01 01 01 01 01 01 01 01 08 01 01 01 01 01 01 01 01 01 01 01 01 08 08 01 01 01 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 6 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK D205 D206 D207 D208 D209 D210 D211 D212 D213 -217 D218 D219 D220 D221 D222 D223 D224 D225 D301 -304 D305 D306 D307 D308 D309 D310 D311 D312 D313 -317 D318 D319 D320 D321 D322 D323 D324 D325 D701 D702 Q201 -203 Q204 Q206 Q207 Q208 Q209 Q210 Q211 Q212 Q213 Q214 Q215 Q216 Q217 Q218 Q219 Q222 -224 Q225 Q226 Q227 Q228 Q229 Q230 Q231 Q232 Q233 Q234 Q235 I F 0 0 5 5 6 0 I F 0 0 5 5 6 0 VD631600 VD631600 I F 0 0 5 5 6 0 I F 0 0 5 5 6 0 VU801600 VU801600 VD631600 VD631600 I F 0 0 5 5 6 0 I F 0 0 5 5 6 0 VD631600 VD631600 I F 0 0 5 5 6 0 I F 0 0 5 5 6 0 VU801600 VU801600 VD631600 VD631600 I F 0 0 5 5 6 0 I F 0 0 5 5 6 0 VD631600 VD631600 I F 0 0 5 5 6 0 I F 0 0 5 5 6 0 VU801600 VU801600 VD631600 VD631600 I F 0 0 5 5 6 0 I F 0 0 5 5 6 0 VD631600 VD631600 I F 0 0 5 5 6 0 I F 0 0 5 5 6 0 VU801600 VU801600 VR149900 VD631600 I A 0 9 7 0 0 0 I A 0 9 7 0 0 0 I C 2 2 4 0 3 0 I C 2 2 4 0 3 0 I C 1 8 1 5 0 1 VR152800 I A 1 0 1 5 9 0 VR152900 VQ547300 VR152900 VR152800 VD678700 VD678500 V2797700 V2797600 VQ547300 VQ547200 I A 0 9 7 0 0 0 I A 0 9 7 0 0 0 I C 2 2 4 0 3 0 I C 2 2 4 0 3 0 I C 1 8 1 5 0 1 VR152800 I A 1 0 1 5 9 0 VR152900 VQ547300 VR152900 VR152800 VD678700 VD678500 Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Stack Diode Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Digital Transistor Digital Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Digital Transistor Digital Transistor 1SS82TD 1SS82TD 1SS133,176,HSS104 1SS133,176,HSS104 1SS82TD 1SS82TD 1N4004L 26 1N4004L 26 1SS133,176,HSS104 1SS133,176,HSS104 1SS82TD 1SS82TD 1SS133,176,HSS104 1SS133,176,HSS104 1SS82TD 1SS82TD 1N4004L 26 1N4004L 26 1SS133,176,HSS104 1SS133,176,HSS104 1SS82TD 1SS82TD 1SS133,176,HSS104 1SS133,176,HSS104 1SS82TD 1SS82TD 1N4004L 26 1N4004L 26 1SS133,176,HSS104 1SS133,176,HSS104 1SS82TD 1SS82TD 1SS133,176,HSS104 1SS133,176,HSS104 1SS82TD 1SS82TD 1N4004L 26 1N4004L 26 D25XB60 25.0A 600V 1SS133,176,HSS104 2SA970 GR,BL 2SA970 GR,BL 2SC2240 GR,BL 2SC2240 GR,BL 2SC1815 Y,GR 2SA1480 E,F 2SA1015 O,Y 2SC3790 E,F 2SC4793 (HFE) 2SC3790 E,F 2SA1480 E,F DTC114ES DTA114ES 2SC5395 E,F 2SA1993 E,F 2SC4793 (HFE) 2SA1837 (HFE) 2SA970 GR,BL 2SA970 GR,BL 2SC2240 GR,BL 2SC2240 GR,BL 2SC1815 Y,GR 2SA1480 E,F 2SA1015 O,Y 2SC3790 E,F 2SC4793 (HFE) 2SC3790 E,F 2SA1480 E,F DTC114ES DTA114ES 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 06 01 01 01 01 01 01 02 01 02 03 02 02 01 01 01 01 03 03 01 01 01 01 01 02 01 02 03 02 02 01 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 7 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK Q236 Q237 Q238 Q239 Q301 -303 Q304 -306 Q307 Q308 Q309 Q310 Q311 Q312 Q313 Q314 Q315 Q316 Q317 Q318 Q319 Q322 -324 Q325 Q326 Q327 Q328 Q329 Q330 Q331 Q332 Q333 Q334 Q335 Q336 Q337 Q338 Q339 Q701 Q702 Q703 R201 R202 R203 R204 R205 R206 R207 R208 R209 R210 R211 R212 R213 R214 -217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 V2797700 V2797600 VQ547300 VQ547200 I A 0 9 7 0 0 0 I A 0 9 7 0 0 0 I C 2 2 4 0 3 0 I C 2 2 4 0 3 0 I C 1 8 1 5 0 1 VR152800 I A 1 0 1 5 9 0 VR152900 VQ547300 VR152900 VR152800 VD678700 VD678500 V2797700 V2797600 VQ547300 VQ547200 I A 0 9 7 0 0 0 I A 0 9 7 0 0 0 I C 2 2 4 0 3 0 I C 2 2 4 0 3 0 I C 1 8 1 5 0 1 VR152800 I A 1 0 1 5 9 0 VR152900 VQ547300 VR152900 VR152800 VD678700 VD678500 V2797700 V2797600 VQ547300 VQ547200 VS883300 V2797600 V2797700 HF455100 VV312900 HF455560 HF857470 HF458330 HF455560 HF455560 VV065600 VV065600 HF857470 HF857470 HF455220 HF455330 HF857470 HF857470 HF455330 HF455330 VZ008800 VZ008800 HF456220 HF455680 HF455270 HF457150 VZ033800 VV065800 VV066000 VV065800 VZ033800 HF457150 Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Digital Transistor Digital Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Digital Transistor Digital Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Carbon Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Flame Proof C. Resistor Flame Proof C. Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor 2SC5395 E,F 2SA1993 E,F 2SC4793 (HFE) 2SA1837 (HFE) 2SA970 GR,BL 2SA970 GR,BL 2SC2240 GR,BL 2SC2240 GR,BL 2SC1815 Y,GR 2SA1480 E,F 2SA1015 O,Y 2SC3790 E,F 2SC4793 (HFE) 2SC3790 E,F 2SA1480 E,F DTC114ES DTA114ES 2SC5395 E,F 2SA1993 E,F 2SC4793 (HFE) 2SA1837 (HFE) 2SA970 GR,BL 2SA970 GR,BL 2SC2240 GR,BL 2SC2240 GR,BL 2SC1815 Y,GR 2SA1480 E,F 2SA1015 O,Y 2SC3790 E,F 2SC4793 (HFE) 2SC3790 E,F 2SA1480 E,F DTC114ES DTA114ES 2SC5395 E,F 2SA1993 E,F 2SC4793 (HFE) 2SA1837 (HFE) 2SB1565 E,F 2SA1993 E,F 2SC5395 E,F 100.0 1/4 J 22K 1/4 F 560.0 1/4 J 47.0K 1/4 J 330.0K 1/4 J 560.0 1/4 J 560.0 1/4 J 11K 1/4 F 11K 1/4 F 47.0K 1/4 J 47.0K 1/4 J 220.0 1/4 J 330.0 1/4 J 47.0K 1/4 J 47.0K 1/4 J 330.0 1/4 J 330.0 1/4 J 22.0 1/4 J 22.0 1/4 J 2.2K 1/4 J 680.0 1/4 J 270.0 1/4 J 15.0K 1/4 J 150K 1/4 F 20K 1/4 F 33K 1/4 F 20K 1/4 F 150K 1/4 F 15.0K 1/4 J 01 01 03 03 01 01 01 01 01 02 01 02 03 02 02 01 01 01 01 03 03 01 01 01 01 01 02 01 02 03 02 02 01 01 01 01 03 03 02 01 01 01 01 01 01 01 01 01 05 05 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 05 01 05 01 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 8 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R248 R249 R250 R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 R261 R262 -265 R266 R267 R268 R269 R270 R271 R272 R273 R274 R275 R276 R277 R278 R279 R280 R281 R282 R283 R284 R285 R286 R287 R288 R289 R290 R291 R292 R296 R297 R301 R302 R303 R304 R305 R306 R307 R308 R309 R310 R311 R312 VV066000 HF457820 HF457820 VV276800 VV276800 VZ008700 VZ008700 VZ009100 VZ009100 VZ008800 VZ008800 VZ370100 VZ370100 HF458150 HF455100 VV312900 VZ010600 HF455560 HF857470 HF455560 HF455560 VV065600 VV065600 HF455220 HF857470 HF857470 HF455330 HF857470 HF857470 HF455330 HF455330 VZ008800 VZ008800 HF456220 HF455680 HF455270 HF457150 VZ033800 VV065800 VV066000 VV065800 VZ033800 HF457150 VV066000 VV276800 VV276800 HF457820 HF457820 VZ008700 VZ008700 VZ009100 VZ009100 VZ008800 VZ008800 VZ370100 VZ370100 HF458150 VZ010600 HF455100 VV312900 HF458330 HF455560 HF857470 HF455560 HF455560 VV065600 VV065600 HF455220 HF857470 HF857470 Metal Film Resistor Carbon Resistor Carbon Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Wire Wound Resistor Wire Wound Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Flame Proof C. Resistor Flame Proof C. Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Flame Proof C. Resistor Flame Proof C. Resistor Carbon Resistor Carbon Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Wire Wound Resistor Wire Wound Resistor Carbon Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor 33K 1/4F 82.0K 1/4 J 82.0K 1/4 J 100 1/4 J 100 1/4 J 2.2K 1/4 J 2.2K 1/4 J 33.0 1/4 J 33.0 1/4 J 22.0 1/4 J 22.0 1/4 J 0.47 5W K 0.47 5W K 150.0K 1/4 J 100.0 1/4 J 22K 1/4 F 560.0 1/4 F 560.0 1/4 J 47.0K 1/4 J 560.0 1/4 J 560.0 1/4 J 11K 1/4 F 11K 1/4 F 220.0 1/4 J 47.0K 1/4 J 47.0K 1/4 J 330.0 1/4 J 47.0K 1/4 J 47.0K 1/4 J 330.0 1/4 J 330.0 1/4 J 22.0 1/4 J 22.0 1/4 J 2.2K 1/4 J 680.0 1/4 J 270.0 1/4 J 15.0K 1/4 J 150K 1/4 F 20K 1/4 F 33K 1/4 F 20K 1/4 F 150K 1/4 F 15.0K 1/4 J 33K 1/4 F 100 1/4 J 100 1/4 J 82.0K 1/4 J 82.0K 1/4 J 2.2K 1/4 J 2.2K 1/4 J 33.0 1/4 J 33.0 1/4 J 22.0 1/4 J 22.0 1/4 J 0.47 5W K 0.47 5W K 150.0K 1/4 J 560.0 1/4 F 100.0 1/4 J 22K 1/4 F 330.0K 1/4 J 560.0 1/4 J 47.0K 1/4 J 560.0 1/4 J 560.0 1/4 J 11K 1/4 F 11K 1/4 F 220.0 1/4 J 47.0K 1/4 J 47.0K 1/4 J 01 01 01 01 01 01 01 01 01 01 01 02 02 01 01 01 01 01 01 01 01 05 05 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 05 01 05 01 01 01 01 01 01 01 01 01 01 01 01 01 02 02 01 01 01 01 01 01 01 01 01 05 05 01 01 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 9 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK R313 R314 -317 R318 R319 R320 R321 R322 R323 R324 R325 R326 R327 R328 R329 R330 R331 R332 R333 R334 R335 R336 R337 R338 R339 R340 R341 R342 R343 R344 R348 R349 R350 R351 R352 R353 R354 R355 R356 R357 R358 R359 R360 R361 R362 -365 R366 R367 R368 R369 R370 R371 R372 R373 R374 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 R388 R389 HF455330 HF857470 HF857470 HF455330 HF455330 VZ008800 VZ008800 HF456220 HF455680 HF455270 HF457150 VZ033800 VV065800 VV066000 VV065800 VZ033800 HF457150 VV066000 VV276800 VV276800 HF457820 HF457820 VZ008700 VZ008700 VZ009100 VZ009100 VZ008800 VZ008800 VZ370100 VZ370100 HF458150 HF455100 VV312900 VZ010600 HF455560 HF857470 HF455560 HF455560 VV065600 VV065600 HF455220 HF857470 HF857470 HF455330 HF857470 HF857470 HF455330 HF455330 VZ008800 VZ008800 HF456220 HF455680 HF455270 HF457150 VZ033800 VV065800 VV066000 VV065800 VZ033800 HF457150 VV066000 VV276800 VV276800 HF457820 HF457820 VZ008700 VZ008700 VZ009100 VZ009100 VZ008800 Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Flame Proof C. Resistor Flame Proof C. Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Flame Proof C. Resistor Flame Proof C. Resistor Carbon Resistor Carbon Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Wire Wound Resistor Wire Wound Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Flame Proof C. Resistor Flame Proof C. Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Flame Proof C. Resistor Flame Proof C. Resistor Carbon Resistor Carbon Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor Flame Proof C. Resistor 330.0 1/4 J 47.0K 1/4 J 47.0K 1/4 J 330.0 1/4 J 330.0 1/4 J 22.0 1/4 J 22.0 1/4 J 2.2K 1/4 J 680.0 1/4 J 270.0 1/4 J 15.0K 1/4 J 150K 1/4 F 20K 1/4 F 33K 1/4 F 20K 1/4 F 150K 1/4 F 15.0K 1/4 J 33K 1/4 F 100 1/4 J 100 1/4 J 82.0K 1/4 J 82.0K 1/4 J 2.2K 1/4 J 2.2K 1/4 J 33.0 1/4 J 33.0 1/4 J 22.0 1/4 J 22.0 1/4 J 0.47 5W K 0.47 5W K 150.0K 1/4 J 100.0 1/4 J 22K 1/4 F 560.0 1/4 F 560.0 1/4 J 47.0K 1/4 J 560.0 1/4 J 560.0 1/4 J 11K 1/4 F 11K 1/4 F 220.0 1/4 J 47.0K 1/4 J 47.0K 1/4 J 330.0 1/4 J 47.0K 1/4 J 47.0K 1/4 J 330.0 1/4 J 330.0 1/4 J 22.0 1/4 J 22.0 1/4 J 2.2K 1/4 J 680.0 1/4 J 270.0 1/4 J 15.0K 1/4 J 150K 1/4 F 20K 1/4 F 33K 1/4 F 20K 1/4 F 150K 1/4 F 15.0K 1/4 J 33K 1/4 F 100 1/4 J 100 1/4 J 82.0K 1/4 J 82.0K 1/4 J 2.2K 1/4 J 2.2K 1/4 J 33.0 1/4 J 33.0 1/4 J 22.0 1/4 J 01 01 01 01 01 01 01 01 01 01 01 01 05 01 05 01 01 01 01 01 01 01 01 01 01 01 01 01 02 02 01 01 01 01 01 01 01 01 05 05 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 05 01 05 01 01 01 01 01 01 01 01 01 01 01 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 10 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK * * * * * * * * * R390 R391 R392 R396 R397 R701 R702 R703 R704 R705 W201 W301 CN201 CN203 CN204 CN301 CN303 CN304 CN404 CN701 CN702 CN703 CN705 PR201 PR202 PR301 PR302 Q220N Q221P Q240N Q241P Q320N Q321P Q340N Q341P VR201 VR202 VR301 VR302 ZD201 -204 ZD301 -304 ZD701 ZD702 C101 C102 C103 C104 C105 C106 C107 C108 C109 C110 C111 C112 C113 VZ008800 VZ370100 VZ370100 HF458150 VZ010600 HF455220 HF455220 HF456820 HF456820 HF457100 -- -- VV066300 VV067600 VV067600 VV066400 VV067600 VV067600 VV066700 LB932030 VV066800 VV066200 VV066400 VL964800 VL964800 VL965100 VL965100 VZ222300 VZ222300 VZ222300 VZ222300 VZ222300 VZ222300 VZ222300 VZ222300 VZ352000 VZ352000 VZ352000 VZ352000 VG437700 VG437700 VG437700 VG437700 VG438900 VG437700 AAX00030 AAX00040 AAX00050 AAX00060 AAX00070 AAX00080 AAX00090 EP600140 VV319600 V2927500 VV291400 VZ353300 VZ353300 VV062800 VV062800 VV062400 VV062400 VV061800 VV062200 VZ353300 VZ353300 VV062800 VV062800 VV062400 Flame Proof C. Resistor Wire Wound Resistor Wire Wound Resistor Carbon Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Connector Assembly Connector Assembly Connector Base Post Connector Base Post Connector Base Post Connector Base Post Connector Base Post Connector Base Post Connector Base Post Base Post Connector Connector Base Post Connector Base Post Connector Base Post Positive Thermistor Positive Thermistor Positive Thermistor Positive Thermistor Pair Transistor Pair Transistor Pair Transistor Pair Transistor Pair Transistor Pair Transistor Pair Transistor Pair Transistor Trimmer Potentiometer Trimmer Potentiometer Trimmer Potentiometer Trimmer Potentiometer Zener Diode Zener Diode Zener Diode Zener Diode Zener Diode Zener Diode Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Circuit Board Bind Head Tapping Screw-B Fuse Holder Sheet Holder Jumper Wire Ceramic Capacitor-SL Ceramic Capacitor-SL Mylar Capacitor Mylar Capacitor Mylar Capacitor Mylar Capacitor Mylar Capacitor Mylar Capacitor Ceramic Capacitor-SL Ceramic Capacitor-SL Mylar Capacitor Mylar Capacitor Mylar Capacitor 22.0 1/4 J 0.47 5W K 0.47 5W K 150.0K 1/4 J 560.0 1/4 F 220.0 1/4 J 220.0 1/4 J 8.2K 1/4 J 8.2K 1/4 J 10.0K 1/4 J OUT7A OUT7B M2426XX 3P TE M2426XXR 2P SE M2426XXR 2P SE M2426XX 4P TE M2426XXR 2P SE M2426XXR 2P SE M2426XX 7P TE VH- 3P TE M2426XX 8P TE M2426XX 2P TE M2426XX 4P TE PTH9M04BH222TS2 PTH9M04BH222TS2 PTH9M04BE222TS2 PTH9M04BE222TS2 A1492C3856(Z)(210) A1492C3856(Z)(210) A1492C3856(Z)(210) A1492C3856(Z)(210) A1492C3856(Z)(210) A1492C3856(Z)(210) A1492C3856(Z)(210) A1492C3856(Z)(210) B 500 3P B 500 3P B 500 3P B 500 3P MTZ J 5.6B 5.6V MTZ J 5.6B 5.6V MTZ J 5.6B 5.6V MTZ J 5.6B 5.6V MTZ J 8.2B 8.2V MTZ J 5.6B 5.6V SUB7 1/5 SUB7 1/5 SUB7 1/5 SUB7 2/5 SUB7 3/5 SUB7 4/5 SUB7 5/5 3.0X10 MFZN2BL CQ-05CT 0.6 56P 50V J 56P 50V J 0.1 50V J 0.1 50V J 0.047 50V J 0.047 50V J 0.015 50V J 0.033 50V J 56P 50V J 56P 50V J 0.1 50V J 0.1 50V J 0.047 50V J (V295080) (V295110) J U,V H,W,B,A 01 02 02 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 04 04 04 04 06 06 06 06 06 06 06 06 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 (XV420B0) (XV420B0) (XV420B0) (XV420B0) (XV420B0) (XV420B0) (XV420B0) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 11 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK * C114 C115 C116 C117 -126 C127 C128 C129 C130 C131 C132 C401 C402 C403 C404 C405 C406 C407 C501 C502 -504 C505 C506 C507 C508 C509 C510 C511 C512 C601 C602 C603 C604 C605 C606 C607 C608 C609 C610 C611 C612 C613 C614 C615 C616 D101 -104 D501 -506 D507 D508 D601 E101 F101 F101 F101 F102 F102 F103 F103 L601 -604 Q401 Q402 Q403 Q404 Q405 Q406 Q407 Q408 VV062400 VV061800 VV062200 VZ354000 VZ354000 UM417100 UM417100 UJ667470 UJ667470 VZ352800 VZ352800 UM416470 VJ839100 VZ354000 VJ839100 VJ839100 VZ354000 VJ839100 VV314800 VH520500 VH520500 VZ353900 VV330700 UJ667470 UJ667470 UM416470 VZ004200 VZ004200 VZ354000 VZ004200 VZ004200 VZ012200 VZ012200 VZ004200 VZ004200 VZ012200 VZ012200 VZ004200 VZ004200 VZ012200 VZ012200 VZ004200 VZ004200 VZ012200 VZ012200 VD631600 VD631600 VU801600 VU801600 VD631600 VU801600 VU801600 V2520600 VS823400 VV314500 VV071700 VV070300 VV071200 VV070300 VV071200 GD900470 GD900470 V2797700 VD678500 VD678500 VD678700 V2797700 VD678500 VD678500 VD678700 Mylar Capacitor Mylar Capacitor Mylar Capacitor Ceramic Capacitor-F Ceramic Capacitor-F Electrolytic Cap. Electrolytic Cap. Electrolytic Cap. Electrolytic Cap. Ceramic Capacitor-SL Ceramic Capacitor-SL Electrolytic Cap. Electrolytic Cap. Ceramic Capacitor-F Electrolytic Cap. Electrolytic Cap. Ceramic Capacitor-F Electrolytic Cap. Capacitor Electrolytic Cap. Electrolytic Cap. Ceramic Cap.-B Electrolytic Cap. Electrolytic Cap. Electrolytic Cap. Electrolytic Cap. Mylar Capacitor Mylar Capacitor Ceramic Capacitor-F Mylar Capacitor Mylar Capacitor Ceramic Capacitor-B Ceramic Capacitor-B Mylar Capacitor Mylar Capacitor Ceramic Capacitor-B Ceramic Capacitor-B Mylar Capacitor Mylar Capacitor Ceramic Capacitor-B Ceramic Capacitor-B Mylar Capacitor Mylar Capacitor Ceramic Capacitor-B Ceramic Capacitor-B Diode Diode Diode Diode Diode Diode Diode Sheet Holder Fuse Fuse Fuse Fuse Fuse Fuse Fuse Coil Coil Transistor Digital Transistor Digital Transistor Digital Transistor Transistor Digital Transistor Digital Transistor Digital Transistor 0.047 50V J 0.015 50V J 0.033 50V J 0.0100 50V Z 0.0100 50V Z 10.00 50.0V 10.00 50.0V 47.00 50.0V 47.00 50.0V 22P 50V J 22P 50V J 4.70 50.0V 1.00 50.0V 0.0100 50V Z 1.00 50.0V 1.00 50.0V 0.0100 50V Z 1.00 50.0V 1000P 400V J.U.C.S 1000 35.0V 1000 35.0V 1000P 50V K 470.00 10.0V 47.00 25.0V 47.00 25.0V 4.70 50.0V 0.1000 100V M 0.1000 100V M 0.0100 50V Z 0.1000 100V M 0.1000 100V M 0.001 500V K 0.001 500V K 0.1000 100V M 0.1000 100V M 0.001 500V K 0.001 500V K 0.1000 100V M 0.1000 100V M 0.001 500V K 0.001 500V K 0.1000 100V M 0.1000 100V M 0.001 500V K 0.001 500V K 1SS133,176,HSS104 1SS133,176,HSS104 1N4004L 26 1N4004L 26 1SS133,176,HSS104 1N4004L 26 1N4004L 26 T 10.00A JUC SIC(TL) 7.00A JU TSD 3.15A 250V SEM TDS 1A 250V J/U/C TSD 1A 250V SEMKO TDS 1A 250V J/U/C TSD 1A 250V SEMKO RZ-001 1.5UH RZ-001 1.5UH 2SC5395 E,F DTA114ES DTA114ES DTC114ES 2SC5395 E,F DTA114ES DTA114ES DTC114ES J U,V H,W,B,A J,U,V H,W,B,A J,U,V H,W,B,A 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 12 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK * * * * * * * * Q409 Q501 Q502 -504 Q505 Q506 Q507 Q508 Q509 Q510 R101 -104 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 -118 R119 R120 -123 R124 R125 R126 R127 R128 R129 R130 R131 R132 R133 R134 R135 -137 R138 R139 -401 R402 R403 R404 R405 R406 R407 R408 R409 R410 R411 R412 -423 R501 R502 R503 R504 R505 R506 R507 R508 R509 R510 R511 R512 R513 R601 VD678500 V2797600 V2797700 V2797700 V2797600 V2797700 V2797700 V2797600 V2797700 VD678500 VZ009900 VZ009900 HF454180 V2440500 V3028900 HF454180 V2440500 V3028900 HF454180 V3029000 V3029000 V2348800 HF454180 VV065200 VV065200 HF454180 VZ009900 VZ009900 HF454180 V2440500 V3028900 HF454180 V2440500 V3028900 HF454180 V3029000 V3029000 V2348800 HF454180 VV065200 VV065200 HF454180 HF456470 HF456470 HF457100 HF455220 HF456470 HF455220 HF456470 HF457100 HF455220 HF456470 HF455220 HF457820 HF456120 HF456120 HF457220 HF857470 HF458150 HF457100 HF857560 HF858100 HF457100 HF457100 HF857560 HF457680 HF456120 HF457150 HF456220 V2961000 Digital Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Digital Transistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Metal Film Resistor Metal Film Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Carbon Resistor Metal Oxide Film Resistor DTA114ES 2SA1993 E,F 2SC5395 E,F 2SC5395 E,F 2SA1993 E,F 2SC5395 E,F 2SC5395 E,F 2SA1993 E,F 2SC5395 E,F DTA114ES 15K 1/4 F 15K 1/4 F 18.0 1/4 J 27K 1/4 F 56K 1/4 F 18.0 1/4 J 27K 1/4 F 56K 1/4 F 18.0 1/4 J 1K 1/4 F 1K 1/4 F 100K 1/4 F 18.0 1/4 J 4.7K 1/4 F 4.7K 1/4 F 18.0 1/4 J 15K 1/4 F 15K 1/4 F 18.0 1/4 J 27K 1/4 F 56K 1/4 F 18.0 1/4 J 27K 1/4 F 56K 1/4 F 18.0 1/4 J 1K 1/4 F 1K 1/4 F 100K 1/4 F 18.0 1/4 J 4.7K 1/4 F 4.7K 1/4 F 18.0 1/4 J 4.7K 1/4 J 4.7K 1/4 J 10.0K 1/4 J 220.0 1/4 J 4.7K 1/4 J 220.0 1/4 J 4.7K 1/4 J 10.0K 1/4 J 220.0 1/4 J 4.7K 1/4 J 220.0 1/4 J 82.0K 1/4 J 1.2K 1/4 J 1.2K 1/4 J 22.0K 1/4 J 47.0K 1/4 J 150.0K 1/4 J 10.0K 1/4 J 56.0K 1/4 J 100.0K 1/4 J 10.0K 1/4 J 10.0K 1/4 J 56.0K 1/4 J 68.0K 1/4 J 1.2K 1/4 J 15.0K 1/4 J 2.2K 1/4 J 4.7 2W J 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 05 05 01 01 01 01 01 01 01 01 01 01 05 05 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 13 *: New parts RANK: Japan only REF NO. PART NO. DESCRIPTION REMARKS QTY RANK * * * * * * R602 R603 R604 R605 R606 R607 R608 R609 R610 R611 R612 R613 R614 W501 W502 CN101 CN102 CN103 CN401 CN501 -506 CN507 CN508 CN509 CN510 CN601 CN602 CN603 IC101 IC102 -105 IC106 IC107 JK101 JK102 JK103 LD401 LD402 LD403 LD404 LD405 LD406 LD407 RY601 RY602 SP601 SW101 SW102 SW103 SW104 SW105 SW501 VR101 VR102 ZD501 V2961000 VV276700 V2961000 V2961000 VV276700 V2961000 V2961000 VV276700 V2961000 V2961000 VV276700 HF457270 HF457270 -- -- VV067700 VV067800 VV067900 VV066700 VZ005700 VZ005700 LB932030 VV066500 VV066800 LB932020 LB933030 LB933020 VV067800 XM085A00 XM356A00 XM356A00 XD853A00 XD854A00 VU805200 VU805200 V2472100 VV621000 VV620800 VV621000 VV620800 VV621000 VV620800 VV620800 VV315400 VV315400 V2945900 V2802500 V2802500 V2802500 V2802500 V2802400 VY898100 V2479500 V2479500 VG437700 V2943900 VZ021200 V2944000 VZ021600 XU906B00 XU907A00 XU908B00 XU909B00 V2945700 Metal Oxide Film Resistor Flame Proof C. Resistor Metal Oxide Film Resistor Metal Oxide Film Resistor Flame Proof C. Resistor Metal Oxide Film Resistor Metal Oxide Film Resistor Flame Proof C. Resistor Metal Oxide Film Resistor Metal Oxide Film Resistor Flame Proof C. Resistor Carbon Resistor Carbon Resistor Connector Assembly Connector Assembly Connector Base Post Connector Base Post Connector Base Post Connector Base Post Fasten Terminal Fasten Terminal Base Post Connector Connector Base Post Connector Base Post Base Post Connector Base Post Connector Base Post Connector Connector Base Post IC IC IC IC IC XLM Connector XLM Connector Lug Terminal LED LED LED LED LED LED LED Relay Relay Lug Terminal Slide Switch Slide Switch Slide Switch Slide Switch Slide Switch Push Switch Rotary Variable Resistor Rotary Variable Resistor Zener Diode AC Cord AC Cord AC Cord AC Cord Power Transformer Power Transformer Power Transformer Power Transformer Fan 4.7 2W J 4.7 1/4 J 4.7 2W J 4.7 2W J 4.7 1/4 J 4.7 2W J 4.7 2W J 4.7 1/4 J 4.7 2W J 4.7 2W J 4.7 1/4 J 27.0K 1/4 J 27.0K 1/4 J AC1 AC2 M2426XXR 3P SE M2426XXR 4P SE M2426XXR 5P SE M2426XX 7P TE TP82223-22 TP82223-22 VH- 3P TE M2426XX 5P TE M2426XX 8P TE VH- 2P TE VH- 3P SE VH- 2P SE M2426XXR 4P SE M5238AP NJM2068L-D NJM2068L-D NJM7815FA NJM7915FA XLR JACK NC3FAV1-0 XLR JACK NC3FAV1-0 DT-55-A05W-06 LT321-41-C13 GR LT311G-41-C13 RE LT321-41-C13 GR LT311G-41-C13 RE LT321-41-C13 GR LT311G-41-C13 RE LT311G-41-C13 RE DC OSA-SH-224DM3M DC OSA-SH-224DM3M DT-55-A05W-04 SS001-P223BDB-PA14 SS001-P223BDB-PA14 SS001-P223BDB-PA14 SS001-P223BDB-PA14 SS001-P022BQB-PA14 SDDFA3107U-YL UCS A 5K RK11K113 A 5K RK11K113 MTZ J 5.6B 5.6V J VCTF 1.25X2 12A UC SJT 3X#18 10A H H05VV-F0.75X3 6A BS H05VV-F 13A KDE2412PMS3-6A/A47 OP AMP OP AMP OP AMP REGULATOR REGULATOR INPUT CHANNEL A INPUT CHANNEL B INPUT POWER A.CLIP A.SIG B.CLIP B.SIG PROTECTION PROTECTION SPEAKERS CHANNEL A,B FILTER CHANNEL A LOW CUT FILTER CHANNEL A HIGH CUT FILTER CHANNEL B LOW CUT FILTER CHANNEL B HIGH CUT OUTPUT VOLTAGE POWER SWITCH CHANNEL A CHANNEL B J U,V H,W,A B J U,V H,W,B A 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 03 02 02 03 03 04 04 01 01 01 01 01 01 01 06 06 05 01 06 08 01 01 01 (V295030) (V295040) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XH150 XH150 A B C D E F G H I J K L M N O P Q A B C D E F G H I J K L M N O P Q 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 XH150 XH150 OVERALL CIRCUIT DIAGRAM (PA7, SUB1/5 - SUB5/5) Capactor : Mylar Capactor : Mylar Capactor : Ceramic Capactor : Mica Capactor Resistor : Flame Proot C. Resistor : Wire Wound Resistor : Metal Oxide Film Resistor OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP REGULATOR REGULATOR 1.OUTPUT 2.COMMON 3.INPUT 3 2 1 1.OUTPUT 2.INPUT 3.COMMON 3 2 1 •NJM7815FA (XD853A00) •REGULATOR •NJM7915FA (XD854A00) •REGULATOR SUB3/5 SUB2/5 SUB1/5 SUB5/5 SUB4/5 SUB7J SUB7U SUB7H F101 10A 125V 7A 125V T3. 15AL F102, 103 1A 250V 1A 250V T1AL PA7 KEC-92352 2 OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP KEC-92352 2 KEC-92352 2 KEC-92352 2 KEC-92352 2 KEC-92351 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
