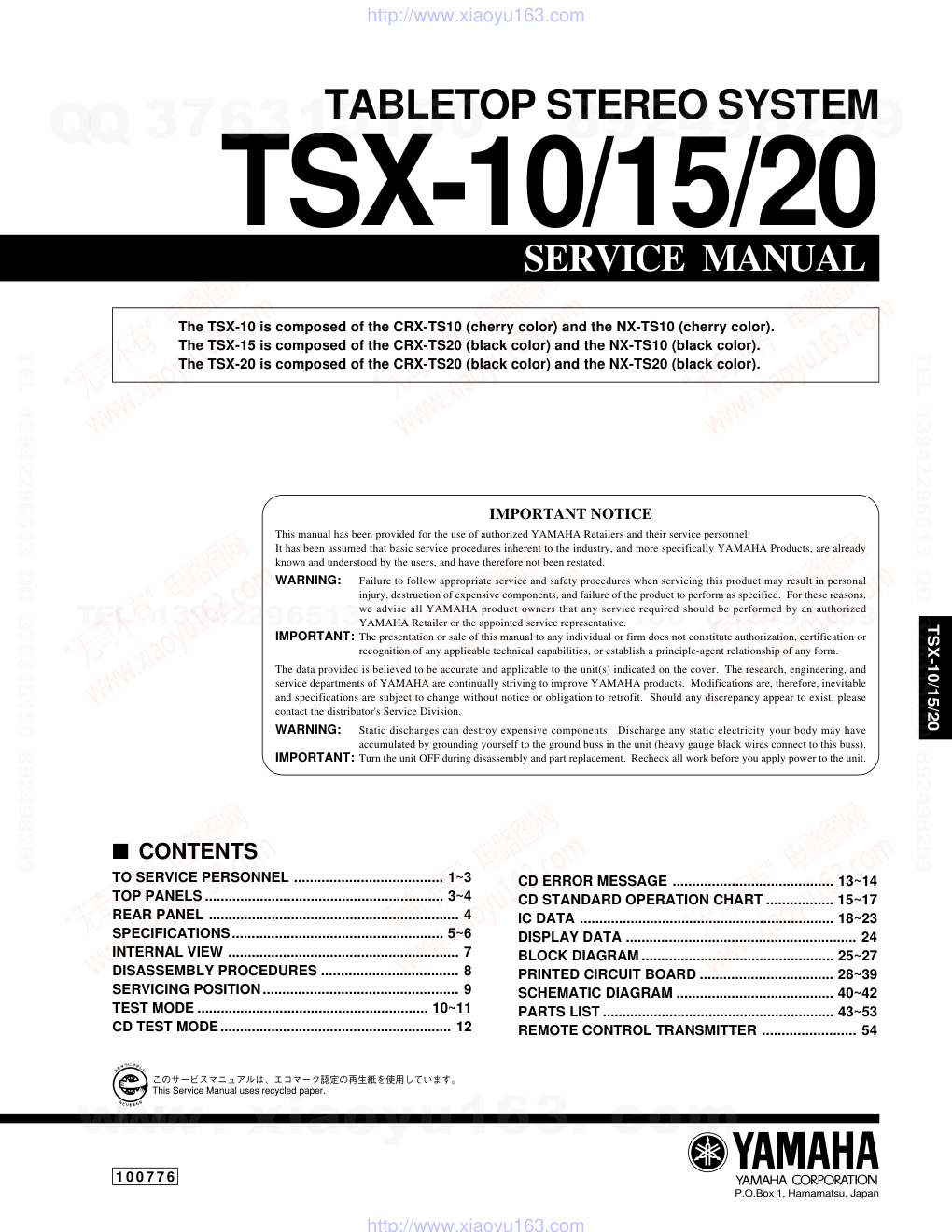

SERVICE MANUAL TABLETOP STEREO SYSTEM 1 0 0 7 7 6 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. P.O.Box 1, Hamamatsu, Japan I CONTENTS TO SERVICE PERSONNEL ...................................... 1~3 TOP PANELS ............................................................. 3~4 REAR PANEL ................................................................ 4 SPECIFICATIONS...................................................... 5~6 INTERNAL VIEW ........................................................... 7 DISASSEMBLY PROCEDURES ................................... 8 SERVICING POSITION.................................................. 9 TEST MODE ........................................................... 10~11 CD TEST MODE........................................................... 12 CD ERROR MESSAGE ......................................... 13~14 CD STANDARD OPERATION CHART ................. 15~17 IC DATA ................................................................. 18~23 DISPLAY DATA ........................................................... 24 BLOCK DIAGRAM ................................................. 25~27 PRINTED CIRCUIT BOARD .................................. 28~39 SCHEMATIC DIAGRAM ........................................ 40~42 PARTS LIST ........................................................... 43~53 REMOTE CONTROL TRANSMITTER ........................ 54 TSX-10/15/20 TSX-10/15/20 The TSX-10 is composed of the CRX-TS10 (cherry color) and the NX-TS10 (cherry color). The TSX-15 is composed of the CRX-TS20 (black color) and the NX-TS10 (black color). The TSX-20 is composed of the CRX-TS20 (black color) and the NX-TS20 (black color). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 1 WALL OUTLET EQUIPMENT UNDER TEST AC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE I TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. • Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. • Leakage current must not exceed 0.5mA. • Be sure to test for leakage with the AC plug in both polarities. “CAUTION” “F1: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 1.25A, 125V FUSE.” “F2: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 1.25A, 125V FUSE.” CAUTION F1: REPLACE WITH SAME TYPE 1.25A, 125V FUSE. F2: REPLACE WITH SAME TYPE 1.25A, 125V FUSE. ATTENTION F1: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 1.25A, 125V. F2: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 1.25A, 125V. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING: Laser Safety This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit. 1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from the laser pick-up unit at all times. Do not stare at the laser beam at any time. 2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Emitting conditions: 1) When the the STANDBY/ON key is turned to the "ON" position, and the cover is open, the laser component will emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens of the laser pick-up unit. Do not attempt any servicing during this period! If no disc is detected, the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser emissions. 2) The laser power level can be adjusted with the VR on the pick-up PWB. However, this level has been set by the factory prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this manual. Adjustment of this control can increase the laser emission level from the device. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 Optical Pick-up 2 VARO!: AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASER- SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. VARNING!: OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to carefully follow the instructions below when servicing. 1. Laser Diode Properties • Material : GaAlAs • Wavelength : 780 nm • Emission Duration : Continuous • Laser Output : max. 44.6 µW* * This output is the value measured at a distance of about 200 mm from the objective lens surface on the Optical Pick-up Block. 2. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens. WARNING: Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions when handling or replacing lithium batteries. • Leave lithium battery replacement to qualified service personnel. • Always replace with batteries of the same type. • When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells. Never solder directly to the cells. Perform the soldering as quickly as possible. • Never reverse the battery polarities when installing. • Do not short the batteries. • Do not attempt to recharge these batteries. • Do not disassemble the batteries. • Never heat batteries or throw them into fire. ADVARSEL! Lithiumbatteri—Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. VARNING Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller an ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. VAROITUS Paristo voi räjähtää, jos se on virheellisesti asennettu. V a i h d a p a r i s t o a i n o a s t a a n l a i t e v a l m i s t a j a n suosittelemaan tyyppiin. Hävitä käytetty peristo valmistajan ohjeiden mukaisesti. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 NATURAL SOUND CD RECEIVER CRX-TS10 PRESET/TUNING STANDBY/ON OPEN/CLOSE HOUR – + HOUR MIN – + MIN V O L U M E INPUT SNOOZE A/B/C/D/E MEMORY SLEEP DISPLAY AUTO/MAN'L PRESET/BAND TIMER TIME ADJ PHONES NATURAL SOUND CD RECEIVER CRX-TS10 PRESET/TUNING STANDBY/ON OPEN/CLOSE HOUR – + HOUR MIN – + MIN V O L U M E INPUT SNOOZE A/B/C/D/E MEMORY SLEEP DISPLAY AUTO/MAN'L PRESET/BAND TIMER TIME ADJ PHONES 1MΩ Conductive material (sheet) or steel sheet Anti-static wrist strip I TOP PANELS CRX-TS10: U, C, A, T models 3 CRX-TS10: B, G models Grounding for electrostatic breakdown prevention 1. Human body grounding Use the antistatic wrist strap to discharge the static electricity from your body. 2. Work table grounding Put a conductive material (sheet) or steel sheet on the area where the optical pickup is placed and ground the sheet. Caution: The static electricity of your clothes will not be grounded through the wrist strap. So take care not to let your clothes touch the optical pickup. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 OUT OPTICAL IN AM GND OTHER 4Ω MIN./SPEAKER FOR USA : CLASS 2 WIRING HRIZ OUT FM 75Ω UNBAL. LINE ANTENNA SUBWOOFER SETTING R + + – – L SPEAKERS CD DIGITAL OUT NATURAL SOUND CD RECEIVER CRX-TS20 PRESET/TUNING STANDBY/ON OPEN/CLOSE HOUR – + HOUR MIN – + MIN V O L U M E INPUT SNOOZE A/B/C/D/E MEMORY SLEEP DISPLAY AUTO/MAN'L PRESET/BAND TIMER TIME ADJ PHONES NATURAL SOUND CD RECEIVER CRX-TS20 PRESET/TUNING STANDBY/ON OPEN/CLOSE HOUR – + HOUR MIN – + MIN V O L U M E INPUT SNOOZE A/B/C/D/E MEMORY SLEEP DISPLAY AUTO/MAN'L PRESET/BAND TIMER TIME ADJ PHONES 4 CRX-TS20: U, C, A, T models CRX-TS20: B, G models I REAR PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 5 I SPECIFICATIONS I Audio Section Output Power Per Channel (1 kHz, 10% THD, 4 ohms) SP OUT L/R .............................................. 18W + 18W (B, G models: DIN standard output power per channel) Input Sensitivity / Impedance AUX ..................................................... 250 mV / 47 k Amplifier ................................................ Tripath Digital BTL type Volume ..................................................... Rotary Encoder type Tone Control (Remote control only) ................................... BASS, TREBLE, BASS BOOST Input ....................................................... AUX (Mini jack) x 1 Output ................ AUX (Mini jack) x 1, CD Digital (Optical) x 1 ............... Subwoofer x 1, Headphone x 1, Speaker x 1 Setting Angle ...................................... Flat, 45°, 70°, Wall mountable I Tuner Section FM Tuning Range U, C models ....................................87.5 to 107.9 MHz A, B, G, T models .........................87.50 to 108.00MHz FM Usable Sensitivity (1 kHz, 100% MOD, 30 dB S/N Quieting) U, C, T models .................................. 1.5 µV (14.8 dBf) A, B, G models (DIN 26 dB S/N)........................ 1.8 µV AM Tuning Range U, C models ....................................... 530 to 1710 kHz A, B, G, T models ............................... 531 to 1611 kHz Preset ....................................................... 40 station (FM/AM) RDS (B, G models only) .............................................................. PS/PTY/RT/CT I CD Section DAC ...................................................................... 1 Bit DAC Digital Filter ............................. 8 times Over Sampling Digital Filter Wow & Flutter ............................................... Below measurable limits CD Mechanical Unit ......................................... Ball Chucking Type Floating Open/Close Mechanism ........................ Big Acrylic CD Window by Motor Drive Playback Disc ..........................................................CD/CD-R/CD-RW Signal Readout .....Non-contact, 3-beam semi-conductor laser pick-up I General Power Supply U, C models ...................................... AC 120 V, 60 Hz A model ............................................. AC 240 V, 50 Hz B, G models ...................................... AC 230 V, 50 Hz T models............................................ AC 220 V, 50 Hz Power Consumption .............................................................................. 35 W Standby Power Consumption ............................................................................. 3.0 W Dimensions (W x H x D) CRX-TS10/20 ................................ 297 x 79 x 213 mm (11-11/16" x 3-1/8" x 8-3/8") NX-TS10..................................... 140 x 213 x 77.5 mm (5-1/2" x 8-3/8" x 3") NX-TS20...................................... 126 x 230 x 146 mm (5" x 9" x 5-3/4") Weight CRX-TS10/20 .............................. 4.0 kg (8 lbs. 13 oz.) NX-TS10........................................ 1.0 kg (2 lbs. 3 oz.) NX-TS20........................................ 1.9 kg (4 lbs. 3 oz.) Finish CRX-TS10 ..........................................................Cherry CRX-TS20 ............................................................Black NX-TS10..................................................Cherry, Black NX-TS20...............................................................Black Accessories Remote Control Transmitter x 1, Lithium battery x 1, Indoor FM antenna x 1, AM loop antenna x 1, Speaker Cable x 2, Stand x 3, Mounting bracket x 1, Cushion x 1, Screws x 9 I SPEAKER Section (NX-TS10, NX-TS20) Type ................ 2 Way Bass-reflex Magnetic Shielding Type Driver Woofer ............................ 10 cm (3-15/16") Cone Type Tweeter ................................... 2.5 cm (1") Dome Type Maximum Input NX-TS10............................................................... 20 W NX-TS20............................................................... 20 W Frequency Response NX-TS10........................................... 100 Hz to 27 kHz NX-TS20............................................. 63 Hz to 27 kHz Sound Pressure Level NX-TS10............................................. 91 dB / 2.83 v/m NX-TS20............................................. 88 dB / 2.83 v/m Setting Angle NX-TS10............................... 45°, 70°, Wall mountable * Specifications are subject to change without notice due to product improvements. U .......... U.S.A. model C ...... Canadian model A .......... Australian model B ...... British model G .......... European model T ....... Chinese model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 297mm (11-11/16") 213mm (8-3/8") 79mm (3-1/8") 210mm (8-1/4") 140mm (5-1/2") 213mm (8-3/8") 77.5mm (3") 230mm (9") 126mm (5") 146mm (5-3/4") 6 • DIMENSIONS CRX-TS10/20 NX-TS10 NX-TS20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 7 I INTERNAL VIEW 1 Pick-up Unit 2 CD Lid Opening Motor Mount 3 DIGITAL (5) P.C.B. 4 DIGITAL (1) P.C.B. 5 DIGITAL (2) P.C.B. 6 DIGITAL (3) P.C.B. 7 Tuner Pack Unit 8 MAIN (1) P.C.B. 9 Power Amplifier IC (IC5) 0 Power Transformer A MAIN (2) P.C.B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 5 5 4 4 4 55 5 5 5 5 5 3 CB4 CB11 CB13 CB207 CB408 CB408 CB409 CB409 CB408 CB409 CB210 CB210 CB210 CB2 CB1 CB1 CB1 CB3 MAIN(2) P.C.B. MAIN(1) P.C.B. Bottom Top DIGITAL(1) P.C.B. DIGITAL(2) P.C.B. 8 7 7 7 6 6 6 CB403 CB402 CB404 CB406 CB407 DIGITAL(2) P.C.B. DIGITAL(1) P.C.B. Motor Unit 1 1 1 1 2 2 2 2 2 2 2 CB206 Lower side screw Lower side screw 8.1 ±0.2 mm 8 I DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) Disconnect the power plug from the AC outlet. 1. Separation of Top section and Bottom section a. Remove 4 screws (1) to remove the side panels. (Fig. 1) b. Remove 7 screws (2). c. Remove the connector (CB206). d. Remove the top section by lifting its right side and place it on the left of the bottom section. 2. Removal of MAIN P.C.B. a. Remove the connectors (CB3, CB11) from the MAIN P.C.B. b. Remove 1 screw (3), shift the MAIN P.C.B (2) upward and then remove the connector (CB4). (Fig. 2) c. Remove the connectors (CB13, CB207, CB408, CB409) and flat cables (CB2, CB210) connected to the MAIN P.C.B.(1). d. Remove 3 screws (4). e. Remove 9 screws (5). The MAIN P.C.B. (1) and MAIN P.C.B. (2) can then be removed. (Fig. 2) 3. Removal of CD Drive Unit a. Remove the connectors (CB402, CB403). b. Remove 4 screws (6) and then remove the Motor Unit. (Fig. 3) c. Disconnect the flat cables (CB404, CB406, CB407). d. Remove 3 screws (7) and then remove the DIGITAL P.C.B. (1). (Fig. 3) e. Remove 1 screw (8). The CD Drive Unit can then be removed together with the DIGITAL P.C.B. (4). (Fig. 3) Check that the disc table height is as specified below. Fig. 1 Fig. 2 Fig. 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 9 I SERVICING POSITION When performing inspections, use the positions as shown in the figure. Be sure to pay attention to the following items when performing inspections. 1. Static electricity 2. Polarity of connectors 3. Laser light from the pickup Be sure to load a CD before turning on the power and take it out after turning off the power. Never turn on the power without a CD loaded . Procedure: 1. Remove the Motor Unit by performing Steps 1 and 3, a and b of the DISASSEMBLY PROCEDURES. 2. Where the Motor Unit has been removed, position the CD drive unit fixing jig as shown in the photo and fix it with 3 screws. 3. Reconnect the connectors that have been disconnected in the original state. However, use an extension cable for connection between W3 of the MAIN (1) P.C.B. and CB206 of the DIGITAL (2) P.C.B. • Extention Cable Part No. Pin Connection MF407300 7P MAIN (1) P.C.B. (W3) ↔ DIGITAL (2) P.C.B. (CB206) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 STANDBY/ON Key is pressed while pressing INPUT Key and PRESET/TUNING Key. TEST MODE indication. PRESET/TUNING Key Test mode number up. PRESET/TUNING Key Test mode number down. PRESET/BAND Key Execute test mode. STANDBY/ON Key POWER OFF The completion of test mode. POWER Off condition TEST MODE UP TEST MODE DOWN When present mode is carried out. Test mode is finished. FL CHECK 1st 2nd 3rd I TEST MODE 10 DISPLAY 01 Fact.Test 02 DEST-R9k 03 FL+CLEAR 04 FL CHECK 05 FAN[Stop] 05 FAN[Low ] 05 FAN[High] FUNCTION The factory inspection mode. Do not use this mode. Indication for destination. (*1) All FL segments and BACKUP RAM CLEAR. (Note that memories set by the user will be erased.) All FL segments and circuit board short circuit inspection. The test of the fan. PRESET/BAND Key The choice of the factory inspection mode. 1st: all segments light 2nd: RAM CLEAR Also, the preset contents of the tuner are restored to the factory preset ones. 1st: all segments light 2nd: Even-numbered segments and even numbered digits are turned on. 3rd: Odd-numbered segments and odd- numbered digits are turned on. Switching of Stop → Low → High. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 DESTINATION R (AM9k/FM:50k), T R (AM10k/FM100k) A B,G U,C J Display R9k R10k A B, G U, C J (*1) (*2) When the ROM collection area of EEPROM has some data, these functions are displayed. Preset group A B C D E P1 P2 P3 P4 P5 P6 P7 P8 CAUTION : When executing Test mode No. 2 RAM CLEAR, be sure to write down the preset memory contents of the tuner, using a table like the one shown below. Execution of RAM CLEAR will set the memory contents of the tuner back to the factory preset state which means that all the memories preset by the user will be erased. G FACTORY PRESET NOTE 1) PRESET PAGE ................................................. A : FM B : AM C : FM D : AM E : FM BAND FM (MHz) AM (kHz) MARKETS U, C A, B, G, T U, C A, B, G, T 8 107.9 107.90 1440 1440 7 106.1 106.10 1350 1350 6 88.1 88.10 900 900 5 107.9 108.00 1710 1611 4 101.5 101.50 530 531 3 87.5 87.50 1400 1404 2 95.1 95.10 1080 1080 1 98.1 98.10 630 630 PRESET No. 11 DISPLAY 06 Ver-A1.06 06 '01.07.11 07 SUM[f370] 08 ROM Check 08 ROM≥Flash 09 PrCan-OFF 09 PrCan-ON 10 Pr!C_P_T_ 11 SubClkOut 11 SubClk-1P 12 RemoCorrR 13 COR-Clear (*2) 14 Cor- St. (*2) FUNCTION Version information of the microcomputer software. (*2) The date of the microcomputer software. The calculation of SUM is done and indicated after that. (*2) Do not use this mode. The cancel of ALL protection. The confirmation of protection. _ (Mark): normal x (Mark): Protection history exists. [C: Amp. voltage, P: Power voltage, T: Thermal] The frequency confirmation of clock (32.768 kHz) for the time display. ROM collection data (remote controller) reception / data writing. ROM collection data is cleared. Do not use this mode. SUM of ROM collection is calculated. PRESET/BAND Key It is changed to the date indication. It is changed to version indication. Re-calculation. ON/OFF Clear protection history. Switching of Out → -1P. (It is outputted when INPUT Key is pushed at the time of -1P.) While this button is pressed, a clock signal is output at TP201. Start the writing. (After the data reception.) Confirm the data clear. Start the data clear. Start calculation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 G Test Mode Function List of Panel keys Press the ”STANDBY/ON” key while pressing the ”STOP” key and the ”INPUT” key simultaneously, and the TEST MODE will be activated. On the FL display, an opening message appears for a few seconds. Command No. Command Name Sample of display of test command After a few seconds PANEL KEY OPEN/CLOSE PLAY/PAUSE STOP (SKIP/SEARCH) (SKIP/SEARCH) FUNCTION Execute the test command selected with the SKIP/SEARCH keys Plays if focus servo is effective. All stop. (Focus, spindle, feed, laser, tray, etc.) Initializes FL display Increase the test command number. Decrease the test command number. I CD TEST MODE 12 The functions corresponded to the test command numbers are as follows. No. Display Function 00 Open/Clos Open/close the CD lid. 01 AutoAdj-1 Auto adjustment mode1 (TR offset, FO offset, adjustment) 02 AutoAdj-2 Auto adjustment mode2 (FO rough gain, TR balance, FO rough gain adjustment). 03 AutoAdj-3 Auto adjustment mode3 (FO fine gain adjustment, TR fine gain adjustment, FO balance). 04 Feed Rev Move traverse reverse until the inner SW turns on. 05 Feed Fwd Move traverse forward. 06 Feed Stop Stop traverse. 07 SP Acc Accelerate spindle. 08 SP Brake Decelerate spindle. 09 SP Srv On Spindle servo on. 10 SP SrvOFF Spindle free (servo off). 11 SP Stop Stop spindle. 12 Fcs Srch FO on, TR off. (Enter forcus search if forcus servo is off.) 13 TrFe OFF FO on, TR off, TV off. 14 1Kick R Reverse 1 track kick continuously. 15 1Kick F Forward 1 track kick continuously. 16 10Kick R Reverse 10 track kick continuously. 17 10Kick F Forward 10 track kick continuously. 18 30Kick R Reverse 30 track kick continuously. 19 30Kick F Forward 30 track kick continuously. 20 150Kick R Reverse 150 track kick continuously. 21 150Kick F Forward 150 track kick continuously. 22 FcsG High Focus gain at High. 23 FcsG Norm Focus gain at Low. 24 Test Coef Servo coefficient rewrite test. 25 Mute Chg Analog mute control. 26 Motor Drv Tray motor drive test (for P.C.B. test). 27 SW check Tray switch test (for P.C.B. test). 28 Error Msg Display of latest error message. 29 ToProduct To product mode. 30 Test Rep To repetitive test mode. 31 Tray Test To tray repetitive test mode. 32 CD Ver. Display of version of CD section. Display and test servo coefficient The coefficients subject to display and test are from FG to SET3. The functions of the control buttons are as follows. PANEL KEY OPEN/CLOSE PLAY/PAUSE STOP (SKIP/SEARCH) (SKIP/SEARCH) FUNCTION Switching up/down contents (coefficient item / upper digits of coefficient / lower digits of coefficient). Define servo coefficient, write data to LSI. Return to the test command selection. Increase of coefficient item / upper digits of coefficient / lower digits of coefficient. Decrease of coefficient item / upper digits of coefficient / lower digits of coefficient. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 (1) If a CD error occurs, an error message can be displayed by selecting “ CD TEST MODE 28 Error Msg” and pressing the “OPEN/CLOSE” key. (2) Shown below is an example of display. (“E-73” as an example) (3) Listed in the table below are error messages. Error No. E-10 E-20 E-30 E-70 E-11 E-21 E-73 E-04 E-14 E-35 Status Contents PLAY SCAN PAUSE SEARCH PLAY SCAN E-31 PAUSE LOAD LOAD, SEARCH LOAD, SEARCH E-AC E-AD MN ERR E-06 SEARCH, PLAY, PAUSE G Error Messages List 1) Error Code Troubleshooting Error code X0 , X1 , 73 ...... Data cannot be read. Error codes AC , AD ..... Poor CD lid operation. Motor defective Control IC (IC405) defective Microcomputer defective Does CD lid operate when OPEN/CLOSE key is pressed? NO TRACKING servo defective. FEED servo defective. Check by using another disc. Is disc dirty or scratched? YES NO Pick-up position Within disc range Outermost (on mirror surface) Pick-up defective, Spindle system defective (Motor fails to run, etc.) Error code X7 ............. FEED operation defective. (Limit switch fails) FEED servo defective Microcomputer defective Is forced feed operation available in TEST mode? YES NO Feed limit switch defective Microcomputer defective ...Outward ...Inward Error code X8 ............ Focus drops. TRACKING servo defective. FEED servo defective. Check by using another disc. Is disc dirty or scratched? YES NO Pick-up position Within disc range Outermost (on mirror surface) FOCUS servo defective Pick-up defective E-47 E-57 E-18 E-28 E-38 E-48 SEARCH STOP E-77 LOAD, EJECT PLAY SCAN PAUSE SEARCH E-68 CD fails in the disc data reading after the state shift. CD fails in the disc data reading. CD fails in the TOC data reading Tracking servo is not effective at the DISC MOTOR SERVO PLL. Disc motor servo PLL is not effective. CD fails in FOCUS SEARCH. Close switch does not operate at the CD Lid CLOSE CONTROL. Open switch does not operate at the CD Lid OPEN CONTROL. MN35511 does not give response of SENSE with resetting. CD fails in escaping from the LEAD-IN area. The inner limit switch does not operate at the FEED INNER CONTROL. CD fails in recovery from the FOCUS OUT. LOAD 13 I CD ERROR MESSAGE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 2) Troubleshooting from System Malfunctions a) CD lid fails to open/close. Microcomputer or LOADING IC (IC405) defective NO FLSW = “L” Limit switch defective FEED servo system defective Microcomputer defective NO YES Motor defective Poor mechanism operation Wire caught. Loose gear, etc. CD lid starts to move but stops. YES NO Is output available at LOADING motor terminal? YES When CD lid fails to close completely (when it stops midway) [Corrective measure] 1) Turn ON the power and open the CD lid. 2) Turn OFF the power and force the CD lid to close. 3) With the power turned ON, open and close the CD lid to check if the CD lid closes completely. IC406 defective YES NO MUTING circuit defective Microcomputer defective MUTING applied. b) No sound generated, Sound cut during play. ( but time display advances properly) FOCUS servo system defective YES Is FOCUS lock done? IC404 or IC406 defective Microcomputer defective YES NO Feed limit switch defective Does CD lid close properly? NO YES Is pick-up at innermost position? NO Poor CD lid operation Jitter defective YES Is EFMI signal normal? NO Spindle servo system defective YES Does spindle motor run? NO c) Operates as if no disc loaded. (although loaded) NO Tracking servo system defective FEED servo system defective FOCUS servo system defective Pick-up defective Is disc dirty, scratched or warped? YES NO Is disc or disc stabilizer in contact with mechanism? YES Check by using a known good disc. Poor mechanism accuracy. Floating rubber/ spring deformed. Pick-up connector assembly caught. d) Sound skips. (Time display fails to advance properly) NO IC406 defective. Is disc dirty, scratched or warped? YES NO Is TER waveform normal? YES Check by using a known good disc. Tracking servo system defective FEED servo system defective FOCUS servo system defective Pick-up defective e) No search provided. (Sound skipped after search) 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 A Turn ON the power. Select CD with the INPUT key. Load a disc. Press the PLAY key. Forced feed return. Press the OPEN/CLOSE key. CD cover opened. CD cover closed. Feed inner track switch searching. Focus offset adjusted (automatic). Laser turned ON. LD (IC404, 2 pin) = Low Tracking offset adjusted (automatic). Disc scanning. Focus gain roughly adjusted (automatic). Focus searching. Focus clock, servo turned ON. /FLOCK (IC406, 11 pin) = High to Low "No Disc" on display when no disc exists. TRV signal output until the limit switch detects the end. "01 Open" on display. To the next step if /FLSW (IC204, 15 pin) = Low. 15 I CD STANDARD OPERATION CHART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 A B Spindle motor accelerated. Tracking servo turned ON. Spindle servo turned ON. VCO locked. Feed servo turned ON. Tracking gain roughly adjusted (automatic). Tracking balance adjusted (automatic). Focus balance adjusted (automatic). Focus gain precisely adjusted (automatic). Tracking gain precisely adjusted (automatic). ~ Data entered ~ First track searched. Muting cancelled after finding the starting point. Playing MUTE (IC201, 95 pin) = Low to High /TLOCK (IC406, 12 pin) = High to Low "0:00" on display. TOC reading. 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 B Press the SKIP key. ~ Playing ~ "0:00" displayed. Press the STOP key. Muting turned ON. Muting cancelled after finding the starting point. MUTE (IC201, 95 pin) = High to Low Track searched. Muting turned ON. MUTE (IC201, 95 pin) = High to Low Spindle motor stopped. Laser turned OFF. LD (IC404, 2 pin) = Low to High Forced feed return. /FLSW (IC204, 15 pin) = Low ~ Stop ~ MUTE (IC201, 95 pin) = High to Low Playing 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 58 59 56 17 STAT X1 X2 XSEL TIMING GENERATOR PITCH CONTROL VCO MICRO COMPUTER INTERFACE SERVO CPU OUTPUT PORT D/A CONVERTER EFM DEMODULATION SYNC INTERPOLATION SUBCODE DEMODULATION CIRC ERROR CORRECTION DEINTERLEAVE CLV SERVO DIGITAL AUDIO INTERFACE INTER POLATION SOFT MUTING DIGITAL ATTENUATION PEAK DETECT AUTO CUE DSL • PLL VCO 16k SRAM PEM (L) PEM (R) DD type DAC PLL VCO 2 8 TIMES OVER SAMPLING DIGITAL FILTER DIGITAL DE-EMPHASIS SUBCODE BUFFER INPUT PORT SERVO TIMING GENERATOR A/D CONVERTER 19 SMCK/FCLK 49 VCOF 69 CK384 8 MDATA 7 MCLK 9 MLD 44 ARF 46 DRF 45 IREF 47 DSLF 48 PLLF 52 EFM 53 PCK/RESY 67 AVDD 62 AVSS 15 SUBQ 14 SQCK 20 CLVS/FLAG6 68 DEMPO 73 SUBC 72 SBCK2 74 SBCK 75 CLDCK 13 BLKCK 55 CRC 78 SDATI 80 BCKI 79 LRCKI 77 DEMPI/TEST2 61 VCOF2 70 IOSEL 41 TOFS 40 10 43 LDON SENSE WVEL 11 /FLOCK 12 /TLOCK 30 FBAL 31 TBAL 28 FOD 27 TRD 22 TVD 25 ECS 42 PLAY/TRVSTP 29 VREF 21 TRV 16 DMUTE 1 BCLK 3 SRDATA 2 LRCK 23 PC 24 ECM 6 TX 76 IPFLAG 54 FLAG 51 AVSS2 63 OUT1C 65 OUT2D 38 /RFDET 39 BDO 35 VDET 37 TRCRS 34 RFENV 33 TE 32 FE 71 /TEST 18 /RST 5 DVSS1 4 DVDD1 57 VSS 60 VDD 36 OFT 50 AVDD2 64 OUT1D 66 OUT2C 26 KICK I IC DATA IC406 : MN35511AL Signal Processor & Controller 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 Function Bit clock output for SR DATA (NC) L/R identification signal output (NC) Serial data output (NC) Power supply for digital circuit (+5) GND for digital circuit Digital audio interface output signal Microprocessor command clock signal input (data latched at leading edge) Microprocessor command data input Microprocessor command load signal input (L : LOAD) Sense signal output (OFT, FESL, NACEND, NAJEND, SFG, NWTEND) Focus servo drawing signal (L : when drawn) Tracking servo drawing signal (L : when drawn) Sub code block clock signal (BLKCK=75Hz) Clock input for sub-code Q register Sub-code Q code output Muting input (H : MUTE) Status signal (CRC, STCNT, CLVS, TTSTOP, SQOK, RESY, FCLV, FLAG6, SENSE ,/FLOCK, /RFDET, /TLOCK) Reset input (L : RESET) 4.2336MHz clock signal output SMCK when command is defaulted. (Note 1) (NC) SMCK (8.4672MHz), FCLK (7.35kHz) or “L” fixed is selected when command is switched. With command defaulted : CLVS when IOSEL=H, FLAG6 when IOSEL=L (NC) These settings can be reversed by command (FLAG6 when IOSEL=H). Traverse (Feed) forced feed output 3-State Traverse (Feed) drive output Spindle motor ON signal L : ON (default) (NC) Spindle motor drive signal (forced mode output) 3-State Spindle motor drive signal (servo error signal output) Kick pulse output 3-State Tracking drive output Focus drive output Reference voltage for DA output block (TVD, ECS, TRD, FOD, FBAL, TBAL) Focus balance adjustment output Tracking balance adjustment output Focus error signal input (analog input) Tracking error signal input (analog input) RF envelope signal input (analog input) Oscillation detect signal input (H : DETECT) (GND) (GND) Off track signal input (H : OFF TRACK) Track cross signal input (analog input) RF detect signal input (L : DETECT) Drop out signal input (H : DROP OUT) Laser ON signal output (H : ON) (NC) Tracking offset adjustment output (NC) Switched by command. PLAY (Play signal output) when command is defaulted. (NC) Double speed status signal output (H : double speed) (NC) RF signal input Reference current input terminal Bias terminal for DSL I/O O O O I I O I I I O O O O I O I O I O O O O O O O O O O I O O I I I I I I I I O O O O I I I Name BCLK LRCK SRDATA DVDD1 DVSS1 TX MCLK MDATA MLD SENSE FLOCK TLOCK BLKCK SQCK SUBQ DMUTE STAT RST SMCK/ FCLK CLVS/ FLAG6 TRV TVD PC ECM ECS KICK TRD FOD VREF FBAL TBAL FE TE RFENV VDET OFT TRCRS RFDET BDO LDON TOFS PLAY/TRVSTOP WVEL ARF IREF DRF (Note 1) At the SMCK/FCLK pin, output does not stop while /RST=L. 19 IC406 : MN35511AL Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 Pin No. 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 Function Loop filter terminal for DSL Loop filter terminal for PLL Loop filter terminal for VCO (+5) Power supply for analog circuit (for AD of DSL, PLL, DA output blocks) (+5) GND for analog circuit (for AD of DSL, PLL, DA output blocks) (GND) EFM signal output (NC) With command defaulted : PLL extract clock output PCK when IOSEL=H, frame re-synchronous signal RESY when IOSEL=L These settings can be reversed by command (RESY when IOSEL=H). (NC) Flag signal output (NC) Sub-code CRC check result output (H : OK, L : NG) (NC) L : Normal mode (GND) H : • For internal master clock, VCO2 output clock for jitter adsorbing PLL is used instead of Xtal oscillation output (X2). • VCO2 is always fixed to oscillation mode regardless of VCO2 oscillation stop command or resetting (/RST=L) and Xtal oscillation is stopped. GND for oscillation circuit Crystal oscillation circuit input terminal Crystal oscillation circuit output terminal Power supply for oscillation circuit (+5) PLL loop filter terminal for jitter adsorption (GND) GND for audio DAC PEM output terminal 1C PEM output terminal 1D PEM output terminal 2D PEM output terminal 2C Power supply terminal for audio DAC Deemphasis detect signal output (NC) 384fs clock output (At the CK384 pin, output does not stop while /RST=L.) (NC) Xtal system when command is defaulted. Signal processing system when command is switched Mode selecting terminal (+5) Test mode setting terminal (Normal : H) (+5) Sub-code data read clock input Sub-code serial output (SBCK effective) when command is defaulted. PACK data usable (SBCK2 effective) when command is switched Clock input for sub-code serial output (with pull-up resistor) (NC) Sub-code frame clock signal output when command is defaulted (fCLDCK=7.35kHz) PACK synchronous signal when command is switched Interpolation flag signal output (H : INTERPOLATION) (NC) When IOSEL=H, L : NORMAL H : TEST2 (GND) Emphasis control in accordance with DEMP0 When IOSEL=L, external DEMP1 input terminal For emphasis control, DEMP0, OR of DEMP1, DEMP1, forced OFF or forced ON is selected by command. When command is defaulted, DEMP0 and OR of DEMP1 SRDATA input (effective only when IOSEL=L) (NC) LRCK input (effective only when IOSEL=L) H : Lch data, L : Rch data (NC) BCK input (effective only when IOSEL=L) (NC) I/O I/O I/O I/O I I O O O O I I I O I O I O O O O I O O I I I O I O O I I I I Name DSLF PLLF VCOF AVDD2 AVSS2 EFM PCK/ RESY FLAG CRC XSEL VSS X1 X2 VDD VCOF2 AVSS1 OUT1C OUT1D OUT2D OUT2C AVDD1 DEMPO CK384 IOSEL TEST SBCK2 SUBC SBCK CLDCK IPFLAG DEMPI /TEST2 SDATI LRCKI BCKI 20 IC406 : MN35511AL Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32.768KOUT SQCK MCLK CLK OUT SOUT DATA OUT SIN DATA IN OPEN ENC 2 ENC 1 CNVSS XCIN XCOUT RESET XOUT VSS XIN VCC GCTRL DRV FEOF BLKCK REM IN PO DOWN CE OUT CLK OUT DATA IN DATA OUT NC DMUTE /MLD ROM CE OUT SEGMENT27 SEGMENT26 SEGMENT25 SEGMENT24 SEGMENT23 SEGMENT22 SEGMENT21 SEGMENT20 SEGMENT19 SEGMENT18 SEGMENT17 SEGMENT16 SEGMENT15 SEGMENT14 SEGMENT13 VSS SEGMENT12 VCC SEGMENT11 SEGMENT10 SEGMENT9 SEGMENT8 SEGMENT7 SEGMENT6 SEGMENT5 SEGMENT4 SEGMENT3 SEGMENT2 SEGMENT1 DIGIT1 DIGIT2 DIGIT3 DIGIT4 DIGIT5 DIGIT6 DIGIT7 DIGIT8 DIGIT9 DIGIT10 DIGIT11 DIGIT12 DIGIT13 STAT /FLOCK /TLOCK NC ROM DATA OUT ROM DATA IN ROM CLK OUT LCK OUT SEGMENT28 SEGMENT29 SEGMENT30 SEGMENT31 SEGMENT32 SEGMENT33 SEGMENT34 SEGMENT35 VEE VPROTEC A/D IN /CMDSEL LDR CTR CLOSE MUTE /MNRST AVSS /QSEL VREF AVCC 21 IC201 : M30217MA-A209FP (Mask Rom) 16 bit µ-COM M30218FCFP (Flash Rom) No. Name Port IN/OUT Function 1 P97 DA0 OUT Air cooling fan control OUT (D-A) (OUT for checking clock at 32.768 kHz/test mode) 2 P96 SCLK22 S-CLK2 [CD] SQCK (Serial I/O - 2) 3 P95 SCLK21 S-CLK1 [CD] MCLK CLK OUT (Serial I/O - 2) 4 P94 SOUT2 S-OUT [CD] SOUT DATA OUT (Serial I/O - 2) 5 P93 SIN2 S-IN [CD] SIN DATA IN (Serial I/O - 2) 6 P92 (SSTB) OUT [CD] CD tray OPEN output 7 P91 (SBUSY) IN Rotary encoder B IN [Pull-up resistor required] 8 P90 (SRDY2) IN Rotary encoder A IN [Pull-up resistor required] 9 CNVSS – – Connected to Vss (GND) via a resistor (5.1k ) 10 P87 XCIN – 32.768 kHz IN (Built-in feedback resistor) 11 P86 XCOUT – 32.768 kHz OUT (Built-in feedback resistor) 12 RESET – – RESET [0: RESET] 13 XOUT – – 10 MHz OUT (Built-in feedback resistor) 14 VSS – – GND 15 XIN – – 10 MHz IN (Built-in feedback resistor) 16 VCC – – Power supply +5V [Backup chemical capacitor for clock required] 17 P85 (INT5) OUT [CD] GCTRL 18 P84 (INT4) OUT [CD] DRV 19 P83 (INT3) OUT [CD] FEOF 20 P82 INT2 IN [CD] BLKCK 21 P81 INT1 INT-IN Remote control IN 22 P80 INT0 INT-IN Power down DC detect IN [0: POWER DOWN] 23 P77 CMOS OUT C2B (LC72131/LC72720/LC75342M) CE OUT [1: DATA transfer] 24 P76 CLK1 S-CLK LC72131/LC72720/LC75342M CLK OUT (Serial I/O-1) 25 P75 RxD1 S-IN LC72131/LC72720 DATA IN (Serial I/O-1) 26 P74 TxD1 S-OUT LC72131/LC72720/LC75342M DATA OUT (Serial I/O-1) 27 P73 (TA3in) OUT NC 28 P72 (TB2in) OUT [CD] DMUTE 29 P71 (TB1in) OUT [CD] /MLD 30 P70 (TB0in) OUT CE OUT to E2PROM [1: DATA transfer (E2PROM)] 31 P47 (CTS0) OUT Busy OUT from built-in flash ROM / Extension port (BU2092) LCK (latch) OUT 32 P46 CLK0 S-CLK CLK IN to built-in flash ROM / E2PROM / CLK OUT to BU2092 (Serial I/O-0) 33 P45 RxD0 S-IN DATA IN to built-in flash ROM / DATA IN from E2PROM (Serial I/O-0) 34 P44 TxD0 S-OUT DATA OUT from built-in flash ROM / E2PROM / DATA OUT to BU2092 (Serial I/O-0) 35 P43 (FLD51) OUT NC 36 P42 (FLD50) IN [CD] /TLOCK 37 P41 (FLD49) IN [CD] /FLOCK 38 P40 (FLD48) IN [CD] STAT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 IC201 : M30217MA-A209FP (Mask Rom) 16 bit µ-COM M30218FCFP (Flash Rom) 22 39 P37 FLD47 OUT DIGIT 13 (13G) [VEE external pull-down required] 40 P36 FLD46 OUT DIGIT 12 (12G) [VEE external pull-down required] 41 P35 FLD45 OUT DIGIT 11 (11G) [VEE external pull-down required] 42 P34 FLD44 OUT DIGIT 10 (10G) [VEE external pull-down required] 43 P33 FLD43 OUT DIGIT 9 (9G) [VEE external pull-down required] 44 P32 FLD42 OUT DIGIT 8 (8G) [VEE external pull-down required] 45 P31 FLD41 OUT DIGIT 7 (7G) [VEE external pull-down required] 46 P30 FLD40 OUT DIGIT 6 (6G) [VEE external pull-down required] 47 P27 FLD39 OUT DIGIT 5 (5G) [VEE external pull-down required] 48 P26 FLD38 OUT DIGIT 4 (4G) [VEE external pull-down required] 49 P25 FLD37 OUT DIGIT 3 (3G) [VEE external pull-down required] 50 P24 FLD36 OUT DIGIT 2 (2G) [VEE external pull-down required] 51 P23 FLD35 OUT DIGIT 1 (1G) [VEE external pull-down required] 52 P22 FLD34 OUT SEGMENT 1 (P1) [VEE external pull-down required] 53 P21 FLD33 OUT SEGMENT 2 (P2) [VEE external pull-down required] 54 P20 FLD32 OUT SEGMENT 3 (P3) [VEE external pull-down required] 55 P17 FLD31 OUT SEGMENT 4 (P4) (VEE internal pull-down) 56 P16 FLD30 OUT SEGMENT 5 (P5) (VEE internal pull-down) 57 P15 FLD29 OUT SEGMENT 6 (P6) (VEE internal pull-down) 58 P14 FLD28 OUT SEGMENT 7 (P7) (VEE internal pull-down) 59 P13 FLD27 OUT SEGMENT 8 (P8) (VEE internal pull-down) 60 P12 FLD26 OUT SEGMENT 9 (P9) (VEE internal pull-down) 61 P11 FLD25 OUT SEGMENT 10 (P10) (VEE internal pull-down) 62 P10 FLD24 OUT SEGMENT 11 (P11) (VEE internal pull-down) 63 VCC – – Power supply +5V [Clock backup chemical capacitor required] 64 P07 FLD23 OUT SEGMENT 12 (P12) (VEE internal pull-down) 65 VSS – – GND 66 P06 FLD22 OUT SEGMENT 13 (P13) (VEE internal pull-down) 67 P05 FLD21 OUT SEGMENT 14 (P14) (VEE internal pull-down) 68 P04 FLD20 OUT SEGMENT 15 (P15) (VEE internal pull-down) 69 P03 FLD19 OUT SEGMENT 16 (P16) (VEE internal pull-down) 70 P02 FLD18 OUT SEGMENT 17 (P17) (VEE internal pull-down) 71 P01 FLD17 OUT SEGMENT 18 (P18) (VEE internal pull-down) 72 P00 FLD16 OUT SEGMENT 19 (P19) (VEE internal pull-down) 73 P57 FLD15 OUT SEGMENT 20 (P20) (VEE internal pull-down) 74 P56 FLD14 OUT SEGMENT 21 (P21) (VEE internal pull-down) 75 P55 FLD13 OUT SEGMENT 22 (P22) (VEE internal pull-down) 76 P54 FLD12 OUT SEGMENT 23 (P23) (VEE internal pull-down) 77 P53 FLD11 OUT SEGMENT 24 (P24) (VEE internal pull-down) 78 P52 FLD10 OUT SEGMENT 25 (P25) (VEE internal pull-down) 79 P51 FLD9 OUT SEGMENT 26 (P26) (VEE internal pull-down) 80 P50 FLD8 OUT SEGMENT 27 (P27) (VEE internal pull-down) 81 P67 FLD7 OUT SEGMENT 28 (P28) (VEE internal pull-down) 82 P66 FLD6 OUT SEGMENT 29 (P29) (VEE internal pull-down) 83 P65 FLD5 OUT SEGMENT 30 (P30) (VEE internal pull-down) 84 P64 FLD4 OUT SEGMENT 31 (P31) (VEE internal pull-down) 85 P63 FLD3 OUT SEGMENT 32 (P32) (VEE internal pull-down) 86 P62 FLD2 OUT SEGMENT 33 (P33) (VEE internal pull-down) 87 P61 FLD1 OUT SEGMENT 34 (P34) (VEE internal pull-down) 88 P60 FLD0 OUT SEGMENT 35 (P35) (VEE internal pull-down) 89 VEE – – P0, P1, P5, P6 pull-down resistor voltage input [~(VCC-43)V] 90 P107 AN7 A-D IN Power voltage detect IN (Protection) [0~VREF] 91 P106 AN6 A-D/IN Extention IN port 1, 2 (TC74HC4051A) A-D/IN input 92 P105 (AN5) OUT [CD] /CMDSEL 93 P104 (AN4) OUT [CD] LDR CTR 94 P103 (AN3) OUT [CD] CD tray CLOSE output 95 P102 (AN2) OUT [CD] MUTE 96 P101 (AN1) OUT [CD] /MNRST 97 AVSS – – Connected to Vss (GND) 98 P100 (AN0) OUT [CD] /QSEL 99 VREF – – A-D, D-A reference voltage input [~VCC] 100 AVCC – – Connected to Vcc terminal (+5V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 IC201 : M30217MA-A209FP (Mask Rom) 16 bit µ-COM M30218FCFP (Flash Rom) 23 • Extention OUT port (IC202: BU2092 / F) Pin No. Name Function 5(5) Q0 Tuner MUTE OUT (TUNER) [1: MUTE ON] 6(6) Q1 AMP MUTE OUT [0: MUTE ON] 7(7) Q2 AUX REC OUT MUTE control OUT [0: MUTE ON] 8(8) Q3 Blue LED control OUT [0: ON] 9(9) Q4 Speaker relay OUT [0: ON 1: OFF] 10(10) Q5 Power supply relay (Power ON) OUT [0: ON 1: OFF] 11(11) Q6 12(14) Q7 13(15) Q8 TC74HC4051A 1/2 select OUT [0: IN-2 1: IN-1] 14(16) Q9 TC74HC4051A control A OUT [Pull-up required] 15(17) Q10 TC74HC4051A control B OUT [Pull-up required] 16(18) Q11 TC74HC4051A control C OUT [Pull-up required] * Figures in ( ) represent pin terminal numbers of BU2092/FV. • Extension IN port 1 (IC203: TC74HC4051A) A-D input Pin No. Name Function 1 4 Destination select input (TUNER) [Pull-up -> VREF at 10k ] 2 6 4 7 5 5 Temperature sensor input [0~VREF] 12 3 KEY 2 input [Pull-up -> VREF at 10k ] 13 0 Extension IN port 2 (TC74HC4051A) OUT enter IN [Connected to 3 pin of IC204] 14 1 KEY 0 input [Pull-up -> VREF at 10k ] 15 2 KEY 1 input [Pull-up -> VREF at 10k ] • Extension IN port 2 (IC204: TC74HC4051A) input Pin No. Name Function 1 4 Power amplifier excess current DC voltage detect IN [1: abnormality exists] 2 6 Headphone detect IN [0: SP 1: HP] 4 7 5 5 STATION IN (TUNER) [0: station exists] 12 3 STEREO/MONO IN (TUNER) [0: STEREO] 13 0 /OPSW CD tray OPEN detect SW IN 14 1 /CLSW CD tray CLOSE detect SW IN 15 2 /FLSW CD feed end detect SW IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G 13G (15G~1G) 1-1 1-2 1-3 1-4 1-5 1-6 1-7 2-1 2-2 2-3 2-4 2-5 2-6 2-7 3-1 3-2 3-3 3-4 3-5 3-6 3-7 4-1 4-2 4-3 4-4 4-5 4-6 4-7 5-1 5-2 5-3 5-4 5-5 5-6 5-7 G GRID ASSIGNMENT G ANODE CONNECTION 13G 12G~1G P1 1-1 P2 kHz 2-1 P3 MHz 3-1 P4 B.BOOST 4-1 P5 TONE 5-1 P6 RANDOM 1-2 P7 PROG 2-2 P8 TPTAL 3-2 P9 F 4-2 P10 S 5-2 P11 REP 1-3 P12 PTY HOLD 2-3 P13 CT 3-3 P14 RT 4-3 P15 PTY 5-3 P16 TUNED 1-4 P17 PS 2-4 P18 RDS 3-4 13G 12G~1G P19 MEMORY 4-4 P20 AUTO 5-4 P21 SLEEP 1-5 P22 STEREO 2-5 P23 TIMER 3-5 P24 PRESET 4-5 P25 – 5-5 P26 – 1-6 P27 – 2-6 P28 – 3-6 P29 – 4-6 P30 – 5-6 P31 – 1-7 P32 – 2-7 P33 – 3-7 P34 – 4-7 P35 – 5-7 G V201 : 13-BT-191GN (V7357700) G PIN CONNECTION 69 F1 70 F1 68 NP 67 P26 66 P27 65 P28 64 P29 63 P30 62 P31 61 P32 60 P33 59 P34 58 P35 57 NC 56 IC 55 NX 54 NX 53 NX 52 NX 51 13G 50 12G 49 11G 48 10G 47 9G 46 8G 45 7G 44 6G 43 5G 42 4G 41 3G 40 2G 39 1G 38 NP 37 F2 36 F2 Pin No. Connection 1 F1 2 F1 3 NP 4 P25 5 P24 6 P23 7 P22 8 P21 9 P20 10 P19 11 P18 12 P17 13 P16 14 P15 15 P14 16 P13 17 NX 18 NX 19 NX 20 NX 21 P12 22 P11 23 P10 24 P9 25 P8 26 P7 27 P6 28 P5 29 P4 30 P3 31 P2 32 P1 33 NP 34 F2 35 F2 Pin No. Connection Note : 1) F1, F2 ..... Filament 2) NP ..... No pin 3) IC ..... Internal connection (IC pin should be electrically open on the PC board) 4) Pin No. 37 and 51 are connected internally 5) NX ..... No extend pin 6) DL ..... Datum Line 7) 1G ~ 16G ..... Grid ~ Z 1 Y PATTERN AREA I DISPLAY DATA 25 24 I BLOCK DIAGRAM Refer to SCHEMATIC DIAGRAM (CD) on page 40. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 13 10 DC Detect Q20/Q21 Speaker Relay IPROTECT SP-RY Speaker Lch Speaker Rch Q22 ZOBEL Circuit NX-TS10 or NX-TS20 Q6 Q5 AMP-MUTE IC5 BTL TYPE Power Amplifier IC "TRIPATH" BA15218F IC6 IC6 Q15 Q14 AMP-MUTE TO PCB-DIG(OPE) SWMUTE Q23 L R Sub Woofer Out Headphone Amplifier & Subwoofer Amplifier 21 L5 23 26 24 R60 C65 C68 Low Pass Filter DC Detect Q17/Q19 TE1 + + - - Q10 FAULT Q22 RY1 L4 L6 L7 OUTP1 OUTM1 OUTM2 OUTP2 TO PCB-DIG (CD) +12V -12V +9V Tuner Pack Unit TUL TUR AGND RDS IC1 RDS Decorder Tuner Control B,G only CB2 AMP-MUTE Q2 AMP-MUTE SP-RY Q3 SP-RY Q4 SWMUTE VPROTECT IPROTECT FAN Drive Circuit Q25/26/27 FAN TO FAN MOTOR TO PCB-DIG (OPE) HRIZ/OTHER ANGL-V ANGL-V TO PCB-DIG(OPE) SF1 SF2 S12V S-27V SGND PO-RY +MB +5A MGN +5V SGND TO PCB-DIG (CD) W2 W1 CB1 W3 SW3 CB14 PJ1 W8 F1 T1 SGND D8 SF1 SF2 + S12V + Q7/D3 S-27V R13/R79 R12/R78 SGND PO-RY Q8 RY2 RY2 AGND D20 + +B (To IC5) + Q9/D7 -12V AGND C71 F2 AGND + C69 +MB Q12/D10 +5A MGN +12V +9V +5V SGND IC3 IC2 IC4 D18 D22 D21 Voltage Limitter Q13/Q16/Q18 D15/D16/D17 D23/ Q24 VPROTECT SGND 16 R59 C64 C67 1 STATION 21 REM IN REMOTE SENSOR 13 15 XL202 IC205 E2PROM 30 31 32 33 3 94 6 MUTE U201 FRX E2CE 2 5 17 20 28 29 22 PO Down Power Down Detect Q205/D215/R289/R290 S12V 12 RESET 63 S5V-BK 100 14 Vss Vcc 16 65 97 AVss AVcc CDMUTE 95 RESET Circuit Q203/D206 90 91 34 7 8 31 IC201 M30218/M30217 HPSW 92 93 96 98 S5V 99 VREF 35 38 A/D IN IC203 TC74HC4051AF 15 12 13 IC204 TC74HC4051AF 5 1 14 KEY 0/1/2 3 DSEL THR-V Temperature Detect TH200/R275 3 15 12 13 1 14 5 2 /OPSW /CLSW /FLSW Power Supply Q204/D216 C216 C215 S5V S5V-BK IPROTECT STEREO IC202 BU2092 32 2 4 3 DATA CLOCK LCK DATA OUT LCK OUT CLK OUT 11 10 XL201 for timer REMOTE SENSOR U202 SW3 on PCB-MAIN Q201 Q202 SW201 ENC1 ENC2 (From R74 on PCB-MAI Control IC204/IC203 PO-RY AUX-MUTE AMP-MUTE TUNER-MUTE SP-RY 6 7 9 5 10 8 S5V TIMER FAN 9 CNVSS 23 24 25 26 CE OUT CLK OUT DATA IN DATA OUT Pull Up CLOSE OPEN JK201 Head Phone Out Blue LED S-27V SF1 SF2 CB206 S12V PO-RY SGND SGND CB207 CB210 VPROTECT V600 FL Display 3 51 5 6 6 6 8 6 40 42 54 ~ ~ ~ ~ ~ 1 2 58 59 89 S-27V VEE SF1 SF2 Bias SGND CB205 CB201 CB202 For Flash Writer TO PCB-DIG (CD) TO PCB-DIG (CD) TO PCB-MAIN TO PCB-MAIN From PCB-MAIN CD SERVO Control Signal ANGL-V ANGL-H ~ ~ ~ 27 26 Refer to SCHEMATIC DIAGRAM (DIGITAL) on page 41. Refer to SCHEMATIC DIAGRAM (MAIN) on page 42. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 TSX-10/15/20 DIGITAL (1) P. C. B. (Lead Type Device) /OPEN SGND /CLOSE From DIGITAL (5) AUX CD DIGITAL OUT IN OUT OPTICAL LOUT AGND ROUT +12V -12V TUL +9V TUR +5V SGND MGND +MB +5A To MAIN (1) From MAIN (1) TCLOSE SGND TOPEN From DIGITAL (6) To DIGITAL (2) To DIGITAL (2) To CD MECHANISM SPDL - SPDL + GND FLSW FEED - FEED + /QSEL /CMDSEL LDR CTL SGCK MUTE /MNRST CLOSE MCLK MDATA SENSE/SUBQ OPEN GCTRL DRY FEOF /MLD SGND SGND SGND DMUTE BLKCK /CLDCK /TLOCK /FLOCK STAT /OPSW /CLSW /FLSW CE OUT DATA OUT CLK OUT AUX MUTE To DIGITAL (4) FA+ VR FA- GND VCC NC TA- LD TA+ GND VC PD PD1 F PD2 E I PRINTED CIRCUIT BOARD (Foil side) 29 28 Ref. No. Location IC405 C3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 TSX-10/15/20 6 DIGITAL (1) P. C. B. (Surface Mount Device) 31 30 I PRINTED CIRCUIT BOARD (Foil side) Ref. No. Location D400 D3 D401 E6 D402 E6 D403 C3 D404 C3 D405 C3 D406 C3 IC400 B5 IC401 G5 IC402 F5 IC403 D4 IC404 D6 IC406 E5 IC407 F3 IC408 E6 Q400 C5 Q401 D6 Q402 B5 Q403 C6 Q405 C5 Q406 D5 Q407 F6 Q408 G5 Q409 G5 Q410 G3 Q411 F3 Q412 F3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 TSX-10/15/20 VOLUME OPEN/CLOSE STANDBY/ON PHONES MEMORY SLEEP DISPLAY AUTO/MAN'L PRESET/BAND DIGITAL (2) P. C. B. (Lead Type Device) DIGITAL (3) P. C. B. (Lead Type Device) DIGITAL (4) P. C. B. (Lead Type Device) DIGITAL (6) P. C. B. (Lead Type Device) DIGITAL (5) P. C. B. (Lead Type Device) M PO RY S12V SGND SGND S-27V SF2 SF1 CE DATA OUT DATA IN CLK IN BUSY OUT VCC VSS RESET CNVSS From MAIN (1) To ROM WRITER VPROTEC CE OUT CLOCK DATA IN DATA TUNER MUTE AMP MUTE ANGL-V FAN SGND SP RY ANGL-H Stereo Tunend IPRT DSEL S5V From MAIN (1) From DIGITAL (1) /GSEL /CMDSEL LDR CTR SQCK MUTE /MNRST CLOSE MCLK CLK OUT SOUT DATA OUT SIN DATA IN OPEN GCTRL DRV FEOF /MLD SGND SGND SGND NC DMUTE From DIGITAL (1) BLKCK /CLDCK /TLOCK /FLOCK STAT /OPSW /CLSW /FLSW CE OUT DATA OUT CLK OUT AUX MUTE HPR HPG HPL From MAIN (1) VO SUB+5 DGND From DIGITAL (1) FA+ VR FA- GND VCC NC TA- LD TA+ GND VC PD PD1 F PD2 E From CD MECHANISM FA- TA- TA+ FA+ VR PD GND LD NC VCC VC E PD1 F PD2 GND /OPEN SGND /CLOSE To DIGITAL (1) TOPEN SGND TCLOSE To DIGITAL (1) DGND SUB+5 VO 33 32 I PRINTED CIRCUIT BOARD (Foil side) Ref. No. Location D209 B6 IC202 H5 Q204 A5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 TSX-10/15/20 6 DIGITAL (2) P. C. B. (Surface Mount Device) DIGITAL (3) P. C. B. (Surface Mount Device) DIGITAL (4) P. C. B. (Surface Mount Device) DIGITAL (6) P. C. B. (Surface Mount Device) M 35 34 I PRINTED CIRCUIT BOARD (Foil side) Ref. No. Location D201 I5 D202 I5 D203 H6 D204 H6 D205 H6 D206 B5 D207 B5 D208 B5 D210 H6 D211 H6 D212 H6 D213 B5 D214 H6 D215 A5 D216 A5 D217 D6 IC201 E6 IC203 H6 IC204 H6 IC205 D5 Q201 G7 Q202 G7 Q203 B5 Q205 A5 Q206 G5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 TSX-10/15/20 1. When replacing these parts, cut each lead from the bottom of the P.C.B. to the length of 2 mm (1/16 inch) or less. 2. Cut each lead from the bottom of the entire MAN (1) P.C.B. to the length of 4 mm (1/8 inch) or less. SUBWOOFER OUT SETTING SPEAKERS + R L + – – HRIZ OTHER MAIN (1) P. C. B. (Lead Type Device) MAIN (2) P. C. B. WH WH WH Stereo Tunend Mut_T TUR TE TUL RDS 12V 5V NC TE dat_O CLK Dat_I CE BR To POWER TRANSFORMER To DIGITAL (2) From POWER TRANSFORMER FAN TUNER PACK UNIT BE BE RE RE SF1 SF2 S-27V SGND SGND S12V PO RY From DIGITAL (1) LOUT AGND ROUT +12V -12V TUL +9V TUR HPR HPG HPL To DIGITAL (2) To DIGITAL (2) To DIGITAL (1) VPROTEC CE OUT CLOCK DATA IN DATA TUNER MUTE AMP MUTE ANGL-V FAN SGND SP RY ANGL-H Stereo Tunend IPRT DSEL S5V +5V SGND MGND +MB +5A 37 36 I PRINTED CIRCUIT BOARD (Foil side) • Semiconductor Location Ref. No. Location D8 C3 D18 I7 D20 G7 IC2 F5 IC3 G5 IC4 H6 IC5 D5 Q1 G4 Q7 D2 Q9 G5 Q10 F5 Q11 F5 Q12 I6 Q13 F7 Q16 F7 Q18 F7 Q22 F3 Q25 E3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 TSX-10/15/20 6 MAIN (1) P. C. B. (Surface Mount Device) 39 38 I PRINTED CIRCUIT BOARD (Foil side) • Semiconductor Location Ref. No. Location D1 H5 D3 D2 D4 C2 D5 C3 D6 C3 D7 G5 D9 F6 D10 I6 D11 E5 D12 D5 D13 E5 D14 D5 D15 G6 D16 G7 D17 G7 D19 F3 D21 G6 D22 G6 D23 F6 D24 E4 D25 F4 IC1 G3 IC6 H5 Q2 H5 Q3 H5 Q4 H5 Q5 G5 Q6 G5 Q8 D3 Q14 H4 Q15 H4 Q17 E4 Q19 E4 Q20 F4 Q21 F4 Q23 F3 Q24 F6 Q26 F2 Q27 F2 Q28 G5 Q29 H5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L TSX-10/15/20 SCHEMATIC DIAGRAM (CD) H�All voltage are measured with a 10M� /V DC electric volt meter. H�Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. H�Schematic diagram is subject to change without notice. IC401, 402: NJM2068MD IC408: NJM2903M Dual OP-Amp IC403: TC74HC125AF Quad Bus Buffer – + OUT1 –IN1 –VCC +VCC OUT2 1 2 3 4 5 +IN1 –IN2 +IN2 – + 6 7 8 40 Point A Pin 59 of IC406 IC404: AN8399SA-E1 CD Head Amp. IC400: AN4801SB-E1 CD Driver Amp. IC405: TA8409SE + – 21 20 + – 19 + – 2 1 SUBT AMP + – GCA BCA 32 31 23 11 16 10 4 5 6 8 9 12 13 14 15 AMP GCA BCA 30 29 AMP GCA BCA 27 AMP GCA BCA 28 SUBT NRFDET 3TENV OFTR BDO AGC RF EQ BAND GAP 22 25 17 7 3 26 24 18 A C B D E F VREF SLPSW GCTL TBAL FBAL LDRCTL GND VCC CEA RFN RF OUT RF IN CAGC ARF CBDO BDO COFTR OFTR 3T OUT NRFDET FEN FEOUT TEN TE OUT LD PD 4G 13 4A 12 4Y 11 3G 10 3A 9 3Y 8 1A 2 2Y 3 2G 4 2A 5 2Y 6 GND 7 Vcc 14 1G 1 9 2 6 7 3 8 5 1 STAND-BY CIRCUIT VREF CIRCUIT THERMAL SHUTDOWN CIRCUIT VCC VS VREF OUT 1 OUT 2 IN 1 IN 2 GND SVcc 20 Standby SVcc PGND2 25 26 23 VREF FIN 23 4 3 1 2 8 9 11 10 13 12 15 14 17 16 18 19 SGND PC2 IN1 IN2 IN3 PC1 IN4 5 PVcc2 V04- V04+ V03- V03+ V02- V02+ V01- V01+ PVcc1 PGND1 M M L: All mute H: Active L: Active H: Power Cut L: Active H: Power Cut Standby Band-gap Vcc/Vref Reset Circuit [Tracking] [Focus] [Spindle] [Traverse] Pvcc/2 Pvcc/2 REST out Direction Detect Direction Detect Direction Detect Direction Detect IC474 : LC75342M-TLM Input Selctor & Electric Controlled Volume 28 27 29 30 1 2 3 4 14 13 12 11 15 16 5 7 9 10 21 17 18 19 20 8 6 26 23 25 24 22 CCB INTERFACE CONTROL CIRCUIT CONTROL CIRCUIT CONTROL CIRCUIT LVREF RVREF + – – + + – + – + – – + + – + – + – + – LOUT LBASS2 LBASS1 LTRE LIN LSELO ROUT TEST VSS CE DI CL VDD VREF NC RBASS2 RBASS1 RTRE RIN RSELO L4 L3 L2 L1 NC NC R1 R2 R3 R4 Anode Cathode M30218FCFP MA8051-M RB501V-40 1SS355 MA8068-M MA8062-M 2SD1938F DTC144EKA 2SA1037K 2SC2412K 2SB1132� DTA114EKA DTC143XKA DTC114EKA 1 30 31 50 51 80 81 100 BU2092 1 9 18 TC74HC4051AF S-29390AFJA� NJM2068MD NJM2903M 1 8 16 1 4 8 AN4801SB-E1 TC74HC126AF AN8399SA-E1 TA8409SE 1 13 14 20 21 27 28 6 7 26 1 7 14 1 16 32 LC75342M 1 15 30 1 9 MN35511AL 41 40 21 60 61 80 20 1 B E C 2SC4488 E C B CD TUNER AUX 4.7 4.9 2.4 0 0 0 5.0 5.0 5.0 5.0 5.0 0 0 0 0 2.5 2.4 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 5.0 5.0 5.0 0 0 0 0 0 0 0 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 9.0 9.0 9.0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -11.5 -11.4 -11.4 -11.4 5.0 4.9 -11.5 0 0 11.9 0 5.0 ~ ~ ~ ~ ~ -11.4 -11.3 -11.3 0 0 5.0 2.6 0 0 0 4.9 0 2.6 5.0 0 0 0 4.9 2.5 2.5 2.5 2.5 2.2 2.4 2.4 5.1 5.1 2.5 2.5 2.5 2.1 2.7 2.4 2.4 0 0 0 0 0 0 5.1 0 0 0 5.1 5.1 0.2 0.2 9.9 0 0 0 0 2.5 2.6 4.7 2.5 2.6 4.8 5.0 5.0 0 0 0 0 0 0 4.9 4.9 2.6 ~ ~ 2.6 2.6 2.4 2.5 5.0 2.1 1.4 0 0 0 2.5 0.2 4.1 5.1 2.6 2.7 2.7 2.6 2.6 2.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.2 2.4 3.4 0 0 0 2.3 2.4 0 5.0 2.4 2.7 0 0 0 2.6 1.5 4.2 2.4 4.0 4.0 4.1 1.9 A To DIGITAL (2) CB201 To DIGITAL (2) CB205 To MAIN (1) W1 To MAIN (1) W2 DIGIAL 1 MOTOR DRIVER MUTE MUTE COMPARATOR DRIVER AMP DSP-DAC MUTE ELECTRICAL VOLUME WITH INPUT SELECTOR HEAD AMP LD DRIVE CD MECHANISM DIGIAL 4 DIGIAL 6 DIGIAL 5 SW400 SW401 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L SCHEMATIC DIAGRAM (DIGITAL) 41 TSX-10/15/20 H�All voltage are measured with a 10M� /V DC electric volt meter. H�Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. H�Schematic diagram is subject to change without notice. Point B Pin 11 of IC201 Point C Pin 15 of IC201 Point D Pin 15 of IC201 1 Q205 E 2 Q203 C POWER ON (Connect the power cord) POWER OFF (Disconnect the power cord) IC205 : S-29390AFJA CMOS 4kbit Serial EEPROM 5 2 7 6 8 1 3 4 DI Vcc GND DO TEST NC CS SK Memory array Address decoder Data register Output buffer Mode decode logic Clock generator IC202: BU2092F Serial In/Parallel Out Driver 1 Vss 2 DATA 3 CLOCK 5 Q0 4 LCK 6 Q1 7 Q2 8 Q3 9 Q4 18 VDD 17 OE 16 Q11 14 Q9 15 Q10 13 Q8 12 Q7 11 Q6 10 Q5 CONTROL CIRCUIT Output Buffer (Open Drain) 12 Bit Strage Register 12 Bit Shift Register IC702: TC74HC4051AF Analog Multiplexer/Demultiplexer 16 VCC 6 INHIBIT 11 3 9 A C B 8 GND 7 VEE 13 0 14 1 15 2 12 3 1 4 5 5 LEVEL CONVERTER 10 BINARY TO 1-OF-8 DECODER WITH INHIBIT SW SW SW SW SW SW 2 6 4 7 SW SW COM INPUT STATES INHIBIT 0 0 0 0 0 0 0 0 1 "ON" CHANNNEL 0 1 2 3 4 5 6 7 NONE C 0 0 0 0 1 1 1 1 X B 0 0 1 1 0 0 1 1 X A 0 1 0 1 0 1 0 1 X Anode Cathode M30218FCFP MA8051-M RB501V-40 1SS355 MA8068-M MA8062-M 2SD1938F DTC144EKA 2SA1037K 2SC2412K 2SB1132� DTA114EKA DTC143XKA DTC114EKA 1 30 31 50 51 80 81 100 BU2092 1 9 18 TC74HC4051AF S-29390AFJA� NJM2068MD NJM2903M 1 8 16 1 4 8 AN4801SB-E1 TC74HC126AF AN8399SA-E1 TA8409SE 1 13 14 20 21 27 28 6 7 26 1 7 14 1 16 32 LC75342M 1 15 30 1 9 MN35511AL 41 40 21 60 61 80 20 1 B E C 2SC4488 E C B -22.2 -22.2 ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ -27.5 2.8 4.8 4.8 5.0 4.8 4.9 0 0 3.3 ~ ~ ~ ~ ~ ~ ~ 5.0 4.8 4.7 0 0 0 0 0 ~ ~ 4.9 0 0 4.8 4.8 2.4 4.9 4.9 4.9 4.9 4.9 4.6 ~ ~ 0 0 0 0 0 0 0 0 0 0 0 0 0 0.1 4.9 4.8 4.7 5.0 5.0 5.0 2.8 2.1 2.5 0.1 1.9 1.1 1.5 1.5 1.5 2.8 4.8 4.8 4.8 6.9 6.9 7.5 12.8 12.8 12.1 0 0 0 0 0 0 0 0 0 0.1 0 0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 2.7 2.7 3.3 1.0 2.8 2.8 0 0 0 5.0 D 1 2 5.6 5.6 6.2 6.2 12.8 0.7 3.9 0 ~ 1.1 1.1 2.1 ~ 1.9 1.9 2.5 ~ ~ 0 0 0 0 0 0 0 0 0 0 4.9 4.9 4.7 5.0 5.0 5.0 5.0 2.5 2.1 2.8 9.0 0.7 5.1 1.1 2.1 1.6 -22.2 -22.2 -22.2 -22.2 -22.4 -27.5 -22.2 -22.2 4.9 4.9 4.9 4.9 0 4.6 4.6 5.0 0 4.9 5.0 0 D C B To DIGITAL (1) CB405 To DIGITAL (1) CB407 To MAIN (1) W8 To MAIN (1) CB1 To MAIN (1) W3 TEMPERATURE DETECT OPERATION KEY POWER DOWN DETECT RESET POWER SUPPLY EEPROM 16 BIT µ-COM FL DISPLAY DIGIAL 2 DIGIAL 3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L TSX-10/15/20 SCHEMATIC DIAGRAM (MAIN) H�All voltage are measured with a 10M� /V DC electric volt meter. H�Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. H�Schematic diagram is subject to change without notice. 42 IC1: LC72722 RDS Decoder + REFERENCE VOLTAGE 57kHz bpf (SCF) CCB TEST PLL (57kHz) ANTIALIASING FILTER SMOOTHING FILTER RAM (24 BLOCK DATA) ERROR CORRECTION (SOFT DECISION) SYNC/EC CONTROLLER SYNC DETECT-1 DATA DECODER CLOCK RECOVERY (1187.5Hz) MEMORY CONTROL OSC/DIVIDER VREF CLK(4.332MHz) SYNC DETECT-2 VDDA VSSD VDDD RDS-ID SYNC SYR VSSA MPX IN DO CL DI CE T1 T2 T3 T4 T5 T6 T7 X IN VREF FL OUT C IN X OUT 3 14 15 19 18 24 1 5 6 4 2 20 21 22 23 7 8 9 10 11 16 17 13 12 8 7 6 5 4 3 2 1 OUT1 –Vcc +IN2 –IN2 OUT2 +Vcc –IN1 +IN1 IC6: BA15218F Dual OP-Amp. IC5: TA2020-020 20W x 2ch Digital Audio Amp. IC2: NJM78L09L Voltage Regulator IC3: NJM78M12FA Voltage Regulator INPUT OUTPUT COMMON VIN VOUT GND 1 9 10 14 11 12 13 4 32 31 17 5 2 3 8 7 15 16 19 22 28 25 30 20 27 29 23 21 6 18 24 26 NC VP IN1 IN2 REF DCAP1 DCAP2 SLEEP NC NC V5D V5A AGND1 AGND2 AGND3 PGND2 PGND1 DGND VDD2 VDD1 VDDA CPUMP OUTM2 OUTM1 OUTP2 OUTP1 OVERLOADB FAULT 5VGEN BIASCAP MUTE VP VDD1 VDD1 5V PGND1 PGND1 VDD2 VDD2 PGND2 PGND2 PROCESSING & MODULATION PROCESSING & MODULATION D3SBA20 – – + + ~ ~ ~ ~ S1NB20 NJM78M12FA NJM78M05FA 1: OUT 2: COM 3: IN 1 32 OUT COM IN BCE 2SD2396 2SC1740S 2SA933S 2SC3330 E C B Anode Cathode 1SS355 MA8270-M 1SR154-400 MA8120-M MA8056-M RB160L-40� MA8150-M MA8160-L BA15218F TA2020-020 1 4 8 DTA114EKA 2SD1938F 2SC2412K B E C 2SC1674 2SC4488 E C B LC72722 NJM78L09A 1 12 24 TUNER -11.3 -11.3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.7 14.0 14.0 14.0 14.0 14.0 14.0 14.0 14.0 14.0 14.0 14.4 7.1 7.1 7.1 7.1 7.1 7.1 7.0 7.0 7.0 7.0 17.9 18.0 18.0 17.9 0.2 0.2 2.1 2.6 3.1 0.7 0.7 0.1 26.0 18.0 18.0 15.0 15.0 15.0 15.4 15.4 11.9 0 0 14.4 35.0 18.0 18.0 AC14.8 8.8 8.8 0 0 0 0 0 21.8 -26.8 -41.1 0 -15.9 -15.9 -41.3 -0.4 -0.4 0.4 -28.0 12.9 12.9 12.8 12.8 0 -8.2 4.5 4.2 9.9 9.9 5.1 5.6 5.6 -16.6 7.0 7.1 2.8 5.0 -11.5 -16.6 -12.1 17.5 0 0 14.4 0 2.3 5.0 5.0 5.0 9.0 11.9 11.9 18.0 5.0 5.0 5.0 -11.3 2.3 0 0 0 0 0 0 0 0 0 0 0 0 0 7.1 7.1 7.1 7.1 14.4 0 0 0 2.4 2.4 2.4 1.1 5.1 5.1 7.1 14.4 14.4 16.8 23.0 0 2.5 2.4 0 0 11.0 11.0 11.6 0.5 11.9 -11.4 -11.3 -11.3 0 0 0 AC23.8 AC3.6 AC8.6 To DIGITAL (1) CB408 To POWER TRANSFORMER To MAIN (1) CB13 To DIGITAL (2) CB207 To DIGITAL (1) CB409 To DIGITAL (2) CB210 To DIGITAL (2) CB206 VOLTAGE LIMITTER FAN DRIVE SW MUTE SP RELAY DC DETECT ZOBEL CIRCUIT ZOBEL CIRCUIT LOW PASS FILTER AMP MUTE POWER AMP RDS DECORDER POWER SUPPLY AMP MUTE HEADPHONE AMP & SUBWOOFER AMP AMP MUTE SW MUTE SP-RY TO TUNER PACK UNIT MAIN 1 MAIN 2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 I WARNING Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally in- stalled. G Carbon resistors (1/6W or 1/4W) are not included in the ELECTRICAL PARTS List. For the parts No. of the carbon resistors, refer to last page. ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS: C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR,BASE PIN CN.CANNON : CONNECTOR,CANNON CN.DIN : CONNECTOR,DIN CN.FLAT : CONNECTOR,FLAT CABLE CN.POST : CONNECTOR,BASE POST COIL.MX.AM : COIL,AM MIX COIL.AT.FM : COIL,FM ANTENNA COIL.DT.FM : COIL,FM DETECT COIL.MX.FM : COIL,FM MIX COIL,OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.SHOT : SCHOTTKY BARRIER DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER,TEST POINT L.DTCT : LIGHT DETECTING MODULE L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED,INFRARED MODUL.RF : MODULATOR,RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN,TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR. : CARBON RESISTOR R.CAR.CHP : CHIP RESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.WW : WIRE WOUND RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW,TRANSISTOR SUPRT.PCB : SUPPORT,P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKER TERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWER TRANSFORMER ASS’Y TUNER.AM : TUNER PACK,AM TUNER.FM : TUNER PACK,FM TUNER.PK : FRONT-END TUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDE POTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER Note) Those parts marked with “#” are not included in the P.C.B. ass’y. PARTS LIST I ELECTRICAL PARTS 43 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 * V8000100 P.C.B. DIGITAL UCTABG * CB201 V7833200 CN.BS.PIN 20P SE CB202 VQ044400 CN.BS.PIN 9P * CB205 V7833100 CN.BS.PIN 13P SE CB206 VB858600 CN.BS.PIN 7P CB207 VB858200 CN.BS.PIN 3P CB209 VB858200 CN.BS.PIN 3P * CB210 V7684200 CN.BS.PIN 17P SE CB400 V2731000 CN.FMN 16P CB402 VB858200 CN.BS.PIN 3P CB403 VB858200 CN.BS.PIN 3P * CB404 V5492000 CN.BS.PIN 16P SE CB405 VB858500 CN.BS.PIN 6P * CB406 V7667200 CN.BS.PIN 20P TE * CB407 V6646700 CN.BS.PIN 13P TE CB408 VB858700 CN.BS.PIN 8P CB409 VB858400 CN.BS.PIN 5P * CB410 V7414700 CN 16P TE C201 UM397100 C.EL 10uF 16V C202 US063100 C.CE.M.CHP 1000pF 50V C203 US063100 C.CE.M.CHP 1000pF 50V C204 UM397100 C.EL 10uF 16V C205 US061330 C.CE.M.CHP 33pF 50V C206 US061330 C.CE.M.CHP 33pF 50V C207 US061220 C.CE.M.CHP 22pF 50V C208 US061220 C.CE.M.CHP 22pF 50V C209 US061330 C.CE.M.CHP 33pF 50V C210 US061330 C.CE.M.CHP 33pF 50V C211 US061330 C.CE.M.CHP 33pF 50V C212 US061330 C.CE.M.CHP 33pF 50V C213 US035100 C.CE.M.CHP 0.1uF 16V C214 US035100 C.CE.M.CHP 0.1uF 16V C215 UM388100 C.EL 100uF 10V * C216 UR619220 C.EL 2200uF 6.3V C217 UM416100 C.EL 1uF 50V C218 US035100 C.CE.M.CHP 0.1uF 16V C219 UM388100 C.EL 100uF 10V C220 US035100 C.CE.M.CHP 0.1uF 16V C221 US035100 C.CE.M.CHP 0.1uF 16V C222 UM416220 C.EL 2.2uF 50V C223 US034470 C.CE.M.CHP 0.047uF 16V C224 US035100 C.CE.M.CHP 0.1uF 16V C225 US034470 C.CE.M.CHP 0.047uF 16V C226 US062560 C.CE.CHP 560pF 50V C227 US035100 C.CE.M.CHP 0.1uF 16V C228 US062100 C.CE.M.CHP 100pF 50V C229 US035100 C.CE.M.CHP 0.1uF 16V C230 US035100 C.CE.M.CHP 0.1uF 16V C231 US035100 C.CE.M.CHP 0.1uF 16V C232 US035100 C.CE.M.CHP 0.1uF 16V C233 US035100 C.CE.M.CHP 0.1uF 16V C234 US035100 C.CE.M.CHP 0.1uF 16V C235 US063100 C.CE.M.CHP 1000pF 50V C236 US063100 C.CE.M.CHP 1000pF 50V C237 US063100 C.CE.M.CHP 1000pF 50V C400 UM388100 C.EL 100uF 10V C401 US035100 C.CE.M.CHP 0.1uF 16V C402 UM388100 C.EL 100uF 10V C403 US063100 C.CE.M.CHP 1000pF 50V C404 UM388100 C.EL 100uF 10V C405 UM397470 C.EL 47uF 16V C407 UM388100 C.EL 100uF 10V C408 UM388100 C.EL 100uF 10V C409 US035100 C.CE.M.CHP 0.1uF 16V C410 US061560 C.CE.CHP 56pF 50V C411 UA655470 C.MYLAR 0.47uF 50V C412 US035100 C.CE.M.CHP 0.1uF 16V C413 US035100 C.CE.M.CHP 0.1uF 16V C414 US035100 C.CE.M.CHP 0.1uF 16V C415 US035100 C.CE.M.CHP 0.1uF 16V C416 US035100 C.CE.M.CHP 0.1uF 16V C417 US034390 C.CE.M.CHP 0.039uF 16V C418 US063560 C.CE.CHP 5600pF 50V C419 US062180 C.CE.CHP 180P 50V C421 US034470 C.CE.M.CHP 0.047uF 16V C422 US034470 C.CE.M.CHP 0.047uF 16V C423 US062270 C.CE.M.CHP 270pF 50V C424 US063100 C.CE.M.CHP 1000pF 50V C425 UA655100 C.MYLAR 0.1uF 50V C426 US063100 C.CE.M.CHP 1000pF 50V C427 UA655100 C.MYLAR 0.1uF 50V C428 UM398100 C.EL 100uF 16V C429 US035100 C.CE.M.CHP 0.1uF 16V C430 US062390 C.CE.CHP 390P 50V C431 UM388100 C.EL 100uF 10V C432 US035100 C.CE.M.CHP 0.1uF 16V C433 UA654120 C.MYLAR 0.012uF 50V C434 UR818100 C.EL 100uF 6.3V C435 UA655100 C.MYLAR 0.1uF 50V C436 US035100 C.CE.M.CHP 0.1uF 16V C437 US061470 C.CE.M.CHP 47pF 50V C438 UA655100 C.MYLAR 0.1uF 50V C439 US035100 C.CE.M.CHP 0.1uF 16V C440 US061470 C.CE.M.CHP 47pF 50V C441 UR866100 C.EL 1uF 50V C442 UR866100 C.EL 1uF 50V C443 UR866100 C.EL 1uF 50V C444 UR866100 C.EL 1uF 50V C445 UR818470 C.EL 470uF 6.3V C446 US035100 C.CE.M.CHP 0.1uF 16V C447 UM388100 C.EL 100uF 10V C448 US035100 C.CE.M.CHP 0.1uF 16V C449 UR847220 C.EL 22uF 25V C450 UR847220 C.EL 22uF 25V C451 UA652560 C.MYLAR 560pF 50V C452 UA652560 C.MYLAR 560pF 50V C453 US035100 C.CE.M.CHP 0.1uF 16V C454 UA652100 C.MYLAR 100pF 50V C455 UA652100 C.MYLAR 100pF 50V C456 UA654180 C.MYLAR 0.018uF 50V C457 UA654180 C.MYLAR 0.018uF 50V C458 UA653330 C.MYLAR 3300pF 50V C459 UA653330 C.MYLAR 3300pF 50V C460 UR847220 C.EL 22uF 25V C461 UR847220 C.EL 22uF 25V C462 US064100 C.CE.M.CHP 0.01uF 50V C463 UR847220 C.EL 22uF 25V C464 UR847220 C.EL 22uF 25V C465 UR866220 C.EL 2.2uF 50V C466 UR866220 C.EL 2.2uF 50V C467 UA655100 C.MYLAR 0.1uF 50V C468 UA655100 C.MYLAR 0.1uF 50V C469 UA655100 C.MYLAR 0.1uF 50V C470 UA655100 C.MYLAR 0.1uF 50V C471 UA653220 C.MYLAR 2200pF 50V C472 UA653220 C.MYLAR 2200pF 50V Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B. DIGITAL Schm Ref. PART NO. Description Markets ✻ New Parts 44 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 C473 UA653270 C.MYLAR 2700pF 50V C474 UA653270 C.MYLAR 2700pF 50V C475 UR866100 C.EL 1uF 50V C476 UR866100 C.EL 1uF 50V C477 UA652220 C.MYLAR 220pF 50V C478 UA652220 C.MYLAR 220pF 50V C479 UR866100 C.EL 1uF 50V C480 UR866100 C.EL 1uF 50V C481 UR866100 C.EL 1uF 50V C482 UR866100 C.EL 1uF 50V C483 UR866100 C.EL 1uF 50V C484 UR866100 C.EL 1uF 50V C485 UR866220 C.EL 2.2uF 50V C486 UR866220 C.EL 2.2uF 50V C487 UA652100 C.MYLAR 100pF 50V C488 UA652100 C.MYLAR 100pF 50V C489 US061470 C.CE.M.CHP 47pF 50V C490 US061470 C.CE.M.CHP 47pF 50V C491 US035100 C.CE.M.CHP 0.1uF 16V C492 US035100 C.CE.M.CHP 0.1uF 16V C493 US035100 C.CE.M.CHP 0.1uF 16V C494 US062560 C.CE.CHP 560pF 50V C495 US062560 C.CE.CHP 560pF 50V C496 US135330 C.CE.CHP 0.33uF 16V C497 US064100 C.CE.M.CHP 0.01uF 50V * C498 US063270 C.CE.M.CHP 2700pF 50V C499 US034470 C.CE.M.CHP 0.047uF 16V C500 US135330 C.CE.CHP 0.33uF 16V C501 US061470 C.CE.M.CHP 47pF 50V C502 US061470 C.CE.M.CHP 47pF 50V C503 US061470 C.CE.M.CHP 47pF 50V C504 US135220 C.CE.CHP 0.22uF 16V C505 US135220 C.CE.CHP 0.22uF 16V C506 US064100 C.CE.M.CHP 0.01uF 50V C509 US062560 C.CE.CHP 560pF 50V C510 US062560 C.CE.CHP 560pF 50V C511 US062560 C.CE.CHP 560pF 50V C512 US062560 C.CE.CHP 560pF 50V C513 US062560 C.CE.CHP 560pF 50V C514 US062560 C.CE.CHP 560pF 50V C515 US062560 C.CE.CHP 560pF 50V C516 US062560 C.CE.CHP 560pF 50V C517 US062560 C.CE.CHP 560pF 50V C518 US062560 C.CE.CHP 560pF 50V C519 US062560 C.CE.CHP 560pF 50V C520 US062560 C.CE.CHP 560pF 50V C521 US062560 C.CE.CHP 560pF 50V C522 US062560 C.CE.CHP 560pF 50V C523 US062560 C.CE.CHP 560pF 50V C524 US062560 C.CE.CHP 560pF 50V C525 US062560 C.CE.CHP 560pF 50V C526 US062560 C.CE.CHP 560pF 50V C527 US062560 C.CE.CHP 560pF 50V C528 US062560 C.CE.CHP 560pF 50V C800 UR866100 C.EL 1uF 50V C801 UR866100 C.EL 1uF 50V C802 UR866100 C.EL 1uF 50V D201 VU992600 DIODE.ZENR MA8051-M 5.1V D202 VV220700 DIODE.SHOT RB501V-40 D203 VT332900 DIODE 1SS355 D204 VT332900 DIODE 1SS355 D205 VT332900 DIODE 1SS355 D206 VT332900 DIODE 1SS355 Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B. DIGITAL Schm Ref. PART NO. Description Markets ✻ New Parts D207 VT332900 DIODE 1SS355 D208 VT332900 DIODE 1SS355 D209 V7446300 LED E1L31-3B0A2 D210 VT332900 DIODE 1SS355 D211 VT332900 DIODE 1SS355 D212 VT332900 DIODE 1SS355 D213 VT332900 DIODE 1SS355 D214 VU992600 DIODE.ZENR MA8051-M 5.1V D215 VU993800 DIODE.ZENR MA8068-M 6.8V D216 VU993400 DIODE.ZENR MA8062-M 6.2V D217 VU992600 DIODE.ZENR MA8051-M 5.1V D400 VU992600 DIODE.ZENR MA8051-M 5.1V D401 VT332900 DIODE 1SS355 D402 VT332900 DIODE 1SS355 D403 VT332900 DIODE 1SS355 D404 VT332900 DIODE 1SS355 D405 VT332900 DIODE 1SS355 D406 VT332900 DIODE 1SS355 * G201 V8880000 TERM.GND M3.5 RJP9899 * G202 V8880000 TERM.GND M3.5 RJP9899 IC201 X0384A00 IC M30217MA-A209FP IC202 XW416A00 IC BU2092 SER/PAR * IC203 XR056A00 IC TC74HC4051AF-TP * IC204 XR056A00 IC TC74HC4051AF-TP IC205 XY887A00 IC S-29390AFJA EEPROM IC400 X0070A00 IC AN4801SB-E1 IC401 XJ553A00 IC NJM2068MD IC402 XJ553A00 IC NJM2068MD IC403 XS776A00 IC TC74HC126AF BUS BU IC404 X0071A00 IC AN8399SA-E1 IC405 XR274A00 IC TA8409SE IC406 XW915A00 IC MN35511AL IC407 XY935A00 IC LC75342M-TLM * IC408 XD672A00 IC NJM2903M(T1) SOP * JK201 V7709900 JACK.MNI HTJ-035-18ABT JK400 V4971300 JACK.MNI 2P JK401 V4971300 JACK.MNI 2P * L202 V3063400 COIL.CHP BLM11B601S 1608 * L203 V3063400 COIL.CHP BLM11B601S 1608 * L204 V3063400 COIL.CHP BLM11B601S 1608 L401 VD473700 COIL 60uH L403 VZ250100 COIL.CHP BK2125HS470-T * L404 V3063400 COIL.CHP BLM11B601S 1608 * L405 V3063400 COIL.CHP BLM11B601S 1608 * L406 V3063400 COIL.CHP BLM11B601S 1608 * L407 V3063400 COIL.CHP BLM11B601S 1608 * L408 V3063400 COIL.CHP BLM11B601S 1608 * L409 V3063400 COIL.CHP BLM11B601S 1608 * L410 V3063400 COIL.CHP BLM11B601S 1608 * L411 V3063400 COIL.CHP BLM11B601S 1608 * L412 V3063400 COIL.CHP BLM11B601S 1608 * L413 V3063400 COIL.CHP BLM11B601S 1608 * L414 V3063400 COIL.CHP BLM11B601S 1608 L415 VZ250100 COIL.CHP BK2125HS470-T L416 V4769500 FER.BEAD RH03506BT-B-1B L417 V4769500 FER.BEAD RH03506BT-B-1B L418 V4769500 FER.BEAD RH03506BT-B-1B L419 V4769500 FER.BEAD RH03506BT-B-1B L420 V4769500 FER.BEAD RH03506BT-B-1B L421 V4769500 FER.BEAD RH03506BT-B-1B L422 VD473700 COIL 60uH Q201 VZ725900 TR 2SD1938F S,T Q202 VZ725900 TR 2SD1938F S,T 45 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B. DIGITAL & P.C.B. MAIN Schm Ref. PART NO. Description Markets ✻ New Parts Q203 VV655700 TR.DGT DTC144EKA Q204 VP872700 TR 2SC4488 S,T Q205 VV556500 TR 2SA1037K Q,R,S Q206 VV556400 TR 2SC2412K Q,R,S Q400 VR810000 TR 2SB1132 Q,R Q401 VV556500 TR 2SA1037K Q,R,S Q402 VZ725900 TR 2SD1938F S,T Q403 VV655000 TR.DGT DTA114EKA Q405 V3033500 TR.DGT DTC143XKA Q406 VV655400 TR.DGT DTC114EKA Q407 VV655000 TR.DGT DTA114EKA Q408 VZ725900 TR 2SD1938F S,T Q409 VZ725900 TR 2SD1938F S,T Q410 VV655000 TR.DGT DTA114EKA Q411 VZ725900 TR 2SD1938F S,T Q412 VZ725900 TR 2SD1938F S,T R291 HV755100 R.CAR.FP 100Ω 1/4W R297 HV756220 R.CAR.FP 2.2KΩ 1/4W R430 HV753220 R.CAR.FP 2.2Ω 1/4W R453 HV754470 R.CAR.FP 47Ω 1/4W R467 HV753100 R.CAR.FP 1Ω 1/4W R468 HV753100 R.CAR.FP 1Ω 1/4W R516 HV754100 R.CAR.FP 10Ω 1/4W R517 HV754100 R.CAR.FP 10Ω 1/4W ST401 V4040500 SCR.TERM M3 * SW201 V7409200 SW.RT.ENC SRGP100100 * SW202 VV020300 SW.TACT SKQNAA * SW203 VV020300 SW.TACT SKQNAA * SW204 VV020300 SW.TACT SKQNAA * SW205 VV020300 SW.TACT SKQNAA * SW206 VV020300 SW.TACT SKQNAA * SW207 VV020300 SW.TACT SKQNAA * SW208 VV020300 SW.TACT SKQNAA * SW209 VV020300 SW.TACT SKQNAA * SW210 VV020300 SW.TACT SKQNAA * SW211 VV020300 SW.TACT SKQNAA * SW212 VV020300 SW.TACT SKQNAA * SW213 VV020300 SW.TACT SKQNAA * SW400 V7644000 SW.MICRO SPPB5A0100 * SW401 V7644000 SW.MICRO SPPB5A0100 * s TH200 V7962300 THRMST.CHP NCP18WF104J03RB * U201 V8085300 L.DTCT GP1UA271X * U202 V8085300 L.DTCT GP1UA271X * U400 V7680800 CN.PHOT.SN 1P GP1FA512TZ * V201 V7357700 FL.DSPLY 13-BT-191GN XL201 VQ328900 RSNR.CRYS 32.768KHz XL202 V7718300 RSNR.CE CSTLS10M0G53-B0 XL400 VJ719800 RSNR.CRYS 16.9344MHz V3688400 SHEET.FL SI V3747400 SPACER.FL T4x6x18 V3747500 SUPRT * V8297500 SPACER 6RB V744630 * V8000200 P.C.B. MAIN UC * V8000300 P.C.B. MAIN T * V8000400 P.C.B. MAIN A * V8000500 P.C.B. MAIN BG * CB1 V7687000 CN.BS.PIN 17P TE CB2 VM859600 CN.BS.PIN 15P * CB3 VT637800 CN.BS.PIN 3P * CB5 V7434900 CN.BS.PIN 4P SE CB8 VP206500 HOLDER.FUS EYF-52BCT CB9 VP206500 HOLDER.FUS EYF-52BCT CB10 VP206500 HOLDER.FUS EYF-52BCT CB11 VG879900 CN.BS.PIN 2P CB12 VP206500 HOLDER.FUS EYF-52BCT CB13 LB932040 CN.BS.PIN 4P CB14 VB389900 CN.BS.PIN 3P C1 US062330 C.CE.M.CHP 330pF 50V BG * C2 V8085400 C.CE.CHP 0.1uF 25V BG C3 UR837470 C.EL 47uF 16V BG * C4 V8085400 C.CE.CHP 0.1uF 25V BG C5 UR837470 C.EL 47uF 16V BG C6 US062560 C.CE.CHP 560pF 50V BG C7 UR837470 C.EL 47uF 16V BG C8 US061270 C.CE.M.CHP 27pF 50V BG C9 US061270 C.CE.M.CHP 27pF 50V BG C10 UR867100 C.EL 10uF 50V C11 UU167100 C.EL 10uF 50V C12 UU167100 C.EL 10uF 50V C13 UR867100 C.EL 10uF 50V C14 UR847220 C.EL 22uF 25V * C15 V8085400 C.CE.CHP 0.1uF 25V C16 UR868100 C.EL 100uF 50V C17 UR847220 C.EL 22uF 25V C18 UR749100 C.EL 1000uF 25V C19 UR848100 C.EL 100uF 25V * C20 V8085400 C.CE.CHP 0.1uF 25V C21 UR868100 C.EL 100uF 50V * C22 V8085400 C.CE.CHP 0.1uF 25V C23 UR866100 C.EL 1uF 50V C24 UR866100 C.EL 1uF 50V C25 UR847220 C.EL 22uF 25V C26 UR818100 C.EL 100uF 6.3V C27 UR847220 C.EL 22uF 25V C28 UR866100 C.EL 1uF 50V C29 US061470 C.CE.M.CHP 47pF 50V C30 US061470 C.CE.M.CHP 47pF 50V C31 US064100 C.CE.M.CHP 0.01uF 50V C32 US061470 C.CE.M.CHP 47pF 50V C33 UR838100 C.EL 100uF 16V C34 UR838100 C.EL 100uF 16V C35 US061470 C.CE.M.CHP 47pF 50V C36 UR847100 C.EL 10uF 25V C37 UR847100 C.EL 10uF 25V C38 UR847100 C.EL 10uF 25V C39 UA652100 C.MYLAR 100pF 50V C40 UA652100 C.MYLAR 100pF 50V C41 UR866100 C.EL 1uF 50V * C42 V8085400 C.CE.CHP 0.1uF 25V * C43 V8085400 C.CE.CHP 0.1uF 25V C44 UR847220 C.EL 22uF 25V C45 UR847220 C.EL 22uF 25V C46 UR838100 C.EL 100uF 16V C47 UR838100 C.EL 100uF 16V * C48 V8085400 C.CE.CHP 0.1uF 25V C49 UR837470 C.EL 47uF 16V * C50 V8085400 C.CE.CHP 0.1uF 25V * s C51 V3324600 C.EL 220uF 25V * C52 V8085400 C.CE.CHP 0.1uF 25V * s C53 V3324600 C.EL 220uF 25V C54 V6185300 C.CE.SAFTY 0.01uF 275V C55 UR865220 C.EL 0.22uF 50V C56 UR858220 C.EL 220uF 35V 46 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B. MAIN Schm Ref. PART NO. Description Markets ✻ New Parts C57 UR866470 C.EL 4.7uF 50V C58 UR847100 C.EL 10uF 25V C59 UA655470 C.MYLAR 0.47uF 50V C60 UA655470 C.MYLAR 0.47uF 50V C61 UA655470 C.MYLAR 0.47uF 50V C62 UA655470 C.MYLAR 0.47uF 50V C63 UR818100 C.EL 100uF 6.3V C64 UA655470 C.MYLAR 0.47uF 50V C65 UA655470 C.MYLAR 0.47uF 50V C66 UR866100 C.EL 1uF 50V C67 UA655100 C.MYLAR 0.1uF 50V C68 UA655100 C.MYLAR 0.1uF 50V C69 UR739330 C.EL 3300uF 16V C70 UR867470 C.EL 47uF 50V * s C71 V7408700 C.EL 8200uF 25V C72 US064100 C.CE.M.CHP 0.01uF 50V C73 UR818100 C.EL 100uF 6.3V C74 UA655100 C.MYLAR 0.1uF 50V C75 UR866100 C.EL 1uF 50V C76 UA654100 C.MYLAR 0.01uF 50V C77 UA653470 C.MYLAR 4700pF 50V C78 UA653470 C.MYLAR 4700pF 50V C79 UR848330 C.EL 330uF 25V C80 UA653470 C.MYLAR 4700pF 50V C81 US064100 C.CE.M.CHP 0.01uF 50V C82 UA652100 C.MYLAR 100pF 50V C83 UA654100 C.MYLAR 0.01uF 50V C84 UA654100 C.MYLAR 0.01uF 50V C85 UA653470 C.MYLAR 4700pF 50V C86 UR848100 C.EL 100uF 25V s C87 UA655100 C.MYLAR 0.1uF 50V C88 UR848330 C.EL 330uF 25V C89 US063220 C.CE.M.CHP 2200pF 50V C90 US063220 C.CE.M.CHP 2200pF 50V C91 US062100 C.CE.M.CHP 100pF 50V C92 US062100 C.CE.M.CHP 100pF 50V C93 US062100 C.CE.M.CHP 100pF 50V C94 US062100 C.CE.M.CHP 100pF 50V C95 US062100 C.CE.M.CHP 100pF 50V C96 US062100 C.CE.M.CHP 100pF 50V C97 US062100 C.CE.M.CHP 100pF 50V C99 US062100 C.CE.M.CHP 100pF 50V C100 US062100 C.CE.M.CHP 100pF 50V C101 US062100 C.CE.M.CHP 100pF 50V C102 US062100 C.CE.M.CHP 100pF 50V C103 US062100 C.CE.M.CHP 100pF 50V * C104 V8085400 C.CE.CHP 0.1uF 25V * C105 VE392300 C.EL 100uF 6.3V C106 UR866100 C.EL 1uF 50V C107 UR847220 C.EL 22uF 25V * C108 V8085400 C.CE.CHP 0.1uF 25V C109 US062100 C.CE.M.CHP 100pF 50V C110 US062100 C.CE.M.CHP 100pF 50V C111 US062100 C.CE.CHP 100pF 50V BG D1 VT332900 DIODE 1SS355 D3 VU999500 DIODE.ZENR MA8270-M 27V D4 VT332900 DIODE 1SS355 D5 VT532500 DIODE 1SR154-400 D6 VT532500 DIODE 1SR154-400 * D7 VU996200 DIODE.ZENR MA8120-M 12.0V s D8 VR253700 DIODE.BRG S1NB20 1A 200V * D9 VU996200 DIODE.ZENR MA8120-M 12.0V D10 VU993000 DIODE.ZENR MA8056-M 5.6V * D11 VS597600 DIODE.CHP RB160L-40 TE25 * D12 VS597600 DIODE.CHP RB160L-40 TE25 * D13 VS597600 DIODE.CHP RB160L-40 TE25 * D14 VS597600 DIODE.CHP RB160L-40 TE25 * s D15 VU997100 DIODE.ZENR MA8150-M 15.0V D16 VT532500 DIODE 1SR154-400 D17 VT532500 DIODE 1SR154-400 s D18 VR253700 DIODE.BRG S1NB20 1A 200V D19 VT332900 DIODE 1SS355 D20 VN011300 DIODE.BRG D3SBA20 4A 200V D21 VT532500 DIODE 1SR154-400 D22 VT532500 DIODE 1SR154-400 * D23 VU997400 DIODE.ZENR MA8160-L 15.7V D24 VT332900 DIODE 1SS355 D25 VT332900 DIODE 1SS355 s F1 VS822300 FUSE 1.25A 125V UC s F1 KB000710 FUSE 500mA 250V TABG s F2 VS822300 FUSE 1.25A 125V UC s F2 KB001770 FUSE T1.0A 250V TABG s Fi1 VU984000 FLTR IE-UU10.5-009 * G2 V8880000 TERM.GND M3.5 RJP9899 * G3 V8880000 TERM.GND M3.5 RJP9899 * G4 V8880000 TERM.GND M3.5 RJP9899 * G5 V8880000 TERM.GND M3.5 RJP9899 HS1 VS231000 HEAT.SINK OSH-1035 * IC1 X0082A00 IC LC72722PM BG * IC2 X0651A00 IC NJM78L09A-T3 IC3 XJ602A00 IC NJM78M12FA IC4 XJ604A00 IC NJM78M05FA * s IC5 XY908A00 IC TA2020-020 IC6 XS377A00 IC BA15218F L1 VU889500 COIL 220uH BG L2 VU889500 COIL 220uH BG L3 VD473700 COIL 60uH * L4 V7046200 COIL 7310-100uH * L5 V7046200 COIL 7310-100uH * L6 V7046200 COIL 7310-100uH * L7 V7046200 COIL 7310-100uH L8 V4769500 FER.BEAD RH03506BT-B-1B L9 VD473700 COIL 60uH PJ1 VV306800 JACK.PIN 1P PN3 V3750200 PIN L=70 PN4 V3750200 PIN L=70 PN6 V3750200 PIN L=70 Q1 iC174020 TR 2SC1740S R,S BG Q2 VV655000 TR.DGT DTA114EKA Q3 VV655000 TR.DGT DTA114EKA Q4 VV655000 TR.DGT DTA114EKA Q5 VZ725900 TR 2SD1938F S,T Q6 VZ725900 TR 2SD1938F S,T Q7 VG805300 TR 2SA1674 R,S Q8 VV655000 TR.DGT DTA114EKA Q9 iA093320 TR 2SA933S Q,R Q10 iC174020 TR 2SC1740S R,S Q11 iA093320 TR 2SA933S Q,R Q12 VR510800 TR 2SD2396 J,K s Q13 VR510800 TR 2SD2396 J,K Q14 VZ725900 TR 2SD1938F S,T Q15 VZ725900 TR 2SD1938F S,T s Q16 VR510800 TR 2SD2396 J,K Q17 VV556400 TR 2SC2412K Q,R,S s Q18 VP872700 TR 2SC4488 S,T Q19 VV556400 TR 2SC2412K Q,R,S 47 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B. MAIN & Chip Resistors Schm Ref. PART NO. Description Markets ✻ New Parts Q20 VV556400 TR 2SC2412K Q,R,S Q21 VV556400 TR 2SC2412K Q,R,S Q22 VC218900 TR 2SC3330 R,S,T Q23 VZ725900 TR 2SD1938F S,T Q24 VZ725900 TR 2SD1938F S,T s Q25 VP872700 TR 2SC4488 S,T Q26 VV556400 TR 2SC2412K Q,R,S Q27 VV556400 TR 2SC2412K Q,R,S Q28 VV556400 TR 2SC2412K Q,R,S Q29 VV556400 TR 2SC2412K Q,R,S R15 HV753470 R.CAR.FP 4.7Ω 1/4W R18 HV756470 R.CAR.FP 4.7KΩ 1/4W R33 HV753100 R.CAR.FP 1Ω 1/4W R36 HV753100 R.CAR.FP 1Ω 1/4W R46 HV756100 R.CAR.FP 1KΩ 1/4W R47 VE869300 R.MTL.OXD 0.1Ω 2W R55 VE869300 R.MTL.OXD 0.1Ω 2W R59 VP939800 R.MTL.OXD 10Ω 1W R60 VP939800 R.MTL.OXD 10Ω 1W s R61 HV755100 R.CAR.FP 100Ω 1/4W s R63 HV756390 R.CAR.FP 3.9KΩ 1/4W R69 VP940400 R.MTL.OXD 100Ω 1W s R75 HV753220 R.CAR.FP 2.2Ω 1/4W R76 HV753220 R.CAR.FP 2.2Ω 1/4W R81 HV755120 R.CAR.FP 120Ω 1/4W R84 VP939700 R.MTL.FLM 4.7Ω 1W R89 HV753220 R.CAR.FP 2.2Ω 1/4W * RY1 V7845000 RELAY DC OSA-SS-212DM3 s RY2 V6017400 RELAY DC SDT-S-112LMR2 SW3 V3624300 SW.SLIDE SS029-P022MJB-PA6 * T1 X0424A00 TRANS UC * T1 X0425A00 TRANS T * T1 X0426A00 TRANS ABG * TE1 V7408800 TERM.SP LQR1410-0004M XL1 V3930900 RSNR.CRYS 4.332MHz BG VQ368600 PUSH.RIVET P3555-B * V7741700 SHEET EP600530 SCR.BND.HD 3x8 MFZN2BL VK173200 SCR.TR 3x15 SP MFC2 EP600830 SCR.BND.HD 3x8 MFC2BL RD350000 R.CAR.CHP 0Ω 1/10W RD353100 R.CAR.CHP 1Ω 1/10W RD354100 R.CAR.CHP 10Ω 1/10W RD354330 R.CAR.CHP 33Ω 1/10W RD354510 R.CAR.CHP 51Ω　　 1/10W RD354820 R.CAR.CHP 82Ω 1/10W * RD354910 R.CAR.CHP 91Ω 1/10W RD355100 R.CAR.CHP 100Ω 1/10W RD355220 R.CAR.CHP 220Ω 1/10W RD355270 R.CAR.CHP 270Ω 1/10W RD355330 R.CAR.CHP 330Ω 1/10W RD355390 R.CAR.CHP 390Ω 1/10W RD355470 R.CAR.CHP 470Ω 1/10W RD355560 R.CAR.CHP 560Ω 1/10W RD355680 R.CAR.CHP 680Ω 1/10W RD356100 R.CAR.CHP 1KΩ 1/10W RD356120 R.CAR.CHP 1.2KΩ 1/10W RD356180 R.CAR.CHP 1.8KΩ 1/10W RD356200 R.CAR.CHP 2KΩ 1/10W RD356220 R.CAR.CHP 2.2KΩ 1/10W RD356240 R.CAR.CHP 2.4KΩ 1/10W RD356330 R.CAR.CHP 3.3KΩ 1/10W RD356360 R.CAR.CHP 3.6KΩ 1/10W RD356390 R.CAR.CHP 3.9KΩ 1/10W RD356470 R.CAR.CHP 4.7KΩ 1/10W RD356510 R.CAR.CHP 5.1KΩ 1/10W RD356560 R.CAR.CHP 5.6KΩ 1/10W RD356620 R.CAR.CHP 6.2KΩ 1/10W RD356680 R.CAR.CHP 6.8KΩ 1/10W RD356820 R.CAR.CHP 8.2KΩ 1/10W RD357100 R.CAR.CHP 10KΩ 1/10W RD357120 R.CAR.CHP 12KΩ 1/10W * RD357130 R.CAR.CHP 13KΩ 1/10W RD357150 R.CAR.CHP 15KΩ 1/10W RD357180 R.CAR.CHP 18KΩ 1/10W RD357220 R.CAR.CHP 22KΩ 1/10W RD357270 R.CAR.CHP 27KΩ 1/10W RD357330 R.CAR.CHP 33KΩ 1/10W RD357390 R.CAR.CHP 39KΩ 1/10W RD357470 R.CAR.CHP 47KΩ 1/10W RD357560 R.CAR.CHP 56KΩ 1/10W RD358100 R.CAR.CHP 100KΩ 1/10W RD358120 R.CAR.CHP 120KΩ 1/10W RD358150 R.CAR.CHP 150KΩ 1/10W RD358220 R.CAR.CHP 220KΩ 1/10W RD358270 R.CAR.CHP 270KΩ 1/16W RD358330 R.CAR.CHP 330KΩ 1/10W RD358470 R.CAR.CHP 470KΩ 1/10W RD359100 R.CAR.CHP 1MΩ 1/10W RD359150 R.CAR.CHP 1.5MΩ 1/10W 48 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 A B C D E 1 2 3 4 5 6 7 TSX-10/15/20 TSX-10/15/20 200 200-1 201 x 1 202 x 1 204 x 1 205 x 1 206 203 x 9 x 3 11 12 13 15 21 31 35 32 51 36 36 32 53 53 51 51 54 54 51 51 51 52 52 1-1-3 1-1-5 1-1-11 1-1-6 1-1-12 1-1-4 1-21 1-53 1-46 1-70 1-31 1-22 1-41 1-37 1-57 1-56 1-51 1-51 1-51 1-54 1-54 1-51 2-45 2-45 2-52 2-45 2-45 2-44 2-22 2-46 2-43 2-42 2-42 2-47 2-43 2-27 2-27 2-29 2-45 2-35 2-28 1-56 1-36 1-42 1-45 1-32 1-48 1-52 1-48 1-52 1-2-13 1-2-31 1-2-31 1-2-31 1-2-33 1-2-32 1-2-16 1-2-17 1-2-14 1-2-15 1-2-23 1-2-31 1-2-4 1-2-21 1-2-11 1-2-22 1-2-24 1-33 1-11 1-49 1-55 1-44 1-44 1-12 2-12 1-13 1-47 1-43 1-35 1-48 1-53 1-55 1-34 1-51 1-6 1-4 1-4 2-1 2-1 2-5 2-3 1-4 1-4 (2) (3) (5) (1) (2) TS20 only TS20 only TS20 only (4) 1-4 (1) 49 I EXPLODED VIEW (CRX-TS10/CRX-TS20) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 50 I MECHANICAL PARTS ✻ New Parts Ref. No. PART NO. Description Remarks Markets * 1-1-3 V7739000 WINDOW/CD GLASS CRXTS10 * 1-1-3 V7739100 WINDOW/CD GRAY CRXTS20 * 1-1-4 V7739200 COVER/PU * 1-1-5 V7739300 COVER/PU-B * 1-1-6 V7722600 HINGE/WINDOW * 1-1-11 VT958800 FLAT HEAD P-TITE SCREW 3x6 MFZN2BL * 1-1-12 V8128400 FLAT HEAD P-TITE SCREW 2.3x5 MFNI33 * 1-2-4 V7424100 MOTOR DC RF-370CA-15370 * 1-2-11 V7738900 SUPPORT/CD * 1-2-13 V7722500 SHAFT ASS'Y/L16 * 1-2-14 V7722300 HOLDER/WO * 1-2-15 V7722200 GEAR * 1-2-16 V7722100 GEAR, WW * 1-2-17 V7722400 WASHER 2.6x5.2 1-2-21 VS036200 PULLEY * 1-2-22 V7722000 PULLEY/22 1-2-23 VV014200 BELT CL 1-2-24 VS036600 SHAFT, 2 * 1-2-31 EP620160 BIND HEAD P-TITE SCREW 2.6x6 MFZN2BL 1-2-32 V2500400 BIND HEAD SCREW 3x3 MFZN2BL 1-2-33 EG320160 BIND HEAD SCREW 2.6x4 MFZN2BL * 1-4 V8000100 P.C.B. ASS'Y DIGITAL * 1-6 V7773300 CD DRIVE NNIT KSM-900AAH * 1-11 V8068700 FLEXIBLE FLAT CABLE 20P 120mm P=1.00 * 1-12 V7839600 FLEXIBLE FLAT CABLE 13P 70mm P=1.00 * 1-13 V7839700 FLEXIBLE FLAT CABLE 16P 70mm P=1.00 * 1-21 V7738700 SUB PANEL * 1-22 V7736900 PANEL, TOP CRXTS10 UCTA * 1-22 V7737000 PANEL, TOP CRXTS10 BG * 1-22 V7737100 PANEL, TOP CRXTS20 UCTA * 1-22 V7737200 PANEL, TOP CRXTS20 BG * 1-31 V7738100 SHAFT/L127.5 * 1-32 V7739600 BUTTON/INPUT * 1-33 V7739700 BUTTON, 4P * 1-34 V7739800 BUTTON * 1-35 V7740000 ESCUTCHEON/2P * 1-36 V7740100 LENS/INSIDE * 1-37 V7740200 LENS/OUTSIDE * 1-41 V7739900 KNOB/VOL * 1-42 V7738000 SPRING * 1-43 V7741100 WINDOW/TOP * 1-44 V7741500 CUSHION/PU BLACK * 1-45 V8105600 SHEET/LED 1-46 VS010000 CUSHION, LEG 1-47 VY940400 CUSHION, LID T=0.8 1-48 VQ368500 PUSH RIVET P3545-B * 1-49 V8529200 CUSHION/PU-HS30 BLUE 1-51 EP630220 BIND HEAD P-TITE SCREW 3x8 MFZN2BL 1-52 VN413300 BIND HEAD BONDING B-T. SCREW 3x8 MFZN2BL 1-53 EP600830 BIND HEAD B-TITE SCREW 3x8 MFC2BL 1-54 EP600910 BIND HEAD P-TITE SCREW 3x10 MFC2BL 1-55 VA775100 PW HEAD P-TITE SCREW 3x8-10 MFCR3BL 1-56 VH365800 PW HEAD B-TITE SCREW 3x6-8 MFC2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 51 ✻ New Parts Ref. No. PART NO. Description Remarks Markets 1-57 VG893800 BIND HEAD P-TITE SCREW 2x6 MFZN2BL * 1-70 VQ472900 GREASE FLOIL G-31KB KANTO CHEMICAL * 2-1 V8000200 P.C.B. ASS'Y MAIN UC * 2-1 V8000300 P.C.B. ASS'Y MAIN T * 2-1 V8000400 P.C.B. ASS'Y MAIN A * 2-1 V8000500 P.C.B. ASS'Y MAIN BG * 2-3 V7424300 AM/FM TUNER FAE350-A10F UCT * 2-3 V7424400 AM/FM TUNER FAE404-E10F ABG * 2-5 V7832900 DC FAN MOTOR DC DF310R-12LC * 2-12 MF115100 FLEXIBLE FLAT CABLE C&C 15P 100mm * 2-22 V7738500 COVER/BOTTOM * 2-27 V7741200 LEG * 2-28 V7741400 SHEET * 2-29 V7741000 WINDOW/FRONT 2-35 VQ368500 PUSH RIVET P3545-B 2-42 EP600820 BIND HEAD B-TITE SCREW 3x6 MFC2BL 2-43 EP600830 BIND HEAD B-TITE SCREW 3x8 MFC2BL 2-44 EP600840 BIND HEAD B-TITE SCREW 3x16 MFC2BL 2-45 VH365800 PW HEAD B-TITE SCREW 3x6-8 MFC2 2-46 EP630400 FLAT HEAD B-TITE SCREW 3x6 MFC2BL 2-47 EP600910 BIND HEAD P-TITE SCREW 3x10 MFC2BL 2-52 CB836200 BINDING TIE S-70B * s 11 X0420A00 POWER TRANSFORMER UC * s 11 X0422A00 POWER TRANSFORMER A * s 11 X0423A00 POWER TRANSFORMER BG * s 11 X0421A00 POWER TRANSFORMER T s 12 V2363800 POWER CORD ASS'Y UC s 12 V2296800 POWER CORD ASS'Y A s 12 VN363700 POWER CORD ASS'Y G s 12 VV437300 POWER CORD ASS'Y B s 12 VZ542500 POWER CORD ASS'Y T 13 V2438700 CORD STOPPER 10P1 15 MFA17100 FLEXIBLE FLAT CABLE 17P 100mm P=1.0 21 VU590000 BINDING TIE CBTD001B * 31 V7740400 COVER/FRONT-10 CRX-TS10 * 31 V7740600 COVER/FRONT-20 CRX-TS20 * 32 V7740500 COVER/SIDE-10 CRX-TS10 * 32 V7740700 COVER/SIDE-20 CRX-TS20 * 35 V7740800 SHEET/FRONT-20 CRX-TS20 * 36 V7740900 SHEET/SIDE-20 CRX-TS20 51 EP600830 BIND HEAD B-TITE SCREW 3x8 MFC2BL 52 EP630220 BIND HEAD P-TITE SCREW 3x8 MFZN2BL 53 V2728500 BIND HEAD S-TITE SCREW 4x7 MFZN2BL 54 VH365800 PW HEAD B-TITE SCREW 3x6-8 MFC2 ACCESSORIES * 200 V7769200 REMOTE CONTROL TRANSMITTER RRS3000-5001LSYS38 　 UCTA * 200 V7769300 REMOTE CONTROL TRANSMITTER RRS3000-5002LSYS39 　 BG * 200-1 AAX30940 BATTERY HOLDER 103RRS-129-50L 103RRS 129 50L * 201 V7848300 AM LOOP ANTENNA 1.2m * 202 V7998500 FM ANTENNA 1.4m C-0918-YAM-017 UCT * 202 V7998400 FM ANTENNA 1.4m 3125-011-0Y01 ABG * 203 V7740300 STAND/SLANT 1pc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 TSX-10/15/20 * 10 AAX30820 CABINET ASS'Y 505 TS20A B 10-1 V2722900 EMBLEM * 11 AAX30840 FRONT GRILLE ASS'Y 903 1TS20B * 12 X0432A00 DRIVER, TWEETER 2.5cm 4Ω 350216 * 13 X0434A00 DRIVER, WOOFER 10cm 4Ω 350217 * 14-1 AAX30830 SPEAKER TERMINAL 213 S28D 14-2 V6367500 ELECTROLYTIC CAP 3.3uF 63V BP * 14-3 UM080010 ELECTROLYTIC CAP 5.6uF 63V BP * 14-4 AAX30810 REF PACKING 72x72x1 429 0720721 * 15 AAX30870 GRILLE HOLDER URETHANE FOAM 437 030050 16 V6018100 HEXAGON SOCKET TAPPING SCREW 4x16 MFCR33 17 03706420 OVAL HEAD WOOD SCREW 3.1x13 MFZN2BL ACCESSORIES * 103 AAX30650 SPEAKER CORD 4m 2pcs/set 617 22GRAY04 * 1 AAX30620 SATELLITE SPEAKER UNIT NX-TS10BL NX TS10A B * 1 AAX30630 SATELLITE SPEAKER UNIT NX-TS10CH NX TS10A C * 1-1 AAX30850 FRONT GRILLE ASS'Y NX-TS10BL 903 TS10B * 1-1 AAX30860 FRONT GRILLE ASS'Y NX-TS10CH 903 TS10C ACCESSORIES * 101 AAX30650 SPEAKER CORD 4m 2pcs/set 617 22GRAY04 * 102 V7741600 NON SKID PAD 4pcs/set 52 ✻ New Parts Ref. No. PART NO. Description Remarks Markets * 204 V7738300 MOUNTING BRACKET 1pc * 205 V7741600 NON SKID PAD 4pcs/set 206 V2728500 BIND HEAD S-TITE SCREW 4x7 MFZN2BL LITHIUM BATTERY 3V CR2025/1FE G NX-TS10 ✻ New Parts Ref. No. PART NO. Description Remarks Markets G NX-TS20 ✻ New Parts Ref. No. PART NO. Description Remarks Markets www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TSX-10/15/20 A B C D E 1 2 3 4 5 6 7 TSX-10/15/20 TSX-10/15/20 10 10-1 11 12 13 14-1 14-2 14-3 14-4 15 16 16 17 103 x 1 NX-TS10 NX-TS20 1 1-1 101 x 1 102 x 1 53 I EXPLODED VIEW (NX-TS10/NX-TS20) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 TSX-10/15/20 C3 Q1 2SC3265-0 R2 = B, G models only JP1 JP2 JP3 JP4 JP5 JP6 Not mount Not mount VSS E2 E1 XIN XOUT E0 G0 G1 G2 G3 VDD CARR D0 D1 D2 D3 D4 D5 D6 D7 R1 1Ω D1 SID1003BQ 27Ω C2 0.1µF 3.0V X1 4.00MHz + C3 + 1 2 3 IC1 M34282M1-558GP-T4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 19 20 U, C, A, T models B, G models KEY No. KEY FUNCTION CUSTOM DATA 1 SLEEP 78 4F 2 STANDBY/ON 78 0F 4 B.BOOST ON/OFF 78 8B 6 BASS/TREBLE 78 84 7 BASS/TREBLE LEVEL– 78 56 8 BASS/TREBLE LEVEL+ 78 55 9 RDS FREQ 78 81 10 RDS PTY SEEK MODE 78 82 11 RDS PTY SEEK START 78 83 12 TUNER PRESET– 78 1C 13 TUNER A/B/C/D/E 78 1D 14 TUNER PRESET+ 78 1B 15 CD REPEAT 78 0C 16 CD PLAY/PAUSE 78 02 17 CD RANDOM 78 07 18 CD SKIP – 78 04 19 INPUT 78 5E 20 CD SKIP + 78 03 21 CD TIME 78 0A 22 CD STOP 78 01 23 CD OPEN 78 00 24 MUTE 78 9C 25 DISPLAY 78 4E 26 VOLUME + 78 1E 27 VOLUME – 78 1F 9 ~ 11 = B, G models only 54 I REMOTE CONTROL TRANSMITTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
