雅马哈YAMAHA SPX2000电路原理图

分类：电子电工日期：2023-03-30 点击：0

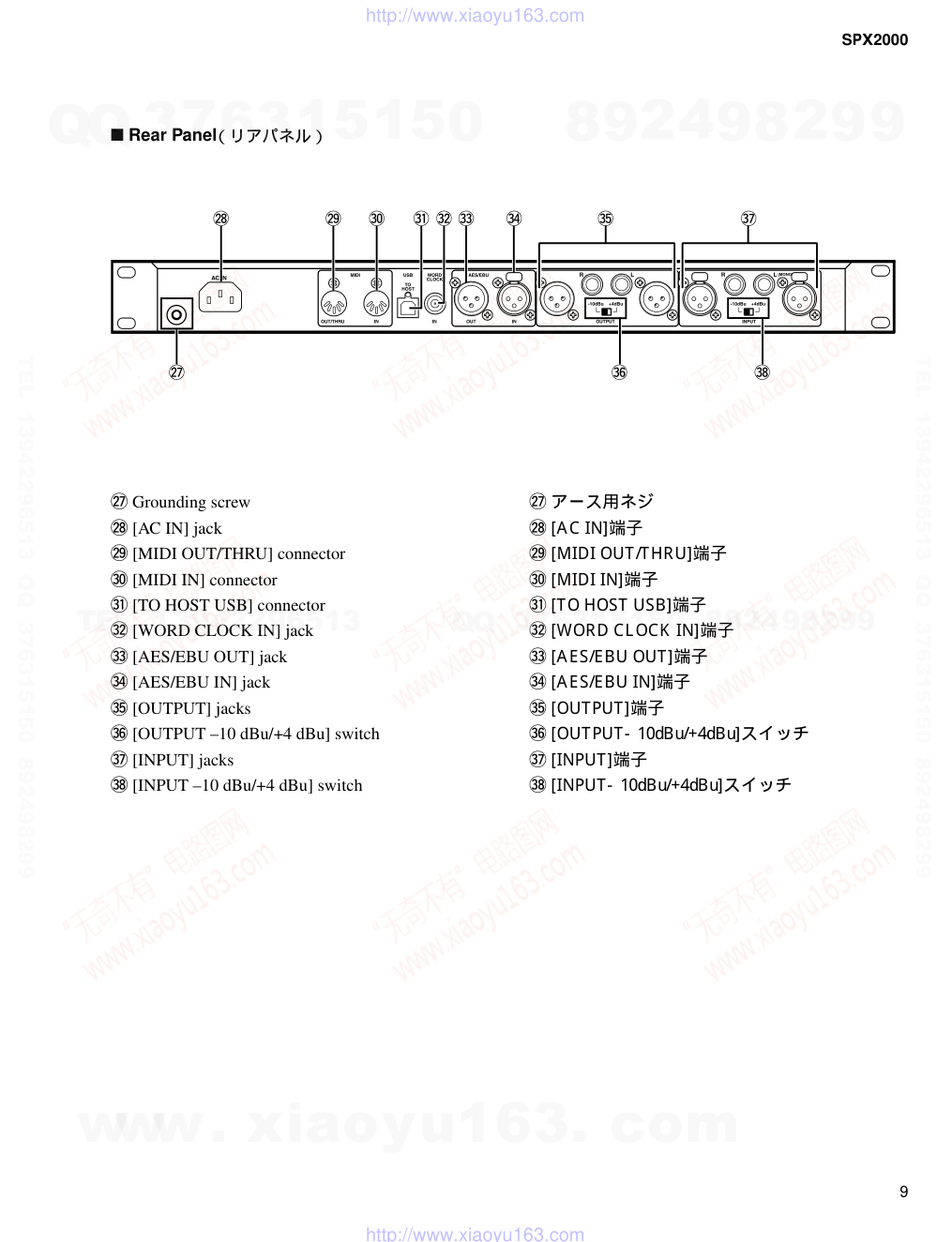

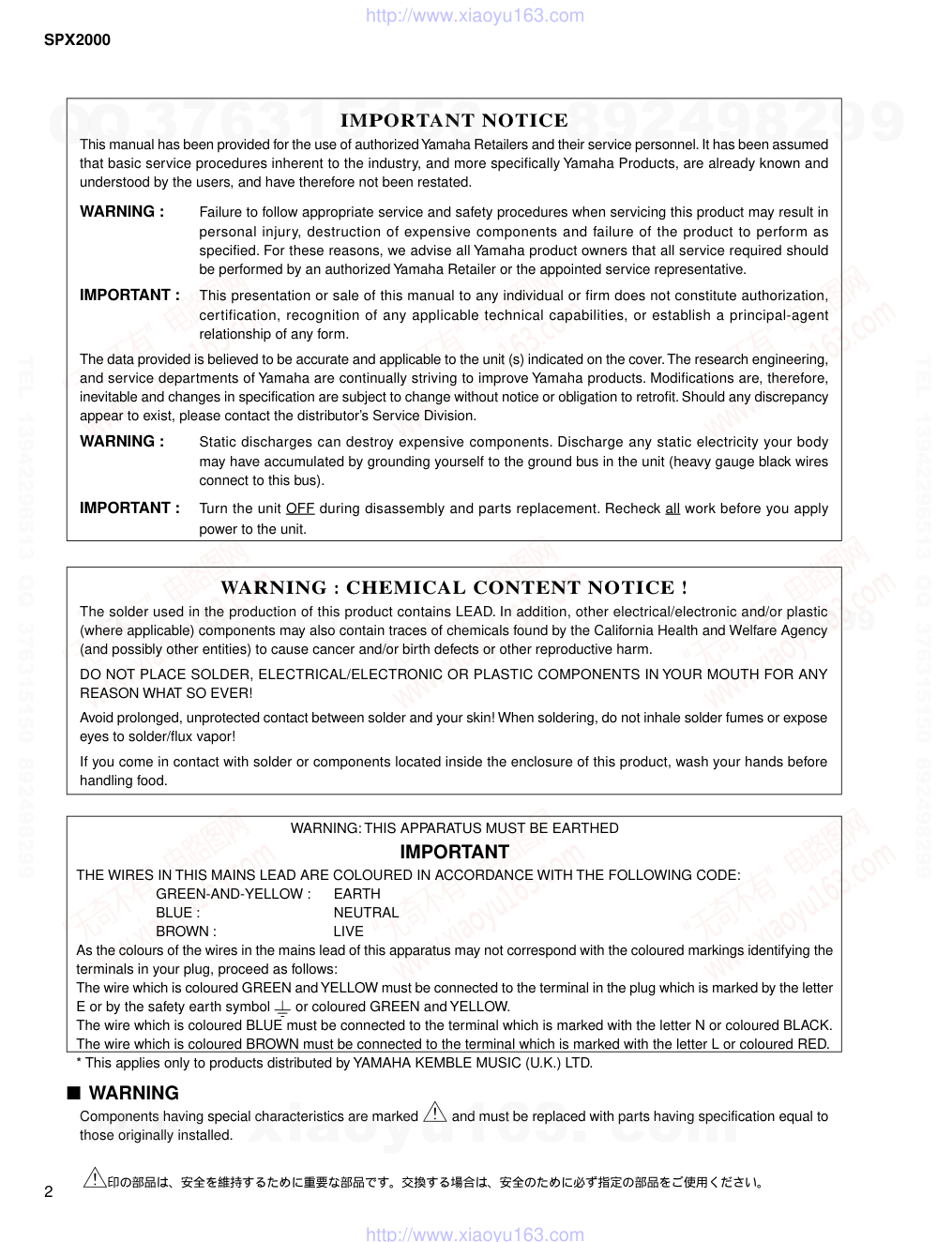

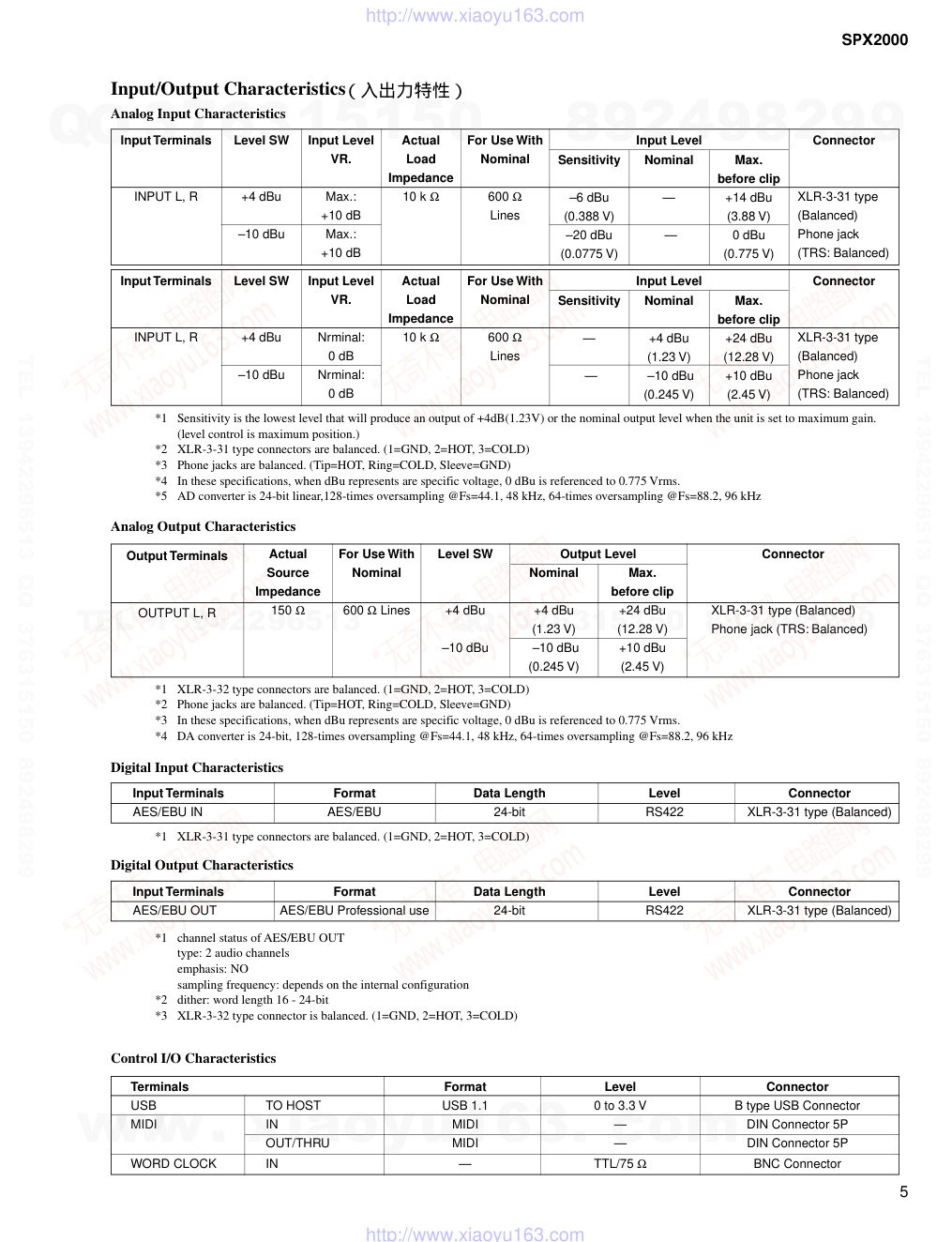

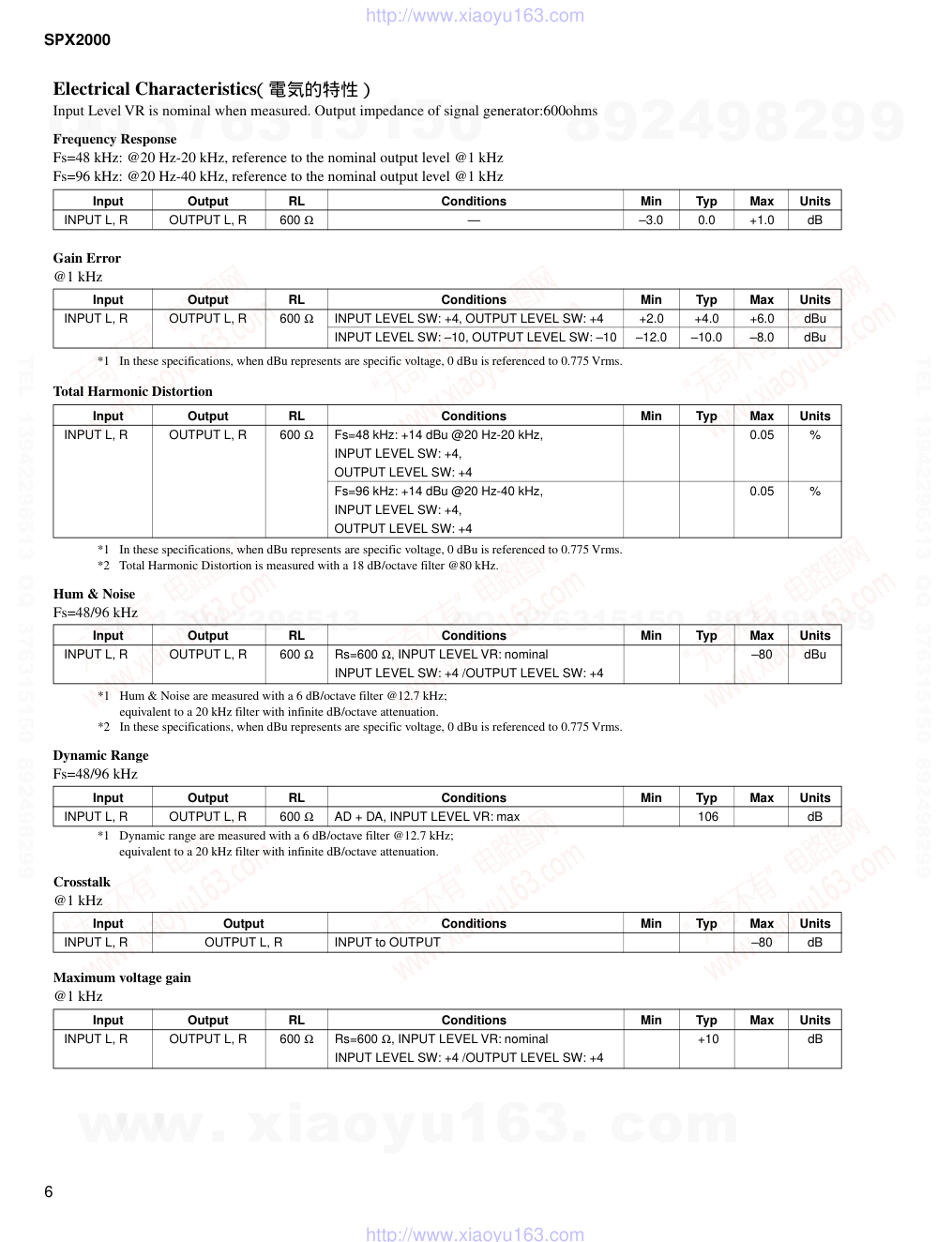

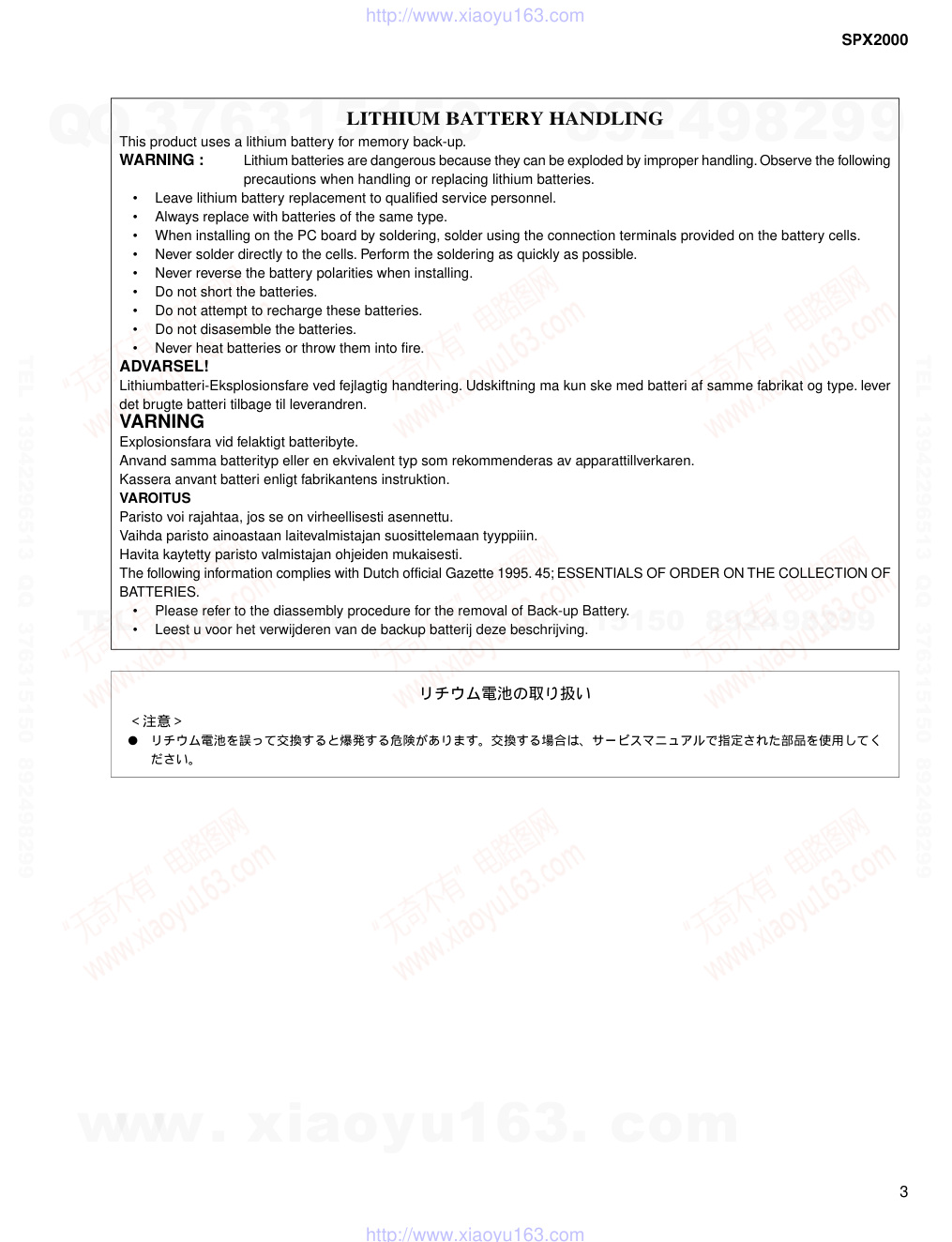

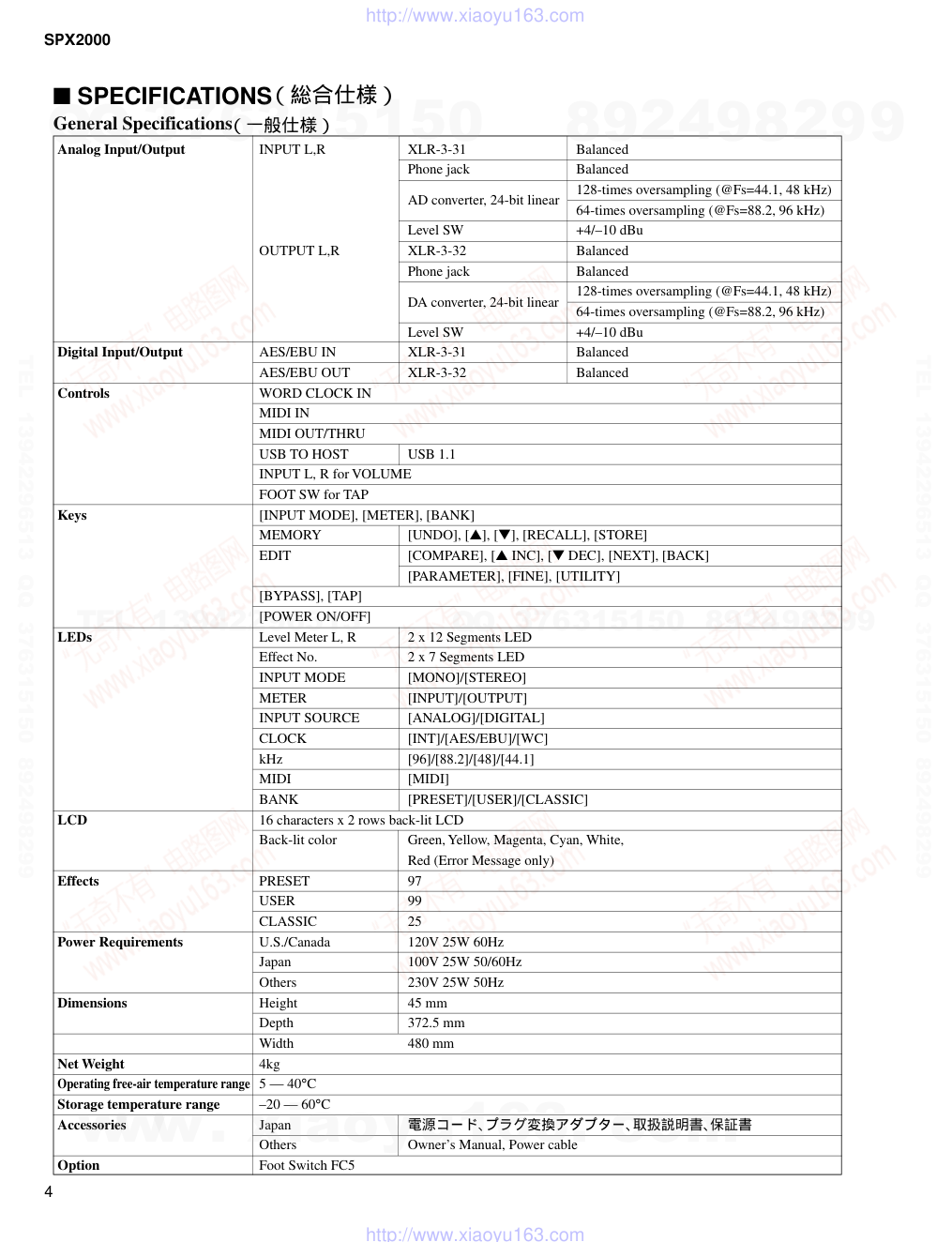

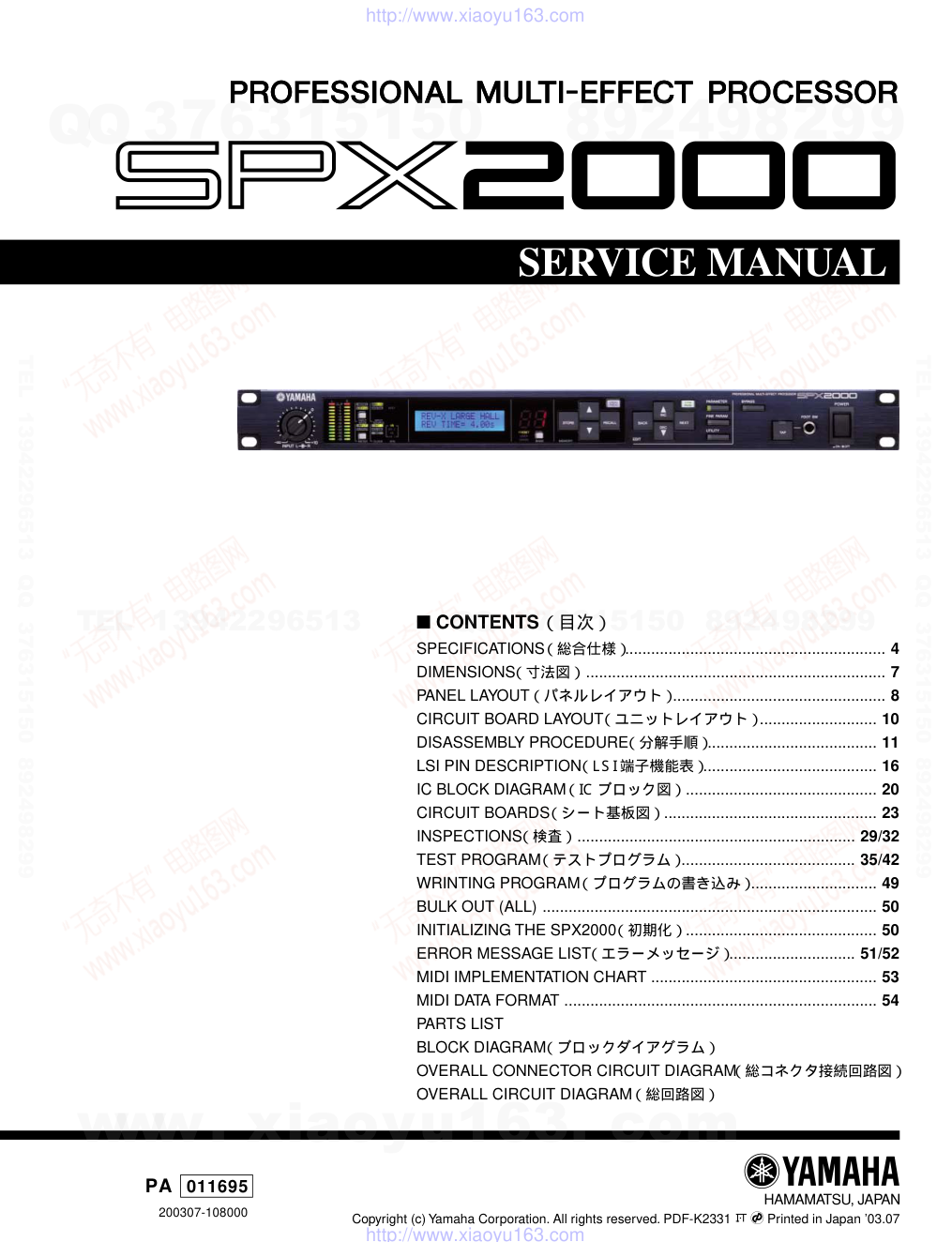

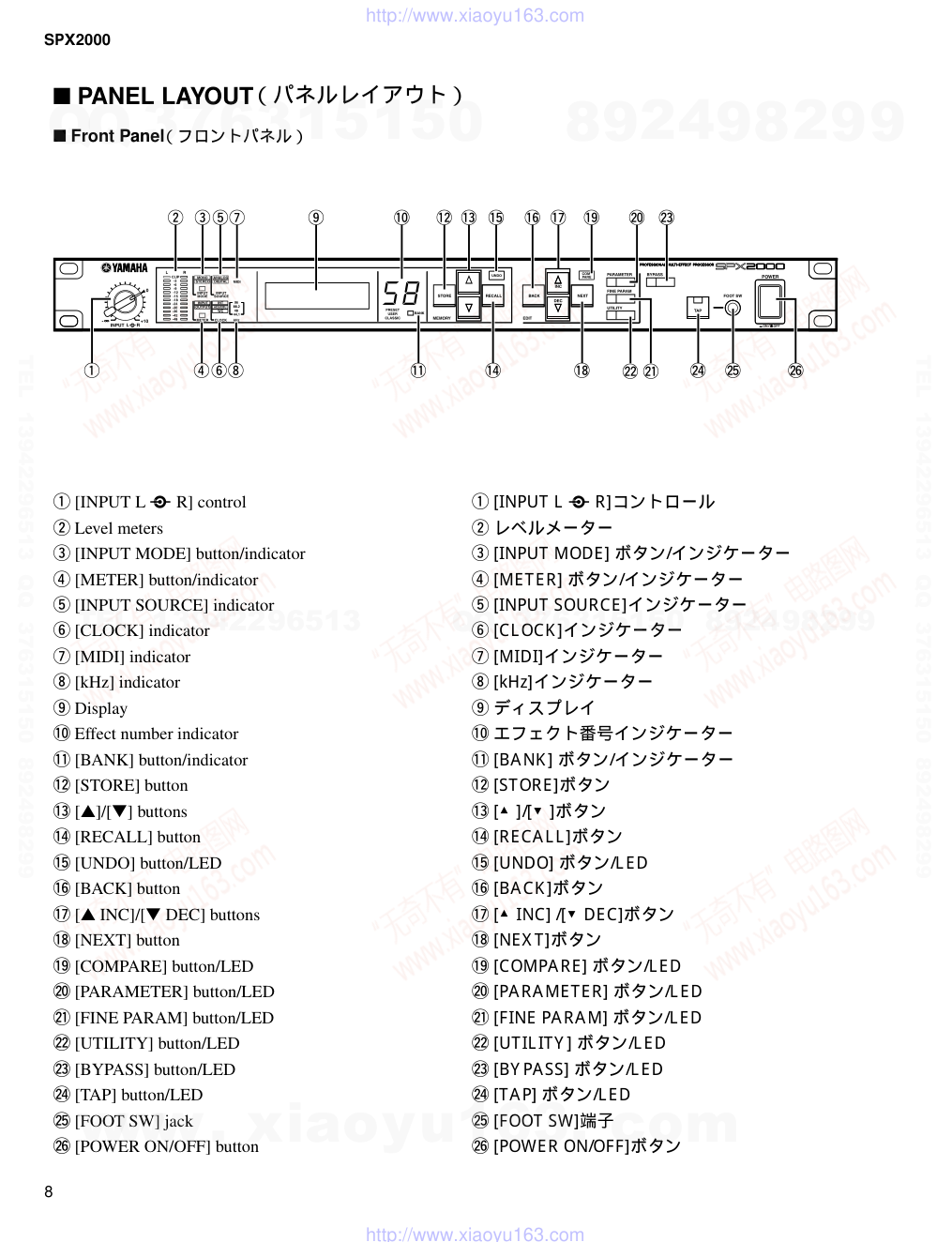

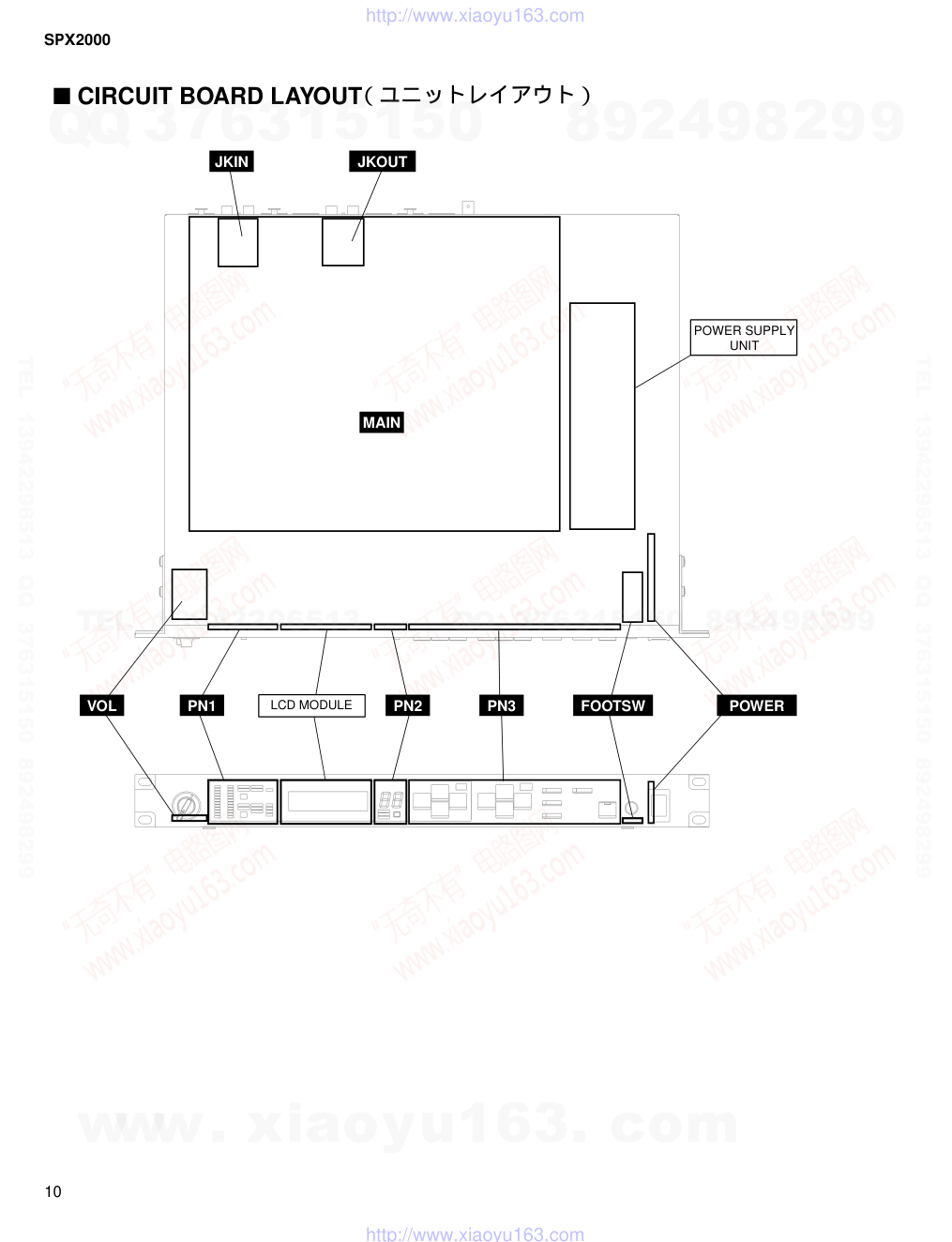

SERVICE MANUAL I CONTENTS SPECIFICATIONS ............................................................ 4 DIMENSIONS ..................................................................... 7 PANEL LAYOUT ................................................. 8 CIRCUIT BOARD LAYOUT ........................... 10 DISASSEMBLY PROCEDURE ....................................... 11 LSI PIN DESCRIPTION ........................................ 16 IC BLOCK DIAGRAM ............................................ 20 CIRCUIT BOARDS ................................................. 23 INSPECTIONS ................................................................ 29/32 TEST PROGRAM ........................................ 35/42 WRINTING PROGRAM ............................. 49 BULK OUT (ALL) ............................................................................. 50 INITIALIZING THE SPX2000 ............................................ 50 ERROR MESSAGE LIST ............................. 51/52 MIDI IMPLEMENTATION CHART .................................................... 53 MIDI DATA FORMAT ........................................................................ 54 PARTS LIST BLOCK DIAGRAM OVERALL CONNECTOR CIRCUIT DIAGRAM OVERALL CIRCUIT DIAGRAM Copyright (c) Yamaha Corporation. All rights reserved. PDF-K2331 Printed in Japan ’03.07 PA 011695 200307-108000 （目次）（総合仕様）（寸法図）（パネルレイアウト）（ユニットレイアウト）（分解手順）（LS I端子機能表）（IC ブロック図）（シート基板図）（検査）（テストプログラム）（プログラムの書き込み）（初期化）（エラーメッセージ）（ブロックダイアグラム）（総コネクタ接続回路図）（総回路図） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 SPX2000 IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization, certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit (s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor’s Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus). IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING : CHEMICAL CONTENT NOTICE ! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. I WARNING Components having special characteristics are marked Z and must be replaced with parts having specification equal to those originally installed. WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: GREEN-AND-YELLOW : EARTH BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN and YELLOW. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. * This applies only to products distributed by YAMAHA KEMBLE MUSIC (U.K.) LTD. Z印の部品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 SPX2000 LITHIUM BATTERY HANDLING This product uses a lithium battery for memory back-up. WARNING : Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions when handling or replacing lithium batteries. • Leave lithium battery replacement to qualified service personnel. • Always replace with batteries of the same type. • When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells. • Never solder directly to the cells. Perform the soldering as quickly as possible. • Never reverse the battery polarities when installing. • Do not short the batteries. • Do not attempt to recharge these batteries. • Do not disasemble the batteries. • Never heat batteries or throw them into fire. ADVARSEL! Lithiumbatteri-Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med batteri af samme fabrikat og type. lever det brugte batteri tilbage til leverandren. VARNING Explosionsfara vid felaktigt batteribyte. Anvand samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvant batteri enligt fabrikantens instruktion. VAROITUS Paristo voi rajahtaa, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiiin. Havita kaytetty paristo valmistajan ohjeiden mukaisesti. The following information complies with Dutch official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES. • Please refer to the diassembly procedure for the removal of Back-up Battery. • Leest u voor het verwijderen van de backup batterij deze beschrijving. リチウム電池の取り扱い＜注意＞リチウム電池を誤って交換すると爆発する危険があります。交換する場合は、サービスマニュアルで指定された部品を使用してください。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SPX2000 I SPECIFICATIONS Analog Input/Output Digital Input/Output Controls Keys LEDs LCD Effects Power Requirements Dimensions Net Weight Operating free-air temperature range Storage temperature range Accessories Option General Specifications INPUT L,R XLR-3-31 Balanced Phone jack Balanced AD converter, 24-bit linear 128-times oversampling (@Fs=44.1, 48 kHz) 64-times oversampling (@Fs=88.2, 96 kHz) Level SW +4/–10 dBu OUTPUT L,R XLR-3-32 Balanced Phone jack Balanced DA converter, 24-bit linear 128-times oversampling (@Fs=44.1, 48 kHz) 64-times oversampling (@Fs=88.2, 96 kHz) Level SW +4/–10 dBu AES/EBU IN XLR-3-31 Balanced AES/EBU OUT XLR-3-32 Balanced WORD CLOCK IN MIDI IN MIDI OUT/THRU USB TO HOST USB 1.1 INPUT L, R for VOLUME FOOT SW for TAP [INPUT MODE], [METER], [BANK] MEMORY [UNDO], [L], [M], [RECALL], [STORE] EDIT [COMPARE], [L INC], [M DEC], [NEXT], [BACK] [PARAMETER], [FINE], [UTILITY] [BYPASS], [TAP] [POWER ON/OFF] Level Meter L, R 2 x 12 Segments LED Effect No. 2 x 7 Segments LED INPUT MODE [MONO]/[STEREO] METER [INPUT]/[OUTPUT] INPUT SOURCE [ANALOG]/[DIGITAL] CLOCK [INT]/[AES/EBU]/[WC] kHz [96]/[88.2]/[48]/[44.1] MIDI [MIDI] BANK [PRESET]/[USER]/[CLASSIC] 16 characters x 2 rows back-lit LCD Back-lit color Green, Yellow, Magenta, Cyan, White, Red (Error Message only) PRESET 97 USER 99 CLASSIC 25 U.S./Canada 120V 25W 60Hz Japan 100V 25W 50/60Hz Others 230V 25W 50Hz Height 45 mm Depth 372.5 mm Width 480 mm 4kg 5 — 40°C –20 — 60°C Japan 電源コード、プラグ変換アダプター、取扱説明書、保証書 Others Owner’s Manual, Power cable Foot Switch FC5 （総合仕様）（一般仕様） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 SPX2000 Input/Output Characteristics Analog Input Characteristics *1 Sensitivity is the lowest level that will produce an output of +4dB(1.23V) or the nominal output level when the unit is set to maximum gain. (level control is maximum position.) *2 XLR-3-31 type connectors are balanced. (1=GND, 2=HOT, 3=COLD) *3 Phone jacks are balanced. (Tip=HOT, Ring=COLD, Sleeve=GND) *4 In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms. *5 AD converter is 24-bit linear,128-times oversampling @Fs=44.1, 48 kHz, 64-times oversampling @Fs=88.2, 96 kHz Analog Output Characteristics *1 XLR-3-32 type connectors are balanced. (1=GND, 2=HOT, 3=COLD) *2 Phone jacks are balanced. (Tip=HOT, Ring=COLD, Sleeve=GND) *3 In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms. *4 DA converter is 24-bit, 128-times oversampling @Fs=44.1, 48 kHz, 64-times oversampling @Fs=88.2, 96 kHz Control I/O Characteristics Digital Input Characteristics *1 XLR-3-31 type connectors are balanced. (1=GND, 2=HOT, 3=COLD) Digital Output Characteristics *1 channel status of AES/EBU OUT type: 2 audio channels emphasis: NO sampling frequency: depends on the internal configuration *2 dither: word length 16 - 24-bit *3 XLR-3-32 type connector is balanced. (1=GND, 2=HOT, 3=COLD) Input Terminals INPUT L, R Level SW +4 dBu –10 dBu Input Level VR. Max.: +10 dB Max.: +10 dB Actual Load Impedance 10 k Ω For Use With Nominal 600 Ω Lines Input Level Connector XLR-3-31 type (Balanced) Phone jack (TRS: Balanced) Sensitivity –6 dBu (0.388 V) –20 dBu (0.0775 V) Nominal — — Max. before clip +14 dBu (3.88 V) 0 dBu (0.775 V) Input Terminals INPUT L, R Level SW +4 dBu –10 dBu Input Level VR. Nrminal: 0 dB Nrminal: 0 dB Actual Load Impedance 10 k Ω For Use With Nominal 600 Ω Lines Input Level Connector XLR-3-31 type (Balanced) Phone jack (TRS: Balanced) Sensitivity — — Nominal +4 dBu (1.23 V) –10 dBu (0.245 V) Max. before clip +24 dBu (12.28 V) +10 dBu (2.45 V) Output Terminals OUTPUT L, R Actual Source Impedance 150 Ω For Use With Nominal 600 Ω Lines Level SW +4 dBu –10 dBu Output Level Connector XLR-3-31 type (Balanced) Phone jack (TRS: Balanced) Nominal +4 dBu (1.23 V) –10 dBu (0.245 V) Max. before clip +24 dBu (12.28 V) +10 dBu (2.45 V) Input Terminals Format Data Length Level Connector AES/EBU IN AES/EBU 24-bit RS422 XLR-3-31 type (Balanced) Input Terminals Format Data Length Level Connector AES/EBU OUT AES/EBU Professional use 24-bit RS422 XLR-3-31 type (Balanced) Terminals Format Level Connector USB TO HOST USB 1.1 0 to 3.3 V B type USB Connector MIDI IN MIDI — DIN Connector 5P OUT/THRU MIDI — DIN Connector 5P WORD CLOCK IN — TTL/75 Ω BNC Connector （入出力特性） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 SPX2000 Electrical Characteristics Input Level VR is nominal when measured. Output impedance of signal generator:600ohms Frequency Response Fs=48 kHz: @20 Hz-20 kHz, reference to the nominal output level @1 kHz Fs=96 kHz: @20 Hz-40 kHz, reference to the nominal output level @1 kHz Gain Error @1 kHz *1 In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms. Total Harmonic Distortion *1 In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms. *2 Total Harmonic Distortion is measured with a 18 dB/octave filter @80 kHz. Hum & Noise Fs=48/96 kHz *1 Hum & Noise are measured with a 6 dB/octave filter @12.7 kHz; equivalent to a 20 kHz filter with infinite dB/octave attenuation. *2 In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms. Crosstalk @1 kHz Input Output RL Conditions Min Typ Max Units INPUT L, R OUTPUT L, R 600 Ω INPUT LEVEL SW: +4, OUTPUT LEVEL SW: +4 +2.0 +4.0 +6.0 dBu INPUT LEVEL SW: –10, OUTPUT LEVEL SW: –10 –12.0 –10.0 –8.0 dBu Input Output RL Conditions Min Typ Max Units INPUT L, R OUTPUT L, R 600 Ω — –3.0 0.0 +1.0 dB Input Output RL Conditions Min Typ Max Units INPUT L, R OUTPUT L, R 600 Ω Fs=48 kHz: +14 dBu @20 Hz-20 kHz, 0.05 % INPUT LEVEL SW: +4, OUTPUT LEVEL SW: +4 Fs=96 kHz: +14 dBu @20 Hz-40 kHz, 0.05 % INPUT LEVEL SW: +4, OUTPUT LEVEL SW: +4 Input Output RL Conditions Min Typ Max Units INPUT L, R OUTPUT L, R 600 Ω Rs=600 Ω, INPUT LEVEL VR: nominal –80 dBu INPUT LEVEL SW: +4 /OUTPUT LEVEL SW: +4 Dynamic Range Fs=48/96 kHz Input Output RL Conditions Min Typ Max Units INPUT L, R OUTPUT L, R 600 Ω AD + DA, INPUT LEVEL VR: max 106 dB *1 Dynamic range are measured with a 6 dB/octave filter @12.7 kHz; equivalent to a 20 kHz filter with infinite dB/octave attenuation. Maximum voltage gain @1 kHz Input Output Conditions Min Typ Max Units INPUT L, R OUTPUT L, R INPUT to OUTPUT –80 dB Input Output RL Conditions Min Typ Max Units INPUT L, R OUTPUT L, R 600 Ω Rs=600 Ω, INPUT LEVEL VR: nominal +10 dB INPUT LEVEL SW: +4 /OUTPUT LEVEL SW: +4 （電気的特性） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 SPX2000 PARAMETER CONDITIONS MIN TYP MAX UNITS Sampling Frequency External Clock Frequency Range Normal Rate 39.69 50.88 kHz Double Rate 79.38 101.76 kHz Jitter of PLL DIGITAL IN Fs=44.1 kHz, Jitter ≤ 2ns 10 ns DIGITAL IN Fs=48 kHz, Jitter ≤ 2ns 10 ns DIGITAL IN Fs=39.69-50.88 kHz, Jitter ≤ 2ns 20 ns DIGITAL IN Fs=88.2 kHz, Jitter ≤ 2ns 10 ns DIGITAL IN Fs=96 kHz, Jitter ≤ 2ns 10 ns DIGITAL IN Fs=79.38-101.76 kHz, Jitter ≤ 2ns 20 ns Internal Clock Frequency word clock: int 44.1 kHz 44.1 kHz word clock: int 48 kHz 48 kHz word clock int 88.2 kHz 88.2 kHz word clock: int 96 kHz 96 kHz accuracy word clock int 44.1 kHz 50 ppm word clock: int 48 kHz 50 ppm word clock: int 88.2 kHz 50 ppm word clock: int 96 kHz 50 ppm jitter word clock: int 44.1 kHz 5 ns word clock: int 48 kHz 5 ns word clock : int 88.2 kHz 5 ns word clock: int 96 kHz 5 ns Signal Delay INPUT to OUTPUT(@Delay time=0.0 ms / Fs=96 kHz) 426 ns Idle tone AD converter, peak@20 Hz–20 kHz –130 dB 1 45 44 480 350 50 250 11.8 352.7 8 372.5 Units : mm （単位） I DIMENSIONS（寸法図） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 SPX2000 I PANEL LAYOUT I Front Panel w etu o !0 !2 !5 !9 @0 @3 !6 !3 !7 !8 @4 @5 !4 !1 ryi q @6 @2 @1 q [INPUT L R] control w Level meters e [INPUT MODE] button/indicator r [METER] button/indicator t [INPUT SOURCE] indicator y [CLOCK] indicator u [MIDI] indicator i [kHz] indicator o Display !0 Effect number indicator !1 [BANK] button/indicator !2 [STORE] button !3 [L]/[M] buttons !4 [RECALL] button !5 [UNDO] button/LED !6 [BACK] button !7 [L INC]/[M DEC] buttons !8 [NEXT] button !9 [COMPARE] button/LED @0 [PARAMETER] button/LED @1 [FINE PARAM] button/LED @2 [UTILITY] button/LED @3 [BYPASS] button/LED @4 [TAP] button/LED @5 [FOOT SW] jack @6 [POWER ON/OFF] button q [INPUT L R]コントロール w レベルメーター e [INPUT MODE] ボタン/インジケーター r [METER] ボタン/インジケーター t [INPUT SOURCE]インジケーター y [CLOCK]インジケーター u [MIDI]インジケーター i [kHz]インジケーター o ディスプレイ !0 エフェクト番号インジケーター !1 [BANK] ボタン/インジケーター !2 [STORE]ボタン !3 [▲ ]/[▼ ]ボタン !4 [RECALL]ボタン !5 [UNDO] ボタン/LED !6 [BACK]ボタン !7 [▲ INC] /[▼ DEC]ボタン !8 [NEX T]ボタン !9 [COMPARE] ボタン/LED @0 [PARAMETER] ボタン/LED @1 [FINE PARAM] ボタン/LED @2 [UTILITY ] ボタン/LED @3 [BY PASS] ボタン/LED @4 [TAP] ボタン/LED @5 [FOOT SW]端子 @6 [POWER ON/OFF]ボタン（パネルレイアウト）（フロントパネル） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 SPX2000 @7 Grounding screw @8 [AC IN] jack @9 [MIDI OUT/THRU] connector #0 [MIDI IN] connector #1 [TO HOST USB] connector #2 [WORD CLOCK IN] jack #3 [AES/EBU OUT] jack #4 [AES/EBU IN] jack #5 [OUTPUT] jacks #6 [OUTPUT –10 dBu/+4 dBu] switch #7 [INPUT] jacks #8 [INPUT –10 dBu/+4 dBu] switch I Rear Panel（リアパネル） @8 @9 #0 #3 #1 #2 #6 @7 #8 #7 #4 #5 @7 アース用ネジ @8 [AC IN]端子 @9 [MIDI OUT/THRU]端子 #0 [MIDI IN]端子 #1 [TO HOST USB]端子 #2 [WORD CLOCK IN]端子 #3 [AES/EBU OUT]端子 #4 [AES/EBU IN]端子 #5 [OUTPUT]端子 #6 [OUTPUT ‐ 10dBu/+4dBu]スイッチ #7 [INPUT]端子 #8 [INPUT ‐ 10dBu/+4dBu]スイッチ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 SPX2000 I CIRCUIT BOARD LAYOUT MAIN FOOTSW PN3 PN2 LCD MODULE PN1 VOL JKOUT JKIN POWER SUPPLY UNIT POWER （ユニットレイアウト） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 SPX2000 2. Top Cover (Time required : About 2 min.) 2-1. Remove the rack angle L and R. (See procedure 1) 2-2. Remove the nine (9) screws marked [520]. The top cover can then be removed. (Fig. 1) 1. Rack Angle (Time required : About 1 min.) 1-1. Remove the three (3) screws marked [540A]. The rack angle L can then be removed. (Fig. 1) 1-2. Remove the three (3) screws marked [540B]. The rack angle R can then be removed. (Fig. 1) Rack angle R Rack angle L (Fig. 1) [520]: Bind Head Tapping Screw-S 3.0 x 6 MFZN2BL (EP630210) [540]: Bind Head Tapping Screw-S 4.0 x 8 MFZN2BL (VI693100) I DISASSEMBLY PROCEDURE（分解手順） [540A] [540A] [520] [520] [520] [540B] [520] [520] Top cover Internal knob (INPUT L) External knob (INPUT R) JKIN JKOUT MAIN POWER button （ボタンPSW） 2 . トップカバー　（所要時間：約2 分） 2-1. ラックアングルL、Rを外します。(1項参照) 2-2. [520]のネジ9本を外し、トップカバーを外します。 (図1) 1 . ラックアングル　（所要時間：約1 分） 1-1. [540A ]のネジ3本を外し、ラックアングルL を外します。(図1) 1-2. [540B]のネジ3本を外し、ラックアングルRを外します。(図1) （ラックアングルL）（トップカバー）（ラックアングルR）＋バインドSタイト＋バインドSタイト (図1) （ノブ内）（ノブ外） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 SPX2000 3. Front Panel (Time required : About 3 min.) 3-1. Remove the rack angle L and R. (See procedure 1) 3-2. Remove the top cover. (See procedure 2) 3-3. Pull out the internal knob (INPUT L) and the external knob (INPUT R). (Fig. 1) 3-4. Remove the screw marked [420] and three (3) screws marked [430]. The front panel can then be removed. (Fig. 2) [420] [430] G Top view G Bottom view (Fig. 2) [420]: Flat Head Tapping Screw-S 3.0 x 6 MFAN2Y (WB451000) [430]: Bind Head Tapping Screw-S 3.0 x 6 MFZN2BL (EP630210) Front panel 4. JKIN Circuit Board, JKOUT Circuit Board (Time required : About 3 minutes each.) 4-1. Remove the rack angle L and R. (See procedure 1) 4-2. Remove the top cover. (See procedure 2) 4-3. Remove the two (2) hexagonal nuts marked [130A]. The JKIN circuit board can then be removed. (Fig. 3) 4-4. Remove the two (2) hexagonal nuts marked [130B]. The JKOUT circuit board can then be removed. (Fig. 3) [130A] [130B] [40] [40] [30] [30] [30] [40] [50] [30] G Rear view [30]: Bind Head Tapping Screw-B 3.0 x 8 MFZN2BL (EP600190) [40]: Bind Head Tapping Screw-B 2.6 x 8 MFZN2BL (VB096700) [50]: Bind Head Tapping Screw-S 3.0 x 6 MFZN2BL (EP630210) [130]: Hexagonal Nut 9.0 x 11 (V2431400) (Fig. 3) JKIN JKOUT MAIN 3 . フロントパネル　（所要時間：約3 分） 3-1. ラックアングルL、Rを外します。(1項参照) 3-2. トップカバーを外します。(2項参照) 3-3. ノブ内（INPUT L）とノブ外（INPUT R）を外します。 (図1) 3-4. [420]のネジ1本と[430]のネジ3本を外し、フロントパネルを外します。(図2) (図2) S タイト平頭＋バインドSタイト（フロントパネル） 4 . J K IN、J K OUT シート　（所要時間：各約3 分） 4-1. ラックアングルL、Rを外します。(1項参照) 4-2. トップカバーを外します。(2項参照) 4-3. [130A]の特殊六角ナット2個を外し、JKINシートを外します。(図3) 4-4. [130B]の特殊六角ナット2個を外し、JKOUTシートを外します。(図3) ＋バインドBタイト＋バインドBタイト＋バインドSタイト特殊六角ナット (図3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 SPX2000 Battery VN103500 VN103600(Battery holder for VN103500) Notice for back-up battery removal Push the battery as shown in figure, then the battery will pop up. Druk de batterij naar beneden zoals aangeven in de tekening, de batterij springt dan naar voren. Battery Battery holder (Fig. 4) [60]: Bind Head Tapping Screw-S 3.0 x 6 MFZN2BL (EP630210) [100]: Bind Head Tapping Screw-S 3.0 x 6 MFZN2BL (EP630210) 5. MAIN Circuit Board (Time required : About 5 min.) 5-1. Remove the rack angle L and R. (See procedure 1) 5-2. Remove the top cover. (See procedure 2) 5-3. Remove the JKIN circuit board and JKOUT circuit board. (See procedure 4) 5-4. Remove the eight (8) screws marked [30], the six (6) screws marked [40] and the two (2) screws marked [50]. (Fig. 3) 5-5. Remove the eight (8) screws marked [60]. The MAIN circuit board can then be removed. (Fig. 4) 6. Replacing the Lithium Battery (Time required : About 3 min.) 6-1. Remove the rack angle L and R. (See procedure 1) 6-2. Remove the top cover. (See procedure 2) 6-3. You can replace the lithium battery from the MAIN circuit board. (Fig. 4) * The lithium battery is not part of the MAIN circuit board. When you replace the MAIN circuit board, you should remove the lithium battery from the board, and install in the holder on the new circuit board. * Important data should be backed up by BULK OUT (ALL) function. (See page 50.) 7. Power Supply Unit (Time required : About 3 min.) 7-1. Remove the rack angle L and R. (See procedure 1) 7-2. Remove the top cover. (See procedure 2) 7-3. Remove the four (4) screws marked [100]. The power supply unit can then be removed. (Fig. 4) [60] [60] MAIN [100] G Lithium Battery Power supply unit ＋バインドSタイト＋バインドSタイト (図4) 5 . MA INシート　（所要時間：約5 分） 5-1. ラックアングルL、Rを外します。(1項参照) 5-2. トップカバーを外します。(2項参照) 5-3. JKINシート、JKOUTシートを外します。(4項参照) 5-4. [30]のネジ8本、[40]のネジ6本、[50]のネジ2本を外します。(図3) 5-5. [60]のネジ8本を外し、MAINシートを外します。(図4) 6 . リチウム電池の交換　（所要時間：約3 分） 6-1. ラックアングルL、Rを外します。(1項参照) 6-2. トップカバーを外します。(2項参照) 6-3. MAINシート上より、リチウム電池を交換することができます。(図4) 　※ リチウム電池は、MAINシートの構成部品ではありません。 MAINシートを交換する際には、本体のシートからリチウム電池を取り外して、新しいシートに取り付けてください。　※ 重要なデータは、あらかじめ「BULK OUT (ALL)」機能でバックアップしてください。（50ページ参照） 7 . 電源ユニット　（所要時間：約3 分） 7-1. ラックアングルL、Rを外します。(1項参照) 7-2. トップカバーを外します。(2項参照) 7-3. [100]のネジ4本を外し、電源ユニットを外します。(図4) （リチウム電池）（電源ユニット） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 SPX2000 [300]: Bind Head Tapping Screw-S 3.0 x 10 MFZN2Y (EP630630) [350]: Hexagonal Nut 9.0 x 11 (V2431400) [360]: Bind Head Tapping Screw-S 3.0 x 6 MFZN2BL (EP630210) [380]: Bind Head Tapping Screw-S 3.0 x 6 MFZN2BL (EP630210) (Fig. 5) LED guide 8. VOL Circuit Board, FOOT SW Circuit Board, POWER Circuit Board (Time required : About 4 minutes each.) 8-1. Remove the rack angle L and R. (See procedure 1) 8-2. Remove the top cover. (See procedure 2) 8-3. Remove the front panel. (See procedure 3) 8-4. VOL Circuit Board Remove the nut and the washer. The VOL circuit board can then be removed. (Fig. 5) 8-5. FOOT SW Circuit Board Remove the screw marked [360] and the hexagonal nut marked [350]. The FOOT SW circuit board can then be removed. (Fig. 5) 8-6. POWER Circuit Board 8-6-1. Pull out the POWER button from the POWER circuit board. 8-6-2. Remove the two (2) screws marked [380]. The POWER circuit board can then be removed. (Fig. 5) 9. PN1 Circuit Board, PN2 Circuit Board, PN3 Circuit Board, LCD (Time required : About 5 minutes each.) 9-1. Remove the rack angle L and R. (See procedure 1) 9-2. Remove the top cover. (See procedure 2) 9-3. Remove the front panel. (See procedure 3) 9-4. Remove the two (2) screws marked [300]. The LED guide can then be removed. (Fig. 5) Nut & Washer [300] [350] [360] [380] VOL FOOT SW POWER (図5) （LEDガイド） 8 . V OLシート、FOOT S Wシート、P OWERシート（所要時間：各約4 分） 8-1. ラックアングルL、Rを外します。(1項参照) 8-2. トップカバーを外します。(2項参照) 8-3. フロントパネルを外します。(3項参照) 8-4. V OLシートナットとワッシャーを外し、V OLシートを外します。 (図5) 8-5. FOOT S Wシート [360]のネジ1本と[350]の特殊六角ナット1個を外し、 FOOT SWシートを外します。(図5) 8-6. P OWE R シート 8-6-1. POWERシートからボタンPSWを抜き取ります。 8-6-2. [380]のネジ2本を外し、POWERシートを外します。 (図5) 9 . P N1 シート、P N2 シート、P N3 シート、LC D （所要時間：各約5 分） 9-1. ラックアングルL、Rを外します。(1項参照) 9-2. トップカバーを外します。(2項参照) 9-3. フロントパネルを外します。(3項参照) 9-4. [300]のネジ2本を外し、LEDガイドを外します。(図5) ＋バインドSタイト特殊六角ナット＋バインドSタイト＋バインドSタイト www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 SPX2000 Hooks 9-5. Remove the three (3) hooks from the LED guide. The PN1 circuit board can then be removed. (Fig. 6) 9-6. Remove the two (2) hooks from the LED guide. The PN2 circuit board can then be removed. (Fig. 6) 9-7. Remove the four (4) hooks from the LED guide. The LCD can then be removed. (Fig. 6) 9-8. Remove the two (2) screws marked [200]. The PN3 circuit board can then be removed. (Fig. 7) Hooks Hooks PN2 PN1 LCD LED guide (Fig. 6) (Fig. 7) [200] PN3 [200]: Bind Head Tapping Screw-S 3.0 x 6 MFZN2BL (EP630210) 10. AC Inlet Assembly (Time required : About 3 min.) 10-1. Remove the rack angle L and R. (See procedure 1) 10-2. Remove the top cover. (See procedure 2) 10-3. Remove the two (2) screws marked [150], the screw marked [160] and the cord holder marked [170]. The AC inlet assembly can then be removed. (Fig. 8) (Fig. 8) [150] [150] [160] [150]: Bind Head Tapping Screw-B 3.0 x 8 MFZN2BL (EP600190) [160]: Bind Head Screw 4.0 x 8 MFZN2BL (EG340360) [170]: Cord Holder BK-1 (CB069250) [170] AC inlet assembly （フック） 9-5. フック3箇所を外し、LEDガイドからPN1シートを外します。(図6) 9-6. フック2箇所を外し、LEDガイドからPN2シートを外します。(図6) 9-7. フック4箇所を外し、LEDガイドからLCDを外します。 (図6) 9-8. [200]のネジ2本を外し、PN3シートを外します。(図7) （フック）（フック）（LEDガイド） (図6) (図7) ＋バインドSタイト 1 0 . A C インレットA s s ’ y　（所要時間：約3 分） 10-1. ラックアングルL、Rを外します。(1項参照) 10-2. トップカバーを外します。(2項参照) 10-3. [150]のネジ2本、[160]のネジ1本、[170]のインシュロックタイ1本を外し、ACインレットAss’ yを外します。 (図8) (図8) ＋バインドBタイト＋バインド小ネジインシュロックタイ（ACインレットAss’ y） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 SPX2000 I LSI PIN DESCRIPTION AK4393-VF-E2 (XW029A00) DAC (Digital to Analog Converter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 CS5361-KS (X3447A00) ADC (Analog to Digital Converter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 CS8405A-CS (XZ349A00) DIT (Digital Audio Interface Transmitter) . . . . . . . . . . . . . . . . . . . . . . . . . 19 CS8415A-CS (X2089A00) DIR (Digital Audio Interface Receiver) . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 HD6417709SF133 (X2081A00) CPU (SH3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 M37641M8-141FP (X2485200) CPU (USB 32K) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 YM3436DK (XG948E00) DIR2 (Digital Format Interface Receiver) . . . . . . . . . . . . . . . . . . . . . . . . . . 19 YSS910-S (XV988A00) DSP6 (Digital Signal Processor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 P61/DQ1 P60/DQ0 P57//W/(R//W) P56//R(E) P55/A0 P54//S0 P53//IBF0 P52/OBF0 CNVSS/VPP /RESET P51/TOUT/XCOUT P50/XCIN VSS XIN XOUT VCC AVCC LPF AVSS P44/CNTR1 P43/CNTR0 P42/INT1 P41/INT0 P40//EDMA P87//RTS1 P86//CTS1 P85/URXD1 P84/UTXD1 P83//RTS2/STXD P82//CTS2/SRXD P81/URXD2/SCLK P80/UTXD2//SRDY P37//RD P36//WR P35/SYNCOUT P34/ØOUT P33/DMAOUT P32 P31 P30/RDY I/O I/O I/O I/O I/O I/O I/O I/O I I I/O I/O I O O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O Port 6 Port 5 Chip operation mode Reset input Port 5 Ground Quartz crystal input Quartz crystal output Power supply +5V Analog power supply +5V Loop filter for synthesizer Analog ground Port 4 Port 8 Port 3 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 P17/AB15 P16/AB14 P15/AB13 P14/AB12 P13/AB11 P12/AB10 P11/AB9 P10/AB8 P07/AB7 P06/AB6 P05/AB5 P04/AB4 P03/AB3 P02/AB2 P01/AB1 P00/AB0 P27/DB7 P26/DB6 P25/DB5 P24/DB4 P23/DB3 P22/DB2 P21/DB1 P20/DB0 P74/OBF1 P73//IBF1//HLDA P72//S1 P71//HOLD P70//SOF USB D+ USB D- Ext. Cap VSS VCC P67/DQ7 P66/DQ6 P65/DQ5 P64/DQ4 P63/DQ3 P62/DQ2 I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O Port 1 Port 0 Port 2 Port 7 USB +voltage line interface USB -voltage line interface Power supply +3.3V Ground Power supply +5V Port 6 M37641M8-141FP (X2485200) CPU (USB 32K) MAIN: IC407 （LS I 端子機能表） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 SPX2000 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 MD1 MD2 Vcc(RTC) XTAL2 EXTAL2 Vss(RTC) NMI IRQ0/IRL0/PTH0 IRQ1/IRL1/PTH1 IRQ2/IRL2/PTH2 IRQ3/IRL3/PTH3 IRQ4/PTH4 D31/PTB7 D30/PTB6 D29/PTB5 D28/PTB4 D27/PTB3 D26/PTB2 VssQ D25/PTB1 VccQ D24/PTB0 D23/PTA7 D22/PTA6 D21/PTA5 D20/PTA4 Vss D19/PTA3 Vcc D18/PTA2 D17/PTA1 D16/PTA0 VssQ D15 VccQ D14 D13 D12 D11 D10 D9 D8 D7 D6 VssQ D5 VccQ D4 D3 D2 D1 D0 A0 A1 A2 A3 VssQ A4 VccQ A5 A6 A7 A8 A9 A10 A11 A12 A13 VssQ A14 VccQ A15 A16 A17 A18 A19 A20 A21 Vss A22 Vcc A23 VssQ A24 VccQ A25 BS/PTK4 RD WE0/DQMLL WE1/DQMLU/WE WE2/DQMUL/ICIORD/PTK6 WE3/DQMUU/ISIOWR/PTK7 RD/WR AUDSYNC/PTE7 VssQ CS0/MCS0 VccQ CS2/PTK0 CS3/PTK1 CS4/PTK2 CS5/CE1A/PTK3 CS6/CE1B CE2A/PTE4 CE2B/PTE5 I I - O I - I I I I I I I/O I/O I/O I/O I/O I/O - I/O - I/O I/O I/O I/O I/O - I/O - I/O I/O I/O - I/O - I/O I/O I/O I/O I/O I/O I/O I/O I/O - I/O - I/O I/O I/O I/O I/O O O O O - O - O O O O O O O O O - O - O O O O O O O - O - O - O - O I/O O O O I/O I/O O I/O - O - I/O I/O I/O I/O O I/O I/O Mode control Power supply +1.8 V Crystal oscillator Ground Non-maskable interrupt request Interrupt request / Port H Data bus / Port B Ground Data bus / Port B Power supply +3.3 V Data bus / Port B Data bus / Port A Ground Data bus / Port A Power supply +1.8 V Data bus / Port A Ground Data bus Power supply +3.3 V Data bus Ground Data bus Power supply +3.3 V Data bus Address bus Ground Address bus Power supply +3.3 V Address bus Ground Address bus Power supply +3.3 V Address bus Ground Address bus Power supply +1.8 V Address bus Ground Address bus Power supply +3.3 V Address bus Bus cycle / Port K Read strobe Select signal (D7-D0) / D QM (SDRAM) Select signal (D15-D8) / D QM (SDRAM) / Write enable Select signal (D23-D16) / D QM (SDRAM) / I/O read / Port K Select signal (D31-D24) / D QM (SDRAM) / I/O write / Port K Read / Write AUD cycle / Port E Ground Chip select / Mask ROM chip select Power supply +3.3V Chip select / Port K Chip select / Chip enable / Port K Chip select / Chip enable Chip enable / Port E 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 CKE/PTK5 RAS3L/PTJ0 PTJ1 CASL/PTJ2 VssQ CASU/PTJ3 VccQ PTJ4 PTJ5 DACK0/PTD5 DACK1/PTD7 PTE6 PTE3 RAS3U/PTE2 PTE1 TDO/PTE0 BACK BREQ WAIT RESETM ADTRG/PTH5 IOIS16/PTG7 ASEMD0/PTG6 ASEBRKAK/PTG5 PTG4/CKIO2 AUDATA3/PTG3 AUDATA2/PTG2 Vss AUDATA1/PTG1 Vcc AUDATA0/PTG0 TRST/PTF7/PINT15 TMS/PTF6/PINT14 TDI/PTF5/PINT13 TCK/PTF4/PINT12 IRLS3/PTF3/PINT11 IRL2/PTF2/PINT10 IRLS1/PTF1/PINT9 IRLS0/PTF0/PINT8 MD0 Vcc(PLL1) CAP1 Vss(PLL1) Vss(PLL2) CAP2 VCC(PLL2) AUDCK/PTH6 Vss Vss Vcc XTAL1 EXTAL1 STATUS0/PTJ6 STATUS1/PTJ7 TCLK/PTH7 /IRQOUT VssQ CKIO VccQ TXD0/SCPT0 SCK0/SCPT1 TXD1/SCPT2 SCK1/SCPT3 TXD2/SCPT4 SCK2/SCPT5 RTS2/SCPT6 RXD0/SCPT0 RXD1/SCPT2 Vss RXD2/SCPT4 Vcc CTS2/IRQ5/SCPT7 MCS7/PTC7/PINT7 MCS6/PTC6/PINT6 MCS5/PTC5/PINT5 MCS4/PTC4/PINT4 VssQ WAKEUP/PTD3 VccQ RESETOUT/PTD2 MCS3/PTC3/PINT3 MCS2/PTC2/PINT2 MCS1/PTC1/PINT1 MCS0/PTC0/PINT0 DRAK0/PTD1 DRAK1/PTD0 DREQ0/PTD4 DREQ1/PTD6 RESETP CA MD3 MD4 MD5 AVss AN0/PTL0 AN1/PTL1 AN2/PTL2 AN3/PTL3 AN4/PTL4 AN5/PTL5 AVcc AN6/DA1/PTL6 AN7/DA0/PTL7 AVss I/O I/O I/O I/O - I/O - I/O I/O I/O I/O I/O I/O I/O I/O I/O O I I I I I I I/O I/O I/O I/O - I/O - I/O I I I I I I I I I - - - - - - I - - - O I I/O I/O I/O O - I/O - O I/O O I/O O I/O I/O I I - I - I I/O I/O I/O I/O - I/O - I/O I/O I/O I/O I/O I/O I/O I I I I I I I - I I I I I I - I/O I/O - CK enable / Port K RAS address bus / Port J Port J CAS address bus / Port J Ground CAS address bus / Port J Power supply +3.3 V Port J DMA acknowledge / Port D Port E RAS address bus / Port E Port E Test data / Port E Bus acknowledge Bus request Hardware wait request Manual reset Analog trigger / Port H Write protect / Port G ASE mode / Port G ASE break acknowledge / Port G Port G / Clock output AUD data / Port G Ground AUD data / Port G Power supply +1.8 V AUD data / Port G Test reset / Port F / Port interruption Test mode switch / Port F / Port interruption Test data / Port F / Port interruption Test clock / Port F / Port interruption Interrupt request / Port F / Port interruption Mode control Power supply +1.8 V Capacitor Ground Ground Capacitor Power supply +1.8 V AUD clock / Port H Ground Power supply +1.8 V Crystal oscillator Processor status / Port J Timer clock / Port H Interrupt request output Ground System clock input / output Power supply +3.3 V Data transmission / SCI port Serial clock / SCI port Data transmission / SCI port Serial clock / SCI port Data transmission / SCI port Serial clock / SCI port Transmit request / SCI port Data reception / SCI port Ground Data reception / SCI port Power supply +1.8 V Transmit clear / Interrupt request / SCI port Mask ROM chip select / Port C / Port interruption Ground Standby mode Interrupt request output / Port D Power supply +3.3 V Reset output / Port D Mask ROM chip select / Port C / Port interruption DMA acknowledge / Port D DMA request / Port D Power on reset Chip active Mode control Analog ground Analog input / Port L Analog power supply +3.3 V Analog input / Analog output / Port L Analog ground HD6417709SF133 (X2081A00) CPU (SH3) MAIN: IC004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 SPX2000 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 Vdd Vss XI XO Vdd5 /SYNCI /SYNCO Vdd5 CKI CKO CKSEL Vss MCKS /SSYNC /IC /TEST BTYP /IRQ TRIG Vdd5 Vss /CS /WR /RD CA7 CA6 CA5 CA4 CA3 CA2 CA1 Vss Vdd CD15 CD14 CD13 CD12 CD11 CD10 CD09 CD08 CD07 CD06 Vss Vdd Vdd5 CD05 CD04 CD03 CD02 CD01 CD00 /WAIT Vss SI0 SI1 SI2 SI3 SI4 SI5 SI6 SI7 Vss Vdd5 SO0 SO1 SO2 SO3 SO4 SO5 SO6 SO7 Vss DB00 DB01 DB02 DB03 DB04 DB05 DB06 DB07 DB08 DB09 DB10 DB11 DB12 Vdd5 Vdd I O I O I O I I I I I I O I/O I I I I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O O I I I I I I I I O O O O O O O O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O Power supply (3.3 V) Ground System master clock input (60 MHz or 30 MHz) System master clock output (High or 30 MHz) Power supply (5 V) Sync. signal input Sync. signal output Power supply (5 V) System clock input (30 MHz) System clock output (30 MHz) System master clock select (0: 60 MHz, 1: 30 MHz) Ground Serial I/O master clock input (128 x Fs) Serial I/O Sync. signal output Initial clear (RESET) Test mode setting (0: Test, 1: Normal) Data bus type select (0: 8 bit, 1: 16 bit) IRQ output Trigger signal input/output Power supply (5 V) Ground chip select signal input Write signal input Read signal input Address bus of internal register Ground Power supply (3.3 V) Data bus of internal register Ground Power supply (3.3 V) Power supply (5 V) Data bus of internal register WAIT output Ground Serial data input Ground Power supply (5 V) Serial data output Ground Parallel data bus Power supply (5 V) Power supply (3.3 V) 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 Vss DB13 DB14 DB15 DB16 DB17 DB18 DB19 DB20 DB21 DB22 Vss Vdd DB23 DB24 DB25 DB26 DB27 DB28 DB29 DB30 DB31 TIMO/DBOB Vss Vdd5 DA00 DA01 DA02 DA03 DA04 DA05 DA06 DA07 Vss DA08 DA09 DA10 DA11 DA12 DA13 DA14 DA15 Vss Vdd (n.c) Vdd5 DA16 DA17 DA18 DA19 DA20 DA21 DA22 DA23 Vss DA24 DA25 DA26 DA27 DA28 DA29 DA30 DA31 Vdd5 Vss A00 A01 A02 A03 A04 A05 A06 A07 A08 A09 Vss Vdd A10 A11 A12 A13 A14 A15/RAS A16/CAS A17/CE /WE /OE Vdd5 I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O O O O O O O O O O O O O O O O O O O O O Ground Parallel data bus Ground Power supply (3.3 V) Parallel data bus Timing signal output/ Parallel data bus output/ input Ground Power supply (5 V) Memory data bus Ground Memory data bus Ground Power supply (3.3 V) Not used Power supply (5 V) Memory data bus Ground Memory data bus Power supply (5 V) Ground Memory address (SRAM, PSRAM, DRAM) Ground Power supply (3.3 V) Memory address (SRAM, PSRAM, DRAM) Memory address (SRAM, PSRAM) Memory address (SRAM, PSRAM), /RAS (DRAM) Memory address (SRAM, PSRAM), /CAS (DRAM) Memory address (SRAM), /CE (PSRAM) Memory write enable signal Memory output enable signal Power supply (5 V) YSS910-S (XV988A00) DSP6 (Digital Signal Processor) MAIN: IC303 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 SPX2000 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 CDOUT /CS /EMPH RXP0 RXN0 VA+ AGND FILT /RST RMCK RERR RXP1 RXP2 RXP3 O I O I I O O I/O O I I I Data out (SPI) Control port chip select (SPI) Pre-emphasis AES3/SPDIF receiver port Positive analog power supply +5V Analog ground PLL loop filter Reset Input section recovered master clock Receiver error Additional AES3/SPDIF receiver port 15 16 17 18 19 20 21 22 23 24 25 26 27 28 RXP4 OSCLK OLRCK SDOUT INT U OMCK DGND VL+ H//S RXP5 RXP6 CDIN CCLK I I/O I/O O O O I I I I I I Additional AES3/SPDIF receiver port Serial audio output bit clock Serial audio output left/right clock Serial audio output data Interrupt User data System clock Digital ground Positive logic power supply +5V Hardware/software mode control Additional AES3/SPDIF receiver port Serial control data in (SPI) Control port clock CS8415A-CS (X2089A00) DIR (Digital Audio Interface Receiver) MAIN: IC401 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 DAUX HDLT DOUT VFL OPT SYNC MCC WC MCB MCA SKSY XI XO P256 LOCK Vss TC DIM1 DIM0 DOM1 DOM0 KM1 I O O O O O O O O O I I O O O O I I I I I Auxiliary input for audio data Asynchronous buffer operation flag Audio data output Parity flag output Fs x 1 Synchronous output signal for DAC Fs x 1 Synchronous output signal for DSP Fs x 64 Bit clock output Fs x 1 Word clock output Fs x 128 Bit clock output Fs x 256 Bit clock output Clock synchronization control input Crystal oscillator connection or external clock input Crystal oscillator connection VCO oscillating clock connection PLL lock flag Logic section power (GND) PLL time constant switching output Data input mode selection Data input mode selection Data output mode selection Data output mode selection Clock mode switching input 1 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 RSTN Vdda CTLN PCO (NC) CTLP Vssa TSTN KM2 KM0 FS1 FS0 CSM EXTW DDIN LR Vdd ERR EMP CD0 CCK CLD I I O I I I I O O I I I O O O O I I System reset input VCO section power (+5V) VCO control input N PLL phase comparison output VCO control input P VCO section power (GND) Test terminal. Open for normal use Clock mode switching input 2 Clock mode switching input 0 Channel status sampling frequency display output 1 Channel status sampling frequency display output 0 Channel status output method selection External synchronous auxiliary input word clock EIAJ (AES/EBU) data input PLL word clock output Logic section power (+5 V) Data error flag output Channel status emphasis control code output 3-wire type microcomputer interface data output 3-wire type microcomputer interface clock input 3-wire type microcomputer interface load input YM3436DK (XG948E00) DIR2 (Digital Format Interface Receiver) MAIN: IC205 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 SDA/CDOUT AD0//CS AD2 RXP DGND2 VD2+ DGND4 DGND3 /RST NC1 NC2 ILRCK ISCLK SDIN I/O I/O I I I I/O I/O I Serial control data I/O (I2C) / Data out (SPI) Address bit 0 (I2C) / Control port chip select (SPI) Address bit 2 (I2C) Auxiliary AES3 Receiver port Digital ground Positive digital power supply (+5V) Digital ground Reset Not used Serial audio input left/right clock Serial audio bit clock Serial audio data port 15 16 17 18 19 20 21 22 23 24 25 26 27 28 TCBL NC3 NC4 NC5 INT U OMCK DGND VD+ H//S TXN TXP AD1/CDIN SCL/CCLK I/O O I/O I I O O I I Transmit channel status block start Not used Interrupt User data Master clock Digital ground Positive digital power supply (+5V) Hardware/software control mode select Differential line drivers Address bit 1 (I2C) / Serial control data in (SPI) Control port clock CS8405A-CS (XZ349A00) DIT (Digital Audio Interface Transmitter) MAIN: IC405 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 SPX2000 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 /RST M//S LRCK SCLK MCLK VD GND VL SDOUT DIV /HPF DIF I I I/O I/O I O I I I Reset Master/slave mode Left right clock Serial clock Master clock Digital power supply +5V Ground Logic power supply +3.3V Serial audio data output Divider High pass filter enable Digital input format 13 14 15 16 17 18 19 20 21 22 23 24 M0 M1 TST AINL+ AINL- GND VA AINR- AINR+ VCOM REFGND FILT+ I I I I I I I O O Mode selection Test Differential left channel analog input Ground Analog power supply +5V Differential right channel analog input Common voltage Reference ground Positive voltage reference CS5361-KS (X3447A00) ADC (Analog to Digital Converter) MAIN: IC603 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 DVSS DVDD MCLK /PD BICK SDATA LRCK SMUTE//CS DFS DEM0/CCLK DEM1/CDTI DIF0 DIF1 DIF2 - - I I I I I I I I I I I I Digital ground Digital power supply Master clock Power down mode Audio serial data clock Audio serial data input L/R clock Soft mute Double speed sampling mode De-emphasis enable Digital input format 15 16 17 18 19 20 21 22 23 24 25 26 27 28 BVSS VREFL VREFH AVDD AVSS AOUTR- AOUTR+ AOUTL- AOUTL+ VCOM P//S CKS0 CKS1 CKS2 - I I - - O O O O O I I I I Substrate ground Low level voltage reference High level voltage reference Analog power supply +5 V Analog ground Rch negative analog output Rch positive analog output Lch negative analog output Lch positive analog output Common voltage output Parallel/serial select Master clock select AK4393-VF-E2 (XW029A00) DAC (Digital to Analog Converter) MAIN: IC701 1 2 3 4 5 6 7 1A 1Y 2A 2Y 3A 3Y Vss 14 13 12 11 10 9 8 VDD 6A 6Y 5A 5Y 4A 4Y TC74VHC04FT (X0195A00) Hex Inverter MAIN: IC207, 501 TC74VHCT08AFT (X3586A00) TC74VHC08FT (XV891A00) Quad 2 Input AND MAIN: IC404 IC005, 107 1 2 3 1A 1Y 4 2A 5 2B 6 2Y 7 VSS 1B 14 13 12 VDD 4A 11 4Y 10 3B 9 3A 8 3Y 4B TC74VHC00FT (X2313A00) Quad 2 Input NAND MAIN: IC209 1 2 3 1A 1Y 4 2A 5 2B 6 2Y 7 Vss 1B 14 13 12 VDD 4A 11 4Y 10 3B 9 3A 8 3Y 4B I IC BLOCK DIAGRAM（IC ブロック図） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 SPX2000 TC74VHC32FT (XY945A00) Quad 2 Input OR MAIN: IC012 TC74VHC244FT (XW234A00) Octal 3-State Bus Buffer MAIN: IC403 TC74VHCT245AFT (XT744A00) Octal 3-State Bus Transceiver MAIN: IC103-106, 203, 606 TC74VHC74FT (XV892A00) Dual D-Type Flip-Flop MAIN: IC206 74LVX4245MTCX (X3097A00) Dual Supply Octal Bus Transceiver MAIN: IC101, 102 1 2 3 4 5 6 7 20 19 18 17 16 15 14 Vcc G B1 B2 B3 B4 B5 B6 B7 B8 8 9 10 12 11 GND A8 A7 A6 A5 A4 A3 A2 A1 D1R 13 SN75124NSR (XV930A00) Triple Line Receiver MAIN: IC406 1 2 3 1A 1Y 4 2A 5 2B 6 2Y 7 GND 1B 14 13 12 Vcc 4A 11 4Y 10 3B 9 3A 8 3Y 4B INPUTS OUTPUTS PR CLR CLK D Q Q L H H L H Q O H L H H L Q O X X X H L X X X X f f L H L L H H H L H L H H H 1 2 3 4 5 6 7 1CLR 1D 1CK 1PR 1Q 1Q GND 14 13 12 11 10 9 8 VCC 2CLR CLR 2D D 2CK CK 2PR PR 2Q 2Q Q Q CLR D CK PR Q Q 1G 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 1 20 2 19 3 18 4 17 5 16 6 15 7 14 8 13 9 12 10 11 VDD (Vcc) 2G 1Y1 2A4 1Y2 2A3 1Y3 2A2 1Y4 2A1 (GND) Vss VCCA DIR A1 A2 A3 A4 A5 A6 A7 A8 GND GND VCCB VCCB /G B1 B2 B3 B4 B5 B6 B7 B8 GND 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 8 9 10 12 13 14 15 G1 G2 D D B A 11 24 23 22 21 20 19 18 8 9 10 11 12 16 15 14 13 17 1A 1B 2R 2S 2A 2B 2Y GND 1 16 2 15 3 14 4 13 5 12 6 11 7 10 8 9 Vcc 1S 1R 1Y 3A 3S 3R 3Y TC7SH04FU (XS775A00) Inverter Gate MAIN: IC003, 210, 402, 605 µPC4570G2 (XF291A00) Dual Operational Amplifier MAIN: IC601, 602, 651, 652, 703, 753 1 2 3 4 -V CH1 8 7 6 5 Output1 +V CH2 -DC Voltage Supply Inverting Input 1 Non-Inverting Input 1 +DC Voltage Supply Non-Inverting Input 2 Output2 Inverting Input 2 + - + - 1 2 3 5 4 NC GND VCC OUT Y IN A TC74VHC14FT (XV890A00) Hex Inverter MAIN: IC208 1 2 3 4 5 6 7 1A 1Y 2A 2Y 3A 3Y GND 14 13 12 11 10 9 8 VDD 6A 6Y 5A 5Y 4A 4Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 SPX2000 NJM4556AL (XP844A00) Dual Operational Amplifier MAIN: IC704, 754 TLC2932IPWR (XV064A00) PLL MAIN: IC204 1 A 2 3 4 5 6 7 8 OUT A -IN A +IN A +IN B -IN B OUT B -V +V - + B - + 1 2 3 4 5 6 7 LOGIC VDD SELECT VCO OUT FIN-A FIN-B PFD OUT LOGIC GND 14 13 12 11 10 9 8 VCO VDD RBIAS VCOIN VCO GND VCO INHBIT PFD INHIBIT NC 7 LOGIC GND 4 FIN-A 6 PFD OUT 12 VCOIN 13 RBIAS 11 VCO GND 8 NC 1 LOGIC VDD 5 FIN-B CHARGE PUMP DETECTOR 9 PFD INHIBIT 10 VCO INHBIT 14 VCO VDD 3 VCO OUT 2 SELECT BLAS CONTROL VCO OUTPUT MUX 1/2 NJM2904V(TE1) (XR532A00) Dual Operational Amplifier MAIN: IC002 1 2 3 4 -V 8 7 6 5 Output A +V Non-Inverting Input A -DC Voltage Supply +DC Voltage Supply Output B Inverting Input B Non-Inverting Input B Inverting Input A + - + - I CIRCUIT BOARDS CONTENTS FOOTSW (X4199B0) ............................................. 28 JKIN (X4199B0) ..................................................... 28 JKOUT (X4199B0) ................................................. 28 MAIN (X498B0) ................................................. 24/26 PN1 (X4199B0) ...................................................... 23 Note : See parts list for details of circuit board conponent parts. PN2 (X4199B0) ...................................................... 23 PN3 (X4199B0) ...................................................... 23 POWER (X4199B0)................................................ 28 VOL (X4199B0) ...................................................... 28 （シート基板図目次）注：シートの部品詳細は、パーツリストをご参照ください。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 SPX2000 I CIRCUIT BOARDS（シート基板図） G PN3 Circuit Board to MAIN-CN503 STORE UNDO RECALL BACK NEXT COM PARE INC DEC PARAMETER FINE PARAM UTILITY BYPASS TAP to MAIN-CN501 G PN1 Circuit Board G PN2 Circuit Board Pattern side （パターン側） Pattern side （パターン側） Component side （部品側） Pattern side （パターン側） to MAIN-CN502 Component side （部品側） Component side （部品側） 2NAP-WB05310-1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 SPX2000 G MAIN Circuit Board to VOL-CN601 to PN1-CN001 to LCD to POWER SUPPLY UNIT-CN51 L (MONO) INPUT OUTPUT R +4dBu -10dBu L +4dBu -10dBu to JKIN-CN401 to JKOUT-CN501 A A' 2NAP-WB05300-1 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 SPX2000 Component side to PN2-CN101 to PN3-CN201 to FOOTSW-CN701 AES/EBU MIDI R IN OUT IN OUT/THRU USB (TO HOST) WORD CLOCK IN Bu A A' 2NAP-WB05300-1 3 （部品側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 SPX2000 G MAIN Circuit Board B B' 2NAP-WB05300-2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 SPX2000 Pattern side B B' 2NAP-WB05300-2 1 （パターン側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 SPX2000 2NAP-WB05310-2 1 G JKIN Circuit Board Component side L (MONO) R to MAIN-CN601 INPUT L R to MAIN-CN701 OUTPUT FOOT SW to MAIN-CN002 POWER to POWER SUPPLY UNIT-CN1 to AC inlet assembly INPUT L R to MAIN-CN602 Pattern side （パターン側） Pattern side （パターン側） Pattern side （パターン側） Pattern side （パターン側） Pattern side （パターン側） Component side （部品側） Component side （部品側） Component side （部品側） Component side （部品側） G JKOUT Circuit Board G FOOTSW Circuit Board G VOL Circuit Board G POWER Circuit Board （部品側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 SPX2000 I INSPECTIONS 1. Preparations 1-1. Conditions Use following conditions unless otherwise specified. • INPUT VOLUME: MAX • Level select switch: +4dBu side (both input and output) • Analog output load: 600 Ω • Word clock (FS): 96kHz To select the word clock, press the UTILITY key several times and when "CLOCK SOURCE" appears on the LCD, press the INC/DEC key. • 0dBu = 0.775Vrms • 0dBFS = 0dB, full scale • Oscillator output impedance: 150 Ω. A sine wave is output. • Input impedance of oscilloscope, level meter, etc.: 100 kΩ or more • Noise measurement is corrected with 12.7kHz, -6dB/ octave low pass filter. (Use average values instead of effective values for measurement.) • Cross talk and distortion ratio measurement is corrected with 80kHz, -18dB/octave low pass filter. • For check items other than “2-7”, turn on the BYPASS key and keep the BYPASS LED lit while checking. 1-2. Measuring Instruments • Use System Two CASCADE Control Software APWIN Version 2.22 of Audio Precision Co. or its equivalent. • Noise meter (Use LMV-1817 of READER Corp. or the equivalent when measuring the noise.) 1-3. Writing Programs If the main program is not the latest version, it must be upgraded to the latest program. For the details, refer to "Method for Writing the Program" on page 49. [2] Frequency response (both L and R) Condition: 1kHz is used as reference of the permissible range. [3] Level difference between left and right The range of difference in the gain measured in [1] above is specified as follows. [4] Residual noise (both L and R) Condition: The input function should be turned off. Permissible range Within 1dB Input frequency Input level Permissible range 20 Hz +4 dBu -1．5～+0．5 dB 40 kHz +4 dBu -1．5～+0．5 dB Input frequency Input level Specified output level Permissible range 1 kHz +4 dBu +14 dBu +14± 2 dBu [5] Crosstalk between left and right Condition: The R channel input function should be turned off when signals are inputted to the L channel. The L channel input function should be turned off when signals are inputted to the R channel. Permissible range -80 dBu or below Input frequency Output level L(R) Permissible range R (L) 1 kHz +22 dBu -58 dBu or below 2-2. When ANALOG INPUT/OUTPUT WORD CLOCK is INT 48kHz Condition: Signals are inputted through ANALOG INPUT L, R (PHONE) and output from ANALOG OUTPUT L, R (PHONE). 2. Check Items 2-1. When ANALOG INPUT/OUTPUT WORD CLOCK is INT 96kHz Condition: Signals are inputted through ANALOG INPUT L, R (XLR) and output from ANALOG OUTPUT L, R (XLR). [1] Gain (both L and R) Connecting hot and cold terminals of OUTPUT L, R to GND respectively provides the same result. ANALOG IN SPX2000 ANALOG OUT AES/EBU IN WCLK IN USB TO HOST AES/EBU OUT MIDI IN MIDI OUT SYSTEM TWO SP SP • Connect the powered speaker to the ANALOG OUT terminal when executing Test item 2-8 Sound Check. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 SPX2000 2-3. Checking ANALOG INPUT/OUTPUT Level Select Switch Condition: Signals are inputted through ANALOG INPUT L, R (PHONE) and output from ANALOG OUTPUT L, R (PHONE). The level select switch should be set to -10dBu side (both input and output) and WORD CLOCK INT should be set to 48kHz. [1] Gain (both L and R) 2-4. Checking DIGITAL OUT Condition: Use the System Two. Signals are inputted through ANALOG INPUT L, R (XLR) and output from AES/EBU OUT. a. WORD CLOCK INT 96kHz Condition: Set WORD CLOCK INT to 96kHz. [1] Gain (AES/EBU OUT) Input frequency Input level Specified output level Permissible range 1 kHz -10 dBu 0 dBu 0± 2 dBu Input frequency Input level Specified output level Permissible range 1 kHz +4 dBu -10 dBFS -10± 2 dBFS [2] Frequency response (AES/EBU OUT) Condition: 1kHz is used as reference of the permissible range. [3] Distortion ratio (AES/EBU OUT) Input frequency Input level Permissible range 20 Hz +4 dBu -1．0～+0．5 dB 40 kHz +4 dBu -1．0～+0．5 dB 2-5. Checking DIGITAL IN Condition: Use the System Two. Signals are inputted through AES/EBU IN and output from ANALOG OUT L, R (XLR). Select AES/EBU for the word clock. Setting: Input selection Press the UTILITY key and when "INPUT SOURCE" appears on the LCD, press the INC key. Setting is completed when the asterisk (*) mark moves to the "DIGITAL" position. Press the BACK key and execute WORD CLOCK selection. a. 96kHz Condition: Make frequency setting (Sample Rate) of the System Two to 96kHz. [1] Gain (both L and R) [2] Frequency response (both L and R) Condition: 1kHz is used as reference of the permissible range. [3] Distortion ratio (both L and R) b. 48kHz Condition: Make frequency setting (Sample Rate) of the System Two to 48kHz. [1] Distortion ratio (both L and R) Input frequency Output level Permissible range 1 kHz -1 dBFS 0.01 % or below Input frequency Output level Permissible range 1 kHz -1 dBFS 0.02 % or below Input frequency Input level Specified output level Permissible range 1 kHz -10 dBFS +14 dBu +14± 2 dBu Input frequency Input level Permissible range 20 Hz -10 dBFS -1．0～+0．5 dB 40 kHz -10 dBFS -1．0～+0．5 dB Input frequency Output level Permissible range 1 kHz +22 dBu 0.01 % or below Input frequency Output level Permissible range 1 kHz +23 dBu 0.02 % or below [1] Distortion ratio (both L and R) Permissible range -80 dBu or below b. WORD CLOCK INT 48kHz Condition: Set WORD CLOCK INT to 48kHz. [1] Distortion ratio (AES/EBU OUT) Input frequency Output level Permissible range 1 kHz +23 dBu 0.02 % or below [2] Residual noise (both L and R) Condition: The input function should be turned off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 SPX2000 Supplementary) After this test, press the UTILITY key again and when "INPUT SOURCE" appears on the LCD, press the DEC key. Setting is completed when the asterisk (*) mark moves to the "ANALOG" position. Press the BACK key and execute WORD CLOCK selection. 2-6. PLL Operation Range of WORD CLOCK IN, DIGITAL IN Condition: Use the System Two. Signals are inputted through ANALOG INUT L, R (XLR) and output from OUTPUT L, R (XLR). The WORD CLOCK should be selected as follows. When checking WORD CLOCK IN: WORD CLOCK When checking DIGITAL IN: AES/EBU a. 96kHz + 6% (101.76kHz) Condition: Make frequency setting (Sample Rate) of the System Two to 96kHz + 6% [1] Distortion ratio (both WORD CLOCK IN and DIGITAL IN) b. 44.1kHz - 10% (39.69kHz) Condition: Make frequency setting (Sample Rate) of the System Two to 44.1kHz - 10% [1] Distortion ratio (both WORD CLOCK IN and DIGITAL IN) 2-7. Jitter Measurement Condition: User the System Two. Select Sec and PK. Select BW: 700Hz to 100kHz. Use AES/EBU OUT for checking. a. WORD CLOCK INT Condition: Select the value of the WORD CLOCK according to the following table. [1] Jitter Input frequency Output level Permissible range 1 kHz +23 dBu 0.03 % or below b. WORD CLOCK EXT Condition: Select the WORD CLOCK as follows. When checking WORD CLOCK IN: WORD CLOCK When checking DIGITAL IN: AES/EBU For the System Two frequency setting (Sample Rate), select the value for according to the table below. [1] Jitter (both WORD CLOCK IN and DIGITAL IN) 2-8. Checking Produced Sound Check EFFECT functions (DSP6 operation check) by listening. ANALOG INPUT, ANALOG OUTPUT Condition • WORD CLOCK: INT96kHz • Input sound signals through ANALOG INPUT L and R (XLR), recall the PRESET programs listed below one after another and adjust the INPUT VOLUME so that the CLIP of the LEVEL METER does not light up with any program. To recall the PRESET programs, press the UP/DOWN key to have a number flash in the 7-segment and press the RECALL key. PRESET programs to be checked Program 08: AMBIENCE Program 58: ROGER ON THE 12 Program 61: SYMPHONIC Program 78: DYNA FILTER Inspection: Recall the PRESET programs and check the signal through the speaker for at least 15 seconds. Perform this check on all 4 types of the PRESET programs. Operate the INPUT VOLUME and check that the output level varies. Judgment criteria 1: The EFFECT sounds are output. Judgment criteria 2: No noise is included in the output. WORD CLOCK Permissible range EXT 44．1 kHz 4 nsec or below EXT 48 kHz 4 nsec or below EXT 88．2 kHz 4 nsec or below EXT 96 kHz 4 nsec or below Input frequency Output level Permissible range 1 kHz +23 dBu 0.03 % or below WORD CLOCK Permissible range INT 44．1 kHz 2 nsec or below INT 48 kHz 2 nsec or below INT 88．2 kHz 2 nsec or below INT 96 kHz 2 nsec or below www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 SPX2000 ■ 検査 1 ．準備 1 －1 ．条件 ◇ 特に指定しないときは以下の条件とします。・ INPUT V OLUME: MAX ・レベル切替SW: ＋4dBu側(入力、出力共) ・アナログ出力の負荷は、600Ω とします。・ワードクロック(FS)は96kHzにします。なお、ワードクロックの切り替えをするには、 UTILITY キーを何度か押しLCDに CLOCK SOURCE が表示されたところで、INC/DECキーを押します。・ 0dBu＝0．775V rms ・ 0dBFS＝0デシベル・フルスケール・発振器の出力インピーダンスは150Ω とします。正弦波を出力します。・オシロスコープ、レベル計等の入力インピーダンスは100kΩ 以上とします。・ノイズ測定は12．7kHz、－6dB／OCTのLPFで補正します。(実効値ではなく平均値での測定とします。) ・クロストークと歪率の測定は80kHz、－18dB／OCTの LPFで補正します。・検査項目2－7以外はBY PA SSキーをオンにして、 BY PASSの LEDを点灯させた状態で検査します。 1 －2 ．測定器・Audio Precision社System Two CASCADE制御ソフトウェアAPWIN V ersion 2.22と同等品を使用します。・ノイズメーター(READER社 LMV-1817または同等品をノイズ測定時に使用します) 2 ．検査項目 2 －1 ．A NA L OG INP UT / OUT P UT のW OR D C L OC K INT 9 6 kHz時検査条件 A NA L OG INPUT L 、R(X L R)から入力し、A NA L OG OUTPUT L、R(X LR)から出力します。 q 利得 (L／R 共) OUTPUT L、Rのホット、コールド端子をそれぞれGND に接続しても同様の結果が得られます。 w f 特 (L／R 共) 条件許容範囲は1kHzを基準とします。 e L／R 間のレベル差 qで測定した利得の差の範囲を以下の様に規定します。 r 残留ノイズ (L／R 共) 条件入力をOFFにします。 t L／R 間のクロストーク条件 Lchに信号を入力した時は、Rchの入力をOFFにします。 Rchに信号を入力した時は、Lchの入力をOFFにします。入力周波数入力レベル規定出力レベル許容範囲 1kHz ＋4dBu ＋14dBu ＋14± 2dBu 入力周波数入力レベル許容範囲 20Hz ＋4dBu －1．5～＋0．5dB 40kHz ＋4dBu －1．5～＋0．5dB 許容範囲 1dB以内許容範囲－80dBu以下入力周波数出力レベルL(R) 許容範囲R(L) 1kHz ＋22dBu －58dBu以下 ANALOG IN SPX2000 ANALOG OUT AES/EBU IN WCLK IN USB TO HOST AES/EBU OUT MIDI IN MIDI OUT SYSTEM TWO SP SP 1 －3 ．プログラムの書き込み本体プログラムが、最新バージョンになっていない場合、最新のプログラムにバージョンアップする必要があります。詳しくは、49ページの「プログラムの書き込み」を参照してください。・パワードスピーカーは、検査項目 2 － 8 の音だし検査時に ANALOG OUTと接続します。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 SPX2000 2 －2 ．A NA L OG INP UT / OUT P UT のW OR D C L OC K INT 4 8 kHz時検査条件 ANALOG INPUT L、R(PHONE)から入力し、ANALOG OUTPUT L、R(PHONE)から出力します。 q 歪率 (L／R 共) w 残留ノイズ (L／R 共) 条件入力をOFFにします。 2 －3 ．A NA LOG INP UT/OUTP UT のレベル切替S Wの検査条件 ANALOG INPUT L、R(PHONE)から入力し、 ANALOG OUTPUT L、R(PHONE)から出力します。　レベル切替S W は－10dB u側( 入出力共) 、W OR D CLOCK INTは48kHzです。 q 利得 (L／R 共) 2 －4 ．DIGIT A L OUT の検査条件 System Twoを使用します。 A NA L OG INPUT L 、R(X L R)から入力し、A ES/EBU OUTから出力します。 a． WOR D C LOC K INT 9 6 kHz 条件 WORD CLOCK INTは96kHzにします。 q 利得 (A E S ／E BU OUT ) w f 特 (A E S /E BU OUT ) 条件許容範囲は1kHzを基準とします。 e 歪率 (A E S /E BU OUT ) b． WOR D C LOC K INT 4 8 kHz 条件 WORD CLOCK INTは48kHzにします。 q 歪率(A E S ／E BU OUT ) 2 －5 ．DIGIT A L INの検査条件 System Twoを使用します。 AES/EBU INから入力し、ANALOG OUT L、R(X LR)から出力します。 WORD CLOCKはAES/EBUを選択します。設定入力の切替 UTILITY キーを押しLCDに INPUT SOURCE が表示されたところで INCキーを押します。 “ ＊”マークが DIGITAL に移動したら設定完了です。 BACKキーを押し、ワードクロックの切り替え操作をします。 a． 9 6 kHz 条件 System Twoの周波数設定(Sample Rate)を96kHzにします。 q 利得 (L／R 共) w f 特 (L／R 共) 条件許容範囲は1kHzを基準とします。 e 歪率 (L／R 共) b． 4 8 kHz 条件 System Twoの周波数設定(Sample Rate)を48kHzにします。 q 歪率 (L／R 共) 補足) このテスト後、再びUTILITY キーを押しLCDに INPUT SOURCE が表示されたところでDECキーを押します。 “ ＊”マークが ANALOG に移動したら設定完了です。 BACKキーを押し、ワードクロックの切り替え操作をします。入力周波数出力レベル許容範囲 1kHz ＋23dBu 0．02％以下許容範囲－80dBu以下入力周波数入力レベル規定出力レベル許容範囲 1kHz －10dBu 0dBu 0± 2dBu 入力周波数入力レベル規定出力レベル許容範囲 1kHz ＋4dBu －10dBFS －10± 2dBFS 入力周波数入力レベル許容範囲 20Hz ＋4dBu －1．0～＋0．5dB 40kHz ＋4dBu －1．0～＋0．5dB 入力周波数出力レベル許容範囲 1kHz －1dBFS 0．01％以下入力周波数出力レベル許容範囲 1kHz －1dBFS 0．02％以下入力周波数入力レベル規定出力レベル許容範囲 1kHz －10dBFS ＋14dBu ＋14± 2dBu 入力周波数入力レベル許容範囲 20Hz －10dBFS －1．0～＋0．5dB 40kHz －10dBFS －1．0～＋0．5dB 入力周波数出力レベル許容範囲 1kHz ＋23dBu 0．01％以下入力周波数出力レベル許容範囲 1kHz ＋23dBu 0．02％以下 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 SPX2000 2 －6 ．WOR D C LOC K IN，DIGIT A L INのP LL動作範囲条件 System Twoを使用します。 A NA L OG INPUT L 、R(X L R)から入力し、A NA L OG OUTPUT L、R(X LR)から出力します。 WORD CLOCKは以下を選択します。 WORD CLOCK INの検査時 : WORD CLOCK DIGITAL INの検査時 : AES/EBU a． 9 6 kHz＋6 ％(1 0 1 .7 6 kHz) 条件 System Twoの周波数設定(Sample Rate)を96kHz＋6％にします。 q 歪率 (WOR D C LOC K IN，DIGIT A L IN共) b． 4 4 .1 kHz－1 0 ％(3 9 .6 9 kHz) 条件 System Twoの周波数設定(Sample Rate)を44.1kHz－10 ％にします。 q 歪率 (WOR D C LOC K IN，DIGIT A L IN共) 2 －7 ．ジッター測定条件 System Twoを使用します。 Sec，PKを選択します。 BW:700Hz to 100kHz を選択します。　 AES/EBU OUTで検査します。 a． WOR D C LOC K INT 条件 WORD CLOCKは、下記表の値を選択します。 q ジッター b． WOR D C LOC K E X T 条件　WORD CLOCKは以下を選択します。 WORD CLOCK INの検査時 : WORD CLOCK DIGITAL INの検査時 : AES/EBU System Twoの周波数設定(Sample Rate)は、下記表の値を選択します。 q ジッター (WOR D C LOC K IN，DIGIT A L IN共) 2 －8 ．音だし EFFECT機能(DSP6動作確認)を聴感で確認します。 ANALOG INPUT、ANALOG OUTPUT 条件・WORD CLOCK: INT96kHz ・ANALOG INPUT L,R(X LR) から音楽信号を入れ、下記のPRESETプログラムを順にリコールし、どのプログラムでも LEV EL METER の CLIP が点灯しないようにINPUT V OLUME を調整しておきます。なお、PR E S E T プログラムのリコール方法は、UP/ DOWNキーを押し7セグに数字を点滅させ、RECALL キーを押します。確認するPRESETプログラムプログラム08: AMBIENCE プログラム58: ROGER ON THE 12 プログラム61: SY MPHONIC プログラム78: DY NA FILTER 検査 PRESETプログラムをリコールし、スピーカーで信号を最低15秒間確認します。 4種類のPRESETプログラム総てに対して行います。 INPUT VOLUMEを操作して出力レベルが変化することを確認します。判定基準1: EFFECT音が出ていることを確認します。判定基準2: ノイズが含まれていないことを確認します。入力周波数出力レベル許容範囲 1kHz ＋23dBu 0．03％以下入力周波数出力レベル許容範囲 1kHz ＋23dBu 0．03％以下 WORD CLOCK 許容範囲 INT 44．1 kHz 2nsec以下 INT 48 kHz 2nsec以下 INT 88．2 kHz 2nsec以下 INT 96 kHz 2nsec以下 WORD CLOCK 許容範囲 EXT 44．1 kHz 4nsec以下 EXT 48 kHz 4nsec以下 EXT 88．2 kHz 4nsec以下 EXT 96 kHz 4nsec以下 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 SPX2000 I TEST PROGRAM G Preparation 1) Cables XLR (AES/EBU): 1 pc. MIDI: 1 pc. USB: 1 pc. FC5 or OPEN JACK: 1 pc. 5) Program Version Check If the main program is not the latest version, it must be upgraded to the latest program. For the methods to check the program version and to write, refer to "Method for Writing the Program" on page 49. (1) After starting the USB-MIDI driver operation, click on "Thru ON/OFF". � � (2) Clicking on this circle (1-1) will set USB=MIDI to THRU.� � � If USB has become invalid by SPX2000 USB initialization, press the [OK] key to end the operation and start up the USB-MIDI driver once again. * Download the USB-MIDI driver from the YSISS Home Page. (YSISS URL >>http://plaza.yamaha.co.jp/ysiss/exindex.nsf) 3) Personal Computer (PC): DOS/V machine Using the USB cable, connect the USB connector of the main unit and the PC. Make settings for the USB-MIDI driver on the PC. For the USB driver, use a Windows 9x type one. (Use of the Windows 2000 or XP, USB driver does not provide proper operation.) 4) Settings for USB-MIDI driver In the "control panel" display on the PC, double click on "USB-MIDI Driver" to start up the USB-MIDI driver and then make settings. 2) Measuring Instruments Oscillator (output impedance: 150 Ω) Oscilloscope (input impedance: 100 kΩ or more) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 SPX2000 Example of panel display MCS(PLLP2) Ver.Check G Starting Testing Turn on the power while pressing "UTILITY" and "NEXT" keys Entry screen SERVICE TEST SPX2000 V1.00 Displayed for a few seconds only. NEXT POWER UTILITY G Operation Procedure Key on panel Function [MEMORY UP] Selection of test numbers in increasing direction [MEMORY DOWN] Selection of test numbers in decreasing direction [RECALL] Starting execution of the selected test number [UNDO] Forcing to stop the test being executed. * Stopping may not be available depending on test items. [NEXT] Manual input of OK in the test judged by a testing person. [BACK] Manual input of NG in the test judged by a testing person. Test name Test description and result Test number 01 Meanings of displayed test results OK Normal Details of the test that ended as normal are displayed on the left. NG Error Details of the test in which an error occurred are displayed on the left. -- Not tested yet The test result is kept until the power is turned off. (It is cleared when the power is turned off.) When re-testing, a new test result is written over the previous test result. It is not possible to restore the "not tested" state for those items that have already been tested. ("not tested" state is restored when the power is turned off.) The LCD back light is white while testing. (this is applicable to tests other than the back light test) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 SPX2000 G Outline of Tests 1. MCS (PLLP2) test Reg. (00, 0f, 10, 16) of PLLP2 is read and written for comparison check. Reg.12 (Ver.) is read and displayed. A0..A4 and D0..D15 are checked. Reg.12 cannot be checked automatically because it is a read only Reg. Example of execution screen MCS(PLLP2) OK When testing starts, "testing..." appears on the screen. "OK" is displayed when the MCS test ends with a satisfactory result and "NG" when it ends with an abnormality detected. G List of check items Item Test name Outline of check item Judgment 1 MCS(PLLP) Check the register of the gate array PLLP2 by reading/writing. Auto 2 BATT Check the voltage of the back-up battery/ Auto 4 DSP6,SIO Check the register of DSP6 by reading/writing and SIO connection. Auto 5 MIDI Check MIDI OUT ➝ IN transmission and reception. Auto 6 USB MIDI Check the USB circuit by initializing it and then executing loopback on the external PC. Auto 7 AES/EBU IN/OUT Check AES/EBU IN/OUT DIGITAL by executing loopback. Semi-auto (DIO) 8 WORD CLOCK Count the Fs of the oscillator using WCLK IN and check the lock state of PLL. Semi-auto 9 LCD Check that the back-light lights up in each color and the entire screen is displayed in black and white. Visual check 10 PANEL LED Check that LEDs (including 7-segment LEDs) light up in the specified order. Visual check 11 PANEL ALL LED Check that all LEDs light up in respective colors, Visual check 12 PANEL SW Check switches by pressing them in the specified order, Semi-auto 13 ANALOG IN/OUT Check analog input/output. Visual check 14 NG LOG Check that a list of test numbers resulted in NG is displayed. 2. BATT test The back-up battery is checked automatically with its voltage measured by A/D. Example of execution screen BATTERY NG When testing starts, "testing..." appears on the screen. "OK" is displayed when the battery test ends with a satisfactory result and "NG" when the measured battery voltage is 2.8V or lower. 3. There is no test program specified for No. 3. 4. DSP6, SIO test The register of DSP6 is read and written to check the condition of Data BUS and Address BUS. The data is read and written in the DRAM of DSP6 via the register for the comparative check. The OUT METER SIO connection of DSP6 is checked by sending and receiving the signal. Example of execution screen DSP6 bit23,3,0 NG When testing starts, "testing..." appears on the screen. "OK" is displayed when the DSP6 test ends with a satisfactory result and "NG" when it ends with an abnormality detected. Caution Cancellation of the test is invalid while it is being executed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 SPX2000 5. MIDI test The character string "SCI2: TEST¥n" (¥n=0Ah) is sent from MIDI OUT to MIDI IN at 31.25 Kbps to check if the sent string and the received one are identical. Preparation Connect the MIDI OUT and MIDI IN connectors of the main unit. Example of execution screen MIDI OK If no signal is received, "NG" is displayed in about 2 seconds. When testing starts, "testing..." appears on the screen. "OK" is displayed when the MIDI test ends with a satisfactory result and "NG" when it ends with an abnormality detected. Caution Cancellation of the test is invalid while it is being executed. 6. USB MIDI test After initialization of the USB, it is checked automatically using the loopback of the USB connected PC. Preparation Using the general purpose USB cable, connect the USB connector of the main unit and the PC. Make USB-MIDI driver settings on the PC. (Thru On) Example of execution screen USB MID OK If no signal is received, "NG" is displayed after about 10 seconds. (The waiting time is set longer than that for the MIDI test because USB response may be slower depending on PCs.) When testing starts, "testing..." appears on the screen. "OK" is displayed when the MIDI test ends with a satisfactory result and "NG" when it ends with an abnormality detected. Caution Cancellation of this test is invalid while it is being executed. 7. AES/EBU IN/OUT (DIO) test AES/EBU OUT DIGITAL ➝ AES/EBU IN DIGITAL is checked by using SIO of DSP. Preparation Connect AES/EBU OUT DIGITAL and AES/EBU IN DIGITAL of the main unit. Example of execution screen AES/EBU IN/OUT OK When testing starts, "testing..." appears on the screen. When "DIO disconnect!" is displayed, disconnect the AES/EBU signal which is connected IN -> OUT. When preparation is completed, press the [NEXT] switch. To cancel this test in this stage, press either [UNDO] or [BACK] switch. When the [NEXT] switch is pressed, testing starts again and "testing..." appears on the screen. "OK" is displayed when the DIO test ends with a satisfactory result and "NG" when it ends with an abnormality detected. Caution 1) DIR Lock flag is read by Gate Array (and checked after waiting for about 100mS after starting SIO transmission/reception). 2) DIT, DIR, CDIN, CDOUT are read and written to check RUN bit (0 x 40 of Reg4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 SPX2000 8. WORD CLOCK test The external oscillator OUT -> WORD CLOCK IN is counted by PLLP2 for automatic check. (Fs=44.1/48/88.2/96kHz) The lock condition of PLL is checked by reading the UNLOCK signal when the clock has been stabilized after the FS was changed (after about 200 ms). The unlock condition of PLL is checked by pulling off the cable connected to WORD CLOCK IN. Preparation Connect the external oscillator and WORD CLOCK IN of the main unit. Set the output clock of the external oscillator to 44.1kHz. Example of execution screen WORD CLOCK OK When testing starts, "testing..." appears on the screen. When "Fs=48kHz OK?" appears on the screen, change the output clock of the external oscillator to Fs=48kHz. When preparation is completed, press the [NEXT] switch. To cancel testing in this stage, press either [UNDO] or [BACK] switch. When testing starts, "testing..." appears on the screen. When "Fs=88.2kHz OK?" appears on the screen, change the output clock of the external oscillator to Fs=88.2kHz. When preparation is completed, press the [NEXT] switch.To cancel testing in this stage, press either [UNDO] or [BACK] switch. When testing starts, "testing..." appears on the screen. When "Fs=96kHz OK?" appears on the screen, change the output clock of the external oscillator to Fs=96kHz. When preparation is completed, press the [NEXT] switch.To cancel testing in this stage, press either [UNDO] or [BACK] switch. When testing starts, "testing..." appears on the screen. When "WC disconnect!" appears on the screen, disconnect the WORD CLOCK OUT signal which is connected IN -> OUT. When preparation is completed, press the [NEXT] switch.To cancel testing in this stage, press either [UNDO] or [BACK] switch. "OK is displayed when the WORD CLOCK test ends with a satisfactory result and "NG" when it ends with an abnormality detected. Caution 1) Various types of FS for PLL LOCK test are produced by the external oscillator. FS=44.1kHz, 48kHz, 88.2kHz, 96kHz 9. LCD test The LCD back-light (LED) is turned on in 3 colors respectively and checked visually. The entire LCD screen is displayed in black and white alternately and checked visually. Example of execution screen PA O "Red" appears on the screen and the LCD back-color lights in red. "Green" appears on the screen and the LCD back-color lights in green. "Blue" appears on the screen and the LCD back-color lights in blue. "White" appears on the screen and the LCD back-color lights in white. If LCD back-color check result is satisfactory, press the [NEXT] switch but if it is not, press the [BACK] switch to make this test end. When the above four colors have been confirmed and the [NEXT] switch is pressed at the fourth color, dots on the entire LCD screen are turned on and off repeatedly. Check that the entire screen is displayed in black and white. Check that no dot is missing on the entire screen. Check that the display contrast is in good condition. When the check results of above 3 items are satisfactory, press the [NEXT] switch but if they are not, press the [BACK] switch. "OK" appears on the screen when the LCD test ends with a satisfactory result and "NG" when it ends with an abnormality detected. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 SPX2000 10. PANEL LED test Whether the LEDs on the panel light up in the specified order or not is checked visually. Example of execution screen. PANEL LED OK LEDs light up in the lighting order as specified. All LEDs light up at the end or the lighting order. If LEDs light properly, press the [NEXT] switch but if not press the [BACK] switch. "OK" appears on the screen when the PANEL LED test ends with a satisfactory result and "NG" when it ends with an abnormality detected. Caution 1) For the lighting order, refer to Fig. 1. 2) Only the meter L/R segments light up at the same time. All the others light up independently. 3) The 7 seg LEDs light up in the order of 0, 1, 2 on the left and 0, 1, 2 on the right. LED lighting order: Fig. 1 11. PANEL ALL LED test When only red LEDs light up, check that no different color exists. When only green LEDs light up, check that no different color exists. When only orange LEDs light up, check that no different color exists. Example of execution screen PANEL ALL LED OK "RED LEDs" appears on the screen and all red LEDs light up. "GREEN LEDs" appears on the screen and all red LEDs light up. "ORANGE LEDs" appears on the screen and all red LEDs light up. If LEDs light up by each color correctly, press the [NEXT] switch but if not, press the [BACK] switch to make this test end. "OK" appears on the screen when the PANEL ALL LED test ends with satisfactory test result but "NG" when it ends with an abnormality detected. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 SPX2000 12. PANEL SW test Press all the switches on the panel in the specified order, and their response is checked automatically. Example of execution screen PANEL SW OK The name of the switch to be pressed is displayed on the LCD. After confirmation of that switch being pressed, the name of the switch to be pressed next is displayed. When "FOOT SW" appears at the end, insert the OPEN jack into the FOOT SW terminal. The infinite loop is effective until the expected switch is pressed. In order to force testing to end, press the [BACK] switch to make the test in the NG state. "OK" appears on the screen when the PANEL SW test ends with satisfactory test result but "NG" when it ends with an abnormality detected. Caution Refer to Fig. 2 for the operation procedure. Button operation order: Fig. 2 14. NG LOG The numbers of tests that ended as NG are displayed as a list. Among all tests that have been executed, the numbers of the tests whose final test result was NG are displayed. Example of execution screen NG 1,2,3,4,5,8, 10,12 When some tests have not been executed and the executed tests have all resulted as OK, the numbers of those that have not been executed are displayed. NOT TESTED 3,5, 8,10 To return to the test menu number selection screen from the NG LOG display screen, press one of [UNDO], [RECALL] and [NEXT] switches. 13. ANALOG IN/OUT test Enter the test waveform through the ANALOG input and check the waveform at ANALOG output. Example of execution screen ANALOG IN/OUT OK As DSP6 is 96kHz through setting, the DSP input/output waveforms should be identical. If the check result is OK, press the [NEXT] switch and if NG, press the [BACK] switch. "OK" appears on the screen when the ANALOG IN/ OUT test ends with satisfactory test result but "NG" when it ends with an abnormality detected. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 SPX2000 ● 準備 1 ) ケーブル類 X LR(AES/EBU): 1本 MIDI: 1本 USB: 1本 FC5またはOPEN JACK: 1個 ■ テストプログラム * USB-MIDIドライバーは、ヤマハCS センターホームページのダウンロードページからダウンロードしてください。 (URL >>http://plaza.yamaha.co.jp/ysiss/index.nsf) (1)起動後「Thru ON/OFF」をチェックします。� � (2)この○ (1-1)をクリックすると、 USB-MIDIがTHRUになります。� � � SPX2000のUSB初期化で、一度USB が無効になった場合、[OK]を押して終了後、再度USB-MIDIドライバを起動します。� � 5 ）プログラムバージョンの確認本体プログラムが、最新バージョンになっていない場合、最新のプログラムにバージョンアップする必要があります。プログラムのバージョンの確認および書き込み方法は、49ページの「プログラムの書き込み」を参照してください。 3 ) パーソナルコンピューター（P C ）: DOS /V 機本体のUSBコネクタとパソコンとをUSBケーブルで接続します。パソコンに、USB-MIDIドライバの設定をします。 USBドライバーは、Windows9x系のものを用います。 (Windows2000,X PのUSBドライバーでは、正常に動作をしません。) 4 ）US B-MIDIドライバの設定パソコンの「コントロールパネル」->「USB-MIDI Driver」をダブルクリックして、USB-MIDI ドライバを起動した後、設定をします。 2 ) 測定器発振器（出力インピーダンスは150Ω とします。）オシロスコープ（入力インピーダンスは100kΩ 以上とします。） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 SPX2000 テスト結果表示の説明 OK 正常左側に正常終了テスト詳細が表示されます NG エラー左側にエラーが発生したテスト詳細が表示されます -- 未テストテスト結果は、電源OFFされるまで保持されます（電源OFFで揮発します）。再テスト時は、以前のテスト結果に新しいテストが上書きされます。既にテストした項目を、未テスト状態に戻すことはできません（電源OFFで未テストに戻ります）。テスト中のLCDバックライトは、白です（但しバックライトテスト以外）。テスト名テスト詳細と結果表示テスト番号 01 パネル表示例 MCS(PLLP2) Ver.Check ● 操作方法パネル上のキー機能 [MEMORY UP] テスト番号の順方向選択 [MEMORY DOWN] テスト番号の逆方向選択 [RECALL] 選択したテスト番号の実行開始 [UNDO] 実行中のテストの強制中止 * 但しテスト項目によっては不可能なものもあります [NEXT] テスト者（人間）が判定するテストでの手動OK入力 [BACK] テスト者（人間）が判定するテストでの手動NG入力 ● 起動方法「UTILITY 」+「NEX T」を押しながら電源ONします。エントリー画面 SERVICE TEST SPX2000 V1.00 数秒だけ表示 NEXT POWER UTILITY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 SPX2000 ● 検査項目一覧項目検査名称検査項目の概要判定 1 MCS(PLLP) ゲートアレー PLLP2 のレジスタをW/Rし判定自動 2 BATT バックアップ用電池の電圧を判定自動 4 DSP6,SIO DSP6のレジスタをW/Rし判定、SIO接続判定自動 5 MIDI MIDI OUT-->INの送受信を判定自動 6 USB MIDI USB回路の初期化、外部PCでLoopBackし判定自動 7 AES/EBU IN/OUT AES/EBU IN/OUT DIGITALをLoopBackし判定半自 (DIO) 8 WORD CLOCK オシレータのFsをWCLK INでカウント、PLLのLOCK判定半自 9 LCD バックライト色別点灯、全画面を黒・白表示目視 10 PANEL LED LED（7セグLEDを含む）が規定の順序で点灯目視 11 PANEL ALL LED 全LEDの色別点灯目視 12 PANEL SW SWを規定順に押して判定半自 13 ANALOG IN/OUT アナログ入出力の検査目視 14 NG LOG テスト結果、NGだったテスト番号の一覧表示 ● 各テストの説明 1 . MC S (P LLP 2 ) tes t 内容 PLLP2のReg.(00, 0f, 10, 16)をW/Rして比較判定と、 Reg.12(V er.)の読出し表示します。 A0..A4とD0..D15をチェックします。 Reg.12はReadOnlyのReg.なので自動判定できません。実行画面例 MCS(PLLP2) OK テストが開始されると、 “ testing...” が表示されます。 MCS テストが正常終了すれば、 “ OK” が表示されます。もし、異常終了すれば、 “ NG”' が表示されます。 2 . BA T T tes t 内容バックアップ用電池の電圧をA/Dで測定し自動判定します。実行画面例 BATTERY NG テストが開始されると、 “ testing...” が表示されます。バッテリーテストが正常終了すれば、 “ OK” が表示されます。もし、バッテリー電圧が2.8V 以下ならば、 “ NG” が表示されます。 3 . N0 . 3 のテストプログラムはありません www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 SPX2000 6 . US B MIDI tes t 内容 USBを初期化後、USB接続したパソコンのLoopBackで自動判定をします。準備本体のUSBコネクタとパソコンとを汎用のUSBケーブルで接続します。パソコンに、USB-MIDIドライバの設定をします。（Thru On）実行画面例 USB MID OK 信号が受信できない場合、約10秒後にNGの判定になります。(パソコンのUSB反応が遅いものがあるため、MIDI test より待ち時間を長くしています) テストが開始されると、 “ testing...” が表示されます。 USB テストが正常終了すれば、 “ OK” が表示されます。もし、異常終了すれば、 “ NG” が表示されます。注意事項このテスト中のキャンセル操作は無効です。 7 . A E S /E BU IN/OUT (DIO) tes t 内容 AES/EBU OUT DIGITAL-->AES/EBU IN DIGITALを DSPのSIOを使用して判定します。準備本体のA E S/E BU OUT DIGIT A L と、A E S/E BU IN DIGITALを接続します。実行画面例 AES/EBU IN/OUT OK テストが開始されると、 “ testing...” が表示されます。 “ DIO disconnect!” と表示したら、IN->OUT 接続されている AES/EBU 信号を切り離します。準備が終わったら、[NEX T] スイッチを押します。ここでキャンセルをする場合、[UNDO] [BACK] スイッチのどちらかを押します。 [NEX T] スイッチが押されると、引き続きテストが始まり、 “ testing...” が表示されます。 DIO テストが正常終了すれば、 “ OK ” が表示されます。もし、異常終了すれば、 “ NG” が表示されます。 4 . DS P 6 , S IO tes t 内容 DSP6のRegisterをWrite/ReadしてDataBUS, Address BUSの良否を判定します。 DSP6 のDRAMにRegister経由でWrite/Readして比較判定します。 DSP6のOUT METER SIO結線を、信号の送受信で判定します。実行画面例 DSP6 bit23,3,0 NG テストが開始されると、 “ testing...” が表示されます。 DSP6 テストが正常終了すれば、 “ OK” が表示されます。もし、異常終了すれば、 “ NG” が表示されます。注意事項このテスト中のキャンセル操作は無効です。 5 . MIDI tes t 内容 MIDI OUT-->MIDI IN に31.25K bpsで文字列“ SCI2: TEST￥n”(￥n=0Ah)を送受信し、同一かどうかを検査します。準備本体のMIDI OUTとMIDI INコネクタを接続します。実行画面例 MIDI OK 信号が受信できない場合、約2秒後にNGの判定になります。テストが開始されると、 “ testing...” が表示されます。 MIDI テストが正常終了すれば、 “ OK ” が表示されます。もし、異常終了すれば、 “ NG”' が表示されます。注意事項このテスト中のキャンセル操作は無効です。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 SPX2000 注意事項 1) DIR Lock flagは、Gate Array にてReadします(SIO送受信開始後約100mS待って判定)。 2) DIT,DIR ,C DIN,C DOUTのWrite/R eadでR UN bit(R eg4の 0x40)を確認します。 8 . WOR D C LOC K tes t 内容外部オシレータOUT --> WORD CLOCK INをPLLP2でカウントして自動判定します。 (Fs=44.1/48/88.2/96kHz) PLLのLOCKチェックは、FS変更後クロックが安定するのを待って(約200ms後)、UNLOCK信号をReadし判定します。 PLLのUnLockチェックはWORD CLOCK INに接続されているケーブルを抜いて検査します。準備外部のオシレータと、本体のWORD CLOCK INを接続します。外部オシレータの出力クロックを、44.1kHz に設定します。実行画面例 WORD CLOCK OK テストが開始されると、 “ testing...” が表示されます。 “ Fs=48kHz OK?” と表示したら、外部オシレータの出力クロックを、Fs=48kHz に変更します。準備が終わったら、[NEX T] スイッチを押します。ここでキャンセルをする場合、[UNDO] [BACK] スイッチのどちらかを押します。テストが開始されると、 “ testing...” が表示される。 “ Fs=88.2kHz OK?” と表示したら、外部オシレータの出力クロックを、Fs=88.2kHz に変更します。準備が終わったら、[NEX T] スイッチを押します。ここでキャンセルをする場合、[UNDO] [BACK] スイッチのどちらかを押します。テストが開始されると、 “ testing...” が表示されます。 “ Fs=96kHz OK?” と表示したら、外部オシレータの出力クロックを、Fs=96kHz に変更します。準備が終わったら、[NEX T] スイッチを押します。ここでキャンセルをする場合、[UNDO] [BACK] スイッチのどちらかを押します。テストが開始されると、 “ testing...” が表示されます。 “ WC disconnect!” と表示したら、IN->OUT 接続されているWORD CLOCK OUT信号を切り離します。準備が終わったら、[NEX T] スイッチを押します。ここでキャンセルをする場合、[UNDO] か [BACK] スイッチのどちらかを押します。 WORD CLOCK テストが正常終了すれば、 “ OK” が表示されます。もし、異常終了すれば、 “ NG” が表示されます。注意事項 1) PLLのLOCK検査用各種FSは、外部のオシレータで発生させます。 FS=44.1kHz, 48kHz, 88.2kHz, 96kHz 9 . LC D tes t 内容 3色のLCDバックライト(LED)を、色別に点灯し、目視で確認します。 LCDの画面全体を黒と白の繰り返し表示にし、目視判定します。実行画面例 PA O “ Red” が表示されて、LCD のバックカラーが赤色に発色します。 “ Green” が表示されて、LCD のバックカラーが緑色に発色します。 “ Blue” が表示されて、LCD のバックカラーが青色に発色します。 “ White” が表示されて、LCD のバックカラーが白色に発色します。 LCD のバックカラーの発光色に問題がなければ、[NEX T] スイッチを押します。異常があれば、[BACK] スイッチを押してこのテストを終了します。上記の4色が問題なく確認できて 4色目で [NEX T] スイッチを押すと、LCD の全ドットON, OFF を繰り返し表示します。全画面が、黒,白表示されることを確認します。全画面に、ドット欠けがないことを確認します。表示コントラストが正常であることを確認します。上記3項目が正常に確認できたら、[NEX T] スイッチを押します。異常があれば、[BACK] スイッチを押します。 LCD テストが正常終了すれば、 “ OK” が表示されます。もし、異常終了すれば、 “ NG” が表示されます。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 SPX2000 1 1 . P A NE L A LL LE D tes t 内容赤色のLEDのみ点灯するので、違う色がないかを確認します。緑色のLEDのみ点灯するので、違う色がないかを確認します。橙(オレンジ)色のLEDのみ点灯するので、違う色がないかを確認します。実行画面例 PANEL ALL LED OK “ RED LEDs” が表示されて、赤色LED が全て発光します。 “ GREEN LEDs” が表示されて、緑色LED が全て発光します。 “ ORANGE LEDs” が表示されて、橙(オレンジ)色LED が全て発光します。 1 0 . P A NE L LE D tes t 内容パネル上のLEDが規定の順序で点灯するかを目視で確認します。実行画面例 PANEL LED OK 点灯順序に従い、LED を点灯します。最後に、全ての LED を点灯します。正常に点灯する場合、OK として、[NEX T]を押します。 NGの場合、[BACK]を押します。 PANEL LED テストが正常終了すれば、 “ OK” が表示されます。もし、異常終了すれば、 “ NG” が表示されます。注意事項 1) 点灯順序は図1を参照してください。 2) メーターL/Rのみ、左右同時に点灯します。それ以外は、単独点灯します。 3) 7segLEDは左0,1,2 右0,1,2の順で点灯します。 LED点灯順序：図1 色別にLED が発光するので、その都度、LED が正常に発光していたら、[NEX T] スイッチを押します。異常があれば、[BACK] スイッチを押してこのテストを終了します。 PANEL ALL LED テストが正常終了すれば、 “ OK” が表示されます。もし、異常終了すれば、 “ NG” が表示されます。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 SPX2000 1 2 . P A NE L S W tes t 内容パネル上の全てのスイッチを規定順序通り押して反応するか検査します(自動判定)。実行画面例 PANEL SW OK LCDに、押すべきスイッチ名称を表示します。押されたことが確認できたら、次の押すべきスイッチ名称を表示します。最後に、FOOT SWと表示されたら、OPEN JACK をFOOT SW端子に挿入します。期待するスイッチが押されるまで無限ループです。テストを強制終了したい場合は、[BACK ]を押し、テスト NGとします。 PANEL SW テストが正常終了すれば、 “ OK ” が表示されます。もし、異常終了すれば、 “ NG” が表示される。注意事項操作順序は図2を参照してください。ボタン操作順序：図2 1 3 . A NA LOG IN/OUT tes t 内容アナログ入力からテスト波形を入力し、アナログ出力波形を測定します。実行画面例 ANALOG IN/OUT OK DSP6 は96kHzのスルー設定となるため、DSP入出力波形は同一です。 OKなら、[NEX T] を押します。 NGなら、[BACK] を押します。 ANALOG IN/OUT テストが正常終了すれば、 “ OK” が表示されます。もし、異常終了すれば、 “ NG” が表示されます。 1 4 . NG LOG 内容テスト結果が、NGであったテスト番号を、列挙表示します。全テストが実施されて、テスト別に最後のテスト結果が NGであったテスト番号を列挙します。画面実行例 NG 1,2,3,4,5,8, 10,12 一部のテストが未テスト状態で、既に実施済みのテストが全てOKだった場合、未テスト番号を列挙します。 NOT TESTED 3,5, 8,10 NG LOG 表示からテストメニュー番号選択に戻るには、 [UNDO], [RECALL], [NEX T]いずれかのスイッチを押します。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 SPX2000 I WRITING PROGRAM 本体プログラムが、最新バージョンになっていない場合、最新のプログラムにバージョンアップします。最新のプログラムはY SISSホームページよりダウンロードしてください。 (URL >>http://plaza.yamaha.co.jp/ysiss/index.nsf) 1 . プログラムのバージョンの確認方法 UTILITY キーを押しながら SPX 2000本体の電源を入れるとLCD画面に本体プログラムのバージョンが表示されます。 3) バージョンアッププログラム(V erUp.exe)を起動します。 4) Browseボタンを押して書き込む本体プログラム(ファイル名は SPX 2K.pgm)を選択します。 5) Loadボタンを押すとプログラムの書き込みが開始されます。プログラム書き込み中は、本体電源を切ったり、ケーブルを抜いたりしないでください。 6) 1 の方法で、プログラムのバージョンを確認します。 BYPASS PARAMETER POWER Example of panel display / エントリー画面 OS UPDATE 2 . プログラムの書き込み方法以下の手順に従い、本体プログラムを書き込みます。 1) PCと SPX 2000を USBケーブルで接続します。 (PCに Y AMAHA USB-MIDIドライバーがインストールされていること。また、USB-MIDIドライバーの設定が Through=Off であること。) 2) PA R A ME T E R キーと BY PA SSキーを押しながら SPX 2000本体の電源を入れます。キーは、SPX 2000本体の画面に"OS UPDATE"と表示されるまで、押しつづけます。 POWER UTILITY If the main program is not the latest version, it must be upgraded to the latest program. Download the latest program from the YSISS Home Page. (YSISS URL >>http://plaza.yamaha.co.jp/ysiss/exindex.nsf) 1. Confirming Program Version While pressing the [UTILITY] key, turn on the main power to the SPX2000. Then, the version of the main program appears on the LCD screen. 2. Writing Program Use the following procedure to write the main program. 1) Using the USB cable, connect the PC and SPX2000. (The YAMAHA USB-MIDI driver must be installed in the PC. Also, the setting of the USB-MIDI driver should be Through=Off.) 2) While pressing the PARAMETER key and BYPASS key, turn on the main power to SPX2000. Keep pressing these keys until "OS UPDATE" appears on the screen of SPX2000. 3) Start up the version upgrading program (VerUp.exe). 4) Press the [Browse] button and select the program of the main unit to be written (file name: SPX2K.pgm) 5) Press the [Load] button to initiate writing of the program. While the program is being written, do not turn off the power to the main unit or disconnect the cable. 6) Check the version of the program according to the method described in 1. Confirming Program Version above. （プログラムの書き込み） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 SPX2000 I BULK OUT (ALL) I INITIALIZING THE SPX2000 SPX 2000 のシステム情報、MIDI プログラムチェンジテーブル、エフェクト情報をまとめて他の機器に転送します。情報の転送には「MIDI PORT GENERAL 」機能で設定したポートが使用されます。 1 「BULK OUT (A LL)」機能を選択する [UTILITY ]ボタンを何回か押して、「BULK OUT(ALL)」を選択します。（S P X 2 0 0 0 の情報を他の機器に転送する） 2 情報の転送を開始する [▲ INC] ボタンを押して、転送を開始します。情報の転送中はディスプレイに「Transmitting..」の文字が表示されます。情報の転送が終了すると、ディスプレイに「Completed!」の文字が約1 秒間表示されます。 NOTE: INPUT MODE 、METER の情報は転送される内容に含まれません。 SPX 2000 を工場出荷時の状態に戻します。以下の操作をすると、USER バンクのエフェクトがすべて消去されます。初期化の前に必要に応じて、「BULK OUT(ALL)」機能でバックアップを取るなどしてください。 1 電源をOFFにする SPX 2000 の電源がON になっている場合は、一度電源をOFF にします。 2 初期化の準備をする [STORE] ボタンを押したまま、電源をON にします。 →以下の画面が表示されます。（初期化） 3 初期化する [▲ INC] ボタンを押して、SPX 2000 を初期化します。初期化をキャンセルする場合には、[▲ INC] 以外のボタンを押してください。 You can transmit the SPX2000’s system settings, MIDI program change tables, and effect data to another device. This data will be transmitted from the port specified by the “MIDI PORT GENERAL” setting. 1 Select the “BULK OUT (ALL)” function Press the [UTILITY] button several times to select “BULK OUT (ALL).” (Transmitting SPX2000 data to another device) 2 Start transmission Press the [L INC] button to start transmission. While the data is being transmitted, the display will indicate “Transmitting...” When transmission is completed, the display will indi- cate “Completed!” for approximately one second. NOTE: The INPUT MODE and METER settings are not included with the transmitted data. BULK OUT(ALL) PUSH INC BULK OUT(ALL) PUSH INC Here’s how to return the SPX2000 to its factory-set condi-tion. The following procedure will erase all effects in the USER bank. If necessary, use the “BULK OUT (ALL)” function to back up your data before you proceed. 1 Turn off the power If the SPX2000 is powered-on, turn the power off. 2 Prepare for initialization While holding down the [STORE] button, turn on the power. ➝The following screen will appear. Z Z 3 Initialize Press the [L INC] button to initialize the SPX2000. If you decide not to initialize, press any button other than [L INC]. Factory Preset? PUSH INC Factory Preset? PUSH INC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 SPX2000 I ERROR MESSAGE LIST Error message Message content/Action Low Battery! The internal backup battery has run down. If the battery goes dead, the internal data will be lost. Press any button to cancel the error message. Then immediately use the “BULK OUT (ALL)” function to save the internal data on your computer or on external device. After you have saved the data, replace the backup battery (lithium battery). MIDI Framing Error! A MIDI framing error has occurred. Press any button to cancel the error message. Then try transmitting the MIDI data once again. MIDI OUT is NOT Selected! Since the “MIDI OUT/THRU” connector is set to “THRU,” MIDI messages cannot be transmitted. If you want to transmit MIDI messages, use the “MIDI OUT SETUP” function to set the [MIDI OUT/THRU] connector to “OUT.” MIDI Overrun Error! A MIDI overrun error has occurred. Press any button to cancel the error message. Then try transmitting the MIDI data once again. MIDI Parity Error! A MIDI parity error has occurred. Press any button to cancel the error message. Then try transmitting the MIDI data once again. MIDI Rx Buffer Full! The MIDI reception buffer is full. Press any button to cancel the error message. Then try transmitting the MIDI data once again. If the error occurs again, try increasing the spacing between the MIDI data that is transmitted, or take other measures to prevent a large amount of MIDI data from being transmitted at once. NO FINE PARAMETER This effect has no Fine parameters. Effects of the CLASSIC bank have no Fine parameters; this message will appear if you press the [FINE PARAM] button for an effect of the CLASSIC bank. Use the [PARAMETER] button to select Basic parameters. Not Available in Compare Mode! You pressed an unavailable button while comparing the effect (while the [COMPARE] LED is blinking). Press the [COMPARE] button to defeat Compare before you perform the desired operation. Operation Locked! The button etc. you attempted to operate has been disabled by the “OPERATION LOCK” function. Defeat the restriction as necessary. PORT GENERAL is Selected OFF! MIDI messages cannot be transmitted because the MIDI port (GENERAL) is turned OFF. If you want to transmit MIDI messages, set the “MIDI PORT GENERAL” setting to the port that you want to use for MIDI message transmission and reception. U## Program is Empty! There is no effect to recall. Please re-select an effect to recall. Sync Error! The clock of the received digital input signal differs from the SPX2000’s operating clock. This BANK is Protected! You selected the PRESET bank or CLASSIC bank as the effect store-destination. Since the PRESET bank and CLASSIC bank are read-only, you cannot change store to these effects, or change the effect name, protect setting, or display background color. Press any button to cancel the error message. Then select a store-destination from the USER bank. This Program is Protected! The effect store-destination is protected. Press any button to cancel the error message. Then defeat the protect setting as desired. USB Rx Buffer Full! The USB reception buffer is full. Press any button to cancel the error message. Then try transmitting the MIDI data once again. If the error occurs again, try increasing the spacing between the MIDI data that is transmitted, or take other measures to prevent a large amount of MIDI data from being transmitted at once. WRONG WORD CLOCK! The word clock signal from an external device has been interrupted, or is a frequency to which the SPX2000 cannot synchronize. Check whether there are any problems with the connection from the device supplying the word clock, and verify that the word clock settings are correct. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 SPX2000 エラーメッセージメッセージの内容/対処方法 Low Battery! 内蔵バックアップバッテリーが消耗しています。バッテリーが切れると内部のデータが消えてしまいます。どれかボタンを押してエラーを解除したあと、至急「BULK OUT(ALL)」機能」使って、コンピューターなどの外部機器にデータを保存してください。また、データの保存が完了したら、バックアップバッテリー（リチウム電池）の交換をしてください。 MIDI Framing Error! MIDI フレーミングエラーが発生しました。どれかボタンを押してエラーを解除したあと、もう一度MIDIデータを送り直してみてください。 MIDI OUT is NOT Selected! [MIDI OUT/THRU] 端子が「THRU」に設定されているため、MIDIメッセージが送信できません。 MIDIメッセージを送信する場合は「MIDI OUT SETUP」機能で[MIDI OUT/THRU] 端子を「OUT」に設定してください。 MIDI Overrun Error! MIDIオーバーランエラーが発生しました。どれかボタンを押してエラーを解除したあと、もう一度MIDIデータを送り直してみてください。 MIDI Parity Error! MIDIパリティエラーが発生しました。どれかボタンを押してエラーを解除したあと、もう一度MIDI データを送り直してみてください。 MIDI Rx Buffer Full! MIDI の受信バッファーが一杯になりました。どれかボタンを押してエラーを解除したあと、もう一度MIDI データを送り直してみてください。エラーが再発する場合にはMIDI データの送信間隔をあけるなどして、一度に大量のMIDI データが送り込まれないようにしてください。 NO FINE PARAMETER FINE パラメーターがありません。 CLASSICバンクのエフェクトにはFINEパラメーターがありません。このため、CLASSICバンクのエフェクトで[FINE PARAM]ボタンを押すと、このメッセージが表示されます。 [PARAMETER] ボタンを使って基本パラメーターを選択してください。 Not Available in Compare Mode! エフェクト効果の比較中([COMPA RE] L ED 点滅中)に使用できないボタンを押しました。 [COMPARE] ボタンを押して比較を解除してからボタン操作をしてください。 Operation Locked! 今操作したボタン類は「OPERATION LOCK」機能によって、使用できなくなっています。必要に応じて操作の制限を解除してください。 PORT GENERAL is Selected OFF! MIDIポート(GENERAL)の設定がOFFになっているため、MIDIメッセージが送信できません。 MIDIメッセージを送信する場合は「MIDI PORT GENERAL」機能でMIDIメッセージの送受信に使うポートを設定してください。 U## Program is Empty! リコールするエフェクトがありません。リコールするエフェクトを選択しなおしてください。 Sync Error! 受信しているデジタル入力信号とSPX 2000の動作しているCLOCKが違います。 This BANK is Protected! エフェクトのストア先がPRESETバンクまたはCLASSICバンクになっています。 PRESETバンクやCLASSICバンクは読み出し専用のためエフェクトのストアやエフェクト名の変更、プロテクトの設定、ディスプレイ背景色の変更ができません。どれかボタンを押してエラーを解除したあと、USERバンクからストア先を選択してください。 This Program is Protected! エフェクトのストア先にプロテクトがかかっています。どれかボタンを押してエラーを解除したあと、必要に応じてプロテクトを解除してください。 USB Rx Buffer Full! USBの受信バッファーが一杯になりました。どれかボタンを押してエラーを解除したあと、もう一度MIDIデータを送り直してみてください。エラーが再発する場合にはMIDIデータの送信間隔をあけるなどして、一度に大量のMIDIデータが送り込まれないようにしてください。 WRONG WORD CLOCK! 外部からのワードクロック信号が途切れているか、SPX 2000で同期可能な周波数ではありません。ワードクロックを供給する機器との接続やワードクロックの設定に問題がないかご確認ください。 ■ エラーメッセージリスト www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 SPX2000 I MIDI IMPLEMENTATION CHART YAMAHA [PROFESSIONAL MULTI-EFFECT PROCESSOR] Date: 12 MAY 2003 Model: SPX2000 MIDI Implementation Chart Version: 1.0 Function... Transmitted Recognized Remarks Basic Channel Default Changed X X 1–16 1–16 Memorized Mode Default Messages Altered X X ************** OMNI OFF/OMNI ON X X Memorized Note Number True Voice X ************** 0–127*1 X *4 Velocity Note On Note Off X X O 9nH, v=1-127*1 X *4 After Key’s Ch’s X X X X Pitch Bend X X Control Change 0-32 X O*1 0:Bank Select MSB 1-30:*4 31:Mix Balance 32:Bank Select LSB Program Change :True# X ************** O 0–127*1 Assignable Program Change Table System Exclusive O*2 O*2 *3 Common :Song Pos. :Song Sel. :Tune X X X X X X System Real Time :Clock :Commands X X O X *4 Aux Messages :All Sound Of :Reset All Cntrls :Local ON/OFF :All Notes OFF :Active Sense :Reset X X X X X X X X X X O O Notes *1 receive if switch is on. *2 transmit/receive if exclusive switch is on. *3 Bulk Dump/Request, Parameter Change/Request *4 Effect Control(Depend On Program) Mode 1: OMNI ON, POLY Mode 3: OMNI OFF, POLY Mode 2: OMNI ON, MONO Mode 4: OMNI OFF, MONO O: Yes X: No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 SPX2000 I MIDI DATA FORMAT 'tx' indicates that the SPX2000 can transmit the message. 'rx' indicates that the SPX2000 can receive the message. 1.1 CHANNEL MESSAGE 1.2 SYSTEM REALTIME MESSAGE 1.3 EXCLUSIVE MESSAGE I 1.3.1 Bulk dump The SPX2000 handles the following types of data as bulk dumps. I 1.3.2 Parameter Change The SPX2000 handles the following types of data as parameter changes. 2.1 NOTE OFF (8n) If the SPX2000 receives this message when a freeze-type effect has been recalled, it will stop playing the sampled data. • Reception conditions This message is received if the following two conditions are satisﬁed. 1) The “MIDI RECEIVE” setting (page 23) is “NOTE ON/OFF = ON”. 2) The channel on which the MIDI message is transmitted matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. • Format STATUS 1000nnnn 8n Note off message DATA 0nnnnnnn nn Note number 0vvvvvvv vv Velocity (ignored) 2.2 NOTE ON (9n) When the SPX2000 receives this message, it will control the recalled effect. The effects that respond to this message and the controlled content are as follows. • Reception conditions This message is received if the following two conditions are satisﬁed. 1) The “MIDI RECEIVE” setting (page 23) is “NOTE ON/OFF = ON”. 2) The channel on which the MIDI message is transmitted matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. • Format STATUS 1001nnnn 9n Note on message DATA 0nnnnnnn nn Note number 0vvvvvvv vv Velocity (1-127:on, 0:off) 2.3 CONTROL CHANGE (Bn) When the SPX2000 receives this message, it will operate in one of two ways. The operation will depend on the content of the ﬁrst two bytes of data. If the data begins with a value of 01h-1Fh, the parameter speciﬁed by the control change parameter list will be controlled. If the data begins with a value of either 00h or 20h, the program change table (A/B/C) will be switched. • Reception conditions This message is received if the following two conditions are satisﬁed. 1) The “MIDI RECEIVE” setting (page 23) is “CTL CHANGE = ON”. 2) The channel on which the MIDI message is transmitted matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. • Format If the data begins with 01h-1Fh STATUS 1011nnnn Bn Control change DATA 000nnnnn nn Control number (1-31) 0vvvvvvv vv Control Value (0-127) 1. Format summary Command rx/tx function 8n NOTE OFF rx Control internal effects 9n NOTE ON rx Control internal effects Bn CONTROL CHANGE rx Control parameters Cn PROGRAM CHANGE rx Change programs Command rx/tx function F8 TIMING CLOCK rx MIDI clock FE ACTIVE SENSING rx Check MIDI cable connections FF RESET rx Clear running status Command rx/tx function F0 43 0n 7E ... F7 BULK DUMP DATA rx/tx Bulk dump data F0 43 2n 7E ... F7 BULK DUMP REQUEST rx Bulk dump request Data name rx/tx function S rx/tx System setup data and request E rx/tx Effect program and request P rx/tx Program change table and request Command rx/tx function F0 43 1n 1E 09 ... F7 RARAMETER CHANGE rx/tx Parameter changes speciﬁc to the SPX2000 F0 43 3n 1E 09 ... F7 PARAMETER REQUEST rx Parameter requests speciﬁc to the SPX2000 Type (HEX) rx/tx function 1 (01) rx/tx Edit buffer 3 (03) rx/tx System setup data 4 (04) rx/tx System backup data 16 (10) rx/tx Functions (recall, store, title, clear) 17 (11) rx/tx Functions (undo, compare) 18 (12) rx Functions (effect) 20 (14) rx/tx Functions (attribute (Protect), LCD Back Color) 33 (21) rx/tx Remote Meter 2. Format details DYNA.FILTER (P76) DYNA.FLANGE (P77) DYNA.PHASER (P78) Modulation FREEZE (P97) FREEZE A (C23) FREEZE B (C24) Start recording, playing the sam- pled data PITCH CHANGE A (C19) PITCH CHANGE D (C22) Change pitch REVERB & GATE (C18) Open the gate This message is received if the following two conditions are satisfied. 1) The “MIDI RECEIVE” setting is “NOTE ON/OFF = ON”. 2) The channel on which the MIDI message is transmitted matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. This message is received if the following two conditions are satisfied. 1) The “MIDI RECEIVE” setting is “NOTE ON/OFF = ON”. 2) The channel on which the MIDI message is transmitted matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. This message is received if the following two conditions are satisfied. 1) The “MIDI RECEIVE” setting is “CTL CHANGE = ON”. 2) The channel on which the MIDI message is transmitted matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 SPX2000 Equation for converting the control value into parameter data (CurValue) paramSteps = paramMax - paramMin; curValue = (Control Value * paramSteps)/127; If the data begins with 00h or 20h STATUS 1011nnnn Bn Control change DATA 00000000 00 Bank Select MSB 00000000 00 Bank number MSB (0); fixed at 0 STATUS 1011nnnn Bn Control change DATA 00100000 20 Bank Select LSB 000000vv vv Bank number LSB (0, 1, 2); 0: table A, 1: table B, 2: table C STATUS 1100nnnn Cn Program change DATA 0vvvvvvv vv Program number (0-127) 2.4 PROGRAM CHANGE (Cn) When the SPX2000 receives this message, it will recall the effect speciﬁed by the content of the program change table (page 22). • Reception conditions This message is received if the following two conditions are satisﬁed. 1) The “MIDI RECEIVE” setting (page 23) is “PGM CHANGE = ON”. 2) The channel on which the MIDI message is transmitted matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. • Format STATUS 1100nnnn Cn Program change DATA 0nnnnnnn nn Program number (0-127) 2.5 TIMING CLOCK (F8) This message is used for tempo synchronization of the effect. Twenty- four of these messages are received per quarter note. • Reception conditions This message is received if the “TEMPO SOURCE” setting (page 23) is set to a tempo synchronization source of “MIDI.” • Format STATUS 11111000 F8 Timing clock 2.6 ACTIVE SENSING (FE) Once the SPX2000 has received this message, failure to receive a message of any kind for an interval longer than 400 ms will cause it to initialize MIDI communication settings such as running status. • Format STATUS 11111110 FE Active sensing 2.7 SYSTEM RESET (FF) When the SPX2000 receives this message, it will initialize MIDI commu- nication settings such as running status. • Format STATUS 11111111 FF System reset 2.8 SYSTEM EXCLUSIVE MESSAGE (F0) I 2.8.1 BULK DUMP/BULK DUMP REQUEST Bulk Dump messages are used to bulk dump SPX2000 data to a con- nected MIDI device (see page 21) , or to receive data from a connected MIDI device to overwrite internal settings of the SPX2000. Bulk Dump Request messages request a bulk dump of data from the SPX2000. • Reception conditions This message is received if the following two conditions are satisﬁed. 1) The “MIDI RECEIVE” setting (page 23) is “SYEX BLKDMP = ON”. 2) The device number within the MIDI message matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. • Transmission conditions This message is transmitted when either of the following conditions are met. • The “BULK OUT (ALL)” function is executed to perform a bulk dump. • A Bulk Dump Request message is received. • Data conversion The data portion is handled by converting seven words of 8-bit data into eight words of 7-bit data. [Converting actual data into bulk data] d[0~6]: Actual data b[0~7]: Bulk data b[0] = 0; for( I=0; I<7; I++){ if( d[I]&0x80){ b[0] |= 1<<(6-I); } b[I+1] = d[I]&0x7F; } [Restoring bulk data into actual data d[0~6]: Actual data b[0~7]: Bulk data for( I=0; I<7; I++){ b[0] <<= 1; d[I] = b[I+1]+(0x80&b[0]); } I 2.8.1.1 System Setup Data Bulk Dump Format This bulk-dumps the SPX2000’s setup memory except for the program change table. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0000nnnn 0n n=0-15 (Device number=Device No-1) FORMAT No. 01111110 7E Universal bulk dump COUNT HIGH 0ccccccc ch data count = ch * 128 + cl COUNT LOW 0ccccccc cl 01001100 4C ‘L’ 01001101 4D ‘M’ 00100000 20 ‘ ’ 00100000 20 ‘ ’ 00111000 38 ‘8’ 01000100 44 ‘D’ 00110001 31 ‘1’ 00110001 31 ‘1’ DATA NAME 01010011 53 ‘S’ 00000010 02 00000000 00 No.256 = Current BLOCK INFO. 0ttttttt tt total block number(minimum number is 0) 0bbbbbbb bb current block number(0-total block number) DATA 0ddddddd ds Setup data of block[bb] : : 0ddddddd de CHECK SUM 0eeeeeee ee ee=(Invert(‘L’+ c+de)+1)&0x7F EOX 11110111 F7 End of exclusive I 2.8.1.2 System Setup Data Bulk Dump request Format • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0010nnnn 2n n=0-15 (Device number=Device No-1) FORMAT No. 01111110 7E Universal bulk dump 01001100 4C ’L’ 01001101 4D ‘M’ 00100000 20 ‘ ’ 00100000 20 ‘ ’ 00111000 38 ‘8’ 01000100 44 ‘D’ 00110001 31 ‘1’ 00110001 31 ‘1’ DATA NAME 01010011 53 ‘S’ 00000010 02 00000000 00 No.256 = Current EOX 11110111 F7 End of exclusive This message is received if the following two conditions are satisfied. 1) The “MIDI RECEIVE” setting is “PGM CHANGE = ON”. 2) The channel on which the MIDI message is transmitted matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. This message is received if the following two conditions are satisfied. 1) The “MIDI RECEIVE” setting is “SYEX BLKDMP = ON”. 2) The device number within the MIDI message matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. When the SPX2000 receives this message, it will recall the effect specified by the content of the program change table. This message is received if the “TEMPO SOURCE” setting is set to a tempo synchronization source of “MIDI.” Bulk Dump messages are used to bulk dump SPX2000 data to a con- nected MIDI device, or to receive data from a connected MIDI device to overwrite internal settings of the SPX2000. Bulk Dump Request messages request a bulk dump of data from the SPX2000. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 SPX2000 I 2.8.1.3 System Setup Data Bulk Dump request Format This bulk-dumps the data of the speciﬁed effect. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0000nnnn 0n n=0-15 (Device number=Device No-1) FORMAT No. 01111110 7E Universal bulk dump COUNT HIGH 00000000 00 data count = ch(0x00) * 128 + cl(0x72) = 114 COUNT LOW 01110010 72 01001100 4C ‘L’ 01001101 4D ‘M’ 00100000 20 ‘ ’ 00100000 20 ‘ ’ 00111000 38 ‘8’ 01000100 44 ‘D’ 00110001 31 ‘1’ 00110001 31 ‘1’ DATA NAME 01000101 45 ‘E’ 0mmmmmmm mh 0-220(Program no.P1-97,C1- 25,U1-99),256(EDIT BUFFER) 0mmmmmmm ml BLOCK INFO. 0ttttttt tt total block number(minimum number is 0) 0bbbbbbb bb current block number(0-total block number) DATA 0ddddddd ds Effect Program data of block[bb] : : 0ddddddd de CHECK SUM 0eeeeeee ee ee=(Invert(‘L’+...de) +1)&0x7F EOX 11110111 F7 End of exclusive The second and third byte of DATA NAME specify the program num- ber. 0:PRESET1 – 96:PRESET97 97:CLASSIC1 – 121:CLASSIC25 122:USER1 – 220:USER99 256:EDIT BUFFER For reception by the SPX2000, only USER 1-99 or EDIT BUFFER are valid. (120-220, 256) I 2.8.1.4 Effect Program Bulk Dump request Format The second and third byte of DATA NAME specify the program number. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0010nnnn 2n n=0-15 (Device number=Device No-1) FORMAT No. 01111110 7E Universal bulk dump 01001100 4C ‘L’ 01001101 4D ‘M’ 00100000 20 ‘ ’ 00100000 20 ‘ ’ 00111000 38 ‘8’ 01000100 44 ‘D’ 00110001 31 ‘1’ 00110001 31 ‘1’ DATA NAME 01000101 45 ‘E’ 0mmmmmmm mh 0-220(Program no.P1-97,C1- 25,U1-99), 256(EDIT BUFFER) 0mmmmmmm ml EOX 11110111 F7 End of exclusive The second and third byte of DATA NAME specify the program num- ber. 122:USER1 – 220:USER99 256:EDIT BUFFER I 2.8.1.5 Program change table Bulk Dump Format This bulk-dumps the program change table data. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0000nnnn 0n n=0-15 (Device number=Device No-1) FORMAT No. 01111110 7E Universal bulk dump COUNT HIGH 0ccccccc ch data count = ch * 128 + cl COUNT LOW 0ccccccc cl 01001100 4C ‘L’ 01001101 4D ‘M’ 00100000 20 ‘ ’ 00100000 20 ‘ ’ 00111000 38 ‘8’ 01000100 44 ‘D’ 00110001 31 ‘1’ 00110001 31 ‘1’ DATA NAME 01010000 50 ‘P’ 00000010 02 00000000 00 No.256 = Current BLOCK INFO. 0ttttttt tt total block number (minimum number is 0) 0bbbbbbb bb current block number (0 - total block number) DATA 0ddddddd ds Program change table data of block[bb] : : 0ddddddd de CHECK SUM 0eeeeeee ee ee=(Invert (‘L’+...+de)+1) &0x7F EOX 11110111 F7 End of exclusive I 2.8.1.6 Program change table Bulk Dump request Format • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0010nnnn 2n n=0-15 (Device number=Device No-1) FORMAT No. 01111110 7E Universal bulk dump 01001100 4C ‘L’ 01001101 4D ‘M’ 00100000 20 ‘ ’ 00100000 20 ‘ ’ 00111000 38 ‘8’ 01000100 44 ‘D’ 00110001 31 ‘1’ 00110001 31 ‘1’ DATA NAME 01010000 50 ‘P’ 00000010 02 00000000 00 No.256 = Current EOX 11110111 F7 End of exclusive I 2.8.2 Program change table Bulk Dump request For- mat When the SPX2000 receives a Parameter Change message, the SPX2000 setting speciﬁed by the content will be controlled. When the SPX2000 receives a Parameter Change Request message, it will transmit a Parame- ter Change message in reply. • Reception conditions This message is received if the following two conditions are satisﬁed. 1) The “MIDI RECEIVE” setting (page 23) is “SYEX PRMCHG = ON”. 2) The device number within the MIDI message matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. • Transmission conditions PARAMETER CHANGE only This message is transmitted when either of the following conditions are met. • The SPX2000’s state has changed due to a received Parameter Change • A Parameter Change Request message is received I 2.8.2.1 Parameter change (Edit Buffer) This message modiﬁes the value of a parameter in the edit buffer. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00000001 01 Edit Buffer 0eeeeeee ee Element no.(if 'ee' is 0, 'ee' will be expanded to two bytes) 0ppppppp pp Parameter no. 0ccccccc cc Channel no. DATA 0ddddddd dd data : : EOX 11110111 F7 End of exclusive This message is received if the following two conditions are satisfied. 1) The “MIDI RECEIVE” setting is “SYEX PRMCHG = ON”. 2) The device number within the MIDI message matches the SPX2000’s MIDI channel, or the SPX2000’s MIDI channel is set to OMNI. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 SPX2000 I 2.8.2.2 Parameter request (Edit Buffer) • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0011nnnn 3n n=0-15 (Device number= Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00000001 01 Edit Buffer 0eeeeeee ee Element no.(if 'ee' is 0, 'ee' will be expanded to two bytes) 0ppppppp pp Parameter no. 0ccccccc cc Channel no. EOX 11110111 F7 End of exclusive I 2.8.2.3 Parameter change (System Setup Memory) This message modiﬁes the value of a parameter in system setup memory. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number= Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00000011 03 System Setup data 0eeeeeee ee Element no.(if 'ee' is 0, 'ee' will be expanded to two bytes) 0ppppppp pp Parameter no. 0ccccccc cc Channel no. DATA 0ddddddd dd data : : EOX 11110111 F7 End of exclusive I 2.8.2.4 Parameter request (System Setup Memory) STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0011nnnn 3n n=0-15 (Device number= Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00000011 03 System Setup data 0eeeeeee ee Element no.(if 'ee' is 0, 'ee' will be expanded to two bytes) 0ppppppp pp Parameter no. 0ccccccc cc Channel no. EOX 11110111 F7 End of exclusive I 2.8.2.5 Parameter change (System Backup Memory) This message modiﬁes the value of a parameter in system backup mem- ory. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number= Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00000011 04 System Backup data 0eeeeeee ee Element no.(if 'ee' is 0, 'ee' will be expanded to two bytes) 0ppppppp pp Parameter no. 0ccccccc cc Channel no. DATA 0ddddddd dd data : : EOX 11110111 F7 End of exclusive I 2.8.2.6 Parameter request (System Backup Memory) • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0011nnnn 3n n=0-15 (Device number= Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00000011 04 System Backup data 0eeeeeee ee Element no.(if 'ee' is 0, 'ee' will be expanded to two bytes) 0ppppppp pp Parameter no. 0ccccccc cc Channel no. EOX 11110111 F7 End of exclusive I 2.8.2.7 Parameter change (Function call : Program store/recall) When the SPX2000 receives this message, it will store or recall the speci- ﬁed effect, and will then use this message to transmit the state following the change. At this time, the device number will be the MIDI channel of the SPX2000. If the MIDI channel is OMNI, the device number will be 1. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number= Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010000 10 Function call 00ffffff ff function 0mmmmmmm mh number High 0mmmmmmm ml number Low DATA 0ccccccc ch channel High 0ccccccc cl channel Low EOX 11110111 F7 End of exclusive I 2.8.2.8 Parameter change (Function call : title) When the SPX2000 receives this message, it will edit the speciﬁed effect name, and will then use this message to transmit the state following the change. At this time, the device number will be the MIDI channel of the SPX2000. If the MIDI channel is OMNI, the device number will be 1. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number= Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010000 10 Function call 01000100 44 Effect Program title 0mmmmmmm mh number High 0mmmmmmm ml number Low DATA 0ddddddd dd title 1 : : : 0ddddddd dd title x(depend on the pro- gram) EOX 11110111 F7 End of exclusive I 2.8.2.9 Parameter request (Function call : title) • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0011nnnn 3n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010000 10 Function call 01000100 44 Effect Program title 0mmmmmmm mh number High 0mmmmmmm ml number Low EOX 11110111 F7 End of exclusive For the function and number, refer to the table in “2.8.2.8 Parameter change (Function call: title).” function number channel rx/tx Effect Program Recall 0x04 1-221 0 rx/tx Effect Program Store 0x24 123-221 0 rx/tx function number size Effect Program Title 0x44 1-221 (1-122:response only) 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 SPX2000 I 2.8.2.10 Parameter change (Function call : Program clear) When the SPX2000 receives this message, it will erase the speciﬁed effect name, and will then use this message to transmit the state following the change. At this time, the device number will be the MIDI channel of the SPX2000. If the MIDI channel is OMNI, the device number will be 1. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010000 10 Function call 01100100 64 Effect Program clear func- tion 0mmmmmmm mh number High 0mmmmmmm ml number Low EOX 11110111 F7 End of exclusive I 2.8.2.11 Parameter change (Function call : Undo) When the SPX2000 receives this message, it will perform the same opera- tion as if the [UNDO] button had been pressed, and will then use this message to transmit the state following the change. At this time, the device number will be the MIDI channel of the SPX2000. If the MIDI channel is OMNI, the device number will be 1. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010001 11 Function call 00100010 24 Undo 00000000 00 00000000 00 DATA 00000000 00 00000000 00 EOX 11110111 F7 End of exclusive I 2.8.2.12 Parameter change (Function call : Compare) When the SPX2000 receives this message, it will perform the same opera- tion as if the [COMPARE] button had been pressed, and will then use this message to transmit the state following the change. At this time, the device number will be the MIDI channel of the SPX2000. If the MIDI channel is OMNI, the device number will be 1. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010001 11 Function call 01000100 44 Compare 00000000 00 00000000 00 DATA 00000000 00 00000000 00 EOX 11110111 F7 End of exclusive I 2.8.2.13 Parameter change (Function call : Event Effect) When the SPX2000 receives this message while a freeze-type effect is recalled, it will perform the same operation as if the RECORD parameter or PLAY parameter is selected and the [M DEC] button pressed. The con- tents of the function will determine whether the RECORD parameter or the PLAY parameter is selected. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010010 12 Function call Effect Event 0000ffff 0f function 00000000 00 0ppppppp pp Release:0, Press:1 DATA 00000000 00 0eeeeeee ee Effect number (0) EOX 11110111 F7 End of exclusive *This will not function if the effect type is wrong. I 2.8.2.14 Parameter change (Function call: attribute(Protect)) When the SPX2000 receives this message, it will switch Protect on/off for the speciﬁed effect, and will then use this message to transmit the state following the change. At this time, the device number will be the MIDI channel of the SPX2000. If the MIDI channel is OMNI, the device num- ber will be 1. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010100 14 Function call 00000100 04 attribute 0mmmmmmm mh number High 0mmmmmmm ml number Low DATA 0ttttttt tt attribute(protect:0x0001, normal:0x0000) 0ttttttt tt EOX 11110111 F7 End of exclusive I 2.8.2.15 Parameter request (Function call: attribute(Protect)) • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0011nnnn 3n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010100 14 Function call 00000100 04 attribute 0mmmmmmm mh number High 0mmmmmmm ml number Low EOX 11110111 F7 End of exclusive For the function and number, refer to the table in “2.8.2.14 Parameter change (Function call: attribute (Protect)).” I 2.8.2.16 Parameter change (Function call: LCD Back Color) When the SPX2000 receives this message, it will change the display background color of the speciﬁed effect, and will then use this message to transmit the state following the change. At this time, the device number will be the MIDI channel of the SPX2000. If the MIDI channel is OMNI, the device number will be 1. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010100 14 Function call 01100100 64 LCD Back Color 0mmmmmmm mh number High 0mmmmmmm ml number Low DATA 0ccccccc cc color(0:Green,1:Yellow, 2:Magenta,3:Cyan,4:White) 0ccccccc cc function number Effect Program Clear 0x64 123-221 function channel Freeze Play button 0x00 0 Freeze Record button 0x01 0 function number Effect Program Attribute 0x04 1-221(1-122:response only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 SPX2000 EOX 11110111 F7 End of exclusive I 2.8.2.17 Parameter request (Function call: LCD Back Color) • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0011nnnn 3n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00010100 14 Function call 01100100 64 LCD Back Color 0mmmmmmm mh number High 0mmmmmmm ml number Low EOX 11110111 F7 End of exclusive For the function and number, refer to the table in “2.8.2.16 Parameter change (Function call: LCD Back Color).” I 2.8.2.18 Parameter change (Remote Meter) When the SPX2000 receives a Parameter Request (Remote Meter) mes- sage, it will transmit this message. The content is data for the speciﬁed meter. This is transmitted at 50 msec intervals for ten seconds. If you want meter data to continue being transmitted, you must transmit a Request message at intervals of less than ten seconds. However if the port is being used for other communication, transmission of meter data may be interrupted. The device number used when transmitting meter data will be the MIDI channel of the SPX2000. If the MIDI channel is OMNI, the device num- ber will be 1. When the SPX2000 receives a Request message with an Address UL = 0x7F, transmission of all meter data will be halted immediately. Transmis- sion will also stop if the power is turned off and on again while transmit- ting meter data, or if the MIDI port setting is changed. • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0001nnnn 1n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00100001 21 Remote meter 0mmmmmmm mm ADDRESS UL 0mmmmmmm mm ADDRESS LU 0mmmmmmm mm ADDRESS LL DATA 0ddddddd dd Data1 H 0ddddddd dd Data1 L : : EOX 11110111 F7 End of exclusive I 2.8.2.19 Parameter request (Remote Meter) • Format STATUS 11110000 F0 System exclusive message ID No. 01000011 43 Manufacture’s ID number (YAMAHA) SUB STATUS 0011nnnn 3n n=0-15 (Device number=Device No-1) GROUP ID 00011110 1E MODEL ID (signal processor) MODEL ID 00001001 09 SPX2000 ADDRESS 00100001 21 Remote meter 0mmmmmmm mm ADDRESS UL 0mmmmmmm mm ADDRESS LU 0mmmmmmm mm ADDRESS LL 0ccccccc ch Count H 0ccccccc cl Count L EOX 11110111 F7 End of exclusive function number Effect Program LCD Back Color 0x64 1-221(1- 122:response only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. Notes : DESTINATION ABBREVIATIONS The numbers “QTY” show quantities for each unit. The parts with “--” in “PART NO.” are not available as spare parts. This mark “ } ” in the REMARKS column means these parts are interchangeable. The second letter of the shaded ( ) part number is O, not zero. The second letter of the shaded ( ) part number is I, not one. M: South African model O : Chinese model Q : South-east Asia model T : Taiwan model U : U.S.A. model V : General export model (110V) W: General export model (220V) N,X: General export model Y : Export model A : Australian model B : British model C : Canadian model D : German model E : European model F : French model H : North European model I : Indonesian model J : Japanese model K : Korean model CONTENTS OVERALL ASSEMBLY ............................................... 2 ELECTRICAL PARTS ...................................... 5 – 15 PARTS LIST （総組立）（電気部品）（目次）印の部品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。部品価格ランクは、変更になることがあります。 QTY欄に記されている数字は、各ユニット当たりの使用個数です。 PART NO.が“ --” の部品は、サービス用部品として準備されておりません。 REMARKS 欄の「｝」マークの部品は、併用部品です。網掛けの付いたPART NO. の2番目の文字は「ゼロ」ではなく「オー」です。網掛けの付いたPART NO. の2番目の文字は「イチ」ではなく、「アイ」です。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 2 OVERALL ASSEMBLY 500 520 410 430 430 400 430 570 380 390 210 300 550 560 300 350 360 330 260 180 180 200 250 420 220 60 140 10 160 50 40 30 30 30 150 130 80 90 100 20 510 530 530 540 540 40 40 30 10c 520 520 520 10a 10b 10a 10a 10a 110a 110b 110h 110f 110d 200 110e 110c 110g Rubber cap （ラバーキャップ） WC049600 See page 5. PN3 circuit board See page 3, 5. Rubber cap （ラバーキャップ） WC049600 See page 5. （総組立） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 3 440 280 290 470 460 450 70 • Pic. 1 MAIN-POWER SUPPLY wiring MAIN POWER SUPPLY UNIT 170 470 • Pic. 2 AC INLET-POWER wiring POWER SUPPLY UNIT AC INLET POWER PARAM button WB435900 TAP button WB436000 BRIGHT button WB436100 MEMO button WB435800 • PN3 circuit board (See page 5.) PN3 A B C D L E N 1 2 3 1 2 3 4 5 140a 140b 140c 140d 140e 140f 140g 140d • AC inlet assembly to POWER-CN301 to POWER SUPPLY UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 4 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK OVERALL ASSEMBLY SPX2000 (WB42170) * 10 Bottom Chassis 10a Bind Head Tapping Screw-S 3.0X6 MFZN2BL 4 01 10b Bind Head Screw 4.0X8 MFZN2BL 01 10c Rubber Foot Black T1.6 4 01 * 20 Circuit Board MAIN 30 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 8 01 40 Bind Head Tapping Screw-B 2.6X8 MFZN2BL 6 01 50 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 2 01 60 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 8 01 70 Cord Binder S-72B L=50 01 * 80 PS Cover Z 90 Power Supply Unit ZWS50AF-5/J 19 100 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 4 01 110 PN Circuit Board Assembly (WB43570) * 110a Circuit Board JKIN (WB42730) * 110b Circuit Board JKOUT (WB42740) * 110c Circuit Board PN3 with Button (WB42710) * 110d Circuit Board PN1 with Cap (WB42690) * 110e Circuit Board PN2 with Cap (WB42700) * 110f Circuit Board VOL (WB42750) * 110g Circuit Board FOOTSW (WB42760) * 110h Circuit Board POWER (WB42720) 130 Hexagonal Nut 9.0X11 4 01 * 140 AC Inlet Assembly AC INLET VH 3P/5P Z 140a AC Inlet 3P M1908-C 03 140b Connector Housing VH 3P 01 140c Connector Housing VH 5P 01 140d Connector Pin SVH-21T-P1.1 4 01 140e Tube Black M5.0 (CH00428) 140f Earth Lug (WA11050) 140g Ferrite Core FR25/15/12-1400L 04 150 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 2 01 160 Bind Head Screw 4.0X8 MFZN2BL 01 170 Cord Holder BK-1 01 180 PCB Spacer KGPS-16RF DPX1000 2 01 200 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 2 01 * 210 LED Guide * 220 Film Red * 250 LCD EW10212YMR 260 Spacer (WB43100) 2 280 Cord Holder BK-1 01 290 Ferrite Core FR25/15/12-1400L 04 300 Bind Head Tapping Screw-S 3.0X10 MFZN2Y 2 01 330 JACK Angle (WB45090) 350 Hexagonal Nut 9.0X11 01 360 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 01 380 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 2 01 * 390 Front Panel * 400 Button Guide * 410 Window * 420 Flat Head Screw-S 3.0X6 MFAN2Y 430 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 3 01 * 440 Connector Assembly VH&VH 4P 340L * 450 Cable 20P 180mm P=1.0 Z 460 Lithium Battery CR2032 03 470 Adhesive Tape 12X50 3 03 * 500 Top Cover 510 Label MULTI (WB55000) 520 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 9 01 * 530 Angle Bracket, Rack 2 540 Bind Head Tapping Screw-S 4.0X8 MFZN2BL 6 01 * 550 Knob Internal INPUT L * 560 Knob External INPUT R * 570 Button POWER ON/OFF ACCESSORIES Z Adaptor, AC Cord KPR-24 J 06 Z AC Cord J 7A 125V 3P 2.5m J 06 Z AC Cord CSA U,C,V 08 Z AC Cord VDE H,W,K 08 Z AC Cord BS 3P B 10 -- WB424200 EP630210 EG340360 CB043750 WB053000 EP600190 VB096700 EP630210 EP630210 CB040540 WB451300 V9702900 EP630210 -- AAX51260 AAX51270 AAX51240 AAX51220 AAX51230 AAX51280 AAX51290 AAX51250 V2431400 WB440900 V5065200 LB015030 LB015050 LB101710 -- -- VC362700 EP600190 EG340360 CB069250 WA624500 EP630210 WB435200 WB550100 WB448400 -- CB069250 VC362700 EP630630 -- V2431400 EP630210 EP630210 WB423800 WB426500 WB424600 WB451000 EP630210 WB440800 WB639200 VN103500 VA126100 WB424400 -- EP630210 WB424500 VI693100 WB426700 WB426800 WB426600 VQ240200 VT119800 VB927800 VB928000 VP204400 総組立ボトムシャーシＡｓｓ’ ｙ＋バインドＳタイト＋バインド小ネジゴム脚ＭＡＩＮシート＋バインドＢタイト＋バインドＢタイト＋バインドＳタイト＋バインドＳタイト束線止めＰＳカバー電源ユニット＋バインドＳタイトＰＮシートＡｓｓ ’ ｙＪＫＩＮシートＪＫＯＵＴシートＰＮ３シートＰＮ１シートＰＮ２シートＶＯＬシートＦＯＯＴＳＷシートＰＯＷＥＲシート特殊六角ナットインレットＡｓｓ ’ ｙＡＣインレット　３Ｐハウジングハウジング圧着端子スミチューブ　クロアースラグ　ＴＩ０４３２フェライトコア＋バインドＢタイト＋バインド小ネジインシュロックタイＰＣＢスペーサ＋バインドＳタイトＬＥＤガイドカラーフィルム液晶ディスプレイスペーサインシュロックタイフェライトコア＋バインドＳタイトＪＡＣＫアングル特殊六角ナット＋バインドＳタイト＋バインドＳタイトフロントパネル印刷品ボタンガイドＰＳＷウインドウ印刷品Ｓタイト平頭＋バインドＳタイト束線　＃２０バンカードリチウム電池粘着テープトップカバープレス品ラベル規格＋バインドＳタイトラックアングル印刷品＋バインドＳタイトノブ内印刷品ノブ外印刷品ボタンＰＳＷ付属品変換アダプター電源コード電源コード電源コード電源コード部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 5 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK ELECTRICAL PARTS（電気部品） ELECTRICAL PARTS SPX2000 * Circuit Board FOOTSW (WB42760)(X4199B0) * Circuit Board JKIN (WB42730)(X4199B0) * Circuit Board JKOUT (WB42740)(X4199B0) * Circuit Board PN1 (WB42690)(X4199B0) * Circuit Board PN2 (WB42700)(X4199B0) * Circuit Board PN3 (WB42710)(X4199B0) * Circuit Board POWER (WB42720)(X4199B0) * Circuit Board VOL (WB42750)(X4199B0) * Circuit Board MAIN (X4198B0) * Circuit Board FOOTSW (WB42760)(X4199B0) * Circuit Board JKIN (WB42730)(X4199B0) * Circuit Board JKOUT (WB42740)(X4199B0) * Circuit Board PN1 (WB42690)(X4199B0) * Circuit Board PN2 (WB42700)(X4199B0) * Circuit Board PN3 (WB42710)(X4199B0) * Circuit Board POWER (WB42720)(X4199B0) * Circuit Board VOL (WB42750)(X4199B0) * A Button, MEMO STORE,RECALL,UP,DOWN, UNDO/REDO * B Button, PARAM BACK,NEXT,INC,DEC, COMPARE * C Button, TAP TAP * D Button, BRIGHT PARAMETER,FINE PARAM, 4 UTILITY,BYPASS * E Rubber Cap INPUT MODE,METER,BANK 3 * 10 Jumper Wire FVP=2.0C26SB14-140 * 20 Jumper Wire FVP=2.0C26SB10-140 * 30 Jumper Wire FVP=2.0C26SB15-140 * 40 Jumper Wire FVP=2.0C26SB7-100 * 50 Jumper Wire FVP=2.0C26SB2-220 Z C301 Capacitor 0.010 VA1 J.U.C.S 01 CN001 Cable Holder 51048 14P TE 01 CN101 Cable Holder 51048 10P TE 01 CN201 Cable Holder 51048 15P TE 01 CN301 Base Post Connector VA 2P SE 01 CN401 Wire Trap 52147 7P TE 01 CN501 Wire Trap 52147 6P TE 01 CN601 Cable Holder 51048 7P TE 01 CN701 Cable Holder 51048 2P TE 01 D001 Diode 1SS355 TE-17 01 D002 Diode 1SS355 TE-17 01 D101 Diode 1SS355 TE-17 01 D201 Diode 1SS355 TE-17 01 -214 Diode 1SS355 TE-17 01 EM701 LC Filter DSS6NB32A271Q93A 01 JK401 Phone Jack HLJ0544 STREO INPUT L 03 JK402 Phone Jack HLJ0544 STREO INPUT R 03 JK501 Phone Jack HLJ0544 STREO OUTPUT L 03 JK502 Phone Jack HLJ0544 STREO OUTPUT R 03 JK701 Phone Jack HLJ0544 MONO. FOOT SW 03 * LD001 LED (chip) Yellow TLYV1020 J,K MIDI * LD002 LED (chip) Yellow TLYV1020 J,K CLOCK INT LD003 LED (chip) Green TLGU1020 CLIP L -48 01 LD004 LED (chip) Green TLGU1020 CLIP L -24 01 * LD005 LED (chip) Yellow TLYV1020 J,K CLIP L -9 * LD006 LED (chip) Yellow TLYV1020 J,K METER INPUT * LD007 LED (chip) Yellow TLYV1020 J,K CLOCK AES/EBU LD008 LED (chip) Green TLGU1020 CLIP L -42 01 * LD009 LED (chip) Yellow TLYV1020 J,K CLIP L -18 * LD010 LED (chip) Yellow TLYV1020 J,K CLIP L -6 * LD011 LED (chip) Yellow TLYV1020 J,K METER OUTPUT * LD012 LED (chip) Yellow TLYV1020 J,K CLOCK WC LD013 LED (chip) Green TLGU1020 CLIP L -36 01 * LD014 LED (chip) Yellow TLYV1020 J,K CLIP L -15 * LD015 LED (chip) Yellow TLYV1020 J,K CLIP L -3 * LD016 LED (chip) Yellow TLYV1020 J,K INPUT SOURCE ANALOG * LD017 LED (chip) Yellow TLYV1020 J,K 96kHz LD018 LED (chip) Green TLGU1020 CLIP L -30 01 AAX51290 AAX51260 AAX51270 AAX51220 AAX51230 AAX51240 AAX51250 AAX51280 WB053000 AAX51290 AAX51260 AAX51270 AAX51220 AAX51230 AAX51240 AAX51250 AAX51280 WB435800 WB435900 WB436000 WB436100 WC049600 VU073800 WB639500 WB639600 VV153500 WC109500 V7682800 VI879200 VI878800 VI879300 VP245600 VK025100 VF728300 VI878500 VI878000 VT332900 VT332900 VT332900 VT332900 VT332900 VI243100 LB302070 LB302070 LB302070 LB302070 LB301800 WC153200 WC153200 WA588100 WA588100 WC153200 WC153200 WC153200 WA588100 WC153200 WC153200 WC153200 WC153200 WA588100 WC153200 WC153200 WC153200 WC153200 WA588100 電気部品ＦＯＯＴＳＷシートＪＫＩＮシートＪＫＯＵＴシートＰＮ１シートＰＮ２シートＰＮ３シートＰＯＷＥＲシートＶＯＬシートＭＡＩＮシートＦＯＯＴＳＷシートＪＫＩＮシートＪＫＯＵＴシートＰＮ１シートＰＮ２シートＰＮ３シートＰＯＷＥＲシートＶＯＬシートボタンＭＥＭＯボタンＰＡＲＡＭボタンＴＡＰボタン照光ラバーキャップ２６７８ジャンパーワイヤジャンパーワイヤジャンパーワイヤ２６７８ジャンパーワイヤジャンパーワイヤ規格認定コン　ＫＨケーブルホルダーケーブルホルダーケーブルホルダーベースツキポストワイヤートラップワイヤートラップケーブルホルダーケーブルホルダーダイオードダイオードダイオードダイオードダイオードＬＣフィルターホーンコネクタホーンコネクタホーンコネクタホーンコネクタホーンコネクタチップＬＥＤキチップＬＥＤキチップＬＥＤミドチップＬＥＤミドチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤミドチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤミドチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤミド部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 6 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK * LD019 LED (chip) Yellow TLYV1020 J,K CLIP L -12 LD020 LED (chip) Red TLSU1020 CLIP L 0 01 * LD021 LED (chip) Yellow TLYV1020 J,K INPUT SOURCE DIGITAL * LD022 LED (chip) Yellow TLYV1020 J,K 88.2kHz LD023 LED (chip) Green TLGU1020 CLIP R -48 01 LD024 LED (chip) Green TLGU1020 CLIP R -24 01 * LD025 LED (chip) Yellow TLYV1020 J,K CLIP R -9 * LD026 LED (chip) Yellow TLYV1020 J,K INPUT MODE MONO * LD027 LED (chip) Yellow TLYV1020 J,K 48kHz LD028 LED (chip) Green TLGU1020 CLIP R -42 01 * LD029 LED (chip) Yellow TLYV1020 J,K CLIP R -18 * LD030 LED (chip) Yellow TLYV1020 J,K CLIP R -6 * LD031 LED (chip) Yellow TLYV1020 J,K INPUT MODE STEREO * LD032 LED (chip) Yellow TLYV1020 J,K 44.1kHz LD033 LED (chip) Green TLGU1020 CLIP R -36 01 * LD034 LED (chip) Yellow TLYV1020 J,K CLIP R -15 * LD035 LED (chip) Yellow TLYV1020 J,K CLIP R -3 LD036 LED (chip) Green TLGU1020 CLIP R -30 01 * LD037 LED (chip) Yellow TLYV1020 J,K CLIP R -12 LD038 LED (chip) Red TLSU1020 CLIP R 0 01 * LD101 LED (chip) Yellow TLYV1020 J,K PRESET LD102 LED Red LT1D40A 7 SEG. 01 LD103 LED Red LT1D40A 7 SEG. 01 * LD104 LED (chip) Yellow TLYV1020 J,K USER LD105 LED Red LT1D40A 7 SEG. 01 LD106 LED Red LT1D40A 7 SEG. 01 * LD107 LED (chip) Yellow TLYV1020 J,K CLASSIC LD108 LED Red LT1D40A 7 SEG. 01 LD109 LED Red LT1D40A 7 SEG. 01 LD110 LED Red LT1D40A 7 SEG. 01 LD111 LED Red LT1D40A 7 SEG. 01 LD112 LED Red LT1D40A 7 SEG. 01 LD113 LED Red LT1D40A 7 SEG. 01 LD114 LED Red LT1D40A 7 SEG. 01 LD115 LED Red LT1D40A 7 SEG. 01 LD116 LED Red LT1D40A 7 SEG. 01 LD117 LED Red LT1D40A 7 SEG. 01 LD201 LED GL3JV804BOPE UNDO/REDO 01 LD202 LED GL3JV804BOPE COMPARE 01 * LD203 LED (chip) Yellow TLYV1020 J,K PARAMETER * LD204 LED (chip) Yellow TLYV1020 J,K FINE PARAM * LD205 LED (chip) Yellow TLYV1020 J,K UTILITY LD206 LED (chip) Red TLSU1020 BYPASS 01 LD207 LED Yellow LT1H40A TAP 01 SW001 Tact Switch SKQNAED010 METER 01 SW002 Tact Switch SKQNAED010 INPUT MODE 01 SW101 Tact Switch SKQNAED010 BANK 01 SW201 Tact Switch SKQNAED010 STORE 01 SW202 Tact Switch SKQNAED010 DOWN 01 SW203 Tact Switch SKQNAED010 UNDO/REDO 01 SW204 Tact Switch SKQNAED010 INC 01 SW205 Tact Switch SKQNAED010 NEXT 01 SW206 Tact Switch SKQNAED010 PARAMETER 01 SW207 Tact Switch SKQNAED010 UTILITY 01 SW208 Tact Switch SKQNAED010 UP 01 SW209 Tact Switch SKQNAED010 RECALL 01 SW210 Tact Switch SKQNAED010 BACK 01 SW211 Tact Switch SKQNAED010 DEC 01 SW212 Tact Switch SKQNAED010 COMPARE 01 SW213 Tact Switch SKQNAED010 FINE PARAM 01 SW214 Tact Switch SKQNAED010 BYPASS 01 SW215 Tact Switch SKQNAED010 TAP 01 Z SW301 Push Switch ESB92S23B J.U.C.S POWER ON/OFF 02 VR601 Rotary Pot. A10.0K RK09722 INPUT L/R 06 * Circuit Board MAIN (X4198B0) Vinyl Wire Black AWG30 UL1571 (V806100) 5 Bind Head Screw 3.0X8 MFZN2BL 01 10 Jumper Wire FVP=2.0C26SB7-60 01 * 20 Jumper Wire FVP=2.0C26SB6-60 WC153200 WA587900 WC153200 WC153200 WA588100 WA588100 WC153200 WC153200 WC153200 WA588100 WC153200 WC153200 WC153200 WC153200 WA588100 WC153200 WC153200 WA588100 WC153200 WA587900 WC153200 V3670000 V3670000 WC153200 V3670000 V3670000 WC153200 V3670000 V3670000 V3670000 V3670000 V3670000 V3670000 V3670000 V3670000 V3670000 V3670000 V5710700 V5710700 WC153200 WC153200 WC153200 WA587900 V3670200 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 VV056000 V3127000 V4441400 WB053000 -- VB659000 VT645200 VY689700 チップＬＥＤキチップＬＥＤアカチップＬＥＤキチップＬＥＤキチップＬＥＤミドチップＬＥＤミドチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤミドチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤミドチップＬＥＤキチップＬＥＤキチップＬＥＤミドチップＬＥＤキチップＬＥＤアカチップＬＥＤキＬＥＤＬＥＤチップＬＥＤキＬＥＤＬＥＤチップＬＥＤキＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤチップＬＥＤキチップＬＥＤキチップＬＥＤキチップＬＥＤアカＬＥＤタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷタクトＳＷプッシュＳＷ二軸ロータリーＶＲＭＡＩＮシートスズコート線　黒＋バインド小ネジ２６７８ジャンパーワイヤ２６７８ジャンパーワイヤ部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 7 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK BT001 Battery Holder CR2032 03 C001 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C002 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C003 Electrolytic Cap. (chip) 100 6.3V 01 C004 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -010 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C011 Ceramic Capacitor-B (chip) 1000P 50V K 01 C012 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -015 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C016 Electrolytic Cap. (chip) 4.7 25V 01 C017 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -026 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C027 Ceramic Capacitor-SL(chip) 470P 50V J 01 C028 Ceramic Capacitor-SL(chip) 470P 50V J 01 C029 Monolithic Ceramic Cap. 1.0 10V K 01 C030 Monolithic Ceramic Cap. 1.0 10V K 01 C031 Electrolytic Cap. (chip) 100 6.3V 01 C032 Ceramic Capacitor-CH(chip) 22P 50V J 01 C033 Ceramic Capacitor-CH(chip) 22P 50V J 01 C036 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -045 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C101 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -109 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C201 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -207 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C208 Electrolytic Cap. (chip) 47 6.3V 01 C209 Ceramic Capacitor-F (chip) 0.3300 16V Z 01 C210 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C211 Ceramic Capacitor-F (chip) 0.3300 16V Z 01 C212 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -223 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C224 Ceramic Capacitor-SL(chip) 560P 50V J 01 C225 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -235 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C236 Electrolytic Cap. (chip) 220 6.3V UUR0J2 01 C237 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C238 Ceramic Capacitor-B (chip) 0.0220 25V K 01 C239 Electrolytic Cap. (chip) 330 6.3V UUR0J3 01 C240 Mylar Capacitor (chip) 0.0820 16V J 01 C241 Ceramic Capacitor-B (chip) 0.0220 25V K 01 C242 Ceramic Capacitor-B (chip) 0.0220 25V K 01 C243 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C244 Capacitor 1.0000 16V M 01 C245 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -247 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C301 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -320 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C401 Mylar Capacitor (chip) 0.15 50V J C402 Mylar Capacitor (chip) 0.0039 16V G 01 C403 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C404 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C405 Electrolytic Cap. (chip) 1 50V 01 C406 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C407 Electrolytic Cap. (chip) 1 50V 01 C408 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -410 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C411 Electrolytic Cap. (chip) 1 50V 01 C412 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C413 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C414 Ceramic Capacitor-CH(chip) 33P 50V J 01 C415 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C416 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C417 Ceramic Capacitor-CH(chip) 10P 50V D 01 C418 Ceramic Capacitor-CH(chip) 10P 50V D 01 C419 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C420 Ceramic Capacitor-SL(chip) 680P 50V J 01 C421 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -425 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C426 Electrolytic Cap. (chip) 10 16V 01 C427 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 VN103600 US145100 US145100 UF018100 US145100 US145100 US063100 US145100 US145100 UF046470 US145100 US145100 US062470 US062470 V4771700 V4771700 UF018100 US061220 US061220 US145100 US145100 US145100 US145100 US145100 US145100 UF017470 US135330 US145100 US135330 US145100 US145100 US062560 US145100 US145100 UF118220 US145100 US044220 UF118330 VR327300 US044220 US044220 US145100 V6200900 US145100 US145100 US145100 US145100 V9074200 VS026900 US145100 US145100 UF066100 US145100 UF066100 US145100 US145100 UF066100 US145100 US145100 US061330 US145100 US145100 US061100 US061100 US145100 US062680 US145100 US145100 UF037100 US145100 バッテリーホルダーチップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｂ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＳＬ）チップセラ（ＳＬ）チップ積層セラコンチップ積層セラコンチップケミコンチップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＳＬ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｂ）チップケミコンチップマイラーチップセラ（Ｂ）チップセラ（Ｂ）チップセラ（Ｆ）チップフィルムコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップマイラーチップマイラーチップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＣＨ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（Ｆ）チップセラ（ＳＬ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 8 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK C428 Electrolytic Cap. (chip) 10 16V 01 C429 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C430 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C431 Ceramic Capacitor-CH(chip) 10P 50V D 01 -433 Ceramic Capacitor-CH(chip) 10P 50V D 01 C501 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C502 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C503 Electrolytic Cap. (chip) 47 16V 01 C504 Electrolytic Cap. (chip) 47 16V 01 C505 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -508 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C509 Ceramic Capacitor-B (chip) 0.0100 50V K 01 C510 Ceramic Capacitor-B (chip) 0.0100 50V K 01 C601 Electrolytic Cap. 47.00 50.0V 01 C602 Electrolytic Cap. 47.00 50.0V 01 C603 Electrolytic Cap. 22.00 25.0V 01 C604 Ceramic Capacitor-SL(chip) 150P 50V J 01 C605 Ceramic Capacitor-CH(chip) 47P 50V J 01 C606 Ceramic Capacitor-CH(chip) 33P 50V J 01 C607 Ceramic Capacitor-SL(chip) 150P 50V J 01 C608 Ceramic Capacitor-CH(chip) 33P 50V J 01 C609 Electrolytic Cap. 22.00 25.0V 01 -611 Electrolytic Cap. 22.00 25.0V 01 C612 Ceramic Capacitor-SL(chip) 100P 50V J 01 C613 Ceramic Capacitor-SL(chip) 100P 50V J 01 C615 Electrolytic Cap. 100.00 25.0V 01 C617 Electrolytic Cap. 100.00 25.0V 01 C618 Electrolytic Cap. 22.00 25.0V 01 C619 Ceramic Capacitor-CH(chip) 47P 50V J 01 C620 Ceramic Capacitor-SL(chip) 120P 50V J 01 C621 Ceramic Capacitor-CH(chip) 47P 50V J 01 C622 Ceramic Capacitor-SL(chip) 120P 50V J 01 C623 Mylar Capacitor 1000P 50V J 01 C626 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C627 Electrolytic Cap. 22.00 25.0V 01 C628 Electrolytic Cap. 47.00 25.0V 01 C629 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C630 Electrolytic Cap. 100.00 25.0V 01 C631 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 * C632 Electrolytic Cap. 22.00 50.0V C633 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C634 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 * C636 Electrolytic Cap. 220.00 25.0V C639 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C640 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C651 Electrolytic Cap. 47.00 50.0V 01 C652 Electrolytic Cap. 47.00 50.0V 01 C653 Electrolytic Cap. 22.00 25.0V 01 C654 Ceramic Capacitor-SL(chip) 150P 50V J 01 C655 Ceramic Capacitor-CH(chip) 47P 50V J 01 C656 Ceramic Capacitor-CH(chip) 33P 50V J 01 C657 Ceramic Capacitor-SL(chip) 150P 50V J 01 C658 Ceramic Capacitor-CH(chip) 33P 50V J 01 C659 Electrolytic Cap. 22.00 25.0V 01 -661 Electrolytic Cap. 22.00 25.0V 01 C662 Ceramic Capacitor-SL(chip) 100P 50V J 01 C663 Ceramic Capacitor-SL(chip) 100P 50V J 01 C665 Electrolytic Cap. 100.00 25.0V 01 C667 Electrolytic Cap. 100.00 25.0V 01 C668 Electrolytic Cap. 22.00 25.0V 01 C669 Ceramic Capacitor-CH(chip) 47P 50V J 01 C670 Ceramic Capacitor-SL(chip) 120P 50V J 01 C671 Ceramic Capacitor-CH(chip) 47P 50V J 01 C672 Ceramic Capacitor-SL(chip) 120P 50V J 01 C673 Mylar Capacitor 1000P 50V J 01 C676 Ceramic Capacitor-CH(chip) 10P 50V D 01 C677 Ceramic Capacitor-CH(chip) 47P 50V J 01 C678 Ceramic Capacitor-CH(chip) 22P 50V J 01 * C701 Electrolytic Cap. 22.00 50.0V C702 Mylar Capacitor 0.1000 50V J 01 UF037100 US145100 US145100 US061100 US061100 US145100 US145100 UF037470 UF037470 US145100 US145100 US064100 US064100 UU167470 UU167470 UU147220 US062150 US061470 US061330 US062150 US061330 UU147220 UU147220 US062100 US062100 UU148100 UU148100 UU147220 US061470 US062120 US061470 US062120 UA353100 US145100 UU147220 UU147470 US145100 UU148100 US145100 WC153700 US145100 US145100 WC153600 US145100 US145100 UU167470 UU167470 UU147220 US062150 US061470 US061330 US062150 US061330 UU147220 UU147220 US062100 US062100 UU148100 UU148100 UU147220 US061470 US062120 US061470 US062120 UA353100 US061100 US061470 US061220 WC153700 UA355100 チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｂ）チップセラ（Ｂ）ケミコン　ＦＷケミコン　ＦＷケミコン　ＦＷチップセラ（ＳＬ）チップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（ＳＬ）チップセラ（ＣＨ）ケミコン　ＦＷケミコン　ＦＷチップセラ（ＳＬ）チップセラ（ＳＬ）ケミコン　ＦＷケミコン　ＦＷケミコン　ＦＷチップセラ（ＣＨ）チップセラ（ＳＬ）チップセラ（ＣＨ）チップセラ（ＳＬ）マイラーコンチップセラ（Ｆ）ケミコン　ＦＷケミコン　ＦＷチップセラ（Ｆ）ケミコン　ＦＷチップセラ（Ｆ）ケミコン　ＳＭＥチップセラ（Ｆ）チップセラ（Ｆ）ケミコン　ＳＭＥチップセラ（Ｆ）チップセラ（Ｆ）ケミコン　ＦＷケミコン　ＦＷケミコン　ＦＷチップセラ（ＳＬ）チップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（ＳＬ）チップセラ（ＣＨ）ケミコン　ＦＷケミコン　ＦＷチップセラ（ＳＬ）チップセラ（ＳＬ）ケミコン　ＦＷケミコン　ＦＷケミコン　ＦＷチップセラ（ＣＨ）チップセラ（ＳＬ）チップセラ（ＣＨ）チップセラ（ＳＬ）マイラーコンチップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（ＣＨ）ケミコン　ＳＭＥマイラーコン部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 9 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK * C704 Electrolytic Cap. 22.00 50.0V C705 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C706 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C707 Mylar Capacitor 0.1000 50V J 01 C708 Electrolytic Cap. 22.00 25.0V 01 C709 Electrolytic Cap. 47.00 25.0V 01 C710 Mylar Capacitor 0.1000 50V J 01 C711 Mylar Capacitor 0.1000 50V J 01 C712 Mylar Capacitor 1200P 50V J 01 C714 Mylar Capacitor 180P 50V J 01 C715 Mylar Capacitor 180P 50V J 01 C719 Ceramic Capacitor-CH(chip) 33P 50V J 01 C720 Ceramic Capacitor-CH(chip) 33P 50V J 01 * C721 Electrolytic Cap. 100.00 50.0V * C722 Electrolytic Cap. 100.00 50.0V C724 Electrolytic Cap. 100.00 25.0V 01 C726 Electrolytic Cap. 100.00 25.0V 01 C727 Electrolytic Cap. (chip) 47 16V 01 * C728 Mylar Capacitor 270P 50V J C729 Mylar Capacitor 680P 50V J 01 C762 Mylar Capacitor 1200P 50V J 01 C764 Mylar Capacitor 180P 50V J 01 C765 Mylar Capacitor 180P 50V J 01 C769 Ceramic Capacitor-CH(chip) 33P 50V J 01 C770 Ceramic Capacitor-CH(chip) 33P 50V J 01 * C771 Electrolytic Cap. 100.00 50.0V * C772 Electrolytic Cap. 100.00 50.0V C774 Electrolytic Cap. 100.00 25.0V 01 C776 Electrolytic Cap. 100.00 25.0V 01 * C778 Mylar Capacitor 270P 50V J C779 Mylar Capacitor 680P 50V J 01 C780 Ceramic Capacitor-CH(chip) 22P 50V J 01 * C801 Electrolytic Cap. 470.00 50.0V * C802 Mylar Capacitor (chip) 0.0056 50V J * C803 Electrolytic Cap. 47.00 50.0V * C804 Electrolytic Cap. 470.00 25.0V * -806 Electrolytic Cap. 470.00 25.0V * C807 Mylar Capacitor 0.1600 50V J * C808 Mylar Capacitor 0.1600 50V J * C809 Electrolytic Cap. 220.00 25.0V * C810 Electrolytic Cap. 220.00 25.0V * C811 Mylar Capacitor 0.1600 50V J * C812 Electrolytic Cap. 330.00 16.0V * C813 Mylar Capacitor 0.1800 50V J * C814 Mylar Capacitor 0.1800 50V J C815 Mylar Capacitor 0.1300 50V J 01 * C816 Electrolytic Cap. 470.00 25.0V * C817 Electrolytic Cap. 470.00 25.0V C818 Mylar Capacitor 0.1500 50V J * C819 Electrolytic Cap. 220.00 25.0V * C820 Electrolytic Cap. 470.00 25.0V CN002 Wire Trap 52147 2P TE 01 * CN101 FFC Connector 52806 20P TE CN401 USB Connector USB 4P SE TO HOST USB CN501 Wire Trap 52147 14P TE 01 CN502 Wire Trap 52147 10P TE 01 CN503 Wire Trap 52147 15P TE 01 CN601 Cable Holder 51048 7P TE 01 CN602 Wire Trap 52147 7P TE 01 CN701 Cable Holder 51048 6P TE 01 CN801 Base Post Connector VH 4P TE 01 D001 Diode RB500V-40 01 D201 Diode 1SS355 TE-17 01 D401 Diode 1SS355 TE-17 01 D701 Diode 1SS355 TE-17 01 -703 Diode 1SS355 TE-17 01 D752 Diode 1SS355 TE-17 01 D753 Diode 1SS355 TE-17 01 D801 Diode 1SS355 TE-17 01 D802 Diode 1SS355 TE-17 01 WC153700 US145100 US145100 UA355100 UU147220 UU147470 UA355100 UA355100 UA353120 UA352180 UA352180 US061330 US061330 WC153900 WC153900 UU148100 UU148100 UF037470 UA352270 UA352680 UA353120 UA352180 UA352180 US061330 US061330 WC153900 WC153900 UU148100 UU148100 UA352270 UA352680 US061220 WB828700 VR330000 WC153800 WB879900 WB879900 UA355160 UA355160 WC153600 WC153600 UA355160 WC153500 UA355180 UA355180 UA355130 WB879900 WB879900 UA355150 WC153600 WB879900 VK024600 WA528800 V9020800 VK025800 VF728200 VF667600 VI878500 VK025100 VI878400 LB932040 V2376600 VT332900 VT332900 VT332900 VT332900 VT332900 VT332900 VT332900 VT332900 ケミコン　ＳＭＥチップセラ（Ｆ）チップセラ（Ｆ）マイラーコンケミコン　ＦＷケミコン　ＦＷマイラーコンマイラーコンマイラーコンマイラーコンマイラーコンチップセラ（ＣＨ）チップセラ（ＣＨ）ケミコン　ＳＭＥケミコン　ＳＭＥケミコン　ＦＷケミコン　ＦＷチップケミコンマイラーコンマイラーコンマイラーコンマイラーコンマイラーコンチップセラ（ＣＨ）チップセラ（ＣＨ）ケミコン　ＳＭＥケミコン　ＳＭＥケミコン　ＦＷケミコン　ＦＷマイラーコンマイラーコンチップセラ（ＣＨ）ケミコン　ＡＳＦチップマイラーケミコン　ＳＭＥケミコン　ＡＳＦケミコン　ＡＳＦマイラーコンマイラーコンケミコン　ＳＭＥケミコン　ＳＭＥマイラーコンケミコン　ＳＭＥマイラーコンマイラーコンマイラーコンケミコン　ＡＳＦケミコン　ＡＳＦマイラーコンケミコン　ＳＭＥケミコン　ＡＳＦワイヤートラップＦＦＣコネクタＵＳＢ　コネクタ　Ｂワイヤートラップワイヤートラップワイヤートラップケーブルホルダーワイヤートラップケーブルホルダーベースポストダイオードダイオードダイオードダイオードダイオードダイオードダイオードダイオードダイオード部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 10 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK D803 Diode RB160L-60 01 D804 Diode RB160L-40 TE25 01 D805 Diode RB160L-60 01 D806 Diode RB160L-40 TE25 01 -808 Diode RB160L-40 TE25 01 DA401 Diode Array DAN217 0.3A X2 01 DA402 Diode Array 1SS372 TE85L 01 DA403 Diode Array 1SS372 TE85L 01 EM201 LC Filter DSS6NF31C223Q93A 01 EM202 LC Filter DSS6NF31C223Q93A 01 EM301 LC Filter DSS6NF31C223Q93A 01 EM401 EMI Filter (chip) NFM3DCC101U1H3L 01 EM402 LC Filter DSS6NB32A271Q93A 01 EM403 LC Filter DSS6NB32A271Q93A 01 EM601 LC Filter DSS6NB32A271Q93A 01 EM602 LC Filter DSS6NB32A271Q93A 01 EM651 LC Filter DSS6NB32A271Q93A 01 EM652 LC Filter DSS6NB32A271Q93A 01 EM701 LC Filter DSS6NB32A271Q93A 01 EM702 LC Filter DSS6NB32A271Q93A 01 EM751 LC Filter DSS6NB32A271Q93A 01 EM752 LC Filter DSS6NB32A271Q93A 01 EM801 LC Filter DSS6NF31C223Q93A 01 EM805 LC Filter DSS6NF31C223Q93A 01 -807 LC Filter DSS6NF31C223Q93A 01 IC001 IC UPC2918T-E1 REGULATOR +1.8V 03 IC002 IC NJM2904V(TE1) OP AMP 02 IC003 IC TC7SH04FU INVERTER 01 IC004 IC HD6417709SF133 CPU 12 IC005 IC TC74VHC08FT AND 01 IC006 IC M62023FP SYSTEM RESET 03 IC007 IC S-80130ANMC-JCP-T2 SYSTEM RESET 01 IC009 IC W986416DH-7 SDRAM 64M 08 * IC010 IC MX29LV160ABTC-7 FL FLASH ROM 16M * IC011 IC M5M5V216ATP-55HI SRAM 2M IC012 IC TC74VHC32FT OR 01 IC101 IC 74LVX4245MTCX TRANSCEIVER 03 IC102 IC 74LVX4245MTCX TRANSCEIVER 03 IC103 IC TC74VHCT245AFT TRANSCEIVER 07 -106 IC TC74VHCT245AFT TRANSCEIVER 07 IC107 IC TC74VHC08FT AND 01 IC201 IC S1L51252F32S000 PLLP2(GATE ARRAY) 08 IC202 IC M51953AFP SYSTEM RESET 01 IC203 IC TC74VHCT245AFT TRANSCEIVER 07 IC204 IC TLC2932IPWR PLL 06 IC205 IC YM3436DK DIR2 11 IC206 IC TC74VHC74FT D-FF 01 IC207 IC TC74VHC04FT INVERTER 01 IC208 IC TC74VHC14FT INVERTER 02 * IC209 IC TC74VHC00FT NAND IC210 IC TC7SH04FU INVERTER 01 IC301 IC MSM514260E-60JS DRAM 4M 07 IC302 IC MSM514260E-60JS DRAM 4M 07 IC303 IC YSS910-S DSP6 10 IC401 IC CS8415A-CS DIR 06 IC402 IC TC7SH04FU INVERTER 01 IC403 IC TC74VHC244FT BUFFER 03 IC404 IC TC74VHCT08AFT AND IC405 IC CS8405A-CS DIT 06 IC406 IC SN75124NSR LINE RECEIVER 05 IC407 IC M37641M8-141FP CPU (USB 32K) 09 * IC408 Photo Coupler PC410L0NIP IC501 IC TC74VHC04FT INVERTER 01 * IC502 IC S-80145ANMC-JC6-T2 SYSTEM RESET IC601 IC UPC4570G2 OP AMP 03 IC602 IC UPC4570G2 OP AMP 03 IC603 IC CS5361-KS ADC 08 IC605 IC TC7SH04FU INVERTER 01 IC606 IC TC74VHCT245AFT TRANSCEIVER 07 IC651 IC UPC4570G2 OP AMP 03 V8409200 VS597600 V8409200 VS597600 VS597600 VV556300 V9424900 V9424900 VD542700 VD542700 VD542700 VQ761400 VI243100 VI243100 VI243100 VI243100 VI243100 VI243100 VI243100 VI243100 VI243100 VI243100 VD542700 VD542700 VD542700 X2157A00 XR532A00 XS775A00 X2081A00 XV891A00 X2163A00 X3848A00 XZ414B00 X4916A00 X3226A00 XY945A00 X3097A00 X3097A00 XT744A00 XT744A00 XV891A00 X3775A00 XW422A00 XT744A00 XV064A00 XG948E00 XV892A00 X0195A00 XV890A00 X2313A00 XS775A00 XV077B00 XV077B00 XV988A00 X2089A00 XS775A00 XW234A00 X3586A00 XZ349A00 XV930A00 X2485200 V9924900 X0195A00 X4069A00 XF291A00 XF291A00 X3447A00 XS775A00 XT744A00 XF291A00 ダイオードダイオードダイオードダイオードダイオードダイオードアレイダイオードアレイダイオードアレイＬＣフィルターＥＭＩＬＣフィルターＥＭＩＬＣフィルターＥＭＩエミフィル　チップＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＥＭＩＬＣフィルターＥＭＩＬＣフィルターＥＭＩＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣフォトカプラＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣ部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 11 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK IC652 IC UPC4570G2 OP AMP 03 IC701 IC AK4393-VF-E2 DAC 07 IC702 IC NJM78L05UA REGULATOR +5V 02 IC703 IC UPC4570G2 OP AMP 03 IC704 IC NJM4556AL OP AMP 02 IC753 IC UPC4570G2 OP AMP 03 IC754 IC NJM4556AL OP AMP 02 * IC801 IC NJM78M15DL1A REGULATOR +15V * IC802 IC NJM79M15DL1A REGULATOR -15V IC803 IC NJM78M05DL1A(TE1) REGULATOR +5V 02 IC804 IC PQ033Y3H3ZP REGULATOR +3.3V 04 JK401 Cannon Connector NC3FBH1 AES/EBU IN 06 JK402 Cannon Connector NC3MAH AES/EBU OUT 04 JK403 BNC Connector 1P YKS11-0067 WORD CLOCK IN 05 JK404 DIN Connector 5P3 YKF51-50 MIDI IN,OUT/THRU 04 JK601 Cannon Connector NC3FBH1 INPUT L 06 JK651 Cannon Connector NC3FBH1 INPUT R 06 JK701 Cannon Connector NC3MAH OUTPUT L 04 JK751 Cannon Connector NC3MAH OUTPUT R 04 K401 Cannon Angle 02 K402 Cannon Angle 02 K601 Cannon Angle 02 K651 Cannon Angle 02 K701 Cannon Angle 02 K751 Cannon Angle 02 K801 Heat Sink PUE16-30 (WB08520) L001 Ferrite Bead BL02RN1-R62T4 01 L003 Noise Filter ZJY51R5-2P 04 L201 Ferrite Bead BL02RN1-R62T4 01 L202 Coil SSB44-331 330uH 03 L401 Ferrite Bead BL02RN1-R62T4 01 -405 Ferrite Bead BL02RN1-R62T4 01 L406 Pulse Transformer TB06A015 05 L407 Pulse Transformer TB06A015 05 L408 Noise Filter ZJY51R5-2P 04 L410 Ferrite Bead FL5R200QNT 20uH 01 -413 Ferrite Bead FL5R200QNT 20uH 01 L414 Common Mode Coil DLP31SN121SL2L 03 R001 Carbon Resistor (chip) 3.0K 63M J 01 R002 Carbon Resistor (chip) 10.0K 63M J 01 R003 Carbon Resistor (chip) 2.0K 63M J 01 R004 Carbon Resistor (chip) 100.0 63M J 01 R005 Carbon Resistor (chip) 100.0K 63M J 01 R006 Carbon Resistor (chip) 1.0M 63M J 01 R007 Carbon Resistor (chip) 10.0K 63M J 01 R011 Carbon Resistor (chip) 10.0K 63M J 01 R012 Carbon Resistor (chip) 10.0K 63M J 01 R017 Carbon Resistor (chip) 220.0 63M J 01 R020 Carbon Resistor (chip) 10.0K 63M J 01 R021 Carbon Resistor (chip) 10.0K 63M J 01 R022 Carbon Resistor (chip) 0 63M J 01 R026 Carbon Resistor (chip) 33.0 63M J 01 R027 Carbon Resistor (chip) 33.0 63M J 01 R028 Carbon Resistor (chip) 0 63M J 01 R029 Carbon Resistor (chip) 10.0K 63M J 01 R030 Carbon Resistor (chip) 1.0K 63M J 01 R033 Carbon Resistor (chip) 22.0 63M J 01 R034 Carbon Resistor (chip) 10.0 63M J 01 R035 Carbon Resistor (chip) 47.0 63M J 01 -051 Carbon Resistor (chip) 47.0 63M J 01 R052 Carbon Resistor (chip) 0 63M J 01 -056 Carbon Resistor (chip) 0 63M J 01 R102 Carbon Resistor (chip) 100.0 63M J 01 R103 Carbon Resistor (chip) 3.3K 63M J 01 R104 Carbon Resistor (chip) 10.0K 63M J 01 -108 Carbon Resistor (chip) 10.0K 63M J 01 R201 Carbon Resistor (chip) 10.0K 63M J 01 -204 Carbon Resistor (chip) 10.0K 63M J 01 R205 Carbon Resistor (chip) 100.0 63M J 01 R206 Carbon Resistor (chip) 0 63M J 01 XF291A00 XW029A00 XJ598A00 XF291A00 XP844A00 XF291A00 XP844A00 X3942A00 X3943A00 XS534A00 X2589A00 V9234300 VS133700 V6415900 VK519000 V9234300 V9234300 VS133700 VS133700 V7539800 V7539800 V7539800 V7539800 V7539800 V7539800 -- GE300610 VP246300 GE300610 V7716400 GE300610 GE300610 V7930100 V7930100 VP246300 VB835000 VB835000 V5239100 RD356300 RD357100 RD356200 RD355100 RD358100 RD359100 RD357100 RD357100 RD357100 RD355220 RD357100 RD357100 RD350000 RD354330 RD354330 RD350000 RD357100 RD356100 RD354220 RD354100 RD354470 RD354470 RD350000 RD350000 RD355100 RD356330 RD357100 RD357100 RD357100 RD357100 RD355100 RD350000 ＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣキャノンコネクタキャノンコネクタ１Ｐ　ＢＮＣコネクタＤＩＮコネクタ２連キャノンコネクタキャノンコネクタキャノンコネクタキャノンコネクタキャノン金具（横形）キャノン金具（横形）キャノン金具（横形）キャノン金具（横形）キャノン金具（横形）キャノン金具（横形）ヒートシンクフェライトビーズノイズフィルターフェライトビーズコイル３３０Ｕフェライトビーズフェライトビーズパルストランスパルストランスノイズフィルターコイル　２０Ｕコイル　２０Ｕコモンモードコイルチップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 12 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK R209 Carbon Resistor (chip) 150.0 63M J 01 R210 Carbon Resistor (chip) 1.5K 63M J 01 R211 Carbon Resistor (chip) 68.0 63M J 01 -217 Carbon Resistor (chip) 68.0 63M J 01 R218 Carbon Resistor (chip) 100.0 63M J 01 R219 Carbon Resistor (chip) 47.0 63M J 01 R220 Carbon Resistor (chip) 0 63M J 01 R221 Carbon Resistor (chip) 47.0 63M J 01 R222 Carbon Resistor (chip) 68.0 63M J 01 R223 Carbon Resistor (chip) 47.0 63M J 01 -225 Carbon Resistor (chip) 47.0 63M J 01 R226 Metal Film Resistor (chip) 750.0 1/10 D 01 R227 Metal Film Resistor (chip) 3.3K 1/10 D 01 R228 Metal Film Resistor (chip) 3.3K 1/10 D 01 R229 Metal Film Resistor (chip) 330.0 1/10 D 01 R230 Metal Film Resistor (chip) 3.0K 1/10 D 01 R231 Carbon Resistor (chip) 0 63M J 01 -235 Carbon Resistor (chip) 0 63M J 01 R236 Carbon Resistor (chip) 100.0 63M J 01 R237 Carbon Resistor (chip) 68.0 63M J 01 R238 Carbon Resistor (chip) 0 63M J 01 -241 Carbon Resistor (chip) 0 63M J 01 R301 Carbon Resistor (chip) 47.0 63M J 01 R302 Carbon Resistor (chip) 0 63M J 01 R401 Carbon Resistor (chip) 47.0 63M J 01 R402 Metal Film Resistor (chip) 3.9K 1/10 D 01 R403 Carbon Resistor (chip) 47.0 63M J 01 R404 Carbon Resistor (chip) 47.0K 63M J 01 -406 Carbon Resistor (chip) 47.0K 63M J 01 R408 Carbon Resistor (chip) 0 63M J 01 R409 Carbon Resistor (chip) 10.0K 63M J 01 R410 Carbon Resistor (chip) 10.0K 63M J 01 R411 Carbon Resistor (chip) 5.6K 63M J 01 R412 Carbon Resistor (chip) 4.7K 63M J 01 R413 Carbon Resistor (chip) 1.0K 63M J 01 R414 Carbon Resistor (chip) 1.0K 63M J 01 R415 Carbon Resistor (chip) 2.2K 63M J 01 R416 Carbon Resistor (chip) 110.0 63M J 01 R417 Carbon Resistor (chip) 110.0 63M J 01 R418 Carbon Resistor (chip) 680.0 63M J 01 R419 Carbon Resistor (chip) 22.0K 63M J 01 R420 Carbon Resistor (chip) 47.0 0.1 J 01 R421 Carbon Resistor (chip) 22.0K 63M J 01 R422 Carbon Resistor (chip) 75.0 0.1 J 01 R423 Carbon Resistor (chip) 220.0 63M J 01 R424 Carbon Resistor (chip) 33.0 1/4 J 01 R425 Carbon Resistor (chip) 33.0 1/4 J 01 R426 Carbon Resistor (chip) 1.5K 63M J 01 R427 Carbon Resistor (chip) 47.0 63M J 01 R428 Carbon Resistor (chip) 47.0 63M J 01 R501 Carbon Resistor (chip) 33.0 1/4 J 01 -510 Carbon Resistor (chip) 33.0 1/4 J 01 R511 Carbon Resistor (chip) 10.0K 63M J 01 R512 Carbon Resistor (chip) 220.0 63M J 01 R513 Carbon Resistor (chip) 150.0 1/4 J R514 Carbon Resistor (chip) 180.0 1/4 J 01 R515 Carbon Resistor (chip) 180.0 1/4 J 01 R516 Carbon Resistor (chip) 10.0K 63M J 01 R517 Carbon Resistor (chip) 10.0K 63M J 01 R518 Carbon Resistor (chip) 1.0K 63M J 01 R519 Carbon Resistor (chip) 1.0K 63M J 01 R520 Carbon Resistor (chip) 10.0K 63M J 01 R521 Carbon Resistor (chip) 10.0K 63M J 01 R601 Carbon Resistor 82.0K 1/4 J 01 R602 Carbon Resistor 82.0K 1/4 J 01 R603 Metal Film Resistor 10.0K 1/4 F 01 R604 Metal Film Resistor 10.0K 1/4 F 01 R605 Metal Film Resistor 7.5K 1/4 F 01 * R606 Carbon Resistor 750.0K 1/4 J * R607 Metal Film Resistor 30.0K 1/4 F RD355150 RD356150 RD354680 RD354680 RD355100 RD354470 RD350000 RD354470 RD354680 RD354470 RD354470 VI194600 VI196100 VI196100 VI193700 VI196000 RD350000 RD350000 RD355100 RD354680 RD350000 RD350000 RD354470 RD350000 RD354470 VI196400 RD354470 RD357470 RD357470 RD350000 RD357100 RD357100 RD356560 RD356470 RD356100 RD356100 RD356220 RD355110 RD355110 RD355680 RD357220 RD254470 RD357220 RD254750 RD355220 RD154330 RD154330 RD356150 RD354470 RD354470 RD154330 RD154330 RD357100 RD355220 RD155150 RD155180 RD155180 RD357100 RD357100 RD356100 RD356100 RD357100 RD357100 HF757820 HF757820 VC328800 VC328800 VC328500 HF758750 VC329900 チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ金被抵抗チップ金被抵抗チップ金被抵抗チップ金被抵抗チップ金被抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ金被抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗カーボン抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗金属被膜抵抗部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 13 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK R608 Metal Film Resistor 7.5K 1/4 F 01 * R609 Metal Film Resistor 30.0K 1/4 F R610 Carbon Resistor 39.0 1/4 J 01 * R611 Carbon Resistor 750.0K 1/4 J R612 Metal Film Resistor 56.0K 1/4 F 01 R613 Carbon Resistor 39.0 1/4 J 01 R614 Metal Film Resistor 4.7K 1/4 F 01 R615 Metal Film Resistor 10.0K 1/4 F 01 R616 Metal Film Resistor 22.0K 1/4 F 01 R617 Metal Film Resistor 2.7K 1/4 F 01 R618 Metal Film Resistor 3.0K 1/4 F 01 R619 Metal Film Resistor 2.2K 1/4 F 01 R620 Metal Film Resistor 1.0K 1/4 F 01 R621 Metal Film Resistor 2.2K 1/4 F 01 R622 Carbon Resistor 150.0 1/4 J 01 R623 Carbon Resistor 150.0 1/4 J 01 R624 Metal Film Resistor 22.0K 1/4 F 01 R625 Metal Film Resistor 1.5K 1/4 F R626 Metal Film Resistor 4.7K 1/4 F 01 R629 Carbon Resistor (chip) 0 63M J 01 R630 Carbon Resistor (chip) 47.0 63M J 01 -632 Carbon Resistor (chip) 47.0 63M J 01 R633 Carbon Resistor (chip) 0 63M J 01 R634 Carbon Resistor (chip) 47.0 63M J 01 R635 Carbon Resistor (chip) 47.0 63M J 01 R636 Carbon Resistor (chip) 100.0 63M J 01 R637 Carbon Resistor (chip) 47.0 63M J 01 R638 Carbon Resistor (chip) 100.0 63M J 01 R639 Carbon Resistor (chip) 100.0 63M J 01 R640 Carbon Resistor (chip) 10.0K 63M J 01 R641 Carbon Resistor (chip) 10.0K 63M J 01 R642 Metal Film Resistor (chip) 75.0K 1/10 D 01 -645 Metal Film Resistor (chip) 75.0K 1/10 D 01 * R646 Carbon Resistor 750.0K 1/4 J R651 Carbon Resistor 82.0K 1/4 J 01 R652 Carbon Resistor 82.0K 1/4 J 01 R653 Metal Film Resistor 10.0K 1/4 F 01 R654 Metal Film Resistor 10.0K 1/4 F 01 R655 Metal Film Resistor 7.5K 1/4 F 01 * R656 Carbon Resistor 750.0K 1/4 J * R657 Metal Film Resistor 30.0K 1/4 F R658 Metal Film Resistor 7.5K 1/4 F 01 * R659 Metal Film Resistor 30.0K 1/4 F R660 Carbon Resistor 39.0 1/4 J 01 * R661 Carbon Resistor 750.0K 1/4 J R662 Metal Film Resistor 56.0K 1/4 F 01 R663 Carbon Resistor 39.0 1/4 J 01 R664 Metal Film Resistor 4.7K 1/4 F 01 R665 Metal Film Resistor 10.0K 1/4 F 01 R666 Metal Film Resistor 22.0K 1/4 F 01 R667 Metal Film Resistor 2.7K 1/4 F 01 R668 Metal Film Resistor 2.2K 1/4 F 01 R669 Metal Film Resistor 3.0K 1/4 F 01 R670 Metal Film Resistor 1.0K 1/4 F 01 R671 Metal Film Resistor 2.2K 1/4 F 01 R672 Carbon Resistor 150.0 1/4 J 01 R673 Carbon Resistor 150.0 1/4 J 01 R692 Metal Film Resistor (chip) 75.0K 1/10 D 01 -695 Metal Film Resistor (chip) 75.0K 1/10 D 01 * R696 Carbon Resistor 750.0K 1/4 J R701 Carbon Resistor (chip) 68.0 63M J 01 R702 Carbon Resistor (chip) 0 63M J 01 R703 Carbon Resistor (chip) 100.0 63M J 01 R704 Carbon Resistor (chip) 0 63M J 01 -706 Carbon Resistor (chip) 0 63M J 01 R708 Carbon Resistor (chip) 0 63M J 01 R709 Metal Film Resistor 1.5K 1/4 F R710 Metal Film Resistor 1.5K 1/4 F R711 Metal Film Resistor 6.8K 1/4 F 01 R713 Metal Film Resistor 1.5K 1/4 F VC328500 VC329900 HF754390 HF758750 VC330600 HF754390 VC328000 VC328800 VC329600 VC327400 VC327500 VC327200 VC326500 VC327200 HF755150 HF755150 VC329600 VC326800 VC328000 RD350000 RD354470 RD354470 RD350000 RD354470 RD354470 RD355100 RD354470 RD355100 RD355100 RD357100 RD357100 VI199500 VI199500 HF758750 HF757820 HF757820 VC328800 VC328800 VC328500 HF758750 VC329900 VC328500 VC329900 HF754390 HF758750 VC330600 HF754390 VC328000 VC328800 VC329600 VC327400 VC327200 VC327500 VC326500 VC327200 HF755150 HF755150 VI199500 VI199500 HF758750 RD354680 RD350000 RD355100 RD350000 RD350000 RD350000 VC326800 VC326800 VC328400 VC326800 金属被膜抵抗金属被膜抵抗カーボン抵抗カーボン抵抗金属被膜抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ金被抵抗チップ金被抵抗カーボン抵抗カーボン抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗カーボン抵抗金属被膜抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗カーボン抵抗チップ金被抵抗チップ金被抵抗カーボン抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 14 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK R714 Metal Film Resistor 1.5K 1/4 F R715 Metal Film Resistor 6.8K 1/4 F 01 R717 Carbon Resistor 39.0 1/4 J 01 R718 Metal Film Resistor 9.1K 1/4 F 01 R719 Metal Film Resistor 2.2K 1/4 F 01 R721 Metal Film Resistor 1.0K 1/4 F 01 R722 Carbon Resistor 39.0 1/4 J 01 R723 Metal Film Resistor 10.0K 1/4 F 01 R724 Metal Film Resistor 10.0K 1/4 F 01 R725 Metal Film Resistor 11.0K 1/4 F 01 * R726 Metal Film Resistor 82.00 1/4 F R727 Metal Film Resistor 10.0K 1/4 F 01 R728 Metal Film Resistor 20.0K 1/4 F 01 R729 Metal Film Resistor 20.0K 1/4 F 01 R730 Metal Film Resistor 18.0K 1/4 F 01 R731 Metal Film Resistor 18.0K 1/4 F 01 R732 Metal Film Resistor 75.00 1/4 F 01 R733 Metal Film Resistor 75.00 1/4 F 01 R734 Carbon Resistor 47.0K 1/4 J 01 R735 Carbon Resistor 47.0K 1/4 J 01 R736 Carbon Resistor (chip) 6.8K 0.1 J 01 R737 Carbon Resistor (chip) 6.8K 0.1 J 01 R738 Carbon Resistor (chip) 10.0K 0.1 J 01 R739 Carbon Resistor (chip) 33.0K 0.1 J 01 R740 Carbon Resistor (chip) 100.0K 0.1 J 01 R741 Carbon Resistor (chip) 100.0K 0.1 J 01 R746 Metal Film Resistor 2.7K 1/4 F 01 R747 Metal Film Resistor 2.7K 1/4 F 01 R759 Metal Film Resistor 1.5K 1/4 F R760 Metal Film Resistor 1.5K 1/4 F R761 Metal Film Resistor 6.8K 1/4 F 01 R763 Metal Film Resistor 1.5K 1/4 F R764 Metal Film Resistor 1.5K 1/4 F R765 Metal Film Resistor 6.8K 1/4 F 01 R767 Carbon Resistor 39.0 1/4 J 01 R768 Metal Film Resistor 9.1K 1/4 F 01 R769 Metal Film Resistor 2.2K 1/4 F 01 R771 Metal Film Resistor 1.0K 1/4 F 01 R772 Carbon Resistor 39.0 1/4 J 01 R773 Metal Film Resistor 10.0K 1/4 F 01 R774 Metal Film Resistor 10.0K 1/4 F 01 R775 Metal Film Resistor 11.0K 1/4 F 01 * R776 Metal Film Resistor 82.00 1/4 F R777 Metal Film Resistor 10.0K 1/4 F 01 R778 Metal Film Resistor 20.0K 1/4 F 01 R779 Metal Film Resistor 20.0K 1/4 F 01 R780 Metal Film Resistor 18.0K 1/4 F 01 R781 Metal Film Resistor 18.0K 1/4 F 01 R782 Metal Film Resistor 75.00 1/4 F 01 R783 Metal Film Resistor 75.00 1/4 F 01 R784 Carbon Resistor 47.0K 1/4 J 01 R785 Carbon Resistor 47.0K 1/4 J 01 R786 Carbon Resistor (chip) 6.8K 0.1 J 01 R787 Carbon Resistor (chip) 6.8K 0.1 J 01 R796 Metal Film Resistor 2.7K 1/4 F 01 R797 Metal Film Resistor 2.7K 1/4 F 01 R801 Carbon Resistor (chip) 1.0K 63M J 01 R802 Carbon Resistor (chip) 68.0 1/4 J 01 R803 Carbon Resistor (chip) 110.0 1/4 J 01 R804 Carbon Resistor (chip) 2.7K 63M J 01 R805 Carbon Resistor (chip) 110.0 1/4 J 01 R806 Carbon Resistor (chip) 68.0 63M J 01 R807 Carbon Resistor (chip) 10.0K 63M J 01 R808 Metal Film Resistor (chip) 39.0K 1/10 D 01 R809 Metal Film Resistor (chip) 75.0K 1/10 D 01 -815 Metal Film Resistor (chip) 75.0K 1/10 D 01 RA001 Resistor Array 10KX4 01 -025 Resistor Array 10KX4 01 RA101 Resistor Array 10KX4 01 -106 Resistor Array 10KX4 01 VC326800 VC328400 HF754390 VC328700 VC327200 VC326500 HF754390 VC328800 VC328800 VC328900 VC323700 VC328800 VC329500 VC329500 VC329400 VC329400 VC323600 VC323600 HF757470 HF757470 RD256680 RD256680 RD257100 RD257330 RD258100 RD258100 VC327400 VC327400 VC326800 VC326800 VC328400 VC326800 VC326800 VC328400 HF754390 VC328700 VC327200 VC326500 HF754390 VC328800 VC328800 VC328900 VC323700 VC328800 VC329500 VC329500 VC329400 VC329400 VC323600 VC323600 HF757470 HF757470 RD256680 RD256680 VC327400 VC327400 RD356100 RD154680 RD155110 RD356270 RD155110 RD354680 RD357100 VI198800 VI199500 VI199500 RE047100 RE047100 RE047100 RE047100 金属被膜抵抗金属被膜抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗カーボン抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗金属被膜抵抗カーボン抵抗カーボン抵抗チップ抵抗チップ抵抗金属被膜抵抗金属被膜抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ金被抵抗チップ金被抵抗チップ金被抵抗抵抗アレイ抵抗アレイ抵抗アレイ抵抗アレイ部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 15 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK RA201 Resistor Array 10KX4 01 RA401 Resistor Array 47KX4 01 RA402 Resistor Array 47KX4 01 RA501 Resistor Array 10KX4 01 SW601 Slide Switch SSSU141800 INPUT -10dBu/+4dBu 03 SW701 Slide Switch SSSU122-S09N0 OUTPUT -10dBU/+4dBu 01 * T801 Inverter Transformer 19LDH-132 TA501 Transistor Array TD62783AF(EL) TA502 Transistor Array TD62783AF(EL) TA503 Transistor Array TD62309F(EL) 04 TA504 Transistor Array TD62309F(EL) 04 TH801 Protector Switch RUE300 3.00A 30V 03 TR001 Digital Transistor DTC143XKA TP 01 TR401 Transistor 2SC2412K Q,R,S 01 TR402 Transistor 2SC2412K Q,R,S 01 TR501 Digital Transistor DTC114EKA TP 01 -506 Digital Transistor DTC114EKA TP 01 TR701 Transistor 2SD1979 S,T 01 TR702 Transistor 2SD1979 S,T 01 TR703 Digital Transistor DTC114EKA TP 01 TR704 Digital Transistor DTC114EKA TP 01 TR705 Transistor 2SA1576A T106 01 TR751 Transistor 2SD1979 S,T 01 TR752 Transistor 2SD1979 S,T 01 TR801 Transistor 2SC2712 GR 01 TR802 Transistor 2SC3709A O,Y 03 X001 Quartz Crystal Unit 11MHz MA-406 02 X201 Quartz Crystal Unit 49.152MHz DSO751SB X202 Quartz Crystal Unit 45.1584M DSO751SB X301 Quartz Crystal Unit 60MHz DSO751S 06 X401 Quartz Crystal Unit 16MHz SMD-49 04 ZD801 Zener Diode HZK3CTR 3.3V 01 ZD802 Zener Diode RLZ11B 11.0V 01 Z AC Inlet 3P M1908-C 03 * LCD EW10212YMR Z Lithium Battery CR2032 03 Z Power Supply Unit ZWS50AF-5/J 19 RE047100 RE047470 RE047470 RE047100 V8190000 VU120200 WB440600 V9615500 V9615500 VY703900 VY703900 VV458100 V3033500 VV556400 VV556400 VV655400 VV655400 V2993500 V2993500 VV655400 VV655400 VR936300 V2993500 V2993500 VV925400 V9702100 WA002000 V8904500 V8904400 VZ156100 VP864900 V9544100 VK040100 V5065200 WB448400 VN103500 V9702900 抵抗アレイ抵抗アレイ抵抗アレイ抵抗アレイスライドＳＷスライドＳＷインバータトランストランジスタアレイトランジスタアレイトランジスタアレイトランジスタアレイポリスイッチデジタルトランジスタトランジスタトランジスタデジタルトランジスタデジタルトランジスタトランジスタトランジスタデジタルトランジスタデジタルトランジスタトランジスタトランジスタトランジスタトランジスタトランジスタ水晶振動子水晶発振器水晶発振器水晶発振器水晶振動子ツェナーダイオードツェナーダイオードＡＣインレット　３Ｐ液晶ディスプレイリチウム電池電源ユニット部品名 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CONTENTS BLOCK DIAGRAM（ブロックダイアグラム） ..............................3 OVERALL CONNECTOR CIRCUIT DIAGRAM （総コネクタ接続回路図）.................................................................4 OVERALL CIRCUIT DIAGRAM（総回路図） MAIN (001-009) ........................................................... 5 – 13 PN1-3, POWER, JKIN, JKOUT, VOL, FOOTSW .............. 14 CIRCUIT DIAGRAM Note : See parts list for details of circuit board conponent parts. Notation for Circuit Diagrams How to identify inter-sheet connectors（シート間コネクタの読み方について） The 3-digit number indicates the destination page. Signal name This indicates the location of the counter inter-sheet connector. (The alphabet indicates horizontal direction and the number indicates vertical direction.) （目次）注：シートの部品詳細は、パーツリストをご参照ください。（回路図表記上の注意）（3桁の数字は信号の行先ページを示します。）対応するシート間コネクタのあるロケーションを示します。（アルファベットが水平方向、数字が垂直方向）（信号名） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 SPX2000 3 I BLOCK DIAGRAM 28CA1-8828882 MAIN FOOTSW PN3 PN2 PN1 JKIN JKOUT 8 10 4 3 VOL R L R IN OUT WORD CLOCK IN USB TO HOST AES/EBU L (MONO) L (MONO) R L R INPUT OUTPUT +4dBu -10dBu +4dBu -10dBu IN OUT/ THRU MIDI VR601 CN601 CN602 CN001 CN501 CN101 CN101 CN502 CN201 CN503 CN701 CN002 KEY x 2 LED x 14 METER (x 24) BACK LIGHT LED LCD 16 x 2 MEMORY 7 seg LED ( x 14) KEY x 1 LED x 3 /SC [7-5] KEY x 15 /SC [6-0] LD [5-0] LED x 7 LD [8] JK701 FOOT SW 7P 7P 14P 14P 20P 20P 10P 10P 15P 15P 2P 2P CN601 CN701 CN401 CN501 7P 7P 6P 6P /KD [0] /KD [2-1], TKD /KD [2-0], TKD +3.3D IC501 TR505, 506 IC105 (20P) TR501-503 INVERTER +5D +5D +5D /CSLCD DB5V [7-0] TRANSCEIVER BLD [2-0] PORT PORT PORT PORT PORT PORT /CS0 /CS2 /CS3 /CS5 /CS6 TAP LED SC [7-0] LED [9-0] DRIVER TR504 TA503, 504 DRIVER Switch LED SCAN DRIVER TA501, 502 LED DATA DRIVER xtal/extal 155,156 199-201,203 182,184,190 23-26,28,30-32 13-18,20,21,91,92 159 180 193 4 5 10 3 15 23 78 190 144 180 8,9 19 26 39,40 6 10 14,15 70,71 14 13 2,9 2,9 4,5 25,26 14 18 10 21,12,13 21,16,17 5 1,2,75-80 199 197 200 177 131 125 73,75, 101,63 149,150, 157-159 179 113 118 117 107 112 170 202 168 174 96,98,99, 101,102 X001 11MHz X301 60MHz +3.3D +3.3D +3.3D +3.3D +3.3D +3.3D +3.3B +3.3B +1.8D CPU SH7709S (X2081A00) CPU 132MHz/BUS 44MHz clock mode: 2 (PLL x 4) CS0:16bit CS2:16bit CS3:16bit CS4:16bit CS5:16bit CS6:16bit big endian IC004 (208P) /SYSRES SYSTEM RESET IC007 CS_DIR CS_DIT PLLINH /RESADA /RES_2TR /RESDSP /RESDIR /RESUSB +5D +5D 3 55 57 56 65 11 10 8 3 2 5,3,7 4-6 20,21 20 5,6 5,6 7 7 1 1 2 2 1,7 1,7 3 3 7 7 6 6 22,23 17 4 9 1 1 9 IC404 IC404 IC404 13 12 +5D +5D IC204 (14P) IC201 (208P) IC009 (54P) IC010 (54P) IC002 IC006 IC101, 102 (24P) IC011 (44P) +5D CPUD [15-0] /CS3 /CS0 /CS2 PLL TLC2932 PLLP2 Clock Generator IC205 (44P) PLL DIR2 X201 49MHz X202 45MHz /CSUSB /CSLCD /CSDSP601 CSIO5V M265FS/M128FS/M64FS/MWC/MSYNC M64FS/MWC/ANA256FS M64FS/MWC/ANA256FS ANA256FS /ANAMUTE /MUTE2TR01 /MUTEADDA /CS5, /CS6 64Mbit SDRAM IC301 (40P) 4Mbit DRAM IC302 (40P) 4Mbit DRAM 16Mbit FLASH ROM 2Mbit SRAM Battery Control LEVEL CHANGE LVX4245 x 2 /CSDSP6 /CSIO5V RX_MIDI TX_MIDI /RESUSB DB5V [7-0] /CSUSB +5D +5D +5D +5D L406 L407 USB CPU M37641M8 IC407 (80P) X401 16MHz Receiver SN75124 IC406 PC IC408 JK404 CN401 JK403 BNCWCIN DB5V [15-0] Pulse Trans Pulse Trans DIR CS8415 IC401 (28P) DIT CS8405 IC405 (28P) CS_DIT, /RES_2TR M265FS/M64FS/MWC M265FS/M64FS/MWC AES_WC256 CS_DIR, /RES_2TR JK751 SW701 SW601 JK701 JK501 JK401 JK402 JK502 JK651 JK601 JK401 JK402 /ANAMUTE /POWERMUTE +15A +15A +15A +15A +15A +5D +5A +5D +5A +15A +15A IC601, 602 IC601 IC651 IC651, 652 +15A -15A -15A -15A -15A -15A -15A -15A -15A IC703 IC704 IC753 IC754 ATT BA IC703 BA HA HA BA BA IC753 ATT D/A AK4393 A/D CS5361 /RESADA /RESADA /MUTEADDA MUTE MUTE MUTE MUTE 2ch/line 2ch/line 2ch/line 2ch/line /MUTE2TR01 /MUTEADDA DSP6 #1 IC303 (176P) /RESDSP /CSDSP6_1 DB5V [15-0] M128FS/MSYNC IC701 (28P) IC603 (24P) INPUT LCD MODULE ANAIN AESOUT AESIN CKIO1 (44MHz) L R w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 SPX2000 4 VOL CN601 CN602 CN001 CN501 CN101 CN101 CN201 CN701 CN801 CN301 CN502 CN503 CN002 PN1 1 7 1 7 1 1 14 14 Metal fitting + nut� （金具 + ナット）� LCD MODULE 1 1 20 20 LDG LDG +5LD +5LD 1 1 10 10 DG 1 1 15 15 PN3 Metal fitting + nut� （金具 + ナット）� Metal fitting + nut� （金具 + ナット）� Metal fitting + nut� （金具 + ナット）� Metal fitting + screw� （金具 + ネジ）� � Metal fitting� + screw� （金具 + ネジ）� � FOOTSW 1 2 1 2 LDG LED,LCD +5LD +5DA DC/DC +15V reg IC801 +15A (Op Amp, DAC) +5A (ADC/DAC) -15A (Op Amp) -15V reg IC802 +5V reg IC803 +1.8V reg IC001 +3.3V reg IC804 CPU AG +5D +3.3D +1.8D Power off (CPU) Power off DET Mute Drive Audio-MUTE (Output Tr MUTE) SH3, DSP6, ATSC2, memory SH3 AES/EBU DA AD FG FG CN701 CN501 CN601 CN401 DSP6, PLL, USB, AES/EBU, memory, ADC/DAC GND DAG MAIN 4 1 4 1 POWER SUPPLY UNIT ! DG DG N L 1 5 2 1 ! POWER ! AC INLET 3-core AC cord� （3芯ACコード）�! FG frame� （筐体）� FG 1 1 7 1 7 1 6 6 JKIN JKOUT Power supply and Audio MUTE/Power Off signal（電源及びAudio MUTE/Power Off信号）� Ground (wiring between pattern in P.C.B. and sheet)（グランド（基板内パターン及びシート間配線））� Function block（機能ブロック）� Signal connection（信号接続）� PN2 P.C.B. installation screw� （基板取付ネジ）� P.C.B. installation screw� （基板取付ネジ）� P.C.B. installation screw� （基板取付ネジ）� P.C.B. installation screw� （基板取付ネジ）� P.C.B. installation screw� （基板取付ネジ）� P.C.B. installation screw� （基板取付ネジ）� Toothed ground lug� + screw� （歯付きアースラグ� + ネジ）� Metal fitting� + screw� （金具 + ネジ）� � Metal fitting� + screw� （金具 + ネジ）� � Metal fitting� + screw� （金具 + ネジ）� � Metal fitting� + screw� （金具 + ネジ）� � Metal fitting� + screw� （金具 + ネジ）� � Metal fitting� + screw� （金具 + ネジ）� � Metal fitting� + screw� （金具 + ネジ）� � CN51 CN1 F1 I OVERALL CONNECTOR CIRCUIT DIAGRAM WARNING Components having special characteristics are marked Z and must be replaced with parts having specification equal to those originally installed. 28CA1-8828882 1 Z 印の部品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 5 I OVERALL CIRCUIT DIAGRAM 001 (MAIN 1/9) X W V U T S R Q P O N M L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 CPU to FOOTSW-CN701 REGULATOR +1.8V SYSTEM RESET BATTERY CONTROL SDRAM 64M FLASH ROM 16M SRAM 2M INVERTER AND OR AND not used (for check) Detection voltage: 2.7V Detection voltage: 3.0V socket XX : not installed（未実装部品）� not installed Battery VN103500 VN103600(Battery holder for VN103500) Notice for back-up battery removal. Push the battery as shown in figure, then the battery will pop up. Druk de batterij naar beneden zoals aangeven in de tekening, de batterij springt dan naar voren. Battery Battery holder µPC2918T-E1(X2157A00) REGULATOR +1.8V 1 4 3 2 1: INPUT 2: GND 3: OUTPUT 4: GND RB500V-40 (V2376600) DIODE 1: ANODE 2: CATHODE 2 1 Z 28CC1-8828883-1 2 I OVERALL CIRCUIT DIAGRAM 001 (MAIN 1/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 6 I OVERALL CIRCUIT DIAGRAM 002 (MAIN 2/9) P Q O N M L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 12 AND AND LEVEL CHANGE TRANSCEIVER XX : not installed（未実装部品）� 28CC1-8828883-2 1 I OVERALL CIRCUIT DIAGRAM 002 (MAIN 2/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 7 I OVERALL CIRCUIT DIAGRAM 003 (MAIN 3/9) X W V U T S R Q P O N M L K J I H G F E D C B A XX : not installed（未実装部品）� ( F ) : Metal Film Resistor（金属皮膜抵抗）� （マ） : Mylar Capacitor（マイラコンデンサ）� （フ） : Film Capcitor（フィルムコンデンサ）� （セ） : Ceramic Capcitor（セラミックコンデンサ）� INVERTER INVERTER NAND PLLP2 (Clock Generator) INVERTER NAND RESET INVERTER TRANSCEIVER PLL DIR2 D-FF 28CC1-8828883-3 1 I OVERALL CIRCUIT DIAGRAM 003 (MAIN 3/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 8 I OVERALL CIRCUIT DIAGRAM 004 (MAIN 4/9) X W V U T S R Q P O N M L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 DRAM 4M DSP6 not installed 28CC1-8828883-4 1 I OVERALL CIRCUIT DIAGRAM 004 (MAIN 4/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 9 I OVERALL CIRCUIT DIAGRAM 005 (MAIN 5/9) P Q O N M L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 12 ( F ) : Metal Film Resistor（金属皮膜抵抗）� （マ） : Mylar Capacitor（マイラコンデンサ）� （セ） : Ceramic Capcitor（セラミックコンデンサ）� BUFFER INVERTER DIR MUTE DIT MUTE LINE RECEIVER Photo Coupler USB CPU USB TO HOST MIDI IN OUT/THRU AES/EBU WORD CLOCK IN IN OUT DAN217 (VV556300) DIODE ARRAY 0.3AX2 1: ANODE1 2: CATHODE2 3: CATHODE1, 1 3 2 ANODE2 1 2 3 1SS372 (V9424900) DIODE ARRAY 1: ANODE1 2: CATHODE2 3: CATHODE1, 1 3 2 ANODE2 1 2 3 28CC1-8828883-5 1 I OVERALL CIRCUIT DIAGRAM 005 (MAIN 5/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 10 I OVERALL CIRCUIT DIAGRAM 006 (MAIN 6/9) P Q O N M L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 XX : not installed（未実装部品）� INVERTER RESET Transistor Array Transistor Array to PN1-CN001 to PN2-CN101 to PN3-CN201 （セ） : Ceramic Capcitor（セラミックコンデンサ）� 28CC1-8828883-6 4 I OVERALL CIRCUIT DIAGRAM 006 (MAIN 6/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 11 I OVERALL CIRCUIT DIAGRAM 007 (MAIN 7/9) P Q O N M L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 12 XX : not installed（未実装部品）� ( F ) : Metal Film Resistor（金属皮膜抵抗）� （マ） : Mylar Capacitor（マイラコンデンサ）� to JKIN-CN401 to VOL-CN601 INPUT L (MONO) R OP AMP OP AMP OP AMP ADC INVERTER TRANSCEIVER OP AMP OP AMP OP AMP INPUT 28CC1-8828883-7 2 I OVERALL CIRCUIT DIAGRAM 007 (MAIN 7/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SPX2000 12 I OVERALL CIRCUIT DIAGRAM 008 (MAIN 8/9) P Q O N M L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 12 NJM78L05UA(XJ598A00) REGULATOR +5V 1: OUTPUT 2: COMMON 3: INPUT 1 2 3 XX : not installed（未実装部品）� ( F ) : Metal Film Resistor（金属皮膜抵抗）� （マ） : Mylar Capacitor（マイラコンデンサ）� OP AMP OP AMP OP AMP OP AMP MUTE MUTE OP AMP OP AMP DAC REGULATOR +5V to JKOUT-CN501 OUTPUT L R OUTPUT 28CC1-8828883-8 2 I OVERALL CIRCUIT DIAGRAM 008 (MAIN 8/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 SPX2000 13 I OVERALL CIRCUIT DIAGRAM 009 (MAIN 9/9) NJM78M15DL1A(X3942A00) REGULATOR +15V 1: INPUT 2: GND 3: OUTPUT 1 2 3 NJM79M15DL1A(X3943A00) REGULATOR -15V 1: COMMON 2: INPUT 3: OUTPUT 1 2 3 NJM78M05DL1A(XS534A00) REGULATOR +5V 1: INPUT 2: GND 3: OUTPUT 1 2 3 REGULATOR +15V REGULATOR +5V REGULATOR -15V REGULATOR +3.3V ( F ) : Metal Film Resistor（金属皮膜抵抗）� （マ） : Mylar Capacitor（マイラコンデンサ）� RB160L-60 (V8409200) DIODE 1: ANODE 2: CATHODE 2 1 RB160L-40 (VS597600) DIODE 1: ANODE 2: CATHODE 2 1 PQ033Y3H3ZP(X2589A00) REGULATOR +3.3V 1: DC INPUT 2: DC OUTPUT 3: GND 4: VO (sense) 5: ON/OFF CONTROL 6: DC OUTPUT 1 5 6 HZK3CTR3.3V (V9544100) ZENER DIODE 1: ANODE 2: CATHODE 2 1 RLZ11B11.0V (VK040100) ZENER DIODE 1: ANODE 2: CATHODE 2 1 to POWER SUPPLY UNIT-CN51 28CC1-8828883-9 2 I OVERALL CIRCUIT DIAGRAM 009 (MAIN 9/9) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 SPX2000 14 I OVERALL CIRCUIT DIAGRAM (PN1-3, POWER, JKIN, JKOUT, VOL, FOOTSW) PN2 PN1 PN3 FOOTSW VOL POWER JKOUT JKIN to MAIN-CN501 to MAIN-CN502 to MAIN-CN503 to MAIN-CN601 to MAIN-CN701 to MAIN-CN602 to MAIN-CN002 to POWER SUPPLY UNIT-CN1 to AC INLET OUTPUT L R INPUT L (MONO) R INPUT FOOT SW CLASSIC 28CC1-8828884 2 I OVERALL CIRCUIT DIAGRAM (PN1-3, POWER, JKIN, JKOUT, VOL, FOOTSW) WARNING Components having special characteristics are marked Z and must be replaced with parts having specification equal to those originally installed. Z 印の部品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
