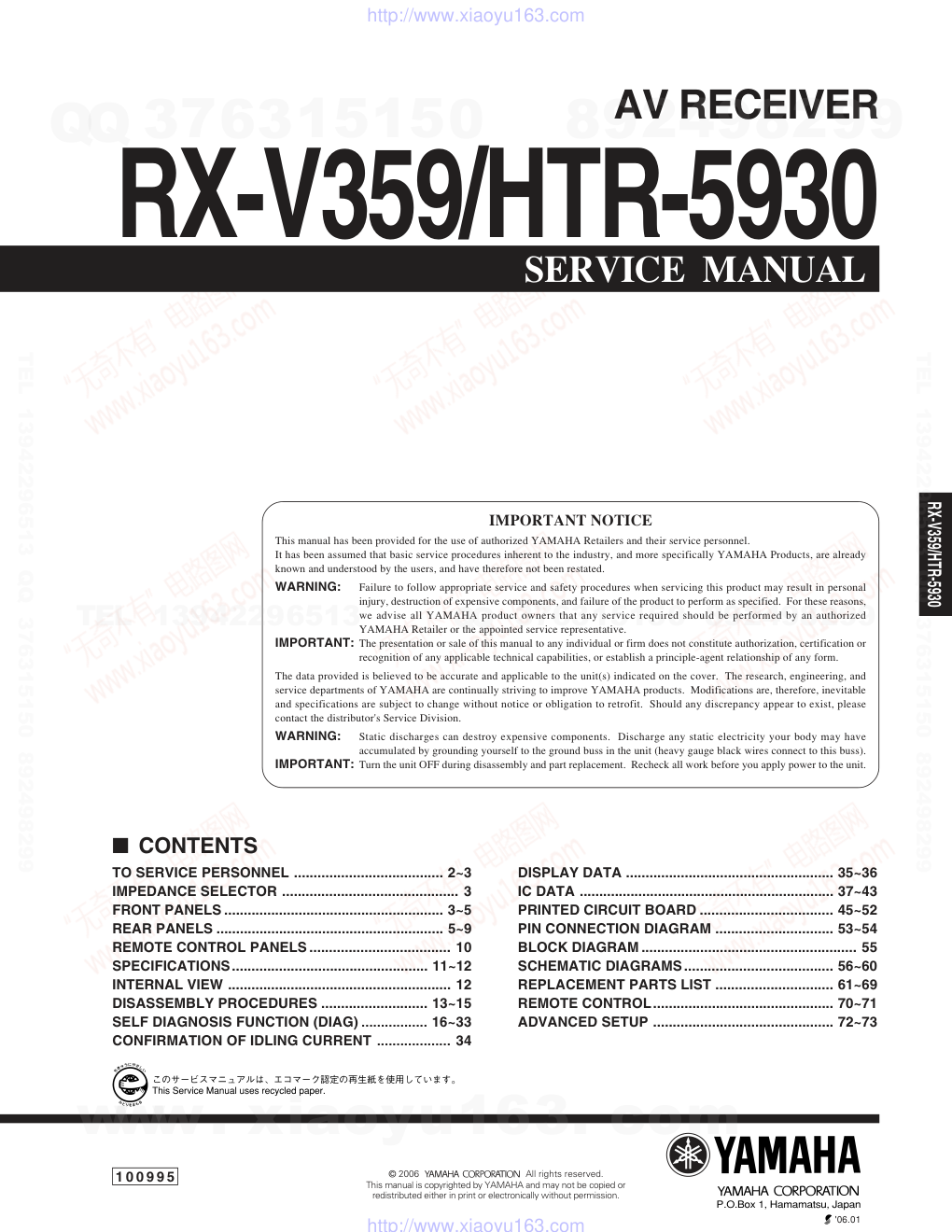

SERVICE MANUAL 1 0 0 9 9 5 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. I CONTENTS TO SERVICE PERSONNEL ...................................... 2~3 IMPEDANCE SELECTOR ............................................. 3 FRONT PANELS ........................................................ 3~5 REAR PANELS .......................................................... 5~9 REMOTE CONTROL PANELS .................................... 10 SPECIFICATIONS.................................................. 11~12 INTERNAL VIEW ......................................................... 12 DISASSEMBLY PROCEDURES ........................... 13~15 SELF DIAGNOSIS FUNCTION (DIAG) ................. 16~33 CONFIRMATION OF IDLING CURRENT ................... 34 DISPLAY DATA ..................................................... 35~36 IC DATA ................................................................. 37~43 PRINTED CIRCUIT BOARD .................................. 45~52 PIN CONNECTION DIAGRAM .............................. 53~54 BLOCK DIAGRAM ....................................................... 55 SCHEMATIC DIAGRAMS...................................... 56~60 REPLACEMENT PARTS LIST .............................. 61~69 REMOTE CONTROL.............................................. 70~71 ADVANCED SETUP .............................................. 72~73 AV RECEIVER RX-V359/HTR-5930 RX-V359/HTR-5930 P.O.Box 1, Hamamatsu, Japan 2006 All rights reserved. This manual is copyrighted by YAMAHA and may not be copied or redistributed either in print or electronically without permission. '06.01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 35 RX-V359/HTR-5930 I DISPLAY DATA Note : 1) F1, F2 ..... Filament 2) NP ..... No pin 3) NX ..... No extened pin 4) DL ..... Datum line 5) 1G ~ 16G ..... Grid Pin No. Connection Pin No. 69 F2 68 NX 67 NP 66 NP 65 P1 64 P2 63 P3 62 P4 61 P5 60 P6 59 P7 58 P8 57 P9 56 P10 55 P11 54 P12 53 P13 52 P14 51 P15 50 P16 49 P17 48 P18 47 P19 46 P20 45 P21 44 P22 43 P23 42 P24 41 P25 40 P26 39 P27 38 P28 37 P29 34 P32 33 P33 32 P34 31 P35 30 P36 29 P37 28 NX 27 NX 26 NX 25 NX 24 NX 23 NX 22 NX 21 17G 20 16G 19 15G 18 14G 17 13G 16 12G 15 11G 14 10G 13 9G 12 8G 11 7G 10 6G 9 5G 8 4G 7 3G 6 2G 5 1G 4 NP 3 NP 36 P30 35 P31 2 NX 1 F1 Connection G V551 : 17-BT-24GNK (WE289300) G PIN CONNECTION G GRID ASSIGNMENT 2G 1G 3G 4G 5G 6G 7G 11G 10G 9G 8G 12G 13G 14G (15G) (16G) (17G~15G) 16G 15G 17G S12 S1 S3 S4 S5 S6 S7 S8 S9 S10 S11 S2 S24 1-1 1-2 1-3 1-4 1-5 1-6 1-7 2-1 2-2 2-3 2-4 2-5 2-6 2-7 3-1 3-2 3-3 3-4 3-5 3-6 3-7 4-1 4-2 4-3 4-4 4-5 4-6 4-7 5-1 5-2 5-3 5-4 5-5 5-6 5-7 S25 S17 S18 S19 S14 S15 S16 S13 S20 1d 1c 1b 2c 2b 1e 1f 2e 2f S22 S23 2d S2 S23 S21 1a 2a 1g 2g S22 (1G~14G) PATTERN AREA } 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 36 RX-V359/HTR-5930 17G 16G 15G 14G 13G~2G 1G P1 1-1 1-1 1-1 P2 2-1 2-1 2-1 P3 3-1 3-1 3-1 P4 S20 4-1 4-1 4-1 P5 1a 5-1 5-1 5-1 P6 1b 1-2 1-2 1-2 P7 1c 2-2 2-2 2-2 P8 S14 1d 3-2 3-2 3-2 P9 S15 1e 4-2 4-2 4-2 P10 S16 1f 5-2 5-2 5-2 P11 S17 1g 1-3 1-3 1-3 P12 S18 2a 2-3 2-3 2-3 P13 2b 3-3 3-3 3-3 P14 S13 2c 4-3 4-3 4-3 P15 2d 5-3 5-3 5-3 P16 2e 1-4 1-4 1-4 P17 S3 2f 2-4 2-4 2-4 P18 – 2g 3-4 3-4 3-4 P19 – S2 4-4 4-4 4-4 P20 – S10 5-4 5-4 5-4 P21 – S19 S11 1-5 1-5 1-5 P22 – 2-5 2-5 2-5 P23 – S21 3-5 3-5 3-5 P24 – S22 4-5 4-5 4-5 P25 – S23 5-5 5-5 5-5 P26 – 1-6 1-6 1-6 P27 – S4 S24 2-6 2-6 2-6 P28 – S5 3-6 3-6 3-6 P29 – S6 4-6 4-6 4-6 P30 – S7 5-6 5-6 5-6 P31 – S8 1-7 1-7 1-7 P32 – S9 2-7 2-7 2-7 P33 – 3-7 3-7 3-7 P34 – S1 4-7 4-7 4-7 P35 – – 5-7 5-7 5-7 P36 – – – S12 P37 – – S25 – – G ANODE CONNECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 37 RX-V359/HTR-5930 I IC DATA IC242: M30622MWP-A82FP (MAIN P.C.B.) 16-bit Microprocessor PSV PURD /BLK ISA ISB ONEA ONEB VRA VRB PRV PRD PLDET THM ADKEY0 ADKEY1 AVss MODEL VREF AVcc CEFD 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 VIA DTZ2 DKZ2 /CE /MTFS /MTZ2 /MTSW /MTCT /EMP /MTHP /HP SCKN SDRN/DEST SDTN BSY CLKF RXDF TXDF DTFD CKFD LC1 SDM SDD SCK BYTE CNVss /CSY /ICY RESET Xout Vss Xin Vcc NMI INTDSP INTFCT VSY /CSDIR /CSADM /CSDAC /ICD /ICADM VBIT /CEEEP CKEY CEEV DTEV PRI 8/4DET /4ohm Z2RY MARY REM PSW PDET MBRY ERY SBRY PRY /ST TUNED TMT SDRP Vss SCKP/TUN0 Vcc SDTP CEP/TUN1 RDSE CES TRIG CMP1 CMP0 YCSEP I/E /VR VIB FL Driver TxD FL Driver CLOCK FL Driver turning off Limiter control output TxD to YSS948/LC89057W, Serial data output RxD from YSS948/LC89057W, Serial data input Clock supply to YSS948/LC89057W, Serial data clock output Vss : When single chip mode is used Vss : When single chip mode is used, Vcc : When flash writing is used YSS948 chip select CE Initial clear to YSS948 Reset Oscillation output (oscillation stopped in Sleep mode) Ground for micro-processor Oscillation input Power supply +5V for micro-processor Unused, connected to Vcc Interruption from YSS948 Interruption from DIR LC89057W Interruption from remote control input DIR LC89057W chip select DIR LC89057W reset HEAD PHONE detection Volume Rotaly Encoder A Volume Rotaly Encoder A Unconnected CODEC reset Unconnected XM voice signal fs detection (32 k/44.1 k) Unconnected Serial light data transmission of Flash ROM TxD Serial data reception of Flash ROM RxD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 P96/ANEX1/SOUT4 P95/ANEX0/CLK4 P94/DA1/TB4in P93/DA0/TB3in P92/TB2in/SOUT3 P91/TB1in/SIN3 P90/TB0in/CLK3 BYTE CNVss P87/Xcin P86/Xcout /RESET Xout Vss Xin Vcc1 P85/NMI P84/INT2 P83/INT1 P82/INT0 P81/TA4in/U P80/TA4out/U P77/TA3in P76/TA3out P75/TA2in/W P74/TA2out/W P73/CTS2/RTS2/TA1in/V P72/CLK2/TA1out/V P71/RXD2/SCL2/TA0in/TB5in P70/TXD2/SDA2/TA0out P67/TXD1 P66/RXD1 DTFD CKFD /BLK LIMA SDM SDD SCK BYTE CNVss /CSADM /ICDADM /RESET Xout Vss Xin Vcc NMI /INTADM /INTDIR REM /CSDIR /ICDIR /HP VRA VRB – /ICCDC – FSCXM – TXDF RXDF SO SO O DA SO SI SO MCU MCU O O MCU MCU MCU MCU MCU MCU IRQ IRQ IRQ O O I+ I+ I+ I O O TMR O SO SO O O O O O O O MCU MCU O O MCU MCU MCU MCU MCU MCU O O IRQ O O O O O O O O O O O O O O O O O O O MCU MCU O O MCU MCU MCU MCU MCU MCU O O O O O O O O O O O O O O O No. Port Name Terminal Name I/O Function PowerOn Standby Sleep www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 38 RX-V359/HTR-5930 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 P65/CLK1 P64/CTS1/RTS1/CTS0/CLKS1 P63/TXD0/SDA0 P62/RXD0/SCL0 P61/CLK0 P60/CTS0/RTS0 P57/RDY/CLKout P56/ALE P55/HOLD P54/HLDA P53/BCLK P52/RD P51/WRH/BHE IOPORT0 IOPORT1 – – – – IOPORT2 IOPORT3 IOPORT4 IOPORT5 P36/A14 / IOPORT6 P35/A13 / IOPORT7 P34/A12 P33/A11 P32/A10 P31/A9 Vcc2 P30/A8 Vss P27/A7 P26/A6 P25/A5 P24/A4 P23/A3 P22/A2 P21/A1 P20/A0 P17/D15/INT5 P16/D14/INT4 P15/D13/INT3 P14/D12 P13/D11 P12/D10 P11/D9 P10/D8 P07/D7 P06/D6 P05/D5 P04/D4 P03/D3 P02/D2 P01/D1 P00/D0 CLKF BSY DTXM DRXM /ICXM /CEEEP – – /EMP – BD_DATA BD_CLK BD_MUTE SELXM – – – – – DFS no connect / SMUTE – – – VIA VIB Vcc XMPWR Vss VR1 – CMP0 CMP1 SDRR SCKR SDTR RDSE RDSE CEP TUN1 PDET PSW SCKP TUN0 SDTP SDRP TUNED /ST TMT PRY CSRY FRRY_B FRRY_A PRI 5MSW – SO O SO SI O O O O I O O O O O O – – – – O I I O O O O O O O MCU O MCU O O O O I O O O I O I IRQ IRQ O I O I+ I+ I+ O O O O O I O O O O O O O O O O I O O O O O O – – – – O O O O O O O O O O MCU O MCU O O O O O O O O O O O IRQ IRQ O O O O O O O O O O O O O O O O O O O O O O I O O O O O O – – – – O O O O O O O O O O MCU O MCU O O O O O O O O O O O O O O O O O O O O O O O O O O O Serial clock of Flash ROM clock BUSY signal output of Flash ROM clock Serial data transmission for XM IC (UART0) Serial data reception for XM IC (UART0) Chip select for XM IC Chip select for EEPROM writing Unconnected Unconnected For FLASH writing (LO) Unconnected Data output of ROHM volume IC Clock output of ROHM volume IC MUTE output of ROHM volume IC Control of logic IC for XM/DIR signal course change (H: XM input/L: DIR input or ADC input) Unconnected No used No used Unconnected No used No used Dual rate change for CODEC/H: Dual rate processing (Dual Rate) Unconnected / MUTE control for CODEC/H: CODEC MUTE ON Unconnected Unconnected Unconnected Control output of VIDEO selector LA7956 Control output of VIDEO selector LA7956 Power supply +5V for micro-processor Regulator control of power supply reset for XM antenna Ground for micro-processor VIDEO Rec Out Selector Unconnected Control output of component video switch Control output of component video switch Serial data reception for RDS IC Clock for RDS IC Serial data transmission for RDS IC RDS Enable Presence judgment of RDS (H: RDS exists./L: RDS doesn't exist.) Chip select of TUNER PLL IC MODEL distinction 1 Detection of power down Interruption of STANDBY/ON switch Clock output of TUNER PLL IC MODEL distinction 0 Serial data transmission of TUNER PLL IC Serial data reception of TUNER PLL IC Detection state reception of TUNER Stereo state reception of TUNER MUTE output of TUNER MUTE Control output of first power relay Control output of CENTER/SURROUND channel relay Control output of FRONT channel/Speaker B Control output of FRONT channel/Speaker A Protection over current detection Control output of power supply +5V for micro-processor Unconnected PowerOn No. Port Name Terminal Name I/O Function Standby Sleep IC242: M30622MWP-A82FP (MAIN P.C.B.) 16-bit Microprocessor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 39 RX-V359/HTR-5930 IC242: M30622MWP-A82FP (MAIN P.C.B.) 16-bit Microprocessor No. Port Name Terminal Name I/O Function 89 90 91 92 93 94 95 96 97 98 99 100 P107/AN7/KI3 P106/AN6/KI2 P105/AN5/KI1 P104/AN4/KI0 P103/AN3 P102/AN2 P101/AN1 Avss P100/AN0 Vref Avcc P97/Adtrg/Sin4 – PRD PLDET THM IMP_6 ohms ADKEY0 ADKEY1 Avss PRD Vref Avcc CEFD O AD AD AD I AD AD MCU AD MCU MCU O O O O O O O O MCU O MCU MCU O O O O O O O O MCU O MCU MCU O No used AD protection DC detection AD power limitter detection AD temperature detection Speaker impedance detection (H: 6 ohms/L: 8 ohms) AD Key 0 AD Key 1 Ground for AD AD protection power supply voltage detection Reference for AD Power supply for AD FL Driver CE PowerOn Standby Sleep Ohm 0.0 +1.0k +1.0k +1.5k +2.2k +3.3k +4.7k +6.8k +10.0k +22.0k +47.0k V 0.0~0.3 ~0.65 ~1.05 ~1.55 ~2.05 ~2.65 ~3.15 ~3.6 ~4.0 ~4.4 ~4.75 ADKEY0 MULTI CH INPUT INPUT INPUT PROGRAM PROGRAM BASS/TREBLE BASS/TREBLE STEREO/ TONE CONTROL SPEAKERS (94Pin, AN2) INPUT > < MODE > < + – EFFECT A/B/OFF ADKEY1 TUNING MODE MEMORY PRESET/TUNING PRESET/TUNING A/B/C/D/E FM/AM PRESET/TUNING – – – – (95Pin, AN1) > < /NEXT /EDIT Key Input (A-D) Pull-Up Resistance 10 k-ohms U, C, R, T, K, A, L models Ohm 0.0 +1.0k +1.0k +1.5k +2.2k +3.3k +4.7k +6.8k +10.0k +22.0k +47.0k V 0.0~0.3 ~0.65 ~1.05 ~1.55 ~2.05 ~2.65 ~3.15 ~3.6 ~4.0 ~4.4 ~4.75 ADKEY0 MULTI CH INPUT INPUT INPUT PROGRAM PROGRAM BASS/TREBLE BASS/TREBLE STEREO/ TONE CONTROL SPEAKERS (94Pin, AN2) INPUT > < MODE > < + - EFFECT A/B/OFF ADKEY1 TUNING MODE MEMORY PRESET/TUNING PRESET/TUNING A/B/C/D/E FM/AM PRESET/TUNING PTY SEEK PTY SEEK EON RDS MODE/FREQ (95Pin, AN1) > < /NEXT /EDIT MODE START B, G, E models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 40 RX-V359/HTR-5930 IC811: YSS948-VZ (DSP P.C.B.) DSP 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 VDD2 VDD2 VSS VSS MEMD7 MEMD6 MEMD5 MEMD4 VDD1 MEMD3 MEMD2 MEMD1 MEMD0 VDD2 VSS VSS MEMA0 MEMA1 MEMA2 VDD2 VDD2 VSS VSS VDD1 MEMA3 MEMA4 MEMA5 MEMA6 VDD2 VDD2 VSS VSS MEMA7 MEMA12 MEMA14 MEMA16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 AHVSS AHVSSG DVSS DVDD VDD2 VDD2 VSS VSS VDD1 STATUS4 STATUS5 STATUS6 STATUS7 VSS VDD2 TEST TEST XI XO VSS VSS VDD2 VDD2 TEST TEST SDI3 SDI2 SDI1 SDI0 SDIWCK SDIBCK SDIMCK VDD1 SDOBCK VSS VDD2 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 AHVDDG AHVDD AVDDR AVSSR VSS VSS VDD2 VDD2 VDD1 nMUTE nINT ZEROFLG TEST nIC VSS VSS VDD2 VDD2 nMICS MISCK MISI VSS MISO VDD1 VDD2 VDD2 VSS VSS STATUS3 STATUS2 STATUS1 STATUS0 MEMA18 nMEMOE MEMA10 nMEMCE SDOWCK SDOMCK SDO0 SDO1 VSS VSS SDO2 SDO3 VDD1 IOPORT0 IOPORT1 VSS VSS VDD2 VDD2 IOPORT2 IOPORT3 IOPORT4 IOPORT5 IOPORT6 IOPORT7 MEMA17 MEMA13 VDD1 VSS VSS VDD2 VDD2 MEMA8 MEMA9 MEMA11 nMEMWE VSS VDD2 VDD2 MEMA15 YSS948-VZ XI XO nIC TEST SDI3-0 SDIMCK SDIBCK SDIWCK nMUTE ZEROFLG nINT STATUS7-0 SDO3-0 SDOMCK SDOBCK SDOWCK MEMA18-0 MEMD7-0 nMEMWE nMEMCE nMEMOE nMICS MISI MISCK MISO IOPORT7-0 ClkGen SDI SDO MicomIF PLL EMS Firmware download circuit Regiser Format conversion ZERO detection Delay control Delay control Automatic muting Detector DSP memory User muting Format conversion Bypass Output ch change Decoder Dividing/Switcing to each control section Internal operation clock Result of Status change detection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 41 RX-V359/HTR-5930 IC811: YSS948-VZ (DSP P.C.B.) DSP No. Pin Name Classification Function I/O Port Set Size Connect 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 AHVSS AHVSSG DVSS DVDD VDD2 VDD2 VSS VSS VDD1 STATUS4 STATUS5 STATUS6 STATUS7 VSS VDD2 TEST(nPLLSEL) TSTSCAN XI XO VSS VSS VDD2 VDD2 TSTIDDQ TSTMEMCK SDI3 SDI2 SDI1 SDI0 SDIWCK SDIBCK SDIMCK VDD1 SDOBCK VSS VDD2 SDOWCK SDOMCK SDO0 SDO1 VSS VSS SDO2 SDO3 VDD1 IOPORT0 IOPORT1 VSS VSS VDD2 VDD2 IOPORT2 IOPORT3 IOPORT4 IOPORT5 IOPORT6 IOPORT7 MEMA17 MEMA13 VDD1 PLL section GND PLL section GND PLL section GND Internal power supply of PLL section (typ1.2V) Internal power supply (typ1.2V) Internal power supply (typ1.2V) GND GND External power supply (typ3.3V) Inside information output terminal 4 Inside information output terminal 5 Inside information output terminal 6 Inside information output terminal 7 GND Internal power supply (typ1.2V) Terminal for a test / GND terminal Terminal for a test / GND terminal Crystal oscillator connecting terminal / Clock input Crystal oscillator connecting terminal GND GND Internal power supply (typ1.2V) Internal power supply (typ1.2V) Terminal for a test / GND terminal Terminal for a test / GND terminal Serial data output 3 Serial data output 2 Serial data output 1 Serial data output 0 Input side WORD clock Input side bit clock Input side master clock External power supply (typ3.3V) Output side bit clock GND Internal power supply (typ1.2V) Output side WORD clock Output side master clock Serial data output 0 Serial data output 1 GND GND Serial data output 2 Serial data output 3 External power supply (typ3.3V) General purpose I/O terminal 0 General purpose I/O terminal 1 GND GND Internal power supply (typ1.2V) Internal power supply (typ1.2V) General purpose I/O terminal 2 General purpose I/O terminal 3 General purpose I/O terminal 4 General purpose I/O terminal 5 General purpose I/O terminal 6 General purpose I/O terminal 7 External memory access output terminal 17 External memory access output terminal 13 External power supply (typ3.3V) - - - - - - - - - O O O O - - - - I O - - - - - - I I I I I Is Is - Is/O - - I/O Ot O O - - O O - I(+)/O I(+)/O - - - - I(+)/O I(+)/O I(+)/O I(+)/O I(+)/O I(+)/O O O - 2mA 2mA 2mA 2mA - - - - - - - - - 4mA 4mA 8mA 4mA 4mA 4mA 4mA 2mA 2mA 2mA 2mA 2mA 2mA 4mA 4mA DGND DGND DGND +1.2VPLL +1.2V +1.2V DGND DGND +3.3V NC NC NC NC DGND +1.2 DGND DGND 12MA NC DGND DGND +1.2V +1.2V DGND DGND NC NC ADSDO DIRSDO RWCK RBCK RMCK +3.3.V BCKO DGND +1.2V WCKO MCKO SDOA0 SDOA1 DGND DGND SDOA2 SDOA3 +3.3V /MIC MICSEL DGND DGND +1.2V +1.2V (CXDTA) 4.7k PD or OPEN 4.7k PD or OPEN NC NC NC EXMA17 EXMA13 +3.3V Power supply Power supply Status port Power supply Test Clock Power supply Test Audio IF Power supply Audio IF Power supply Audio IF Audio IF Power supply IO port Power supply IO port External memory IF Power supply I O I O O O O O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 42 RX-V359/HTR-5930 No. Pin Name Classification Function I/O Port Set Size Connect IC811: YSS948-VZ (DSP P.C.B.) DSP 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 VSS VSS VDD2 VDD2 MEMA8 MEMA9 MEMA11 nMEMWE VSS VDD2 VDD2 MEMA15 MEMA16 MEMA14 MEMA12 MEMA7 VSS VSS VDD2 VDD2 MEMA6 MEMA5 MEMA4 MEMA3 VDD1 VSS VSS VDD2 VDD2 MEMA2 MEMA1 MEMA0 VSS VSS VDD2 MEMD0 MEMD1 MEMD2 MEMD3 VDD1 MEMD4 MEMD5 MEMD6 MEMD7 VSS VSS VDD2 VDD2 nMEMCE MEMA10 nMEMOE MEMA18 STATUS0 STATUS1 STATUS2 STATUS3 VSS VSS VDD2 VDD2 Power supply External memory IF Power supply External memory IF Power supply External memory IF Power supply Power supply External memory IF Power supply External memory IF Power supply External memory IF Status port Power supply GND GND Internal power supply (typ1.2V) Internal power supply (typ1.2V) External memory access output terminal 8 External memory access output terminal 9 External memory access output terminal 11 External memory light enable output terminal GND Internal power supply (typ1.2V) Internal power supply (typ1.2V) External memory access output terminal 15 External memory access output terminal 16 External memory access output terminal 14 External memory access output terminal 12 External memory access output terminal 7 GND GND Internal power supply (typ1.2V) Internal power supply (typ1.2V) External memory access output terminal 6 External memory access output terminal 5 External memory access output terminal 4 External memory access output terminal 3 External power supply (typ3.3V) GND GND Internal power supply (typ1.2V) Internal power supply (typ1.2V) External memory access output terminal 2 External memory access output terminal 1 External memory access output terminal 0 GND GND Internal power supply (typ1.2V) External memory data I/O terminal 0 External memory data I/O terminal 1 External memory data I/O terminal 2 External memory data I/O terminal 3 External power supply (typ3.3V) External memory data I/O terminal 4 External memory data I/O terminal 5 External memory data I/O terminal 6 External memory data I/O terminal 7 GND GND Internal power supply (typ1.2V) Internal power supply (typ1.2V) External memory chip select output terminal External memory access output terminal 10 External memory output enable output terminal External memory access output terminal 18 Inside information output terminal 0 Inside information output terminal 1 Inside information output terminal 2 Inside information output terminal 3 GND GND Internal power supply (typ1.2V) Internal power supply (typ1.2V) - - - - O O O O - - - O O O O O - - - - O O O O - - - - - O O O - - - I/O I/O I/O I/O - I/O I/O I/O I/O - - - - O O O O O O O O - - - - 4mA 4mA 4mA 8mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 4mA 2mA 2mA 2mA 2mA DGND DGND +1.2V +1.2V EXMA8 EXMA9 EXMA11 /EXMEW DGND +1.2V +1.2V EXMA15 EXMA16 EXMA14 EXMA12 EXMA7 DGND DGND +1.2V +1.2V EXMA6 EXMA5 EXMA4 EXMA3 +3.3V DGND DGND +1.2V +1.2V EXMA2 EXMA1 EXMA0 DGND DGND +1.2V EXMD0 EXMD1 EXMD2 EXMD3 +3.3V EXMD4 EXMD5 EXMD6 EXMD7 DGND DGND +1.2V +1.2V /EXMCE EXMA10 /EXMOE EXMA18 NC NC NC NC DGND DGND +1.2V +1.2V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 43 RX-V359/HTR-5930 I/O ..... Is : Schmidt trigger input terminal Ot : 3-state digital output terminal I(+) : Input terminal with pull-up resistor O : Digital output terminal No. Pin Name Classification Function I/O Port Set Size Connect IC811: YSS948-VZ (DSP P.C.B.) DSP 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 VDD1 MISO VSS MISI MISCK nMICS VDD2 VDD2 VSS VSS nIC nTSTREGRST ZEROFLG nINT nMUTE VDD1 VDD2 VDD2 VSS VSS AVSSR AVDDR AHVDD VHVDDG Microprocessor IF Microprocessor IF Power supply Reset Test Status port Power supply Power supply External power supply (typ3.3V) Data output GND Data input Serial clock Chip select Internal power supply (typ1.2V) Internal power supply (typ1.2V) GND GND Hardware/Reset input terminal Terminal for a test / GND terminal Terminal for a test / GND terminal Interrupt request output terminal MUTE output terminal External power supply (typ3.3V) Internal power supply (typ1.2V) Internal power supply (typ1.2V) GND GND PLL section GND PLL section power supply (typ3.3V) PLL section power supply (typ3.3V) PLL section power supply (typ3.3V) - Ot - I Is Is - - - - Is - - O O - - - - - - - - - 4mA - - - 2mA 2mA +3.3V SDD3 DGND SDM3A SCK3A /CSADM +1.2V +1.2V DGND DGND /ICADM DGND DGND /INTADM NC +3.3V +1.2V +1.2V DGND DGND DGND +3.3VPLL +3.3VPLL +3.3VPLL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 44 RX-V359/HTR-5930 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 53 RX-V359/HTR-5930 I PIN CONNECTION DIAGRAM • ICs LA7956 KIA7805API KIA7812API OUT COM IN KIA7912PI OUT GND IN BD3816K1-C AK4628AVQ 1 22 33 34 11 23 12 44 STK433-130-E STK404-130Y 1 13 1 9 MM74HCU04SJX 14 7 1 LC72722PM NJM2586AM 1 24 25 40 41 64 65 80 BS62LV256SC-70 28 14 1 1 24 36 37 12 25 13 48 F2602E-01 LC89057W-VF4A-E 1 12 13 24 25 36 37 48 M66003-0131FP 1 16 17 32 33 48 49 64 24 12 1 NJM2885DL1-33 3:OUT 1:IN 2:GND NJM4565M 8 4 1 5 1 PQ012FZ01ZP SN74AHCT1G32DCKR 1 3 4 5 SN74AHC08PWR SN74AHCT08PWR SN74LV157APWR 14 7 1 NJM2388F05 4 1 M30622MWP-A82FP 80 1 51 30 81 100 50 31 YSS948-VZ 1 36 37 72 73 108 109 144 1 15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 54 RX-V359/HTR-5930 • Diodes • Transistors + 1SS133,176 1SS270A 1T2 MTZJ12C MTZJ30A MTZJ4.7A Anode Cathode 1SS355 KDS160-RTK MA8075-H MA8100-H UDZ3.6B UDZ5.1B UDZ6.8B UDZS16B UDZS5.6B UDZS6.2B UDZS9.1B RB500V-40 1SS380 TS6P03G Anode Anode Cathode Cathode SB01-05Q – 1SR154-400 KPB103G TS4B03G Anode Cathode + – 2N5401C-AT 2SA1015 2SA949 2SC1815 2SC2705 E C B 2SA1037K 2SC2412K 2SC3326 2SD1938F KRA104S-RTK KRC102S-RTK KRC104S-RTK B E C 2SA1708 2SC4488 E C B BCE 2SB1274 2SC1740S KRC102M-AT E C B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 B C D E F G H I J K L M N RX-V359/HTR-5930 BLOCK DIAGRAM 55 VIDEO IC701 DVD SELECTOR 75 82 & VIDEO Amp POWER RELAY U,C,T,K,A,B,G,E models DTV/CBL MONITOR OUT 83-85 T371 C377 RY371 +5 SPEAKER RELAY S12 VCR 6dB -5 20 48-51 RY371 C374 MUTE CONTROL PRY C371 AC CABLE VIDEO 4 MG 24,25 POWER LIMIT Q371 D373,374,376,377 DVD IC391 91 SELECTOR POWER LIMIT DETECT STANDBY/ON DTV/CBL & VIDEO Amp 94,95 16,62,99 F371 MONITOR OUT +5M R,L models VCR 12 6dB RESET V-AUX 1-3,100 86 D375 Q391~393 SWITCH I DETECT Q372 ~375 REC OUT & BUFFER Amp 90 C375 VCR DC DETECT C376 0dB +12V SERIAL CONTROL D373,374,376,377 DIGITAL OPTICAL COAXIAL 13 15 5 IC801 IC811 28 9 IC803 31,32 ADFL/ADFR DVD XL801 AD & DA XL242 16MHz 8 DIR 28 DECODER + DSP Converter IC452~454 DTV/CBL 21-28 29 U,C models 1 IC807 4 4 24.576MHz DVD Duty MICROPROCESSOR +5BUS(U,C models) FL/FR/SL/SR/ C/SW ch IMPEDANCE Corrector 29 +5D1 SELECTOR 21 +3.3D +5D2 10.6dB SW381 12 +1.2D IC805 IC950 IC808 14 IC804 IC802 POWER Amp XM XM Selector SRAM MG SPEAKER OUT U,C models D122 RY101 FRONT A L/R ANALOG 26-32 23,24 FLch:IC102 FRch:IC103 C154, C155 C159 4,5 IC451 7ch VOLUME 31.6dB CD 53,54 FL,FR MUTE 2,3 TONE Q102,103 RY102 FRONT B L/R C160 U,C models MD/CD-R CONTROL C156, C157 SLch:IC102 SRch:IC103 R,T,K,A,B,G,E,L models FM/AM 74,75 31.6dB TUNER INPUT 7ch 7ch 49,50 SL,SR MUTE +B D122 SELECTOR SELECTOR INPUT Q101,104 RY103 SURROUND L/R 12,13 GAIN C171, C172 E C152 C159 DVD CONTROL C153 C160 10,11 Cch:IC101 -B DTV/CBL 31.6dB 8,9 51 C MUTE V-AUX Q105 RY104 CENTER G103 6,7 SW(MIX) 48 C157 VCR VP Q121 RY105 76-79 15-21 SW 48 HPL,HPR REC OUT MICROPROCESSOR IC655 U,C models D654 R,T,K,A,B,G,E,L models MD/CD-R -7 E +7 Q451 +12 +5BUS IC653 D655 U,C models +5D2 VCR E U,C models C662 C666 C665 PHONES R652 R,L models Q452 -12 +RY IC651 G651 MULTI CH INPUT +12 D653 FRONT +5D1 IC654 +5 SURROUND OUT PUT 12E R663 R655 C663 C667 IC456 SUB WOOFER E2 C664 C668 SW691 CENTER 5 7 MUTE -5 Q652 VOLTAGE SELECTOR Q611,612 SUB WOOFER -12 13dB -RY IC652 F1,F2 R651 to FUNCTION (2) FL DISPLAY V551 KEY SW552~573 *SW567,569,571,573 B,G,E models TUNER DRIVE TR Q551~557 MICRO PROCESSOR IC242 SW551 FL DRIVER SELECTOR VOLUME IC551 DSP COMPOSITE COMPONENT IR REMOTE U551 VOLUME STANDBY/ON SW671 F1, F2 To Function (4) F1, F2 To Function (4) U,C,T,K,A,B,G,E models • See page 60 → SCHEMATIC DIAGRAM MAIN (5) • See page 59 → SCHEMATIC DIAGRAM MAIN (1) • See page 59 → SCHEMATIC DIAGRAM MAIN (2) • See page 60 → SCHEMATIC DIAGRAM MAIN (3) • See page 58 → SCHEMATIC DIAGRAM FUNCTION (5) • See page 58 → SCHEMATIC DIAGRAM FUNCTION (2) • See page 57 → SCHEMATIC DIAGRAM FUNCTION (1) • See page 59 → SCHEMATIC DIAGRAM MAIN (6) • See page 58 → SCHEMATIC DIAGRAM FUNCTION (7) • See page 58 → SCHEMATIC DIAGRAM FUNCTION (4) • See page 58 → SCHEMATIC DIAGRAM FUNCTION (10) • See page 56 → SCHEMATIC DIAGRAM DSP • See page 57 → SCHEMATIC DIAGRAM FUNCTION (3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 B C D E F G H I J K L M N RX-V359/HTR-5930 SCHEMATIC DIAGRAM (DSP) 56 # All voltages are measured with a 10MΩ/V DC electronic volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. FRONT L CENTER SURROUND L ANALOG IN 1.3 0.2 0 4.9 0.2 0 4.9 3.3 3.3 3.3 0 0 0 3.1 1.3 1.3 3.4 3.3 0 5.0 3.1 0.1 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0 0.4 0.4 0.4 0.4 0.3 0.3 0.3 2.7 3.2 4.9 4.9 3.2 0 0.1 0.1 0.1 3.4 3.4 1.8 1.8 1.7 0 0 0 3.4 4.8 3.4 3.4 1.1 3.4 0 0 0 0 0 0 3.4 3.4 0.2 0.5 0.2 3.4 3.4 1.6 1.6 1.7 3.4 0 0.1 0.1 A-1 0 0.1 0 0 2.9 5.0 2.4 5.0 0.1 0 5.0 0.1 0.5 4.8 4.8 3.4 3.4 3.4 3.4 4.9 4.9 4.9 0 0.1 0.1 0.1 3.4 0 4.8 4.8 4.8 4.8 4.8 4.8 0.1 0.1 0 2.5 0 5.0 2.5 5.0 2.5 2.5 0 2.5 0 0 0 0 0 2.5 2.5 1.4 4.9 4.9 5.0 5.0 0 0 0.1 0.1 0.1 0.1 1.3 1.9 1.8 1.8 2.5 2.5 2.5 2.5 2.5 0 0 0 0 5.0 5.0 5.0 2.5 0 4.9 4.9 1.8 1.3 1.3 1.3 1.3 1.3 1.3 1.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.3 3.4 3.4 0 0 0 0 0.4 0.4 0.4 0 0 0 0 0 0 0 0 1.7 0 0 0 0 0 0 1.9 0.1 1.8 1.7 1.8 3.4 1.8 0 0 3.4 1.3 1.3 1.3 1.3 1.3 1.3 0 0 1.3 3.1 0.4 0.4 0.4 1.3 1.3 1.3 1.3 1.4 1.3 1.3 3.4 3.4 0.1 0.1 0.1 0.1 0.1 0.1 1.8 1.8 0.1 0.1 0 0 0 0 0 0 0 2.7 0.4 3.2 0 0 0 0 0 0 0 0 0 1.3 1.3 1.3 1.3 1.3 1.3 3.4 1.1 3.4 3.4 3.4 3.4 3.4 3.4 3.4 4.8 4.8 U, C models Input Selector RXOUT RX0 RX1 RX2 RX3 RX4 RX5/VI RX6/UI LPF TMCK/PIO0 TBCK/PIO1 TLRCK/PIO2 TDATA/PIO3 TXO/PIOEN Cbit, Ubit Microcontroller I/F Data Selector Clock Selector Modulation & Parallel Port PLL XIN XOUT XMCK CKST SLRCK SBCK RLRCK RBCK RMCK SDIN RDATA RERR DO XMODE CI CE CL INT AUDIO/VO EMPHA/UO 1/N Demodulation & Lock detect 1 2 3 4 5 8 9 10 13 44 45 46 47 48 29 28 27 34 23 22 20 17 16 24 21 36 37 41 38 39 48 35 33 32 IC801: LC89057W-VF4A-E Digital Audio Interface Transceiver 1 DC input (Vin) GND DC output (Vo) 3 5 IC802: PQ012FZ01ZP Voltage Regulator 2 Bias power supply (VB) ON/OFF control (Vc) 4 Specific IC MCLK LRCK BICK Format Converter SDOS SDOUT SDIN1 SDIN2 SDIN3 SDIN4 ADC HPF Audio I/F ADC HPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF AK4628A IC803: AK4628AVQ 192kHz 24Bit 8-channel CODEC 22 ROUT4 12 1 SDTI4 8 SDTI3 7 SDTI2 6 SDTI1 9 SDTO 10 DAUX 4 BICK 5 LRCK 39 MCLK 32 RIN 31 LIN 21 LOUT4 24 ROUT3 23 LOUT3 26 ROUT2 25 LOUT2 28 ROUT1 27 LOUT1 A6 Address Input Buffer Row Decoder Memory Array 512 x 512 Column I/O Sense Amp Write Driver Column Decoder Data Buffer Output Address Input Buffer A3 A2 A1 A0 A10 Data Buffer Input Control Gnd Vdd OE WE CE DQ5 DQ4 A12 A8 A7 8 8 8 8 DQ7 DQ6 DQ3 DQ2 DQ1 DQ0 A11 A9 A5 12 64 512 512 18 A14 A13 A4 A14 A12 A7 A6 A5 A4 A3 A2 A1 A0 DQ0 DQ1 DQ2 GND VC WE A13 A8 A9 A11 OE A10 CE DQ7 DQ6 DQ5 DQ4 DQ3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 C • IC804: BS62LV256SC-70 CMOS SRAM IC805: NJM2885DL1-33 Low dropout voltage regulator Thermal Protection Bandgap Reference VOUT VIN GND 1 3 2 4B 13 4A 12 4Y 11 3B 10 3A 9 3Y 8 1B 2 1Y 3 2A 4 2B 5 2Y 6 GND 7 IC806: SN74AHCT08PWR IC951: SN74AHC08PWR QUADRUPLE 2-INPUT POSITIVE-AND GATES Vcc 14 1A 1 2 3 5 6 11 10 14 13 15 1 G A/B 4B 4A 3B 3A 2B 2A 1B 1A 4 7 9 12 1Y 2Y 3Y 4Y 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 A/B 1A 1B 1Y 2A 2B 2Y GND VCC G 4A 4B 4Y 3A 3B 3Y IC808: SN74LV157APWR Quadruple 2-line to 1-line data selectors/multiplexers IC807: MM74HCU04SJX Hex Inverters A1 Y1 Y2 VCC A6 1 2 3 4 11 A2 Y6 A5 12 13 14 A3 Y3 Y5 A4 5 6 7 Y4 8 9 10 GND Y 4 B 2 GND 3 IC809: SN74AHCT1G32DCKR SINGLE 2-INPUT POSITIVE-OR GATE Vcc 5 A 1 POINT A-1 Pin 29 of IC801 DSP DUTY CORRECTOR DIR DECODER + DSP SRAM AD & DA CONVERTER XM SELECTOR to MAIN (1)_CB249 Page 60 C10 to MAIN (1)_CB247 Page 60 H5 to FUNCTION (1)_CB453 Page 57 H1 to FUNCTION (2)_CB551 Page 58 D9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 B C D E F G H I J K L M N RX-V359/HTR-5930 SCHEMATIC DIAGRAM (FUNCTION 1/2) 57 # All voltages are measured with a 10MΩ/V DC electronic volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. FRONT L ANALOG IN CENTER SURROUND L CENTER SURROUND L FRONT L -12.3 -7.0 0 0 -7.7 -7.7 7.7 7.7 7.7 11.9 11.9 0 0 0 0 8 1 0 7 -12.3 4 3 6 0 5 0 0 7 11.9 8 6 0 5 0 0 7 -12.3 4 5 0 6 2 11.9 0 0 0 8 1 3 2 -12.3 -12.3 0 0 0 11.9 0 0 0 0 0 0 4 1 3 2 0 0 -12.2 0 0 -12.2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 7.0 -7.0 IC452~454, 456: NJM4565M Dual OP-Amp 8 2, 6 3, 5 1, 7 4 V+ –INPUT +INPUT V– OUTPUT IC451: BD3816K1-C 7-channel volume IC for 7-channel BD3816K1 1 2 3 4 5 6 7 TREBLE REC A REC B REC C FRL select 6.1ch select Input select BASS Output mode select Master Volume ING SW 8 9 10 80 79 11 12 13 14 15 73 22 23 24 78 77 76 75 74 16 17 18 19 20 21 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 43 42 41 49 48 47 46 45 44 72 71 70 69 68 67 66 65 25 26 27 28 29 30 31 33 34 35 36 37 38 39 40 LOGIC 32 + + AGND1 INA1 INA2 INB1 INB2 INC1 INC2 IND1 IND2 INE1 INE2 INF1 INF2 AGND2 INDVDFR INDVDFL INDVDC INDVDSR INDVDSL INDVDCB INDVDSW AGND3 OUT1 OUT2 VINFR GOUTFL VINFL AGND10 TNF1 TNF2 BNFA1 BNFB1 BNFA2 BNFB2 OUTFR OUTFL AGND9 OUTC OUTSR OUTSL OUTCB AGND8 OUTSW AGND7 VINC GOUTC VINSR GOUTSR AGND13 ROUTC2 ROUTC1 ROUTB2 ROUTB1 ROUTA2 ROUTA1 AGND12 VCC VEE AGND11 DA CL MUTE THGND GOUTFR AGND4 INDSPFR INDSPFL INDSPC INDSPSR INDSPSL INDSPCB INDSPSW AGND5 GOUTSW VINSW AGND6 GOUTCB VINCB GOUTSL VINSL to MAIN (1)_CB244 Page 60 F3 to DSP_CB803 Page 56 L1 to MAIN (1)_CB101 Page 59 A6 7CH VOLUME FUNCTION (3) FUNCTION (6) FUNCTION (1) INPUT Section MUTE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 B C D E F G H I J K L M N RX-V359/HTR-5930 SCHEMATIC DIAGRAM (FUNCTION 2/2) 58 # All voltages are measured with a 10MΩ/V DC electronic volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. -20.2 -20.2 -26.1 -22.4 -22.3 -16.8 -18.5 -24.1 -24.1 -24.1 -24.2 -18.7 -20.4 -22.5 -14.9 -14.9 -11.5 -16.6 -25.9 -26.0 -25.9 -26.0 -26.0 -26.0 -26.0 -26.0 4.8 4.8 4.8 -26.0 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -28.1 -22.4 -22.3 -15.0 -18.7 -16.7 -24.2 4.8 24.2 -9.6 -14.9 -24.1 -24.1 -20.4 -16.9 -15.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.1 -26.0 -26.0 -26.0 -11.5 -14.9 -24.1 -16.6 -14.9 -14.9 -22.5 -20.4 -18.7 -24.2 -24.1 -24.1 -22.2 -24.1 -24.1 -15.0 -15.0 -19.6 -16.9 -18.5 -18.5 -16.7 -24.2 -24.2 -24.2 -24.2 -18.6 -22.3 -22.3 -22.3 -22.3 -22.3 -22.3 -22.2 -22.2 -20.2 -20.2 -20.4 -22.4 -20.4 -22.3 -22.3 -22.3 -22.3 4.8 4.8 4.8 4.8 4.8 2.1 0 2.1 -22.2 -22.4 -22.4 4.8 4.8 -15.1 -16.6 -28.1 -24.4 -20.7 -16.6 -28.1 4.8 -22.3 -22.3 4.8 -22.3 -22.3 0 0 0 0 0 0 4.9 0 5.0 0 20.0 5.0 0 -20.9 -12.3 0 20.0 11.7 0 -4.8 -5.5 -12.3 -4.9 0 5.0 13.2 0 13.2 6.7 6.7 -21.0 20.0 -0.1 -0.1 0 13.2 6.7 6.7 AC 32.4 AC 11.1 AC 5.2 (R, L models) B, G models (For RDS) U, C models U, C models R, T, K, A, B, G, E, L models 52 Display controller Segment digit select/ output circuit Serial receive circuit Digit output circuit Clock generator DIG11/ SEG42 51 DIG12/ SEG41 50 DIG13/ SEG40 49 DIG14/ SEG39 48 DIG15/ SEG38 47 DIG16/ SEG37 46 DIG17/ SEG36 45 SEG35 XOUT 6 Vcc1 8 Vcc2 18 Vss 5 Vp 64 XIN 7 CS SCK 3 SDATA 4 RESET 1 SEG00 44 9 SEG34 SEG26 17 19 SEG25 Segment output circuit Display code RAM (8-bit x 60) CGROM (35 bit x 166) CGROM (35 bit x 16) code select Code write Code/ command control circuit DIG00 63 53 DIG10 IC551: M66003-0131FP FL Display Driver 2 data timing clock dot data write scan pulse IC651: KIA7812API IC653, 654: KIA7805API Voltage Regulator R1 R2 R3 R4 R5 R6 R7 R8 Z1 Q12 Q13 Q18 Q17 Q14 Q19 Q10 Q8 Q16 INPUT OUTPUT COMMON (GND) Q15 Q11-1 Q11 Q2 Q3 Q4 Q5 Q9 Q7 Q1 Q6 R12 R19 R10 R9 R15 R14 R16 R21 R20 R22 R23 R17 R13 R11 R18 C1 1 3 2 COMMON (GND) IC652: KIA7912PI Voltage Regulator Q28 Q17 Q18 Q19 Q20 Q31 Q23 Q21 Q22 Q24 Q25 Q26 Q27 Q10 Q11 Q14 Q15 Q16 Q27-1 Q26-1 Q12 Q13 Q8 Q9 Q2 Q7 Q4 Q5 Q6 Q3 Q29 Q30 R0 R1 R2 R14 R17 R19 R20 R21 R22 R23 R24 R25 R26 R3 R4 R5 R6 R10 R11 R12 R13 D4 R9 R7 R8 C2 C1 R16 R15 R18 1 OUTPUT INPUT 3 2 IC655: NJM2388F05 LOW DROPOUT VOLTAGE REGULATOR WITH ON/OFF CONTROL GND Cont Vin Vout 2 1 4 3 Thermal Protection Bandgrap Reference ON/OFF control Over Voltage Protection Over Current Protection +- to DSP_CB804 Page 56 G2 to MAIN (1)_CB246 Page 60 H4 to TRANSFORMER to MAIN (1)_CB105 Page 59 I4 STANDBY/ON FUNCTION (5) FUNCTION (2) FUNCTION (4) FUNCTION (10) FUNCTION (9) FUNCTION (8) FUNCTION (7) IR REMOTE VOLUME KEY FL DRIVER FL DISPLAY DRIVER TR DRIVER TR VOLTAGE SELECTOR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 B C D E F G H I J K L M N RX-V359/HTR-5930 SCHEMATIC DIAGRAM (MAIN 1/2) 59 # All voltages are measured with a 10MΩ/V DC electronic volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. FRONT L FRONT L CENTER CENTER SURROUND L SURROUND L -47.9 -49.2 49.3 0.1 0.1 0.1 0.1 0 0 0 0 0 0 0 0.1 -12.4 0 0.1 -12.4 0.6 48.8 -47.9 -49.2 49.3 0.1 0.1 0.1 0 0 0 0 0 0 0 0.6 48.8 0.5 0 0.2 0.2 0 -47.9 1.2 49.2 49.3 0.1 0.1 11.9 AC 72.6 49.0 0.1 0.1 49.2 49.3 0.1 49.0 0 0 0 0.1 0.1 49.0 0.1 0 0.1 49.0 0.1 0.1 0.1 0.6 48.2 4.3 48.8 4.2 3.8 3.7 3.7 48.9 48.8 0 0.1 -12.4 0 0.1 -12.4 0 0 0 0 0 0 0 0 0 4.7 0 0 0 0 0.3 -49.0 -48.6 -48.8 -48.0 -49.0 0 0.1 12.4 -49.0 0 0 0.1 0.3 -48.0 -48.8 49.0 0 0.1 0 0 11.9 0.1 48.8 48.2 47.7 47.7 1.2 48.3 -28.1 -12.1 -12.1 11.2 11.2 11.5 11.4 11.4 11.5 0.1 0.1 -12.1 -12.1 11.5 11.5 11.5 -12.3 -12.1 -12.3 -12.3 -12.3 11.5 12.5 11.3 11.3 0.1 -28.7 -28.7 0 -38.4 -49.2 49.3 0 0 13.6 13.6 13.6 6.5 0 6.5 0 0 0.8 0.2 0.2 AC 13.2 U, C models R, T, K, A, B, G, E, L models U, C models HV75722 22k HV75647 4.7k HV75647 4.7k HV75647 4.7k HV75647 4.7k HV75647 4.7k IC101: STK404-130Y AF Power Amp 8 11 12 1 2 13 15 14 5 4 6 7 9 10 IC102, 103: STK433-130-E Power Amp. Pre Driver CH1 Pre Driver CH2 Bias Circuit SUB 3 to FUNCTION (1) _CB454 Page 57 L7 to MAIN (1) MICROPROCESSOR Section to FUNCTION (10)_CB431 Page 58 K5 MAIN (1) POWER Section MAIN (2) MAIN (4) INPEDANCE SELECTOR L CH POWER AMP R CH POWER AMP CENTER CH POWER AMP MUTE MUTE MUTE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 10 B C D E F G H I J K L M N RX-V359/HTR-5930 SCHEMATIC DIAGRAM (MAIN 2/2) 60 # All voltages are measured with a 10MΩ/V DC electronic volt meter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. 0 0 13.6 11.3 11.3 0.8 0.1 0.1 0.1 0.1 4.7 4.3 -28.1 12.4 -12.4 -12.1 -12.4 11.5 0 2.2 11.7 4.9 4.9 1.2 4.8 0.8 4.8 4.8 1.2 0.5 0.8 4.7 6.1 4.8 4.8 4.8 4.8 4.8 4.8 4.9 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 4.8 4.8 4.8 0 0 0.5 0.5 0.1 1.6 4.9 4.9 4.9 4.8 1.2 4.8 4.8 0.1 0.1 0.1 4.9 4.9 0.1 0.1 0.1 4.8 0.1 0.1 0.1 0.1 4.8 4.8 0 0.1 4.8 4.7 5.1 0.1 0 0 4.8 6.1 11.3 0.1 0.1 4.8 4.9 8.6 9.3 9.4 0 5.0 11.7 2.2 2.1 4.3 1.6 0 0 1.9 0 0 0.1 0.1 4.7 4.7 1.7 4.9 4.8 -12.5 4.9 4.8 -12.5 4.9 4.8 -12.5 4.9 4.8 -12.5 11.3 0.1 0 A-3 0.1 0.1 0.1 0.1 0.1 0.1 5.0 0 0 0 0 4.8 4.8 0.1 0.1 0.1 0.1 0.1 -4.8 -4.8 0 0 5.0 4.8 0.1 6.3 6.2 6.2 0.8 11.8 5.5 0.1 0 3.9 3.9 3.9 3.9 4.8 4.8 0.3 0 11.8 4.9 4.9 4.3 4.8 0 0 0 0.1 0.1 6.8 6.2 7.4 1 6.2 6.2 5.7 5.7 5.1 4.8 0 0.1 4.8 5.7 13.5 13.5 5.7 0 0 0 5.7 4.9 4.9 4.9 4.3 13.5 12.8 B-1 0.1 0 0 2.3 4.9 4.8 4.8 4.8 4.8 4.8 0.2 0.1 4.8 4.8 4.8 4.8 4.8 4.8 4.8 5.0 5.0 5.0 5.1 0.2 1.8 2.4 0.1 0 0.8 A-2 2 IC241: LC72722PM RDS Signal Processor REFERENCE VOLTAGE 57 kHz bpf (SCF) CCB TEST PLL (57 kHz) ANTIALIASING FILTER SMOOTHING FILTER RAM (24 BLOCK DATA) ERROR CORRECTION (SOFT DECISION) SYNC / EC CONTROLLER SYNC DETECT-1 DATA DECODER CLOCK RECOVERY (1187.5 Hz) MEMORY CONTROL OSC/DIVIDER VREF CLK (4.332 MHz) SYNC DETECT-2 VDDA VSSD VDDD RDS-ID SYNC SYR VSSA MPX IN DO CL DI CE T1 T2 T3 T4 T5 T6 T7 X IN VREF FL OUT C IN X OUT 3 14 15 19 18 24 1 5 6 4 2 20 21 22 23 7 8 9 10 11 16 17 13 12 IC391: LA7956 Video Switch 1 2 3 4 5 6 7 8 9 VIDEO OUT A B VIN1 GND VIN2 VCC VIN3 VIN4 DRIVER 6dB AMP CONTROL VIDEO SWITCH 4 INPUT 1 OUTPUT IC701: NJM2586AM Wide band 3-input 1-output 3-circuit video amplifier 9 10 8 5 6 7 4 3 2 1 11 12 13 16 15 14 17 18 19 20 21 22 23 24 CH1 IN1 CH1 IN3 CH1 IN2 SW 1 SW 2 GND CH1 OUT GND CH2 OUT CH3 IN2 CH3 IN3 V+2 V- 2 CH2 IN3 CH2 IN1 CH3 OUT CH3 IN1 GND CH2 IN2 GND PS 75 Driver Bias Cont2 Cont1 Cont1 Cont2 Cont1 Cont2 6dB Amp Bias Bias Bias Bias Bias Bias Bias 75 Driver 75 Driver Bias 6dB Amp 6dB Amp GND GND V+1 POINT B-1 1 /EMITTER of Q258, 2 /COLLECTOR of Q259 1 2 Q258 (E) Q259 (C) POWER ON (connect the power cable) POWER OFF (disconnect the power cable) POWER ON (connect the power cable) POINT A-2 Pin 13 of IC242 POINT A-3 Pin 12 of IC241 1 2 Q258 (E) Q259 (C) to FUNCTION (1)_CB452 Page 57 G1 to MAIN (1) POWER Section to FUNCTION (4)_CB651 Page 58 H7 to DSP_CB802 Page 56 K1 to DSP_CB801 Page 56 G1 to TUNER MAIN (1) u-COM Section MAIN (3) MAIN (5) SELECTOR & VIDEO AMP SELECTOR & VIDEO AMP SWITCH & BUFFER AMP MICROPROCESSOR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 RX-V359/HTR-5930 6 70 I REMOTE CONTROL RAV309 (U, C, R, T, K, A, L models) 15 TUNER AUDIO FF VOLUME + 6 SLEEP MULTI CH IN AMP VOLUME - 7 CD REC REW CH - 4 MD/CD-R PAUSE STOP INPUT 5 STANDBY VCR SKIP + MUTE 2 POWER V-AUX CODE SET CH + 3 IC1: µPD17242MC-159-5A4-E1-A P0E2 P0E3 REM VDD XOUT XIN GND RESETPU P0D2 P0D3 P1B0/INT P0E0 P0E1 P1A0 P1A1 P0C1 P0C0 P0B3 P0B2 P0B1 P0B0 P0A3 P1A2 P0D1 P0D0 P0C3 P0C2 P0A2 P0A1 P0A0 6 7 JP1 JP2 8 9 10 11 1 2 3 4 5 12 13 14 25 24 23 22 21 20 19 18 17 16 TV POWER DVD SKIP- VOL + MUTE AV POWER DTV/CBL PLAY VOL - 1 > MENU ENT. TITLE 0 +10 8 9 < DISPLAY > RETURN < ENTER 29 28 27 26 30 R1 2Ω (1/4W) D1 SID303C-01 Q1 2SC3440-T112 T2 T1 C4 0.1µF NOT MOUNTED 3 2 1 R2 22Ω C3 0.1µF R4 100kΩ D3 RLS-73 2.1V IC2 X1 4MHz OPEN C1 47µF 3.0V + C2 220µF + R3 0Ω Key No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Function TV POWER REW CODE SET AV POWER STANDBY POWER CD MD/CD-R TUNER SLEEP DVD DTV/CBL VCR V-AUX REC, DISC SKIP PAUSE AUDIO MULTI CH IN SKIP - PLAY SKIP + CODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 STOP 8 FF AMP TV VOL + TV VOL – TV MUTE TV CH + TV CH – TV INPUT VOLUME + VOLUME – MUTE 1 2 3 4 5 6 7 42 43 44 45 46 47 48 49 50 51 52 53 54 9 0 +10 ENT. TITLE > MENU < ENTER > RETURN < DISPLAY – – – – – – – – – – – – 7A-4F 7A-09 – – 7A-0B 7A-08 7A-0A – CD 7A-0D 7A-09 7A-0C – – – – – – – – – – 79-11 79-12 79-13 79-14 79-15 79-16 79-17 79-18 – – – – – – – – – – – – 79-AF 79-A9 – – 79-AB 79-A8 79-AE – MD 79-AC 79-AA 79-AD – – – – – – – – – – 79-85 79-86 79-87 79-88 79-89 79-8A 79-8B 79-8C – 7F-80 – – – – – – – – – – – 7F-83 – – 7F-86 7F-82 7F-87 – CD-R 7F-88 7F-84 7F-89 – – – – – – – – – – 7F-91 7F-92 7F-93 7F-94 7F-95 7F-96 7F-97 7F-98 – – – – – – – – – – – – – – – – 7A-A4 – 7A-A5 – TUNER 7A-A6 – 7A-A7 – – – – – – – – – – 7A-E5 7A-E6 7A-E7 7A-E8 7A-E9 7A-EA 7A-EB 7A-EC – A5-AA – – – – – – – – – – 55-56 AA-5A 95-A6 – 6A-9A A5-9A AA-9A – DVD (P) 69-9A 6A-5A A9-9A – – – – – – – – – – 6A-AA 9A-AA 5A-AA A6-AA 66-AA 96-AA 56-AA A9-AA – 7C-80 – – – – – – – – – – 7C-8B 7C-83 7C-AD – 7CB9 7C-82 7C-BA – DVD (Y) 7C-86 7C-85 7C-87 – – – – – – – – – – 7C-94 7C-95 7C-96 7C-97 7C-98 7C-99 7C-9A 7C-9B – 3D-8D – – – – – – – – – – – 06-B6 33-83 – 49-F9 0A-BA 4A-FA – DVD (M) 04-B4 00-B0 05-B5 – – – – – – – – – – 10-A0 11-A1 12-A2 13-A3 14-A4 15-A5 16-A6 17-A7 – A5-AA – – – – – – – – – – 56-5A AA-5A 95-A6 – 6A-9A A5-9A AA-9A – DVD-R (P) 69-9A 6A-5A A9-9A – – – – – – – – – – 6A-AA 9A-AA 5A-AA A6-AA 66-AA 96-AA 56-AA A9-AA 79-19 79-10 79-1A 79-0B – – – – – – – – 79-0A 79-8D 79-8E 79-8F – – – – – – – – – 79-A5 7F-99 7F-90 7F-9A 7F-8A – – – – – – – – 7F-9E 7A-B1 7A-B2 – 7A-B3 7A-AE 7A-10 7A-AB 7A-A0 7A-AD 7A-12 7A-AF 7A-11 7A-00 69-AA AA-AA A9-56 A9-A5 6A-56 A9-66 A6-66 99-66 A5-66 59-66 5A-A9 69-66 55-AA 7C-9C 7C-93 7C-9D 7C-9E 7C-B1 7C-B4 7C-B2 7C-B5 7C-B8 7C-B6 7C-B7 7C-B3 7C-A6 18-A8 19-A9 89-39 – 9B-2B 85-35 80-30 87-37 82-32 88-38 81-31 86-36 92-22 69-AA AA-AA A9-56 A9-A5 6A-56 A9-66 A6-66 99-66 A5-66 59-66 5A-A9 69-66 55-AA – – 7A-1E 7A-1D 7A-15 7A-C9 7A-16 7A-57 7A-C1 7A-54 7A-0F 7A-55 – – – 7A-87 – – – – AMP – – – 7A-9C – – – – – – 7A-1A 7A-1B 7A-1C 7A-88 7A-89 7A-8A 7A-8B 7A-8D 7A-96 7A-97 7A-DD 7A-9A 7A-9B 7A-95 7A-56 7A-86 7A-98 7A-9C 7A-53 7A-DE 7A-52 7A-AA 7A-99 – • PANEL • SCHEMATIC DIAGRAM • KEY CODE TABLE • KEY LAYOUT 1 13 14 15 16 20 16 21 25 27 30 26 28 29 31 32 33 22 23 24 17 18 19 20 5 6 7 8 9 34 35 36 37 38 39 40 41 42 46 47 50 53 49 51 52 48 54 43 44 45 10 11 12 2 3 4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 71 RX-V359/HTR-5930 RX-V359/HTR-5930 Key No. 1 DVD C1 2 D-TV/CBL 54 3 VCR 0F 4 POWER 1F 5 CD 15 6 MD/CD-R C9 7 V-AUX 55 8 6CH INPUT 87 9 TUNER 16 10 A/B/C/D/E 12 11 PRESET – 11 12 PRESET + 10 13 / DTS 90 14 6.1 / 5.1 97 15 NIGHT 95 16 SLEEP 57 17 TEST 85 Key Name Data Code 18 VOLUME + 1A 19 STEREO 56 20 PROG – 59 21 MUTE 1C 22 PROG + 58 23 LEVEL 86 24 VOLUME – 1B 25 SET MENU 9C 26 98 27 ——— ——— 28 ——— ——— 29 ——— ——— 30 99 31 – 53 32 + 52 33 ——— ——— I REMOTE CONTROL RAV22 (B, G, E models) The schematic diagram is not available. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 21 24 20 22 15 16 17 18 19 23 26 30 31 32 25 • CUSTOM CODE: 7A • PANEL • KEY LAYOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RX-V359/HTR-5930 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
