雅马哈YAMAHA NHB32-C电路原理图

分类：电子电工日期：2023-03-30 点击：0

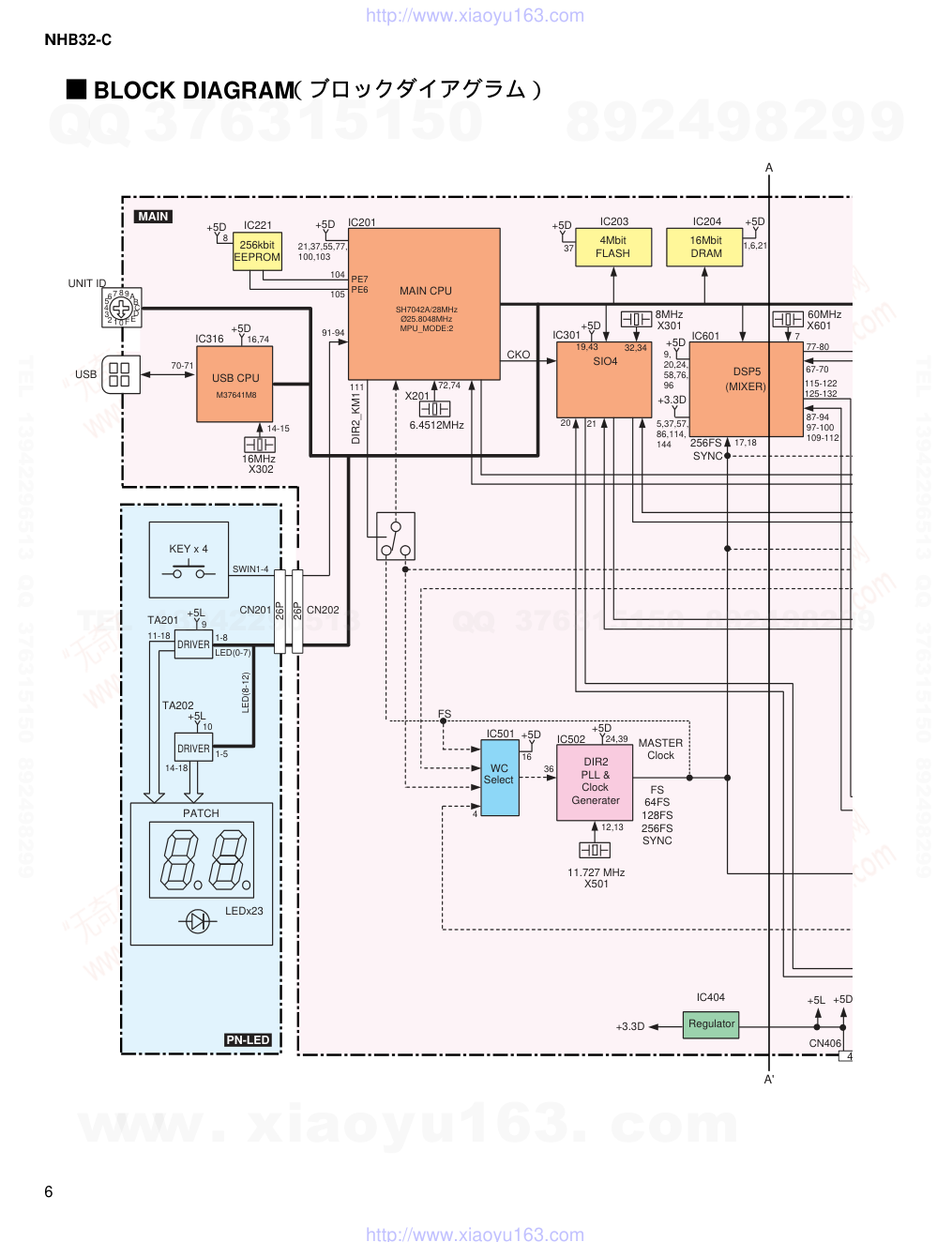

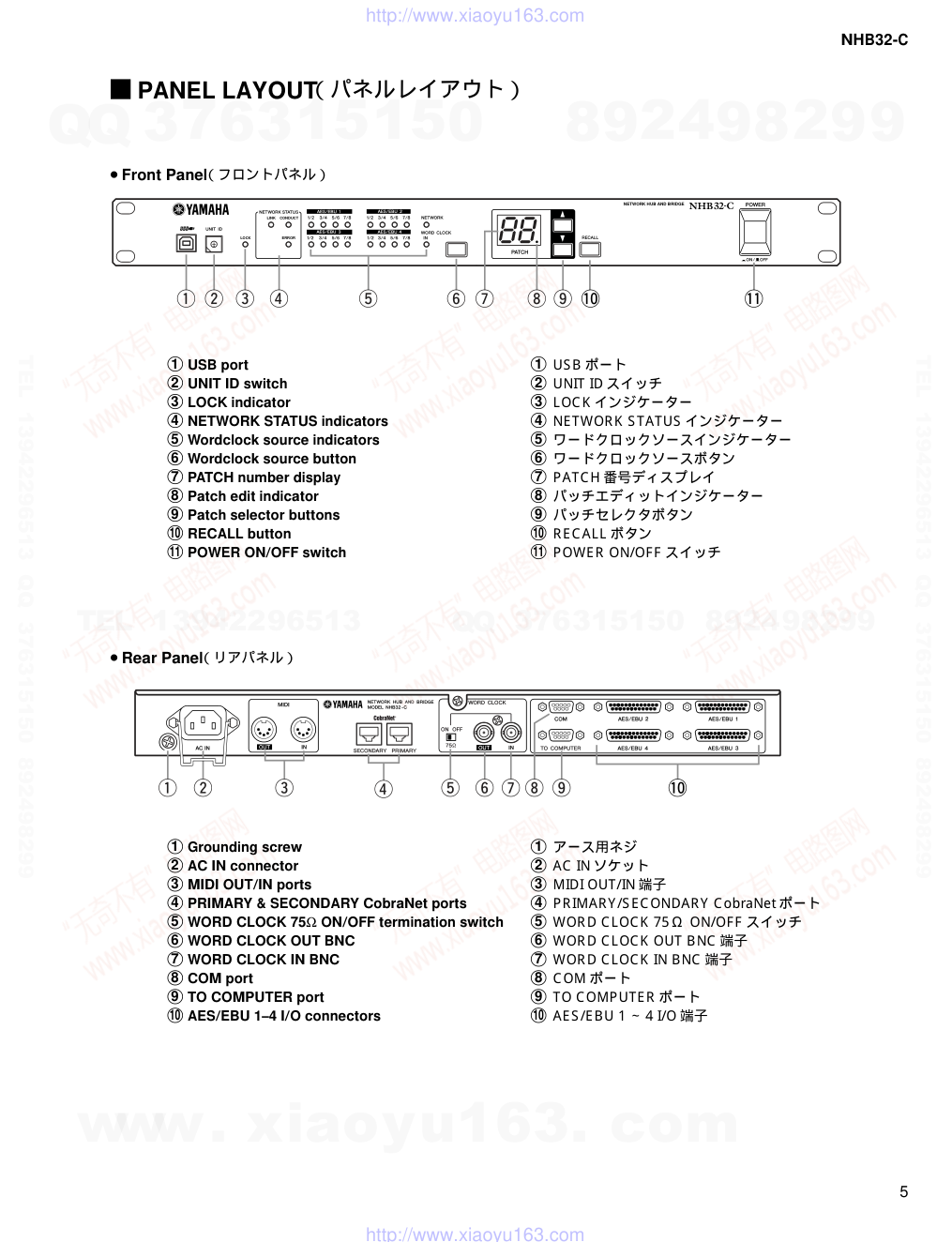

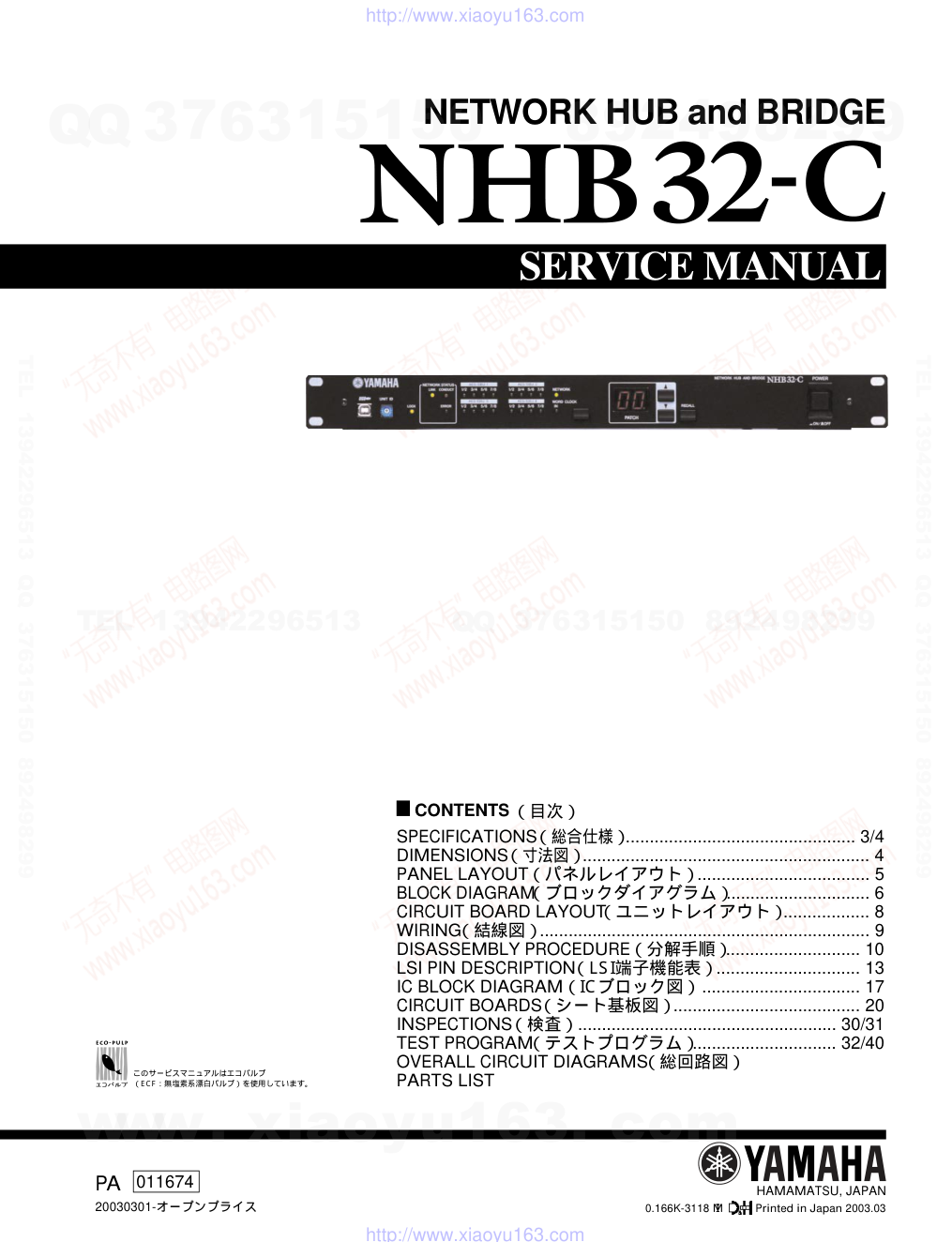

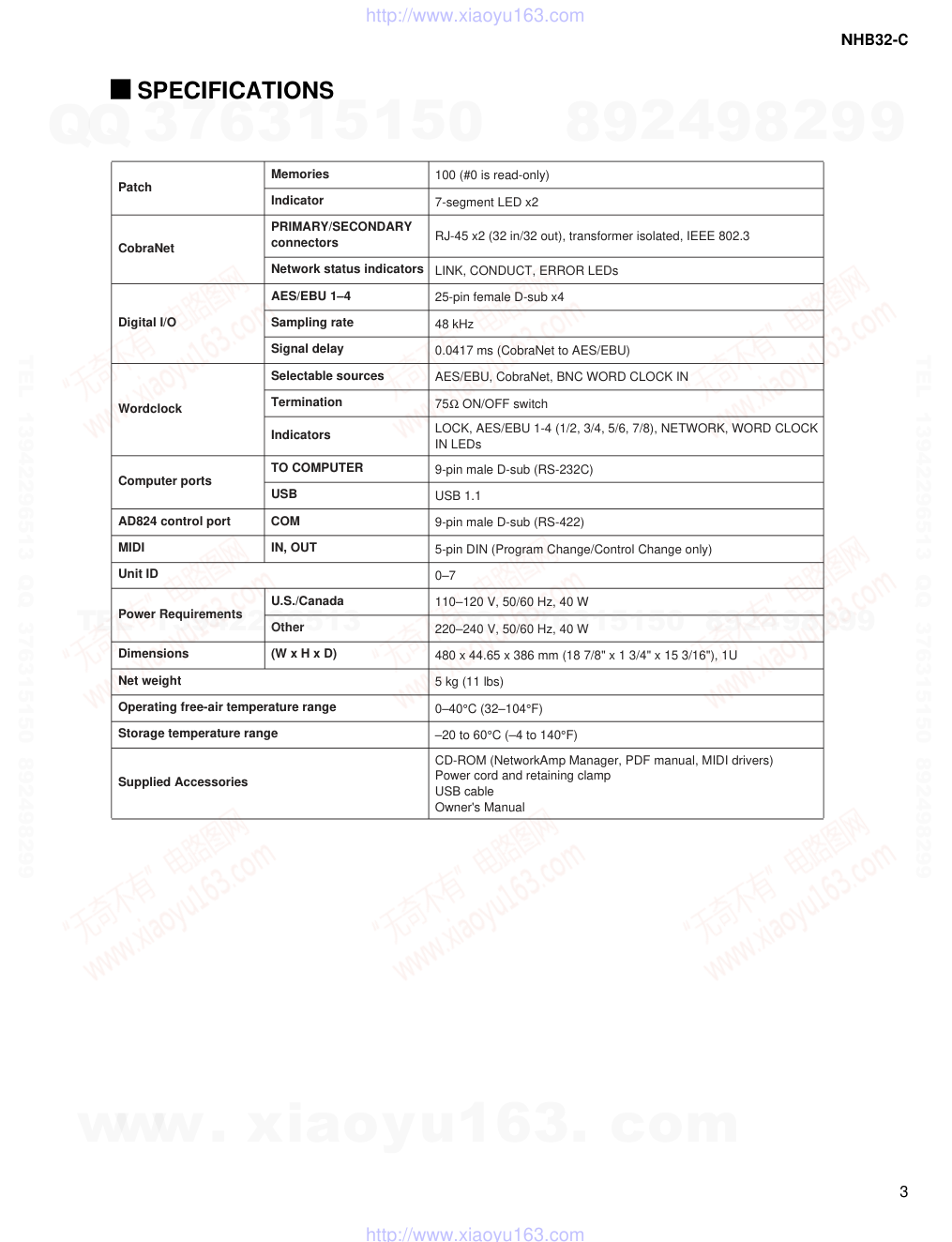

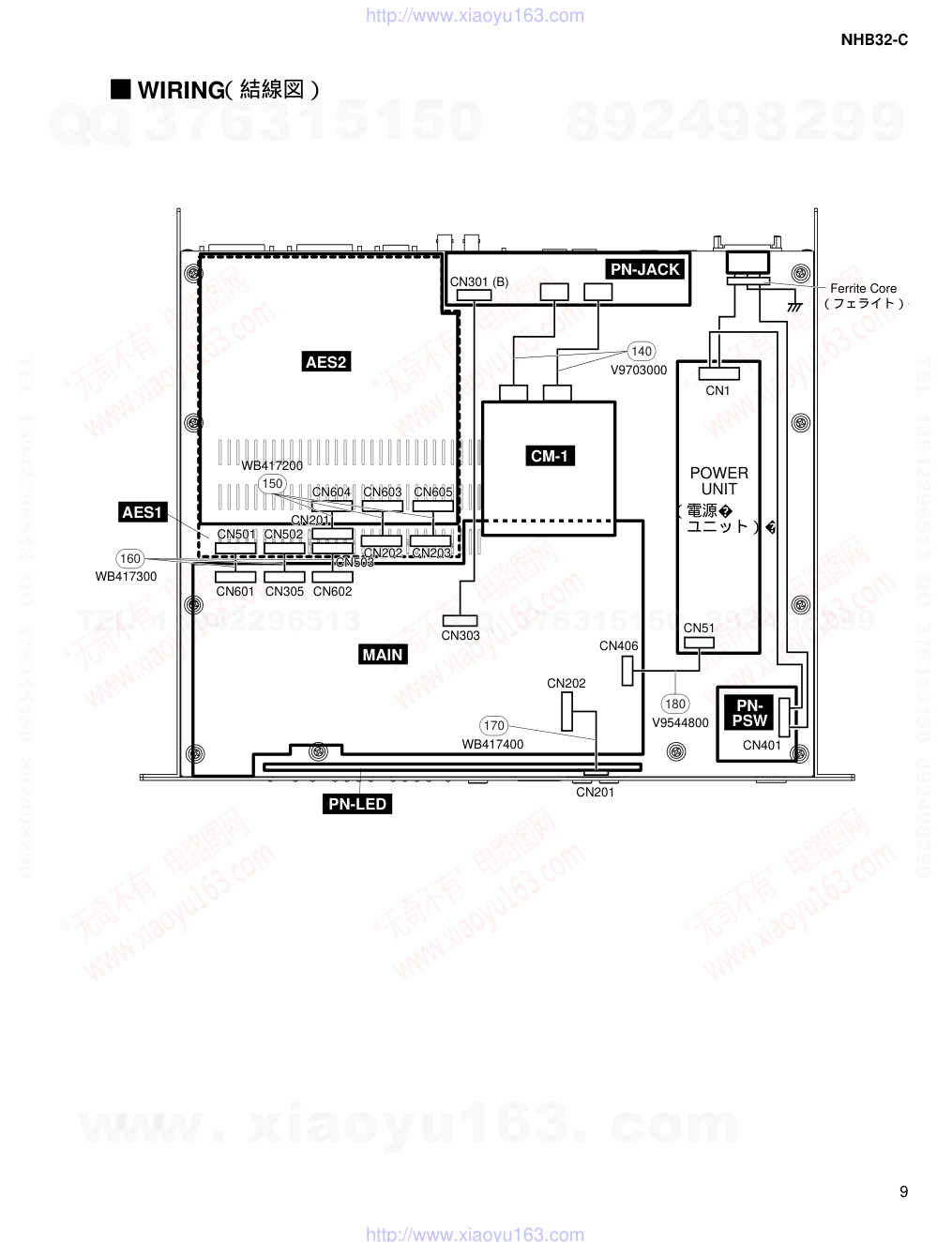

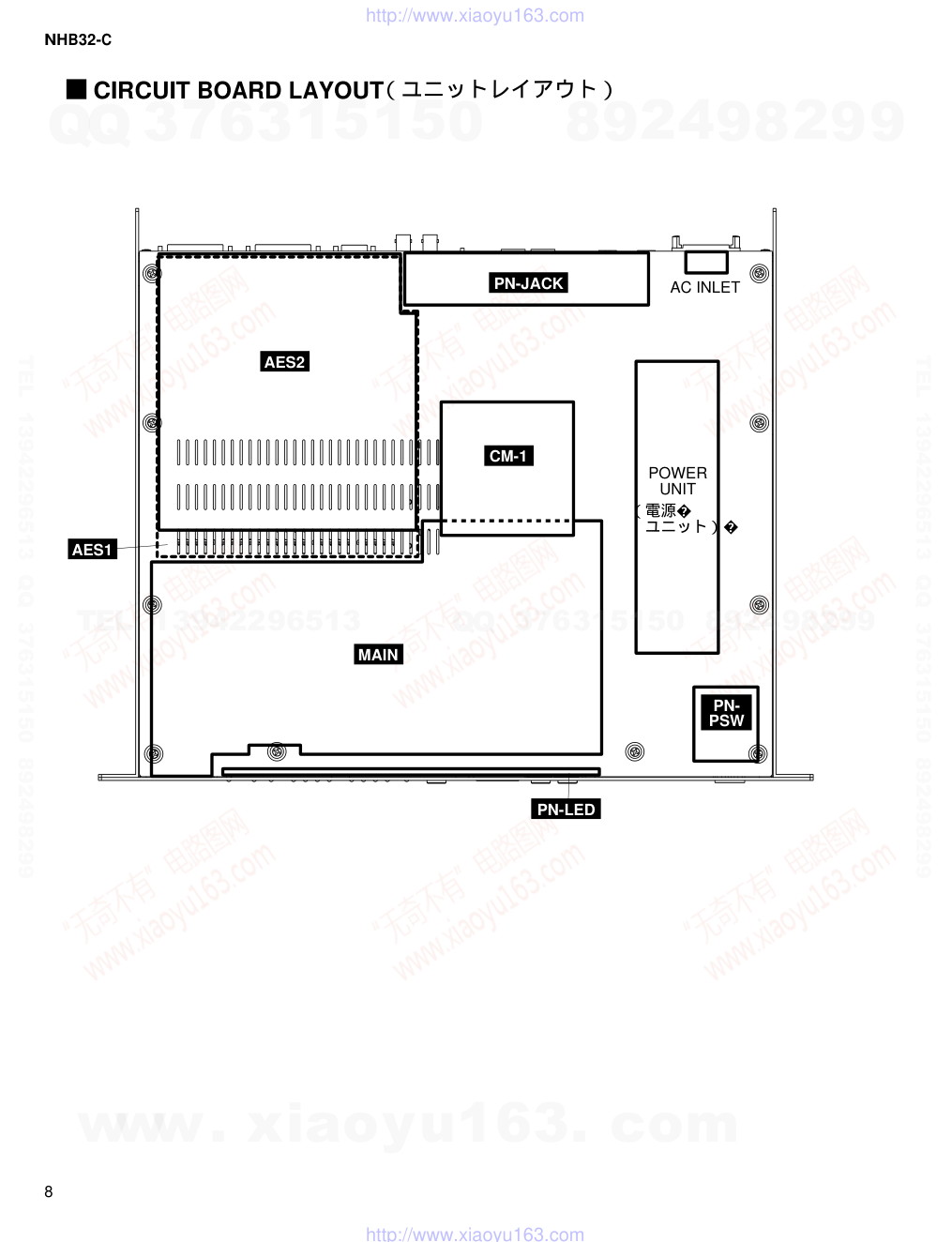

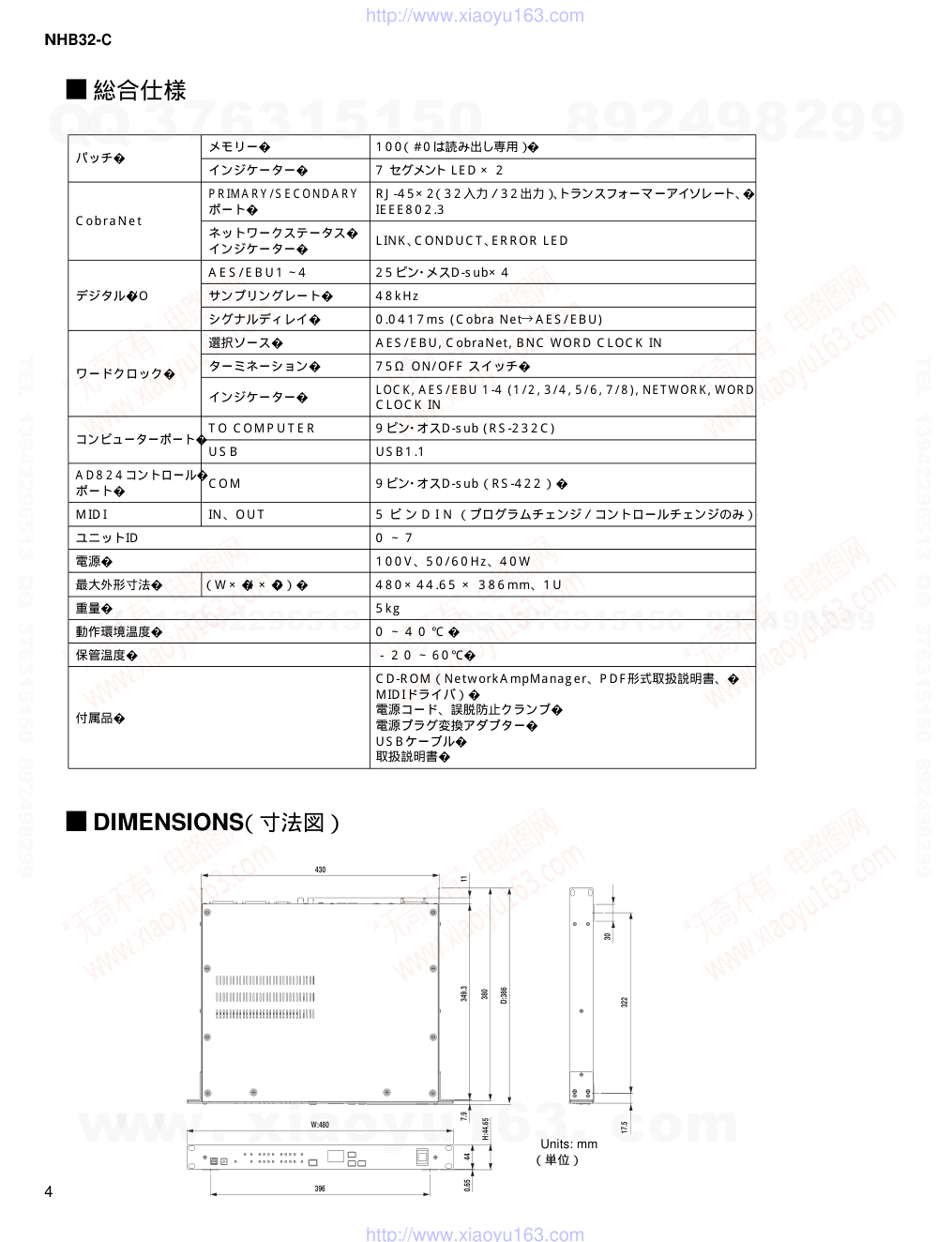

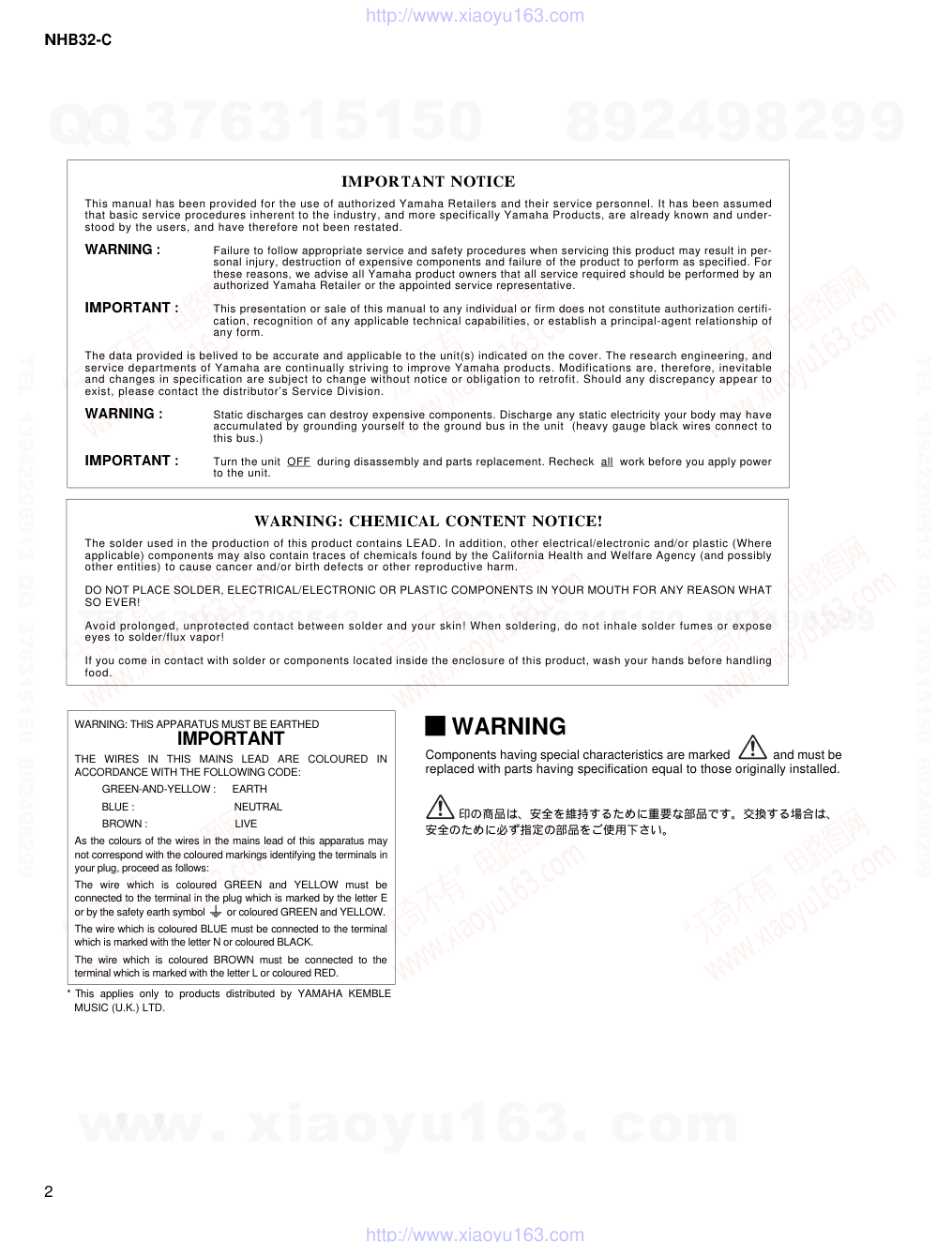

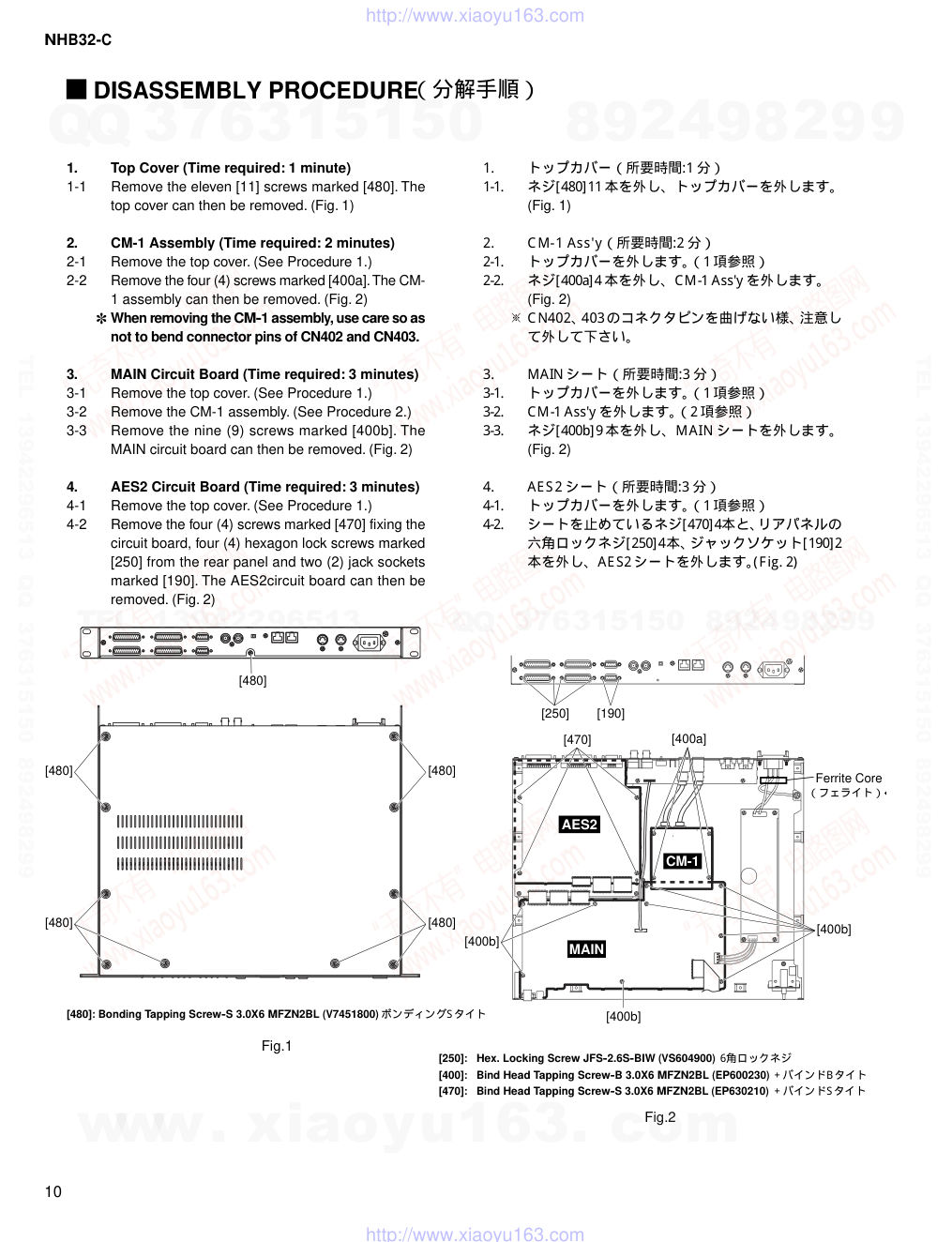

NHB32-C 1 SERVICE MANUAL PA 011674 20030301-オープンプライス 0.166K-3118 Printed in Japan 2003.03 HAMAMATSU, JAPAN CONTENTS SPECIFICATIONS ................................................ 3/4 DIMENSIONS ............................................................ 4 PANEL LAYOUT .................................... 5 BLOCK DIAGRAM .............................. 6 CIRCUIT BOARD LAYOUT .................. 8 WIRING ..................................................................... 9 DISASSEMBLY PROCEDURE ............................ 10 LSI PIN DESCRIPTION .............................. 13 IC BLOCK DIAGRAM ................................. 17 CIRCUIT BOARDS ....................................... 20 INSPECTIONS ...................................................... 30/31 TEST PROGRAM .............................. 32/40 OVERALL CIRCUIT DIAGRAMS PARTS LIST このサービスマニュアルはエコパルプ（ECF：無塩素系漂白パルプ）を使用しています。 NETWORK HUB and BRIDGE （総合仕様）（寸法図）（パネルレイアウト）（ブロックダイアグラム）（ユニットレイアウト）（結線図）（分解手順）（LSI端子機能表）（ICブロック図）（シート基板図）（検査）（テストプログラム）（総回路図）（目次） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 2 WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: GREEN-AND-YELLOW : EARTH BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN and YELLOW. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. * This applies only to products distributed by YAMAHA KEMBLE MUSIC (U.K.) LTD. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor’s Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. 印の商品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用下さい。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 3 SPECIFICATIONS Patch Memories 100 (#0 is read-only) Indicator 7-segment LED x2 CobraNet PRIMARY/SECONDARY connectors RJ-45 x2 (32 in/32 out), transformer isolated, IEEE 802.3 Network status indicators LINK, CONDUCT, ERROR LEDs Digital I/O AES/EBU 1–4 25-pin female D-sub x4 Sampling rate 48 kHz Signal delay 0.0417 ms (CobraNet to AES/EBU) Wordclock Selectable sources AES/EBU, CobraNet, BNC WORD CLOCK IN Termination 75Ω ON/OFF switch Indicators LOCK, AES/EBU 1-4 (1/2, 3/4, 5/6, 7/8), NETWORK, WORD CLOCK IN LEDs Computer ports TO COMPUTER 9-pin male D-sub (RS-232C) USB USB 1.1 AD824 control port COM 9-pin male D-sub (RS-422) MIDI IN, OUT 5-pin DIN (Program Change/Control Change only) Unit ID 0–7 Power Requirements U.S./Canada 110–120 V, 50/60 Hz, 40 W Other 220–240 V, 50/60 Hz, 40 W Dimensions (W x H x D) 480 x 44.65 x 386 mm (18 7/8" x 1 3/4" x 15 3/16"), 1U Net weight 5 kg (11 lbs) Operating free-air temperature range 0–40°C (32–104°F) Storage temperature range –20 to 60°C (–4 to 140°F) Supplied Accessories CD-ROM (NetworkAmp Manager, PDF manual, MIDI drivers) Power cord and retaining clamp USB cable Owner's Manual www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 4 Units: mm 44 7.9 380 D:386 30 322 17.5 349.3 11 0.65 H:44.65 396 W:480 430 パッチ� メモリー� 1 0 0（＃0 は読み出し専用）� インジケーター� 7 セグメント LE D × 2 C obra Net P R IMA R Y /S E C OND A R Y ポート� R J -4 5× 2（3 2 入力／3 2 出力）、トランスフォーマーアイソレート、� IE E E 8 0 2 .3 ネットワークステータス� インジケーター� LINK 、C ONDUC T 、E R R OR LE D デジタル�I/O A E S /E B U 1 ～4 2 5 ピン･メスD-s ub× 4 サンプリングレート� 4 8 kHz シグナルディレイ� 0 .0 4 1 7 ms (C obra Net　A E S /E BU) ワードクロック� 選択ソース� A E S /E BU, C obraNet, BNC WOR D C LOC K IN ターミネーション� 7 5 Ω ON/OFF スイッチ� インジケーター� LOC K , A E S /E BU 1 -4 (1 /2 , 3 /4 , 5 /6 , 7 /8 ), NE T WOR K , WOR D C LOC K IN コンピューターポート� T O C OMP U T E R 9 ピン･オスD-s ub (R S -2 3 2 C ) U S B US B1 .1 A D 8 2 4 コントロール� ポート� C OM 9 ピン･オスD-s ub（R S -4 2 2 ）� MID I IN、OU T 5 ピン D I N （プログラムチェンジ／コントロールチェンジのみ）� ユニットID 0 ～ 7 電源� 1 0 0 V 、5 0 /6 0 Hz、4 0 W 最大外形寸法� （W × �H × �D）� 4 8 0 × 4 4 .6 5 × 3 8 6 mm、1 U 重量� 5 kg 動作環境温度� 0 ～ 4 0 ℃ � 保管温度� － 2 0 ～ 6 0 ℃� 付属品� C D-R OM（NetworkA mpManag er、P DF形式取扱説明書、� MIDIドライバ）� 電源コード、誤脱防止クランプ� 電源プラグ変換アダプター� US Bケーブル� 取扱説明書� DIMENSIONS（寸法図）（単位）総合仕様 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 5 PANEL LAYOUT Front Panel Rear Panel NETWORK HUB AND BRIDGE LINK CONDUCT LOCK ERROR - 1 2 3 4 5 6 7 8 9 10 11 USB port UNIT ID switch LOCK indicator NETWORK STATUS indicators Wordclock source indicators Wordclock source button PATCH number display Patch edit indicator Patch selector buttons RECALL button POWER ON/OFF switch 1 2 3 4 5 6 7 8 9 10 Grounding screw AC IN connector MIDI OUT/IN ports PRIMARY & SECONDARY CobraNet ports WORD CLOCK 75Ω ON/OFF termination switch WORD CLOCK OUT BNC WORD CLOCK IN BNC COM port TO COMPUTER port AES/EBU 1–4 I/O connectors （パネルレイアウト）（フロントパネル）（リアパネル） 1 2 3 4 5 6 7 8 9 10 11 USB ポート UNIT ID スイッチ LOCK インジケーター NETWORK STATUS インジケーターワードクロックソースインジケーターワードクロックソースボタン PATCH 番号ディスプレイパッチエディットインジケーターパッチセレクタボタン RECALL ボタン POWER ON/OFF スイッチ 1 2 3 4 5 6 7 8 9 10 アース用ネジ AC IN ソケット MIDI OUT/IN 端子 PRIMARY/SECONDARY CobraNet ポート WORD CLOCK 75 Ω ON/OFF スイッチ WORD CLOCK OUT BNC 端子 WORD CLOCK IN BNC 端子 COM ポート TO COMPUTER ポート AES/EBU 1 ～ 4 I/O 端子 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 6 BLOCK DIAGRAM 4Mbit FLASH 16Mbit DRAM MAIN CPU SH7042A/28MHz Ø25.8048MHz MPU_MODE:2 DSP5 (MIXER) SIO4 DIR2 PLL & Clock Generater WC Select 11.727 MHz FS 64FS 128FS 256FS SYNC MASTER Clock 60MHz 8MHz M37641M8 16MHz KEY x 4 DRIVER DRIVER PATCH LEDx23 IC201 111 PE7 PE6 104 105 X201 IC316 X302 TA201 CN201 CN202 TA202 X501 IC502 IC501 IC301 X301 IC203 IC204 IC601 X601 256FS SYNC FS USB DIR2_KM1 USB CPU 0 8 4 C E 6 2 A 1 3 5 7 9 B D F UNIT ID 256kbit EEPROM IC221 6.4512MHz CKO PN-LED MAIN A A' 26P 26P 20 21 4 36 12,13 +5L 9 10 +5L LED(8-12) LED(0-7) 1-8 11-18 1-5 14-18 SWIN1-4 91-94 70-71 14-15 +5D 16,74 72,74 IC404 Regulator +5D +5D 21,37,55,77, 100,103 9, 20,24, 58,76, 96 +3.3D 5,37,57, 86,114, 144 7 32,34 +5D 19,43 +5D 24,39 67-70 77-80 17,18 115-122 125-132 87-94 97-100 109-112 +5D 1,6,21 +5D 37 +5D 8 +5D 16 4 CN406 +5D +5L +3.3D 4 （ブロックダイアグラム） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 7 t M DSP5 (MIXER) 60MHz Transmitter Receiver IN OUT MIDI DRIVER CPU-Interface Digital-Audio-Interface DIR2x8 DIT2x8 Digital-Audio-Interface DIR2x8 DIT2x8 WC-Select IN OUT JK304 JK305 (CobraNET) 4 X601 IC225 IC226 IC312 IC311 IC305 IC901 IC703~706 IC803~806 IC711~714 IC810~813 IC303~306 IC403~406 IC311~314 IC410~413 COM AES/EBU 1 AES/EBU 2 WORD CLOCK SECONDARY PRIMARY S C FS DIRDT1~8 DITDT1~8 NETIN[0~3] NETOUT[0~3] NET_WC AES/EBU_WC EXT_WCIN CobraNet 75Ω ON OFF PN-JACK AES2 CM-1 CN301 CN303 CN402,CN403 CN601 CN501 CN602 CN503 CN305 CN502 A A' 128FS 256FS SYNC JK301 JK302 SW301 8P-B JK303 BUFFER (AES/EBU4) AES1 (AES/EBU3) (AES/EBU4) (AES/EBU3) (AES/EBU1) (AES/EBU1) (AES/EBU2) (AES/EBU2) CN604 CN201 IC614 CN605 25P 25P CN203 CN603 CN202 CN901 25P 25P 25P AES/EBU 3 AES/EBU 4 25P TO COMPUTER DRIVER IC502 BUFFER IC501 26P 13 15 18 2 PC_TX 26P 1 3 3 17 PC_RX 13,14 15 15 1,2 3 4 16 5 DITDT9-16 DIRDT9-16 DIR2 DIR2 DIRWC1-8 DIRWC9-16 38 38 1-4 12-15 1-4 12-15 8P 14 9 13 FS DITDT9-16 DIT2 DIT2 +5D +5D 20 16 AESD_3(8-15) AESD(0-7) JK306 04 ator 7 +5D 16 +5D 16 67-70 77-80 DITDT9~16 DIRDT9~16 17,18 115-122 125-132 87-94 97-100 109-112 +5D 1,6,21 +5D20 +5D 16 Photo Coupler +5D 6 26P 26P 26P 26P 40P 40P POWER UNIT PN-PSW CN1 3P 5P AC INLET AC CORD CN401 POWER CN51 4P 4P CN406 +5D DGND CN502 CN305 CN504 CN401 CN301 CN701 +5L CN801 4P 38CA1-8821493 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 8 CIRCUIT BOARD LAYOUT AC INLET POWER UNIT （電源� 　ユニット）� MAIN AES2 CM-1 PN-JACK PN- PSW PN-LED AES1 （ユニットレイアウト） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 9 WIRING POWER UNIT （電源� 　ユニット）� Ferrite Core （フェライト）� MAIN AES2 CM-1 PN-JACK PN- PSW PN-LED AES1 CN601 WB417300 CN501 CN501 CN502 CN502 CN604 CN604 CN203 CN203 CN202 CN202 CN201 CN201 CN503 CN503 CN603 CN603 CN605 CN605 CN501 CN502 CN604 CN203 CN202 CN201 CN503 CN603 CN605 CN301 (B) CN303 CN202 CN406 CN51 CN1 CN201 CN401 CN305 CN602 160 V9703000 140 WB417400 V9544800 170 WB417200 150 180 （結線図） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 10 DISASSEMBLY PROCEDURE Fig.1 [480]: Bonding Tapping Screw-S 3.0X6 MFZN2BL (V7451800) Fig.2 [250]: Hex. Locking Screw JFS-2.6S-BIW (VS604900) [400]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230) [470]: Bind Head Tapping Screw-S 3.0X6 MFZN2BL (EP630210) 1. Top Cover (Time required: 1 minute) 1-1 Remove the eleven [11] screws marked [480]. The top cover can then be removed. (Fig. 1) 2. CM-1 Assembly (Time required: 2 minutes) 2-1 Remove the top cover. (See Procedure 1.) 2-2 Remove the four (4) screws marked [400a]. The CM- 1 assembly can then be removed. (Fig. 2) When removing the CM-1 assembly, use care so as not to bend connector pins of CN402 and CN403. 3. MAIN Circuit Board (Time required: 3 minutes) 3-1 Remove the top cover. (See Procedure 1.) 3-2 Remove the CM-1 assembly. (See Procedure 2.) 3-3 Remove the nine (9) screws marked [400b]. The MAIN circuit board can then be removed. (Fig. 2) 4. AES2 Circuit Board (Time required: 3 minutes) 4-1 Remove the top cover. (See Procedure 1.) 4-2 Remove the four (4) screws marked [470] fixing the circuit board, four (4) hexagon lock screws marked [250] from the rear panel and two (2) jack sockets marked [190]. The AES2circuit board can then be removed. (Fig. 2) 1. トップカバー（所要時間:1 分） 1-1.　ネジ[480]11本を外し、トップカバーを外します。 (Fig. 1) 2. CM-1 Ass'y（所要時間:2 分） 2-1. トップカバーを外します。（1 項参照） 2-2. ネジ[400a]4 本を外し、CM-1 Ass'y を外します。 (Fig. 2) 　　※ CN402、403のコネクタピンを曲げない様、注意して外して下さい。 3. MAIN シート（所要時間:3 分） 3-1. トップカバーを外します。（1 項参照） 3-2. CM-1 Ass'y を外します。（2 項参照） 3-3. ネジ[400b]9本を外し、MAIN シートを外します。 (Fig. 2) 4. AES2 シート（所要時間:3 分） 4-1. トップカバーを外します。（1 項参照） 4-2. シートを止めているネジ[470]4本と、リアパネルの六角ロックネジ[250]4本、ジャックソケット[190]2 本を外し、AES2シートを外します。(Fig. 2) [480] [480] [480] [480] [480] [250] [190] [470] [400b] [400b] [400a] [400b] MAIN AES2 CM-1 Ferrite Core （フェライト）� （分解手順）ボンディングSタイト 6角ロックネジ＋バインドBタイト＋バインドSタイト www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 11 Fig.3 5. AES1 Circuit Board (Time required: 6 minutes) 5-1 Remove the top cover. (See Procedure 1.) 5-2 Remove the AES2 circuit board. (See Procedure 4.) 5-3 Remove the six (6) screws marked [400a] fixing the circuit board and the AES circuit board angle. Also, remove the four (4) hexagon lock screws marked [250] from the rear panel and two (2) jack sockets marked [190]. The AES1 circuit board can then be removed. (Fig. 3) 6. PN-JACK Circuit Board (Time required: 2 minutes) 6-1 Remove the top cover. (See Procedure 1.) 6-2 Remove the two (2) screws marked [400b] from the circuit board, , three (3) screws marked [460] and one (1) screw marked [410] from the rear panel. The PN-JACK circuit board can then be removed. (Fig. 3) 7. Power Unit (Time required: 2 minutes) 7-1 Remove the top cover. (See Procedure 1.) 7-2 Remove the four (4) screws marked [400c] from the circuit board. The power unit can then be removed. (Fig. 3) 5. AES1 シート（所要時間:6 分） 5-1. トップカバーを外します。（1項参照） 5-2. AES2 シートを外します。（4 項参照） 5-3. シートを止めているネジ[ 400a] 6 本を外し、AE S シートアングルも外します。リアパネルの六角ロックネジ[250]4 本、ジャックソケット[190]2 本を外し、AES1 シートを外します。(Fig. 3) 6. PN-J ACK シート（所要時間:2 分） 6-1. トップカバーを外します。（1項参照） 6-2. シートのネジ[400b]2本、リアパネルのネジ[460]3 本とネジ[410]1 本を外し、PN-JACK シートを外します。(Fig. 3) 7. 電源ユニット（所要時間:2 分） 7-1. トップカバーを外します。（1項参照） 7-2. シートのネジ[400c]4本を外し、電源ユニットを外します。(Fig. 3) [400a] [400b] [460] [400c] AC INLET Ass'y [400d] [250] [190] [40] [470] [410] POWER Supply Unit （電源� 　ユニット）� AES1 PN-JACK PN-PSW Ferrite Core （フェライト）� [400]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230) [410]: Bonding Screw 3.0X8 MFZN2BL (VP157800) [460]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190) ＋バインドBタイト＋ボンディング小ネジ＋バインドBタイト www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 12 Fig.4 [480] [400] [480] PN-LED PSW knob （PSWノブ）� 8. AC INLET Assembly (Time required: 2 minutes) 8-1 Remove the top cover. (See Procedure 1.) 8-2 Remove the two (2) supports marked [40] from the rear panel. The AC INLET assembly can then be removed. (Fig. 3) 9. PN-LED Circuit Board (Time required: 2 minutes) 9-1 Remove the top cover. (See Procedure 1.) 9-2 Remove the two (2) screws marked [480] from the front panel and then remove the front panel assembly. 9-3 Remove the seven (7) screws marked [400] from the circuit board. The PN-LED circuit board can then be removed. (Fig. 4) 10. PN-PSW Circuit Board (Time required: 2 minutes) 10-1 Remove the top cover. (See Procedure 1.) 10-2 Remove the front panel assembly. (See Procedure 9-2.) 10-3 Remove the PSW knob. 10-4 Remove the two (2) screws marked [470] fixing the switch and one (1) screw marked [400d] fixing the circuit board. The PN-PSW circuit board can then be removed. (Fig. 3) 8. AC INLET Ass'y（所要時間:2 分） 8-1. トップカバーを外します。（1 項参照） 8-2. リアパネルのサポート[40]2 本を外し、AC INLET Ass'y を外します。(Fig. 3) 9. PN-LED シート（所要時間:2 分） 9-1. トップカバーを外します。（1 項参照） 9-2. フロントパネルのネジ[480]2本を外し、フロントパネル Ass'y を外します。 9-3. シートのネジ[400]7本を外し、PN-LED シートを外します。(Fig. 4) 10. PN-PSW シート（所要時間:2 分） 10-1. トップカバーを外します。（1 項参照） 10-2. フロントパネル Ass'y を外します。（9-2 項参照） 10-3. PSW ノブを外します。 10-4. スイッチを止めているのネジ[470]2本とシートを止めているネジ[400d]1本を外し、PN-PSW シートを外します。(Fig. 3) [400]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230) [480]: Bind Tapping Screw-S 3.0X6 MFZN2BL (V7451800) ＋バインドBタイトボンディングSタイト www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 13 LSI PIN DESCRIPTION PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 /DACK0 PE15 VSS A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 VCC A17 VSS /RAS /CASL /CASH VSS RDWR A18 A19 A20 /IRQ7 VSS /RD /WDTOVF /WRH VCC /WRL VSS /CS1 /CS0 /IRQ3 /IRQ2 /CS3 /CS2 /IRQ1 TXD RXD SCK0 PA1 / TXD0 PA0 / RXD0 D15 D14 D13 VSS D12 O O I O O O O O O O O O O O O O O O O O I O I O O O O O O O O I I O O O I O I O O I I O O I O I O I I/O I/O I/O I/O I I/O DMA strobe Port E Ground Address bus Power supply Address bus Ground Row address strobe Column address strobe (low) Column address strobe (high) Ground DRAM read/write Address bus Interrupt reguest Ground Read Watch dog timer overflow High write Power supply Low write Ground Chip select Chip select Interrupt reguest Interrupt request Chip select Chip select Interrupt request Data transmission Data reception Serial clock Port A / Data transmission Port A / Data reception Data bus Ground Data bus 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 D11 D10 D9 D8 VSS D7 D6 D5 VCC D4 D3 D2 D1 D0 VSS XTAL MD3 EXTAL MD2 NMI VCC MD1 MD0 PLLVCC PLLCAP PLLVSS PA15 / CK /RES DREQ0 PE1 PE2 PE3 PE4 VSS AN0 / PF0 AN1 / PF1 AN2 / PF2 AN3 / PF3 AN4 / PF4 AN5 / PF5 AVSS AN6 / PF6 AN7 / PF7 AVCC VSS TIOC1B VCC PE6 PE7 PE8 PE9 PE10 VSS PE11 PE12 PE13 I/O I/O I/O I/O I I/O I/O I/O I I/O I/O I/O I/O I/O I I I I I I I I I I I I O I I I I I I I I I I I I I I I I I I I/O I O O O O O I O O O Data bus Ground Data bus Power supply Data bus Ground Crystal oscillator Mode control Crystal oscillator Mode control Non-maskable interrupt request Power supply Mode control Mode control PLL Power supply PLL capacitor PLL Ground Port A / Clock Reset DMA Reguest Port E Ground Analog input / Port F Analog ground Analog input / Port F Analog input / Port F Power supply Ground Input capture/Output compare Power supply Port E Ground Port E HD6477042AF28 (X3250A00) CPU MAIN: IC201 （LSI 端子機能表） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 14 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 NC NC NC NC Vdd Vss XI XO Vdd /SYNCI /SYNCO Vdd CKI CKO CKSEL Vss MCKD /SSYNC /IC /TEST NC NC NC Vdd Vss /CS /WR /RD CA7 CA6 CA5 CA4 CA3 CA2 CA1 Vss Vdd CD15 CD14 CD13 CD12 CD11 CD10 CD09 CD08 CD07 CD06 Vss NC NC NC NC NC NC NC NC Vdd Vdd CD05 CD04 CD03 CD02 CD01 CD00 /WAIT Vss SIO00 SIO01 SIO02 SIO03 SIO04 SIO05 SIO06 SIO07 Vss Vdd SIO08 SIO09 SIO10 SIO11 SIO12 SIO13 SIO14 SIO15 Vss Vdd SIO16 SIO17 SIO18 SIO19 SIO20 SIO21 SIO22 SIO23 Vss Vdd SIO24 SIO25 SIO26 SIO27 NC NC NC NC I O O I O I O I I I I I I I I I I I I I I I I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O Not used Ground Power supply System master clock input (60 MHz or 30 MHz) System master clock output (High or 30 MHz) Ground Sync. signal input Sync. signal output Ground System clock input (30 MHz) System clock output (30 MHz) System master clock select Power supply Serial clock input (256 fs) Serial. signal input Initial clear Test mode setting (0: TEST, 1: Normal) Not used Ground Power supply Chip select Write enable input Read enable input CPU address bus Power supply Ground CPU data bus Power supply Not used Ground CPU data bus Wait output Power supply Serial data bus Power supply Ground Serial data bus Power supply Ground Serial data bus Power supply Ground Serial data bus Not used 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 NC NC NC NC SIO28 SIO29 SIO30 SIO31 Vss Vdd SIO32 SIO33 SIO34 SIO35 SIO36 SIO37 SIO38 SIO39 Vss Vdd SIO40 SIO41 SIO42 SIO43 SIO44 SIO45 SIO46 SIO47 Vss SIO48 SIO49 SIO50 SIO51 SIO52 SIO53 SIO54 SIO55 Vss Vdd Vdd SIO56 SIO57 SIO58 SIO59 SIO60 SIO61 SIO62 SIO63 NC NC NC NC NC NC NC NC Vss /POE Vss PIO00 PIO01 PIO02 PIO03 PIO04 PIO05 PIO06 PIO07 Vss Vdd Vdd PIO08 PIO09 PIO10 PIO11 PIO12 PIO13 PIO14 PIO15 Vss NC PIO16 PIO17 PIO18 PIO19 PIO20 PIO21 PIO22 PIO23 Vss Vdd Vdd PIO24 PIO25 PIO26 PIO27 PIO28 PIO29 PIO30 PIO31 Vss NC NC NC NC I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O Not used Serial data bus Power supply Ground Serial data bus Power supply Ground Serial data bus Power supply Serial data bus Power supply Ground Serial data bus Not used Power supply Parallel data bus controll signal Power supply Parallel data bus Power supply Ground Parallel data bus Power supply Not used Parallel data bus Power supply Ground Parallel data bus Power supply Not used YSS904-F (XV989A00) DSP5 (Digital Signal Processor) MAIN: IC601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 15 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 DAUX HDLT DOUT VFL OPT SYNC MCC WC MCB MCA SKSY XI XO P256 LOCK Vss TC DIM1 DIM0 DOM1 DOM0 KM1 I O O O O O O O O O I I O O O O I I I I I Auxiliary input for audio data Asynchronous buffer operation flag Audio data output Parity flag output Fs x 1 Synchronous output signal for DAC Fs x 1 Synchronous output signal for DSP Fs x 64 Bit clock output Fs x 1 Word clock output Fs x 128 Bit clock output Fs x 256 Bit clock output Clock synchronization control input Crystal oscillator connection or external clock input Crystal oscillator connection VCO oscillating clock connection PLL lock flag Logic section power (GND) PLL time constant switching output Data input mode selection Data input mode selection Data output mode selection Data output mode selection Clock mode switching input 1 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 RSTN Vdda CTLN PCO (NC) CTLP Vssa TSTN KM2 KM0 FS1 FS0 CSM EXTW DDIN LR Vdd ERR EMP CD0 CCK CLD I I O I I I I O O I I I O O O O I I System reset input VCO section power (+5V) VCO control input N PLL phase comparison output VCO control input P VCO section power (GND) Test terminal. Open for normal use Clock mode switching input 2 Clock mode switching input 0 Channel status sampling frequency display output 1 Channel status sampling frequency display output 0 Channel status output method selection External synchronous auxiliary input word clock EIAJ (AES/EBU) data input PLL word clock output Logic section power (+5 V) Data error flag output Channel status emphasis control code output 3-wire type microcomputer interface data output 3-wire type microcomputer interface clock input 3-wire type microcomputer interface load input YM3436DK (XG948E0) DIR2 (Digital Format Interface Receiver) AES: IC303-306, IC403-406,703-706,803-806,MAIN: IC502 MAIN: IC502 AES1, AES2: IC303~IC306 IC403~IC406 IC703~IC706 IC803~IC806 (XV833A00) CPU PIN NO. NAME I/O FUNCTION PIN NO. NAME I/O FUNCTION 1 D5 I/O 25 TX3 MAIN: IC301 1 O 2 D6 I/O Data bus 26 RX32 I 3 D7 I/O 27 TX32 O Serial data 4 /IRQ0 I/O Interrupt request 28 RX33 I 5 /IRQ1 I/O Interrupt request 29 TX33 I/O 6 VSS6 Ground 30 /IC I Initial Clear 7 /IRQ2 I/O Interrupt request 31 VSS31 Ground 8 /IRQ3 I/O Interrupt request 32 XI I Crystal quarts input 9 /RD I Read 33 VSS33 Ground 10 /WR I Write 34 XO O Crystal quarts output 11 /CE I Chip enable 35 A0 I 12 /ASTB I 36 A1 I 13 TESTI0 I Test mode 37 A2 I 14 RX0 I 38 A3 I Address bus 15 TX0 O 39 A4 I 16 RX1 I Serial data 40 A5 I 17 TX1 O 41 CPUCLK I Clock 18 VSS18 Ground 42 VSS42 Ground 19 VDD19 Power supply 43 VDD43 Power supply 20 RX2 I 44 D0 I/O 21 TX2 O 45 D1 I/O 22 RX30 I Serial data 46 D2 I/O Data bus 23 TX30 O 47 D3 I/O 24 RX31 I 48 D4 I/O MBCG46183-129PFV-G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 16 YM3437C-FE2 (XW060A00) DIT2 PIN NO. NAME I/O FUNCTION PIN NO. NAME I/O FUNCTION 1 VSS Ground 9 MU TE I DOU T output mute 2 MCL K I Master clock(128fs) 10 VFL I Bit data in put 3 DM0 I Data inp ut mode select0 11 CCK/CSB I “L ”= Serial clock “H”= Bit data input 4 DM1 I Data inp ut mode select1 12 CIN /UDB I “L ”= Serial data “H”= Bit data 5 RSTN I System reset 13 CLD/AUXE N I “L”= Word clock “H”= 24 bit output 6 WCIN I Word clock input 14 CNTR/BLKIN I “L”= address reset “H”= Block start clock 7 DIN I Audio data input 15 CSM I Mode select 8 VDD AES: IC311-314,410-413,711-714,810-813 Power supply (+5V) 16 DOU T O Signal output AES1, AES2: IC311~IC314 IC410~IC413 IC711~IC714 IC810~IC813 PIN NO. I/O FUNCTION NAME PIN NO. I/O FUNCTION NAME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 DQ1 DQ0 /W /R A0 S0 /IBF0 OBF0 CNVSS/VPP /RESET P51 P50 VSS XIN XOUT VCC AVCC LPF AVSS P44 P43 P42 P41 P40 P87 P86 P85 P84 P83 P82 P81 P80 P37 P36 P35 P34 P33 P32 P31 P30 I/O I/O I/O I/O I/O I/O I/O I/O I I I/O I/O I O O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT POWER SUPPLY RESET INPUT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT POWER SUPPLY CLOCL INPUT CLOCK OUTPUT POWER SUPPLY ANALOG POWER SUPPLY LOOP FILTER 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 P17 P16 P15 P14 P13 P12 P11 P10 P07 P06 P05 P04 P03 P02 P01 P00 P27 P26 P25 P24 P23 P22 P21 P20 P74 P73 P72 P71 P70 USB_D+ USB_D- EXT.CAP VSS VCC DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 5 bit INPUT/OUTPUT PORT 5 bit INPUT/OUTPUT PORT 5 bit INPUT/OUTPUT PORT 5 bit INPUT/OUTPUT PORT 5 bit INPUT/OUTPUT PORT USB D+ VOLTAGE USB D- VOLTAGE Capacitor terminal for DC-DC converter POWER SUPPLY POWER SUPPLY 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT 8 bit INPUT/OUTPUT PORT M37641M8-140FP (X2485100) CPU MAIN: IC316 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 17 IC BLOCK DIAGRAM 1 D1R 2 3 4 5 6 7 8 9 10 A1 A2 A3 A4 A5 A6 A7 A8 GND 11 12 13 14 15 16 17 18 19 20 VCC G B1 B2 B3 B4 B5 B6 B7 B8 TC74HC245F(XT487A00) MAIN: IC418 TC74VHC245AFT(XT744A00) MAIN: IC407, IC410 BUFFER TC74VHC245FT(XU797A00) AES: IC203-214, IC220, IC310, IC501, IC601-606, IC608, IC614, IC710 MAIN: IC219, IC309, IC310, IC503, IC604-608 TC74VHC125FT (XY074A00) MAIN: IC314, IC412 BUFFER TC74VHC244FT (XW234A00) MAIN: IC308, IC402, IC408, IC409 BUS BUFFER TC74VHC245MTCX (X0296A00) AES: IC203-214, IC220, IC310, IC501, IC601-608, IC614, IC710 MAIN: IC219, IC309, IC310, IC503, IC604-608 1 2 3 4 5 6 7 C1 A1 Y1 C2 A2 Y2 GND 14 13 12 11 10 9 8 Vcc C4 A4 Y4 C3 A3 Y3 AM26LS31CNSR AES: IC302, IC402, IC702, IC802 TRANSMITTER (XU996A00) DS26C32ATMX (XU815A00) AES: IC301, IC401, IC701, IC801 RECEIVER HD74LV273ATELL (X2689A00) MAIN: IC207, IC214, IC215, IC218 D-FF HD74LV574AFPEL (IS057400) MAIN: IC417 D-FF 1 2 3 4 5 6 7 1A 1Y 1Z 2Z 2Y 2A GND ENABLE G 16 15 14 13 12 11 Vcc 4A 4Y 4Z ENABLE G 3Z 3Y 8 9 10 3A H= high level L= low level X= irrelevant Z= high impedance (off) OUTPUTS ENABLES INPUT A G G Y Z H H X X L X X L L H H L H L Z L H L H Z H L H L X 1 2 3 4 5 6 7 INPUT A INPUT A OUTPUT A OUTPUT C INPUT C INPUT C GND ENABLE 16 15 14 13 12 11 Vcc INPUT B INPUT B OUTPUT B ENABLE OUTPUT D INPUT D 8 9 10 INPUT D + - - + + - - + 10 9 8 7 6 5 4 3 2 1 D5 D CK Q OE D CK Q OE D CK Q OE D CK Q OE D CK Q OE D CK Q OE D CK Q OE D CK Q OE D6 D7 GND D4 D3 D2 D1 D0 Output Control Q5 Q6 Q7 Clock Q4 Q3 Q2 Q1 Q0 Vcc 11 12 13 14 15 16 17 18 19 20 1 2 3 4 5 6 7 19 18 17 16 15 14 20 1G 1A1 2Y4 1A2 2Y3 1A3 2Y2 VDD (Vcc) 2G 1Y1 2A4 1Y2 2A3 1Y3 8 9 10 13 12 11 1A4 2Y1 (GND) Vss 2A2 1Y4 2A1 1 CLEAR 2 3 4 5 6 7 8 9 10 1Q 1D 2D 2Q 3Q 3D 4D 4Q GND 11 12 13 14 15 16 17 18 19 20 VCC 8Q 8D 7D 7Q 6Q 6D 5D 5Q CLOCK Q Q D D CK CK CL CL Q Q D D CK CK CL CL Q Q D D CK CK CL CL Q Q D D CK CK CL CL SN75C1168NSR (XU073A00) AES: IC502, 901 DRIVER/RECEIVER 1 2 3 4 5 6 7 1B 1A 1R 1DE 2R 2A 2B 16 15 14 13 12 11 10 Vcc 1D 1Y 1Z 2DE 2Z 2Y 8 GND 9 2D （IC ブロック図） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 18 AES: IC215, IC223, IC224, IC609, IC616, IC617 D-FF TC74VHC74FT (XV892A00) AES: IC212-219, IC610-613 MAIN: IC212 D-FF INPUTS OUTPUTS PR CLR CLK D Q Q L H H L H Q O H L H H L Q O X X X H L X X X X f f L H L L H H H L H L H H H 1 2 3 4 5 6 7 1CLR 1D 1CK 1PR 1Q 1Q GND 14 13 12 11 10 9 8 VCC 2CLR CLR 2D D 2CK CK 2PR PR 2Q 2Q Q Q CLR D CK PR Q Q Vcc 2F 2E 2A 2Y GND 1Y 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 2C 2B 2D 1A 1B 1C 1D 1E 1F SN75121NSR MAIN: IC312 LINE DRIVER (XU816A00) 1A 1B 2R 2S 2A 2B 2Y GND 1 16 2 15 3 14 4 13 5 12 6 11 7 10 8 9 Vcc 1S 1R 1Y 3A 3S 3R 3Y SN75124NSR MAIN: IC311 LINE DRIVER (XV930A00) TC74HC251AF AES: IC225, IC226 MAIN: IC501 LINE DRIVER (XQ968A00) 1 2 3 4 5 6 7 3 2 1 Y W STROBE GND 0 16 15 14 13 12 11 Vcc 4 5 6 7 A B 8 9 10 C DATA INPUTS DATA SELECT DATE INPUTS OUTPUTS D4 D5 B C S D7 A D6 D2 D3 D1 D0 Y W TC74VHC04FT (X0195A00) AES: IC222, IC319, IC320, IC415, IC416, IC716, IC717, IC815, IC816 INVERTER 1 2 3 4 5 6 7 1A 1Y 2A 2Y 3A 3Y Vss 14 13 12 11 10 9 8 VDD 6A 6Y 5A 5Y 4A 4Y M51953AFP (XW422A00) AES: IC315-318, IC417-420, IC718-721, IC817-820 RESET TC7SH04FU (XS775A00) MAIN: IC211,IC315 INVERTER NC IN A GND VCC OUT Y 1 2 3 5 4 1 2 N.C. 3 N.C. 4 8 7 6 5 Output Outside delay capacity N.C. GND N.C. Power supply GND Outside delay capacity 7 4 5 Power supply 5 A 5 A 6 Output + R1 R2 1.25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 19 TC74VHC08FT AES: IC201, IC321, IC414, IC715, IC814 AND (XV891A00) TC7WH04FU MAIN: IC413, IC419 INVERTER (XY363A00) TC7WH14FU MAIN: IC208, IC306, IC317 SCHMITT INVERTER (XY806A00) 1 2 3 1A 1Y 4 2A 5 2B 6 2Y 7 VSS 1B 14 13 12 VDD 4A 11 4Y 10 3B 9 3A 8 3Y 4B TC7SH08FU MAIN: IC220 AND (XR680A00) 1 5 2 3 4 IN B GND Vcc OUT Y IN A TC74VHC32FT MAIN: IC210, IC213, IC216, IC217 OR (XY945A00) 1 2 3 1A 1Y 4 2A 5 2B 6 2Y 7 GND 1B 14 13 12 Vcc 4A 11 4Y 10 3B 9 3A 8 3Y 4B B1 21 23 VCCA VCCB 24 B8 14 13 12 11 1 2 DIR 22 G 10 A8 3 A1 Logic Level Converter Same as above block VCCA DIR A1 A2 A3 A4 A5 A6 A7 A8 GND GND VCCB VCCB G B1 B2 B3 B4 B5 B6 B7 B8 GND (TOP VIEW) INPUTS OUTPUTS FUNCTION G L L H DIR A-BUS B-BUS L H X A=B OUTPUT INPUT B=A INPUT OUTPUT Z High lmpedance X : Don't Care Z : High lmpedance 1 2 3 4 5 6 7 8 9 10 11 12 15 14 13 18 17 16 21 20 23 24 22 19 TC74LVX4245FS (XU229A00) MAIN: IC403 TRANSCEIVER TC74VHC138FT AES: IC202 MAIN: IC205, IC206 3-8 DEMULTIPLEXER (XZ495A00) 1 2 3 4 5 6 7 A A Select Enable Output Output B B C C G2A G2A G2B G2B G1 G1 Y7 Y7 Y5 Y4 Y3 Y2 Y1 Y0 Y6 16 15 14 13 12 11 10 Vcc YO Y1 Y2 Y3 Y4 Y5 8 GND 9 Y6 1 2 3 4 7 6 5 8 1A 3Y 2A GND Vcc 1Y 3A 2Y 1 2 3 4 7 6 5 8 1A 3Y 2A GND Vcc 1Y 3A 2Y TC74NHC163FT (X2378A00) MAIN: IC313 TC7WH08FU (XW948A00) MAIN: IC209 AND Vcc RIPPLE CARRY OUTPUT OA LOAD GND ENABLE P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 OC OD OB CLEAR CLOCK A B C D R C OA EN T EN P OC OD OB CLEAR CK A B C D ENABLE T LOAD 1 2 3 4 5 6 7 8 1A 1B 2Y GND VCC 1Y 2B 2A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 20 CN601: to AES1-CN501 CN305: to AES1-CN502 CN602: to AES1-CN503 CN3 to PN USB UNIT ID A A' MAIN Circuit Board IN: 3NA-V848170 CIRCUIT BOARDS（シート基板図） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 NHB32-C CN303: to PN-JACK-CN301 CN202: to PN-LED-CN201 CN406: to POWER UNIT CN403: to CM-1 CN402: to CM-1 A A' Component side（部品側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 22 MAIN Circuit Board A A' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 NHB32-C Pattern side A A' （パターン側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 24 AES-AES1 Circuit Board Component side CN501: to MAIN-CN601 CN502: to MAIN-CN305 CN503: to MAIN-CN602 CN201: to AES2-CN604 CN202: to AES2-CN603 CN203: to AES2-CN605 AES/EBU3 AES/EBU4 to COMPUTER （部品側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 NHB32-C Pattern side AES-AES1 Circuit Board （パターン側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 26 AES-AES2 Circuit Board Component side CN604: to AES1-CN201 CN603: to AES1-CN202 CN605: to AES1-CN203 AES/EBU1 AES/EBU2 COM （部品側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 NHB32-C Pattern side AES-AES2 Circuit Board （パターン側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 28 CN301: to MAIN-CN303 to CM-1 to CM-1 IN OUT OFF ON 75Ω PRIMARY Cobra Net MIDI SECONDARY IN OUT WORD CLOCK NETWORK STATUS LOCK LINK CONDUCT NETWORK WORD CLOCK IN ERROR 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 AES/EBU3 AES/EBU4 AES/EBU1 AES/EBU2 A A' A A' PN-LED Circuit Board PN-JACK Circuit Board Component side Pattern side （部品側）（パターン側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 NHB32-C CN201: to MAIN-CN202 RECALL PATCH A A' A A' PN-PSW Circuit Board Component side Pattern side Component side Pattern side CN401: to AC INLET : to POWER UNIT-CN1 POWER ON/OFF （部品側）（パターン側）（部品側）（パターン側） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 30 2.2 Jitter measurement Measure the jitter with the MASTER CLOCK set to “NETWORK” as follows. q Set the MASTER CLOCK to “NETWORK”. w Measure the Fs jitter value at the CH1/2 output of AES/EBU1. e Check to ensure that the “LOCK” LED is lit. Measure the jitter with the MASTER CLOCK set to “WORDCLOCK IN” as follows. q Set the MASTER CLOCK to “WORDCLOCK IN”. w Measure the Fs jitter value at the CH1/2 output of AES/EBU1. e Check to ensure that the “LOCK” LED is lit. Measure the jitter with the MASTER CLOCK set to “AES/EBU” as follows. q Connect OUT of the AES/EBU unit to the CH1/2 (3/4, 5/6, 7/8) input of AES/EBU1 (2, 3, 4). w Set the MASTER CLOCK to 1/2 (3/4, 5/6, 7/8) of AES/EBU1 (2, 3, 4). e Measure the Fs jitter value at the CH1/2 (3/4, 5/ 6, 7/8) output of AES/EBU1 (2, 3, 4). r Check to ensure that the “LOCK” LED is lit. 3. Factory settings before shipment q POWER SW: OFF w UNIT ID: 0 e 75 Ω: ON 1. Preparation 1.1 Conditions Unless otherwise specified, use the following conditions. UNIT ID switch setting : “0” WORD CLOCK IN 75Ω switch setting : “ON” MASTER CLOCK setting: “NETWORK” PATCH setting: “00” Use DME32 as the word clock signal source. Insert “MYT8-AE” into the slot 1 of DME32. Set MASTER CLOCK of DME32 to “INTERNAL”. 1.2 Test program Specify the TEST PROGRAM when performing inspections using the test program. Execute of the TEST PROGRAM to confirm that there is no NG item. 1.3 Firmware version The version of the firmware for NHB32-C (for jigs) used for inspection is also specified as follows. 1.3.1 Confirmation of version The version can be confirmed on the PC screen at the start- up of the TEST PROGRAM. For the details, refer to 2. How to start the TEST PROGRAM. 1.3.2 Upgrading of version For the details, refer to 7. Upgrading of version of the TEST PROGRAM. 2. Inspections 2.1 Connection INSPECTIONS Version V1.02 (jig NHB) NHB32-C (for jigs) MASTER CLOCK Tolerance NETWORK 5n sec or less WORD CLOCK IN 5n sec or less AES/EBU 5n sec or less AES/EBU D-SUB 25P Female Signal Data In Ch Data Out Ch Open GND Pin Hot Cold 1-2 1 14 3-4 2 15 5-6 3 16 7-8 4 17 1-2 5 18 3-4 6 19 5-6 7 20 7-8 8 21 10, 12, 13, 22, 23, 24, 25 9, 11 25 14 13 1 SLOT 1 MY8-AE DME32 5/18 6/19 7/20 8/21 1/14 2/15 3/16 4/17 CH 1-2 CH 3-4 CH 5-6 CH 7-8 5/16 6/19 7/20 8/21 CH 1-2 CH 3-4 CH 5-6 CH 7-8 2/3 XLR IN DSA-1 Digital Audio Analizer AES/EBU 1 AES/EBU 2 AES/EBU 3 AES/EBU 4 1/14 2/15 3/16 4/17 5/16 6/19 7/20 8/21 1/14 2/15 3/16 4/17 5/16 6/19 7/20 8/21 1/14 2/15 3/16 4/17 5/16 6/19 7/20 8/21 NHB32-C WORD CLOCK OUT WORD CLOCK IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 NHB32-C 1. 準備 1.1 条件特に指定しないときは以下の条件とします。　・［UNIT ID］SW は” 0” に設定します。　・［WORD CLOCK IN 75Ω ］SW を”ON”に設定します。　・マスター CLOCK は、” NETWORK” に設定します。　・PATCH は、” 00” に設定します。　・WORD CLOCK 信号供給元として、DME32 を使用します。　　DME32 の SLOT1に、” MY8-AE” を挿入します。　　DME32のマスターCLOCK は、” INTERNAL” に設定します。 1.2 テストプログラムテストプログラムによる検査は、■ テストプログラムを参照してください。テストプログラムによる検査の結果、ＮＧ項目が無いことを確認します。 1.3 治具用ファームウェアのバージョン検査で使用する NHB32-C（治具用）のファームウェアのバージョンを、下表に規定します。 1.3.1 バージョン確認方法テストプログラム起動時の PC 画面にて、確認できます。詳細はテストプログラムの 2. 起動方法を参照してください。 1.3.2 バージョンアップ手順詳細は■ テストプログラムの7. バージョンアップを参照してください。 2. 検査 2.1 接続 2.2 ジッタ測定マスターCLOCK” NETWORK” 時のジッター測定は、 ①マスター CLOCK を NETWORK に設定します。 ②AES ／EBU1のCH1／2出力にてFsジッタ－を測定します。 ③” LOCK” LEDが点灯していることを確認します。マスター CLOCK” WORD CLOCK IN” 時のジッター測定は、 ①マスター CLOCK を WORD CLOCK IN に設定します。 ②AES ／EBU1のCH1／2出力にてFsジッタ－を測定します。 ③” LOCK” LEDが点灯していることを確認します。マスターCLOCK” AES ／EBU” 時のジッター測定は、 ① AES ／ EBU1（2，3，4）の CH1/ 2（3/ 4，5/ 6， 7/ 8）入力に AES ／ EBU 機器の OUT を接続します。 ②マスター CLOCK を AES ／ EBU1（2，3，4）の 1/ 2（3/ 4，5/ 6，7/ 8）に設定します。 ③ AES ／ EBU1（2，3，4）の CH1/ 2（3/ 4，5/ 6， 7/ 8）出力にて Fs ジッタ－を測定します。 ④” LOCK” LEDが点灯していることを確認します。 3. 出荷設定出荷時の設定は下記の通りです。 ① POWER SW ： OFF ② UNIT ID ：０ ③ 75Ω ： ON 検査バーション V1.02 (jig NHB) MHB32-C（治具用）マスター CLOCK 許容範囲 NETWORK 5nsec 以下 WORD CLOCK IN 5nsec 以下 AES ／ EBU 5nsec 以下 AES/EBU D-SUB 25P Female Signal Data In Ch Data Out Ch Open GND Pin Hot Cold 1-2 1 14 3-4 2 15 5-6 3 16 7-8 4 17 1-2 5 18 3-4 6 19 5-6 7 20 7-8 8 21 10, 12, 13, 22, 23, 24, 25 9, 11 25 14 13 1 SLOT 1 MY8-AE DME32 5/18 6/19 7/20 8/21 1/14 2/15 3/16 4/17 CH 1-2 CH 3-4 CH 5-6 CH 7-8 5/16 6/19 7/20 8/21 CH 1-2 CH 3-4 CH 5-6 CH 7-8 2/3 XLR IN DSA-1 Digital Audio Analizer AES/EBU 1 AES/EBU 2 AES/EBU 3 AES/EBU 4 1/14 2/15 3/16 4/17 5/16 6/19 7/20 8/21 1/14 2/15 3/16 4/17 5/16 6/19 7/20 8/21 1/14 2/15 3/16 4/17 5/16 6/19 7/20 8/21 NHB32-C WORD CLOCK OUT WORD CLOCK IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 32 1. Preparation 1.1 Peripheral equipment Windows PC (serial terminal, USB terminal, USB MIDI driver) (Install NHB32-C USB MIDI driver in advance.) Enter a check [V] for ON/OFF of USB MIDI driver. AC voltmeter NHB32-C (for jigs) Make following settings for PATCH “01”. The CH1 to CH8 input of [AES/EBU 1] is output at CH1 to CH8 of CobraNet. The CH1 to CH8 input of [AES/EBU 2] is output at CH9 to CH16 of CobraNet. The CH1 to CH8 input of CobraNet is output at CH1 to CH8 of [AES/EBU1]. The CH9 to CH16 input of CobraNet is output at CH1 to CH8 of [AES/EBU2]. Make following settings for PATCH “02”. The CH1 to CH8 input of [AES/EBU 1] is output at CH17 to CH24 of CobraNet. The CH1 to CH8 input of [AES/EBU 2] is output at CH25 to CH32 of CobraNet. The CH17 to CH24 input of CobraNet is output at CH1 to CH8 of [AES/EBU1]. The CH25 to CH32 input of CobraNet is output at CH1 to CH8 of [AES/EBU2]. Set MASTER CLOCK to “AES/EBU 1 1/2”. DME32 Insert “MYT8-AE” into SLOT1 and SLOT 2. 1kHz, -14dBFS is output at all channels of SLOT 1 and SLOT 2. Set MASTER CLOCK to “INTERNAL”. Insert “MY4-DA”into SLOT 3. Set all the GAIN select switchs of MY4-DA to “+18dB”. Use 600Ω for the analog output load of MY4-DA. Assign the input signal of SLOT1 and SLOT2 to SLOT3 to convert it to the analog signal before measurement, observation and hearing inspection. Use 10 seconds or more for visual inspection and hearing inspection. Note) When turning the rotary switch [UNIT ID](MAIN sheet SW201: Part No. V9614600), be sure to use a screwdriver with the tip shape suitable for this switch so as to avoid deformation of the switch. 2. How to start Start up the communication software “Tera Term Pro for ACU/NHB” specially intended for ACU16-C/NHB32-C issued as the master data. Set the communication format as follows. Baud rate: 38400bps Data: 8bits Parity: none Stop: 1bit Flow control: none To start up the TEST program, turn on the power to NHB32-C and press the “F1” key of the keyboard. Then the PC screen appears as shown below. Press the number of the keyboard corresponding to the test item number and then press the “ENTER” key. Then testing only the selected test item will be executed out of the list of test items. TEST PROGRAM <<<<< ACU16-C/NHB32-C Test Mode >>>> FIRMWARE VERSION: V1.00 1. NHB32-C FINAL ASS'Y 2. NHB32-C MAIN SHEET 3. NHB32-C AES SHEET 4. NHB32-C PN SHEET 5. ACU16-C FINAL ASS'Y 6. ACU16-C MAIN SHEET 7. ACU16-C DAC SHEET Enter “FST” and press the “ENTER” key, and only the “FACTORY SET” command can be executed (and completed in about 30 seconds). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 NHB32-C DIA>FLA >> FLASH MEMORY TEST OK: FLASH MEMORY TEST.......[ OK ] DIA>RAM >> DRAM TEST NG: DRAM TEST........................>>>> NG <<<< 2. List of test items 1 FLA : READ/WRITE test of FLASH ROM Automatic judgment 2 RAM : READ/WRITE test of DRAM Automatic judgment 3 EEP : READ/WRITE test of EEPROM Automatic judgment 4 DSP : READ/WRITE test of DSP5 register Automatic judgment 5 CM1 : READ/WRITE test of CM-1 HM1 Automatic judgment 6 COB : Serial LOOP BACK test of CM-1 Automatic judgment 7 USB : USB test Automatic judgment 8 DIO : AES/EBU test Automatic judgment 9 COM : COM LOOP BACK test Automatic judgment 10 MID : MIDI LOOP BACK test Automatic judgment 11 WCK : Word clock test Automatic judgment 12 ROT : UNIT ID select SW test Automatic judgment 13 SWI : SWITCH input test Automatic judgment 14 LED : LED lighting test 15 THR : Audio signal test 16 AES : AES work clock test Automatic judgment 17 FST : Factory set 18 EXI : The program exits from the test mode and is restarted in the normal mode. While testing, the PC screen displays the contents currently being tested and the test results as shown below. 3. Overall inspection 3.1 Connection NHB32-C Win dows PC USB USB cable MIDI cable BNC cable LAN cable (cross) RS-232C cable (cross) 25P D-sub cable (cross) 25P D-sub cable (cross) CHECK TO COMPUTER PRIMARY DME32 AES/EBU 1 AES/EBU 2 SLOT1 MY8-AE SLOT2 MY8-AE SLOT3 MY4-DA MIDI IN OUT WORD CLOCK IN OUT COM Reflected jig A Reflected jig B AES/EBU 1~4 N-B32-C (for jigs) (For example) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 34 Using the 25PD-sub cross cable (for MY8-AE), connect SLOT1 of DME32 and [AES/EBU1] of NHB32-C(for jigs). Using the 25PD-sub cross cable (for MY8-AE), connect SLOT2 of DME32 and [AES/EBU2] of NHB32-C(for jigs). Using the USB cable, connect the [USB] terminal and the USB terminal of PC. Using the serial cable (cross), connect the [TO COMPUTER] terminal and the serial terminal of PC. Set the [UNIT ID]switch to “0”. Using the LAN cable (CAT5: cross), connect the [PRIMARY] terminals of NHB32-C. Using the MIDI cable, connect the [MIDI IN] terminal and [MIDI OUT] terminal. Using the BNC cable, connect the [WORD CLOCK IN] terminal and [WORK CLOCK OUT] terminal. Connect the “reflected jig A” to the [COM] terminal. Connect the “reflected jig B” to [AES/EBU 1], [AES/EBU 2], [AES/EBU 3] and [AES/EBU 4] terminals . 3.2 Testing method Select “1. NHB32-C FINAL ASS’Y” on the start-up screen of the TEST PROGRAM, and testing of test items is automatically executed in the order of the following test items. 1 FLA : READ/WRITE test of FLASH ROM Automatic judgment 2 RAM : READ/WRITE test of DRAM Automatic judgment 3 EEP : READ/WRITE test of EEPROM Automatic judgment 4 DSP : READ/WRITE test of DSP5 register Automatic judgment 5 CM1 : READ/WRITE test of CM-1 HM1 Automatic judgment 6 COB : Serial LOOP BACK test of CM-1 Automatic judgment 7 USB : USB test Automatic judgment 8 DIO : AES/EBU test Automatic judgment 9 COM : COM LOOP BACK test Automatic judgment 10 MID : MIDI LOOP BACK test Automatic judgment 11 WCK : Word clock test Automatic judgment 12 ROT : UNIT ID select SW test Automatic judgment Turn the [UNIT ID] switch clockwise according to the instruction on the PC screen. “Reflected jig A” D-SUB 9 pin female connector Short-circuit No. 2 and No.3. Short-circuit No.4 and No. 6. “Reflected jig B” D-SUB 25 pin male connector Short-circuit No. 1 and No.5. Short-circuit No.2 and No. 6. Short-circuit No. 3 and No.7. Short-circuit No.4 and No. 8. Short-circuit No. 14 and No.18. Short-circuit No.15 and No. 19. Short-circuit No. 16 and No.20. Short-circuit No.17 and No. 21. 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 NHB32-C Following test items are tested one after another each time the “ENTER” key of the keyboard is pressed. 13 SW1 : SWITCH input test Automatic judgment Press the switches on the front panel in the order of [RECALL] → [ ] → [ ] → [WORD CLOCK] according to the instruction on the screen. 14 LED : LED lighting test 1. Check that LED’s on the front panel light up in the order as shown below. 2. Check that the 7 seg. LED’s light one by one in the order of “0, 1, 2, 3, 4, 5, 6, 7, 8, 9, .” 3. Check that all LED’s light up at the end. 15 THR : Audio signal test Set PATCH of NHB32-C (for jigs) to “01”. Check the input level of SLOT 1 and SLOT2 of DME32 (16 channels in all) at SLOT 3 (MY4-DA). Check that the analog output of MY4-DA is 1kHz, +4dBu±2dB. Monitor the CH1 input of SLOT1 with the oscilloscope and check that the sine wave is free from disturbance. Hear the CH1 input of SLOT 1 through the powered speaker, etc. and check that it is free from distortion and noise. Monitor the CH1 input of SLOT2 with the oscilloscope and check that the sine wave is free from disturbance. Hear the CH1 input of SLOT 2 through the powered speaker, etc. and check that it is free from distortion and noise. Reconnect the LAN cable (CAT5: cross cable) to the CobraNet [SECONDARY] side. Set PATCH of NHB32-C (for jigs) to “02”. Check the input level of SLOT 1 and SLOT 2 of DME32 (16 channels in all) at SLOT 3 (MY4-DA). Check that the analog output of MY4-DA is 1kHz, +4dBu±2dB. Monitor the CH1 input of SLOT1 with the oscilloscope and check that the sine wave is free from disturbance. Hear the CH1 input of SLOT 1through the powered speaker, etc. and check that it is free from distortion and noise. Monitor the CH1 input of SLOT2 with the oscilloscope and check that the sine wave is free from disturbance. Hear the CH1 input of SLOT 2 through the powered speaker, etc. and check that it is free from distortion and noise. Using the BNC cable, connect the WORD CLOCK OUT terminal of DME32 and the [WORD CLOCK IN] terminal of NHB32-C to be tested. Select “05” for PATCH of NHB32-C for jigs. Press the “ENTER” key of the keyboard. Check the input level of SLOT1 and SLOT2 of DME32 (16 channels in all) at SLOT3 (MY4-DA). The analog output of MY4-DA should be 1KHz, +4dBu±2dB. Make settings for PATCH “05” of NHB32-C for jigs as follows. CH1 to CH8 input of [AES/EBU 1] is output to CH1 to CH8 of CobraNet. CH1 to CH8 input of [AES/EBU 2] is output to CH9 to CH16 of CobraNet. CH1 to CH8 input of CobraNet is output to CH1 to CH8 of [AES/EBU 1]. CH9 to CH16 input of CobraNet is output to CH1 to CH8 of [AES/EBU 2]. Set MASTER CLOCK to “NETWORK”. (SW201) (SW202) (SW203) (SW204) LOCK LINK LD216 LD224 LD201 LD202 LD203 LD214 LD204 LD205 LD206 LD217 LD215 LD218 LD223 LD213 LD212 LD211 LD220 LD209 LD208 LD207 LD226 LD221 CONDUCT ERROR WORD CLOCK IN NETWORK 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 NETWORK STATUS AES/EBU 1 AES/EBU 3 AES/EBU 4 AES/EBU 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 36 Select “06” for PATCH of NHB32 for jigs. Check the input level of SLOT1 and SLOT2 of DME32 (16 channels in all) at SLOT3 (MY4-DA). The analog output of MY4-DA should be 1KHz, +4dBu±2dB. Make settings for PATCH “06” of NHB32-C for jigs as follows. CH1 to CH8 input of [AES/EBU 1] is output to CH17 to CH24 of CobraNet. CH1 to CH8 input of [AES/EBU 2] is output to CH25 to CH32 of CobraNet. CH17 to CH24 input of CobraNet is output to CH1 to CH8 of [AES/EBU 1]. CH25 to CH32 input of CobraNet is output to CH1 to CH8 of [AES/EBU 2]. Set MASTER CLOCK to “NETWORK”. With the reflected jig of [AES/EBU 1 to 4] removed, connect SLOT1 of DME32 and [AES/EBU1] with the 25P D- sub cross cable (for MY8-AE), also SLOT2 of DME32 and [AES/EBU2] with the 25P D-sub cross cable (for MY8- AE). Press the “ENTER” key of the keyboard. 16 AES : AES clock test Automatic judgment Connect SLOT1 of DME32 and [AES/EBU3] with the 25P D-sub cross cable (for MY8-AE), also SLOT2 of DME32 and [AES/EBU4] with the 25P D-sub cross cable (for MY8-AE). Press the “ENTER” key of the keyboard. 17 FST : Factory set Initialize IC221 (EEPROM) of the MAIN circuit board in the factory setting state. 18 EXI : The program exits from the test mode and is restarted in the normal mode. 4. Testing of MAIN circuit board 4.1 Connection Using the USB cable, connect CN308 or the MAIN circuit board and the USB terminal of PC. Using the serial cable (cross), connect CN504 of the AES-AES1 circuit board and the serial terminal of PC. Set SW201 of the MAIN circuit board to “0”. Connect the BNC cable to JK306 of the PN-JACK circuit board. (WORD CLOCK IN-OUT) Connect the MIDI cable to JK303 of the PN-JACK circuit board. (MIDI IN-OUT) Connect the “reflected jig B” to CN301, CN401 of the AES-AES 1 circuit board and CN701, CN801 of AES-AES 2 circuit board. (AES/EBU [1~4]) Connect the “reflected jig A” to CN901 of the AES-AES2 circuit board. (COM) Windows PC PN-LED (V9050200) CM-1 (V9811200) PN-JACK (V9050300) AES-AES2 (V9051000) AES-AES1 (V9050900) CN601 CN604 CN701 CN801 CN901 CN301 CN401 CN504 CN603 CN605 CN201 CN202 CN203 CN501 CN502 CN503 CN308 CN303 CN403 CN301 JK306 JK303 CN402 CN406 CN202 CN305 CN201 CN602 POWER SUPPLY (V9702900) CN51 : Reflected jig A A A RS-232C cable (cross) MAIN (V9061800) to be tested USB cable : Reflected jig B B B B B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 NHB32-C 4.2 Testing Select “2. NHB32-C MAIN SHEET” on the start-up screen of the TEST PROGRAM, and testing of test items is automatically executed in the order of the following test items. 1 FLA : READ/WRITE test of FLASH ROM Automatic judgment 2 RAM : READ/WRITE test of DRAM Automatic judgment 3 EEP : READ/WRITE test of EEPROM Automatic judgment 4 DSP : READ/WRITE test of DSP5 register Automatic judgment 5 CM1 : READ/WRITE test of CM-1 HM1 Automatic judgment 6 COB : Serial LOOP BACK test of CM-1 Automatic judgment 7 USB : USB test Automatic judgment 8 DIO : AES/EBU test Automatic judgment 9 COM : COM LOOP BACK test Automatic judgment 10 MID : MIDI LOOP BACK test Automatic judgment 11 WCK : Word clock test Automatic judgment 12 ROT : UNIT ID select SW test Automatic judgment Turn the SW201 switch of the MAIN circuit board clockwise according to the instruction on the PC screen. Testing of following test items is executed one by one when the “ENTER” key of the keyboard is pressed. 13 SWI : SWITCH input test Automatic judgment Press the switches of the PN-LED circuit board in the order of SW201 → SW202 → SW203 → SW204 according to the instruction on the screen. 14 LED : LED lighting test 1. Check that LED’s on the PN-LED sheet light up in the following order. LD216 → LD224 → LD201 → LD202 → LD203 → LD214 → LD204 → LD205 → LD206 → LD217 → LD215 → LD218 → LD223 → LD213 → LD212 → LD211 → LD220 → LD209 → LD208 → LD207 → LD226 → LD221 2. Check that LD210 (7 seg. LED’s) of the PN-LED circuit board light one by one in the order of “0, 1, 2, 3, 4, 5, 6, 7, 8, 9, .”. 3. Check that all LED’s light up at the end. 5. Testing of AES circuit board 5.1 Connection Using the USB cable, connect CN308 of the MAIN circuit board and the USB terminal of PC. Using the serial cable (cross), connect CN504 of the AES-AES 1 circuit board and the serial terminal of PC. Set SW201 of the MAIN circuit board to “0”. Connect the BNC cable to JK306 of the PN-JACK circuit board. (WORD CLOCK IN-OUT) Connect the MIDI cable to JK303 of the PN-JACK circuit board. (MIDI IN-OUT) Connect the “reflected jig B” to CN301, CN401 of the AES-AES1 circuit board and CN701, CN801 of the AES-AES2 circuit board. (AES/EBU [1~4]) Connect the “reflected jig A” to CN901 of the AES-AES2 circuit board. (COM) Windows PC MAIN (V9061800) PN-LED (V9050200) USB cable RS-232C cable (cross) CM-1 (V9811200) PN-JACK (V9050300) ABS - ABS2 sheet to be tested (V9051000) ABS - ABS1 sheet to be tested (V9050900) CN601 CN604 CN701 CN801 CN901 CN301 CN401 CN504 CN603 CN605 CN201 CN202 CN203 CN501 CN502 CN503 CN308 CN303 CN403 CN301 JK306 JK303 CN402 CN406 CN202 CN305 CN201 CN602 POWER SUPPLY (V9702900) CN51 : Reflected jig A A A : Reflected jig B B B B B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 38 5.2 Testing method Select “3. NHB32-C AES SHEET” on the start-up screen of the TEST PROGRAM, and testing of following test items is executed automatically. 1 DIO : AES/EBU test Automatic judgment 2 COM : COM LOOP BACK test Automatic judgment 6. Testing of PN circuit board 6.1 Connection Using the USB cable, connect CN308 of the MAIN circuit board and the USB terminal of PC. Using the serial cable (cross), connect CN504 of the AES-AES 1 circuit board and the serial terminal of PC. Set SW201 of the MAIN circuit board to “0”. Connect the BNC cable to JK306 of the PN-JACK circuit board. (WORD CLOCK IN-OUT) Connect the MIDI cable to JK303 of the PN-JACK circuit board. (MIDI IN-OUT) Connect the “reflected jig B” to CN301, CN401 of the AES-AES1 circuit board and CN701, CN801 of the AES-AES2 circuit board. (AES/EBU [1~4]) Connect the “reflected jig A” to CN901 of the AES-AES2 circuit board. (COM) 6.2 Testing method Select “4. NHB32-C PN SHEET” on the start-up screen of the TEST PROGRAM, and testing of following test items is executed. To start the following testing, press the “ENTER” key of the keyboard. 1 SWI : SWITCH input test Press the switches of the PN-LED circuit board in the order of SW201 → SW202 → SW203 → SW204 according to the instruction on the screen. 2 LED : LED lighting test 1. Check that LED’s on the PN-LED circuit board light up in the following order. LD216 → LD224 → LD201 → LD202 → LD203 → LD214 → LD204 → LD205 → LD206 → LD217 → LD215 → LD218 → LD223 → LD213 → LD212 → LD211 → LD220 → LD209 → LD208 → LD207 → LD226 → LD221 2. Check that LD210 (7 seg. LED’s) of the PN-LED circuit board light one by one in the order of “0, 1, 2, 3, 4, 5, 6, 7, 8, 9, .”. 3. Check that all LED’s light up at the end. Windows PC MAIN (V9061800) USB cable PN-LED (V9050200) to be tested CM-1 (V9811200) PN-JACK (V9050300) AES-AES2 (V9051000) AES-AES1 (V9050900) CN601 CN604 CN701 CN801 CN901 CN301 CN401 CN504 CN603 CN605 CN201 CN202 CN203 CN501 CN502 CN503 CN308 CN303 CN403 CN301 JK306 JK303 CN402 CN406 CN202 CN305 CN201 CN602 POWER SUPPLY (V9702900) CN51 RS-232C cable (cross) : Reflected jig A A A : Reflected jig B B B B B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 NHB32-C 7. Upgrading of version The version can be upgraded by using the master data “ACU16-C/NHB32-C “V . ”. Upgrading of the version is executed from Windows PC through USB. The master data includes the following files. wain.exe → Installer program file Wain. ini → Setting file 8c78 (folder with this name) 8c78. scr → Script file V . bir → Program data file ( : version) Download the NHB32-C updated program from the download page on the YSISS home page. (YSISS URL >>http://plaza.yamaha.co.jp/ysiss/exindex.nsf) 7.1 Connection Using the USB cable, connect NHB32-C and PC and then turn on the power to NHB32-C. 7.2 PC setting Remove the THR ON/OFF check box from the USB-MIDI driver. 7.3 Procedure Start the installer program “wain. exe”, and the screen appears as shown below. Cancel the Pre Check function and click the START button. Then the version is upgraded and the screen appears as shown below. Upon completion of upgrading the version, the screen appears as shown below. Click the CLOSE button and turn off the power to NHB32-C. HiSpeed Serial Installer Version 0.52 - m2001 File Help Static LOOP Model Name Script Status YAMAHA USB IN 0-1 YAMAHA USB OUT 0-1 RESET CLOSE Ready START Pre Check All 0 100% Part ONE SHOT HiSpeed Serial Installer Version 0.52 - m2001 File Help Static LOOP Model Name Script ACU16-C/NHB32-C Down Load... ; --- Baudrate --- ; UP_BAUDRATE SET_UPDATE_DEVICE, 0, "Main" ; --- Update Main/Style Flash --- UPDATE_BLOCK, 00200000, 4000, 1, 0 UPDATE_BLOCK, 00204000, 2000, 1, 4000 UPDATE_BLOCK, 00206000, 2000, 1, 6000 UPDATE_BLOCK, 00208000, 8000, 1, 8000 UPDATE_DEVICE, 00210000, 1000, 1, 10000 Status YAMAHA USB IN 0-1 YAMAHA USB OUT 0-1 RESET CLOSE Ready START Pre Check All 0 100% Part ONE SHOT HiSpeed Serial Installer Version 0.52 - m2001 File Help Static LOOP Model Name Script Status YAMAHA USB IN 0-1 YAMAHA USB OUT 0-1 RESET CLOSE Ready START Pre Check All 0 100% Part ONE SHOT Script Done. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 40 1. 準備 1.1 周辺機器　・Windows PC（シリアル端子、USB 端子、USB MIDIドライバ）　　（予め NHB32-C USB MIDI ドライバをインストールしておいてください。）　　＊ USB MIDI ドライバの THR ON/ OFF にチェック[V]を入れます。　・AC 電圧計　・NHB32-C（治具用）　　＊ PATCH” 01” には、以下のように設定します。　　　［AES ／ EBU 1］の CH1～ CH8入力を、CobraNet の CH1～ CH8に出力します。　　　［AES ／ EBU 2］の CH1～ CH8入力を、CobraNet の CH9～ CH16 に出力します。　　　CobraNet の CH1～ CH8入力を、［AES ／ EBU 1］の CH1～ CH8に出力します。　　　CobraNet の CH9～ CH16 入力を、［AES ／ EBU 2］の CH1 ～ CH8に出力します。　　＊ PATCH” 02” には、以下のように設定します。　　　［AES ／ EBU 1］の CH1～ CH8入力を、CobraNet の CH17 ～ CH24に出力します。　　　［AES ／ EBU 2］の CH1～ CH8入力を、CobraNet の CH25 ～ CH32に出力します。　　　CobraNet の CH17 ～ CH24入力を、［AES ／ EBU 1］の CH1～ CH8に出力します。　　　CobraNet の CH25 ～ CH32入力を、［AES ／ EBU 2］の CH1～ CH8に出力します。　　＊マスター CLOCK は，” AES ／ EBU 1 1/ 2” に設定します。　・DME32 　　＊ SLOT1、SLOT2に” MY8-AE” を挿入します。　　＊ SLOT1、SLOT2の全 CH に、1KHz、-14dBFS を出力します。　　＊マスター CLOCK は、” Internal” に設定します。　　＊ SLOT3に” MY4-DA” を挿入します。　　　MY4-DA の GAIN 切替 SW は、全て” +18dB” に設定します。　　　MY4-DA のアナログ出力の負荷は 600Ω とします。　　＊ SLOT1、SLOT2の入力信号は、SLOT3にアサインして　　アナログ信号に変換してから測定、観測、検聴します。　・目視試験、検聴試験の時間は、10秒以上実施してください。　　注）ロータリ SW［UNIT ID］（MAIN シート SW201:部品番号 V9614600）をドライバーで回す際に、ドライバーの先端形状が、このＳＷに適した形状のものを使用してください。 SW が変形する恐れがあります。 2. 起動方法マスターデータとして発行される ACU16-C ／ NHB32-C 専用の通信ソフト” Tera Term Pro for ACU ／ NHB” を起動します。通信フォーマットを以下のように設定します。 Baud rate： 38400bps Data： 8bits Parity： none Stop： 1bit Flow control：none NHB32-C 電源投入後、キーボードから” F1” キーを入力すると、テストプログラムが起動します。起動時、PC の画面は、以下の例のような表示します。キーボードから、該当する検査項目の番号を入力し、” ENTER” キーを入力します。選択された検査項目に応じて、検査項目一覧の中から、必要な検査項目のみが実施されます。 ※ ” FST” と入力し、” ENTER” キーを押すと「FACTORY SET」　コマンドのみが実施できます。（約 30秒で終了します。）テストプログラム <<<<< ACU16-C/NHB32-C Test Mode >>>> FIRMWARE VERSION: V1.00 1. NHB32-C FINAL ASS'Y 2. NHB32-C MAIN SHEET 3. NHB32-C AES SHEET 4. NHB32-C PN SHEET 5. ACU16-C FINAL ASS'Y 6. ACU16-C MAIN SHEET 7. ACU16-C DAC SHEET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 NHB32-C （例） DIA>FLA >> FLASH MEMORY TEST OK: FLASH MEMORY TEST.......[ O K ] DIA>RAM >> DRAM TEST NG: DRAM TEST........................>>>> ＮＧ <<<< ２．検査項目一覧 1 ＦＬＡ：ＦＬＡＳＨＲＯＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 2 ＲＡＭ：ＤＲＡＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 3 ＥＥＰ：ＥＥＰＲＯＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 4 ＤＳＰ：ＤＳＰ５のレジスタＲＥＡＤ／ＷＲＩＴＥテスト自動判定 5 ＣＭ１：ＣＭ－１ＨＭＩのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 6 ＣＯＢ：ＣＭ－１シリアルＬＯＯＰＢＡＣＫテスト自動判定 7 ＵＳＢ：ＵＳＢテスト自動判定 8 ＤＩＯ：ＡＥＳ／ＥＢＵテスト自動判定 9 ＣＯＭ：ＣＯＭＬＯＯＰＢＡＣＫテスト自動判定 10 ＭＩＤ：ＭＩＤＩＬＯＯＰＢＡＣＫテスト自動判定 11 ＷＣＫ：ワードクロックテスト自動判定 12 ＲＯＴ：ＵＮＩＴＩＤ切り替えＳＷテスト自動判定 13 ＳＷＩ：ＳＷＩＴＣＨ入力テスト自動判定 14 ＬＥＤ：ＬＥＤ点灯テスト 15 ＴＨＲ：オーディオ信号テスト 16 ＡＥＳ：ＡＥＳワードクロックテスト自動判定 17 ＦＳＴ：ＦＡＣＴＯＲＹＳＥＴ 18 ＥＸＩ：テストモードを抜け、通常モードで再起動します。尚、検査中 PC 画面には、以下のように現在検査している内容と、その検査結果が表示されます。３．総合検査３．１接続方法 NHB32-C Win dows PC USB USB cable MIDI cable BNC cable LAN cable (cross) RS-232C cable (cross) 25P D-sub cable (cross) 25P D-sub cable (cross) CHECK TO COMPUTER PRIMARY DME32 AES/EBU 1 AES/EBU 2 SLOT1 MY8-AE SLOT2 MY8-AE SLOT3 MY4-DA MIDI IN OUT WORD CLOCK IN OUT COM 折り返し治具 A 折り返し治具 B AES/EBU 1~4 NHB32-C (治具用) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 42 　・DME32の SLOT1と、NHB32-C（治具用）の［AES ／ EBU 1］を、25P D-subクロスケーブル（MY8-AE 用）で接続します。　・DME32のSLOT2と、NHB32-C（治具用）の［AES ／EBU 2］を、 25P D-subクロスケーブル（MY8-AE 用）で接続します。　・［USB］端子と PC の USB 端子を，USB ケーブルで接続します。　・［TO COMPUTER］端子と PC のシリアル端子をシリアルケーブル（クロス）で接続します。　・［ＵＮＩＴＩＤ］ＳＷは、” ０” に設定します。　・NHB32-C の［PRIMARY］端子間を、LAN ケーブル（CAT5：クロス）で接続します。　・［MIDI IN］端子と［MIDI OUT］端子を MIDI ケーブルで接続します。　・［WORD CLOCK IN］端子と［WORD CLOCK OUT］を BNC ケーブルで接続します。　・［COM］端子に” 折り返し治具 A” を接続します。　・［AES ／ EBU 1］，［AES ／ EBU 2］，［AES ／ EBU 3］，［AES ／ EBU 4］端子に” 折り返し治具 B” を接続します。 3.2 検査方法テストプログラム起動画面にて、” 1. NHB32-C FINAL ASS'Y” を選択すると、以下の検査項目の順に、自動的に実施されます。 1 ＦＬＡ：ＦＬＡＳＨＲＯＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 2 ＲＡＭ：ＤＲＡＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 3 ＥＥＰ：ＥＥＰＲＯＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 4 ＤＳＰ：ＤＳＰ５のレジスタＲＥＡＤ／ＷＲＩＴＥテスト自動判定 5 ＣＭ１：ＣＭ－１ＨＭＩのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 6 ＣＯＢ：ＣＭ－１シリアルＬＯＯＰＢＡＣＫテスト自動判定 7 ＵＳＢ：ＵＳＢテスト自動判定 8 ＤＩＯ：ＡＥＳ／ＥＢＵテスト自動判定 9 ＣＯＭ：ＣＯＭＬＯＯＰＢＡＣＫテスト自動判定 10 ＭＩＤ：ＭＩＤＩＬＯＯＰＢＡＣＫテスト自動判定 11 ＷＣＫ：ワードクロックテスト自動判定 12 ＲＯＴ：ＵＮＩＴＩＤ切り替えＳＷテスト自動判定［UNIT ID］SW を、PC 画面の指示のとおり、時計回り方向に回します。 ” 折り返し治具 A” D-SUB9 ピンメスコネクタ・2 番と 3番をショートします。・4 番と 6番をショートします。 ” 折り返し治具 B” D-SUB 25ピンオスコネクタ・1番と 5 番をショートします。・2番と 6 番をショートします。・3番と 7 番をショートします。・4番と 8 番をショートします。・14番と 18番をショートします。・15番と 19番をショートします。・16番と 20番をショートします。・17番と 21番をショートします。 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 NHB32-C 以下の検査項目は、キーボードから” ENTER” キーを押すことにより順次、次の検査が実施されます。 13 SWI: SWITCH 入力テスト　自動判定画面の指示に従い、フロントパネルの SW を［RECALL］→［▼ ］→［▲ ］→［WORD CLOCK］の順に押します。 14 LED: LED 点灯テスト 1. フロントパネルの LED が、下図の順に点灯することを確認します。 2. 7seg. LED が 1桁づつ” 0、1，2、3、4、5、6、7、8、9、” の順に点灯することを確認します。 3. 最後に LED が全て点灯することを確認します。　15 THR: オーディオ信号テスト治具用 NHB32-C の PATCH を” 01” にします。 DME32 の SLOT1、SLOT2の入力レベル（計 16CH）を SLOT3（MY4-DA）で確認します。 MY4-DA のアナログ出力は 1KHz、+4dBu ± 2dB であることを確認します。 SLOT1の CH1 入力をオシロスコープでモニターし、サイン波に乱れがないことを確認します。 SLOT1の CH1 入力をパワードスピーカー等で検聴し、歪み、ノイズがないことを確認します。 SLOT2の CH1 入力をオシロスコープでモニターし、サイン波に乱れがないことを確認します。 SLOT2の CH1 入力をパワードスピーカー等で検聴し、歪み、ノイズがないことを確認します。 LAN ケーブル（CAT5: クロスケーブル）を CobraNet の［SECONDRY］側に、差し替えます。　　治具用 NHB32-C の PATCH を” 02” にします。　　 DME32 の SLOT1、SLOT2の入力レベル（計 16CH）を SLOT3（MY4-DA）で確認します。　　ＭＹ４－ＤＡのアナログ出力は１ＫＨｚ、＋４ｄＢｕ± ２ｄＢであることを確認します。　　 SLOT1の CH1 入力をオシロスコープでモニターし、サイン波に乱れがないことを確認します。　　 SLOT1の CH1 入力をパワードスピーカー等で検聴し、歪み、ノイズがないことを確認します。　　 SLOT2の CH1 入力をオシロスコープでモニターし、サイン波に乱れがないことを確認します。　　 SLOT2の CH1 入力をパワードスピーカー等で検聴し、歪み、ノイズがないことを確認します。 DME32 の WORD CLOCK OUT 端子と、被検査 NHB32-C の[WORD CLOCK IN]端子を BNC ケーブルで接続します。治具用 NHB32-C の PATCH を "05" にします。キーボードから "ENTER" キーを押します。 DME32 の SLOT1、SLOT2の入力レペル(計 16CH)を SLOT3(MY4-DA)で確認します。 MY4-DA のアナログ出力は 1KHz、+4dBu ± dB であることを確認します。 ※ 治具用 NHB32-C の PATCH"05" には、以下のように設定します。　　　[AES/ EBU 1]の CH1～ CH8入力を、CobraNet の CH1～ CH8 に出力します。　　　[AES/ EBU 2]の CH1～ CH8入力を、CobraNet の CH9～ CH16 に出力します。　　 CobraNet の CH1～ CH8入力を、[AES/ EBU 1]の CH1～ CH8に出力します。　　 CobraNet の CH9～ CH16 入力を、[AES/ EBU 2]の CH1～ CH8 に出力します。　　マスター CLOCK は、"NETWORK" に設定しておきます。 LOCK LINK LD216 LD224 LD201 LD202 LD203 LD214 LD204 LD205 LD206 LD217 LD215 LD218 LD223 LD213 LD212 LD211 LD220 LD209 LD208 LD207 LD226 LD221 CONDUCT ERROR WORD CLOCK IN NETWORK 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 1/2 3/4 5/6 7/8 NETWORK STATUS AES/EBU 1 AES/EBU 3 AES/EBU 4 AES/EBU 2 (SW201) (SW202) (SW203) (SW204) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 44 治具用 NHB32-C の PATCH を "06" にします。 DME32の SLOT1、SLOT2の入力レベル(計 16CH)を SLOT3(MY4-DA)で確認します。 MY4-DA のアナログ出力は 1KHz、+4dBu ± dB であることを確認します。　 ※ 治具用 NHB32-C の PATCH"06" には、以下のように設定します。　　　[AES/ EBU 1]の CH1～ CH8入力を、CobraNet の CH17 ～ CH24 に出力します。　　　[AES/ EBU 2]の CH1～ CH8入力を、CobraNet の CH25 ～ CH32 に出力します。　　 CobraNet の CH17 ～ CH24入力を、[AES/ EBU 1]の CH1～ CH8に出力します。　　 CobraNet の CH25 ～ CH32入力を、[AES/ EBU 2]の CH1～ CH8に出力します。　　マスター CLOCK は、"NETWORK" に設定しておきます。　　［AES／EBU 1～4］の折り返し治具を外し、DME32のSLOT1と、［AES／EBU 1］を25P D-subクロスケーブル（MY8- AE 用）で接続します。　　 DME32の SLOT2 と、［AES ／ EBU 2］を 25P D-sub クロスケーブル（MY8-AE 用）で接続します。　　キーボードから” ENTER” キーを押します。 16 AES: AES クロックテスト　自動判定　　 DME32の SLOT1 と、［AES ／ EBU 3］を 25P D-sub クロスケーブル（MY8-AE 用）で接続します。　　 DME32の SLOT2 と、［AES ／ EBU 4］を 25P D-sub クロスケーブル（MY8-AE 用）で接続します。　　キーボードから” ENTER” キーを押します。 17 FST : FACTORY SET MAIN シートの IC221（EEPROM）を工場出荷状態に初期化します。 18 EXI: テストモードを抜け、通常モードで再起動します。 4. MAIN シート検査 4.1 接続方法・MAIN シートの CN308と、PC の USB 端子を、USB ケーブルで接続します。・AES-AES1シートの CN504と、PC のシリアル端子をシリアルケーブル（クロス）で接続します。・MAIN シートの SW201は、” 0” に設定します。・PN-JACK シートの JK306に、BNC ケーブルを接続します。（WORD CLOCK IN-OUT）・PN-JACK シートの JK303に、MIDI ケーブルを接続します。（MIDI IN-OUT）・AES-AES1シートの CN301、CN401及び AES-AES 2シートの CN701、CN801に” 折り返し治具 B” を接続します。（AES/EBU 1～ 4）　・AES-AES 2シートの CN901に” 折り返し治具 A” を接続します。（COM） Windows PC PN-LED (V9050200) USB cable CM-1 (V9811200) PN-JACK (V9050300) AES-AES2 (V9051000) AES-AES1 (V9050900) CN601 CN604 CN701 CN801 CN901 CN301 CN401 CN504 CN603 CN605 CN201 CN202 CN203 CN501 CN502 CN503 CN308 CN303 CN403 CN301 JK306 JK303 CN402 CN406 CN202 CN305 CN201 CN602 POWER SUPPLY (V9702900) CN51 RS-232C cable (cross) 被検査MAINシート (V9061800) : 折り返し治具 A A A : 折り返し治具 B B B B B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 NHB32-C 4.2 検査方法テストプログラム起動画面にて、” 2.NHB32-C MAIN SHEET” を選択すると、以下の検査項目の順に、自動的に実施される。 1 ＦＬＡ：ＦＬＡＳＨＲＯＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 2 ＲＡＭ：ＤＲＡＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 3 ＥＥＰ：ＥＥＰＲＯＭのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 4 ＤＳＰ：ＤＳＰ５のレジスタＲＥＡＤ／ＷＲＩＴＥテスト自動判定 5 ＣＭ１：ＣＭ－１ＨＭＩのＲＥＡＤ／ＷＲＩＴＥテスト自動判定 6 ＣＯＢ：ＣＭ－１シリアルＬＯＯＰＢＡＣＫテスト自動判定 7 ＵＳＢ：ＵＳＢテスト自動判定 8 ＤＩＯ：ＡＥＳ／ＥＢＵテスト自動判定 9 ＣＯＭ：ＣＯＭＬＯＯＰＢＡＣＫテスト自動判定 10 ＭＩＤ：ＭＩＤＩＬＯＯＰＢＡＣＫテスト自動判定 11 ＷＣＫ：ワードクロックテスト自動判定 12 ＲＯＴ：ＵＮＩＴＩＤ切り替えＳＷテスト自動判定 MAIN シートの SW201を、PC 画面の指示のとおり、時計回り方向に回します。以下の検査項目は、キーボードから” ENTER” キーを押すことにより順次、次の検査が実施されます。 13 ＳＷＩ：ＳＷＩＴＣＨ入力テスト自動判定画面の指示に従い、PN-LED シートの SW を SW201 → SW202→ SW203→ SW204の順に押します。 14ＬＥＤ：ＬＥＤ点灯テスト 1.PN-LED シートの LED が、以下の順に点灯することを確認します。　LD216→ LD224→ LD201→ LD202→ LD203→ LD214→ LD204→ LD205→ LD206→ LD217→ LD215→ LD218→ 　LD223 → LD213→ LD212→ LD211→ LD220→ LD209 → LD208→ LD207→ LD226→ LD221 2. PN-LED シートの LD210（7seg. LED）が 1桁づつ” 0、1、2、3、4、5、6、7、8、9、．” の順に点灯することを確認します。 3. 最後に LED が全て点灯することを確認します。 5. AES シート検査 5.1 接続方法 Windows PC MAINシート (V9061800) PN-LED (V9050200) USB cable RS-232C cable (cross) CM-1 (V9811200) PN-JACK (V9050300) 被検査� AES-AES2シート (V9051000) 被検査� AES-AES1シート� (V9050900) CN601 CN604 CN701 CN801 CN901 CN301 CN401 CN504 CN603 CN605 CN201 CN202 CN203 CN501 CN502 CN503 CN308 CN303 CN403 CN301 JK306 JK303 CN402 CN406 CN202 CN305 CN201 CN602 POWER SUPPLY (V9702900) CN51 : 折り返し治具 A A A : 折り返し治具 B B B B B B ・MAIN シートの CN308と、PC の USB 端子を、USB ケーブルで接続します。・AES-AES1 シートの CN504と、PC のシリアル端子をシリアルケーブル（クロス）で接続します。・MAIN シートの SW201は、” 0” に設定します。・PN-JACK シートの JK306に、ＢＮＣケーブルを接続します。（WORD CLOCK IN-OUT）・PN-JACK シートの JK303に、ＭＩＤＩケーブルを接続します。（MIDI IN-OUT）・AES-AES1 シートの CN301、CN401及び AES-AES2 シートの CN701、CN801に” 折り返し治具 B” を接続します。（AES/ EBU 1～ 4)　・AES-AES2 シートの CN901に” 折り返し治具 A” を接続します。（COM） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 46 5.2 検査方法テストプログラム起動画面にて、” 3. NHB32-C AES SHEET” を選択すると、以下の検査項目の順に、自動的に実施されます。１ＤＩＯ：ＡＥＳ／ＥＢＵテスト自動判定２ＣＯＭ：ＣＯＭＬＯＯＰＢＡＣＫテスト自動判定６．ＰＮシート検査６．１接続方法・MAIN シートの CN308と、PC の USB 端子を、USB ケーブルで接続します。・AES-AES1シートの CN504と、PC のシリアル端子をシリアルケーブル（クロス）で接続します。・MAIN シートの SW201は、” 0” に設定します。・PN-JACK シートの JK306に、BNC ケーブルを接続します。（WORD CLOCK IN-OUT）・PN-JACK シートの JK303に、MIDI ケーブルを接続します。（MIDI IN-OUT）・AES-AES1シートの CN301、CN401及び AES-AES2シートの CN701、CN801に” 折り返し治具 B” を接続します。（AES/EBU 1～ 4）　・AES-AES2シートの CN901に” 折り返し治具 A” を接続します。（COM） 6.2 検査方法　テストプログラム起動画面にて、” 4. NHB32-C PN SHEET” を選択すると、以下の検査項目が開始されます。　キーボードから” ENTER” キーを押すことにより次の検査が開始されます。 1 SWI: SWITCH 入力テスト画面の指示に従い、PN-LED シートの SW を SW201→ SW202→ SW203→ SW204の順に押します。 2 LED: LED 点灯テスト 1.PN-LED シートの LED が、以下の順に点灯することを確認します。　LD216→ LD224→ LD201→ LD202 → LD203→ LD214→ LD204→ LD205→ LD206→ LD217 → LD215→ LD218→ 　LD223→ LD213→ LD212→ LD211 → LD220→ LD209→ LD208→ LD207 → LD226→ LD221 2. PN-LED シートの LD210（7seg. LED）が 1桁づつ” 0、1、2、3、4、5、6、7、8、9、．” の順に点灯することを確認します。 3. 最後に LED が全て点灯することを確認します。 Windows PC MAINシート (V9061800) USB cable (cross) 被検査PN-LEDシート� (V9050200) CM-1 (V9811200) PN-JACK (V9050300) AES-AES2 (V9051000) AES-AES1 (V9050900) CN601 CN604 CN701 CN801 CN901 CN301 CN401 CN504 CN603 CN605 CN201 CN202 CN203 CN501 CN502 CN503 CN308 CN303 CN403 CN301 JK306 JK303 CN402 CN406 CN202 CN305 CN201 CN602 POWER SUPPLY (V9702900) CN51 RS-232C cable (cross) : 折り返し治具 A A A : 折り返し治具 B B B B B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 NHB32-C 7. バージョンアップマスターデータ” ACU16-C ／ NHB32-C V ＊．＊＊” により、バージョンアップが可能です。バージョンアップは Windows PC から、USB 経由にて実行されます。マスターデータには、以下のファイルが含まれます。・ wain. exe → インストーラープログラムファイル・ Wain. ini → 設定ファイル 8c78（という名称のフォルダ）・ 8c78. Scr → スクリプトファイル・ v＊＊＊. bir → プログラムデータファイル　　　　（＊＊＊：バージョン） ※ 最新バージョンは、ヤマハ CS センターホームページのダウンロードページからダウンロードして下さい。 (YSISS URL >>http:/ / plaza.yamaha.co.jp/ ysiss/ index.nsf) 7.1 接続 NHB32-C と PC を USB ケーブルで接続してから、NHB32-C の電源を入れます。 7.2 PC の設定 USB-MIDI ドライバの THR ON ／ OFF のチェック BOX を外しておきます。 7.3 手順インストーラープログラム” wain. exe” を起動すると、以下のような画面になります。 Pre Check のチェックを外してから、START ボタンをクリックするとバージョンアップが始まり、画面は以下のようになります。バージョンアップが終了すると、画面は以下のようになります。 CLOSE ボタンをクリックし，NHB32-C の電源を OFF にします。 HiSpeed Serial Installer Version 0.52 - m2001 File Help Static LOOP Model Name Script Status YAMAHA USB IN 0-1 YAMAHA USB OUT 0-1 RESET CLOSE Ready START Pre Check All 0 100% Part ONE SHOT HiSpeed Serial Installer Version 0.52 - m2001 File Help Static LOOP Model Name Script ACU16-C/NHB32-C Down Load... ; --- Baudrate --- ; UP_BAUDRATE SET_UPDATE_DEVICE, 0, "Main" ; --- Update Main/Style Flash --- UPDATE_BLOCK, 00200000, 4000, 1, 0 UPDATE_BLOCK, 00204000, 2000, 1, 4000 UPDATE_BLOCK, 00206000, 2000, 1, 6000 UPDATE_BLOCK, 00208000, 8000, 1, 8000 UPDATE_DEVICE, 00210000, 1000, 1, 10000 Status YAMAHA USB IN 0-1 YAMAHA USB OUT 0-1 RESET CLOSE Ready START Pre Check All 0 100% Part ONE SHOT HiSpeed Serial Installer Version 0.52 - m2001 File Help Static LOOP Model Name Script Status YAMAHA USB IN 0-1 YAMAHA USB OUT 0-1 RESET CLOSE Ready START Pre Check All 0 100% Part ONE SHOT Script Done. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 12 13 A B C D E F G H I J K L M N O P Q R NHB32-C OVERALL CIRCUIT DIAGRAM 1/14 (MAIN) C1 NHB32-C NHB32-C NHB32-C CPU D-FF D-FF D-FF DRAM16M OR AND OR OR OR OR OR OR D-FF TE12L TE12L OR BUFFER D-FF FLASH ROM 4M 3-8 DEMULTIPLEXER 3-8 DEMULTIPLEXER EEPROM MAIN to C1: H11 to C2: G8 to C3: F5 to C2: M11, to C4: L7 to C5: M2 to C2: G8 to C2: K4 to C2: O4 to C5: O6 to C2: P4 to C2: K3 to C4: J8 to C1: H12, to C3: N2 to C2: D4, to C5: E11 to C2: F4, to C3: N5 to C2: K6, to C2: P3 to C3: E2 to C3: B7 to C3: D9 to C3: D7 to C3: K9 to C3: E2 to C3: J11 to C3: K9 to C2: K6, to C2: P3, to C5: E11 from C2: P4 from C2: P4 from C2: K5 to C2: G8 from C2: G8 to C3: K9 from C3: J10 from C3: J11 to C5: E11 to C2: F4 to C2: P4 from C1: P4 to C1: K2 to C1: J8, to C3: N2 to C2: K6 to C4: C4, to C5: E11 to C3: E3 from C2: H9 from C3: J11 from C4: C4 to C4: C8, to C5: M2 to C3: P7, to C4: O4 to C4: O4 from C1: H11 from C3: J11 : not installed (未実装) 未実装� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C2 NHB32-C OVERALL CIRCUIT DIAGRAM 2/14 (MAIN) NHB32-C NHB32-C NHB32-C B C D E F G H I J K L M N O P Q A 1 2 3 4 5 6 7 8 9 10 11 12 : not installed (未実装) 未実装� CPU Photo Coupler INVERTER LINE DRIVER LINE DRIVER BUFFER BUFFER BUS BUFFER SYNC. Binary Counter INVERTOR BUFFER CPU INVERTER MAIN from C1: G9, from C2: K6 from C1: G8, from C2: K6, from C5: E11 from C1: J11 to C2: D2 from C1: F4 from C1: I4 to C1: J9 from C1: G9, from C2: P3 from C1: J11 to C4: O4 from C1: M2 to C3: K9 from C3: J11 from C1: J10 from C2: K2 from C1: F3 to C5: B4 to C5: B4 to C5: B4 from C1: G9, from C3: N5 from C1: G8, from C5: E11 from C1: G8, from C2: P3, from C5: E11 to C1: J8 to C1: J9 from C1: F3 from C3: C7, from C3: F4, from C3: K10, from C4: C3 to C1: L2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 12 A B C D E F G H I J K L M N O P Q R NHB32-C OVERALL CIRCUIT DIAGRAM 3/14 (MAIN) C3 NHB32-C NHB32-C NHB32-C BUS BUFFER TRANSCEIVER INVERTER INVERTER INVERTER REGULATOR +3.3V D-FF BUFFER INVERTER BUFFER BUFFER BUS BUFFER BUS BUFFER BUFFER BUFFER not used from C1: H12, from C1: J8 from C1: G9 : from C2: F4 from C1: K2, from C4: O4 from C5: F7 from C5: F7 from C5: F7 from C5: F7 to C5: F9 to C5: F9 to C5: F9 to C5: F9 from C3: B9, from C3:F5, from C4: C4, from C5: C5, from C5: E11 from C5: F8 from C1: E10 from C1: E11 from C1: F3 from C2: N8, from C3: C7, from C3: K10, from C4: C3 from C3: B9, from C3: P9, from C4: C4, from C5: C5, from C5: E11 from C1: M2 from C1: E11 to C1: A9 from C2: N8, from C3: F4, from C3: K10, from C4: C3 from C3: F5, from C3: P9, from C4: C4, from C5: C5, from C5: E11 from C1: E10 from C4: C4, from C5: C5 from C5: F8 from C5: F8 from C5: F8 from C5: F8 from C5: F8 from C5: F8 from C5: F8 to C5: F9 to C5: F9 to C5: F9 to C5: F9 to C5: F10 to C5: F10 to C5: F10 to C5: F10 to C5: F9 to C5: F9 to C5: F9 to C5: F9 from C5: F7 from C5: F8 from C5: F8 from C5: F8 from C1: E12 from C1: J9 from C2: H6 from C1: E11 from C4: G5 from C2: N8, from C3: C7, from C3: F4, from C4: C3 to C1: J9 to C1: J9 to C4: O3 to C4: C8 to C1: M8 to C1: E11 to C1: L2 to C2: H6 : not installed (未実装) 未実装� 512FSO_NET 512FSO_NET w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C4 NHB32-C OVERALL CIRCUIT DIAGRAM 4/14 (MAIN) NHB32-C NHB32-C NHB32-C A B C D E F G H I J K L M N O P Q 1 2 3 4 5 6 7 8 9 10 11 12 SELECTOR DIR2 BUFFER CLOCK GENERATOR from C3: J11 from C1: K2 from C1: K2, from C3: P7 from C3: K10 to C2: N8, to C3: C7, to C3: F4, to C3: K10 from C1: F4, from C5: E11 to C1: L2 to C5: C5, to C5: E11 to C3: B9, to C3: F5, to C3: P9, to C5: C5, to C5: E11 to C3: B8, to C5: C5 from C5: C4 from C2: M11 from C1: M2 : not installed (未実装) 未実装� : Mylar Capacitor (マイラーコン) (マ)w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 12 A B C D E F G H I J K L M N O P Q R NHB32-C OVERALL CIRCUIT DIAGRAM 5/14 (MAIN) C5 NHB32-C NHB32-C NHB32-C BUFFER BUFFER BUFFER BUFFER DSP5 to C4: O4 from C2: C3 from C2: C4 from C2: C4 from C3: B8, from C4: C4 from C4: C4, from C5: E11 to C3: P8 to C3: P8 to C3: P8 to C3: P8 to C3: K9 to C3: K9 to C3: K9 to C3: K9 to C3: J4 to C3: J4 to C3: J5 to C3: J5 to C3: J3 to C3: J3 to C3: J4 to C3: J4 from C3: P8 from C3: P8 from C3: P8 from C3: P8 from C3: J7 from C3: J7 from C3: J7 from C3: J7 from C3: J5 from C3: J6 from C3: J6 from C3: J6 from C3: J6 from C3: J6 from C3: J6 from C3: J6 from C3: B9, from C3: F5, from C3: P9, from C4: C4, from C5: E11 from C1: G8, from C2: K6, from C2: P3 from C1: G8, from C2: D4 from C1: J10 from C1: F4, from C4: C4 from C4: C4, from C5: C5 from C3: B9, from C3: F5, from C3: P9, from C4: C4, from C5: C5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C6 NHB32-C OVERALL CIRCUIT DIAGRAM 6/14 (AES2) NHB32-C NHB32-C NHB32-C A B C D E F G H I J K L M N O P Q 1 2 3 4 5 6 7 8 9 10 11 12 RECEIVER RESET RESET AND INVERTER AND INVERTER RESET AND INVERTER INVERTER RESET AND BUFFER DIT2 DIT2 DIT2 DIT2 INVERTER INVERTER TRANSMITTER DIR2 DIR2 DIR2 DIR2 AES2 to C8: O11 to C8: G3 to C8: I3 to C8: I2 to C8: I4 to C8: E9 to C8: I3 to C8: O11 to C8: G3 to C8: I2 to C8: E9 to C8: O11 to C8: G4 from C8: B5, from C7: E6 from C8: K10 from C8: K10 from C8: K10 from C7: O2 from C7: O2 from C7: E4 from C7: E4 from C7: E7 from C8: D11 from C8: B2 from C8: D11, from C7: E7 from C8: D11, from C7: E7 to C8: I3 to C8: O11 to C8: G4 from C8: O10 to C8: I2 to C8: I5 to C8: E9 from C8: O10 from C8: O10 from C8: O10 from C8: B2 from C8: B1 from C8: B1 from C8: B3 to C8: I3 to C8: I2 to C8: I5 to C8: E9 to C8: I4 : Ceramic Capacitor (セラコン) (セ) : Mylar Capacitor (マイラーコン) (マ) : not installed (未実装) 未実装� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C OVERALL CIRCUIT DIAGRAM 7/14 (AES2) C7 NHB32-C NHB32-C NHB32-C A B C D E F G H I J K L M N O P Q 1 2 3 4 5 6 7 8 9 10 11 12 RECEIVER RESET RESET AND INVERTER AND INVERTER RESET AND INVERTER INVERTER RESET AND INVERTER INVERTER TRANSMITTER DIR2 DIR2 DIR2 DIR2 DIT2 DIT2 DIT2 DIT2 to C8: O12 to C8: G5 to C8: I3 from C6: B5 from C6: B6 to C8: I2 to C8: I5 to C8: E9 to C8: I3 from C6: B6 from C6: B6 to C8: O12 to C8: G5 to C8: I2 to C8: E10 to C8: O12 to C8: G5 from C8: B5, from C6: D5 from C8: B2 from C8: B2 from C8: D11, from C6: E7 from C8: D11, from C6: E7 to C8: O12 to C8: G6 from C8: O10 to C8: I2 to C8: I5 to C8: E10 from C8: O10 from C8: O10 from C8: O10 from C8: B2 from C8: B2 from C8: B6 to C8: I3 to C8: I3 to C8: I2 to C8: I5 to C8: E10 to C8: I5 : Ceramic Capacitor (セラコン) (セ) : Mylar Capacitor (マイラーコン) (マ) : not installed (未実装) 未実装� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C8 NHB32-C OVERALL CIRCUIT DIAGRAM 8/14 (AES2) NHB32-C NHB32-C NHB32-C A B C D E F G H I J K L M N O P Q 1 2 3 4 5 6 7 8 9 10 11 12 DRIVER/RECEIVER D-FF D-FF D-FF BUFFER BUFFER D-FF BUFFER BUFFER BUFFER BUFFER to C6: E8 to C6: D5 from C6: F1 to C6: E7 to C6: E7 to C6: E7 to C6: E6 to C7: E7 to C7: E7 to C7: E6 to C7: E6 to C6: D6 to C6: D5, to C7: E6 from C6:G4 from C6:G5 from C6:G8 from C7: F1 from C7:G4 from C7:G5 from C7:G8 to C6: D5 to C6: D6 from C6: F1 from C6: G4 from C6: G5 from C6: G8 from C7: F1 from C7: G4 from C7: G5 from C7: G8 to C6: E9 to C6: E10 to C6: E11 to C7: E8 to C7: E9 to C7: E10 to C7: E11 to C8: D11 to C6: G2 to C6: G5 to C6: G6 from C6: G2 C6: G4 C6: G6 C6: G9 C7: G2 C7: G4 C7: G6 C7: G9 from C6: G2 C6: G4 C6: G6 C6: G9 C7: G2 C7: G4 C7: G6 C7: G9 from C6: F1 C6: F4 C6: F6 C6: F8 C7: F1 C7: F4 C7: F5 C7: F8 to C6: G9 to C7: G2 to C7: G5 to C7: G6 to C7: G9 to C6: E7, to C7: E7 to C6: D6 to C6: E7, to C7:E7 : Ceramic Capacitor (セラコン) (セ) : not installed (未実装) 未実装� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 12 A B C D E F G H I J K L M N O P Q R NHB32-C OVERALL CIRCUIT DIAGRAM 9/14 (AES1) C9 NHB32-C NHB32-C NHB32-C RECEIVER RESET RESET AND INVERTER AND INVERTER RESET AND INVERTER INVERTER RESET AND BUFFER DIT2 DIT2 DIT2 DIT2 INVERTER INVERTER TRANSMITTER DIR2 DIR2 DIR2 DIR2 AES1 to C11: M9 to C11: G3 to C11: I3 to C11: I2 to C11: I4 to C11: B5 to C11: I3 to C11: M9 to C11: G3 to C11: I2 to C11: B5 to C11: M9 to C11: G4 from C11: F12, from C10: E6 from C11: M6 from C11: M6 from C11: M6 from C10: P2 from C10: P2 from C10: E4 from C10: E4 from C10: E7 from C11: B4 from C11: B4 from C11: B2 from C11: B4, from C10: E7 from C11: B4, from C10: E7 to C11: I3 to C11: M9 to C11: G4 from C11: M7 to C11: I2 to C11: I5 to C11: E6 from C11: M7 from C11: M8 from C11: M7 from C11: B2 from C11: B1 from C11: B1 to C11: I3 to C11: I2 to C11: I5 to C11: E5 to C11: I4 : Ceramic Capacitor (セラコン) (セ) : Mylar Capacitor (マイラーコン) (マ) : not installed (未実装) 未実装� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C10 NHB32-C OVERALL CIRCUIT DIAGRAM 10/14 (AES1) NHB32-C NHB32-C NHB32-C A B C D E F G H I J K L M N O P Q 1 2 3 4 5 6 7 8 9 10 11 12 RECEIVER RESET RESET AND INVERTER AND INVERTER RESET AND INVERTER INVERTER RESET AND INVERTER INVERTER TRANSMITTER DIR2 DIR2 DIR2 DIR2 DIT2 DIT2 DIT2 DIT2 to C11: M9 to C11: G5 to C11: I3 from C9: B5 from C9: B6 to C11: I2 to C11: I5 to C11: B6 to C11: I3 from C9: B6 from C9: B6 to C11: M9 to C11: G5 to C11: I2 to C11: B6 to C11: M9 to C11: G5 from C11: B2 from C11: B2 from C11: B4, from C9: E7 from C11: F12, from C9: E5 from C11: B4, from C9: E7 to C11: M9 to C11: G6 from C11: M8 to C11: I2 to C11: I5 to C11: B6 from C11: M8 from C11: M8 from C11: M8 from C11: B2 from C11: B2 from C9: B6 to C11: I3 to C11: I3 to C11: I2 to C11: I5 to C11: B6 to C11: I5 : Ceramic Capacitor (セラコン) (セ) : Mylar Capacitor (マイラーコン) (マ) : not installed (未実装) 未実装� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 12 A B C D E F G H I J K L M N O P Q R NHB32-C OVERALL CIRCUIT DIAGRAM 11/14 (AES1) C11 NHB32-C NHB32-C NHB32-C 3-8 DEMULTIPLEXER BUFFER BUFFER BUFFER D-FF D-FF D-FF D-FF SELECTOR SELECTOR BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER AND from C12: J3 from C12: J3 from C12: J3 from C12: J4 from C12: J4 from C12: J4 from C12: J4 from C12: J4 from C12: J4 from C12: J5 from C12: J5 from C12: J5 from C12: J5 from C12: J5 from C12: J5 from C12: J5 from C12: J5 from C12: J5 from C12: J5 from C12: J5 from C12: J5 to C12: J4 to C12: J6 to C12: J7 to C12: J7 to C12: J2 to C12: J3 to C12: J3 to C12: J3 to C12: J3 to C12: J3 to C12: J3 to C12: J3 to C12: J2 to C12: J2 to C12: J2 to C12: J2 to C12: J2 to C12: J2 to C12: J2 to C12: J2 from C12: J8 from C12: J8 from C12: J8 from C12: J8 from C12: J8 from C12: J8 from C12: J8 from C12: J8 to C12: J7 to C12: J7 to C12: J7 to C12: J7 to C12: J7 to C12: J7 to C12: J7 to C12: J7 to C12: J6 from C12: J4 to C9: E5 to C9: E5 to C9: E6 to C9: E8 to C9: E9 to C9: E10 to C9: E11 to C10: E8 to C10: E9 to C10: E10 to C10: E11 from C9: G1 from C9: G4 from C9: G5 from C9: G8 from C10: F1 from C10: G4 from C10: G5 from C10: G8 from C9: G2 from C9: G4 from C9: G6 from C9: G9 from C10: G2 from C10: G4 from C10: G6 from C10: G9 from C9: F1 from C9: F4 from C9: F6 from C9: F8 from C10: F1 from C10: F4 from C10: F5 from C10: F8 from C9: G2 from C9: G1 from C9: G4 from C9: G5 from C9: G8 from C10: F1 from C10: G4 from C10: G5 from C10: G8 from C9: G4 from C9: G6 from C9: G9 from C10: G2 from C10: G4 from C10: G6 from C10: G9 to C9: E7 to C9: E7 to C9: E7 to C9: E6 to C10: E7 to C10: E7 to C10: E6 to C10: E6 from C9: G2 to C9: E6 to C9: E7, to C10: E7 to C9: E7, to C10: E7 to C9: E5, to C10: E6 to C12: G6 to C12: G7 to C9: E6 from C9: G5 from C9: G6 from C9: G9 from C10: G2 from C10: G5 from C10: G6 from C10: G9 : Ceramic Capacitor (セラコン) (セ) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C12 NHB32-C OVERALL CIRCUIT DIAGRAM 12/14 (AES1) NHB32-C NHB32-C NHB32-C A B C D E F G H I J K L 1 2 3 4 5 6 7 8 9 DRIVER/RECEIVER BUFFER from C11: O9 from C11: O9 from C11: O12 from C11: O11 from C11: O11 from C11: O11 from C11: O11 from C11: O12 from C11: O12 from C11: H11 from C11: H12 from C11: O12 from C11: O12 from C11: O9 from C11: O9 from C11: O9 from C11: O9 from C11: O9 from C11: O9 to C11: O7 to C11: O7 to C11: O7 to C11: O7 to C11: O8 to C11: O8 to C11: O8 to C11: O8 to C11: O2 to C11: O3 to C11: O3 to C11: O3 to C11: O3 to C11: O3 to C11: O3 to C11: O3 to C11: O3 to C11: O4 to C11: O4 to C11: O4 to C11: O4 to C11: O4 to C11: O5 to C11: O5 to C11: O5 to C11: O6 to C11: O10 to C11: O10 to C11: O10 to C11: O10 to C11: O10 to C11: O10 to C11: O10 to C11: O10 to C11: O6 to C11: O6 to C11: O2 to C11: O3 to C11: O6 to C11: O1 to C11: O1 to C11: O1 : Ceramic Capacitor (セラコン) (セ) : not installed (未実装) 未実装� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 A B C D E F G H I J K L NHB32-C OVERALL CIRCUIT DIAGRAM 13/14 (PN-LED) C13 NHB32-C NHB32-C NHB32-C TRANSISTOR ARRAY TRANSISTOR ARRAY PN-LED NHB32-C only : Ceramic Capacitor (セラコン) (セ) : not installed (未実装) 未実装� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C14 NHB32-C OVERALL CIRCUIT DIAGRAM 14/14 (PN-JACK, PN-PSW) NHB32-C NHB32-C NHB32-C A B C D E F G H I 1 2 3 4 5 6 PN-JACK PN-PSW : Ceramic Capacitor (セラコン) (セ) : not installed (未実装) (規格認定コン) 未実装� Capacitor [PRIMARY] [SECONDARY] [CobraNet] w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PARTS LIST WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. Notes : DESTINATION ABBREVIATIONS The numbers “QTY” show quantities for each unit. The parts with “--” in “PART NO.” are not available as spare parts. This mark “ } ” in the REMARKS column means these parts are interchangeable. The second letter of the shaded ( ) part number is O, not zero. The second letter of the shaded ( ) part number is I, not one. M: South African model O : Chinese model Q : South-east Asia model T : Taiwan model U : U.S.A. model V : General export model (110V) W: General export model (220V) N,X: General export model Y : Export model A : Australian model B : British model C : Canadian model D : German model E : European model F : French model H : North European model I : Indonesian model J : Japanese model K : Korean model NETWORK HUB and BRIDGE CONTENTS OVERALL ASSEMBLY .............................................. 2 ELECTRICAL PARTS ............................................. 4 印の部品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用下さい。部品価格ランクは、変更になることがあります。 QTY欄に記されている数字は、各ユニット当たりの使用個数です。 PART NO.が“ --” の部品は、サービス用部品として準備されておりません。 REMARKS 欄の「｝」マークの部品は、併用部品です。網掛けの付いたPART NO. の2番目の文字は「ゼロ」ではなく「オー」です。網掛けの付いたPART NO. の2番目の文字は「イチ」ではなく、「アイ」です。（総組立）（電気部品）（目次） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 2 OVERALL ASSEMBLY 480 330 10 110 170 300 230 400 500 240 240 220 200 210 480 115 310 320 480 480 490 340 120 260 20 30 140 130 180 470 400 310 480 490 340 60 40 410 460 420 420 400 135 460 450 190 90 270 80 70 80 470 400 400 400 150 400 400 50 30a 160 250 30mm WA728100 Japanese model only （総組立） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 3 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Overall Assembly NHB32-C Overall Assembly (V954630) 10 Bottom Chassis 20 Insulation Sheet 30 AC Inlet Assembly AC INLET&FASTON 30a Ferrite Core FR25/15/12-1400L 04 40 Support 2 05 50 Adhesive Tape 12X50 3 03 60 Circuit Board JACK 70 Circuit Board AES1 80 Angle AES-PWB 2 90 Circuit Board AES2 110 Circuit Board PSW 115 Angle USB 120 Circuit Board MAIN 130 Power Supply Unit ZWS50AF-5/J 19 135 Fuse Label T2AH (WA11380) 140 LAN Cable Assembly LAN8P L=100 2 07 150 Connector Assembly 25P 60mm P=1.0 3 160 Connector Assembly 26P 60mm P=1.0 3 170 Connector Assembly 26P 120mm P=1.0 180 Connector Assembly VH&VH 4P 100L 190 Jack Socket 17L-003C3 4 01 200 Front Panel 210 Escutcheon, Power Switch 03 220 LED Cover 7SEG 230 Circuit Board LED 240 Push Button PRO R3 4 03 250 Hex. Locking Screw JFS-2.6S-BIW 8 01 260 Circuit Board Assembly COBRANET CM-1 63 270 Cord Holder BK-1 01 300 Power Switch Knob EMP700 03 310 Rack Mount Angle 2 320 Top Cover 330 Gasket UC-3E0595 07 340 Angle Bracket MT 2 400 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 33 01 410 Bonding Screw 3.0X8 MFZN2BL 01 420 Bonding Tapping Screw-B 3.0X6 MFZN2BL 2 450 Bind Head Tapping Screw-S 4.0X8 MFZN2BL 2 01 460 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 3 01 470 Bind Head Tapping Screw-S 3.0X6 MFZN2BL 6 01 480 Bonding Tapping Screw-S 3.0X6 MFZN2BL 23 01 490 Bonding Screw-S 3.0X8 MFZN2BL 6 01 500 Foot 4 ACCESSORIES NHB32-C CD-ROM CD-ROM 650MB 12CM USB Cable 4PIN 1.5m USB(A-B) 03 AC Cord J 3PIN 15A J 09 Label AC cord J AC Cord U/C3PIN 13A U,V 09 AC Cord CE 3PIN 10A H,A,K,W 08 AC Cord BS B 10 Adapter, AC Cord KPR-24 J 06 I/O Rock J UL J,U,V 07 I/O Rock BS CE H,B,A,K,W 07 -- V9447900 V9127100 V9544900 VC362700 V5600300 VA126100 V9050300 V9050900 V9266800 V9051000 V9050400 V9812100 V9061800 V9702900 -- V9703000 WB417200 WB417300 WB417400 V9544800 V6164800 V9449300 VL813000 V9127000 V9050200 VT810300 VS604900 V9811200 CB069250 VL812900 V9449100 V9449000 WA388000 WA471600 EP600230 VP157800 VR144900 VI693100 EP600190 EP630210 V7451800 V2134800 WA036300 X3094A00 V8100400 V5800000 WA728100 V5068000 V5067700 V6190800 VQ240200 V5600500 V5600800 部品名総組立総組立ボトムシャーシ印刷上がり絶縁シートインレットＡｓｓ ’ ｙフェライトコアサポート粘着テープシートＪＡＣＫシートＡＥＳ１ＡＥＳＰＷＢアングルシートＡＥＳ２シートＰＳＷＵＳＢ金具フロント用シートＭＡＩＮ電源ユニットヒューズラベルＬＡＮケーブルＡｓｓ’ ｙバンカードバンカードバンカード束線＃２０ジャックソケットフロントパネル印刷上がりＰＳＷエスカッション７セグウインドウシートＬＥＤプッシュボタン６角ロックネジシートＡｓｓ ’ ｙインシュロックタイＰＳＷノブラックマウントアングル塗トップカバー印刷上がりソフトガスケットラックＭＴ補強金具塗装上＋バインドＢタイト＋ボンディング小ネジボンディングＢタイト＋バインドＳタイト＋バインドＢタイト＋バインドＳタイトボンディグＳタイト＋ボンディングＳゴム足付属品ＣＤ－ＲＯＭＵＳＢケーブル電源コード加工品注意ラベル（AC コードに貼付して下さい）電源コ－ド電源コ－ド電源コード変換アダプターＩ／Ｏロック＿Ｊ＿ＵＬＩ／ＯロックＢＳ＿ＣＥ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 4 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * ELECTRICAL PARTS ELECTRICAL PARTS NHB32-C Circuit Board MAIN (X2652B0) Circuit Board JACK (X2653B0) Circuit Board PSW (X2653B0) Circuit Board LED (X2653B0) Circuit Board AES1 (X2655B0) Circuit Board AES2 (X2655B0) Circuit Board MAIN (X2652B0) C201 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C202 Electrolytic Cap. (chip) 47 16V 01 C203 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -208 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C209 Ceramic Capacitor-CH(chip) 33P 50V J 01 C210 Ceramic Capacitor-CH(chip) 33P 50V J 01 C211 Ceramic Capacitor-SL(chip) 470P 50V J 01 C212 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C213 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C214 Ceramic Capacitor-SL(chip) 100P 50V J 01 C215 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C216 Electrolytic Cap. (chip) 47 16V 01 C217 Electrolytic Cap. (chip) 47 16V 01 C218 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -226 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C227 Electrolytic Cap. (chip) 47 16V 01 C228 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -235 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C238 Ceramic Capacitor-B (chip) 0.0100 50V K 01 -241 Ceramic Capacitor-B (chip) 0.0100 50V K 01 C242 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C243 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C302 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C303 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -305 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C306 Electrolytic Cap. (chip) 47 16V 01 C311 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -317 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C322 Ceramic Capacitor-CH(chip) 33P 50V J 01 C332 Ceramic Capacitor-SL(chip) 100P 50V J 01 C333 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C334 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C335 Ceramic Capacitor-CH(chip) 22P 50V J 01 C336 Ceramic Capacitor-CH(chip) 27P 50V J 01 C337 Ceramic Capacitor-SL(chip) 680P 50V J 01 C338 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C339 Electrolytic Cap. (chip) 10 16V 01 C340 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C341 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C342 Electrolytic Cap. (chip) 10 16V 01 C343 Electrolytic Cap. (chip) 10 16V 01 C344 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C345 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C411 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C412 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C419 Electrolytic Cap. (chip) 100 16V 01 C424 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C425 Electrolytic Cap. (chip) 47 16V 01 C429 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -433 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C434 Electrolytic Cap. (chip) 100 16V 01 C435 Electrolytic Cap. (chip) 100 16V 01 C436 Electrolytic Cap. (chip) 10 16V 01 C437 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C438 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C451 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -465 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C468 Electrolytic Cap. (chip) 100 16V 01 C472 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -474 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C501 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 V9061800 V9050300 V9050400 V9050200 V9050900 V9051000 V9061800 US135100 UF037470 US135100 US135100 US061330 US061330 US062470 US135100 US135100 US062100 US135100 UF037470 UF037470 US135100 US135100 UF037470 US135100 US135100 US064100 US064100 US135100 US135100 US135100 US135100 US135100 UF037470 US135100 US135100 US061330 US062100 US135100 US135100 US061220 US061270 US062680 US135100 UF037100 US135100 US135100 UF037100 UF037100 US135100 US135100 US135100 US135100 UF038100 US135100 UF037470 US135100 US135100 UF038100 UF038100 UF037100 US135100 US135100 US135100 US135100 UF038100 US135100 US135100 US135100 （電気部品）部品名電気部品シートＭＡＩＮシートＪＡＣＫシートＰＳＷシートＬＥＤシートＡＥＳ１シートＡＥＳ２シートＭＡＩＮチップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（ＳＬ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＳＬ）チップセラ（Ｆ）チップケミコンチップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｂ）チップセラ（Ｂ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＣＨ）チップセラ（ＳＬ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（ＳＬ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップケミコンチップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 5 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * * C502 Mylar Capacitor(Chip) 0.0820 16V J 01 C503 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C504 Electrolytic Cap. (chip) 47 16V 01 C505 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C506 Ceramic Cap. (chip) 0.1 01 C513 Ceramic Capacitor-CH(chip) 10P 50V D 01 C514 Ceramic Capacitor-CH(chip) 10P 50V D 01 C601 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -609 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 C610 Ceramic Capacitor-B (chip) 0.0100 50V K 01 -617 Ceramic Capacitor-B (chip) 0.0100 50V K 01 C620 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 -623 Ceramic Capacitor-F (chip) 0.1000 16V Z 01 CN202 Connector 52808 26P TE 01 CN303 Connector Base Post PH- 8P TE 01 CN305 Connector 52808 26P TE 01 CN308 Jack USB 4P TE 03 CN402 Board stacker TW 40P TE 09 CN403 Board stacker TW 40P TE 09 CN406 Base Post Connector VH- 4P TE 01 CN601 Connector 52808 26P TE 01 CN602 Connector 52808 26P TE 01 D301 Diode 1SS355 TE-17 01 -305 Diode 1SS355 TE-17 01 D401 Diode RB160L-40 TE25 01 DA301 Diode Array 1SS372 TE85L 01 DA302 Diode Array 1SS372 TE85L 01 EM401 LC Filter DSS6NF31C223Q93A 01 EM403 LC Filter DSS6NF31C223Q93A 01 IC201 IC HD6477042AF28 CPU5 17 IC202 IC IC-PST591DMT SYSTEM RESET 03 IC203 IC MX29F400BTC-70 FLASH ROM 4M 08 IC204 IC MSM5118160F-60JSR1 DRAM 16M 08 IC204 IC IS41C16105-50K DRAM 16M 08 IC204 IC K4F151611D-JL6000 DRAM 16M 08 IC205 IC TC74VHC138FT 3-8 DEMULTIPLEXER 01 IC206 IC TC74VHC138FT 3-8 DEMULTIPLEXER 01 IC207 IC HD74LV273ATELL D-FF 01 IC208 IC TC7WH14FU INVERTER 02 IC209 IC TC7WH08FU AND 01 IC210 IC TC74VHC32FT OR 01 IC211 IC TC7SH04FU INVERTER 01 IC212 IC TC74VHC74FT D-FF 01 IC213 IC TC74VHC32FT OR 01 IC214 IC HD74LV273ATELL D-FF 01 IC215 IC HD74LV273ATELL D-FF 01 IC216 IC TC74VHC32FT OR 01 IC217 IC TC74VHC32FT OR 01 IC218 IC HD74LV273ATELL D-FF 01 IC219 IC TC74VHC245FT BUFFER 03 IC219 IC 74VHC245MTCX BUFFER 02 IC220 IC TC7SH08FU AND IC221 IC 24LC256T-I/SN EEPROM 06 IC301 IC MBCG46183-129PFV-G CPU 06 IC305 Photo Coupler PC410T 04 IC306 IC TC7WH14FU INVERTER 02 IC308 IC TC74VHC244FT BUS BUFFER 03 IC309 IC TC74VHC245FT BUFFER 03 IC309 IC 74VHC245MTCX BUFFER 02 IC310 IC TC74VHC245FT BUFFER 03 IC310 IC 74VHC245MTCX BUFFER 02 IC311 IC SN75124NSR LINE DRIVER 05 IC312 IC SN75121NSR LINE DRIVER 05 IC313 IC TC74VHC163FT BINARY COUNTER 02 IC314 IC TC74VHC125FT BUFFER 03 IC315 IC TC7SH04FU INVERTER 01 IC316 IC M37641M8-140FP CPU 09 IC317 IC TC7WH14FU INVERTER 02 IC402 IC TC74VHC244FT BUS BUFFER 03 IC403 IC TC74LVX4245FS TRANSCEIVER 04 VR327300 US135100 UF037470 US135100 US135100 US061100 US061100 US135100 US135100 US064100 US064100 US135100 US135100 V6478900 VB390400 V6478900 V3671200 V9614700 V9614700 LB932040 V6478900 V6478900 VT332900 VT332900 VS597600 V9424900 V9424900 VD542700 VD542700 X3250A00 XP226A00 XY893A00 XV932B00 XY931A00 X0086A00 XZ495A00 XZ495A00 X2689A00 XY806A00 XW948A00 XY945A00 XS775A00 XV892A00 XY945A00 X2689A00 X2689A00 XY945A00 XY945A00 X2689A00 XU797A00 X0296A00 XR680A00 X3227A00 XV833A00 VN686000 XY806A00 XW234A00 XU797A00 X0296A00 XU797A00 X0296A00 XV930A00 XU816A00 X2378A00 XY074A00 XS775A00 X2485100 XY806A00 XW234A00 XU229A00 部品名チップマイラーチップセラ（Ｆ）チップケミコンチップセラ（Ｆ）セラコン（Ｆ）チップセラ（ＣＨ）チップセラ（ＣＨ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｂ）チップセラ（Ｂ）チップセラ（Ｆ）チップセラ（Ｆ）ＦＦＣ／ＦＰＣコネクタコネクタベースポストＦＦＣ／ＦＰＣコネクタＵＳＢジャック２ｍｍボード・スタッカー２ｍｍボード・スタッカーベースポストＦＦＣ／ＦＰＣコネクタＦＦＣ／ＦＰＣコネクタダイオードダイオードダイオードダイオードアレイダイオードアレイＬＣフィルターＥＭＩＬＣフィルターＥＭＩＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣフォトカプラＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 6 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only IC404 IC PQ033Y3H3ZP REGULATOR +2.5V 04 IC407 IC TC74VHCT245AFT BUFFER 07 IC408 IC TC74VHC244FT BUS BUFFER 03 IC409 IC TC74VHC244FT BUS BUFFER 03 IC410 IC TC74VHCT245AFT BUFFER 07 IC412 IC TC74VHC125FT BUFFER 03 IC413 IC TC7WH04FU INVERTER 01 IC417 IC HD74LV574AFPEL D-FF 03 IC417 IC SN74LV574ANSR IC418 IC TC74HC245F BUFFER 03 IC419 IC TC7WH04FU INVERTER 01 IC501 IC TC74HC251AF SELECTOR 03 IC502 IC YM3436DK DIR2 11 IC503 IC HD74HC245TELL BUFFER 02 IC504 IC W194-70G 01 IC601 IC YSS904-F DSP5 11 IC604 IC TC74VHC245FT BUFFER 03 IC604 IC 74VHC245MTCX BUFFER 02 IC605 IC TC74VHC245FT BUFFER 03 IC605 IC 74VHC245MTCX BUFFER 02 IC606 IC TC74VHC245FT BUFFER 03 IC606 IC 74VHC245MTCX BUFFER 02 IC607 IC TC74VHC245FT BUFFER 03 IC607 IC 74VHC245MTCX BUFFER 02 L301 Common Mode Coil DLP31SN121SL2L 03 R201 Carbon Resistor (chip) 22.0K 63M J 01 R202 Carbon Resistor (chip) 22.0K 63M J 01 R203 Carbon Resistor (chip) 47.0 63M J 01 -209 Carbon Resistor (chip) 47.0 63M J 01 R210 Carbon Resistor (chip) 330.0 63M J 01 R211 Carbon Resistor (chip) 0 63M J 01 -214 Carbon Resistor (chip) 0 63M J 01 R215 Carbon Resistor (chip) 220.0 63M J 01 R216 Carbon Resistor (chip) 3.3K 63M J 01 R217 Carbon Resistor (chip) 10.0K 63M J 01 R218 Carbon Resistor (chip) 4.7K 63M J 01 R219 Carbon Resistor (chip) 22.0K 63M J 01 -222 Carbon Resistor (chip) 22.0K 63M J 01 R223 Carbon Resistor (chip) 47.0 63M J 01 R224 Carbon Resistor (chip) 22.0K 63M J 01 R226 Carbon Resistor (chip) 22.0K 63M J 01 R229 Carbon Resistor (chip) 22.0K 63M J 01 R231 Carbon Resistor (chip) 22.0K 63M J 01 -244 Carbon Resistor (chip) 22.0K 63M J 01 R250 Carbon Resistor (chip) 0 63M J 01 R251 Carbon Resistor (chip) 0 63M J 01 R256 Carbon Resistor (chip) 0 63M J 01 R261 Carbon Resistor (chip) 0 63M J 01 R262 Carbon Resistor (chip) 1.0K 63M J 01 -265 Carbon Resistor (chip) 1.0K 63M J 01 R267 Carbon Resistor (chip) 0 63M J 01 R268 Carbon Resistor (chip) 22.0K 63M J 01 R270 Carbon Resistor (chip) 220.0 63M J 01 R271 Carbon Resistor (chip) 0.0 1/4 J 01 R301 Carbon Resistor (chip) 1.0M 63M J 01 R306 Carbon Resistor (chip) 1.0K 63M J 01 R307 Carbon Resistor (chip) 220.0 63M J 01 R308 Carbon Resistor (chip) 22.0K 63M J 01 R309 Carbon Resistor (chip) 220.0 63M J 01 R310 Carbon Resistor (chip) 220.0 63M J 01 R311 Carbon Resistor (chip) 22.0K 63M J 01 R312 Carbon Resistor (chip) 22.0K 63M J 01 R314 Carbon Resistor (chip) 22.0K 63M J 01 R315 Carbon Resistor (chip) 22.0K 63M J 01 R318 Carbon Resistor (chip) 22.0K 63M J 01 R319 Carbon Resistor (chip) 22.0K 63M J 01 R324 Carbon Resistor (chip) 0 63M J 01 R325 Carbon Resistor (chip) 47.0 1/4 J 01 R326 Carbon Resistor (chip) 4.7 63M J 01 R327 Carbon Resistor (chip) 2.2K 63M J 01 X2589A00 XT744A00 XW234A00 XW234A00 XT744A00 XY074A00 XY363A00 IS057400 IS057410 XT487A00 XY363A00 XQ968A00 XG948E00 X3696A00 XW492A00 XV989A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 V5239100 RD357220 RD357220 RD354470 RD354470 RD355330 RD350000 RD350000 RD355220 RD356330 RD357100 RD356470 RD357220 RD357220 RD354470 RD357220 RD357220 RD357220 RD357220 RD357220 RD350000 RD350000 RD350000 RD350000 RD356100 RD356100 RD350000 RD357220 RD355220 RD150000 RD359100 RD356100 RD355220 RD357220 RD355220 RD355220 RD357220 RD357220 RD357220 RD357220 RD357220 RD357220 RD350000 RD154470 RD353470 RD356220 * *    部品名ＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣコモンモードコイルチップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 7 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * R331 Carbon Resistor (chip) 270.0 63M J 01 R332 Carbon Resistor (chip) 1.0K 63M J 01 R333 Carbon Resistor (chip) 10.0K 63M J 01 -337 Carbon Resistor (chip) 10.0K 63M J 01 R338 Carbon Resistor (chip) 33.0 1/4 J 01 R339 Carbon Resistor (chip) 33.0 1/4 J 01 R340 Carbon Resistor (chip) 1.5K 63M J 01 R341 Carbon Resistor (chip) 22.0K 63M J 01 R342 Carbon Resistor (chip) 22.0K 63M J 01 R343 Carbon Resistor (chip) 0.0 1/4 J 01 R416 Carbon Resistor (chip) 10.0K 63M J 01 R421 Carbon Resistor (chip) 0 63M J 01 R440 Carbon Resistor (chip) 10.0K 63M J 01 R441 Carbon Resistor (chip) 0 63M J 01 R444 Carbon Resistor (chip) 22.0K 63M J 01 R445 Carbon Resistor (chip) 22.0K 63M J 01 R448 Carbon Resistor (chip) 10.0 63M J 01 R450 Carbon Resistor (chip) 0 63M J 01 R455 Carbon Resistor (chip) 0 63M J 01 R458 Carbon Resistor (chip) 0 63M J 01 R502 Carbon Resistor (chip) 10.0K 63M J 01 R503 Carbon Resistor (chip) 750.0 63M J 01 R504 Carbon Resistor (chip) 3.3K 63M J 01 R505 Carbon Resistor (chip) 22 01 R506 Carbon Resistor (chip) 22 01 R508 Carbon Resistor (chip) 0 63M J 01 R509 Carbon Resistor (chip) 1.0M 63M J 01 R510 Carbon Resistor (chip) 560.0 63M J 01 R513 Carbon Resistor (chip) 10.0 63M J 01 -516 Carbon Resistor (chip) 10.0 63M J 01 R523 Carbon Resistor (chip) 0.0 1/4 J 01 R601 Carbon Resistor (chip) 0 63M J 01 R605 Carbon Resistor (chip) 10.0 63M J 01 R606 Carbon Resistor (chip) 10.0 63M J 01 RA201 Resistor Array 47X4 01 -211 Resistor Array 47X4 01 RA212 Resistor Array 22KX4 01 -223 Resistor Array 22KX4 01 RA401 Resistor Array 22KX4 01 -411 Resistor Array 22KX4 01 SW201 Rotary Switch S-1011A 05 X201 Quartz Crystal Unit AT-49 6.4512MHZ 03 X301 Ceramic Resonator CSTCC8M00G53-R0 01 X302 Quartz Crystal Unit 16M AT49 03 X501 Quartz Crystal Unit 11.727M AT-49 03 X601 Quartz Crystal Unit 60MHZ DSO751S 06 Circuit Board JACK (X2653B0) Circuit Board LED (X2653B0) Circuit Board PSW (X2653B0) C201 Monolithic Ceramic Cap. 0.100 50V Z 01 C203 Monolithic Ceramic Cap. 0.100 50V Z 01 C204 Monolithic Ceramic Cap. 0.100 50V Z 01 C301 Monolithic Ceramic Cap. 0.100 50V Z 01 C401 Capacitor 0.010 VA1 J.U.C.S 01 CN201 FFC Connector 52807 26P SE 02 CN301 Connector Assembly SAN&PH 8P 250L 05 CN401 Base Post Connector VA- 2P TE 01 EM301 LC Filter DSS6NB32A271Q93A 01 EM302 LC Filter DSS6NB32A271Q93A 01 JK301 Modular Jack 52018-8845 04 JK302 Modular Jack 52018-8845 04 JK303 DIN Connector JACK 5P3 YKF51-50 04 JK304 Modular Jack 8P TM11R-5N2-88 05 JK305 Modular Jack 8P TM11R-5N2-88 05 JK306 BNC Connector COH2183-02 05 K301 Screw Terminal 8.3X13 M1698 01 L301 Coil FL5R200QNT 01 -304 Coil FL5R200QNT 01 LD201 LED SLZ-235B-08-T1 GR 01 RD355270 RD356100 RD357100 RD357100 RD154330 RD154330 RD356150 RD357220 RD357220 RD150000 RD357100 RD350000 RD357100 RD350000 RD357220 RD357220 RD354100 RD350000 RD350000 RD350000 RD357100 RD355750 RD356330 RD354220 RD354220 RD350000 RD359100 RD355560 RD354100 RD354100 RD150000 RD350000 RD354100 RD354100 RE044470 RE044470 RE047220 RE047220 RE047220 RE047220 V9614600 V8249200 VY681200 VI573400 VM905800 VZ156100 V9050300 V9050200 V9050400 VT439600 VT439600 VT439600 VT439600 V7682800 V8756100 VQ251300 VG879900 VI243100 VI243100 V8244900 V8244900 VK519000 V6135300 V6135300 V5107900 BB071360 VB835000 VB835000 VU091400 部品名チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗カーボン抵抗カーボン抵抗カーボン抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗抵抗アレイ抵抗アレイ抵抗アレイ抵抗アレイ抵抗アレイ抵抗アレイロータリーＳＷ水晶振動子セラミック発振子水晶振動子水晶振動子水晶発振器シートＪＡＣＫシートＬＥＤシートＰＳＷ積層セラコン積層セラコン積層セラコン積層セラコン規格認定コンＫＨＦＦＣコネクタ束線＃２８ベースツキポストＬＣフィルターＬＣフィルターモジュラージャック８Ｐモジュラージャック８ＰＤＩＮコネクタ２連モジュラージャックモジュラージャック２ＰＢＮＣコネクタネジ端子Ｍ３コイル２０Ｕコイル２０ＵＬＥＤ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 8 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * LD202 LED SLZ-235B-08-T1 GR 01 LD203 LED SLZ-235B-08-T1 GR 01 LD204 LED SLZ-235B-08-T1 GR 01 LD205 LED SLZ-235B-08-T1 GR 01 LD206 LED SLZ-235B-08-T1 GR 01 LD207 LED SLZ-235B-08-T1 GR 01 LD208 LED SLZ-235B-08-T1 GR 01 LD209 LED SLZ-235B-08-T1 GR 01 LD210 LED LB-602DK2 OR 04 LD211 LED SLZ-235B-08-T1 GR 01 LD212 LED SLZ-235B-08-T1 GR 01 LD213 LED SLZ-235B-08-T1 GR 01 LD214 LED SLZ-235B-08-T1 GR 01 LD215 LED SLZ-235B-08-T1 GR 01 LD216 LED SLZ-235B-08-T1 GR 01 LD217 LED SLZ-235B-08-T1 GR 01 LD218 LED SLZ-235B-08-T1 GR 01 LD220 LED SLZ-235B-08-T1 GR 01 LD221 LED SLZ-235B-08-T1 GR 01 LD223 LED SLZ-235B-08-T1 GR 01 LD224 LED SLZ-435B-08-T1 YE 01 LD226 LED SLZ-135B-08-T1 RE 01 R201 Carbon Resistor 47.0 1/4 J 01 -208 Carbon Resistor 47.0 1/4 J 01 R301 Carbon Resistor 75.0 1/4 J 01 SW201 Tact Switch SKQNAED010 01 SW202 Tact Switch SKQNAED010 01 SW203 Tact Switch SKQNAED010 01 SW204 Tact Switch SKQNAED010 01 SW301 Slide Switch SSSF04 02 SW401 Push Switch ESB92S23B J.U.C.S 02 TA201 Transistor Array TD62783AP 04 TA202 Transistor Array TD62381P 04 Circuit Board AES1 (X2655B0) Circuit Board AES2 (X2655B0) C201 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -215 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C217 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -226 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C301 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -318 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C319 Mylar Capacitor(Chip) 0.0047 16V J 01 -322 Mylar Capacitor(Chip) 0.0047 16V J 01 C323 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -326 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C338 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -342 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C343 Monolithic Ceramic Cap. F 0.330 16V Z 01 -350 Monolithic Ceramic Cap. F 0.330 16V Z 01 C351 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -353 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C401 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -418 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C419 Mylar Capacitor(Chip) 0.0047 16V J 01 -422 Mylar Capacitor(Chip) 0.0047 16V J 01 C423 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -426 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C438 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -441 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C442 Monolithic Ceramic Cap. F 0.330 16V Z 01 -449 Monolithic Ceramic Cap. F 0.330 16V Z 01 C450 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -452 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C501 Electrolytic Cap. (chip) 100 16V 01 C502 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C503 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C601 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -608 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C609 Electrolytic Cap. (chip) 100 16V 01 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 V5477900 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 VU091400 V4845500 VT838500 HF754470 HF754470 HF754750 VV056000 VV056000 VV056000 VV056000 VQ545800 V3127000 VK456300 VJ041400 V9050900 V9051000 US145100 US145100 US145100 US145100 US145100 US145100 VP864400 VP864400 US145100 US145100 US145100 US145100 UB445330 UB445330 US145100 US145100 US145100 US145100 VP864400 VP864400 US145100 US145100 US145100 US145100 UB445330 UB445330 US145100 US145100 UF038100 US145100 US145100 US145100 US145100 UF038100 部品名ＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤ７セグメントＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤＬＥＤカーボン抵抗カーボン抵抗カーボン抵抗タクトＳＷタクトＳＷタクトＳＷタクトＳＷスライドＳＷプッシュＳＷトランジスタアレイトランジスタアレイシートＡＥＳ１シートＡＥＳ２チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップマイラーチップマイラーチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップ積層セラコンチップ積層セラコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップマイラーチップマイラーチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップ積層セラコンチップ積層セラコンチップセラ（Ｆ）チップセラ（Ｆ）チップケミコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップケミコン www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 9 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C610 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C611 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C613 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -618 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C701 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -718 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C719 Mylar Capacitor(Chip) 0.0047 16V J 01 -722 Mylar Capacitor(Chip) 0.0047 16V J 01 C723 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -726 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C738 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -742 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C743 Monolithic Ceramic Cap. F 0.330 16V Z 01 -750 Monolithic Ceramic Cap. F 0.330 16V Z 01 C751 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -753 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C801 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -818 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C819 Mylar Capacitor(Chip) 0.0047 16V J 01 -822 Mylar Capacitor(Chip) 0.0047 16V J 01 C823 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -826 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C833 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C838 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 -841 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C842 Monolithic Ceramic Cap. F 0.330 16V Z 01 -849 Monolithic Ceramic Cap. F 0.330 16V Z 01 C850 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C851 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 C901 Ceramic Capacitor-F (chip) 0.1000 25V Z 01 CN201 Connector 52808 25P TE 02 CN202 Connector 52808 25P TE 02 CN203 Connector 52808 25P TE 02 CN301 D-sub Connector JBY 25P SE 05 CN401 D-sub Connector JBY 25P SE 05 CN501 Connector 52808 26P TE 01 -503 Connector 52808 26P TE 01 CN504 D-sub Connector 17LE-23090-27(D41) 04 CN603 Connector 52808 25P TE 02 -605 Connector 52808 25P TE 02 CN701 D-sub Connector JBY 25P SE 05 CN801 D-sub Connector JBY 25P SE 05 CN901 D-sub Connector 17LE-23090-27(D41) 04 EM501 LC Filter DSS6NF31C223Q93A 01 EM502 LC Filter DSS6NB32A271Q93A 01 EM503 LC Filter DSS6NB32A271Q93A 01 EM901 LC Filter DSS6NB32A271Q93A 01 -904 LC Filter DSS6NB32A271Q93A 01 IC201 IC TC74VHC08FT AND 01 IC202 IC TC74VHC138FT 3-8 DEMULTIPLEXER 01 IC203 IC TC74VHC245FT BUFFER 03 IC203 IC 74VHC245MTCX BUFFER 02 IC204 IC TC74VHC245FT BUFFER 03 IC204 IC 74VHC245MTCX BUFFER 02 IC205 IC HD74HC245TELL BUFFER 02 IC206 IC TC74VHC245FT BUFFER 03 IC206 IC 74VHC245MTCX BUFFER 02 IC207 IC TC74VHC245FT BUFFER 03 IC207 IC 74VHC245MTCX BUFFER 02 IC208 IC TC74VHC245FT BUFFER 03 IC208 IC 74VHC245MTCX BUFFER 02 IC209 IC TC74VHC245FT BUFFER 03 IC209 IC 74VHC245MTCX BUFFER 02 IC210 IC TC74VHC245FT BUFFER 03 IC210 IC 74VHC245MTCX BUFFER 02 IC211 IC TC74VHC245FT BUFFER 03 IC211 IC 74VHC245MTCX BUFFER 02 IC212 IC TC74VHC245FT BUFFER 03 IC212 IC 74VHC245MTCX BUFFER 02 IC213 IC TC74VHC245FT BUFFER 03 US145100 US145100 US145100 US145100 US145100 US145100 VP864400 VP864400 US145100 US145100 US145100 US145100 UB445330 UB445330 US145100 US145100 US145100 US145100 VP864400 VP864400 US145100 US145100 US145100 US145100 US145100 UB445330 UB445330 US145100 US145100 US145100 V9560700 V9560700 V9560700 VR147400 VR147400 V6478900 V6478900 V6164700 V9560700 V9560700 VR147400 VR147400 V6164700 VD542700 VI243100 VI243100 VI243100 VI243100 XV891A00 XZ495A00 XU797A00 X0296A00 XU797A00 X0296A00 X3696A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 * * 部品名チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップマイラーチップマイラーチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップ積層セラコンチップ積層セラコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップマイラーチップマイラーチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）チップ積層セラコンチップ積層セラコンチップセラ（Ｆ）チップセラ（Ｆ）チップセラ（Ｆ）ＦＦＣ／ＦＰＣコネクタＦＦＣ／ＦＰＣコネクタＦＦＣ／ＦＰＣコネクタＤサブコネクターＤサブコネクターＦＦＣ／ＦＰＣコネクタＦＦＣ／ＦＰＣコネクタＤサブ・コネクタＦＦＣ／ＦＰＣコネクタＦＦＣ／ＦＰＣコネクタＤサブコネクターＤサブコネクターＤサブ・コネクタＬＣフィルターＥＭＩＬＣフィルターＬＣフィルターＬＣフィルターＬＣフィルターＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 10 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * IC213 IC 74VHC245MTCX BUFFER 02 IC214 IC TC74VHC245FT BUFFER 03 IC214 IC 74VHC245MTCX BUFFER 02 IC215 IC SN74HC273NSR D-FF 01 IC216 IC TC74VHC74FT D-FF 01 -219 IC TC74VHC74FT D-FF 01 IC220 IC TC74VHC245FT BUFFER 03 IC220 IC 74VHC245MTCX BUFFER 02 IC222 IC TC74VHC04FT INVERTER 01 IC223 IC SN74HC273NSR D-FF 01 IC224 IC SN74HC273NSR D-FF 01 IC225 IC TC74HC251AF SELECTOR 03 IC226 IC TC74HC251AF SELECTOR 03 IC301 IC DS26C32ATMX RECEIVER 06 IC301 IC AM26LS32ACNSR RECEIVER IC302 IC AM26LS31CNSR TRANSMITTER 05 IC303 IC YM3436DK DIR2 11 -306 IC YM3436DK DIR2 11 IC310 IC TC74VHC245FT BUFFER 03 IC310 IC 74VHC245MTCX BUFFER 02 IC311 IC YM3437C-FE2 DIT2 04 -314 IC YM3437C-FE2 DIT2 04 IC315 IC M51953AFP RESET 01 -318 IC M51953AFP RESET 01 IC319 IC TC74VHC04FT INVERTER 01 IC320 IC TC74VHC04FT INVERTER 01 IC321 IC TC74VHC08FT AND 01 IC401 IC DS26C32ATMX RECEIVER 06 IC401 IC AM26LS32ACNSR RECEIVER IC402 IC AM26LS31CNSR TRANSMITTER 05 IC403 IC YM3436DK DIR2 11 -406 IC YM3436DK DIR2 11 IC410 IC YM3437C-FE2 DIT2 04 -413 IC YM3437C-FE2 DIT2 04 IC414 IC TC74VHC08FT AND 01 IC415 IC TC74VHC04FT INVERTER 01 IC416 IC TC74VHC04FT INVERTER 01 IC417 IC M51953AFP RESET 01 -420 IC M51953AFP RESET 01 IC501 IC TC74VHC245FT BUFFER 03 IC501 IC 74VHC245MTCX BUFFER 02 IC502 IC SN75C1168NSR DRIVER/RECEIVER 05 IC601 IC TC74VHC245FT BUFFER 03 IC601 IC 74VHC245MTCX BUFFER 02 IC602 IC TC74VHC245FT BUFFER 03 IC602 IC 74VHC245MTCX BUFFER 02 IC603 IC TC74VHC245FT BUFFER 03 IC603 IC 74VHC245MTCX BUFFER 02 IC604 IC TC74VHC245FT BUFFER 03 IC604 IC 74VHC245MTCX BUFFER 02 IC605 IC TC74VHC245FT BUFFER 03 IC605 IC 74VHC245MTCX BUFFER 02 IC606 IC TC74VHC245FT BUFFER 03 IC606 IC 74VHC245MTCX BUFFER 02 IC607 IC TC74VHC245FT BUFFER 03 IC607 IC 74VHC245MTCX BUFFER 02 IC608 IC TC74VHC245FT BUFFER 03 IC608 IC 74VHC245MTCX BUFFER 02 IC609 IC SN74HC273NSR D-FF 01 IC610 IC TC74VHC74FT D-FF 01 -613 IC TC74VHC74FT D-FF 01 IC614 IC TC74VHC245FT BUFFER 03 IC614 IC 74VHC245MTCX BUFFER 02 IC616 IC SN74HC273NSR D-FF 01 IC617 IC SN74HC273NSR D-FF 01 IC701 IC DS26C32ATMX RECEIVER 06 IC701 IC AM26LS32ACNSR RECEIVER IC702 IC AM26LS31CNSR TRANSMITTER 05 IC703 IC YM3436DK DIR2 11 -706 IC YM3436DK DIR2 11 X0296A00 XU797A00 X0296A00 XH223A00 XV892A00 XV892A00 XU797A00 X0296A00 X0195A00 XH223A00 XH223A00 XQ968A00 XQ968A00 XU815A00 X3251A00 XU996A00 XG948E00 XG948E00 XU797A00 X0296A00 XW060A00 XW060A00 XW422A00 XW422A00 X0195A00 X0195A00 XV891A00 XU815A00 X3251A00 XU996A00 XG948E00 XG948E00 XW060A00 XW060A00 XV891A00 X0195A00 X0195A00 XW422A00 XW422A00 XU797A00 X0296A00 XU073A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XU797A00 X0296A00 XH223A00 XV892A00 XV892A00 XU797A00 X0296A00 XH223A00 XH223A00 XU815A00 X3251A00 XU996A00 XG948E00 XG948E00 部品名ＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 11 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * IC710 IC TC74VHC245FT BUFFER 03 IC710 IC 74VHC245MTCX BUFFER 02 IC711 IC YM3437C-FE2 DIT2 04 -714 IC YM3437C-FE2 DIT2 04 IC715 IC TC74VHC08FT AND 01 IC716 IC TC74VHC04FT INVERTER 01 IC717 IC TC74VHC04FT INVERTER 01 IC718 IC M51953AFP RESET 01 -721 IC M51953AFP RESET 01 IC801 IC DS26C32ATMX RECEIVER 06 IC801 IC AM26LS32ACNSR RECEIVER IC802 IC AM26LS31CNSR TRANSMITTER 05 IC803 IC YM3436DK DIR2 11 -806 IC YM3436DK DIR2 11 IC810 IC YM3437C-FE2 DIT2 04 -813 IC YM3437C-FE2 DIT2 04 IC814 IC TC74VHC08FT AND 01 IC815 IC TC74VHC04FT INVERTER 01 IC816 IC TC74VHC04FT INVERTER 01 IC817 IC M51953AFP RESET 01 -820 IC M51953AFP RESET 01 IC901 IC SN75C1168NSR DRIVER/RECEIVER 05 L201 Chip Solid Inductance BLM31A700SPT 70ohm 01 -216 Chip Solid Inductance BLM31A700SPT 70ohm 01 L301 Noise Filter ZJY51R5-8P 07 L302 Noise Filter ZJY51R5-8P 07 L303 Pulse Transformer TB06A015 05 -310 Pulse Transformer TB06A015 05 L401 Noise Filter ZJY51R5-8P 07 L402 Noise Filter ZJY51R5-8P 07 L403 Pulse Transformer TB06A015 05 -410 Pulse Transformer TB06A015 05 L701 Noise Filter ZJY51R5-8P 07 L702 Noise Filter ZJY51R5-8P 07 L703 Pulse Transformer TB06A015 05 -710 Pulse Transformer TB06A015 05 L801 Noise Filter ZJY51R5-8P 07 L802 Noise Filter ZJY51R5-8P 07 L803 Pulse Transformer TB06A015 05 -810 Pulse Transformer TB06A015 05 R201 Carbon Resistor (chip) 10.0K 63M J 01 R202 Carbon Resistor (chip) 56.0 63M J 01 R203 Carbon Resistor (chip) 56.0 63M J 01 R204 Carbon Resistor (chip) 47.0 63M J 01 R205 Carbon Resistor (chip) 47.0 63M J 01 R206 Carbon Resistor (chip) 10.0 63M J 01 R207 Carbon Resistor (chip) 10.0 63M J 01 R208 Carbon Resistor (chip) 10.0K 63M J 01 -223 Carbon Resistor (chip) 10.0K 63M J 01 R301 Carbon Resistor (chip) 110.0 63M J 01 -304 Carbon Resistor (chip) 110.0 63M J 01 R305 Carbon Resistor (chip) 10.0 63M J 01 -312 Carbon Resistor (chip) 10.0 63M J 01 R313 Carbon Resistor (chip) 100.0 63M J 01 -316 Carbon Resistor (chip) 100.0 63M J 01 R317 Carbon Resistor (chip) 3.3K 63M J 01 -320 Carbon Resistor (chip) 3.3K 63M J 01 R325 Carbon Resistor (chip) 56.0 63M J 01 R326 Carbon Resistor (chip) 56.0 63M J 01 R327 Carbon Resistor (chip) 100.0 63M J 01 -330 Carbon Resistor (chip) 100.0 63M J 01 R332 Carbon Resistor (chip) 68.0 63M J 01 R333 Carbon Resistor (chip) 47.0 63M J 01 R334 Carbon Resistor (chip) 0.0 1/4 J 01 -337 Carbon Resistor (chip) 0.0 1/4 J 01 R401 Carbon Resistor (chip) 110.0 63M J 01 -404 Carbon Resistor (chip) 110.0 63M J 01 R405 Carbon Resistor (chip) 10.0 63M J 01 -412 Carbon Resistor (chip) 10.0 63M J 01 R413 Carbon Resistor (chip) 100.0 63M J 01 XU797A00 X0296A00 XW060A00 XW060A00 XV891A00 X0195A00 X0195A00 XW422A00 XW422A00 XU815A00 X3251A00 XU996A00 XG948E00 XG948E00 XW060A00 XW060A00 XV891A00 X0195A00 X0195A00 XW422A00 XW422A00 XU073A00 VL139800 VL139800 VP246200 VP246200 V7930100 V7930100 VP246200 VP246200 V7930100 V7930100 VP246200 VP246200 V7930100 V7930100 VP246200 VP246200 V7930100 V7930100 RD357100 RD354560 RD354560 RD354470 RD354470 RD354100 RD354100 RD357100 RD357100 RD355110 RD355110 RD354100 RD354100 RD355100 RD355100 RD356330 RD356330 RD354560 RD354560 RD355100 RD355100 RD354680 RD354470 RD150000 RD150000 RD355110 RD355110 RD354100 RD354100 RD355100 部品名ＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣＩＣチップソリッドインダクタチップソリッドインダクタノイズフィルタ－ノイズフィルタ－パルストランスパルストランスノイズフィルタ－ノイズフィルタ－パルストランスパルストランスノイズフィルタ－ノイズフィルタ－パルストランスパルストランスノイズフィルタ－ノイズフィルタ－パルストランスパルストランスチップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NHB32-C 12 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only -416 Carbon Resistor (chip) 100.0 63M J 01 R417 Carbon Resistor (chip) 3.3K 63M J 01 -420 Carbon Resistor (chip) 3.3K 63M J 01 R421 Carbon Resistor (chip) 100.0 63M J 01 -424 Carbon Resistor (chip) 100.0 63M J 01 R425 Carbon Resistor (chip) 0.0 1/4 J 01 -428 Carbon Resistor (chip) 0.0 1/4 J 01 R501 Carbon Resistor (chip) 470.0 63M J 01 R502 Carbon Resistor (chip) 470.0 63M J 01 R503 Carbon Resistor (chip) 10.0 63M J 01 R504 Carbon Resistor (chip) 10.0K 63M J 01 R507 Carbon Resistor (chip) 1.5K 63M J 01 R601 Carbon Resistor (chip) 10.0K 63M J 01 -608 Carbon Resistor (chip) 10.0K 63M J 01 R701 Carbon Resistor (chip) 110.0 63M J 01 -704 Carbon Resistor (chip) 110.0 63M J 01 R705 Carbon Resistor (chip) 10.0 63M J 01 -712 Carbon Resistor (chip) 10.0 63M J 01 R713 Carbon Resistor (chip) 100.0 63M J 01 -716 Carbon Resistor (chip) 100.0 63M J 01 R717 Carbon Resistor (chip) 3.3K 63M J 01 -720 Carbon Resistor (chip) 3.3K 63M J 01 R725 Carbon Resistor (chip) 56.0 63M J 01 R726 Carbon Resistor (chip) 56.0 63M J 01 R727 Carbon Resistor (chip) 100.0 63M J 01 -730 Carbon Resistor (chip) 100.0 63M J 01 R732 Carbon Resistor (chip) 47.0 63M J 01 R733 Carbon Resistor (chip) 68.0 63M J 01 R734 Carbon Resistor (chip) 0.0 1/4 J 01 -737 Carbon Resistor (chip) 0.0 1/4 J 01 R801 Carbon Resistor (chip) 110.0 63M J 01 -804 Carbon Resistor (chip) 110.0 63M J 01 R805 Carbon Resistor (chip) 10.0 63M J 01 -812 Carbon Resistor (chip) 10.0 63M J 01 R813 Carbon Resistor (chip) 100.0 63M J 01 -816 Carbon Resistor (chip) 100.0 63M J 01 R817 Carbon Resistor (chip) 3.3K 63M J 01 -820 Carbon Resistor (chip) 3.3K 63M J 01 R821 Carbon Resistor (chip) 100.0 63M J 01 -824 Carbon Resistor (chip) 100.0 63M J 01 R825 Carbon Resistor (chip) 0.0 1/4 J 01 -828 Carbon Resistor (chip) 0.0 1/4 J 01 R901 Carbon Resistor (chip) 470.0 63M J 01 R902 Carbon Resistor (chip) 470.0 63M J 01 R903 Carbon Resistor (chip) 10.0 63M J 01 R904 Carbon Resistor (chip) 10.0 63M J 01 R905 Carbon Resistor (chip) 10.0K 63M J 01 RD355100 RD356330 RD356330 RD355100 RD355100 RD150000 RD150000 RD355470 RD355470 RD354100 RD357100 RD356150 RD357100 RD357100 RD355110 RD355110 RD354100 RD354100 RD355100 RD355100 RD356330 RD356330 RD354560 RD354560 RD355100 RD355100 RD354470 RD354680 RD150000 RD150000 RD355110 RD355110 RD354100 RD354100 RD355100 RD355100 RD356330 RD356330 RD355100 RD355100 RD150000 RD150000 RD355470 RD355470 RD354100 RD354100 RD357100 部品名チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗チップ抵抗 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
