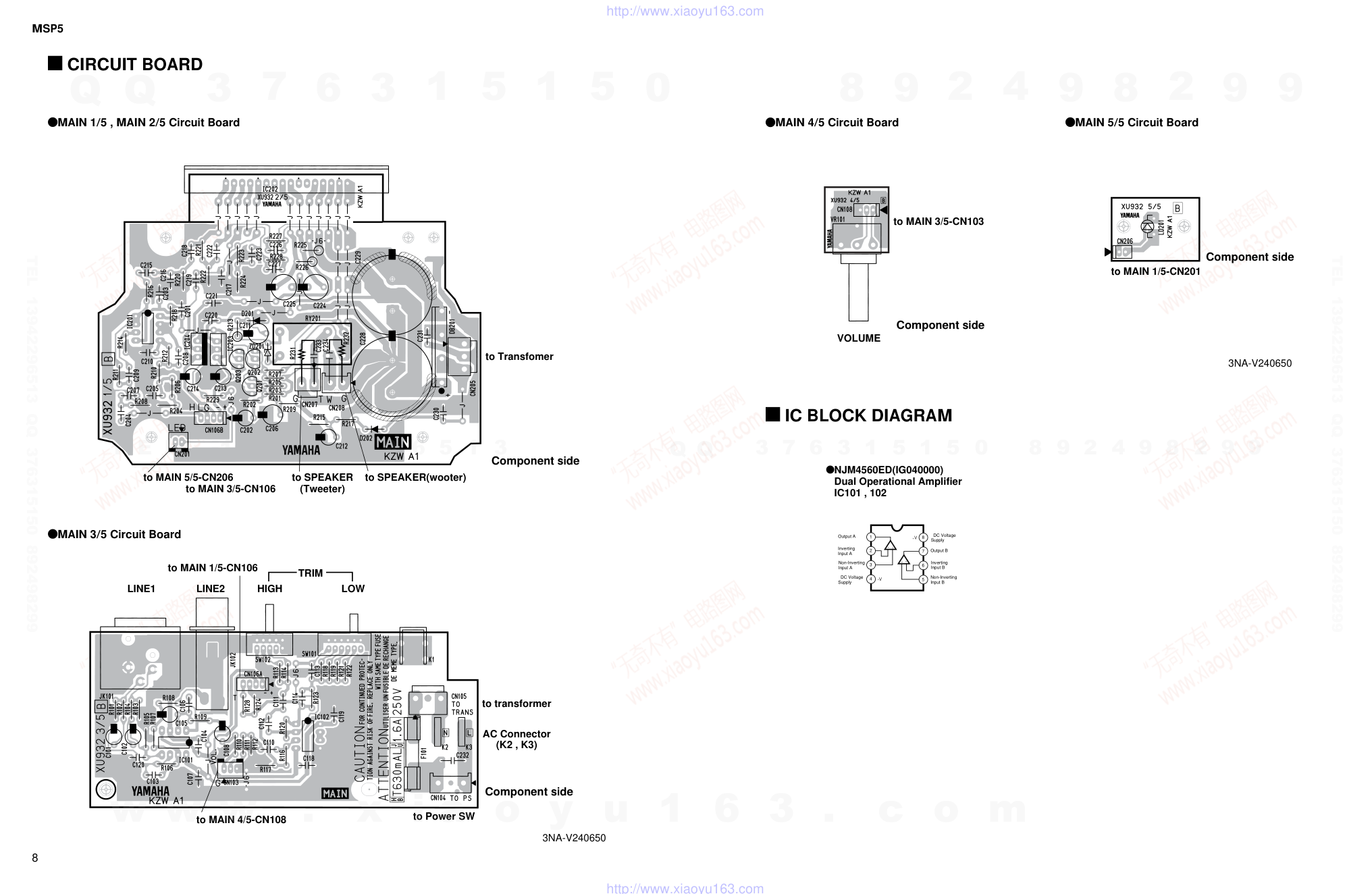

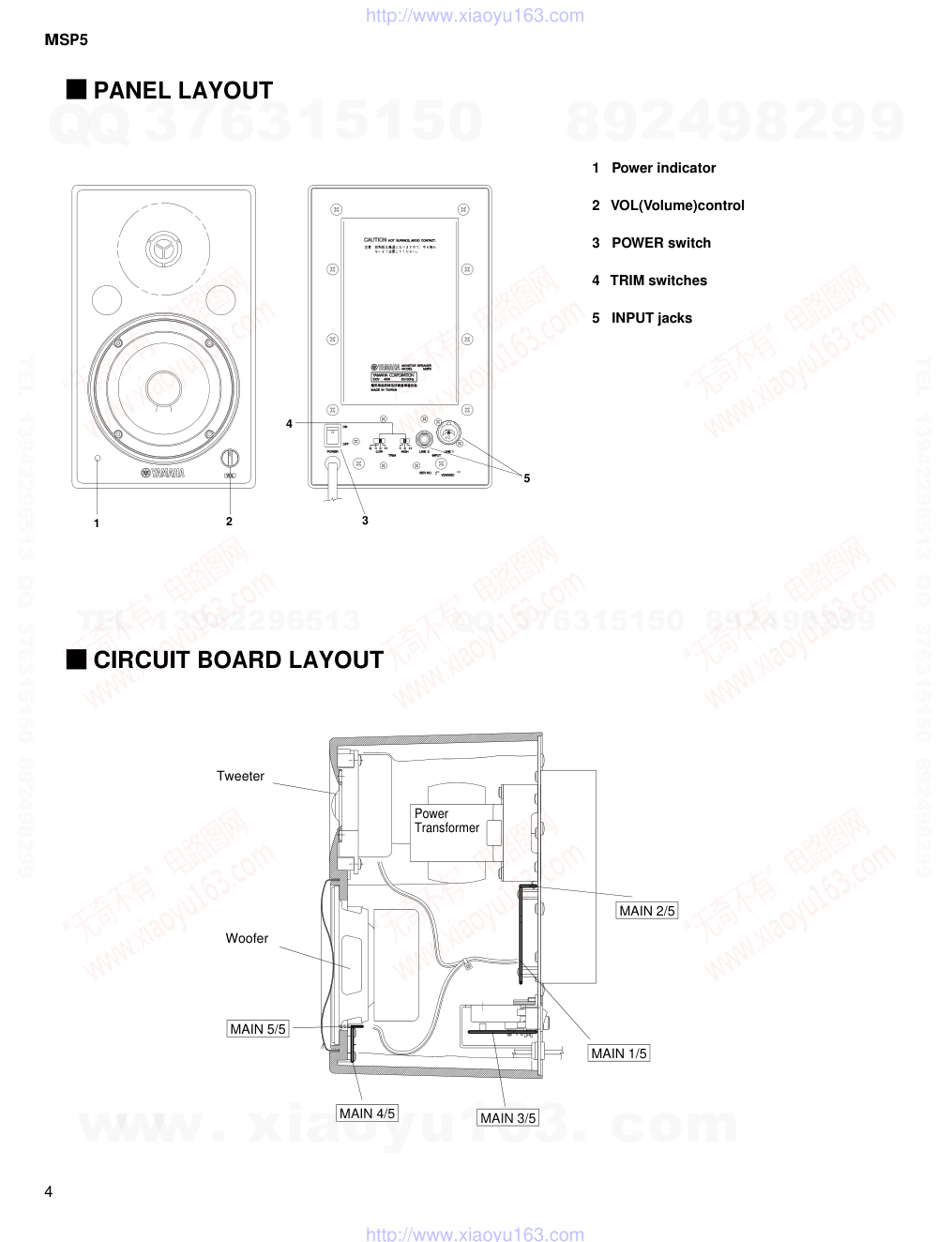

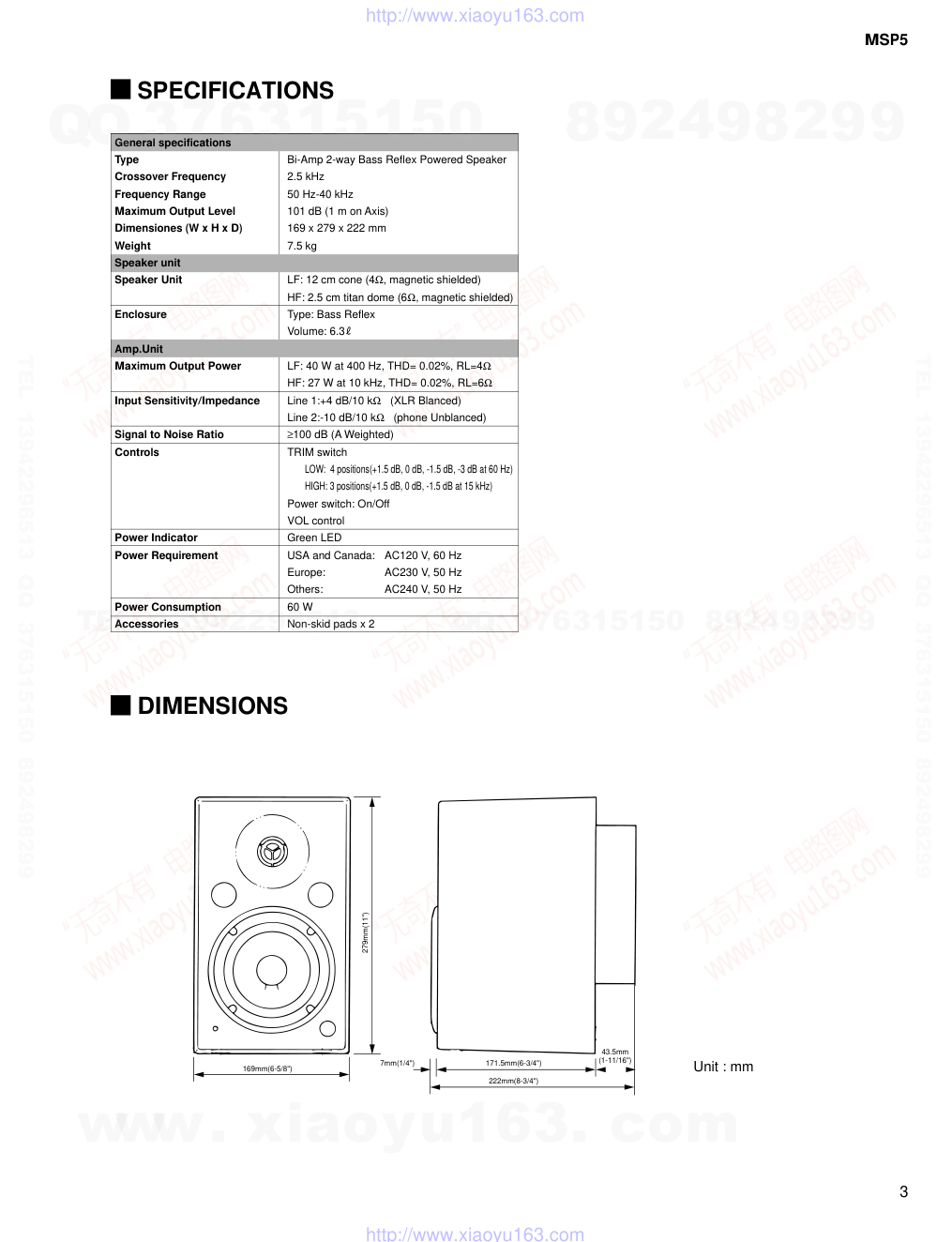

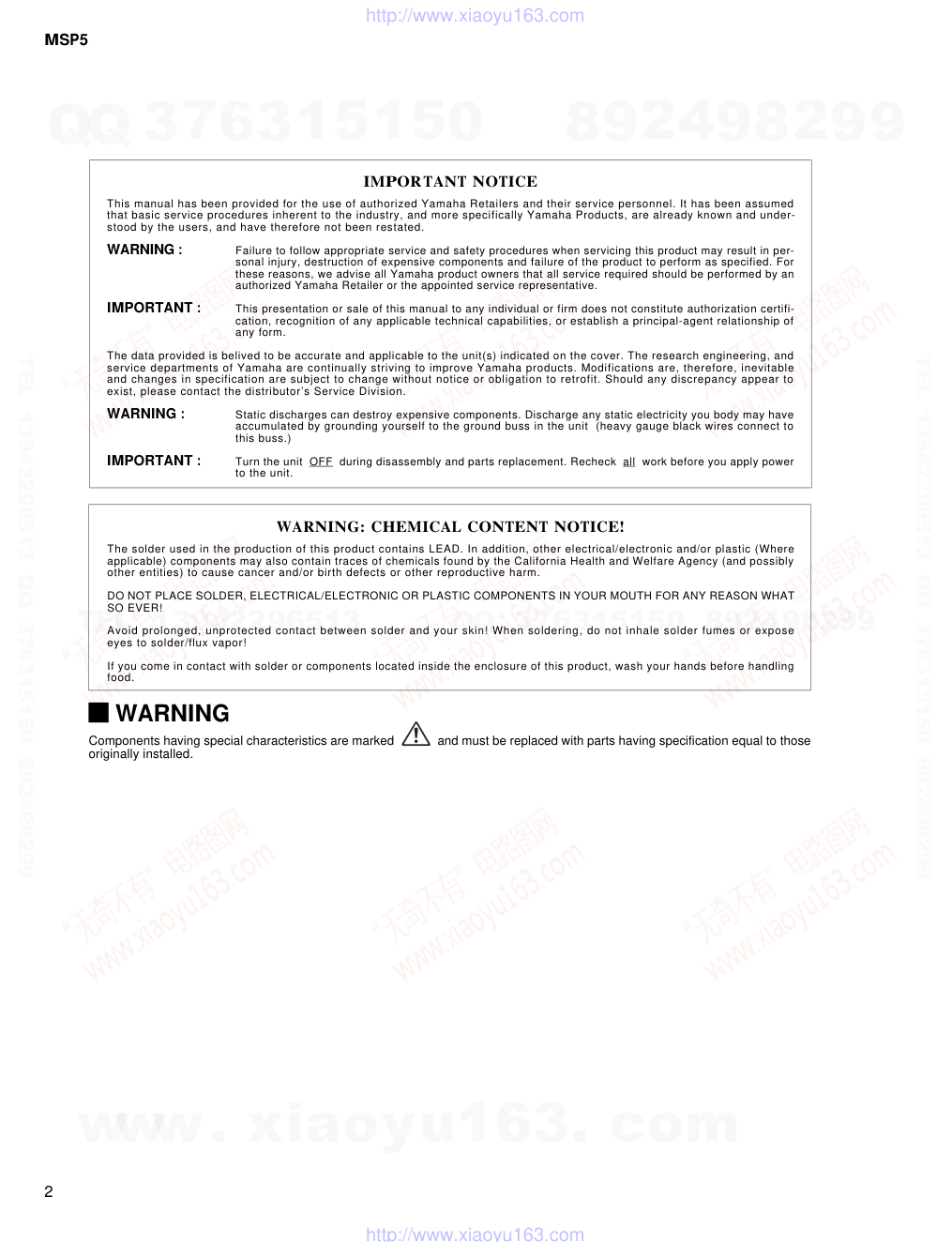

MSP5 1 CONTENTS SPECIFICATIONS ................................................. 3 DIMENSIONS ............................................................ 3 PANEL LAYOUT ..................................... 4 CIRCUIT BOARD LAYOUT ................. 4 BLOCK & LEVEL DIAGRAM .... 5 DISASSEMBLY PROCEDURE ............................. 6 CIRCUIT BOARD ........................................... 8 IC BLOCK DIAGRAM ..................................... 8 OVERALL CIRCUIT DIAGRAM ............................ 9 PARTS LIST SERVICE MANUAL PA 011409 19980915-30000 1.94K-482 Printed in Japan ’98.08 HAMAMATSU, JAPAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 2 IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor’s Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity you body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 3 SPECIFICATIONS DIMENSIONS 169mm(6-5/8") 171.5mm(6-3/4") 7mm(1/4") 43.5mm (1-11/16") 222mm(8-3/4") 279mm(11") Bi-Amp 2-way Bass Reflex Powered Speaker 2.5 kHz 50 Hz-40 kHz 101 dB (1 m on Axis) 169 x 279 x 222 mm 7.5 kg LF: 12 cm cone (4Ω, magnetic shielded) HF: 2.5 cm titan dome (6Ω, magnetic shielded) Type: Bass Reflex Volume: 6.3 LF: 40 W at 400 Hz, THD= 0.02%, RL=4Ω HF: 27 W at 10 kHz, THD= 0.02%, RL=6Ω Line 1:+4 dB/10 kΩ (XLR Blanced) Line 2:-10 dB/10 kΩ (phone Unblanced) ≥100 dB (A Weighted) TRIM switch LOW: 4 positions(+1.5 dB, 0 dB, -1.5 dB, -3 dB at 60 Hz) HIGH: 3 positions(+1.5 dB, 0 dB, -1.5 dB at 15 kHz) Power switch: On/Off VOL control Green LED USA and Canada: AC120 V, 60 Hz Europe: AC230 V, 50 Hz Others: AC240 V, 50 Hz 60 W Non-skid pads x 2 General specifications Type Crossover Frequency Frequency Range Maximum Output Level Dimensiones (W x H x D) Weight Speaker unit Speaker Unit Enclosure Amp.Unit Maximum Output Power Input Sensitivity/Impedance Signal to Noise Ratio Controls Power Indicator Power Requirement Power Consumption Accessories Unit : mm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 4 PANEL LAYOUT CIRCUIT BOARD LAYOUT 1 Power indicator 2 VOL(Volume)control 3 POWER switch 4 TRIM switches 5 INPUT jacks 1 2 3 4 5 Tweeter Woofer Power Transformer MAIN 5/5 MAIN 4/5 MAIN 3/5 MAIN 1/5 MAIN 2/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 5 BLOCK & LEVEL DIAGRAM Tweeter IC101 IC202 Woofer 1 6 5 2 1 15 5 16 1 _ + 2 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 6 DISASSEMBLY PROCEDURE Remove the speaker cabinet first. 1 Woofer 1-1 Remove the four (4) screws marked [110]. The woofer can then be removed. (Fig. 1) 2 Amplifier Assembly 2-1 Remove the woofer. (See procedure 1) 2-2 Remove the eight (8) screws marked [130] and the two (2) screws marked [A180]. The amplifier assembly can then be removed. (Fig.2) 3 Tweeter 3-1 Remove the woofer. (See procedure 1) 3-2 Remove the amplifier assembly. (See procedure 2) 3-3 Remove the four (4) screws marked [120]. The tweeter can then be removed. (Fig. 3) Fig.1 Fig.2 Fig.3 [110] [130] [A180] [130] [120] [110]: Cap Screw 4.0X14 MFZN2BL (V2433800) [130]: Bind Head Tapping Screw-P 5.0X20 MFZN2BL (V2436600) [A180]: Bonding Tapping Screw-B 3.0X10 MFZN2BL (VQ049800) [120]: Bind Head Tapping Screw-P 4.0X16 MFZN2BL (VA835700) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 MSP5 7 [A180C] [A180A] [A190][A200] [A180B] [60] 4 Power Transformer 4-1 Remove the woofer. (See procedure 1) 4-2 Remove the amplifier assembly. (See procedure 2) 4-3 Remove the three (3) screws marked [A150A] and one (1) screw marked [A151A]. The power transformer with the base can then be removed. (Fig. 4) 4-4 Remove the four (4) screws marked [A150B]. The power transformer can then be removed. 5 MAIN (1/5,2/5) Circuit Board 5-1 Remove the woofer. (See procedure 1) 5-2 Remove the amplifier assembly. (See procedure 2) 5-3 Remove the power transformer. (See procedure 4) 5-4 Remove the four (4) screw marked [A170] and the two (2) screws marked [A160]. The MAIN (1/5,2/5) circuit board can then be removed. (Fig.4) 6 MAIN 3/5 Circuit Board 6-1 Remove the woofer. (See procedure 1) 6-2 Remove the amplifier assembly. (See procedure 2) 6-3 Remove the four (4) screws marked [A180A]. The shield sheet can then be removed. (Fig.5) 6-4 Remove the two (2) screws marked [A180B], the nut marked [A190], the washer marked [A200] and the screw marked [A180C]. The MAIN 3/5 circuit board can then be removed. (Fig.5) Fig.4 Fig.5 Fig.6 Fig.7 Fig.8 [A151] [A150] [A150] [A150] [A150] [A151] [140] [A150A] [A150A] [A170] [A160] [A150B] [A150A] [A151A] [A170] [A150B] [A150]: Bind Head Tapping Screw-B 4.0X10 MFZN2BL (EP600240) [A151]: Bonding Tapping Screw-B 4.0X10 MFZN2Y (V2491300) [A160]: Bind Head Screw 3.0X14 MFZN2BL (VH610100) [A170]: Bind Head Screw 3.0X6 MFZN2BL (EG330360) [A180]: Bonding Tapping Screw-B 3.0X10 MFZN2BL (VQ049800) [A190]: Hexagonal Nut 12.0 14X2 MFZN2BL (VD794100) [A200]: Flat Washer 12S MFC2BL (VB004700) [140]: Bind Head Tapping Screw-P 3.5X8 ZMCBL (VD277800) [A150]: Bind Head Tapping Screw-B 4.0X10 MFZN2BL (EP600240) [A151]: Bonding Tapping Screw-B 4.0X10 MFZN2Y (V2491300) 7 MAIN 4/5 Circuit Board 7-1 Remove the woofer. (See procedure 1) 7-2 Remove the amplifier assembly. (See procedure 2) 7-3 Remove the knob marked [60] and the nut. The MAIN 4/5 circuit board with the volume can then be removed. (Fig.6) 8 MAIN 5/5 Circuit Board 8-1 Remove the woofer. (See procedure 1) 8-2 Remove the amplifier assembly. (See procedure 2) 8-3 Remove the two (2) marked [140]. The MAIN 5/5 circuit board can then be removed. (Fig.7) 9 Heat Sink 9-1 Remove the woofer. (See procedure 1) 9-2 Remove the amplifier assembly. (See procedure 2) 9-3 Remove the power transformer. (See procedure 4) 9-4 Remove the MAIN 1/5 circuit board. (See procedure 5) 9-5 Remove the two (2) screws marked [A151] and the eight (8) screws marked [A150]. The heat sink can then be removed. (Fig.8) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 MSP5 8 3NA-V240650 to MAIN 4/5-CN108 to transformer AC Connector (K2 , K3) to MAIN 1/5-CN106 to Power SW LINE1 LINE2 HIGH TRIM LOW Component side MAIN 3/5 Circuit Board Component side CIRCUIT BOARD MAIN 1/5 , MAIN 2/5 Circuit Board to Transfomer to MAIN 5/5-CN206 to SPEAKER (Tweeter) to SPEAKER(wooter) to MAIN 3/5-CN106 to MAIN 3/5-CN103 VOLUME to MAIN 1/5-CN201 MAIN 4/5 Circuit Board MAIN 5/5 Circuit Board Component side Component side NJM4560ED(IG040000) Dual Operational Amplifier IC101 , 102 3NA-V240650 IC BLOCK DIAGRAM Output A Inverting Input A Non-Inverting Input A DC Voltage Supply DC Voltage Supply Output B Inverting Input B Non-Inverting Input B 1 2 3 4 8 7 6 5 - + - + -V +V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 B C D E F G H I J K A L A B C D E G F H I J K L 3 4 5 6 7 8 NJM79M15FA (XG505A00) REGULATOR -15V MSP5 1 2 3 MODEL POWER TRANSFORMER MODEL VOLTAGE PARTS No TRIM MSP5 OVERALL CIRCUIT DIAGRAM 2 1 OP AMP OP AMP HIGH VOL. AMP OP LOW OP AMP OP AMP TRANSISTOR 2SC2603 E,F (IC260320) 1: OUTPUT 3: INPUT 2: COMMON NJM78M15FA (XJ603A00) 3: COMMON 1: OUTPUT 2: INPUT 1 3 2 REGULATOR +15V Cathode Anode MTZ J 24.0C (VG442600) ZENER DIODE D3SBA20 (VT359600) DIODE STACK 4.0A Cathode Anode 1SS133,176,HSS104 DIODE (VD631600) -15V REGULATOR +15V REGULATOR KEC-92341 MSP5 OP AMP OP AMP OP AMP POWER AMP C233 R231 C233 R234 0.022 4.7 4.7 0.022 SPEAKER 25mm SPEAKER 12cm 4 40W 6 MSP5 LINE LINE MAIN 5/5 MAIN 3/5 MAIN 4/5 MAIN 1/5 MAIN 2/5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PARTS LIST CONTENTS OVERALL ASSEMBLY ............................................. 2 ELECTRICAL PARTS ............................................ 4 WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. The numbers “QTY” show quantities for each unit. The parts with “--” in “PART NO.” are not available as spare parts. A : Australian model B : British model C : Canadian model D : German model E : European model F : French model G : Belgian model H : North European model I : Indonesian model J : Japanese model M : South African model Q : South-east Asia model U : U.S.A. model V : General export model (110V) W : General export model (220V) X : General export model Y : Export model Notes : DESTINATION ABBREVIATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 2 OVERALL ASSEMBLY A150 A150 A160 A170 A131 A230 A151 A130 A180 A50a A150 A100 A140 A120 A200 A190 A180 A110 120 140 150 110 100 A40 A30 A10 130 A90 A20 A60 A80 A70 A15 30 50 81 80 90 20 10 40 60 A50b A50d A50c A151 Amp Assembly www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 3 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK : Japan only OVERALL ASSEMBLY MSP5 10 Speaker Cabinet 20 Speaker 12cm 4 ohm 30 Speaker 25mm 6 ohm 40 Protector 50 Amp Assembly J (V243570) 50 Amp Assembly U,V (V243580) 50 Amp Assembly H,W (V243590) 50 Amp Assembly B (V243600) 50 Amp Assembly A (V243610) 60 Knob 80 Felt A (V243640) 81 Felt B (V245090) 90 Cord Holder CV-100 2 01 100 Tape, Speaker Protector MSP5 (V243650) 4 110 Cap Screw 4.0X14 MFZN2BL 4 120 Bind Head Tapping Screw-P 4.0X16 MFZN2BL 4 01 130 Bind Head Tapping Screw-P 5.0X20 MFZN2BL 10 140 Bind Head Tapping Screw-P 3.5X8 ZMCBL 2 01 150 Connector Assembly C&F 2P #18L300 (V242100) ACCESSARY Leg SJ-5808 2 Amp Assembly J (V243570) Amp Assembly U,V (V243580) Amp Assembly H,W (V243590) Amp Assembly B (V243600) Amp Assembly A (V243610) A10 Rear Panel A15 Shield Plate (V260380) A20 Heat Sink J A20 Heat Sink U A20 Heat Sink H A20 Heat Sink A A40 Power Transformer J A40 Power Transformer U,C A40 Power Transformer H,W,B A40 Power Transformer A A30 Transformer Base (V243740) A50 Circuit Board MAIN J,U,V (V240650) A50 Circuit Board MAIN H,W,B,A (V240660) A50a Circuit Board MA 1/5,2/5 A50b Circuit Board MA 3/5 J,U,C A50b Circuit Board MA 3/5 H,B,A A50c Circuit Board MA 4/5 A50d Circuit Board MA 5/5 A60 Switch SDDJE3-A-2 U C S POWER SWITCH A70 AC Cord J J A70 AC Cord UC U,C A70 AC Cord H H,A A70 AC Cord B B A80 Cord Strain Relief SR-4K-4 A90 Tape A (V243780) 2 A100 Tape B (V243790) 2 A110 Tape C (V243800) 2 A120 Tape D (V243810) 2 A130 Switch Cover A A131 Switch Cover B A140 Support H=15.0 B=7.0 M4/M3 4 A150 Bind Head Tapping Screw-B 4.0X10 MFZN2BL 15 01 A151 Bonding Tapping Screw-B 4.0X10 MFZN2Y 3 A160 Bind Head Screw 3.0X14 MFZN2BL 2 01 A170 Bind Head Screw 3.0X6 MFZN2BL 4 01 A180 Bonding Tapping Screw-B 3.0X10 MFZN2BL 7 01 A190 Hexagonal Nut 12.0 14X2 MFC2BL 01 A200 Flat Washer 12S MFC2BL 01 A230 Cord Holder CV-100 3 01 V2435500 XU973A00 XU974A00 V2435600 -- -- -- -- -- V2436200 -- -- VV104600 V2436500 V2433800 VA835700 V2436600 VD277800 -- -- -- -- -- -- -- V24368A0 -- V2437000 V2437100 V2437200 V2437300 XU870A00 XU871A00 XU872A00 XU972A00 -- -- -- NX819520 NX819540 NX819570 NX819550 NX819560 V2422400 V2422300 V2421400 V2421500 V2421600 V2437500 -- -- -- -- V2518000 V2518100 V2437700 EP600240 V2491300 VH610100 EG330360 VQ049800 VD794100 VB004700 VV104600 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 4 New Parts * * * * * * * * * * * * * * * * * * * * ELECTRICAL PARTS Circuit Board MA J,U,C (V240650) Circuit Board MA H,B,A (V240660) Circuit Board MA 1/5,2/5 Circuit Board MA 3/5 J,U,C Circuit Board MA 3/5 H,B,A Circuit Board MA 4/5 Circuit Board MA 5/5 Cover, Fuse FH-1 1PG Tape (V251820) 1PG Tape (V251830) 3MW Jumper Wire 0.60 01 C101 Electrolytic Cap. 22.00 25.0V 01 C102 Electrolytic Cap. 22.00 25.0V 01 C103 Ceramic Cap.-B 100P 50V K 01 C104 Ceramic Capacitor-F 0.0100 50V Z 01 C105 Electrolytic Cap. 10.00 50.0V 01 C106 Ceramic Capacitor-SL 47P 50V J C107 Ceramic Capacitor-F 0.0100 50V Z 01 C108 Electrolytic Cap. 10.00 50.0V 01 C110 Mylar Capacitor 8200P 50V J 01 C111 Mylar Capacitor 1800P 50V J C112 Monolithic Mylar Capacitor 0.47 50V J 02 C113 Mylar Capacitor 0.015 50V J 01 C114 Ceramic Cap.-B 100P 50V K 01 C115 Monolithic Mylar Capacitor 0.12 50V J C116 Mylar Capacitor 0.022 50V J C117 Monolithic Mylar Capacitor 0.47 50V J 02 C118 Ceramic Capacitor-F 0.0100 50V Z 01 C119 Ceramic Capacitor-F 0.0100 50V Z 01 C120 Ceramic Capacitor-B 1000P 50V K 01 C121 Mylar Capacitor 470P 50V J C201 Ceramic Capacitor-F 0.0100 50V Z 01 C202 Electrolytic Cap. 10.00 50.0V 01 C203 Ceramic Capacitor-F 0.0100 50V Z 01 C204 Mylar Capacitor 0.010 50V J 01 C205 Mylar Capacitor 6800P 50V J C206 Electrolytic Cap. 47.00 25.0V 01 C207 Mylar Capacitor 6800P 50V J C208 Mylar Capacitor 6800P 50V J C209 Mylar Capacitor 2200P 50V J 01 C210 Mylar Capacitor 470P 50V J C211 Electrolytic Cap. 47.00 50.0V 01 C212 Electrolytic Cap. 10.00 50.0V 01 C213 Electrolytic Cap. 47.00 25.0V 01 C214 Electrolytic Cap. 47.00 25.0V 01 C215 Mylar Capacitor 2200P 50V J 01 C216 Mylar Capacitor 470P 50V J C217 Mylar Capacitor 0.1 50V J 01 C218 Mylar Capacitor 2200P 50V J 01 C219 Mylar Capacitor 0.068 50V J 01 C220 Monolithic Mylar Capacitor 0.22 50V J 01 C221 Monolithic Mylar Capacitor 0.22 50V J 01 C222 Mylar Capacitor 0.047 50V J 01 C223 Monolithic Mylar Capacitor 1.0 50V J C224 Electrolytic Cap.-SM 100.0 35.0V C225 Electrolytic Cap.-SM 100.0 35.0V C226 Ceramic Capacitor-SL 3P 50V C 01 C227 Ceramic Capacitor-SL 3P 50V C 01 C228 Electrolytic Cap. 6800 35V C229 Electrolytic Cap. 6800 35V C230 Ceramic Capacitor-F 0.0220 50V Z 01 C231 Ceramic Capacitor-F 0.0220 50V Z 01 C232 Capacitor 1000P 400V J.U.C.S 01 C233 Mylar Capacitor 0.022 50V J C234 Mylar Capacitor 0.022 50V J CN103 Connector Base Post M2426XX 3P TE 01 CN104 Connector Assembly B&F 2P #20L70 (V242090) CN105 Base Post Connector VH- 3P TE 01 CN106 Connector Assembly B&B 2P #24 L70 (V242060) CN107 Connector Assembly B&B 2C L70 (V242050) -- -- NX819520 NX819540 NX819570 NX819550 NX819560 V2598800 -- -- VV291400 UJ847220 UJ847220 FG612100 FG644100 UJ867100 FG651470 FG644100 UJ867100 VV061300 VV060200 VV064100 VV061800 FG612100 V2439900 VV062000 VV064100 FG644100 FG644100 FG613100 V2439700 FG644100 UJ867100 FG644100 VV061400 VV061200 UJ847470 VV061200 VV061200 VV060300 V2439700 UJ867470 UJ867100 UJ847470 UJ847470 VV060300 V2439700 VV062800 VV060300 VV062600 VV321100 VV321100 VV062400 VV064500 VY946300 VY946300 FG650300 FG650300 V2133300 V2133300 FG644220 FG644220 VV314800 VV062000 VV062000 VV066300 -- LB932030 -- -- REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK : Japan only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 5 New Parts * * * * * * * * * * * * * * * * CN108 Connector Assembly B&C 2C L180 (V242040) CN201 Connector Base Post M2426XX 2P TE 01 CN204 Base Post Connector VH- 4P TE 01 CN205 Base Post Connector VH- 3P TE 01 CN206 Connector Assembly B&C 2P #24L180 (V242070) CN208 Connector Assembly B&F 2P #20L70 (V242090) D201 Diode 1SS133,176,HSS104 01 D202 Diode 1SS133,176,HSS104 01 DB201 Diode D3SBA20 4.0A 200V 03 F101 Fuse TDS 1.5A 250V J/UC J,U,C 01 F101 Fuse 630mA S H,B,A 01 F101 Fuse Holder CQ-05CT 01 IC101 IC NJM4560D OP AMP 04 IC102 IC NJM4560D OP AMP 04 IC201 IC NJM4560D OP AMP 04 IC202 IC STK401-090 POWER 09 IC203 IC NJM78M15FA REGULATOR +15V 0.5A 02 IC204 IC NJM79M15FA REGULATOR -15V 03 JK101 XLM Connector NC3FAH1-0 LINE 1 04 JK102 Phone Jack HTJ-064 LINE 2 02 K1 Terminal Plate 01 K2 Terminal TP82223-22 01 K3 Terminal TP82223-22 01 LD201 LED SLR-56MGT GR Q201 Transistor 2SC2603 E,F 01 -203 Transistor 2SC2603 E,F 01 R101 Metal Film Resistor 10K 1/4 F 01 -106 Metal Film Resistor 10K 1/4 F 01 R107 Metal Film Resistor 33K 1/4 F 01 R108 Metal Film Resistor 10K 1/4 F 01 R109 Metal Film Resistor 33K 1/4 F 01 R110 Carbon Resistor 47.0 1/4 J 01 R111 Carbon Resistor 100.0 1/4 J 01 R112 Carbon Resistor 100.0K 1/4 J 01 R113 Metal Film Resistor 15K 1/4 F 01 R114 Metal Film Resistor 12K 1/4 F R115 Metal Film Resistor 5.6K 1/4 F R116 Metal Film Resistor 150.0K 1/5 F R117 Metal Film Resistor 20K 1/4 F 05 R118 Metal Film Resistor 10K 1/4 F 01 R119 Metal Film Resistor 22K 1/4 F 01 R120 Metal Film Resistor 220K 1/4 F 01 R121 Metal Film Resistor 47K 1/4 F 01 R122 Metal Film Resistor 100K 1/4 F R123 Metal Film Resistor 27K 1/4 F R124 Metal Film Resistor 10K 1/4 F 01 R125 Metal Film Resistor 1.5K 1/4 F -127 Metal Film Resistor 1.5K 1/4 F R128 Carbon Resistor 47.0 1/4 J 01 R201 Carbon Resistor 470.0K 1/4 J 01 R202 Carbon Resistor 100.0K 1/4 J 01 R203 Carbon Resistor 470.0K 1/4 J 01 R204 Carbon Resistor 100.0K 1/4 J 01 R205 Carbon Resistor 100.0K 1/4 J 01 R206 Metal Film Resistor 2.4K 1/4 F R207 Carbon Resistor 100.0K 1/4 J 01 R208 Metal Film Resistor 3.9K 1/4 F R209 Carbon Resistor 330.0K 1/4 J 01 R210 Metal Film Resistor 15K 1/4 F 01 R211 Metal Film Resistor 3.9K 1/4 F R212 Metal Film Resistor 68K 1/4 F R213 Flame Proof C. Resistor 330.0 1/4 J 01 R214 Metal Film Resistor 68K 1/4 F R215 Metal Film Resistor 10K 1/4 F 01 R216 Metal Film Resistor 1.5K 1/4 F R217 Carbon Resistor 3.3K 1/4 J 01 R218 Metal Film Resistor 1.5K 1/4 F R219 Metal Film Resistor 100K 1/4 F R220 Metal Film Resistor 8.2K 1/4 F 01 R221 Metal Film Resistor 47K 1/4 F 01 -- VV066200 LB932040 LB932030 -- -- VD631600 VD631600 VT359600 VV301200 KB003020 VV319600 IG040000 IG040000 IG040000 XQ374A00 XJ603A00 XG505A00 VS133800 VV278300 VV075700 VZ005700 VZ005700 V2429700 IC260320 IC260320 VV065500 VV065500 VV066000 VV065500 VV066000 HF454470 HF455100 HF458100 VZ009900 V2440400 V2440300 VZ862000 VV065800 VV065500 VV312900 VV313500 VV066100 V2348800 V2440500 VV065500 V2348400 V2348400 HF454470 HF458470 HF458100 HF458470 HF458100 HF458100 V2440200 HF458100 VV312400 HF458330 VZ009900 VV312400 V2689800 VZ009300 V2689800 VV065500 V2348400 HF456330 V2348400 V2348800 VV065400 VV066100 REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK : Japan only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MSP5 6 New Parts * * * * * * * * * * * * * * * * * * REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK : Japan only R222 Metal Film Resistor 3.9K 1/4 F 01 R223 Metal Film Resistor 47K 1/4 F 01 R224 Metal Film Resistor 3.9K 1/4 F 01 R225 Flame Proof C. Resistor 100 1/4 J 01 R226 Flame Proof C. Resistor 100 1/4 J 01 R227 Metal Film Resistor 51K 1/4 F 01 R228 Metal Film Resistor 51K 1/4 F 01 R229 Carbon Resistor 3.3K 1/4 J 01 R231 Flame Proof C. Resistor 4.7Ω J 1/4 01 R232 Flame Proof C. Resistor 4.7Ω J 1/4 01 RY201 Relay DC OSA-SS-224DM3 06 SW101 Slide Switch SSSF124S06N1 TRIM HIGH 06 SW102 Slide Switch SSSF123S06N1 TRIM LOW 06 VR101 Rotary Variable Resistor A 5.0K RK16311 VOLUME 07 ZD201 Zener Diode MTZ J 24.0C 24.0V 01 Speaker 12cm 4 ohm Speaker 25mm 6 ohm Power Transformer J Power Transformer U,C Power Transformer H,W,B Power Transformer A Switch SDDJE3-A-2 U C S POWER SWITCH AC Cord J J AC Cord UC U,C AC Cord H H,A AC Cord B B VV312400 VV066100 VV312400 VV276800 VV276800 V2689700 V2689700 HF456330 VV276700 VV276700 VU161600 V2419700 V2419800 V2420300 VG442600 XU973A00 XU974A00 XU870A00 XU871A00 XU872A00 XU972A00 V2422400 V2422300 V2421400 V2421500 V2421600 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
