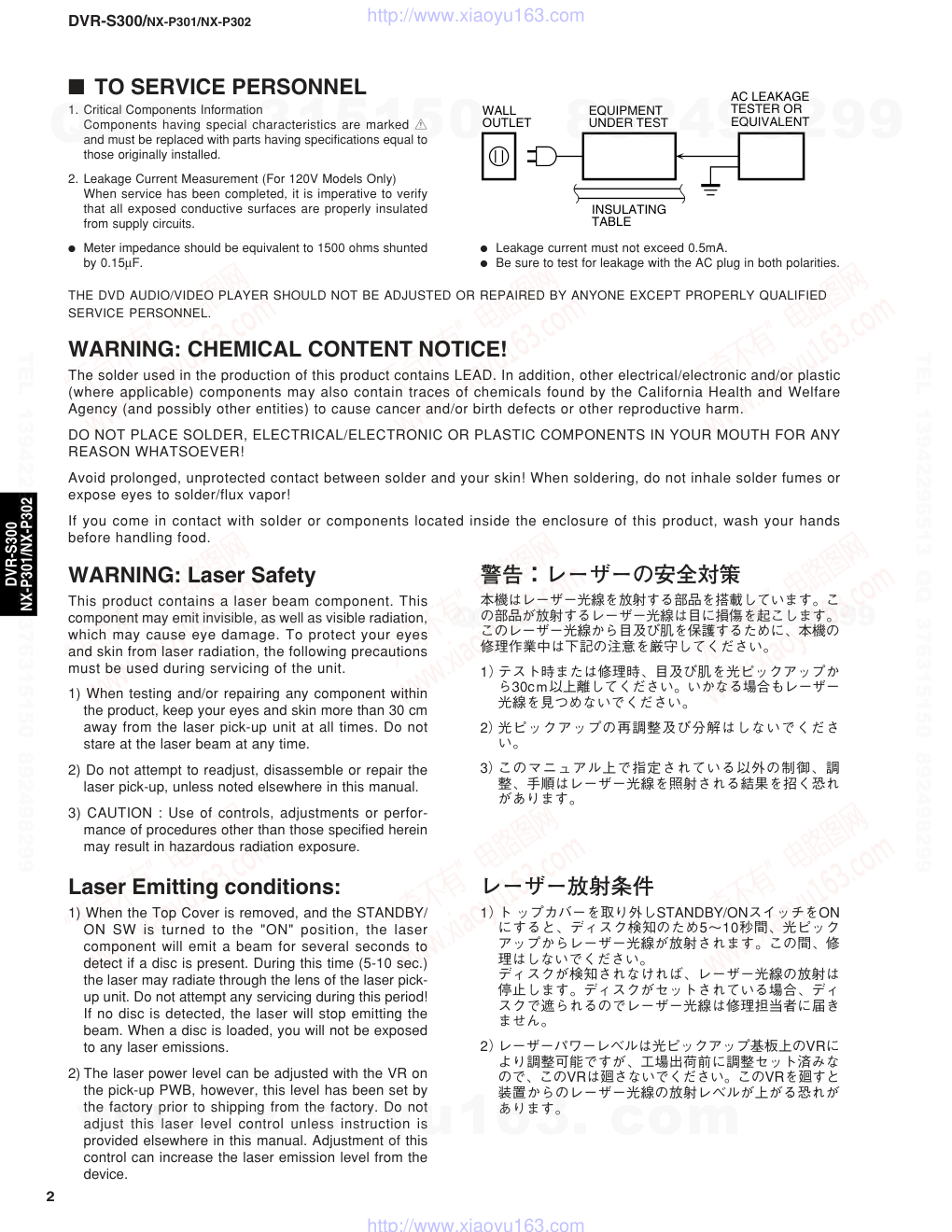

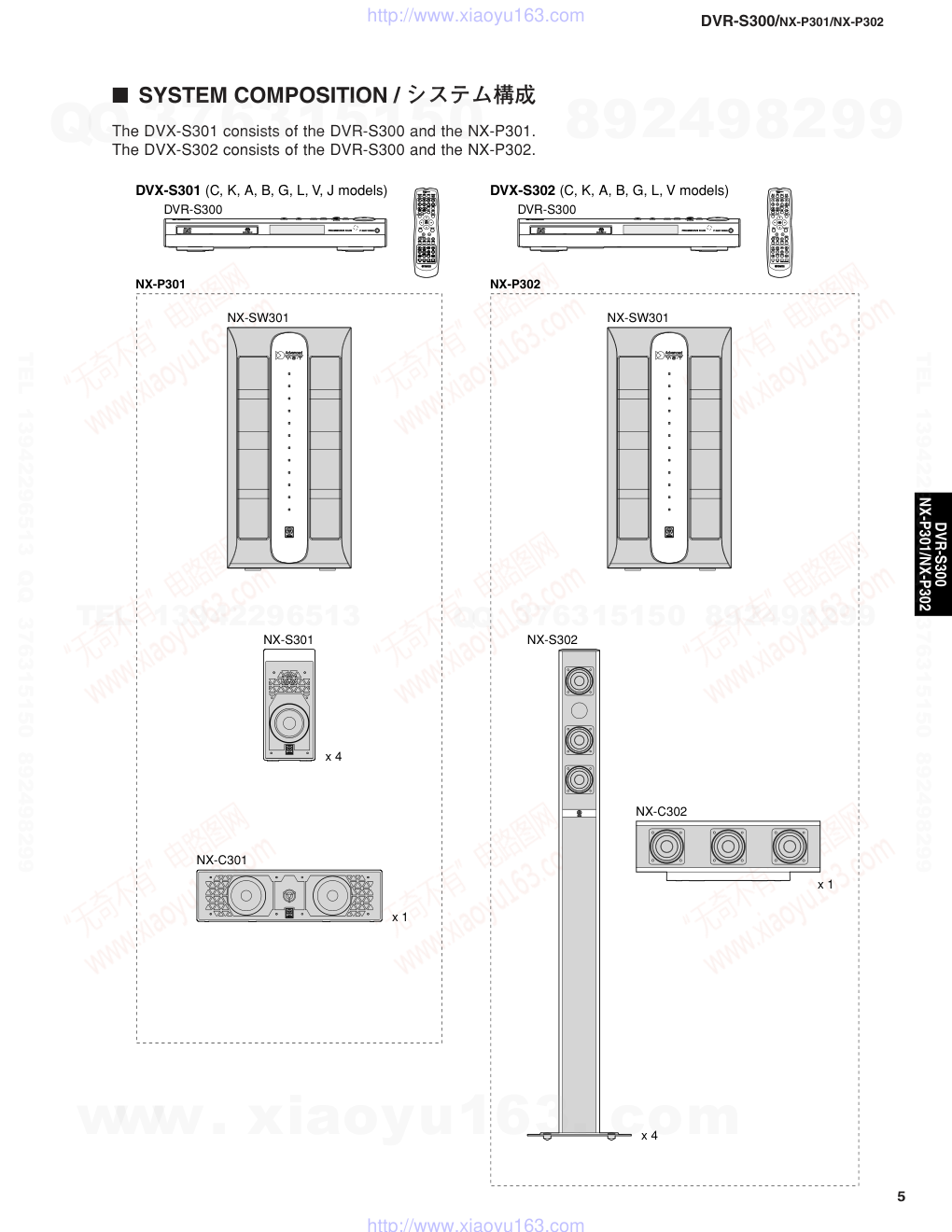

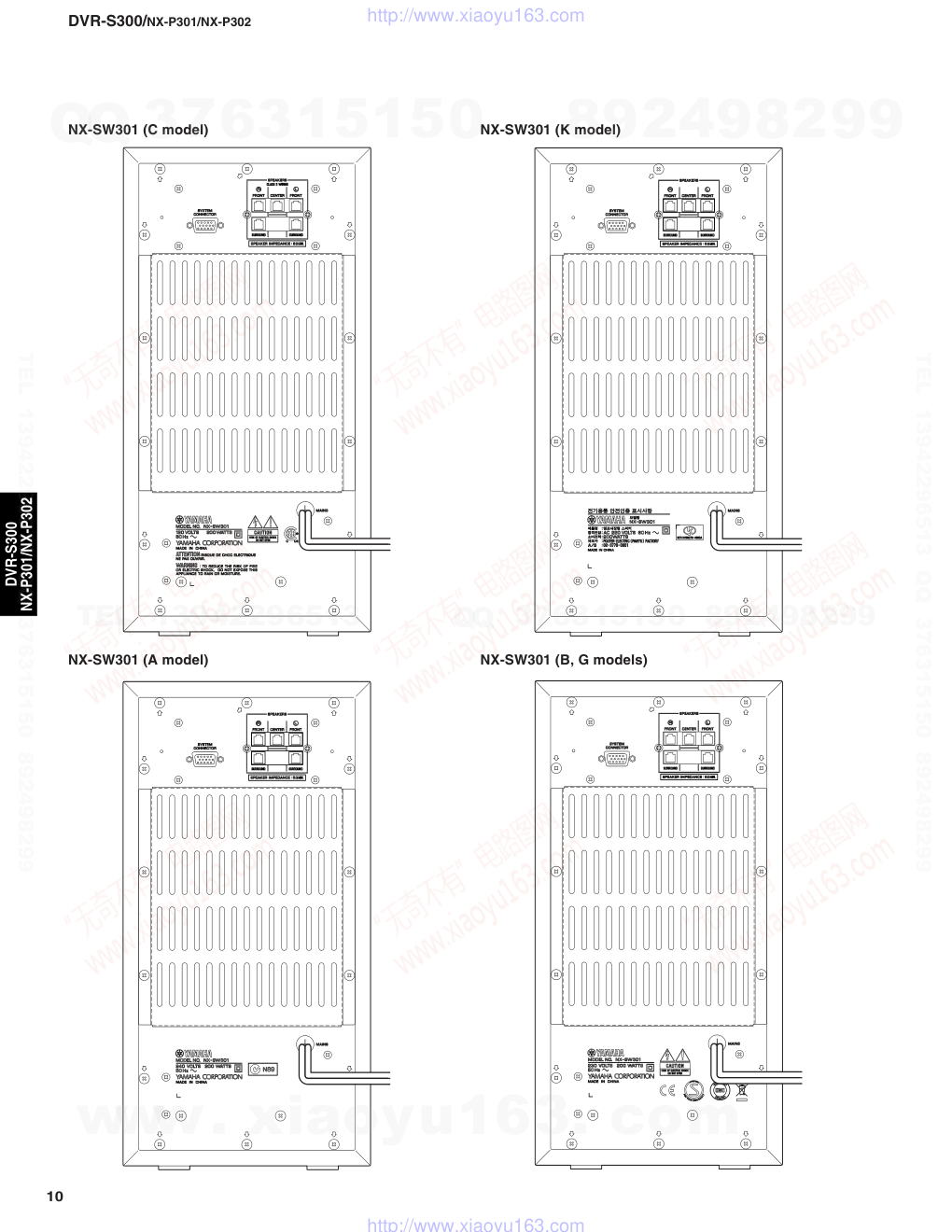

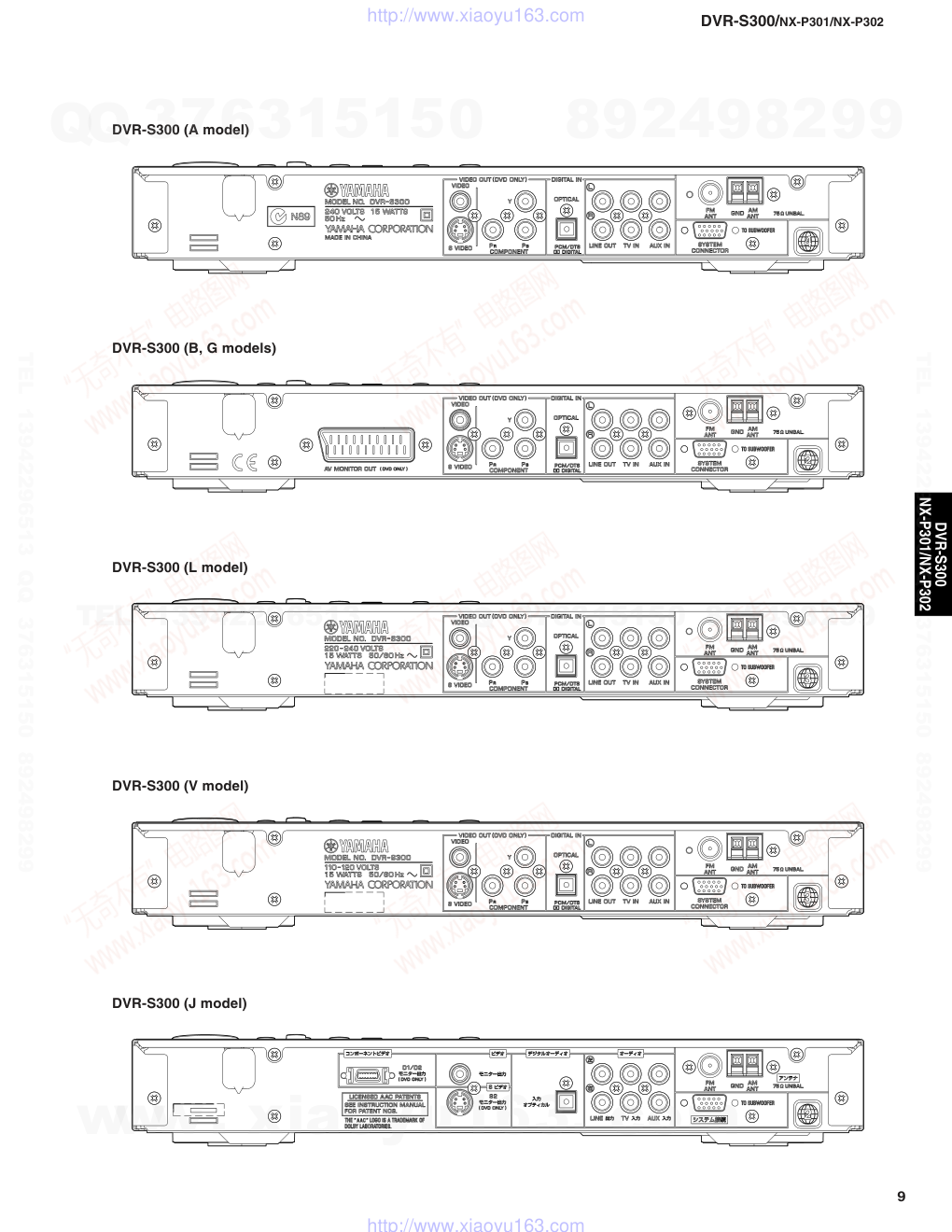

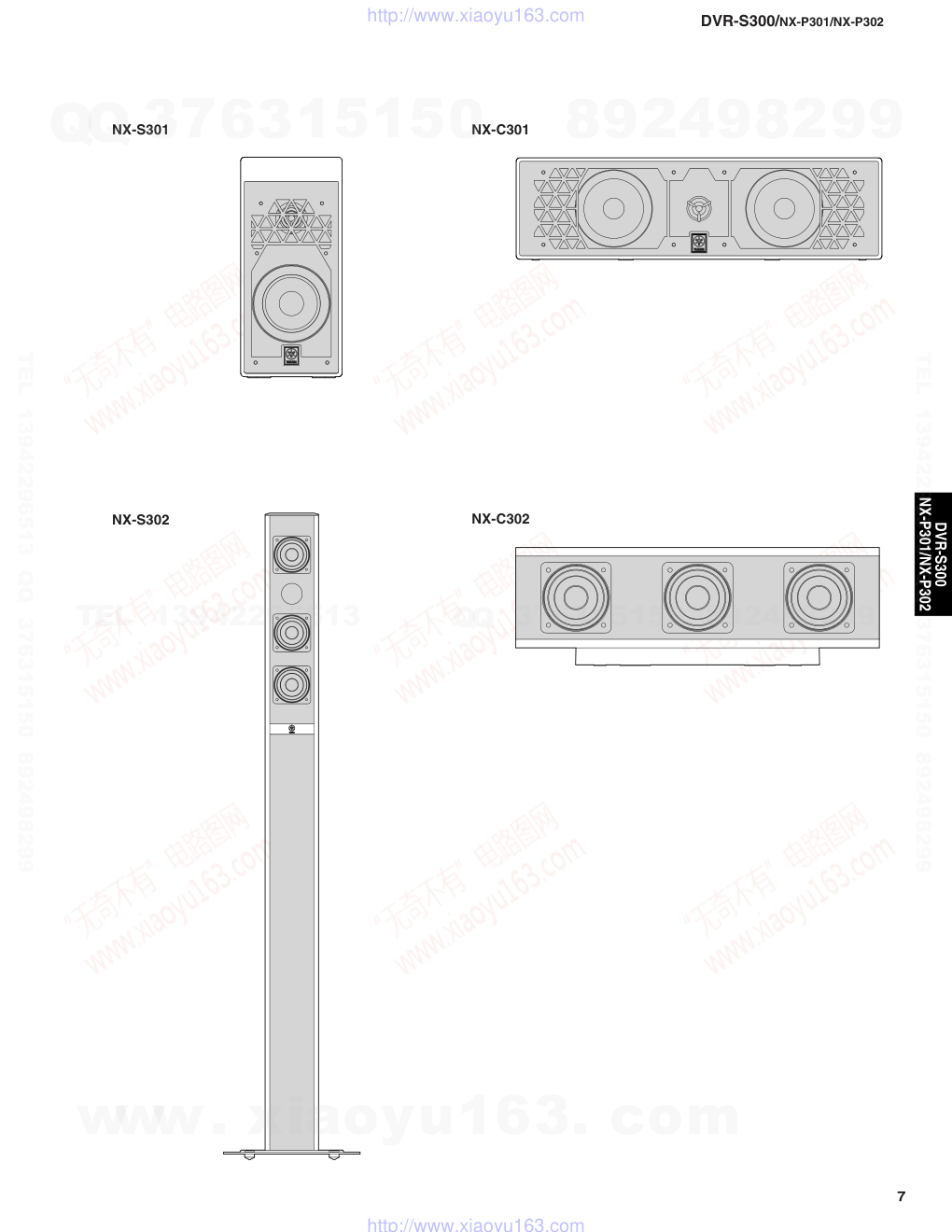

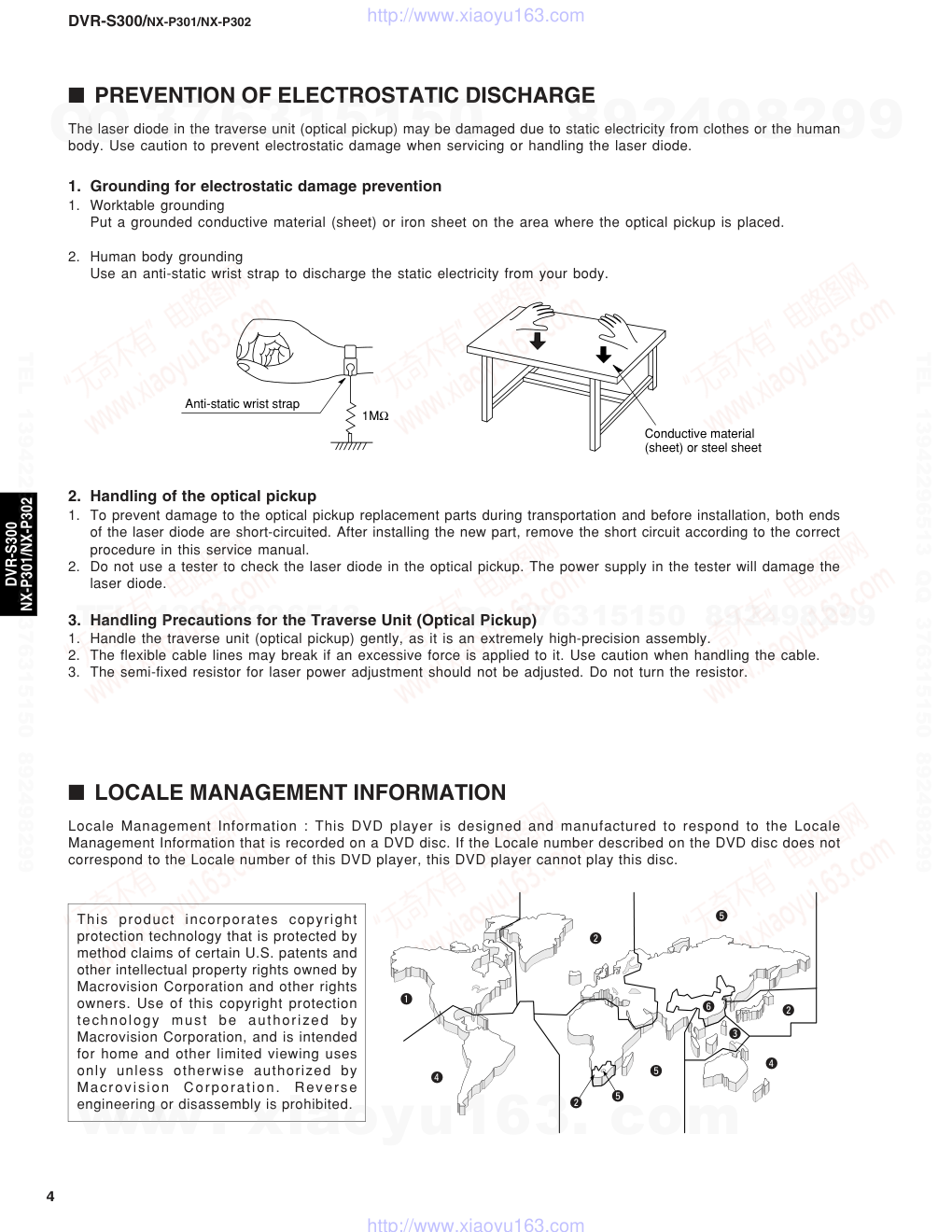

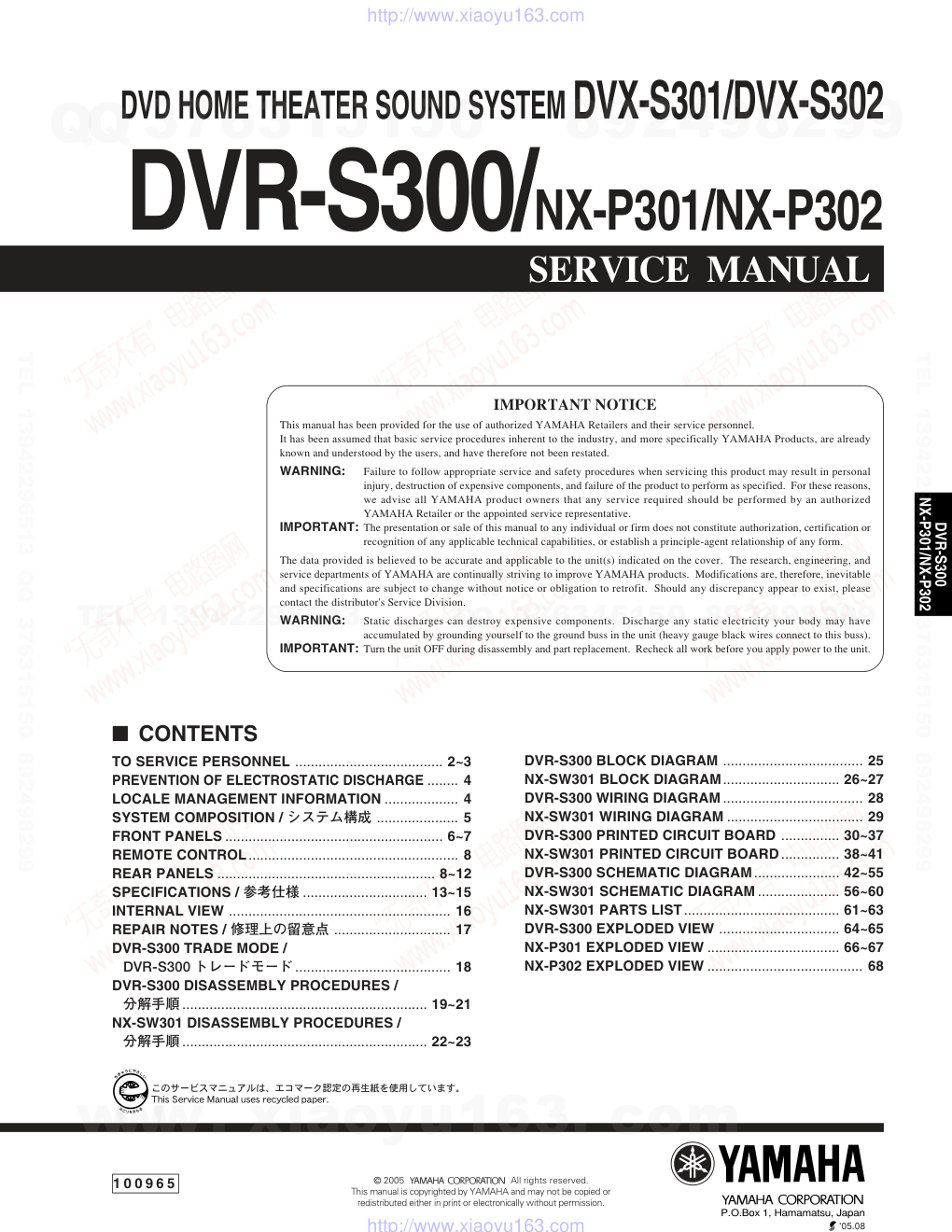

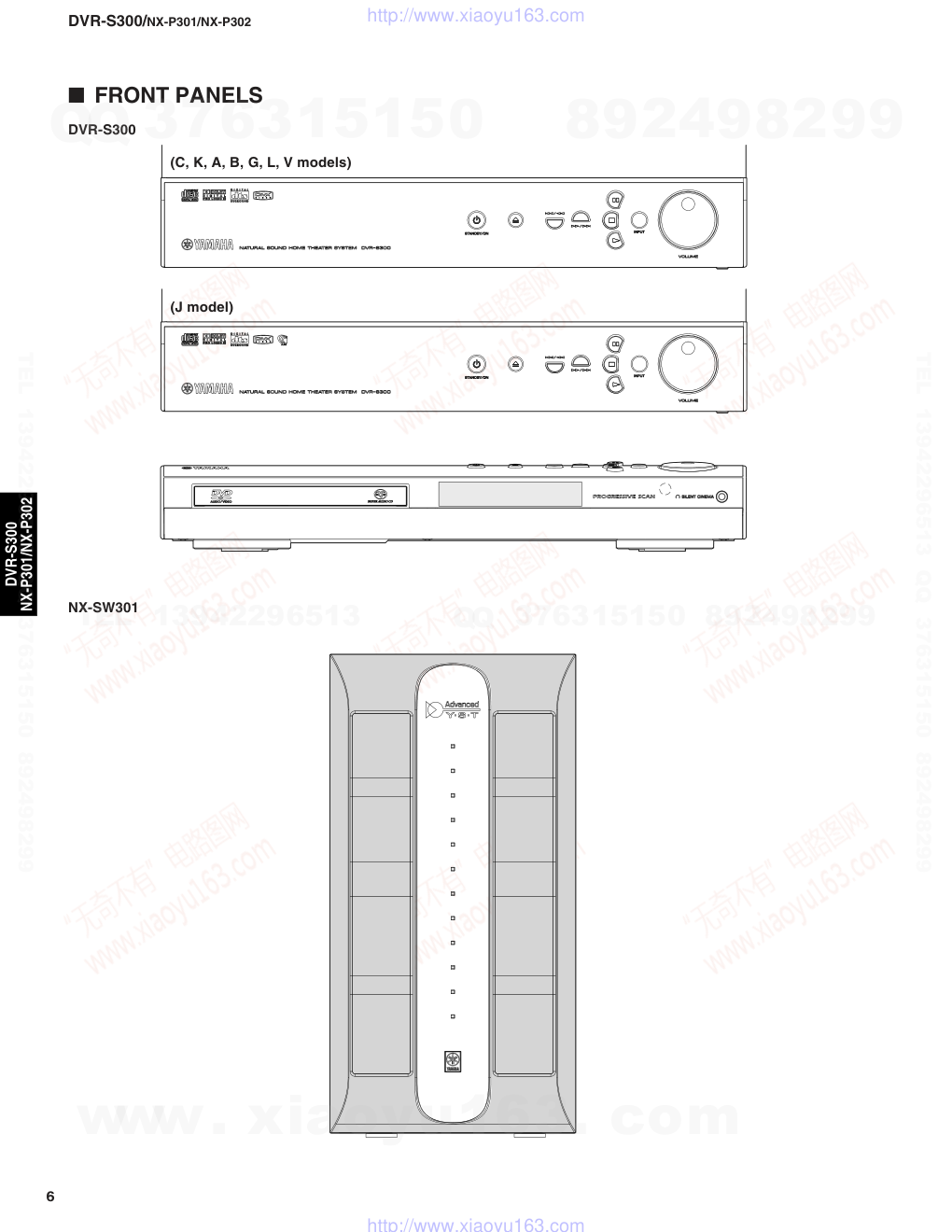

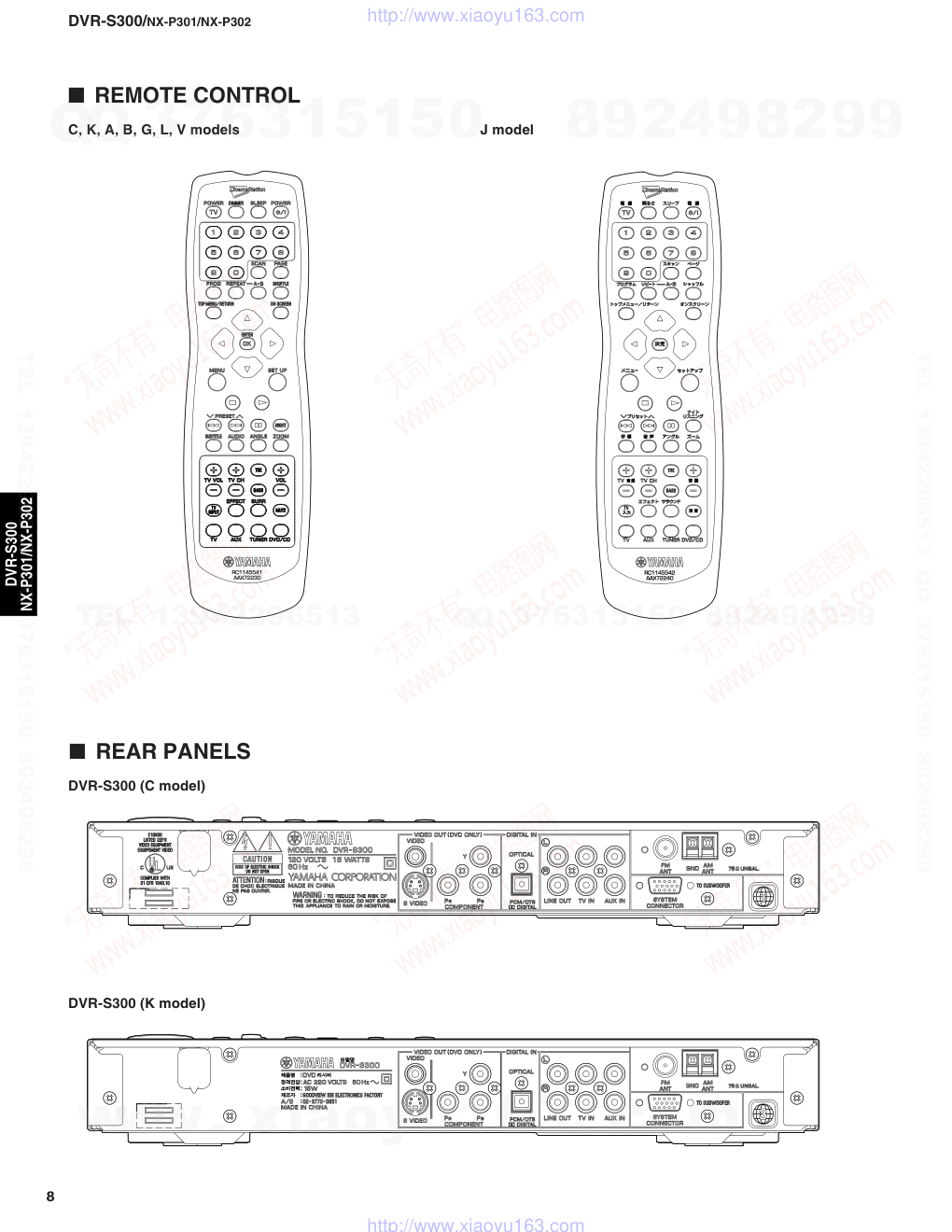

SERVICE MANUAL 1 0 0 9 6 5 SERVICE MANUAL P.O.Box 1, Hamamatsu, Japan 2005 All rights reserved. This manual is copyrighted by YAMAHA and may not be copied or redistributed either in print or electronically without permission. SERVICE MANUAL DVD HOME THEATER SOUND SYSTEM DVX-S301/DVX-S302 DVR-S300/NX-P301/NX-P302 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. I CONTENTS TO SERVICE PERSONNEL ...................................... 2~3 PREVENTION OF ELECTROSTATIC DISCHARGE ........ 4 LOCALE MANAGEMENT INFORMATION ................... 4 SYSTEM COMPOSITION / システム構成 ..................... 5 FRONT PANELS ........................................................ 6~7 REMOTE CONTROL...................................................... 8 REAR PANELS ........................................................ 8~12 SPECIFICATIONS / 参考仕様 ................................ 13~15 INTERNAL VIEW ......................................................... 16 REPAIR NOTES / 修理上の留意点 .............................. 17 DVR-S300 TRADE MODE / DVR-S300 トレードモード........................................ 18 DVR-S300 DISASSEMBLY PROCEDURES / 分解手順 ............................................................... 19~21 NX-SW301 DISASSEMBLY PROCEDURES / 分解手順 ............................................................... 22~23 DVR-S300 BLOCK DIAGRAM .................................... 25 NX-SW301 BLOCK DIAGRAM.............................. 26~27 DVR-S300 WIRING DIAGRAM .................................... 28 NX-SW301 WIRING DIAGRAM ................................... 29 DVR-S300 PRINTED CIRCUIT BOARD ............... 30~37 NX-SW301 PRINTED CIRCUIT BOARD ............... 38~41 DVR-S300 SCHEMATIC DIAGRAM...................... 42~55 NX-SW301 SCHEMATIC DIAGRAM ..................... 56~60 NX-SW301 PARTS LIST........................................ 61~63 DVR-S300 EXPLODED VIEW ............................... 64~65 NX-P301 EXPLODED VIEW .................................. 66~67 NX-P302 EXPLODED VIEW ........................................ 68 DVR-S300 NX-P301/NX-P302 '05.08 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 2 DVR-S300 NX-P301/NX-P302 WALL OUTLET EQUIPMENT UNDER TEST AC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE I TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. G Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF. G Leakage current must not exceed 0.5mA. G Be sure to test for leakage with the AC plug in both polarities. WARNING: Laser Safety This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit. 1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from the laser pick-up unit at all times. Do not stare at the laser beam at any time. 2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION : Use of controls, adjustments or perfor- mance of procedures other than those specified herein may result in hazardous radiation exposure. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. Laser Emitting conditions: 1) When the Top Cover is removed, and the STANDBY/ ON SW is turned to the "ON" position, the laser component will emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens of the laser pick- up unit. Do not attempt any servicing during this period! If no disc is detected, the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser emissions. 2) The laser power level can be adjusted with the VR on the pick-up PWB, however, this level has been set by the factory prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this manual. Adjustment of this control can increase the laser emission level from the device. 警告：レーザーの安全対策 本機はレーザー光線を放射する部品を搭載しています。こ の部品が放射するレーザー光線は目に損傷を起こします。 このレーザー光線から目及び肌を保護するために、本機の 修理作業中は下記の注意を厳守してください。 1）テスト時または修理時、目及び肌を光ピックアップか ら30cｍ以上離してください。いかなる場合もレーザー 光線を見つめないでください。 2）光ピックアップの再調整及び分解はしないでくださ い。 3）このマニュアル上で指定されている以外の制御、調 整、手順はレーザー光線を照射される結果を招く恐れ があります。 レーザー放射条件 1）ト ップカバーを取り外しSTANDBY/ONスイッチをON にすると、ディスク検知のため5～10秒間、光ピック アップからレーザー光線が放射されます。この間、修 理はしないでください。 ディスクが検知されなければ、レーザー光線の放射は 停止します。ディスクがセットされている場合、ディ スクで遮られるのでレーザー光線は修理担当者に届き ません。 2）レーザーパワーレベルは光ピックアップ基板上のVRに より調整可能ですが、工場出荷前に調整セット済みな ので、このVRは廻さないでください。このVRを廻すと 装置からのレーザー光線の放射レベルが上がる恐れが あります。 THE DVD AUDIO/VIDEO PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 3 DVR-S300 NX-P301/NX-P302 INVISIBLE LASER RADIATION WHEN OPEN DO NOT STARE INTO BEAM CAUTION: INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO THE BEAM DANGER: Laser Diode Properties Type: Semiconductor laser GaAlAs Wave length: 650 nm (DVD) 784 nm (VCD/CD) Output Power: 7 mW (DVD/VCD/CD) Beam divergence 60 degree WARNING The use of optical instruments with this product will increase eye hazard. Repair handling should take place as much as possible with a disc loaded inside the player. CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSÆTTELSE FOR STRÅLING. ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES. UNNGÅ EKSPONERING FOR STRÅLEN. VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN. VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄ TEILYLLE. ÄLÄ KATSO SÄTEESEEN. VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETSEN. DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE. EXPOSITION DANGEREUSE AU FAISCEAU Warning for power supply The primary side of the power supply carries live mains voltage when the player is connected to the mains even when the player is switched off ! This primary area is not shielded so it is possible to touch copper tracks and/or components when servicing the player. Service personnel have to take precautions to prevent touching this area or components in this area. Note: The screws on the DVD mechanism may never be touched, removed or re-adjusted. Handle the DVD mechanism with care when the unit has to be exchanged! The DVD mechanism is very sensitive for dropping or giving shocks. VARO! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASER- SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. VARNING! : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 4 DVR-S300 NX-P301/NX-P302 I PREVENTION OF ELECTROSTATIC DISCHARGE I LOCALE MANAGEMENT INFORMATION Locale Management Information : This DVD player is designed and manufactured to respond to the Locale Management Information that is recorded on a DVD disc. If the Locale number described on the DVD disc does not correspond to the Locale number of this DVD player, this DVD player cannot play this disc. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. q w r w t t r w y e t The laser diode in the traverse unit (optical pickup) may be damaged due to static electricity from clothes or the human body. Use caution to prevent electrostatic damage when servicing or handling the laser diode. 1. Grounding for electrostatic damage prevention 1. Worktable grounding Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed. 2. Human body grounding Use an anti-static wrist strap to discharge the static electricity from your body. 2. Handling of the optical pickup 1. To prevent damage to the optical pickup replacement parts during transportation and before installation, both ends of the laser diode are short-circuited. After installing the new part, remove the short circuit according to the correct procedure in this service manual. 2. Do not use a tester to check the laser diode in the optical pickup. The power supply in the tester will damage the laser diode. 3. Handling Precautions for the Traverse Unit (Optical Pickup) 1. Handle the traverse unit (optical pickup) gently, as it is an extremely high-precision assembly. 2. The flexible cable lines may break if an excessive force is applied to it. Use caution when handling the cable. 3. The semi-fixed resistor for laser power adjustment should not be adjusted. Do not turn the resistor. 1MΩ Conductive material (sheet) or steel sheet Anti-static wrist strap www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 5 DVR-S300 NX-P301/NX-P302 I SYSTEM COMPOSITION / システム構成 The DVX-S301 consists of the DVR-S300 and the NX-P301. The DVX-S302 consists of the DVR-S300 and the NX-P302. NX-SW301 NX-SW301 NX-S301 NX-S302 NX-C301 NX-C302 DVR-S300 DVR-S300 DVX-S301 (C, K, A, B, G, L, V, J models) DVX-S302 (C, K, A, B, G, L, V models) NX-P301 NX-P302 x 4 x 1 x 1 x 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 6 DVR-S300 NX-P301/NX-P302 I FRONT PANELS DVR-S300 (C, K, A, B, G, L, V models) (J model) NX-SW301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 7 DVR-S300 NX-P301/NX-P302 NX-S301 NX-C301 NX-S302 NX-C302 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 8 DVR-S300 NX-P301/NX-P302 I REAR PANELS DVR-S300 (C model) DVR-S300 (K model) I REMOTE CONTROL C, K, A, B, G, L, V models J model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 9 DVR-S300 NX-P301/NX-P302 DVR-S300 (A model) DVR-S300 (B, G models) DVR-S300 (L model) DVR-S300 (V model) DVR-S300 (J model) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 10 DVR-S300 NX-P301/NX-P302 NX-SW301 (C model) NX-SW301 (K model) NX-SW301 (A model) NX-SW301 (B, G models) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 11 DVR-S300 NX-P301/NX-P302 NX-SW301 (J model) NX-SW301 (L model) NX-SW301 (V model) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 12 DVR-S300 NX-P301/NX-P302 NX-S301 NX-C301 NX-S302 NX-C302 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 13 DVR-S300 NX-P301/NX-P302 TUNER SECTION FM Tuning Range - C, K, A, B, G, L, V models 87.50 to 108.00 MHz - J model 76.0 to 90.0 MHz AM Tuning Range - C model 530 to 1700 kHz - K, A, B, G models 531 to 1602 kHz - L, V models 531 to 1602 kHz/530 to 1700 kHz - J model 531 to 1602 kHz DISC SECTION Laser Type Semiconductor Disc Diametre 12cm / 8cm Video Decoding MPEG-1 / MPEG-2 / DivX 3.11, 4.x & 5.x Video DAC 12 bits/108 MHz Signal System PAL / NTSC Video Format 4:3 / 16:9 Composite Video Output 1.0 Vp-p, 75 ohms S-video Output Y - 1.0 Vp-p, 75 ohms C - 0.3 Vp-p, 75 ohms RGB (SCART) output 0.7 Vp-p, 75 ohms (B, G models) Component Video Output Y - 1.0 Vp-p, 75 ohms PB/CB PR/CR – 0.7 Vp-p, 75 ohms Audio DAC 24 bits / 192 kHz Frequency Response 4 Hz to 20 kHz (44.1 kHz) 4 Hz to 22 kHz (48 kHz) 4 Hz to 44 kHz (96 kHz) Audio S/N 105 dB Distortion 0.0035 % Dynamic Range 95 dB AUDIO FORMAT Digital Dolby Digital/DTS/MPEG Compressed Digital PCM 16, 20, 24 bits fs 44.1, 48, 88.2, 96, 176.4, 192 kHz MP3 (ISO 9660) 24, 32, 56, 64, 96, 128, 256 kbps fs 16, 22.05, 24, 32, 44.1, 48 kHz WMA 32 to 192 kbps, Mono, Stereo Full Decoding of Dolby Digital and DTS Multi-channel Sound Dolby Surround Compatible Downmix from Dolby Digital Multi-chan- nel Sound Dolby Pro Logic II MAIN UNIT (DVR-S300) Power Supply - C model 120 V, 60 Hz - K model 220 V, 60 Hz - A model 240 V, 50 Hz - B, G models 230 V, 50 Hz - L model 220 - 240 V, 50/60 Hz - V model 110 - 120 V, 50/60 Hz - J model 100 V, 50/60 Hz Power Consumption 15W Frequency Response 20 Hz to 20 kHz/-3 dB Signal-to-Noise Ratio > 95 dB Input Sensitivity - AUX In, TV In 300 mV - SCART In 500 mV (B, G models) Dimensions (W x H x D) 360 x 53 x 310 mm (14-3/16" x 2-1/16" x 12-3/16") Weight 2.7 kg (5 lbs. 15 oz.) Finish Silver Color SUBWOOFER (NX-SW301) Power Supply - C model 120 V, 60 Hz - K model 220 V, 60 Hz - A model 240 V, 50 Hz - B, G models 230 V, 50 Hz - L model 220 - 240 V, 50/60 Hz - V model 110 - 120 V, 50/60 Hz - J model 100 V, 50/60 Hz Power Consumption - C, K, A, B, G, L, V models 200 W - J model 145 W System Bass Reflex System Impedance 6 ohms Driver 16 cm (6-5/16”) Woofer Frequency Response 40 Hz to 100 Hz Dimensions (W x H x D) 200 x 390 x 382 mm (7-7/8" x 15-3/8" x 15-1/16") Weight 11.5 kg (25 lbs. 5 oz.) Finish Silver Color FRONT AND SURROUND SPEAKER NX-S301 System 2-way System Impedance 6 ohms Drivers 7.0 cm (2-3/4”) Woofer x 1 1.9 cm (3/4”) Tweeter x 1 Frequency Response 100 Hz to 20 kHz Dimensions (W x H x D) 83 x 181 x 78 mm (3-1/4" x 7-1/8" x 3-1/16") Weight 0.6 kg (1 lbs. 5 oz.) Finish Silver Color NX-S302 System Full Range System Impedance 6 ohms Drivers 5.0 cm (2”) Full Range x 3 2.5 cm (1”) Piezo Tweeter x 1 Frequency Response 100 Hz to 20 kHz Dimensions (W x H x D) 210 x 994 x 210 mm (8-1/4" x 39-1/8" x 8-1/4") with Stand Weight 3.0 kg (6 lbs. 9 oz.) Finish Silver Color CENTER SPEAKER NX-C301 System 2-way System Impedance 6 ohms Drivers 7.0 cm (2-3/4”) Woofer x 2 1.9 cm (3/4”) Tweeter x 1 Frequency Response 100 Hz to 20 kHz Dimensions (W x H x D) 300 x 84 x 78 mm (11-13/16" x 3-5/16" x 3-1/16") Weight 1.0 kg (2 lbs. 3 oz.) Finish Silver Color NX-C302 System Full Range System Impedance 6 ohms Drivers 5.0 cm (2”) Full Range x 3 Frequency Response 100 Hz to 20 kHz Dimensions (W x H x D) 328 x 98 x 64 mm (12-15/16" x 3-7/8" x 2-1/2") Weight 0.7 kg (1 lbs. 8 oz.) Finish Silver Color I SPECIFICATIONS / 参考仕様 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 14 DVR-S300 NX-P301/NX-P302 ACCESSORIES DVR-S300 Remote Control x 1 Indoor FM Antenna x 1 AM Loop Antenna x 1 System Control Cable (4m) x 1 Video Pin Cable (1.5m) x 1 NX-P301 Speaker Cable Kit (15m) x 2 Speaker Cable Kit (5m) x 3 Fastener x 2 (for NX-C301) Nonskid Pad x 4 (for NX-SW301) NX-P302 Base x 4 (for NX-S302) Bind Head Screw x 8 (for NX-S302) Washer x 8 (for NX-S302) Fastener x 2 (for NX-C302) * Specifications subject to change without prior notice. C ........ Canada model K ........ Korean model A ........ Australian model B ........ British model G ........ European model L ........ Singapore model V ......... Taiwan model J ........ Japanese model Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless” and the double-D symbol are trademarks of Dolby Laboratories. ドルビーラボラトリーズからの実施権により製 造されています。「ドルビー」及びダブルD 記 号は、ドルビーラボラトリーズの商標です。 “DivX”, “DivX Certified”, and associated logos are trademarks of DivXNetworks, Inc and are used under license. DivX、DivX Certified およびそのロゴはDivX Networks Inc の商標であり、ライセンス承諾を 得て使用されます。 AACロゴマーク はドルビーラボラトリーズの 商標です。 This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. 本製品は、著作権保護技術を採用しており、マクロビジョン社 及びその他の著作権利者が保有する米国特許及びその他の知的 財産権によって保護されています。この著作権保護技術の使用 は、マクロビジョン社の許可が必要で、またマクロビジョン社 の特別な許可がない限り家庭用及びその他の一部の視聴用の使 用に制限されています。分解したり、改造することも禁じられ ています。 Advanced YST Active Servo Processing Subwoofer System with built-in power amplifier. This subwoofer system (NX-SW301) employes Advanced YAMAHA Active Servo Technology which YAMAHA has developed for reproducing higher quality super-bass sound. This super-bass sound adds a more realistic, theater-in-the-home effect to your stereo syetem. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. DTS およびDTS Digital Out はデジタルシア ターシステムズの登録商標です。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 15 DVR-S300 NX-P301/NX-P302 • DIMENSIONS / 寸法図 DVR-S300 NX-C302 NX-S302 NX-S301 NX-SW301 NX-C301 181 (7-1/8") 390 (15-3/8") 300 (11-13/16") 78 (3-1/16") 110 (4-3/8") 84 (3-5/16") 53 (2-1/16") 210 (8-1/4") 78 (3-1/16") 83 (3-1/4") 40 (1-9/16") 328 (12-15/16") 64 (2-9/16") 151 (5-15/16") 98 (3-7/8") 994 (39-1/8") 310 (12-3/16") 360 (14-3/16") 200 (7-7/8") 382.4 (15-1/16") 53.57 (2-1/8") 83.17 (3-5/16") Unit :mm (inch) 単位 : mm （インチ）� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 16 DVR-S300 NX-P301/NX-P302 I INTERNAL VIEW 1 2 3 4 5 9 6 7 8 1 TUNER 2 AV P.C.B. 3 HDMI D2 P.C.B. (J model) 4 POWER SUPPLY UNIT 5 MONO P.C.B. 6 DVD MECHANISM 7 CONTROL P.C.B. 8 FRONT (2) HP P.C.B. 9 FRONT (1) DISPLY P.C.B. 1 POWER (3) IN/OUT P.C.B. AMP (1) FL/FR P.C.B. AMP (2) SL/SR P.C.B. POWER (1) C/SW P.C.B. POWER (4) SUBTR P.C.B. POWER (2) POWER P.C.B. 1 2 3 4 5 6 2 3 4 5 6 DVR-S300 NX-SW301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 17 DVR-S300 NX-P301/NX-P302 • DVR-S300 None of the components of the following units can be supplied separately. Each unit must be replaced as a whole in case of a failure. • DVD Mechanism • MONO P.C.B. • FRONT P.C.B. • CONTROL P.C.B. • AV P.C.B. • Power Supply Unit • Power Supply Unit Never touch the potentiometer (VR301) installed to the Power Supply Unit. ● DVR-S300 下記のユニットは、小部品の部品供給はできません。 故障の場合は、各ユニットを交換してください。 ・ DVDメカ ・ MONO P.C.B. ・ FRONT P.C.B. ・ CONTROL P.C.B. ・ AV P.C.B. ・ HDMI D2 P.C.B. ・ 電源ユニット ● 電源ユニットについて 電源ユニットに搭載されている可変抵抗（VR301）は、絶対 に触らないでください。 I REPAIR NOTES / 修理上の留意点 Power Supply Unit / 電源ユニット� VR301 • NX-SW301 When turning on the power of NX-SW301 indepen- dently for its operation check, refer to “When check- ing the P.C.B.” of “I NX-SW301 DISASSEMBLY PROCEDURES” (on page 23). ● NX-SW301 動作確認のためにNX-SW301単独で電源をONする場 合、「■ NX-SW301分解手順」の「P.C.B.動作チェックを する場合」 （23ページ）を参照してください。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 18 DVR-S300 NX-P301/NX-P302 I DVR-S300 TRADE MODE / DVR-S300トレードモード DVR-S300には、“ ” （オープン/クローズ）キーを押しても トレーが開かない「トレードモード」があります。 ● トレードモードの起動 本体の電源をオンの状態から行います。 1. 本体の“ ”キーを押し、トレーを開きます。（Fig. 1） 2. リモコンの“DVD/CD”ボタンを押し、次に“ ”、“ ”、 “ ”ボタンを順番に押します。（Fig. 2） 3. 本体FLディスプレイに“TRA ON”が表示され、トレー ドモードが起動します。（Fig. 3） This unit has “TRADE MODE” which prevents the tray from opening even when the “ ” (Open/Close) key is pressed. • Entering TRADE MODE The power to the main unit should be turned on before entering the TRADE MODE. 1. Press the “ ” key to open the tray. (Fig. 1) 2. Press the “DVD/CD”, “ ”, “ ” and “ ” buttons on the remote control in that order. (Fig. 2) 3. “TRA ON” appears on the FL display of the main unit and TRADE MODE is activated. (Fig. 3) ※ トレードモード起動後、本体は下記のキー以外の操作 を通常通り行うことができません。 STANDBY/ON（POWER ONのみ） VOLUME UP/DOWN ※ リモコンからの操作は通常通り行うことができます。 ● トレードモードの解除 本体の電源をオンの状態から行います。 1. リモコンの“DVD/CD”ボタンを押してから、“ ”ボタン を押し続けます。（Fig. 2） 約2秒後、トレーが開きます。 2. リモコンの“ ”、“ ”、“ ”ボタンを順番に押しま す。（Fig. 2） 3. 本体FLディスプレイに“TRA OFF”が表示され、トレー ドモードが解除されます。（Fig. 4） * After entering TRADE MODE, it is not possible to operate keys of the main unit as usual except the following keys. STANDBY/ON (POWER ON only) VOLUME UP/DOWN * Operation through the remote control is available as usual. • Canceling TRADE MODE The power to the main unit should be turned on be- fore canceling TRADE MODE. 1. Press the “DVD/CD” button and keep pressing the “ ” button on the remote control. (Fig. 2) The tray opens after about 2 second. 2. Press the “ ”, “ ” and “ ” buttons on the remote control in that order. (Fig. 2) 3. “TRA OFF” appears on the FL display of the main unit and TRADE MODE is cancelled. (Fig. 4) VOLUME / ボリューム� STANDBY/ON OPEN/CLOSE TRAY / トレー� FL Display / FLディスプレイ� Fig. 1 Fig. 2 TRADE MODE display / トレードモード表示 Fig. 3 Fig. 4 Enter / 起動 Cancel / 解除 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 19 DVR-S300 NX-P301/NX-P302 HOW TO MANUALLY EJECT THE TRAY a. Turn the player bottom up. b. Move the slider in the direction indicated with a flatblade screwdriver until the tray is ejected. c. Gently pull the tray out. I DVR-S300 DISASSEMBLY PROCEDURES / DVR-S300分解手順 （番号順に部品を取り外してください。） 1. トップパネルの外し方 a. 1のネジ6本を外します。（Fig. 1） b. トップカバーを後ろ側から上げて取り外します。 2. フロントパネルユニットの外し方 a.「手動でトレーを開く方法」でトレーを開き、リッドを外 します。 b. トレーを閉じます。 c. コネクター1105、1601、CN2を外します。（Fig. 1） d. 2のネジ2本、3のネジ3本を外します。（Fig. 1、2） e. 4のネジ1本を外し、アース（リード線）を外します。 （Fig. 1） f. スナップ2箇所を外し、フロントパネルを取り外します。 手動でトレーを開く方法 a. 本体を上下反転します。 b. トレーが出てくるまで、マイナスドライバーでスラ イダーを図に示す矢印の方向に動かします。 c. トレーをそっと引き出します。 Fig. 1 (Remove parts in the order as numbered.) 1. Removal of Top Panel a. Remove 6 screws (1). (Fig. 1) b. Remove the Top Panel by lifting it from the rear. Fig. 2 2. Removal of Front Panel Unit a. Open the tray according to “HOW TO MANUALLY EJECT THE TRAY” and remove the lid. b. Close the tray. c. Remove connectors 1105, 1601 and CN2. (Fig. 1) d. Remove 2 screws (2) and 3 screws (3). (Fig. 1, 2) e. Remove 1 screw (4) and then remove the earth (lead wire). (Fig. 1) f. Release 2 snaps and remove the Front Panel. 1 1 1 1 2 2 CN2 1105 1601 Snap� スナップ� Lid� リッド� Front Panel Unit フロントパネルユニット� Snap� スナップ� Earth (lead wire) アース（リード線）� 4 3 Flatblade Screwdriver マイナスドライバー� Slider スライダー� Slider スライダー� Rear リア� Frame フレーム� Front フロント� Tray トレイ� a c b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 20 DVR-S300 NX-P301/NX-P302 3. FRONT（1）、（2）、CONTROL P.C.Bの外し方 a. 5のねじ3本、6のネジ1本を外します。（Fig.3） ＊ 組立時、6のネジは必ずM3×6を使用してください。 b. スナップ2箇所を外し、ボトムパネルを取り外します。 c. コネクター1102を外します。（Fig. 3） d. 7のネジ1本を外します。（Fig. 3） e. FRONT（1）DISPLAY P.C.Bを取り外します。 f. コネクター1103を外します。（Fig. 3） g. 8のネジ1本を外します。（Fig. 3） h. FRONT（2）HP P.C.B.を取り外します。 I. ノブ/ボリュームを外します。 j. 9のネジ4本を外します。（Fig. 3） k. CONTROL P.C.B.、ボタン/フレーム、ボタンを取り外 します。 4. DVDメカの外し方 a. コネクター1101、1102、1103を外します。（Fig. 4） b. 0のネジ4本を外します。（Fig. 5） c. DVDメカを取り外します。 5. MONO P.C.B.の外し方 a. コネクター1104、1105、1301、1302を外します。 （Fig. 4） b. Aのネジ4本を外します。（Fig. 5） c. MONO P.C.B.を取り外します。 Fig. 3 3. Removal of FRONT (1), (2) and CONTROL P.C.B.s a. Remove 3 screws (5) and 1 screw (6). (Fig. 3) * Be sure to use M3 x 6 type for screws (6). b. Release 2 snaps and remove the Bottom Panel. c. Remove the connector 1102. (Fig. 3) d. Remove 1 screw (7). (Fig. 3) e. Remove FRONT (1) DISPLAY P.C.B.. f. Remove the connector 1103. (Fig. 3) g. Remove 1 screw (8). h. Remove FRONT (2) HP P.C.B.. i. Remove the Knob Volume. j. Remove 4 screws (9). (Fig. 3) k. Remove CONTROL P.C.B., Button Frame and But- ton. Fig. 4 Fig. 5 4. Removal of DVD MECHANISM a. Remove connectors 1101, 1102 and 1103. (Fig. 4) b. Remove 4 screws (0). (Fig. 5) c. Remove the DVD MECHANISM. 5. Removal of MONO P.C.B. a. Remove connectors 1104, 1105, 1301 and 1302. (Fig. 4) b. Remove 4 screws (A). (Fig. 5) c. Remove MONO P.C.B.. 5 6 7 1102 1103 FRONT (1) DISPLY P.C.B. FRONT (2) HP P.C.B. CONTROL P.C.B. 8 9 9 Knob Volume ノブ/ ボリューム� Button Frame ボタン/ フレーム� Button ボタン� Snap� スナップ� Snap� スナップ� Bottom Panel ボトムパネル� 1101 1103 1102 1104 1105 1301 1302 MONO P.C.B. DVD MECHANISM DVDメカ� A A 0 0 MONO P.C.B. DVD MECHANISM DVDメカ� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 21 DVR-S300 NX-P301/NX-P302 Fig. 7 Fig. 6 6. チューナーの外し方 a. コネクターCN1を外します。（Fig. 6） b. Bのネジ2本を外します。（Fig. 7） c. チューナーを取り外します。 7. HDMI D2 P.C.B.の外し方（J model） a. コネクター1704を外します。（Fig. 6） b. Cのネジ2本を外します。（Fig. 7） c. HDMI D2 P.C.B.を取り外します。 8. AV P.C.B.の外し方 a. コネクター1101、1102、1201、1401、1601を外しま す。（Fig. 6） b. Dのネジ4本を外します。（Fig. 7） c. Eのジャックスクリュー2本を外します。（Fig. 7） d. Fのネジ2本を外します。（Fig. 6） e. AV P.C.B.を取り外します。 9. 電源ユニットの外し方 a. コネクターCON1を外します。（Fig. 6） b. Gのネジ2本を外します。（Fig. 6） c. スナップ2箇所を外します。（Fig. 6） d. 電源ユニットを取り外します。 6. Removal of Tuner a. Remove the connector CN1. (Fig. 6) b. Remove 2 screws (B). (Fig. 7) c. Remove the Tuner. 7. Removal of AV P.C.B. a. Remove connectors 1101, 1102, 1201, 1401 and 1601. (Fig. 6) b. Remove 6 screws (C, K, A, L, V models) / 8 screws (B, G models) (D). (Fig. 7) c. Remove 2 jack screws (E). (Fig. 7) d. Remove 2 screws (F). (Fig. 6) e. Remove AV P.C.B.. 8. Removal of Power Supply Unit a. Remove the connector CON1. (Fig. 6) b. Remove 2 screws (G). (Fig. 6) c. Release 2 snaps. (Fig. 6) d. Remove the Power Supply Unit. 1704 (J model) 1102 1101 1401 1201 1601 CN1 CON1 Tuner チューナー� Power Supply Unit 電源ユニット� AV P.C.B. HDMI D2 P.C.B. (J model) Snap� スナップ� G G F C D B D (B, G models) D (C, K, A, B, G, L, V models) E (J model) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 22 DVR-S300 NX-P301/NX-P302 I NX-SW301 DISASSEMBLY PROCEDURES / NX-SW301分解手順 (Remove parts in disassembly order as numbered.) 1. Removal of Front Grille Ass’y The Front Grille Ass’y is fixed to the cabinet with dowels at 6 locations. As a Flatblade Screwdriver is used for removal, use special care not to cause damage to the cabinet. a. Using the Flatblade Screwdriver inserted in the gap between the Front Grille Ass’y and the cabinet (bottom side first), push up the Front Grille Ass’y. (Fig. 1) b. Remove the Front Grille Ass’y by lifting it up. * When installing the Front Grille Ass’y, apply quick- drying bond to the dowels and then fit them into dowel holes for secure installation. (The Front Grille Ass’y will come off easily if its dowels are fitted into dowel holes only.) 2. Removal of Rear Panel Ass’y a. Remove 4 screws (1) and then remove the Heat Sink Cover. (Fig. 2) b. Remove 10 screws (2) and then take out the Rear Panel Ass’y. (Fig. 2) * Arrow Marks ( ) are printed to identify the screws to be removed. * When assembling the Rear Panel, check to ensure that the packing is not damaged so as to prevent air leakage from occurring. （番号順に部品を取り外してください。） 1. フロントグリルASSYの外し方 フロントグリルASSYは6箇所のダボで固定されていま す。取り外しの際、本体に傷が付かないよう十分注意 してください。 a. 底側からマイナスドライバー等を差し込み、フロント グリルASSYを押し上げます。（Fig. 1） b. 徐々に上面へマイナスドライバー等で押し上げて、フ ロントグリルASSYを外します。 ＊ 取付時には、フロントグリルASSYのダボに速乾ボ ンドなどを塗って差し込み、固定してください。（フ ロントグリルASSYを差し込むだけでは、簡単には ずれてしまいます。） 2. リアパネルASSYの外し方 a. 1のネジ4本を外し、ヒートシンクカバーを外します。 （Fig. 2） b. 2のネジ10本を外し、リアパネルASSYを取り出しま す。（Fig. 2） ＊ 取り外すネジの箇所には矢印（ ）が印刷されていま す。 ＊ 組み立ての際は、パッキングの損傷など無いことを 確認し、エアー漏れが発生しないように組み立てて ください。 Front Grille Ass'y� フロントグリルASSY Dowel� ダボ� Bottom Side� 底面� Flatblade Screwdriver� マイナスドライバー� Rear Panel Ass'y� リアパネル ASSY 2 2 1 1 Heat Sink Cover� ヒートシンクカバー� Fig. 1 Fig. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 23 DVR-S300 NX-P301/NX-P302 POWER (3) IN/OUT P.C.B. POWER (3) IN/OUT SCHEMATIC DIAGRAM 1 2 3 4 5 11 12 13 14 15 6 7 8 9 10 Short SYSTEM CONNECTOR Short SYSTEM CONNECTOR P.C.B.動作チェックをする場合 下記の方法により、NX-SW301に電源を投入します。 a. システムコネクターの端子間（1pin <－> 5pin）をショー トします。 b. 電源コードをAC電源コンセントに接続します。 When checking the P.C.B. Turn on the power to NX-SW301 according to the following procedure. a. Short between the terminals No.1 and No.5 of SYSTEM CONNECTOR. b. Connect the power cable to the AC power outlet. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 24 DVR-S300 NX-P301/NX-P302 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 25 I DVR-S300 BLOCK DIAGRAM GND OUT VS (SAA6581) RDS (TM 08) TUNER 74HC4052 HEADPHONE Y/Pr/Pb POWER SUPPLY UNIT FRONT (1) DISPLAY Board AV Board MONO Board DVD MECHANISM J model HDMI D2 Board AM/FM TUNER B, G models B, G models C, K, A, B, G, L, V models FRONT (2) HP Board 22 3 7400 7509 1 2 39 78 19 26, 27, 28 7300 7301 7200 7507 1102 7508 7204 B, G models 1 5 10 15 11 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 26 I NX-SW301 BLOCK DIAGRAM (1/2) CN401 CN404 CN301 (BLUE/青) SYSTEM CONNECTOR SPEAKERS SCN6P EH6P SYSTEM CONTROL C C IC302 IC303 Over Q304 NC GND C/SW GND C/SW KIA4558P KIA4558P IC303 IC301 Current NC SW SW KIA4558P STK403-090 Detect CN305 C MUTE MUTE RY301 SDN2P GND C/SW PROTE PROTE Q303 GND D RLY-SP RLY-SP GND D A-YST GND D IC304 SW LIMITER Q305 GND SL/SR Q306,307 FL Q308,309 FR GND FL/FR SR SL Over Q302 IC302 IC301 Current Q310 CN304 KIA4558P STK403-090 Detect CN302 EH2P RY301 SDN2P (BLUE/青) -12V +12V Q301 IN/OUT C/SW Over Q105 CN405 CN402 CN101 (WHITE/白) IC102 IC101 Current Q103 SDN7P SCN6P EH6P KIA4558P STK403-090 Detect CN102 GND-C FL RY101 VH2P (WHITE/白) GND-SR GND FL/FR GND FL/FR GND-SL FR FL FR Q101 GND-FR MUTE MUTE GND-FL PROTE PROTE GND-D RLY-SP RLY-SP SYSTEM CN104 Over EH4P IC102 IC101 Current Q104 PROTE KIA4558P STK403-090 Detect MUTE RY101 CN409 -12V +12V Q102 GND-FL FL-OUT CN406 GND-FR SDN5P FR-OUT SL-OUT FL/FR GND-SL SR-OUT SL-OUT FL-OUT GND-SR FR-OUT SR-OUT CT-OUT GND-CT CT-OUT Over Q205 CN403 CN201 (RED/紅) IC202 IC201 Current Q203 SCN6P EH6P KIA4558P STK403-090 Detect CN202 SL SL RY201 VH2P (RED/紅) GND SL/SR GND SL/SR SR SR Q201 MUTE MUTE PROTE PROTE RLY-SP RLY-SP Over CN204 IC202 IC201 Current Q204 EH3P KIA4558P STK403-090 Detect PLY-SP RY201 -12V +12V Q202 SL/SR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 7 5 6 1 3 2 7 5 6 6 7 14 15 1 2 1 2 3 4 5 11 12 4 5 11 12 7 6 5 DC Detect Q311,312 RLY Tr Q313 1 2 1 2 3 4 5 6 1 2 3 4 5 6 1 3 2 14 15 6 7 RLY Tr Q108 DC Detect Q107,106 1 2 4 5 11 12 14 15 6 7 RLY Tr Q208 DC Detect Q207,206 1 2 TEMP Tr Q209,210 Thermister TH201 1 2 1 2 3 CN203 VH3P -B GND +B 1 2 3 CN103 VH3P -B GND +B 1 2 3 1 2 3 4 1 2 3 4 5 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 7 6 5 1 3 2 DRIVER WOOFER CN303 VH5P GND GND -B GND +B 1 2 3 4 5 AMP (2) POWER (3) POWER (1) AMP (1) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 27 I NX-SW301 BLOCK DIAGRAM (2/2) CN806 CN805 SDN5P SDN6P 5 3,6 1,2,4 2,5 CN801 SCN4P CN802 3 1,4 SCN3P CN803 SCN2P 8200/50 RBV-602 C807 D802 T801 KIA7812 CN405 VH7P C808 KIA7912 8200/50 F801 RY801 C, V, J models ... 8A250V K, A, B, G, L models ... T2.5A SDT-S-112LMR W1B W2B R821 W1A W2A 2K IC804 Q807 D804 (Blue) (White) KTC3198 KLA78L05 1SR139-400 SCN3P SCN3P T802 R822 470/25V C814 C813 4.7K CN808 CN810 TE801 TE802 D805 BP 1SR139-400 4.7/50V R823 10K IC804 Q808 KTA1266 AC IN R824 10K 1 1 2 3 4 5 IC803 +5 + -B +B IC801 IC802 +12V -12V + +5 SP RLY_on Tr (Q805,Q806) 5 6 7 +5 1 2 3 PRTTECTION Tr (Q801,Q802,Q803) 1 2 3 1 2 3 4 1 2 1 6 7 GND Q809,810 1 2 3 2 3 1 1 1 1 1 1 1 2 3 2 1 3 3 2 1 + POWER POWER (2) SUB TRANSFORMER POWER (4) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 28 I DVR-S300 WIRING DIAGRAM RDS_CLK 1 GND_D PCM_Data_LR GND_D 1 GND_D 1 SDA-DAC GND_D GND_D PCM_Data_Sub_Cen GND_ND SCL-DAC PCM_Data_SLR RDS_DAT HDMI D2 BOARD AM/FM TUNER 1108 1109 POWER SUPPLY UNIT 1107 FRONT (2) HP BOARD CONTROL BOARD 1103 1104 FRONT (1) DISPLAY BOARD 1103 WXD8829 DVD MECHANISM SD6.31 1106-5 MONO BOARD AV BOARD 1105 (J model) 8011 13P 8009 11P 8007 7P 4P 8001 10P 8008 9P 5P 24P 6P 8002 30P 8004 16P 8005 30P 12P 5P (J model) 1106-1 PLUG DET PLUG DET D2 VSDA_DAC VSCL_DAC DAC_STB VSDA VSCK RDS_DAT TU_SD L2 SPDIF_OUT MIC_DET w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 29 I NX-SW301 WIRING DIAGRAM 1 2 3 4 5 6 1 2 1 2 3 4 5 6 1 2 1 2 1 2 3 4 5 6 SPEAKER TERMINAL SYSTEM CONNECTOR CN409 1 2 3 4 5 6 7 8 9 10 CN401 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 GND FL FL-OUT GND-FR FR-OUT GND-SL SL-OUT GND-SR SR-OUT GND-C C-OUT SYSTEM N.C. N.C. C-IN GND C/SW GND D GND D GND D SW-IN GND SL/SR FL-IN FR-IN GND-FL/FR SR-IN SL-IN POWER (3) IN/OUT BOARD GND-FL/FR GND-SL/SR GND-C/SW RLY-SP RLY-SP RLY-SP SYSTEM CN402 FL-IN FR-IN MUTE PROTE CN403 SL-IN SR-IN MUTE PROTE CN406 SL-OUT SR-OUT FL-OUT FR-OUT C-OUT CN404 C-IN SW-IN MUTE PROTE CN804 GND-C GND-SR GND-SL GND-FR GND-FL GND-D 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 1 2 3 4 5 6 1 2 3 4 5 6 7 6P 6P 1P 2P 2P 6P CN101 CN102 CN201 CN202 CN302 CN301 FL-IN GND-FL/FR FR-IN MUTE PROTE RLY-SP FL-OUT FR-OUT SL-IN GND-SL/SR SR-IN MUTE PROTE RLY-SP SL-OUT SR-OUT C-OUT N.C. C-IN GND-C/SW SW-IN MUTE PROTE RLY-SP AMP (1) FL/FR BOARD AMP (2) SL/SR BOARD POWER (1) C/SW BOARD CN305 SP+ 1 DRIVER WOOFER SP- 2 RLY-SP CN104 PROTE MUTE -12V +12V CN802 -B GND +B CN104 -12V +12V CN203 -B GND +B CN303 GND GND -B GND +B CN304 -12V +12V 1 2 3 4 1 2 3 1 2 3 1 2 3 1 2 3 4 5 1 2 3P 3P 7P 3P 5P 4P 2P POWER (4) CN801 1 2 3 4 CN802 1 2 3 CN805 1 2 3 4 5 6 CN804 1 2 3 4 5 6 7 CN806 1 2 3 4 5 CN803 1 2 SUBTR PROTE MUTE -12V +12V RLY-SP -12V +12V -B GND +B -B GND +B GND GND GND GND GND GND SYSTEM GND GND -B GND +B -12V +12V BOARD CN810 CN808 3P POWER CABLE POWER (2) POWER BOARD 2P w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 30 MONO Board-Top View DVD MECHANISM A 5 FRONT (1) DISPLAY BOARD 1301 Page 34 A 2 AV BOARD 1101 Page 32 A 3 AV BOARD 1201 Page 32 B 2 AV BOARD 1102 Page 32 I DVR-S300 PRINTED CIRCUIT BOARD FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 31 MONO Board-Bottom View I DVR-S300 PRINTED CIRCUIT BOARD FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 32 AV Board-Top View AV MONITOR OUT (DVD ONLY) VIDEO / S VIDEO COMPONENT Y / PR / PB OPTICAL LINE OUT TV IN ANALOG IN/OUT AUX IN SYSTEM CONNECTOR VIDEO OUT (DVD ONLY) DIGITAL IN B, G models B, G models J model C, K, A, B, G, L, V models C, K, A, L, V models C, K, A, L, V, J models B, G models B, G, J models B, G, J models POWER SUPPLY UNIT AM/FM TUNER A 1 HDMI D2 BOARD 1101 (J model) Page 37 B 1 MONO BOARD 1301 Page 30 A 1 MONO BOARD 1104 Page 30 C 2 MONO BOARD 1302 Page 30 A 1 CONTROL BOARD 1101 Page 36 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 PRINTED CIRCUIT BOARD FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 33 AV Board-Bottom View C, K, A, B, G, L, V models B, G models The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 PRINTED CIRCUIT BOARD FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 34 FRONT (1) Display Board-Top View FRONT (1) Display Board-Bottom View POWER SUPPLY UNIT A 3 1 CONTROL BOARD 1100 Page 36 A MONO BOARD 1105 Page 30 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 PRINTED CIRCUIT BOARD FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 35 HEADPHONE A 4 CONTROL BOARD 1103 Page 36 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 PRINTED CIRCUIT BOARD FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) FRONT (2) HP Board-Top View FRONT (2) HP Board-Bottom View w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 36 I DVR-S300 PRINTED CIRCUIT BOARD FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper A 5 AV BOARD 1601 Page 32 A 4 FRONT (1) DISPLAY BOARD 1302 Page 34 A 2 FRONT (2) HP BOARD 1400 Page 35 CONTROL Board-Top View CONTROL Board-Bottom View w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 37 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper (J model) (J model) I DVR-S300 PRINTED CIRCUIT BOARD FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) D1/D2 モニター出力� C 1 AV BOARD 1704 Page 32 HDMI D2 Board-Bottom View HDMI D2 Board-Top View w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 38 I NX-SW301 PRINTED CIRCUIT BOARD 2 G POWER (2) POWER BOARD CN801 Page 40 2 G POWER (2) POWER BOARD CN805 Page 40 5 B POWER (3) IN/OUT BOARD CN406 Page 40 5 D POWER (3) IN/OUT BOARD CN402 Page 40 AMP (1) FL/FR Board-Top View AMP (2) SL/SR Board-Top View 5 D POWER (3) IN/OUT BOARD CN403 Page 40 5 B POWER (3) IN/OUT BOARD CN406 Page 40 2 G POWER (2) POWER BOARD CN805 Page 40 2 G POWER (2) POWER BOARD CN802 Page 40 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 39 I NX-SW301 PRINTED CIRCUIT BOARD 2 G POWER (2) POWER BOARD CN801 Page 40 2 G POWER (2) POWER BOARD CN805 Page 40 5 B POWER (3) IN/OUT BOARD CN406 Page 41 5 D POWER (3) IN/OUT BOARD CN402 Page 41 R162 R161 R163 R164 R262 R261 R263 R264 5 D POWER (3) IN/OUT BOARD CN403 Page 41 5 B POWER (3) IN/OUT BOARD CN406 Page 41 2 G POWER (2) POWER BOARD CN805 Page 40 2 G POWER (2) POWER BOARD CN802 Page 40 AMP (1) FL/FR Board-Top View (Specifications for the beginnings of production / 生産初期の仕様) AMP (2) SL/SR Board-Top View (Specifications for the beginnings of production / 生産初期の仕様) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 40 I NX-SW301 PRINTED CIRCUIT BOARD POWER (1) C/SW Board-Top View POWER (2) POWER Board-Top View 5 D POWER (3) IN/OUT BOARD CN404 Page 40 5 B POWER (3) IN/OUT BOARD CN406 Page 40 2 G POWER (2) POWER BOARD CN806 Page 40 2 G POWER (2) POWER BOARD CN803 Page 40 DRIVER 5 F POWER (4) SUBTR BOARD CN810 Page 40 2 B AMP (1) FL/FR BOARD CN104 Page 38 4 F AMP (2) SL/SR BOARD CN204 Page 38 3 B POWER (1) C/SW BOARD CN303 Page 40 3 B AMP (1) FL/FR BOARD CN103 Page 38 4 B POWER (1) C/SW BOARD CN304 Page 40 4 F AMP (2) SL/SR BOARD CN203 Page 38 5 C POWER (3) IN/OUT BOARD CN405 Page 40 POWER (3) IN/OUT Board-Top View SPEAKER TERMINAL SYSTEM CONNECTOR 3 B POWER (1) C/SW BOARD CN302 Page 40 3 F AMP (2) SL/SR BOARD CN202 Page 38 4 B AMP (1) FL/FR BOARD CN102 Page 38 2 F AMP (2) SL/SR BOARD CN201 Page 38 2 B POWER (1) C/SW BOARD CN301 Page 40 4 B AMP (1) FL/FR BOARD CN101 Page 38 3 F POWER (2) POWER BOARD CN804 Page 40 POWER (4) SUBTR Board-Top View 3 G POWER (2) POWER BOARD CN808 Page 40 SUBTRANS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 41 I NX-SW301 PRINTED CIRCUIT BOARD R383 R382 R381 R384 5 D POWER (3) IN/OUT BOARD CN404 Page 41 6 B POWER (3) IN/OUT BOARD CN406 Page 41 2 G POWER (2) POWER BOARD CN806 Page 40 2 G POWER (2) POWER BOARD CN803 Page 40 DRIVER R138/C121 R314/C308 R137/C122 C221/R237 R237/C222 SPEAKER TERMINAL SYSTEM CONNECTOR 3 B POWER (1) C/SW BOARD CN302 Page 41 3 F AMP (2) SL/SR BOARD CN202 Page 39 4 B AMP (1) FL/FR BOARD CN102 Page 39 2 F AMP (2) SL/SR BOARD CN201 Page 39 2 B POWER (1) C/SW BOARD CN301 Page 41 4 B AMP (1) FL/FR BOARD CN101 Page 39 3 F POWER (2) POWER BOARD CN804 Page 40 POWER (1) C/SW Board-Top View (Specifications for the beginnings of production / 生産初期の仕様) POWER (3) IN/OUT Board-Top View (Specifications for the beginnings of production / 生産初期の仕様) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 42 NC RESET VIN3 VIN4 VINLOp VINLOn PREGND PWRVCC PREVCC PS VBIAS SB VIN1 VIN2p VIN2n PWRGND HS_GND OUTLn OUTLp OUT4n OUT4p OUT3n OUT3p OUT2n OUT2p OUT1n OUT1p VO2 COM OUT IN T166 I6 T167 I1 T142 I6 T144 I6 T145 I6 T146 I6 T147 I6 T148 I4 T149 I4 T150 I4 T151 I4 T152 I4 T153 I5 T154 I5 T155 I12 T156 I12 T157 I12 T158 I12 T161 I5 T162 I5 T163 I5 T164 I5 T165 I5 T131 H2 T132 I2 T133 I2 T134 I2 T135 I2 T136 E6 T137 E6 T138 I5 T139 I5 T140 I5 T141 I5 T106 E3 T107 E3 T109 E3 T110 E3 T111 E3 T113 E3 T114 E3 T115 E3 T116 E3 T117 E3 T118 F3 T119 F3 T120 F3 T121 F3 T122 F3 T123 F3 T125 G2 T126 G2 T127 G2 T128 G2 T129 G2 T130 G2 7132 I9 F125 F12 F126 F12 F127 H10 F128 C12 F141 C6 F155 E6 F156 E6 T101 D3 T102 D3 T103 D3 T104 E3 T105 E3 7110 F4 7111 F3 7112 E9 7131 I10 5135 A10 5136 A10 7101 B2 7102 I13 7106 D5 7107 D4 7108 E4 7109 E3 5124 D4 5125 D4 5126 D3 5130 A5 5131 B13 5132 B13 5133 A12 5134 A12 5101 A1 5103 A3 5104 A3 5105 B4 5106 B3 5107 B5 5108 C4 5109 C1 5111 C2 5112 C2 5115 A9 5116 A9 5117 A8 5118 A8 5119 B7 5122 D5 5123 F6 4134 I10 4137 A4 4138 A5 4139 A6 4140 I10 4141 A13 4142 A13 4143 A13 4144 A13 4145 A13 4146 A13 4152 G2 4153 G2 4156 H2 4157 H2 3196 A10 3205 I11 4102 H6 4106 H11 4115 C6 4116 C6 4117 C6 4118 C6 4119 D6 4122 F7 4133 I9 3166 G5 3167 H5 3168 H5 3171 G2 3173 H2 3174 H2 3175 I2 3176 I2 3177 H2 3181 B12 3182 B12 3183 A12 3184 A11 3185 A11 3186 A11 3191 B13 3192 B13 3193 A13 3194 A12 3195 A10 3143 B8 3144 B7 3145 A5 3146 D3 3147 D5 3148 D4 3149 E4 3150 E3 3151 F4 3152 F4 3153 E5 3154 E5 3158 E4 3159 E4 3161 F5 3162 G5 3163 G5 3164 G5 3165 G5 3108 H10 3110 H10 3111 H10 3114 H10 3115 I12 3131 I10 3132 I9 3136 I9 3139 C12 3140 B10 3142 A9 2227 A12 2228 A12 2229 A11 2232 A10 2230 A10 2231 A11 2232 A10 2241 I3 2242 I4 2243 I4 2245 I5 2247 I5 2248 I5 3101 I3 3102 I4 3103 I4 3104 I4 3107 H10 2203 E5 2204 E5 2208 F6 2209 G6 2210 E5 2211 F4 2212 G5 2213 G5 2214 G5 2215 G5 2216 G5 2221 B12 2222 B13 2223 B12 2224 B13 2225 A12 2226 A12 2181 C3 2182 C3 2183 C3 2184 C4 2185 C4 2186 C6 2187 C6 2188 C6 2189 C6 2190 C6 2191 C6 2193 D2 2194 D3 2195 D5 2196 D4 2198 E3 2201 E5 2202 E6 2158 B8 2159 B8 2161 A8 2162 A8 2163 A8 2164 A8 2165 A8 2166 A8 2167 B8 2168 B8 2169 B8 2171 B7 2172 B7 2173 B7 2174 A4 2175 A5 2180 C3 2130 C4 2131 C5 2132 C5 2133 C5 2134 C5 2135 C5 2136 C5 2138 D1 2139 D1 2141 D2 2142 D2 2145 C2 2146 C3 2149 B9 2150 I13 2151 C12 2152 B9 2153 A9 2154 B9 2155 B9 2156 B9 2157 B8 1151 H5 1152 H5 1153 H5 2101 C1 2102 C1 2103 A2 2104 A2 2105 A3 2106 A3 2107 A4 2108 A4 2111 B4 2112 B4 2113 B5 2116 B3 2117 B3 2118 B3 2119 B3 2120 B3 2121 B3 2122 B4 2123 B4 2126 B5 2127 B5 6 7 8 9 10 11 12 13 A B C D 2 3 4 5 1 2 3 4 5 6 7 8 9 10 11 12 13 1 E F G H I A B C D E F G H I 1101 D2 1102 G1 1103 H1 1104 I6 1105 I3 1108 I12 3110 22R 4 1108 B4B-PH-K 1 2 3 BLM18P 5107 3193 150R T122 4146 4144 4145 100n 2202 47u 2180 T141 T152 T158 100K 3149 750K 3142 T139 220u 2193 BSH103 3 1 2 3104 1K0 9 25 26 7109 20 21 22 23 24 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 2 1101 SFV24R-1ST 1 T118 150R 2118 100n 3196 2190 2171 1u0 BLM18P 5116 100n BLM31 1152 4115 10u T130 5124 10R 3148 3 1 2157 47n 2SB1132 7106 2 3 2 100n 2123 7 8 9 7110 BC817-25W 1 12 13 14 15 16 2 3 4 5 6 16FMN-BMT-A-TFT 1104 1 10 11 100R 3158 2152 100n 2127 100n T136 2104 100n 2174 3p9 4134 2149 10u 2186 1u0 100n 2185 T146 2226 47p 1K0 3103 100n 4133 2163 3132 4K7 27M 5130 7108 BSH103 3 1 2 10K 3161 2116 100n T105 T107 100n 2161 F128 T149 T125 2107 220u 10K 3168 2231 47p BLM31 5112 T119 15K 3164 3159 2133 100n 100R T150 3165 8K2 F125 4118 1K0 47u 2141 3102 2136 100n 220u 2138 7132 3 1 2 BSH103 3111 22R T154 2224 47p 2167 100n T126 100p 2248 100n BLM18P 2146 4141 5115 T114 47p 1u8 5132 3185 2222 3163 150R 56K 3183 4K7 3131 150R 2215 100n 3167 BLM18P 10K 5118 T138 3108 100R 100n 2132 5125 10u 2159 1u0 150R 3195 BLM31 1153 47n 2156 T142 F156 T128 T129 2121 5104 BLM18P 100n BLM18P 5103 4142 T147 100n 2214 10K 3152 T137 5117 BLM18P F155 3145 100K BLM18P 5109 1n0 2162 T162 V V V 3173 330K 3205 6K8 3146 390R T121 2n2 2210 4139 T157 2230 47p 100n 2208 16V 47u 2195 T163 100n 2135 2182 47u T106 T165 T161 5135 1u8 4152 2223 47p 22p 2165 T156 4138 100n 2111 4137 100n 2134 2225 47p 2112 100n 100n 3174 330K 2139 5131 1u8 4117 V1 BLM18P 5123 220u 2101 2119 100n 1 2 3 4 5 6 B6B-PH-K 1102 2154 470n 5126 BLM18P 10K 3151 T155 3194 150R 27K 3162 100n 2102 2173 100n 4102 3p9 2175 47p 2227 100n 2155 3115 T151 4K7 47u 2145 BLM18P 5111 T153 2194 1R0 3171 100n F127 1K0 3114 T145 120p 2191 2229 47p V 4119 2169 100n 2221 47p 4116 T111 BLM18P 5119 10K 2172 100n 3101 100n 2142 4143 2130 T120 220u 4140 4153 2228 47p T127 1151 BLM31 2241 T101 100p 150R 3192 4 OUTP 1 100n 2151 7102 NCP303LSN30 5 CD GND 3 INP 2 3150 100K 1u0 2188 BLM18P 5105 220u 2105 3140 100n 2106 22R BLM31 470p 2212 5101 10K 3177 2153 100n 2150 100n 100n 2183 2113 100n 100K 3143 3191 150R 1K0 3136 2203 100n 2181 T102 100n 100n 2198 2189 1u0 100n 2201 220u 2103 9 T123 1 2 3 4 5 6 7 8 09FMN-BMT-A-TFT 1105 100n 2108 2122 100n 1n0 2166 5134 1u8 2 5136 1u8 BSH103 7131 3 1 5106 BLM18P T110 22p 2242 560R 3139 2204 2n2 T117 22K 3166 2247 100p 2120 100n 2196 47u 16V 2184 47u 3147 10R 15K 5122 BLM18P T103 3144 T148 3153 DVSS_3 94 UWR# 95 URD# 96 97 DVDD18_2 98 UP1_2 99 UP1_3 680K 87 AD5 88 AD6 IOA21 89 MB 9 ALE 90 AD7 91 A17 92 IOA0 93 8 MA 80 DVDD3_2 AD0 81 AD1 82 AD2 83 AD3 84 DVSS_2 85 AD4 86 HIGHA4 72 HIGHA3 DVDD3_1 73 74 HIGHA2 HIGHA1 75 76 IOA20 77 IOCS# 78 IOA1 IOOE# 79 65 APLLVDD3 IOWR# 66 67 A16 HIGHA7 68 69 HIGHA6 7 DVDRFIN 70 HIGHA5 71 58 IOA7 59 HIGHA0 6 DVDRFIP IOA18 60 IOA19 61 62 DVSS_1 63 APLLCAP APLLVSS 64 50 TDO 51 52 DVDD18_1 IOA2 53 IOA3 54 55 IOA4 56 IOA5 57 IOA6 43 USBP 44 45 USBM USB_VDD3 46 47 FG TDI 48 TMS 49 5 DVDD TCK 36 37 DMO 38 FMO TROPENPWM 39 4 DVDC PWMOUT1 40 TRO 41 FOO 42 USB_VSS 29 DVDB 3 30 VREFO FEO 31 TEO 32 TEZISLV 33 OP_OUT 34 OP_INN 35 OP_INP 252 253 OSN 254 RFGC IREF 255 256 AVDD3 RFLVL 26 SGND 27 V2REFO 28 V20 245 246 RFRPAC 247 HRFZC 248 CRTPLP RFGND 249 CSO 25 CEQP 250 CEQN 251 OSP LPFOP 239 ADCVDD3 SVDD3 24 S_VCM 240 241 ADCVSS S_VREFP 242 243 S_VREFN RFVDD3 244 RFRPDC JITFO 231 JITFN 232 PLLVSS 233 IDACEXLP PLLVDD3 234 LPFON 235 LPFIP 236 LPFIN 237 238 DVSS_13 224 MC_DATA 225 SPDIF RFGND18 226 227 RFVDD18 XTALO 228 XTALI 229 LDO1 23 230 DVSS_12 217 ASDATA0 ASDATA1 218 219 ASDATA2 LDO2 22 ASDATA3 220 DVDD18_6 221 ASDATA4 222 223 SPDATA 21 MDI2 SPLRCK 210 211 SPBCK DVDD3_10 212 ALRCK 213 ABCK 214 215 ACLK 216 201 202 YUV5 YUV6 203 204 DVDD3_9 205 VSYN YUV7 206 207 HSYN 208 SPMCLK 209 DACVDDB 196 YUV2 197 DACVSSB YUV3 198 199 DACVDDA DVDA 2 MDI1 20 YUV4 200 DACVSSA 189 DACVDDC 19 TPI VREF 190 191 FS 192 YUV0 DACVSSC 193 YUV1 194 195 181 RD22 182 DVDD3_8 RD21 183 RD20 184 185 RD19 186 RD18 187 RD17 188 RD16 RD26 174 175 DVSS_11 176 RD25 RD24 177 178 DQM3 DQM2 179 TNI 18 RD23 180 167 DVDD3_7 RD31 168 RD30 169 CDFOP 17 170 RD29 RD28 171 RD27 172 DVDD18_5 173 16 CDFON 160 RA8 DVSS_9 161 RA7 162 DVSS_10 163 RA6 164 RA5 165 RA4 166 152 DVDD18_4 153 RVREF 154 RCLKB DVDD3_6 155 156 RCLK 157 CKE 158 RA11 159 RA9 145 BA1 RA10 146 RA0 147 148 DVSS_8 RA1 149 15 SD 150 RA2 151 RA3 138 RWE# CAS# 139 SC 14 RAS# 140 DVDD3_5 141 RCS# 142 BA0 143 DVSS_7 144 RD12 130 131 RD11 132 RD10 RD9 133 DVSS_6 134 RD8 135 136 DQS1 DQM1 137 RD2 RD1 124 125 RD0 126 RD15 DVDD3_4 127 RD14 128 RD13 129 SB 13 116 117 RD6 118 RD5 119 DVSS_5 12 SA RD4 120 121 RD3 122 DVDD18_3 123 ICE MD 11 110 PRST# 111 IR INT0# 112 DQM0 113 DQS0 114 RD7 115 DVSS_4 UP1_5 UP1_6 102 103 UP1_7 104 UP3_0 105 UP3_1 UP3_4 106 UP3_5 107 DVDD3_3 108 109 7112 MT1389 1 AGND MC 10 100 UP1_4 101 3182 150R 2187 1u0 150R 3184 100n T116 2164 2131 100n 150n 2213 T109 24 26 27 6 T140 1 10 21 8 9 28 2 3 5 4 23 12 18 17 16 15 20 19 25 7 22 Φ 7111 MM1646XH 29 30 13 14 11 F141 2243 22p 150R 3186 5108 BLM18P 2126 10u T144 T113 2117 100n 1u8 5133 1n5 4122 2209 1 3 2 4106 LD1117DT33 7101 F126 T115 2158 100n 150R 3181 2211 T104 100n 470p 2216 47p 2232 100R 3107 3154 680K 2 3 1 7107 2SB1132 2245 33n 2168 100p T164 T166 CVBS YUV2 C YUV1 Y VSCK +5V RDS_DAT VSDA OP- ADIN YUV6 YUV5 R_Cr B_Cb YUV4 G_Y YUV3 B_ D_ E FP_IRQ XTALI XO rf +5D SDA_DAC +3V3 +1V8 +5VL +5VL +8V +3V3 LIMIT VSCK F VOLB A_ IOA V20 C_ YUV0 SDA_DAC SCL_DAC AV_MUTE CH_IRQ HDMI_DET TU_SD +S_V33 +S_V33 +S_V33 +3V3 +3V3 +5D PWR_ON_ PWR_ON_ RDS_CLK RDS_DAT VOLA DSD_LFE FREQ_HOP AMP_ON PW_DN_ ERR TU_CLK TU_DO_ST TROPEN +3V3 SCL_DAC +L_V33 +L_V33 +RF_V5 +V18 MUTE_TV +8V +8M +5VL +5M +5D +RF_V5 +S_V33 +3V3 +3V3 +3V3 +L_V33 +3V3 +DV33A +3V3 +DV33B +3V3 +V_V33 +1V8 +V18 +S_V33 V1P4 A(0) LIMIT ADIN OP+ V1P4 PCM_MIC_IN +DV33B MIC_DET STBY V1P4 +8M +5M TRCLOSE +3V3 OP- OP+ +8M VO2 VO2 +RF_V5 TRIN +DV33B V1P4 +V18 SP_RST F TU_CE TU_DI +5D DQM0 V1P4 +V18 +V18 +S_V33 +DV33A +DV33A PWR PRD PCE +DV33A +DV33B +DV33B +DV33B +DV33B +DV33B +V_V33 +V_V33 +V_V33 XTALI FMO TRO DMO FMO V1P4 FOO V1P4 V1P4 PCM_LRCK PCM_MCLK PCM_LTRT PCM_SCLK PCM_LR PCM_CLfe PCM_LsRs PCM_Cs SP_OUT SPMCLK SPBCK SPLRCK SPDATA PCM_MIC_IN YUV7 VSDA RC6 VOLA VOLB +V18 E D_ B_ C_ V20 V2P8 V2P8 V20 V1P4 IOA A_ AD(5) AD(6) A(21) AD(7) A(17) +V18 A(0:21) AD(0:7) DQ(0:15) MA(0:11) DCKE DCLK BA0 WE RAS CAS CS BA1 DQM1 XO TROPEN TRO FOO TROUT STBY TRCLOSE +V18 A(2) A(3) A(4) A(5) A(6) A(7) A(8) A(18) A(19) +DV33B A(16) A(15) A(14) A(13) A(12) A(11) A(10) A(9) A(20) A(1) AD(0) AD(1) AD(2) AD(3) AD(4) FP_IRQ RC6 DQ(7) DQ(6) DQ(5) DQ(4) DQ(3) DQ(2) DQ(1) DQ(0) DQ(15) DQ(14) DQ(13) DQ(12) DQ(11) DQ(10) DQ(9) DQ(8) MA(10) MA(0) MA(1) MA(2) MA(3) MA(11) MA(9) MA(8) MA(7) MA(6) MA(5) MA(4) V1P4 DMO MONO BOARD 1/2 T135 4157 4156 1 2 3 4 5 B5B-PH-K T134 T131 3175 10K T133 10K 3176 T132 TRIN TROUT +3V3 +3V3 1103 B 5 TO 1101 OF AV BOARD Page 44 TO DVD MECHANISM TO DVD MECHANISM TO DVD MECHANISM H 3 TO 1301 OF FRONT (1) DISPLAY BOARD Page 52 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 43 8 8 8 8 8 8 EN 19 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 VSS VDD 0 A D 5 2 4 RB OE CE 7 6 WE 3 1 RP 0 BYTE 2M-1 / 1M-1 NC A-1 8 9 10 11 12 13 14 15 11 1 0 13 12 9 8 9 10 VSS VDDQ 1M-1 DQM VDD VSSQ 0 A BA 1 6 H 0 WE L NC CAS RAS 7 5 4 3 2 15 14 11 10 CS CKE CLK D 0 1 2 3 4 5 6 7 8 SCL ADR 0 1 2 SDA WC T255 C8 T256 C8 T257 C8 T258 B8 T259 B8 T260 B8 T261 B8 T262 B8 T263 A8 T264 A8 T265 B8 T266 B8 T267 A8 T271 H9 T272 H9 T273 H9 T274 H9 T275 I9 T221 F12 T222 F12 T223 F12 T224 F12 T225 F12 T226 F13 T227 G12 T228 G12 T229 G12 T230 G12 T231 G12 T232 G12 T233 G12 T234 G12 T235 H12 T236 H12 T237 H12 T238 H12 T239 F13 T240 B12 T241 G13 T251 C8 T252 C8 T253 C8 T254 C8 5344 C11 5345 C11 7301 B1 7302 E3 7303 G2 7304 F5 7306 A2 7310 E8 7311 I4 T200 D13 T201 A12 T202 B12 T203 B12 T204 B12 T205 B12 T206 B12 T207 B12 T208 B12 T209 C12 T210 C12 T211 C12 T212 C12 T213 C12 T214 C12 T215 C12 T216 C12 T217 C12 T218 C12 T219 D12 T220 F12 3407 C11 3408 C11 3409 C11 4301 H1 4311 A1 4312 A2 5303 F6 5305 A3 5308 F8 3401 D10 3402 C10 3403 C10 3404 C10 3405 C11 3406 C11 3369 B11 3370 A11 3371 A11 3372 B11 3373 B11 3374 B11 3375 B11 3376 B11 3350 H11 3354 A1 3355 A3 3358 H12 3361 A11 3362 A11 3363 A11 3364 A11 3365 B11 3366 B11 3367 B11 3368 B11 3315 H7 3316 E8 3317 F8 3325 I1 3326 H3 3335 G4 3336 H5 3337 I6 3338 H5 3340 H11 3342 G7 3343 F7 3344 F7 3345 G11 3346 G11 3348 H5 3349 G11 3302-4 E1 3303-2 D1 3303-3 D1 3303-4 D1 3304-1 D1 3304-2 D1 3304-3 D1 3304-4 D1 3305-1 E1 3305-2 E1 3305-3 E1 3305-4 E1 3307 I4 3308 I4 3309 I4 3306 E1 3312 B2 3313 C2 3314 G7 2381 F8 2391 D5 2392 D5 2393 E5 2394 E5 3301-1 E1 3301-2 E1 3301-3 F1 3301-4 F1 3302-1 D1 3302-2 E1 3302-3 E1 2328 H11 2329 H11 2341 D11 2342 D11 2343 D11 2344 D12 2345 D12 2346 D12 E F G H I A B C D E F 2319 F5 2320 F6 2323 A3 2324 H12 2325 H12 2326 H12 2327 H12 3 4 5 6 7 8 9 10 11 12 13 A B C D 3 4 5 6 7 8 9 10 11 12 13 1 2 2305 C3 2306 D3 2307 D3 2308 D3 2309 D3 2310 I4 2311 G3 2312 G3 2315 G5 2316 G5 2317 I5 2318 I6 1 2 G H I 1301 F13 1302 A13 2301 B2 2302 C2 2303 C3 2304 C3 T223 5303 BLM18P 12 GND 8 SCL 2 SDA 3 SO 1 VDD 13 D0 4 D1 5 D2 6 D3 7 D4 9 D5 10 D6 11 D7 I/O PORT TRANSCEIVER C BUS 2 I CHIP SELECT M62320FP 7310 CS0 16 15 CS1 CS2 14 3 6 REG SHIFT IN I/O OUT RES PWR DATA LATCHES 3302-3 22R 10K 3372 22R 3355 10K 3325 22R 3407 3406 22R 2392 100n 2320 100n T240 100n 2316 T234 4 5 6 7 8 9 22 23 24 25 26 27 28 29 3 30 12 13 14 15 16 17 18 19 2 20 21 1302 SFW30R-2STE1 1 10 11 2319 100n 22R 3317 3316 22R Chassis1 T224 5308 BLM18P 100n T212 1K2 3337 2323 2 7 3303-2 22R T222 T221 3408 22R 22R T227 T226 3366 3375 10K VD+ 25 RXP5 26 RXP6 28 SCL|CCLK 1 SDA|CDOUT SDOUT 18 U 20 6 VA+ 23 RMCK 9 RST_ 5 RXN0 4 RXP0 12 RXP1 RXP2 13 14 RXP3 15 RXP4 8 FILT 24 H|S_ 19 INT 17 OLRCK 21 OMCK OSCLK 16 RERR 11 10 2 AD0|CS_ 27 AD1|CDIN 7 AGND DGND 22 3 EMPH_ 2 3 1 5 4 CS8415A 7304 74HC1G125GW 7306 22R T215 3314 3315 22R 22R 3312 22R 3313 2394 22R 3342 100n 100n 2393 T241 BLM18P 5344 D T211 3302-4 22R 4 5 T210 22R 3402 3344 22R T232 22R 3348 T231 T205 3301-2 22R 2 7 22R 3306 1 2 22p 37 27 46 2343 33 35 38 40 42 44 30 32 13 14 10 7 29 31 34 36 39 41 43 45 48 17 16 9 23 22 21 20 19 18 8 25 24 6 5 4 3 2 1 M29W160ET70 7303 2Mx8/1Mx16 [FLASH] 3405 2345 22p 22R 100n 2304 75R 3335 1 8 T209 3301-1 22R T207 16 2327 22p 3 9 43 49 28 41 54 6 12 46 52 44 39 15 36 40 18 1 14 27 48 50 51 53 5 7 8 10 11 13 42 20 21 17 37 38 19 2 4 45 47 23 24 22 35 25 26 29 30 31 32 33 34 1M X 16 X 4 7302 IS42S16400A DRAM 2303 100n T206 T204 10K 3374 2306 100n T213 T202 T203 T201 3303-3 22R 3 6 3303-4 4 5 22R 2 3 6 5 8 4 7 M24C16-RDW6 7301 EEPROM Φ 1 T237 (2Kx8) 2328 22p T228 22R 3364 100n 2309 2308 22R 3401 100n 3345 22R 3373 100n 10K 2381 Chassis2 BLM18P 5302 4311 5301 BLM18P 3 6 3305-3 22R T239 5 5 3301-4 22R 4 3305-4 22R 4 3301-3 22R 3 6 2305 100n T229 3362 22R 3305-1 1 8 22R 5345 BLM18P 22p 2325 2342 22p 1 8 3302-1 22R 22R 3403 5300 BLM18P 22R 3343 2326 22p 3369 22R 100n 2307 T225 T220 3326 22R 3404 22R T233 2391 100n 4 5 6 7 8 9 21 22 23 24 25 26 27 28 29 3 30 12 13 14 15 16 17 18 19 2 20 SFW30R-2STE1 1301 1 10 11 22R 3361 3346 BLM18P 3304-3 22R 3 6 4 5 3304-4 22R BLM18P 5305 T218 100n 2312 Chassis4 7 3376 10K 22R 3304-2 2 22R 3340 2324 22p 16V T208 2302 47u T214 T216 4301 22p 2329 3365 22R 3363 22R 3368 22R 3367 22R 3302-2 22R 2 7 Chassis3 3358 1K0 T219 47u 2311 100n 16V 10K 2317 3338 3304-1 22R 1 8 T236 2315 T235 3305-2 22R 2 7 100n 22R 3409 3371 10K 3370 10K 47n 2318 3336 T217 2346 10K 1K0 22p 3354 3350 22R 22R T238 3349 2301 100n 4312 2341 22p 22p 2344 T230 ERR AMP_ON RDS_CLK RDS_DAT PCM_LRCK PCM_SCLK PW_DN_ HP_DET TU_SD SDA_DAC SCL_DAC +3V3 +5D S0_L3_0 S1_L3_1 L2 SPDIF_OUT AV_MUTE CVBS C Y B_Cb G_Y R_Cr PCM_MIC_IN +5D SCL_DAC SDA_DAC SDA_DAC SCL_DAC +3V3 +3V3_FL +3V3 +5D MA(0) MA(1) MA(2) MA(3) MA(4) MA(5) MA(6) MA(7) MA(8) MA(9) MA(10) MA(11) BA0 BA1 DCLK DCKE CS RAS CAS WE PCM_LTRT PCM_MCLK MIC_DET SP_MUTE SP_MUTE CH_RST +5D HP_DET S0_L3_0 SDA_DAC SCL_DAC +5D +5D +5D SPDIF_IN TU_SD TU_CE TU_DI TU_DO_ST TU_CLK MUTE_TV FREQ_HOP PCM_Cs PCM_CLfe PCM_LsRs PCM_LR A(1) SPBCK SPLRCK SPDIF_IN +5D +5VS +3V3_FL SP_RST +5VS SPDATA SPMCLK L2 S1_L3_1 PWR +3V3_FL PRD AD(7) AD(6) AD(5) AD(4) AD(3) AD(2) A(0) AD(1) AD(0) PCE A(10) A(9) A(8) A(7) A(6) A(5) A(4) A(3) A(19) A(18) A(17) A(16) A(15) A(14) A(13) A(12) A(11) A(2) SPDIF_OUT SP_OUT DQ(0:15) MA(0:11) DQM0 DQM1 DQ(9) DQ(8) DQ(7) DQ(6) DQ(5) DQ(4) DQ(3) DQ(2) DQ(15) DQ(14) DQ(13) DQ(12) DQ(11) DQ(10) DQ(1) DQ(0) +3V3_FL A21 AD(0:7) A(20) A(0:21) MONO BOARD 2/2 5300 C2 5301 F3 5302 F5 1K0 3309 10K 3307 100K 3308 BC817-25W 7311 2310 100p +5VS AV_MUTE SPDIF_ERR_CTRL SPDIF_ERR_CTRL The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 44 T133 F6 * T114 E6 T115 E6 T119 E6 T120 E6 T121 F6 T123 F6 T124 F6 T125 F6 T128 D5 T129 D6 T130 E6 T131 E6 T132 F6 T101 B6 T103 B6 T104 B6 T105 B6 T106 B6 T107 B6 T108 B6 T109 B6 T112 E6 T113 E6 3132 E7 3163 E7 3164 E7 3165 E7 4101 B10 4110 H7 * 11 12 A B C D E F G H A B C D E F AV_VIDEO 5 6 7 8 9 10 6 7 8 9 10 11 12 1 2 3 4 1 2 3 4 5 G H 1101 C5 1102 F5 2121 G7 2124 G7 2125 G7 2126 G7 2130 G5 T129 T133 T103 47p 2121 T120 T124 3165 4110 T128 T115 3 4 5 6 7 8 9 1 10 11 12 13 14 15 16 2 DGND 16FMN-BTRK-A 1101 DGND T112 T104 100n 2130 VGND2 VGND T107 T101 +8VL 47p 2124 T119 T114 +5VL 4101 DGND T123 30 4 5 6 7 8 9 20 21 22 23 24 25 26 27 28 29 3 11 12 13 14 15 16 17 18 19 2 1102 30FMN-BTRK-A 1 10 T109 T125 2125 47p 47p 2126 T113 T108 3132 T131 T132 T130 3163 VGND1 T105 T121 +1V8 T106 +8VL Standby_PSU 3164 DIG_IN_A R_V AV_MUTE DIG_IN D2 S0 SY SC CVBS G_Y B_U PCM_Data_Mic_In S1 PCM_LRCLK PCM_BCLK PCMDATA_LO PCMCLK VID_SW AV BOARD 1/8 F 13 TO 1301 OF MONO BOARD Page 43 I 5 TO 1104 OF MONO BOARD Page 42 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 45 OSCO RDSCL SCOUT VREF RDDA QUAL VDDD VDDA MPX CIN MODE SYNC TCON OSCI VSSA VSSD COM OUT IN * * * * * T212 F3 T213 F3 T214 F3 T215 G3 T217 G3 T218 I2 T219 G3 T221 G3 T222 G9 T223 G3 T224 H2 T225 H2 T226 I9 T227 H2 * 6CH AUDIO DAC 7207 I4 T201 D2 T202 D2 T203 D2 T204 E2 T205 E2 T206 E3 T207 E3 T208 F3 T209 F3 T210 F3 T211 F3 4201 A12 4202 B12 5206 A10 5207 B10 5208 C2 5209 C4 5210 C13 5211 F8 5212 I6 6204 I3 6205 G12 6206 H12 6208 I13 6209 H12 6210 G3 7200 C8 7201 F14 7203 G12 7204 G6 7205 H13 7206 I3 3270 I10 3271 I10 3272 I10 3273 G9 3274 I9 3281 I2 3282 I4 3283 I2 3284 I3 3285 I4 3286 I2 3287 I3 B, G models 3244 G7 3246 G10 3247 G10 3248 G12 3249 H4 3250 H7 3251 H9 3255 H10 3256 H4 3257 H10 3259 H4 3260 H5 3261 I6 3262 I10 3263 I6 3264 H13 3265 I9 3269 I10 3226 D4 3227 D5 3228 D5 3229 D5 3230 D12 3231 D12 3232 D6 3233 E5 3234 E5 3235 F5 3236 F5 3237 F5 3238 F5 3239 F5 3240 F5 3210 B6 3211 B10 3213 C10 3215 C10 3216 C5 3217 C10 3218 C3 3219 C3 3220 C10 3221 B8 3222 C6 3224 C6 3225 D6 2240 H12 2241 H12 2242 I6 2243 I6 2244 I4 3200 A6 3201 A5 3203 A7 3204 A5 3206 B7 3207 B7 3208 B6 3209 B5 2219 F4 2221 F6 2222 F7 2223 F7 2224 F7 2225 F1 2226 F14 2227 G5 2228 H5 2229 H7 2230 G7 2232 G13 2233 H7 2234 H7 2235 G12 2236 H4 2237 H5 2238 H9 2239 H9 * A B C D E F G H I A B C D E F G H * 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 5 6 7 8 9 10 11 12 13 * * I 1200 B10 1201 E1 2200 A10 2201 A10 2203 B10 2204 C2 2205 C3 2206 C6 2207 D6 2208 D12 2209 D12 2210 D12 2211 D11 2212 D4 2213 D4 2214 D4 2215 E3 2216 F4 2217 F4 2218 E8 2229 560p 10u 2219 50V 7207 BC547B DGND 3236 100K 3238 100K 3285 100R 3224 33R 3246 22R +5VA 2243 82p 100n 2206 GND_A_REF T211 2230 1n0 100K 3240 22R 3262 22R 3257 10u 2212 50V 470p 2213 3256 1K0 DGND 22R 3247 GND_A_REF GND_A_REF DGND +5VL GND_A_REF 2234 2215 470n DGND 47p 1u0 2216 3206 DGND +5VVID 64 SCL_CCLK 7 8 SDA_CDOUT AD1_CDIN 9 33R 57 ADCIN2 58 ADCIN1 OMCK 59 VLC 6 ADC_LRCK 60 ADC_SCLK 61 DAC_SDIN4 62 DAC_SDIN3 63 DAC_SDIN2 5 50 NC_2 VD_2 51 DGND_2 52 53 VLS NC_3 54 55 RMCK 56 ADC_SDOUT GPO6 43 44 GPO5 GPO4 45 GPO3 46 GPO2 47 GPO1 48 49 NC_1 DGND_1 36 AOUTA1+ AOUTA1- 37 MUTEC 38 LPFLT 39 4 VD_1 AGND_2 40 VA_2 41 GPO7 42 AOUTA3- 29 DAC_LRCK 3 30 AOUTB2- 31 AOUTB2+ 32 AOUTA2+ AOUTA2- 33 AOUTB1- 34 AOUTB1+ 35 21 AOUTB4+ AOUTA4+ 22 AOUTA4- 23 VA_1 24 AGND_1 25 26 AOUTB3- 27 AOUTB3+ 28 AOUTA3+ 14 AINL+ 15 AINL- 16 VQ 17 FILT+ 18 19 REFGND DAC_SCLK 2 AOUTB4- 20 CS42418 7200 DAC_SDIN1 1 AD0_CS_ 10 INT 11 RST_ 12 AINR- 13 AINR+ 3210 33R DGND DGND +5VL 10K 3250 3263 2K2 3233 100K 10K 3225 3237 100K 10V 100u DGND GND_A 2226 GND_A_REF 3221 10K 33R 3222 3227 100K 6206 BAS316 33R DGND 3207 2224 100n 470p 2217 3226 100K DGND 2225 100p +5VA 100n 2201 3208 33R 2232 1u0 2n2 2208 22R 3270 T205 BZX384-C5V6 6205 1K2 +12Va_LO +3V3_AD 3248 GND_A_REF +12Va_Dif_LR 3220 1K0 -12Va_LO +3V3_AD 47p 2242 1u0 2214 DGND 3281 47K 3271 22R 100u 10V 2K2 3218 T223 2223 GND_A +5VL 1K0 3249 GND_A_REF 100K 3228 470u 2238 15 5 12 3 6 11 DGND LO_Left_+ 9 4 13 14 1 2 16 8 1 0 7204 SAA6581T Φ 7 100u 2239 T219 +5VL DGND 3215 1K0 DGND 100K 3235 3232 100K 3230 GND_A 10K 33R 3209 3229 100K DGND +5VA T213 +3V3_AD 22R 3274 7203 BC547B DGND DGND DGND 30 4 5 6 7 8 9 +12Va_Dif_LFE 20 21 22 23 24 25 26 27 28 29 3 11 12 13 14 15 16 17 18 19 2 30FMN-BTRK-A 1201 1 10 100n 2222 DGND T203 T202 GND_A_REF DGND 5208 560p -12Va_Dif_LR 33R 3203 GND_A_REF 2233 LO_Left_- 5206 3201 33R T210 5209 +3V3_A GND_A 22R 3269 +5VA +5VL GND_A_REF 5212 LA-8481 1 2 -12Va_Dif_LFE +3V3_AD -12Va_Dif_SLR 4M332 3234 100K 33R 3216 10K 3231 T217 DGND DGND +12Va T221 3213 1K0 22R T227 T204 3265 MC78FC33H 7201 1 2 3 T209 +5VA T225 2240 16V 470u 100u 10V 2235 3273 22R DGND +5VA +5VA DGND DGND T215 T201 3244 +12Va 3272 100R DGND T207 +5VL 2204 1u0 +3V3M GND_A_REF DGND DGND DGND GND_A 4K7 3284 TU_MTK 2244 1n5 GND_A_REF DGND 2227 100n DGND 1200 100n T218 3217 1K0 +12Va_Dif_SLR 3264 1K5 BC547B 7205 2209 100n -12V_Mute 6210 BAS316 2237 100p GND_A_REF 3211 1K0 4202 Mutec 22R 3255 6209 5207 T226 BAS316 DGND 3219 2K2 LO_Right_- DGND +5VVID 4201 3287 4K7 3282 1K0 47K 3286 100n 2218 +12Va 5210 5211 100K 3239 +3V3_AD DGND BAS316 6204 3260 47K 2210 47u 680p 2211 22R 3251 3259 47K -12Va DGND T214 33R DGND T224 3204 T222 BC857B 7206 3283 100K T208 DGND T206 GND_A_REF 2236 100p 2205 100n LO_Right_+ T212 2203 1u0 2200 1u0 16V 3261 220K 470u 2241 2228 2u2 2207 4u7 2221 3200 33R 4u7 50V 6208 BZX384-C3V9 MUTE_TV MUX_EN AV_MUTE MUTE_LR_SUB MUTE_SL_SR MUTE_CEN TU_Dat_In SCL_DAC PCM_Data_Mic_In DIG_IN_A PWR_DN Tu_SD TU_CE SDA_DAC PCM_Data_LR TU_DO_STEREO PCM_Data_Sub_Cen AMP_ON HP_Det PCM_Data_SLR TU_RDS_IN TU_CLK DAC_LEF_- +3V3_AD +3V3_DAC Source_sel_A0 Source_sel_A1 Right_In Left_In PCM_Data_SLR PCM_Data_LR PCM_Data_Sub_Cen PCMCLK SDA_DAC SCL_DAC PCM_LRCLK PCMDATA_LO PCM_BCLK DAC_LEF_+ DAC_C_+ DAC_C_- DAC_RS_- DAC_RS_+ DAC_LS_+ DAC_LS_- DAC_R_- DAC_R_+ DAC_L_+ DAC_L_- AV BOARD 2/8 B 12 TO 1302 OF MONO BOARD Page 43 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 46 7316 E7 7317 E8 7318 E8 7319 F7 7320 F9 7321 H7 7322 H7 7323 H9 7324 H9 6311 G8 6313 G7 6314 G9 6315 D7 7300-1 A4 7300-2 C4 7301-1 F4 7301-2 D4 7302-1 I4 7302-2 G4 7310 A7 7311 B7 7312 A9 7313 B8 7314 B7 7315 E7 4300 H6 4303 D7 6300 C6 6301 C6 6302 C6 6303 D6 6304 F6 Surround_Right Surround_Left GND * * Gnd_D 6305 F6 6306 G6 6307 G6 6308 F8 6309 F8 6310 G8 3377 E6 3378 E8 3379 F7 3380 F7 3381 F8 3384 F9 3385 F9 3386 F10 3388 H8 * AV_AUDIO ( Dif_Amp for 6-channels ) NC GND_LR Front_Right Front_Left 3389 G7 3390 G8 3391 G10 3392 H10 3393 G10 3394 H10 3395 H8 3396 H8 3397 H8 3398 H8 3399 H7 3400 C8 3354 A10 3355 A10 3356 A7 3357 B7 3358 A8 3359 B8 3360 B6 3361 B8 3362 C7 Center 3363 C7 3364 C8 3367 D6 3368 D8 3369 D10 3370 E10 3371 D10 3372 E10 3373 D7 3374 E7 3375 D8 3376 E8 3332 G3 3333 G1 3334 H3 3335 H2 3336 H3 3337 H1 3338 H4 3339 H3 3340 I3 PB_Ctrl 3341 I2 3342 I1 3343 I3 3344 I2 3345 I3 3346 I2 3347 I1 3348 I4 3349 I3 3350 A6 3351 A8 3352 A10 3353 A9 3312 C3 3313 C1 3314 D4 3315 D3 3316 D3 3317 D1 3318 E3 3319 D2 3320 E3 NC 3321 E1 3322 E4 3323 E3 3324 F3 3325 F1 3326 F3 3327 F2 3328 F3 3329 F1 3330 F4 3331 F3 2340 E9 2341 F7 2342 F7 2343 F9 2344 F10 2345 H9 2346 H9 2347 F2 2348 G6 2349 I6 3300 A3 3301 A1 3302 B3 3303 B2 3304 B3 3305 B1 3306 B4 3307 B3 3308 C3 3309 C1 3310 C3 3311 C2 2321 H4 2322 H2 2323 H4 2324 I4 2325 I3 2326 I4 2327 I2 2328 I2 2329 I3 Gnd_SL_SR Gnd_Cen_sub 2330 I2 2331 A6 2332 B6 2333 D6 2334 E6 2335 A9 2336 B9 2337 C7 2338 C8 2339 D9 5 6 7 8 9 10 11 12 13 2301 B4 2302 B4 2303 A3 2304 A2 2305 B2 2306 C3 2307 C4 2308 C2 2309 D2 2310 D4 2311 D3 2312 E4 2313 E4 2314 D2 2315 E2 2316 F3 2317 F4 2318 F2 2319 G3 2320 G2 G H I A B C D E F G H I 1300 E14 2300 A4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 T300 A11 T301 A11 T302 A11 T303 D11 T304 D11 T305 D11 T306 E13 T307 E12 T308 E12 Gnd_D Subwoofer 14 A B C D E F +3V3M 2K7 3343 GND_A +3V3M 2333 1u0 -12Va_Dif_SLR 3307 6K8 680R 3360 6310 BAS316 5K6 GND_A 3304 3315 6K8 3322 2K2 6301 BAS316 2K2 3314 2323 100n 2n2 2347 3303 680R 3378 6K8 MUN2211J 3346 1K5 7313 5K6 3336 2336 100p 680R 3361 1u0 2341 100p 2303 2n2 2329 3347 2306 100p 3308 5K6 1K0 3363 +3V3M 2K2 47K 3353 3330 GND_A 6307 BAS316 100R 3354 2n2 2320 3348 2K7 DGND 6309 BAS316 GND_A GND_A 1u0 2342 2n2 2322 100R 3391 100p 2339 GND_A 100p +12Va_Dif_SLR 2307 2301 100n 1K5 3337 2319 100p 330p 2330 MUN2211J 3357 7317 GND_A 1K0 3384 27K 100p 2302 3345 3 4 5 6 7 8 9 16 17 12K 1 10 11 12 13 14 15 2 1300 1216-004-15S-AAC 470p 2325 3349 -12Va_Dif_LFE 3340 12K 3356 22K 1K0 GND_A 2n2 2309 100R 3369 680R GND_A GND_A 3368 6K8 GND_A 3339 1u0 6K8 3327 2334 3328 6314 BAT54 COL 5K6 BAT54 COL 6313 3358 1K0 6315 BAT54 COL 7310 MUN2211J 7312 MUN2211J 100R 2345 3352 T300 100p 2K2 3326 3318 2K2 2K2 3338 7323 MUN2211J GND_A GND_A GND_A -12Va_Dif_LR 3377 680R 7301-1 3 2 1 8 4 LM833D 3333 1K5 1K0 3400 1K0 3376 1K0 3375 680R 3389 1u0 2348 3399 680R GND_A 100p 2311 T305 1K5 100p 2313 3341 T303 T301 T302 GND_A GND_A 2K2 3302 2314 2n2 1u0 +12Va_Dif_SLR -12Va_Dif_SLR 2343 3388 680R 3396 3323 6K8 1K0 3385 1K0 5K6 3332 3395 GND_A 1K0 GND_A 2344 1u0 7319 BC857B 2338 1u0 2349 10u 50V 3300 1K5 5K6 3305 3317 7311 1K5 GND_A MUN2211J 680R 3351 GND_A 1K5 +12Va_Dif_LFE 3325 -12Va_Dif_LR 3373 1K0 7320 5 6 7 8 4 BC857B 7302-2 LM833D 2327 2n2 680R 3367 GND_A 2321 100p BAS316 6308 27K 3362 100n 2310 4303 6302 BAS316 100R 3371 6304 BAS316 47K 100n 2300 3386 T304 7302-1 LM833D 3 2 1 8 4 5 6 7 8 4 GND_A LM833D 7301-2 3 2 1 8 4 GND_A 7300-1 NJM4556AM 6K8 3331 3381 47K 100p 2340 3344 MUN2211J 22K GND_A 7321 3319 6K8 MUN2211J 7324 MUN2211J 7318 GND_A 680R 3350 GND_A 3342 1K0 GND_A GND_A 3380 GND_A 1u0 2337 47K 3394 3379 27K 2n2 2305 3397 7316 MUN2211J 2n2 1K0 2318 3329 1K5 1K0 3398 6K8 3335 2K2 3306 100p 100n 2312 2335 1K0 3359 1K5 3313 3364 47K 2n2 2304 1u0 2331 2K2 GND_A GND_A 3310 T308 6300 3374 1K0 GND_A GND_A BAS316 3392 GND_A 680R 3390 47K -12Va_Dif_LFE 3334 2K2 1u0 GND_A 5 6 7 8 4 2332 7300-2 NJM4556AM 2316 100p 3370 47K 47K 3372 BC857B 7314 470p 2326 6305 BAS316 T306 T307 +12Va_Dif_LR 100R 3393 GND_A 3321 1K5 5K6 3316 2308 2n2 6K8 3311 100p 2346 1K5 3309 5K6 6311 BAS316 3312 330p 2328 BAS316 6303 GND_A 7315 MUN2211J 2315 GND_A +12Va_Dif_LFE 2n2 1K5 3301 +12Va_Dif_LR GND_A 3355 3324 5K6 GND_A 47K 6306 BAS316 100n 2324 7322 MUN2211J 2317 5K6 3320 100p -12V_Mute DAC_RS_- DAC_LEF_- PBox_Ctrl PWR_DN PWR_DN PWR_DN Sub_Mute HP_Mute HP_Mute MUTE_LR_SUB MUTE_SL_SR MUTE_CEN AV_Mute AV_Mute AV_Mute Mutec Mutec Mutec HP_Mute -12V_Mute Sub_Mute -12V_Mute DAC_L_+ DAC_C_- DAC_R_+ DAC_LS_+ DAC_RS_+ DAC_LEF_+ DAC_C_+ HP_L HP_R DAC_LS_- DAC_R_- DAC_L_- AV BOARD 3/8 SYSTEM CONNECTOR # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 47 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. NC NC A REF K COM OUT IN COM OUT IN COM OUT IN 1% +3V3 7404 C6 7405 E3 7406 F5 T401 B3 T402 B3 T403 C3 T404 B3 T405 B3 T406 B3 T407 B3 GND_D Gnd_a GND_D 1% 3490 D7 3492 D7 3493 F4 4401 B4 4402 B4 4409 D6 5401 B5 5402 B5 5403 B7 5404 C10 5405 C10 7401 B6 7402 C6 7403 C10 Standby_PSU +12Va +3V3 Power_Dn AV_VIDEO (Supply Distribution ) 2420 F9 2421 G9 2422 G9 2423 H9 3401 B4 3480 D9 3481 D9 3486 C6 3487 C5 3488 C6 11 12 1 2 3 4 5 6 7 8 9 10 11 12 A B C D E F G H A B +12VL -12Va +5VL 1% 1 2 3 4 5 6 7 8 9 10 GND_D C D E F G H 1401 B2 1402 B3 1405 E2 2351 C3 2401 B7 2402 B7 2403 C11 2404 C11 2405 C5 2406 C5 2407 C9 2408 D11 2409 D11 2410 D10 2413 E3 2414 E4 2415 G5 2417 G9 2418 F9 2419 G9 T405 +3V3_DAC T404 +3V3 12K 3490 1R0 3493 4402 3492 8K2 2413 100u 100u 2414 5403 100n 2421 5401 TS431L 7404 5 A 3 K 1 2 4 DGND 3488 15K 2419 100n 47u 2403 25V 4401 3481 1K0 +5VL 1K0 3480 2407 100n 5402 1402 T403 T406 DGND 10u 50V 2401 2420 100n +3V3_POWER 1 3 2 DGND GND_A 7402 BC847B +1V8 DGND 2408 47u 25V 100n 2422 100n +5VL 2423 +8VL T407 T402 4409 L78M05CDT 7406 2 1 3 100R 3401 1405 T 2A DGND 6 7 8 9 1 10 11 12 2 3 4 5 VGND B12B-EH-A 1401 T401 DGND 3486 22R 2409 +5VVID 100n 100n 2404 GND_A -12Va +12VL IN 1 OUT 3 100n 2417 7405 L7808CD2T GND 2 1 IN 3 OUT 2 +12VL 7403 LD1117DT33 BCP53 7401 100u 2415 68R 2406 100n 3487 100n 2418 DGND 5404 33u 2402 100n 33u 5405 10u 50V 2405 100n 2351 DGND 100u 2410 PWR_DN +12Va DGND +12Va Standby_PSU AV BOARD 4/8 TO POWER SUPPLY UNIT The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 48 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. G4 0 3 2 VDD VEE VSS 1 0 3 2 1 4X 0 3 0 1 T513 F3 T514 E3 T515 E3 T516 E3 T517 G3 T518 G3 7504 G5 7505 G5 7506 H5 7507-1 G9 7507-2 H9 7508 C9 7509-1 C13 7509-2 D13 T501 A3 T502 A3 T504 A3 T505 A3 T506 A3 T507 B3 T508 B3 T509 B3 T510 B3 T511 D3 T512 D3 4507 D4 4508 D4 4509 C7 4510 C7 4511 D9 4512 E9 4513 E11 4514 E11 4515 E11 6501 B4 6503 H7 6504 H7 7501 B4 3551 E13 3552 C14 3553 D13 3554 D14 3555 C12 3556 C12 3557 C12 3558 D12 3559 D12 3560 D12 4501 F10 4502 B3 4503 F10 3539 H4 3540 H5 3541 G5 3542 H9 3543 H11 3544 I7 3545 I10 3546 I10 3547 I9 3548 I10 3549 I8 3550 I9 3524 F5 3525 F6 3526 G9 3527 G11 3528 G7 3529 G10 3530 G10 3531 G4 3532 G5 3533 H9 3534 H10 3535 H6 3536 H8 3537 H9 3538 H6 3502 B6 3503 B12 3504 B7 3505 B7 3506 B12 3507 B4 3508 C11 3509 D10 3512 D4 3513 C11 3514 D4 3515 C10 3516 D5 3517 D6 3518 D10 3519 E10 3520 E5 3521 E5 3522 E6 3523 F5 2531 H6 2532 H6 2533 I10 2534 I9 2535 I8 2536 I10 2538 E13 2539 B13 2540 C13 2541 C13 2543 C12 2544 D12 2545 D7 2546 G8 2547 I8 3501 A6 2517 H5 2518 E5 2519 E5 2520 F6 2521 F5 2522 F5 2523 G8 2524 G9 2525 G10 2526 G4 2527 G8 2528 H8 2529 H10 2530 H4 1505 G2 2501 B7 2502 B8 2503 B11 2504 B3 2505 B4 2509 D7 2510 D3 2511 D4 2512 D5 2513 D5 2514 E10 2516 E6 * 6 7 8 9 10 11 12 13 14 A B C D E F G H I A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 5 AV_INPUT_CIRCUIT * B C D E F G H I 1503 A2 1504 E2 4507 TU_MTK 3501 3502 560R 560R MUN2211J GND_sel 7506 3515 470K 3518 10K 3503 5K6 6K8 3519 3545 12K 16V 1u0 2503 4513 4503 -12Va_LO GND_sel 1K5 3532 12K 3549 GND_A 68K 3525 +12Va 2505 100u 16V 9 GND_sel 1 10 11 2 3 4 5 6 7 8 68p 1503 2510 3542 15K GND_sel 2544 4u7 50V T506 4509 GND_A T505 560p 2529 15K 3547 4511 3548 10K +12Va_LO LO_Left_- 4508 150K 3505 T516 +3V3M GND_A 330R 3516 68K 3528 3504 150K 3529 GND_sel GND_A 12K 3537 3552 100R GND_A 3534 10K +12Va_LO GND_A 6.3V 4u7 2531 3550 2502 100p 100n 2539 GND_TU GND_sel 1 8 4 T504 LM833D 7507-1 3 2 3544 330R GND_sel 2522 100p LO_Left_+ GND_sel GND_sel 2530 100p 3557 100K T510 3521 4u7 2523 100n 2532 6.3V +5VVID 2527 100n 3535 T515 47K 2535 GND_sel 2520 1u0 100p 2516 GND_sel GND_A 1u0 T518 T514 3536 12K 2504 GND_A 5 6 7 8 4 68p LM833D 7509-2 T517 2511 4502 GND_A GND_sel 2524 GND_TU 100p GND_A 4515 GND_sel 3K3 3523 50V 4u7 2543 2509 1u0 2514 16V 1u0 4510 10K 3527 2525 560p 3538 3522 GND_A 1K0 T507 68K GND_A 5 GND_sel 6503 BAS316 3 1 2 6 4 3 1 2 1504 LPR6520-J440G 1505 LPR6520-J920G 470p 2538 GND_sel 2533 560p 3546 100p 2534 T511 100p 3533 15K 68K 3517 2512 2513 100p 3K3 3520 3524 3509 470K GND_sel 3558 100K 3514 3K3 BC368 7501 T508 +12Va_LO 100K 3555 GND_sel +12Va_LO +5VVID -12Va GND_sel 6504 BAS316 GND_A -12Va_LO 68p 2521 2518 68p 3506 6K8 GND_sel GND_sel -12Va_LO 100n 2540 2526 100p GND_TU GND_sel LO_Right_- 100p GND_A GND_sel 3512 2519 13 3 3K3 16 7 8 12 1 14 5 15 2 11 4 MDX HEF4052B 7508 10 9 6 2501 100p T501 3530 3526 T502 GND_sel 15K 4512 GND_A 1u0 GND_sel GND_sel 2545 LO_Right_+ +12Va 470p 3553 820R 2541 T512 2517 100n -12Va_LO T509 3559 100K 100K 3560 3541 47K 100R 3554 820R 3551 GND_sel 3556 3507 150R 100K 3508 100R 4514 560p GND_A 2536 3540 1K5 GND_A GND_A_REF 3539 10K 7505 BC857B 3 2 1 8 4 7509-1 LM833D GND_A 2546 16V 22u 10K 3543 7504 7507-2 5 6 7 8 4 MUN2211J LM833D GND_A T513 GND_A 4501 GND_A GND_A GND_A 3531 10K 16V 2547 22u 6501 BZX384-C10 3513 100R 2528 100p LINE_L -12V_Mute AV_Mute Mutec LINE_R MUX_EN Left_In SCART_IN_L Right_In Source_sel_A0 Source_sel_A1 SCART_IN_R TU_RDS_IN TU_Dat_In Tu_CLK TU_DO_STEREO TU_CE Tu_SD AV BOARD 5/8 TO AM/FM TUNER The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 49 7607-1 B2 7607-2 D2 T601 C8 T602 C8 T603 C8 T604 C8 3633 B3 6316 F5 6601 F3 6602 F3 6603 F3 6604 A2 6605 B3 7601 C5 7602 C4 7603 D4 7604 C5 7605 D4 7606 E5 7 AV_HEADPHONE 3613 E3 3614 E6 3615 E5 3616 E4 3617 D5 3618 E5 3620 A3 3621 B2 3622 B2 3624 C2 3625 C2 3626 D2 3628 E1 6 4 3629 E1 3630 D1 3631 D2 3632 A2 2620 D1 2621 E2 2622 B3 2623 B3 3601 B4 3602 B5 3603 B7 3604 C6 3605 C4 3606 C5 3607 C4 3608 C5 3609 C6 5 1 3610 D4 3611 D5 3612 D7 4 5 6 7 8 9 A B C D E F A 1XXX TC38-103-01 FD 2 2618 D1 2619 D1 2604 D3 2605 E4 2606 E4 2607 E4 2608 E5 2609 C3 2610 A3 2611 B2 2612 B3 2613 B2 2614 B2 2615 C2 2616 C2 2617 C2 3 1 2 3 4 5 6 7 8 9 1 2 3 B C D E F 1601 C8 2602 C6 2603 C6 GND_A MUN2211J 7604 3624 3K3 3621 5K6 MUN2211J 7601 3608 1K0 1K0 3606 7602 MUN2211J 1K0 3614 GND_A 3603 33R 3620 3K9 16V 10u 2614 4K7 3618 GND_A 3628 GND_A -12Va_Dif_LR +12Va_Dif_LR 3K3 3622 5K6 2613 33p +3V3M 47K 3604 GND_A 10V 100u 2612 150R 3602 BAS316 6603 GND_A BAS316 6602 2605 1u0 1u0 2606 3613 27K 7606 BC847B +3V3M GND_A GND_A GND_A T601 100n 2616 1u0 2608 33p 2619 GND_A 3605 1K0 47p 2617 47K 3617 T604 3609 47K 33R 3612 2620 10u 16V 2623 100n 2622 470u 16V 3633 22R 22R 3632 1SS356 6605 1SS356 6604 10u 100V 10V 100u 2615 2618 GND_A 7605 BC857B 10V 47K 3629 2621 100u 8 9 2607 1u0 1601 07FMN-BMT-A-TFT 1 2 3 4 5 6 7 150R 3611 1K0 3616 3625 47K 5K6 3630 6601 GND_A 6 7 8 4 GND_A BAS316 4 7607-2 LM833D 5 LM833D 7607-1 3 2 1 8 100p 2602 2611 GND_A 100V 10u 6316 2603 100p BAT54 COL 3615 4K7 T602 16V 470u 2609 7603 MUN2211J 150R 3601 1K0 3607 2610 47p T603 2604 100u 10V 5K6 3626 3631 3K9 3610 150R HP_R PWR_DN MUTE_LR_SUB AV_Mute Mutec HP_Det -12V_Mute HP_Det PBox_Ctrl HP_Mute HP_L AV BOARD 6/8 F 3 TO 1101 OF CONTROL BOARD Page 54 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 50 * * A B C D E F G H I 1702-A B12 1702-B B12 1703 D13 1704 E13 1705 D13 2136 F6 2140 G4 2701 A12 2702 B10 2704 B4 * * 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 * * * 7 8 9 10 11 12 13 A B C D E F G H I Pr 2705 C10 2706 C4 2707 E4 2708 C10 2711 F4 2712 D12 * VIDEO CONNECTOR S.VIDEO * 2713 B8 * Y 2714 D12 2715 C6 2716 E12 2717 D8 2718 D6 2719 E8 2731 B1 2732 B1 2818 H6 2822 G8 3111 F12 3112 H4 3130 D6 3135 E6 3136 E6 3137 E7 3138 E7 3139 E7 3172 H3 3701 A12 3702 B12 3703 B11 3704 C3 3705 C3 3706 C4 3707 D3 3708 D3 3710 D4 3711 E3 3712 C10 3714 E3 3715 E4 3716 D11 3717 F3 3718 F3 3719 F4 3720 B8 3721 B8 3722 D11 3723 B8 3724 B8 3725 B9 3726 B9 3727 B6 3728 E11 3730 C6 3731 C6 3732 C7 3733 C7 3734 C7 3735 C8 3736 D8 3737 D8 3738 D8 3739 F11 3740 D9 3741 D9 3742 F11 3743 F12 3744 G12 3745 G10 3746 G11 3747 G12 3748 G11 3749 G11 3750 G12 3752 E8 3753 F8 3754 F8 3755 F8 3756 F9 3757 F9 3758 F6 3759 F6 3760 F6 3761 F7 3762 F7 3763 F7 * 3764 G8 3765 G9 3766 G9 3767 H7 3768 H7 3769 H7 3772 D12 3780 F12 # # # * 3781 H10 3782 F10 3783 F12 3827 H6 3830 G8 3832 H6 3833 H6 3836 G8 3837 G8 4114 G4 4128 G3 4705 B11 4707 C11 4708 D10 4709 D10 4710 E10 4711 F12 4712 B4 4713 C4 4714 D4 4715 F4 4718 F8 4720 A8 4721 B6 4722 C8 4723 D6 4724 E8 4725 E6 4801 G6 5701 A12 6704 D11 6705 D11 6706 E11 7117 G4 7701 A13 7702 B4 7703 D4 7704 E4 7705 F4 7708 F11 7709 G11 Optical In * 7711 H11 7712 B8 7713 C6 7714 D8 7715 D6 7716 E8 7717 F6 7718 H11 7719 G10 7808 H6 7809 G8 I714 E12 I715 E12 I716 F12 I717 F13 I718 F13 I719 F13 I720 F13 I721 F13 T701 B12 T702 B12 CVBS1 Pr1 Pb1 Y1 CVBS Pb T703 C12 T704 C10 T706 C12 T709 D12 # # SY1 Y12 Y11 Pb11 CVBS11 Pr11 Pb12 Pr12 CVBS12 # # # # # MSP-801V1-02-01-B NI FE LF 1702-B T712 D12 T713 A12 10K 3781 VGND1 1 3 2 VGND BC847B 7718 6705 BZX384-C15 2K7 3732 3731 2K7 4718 T704 220p 2712 VGND2 6706 BZX384-C15 3130 47K 2K7 3137 3136 2K7 7714 BC847B 47K 3735 3736 3738 47K 3737 2K7 2K7 7713 BC847B T712 +5VVID 100n 75R 3717 2140 +5VVID VGND 1 3 2 +5VVID 3836 7708 BC857B 47K 3744 4K7 7709 BC847B 1 3 2 VGND 10K 3748 10K 10K 3746 3745 10K 3712 3750 1K0 3747 3K9 T706 VGND 3728 4711 AD8091ART 3 4 1 5 2 VGND2 VGND 7705 3172 1K0 3112 3 1 2 1K0 1703 LPR6520-N620F 3727 47K T709 3716 2708 470n 4707 VGND 3752 3755 47K 2K7 1K0 3754 2K7 3715 T701 47K 3135 VGND VGND 3743 VGND1 VGND1 4721 4705 4723 2716 220p 3138 2K7 3734 2K7 3741 2K7 2K7 3757 2K7 3740 50V 2715 10u 50V 10u 2717 10K 3749 50V 2136 10u 2822 10u 50V 47K 7712 BC847B 47K 3721 2K7 3720 2K7 3724 3723 VGND1 3769 2K7 VGND1 VGND1 VGND2 VGND VGND1 VGND2 4715 2706 75R 3707 100n 4725 4801 4720 VGND2 75R 4128 4724 3708 +5VVID 2 1K0 AD8091ART 3 4 1 5 VGND1 7703 3 4 1 5 2 4710 AD8091ART 7704 VGND2 100n 2711 2K7 4722 68u 3762 3702 2K2 5701 7715 BC847B 2K7 3756 2K7 3733 2K7 3726 2K7 3725 10u 50V 2718 VGND2 10u 2719 50V VGND2 VGND2 VGND1 3711 75R 2707 100n 1K0 4714 VGND1 VGND1 3714 2818 50V 10u 7808 BC847B 47K 3832 47K 3827 2K7 2K7 3767 4114 3833 1K0 3718 +5VVID VGND 2K7 3766 2K7 3765 2 3763 2K7 AD8091ART 3 4 1 5 VGND VGND 7117 DGND 6.3V 2702 470u 7 6 3703 VGND1 3768 2K7 VGND2 1K0 3719 3K3 VGND2 3701 6704 BZX384-C15 4708 22K 3739 8 9 VGND1 10 11 12 13 2 3 4 5 6 7 VGND 13FMN-BMT-A-TFT 1704 1 47K 3742 VGND1 2K7 3139 T703 2701 100n 1705 LPR6520-N520F 2 1 2705 3780 10K I721 2704 100n I720 I718 I719 I717 I715 I716 10K 3774 10K 3773 3772 VGND1 10K 3 4 1 5 2 VGND1 AD8091ART 7702 7716 BC847B 3753 47K 1 2 3 4 5 T702 1702-A MSP-801V1-02-01-B NI FE LF 4709 7711 BC847B 1 3 2 16V 100u 2731 BC847B 3730 47K 7809 3830 47K 3764 2K7 2K7 3837 7717 BC847B 47K 3759 47K 2K7 3758 3761 3760 2K7 1M0 3111 2714 220p 7701 JFJ2000-010111 2 GND OUT 3 VS 1 3722 VGND 2732 100n 4K7 3782 +5VVID BC847B 7719 3710 VGND2 VGND2 1K0 4713 3705 1K0 4712 1K0 3706 10u 2713 3704 75R I714 50V T713 VGND1 VGND2 S1 S0 Y_1 +5VVID Y_1 -12Va Pb_1 Pb Pb_1 +5VVID Y CVBS_1 Pr Pr_1 +5VVID Pr_1 CVBS_1 -12Va CVBS_11 CVBS_11 Y_1 +5VVID Y_12 Y_1 Y_11 Pr_1 Pr_1 Pb_1 Pb_1 Pr_11 Pr_11 Pr_12 Pb_11 Pb_12 +5VVID +5VVID -12Va Pb_11 -12Va +5VVID -12Va +5VVID -12Va +5VVID +5VVID -12Va CVBS_1 -12Va +5VVID CVBS_12 SY_1 CVBS_1 +5VVID SY_1 +5VVID SY CVBS Y_11 Pb_12 Pr_12 CVBS_11 SY_1 SC 0|2|5 Pr_11 Pb_11 DIG_IN Y_11 D2 Y_12 0|2|5 NO(4712) NO(4712) ROW JP NO(4114) YES NO(4714) NO(4713) NO(4712) EU CVBS12 NO(4720) - - NO(4713) NO(4713) NO(4714) NO(4714) NO(4715) NO(4715) NO(4114) NO(4114) NO(4720) NO(4720) Pr11 Pr12 CVBS11 NO(4721) NO(4722) NO(4722) NO(4722) - - NO(4723) NO(4724) NO(4725) YES NO(4718) NO(4718) YES - - 4708 4709 4710 YES NO YES 1703 YES NO YES Y1 Region Block Pb1 Pr1 CVBS1 SY1 Y11 Y12 Pb11 Pb12 - - NO(4724) NO(4724) AV BOARD 7/8 3773 D12 3774 E12 VGND 10K 3783 B, G, J models J model B, G models B, G, J models B, G, J models B, G, J models B, G, J models B, G, J models C, K, A, B, G, L, V models C, K, A, L, V models C, K, A, L, V models C, K, A, L, V models C, K, A, B, G, L, V models B, G, J models B, G, J models B 1 TO 1101 OF HDMI D2 BOARD Page 55 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 51 S2B VSS S2A S3B S1A S3A S1B D3 EN GND A0 A1 A2 D1 D2 VDD # (B, G models) * # # C D E F A B C D E F 1801-1 A9 2801 A7 2802 A7 2803 A7 2804 A8 2805 A4 2806 B2 2807 B2 2808 B4 2809 B7 2810 B3 * * * # Jumper 4105, 4821 and 4820 is stuffed for non scart 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 A B 2811 B7 2812 C7 2813 C7 2814 C3 2815 C7 2816 C7 2817 D6 2820 E6 2824 B3 2825 D8 2826 F7 2827 F7 3801 A3 3802 A8 3803 A3 3804 A8 3805 A4 3806 A8 3807 A2 3808 A3 3809 B8 3811 B4 3812 B3 3813 B7 3814 B3 3815 B3 3816 C7 3817 C7 3818 D7 3819 D6 3820 D6 3821 D7 3822 D6 3823 D7 3824 E6 3825 E4 3826 E5 3828 E4 SCART CONNECTOR 3831 F5 3835 F4 3838 E3 3839 F3 3840 D8 4102 B8 4103 C8 4104 C8 4105 E2 To AV Board 1501 4106 B7 4107 B7 4108 C7 4717 D8 4802 A8 4803 A8 4820 E2 4821 E2 4822 E6 6801 B8 6802 C8 6803 C8 6804 B2 6805 B2 6806 D9 7801 C2 7802 A3 7803 A4 7804 B4 7805 D7 7806 E7 7807 E5 7811 F5 7812 F3 F801 A9 F802 A9 F803 A9 F804 B9 F805 B9 F806 B9 F807 B9 F808 C9 F809 C9 F810 C9 F811 D9 F807 F808 BC847B 1 3 2 7812 100p 2804 100R 3809 +3V3M 4103 GND_A 6802 BZX384-C15 F805 F803 F804 4K7 3801 3815 4K7 3808 47K GND_A 3812 1K0 GND_A GND_MECH 4u7 2807 47p 2827 BAS316 6804 4K7 3838 4108 3811 47K 10K 3822 1 3 2 10u 50V 7807 BC857B 1 3 2 2817 BC857B 7802 2809 470u 6.3V 3819 10K 3824 10K 7805 BC847B 1 3 2 220p 2811 VGND 4803 6.3V 470u 2820 +5VVID 3821 220R 470R 3823 VGND VGND1 220p 2825 2815 470u 6.3V 4106 DGND 4717 F801 F802 4822 GND_A GND_A GND_A 470p 2803 2 20 21 3 4 5 6 7 8 9 1 10 11 12 13 14 15 16 17 18 19 1801-1 2806 4u7 4105 VGND1 4821 2805 100p 4820 3826 56R VGND1 +5VVID F810 F806 2824 100n 47K 3825 3828 12K 3835 22K GND_A DGND 4802 100n 2810 8 12 13 2 1 5 3 16 7 Φ ADG733BRU 7801 11 10 9 14 15 4 6 47K 1 3 2 3807 BC847B 7811 2802 100p 3831 75R 4104 2813 220p 10K 3813 BZX384-C15 6801 3802 820R 2 820R 3806 BC847B 7806 1 3 7803 MUN2211J 1 3 2 +5VVID 3840 BZX384-C15 6806 F811 10K MUN2211J 1 3 2 6803 BZX384-C15 GND_A 7804 10K 3820 2814 100n VGND VGND 2801 470p 4102 4107 6805 BAS316 DGND VGND 100p 2808 47K 3805 3803 1K5 3816 10K VGND1 F809 2826 47p 1K5 3814 10K 3839 6.3V 470u 2812 +12VA VGND +5VVID VGND 2816 220p 3817 10K 3818 470R SCART_OUT_R SCART_OUT_L 3804 100R CVBS_12 G R SCART_OUT_L Pb B S0 -12V_Mute R_V S1 VID_SW B_U Y Pr B G R SCART_IN_R SCART_OUT_R SCART_IN_L AV_MUTE VID_SW G_Y MUTE_TV Line_L Line_R C, K, A, L, V, J models AV BOARD 8/8 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 52 RESET VASS INT3 INT2 INT4 INT5 XTIN XTOUT SCL V P9<0:7> V SO1 5 6 7 6 5 4 3 2 29 28 27 26 25 24 2 3 4 TC1 SCK0 0 1 2 3 4 5 6 SI1 SCK1 DVO TEST VKK VDD VAREF 14 13 12 11 10 9 8 SDA 22 TC3 P1<0:7> STOP P2<0:2> SI0 SO0 P3<0:2> AIN 31 30 P5<0:3> PD<0:4> V3 P6<0:7> V P7<0:7> V P8<0:7> 23 16 21 20 19 18 17 P4<0:7> AIN 1 0 15 VSS PDO 2 1 XTAL P0<0:7> PPG PWM TC4 13 12 11 10 7 INT0 INT1 TC2 * 3342 - 150 YAMAHA S300 -27V -24V 2V T309 A4 T310 A4 T311 B3 T314 F6 T315 F6 T316 F6 T322 C6 T323 C6 T324 C6 T325 D6 T327 D6 T329 E6 T330 F6 T331 F6 T332 H3 DISPLAY PANEL -11V NC -30V 5V - NIL PHILIPS HTS5500 4303 E3 NC 3376 B12 * 3378 C12 3379 C12 3380 C12 4301 H4 * T335 C3 +12V -22V A -30V T336 D2 T353 G3 T355 E12 T356 B10 T357 B13 T358 A5 T359 B5 T360 C2 T326 D6 T362 H3 T328 E6 T364 H3 T365 D6 T366 F3 T367 G3 T333 H3 T334 H3 5V3 T304 G3 27V -30V 5V2 0V 7308 C2 7309 I5 7310 H6 7311 I7 3375 B12 7400 F2 3377 B12 T301 F3 T302 B10 T303 B13 4302 H4 T368 G4 -27V -25V -18V 5V 13 A B C D E F G H I A B C D E T361 H3 G T363 H3 I 1300 A5 1301 I3 1 5V 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 7312 H8 T300 E4 NC 1302 F3 1304 C5 1305 B1 -32V 2303 B4 2304 B5 2305 B4 2306 B4 2307 B4 2308 I10 2309 I11 2310 I11 2311 I4 2312 E6 2313 E6 2314 E2 2315 C1 2316 C3 2317 C3 2318 C2 2319 B8 2320 D11 2321 D11 2322 E11 F H NC 2 3 4 5 2323 F13 2324 F11 2325 C12 2326 C12 2327 C12 2328 D12 2329 D12 2330 D12 2331 D12 2332 D12 2333 D12 2334 D12 2335 E12 2336 E12 2337 B7 2338 B7 2341 B7 3300 F4 * 0V 1306 B1 2300 E4 2301 E3 2302 A3 3301 F4 3302 B3 3303 E3 3304 H11 3305 I11 3306 I12 3307 I11 3308 I11 3309 H4 3310 H4 3313 F6 3314 F6 3315 F6 3316 F6 3317 F6 3318 D6 * -25V 5V 3319 E6 3320 D6 3321 D3 3323 C3 3324 C2 3325 C1 3326 D12 3327 E12 3328 E11 3329 F13 3330 F12 3331 F11 3333 B5 3334 B6 3335 B10 3336 B13 -25V -18V * FTD DISPLAY * 3337 B10 3338 B13 3340 H7 3341 H5 3342 H6 3343 H6 3344 E6 3345 G6 3346 I6 NC -30V -32V -20V NC 3347 I6 3348 I8 3349 I8 3350 H7 3351 H5 3352 F4 3360 D6 3361 D6 3365 B12 3366 B12 3367 B12 3368 B12 3369 B12 3370 B12 3371 B12 3372 B12 3373 B12 3374 B12 -25V -30V NC 5300 B7 6301 B3 6302 I11 6304 H6 6305 I6 6306 H8 6307 I8 7300 B7 7301 A10 7303 E11 7304 E11 7305 E12 7306 H11 * B 5V NC -32V 1V6 -30V 5V T369 G4 T370 H4 NC -30V 5V NC 5V -30V -30V -30V -25V -25V -32V -25V NC -30V 2V5 8MHz 5V NC 0V5 2302 47p 100n 2301 8 9 10 11 09FMN-SMT-A-TF 1 2 3 4 5 6 7 T330 1301 3361 4K7 22u 2305 T315 3327 22u 2324 330R 3334 10R +5V_ever T328 T364 T368 100p 2325 2332 100p 3341 1K2 VFIL_DC 100p 2327 100n 2306 4303 10K 3345 47p 2307 BC857BW 7312 4K7 4302 3321 T303 GND_FD +5V_ever 3333 10R 3308 1K0 1305 RT-01T-1.0B 1 GND_FD T304 T356 BAS316 6307 GND 2 OUT 1 VS 3 3300 TSOP4836 7400 GND_FD VKK 2K7 22u 2320 3337 3343 2K7 4R7 470R 3328 4301 2314 GND_VFD 22p 10K 3347 GND_FD 2311 1n0 3302 10K BC847BW 7306 T359 7310 BC857BW BC847BW 7309 10K 3346 7308 BC847BW T325 1K0 3315 7311 BC847BW T335 2309 4u7 GND_FD 100p 2329 2322 22u 100p 2331 +5V_ever 3342 390R 7305 BC847BW GND_FD 2330 100p 47n 2319 3K3 3309 VFIL_DC T360 2321 33n +5V_ever 100p 2333 T357 T334 T355 T353 10R VKK GND_B 3317 100R 3303 6305 BAS316 2336 100p BAS316 6304 2304 47p T316 3K3 3310 T363 2u2 2315 +12VL 100p 2326 1K2 3304 T327 T322 RT-01T-1.0B 1306 1 1K0 3319 2n2 T361 2310 GND_FD 3325 10K T301 6302 PDZ5.6-B 3323 1K0 GND_FD T333 GND_B +12VL +5V_ever 76 77 10 13 39 38 40 78 7 9 8 66 67 68 69 70 71 72 73 74 75 56 57 58 59 60 61 62 63 64 65 45 46 47 48 49 50 51 52 53 54 55 32 33 34 35 36 37 41 42 43 44 11 23 24 25 26 27 28 29 30 31 6 15 16 17 18 19 20 21 22 14 12 7300 TMP87PM74ZF MICROPROCESSOR Φ 79 80 1 2 3 4 5 470R GND_FD GND_FD GND_FD 3331 +5V_ever T332 +5V_ever_IR T331 2K7 3352 100u T302 2300 4K7 3318 2 3 4 5 +5VL S5B-EH 1300 1 GND_FD 47K 3307 GND_FD 2R2 3336 3360 1K0 BC327-25 7304 BC337-25 7303 1K0 GND_FD 3314 22p 2312 T362 GND_FD T311 +5V_ever_IR T326 3348 10K 2K2 3340 10K +5V_ever 3349 +5V_ref GND_FD 100p 2335 2303 47p 3316 2317 1n0 10R 10K 3324 +5V_ever T300 3338 4R7 2328 100p 10K T370 3330 GND_VFD GND_VFD VKK 2313 22p GND_FD GND_FD 3326 330R 1K0 3313 T324 2u2 5300 T309 +5V_ever T310 T367 +5VL 12 T369 T366 2 3 4 5 6 7 8 9 11 10FMN-SMT-A-TF 1302 1 10 T323 4u7 2341 3306 10K 3305 10K 3344 10K 1304 GND_FD T365 3380 100K T329 GND_FD T358 100K 3373 3372 100K VKK 100K 3371 3370 100K 3369 GND_D 100K 100n 2308 PDZ8.2-B 6301 GND_FD +5V_ever 2R2 3335 1n0 2318 +5V_ref +5V_ever 6306 BAS316 2338 33n 2323 22p GND_FD T314 GND_FD 3350 2K2 3351 2316 1K2 100K 3379 33n 3378 100K 3376 100K 100K 3377 100K 3375 3374 100K 4K7 3329 2334 100p 3368 100K 100K 3367 3366 3365 100K 100K 41 4445 5 6 7 8 9 18 19 2 20 3031323334353637383940 FTD 12-ST-50GNK 1 1011121314151617 GND_FD 7301 4K7 3320 3301 2K7 GND_FD P13 P14 P15 P16 IR 2337 4u7 PBox_Ctrl VOL_B VOL_A STDBY_CTRL ioRC6 INTRQ P1 P9 P10 P11 PBox_Ctrl ioRC6 IR B01 HP_DET HP_DET B02 B03 VOL_A VOL_B B01 P12 P11 B02 P10 B03 P9 P8 P7 P6 P5 FIL_DIR SDA SCL SCL P16 P15 SDA P14 P13 FIL2 G8 G4 G5 G9 G6 G10 G11 G7 G8 G12 G9 G10 INTRQ G11 IR STDBY_CTRL G12 FIL1 P2 FIL1 G1 P4 G2 P3 P2 G3 P1 G4 G5 G6 G1 G7 G2 G3 G9 G10 G11 G12 P12 P8 P7 P6 P5 P4 P3 FIL2 G1 G2 G3 G4 G5 G6 G7 G8 FRONT (1) DISPLAY BOARD I 4 TO 1105 OF MONO BOARD Page 42 C 1 TO 1100 OF CONTROL BOARD Page 54 TO POWER SUPPLY UNIT # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 53 FRONT IR_HP FRONT (2) HP BOARD 1 2 3 1 2 3 A B A B 1400 A1 1401 A3 1410 B3 2403 B3 5401 A2 5402 A2 5403 A2 5404 A2 F101 A3 F102 B3 F103 A3 F104 A3 2403 470n GND_HP 5404 600R 600R 5403 5402 600R 600R 5401 F104 F103 F101 F102 1401 1 2 3 4 5 7 8 2 3 4 MSJ-035-11A B AG 1 B4B-PH-K 1400 1 1410 RT-01T-1.0B E 7 TO 1103 OF CONTROL BOARD Page 54 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 54 F A B C D E F 1100 B1 1111 C6 1112 D6 1113 D6 1114 D6 NEXT * 1 2 Key & OPEN|CLOSE D E * * * 3 4 5 6 7 1101 E3 1102 B6 1103 E7 1105 C4 1107 C5 1108 C6 1109 D4 1110 D5 8 A B C 1115 F7 1201 B4 1207 B4 2100 C4 Source 3102 D5 3103 B6 3104 D6 3105 B4 * 3106 B5 3107 B5 8 1 2 3 4 5 6 7 5102 F6 5103 E6 STANDBY * 5104 E5 5105 F7 6100 C3 6101 C3 6102 D3 6103 D3 2101 D4 2200 B3 2479 D2 2480 F5 2481 F6 2482 F6 3100 D4 3101 D5 I106 C2 I107 C2 I108 C2 I109 C2 STOP I113 E7 I114 E7 I115 E7 I116 F7 3110 A6 3111 A6 4100 B3 4101 D3 4102 A5 4103 A5 4104 F6 4200 A3 * Open/Close Play Pause * * 6200 B4 6201 B4 I100 C2 I101 C2 I102 C2 I103 C2 I104 C2 I105 C2 PREV * * I110 E4 I111 E4 I112 E4 GND_FD BZX384-C6V8 GND_B 4100 3 B 2 C 4 5 6103 EVE 1102 1 A 1108 10K 3110 GND_FD I105 1 1113 1112 RT-01T-1.0B 220R 3107 I103 I104 I102 I108 GND_HP 2200 100p RT-01T-1.0B 1207 1 1 GND_B 4102 1111 RT-01T-1.0B 3103 390R 3104 I101 390R 1110 6201 BZX384-C6V8 6200 BZX384-C6V8 GND_HP 4200 GND_B 2482 100p 5105 2u2 150R 1114 5 6 7 8 9 3105 07FMN-SMT-A-TF 1101 1 2 3 4 3111 10K I107 GND_B 6102 BZX384-C6V8 2u2 5102 4104 I115 GND_B 1109 1115 RT-01T-1.0B 1 I113 I111 3101 220R 150R 3100 I100 270R 3106 GND_HP GND_B 100p 2481 2480 100p 2u2 5103 5104 2u2 2479 100p 1105 I106 BZX384-C6V8 6100 4101 270R I109 3102 1107 100p 2101 4103 BZX384-C6V8 6101 I116 2100 100p 1 2 3 4 I114 I112 1103 S4B-PH-K 5 6 7 8 9 11 1 10 2 3 4 I110 1100 10FMN-SMT-A-TF 1201 B02 B01 B03 +5VL B02 VOL_A VOL_B VOL_A VOL_B B01 B03 +5VL CONTROL BOARD C 8 TO 1601 OF AV BOARD Page 49 G 3 TO 1302 OF FRONT (1) DISPLAY BOARD Page 52 A 1 TO 1400 OF FRONT (2) HP BOARD Page 53 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 55 * * * * * * 1101 B1 1102 B9 2110 A6 2111 C6 2112 D6 2116 B7 2117 C7 2118 D7 2119 A8 2120 A9 3122 A7 3123 C7 3124 D7 3125 E4 3126 E5 3127 E5 4109 A8 4111 A5 4112 B5 4113 C5 6101 B7 6102 C7 6103 D7 F101 B1 F102 B1 F103 B1 F104 B1 F105 C1 F106 C1 F107 C1 F108 C1 F109 D1 F110 C2 F111 A7 F112 C7 F113 D7 F114 B8 F115 C8 F116 C8 F117 C8 F118 C9 1 2 3 4 5 6 Gnd Line 3 Line 2 Line 1 AV1 7 8 9 1 2 3 4 5 6 7 8 9 A B C D E A B C D E Pb 4V Pb Gnd * Option Y 4V 4V Pr Gnd PlugDet PlugDet Gnd Y Reserved 2 Pr Reserved 1 Reserved 3 6103 BZX384-C4V7 F111 2112 470u AV F102 7 8 9 10 11 12 13 14 2 3 4 5 6 CSS0514-0801 1102 1 C 75R 3123 BZX384-C4V7 6102 100p 2117 470u 2111 10K 3127 3126 10K 10K 3125 2110 470u 1 10 11 12 13 2 3 4 5 6 7 8 9 1101 FMN 4113 4111 4112 F117 AV AV F118 C 2120 100n F116 C 2118 100p 4109 F106 F107 F105 F104 6101 BZX384-C4V7 F114 F115 F103 3122 75R C F109 C C F101 F108 C F113 2116 100p 75R 3124 F112 V U Y PLUGDETN Y U V LINE_2 LINE_1 LINE_3 モニター出力� D1/D2 HDMI D2 BOARD (J model) E 13 TO 1704 OF AV BOARD Page 50 # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper I DVR-S300 SCHEMATIC DIAGRAM FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 56 5 B TO CN406 OF POWER (3) IN/OUT BOARD Page 60 5 E TO CN402 OF POWER (3) IN/OUT BOARD Page 60 2 E TO CN805 OF POWER (2) POWER BOARD Page 59 2 D TO CN801 OF POWER (2) POWER BOARD Page 59 AMP (1) FL/FR BOARD # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. I NX-SW301 SCHEMATIC DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 57 5 B TO CN406 OF POWER (3) IN/OUT BOARD Page 60 5 D TO CN403 OF POWER (3) IN/OUT BOARD Page 60 2 E TO CN805 OF POWER (2) POWER BOARD Page 59 2 D TO CN802 OF POWER (2) POWER Page 59 AMP (2) SL/SR BOARD # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. I NX-SW301 SCHEMATIC DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 58 5 B TO CN406 OF POWER (3) IN/OUT BOARD Page 60 5 G TO CN404 OF POWER (3) IN/OUT BOARD Page 60 2 E TO CN806 OF POWER (2) POWER BOARD Page 59 DRIVER 2 D TO CN803 OF POWER (2) POWER BOARD Page 59 POWER (1) C/SW BOARD # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. I NX-SW301 SCHEMATIC DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 59 5 C TO CN405 OF POWER (3) IN/OUT BOARD Page 60 4 H TO CN104 OF AMP (1) FL/FR BOARD Page 56 4 H TO CN204 OF AMP (2) SL/SR BOARD Page 57 5 H TO CN304 OF POWER (1) C/SW BOARD Page 58 2 H TO CN103 OF AMP (1) FL/FR BOARD Page 56 2 H TO CN203 OF AMP (2) SL/SR BOARD Page 57 2 H TO CN303 OF POWER (1) C/SW BOARD Page 58 POWER (2) POWER BOARD POWER (4) SUBTR BOARD I NX-SW301 SCHEMATIC DIAGRAM # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 60 I NX-SW301 SCHEMATIC DIAGRAM 4 A TO CN201 OF AMP (2) SL/SR BOARD Page 57 4 A TO CN101 OF AMP (1) FL/FR BOARD Page 56 3 A TO CN301 OF POWER (1) C/SW BOARD Page 58 1 E TO CN804 OF POWER (2) POWER BOARD Page 59 2 A TO CN202 OF AMP (2) SL/SR BOARD Page 57 2 A TO CN302 OF POWER (1) C/SW BOARD Page 58 2 A TO CN102 OF AMP (1) FL/FR BOARD Page 56 POWER (3) IN/OUT BOARD SPEAKERS SYSTEM CONNECTOR # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. # Schematic diagram is subject to change without notice. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 61 DVR-S300 NX-P301/NX-P302 I WARNING G Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. ●s印のある部分は、安全確保部品を示しています。部品の交換が必要な場合、パーツリストに記載されている部品を使用してください。 ●部品価格ランクは、予告なく変更することがあります。 ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS: PARTS LIST I ELECTRICAL PARTS C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR,BASE PIN CN.CANNON : CONNECTOR,CANNON CN.DIN : CONNECTOR,DIN CN.FLAT : CONNECTOR,FLAT CABLE CN.POST : CONNECTOR,BASE POST COIL.MX.AM : COIL,AM MIX COIL.AT.FM : COIL,FM ANTENNA COIL.DT.FM : COIL,FM DETECT COIL.MX.FM : COIL,FM MIX COIL,OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER,TEST POINT L.DTCT : LIGHT DETECTING MODULE L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED,INFRARED MODUL.RF : MODULATOR,RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN,TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR. : CARBON RESISTOR R.CAR.CHP : CHIP RESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.CEMENT : CEMENT RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW,TRANSISTOR SUPRT.PCB : SUPPORT,P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKER TERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWER TRANSFORMER ASS’Y TUNER.AM : TUNER PACK,AM TUNER.FM : TUNER PACK,FM TUNER.PK : FRONT-ENDTUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDE POTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 62 DVR-S300 NX-P301/NX-P302 * AAX72270 P.C.B. AMP 422164 ＰＣＢ　アンプ CN101 VC015000 CN EH 6P 081522 コネクター 01 CN102 LB932020 CN.BS.PIN 2P 081661 ベースポスト 01 CN103 AAX10570 CN B 5P-VH 081672 コネクター CN104 VC014800 CN EH 4P 081493 コネクター 01 * CN201-203 AAX72350 CN B6B-EH-R RED 423583 コネクター CN204 AAX28370 CN B3B-EH 081465 コネクター C101-102 UR867220 C.EL 22uF 50V 356201 ケミコン 01 C105-106 AAX12400 C.POL 560pF 50V 055500 ポリエステルコン C107-108 UR867100 C.EL 10uF 50V 338565 ケミコン 01 C109-110 AAX11210 C.POL 1500pF 50V 065028 ポリエステルコン C111-112 UR866220 C.EL 2.2uF 50V 353100 ケミコン 01 C113-114 UR867330 C.EL 33uF 50V 368200 ケミコン 01 C115-116 UR867100 C.EL 10uF 50V 338565 ケミコン 01 * C117-118 FG212560 C.CE 560pF 50V 065810 セラコン 01 C119 UR866100 C.EL 1uF 50V 356367 ケミコン 01 C120 UR868100 C.EL 100uF 50V 427664 ケミコン 01 C123-124 FG613100 C.CE 1000pF 50V 065385 セラコン 01 C125-126 FG651220 C.CE 22pF 50V 065741 セラコン 01 C127-128 UR867100 C.EL 10uF 50V 338565 ケミコン 01 C129-130 UR868100 C.EL 100uF 50V 353102 ケミコン 01 C201-202 UR867220 C.EL 22uF 50V 356201 ケミコン 01 C205-206 UA652100 C.MYLAR 100pF 50V J 055439 マイラーコン 01 C207-208 UR867100 C.EL 10uF 50V 338565 ケミコン 01 * C209-210 AAX42490 C.POL 2200pF 50V 065055 ポリエステルコン 01 C211-212 UR866220 C.EL 2.2uF 50V 353100 ケミコン 01 C213-214 UR867330 C.EL 33uF 50V 368200 ケミコン 01 C215-216 UR867100 C.EL 10uF 50V 338565 ケミコン 01 * C217-218 FG212560 C.CE 560pF 50V 065810 セラコン 01 C219 UR866100 C.EL 1uF 50V 356367 ケミコン 01 C220 UR868100 C.EL 100uF 50V 427664 ケミコン 01 * C223-224 FG612680 C.CE 680pF 50V 065824 セラコン 01 * C225-226 FG211180 C.CE 18pF 50V 065727 セラコン 01 C227-228 UR867100 C.EL 10uF 50V 338565 ケミコン 01 C229 UR868100 C.EL 100uF 50V 353102 ケミコン 01 C230-231 XX698870 C.POL 0.01uF 50V 065000 ポリエステルコン 01 C232 UR868100 C.EL 100uF 50V 353102 ケミコン 01 D101 iF004600 DIODE 1SS133 069460 ダイオード 01 D103 iF004600 DIODE 1SS133 069460 ダイオード 01 D201-204 iF004600 DIODE 1SS133 069460 ダイオード 01 *# IC101 AAX72250 IC STK403-090-E LF 421556 ＩＣ IC102 AAX41390 IC KIA4558P 353033 ＩＣ 03 *# IC201 AAX72250 IC STK403-090-E LF 421556 ＩＣ IC202 AAX41390 IC KIA4558P 353033 ＩＣ 03 Q101-102 AAX41640 TR KTC2874 AB AT 367222 トランジスタ 01 Q103-104 AAX51670 TR KTC3200 GR,BL 358033 トランジスタ 01 Q105 AAX12580 TR 2SA970 GR BL 073509 トランジスタ 03 Q106 iC174020 TR 2SC1740S QRS 055717 トランジスタ 01 Q107 AAX41640 TR KTC2874 AB AT 367222 トランジスタ 01 Q108 iC174020 TR 2SC1740S QRS 055717 トランジスタ 01 Q201-202 AAX41640 TR KTC2874 AB AT 367222 トランジスタ 01 Q203-204 AAX51670 TR KTC3200 GR,BL 358033 トランジスタ 01 Q205 AAX12580 TR 2SA970 GR BL 073509 トランジスタ 03 Q206 iC174020 TR 2SC1740S QRS 055717 トランジスタ 01 Q207 AAX41640 TR KTC2874 AB AT 367222 トランジスタ 01 Q208 iC174020 TR 2SC1740S QRS 055717 トランジスタ 01 Q209 AAX41660 TR KTA1266GR AT 051819 トランジスタ 01 Q210 AAX41650 TR KTC3198GR AT 051818 トランジスタ 01 R119-120 VA872100 R.MTL.OXD 0.22Ω 3W 422321 酸化金属被膜抵抗 01 R130 HL005470 R.MTL.OXD 470Ω 1/2W 423581 酸化金属被膜抵抗 R141-142 AAX11870 R.CAR.FP 10Ω 1/4W 044452 不燃化カーボン抵抗 01 R143 AAX11860 R.CAR.FP 100Ω 1/4W 044153 不燃化カーボン抵抗 01 R145 AAX11860 R.CAR.FP 100Ω 1/4W 044153 不燃化カーボン抵抗 01 R219-220 VA872100 R.MTL.OXD 0.22Ω 3W 422321 酸化金属被膜抵抗 01 R230 HL005470 R.MTL.OXD 470Ω 1/2W 423581 酸化金属被膜抵抗 R241-242 AAX11870 R.CAR.FP 10Ω 1/4W 044452 不燃化カーボン抵抗 01 R243 AAX11860 R.CAR.FP 100Ω 1/4W 044153 不燃化カーボン抵抗 01 R249 AAX11860 R.CAR.FP 100Ω 1/4W 044153 不燃化カーボン抵抗 01 s RY101 VU161600 RELAY OSA-SS-224DM3 079766 リレー 05 s RY201 VU161600 RELAY OSA-SS-224DM3 079766 リレー 05 NX-SW301 P.C.B. AMP Ref. No. Part No. Description Remarks Markets 部　品　名 Rank ✻ New Parts　＊ 新規部品 Note) Those parts marked with “#” are not included in the P.C.B. ass’y. （マーク#の部品は、基板に含まれません） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 63 TH201 V9792500 POSISTOR PTFM04BC471Q2N34B0 068554 ポジスタ 04 * AAX72280 P.C.B. POWER 422168 J ＰＣＢ　パワー * AAX72290 P.C.B. POWER 422287 CV ＰＣＢ　パワー * AAX72320 P.C.B. POWER 422290 K ＰＣＢ　パワー * AAX72300 P.C.B. POWER 422288 AL ＰＣＢ　パワー * AAX72310 P.C.B. POWER 422289 BG ＰＣＢ　パワー * CN301-302 AAX72360 CN B6B-EH-E BLUE 423584 コネクター CN303 AAX10570 CN B 5P-VH 081672 コネクター CN304 VC014600 CN B02B-EH 081439 コネクター 01 * CN401 AAX72330 CN KEY-15S-2A3F(LF)(SN)LF 422365 ＶＧＡコネクター１５Ｐ * CN409 AAX72460 CN NAL1-01-008 LF 421559 スピーカーターミナル * CN804 AAX72340 CN B 7P-VH 081677 コネクター C121-122 AAX11180 C.POL 0.1uF 50V 065007 ポリエステルコン C221-222 AAX11180 C.POL 0.1uF 50V 065007 ポリエステルコン C301 UR867220 C.EL 22uF 50V 356201 ケミコン 01 C303 AAX12400 C.POL 560pF 50V 055500 ポリエステルコン C304 UR867100 C.EL 10uF 50V 338565 ケミコン 01 C305 AAX11210 C.POL 1500pF 50V 065028 ポリエステルコン C306 UR866220 C.EL 2.2uF 50V 353100 ケミコン 01 * C307 FG212560 C.CE 560pF 50V 065810 セラコン 01 C308 AAX11180 C.POL 0.1uF 50V 065007 ポリエステルコン * C309 FG612470 C.CE 470pF 50V 065793 セラコン 01 C310 UR867330 C.EL 33uF 50V 368200 ケミコン 01 C311 FG651100 C.CE 10pF 50V 065696 セラコン 01 C312 UR867220 C.EL 22uF 50V 356201 ケミコン 01 C313 FG651330 C.CE 33pF 50V 065767 セラコン 01 C314 UR866470 C.EL 4.7uF 50V 358225 ケミコン 01 C315 AAX09530 C.CE 100pF 50V 065382 セラコン C316 UR837470 C.EL 47uF 16V 338563 ケミコン 01 C317-318 UR867100 C.EL 10uF 50V 338565 ケミコン 01 C319-320 UA655180 C.MYLAR 0.18uF 50V J 352293 マイラーコン 01 C321-322 UR837100 C.EL 10uF 16V 353104 ケミコン 01 C323 UA555390 C.MYLAR 0.39uF 50V 352300 マイラーコン 02 C324 UA655150 C.MYLAR 0.15uF 50V J 065038 マイラーコン 01 C325 UR867220 C.EL 22uF 50V 356201 ケミコン 01 C326 UA655820 C.MYLAR 0.82uF 50V J 352307 マイラーコン 01 C327 UR838100 C.EL 100uF 16V 353103 ケミコン 01 * C329 FG210600 C.CE 6pF 50V 065816 セラコン 01 * C330 FG212560 C.CE 560pF 50V 065810 セラコン 01 C331 AAX11180 C.POL 0.1uF 50V 065007 ポリエステルコン * C332 FG612470 C.CE 470pF 50V 065793 セラコン 01 C333 FG644100 C.CE 0.01uF 50V 065452 セラコン 01 C334 UA655470 C.MYLAR 0.47uF 50V J 352302 マイラーコン 01 C335-336 UR867100 C.EL 10uF 50V 338565 ケミコン 01 * C337 VQ529900 C.EL 10uF 16V 066606 ＢＰケミコン C338 AAX11180 C.POL 0.1uF 50V 065007 ポリエステルコン C339-340 UR837470 C.EL 47uF 16V 338563 ケミコン 01 C341 UR866100 C.EL 1uF 50V 356367 ケミコン 01 C342 UR868100 C.EL 100uF 50V 427664 ケミコン 01 C343-344 UR867100 C.EL 10uF 50V 338565 ケミコン 01 C345-346 UR868100 C.EL 100uF 50V 353102 ケミコン 01 * C347 AAX11200 C.POL 0.12uF 50V 065024 ポリエステルコン * C348 UA555680 C.MYLAR 0.68uF 50V 352305 マイラーコン 03 C349 AAX11210 C.POL 1500pF 50V 065028 ポリエステルコン * C401-406 FG613470 C.CE 4700pF 50V 065428 セラコン 01 C407-408 FG613100 C.CE 1000pF 50V 065385 セラコン 01 * C409-410 FG613470 C.CE 4700pF 50V 065428 セラコン 01 C411 FG613100 C.CE 1000pF 50V 065385 セラコン 01 C412-413 FG612470 C.CE 470pF 50V 065793 セラコン C414-415 AAX09530 C.CE 100pF 50V 065382 セラコン C416 FG612470 C.CE 470pF 50V 065793 セラコン C417 AAX09530 C.CE 100pF 50V 065382 セラコン C801 UR857100 C.EL 10uF 35V 367294 ケミコン 01 C802 UR837470 C.EL 47uF 16V 338563 ケミコン 01 C803-804 UR838330 C.EL 330uF 16V 356203 ケミコン 01 C805-806 UR867220 C.EL 22uF 50V 356201 ケミコン 01 C807-808 VT202600 C.EL 8200uF 50V 422366 ケミコン 08 Ref. No. Part No. Description Remarks Markets 部　品　名 Rank ✻ New Parts　＊ 新規部品 Note) Those parts marked with “#” are not included in the P.C.B. ass’y. （マーク#の部品は、基板に含まれません） NX-SW301 P.C.B. AMP & POWER Ref. No. Part No. Description Remarks Markets 部　品　名 Rank ✻ New Parts　＊ 新規部品 Note) Those parts marked with “#” are not included in the P.C.B. ass’y. （マーク#の部品は、基板に含まれません） NX-SW301 P.C.B. POWER * C809-810 AAX43060 C.POL 0.047uF 100V 065121 ポリエステルコン 01 C811 UR837100 C.EL 10uF 16V 353104 ケミコン 01 C812 UR867100 C.EL 10uF 50V 338565 ケミコン 01 C813 UR848470 C.EL 470uF 25V 338564 ケミコン 01 C814 VU092400 C.EL 4.7uF 50V 066643 ＢＰケミコン * s C815 AAX72440 C.CE.SAFTY 0.01uF 275V 360376 規格認定コン C816 UR866100 C.EL 1uF 50V 356367 ケミコン 01 D301-309 iF004600 DIODE 1SS133 069460 ダイオード 01 s D802 AAX12240 DIODE RBV602 069599 ダイオード D803-804 VU264100 DIODE 1SR139,400 069536 ダイオード 01 D805-811 iF004600 DIODE 1SS133 069460 ダイオード 01 s F801-1 WC050700 CLIP.FUSE EYF-52BCY 404188 ヒューズクリップ 01 * s F801-2 AAX72430 FUSE 8A 250V 423492 JCV ヒューズ * s F801-2 AAX72420 FUSE 2.5A 250V 386499 KABGL ヒューズ *# IC301 AAX72250 IC STK403-090-E LF 421556 ＩＣ IC302-304 AAX41390 IC KIA4558P 353033 ＩＣ 03 IC801 X4153A00 IC KIA7812API 354983 電源ＩＣ IC802 X4154A00 IC KIA7912PI 354984 電源ＩＣ IC803 AAX41450 IC KIA78L05BP TO-92L 368508 ＩＣ 04 * IC804 AAX72260 IC KIA393P LF 422426 ＩＣ Q301 AAX41640 TR KTC2874 AB AT 367222 トランジスタ 01 Q302 AAX51670 TR KTC3200 GR,BL 358033 トランジスタ 01 Q303 AAX41640 TR KTC2874 AB AT 367222 トランジスタ 01 Q304 AAX51670 TR KTC3200 GR,BL 358033 トランジスタ 01 Q305 AAX09180 FET 2SK304 E 051061 ＦＥＴ 03 Q306 AAX41650 TR KTC3198GR AT 051818 トランジスタ 01 Q307 AAX41660 TR KTA1266GR AT 051819 トランジスタ 01 Q308 AAX41650 TR KTC3198GR AT 051818 トランジスタ 01 Q309 AAX41660 TR KTA1266GR AT 051819 トランジスタ 01 Q310 AAX12580 TR 2SA970 GR BL 073509 トランジスタ 03 Q311 iC174020 TR 2SC1740S QRS 055717 トランジスタ 01 Q312 AAX41640 TR KTC2874 AB AT 367222 トランジスタ 01 Q313 iC174020 TR 2SC1740S QRS 055717 トランジスタ 01 Q801 AAX41660 TR KTA1266GR AT 051819 トランジスタ 01 Q802 AAX41650 TR KTC3198GR AT 051818 トランジスタ 01 Q803 AAX41660 TR KTA1266GR AT 051819 トランジスタ 01 Q805-806 AAX41660 TR KTA1266GR AT 051819 トランジスタ 01 Q807 AAX41650 TR KTC3198GR AT 051818 トランジスタ 01 Q808 AAX41660 TR KTA1266GR AT 051819 トランジスタ 01 Q809-810 AAX41650 TR KTC3198GR AT 051818 トランジスタ 01 R137-138 AAX11870 R.CAR.FP 10Ω 1/4W 044452 不燃化カーボン抵抗 01 R237-238 AAX11870 R.CAR.FP 10Ω 1/4W 044452 不燃化カーボン抵抗 01 R309 VA872100 R.MTL.OXD 0.22Ω 3W 422321 酸化金属被膜抵抗 01 R314 AAX11870 R.CAR.FP 10Ω 1/4W 044452 不燃化カーボン抵抗 01 R336 VA872100 R.MTL.OXD 0.22Ω 3W 422321 酸化金属被膜抵抗 01 R341 AAX11870 R.CAR.FP 10Ω 1/4W 044452 不燃化カーボン抵抗 01 R346 VR412900 R.MTL.OXD 0.1Ω 3W 422319 酸化金属被膜抵抗 01 R357 HV455680 R.CAR.FP 680Ω 1/4W 332092 不燃化カーボン抵抗 01 R358 HV455330 R.CAR.FP 330Ω 1/4W 332097 不燃化カーボン抵抗 01 R359 HV754680 R.CAR.FP 68Ω 1/4W 067490 不燃化カーボン抵抗 01 R362-365 AAX11870 R.CAR.FP 10Ω 1/4W 044452 不燃化カーボン抵抗 01 R366 AAX11860 R.CAR.FP 100Ω 1/4W 044153 不燃化カーボン抵抗 01 R371 HL005470 R.MTL.OXD 470Ω 1/2W 423581 酸化金属被膜抵抗 R380 AAX11860 R.CAR.FP 100Ω 1/4W 044153 不燃化カーボン抵抗 01 R401-405 AAX11870 R.CAR.FP 10Ω 1/4W 044452 不燃化カーボン抵抗 01 * R802-803 AAX72450 R.MTL.OXD 510Ω 2W 427590 酸化金属被膜抵抗 * R804 HL314560 R.MTL.OXD 56Ω 1W 422429 酸化金属被膜抵抗 01 * R821 Vi510100 R.MTL.FLM 2KΩ 1/4W 423588 金属被膜抵抗 R822 Vi511000 R.MTL.FLM 4.7KΩ 1/4W 423589 金属被膜抵抗 01 R823-824 HB027100 R.MTL.FLM 10KΩ 1/4W 366208 金属皮膜抵抗 01 * R831 Vi509800 R.MTL.FLM 1.5KΩ 1/4W 423822 金属被膜抵抗 s RY301 VU161600 RELAY OSA-SS-224DM3 079766 リレー 05 s RY801 AAX12490 RELAY SDT-S-112LMR 055473 リレー 06 * s T802 AAX72370 TRANS 422312 J サブトランス * s T802 AAX72380 TRANS 422313 CV サブトランス * s T802 AAX72410 TRANS 422316 K サブトランス * s T802 AAX72390 TRANS 422314 AL サブトランス * s T802 AAX72400 TRANS 422315 BG サブトランス w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 64 I DVR-S300 EXPLODED VIEW 113 240 277 277 277 277 250 250 250 250 250 110 112 101 102 278 253 260 260 260 260 260 260 260 253 250 253 253 253 253 1103 (2) 1103 (1) 1104 8008 8001 8007 1106-5 1106-1 161 1107 1109 1108 8005 8002 8009 8011 8004 1105 230 275 500 502 503 504 507 335 B, G models J model J model Note) The replacement battery cover is not available. 電池蓋のみの交換はできません。� 分解には、図のような特殊ドライバーを使用します。� 2.7 mm T10 When disassembling, use the special screw driver with such tip shape as shown in figure. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 65 I DVR-S300 MECHANICAL PARTS * 101 AAX72200 FRONT PANEL ASS'Y 3141 079 33331 フロントパネルＡＳＳＹ * 102 AAX73170 BOTTOM PANEL 3139 244 07771 ボトムパネル * 110 AAX71310 TRAY COVER ASS'Y 3141 079 33671 トレーカバーＡＳＳＹ * 112 AAX71350 BUTTON 3139 244 07751 ボタン * 113 AAX71320 KNOB VOLUME 3139 244 07741 ノブ／ボリューム * 161 AAX71330 FRAME ASS'Y 3141 079 33341 フレームＡＳＳＹ * 230 AAX71420 REAR PANEL 3139 241 23181 J リアパネル * 230 AAX71400 REAR PANEL 3139 241 23161 C リアパネル * 230 AAX71380 REAR PANEL 3139 241 23141 K リアパネル * 230 AAX71370 REAR PANEL 3139 241 23131 A リアパネル * 230 AAX71360 REAR PANEL 3139 241 23111 BG リアパネル * 230 AAX71410 REAR PANEL 3139 241 23171 L リアパネル * 230 AAX71390 REAR PANEL 3139 241 23151 V リアパネル * 240 AAX71300 TOP COVER 3139 241 22971 トップカバー 250 AAX23650 PAN HEAD TORX S-TIGHT SCREW 3x6 MFNI33 2511 077 01039 ナベトルクスＳタイトネジ 253 AAX53520 PAN HEAD TORX P-TIGHT SCREW 3x8 MFZN2BL 2511 076 50012 ナベトルクスＰタイトネジ 260 AAX23640 PAN HEAD TORX S-TIGHT SCREW 3x6 MFZN2BL 2511 077 00039 ナベトルクスＳタイトネジ * 275 AAX72200 FLAT HEAD B-TIGHT SCREW 3x8 MFZN2BL 2522 200 00019 ＋皿Ｂタイトネジ * 277 AAX72220 PAN HEAD TORX S-TIGHT SCREW 3x4 MFNI33 2522 201 00028 ナベトルクスＳタイトネジ * 278 AAX72210 PAN HEAD TORX P-TIGHT SCREW 3x6 MFZN2BL 2511 076 50011 ナベトルクスＰタイトネジ s 335 AAX53650 POWER CABLE 1.8m 2422 070 98255 J 電源コード s 335 AAX47750 POWER CABLE 1.8m 2422 070 98235 C 電源コード s 335 AAX59130 POWER CABLE 1.8m 2422 070 98222 K 電源コード s 335 AAX47740 POWER CABLE 1.8m 2422 070 98233 A 電源コード s 335 AAX53640 POWER CABLE 1.8m 2422 070 98236 B 電源コード s 335 AAX53630 POWER CABLE 1.8m 2422 070 98231 GL 電源コード * s 335 AAX71430 POWER CABLE 1.8m 2422 070 00093 V 電源コード * 1103 AAX71250 P.C.B. ASS'Y FRONT 3139 248 85651 ＰＣＢ　フロント * 1104 AAX71240 P.C.B. ASS'Y CONTROL 3139 248 85631 ＰＣＢ　コントロール * 1105 AAX71220 P.C.B. ASS'Y AV 3139 248 85841 J ＰＣＢ　ＡＶ * 1105 AAX71230 P.C.B. ASS'Y AV 3139 248 85851 CKALV ＰＣＢ　ＡＶ * 1105 AAX71210 P.C.B. ASS'Y AV 3139 248 85361 BG ＰＣＢ　ＡＶ * 1106-1 AAX71260 P.C.B. ASS'Y MONO SD6.31 ST A-KEY 3141 079 33981 ＰＣＢ　ＭＯＮＯ * 1106-5 AAX71200 DVD MECHANISM WXD8829 3139 117 11201 ＤＶＤメカニズム * s 1107 AAX71440 POWER SUPPLY UNIT 4-20 J 3139 247 11511 J 電源ユニット s 1107 AAX67380 POWER SUPPLY UNIT 4-20 3139 117 11111 CKABGLV 電源ユニット * 1108 AAX71190 AM/FM TUNER ENG047XX01QF 2422 542 00026 J ＡＭ／ＦＭ　チューナー 1108 AAX67090 AM/FM TUNER ENG06703QF 2422 542 00022 CKALV ＡＭ／ＦＭ　チューナー * 1108 AAX71180 AM/FM TUNER ENG07703QRF 2422 542 00024 BG ＡＭ／ＦＭ　チューナー 1109 AAX57680 P.C.B. ASS'Y HDMI D2 CONNECTOR 3139 248 82751 J ＰＣＢ　ＨＤＭＩ　Ｄ２ * 8001 AAX71730 FLEXIBLE FLAT CABLE 10P 60mm P=1mm 3139 241 01441 カード電線　Ｃ＆Ｃ 8002 AAX59250 FLEXIBLE FLAT CABLE 30P 180mm P=1mm 3139 241 00421 カード電線　Ｃ＆Ｃ 8004 AAX58220 FLEXIBLE FLAT CABLE 16P 220mm P=1mm 3139 111 02421 カード電線　Ｃ＆Ｃ 8005 AAX67190 FLEXIBLE FLAT CABLE 30P 60mm P=1mm 3139 111 04271 カード電線　Ｃ＆Ｃ * 8007 AAX71720 FLEXIBLE FLAT CABLE 7P 220mm P=1mm 3139 241 01431 カード電線　Ｃ＆Ｃ * 8008 AAX71740 FLEXIBLE FLAT CABLE 9P 100mm P=1mm 3139 241 01461 カード電線　Ｃ＆Ｃ 8009 AAX67170 FLEXIBLE FLAT CABLE 11P 100mm P=1mm 3103 308 93911 カード電線　Ｃ＆Ｃ Ref. No. Part No. Description Remarks Markets 部　品　名 Rank ✻ New Parts　＊ 新規部品 Ref. No. Part No. Description Remarks Markets 部　品　名 Rank ✻ New Parts　＊ 新規部品 * 8011 AAX71290 FLEXIBLE FLAT CABLE 13P 80mm P=1mm 3139 241 01351 J カード電線　Ｃ＆Ｃ ACCESSORIES 付属品 * 500 AAX72240 REMOTE CONTROL RC1145542/01 3139 238 11471 J リモコン * 500 AAX72230 REMOTE CONTROL RC1145541/01 3139 238 11301 CKABGLV リモコン 502 AAX67120 INDOOR FM ANTENNA 1.0m 1pc 2422 076 00546 ＦＭ簡易アンテナ 503 AAX67100 AM LOOP ANTENNA 1.0m 1pc 2422 549 45386 ＡＭループアンテナ 504 AAX67250 SYSTEM CONTROL CABLE D-SUB 15P 4m 1pc 2422 076 00671 システム接続ケーブル 507 AAX22970 VIDEO PIN CABLE YE 1.5m 1pc 3104 108 45432 ビデオ用ピンケーブル BATTERY SUM-3N 2pcs 乾電池 I WARNING G Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. ● s印のある部分は、安全確保部品を示しています。部品の交換が必要な場合、 パーツリストに記載されている部品を使用してください。 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 66 101 102 103 104 103 202 103 104 6-1 5-2 5-2 6-2 5-1 6-1 1 2 3 24 25 25 25 20 31 31 20 20 20 16 16 25 25 33 25 17 25 25 25 32 32 32 18 19 4 (1) FL/FR (1) C/SW (3) IN/OUT 5-1 (2) SL/SR (2) POWER 6-1 6-1 (4) SUBTR 5m x 3 15m x 2 204 for NX-SW301 for NX-C301 203 23 23 23 23 27 11 14 14 15 15 30 23 29 29 28 8 9 34 22 22 21 21 30 26 27 26 23 13 7 10 12 I NX-P301 EXPLODED VIEW w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVR-S300/NX-P301/NX-P302 67 I NX-P301 MECHANICAL PARTS I WARNING G Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. ● s印のある部分は、安全確保部品を示しています。部品の交換が必要な場合、 パーツリストに記載されている部品を使用してください。 * 1 AAX72480 CABINET ASS'Y 419822 キャビネットＡＳＳＹ * 2 X4329B00 DRIVER WOOFER 16cm 6Ω 411823 スピーカーユニット * 3 AAX72750 FRONT GRILLE ASS'Y 421005 フロントグリルＡＳＳＹ * 4 AAX72760 FRONT PANEL ASS'Y 421006 フロントパネルＡＳＳＹ * 5-1 AAX72270 P.C.B ASS'Y AMP 422164 ＰＣＢ　アンプ *# 5-2 AAX72250 IC (IC101,IC102) STK403-090-E LF 421556 ＩＣ * 6-1 AAX72280 P.C.B ASS'Y POWER 422168 J ＰＣＢ　パワー * 6-1 AAX72290 P.C.B ASS'Y POWER 422287 CV ＰＣＢ　パワー * 6-1 AAX72320 P.C.B ASS'Y POWER 422290 K ＰＣＢ　パワー * 6-1 AAX72300 P.C.B ASS'Y POWER 422288 AL ＰＣＢ　パワー * 6-1 AAX72310 P.C.B ASS'Y POWER 422289 BG ＰＣＢ　パワー *# 6-2 AAX72250 IC (IC301) STK403-090-E LF 421556 ＩＣ * s 7 AAX72910 POWER TRANSFORMER 422307 J 電源トランス * s 7 AAX72960 POWER TRANSFORMER 429740 C 電源トランス * s 7 AAX72950 POWER TRANSFORMER 428880 K 電源トランス * s 7 AAX72930 POWER TRANSFORMER 428878 AL 電源トランス * s 7 AAX72940 POWER TRANSFORMER 428879 BG 電源トランス * s 7 AAX72920 POWER TRANSFORMER 428877 V 電源トランス * s 8 AAX72880 POWER CABLE 2m 405589 J 電源コード s 8 V8366300 POWER CABLE 2m 353587 C 電源コード 04 * s 8 AAX72900 POWER CABLE 2m 425655 K 電源コード * s 8 AAX72870 POWER CABLE 2m 393807 A 電源コード * s 8 AAX72860 POWER CABLE 2m 389588 B 電源コード s 8 V8366400 POWER CABLE 2m 355106 GL 電源コード 04 * s 8 AAX72890 POWER CABLE 2m 414127 V 電源コード 9 AAX12230 CORD STOPPER SR-4 078519 コードストッパー 01 10 CB069250 BINDING TIE BK-1 080558 束線止め 01 * 11 AAX72770 REAR PANEL 429893 J リアパネル * 11 AAX72780 REAR PANEL 429897 C リアパネル * 11 AAX72820 REAR PANEL 429901 K リアパネル * 11 AAX72800 REAR PANEL 429899 A リアパネル * 11 AAX72810 REAR PANEL 429900 BG リアパネル * 11 AAX72830 REAR PANEL 429903 L リアパネル * 11 AAX72790 REAR PANEL 429898 V リアパネル * 12 AAX72470 COVER SP TERMINAL 420867 ＳＰターミナルカバー * 13 AAX72740 COVER HEATSINK 424455 ヒートシンクカバー 14 AAX12910 SEAL 13x170 t=1 055433 シール 01 15 AAX12920 SEAL 13x370 t=1 058018 シール 05 * 16 AAX72490 CUSHION 15x45 t=1 363704 クッション * 17 AAX72510 CUSHION 18x100 t=1 364547 クッション * 18 AAX72520 CUSHION BUSH 8x16x48 368730 クッション * 19 AAX72530 CUSHION COVER 422302 クッション * 20 AAX72540 CUSHION 15x115 t=1 422303 クッション * 21 AAX72500 CUSHION 10x145 t=1 364541 クッション * 22 AAX72550 CUSHION 10x160 t=1 422347 クッション * 23 AAX72730 BIND HEAD TAPPING SCREW 4x20 MFZN2BL 405824 バインドＴＰネジ * 24 AAX72710 BIND HEAD P-TIGHT SCREW 3x16 MFZNI33 397596 バインドＰタイトネジ Ref. No. Part No. Description Remarks Markets 部　品　名 Rank ✻ New Parts　＊ 新規部品 Note) Those parts marked with “#” are not included in the P.C.B. ass’y. （マーク#の部品は、基板に含まれません） Ref. No. Part No. Description Remarks Markets 部　品　名 Rank ✻ New Parts　＊ 新規部品 Note) Those parts marked with “#” are not included in the P.C.B. ass’y. （マーク#の部品は、基板に含まれません） * 25 AAX61980 BIND HEAD B-TIGHT SCREW 3x8 MFZNI33 410797 バインドＢタイトネジ * 26 AAX72670 BIND HEAD B-TIGHT SCREW 4x8 MFZN2BL 414197 バインドＢタイトネジ * 27 AAX72680 BIND HEAD B-TIGHT SCREW 3x8 MFZN2BL 414198 バインドＢタイトネジ * 28 AAX72690 BIND HEAD B-TIGHT SCREW 3x10 MFZN2BL 417370 バインドＢタイトネジ * 29 AAX72620 SEMS PAN HEAD B-TIGHT SCREW 3x12 MFZN2BL 426617 セムスナベＢタイトネジ * 30 AAX72720 BIND HEAD P-TIGHT SCREW 3x10 MFZN2BL 417372 バインドＰタイトネジ * 31 AAX72700 BIND HEAD B-TIGHT SCREW 3x8 MFZN2BL 417371 バインドＢタイトネジ * 32 AAX72610 SEMS PAN HEAD B-TIGHT SCREW 3x20 MFZN2BL 422299 セムスナベＢタイトネジ * 33 AAX72630 SEMS PAN HEAD B-TIGHT SCREW 3x10 MFZNI33 426847 セムスナベＢタイトネジ * 34 AAX72590 JACK SCREW KFS-4S-C1WM 423386 ジャックスクリュー * 101 AAX72560 SATELLITE SPEAKER UNIT NX-S301 419192 J サテライトＳＰユニット * 101 AAX72570 SATELLITE SPEAKER UNIT NX-S301 419193 CKABG サテライトＳＰユニット * 101 AAX72580 SATELLITE SPEAKER UNIT NX-S301 419194 LV サテライトＳＰユニット * 102 AAX72640 CENTER SPEAKER UNIT NX-C301 419190 J センターＳＰユニット * 102 AAX72650 CENTER SPEAKER UNIT NX-C301 419191 CKABG センターＳＰユニット * 102 AAX72660 CENTER SPEAKER UNIT NX-C301 422298 LV センターＳＰユニット * 103 AAX72840 NONSKID PAD M8 t1.5 421069 滑止パッド * 104 AAX72850 NONSKID PAD 8x12 t3 421070 滑止パッド ACCESSORIES 付属品 202 WC017100 SPEAKER CABLE KIT 15m 2pcs, 5m 3pcs 421558 スピーカーコードキット 10 203 AAX21240 FASTENER for NX-C301 51.5x39x3.5 1pair 335212 固定テープ 04 204 V5982400 NONSKID PAD for NX-SW301 M25 t2 4pcs/set 353628 滑止パッド 03 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com I NX-P302 EXPLODED VIEW * 1 AAX71470 SPEAKER FINAL ASS'Y NX-S302 NX-SP302F010000 スピーカー　総組立 1-4 EM830120 PAN HEAD TAPPING SCREW 3x10 MFZN2BL ナベＴＰネジ 01 * 1-28 AAX73130 SPEAKER TERMINAL 2P PUSH 420040 スピーカーターミナル * 2 AAX71460 SPEAKER FINAL ASS'Y NX-C302 NX-SP302C010000 スピーカー　総組立 2-3 EM830120 PAN HEAD TAPPING SCREW 3x10 MFZN2BL ナベＴＰネジ 01 2-4 VC568100 PW HEAD TAPPING SCREW 3x8-10 MFNI33 ＰＷヘッドＴＰネジ 01 * 2-6 AAX71530 STAND for NX-C302 NX-SP302C000030 スタンド * 2-19 AAX73130 SPEAKER TERMINAL 2P PUSH 420040 スピーカーターミナル * 2-26 AAX71550 NONSKID PAD M12 t2 4pcs/set NX-SP302C000050 滑止パッド * 2-32 AAX73140 DAMPER 20x50 t=1 3pcs/set NX-SP302C010020 ダンパー ACCESSORIES 付属品 * 202-1 AAX73150 BASE for NX-S302 1pc NX-SP302F000050 ベース * 202-2 AAX71540 LEG ASS'Y M15 t=11 1pair NX-SP302000040 レッグＡＳＳＹ 203 03753460 BIND HEAD SCREW 5x10 MFNI33 1pc バインド小ネジ 204 VZ890800 WASHER 5.5x8x0.3 1pc ワッシャー * 205 AAX73160 FASTENER 25x25 2pairs 57045&57046 固定テープ Ref. No. Part No. Description Remarks Markets 部　品　名 Rank ✻ New Parts　＊ 新規部品 A B C D 1 2 3 4 5 6 DVR-S300/NX-P301/NX-P302 68 DVR-S300/NX-P301/NX-P302 1-4 2-3 2-4 2-6 2-32 2-32 203 1-28 204 202-2 1 x 4 x 16 x 8 x 8 x 4 2 x 1 x 1 2-19 2-26 205 202-1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
