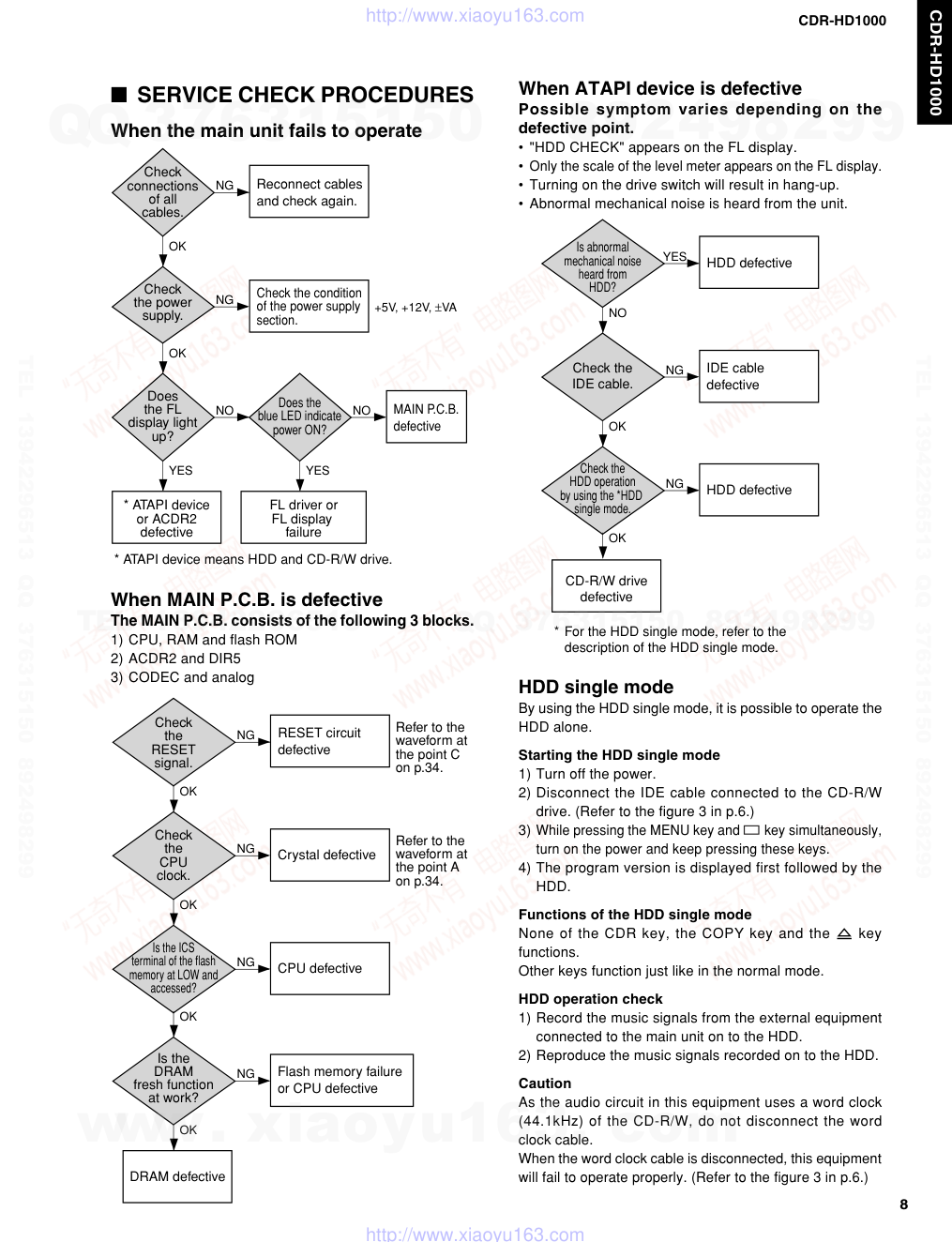

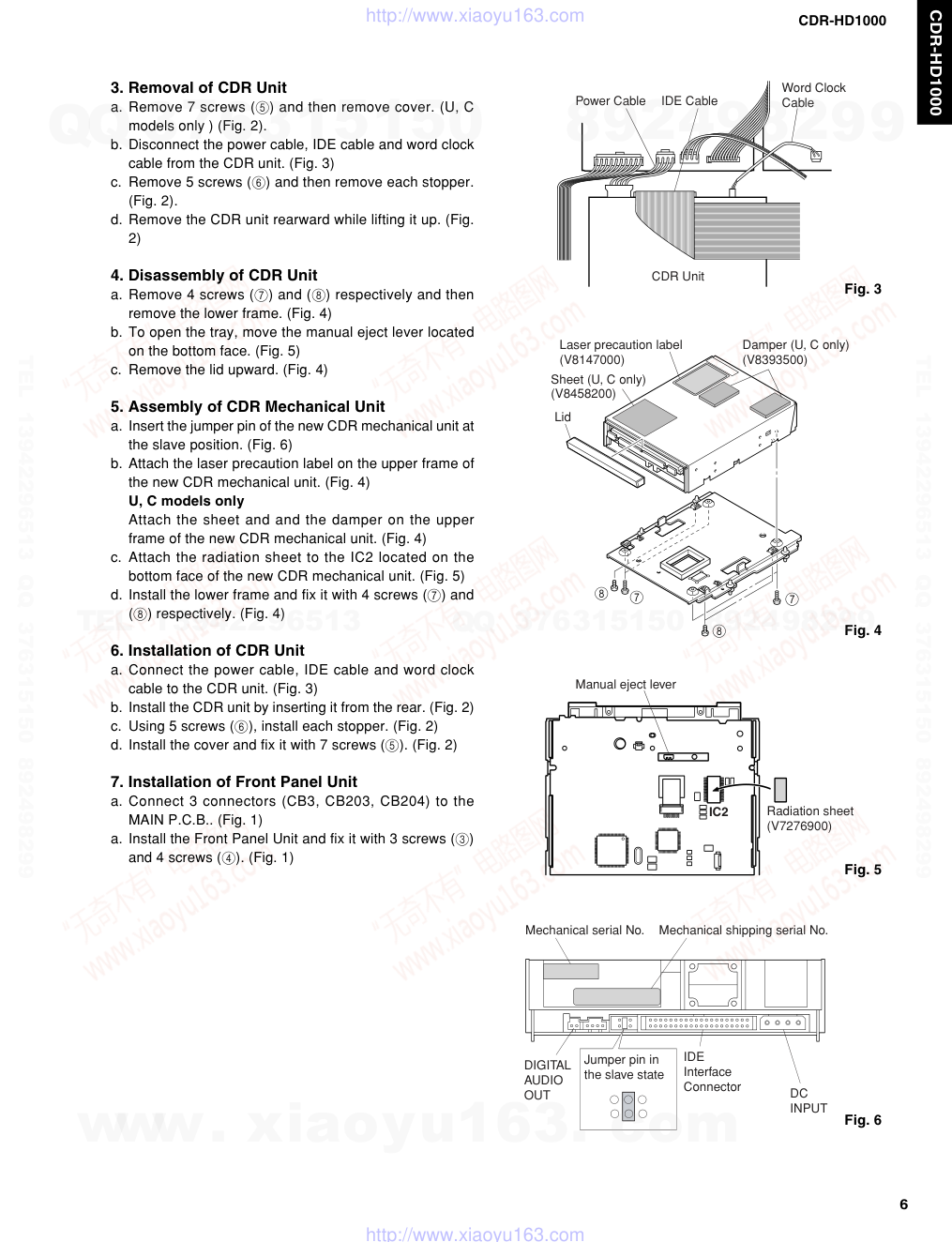

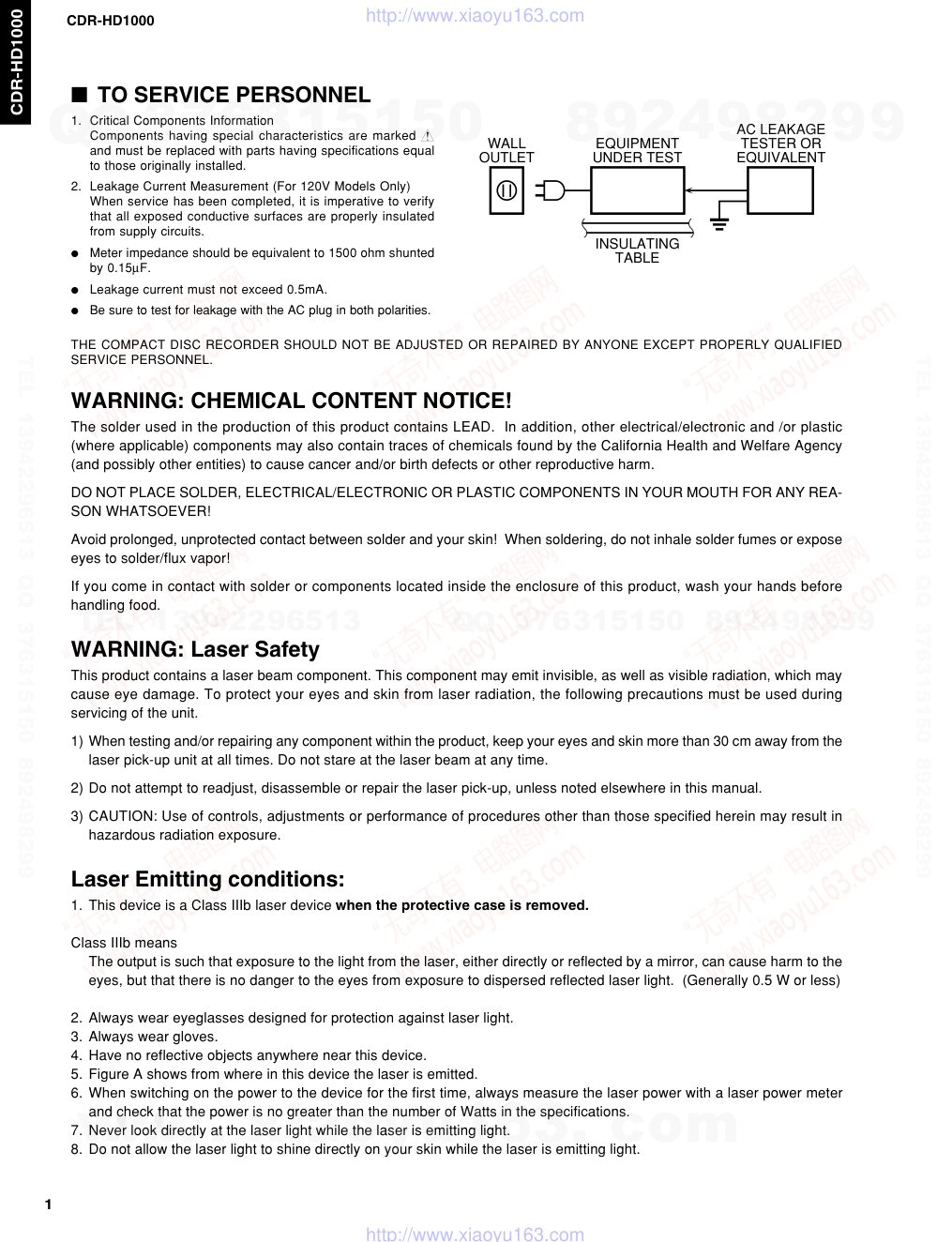

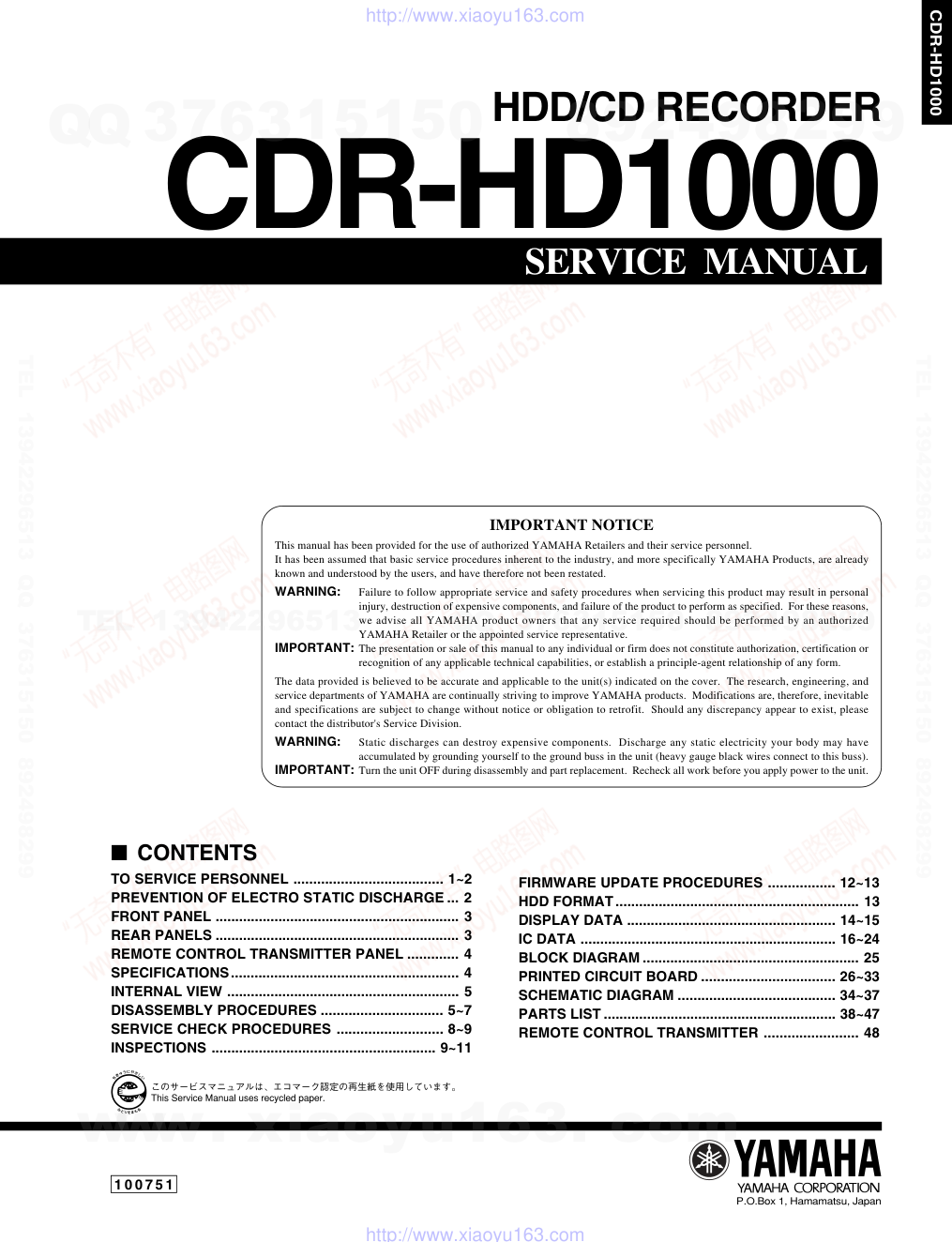

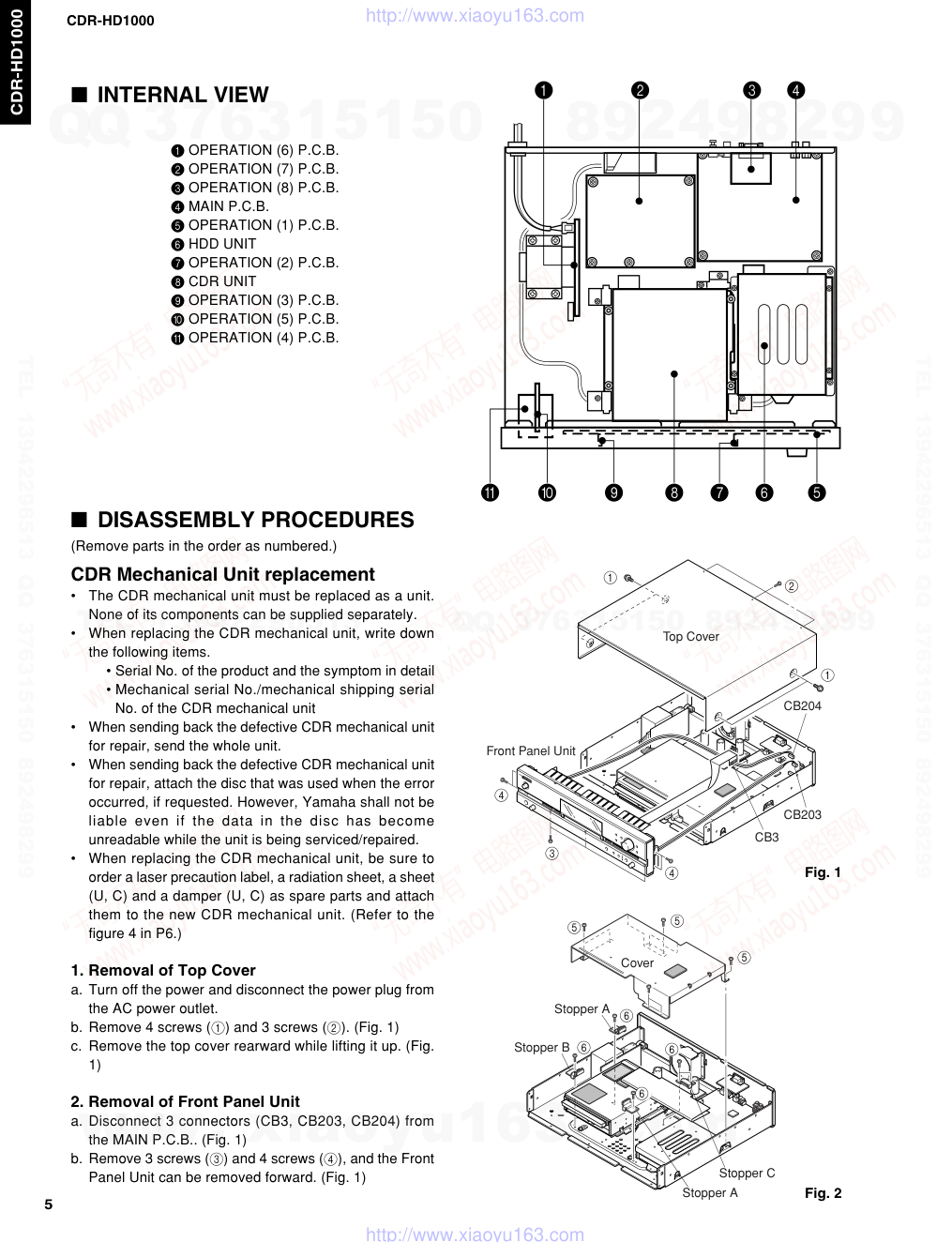

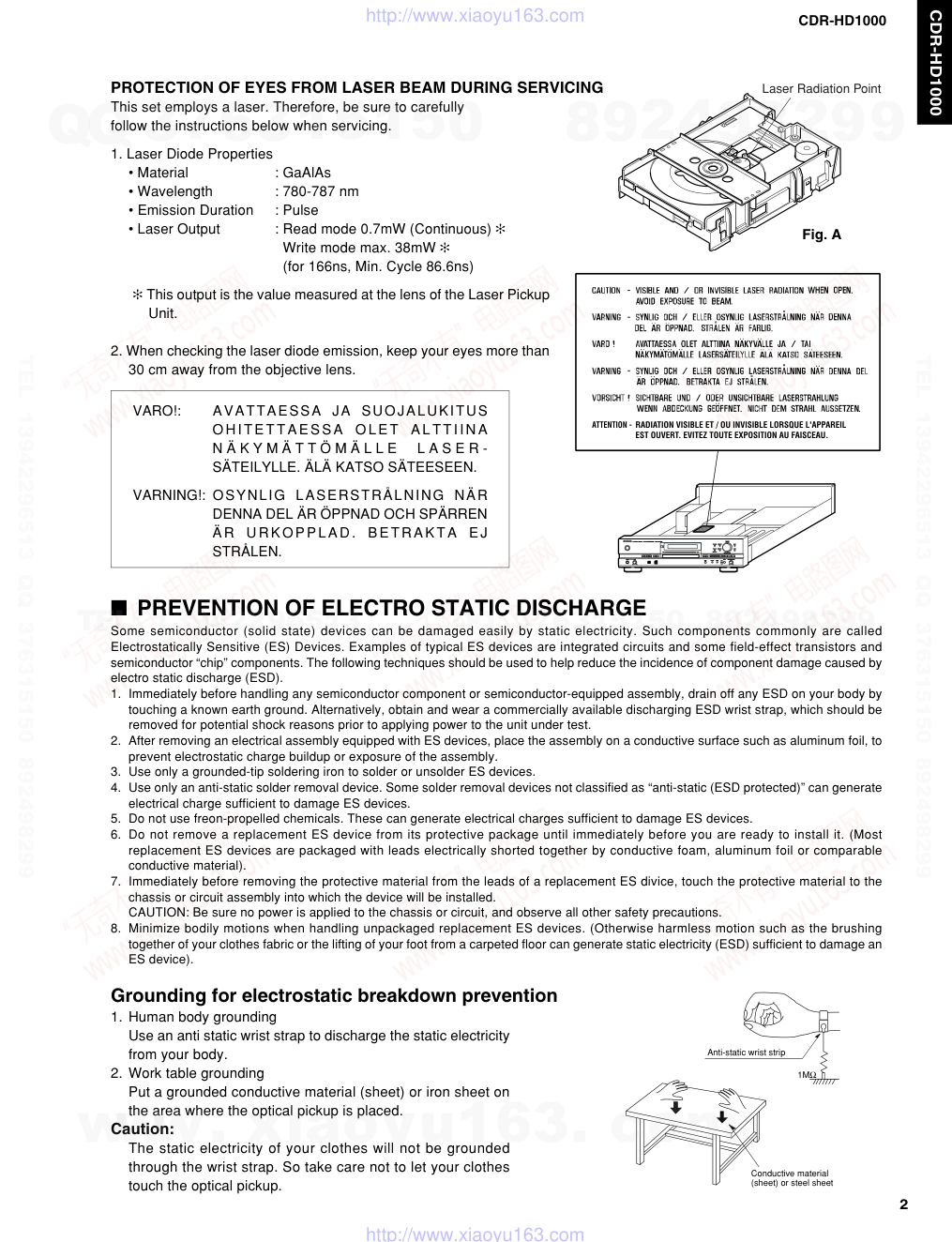

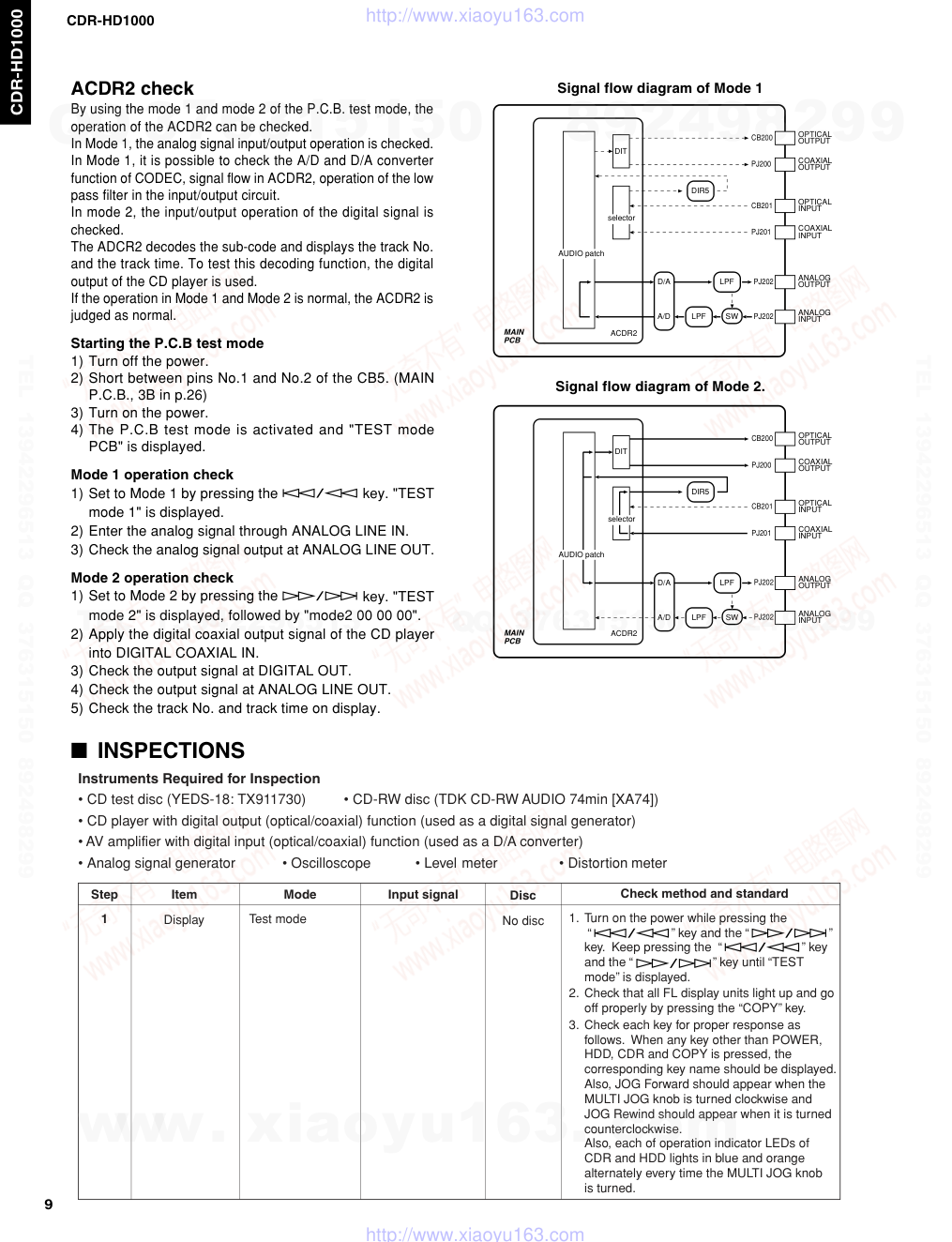

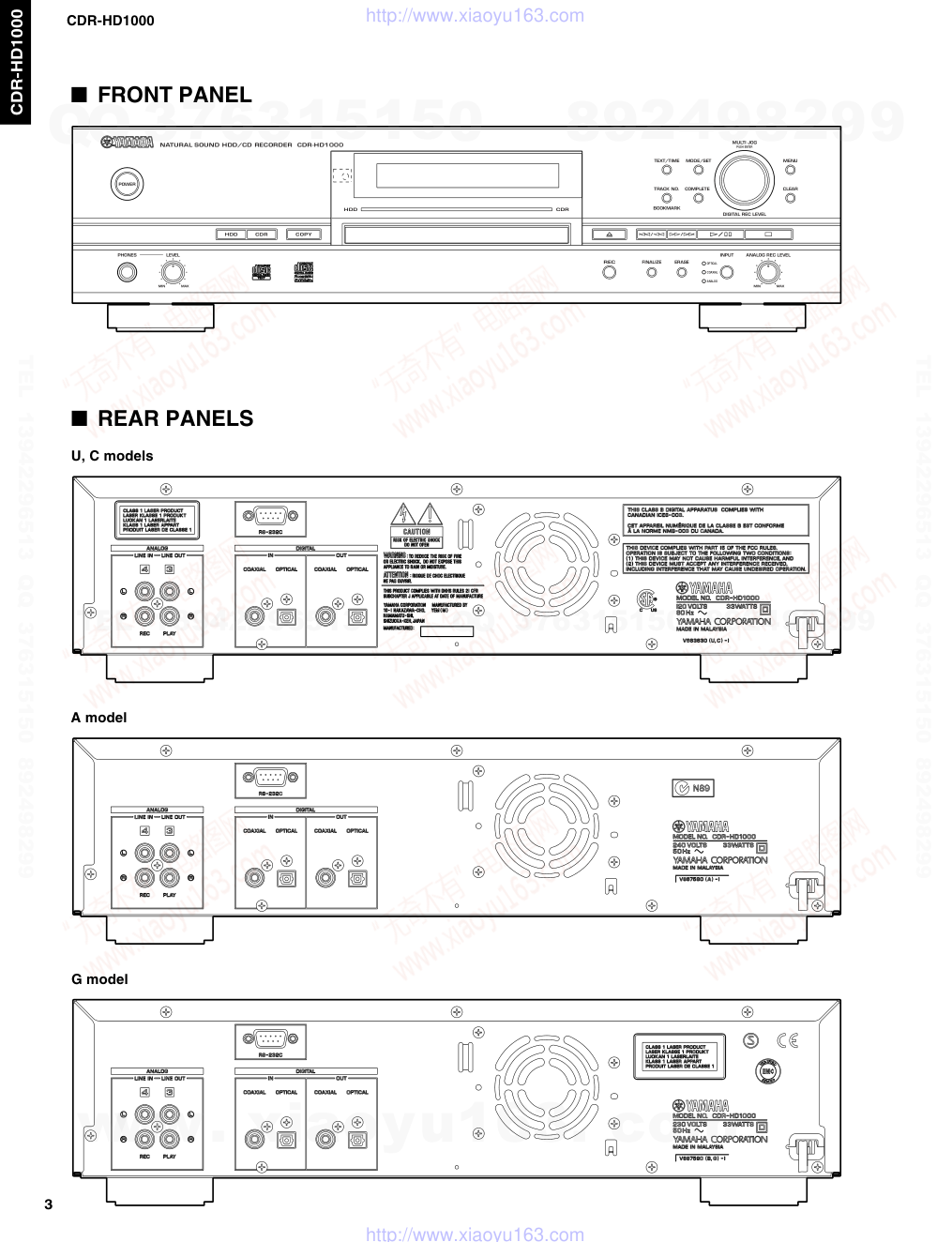

SERVICE MANUAL HDD/CD RECORDER 1 0 0 7 5 1 P.O.Box 1, Hamamatsu, Japan I CONTENTS TO SERVICE PERSONNEL ...................................... 1~2 PREVENTION OF ELECTRO STATIC DISCHARGE ... 2 FRONT PANEL .............................................................. 3 REAR PANELS .............................................................. 3 REMOTE CONTROL TRANSMITTER PANEL ............. 4 SPECIFICATIONS.......................................................... 4 INTERNAL VIEW ........................................................... 5 DISASSEMBLY PROCEDURES ............................... 5~7 SERVICE CHECK PROCEDURES ........................... 8~9 INSPECTIONS ......................................................... 9~11 FIRMWARE UPDATE PROCEDURES ................. 12~13 HDD FORMAT .............................................................. 13 DISPLAY DATA ..................................................... 14~15 IC DATA ................................................................. 16~24 BLOCK DIAGRAM ....................................................... 25 PRINTED CIRCUIT BOARD .................................. 26~33 SCHEMATIC DIAGRAM ........................................ 34~37 PARTS LIST ........................................................... 38~47 REMOTE CONTROL TRANSMITTER ........................ 48 CDR-HD1000 CDR-HD1000 IMPORTANT NOTICE This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 1 WALL OUTLET EQUIPMENT UNDER TEST AC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE I TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. G Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. G Leakage current must not exceed 0.5mA. G Be sure to test for leakage with the AC plug in both polarities. THE COMPACT DISC RECORDER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING: Laser Safety This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit. 1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from the laser pick-up unit at all times. Do not stare at the laser beam at any time. 2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Emitting conditions: 1. This device is a Class IIIb laser device when the protective case is removed. Class IIIb means The output is such that exposure to the light from the laser, either directly or reflected by a mirror, can cause harm to the eyes, but that there is no danger to the eyes from exposure to dispersed reflected laser light. (Generally 0.5 W or less) 2. Always wear eyeglasses designed for protection against laser light. 3. Always wear gloves. 4. Have no reflective objects anywhere near this device. 5. Figure A shows from where in this device the laser is emitted. 6. When switching on the power to the device for the first time, always measure the laser power with a laser power meter and check that the power is no greater than the number of Watts in the specifications. 7. Never look directly at the laser light while the laser is emitting light. 8. Do not allow the laser light to shine directly on your skin while the laser is emitting light. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 ATTENTION - RADIATION VISIBLE ET / OU INVISIBLE LORSQUE L'APPAREIL EST OUVERT. EVITEZ TOUTE EXPOSITION AU FAISCEAU. 2 VARO!: AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA N Ä K Y M Ä T T Ö M Ä L L E L A S E R - SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. VARNING!: OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. I PREVENTION OF ELECTRO STATIC DISCHARGE Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD). 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can generate electrical charge sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES divice, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device). Grounding for electrostatic breakdown prevention 1. Human body grounding Use an anti static wrist strap to discharge the static electricity from your body. 2. Work table grounding Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed. Caution: The static electricity of your clothes will not be grounded through the wrist strap. So take care not to let your clothes touch the optical pickup. 1MΩ Conductive material (sheet) or steel sheet Anti-static wrist strip PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to carefully follow the instructions below when servicing. 1. Laser Diode Properties • Material : GaAlAs • Wavelength : 780-787 nm • Emission Duration : Pulse • Laser Output : Read mode 0.7mW (Continuous) ✻ Write mode max. 38mW ✻ (for 166ns, Min. Cycle 86.6ns) ✻ This output is the value measured at the lens of the Laser Pickup Unit. 2. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens. Laser Radiation Point Fig. A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 I FRONT PANEL NATURAL SOUND HDD/CD RECORDER CDR-HD1000 HDD HDD CDR REC FINALIZE ERASE INPUT TEXT/TIME MODE/SET MENU MULTI JOG PUSH ENTER DIGITAL REC LEVEL TRACK NO. BOOKMARK COMPLETE CLEAR ANALOG REC LEVEL OPTICAL COAXIAL ANALOG PHONES LEVEL POWER MIN MAX MIN MAX CDR COPY 3 A model I REAR PANELS U, C models G model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 435 (17-1/8") 100 (3-15/16") 15.5 (5/8") 115.5 (4-9/16") 11.5 (7/16") 8.3 (5/16") 394.7 (15-1/2") 414.5 (16-5/16") Unit : mm (inch) 4 I REMOTE CONTROL TRANSMITTER PANEL OPEN/CLOSE TRACK NO. WRITE TEXT/TIME INPUT MODE/SET COMPLETE MENU CLEAR 1 ABC 2 DEF 3 GHI 4 JKL 5 MNO 6 PQR 7 STU 0 SPACE REPEAT RANDOM GROUP SKIP CDR CDR3 V764050 HDD INTRO +10 SYMBOL 8 VWX 9 YZ ENTER COPY FINALIZE ERASE REC BOOKMARK I SPECIFICATIONS GENERAL Model ............................................. Compact disc and HDD recorder Application disks ...... CDs, CD-Rs for AUDIO, CD-RWs for AUDIO Power supply U, C models .........................................................AC 120 V 60 Hz A model ................................................................AC 240 V 50 Hz B, G models .........................................................AC 230 V 50 Hz Power consumption ................................................................. 33 W Standby power consumption .................................................... 0 W Operating temperature ......................................... + 5 °C to + 35 °C Max. dimensions (W x H x D) ................ 435 x 115.5 x 414.5 mm (17-1/8" x 4-9/16" x 16-5/16") (include legs, terminals and knobs) Weight ....................................................................................... 8.3 kg Panel color ..................................... Black Color [U, C, A, G models] AUDIO PERFORMANCE Output level (1kHz 0dB) ............................................... 2 ± 0.5 Vrms Frequency characteristics (EIAJ) 5Hz to 20kHz .................................................................... ± 0.5 dB Playback signal to noise ratio (EIAJ) .....................105 dB or more Playback dynamic range (EIAJ)................................ 99 dB or more Playback THD + noise (EIAJ) ..................................0.004 % or less Recording signal to noise ratio (EIAJ) .................... 92 dB or more Recording dynamic range (EIAJ) ............................. 93 dB or more Recording THD + noise (EIAJ) ................................0.006 % or less • DIMENSIONS INPUT/OUTPUT LINE OUTPUT Output level ........................................................................ 2 Vrms Output resistance ........................................................... 990 ohms LINE INPUT Input sensitivity ........................................................... 500 mVrms Input impedance .......................... 24 k-ohms (REC LEVEL Max.) DIGITAL OUTPUT Coaxial output level ....................................... 0.5 Vp-p (75 ohms) Optical output level .......................................................... -20 dBm Sampling frequency ........................................................ 44.1 kHz DIGITAL INPUT Coaxial input level .......................................... 0.5 Vp-p (75 ohms) Optical input level ............................................................ -20 dBm Input gain (with Digital Volume)......................................... ±12 dB Input gain (without Digital Volume) ..................................... ±0 dB Sampling frequency tolerance ........................................... 32 kHz, 44.1 kHz, 48 kHz and 96 kHz HEADPHONE OUTPUT (PHONES LEVEL MAX) Output level (-20 dB, 150 ohms load) ........................ 300 mVrms * Specifications are subject to change without notice due to product improvements. U .......... U.S.A. model C ...... Canadian model A .......... Australian model G ...... European model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 1 1 2 3 4 4 Top Cover Front Panel Unit CB204 CB203 CB3 5 I INTERNAL VIEW 1 OPERATION (6) P.C.B. 2 OPERATION (7) P.C.B. 3 OPERATION (8) P.C.B. 4 MAIN P.C.B. 5 OPERATION (1) P.C.B. 6 HDD UNIT 7 OPERATION (2) P.C.B. 8 CDR UNIT 9 OPERATION (3) P.C.B. 0 OPERATION (5) P.C.B. A OPERATION (4) P.C.B. Fig. 1 1 2 3 4 5 6 7 8 9 0 A I DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) CDR Mechanical Unit replacement • The CDR mechanical unit must be replaced as a unit. None of its components can be supplied separately. • When replacing the CDR mechanical unit, write down the following items. • Serial No. of the product and the symptom in detail • Mechanical serial No./mechanical shipping serial No. of the CDR mechanical unit • When sending back the defective CDR mechanical unit for repair, send the whole unit. • When sending back the defective CDR mechanical unit for repair, attach the disc that was used when the error occurred, if requested. However, Yamaha shall not be liable even if the data in the disc has become unreadable while the unit is being serviced/repaired. • When replacing the CDR mechanical unit, be sure to order a laser precaution label, a radiation sheet, a sheet (U, C) and a damper (U, C) as spare parts and attach them to the new CDR mechanical unit. (Refer to the figure 4 in P6.) 1. Removal of Top Cover a. Turn off the power and disconnect the power plug from the AC power outlet. b. Remove 4 screws (1) and 3 screws (2). (Fig. 1) c. Remove the top cover rearward while lifting it up. (Fig. 1) 2. Removal of Front Panel Unit a. Disconnect 3 connectors (CB3, CB203, CB204) from the MAIN P.C.B.. (Fig. 1) b. Remove 3 screws (3) and 4 screws (4), and the Front Panel Unit can be removed forward. (Fig. 1) 6 Stopper C Stopper A 6 6 6 Stopper B Stopper A 5 5 5 Cover Fig. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 7 7 8 8 Laser precaution label (V8147000) Lid Sheet (U, C only) (V8458200) Damper (U, C only) (V8393500) Manual eject lever Radiation sheet (V7276900) IC2 Power Cable IDE Cable CDR Unit Word Clock Cable 6 3. Removal of CDR Unit a. Remove 7 screws (5) and then remove cover. (U, C models only ) (Fig. 2). b. Disconnect the power cable, IDE cable and word clock cable from the CDR unit. (Fig. 3) c. Remove 5 screws (6) and then remove each stopper. (Fig. 2). d. Remove the CDR unit rearward while lifting it up. (Fig. 2) 4. Disassembly of CDR Unit a. Remove 4 screws (7) and (8) respectively and then remove the lower frame. (Fig. 4) b. To open the tray, move the manual eject lever located on the bottom face. (Fig. 5) c. Remove the lid upward. (Fig. 4) 5. Assembly of CDR Mechanical Unit a. Insert the jumper pin of the new CDR mechanical unit at the slave position. (Fig. 6) b. Attach the laser precaution label on the upper frame of the new CDR mechanical unit. (Fig. 4) U, C models only Attach the sheet and and the damper on the upper frame of the new CDR mechanical unit. (Fig. 4) c. Attach the radiation sheet to the IC2 located on the bottom face of the new CDR mechanical unit. (Fig. 5) d. Install the lower frame and fix it with 4 screws (7) and (8) respectively. (Fig. 4) 6. Installation of CDR Unit a. Connect the power cable, IDE cable and word clock cable to the CDR unit. (Fig. 3) b. Install the CDR unit by inserting it from the rear. (Fig. 2) c. Using 5 screws (6), install each stopper. (Fig. 2) d. Install the cover and fix it with 7 screws (5). (Fig. 2) 7. Installation of Front Panel Unit a. Connect 3 connectors (CB3, CB203, CB204) to the MAIN P.C.B.. (Fig. 1) a. Install the Front Panel Unit and fix it with 3 screws (3) and 4 screws (4). (Fig. 1) Fig. 3 Fig. 4 Fig. 5 Fig. 6 DIGITAL AUDIO OUT Mechanical serial No. Mechanical shipping serial No. DC INPUT IDE Interface Connector Jumper pin in the slave state www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 7 HDD replacement • The HDD must be replaced as a unit. None of its components can be supplied separately. • When replacing the HDD, write down the following items. • Serial No. of the product and the symptom in detail • Mechanical serial No./mechanical shipping serial No. of the HDD • After replacing the hard disc, be sure to initialize it using the “HDD format” procedure on page 13. 1. Removal of HDD Unit a. Disconnect the power cable and IDE cable from the HDD unit. (Fig. 7) b. Remove 4 screws (9) and then remove the holder. (Fig. 8) c. Take out the HDD unit. (Fig. 8) 2. Disassembly of HDD Unit a. Take out the HDD unit from the case. (Fig. 8) b. Remove 4 screws (0) and then remove the plate. (Fig. 8) c. Remove 4 screws (A) and then remove the mounter. (Fig. 8) 3. Assembly of HDD a. Insert the jumper pin of the new HDD unit at the master position. b. Install the mounter with 4 screws (A). (Fig. 8) c. Install the plate with 4 screws (0). (Fig. 8) d. Enclose the HDD unit with the case. (Fig. 8) 4. Installation of HDD Unit a. Connect the power cable and IDE cable to the HDD unit. (Fig. 7) b. Put the HDD unit in place. (Fig. 8) c. Using 4 screws (9), install the holder. (Fig. 8) Fig. 7 Fig. 8 HDD Unit IDE Cable Power Cable 9 9 0 0 A A Mounter Case HDD Plate Holder www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 8 I SERVICE CHECK PROCEDURES When the main unit fails to operate Check connections of all cables. NG OK OK NO NO NG +5V, +12V, ±VA YES Check the condition of the power supply section. MAIN P.C.B. defective Reconnect cables and check again. Does the FL display light up? Does the blue LED indicate power ON? Check the power supply. * ATAPI device or ACDR2 defective * ATAPI device means HDD and CD-R/W drive. YES FL driver or FL display failure When MAIN P.C.B. is defective The MAIN P.C.B. consists of the following 3 blocks. 1) CPU, RAM and flash ROM 2) ACDR2 and DIR5 3) CODEC and analog Check the RESET signal. NG OK OK NG NG Refer to the waveform at the point C on p.34. Refer to the waveform at the point A on p.34. OK Crystal defective RESET circuit defective CPU defective Is the ICS terminal of the flash memory at LOW and accessed? OK NG Flash memory failure or CPU defective Is the DRAM fresh function at work? Check the CPU clock. DRAM defective When ATAPI device is defective Possible symptom varies depending on the defective point. • "HDD CHECK" appears on the FL display. • Only the scale of the level meter appears on the FL display. • Turning on the drive switch will result in hang-up. • Abnormal mechanical noise is heard from the unit. Is abnormal mechanical noise heard from HDD? YES NO OK NG NG IDE cable defective HDD defective HDD defective Check the HDD operation by using the *HDD single mode. OK Check the IDE cable. CD-R/W drive defective * For the HDD single mode, refer to the description of the HDD single mode. HDD single mode By using the HDD single mode, it is possible to operate the HDD alone. Starting the HDD single mode 1) Turn off the power. 2) Disconnect the IDE cable connected to the CD-R/W drive. (Refer to the figure 3 in p.6.) 3) While pressing the MENU key and key simultaneously, turn on the power and keep pressing these keys. 4) The program version is displayed first followed by the HDD. Functions of the HDD single mode None of the CDR key, the COPY key and the key functions. Other keys function just like in the normal mode. HDD operation check 1) Record the music signals from the external equipment connected to the main unit on to the HDD. 2) Reproduce the music signals recorded on to the HDD. Caution As the audio circuit in this equipment uses a word clock (44.1kHz) of the CD-R/W, do not disconnect the word clock cable. When the word clock cable is disconnected, this equipment will fail to operate properly. (Refer to the figure 3 in p.6.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 Step 1 Item Display Check method and standard 1. Turn on the power while pressing the “ ” key and the “ ” key. Keep pressing the “ ” key and the “ ” key until “TEST mode” is displayed. 3. Check each key for proper response as follows. When any key other than POWER, HDD, CDR and COPY is pressed, the corresponding key name should be displayed. Also, JOG Forward should appear when the MULTI JOG knob is turned clockwise and JOG Rewind should appear when it is turned counterclockwise. Also, each of operation indicator LEDs of CDR and HDD lights in blue and orange alternately every time the MULTI JOG knob is turned. 2. Check that all FL display units light up and go off properly by pressing the “COPY” key. Input signal Disc No disc Mode Test mode Instruments Required for Inspection • CD test disc (YEDS-18: TX911730) • CD-RW disc (TDK CD-RW AUDIO 74min [XA74]) • CD player with digital output (optical/coaxial) function (used as a digital signal generator) • AV amplifier with digital input (optical/coaxial) function (used as a D/A converter) • Analog signal generator • Oscilloscope • Level meter • Distortion meter 9 I INSPECTIONS ACDR2 check By using the mode 1 and mode 2 of the P.C.B. test mode, the operation of the ACDR2 can be checked. In Mode 1, the analog signal input/output operation is checked. In Mode 1, it is possible to check the A/D and D/A converter function of CODEC, signal flow in ACDR2, operation of the low pass filter in the input/output circuit. In mode 2, the input/output operation of the digital signal is checked. The ADCR2 decodes the sub-code and displays the track No. and the track time. To test this decoding function, the digital output of the CD player is used. If the operation in Mode 1 and Mode 2 is normal, the ACDR2 is judged as normal. Starting the P.C.B test mode 1) Turn off the power. 2) Short between pins No.1 and No.2 of the CB5. (MAIN P.C.B., 3B in p.26) 3) Turn on the power. 4) The P.C.B test mode is activated and "TEST mode PCB" is displayed. Mode 1 operation check 1) Set to Mode 1 by pressing the key. "TEST mode 1" is displayed. 2) Enter the analog signal through ANALOG LINE IN. 3) Check the analog signal output at ANALOG LINE OUT. Mode 2 operation check 1) Set to Mode 2 by pressing the key. "TEST mode 2" is displayed, followed by "mode2 00 00 00". 2) Apply the digital coaxial output signal of the CD player into DIGITAL COAXIAL IN. 3) Check the output signal at DIGITAL OUT. 4) Check the output signal at ANALOG LINE OUT. 5) Check the track No. and track time on display. Signal flow diagram of Mode 1 Signal flow diagram of Mode 2. OPTICAL OUTPUT COAXIAL OUTPUT OPTICAL INPUT COAXIAL INPUT ANALOG OUTPUT ANALOG INPUT CB200 PJ200 CB201 PJ201 PJ202 PJ202 MAIN PCB DIR5 ACDR2 A/D D/A LPF SW DIT selector LPF AUDIO patch OPTICAL OUTPUT COAXIAL OUTPUT OPTICAL INPUT COAXIAL INPUT ANALOG OUTPUT ANALOG INPUT CB200 PJ200 CB201 PJ201 PJ202 PJ202 MAIN PCB DIR5 ACDR2 A/D D/A LPF SW DIT selector LPF AUDIO patch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 10 Step 2 Item D/A converter Check method and standard 1. Turn on the power. (In normal mode) 2. Load the CD test disc (YEDS-18: TX911730). 3. Play track 2 (1kHz, 0dB). 4. Check that the output level of LINE OUT (ANA- LOG) is 2 ± 0.5Vrms. 5. Check that the distortion factor (1kHz) is 0.01% or less. 6. Play tracks 3 (20Hz) and 6 (20kHz) and check that the frequency response is 0 ± 1.5dB. 7. Play track 7 and check that S/N is 100dB or more. Input signal Disc YEDS-18 Mode Normal mode CDR-HD1000 LINE OUT (ANALOG) Oscilloscope Level meter Distortion meter YEDS-18 Track 2 (1kHz, 0dB) Track 3 (20Hz, 0dB) Track 6 (20kHz, 0dB) Track 7 (Infinity Zero) Step 3 Item A/D converter Check method and standard 1. Press the “MENU” key. Rotate the “MULTI JOG” knob to select “DAC mode” then press the “MULTI JOG” knob. 10. Press the “ ” key to return to the normal mode. 2. Set the INPUT selector to the ANALOG posi- tion. 3. Apply a 1kHz, 500mVrms analog signal to the LINE IN (ANALOG). 4. Demodulate the digital signal of DIGITAL OUT (COAXIAL) to analog. 5. Adjusting the ANALOG REC LEVEL control knob, check that the demodulated signal level can be set to 1Vrms. 6. At this time, check that the REC LEVEL con- trol knob is close to the 12 o’clock position. 7. Check that the distortion factor is 0.02% or less. 8. Check that the S/N is 82dB or more. (Input shorted, REC LEVEL max.) 9. Check that the frequency response (at 20Hz and 20kHz) is 0 ± 1.5dB. Input signal LINE IN (ANALOG) 1kHz, 20Hz, 20kHz 500mVrms Disc No disc Mode DAC mode CDR-HD1000 Signal generator LINE IN (ANALOG) DIGITAL OUT (COAXIAL) AV amplifier Oscilloscope Level meter Distortion meter DIGITAL IN (COAXIAL) Level meter 500mVrms PRE OUT 1kHz/20Hz/20kHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 11 Step 4 Item CD-RW recording Check method and standard 1. Press the “CDR” key to select CD-R/W drive and then press the “ ” key to open the tray and set unfinalized CD-RW disc, and close the tray. 2. Press the REC key. • When it is judged as necessary to adjust the laser output for the disc being set, "OPC Adjust" is displayed and the laser output is automatically adjusted. (Adjustment takes approximately 15 seconds.) • When it is judged unnecessary to adjust the laser output for the disc being set, "Standby" is displayed. After a few seconds, "0 00" is displayed. 3. Press the “INPUT” key to select the external sound source. 4. Press the “ ” key to start recording. 5. Press the “ ” key to stop recording. Recommended recording time is over 20 seconds. 6. Wait for the track numbers to be displayed. Turn the “MULTI JOG” knob to select the last recorded track. 7. Press the “ ” key to play back the track and confirm it recorded correctly. 8. Press the “ ” key and remove the disc. Input signal Disc CD-RW Mode Normal mode CDR-HD1000 CD player DIGITAL OUT or ANALOG OUT DIGITAL IN or ANALOG IN Step 5 Item Copying CD HDD Check method and standard 1. Insert a CD into the tray and close the tray. 2. Press the “COPY” key once to go to COPY Standby mode, blue LED at right side and amber LED at left side begin to blink slowly. 3. Press the “ ” key to start copying. 4. Press the “ ” key to stop copying. Recommended recording time is over 1 track time. 5. Press the “HDD” key to select HDD. 6. Press the “ ” key to play back the recorded track and confirm it recorded correctly. 7. Press the “ ” key, remove the disc and close the tray. 8. Check the disc and track numbers with recorded contents for testing. 9. Press the “HDD” key to select HDD. 10. Press the “MENU” key and turn the “MULTI JOG” knob to select “Disc Edit” and then press the “MULTI JOG” knob. 11. Turn the “MULTI JOG” knob to select “Disc Erase” and then press the “MULTI JOG” knob. 12. Select the disc No. with recorded contents for testing by turning the “MULTI JOG” knob and press it. 13. Press the “COMPLETE” key to erase the selected disc. 14. If there are more than one discs with recorded contents for testing, repeat Steps 11, 12 and 13. * If it is allowed to format HDD, execute formatting instead of performing Steps 8 and after. Input signal Disc CD Mode Normal mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 I FIRMWARE UPDATE PROCEDURES 1. Overview CDR-HD1000 is capable of upgrading both of the system control firmware and the CD-R/W drive firmware by using the firmware CD-R. The details of firmware CD-R availability will be provided by a Technical Bulletin. 2. Confirmation of the firmware versions 1. Press the “ ” key. 2. Press the “MENU” key to enter MENU mode. “Album Edit” is displayed. 3. Rotate the “MULTI JOG” knob to select “Sys. Utility”. Press the “MULTI JOG” knob. 4. “Firm. Version” appears is displayed. Press the “MULTI JOG” knob. The system control firmware version is displayed with its compiled date and time. The characters shown are scrolled once. 5. Rotate the “MULTI JOG” knob clockwise, the CD-R/W drive firmware version is displayed. 6. Rotate the “MULTI JOG” knob clockwise again, the HDD name is displayed. 7. Press the “MENU” key three times to return to the normal playback mode. 3. Upgrading of the firmware 3.1 Normal Update Operation 1. Press the “ ” key. 2. Press the “CDR” key to select the CD-R/W drive. 3. Press the “ ” key to open the disc tray. Load the “firmware CD-R” on the disc tray and press the “ ” key to close the tray. Wait to finish reading the disc. 4. Press the “MENU” key to enter MENU mode. “Album Edit” is displayed. 5. Rotate the “MULTI JOG” knob to select “Sys. Utility”. Press the “MULTI JOG” knob. “Firm. Version” is displayed. 6. Rotate the “MULTI JOG” knob to select “Firm. Update”. Press the “MULTI JOG” knob. 7. “Main FW (CD)” is displayed. Three types of upgrade mode can be selected by rotating the “MULTI JOG” knob. (1) “Main FW (CD)” means upgrading the system control firmware from CD-ROM. (2) “CDRW FW (CD)” means upgrading the CD-R/W drive firmware from CD-ROM. (3) “All FW (CD)” equal executing “Main FW (CD)” and “CDRW FW (CD)” at the same time. 8. Choose one mode and press the “MULTI JOG” knob. 9. “Push PLAY KEY” is displayed. Press the “ ” key to start update. 10. “Downloading” is displayed. NEVER TURN OFF THE POWER WHILE “Downloading” IS DISPLAYED. – “Main FW (CD)” takes about 16 seconds. – “CDRW FW (CD)” takes about 32 seconds. – “All FW (CD)” takes about 48 seconds. 11. When finishing the upgrade, “Complete” is displayed and the CDR-HD1000 is rebooted. 12. Confirm that the firmware version has been changed from old to new. 13. If the firmware versions stay old, retry above updating procedures. And if the CDR-HD1000 does not work well after this updating, see section 3.2 to recover it. 3.2 Recovery mode The updating procedure fails and the CDR-HD1000 malfunctions. In this case, the CDR-HD1000 has a recovery updating mode. 3.2.1 The system control firmware recovery If “Firm. Update” is displayed when the CDR-HD1000 has finished the start up sequence, the system control firmware may be corrupted. In this case, you can recover the system control firmware by the following procedures. 1. Press the “ ” key to open the disc tray. Load the “firmware CD-R” on the disc tray and press the “ ” key to close the tray. Wait to finish reading the disc. 2. Rotate the “MULTI JOG” knob to select “Firm. Update”. Press the “MULTI JOG” knob. 3. “Main FW (CD)” is displayed. Five types of upgrade mode can be selected by rotating the “MULTI JOG” 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 13 knob. (1) “Main FW (CD)” means upgrading the system control firmware from CD-ROM. (2) “CDRW FW (CD)” means upgrading the CD-R/W drive firmware from CD-ROM. (3) “All FW (CD)” equal executing “Main FW (CD)” and “CDRW FW (CD)” at the same time. (4) “Main FW (HDD)” means upgrading the system control firmware from internal HDD backup. (5) “CDRW FW (HDD)” means upgrading the CD-R/W drive firmware from internal HDD backup. 4. Select “Main FW (CD)” and press the “MULTI JOG” knob. 5. “Push PLAY KEY” is displayed. Press the “ ” key to start update. 6. “Downloading” is displayed. NEVER TURN OFF THE POWER WHILE “Downloading” IS DISPLAYED. 7. When finishing the recovery, “Complete” is displayed and the CDR-HD1000 is rebooted. 8. Confirm that the firmware version has been changed from old to new. 3.2.2 The CD-R/W drive firmware recovery If the CD-R/W drive doesn't work after updating its firmware, the CD-R/W drive firmware may be corrupted. In this case, you can recover the CD-R/W drive firmware by the following procedures. 1. Turn off the power. Turn on the power while pressing the “ ” key and the “MENU” key. Keep pressing until the start up sequence is finished. 2. Press the “MENU” key to enter MENU mode. 3. Rotate the “MULTI JOG” knob to select “Sys. Utility”. Press the “MULTI JOG” knob. “Firm. Version” is displayed. 4. Rotate the “MULTI JOG” knob to select “Firm. Update”. Press the “MULTI JOG” knob. 5. “Main FW (HDD)” is displayed. Two types of upgrade mode can be selected by rotating the “MULTI JOG” knob. (1) “Main FW (HDD)” means upgrading the system control firmware from internal HDD backup. (2) “CDRW FW (HDD)” means upgrading the CD-R/W drive firmware from internal HDD backup. 6. Select “CDRW FW (HDD)”. Press the “MULTI JOG” knob. 7. “Push PLAY KEY” is displayed. Press the “ ” key to start update. 8. “Downloading” is displayed. NEVER TURN OFF THE POWER WHILE “Downloading” IS DISPLAYED. 9. When finishing the recovery, “Complete” is displayed and the CDR-HD1000 is rebooted. 10. Confirm that the firmware version has been changed from old to new. CAUTION: Never press the “CDR” and “COPY” keys during the above sequence. I HDD FORMAT Use the following procedure for initialization of the hard disk drive. 1. Turn on the power. 2. Press the “HDD” key to select HDD and then press the “MENU” key. 3. Turn the “MULTI JOG” knob to select “HDD Utility” and then press the “MULTI JOG” knob. 4. Turn the “MULTI JOG” knob to select “HDD Format” and then press the “MULTI JOG” knob. Then “Initialize ?” is displayed. 5. Press the “ ” key, and “Format Really” is displayed. 6. Press the “INPUT” key. 7. Wait for “No data” to be displayed. 8. Turn off the power. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 14 I DISPLAY DATA G V400 : BJ838GN (V7446200) G PIN CONNECTION G GRID ASSIGNMENT 1 F1 2 F1 3 NP 4 NP 5 P26 6 P25 7 P24 8 P23 9 P22 10 P21 11 P20 12 P19 13 P18 14 P17 15 P16 16 P15 17 P14 18 NX 19 NX 20 NX 21 NX 22 NX 23 NX 24 NX 25 NX 26 NX 27 NX 28 NX 29 NX 30 P13 31 P12 32 P11 33 P10 34 P9 35 P8 36 P7 37 P6 38 P5 39 P4 40 P3 41 P2 42 P1 43 IC 44 NP 45 NP 46 F2 47 F2 Pin No. Connection 94 F1 93 F1 92 NP 91 NP 90 P27 89 P28 88 P29 87 P30 86 P31 85 P32 84 P33 83 P34 82 P35 81 P36 80 16G 79 15G 78 14G 77 13G 76 NX 75 NX 74 NX 73 NX 72 NX 71 NX 70 NX 69 NX 68 NX 67 NX 66 NX 65 NX 64 12G 63 11G 62 10G 61 9G 60 8G 59 7G 58 6G 57 5G 56 4G 55 3G 54 2G 53 1G 52 IC 51 NP 50 NP 49 F2 48 F2 Pin No. Connection Note : 1) F1, F2 ..... Filament 2) NP ..... No pin 3) NX ..... No extend pin 4) DL ..... Datum Line 5) 1G ~ 16G ..... Grid 6) IC ..... Internal connection (16G~4G) (6G) (3G) (2G) (1G) 1-1 1-2 1-3 1-4 1-5 1-6 1-7 2-1 S1 S7 S1 S3 S5 S7 S9 S11 S13 S15 S2 S4 S6 S8 S10 S12 S1 RB1 LB1 RB2 LB2 RB3 LB3 RB4 LB4 RB5 LB5 RB6 LB6 RB7 LB7 RB8 LB8 RB9 LB9 RB10 LB10 RB11 LB11 S14 S16 S2 S3 S4 S5 S6 2-2 2-3 2-4 2-5 2-6 2-7 3-1 3-2 3-3 3-4 3-5 3-6 3-7 4-1 4-2 4-3 4-4 4-5 4-6 4-7 5-1 5-2 5-3 5-4 5-5 5-6 5-7 12G 13G 14G 15G 16G 1G 11G 10G 9G 8G 7G 6G 5G 4G 2G 3G › h 1 g col www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 15 4G 5G 6G 7G~16G 1-1 1-1 1-1 1-1 2-1 2-1 2-1 2-1 3-1 3-1 3-1 3-1 4-1 4-1 4-1 4-1 5-1 5-1 5-1 5-1 1-2 1-2 1-2 1-2 2-2 2-2 2-2 2-2 3-2 3-2 3-2 3-2 4-2 4-2 4-2 4-2 5-2 5-2 5-2 5-2 1-3 1-3 1-3 1-3 2-3 2-3 2-3 2-3 3-3 3-3 3-3 3-3 4-3 4-3 4-3 4-3 5-3 5-3 5-3 5-3 1-4 1-4 1-4 1-4 2-4 2-4 2-4 2-4 3-4 3-4 3-4 3-4 4-4 4-4 4-4 4-4 5-4 5-4 5-4 5-4 1-5 1-5 1-5 1-5 2-5 2-5 2-5 2-5 3-5 3-5 3-5 3-5 4-5 4-5 4-5 4-5 5-5 5-5 5-5 5-5 1-6 1-6 1-6 1-6 2-6 2-6 2-6 2-6 3-6 3-6 3-6 3-6 4-6 4-6 4-6 4-6 5-6 5-6 5-6 5-6 1-7 1-7 1-7 1-7 2-7 2-7 2-7 2-7 3-7 3-7 3-7 3-7 4-7 4-7 4-7 4-7 5-7 5-7 5-7 5-7 - col 1G 2G 3G P1 S7 RB1 S1 P2 S1 RB2 S2 P3 S2 RB2 S3 P4 S3 RB4 S4 P5 S4 RB5 S5 P6 S5 RB6 S6 P7 S6 RB7 S7 P8 – RB8 S8 P9 – RB9 S9 P10 – RB10 S10 P11 – RB11 S11 P12 – S1 S12 P13 LB1 S13 P14 LB2 S14 P15 LB3 S15 P16 LB4 S16 P17 LB5 P18 LB6 P19 LB7 P20 LB8 P21 LB9 P22 LB10 P23 LB11 P24 – P25 – P26 – – P27 – – P28 – – P29 – – P30 – – – P31 – – – P32 – – – P33 – – – P34 – – – P35 – – – P36 – – – G ANODE CONNECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 16 I IC DATA IC2 : HD6417014F28 µ-COM (CPU) HD6417014F28 PE0/TIOC0A/DREQ0 PE1/TIOC0B/DRAK0 PE2/TIOC0C/DREQ1 PE3/TIOC0D/DRAK1 PE4/TIOC1A Vss PF0/AN0 PF1/AN1 PF2/AN2 PF3/AN3 PF4/AN4 PF5/AN5 AVss PF6/AN6 PF7/AN7 AVcc Vss PE5/TIOC1B Vcc PE6/TIOC2A 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 D12 Vss D13 D14 D15 PA0/RXD0 PA1/TXD0 PA2/SCK0/DREQ0/IRQ0 PA3/RXD1 PA4/TXD1 PA5/SCK1/DREQ1/IRQ1 PA6/TCLKA/CS2 PA7/TCLKB/CS3 PA8/TCLKC/IRQ2 PA9/TCLKD/IRQ3 CS0 CS1 Vss WRL Vcc 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 PE7/TIOC2B PE8 PE9 PE10 Vss PE11 PE12 PE13 105 106 107 108 109 110 111 112 WRH WDTOVF RD Vss PB9/IRQ7/A21 PB8/IRQ6/A20/WAIT PB7/A19 PB6/A18 36 35 34 33 32 31 30 29 PE14/DACK0/AH PE15/DACK1 Vss A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 Vcc A17 Vss PB2/IRQ0/RAS PB3/IRQ1/CASL PB4/IRQ2/CASH Vss PB5/IRQ3/RDWR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 RES PA15/CK PLLVSS PLLCAP PLLVCC MD0 MD1 Vcc NMI MD2 EXTAL MD3 XTAL Vss D0 D1 D2 D3 D4 Vcc D5 D6 D7 Vss D8 D9 D10 D11 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 17 No. Port Name I/O Function 1 DACK0 DACK0 for extend 2 PE15 LED3 for extend 3 VSS GND 4 A0 O Adress bus 5 A1 O Adress bus 6 A2 O Adress bus 7 A3 O Adress bus 8 A4 O Adress bus 9 A5 O Adress bus 10 A6 O Adress bus 11 A7 O Adress bus 12 A8 O Adress bus 13 A9 O Adress bus 14 A10 O Adress bus 15 A11 O Adress bus 16 A12 O Adress bus 17 A13 O Adress bus 18 A14 O Adress bus 19 A15 O Adress bus 20 A16 O Adress bus 21 Vcc +5V power supply 22 A17 O Adress bus 23 Vss GND 24 /RAS N_RAS O DRAM control 25 /CASL N_CASL O DRAM control 26 /CASH N_CASH O DRAM control 27 Vss GND 28 RDWR RDWR O DRAM control 29 A18 O Adress bus 30 A19 O Adress bus 31 /WAIT N_WAIT I WAIT input 32 PB9 CPU_MUTE O Output mute 33 Vss GND 34 /RD N_RD O Read strobe 35 /WDTOVF – 36 /WRH N_WRH O Write strobe 37 Vcc +5V power supply 38 /WRL N_WRL O Write strobe 39 Vss GND 40 /CS1 N_CDR O ACDR2 chip select 41 /CS0 N_ROM O Flash memory chip select 42 PA9 N_CPU_RST O Resetting peripheral devices 43 /IRQ2 N_IRQ2 for extend 44 /CS3 N_CS3 for extend 45 /CS2 N_CS2 for extend 46 /IRQ1 N_INT_CDR I ACDR2 interrupt 47 TXD1 TXD1 O RS-232C output 48 RXD1 RXD1 I RS-232C input 49 /IRQ0 N_INT_REM I Remote control input 50 TXD0 TXD0 for extend 51 RXD0 RXD0 for extend 52 D15 I/O Data bus 53 D14 I/O Data bus 54 D13 I/O Data bus 55 Vss GND 56 D12 I/O Data bus IC2 : HD6417014F28 Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 18 No. Port Name I/O Function 57 D11 I/O Data Bus 58 D10 I/O Data Bus 59 D9 I/O Data Bus 60 D8 　 Data Bus 61 Vss 　 GND 62 D7 I/O Data Bus 63 D6 I/O Data Bus 64 D5 I/O Data Bus 65 Vcc +5V Power Supply 66 D4 I/O Data Bus 67 D3 I/O Data Bus 68 D2 I/O Data Bus 69 D1 I/O Data Bus 70 D0 I/O Data Bus 71 Vss 　 GND 72 XTAL O Terminal for crystal oscillator 73 MD3 I Setting CPU operation mode 74 EXTAL I Terminal for crystal oscillator 75 MD2 I Setting CPU operation mode 76 NMI I NMI input 77 Vcc +5V Power Supply 78 MD1 I Setting CPU operation mode 79 MD0 I Setting CPU operation mode 80 PLLVCC +5V Power Supply 81 PLLCAP O PLL Capacitor Terminal 82 PLLVSS GND 83 CK O Peripheral device clock 84 /RES I Reset input 85 TIOC0A LED_HD_B O Panel LED control 86 TIOC0B LED_HD_A O Panel LED control 87 TIOC0C LED_CD_B O Panel LED control 88 TIOC0D LED_CD_A O Panel LED control 89 PE4 SB_N_FL O FL control IC chip select 90 Vss GND 91 AN0 PUI_KEY0 I Panel key input 92 AN1 PUI_KEY1 I Panel key input 93 AN2 PUI_KEY2 I Panel key input 94 AN3 PUI_KEY3 I Panel key input 95 AN4 PUI_KEY4 I Panel key input 96 AN5 PUI_KEY5 I Panel key input 97 AVSS GND for A/D 98 AN6 PUI_KEY6 I Panel key input 99 AN7 PUI_KEY7 I for P.C.B. check 100 AVCC +5V power supply for A/D 101 Vss GND 102 PE5 SB_SCK O FL control IC serial clock 103 Vcc +5V power supply 104 TIOC2A CDR_FSCNT I – 105 PE7 FLASH_N_VPP for extend 106 PE8 SB_DATA O FL control IC serial clock 107 PE9 DIP0 for extend 108 PE10 DIP1 for extend 109 VSS GND 110 PE11 LED0 for extend 111 PE12 LED1 for extend 112 PE13 LED2 for extend www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 19 IC3 : YDC126-F ACDR 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 MUTAE MUTSP /CAS /RAS /RWE /ROE VSS RA0 RA1 RA2 RA3 RA4 RA5 RA6 VSS RA7 RA8 RA9 RA10 RA11 RA12 VDD RD0 RD1 RD2 RD3 RD4 RD5 RD6 RD7 VSS RD8 RD9 RD10 RD11 RD12 RD13 RD14 RD15 VSS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 /CS /RD /WR /WAIT /IRQ FSCNT VSS D7 D6 D5 D4 D3 D2 D1 D0 VSS A7 A6 A5 A4 A3 A2 A1 A0 VDD SRCD1 /IC SPD AES P14 P13 P12 P11 P10 P04 P03 P02 P01 P00 VSS 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 VDD DWCKO DWCKI VSS F64C F128C WCC SYNCC F64B F256B WCB EXWI EXTW F64A F128A WCA SYNCA VSS UBIT DIRINT SCK /CSO SO SI DDIN DOUT DINC DINB DINA VDD F256A XO XI VSS /TESTB /TESTA /LOCK AVDD PCO AVSS DD15 DD14 DD13 DD12 DD11 DD10 DD9 DD8 VSS DD7 DD6 DD5 DD4 DD3 DD2 DD1 DD0 VDD /HRST /HCS1 /HCS0 HA2 HA1 HA0 /H10W /H10R CSEL IORDY /HDACK HINTRQ /PDIAG /DASP HDMARQ VSS SENDA RTRNA SENDB RTRNB SD0 SDI YDC126-F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 20 No. Name I/O DC Level Function 1 /CS I T Microprocessor interface, chip select input 2 /RD I T Microprocessor interface, read strobe input 3 /WR I T Microprocessor interface, write strobe input 4 /WAIT OD C Wait output 5 /IRQ O C Interrupt request output 6 FSCNT O$ C Dividing word clock output 7 VSS GND 8 D7 I/O T/C Microprocessor interface, data bus 9 D6 I/O T/C Microprocessor interface, data bus 10 D5 I/O T/C Microprocessor interface, data bus 11 D4 I/O T/C Microprocessor interface, data bus 12 D3 I/O T/C Microprocessor interface, data bus 13 D2 I/O T/C Microprocessor interface, data bus 14 D1 I/O T/C Microprocessor interface, data bus 15 D0 I/O T/C Microprocessor interface, data bus 16 VSS GND 17 A7 I T Microprocessor interface, data bus 18 A6 I T Microprocessor interface, data bus 19 A5 I T Microprocessor interface, data bus 20 A4 I T Microprocessor interface, data bus 21 A3 I T Microprocessor interface, data bus 22 A2 I T Microprocessor interface, data bus 23 A1 I T Microprocessor interface, data bus 24 A0 I T Microprocessor interface, data bus 25 VDD Power supply +5V 26 SRCDI I+ T Unconnected 27 /IC I T Initial clear input 28 SPD O C Digital audio interface output (SPDIF) 29 AES O C Unconnected 30 P14 I+ T General purpose input port 31 P13 I+ T General purpose input port 32 P12 I+ T General purpose input port 33 P11 I+ T General purpose input port 34 P10 I+ T General purpose input port 35 P04 O C General purpose input port 36 P03 O C General purpose input port 37 P02 O C General purpose input port 38 P01 O C General purpose input port 39 P00 O C General purpose input port 40 VSS GND 41 DD15 I/O T/C IDE bus interface, data bus 42 DD14 I/O T/C IDE bus interface, data bus 43 DD13 I/O T/C IDE bus interface, data bus 44 DD12 I/O T/C IDE bus interface, data bus 45 DD11 I/O T/C IDE bus interface, data bus 46 DD10 I/O T/C IDE bus interface, data bus 47 DD9 I/O T/C IDE bus interface, data bus 48 DD8 I/O T/C IDE bus interface, data bus 49 VSS GND 50 DD7 I/O T/C IDE bus interface, data bus 51 DD6 I/O T/C IDE bus interface, data bus 52 DD5 I/O T/C IDE bus interface, data bus 53 DD4 I/O T/C IDE bus interface, data bus 54 DD3 I/O T/C IDE bus interface, data bus 55 DD2 I/O T/C IDE bus interface, data bus IC3 : YDC126-F Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 21 No. Name I/O DC Level Function 56 DD1 I/O T/C IDE bus interface, data bus 57 DD0 I/O T/C IDE bus interface, data bus 58 VDD Power supply +5V 59 /HRST OT C IDE bus interface, reset output 60 /HCS1 OT C IDE bus interface, chip select output 61 /HCS0 OT C IDE bus interface, chip select output 62 HA2 OT C IDE bus interface, address output 63 HA1 OT C IDE bus interface, address output 64 HA0 OT C IDE bus interface, address output 65 /H10W OT C IDE bus interface, write strobe output 66 /H10R OT C IDE bus interface, read strobe output 67 CSEL OT C IDE bus interface, cable select output 68 IORDY I T IDE bus interface, channel ready input 69 /HDACK OT C IDE bus interface, DMA acknowledge output 70 HINTRQ I T IDE bus interface, interrupt request input 71 /PDIAG OD C IDE bus interface, connection diagnosis output 72 /DASP OD C IDE bus interface, active slave output 73 HDMARQ I T IDE bus interface, DMA request input 74 VSS GND 75 SENDA O C DSP3 serial data interface output 1 76 RTRNA I+ T DSP3 serial data interface input 1 77 SENDB O C DSP3 serial data interface output 2 78 RTRNB I+ T DSP3 serial data interface input 2 79 SDO O C Serial audio data output 80 SDI I T Serial audio data input 81 VSS GND 82 RD15 I/O T/C External RAM interface, data bus 83 RD14 I/O T/C External RAM interface, data bus 84 RD13 I/O T/C External RAM interface, data bus 85 RD12 I/O T/C External RAM interface, data bus 86 RD11 I/O T/C External RAM interface, data bus 87 RD10 I/O T/C External RAM interface, data bus 88 RD9 I/O T/C External RAM interface, data bus 89 RD8 I/O T/C External RAM interface, data bus 90 VSS GND 91 RD7 I/O T/C External RAM interface, data bus 92 RD6 I/O T/C External RAM interface, data bus 93 RD5 I/O T/C External RAM interface, data bus 94 RD4 I/O T/C External RAM interface, data bus 95 RD3 I/O T/C External RAM interface, data bus 96 RD2 I/O T/C External RAM interface, data bus 97 RD1 I/O T/C External RAM interface, data bus 98 RD0 I/O T/C External RAM interface, data bus 99 VDD Power supply +5V 100 RA12 O C External RAM interface, address output 101 RA11 O C External RAM interface, address output 102 RA10 O C External RAM interface, address output 103 RA9 O C External RAM interface, address output 104 RA8 O C External RAM interface, address output 105 RA7 O C External RAM interface, address output 106 VSS GND 107 RA6 O C External RAM interface, address output 108 RA5 O C External RAM interface, address output 109 RA4 O C External RAM interface, address output 110 RA3 O C External RAM interface, address output 111 RA2 O C External RAM interface, address output 112 RA1 O C External RAM interface, address output 113 RA0 O C External RAM interface, address output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 22 No. Name I/O DC Level Function 114 VSS GND 115 /ROE O C External RAM interface, read strobe output 116 /RWE O C External RAM interface, write strobe output 117 /RAS O C External RAM interface, lower address strobe output 118 /CAS O C External RAM interface column address strobe output 119 MUTSP I T SPD pin mute control input, muting provided at “1” 120 MUTAE I+ T Unconnected 121 AVSS Analog GND for PLL 122 PCO A Capacitance connection terminal for PLL 123 AVDD Analog power supply for PLL +5V 124 /LOCK O C Master clock, PLL lock detect output 125 /TESTA I+ T Unconnected (testing terminal) 126 /TESTB I+ T Unconnected (testing terminal) 127 VSS GND 128 XI I$ C 24.576MHz crystal oscillator connection terminal (input) 129 XO O$ C 24.576MHz crystal oscillator connection terminal (output) 130 F256A O$ C Master clock, dividing clock output (256fs) 131 VDD Power supply +5V 132 DINA I+ T Digital audio interface input A 133 DINB I+ T Digital audio interface input B 134 DINC I+ T Digital audio interface input C 135 DOUT O C Digital audio interface output 136 DDIN I T Serial audio data input 137 SI I+ T DIR5 interface, control data input 138 SO O C DIR5 interface, control data output 139 /CSO O C DIR5 interface, chip select output 140 SCK O$ C DIR5 interface, bit clock output 141 DIRINT I+ T DIR5 interface, interrupt input 142 UBIT I+ T DIR5 interface, U-bit signal input 143 VSS GND 144 SYNCA O C Master clock system, synchronous signal output 145 WCA O$ C Master clock system, word clock output (fs) 146 F128A O$ C Master clock system, dividing clock output (128fs) 147 F64A O$ C Master clock system, dividing clock output (64fs) 148 EXTW O$ C Word clock output (fs) 149 EXWI I$+ T External word clock input (fs) 150 WCB I$ T Digital input data system, word clock input (fs) 151 F256B I$ T Digital input data system, dividing clock input (256fs) 152 F64B I$ T Digital input data system, dividing clock input (64fs) 153 SYNCC I+ T Unconnected 154 WCC I$+ T Mode switching, “1”: normal operation, “0”: PLL constant output mode 155 F128C I$+ T Unconnected 156 F64C I$+ T Unconnected 157 VSS GND 158 DWCKI I$ T Drive word clock input (44.1kHz or 33.8688MHz) 159 DWCKO O$ C Drive word clock output (for charge couple) 160 VDD Power supply +5V I/O I: Input O: Output I/O: Bi-directional $: Clock signal OT: Tri-state output +: Pull-up resistor built-in A: Analog terminal OD: Open drain DC C: CMOS level T: TTL level www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 23 IC401 : M66004MAFP-200C FL tube driver 64 DIG12 63 DIG13 62 DIG14 61 DIG15 60 VCC2 59 SEG00 58 SEG01 57 SEG02 56 SEG03 55 SEG04 54 SEG05 53 SEG06 52 SEG07 51 SEG08 50 SEG09 49 SEG10 48 SEG11 47 SEG12 46 SEG13 45 SEG14 44 SEG15 43 SEG16 42 SEG17 41 SEG18 40 SEG19 39 SEG20 38 SEG21 37 SEG22 36 SEG23 35 SEG24 34 SEG25 33 SEG26 DIG11 DIG10 DIG09 DIG08 DIG07 DIG06 DIG05 DIG04 DIG03 DIG02 DIG01 DIG00 /RESET /CS SCK SDATA P1 P0 VCC1 XOUT XIN VSS SEG35 SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 VP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 P1 18 17 Display control register Output port (2 bits) Serial receive circuit Digit output circuit Display controller Clock generator P0 XOUT 20 XIN 21 CS 14 SCK 15 SDATA 16 RESET 13 DIG00 12 61 DIG15 DIG12 64 1 DIG11 SEG00 59 23 SEG35 SEG27 31 33 SEG26 Segment output circuit Display code register (8-bit x 16) CGROM (35-bit x 160) Decoder CGRAM (35-bit x 16) Decoder code select Code write RAM write Code/ command control circuit No. Name IN/OUT Function 1 DIG11 O Digit output 2 DIG10 O Digit output 3 DIG09 O Digit output 4 DIG08 O Digit output 5 DIG07 O Digit output 6 DIG06 O Digit output 7 DIG05 O Digit output 8 DIG04 O Digit output 9 DIG03 O Digit output 10 DIG02 O Digit output IC401 : M66004MAFP-200C Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 No. Name IN/OUT Function 11 DIG01 O Digit output 12 DIG00 O Digit output 13 /RESET I Reset input 14 /CS I Chip select input 15 SCK I Shift clock input 16 SDATA I Serial data input 17 P1 O Output port (static operation) 18 P0 O Output port (static operation) 19 VCC1 Positive power supply for internal logic 20 XOUT O Clock output 21 XIN I Clock input 22 VSS GND 23 SEG35 O Segment output 24 SEG34 O Segment output 25 SEG33 O Segment output 26 SEG32 O Segment output 27 SEG31 O Segment output 28 SEG30 O Segment output 29 SEG29 O Segment output 30 SEG28 O Segment output 31 SEG27 O Segment output 32 VP Negative power supply for VFD drive 33 SEG26 O Segment output 34 SEG25 O Segment output 35 SEG24 O Segment output 36 SEG23 O Segment output 37 SEG22 O Segment output 38 SEG21 O Segment output 39 SEG20 O Segment output 40 SEG19 O Segment output 41 SEG18 O Segment output 42 SEG17 O Segment output 43 SEG16 O Segment output 44 SEG15 O Segment output 45 SEG14 O Segment output 46 SEG13 O Segment output 47 SEG12 O Segment output 48 SEG11 O Segment output 49 SEG10 O Segment output 50 SEG09 O Segment output 51 SEG08 O Segment output 52 SEG07 O Segment output 53 SEG06 O Segment output 54 SEG05 O Segment output 55 SEG04 O Segment output 56 SEG03 O Segment output 57 SEG02 O Segment output 58 SEG01 O Segment output 59 SEG00 O Segment output 60 VCC2 Positive power supply for high-pressure-resistant output port 61 DIG15 O Digit output 62 DIG14 O Digit output 63 DIG13 O Digit output 64 DIG12 O Digit output 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 25 I BLOCK DIAGRAM DIR5 IC3 ACDR2 IC2 CPU DRAM CD-R/RW drive HDD FL tube A/D FL tube driver PANEL keys DRAM ADC DAC MIXER LPF BUFFER AMP PHONES LINE OUT LINE IN DIGITAL OUT OPTICAL COAXIAL OPTICAL VR400 ANALOG REC LEVEL VR500 PHONES LEVEL COAXIAL DIGITAL IN IDE bus Flash AUDIO CODEC (master) IC401 V400 (slave) PLL CD-R/W word clock IC208 IC9 IC7 IC210 IC3 IC500 U400 Remote Control receiver IC11 IC5 See page E-34/J-32 ~ E-35/J-33 MAIN See page E-36/J-34 OPERATION (1) See page E-36/J-34 OPERATION (1) See page E-37/J-35 OPERATION (4) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 TE L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Point A Pin 74 of IC2 Point C VCC of IC4 and OUT of IC4 Point B Pin 129 of IC3 POWER ON A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L CDR-HD1000 SCHEMATIC DIAGRAM (MAIN 1/2) E-34/J-32 IC1: SN74LS06NSR Inverter Buffer/Driver 1A 1Y 2Y VCC 6A 1 2 3 4 11 2A 6Y 5A 12 13 14 3A 3Y 5Y 4A 5 6 7 4Y 8 9 10 GND IC4: PST572CMT-R System Reset + Vcc Out Gnd 1 3 2 IC5 : IS41C16100S-50K 1M x 16 (16-MBIT) Dynamic RAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 VCC I/O0 I/O1 I/O2 I/O3 VCC I/O4 I/O5 I/O6 I/O7 NC NC WE RAS NC NC A0 A1 A2 A3 VCC GND I/O15 I/O14 I/O13 I/O12 GND I/O11 I/O10 I/O9 I/O8 NC LCAS UCAS OE A9 A8 A7 A6 A5 A4 GND 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 UCAS CAS CLOCK GENERATOR CAS RAS OE WE RAS OE WE LCAS A0~A9 I/O0~I/O15 RAS CLOCK GENERATOR DATA I/O BUS REFRESH COUNTER COLUMN DECODERS MEMORY ARRAY 1,046,576 x 16 SENSE AMPLIFIERS WE CONTROL LOGICS OE CONTROL LOGIC ADDRESS BUFFERS ROW DECODER DATA I/O BUFFERS IC7: MSM514260E-60JS 4Mbit DRAM Timing Generator I/O Controller Output Buffers Input Buffers Input Buffers Output Buffers I/O Controller Column Decoders RAS Refresh Control Clock 14 WE 13 9 9 LCAS 29 UCAS A0~A8 28 VCC 20 VSS 21 Sense Amplifiers I/O Selector Memory Cells OE 27 DQ9~DQ16 Column Address Buffers Internal Addess Counter Row Address Buffers On Chip VBB Generater Row Deco- ders Word Drivers 9 9 16 16 8 8 8 8 8 8 DQ1~DQ8 8 8 IC8: TC74HC14AF-TP1 Inverter 1A 1Y 2Y VCC 6A 1 2 3 4 11 2A 6Y 5A 12 13 14 3A 3Y 5Y 4A 5 6 7 4Y 8 9 10 GND IC9: TC9246F-TEL Clock Generator 2 PD 1 REF 15 LOCK 3 VDDA 14 S2 4 AMPI 13 S1 5 AMPO 12 M2 6 VSSA 11 M1 7 XI 10 CKO 8 XO 9 VSS 16 VDD REF VAR Phase Comparator Programable Counter µ-COM Interface Lock Detector VCO Selector IC11: MBM29F800BA-70PFTN 8Mbit Flash Memory RY/BY Buffer State Control Command Register Erase Voltage Generator Input/Output Buffers Chip Enable Output Enable Logic Address Latch X-Decoder Y-Decoder Y-Gating 8,388,608 Cell Matrix Timer for Program/Erase Program Voltage Generator Low Vcc Detector VCC RY/BY VSS WE CE OE STB STB DQ0 to DQ15 BYTE A-1 A0 to A18 RESET Data Latch IC202: NJM2904M Dual OP-Amp Q1 Q2 Q3 Q9 Q8 Q4 INPUTS OUTPUT V– – + Q6 Q5 Q10 Q11 Q12 Q7 Q13 #� All voltage are measured with a 10M‰/V DC electric volt meter. #� Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. #� Schematic diagram is subject to change without notice. FROM CD-R/W & HDD DRIVE FROM CD-R/W E-36/J-34 FROM OPERATION (8) E7 E-37/J-35 FROM OPERATION (7) I6 E-36/J-34 FROM OPERATION (1) H3 CLOCK ACDR DRAM FLASH MEMORY DRAM SYSTEM RESET CPU 1 1 1 3 4 2 3 2 9 10 11 10 3 14 4 11 12 13 6 14 5 5 6 1 8 7 13 12 9 8 B A C Ch 1 Ch 2 2.5 0 5.1 0.1 0 0 0 -4.9 5.1 0 2.6 2.5 2.5 0 0 0 5.1 0 0 5.1 2.5 2.6 5.1 5.1 0 2.6 0 2.5 5.1 5.1 0 2.5 2.4 5.1 1.7 1.1 5.1 0 5.1 0 5.1 2.5 0 0 0 2.6 2.5 2.5 2.6 2.5 2.5 2.5 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 0 0 2.6 2.6 2.6 2.6 2.6 2.6 2.6 5.1 5.1 ~ ~ ~ ~ ~ 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 0 ~ ~ ~ ~ 2.2 ~ ~ 2.2 2.5 5.1 ~ ~ ~ ~ ~ 0 ~ 0 5.1 0 ~ 5.1 0 5.1 1.3 ~ ~ 0 0 4.9 ~ 0 0 2.3 2.6 5.1 0 2.6 0 0 2.5 2.8 5.1 5.1 0 ~ ~ ~ ~ ~ ~ ~ 0 ~ ~ 5.1 2.2 2.2 2.2 2.2 2.2 2.3 2.3 0 2.2 ~ ~ ~ 2.2 ~ ~ ~ 0 2.2 5.1 4.9 4.9 5.1 5.1 2.6 0 1.4 1.3 1.6 1.8 1.8 1.9 1.9 1.6 0 2.5 2.3 2.2 5.1 5.1 1.3 5.0 5.1 0 5.1 5.1 5.1 0 5.1 5.1 0 0.8 2.5 2.5 2.4 2.7 5.1 0.2 0 5.1 5.1 5.1 5.1 0 5.1 5.1 0.2 5.1 5.1 5.1 5.1 5.1 0.2 5.1 0.2 0.2 4.8 5.1 0 0 0 5.1 5.1 1.7 1.9 1.9 1.8 5.1 1.8 1.6 1.3 1.4 4.8 1.4 2.2 2.3 2.4 2.7 5.1 5.1 0.9 2.4 2.1 0.9 0 0 1.3 1.2 1.4 2.6 3.4 3.4 2.6 2.5 1.7 2.4 2.5 2.5 0 0 1.3 1.4 1.7 2.4 3.0 2.3 1.6 3.8 4.9 5.1 2.3 0 2.5 2.5 2.6 2.5 2.7 2.4 2.3 1.7 1.4 2.4 1.3 1.6 0.9 1.3 2.1 0 5.1 2.0 1.4 1.8 5.1 1.9 1.8 1.2 1.7 4.9 1.9 2.6 0 5.1 2.2 0.9 0 5.1 0 5.1 0 0 5.1 5.1 5.1 5.1 5.1 5.0 0 5.0 4.9 5.1 0 5.1 5.1 2.6 0 5.1 5.1 5.1 0 0 0 5.1 5.1 0.9 2.4 2.1 0 0.9 5.1 0 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 0 4.9 5.1 5.0 4.9 0 0.1 5.1 ~ 3.8 5.1 5.0 2.3 0 2.3 5.1 0 5.1 5.1 0 2.5 5.1 2.4 0 1.6 1.9 1.9 1.8 1.8 5.1 1.6 1.3 1.4 0 2.6 1.4 1.2 1.3 2.3 2.2 0.8 0 0 0.1 2.4 2.7 2.5 2.5 2.5 2.6 2.4 1.7 1.4 1.3 1.7 3.0 2.3 1.6 5.1 2.0 0 1.4 3.4 3.4 0 4.8 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AK4528VF 1 14 28 A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L SCHEMATIC DIAGRAM (MAIN 2/2) E-35/J-33 CDR-HD1000 2SC2412K 2SD1938F DTC114EKA DTA143EK 1SS355� MA732 MA8051-M PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. MSM514260E-60JS B E C Anode Cathode SN74LS06NST-EL 1 7 14 PST572CMT-R NJM2100M NJM2904M NJM4580E-T1 2 1 3 MBM29F800BA-70PFTN HD6417014F28 1 40 41 80 81 120 121 160 YDC126-F IS41C16100S-50K 1 21 42 1 28 29 56 57 84 85 112 HD74HC02FPEL TC74HC14AF-TP1 TC74HCU04AF-TP1 TC4052BF TC9246F-TEL 1 7 14 1 20 40 1 8 16 1 24 25 48 1 4 8 YSD917 1 14 28 IC201: HD74HC02FPEL Quad 2 Input NOR 1 2 3 4 5 6 7 14 13 12 11 10 9 8 Y1 A1 B1 Y2 A2 B2 GND VCC Y4 B4 A4 Y3 B3 A3 IC200: TC74HCU04AF-TP1 Hex Inverters 1A 1Y 2Y VCC 6A 1 2 3 4 11 2A 6Y 5A 12 13 14 3A 3Y 5Y 4A 5 6 7 4Y 8 9 10 GND IC202: NJM2904M Dual OP-Amp Q1 Q2 Q3 Q9 Q8 Q4 INPUTS OUTPUT V– – + Q6 Q5 Q10 Q11 Q12 Q7 Q13 IC203~204: NJM2100M Dual OP-Amp 8 2, 6 3, 5 1, 7 4 V+ –INPUT +INPUT V– OUTPUT V+ –INPUT +INPUT V– OUTPUT IC205: NJM4580E-T1 Dual OP-Amp 8 2, 6 3, 5 1, 7 4 IC206: TC4052BF Analog Multiplexers/Demultiplexers 16 10 9 6 8 7 13 12 14 15 11 1 5 2 4 3 X-COMMON 0X 1X 2X 3X 0Y 1Y 2Y 3Y Y-COMMON VEE VSS INH B A VDD LOGIC LEVEL CONVERTER I/O c O/I I/O c O/I I/O c O/I I/O c O/I I/O c O/I I/O c O/I I/O c O/I I/O c O/I IC208: YSD917 DIR IC210: AK4528VF 24bit CODEC ADC AINL+ 20 DEM0 21 DEM1 HPF Audio I/F Controller AINL- 23 VD 22 VT 24 DGND 19 PDN 11 LRCK 12 BICK 13 SDTO 14 SDTI 4 5 AINR+ AINR- 2 VREF VA 6 8 AGND 7 3 ADC AOUTL+ HPF Control Register I/F AOUTL- 26 VCOM 1 25 AOUTR+ P/S 28 AOUTR- 27 9 CCLK (CKS1) 16 CSN (DIF) 17 CDTI (CKS0) 15 Clock Divider MCLK 10 DFS 18 Digital audio interface decoder & lock error judgment 16 SDMCK 13 SDO 20 DBL/V 21 ERR/BS 18 SYNC/U 19 FS128/C 14 SDBCK 15 SDWCK 5 DDIN 7 /IC AVDD PCO AVSS M/S DDIN TEST /IC VSS XO XI MCK VDD SDO SDBCK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 SCK SI SO /CS VDD INT /LOCK ERR/BS DBL/V FS128/C SYNC/U VSS SDMCK SDWCK 28 27 26 25 24 23 22 21 20 19 18 17 16 15 2 PLL Each control signal DATA BUS Output selection Clock system selection Output clock generation Flame Buffer Serial Converter Channel Status User Data Microprocessor interface 22 /LOCK PCO 9 Reference clock generation XO 11 MCK 10 XI 4 M/S 26 SO Interrupt factor detection 23 INT 27 SI 28 SCK 25 /CS #� All voltage are measured with a 10M‰/V DC electric volt meter. #� Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. #� Schematic diagram is subject to change without notice. E-36/J-34 TO OPERATION (1) F6 E-36/J-34 TO OPERATION (4) A7 DIGITAL OUT DIGITAL IN DIR 24 BIT CODEC BUFFER MIXER MUTE LPF ANALOG IN ANALOG OUT 3 4 7 6 5 4 5 6 7 8 3 2 1 4 1 2 3 8 1 3 2 4 7 5 6 8 2 5 1 13 11 15 14 12 4 3 6 5 7 14 2.5 2.5 1 2 4.0 8 9 10 5.1 0 0 0 0 0 5 6 4 7 14 0 0 5.1 5.1 2 3 1 0 5.1 0 7 8 4 6 5 0 5.1 0 0 2.3 11 12 13 5.1 0 0.1 9 8 11 10 13 12 2.7 2.7 2.7 2.7 0 0 3.0 2.5 5.1 0 2.6 2.7 5.1 0 5.1 0 4.0 0 0 2.6 0 2.6 2.6 5.1 0 0 0 -5.0 0 0 0 -4.9 -4.9 0 0 -4.9 -4.9 0 0 -4.9 0 0 -4.9 0 0 -4.9 0 -4.7 0 2.6 5.1 2.6 2.6 2.6 0 2.6 2.6 2.6 5.1 2.6 2.6 0 0 0 0 0 0 0 0 0 0 5.1 0 5.1 5.1 5.1 0 0 0 5.1 5.1 0 4.9 4.9 0 2.5 2.6 2.5 2.5 1.3 ~ 2.5 2.5 2.4 0 5.1 0 5.1 2.6 2.6 2.6 2.6 2.5 5.1 3.4 3.4 5.1 0 0 5.1 0 2.6 2.4 5.1 0 2.5 2.5 0 5.1 5.1 5.1 5.1 0 5.1 0 0 0 2.5 2.5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L CDR-HD1000 SCHEMATIC DIAGRAM (OPERATION 1/2) E-36/J-34 IC400: HD74HC139FPEL Dual 2 line to 4 line Decoders/Demultiplexers 4 1Y0 1 5 1Y1 1G ENABLE SELECT INPUTS 2 6 1Y2 1A 7 1Y3 3 1B 12 2Y0 15 11 2Y1 2G ENABLE SELECT INPUTS 14 10 2Y2 2A 9 2Y3 13 2B IC500: µPC4570HA Dual OP-Amp Vcc Vo1 -Vm1 +Vm1 VEE +Vm2 -Vm2 Vo2 Vcc 1� 2� 3� 4� 5� 6� 7� 8� 9 + + - - 1 2 IC900: SP232ECP RS232 Driver/Receiver 9 R2O Charge Pump R2 8 R2I 12 R1O R1 13 R1I 9 T2I 8 T2O 12 T1I 15 GND 13 T1O T1 T2 #� All voltage are measured with a 10M‰/V DC electric volt meter. #� Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. #� Schematic diagram is subject to change without notice. µPC4570HA 2SC2878 1SR139-400 DTA114ES DTC114ES PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. HD74HC139FPEL SP232ECP M66004MAFP-200C E C B E C B Anode Cathode 1 32 33 64 1 9 1 8 16 E-37/J-35 TO OPERATION B4 E-35/J-33 FROM MAIN J4 E-34/J-32 TO MAIN B4 E-35/J-33 FROM MAIN J1 E-34/J-32 TO MAIN A6 4 3 2 1 7 6 5 8 RS-232C DRIVER/RECEIVER FL TUBE DECODER/ DEMULTIPLEXERS REMOTE CONTROL RECEIVER FL TUBE DRIVER PHONES AMP POWER SW J797 0 0 4.0 0 0 0 -5.0 -4.3 5.1 4.5 -3.8 0 0 5.1 0 -8.6 0 5.1 5.1 2.7 9.2 -2.2 5.6 -3.9 -8.6 ~ ~ -22.2 -22.2 ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ -22.2 -22.2 5.0 0 0 0 5.0 5.0 0 0 0 5.0 5.0 0 0 0 5.0 5.0 5.0 0 0 4.3 0 0 4.3 0.1 0 5.1 2.7 1.0 4.1 2.7 4.1 1.8 4.1 2.7 4.1 0 0 1.8 0 0 2.7 0 0 4.8 4.1 5.0 5.1 5.0 0 4.8 0 0 0 0 0 5.0 5.0 5.0 5.0 5.0 0 ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ 4.3 5.1 5.1 5.1 5.0 5.0 5.0 2.3 2.3 0 ~ ~ ~ ~ ~ ~ ~ ~ ~ -28.2 ~ ~ ~ ~ 5.0 ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S1VB20 – + ~ ~ A 1 2 3 4 5 6 7 8 9 B C D E F G H I J K L SCHEMATIC DIAGRAM (OPERATION 2/2) E-37/J-35 CDR-HD1000 INPUT OUTPUT COMMON IC703: NJM79L05A-T3 Voltage Regulator 1 3 2 + – + – 1 2 3 VOUT 5 ON/OFF 4 Oadj VIN VREF COM Voltage regulator Over current protection circuit Over heat protection circuit ON/OFF circuit Soft start Oscillator ERROR AMP. PWM COMP. F/F Q S R IC700~701 : PQ1CG2032FZ Voltage Regulator Amp. IC702: M5237L Regulator 3 OUTPUT 1 INPUT Starter Circuit Overheat Protection Sudden Current Protection ASO Protection 2 GND Standard Voltage – + PIN CONNECTION DIAGRAM OF TRANSISTORS, DIODES AND ICS. #� All voltage are measured with a 10M‰/V DC electric volt meter. #� Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. #� Schematic diagram is subject to change without notice. SF5S6 D2SBA20 D3SBA20 2SB1314 2SD2394 1SR139-400 MTZJ5.1B MTZJ5.6B MTZJ11.0A MTZJ30.0D 2SA933S B C E E C B Anode Cathode – + ~ ~ NJM79L05A 5 1 PQ1CG2032FZ M5237L 3: OUT 2: GND 1: IN 3: Output 2: Input 1: Common E-34/J-32 TO MAIN A5 E-36/J-34 FROM OPERATION (5) D7 C728 470/25 AC 19.2 AC 9.9 AC 6.9 AC 15.9 AC 4.7 10.1 10.1 24.4 12.0 0 12.0 0 1.2 6.8 0 24.4 12.0 24.4 4.6 4.6 11.1 5.0 0 5.0 0 1.2 6.8 0 11.1 3.2 3.3 0 6.7 -10.0 -10.0 -19.8 0 10.0 20.9 10.0 20.9 6.7 5.1 5.8 -29.5 -28.6 -19.8 -24.8 -29.5 -24.8 8.6 -22.8 -29.2 5.1 -4.9 5.2 5.2 0 5.1 4.6 9.1 4.6 9.1 5.2 5.1 5.1 -29.2 0 1.3 5.8 -5.0 -19.8 -5.0 -19.8 0 0 20.9 11.9 0 11.2 11.9 5.0 11.1 POWER SUPPLY VOLTAGE REGULATOR VOLTAGE REGULATOR POWER SUPPLY MTZJ11A 2200P 2200P 2200P 2200P 2200P 2200P 2200P 2200P 2200P 2200P R765 220 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 CDR-HD1000 I PRINTED CIRCUIT BOARD (Foil side) 1 14 7 8 1 14 7 8 1 14 7 8 1 14 7 8 KEY2 KEY0 KEY6 KEY4 VP FL_N_RST FL2 LED_CD_A LED_HD_A VREF REM FL_SCK OPTICAL COAXIAL DIGITAL OUT OPTICAL COAXIAL DIGITAL IN LINE OUT (PLAY) LINE IN (REC) ANALOG 1 28 84 57 1 24 48 25 1 1 14 28 15 1 40 120 1 20 40 21 81 21 42 22 29 41 80 1 8 16 9 160 121 56 112 85 1 7 14 8 1 4 1 1 4 8 5 5 8 4 1 5 8 8 16 9 1 8 16 9 1 14 28 15 1 7 14 8 From CDRW & HDD Drive /DASP /CS1 DA0 DA1 INTRG /DMACK IORDY /DIOR /DIOW DMAR0 GND DD0 DD1 DD2 DD3 DD4 DD5 DD6 DD7 /RESET GND /CS3 DA2 /PDIAG /IOCS16 GND /CSEL GND GND GND KEY DD15 DD14 DD13 DD12 DD11 DD10 DD9 DD8 GND From OPERATION (8) VCC RXD1 TXD1 GND From CDR WC GND From OPERARION (1) KEY3 KEY1 KEY5 FL1 FLGND GND LED_CD_B GND LED_HD_B FL_N_CS +5V POUT0 FL_DATA From OPERATION (7) GND +VA +5V -VA VP AGND FL2 PMUTE FL1 To OPE (4) AGND +5VHP -5VHP AGND AGND HPIN_L HPIN_R To OPE (1) VR_OUT_R AGND VR_IN_R AGND VR_IN_L VR_OUT_L MAIN P. C. B. (Lead Type Device) MAIN P. C. B. (Surface Mount Device) Ref. No. Location D1 D6 D2 D4 D200 D6 D201 C5 D202 D5 D203 E5 D204 E5 D205 C4 IC1 D6 IC2 D5 IC3 C3 Ref. No. Location IC4 D6 IC5 B5 IC7 D3 IC8 D6 IC9 D4 IC11 C5 IC200 C6 IC201 C4 IC202 D4 IC203 E5 IC204 E5 Ref. No. Location IC205 E4 IC206 E5 IC208 C4 IC210 E4 Q1 D4 Q2 D4 Q200 E5 Q201 E5 Q202 E5 Q203 E5 Q204 E5 • Semiconductor Location E-27/J-25 E-26/J-24 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 CDR-HD1000 6 E-29/J-27 E-28/J-26 I PRINTED CIRCUIT BOARD (Foil side) INPUT MENU CLEAR FINALIZE ERASE REC ANALOG REC LEVEL MULTI JOG MODE/SET COMPLETE TRACK NO. TEXT/TIME OPERATION (1) P. C. B. (Lead Type Device) To MAIN FL_NRST FL_SCK VREF REM KEY6 FL1 FLGND FL_DATA FL_N_CS +5V POUT0 FL2 GND VP KEY4 KEY2 KEY5 KEY3 KEY1 KEY0 AMLE_CD AMLE_HD GND BLLE_CD BLUE_HD BLLE_HD AMLE_HD BLLE_CD AMLE_CD FL1 BLLE_HD2 AMLE_HD2 BLLE_CD2 AMLE_CD2 FL1_2 KEY3 REM +5V VREF FL_N__RST FLGND GND KEY3_2 REM_2 +5V_2 VREF_2 FL_N__RST2 FLGND_2 GND_2 From MAIN VOL_OUT_R AGND VOL_IN_R AGND VOL_IN_L VOL_OUT_L To OPERATION (3) To OPERATION (2) BL_HD VC_HD AM_HD BL_CD VC_CD AM_CD COPY CDR HDD 47 46 43 48 49 52 1 94 2 93 5 90 D E B A Ref. No. Location D400 B5 D401 B5 D402 B5 Q400 D5 Q401 D5 Q402 C5 Q403 J4 Q404 J3 Q405 J3 Q406 J3 Q407 I4 Q408 I3 Q409 I3 Q450 D5 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E F G H I J 1 2 3 4 5 6 7 CDR-HD1000 E-31/J-29 E-30/J-28 I PRINTED CIRCUIT BOARD (Foil side) Ref. No. Location D490 A5 D491 A5 D495 C5 D496 C5 D500 E5 D501 E5 IC400 D3 IC401 F2 IC500 E6 • Semiconductor Location OPERATION (1) P. C. B. (Surface Mount Device) 1 32 64 33 1 8 16 9 AGND OPERATION (2) P. C. B. (Lead Type Device) OPERATION (3) P. C. B. (Lead Type Device) OPERATION (4) P. C. B. (Lead Type Device) OPERATION (5) P. C. B. (Lead Type Device) From OPERATION (1) BL_CD VC_CD AM_CD From OPERATION (1) BL_HD AM_HD VC_HD BLUE (PLAY) ORANGE (REC) BLUE (PLAY) PHONES POWER PHONES LEVEL ORANGE (REC) 1 8 From MAIN -5VHP +5VHP AGND AGND HPIN_R HPIN_L 2 From OPERATION (6) 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 A B C D E F G H I J 1 3 4 5 7 CDR-HD1000 6 E-33/J-31 E-32/J-30 I PRINTED CIRCUIT BOARD (Foil side) Power Transformer OPE (6) P. C. B. (Lead Type Device) To OPERATION (5) 2 1 From AC power cord To OPERATION (7) FL2 AC1H AC4L AC2H AC3L AC2L AC3H AC4H FL1 AC1L PMUTE OPE (7) P. C. B. (Lead Type Device) OPE (8) P. C. B. (Lead Type Device) RS-232C TXD To MAIN GND RXD +5V From OPERATION (6) FL2 AC1H AC4L AC2H AC3L AC2L AC3H AC4H FL1 AC1L To MAIN FL1 FL1 -VA AGND +VA GND +5V VP To HDD +12V GND +5V GND To CDR +12V GND +5V GND +12FAN To FAN GND 5 1 5 1 1 8 16 9 Ref. No. Location D700 G3 D701 F3 D702 G4 D703 G4 D710 E4 D711 E4 D712 G2 D713 G2 D714 F2 D715 F2 D716 E4 D717 E4 D718 E3 D719 F3 D720 F3 D721 E2 D722 E2 D723 E2 D750 H3 D751 H3 D752 H3 IC700 G2 IC701 F2 IC702 E2 IC703 D4 IC900 E6 Q700 F2 Q702 E3 Q703 E3 Q750 H3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 I WARNING Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally in- stalled. G Carbon resistors (1/6W or 1/4W) are not included in the ELECTRICAL PARTS List. For the parts No. of the carbon resistors, refer to last page. ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS: C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP C.CE : CERAMIC CAP C.CE.ARRAY : CERAMIC CAP ARRAY C.CE.CHP : CHIP CERAMIC CAP C.CE.ML : MULTILAYER CERAMIC CAP C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP C.CE.SAFTY : RECOGNIZED CERAMIC CAP C.CE.TUBLR : CERAMIC TUBULAR CAP C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP C.EL : ELECTROLYTIC CAP C.MICA : MICA CAP C.ML.FLM : MULTILAYER FILM CAP C.MP : METALLIZED PAPER CAP C.MYLAR : MYLAR FILM CAP C.MYLAR.ML : MULTILAYER MYLAR FILM CAP C.PAPER : PAPER CAPACITOR C.PLS : POLYSTYRENE FILM CAP C.POL : POLYESTER FILM CAP C.POLY : POLYETHYLENE FILM CAP C.PP : POLYPROPYLENE FILM CAP C.TNTL : TANTALUM CAP C.TNTL.CHP : CHIP TANTALUM CAP C.TRIM : TRIMMER CAP CN : CONNECTOR CN.BS.PIN : CONNECTOR,BASE PIN CN.CANNON : CONNECTOR,CANNON CN.DIN : CONNECTOR,DIN CN.FLAT : CONNECTOR,FLAT CABLE CN.POST : CONNECTOR,BASE POST COIL.MX.AM : COIL,AM MIX COIL.AT.FM : COIL,FM ANTENNA COIL.DT.FM : COIL,FM DETECT COIL.MX.FM : COIL,FM MIX COIL,OUTPT : OUTPUT COIL DIOD.ARRAY : DIODE ARRAY DIODE.BRG : DIODE BRIDGE DIODE.CHP : CHIP DIODE DIODE.SHOT : SCHOTTKY BARRIER DIODE DIODE.VAR : VARACTOR DIODE DIOD.Z.CHP : CHIP ZENER DIODE DIODE.ZENR : ZENER DIODE DSCR.CE : CERAMIC DISCRIMINATOR FER.BEAD : FERRITE BEADS FER.CORE : FERRITE CORE FET.CHP : CHIP FET FL.DSPLY : FLUORESCENT DISPLAY FLTR.CE : CERAMIC FILTER FLTR.COMB : COMB FILTER MODULE FLTR.LC.RF : LC FILTER,EMI GND.MTL : GROUND PLATE GND.TERM : GROUND TERMINAL HOLDER.FUS : FUSE HOLDER IC.PRTCT : IC PROTECTOR JUMPER.CN : JUMPER CONNECTOR JUMPER.TST : JUMPER,TEST POINT L.DTCT : LIGHT DETECTING MODULE L.EMIT : LIGHT EMITTING MODULE LED.DSPLY : LED DISPLAY LED.INFRD : LED,INFRARED MODUL.RF : MODULATOR,RF PHOT.CPL : PHOTO COUPLER PHOT.INTR : PHOTO INTERRUPTER PHOT.RFLCT : PHOTO REFLECTOR PIN.TEST : PIN,TEST POINT PLST.RIVET : PLASTIC RIVET R.ARRAY : RESISTOR ARRAY R.CAR. : CARBON RESISTOR R.CAR.CHP : CHIP RESISTOR R.CAR.FP : FLAME PROOF CARBON RESISTOR R.FUS : FUSABLE RESISTOR R.MTL.CHP : CHIP METAL FILM RESISTOR R.MTL.FLM : METAL FILM RESISTOR R.MTL.OXD : METAL OXIDE FILM RESISTOR R.MTL.PLAT : METAL PLATE RESISTOR RSNR.CE : CERAMIC RESONATOR RSNR.CRYS : CRYSTAL RESONATOR R.TW.CEM : TWIN CEMENT FIXED RESISTOR R.WW : WIRE WOUND RESISTOR SCR.BND.HD : BIND HEAD B-TITE SCREW SCR.BW.HD : BW HEAD TAPPING SCREW SCR.CUP : CUP TITE SCREW SCR.TERM : SCREW TERMINAL SCR.TR : SCREW,TRANSISTOR SUPRT.PCB : SUPPORT,P.C.B. SURG.PRTCT : SURGE PROTECTOR SW.TACT : TACT SWITCH SW.LEAF : LEAF SWITCH SW.LEVER : LEVER SWITCH SW.MICRO : MICRO SWITCH SW.PUSH : PUSH SWITCH SW.RT.ENC : ROTARY ENCODER SW.RT.MTR : ROTARY SWITCH WITH MOTOR SW.RT : ROTARY SWITCH SW.SLIDE : SLIDE SWITCH TERM.SP : SPEAKER TERMINAL TERM.WRAP : WRAPPING TERMINAL THRMST.CHP : CHIP THERMISTOR TR.CHP : CHIP TRANSISTOR TR.DGT : DIGITAL TRANSISTOR TR.DGT.CHP : CHIP DIGITAL TRANSISTOR TRANS : TRANSFORMER TRANS.PULS : PULSE TRANSFORMER TRANS.PWR : POWER TRANSFORMER ASS’Y TUNER.AM : TUNER PACK,AM TUNER.FM : TUNER PACK,FM TUNER.PK : FRONT-END TUNER PACK VR : ROTARY POTENTIOMETER VR.MTR : POTENTIOMETER WITH MOTOR VR.SW : POTENTIOMETER WITH ROTARY SW VR.SLIDE : SLIDE POTENTIOMETER VR.TRIM : TRIMMER POTENTIOMETER Note) Those parts marked with “#” are not included in the P.C.B. ass’y. PARTS LIST I ELECTRICAL PARTS 38 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 39 * V7455000 P. C. B. OPERATI ON CB400 VP082900 CN. BS. PI N 25P CB550 VP245600 CN 2P s CB600 VG879900 CN. BS. PI N 2P * CB601 LB933100 CN. BS. PI N 10P SE * CB700 LB932100 CN. BS. PI N 10P CB701 LB932040 CN. BS. PI N 4P CB702 LB932040 CN. BS. PI N 4P CB750 VB389800 CN. BS. PI N 2P CB901 V6509500 SOCKET 9P SE 3170 C400 UM416470 C. EL 4. 7uF 50V C401 UM416470 C. EL 4. 7uF 50V C402 VJ 599100 C. CE. TUBLR 0. 1uF 50V C404 VJ 599100 C. CE. TUBLR 0. 1uF 50V C405 VJ 599100 C. CE. TUBLR 0. 1uF 50V C406 VF466800 C. CE. TUBLR 100pF 50V C407 UM416470 C. EL 4. 7uF 50V C408 VJ 599100 C. CE. TUBLR 0. 1uF 50V C409 VF467300 C. CE. TUBLR 0. 01uF 16V C410 VJ 599100 C. CE. TUBLR 0. 1uF 50V C411 UM387470 C. EL 47uF 16V C412 UM388100 C. EL 100uF 10V C413 VF467300 C. CE. TUBLR 0. 01uF 16V C414 VF467300 C. CE. TUBLR 0. 01uF 16V C415 VF467300 C. CE. TUBLR 0. 01uF 16V C416 VF467300 C. CE. TUBLR 0. 01uF 16V C417 VF467300 C. CE. TUBLR 0. 01uF 16V C418 VF467300 C. CE. TUBLR 0. 01uF 16V C419 VG276600 C. CE. TUBLR 22pF 50V C420 VG276600 C. CE. TUBLR 22pF 50V C421 VF466800 C. CE. TUBLR 100pF 50V C450 VJ 599100 C. CE. TUBLR 0. 1uF 50V C451 VJ 599100 C. CE. TUBLR 0. 1uF 50V C452 UM387470 C. EL 47uF 16V C453 UM387470 C. EL 47uF 16V C454 UM387470 C. EL 47uF 16V C490 VF467300 C. CE. TUBLR 0. 01uF 16V C491 VF467300 C. CE. TUBLR 0. 01uF 16V C495 VF467300 C. CE. TUBLR 0. 01uF 16V C496 VF467300 C. CE. TUBLR 0. 01uF 16V C500 UR837470 C. EL 47uF 16V C501 UR837470 C. EL 47uF 16V C502 UR838330 C. EL 330uF 16V C503 UA653220 C. MYLAR 2200pF 50V C504 UA653220 C. MYLAR 2200pF 50V C505 VG278200 C. CE. TUBLR 150pF 50V C506 UR838330 C. EL 330uF 16V C550 V3501400 C. CE. SAFTY 0. 01uF 275V s C600 V3501400 C. CE. SAFTY 0. 01uF 275V C601 V3501400 C. CE. SAFTY 0. 01uF 275V C700 UA654100 C. MYLAR 0. 01uF 50V C701 UA654100 C. MYLAR 0. 01uF 50V C702 UA654100 C. MYLAR 0. 01uF 50V C703 UA654100 C. MYLAR 0. 01uF 50V C704 UR759470 C. EL 4700uF 35V C705 UR73A100 C. EL 10000uF 16V * C706 V8225900 C. EL 15000uF 16V C707 VJ 599100 C. CE. TUBLR 0. 1uF 50V s C708 UR867470 C. EL 47uF 50V C709 VJ 599100 C. CE. TUBLR 0. 1uF 50V C710 UR868100 C. EL 100uF 50V C711 UR866470 C. EL 4. 7uF 50V C712 UR868220 C. EL 220uF 50V C713 VJ 599100 C. CE. TUBLR 0. 1uF 50V C714 UR848220 C. EL 220uF 25V C715 VJ 599100 C. CE. TUBLR 0. 1uF 50V C716 VF467000 C. CE. TUBLR 1000pF 50V C717 VJ 599100 C. CE. TUBLR 0. 1uF 50V C718 UR868100 C. EL 100uF 50V C719 UR837470 C. EL 47uF 16V C720 UR866470 C. EL 4. 7uF 50V s C723 UR839100 C. EL 1000uF 16V C724 UR739330 C. EL 3300uF 16V C727 UR838220 C. EL 220uF 16V C728 UR848470 C. EL 470uF 25V C729 UR868100 C. EL 100uF 50V C750 UR837100 C. EL 10uF 16V C751 UR867470 C. EL 47uF 50V C752 UR837100 C. EL 10uF 16V C753 UR866470 C. EL 4. 7uF 50V C760 VG279400 C. CE. TUBLR 2200pF 16V C761 VG279400 C. CE. TUBLR 2200pF 16V C762 VG279400 C. CE. TUBLR 2200pF 16V C763 VG279400 C. CE. TUBLR 2200pF 16V C764 VG279400 C. CE. TUBLR 2200pF 16V C765 VG279400 C. CE. TUBLR 2200pF 16V C766 VG279400 C. CE. TUBLR 2200pF 16V C767 VG279400 C. CE. TUBLR 2200pF 16V C768 VG279400 C. CE. TUBLR 2200pF 16V C769 VG279400 C. CE. TUBLR 2200pF 16V C900 VJ 599100 C. CE. TUBLR 0. 1uF 50V C901 UR818100 C. EL 100uF 6. 3V C902 VJ 599100 C. CE. TUBLR 0. 1uF 50V C903 VJ 599100 C. CE. TUBLR 0. 1uF 50V C904 VJ 599100 C. CE. TUBLR 0. 1uF 50V C905 VG278100 C. CE. TUBLR 120pF 50V D400 VS132300 LED( re) SLR- 325VCT31 D401 VS132300 LED( re) SLR- 325VCT31 D402 VS132300 LED( re) SLR- 325VCT31 * D490 V7446300 LED E1L31- 3B0A2 * D491 V7446400 LED GL3J S404B0SE * D495 V7446300 LED E1L31- 3B0A2 * D496 V7446400 LED GL3J S404B0SE D500 VU264100 DI ODE 1SR139- 400 D501 VU264100 DI ODE 1SR139- 400 s D700 VN011300 DI ODE. BRG D3SBA20 4A 200V s D701 VN011300 DI ODE. BRG D3SBA20 4A 200V D702 V4269600 DI ODE. BRG D2SBA20 1. 5A 200V D703 VQ379300 DI ODE. BRG S1VB20 1. 0A 200V D710 VU264100 DI ODE 1SR139- 400 D711 VU264100 DI ODE 1SR139- 400 D712 VU264100 DI ODE 1SR139- 400 * D713 V6591700 DI ODE SF5S6 D714 VU264100 DI ODE 1SR139- 400 * D715 V6591700 DI ODE SF5S6 D716 VU264100 DI ODE 1SR139- 400 D717 VG437700 DI ODE. ZENR MTZJ 5. 6B 5. 6V D718 VG443500 DI ODE. ZENR MTZJ 30D 30V s D719 VU264100 DI ODE 1SR139- 400 s D720 VU264100 DI ODE 1SR139- 400 D721 VG437400 DI ODE. ZENR MTZJ 5. 1B 5. 1V D722 VU264100 DI ODE 1SR139- 400 D723 VU264100 DI ODE 1SR139- 400 s D750 VU264100 DI ODE 1SR139- 400 s D751 VU264100 DI ODE 1SR139- 400 D752 VG439800 DI ODE. ZENR MTZJ 11A Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B. OPERATION Schm Ref. PART NO. Description Markets ✻ New Parts www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 G760 VR463400 TERM. GND D3. 5 G761 VR463400 TERM. GND D3. 5 HS700 V6295800 HEAT. SI NK PUH26- 30 * I C400 XU532A00 I C HD74HC139FPEL 2- 4 I C401 XY115A00 I C M66004MAFP- 200C I C500 XB247A00 I C uPC4570HA * I C700 XY525A00 I C PQ1CG2032FZ * I C701 XY525A00 I C PQ1CG2032FZ * I C702 Xi 165A00 I C M5237L * I C703 XP264A00 I C NJ M79L05A- T3 * I C900 X0226A00 I C SP232ECP J K500 V5129000 J ACK. PHONE YKB26- 5236 L500 VD473700 COI L 60uH L501 VD473700 COI L 60uH L502 VD473700 COI L 60uH L503 Vi 491100 FER. CORE BP53RB19012080M s L600 VV900900 FLTR 3071- 012- 0 * L700 V6673100 COI L 3145- 044- 0Y01 * L701 V6673100 COI L 3145- 044- 0Y01 L702 V4769500 FER. BEAD RH03506BT- B- 1B L703 V4769500 FER. BEAD RH03506BT- B- 1B L704 V4769500 FER. BEAD RH03506BT- B- 1B L705 V4769500 FER. BEAD RH03506BT- B- 1B L706 V4769500 FER. BEAD RH03506BT- B- 1B L707 V4769500 FER. BEAD RH03506BT- B- 1B L708 V4769500 FER. BEAD RH03506BT- B- 1B L709 V4769500 FER. BEAD RH03506BT- B- 1B L710 V4769500 FER. BEAD RH03506BT- B- 1B L711 V4769500 FER. BEAD RH03506BT- B- 1B L760 V4769500 FER. BEAD RH03506BT- B- 1B L761 V4769500 FER. BEAD RH03506BT- B- 1B L762 V4769500 FER. BEAD RH03506BT- B- 1B L763 V4769500 FER. BEAD RH03506BT- B- 1B L764 V4769500 FER. BEAD RH03506BT- B- 1B * L900 VS150200 FLTR. LC. RF ST B101KBTBM * L901 VS150200 FLTR. LC. RF ST B101KBTBM L902 Vi 491100 FER. CORE BP53RB19012080M PN400 V3750100 PI N L=50 PN401 V3750100 PI N L=50 PN402 V3750100 PI N L=50 PN403 V3750100 PI N L=50 PN500 V3750100 PI N L=50 PN600 V3750200 PI N L=70 PN700 V3750200 PI N L=70 PN701 V3750100 PI N L=50 PN702 V3750100 PI N L=50 PN900 V3750100 PI N L=50 Q400 VD678500 TR. DGT DTA114ES Q401 VD678500 TR. DGT DTA114ES Q402 VD678500 TR. DGT DTA114ES Q403 VD678700 TR. DGT DTC114ES Q404 VD678700 TR. DGT DTC114ES Q405 VD678700 TR. DGT DTC114ES Q406 VD678700 TR. DGT DTC114ES Q407 i C287820 TR 2SC2878 A, B Q408 VD678700 TR. DGT DTC114ES Q409 VD678700 TR. DGT DTC114ES Q450 VD678700 TR. DGT DTC114ES s Q700 i A093320 TR 2SA933S Q, R * Q702 V2650900 TR 2SB1314 E, F s Q703 i A093320 TR 2SA933S Q, R Q750 VS883400 TR 2SD2394 E, F R440 HV753220 R. CAR. FP 2. 2Ω 1/4W Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B.OPERATION & P.C.B. MAIN Schm Ref. PART NO. Description Markets ✻ New Parts R500 HV755100 R. CAR. FP 100Ω 1/4W R509 HV755100 R. CAR. FP 100Ω 1/4W s R700 HV753220 R. CAR. FP 2. 2Ω 1/4W s R701 HV755100 R. CAR. FP 100Ω 1/4W s R705 HV755100 R. CAR. FP 100Ω 1/4W R710 HV755100 R. CAR. FP 100Ω 1/4W R714 HV753100 R. CAR. FP 1Ω 1/4W R716 HV755180 R. CAR. FP 180Ω 1/4W R717 HV754470 R. CAR. FP 47Ω 1/4W R719 HV755100 R. CAR. FP 100Ω 1/4W R720 HV755100 R. CAR. FP 100Ω 1/4W R721 HV755100 R. CAR. FP 100Ω 1/4W s R750 HV753220 R. CAR. FP 2. 2Ω 1/4W R751 HV757100 R. CAR. FP 10KΩ 1/4W R752 HV755100 R. CAR. FP 100Ω 1/4W s R760 HV753220 R. CAR. FP 2. 2Ω 1/4W s R761 HV753220 R. CAR. FP 2. 2Ω 1/4W s R762 HV753220 R. CAR. FP 2. 2Ω 1/4W s R763 HV753220 R. CAR. FP 2. 2Ω 1/4W s R764 HV753220 R. CAR. FP 2. 2Ω 1/4W s R765 HV755220 R. CAR. FP 220Ω 1/4W R900 HV753100 R. CAR. FP 1Ω 1/4W SW400 VG392900 SW. TACT SKHVAA SW401 VG392900 SW. TACT SKHVAA SW402 VG392900 SW. TACT SKHVAA SW403 VG392900 SW. TACT SKHVAA SW404 VG392900 SW. TACT SKHVAA SW405 VG392900 SW. TACT SKHVAA SW406 VG392900 SW. TACT SKHVAA SW407 VG392900 SW. TACT SKHVAA SW408 VG392900 SW. TACT SKHVAA SW409 VG392900 SW. TACT SKHVAA SW410 VG392900 SW. TACT SKHVAA SW411 VG392900 SW. TACT SKHVAA SW412 VG392900 SW. TACT SKHVAA SW413 VG392900 SW. TACT SKHVAA SW414 VG392900 SW. TACT SKHVAA SW415 VG392900 SW. TACT SKHVAA SW416 VG392900 SW. TACT SKHVAA SW417 VG392900 SW. TACT SKHVAA * SW418 V7597700 SW. RT. ENC EC12E2424404 SW550 VZ364100 SW. PUSH SDDLD1- A2- F- 1 * TH700 VV458000 SW RUE250 2. 50A 30V * TH701 VV458000 SW RUE250 2. 50A 30V * TH702 VV457600 SW RUE090 0. 90A 30V U400 VU591000 L. DTCT GP1U271X * V400 V7446200 FL. DSPLY BJ 838GN * VR400 V6619600 VR B50KΩ RK14K12C0 * VR500 V7502400 VR A20KΩ RK09L12B0 VQ859800 SHEET. FL * V8080700 SPACER. FL V6100600 SUPRT EG330030 SCR. BND. HD 3x6 MFCR3BL * V8297500 SPACER. LED * V7454900 P. C. B. MAI N CB1 V4325300 CN 2P CB2 VL845300 CN. BS. PI N 9P CB3 VP082900 CN. BS. PI N 25P * CB4 V6451700 CN. BS. PI N 16P TE CB5 VB389800 CN. BS. PI N 2P 40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 41 Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B. MAIN Schm Ref. PART NO. Description Markets ✻ New Parts CB140 VB390000 CN. BS. PI N 4P CB200 V4164300 L. EMI T TOTX178A CB201 V5478200 CN. PHOT. SN 1P GP1FA551RZ CB203 VB390200 CN. BS. PI N 6P CB204 VB390300 CN. BS. PI N 7P C1 US061330 C. CE. M. CHP 33pF 50V C2 US061330 C. CE. M. CHP 33pF 50V C3 US061330 C. CE. M. CHP 33pF 50V C4 US061330 C. CE. M. CHP 33pF 50V C5 US061330 C. CE. M. CHP 33pF 50V C6 US061330 C. CE. M. CHP 33pF 50V C7 US061330 C. CE. M. CHP 33pF 50V C8 US061330 C. CE. M. CHP 33pF 50V C9 US061330 C. CE. M. CHP 33pF 50V C10 US061330 C. CE. M. CHP 33pF 50V C11 US061330 C. CE. M. CHP 33pF 50V C12 US061330 C. CE. M. CHP 33pF 50V C13 US061330 C. CE. M. CHP 33pF 50V C14 US061330 C. CE. M. CHP 33pF 50V C15 US061330 C. CE. M. CHP 33pF 50V C16 US061330 C. CE. M. CHP 33pF 50V C17 US135100 C. CE. CHP 0. 1uF 16V C18 UF017470 C. EL. CHP 47uF 6. 3V C19 US063100 C. CE. M. CHP 1000pF 50V C20 US063100 C. CE. M. CHP 1000pF 50V C21 US063100 C. CE. M. CHP 1000pF 50V C22 US063100 C. CE. M. CHP 1000pF 50V C23 US063100 C. CE. M. CHP 1000pF 50V C24 US063100 C. CE. M. CHP 1000pF 50V C25 US063100 C. CE. M. CHP 1000pF 50V C26 US063100 C. CE. M. CHP 1000pF 50V C27 US063100 C. CE. M. CHP 1000pF 50V C28 US063100 C. CE. M. CHP 1000pF 50V C29 US061330 C. CE. M. CHP 33pF 50V C30 US061330 C. CE. M. CHP 33pF 50V C31 US061330 C. CE. M. CHP 33pF 50V C32 US061330 C. CE. M. CHP 33pF 50V C33 US061330 C. CE. M. CHP 33pF 50V C34 US061330 C. CE. M. CHP 33pF 50V C35 US061330 C. CE. M. CHP 33pF 50V C36 US061330 C. CE. M. CHP 33pF 50V C37 US061330 C. CE. M. CHP 33pF 50V C38 US061330 C. CE. M. CHP 33pF 50V C39 US061330 C. CE. M. CHP 33pF 50V C40 US061330 C. CE. M. CHP 33pF 50V C41 US061330 C. CE. M. CHP 33pF 50V C42 US061330 C. CE. M. CHP 33pF 50V C43 US061330 C. CE. M. CHP 33pF 50V C44 US061330 C. CE. M. CHP 33pF 50V C45 US061330 C. CE. M. CHP 33pF 50V C46 US135100 C. CE. CHP 0. 1uF 16V C47 UF017470 C. EL. CHP 47uF 6. 3V C48 US061150 C. CE. CHP 15pF 50V C49 US061150 C. CE. CHP 15pF 50V C50 US063100 C. CE. M. CHP 1000pF 50V C51 US063100 C. CE. M. CHP 1000pF 50V C52 US063100 C. CE. M. CHP 1000pF 50V C53 US063100 C. CE. M. CHP 1000pF 50V C54 US063100 C. CE. M. CHP 1000pF 50V C55 US063100 C. CE. M. CHP 1000pF 50V C56 UF017470 C. EL. CHP 47uF 6. 3V C57 US135100 C. CE. CHP 0. 1uF 16V C58 US135100 C. CE. CHP 0. 1uF 16V C59 US135100 C. CE. CHP 0. 1uF 16V C60 US062470 C. CE. M. CHP 470pF 50V C61 US061270 C. CE. M. CHP 27pF 50V C62 US061270 C. CE. M. CHP 27pF 50V C63 US135100 C. CE. CHP 0. 1uF 16V C64 US063100 C. CE. M. CHP 1000pF 50V C65 UR819100 C. EL 1000uF 6. 3V C66 US135100 C. CE. CHP 0. 1uF 16V C67 UF017470 C. EL. CHP 47uF 6. 3V C68 US061150 C. CE. CHP 15pF 50V C69 US061150 C. CE. CHP 15pF 50V C70 US135100 C. CE. CHP 0. 1uF 16V C71 US135100 C. CE. CHP 0. 1uF 16V C72 US135100 C. CE. CHP 0. 1uF 16V C73 US135100 C. CE. CHP 0. 1uF 16V C74 US135100 C. CE. CHP 0. 1uF 16V C75 US135100 C. CE. CHP 0. 1uF 16V C76 US135100 C. CE. CHP 0. 1uF 16V C77 US135100 C. CE. CHP 0. 1uF 16V C78 US135100 C. CE. CHP 0. 1uF 16V C79 US135100 C. CE. CHP 0. 1uF 16V C80 US135100 C. CE. CHP 0. 1uF 16V C81 US135100 C. CE. CHP 0. 1uF 16V C82 UF037100 C. EL. CHP 10uF 16V C83 US063100 C. CE. M. CHP 1000pF 50V C84 US135100 C. CE. CHP 0. 1uF 16V C85 US135100 C. CE. CHP 0. 1uF 16V C86 US135100 C. CE. CHP 0. 1uF 16V C88 US135100 C. CE. CHP 0. 1uF 16V C89 US135100 C. CE. CHP 0. 1uF 16V C90 US135100 C. CE. CHP 0. 1uF 16V C91 US135100 C. CE. CHP 0. 1uF 16V C92 US135100 C. CE. CHP 0. 1uF 16V C93 UF017470 C. EL. CHP 47uF 6. 3V C94 US063100 C. CE. M. CHP 1000pF 50V C95 US063100 C. CE. M. CHP 1000pF 50V C96 US063100 C. CE. M. CHP 1000pF 50V C97 US135100 C. CE. CHP 0. 1uF 16V C98 UF018100 C. EL. CHP 100uF 6. 3V C99 US135100 C. CE. CHP 0. 1uF 16V C100 US163100 C. CE. CHP 1000pF 50V C101 VR169200 C. MYLAR. ML ECQ- V1H474J L3 C102 US062100 C. CE. M. CHP 100pF 50V C103 US135100 C. CE. CHP 0. 1uF 16V C104 US063470 C. CE. CHP 4700pF 50V C140 US135100 C. CE. CHP 0. 1uF 16V C141 US135100 C. CE. CHP 0. 1uF 16V C142 US135100 C. CE. CHP 0. 1uF 16V C143 US135100 C. CE. CHP 0. 1uF 16V C144 UF017470 C. EL. CHP 47uF 6. 3V C145 US061100 C. CE. M. CHP 10pF 50V C200 US135100 C. CE. CHP 0. 1uF 16V C201 US062330 C. CE. M. CHP 330pF 50V C202 US135100 C. CE. CHP 0. 1uF 16V C204 UF017470 C. EL. CHP 47uF 6. 3V C205 US135100 C. CE. CHP 0. 1uF 16V * C206 UF027330 C. EL. CHP 33uF 10V C207 US062330 C. CE. M. CHP 330pF 50V C208 UF037220 C. EL. CHP 22uF 16V C209 US135100 C. CE. CHP 0. 1uF 16V C215 US135100 C. CE. CHP 0. 1uF 16V C216 US135100 C. CE. CHP 0. 1uF 16V C217 US061100 C. CE. M. CHP 10pF 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 Schm Ref. PART NO. Description Markets ✻ New Parts P.C.B. MAIN Schm Ref. PART NO. Description Markets ✻ New Parts C218 UF066100 C. EL. CHP 1uF 50V C219 US063100 C. CE. M. CHP 1000pF 50V C220 US044220 C. CE. M. CHP 0. 022uF 25V C227 US135100 C. CE. CHP 0. 1uF 16V C228 US061330 C. CE. M. CHP 33pF 50V C229 US135100 C. CE. CHP 0. 1uF 16V C230 US135100 C. CE. CHP 0. 1uF 16V C231 UF017470 C. EL. CHP 47uF 6. 3V C232 US063470 C. CE. CHP 4700pF 50V C233 US135100 C. CE. CHP 0. 1uF 16V C234 US135100 C. CE. CHP 0. 1uF 16V C237 US135100 C. CE. CHP 0. 1uF 16V C239 US135100 C. CE. CHP 0. 1uF 16V C240 VG286600 C. EL 1000uF 6. 3V C241 UF017470 C. EL. CHP 47uF 6. 3V C242 UF017470 C. EL. CHP 47uF 6. 3V C243 UF017470 C. EL. CHP 47uF 6. 3V C244 UA653100 C. MYLAR 1000pF 50V C245 UA653100 C. MYLAR 1000pF 50V C246 US135100 C. CE. CHP 0. 1uF 16V C247 UF018100 C. EL. CHP 100uF 6. 3V C248 US135100 C. CE. CHP 0. 1uF 16V C250 VG287600 C. EL 100uF 25V C251 VG287600 C. EL 100uF 25V C252 VG287600 C. EL 100uF 25V C253 VG287600 C. EL 100uF 25V * C254 VG287700 C. EL 220uF 25V C255 UA653150 C. MYLAR 1500pF 50V * C256 VG287700 C. EL 220uF 25V C257 UA652220 C. MYLAR 220pF 50V * C258 VG287700 C. EL 220uF 25V C259 UA653150 C. MYLAR 1500pF 50V * C260 VG287700 C. EL 220uF 25V C261 UA652220 C. MYLAR 220pF 50V C262 US135100 C. CE. CHP 0. 1uF 16V C263 VG290900 C. EL 10uF 50V C264 VG287600 C. EL 100uF 25V C265 VG287600 C. EL 100uF 25V C266 US135100 C. CE. CHP 0. 1uF 16V C267 VG290900 C. EL 10uF 50V C268 UA652220 C. MYLAR 220pF 50V C269 VG287600 C. EL 100uF 25V C270 VG287600 C. EL 100uF 25V C271 UA652220 C. MYLAR 220pF 50V C272 VG287600 C. EL 100uF 25V C273 VG287600 C. EL 100uF 25V C274 VG287500 C. EL 47uF 50V C275 VG287500 C. EL 47uF 50V C276 US062150 C. CE. CHP 150pF 50V C277 US062150 C. CE. CHP 150pF 50V C278 US062150 C. CE. CHP 150pF 50V C279 US062150 C. CE. CHP 150pF 50V C280 US135100 C. CE. CHP 0. 1uF 16V C281 US062150 C. CE. CHP 150pF 50V C282 US135100 C. CE. CHP 0. 1uF 16V C283 US062150 C. CE. CHP 150pF 50V C284 UA652220 C. MYLAR 220pF 50V * C285 UA652390 C. MYLAR 390pF 50V C286 UA652220 C. MYLAR 220pF 50V * C287 UA652390 C. MYLAR 390pF 50V C288 UA653100 C. MYLAR 1000pF 50V C289 UA653100 C. MYLAR 1000pF 50V C300 US135100 C. CE. CHP 0. 1uF 16V C301 UF018100 C. EL. CHP 100uF 6. 3V * D1 VQ721800 DI ODE. CHP MA732 D2 VT332900 DI ODE 1SS355 D200 VU992600 DI ODE. ZENR MA8051- M 5. 1V D201 VT332900 DI ODE 1SS355 D202 VT332900 DI ODE 1SS355 D203 VT332900 DI ODE 1SS355 D204 VT332900 DI ODE 1SS355 D205 VT332900 DI ODE 1SS355 * I C1 XP985A00 I C SN74LS06NSR I NV/BU I C2 XU147A00 I C HD6417014F28 CPU * I C3 XZ073A00 I C YDC126- F * I C4 XL122A00 I C PST572CMT- R * I C5 XY707A00 I C I S41C16100S- 50K I C7 XV077B00 I C MSM514260E- 60J S * I C8 XD657A00 I C TC74HC14AF- TP1 SOP * I C9 XR339A00 I C TC9246F- TEL PLL * I C11 X0419B00 I C MBM29F800BA- 70PFTN I C200 XD660A00 I C TC74HCU04AF- TP1 I C201 XL091A00 I C HD74HC02FPEL NOR I C202 XR038A00 I C NJ M2904M OP AMP I C203 XQ185A00 I C NJ M2100M I C204 XQ185A00 I C NJ M2100M I C205 XQ178A00 I C NJ M4580E- T1 OP AMP I C206 XG903A00 I C TC4052BF MPX I C208 XW526A00 I C YSD917 * I C210 XY624A00 I C AK4528VF * L1 VY657500 COI L. CHP 120uH * L2 VR355700 COI L. CHP 220uH * L3 VR355700 COI L. CHP 220uH L200 Vi 530800 TRANS. PULS 3PTD- 001 * L201 VR355700 COI L. CHP 220uH * L202 VR355700 COI L. CHP 220uH * L203 VR355700 COI L. CHP 220uH L204 VD473700 COI L 60uH L205 VD473700 COI L 60uH L206 VD473700 COI L 60uH L207 VD473700 COI L 60uH * PJ 200 V4846000 J ACK. PI N 1P * PJ 201 V4846000 J ACK. PI N 1P PJ 202 V2020500 J ACK. PI N 4P Q1 VV556400 TR 2SC2412K Q, R, S Q2 VV655400 TR. DGT DTC114EKA Q200 VC123900 TR. DGT DTA143EK Q201 VZ725900 TR 2SD1938F S, T Q202 VZ725900 TR 2SD1938F S, T Q203 VZ725900 TR 2SD1938F S, T Q204 VZ725900 TR 2SD1938F S, T R1 HV753220 R. CAR. FP 2. 2Ω 1/4W R2 HV753220 R. CAR. FP 2. 2Ω 1/4W R155 HV753220 R. CAR. FP 2. 2Ω 1/4W R236 HV753470 R. CAR. FP 4. 7Ω 1/4W * TE1 V5739200 CN. BS. PI N 2120- 40SF1BN XL1 VV762900 RSNR. CRYS 7MHz SMD- 49 XL2 V3625700 RSNR. CRYS 24. 576MHz 42 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 43 Schm Ref. PART NO. Description Markets ✻ New Parts Chip Resistors Schm Ref. PART NO. Description Markets ✻ New Parts RD354100 R. CAR. CHP 10Ω 1/10W RD354220 R. CAR. CHP 22Ω 1/10W RD354470 R. CAR. CHP 47Ω 1/16W RD354750 R. CAR. CHP 75Ω 1/10W RD355100 R. CAR. CHP 100Ω 1/10W RD355220 R. CAR. CHP 220Ω 1/10W RD355330 R. CAR. CHP 330Ω 1/10W RD356100 R. CAR. CHP 1KΩ 1/10W RD356150 R. CAR. CHP 1. 5KΩ 1/10W RD356220 R. CAR. CHP 2. 2KΩ 1/10W RD356330 R. CAR. CHP 3. 3KΩ 1/10W RD356470 R. CAR. CHP 4. 7KΩ 1/10W RD356560 R. CAR. CHP 5. 6KΩ 1/10W RD357100 R. CAR. CHP 10KΩ 1/10W RD357220 R. CAR. CHP 22KΩ 1/10W RD357470 R. CAR. CHP 47KΩ 1/10W RD357560 R. CAR. CHP 56KΩ 1/10W RD357910 R. CAR. CHP 91KΩ 1/10W RD358100 R. CAR. CHP 100KΩ 1/10W RD358220 R. CAR. CHP 220KΩ 1/10W RD358470 R. CAR. CHP 470KΩ 1/10W RD359100 R. CAR. CHP 1MΩ 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D E 1 2 3 4 5 6 7 CDR-HD1000 CDR-HD1000 45 11 56 56 22 56 56 56 56 6 12 45 50 52 52 51 51 77 77 31 13 19 15 54 47 46 46 1-33 1-14 1-22 1-15 1-11 1-28 1-17 1-19 1-33 1-33 1-33 1-33 1-33 1-35 1-36 1-31 1-30 1-30 1-23 1-32 1-18 1-25 1-21 1-7 1-7 1-5 1-7 1-27 56 54 56 39 38 38 37 37 37 33 33 57 57 37 49 49 56 56 56 66 32 56 35 40 34 32 6 7 16 50 50 50 57 57 14 56 72 56 56 56 55 202 203 200 200-1 55 25 56 62 59 56 56 56 17 18 4-31 4-31 4-31 4-31 4-32 4-32 4-32 4-1 4-32 3-21 3-13 3-14 3-17 3-7 3-1 3-21 3-15 3-22 3-22 61 72 74 (7) 6 (6) 6 (1) 6 (3) 6 (5) 6 (4) 6 (2) (8) 75 67 56 56 71 U,C U,C U,C U,C U,C U,C U,C U,C U,C U,C 56 29 A,G U,C U,C U,C U,C I EXPLODED VIEW 44 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 45 I MECHANICAL PARTS ✻ New Parts Ref. No. PART NO. Description Remarks Markets * 1- 5 V8463800 FLEXI BLE FLAT CABLE 25P UC * 1- 5 V7986200 FLEXI BLE FLAT CABLE 25P 400mm P=1. 25 AG 1- 7 VQ368600 PUSH RI VET P3555- B * 1- 11 V6665300 FRONT PANEL BL * 1- 14 V6741300 LENS, LED * 1- 15 V6741500 WI NDOW PANEL, LI D * 1- 17 V7359800 REFLECTOR PS * 1- 18 V7416900 REFLECTOR/CASE * 1- 19 V7416200 PLATE SI DE/R BL * 1- 21 V7416500 PLATE SI DE/L BL * 1- 22 V7416800 SHEET/DI FFUSI ON * 1- 23 V8080100 PLATE/ASSY 1- 25 V5914500 BUTTON/D12 BL 1- 27 V6034100 EMBLEM BL 1- 28 V6094800 ESCUTCHEON/PW BL * 1- 30 V8080300 DAMPER/FP * 1- 31 V8146700 EARTH PLATE/CENTER UC 1- 32 VN413300 BI ND HEAD BONDI NG B- T. SCREW 3x8 MFZN2BL 1- 33 EP600730 BI ND HEAD P- TI TE SCREW 3x8 MFC2BL 1- 35 EP600410 BI ND HEAD S- TI TE SCREW 3x6 MFZN2Y UC * 1- 36 V8458100 SHEET/A UC * 3- 1 V7691100 CDR FI NAL PRODUCT CRW2100AML * 3- 7 V7790200 CONNECTOR ASS' Y 4P 70mm C&C * 3- 13 V6445800 PACKI NG/FFC * 3- 14 V7276900 RADI ATI ON SHEET 8x16 * 3- 15 V7881200 CUSHI ON/CDR * 3- 17 V8147000 LABEL LASER CAUTI ON 3- 21 V6534900 BI ND HEAD S- TI TE SCREW 2. 6x5 MFZN2BL 3- 22 EP620100 BI ND HEAD P- TI TE SCREW 2. 6x8 MFZN2Y * 4- 1 V8002000 HARD DI SK DRI VE 3. 50i nch I C35L020 * 4- 31 VV452200 PAN HEAD SCREW UN#6x32 MFZN2Y * 4- 32 03765170 SPRI NG WASHER 4. 0 #2 * 6 V7455000 P. C. B. ASS' Y OPERATI ON * 7 V7454900 P. C. B. ASS' Y MAI N s 11 V2363800 POWER CORD ASS' Y UC s 11 V2296800 POWER CORD ASS' Y A s 11 VN363700 POWER CORD ASS' Y G 12 V2438700 CORD STOPPER 10P1 s 13 X0211A00 POWER TRANSFORMER UC s 13 X0212A00 POWER TRANSFORMER A * s 13 X0213A00 POWER TRANSFORMER G * 14 V7719700 DC FAN MOTOR DC D06T- 12TL07( EX) * 15 V7790700 CONNECTOR ASS' Y 10P 250mm C&C * 16 V7966200 CONNECTOR ASS' Y 2P 140mm C&C 2. 5 * 17 V7966300 CONNECTOR ASS' Y 4P 180mm C&C 3. 96 * 18 V7790800 CONNECTOR, FLAT CABLE 40P 430mm P=2. 0 19 VU590000 BI NDI NG TI E CBTD001B * 22 V6636300 REAR PANEL UC * 22 V6675800 REAR PANEL A * 22 V6675900 REAR PANEL G 25 VZ876700 TOP COVER BL 29 VQ775900 GROUND PLATE AG * 31 V7418600 LI D/ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 ✻ New Parts Ref. No. PART NO. Description Remarks Markets 32 VR264400 SPACER H8 33 VQ780300 LEG D60xH16 BL * 34 V8001500 DAMPER/SI DE 35 VQ390100 DAMPER 8x8x15 * 37 V7993800 DAMPER/SCREW * 38 V7880200 STOPPER/A * 39 V7880300 STOPPER/B * 40 V7880400 STOPPER/C * 45 V8080500 CUSHI ON/FAN 46 V6101000 KNOB HP BL * 47 V7357900 KNOB D26 BL * 49 V7881000 DAMPER/D9 * 50 V8080600 CUSHI ON 10x20 51 VT669300 PW HEAD B- TI TE SCREW 3x8- 8 MFC2 52 VT669400 PW HEAD B- TI TE SCREW 3x15- 8 MFC2 54 V2728500 BI ND HEAD S- TI TE SCREW 4x7 MFZN2BL 55 21991500 PW HEAD S- TI TE SCREW 4x8- 10 MFC2BL BL 56 VN413300 BI ND HEAD BONDI NG B- T. SCREW 3x8 MFZN2BL 57 EP600250 BI ND HEAD B- TI TE SCREW 3x8 MFZN2Y 59 V6509600 J ACK SCREW SS6- A47511848 * 61 VY734700 FERRI TE CORE ZCAT2032- 0930 * 62 VV910400 FERRI TE CORE ZCAT3035- 1330 * 66 V8146500 EARTH PLATE/BOTTOM UC * 67 V8146600 EARTH PLATE/TOP UC * 71 V8457900 SHI ELD/ATA UC * 72 V8393500 DAMPER 28x40 UC * 74 V8458200 SHEET UC * 75 V8458300 DAMPER/EARTH UC * 77 V8393800 SPACER/T0. 2 UC ACCESSORI ES * 200 V7640500 REMOTE CONTROL TRANSMI TTER CDR3 RC7060- 01- 0025 200- 1 AAX13340 LI D BLJ YE 60050001 202 V6326400 OPTI CAL CABLE 1P 0. 6m 1pc 203 VY952200 PI N- PLUG CORD 2P 1. 0m 1pc BATTERY, MANGANESE SUM- 3, AA, R06 46 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 10mm HJ35 1/4W Type 5mm HF85 1/6W Type HF45 1/4W Type Value 1/4W Type Part No. 1/6W Type Part No. 10 kΩ HF45 7100 HF45 7100 11 kΩ HF45 7110 HF45 7110 12 kΩ HJ35 7120 HF85 7120 13 kΩ HF45 7130 HF45 7130 15 kΩ HF45 7150 HF45 7150 18 kΩ HF45 7180 HF45 7180 22 kΩ HF45 7220 HF45 7220 24 kΩ HF45 7240 HF45 7240 27 kΩ HJ35 7270 HF85 7270 30 kΩ HF45 7300 HF45 7300 33 kΩ HF45 7330 HF45 7330 36 kΩ HF45 7360 HF45 7360 39 kΩ HF45 7390 HF45 7390 47 kΩ HF45 7470 HF45 7470 51 kΩ HF45 7510 HF45 7510 56 kΩ HF45 7560 HF45 7560 62 kΩ HF45 7620 HF45 7620 68 kΩ HF45 7680 HF45 7680 82 kΩ HF45 7820 HF45 7820 91 kΩ HF45 7910 HF45 7910 100 kΩ HF45 8100 HF45 8100 110 kΩ HF45 8110 HF45 8110 120 kΩ HF45 8120 HF45 8120 150 kΩ HF45 8150 HF45 8150 180 kΩ HF45 8180 HF45 8180 220 kΩ HJ35 8220 HF85 8220 270 kΩ HF45 8270 HF45 8270 300 kΩ HF45 8300 HF45 8300 330 kΩ HF45 8330 HF45 8330 390 kΩ HJ35 8390 HF85 8390 470 kΩ HF45 8470 HF45 8470 560 kΩ HJ35 8560 HF85 8560 680 kΩ HJ35 8680 HF85 8680 820 kΩ HJ35 8820 HF85 8820 1.0 MΩ HF45 9100 HF45 9100 1.2 MΩ HJ35 9120 ❊ 1.5 MΩ HJ35 9150 HF85 9150 1.8 MΩ HJ35 9180 HF85 9180 2.2 MΩ HJ35 9220 HF85 9220 3.3 MΩ HJ35 9330 HF85 9330 3.9 MΩ HJ35 9390 ❊ 4.7 MΩ HJ35 9470 HF85 9470 Value 1/4W Type Part No. 1/6W Type Part No. 1.0 Ω HJ35 3100 HF85 3100 1.8 Ω HJ35 3180 ❊ 2.2 Ω HJ35 3220 HF85 3220 3.3 Ω HJ35 3330 HF85 3330 4.7 Ω HJ35 3470 HF85 3470 5.6 Ω HJ35 3560 HF85 3560 10 Ω HF45 4100 HF45 4100 15 Ω HJ35 4150 HF85 4150 22 Ω HF45 4220 HF45 4220 27 Ω HJ35 4270 HF85 4270 33 Ω HF45 4330 HF45 4330 39 Ω HJ35 4470 HF85 4390 47 Ω HF45 4470 HF45 4470 56 Ω HF45 4560 HF45 4560 68 Ω HF45 4680 HF45 4680 75 Ω HF45 4750 HF45 4750 82 Ω HF45 4820 HF45 4820 91 Ω HF45 4910 HF45 4910 100 Ω HF45 5100 HF45 5100 110 Ω HJ35 5110 HF85 5110 120 Ω HF45 5120 HF45 5120 150 Ω HF45 5150 HF45 5150 160 Ω HJ35 5160 ❊ 180 Ω HF45 5180 HF45 5180 200 Ω HF45 5200 HF45 5200 220 Ω HF45 5220 HF45 5220 270 Ω HF45 5270 HF45 5270 330 Ω HF45 5330 HF45 5330 390 Ω HF45 5390 HF45 5390 430 Ω HF45 5430 HF45 5430 470 Ω HF45 5470 HF45 5470 510 Ω HF45 5510 HF45 5510 560 Ω HF45 5560 HF45 5560 680 Ω HF45 5680 HF45 5680 820 Ω HF45 5820 HF45 5820 910 Ω HF45 5910 HF45 5910 1.0 kΩ HF45 6100 HF45 6100 1.2 kΩ HF45 6120 HF45 6120 1.5 kΩ HF45 6150 HF45 6150 1.8 kΩ HF45 6180 HF45 6180 2.0 kΩ HJ35 6200 HF85 6200 2.2 kΩ HF45 6220 HF45 6220 2.4 kΩ HJ35 6240 HF85 6240 2.7 kΩ HF45 6270 HF45 6270 3.0 kΩ HF45 6300 HF45 6300 3.3 kΩ HF45 6330 HF45 6330 3.6 kΩ HJ35 6360 HF85 6360 3.9 kΩ HF45 6390 HF45 6390 4.7 kΩ HF45 6470 HF45 6470 5.1 kΩ HF45 6510 HF45 6510 5.6 kΩ HF45 6560 HF45 6560 6.8 kΩ HF45 6680 HF45 6680 8.2 kΩ HF45 6820 HF45 6820 9.1 kΩ HF45 6910 HF45 6910 Parts List for Carbon Resistors ❊ : Not available 47 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 CDR-HD1000 48 IC1 : JT7060–25 KI/O6 KI/O7 S0 S1 REM VDD X OUT X IN GND RESET KI/O5 KI/O4 KI/O3 KI/O2 KI/O1 KI/O0 KI3 KI2 KI1 KI0 IR-LED Q1 2SD1781KR R2 220Ω DC3V B1 C1 47µF/16 X1 455kHz C2 100P C3 100P C4 0.1µF 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 29 25 21 17 13 9 5 1 30 26 22 18 14 10 6 2 31 27 23 19 15 11 7 3 32 28 24 20 16 12 8 4 38 40 36 34 39 41 37 35 33 R1 1Ω + VCC Key No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Key Name OPEN/CLOSE 6 PQR 5 MNO COPY REC FINALIZE ERASE TRACK NO. WRITE TEXT/TIME INPUT MODE/SET MENU COMPLETE – + CLEAR ENTER 1 ABC 2 DEF 3 GHI 4 JKL Data Code (HEX) 81 A3 A0 A5 A6 A7 9E AB B9 BA B8 BC BB 8C B7 91 92 93 94 95 Custom Code 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 07 7F 7F 7F 7F Custom Code 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F 7F Key No. 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Key Name 0/SPACE BOOKMARK REPEAT RANDOM INTRO GROUP SKIP GROUP SKIP Data Code (HEX) (HEX) (HEX) 97 98 99 90 9A DD 8D 8E 8F DE DF 86 83 87 88 82 89 BE 84 21 96 7F 7F 41 CDR 7 STU HDD 9 YZ 8 VWX +10/SYMBOL BD OPEN/CLOSE TRACK NO. WRITE TEXT/TIME INPUT MODE/SET COMPLETE MENU CLEAR 1 ABC 2 DEF 3 GHI 4 JKL 5 MNO 6 PQR 7 STU 0 SPACE REPEAT RANDOM GROUP SKIP CDR CDR3 V764050 HDD INTRO +10 SYMBOL 8 VWX 9 YZ ENTER COPY FINALIZE ERASE REC BOOKMARK I REMOTE CONTROL TRANSMITTER SCHEMATIC DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR-HD1000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
