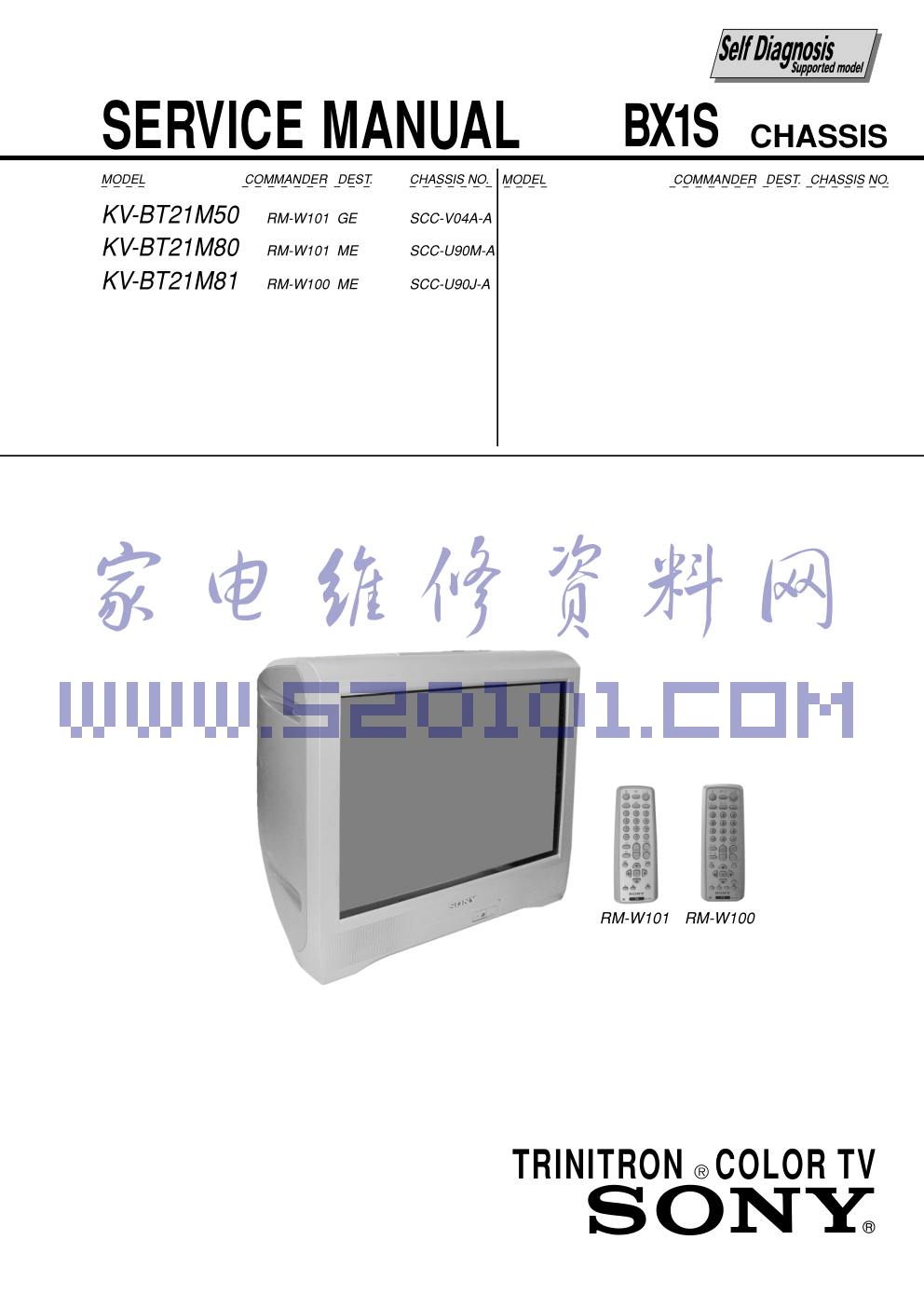

MODEL COMMANDER DEST. CHASSIS NO. CHASSIS TRINITRON ® COLOR TV SERVICE MANUAL BX1S MODEL COMMANDER DEST. CHASSIS NO. KV-BT21M50 RM-W101 GE SCC-V04A-A KV-BT21M80 RM-W101 ME SCC-U90M-A KV-BT21M81 RM-W100 ME SCC-U90J-A RM-W100 RM-W101 家电维修资料网 www.520101.com – 2 – KV-BT21M50/BT21M80/BT21M81 RM-W101 RM-W100 Note Power requirements 110-240 V AC, 50/60 Hz Power consumption (W) Indicated on the rear of the TV Television system B/G, I, D/K, M Color system PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43 Teletext language English, Farsi (Persian) KV-BT21M81 only Channel coverage B/G VHF: E2 to E12 / UHF: E21 to E69 CATV: S01 to S03, S1 to S41 I UHF: B21 to B68 CATV: S01 to S03, S1 to S41 D/K VHF: C1 to C12, R1 to R12 / UHF: C13 to C57, R21 to R60 / CATV: S01 to S03, S1 to S41, Z1 to Z39 M VHF: A2 to A13 / UHF: A14 to A79 / CATV: A-8 to A-2, A to W+4, W+6 to W+84 8 (Antenna) 75-ohm external terminal Audio output (Speaker) 3W + 3W Number of terminal D Video Input: 2 Output: 1 Phono jacks; 1 VP-P, 75 ohms ≥ Audio Input: 2 Output: 1 Phono jacks; 500 mVrms 2 (Headphone) Output: 1 Stereo minijack Picture tube 21 in. Tube size (cm) 54 Measured diagonally Screen size (cm) 51 Measured diagonally Dimension (w/h/d, mm) 497 x 461 x 487 Mass (kg) 23 Design and specifications are subject to change without notice. SPECIFICATIONS SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR CARBON PAINTED ON THE CRT, AFTER REMOVING THE ANODE. 家电维修资料网 www.520101.com – 31 – KV-BT21M50/BT21M80/BT21M81 RM-W101 RM-W100 SECTION 4 DIAGRAMS 4-1. BLOCK DIAGRAM VIF&SIF SAW MAIN Power Supply FSS TUNER AGCin 12C Video L(Mono) Video L(Mono) CV/YC L(Mono) CV/YC L(Mono) CV/YC L(Mono) G/Y B/PB R/PR L Fbl(RGBin) 24.576MHz DVD/RGB AV2 AV3 AV1 Mon Out Audio Amp TV out Mon out AV1 in AV2 in AV3 in RGB/ DVD in 5V 30V IF 24-5.VIF1~2 115. DGC Relay STBY 3.3V AC in ~ 110-220V CISPR/ PFC 3.3V RESET 3.3V 5V 8V 3.3/5V Relay 8V AUDIO VCC HV DGC +/-15V Hout FBT L 1/2ch Audio Amp ATT VAR NVM Pin out H-drive H-out Rot. cct V-out VM RGB Amp feedback 3W Mono 3W R L,R HP mute EHT, ABL Hp 1k EW, Hd V+, V- RGB +B On/Off stdby Device 12C 12C SIRCS Key buttons PLL I/O Port VIF & SIF POWER Color Decoder YUV Processor Jungle RGB FM MONO Dem Volume control ONE CHIP Micro Text CC & V-chip 11.XTALOUT 10.XTALIN 74~76.YUVout 70-72.YUVin 119. KEY IN 126.INT2 98, 99. SCL1, SDA1 108, 109. SCL0, SDA0 102. BINT 122~3. RED/GREEN LED 77.SCARTFBL 78~80.RGB3 34DIRIN R-Y/R,Y/G, B-Y/B IN 31.AGCout 43.IFVO/IF- MON-OUT 62.SCARTHPL 48.MON-OUT 36.OutL 85~87 RGBout 84.lk 65.VM 23. VD+ 22. VD- 112.ROT CTRL 113. ROT SW 21.EWD 67.Hout 66.AFC 32.EHTO 83.ABL 60.LSL 106. AUDIO MUTE 105. AUDIO STDBY 58.CVBS1/Y1 59.C3 56.InL1 55.CVBS3 53.InL3 I/O Port 51.CVBS2/Y2 52.C2 49.InL2 B-INT LED +B line 30V L 家电维修资料网 www.520101.com – 32 – KV-BT21M50/BT21M80/BT21M81 RM-W101 RM-W100 4-2. CIRCUIT BOARDS LOCATION A Board C Board 4-3. SCHEMATIC DIAGRAM Note: • All capacitors are in µF unless otherwise noted. • All electrolytic capacitors are rated at 50V unless otherwise noted. • All resistors are in ohms. kΩ = 1000Ω, MΩ = 1000kΩ • Indication of resistance which does not have rating electrical power is as follows. Pitch: 5 mm Rating electrical power 1/4W (CHIP: 1/10W) • : nonflammable resistor. • : fusible resistor. • ¢ : internal component. • : panel designation or adjustment for repair. • All variable and adjustable resistors have characteristic curve B unless otherwise noted. • Readings are taken with a color-bar signal input. no mark : Common ( ) : PAL [ ] : NTSC 3.58 • Readings are taken with a 10 MΩ digital multimeter. • Voltage are dc with respect to ground unless otherwise noted. • Voltage variations may be noted due to normal production tolerances. • All voltage are in Volt. • ✽ : Cannot be measured. • Circled numbers are waveform references. • : B +bus. • : B –bus. • k : signal path. Note: The reference number which starts with Wxxx (eg: W003) indicates a wire to wire connection. Note: Components marked as XX are not fitted on this model. Reference information RESISTOR : RN METAL FILM : RC SOLID : FPRD NONFLAMMABLE CARBON : FUSE NONFLAMMABLE FUSIBLE : RS NONFLAMMABLE METAL OXIDE : RB NONFLAMMABLE CEMENT : RW NONFLAMMABLE WIREWOUND : ✽ ADJUSTMENT RESISTOR COIL : LF-8L MICRO INDUCTOR CAPACITOR : TA TANTALUM : PS STYROL : PP POLYPROPYLENE : PT MYLAR : MPS METALIZED POLYESTER : MPP METALIZED POLYPROPYLENE : ALB BIPOLAR : ALT HIGH TEMPERATURE : ALR HIGH RIPPLE Note: The component identified by shading and mark ! are critical for safety. Replace only with part number specified. Note: “A” board schematic diagram is divided into 6 blocks. Each block is named by its function and block “alphabet”. eg: Processor (Block A) Joint connection between boards can be identified using the block alphabet followed by sequence numbering. eg: -
