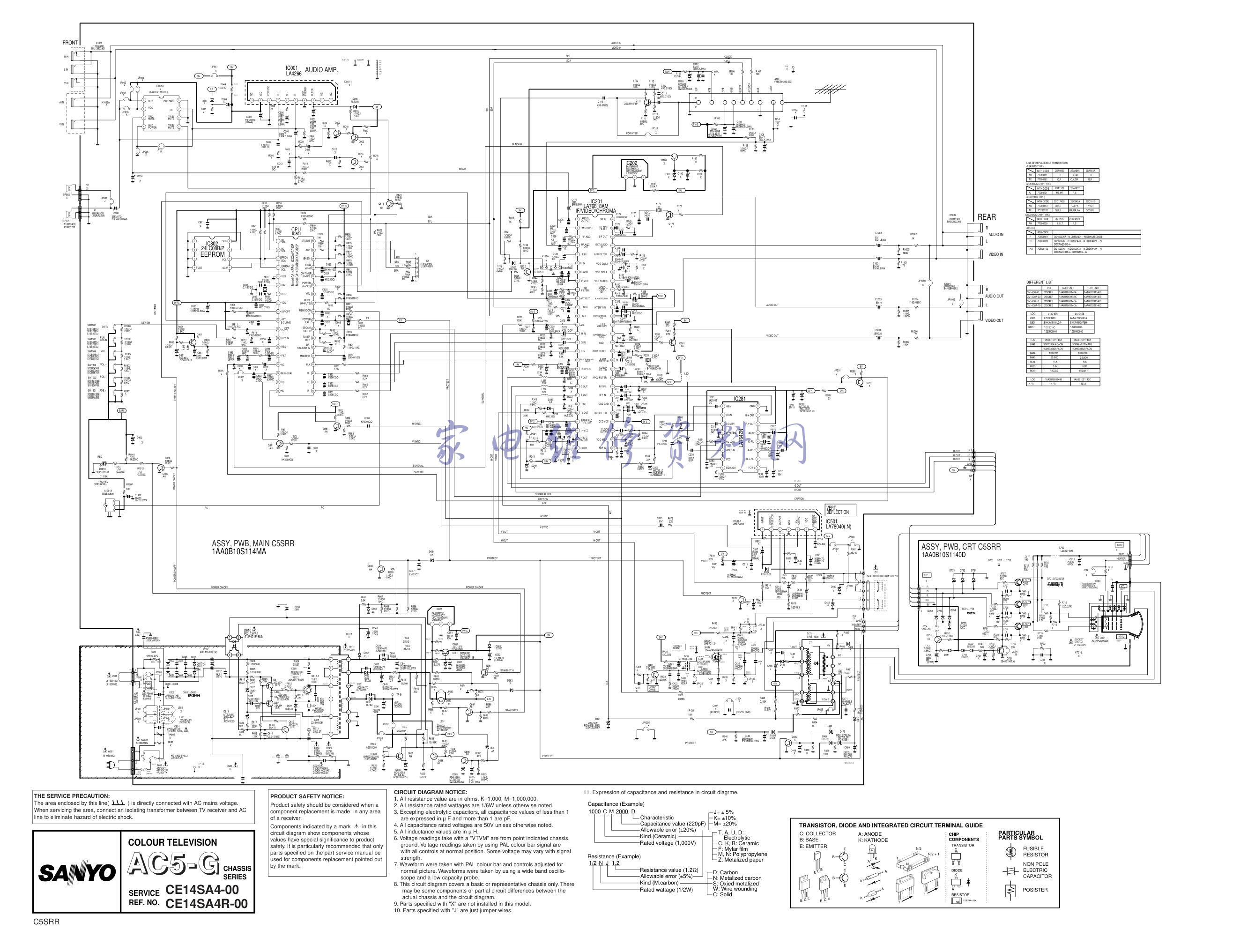

三洋 CE14SA4(AC5-G)彩电图纸

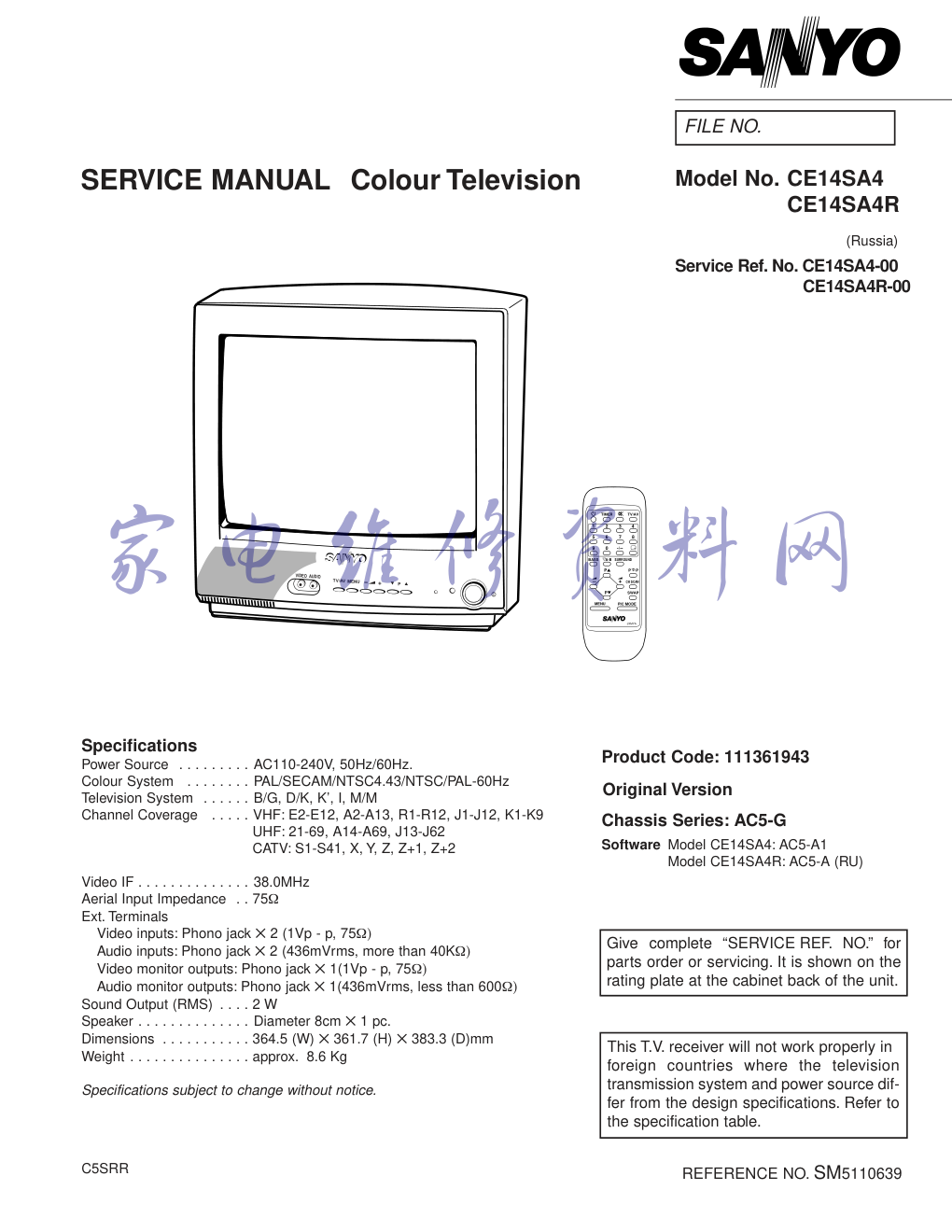

SERVICE MANUAL Colour Television Specifications Power Source . . . . . . . . . AC110-240V, 50Hz/60Hz. Colour System . . . . . . . . PAL/SECAM/NTSC4.43/NTSC/PAL-60Hz Television System . . . . . . B/G, D/K, K’, I, M/M Channel Coverage . . . . . VHF: E2-E12, A2-A13, R1-R12, J1-J12, K1-K9 UHF: 21-69, A14-A69, J13-J62 CATV: S1-S41, X, Y, Z, Z+1, Z+2 Video IF . . . . . . . . . . . . . . 38.0MHz Aerial Input Impedance . . 75Ω Ext. Terminals Video inputs: Phono jack ✕ 2 (1Vp - p, 75Ω) Audio inputs: Phono jack ✕ 2 (436mVrms, more than 40KΩ) Video monitor outputs: Phono jack ✕ 1(1Vp - p, 75Ω) Audio monitor outputs: Phono jack ✕ 1(436mVrms, less than 600Ω) Sound Output (RMS) . . . . 2 W Speaker . . . . . . . . . . . . . . Diameter 8cm ✕ 1 pc. Dimensions . . . . . . . . . . . 364.5 (W) ✕ 361.7 (H) ✕ 383.3 (D)mm Weight . . . . . . . . . . . . . . . approx. 8.6 Kg Specifications subject to change without notice. Original Version Chassis Series: AC5-G C5SRR FILE NO. Model No. CE14SA4 CE14SA4R (Russia) Give complete “SERVICE REF. NO.” for parts order or servicing. It is shown on the rating plate at the cabinet back of the unit. This T.V. receiver will not work properly in foreign countries where the television transmission system and power source dif- fer from the design specifications. Refer to the specification table. 0 7 1 4 8 5 2 3 6 9 P▲ P▼ JXMYA -/-- P P TV/AV A B CH SCAN TIMER MENU PIC MODE SWAP BASS SURROUND Service Ref. No. CE14SA4-00 CE14SA4R-00 Product Code: 111361943 P TV/AV - + VIDEO AUDIO MENU Software Model CE14SA4: AC5-A1 Model CE14SA4R: AC5-A (RU) REFERENCE NO. SM5110639 家电维修资料网 LIST OF REPLACEABLE TRANSISTORS AC AB 7T200182 7T200181 2SA564A 2SA1015 2SA933S Q,R R O,Y,GR Y,GR Q,R R 14TH CODE AJ 7T200221 2SA1179 2SA1037 M6,M7 R,S 14TH CODE (2SA1037K CHIP TYPE) (2SA933S TYPE) AE AD 7QT00202 7T200183 2SC945A 2SC1815 2SC1740S RA,QA,PA QA,PA O,Y,GR Y,GR 14TH CODE AH 7T200220 2SC2812 2SC2412K L6,L7 R,S 14TH CODE (2SC1740S TYPE) (2SC2412K CHIP TYPE) Q,R,S Q,R,S K7U K7VM 1AA0B10S1140D 180V GND 9V HEATER SOCKET FBT Q701/Q703/Q705 B G R 5 3 1 1 B-OUT G-OUT R-OUT PROTECT FRONT REAR B OUT G OUT R OUT GND B G R 5 1 ACL PROTECT VIDEO ABL HEATER AFC GND LOW B +B PROTECT PROTECT SC FO HV HORIZ. DRIVE STAND-BY:L STAND-BY:H SCL SDA STS 1 5 ACK TUNER OPT IF 7.PB 9.TB 1.AGC 3.AS 4.CLOCK 5.DATA 6.MB 11.IF BLK DETECTION INTER Y IN CLAMP FILTER APC2-FILTER R-Y IN B-Y IN G OUT B OUT FSC V-OUT RAMP ALC FILTER R OUT RGB VCC CCD GND CCD FILTER CCD VCC CLOCK OUTPUT H-VCC SIF APC FILTER 4.43M CRYSTAL APC1 FILTER SVD V/VERTICAL/ GND EXT VIDEO IN SDA G IN RF AGC OUT PIF AGC IF VCC IF IN SIF OUT B IN IF IN IF GND APC FILTER VCO COIL1 VCO FILTER VIDEO OUTPUT (2V) VIDEO/VERTICAL VCC FM FILTER R IN VCO COIL2 VCO IREF FAST BLANKING INPUT H-AFC FILTER AFT OUT EXT.AUDIO IN AUDIO OUTPUT SCL ABL SIF IN FM OUTPUT MUTE (H=MUTE) SECAM KILLER SIF STATUS1 IN OPT C-SYS (BASS) POWER (L=OFF) ON-TIMER (H=ON) STATUS ACK EPROM SDA EPROM SCL SIF OPT FILT VDD REMOCON IN POWER FAIL VS HS BLK B G R AFT S-CURVE KEY-IN RES XOUT XIN X-SW VIF-M VSS IIC 5DA IIC SCL VOL VSS SDA SCL VDD EEPROM 5.5M RED ACL V-SYNC H-SYNC 2HEF0112-- Q432-1 HEATER 180V GND DATA CLOCK PROTECT POWER ON/OFF RC KEY SW PROTECT POWER ON/OFF PROTECT V OUT INPUT Var OUTPUT INVERTING INPUT OUTPUT VCC GND V OUT H OUT POWER ON/OFF POWER ON/OFF 4.5M ON TIMER POWER ON/OFF PROTECT V OUT H OUT V OUT H-OUT RC H OUT 11 6 5 3 IF POS.+ POS.- VOL.+ VOL.- AV/TV FUN CTION VERT. DEFLECTION H-DRIVE TRANS 4 1 3 1 C603/.../C606 D603/.../D606 KG-1/KG-2/KG-3 J30B0250N 2 1 1 2 KE-1/KE-2 J30B0250N VIDEO IN MONO/ST NC P.F OUTPUT STAGE VCC G OUT B OUT R OUT FO-FIL KILL-FIL ID-FIL 4M-DC B-Y OUT GND EQU-ADJ VCC VIDEO IN KIL-LOW SYYSTEM 4.43M IN SC-IN R-Y OUT 4.43DC 4MIN VIDEO OUT BILINGUAL H-SYNC V-SYNC SDA SCL SCL SDA SDA SCL AUDIO OUT VIDEO OUT ACL V-IN A-IN Q613-1 2HEF 0138-- 1AA0B10S114MA R IN V IN L IN (DIODE) DD1S2076A---N,DD1S2471----N,DDXAAED0434-- 7DD00021 7DD00019 7DD00192 14TH CODE P R AA DD1S2076----N,DD1S2473----N,DDDS442X----N DDXAAED0434-- DD1S2076----N,DD1S2473----N,DDDS442X----N DDXAAED0434--,DD1SS133----N DIFFERENT LIST CM14G8-00 CM14G8A-00 CM14G8A-10 CM14G8-10 013 013C4ER 013C4ER 013C4ES 013C4ES MAIN UNIT 1AA0B10S114BA 1AA0B10S114BA 1AA0B10S114CA 1AA0B10S114CA CRT UNIT 1AA0B10S1140B 1AA0B10S1140B 1AA0B10S1140C 1AA0B10S1140C L902 LOC. Q901 Q901-1 L70B09900 013C4ER 4AA4L70251XTA 013C4ES BXXAVB118LGA- BXXAVB138TSH- * DC0018C * Z20B00800 * Z20B00900 * Z2DC0054- LOC. C441 R434 R445 R514 R516 R518 1AA0B10S114BA 1AA0B10S114CA * CM2D364JACAQN * CM2E364JAPAON 1/2DJ220 2SJ560 15K 5.6K 12DJ3.3 * CMXAV2D394ABS * CM2E394JAPAON 1/2DJ120 2SJ470 12K 8.2K 1/2DJ2.7 LOC. 1AA0B10S1140B 1AA0B10S1140C N / A N / A N / A SP901 SP902 W901 L901 DY L702 K7Q K7P Q705 Q701 Q703 K701-L R718 R719 C721 C702 R723 R724 Q721 R703 R706 R709 R701 R704 C701 C708 R715 R717 R716 R711 R712 R713 C707 R708 C705 R707 R705 C703 R702 R710 J702 R732 D753 D752 D754 J704 Q751 R752 D751 R751 C751 D731 D732 D733 D731 D732 D733 D751/.../754 JS741 R753 D741 D742 R743 Q703A K701-M Q701A Q705A C708A C710 Q901 A34KPU02XXD8 KP R431 T471-H12 D432 C482 R477 D485 R481 R423 R434 R228 C491 C435-H2 C435-H3 L432 L431 C486 R488 R426 C435 C434 C432 R479 D468 R424 C471 C469 D467 R475 T471-H11 T471-H7 T471-H10 T471-H2 Q432-H1 Q432-H2 Q432-H3 T431 R355 R432 C431 Q431 C433 R433 D686 R636 R635 VR631 R637 Q631 R674 R675 T611-H4 R689 T611-H2 T611-H7 R642 R688 C633 Q684 R687 Q683 R686 D633 C643 D634 R663 C662 C644 R661 D661 C661 Q681 R681 D683 C685 R685 C641 C631 D685 R683 R682 D631 L631 R638 R639 R684 D682 T611-H10 Q685 Q686 R662-H1 R662-H2 C006 C510 R511 R510 R357 R356 C176 R804 R805 KX C856 R830 R857 R855 R853 R866 R869 R875 R876 R817 R819 C816 R1913 Q886 R1912 C202 C201 C1902 R1907 R263 R141 R140 R351 C651 IC651 A101 R107 R106 R108 R109 C106 D103 C111 R112 R111 R114 C113 R116 C112 R103 R105 C101 L236 L235 L234 R130 C171 R176 C172 R233 R232 R231 R227 R226 C225 C242 C230 C210 C231 C234 C174 C133 C132 R132 C135 R229 C247 C243 C244 R220 R225 R224 C226 C224 C212 C209 R212 R211 R210 C232 C233 C270 R272 C271 R245 R244 C273 C124 C138 IC201 R115 R121 X161 R122 D122 R124 R125 Q122 C120 C121 C122 C246 R358 R221 R222 R223 R271 C358 IC202 R230 R899 C805 R816 R814 R815 R801 C832 R842 R841 R835 C803 C811 R838 R837 R836 R834 R813 R840 R839 R831 R893 C893 R894 C894 C802 C801 IC801 Q861 R851 R861 C861 D861 R863 R862 IC802 IC501-H2 KQ R886 R1901 IC501 Q432-H4 Q432-H5 R486 R485 D486 R1911 T471-H1 IC501-H1 SW1901 SW1904 KDY-6 KDY-4 KDY-5 KDY-3 KDY-1 C518 JP501 C527 D512 R1902 R1903 R1904 R1905 R1906 SW1902 SW1903 SW1905 SW1906 Q527 R527 R445 R518 R514 R522 C514 R515 R516 C515 D441 R525 C524 C517 C521 AUDIO IN VIDEO IN R662 C634 Q661 FBP IN C435-H1 T471A IC501-1 2HEF0008-- T471 Q432 C603 C607-H1 C607-H2 D605 D603 D604 D606 C607 C612 C606 C605 C604 PS601-H1 PS601-H3 KG-3 KE TP-EE SW601-H1 SW601-H2 R602-H1 R602-H3 VA601 L601-H5 L601-H2 L601-H3 L601-H1 PS601 C627 KG-1 KG-2 JP602 JP601 C602 L601 C601 R602-H2 R602-H4 F601A F601B R602 PS601-H2 R601 C245 MONO OUT NFL NC NC NC IN R818 JP001 AUDIO IN A1901A T471-H4 T611-H14 R501 JP201 JP202 D004 D003 R015 R185 R186 R512 R422 Q818 R821 IC001 FILTER VCC PREAMP GND VCC GND C123 R1001 C172 C175 C007 R006 R005 C005 C004 R004 C012 C003 C013 R012 R013 R003 Q001 R014 R010 R011 C178 D1910A D610 R643 X211 X801 IC001-1 X R664 D102 D230 D507 D862 C104 TP-M D005 R209 R1002 R1003 C1002 C1001 JP502 JP503 C511 R519 C520 T611 JP683 JP633 JP631 C107A D421 JP204 R243 D249 R644 R646 R664-H1 R664-H2 T611A C853 C852 C851 C203 C204 R286 C353 R285 C289 D280 C218 R287 R353 C283 R280 C207 C206 R283 C288 C282 IC281 C284 C285 C286 C287 R282 R284 R281 D352 R352 C280 C205 R354 R288 C291 C219 R207 R206 R267 R264 R265 Q261 AUDIO OUT JP1003 R833 R832 Q173 R173 R892 C892 JP801 K1001 C008 C891 C896 R891 R895 Q291 R296 JP111 BLINGUAL BLINGUAL BLINGUAL CAPTION CAPTION CAPTION SECAM KILLER FOR NTSC SW601 IC001A PRE GND IN MUTE TR(E) MUTE TR(B) POWER GND MUTE TR(C) VCC OUT R822 R645 KR 1 1 C278 C1003 R1005 R1004 R1006 R1007 C1004 C277 R873 R845 TP-A C804 C610 C825 C824 C823 R812 R811 JP291 JP646 JP645 R644-H1 R644-H2 JP661 X161A R179 D863 R874 C829 D357 R340 L441-H1 R441 C441-H4 C441-H3 JP442 C441A C441 L441 L441-H2 C441-H1 C441-H2 C441B L601-H8 L601-H6 L601-H7 L601-H4 C888 D681 L171 C601-2 C601A-2 C601-1 C601A-1 X171 F601 C602-1 C602A-1 C602-2 C602A-2 C602A JP1001 C107 T431A JW1 JW2 JW3 JW4 JW5 JW6 JW7 TP-E C407 Q111 K1003 K1003A KL K1002 R609 Q613-H2 Q613-H3 D611 L604 C611 L603 Q614 R606 Q613 Q612 R617 R616 L605 C614 R613 R615 C613 R611 R605 R603 R618 D617 R607 R620 D613 R619 C628 R604-H1 R604-H2 R612-H2 R612-H1 R604 C608 R612 Q613-H1 C629 R629 Q881 Q871 R881 R882 R877 R871 R883 R870 C835 R872 R435 C437 D1910 C211 C208 D476 D448 R449 C449 Q449 C221 C222 C223 KE-1 KE-2 R613-H1 R613-H2 Q611 D662 R669 C646 D663 R667 R666 R668 Q666 R670 D664 C647 C213 JP610 L602 JP608 JP611 JP609 R628 Q180 R187 D180 C180 R188 JP436 C436 JP437 C436A C435B JP1005 J1004 (AV GND) (HRZTL GND) IC001-H2 IC001-H1 C435A JP002 JP003 JP004 JP005 JP007 JP006 C014 R016 Q002 R017 R018 Q003 R020 C015 R019 L204 R665 C870 C281 TP-B A10B13400: A10B01700 X W10B03901 L81B30400; L81B30500 INCLUDED CRT COMPONENT L2C1271KN X X 2SC2229(O:Y) :2SC22289(D:E) 2SC2229(O:Y) :2SC22289(D:E) 2SC2229(O:Y) :2SC22289(D:E) J30B(0250N :1380N) X 1/2DJ 2.7K 1/2DJ2.7K X X 1/16GJ 1.2KC 470 2SA1015(O:Y) X X X 1/16GJ 82C 1/16GJ 82C X J30B(0250N :1380N) 2000KK1000LBZB: 2000KP1000AHE: 2000KZ1000(CB:HE) 1/2DJ 2.7K X X 2SJ 12K 2SJ 12K 2SJ 12K X 270 X 1/16GJ 82C 270 X 270 X X J X 1SS355 1SS355 1SS355 1/16GZ0C AJ 1/16GJ10KC 1SS355 1/16GJ 1.5KC 16EM 100 (:LBWA) X 39 1/16GJ 10KC 1SS355 1SS355 12K X J11B2490N X X X 250EM 4.7CY X X 2400030 2400010 RU3M 25EM1000: 25EM1000LBWA J X 2SJ4.7 DJ82K 1/2DJ220 100K X 2400030 2400030 L3004: B4Z21B0160N: Z21B0330N L2G33R3KN: L7133(B:D) J X 10K 1500MH 5400XH 35EM47: 35EM47LBWA 2.2K 1SS133 1K 100PM2.2 (X:LBZA) EM10: EM10LB (WA:ZA) AA 1/2DJ330 X 2400010 2400010 2400030 2400030 2400030 2400030 B4L18B0070N DJ18K 1K X 2SC3332 (R:S) 500KK 3900A 1/2DJ1K TXXGA0125721M RD6.2EB3: MTZJ6.2C: DZXLBZA6.2C 1/16GJ 4.7KC 1/2DJ100K B4R3ZA202NN :R3K1202NN 1/2DJ150K AH X X 2400030 560K 2400030 2400030 DJ10K 22K 1000KK470 (CRD:NH) AE X X X EU2 :EU2Z 35EM470: 35EM470LBWA RU3M DJ12K 16EM470 (:LBWA) 25EM1000: 25EM102LBWA 1000KK470 (CRD:NH) 1SJ270 RD10EB2 :MTZJ10B :DZXLBZA10B 16EM220: 16EM220 LBWA AE 1K AA EM1: EM1LBWA 1/16GJ 22KC 160EM 100X 1000KK470 (CRD:NH) RD6.8EB1: MTZJ6.8A: DZXLBZA6.8A 1/16GJ 560KC 22K RU3M ZZ0122: B4Z21B0150N: Z21B0340N 1SJ33K DJ12K 1/16GJ 10KC X 2400030 AH AJ 2400030 2400030 25EM470: 25EM470LBWA 16EM22: 16EM22LBWAJ 10K 22K 3.9K 1/16GJ 10KC X 1/16GZ 0C 1/16GZ0C J10EA050N: J10KR050N X 1/16GJ 1KC 8.2K 8.2K 8.2K 100 100 1/16GJ10KC 1/16GJ2.7KC 1/16GJ 2.7KC 1/16GJ 10KC X 1/16 GJ220C AH 1/16 GJ220C FJ0.015 (BE:D) PM1 EM22: EM22LBWA 100 1/16GJ10KC 1/16GJ560C 1/16GJ560C 8.2K 10EM 470 BA178M05T: MC78M05CT: UPC78M05AHF: L78M05CV F1BEB0(240:260) 100 100 1/16GJ 18KC 1/16GJ 68KC EM47: EM47LBWA RD36EB1 :MTZJ36A :DZXLBZA36A KK0.01GQ 1/16GJ 5.6KC 1/16GJ 1KC 1/16GJ 330C KK0.01GQ 1/16GJ 56C KK0.01GQ 1SJ39K J 16EM470: 16EM470LBWA 120 120 120 1/16GZ 0C KK1500GQ 1/16GJ 10KC KK0.01GQ X X X 1/16GJ 33KC 1/16GJ27KC EM1: EM1LBWA X KK0.01GQ 16EM470: 16EM470LBWA HJ0.33G KK0.01GQ CD10 CGQ X EM0.47: EM0.47LBWA 1/16GJ 470C EM0.47: EM0.47LBWA 1/16GJ 680KC EM2.2: EM2.2LBWA KK0.01GQ EM47:EM47LBWA X 1/16GJ 4.7KC 1/16GJ 4.7KC EM1: EM1LBWA KK0.1GQ CJ15CGQ EM0.47: EM0.47LBWA 150 150 1/16GJ 3KC HJ0.33G EM10: EM10 LBWA X 1/16GJ 100C X 1/16GJ 47KC 1/16GJ 47KC 25KZ 0.1GQF X KZ 0.022 GQF LA76818AM 56 1/16GJ 6.8KC SF6376U 1/16GJ 2.2KC 1SS356 1/16GJ 10KC 1/16GJ 27KC AH HJ 0.022 GQF KK0.01GQ 16EM100: 16EM100 LBWA EM1: EM1LBWA 1/16 GZ0C 1/16GJ 1KC 1/16GJ 1KC 1/16GJ 1KC 1/16GJ 100C EM1: EM1LBWA BA178M05T :MC78M05CT :UPC78M05AHF :L78M05CV 47 X 16EM10: 16EM10LBWA 1/16GJ10KC 1/16G J10KC 1/16G J10KC 1/16GJ 270KC X 1/16GJ 4.7KC 1/16GJ 4.7KC 1/16GJ 10KC KK0.01GQ X 1/16GJ 15KC 1/16GJ 15KC 1/16GJ 10KC 1/16GJ 10KC 1/16G J10KC 1/16GJ 330C 1/16GJ330C 1/16GJ 470C 1/16GJ 1MC EM2.2: EM2.2 LBWA 1/16GJ 100C 25KK 0.033GQ CJ27CGQ CJ15CGQ AJ 1.5K 1/16GJ 1.5KC EM1: EM1LBWA RD3.6EL :DZXLBB017 1/16GJ 47KC 1/16GJ 8.2KC 24LC08B/P 2400010 X 1/16GJ 22KC X LA78040(:N) 2400010 2400010 X X X 1/16 GJ220C 2400030 2400010 S10B0450J: S10B2790J: S10B3670J S10B0450J: S10B2790J: S10B3670J X J30B0250N :J30B1380N J30B0250N :J30B1380N J30B0250N :J30B1380N J30B0250N :J30B1380N KK3300 J X ERA15-02 1/16GJ 27KC 1/16GJ 12KC 1/16GJ 5.6KC 1/16GJ 3.9KC 1/16GJ 2.2KC S10B0450J: S10B2790J: S10B3670J S10B0450J: S10B2790J: S10B3670J S10B0450J: S10B2790J: S10B3670J S10B0450J: S10B2790J: S10B3670J X X 2SJ560 1/2DJ3.3 15K 120 EM10: EM10LBWA 27K 5.6K 25EM1000: 25EM1000 LBWA X 1/2DJ 220 100FK0.1 (AD:BE) 35EM (220: 220 LBWA) 35EM470: 35EM470 LBWA 2SJ12 2SD1913 (RRA:SRA) H-OUT X L40B14900 X 2400010 2400010 ERC05-10B ERC05-10B ERC05-10B ERC05-10B 400EM270X(F:M) HJ0.1 (G:H) X 2400030 2400030 J30B0250N :J30B1380N X X 2400010 2400010 X 2400010 X X 2400030 2400030 2400030 DHXAA EV0066 250KK470XH :250KM470XN J30B0250N :J30B1380N J30B0250N :J30B1380N X J 275GM0.1XB :275GM0.1VDA F35B0540N :LQ000(2:4) 275GM0.1XB :275GM0.1VDA 2400010 X J20B0170J J20B0170J 10WK3.9VC X X PM1 1K J U20B40500 2400010 2400030 2SJ1K X 1/16GZ0C X X X 2SJ4.7 X X DJ82K AH 1/16GJ 10KC LA4266 1/16GZ 0C 75 X FK0.1BE :FK0.1D 1 150 25EM 100: 25EM 100 LBWA EM4.7: EM4.7LBWA 1/16GJ 100KC KK0.01 GQ 25EM 100: 25EM 100 LBWA X X X 1/16GJ 750C X X 1/16GJ 2.7KC 1/16GJ 22KC EM1: EM1LBWA 1AA2HLM (0144:0212)-- PC123Y52 :TLP421F-BLN 1/2F J4.7 V10B2930J: B4V10B0040N V10B0 (560N:570N) 2SJ12 MTZJ6.8A :RD6.8EB1 :DZXLBZA6.8A X X X X X 1SS355 1/16GJ 620KC 1K 100K EM1: EM1LBWA EM10: EM10LBWA X J X X X L51B5540N J X J X MTZJ16A: RD16(EB1:EB3) :DZXLBZA16A J X X 1SJ0.27 27K 2400030 2400030 X CJ56CGQ CJ56CGQ CJ56CGQ KK0.01GQ EM10 :EM10LBWA 1/16GF 4.7KC X 33 EM10 MTZJ7.5C :RD7.5EB1 :DZXLBZA7.5C 1/16GZ0C 1/16GZ 0C X KK0.01GQ 100 KZ0.1GQF KZ0.1GQF 1/16GJ 4.7KC KZ 0.033GQF KK0.033 GQ LA7642N EM1 PM1 EM1 PM1 1/16GJ 3.3KC 1/16GJ 3.3KC 1/16GJ 27KC MTZJ5.1C :RD5.6EB1 :DZXLBZA5.1C DJ10K KK0.01 GQ EM10 :EM10LBWA 22K X EM1 KK0.01 GQ X X C204 C205 270 270 1/16GJ 33C AC L R X 1/16GJ10KC X X X 1/16GJ 470KC 25KK 0.1GQ X J12B11905: B4J12B03202 25EM1000 (:LBWA) X X X X X X X S10B6230N X 1/16G Z0C 330 X KZ0.1 GQF EM10 1/16GJ 100KC 1/16GJ680C 75 100K 16EM220 FK 0.1BE 1/16GJ 33KC 1/16G J47KC J30B(0250N :1380N) X EM1 CJ100CGQ KK0.1GQ 25KK0.1GQ 1/16GJ10KC 1/16GJ4.7KC X J X 2400030 2400030 X X X X 1/16GJ10KC 25KK0.1GQ AA 1/16GJ 82KC X X X 2400030 J X 200MJ 0.36UCQ :250MJ 0.36UAP X X 2400030 2400030 X X X X 2400030 KK3300GQ 1SS355 L14B(1830N:1870N) X X X 4A250VT: 4A250VTW: 4A250VTX X X X X EM47 :EM47LBWA X X X X X X X X X X 2SC2814F4P J12B2691N: B4J12B02801 X J10EA030N: J10KR030N J12B11905 :B4J12B03202 R L 22K 2400030 2400030 1SS133 ZZ0122: B4Z21B0150N: Z21B0340N 1000KK 470NH ZZ0122: B4Z21B0150N: Z21B0340N 2SA984 (E:F) 470K 2SK2647-F82N 2SC2274 (E:F) FJ 220P 10K Z21B0140B FJ0.01(D:BE) 2SJ0.27 DJ22 FJ0.012BE: HJ0.012G 47K 1/2DJ560K 1/2DJ560K 1K ERA91 -02 DJ47 DJ470 MTZJ9.1C :DZXLBZA 9.1C :RD9.1EB3 22K X 2400030 2400030 2400030 2400030 2SJ27 1000KK220 (CRD:NH) 1/2FJ10 2400030 250KK1000XH: 250KM1000VAC: 250KM1000XN 1/2CK 5.6MXG AH AH 1/16GJ 3.3KC 1/16GJ 3.3KC KK3900GQ 1/16GJ 10KC 1/16GJ 33KC 1/16GJ 22KC EM1 27K X X SLP-181B51 X X DZXLBZA8.2A :MTZJ8.2A :RD8.2EB1 X X X X KZ0.1GQF KZ0.1GQF KZ0.1GQF J30B0250N :J30B1380N J30B0250N :J30B1380N 2400030 2400030 500KK 1000A 2SC2274 (E:F) (LA4224 1 WATT ) EU1 5.6K 35EM 47CD AA 1/16GJ 10KC 1/16GJ 47KC 1/16GJ 47KC AH 1/16GJ 47KC AA EM2.2CT X J X X J X 1/2CK 5.6MXG X X X X X J 3000KK 390CRD J X X X X X X X X X X X X X X X X X X X X X X J X X EM1 J30B (0250N :1380N) 9 5 4 11 10 3 2 9 5 7 4 10 3 2 1 2 3 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 7 6 5 4 3 2 1 1 1 2 3 4 5 6 7 8 9 10 1 2 3 4 2 1 4 5 6 7 16 14 10 11 12 13 2 1 4 5 6 7 16 14 10 11 12 13 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 3 9V 15V 130V 24V 130V 9V 5VRC 130V 5V-2 5V-2 9V 5V-2 5V-2 9V 5V-2 9V 5VRC 5VRC 15V 5VRC 24V 130V 24V P.F P.F 9V 9V 5V-2 24V 5VRC 9V 9V 9V 9V 9V 5V-3 9V-4 5V-3 AUDIO AMP. CPU IF/VIDEO/CHROMA ASSY, PWB, CRT C5SRR ASSY, PWB, MAIN C5SRR Model CA14SR4: QXXAVC042P Model CA14SR4R:QXXAVC320P COLOUR TELEVISION CHASSIS SERIES SERVICE REF. NO. AACC55--G G PRODUCT SAFETY NOTICE: Product safety should be considered when a component replacement is made in any area of a receiver. Components indicated by a mark in this circuit diagram show components whose values have special significance to product safety. It is particularly recommended that only parts specified on the part service manual be used for components replacement pointed out by the mark. CIRCUIT DIAGRAM NOTICE: 1. All resistance value are in ohms, K=1,000, M=1,000,000. 2. All resistance rated wattages are 1/6W unless otherwise noted. 3. Excepting electrolytic capacitors, all capacitance values of less than 1 are expressed in µ F and more than 1 are pF. 4. All capacitance rated voltages are 50V unless otherwise noted. 5. All inductance values are in µ H. 6. Voltage readings take with a "VTVM" are from point indicated chassis ground. Voltage readings taken by using PAL colour bar signal are with all controls at normal position. Some voltage may vary with signal strength. 7. Waveform were taken with PAL colour bar and controls adjusted for normal picture. Waveforms were taken by using a wide band oscillo- scope and a low capacity probe. 8. This circuit diagram covers a basic or representative chassis only. There may be some components or partial circuit differences between the actual chassis and the circuit diagram. 9. Parts specified with "X" are not installed in this model. 10. Parts specified with "J" are just jumper wires. THE SERVICE PRECAUTION: The area enclosed by this line( ) is directly connected with AC mains voltage. When servicing the area, connect an isolating transformer between TV receiver and AC line to eliminate hazard of electric shock. 11. Expression of capacitance and resistance in circuit diagrme. C5SRR TRANSISTOR, DIODE AND INTEGRATED CIRCUIT TERMINAL GUIDE C: COLLECTOR B: BASE E: EMITTER A: ANODE K: KATHODE B B C C E E C E B C E B B C E A K K A A K FUSIBLE RESISTOR PARTICULAR PARTS SYMBOL 1 1 1 N/2 N/2 + 1 N NON POLE ELECTRIC CAPACITOR POSISTER C E B CHIP COMPONENTS K A TRANSISTOR DIODE 123 RESISTOR 12 X 103=12K Capacitance (Example) 1000 C M 2000 D Characteristic Capacitance value (220pF) Allowable error (±20%) Kind (Ceramic) Rated voltage (1,000V) J= ± 5% K= ±10% M= ±20% Resistance (Example) 1/2 N J 1.2 Resistance value (1.2Ω) Allowable error (±5%) Kind (M.carbon) Rated wattage (1/2W) D: Carbon N: Metalized carbon S: Oxied metalized W: Wire wounding C: Solid T, A, U, D: Electrolytic C, K, B: Ceramic F: Mylar film M, N: Polypropylene Z: Metalized paper CE14SA4-00 CE14SA4R-00 家电维修资料网
