LG W2243T液晶显示器维修手册

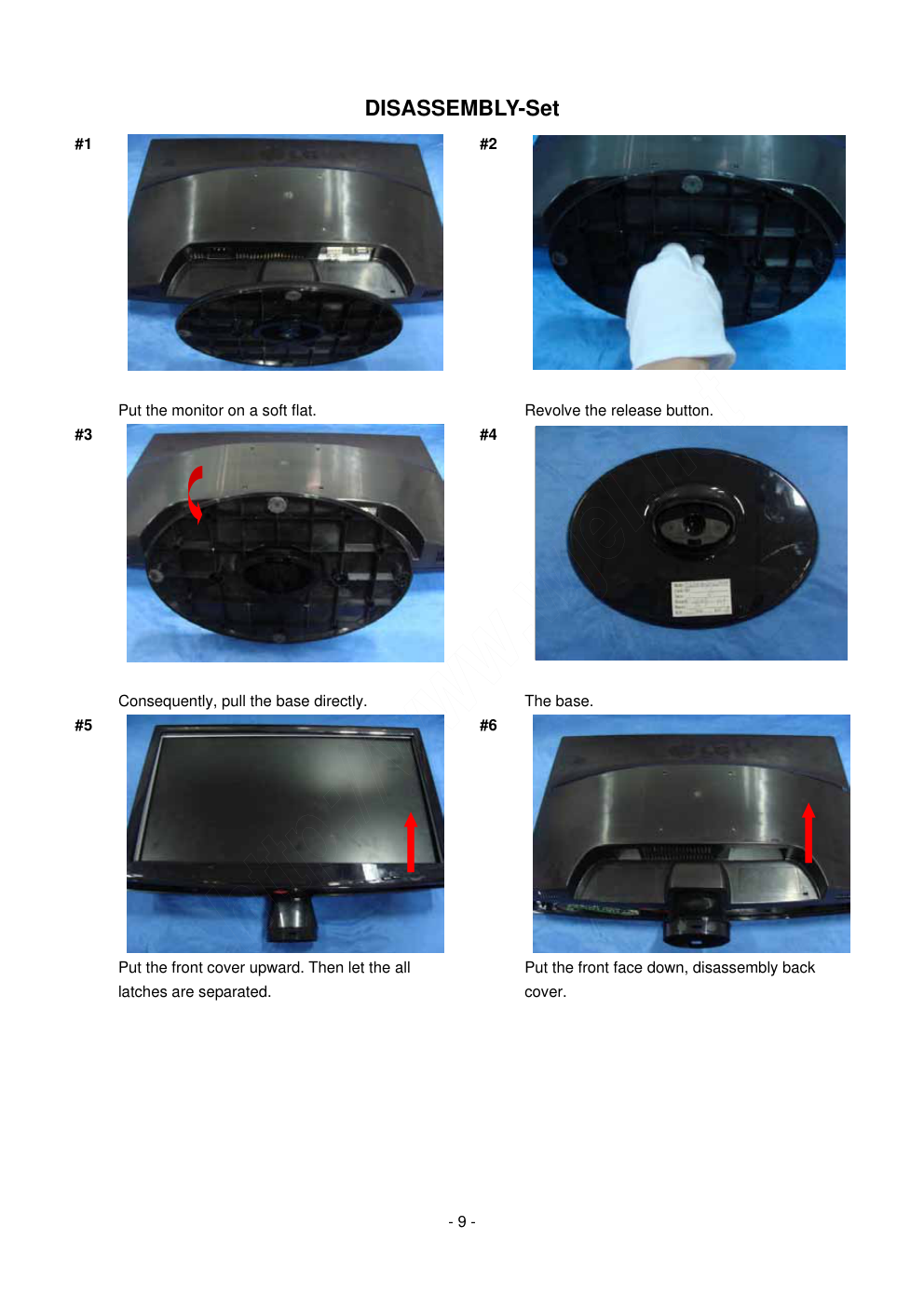

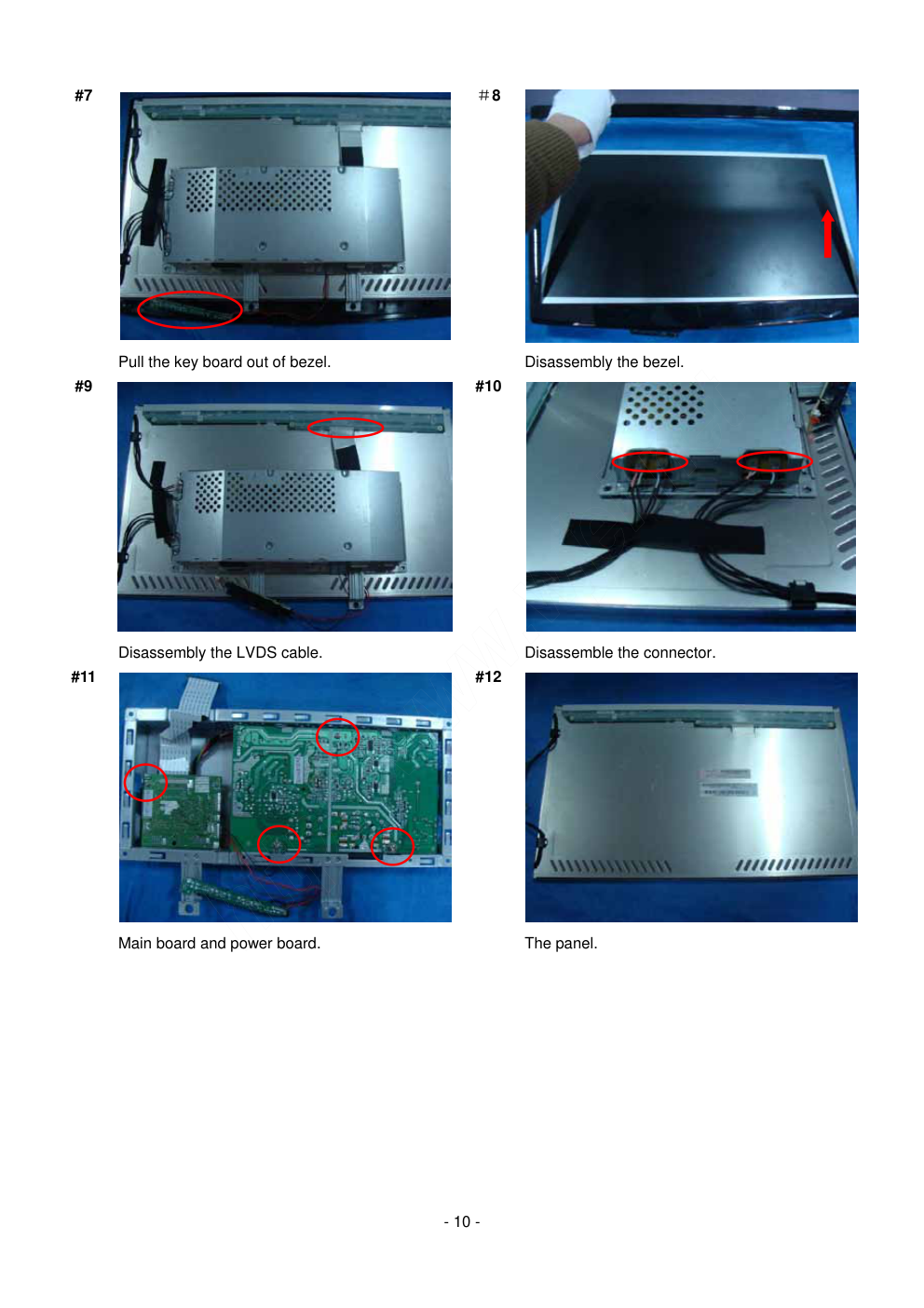

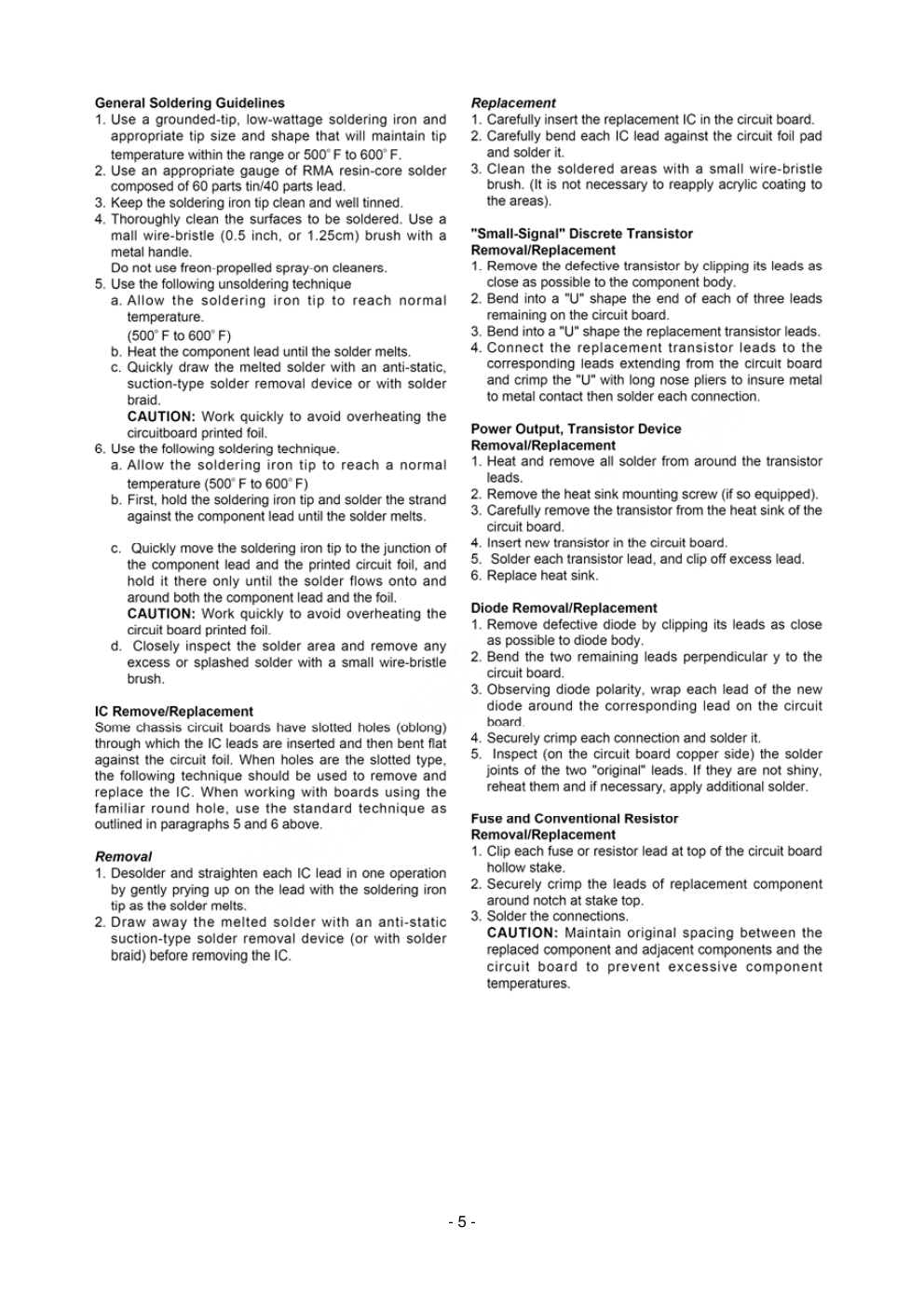

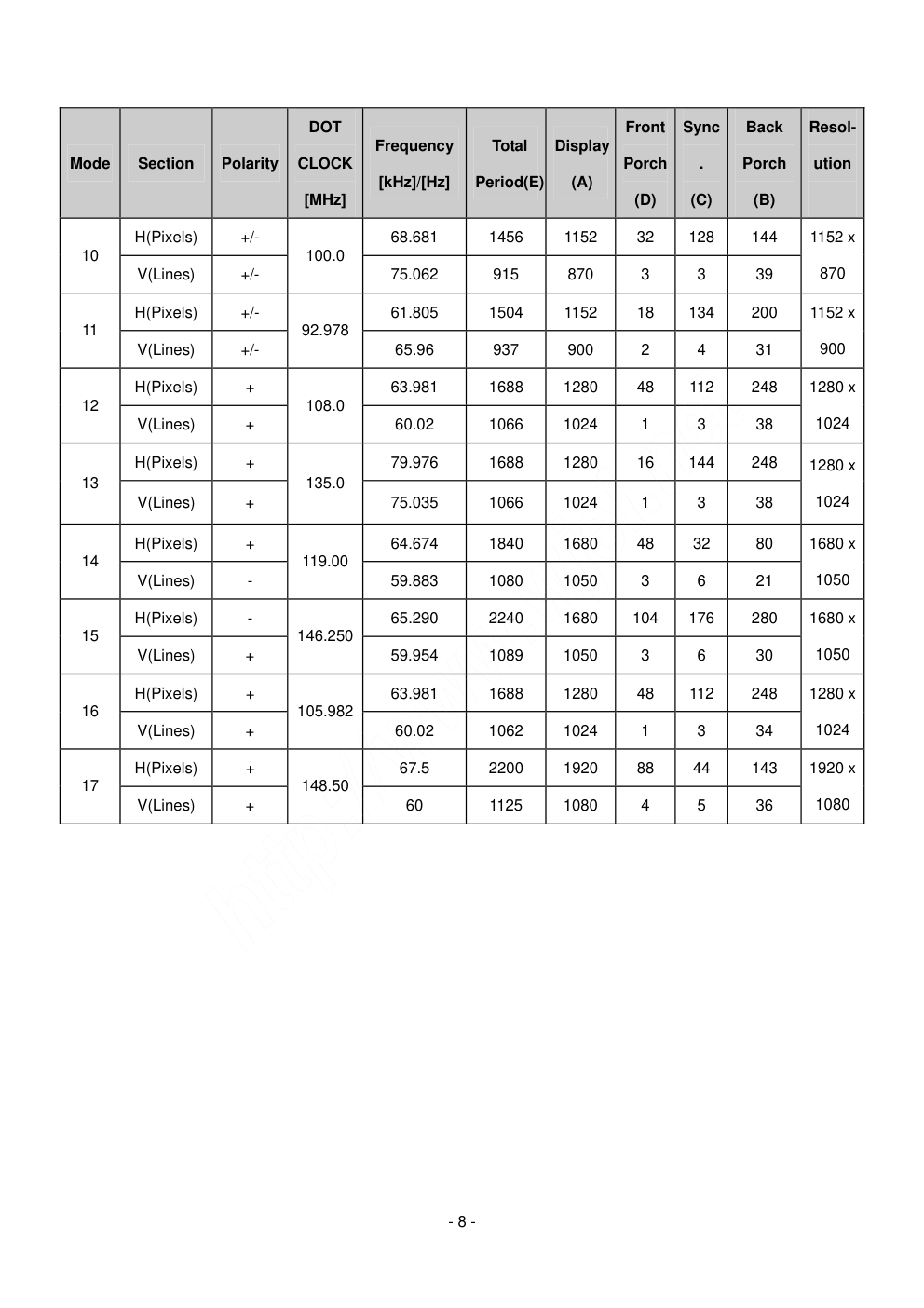

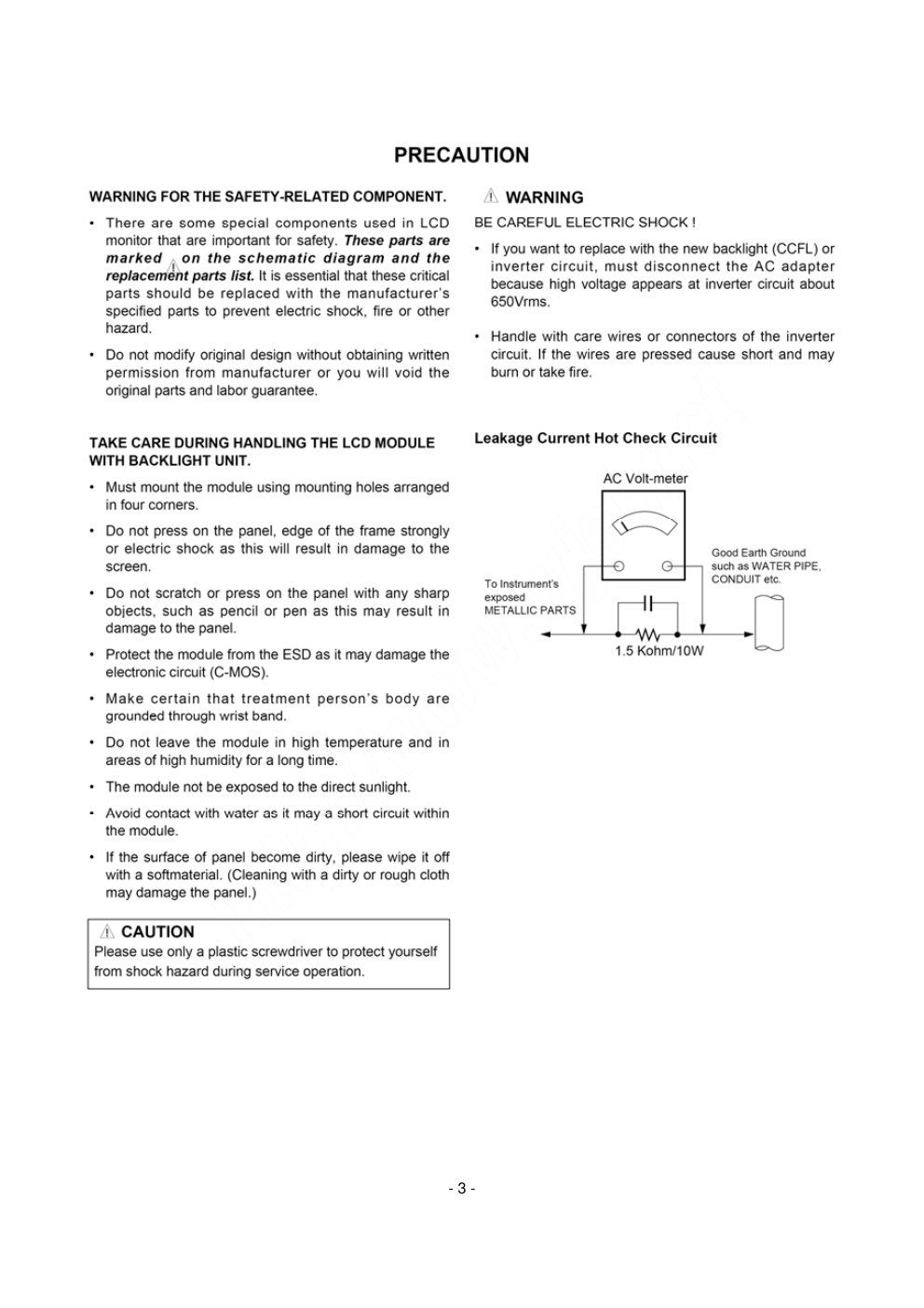

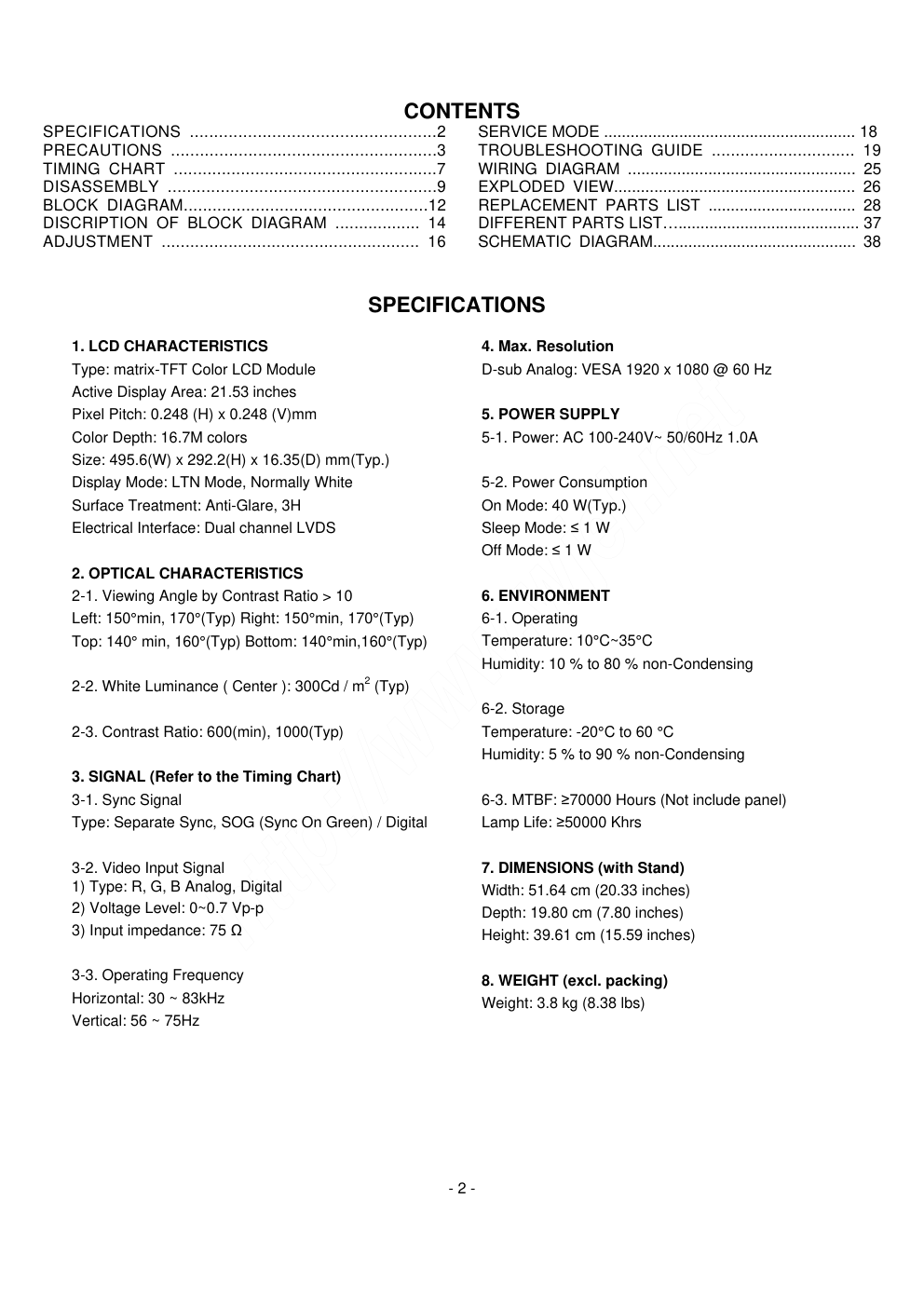

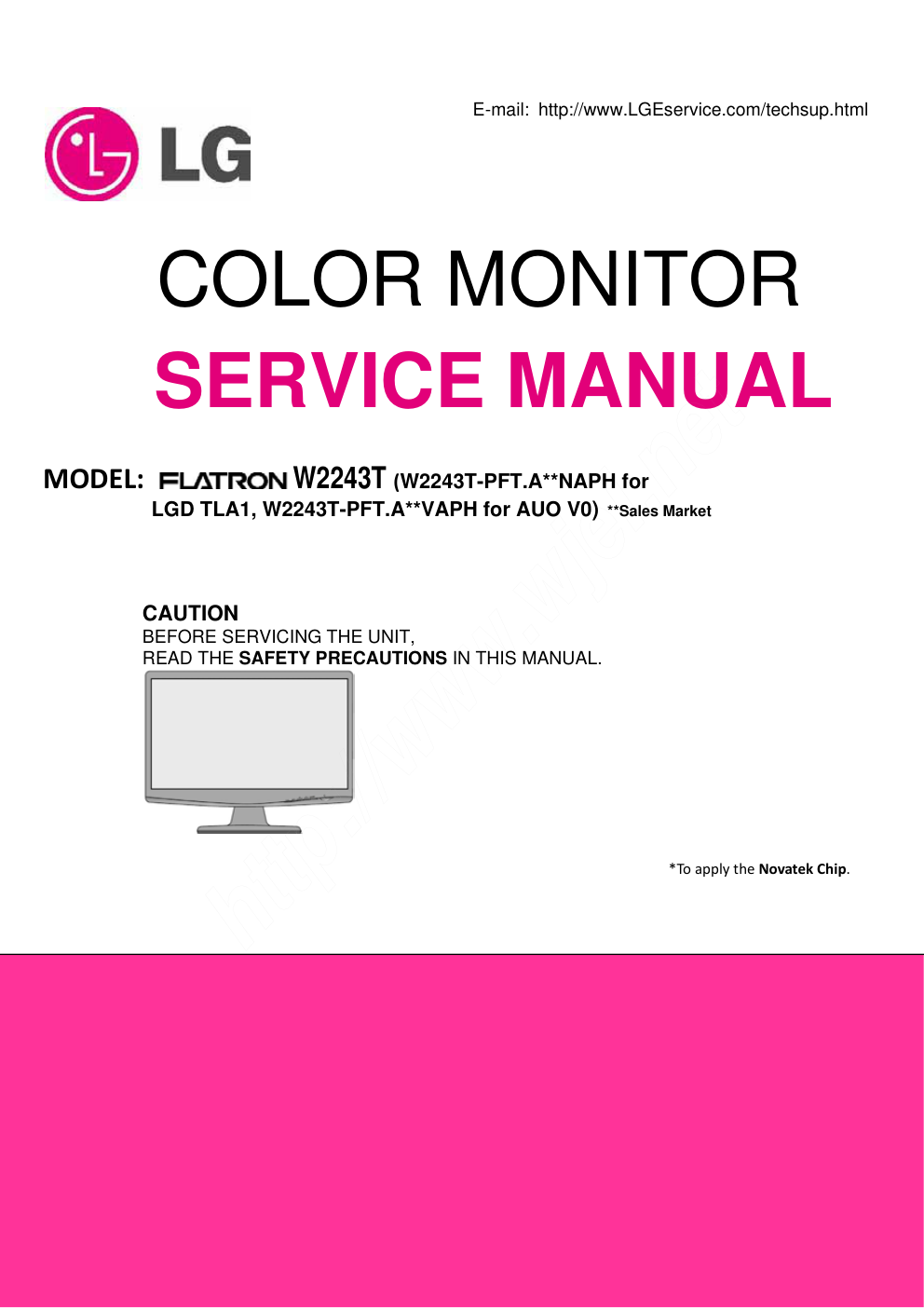

- 1 - E-mail: http://www.LGEservice.com/techsup.html COLOR MONITOR SERVICE MANUAL MODEL: W2243T (W2243T-PFT.A**NAPH for LGD TLA1, W2243T-PFT.A**VAPH for AUO V0) **Sales Market CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. *To apply the Novatek Chip. http://www.wjel.net - 2 - CONTENTS SPECIFICATIONS ...................................................2 PRECAUTIONS .......................................................3 TIMING CHART .......................................................7 DISASSEMBLY ........................................................9 BLOCK DIAGRAM...................................................12 DISCRIPTION OF BLOCK DIAGRAM .................. 14 ADJUSTMENT ...................................................... 16 SERVICE MODE ......................................................... 18 TROUBLESHOOTING GUIDE .............................. 19 WIRING DIAGRAM ................................................... 25 EXPLODED VIEW...................................................... 26 REPLACEMENT PARTS LIST ................................. 28 DIFFERENT PARTS LIST…......................................... 37 SCHEMATIC DIAGRAM.............................................. 38 SPECIFICATIONS 1. LCD CHARACTERISTICS Type: matrix-TFT Color LCD Module Active Display Area: 21.53 inches Pixel Pitch: 0.248 (H) x 0.248 (V)mm Color Depth: 16.7M colors Size: 495.6(W) x 292.2(H) x 16.35(D) mm(Typ.) Display Mode: LTN Mode, Normally White Surface Treatment: Anti-Glare, 3H Electrical Interface: Dual channel LVDS 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio > 10 Left: 150°min, 170°(Typ) Right: 150°min, 170°(Typ) Top: 140° min, 160°(Typ) Bottom: 140°min,160°(Typ) 2-2. White Luminance ( Center ): 300Cd / m2 (Typ) 2-3. Contrast Ratio: 600(min), 1000(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal Type: Separate Sync, SOG (Sync On Green) / Digital 3-2. Video Input Signal 1) Type: R, G, B Analog, Digital 2) Voltage Level: 0~0.7 Vp-p 3) Input impedance: 75 Ω 3-3. Operating Frequency Horizontal: 30 ~ 83kHz Vertical: 56 ~ 75Hz 4. Max. Resolution D-sub Analog: VESA 1920 x 1080 @ 60 Hz 5. POWER SUPPLY 5-1. Power: AC 100-240V~ 50/60Hz 1.0A 5-2. Power Consumption On Mode: 40 W(Typ.) Sleep Mode: ≤ 1 W Off Mode: ≤ 1 W 6. ENVIRONMENT 6-1. Operating Temperature: 10°C~35°C Humidity: 10 % to 80 % non-Condensing 6-2. Storage Temperature: -20°C to 60 °C Humidity: 5 % to 90 % non-Condensing 6-3. MTBF: ≥70000 Hours (Not include panel) Lamp Life: ≥50000 Khrs 7. DIMENSIONS (with Stand) Width: 51.64 cm (20.33 inches) Depth: 19.80 cm (7.80 inches) Height: 39.61 cm (15.59 inches) 8. WEIGHT (excl. packing) Weight: 3.8 kg (8.38 lbs) http://www.wjel.net - 3 - http://www.wjel.net - 4 - http://www.wjel.net - 5 - http://www.wjel.net - 6 - http://www.wjel.net - 7 - TIMING CHART Mode Section Polarity DOT CLOCK [MHz] Frequency [kHz]/[Hz] Total Period(E) Display (A) Front Porc h (D) Syn c. (C) Back Porch (B) Resol- ution H(Pixels) + 31.469 800 640 16 96 48 1 V(Lines) - 25.175 70.09 449 350 37 2 60 640 x 350 H(Pixels) - 31.468 900 720 18 108 54 2 V(Lines) + 28.321 70.08 449 400 12 2 35 720 X 400 H(Pixels) - 31.469 800 640 16 96 48 3 V(Lines) - 25.175 59.94 525 480 10 2 33 640 x 480 H(Pixels) - 37.5 840 640 16 64 120 4 V(Lines) - 31.5 75 500 480 1 3 16 640 x 480 H(Pixels) + 37.879 1056 800 40 128 88 5 V(Lines) + 40.0 60.317 628 600 1 4 23 800 x 600 H(Pixels) + 46.875 1056 800 16 80 160 6 V(Lines) + 49.5 75.0 625 600 1 3 21 800 x 600 H(Pixels) +/- 49.725 1152 832 32 64 224 7 V(Lines) +/- 57.283 74.55 667 624 1 3 39 832 x 624 H(Pixels) - 48.363 1344 1024 24 136 160 8 V(Lines) - 65.0 60.0 806 768 3 6 29 1024 x 768 H(Pixels) - 60.123 1312 1024 16 96 176 9 V(Lines) - 78.75 75.029 800 768 1 3 28 1024 x 768 http://www.wjel.net - 8 - Mode Section Polarity DOT CLOCK [MHz] Frequency [kHz]/[Hz] Total Period(E) Display (A) Front Porch (D) Sync . (C) Back Porch (B) Resol- ution H(Pixels) +/- 68.681 1456 1152 32 128 144 10 V(Lines) +/- 100.0 75.062 915 870 3 3 39 1152 x 870 H(Pixels) +/- 61.805 1504 1152 18 134 200 11 V(Lines) +/- 92.978 65.96 937 900 2 4 31 1152 x 900 H(Pixels) + 63.981 1688 1280 48 112 248 12 V(Lines) + 108.0 60.02 1066 1024 1 3 38 1280 x 1024 H(Pixels) + 79.976 1688 1280 16 144 248 13 V(Lines) + 135.0 75.035 1066 1024 1 3 38 1280 x 1024 H(Pixels) + 64.674 1840 1680 48 32 80 14 V(Lines) - 119.00 59.883 1080 1050 3 6 21 1680 x 1050 H(Pixels) - 65.290 2240 1680 104 176 280 15 V(Lines) + 146.250 59.954 1089 1050 3 6 30 1680 x 1050 H(Pixels) + 63.981 1688 1280 48 112 248 16 V(Lines) + 105.982 60.02 1062 1024 1 3 34 1280 x 1024 H(Pixels) + 67.5 2200 1920 88 44 143 17 V(Lines) + 148.50 60 1125 1080 4 5 36 1920 x 1080 http://www.wjel.net - 9 - DISASSEMBLY-Set #1 Put the monitor on a soft flat. #2 Revolve the release button. #3 Consequently, pull the base directly. #4 The base. #5 Put the front cover upward. Then let the all latches are separated. #6 Put the front face down, disassembly back cover. http://www.wjel.net - 10 - #7 Pull the key board out of bezel. ＃8 Disassembly the bezel. #9 Disassembly the LVDS cable. #10 Disassemble the connector. #11 Main board and power board. #12 The panel. http://www.wjel.net - 11 - #13 Rear cover and hinge ASS’Y. #14 Disassemble the rear cover and hinge ASS’Y. #15 Disassemble the hinge and stand. #16 Hinge top, hinge and stand. http://www.wjel.net - 12 - BLOCK DIAGRAM http://www.wjel.net - 13 - BLOCK DIAGRAM-POWER Power Inverter EMI filter Rectification Transformer 5V/16V output OVP Feedback control circuit Switching circuit (PWM control IC & MOSFER) OVP protect circuit Diode rectifier Starting resistor 16V Rush prevention ON/OFF DIM Push-pull circuit Transformer conversion LC resonance VDDA ON/OFF circuit PWM IC ta9687GN Feedback circuit OVP circuit 2 CCFL lamps Sampling Lamp open protection DIM circuit 16V 5V 100~240V http://www.wjel.net - 14 - DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 148.5MHz. This part consists of the Scalar, ADC converter, TMDS receiver and LVDS transmitter. The Scalar gets the video signal converted analog to digital, interpolates input to 1920 X 1080 resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V, and one 1.8V regulators to convert power which is provided 5V in Power board. 16V is provided for inverter, 5V is provided for LCD panel. Also, 5V is converted 3.3V and 1.8V by regulator. Converted power is provided for IC in the main board. The inverter converts from DC 16V to AC 700Vrms and operates back-light lamps of module. 3. MICOM Part. This part is including video controller part. And this part consists of Reset IC and the Micom. The Micom distinguishes polarity and frequencies of the H/V sync are supplied from signal cable. The controlled data of each mode is stored in scalar. http://www.wjel.net - 15 - LIPS Board Block Diagram Operation Description_LIPS 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is for transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilized, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the DC output changing status through a photo transistor to primary controller to achieve the stabilized DC output voltage. 6. Signal collection. This part function is to collect the any change from the DC output and feed back to the primary through photo transistor. http://www.wjel.net - 16 - ADJUSTMENT Windows EDID V1.0 User Manual Operating System: DOS, windows98, 2000, XP 1. Parallel port setting Enter your bios, and do as followings. a) Integrated peripheral b) Super IO Device c) Parallel port mode you should set the” parallel port mode” to SPP for using the DOS EDID tool surely. 2. EDID Write 1、Connect the signal line of monitor with DDC recorder. 2、Choose the DDC RECORD program, and it shows on the screen, the choose the correct source base on the monitor. 3、Click “LoadFile” ,then key in the manufacturer name、model name、product code, then choose the correct model name base on the monitor.(as Fig.2) 4、Scan serial No. to DDC recorder by Bar Reader, then read again in the Verify SN. 5、According to the message of DDC program, when the picture as fig.1 appears, it show DDC record has finished. Fig.1 http://www.wjel.net - 17 - Please check Manufacturer Name、Vendor Assigned Code、 Monitor Name、 Serial Number：*****[???????? ******] (it must be the same as Bar Code)、 Week of Manufacture：**、Year of Manufacture：****、Check sum：** (It must be the same as the last byte of data table, as follows picture shows). Above of all must be right, then if it shows the green “PASS”, it means record succeeds ,the red “Fail” means record fails; then check the power supply and signal line, and ensure they are connected well ,then do DDC record again from the third step. Fig.2 http://www.wjel.net - 18 - 1) Turn off the power switch at the front side of the display. 2) Wait for about 5 seconds and press MENU, POWER switch with 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) CLEAR ETI: To initialize using time. b) Auto Color: W/B balance and automatically sets the gain and offset value. c) AGING: Select Aging mode (on/off). d) PANEL: used panel type e) NVRAM INIT: NO f) R/G/B-9300K: Allows you to set the R/G/B-9300K value manually. g) R/G/B-6500K: Allows you to set the R/G/B-6500K value manually. h) R/G/B-Offset: Allows you to set the R/G/B-Offset value manually. (Analog Only) i) R/G/B-Gain: Allows you to set the R/G/B-Gain value manually. (Analog Only) Figure 1 Cable Connection for Micom uploading SERVICE MODE Connect to the PC Connect to the monitor http://www.wjel.net - 19 - TROUBLESHOOTING GUIDE No Power (Power Indicator Off) Please reinsert and make sure the AC of 100-240v is normal Measure U704 PIN2=1.8V U703 PIN2=3.3V Check the Adapter/Inverter section Check CN701 or replace U704, and U703 NO NO YES YES 1. NO POWER Check X401 oscillate waveforms are normal Replace X401 Replace U401 NO YES http://www.wjel.net - 20 - 2. NO RASTER (OSD IS NOT DISPLAY)-LIPS LIPS Check U704 PIN 2 1.8V? 1. Check U704 2. Check C704 3. TROUBLE IN SCALER IC NO No Raster (OSD Is Not Displayed) Check U703 PIN 2 =3.3V? Check CN701 PIN 6, PIN7 =5V? Check power board and find out a short point as penning each power line 1. Check U703 2. Check C706,C707 NO NO YES YES YES Check CN701 PIN 6, PIN7 =5V? YES NO Check BL ON/OFF pulse as contacting scope http://www.wjel.net - 21 - 3. NO RASTER (OSD IS NOT DISPLAY)-MSTAR 1. Check C420 C421 2. Check X401 3. TROUBLE IN SCALER IC SCALER PIN 127, 128 OSCILLATES AS 12MHZ? No Raster (OSD Is Not Displayed) CHECK CONNECTION LINE FROM D-SUB TO SCALER TROUBLE IN CABLE OR LCD MODULE NO YES YES NO SCALER IC PIN 41 H SYNC ? PIN 42 V SYNC? http://www.wjel.net - 22 - 4. TROUBLE IN DPM TROUBLE IN DPM SCALER IC PIN 41 H SYNC? PIN 42 V SYNC? CHECK H/V SYNC LINE TROUBLE IN CABLE OR LCD MODULE NO YES http://www.wjel.net - 23 - 5. POWER Check U901 pin 6 Vcc is 13v? Check D902,C911 Check U901, T901, D906, D905, ZD903, ZD902, U902, U903 NO YES YES No Power (Power Indicator Off) Check AC line volt Check the voltage of C907(+) Check start voltage for the pin1 of U901 Check AC line Check F901, BD901 Check D901, R903, R904,R905,U901 NO YES NO YES NO Check U901 PIN5 output is PWM? Check D904,Q901 NO http://www.wjel.net - 24 - 6. RASTER Unplug backlight connector wire, check PT801 pin7/pin8 = 650V? Replace PT801 NO NO YES Check PT801 pin7/pin8= 650V? Replace backlight Check Q805/Q806 pin5/pin8 is 16V? Cut all the pin connector of Q805/Q806, check C804 (+) =16V? Replace Q805/Q806 Check C808, C809, C810 Replace IC801 NO NO Raster (Lamp Off) Check C804 (+) =16V Check ON/OFF signal CheckIC801 pin 11=5V? Check power section Check Interface section or main board Check C808, C809, C810 Check IC801 pin 1/pin 14 NO NO NO YES YES Check IC801 Pin8/pin9 have the output of sawtooth YES NO YES YES NO YES NO http://www.wjel.net - 25 - WIRING DIAGRAM 095G820H 6D515 095G8018 3D677 095G 825 9W524 http://www.wjel.net - 26 - EXPLODED VIEW http://www.wjel.net - 27 - EXPLODED VIEW PARTS LIST Ref. No. TPV part no. LGE part no. Description 705GQ9CS027 BEZEL ASSY 010 705GQ9CS026 BEZEL ASSY 020 KEPC8QG2 KEY BOARD 750GLU215H1013N000 PANEL M215HW01 V00 XM AUO 750GLU215H1013M0LG PANEL M215HW01 V000 XM AUO 030 750GLG215W1A13M0LG PANEL LM215WF1-TLA1 GZ LGD 756GQ8CB KL013 MAIN BOARD-CBPCRNDLGQ2 040 756GQ9CB KL002 MAIN BOARD-CBPCRNDLGQ2 050 PWPC8C41LYB1 POWER BOARD 060 Q15G0415201 MAIN FRAME 070 705GQ934047 REAR COVER/HINGE/STAND ASS'Y 080 705GQ9CS028 BASE ASSY 090 089G 728HAA 2G SIGNAL CABLE 100 089G1748HAA AC DVI CABLE 110 095G8018 3D677 LVDS CABLE 30P-30P 160MM 120 089G421A18N IS POWER CORD http://www.wjel.net - 28 - REPLACEMENT PARTS LIST DATE: 2009. 3. 27 TIRANDNBMWLFHN *S *AL LOC. NO. PART NO. DESCRIPTION MAIN BOARD CAPACITOR C102 065G0402473 12 CHIP 0.047UF 16V X7R C103 065G0402220 31 CHIP 22PF 50V NPO C104 065G0402220 31 CHIP 22PF 50V NPO C105 065G0402509 31 CHIP 5PF 50V NPO C106 065G0402473 12 CHIP 0.047UF 16V X7R C107 065G0402102 32 1000PF +-10% 50V X7R C108 065G0402473 12 CHIP 0.047UF 16V X7R C109 065G0402509 31 CHIP 5PF 50V NPO C110 065G0402473 12 CHIP 0.047UF 16V X7R C111 065G0402473 12 CHIP 0.047UF 16V X7R C113 065G0402509 31 CHIP 5PF 50V NPO C114 065G0402473 12 CHIP 0.047UF 16V X7R C115 065G040210412T CHIP 0.1UF 16V X7R C117 065G0402224 17 CAP CER 0.22UF -20%-80% C301 065G040210412T CHIP 0.1UF 16V X7R C302 065G0402224 17 CAP CER 0.22UF -20%-80% C303 065G0603105 12 CHIP 1UF 16VX7R 0603 C304 065G040210412T CHIP 0.1UF 16V X7R C305 067G 2151014PB EC 100UF M 25V 6.3*11MM C401 065G0402224 17 CAP CER 0.22UF -20%-80% C403 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V C404 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V C406 065G040210412T CHIP 0.1UF 16V X7R C407 065G040210412T CHIP 0.1UF 16V X7R C410 065G040210412T CHIP 0.1UF 16V X7R C412 065G040210412T CHIP 0.1UF 16V X7R C413 065G040210412T CHIP 0.1UF 16V X7R C420 065G0402220 31 CHIP 22PF 50V NPO C421 065G0402220 31 CHIP 22PF 50V NPO C422 065G040210412T CHIP 0.1UF 16V X7R C423 065G040210412T CHIP 0.1UF 16V X7R C430 065G040210412T CHIP 0.1UF 16V X7R C431 065G040210412T CHIP 0.1UF 16V X7R C434 065G040210412T CHIP 0.1UF 16V X7R http://www.wjel.net - 29 - C435 065G040210412T CHIP 0.1UF 16V X7R C438 065G0805105 12 1UF +-10% 6V X7R C439 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V C440 065G0805475A7Z CAP CHIP 4.7UF 10V Y5V -20%~+80% C442 065G040210412T CHIP 0.1UF 16V X7R C446 065G040210412T CHIP 0.1UF 16V X7R C447 065G040210412T CHIP 0.1UF 16V X7R C448 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V C702 065G040210412T CHIP 0.1UF 16V X7R C704 067G 2151014PB EC 100UF M 25V 6.3*11MM C705 065G040210412T CHIP 0.1UF 16V X7R C707 067G 2151014PB EC 100UF M 25V 6.3*11MM C708 065G040210412T CHIP 0.1UF 16V X7R C709 065G040210412T CHIP 0.1UF 16V X7R DIODE D102 093G 64 42 PP BAV70 SOT-23 ZD104 093G 39GA01 T RLZ5.6B IC U102 056G1133 34 1 IC M24C02-RMN6TP 2KB SO-8 U103 056G 662502 IC ESD AZC199-04S SOT23-6L U104 056G 662502 IC ESD AZC199-04S SOT23-6L U105 056G 662502 IC ESD AZC199-04S SOT23-6L U106 056G 662502 IC ESD AZC199-04S SOT23-6L U107 056G 662502 IC ESD AZC199-04S SOT23-6L U401 056G 562583 IC NT68667UFG/C QFP-128L U402 056G1133 81 SST25LF020A-33-4C-SAE SMTCR-U402 100GKNAI001N11 MCU ASS'Y-056G1133 81 U703 056G 563 52 IC AP1117D33L-13 TO252-3L DIODES U704 056G 56327A IC AP1117E18LA SOT223-3L ANACHIP TRANSISTOR Q301 057G 763 1 A03401 SOT23 BY AOS(A1) Q302 057G 417 12 T KEC 2N3904S-RTK/PS Q401 057G 417 13 T KEC 2N3906S-RTK/PS Q701 057G 417 12 T KEC 2N3904S-RTK/PS RESISTOR R101 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R102 061G0603000 RST CHIP MAX 0R05 1/10W R103 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R104 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R105 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R106 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R107 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R108 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R109 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R110 061G0402471 RST CHIPR 470 OHM +-5% 1/16W R111 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R112 061G0402750 RST CHIPR 75 OHM +-5% 1/16W http://www.wjel.net - 30 - R113 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R114 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R115 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R116 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R117 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R118 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R119 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R120 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R121 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R122 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R126 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R127 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R128 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R129 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R130 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R131 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R132 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R134 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R136 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R137 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R138 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R139 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R141 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R142 061G0402000 Y RST CHIP MAX 0R05 1/16W YAGEO R143 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R144 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R301 061G1206221 RST CHIPR 220 OHM +-5% 1/4W R302 061G1206221 RST CHIPR 220 OHM +-5% 1/4W R303 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R304 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R305 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R306 061G0402563 RST CHIP 56K 1/16W 5% R308 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R401 061G0402470 0F RST CHIPR 0402 470 OHM +-1% 1/16W R402 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R403 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R404 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R405 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R407 061G0402203 RST CHIP 20K 1/16W 5% R409 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R413 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R415 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R416 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R417 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R418 061G0402121 RST CHIP 120R 1/16W 5% R419 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R438 061G0402000 RST CHIP MAX 0R05 1/16W http://www.wjel.net - 31 - R439 061G0402000 RST CHIP MAX 0R05 1/16W R444 061G0402392 RST CHIP 3.9K 1/16W 5% R445 061G0402392 RST CHIP 3.9K 1/16W 5% R446 061G0402000 RST CHIP MAX 0R05 1/16W R462 061G0402105 RST CHIPR 1MOHM +-5% 1/16W R465 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R466 061G0402000 RST CHIP MAX 0R05 1/16W R468 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R702 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R704 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R705 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R706 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R708 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W FB101 071G 59K190 B 19 OHM BEAD FB102 071G 59K190 B 19 OHM BEAD FB103 071G 59K190 B 19 OHM BEAD FB105 071G 59B121 TB160808B FB301 071G 56K121 CHIP BEAD FB401 071G 56G301 EA BEAD 300 OHM FB403 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB404 071G 56G301 EA BEAD 300 OHM FB406 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB407 071G 56G301 EA BEAD 300 OHM OTHER X401 093G 2251B J NXS12.000AC30F-BT-2 CN101 088G 35315F XH D-SUB 15PIN VERTICAL CONN WITH SCREW CN102 088G 35424F N DVI 24PIN CONN F WITH SCREW CN302 033G8027 30 H WAFER 30P 2.0MM RIGHT ANGLE CN402 033G3802 7B Y CONNECTOR 7P 2.0 DIP CN701 033G3802 9B Y W WAFER POWER BOARD CAPACITOR C801 065G0805473 32 CHIP 0.047UF 50V X7R C802 065G0805473 32 CHIP 0.047UF 50V X7R C803 065G1206104 32 CHIP 0.1UF 25V X7R 1206 C804 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM C805 065G0805333 32 CHIP 0.033UF 50V C806 065G0805225 12 CAP CHIP 0805 2.2UF K 16V X7R C808 065G0805333 32 CHIP 0.033UF 50V C809 065G080522131G CAP CHIP 0805 220PF G 50V NPO C810 065G0603222 32 CHIP 2200PF 50V X7R C811 065G0805474 32 0.47UF +-10% 50V X7R C814 065G0603221 31 CER1 0603 NP0 50V 220P P C815 065G0805474 32 0.47UF +-10% 50V X7R C817 065G 3J2096ET 2PF 5% SL 3KV C818 065G080510522K T CAP CHIP 0805 1UF K 25V X7R C819 065G 3J5606ET CAP CER 56PF J 3KV http://www.wjel.net - 32 - C820 065G 3J5606ET CAP CER 56PF J 3KV C821 065G 3J5606ET CAP CER 56PF J 3KV C822 065G 3J5606ET CAP CER 56PF J 3KV C823 065G0805474 22 CHIP 0.47UF 25V X7R 0805 C900 065G306M4722BP 4700PF +-20% 400VAC C901 065G306M1022BP 1000PF Y1.CAP C902 065G306M1022BP 1000PF Y1.CAP C903 063G 10747410S PLASTIC MEMBRANE CAPACITANCE C903 006G 31502 1.5MM RIVET C905 067G215S10915T L LOW ESR EC 1UF 450V M 8*11.5MM C906 065G1206104 32 CHIP 0.1UF 25V X7R 1206 C907 067G315Z12115L EC 120UF 450V M 20*40MM C907 006G 31 4 1.7MM RIVET C908 065T0603103 12 CHIP 0.01UF 16V X7R C909 065G0603471 32 CHIP 470PF 50V X7R C910 065G0805474 32 0.47UF +-10% 50V X7R C911 067G215Y2207LT LOW ESR EC 22UF 50V M 5*11MM C912 065G 2K152 2T6921 CAP CER 1500PF K 2KV Y5P C913 065G080510241J CAP CHIP 0805 1N 100V NPO +/-5% C914 065G0805222 31 0805 2200PF C915 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C916 065G0603102 32 1000PF +-10% 50V X7R C917 067G215D6814LV LOW ESR EC 680UF 25V M 10*20MM C918 067G215D4714LV LOW ESR EC 470UF 25V M 10*16MM C919 067G215D4714LV LOW ESR EC 470UF 25V M 10*16MM C920 067G215D4713LT LOW ESR EC 470UF 16V M 8*11.5MM C921 065G080510522K T CAP CHIP 0805 1UF K 25V X7R C922 065G1206475 22 4.7U/25V X7R C925 065G080510241J CAP CHIP 0805 1N 100V NPO +/-5% C927 065G0805222 31 0805 2200PF C929 067G215D6814LV LOW ESR EC 680UF 25V M 10*20MM DIODE BD901 093G 50460 38 BRIDGE KBJ408G 4A/800V KBJ BD901 006G 31500 EYELET D801 093G 64 1152T 1N4148 D803 093G 64 33 DIO SIG SM BAV99 (PHSE)R D806 093G 64 42 PP BAV70 SOT-23 D806 093G 64 42 P BAV70 SOT23 BY PAN JIT D807 093G 64 42 PP BAV70 SOT-23 D807 093G 64 42 P BAV70 SOT23 BY PAN JIT D808 093G 64 42 PP BAV70 SOT-23 D808 093G 64 42 P BAV70 SOT23 BY PAN JIT D901 093G 5212T52T DIODE 1N4007 DO-41 D902 093G 6038T52T FR103 D903 093G 6026T52T RECTIFIER DIODE FR107 D903 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41 D904 093G 64 1152T 1N4148 http://www.wjel.net - 33 - D905 093G 52 66 DIODE FMX-12SL 10A/200V TO-220 D905 093G 60316 DIODE FCH10A20 10A/200V TO-220 D906 093G 60309 DIODE SB560 5A/60V DO-201AD D906 093G 60517 DIODE 50PQSA065FC13A 5A/65V NIHON INTER ZD802 093G 39S 24 T RLZ 5.6B LLDS ZD802 093G 39GA01 T RLZ5.6B ZD803 093G 39S 24 T RLZ 5.6B LLDS ZD803 093G 39GA01 T RLZ5.6B ZD901 093G 39S 44 T RLZ18B LLDS ZD902 093G 39S 24 T RLZ 5.6B LLDS ZD902 093G 39GA01 T RLZ5.6B TRANSISTOR & IC IC801 056G 608 12 IC TA9687GN-A-0-TR SOP-16 Q802 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q805 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8 Q805 057G 763905 FET FDS8958A SO-8 Q806 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8 Q806 057G 763905 FET FDS8958A SO-8 Q901 057G 667 56 MOSFET 7A/650V FMA07N65GX TO-220F Q901 057G 724 11 STP9NK65ZFP Q901 006G 31502 1.5MM RIVET Q902 057G 761 16 TRA KTD1028 KEC Q903 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM Q903 057G 763 62 FET 2N7002K 300MA/60V SOT-23 Q904 057G 417 12 T KEC 2N3904S-RTK/PS U901 056G 379151 IC LD7577J GS SOP-8 U902 056G 139 7 1 IC EL817MA M-TYPE U902 056G 139 3A IC PC123Y22FZ0F U903 056G 158 12 KIA431A-AT/P TO-92 RESISTOR JR801 061G1206000 RST CHIP MAX 0R05 1/4W JR802 061G1206000 RST CHIP MAX 0R05 1/4W JR803 061G0805000 RST CHIP MAX 0R05 1/8W JR804 061G0805000 RST CHIP MAX 0R05 1/8W JR808 061G1206000 RST CHIP MAX 0R05 1/4W JR809 061G0805000 RST CHIP MAX 0R05 1/8W JR810 061G1206000 7 RST CHIP MAX 0R05 1/4W JR901 061G1206000 RST CHIP MAX 0R05 1/4W NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING NR901 006G 31502 1.5MM RIVET R801 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R802 061G0805220 RST CHIPR 22 OHM +-5% 1/8W R803 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W R804 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W R806 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R807 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R808 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W http://www.wjel.net - 34 - R809 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R810 061G0603100 3F RST CHIPR 100 KOHM +-1% 1/10W R811 061G0805820 2F RST CHIPR 82KOHM +-1% 1/8W R812 061G0805104 RST CHIPR 100K OHM +-5% 1/8W R813 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R815 061G0603750 1F RST CHIPR 7.5 KOHM +-1% 1/10W R816 061G0805229 RST CHIP 2R2 1/8W 5% R817 061G0805229 RST CHIP 2R2 1/8W 5% R818 061G0805229 RST CHIP 2R2 1/8W 5% R819 061G0805229 RST CHIP 2R2 1/8W 5% R828 061G212Y62552T SY RST MGFR 6.2MOHM +-5% 1/2W FUTABA R830 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W R836 061G0603563 Y RST CHIPR 56KOHM +-5% 1/10W YAGEO R837 061G0603752 RST CHIPR 7.5 KOHM +-5% 1/10W R838 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R839 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R840 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R841 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R842 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R843 061G1206103 RST CHIPR 10K OHM +-5% 1/4W R844 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R845 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R900 061G1206624 RST CHIPR 620 KOHM +-5% 1/4W R901 061G1206624 RST CHIPR 620 KOHM +-5% 1/4W R902 061G1206624 RST CHIPR 620 KOHM +-5% 1/4W R903 061G1206335 RST CHIPR 3.3M OHM +-5% 1/4W R904 061G1206335 RST CHIPR 3.3M OHM +-5% 1/4W R905 061G1206335 RST CHIPR 3.3M OHM +-5% 1/4W R906 061G0603100 3F RST CHIPR 100 KOHM +-1% 1/10W R908 061G1206203 RST CHIPR 20 KOHM +-5% 1/4W R909 061G152M10452T SY RST MOFR 100KOHM +-5% 2WS FUTABA R910 061G1206229 RST CHIPR 2.2 OHM +-5% 1/4W R911 061G1206100 RST CHIPR 10 OHM +-5% 1/4W R912 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W R913 061G1206221 RST CHIPR 220 OHM +-5% 1/4W R914 061G152M39852T RST MOFR 0.39 OHM +-5% 2WS R915 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R916 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R917 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R918 061G0805181 RST CHIPR 180 OHM +-5% 1/8W R919 061G0805181 RST CHIPR 180 OHM +-5% 1/8W R920 061G0805181 RST CHIPR 180 OHM +-5% 1/8W R921 061G0805151 RST CHIPR 150 OHM +-5% 1/8W R922 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W R923 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W R924 061G152M25152T RST MOFR 250 OHM +-5% 2WS R925 061G1206471 RST CHIPR 470 OHM +-5% 1/4W http://www.wjel.net - 35 - R926 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W R927 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R928 061G0603953 1F RST CHIP 9.53K 1/10W 1% R930 061G0603910 1F RST CHIPR 9.1 KOHM +-1% 1/10W R931 061G1206479 RST CHIPR 4.7OHM +-5% 1/4W R932 061G0603000 RST CHIP MAX 0R05 1/10W R934 061G0603303 Y RST CHIPR 30KOHM +-5% 1/10W YAGEO R935 061G0603203 Y RST CHIPR 20KOHM +-5% 1/10W YAGEO R936 061G0603513 Y RST CHIPR 51KOHM +-5% 1/10W YAGEO R937 061G1206202 Y RST CHIPR 2KOHM +-5% 1/4W YAGEO R938 061G0603390 1F RST CHIPR 3.9 KOHM +-1% 1/10W R939 061G0805181 RST CHIPR 180 OHM +-5% 1/8W R940 061G0805181 RST CHIPR 180 OHM +-5% 1/8W R941 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R942 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W RJ838 061G2010000 RST CHIP MAX 0 OHM 3/4W RJ938 061G2010000 RST CHIP MAX 0 OHM 3/4W TRANSFORMER PT801 080GL24T 23 H INVERTER X'FMR 68.5UH PT801 006G 31502 1.5MM RIVET T901 080GL22T 3 N2 X'FMR 490UH T901 006G 31502 1.5MM RIVET OTHER CN801 033G8021 2E F WAFER CN801 033G8021 2E U INVERT CONNECTOR CN802 033G8021 2E F WAFER CN802 033G8021 2E U INVERT CONNECTOR CN803 033G8021 2E F WAFER CN803 033G8021 2E U INVERT CONNECTOR CN804 033G8021 2E F WAFER CN804 033G8021 2E U INVERT CONNECTOR CN901 087G 501 32 S AC SOCKET CN901 087G 501 32 DL AC SOCKET DIP 3PIN+2PIN GROUND CN901 006G 31500 EYELET CN903 095G 825 9W524 WIRE HARNESS 9P(SCN)-9P(2008)120MM F802 084G 56 4 B FUSE 4A 250V F802 084G 56 4W FUSE 4.0A 250V F901 084G 41004 L 877SERIES 4A 250V F901 006G 31502 1.5MM RIVET F902 084G 56 4 B FUSE 4A 250V F902 084G 56 4W FUSE 4.0A 250V FB901 071G 55 29 FERRITE BEAD FB904 071G 55 9 T FERRITE BEAD FB907 071G 55 29 FERRITE BEAD FB907 006G 31502 1.5MM RIVET HS1 090G6064 1 HEAT SINK HS2 Q90G6263 6 HEAT SINK http://www.wjel.net - 36 - J801 095G 90 23 JUMPER WIRE J802 095G 90 23 JUMPER WIRE J803 095G 90 23 JUMPER WIRE J804 095G 90 23 JUMPER WIRE J805 095G 90 23 JUMPER WIRE J806 095G 90 23 JUMPER WIRE J807 095G 90 23 JUMPER WIRE J808 095G 90 23 JUMPER WIRE J809 095G 90 23 JUMPER WIRE J811 095G 90 23 JUMPER WIRE J812 095G 90 23 JUMPER WIRE J813 095G 90 23 JUMPER WIRE J814 095G 90 23 JUMPER WIRE J815 095G 90 23 JUMPER WIRE J816 095G 90 23 JUMPER WIRE J901 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE J904 095G 90 23 JUMPER WIRE L801 073G 174 35DNA FILTER 200MH±25% L802 073G 174 35DNA FILTER 200MH±25% L901 073G 174 65 S2 LINE FILTER 30MH MIN L901 006G 31502 1.5MM RIVET L903 073G 253191 S IND CHOKE 1.1UH L904 073G 253191 S IND CHOKE 1.1UH http://www.wjel.net - 37 - DIFFERENT PARTS LIST W2243T Diversity of TI9GNDM8MWLGNN Compared with TIRANDNBMWLFHN Location Part No. for TPV Description 750GLG215W1A13M0LG PANEL LM215WF1-TLA1 GZ LGD 756GQ9CB KL002 MAIN BOARD-CBPCRNDLGQ2 SMTCR-U402 100GKNGI000NT1 MCU ASS'Y- 056G1133 81 Q34G0576 B6B2B0100 BEZEL L215W-9LG http://www.wjel.net - 38 - SCHEMATIC DIAGRAM DVI_5V 5VCC DDC1_SDA 5 DSUB_5V U108 NC / M24C02-WMN6TP 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC R141 1K 1/16W 5% U103 AZC199-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 VGA_B+ R114 100R 1/16W 5% DVI_SCL VGA_R+ RX0N R128 10R 1/16W 5% ESD_5V 5VCC R108 75R 1/16W 5% C103 22pF R104 100R 1/16W 5% VGA_R+ V_Sy nc R126 10R 1/16W 5% R120 1K 1/16W 5% R111 100R 1/16W 5% R109 100R 1/16W 5% U107 AZC199-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 ZD104 RLZ5.6B C101 NC RX2P U104 AZC199-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 R110 470R 1/16W 5% V_Sy nc DGND VGA_G+ R113 100R 1/16W 5% R150 NC/100R 1/16W 5% R136 4K7 1/16W 5% C102 0.047uF DDC2_SDA U105 AZC199-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 GND POWER 5VCC U102 M24C02-RMN6TP 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC ESD_5V RX1P VGA_G+ RXCN DSUB_SDA R117 100R 1/16W 5% C112 NC R112 75R 1/16W 5% R134 10R 1/16W 5% VGA_R+ R116 75R 1/16W 5% DSUB_SCL C109 5pF/50V ZD105 NC/RLZ5.6B 5V_ESD R142 0 OHM +-5% 1/16W R132 10R 1/16W 5% R127 10R 1/16W 5% C115 0.1UF 16V C117 0.22uF16V R122 100R 1/16W 5% DVI_5V VGA_B+ R107 2K2 1/16W 5% DVI_SDA R133 NC RX0P C106 0.047uF D102 BAV70 3 1 2 R151 NC/4K7 1/16W 5% R115 100R 1/16W 5% RXCP R118 100R 1/16W 5% DVI_5V VGA_G+ R105 100R 1/16W 5% C104 22pF C113 5pF/50V U106 AZC199-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 R140 NC 5V_ESD R147 NC/100R 1/16W 5% H_Sy nc R148 NC/4K7 1/16W 5% VGA_B+ H_Sy nc C119 NC VGA_B- R101 100R 1/16W 5% R121100R 1/16W 5% R138 4K7 1/16W 5% R149 NC/4K7 1/16W 5% VGA_B- DSUB_SCL DDC2_SCL FB103 BEAD 1 2 D103 NC/BAT54C 5V_ESD DVI_SCL VGA_G- R106 2K2 1/16W 5% DDC1_SCL 5 FB105 120 OHM 1 2 R143 4K7 1/16W 5% ESD_5V CN101 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 FB102 BEAD 1 2 R137 4K7 1/16W 5% DSUB_SDA C105 5pF/50V R131 10R 1/16W 5% 5VCC R102 0R05 1/10W 5% C121 NC/0.22uF16V C120 NC DSUB_SCL DDC_WP 5 VGA_G- R139 1K 1/16W 5% C111 0.047uF C108 0.047uF R119 100R 1/16W 5% DSUB_SDA C110 0.047uF Q101 NC R144 4K7 1/16W 5% CN102 JACK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 26 25 DAT2- DAT2+ 2/4shield DAT4- DAT4+ DDC SCL DDC SDA VSYNC DAT1- DAT1+ 1/3shield DAT3- DAT3+ +5V SYNC GND HPD DAT0- DAT0+ 0/5shield DAT5- DAT5+ clk shield clk+ clk- GND GND VGA_PLUG RX2N VGA_R- DSUB_5V RX1N VGA_R- C107 1000pF DSUB_5V FB101 BEAD 1 2 DVI_HPD C114 0.047uF DVI_SDA R103 100R 1/16W 5% R135 NC R129 10R 1/16W 5% R130 10R 1/16W 5% ESD_5V VGA_DET 5 C118 NC 1. SCALER http://www.wjel.net - 39 - LED_ORANGE 5 LVB1M TCLK1M 5 RXE0- LVA2P LVA3P C432 NC/0.1UF 16V R438 0R05 1/16W LVA1P RXOC- 2 T7M 5 LVB3P LVA1M RXE3- RXE0+ LVACKP CN402 CONN 1 2 3 4 5 6 7 LED_LF_BLUE 5 LED_GRN/BLUE R305 10K 1/16W 5% LVA3P LVA2M TCLK2M 5 LVA1P LED_ORANGE CN401 NC/CONN 1 2 3 4 5 6 +5V R304 22K 1/16W 5% RXOC- ZD401 NC 1 2 LVA0M R302 220 OHM 1/4W LVB3P D TCLK2P 5 T3M 5 RXO3- LVB1P C431 0.1UF 16V T5P 5 T5M 5 RXO3- LVB0P RXOC+ RXE0+ LVA3M LVA2M +5V G LVB0P R439 0R05 1/16W LVA3M R308 10K 1/16W 5% RXEC- KEY2 CN302 CONN 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 RXE3+ RXO2- LVB1P LVB2P R306 56K 1/16W 5% T3P 5 LVA1M ZD402 NC 1 2 U301 NC/AO4411 1 2 3 4 8 7 6 5 S S S G D D D D LVB2M C435 0.1UF 16V LVBCKM T6M 5 RXO1- LVB2M RXO2+ RXO1- R445 3.9K OHM 1/16W RXOC+ R437 NC R443 NC/3.9K OHM 1/16W KEY1 5 LVA2P T1M 5 LVA0M RXO2+ 3 KEY2 5 RXE1- C433 NC/0.1UF 16V RXE2+ LVA0P LVBCKM RXE3+ C302 0.22uF16V T2P 5 R307 NC CN403 NC/CONN 2 4 6 8 1 3 5 7 RXE1+ Both CN401 and CN402 foot-print RXO3+ RXEC- RXO0- RXE2- R301 220 OHM 1/4W FB402 NC AO3401L R444 3.9K OHM 1/16W Q302 2N3904S-RTK/PS LVBCKP RXO1+ C304 0.1UF 16V PANEL_VCC RXEC+ T2M 5 T4P 5 + C305 100UF25V RXO0- RXE0- ZD403 NC 1 2 Both CN403,CN404 and CN405 foot-print VCC3.3 RXE1- RXE3- Q301 AO3401 LVA0P FB301 120 OHM 1 2 C303 1uF/16V T7P 5 T6P 5 RXO0+ KEY1 CN405 NC/CONN 1 2 3 4 5 6 7 1 LVB0M CN301 NC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 TCLK1P 5 RXO0+ RXE2+ RXE2- PPWR_ON# 5 LVACKM R436 NC CN404 NC/CONN 1 2 3 4 5 6 PANEL_VCC RXEC+ T0P 5 T0M 5 LVACKP T4M 5 TOUCH_POWER RXO2- RXO1+ LVB0M C436 NC LVB1M LVACKM T1P 5 LED_LF_BLUE POWER_KEY# 5 POWER_KEY# C434 0.1UF 16V LED_GRN/BLUE 5 LVBCKP LVB3M RXE1+ LVB3M C301 0.1UF 16V RXO3+ S VCC3.3 PANEL_VCC LVB2P R303 4K7 1/16W 5% http://www.wjel.net - 40 - DSUB_5V U704 AP1117E18LA 3 2 1 4 VI VO GND 4 lock type 5VCC C702 0.1UF 16V TO252 + C707 100UF25V C701 NC CN701 CONN 1 2 3 4 5 6 7 8 9 C711 NC/0.1UF 16V R705 1K 1/16W 5% NT60670B OPTION U702 NC/AIC1117A-18PE 1 2 3 ADJ Vout Vin + C706 NC/100UF25V 5VCC BKLT-VBRI +5V U701 NC/AP1117E33LA 1 2 3 VSS VOUT VIN VCC1.8 C705 0.1UF 16V R702 1K 1/16W 5% +5V R707 NC/4K7 1/16W 5% Both 223 and 252 foot-print on_BACKLIGHT_1 5 U703 AP1117D33L-13 1 2 3 ADJ(GND) VOUT VIN E5VCC C710 NC/1N 50V Both 223 and 252 foot-print R701 NC/10K 1/16W 5% 20081210: use Pin 123 control BL_ON [on_BACKLIGHT_1]: R446: 0 Ohm; R708: 10K; R704: 22K;R702:1K; Q701:2N3904;C702:0.1uF R447, R711: NC use Pin 39 control BL_ON [on_BACKLIGHT_5V_1]: R447: 0 Ohm; R711: 10K R446,R708,R704,R702,Q701,C702: NC R708 10K 1/16W 5% 5VCC C703 NC/0.1UF 16V Volume# 5 on_BACKLIGHT_5v _1 5 5VCC VCC3.3 SOT223 BKLT-EN FB701 NC/300 OHM 1 2 DVI_5V R710 NC PANEL_ID# 5 R706 100R 1/16W 5% C708 0.1UF 16V Mute 5 VCC3.3 VCC3.3 adj_BACKLIGHT 5 R711 NC BKLT-VBRI 5VCC +5V R703 NC/10K 1/16W 5% 5VCC BKLT-EN Q701 2N3904S-RTK/PS C712 NC/1uF/16V + C704 100UF25V ADD R711 LG 20081029 R704 22K 1/16W 5% C709 0.1UF 16V D702 NC/BAT54C 1 3 2 http://www.wjel.net - 41 - on_BACKLIGHT SPI_SI TCLK2M 3 R446 0R05 1/16W CVDD R470 NC/0R05 1/16W T4P 3 TCLK1M 3 SPI_CK RXCP 2 on_BACKLIGHT_5v _1 4 POWER_KEY# U403 NC/M24C16 1 2 3 4 5 6 7 8 NC NC NC VSS SDA SCL WC VCC DDC1_SCL 2 SPI_SO C447 0.1UF 16V R476 NC C403 1uF 16V C0603 C404 1uF 16V C0603 +5V LED_A T5P 3 BUZZER C439 1uF 16V KEY2 C440 4.7UF 10V C0805 R413 10K 1/16W 5% R416 1K 1/16W 5% R419 10K 1/16W 5% FB404 300 OHM R447 NC/0R05 1/16W MSCL R402 100R 1/16W 5% SPI_CE on_BACKLIGHT_5v DVDD RX2N 2 DSUB_B+ 2 DSUB_G+ 2 C430 0.1UF 16V 5V_DET R414 NC R418 120R 1/16W 5% FB403 300OHM U402 SST25LF020A-33-4C-SAE 1 2 3 4 5 6 7 8 CE# SO WP# VSS SI SCK HOLD# VDD SPI_CE MSCL DVDD T1P 3 R471 NC/0R05 1/16W R409 100R 1/16W 5% R462 1M 1/16W 5% R417 100R 1/16W 5% VCC3.3 RX1P 2 For LED Current, need modify R465/R466/R468/R419 LED_LF_BLUE 3 EE_WP R415 1K 1/16W 5% on_BACKLIGHT_1 4 LED_C WP C406 0.1UF 16V DSUB_R- 2 T2M 3 DSUB_G- 2 CN407 NC/CONN 1 2 3 4 T7P 3 C410 0.1UF 16V ADD R446,447 LG 20081030 SPI_SO R421 NC/10K 1/16W 5% RX0P 2 +5V VCC3.3 DSUB_H 2 TCLK2P 3 R475 NC/2K2 1/16W 5% CN406 NC/CONN 1 2 3 NC/R429 NC/100R 1/16W 5% R441 NC/4K7 1/16W 5% DSUB_SOG 2 VSO HSO LED_A RXCN 2 LED_GRN/BLUE VCC1.8 R420 NC/10K 1/16W 5% LED_LF_BLUE LED_ORANGE PVCC MUTE 4 C411 NC/0.22uF16V R467 NC/0R05 1/16W PVCC +5V SPI_CK C401 0.22uF16V ADC_VAA DDC1_SDA 2 AVCC LED_GRN/BLUE 3 For BUZZER control board or Touch Panel +5V Volume# 4 R478 NC/100R 1/10W 5% VCC3.3 PANEL_ID# 4 R477 NC/0R05 1/16W R468 100R 1/10W 5% CVDD R440 NC/4K7 1/16W 5% T6M 3 T6P 3 DSUB_R+ 2 NC/R431 NC/RST CHIP 100R 1/16W 5% POWER_KEY# 3 TCLK1P 3 C420 22pF C412 0.1UF 16V AVCC DVI_DET 2 LED_C R465 2K2 1/16W 5% R472 NC/100R 1/10W 5% DVDD FB406 300OHM VCC3.3 T7M 3 C448 1uF 16V C0603 FB407 300 OHM DSUB_V 2 VGA_DET 2 LED_ORANGE 3 LED_B AVCC R425 NC/1K 1/16W 5% RX1N 2 MSDA R401 470 OHM +-1% 1/16W RX2P 2 C442 0.1UF 16V +5V C438 1uF/16V FB401 300 OHM T3P 3 DDC_WP 2 LED_B R466 0R05 1/16W R412 NC/100R 1/16W 5% R469 NC/2K2 1/16W 5% DVDD DDC2_SDA 2 T1M 3 +5V KEY1 3 SPI_SI Q403 NC/2N3906S-RTK/PS DDC2_SCL 2 WP C413 0.1UF 16V DVDD C421 22pF R403 10K 1/16W 5% T3M 3 ADC_VAA T5M 3 T0M 3 U401 NT68667UFG/C 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 RSTB DVDD DGND RX2+ RX2- AVCC RX1+ RX1- AGND RX0+ RX0- AGND RXC+ RXC- AVCC REXT PVCC PGND BIN1+ BIN1- SOG1I GIN1+ GIN1- RIN1+ RIN1- ADC_VAA ADC_GNDA PC2 PD6 PB3/ADC3/INTE1 P31/TXD P30/RXD PB2/ADC2/INTE0 PB7/DDC_SDA1* PB6/DDC_SCL1* PA3/PWM5 PA4/PWM6* PA5/PWM7* PA6/PWM8* PA7/PWM9* HSYNCI1 VSYNCI1 PLL_GND GND PLL_VDD PB5/DVI_SDA0* PB4/DVI_SCL0* PD5 P35 P34 DVDD CVDD DVDD RSBA1P/V0 RSBA1M/V1 RSBA2P/V2 RSBA2M/V3 RSBA3P/V4 RSBA3M/V5 RSCLKAP/V6 RSCLKAM/V7 RSGA1P/VCKI DGND/CGND DGND/CGND PC6 DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DVDD DGND/CGND RSGB1M/T0M RSGB1P/T0P RSCLKBM/T1M RSCLKBP/T1P RSBB3M/T2M RSBB3P/T2P RSBB2M/TCLK1M RSBB2P/TCLK1P RSBB1M/T3M RSBB1P/T3P DGND/CGND RSRA3M/T4M/RSRB0M RSRA3P/T4P/RSRB0P RSRA2M/T5M/GSGB0M RSRA2P/T5P/RSGB0P RSRA1M/T6M/RSGB0M RSRA1P/T6P/RSBB0P RSGA3M/TCLK2M RSGA3P/TCLK2P RSGA2M/T7M RSGA2P/T7P PA1/PWM3 PA2/PWM4 PA0/PWM2 OSCO OSCI PB0/ADC0 PB1/ADC1 PC5 PC4/PWM1 PC3/PWM0 PC1* PC0* CVDD PWMB*/GPO8 PWMA*/GPO7 NC CVDD INT_HSO/GPO5 INT_VSO/GPO4 GPO3/AD1 GPO2/AD0 NC GND PD4 SPI_CLK SPI_SI SPI_SO SPI_CE PC7 R405 10K 1/16W 5% T4M 3 TX PPWR_ON# 3 R454 NC/10K 1/16W 5% C422 0.1UF 16V Q402 NC/2N3906S-RTK/PS X401 12MHz 1 2 EE_WP C423 0.1UF 16V R407 20K OHM 1/16W RX0N 2 KEY2 3 BUZZER KEY1 R406 NC/10K 1/16W 5% adj_BACKLIGHT 4 DSUB_B- 2 R404 100R 1/16W 5% HSO MSDA C407 0.1UF 16V T0P 3 HDCP_CTRL 2 VSO Q401 2N3906S-RTK/PS T2P 3 C446 0.1UF 16V http://www.wjel.net - 42 - R939 180R 1/8W +5Vi D901 1N4007 93G 5212T52T ZD903 NC NC 1 2 C914 2200pF50V FB901 BEAD 1 2 ! C913 0.001uF L901 30mH 1 4 2 3 C927 2200pF50V R928 9.53K OHM 1/10W R913 220 OHM 1/4W ZD902 RLZ5.6B 93G 39S 24 T 1 2 R922 1K 1/10W 1% R941 100R 1/8W 5% ! + C929 680uF 25V R917 100R 1/8W 5% R915 100R 1/8W 5% CN903 1 2 3 4 5 6 7 8 9 D904 IN4148 R900 620K OHM 1/4W T901 POWER X'FMR 1 3 4 5 6 7 8 9 10 11 12 C925 0.001uF ! R931 4.7 OHM R906 100K 1/10W 1% 61G0603100 3F ! C912 1500PF2KV +16V U903 KIA431A-AT/P C910 0.47UF/50V R929 NC R926 1K 1/10W 1% R918 180R 1/8W VOL MUTE + C911 22uF 50V + C920 470uF 16V F801 NC U902 PC123X2YFZOF 1 2 4 3 RJ938 0 OHM 3/4W C909 470pF ! D905 FMX-12SL 1 2 3 R940 180R 1/8W FB907 BEAD 1 2 + C907 120uF 450V DIM R932 0R05 1/10W 5% C900 0.0047UF/400V L904 R908 20K OHM 1/4W +-5% ! ! R920 180R 1/8W D906 50PQSA065 ! ZD904 RLZ27B 1 2 ! R938 3K9 1/10W 1% R916 100R 1/8W 5% ! ZD901 RLZ18B 1 2 R942 100R 1/8W 5% D907 31DQ06FC3 R923 1K 1/10W 1% U901 LD7577 1 2 3 4 5 6 7 8 BNO COMP CS GND OUT VCC NC HV R910 2R2 1/4W 5% NR901 NTCR C906 0.1uF 65G1206104 32 R911 10R 1/4W 5% ! R902 620K OHM 1/4W C908 ! D902 FR103 R912 10K 1/10W 1% +5V +5V C921 1uF/25V F901 FUSE C915 0.1uF Q901 FMA07N65GX R914 0.39 OHM 2W +-5% +16Vi L903 R921 150R 1/8W 5% CN901 SOCKET 1 2 3 R927 1KΩ 1/8W R925 470R 1/4W 5% R930 9K1 1/10W 1% C901 1000PF/250VAC R903 3.3MΩ 1/4W 61G1206335 + C918 470uF 25V C903 0.47uF/275V - + BD901 KBJ408G 2 1 3 4 ! C902 1000PF/250VAC C916 0.001uF ! + C905 1uF 450V 67G215S10915T L FB904 BEAD 1 2 R909 100KOHM/2WS ! F802 FUSE ! F902 FUSE Q902 KTD1028 R924 250OHM2W + C919 470uF 25V RV901 NC R901 620K OHM 1/4W C922 4uF7 25V R905 3.3MΩ 1/4W 61G1206335 C904 NC ON/OFF C923 NC + C917 680uF 25V D903 FR107 R904 3.3MΩ 1/4W 61G1206335 ! R919 180R 1/8W 2. POWER http://www.wjel.net - 43 - C817 2pF/3KV L801 200mH 1 2 4 3 LV2 R845 10K 1/10W PT801 POWER X'FMR 6 2 7 5 1 8 R936 51KOHM +-5% 1/10W CN803 CONN 1 2 LV3 R809 1M 1/10W 5% R840 1M 1/8W 5% R841 1M 1/10W 5% C803 0.1uF R842 10K 1/10W C808 33NF50V Q805 AO4620 1 2 3 4 5 6 7 8 S2 G2 S1 G1 D1 D1 D2 D2 LV3 ZD802 RLZ5.6B 1 2 R804 5K1 1/8W 5% C801 0.047uF R837 7K5 1/10W 5% R810 100K 1/10W 1% +5Vi R818 2R2 1/8W 5% C815 0.47UF/50V C823 0.47uF/25V Q802 2N7002 SOT-23 R815 7K5 1/10W 1% R836 56KOHM +-5% 1/10W D806 BAV70 3 1 2 R806 100K 1/10W 5% CN801 CONN 1 2 DIM C818 1uF/25V R816 2R2 1/8W 5% R808 390R 1/10W 1% ZD803 RLZ5.6B 1 2 C821 56pF3KV C802 0.047uF +16Vi R807 10K 1/8W 5% + C804 1000uF 25V LV1 C811 0.47UF/50V R819 2R2 1/8W 5% R844 10K 1/10W L802 200mH 1 2 4 3 C814 220pF D801 IN4148 C809 220pF50V C819 56pF3KV +5Vi C813 NC C822 56pF3KV +16V C805 33NF50V C820 56pF3KV CN804 CONN 1 2 R801 10K 1/8W 5% R802 22R 1/8W 5% IC801 ta9687GN-A-0-TR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VSEN SSTCMP CT RT1 GNDA PDR2 GNDP NDR2 NDR1 PDR1 VDDA TIMER PWM ISEN OVPT ENA RJ838 0 OHM 3/4W Q904 2N3904S-RTK/PS R803 5K1 1/8W 5% ON/OFF Q806 AO4620 1 2 3 4 5 6 7 8 S2 G2 S1 G1 D1 D1 D2 D2 R843 10K OHM 1/4W R937 2KOHM +-5% 1/4W D808 BAV70 3 1 2 R811 82 KOHM +-1% 1/8W R935 20KOHM +-5% 1/10W LV1 D807 BAV70 3 1 2 R830 5K1 1/8W 5% Q903 RK7002FD5T116 CN802 CONN 1 2 R934 30KOHM +-5% 1/10W R817 2R2 1/8W 5% R839 1M 1/10W 5% LV2 LV4 C810 0.0022uF LV4 D803 BAV99 3 1 2 R828 6.2M OHM 1/2W R812 100K 1/8W 5% R838 1M 1/10W 5% R813 100K 1/10W 5% C806 2.2uF/16V Change 82K +-1 % 3. INVERTER http://www.wjel.net - 44 - Mar.2009 P/NO: Printed in China http://www.wjel.net
