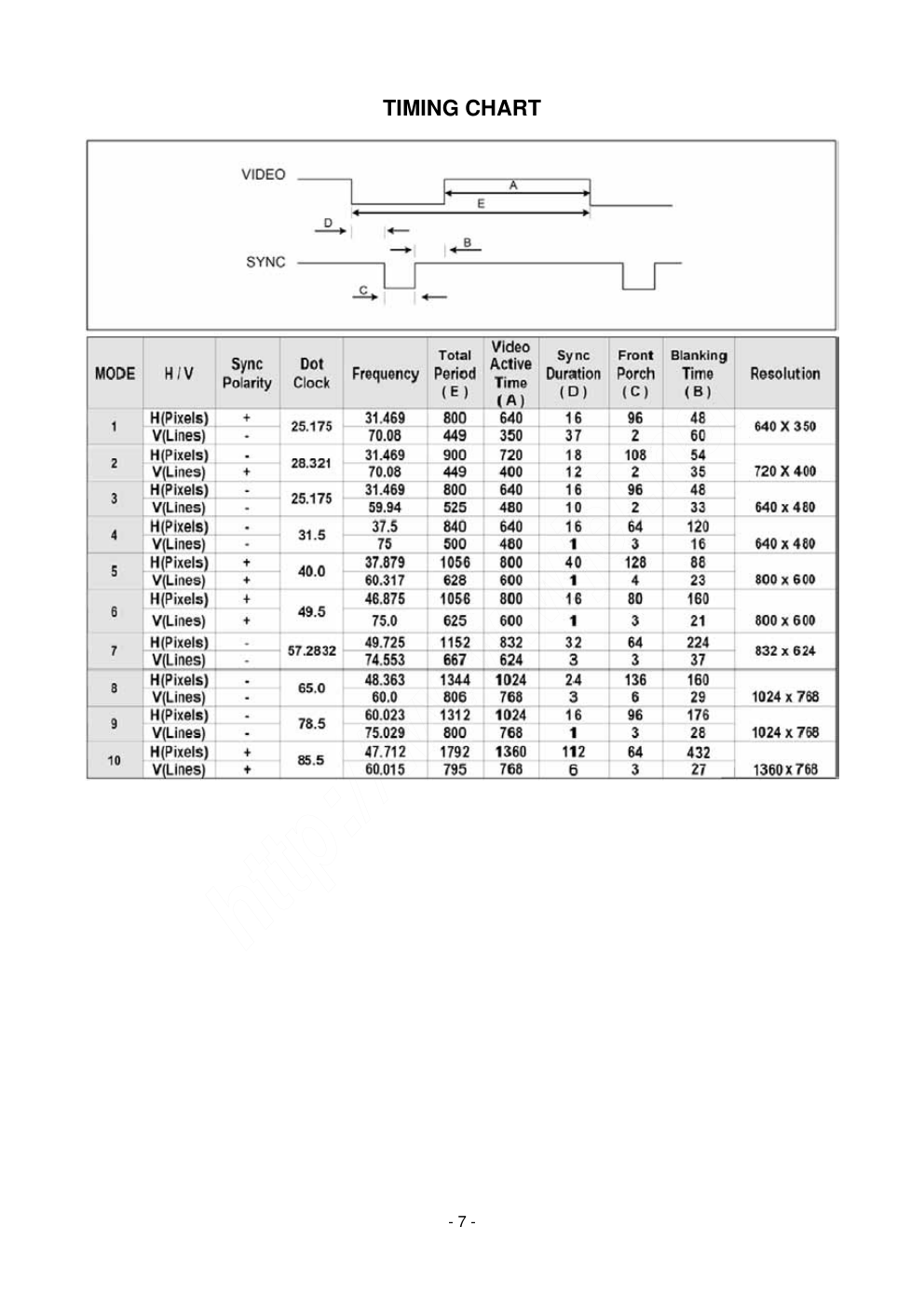

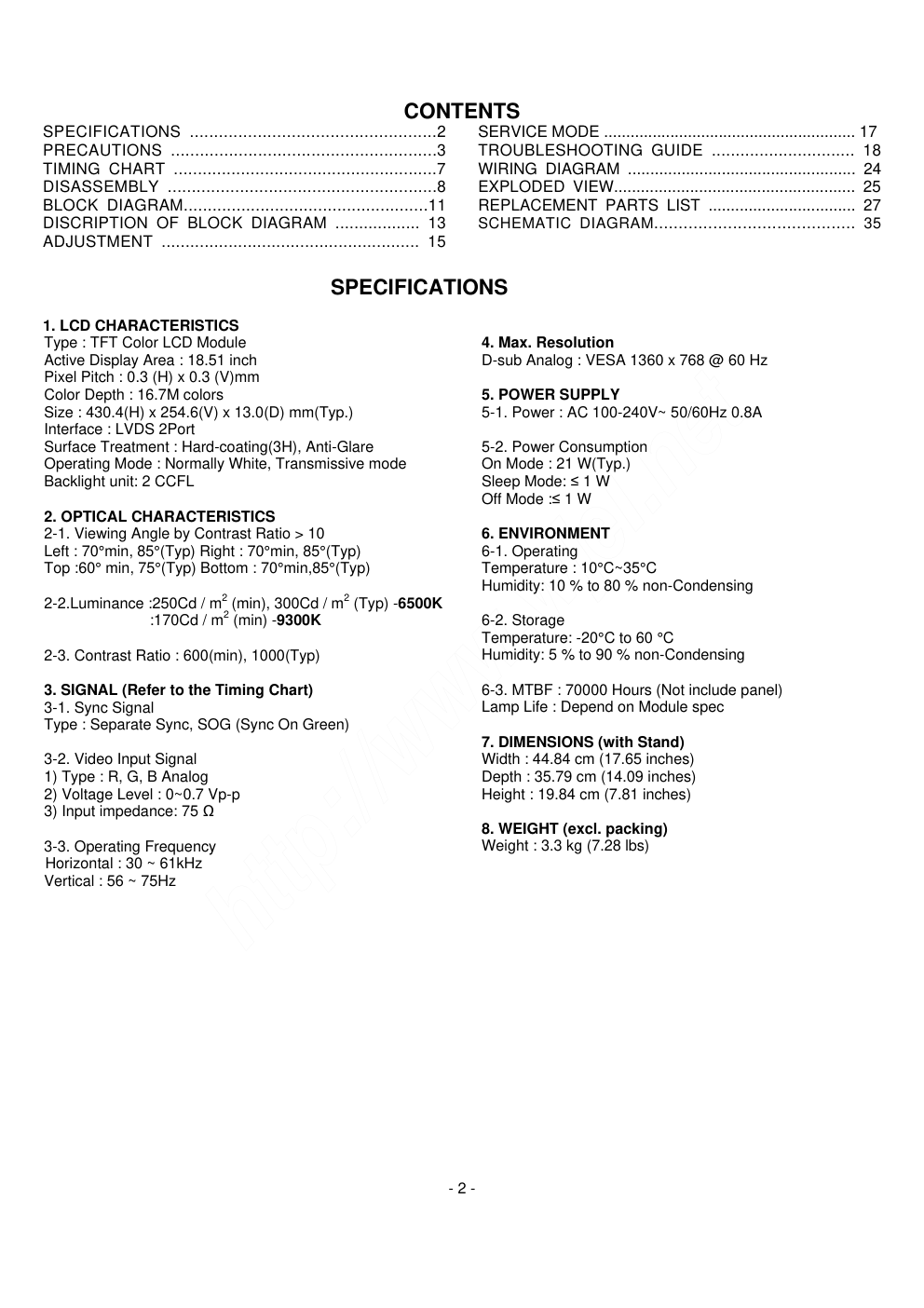

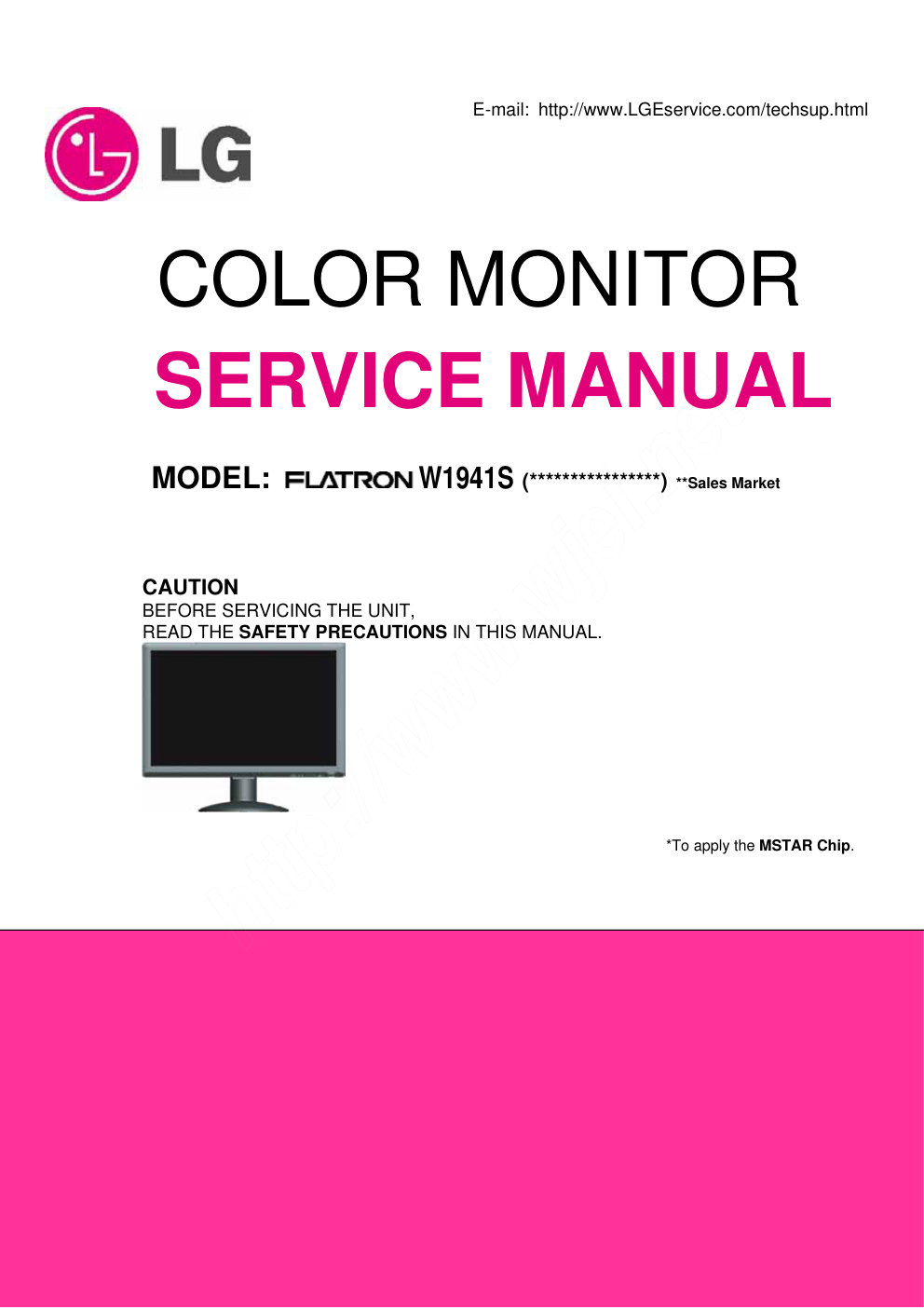

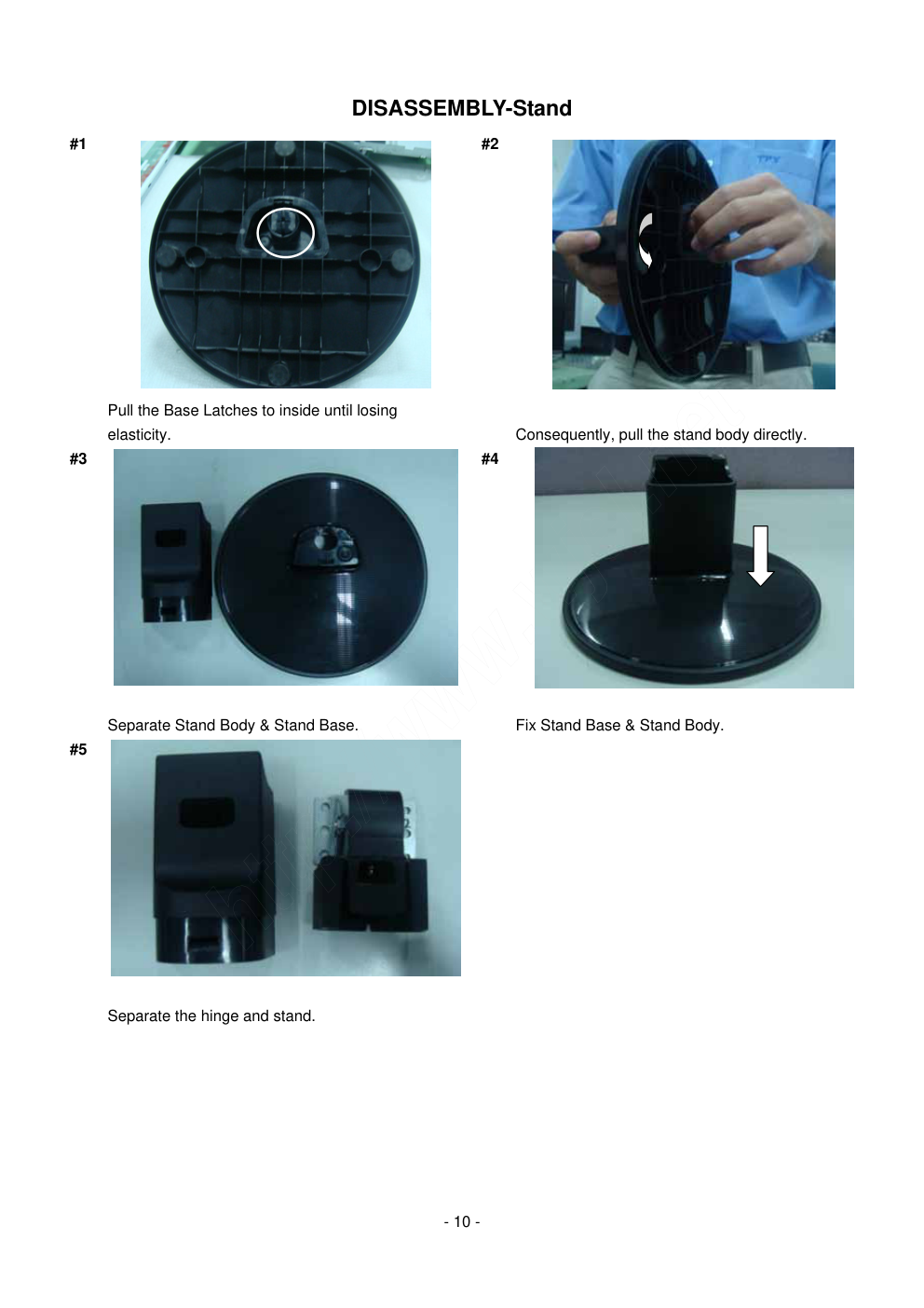

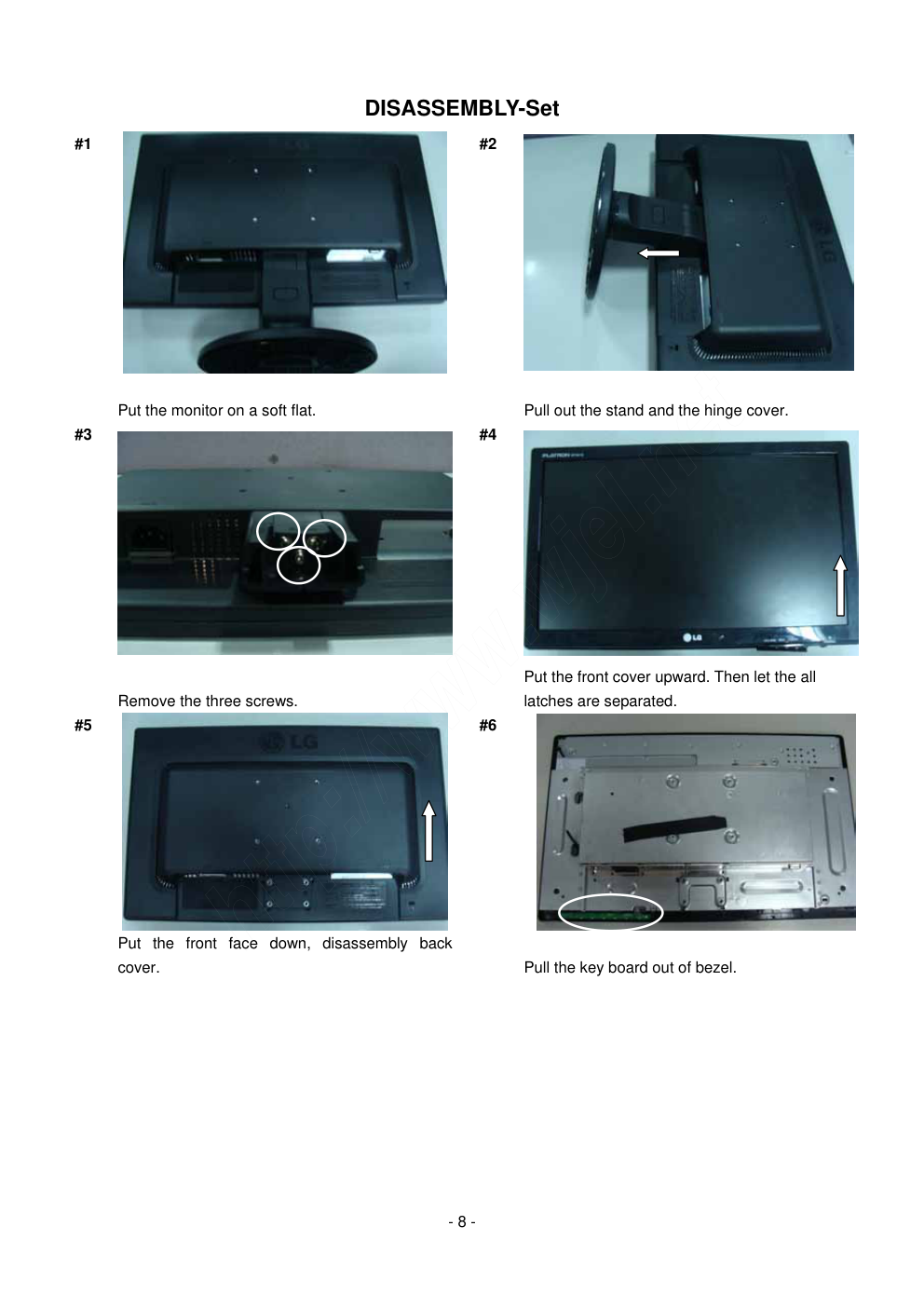

- 1 - E-mail: http://www.LGEservice.com/techsup.html COLOR MONITOR SERVICE MANUAL MODEL: W1941S (****************) **Sales Market CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. *To apply the MSTAR Chip. http://www.wjel.net - 2 - CONTENTS SPECIFICATIONS ...................................................2 PRECAUTIONS .......................................................3 TIMING CHART .......................................................7 DISASSEMBLY ........................................................8 BLOCK DIAGRAM...................................................11 DISCRIPTION OF BLOCK DIAGRAM .................. 13 ADJUSTMENT ...................................................... 15 SERVICE MODE ......................................................... 17 TROUBLESHOOTING GUIDE .............................. 18 WIRING DIAGRAM ................................................... 24 EXPLODED VIEW...................................................... 25 REPLACEMENT PARTS LIST ................................. 27 SCHEMATIC DIAGRAM......................................... 35 SPECIFICATIONS 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Active Display Area : 18.51 inch Pixel Pitch : 0.3 (H) x 0.3 (V)mm Color Depth : 16.7M colors Size : 430.4(H) x 254.6(V) x 13.0(D) mm(Typ.) Interface : LVDS 2Port Surface Treatment : Hard-coating(3H), Anti-Glare Operating Mode : Normally White, Transmissive mode Backlight unit: 2 CCFL 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio > 10 Left : 70°min, 85°(Typ) Right : 70°min, 85°(Typ) Top :60° min, 75°(Typ) Bottom : 70°min,85°(Typ) 2-2.Luminance :250Cd / m2 (min), 300Cd / m2 (Typ) -6500K :170Cd / m2 (min) -9300K 2-3. Contrast Ratio : 600(min), 1000(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal Type : Separate Sync, SOG (Sync On Green) 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.7 Vp-p 3) Input impedance: 75 Ω 3-3. Operating Frequency Horizontal : 30 ~ 61kHz Vertical : 56 ~ 75Hz 4. Max. Resolution D-sub Analog : VESA 1360 x 768 @ 60 Hz 5. POWER SUPPLY 5-1. Power : AC 100-240V~ 50/60Hz 0.8A 5-2. Power Consumption On Mode : 21 W(Typ.) Sleep Mode: ≤ 1 W Off Mode :≤ 1 W 6. ENVIRONMENT 6-1. Operating Temperature : 10°C~35°C Humidity: 10 % to 80 % non-Condensing 6-2. Storage Temperature: -20°C to 60 °C Humidity: 5 % to 90 % non-Condensing 6-3. MTBF : 70000 Hours (Not include panel) Lamp Life : Depend on Module spec 7. DIMENSIONS (with Stand) Width : 44.84 cm (17.65 inches) Depth : 35.79 cm (14.09 inches) Height : 19.84 cm (7.81 inches) 8. WEIGHT (excl. packing) Weight : 3.3 kg (7.28 lbs) http://www.wjel.net   - 3 - http://www.wjel.net   - 4 - http://www.wjel.net   - 5 - http://www.wjel.net   - 6 - http://www.wjel.net   - 7 - TIMING CHART http://www.wjel.net   - 8 - DISASSEMBLY-Set #1 Put the monitor on a soft flat. #2 Pull out the stand and the hinge cover. #3 Remove the three screws. #4 Put the front cover upward. Then let the all latches are separated. #5 Put the front face down, disassembly back cover. #6 Pull the key board out of bezel. http://www.wjel.net   - 9 - #7 Disassembly the bezel. ＃8 Disassembly the connector and screw. #9 Remove the screw. #10 Disassemble the FFC cable. #11 Main board and power board. #12 The panel. http://www.wjel.net   - 10 - DISASSEMBLY-Stand #1 Pull the Base Latches to inside until losing elasticity. #2 Consequently, pull the stand body directly. #3 Separate Stand Body & Stand Base. #4 Fix Stand Base & Stand Body. #5 Separate the hinge and stand. http://www.wjel.net   - 11 - BLOCK DIAGRAM http://www.wjel.net   - 12 - BLOCK DIAGRAM-POWER Power Inverter EMI filter Rectification  Transformer 5V/12V output OVP Feedback control circuit Switching circuit (PWM control IC & MOSFER) OVP protect circuit Diode rectifier  Starting resistor 12V Rush prevention ON/OFF DIM Push-pull circuit Transformer conversion LC resonance VDDA ON/OFF circuit PWM IC OZ9938GN Feedback circuit OVP circuit 2 CCFL lamps Sampling Lamp open protection DIM circuit 12V 5V 100~240V http://www.wjel.net   - 13 - DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 79.5MHz to 90MHz. This part consists of the Scaler, ADC converter, TMDS receiver and LVDS transmitter. The Scaler gets the video signal converted analog to digital, interpolates input to 1360 X 768 resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V, and one 1.8V regulators to convert power which is provided 5V in Power board. 12V is provided for inverter, 5V is provided for LCD panel. Also, 5V is converted 3.3V and 1.8V by regulator. Converted power is provided for IC in the main board. The inverter converts from DC 12V to AC 700Vrms and operates back-light lamps of module. 3. MICOM Part. This part is including video controller part. And this part consists of NVRAM which stores control data, Reset IC and the Micom. The Micom distinguishes polarity and frequencies of the H/V sync are supplied from signal cable. The controlled data of each mode is stored in NVRAM. http://www.wjel.net   - 14 - LIPS Board Block Diagram Operation description_LIPS 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is for transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilized, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the DC output changing status through a photo transistor to primary controller to achieve the stabilized DC output voltage. 6. Signal collection. This part function is to collect the any change from the DC output and feed back to the primary through photo transistor. http://www.wjel.net   - 15 - ADJUSTMENT Windows EDID V1.0 User Manual Operating System: DOS, windows98, 2000, XP 1. Parallel port setting Enter your bios, and do as followings. a) Integrated peripheral b) Super IO Device c) Parallel port mode you should set the” parallel port mode” to SPP for using the DOS EDID tool surely. 2. EDID Write 1、Connect the signal line of monitor with DDC recorder. 2、Choose the DDC RECORD program, and it shows on the screen, the choose the correct source base on the monitor. 3、Click “LoadFile” ,then key in the manufacturer name、model name、product code, then choose the correct model name base on the monitor.(as Fig. 2) 4、Scan serial No. to DDC recorder by Bar Reader, then read again in the Verify SN. 5、According to the message of DDC program, when the picture as fig.1 appears, it show DDC record has finished. Fig.1 http://www.wjel.net   - 16 - Please check Manufacturer Name、Vendor Assigned Code、 Monitor Name、 Serial Number：*****[???????? ******] (it must be the same as Bar Code)、 Week of Manufacture：**、Year of Manufacture：****、Check sum：** (It must be the same as the last byte of data table, as follows picture shows). Above of all must be right, then if it shows the green “PASS”, it means record succeeds ,the red “Fail” means record fails; then check the power supply and signal line, and ensure they are connected well ,then do DDC record again from the third step.   Fig.2 http://www.wjel.net   - 17 -       1) Turn off the power switch at the front side of the display. 2) Wait for about 5 seconds and press MENU, POWER switch with 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) CLEAR ETI: To initialize using time. b) Auto Color: W/B balance and automatically sets the gain and offset value. c) AGING: Select Aging mode (on/off). d) PANEL: used panel type e) NVRAM INIT: EEPROM initialize. (24C04) f) R/G/B-9300K: Allows you to set the R/G/B-9300K value manually. g) R/G/B-6500K: Allows you to set the R/G/B-6500K value manually. h) R/G/B-Offset: Allows you to set the R/G/B-Offset value manually. (Analog Only) i) R/G/B-Gain: Allows you to set the R/G/B-Gain value manually. (Analog Only) Figure 1. Cable Connection for Micom uploading SERVICE MODE  Connect to the monitor Connect to the PC http://www.wjel.net   - 18 - TROUBLESHOOTING GUIDE No Power (Power Indicator Off) Please reinsert and make sure the AC of 100-240v is normal Measure C704 (+) =1.8V U701 PIN2=3.3V Check the Adapter/Inverter section Check CN701 or replace Q702, Q703, and U701 NO NO YES YES 1. NO POWER  Check X401 oscillate waveforms are normal Replace X401   Replace U401   NO YES http://www.wjel.net   - 19 - 2. NO RASTER (OSD IS NOT DISPLAY)-LIPS  LIPS No Raster (OSD Is Not Displayed) Check U701 PIN 2 =3.3V? Check U701 PIN 3 =5V? Check power board and find out a short point as penning each power line 1. Check U701 2. Check C706,C707 Check C704 (+) 1.8V? 1. Check Q702,Q703 2. CheckC704,C705 3. TROUBLE IN SCALER IC  NO NO NO YES YES YES Check CN701 PIN 3 =5V? YES NO Check BL ON/OFF pulse as contacting scope http://www.wjel.net   - 20 - 2. NO RASTER (OSD IS NOT DISPLAY)-MSTAR  1. Check C420 C421 2. Check X401 3. TROUBLE IN SCALER IC SCALER PIN 96, 97 OSCILLATES AS 14.318MHZ? No Raster (OSD Is Not Displayed) CHECK CONNECTION LINE FROM D-SUB TO SCALER TROUBLE IN CABLE OR LCD MODULE NO YES YES NO SCALER IC PIN 27 H SYNC ? PIN 28 V SYNC? http://www.wjel.net   - 21 - 4. TROUBLE IN DPM  TROUBLE IN DPM SCALER IC PIN 27 H SYNC? PIN 28 V SYNC? CHECK H/V SYNC LINE TROUBLE IN CABLE OR LCD MODULE NO YES http://www.wjel.net   - 22 - 5. POWER No Power (Power Indicator Off) Check AC line volt Check the voltage of C905(+) Check start voltage for the pin1 of IC901 Check IC901 pin 7 Vcc is 13v? Check AC line Check F901, BD901 Check D905, R934, R929,R928,IC901 Check D902,C907  Check IC901, T901,D907,D908,ZD903,ZD902,ZD901,IC902,IC903 NO YES YES NO YES NO YES NO Check IC901 PIN6 output is PWM? Check D901,Q903,ZD904  NO http://www.wjel.net   - 23 - 6. RASTER  NO Raster (Lamp Off) Check C811 (+) =12V Check ON/OFF signal CheckIC801 pin 2=5V?  Check Q805/Q806 pin5/pin8 is 12V? Check power section Check Interface section or main board  Check Q801 Q802 Q803 ZD801 Check IC801 pin 5/pin6 Cut all the pin connector of Q805/Q806, check C811 (+) =12V? Unplug backlight connector wire, check PT801/PT802 pin7/pin8 = 650V? Replace PT801/PT802 NO NO NO NO NO YES YES YES Check IC801 Pin1/pin15 have the output of sawtooth Check PT801/PT802 pin7/pin8= 650V? Replace Q805/Q806 Check Q801 Q802 Replace backlight Replace IC801 NO YES NO YES YES NO YES NO http://www.wjel.net   - 24 - WIRING DIAGRAM 95G820H 6W503 089G179J30N511 95G 825 7D504 http://www.wjel.net   - 25 - EXPLODED VIEW   http://www.wjel.net   - 26 - EXPLODED VIEW PARTS LIST Ref. No. TPV part no. LGE part no. Description 010 Q34G0459 B6A1B0130 BEZEL(18.5") 020 Q33G0238 1 1C0100 LENS 030 Q33G0239 B6 1L0100 KEY BUTTON 040 KEPC8QG8 KEY BOARD 050 750GLG185H1A11N000 PANEL LM190WH1-TLA1 KR LPL 060 PWPC8921CYA1 POWER BOARD 070 756GQ8CB KL005 MAIN BOARD-CBPCRM5LMQ2 080 Q15G0360101 MAINFRAME 090 Q34G0460 B6 1B0100 REAR COVER(18.5") 100 Q37G0104012 HINGE 110 Q34G0462 B6 1B0100 STAND TOP 120 Q34G0463 B6 1B0100 HINGE COVER 130 Q34G0464 B6 1B0132 STAND 140 Q34G0465 B6 1B0133 BASE 2 150 Q33G0240 B6 1L0100 RELEASE BUTTON 160 Q12G6600 6 FOOT 170 089G179J30N511 FFC CABLE 180 089G 728HAA 2G SIGNAL CABLE 190 089G421A18N IS POWER CORD http://www.wjel.net   - 27 - REPLACEMENT PARTS LIST DATE: 2008. 10. 16 *S *AL LOC. NO. PART NO. DESCRIPTION MAIN BOARD CAPACITOR C102 065G0402473 12 CHIP 0.047UF 16V X7R C103 065G0402220 31 CHIP 22PF 50V NPO C104 065G0402220 31 CHIP 22PF 50V NPO C105 065G0402509 31 CHIP 5PF 50V NPO C106 065G0402473 12 CHIP 0.047UF 16V X7R C107 065G0402102 32 1000PF +-10% 50V X7R C108 065G0402473 12 CHIP 0.047UF 16V X7R C109 065G0402509 31 CHIP 5PF 50V NPO C110 065G0402473 12 CHIP 0.047UF 16V X7R C111 065G0402473 12 CHIP 0.047UF 16V X7R C113 065G0402509 31 CHIP 5PF 50V NPO C114 065G0402473 12 CHIP 0.047UF 16V X7R C301 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C302 065G0402224 17 CAP CER 0.22UF -20%-80% C305 067G 3151014KB EC 100UF M 25V 6.3*11 C401 065G0402224 17 CAP CER 0.22UF -20%-80% C402 067G 3151007KB EC 10UF M 50V 5*11 C403 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C404 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C405 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C406 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C407 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C408 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C409 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C410 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C411 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C412 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C413 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C414 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C415 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C417 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C418 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C419 067G 3151007KV ELCAP 10UF M 50V 105℃ KINGNICHI C420 065G0402470 31 MLCC 0402 CAP 47PF J 50V NPO C421 065G0402470 31 MLCC 0402 CAP 47PF J 50V NPO http://www.wjel.net   - 28 - C422 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C423 065G0402224 17 CAP CER 0.22UF -20%-80% C432 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C433 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C434 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C435 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C701 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C704 067G 3151014KB EC 100UF M 25V 6.3*11 C705 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C706 067G 3151014KB EC 100UF M 25V 6.3*11 C707 067G 3151014KB EC 100UF M 25V 6.3*11 C708 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C709 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C710 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C711 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R DIODE D104 093G 60505 DIO SIG SM BAT54C(PHSE)R D109 093G 60505 DIO SIG SM BAT54C(PHSE)R D701 093G3004 3 SM340A ZD105 093G 39GA01 T RLZ5.6B IC U103 056G 662 13 IC AZC099-04S SOT23-6L U104 056G 662 13 IC AZC099-04S SOT23-6L U401 056G 562208 IC TSUM1PFL-LF PQFP-100 SMTCR-U402 100GKMG8000N11 MCU ASS'Y-056G1133 81 U403 056G1133 32 IC M24C04-WMN6TP SO8 U701 056G 585 4A IC AP1117E33L-13 TRANSISTOR Q301 057G 763 1 A03401 SOT23 BY AOS(A1) Q302 057G 417517 LMBT3906LT1G SOT-23 BY LRC Q406 057G 763 1 A03401 SOT23 BY AOS(A1) Q701 057G 417518 LMBT3904LT1G SOT-23 BY LRC Q702 057G 417 22 T TRA KN2907AS -60V/-0.6A SOT-23 Q703 057G 417 22 T TRA KN2907AS -60V/-0.6A SOT-23 RESISTOR R101 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R102 061G0603000 RST CHIP MAX 0R05 1/10W R103 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R104 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R105 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R106 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R107 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R108 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R109 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R110 061G0402471 RST CHIPR 470 OHM +-5% 1/16W R111 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R112 061G0402750 RST CHIPR 75 OHM +-5% 1/16W http://www.wjel.net   - 29 - R113 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R114 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R115 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R116 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R117 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R124 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R125 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R133 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R139 061G0402682 RST CHIP 6K8 1/16W 5% R301 061G1206331 RST CHIPR 330 OHM +-5% 1/4W R302 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R303 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R304 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R305 061G0805000 F RST CHIPR 0 OHM +-5% 1/8W FENGHUA R401 061G0402390 0F RST CHIP 390R 1/16W 1% R403 061G0805000 F RST CHIPR 0 OHM +-5% 1/8W FENGHUA R408 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R409 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R410 061G0402682 RST CHIP 6K8 1/16W 5% R411 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R412 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R413 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R415 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R416 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R417 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R419 061G0402000 RST CHIP MAX 0R05 1/16W R420 061G0402121 RST CHIP 120R 1/16W 5% R421 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W R423 061G0402000 RST CHIP MAX 0R05 1/16W R428 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R429 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R431 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R440 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R441 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R442 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R443 061G0402390 1F RST CHIPR 3.9KOHM +-1% 1/16W R444 061G0402390 1F RST CHIPR 3.9KOHM +-1% 1/16W R445 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R448 061G0402203 RST CHIP 20K 1/16W 5% R449 061G0402303 RST CHIPR 30 KOHM +-5% 1/16W R701 061G1206000 RST CHIP MAX 0R05 1/4W R702 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R703 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R704 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R705 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R706 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W FB403 061G0805000 F RST CHIPR 0 OHM +-5% 1/8W FENGHUA http://www.wjel.net   - 30 - COIL & FILTER FB101 071G 59K190 B 19 OHM BEAD FB102 071G 59K190 B 19 OHM BEAD FB103 071G 59K190 B 19 OHM BEAD FB401 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB402 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB404 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB702 071G 56G301 EA BEAD 300 OHM FB703 071G 59G301 CHIP BEAD 300OHM OTHER X401 093G 22 53 J 14.31818MHZ/32PF/49US CN101 088G 35315F H D-SUB 15PIN CN301 033G801930F CH JS CONNECTOR CN402 033G3802 6 WAFER CN701 033G3802 9 WAFER 9P RIGHT ANELE PITCH POWER BOARD CAPACITOR C801 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C802 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C804 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C805 065G0805222 31 0805 2200PF C806 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C807 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R C808 061G0805184 RST CHIPR 180K OHM +-5% 1/8W C809 065G0805473 32 CHIP 0.047UF 50V X7R C810 065G080556131G MLCC 0805 560PF G 50V NPO C811 067G215P4714AV CAP 105℃ 470UF M 25V C813 065G0805102 31 CAP CHIP 0805 1000PF J 50V NPO C814 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C819 065G0805473 32 CHIP 0.047UF 50V X7R C820 065G0805472 32 CAP CHIP 0805 4700PF K 50V X7R C822 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C825 065G 6J1206ET 12PF 5% SL 6KV TDK C826 065G 3J3096ET 3PF,J,3KV,Z5P C828 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C830 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C832 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C833 065G060347141J W CAP CHIP 0603 470PF J 100V NPO C833 065G060347141J Y CAP CHIP 0603 470PF J 100V NPO C834 065G060347141J W CAP CHIP 0603 470PF J 100V NPO C834 065G060347141J Y CAP CHIP 0603 470PF J 100V NPO C837 065G0805391 31 CHIP 390PF 50V C838 065G0805473 32 CHIP 0.047UF 50V X7R C839 065G 3J3096ET 3PF,J,3KV,Z5P C841 065G0805472 32 CAP CHIP 0805 4700PF K 50V X7R C900 065G306M3322BP 3300PF 20% C901 065G306M2222BP 2200PF +-20% 250VAC http://www.wjel.net   - 31 - C902 065G306M2222BP 2200PF +-20% 250VAC C903 063G107K474 6S CAP X2 0.47UF K 275VAC C903 006G 31502 1.5MM RIVET C904 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C905 067G315Y10115H CAP 105℃ 100UF M 450V C905 006G 31502 1.5MM RIVET C907 067G 5152207HT CAP 105℃ 22UF M 50V C908 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C909 065G0805221 31 CAP CHIP 0805 220PF J 50V NPO C910 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R C912 065G0805152 32 CHIP 1500PF 50V X7R 0805 C913 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C914 065G0805152 32 CHIP 1500PF 50V X7R 0805 C915 067G215P4714AV CAP 105℃ 470UF M 25V C918 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C919 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C920 067G215P4714AV CAP 105℃ 470UF M 25V C921 067G215P4714AV CAP 105℃ 470UF M 25V C922 067G215D4713KT /105℃ EC 470UF M 16V KINGNICHI C923 067G 2046812KT CS CAP 680UF 10V 8*11 MM C925 067G215S10915T3964 EC CAP 1.0UF 450V 8*11MM C930 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P C931 065G 2K152 1T GP CERAMIC CAP C932 065G0603102 32 1000PF +-10% 50V X7R C934 065G 2K152 1T GP CERAMIC CAP DIODE BD901 093G 50460 38 BRIDGE KBJ408G 4A/800V KBJ BD901 006G 31500 EYELET D801 093G 64 33 DIO SIG SM BAV99 (PHSE)R D801 093G 6433S DIODE BAV99 SEMTECH D802 093G 64 33 DIO SIG SM BAV99 (PHSE)R D802 093G 6433S DIODE BAV99 SEMTECH D806 093G 64 33 DIO SIG SM BAV99 (PHSE)R D806 093G 6433S DIODE BAV99 SEMTECH D809 093G 6432S 1N4148W D809 093G 64S511SEM 1N4148W D810 093G 6432S 1N4148W D810 093G 64S511SEM 1N4148W D811 093G 6432S 1N4148W D811 093G 64S511SEM 1N4148W D812 093G 6432S 1N4148W D812 093G 64S511SEM 1N4148W D901 093G 6026T52T RECTIFIER DIODE FR107 D901 093G 6026W52T FR107 D902 093G 6038P52T PS102R D902 093G 6038T52T FR103 D903 095G 90 23 JUMP LINE http://www.wjel.net   - 32 - D905 093G 52 1552T DIODE 1N4007-E3/54 1A/1000V DO-41 D905 093G 5212T52T DIODE 1N4007 DO-41 D907 093G 60267 SP10100 D908 093G3006 1 1 31DQ06FC3 NIHON INTER ZD001 093G 39GA01 T RLZ5.6B ZD002 093G 39GA01 T RLZ5.6B ZD003 093G 39GA01 T RLZ5.6B ZD004 093G 39GA01 T RLZ5.6B ZD005 093G 39GA01 T RLZ5.6B ZD006 093G 39GA01 T RLZ5.6B ZD801 093G 39GA01 T RLZ5.6B ZD801 093G 39S 24 T RLZ 5.6B LLDS ZD901 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH ZD901 093G 39S 40 T RLZ 13B LLDS ZD902 093G 39GA01 T RLZ5.6B ZD902 093G 39S 24 T RLZ 5.6B LLDS ZD903 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH ZD903 093G 39S 40 T RLZ 13B LLDS ZD904 093G 39GA31 T ZENER DIODE RLZ18B SEMTECH ZD904 093G 39S 44 T RLZ18B LLDS ZD906 093G 39S 42 T RLZ27B LLDS TRANSISTOR & IC IC801 056G 608 10 IC OZ9938GN-B SOIC-16 IC901 056G 379 79 IC LD7522PS SOP-8 IC902 056G 139 7 1 IC EL817MA M-TYPE IC902 056G 139 3A IC PC123Y22FZ0F IC903 056G 158 7 AP431V TO-92BY ATC IC903 056G 158 10 T IC AS431AZTR-E1 TO-92 IC903 056G 158 12 KIA431A-AT/P TO-92 Q801 057G 417 12 T KEC 2N3904S-RTK/PS Q802 057G 417 12 T KEC 2N3904S-RTK/PS Q803 057G 417 12 T KEC 2N3904S-RTK/PS Q804 057G 759 2 RK7002 Q806 057G 763 6 AO4828L Q806 057G 763 14 AM9945N Q807 057G 759 2 RK7002 Q808 057G 759 2 RK7002 Q811 057G 759 2 RK7002 Q812 057G 759 2 RK7002 Q903 006G 31502 1.5MM RIVET Q904 057G 417511 MMBT3904 RESISTOR JR901 061G1206000 RST CHIP MAX 0R05 1/4W JR902 061G1206000 RST CHIP MAX 0R05 1/4W NR901 061G 58005 W RST NTCR 5 OHM 3A THINKING NR901 006G 31502 1.5MM RIVET R802 061G0805304 RST CHIPR 300K OHM +-5% 1/8W http://www.wjel.net   - 33 - R803 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R804 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R805 061G1206471 RST CHIPR 470 OHM +-5% 1/4W R806 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R807 061G1206220 RST CHIPR 22 OHM +-5% 1/4W R808 061G0805473 RST CHIPR 47K OHM +-5% 1/8W R810 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R812 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R813 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R814 061G0805754 RST CHIPR 750K OHM +-5% 1/8W R815 061G0805104 RST CHIPR 100K OHM +-5% 1/8W R816 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R817 061G0805200 2F RST CHIPR 20 KOHM +-1% 1/8W R818 061G1206820 RST CHIPR 82 OHM +-5% 1/4W R820 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R825 061G0805513 RST CHIPR 51K OHM +-5% 1/8W R826 061G0805150 1F RST CHIPR 1.5 KOHM +-1% 1/8W R828 061G1206472 RST CHIPR 4.7K OHM +-5% 1/4W R829 061G1206820 RST CHIPR 82 OHM +-5% 1/4W R833 061G1206472 RST CHIPR 4.7K OHM +-5% 1/4W R836 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R837 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W R840 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R841 061G0805430 0F RST CHIPR 430 OHM +-1% 1/8W R842 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W R844 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R846 061G0805511 RST CHIPR 510 OHM +-5% 1/8W R847 061G0805105 RST CHIPR 1M OHM +-5% 1/8W R858 061G0805751 RST CHIPR 750 OHM +-5% 1/8W R901 061G1206684 RST CHIPR 680K OHM +-5% 1/4W R902 061G1206684 RST CHIPR 680K OHM +-5% 1/4W R903 061G1206684 RST CHIPR 680K OHM +-5% 1/4W R904 061G1206154 RST CHIPR 150K OHM +-5% 1/4W R905 061G152M51352T RST MOFR 51 KOHM +-5% 2WS R906 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R907 061G1206154 RST CHIPR 150K OHM +-5% 1/4W R908 061G0805202 RST CHIPR 2K OHM +-5% 1/8W R909 061G1206249 RST CHIPR 2.4 OHM +-5% 1/4W R910 061G1206220 RST CHIPR 22 OHM +-5% 1/4W R911 061G1206221 RST CHIPR 220 OHM +-5% 1/4W R912 061G1206103 RST CHIPR 10K OHM +-5% 1/4W R913 061G0805124 RST CHIPR 120K OHM +-5% 1/8W R914 061G152M51852T RST MOFR 0.51 OHM +-5% 2WS R915 061G1206154 RST CHIPR 150K OHM +-5% 1/4W R916 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R917 061G0805683 RST CHIPR 68K OHM +-5% 1/8W R919 061G1206151 RST CHIPR 150 OHM +-5% 1/4W http://www.wjel.net   - 34 - R920 061G0805302 RST CHIPR 3K OHM +-5% 1/8W R921 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R922 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R923 061G0805330 2F RST CHIPR 33K OHM +-1% 1/8W R924 061G0805240 1F RST CHIPR 2.4K OHM +-1% 1/8W R925 061G0805360 1F RST CHIPR 3.6K OHM +-1% 1/8W R926 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R927 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R928 061G1206335 RST CHIPR 3.3M OHM +-5% 1/4W R929 061G1206335 RST CHIPR 3.3M OHM +-5% 1/4W R930 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R931 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R932 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R933 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R934 061G1206335 RST CHIPR 3.3M OHM +-5% 1/4W R935 061G152M25152T RST MOFR 250 OHM +-5% 2WS R936 061G0805471 RST CHIPR 470 OHM +-5% 1/8W R937 061G0805102 RST CHIPR 1K OHM +-5% 1/8W TRANSFORMER PT801 080GL22T 1 H XFMR INVERTER 86.7UH DADON PT801 006G 31502 1.5MM RIVET T901 006G 31502 1.5MM RIVET T901 S80GL22T2V TRANSFORMER SUBASSEMBLY OTHER CN801 033G8021 2E F WAFER CN801 033G8021 2E U INVERT CONNECTOR CN802 033G8021 2E F WAFER CN802 033G8021 2E U INVERT CONNECTOR CN901 087G 501 32 S AC SOCKET CN901 087G 501 32 DL AC SOCKET DIP 3PIN+2PIN GROUND L901 073L 174 53 VG GP LINE FILTER 2MH MIN L901 006G 31502 1.5MM RIVET L902 006G 31502 1.5MM RIVET L902 S73L17440VG TRANSFORMER SUBASSEMBLY L903 073G 253 91 V CHOKE COIL 3.5UH+-10% L904 073G 253 91 V CHOKE COIL 3.5UH+-10% L906 071G 55 29 FERRITE BEAD HS1 090G6084 1 HEAT SINK HS4 Q85G0062 1 EMI-BKT F901 084G 33 10 FUSE CLIP F901 084G 41 3 3.15AH/250V FB901 071G 55 29 FERRITE BEAD http://www.wjel.net   - 35 - SCHEMATIC DIAGRAM 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 CN101 DB15 R120 NC I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 U105 NC Q101 NC ESD_VCC ESD_VCC ESD_VCC2 ESD_VCC1 DSUB_SCL DDC1_SCL CMVCC DVI_5V C121 NC FB108 NC VGA_R- DSUB_B+ 2 R140 NC DVI_5V I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 U104 AZC099-04S DSUB_SCL DSUB_SDA ESD_VCC C101 NC I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 U103 AZC099-04S VGA_R+ VGA_B+ VGA_G+ V_Sy nc VGA_G- I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 U106 NC DDC1_SDA DSUB_SDA H_Sy nc DDC1_SCL DDC2_SDA DDC2_SCL FB104 NC I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 U107 NC C120 NC H_Sy nc FB105 NC DSUB_B- 2 DSUB_SOG 2 DSUB_G+ 2 DSUB_R+ 2 DSUB_R- 2 DSUB_G- 2 DSUB_H 2 3 1 2 D109 BAT54C DSUB_V 2 DDC2_SCL 2 DDC2_SDA 2 RX0P 2 MVCC_1 RX0N 2 RX1N 2 RX1P 2 RX2P 2 RX2N 2 RXCP 2 RXCN 2 DDC1_SCL 2 DDC1_SDA 2 DDC1_SDA VGA_B- DET_CABLE 2 DDC_WP 2 FB107 NC DDC_WP 2 DAT2- 1 DAT2+ 2 2/4shield 3 DAT4- 4 DAT4+ 5 DDC SCL 6 DDC SDA 7 VSYNC 8 DAT1- 9 DAT1+ 10 1/3shield 11 DAT3- 12 DAT3+ 13 +5V 14 SYNC GND 15 HPD 16 DAT0- 17 DAT0+ 18 0/5shield 19 DAT5- 20 DAT5+ 21 clk shield 22 clk+ 23 clk- 24 GND 26 GND 25 CN102 NC R104 1K 1/16W 5% R138 NC DDC2_SDA C113 5pF/50V V_Sy nc ZD105 RLZ5.6B 1 2 FB102 BEAD R125 4K7 1/16W 5% VGA_PLUG RX1P R124 4K7 1/16W 5% A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U102 NC A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U101 NC C124 NC VCC3.3 VGA_R+ DDC2_SCL VGA_B+ RX2P R137 NC DSUB_5V VGA_PLUG VGA_G- R122 NC C107 1000pF HDCP_CTRL2 3 1 2 D108 NC R139 6K8 1/16W 5% R127 NC R111 100R 1/16W 5% R101 100R 1/16W 5% C114 0.047uF R112 75R 1/16W 5% VGA_G+ RX0N DVI_5V C106 0.047uF VGA_R- R129 NC 3 1 2 D104 BAT54C R135 NC DGND R134 NC C103 22pF C104 22pF C110 0.047uF C122 NC ZD104 NC R121 NC VGA_B- R131 NC R136 NC R103 1K 1/16W 5% 1 2 FB103 BEAD ESD_VCC1 ESD_VCC2 FB109 NC R126 NC R119 NC R105 100R 1/16W 5% R123 NC C111 0.047uF VGA_G+ R108 75R 1/16W 5% VGA_B+ R115 100R 1/16W 5% RXCN CMVCC RX1N DSUB_5V R117 100R 1/16W 5% C117 NC C115 NC R110 470R 1/16W 5% C109 5pF/50V R116 75R 1/16W 5% R128 NC R106 2K2 1/16W 5% RX0P C108 0.047uF C118 NC VGA_R+ C119 NC R109 100R 1/16W 5% R107 2K2 1/16W 5% C112 NC DVI_HPD C102 0.047uF R102 0R05 1/10W 5% 1 2 FB101 BEAD RX2N R133 10K 1/16W 5% R130 NC R132 NC RXCP R113 100R 1/16W 5% R114 100R 1/16W 5% C116 NC GND POWER DVI_HPD C105 5pF/50V R118 NC 1. SCALER  http://www.wjel.net   - 36 - LVBCKM RXOC- LVB2M RXO2- RXOC+ LVBCKP RXO3- LVB3M RXEC+ LVACKP RXE2- LVA2M RXO1+ LVB1P 2 4 6 8 10 12 14 16 18 20 22 24 1 3 5 7 9 11 13 15 17 19 21 23 CN302 NC RXE0+ LVA0P RXO0- LVB0M LVACKM RXEC- RXE0- LVA0M RXO2+ LVB2P RXE1+ LVA1P RXO3+ LVB3P RXE1- LVA1M LVB0P PB8 + C305 100UF25V RXE3- LVA3M RXE3+ LVA3P R304 47K 1/16W 5% RXO0+ LVB0P RXO1- LVB1M RXE2+ LVA2P PANEL_VCC R303 10K 1/16W 5% C302 0.22uF Q302 2N3906S-RTK/PS PA2 LVACKP LVB1M PB7 LVB3P PB0 PA5 LVA2M PA0 LVA3P PA9 LVA0M PA4 LVA2P LVB3M PB1 PA8 LVA0P PA[0..9] LVB2M PB5 PA1 LVA3M LVB0M PB9 CMVCC PA6 LVA1P PPWR_ON# 2 LVBCKP PB2 PA3 LVACKM LVBCKM PB3 LVB2P PB4 PA7 LVA1M Q301 AO3401 LVB1P PB6 R305 0 OHM +-5% 1/8W PANEL_VCC PB[0..9] PA[0..9] 2 PB[0..9] 2 AO3401L 2 1 C303 NC C304 NC S D R302 4K7 1/16W 5% 3 G PANEL_VCC R301 330 OHM 1/4W C301 0.1uF/16V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CN301 CONN LVA0P RXE0+ RXO1- LVB1M RXE2- LVA2M RXE1- LVA1M LVACKM RXEC- RXO3- LVB3M LVB2M RXO2- RXOC+ LVBCKP RXE0- LVA0M RXO0- LVB0M RXE3- LVA3M RXO1+ LVB1P RXE2+ LVA2P RXO0+ LVB0P LVBCKM RXOC- RXE1+ LVA1P RXO3+ LVB3P RXO2+ LVB2P RXEC+ LVACKP RXE3+ LVA3P S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 U301 NC\AO4411 http://www.wjel.net   - 37 - Q703 KN2907AS C712 NC DVI_5V D701 SM340A VCC3.3 BKLT-VBRI MVCC VCTRL C713 NC R708 NC MVCC Q702 KN2907AS PANEL_ID# 2 PANEL_ID# R709 NC R710 NC VCC3.3 VCC3.3 VCC3.3 VCC3.3 FB702 300 OHM R701 0R05 1/4W + C704 100UF25V VSS 1 VOUT 2 VIN 3 U701 AP1117E33LA FB703 300 OHM C710 0.1uF 16V C711 0.1uF 16V Mute BKLT-EN 3 1 2 D702 NC DSUB_5V BKLT-VBRI Volume# BKLT-EN CMVCC CMVCC R702 10K 1/16W 5% + C706 100UF25V C701 0.1uF/16V R703 10K 1/16W 5% C708 0.1uF/16V C702 NC 1 2 3 4 5 6 7 8 9 CN701 CONN R705 10K 1/16W 5% R704 4K7 1/16W 5% + C707 100UF25V C709 0.1uF/16V R706 1K 1/16W 5% Q701 2N3904S-RTK/PS MVCC_1 FB701 NC C705 0.1uF/16V DGND 1,2,3 CMVCC VCC1.8 Mute 2 Volume# 2 on_BACKLIGHT 2 adj_BACKLIGHT 2 http://www.wjel.net   - 38 - FB406 NC FB403 0 OHM +-5% 1/8W R447 NC WP VCTRL PA[0..9] 3 PB[0..9] 3 R413 10K 1/16W 5% C418 0.1uF/16V R410 6K8 1/16W 5% MVCC CMVCC Q406 AO3401 R449 30K OHM 1/16W 5% R448 20K OHM 1/16W LF_B DSUB_R+ 1 R411 10K 1/16W 5% R408 10K 1/16W 5% MSCL RIN0P 23 GIN0P 20 SOGIN0 21 BIN0P 18 RIN0M 22 GIN0M 19 BIN0M 17 HSYNC0 27 VSYNC0 28 REXT 15 REFP 26 REFM 25 SDO 37 SCK 39 SCZ 38 SDI 40 PWM2/GPIO_P24 47 PWM1/GPIO_P25 86 LVACKM 59 XIN 96 XOUT 97 LVA2P 60 LVA2M 61 LVA1P 62 LVA1M 63 LVA0P 64 LVA0M 65 LVB3P 67 LVB3M 68 LVBCKP 69 LVBCKM 70 LVB2P 71 LVB2M 72 LVB1P 73 LVB1M 74 LVB0P 77 LVB0M 78 LVACKP 58 LVA3M 55 LVA3P 54 GND 2 GND 5 R+ 3 R- 4 G+ 6 G- 7 AVDD_DVI 8 B+ 9 B- 10 CK+ 12 CK- 13 GND 11 GND 29 GND 33 AVDD_ADC 24 VDDP 56 MODE[1] 53 MODE[0] 52 VCTRL 81 VDDC 51 DDCA_SDA/RS232_TX 30 DDCA_SCL/rs232_RX 31 DDCD_SDA 100 DDCD_SCL 1 PWM0/GPIO_P26 93 AVDD_DVI 14 VDDP 75 GPIO_P15/PWM0 35 GPIO_P27/PWM1 48 GPIO_P12 85 GPIO_P00/SAR1 88 GPIO_P01/SAR2 89 GPIO_P02/SAR3 90 GPIO_P06 91 GPIO_P07 92 GPIO_P13 94 GPIO_P14 95 GPIO_P16/PWM2 99 GPIO_P11/I2C_MDA 43 GPIO_P10/I2C_MCL 44 RST 84 GPIO_P23 41 GPIO_P22 42 AVDD_MPLL 98 AVDD_PLL 16 VDDP 32 VDDP 49 VDDC 66 VDDC 82 VDDC 34 GND 50 GND 57 GND 76 GND 79 GND 83 BYPASS 80 RSTN 87 NC 36 NC 45 NC 46 TSUM1PFL-LF VCC3.3 C420 47pF C413 0.1uF/16V R445 100R 1/16W 5% PANEL_ID# 4 KEY2 R431 100R 1/16W 5% LED_ORANGE VDDP PA2 PA3 R429 100R 1/16W 5% C415 0.1uF/16V VCC3.3 VCC3.3 1 C404 0.1uF/16V LED_ORANGE KEY2 PB7 R401 390 OHM 1/16W R440 10K 1/16W 5% C434 0.1uF/16V PB9 R412 10K 1/16W 5% VCC3.3 PB5 VMPLL C416 NC R426 NC PB0 PA7 C409 0.1uF/16V PB[0..9] + C402 10UF50V FB404 300OHM C423 0.22uF16V R403 0 OHM +-5% 1/8W 3 2 1 Q404 NC C422 0.1uF/16V LED_GRN/BLUE C403 0.1uF/16V C410 0.1uF/16V AVDD C431 NC VDDC R420 120R 1/16W 5% VCC3.3 EE_WP C406 0.1uF/16V C407 0.1uF/16V C405 0.1uF/16V LED_GRN/BLUE C414 0.1uF/16V VCC3.3 C435 0.1uF/16V R415 100R 1/16W 5% PA1 PA0 VCC3.3 VPLL R442 10K 1/16W 5% R441 10K 1/16W 5% NC 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WC 7 VCC 8 U403 M24C04-WMN6TP R417 100R 1/16W 5% VMPLL C408 0.1uF/16V VCC3.3 C417 0.1uF/16V C411 0.1uF/16V MSDA C421 47pF PB4 R419 0R05 1/16W VCC3.3 PPWR_ON# 3 CMVCC EE_WP KEY1 PB2 KEY1 R407 NC POWER_KEY# 1 2 X401 14.31818MHz AVDD R409 100R 1/16W 5% R428 100R 1/16W 5% PA6 DVI_5V R446 NC FB401 300OHM VPLL C401 0.22uF16V VDVI PA8 R425 NC 3 2 1 Q401 NC R421 100K 1/16W 5% WP VDDP R423 0R05 1/16W VDDC PA5 C432 0.1uF/16V 1 2 3 4 5 6 CN402 CONN POWER_KEY# MVCC + C419 10uF/50V C412 0.1uF/16V R422 NC C433 0.1uF/16V FB402 300OHM LVDS PA[0..9] PB3 AVDD PA4 DET_CABLE 1 VCC3.3 PA9 R424 NC R416 100R 1/16W 5% VCC1.8 PB8 PB1 VDVI PB6 R430 NC VCC1.8 4 R406 NC R404 NC Q405 NC VCC3.3 LF_B R402 NC R405 NC FOR EMI C436 NC FB405 NC CE# 1 SO 2 WP# 3 VSS 4 SI 5 SCK 6 HOLD# 7 VDD 8 U402 SST25LF020A-33-4C-SAE R443 3.9K OHM 1% 1/16W DDC2_SCL 1 R444 3.9K OHM 1% 1/16W DSUB_R- 1 DSUB_G+ 1 DSUB_G- 1 DSUB_B+ 1 DSUB_SOG 1 DSUB_V 1 DSUB_B- 1 DSUB_H 1 DDC1_SDA 1 DDC1_SCL 1 RX2P 1 RX2N 1 RX1P 1 RX1N 1 RX0N 1 RX0P 1 RXCN 1 RXCP 1 DDC2_SDA 1 HDCP_CTRL 1 DDC_WP 1 on_BACKLIGHT 4 adj_BACKLIGHT 4 Volume# 4 Mute 4 R427 NC/10K 1/16W 5% MSCL MSDA http://www.wjel.net   - 39 - 1 2 t NR901 NTCR 61G 58005 W 1 2 3 4 5 6 7 CN902 Wire Harness 95G 825 7D502 1 2 ZD906 RLZ27B 93G 39S 42 T R928 3.3MΩ 1/4W 61G1206335 1 2 3 D907 SP10100 93G 60267 D901 FR107 93G 6026T52T IC903 AP431VLA 56G 158 7 R919 150 1/4W 61G1206151 R910 61G1206470 + C915 470uF25V 67G215V471 4H 1 4 2 3 L901 2.0MH 73L 174 53 LG GP + C907 22uF/50V 67G 5152207HT R932 61G1206101 L903 3.5uH 73G 253 91 LS C908 0.1uF 65G0805104 32 1 4 2 3 L902 30.0mH 73L 174 40 HG R922 1KΩ 1/8W 61G0805102 R924 2.4KΩ 1% 1/8W 61G0805240 1F C904 0.1uF 65G0805104 32 R920 3 K 1/8W 61G0805302 R907 150K 1/4W 61G1206154 R904 150K 1/4W 61G1206154 C913 0.1uF 65G0805104 32 C909 220pF/50V 65G0805221 31 L904 3.5uH 73G 253 91 LS C934 0.0015uF/2KV 65G 2K152 1T GP + C921 NC 1 2 3 D906 NC 1 2 L906 BEAD 71G 55 29 R921 1KΩ 1/8W 61G0805102 + C920 470uF25V 67G215V471 4H 2 6 7 8 9 10 11 12 4 1 3 T901 POWER X'FMR 80GL22T 2 LS R913 120KΩ 1/8W 61G0805124 1 2 ZD904 RLZ18B 93G 39S 44 T 1 2 4 3 IC902 PC123X2YFZOF 56G 139 3A R911 61G1206221 220Ω 1/4W R906 100Ω 1/4W 61G1206101 R905 51KOMH 2W 61G152M51352T C926 3300pF 250V 65G306M3322BP 1 2 ZD905 NC F901 FUSE/3.15A 84G 41 3 + C922 470uF 16V 67G215D4713KT 2 1 3 4 - + BD901 KBJ408G 93G 50460 38 C910 0.01uF/50V 65G0805103 32 D902 FR103 93G 6038T52T R925 3.6 K+-1% 1/8W 61G0805360 1F R926 1KΩ 1/8W 61G0805102 1 2 ZD903 RLZ13B 93G 39S 40 T VAR901 NC 61G 46 11 R937 1K 1/8W 　 61G0805102 R936 470 1/8W 　 61G0805471 C932 0.001uF 65G0603102 32 Q904 PMBS3904 57G 417 4 D904 NC R908 2KΩ 1/8W 61G0805202 + C925 1UF450V 67G215S10915T3964 R930 100Ω 1/4W 61G1206101 + C924 NC NC 1 2 JP903 BEAD 71G 55 29 R912 61G1206103 OTP 3 CS 4 GND 5 Line 1 COMP 2 OUT 6 VCC 7 OVP 8 IC901 LD7522 56G 379 79 R901 680KΩ 61G1206684 C903 0.47UF C914 1500PF/50V R909 2.4Ω 1/4W 61G1206249 + C906 NC ! ! R929 3.3MΩ 1/4W 61G1206335 ! ! ! ! ! ! 1 2 FB901 BEAD 71G 55 29 ! ! ! ! R935 150OHM2W 61G152M15152T + C923 1000uF16V 67G215V1023HS R915 150K 1/4W 61G1206154 R931 100Ω 1/4W 61G1206101 C919 0.1uF 65G0805104 32 D903 NC JUMP D908 31DQ06FC3 93G3006 1 1 R914 0.51 2W 　 61G152M51852T +5V +12V DIM ON/OFF C931 0.0015uF/2KV 65G 2K152 1T GP 1 2 3 CN901 SOCKET 87G 501 32 S R917 68KΩ 1/8W 61G0805683 R916 100Ω 1/4W 61G1206101 1 2 ZD902 RLZ5.6B 93G 39S 24 T R902 680KΩ 61G1206684 R934 3.3MΩ 1/4W 61G1206335 R903 680KΩ 61G1206684 C901 0.0022uF/250V 65G306M2222B3 ! + C905 100uF/450V 67G315Y10115H C902 0.0022uF/250V 65G306M2222B3 R923 33 K+-1% 1/8W 61G0805330 2F Q903 FQPF8N60C 57G 667 47 R927 61G0805103 1 2 ZD901 RLZ13B 93G 39S 40 T C918 0.1uF 65G0805104 32 R933 61G1206101 C930 2200PF2KV 65G 2K222 2T6921 D905 1N4007 93G 5212T52T C912 65G0805152 32 2. POWER http://www.wjel.net   - 40 - 65G0805104 32 61G0805751 R833 4.7 K 1/4W S 1 G 2 S 3 G 4 D 8 D 7 D 6 D 5 Q805 AM9945N-T1-PF 065G 3J3096ET C809 0.047uF 3 1 2 D804 BAV99 OPT2 C832 0.1uF 0805 R802 300KΩ 1/8W OPT3 61G1206472 OPT1 C804 1uF/25V C826 3PF/3KV 57G 759 2 1 2 ZD801 RLZ5.6B 65G0805472 32 D810 1N4148W R807 22 1/4W 57G 759 2 R835 4.7 K 1/4W 6 3 7 4 8 1 PT801 POWER X'FMR 80GL17T 40 DN D811 1N4148W 93G 64 33 57G 759 2 OPT4 R847 1M 1/8W 61G0805105 Q801 PMBS3904 Q811 RK7002 57G 759 2 Q812 RK7002 57G 759 2 C837 390pF/50V 65G080539131G C838 0.047uF 65G0805473 32 SST CT D812 1N4148W 93G 6432S FB C821 0.1uF 0805 R803 10KΩ 1/8W D808 1N4148W 93G 64 33 57G 759 2 C824 3PF/3KV CT + C811 470uF25V D809 1N4148W C827 0805 4700PF 1 2 JP929 BEAD D807 1N4148W 57G 759 2 R858 750Ω 1/8W 65G0805102 31 R842 5.1Ω 1/4W R834 4.7 K 1/4W R825 51 K1/8W R827 R813 1M 1/8W C819 0.047uF C801 0.1uF C822 0.1uF 0805 Q804 RK7002 SST R815 100KΩ 1/8W R804 10KΩ 1/8W R824 750Ω 1/8W Q807 RK7002 93G 64 33 R836 1KΩ 1/8W + C815 470uF25V C825 12PF6KV C820 0.0047uF Q808 RK7002 R844 1MΩ 1/8W OPT1 6 3 7 4 8 1 PT802 POWER X'FMR 80GL17T 40 DN 93G 64 33 Q809 RK7002 R837 5.1Ω 1/4W R811 NC C805 2200pF50V 61G1206472 R832 3PF/3KV Q810 RK7002 R814 750K OHM 1/8W C817 0.1uF 0805 R819 82OHM +-5% 1/4W OPT2 R806 10KΩ 1/8W OPT3 C830 1uF/25V 61G0805102 R801 82OHM +-5% 1/4W OPT4 R829 82OHM +-5% 1/4W C828 0.1uF 1 2 JP934 BEAD C803 NC R818 82OHM +-5% 1/4W R822 C810 560PF/50V R840 1MΩ 1/8W C813 1000pF R805 470 1/4W 93G 64 33 C802 0.1uF 93G 6432S 61G0805102 3 1 2 D805 BAV99 93G 6432S 61G0805513 C816 12PF6KV VCC 61G1206519 R817 20K 1/8W 93G 6432S R828 4.7 K 1/4W C806 1uF/25V R843 1KΩ 1/8W 93G 6432S C814 1uF/25V R809 NC R839 1MΩ 1/8W R816 1MΩ 1/8W 93G 6432S 61G1206472 R808 47K 1/8W Q802 PMBS3904 61G1206472 S 1 G 2 S 3 G 4 D 8 D 7 D 6 D 5 Q806 AM9945N-T1-PF 65G0805104 32 1 2 JP920 BEAD 3 1 2 D801 BAV99 1 2 CN802 33G8021 2E AC 1 2 CN803 33G8021 2E AC 1 2 CN804 33G8021 2E AC C807 0.01uF C829 0.1uF C808 180 K1/8W R831 4700PF/50V/0805/X7R R810 1M 1/8W 3 1 2 D806 BAV99 Q803 PMBS3904 R841 430Ω 1% 1/8W R838 1MΩ 1/8W 61G0805105 61G0805751 3 1 2 D803 BAV99 C812 1000pF FB R846 510Ω 1/4W 61G1206511 65G0805104 32 65G0805103 32 56G 608 10 93G 39S 24 T DRV1 1 VDDA 2 TIMER 3 DIM 4 ISEN 5 VSEN 6 OVPT 7 NC1 8 NC2 9 ENA 10 LCT 11 SSTCMP 12 CT 13 GNDA 14 DRV2 15 PGND 16 IC801 OZ9938GN 1 2 CN801 CONN 57G 763 14 R812 10K 1/8W 3 1 2 D802 BAV99 R820 1MΩ 1/8W +12V ON/OFF DIM 61G0805430 0F 065G 3J3096ET C833 470P R826 360Ω 1/8W C834 470P C836 470P C835 470P 3. INVERTER http://www.wjel.net   - 41 - Oct.2008 P/NO: Printed in China http://www.wjel.net
