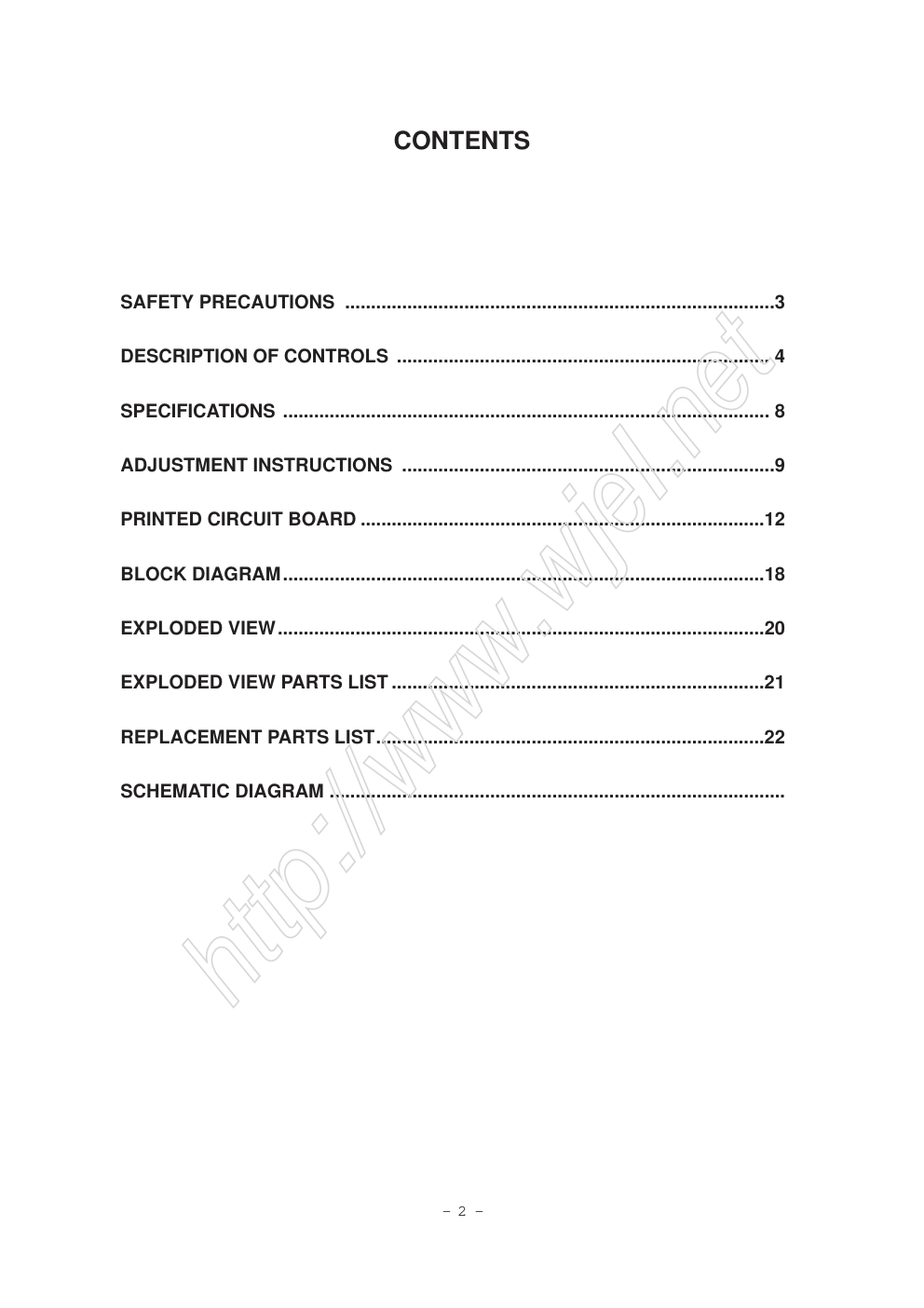

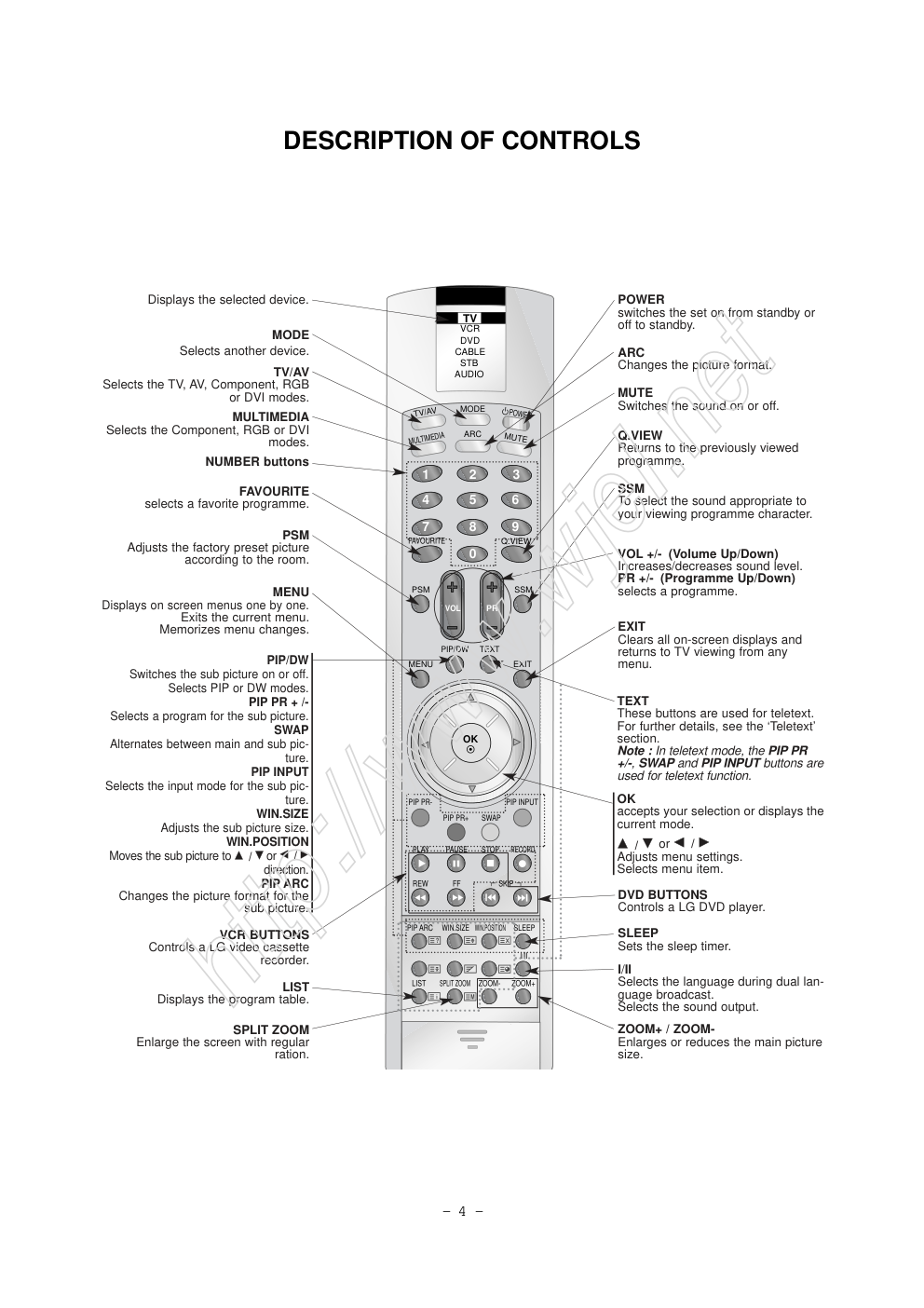

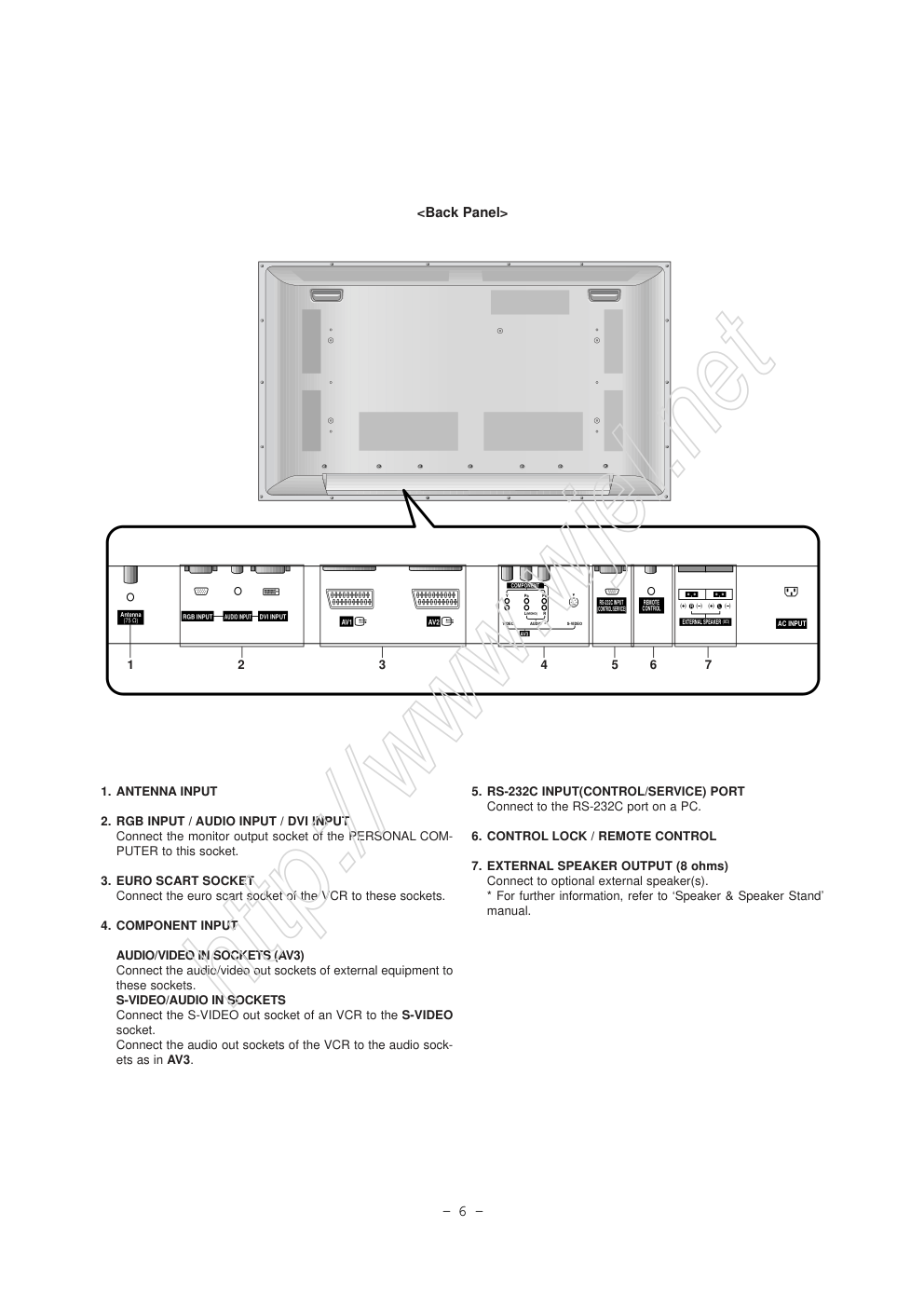

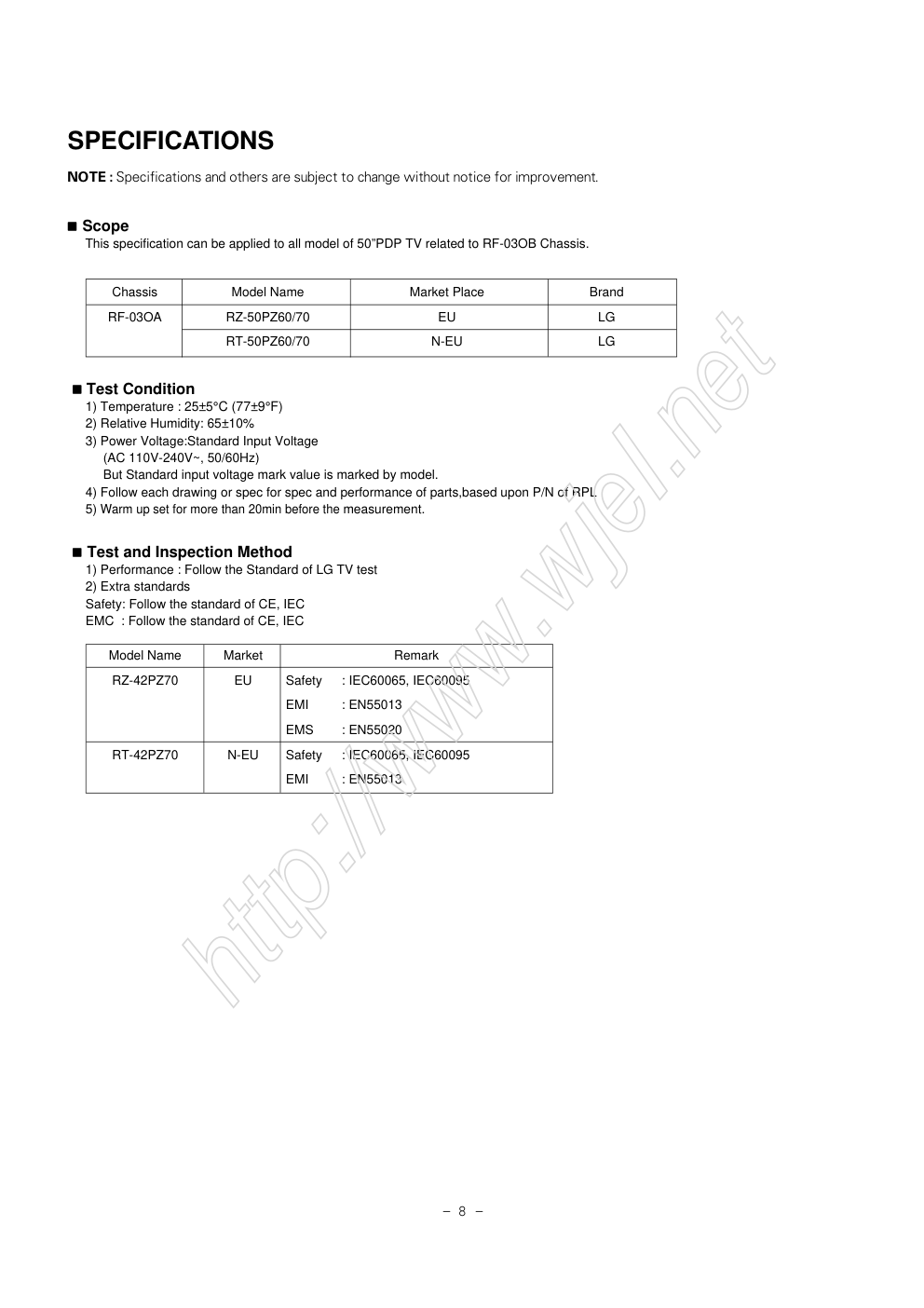

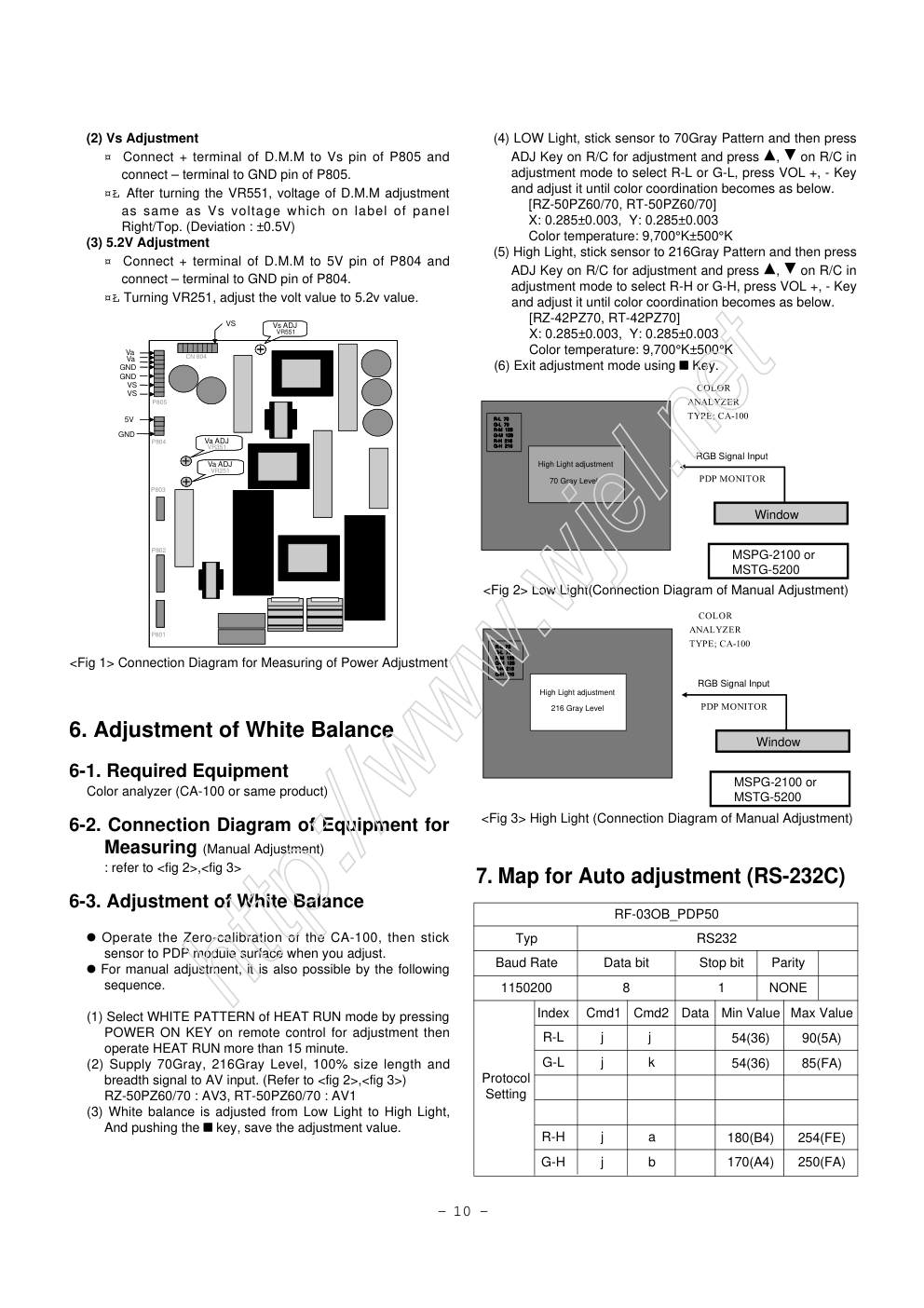

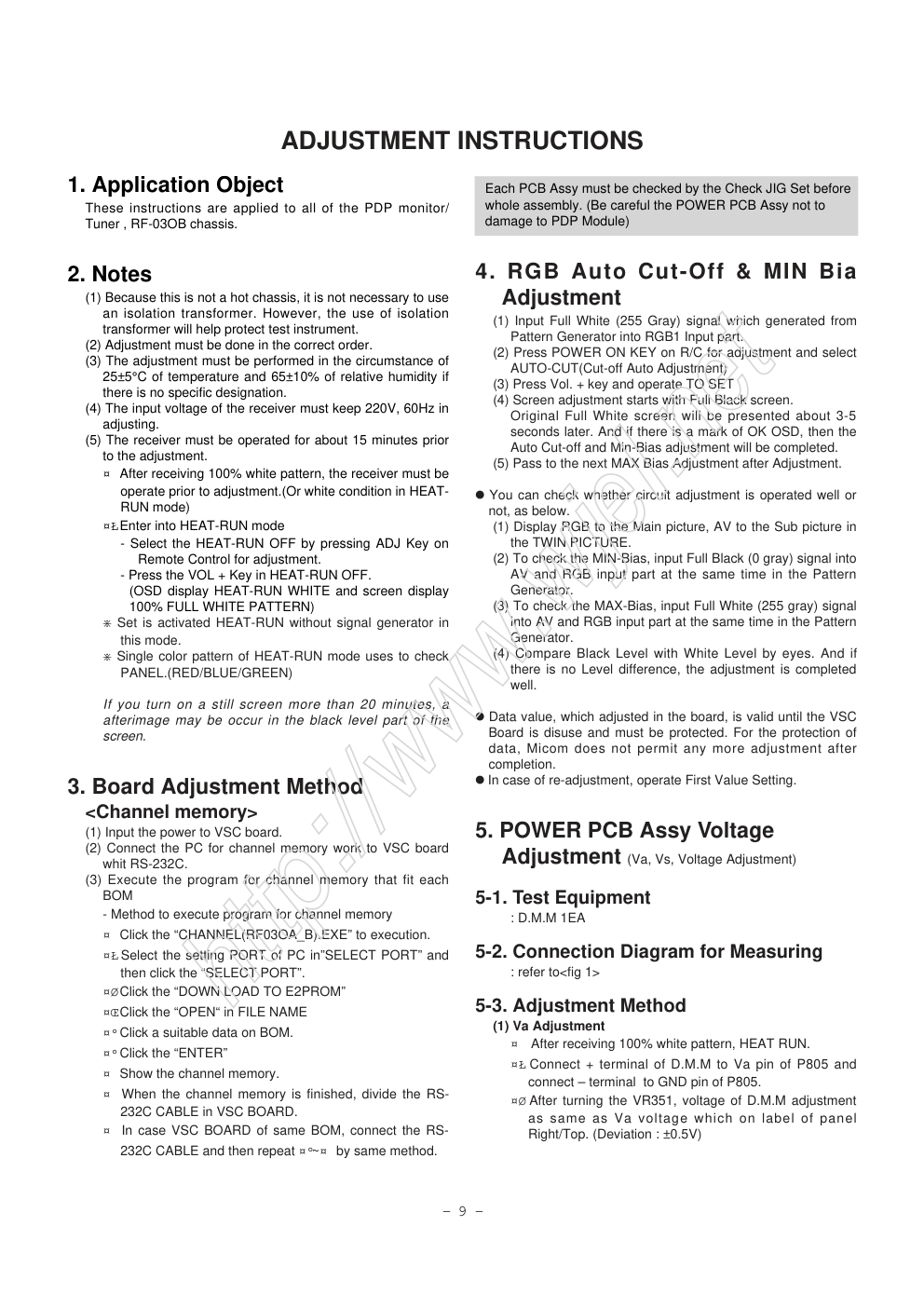

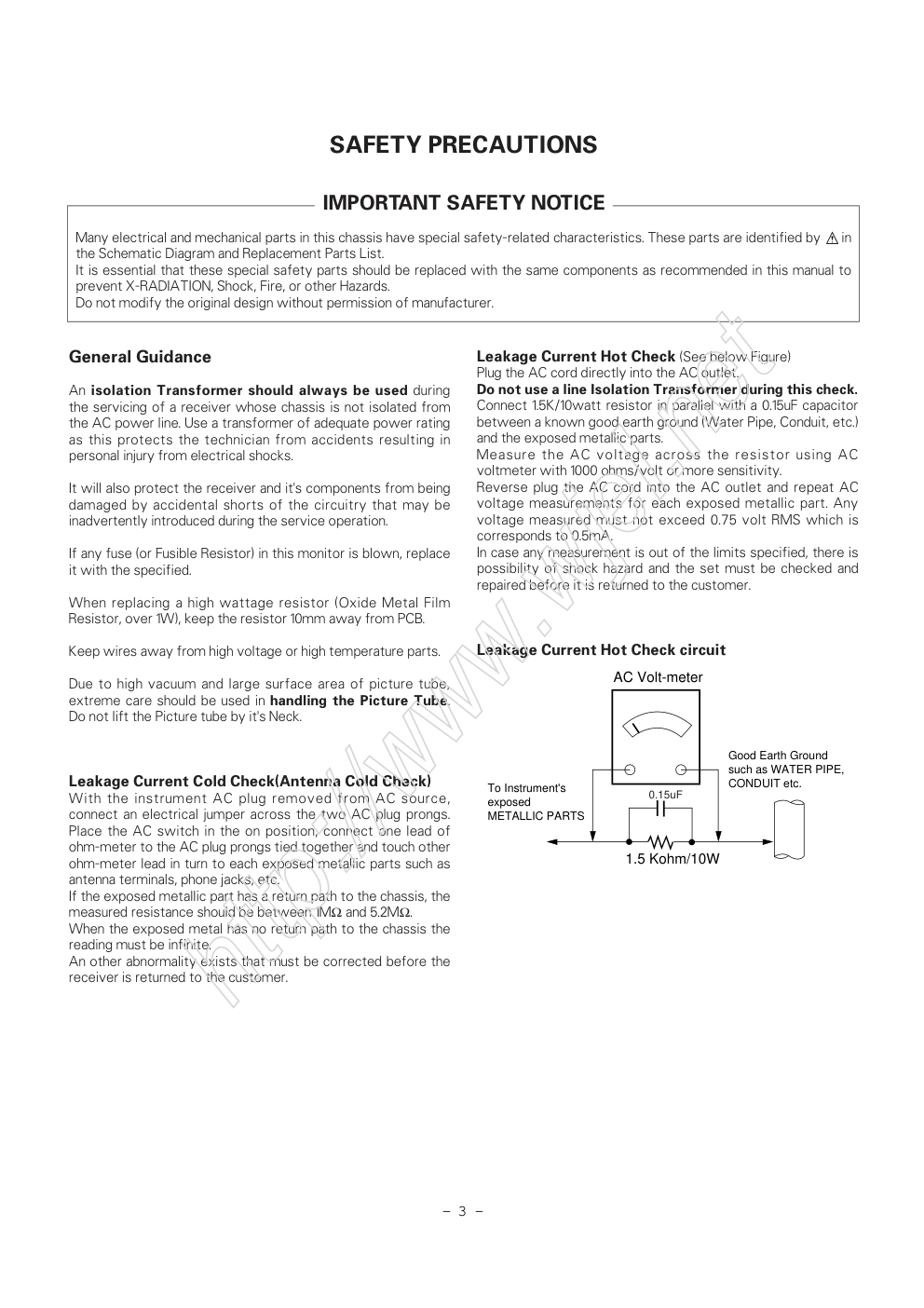

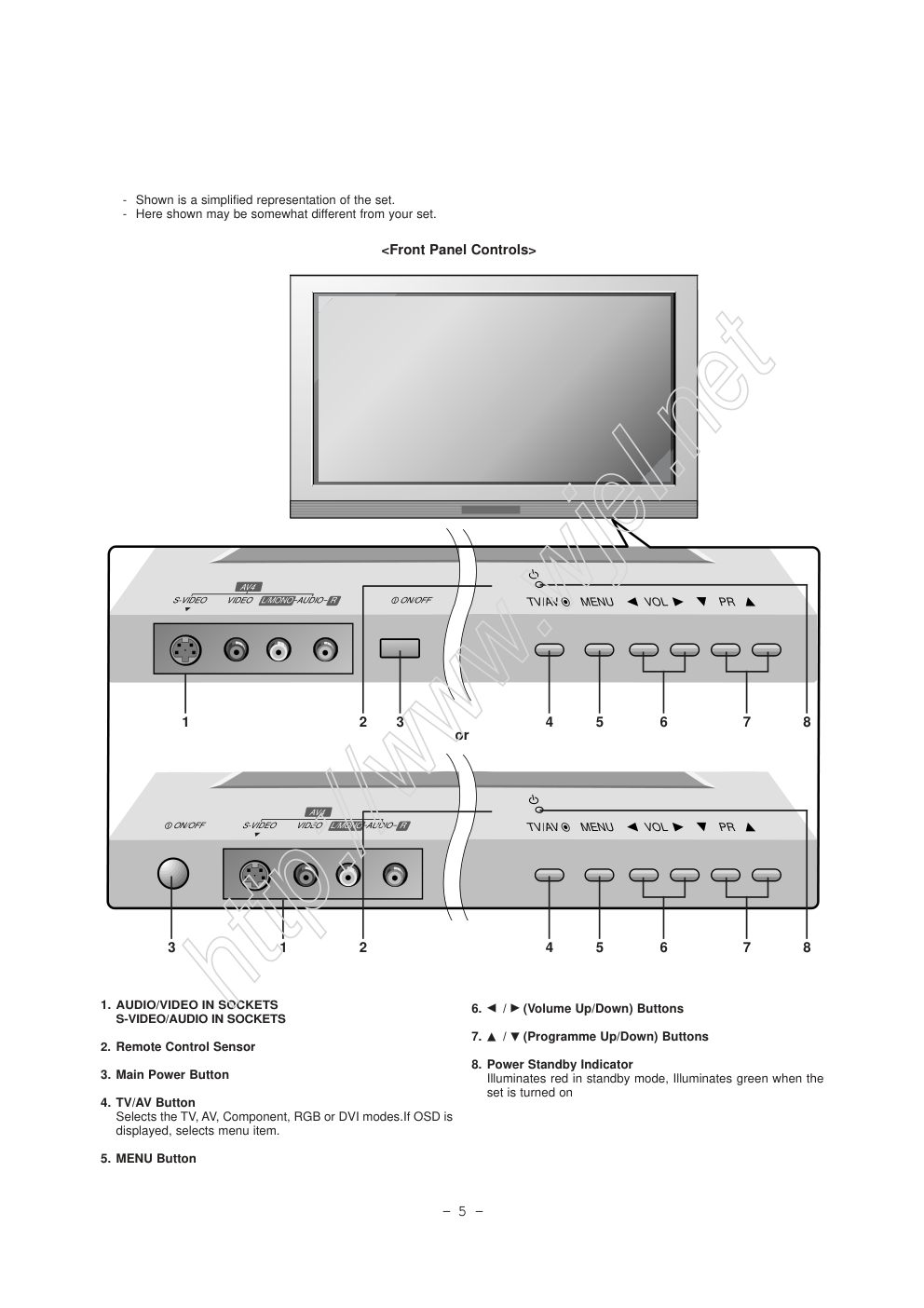

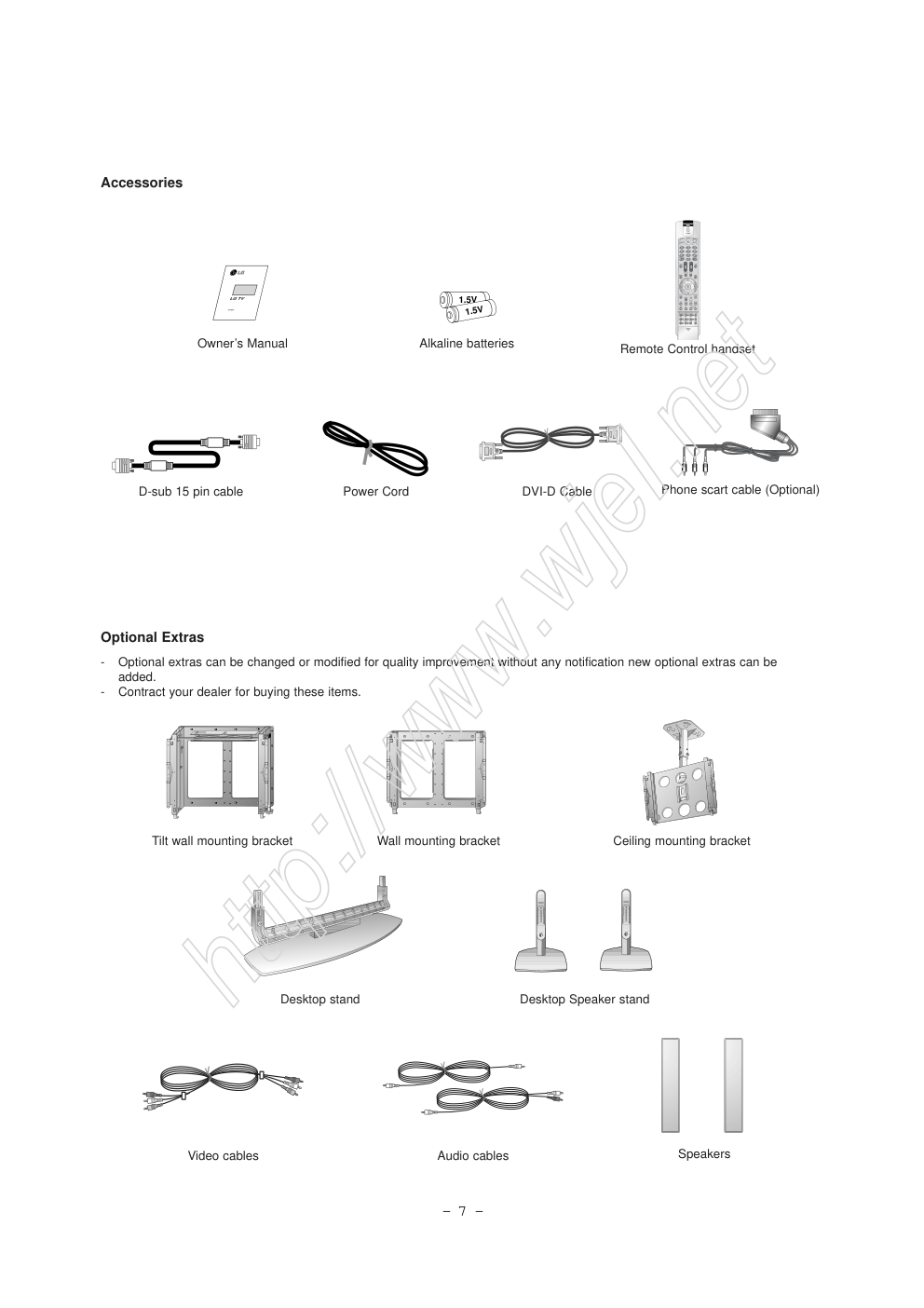

PLASMA TV SERVICE MANUAL CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS : RF-03OB MODEL : RT-50PZ60/70 website:http://biz.LGservice.com e-mail:http://www.LGEservice.com/techsup.html http://www.wjel.net - 2 - CONTENTS SAFETY PRECAUTIONS ...................................................................................3 DESCRIPTION OF CONTROLS ........................................................................ 4 SPECIFICATIONS .............................................................................................. 8 ADJUSTMENT INSTRUCTIONS ........................................................................9 PRINTED CIRCUIT BOARD ..............................................................................12 BLOCK DIAGRAM.............................................................................................18 EXPLODED VIEW..............................................................................................20 EXPLODED VIEW PARTS LIST ........................................................................21 REPLACEMENT PARTS LIST...........................................................................22 SCHEMATIC DIAGRAM ........................................................................................ http://www.wjel.net - 3 - SAFETY PRECAUTIONS Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation. If any fuse (or Fusible Resistor) in this monitor is blown, replace it with the specified. When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB. Keep wires away from high voltage or high temperature parts. Due to high vacuum and large surface area of picture tube, extreme care should be used in handling the Picture Tube. Do not lift the Picture tube by it's Neck. Leakage Current Cold Check(Antenna Cold Check) With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. Do not use a line Isolation Transformer during this check. Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer. Leakage Current Hot Check circuit 1.5 Kohm/10W To Instrument's exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter IMPORTANT SAFETY NOTICE 0.15uF http://www.wjel.net - 4 - DESCRIPTION OF CONTROLS 1 2 3 4 5 6 7 8 9 0 DVD STB AUDIO MODE POWER MUTE TV/AV MULTIMEDIA ARC SSM Q.VIEW PSM FAVOURITE MENU PIP PR- PIP ARC LIST PLAY REW FF SKIP PAUSE STOP RECORD ZOOM- ZOOM+ SPLIT ZOOM SLEEP I/II WIN.SIZE WIN.POSITION PIP INPUT PIP PR+ SWAP OK PIP/DW TEXT EXIT PR VOL CABLE VCR ? M TV Displays the selected device. TV/AV Selects the TV, AV, Component, RGB or DVI modes. MODE Selects another device. NUMBER buttons PIP/DW Switches the sub picture on or off. Selects PIP or DW modes. PIP PR + /- Selects a program for the sub picture. SWAP Alternates between main and sub pic- ture. PIP INPUT Selects the input mode for the sub pic- ture. WIN.SIZE Adjusts the sub picture size. WIN.POSITION Moves the sub picture to D / E or F / G direction. PIP ARC Changes the picture format for the sub picture. OK accepts your selection or displays the current mode. D / E or F / G Adjusts menu settings. Selects menu item. POWER switches the set on from standby or off to standby. ARC Changes the picture format. MUTE Switches the sound on or off. Q.VIEW Returns to the previously viewed programme. SSM To select the sound appropriate to your viewing programme character. VOL +/- (Volume Up/Down) Increases/decreases sound level. PR +/- (Programme Up/Down) selects a programme. EXIT Clears all on-screen displays and returns to TV viewing from any menu. DVD BUTTONS Controls a LG DVD player. SLEEP Sets the sleep timer. I/II Selects the language during dual lan- guage broadcast. Selects the sound output. ZOOM+ / ZOOM- Enlarges or reduces the main picture size. TEXT These buttons are used for teletext. For further details, see the ‘Teletext’ section. Note : In teletext mode, the PIP PR +/-, SWAP and PIP INPUT buttons are used for teletext function. MULTIMEDIA Selects the Component, RGB or DVI modes. FAVOURITE selects a favorite programme. PSM Adjusts the factory preset picture according to the room. MENU Displays on screen menus one by one. Exits the current menu. Memorizes menu changes. VCR BUTTONS Controls a LG video cassette recorder. LIST Displays the program table. SPLIT ZOOM Enlarge the screen with regular ration. http://www.wjel.net - 5 - 1. AUDIO/VIDEO IN SOCKETS S-VIDEO/AUDIO IN SOCKETS 2. Remote Control Sensor 3. Main Power Button 4. TV/AV Button Selects the TV, AV, Component, RGB or DVI modes.If OSD is displayed, selects menu item. 5. MENU Button 6. F / G (Volume Up/Down) Buttons 7. D / E (Programme Up/Down) Buttons 8. Power Standby Indicator Illuminates red in standby mode, Illuminates green when the set is turned on ON/OFF S-VIDEO VIDEO AUDIO L/MONO AV4 R TV/AV MENU VOL PR S-VIDEO VIDEO AUDIO L/MONO AV4 R TV/AV MENU VOL PR ON/OFF - Shown is a simplified representation of the set. - Here shown may be somewhat different from your set. 1 2 3 4 or 5 6 7 8 1 2 3 4 5 6 7 8 http://www.wjel.net - 6 - Location and Function of Controls Location and Function of Controls Antenna RGB INPUT DVI INPUT AV1 AUDIO INPUT AV2 COMPONENT AV3 Y PB L(MONO) AUDIO S-VIDEO VIDEO R PR RS-232C INPUT EXTERNAL SPEAKER R L CONTROL REMOTE (CONTROL/SERVICE) AC INPUT 1. ANTENNA INPUT 2. RGB INPUT / AUDIO INPUT / DVI INPUT Connect the monitor output socket of the PERSONAL COM- PUTER to this socket. 3. EURO SCART SOCKET Connect the euro scart socket of the VCR to these sockets. 4. COMPONENT INPUT AUDIO/VIDEO IN SOCKETS (AV3) Connect the audio/video out sockets of external equipment to these sockets. S-VIDEO/AUDIO IN SOCKETS Connect the S-VIDEO out socket of an VCR to the S-VIDEO socket. Connect the audio out sockets of the VCR to the audio sock- ets as in AV3. 5. RS-232C INPUT(CONTROL/SERVICE) PORT Connect to the RS-232C port on a PC. 6. CONTROL LOCK / REMOTE CONTROL 7. EXTERNAL SPEAKER OUTPUT (8 ohms) Connect to optional external speaker(s). * For further information, refer to ‘Speaker & Speaker Stand’ manual. 1 2 3 4 5 6 7 http://www.wjel.net - 7 - D-sub 15 pin cable AS mark LG TV Owner’s Manual 1.5V 1.5V Alkaline batteries Power Cord 1 2 3 4 5 6 7 8 9 0 DVD STB AUDIO MODE POWER MUTE TV/AV MULTIMEDIA ARC SSM Q.VIEW PSM FAVOURITE MENU PIP PR- PIP ARC LIST PLAY REW FF SKIP PAUSE STOP RECORD ZOOM- ZOOM+ SPLIT ZOOM SLEEP I/II WIN.SIZE WIN.POSITION PIP INPUT PIP PR+ SWAP OK PIP/DW TEXT EXIT PR VOL CABLE VCR ? M TV Remote Control handset DVI-D Cable Accessories - Optional extras can be changed or modified for quality improvement without any notification new optional extras can be added. - Contract your dealer for buying these items. Optional Extras Phone scart cable (Optional) Tilt wall mounting bracket Video cables Audio cables Desktop stand Wall mounting bracket Ceiling mounting bracket Speakers Desktop Speaker stand http://www.wjel.net - 8 - SPECIFICATIONS NOTE : Specifications and others are subject to change without notice for improvement. V Scope This specification can be applied to all model of 50”PDP TV related to RF-03OB Chassis. V Test Condition 1) Temperature : 25±5°C (77±9°F) 2) Relative Humidity: 65±10% 3) Power Voltage:Standard Input Voltage (AC 110V-240V~, 50/60Hz) But Standard input voltage mark value is marked by model. 4) Follow each drawing or spec for spec and performance of parts,based upon P/N of RPL 5) Warm up set for more than 20min before the measurement. V Test and Inspection Method 1) Performance : Follow the Standard of LG TV test 2) Extra standards Safety: Follow the standard of CE, IEC EMC : Follow the standard of CE, IEC Remark Safety : IEC60065, IEC60095 EMI : EN55013 EMS : EN55020 Safety : IEC60065, IEC60095 EMI : EN55013 Model Name RZ-42PZ70 RT-42PZ70 Market EU N-EU Chassis RF-03OA Model Name RZ-50PZ60/70 RT-50PZ60/70 Market Place EU N-EU Brand LG LG http://www.wjel.net 1. Application Object These instructions are applied to all of the PDP monitor/ Tuner , RF-03OB chassis. 2. Notes (1) Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of 25±5°C of temperature and 65±10% of relative humidity if there is no specific designation. (4) The input voltage of the receiver must keep 220V, 60Hz in adjusting. (5) The receiver must be operated for about 15 minutes prior to the adjustment. ¤ After receiving 100% white pattern, the receiver must be operate prior to adjustment.(Or white condition in HEAT- RUN mode) ¤ŁEnter into HEAT-RUN mode - Select the HEAT-RUN OFF by pressing ADJ Key on Remote Control for adjustment. - Press the VOL + Key in HEAT-RUN OFF. (OSD display HEAT-RUN WHITE and screen display 100% FULL WHITE PATTERN) [ Set is activated HEAT-RUN without signal generator in this mode. [ Single color pattern of HEAT-RUN mode uses to check PANEL.(RED/BLUE/GREEN) If you turn on a still screen more than 20 minutes, a afterimage may be occur in the black level part of the screen. 3. Board Adjustment Method (1) Input the power to VSC board. (2) Connect the PC for channel memory work to VSC board whit RS-232C. (3) Execute the program for channel memory that fit each BOM - Method to execute program for channel memory ¤ Click the “CHANNEL(RF03OA_B).EXE” to execution. ¤Ł Select the setting PORT of PC in”SELECT PORT” and then click the “SELECT PORT”. ¤ØClick the “DOWN LOAD TO E2PROM” ¤ŒClick the “OPEN“ in FILE NAME ¤ºClick a suitable data on BOM. ¤ºClick the “ENTER” ¤ Show the channel memory. ¤ When the channel memory is finished, divide the RS- 232C CABLE in VSC BOARD. ¤ In case VSC BOARD of same BOM, connect the RS- 232C CABLE and then repeat ¤º~¤ by same method. 4. RGB Auto Cut-Off & MIN Bia Adjustment (1) Input Full White (255 Gray) signal which generated from Pattern Generator into RGB1 Input part. (2) Press POWER ON KEY on R/C for adjustment and select AUTO-CUT(Cut-off Auto Adjustment) (3) Press Vol. + key and operate TO SET (4) Screen adjustment starts with Full Black screen. Original Full White screen will be presented about 3-5 seconds later. And if there is a mark of OK OSD, then the Auto Cut-off and Min-Bias adjustment will be completed. (5) Pass to the next MAX Bias Adjustment after Adjustment. O You can check whether circuit adjustment is operated well or not, as below. (1) Display RGB to the Main picture, AV to the Sub picture in the TWIN PICTURE. (2) To check the MIN-Bias, input Full Black (0 gray) signal into AV and RGB input part at the same time in the Pattern Generator. (3) To check the MAX-Bias, input Full White (255 gray) signal into AV and RGB input part at the same time in the Pattern Generator. (4) Compare Black Level with White Level by eyes. And if there is no Level difference, the adjustment is completed well. O Data value, which adjusted in the board, is valid until the VSC Board is disuse and must be protected. For the protection of data, Micom does not permit any more adjustment after completion. O In case of re-adjustment, operate First Value Setting. 5. POWER PCB Assy Voltage Adjustment (Va, Vs, Voltage Adjustment) 5-1. Test Equipment : D.M.M 1EA 5-2. Connection Diagram for Measuring : refer to 5-3. Adjustment Method (1) Va Adjustment ¤ After receiving 100% white pattern, HEAT RUN. ¤Ł Connect + terminal of D.M.M to Va pin of P805 and connect – terminal to GND pin of P805. ¤Ø After turning the VR351, voltage of D.M.M adjustment as same as Va voltage which on label of panel Right/Top. (Deviation : ±0.5V) - 9 - ADJUSTMENT INSTRUCTIONS Each PCB Assy must be checked by the Check JIG Set before whole assembly. (Be careful the POWER PCB Assy not to damage to PDP Module) http://www.wjel.net (2) Vs Adjustment ¤ Connect + terminal of D.M.M to Vs pin of P805 and connect – terminal to GND pin of P805. ¤Ł After turning the VR551, voltage of D.M.M adjustment as same as Vs voltage which on label of panel Right/Top. (Deviation : ±0.5V) (3) 5.2V Adjustment ¤ Connect + terminal of D.M.M to 5V pin of P804 and connect – terminal to GND pin of P804. ¤Ł Turning VR251, adjust the volt value to 5.2v value. 6. Adjustment of White Balance 6-1. Required Equipment Color analyzer (CA-100 or same product) 6-2. Connection Diagram of Equipment for Measuring (Manual Adjustment) : refer to , 6-3. Adjustment of White Balance O Operate the Zero-calibration of the CA-100, then stick sensor to PDP module surface when you adjust. O For manual adjustment, it is also possible by the following sequence. (1) Select WHITE PATTERN of HEAT RUN mode by pressing POWER ON KEY on remote control for adjustment then operate HEAT RUN more than 15 minute. (2) Supply 70Gray, 216Gray Level, 100% size length and breadth signal to AV input. (Refer to ,) RZ-50PZ60/70 : AV3, RT-50PZ60/70 : AV1 (3) White balance is adjusted from Low Light to High Light, And pushing the V key, save the adjustment value. (4) LOW Light, stick sensor to 70Gray Pattern and then press ADJ Key on R/C for adjustment and press D, E on R/C in adjustment mode to select R-L or G-L, press VOL +, - Key and adjust it until color coordination becomes as below. [RZ-50PZ60/70, RT-50PZ60/70] X: 0.285±0.003, Y: 0.285±0.003 Color temperature: 9,700°K±500°K (5) High Light, stick sensor to 216Gray Pattern and then press ADJ Key on R/C for adjustment and press D, E on R/C in adjustment mode to select R-H or G-H, press VOL +, - Key and adjust it until color coordination becomes as below. [RZ-42PZ70, RT-42PZ70] X: 0.285±0.003, Y: 0.285±0.003 Color temperature: 9,700°K±500°K (6) Exit adjustment mode using V Key. 7. Map for Auto adjustment (RS-232C) - 10 - Va ADJ VR351 Vs ADJ VR551 CN 804 P805 P804 P803 P802 P801 VS Va Va GND GND VS VS 5V GND Va ADJ VR251 Connection Diagram for Measuring of Power Adjustment Typ Baud Rate 1150200 Index R-L G-L R-H G-H Data bit 8 Cmd1 Cmd2 j j j k j a j b Stop bit 1 Parity NONE RF-03OB_PDP50 Protocol Setting Data Min Value 54(36) 54(36) 180(B4) 170(A4) Max Value 90(5A) 85(FA) 254(FE) 250(FA) RS232 R-L 70 R-L 70 G-L 70 G-L 70 R-M 128 R-M 128 G-M 128 G-M 128 R-H 216 R-H 216 G-H 216 G-H 216 Window MSPG-2100 or MSTG-5200 RGB Signal Input High Light adjustment 70 Gray Level Low Light(Connection Diagram of Manual Adjustment) R-L 70 R-L 70 G-L 70 G-L 70 R-M 128 R-M 128 G-M 128 G-M 128 R-H 216 R-H 216 G-H 216 G-H 216 Window MSPG-2100 or MSTG-5200 RGB Signal Input High Light adjustment 216 Gray Level High Light (Connection Diagram of Manual Adjustment) http://www.wjel.net - 11 - 8. Adjustment of Component Off-Set 8-1. Required Test Equipment : HD-STB(SK-010T) or same product 8-2. Manual Adjustment of Component Off- Set (1) Input Video signal and Component 720P,1080i signal of HD-STB. (2) Press ADJ key of R/C twice for entering twin picture mode. (3) Adjust the same color senses between main and sub, using Volume +; -key of R/C in R, G, B Off-Set menu. 9. DDC Data input 9-1. Required Test Equipment (1) A jig for adjusting PC, DDC. (PC serial to D-sub Connection equipment) (2) S/W for writing DDC(EDID data write & read) (3) D-Sub 15P cable, D-Sub to DVI Connector (Connect to DVI Jack) 9-2. Setting of Device 9-3. Preparation for Adjustment (1) Set devices as above and turn the PC, jig on. (2) Put S/W for writing DDC (EDID data write & read) into operation. (operated in DOS mode.) 9-4. Sequence of Adjustment (1) DDC Data Input for Analog-RGB ¤ Put the set on the table and turn the power on. ¤Ł Connect PC Serial to D-sub 15P Cable of JIG for DDC Adjustment to RGB terminal (D-Sub 15Pin). ¤Ø Operate S/W for DDC record and select DDC Data for Analog RGB in Model Menu. ¤Œ Operate EDID Write command. ¤º Operate EDID Read command and check whether Check Sum is OK. ¤ If Check Sum is NG, repeat ¤Ø~ ¤Œ. ¤ If Check Sum is OK, DDC Data for Analog-RGB input is completed. (2) DDC Data input for Digital-RGB ¤ Connect PC Serial to DVI Cable of JIG for DDC Adjustment to RGB2 terminal (DVI Jack). ¤Ł Operate S/W for DDC record and select DDC Data for Digital RGB in Model Menu. ¤ØOperate EDID Write command. ¤Œ Operate EDID Read command and check whether Check Sum is OK. ¤ºIf Check Sum is NG, repeat ¤Ø~ ¤Œ. ¤ If Check Sum is OK, DDC Data for Digital-RGB input is completed. * If you change the Booster 0 to 1 in a fringe area, a user ca set to Booster “On”. http://www.wjel.net - 12 - MAIN (TOP) PRINTED CIRCUIT BOARD http://www.wjel.net - 13 - MAIN (BOTTOM) http://www.wjel.net - 14 - REAR AV (TOP) REAR AV (BOTTOM) FRONT AV (TOP) FRONT AV (BOTTOM) POWER SWITCH http://www.wjel.net - 15 - PREAMP (BOTTOM) PREAMP (TOP) SPEAKER (TOP) SPEAKER (BOTTOM) http://www.wjel.net - 16 - TUNER (TOP) http://www.wjel.net - 17 - TUNER (BOTTOM) http://www.wjel.net - 18 - BLOCK DIAGRAM cable http://www.wjel.net MEMO - 19 - http://www.wjel.net - 20 - EXPLODED VIEW 301 303 302 300 305 400 203 200 213 202 210 208 209 207 206 211 580 304 581 410 430 101 440 420 570 540 550 551 552 401 530 531 590 532 520 524 560 523 525 522 102 103 http://www.wjel.net - 21 - EXPLODED VIEW PARTS LIST 101 5900V12001A FAN,DC G1225S12B2 DONGYANG 12X12X25 12V130MA 1500 168GM MOTOR L=260 102 4980V01017A SUPPORTER,FAN EGI RIGHT PDP DN-50PY10 103 4980V01018A SUPPORTER,FAN EGI LEFT PDP DN-50PY10 200 6348Q-C033S PDP,50 16:9 1365*768 PDP50X20330.AKLGG 201 6871QRH035B PWB(PCB) ASSEMBLY,DISPLAY XRRT ASSY HAND INSERT 50X2 BARE PCB 202 6871QPH008A PWB(PCB) ASSEMBLY,DISPLAY DCDC ASSY HAND INSERT KK MODEL 203 6871QZH031A PWB(PCB) ASSEMBLY,DISPLAY ZSUS ASSY HAND INSERT 50KK 2LAYER 205 6871QLH032B PWB(PCB) ASSEMBLY,DISPLAY XRLT ASSY HAND INSERT 50X2 BARE PCB 352.5 X 280 206 6871QXH021B PWB(PCB) ASSEMBLY,DISPLAY XRCB ASSY HAND INSERT 50X2 BARE PCB 207 6871QLH033B PWB(PCB) ASSEMBLY,DISPLAY XRLB ASSY HAND INSERT 50X2 BARE PCB 352.5 X 280 208 6871QDH049A PWB(PCB) ASSEMBLY,DISPLAY YDRV ASSY HAND INSERT 50WXDP2 4L(BTM) 209 6871QYH028A PWB(PCB) ASSEMBLY,DISPLAY YSUS ASSY HAND INSERT 50KK 4LAYER 210 6871QDH048A PWB(PCB) ASSEMBLY,DISPLAY YDRV ASSY HAND INSERT 50WXDP2 4L(TOP) 211 6871QRH036B PWB(PCB) ASSEMBLY,DISPLAY XRRB ASSY HAND INSERT 50X2 BARE PCB 212 6871QXH020B PWB(PCB) ASSEMBLY,DISPLAY XRCT ASSY HAND INSERT 50X2 BARE PCB 213 6871QCH028C PWB(PCB) ASSEMBLY,DISPLAY CTRL ASSY HAND INSERT 50X2 TMDS FOR 4022H 300 3091V00B68D CABINET ASSEMBLY,RT-50PZ60 NON RF03OB NON 3091V00B69E CABINET ASSEMBLY,RT-50PZ70 NON RF03OB NON 301 4980V00634A SUPPORTER,FILTER AL DN-50PZ60 TOP 302 4980V00636A SUPPORTER,FILTER AL DN-50PZ60 4980V00636B SUPPORTER,FILTER AL DN-50PZ70 303 4980V00637A SUPPORTER,FILTER AL DN-50PZ60 SIDE 304 4980V00374A SUPPORTER,MODULE EGI CENTER,MN-50PZ40 305 3790V00683C FILTER(MECH), - MN-50PZ41 1150G03EK NBK 50 MESH SINGLE GLASS FILTER 400 3809V00B03A BACK COVER ASSEMBLY,DN-50PZ60 NON NON 401 3301V00014E PLATE ASSEMBLY, AV 3300V00244 RP-50PZ60 C/SKD 410 4980V00790A SUPPORTER,MODULE AL DIE-CASTING DN-50PZ60 SUPP_MODULE ASSY 420 4980V00790B SUPPORTER,MODULE AL DIE-CASTING DN-50PZ60 SUPP.MODULE ASSY(R) 430 4980V00791C SUPPORTER,FAN EGI PRESS 440 4980V00792C SUPPORTER,FAN EGI PRESS 520 6871VMMS50A PWB(PCB) ASSEMBLY,MAIN RF-03OB 50KK ANALOG BUILT IN VSC B/D 6871VMMS49A PWB(PCB) ASSEMBLY,MAIN RF-03OB RT 50KK ANALOG BUILT IN VSC B/D 522 4814V00424A SHIELD,RZ-42PZ70 RF03OA ET ANALOG 2 TUNER TOP 523 4980V00641A SUPPORTER,NON SECC VSC_BOTTOM 524 4980V00642D SUPPORTER,VSC AL . 525 4814V00425A SHIELD,RZ-42PZ70 RF03OA ET ANALOG 2 TUNER BOTTOM 530 6871VSMF08A PWB(PCB) ASSEMBLY,SUB PSW AF03BA BUILT IN PDP 531 5020V00457A BUTTON, KEY BUTTON POWER FD-36X3 532 4810V00737A BRACKET,AV DN-50PZ60 AB00EA ABS, AF-303S PDP 540 6871VSMY20A PWB(PCB) ASSEMBLY,SUB A/V RF03OA RT-42PZ70 KK ANALOG 2TUNER B-IN 550 6871VSMX09A PWB(PCB) ASSEMBLY,SUB SPK RF03OB PDP 50 KK ANALOG BUILT IN SPEAKER B/D 551 4980V00647A SUPPORTER,NON AL DN-50PZ60 REAR A/V 552 4980V00962B SUPPORTER,NON SECC(EGI) RZ-50PZ70 560 6871VSMY70A PWB(PCB) ASSEMBLY,SUB,TUNER RF03OA RT SDA6001 42 50 PDP 570 6871VSMX31A PWB(PCB) ASSEMBLY,SUB,CONT RF03OB 50 KK ANALOG BUILT IN RZ-50PZ60/70 580 3501V00084D BOARD ASSEMBLY,POWER MN50PZ10 RF03GB SRX-75 SONY 50KK 581 3720V00237B PANEL,ASSY RZ-50PZ60 VFD 16ML07HA1 SDI VFD 590 6871VSMX08A PWB(PCB) ASSEMBLY,SUB A/V RF03FB 50 KK ANALOG BUILT IN FRONT B/D No. Description Part No. http://www.wjel.net REPLACEMENT PARTS LIST LOCA. NO PART NO DESCRIPTION IC704 IC801 IC805 IC902 IC903 IC904 IC905 IC906 IC907 IC908 IC909 IC910 IC911 IC912 IC913 IC914 IC915 IC203 IC204 Q001 Q001 Q001 Q002 Q002 Q002 Q003 Q003 Q004 Q004 Q005 Q006 Q101 Q102 Q103 Q104 Q105 Q106 Q107 Q108 Q109 Q110 Q201 Q202 Q203 Q204 Q205 Q206 Q207 Q208 Q209 Q210 0IMMRHY033A 0IPRPTI001A 0IS5160000A 0IMCRSJ001A 0IMCRFA010A 0IMCRRH001A 0IMCRRH001A 0IMCRSH001A 0IMCRSH001A 0IDS162100B 0IMCRPH015A 0IMCRKE007A 0ISS278120A 0IMCRKE007A 0ITK118100B 0IMCRRH001A 0IMCRRH001A 0TR830009BA 0TR830009BA 0TR387500AA 0TR387500AA 0TR830009BA 0TR387500AA 0TR387500AA 0TR830009BA 0TR387500AA 0TR830009BA 0TR387500AA 0TR830009BA 0TR387500AA 0TR150400BA 0TR150400BA 0TR387500AA 0TR387500AA 0TR150400BA 0TR387500AA 0TR387500AA 0TR150400BA 0TR387500AA 0TR150400BA 0TR150400BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA HY57V643220C(L)T-6 HYNIX 86P TSOP TFP401PZP 100,TQFP SIL160CT100 SILICON IMAGE 100 TQFP SC1565IST-1.8 SEMTECH 3P SOT223 KA7809R, FAIRCHILD 2P D-PAK BA033FP-E2 ROHM 3P-SOP,TO252-3 BA033FP-E2 ROHM 3P-SOP,TO252-3 PQ05DZ1U SHARP 5, SMD TYPE PQ05DZ1U SHARP 5, SMD TYPE DS1621V 8P SOIC ST THERMOSTAT 74LVC32AD PHILIPS 14P SOT108-1 KIA278R09PI KEC TO220IS,4P ST 2A KA278R12 4P,TO-220F KIA278R09PI KEC TO220IS,4P ST 2A TK11840L 8P SOT23L BA033FP-E2 ROHM 3P-SOP BA033FP-E2 ROHM 3P-SOP BSS83 TP PHILIPS BSS83 TP PHILIPS CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC BSS83 TP PHILIPS CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC BSS83 TP PHILIPS CHIP 2SC3875S(ALY) KEC BSS83 TP PHILIPS CHIP 2SC3875S(ALY) KEC BSS83 TP PHILIPS CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC LOCA. NO PART NO DESCRIPTION IC001 IC001 IC002 IC002 IC003 IC003 IC003 IC004 IC004 IC005 IC005 IC006 IC006 IC007 IC007 IC008 IC009 IC010 IC011 IC012 IC013 IC014 IC015 IC016 IC101 IC107 IC201 IC201 IC202 IC202 IC203 IC205 IC301 IC401 IC402 IC403 IC404 IC405 IC406 IC407 IC408 IC409 IC501 IC601 IC603 IC604 IC605 IC606 IC701 IC702 IC703 0IMCRMN023A 0IMCRRS001A 0IMMRHY001F 0IMMRSS064A 0IZZVA0087A 0IMMRSG028A 0IMMRMR006B 0IMCRAL006A 0IMMRAL025A 0IKE702700D 0IMCRFA013A 0ISJ111733A 0IMCRFA013A 0ISJ111725A 0ITI745740M 0IMCRPH017A 0IPH740800L 0IMCRPH015A 0IMCRPH016A 0IMCRPH014A 0IKE702700D 0IDS232000A 0IPH858400A 0IMCRTI001A 0IMI623200B 0ISA428200A 0ISO206900A 0IMCRTI003A 0IAL242110A 0IMCRFA010A 0IAL242110A 0IMCRTI003A 0IMCRAD003A 0IIT323000E 0IFA741230A 0IFA741230A 0IMCRMI006A 0IMCRGN001B 0IMMRHY033A 0IIT323000E 0IMCRGN002B 0IMMRHY033A 0ISO210100B 0IMCRMN004C 0IMCRFA009A 0IMCRFA015A 0IKE704200J 0IMCRSH001A 0IMCROT001B 0IMMRHY033A 0IMMRHY033A SDA6001 QH B12 MICRONAS 128P R8820LV RDC 100P PQFP HY57V641620HGT-H HYNIX 54P K6R4016V1D-TC10 44P M37272E8A(OTP) DIP 42P ST M27V160 STM 42P PDIP ST MX29LV160ATTC-70 MACRONIX 48P AT24C16AN-10SI-2.7 ATMEL 8P AT24C32AN-10SI-2.7 ATMEL 8PIN KIA7027AF 3, SOT-89 TP 74LCX244MTC FAIRCHILD 20P TSSOP EZ1117CST-3.3 3P,SOT-223 TP 3.3V 74LCX244MTC FAIRCHILD 20P TSSOP EZ1117ACST-2.5 3P SOT ST SN74HC574NSR 14P,SOP 74LVC574APW PHILIPS 20P SOT360-1 74LVT08D 14SOP 74LVC32AD PHILIPS 14P SOT108-1 74LVC139D PHILIPS 16P SOT109-1 74LV132D PHILIPS 14P SOT108-1 KIA7027AF 3, SOT-89 TP DS232AS 16P,SOP TP RS-232 PCF8584T 20P,SOP TP SN74HCT157D TEXAS INSTRUMENT 16P M62320FP,I/O EXPANDER 16P LA4282 12S 2CHX10W CXA2069Q QFP64 BK I2C SN74HCT08D TEXAS INSTRUMENT 16P AT24C21-10SI-2.5 8P,SOP TP 1K KA7809R, FAIRCHILD 2P D-PAK AT24C21-10SI-2.5 8P,SOP TP SN74HCT08D TEXAS INSTRUMENT 16P AD9888KS-140 ANALOG DEVICE 128P VPC3230D C5 80P QFP DM74LS123MX 16SOP TP DM74LS123MX 16SOP TP M52758FP MITSUBISHI 36PIN FLI2310BC GENESIS 208P PQFP HY57V643220C(L)T-6 HYNIX 86P TSOP VPC3230D C5 80P QFP FLI2300BC GENESIS 208P PQFP HY57V643220C(L)T-6 HYNIX 86P TSOP CXA2101AQ 80P,QFP BK MSP3451G C12 MICRONAS 80P PQFP KA78M08RTM, FAIRCHILD 2P D-PAK KA7805R FAIRCHILD 2P D-PAK KIA7042AF SOT-89 TP 4.2V PQ05DZ1U SHARP 5, SMD TYPE REMBRANT-102 352P PBGA HY57V643220C(L)T-6 HYNIX 86P TSOP HY57V643220C(L)T-6 HYNIX 86P TSOP IC TRANSISTOR - 22 - http://www.wjel.net - 23 - LOCA. NO PART NO DESCRIPTION Q211 Q212 Q213 Q214 Q215 Q216 Q217 Q218 Q219 Q220 Q221 Q222 Q223 Q224 Q225 Q226 Q227 Q228 Q229 Q230 Q231 Q232 Q233 Q234 Q235 Q236 Q237 Q238 Q239 Q240 Q241 Q242 Q243 Q244 Q245 Q246 Q247 Q248 Q249 Q601 Q602 Q603 Q604 Q605 Q606 Q901 Q902 Q903 D001 D002 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR388109AA 0TR388109AA 0TR388109AA 0TR388109AA 0TR388109AA 0TR388109AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA 0TR387500AA 0TR104009AF 0TR150400BA 0TR150400BA 0TR150400BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA 0TR387500AA 0TR104009AF 0TR387500AA 0TR387500AA 0TR150400BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA 0TR150400BA 0TR830009BA 0TR830009BA 0TRKE80038A 0DD226239AA 0DD226239AA CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC KTC3881 CHIP KEC KTC3881 CHIP KEC KTC3881 CHIP KEC KTC3881 CHIP KEC KTC3881 CHIP KEC KTC3881 CHIP KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP KRC104S SOT-23 TP KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP KRC104S SOT-23 TP KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC BSS83 TP PHILIPS BSS83 TP PHILIPS KTC3552T-RTK KEC CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 LOCA. NO PART NO DESCRIPTION D003 D004 D005 D006 D007 D008 D009 D010 D1101 D1102 D201 D207 D208 D209 D210 D211 D212 D213 D214 D215 D216 D217 D218 D219 D220 D221 D223 D225 D226 D227 D228 D229 D230 D601 D602 D603 D604 D904 D905 D906 D907 D908 D909 D910 D911 D912 LD001 LD001 LD002 LD003 LD004 LD901 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD100009AC 0DD184009AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD184009AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD184009AA 0DD184009AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD226239AA 0DD110009DB 0DL200000CA 0DL233309AC 0DL233309AC 0DL233309AC 0DL233309AC 0DL233309AC CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 RU1V(1) TP SANKEN KDS184S CHIP 85V 300MA KEC TP CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 KDS184S CHIP 85V 300MA KEC TP CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 KDS184S CHIP 85V 300MA KEC TP KDS184S CHIP 85V 300MA KEC TP CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 CHIP KDS226 SOT-23 RM11CV(1) TP SANKEN TP SANKEN LED,SAM5670(DL-2LRG) BK Y-GREEN LED,SAM2333 TP LED,SAM2333 TP LED,SAM2333 TP LED,SAM2333 TP LED,SAM2333 TP DIODE http://www.wjel.net - 24 - LOCA. NO PART NO DESCRIPTION LD902 LD903 LD904 ZD201 ZD202 ZD831 ZD832 ZD833 ZD834 C002 C004 C008 C009 C010 C011 C012 C020 C023 C026 C028 C030 C032 C034 C035 C036 C040 C044 C045 C046 C047 C051 C052 C1000 C1001 C1002 C1003 C1004 C1005 C1006 C101 C102 C1020 C103 C1034 C104 C104 C104 C104 C1047 C1048 0DL233309AC 0DL233309AC 0DL233309AC 0DZRM00178A 0DZRM00178A 0DR050008AA 0DR050008AA 0DR050008AA 0DR050008AA 0CE4763F618 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE106SF6DC 0CE105SK6DC 0CE106SF6DC 0CE476SF6DC 0CE106SF6DC 0CE105SK6DC 0CE106SF6DC 0CE107SF6DC 0CE107SF6DC 0CE106SF6DC 0CE106SF6DC 0CE477VF6DC 0CE476SF6DC 0CE476SF6DC 0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE107SF6DC 0CE108DK61A 0CE108DK61A 0CE477WF6DC 181-120K 0CE477VF6DC 0CE476DF618 0CE474SK6DC 181-120K 0CE475SK6DC 0CE476SF6DC 0CE476SF6DC LED,SAM2333 TP LED,SAM2333 TP LED,SAM2333 TP UDZS TE-17 5.1B ROHM UDZS TE-17 5.1B ROHM SD05.TC R/TP SEMTECH SD05.TC R/TP SEMTECH SD05.TC R/TP SEMTECH SD05.TC R/TP SEMTECH 47UF SRE 16V M FL TP5 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 1UF MVG 50V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 1UF MVG 50V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 470UF MV 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 1000UF STD 50V M FL TP7.5 1000UF STD 50V M FL TP7.5 470UF MVK 16V 20% SMD R/TP(SMD) 2200PF 4KV M E FMTW LEAD 4.5 470UF MV 16V 20% R/TP(SMD) SMD 47UF STD 16V M FL TP5 0.47UF MVG 50V M SMD R/TP 2200PF 4KV M E FMTW LEAD 4.5 4.7UF MVG 50V 20% SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP LOCA. NO PART NO DESCRIPTION C1049 C105 C105 C1050 C1051 C1052 C1054 C1056 C1058 C106 C1064 C1069 C107 C107 C1070 C1071 C1072 C1079 C1080 C1081 C1086 C109 C1092 C1093 C1094 C1095 C1099 C110 C1100 C1105 C1107 C111 C1110 C1112 C1114 C1116 C113 C114 C116 C117 C118 C119 C119 C126 C129 C131 C134 C201 C205 C207 C211 C215 0CE107SF6DC 0CE476DF618 0CE108DK61A 0CE107SF6DC 0CE227VF6DC 0CE227VF6DC 0CE477WF6DC 0CE227WF6DC 0CE477WF6DC 0CE108DK61A 0CE227VF6DC 0CE107SF6DC 0CE106DK618 0CE477VF6DC 0CE107SF6DC 0CE476SF6DC 0CE107SF6DC 0CE476SF6DC 0CE107SF6DC 0CE476SF6DC 0CE106SF6DC 0CE227VF6DC 0CE227VF6DC 0CE105SK6DC 0CE105SK6DC 0CE107WF6DC 0CE107SF6DC 0CE477VF6DC 0CE107SF6DC 0CE475SK6DC 0CE475SK6DC 0CE477VF6DC 0CE477VF6DC 0CE477VF6DC 0CE477WF6DC 0CE477VF6DC 0CE227VF6DC 0CE477VF6DC 0CE475SK6DC 0CE477VF6DC 0CE106SF6DC 0CE474SK6DC 0CE475SK6DC 0CE477VF6DC 0CE477VF6DC 0CE107SF6DC 0CE475SK6DC 0CE227VF6DC 0CE227VF6DC 0CE476SF6DC 0CE227VF6DC 0CE227VF6DC 100UF MVG 16V M SMD R/TP 47UF STD 16V M FL TP5 1000UF STD 50V M FL TP7.5 100UF MVG 16V M SMD R/TP 220UF MV 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 470UF MVK 16V 20% SMD R/TP(SMD) 220UF MVK 16V 20% R/TP(SMD) SMD 470UF MVK 16V 20% SMD R/TP(SMD) 1000UF STD 50V M FL TP7.5 220UF MV 16V 20% R/TP(SMD) SMD 100UF MVG 16V M SMD R/TP 10UF STD 50V M FL TP5 470UF MV 16V 20% R/TP(SMD) SMD 100UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 1UF MVG 50V M SMD R/TP 1UF MVG 50V M SMD R/TP 100UF MVK 16V 20% R/TP(SMD) SMD 100UF MVG 16V M SMD R/TP 470UF MV 16V 20% R/TP(SMD) SMD 100UF MVG 16V M SMD R/TP 4.7UF MVG 50V 20% SMD R/TP 4.7UF MVG 50V 20% SMD R/TP 470UF MV 16V 20% R/TP(SMD) SMD 470UF MV 16V 20% R/TP(SMD) SMD 470UF MV 16V 20% R/TP(SMD) SMD 470UF MVK 16V 20% SMD R/TP(SMD) 470UF MV 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 470UF MV 16V 20% R/TP(SMD) SMD 4.7UF MVG 50V 20% SMD R/TP 470UF MV 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 0.47UF MVG 50V M SMD R/TP 4.7UF MVG 50V 20% SMD R/TP 470UF MV 16V 20% R/TP(SMD) SMD 470UF MV 16V 20% R/TP(SMD) SMD 100UF MVG 16V M SMD R/TP 4.7UF MVG 50V 20% SMD R/TP 220UF MV 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 220UF MV 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible CAPACITOR http://www.wjel.net - 25 - LOCA. NO PART NO DESCRIPTION C231 C233 C236 C237 C239 C249 C250 C251 C251 C252 C253 C259 C262 C263 C264 C266 C268 C281 C284 C285 C291 C299 C300 C302 C307 C308 C309 C310 C311 C312 C313 C317 C320 C379 C387 C388 C390 C394 C395 C396 C397 C398 C399 C400 C404 C407 C467 C468 C476 C489 C495 C501 0CE476VF6DC 0CE476VF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE106VF6DC 0CE477VF6DC 0CE476SF6DC 0CE106VF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CE476SF6DC 0CN105EJ56A 0CE106SF6DC 0CE107SF6DC 0CE106SF6DC 0CK224DF56A 0CE106SF6DC 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CE106SF6DC 0CK224DF56A 0CE107SF6DC 0CE106SF6DC 0CK224DF56A 0CE106SF6DC 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CE106SF6DC 0CK224DF56A 0CE476SF6DC 0CE107SF6DC 0CE107SF6DC 0CE105SK6DC 0CE107SF6DC 0CE107SF6DC 47UF MV 16V 20% R/TP(SMD) SMD 47UF MV 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 10UF MV 16V 20% R/TP(SMD) SMD 470UF MV 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 10UF MV 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 1.0UF 3216 35V 10% R/TP X7R 10UF MVG 16V 20% R/TP(SMD) SMD 100UF MVG 16V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 220000PF 2012 16V 10% R/TP X7R 10UF MVG 16V 20% R/TP(SMD) SMD 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 10UF MVG 16V 20% R/TP(SMD) SMD 220000PF 2012 16V 10% R/TP X7R 100UF MVG 16V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 220000PF 2012 16V 10% R/TP X7R 10UF MVG 16V 20% R/TP(SMD) SMD 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 220000PF 2012 16V 10% R/TP X7R 10UF MVG 16V 20% R/TP(SMD) SMD 220000PF 2012 16V 10% R/TP X7R 47UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 1UF MVG 50V M SMD R/TP 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP LOCA. NO PART NO DESCRIPTION C506 C508 C601 C602 C604 C605 C606 C607 C608 C609 C610 C611 C612 C613 C614 C615 C617 C619 C621 C623 C632 C635 C636 C637 C638 C640 C645 C647 C653 C654 C655 C657 C658 C659 C660 C661 C661 C663 C665 C665 C667 C667 C668 C671 C672 C674 C680 C901 C908 C914 C916 C918 0CE106SF6DC 0CE106SF6DC 0CE227DK618 0CE227DK618 0CE107DH618 0CE106SF6DC 0CQ1521N509 0CE107DH618 0CQ1521N509 0CE106SF6DC 0CE107DH618 0CQ1041N509 0CE106SF6DC 0CE227VF6DC 0CQ1041N509 0CE107SF6DC 0CE107SF6DC 0CE476SF6DC 0CE335SK6DC 0CE106SF6DC 0CE107SF6DC 0CE106SF6DC 0CE106SF6DC 0CE476SF6DC 0CE107SF6DC 0CE107SF6DC 0CN105EJ56A 0CE106SF6DC 0CE476SF6DC 0CE107SF6DC 0CE106SF6DC 0CE476SF6DC 0CE227DK618 0CE227DK618 0CE227DK618 0CE227DK618 0CE107SF6DC 0CE227VF6DC 0CE227VF6DC 0CE476XFKDC 0CE227VF6DC 0CE476XFKDC 0CE476XFKDC 0CE476XFKDC 0CE476XFKDC 0CE476XFKDC 0CE107SF6DC 0CE477VF6DC 0CN105EJ56A 0CE477WF6DC 0CE477VF6DC 0CE107WF6DC 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 220UF STD 50V M FL TP5 220UF STD 50V M FL TP5 100UF STD 25V M FL TP5 10UF MVG 16V 20% R/TP(SMD) SMD 0.0015UF D 100V 10% PE TP5 100UF STD 25V M FL TP5 0.0015UF D 100V 10% PE TP5 10UF MVG 16V 20% R/TP(SMD) SMD 100UF STD 25V M FL TP5 0.1UF D 100V 10% PE TP5 10UF MVG 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 0.1UF D 100V 10% PE TP5 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 3.3UF MVG 50V 20% SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 100UF MVG 16V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 10UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 1.0UF 3216 35V 10% R/TP X7R 10UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 10UF MVG 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 220UF STD 50V M FL TP5 220UF STD 50V M FL TP5 220UF STD 50V M FL TP5 220UF STD 50V M FL TP5 100UF MVG 16V M SMD R/TP 220UF MV 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 47UF MVK-BP,CN 16V 20%,-20% SMD 220UF MV 16V 20% R/TP(SMD) SMD 47UF MVK-BP,CN 16V 20%,-20% SMD 47UF MVK-BP,CN 16V 20%,-20% SMD 47UF MVK-BP,CN 16V 20%,-20% SMD 47UF MVK-BP,CN 16V 20%,-20% SMD 47UF MVK-BP,CN 16V 20%,-20% SMD 100UF MVG 16V M SMD R/TP 470UF MV 16V 20% R/TP(SMD) SMD 1.0UF 3216 35V 10% R/TP X7R 470UF MVK 16V 20% SMD R/TP(SMD) 470UF MV 16V 20% R/TP(SMD) SMD 100UF MVK 16V 20% R/TP(SMD) SMD For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible http://www.wjel.net - 26 - LOCA. NO PART NO DESCRIPTION C923 C940 C942 C943 C944 C946 C949 C950 C953 C955 C973 C981 C982 C999 AR001 AR002 AR330 AR332 AR333 AR334 AR335 AR336 AR337 AR338 AR339 AR340 AR341 AR342 AR400 AR401 AR402 AR403 AR404 AR405 AR406 AR407 AR408 AR409 AR410 AR411 AR412 AR413 AR414 AR415 AR416 AR417 AR418 AR421 AR422 AR423 0CE107WF6DC 0CE476SF6DC 0CE107SF6DC 0CE476SF6DC 0CE107SF6DC 0CE227VF6DC 0CE107WF6DC 0CE227VF6DC 0CE227WF6DC 0CE107WF6DC 0CE476SF6DC 0CE476SF6DC 0CE477WF6DC 0CE476SF6DC 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 100UF MVK 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 100UF MVG 16V M SMD R/TP 220UF MV 16V 20% R/TP(SMD) SMD 100UF MVK 16V 20% R/TP(SMD) SMD 220UF MV 16V 20% R/TP(SMD) SMD 220UF MVK 16V 20% R/TP(SMD) SMD 100UF MVK 16V 20% R/TP(SMD) SMD 47UF MVG 16V M SMD R/TP 47UF MVG 16V M SMD R/TP 470UF MVK 16V 20% SMD R/TP(SMD) 47UF MVG 16V M SMD R/TP 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% LOCA. NO PART NO DESCRIPTION AR424 AR425 AR426 AR427 AR428 AR429 AR430 AR431 AR432 AR433 AR434 AR435 AR438 AR439 AR440 AR441 AR442 AR443 AR444 AR445 AR446 AR447 AR448 AR449 AR450 AR451 AR452 AR453 AR454 AR455 AR456 AR457 AR458 AR459 AR460 AR461 AR462 AR463 AR464 AR465 AR466 AR467 AR468 AR469 AR600 AR601 R105 R106 R601 R602 R610 R614 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001C 0RRZVTA001C 0RRZVTA001C 0RRZVTA001C 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RRZVTA001D 0RD4700H609 0RD4700H609 0RS2701K607 0RS2701K607 0RS0221H609 0RS0221H609 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 4.7K OHM 1 / 16 W 1608 5% 4.7K OHM 1 / 16 W 1608 5% 4.7K OHM 1 / 16 W 1608 5% 4.7K OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 22 OHM 1 / 16 W 1608 5% 470 OHM 1/2 W 5.00% TA52 470 OHM 1/2 W 5.00% TA52 2.7K OHM 2 W 5.00% TA62 2.7K OHM 2 W 5.00% TA62 2.2 OHM 1/2 W 5.00% TA52 2.2 OHM 1/2 W 5.00% TA52 For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible RESISTOR http://www.wjel.net - 27 - LOCA. NO PART NO DESCRIPTION R948 SW001 SW002 SW003 SW004 SW005 SW006 SW201 F101 F102 F103 L001 L002 L003 L004 L005 L006 L007 L008 L009 L010 L011 L012 L101 L102 L103 L103 L104 L104 L105 L106 L107 L108 L201 L202 L203 L204 L205 L206 L207 L208 L209 L210 L211 L212 L214 L215 L216 0RD0152H609 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 140-275A 6200VJS001A 6200VJS001B 6200VJS001B 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6210VC0006A 6210VC0006A 6200JB8010L 6210VC0006A 6200JB8010L 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 15 OHM 1/2 W 5.00% TA52 TACT SKHV17910B LG C&D NON 12V TACT SKHV17910B LG C&D NON 12V TACT SKHV17910B LG C&D NON 12V TACT SKHV17910B LG C&D NON 12V TACT SKHV17910B LG C&D NON 12V TACT SKHV17910B LG C&D NON 12V PUSH JDPB21SA EVLAND NON 30V 0.3A ZJY51R5-4P TDK DIP DC 50VOLT 2A ZJYS51R5-2PL(T) TDK R/TP 50VOLT 2A ZJYS51R5-2PL(T) TDK R/TP 50VOLT 2A FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP MLB-201209-1000L-N2 FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP MLB-201209-1000L-N2 FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP LOCA. NO PART NO DESCRIPTION L219 L220 L221 L224 L225 L226 L227 L228 L229 L229 L230 L230 L231 L232 L233 L234 L601 L602 L603 L606 L903 L904 L905 L906 L907 L908 L909 L910 L911 L912 L913 L914 L916 L917 L918 L919 L920 L921 L922 L923 L924 L925 L926 L927 L928 L929 L930 L931 L932 L933 L934 L935 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0005A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP BK2125 HS 750 2X1.25X0.85MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FILTER & CRYSTAL SWITCH http://www.wjel.net - 28 - LOCA. NO PART NO DESCRIPTION L936 L937 L938 L939 L940 L941 L942 L943 L944 L945 L947 R102 R103 R106 R107 R108 R110 R276 R277 R278 R279 R301 X001 X001 X401 X402 X403 X501 X601 JK103 JK105 JK107 JK109 JK112 JK113 JK201 JK202 JK203 A1 A2 A3 A3 A4 A5 A6 JK104 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6210VC0006A 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6200JB8010L 6212AB2015C 6202VDT002K 6202VDB007B 6202VDB007B 6202VDT002J 6202VDT002J 156-A02M 6613V00004S 6612BBBHN6A 380-363G 380-068E 380-068E 6612JH003EB 6612VJH020B 6612VJH020C 6612VJH019B 3828VA0442A 6710V00116J 6410VBH003C 6410VSH001D 6410VCH001C 6850J00002A 6866VA9001B 6630VGA001C FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP FBMH3216 HM501NT 3.2X1.6X1.6MM R/TP MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 MLB-201209-1000L-N2 CRYSTAL,HC-49/SM4H BUBANG CRYSTAL,SX-1 SUNNY CRYSTAL,HC49U 20.250MHZ CRYSTAL,HC49U 20.250MHZ 30PPM 13PF BK CRYSTAL,SX-1 13.500000MHZ +/- 50 PPM CRYSTAL,SX-1 13.500000MHZ +/- 50 PPM CRYSTAL,HC49U 18.432MHZ 30PPM 10PF BK PJ-6054R S-VHS+3P+GOLD 440062-1 AMP DVI INTERACED RIGHT ANGLE 6046B-01S H=8.0 WITH S/W,SHIELD UEJ-CV-018 UGCOM D3.5 E/P UEJ-CV-018 UGCOM D3.5 E/P UST-AG-013 UGCOM PPJ122B PARK ELEC. A/V 6P PPJ122C A/V 6P(COMPONENT) PPJ121B PARK ELEC. A/V 4P MANUAL,OWNERS RF03OA 42PZ70 LG EN REMOTE CONTROLLER,RF03OB POWER CORD,MP5004(13A)+V1625 POWER CORD,M3203+V1625 SAA 2800MM POWER CORD,V3203CA+V1625 CCEE 2800MM CABLE,DVI-D TO DVI-D UL20276 3000MM CONNECTOR,2990-9C UL 1161 CONNECTOR,68114-1521 15PIN 2.29MM LOCA. NO PART NO DESCRIPTION JK111 L604 L902 L915 PA001 TU101 TU102 X002 6630VGA004B 6140VB0004B 6140VB0004B 6140VB0004B 6726VH0001A 6700MF0001J 6700MF0001K 6204B47985D CONNECTOR,69107-0921 9P 2.77MM COIL,26UH 1UEWPHY 22.5TURN YL-9N 0.4 COIL,26UH 1UEWPHY 22.5TURN YL-9N 0.4 COIL,26UH 1UEWPHY 22.5TURN YL-9N 0.4 REMOTE CONTROLLER RECEIVER,TSOP1238RF1 TUNER,TAUH-Z340D LG INOTEK MULTI TUNER,TAFH-Z341P LG INOTEK MULTI OSCILLATOR,SCO-103 12MHZ +/-100PPM JACK ACCESSORIES MISCELLANEOUS http://www.wjel.net http://www.wjel.net http://www.wjel.net http://www.wjel.net http://www.wjel.net http://www.wjel.net http://www.wjel.net http://www.wjel.net http://www.wjel.net Jan., 2004 Printed in Korea P/NO : 3828VD0164A http://www.wjel.net
