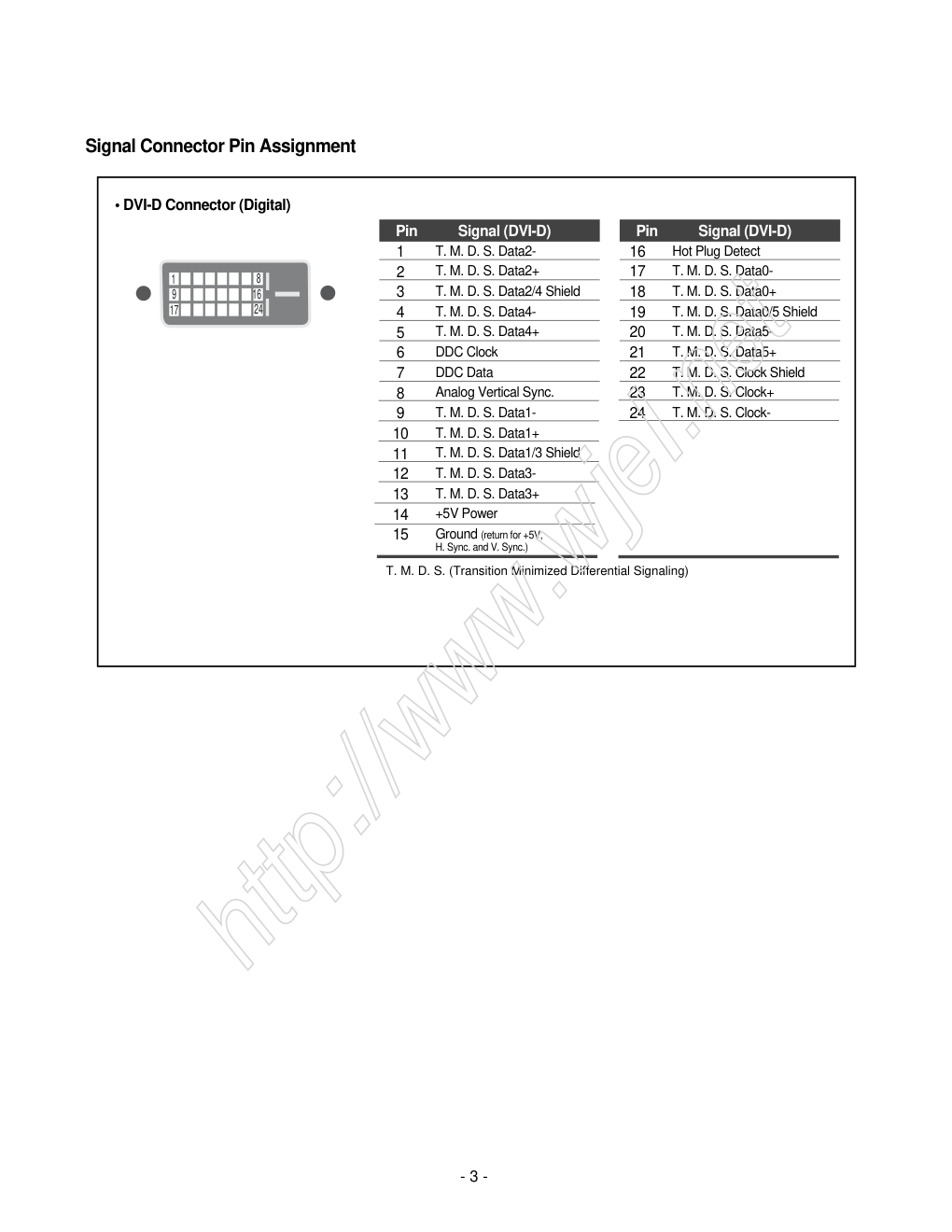

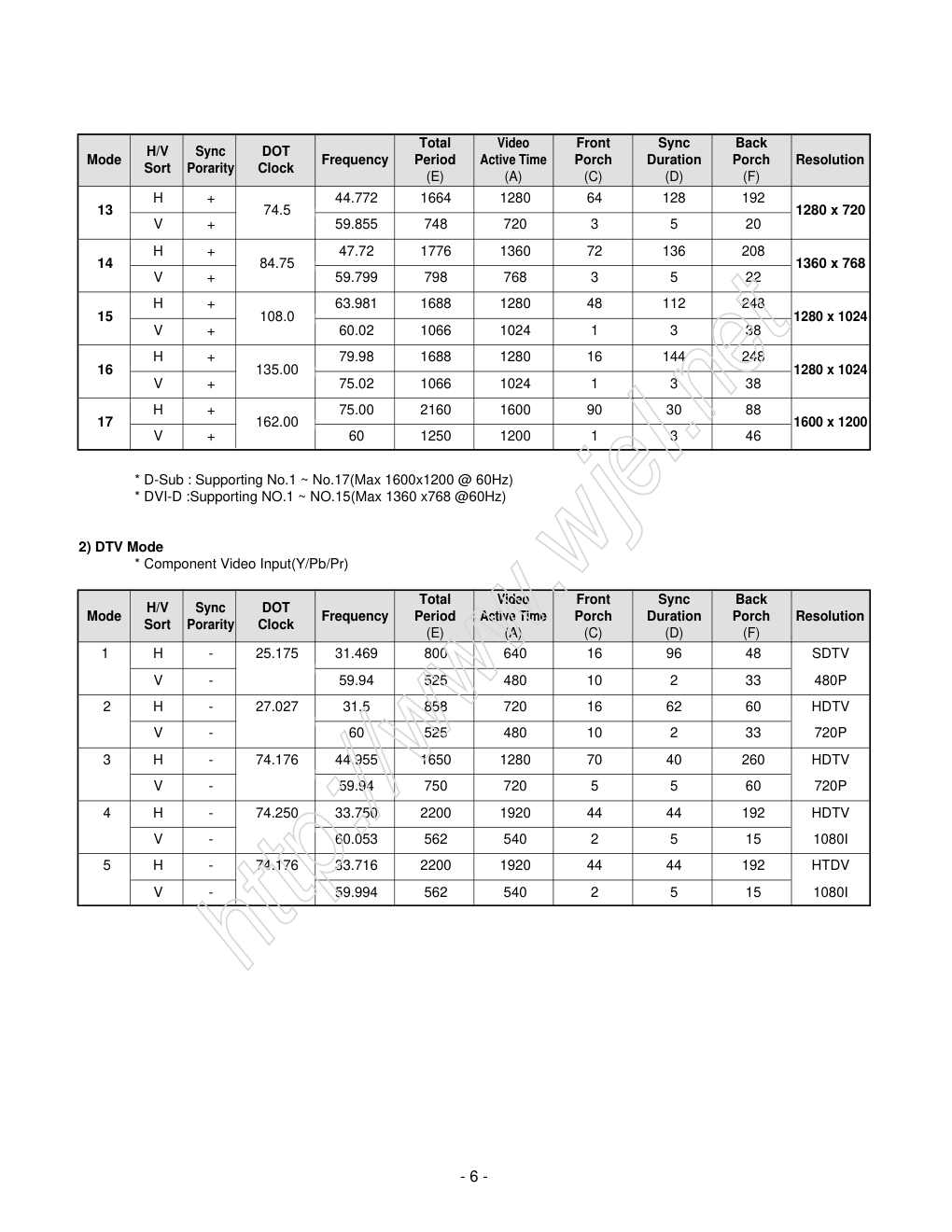

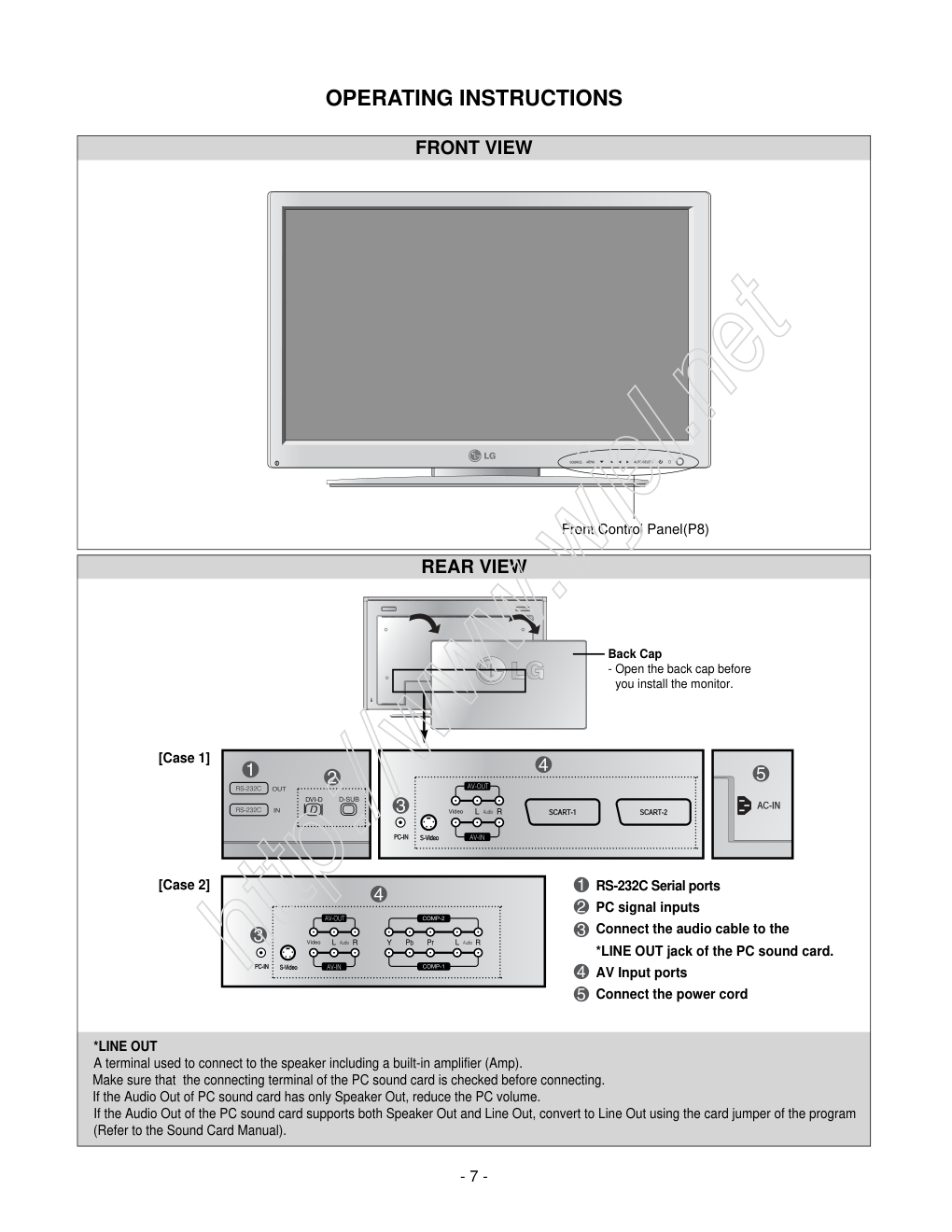

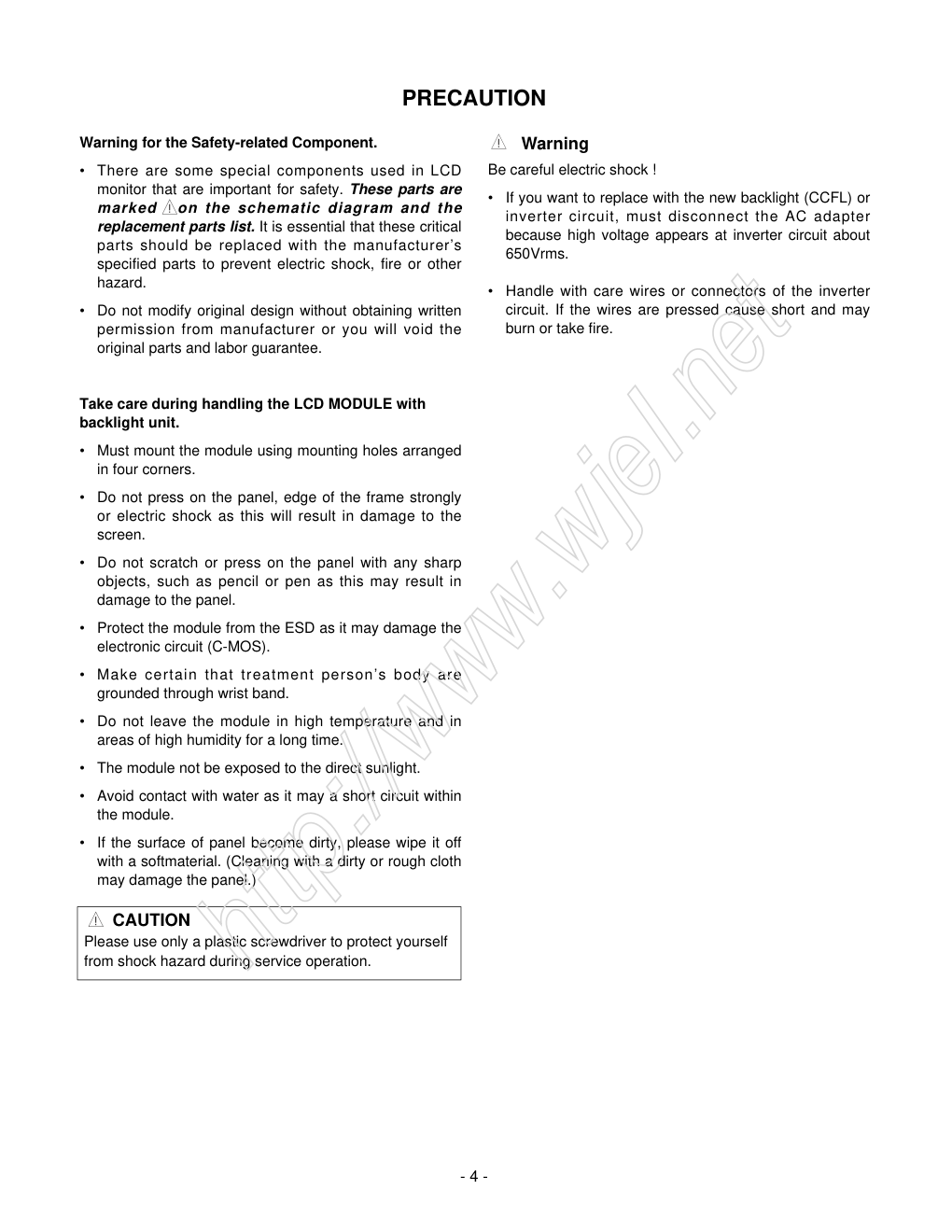

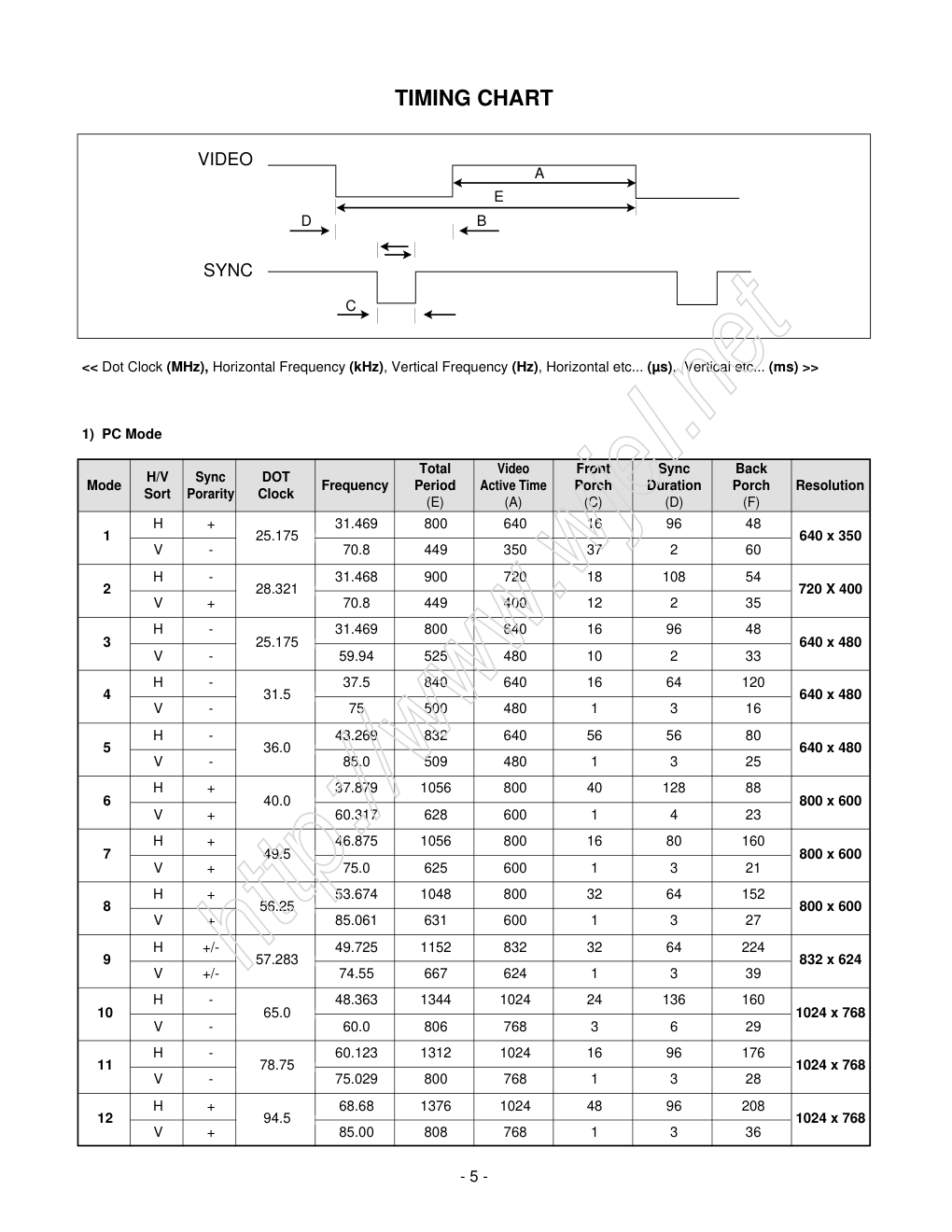

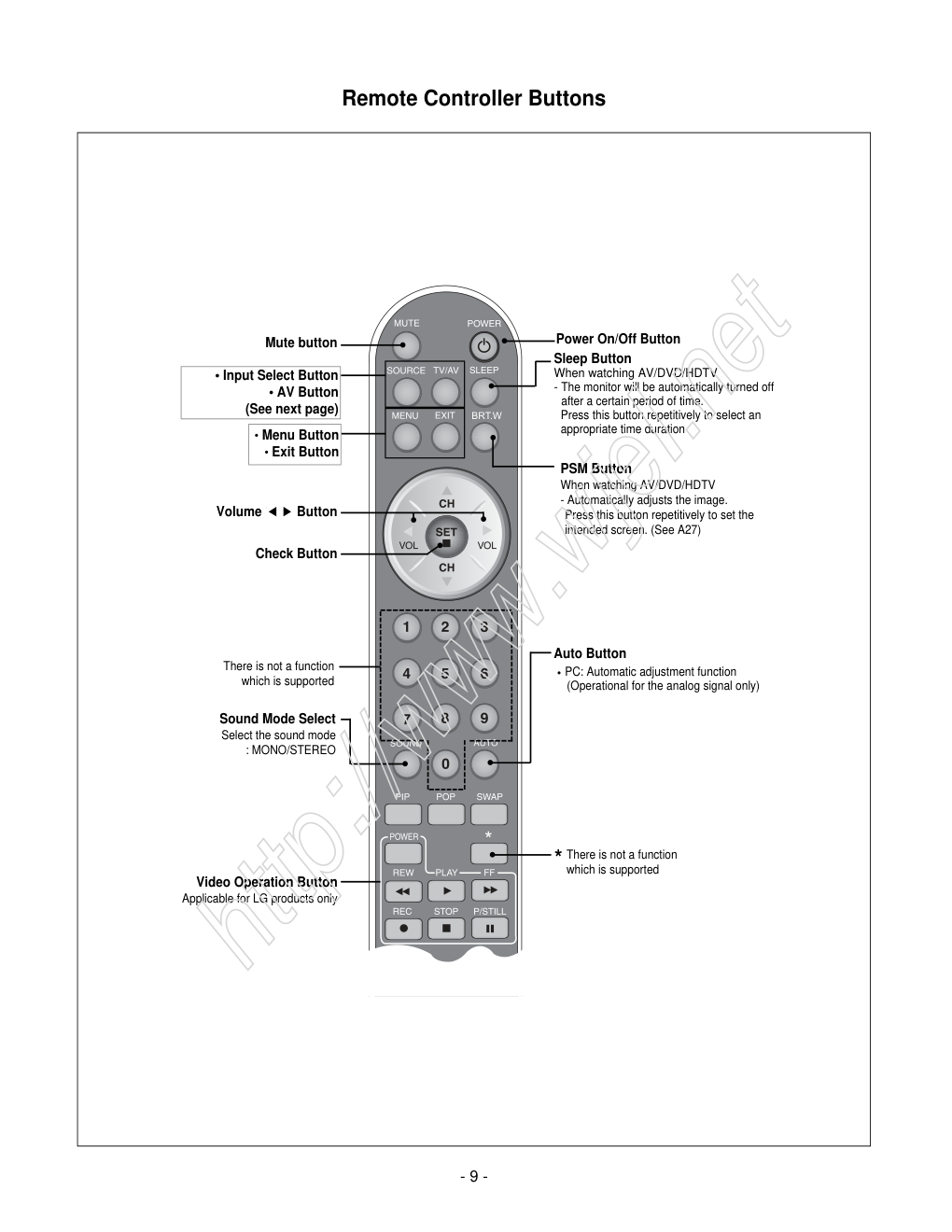

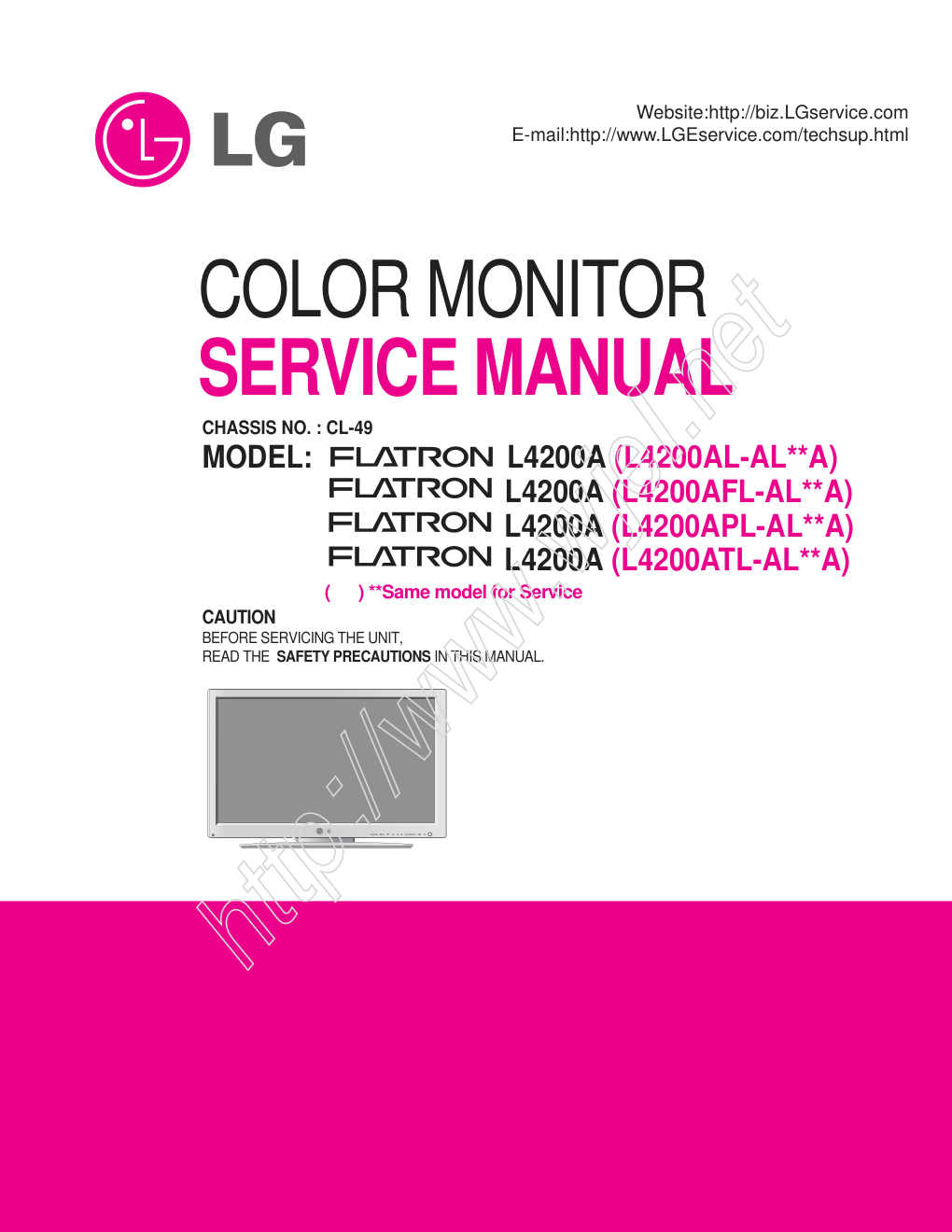

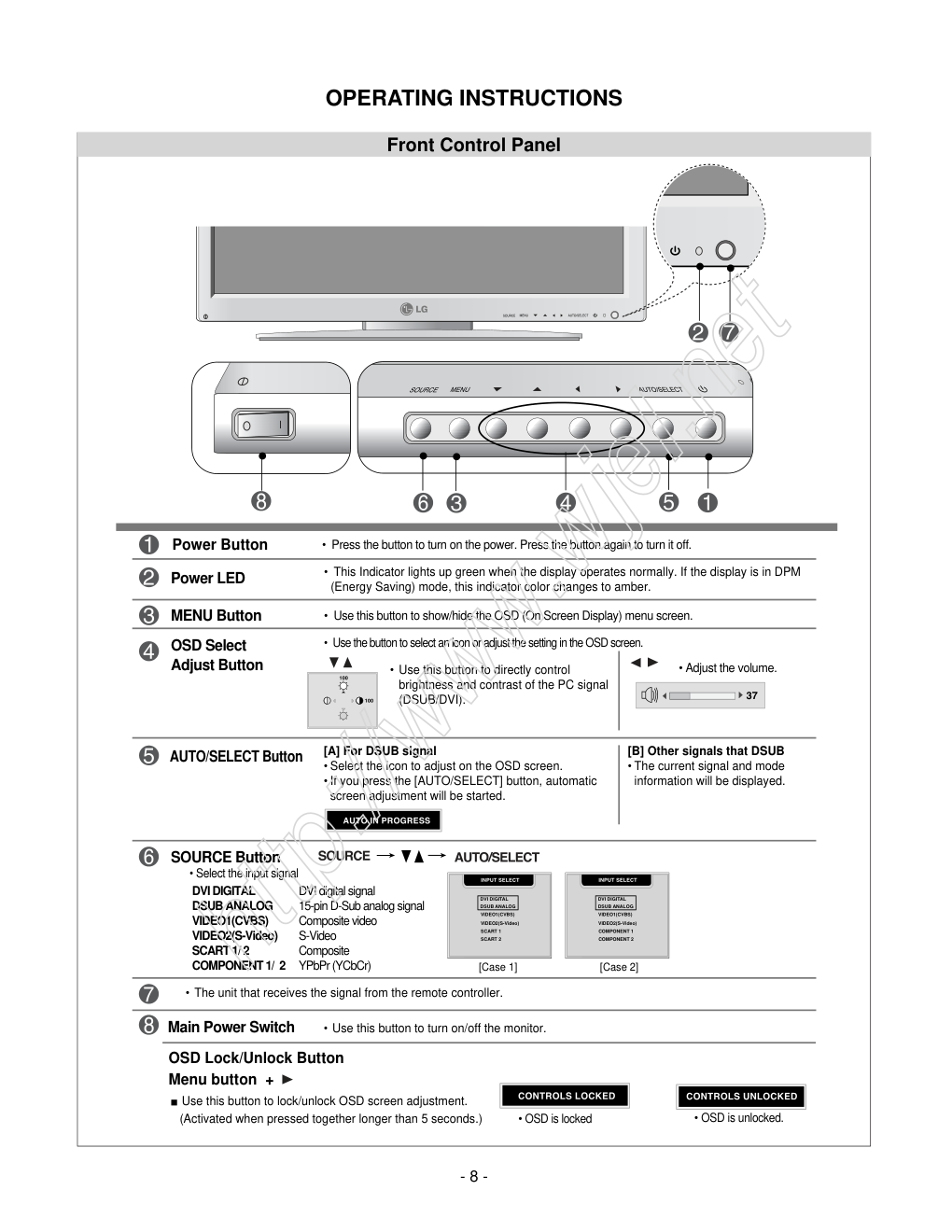

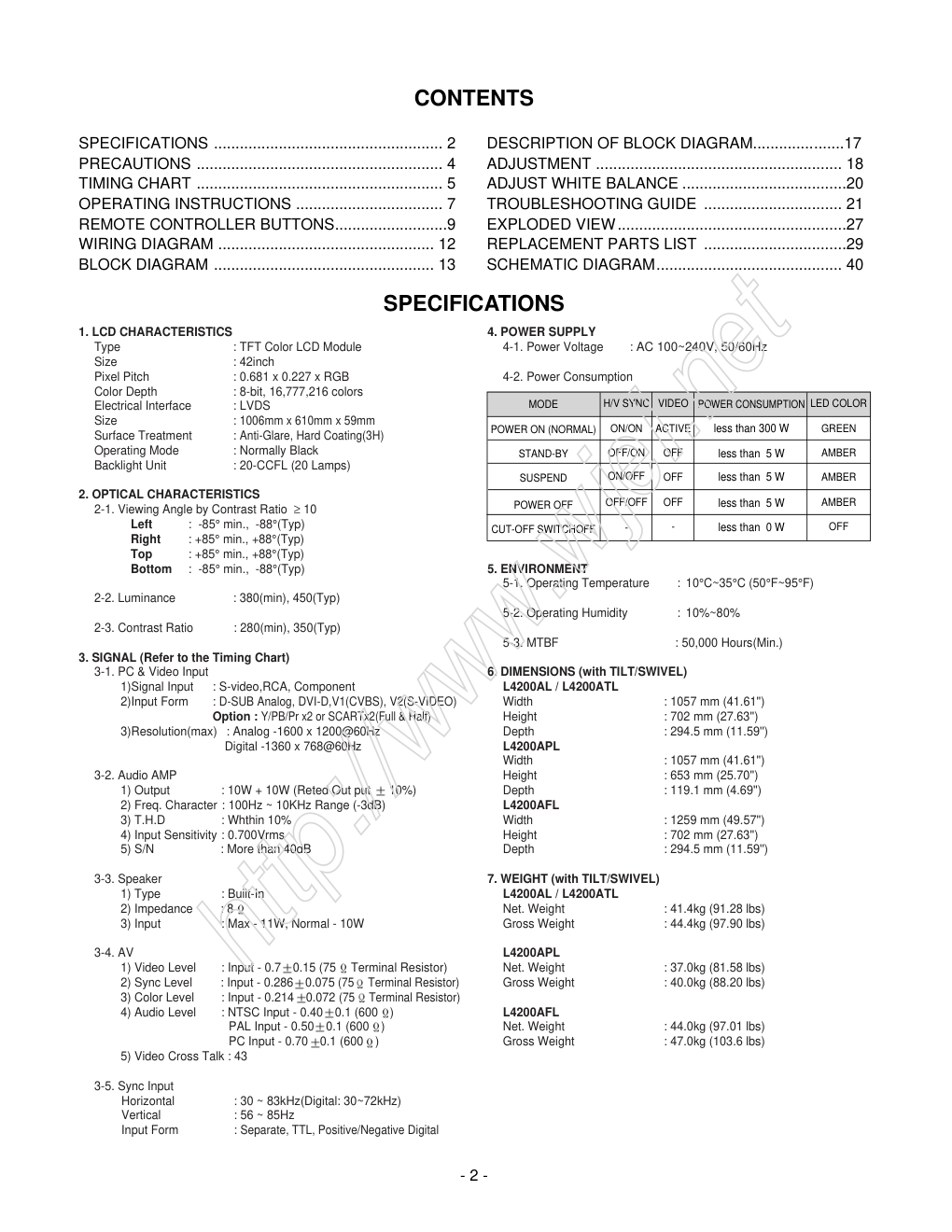

COLOR MONITOR SERVICE MANUAL Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : CL-49 MODEL: L4200A (L4200AL-AL**A) L4200A (L4200AFL-AL**A) L4200A (L4200APL-AL**A) L4200A (L4200ATL-AL**A) ( ) **Same model for Service http://www.wjel.net http://www.wjel.net 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Size : 42inch Pixel Pitch : 0.681 x 0.227 x RGB Color Depth : 8-bit, 16,777,216 colors Electrical Interface : LVDS Size : 1006mm x 610mm x 59mm Surface Treatment : Anti-Glare, Hard Coating(3H) Operating Mode : Normally Black Backlight Unit : 20-CCFL (20 Lamps) 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : -85° min., -88°(Typ) Right : +85° min., +88°(Typ) Top : +85° min., +88°(Typ) Bottom : -85° min., -88°(Typ) 2-2. Luminance : 380(min), 450(Typ) 2-3. Contrast Ratio : 280(min), 350(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. PC & Video Input 1)Signal Input : S-video,RCA, Component 2)Input Form : D-SUB Analog, DVI-D,V1(CVBS), V2(S-VIDEO) Option : Y/PB/Pr x2 or SCARTx2(Full & Half) 3)Resolution(max) : Analog -1600 x 1200@60Hz Digital -1360 x 768@60Hz 3-2. Audio AMP 1) Output : 10W + 10W (Reted Out put 10%) 2) Freq. Character : 100Hz ~ 10KHz Range (-3dB) 3) T.H.D : Whthin 10% 4) Input Sensitivity : 0.700Vrms 5) S/N : More than 40dB 3-3. Speaker 1) Type : Built-In 2) Impedance : 8 3) Input : Max - 11W, Normal - 10W 3-4. AV 1) Video Level : Input - 0.7 0.15 (75 Terminal Resistor) 2) Sync Level : Input - 0.286 0.075 (75 Terminal Resistor) 3) Color Level : Input - 0.214 0.072 (75 Terminal Resistor) 4) Audio Level : NTSC Input - 0.40 0.1 (600 ) PAL Input - 0.50 0.1 (600 ) PC Input - 0.70 0.1 (600 ) 5) Video Cross Talk : 43 3-5. Sync Input Horizontal : 30 ~ 83kHz(Digital: 30~72kHz) Vertical : 56 ~ 85Hz Input Form : Separate, TTL, Positive/Negative Digital 4. POWER SUPPLY 4-1. Power Voltage : AC 100~240V, 50/60Hz 4-2. Power Consumption 5. ENVIRONMENT 5-1. Operating Temperature : 10°C~35°C (50°F~95°F) 5-2. Operating Humidity : 10%~80% 5-3. MTBF : 50,000 Hours(Min.) 6. DIMENSIONS (with TILT/SWIVEL) L4200AL / L4200ATL Width : 1057 mm (41.61'') Height : 702 mm (27.63'') Depth : 294.5 mm (11.59'') L4200APL Width : 1057 mm (41.61'') Height : 653 mm (25.70'') Depth : 119.1 mm (4.69'') L4200AFL Width : 1259 mm (49.57'') Height : 702 mm (27.63'') Depth : 294.5 mm (11.59'') 7. WEIGHT (with TILT/SWIVEL) L4200AL / L4200ATL Net. Weight : 41.4kg (91.28 lbs) Gross Weight : 44.4kg (97.90 lbs) L4200APL Net. Weight : 37.0kg (81.58 lbs) Gross Weight : 40.0kg (88.20 lbs) L4200AFL Net. Weight : 44.0kg (97.01 lbs) Gross Weight : 47.0kg (103.6 lbs) CONTENTS SPECIFICATIONS - 2 - SPECIFICATIONS ..................................................... 2 PRECAUTIONS ......................................................... 4 TIMING CHART ......................................................... 5 OPERATING INSTRUCTIONS .................................. 7 REMOTE CONTROLLER BUTTONS..........................9 WIRING DIAGRAM .................................................. 12 BLOCK DIAGRAM ................................................... 13 DESCRIPTION OF BLOCK DIAGRAM.....................17 ADJUSTMENT ......................................................... 18 ADJUST WHITE BALANCE ......................................20 TROUBLESHOOTING GUIDE ................................ 21 EXPLODED VIEW.....................................................27 REPLACEMENT PARTS LIST .................................29 SCHEMATIC DIAGRAM........................................... 40 MODE POWER ON (NORMAL) STAND-BY SUSPEND POWER OFF CUT-OFF SWITCHOFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF - POWER CONSUMPTION less than 300 W less than 5 W less than 5 W less than 5 W less than 0 W LED COLOR GREEN AMBER AMBER AMBER OFF VIDEO ACTIVE OFF OFF OFF - http://www.wjel.net - 3 - Signal Connector Pin Assignment Pin Signal (DVI-D) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 T. M. D. S. Data2- T. M. D. S. Data2+ T. M. D. S. Data2/4 Shield T. M. D. S. Data4- T. M. D. S. Data4+ DDC Clock DDC Data Analog Vertical Sync. T. M. D. S. Data1- T. M. D. S. Data1+ T. M. D. S. Data1/3 Shield T. M. D. S. Data3- T. M. D. S. Data3+ +5V Power Ground (return for +5V, H. Sync. and V. Sync.) Pin Signal (DVI-D) 1 8 9 17 24 16 16 17 18 19 20 21 22 23 24 Hot Plug Detect T. M. D. S. Data0- T. M. D. S. Data0+ T. M. D. S. Data0/5 Shield T. M. D. S. Data5- T. M. D. S. Data5+ T. M. D. S. Clock Shield T. M. D. S. Clock+ T. M. D. S. Clock- T. M. D. S. (Transition Minimized Differential Signaling) • DVI-D Connector (Digital) http://www.wjel.net - 4 - Warning for the Safety-related Component. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. Take care during handling the LCD MODULE with backlight unit. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) Warning Be careful electric shock ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. http://www.wjel.net TIMING CHART - 5 - VIDEO SYNC B C E A D << Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >> 1) PC Mode Mode H/V Sort Sync Porarity DOT Clock Frequency Total Period (E) Video Active Time (A) Front Porch (C) Sync Duration (D) Back Porch (F) Resolution 1 H + 25.175 31.469 800 640 16 96 48 640 x 350 V - 70.8 449 350 37 2 60 2 H - 28.321 31.468 900 720 18 108 54 720 X 400 V + 70.8 449 400 12 2 35 3 H - 25.175 31.469 800 640 16 96 48 640 x 480 V - 59.94 525 480 10 2 33 4 H - 31.5 37.5 840 640 16 64 120 640 x 480 V - 75 500 480 1 3 16 5 H - 36.0 43.269 832 640 56 56 80 640 x 480 V - 85.0 509 480 1 3 25 6 H + 40.0 37.879 1056 800 40 128 88 800 x 600 V + 60.317 628 600 1 4 23 7 H + 49.5 46.875 1056 800 16 80 160 800 x 600 V + 75.0 625 600 1 3 21 8 H + 56.25 53.674 1048 800 32 64 152 800 x 600 V + 85.061 631 600 1 3 27 9 H +/- 57.283 49.725 1152 832 32 64 224 832 x 624 V +/- 74.55 667 624 1 3 39 10 H - 65.0 48.363 1344 1024 24 136 160 1024 x 768 V - 60.0 806 768 3 6 29 11 H - 78.75 60.123 1312 1024 16 96 176 1024 x 768 V - 75.029 800 768 1 3 28 12 H + 94.5 68.68 1376 1024 48 96 208 1024 x 768 V + 85.00 808 768 1 3 36 http://www.wjel.net - 6 - Mode H/V Sort Sync Porarity DOT Clock Frequency Total Period (E) Video Active Time (A) Front Porch (C) Sync Duration (D) Back Porch (F) Resolution 13 H + 74.5 44.772 1664 1280 64 128 192 1280 x 720 V + 59.855 748 720 3 5 20 14 H + 84.75 47.72 1776 1360 72 136 208 1360 x 768 V + 59.799 798 768 3 5 22 15 H + 108.0 63.981 1688 1280 48 112 248 1280 x 1024 V + 60.02 1066 1024 1 3 38 16 H + 135.00 79.98 1688 1280 16 144 248 1280 x 1024 V + 75.02 1066 1024 1 3 38 17 H + 162.00 75.00 2160 1600 90 30 88 1600 x 1200 V + 60 1250 1200 1 3 46 Mode H/V Sort Sync Porarity DOT Clock Frequency Total Period (E) Video Active Time (A) Front Porch (C) Sync Duration (D) Back Porch (F) Resolution 1 H - 25.175 31.469 800 640 16 96 48 SDTV V - 59.94 525 480 10 2 33 480P 2 H - 27.027 31.5 858 720 16 62 60 HDTV V - 60 525 480 10 2 33 720P 3 H - 74.176 44.955 1650 1280 70 40 260 HDTV V - 59.94 750 720 5 5 60 720P 4 H - 74.250 33.750 2200 1920 44 44 192 HDTV V - 60.053 562 540 2 5 15 1080I 5 H - 74.176 33.716 2200 1920 44 44 192 HTDV V - 59.994 562 540 2 5 15 1080I * D-Sub : Supporting No.1 ~ No.17(Max 1600x1200 @ 60Hz) * DVI-D :Supporting NO.1 ~ NO.15(Max 1360 x768 @60Hz) 2) DTV Mode * Component Video Input(Y/Pb/Pr) http://www.wjel.net - 7 - FRONT VIEW REAR VIEW OPERATING INSTRUCTIONS Front Control Panel(P8) Back Cap - Open the back cap before you install the monitor. IN OUT Video Video *LINE OUT A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of PC sound card has only Speaker Out, reduce the PC volume. If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out using the card jumper of the program (Refer to the Sound Card Manual). [Case 1] [Case 2] RS-232C Serial ports PC signal inputs Connect the audio cable to the *LINE OUT jack of the PC sound card. AV Input ports Connect the power cord http://www.wjel.net - 8 - OPERATING INSTRUCTIONS Front Control Panel • Press the button to turn on the power. Press the button again to turn it off. • This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. Power Button Power LED • Adjust the volume. • Use this button to directly control brightness and contrast of the PC signal (DSUB/DVI). • Use this button to show/hide the OSD (On Screen Display) menu screen. MENU Button • Use the button to select an icon or adjust the setting in the OSD screen. OSD Select Adjust Button [A] For DSUB signal • Select the icon to adjust on the OSD screen. • If you press the [AUTO/SELECT] button, automatic screen adjustment will be started. [B] Other signals that DSUB • The current signal and mode information will be displayed. AUTO/SELECT Button • The unit that receives the signal from the remote controller. DVI DIGITAL DVI digital signal DSUB ANALOG 15-pin D-Sub analog signal VIDEO1(CVBS) Composite video VIDEO2(S-Video) S-Video SCART 1/ 2 Composite COMPONENT 1/ 2 YPbPr (YCbCr) • Select the input signal SOURCE Button [Case 1] DVI DIGITAL DSUB ANALOG VIDEO1(CVBS) VIDEO2(S-Video) SCART 1 SCART 2 [Case 2] DVI DIGITAL DSUB ANALOG VIDEO1(CVBS) VIDEO2(S-Video) COMPONENT 1 COMPONENT 2 • OSD is locked • OSD is unlocked. Use this button to lock/unlock OSD screen adjustment. (Activated when pressed together longer than 5 seconds.) OSD Lock/Unlock Button Menu button + • Use this button to turn on/off the monitor. Main Power Switch http://www.wjel.net - 9 - Remote Controller Buttons Power On/Off Button BRT.W * • Input Select Button • AV Button (See next page) Sleep Button When watching AV/DVD/HDTV - The monitor will be automatically turned off after a certain period of time. Press this button repetitively to select an appropriate time duration * There is not a function which is supported • Menu Button • Exit Button Auto Button PC: Automatic adjustment function (Operational for the analog signal only) Check Button Sound Mode Select Select the sound mode : MONO/STEREO Video Operation Button Applicable for LG products only Volume Button Mute button There is not a function which is supported PSM Button When watching AV/DVD/HDTV - Automatically adjusts the image. Press this button repetitively to set the intended screen. (See A27) http://www.wjel.net - 10 - * BRT.W If you press the button once, the following Input Signal Window will appear. Select the signal type you want using the button. This button will be enabled only when you selected the AV signal. The signal type will be changed with the followaing order. Set the signal type you want. [Case 1] • Input Select Button • AV Button [Case 1] CVBS S-Video SCART1 SCART 2 [Case 2] CVBS S-Video COMPONENT1 COMPONENT2 DVI DIGITAL DSUB ANALOG VIDEO1(CVBS) VIDEO2(S-Video) SCART 1 SCART 2 [Case 2] DVI DIGITAL DSUB ANALOG VIDEO1(CVBS) VIDEO2(S-Video) COMPONENT 1 COMPONENT 2 1. PIP (Picture in Picture) Button The sub-screen moves to the next mode whenever you press this button. : SMALL -> LARGE -> OFF 2. POP (Picture out Picture) Button The sub-screen moves to the next mode whenever you press this button. : POP ON -> PBP(FULL) -> PBP(4:3) -> OFF POP ON PBP (FULL) PBP (4:3) PIP http://www.wjel.net - 11 -

SWAP SWAP When 'Input Signal 1' comes on in the main screen, only 'Input Signal 2' can be displayed on the sub-screen. On the contrary, if the main screen displays 'Input Signal 2', the sub-screen can display 'Input Signal 1' only. You can swap 'Input Signal 1' and 'Input Signal 2' using the SWAP button. CVBS CVBS S-Video S-Video SCART 1 COMPONENT 1 SCART 1 COMPONENT 1 SCART 2 COMPONENT 2 SCART 2 COMPONENT 2 3. Swap Button You can swap the main screen and the sub-screen when the PIP/POP/PBP function is used. PIP POP PBP http://www.wjel.net - 12 - WIRING DIAGRAM NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 PIN & P/N 20PIIN, 6631T11016Z 4PIN, 6631T25019G 14PIN, 6631T20029L 5PIN, 6631T25019C 15PIN, 6631T20029K 12PIN, 6631T20029M 8PIN, 6631T20029Q 12PIN, 6631T20029N 12PIN, 6631T20029T 3PIN, 6631T25005M 6PIN, 6631T25019E 5PIN, 6631T20029S 13PIN, 6631T20029U 14PIN, 6631T20029R 5PIN, 6631T25019D Power Cord Switch Screw 11Pin 13Pin 5Pin 15Pin 14Pin 14Pin 14Pin 14Pin 15Pin 15Pin 15Pin 5Pin 5Pin 10Pin 10Pin 6Pin 6Pin 8Pin 8Pin 8Pin 8Pin 20Pin 20Pin 5Pin 5Pin 5Pin 13Pin 12Pin 12Pin 12Pin 12Pin 12Pin 12Pin Inverter Inverter Power Board Main Board 2Pin 3Pin 4Pin 2Pin 1Pin 11Pin Screw Screw Screw 1 8 9 10 11 12 13 14 15 6 7 2 3 4 5 http://www.wjel.net - 13 - CVBS_In PA L Option Full SCART DVI-D CVBS_Out Half SCART Y/C1 Y/C2 CVIN1 CVIN2 CVIN3 CVIN4 CVIN5 Y/C OUT CVOUT1 CVOUT2 CVOUT3 CXA2040Q S-Video S_CVO1 S_AVID1 S_R/G/B S_FB VPC3230D S_CVI1 S_CVO2 S_CVI2 S_AVID2 3D COM Filter 64M bits SDRAM (HY57V643220CT6) 128Mbits DDR SDRAM (HY5DU283222AQ) 4Mbits Flash Memory (29LV040B) Scaler gm1601 To Module 5.2M Filter SY/SC_In CVBS_In CVBS_Out *Non-TV S_CV1 S_CV2 SY/SC_In +9V_CXA EEPROM (24C16) BA7657F CVBSI_3D Y/Cout_CXA +3.3V_3D +2.5V_3D 3DY/C I2C EN_3D RST_3D CSI_3D CVBSO_SC ??? SCART_Select S_AVID 1 S_AVID 2 S_AVID R/G/B_In1 FB_In T_R/G/B T_FB S_R/G/B S_FB +5V_BA RGB_Select I2C +3.3V_TXT +2.5V_TXT SW_Tuner(0, 1) Buffer Vout_TXT +5V_VPC SCL1/SDA1 +3.3V_M Data(0~10) Address(0~31) +1.8V_FIL +3.3V_FIL 13.5MHz CLK_ADC HS_ADC VS_ADC +3.3V_F FDATA(0~7) FADDR_(0~18) WE_F RE_F CS_F DDRDATA(0~31) DDRADDR_(0~11) +2.5V_DDR +3.3V_M +2.5V_M +1.8V_M DVI_RX(0,1,2,C)/I2C R/G/B_In Y/U/V_Out(0~15) I2C_DDCCI I2C_DDCCI SDA1/SCL1 B CVBSO C D E F G +3.3V_VPC H Deinterlace FLI2310 SCL1/SDA1 SCL1/SDA1 SDA2/SCL2 +5VA MAX232 RS232C In RS232C Out RX TX VPC_Y1(0~7) I J Buffer Buffer Buffer BLOCK DIAGRAM(Video1) http://www.wjel.net BLOCK DIAGRAM(Video2) - 14 - +5VA MAX232 In RS232C Out RX TX RS232C VPC3230D 64M bits SDRAM (HY57V643220CT6) +5V_VPC VPC_Y2(0~7) I2C +3.3V_M Data(0~10) Address(0~31) +1.8V_FIL +3.3V_FIL 13.5MHz CLK_ADC HS_ADC VS_ADC Deinterlace FLI2300 +3.3V_VPC B F E G CVBS_In S_CV1 S_CV2 H BA7657F +5V_BA RGB_Select R/G/B Out_FIL R/G/B In_ANA R/G/B In SOG SCL2/SDA2 SCL2/SDA2 D-Sub EEPROM (24C16) I2C_DDCCI +3.3_ADC SCL1/SDA1 SY/SC_In Y/C1 Y/C2 CVIN1 CVIN2 CVIN3 CVIN4 CVIN5 Y/C OUT CVOUT1 CVOUT2 CVOUT3 CXA2040Q CVBSI_3D +9V_CXA Y/Cout_CXA C D S_R/G/B S_FB I Port 1 Port A J Port 2 NTSC Option Compo_In Compo_In YPbPr_In RS232C MST9888 BA7657F YPbPr_In http://www.wjel.net - 15 - BLOCK DIAGRAM(Audio) Audio Processor (MPS3450G —Global Version) Audio Power Amp (TPA3004D2) Audio Input Selector (CD4052B) CVBS_In TV Tuner Option PC_In I PA L Option SCART_In_Out NTSC Option Compo_In Compo_In PC Audio_In1 PC Audio_In Audio Buffer SCART Audio1_Out SIF1 CVBS Audio_In Audio Buffer To Speaker Out DACM_L DACM_R AMP IN_R AMP IN_L SCART_In_Out (Half) SC1_In SC2_In SC3_In SC4_In SCART Audio2_Out SC2_OUT +8VA PC Audio_Select PC Audio_Sta ndby +8VA +5VS MSP_INT I2C_SCL I2C_SDA MSP_RST Tuner SIF MONO_In SECAM_Audio +8VA +8VA +18VAMP Standby_TPA3004 Fadeout_Audio RS232_In RS232_Out MAX232 Tx Tx_In Tx_Out Rx Rx_In Rx_Out Option Board ł ł ł ł ¯ ¯ ¯ ¯ º º º º CVBS_Out CVBS_Audio Out Audio Buffer http://www.wjel.net - 16 - BLOCK DIAGRAM(Power) EMI COMPONENTS AAAACCCC IIIInnnnppppuuuutttt 111100000000 ~~~~ 222244440000VVVV 55550000////66660000HHHHzzzz INPUT RECTIFIER AND FILTER MAIN SWITCHING TRANSFORMER OUTPUT RECTIFIER AND FILTER MAIN CONTROL IC & CIRCUIT INVERTER SWITCHING TRANSFORMER INVERTER CONTROL IC & CIRCUIT PFC CHOKE COIL PFC CONTROL IC & CIRCUIT OUTPUT RECTIFIER AND FILTER F/B F/B F/B 400V Vcc 5V Stand-by 12V 18V 12V or 24V MICOM PWR O n/Off Vcc L N http://www.wjel.net - 17 - DESCRIPTION OF BLOCK DIAGRAM 1. Input Selection Circuit 1) Analog Input Selection This block is composed of BA7657F(U103) and peripheral devices. There are analog H/V Syncs. BA7657F IC chooses one input and outputs selected input through sync selection pin 2) Video Input Selection This block is composed of video S/W IC (CXA2040Q, U3) , 3D- Comb filter(UPD64083,U805) and peripheral devices. There are three inputs in CXA2040Q IC(CVBS video , S-video signal,SCART SIGNAL). CVBS video signal is separated to Y/C signal by 3D- Comb filter. One selected video signal is transmitted a video decoder IC (VPC3230, U201) 2. DDC controller This block is composed of GM1501(U402) and peripheral EEPROM IC(U107,U108). GM1501(U402) controls peripheral devices through IIC line. Major functions are (1) to control Flash memory through DDC-SCLA, DDC-SDAA of D-sub And (2) to store EDID data in the EEPROM (U107,U108). 3. Video Decoder This block is composed of VPC 3230 (U1) and peripheral devices. GM 1501 controls this IC through IIC Line. This IC analyzes input signal of CVBS, Y/C and output analyzed signal (8bit interlace signal) to De-interlace block. Analyzed signal has video control signals like Contrast, Brightness, Sharpness, Color, tint signals Including Adaptive Comb Filter. 4. Audio Decoder This block is composed of MSP3420G (U501) and peripheral devices. GM 1501 controls this IC through IIC Line. This IC analyzes audio input signal through A/V Jack and PC audio. The analyzed signals transmitted to audio amplifier (TPA3004, U501). 5. Audio Amplifier This block is composed of TPA3004 (U505) and peripheral devices. The function of the audio amplifier is that to amplify audio L/R signal transmitted from audio decoder. The audio signal is amplified according to pre-defined DC volume control curve. Also, Headphone amplifier (Tpa6110, U501) is controlled through Line-out. 6. De-interlacer This block is composed of FLI 2310(U301) and peripheral devices. GM1501 (U402) controls this IC through IIC Line. And this IC converts 8 Bit Interlaced Y/UV signal and signal that is from component port and changed to 24bit digital signal to De-interlaced signal. It output converted signal to Format Converter IC(GM 1501, U402). 7. Format Converter This block is composed of GM 1501(U402) and peripheral devices. GM 1501(Scaler,U402) contains MICOM. 1) This IC contain A/D converter, Pre-amp and PLL circuit that converting analog video signal(0.7Vp-p) through D-sub(J103) Pin to digital signal. 2) This IC Decode TMDS signals of 8 line from DVI-D Pin (J202) and transmit to LVDS Transmitter. GM 1501 is Format Converter IC that receives Digital signal and outputs proper frame signal to LCD Module Timing(1360°ø768,WXGA). 8. RS-232C PART This block is composed of Max232c(U504) and peripheral devices. Input port support communication of between computer and monitor , output port support communication of other monitors that linked by RS- 232c cable. By using this port computer can control this monitor And GM1501 can send/receive by using RX,TX port of Max232C 9. DC/DC Converter block DC/DC Converter convert the input 12V, 24V to proper 2.5V, 3.3V, 5V, 1.8V for main control system. For shooting heat trouble, we use the DC/DC converting IC. 10. Power Supply Block This Block generates DC Voltages(5V, 12V, 18V and 24V) to Main Control system from AC Power(100-240 V, 50/60 Hz, 1.0 A). This Circuit contains PFC(Power Factor correction) circuit. http://www.wjel.net - 18 - ADJUSTMENT Windows EDID V1.0 User Manual Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Don’t need setup Windows 2000, XP => Need to Port Setup. This program is available to LCD Monitor only. 1. Port Setup a) Copy “UserPort.sys” file to “c:\WINNT\system32\drivers” folder b) Run Userport.exe c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. 2. EDID Read & Write 1) Run WinEDID.exe 2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button http://www.wjel.net - 19 - DVI-D Connector 220 IBM Compatible PC Parallel Port Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E V-Sync On/Off Switch (Switch must be ON.) F A B C 5V E F A B C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Figure 1. Cable Connection - When entering Service mode : Press the Menu key using a remote controller and input the number (3 -> 0 -> 2 -> 0) to enter Service mode. 1. MODEL : Shows the model name of the current product. 2. NVRAM INITIAL : Initiates the EEPROM setting with the factory-setting value. The default value is "OFF". Left and right key can be used for operation. 3. (AV) MICOM VERSION : Shows the MICOM version of the set. Displays as a number including the event type and date information 5. (AV) VCHIP TEST : Menu for VCHIP test. This menu is used to test whether the VCHIP is working properly at the VCHIP signal input by setting as "ON". 6. (AV) SDRAM DELAY : Sets the SDRAM delay value. 7. (AV) 9888 SETTING : Sets the AD9888 register. When you move to the sub-menu, you can set the offset and gain for each RGB and set automatic offset/gain on/off. 4. (PC) Aging Mode : Sets Aging Mode on/off. 5. (PC) HDCP Enable : Sets HDCP Enable on/off. 6. (PC) WB : White balance adjustment mode. When operating with the left or right key after black signal input, WB will become "1". Next, input the white signal and operate again and WB becomes 2 and white balance adjustment will be completed. 7. (PC) MODE SEL : Sets the panel mode. (Select one of 1024*768, 1280*768, 1360*768 (default)). SERVICE OSD http://www.wjel.net - 20 - 123 CONTRAST ADJUSTMENT 123 BRIGHTNESS COLOR 1. Input Analog signal through D-sub. 2. Press MENU Key and 3, 0, 2, 0 Num.key NVRAM INITIAL MICOM VERSION Ver. 49 VCHIP TEST OFF OFF L4200AL MODEL ELAPSED T IME 21 H WB 0 SETUP NVRAM INITIAL MICOM VERSION Ver. 49 VCHIP TEST OFF OFF L4200AL MODEL ELAPSED T IME 21 H WB 0 SETUP NVRAM INITIAL MICOM VERSION Ver. 49 VCHIP TEST OFF OFF L4200AL MODEL ELAPSED T IME 21 H WB 1 SETUP 3. Then move SETUP. You can see SVC OSD. ADJUST WHITE BALANCE 4. Press Down key to move WB 5. Input Full Black signal through D-Sub and the number beside WB changes 1 NVRAM INITIAL MICOM VERSION Ver. 49 VCHIP TEST OFF OFF L4200AL MODEL ELAPSED T IME 21 H WB 2 SETUP 7. Input Full White signal through D-Sub and PRESS RIGHT Key. 8. The number beside WB changes 2. White balance adjustment is over. http://www.wjel.net - 21 - TROUBLESHOOTING GUIDE 1. NO POWER NO POWER (POWER INDICATOR OFF) CHECK POWER BOARD CHECK J602 VOLTAGE (18V, 12V, 5V)? NO CHECK POWER BOARD CHECK J601 VOLTAGE (24V, 12V) ? NO CHECK KEY CONTROL BOARD YES YES CHECK POWER BOARD CHECK J609 VOLTAGE (5V, 9V, 24V) ? NO YES YES YES CHECK X401 CHECK X401 (14.318MHz) ? NO CHECK MICOM(U402) SUB POWER PORT(R419) CHECK J602 (SUB POWER) ? NO http://www.wjel.net - 22 - 2. NO RASTER(OSD IS NOT DISPLAYED) NO RASTER (OSD IS NOT DISPLAYED) CHECK THE PERIPHERAL IC U402 CHECK U402? NO CHECK THE PERIPHERAL IC U402 CHECK LVDS OUTPUT (J401)? NO CHECK INVERTER YES YES YES YES CHECK U604 AND THE PERIPHERAL IC U604 CHECK INVERTER POWER (J605, J605) ? NO http://www.wjel.net - 23 - 3. NO RASTER ON VIDEO SIGNAL INPUT NO RASTER ON VIDEO SIGNAL CHECK CABLE OF VIDEO/COMPONENT CHECK THE PERIPHERAL UPD64083(U803) CHECK THE PERIPHERAL IC OF VPC3230(U201) CHECK THE PERIPHERAL IC OF VPC3230, FLI2310, SDRAM CHECK THE PERIPHERAL IC OF GM1501(U402) CHECK UPD64083(U8.3)I/O SIGNAL CHECK VPC3230(U201) I/O SIGNAL CHECK FLI2310(U301) AND SDRAM(U302) I/O SIGNAL CHECK GM1501(U402)AND SDRAM(U401) POWER CHECK OF CXA2040(U202) : R248(9V) POWER CHECK OF UPD64083(U805) : #93 PORT 2.5V POWER CHECK OF FLI2310(U301) : R308, R311(3.3V), PORT#165(1.8V) POWER CHECK OF GM1501(U402) NO INPUT SIGNAL NO INPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL http://www.wjel.net - 24 - 4. SOUND TROBLE SHOOTING NO SOUND OUTPUT CHECK SOUND OF VCR,DVD,PC (TV)CHECK OF CONNECTION OF TUNER AND ANTENNA CHECK THE PERIPHERAL IC OF MSP3420G(U503) CHECK THE PERIPHERAL IC OF TPA3004(U501) CHECK CONNECTION OF SPEAKER ON MONITOR CHECK SOUND INPUT =>PC SOUND(J804) =>VIDEO, DVD, DTV SOUND (RED, WHITE OF J809, J808) CHECK THE PERIPHERAL IC OF MSP3420G(U503) CHECK MSP3420G(U503) I/O SIGNAL CHECK TPA3004(U501) I/O SIGNAL CONNECTOR CHECK POWER CHECK OF MSP3420G(U503) : L505(8V), L508(5V), R509(5V) POWER CHECK OF TPA3004(U505) : C510(18V) NO OUTPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL NO INPUT SIGNAL NO INPUT SIGNAL http://www.wjel.net - 25 - 5. NO RASTER STATE ON ANALOG SIGNAL NO RASTER ON ANALOG SIGNAL CONNECTOR(J101) CHECK CHECK THE PERIPHERAL IC OF GM1501(U402) CHECK THE PERIPHERAL IC OF GM1501(U402) CHECK THE PERIPHERAL IC OF GM1501(U402) CHECK THE PERIPHERAL IC OF D-SUB(J101) CHECK I/O SYNC OF BA7657(U103) CHECK ADC I/O SIGNAL IN GN1501(U402) CHECK GM1501(U402) I/O SIGNAL CHECK LVDS I/O SIGNAL POWER CHECK OF BA7657(U103) : L105(5V) POWER CHECK OF GM1501(U401) POWER CHECK OF LVDS OUTPUT: J403 NO OUTPUT SIGNAL NO INPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL http://www.wjel.net - 26 - 6. NO RASTER STATE ON DIGITAL SIGNAL NO RASTER STATEON DIGITAL SIGNAL CONNECTOR(J103) CHECK CHECK THE PERIPHERAL IC OF GM1501(U402) CHECK THE PERIPHERAL IC OF GM1501(U402) CHECK GM1501(U402) I/O SIGNAL CHECK LVDS I/O SIGNAL POWER CHECK OF GM1501(U402) POWER CHECK OF LVDS OUTPUT: J401 NO OUTPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL NO INPUT SIGNAL http://www.wjel.net - 27 - 25 26 27 28 1 2 12 3 4 5 6 19 9 7 24 23 20 15 8 21 22 18 17 14 16 13 11 10 EXPLODED VIEW http://www.wjel.net - 28 - EXPLODED VIEW PARTS LIST 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 3091TKE006B CABINET ASSEMBLY, L4200A BRAND 3090TKE005A .- L4200AFL 3091TKE006E CABINET ASSEMBLY, L4200AL BRAND 3090TKE005A .- L4200AL, L4200ATL, L4200APL 6304FLP125A LCD(LIQUID CRYSTAL DISPLAY), LC420W02-A4K1 LG PHILPS TFT COLOR NORMAL POL,WXGA,20LAMP,500NITS, H-L, W/O AI 4951TKS144A METAL ASSEMBLY, FRAME CENTER (L4200A) 4951TKS142A METAL ASSEMBLY, FRAME SIDE(L) 4951TKS142B METAL ASSEMBLY, FRAME SIDE (R) 4951TKS143A METAL ASSEMBLY, FRAME MAIN(L4200) 3809TKE004A BACK COVER ASSEMBLY, L4200 3808TKE004A .- L4200AFL 3809TKE004C BACK COVER ASSEMBLY, L4200AL 3808TKE004A .- L4200AL, L4200ATL, L4200APL 3043TKK157A TILT SWIVEL ASSEMBLY, L4200 4950TKK758A BRAND- L4200AFL 3043TKK157B TILT SWIVEL ASSEMBLY, L4200AL 4950TKK758A .- L4200AL, L4200ATL, L4200APL 3551TKK511A COVER ASSEMBLY, L4200 REAR 3550TKK501A DECO - L4200AFL 3551TKK511B COVER ASSEMBLY, L4200AL REAR 3550TKK501A .- L4200AL, L4200ATL, L4200APL 6871TST481A PWB(PCB) ASSEMBLY,SUB, L4200AL CONTROL TOTAL BRAND CL-49 4950TKK760A METAL, UPPORT SIDE (L4200A) 4950TKK760B METAL, SUPPORT SIDE (L4200A) 4950TKK760B METAL, SUPPORT SIDE (L4200A) 4950TKK760A METAL, SUPPORT SIDE (L4200A) 4950TKK774A METAL, SUPPORT CENTER TOP (L4200A) 4950TKK775A METAL, SUPPORT CENTER BOTTOM (L4200A) 4950TKK767A METAL, FIX AC SOCKET 3313TL4001A MAIN TOTAL ASSEMBLY, L4200AL BRAND CL-49 - L4200AFL 3313TL4001B MAIN TOTAL ASSEMBLY, L4200AL BRAND CL-49 - L4200AL, L4200ATL, L4200APL 6871TPT273A PWB(PCB) ASSEMBLY,POWER, L4200 POWER TOTAL BRAND FOR LPL 6871TST5880A PWB(PCB) ASSEMBLY, SUB, L4200AL SUB TOTAL BRAND CL-49 6871TST482A PWB(PCB), ASSEMBLY, SUB, L4200AL, VIDEO TOTAL BRAND CL-49 4950TKK868A METAL, SHIELD BARRIER_L4200A 4950TKG011A METAL, REAR SHIELD (L4200A) 6852TAZ006J CORD,A/V,A/V KHC-LG-3-0010 UL 2851 #28-2C 1500MM BLACK(9930) KSD WITH CORE LM295B 6850TD9001G CABLE,D-SUB, UL 2990-9C(7.5) DT 1870MM BLACK(9930) , DM 6866TDV004J CABLE,DVI, UL20276 DT 2000MM BLACK(9930) LG883D DM 6710T00003B REMOTE CONTROLLER, L2320A OVERSEAS NTSC NTSC REMOTE CONTROLLER 3551TKS050B COVER ASSEMBLY, L4200AL SPEAKER . SPK ASSY BLACK Description Part No. Ref. No. http://www.wjel.net - 29 - DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C101 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C103 0CE227BF638 220U KME 16V M FM5 TP5 C104 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C105 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C106 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C108 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C109 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C110 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C111 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C115 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C116 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C117 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C118 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C119 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C121 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C122 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C123 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C124 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C125 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C126 0CH6101K416 100PF 50V J NP0 2012 R/TP C127 0CH6471K416 470F 50V J NP0 2012 R/TP C128 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C129 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C130 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V) 2" C131 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C132 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C133 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C134 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C135 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C136 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C144 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C201 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C202 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C203 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C204 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C205 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C206 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C207 0CH8226F691 22UF 16V 20% 105STD (CYL) R/ C208 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C209 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C210 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C211 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C212 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C213 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C214 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C215 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C216 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C217 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C218 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C219 0CC391CK41A 390PF 1608 50V 5% NP0 R/TP C220 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C221 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C222 0CH8225K611 2UF 50V 20% 85STD (CYL) R/TP C223 0CK472CK51A 4700PF 1608 50V 10% R/TP B(Y C224 0CH8225K611 2UF 50V 20% 85STD (CYL) R/TP C225 0CH8225K611 2UF 50V 20% 85STD (CYL) R/TP C226 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C228 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C229 0CH8225K611 2UF 50V 20% 85STD (CYL) R/TP C230 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C231 0CK683CK56A 0.068UF 1608 50V 10% X7R R/T C232 0CH8336H611 33UF 25V M 85STD(CYL) R/TP C233 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C234 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C235 0CC391CK41A 390PF 1608 50V 5% NP0 R/TP C236 0CK683CK56A 0.068UF 1608 50V 10% X7R R/T C237 0CH8225K611 2UF 50V 20% 85STD (CYL) R/TP C238 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T" C239 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T" C240 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T" C241 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C242 0CC391CK41A 390PF 1608 50V 5% NP0 R/TP C243 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C244 0CH8225K611 2UF 50V 20% 85STD (CYL) R/TP C245 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C246 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C247 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C248 0CC080CK11A 8PF 1608 50V 0.5 PF R/TP NP0 C249 0CC080CK11A 8PF 1608 50V 0.5 PF R/TP NP0 C250 0CH8225K611 2UF 50V 20% 85STD (CYL) R/TP C251 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C252 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C253 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C254 0CH6152K406 1500PF 50V J SL 2012 R/TP C255 0CH3683K946 68000PF 50V Z F 2012 R/TP C256 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C257 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C258 0CH8225K611 2UF 50V 20% 85STD (CYL) R/TP C259 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C260 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C261 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C262 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C263 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C274 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP C275 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP C276 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP C301 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C302 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C304 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C305 0CC560CK41A 56PF 1608 50V 5% R/TP NP0 C306 0CC330CK41A 33PF 1608 50V 5% R/TP NP0 C307 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C308 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C309 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C310 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C311 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C312 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C313 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C314 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C315 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C316 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C317 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C318 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C319 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C320 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C321 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C322 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C323 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C324 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C325 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C326 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C327 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C328 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C329 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C330 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C331 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C332 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C333 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C334 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C335 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C336 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C337 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C338 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C339 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C340 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C341 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C342 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C343 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C344 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C345 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C346 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C347 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C348 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C349 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C350 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C351 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C352 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C353 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C354 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C358 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C360 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C365 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C366 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C368 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C369 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C376 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C377 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C379 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C381 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C382 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C389 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP C390 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP C391 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP C401 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C402 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C403 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C404 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C405 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C406 0CH8226F691 22UF 16V 20% 105STD (CYL) R/ C407 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C408 0CH8226F691 22UF 16V 20% 105STD (CYL) R/ C409 0CH6150K416 15PF 50V J NP0 2012 R/TP C410 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C411 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C412 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C413 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C414 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C415 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C416 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C417 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C418 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C419 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C420 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C421 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C422 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C423 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C424 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C425 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C426 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C427 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C428 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C429 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C430 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C431 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C432 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C433 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C434 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C435 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C436 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C437 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C438 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C439 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C440 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C441 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C442 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C443 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C444 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C445 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C446 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C447 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C448 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C449 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C450 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C451 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C452 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C453 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C454 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C455 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C456 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C457 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C458 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C459 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C460 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C461 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C462 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C463 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C464 0CE335EK638 3.3UF KMG 50V M FM5 TP 5 C465 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C501 0CE476EK638 47UF KMG 50V M FM5 TP 5 C502 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" - 30 - http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C503 0CH8476F691 47UF 16V 20% 105STD (CYL) R/ C504 0CC3R3CK01A 3.3PF 1608 50V 0.25 PF R/TP C505 0CH8476F691 47UF 16V 20% 105STD (CYL) R/ C506 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C507 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C508 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C510 0CE476EK638 47UF KMG 50V M FM5 TP 5 C511 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C513 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C515 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C516 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C517 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C518 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C519 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C522 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C523 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C526 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C527 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C528 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C529 0CC3R3CK01A 3.3PF 1608 50V 0.25 PF R/TP C530 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C531 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C532 0CC560CK41A 56PF 1608 50V 5% R/TP NP0 C533 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C534 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C535 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C536 0CC560CK41A 56PF 1608 50V 5% R/TP NP0 C537 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C538 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C539 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C540 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C541 0CE477EF638 470UF KMG 16V M FM5 TP 5 C542 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C543 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C544 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C545 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C546 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C547 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C548 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C549 0CH8476F691 47UF 16V 20% 105STD (CYL) R/ C550 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C551 0CE227BF638 220U KME 16V M FM5 TP5 C552 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C553 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C554 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C555 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C556 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C557 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C558 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C559 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C560 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C561 0CE475EK638 4.7UF KMG 50V 20% FM5 TP 5 C562 0CE227BF638 220U KME 16V M FM5 TP5 C563 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C564 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C565 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T" C566 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T" C567 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T" C568 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T" C569 0CH8476F691 47UF 16V 20% 105STD (CYL) R/ C570 0CH8476F691 47UF 16V 20% 105STD (CYL) R/ C571 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C573 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C574 0CH3222K516 2200PF 50V K B 2012 R/TP C576 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C577 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C578 0CH3222K516 2200PF 50V K B 2012 R/TP C579 0CH6560K416 56PF 50V J NP0 2012 R/TP C580 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C581 0CH6101K416 100PF 50V J NP0 2012 R/TP C590 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V) 2" C591 0CE475EK638 4.7UF KMG 50V 20% FM5 TP 5 C601 0CH8106J691 10UF 35V 20% 105STD (CYL) R/ C602 0CE227BF638 220U KME 16V M FM5 TP5 C603 0CE477EF638 470UF KMG 16V M FM5 TP 5 C604 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C605 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C607 0CE476EK638 47UF KMG 50V M FM5 TP 5 C608 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C609 0CE227BF638 220U KME 16V M FM5 TP5 C610 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C611 0CE477EF638 470UF KMG 16V M FM5 TP 5 C612 0CE477EF638 470UF KMG 16V M FM5 TP 5 C613 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C614 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C615 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C617 0CE477EF638 470UF KMG 16V M FM5 TP 5 C618 0CE227BF638 220U KME 16V M FM5 TP5 C619 0CE477EF638 470UF KMG 16V M FM5 TP 5 C620 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C621 0CE227BF638 220U KME 16V M FM5 TP5 C622 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C623 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C624 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C625 0CE227BF638 220U KME 16V M FM5 TP5 C626 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C627 0CE227BF638 220U KME 16V M FM5 TP5 C628 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C630 0CE477EF638 470UF KMG 16V M FM5 TP 5 C631 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C632 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C633 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C634 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C635 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C636 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C637 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C638 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C639 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C640 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C641 0CH8226F691 22UF 16V 20% 105STD (CYL) R/ C642 0CH8226F691 22UF 16V 20% 105STD (CYL) R/ C644 0CE476EK638 47UF KMG 50V M FM5 TP 5 C646 0CE477EF638 470UF KMG 16V M FM5 TP 5 C647 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C648 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C649 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C650 0CE476EK638 47UF KMG 50V M FM5 TP 5 C651 0CE476EK638 47UF KMG 50V M FM5 TP 5 C652 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C653 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C654 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C655 0CE227BF638 220U KME 16V M FM5 TP5 C656 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C658 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP - 31 - http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C659 0CE227BF638 220U KME 16V M FM5 TP5 C660 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C661 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C663 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C664 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C665 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C801 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C803 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C804 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C805 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C806 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C807 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C808 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C809 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C810 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C811 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C812 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C813 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C814 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C815 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C816 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C817 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C818 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C819 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C820 0CC561CK41A 560PF 1608 50V 5% NP0 R/TP C821 0CC821CK41A 820PF 1608 50V 5% R/TP NP0 C822 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C823 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C824 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C825 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C826 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C827 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C828 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C829 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C830 0CH8106F691 10UF 16V 20% 105STD (CYL) R/ C831 0CC561CK41A 560PF 1608 50V 5% NP0 R/TP C834 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C835 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C836 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C838 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C840 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C841 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C842 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C843 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C844 0CH6180K416 18PF 50V 5% NP0 2012 R/TP C845 0CH6180K416 18PF 50V 5% NP0 2012 R/TP C846 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C847 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C848 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C849 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C850 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C851 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C852 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C853 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C854 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C855 0CH6471K416 470F 50V J NP0 2012 R/TP C856 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C857 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C858 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C859 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C860 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C861 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C862 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C863 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C864 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C865 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C867 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C868 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C869 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C870 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C871 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C872 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C873 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C874 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C875 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C876 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C877 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C878 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C879 0CH6201K416 200PF 50V J NP0 2012 R/TP C880 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C881 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C882 0CH6201K416 200PF 50V J NP0 2012 R/TP C883 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C884 0CH6102K406 1000PF 50V J SL 2012 R/TP C885 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C886 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C887 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C888 0CH3105H946 "1UF 25V 80%,-20% F(Y5V) 2012" C889 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C890 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C891 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C892 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C893 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C894 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C895 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C897 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C920 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C921 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C922 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C923 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C924 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C925 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R D101 0DD184009AA KDS184 TP KEC - 85V - - - 30 D102 0DD184009AA KDS184 TP KEC - 85V - - - 30 D103 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D104 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D105 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D106 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D107 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D117 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D501 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D502 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D503 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D504 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D505 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D506 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D507 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D508 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D509 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D601 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D602 0DS226009AA KDS226 TP KEC SOT-23 80V 30 - 32 - DIODEs http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION D603 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D604 0DD184009AA KDS184 TP KEC - 85V - - - 30 ZD101 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD102 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD103 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD104 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD105 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD106 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD107 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD108 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD109 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD110 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD401 0DZ910009FE UDZS 9.1B TP ROHM - - 9.1V - ZD402 0DZ910009FE UDZS 9.1B TP ROHM - - 9.1V - ZD403 0DZ910009FE UDZS 9.1B TP ROHM - - 9.1V - ZD404 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD405 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD406 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD407 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD408 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD501 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD502 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD503 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD504 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD505 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD506 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD507 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD508 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD601 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD602 0DZ330009DF MTZJ33B TP ROHM-K DO34 0.5W U101 0ISS524202B S524A40X21(SCT0) SAMSUNG ELE U102 0ISTLFA058A "74F14SCX FAIRCHILD 14P,SOIC" U103 0IRH765700B "BA7657F 24P,SOP TP INPUT SIG" U104 0DRCE00028A CM1213-08MS CAMD R/TP MSOP 1 U105 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT U106 0ISS524202B S524A40X21(SCT0) SAMSUNG ELE U107 0DRCE00028A CM1213-08MS CAMD R/TP MSOP 1 U108 0DRCE00028A CM1213-08MS CAMD R/TP MSOP 1 U201 0IIT323000E VPC3230D C5 80P QFP TRAY VID U202 0ISO204000A "CXA2040AQ 32P,QFP BK IIC BUS" U203 0IPMGKE036A KIA78DL09F KEC DPARK R/TP 9V U204 0ISTLTI047A SN74LV4052APWR TEXAS INSTRUM U301 0IMCRGN001B FLI2310BC GENESIS 208P PQFP U302 0IMMRHY033A HY57V643220C(L)T-6 HYNIX 86P U303 0IPRPM3002B "MST9883C-110 MSTAR 80P,LQFP" U401 0IMMRHY051A "HY5DU283222AQ-4 HYNIX 100P,L" U402 0IPRPGN011B "GM1501H(HDCP) GENESIS 416P,P" U403 0IMMRSG014B M29W800DT70M1 SGS-THOMSON 44 U404 0IMMRSS040C S524A60X51(SCT0) SAMSUNG ELE U501 0IPRPTI036A TPA3004D2PHPR TEXAS INSTRUME U503 0IPRPMN001C MSP3420G-C12-100 MICRONAS 80 U504 0IPRPTI015A MAX232DR TEXAS INSTRUMENT 16 U601 0TFIR80009B IRF7316 INTERNATIONAL RECTIF U602 0TFIR80009A INTERNATIONAL RECTIFIER IRF7 U603 0IPMGSG020A "LD1117DT18TR SGS-THOMSON 3P," U604 0ISS780800J "KA78M08R 3P,D-PAK TP VOL. RE" U605 0INS317000E LM317EMPX SOT-223 TP REGULAT U606 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT U607 0INS317000E LM317EMPX SOT-223 TP REGULAT DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION U608 0ISS780500H "KA78M05-R 3P,D-PAK TP 5V 0.5" U609 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT U610 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT U802 0IFA111733A RC1117S-33 SOT-223 TP 1A 3.3 U803 0IRH765700B "BA7657F 24P,SOP TP INPUT SIG" U805 0IMMRNE002A UPD64083GF3BA NEC 100 QFP ST U806 0IPMGFA003B RC1117S-2.5 FAIRCHILD SOT-22 U807 0ISTLFA094A "FSTD3306MTC FAIRCHILD 8P,TSS" L101 0RH0000D622 0 1/10W P-TYPE TAPPING L102 0RH0000D622 0 1/10W P-TYPE TAPPING L103 0RH0000D622 0 1/10W P-TYPE TAPPING L104 6210TCE001A HB-1S2012-080JT CERATEC 2012 L105 6210TCE001G HH-1M3216-501 CERATEC 3216MM L201 6210TCE001S HU-1M2012-121 CERATECH 2012M L202 6210TCE001S HU-1M2012-121 CERATECH 2012M L203 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L204 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L205 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L206 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L207 6210TCE001G HH-1M3216-501 CERATEC 3216MM L208 6200J00011A H354LAI-K5202 TOKO R/TP BAND L209 6210TCE001Z HH-1M2012-600JT CERATEC R/TP L210 6200J00011A H354LAI-K5202 TOKO R/TP BAND L211 6200J00011A H354LAI-K5202 TOKO R/TP BAND L212 6210TCE001Z HH-1M2012-600JT CERATEC R/TP L213 6210TCE001Z HH-1M2012-600JT CERATEC R/TP L302 6210TCE001G HH-1M3216-501 CERATEC 3216MM L303 6210TCE001G HH-1M3216-501 CERATEC 3216MM L304 6210TCE001G HH-1M3216-501 CERATEC 3216MM L307 6210TCE001S HU-1M2012-121 CERATECH 2012M L308 6210TCE001S HU-1M2012-121 CERATECH 2012M L309 6210TCE001S HU-1M2012-121 CERATECH 2012M L311 6210TCE001G HH-1M3216-501 CERATEC 3216MM L312 6210TCE001G HH-1M3216-501 CERATEC 3216MM L316 6210TCE001G HH-1M3216-501 CERATEC 3216MM L401 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L402 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L403 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L404 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L405 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L406 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L407 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L408 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L409 6210TCE001G HH-1M3216-501 CERATEC 3216MM L410 6210TCE001A HB-1S2012-080JT CERATEC 2012 L411 6210TCE001A HB-1S2012-080JT CERATEC 2012 L501 6210TCE001S HU-1M2012-121 CERATECH 2012M L502 6210TCE001S HU-1M2012-121 CERATECH 2012M L503 6210TCE001S HU-1M2012-121 CERATECH 2012M L504 6210TCE001S HU-1M2012-121 CERATECH 2012M L505 6210TCE001G HH-1M3216-501 CERATEC 3216MM L507 6210TCE001G HH-1M3216-501 CERATEC 3216MM L508 6210TCE001G HH-1M3216-501 CERATEC 3216MM L601 6210TCE001G HH-1M3216-501 CERATEC 3216MM L602 6210TCE001G HH-1M3216-501 CERATEC 3216MM L605 6210TCE001G HH-1M3216-501 CERATEC 3216MM L606 6210TCE001G HH-1M3216-501 CERATEC 3216MM L607 6210TCE001G HH-1M3216-501 CERATEC 3216MM L608 6210TCE001G HH-1M3216-501 CERATEC 3216MM - 33 - ICs COILs & COREs http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L609 6210TCE001G HH-1M3216-501 CERATEC 3216MM L610 6210TCE001H HB-1T2012-301JT CERATEC 2012 L611 6210TCE001H HB-1T2012-301JT CERATEC 2012 L614 6210TCE001G HH-1M3216-501 CERATEC 3216MM L616 6210TCE001G HH-1M3216-501 CERATEC 3216MM L619 6210TCE001G HH-1M3216-501 CERATEC 3216MM L802 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L804 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L805 0LC2000005F F1-C2012-562-KJT CERATECH R/ L806 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L807 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L808 6210TCE001S HU-1M2012-121 CERATECH 2012M L809 6210TCE001G HH-1M3216-501 CERATEC 3216MM L811 6210TCE001Z HH-1M2012-600JT CERATEC R/TP L812 6210TCE001G HH-1M3216-501 CERATEC 3216MM L813 6210TCE001G HH-1M3216-501 CERATEC 3216MM L814 6210TCE001G HH-1M3216-501 CERATEC 3216MM L815 6210TCE001Z HH-1M2012-600JT CERATEC R/TP L816 6210TCE001Z HH-1M2012-600JT CERATEC R/TP L817 6210TCE001Z HH-1M2012-600JT CERATEC R/TP L920 6140TBZ007E "SLF12575T-330M3R2,TDK SMD CH" L921 6140TBZ007E "SLF12575T-330M3R2,TDK SMD CH" L922 6140TBZ007E "SLF12575T-330M3R2,TDK SMD CH" L923 6140TBZ007E "SLF12575T-330M3R2,TDK SMD CH" Q201 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q202 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q203 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q204 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q205 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q208 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q209 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q210 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q401 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q402 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q403 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q404 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q405 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q406 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q407 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOL Q501 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOL Q502 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q503 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q504 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q505 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q506 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q507 0TR150509AD KTA1505S-Y -T1 TP KEC SOT23 Q508 0TR150509AD KTA1505S-Y -T1 TP KEC SOT23 Q509 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q601 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q602 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q603 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q604 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q605 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q606 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q801 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q805 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q806 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q807 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q808 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION Q809 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q810 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q811 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q812 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP R106 0RH0912D622 91 1/10W 5 D.R/TP R109 0RH0912D622 91 1/10W 5 D.R/TP R110 0RH0912D622 91 1/10W 5 D.R/TP R113 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R114 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R115 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R116 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R117 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R119 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R122 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R123 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R126 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R127 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R128 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R129 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R130 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R131 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R132 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R133 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R136 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R137 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R138 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R139 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R140 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R141 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R142 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R143 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R146 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R149 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R153 0RH4703D622 470K 1/10W 5 D.R/TP R154 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R155 0RH2001D622 2.0K 1/10W 5 D.R/TP R156 0RH6802D622 68K 1/10W 5 D.R/TP R157 0RH0000D622 0 1/10W P-TYPE TAPPING R158 0RH4701D622 4.7K 1/10W 5 D.R/TP R159 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R160 0RH8200D622 820 1/10W 5 D.R/TP R161 0RH0000D622 0 1/10W P-TYPE TAPPING R162 0RH0000D622 0 1/10W P-TYPE TAPPING R163 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R164 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R165 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R166 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R167 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R168 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R169 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R170 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R171 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R172 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R201 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R202 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R203 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R204 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R205 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R206 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP - 34 - RESISTORs TRANSISTOR http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R207 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R210 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R2100 0RH0000D622 0 1/10W P-TYPE TAPPING R2101 0RH0000D622 0 1/10W P-TYPE TAPPING R2102 0RH0000D622 0 1/10W P-TYPE TAPPING R2103 0RH0000D622 0 1/10W P-TYPE TAPPING R2104 0RH0000D622 0 1/10W P-TYPE TAPPING R2105 0RH0000D622 0 1/10W P-TYPE TAPPING R2106 0RH0000D622 0 1/10W P-TYPE TAPPING R2111 0CH6471K416 470F 50V J NP0 2012 R/TP R212 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R213 0RJ0752D477 75 OHM 1/10 W 1% 1608 R/TP R214 0RJ0752D477 75 OHM 1/10 W 1% 1608 R/TP R215 0RJ0752D477 75 OHM 1/10 W 1% 1608 R/TP R216 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R219 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R220 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R221 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R222 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R223 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R225 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R226 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R227 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R229 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R230 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R239 0RJ2700D677 270 OHM 1/10 W 5% 1608 R/TP R240 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R241 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R245 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R246 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R248 0RJ6802D677 68K OHM 1/10 W 5% 1608 R/TP R251 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R252 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R253 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R254 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R255 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R256 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R257 0RH0000D622 0 1/10W P-TYPE TAPPING R258 0RH0000D622 0 1/10W P-TYPE TAPPING R259 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R260 0RJ0752D477 75 OHM 1/10 W 1% 1608 R/TP R261 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R262 0RH0752D622 75 1/10W 5 D.R/TP R263 0RH0752D622 75 1/10W 5 D.R/TP R264 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R265 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R266 0RJ8201D677 8.2K OHM 1/10 W 5% 1608 R/TP R267 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R268 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R269 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R270 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R271 0RJ8201D677 8.2K OHM 1/10 W 5% 1608 R/TP R272 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R274 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R275 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R276 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R278 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R280 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R281 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R282 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R283 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R284 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R285 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R287 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R289 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R290 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R295 0RH0752D622 75 1/10W 5 D.R/TP R297 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R298 0RH0752D622 75 1/10W 5 D.R/TP R302 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R303 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R304 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R307 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R308 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R311 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R312 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R313 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R314 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R315 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R316 0RH0000D622 0 1/10W P-TYPE TAPPING R317 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R318 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R319 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R320 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R321 0RH4701D622 4.7K 1/10W 5 D.R/TP R322 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R323 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R324 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R325 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R326 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R327 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R328 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R332 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R333 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R334 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R343 0RH1000D622 100 1/10W 5 D.R/TP R344 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R346 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R347 0RH0000D622 0 1/10W P-TYPE TAPPING R348 0RH4701D622 4.7K 1/10W 5 D.R/TP R353 0RH0000D622 0 1/10W P-TYPE TAPPING R354 0RH0000D622 0 1/10W P-TYPE TAPPING R355 0RH0000D622 0 1/10W P-TYPE TAPPING R356 0RH0000D622 0 1/10W P-TYPE TAPPING R4001 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R4002 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R401 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R402 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R403 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R404 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R405 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R406 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R407 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R408 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R410 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R4101 0RH3301D622 3.3K 1/10W 5 D.R/TP R4102 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R4103 0RH0000D622 0 1/10W P-TYPE TAPPING R4105 0RH2700D622 270 1/10W 5 D.R/TP R411 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R412 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP R413 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R414 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R415 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP - 35 - http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R418 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R419 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R420 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R421 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R422 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R423 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R424 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R425 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R426 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R427 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R428 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R429 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R430 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R432 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R433 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R434 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R435 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R436 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R437 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R438 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R439 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R440 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R441 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R442 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R444 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R445 0RH1500D622 150 1/10W 5 D.R/TP R446 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R447 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R448 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R449 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R450 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R451 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R452 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R453 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R454 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R455 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R456 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R458 0RJ3302D677 33K OHM 1/10 W 5% 1608 R/TP R460 0RH0000D622 0 1/10W P-TYPE TAPPING R461 0RH0000D622 0 1/10W P-TYPE TAPPING R462 0RH0000D622 0 1/10W P-TYPE TAPPING R463 0RH0000D622 0 1/10W P-TYPE TAPPING R464 0RH0000D622 0 1/10W P-TYPE TAPPING R465 0RH0000D622 0 1/10W P-TYPE TAPPING R466 0RH0000D622 0 1/10W P-TYPE TAPPING R467 0RH0000D622 0 1/10W P-TYPE TAPPING R468 0RH0000D622 0 1/10W P-TYPE TAPPING R469 0RH0000D622 0 1/10W P-TYPE TAPPING R470 0RH0000D622 0 1/10W P-TYPE TAPPING R472 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R473 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R474 0RH0000D622 0 1/10W P-TYPE TAPPING R475 0RH0000D622 0 1/10W P-TYPE TAPPING R476 0RH0000D622 0 1/10W P-TYPE TAPPING R479 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R482 0RH1000D622 100 1/10W 5 D.R/TP R487 0RH0000D622 0 1/10W P-TYPE TAPPING R488 0RH0000D622 0 1/10W P-TYPE TAPPING R490 0RH1000D622 100 1/10W 5 D.R/TP R491 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R492 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R493 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R494 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R496 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R497 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R499 0RH0000D622 0 1/10W P-TYPE TAPPING R501 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R502 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R507 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R508 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R509 0RJ2702D677 27K OHM 1/10 W 5% 1608 R/TP R510 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R511 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R512 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R514 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R517 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R518 0RJ2002D677 20000 OHM 1/10 W 5% 1608 R/T R519 0RJ2402D677 24K OHM 1/10 W 5% 1608 R/TP R520 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R522 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R523 0RJ1203D677 120K OHM 1/10 W 5% 1608 R/TP R524 0RJ2402D677 24K OHM 1/10 W 5% 1608 R/TP R526 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R527 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R528 0RJ1203D677 120K OHM 1/10 W 5% 1608 R/TP R529 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R530 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R531 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R532 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R533 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R534 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R535 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R536 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R537 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R538 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R539 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R540 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R542 0RJ3302D677 33K OHM 1/10 W 5% 1608 R/TP R543 0RJ2402D677 24K OHM 1/10 W 5% 1608 R/TP R545 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R546 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R547 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R548 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R549 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R550 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R551 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R552 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R553 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R554 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R555 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R556 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R557 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R562 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R563 0RH0000D622 0 1/10W P-TYPE TAPPING R564 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R565 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R566 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R567 0RH1000D622 100 1/10W 5 D.R/TP R568 0RH0000D622 0 1/10W P-TYPE TAPPING R569 0RH0000D622 0 1/10W P-TYPE TAPPING R570 0RH0000D622 0 1/10W P-TYPE TAPPING R571 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R572 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R573 0RH4703D622 470K 1/10W 5 D.R/TP - 36 - http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R574 0RH4703D622 470K 1/10W 5 D.R/TP R575 0RH4703D622 470K 1/10W 5 D.R/TP R576 0RH4703D622 470K 1/10W 5 D.R/TP R577 0RH4703D622 470K 1/10W 5 D.R/TP R578 0RH4703D622 470K 1/10W 5 D.R/TP R579 0RH4703D622 470K 1/10W 5 D.R/TP R580 0RH4703D622 470K 1/10W 5 D.R/TP R581 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R582 0RH5602D622 56K 1/10W 5 D.R/TP R583 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R584 0RH5602D622 56K 1/10W 5 D.R/TP R585 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R586 0RH2702D622 27K 1/10W 5 D.R/TP R587 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R588 0RH2702D622 27K 1/10W 5 D.R/TP R589 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R590 0RH2002D622 20K OHM 1 / 10 W 2012 5.00% R591 0RH0000D622 0 1/10W P-TYPE TAPPING R592 0RH2002D622 20K OHM 1 / 10 W 2012 5.00% R593 0RH0000D622 0 1/10W P-TYPE TAPPING R594 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R595 0RH0000D622 0 1/10W P-TYPE TAPPING R596 0RH0000D622 0 1/10W P-TYPE TAPPING R601 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R602 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R603 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R604 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R605 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R606 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R610 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R611 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R612 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R613 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R616 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R617 0RJ1802D677 18K OHM 1/10 W 5% 1608 R/TP R618 0RJ1802D677 18K OHM 1/10 W 5% 1608 R/TP R620 0RJ1802D677 18K OHM 1/10 W 5% 1608 R/TP R621 0RJ1802D677 18K OHM 1/10 W 5% 1608 R/TP R622 0RJ1802D677 18K OHM 1/10 W 5% 1608 R/TP R623 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R624 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R625 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP R626 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R628 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R631 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R632 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R635 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R636 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R638 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R639 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R640 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R641 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R642 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R643 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R644 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R645 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R646 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R706 0RH1502D622 15K 1/10W 5 D.R/TP R801 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R802 0RJ3000D677 300 OHM 1/10 W 5% 1608 R/TP R803 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R804 0RJ3000D677 300 OHM 1/10 W 5% 1608 R/TP DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R805 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R806 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R807 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R810 0RJ3000D677 300 OHM 1/10 W 5% 1608 R/TP R8103 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R8104 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R8105 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R8106 0RJ2203D677 220K OHM 1/10 W 5% 1608 R/TP R811 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R812 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R814 0RJ3600D477 360 OHM 1/10 W 1% 1608 R/TP R815 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R816 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R820 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R821 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R822 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R823 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R824 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R826 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R828 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R832 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R833 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R839 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R840 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R841 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R842 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R843 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R844 0RH4701D622 4.7K 1/10W 5 D.R/TP R849 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R852 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R853 0RH4702D622 47K 1/10W 5 D.R/TP R855 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R858 0RH0822D622 82 1/10W 5 D.R/TP R859 0RH0822D622 82 1/10W 5 D.R/TP R860 0RH0822D622 82 1/10W 5 D.R/TP R861 0RH4700D622 470 1/10W 5 D.R/TP R863 0RH4700D622 470 1/10W 5 D.R/TP R864 0RH4700D622 470 1/10W 5 D.R/TP R865 0RH4700D622 470 1/10W 5 D.R/TP R866 0RH4700D622 470 1/10W 5 D.R/TP R867 0RH2202D622 22K 1/10W 5 D.R/TP R868 0RH0000D622 0 1/10W P-TYPE TAPPING R869 0RH0000D622 0 1/10W P-TYPE TAPPING R870 0RH4703D622 470K 1/10W 5 D.R/TP R872 0RH0000D622 0 1/10W P-TYPE TAPPING R874 0RH0000D622 0 1/10W P-TYPE TAPPING R876 0RH4701D622 4.7K 1/10W 5 D.R/TP R883 0RH4701D622 4.7K 1/10W 5 D.R/TP R884 0RH0000D622 0 1/10W P-TYPE TAPPING R885 0RH2001D622 2.0K 1/10W 5 D.R/TP R886 0RH6802D622 68K 1/10W 5 D.R/TP R887 0RH1000D622 100 1/10W 5 D.R/TP R889 0RH1000D622 100 1/10W 5 D.R/TP R890 0RH1000D622 100 1/10W 5 D.R/TP R891 0RH4701D622 4.7K 1/10W 5 D.R/TP R892 0RH4701D622 4.7K 1/10W 5 D.R/TP R897 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R899 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D RA201 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 - 37 - OTHERs http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION RA202 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA301 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA302 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA305 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA306 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA307 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA308 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA309 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA310 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA312 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA313 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA314 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA315 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA316 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA317 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA318 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA319 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA320 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA321 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA323 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA324 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA325 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA326 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA327 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA328 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA401 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA402 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA403 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA404 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA405 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA406 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA407 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA408 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA409 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA410 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA411 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 X201 6202TST003C HC-49/SM5H KONY CHIP 20.25MH X301 6202TST003H HC-49S KONY 13.5MHZ +/- 30 P X401 6202TST001A "SX-1 SUNNY ,SMS, 14.31818MHZ" X501 6202TST003B HC-49/SM5H KONY CHIP 18.432M X802 6212AB2018B SX-1 SUNNY 20MHZ +/- 30 PPM C801 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C802 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C803 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C804 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C805 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C806 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C807 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C808 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C809 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C810 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C811 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C812 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C813 0CH6471K416 470F 50V J NP0 2012 R/TP C814 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C815 0CH8476F691 47UF 16V 20% 105STD (CYL) R/ C816 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V) 2" C826 0CH8227F611 220UF 16V 20% 85STD (CYL) R/ D801 0DS226009AA KDS226 TP KEC SOT-23 80V 30 DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION D802 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D803 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D804 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D805 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D806 0DS226009AA KDS226 TP KEC SOT-23 80V 30 L801 6210TCE001G HH-1M3216-501 CERATEC 3216MM L804 0LC2000005D "F1-B2012-332KJT,3.3 UH CERAT" L809 0RH0000D622 0 1/10W P-TYPE TAPPING L810 0RH0000D622 0 1/10W P-TYPE TAPPING R801 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R802 0RH4703D622 470K 1/10W 5 D.R/TP R803 0RH6802D622 68K 1/10W 5 D.R/TP R804 0RH2001D622 2.0K 1/10W 5 D.R/TP R805 0RH0332D622 33 1/10W 5 D.R/TP R806 0RH0332D622 33 1/10W 5 D.R/TP R807 0RH0332D622 33 1/10W 5 D.R/TP R808 0RH4701D622 4.7K 1/10W 5 D.R/TP R809 0RH9101D622 9.1K 1/10W 5 D.R/TP R810 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R811 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R812 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R813 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R814 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R815 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R816 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R817 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R818 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R819 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R820 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R821 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R823 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R824 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R825 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R830 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R840 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R842 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R843 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R844 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R845 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R846 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R847 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R848 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R851 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R852 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R857 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R858 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R892 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R893 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP U801 0IRH765700B "BA7657F 24P,SOP TP INPUT SIG" ZD801 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD802 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD803 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD804 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD805 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD806 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD811 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD812 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD813 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD814 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD815 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD816 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD817 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 - 38 - VIDEO BOARD http://www.wjel.net DATE: 2004. 04. 26. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION ZD818 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD819 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD820 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD821 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD822 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD823 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD824 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD825 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD826 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD827 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD828 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD829 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD830 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD831 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD832 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD833 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD834 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD835 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD836 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD837 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M ZD838 0DZ360009EB UDZ 3.6B TP ROHM SOD323 200M C2 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C3 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F" C4 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C5 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R L1 6210TCE001H HB-1T2012-301JT CERATEC 2012 LED1 0DLLT0089AA LITEON LTL-1BEDJ-0C2 TP GREE R1 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R10 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R2 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R3 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R4 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R5 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R6 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R7 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R8 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R9 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP SW1 140-058B EVQ PB2 05K MATUSHITA NON 12 SW2 140-058B EVQ PB2 05K MATUSHITA NON 12 SW3 140-058B EVQ PB2 05K MATUSHITA NON 12 SW4 140-058B EVQ PB2 05K MATUSHITA NON 12 SW5 140-058B EVQ PB2 05K MATUSHITA NON 12 SW6 140-058B EVQ PB2 05K MATUSHITA NON 12 SW7 140-058B EVQ PB2 05K MATUSHITA NON 12 SW8 140-058B EVQ PB2 05K MATUSHITA NON 12 U1 6726TV0001A TSOP4838SO1 VISHAY 38.0KHZ H ZD1 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD2 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD4 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD5 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 - 39 - CONTROL BOARD http://www.wjel.net SCHEMATIC DIAGRAM - 40 - 1. DSUB / DVI / TUNER INPUT 1 http://www.wjel.net - 41 - 2. CXA2040AQ / VPC3230 / 3D-COMB / TTX 2 http://www.wjel.net - 42 - 3. FLI2310/ HY57V643220CTB / ML87V2104 / MST9883 3 http://www.wjel.net - 43 - 4. SCALER(GM1501) 4 http://www.wjel.net - 44 - 5. AUDIO CTL / AMP/RS232 5 http://www.wjel.net - 45 - 6. POWER / CONNECTOR 6 http://www.wjel.net - 46 - 7. TUNER 7 http://www.wjel.net - 47 - 8. TTX / 3D-COMB http://www.wjel.net - 48 - 9. SPEAKER http://www.wjel.net Blank Page1 http://www.wjel.net Blank Page2 http://www.wjel.net Apr. 2004 P/NO : 3828TSL093H Printed in Korea http://www.wjel.net
