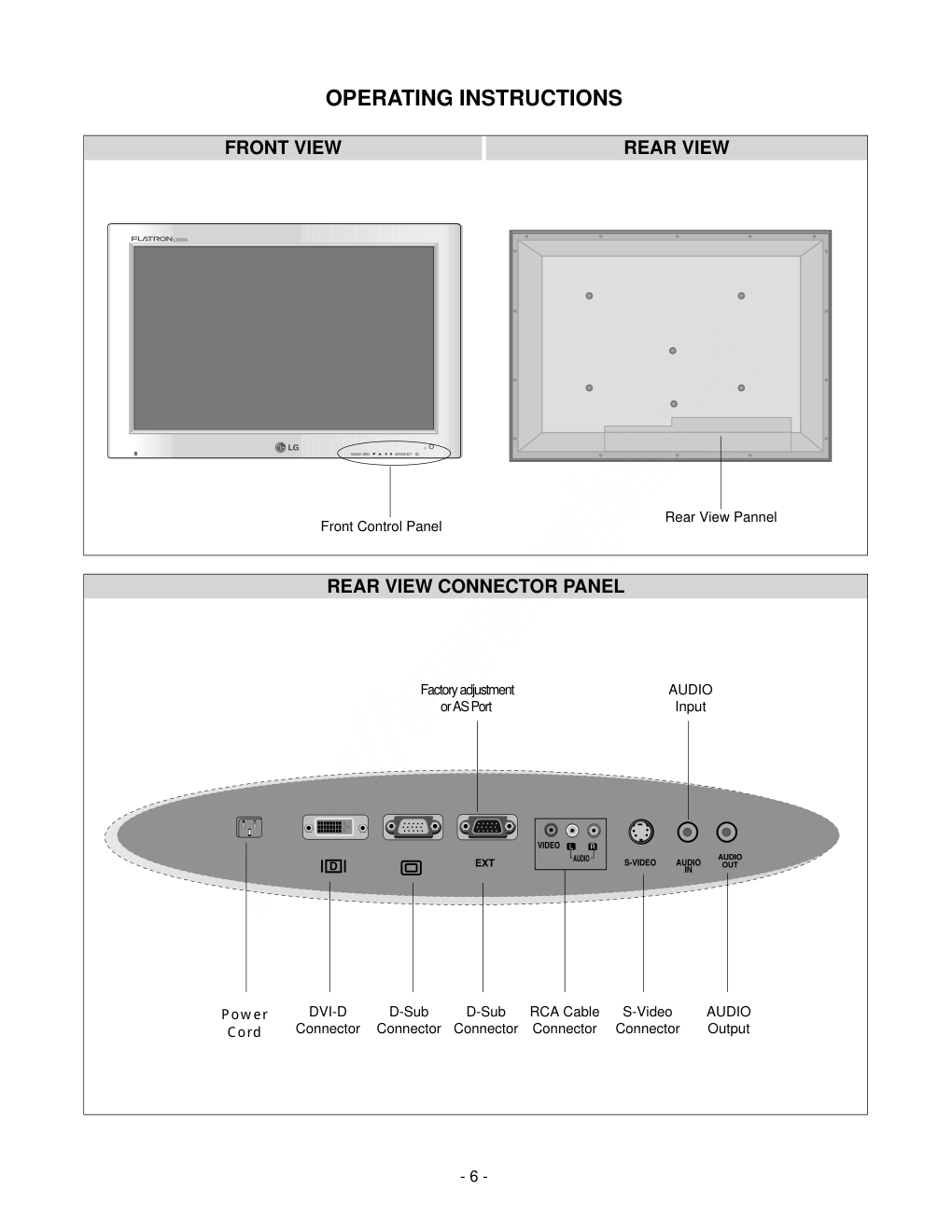

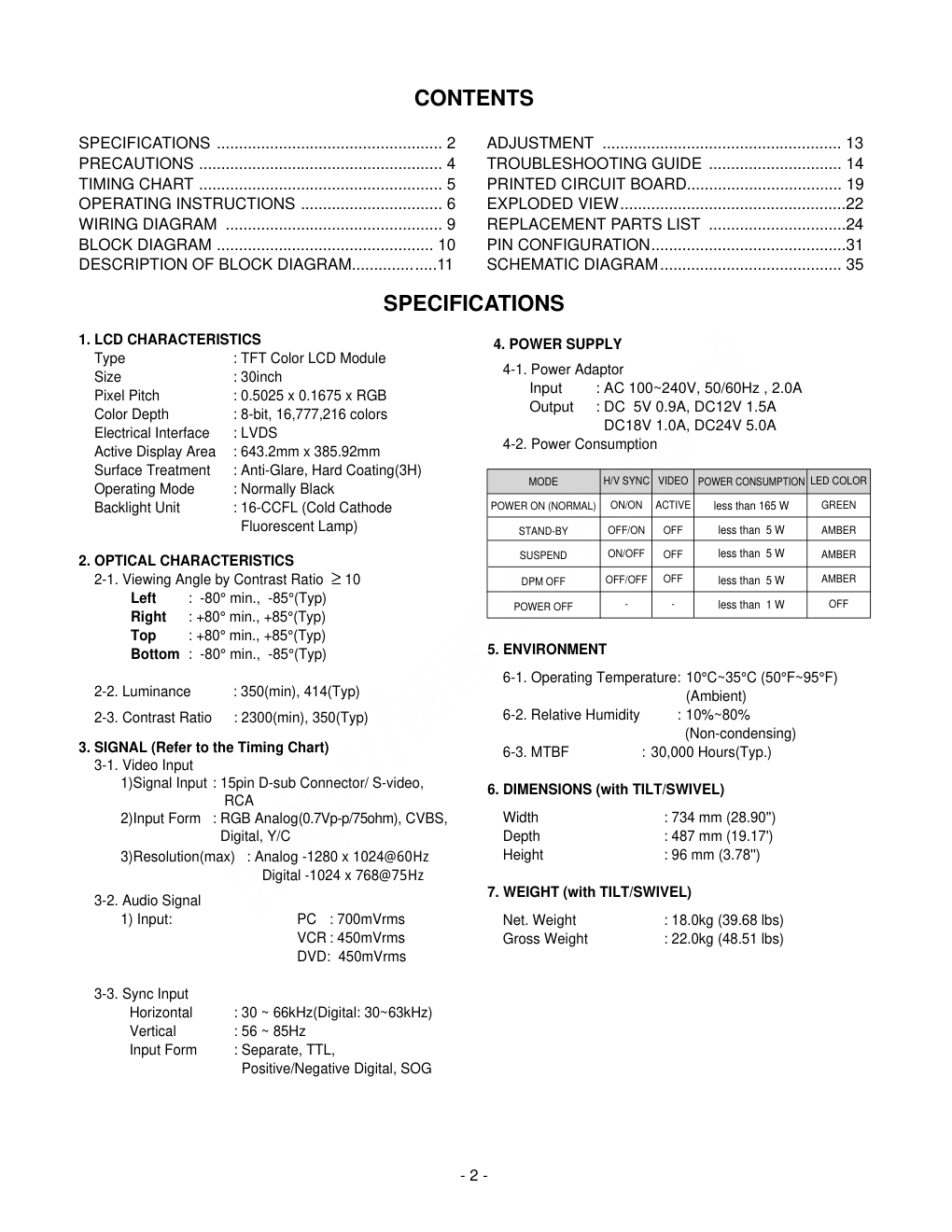

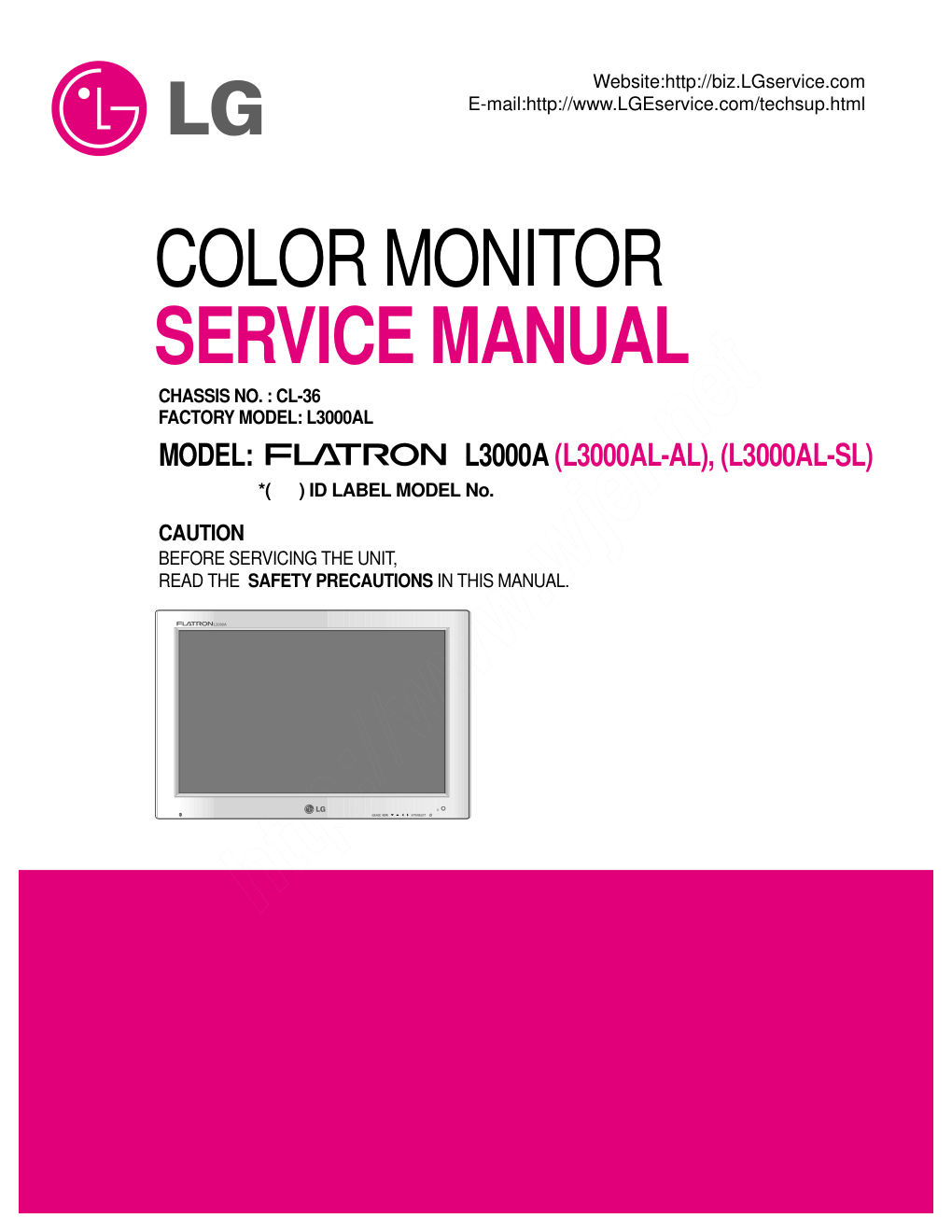

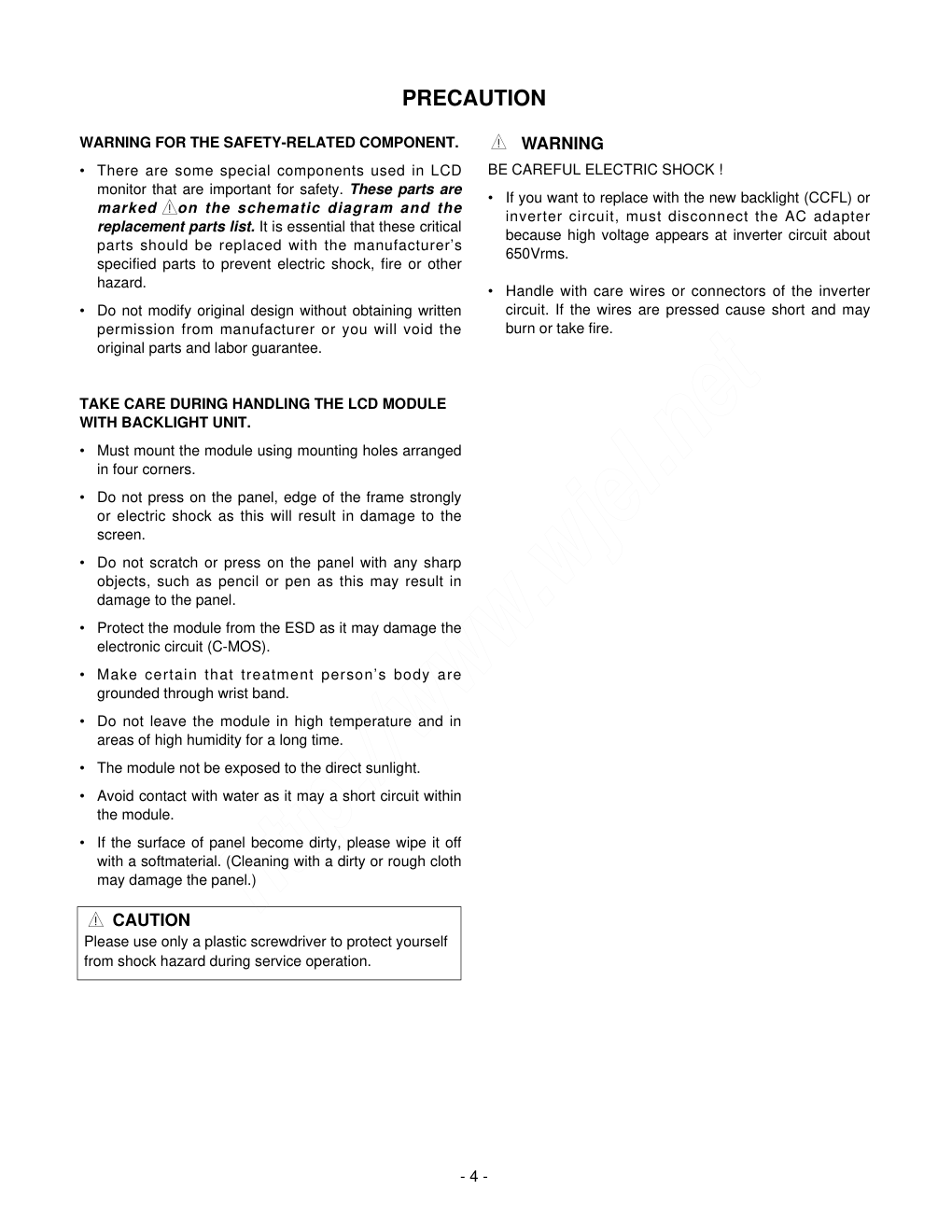

L3000A COLOR MONITOR SERVICE MANUAL Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : CL-36 FACTORY MODEL: L3000AL MODEL: L3000A (L3000AL-AL), (L3000AL-SL) *( ) ID LABEL MODEL No. http://www.wjel.net 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Size : 30inch Pixel Pitch : 0.5025 x 0.1675 x RGB Color Depth : 8-bit, 16,777,216 colors Electrical Interface : LVDS Active Display Area : 643.2mm x 385.92mm Surface Treatment : Anti-Glare, Hard Coating(3H) Operating Mode : Normally Black Backlight Unit : 16-CCFL (Cold Cathode Fluorescent Lamp) 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : -80° min., -85°(Typ) Right : +80° min., +85°(Typ) Top : +80° min., +85°(Typ) Bottom : -80° min., -85°(Typ) 2-2. Luminance : 350(min), 414(Typ) 2-3. Contrast Ratio : 2300(min), 350(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. Video Input 1)Signal Input : 15pin D-sub Connector/ S-video, RCA 2)Input Form : RGB Analog(0.7Vp-p/75ohm), CVBS, Digital, Y/C 3)Resolution(max) : Analog -1280 x 1024@60Hz Digital -1024 x 768@75Hz 3-2. Audio Signal 1) Input: PC : 700mVrms VCR : 450mVrms DVD: 450mVrms 3-3. Sync Input Horizontal : 30 ~ 66kHz(Digital: 30~63kHz) Vertical : 56 ~ 85Hz Input Form : Separate, TTL, Positive/Negative Digital, SOG 4. POWER SUPPLY 4-1. Power Adaptor Input : AC 100~240V, 50/60Hz , 2.0A Output : DC 5V 0.9A, DC12V 1.5A DC18V 1.0A, DC24V 5.0A 4-2. Power Consumption 5. ENVIRONMENT 6-1. Operating Temperature: 10°C~35°C (50°F~95°F) (Ambient) 6-2. Relative Humidity : 10%~80% (Non-condensing) 6-3. MTBF : 30,000 Hours(Typ.) 6. DIMENSIONS (with TILT/SWIVEL) Width : 734 mm (28.90'') Depth : 487 mm (19.17') Height : 96 mm (3.78'') 7. WEIGHT (with TILT/SWIVEL) Net. Weight : 18.0kg (39.68 lbs) Gross Weight : 22.0kg (48.51 lbs) CONTENTS SPECIFICATIONS - 2 - SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 4 TIMING CHART ....................................................... 5 OPERATING INSTRUCTIONS ................................ 6 WIRING DIAGRAM ................................................. 9 BLOCK DIAGRAM ................................................. 10 DESCRIPTION OF BLOCK DIAGRAM...................11 ADJUSTMENT ...................................................... 13 TROUBLESHOOTING GUIDE .............................. 14 PRINTED CIRCUIT BOARD................................... 19 EXPLODED VIEW...................................................22 REPLACEMENT PARTS LIST ...............................24 PIN CONFIGURATION............................................31 SCHEMATIC DIAGRAM......................................... 35 MODE POWER ON (NORMAL) STAND-BY SUSPEND DPM OFF POWER OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF - POWER CONSUMPTION less than 165 W less than 5 W less than 5 W less than 5 W less than 1 W LED COLOR GREEN AMBER AMBER AMBER OFF VIDEO ACTIVE OFF OFF OFF - http://www.wjel.net - 3 - Signal Connector Pin Assignment Pin Signal (DVI-D) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 T. M. D. S. Data2- T. M. D. S. Data2+ T. M. D. S. Data2/4 Shield T. M. D. S. Data4- T. M. D. S. Data4+ DDC Clock DDC Data Analog Vertical Sync. T. M. D. S. Data1- T. M. D. S. Data1+ T. M. D. S. Data1/3 Shield T. M. D. S. Data3- T. M. D. S. Data3+ +5V Power Ground (return for +5V, H. Sync. and V. Sync.) Pin Signal (DVI-D) 1 8 9 17 24 16 16 17 18 19 20 21 22 23 24 Hot Plug Detect T. M. D. S. Data0- T. M. D. S. Data0+ T. M. D. S. Data0/5 Shield T. M. D. S. Data5- T. M. D. S. Data5+ T. M. D. S. Clock Shield T. M. D. S. Clock+ T. M. D. S. Clock- T. M. D. S. (Transition Minimized Differential Signaling) • DVI-D Connector (Digital) http://www.wjel.net - 4 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. http://www.wjel.net TIMING CHART - 5 - VIDEO SYNC B D C F E A << Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >> H + 31.469 800 640 16 96 48 V – 70.8 449 350 37 2 60 H – 43.269 832 640 56 56 80 V – 85.0 509 480 1 3 25 H – 31.469 800 640 16 96 48 V – 59.94 525 480 10 2 33 H – 37.5 840 640 16 64 120 V – 75 500 480 1 3 16 H – 31.468 900 720 18 108 54 V + 70.8 449 400 12 2 35 H + 37.879 1056 800 40 128 88 V + 60.317 628 600 1 4 23 H + 46.875 1056 800 16 80 160 V + 75.0 625 600 1 3 21 H + 53.674 1048 800 32 64 152 V + 85.061 631 600 1 3 27 H +/– 49.725 1152 832 32 64 224 V +/– 74.55 667 624 1 3 39 H – 48.363 1344 1024 24 136 160 V – 60.0 806 768 3 6 29 H – 60.123 1312 1024 16 96 176 V – 75.029 800 768 1 3 28 H + 63.981 1688 1280 48 112 248 V + 60.02 1066 1024 1 3 38 H + 47.7 1680 1280 66 134 200 V + 60 795 768 1 3 23 Mode H/V Sort 1 2 3 4 5 6 7 8 9 10 11 12 13 25.175 28.321 25.175 31.5 36.0 40.0 49.5 56.25 57.283 65.0 78.75 108.0 80.14 640x350 70Hz 640x480 85Hz 640x480 60Hz 640x480 75Hz 720x400 70Hz 800x600 60Hz 800x600 75Hz 800x600 85Hz 832x624 75Hz 1024x768 60Hz 1024x768 75Hz 1280x1024 60Hz 1280x768 60Hz Sync Polarity Frequency Dot Clock Total Period (E) Video Active Time (A) Sync Duration (D) Back Porch (F) Front Porch (C) Resolution http://www.wjel.net - 6 - FRONT VIEW REAR VIEW CONNECTOR PANEL REAR VIEW OPERATING INSTRUCTIONS L3000A Front Control Panel Rear View Pannel AUDIO Output S-Video Connector RCA Cable Connector Factory adjustment or AS Port AUDIO Input D-Sub Connector D-Sub Connector DVI-D Connector Pow er Cord http://www.wjel.net - 7 - OPERATING INSTRUCTIONS Front Control Panel 7 2 1 5 6 8 3 4 • Use this button to turn the display on or off. • This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. Power Button Power (DPMS) Indicator Use these buttons to decrease or increase the volume level. • Bring up Contrast and Brightness adjustment. • Use this button to enter or exit the On Screen Display. MENU Button • Use these buttons to choose or adjust items in the On Screen Display. OSD Buttons • Use this button to enter a selection in the On Screen Display. • When adjusting your display settings, always press the AUTO/SELECT button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). AUTO/SELECT Button 1 2 3 4 5 6 8 7 This function allows you to secure the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button and button for 3 seconds: the message “CONTROLS LOCKED” appears. You can unlock the OSD controls at any time by pushing the MENU button and button for 3 seconds: the message “CONTROLS UNLOCKED” will appear. • Use this button to select an input signal. • DVI DIGITAL: DVI digital signal • DSUB ANALOG: 15-pin D-sub analog signal • V1 (AV): Composite video • V2 (S): S video SOURCE Button CONTROLS LOCKED/UNLOCKED : MENU and Remote Control Sensor Power On/Off switch AUTO/SELECT SOURCE http://www.wjel.net Attaching temporary stand - 8 - Follow below procedures to temporarily use the display on the floor. First, check if the following parts are all present. 1. Take out 2 screws from the rear of the display. Parts Temporary Stand Screws Bottom Rubbers 2. As shown in the diagram, place the bottom rubbers where you took out the 2 screws and then secure them with those 2 screws. 3. Attach the temporary stand as shown. http://www.wjel.net - 9 - WIRING DIAGRAM CN1 CN1 J710 J19 J703 J706 J704 J705 Connector Ass’y P/N: 6631T11016A Connector Ass’y P/N: 6631T20020P Connector Ass’y P/N: 6631T12002P Connector Ass’y P/N: 6631T12002N http://www.wjel.net - 10 - DVI-D D-SUB CVBS L R PC L/R Video Decoder (SAA 7114H) Deinterlacer (SDA9400) YUV Flash Memory (M29W800DT) EEPROM Y/C YUV Multi- plexer (74LVC257) H V Sync H V Sync GVS GHS Video Signal GVS GHS Sync_ Sel Sync_ Sel 3.3V 3.3V 3.3V NCTL_SCL NCTL_SDA GREF GREF 3.3V 5V 8V 3.3V 3.3V 2.5V 3.3V 3.3V Buffer (74LVC541ct) RDN CS0N Data (PWD 0...7 ) Key_Data (0...15) CS0N RDN CS1N Data (PWD 0 ..7) (PWA 0 ..19) ROMOE ROMWE ROMWE ROMOE I/O expander (74LVC273D) Control Signals TMDSTX_PDNN TMDSRX_PDNN R,G,B Even R,G,B Odd RGB Digital Signal Even Input Selection Format Converter Circuit Odd ADC (AD9883-140) R,G,B differential Video Signal Processor (PW166B-20T) Analo g Switch (BA 7657F) TMDS Receiver (SIL161A) Control Board Line-out L Line-out R Audio Processor (MSP3420G) LCD Module LVDS Transm itte r (THC63LVDM83R) Ready Power Block 12V 5V 3.3V 24V,18V,12V,5V Input from Power B/d 8V 2.5V 12V PCB_PWR INV_PWR LCM_PWR BLOCK DIAGRAM http://www.wjel.net - 11 - DESCRIPTION OF BLOCK DIAGRAM 1. Input Selection Circuit This block is composed of 74LVC257(U5) and peripheral devices. There are two inputs, Analog and Digital H/V Sync. LVC257 IC chooses one input and outputs selected input through sync selection pin (Pin 1). 2. A/D Converter This block is composed of AD9883 (U4) and peripheral devices. AD9883 includes A/D converter, Pre-amp, and PLL. The Analog RGB signal (0.7Vp-p) is input to R,G,B port of AD9883(U4). Input signal is amplified, phase locked , A/D converted in 8bits digital signal by this IC(U4), and sent to the Digital video signal to PW166B-20T. U4 makes clock for PW166B-20T(U8). 3. TMDS PanelLink Receiver This Block is composed of SiI161B (U201) and peripheral devices. This IC decodes PanelLink Digital Input signal(TMDS) from DVI-D Pin (J18) and make 8bit digital RGB signal with Digital EVEN/ODD format to PW166B-20T(U8). 4. DDC controller This block is composed of PW166B-20T(U8) and peripheral devices. PW166B-20T controls peripheral devices through IIC line. Major functions are (1) to control Flash memory through DDC-SCLA, DDC-SDAA of D-sub And (2) to store EDID data in the EEPROM (U17, U30) 5. Video Decoder This block is composed of SAA7114H (U7) and peripheral devices. PW166B-20T controls this IC through IIC Line. This IC analyzes input signal of CVBS, Y/C and outputs analyzed signal (8bit interlace signal) to De-interlace block. Analyzed signal has video control signals like Contrast, Brightness, Sharpness, Color, tint signals Including Adaptive Comb Filter. 6. Audio Decoder This block is composed of MSP3420G (U49) and peripheral devices. PW166B-20T controls this IC through IIC Line. This IC analyzes Audio input signal through A/V Jack and PC audio. And output the analyzed signals 7. De-interlace This block is composed of SDA9400 (U16) and peripheral devices. PW166B-20T (U8) controls this IC through IIC Line. And this IC convert 8 Bit Interlaced Y/UV signal to De-interlace signal. It outputs converted signal to Format Converter (PW166B-20T). 8. Format Converter(Scaler) This block is composed of PW166B-20T (U8), M29W800DT (U19) and peripheral devices. MICOM in PW166B-20T (U7) processes outputs of A/D Converter and TMDS Receiver, De-interlace output and output processed 48 Bit Digital signal to TMDS Transmitter. PW166B-20T is Format Converter IC that receives Digital signal and outputs proper frame signal to LCD Module Timing(1280x768,WXGA). 9. PanelLink Circuit TMDS Transmitter (THC63LVDM83R, U401) is the IC that receives output digital signal of PW166B-20T (U8) and output to LCD Module. The signal format is Panel-link. LCD Module has Panel-link receiver that is same output of PW166B-20T. This is the best for reduction EMI problem and the number of pin connector. http://www.wjel.net - 12 - 10. DC/DC Converter block DC/DC Converters convert the input 12V, 24V to proper 2.5V, 3.3V, 5V, 8V for main control system. For shooting heat trouble, we use the DC/DC converting IC. 11. Power Supply Block This Block generates DC Voltages(5V, 12V, 18V and 24V) to Main Control system from AC Power(100-240 V, 50/60 Hz, 1.0 A). This Circuit contains PFC(Power Factor correction) circuit. The Minimum of Power efficiency is about 75%. http://www.wjel.net - 13 - ADJUSTMENT DVI-D Connector 220 IBM Compatible PC Parallel Port Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E V-Sync On/Off Switch (Switch must be ON.) F A B C 5V E F A B C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Figure 1. Cable Connection All adjustment are thoroughly checked and corrected when the monitor leaves the factory, but sometimes several minor adjustment may be required. Adjustment should be following procedure and after warming up for a minimum of 30 minutes. • Alignment appliances and tools. - IBM compatible PC - Programmable Signal Generator. (eg. VG-819 made by Astrodesign Co.) - Oscilloscope. - White Balance Meter. (CA-110) 1. Adjustment for Factory Preset Mode No read to adjust FOS data for Factory Preset Mode. 2. Adjustment for White Balance 1) Set External Bright to MAX position and Contrast to MAX position. 2) Display Color 0,0 pattern at Mode 15. 3) Press Menu key, Vp key, Right key of Remote controller or Menu Buttons in sequence. 4) Select “WHITE BALANCE ADJUST” and Press SET key. 5) After “INPUT WHITE PATTERN” message, Display Color 15, 0 pattern at Mode 15. 6) No attempt to manually adjust, BIAS and Drive data is automatically adjustde and saved to the EEPROM. 7) After “OK” message, Press SET KEY. 8) Select “SERVICE MODE EXIT” and Press SET KEY. 3. DDC Data Write Procedure-Analog 1) Use this procedure only when there is some problem on Analog EDID data. 2) Run alignment program for LM805L on the IBM compatible PC. 3) Select EEPROM → Analog EDID write command and Enter. 4) This will write the Analog EDID data to EEPROM. 4. DDC Data Write Procedure-Digital 1) Use this procedure only when there is some problem on Digital EDID data. 2) Run alignment program for LM805L on the IBM compatible PC. 3) Select EEPROM → Digital EDID write command and Enter. 4) This will write the Digital EDID data to EEPROM. http://www.wjel.net - 14 - TROUBLESHOOTING GUIDE 1. OUT OF ORDER ON POWER POWER LAMP OFF STATE POWER BOARD OUTPUT CHECK (5V, 12V, 24V) KEY CHECK 74LVC541(U25), CONN(J19)CHECK OTHER CIRCUIT CHECK PW166(U8) INPUT POWER CHECK BA033T(U37) =>3.3V LM317(U10) =>2.5STB INVERTER INPUT POWER CHECK L53,L54 => 24V MODULE INPUT POWER CHECK PIN 1=> 12VS IRF7314(U35) =>LCD-VDD INVERTER CHECK MODULE CHECK M29W800DT(U19) INPUT POWER CHECK BA033T(U37) =>3.3V http://www.wjel.net - 15 - 2.NO RASTER STATE ON ANALOG SIGNAL NO RASTER ON ANALOG SIGNAL CONN(J17) CHECK CHECK THE PERIPHERAL IC OF D-SUB(J17) CHECK THE PERIPHERAL IC OF AD9883(U4) CHECK THE PERIPHERAL IC OF PW166(U8) CHECK THE PERIPHERAL IC OF LVDS(U401) CHECK I/O SYNC OF 74LVC257(U5) CHECK AD9883 I/O SIGNAL CHECK PW166(U8) I/O SIGNAL CHECK LVDS(U401) I/O SIGNAL POWER CHECK OF 74LVC257(U5) : U37(3.3V) POWER CHECK OF AD9883 : U2(DVDD,AVD), L11(V33-ADC) POWER CHECK OF PW166(U8) :BA033T(U37) =>3.3V, LM317(U10) =>2.5STB POWER CHECK OF LVDS(U401) : L401(3.3V-LVDS) NO INPUT SIGNAL NO OUTPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL http://www.wjel.net - 16 - 3. NO RASTER STATE ON DIGITAL SIGNAL NO RASTER STATE ON ANALOG SIGNAL CONN(J10) CHECK CHECK THE PERIPHERAL IC OF D-SUB(J17) CHECK THE PERIPHERAL IC OF SIL161(U201) CHECK THE PERIPHERAL IC OF PW166(U8) CHECK THE PERIPHERAL IC OF LVDS(U401) CHECK I/O SYNC OF 74LVC257(U5) CHECK SIL161(U201) I/O SIGNAL CHECK PW166(U8) I/O SIGNAL CHECK LVDS(U401) I/O SIGNAL POWER CHECK OF 74LVC257(U5) : U37(3.3V) POWER CHECK OF AD9883 : U2(DVDD,AVD), L11(V33-ADC) POWER CHECK OF PW166(U8) : BA033T(U37) =>3.3V, LM317(U10) =>2.5STB POWER CHECK OF LVDS(U401) : L401(3.3V-LVDS) POWER CHECK OF SIL161(U201) : L4(AVCC),L5(PVCC) L9(DVCC),L210(OVCC) NO INPUT SIGNAL NO OUTPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL http://www.wjel.net - 17 - 4. NO RASTER ON VIDEO SIGNAL INPUT NO RASTER ON VIDEO SIGNAL CHECK CABLE OF VCR,DVD CHECK VCR,DVD INPUT SIGNAL CHECK THE PERIPHERAL IC OF SAA7114(U7) CHECK THE PERIPHERAL IC OF SDA9400(U16) CHECK THE PERIPHERAL IC OF LVDS(U401) CHECK THE PERIPHERAL IC OF PW166(U8) CHECK SAA7114(U7) I/O SIGNAL CHECK SDA9400(U16) I/O SIGNAL CHECK PW166(U8) I/O SIGNAL CHECK LVDS(U401) I/O SIGNAL POWER CHECK OF SAA7114(U7) : L19,L21(3.3V) POWER CHECK OF SDA9400(U16) : L23(3.3V) POWER CHECK OF PW166(U8) : BA033T(U37) =>3.3V, LM317(U10) =>2.5STB POWER CHECK OF LVDS(U401) : L401(3.3V-LVDS) NO INPUT SIGNAL NO INPUT SIGNAL NO OUTPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL NO INPUT SIGNAL NO OUTPUT SIGNAL NO INPUT SIGNAL http://www.wjel.net - 18 - 5. SOUND TROBLE SHOOTING NO SOUND OUTPUT CHECK SOUND OF VCR,DVD,PC CHECK THE PERIPHERAL IC OFMSP3420G(U49) CHECK SOUND INPUT =>PC SOUND(J7) =>VIDEO SOUND (RDE,WHITE OF J702) CHECK THE PERIPHERAL IC CHECK MSP3420G(U49) INPUT SIGNAL POWER CHECK OF MSP3420G(U49) : L34,L35,L36(5V) POWER CHECK OF TDA7268(U39) : 12V POWER CHECK OF PW166(U8) : BA033T(U37) =>3.3V, LM317(U10) =>2.5STB NO OUTPUT SIGNAL NO INPUT SIGNAL NO INPUT SIGNAL http://www.wjel.net PRINTED CIRCUIT BOARD - 19 - 1. MAIN BOARD (Component Side) C98 J19 R19 R20 J1 Q2 Q5 D6 1 D4 R230 C146 R81 C276 C147 C155 C278 C280 C287 R132 R133 R231 R232 C288 1 J4 R41 R42 C303 C101 C102 C104 C105 L15 D34 E D35 R216 E D36 R263 R262 R261 R250 R251 C332 R172 R171C320 C319 X5 70 C311 C310 C308 C325 C328 R168 C182 C302 L34 J7 L16 L62 C197 C317 R135 R84 R85 C77 R95 U21 C96 R264 C183 C184 C388 1 U49 60 C305 R528 R531 R246 C137 C140 ZD8 C91 C111 DATE :2002.11.27 P/N :6870T597A11 MODEL:L3000A R148 R152 C49 U34 Q9 L2 C383 L35 C375 U32 10 50 C307 C304 R248 R245 ZD7 L64 R237 C156 C42 C374 C384 U20 R269 R270 C95 C97 C331 20 C415 C C306 R247 ZD28 R526 R185 J5 L68 R236 R235 C143 R136 R153 R47 R179 R180 Q13 R181 C380 U9 Q1 R217 Q4 C144 C141 C142 C16 C15 Q12 R268 R267 C407 L42 30 C416 40 C413 C126 R62 C128 C131 C61 C57 C377 R15 C129 C58 C130 C59 C100 C110 C125 C138 ZD29 L67 R529 R183 R4 R45 R167 C68 U23 R212 Q6 R113 R116 R218 U27 U24 L36 Q11 R266 R265 C412 R23 R82 R238 C404 R17 R18 R70 C64 R24 C53 L21 R525 C127 D9 R44 J702 R83 R128 C69 R129 R46 1 U25 C145 20 R79 R229 U18 J6 C196 R63 R68 R80 C48 R75 C62 50 40 30 C47 R523 L70 D12 R150 R66 R131 R130 10 1 U14 R124 C175 20 1 R228 C176 R100 R40 20 R115 R134 R140 L23 L19 C198 R69 R71 R253 C322 C329 C63 60 20 10 D11 R532 L71 R182 Q14 R154 R73 R74 C54 10 10 U15 U33 R123 R121 C124 C178 C R255 R259 R252 C387 C323 C324 C321 C60 80 70 U7 90 C50 C46 100 1 D32 C51 L66 R223 R67 R72 U35 20 U12 C316 R28 R29 R31 R156 R146 C83 R22 C55 L13 C65 C52 X1 D24 R191 D33 R188 ZD1 R222 R224 C385 U11 30 R76 R77 R78 R127 R141 R142 C188 R147 R149 C81 C41 C39 R145 Q22 D27 R97 R195 C89 C88 ZD9 ZD2 D31 R190 C381 L20 10 R108 R109 R90 R106 R117 50 U16 C78 40 RA3 RA25 30 R39 R157 R98 R165 D2 D25 D26 R65 R196 R166 R194 C90 ZD6 ZD5 ZD11 ZD10 C40 C44 R30 R16 C36 R64 U22 40 1 R92 R93 R94 R107 R110 R151 R26 C70 C75 C85 60 RA2 RA24 20 R32 R86 R96 Q19 D29 D30 R177 R187 J3 R9 R13 R10 R14 X3 X4 U19 R137 R138 R155 R27 R25 R33 5 10 L3 R173 R206 C12 D28 C11 SOLDERING DIRECTION J710 1 R403 C38 U6 L27 R37 R125 R99 W Y C74 C76 X2 N P R T U V M L K J H G R126 R91 F E D C B A U8 R35 R208 R219 1 R197 R202 R204 R198 RA5 C67 RA4 RA7 C235 RA6 C10 C9 C106 C107 C410 30 R404 R405 C403 20 RA37 R120 R119 R221 7 6 5 4 3 2 R186 R184 R189 C14 C8 C7 R169 R170 C108 C112 C113 50 40 R401 C402 10 RA8 RA32 RA33 R220 12 11 10 9 8 C24 R54 R58 R59 C23 C118 C35 R55 R56 C116 C117 C33 R5 C25 C34 C234 C18 C17 C31 C32 U1 C6 C5 C3 L8 D5 R38 R207 L31 ZD3 C99 D39 C405 U401 C401 1 RA29 R122 R87 18 17 16 15 14 13 C20 60 50 C21 C22 R60 R6 C19 C30 40 R1 C122 C4 C13 C1 L7 R34 R36 C186 R143 U29 L401 RA28 C148 C149 C152 R7 R8 R61 R227 C37 20 19 70 30 L17 C123 C2 C121 L18 D1 D3 L6 R176 R174 C215 R178 C223 R209 R211 U10 C172 C171 C221 C220 80 1 U4 10 20 L11 R50 D8 D10 R51 R254 R43 L1 D7 D38 C177 L28 1 R175 C204 C203 C132 U37 C801 RA1 RA21 RA19 RA22 RA20 RA23 C26 R105 C227 U2 C71 C120 ZD22 R52 R21 C72 C136 C225 R53 C73 ZD23 Q3 L57 C173 R144 R57 C179 R203 R205 R139 R700 R210 CA207 CA208 RA227 RA228 CA209 CA210 RA229 RA230 CA211 CA212 RA231 RA232 U3 R111 R213 U13 Q10 C153 R12 R342 R11 C248 J17 D37 ZD26 J704 R225 L58 TRANS801 U5 C115 U201 20 10 100 1 R164 R201 U17 D18 R192 R193 U30 ZD27 ZD20 1 C158 ZD4 L25 L22 C812 C809 C802 R48 R49 R215 R214 R161 40 30 90 C217 C218 L5 R114 R112 R118 R103 R104 R102 R101 C103 D17 ZD25 J703 L55 ZD806 C803 20 C805 R804 15 C807 C816 CA206 RA221 R2 R3 50 60 80 70 C216 C150 R271 R272 R273 R274 R275 R276 R277 R278 C43 C109 ZD24 ZD21 C93 L29 C840 L52 U801 C86 C195 CA205 CA203 CA204 RA222 RA223 RA224 RA225 RA226 C154 C94 C806 C185 C82 L59 1 C187 C159 C79 L10 R801 C804 L30 1 C814 L54 L53 1 10 D23 C87 C92 J2 R163 L12 CA201 CA202 R162 L4 L210 L9 R233 R234 J10 J706 J705 L56 C45 R158 R159 R160 C66 D19 D21 ZD13 ZD12 D13 D15 D14 D16 D20 D22 ZD17 ZD16 ZD15 ZD14 ZD19 ZD18 http://www.wjel.net - 20 - 2. MAIN BOARD (Solder Side) L32 L33 L37 L41 L46 L45 L43 L48 L26 L44 1 L47 1 L24 L38 L39 L40 L14 L14 L51 L51 C190 C189 TP455 C313 C139 C151 R200 C165 C166 C160 C157 C135 R199 C164 R88 R89 C170 C162 C161 C163 C167 C169 C168 C133 C134 C29 C28 C27 C811 C224 L49 C119 C810 C174 C206 C219 C214 C209 C56 C208 C213 C242 C212 C211 C210 C181 C180 TP815 C84 C201 C200 C80 C114 http://www.wjel.net - 21 - 3. POWER BOARD (Component Side) 4. CONTROL BOARD (Component Side) ZD4 C1 U1 C3 LED1 R2 R1 ZD2 ZD1 1 Q1 R3 SW8 POWER DATE :2002.11.28 Q14 R19 R21 P/N :6870T598C11 MODEL:L3000A(KEY) SW6 SELECT SW4 RIGHT Q12 R13 R15 R17 Q10 SW2 LEFT Q18 SW10 UP Q17 R24 R25 R26 SW9 DOWN SW7 MENU Q15 R22 R20 Q13 R18 SW5 ZD5 SOURCE L1 ZD9 C2 ZD7 ZD6 ZD3 ZD10 ZD11 J1 ZD8 http://www.wjel.net - 22 - EXPLODED VIEW 12 13 14 15 16 17 18 19 b CH VOL VOL SET CH 1 2 5 6 7 11 8 4 9 a a 3 10 a a a a a a a a a a a a a a a a http://www.wjel.net - 23 - EXPLODED VIEW PARTS LIST Ref. No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 a b Part No. 3091TKL059A 3091TKL059B 6304FLP049A or 6304FLP017A or 6304FLP054A 4814TKK234J or 4814TKK234K 4950TKK502A 4950TKK502B 4950TKS215C 6871TPT240A 6871TMT418A 6631T11016A 4815TKK026B 4815TKK026D 4951TKK127A 4951TKK127B 6871TST358A 6852TAZ006B 6852TAZ006C 6852TAZ006D 6852TAZ006J 6850TD9001G 6850TD9001J 6866TDV004J 6866TDV004C 5040TKM050A 6710T00001C 332-102R 1SZZTMF010A Description CABINET ASSEMBLY, L3000AL BRAND 3090TKL056A (30") -(L3000AL-AL) CABINET ASSEMBLY, L3000AL BRAND 3090TKL056 B30""" -(L3000AL-SL) LCD(LIQUID CRYSTAL DISPLAY), LC300W01-A3M2 LG PHILPS TFT COLOR LPL INVERTER APPLY LCD(LIQUID CRYSTAL DISPLAY), LC300W01-A3 LG PHILPS TFT COLOR WITH INVERTER29.53",1280*768,450CD/M2,8BIT LCD(LIQUID CRYSTAL DISPLAY), LC300W01-A3M3 LG PHILPS TFT COLOR 8BIT LVDS 16LAMP SHIELD, REAR L3000AL -(L3000AL-AL) SHIELD, REAR (L3000AL)-(L3000AL-SL) METAL, STAND TEMP.-(L3000AL-AL) METAL, STAND TEMP-(L3000AL-SL) METAL, FRAME PWB(PCB) ASSEMBLY, POWER, L3000AL POWER TOTAL HAEPYUNG U200-M30LZ1A PWB(PCB) ASSEMBLY,MAIN, L3000A ALEUA BRAND CL-36 TOTAL CONNECTOR ASSEMBLY, 20P H-H 180MM UL20276 I/FACE CABLE LB200A SHIELD ASSEMBLY, REAR MAIN (PAL) -(L3000AL-AL) SHIELD ASSEMBLY, REAR MAIN(SILVER_PAL) -(L3000AL-SL) METAL ASSEMBLY, STAND(ST3000-BLACK) METAL ASSEMBLY, STAND(ST3000-SILVER) PWB(PCB) ASSEMBLY,SUB, L3000AL CONTROL TOTAL BRAND CL-36 CORD, A/V, RCA CABLE UL 2863 #25 3000MM BLACK(9930) DH-3P-N300C LM295B CORD, A/V, SCART CABLE UL 2863 #25 1500MM GRAY(85964) DH-3P-150SRC LM295B CORD, A/V, DIN CABLE UL 2990-9C(5.5) 1560MM BLACK(9930) DH-150DIN LM295B CORD, A/V, A/V KHC-LG-3-0010 UL 2851 #28-2C 1500MM BLACK(9930) KSD WITH CORE LM295B CABLE, D-SUB, UL 2990-9C(7.5) DT 1870MM BLACK(9930) , DM -(L3000AL-AL) CABLE, D-SUB, UL 2990-9C(7.5) DT 1870MM PEARL WH T541K DM -(L3000AL-SL) CABLE, DVI, UL20276 DT 2000MM BLACK(9930) LG883D DM -(L3000AL-AL) CABLE, DVI, UL20276 DT 2000MM GRAY(85964) LB885C DM -(L3000AL-SL) RUBBER, FOOT MOLDING BOTTOM(L3000AL) REMOTE CONTROLLER, LM295B -KALU (22") SCREW,DRAWING, TAP-TITE(P) TRUSS HEAD TYPE D4.0 L14.0 MSWR/BK (L3000AL) SCREW,DRAWING, MACHINE FILLISTER TYPE D5.0 L10.0 MSWR/FN L3000AL http://www.wjel.net - 24 - DATE: 2003. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C2 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C3 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C4 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C5 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C6 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C7 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C8 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C9 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C10 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C11 0CE476VC6DC 47UF MV 6.3V 20% R/TP(SMD) S C12 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C13 0CC471CK41A 470PF 1608 50V 5% R/TP NP0 C14 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C15 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C16 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C17 0CK823CK56A 82NF 1608 50V 10% R/TP X7R C18 0CK822CK56A 8200PF 1608 50V 10% X7R R/TP C20 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C21 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C22 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C23 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C24 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C25 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C26 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C27 0CH3104K946 100000PF 50V Z F 2012 R/TP C28 0CH3104K946 100000PF 50V Z F 2012 R/TP C29 0CH3104K946 100000PF 50V Z F 2012 R/TP C30 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C31 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C32 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C33 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C34 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C35 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C39 0CE477CF618 470UF SHL 16V M FL TP5 C41 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C42 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C43 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C45 0CH8476K611 47UF 50V 20% 85STD (CYL) R/T C46 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C47 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C48 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C49 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C50 0CC390CK41A 39PF 1608 50V 5% R/TP NP0 C51 0CC390CK41A 39PF 1608 50V 5% R/TP NP0 C52 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C53 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C54 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C55 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C56 0CH3104K946 100000PF 50V Z F 2012 R/TP C57 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C58 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C59 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C60 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C61 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C62 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C63 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C64 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C65 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C66 0CH8476K611 47UF 50V 20% 85STD (CYL) R/T C67 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C68 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C70 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C71 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C72 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C73 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C74 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C75 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C76 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C77 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C78 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C79 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C80 0CH3104K946 100000PF 50V Z F 2012 R/TP C81 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C82 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C83 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C84 0CH3104K946 100000PF 50V Z F 2012 R/TP C85 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C86 0CE227CF638 “220UF SHL,SD 16V M FM5 TP 5” C87 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C88 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C89 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C90 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C92 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C93 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C94 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C95 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C96 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C97 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C98 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C99 0CE106VK6DC 10UF MV 50V 20% R/TP(SMD) SM C100 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C103 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C109 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C110 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C114 0CH3104K946 100000PF 50V Z F 2012 R/TP C119 0CH3104K946 100000PF 50V Z F 2012 R/TP C120 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C121 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C122 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C123 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C124 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C125 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C126 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C127 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C128 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS http://www.wjel.net DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C129 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C130 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C131 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C132 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C133 0CH3104K946 100000PF 50V Z F 2012 R/TP C134 0CH3104K946 100000PF 50V Z F 2012 R/TP C135 0CH3104K946 100000PF 50V Z F 2012 R/TP C136 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C137 0CC471CK41A 470PF 1608 50V 5% R/TP NP0 C138 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C139 0CH3104K946 100000PF 50V Z F 2012 R/TP C140 0CC471CK41A 470PF 1608 50V 5% R/TP NP0 C141 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C142 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C143 0CE477CF618 470UF SHL 16V M FL TP5 C144 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C145 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C146 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C147 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C148 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C149 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C150 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C151 0CH3104K946 100000PF 50V Z F 2012 R/TP C152 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C153 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C154 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C155 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C156 0CE477CF618 470UF SHL 16V M FL TP5 C157 0CH3104K946 100000PF 50V Z F 2012 R/TP C158 0CE477CF618 470UF SHL 16V M FL TP5 C159 0CE227CF638 “220UF SHL,SD 16V M FM5 TP 5” C160 0CH3104K946 100000PF 50V Z F 2012 R/TP C161 0CH3104K946 100000PF 50V Z F 2012 R/TP C162 0CH3104K946 100000PF 50V Z F 2012 R/TP C163 0CH3104K946 100000PF 50V Z F 2012 R/TP C164 0CH3104K946 100000PF 50V Z F 2012 R/TP C165 0CH3104K946 100000PF 50V Z F 2012 R/TP C166 0CH3104K946 100000PF 50V Z F 2012 R/TP C167 0CH3104K946 100000PF 50V Z F 2012 R/TP C168 0CH3104K946 100000PF 50V Z F 2012 R/TP C169 0CH3104K946 100000PF 50V Z F 2012 R/TP C170 0CH3104K946 100000PF 50V Z F 2012 R/TP C171 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C172 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C173 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C175 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C176 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C177 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C178 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C179 0CE477CF618 470UF SHL 16V M FL TP5 C180 0CH3104K946 100000PF 50V Z F 2012 R/TP C181 0CH3104K946 100000PF 50V Z F 2012 R/TP C182 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C183 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C184 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C185 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C186 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C187 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C195 0CE477CJ618 470UF SHL 35V M FL TP5 C196 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C197 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C198 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C200 0CH3104K946 100000PF 50V Z F 2012 R/TP C201 0CH3104K946 100000PF 50V Z F 2012 R/TP C203 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C208 0CH3104K946 100000PF 50V Z F 2012 R/TP C209 0CH3104K946 100000PF 50V Z F 2012 R/TP C210 0CH3104K946 100000PF 50V Z F 2012 R/TP C211 0CH3104K946 100000PF 50V Z F 2012 R/TP C212 0CH3104K946 100000PF 50V Z F 2012 R/TP C213 0CH3104K946 100000PF 50V Z F 2012 R/TP C214 0CH3104K946 100000PF 50V Z F 2012 R/TP C215 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C217 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C218 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C219 0CH3104K946 100000PF 50V Z F 2012 R/TP C220 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C221 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C223 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C224 0CH3104K946 100000PF 50V Z F 2012 R/TP C225 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C227 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C234 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C235 0CH8476F611 47UF 16V 20% 85STD (CYL) R/T C242 0CH3104K946 100000PF 50V Z F 2012 R/TP C248 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C276 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C278 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C280 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C287 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C288 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C302 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C303 0CH8476F611 47UF 16V 20% 85STD (CYL) R/T C304 0CH8474K611 0.47UF 50V 20% 85STD (CYL) R C305 0CH8474K611 0.47UF 50V 20% 85STD (CYL) R C306 0CH8474K611 0.47UF 50V 20% 85STD (CYL) R C307 0CH8474K611 0.47UF 50V 20% 85STD (CYL) R C308 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C310 0CC560CK41A 56PF 1608 50V 5% R/TP NP0 C311 0CC560CK41A 56PF 1608 50V 5% R/TP NP0 C313 0CH3104K946 100000PF 50V Z F 2012 R/TP C316 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C317 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C319 0CC3R3CK01A 3.3PF 1608 50V 0.25 PF R/TP C320 0CC3R3CK01A 3.3PF 1608 50V 0.25 PF R/TP C321 0CK222CK51A 2200PF 1608 50V 10% R/TP B(Y C322 0CK222CK51A 2200PF 1608 50V 10% R/TP B(Y C325 0CC560CK41A 56PF 1608 50V 5% R/TP NP0 C328 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C329 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C331 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C332 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C374 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C375 0CH8476F611 47UF 16V 20% 85STD (CYL) R/T C377 0CH8475J611 4.7UF 35V M 85STD(CYL) R/TP C380 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C381 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C383 0CH8226F611 22UF 16V M 85STD(CYL) R/TP C384 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C385 0CH8227F611 220UF 16V 20% 85STD (CYL) R/ C387 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C388 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R - 25 - http://www.wjel.net DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C401 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C402 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C403 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C404 0CH8476F611 47UF 16V 20% 85STD (CYL) R/T C405 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C407 0CK472CK51A 4700PF 1608 50V 10% R/TP B(Y C410 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C412 0CK472CK51A 4700PF 1608 50V 10% R/TP B(Y C413 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C415 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C416 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C801 0CZZTAT002D SVP SANYO 10V 270UF M REEL O C802 0CZZTAT002D SVP SANYO 10V 270UF M REEL O C803 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C804 0CC821CK41A 820PF 1608 50V 5% R/TP NP0 C805 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C806 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C807 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C809 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C810 0CH3104K946 100000PF 50V Z F 2012 R/TP C811 0CH3104K946 100000PF 50V Z F 2012 R/TP C812 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C814 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C816 0CE477CJ618 470UF SHL 35V M FL TP5 C840 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y D1 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D2 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D3 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D4 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D5 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D6 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D7 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D8 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D9 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D10 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D11 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D12 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D13 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D14 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D15 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D16 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D17 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D18 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D19 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D20 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D21 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D22 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D23 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D24 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D25 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D26 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D27 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D28 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D29 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D30 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D31 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D32 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D33 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D34 0DS226009AA KDS226 TP KEC SOT-23 80V 30 DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION D35 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D36 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D37 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D38 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D39 0DS226009AA KDS226 TP KEC SOT-23 80V 30 ZD1 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD2 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD3 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD7 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD8 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD21 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD22 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD23 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD24 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD25 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD26 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD27 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD28 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD29 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD806 0DR190309AA MBRS190T3 TP MOTOROLA 403A U1 0IRH765700B “BA7657F 24P,SOP TP INPUT SIG” U2 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT U3 0ISTLFA058A “74F14SCX FAIRCHILD 14P,SOIC” U4 0IPRPAD008C AD9883AKST-140 ANALOG DEVICE U5 0ISTLPH002A 74LVC257A PHILIPS SO16 R/TP U7 0ILNRPH003A SAA7114H PHILIPS 100 LQFP TR U8 0IPRPPW002A “PW166B-20T PIXELWORKS 256P,B” U9 0IDS170800A DS1708S 8P SOIC ST MICROMONI U10 0INS317000E LM317EMPX SOT-223 TP REGULAT U12 0IMMRSS040C S524A60X51(SCT0) SAMSUNG ELE U13 0IMO140662A “MC14066BDR2 14P,SOIC TP BILA” U14 0ISTLPH004B “74LVC273(PW) PHILIPS 16P,TSS” U15 0ITI743200P “SN74HC32DR 14P,SOIC TP QUAD” U16 0ISM940000A SDA9400 64P MQFP BK DRAM - U17 0ISS524202B S524A40X21(SCT0) SAMSUNG ELE U18 0IDS170800A DS1708S 8P SOIC ST MICROMONI U19 0IZZTSZ259A L3000A PAL V1.0 44PIN PSOP U20 0ISS780800J “KA78M08R 3P,D-PAK TP VOL. RE” U21 0ITI741400T “SN74AC14DR 14,SOP R/TP HEX I” U23 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOL U24 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT U25 0ISTLPH003B “74LVC541A(PW) PHILIPS 16P,TS” U27 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOL U29 0ISS358000D KA358D-TF OP AMP SMD REEL:3K U30 0ISS524202B S524A40X21(SCT0) SAMSUNG ELE U32 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOL U33 0ISTLPH004B “74LVC273(PW) PHILIPS 16P,TSS” U34 0TFIR80009A INTERNATIONAL RECTIFIER IRF7 U35 0TFIR80009A INTERNATIONAL RECTIFIER IRF7 U37 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT U49 0IPRPMN001A “MSP3420G MICRONAS 80,PQFP TR” U401 0ITH638300B “THC63LVDM83R THINE 56P,TSSOP” U201 0IS5161000B SIL161BCT100 SILICON IMAGE 1 U801 0ISG497351A L4973D5.1 SO20 TP 3.5A S/DOW L1 6210TCE001A HB-1S2012-080JT CERATEC 2012 L2 6210TCE001G HH-1M3216-501 CERATEC 3216MM - 26 - DIODEs ICs COILs & COREs http://www.wjel.net DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L3 6210TCE001G HH-1M3216-501 CERATEC 3216MM L4 6210TCE001G HH-1M3216-501 CERATEC 3216MM L5 6210TCE001G HH-1M3216-501 CERATEC 3216MM L6 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L7 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L8 6210TCE001Y HB-1H2012-320JT CERATEC 2012 L9 6210TCE001G HH-1M3216-501 CERATEC 3216MM L10 6210TCE001G HH-1M3216-501 CERATEC 3216MM L11 6210TCE001G HH-1M3216-501 CERATEC 3216MM L12 6210TCE001G HH-1M3216-501 CERATEC 3216MM L13 6210TCE001G HH-1M3216-501 CERATEC 3216MM L14 6210TCE001G HH-1M3216-501 CERATEC 3216MM L15 6210TCE001H HB-1T2012-301JT CERATEC 2012 L16 6210TCE001H HB-1T2012-301JT CERATEC 2012 L17 6210TCE001G HH-1M3216-501 CERATEC 3216MM L18 6210TCE001G HH-1M3216-501 CERATEC 3216MM L19 6210TCE001G HH-1M3216-501 CERATEC 3216MM L21 6210TCE001G HH-1M3216-501 CERATEC 3216MM L22 6210TCE001G HH-1M3216-501 CERATEC 3216MM L23 6210TCE001G HH-1M3216-501 CERATEC 3216MM L24 6210TCE001L HB-1T2012-102JT CERATECH 201 L25 6210TCE001G HH-1M3216-501 CERATEC 3216MM L26 6210TCE001L HB-1T2012-102JT CERATECH 201 L28 6210TCE001H HB-1T2012-301JT CERATEC 2012 L29 6210TCE001G HH-1M3216-501 CERATEC 3216MM L30 6210TCE001G HH-1M3216-501 CERATEC 3216MM L31 6210TCE001G HH-1M3216-501 CERATEC 3216MM L32 6210TCE001H HB-1T2012-301JT CERATEC 2012 L33 6210TCE001H HB-1T2012-301JT CERATEC 2012 L34 6210TCE001G HH-1M3216-501 CERATEC 3216MM L35 6210TCE001G HH-1M3216-501 CERATEC 3216MM L36 6210TCE001G HH-1M3216-501 CERATEC 3216MM L37 6210TCE001H HB-1T2012-301JT CERATEC 2012 L38 6210TCE001H HB-1T2012-301JT CERATEC 2012 L39 6210TCE001H HB-1T2012-301JT CERATEC 2012 L40 6210TCE001H HB-1T2012-301JT CERATEC 2012 L41 6210TCE001H HB-1T2012-301JT CERATEC 2012 L42 6210TCE001G HH-1M3216-501 CERATEC 3216MM L43 6210TCE001H HB-1T2012-301JT CERATEC 2012 L44 6210TCE001H HB-1T2012-301JT CERATEC 2012 L45 6210TCE001H HB-1T2012-301JT CERATEC 2012 L46 6210TCE001H HB-1T2012-301JT CERATEC 2012 L47 6210TCE001H HB-1T2012-301JT CERATEC 2012 L48 6210TCE001H HB-1T2012-301JT CERATEC 2012 L49 0RH0000D622 0 1/10W P-TYPE TAPPING L51 6210TCE001G HH-1M3216-501 CERATEC 3216MM L52 6210TCE001G HH-1M3216-501 CERATEC 3216MM L53 6210TCE001G HH-1M3216-501 CERATEC 3216MM L54 6210TCE001G HH-1M3216-501 CERATEC 3216MM L55 6210TCE001G HH-1M3216-501 CERATEC 3216MM L56 6210TCE001G HH-1M3216-501 CERATEC 3216MM L57 6210TCE001H HB-1T2012-301JT CERATEC 2012 L59 6210TCE001G HH-1M3216-501 CERATEC 3216MM L62 6210TCE001H HB-1T2012-301JT CERATEC 2012 L64 6210TCE001H HB-1T2012-301JT CERATEC 2012 L66 6210TCE001L HB-1T2012-102JT CERATECH 201 L67 6210TCE001L HB-1T2012-102JT CERATECH 201 L68 6210TCE001L HB-1T2012-102JT CERATECH 201 L70 6210TCE001P HB-1S2012-121JT CERATECH 201 L71 6210TCE001P HB-1S2012-121JT CERATECH 201 L210 6210TCE001G HH-1M3216-501 CERATEC 3216MM L401 6210TCE001G HH-1M3216-501 CERATEC 3216MM DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION Q1 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q2 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q3 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q4 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q5 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q6 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q9 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q10 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q11 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q12 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q13 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q14 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q19 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP Q22 0TR162309CA KSC1623 TP SAMSUNG SOT23 NP R1 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R2 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R3 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R4 0RJ7500D677 750 OHM 1/10 W 5% 1608 R/TP R5 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP R6 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R7 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R8 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R11 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R12 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R15 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R17 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R18 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R19 0RH0000D622 0 1/10W P-TYPE TAPPING R20 0RH0000D622 0 1/10W P-TYPE TAPPING R21 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R22 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R23 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R24 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R25 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R26 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R27 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R28 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R29 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R31 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R32 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R33 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R34 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R35 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R36 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R38 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R39 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R40 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R43 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R44 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R45 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R46 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R48 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R49 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R50 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R51 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R52 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R53 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R54 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP - 27 - RESISTORs TRANSISTOR http://www.wjel.net DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R55 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R56 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R57 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R58 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R59 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R61 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R62 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R64 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R65 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R66 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R67 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R71 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R72 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R73 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R74 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R75 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R76 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R77 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R78 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R79 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R80 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R81 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R83 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R84 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R85 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R87 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R88 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R89 0RH0272D622 27 1/10W 5 D.R/TP R90 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R91 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R93 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R94 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R95 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R96 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R97 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R98 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R99 0RJ3303D677 330K OHM 1/10 W 5% 1608 R/TP R100 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R101 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R102 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R103 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R104 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R105 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R106 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R107 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R109 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R110 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R111 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R112 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R113 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R114 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R115 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R116 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R117 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R118 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R119 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R120 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R121 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R123 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R124 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R125 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R126 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R128 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R129 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R130 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R131 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R132 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R133 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R134 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R135 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R136 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R137 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R138 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R139 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R140 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R141 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R142 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R143 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R144 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R145 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R146 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R147 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R148 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R149 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R150 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R151 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R152 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R153 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R154 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R155 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R156 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R157 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R158 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R159 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R160 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R161 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R162 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R163 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R164 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R165 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R166 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R168 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R169 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R170 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R171 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R172 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R173 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R174 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R175 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R176 0RJ2002D677 20000 OHM 1/10 W 5% 1608 R/T R177 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R178 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R179 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R180 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R181 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R182 0RJ0182D677 18 OHM 1/10 W 5% 1608 R/TP R183 0RJ0182D677 18 OHM 1/10 W 5% 1608 R/TP R184 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R185 0RJ0182D677 18 OHM 1/10 W 5% 1608 R/TP R186 0RJ6802D677 68K OHM 1/10 W 5% 1608 R/TP R187 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R188 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R189 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R190 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP - 28 - http://www.wjel.net DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R191 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R192 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R193 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R194 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R195 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R196 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R197 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R198 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R199 0RH0000D622 0 1/10W P-TYPE TAPPING R201 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R202 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R203 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R204 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R205 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R207 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R208 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R209 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R210 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R211 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R212 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R214 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R215 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R216 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R217 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R218 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R219 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R220 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R222 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R223 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R224 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R225 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R226 0RH0000D622 0 1/10W P-TYPE TAPPING R227 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R228 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP R229 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R230 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R231 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R232 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R233 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R235 0RJ0101G676 1 OHM 1/4 W 5% 3216 R/TP R236 0RJ0101G676 1 OHM 1/4 W 5% 3216 R/TP R237 0RJ0101G676 1 OHM 1/4 W 5% 3216 R/TP R245 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R246 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R247 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R248 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R250 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R251 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R252 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R253 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R254 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R255 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R259 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R264 0RJ2702D677 27K OHM 1/10 W 5% 1608 R/TP R265 0RJ3302D677 33K OHM 1/10 W 5% 1608 R/TP R266 0RJ2002D677 20000 OHM 1/10 W 5% 1608 R/T R267 0RJ3302D677 33K OHM 1/10 W 5% 1608 R/TP R268 0RJ2002D677 20000 OHM 1/10 W 5% 1608 R/T R269 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R270 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R271 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R272 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R273 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R274 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R275 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R276 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R277 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R278 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R342 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R401 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R403 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R405 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R523 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R525 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R526 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R528 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R529 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R531 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R532 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R700 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R801 0RJ2702D677 27K OHM 1/10 W 5% 1608 R/TP R804 0RJ9101D677 9.1K OHM 1/10 W 5% 1608 R/TP RA1 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA4 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA5 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA6 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA7 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA8 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA19 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA20 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA21 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA22 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA23 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA28 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA29 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA32 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA33 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA37 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA221 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA222 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA223 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA224 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA225 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA226 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA227 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA228 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA229 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA230 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA231 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP RA232 0RHZTCZ001C 220 OHM 1/16 W 5% 3215 R/TP J1 6612F00001D DJ-S360LM KSD STERO R/A LIME J5 6612F00024A PSJ007A PARK ELEC. LM805L J7 6612F00001C DJ-S360LB KSD STERO R/A LIGH J702 6612F00025B PPJ122X PARK ELEC. LB200A TRANS01 6170TCZ014A EPC17 22UH LM805L X1 6202TST003G HC-49/SM5H KONY 24.576MHZ +/ X2 6202TST001A “SX-1 SUNNY ,SMS, 14.31818MHZ” X5 6202TST003B HC-49/SM5H KONY CHIP 18.432M - 29 - OTHERs http://www.wjel.net DATE: 2002. 3. 5. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C2 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C3 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” LED1 0DLLT0089AA LITEON LTL-1BEDJ-0C2 TP GREE Q1 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q10 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q12 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q13 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q14 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q15 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q17 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q18 0TR102009AJ KRC102S NPN SOT-23 TP KEC R1 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R2 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R3 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R13 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R15 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R17 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R18 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R19 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R20 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R21 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R22 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R24 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R25 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R26 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP SW2 140-058B EVQ PB2 05K MATUSHITA NON 12 SW4 140-058B EVQ PB2 05K MATUSHITA NON 12 SW5 140-058B EVQ PB2 05K MATUSHITA NON 12 SW6 140-058B EVQ PB2 05K MATUSHITA NON 12 SW7 140-058B EVQ PB2 05K MATUSHITA NON 12 SW8 140-058B EVQ PB2 05K MATUSHITA NON 12 SW9 140-058B EVQ PB2 05K MATUSHITA NON 12 SW10 140-058B EVQ PB2 05K MATUSHITA NON 12 U1 6726TV0001A TSOP4838ON1 TEMIC 38.0KHZ HO ZD1 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD2 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD3 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD4 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD5 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD6 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD7 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD8 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD9 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD10 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD11 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 - 30 - CONTROL BOARD http://www.wjel.net P IN C ONF IGUR AT ION - 31 - BA7657 Multimedia ICs 1 2 3 4 5 6 7 8 9 10 11 12 15 14 13 18 17 16 21 20 19 24 23 22 DET. Logic Syncsepa Red 1 input HD Sync Signal detector Green 1 input Ground Blue 1 input Ground Red 2 input Ground Green 2 input Ground Blue 2 input VD 1 input HD 1 input HD 2 input HD output Red output Vcc Green output Composite video input (Sync on Green) Composite sync output CTL (H:IN, L:IN2) Blue output VD output VD 2 input 1 24 BLOCK DIAGRAM http://www.wjel.net - 32 - S524A40X10/40X20/40X40 S524A40X10/ 40X20/40X40 VCC WP SCL SDA A0 A1 A2 VSS NOTE: The S524A40X10/40X20/40X40 is available in 8-pin DIP, SOP, and TSSOP package. Figure 2-2. Pin Assignment Diagram Table 2-1. S524A40X10/40X20/40X40 Pin Descriptions Name Type Description Circuit Type A0, A1, A2 Input Input pins for device address selection. To configure a device address, these pins should be connected to the VCC or VSS of the device. These pins are internally pulled down to VSS. 1 VSS — Ground pin. — SDA I/O Bi-directional data pin for the I2C-bus serial data interface. Schmitt trigger input and open-drain output. An external pull-up resistor must be connected to VCC. Typical values for this pull-up resistor are 4.7 k (100 kHz) and 1 k (400 kHz). 3 SCL Input Schmitt trigger input pin for serial clock input. 2 WP Input Input pin for hardware write protection control. If you tie this pin to VCC, the write function is disabled to protect previously written data in the entire memory; if you tie it to VSS, the write function is enabled. This pin is internally pulled down to VSS. 1 VCC — Single power supply. — NOTE: See the following page for diagrams of pin circuit types 1, 2, and 3. http://www.wjel.net - 33 - Start/Stop Logic Slave Address Comparator Word Address Pointer Row decoder EEPROM Cell Array 128 x 8 bits 256 x 8 bits 512 x 8 bits HV Generation Timing Control Control Logic Column Decoder Data Register DOUT and ACK SCL WP SDA A0 A1 A2 Figure 2-1. S524A40X10/40X20/40X40 Block Diagram http://www.wjel.net - 34 - SIL161BCT100 HS_DJTR 1 SiI 161B 100-Pin TQFP (Top View) PD 2 ST 3 PIX S 4 GND 5 VCC 6 STAG_OUT 7 SCDT 8 PDO 9 QE0 10 QE1 11 QE2 12 QE3 13 QE4 14 QE5 15 QE6 16 QE7 17 OVCC 18 OGND 19 QE8 20 QE9 21 QE10 22 QE11 23 QE12 24 QE13 25 QE14 26 QE15 27 OGND 28 OVCC 29 QE16 30 QE17 31 QE18 32 QE19 33 QE20 34 QE21 35 QE22 36 QE23 37 VCC 38 GND 39 CTL1 40 CTL2 41 CTL3 42 OVCC 43 ODCK 44 OGND 45 DE 46 V SYNC 47 HSY NC 48 QO0 49 QO1 50 75 QO21 74 QO20 73 QO19 72 QO18 71 QO17 70 QO16 69 GND 68 VCC 67 QO15 66 QO14 65 QO13 64 QO12 63 QO11 62 QO10 61 QO9 60 QO8 59 OGND 58 OVCC 57 QO7 56 QO6 55 QO5 54 QO4 53 QO3 52 QO2 51 QO22 OCK_INV 100 RESERVED 99 PGND 98 PVCC 97 EXT_RES 96 AV CC 95 RXC- 94 RXC+ 93 AGND 92 RX0- 91 RX0+ 90 AGND 89 AV CC 88 AGND 87 RX1- 86 RX1+ 85 AV CC 84 AGND 83 AV CC 82 RX2- 81 RX2+ 80 AGND 79 OVCC 78 QO23 77 OGND 76 DI FFERENTI AL SI GNAL ODD 8-bits RED EV EN 8-bits RED ODD 8-bits GREEN EVEN 8-bits GREEN ODD 8-bits BL UE EVEN 8-bits BLUE CONFI G. PINS PLL PWR M ANAGEM ENT GPO OUTPUT CLOCK CONT ROL S PIN CONFIGURATION CTL3 RX2+ RX2- RX1+ RX1- RX0+ RX0- RXC+ RXC- SYNC2 EX T_RES PDO ST ODCK PIX S H S_DJTR OCK _INV STAG_OUT Data Recovery CH2 VCR Termination Control Data Recovery CH1 VCR Data Recovery CH0 VCR PLL VCR SYNC1 SYNC0 Channel SYNC SYNC2 SYNC1 SYNC0 Decoder CTL2 CTL1 VSYNC HSYNC Panel Inter- face Logic QE[23:0] 24 QO[23:0] 24 DE HSYNC VSYNC CTL3 CTL2 CTL1 SCDT DATA DATA DATA BLOCK DIAGRAM http://www.wjel.net SCHEMATIC DIAGRAM - 35 - 1. D-SUB/DVI INPUT http://www.wjel.net - 36 - 2. BA7657/AD9883/SAA7114 http://www.wjel.net - 37 - 3. SCALER(PW166B) http://www.wjel.net - 38 - 4. MEMORY & PLL http://www.wjel.net - 39 - 5. DEINTERLACER(SDA9400) http://www.wjel.net - 40 - 6. AUDIO CONTROLLER http://www.wjel.net - 41 - 7. LVDS http://www.wjel.net - 42 - 8. POWER & DC/DC http://www.wjel.net - 43 - 9. KEY CONTROL http://www.wjel.net Mar. 2003 P/NO : 3828TSL093B Printed in Korea http://www.wjel.net
