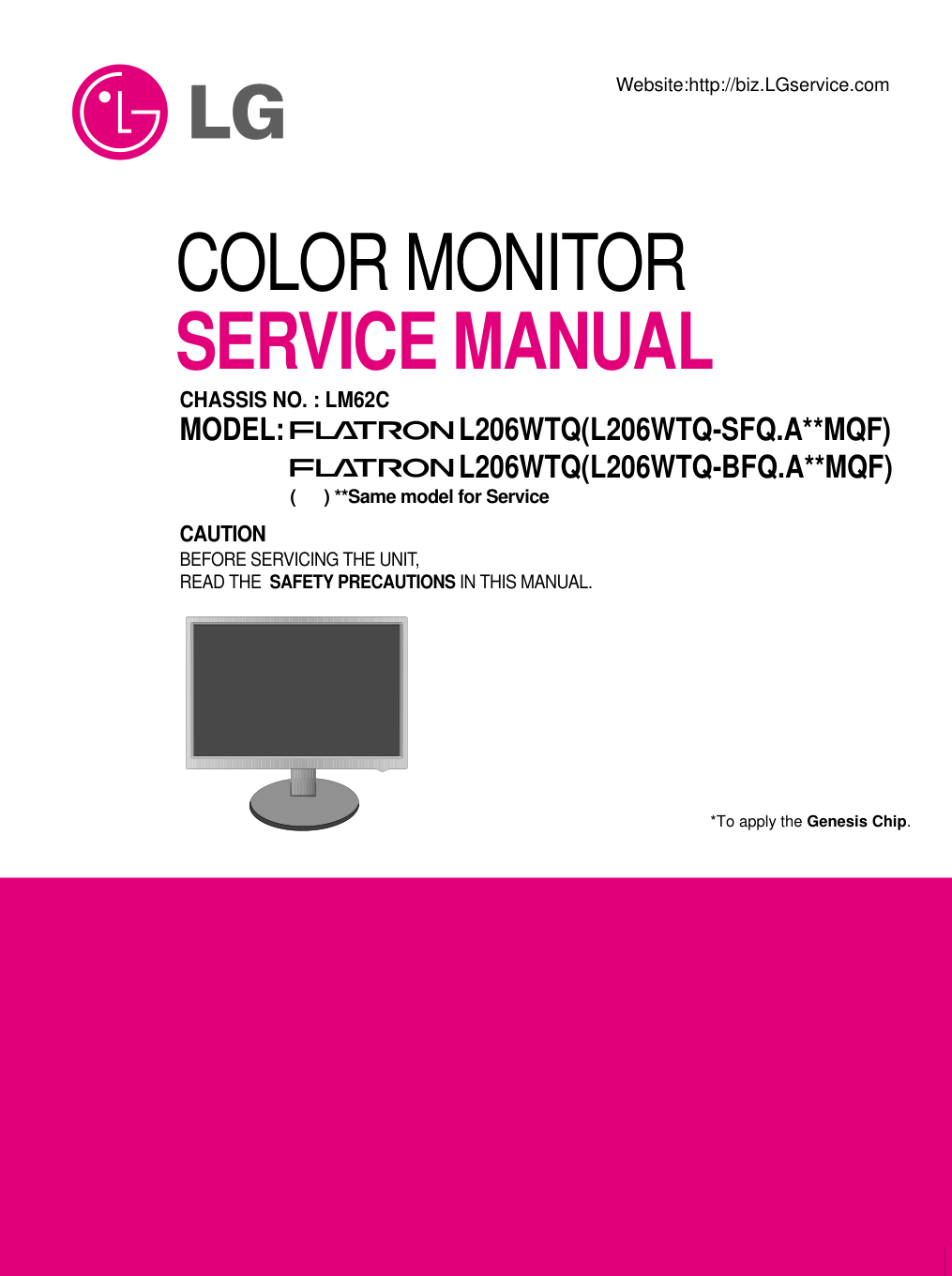

COLOR MONITOR SERVICE MANUAL Website:http://biz.LGservice.com CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : LM62C MODEL: L206WTQ(L206WTQ-SFQ.A**MQF) L206WTQ(L206WTQ-BFQ.A**MQF) ( ) **Same model for Service *To apply the Genesis Chip. - 2 - CONTENTS SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 4 TIMING CHART ....................................................... 8 DISASSEMBLY ....................................................... 9 BLOCK DIAGRAM ................................................. 11 DESCRIPTION OF BLOCK DIAGRAM...................12 ADJUSTMENT ...................................................... 14 TROUBLESHOOTING GUIDE .............................. 16 WIRING DIAGRAM ............................................... 19 EXPLODED VIEW...................................................20 REPLACEMENT PARTS LIST ...............................22 SCHEMATIC DIAGRAM......................................... 26 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Active Display Area : 20.1 inch diagonal Pixel Pitch : 0.258 (H) x 0.258 (V) Size : 459.4(H) x 296.4(V) x 16.5(D) Color Depth : 16.7M (6bit+HI FRC) color Electrical Interface : LVDS Surface Treatment : Anti-Glare, Hard Coating(3H) Operating Mode : Normally White Backlight Unit : 4 CCFL 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 5 Left : -80° min., -85°(Typ) Right : +80° min., +85°(Typ) Top :+80° min., +85°(Typ) Bottom : -80° min., -85°(Typ) 2-2. Luminance : 180(Typ) (Typ. 30)-sRGB : 220(min), 300(Typ)-6500K : 150(min)-9300K 2-3. Contrast Ratio : 500(min), 1000(Typ) DFC -> 3000 : 1(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal • Type : Separate Sync, SOG, Digital 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.7 V 3) Input Impedance : 75 Ω 3-3. Operating Frequency Horizontal : 30 ~ 83kHz Vertical : 56 ~ 75Hz 4. MAX. RESOLUTION Analog : 1680 x 1050@60Hz Digital : 1680 x 1050@60Hz 5. POWER SUPPLY 5-1. Power Adaptor(Built-in Power) Input : AC 100-240V~, 50/60Hz, 1.2A 5-2. Power Consumption 6. ENVIRONMENT 6-1. Operating Temperature : 10°C~35°C (50°F~95°F) 6-2. Relative Humidity : 10%~80% (Non-condensing) 6-3. MTBF : 50,000 HRS with 90% Confidence level Lamp Life : 50,000 Hours (Min) 7. DIMENSIONS (with TILT/SWIVEL) Width : 471 mm (18.54'') Depth : 234 mm (9.21'') Height : 402.4 mm (15.84'') 8. WEIGHT (with TILT/SWIVEL) Net. Weight : 4.6 kg (10.14 lbs) Gross Weight : 6.0 kg (13.23 lbs) SPECIFICATIONS MODE POWER ON (NORMAL) STAND BY SUSPEND DPMS OFF POWER S/W OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF - POWER CONSUMPTION less than 50 W(max) less than 45 W(typ) less than 1 W less than 1 W less than 1 W less than 1 W LED COLOR BLUE AMBER AMBER AMBER OFF VIDEO ACTIVE OFF OFF OFF - - 3 - Signal Connector Pin Assignment Pin Signal (DVI-D) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 T. M. D. S. Data2- T. M. D. S. Data2+ T. M. D. S. Data2/4 Shield T. M. D. S. Data4- T. M. D. S. Data4+ DDC Clock DDC Data Analog Vertical Sync. T. M. D. S. Data1- T. M. D. S. Data1+ T. M. D. S. Data1/3 Shield T. M. D. S. Data3- T. M. D. S. Data3+ +5V Power Ground (return for +5V, H. Sync. and V. Sync.) Pin Signal (DVI-D) 1 8 9 17 24 16 16 17 18 19 20 21 22 23 24 Hot Plug Detect T. M. D. S. Data0- T. M. D. S. Data0+ T. M. D. S. Data0/5 Shield T. M. D. S. Data5- T. M. D. S. Data5+ T. M. D. S. Clock Shield T. M. D. S. Clock+ T. M. D. S. Clock- T. M. D. S. (Transition Minimized Differential Signaling) • DVI-D Connector (Digital) - 4 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. Leakage Current Hot Check Circuit PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. 1.5 Kohm/10W To Instrument's exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter - 5 - SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First. General Servicing Precautions 1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board module or any other receiver assembly. b. Disconnecting or reconnecting any receiver electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard. d. Discharging the picture tube anode. 2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc". 3. Discharge the picture tube anode only by (a) first connecting one end of an insulated clip lead to the degaussing or kine aquadag grounding system shield at the point where the picture tube socket ground lead is connected, and then (b) touch the other end of the insulated clip lead to the picture tube anode button, using an insulating handle to avoid personal contact with high voltage. 4. Do not spray chemicals on or near this receiver or any of its assemblies. 5. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton- tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required. 6. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped. 7. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. 8. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. 9. Use with this receiver only the test fixtures specified in this service manual. CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver. Electrostatically Sensitive (ES) Devices Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti- static" can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.) - 6 - General Soldering Guidelines 1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 F to 600 F. 2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead. 3. Keep the soldering iron tip clean and well tinned. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-bristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners. 5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500 F to 600 F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuitboard printed foil. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature (500 F to 600 F) b. First, hold the soldering iron tip and solder the strand against the component lead until the solder melts. c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil. d. Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush. IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above. Removal 1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts. 2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC. Replacement 1. Carefully insert the replacement IC in the circuit board. 2. Carefully bend each IC lead against the circuit foil pad and solder it. 3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas). "Small-Signal" Discrete Transistor Removal/Replacement 1. Remove the defective transistor by clipping its leads as close as possible to the component body. 2. Bend into a "U" shape the end of each of three leads remaining on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection. Power Output, Transistor Device Removal/Replacement 1. Heat and remove all solder from around the transistor leads. 2. Remove the heat sink mounting screw (if so equipped). 3. Carefully remove the transistor from the heat sink of the circuit board. 4. Insert new transistor in the circuit board. 5. Solder each transistor lead, and clip off excess lead. 6. Replace heat sink. Diode Removal/Replacement 1. Remove defective diode by clipping its leads as close as possible to diode body. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. - 7 - Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered. At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections). 1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection. 4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board. 1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens. 2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern. 3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges. TIMING CHART - 8 - VIDEO SYNC F E C A B D 1 H(Pixels) - 28.321 31.468 900 720 18 108 54 720 X 400 V(Lines) + 70.08 449 400 12 2 35 2 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480 V(Lines) - 59.94 525 480 10 2 33 3 H(Pixels) - 31.5 37.5 840 640 16 64 120 640 x 480 V(Lines) - 75 500 480 1 3 16 4 H(Pixels) + 40.0 37.879 1056 800 40 128 88 800 x 600 V(Lines) + 60.317 628 600 1 4 23 5 H(Pixels) + 49.5 46.875 1056 800 16 80 160 800 x 600 V(Lines) + 75.0 625 600 1 3 21 6 H(Pixels) - 65.0 48.363 1344 1024 24 136 160 1024 x 768 V(Lines) - 60.0 806 768 3 6 29 7 H(Pixels) - 78.75 60.123 1312 1024 16 96 176 1024 x 768 V(Lines) - 75.029 800 768 1 3 28 8 H(Pixels) +/- 108.0 67.500 1600 1152 64 128 256 1152 x 864 V(Lines) +/- 75.000 900 864 1 3 32 9 H(Pixels) + 108.0 63.981 1688 1280 48 112 248 1280 x 1024 V(Lines) + 60.02 1066 1024 1 3 38 10 H(Pixels) + 135.0 79.976 1688 1280 16 144 248 1280 x 1024 V(Lines) + 75.035 1066 1024 1 3 38 11 H(Pixels) + 119 64.674 1840 1680 48 32 80 1680 x 1050 V(Lines) - 59.883 1080 1050 3 6 21 12 H(Pixels) - 146.25 65.290 2240 1680 104 176 280 1680 x 1050 V(Lines) + 59.954 1089 1050 3 6 30 MODE H / V Sync Polarity Dot Clock Frequency Total Period ( E ) Video Active Time ( A ) Sync Duration ( D ) Front Porch ( C ) Blanking Time ( B ) Resolution - 9 - DISASSEMBLY-Set Remove the screws. Disassemble back cover. Remove the screws. 1. Pull the front cover upward. 2. Then, let the all latches are separated. 3. Put the front face down. # 1 # 4 # 2 # 3 - 10 - DISASSEMBLY-Stand Please pull the stand body lightly to separate it from the hinge body. Pushing Latch inside, Take the stand base from stand body. (#1-1~2) # 1-1 # 2 # 1-2 - 11 - L V D S Analog I(R/G/B) D-Sub LIPS Filter 5V 12V 5V Regulator 3.3V Vcc 5V 14.3Mhz Inverter(4Lamps) 12V Flash ROM DVI-D DVI(TMDS) KEY 1.8V 3.3V 1.8V 3.3V Module SDA /SCL EEPROM (EDID) EEPROM (System) SDRAM Memory 16Mbit X 2 166MHZ 3.3V ADC TMDS Rx Scaler GM ACE LVDS Tx OSD MCU SSC Buffer GM5822H EEPROM (EDID) CRYSTAL 1680X1050@60 146Mhz BLOCK DIAGRAM - 12 - DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is 146MHz In L206WTQ/WTG. This part consists of the Scaler, ADC convertor, TMDS receiver and LVDS transmitter. The Scaler gets the video signal converted analog to digital, interpolates input to 1680X1050(L206WTQ/WTG) resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V, and one 1.8V regulators to convert power which is provided 5V in Power board. 15V is provided for inverter in L206WTQ/WTG. Also, 5V is converted 3.3V and 1.8V by regulator. Converted power is provided for IC in the main board. The inverter converts from DC 15V to AC 820Vrms and operates back-light lamps of module in L206WTQ/WTG. 3. MICOM Part. This part is include video controller part. And this part consists of EEPROM IC which stores FRC(OD) memory, control data, Reset IC and the Micom. The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable. The controlled data of each modes is stored in EEPROM. LIPS Board Block Diagram - 13 - EMI COMPONENTS LINE 100 ~ 240V INPUT RECTIFIER AND FILTER ENERGY TRANSFER OUTPUT RECTIFIER AND FILTER 15V 5V GND PHOTO- COUPLER ISOLATION PWM CONTROL CIRCUIT HVDC 100KHz PRIMARY SECONDARY 50 ~ 60Hz SIGNAL Collection and Feedback Operation description_Power 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC,VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is for transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilized, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the DC output changing status through a photo transistor to primary controller to achieve the stabilized DC output voltage. 6. Signal collection. This part function is to collect the any change from the DC output and feed back to the primary through photo transistor. - 14 - ADJUSTMENT Windows EDID V1.0 User Manual Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Doesn’t need setup Windows 2000, XP => Need to Port Setup. This program is available for LCD Monitor only. 1. Port Setup a) Copy “UserPort.sys” file to “c:\WINNT\system32\drivers” folder b) Run Userport.exe c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. 2. EDID Read & Write 1) Run WinEDID.exe 2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button - 15 - 220 IBM Compatible PC PARALLEL PORT Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E E V-Sync On/Off Switch (Switch must be ON.) F F A A B B C C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Video Signal Generator Figure 1. Cable Connection SERVICE OSD 1) Turn off the power switch at the right side of the display. 2) Wait for about 5 seconds and press MENU, POWER switch for 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) CLEAR ETI : To initialize using time. c) Auto Color : W/B balance and Automatically sets the gain and offset value. (press key for over 3 sec) d) AGING : Select Aging mode(on/off). b) Module : To select applied module. d) NVRAM INIT : EEPROM initialize.(24C16, press key for over 3 sec) e) R/G/B-9300K : Allows you to set the R/G/B-9300K value manually. f) R/G/B-6500K : Allows you to set the R/G/B-6500K value manually. g) R/G/B-Offset : Allows you to set the R/G/B-Offset value manually.(Analog Only) h) R/G/B-Gain : Allows you to set the R/G/B-Gain value manually.(Analog Only) - 16 - TROUBLESHOOTING GUIDE 1. NO POWER NO POWER (POWER INDICATOR OFF) CHECK IC501 NO NO CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK IC702(1.8V) IC703(3.3V) LINE NO CHECK CRYSTAL(X501) YES YES YES CHECK P605 VOLTAGE PIN5,6 (5V)? IS IC702 PIN2(1.8V) IC703 PIN2(3.3V) CHECK X501 PIN201 PULSE 1 2 13 14 Waveforms 1 P605-#5,6 2 IC702-#2 3 IC703-#2 4 IC501-#201 - 17 - 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS CHECK IC502 INVERTER ON/OFF PORT P605 PIN9 3.3V? NO RASTER (OSD IS NOT DISPLAYED) CHECK POWER BOARD (LIPS) CHECK P605 VOLTAGE PIN5,6 (5V)? NO NO NO NO 1. CONFIRM BRIGHTNESS OSD CONTRL STATUS 2. CHECK SCALER DIM ADJ PORT 3. CHECK SCALER LAMP ADJ PORT CHECK P605 PIN11 POWER BOARD (LIPS) CHECK PULSE AS CONTACTING PROBE TO THE LAMP WIRE OF THE LCD MODULE REPLACE LCD MODULE YES 1 3 2 4 YES YES YES Waveforms 1 P605-#5,6 2 P605-#9 4 LAMP CURRENT 3 3 P605-#11 (Brightness 100) J905-#10 (Brightness 0) - 18 - 3. NO RASTER (OSD IS NOT DISPLAYED) - MAIN 1. CHECK PIN 201,202 SOLDERING CONDITION 2. CHECK X501 3. TROUBLE IN IC502 CHECK IC502 PIN7(3.3V) PIN131(1.8V) NO NO NO CHECK IC702(1.8V), IC703(3.3V) IC501 PIN 201,202 14.3MHZ? CHECK CONNECTION LINE FROM D-SUB TO IC502 TROUBLE IN CABLE OR LCD MODULE YES YES NO RASTER (OSD IS NOT DISPLAYED) CHECK IC502 PIN168(H-SYNC) AND PIN169(V-SYNC). IS PULSE APPEARED AT SIGNAL PINS? YES 1 Waveforms 1 U502-#201 - 19 - 4. TROUBLE IN DPM TROUBLE IN DPM TROUBLE IN IC502 CHECK PC PC IS GOING INTO DPM MODE NO CHECK H/V SYNC LINE NO YES CHECK R606 AND R608, SYNC APPEARED? CHECK IC502 PIN 168,169 SYNC PULSE YES 1 H-SYNC 2 V-SYNC Waveforms 1 2 EXPLODED VIEW - 20 - 300 200 330 460 510 500 430 440 420 410 400 900 910 940 950 920 450 520 310 320 930 - 21 - EXPLODED VIEW PARTS LIST 200 300 310 320 330 400 410 420 430 440 450 460 500 510 520 900 910 920 930 940 950 EAJ35698601 LCD,Module-TFT, LM201WE3-TLE1 DRIVER 20.1INCH 1680X1050 300CD COLOR 72% 16/9 800:1 5ms, P6, 4lamp LG PHILIPS LCD ABJ33081304 Cabinet Assembly, L206W LM62B 20" Cabinet Assy' , SILVER, 02-CKD ABJ33081303 Cabinet Assembly, L206W LM62B 20" Cabinet Assy' , MT11020 ,BLACK (01-CKD) ABJ33081301 Cabinet Assembly, L206W LM62B 20" L206W Cabinet Assy' , MT11020 ,BLACK MFB35938701 Lens, MOLD PMMA BenQ LENS Lx6W Eagle Eye, PMMA MEY35940502 Knob, MOLD ABS HF-350 SUB 1 keys Lx6W(19"/20") Power knob , light gray(89483)-SILVER MEY35940501 Knob, MOLD ABS 380 SUB 1 keys Lx6W Power knob.-BLACK MEY35940302 Knob, MOLD ABS HF-350 SUB 5keys Lx6W(20"/19") ABS HF 350, light gray(89483)-SILVER MEY35940301 Knob, MOLD ABS 380 SUB 5keys Lx6W(20"/19") ABS HF 380-BLACK ACQ32510405 Cover Assembly,Rear, L206W . 20" B/C ASSY' , BLACK (LPL) ,04-CKD ACQ32510404 Cover Assembly,Rear, L206W . 20" B/C ASSY , BLACK (LPL) ACQ32510406 Cover Assembly,Rear, L206W . 20" B/C ASSY , BLACK (LPL) for US (mercury label) MJH35943001 Supporter, PRESS EGI 0.8 GUIDE EGI Metal stand bracket ADV32509405 Frame Assembly, L206WTQ . 20" REAR FRAME ASSY' (LPL), 02-CKD ADV32509402 Frame Assembly, L206W . 20" REAR FRAME ASSY' (LPL) MCK35940801 Cover, MOLD ABS 380 L206W Vesa mold bracket ABS, HF-380 vesa mold bracket. MAZ35951701 Bracket, PRESS SBHG-A 1.0 FIXER Lx6W AB SBHG PCB mounting bracket. 6620K00017A Socket,Power, DAC-11S L1 3P STRAIGHT WIRE BK AC 40x22.5mm 10.0A 250.0V LENGTH 95MM YH396-03V(RED) DONG IL TECHNOLOGY LTD. MDQ35941902 Frame, PRESS SPTE 0.3 L206W METAL LampWire shield , 01-CKD MDQ35941901 Frame, PRESS SPTE 0.3 L206W METAL LampWire shield EBU36407601 Main Total Assembly, L206WTQ-WFQ BRAND LM62C 6871TPT318G PCB Assembly,Power, PLLM-M602B POWER T.T CMO L225W 22"Wide Scaler Dimming FREQENCY CHANGE LG INNOTEK CO., LTD EBR35809101 PCB Assembly,Sub, CONTROL T.T LM62B L196/206WT AXXXXFX L196/206 CONTROL ASSEMBLEY TOTALGUMI MCK35941602 Cover, MOLD ABS Lx6W ABS HF-350, Hinge Cover Body. (BK) MCK35941502 Cover, MOLD ABS Lx6W ABS HF-350, Hinge Left cover. (BK) MCK35941402 Cover, MOLD ABS Lx6W ABS HF-350, Hinge Right cover. (BK) ABA31569202 Bracket Assembly, STAND L196W/L206W LM62B Hinge Assy AAN32533504 Base Assembly, STAND L206W/L196W LM62B stand body Assy, Black, 03-CKD AAN32533503 Base Assembly, STAND L206W/L196W LM62B stand body Assy, Black AAN32510204 Base Assembly, STAND L206W/L196W LM62B Stand base Assy, RAVEN BLACK, 03-CKD AAN32510203 Base Assembly, STAND L206W/L196W LM62B Lx6W Stand base Assy, RAVEN BLACK Description Part No. Ref. No. * Note: Safety mark LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C501 0CK104CK56A 0603B104K500CT 100nF 10% 50V C502 0CK104CK56A 0603B104K500CT 100nF 10% 50V C503 0CK104CK56A 0603B104K500CT 100nF 10% 50V C504 0CK104CK56A 0603B104K500CT 100nF 10% 50V C505 0CK104CK56A 0603B104K500CT 100nF 10% 50V C506 0CK104CK56A 0603B104K500CT 100nF 10% 50V C508 0CK104CK56A 0603B104K500CT 100nF 10% 50V C509 0CK104CK56A 0603B104K500CT 100nF 10% 50V C510 0CK104CK56A 0603B104K500CT 100nF 10% 50V C511 0CK104CK56A 0603B104K500CT 100nF 10% 50V C512 0CK104CK56A 0603B104K500CT 100nF 10% 50V C513 0CK104CK56A 0603B104K500CT 100nF 10% 50V C514 0CK104CK56A 0603B104K500CT 100nF 10% 50V C515 0CK104CK56A 0603B104K500CT 100nF 10% 50V C516 0CK104CK56A 0603B104K500CT 100nF 10% 50V C517 0CK104CK56A 0603B104K500CT 100nF 10% 50V C518 0CK104CK56A 0603B104K500CT 100nF 10% 50V C519 0CK104CK56A 0603B104K500CT 100nF 10% 50V C520 0CK104CK56A 0603B104K500CT 100nF 10% 50V C521 0CK104CK56A 0603B104K500CT 100nF 10% 50V C522 0CK104CK56A 0603B104K500CT 100nF 10% 50V C523 0CK104CK56A 0603B104K500CT 100nF 10% 50V C524 0CK104CK56A 0603B104K500CT 100nF 10% 50V C525 0CK104CK56A 0603B104K500CT 100nF 10% 50V C526 0CK104CK56A 0603B104K500CT 100nF 10% 50V C527 0CK104CK56A 0603B104K500CT 100nF 10% 50V C528 0CK104CK56A 0603B104K500CT 100nF 10% 50V C529 0CK104CK56A 0603B104K500CT 100nF 10% 50V C530 0CK104CK56A 0603B104K500CT 100nF 10% 50V C531 0CK104CK56A 0603B104K500CT 100nF 10% 50V C532 0CK104CK56A 0603B104K500CT 100nF 10% 50V C533 0CK104CK56A 0603B104K500CT 100nF 10% 50V C534 0CK104CK56A 0603B104K500CT 100nF 10% 50V C535 0CK104CK56A 0603B104K500CT 100nF 10% 50V C536 0CK104CK56A 0603B104K500CT 100nF 10% 50V C537 0CK104CK56A 0603B104K500CT 100nF 10% 50V C538 0CK104CK56A 0603B104K500CT 100nF 10% 50V C539 0CK104CK56A 0603B104K500CT 100nF 10% 50V C540 0CK104CK56A 0603B104K500CT 100nF 10% 50V C541 0CK104CK56A 0603B104K500CT 100nF 10% 50V C542 0CK104CK56A 0603B104K500CT 100nF 10% 50V C543 0CK104CK56A 0603B104K500CT 100nF 10% 50V C544 0CK104CK56A 0603B104K500CT 100nF 10% 50V C545 0CK104CK56A 0603B104K500CT 100nF 10% 50V C546 0CK104CK56A 0603B104K500CT 100nF 10% 50V C547 0CK104CK56A 0603B104K500CT 100nF 10% 50V C548 0CK104CK56A 0603B104K500CT 100nF 10% 50V C549 0CC221CK41A C1608C0G1H221JT 220pF 5% 50V C550 0CK104CK56A 0603B104K500CT 100nF 10% 50V C551 0CC180CK41A C1608C0G1H180JT 18pF 5% 50V C552 0CC180CK41A C1608C0G1H180JT 18pF 5% 50V C554 0CK104CK56A 0603B104K500CT 100nF 10% 50V C555 0CK104CK56A 0603B104K500CT 100nF 10% 50V C556 0CK104CK56A 0603B104K500CT 100nF 10% 50V C557 0CK104CK56A 0603B104K500CT 100nF 10% 50V C558 0CK104CK56A 0603B104K500CT 100nF 10% 50V C559 0CK104CK56A 0603B104K500CT 100nF 10% 50V C560 0CK104CK56A 0603B104K500CT 100nF 10% 50V C562 0CK104CK56A 0603B104K500CT 100nF 10% 50V C563 0CK105CD56A C1608X7R1A105KT 1uF 10% 10V C564 0CC101CK41A C1608C0G1H101JT 100pF 5% 50V C601 0CK104CK56A 0603B104K500CT 100nF 10% 50V C602 0CK104CK56A 0603B104K500CT 100nF 10% 50V C603 0CK104CK56A 0603B104K500CT 100nF 10% 50V C604 0CK104CK56A 0603B104K500CT 100nF 10% 50V C605 0CC101CK41A C1608C0G1H101JT 100pF 5% 50V C606 0CK104CK56A 0603B104K500CT 100nF 10% 50V C607 0CK104CK56A 0603B104K500CT 100nF 10% 50V C608 0CC101CK41A C1608C0G1H101JT 100pF 5% 50V C609 0CK104CK56A 0603B104K500CT 100nF 10% 50V C610 0CK104CK56A 0603B104K500CT 100nF 10% 50V C611 0CK104CK56A 0603B104K500CT 100nF 10% 50V C612 0CC680CK41A C1608C0G1H680JT 68pF 5% 50V C613 0CK104CK56A 0603B104K500CT 100nF 10% 50V C614 0CC680CK41A C1608C0G1H680JT 68pF 5% 50V C615 0CK104CK56A 0603B104K500CT 100nF 10% 50V C616 0CK104CK56A 0603B104K500CT 100nF 10% 50V C617 0CC680CK41A C1608C0G1H680JT 68pF 5% 50V C618 0CC680CK41A C1608C0G1H680JT 68pF 5% 50V C619 0CK104CK56A 0603B104K500CT 100nF 10% 50V C620 0CK104CK56A 0603B104K500CT 100nF 10% 50V C622 0CK104CK56A 0603B104K500CT 100nF 10% 50V C623 0CK103CK51A 0603B103K500CT 10nF 10% 50V C625 0CK103CK51A 0603B103K500CT 10nF 10% 50V C627 0CK104CK56A 0603B104K500CT 100nF 10% 50V C701 0CK105CD56A C1608X7R1A105KT 1uF 10% 10V C702 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C C703 0CK103CK51A 0603B103K500CT 10nF 10% 50V C704 0CE227EF638 KMG5.0TP16VB220M 220uF 20% 1 C706 0CE107EF610 KMG16VB100M 100uF 20% 16V 12 C708 0CE107EF610 KMG16VB100M 100uF 20% 16V 12 C709 0CK104CK56A 0603B104K500CT 100nF 10% 50V C710 0CK104CK56A 0603B104K500CT 100nF 10% 50V C711 0CK104CK56A 0603B104K500CT 100nF 10% 50V C712 0CK104CK56A 0603B104K500CT 100nF 10% 50V C713 0CK103CK51A 0603B103K500CT 10nF 10% 50V C714 0CK103CK51A 0603B103K500CT 10nF 10% 50V LOC. NO. PART NO. DESCRIPTION / SPECIFICATION - 22 - REPLACEMENT PARTS LIST DATE: 2007. 02. 21. CAPACITORs LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C715 0CK103CK51A 0603B103K500CT 10nF 10% 50V C716 0CK103CK51A 0603B103K500CT 10nF 10% 50V D601 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D602 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D603 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D604 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D605 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D606 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D607 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D608 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D609 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D610 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D611 0DS226009AA KDS226 1.2V 85V 300MA 2A 4NS D612 0DSON00138A MMBD301LT1G 600MV 30V - - 1. D613 0DSON00138A MMBD301LT1G 600MV 30V - - 1. D614 0DD184009AA KDS184 KDS184 TP KEC - 85V - D615 0DD184009AA KDS184 KDS184 TP KEC - 85V - ZD1 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD2 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD3 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD4 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD601 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD603 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD605 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD606 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD607 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD608 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V ZD610 0DZ560009GB BZT52C5V6S-(F) 5.6V 5.2TO6V IC501 EAN36403001 L206WTQ GM5822H ODC GUMI IC502 EAN31470701 GM5822H-LF-AA 1.8VTO3.3V 14. IC503 EAN31557001 HY57V161610FTP-6 16MBIT 1MX1 IC504 EAN31557001 HY57V161610FTP-6 16MBIT 1MX1 IC505 0IMMRSG036B M24C16-WMN6TP 16KBIT 2KX8BIT IC601 0IMMR00014A M24C02-RMN6TP 2KBIT 256X8BIT IC602 0IMMR00014A M24C02-RMN6TP 2KBIT 256X8BIT IC702 0IPMGSG016A LD1086D2T18TR 3.4TO30V 1.8V IC703 0IPMGA0010A AZ1117H-3.3 4.75TO10V 3.3V 0 L501 6210TCE0013 HB-1M1608-121JT 120OHM 1.6X0 L502 6210TCE0013 HB-1M1608-121JT 120OHM 1.6X0 Q502 0TRDI80002A MMBT3904-(F) NPN 6V 60V 40V Q601 0TR390609FA KST3906-MTF PNP -5V -40V -40 Q602 0TR390609FA KST3906-MTF PNP -5V -40V -40 Q701 0TFVI80067A SI3865BDV(E3) N-CHANNEL MOSF R1 0RJ7501D677 MCR03EZPJ752 7.5KOHM 5% 1/10 R2 0RJ7501D677 MCR03EZPJ752 7.5KOHM 5% 1/10 R3 0RJ1201D677 MCR03EZPJ122 1.2KOHM 5% 1/10 R4 0RJ1801D677 MCR03EZPJ182 1.8KOHM 5% 1/10 R5 0RJ1201D677 MCR03EZPJ122 1.2KOHM 5% 1/10 R503 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R511 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R514 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R519 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R524 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R525 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R526 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R527 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R528 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R529 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R530 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R538 0RJ5601D677 MCR03EZPJ562 5.6KOHM 5% 1/10 R540 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R541 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R542 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R544 0RJ0562D677 MCR03EZPJ560 56OHM 5% 1/10W R545 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R546 0RJ0562D677 MCR03EZPJ560 56OHM 5% 1/10W R547 0RJ0562D677 MCR03EZPJ560 56OHM 5% 1/10W R548 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R549 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R550 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R553 0RJ2400D677 MCR03EZPJ241 240OHM 5% 1/10W R554 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R566 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R567 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R568 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R569 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R577 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R578 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R583 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R584 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R588 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R589 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R590 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R591 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R592 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R593 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R594 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R595 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R596 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R597 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W R598 0RJ2001D677 MCR03EZPJ202 2KOHM 5% 1/10W R599 0RJ2702D677 MCR03EZPJ273 27KOHM 5% 1/10W R6 0RJ1801D677 MCR03EZPJ182 1.8KOHM 5% 1/10 R601 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R602 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R603 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W LOC. NO. PART NO. DESCRIPTION / SPECIFICATION - 23 - DIODEs ICs COILs & FILTERs & INDUCTORs TRANSISTORs & FETs RESISTORs R604 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R605 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R606 0RJ0682D677 MCR03EZPJ680 68OHM 5% 1/10W R607 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R608 0RJ0682D677 MCR03EZPJ680 68OHM 5% 1/10W R609 0RJ4700D677 MCR03EZPJ471 470OHM 5% 1/10W R610 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R611 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R612 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R613 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R614 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R615 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R616 0RJ4700D677 MCR03EZPJ471 470OHM 5% 1/10W R617 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R618 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R619 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R620 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R621 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R622 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R623 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R624 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R625 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R626 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R627 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R628 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R629 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R630 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R631 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R632 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R632 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10W R633 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R635 0RJ4700D677 MCR03EZPJ471 470OHM 5% 1/10W R636 0RJ0392D677 MCR03EZPJ390 39OHM 5% 1/10W R637 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R638 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10W R639 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R640 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R641 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R642 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/10 R651 0RJ0472D677 MCR03EZPJ470 47OHM 5% 1/10W R652 0RJ0472D677 MCR03EZPJ470 47OHM 5% 1/10W R702 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R703 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R704 0RX0471K668 RS02AO4R70J - 5% 2W 15.0X5.5 R705 0RX0471K668 RS02AO4R70J - 5% 2W 15.0X5.5 R706 0RJ2202D677 MCR03EZPJ223 22KOHM 5% 1/10W R708 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R709 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W 1 R710 0RJ5600D677 MCR03EZPJ561 560OHM 5% 1/10W R712 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R715 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10W R715 0RJ4702D677 MCR03EZPJ473 47KOHM 5% 1/10W RA555 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA556 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA557 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA558 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA559 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA560 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA561 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA562 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA563 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA564 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W RA565 0RJ0472C687 RCA86TRJ47R0 47OHM 5% 1/16W J1 6602T12005E 12505WR-06A00 6P 1.25MM 1R A J2 6602T12005C 12505WR-04A00 4P 1.25MM 1R A J3 6602T12005C 12505WR-04A00 4P 1.25MM 1R A P601 6630TGA005B QH11121-DN0-D DVI 24P 1.90MM P602 6630TGA004F KCN-DS-3-0062 D-SUB 15P 2.29 P604 6602T12004E 12505WS-06A00 6P 1.25MM 1R S P605 6602T20008K SMW200-11P 11P 2.00MM 1R STR P606 6630V90219A SMW200-28C 28P 2.0MM 2R STRA C1 6631900109D (FOOSUNG)DCE153B-23024 (YEON C2 6631T12006L 6P(1.25) 12505HS-0600 12505H C3 6631T20034P 11P(M203WTB) SMH200-11P SMH2 C4 6631V12031G 12505HS-0400 12505HS-0400 25 B1 3890TKD002P LB500J(PCB) BRAND 542*397*44 B2 3890TKD002P LB500J(PCB) BRAND 542*397*44 B3 MAY36542301 BOX SW-A 522 173 371 2 COLOR D1 0DLBE0048AA BL-HKBB533B-TRB SUPER YELLOW P1 3918TKK038Z (1140*1054) CARTON PLATE FOR P2 MFZ35945001 "MOLD EPS L206W EPS 20"" Monit" P3 3918TKK038J 538*390 LB500J PCB P4 3918TKK040A 542*70 MAIN PCB(B) P5 3918TKK040B 397*70 LB500J MAIN PCB(S) P6 400-C17F (1000X1050)CS771 DIGITAL P7 3918TKK038J 538*390 LB500J PCB P8 3918TKK040A 542*70 MAIN PCB(B) P9 3918TKK040B 397*70 LB500J MAIN PCB(S) SW1 6600R00004C JTP1127WEM 1C1P 15VDC 0.05A SW2 6600R00004C JTP1127WEM 1C1P 15VDC 0.05A SW3 6600R00004C JTP1127WEM 1C1P 15VDC 0.05A SW4 6600R00004C JTP1127WEM 1C1P 15VDC 0.05A SW5 6600R00004C JTP1127WEM 1C1P 15VDC 0.05A SW6 6600R00004C JTP1127WEM 1C1P 15VDC 0.05A X501 6212AA2004F HC-49/U 14.31818MHZ 30PPM(TX A1 SAB30647601 "L196WT, L206WT SERIES EUROPE" A2 6410TEW010A "CEE,LP-34A&H05VV-FX3C,LS-60_" A2 6410TBW004A LP-61L+GFC18N+
