LG L2010P液晶显示器维修手册和图纸

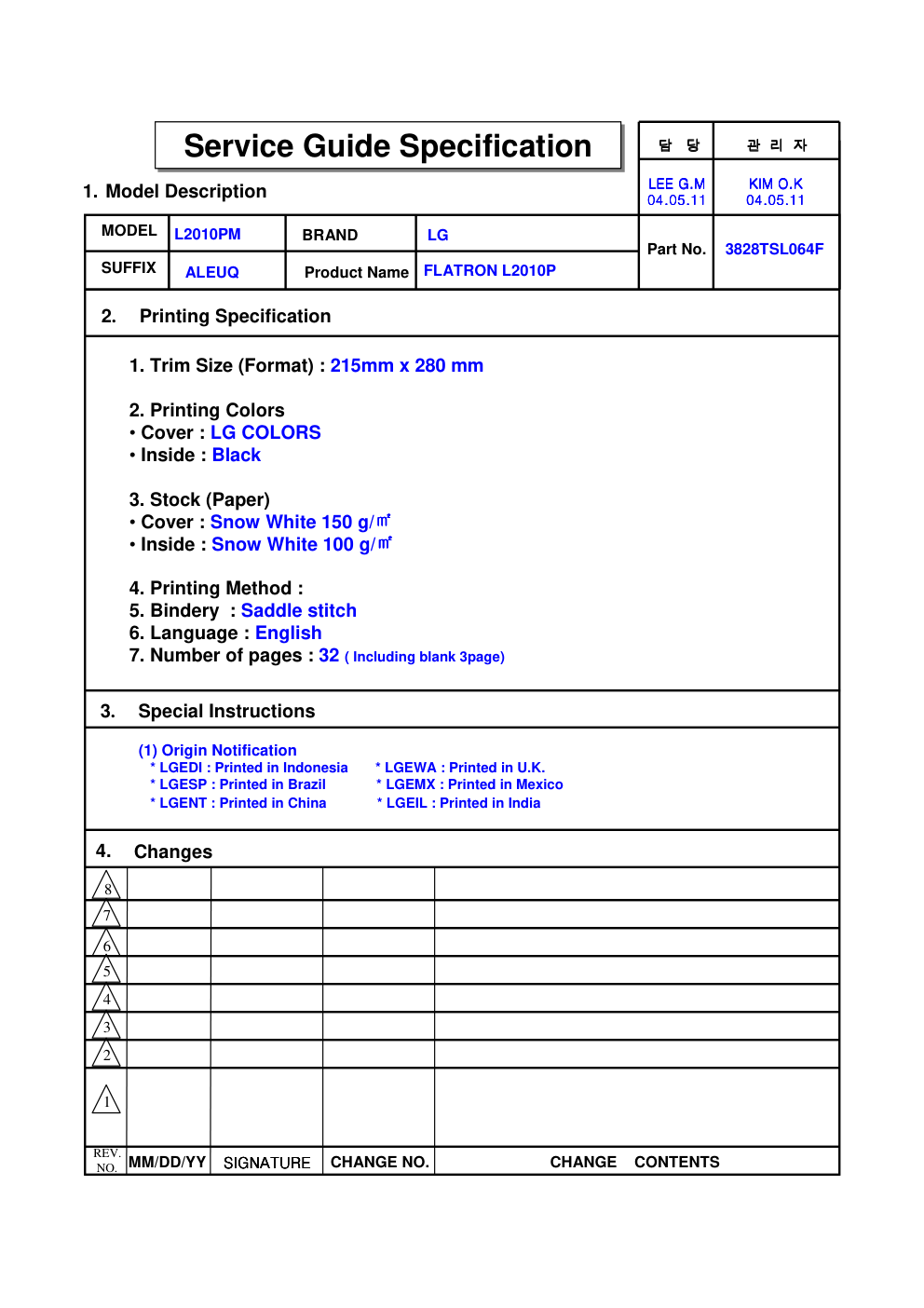

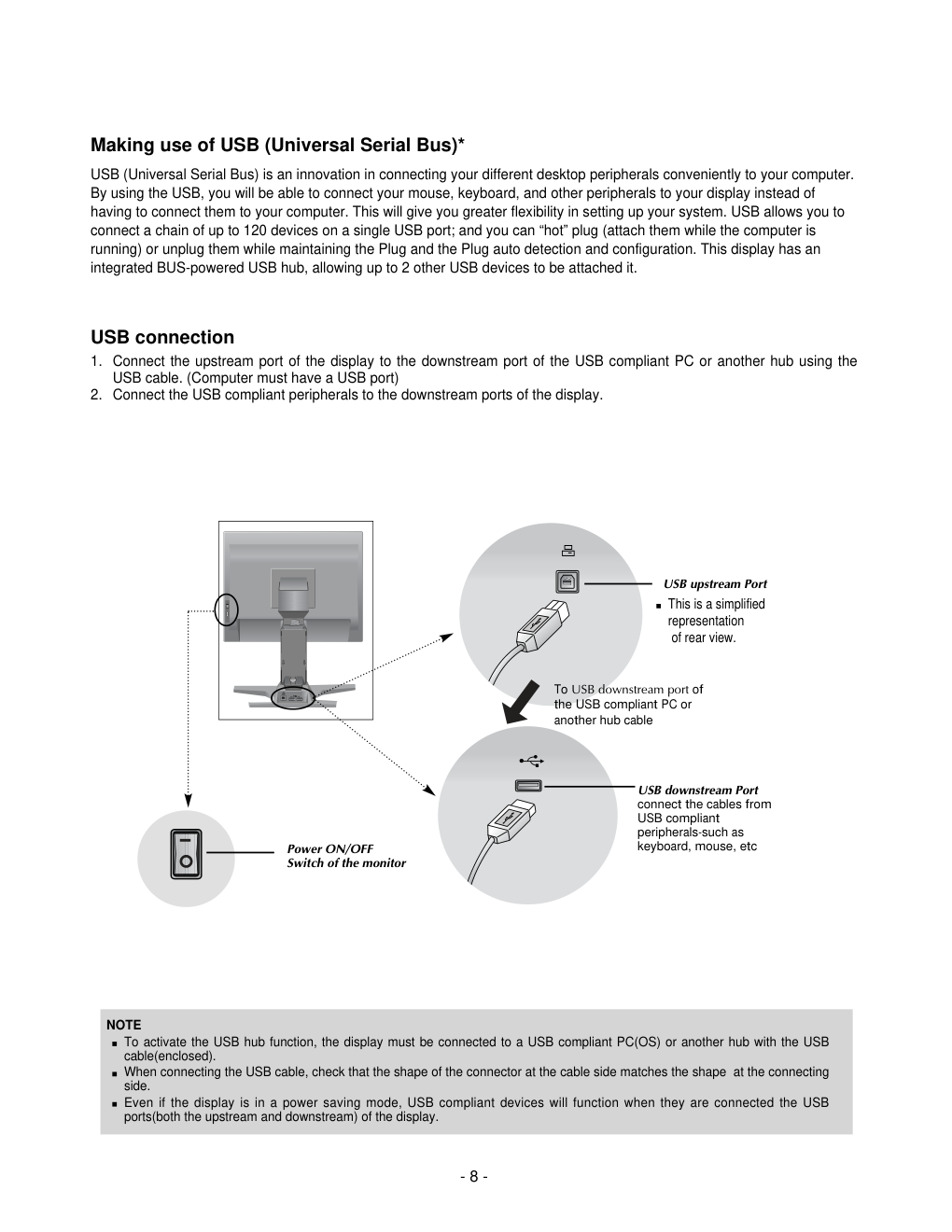

� � � � � � � � � � � � � � � � � � � � Model Description MODEL BRAND Printing Specification 1. Trim Size (Format) : 215mm x 280 mm 2. Printing Colors • Cover : LG COLORS • Inside : Black 3. Stock (Paper) • Cover : Snow White 150 g/� � � � • Inside : Snow White 100 g/� � � � 4. Printing Method : 5. Bindery : Saddle stitch 6. Language : English 7. Number of pages : 32 ( Including blank 3page) Part No. 1. 2. Service Guide Specification Service Guide Specification Changes 4. REV. NO. MM/DD/YY ��������� ��������� ��������� ��������� CHANGE NO. CHANGE CONTENTS 1 2 3 4 5 7 6 SUFFIX ������� ������� ������� ������� �������� �������� �������� �������� L2010PM LG 3828TSL064F ������� ������� ������� ������� �������� �������� �������� �������� (1) Origin Notification * LGEDI : Printed in Indonesia * LGEWA : Printed in U.K. * LGESP : Printed in Brazil * LGEMX : Printed in Mexico * LGENT : Printed in China * LGEIL : Printed in India 8 Special Instructions 3. Product Name FLATRON L2010P ALEUQ Pagination sheet Pagination sheet ����� ����� ����� ���������������� ������������� ������������� ������������� ������������� ������� Cover English 2 English 3 English 4 English 5 English …. English ….. English 28 Blank Rear Cover Blank Rear Cover Inside Blank English 26 English 27 MENU SOURCE AUTO LIGHT VIEW SELECT COLOR MONITOR SERVICE MANUAL Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : CL-63 MODEL: L2010P(L2010PM-AL**Q) ( ) **Same model for Service 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Size : 20.1inch Pixel Pitch : 0.255(H) x 0.255(V) Color Depth : 8-bit, 16,777,216 colors Electrical Interface : LVDS Surface Treatment : Anti-Glare, Hard Coating(3H) Operating Mode : Normally Black Backlight Unit : Six-CCFL (Cold Cathode Fluorescent Lamp) 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : -85° min., -88°(Typ) Right : +85° min., +88°(Typ) Top : +85° min., +88°(Typ) Bottom : -85° min., -88°(Typ) 2-2. Luminance : 200(min), 250(Typ) -6500K : more than 110cd/m2 -9300K 2-3. Contrast Ratio : 400(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal • Type : Separate, Positive/Negative Composite, SOG (Sync On Green) Digital 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.71 V a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.467 Vp-p c) Color 15, 0 : 0.714 Vp-p 3) Input Impedance : 75 Ω 3-3. Operating Frequency Horizontal : 28 ~ 92kHz (Analog) : 28 ~ 80kHz (Digital) Vertical : 56 ~ 85Hz 4. MAX. RESOLUTION Analog : 1600 x 1200 60Hz Digital : 1600 x 1200 60Hz 1280 x 1024 70Hz 5. POWER SUPPLY 5-1. Power Adaptor(Built-in Power) Input : AC 100-240V~, 50/60Hz , 1.2A 5-2. Power Consumption 6. ENVIRONMENT 6-1. Operating Temperature: 10°C~35°C (50°F~95°F) 6-2. Relative Humidity : 10%~80% (Non-condensing) 6-3. MTBF : 40,000 Hour(Min) 7. DIMENSIONS (with TILT/SWIVEL) Width : 446.0 mm (17.56'') Depth : 237.3 mm (9.34'') Height : 445.6 mm (17.54'') 8. WEIGHT (with TILT/SWIVEL) Net. Weight : 9.5kg (20.95 lbs) Gross Weight : 12.0kg (26.46 lbs) 9. USB Upstream : 1 port, Downstream : 2 port Speed : Full-12Mbps, Low-1.5Mbps CONTENTS SPECIFICATIONS - 2 - SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 4 TIMING CHART ....................................................... 5 OPERATING INSTRUCTIONS ................................ 6 WIRING DIAGRAM ................................................. 9 BLOCK DIAGRAM ................................................. 10 DESCRIPTION OF BLOCK DIAGRAM...................11 ADJUSTMENT ...................................................... 13 TROUBLESHOOTING GUIDE .............................. 14 EXPLODED VIEW...................................................21 REPLACEMENT PARTS LIST ...............................23 SCHEMATIC DIAGRAM......................................... 35 MODE POWER ON (NORMAL) STAND-BY SUSPEND MODE DPM OFF POWER KEY OFF CUTOFF SWITCH OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF - - POWER CONSUMPTION less than 60 W less than 3 W less than 3 W less than 3 W less than 3 W less than 1 W LED COLOR GREEN AMBER AMBER AMBER OFF OFF VIDEO ACTIVE OFF OFF OFF - - - 3 - Signal Connector Pin Assignment Pin Signal (DVI-I) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 T. M. D. S. Data2- T. M. D. S. Data2+ T. M. D. S. Data2/4 Shield T. M. D. S. Data4- T. M. D. S. Data4+ DDC Clock DDC Data Analog Vertical Sync. T. M. D. S. Data1- T. M. D. S. Data1+ T. M. D. S. Data1/3 Shield T. M. D. S. Data3- T. M. D. S. Data3+ +5V Power Ground (return for +5V, H. Sync. and V. Sync.) Pin Signal (DVI-I) 1 8 9 17 24 16 C1 C4 C3 C2 C5 16 17 18 19 20 21 22 23 24 C1 C2 C3 C4 C5 Hot Plug Detect T. M. D. S. Data0- T. M. D. S. Data0+ T. M. D. S. Data0/5 Shield T. M. D. S. Data5- T. M. D. S. Data5+ T. M. D. S. Clock Shield T. M. D. S. Clock+ T. M. D. S. Clock- Analog Red Analog Green Analog Blue Analog H. Sync. Analog Ground T. M. D. S. (Transition Minimized Differential Signaling) • DVI-I Connector (Digital/Analog) - 4 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. TIMING CHART - 5 - VIDEO SYNC B D C F E A << Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >> H + 31.47 800 640 16 96 48 V – 70.09 449 350 38 2 60 Mode H/V Sort 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 25.175 25.175 31.5 36.0 28.324 40.0 49.5 56.25 57.283 65.0 78.75 94.5 100.0 92.978 108.0 135.0 112.27 162 (Analog only) 130.89 (Digital only) 640x350 70Hz H – 31.47 800 640 16 96 48 V – 59.94 525 480 10 2 33 640x480 60Hz H – 37.5 840 640 16 64 120 V – 75 500 480 1 3 16 640x480 75Hz H – 43.27 832 640 56 56 80 V – 85.01 509 480 1 3 25 640x480 85Hz H – 31.47 900 720 18 108 54 V + 70.08 449 400 13 2 34 720x400 70Hz H + 37.88 1056 800 40 128 88 V + 60.32 628 600 1 4 23 800x600 60Hz H + 46.88 1056 800 16 80 160 V + 75.0 625 600 1 3 21 800x600 75Hz H + 53.67 1048 800 32 64 152 V + 85.06 631 600 1 3 27 800x600 85Hz H – 49.72 1152 832 32 64 224 V – 74.55 667 624 1 3 39 832x624 75Hz H – 48.36 1344 1024 24 136 160 V – 60.0 806 768 3 6 29 1024x768 60Hz H + 60.02 1312 1024 16 96 176 V + 75.03 800 768 1 3 28 1024x768 75Hz H + 68.68 1376 1024 48 96 208 V + 85.0 808 768 1 3 36 1024x768 85Hz H – 68.68 1456 1152 32 128 144 V – 75.06 915 870 3 3 39 1152x870 75Hz H +/– 61.80 1504 1152 18 134 200 V +/– 65.96 937 900 2 4 31 1152x900 65Hz H + 63.98 1688 1280 48 112 248 V + 60.02 1066 1024 1 3 38 1280x1024 60Hz H + 79.98 1688 1280 16 144 248 V + 75.02 1066 1024 1 3 38 1280x1024 75Hz H + 62.11 1808 1600 90 30 88 V + 60.00 1040 1024 10 3 3 1600x1024 60Hz H + 75.0 2160 1600 64 192 304 V + 60.00 1250 1200 1 3 46 1600x1200 60Hz H + 73.53 1780 1600 20 80 80 V + 60 1225 1200 1 3 21 1600x1200 60Hz Sync Polarity Frequency Dot Clock Total Period (E) Video Active Time (A) Sync Duration (D) Back Porch (F) Front Porch (C) Resolution - 6 - FRONT VIEW Front Control Panel REAR VIEW OPERATING INSTRUCTIONS MENU SOURCE AUTO LIGHT VIEW SELECT Front Control Panel Power Connect Power Switch 2 1 3 4 8 7 6 5 1. Power ON/OFF Button Use this button to turn the monitor on or off. 2. Power Indicator This indicator lights up green when the monitor operates normally. If the display is in DPM(Energy Saving)mode, this indicator color change to amber. 3. MENU Button Use these button to enter or exit the On Screen Display. 4. Buttons Use these button to choose or adjust items in the On Screen Display. Bring up contrast and brightness adjustment. Stand lock DVI Connect D-Sub Signal Connect 100 100 USB Up Stream Port USB Down Stream Port - 7 - 5. SELECT Button Use this buttons to enter a selection in the On Screen Display. 6. LIGHT VIEW Button This function optimizes the brightness, contrast of color value to the surrounding conditions and settings and enables you to enjoy the most suitable picture by adjusting the surroundings(DAY/LIGHT/USER MODE). • TEXT: For viewing letters • MOVIE: For viewing movies • PHOTO: For viewing pictures or the photographs • USER MODE: This function memorizes the manual adjustment-Brightness, Contrast color value on the On Screen Display 7. AUTO Adjustment Button When adjusting your display settings, always press the AUTO button before entering On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size(display mode). The best display mode is 1600 x 1200@60Hz. 8. SOURCE Selections:SOURCE SELECT Use this button to make DVI digital, DVI analog or D-sub analog connector active. This feature is used when two computers are connected to the display. The default setting is D-sub. • DVI DIGITAL • DVI ANALOG • D-SUB ANALOG .CONTROLS LOCKED /UNLOCKED: MENU & Button Direct Access Function INPUT SELECT DVI DIGITAL DVI ANALOG DSUB ANALOG AUTO IN PROGRESS LIGHT VIEW DAY TXT NIGHT TEXT USER MODE PHOTO PHOTO MOVIE MOVIE This function allows you to secure the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button and button for 3 seconds: the message “CONTROLS LOCKED” appears. You can unlock the OSD controls at any time by pushing the MENU button and button for 3 seconds: the message “CONTROLS UNLOCKED” will appear. CONTROLS LOCKED CONTROLS UNLOCKED - 8 - Making use of USB (Universal Serial Bus)* USB (Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your computer. By using the USB, you will be able to connect your mouse, keyboard, and other peripherals to your display instead of having to connect them to your computer. This will give you greater flexibility in setting up your system. USB allows you to connect a chain of up to 120 devices on a single USB port; and you can “hot” plug (attach them while the computer is running) or unplug them while maintaining the Plug and the Plug auto detection and configuration. This display has an integrated BUS-powered USB hub, allowing up to 2 other USB devices to be attached it. USB connection 1. Connect the upstream port of the display to the downstream port of the USB compliant PC or another hub using the USB cable. (Computer must have a USB port) 2. Connect the USB compliant peripherals to the downstream ports of the display. NOTE To activate the USB hub function, the display must be connected to a USB compliant PC(OS) or another hub with the USB cable(enclosed). When connecting the USB cable, check that the shape of the connector at the cable side matches the shape at the connecting side. Even if the display is in a power saving mode, USB compliant devices will function when they are connected the USB ports(both the upstream and downstream) of the display. PUSH USB downstream Port connect the cables from USB compliant peripherals-such as keyboard, mouse, etc This is a simplified representation of rear view. To USB downstream port of the USB compliant PC or another hub cable USB upstream Port Power ON/OFF Switch of the monitor - 9 - WIRING DIAGRAM J303 J302 CN101 CN103 CN104 CN102 Connector Ass’y P/N: 6631T20013P Connector Ass’y P/N: 6631T25008Q - 10 - gm1601 ADC Scaling PLL OSD LVDS Analog I(R/G/B) D-Sub LIPS Filter 5V 12V-F ujitsu 18V-LPL 5V - AU O 5V Regulator Regulator 3.3V 1.8V Vcc 12 V-Fujitsu 18 V-LPL 5V -AUO 3.3V 2.5V LVDS Tx DVI Rx LAMP Connector Inverter Output (6Lamp) EEPR OM (ED ID) EEPROM (System) DVI-I DVI(TMDS) EEPR OM (ED ID) KEY Analog II(R/G/B) Analog switch Analog 1.8V ROM MICOM Real colour Regulator 2.5V Flash ROM DDR RAM 2.5V 3.3V 5.0V Panel BLOCK DIAGRAM - 11 - DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part & Display Data Transmitter Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 170MHz. This part consists of the Scaler, Flash-ROM IC which stores program data, Reset IC. The Scaler gets the video signal converted analog to digital, interpolates input to 1600 * 1200 resolution signal and outputs 8-bit R, G, B signal to transmitter. Especially pre-amp / ADC / Video controller/ Transmitter are merged to one chip "Gm1601" by Genesis. This part transmit digital signal from the Scaler to the receiver of module. 2. Power Part This part consists of the two 3.3V and one 2.5V and one 1.8Vregulators to convert power which is provided 12V in LIPS Board V is provided for LCD Panel. Also, 5V is converted 3.3V and 2.5V and 1.8V by regulator. Converted power is provided for IC in the main board. - 12 - EMI COMPONENTS LINE 100 ~ 240V INPUT RECTIFIER AND FILTER ENERGY TRANSFER OUTPUT RECTIFIER AND FILTER 12V 5V GND SIGNAL COLLECT- ON PHOTO INVERTER CIRCUIT High Voltage output 12V -COUPLER ISOLATION PWM CONTROL CIRCUIT HVDC 100KHz PRIMARY SECONDARY 50 ~ 60Hz Operation description_Power 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC,VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is for transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch,to adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilized, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the dc output changing status through a photo transistor to primary controller to achieve the stabilized dc output voltage. 6. Signal collection. This part function is to collect the any change from the dc output and feed back to the primary through photo transistor 7. Inverter The inverter converts from DC12V to AC 700V and operate back-light lamp of module. - 13 - ADJUSTMENT 220 IBM Compatible PC Video Signal Generator PARALLEL PORT Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E E V-Sync On/Off Switch (Switch must be ON.) F F A A B B C C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Figure 1. Cable Connection Windows EDID V1.0 User Manual Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Doesn’t need setup Windows 2000, XP => Need to Port Setup. This program is available for LCD Monitor only. 1. Port Setup a) Copy “UserPort.sys” file to “c:\WINNT\system32\drivers” folder b) Run Userport.exe c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. 2. EDID Read & Write 1) Run WinEDID.exe 2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button - 14 - TROUBLESHOOTING GUIDE 1. NO POWER NO POWER (POWER INDICATOR OFF) CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK J302 VOLTAGE PIN5, PIN6 (5V)? NO CHECK 5VS LINE (OPEN CHECK) CHECK U207 PIN3 (3.3V) U205 PIN4 (2.5V) U202 PIN4 (1.8V) Voltage ? NO CHECK IIC LINE CONNECTION (U403(24LC16), U303(24LC02)) CHECK U101 VCC, XTAL, RESET IS U101 PIN K17(1.8V)/ D17(3.3V)/H23(2.5V) VOLTAGE ? NO YES YES NO PROBLEM YES CHECK REGULATOR IC LINE - 15 - 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS CHECK MICOM INV ON/OFF PORT. J302 PIN9 5V? NO NO RASTER (OSD IS NOT DISPLAYED) CHECK LIPS J302 PIN5, PIN 6 5V? NO 1. CONFIRM BRIGHTNESS OSD CONTRL STATE. 2. CHECK MICOM DIM-ADJ PORT J302 PIN10 5V? NO LIPS CHECK PULSE AS CONTACTING SCOPE PROBE TO CAUTION LABEL. (CONTACT PROBE TO CAUTION LABEL. CAN YOU SEE PULSE AT YOUR SCOPE? NO REPLACE CCFL LAMP IN THE LCD MODULE YES YES YES YES - 16 - 3. NO RASTER (OSD IS NOT DISPLAYED) 1. CHECK PIN122, 123 SOLDERING CONDITION 2. CHECK X101 3. TROUBLE IN U201 U207 PIN3 3.3V CHECK? NO CHECK LIPS U101 PIN G3, G4 OSCILLATE AS 14.318MHZ? CHECK CONNECTION LINE FROM D-SUB TO U501 TROUBLE IN CABLE OR LCD MODULE YES YES YES NO RASTER (OSD IS NOT DISPLAYED) U301 PIN24 IS H-SYNC(1) PIN12 IS V-SYNC(1) PIN23 IS H-SYNC(0) PIN13 IS V-SYNC(0) NO NO - 17 - 4. TROUBLE IN DPM TROUBLE IN DPM TROUBLE IN PC CHECK PC PC IS GOING INTO DPM OFF MODE NO TROUBLE IN SIGNAL CABLE NO YES YES CHECK R340(H0), R339(V0) R330(H1), R328(V1) (SYNC) ? CHECK U501 PIN 24 (0V) ? - 18 - 5 1 25 26 6 2 9 12 11 10 13 8 7 b a a 3 15 4 14 16 18 17 20 19 21 24 23 22 c EXPLODED VIEW - 19 - EXPLODED VIEW PARTS LIST 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 a b c 3091TKL049W CABINET ASSEMBLY, L2010PM BRAND 051 IPS TCO03 USB 3091TKL113B CABINET ASSEMBLY, L2010PM BRAND 051 IPS TCO03 USB RED LG(ALPAQ) 3091TKL113A CABINET ASSEMBLY, L2010PM BRAND 051 IPS TCO03 USB US(ALUSQ) 6304FLP130A LCD(LIQUID CRYSTAL DISPLAY) , "LM201U04-A3K5 LG PHILPS TFT COLOR UXGA,250NITS,8BITS,LVDS,4MASK" 3809TKL031J BACK COVER ASSEMBLY, L2010BM 037A . 3809TKL031M BACK COVER ASSEMBLY, L2010PM 037 US(ALUSQ) 3043TKK105D TILT SWIVEL ASSEMBLY, L2010PM 222F USB 6871TST582A "PWB(PCB) ASSEMBLY,SUB", L2010P(B)M CONTROL TOTAL BRAND CL-63 6631T11016J CONNECTOR ASSEMBLY, 30P H-H 100MM UL20276 AWG30 LB200A LPL 4951TKK100G METAL ASSEMBLY, FRAME L2010 6871TPT270B "PWB(PCB) ASSEMBLY,POWER", "L2010 POWER TOTAL LIEN CHANG 20.1"" LIPS FOR LPL" 3313TL2020A MAIN TOTAL ASSEMBLY, L2010P(B)M_LPL BRAND CL-63 4951TKK098G METAL ASSEMBLY, REAR L2010B 6871TUT015A "PWB(PCB) ASSEMBLY,USB", LB886F SUB TOTAL BRAND CL-29 6631T25005F CONNECTOR ASSEMBLY, SWITCH(GY)+CONN ASSYP H-W 260MM UL 1617 AWG 22 LB200A 3550TKK220D COVER, LB200A TOP FRONT POLYACETAL 87074 3550TKK218E COVER, LB200A STAND FRONT ABS HF350U 87074 3550TKK222F COVER, L1910PL BASE TOP HF350U 87074(USB) 3550TKK223E COVER, LB200A CABLE COVER ABS HF350U 87074 3550TKK219E COVER, LB200A STAND REAR ABS HF350U 87074 3550TKK221D COVER, LB200A TOP REAR POLYACETAL 87074 3550TKK217E COVER, LB200A HINGE REAR ABS HF350U 87074 3550TKK216E COVER, LB200A HINGE TOP ABS HF350U 87074 4950TKK346A METAL, "PLATE STOPPER,LB886F" 3550TKK224C COVER, "LW900Z PIECE LOCK PC IDEMITSU IR1900, CRYSTAL" 4970TKK009A "SPRING,COIL", COIL - FOR STAND T=4.5 LB200A 6866TDU002D "CABLE,D-SUB", UL20276SB10P+2C AWG#30 DT 1870MM GRAY(85964) BRAND DM 6866TDV004C "CABLE,DVI", UL20276 DT 2000MM GRAY(85964) LB885C DM 6850TD9001J "CABLE,D-SUB", UL 2990-9C(7.5) DT 1870MM PEARL WH T541K DM 1SZZTER001G "SCREW,DRAWING", D3.0 L6.0 MSWR/BK . 332-113S "SCREW,DRAWING", D3.0 L12.0 MSWR/BK . 332-105G "SCREW,DRAWING", PVS+4*10(MSWR/BK) Description Part No. Ref. No. - 20 - DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C101 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C103 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C104 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C105 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C106 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C107 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C109 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C110 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C111 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C112 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C113 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C114 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C115 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C116 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C117 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C118 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C119 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C120 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C121 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C122 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C123 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C124 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C125 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C126 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C127 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C128 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C129 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C130 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C131 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C135 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C136 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C137 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C138 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C140 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C141 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C147 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C148 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C149 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C150 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C151 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C152 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C155 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C165 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C169 0CH6102K406 1000PF 50V J SL 2012 R/TP C170 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C201 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP F(" C203 0CZZTAT005D RJ4-16V471MX ELNA 16V 470UF 2 C204 0CZZTAT005D RJ4-16V471MX ELNA 16V 470UF 2 C205 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C206 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C207 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C209 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C210 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C211 0CE477EH618 470UF KMG 25V M FL TP 5 C212 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C213 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C214 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C215 0CH6102K406 1000PF 50V J SL 2012 R/TP C217 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C219 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C220 0CE477EH618 470UF KMG 25V M FL TP 5 C221 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C222 0CZZTAT005D RJ4-16V471MX ELNA 16V 470UF 2 C224 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C225 0CZZTAT005G RJ4-16V221MF3#-T36 ELNA 16V 2 C227 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C229 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C230 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C233 0CZZTAT005C RJ4-25V101MX ELNA 25V 100UF 2 C301 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C302 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F(" C303 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C304 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C305 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C306 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C307 0CC471CK41A 470PF 1608 50V 5% R/TP NP0 C308 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C309 0CZZTAT008D RVS-6V470MU-R ELNA 6.3V 47UF C310 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C311 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C312 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/TP" C313 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C314 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C315 0CZZTAT008D RVS-6V470MU-R ELNA 6.3V 47UF C316 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C317 0CZZTAT008D RVS-6V470MU-R ELNA 6.3V 47UF C318 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C319 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C320 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 R C321 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C322 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C323 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C324 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C325 0CZZTAT008D RVS-6V470MU-R ELNA 6.3V 47UF C326 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C327 0CZZTAT008D RVS-6V470MU-R ELNA 6.3V 47UF C328 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C330 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 R C333 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 R C334 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 R C335 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 R C337 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C341 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C342 0CZZTAT008D RVS-6V470MU-R ELNA 6.3V 47UF REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C343 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C344 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C345 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP F(" C346 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP F(" C347 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP F(" C349 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C350 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 R C352 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 R C354 0CC080CK11A 8PF 1608 50V 0.5 PF R/TP NP0 C357 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C358 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C360 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F(" C361 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C362 0CC080CK11A 8PF 1608 50V 0.5 PF R/TP NP0 C363 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP F(" C364 0CH5100K416 10PF 50V 5% NP0 2012 R/TP C365 0CH5100K416 10PF 50V 5% NP0 2012 R/TP C401 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C402 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C403 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C404 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C405 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C406 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C407 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C408 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C409 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C410 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C411 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C412 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C611 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R D301 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D302 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D303 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D304 0DD184009AA KDS184 TP KEC - 85V - - - 300 D316 0DD184009AA KDS184 TP KEC - 85V - - - 300 D317 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D318 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D319 0DS226009AA KDS226 TP KEC SOT-23 80V 300 ZD301 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD302 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD303 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD304 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD305 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD306 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD307 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD308 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD309 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD310 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD311 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD312 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD315 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD316 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD317 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD318 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD319 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD320 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD321 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD322 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD323 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION20 U101 0IPRPGN007A "GM1601,A&D&VIDEO GENESIS 416P" U102 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT. U201 0TFIR80009B IRF7316 INTERNATIONAL RECTIFI U202 0IPMGFA003D FAN1117AS-1.8 FAIRCHILD 4P SO U204 0TFFC80009A FAIRCHILD FDC6326L R/TP SOT-6 U205 0IPMGFA003E FAN1086-1.5A FAIRCHILD SOT252 U206 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATO U207 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATO U301 0IRH765700B "BA7657F 24P,SOP TP INPUT SIG." U303 0IMMRSG036A "M24C02-WMN6T SGS-THOMSON 8P,S" U304 0IMMRSG036A "M24C02-WMN6T SGS-THOMSON 8P,S" U305 0DRCE00028A CM1213-08MS CAMD R/TP MSOP 10 U306 0DRCE00028A CM1213-08MS CAMD R/TP MSOP 10 U307 0DRCE00028A CM1213-08MS CAMD R/TP MSOP 10 U401 0IZZTSZ432A MACRONIX/ATMEL 32PIN PLCC ST U402 0IMMRAL035A "AT49BV040A-70JI ATMEL 32P,PLC" U403 0IMMRSG036B M24C16-WMN6T SGS-THOMSON 8PIN L101 6210TCE001E HB-1M2012-800JT CERATEC 2012M L102 6210TCE001E HB-1M2012-800JT CERATEC 2012M L201 6210TCE001G HH-1M3216-501 CERATEC 3216MM L202 6210TCE001G HH-1M3216-501 CERATEC 3216MM L203 6210TCE001G HH-1M3216-501 CERATEC 3216MM L204 6210TCE001G HH-1M3216-501 CERATEC 3216MM L206 6210TCE001G HH-1M3216-501 CERATEC 3216MM L207 6210TCE001G HH-1M3216-501 CERATEC 3216MM L208 6210TCE001G HH-1M3216-501 CERATEC 3216MM L209 6210TCE001G HH-1M3216-501 CERATEC 3216MM L210 6210TCE001G HH-1M3216-501 CERATEC 3216MM L211 6210TCE001G HH-1M3216-501 CERATEC 3216MM L212 6210TCE001G HH-1M3216-501 CERATEC 3216MM L301 6210TCE001S HU-1M2012-121 CERATECH 2012MM L307 6210TCE001G HH-1M3216-501 CERATEC 3216MM L308 0RH0000D622 0 1/10W P-TYPE TAPPING L309 0RH0000D622 0 1/10W P-TYPE TAPPING Q201 0TR162309CA KSC1623 TP SAMSUNG SOT23 NPN Q301 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q302 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q303 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q304 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q305 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q306 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q307 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q308 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP R101 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R104 0RH3301D622 3.3K 1/10W 5 D.R/TP R105 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% D R106 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% D R108 0RH3301D622 3.3K 1/10W 5 D.R/TP R110 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R111 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R112 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R115 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP - 21 - DIODEs ICs COILs & COREs TRANSISTOR RESISTORs DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R116 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R117 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R119 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R120 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R121 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R122 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R123 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R126 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R127 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R128 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R131 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R132 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R134 0RH0000D622 0 1/10W P-TYPE TAPPING R135 0RH0000D622 0 1/10W P-TYPE TAPPING R136 0RH0000D622 0 1/10W P-TYPE TAPPING R137 0RH0000D622 0 1/10W P-TYPE TAPPING R138 0RH0000D622 0 1/10W P-TYPE TAPPING R139 0RH0000D622 0 1/10W P-TYPE TAPPING R140 0RH2700D622 270 1/10W 5 D.R/TP R142 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R143 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R147 0RH2701D622 2.7K 1/10W 5 D.R/TP R148 0RH0000D622 0 1/10W P-TYPE TAPPING R151 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R152 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R153 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R154 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R155 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R156 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R157 0RJ3302D677 33K OHM 1/10 W 5% 1608 R/TP R158 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R163 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R164 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R165 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R170 0RH0472D622 47 1/10W 5 D.R/TP R202 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% D R203 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R206 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R208 0RH0000D622 0 1/10W P-TYPE TAPPING R209 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R210 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R221 0RH0471D622 4.7 1/10W 5 D.R/TP R222 0RH0471D622 4.7 1/10W 5 D.R/TP R223 0RH0471D622 4.7 1/10W 5 D.R/TP R224 0RH0471D622 4.7 1/10W 5 D.R/TP R225 0RH0471D622 4.7 1/10W 5 D.R/TP R226 0RH0471D622 4.7 1/10W 5 D.R/TP R227 0RH0471D622 4.7 1/10W 5 D.R/TP R228 0RH0471D622 4.7 1/10W 5 D.R/TP R229 0RH0471D622 4.7 1/10W 5 D.R/TP R230 0RH0471D622 4.7 1/10W 5 D.R/TP R300 0RH0000D622 0 1/10W P-TYPE TAPPING R301 0RH0000D622 0 1/10W P-TYPE TAPPING R303 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R305 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R307 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R308 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R309 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R310 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R311 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R312 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R313 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R314 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R315 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R316 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R317 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R318 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R319 0RH6802D622 68K 1/10W 5 D.R/TP R320 0RH2001D622 2.0K 1/10W 5 D.R/TP R321 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R322 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R323 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R324 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R325 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R326 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R327 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R328 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R329 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R330 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R331 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R332 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R333 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R334 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R335 0RH4701D622 4.7K 1/10W 5 D.R/TP R336 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R337 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R338 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R339 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R340 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R341 0RH4701D622 4.7K 1/10W 5 D.R/TP R342 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R343 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R344 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R345 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R346 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R347 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R348 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R349 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R350 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R351 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R353 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R354 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R355 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R356 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R357 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R358 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R359 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R360 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R361 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R363 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R364 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R365 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R366 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R367 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R368 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R370 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R371 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R372 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R373 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R374 0RH1500D622 150 1/10W 5 D.R/TP R376 0RH1500D622 150 1/10W 5 D.R/TP R378 0RH1500D622 150 1/10W 5 D.R/TP R379 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R380 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP - 22 - DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R382 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R383 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R384 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R385 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R386 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R387 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R389 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R391 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R392 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R393 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R394 0RH0000D622 0 1/10W P-TYPE TAPPING R395 0RH0000D622 0 1/10W P-TYPE TAPPING R396 0RH0000D622 0 1/10W P-TYPE TAPPING R398 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R399 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R400 0RH0000D622 0 1/10W P-TYPE TAPPING R401 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R402 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R403 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R404 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R405 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R406 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R407 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R408 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R409 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R410 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R412 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R413 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R414 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R415 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R416 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% D R417 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R418 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R419 0RH0000D622 0 1/10W P-TYPE TAPPING R450 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R451 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP RA101 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA102 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA103 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA104 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA105 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA106 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA107 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA108 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA109 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA110 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 RA111 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/16 X101 6202TST001A "SX-1 SUNNY ,SMS, 14.31818MHZ" LED1 0DLRH0058AA ROHM SML-521MYWT86 R/TP GREEN R1 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R2 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R3 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R4 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP R5 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP R6 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP R7 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION SW1 140-058E SKHV10910B LGEC NON 12V 20A H SW10 140-058E SKHV10910B LGEC NON 12V 20A H SW2 140-058E SKHV10910B LGEC NON 12V 20A H SW3 140-058E SKHV10910B LGEC NON 12V 20A H SW4 140-058E SKHV10910B LGEC NON 12V 20A H SW5 140-058E SKHV10910B LGEC NON 12V 20A H SW7 140-058E SKHV10910B LGEC NON 12V 20A H SW8 140-058E SKHV10910B LGEC NON 12V 20A H SW9 140-058E SKHV10910B LGEC NON 12V 20A H ZD1 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD2 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD3 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD4 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD5 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 C1 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C18 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C23 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C24 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C25 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C27 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C28 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C31 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C32 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C37 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C38 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C39 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C6 0CH3105F946 1UF 16V Z F 2012 R/TP C8 0CC150CK41A 15PF 1608 50V 5% R/TP NP0 C9 0CC150CK41A 15PF 1608 50V 5% R/TP NP0 D1 0DS181009AA KDS181 TP KEC SOT-23 80V 30 L13 6210TCE001B HH-1H3216-500JT CERATEC 3216M L14 6210TCE001P HB-1S2012-121JT CERATECH 2012 L15 6210TCE001P HB-1S2012-121JT CERATECH 2012 L16 6210TCE001P HB-1S2012-121JT CERATECH 2012 L17 6210TCE001P HB-1S2012-121JT CERATECH 2012 L18 6210TCE001B HH-1H3216-500JT CERATEC 3216M L19 6210TCE001P HB-1S2012-121JT CERATECH 2012 L20 6210TCE001P HB-1S2012-121JT CERATECH 2012 L4 6210TCE001P HB-1S2012-121JT CERATECH 2012 L5 6210TCE001P HB-1S2012-121JT CERATECH 2012 R1 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R19 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R2 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R21 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R22 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R23 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R24 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R25 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R26 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R28 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R30 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R31 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R32 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R34 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R35 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R37 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R40 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R41 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP - 23 - OTHERs CONTROL BOARD USB BOARD DATE: 2004. 03. 23. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R8 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R9 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP U1 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATO U2 0IPRPTI007A TUSB2036 TEXAS INSTRUMENT 32P U3 0ITI204200B TPS2042ADR TEXAS INSTRUMENT 8 X1 6202TST001C "SX-1, SUNNY SMD, 6.0MHZ ,50PP" ZD1 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD11 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD12 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD4 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD7 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD8 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 - 24 - SCHEMATIC DIAGRAM - 25 - 1. SCALER - 26 - 2. MICOM - 27 - 3. POWER - 28 - 4. CONNECTOR/JACKS Blank Page1 Blank Page2 May. 2004 P/NO : 3828TSL064F Printed in Korea
