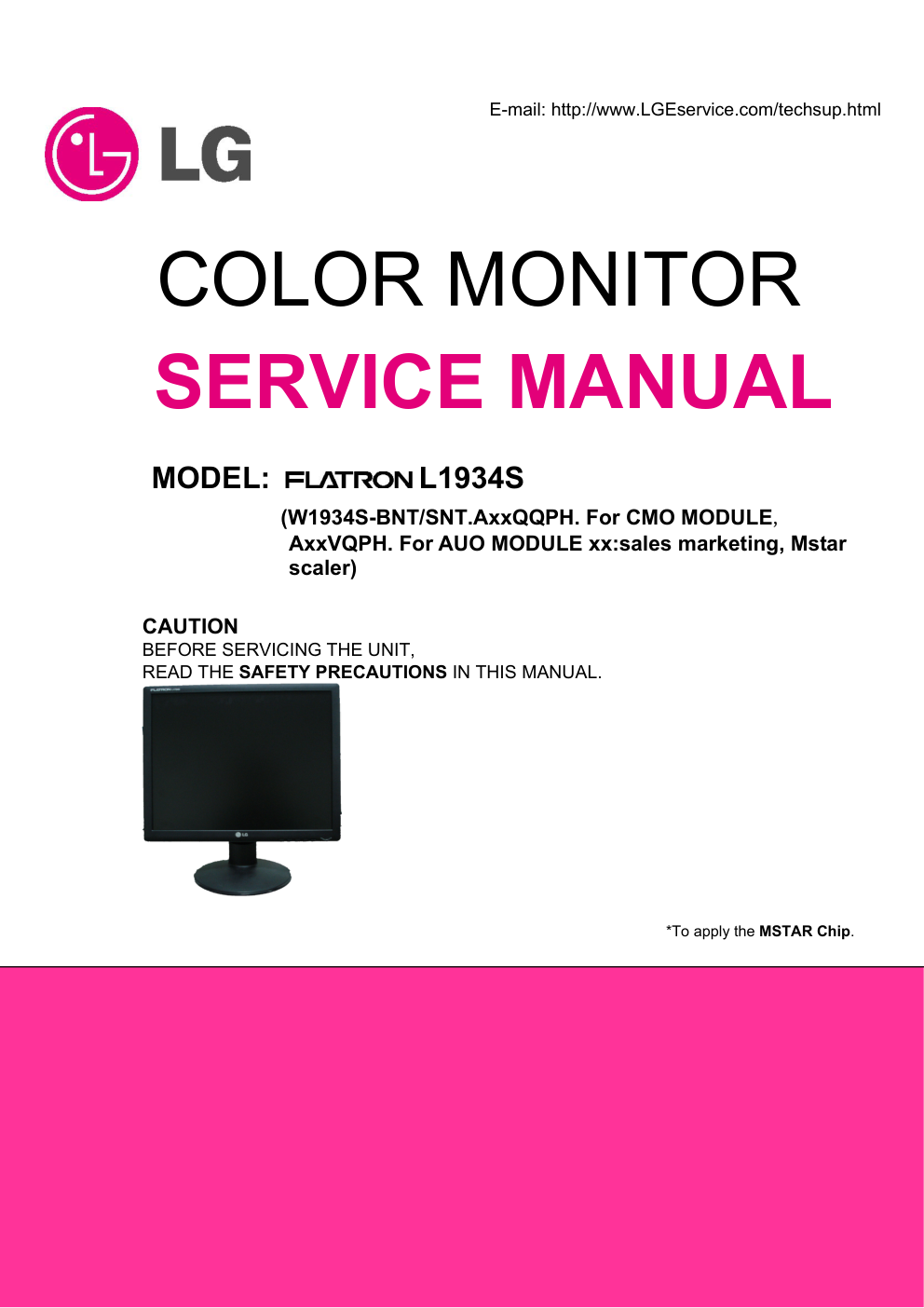

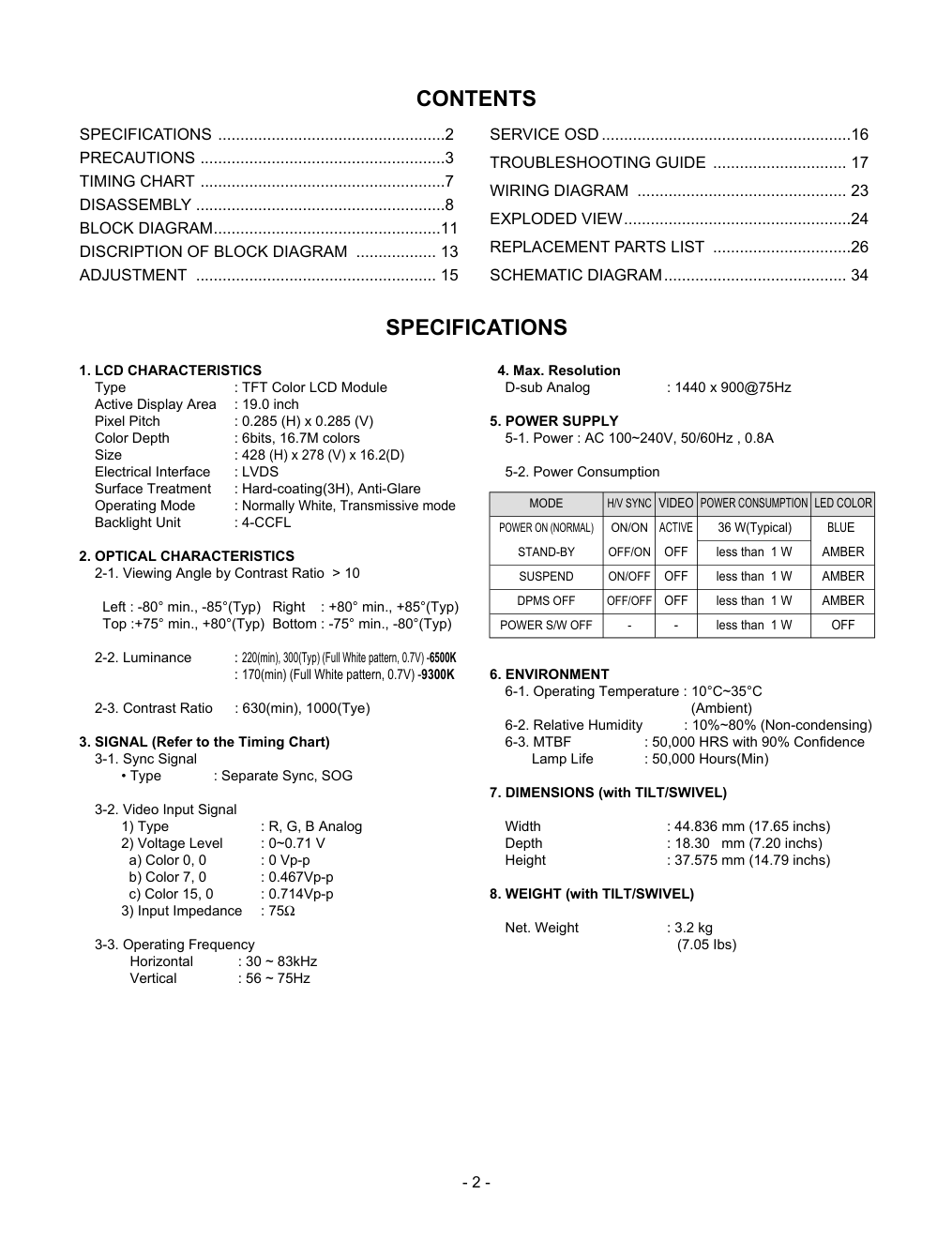

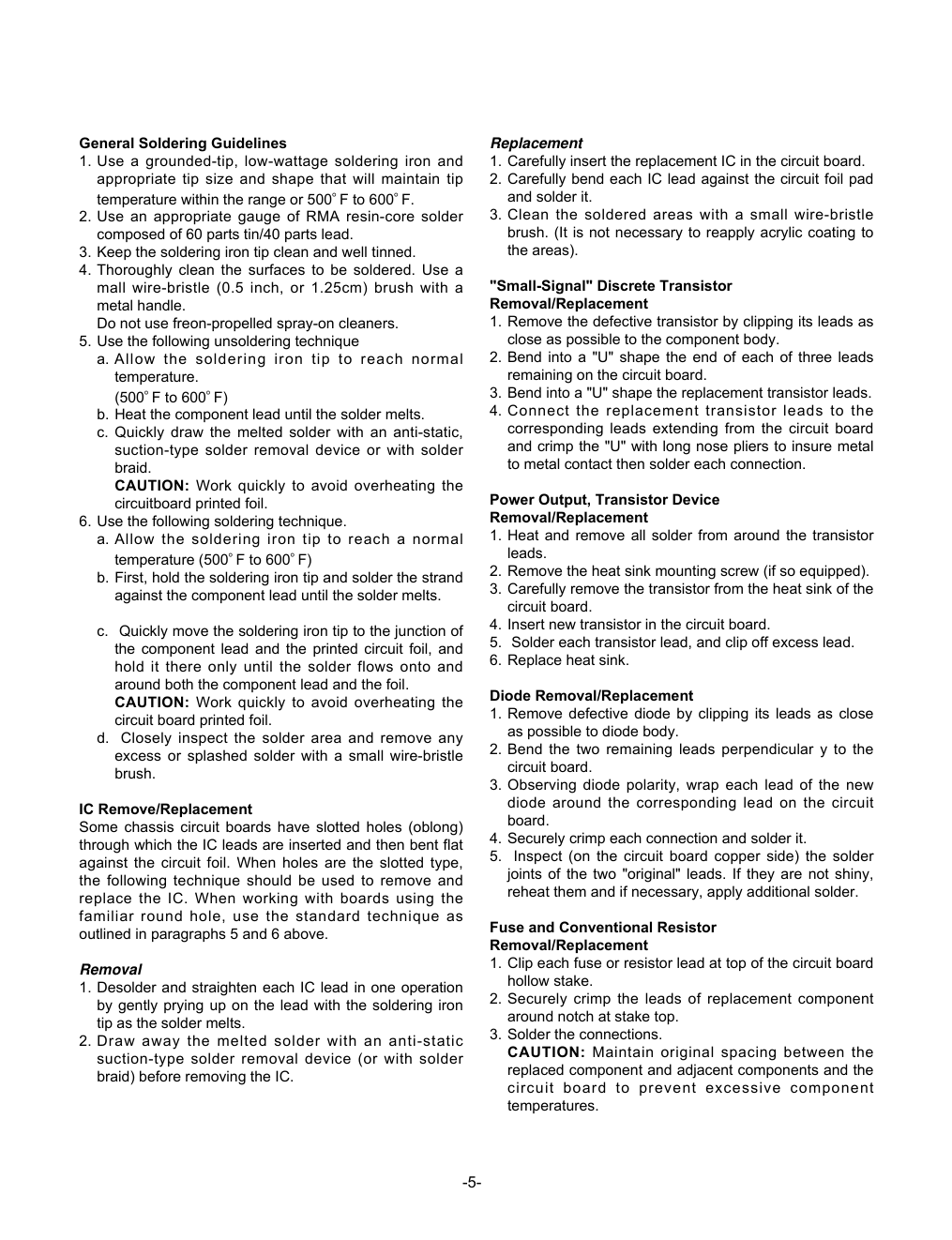

E-mail: http://www.LGEservice.com/techsup.html COLOR MONITOR SERVICE MANUAL MODEL: L1934S                     (W1934S-BNT/SNT.AxxQQPH. For CMO MODULE, AxxVQPH. For AUO MODULE xx:sales marketing, Mstar scaler) CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. *To apply the MSTAR Chip. - 2 - CONTENTS 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Active Display Area : 19.0 inch Pixel Pitch : 0.285 (H) x 0.285 (V) Color Depth : 6bits, 16.7M colors Size : 428 (H) x 278 (V) x 16.2(D) Electrical Interface : LVDS Surface Treatment : Hard-coating(3H), Anti-Glare Operating Mode : Normally White, Transmissive mode Backlight Unit : 4-CCFL 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio > 10 Left : -80° min., -85°(Typ) Right : +80° min., +85°(Typ) Top :+75° min., +80°(Typ) Bottom : -75° min., -80°(Typ) 2-2. Luminance : 220(min), 300(Typ) (Full White pattern, 0.7V) -6500K : 170(min) (Full White pattern, 0.7V) -9300K 2-3. Contrast Ratio : 630(min), 1000(Tye) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal • Type : Separate Sync, SOG 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.71 V a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.467Vp-p c) Color 15, 0 : 0.714Vp-p 3) Input Impedance : 75Ω 3-3. Operating Frequency Horizontal : 30 ~ 83kHz Vertical : 56 ~ 75Hz 4. Max. Resolution D-sub Analog : 1440 x 900@75Hz 5. POWER SUPPLY 5-1. Power : AC 100~240V, 50/60Hz , 0.8A 5-2. Power Consumption 6. ENVIRONMENT 6-1. Operating Temperature : 10°C~35°C (Ambient) 6-2. Relative Humidity : 10%~80% (Non-condensing) 6-3. MTBF : 50,000 HRS with 90% Confidence Lamp Life : 50,000 Hours(Min) 7. DIMENSIONS (with TILT/SWIVEL) Width : 44.836 mm (17.65 inchs) Depth : 18.30 mm (7.20 inchs) Height : 37.575 mm (14.79 inchs) 8. WEIGHT (with TILT/SWIVEL) Net. Weight : 3.2 kg (7.05 Ibs) SPECIFICATIONS SPECIFICATIONS ...................................................2 PRECAUTIONS .......................................................3 TIMING CHART .......................................................7 DISASSEMBLY ........................................................8 BLOCK DIAGRAM...................................................11 DISCRIPTION OF BLOCK DIAGRAM .................. 13 ADJUSTMENT ...................................................... 15 SERVICE OSD ........................................................16 TROUBLESHOOTING GUIDE .............................. 17 WIRING DIAGRAM ............................................... 23 EXPLODED VIEW...................................................24 REPLACEMENT PARTS LIST ...............................26 SCHEMATIC DIAGRAM......................................... 34 MODE POWER ON (NORMAL) STAND-BY SUSPEND DPMS OFF POWER S/W OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF - POWER CONSUMPTION 36 W(Typical) less than 1 W less than 1 W less than 1 W less than 1 W LED COLOR BLUE AMBER AMBER AMBER OFF VIDEO ACTIVE OFF OFF OFF - - 3 - PRECAUTION WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. Leakage Current Hot Check Circuit CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. 1.5 Kohm/10W To Instrument’s exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter - 4 - SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First. General Servicing Precautions 1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board module or any other receiver assembly. b. Disconnecting or reconnecting any receiver electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard. d. Discharging the picture tube anode. 2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc". 3. Discharge the picture tube anode only by (a) first connecting one end of an insulated clip lead to the degaussing or kine aquadag grounding system shield at the point where the picture tube socket ground lead is connected, and then (b) touch the other end of the insulated clip lead to the picture tube anode button, using an insulating handle to avoid personal contact with high voltage. 4. Do not spray chemicals on or near this receiver or any of its assemblies. 5. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton- tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required. 6. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped. 7. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. 8. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. 9. Use with this receiver only the test fixtures specified in this service manual. CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver. Electrostatically Sensitive (ES) Devices Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti- static" can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.) -5- General Soldering Guidelines 1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500。F to 600。F. 2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead. 3. Keep the soldering iron tip clean and well tinned. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-bristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners. 5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500。F to 600。F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuitboard printed foil. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature (500。F to 600。F) b. First, hold the soldering iron tip and solder the strand against the component lead until the solder melts. c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil. d. Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush. IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above. Removal 1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts. 2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC. Replacement 1. Carefully insert the replacement IC in the circuit board. 2. Carefully bend each IC lead against the circuit foil pad and solder it. 3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas). "Small-Signal" Discrete Transistor Removal/Replacement 1. Remove the defective transistor by clipping its leads as close as possible to the component body. 2. Bend into a "U" shape the end of each of three leads remaining on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection. Power Output, Transistor Device Removal/Replacement 1. Heat and remove all solder from around the transistor leads. 2. Remove the heat sink mounting screw (if so equipped). 3. Carefully remove the transistor from the heat sink of the circuit board. 4. Insert new transistor in the circuit board. 5. Solder each transistor lead, and clip off excess lead. 6. Replace heat sink. Diode Removal/Replacement 1. Remove defective diode by clipping its leads as close as possible to diode body. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. - 6 - Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered. At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections). 1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection. 4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board. 1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens. 2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern. 3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges. -7- TIMING CHART MODE H / V Sync Polarity Dot Clock Frequency Total Period ( E ) Video Active Time ( A ) Sync Duration ( C ) Front Porch ( D) Back Porch ( B ) Resolution H(Pixels) + 31.469 800 640 96 96 48 1 V(Lines) - 25.175 70.08 449 350 2 2 60 640 X 350 H(Pixels) - 31.469 900 720 108 108 52 2 V(Lines) + 28.321 70.08 449 400 2 2 35 720 X 400 H(Pixels) - 31.469 800 640 96 8 40 3 V(Lines) - 25.175 59.94 525 480 2 2 25 640 x 480 H(Pixels) - 37.5 840 640 64 16 120 4 V(Lines) - 31.5 75 500 480 3 1 16 640 x 480 H(Pixels) + 37.879 1056 800 128 40 88 5 V(Lines) + 40.0 60.317 628 600 4 1 23 800 x 600 H(Pixels) + 46.875 1056 800 80 16 160 6 V(Lines) + 49.5 75.0 625 600 3 1 21 800 x 600 H(Pixels) - 49.725 1152 832 61 64 224 7 V(Lines) - 57.2832 74.553 667 624 3 3 37 832 x 624 H(Pixels) - 48.363 1344 1024 136 24 160 8 V(Lines) - 65.0 60.0 806 768 6 3 29 1024 x 768 H(Pixels) - 60.023 1312 1024 96 16 176 9 V(Lines) - 78.5 75.029 800 768 3 1 28 1024 x 768 H(Pixels) +/- 68.681 1456 1152 32 128 144 10 V(Lines) +/- 100.0 75.062 915 870 3 3 39 1152 x 870 H(Pixels) +/- 61.805 1504 1152 30 128 194 11 V(Lines) +/- 92.954 65 937 900 2 4 31 1152 x 900 H(Pixels) + 63.981 1688 1280 112 48 248 12 V(Lines) + 108.0 60.02 1066 1024 3 1 38 1280x1024 H(Pixels) + 79.976 1688 1280 144 16 248 13 V(Lines) + 135.0 75.035 1066 1024 3 1 38 1280 x 1024 H(Pixels) + 55.469 1600 1400 32 48 80 14 V(Lines) - 88.750 59.901 926 900 6 3 17 1440 x 900 H(Pixels) - 55.935 1904 1400 152 80 232 15 V(Lines) + 106.500 59.887 934 900 6 3 25 1440 x 900 H(Pixels) - 70.635 1936 1400 152 96 248 16 V(Lines) + 136.750 74.984 942 900 6 3 33 1440 x 900 8 DISASSEMBLY-Set #1 Put the monitor on a soft flat. #2 Pull out the hinge cover as arrow direction. #3 Remove the four screws. #4 Put the front cover upward. Then let the all latches are separated. #5 Put the front face down, disassembly back cover. #6 Pull the key board out of bezel. 9 #7 Disassembly the bezel. ＃8 Disassembly the connector and screw. #9 Remove the 2 screws. #10 Disassemble the LVDS cable #11 Main board and power board #12 The panel 10 DISASSEMBLY-Stand #1 Pull the Base 2 ea Latches to inside until losing elasticity. #2 Consequently, pull the stand body directly. #3 Separate Stand Body & Stand Base. #4 Fix Stand Base & Stand Body. #5 Remove the three screws. #6 Separate the hinge and stand. 11 BLOCK DIAGRAM TSUM1PFR 12 BLOCK DIAGRAM-POWER Power Inverter EMI filter Rectification Transformer 5V/12V output OVP Feedback control circuit Switching circuit (PWM control IC & MOSFER) OVP protect circuit Diode rectifier Starting resistor 12V Rush prevention ON/OFF DIM Push-pull circuit Transformer conversion LC resonance VDDA ON/OFF circuit PWM IC OZ9938GN Feedback circuit OVP circuit 4 CCFL lamps Sampling Lamp open protection DIM circuit 12V 5V 100~240V 13 DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 135MHz. This part consists of the Scaler, ADC converter, TMDS receiver and LVDS transmitter. The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V, and one 1.8V regulators to convert power which is provided 5V in Power board. 12V is provided for inverter, 5V is provided for LCD panel. Also, 5V is converted 3.3V and 1.8V by regulator. Converted power is provided for IC in the main board. The inverter converts from DC 12V to AC 700Vrms and operates back-light lamps of module. 3. MICOM Part. This part is including video controller part. And this part consists of EEPROM IC which stores control data, Reset IC and the Micom. The Micom distinguishes polarity and frequencies of the H/V sync are supplied from signal cable. The controlled data of each mode is stored in EEPROM. 14 LIPS Board Block Diagram Operation description_LIPS 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC,VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is for transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilized, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the DC output changing status through a photo transistor to primary controller to achieve the stabilized DC output voltage. 6. Signal collection. This part function is to collect the any change from the DC output and feed back to the primary through photo transistor. 15 ADJUSTMENT Windows EDID V1.0 User Manual Operating System: DOS, windows98, 2000, XP 1. Parallel port setting Enter your bios，and do as followings. a) Integrated peripheral b) Super IO Device c) Parallel port mode you should set the” parallel port mode” to SPP for using the DOS EDID tool surely. 2. EDID Write ① Run D20FNL.EXE. And choose 1 to write. ② choose panel type ③ if you get the right panel type, the you can go to the next step; if not ,the panel type loop will continue. For example, your monitor use the CMO Panel ,then you should assure a certain digit(usually the sixteenth or seventeenth digit for LG) of your input panel check number is ‘q’ or ‘Q’. ④ input serial NO. For LG , the number of SN is 12. So input 12 digits，then EDID data will be send to the monitor from PC. 16 1) Turn off the power switch at the front side of the display. 2) Wait for about 5 seconds and press MENU, POWER switch with 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) CLEAR ETI: To initialize using time. b) Auto Color: W/B balance and automatically sets the gain and offset value. c) AGING: Select Aging mode (on/off). d) PANEL: used panel type e) NVRAM INIT: EEPROM initialize. (24C08) f) R/G/B-9300K: Allows you to set the R/G/B-9300K value manually. g) R/G/B-6500K: Allows you to set the R/G/B-6500K value manually. h) R/G/B-Offset: Allows you to set the R/G/B-Offset value manually. (Analog Only) i) R/G/B-Gain: Allows you to set the R/G/B-Gain value manually. (Analog Only) Figure 1. Cable Connection for Micom uploading SERVICE MODE Connect to the monitor Connect to the PC 17 TROUBLESHOOTING GUIDE No Power (Power Indicator Off) Please reinsert and make sure the AC of 90-264v is normal Measure C423 (+) =1.8V U404 PIN2=3.3V Check the Adapter/Inverter section Check CN404 or replace Q409, Q410, and U404 NO NO YES YES 1. NO POWER Check X401 oscillate waveforms are normal Replace U401 Replace X401 NO YES 18 2. NO RASTER (OSD IS NOT DISPLAY)-LIPS LIPS No Raster (OSD Is Not Displayed) Check U404 PIN 2 =3.3V? Check U404 PIN 3 =5V? Check power board and find out a short point as penning each power line 1. Check U404 2. Check C426,C427 CheckC423 (+) 1.8V? 1. Check Q409,Q410 2. Check C432,C423 3. TROUBLE IN SCALER IC Check CN701 PIN1 =5V? Check BL ON/OFF pulse as contacting scope NO NO NO NO YES YES YES YES 19 2. NO RASTER (OSD IS NOT DISPLAY)-MSTAR 1. Check C411 C412 2. Check X401 3. TROUBLE IN SCALER IC SCALER PIN1，2 OSCILLATES AS 14.318MHZ? No Raster (OSD Is Not Displayed) SCALER IC PIN16 H SYNC ? PIN17 V SYNC? CHECK CONNECTION LINE FROM D-SUB TO SCALER TROUBLE IN CABLE OR LCD MODULE NO YES YES NO 20 4. TROUBLE IN DPM TROUBLE IN DPM SCALER IC PIN16 H SYNC? PIN17 V SYNC? CHECK H/V SYNC LINE TROUBLE IN CABLE OR LCD MODULE NO YES 21 5. POWER No Power (Power Indicator Off) Check AC line volt Check the voltage of C905(+) Check start voltage for the pin1 of IC901 Check IC901 pin 7 Vcc is 13v? Check AC line Check F901, BD901 Check D905, R934, R928,IC901 Check D902,C907 Check IC901, T901,D907,D908,ZD903,ZD902,ZD901,IC902,IC903 NO YES YES NO YES NO YES NO Check IC901 PIN6 output is PWM? Check D901,Q903,ZD904 NO 22 Replace IC801 Replace Q805/Q806 NO NO NO NO YES YES YES YES 6. RASTER NO Raster (Lamp Off) Check C811 (+) =12V Check ON/OFF signal CheckIC801 pin 2=5V? Check IC801 Pin1/pin15 have the output of sawtooth wave at short time Check Q805/Q806 pin5/pin8 is 12V? Check PT801/PT802 pin7/pin8= 650V? Check power section Check Interface section or main board Check Q801 Q802 Q803 ZD801 Check IC801 pin 5/pin6 Cut all the pin connector of Q805/Q806, check C811 (+) =12V? Unplug backlight connector wire, check PT801/PT802 pin7/pin8 = 650V? Check Q801 Q802 Replace PT801/PT802 Replace backlight NO NO NO NO NO YES YES YES 23 WIRING DIAGRAM 89G179E30N586 95G 825 7W503 89G 76J 8526 24 EXPLODED VIEW 25 EXPLODED VIEW PARTS LIST Ref. No. TPV part no. LGE part no. Description A34G0563ABNA1B0100 ABJ55934301 Bezel (Front cabinet) Silver color 010 A34G0563 B6A1B0100 ABJ55934302 Bezel (Front cabinet) Black color 020 KEPC7QG8 EBU51011201 KEY BOARD include control wire 750GLM90A1A12N COV30013601 CMO PANEL M190A1-L0A C1 NB 030 750GLV90W1021N COV30024802 AUO PANEL TPM190A1-PW01 V0 040 PWPC942MG1 EBU51011301 POWER BOARD CBPC7MMRLGQ1 EBU51011401 MAIN BOARD FOR CMO 050 CBPC84M5LGQ1 COV30024503 MAIN BOARD FOR AUO 060 Q15G0270101 MDQ48211901 MAIN FRAME 070 89G179E30N586 COV30013701 LVDS FFC Cable 080 A34G0564 B6 1B0100 ACQ55937401 REAR COVER 090 A37G0061 1 AGU55931102 HINGE ASS’Y 100 A34G0565 B6 1B0100 MCK48193801 STAND NECK 110 A34G0566 B6 1B0132 MCK48194001 STAND COVER 120 A34G0567 B6 1B0132 MCK48194201 BASE 130 A33G0317 B6 1L0100 MCK48193401 HINGE COVER 89G421A18N IS 6410TEW003A POWER CORD BLK 6FT For Europe/Thailand/Vietnam/Russia/U.A.E 89G402A18NIS 6410TUW008A POWER CORD BLK 6FT For USA/Mexico/Panama/Canada 89G410A-18N-IS 6410TBW004A POWER CORD 10A/250V BLK 6FT UK for UK/Malaysia 89G420A-18N-IS 6410TTW001A POWER CORD BLK 6ft For Taiwan 140 89G412A-18N-IS3 6410TSW003A POWER CORD BLK 6ft For Australia 150 89G 728CAA 2G COV30013801 SIGNAL CABLE 26 REPLACEMENT PARTS LIST DATE: 2008. 01. 27 *S *AL LOC. NO. PART NO. DESCRIPTION MAIN BOARD CAPACITORS C427 067G 3151014KV EC 105℃ CAP 100UF M 25V C426 067G 3151014KV EC 105℃ CAP 100UF M 25V C423 067G 3151014KV EC 105℃ CAP 100UF M 25V C421 067G 3151014KV EC 105℃ CAP 100UF M 25V C410 067G215V100 7R LOW E.S.R 10UF +/-20% 50V C432 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C428 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C422 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C420 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C419 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C417 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C416 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C415 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C414 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C413 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C409 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C407 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C406 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C404 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C403 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C401 065G0402104 15 MLCC 0402 0.1UF K 16V X5R C412 065G0402220 31 CHIP 22PF 50V NPO C411 065G0402220 31 CHIP 22PF 50V NPO C103 065G0402220 31 CHIP 22PF 50V NPO C102 065G0402220 31 CHIP 22PF 50V NPO C408 065G0402224 17 CAP CER 0.22UF -20%-80% C429 065G0402224 17 CAP CER 0.22UF -20%-80% C113 065G0402473 12 CHIP 0.047uF 16V X7R C110 065G0402473 12 CHIP 0.047uF 16V X7R C109 065G0402473 12 CHIP 0.047uF 16V X7R C107 065G0402473 12 CHIP 0.047uF 16V X7R C106 065G0402473 12 CHIP 0.047uF 16V X7R C105 065G0402473 12 CHIP 0.047uF 16V X7R C101 065G0402473 12 CHIP 0.047uF 16V X7R 27 C104 065G0402509 31 CHIP 5pF 50V NPO C108 065G0402509 31 CHIP 5pF 50V NPO C111 065G0402509 31 CHIP 5pF 50V NPO DIODEs ZD103 093G 39S 34 T UDZSNP5.6B ROHM ZD104 093G 39S 34 T UDZSNP5.6B ROHM D402 093G3004 3 SM340A IC U401 056G 562557 IC TSUM1PFR-LF U404 056G 563 52 IC AP1117D33LA TO252-3L ATC U102 056G 662 13 IC AZC099-04S SOT23-6L U103 056G 662 13 IC AZC099-04S SOT23-6L U403 056G1133 32 IC M24C04-WMN6TP SO8 U402 056G1133 74(WLGMRT9MCQ1) SST25VF010A-33-4C-SAE TRANSISTOR Q404 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q406 057G 417 12 T KEC 2N3904S-RTK/PS Q410 057G 417 22 T TRA KN2907AS -60V/-0.6A SOT-23 Q409 057G 417 22 T TRA KN2907AS -60V/-0.6A SOT-23 Q405 057G 763 1 A03401 SOT23 BY AOS(A1) RESISTORs R458 061G0402000 RST CHIPR 0 OHM +-5% 1/16W R431 061G0402000 RST CHIPR 0 OHM +-5% 1/16W R429 061G0402000 RST CHIPR 0 OHM +-5% 1/16W R402 061G0402000 RST CHIPR 0 OHM +-5% 1/16W R401 061G0402000 RST CHIPR 0 OHM +-5% 1/16W R411 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R412 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R413 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R418 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R419 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R424 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R442 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R456 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R457 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R451 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R452 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R102 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R103 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R104 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R108 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R110 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R111 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R113 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 28 R114 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R115 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R117 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R405 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R441 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R118 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R121 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R120 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R455 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R454 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R453 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R439 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R437 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R433 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R421 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R417 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R408 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R407 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R406 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R404 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R436 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W R414 061G0402121 RST CHIP 120R 1/16W 5% R410 061G0402121 RST CHIP 120R 1/16W 5% R409 061G0402203 RST CHIP 20K 1/16W 5% R105 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R106 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R109 061G0402390 0F RST CHIP 390R 1/16W 1% R403 061G0402390 0F RST CHIP 390R 1/16W 1% R427 061G0402392 RST CHIP 3.9K 1/16W 5% R428 061G0402392 RST CHIP 3.9K 1/16W 5% R435 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R440 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R116 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R112 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R107 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R101 061G0603000 RST CHIPR 0 OHM +-5% 1/10W R434 061G1206331 RST CHIPR 330 OHM +-5% 1/4W COILs & FILTERs FB402 071G 56K121 M CHIP BEAD FB401 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill FB101 071G 59K190 B 19 OHM BEAD FB102 071G 59K190 B 19 OHM BEAD FB103 071G 59K190 B 19 OHM BEAD OTHERs X401 093G 22 53 J 14.31818MHZ/32PF/49US 29 CN404 033G3802 9 WAFER 9P RIGHT ANELE PITCH CN402 033G8019 8C FPC/FFC CONN CN403 033G801930F CH JS CONNECTOR CN101 088G 35315F H D-SUB 15PIN POWER BOARD CAPACITORS C903 063G107K474 6S CAP X2 0.47UF K 275VAC C840 065G 3J3096ET 3PF,J,3KV,Z5P C839 065G 3J3096ET 3PF,J,3KV,Z5P C826 065G 3J3096ET 3PF,J,3KV,Z5P C824 065G 3J3096ET 3PF,J,3KV,Z5P C816 065G 6J1206ET 12PF 5% SL 6KV TDK C825 065G 6J1206ET 12PF 5% SL 6KV TDK C902 065G306M2222BP 2200PF +-20% 400VAC C901 065G306M2222BP 2200PF +-20% 400VAC C900 065G306M3322BP 3300PF 20% C923 067G215S1023KV 105℃ 1000UF M 16V C915 067G215V471 4H CAP 105℃ 470UF M 25V C920 067G215V471 4H CAP 105℃ 470UF M 25V C905 067G315Y10115H CAP 105℃ 100uF M 450V C815 067T215P4714XV CAP 105℃ 470UF M 25V C811 067T215P4714XV CAP 105℃ 470UF M 25V C808 061G0805184 RST CHIPR 180 KOHM +-5% 1/8W C932 065G0603102 32 1000PF +-10% 50V X7R C836 065G060347141J W CAP CHIP 0603 470PF J 100V NPO C835 065G060347141J W CAP CHIP 0603 470PF J 100V NPO C834 065G060347141J W CAP CHIP 0603 470PF J 100V NPO C833 065G060347141J W CAP CHIP 0603 470PF J 100V NPO C813 065G0805102 31 1000PF 50V NPO C812 065G0805102 31 1000PF 50V NPO C910 065G0805103 32 10NF/50V/0805/X7R C807 065G0805103 32 10NF/50V/0805/X7R C904 065G0805104 32 CHIP 0.1U 50V X7R C832 065G0805104 32 CHIP 0.1U 50V X7R C829 065G0805104 32 CHIP 0.1U 50V X7R C828 065G0805104 32 CHIP 0.1U 50V X7R C822 065G0805104 32 CHIP 0.1U 50V X7R C821 065G0805104 32 CHIP 0.1U 50V X7R C817 065G0805104 32 CHIP 0.1U 50V X7R C802 065G0805104 32 CHIP 0.1U 50V X7R C801 065G0805104 32 CHIP 0.1U 50V X7R C908 065G0805104 32 CHIP 0.1U 50V X7R C913 065G0805104 32 CHIP 0.1U 50V X7R C918 065G0805104 32 CHIP 0.1U 50V X7R C919 065G0805104 32 CHIP 0.1U 50V X7R 30 C814 065G0805105 22 CHIP 1UF 25V X7R 0805 C830 065G0805105 22 CHIP 1UF 25V X7R 0805 C806 065G0805105 22 CHIP 1UF 25V X7R 0805 C804 065G0805105 22 CHIP 1UF 25V X7R 0805 C914 065G0805152 32 CHIP 1500PF 50V X7R 0805 C912 065G0805152 32 CHIP 1500PF 50V X7R 0805 C909 065G0805221 31 220PF 50V NPO C805 065G0805222 31 0805 2200PF C837 065G0805391 31 CHIP 390PF 50V C842 065G0805472 32 4700PF/50V/0805/X7R C841 065G0805472 32 4700PF/50V/0805/X7R C827 065G0805472 32 4700PF/50V/0805/X7R C820 065G0805472 32 4700PF/50V/0805/X7R C838 065G0805473 32 CHIP 0.047UF 50V X7R C809 065G0805473 32 CHIP 0.047UF 50V X7R C819 065G0805473 32 CHIP 0.047UF 50V X7R C810 065G080556131G MLCC 0805 560PF G 50V NPO C905 006G 31502 1.5MM RIVET C903 006G 31502 1.5MM RIVET C934 065G 2K152 1T GP CERAMIC CAP C931 065G 2K152 1T GP CERAMIC CAP C930 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P C907 067G 5152207HT CAP 105℃ 22UF M 50V C922 067G215D4713KT /105℃ EC 470UF M 16V KINGNICHI C925 067G215S10915T3964 EC CAP 1.0uF 450V 8*11mm DIODEs BD901 093G 50460 38 BRIDGE KBJ408G 4A/800V KBJ D908 093G3006 1 1 31DQ06FC3 NIHON INTER D907 093G 60267 SP10100 D807 093G 6432S IN4148W D808 093G 6432S IN4148W D812 093G 6432S IN4148W D811 093G 6432S IN4148W D810 093G 6432S IN4148W D809 093G 6432S IN4148W D806 093G 6433S DIODE BAV99 SEMTECH D805 093G 6433S DIODE BAV99 SEMTECH D804 093G 6433S DIODE BAV99 SEMTECH D803 093G 6433S DIODE BAV99 SEMTECH D802 093G 6433S DIODE BAV99 SEMTECH D801 093G 6433S DIODE BAV99 SEMTECH ZD904 093G 39GA31 T ZENER DIODE RLZ18B SEMTECH ZD902 093G 39S 24 T RLZ 5.6B LLDS ZD801 093G 39S 24 T RLZ 5.6B LLDS ZD903 093G 39S 40 T RLZ 13B LLDS 31 ZD901 093G 39S 40 T RLZ 13B LLDS ZD906 093G 39S 42 T RLZ27B LLDS BD901 006G 31500 EYELET D905 093G 5212T52T DIODE 1N4007 DO-41 D901 093G 6026W52T FR107 D902 093G 6038T52T FR103 D903 095G 90 23 JUMPER TRANSISTORs & ICs IC902 056G 139 7 1 IC EL817MA M-TYPE IC901 056G 379 79 IC LD7522PS SOP-8 IC801 056G 608 10 IC OZ9938GN-B SOIC-16 IC903 056G 158 12 KIA431A-AT/P TO-92 Q903 057G 667 47 FET FQPF8N60C FAIRCHILD Q904 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q803 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q802 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q801 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q804 057G 759 2 RK7002 Q807 057G 759 2 RK7002 Q808 057G 759 2 RK7002 Q809 057G 759 2 RK7002 Q810 057G 759 2 RK7002 Q811 057G 759 2 RK7002 Q812 057G 759 2 RK7002 Q806 057G 763 6 AO4828L Q805 057G 763 6 AO4828L Q903 006G 31502 1.5MM RIVET RESISTORs NR901 061G 58005 W RST NTCR 5 OHM 3A THINKING R937 061G0805102 RST CHIPR 1KOHM +-5% 1/8W R926 061G0805102 RST CHIPR 1KOHM +-5% 1/8W R922 061G0805102 RST CHIPR 1KOHM +-5% 1/8W R921 061G0805102 RST CHIPR 1KOHM +-5% 1/8W R843 061G0805102 RST CHIPR 1KOHM +-5% 1/8W R836 061G0805102 RST CHIPR 1KOHM +-5% 1/8W R927 061G0805103 10 KOHM 1/10W R812 061G0805103 10 KOHM 1/10W R806 061G0805103 10 KOHM 1/10W R804 061G0805103 10 KOHM 1/10W R803 061G0805103 10 KOHM 1/10W R815 061G0805104 RST CHIP 100K 1/8W 5% R839 061G0805105 1MOHM 1/10W R840 061G0805105 1MOHM 1/10W R844 061G0805105 1MOHM 1/10W R847 061G0805105 1MOHM 1/10W 32 R838 061G0805105 1MOHM 1/10W R820 061G0805105 1MOHM 1/10W R813 061G0805105 1MOHM 1/10W R816 061G0805105 1MOHM 1/10W R810 061G0805105 1MOHM 1/10W R913 061G0805124 RST CHIPR 120 KOHM +-5% 1/8W R817 061G0805200 2F RST CHIPR 20 KOHM +-1% 1/8W R908 061G0805202 RST CHIP 2K 1/8W 5% R924 061G0805240 1F RST CHIPR 2.4KOHM +-1% 1/8W R920 061G0805302 RST CHIPR 3 KOHM +-5% 1/8W R802 061G0805304 RST CHIPR 300 KOHM +-5% 1/8W R923 061G0805330 2F RST CHIPR 33 KOHM +-1% 1/8W R925 061G0805360 1F RST CHIPR 3.6KOHM +-1% 1/8W R826 061G0805390 0F RST CHIPR 390 OHM +-1% 1/8W R841 061G0805430 0F RST CHIPR 430 OHM +-1% 1/8W R936 061G0805471 RST CHIPR 470 OHM +-5% 1/8W R808 061G0805473 RST CHIPR 47 KOHM +-5% 1/8W R825 061G0805513 RST CHIPR 51 KOHM +-5% 1/8W R917 061G0805683 68K&8 1/10W R858 061G0805751 RST CHIPR 750 OHM +-5% 1/8W R824 061G0805751 RST CHIPR 750 OHM +-5% 1/8W R814 061G0805754 RST CHIPR 750 KOHM +-5% 1/8W JR801 061G1206000 RST CHIPR 0 OHM +-5% 1/4W JR902 061G1206000 RST CHIPR 0 OHM +-5% 1/4W JR823 061G1206000 RST CHIPR 0 OHM +-5% 1/4W JR820 061G1206000 RST CHIPR 0 OHM +-5% 1/4W JR802 061G1206000 RST CHIPR 0 OHM +-5% 1/4W R933 061G1206101 100 1206 R932 061G1206101 100 1206 R931 061G1206101 100 1206 R930 061G1206101 100 1206 R916 061G1206101 100 1206 R906 061G1206101 100 1206 R912 061G1206103 RST CHIPR 10 KOHM +-5% 1/4W R919 061G1206151 RST CHIPR 150 OHM +-5% 1/4W R915 061G1206154 RST CHIP 150K 1/4W 5% R907 061G1206154 RST CHIP 150K 1/4W 5% R904 061G1206154 RST CHIP 150K 1/4W 5% R807 061G1206220 RST CHIPR 22 OHM +-5% 1/4W R911 061G1206221 RST CHIPR 220 OHM +-5% 1/4W R909 061G1206249 RST CHIPR 2.4 OHM +-5% 1/4W R928 061G1206335 RST CHIPR 3.3MOHM +-5% 1/4W R929 061G1206335 RST CHIPR 3.3MOHM +-5% 1/4W R934 061G1206335 RST CHIPR 3.3MOHM +-5% 1/4W R910 061G1206470 RST CHIPR 47 OHM +-5% 1/4W 33 R805 061G1206471 470 1206 R835 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W R834 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W R833 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W R828 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W R846 061G1206511 RST CHIPR 510 OHM +-5% 1/4W R837 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W R842 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W R901 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W R902 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W R903 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W R801 061G1206820 RST CHIPR 82 OHM +-5% 1/4W R818 061G1206820 RST CHIPR 82 OHM +-5% 1/4W R819 061G1206820 RST CHIPR 82 OHM +-5% 1/4W R829 061G1206820 RST CHIPR 82 OHM +-5% 1/4W NR901 006G 31502 1.5MM RIVET R935 061G152M15152T RST MOFR 150 OHM +-5% 2WS R905 061G152M51352T RST MOFR 51kOHM +-5% 2WS R914 061G152M51852T RST MOFR 0.51OHM +-5% 2WS TRANSFORMER PT802 080GL17T 40 DN X'FMR TK.2001U.101 PT801 080GL17T 40 DN X'FMR TK.2001U.101 T901 080GL22T 2 LS X'FMR 510uH PAO7001EL0-0 T901 006G 31502 1.5MM RIVET PT802 006G 31502 1.5MM RIVET PT801 006G 31502 1.5MM RIVET OTHERs CN801 033G8021 2E AC WAFER CN802 033G8021 2E AC WAFER CN803 033G8021 2E AC WAFER CN804 033G8021 2E AC WAFER CN901 087G 501 32 DL AC SOCKET DIP 3PIN+2PIN GROUND CN902 095G 825 7W503 WIRE HARNESS 7P(SCN)-9P(PH) CN901 006G 31500 EYELET L902 006G 31502 1.5MM RIVET L901 006G 31502 1.5MM RIVET L906 071G 55 29 FERRITE BEAD L905 095G 90 23 JUMPER L904 S73G25391V CHOKE COIL ASS'Y L903 S73G25391V CHOKE COIL ASS'Y L902 S73L17440VG TRANSFORMER ASS'Y L901 S73L17453VGGP TRANSFORMER ASS'Y HS1 090G6084 1 HEAT SINK HS4 Q85G0062 1 EMI-BKT 34 SCHEMATIC DIAGRAM ESD_VCC PA[4..9] CMVCC1 LVDS OUTPUT DSUB_5V ESD_VCC CMVCC VCC3.3 CMVCC 03.Scalar DSUB_R+ DSUB_G+ DSUB_SOG DSUB_B+ DSUB_R- DSUB_G- DSUB_B- DSUB_H DSUB_V Adj_BACKLIGHT VCC1.8 VCC3.3 PA[0..1] PB[0..9] DDC1_SDA DDC1_SCL DET_CABLE on_BACKLIGHT PPWR_ON# PANEL_ID# Volume# Mute CMVCC PA[4..9] CMVCC1 VCTRL 05.Power on_BACKLIGHT Adj_BACKLIGHT VCC1.8 CMVCC VCC3.3 Mute Volume# PANEL_ID# DSUB_5V CMVCC1 VCTRL ESD_VCC TSUM1PFR-LF SCHEMATIC DSUB_5V VCC3.3 VCC3.3 VCC1.8 VCC1.8 CMVCC PA[0..1] PB[0..9] 02.Input DSUB_R+ DSUB_G+ DSUB_B+ DSUB_V DSUB_R- DSUB_G- DSUB_B- DET_CABLE DSUB_H DSUB_SOG DDC1_SDA DDC1_SCL DSUB_5V CMVCC1 VCC3.3 ESD_VCC CMVCC1 CMVCC1 04.Output CMVCC PB[0..9] PA[0..1] PPWR_ON# PA[4..9] XGA/SXGA 1. SCALER 35 R121 10K 1/16W 5% C101 0.047uF DSUB_5V DSUB_SDA DSUB_5V 7 C103 22pF DSUB_B- 5 ESD_VCC GND POWER C108 5pF/50V C109 0.047uF R115 100R 1/16W 5% R104 100R 1/16W 5% VCC3.3 H_Sy nc VGA_G- R106 2K2 1/16W 5% ZD103 UDZSNP5.6B 1 2 DDC1_SDA 5 VGA_R+ DSUB_B+ 5 ZD104 UDZSNP5.6B 1 2 C110 0.047uF DSUB_R+ 5 R102 100R 1/16W 5% DDC1_SDA C102 22pF C107 0.047uF DSUB_R- 5 C111 5pF/50V C115 NC R120 10K 1/16W 5% VGA_B+ R111 100R 1/16W 5% R108 100R 1/16W 5% FB101 BEAD 1 2 DDC1_SCL 5 VGA_B+ VGA_R- VGA_G+ VGA_B- DSUB_SOG 5 U102 AZC099-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 DSUB_SCL C105 0.047uF U103 AZC099-04S 1 2 3 4 5 6 I/O1 GND I/O2 I/O3 VDD I/O4 V_Sy nc C104 5pF/50V R109 390 OHM 1/16W VGA_G+ VGA_R+ FB102 BEAD 1 2 DDC1_SCL VGA_G- C113 0.047uF DSUB_G- 5 ESD_VCC DGND VGA_PLUG R103 100R 1/16W 5% R101 0R05 1/10W 5% R118 1K 1/16W 5% H_Sy nc R105 2K2 1/16W 5% R114 100R 1/16W 5% R107 75R 1/16W 5% ESD_VCC 7 VGA_G+ VGA_R+ VGA_B- DSUB_H 5 VGA_R- R117 100R 1/16W 5% VCC3.3 5,7 DSUB_5V V_Sy nc FB103 BEAD 1 2 VCC3.3 R116 75R 1/16W 5% DET_CABLE 5 VGA_B+ C114 NC DSUB_V 5 DSUB_SDA C106 0.047uF R112 75R 1/16W 5% VGA_PLUG R110 100R 1/16W 5% DSUB_SCL DSUB_G+ 5 CN101 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 R113 100R 1/16W 5% 36 R452 100R 1/16W 5% VCC3.3 R403 390 OHM 1/16W VCC1.8 7 VDDC AVDD PA1 KEY_LEFT Mute 7 POWER_KEY# C407 0.1uF/16V R432 NC R410 120R 1/16W 5% DSUB_G+ 4 POWER_KEY# DSUB_B+ 4 C401 0.1uF/16V R431 0R05 1/16W VCC3.3 DSUB_V 4 on_BACKLIGHT 7 AVDD R428 3.9K OHM 1/16W R455 10K 1/16W 5% R451 100R 1/16W 5% R429 0R05 1/16W VCC1.8 DDC1_SCL 4 PB8 PB[0..9] 6 Volume# 7 VCC3.3 4,7 R456 100R 1/16W 5% PPWR_ON# 6 VDDC KEY1 R454 10K 1/16W 5% R424 100R 1/16W 5% PB4 PB7 PB5 C429 0.22uF16V R405 100R 1/16W 5% R453 10K 1/16W 5% X401 14.31818MHz 1 2 VCTRL 7 WP PA4 EE_WP PANEL_ID# 7 R419 100R 1/16W 5% R401 0R05 1/16W R457 100R 1/16W 5% PA[4..9] 6 R404 10K 1/16W 5% DSUB_H 4 adj_BACKLIGHT 7 C404 0.1uF/16V MSDA PB3 MSDA R413 100R 1/16W 5% KEY2 C417 0.1uF/16V C414 0.1uF/16V DSUB_G- 4 C415 0.1uF/16V VCC3.3 VCC3.3 TSUM1PFR-LF U401 13 10 11 8 12 9 7 16 17 4 15 14 21 23 22 24 27 56 1 2 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 34 33 5 6 32 31 52 30 18 19 62 20 28 55 58 59 60 61 63 64 25 26 54 51 53 29 57 3 RIN0P GIN0P SOGIN0 BIN0P RIN0M GIN0M BIN0M HSYNC0 VSYNC0 REXT REFP REFM SDO SCK SCZ SDI PWM2/GPIO_P24 PWM1/GPIO_P25 XIN XOUT LVA2P LVA2M LVA1P LVA1M LVA0P LVA0M LVB3P LVB3M LVBCKP LVBCKM LVB2P LVB2M LVB1P LVB1M LVB0P LVB0M LVA3M LVA3P GND AVDD_ADC MODE[1] MODE[0] VCTRL VDDC DDCA_SDA/RS232_TX DDCA_SCL/rs232_RX PWM0/GPIO_P26 GPIO_P15/PWM0 GPIO_P27/PWM1 GPIO_P12 GPIO_P00/SAR1 GPIO_P01/SAR2 GPIO_P06 GPIO_P07 GPIO_P13 GPIO_P14 GPIO_P11/I2C_MDA GPIO_P10/I2C_MCL RST VDDP VDDC GND RSTN GND U402 SST25VF010A-33-4C-SAE 1 2 3 4 5 6 7 8 CE# SO WP# VSS SI SCK HOLD# VDD PA[4..9] PA8 C406 0.1uF/16V DET_CABLE 4 C403 0.1uF/16V DSUB_B- 4 R421 10K 1/16W 5% R427 3.9K OHM 1/16W CMVCC R418 100R 1/16W 5% MSCL LED_GRN/BLUE PB6 CN401 NC 1 2 3 4 5 6 LED_GRN/BLUE R425 NC C408 0.22uF16V KEY2 PA[0..1] C413 0.1uF/16V C409 0.1uF/16V PB0 R411 100R 1/16W 5% DDC1_SDA 4 LVDS CMVCC1 7 PA0 R406 10K 1/16W 5% DSUB_SOG 4 LED_GRN/BLUE EE_WP PB9 CN402 CONN 1 2 3 4 5 6 7 8 C411 22pF KEY1 PB1 CMVCC 6,7 R409 20K OHM 1/16W + C410 10uF/50V C418 NC PA[0..1] 6 LED_ORANGE PB2 PB[0..9] R407 10K 1/16W 5% LED_ORANGE POWER_KEY# CMVCC1 DSUB_R- 4 KEY_RIGHT R420 NC C412 22pF DSUB_R+ 4 AVDD KEY_AUTO VDDP Near to Connect MSCL R412 100R 1/16W 5% PA5 R414 120R 1/16W 5% FB401 300OHM LED_ORANGE R402 0R05 1/16W PA7 PA9 U403 M24C04-WMN6TP 1 2 3 4 5 6 7 8 NC E1 E2 VSS SDA SCL WC VCC R430 NC VDDP PA6 R426 NC R417 10K 1/16W 5% R408 10K 1/16W 5% C416 0.1uF/16V 37 PB7 PB2 1 PB5 PA6 PB7 Q404 PMBS3906 PB1 + C421 100uF25V CMVCC 5,7 2 PANEL_VCC PA5 FB402 120OHM PA6 PB2 PB5 PA9 PPWR_ON# C420 0.1uF/16V PA7 PANEL_VCC PB9 CMVCC PB3 R436 100K 1/16W 5% G PA8 R434 330 OHM 1/4W 3 PB[0..9] R435 4K7 1/16W 5% PA[4..9] 5 C419 0.1uF/16V PA7 PB1 PA1 PA0 PB9 PB3 PA1 PA5 PA[0..1] 5 PA4 S AO3401L PA[4..9] PB0 PB6 PA8 PB3 CN403 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 PB4 PB8 PA[0..1] PB8 PA0 PB0 PA4 PB4 PB6 PA9 PB[0..9] 5 PPWR_ON# 5 R433 10K 1/16W 5% PB2 Q405 AO3401 D 38 BKLT-VBRI VCC1.8 5 D402 SM340A BKLT-EN adj_BACKLIGHT 5 + C427 100uF25V VCC1.8 C428 0.1uF/16V VCTRL 5 Q409 KN2907AS CN404 CONN 1 2 3 4 5 6 7 8 9 FB403 NC Q408 NC VCC3.3 + C423 100uF25V BKLT-EN R448 NC D401 NC 3 1 2 R446 NC C422 0.1uF/16V VCC3.3 CMVCC 5,6 R447 NC R437 10K 1/16W 5% C425 NC VCC3.3 4,5 DSUB_5V 4 R442 100R 1/16W 5% VCC3.3 DSUB_5V + C426 100uF25V R441 1K 1/16W 5% VCC3.3 C_PANEL_INDEX BKLT-VBRI CMVCC Mute CMVCC1 Mute 5 CMVCC1 C432 0.1uF/16V VCC3.3 Q410 KN2907AS Q406 2N3904S-RTK/PS R450 NC NC CMVCC ESD_VCC 4 R449 NC VCC3.3 CMVCC1 5 Volume D403 BAT54C 3 1 2 CMVCC U404 AP1117D33LA 1 2 3 ADJ(GND) VOUT VIN PANEL_ID# 5 R439 10K 1/16W 5% VCC3.3 Volume R440 4K7 1/16W 5% MVCC Volume# 5 on_BACKLIGHT 5 39 C810 560PF/50V 65G0805103 32 C839 065G 3J3096ET D801 BAV99 3 1 2 C835 470P 57G 759 2 VCC C827 0805 4700PF R836 1KΩ 1/8W R811 NC OPT1 C842 4700PF/50V/0805/X7R D802 BAV99 3 1 2 C819 0.047uF R813 1M 1/8W C841 93G 6432S C829 0.1uF Q808 RK7002 +12V 57G 759 2 57G 759 2 65G0805104 32 R816 1MΩ 1/8W C802 0.1uF C834 470P 61G1206472 JP920 BEAD 1 2 R817 20K 1/8W C809 0.047uF C822 0.1uF 0805 R824 750Ω 1/8W R826 3K9 1/8W 61G0805390 0F Q809 RK7002 C816 12PF6KV R825 51 K1/8W R810 1M 1/8W + C815 470uF25V Q810 RK7002 R818 82OHM +-5% 1/4W R815 100KΩ 1/8W 93G 64 33 C812 1000pF 93G 6432S Q806 AM9945N-T1-PF 1 2 3 4 8 7 6 5 S G S G D D D D R809 NC C805 2200pF50V R820 1MΩ 1/8W R843 1KΩ 1/8W Q803 PMBS3904 Q807 RK7002 CN804 33G8021 2E AC 1 2 93G 6432S CN802 33G8021 2E AC 1 2 61G1206519 Q811 RK7002 57G 759 2 D808 1N4148W SST R801 82OHM +-5% 1/4W 93G 64 33 CT R834 4.7 K 1/4W 93G 39S 24 T R805 470 1/4W C826 3PF/3KV D803 BAV99 3 1 2 OPT2 65G0805472 32 IC801 OZ9938GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DRV1 VDDA TIMER DIM ISEN VSEN OVPT NC1 NC2 ENA LCT SSTCMP CT GNDA DRV2 PGND C833 470P JP934 BEAD 1 2 61G1206472 C801 0.1uF R814 750K OHM 1/8W ON/OFF 65G0805104 32 R829 82OHM +-5% 1/4W R833 4.7 K 1/4W R842 5.1Ω 1/4W OPT4 C821 0.1uF 0805 61G0805105 65G0805104 32 C837 390pF/50V 65G0805391 31 C808 180 K1/8W C825 12PF6KV 57G 759 2 065G 3J3096ET C817 0.1uF 0805 C824 3PF/3KV 61G1206472 R807 22 1/4W OPT4 + C811 470uF25V R835 4.7 K 1/4W OPT1 R828 4.7 K 1/4W 93G 64 33 Q805 AM9945N-T1-PF 1 2 3 4 8 7 6 5 S G S G D D D D R847 1M 1/8W 61G0805105 C806 1uF/25V D812 1N4148W 93G 6432S C830 1uF/25V 61G0805751 D804 BAV99 3 1 2 OPT2 D810 1N4148W 65G0805102 31 R802 300KΩ 1/8W DIM 61G0805102 Q804 RK7002 CN801 CONN 1 2 C832 0.1uF 0805 OPT3 OPT3 D809 1N4148W 93G 64 33 C840 3PF/3KV C803 NC C836 470P 57G 763 14 R819 82OHM +-5% 1/4W C813 1000pF C838 0.047uF 65G0805473 32 C804 1uF/25V 93G 6432S R812 10K 1/8W R808 47K 1/8W SST D805 BAV99 3 1 2 93G 6432S FB R804 10KΩ 1/8W R839 1MΩ 1/8W 61G1206472 Q802 PMBS3904 C807 0.01uF 57G 759 2 C814 1uF/25V D811 1N4148W CN803 33G8021 2E AC 1 2 R838 1MΩ 1/8W PT801 POWER X'FMR 80GL17T 40 DN 6 3 7 4 8 1 R841 430Ω 1% 1/8W PT802 POWER X'FMR 80GL17T 40 DN 6 3 7 4 8 1 61G0805751 R803 10KΩ 1/8W D806 BAV99 3 1 2 ZD801 RLZ5.6B 1 2 R846 510Ω 1/4W 61G1206511 JP929 BEAD 1 2 R806 10KΩ 1/8W C828 0.1uF 61G0805102 FB Q812 RK7002 57G 759 2 R840 1MΩ 1/8W 61G0805513 CT D807 1N4148W 56G 608 10 C820 0.0047uF R837 5.1Ω 1/4W Q801 PMBS3904 R844 1MΩ 1/8W R858 750Ω 1/8W 93G 64 33 2. INVERTER 40 R934 3.3MΩ 1/4W 61G1206335 + C921 NC L903 3.5uH C908 0.1uF 65G0805104 32 R920 3 K 1/8W 61G0805302 ! C913 0.1uF 65G0805104 32 R909 2.4Ω 1/4W 61G1206249 C918 0.1uF 65G0805104 32 DIM R907 150K 1/4W 61G1206154 + C922 470uF 16V 67G215D4713KT D906 NC 1 2 3 ZD903 RLZ13B 93G 39S 40 T 1 2 C901 0.0022uF/250V ZD904 RLZ18B 93G 39S 44 T 1 2 ! R916 100Ω 1/4W 61G1206101 C931 0.0015uF/2KV 65G 2K152 1T GP R930 100Ω 1/4W 61G1206101 R924 2.4KΩ 1% 1/8W 61G0805240 1F ! R927 61G0805103 R917 68KΩ 1/8W 61G0805683 +5V C903 0.47UF IC903 KIA431A-AT/P 56G 158 12 R904 150K 1/4W 61G1206154 + C907 22uF/50V 67G 5152207HT C902 0.0022uF/250V R926 1KΩ 1/8W 61G0805102 C904 0.1uF 65G0805104 32 R910 61G1206470 C919 0.1uF 65G0805104 32 R905 51KOMH 2W 61G152M51352T IC901 LD7522 56G 379 79 3 4 5 1 2 6 7 8 OTP CS GND Line COMP OUT VCC OVP L902 L S73L17440VG 3 4 1 2 R935 150OHM2W 61G152M15152T t NR901 NTCR 61G 58005 W 1 2 R922 1KΩ 1/8W 61G0805102 ! D902 FR103 93G 6038T52T ! ! ! + C925 1UF450V 67G215S10915T3964 L901 2.0mH S73L17453VGGP 1 2 4 3 + C923 1000uF M 16V 67G215S1023KV D905 1N4007 93G 5212T52T Q904 PMBS3904 57G 417 4 ! R923 33 K+-1% 1/8W 61G0805330 2F C914 1500PF/50V R937 1K 1/8W 　 61G0805102 R908 2KΩ 1/8W 61G0805202 IC902 PC123X2YFZOF 56G 139 3A 1 2 4 3 R911 61G1206221 220Ω 1/4W C912 65G0805152 32 R933 61G1206101 ! T901 POWER X'FMR 80GL22T 2 LS 2 6 7 8 9 10 11 12 4 1 3 R915 150K 1/4W 61G1206154 + C924 NC NC R936 470 1/8W 　 61G0805471 Q903 FQPF8N60C 57G 667 47 + C920 470uF25V 67G215V471 4H R902 680KΩ 61G1206684 GND ! GND C930 2200PF2KV 65G 2K222 2T6921 C926 NC NC DIM R901 680KΩ 61G1206684 C909 220pF/50V 65G0805221 31 + C915 470uF25V 67G215V471 4H D901 FR107 93G 6026T52T R931 100Ω 1/4W 61G1206101 C934 0.0015uF/2KV 65G 2K152 1T GP CN902 Wire Harness 95G 825 7W503 1 2 3 4 5 6 7 R929 3.3MΩ 1/4W 61G1206335 R928 3.3MΩ 1/4W 61G1206335 R932 61G1206101 R914 0.51 2W 　 61G152M51852T C900 3300pF 250V 65G306M3322BP C932 0.001uF 65G0603102 32 ! ! ! R912 61G1206103 ZD906 RLZ27B 93G 39S 42 T 1 2 R903 680KΩ 61G1206684 +5V D908 31DQ06FC3 93G3006 1 1 D903 NC JUMP R906 100Ω 1/4W 61G1206101 ON/OFF R919 150 1/4W 61G1206151 JP903 BEAD 71G 55 29 1 2 ZD902 RLZ5.6B 93G 39S 24 T 1 2 ON/OFF R925 3.6 K+-1% 1/8W 61G0805360 1F + C905 100uF/450V 67G315Y10115H ZD901 RLZ13B 93G 39S 40 T 1 2 ZD905 NC 1 2 R913 120KΩ 1/8W 61G0805124 +12V VAR901 NC 61G 46 11 CN901 SOCKET 87G 501 32 DL 1 2 3 C910 0.01uF/50V 65G0805103 32 D904 NC F901 FUSE/3.15A 84G 41 3 L906 BEAD 71G 55 29 1 2 FB901 BEAD 71G 55 29 1 2 ! R921 1KΩ 1/8W 61G0805102 +5V - + BD901 KBJ408G 93G 50460 38 2 1 3 4 + C906 NC L904 3.5uH D907 SP10100 93G 60267 1 2 3 3. POWER Jan. 2008 P/NO : Printed in China
