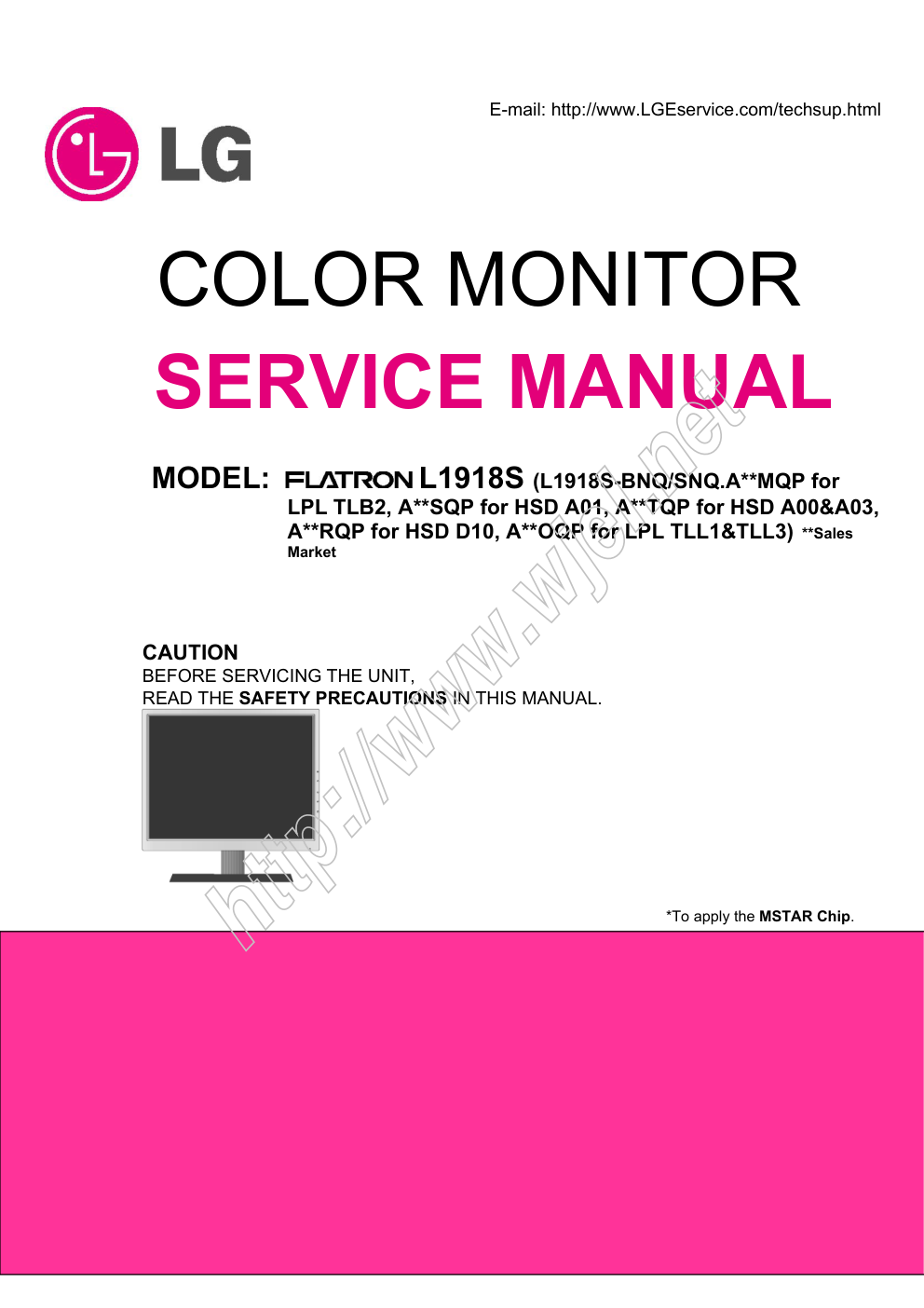

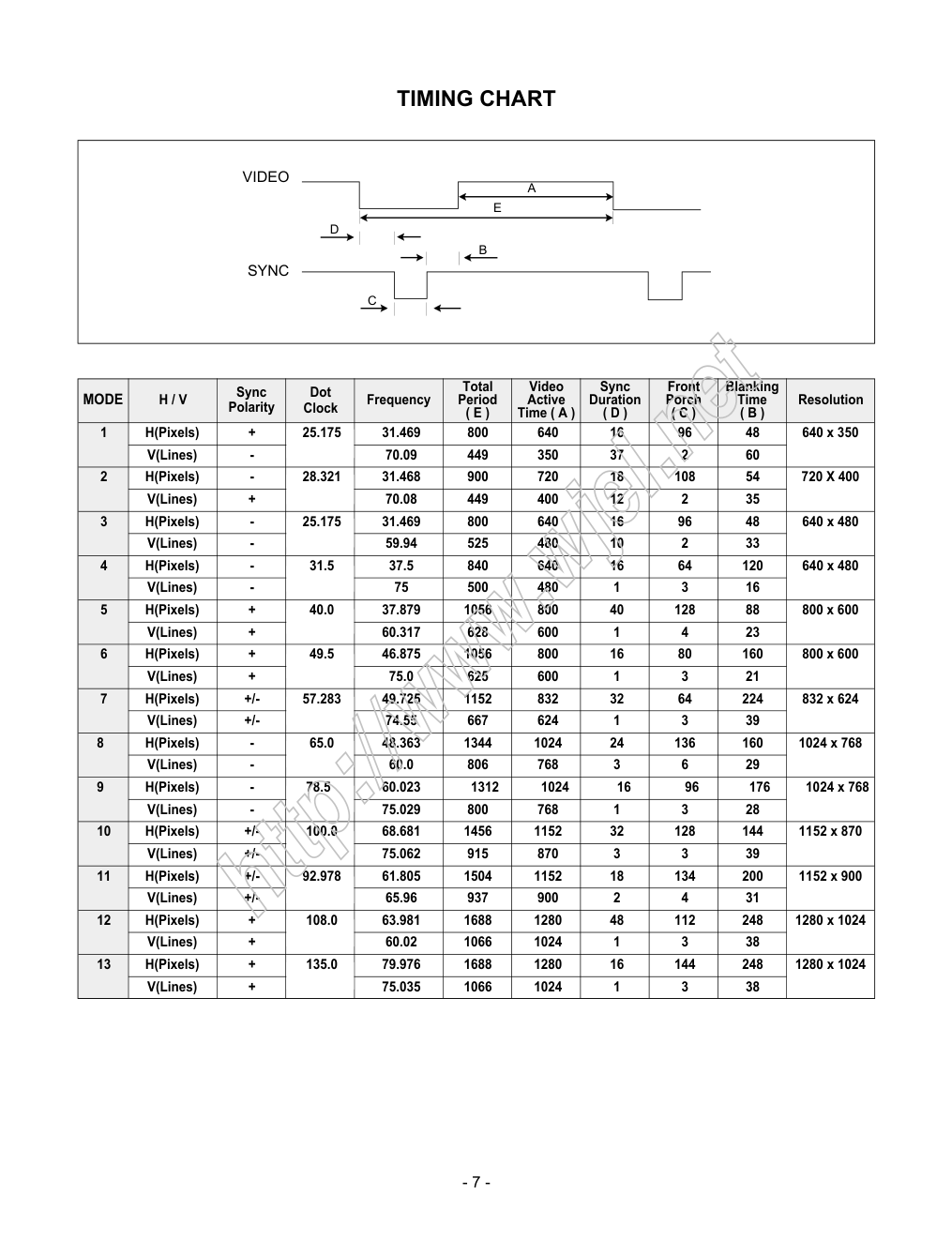

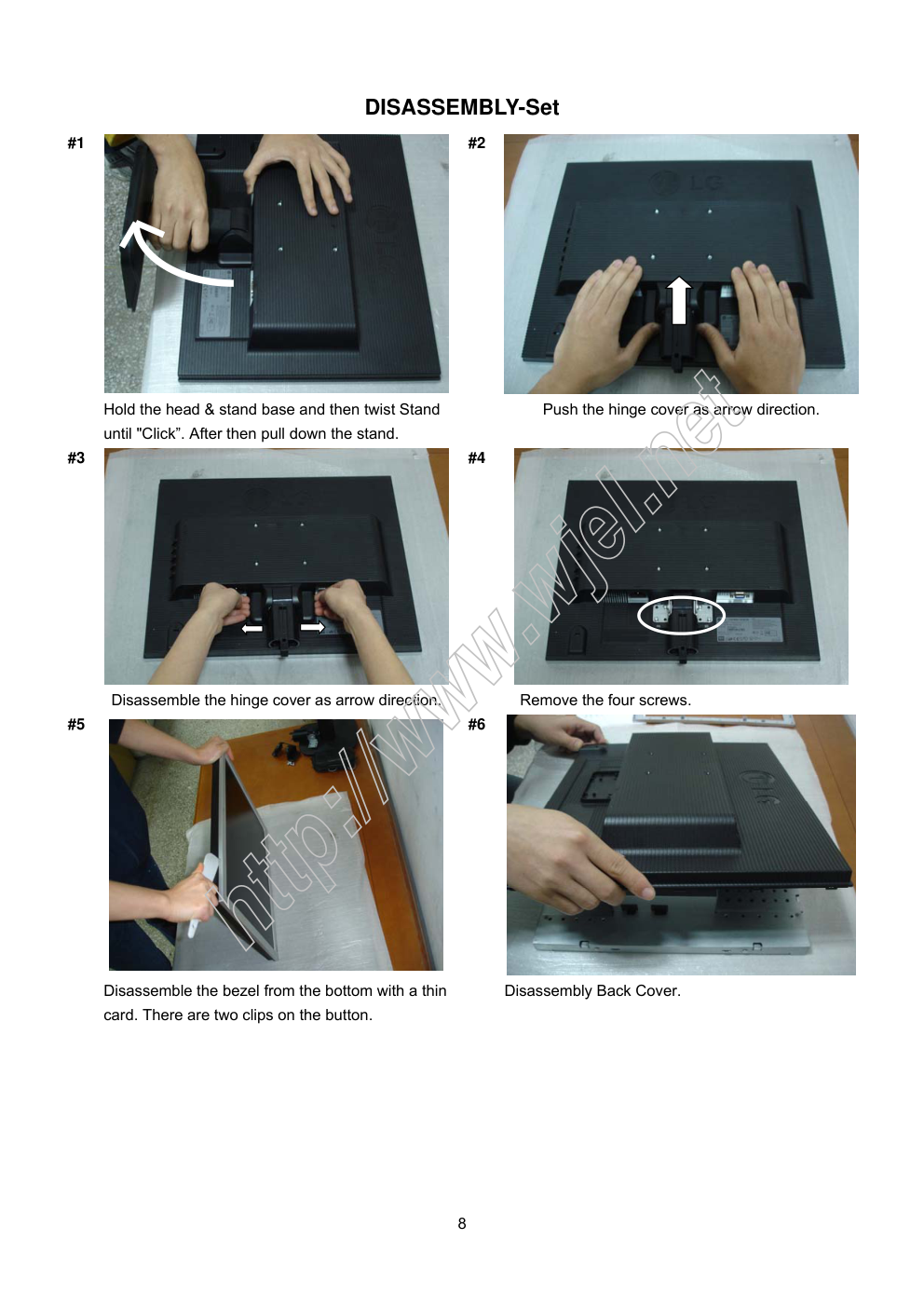

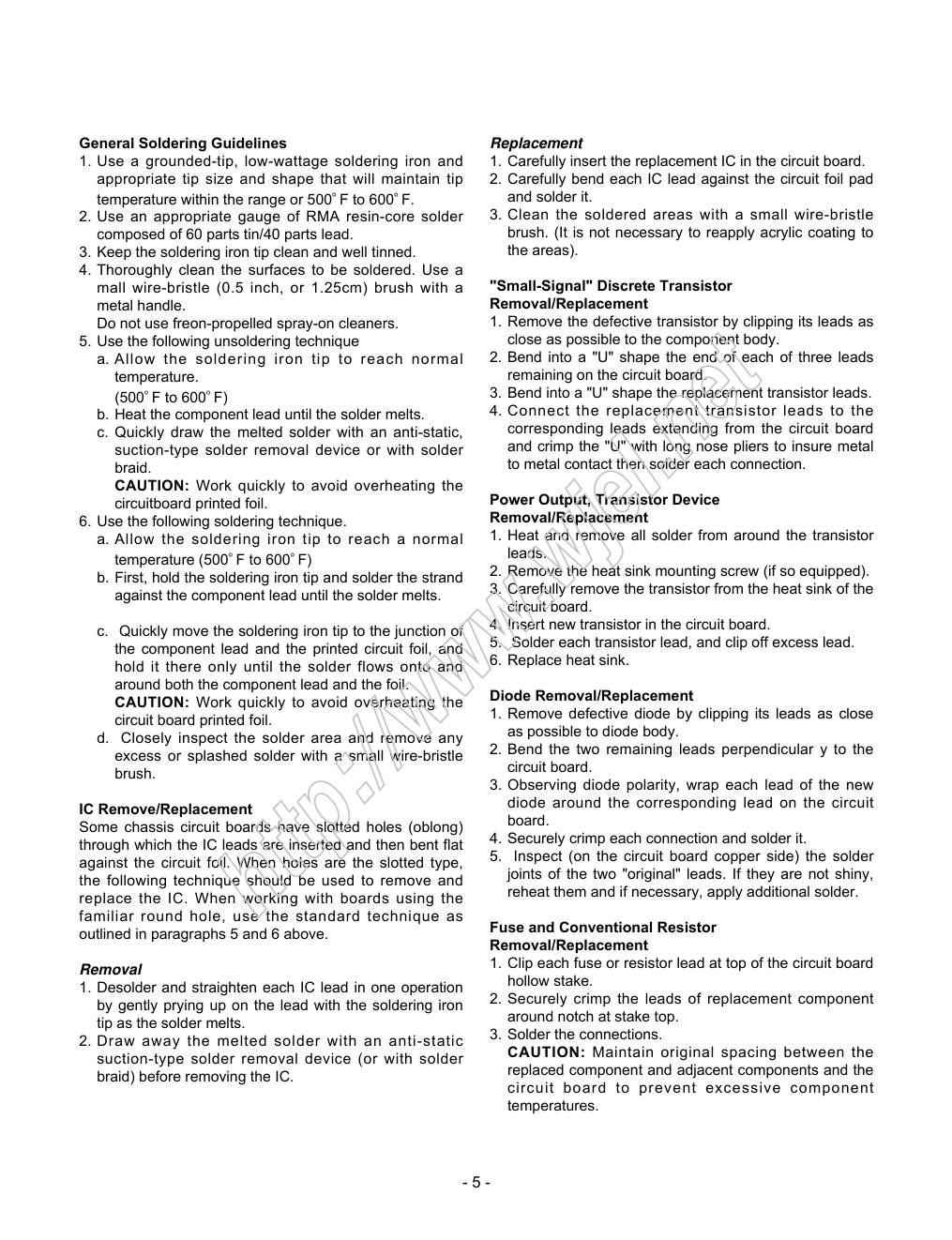

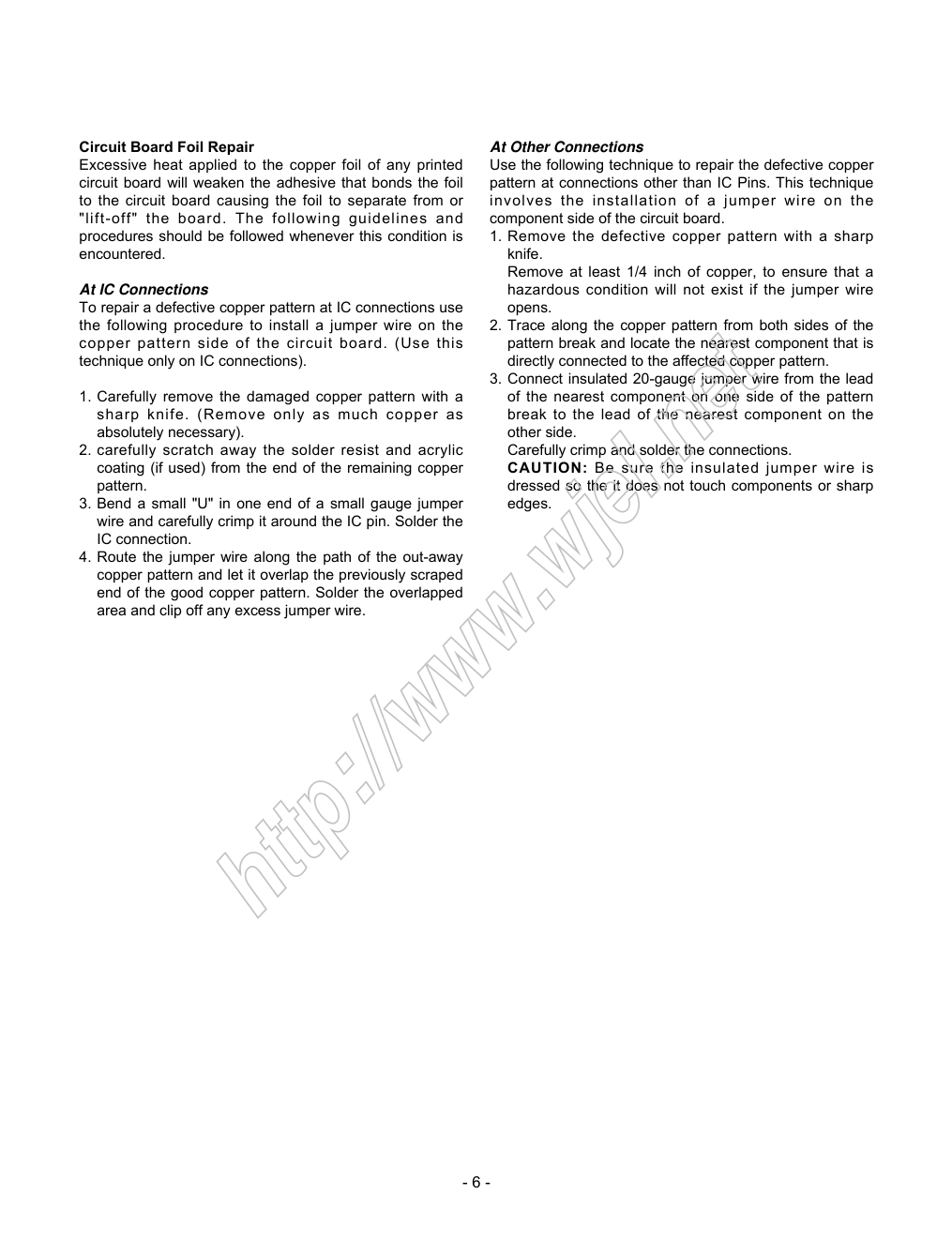

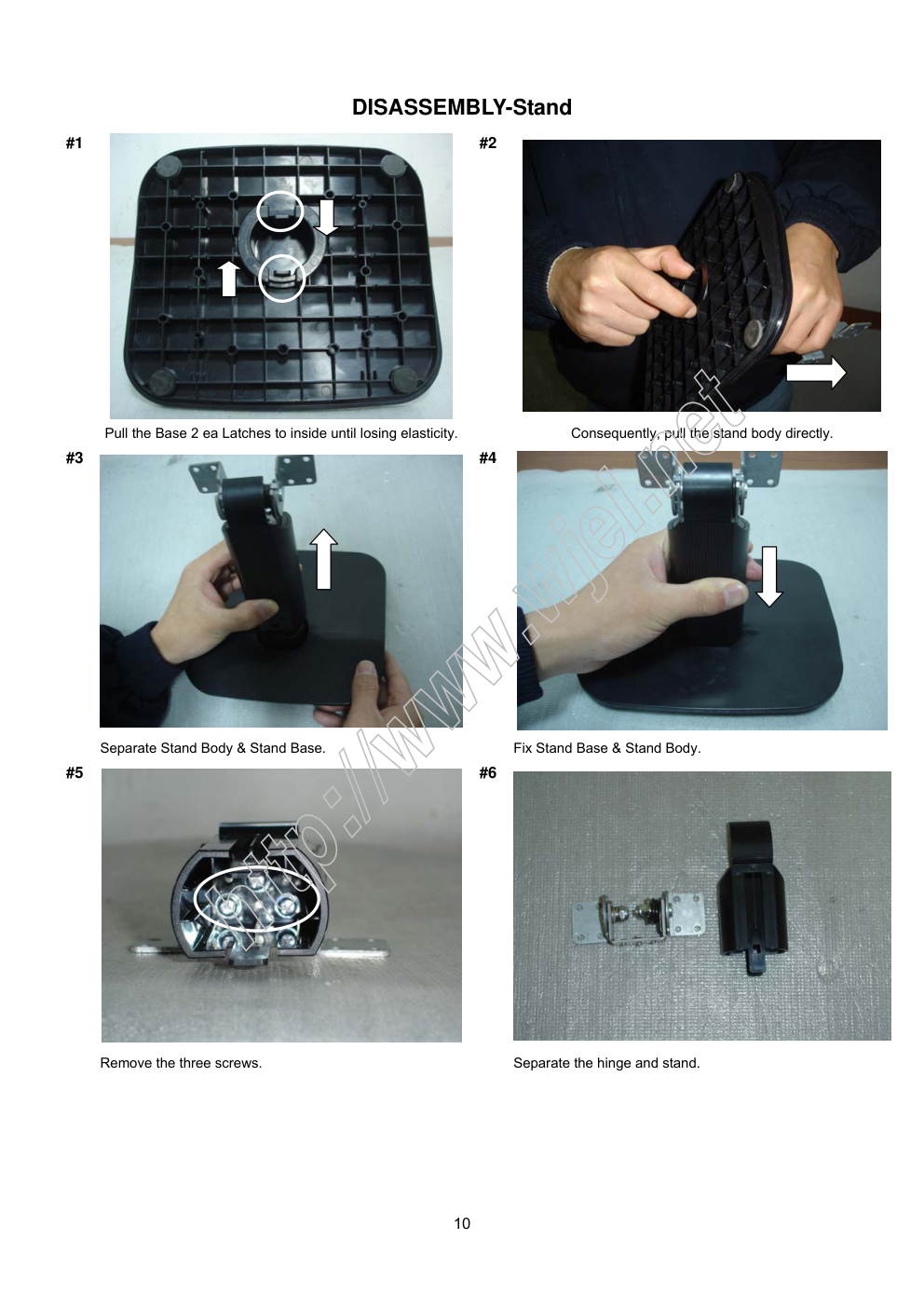

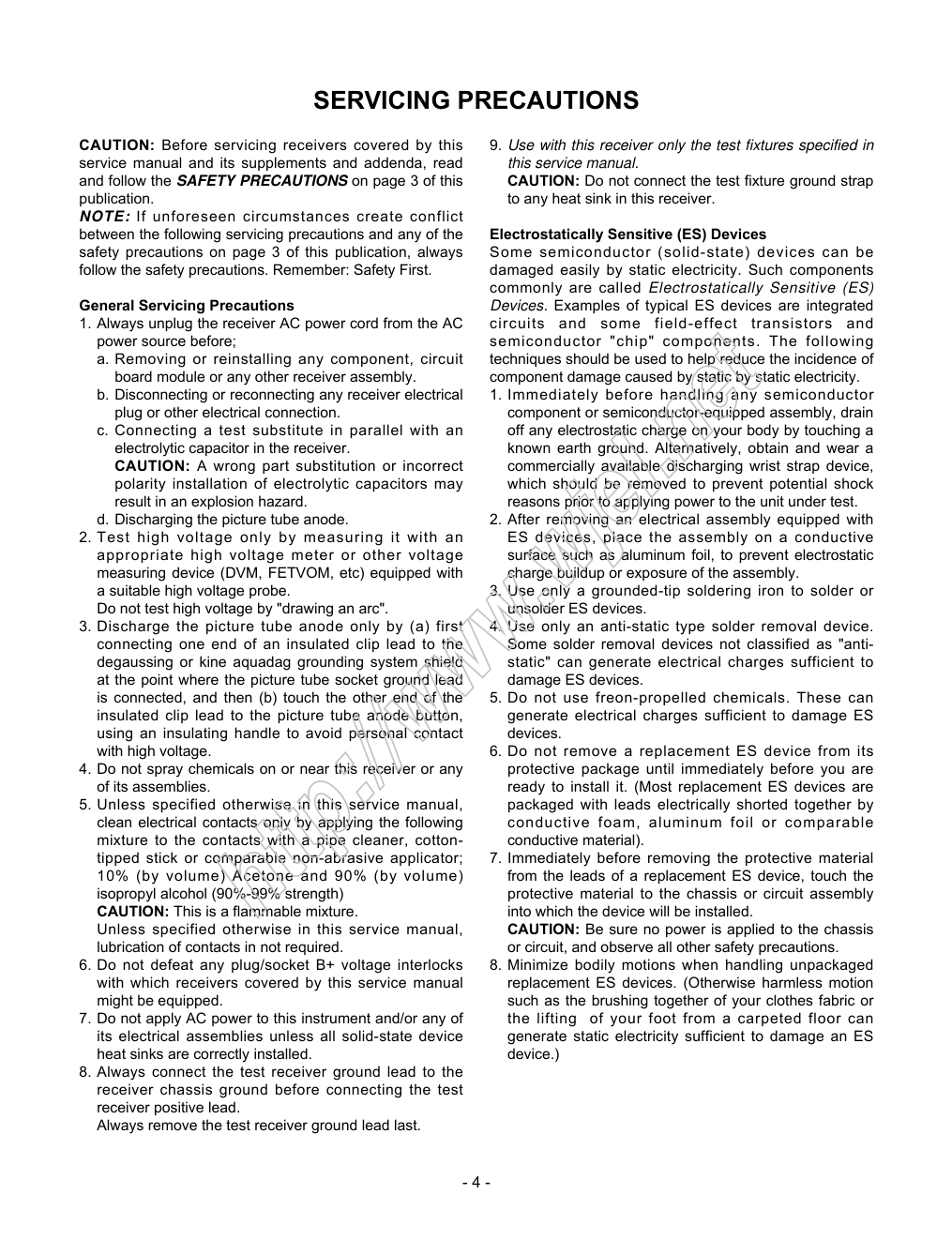

E-mail: http://www.LGEservice.com/techsup.html COLOR MONITOR SERVICE MANUAL MODEL: L1918S (L1918S-BNQ/SNQ.A**MQP for LPL TLB2, A**SQP for HSD A01, A**TQP for HSD A00&A03, A**RQP for HSD D10, A**OQP for LPL TLL1&TLL3) **Sales Market CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. *To apply the MSTAR Chip. http://www.wjel.net - 2 - CONTENTS 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Active Display Area : 19 inch Pixel Pitch : 0.294 (H) x 0.294 (V) Color Depth : 8bits, 16.7M colors Size : 396 (H) x 324 (V) x 16.5(D) Electrical Interface : LVDS Surface Treatment : Hard-coating(3H), Anti-Glare Operating Mode : Normally White, Transmissive mode Backlight Unit : 4-CCFL 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio > 10 Left : -70° min., -80°(Typ) Right : +70° min., +80°(Typ) Top :+60° min., +75°(Typ) Bottom : -70° min., -85°(Typ) 2-2. Luminance : 250(min), 300(Typ) (Full White pattern, 0.7V) -6500K : 150(min) (Full White pattern, 0.7V) -9300K 2-3. Contrast Ratio : 500(min), 700(Tye) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal • Type : Separate Sync, SOG 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.71 V a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.467Vp-p c) Color 15, 0 : 0.714Vp-p 3) Input Impedance : 75Ω 3-3. Operating Frequency Horizontal : 30 ~ 83kHz Vertical : 56 ~ 75Hz 4. Max. Resolution D-sub Analog : 1280 x 1024@75Hz 5. POWER SUPPLY 5-1. Power : AC 100~240V, 50/60Hz , 0.8A 5-2. Power Consumption 6. ENVIRONMENT 6-1. Operating Temperature : 10°C~35°C (50°F~95°F) (Ambient) 6-2. Relative Humidity : 20%~80% (Non-condensing) 6-3. MTBF : 50,000 HRS with 90% Confidence Lamp Life : 50,000 Hours(Min) 7. DIMENSIONS (with TILT/SWIVEL) Width : 418 mm (16.45 inchs) Depth : 180.1mm (7.09 inchs) Height : 414 mm (14.98 inchs) 8. WEIGHT (with TILT/SWIVEL) Net. Weight : 4.3 kg (9.48 Ibs) SPECIFICATIONS SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 3 TIMING CHART ....................................................... 7 DISASSEMBLY ........................................................ 8 BLOCK DIAGRAM...................................................11 DISCRIPTION OF BLOCK DIAGRAM .................. 13 ADJUSTMENT ...................................................... 15 SERVICE OSD ........................................................16 TROUBLESHOOTING GUIDE .............................. 17 WIRING DIAGRAM ............................................... 23 EXPLODED VIEW...................................................24 REPLACEMENT PARTS LIST ...............................26 SCHEMATIC DIAGRAM......................................... 37 MODE POWER ON (NORMAL) STAND-BY SUSPEND DPMS OFF POWER S/W OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF - POWER CONSUMPTION 34 W(Typical) less than 1 W less than 1 W less than 1 W less than 1 W LED COLOR GREEN AMBER AMBER AMBER OFF VIDEO ACTIVE OFF OFF OFF - http://www.wjel.net - 3 - PRECAUTION WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. Leakage Current Hot Check Circuit CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. 1.5 Kohm/10W To Instrument’s exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter http://www.wjel.net - 4 - SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First. General Servicing Precautions 1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board module or any other receiver assembly. b. Disconnecting or reconnecting any receiver electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard. d. Discharging the picture tube anode. 2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc". 3. Discharge the picture tube anode only by (a) first connecting one end of an insulated clip lead to the degaussing or kine aquadag grounding system shield at the point where the picture tube socket ground lead is connected, and then (b) touch the other end of the insulated clip lead to the picture tube anode button, using an insulating handle to avoid personal contact with high voltage. 4. Do not spray chemicals on or near this receiver or any of its assemblies. 5. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton- tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required. 6. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped. 7. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. 8. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. 9. Use with this receiver only the test fixtures specified in this service manual. CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver. Electrostatically Sensitive (ES) Devices Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti- static" can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.) http://www.wjel.net - 5 - General Soldering Guidelines 1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500。F to 600。F. 2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead. 3. Keep the soldering iron tip clean and well tinned. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-bristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners. 5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500。F to 600。F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuitboard printed foil. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature (500。F to 600。F) b. First, hold the soldering iron tip and solder the strand against the component lead until the solder melts. c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil. d. Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush. IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above. Removal 1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts. 2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC. Replacement 1. Carefully insert the replacement IC in the circuit board. 2. Carefully bend each IC lead against the circuit foil pad and solder it. 3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas). "Small-Signal" Discrete Transistor Removal/Replacement 1. Remove the defective transistor by clipping its leads as close as possible to the component body. 2. Bend into a "U" shape the end of each of three leads remaining on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection. Power Output, Transistor Device Removal/Replacement 1. Heat and remove all solder from around the transistor leads. 2. Remove the heat sink mounting screw (if so equipped). 3. Carefully remove the transistor from the heat sink of the circuit board. 4. Insert new transistor in the circuit board. 5. Solder each transistor lead, and clip off excess lead. 6. Replace heat sink. Diode Removal/Replacement 1. Remove defective diode by clipping its leads as close as possible to diode body. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. http://www.wjel.net - 6 - Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered. At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections). 1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection. 4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board. 1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens. 2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern. 3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges. http://www.wjel.net - 7 - TIMING CHART VIDEO SYNC B C E A D 1 H(Pixels) + 25.175 31.469 800 640 16 96 48 640 x 350 V(Lines) - 70.09 449 350 37 2 60 2 H(Pixels) - 28.321 31.468 900 720 18 108 54 720 X 400 V(Lines) + 70.08 449 400 12 2 35 3 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480 V(Lines) - 59.94 525 480 10 2 33 4 H(Pixels) - 31.5 37.5 840 640 16 64 120 640 x 480 V(Lines) - 75 500 480 1 3 16 5 H(Pixels) + 40.0 37.879 1056 800 40 128 88 800 x 600 V(Lines) + 60.317 628 600 1 4 23 6 H(Pixels) + 49.5 46.875 1056 800 16 80 160 800 x 600 V(Lines) + 75.0 625 600 1 3 21 7 H(Pixels) +/- 57.283 49.725 1152 832 32 64 224 832 x 624 V(Lines) +/- 74.55 667 624 1 3 39 8 H(Pixels) - 65.0 48.363 1344 1024 24 136 160 1024 x 768 V(Lines) - 60.0 806 768 3 6 29 9 H(Pixels) - 78.5 60.023 1312 1024 16 96 176 1024 x 768 V(Lines) - 75.029 800 768 1 3 28 10 H(Pixels) +/- 100.0 68.681 1456 1152 32 128 144 1152 x 870 V(Lines) +/- 75.062 915 870 3 3 39 11 H(Pixels) +/- 92.978 61.805 1504 1152 18 134 200 1152 x 900 V(Lines) +/- 65.96 937 900 2 4 31 12 H(Pixels) + 108.0 63.981 1688 1280 48 112 248 1280 x 1024 V(Lines) + 60.02 1066 1024 1 3 38 13 H(Pixels) + 135.0 79.976 1688 1280 16 144 248 1280 x 1024 V(Lines) + 75.035 1066 1024 1 3 38 MODE H / V Sync Polarity Dot Clock Frequency Total Period ( E ) Video Active Time ( A ) Sync Duration ( D ) Front Porch ( C ) Blanking Time ( B ) Resolution http://www.wjel.net 8 DISASSEMBLY-Set #1 Hold the head & stand base and then twist Stand until "Click”. After then pull down the stand. #2 Push the hinge cover as arrow direction. #3 Disassemble the hinge cover as arrow direction. #4 Remove the four screws. #5 Disassemble the bezel from the bottom with a thin card. There are two clips on the button. #6 Disassembly Back Cover. http://www.wjel.net 9 #7 Disassemble connector http://www.wjel.net 10 DISASSEMBLY-Stand #1 Pull the Base 2 ea Latches to inside until losing elasticity. #2 Consequently, pull the stand body directly. #3 Separate Stand Body & Stand Base. #4 Fix Stand Base & Stand Body. #5 Remove the three screws. #6 Separate the hinge and stand. http://www.wjel.net 11 BLOCK DIAGRAM http://www.wjel.net 12 BLOCK DIAGRAM-POWER Power Inverter EMI filter Rectification Transformer 5V/12V output OVP Feedback control circuit Switching circuit (PWM control IC & MOSFER) OVP protect circuit Diode rectifier Starting resistor 12V Rush prevention ON/OFF DIM Push-pull circuit Transformer conversion LC resonance VDDA ON/OFF circuit PWM IC OZ9938GN Feedback circuit OVP circuit 4 CCFL lamps Sampling Lamp open protection DIM circuit 12V 5V 100~240V http://www.wjel.net 13 DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 135MHz. This part consists of the Scaler, ADC converter, TMDS receiver and LVDS transmitter. The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V, and one 1.8V regulators to convert power which is provided 5V in Power board. 12V is provided for inverter, 5V is provided for LCD panel. Also, 5V is converted 3.3V and 1.8V by regulator. Converted power is provided for IC in the main board. The inverter converts from DC 12V to AC 700Vrms and operates back-light lamps of module. 3. MICOM Part. This part is including video controller part. And this part consists of EEPROM IC which stores control data, Reset IC and the Micom. The Micom distinguishes polarity and frequencies of the H/V sync are supplied from signal cable. The controlled data of each mode is stored in EEPROM. http://www.wjel.net 14 LIPS Board Block Diagram Operation description_LIPS 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC,VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is for transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilized, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the DC output changing status through a photo transistor to primary controller to achieve the stabilized DC output voltage. 6. Signal collection. This part function is to collect the any change from the DC output and feed back to the primary through photo transistor. http://www.wjel.net 15 ADJUSTMENT Windows EDID V1.0 User Manual Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Doesn’t need setup Windows 2000, XP => Need to Port Setup. This program is available for LCD Monitor only. 1. Port Setup a) Copy “UserPort.sys” file to “c:\WINNT\system32\drivers” folder b) Run Userport.exe c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. 2. EDID Read & Write 1) Run WinEDID.exe 2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button http://www.wjel.net 16 1) Turn off the power switch at the front side of the display. 2) Wait for about 5 seconds and press MENU, POWER switch with 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) CLEAR ETI: To initialize using time. b) Auto Color: W/B balance and automatically sets the gain and offset value. c) AGING: Select Aging mode (on/off). d) PANEL: used panel type e) NVRAM INIT: EEPROM initialize. (24C08) f) R/G/B-9300K: Allows you to set the R/G/B-9300K value manually. g) R/G/B-6500K: Allows you to set the R/G/B-6500K value manually. h) R/G/B-Offset: Allows you to set the R/G/B-Offset value manually. (Analog Only) i) R/G/B-Gain: Allows you to set the R/G/B-Gain value manually. (Analog Only) Figure 1. Cable Connection for Micom uploading SERVICE MODE Connect to the monitor Connect to the PC http://www.wjel.net 17 TROUBLESHOOTING GUIDE No Power (Power Indicator Off) Please reinsert and make sure the AC of 100-240 is normal Measure Q702 Vout=1.8V U701 PIN2=3.3V Check the Adapter/Inverter section Check CN701 or replace Q702, U701 NO NO YES YES 1. NO POWER Check X401 oscillate waveforms are normal Replace U401 Replace X401 NO YES http://www.wjel.net 18 2. NO RASTER (OSD IS NOT DISPLAY)-LIPS LIPS No Raster (OSD Is Not Displayed) Check U701 PIN 1 =3.3V? Check U701 PIN 3 =5V? Check power board and find out a short point as penning each power line 1. Check U701 2. Check C712 714 CHECK D701 1.8V? 1. CHECK Q702 2. CHECK D701 D702 3. TROUBLE IN SCALER IC Check CN701 PIN1 =5V? 1. Check BL ON/OFF pulse as contacting scope NO NO NO NO YES YES YES YES http://www.wjel.net 19 2. NO RASTER (OSD IS NOT DISPLAY)-MSTAR 1. Check C421 C423 2. Check X401 3. TROUBLE IN SCALER IC SCALER PIN96 97 OSCILLATES AS 14.318MHZ? No Raster (OSD Is Not Displayed) SCALER IC PIN27 H SYNC ? PIN28 V SYNC? CHECK CONNECTION LINE FROM D-SUB TO SCALER TROUBLE IN CABLE OR LCD MODULE NO YES YES NO http://www.wjel.net 20 4. TROUBLE IN DPM TROUBLE IN DPM SCALER IC PIN27 H SYNC ? PIN28 V SYNC? CHECK H/V SYNC LINE TROUBLE IN CABLE OR LCD MODULE NO YES http://www.wjel.net 21 5. POWER No Power (Power Indicator Off) Check AC line volt 110V or 220V Check the voltage of C905(+) Check start voltage for the pin3 of IC901 The auxiliary voltage (IC901 pin 7) is between 10V-16V jumping Check AC line Check F901, BD901 Check R906, R907, IC901 Check D902,D902,C907 1) Check IC901,T901 2) Check Q903, ZD903, ZD904 3) Check IC902, IC903 NO YES YES NO YES NO YES NO http://www.wjel.net 22 Replace IC801 Replace Q805/Q806 NO NO NO NO YES YES YES YES 6. RASTER NO Raster (Lamp Off) Check C811 (+) =12V Check ON/OFF signal CheckIC801 pin 2=5V? Check IC801 Pin1/pin15 have the output of sawtooth wave at short time Check Q805/Q806 pin5/pin8 is 12V? Check PT801/PT802 pin7/pin8= 650V? Check power section Check Interface section or main board Check Q801 Q802 Q803 ZD801 Check IC801 pin 5/pin6 Cut all the pin connector of Q805/Q806, check C811 (+) =12V? Unplug backlight connector wire, check PT801/PT802 pin7/pin8 = 650V? Check Q801 Q802 Replace PT801/PT802 Replace backlight NO NO NO NO NO YES YES YES http://www.wjel.net 23 WIRING DIAGRAM 95G8014 8D679 89G179J30H 8 or 89G179S30H 8 95G8014 3 28 95G8014 6D643 http://www.wjel.net 24 EXPLODED VIEW http://www.wjel.net 25 EXPLODED VIEW PARTS LIST Ref. No. TPV part no. LGE part no. Description A34G0212ABNA1B ABJ33041502 Bezel (Front cabinet) Silver color 010 A34G0212 B6A1B ABJ33041501 Bezel (Front cabinet) Black color 020 A33G0135 1 1C MKC37803901 POWER LENS 030 A33G0134-B6 1L MEY37805401 KEY BUTTON A15G0163-4 ADV33042601 MAIN FRAME for LPL TLB2 A15G0163 5 ADV33042603 MAIN FRAME for LPL TLL1/3 , HSD A01 040 A15G0163-3 ADV33042602 MAIN FRAME for HSD D10 050 A34G0213-B6 1B 30 MCK37805801 REAR COVER 060 A37G0024 1 AGU33042901 HINGE 070 A33G0136-B6 1L MCK37806001 HINGE BASE 080 A33G0137-B6 1L MCK37806101 HINGE COVER 090 A34G0214-B6 1B 32 MCK37806301 STAND 100 A34G0215-B6 1B 33 MCK37806501 BASE 89G421A-18N-IS 6410TEW003A PWRCORD BLK 6FT For Europe/Thailand/Vietnam/Russia/U.A.E 89G402A18NIS 6410TUW008A PWR CORD BLK 6FT For USA/Mexico/Panama/Canada 89G410A-18N-IS 6410TBW004A PWR CORD 10A/250V BLK 6FT UK for UK/Malaysia 89G420A-18N-IS 6410TTW001A PWR CORD BLK 6ft For Taiwan 110 89G412A-18N-IS3 6410TSW003A PWR CORD BLK 6ft For Australia 89G419A-18N-IS 6410TAW001A PWR CORD BLK 6ft For South Africa 120 PTPC6AA1 EBU36839301 LED BOARD 130 KEPC6AAB EBU36839101 KEY BOARD PWPC942LL1P EBU36838201 POWER BOARD for LPL 140 PWPC942HL1P EBU36848401 POWER BOARD for HSD CBPC6GM9LMA1 EBU36837701 MAIN BOARD for LPL TLB2 CBPC7GM9LMQ1 EBU38799401 MAIN BOARD for LPL TLL1/3 CBPC6HM9LMA1 EBU36848301 MAIN BOARD for HSD D10 CBPC7HM9LMQ1 EBU41521601 MAIN BOARD for HSD A01 150 CBPC7HM9LMQ2 COV30060701 MAIN BOARD for HSD A00/A03 750GLG90E8B21M000K EBU36839801 LPL PANEL LM190E08-TLB2 750GLG90E8L12M000K EBU38798501 LPL PANEL LM190E08-TLL1 750GLG90E8L32M000K EBU38798901 LPL PANEL LM190E08-TLL3 750GLH9013D12N EBU36839901 HSD PANEL HSD190ME13-D10 750GLH90N3A22N EBU41521801 HSD PANEL HSD190MEN3-A01 750GLH90N3A12N COV30060601 HSD PANEL HSD190MEN3-A00 160 750GLH90N3A42N COV30060602 HSD PANEL HSD190MEN3-A03 170 89G179S30H 8 EBU36839601 LVDS CABLE 180 95G8014 8D679 EBU36839501 KEY BOARD HARNESS 190 89G728HAA 2G EBU41369001 SIGNAL CABLE http://www.wjel.net 26 REPLACEMENT PARTS LIST DATE: 2006. 12. 21. *S *AL LOC. NO. PART NO. DESCRIPTION MAIN BOARD CAPACITORS C702 067G215Y479 7N LOW ESR EC 4.7 UF 50V NC C702 067G215Y4797RV EC 105℃ CAP 4.7UF M 50V C717 067G305L100 3 10UF +-20% 16V C712 067G305L100 3 10UF +-20% 16V C710 067G305L100 3 10UF +-20% 16V C418 067G305L100 3 10UF +-20% 16V C408 067G305L100 3 10UF +-20% 16V C403 067G305L100 3 10UF +-20% 16V C435 065G0603102 32 1000PF +-10% 50V X7R C441 065G0603104 12 CER2 0603 X7R 16V 100N P C440 065G0603104 12 CER2 0603 X7R 16V 100N P C439 065G0603104 12 CER2 0603 X7R 16V 100N P C430 065G0603104 12 CER2 0603 X7R 16V 100N P C429 065G0603104 12 CER2 0603 X7R 16V 100N P C425 065G0603104 12 CER2 0603 X7R 16V 100N P C422 065G0603104 12 CER2 0603 X7R 16V 100N P C444 065G0603104 12 CER2 0603 X7R 16V 100N P C445 065G0603104 12 CER2 0603 X7R 16V 100N P C709 065G0603104 12 CER2 0603 X7R 16V 100N P C713 065G0603104 12 CER2 0603 X7R 16V 100N P C714 065G0603104 12 CER2 0603 X7R 16V 100N P C715 065G0603104 12 CER2 0603 X7R 16V 100N P C718 065G0603104 12 CER2 0603 X7R 16V 100N P C419 065G0603104 12 CER2 0603 X7R 16V 100N P C401 065G0603104 12 CER2 0603 X7R 16V 100N P C402 065G0603104 12 CER2 0603 X7R 16V 100N P C404 065G0603104 12 CER2 0603 X7R 16V 100N P C405 065G0603104 12 CER2 0603 X7R 16V 100N P C406 065G0603104 12 CER2 0603 X7R 16V 100N P C407 065G0603104 12 CER2 0603 X7R 16V 100N P C409 065G0603104 12 CER2 0603 X7R 16V 100N P C410 065G0603104 12 CER2 0603 X7R 16V 100N P C411 065G0603104 12 CER2 0603 X7R 16V 100N P C412 065G0603104 12 CER2 0603 X7R 16V 100N P http://www.wjel.net 27 C413 065G0603104 12 CER2 0603 X7R 16V 100N P C414 065G0603104 12 CER2 0603 X7R 16V 100N P C415 065G0603104 12 CER2 0603 X7R 16V 100N P C416 065G0603104 12 CER2 0603 X7R 16V 100N P C443 065G0603220 31 CER1 0603 NP0 50V 22P PM C442 065G0603220 31 CER1 0603 NP0 50V 22P PM C423 065G0603220 31 CER1 0603 NP0 50V 22P PM C421 065G0603220 31 CER1 0603 NP0 50V 22P PM C417 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10% C426 065G0603331 32 CHIP 330PF 50V X7R C427 065G0603331 32 CHIP 330PF 50V X7R C428 065G0603331 32 CHIP 330PF 50V X7R C431 065G0603331 32 CHIP 330PF 50V X7R C446 065G0603331 32 CHIP 330PF 50V X7R C438 065G0603473 32 CHIP 0.047UF 50V X7R C437 065G0603473 32 CHIP 0.047UF 50V X7R C436 065G0603473 32 CHIP 0.047UF 50V X7R C434 065G0603473 32 CHIP 0.047UF 50V X7R C433 065G0603473 32 CHIP 0.047UF 50V X7R C432 065G0603473 32 CHIP 0.047UF 50V X7R DIODEs D415 093G 39147 TZMC5V6 D413 093G 39147 TZMC5V6 D412 093G 39147 TZMC5V6 D411 093G 39147 TZMC5V6 D410 093G 39147 TZMC5V6 D409 093G 39147 TZMC5V6 D408 093G 39147 TZMC5V6 D406 093G 39147 TZMC5V6 D415 093G 39147SEM ZMM5V6ST D413 093G 39147SEM ZMM5V6ST D412 093G 39147SEM ZMM5V6ST D411 093G 39147SEM ZMM5V6ST D410 093G 39147SEM ZMM5V6ST D409 093G 39147SEM ZMM5V6ST D408 093G 39147SEM ZMM5V6ST D406 093G 39147SEM ZMM5V6ST D407 093G 64 42 P BAV70 SOT-23 D407 093G 64 42 PP BAV70 SOT-23 D414 093G 6432P LL4148 D701 093G 6432P LL4148 D702 093G 6432P LL4148 D405 093G 6433P BAV99 D404 093G 6433P BAV99 D403 093G 6433P BAV99 http://www.wjel.net 28 D403 093G 6433S DIODE BAV99 SEMTECH D404 093G 6433S DIODE BAV99 SEMTECH D405 093G 6433S DIODE BAV99 SEMTECH D702 093G 64S522SEM LL4148 D701 093G 64S522SEM LL4148 D414 093G 64S522SEM LL4148 D704 093G2004 2 SR24/PANJIT-SMT D704 093G2004 2A SM240A DO-214AC IC U401 056G 562105 TSUM16AL-LF U701 056G 585 4 IC AIC1117-33PYTR-R AIC U701 056G 585 4A AP1117E33LA U403 056G1133 32 IC M24C04-WMN6TP SO8 U404 056G1133 34 1 IC M24C02-RMN6TP 2Kb SO-8 U402 LLGM9S9GNQ1 SST25VF010A-33-4C-SAE U403 056G1133104 IC AF24BC04-SI 4K SOIC-8 TRANSISTOR Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q402 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q706 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q402 057G 417 12 T KEC 2N3904S-RTK/PS Q703 057G 417 12 T KEC 2N3904S-RTK/PS Q706 057G 417 13 T KEC 2N3906S-RTK/PS Q403 057G 417 13 T KEC 2N3906S-RTK/PS Q401 057G 417 13 T KEC 2N3906S-RTK/PS Q702 057G 417 17 T PZT2907A Q702 057G 41717B T tra PZT2907A PHILIPS Q704 057G 763 1 A03401 SOT23 BY AOS(A1) Q704 057G 763 1A AP2305N RESISTORs R706 061G0603000 RST CHIPR 0 OHM +-5% 1/10W R721 061G0603000 RST CHIPR 0 OHM +-5% 1/10W R704 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R478 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R454 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R453 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R445 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R443 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R442 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R441 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R429 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W http://www.wjel.net 29 R414 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R409 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R486 061G0603102 RST CHIP 1K 1/10W 5% R477 061G0603102 RST CHIP 1K 1/10W 5% R476 061G0603102 RST CHIP 1K 1/10W 5% R475 061G0603102 RST CHIP 1K 1/10W 5% R474 061G0603102 RST CHIP 1K 1/10W 5% R455 061G0603102 RST CHIP 1K 1/10W 5% R447 061G0603102 RST CHIP 1K 1/10W 5% R446 061G0603102 RST CHIP 1K 1/10W 5% R480 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R481 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R482 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R483 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R484 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R485 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R708 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R711 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R714 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R727 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R701 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R408 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R413 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R415 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R424 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R444 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R452 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R479 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R728 061G0603151 RST CHIPR 150 OHM +-5% 1/10W R729 061G0603151 RST CHIPR 150 OHM +-5% 1/10W R703 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W R405 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W R449 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W R448 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W R403 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W R419 061G0603470 RST CHIPR 47 OHM +-5% 1/10W R421 061G0603470 RST CHIPR 47 OHM +-5% 1/10W R487 061G0603470 RST CHIPR 47 OHM +-5% 1/10W R488 061G0603470 RST CHIPR 47 OHM +-5% 1/10W http://www.wjel.net 30 � � R437 061G0603471 RST CHIPR 470 OHM +-5% 1/10W � � R451 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W � � R450 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W � � R725 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W � � R712 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W � � R705 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W � � R423 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W � � R422 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W � � R702 061G0603510 RST CHIPR 51 OHM +-5% 1/10W � � R723 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W � � R436 061G0603560 RST CHIPR 56 OHM +-5% 1/10W � � R435 061G0603560 RST CHIPR 56 OHM +-5% 1/10W � � R434 061G0603560 RST CHIPR 56 OHM +-5% 1/10W � � R438 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W � � R439 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W � � R440 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W COILs & FILTERs � � FB401 071G 56Z601 CHIP BEAD 600 OHM 0805 � � FB402 071G 56Z601 CHIP BEAD 600 OHM 0805 � � FB403 071G 56Z601 CHIP BEAD 600 OHM 0805 � � FB404 071G 56Z601 CHIP BEAD 600 OHM 0805 � � FB405 071G 56Z601 CHIP BEAD 600 OHM 0805 � � FB406 071G 56Z601 CHIP BEAD 600 OHM 0805 � � FB409 071G 59B121 TB160808B � � FB412 071G 59K300 B CHIP BEAD FCB1608KF-300T07 bullwill � � FB411 071G 59K300 B CHIP BEAD FCB1608KF-300T07 bullwill � � FB410 071G 59K300 B CHIP BEAD FCB1608KF-300T07 bullwill OTHERs � � CN701 033G3802 6 J GP WAFER � � CN102 33G801930F BH U LVDS SOCKET � � CN403 33G8043 8 H WAFER 2*4P 2.0MM � � CN405 088G 35315F H D-SUB 15PIN � � X401 093G 22 53 CRYSTAL 14.318MHzHC-49US POWER BOARD CAPACITORS � � C903 063G 10747410S CAPACITANCE � � C825 065G 3J1006ET 10PF,J,3KV,SL � � C816 065G 3J1006ET 10PF,J,3KV,SL � � C824 065G 3J3096ET 3PF,J,3KV,Z5P � � C826 065G 3J3096ET 3PF,J,3KV,Z5P � � C900 065G306M1022B3 Y1 CAP 1000PF M 250VAC TDK � � C901 065G306M1022B3 Y1 CAP 1000PF M 250VAC TDK � � C902 065G306M1022B3 Y1 CAP 1000PF M 250VAC TDK � � C902 065G306M1022BP 1000PF Y1.CAP http://www.wjel.net 31 � � C901 065G306M1022BP 1000PF Y1.CAP � � C900 065G306M1022BP 1000PF Y1.CAP � � C924 067G215L471 4H 470UF 25V � � C923 067G215L471 4H 470UF 25V � � C922 067G215L471 4H 470UF 25V � � C921 067G215L471 4H 470UF 25V � � C920 067G215L471 4H 470UF 25V � � C915 067G215L471 4H 470UF 25V � � C815 067G215L471 4H 470UF 25V � � C811 067G215L471 4H 470UF 25V � � C925 067G215S10915H EC CAP 1.0uF 450V 8*11mm � � C905 067G315L10115H EC.100UF 450V 20*34mm � � C808 061G0805184 RST CHIPR 180 KOHM +-5% 1/8W � � C813 065G0805102 31 1000PF 50V NPO � � C812 065G0805102 31 1000PF 50V NPO � � C807 065G0805103 32 10NF/50V/0805/X7R � � C910 065G0805103 32 10NF/50V/0805/X7R � � C919 065G0805104 32 CHIP 0.1U 50V X7R � � C918 065G0805104 32 CHIP 0.1U 50V X7R � � C913 065G0805104 32 CHIP 0.1U 50V X7R � � C908 065G0805104 32 CHIP 0.1U 50V X7R � � C904 065G0805104 32 CHIP 0.1U 50V X7R � � C832 065G0805104 32 CHIP 0.1U 50V X7R � � C829 065G0805104 32 CHIP 0.1U 50V X7R � � C828 065G0805104 32 CHIP 0.1U 50V X7R � � C822 065G0805104 32 CHIP 0.1U 50V X7R � � C821 065G0805104 32 CHIP 0.1U 50V X7R � � C817 065G0805104 32 CHIP 0.1U 50V X7R � � C802 065G0805104 32 CHIP 0.1U 50V X7R � � C801 065G0805104 32 CHIP 0.1U 50V X7R � � C830 065G0805105 22 CHIP 1UF 25V X7R 0805 � � C804 065G0805105 22 CHIP 1UF 25V X7R 0805 � � C806 065G0805105 22 CHIP 1UF 25V X7R 0805 � � C909 065G0805221 31 220PF 50V NPO � � C820 065G0805222 31 0805 2200PF � � C827 065G0805222 31 0805 2200PF � � C831 065G0805222 31 0805 2200PF � � C805 065G0805222 31 0805 2200PF � � C818 065G0805222 31 0805 2200PF � � C814 065G0805224 22 CAIP CAP 0.22 uF 25V X7R � � C810 065G0805471 31 CHIP 470PF 50V NPO � � C809 065G0805473 32 CHIP 0.047UF 50V X7R � � C819 065G0805473 32 CHIP 0.047UF 50V X7R � � C905 006G 31502 1.5MM RIVET � � C903 006G 31502 1.5MM RIVET http://www.wjel.net 32 � � C934 065G 2K152 1T GP CERAMIC CAP � � C931 065G 2K152 1T GP CERAMIC CAP � � C930 065G 2K152 1T GP CERAMIC CAP � � C914 065G 2K152 1T GP CERAMIC CAP � � C912 065G 2K152 1T GP CERAMIC CAP � � C907 067G 5152207HT CAP 105℃ 22UF M 50V � � C907 067G215Y2207KT ED 105℃ 22UF M 50V KINGNICHI DIODEs � � BD901 093G 50460900 BRIDEGE DIODE GBU408 LITEON � � D907 093G 60245 SP10150 � � D906 093G 60267 SP10100 � � D806 093G 64 33 DIO SIG SM BAV99 (PHSE)R � � D805 093G 64 33 DIO SIG SM BAV99 (PHSE)R � � D804 093G 64 33 DIO SIG SM BAV99 (PHSE)R � � D803 093G 64 33 DIO SIG SM BAV99 (PHSE)R � � D802 093G 64 33 DIO SIG SM BAV99 (PHSE)R � � D801 093G 64 33 DIO SIG SM BAV99 (PHSE)R � � D904 093G 6432S IN4148W � � D807 093G 6432S IN4148W � � D808 093G 6432S IN4148W � � D809 093G 6432S IN4148W � � D810 093G 6432S IN4148W � � D811 093G 6432S IN4148W � � ZD801 093G 39S 24 T RLZ 5.6B LLDS � � ZD902 093G 39S 24 T RLZ 5.6B LLDS � � ZD903 093G 39S 38 T PTZ 9.1B � � ZD901 093G 39S 40 T RLZ 13B LLDS � � ZD906 093G 39S 42 T RLZ27B LLDS � � ZD904 093G 39S 44 T RLZ18B LLDS � � D801 093G 6433S DIODE BAV99 SEMTECH � � D802 093G 6433S DIODE BAV99 SEMTECH � � D803 093G 6433S DIODE BAV99 SEMTECH � � D804 093G 6433S DIODE BAV99 SEMTECH � � D805 093G 6433S DIODE BAV99 SEMTECH � � D806 093G 6433S DIODE BAV99 SEMTECH � � D904 093G 64S511SEM IN4148W � � D807 093G 64S511SEM IN4148W � � D808 093G 64S511SEM IN4148W � � D809 093G 64S511SEM IN4148W � � D810 093G 64S511SEM IN4148W � � D811 093G 64S511SEM IN4148W http://www.wjel.net 33 � � D905 093G 5212T52T DIODE 1N4007 DO-41 � � D901 093G 6026T52T RECTIFIER DIODE FR107 � � D902 093G 6038T52T FR103 � � D901 093G 6026W52T FR107 TRANSISTORs & Ics � � IC902 056G 139 3A PC123Y22FZOF � � IC901 056G 379 79 IC LD7522PS SOP-8 � � IC801 056G 608 10 0Z9938 � � IC903 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC � � Q903 057G 667516 FET 2SK3673 TO-220 FUJI � � Q801 057G 417 4 PMBS3904/PHILIPS-SMT(04) � � Q802 057G 417 4 PMBS3904/PHILIPS-SMT(04) � � Q803 057G 417 4 PMBS3904/PHILIPS-SMT(04) � � Q810 057G 759 2 RK7002 � � Q809 057G 759 2 RK7002 � � Q808 057G 759 2 RK7002 � � Q807 057G 759 2 RK7002 � � Q804 057G 759 2 RK7002 � � Q805 057G 763 14 AM9945N � � Q806 057G 763 14 AM9945N � � Q801 057G 417 12 T KEC 2N3904S-RTK/PS � � Q802 057G 417 12 T KEC 2N3904S-RTK/PS � � Q803 057G 417 12 T KEC 2N3904S-RTK/PS � � Q805 057G 763 6 AO4828L � � Q806 057G 763 6 AO4828L � � Q903 006G 31502 1.5MM RIVET RESISTORs � � R905 061G152M10458F 100K OHM 5% 2W � � R914 061G152M43858F RST MOFR 0.43OHM +-5% 2WS � � NR901 061G 58005 W RST NTCR 5 OHM 3A THINKING � � JR801 061G0805000 0 OHM 1/10W � � JR821 061G0805000 0 OHM 1/10W � � R921 061G0805102 CHIP 1KOHM 1/10W � � R922 061G0805102 CHIP 1KOHM 1/10W � � R926 061G0805102 CHIP 1KOHM 1/10W � � R843 061G0805102 CHIP 1KOHM 1/10W � � R836 061G0805102 CHIP 1KOHM 1/10W � � R812 061G0805103 10 KOHM 1/10W � � R927 061G0805103 10 KOHM 1/10W � � R806 061G0805103 10 KOHM 1/10W � � R804 061G0805103 10 KOHM 1/10W � � R803 061G0805103 10 KOHM 1/10W � � R815 061G0805104 RST CHIP 100K 1/8W 5% � � R844 061G0805105 1MOHM 1/10W � � R840 061G0805105 1MOHM 1/10W http://www.wjel.net 34 � � R839 061G0805105 1MOHM 1/10W � � R838 061G0805105 1MOHM 1/10W � � R820 061G0805105 1MOHM 1/10W � � R816 061G0805105 1MOHM 1/10W � � R813 061G0805105 1MOHM 1/10W � � R810 061G0805105 1MOHM 1/10W � � R913 061G0805114 RST CHIPR 110 KOHM +-5% 1/8W � � R908 061G0805202 RST CHIP 2K 1/8W 5% � � R924 061G0805240 1F 2.4KOHM 1/10W 1% � � R920 061G0805302 RST CHIPR 3 KOHM +-5% 1/8W � � R802 061G0805304 RST CHIPR 300 KOHM +-5% 1/8W � � R923 061G0805330 2F 33 KOHM 1/10W 1% � � R925 061G0805360 1F 3.6KOHM 1/10W 1% � � R826 061G0805361 RST CHIPR 360 OHM +-5% 1/8W � � R841 061G0805430 0F RST CHIPR 430 OHM +-1% 1/8W � � R817 061G0805433 RST CHIPR 43 KOHM +-5% 1/8W � � R808 061G0805473 RST CHIPR 47 KOHM +-5% 1/8W � � R825 061G0805513 RST CHIPR 51 KOHM +-5% 1/8W � � R917 061G0805683 68K&8 1/10W � � R824 061G0805751 RST CHIPR 750 OHM +-5% 1/8W � � R858 061G0805751 RST CHIPR 750 OHM +-5% 1/8W � � R827 061G0805752 RST CHIPR 7.5 KOHM +-5% 1/8W � � R831 061G0805752 RST CHIPR 7.5 KOHM +-5% 1/8W � � R814 061G0805754 RST CHIPR 750 KOHM +-5% 1/8W � � R823 061G0805823 RST CHIPR 82 KOHM +-5% 1/8W � � R830 061G0805823 RST CHIPR 82 KOHM +-5% 1/8W � � JR904 061G1206000 0 OHM 1/8W � � JR903 061G1206000 0 OHM 1/8W � � JR902 061G1206000 0 OHM 1/8W � � JR824 061G1206000 0 OHM 1/8W � � JR823 061G1206000 0 OHM 1/8W � � JR822 061G1206000 0 OHM 1/8W � � JR820 061G1206000 0 OHM 1/8W � � R910 061G1206100 10 OHM 1/8W � � R931 061G1206101 100 1206 � � R932 061G1206101 100 1206 � � R933 061G1206101 100 1206 � � R930 061G1206101 100 1206 � � R916 061G1206101 100 1206 � � R906 061G1206101 100 1206 � � R912 061G1206103 10 KOHM 1/8W � � R919 061G1206151 RST CHIPR 150 OHM +-5% 1/4W � � R904 061G1206154 RST CHIP 150K 1/4W 5% � � R907 061G1206154 RST CHIP 150K 1/4W 5% � � R915 061G1206154 RST CHIP 150K 1/4W 5% http://www.wjel.net 35 � � R807 061G1206220 RST CHIPR 22 OHM +-5% 1/4W � � R911 061G1206221 RST CHIPR 220 OHM +-5% 1/4W � � R909 061G1206249 RST CHIPR 2.4 OHM +-5% 1/4W � � R801 061G1206330 RST CHIPR 33 OHM +-5% 1/4W � � R818 061G1206330 RST CHIPR 33 OHM +-5% 1/4W � � R928 061G1206335 RST CHIPR 3.3MOHM +-5% 1/4W � � R929 061G1206335 RST CHIPR 3.3MOHM +-5% 1/4W � � R934 061G1206335 RST CHIPR 3.3MOHM +-5% 1/4W � � R805 061G1206471 470 1206 � � R835 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W � � R834 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W � � R833 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W � � R828 061G1206472 RST CHIPR 4.7 KOHM +-5% 1/4W � � R837 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W � � R842 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W � � R901 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W � � R902 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W � � R903 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W � � NR901 006G 31502 1.5MM RIVET � � R822 061G212Y625 KT MGFR 6.2MOHM +-5% 1/2W � � R832 061G212Y625 KT MGFR 6.2MOHM +-5% 1/2W TRANSFORMER � � PT801 080GL19T 8DN1 X'FMR DARFONTK.2006M.101 � � PT802 080GL19T 8DN1 X'FMR DARFONTK.2006M.101 � � T901 080GL19T 25 L X'FMR 550uH PT-0076563-3 � � T901 080GL19T 25 YS X'FMR 550uH YS04160073 � � PT802 S80GL19T8V1 TRANSFORMER ASS'Y � � PT801 S80GL19T8V1 TRANSFORMER ASS'Y � � T901 006G 31502 1.5MM RIVET � � PT801 006G 31502 1.5MM RIVET � � PT802 006G 31502 1.5MM RIVET OTHERs � � CN801 033G8021 2E U WAFER � � CN802 033G8021 2E U WAFER � � CN803 033G8021 2E U WAFER � � CN804 033G8021 2E U WAFER � � CN901 087G 501 32 S AC SOCKET � � CN902 095G8014 6D643 WIRE HARNESS � � CN901 006G 31500 EYELET � � L904 073G 253 91 LS CHOKE BY LI SHIN � � L903 073G 253 91 LS CHOKE BY LI SHIN � � L901 073L 174 53 LG GP CHOKE � � L902 073L 174 55 LG GP LINE FILTER BY LITAI � � L902 073L 174 55LSG GP LINE FILTER BY LISHIN � � L902 S73L17455VG TRANSFORMER ASS'Y http://www.wjel.net 36 � � L901 006G 31502 1.5MM RIVET � � L902 006G 31502 1.5MM RIVET � � F901 084G 33 10 FUSE CLIP � � F901 084G 41 3 3.15AH/250V � � FB901 071G 55 29 FERRITE BEAD http://www.wjel.net 37 SCHEMATIC DIAGRAM B3 3.INPUT RIN GIN BIN VSYNC GNDR GNDG GNDB DET_VGA HSYNC SOG DDCA_SDA DDCA_SCL +5V DDC_WP PC5V VCC3.3 PC5V A[0..9] VLCD XGA/SXGA +5V TSUM16AL SCHEMATIC B5 5.PANEL INTERFACE VLCD B[0..9] A[0..9] VLCD +5V B4 4.SCALER RIN GIN SOG BIN GNDR GNDG GNDB HSYNC VSYNC Adj_BACKLIGHT VCC1.8 Vcc3.3 VCTRL A[0..9] B[0..9] DDCA_SDA DDCA_SCL DET_VGA on_BACKLIGHT on_Panel +5V DDC_WP VCC1.8 VCC1.8 B[0..0] PC5V B2 2.POWER on_Panel on_BACKLIGHT Adj_BACKLIGHT VCC1.8 VLCD +5V VCTRL VCC5V VCC3.3 PC5V LVDS OUTPUT VCC3.3 +5V VCC5V 1. SCALER http://www.wjel.net 38 0V ~ 5V +5V R721 0Ω 1/10W U701 3 2 1 VI VO GND R706 R729 150Ω 1/10W 1uF R705 4.7KΩ 1/10W R725 4.7KΩ 1/10W R704 100Ω 1/10W Q703 PMBS3904 R707 NC + C710 10uF/16V VCC3.3 R703 2KΩ 1/10W VCTRL 4 MMBT3904 BL_ON BL_ADJ(DC) GND VCC1.8 4 1K Q706 PMBS3906 R706 0Ω 1/10W D704 SR24 C713 0.1uF 16V +5V 4.7K D702 LL4148 CN701 CONN 1 2 3 4 5 6 VCC1.8 +5V 4.7K + C717 10uF/16V C708 NC X BL_ADJ C718 0.1uF 16V 47 R728 150Ω 1/10W +5V +5V Q701 NC +5V 3,4 U702->U701 TO-263 + C712 10uF/16V R727 10KΩ 1/10W X VCC3.3 C709 0.1uF 16V R723 51 KOHM +-5% 1/10W on_BACKLIGHT 4 0V ~ 3.3V 1UF + C702 4.7uF VCC3.3 3,4 C711 NC +5V VCC5V C708 X R711 10KΩ 1/10W +5V C714 0.1uF 16V 1UF +5V 3,4 4K7 X R714 10KΩ 1/10W R701 Q701 R705 R702 51Ω 1/10W C708 R717 10KΩ 1/10W BL_ADJ +5V R712 4.7KΩ 1/10W R708 10KΩ 1/10W N.C R701 10KΩ 1/10W VCC3.3 3,4 C715 0.1uF 16V Adj_BACKLIGHT 4 R707 Q702 PZT2907A D701 LL4148 R722 NC VLCD 5 0 R705 on_Panel 4 VCC3.3 4.7K P W M VLCD D C R710 NC Q704 AM2321P 3 1 2 http://www.wjel.net 39 VGA_CON R437 470Ω 1/10W C440 0.1uF 16V D409 ZMM5V6 C444 0.1uF 16V CN405 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 GREEN- SCL_VGA C434 0.047uF50V R448 2.2KΩ 1/10W BLUE- RED+ R487 47Ω 1/10W +5V C436 0.047uF50V C439 0.1uF 16V DDCA_SCL 4 D403 BAV99 3 1 2 R446 1KΩ 1/10W R445 100Ω 1/10W R434 56Ω 1/10W FB409 120 OHM R488 47Ω 1/10W SOG 4 D411 ZMM5V6 HSYNC 4 DET_VGA 4 R455 1KΩ 1/10W GNDB 4 C448 NC R453 100Ω 1/10W R452 10KΩ 1/10W D405 BAV99 3 1 2 R450 4.7KΩ 1/10W PC5V 2 D408 ZMM5V6 +5V 2,4 C438 0.047uF50V RIN 4 VSYNC 4 PC5V R441 100Ω 1/10W R436 56Ω 1/10W PC5V R438 75 OHM +-1% 1/10W U404 M24C02-RMN6TP 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC BIN 4 DDCA_SDA 4 R444 10KΩ 1/10W D404 BAV99 3 1 2 D407 BAV70 3 1 2 +5V RED- C447 NC R439 75 OHM +-1% 1/10W C433 0.047uF50V FB411 30 OHM 1 2 R454 100Ω 1/10W R447 1KΩ 1/10W R449 2.2KΩ 1/10W GIN 4 VCC3.3 FB410 30 OHM 1 2 GREEN+ D412 ZMM5V6 VSI FB412 30 OHM 1 2 R443 100Ω 1/10W GNDG 4 C441 0.1uF 16V C443 22pF50V C442 22pF50V DDC_WP 4 PC5V R435 56Ω 1/10W BLUE+ D410 ZMM5V6 HSI R440 75 OHM +-1% 1/10W C432 0.047uF50V SDA_VGA R442 100Ω 1/10W C435 1000pF/50V R451 4.7KΩ 1/10W D413 ZMM5V6 C437 0.047uF50V D406 ZMM5V6 1 2 GNDR 4 http://www.wjel.net 40 RIGHT R429 100Ω 1/10W R475 1KΩ 1/10W POWER AUTO R480 10KΩ 1/10W Q401 PMBS3906 C414 0.1uF 16V Option C405 0.1uF 16V R414 100Ω 1/10W A3 VDDC C412 0.1uF 16V R428 100Ω 1/10W C411 0.1uF 16V VDDP A8 + C418 10uF/16V VCC3.3 R416 10KΩ 1/10W VCC3.3 2,3 LEFT A2 C415 0.1uF 16V VSYNC 3 C417 220nF16V +5V B1 LEFT R405 20 KOHM +-5% 1/10W VDDP U403 M24C04-WMN6TP 1 2 3 4 5 6 7 8 NC E1 E2 VSS SDA SCL WC VCC VCC3.3 C419 0.1uF 16V B2 VCC3.3 2,3 A5 VPLL B8 CN403 CONN 2 4 6 8 1 3 5 7 R476 1KΩ 1/10W U402 SST25VF010A-33-4C-SAE 1 2 3 4 5 6 7 8 CE# SO WP# VSS SI SCK HOLD# VDD VCC3.3 R407 NC VCC3.3 C416 0.1uF 16V R421 47Ω 1/10W BIN 3 LEFT FB406 600 OHM C407 0.1uF 16V C423 22pF50V VCC3.3 B7 + C403 10uF/16V C422 0.1uF 16V R426 10KΩ 1/10W C409 0.1uF 16V A[0..9] 5 VCC3.3 2,3 DDCA_SCL 3 VMPLL R478 100Ω 1/10W DDCA_SDA 3 B3 on_BACKLIGHT 2 VCC3.3 R485 10KΩ 1/10W R427 100Ω 1/10W B4 FB405 600 OHM VDVI C428 330pF R484 10KΩ 1/10W +5V D414 LL4148 AVDD LEDG X401 14.318MHz C427 330pF A4 R477 1KΩ 1/10W C406 0.1uF 16V Reset Circuit AVDD C424 NC AUTO KEY_RIGHT SPI_WP C446 330pF A9 FB404 600 OHM MENU R479 10KΩ 1/10W KEY_AUTO R413 10KΩ 1/10W A1 R486 1KΩ 1/10W R423 4.7KΩ 1/10W R415 10KΩ 1/10W R422 4.7KΩ 1/10W VCC3.3 2,3 VPLL VCC3.3 R403 390 OHM +-1% 1/10W C410 0.1uF 16V C402 0.1uF 16V A7 R474 1KΩ 1/10W VDVI B6 SOG 3 AUTO R412 NC C421 22pF50V R481 10KΩ 1/10W R424 10KΩ 1/10W GIN 3 C401 0.1uF 16V VCC3.3 2,3 HSYNC 3 MENU LEDA R417 NC R404 10KΩ 1/10W R406 10KΩ 1/10W on_PANEL 2 RIN 3 A6 FB401 600 OHM GNDR 3 DDC_WP 3 adj_BACKLIGHT 2 R483 10KΩ 1/10W VCC1.8 GNDG 3 B5 RIGHT VCC3.3 SPI_WP R409 100Ω 1/10W KEY_POWER R410 NC POWER VCC3.3 VMPLL R408 10KΩ 1/10W B[0..9] 5 B[0..9] FB403 600 OHM R419 47Ω 1/10W + C408 10uF/16V C426 330pF KEY_MENU 23 20 21 18 22 19 17 27 28 15 26 25 37 39 38 40 47 86 59 96 97 60 61 62 63 64 65 67 68 69 70 71 72 73 74 77 78 58 55 54 2 5 8 11 29 33 24 56 53 52 81 51 30 31 93 14 75 35 48 85 88 89 90 91 92 94 95 99 43 44 84 41 42 98 16 32 49 66 82 34 50 57 76 79 83 80 87 36 45 46 RIN0P GIN0P SOGIN0 BIN0P RIN0N GIN0N BIN0N HSYNC0 VSYNC0 REXT REFP REFM SDO SCK SCZ SDI PWM2/GPIO_P24 PWM1/GPIO_P25 LVACKM XIN XOUT LVA2P LVA2M LVA1P LVA1M LVA0P LVA0M LVB3P LVB3M LVBCKP LVBCKM LVB2P LVB2M LVB1P LVB1M LVB0P LVB0M LVACKP LVA3M LVA3P GND GND AVDD_DVI GND GND GND AVDD_ADC VDDP MODE[1] MODE[0] VCTRL VDDC DDCA_SDA/RS232_TX DDCA_SCL/rs232_RX PWM0/GPIO_P26 AVDD_DVI VDDP GPIO_P15/PWM0 GPIO_P27/PWM1 GPIO_P12 GPIO_P00/SAR1 GPIO_P01/SAR2 GPIO_P02/SAR3 GPIO_P06 GPIO_P07 GPIO_P13 GPIO_P14 GPIO_P16/PWM2 GPIO_P11/I2C_MDA GPIO_P10/I2C_MCL RST GPIO_P23 GPIO_P22 AVDD_MPLL AVDD_PLL VDDP VDDP VDDC VDDC VDDC GND GND GND GND GND BYPASS RSTN NC NC NC VDDC RIGHT POWER C429 0.1uF 16V VCC1.8 2 Q402 PMBS3904 R425 10KΩ 1/10W R482 10KΩ 1/10W VCC3.3 C430 0.1uF 16V A[0..9] MENU C425 0.1uF 16V C431 330pF GNDB 3 U405 NC 1 2 3 GND RESET VCC Q403 PMBS3906 C404 0.1uF 16V B0 C413 0.1uF 16V VCTRL 2 A0 +5V 2,3 DET_VGA 3 FB402 600 OHM 1 2 Change Symbol VCC3.3 AVDD B9 C445 0.1uF 16V VCC3.3 D415 ZMM5V6 http://www.wjel.net 41 A9 LVACKM LVB1P LVA1M B4 LVACKM LVA1P B8 LVACKP LVA2M A6 LVB3M A[0..9] 4 LVA2P LVB2P LVA0M LVA3P LVB3M LVB1M LVB3P LVB1P LVB2M LVBCKM LVACKP LVA2M LVB2M CN102 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 B1 LVB1M B[0..9] LVA0P A8 A1 LVA3P LVA0M LVA3M LVA3P B5 LVBCKP LVB0P LVA1P LVA1M LVA2P VLCD LVB3P LVA3M LVBCKM B0 A7 B[0..9] 4 B7 A3 A[0..9] A2 B6 LVB2P LVA3M LVBCKP LVB0M B9 B2 A4 LVB0M B3 A5 LVB0P LVA0P A0 http://www.wjel.net 42 CN802 033G8021 2E U 1 2 61G0805103 CN803 033G8021 2E U 1 2 NC 65G0805103 32 Q809 RK7002 IC801 OZ9938GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DRV1 VDDA TIMER DIM ISEN VSEN OVPT NC1 NC2 ENA LCT SSTCMP CT GNDA DRV2 PGND 80GL19T 8DN1 61G0805823 61G1206471 61G0805105 D811 1N4148W R822 6.2MΩ 1/2W 65G0805104 32 67G215L471 4H R830 82 K 1/8W R838 1MΩ 1/8W R824 750Ω 1/8W 61G1206472 R837 5.1Ω 1/4W 93G 6432S D801 BAV99 3 1 2 61G0805754 OPT3 C826 3PF/3KV C813 1000pF R811 NC 57G 763 14 61G0805751 C825 10pF/3KV 65G0805471 31 R810 1MΩ 1/8W D802 BAV99 3 1 2 65G0805104 32 CN801 033G8021 2E U 1 2 C806 1uF/25V OPT2 61G0805103 61G0805430 0F R809 NC R815 100KΩ 1/8W 61G0805823 R843 1KΩ 1/8W 93G 6432S 93G 64 33 61G0805105 R805 470 1/4W 93G 64 33 C822 0.1uF 0805 C816 10pF/3KV 56G 608 10 R840 1MΩ 1/8W C827 0805 2200PF 65G 3J3096ET R817 43KΩ 1/8W C807 0.01uF + C815 470uF/25V DIM 57G 759 2 + C811 470uF/25V VCC PT802 POWER X'FMR 5 3 7 4 1 8 R816 1MΩ 1/8W 57G 759 2 R825 51 K1/8W C802 0.1uF 93G 39S 24 T R814 750KΩ 1/8W R806 10KΩ 1/8W 61G0805103 C829 0.1uF R832 6.2MΩ 1/2W R842 5.1Ω 1/4W C831 0805 2200PF 61G1206330 65G0805105 22 61G0805513 61G0805752 OPT3 D806 BAV99 3 1 2 80GL19T 8DN1 R823 82 K 1/8W R801 33Ω 1/4W OPT2 OPT4 57G 763 14 OPT1 61G0805105 R835 4.7 K 1/4W ON/OFF 61G0805751 PT801 POWER X'FMR 5 3 7 4 1 8 61G212Y625 KT Q804 RK7002 C817 0.1uF 0805 61G0805473 C808 180 K1/8W Q810 RK7002 65G0805104 32 R803 10KΩ 1/8W R807 22 1/4W 93G 6432S 57G 759 2 65G0805222 31 D804 BAV99 3 1 2 65G 3J3096ET Q802 PMBS3904 67G215L471 4H R808 47KΩ 1/8W D803 BAV99 3 1 2 D805 BAV99 3 1 2 61G1206472 61G1206472 61G1206220 61G0805102 Q808 RK7002 R831 7.5 K 1/8W 93G 6432S C814 0.22uF/25V 61G0805103 61G1206519 R820 1MΩ 1/8W C828 0.1uF D810 1N4148W 61G1206472 61G1206330 C812 1000pF 65G0805104 32 61G0805433 Q801 PMBS3904 +12V R836 1KΩ 1/8W D809 1N4148W C819 0.047uF R858 750Ω 1/8W 65G0805102 31 R802 300KΩ 1/8W CN804 033G8021 2E U 1 2 93G 64 33 65G 3J1006ET OPT1 65G0805104 32 NC Q806 AM9945N-T1-PF 1 2 3 4 8 7 6 5 S G S G D D D D R839 1MΩ 1/8W R804 10KΩ 1/8W 93G 64 33 61G212Y625 KT R827 7.5 K 1/8W R826 360Ω 1/8W C809 0.047uF R812 10KΩ 1/8W C803 NC R841 430Ω 1% 1/8W C821 0.1uF 0805 R818 33Ω 1/4W D807 1N4148W R813 1M 1/8W Q807 RK7002 R833 4.7 K 1/4W 57G 759 2 65G 3J1006ET C824 3PF/3KV Q805 AM9945N-T1-PF 1 2 3 4 8 7 6 5 S G S G D D D D R828 4.7 K 1/4W R844 1MΩ 1/8W C832 0.1uF 0805 61G0805304 57G 759 2 OPT4 C805 0805 2200PF C801 0.1uF C818 0805 2200PF NC 93G 6432S C810 470pF/50V 61G1206519 C830 1uF/25V 65G0805102 31 65G0805105 22 93G 64 33 61G0805102 R834 4.7 K 1/4W C804 1uF/25V ZD801 RLZ5.6B 1 2 Q803 PMBS3904 61G0805752 D808 1N4148W C820 0805 2200PF 65G0805105 22 65G0805224 22 93G 64 33 2. INVERTER http://www.wjel.net 43 + C920 470uF/25V R906 100Ω 1/4W L904 3.5uH 61G1206684 93G 39S 44 T 93G 60267 CN901 SOCKET 1 2 3 R913 110KΩ 1/8W 93G 39S 24 T 61G0805360 1F 67G215S10915H DIM + C906 NC R932 100Ω 1/4W R926 1KΩ 1/8W Q903 STP10NK70ZFP R904 150K 1/4W D902 FR103 C909 220pF/50V 93G 39S 42 T 61G0805102 93G 6038T52T 61G0805240 1F +12V D901 FR107 + C921 470uF/25V C900 1000PF 250V 65G0805104 32 C908 0.1uF C913 0.1uF 61G0805102 67G315L10115H IC902 PC123X2YFZOF 1 2 4 3 t NR901 SCK-053 1 2 C902 1000PF 250V R912 10KΩ 1/4W 67G215L471 4H + C922 470uF/25V ZD902 RLZ5.6B 1 2 +5V 93G 6026T52T 61G0805202 F901 FUSE/3.15A 84G 41 3 ZD906 RLZ27B 1 2 93G 50460900 73G 253 91 LS FB901 BEAD 1 2 VAR901 NC +5V D903 NC JUMP C934 0.0015uF/2KV 61G1206101 61G152M43858F 61G0805102 IC901 LD7522 3 4 5 1 2 6 7 8 OTP CS GND Line COMP OUT VCC OVP 65G0805221 31 R927 10KΩ 1/8W + C923 470uF/25V R908 2KΩ 1/8W 63G 10747410S 67G 5152207HT ON/OFF 61G1206154 R930 100Ω 1/4W + C924 470uF/25V 61G1206100 65G 2K152 1T GP + C915 470uF/25V R922 1KΩ 1/8W R921 1KΩ 1/8W + C907 22uF 25V 065G306M1022B3 93G 5212T52T ZD905 NC 1 2 61G1206151 D904 1N4148W 61G1206103 C903 0.47uF/275V R917 68KΩ 1/8W 61G1206154 IC903 AZ431AZ-AE1 65G0805104 32 - + BD901 GBU408 2 1 3 4 R914 0.43 2W 　 C930 0.0015uF/2KV +5V 93G 39S 40 T 65G 2K152 1T GP R905 100KΩ 2W C919 0.1uF D907 SP10150 1 2 3 57G 667516 C904 0.1uF R910 10Ω 1/4W 71G 55 29 061G0805330 2F 56G 139 3A 61G0805103 T901 6 9 5 4 2 1 7 3 10 8 R919 150 1/4W R901 680KΩ L901 73L 174 53 LG GP 1 4 2 3 65G0805104 32 R911 220Ω 1/4W DIM 61G1206154 R929 3.3MΩ 1/4W 56G 158 10 T ZD901 RLZ13B 1 2 65G0805103 32 87G 501 32 S ZD904 RLZ18B 1 2 93G 60245 56G 379 79 CN902 CONNECTOR 1 2 3 4 5 6 7 C910 0.01uF/50V L902 73G 174 55 LG GP 1 4 2 3 R916 100Ω 1/4W 61G1206221 065G306M1022B3 L903 3.5uH R931 100Ω 1/4W R903 680KΩ 61G1206335 R909 2.4Ω 1/4W C914 152/2KV GND R928 3.3MΩ 1/4W 73G 253 91 LS 93G 6432S 93G 39S 38 T + C925 1.0uF/450V R934 3.3MΩ 1/4W 61G 58005 W 61G0805683 R920 3 K 1/8W 65G0805104 32 C912 152/2KV R924 2.4KΩ 1% 1/8W 65G0805104 32 C918 0.1uF 61G152M10458F R907 150K 1/4W 095G8014 6D643 R915 150K 1/4W + C905 100uF/450V R925 3.6 K+-1% 1/8W R902 680KΩ GND ZD903 PTZ9.1B 1 2 X'FMR 550uH PT-0076563-3 61G0805302 61G0805114 61G1206101 C901 1000PF 250V R933 100Ω 1/4W D905 1N4007 C931 0.0015uF/2KV ON/OFF D906 SP10100 1 2 3 R923 33 K+-1% 1/8W 61G1206249 3. POWER http://www.wjel.net Jan. 2007 P/NO : MFL36713631 Printed in China http://www.wjel.net
