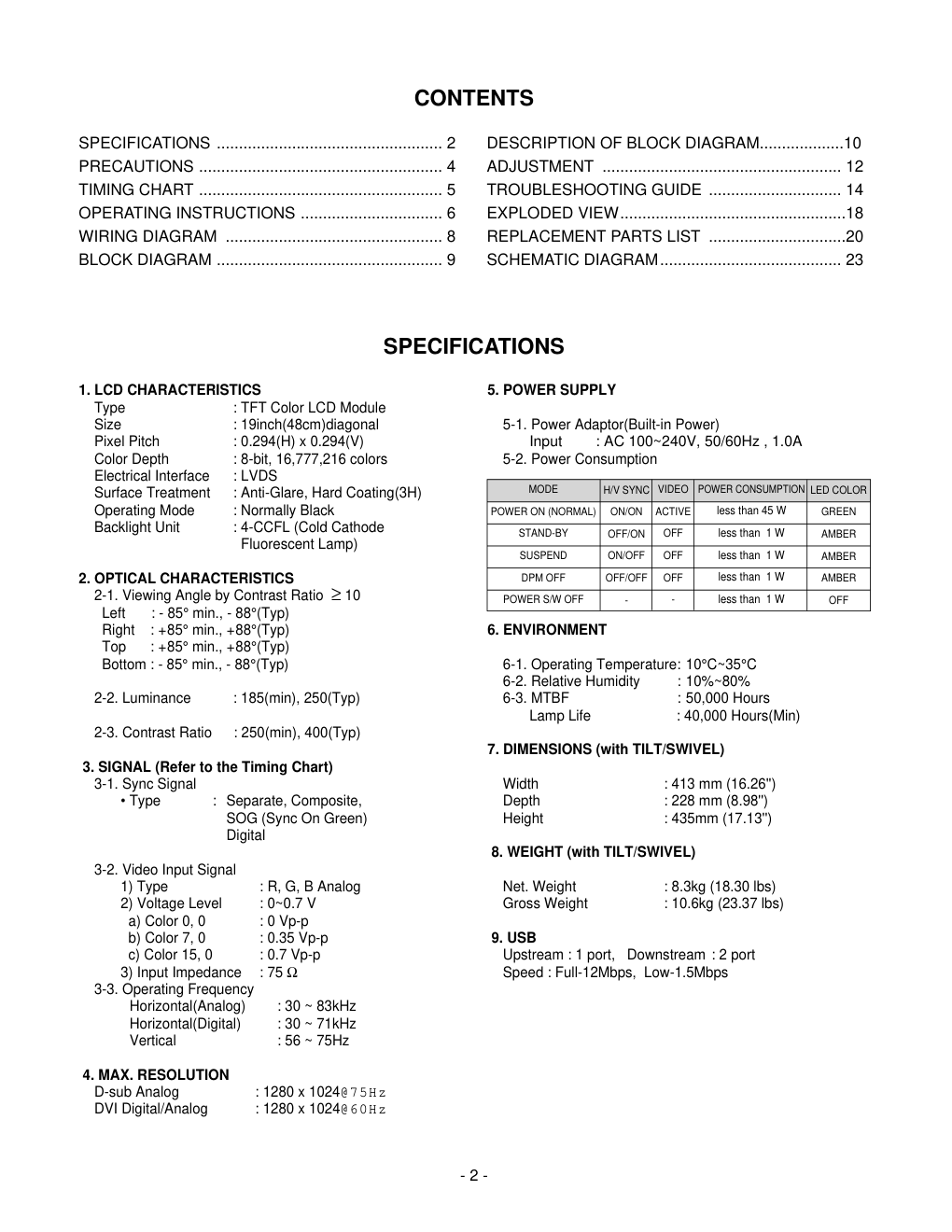

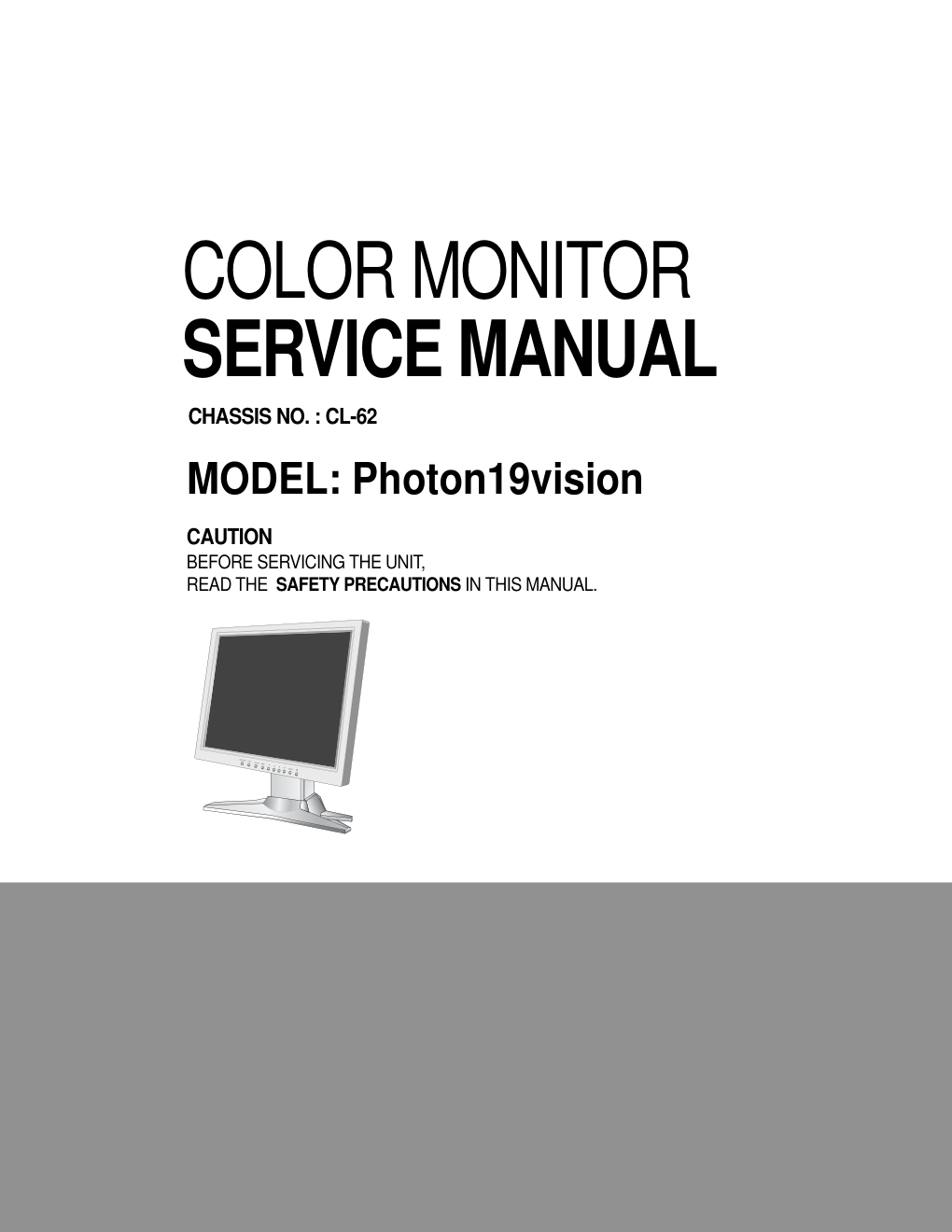

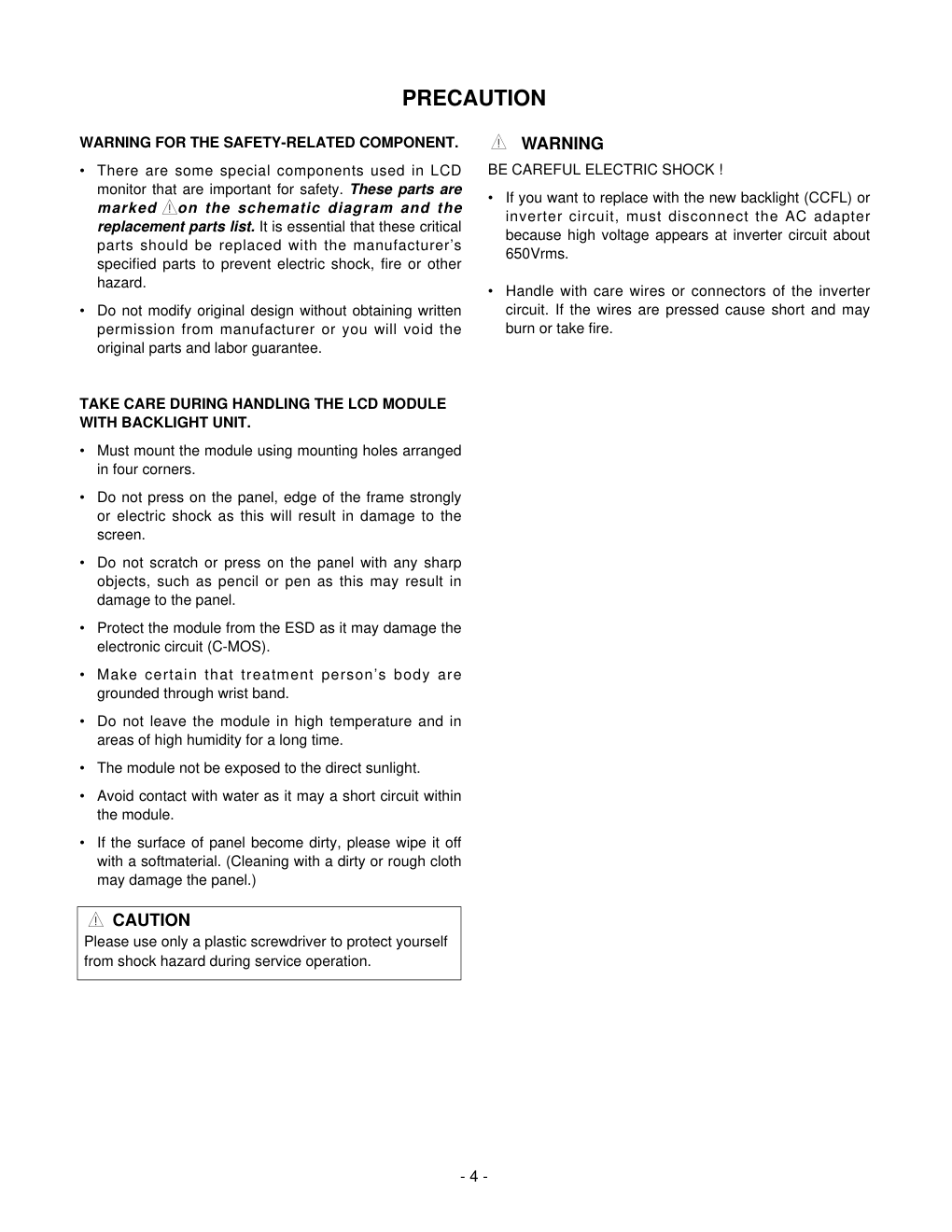

MENU SOURCE AUTO LIGHT VIEW SELECT COLOR MONITOR SERVICE MANUAL CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. MODEL: Photon19vision CHASSIS NO. : CL-62 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Size : 19inch(48cm)diagonal Pixel Pitch : 0.294(H) x 0.294(V) Color Depth : 8-bit, 16,777,216 colors Electrical Interface : LVDS Surface Treatment : Anti-Glare, Hard Coating(3H) Operating Mode : Normally Black Backlight Unit : 4-CCFL (Cold Cathode Fluorescent Lamp) 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : - 85° min., - 88°(Typ) Right : +85° min., +88°(Typ) Top : +85° min., +88°(Typ) Bottom : - 85° min., - 88°(Typ) 2-2. Luminance : 185(min), 250(Typ) 2-3. Contrast Ratio : 250(min), 400(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal • Type : Separate, Composite, SOG (Sync On Green) Digital 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.7 V a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.35 Vp-p c) Color 15, 0 : 0.7 Vp-p 3) Input Impedance : 75 Ω 3-3. Operating Frequency Horizontal(Analog) : 30 ~ 83kHz Horizontal(Digital) : 30 ~ 71kHz Vertical : 56 ~ 75Hz 4. MAX. RESOLUTION D-sub Analog : 1280 x 1024@75Hz DVI Digital/Analog : 1280 x 1024@60Hz 5. POWER SUPPLY 5-1. Power Adaptor(Built-in Power) Input : AC 100~240V, 50/60Hz , 1.0A 5-2. Power Consumption 6. ENVIRONMENT 6-1. Operating Temperature: 10°C~35°C 6-2. Relative Humidity : 10%~80% 6-3. MTBF : 50,000 Hours Lamp Life : 40,000 Hours(Min) 7. DIMENSIONS (with TILT/SWIVEL) Width : 413 mm (16.26'') Depth : 228 mm (8.98'') Height : 435mm (17.13'') 8. WEIGHT (with TILT/SWIVEL) Net. Weight : 8.3kg (18.30 lbs) Gross Weight : 10.6kg (23.37 lbs) 9. USB Upstream : 1 port, Downstream : 2 port Speed : Full-12Mbps, Low-1.5Mbps CONTENTS SPECIFICATIONS - 2 - SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 4 TIMING CHART ....................................................... 5 OPERATING INSTRUCTIONS ................................ 6 WIRING DIAGRAM ................................................. 8 BLOCK DIAGRAM ................................................... 9 DESCRIPTION OF BLOCK DIAGRAM...................10 ADJUSTMENT ...................................................... 12 TROUBLESHOOTING GUIDE .............................. 14 EXPLODED VIEW...................................................18 REPLACEMENT PARTS LIST ...............................20 SCHEMATIC DIAGRAM......................................... 23 MODE POWER ON (NORMAL) STAND-BY SUSPEND DPM OFF POWER S/W OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF - POWER CONSUMPTION less than 45 W less than 1 W less than 1 W less than 1 W less than 1 W LED COLOR GREEN AMBER AMBER AMBER OFF VIDEO ACTIVE OFF OFF OFF - - 3 - Signal Connector Pin Assignment Pin Signal (DVI-D) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 T. M. D. S. Data2- T. M. D. S. Data2+ T. M. D. S. Data2/4 Shield T. M. D. S. Data4- T. M. D. S. Data4+ DDC Clock DDC Data Analog Vertical Sync. T. M. D. S. Data1- T. M. D. S. Data1+ T. M. D. S. Data1/3 Shield T. M. D. S. Data3- T. M. D. S. Data3+ +5V Power Ground (return for +5V, H. Sync. and V. Sync.) Pin Signal (DVI-D) 1 8 9 17 24 16 16 17 18 19 20 21 22 23 24 Hot Plug Detect T. M. D. S. Data0- T. M. D. S. Data0+ T. M. D. S. Data0/5 Shield T. M. D. S. Data5- T. M. D. S. Data5+ T. M. D. S. Clock Shield T. M. D. S. Clock+ T. M. D. S. Clock- T. M. D. S. (Transition Minimized Differential Signaling) • DVI-D Connector - 4 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. TIMING CHART - 5 - VIDEO SYNC B D C F E A << Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >> H + 31.469 800 640 16 96 48 V – 70.8Hz 449 350 37 2 60 H – 31.469 840 640 16 96 48 V – 59.94 525 480 10 2 33 H – 37.5 840 640 16 64 120 V – 75 500 480 1 3 16 H – 31.468 900 720 18 108 54 V + 70.09 449 400 12 2 35 H + 37.879 1056 800 40 128 88 V + 60.317 628 600 1 4 23 H + 46.875 1056 800 16 80 160 V + 75.0 625 600 1 3 21 H +/– 49.725 1152 832 32 64 224 V +/– 74.55 667 624 1 3 39 H – 48.363 1344 1024 24 136 160 V – 60.0 806 768 3 6 29 H – 60.123 1312 1024 16 96 176 V – 75.029 800 768 1 3 28 H +/– 68.681 1456 1152 32 128 144 V +/– 75.062 915 870 3 3 39 H +/– 61.805 1504 1152 18 134 200 V +/– 65.96 937 900 2 4 31 H + 63.981 1688 1280 48 112 248 V + 60.02 1066 1024 1 3 38 H + 79.976 1688 1280 16 144 248 V + 75.035 1066 1024 1 3 38 Mode H/V Sort 1 2 3 4 5 6 7 8 9 10 11 12 13 25.175 28.321 25.175 31.5 40.0 49.5 57.283 65.0 78.75 100.0 92.978 108.0 135.0 640x350 70Hz 640x480 60Hz 640x480 75Hz 720x400 70Hz 800x600 60Hz 800x600 75Hz 832x624 75Hz 1024x768 60Hz 1024x768 75Hz 1152x870 75Hz 1152x900 65Hz 1280x1024 60Hz 1280x1024 75Hz Sync Polarity Frequency Dot Clock Total Period (E) Video Active Time (A) Sync Duration (D) Back Porch (F) Front Porch (C) Resolution - 6 - FRONT VIEW REAR VIEW OPERATING INSTRUCTIONS See Front Control Panel USB Port DVI Connect D-Sub Signal Connect Power Connect Front Control Panel 1. Power Button Use this button to turn the display on or off. Power (DPMS) Indicator This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. 2. MENU Button Use this button to enter or exit the On Screen Display. 3. ¡ ¡ª¢‚¢” Button Use these buttons to choose or adjust items in the On Screen Display.. 4. AUTO/SELECT Button Use this button to enter a selection in the On Screen Display. When adjusting your display settings, always press the AUTO/SELECT button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is 1280x1024. 5. SOURCE Use this button to make Dsub or DVI connector active. This feature is used when two computers are connected to the display. The default setting is Dsub. This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc.). • DAY : Bright ambient illumination • NIGHT : Dark ambient illumination • TEXT : For text images (Word processing etc.) • MOVIE : For animation images in videos or movies • PHOTO : For pictures or drawings • USER MODE : For use under user setup image conditions (Brightness, contrast and color tint are selected by the user in OSD Screen Setup Menu.) 100 100 Bring up Contrast and Brightness adjustment. : LightView - 7 - Making use of USB (Universal Serial Bus)* USB (Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your computer. By using the USB, you will be able to connect your mouse, keyboard, and other to your monitor instead of having to connect them to your computer. This will give you greater flexibility in setting up your system. USB allows you to connect chain up to 120 devices on a single USB port, and you can “hot” plug (attach them while the computer is running) or unplug them while maintaining Plug and Play auto detection and configuration. This monitor has an integrated BUS-powered USB hub, allowing up to 2 other USB devices to be attached it. USB connection 1. Connect the upstream port of the Display to the downstream port of the USB compliant PC or another hub using the USB cable. (Computer must have a USB port) 2. Connect the USB compliant peripherals to the downstream ports of the monitor. NOTE To activate the USB hub function, the monitor must be connected to a USB compliant PC(OS) or another hub with the USB cable(enclosed). When connecting the USB cable, check that the shape of the connector at the cable side matches the shape at the connecting side. Even if the monitor is in a power saving mode, USB compliant devices will function when they are connected the USB ports(both the upstream and downstream) of the monitor. USB downstream Port connect the cables from USB compliant peripherals-such as keyboard, mouse, etc This is a simplified representation of rear view. To USB downstream port of the USB compliant PC or another hub cable CONTROLS LOCKED/UNLOCKED : MENU and This function allows you to secure the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button and button for 3 seconds: the message “CONTROLS LOCKED” appears. You can unlock the OSD controls at any time by pushing the MENU button and button for 3 seconds: the message “CONTROLS UNLOCKED” will appear. MMST9151 Control Board J1 J706 J702 J705 Power Board Main Board - 8 - WIRING DIAGRAM Connector Ass’y P/N: 6631T20024B Connector Ass’y P/N: 6631T20020Q Connector Ass’y P/N: 6631T11012W - 9 - D-SUB MST9131B including (ADC/LVDS/SCALER /INPUT SWITCHING /TMDS ) MTV312 Micom LCD Module R,G,B differential LLLLVVVVDDDDSSSS ((((LLLLoooowwww VVVVooollllttttaaaaggggeeee DDDDiiiiffff ffffeeeerrrreeeennnnttttiiiiaaaallll SSSSiiiiggggnnnnaaaalllliiiinnnngggg)))) LIPS 5V 5V AC Input 3.3V Reg. Diode KDS184 5V 3.3V 12V DVI-D R,G,B, H/V Sync Digital Signal U/S D/S USB HUB D/S Bus-power USB 3.3V 2.5V 3.3V 2.5V BLOCK DIAGRAM - 10 - DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 135MHz. This part consists of the Scaler, ADC and TMDS receiver . The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V regulator, and two 2.5V drop diodes to convert power which is provided 12V, 5V in Power board. 5V is provided for LCD panel and Micom. Also, 5V is converted 3.3V by regulator and 3.3V is converted 2.5V by drop diode. Converted power is provided for IC in the main board. 3. MICOM Part. This part consists of EEPROM IC which stores control data, Reset IC and the Micom. The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable. The controlled data of each modes is stored in EEPROM. - 11 - EMI COMPONENTS LINE 100 ~ 240V INPUT RECTIFIER AND FILTER ENERGY TRANSFER OUTPUT RECTIFIER AND FILTER 12V 5V GND SIGNAL COLLECTI ON PHOTO- COUPLER ISOLATION PWM CONTROL CIRCUIT HVDC 100KHz PRIMARY SECONDARY 50 ~ 60Hz Operation description_LIPS LIPS Board Block Diagram 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achive the dc output stablize, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the dc output changing status through a photo transistor to primary controller to achieve the stabilized dc output voltage. 6. Signal collection. This part function is to collect the any change from the dc output and feed back to the primary through photo transistor. - 12 - ADJUSTMENT Windows EDID V1.0 User Manual Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Don’t need setup Windows 2000, XP => Need to Port Setup. This program is available to LCD Monitor only. 1. Port Setup a) Copy “UserPort.sys” file to “c:\WINNT\system32\drivers” folder b) Run Userport.exe c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. 2. EDID Read & Write 1) Run WinEDID.exe 2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button - 13 - 220 IBM Compatible PC Video Signal Generator PARALLEL PORT Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E E V-Sync On/Off Switch (Switch must be ON.) F F A A B B C C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Figure 1. Cable Connection SERVICE OSD 1) Turn off the power switch at the front side of the display. 2) Wait for about 3 seconds and press MENU, POWER switch. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) MODULE : To select applied module. b) NVRAM INIT : EEPROM initialize(24C08) c) ADC OFFSET : The lowest value of input leves sets to digitally 0(zero). d) ADC GAIN : The highest value of input levels sets to digitally 255. e) ADC CAL : W/B balance sets the gain and offset value. f) ELAPSED CLEAR : To initialize using time. - 14 - TROUBLESHOOTING GUIDE 1. NO POWER NO POWER (POWER INDICATOR OFF) CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK J705 VOLTAGE PIN5, PIN6 (5V)? NO CHECK 5VS LINE (OPEN CHECK) CHECK U501 PIN 8 Voltage (5V) ? NO NO NO CHECK U201 PIN 122 PULSE CHECK U201 CHECK 3.3V LINE CHECK X-TAL IS U201 PIN114 (3.3V) VOLTAGE ? YES YES NO PROBLEM YES CHECK KEY CONTROL CONNECTOR ROUTINE YES - 15 - 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS CHECK MICOM INV ON/OFF PORT. J705 PIN 9 5V? NO NO RASTER (OSD IS NOT DISPLAYED) CHECK LIPS J705 PIN5, PIN6 5V? NO 1. CONFIRM BRIGHTNESS OSD CONTRL STATE. 2. CHECK MICOM DIM-ADJ PORT J705 PIN10 5V? NO LIPS CHECK PULSE AS CONTACTING SCOPE PROBE TO CAUTION LABEL. (CONTACT PROBE TO CAUTION LABEL. CAN YOU SEE PULSE AT YOUR SCOPE? NO REPLACE CCFL LAMP IN THE LCD MODULE YES YES YES YES - 16 - 1. CHECK PIN122, 123 SOLDERING CONDITION 2. CHECK X501 3. TROUBLE IN U201 U201 POWER PIN 8, 114 (3.3V)? NO CHECK U801 U201 PIN122, 123 OSCILLATE AS 12MHZ? CHECK CONNECTION LINE FROM D-SUB TO U501 TROUBLE IN CABLE OR LCD MODULE YES YES YES 3. NO RASTER (OSD IS NOT DISPLAYED) – MST9131B NO RASTER (OSD IS NOT DISPLAYED) U501 PIN43 IS 64KHz H-SYNC? PIN44 IS 60Hz V-SYNC? IS PULSE APPEARED AT SIGNAL PINS? AT MODE 12? NO NO - 17 - 4. TROUBLE IN DPM TROUBLE IN DPM TROUBLE IN U501 CHECK PC PC IS NOT GOING INTO DPM OFF MODE NO CHECK H/V SYNC LINE NO YES YES CHECK R756, R760 (SYNC) ? CHECK U501 PIN 43.44 SYNC PULSE? - 18 - EXPLODED VIEW 1 2 3 5 6 7 8 11 10 25 26 27 13 a 4 12 14 15 17 16 19 18 20 23 22 24 21 9 - 19 - EXPLODED VIEW PARTS LIST 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 a 3091TKL112A CABINET ASSEMBLY, L1912 LACIE TKL097 DARK BLUE PC+ABS 6304FLP075A LCD(LIQUID CRYSTAL DISPLAY), LM190E01-C4 LG PHILPS TFT COLOR 4LAMP 250NIT 6304FLP129A LCD(LIQUID CRYSTAL DISPLAY), LM190E02-A5 LG PHILPS TFT COLOR SLIM 20T,SXGA,LVDS 6304FLP134A LCD(LIQUID CRYSTAL DISPLAY) , LM190E02-A4 LG PHILPS TFT COLOR SLIM,20T,SXGA,LVDS 3809TKL051M BACK COVER ASSEMBLY, L1912 TKL053 LUPOY GN5008HF DARK BLUE LACIE 3043TKK105F TILT SWIVEL ASSEMBLY, L1912BM . LACIE DARK BLUE USB 6871TST415A PWB(PCB) ASSEMBLY,SUB, L1910 L1810 CONTROL TOTAL BRAND CONTROL 4951TKS126G METAL ASSEMBLY, FRAME L1910B/PM LPL/CMO/FUSITSU(226G) 6871TPT271V PWB(PCB) ASSEMBLY,POWER, M-CHASSIS 19LPL DOCKING,2PIN,78R12,450V POWER TOTAL LIEN CHANG 6871TPT271E PWB(PCB) ASSEMBLY,POWER, 19" M-CHASSIS POWER TOTAL LIEN CHANG " INTEGRATED LIPS" USED 7812 3313TL9025A MAIN TOTAL ASSEMBLY, L1910BM LPL - E BRAND CL-62 6631T11012W CONNECTOR ASSEMBLY, 30P H-H 200MM UL20276 LG708G 6871TKT294A PWB(PCB) ASSEMBLY,INTERFACE, L1910BM ETC TOTAL BRAND AC INLET ASSY 4951TKS118D METAL ASSEMBLY, REAR SHIELD L1910B,P,S 3550TKK220E COVER, LB200A, LACIE TOP FRONT POLYACETAL DARK BLUE 3550TKK218F COVER, LB200A, LACIE STAND FRONT ABS HF350U DARK BLUE 3550TKK222G COVER, L1912 BASE TOP HF-350U DARK BLUE USB 6871TUT015A PWB(PCB) ASSEMBLY,USB, LB886F SUB TOTAL BRAND CL-29 3550TKK223F COVER, LB200A, LACIE CABLE ABS HF350U DARK BLUE 3550TKK219F COVER, LB200A, LACIE STAND REAR ABS HF350U DARK BLUE 3550TKK221E COVER, LB200A, LACIE TOP REAR POLYACETAL DARK BLUE 3550TKK217F COVER, LB200A, LACIE HINGE REAR, ABS HF350U DARK BLUE 3550TKK216F COVER, LB200A, LACIE HINGE TOP, ABS HF350U DARK BLUE 4950TKK346A METAL, PLATE STOPPER,LB886F 3550TKK224C COVER, LW900Z PIECE LOCK PC IDEMITSU IR1900, CRYSTAL 4970TKK009A SPRING,COIL, COIL - FOR STAND T=4.5 LB200A 4950TKK344A METAL, FIX SLIDE,LB886F 6850TD9004D CABLE,D-SUB, UL20276-9C(5.8MM) DT 1500MM GRAY(85964) LB500L DM or 6850TD9004J CABLE,D-SUB, UL20276-9C(5.8MM) DT 1500MM,CORE POS400MM GRAY(85964) L1720BM DM 6866TDV004C CABLE,DVI, UL20276 DT 2000MM GRAY(85964) LB885C DM 6866TDU002D CABLE,D-SUB, UL20276SB10P+2C AWG#30 DT 1870MM GRAY(85964) BRAND DM 332-113E SCREW,DRAWING, D3.0 L10.0 MSWR/BK - Description Part No. Ref. No. - 20 - DATE: 2004. 04. 12. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C205 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C209 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C210 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C211 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C213 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C214 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C215 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C217 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C218 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C219 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C220 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C221 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C222 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C223 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C224 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C225 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C226 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C227 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C232 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C233 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C240 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C251 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C501 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C502 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C503 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C504 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C506 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP NP0 C507 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C508 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C701 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C703 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C707 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C708 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C709 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C710 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C711 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C712 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C713 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C714 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C717 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C718 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C719 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C720 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C721 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C722 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 DATE: 2004. 04. 12. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C723 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C724 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C725 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C726 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C727 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C728 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C732 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C733 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C734 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C735 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C737 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C738 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C739 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C740 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C741 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C742 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C743 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C760 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C801 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C803 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C804 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C805 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C806 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C807 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C808 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C809 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C810 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C812 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C814 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C815 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C816 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C817 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C818 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 D701 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D702 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D706 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D708 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D709 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D710 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D711 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D712 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D713 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D714 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D715 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D719 0DD184009AA KDS184 TP KEC - 85V - - - 300 D720 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D721 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D722 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D723 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D724 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D725 0DS226009AA KDS226 TP KEC SOT-23 80V 300 REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS DIODEs DATE: 2004. 04. 12. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION D804 0DD184009AA KDS184 TP KEC - 85V - - - 300 D805 0DD184009AA KDS184 TP KEC - 85V - - - 300 ZD701 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD702 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD703 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD704 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD705 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD706 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD709 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD711 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD712 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 U201 0IPRPM3011B "MST9131B(DUAL) MSTAR 128P,LQF" U501 0IZZTSZ330A MYSON 44P MTV512 L1910BM - E U502 0ISG240860B M24C08W6 SGS-THOMSON 8SOP R/T U703 0IMMRSG036A "M24C02-WMN6T SGS-THOMSON 8P,S" U801 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V U802 0TFVI80036A SI3861DV VISHAY R/TP TSOP-6 4 Q502 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT. Q503 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q504 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q505 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q703 0TR390609FA KST3906-MTF TP SAMSUNG SOT23 Q704 0TR390609FA KST3906-MTF TP SAMSUNG SOT23 Q706 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q707 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP R201 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R202 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R203 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R207 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R208 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R209 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R210 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R216 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R217 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R220 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R240 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R501 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R506 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R508 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R512 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R513 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R514 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R515 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R516 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R518 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R519 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R520 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R521 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R522 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R523 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R524 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R525 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R526 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP DATE: 2004. 04. 12. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R527 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R528 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R529 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R530 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R531 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R532 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R534 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R535 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R537 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R541 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R542 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R543 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R544 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R545 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R546 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R547 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R548 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R549 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R555 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R556 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R557 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R560 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/TP R561 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R562 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R563 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R564 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R701 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R702 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R704 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R706 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R708 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R709 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R712 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R713 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R716 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R717 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R720 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R722 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R723 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R724 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R726 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R727 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R728 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R729 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R730 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R731 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R737 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R744 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R745 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R747 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R748 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R755 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R756 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R759 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R760 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R762 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R763 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R764 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R765 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R766 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R769 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP - 21 - ICs RESISTORs TRANSISTOR DATE: 2004. 04. 12. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R772 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R773 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R774 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R775 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R776 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R777 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R778 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R807 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R808 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R811 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R812 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R814 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R815 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R820 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R821 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R822 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP X501 6212AA2004A HC-49U TXC 12.0MHZ +/- 30 PPM LED1 0DLLT0208AA LITEON LTST-C155KGJSKT R/TP G R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R2 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R3 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R4 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R5 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R6 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R7 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R8 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP SW1 140-058E SKHV10910B LGEC NON 12V 20A H SW2 140-058E SKHV10910B LGEC NON 12V 20A H SW3 140-058E SKHV10910B LGEC NON 12V 20A H SW4 140-058E SKHV10910B LGEC NON 12V 20A H SW5 140-058E SKHV10910B LGEC NON 12V 20A H SW6 140-058E SKHV10910B LGEC NON 12V 20A H SW7 140-058E SKHV10910B LGEC NON 12V 20A H SW8 140-058E SKHV10910B LGEC NON 12V 20A H C1 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C18 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C23 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C24 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C25 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C27 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C28 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C31 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C32 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C37 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C38 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C39 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C6 0CH3105F946 1UF 16V Z F 2012 R/TP C8 0CC150CK41A 15PF 1608 50V 5% R/TP NP0 C9 0CC150CK41A 15PF 1608 50V 5% R/TP NP0 D1 0DS181009AA KDS181 TP KEC SOT-23 80V 30 L13 6210TCE001B HH-1H3216-500JT CERATEC 3216M L14 6210TCE001P HB-1S2012-121JT CERATECH 2012 DATE: 2004. 04. 12. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L15 6210TCE001P HB-1S2012-121JT CERATECH 2012 L16 6210TCE001P HB-1S2012-121JT CERATECH 2012 L17 6210TCE001P HB-1S2012-121JT CERATECH 2012 L18 6210TCE001B HH-1H3216-500JT CERATEC 3216M L19 6210TCE001P HB-1S2012-121JT CERATECH 2012 L20 6210TCE001P HB-1S2012-121JT CERATECH 2012 L4 6210TCE001P HB-1S2012-121JT CERATECH 2012 L5 6210TCE001P HB-1S2012-121JT CERATECH 2012 R1 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R19 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R2 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R21 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R22 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R23 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R24 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R25 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R26 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R28 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R30 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R31 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R32 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R34 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R35 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R37 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R40 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R41 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R8 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R9 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP U1 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATO U2 0IPRPTI007A TUSB2036 TEXAS INSTRUMENT 32P U3 0ITI204200B TPS2042ADR TEXAS INSTRUMENT 8 X1 6202TST001C "SX-1, SUNNY SMD, 6.0MHZ ,50PP" ZD1 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD11 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD12 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD4 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD7 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD8 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 - 22 - OTHERs CONTROL BOARD USB BOARD SCHEMATIC DIAGRAM - 23 - 1. MST9131B . 11. 18 - 24 - 2. MICOM . 11. 18 - 25 - 3. POWER . 11. 18 - 26 - 4. CONNECT & JACK Apr. 2004 P/NO : 3828TSO058K Printed in Korea
