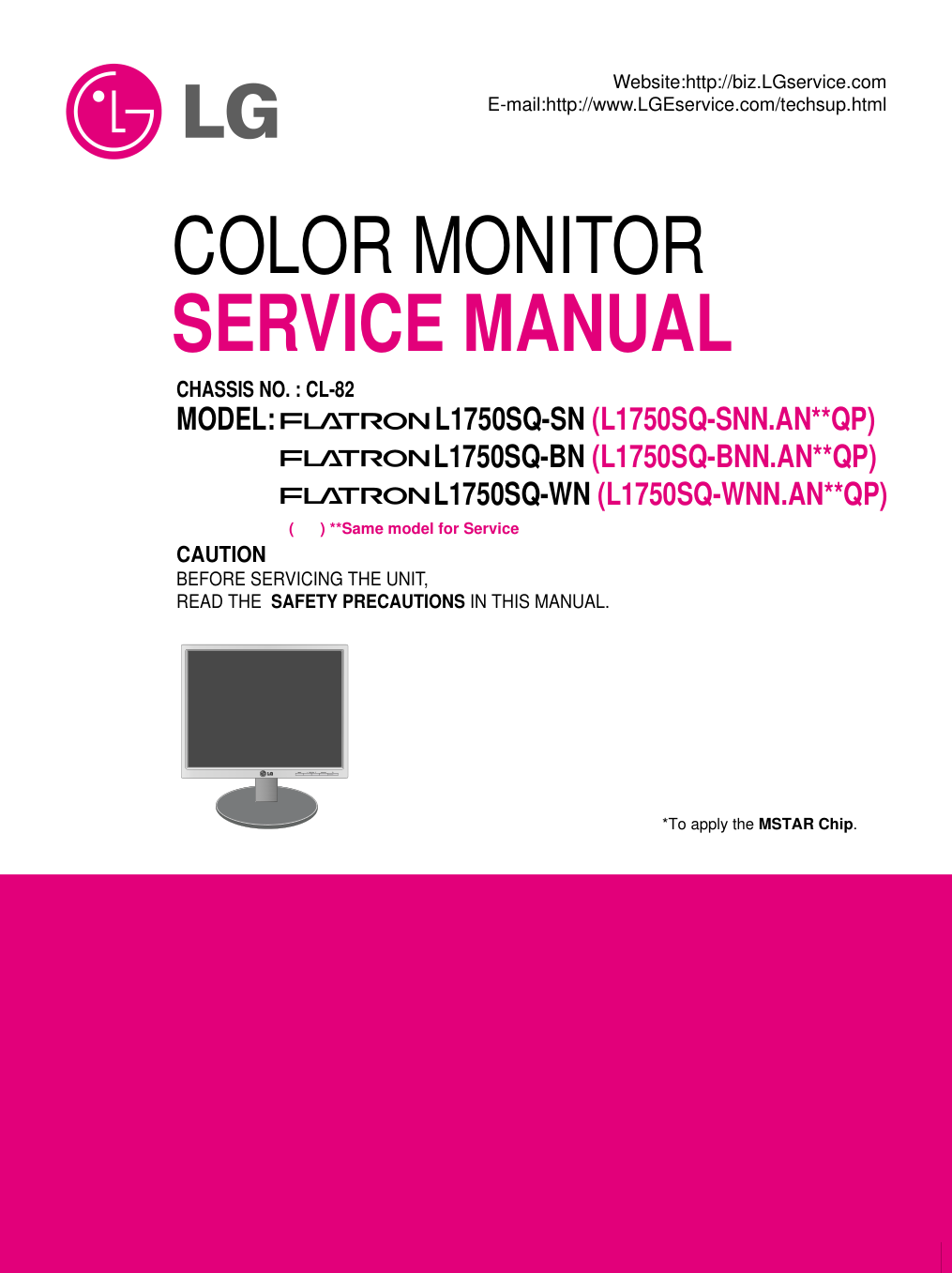

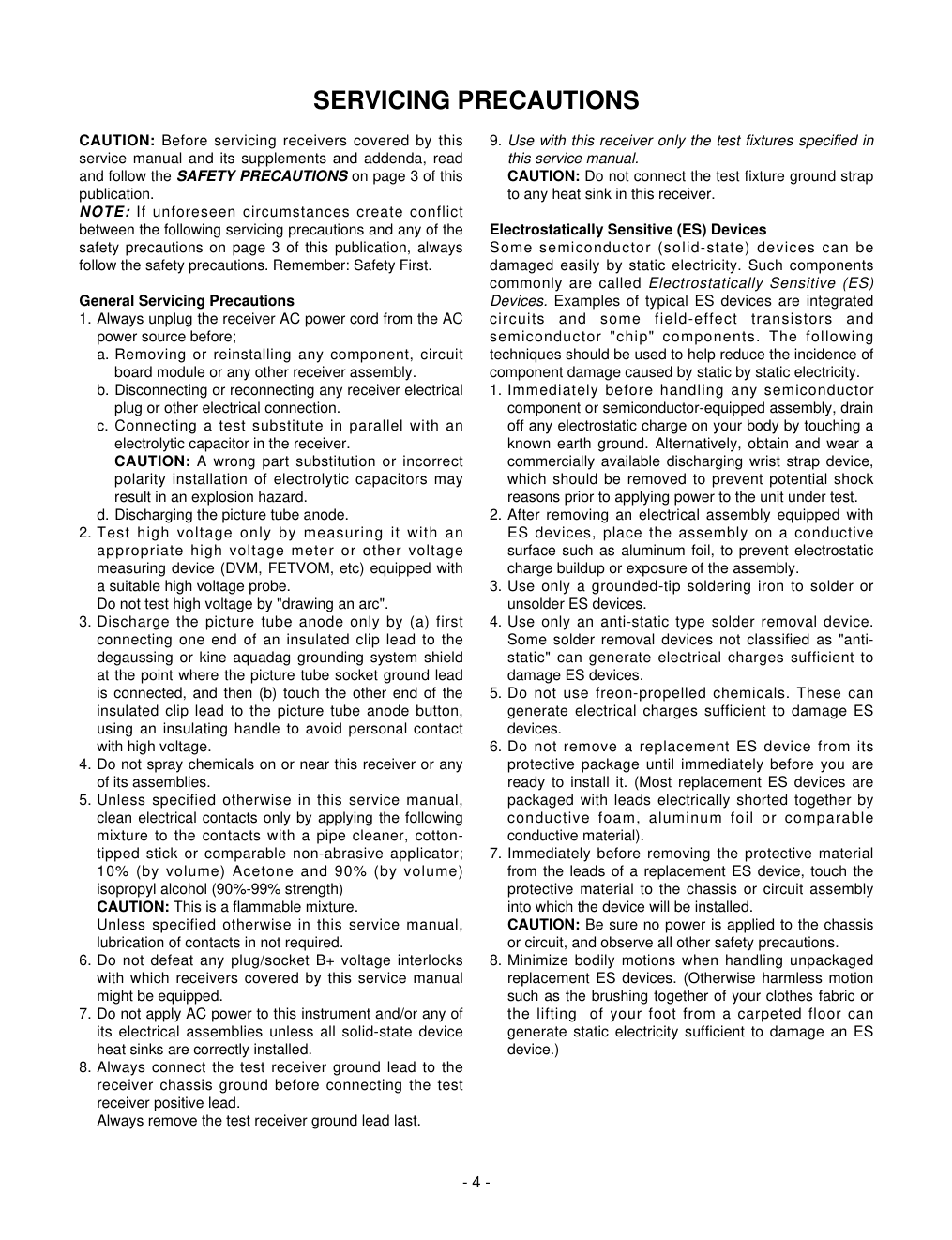

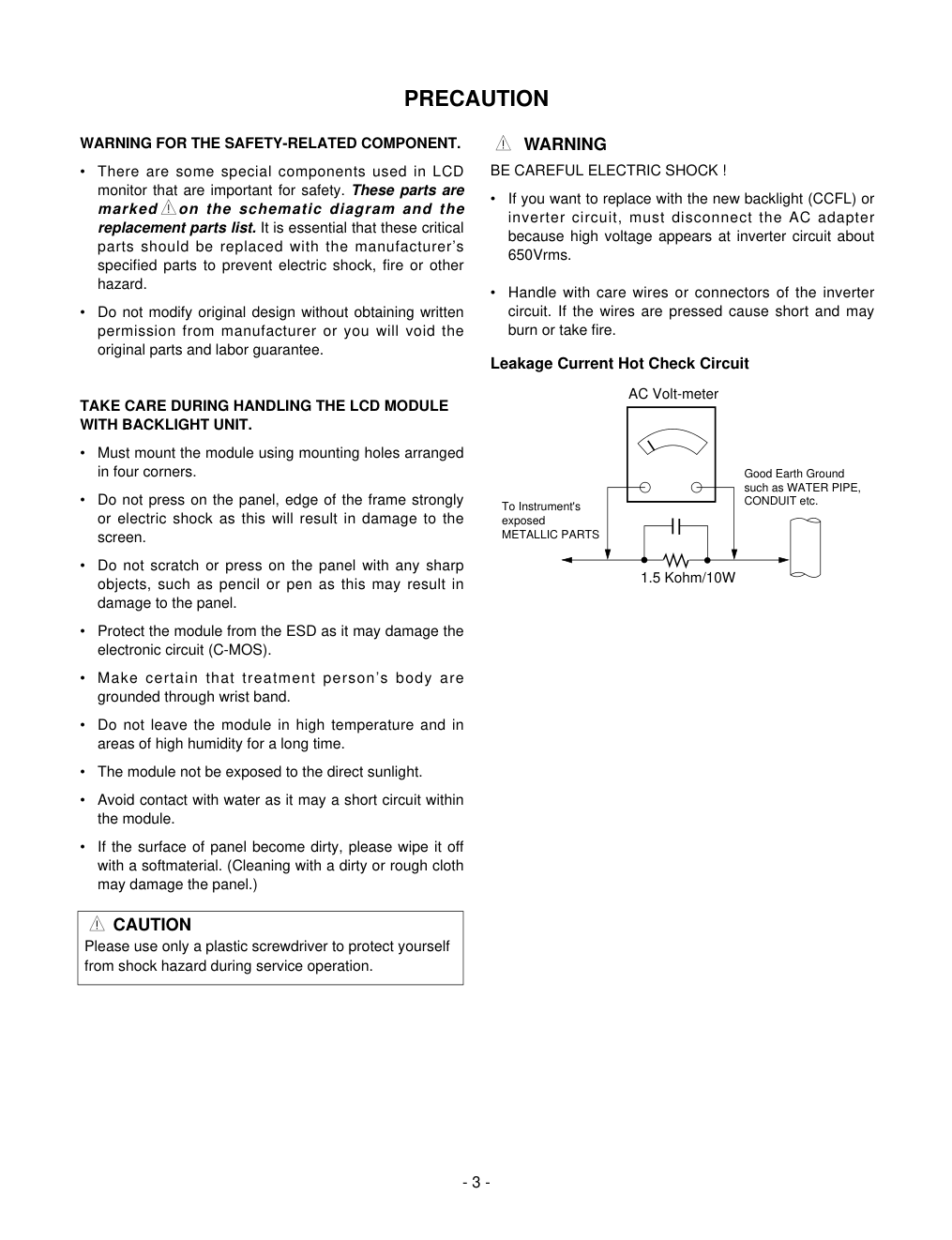

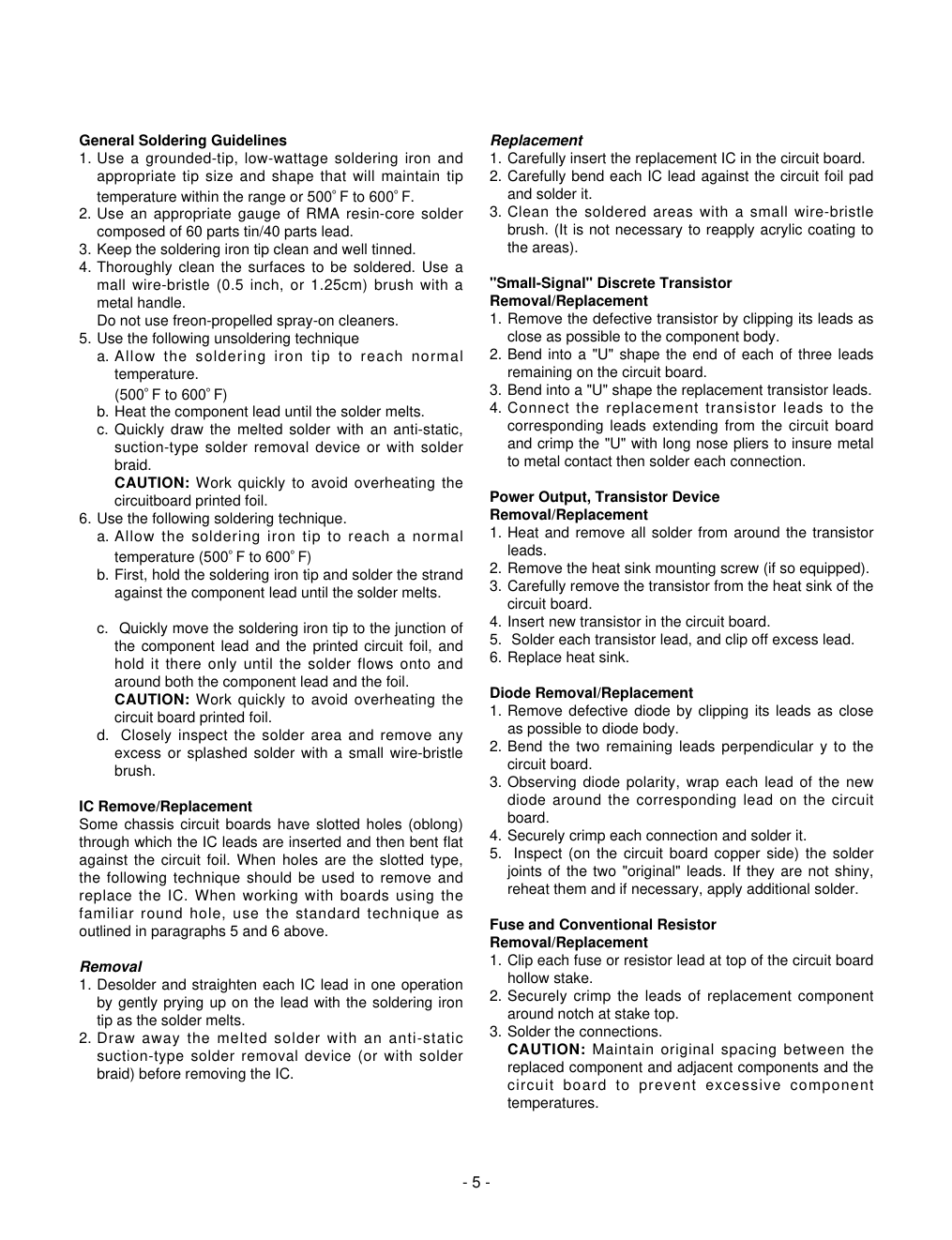

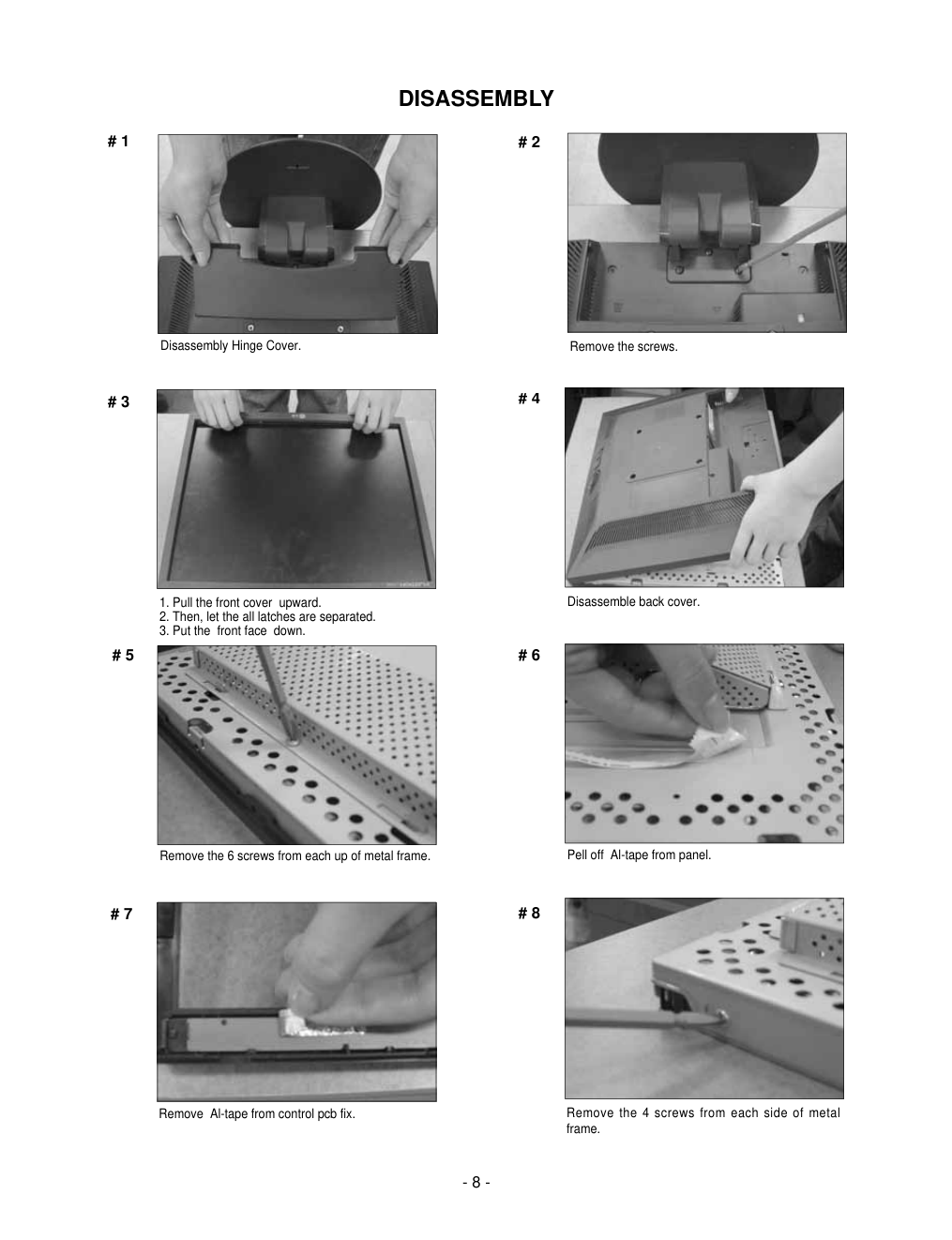

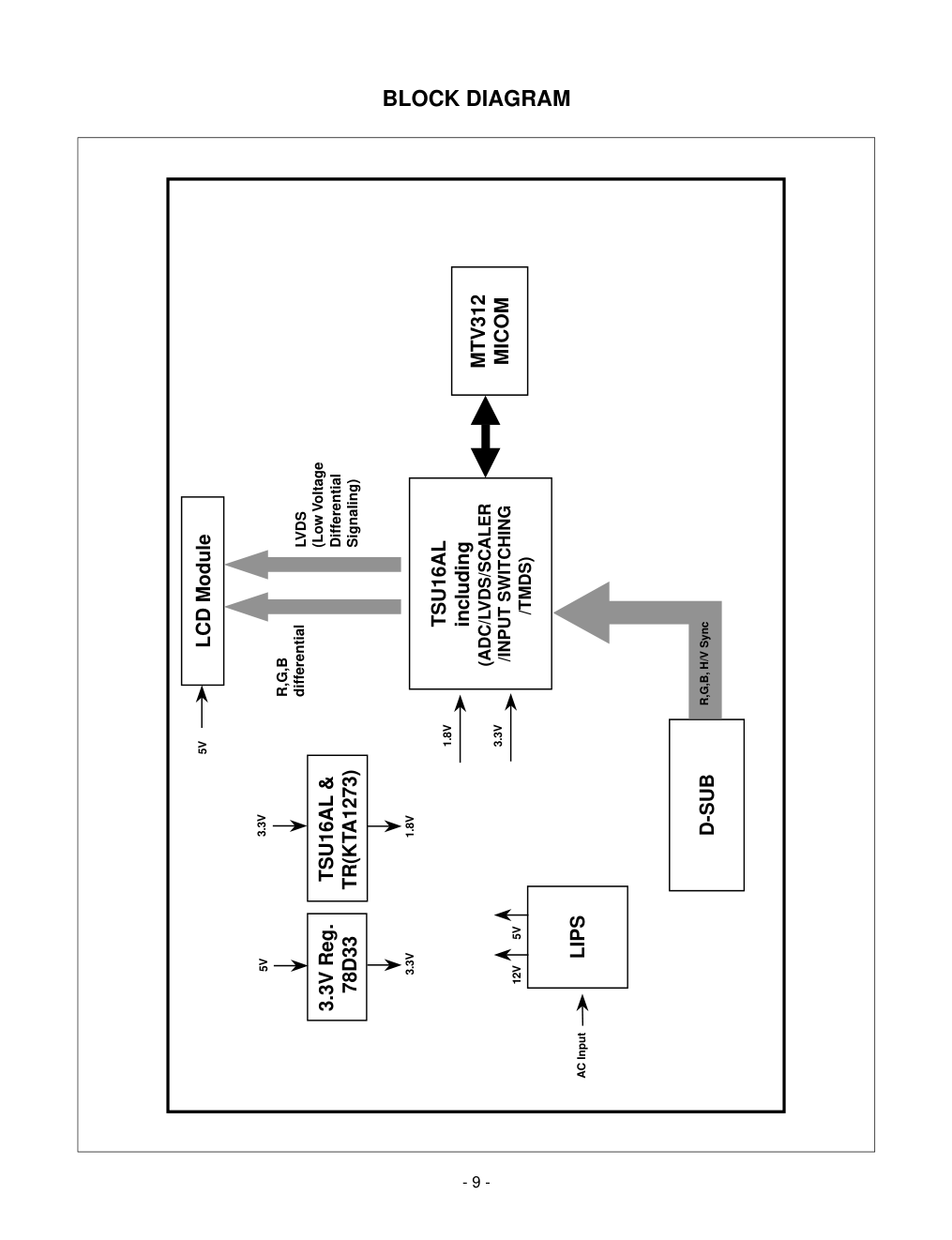

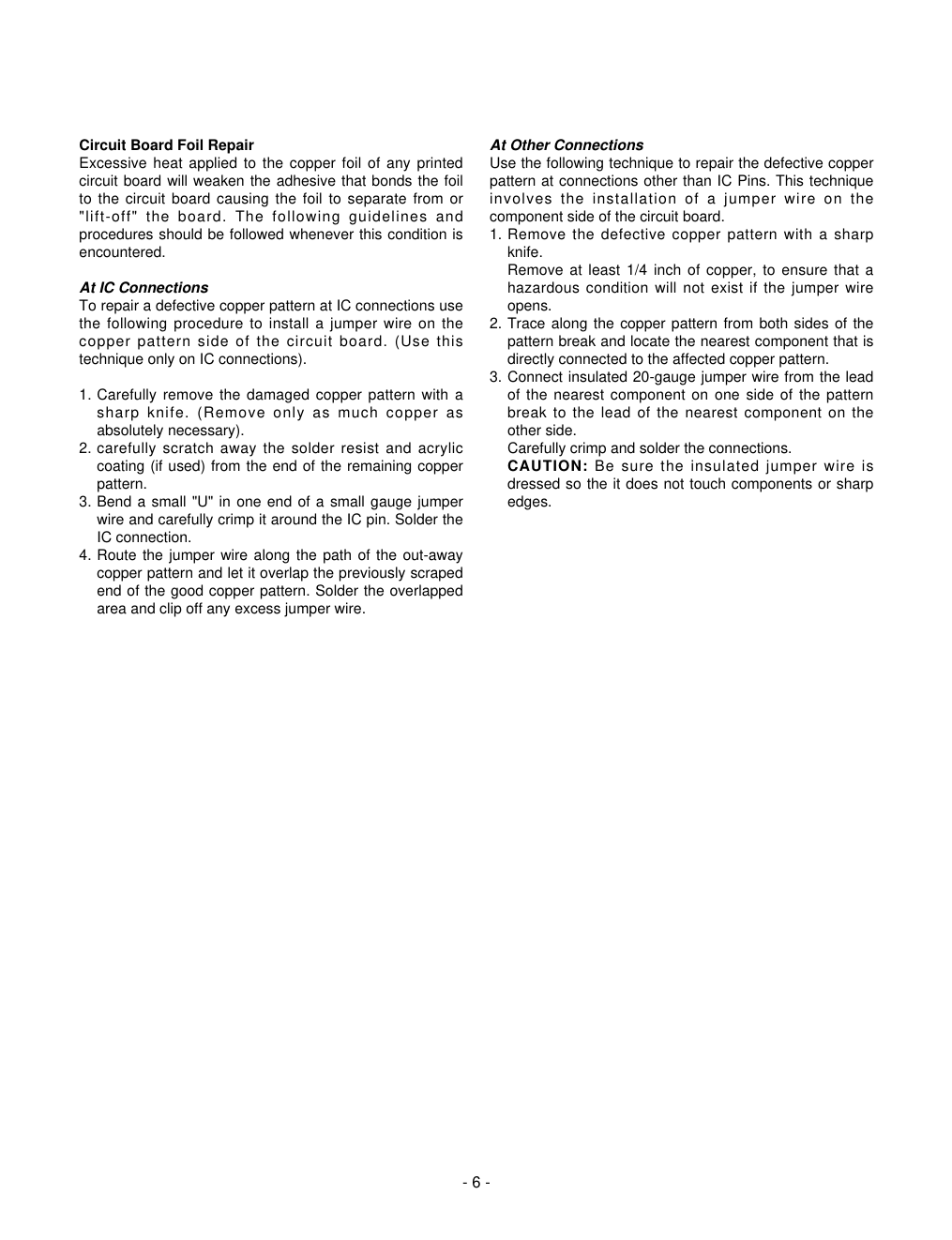

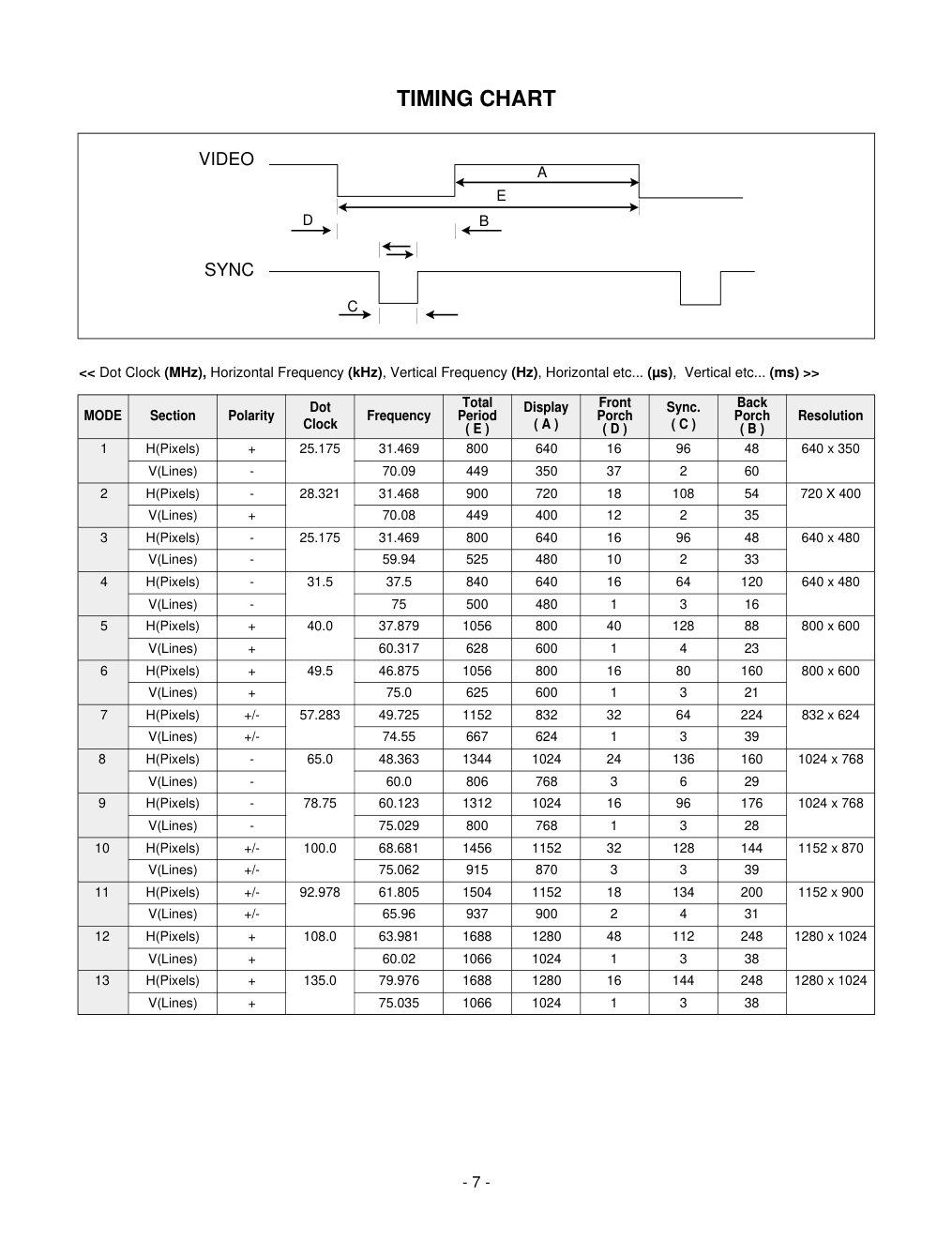

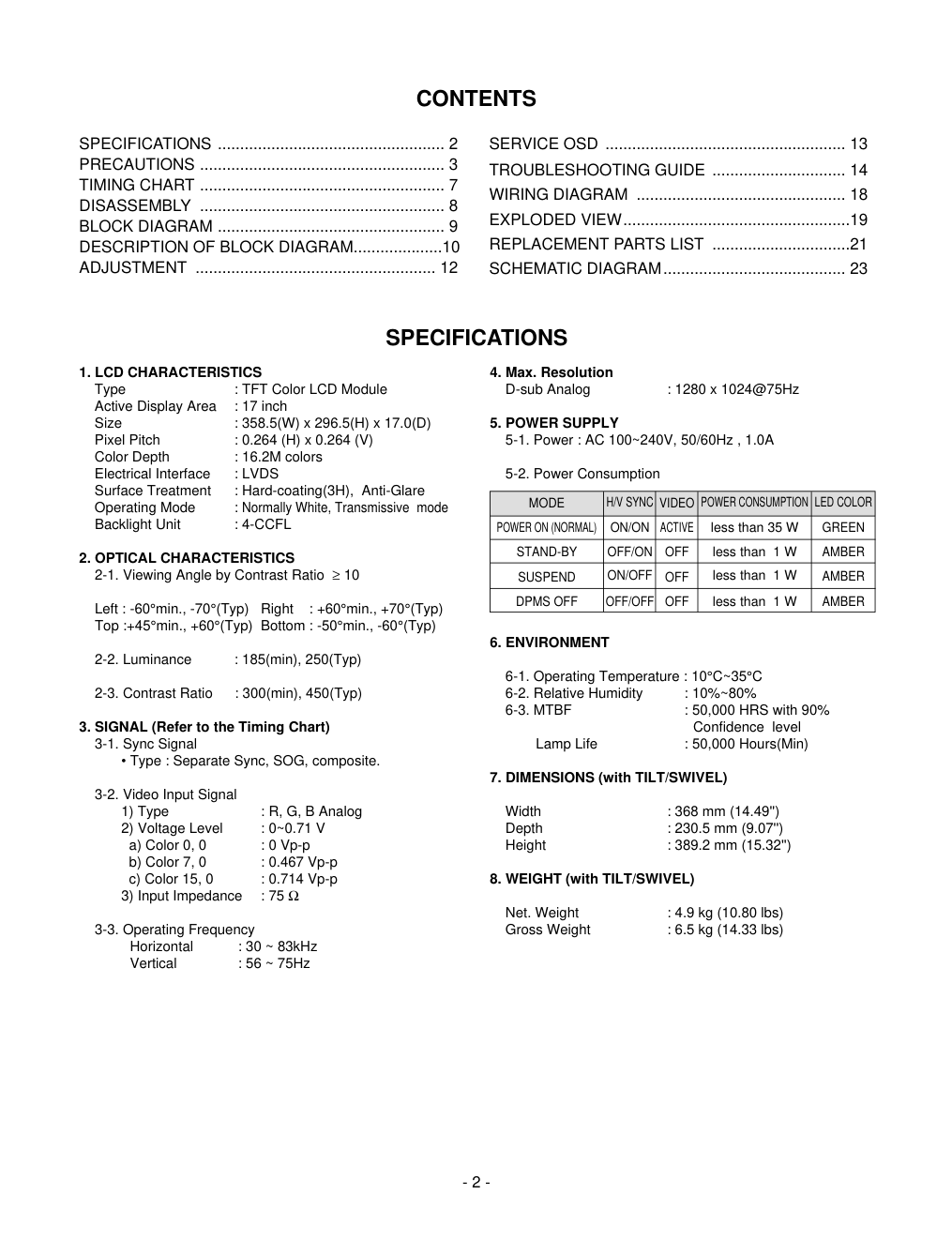

COLOR MONITOR SERVICE MANUAL Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : CL-82 MODEL: L1750SQ-SN (L1750SQ-SNN.AN**QP) L1750SQ-BN (L1750SQ-BNN.AN**QP) L1750SQ-WN (L1750SQ-WNN.AN**QP) ( ) **Same model for Service *To apply the MSTAR Chip. Blank Page1 - 2 - CONTENTS SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 3 TIMING CHART ....................................................... 7 DISASSEMBLY ....................................................... 8 BLOCK DIAGRAM ................................................... 9 DESCRIPTION OF BLOCK DIAGRAM....................10 ADJUSTMENT ...................................................... 12 SERVICE OSD ...................................................... 13 TROUBLESHOOTING GUIDE .............................. 14 WIRING DIAGRAM ............................................... 18 EXPLODED VIEW...................................................19 REPLACEMENT PARTS LIST ...............................21 SCHEMATIC DIAGRAM......................................... 23 1. LCD CHARACTERISTICS Type : TFT Color LCD Module Active Display Area : 17 inch Size : 358.5(W) x 296.5(H) x 17.0(D) Pixel Pitch : 0.264 (H) x 0.264 (V) Color Depth : 16.2M colors Electrical Interface : LVDS Surface Treatment : Hard-coating(3H), Anti-Glare Operating Mode : Normally White, Transmissive mode Backlight Unit : 4-CCFL 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : -60°min., -70°(Typ) Right : +60°min., +70°(Typ) Top :+45°min., +60°(Typ) Bottom : -50°min., -60°(Typ) 2-2. Luminance : 185(min), 250(Typ) 2-3. Contrast Ratio : 300(min), 450(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal • Type : Separate Sync, SOG, composite. 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.71 V a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.467 Vp-p c) Color 15, 0 : 0.714 Vp-p 3) Input Impedance : 75 Ω 3-3. Operating Frequency Horizontal : 30 ~ 83kHz Vertical : 56 ~ 75Hz 4. Max. Resolution D-sub Analog : 1280 x 1024@75Hz 5. POWER SUPPLY 5-1. Power : AC 100~240V, 50/60Hz , 1.0A 5-2. Power Consumption 6. ENVIRONMENT 6-1. Operating Temperature : 10°C~35°C 6-2. Relative Humidity : 10%~80% 6-3. MTBF : 50,000 HRS with 90% Confidence level Lamp Life : 50,000 Hours(Min) 7. DIMENSIONS (with TILT/SWIVEL) Width : 368 mm (14.49'') Depth : 230.5 mm (9.07'') Height : 389.2 mm (15.32'') 8. WEIGHT (with TILT/SWIVEL) Net. Weight : 4.9 kg (10.80 lbs) Gross Weight : 6.5 kg (14.33 lbs) SPECIFICATIONS MODE POWER ON (NORMAL) STAND-BY SUSPEND DPMS OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF POWER CONSUMPTION less than 35 W less than 1 W less than 1 W less than 1 W LED COLOR GREEN AMBER AMBER AMBER VIDEO ACTIVE OFF OFF OFF - 3 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. Leakage Current Hot Check Circuit PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. 1.5 Kohm/10W To Instrument's exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter - 4 - SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First. General Servicing Precautions 1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board module or any other receiver assembly. b. Disconnecting or reconnecting any receiver electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard. d. Discharging the picture tube anode. 2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc". 3. Discharge the picture tube anode only by (a) first connecting one end of an insulated clip lead to the degaussing or kine aquadag grounding system shield at the point where the picture tube socket ground lead is connected, and then (b) touch the other end of the insulated clip lead to the picture tube anode button, using an insulating handle to avoid personal contact with high voltage. 4. Do not spray chemicals on or near this receiver or any of its assemblies. 5. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton- tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required. 6. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped. 7. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. 8. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. 9. Use with this receiver only the test fixtures specified in this service manual. CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver. Electrostatically Sensitive (ES) Devices Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti- static" can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.) - 5 - General Soldering Guidelines 1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500。F to 600。F. 2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead. 3. Keep the soldering iron tip clean and well tinned. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-bristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners. 5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500。F to 600。F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuitboard printed foil. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature (500。F to 600。F) b. First, hold the soldering iron tip and solder the strand against the component lead until the solder melts. c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil. d. Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush. IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above. Removal 1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts. 2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC. Replacement 1. Carefully insert the replacement IC in the circuit board. 2. Carefully bend each IC lead against the circuit foil pad and solder it. 3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas). "Small-Signal" Discrete Transistor Removal/Replacement 1. Remove the defective transistor by clipping its leads as close as possible to the component body. 2. Bend into a "U" shape the end of each of three leads remaining on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection. Power Output, Transistor Device Removal/Replacement 1. Heat and remove all solder from around the transistor leads. 2. Remove the heat sink mounting screw (if so equipped). 3. Carefully remove the transistor from the heat sink of the circuit board. 4. Insert new transistor in the circuit board. 5. Solder each transistor lead, and clip off excess lead. 6. Replace heat sink. Diode Removal/Replacement 1. Remove defective diode by clipping its leads as close as possible to diode body. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. - 6 - Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered. At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections). 1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection. 4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board. 1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens. 2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern. 3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges. TIMING CHART - 7 - << Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >> VIDEO SYNC B C E A D MODE Section Polarity Frequency Dot Clock 1 H(Pixels) + 25.175 31.469 800 640 16 96 48 640 x 350 V(Lines) - 70.09 449 350 37 2 60 2 H(Pixels) - 28.321 31.468 900 720 18 108 54 720 X 400 V(Lines) + 70.08 449 400 12 2 35 3 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480 V(Lines) - 59.94 525 480 10 2 33 4 H(Pixels) - 31.5 37.5 840 640 16 64 120 640 x 480 V(Lines) - 75 500 480 1 3 16 5 H(Pixels) + 40.0 37.879 1056 800 40 128 88 800 x 600 V(Lines) + 60.317 628 600 1 4 23 6 H(Pixels) + 49.5 46.875 1056 800 16 80 160 800 x 600 V(Lines) + 75.0 625 600 1 3 21 7 H(Pixels) +/- 57.283 49.725 1152 832 32 64 224 832 x 624 V(Lines) +/- 74.55 667 624 1 3 39 8 H(Pixels) - 65.0 48.363 1344 1024 24 136 160 1024 x 768 V(Lines) - 60.0 806 768 3 6 29 9 H(Pixels) - 78.75 60.123 1312 1024 16 96 176 1024 x 768 V(Lines) - 75.029 800 768 1 3 28 10 H(Pixels) +/- 100.0 68.681 1456 1152 32 128 144 1152 x 870 V(Lines) +/- 75.062 915 870 3 3 39 11 H(Pixels) +/- 92.978 61.805 1504 1152 18 134 200 1152 x 900 V(Lines) +/- 65.96 937 900 2 4 31 12 H(Pixels) + 108.0 63.981 1688 1280 48 112 248 1280 x 1024 V(Lines) + 60.02 1066 1024 1 3 38 13 H(Pixels) + 135.0 79.976 1688 1280 16 144 248 1280 x 1024 V(Lines) + 75.035 1066 1024 1 3 38 Total Period ( E ) Display ( A ) Front Porch ( D ) Sync. ( C ) Back Porch ( B ) Resolution - 8 - DISASSEMBLY Disassembly Hinge Cover. Disassemble back cover. # 1 Remove the screws. Pell off Al-tape from panel. Remove the 6 screws from each up of metal frame. # 2 # 3 # 4 # 5 # 6 Remove Al-tape from control pcb fix. Remove the 4 screws from each side of metal frame. 1. Pull the front cover upward. 2. Then, let the all latches are separated. 3. Put the front face down. # 7 # 8 - 9 - D-SUB TSU16AL including (ADC/LVDS/SCALER /INPUT SWITCHING /TMDS) MTV312 MICOM LCD Module R,G,B differential LIPS 5V 5V TSU16AL & TR(KTA1273) 12V R,G,B, H/V Sync 1.8V 3.3V 1.8V 3.3V 3.3V Reg. 78D33 5V 3.3V LVDS (Low Voltage Differential Signaling) AC Input BLOCK DIAGRAM - 10 - DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 135MHz. This part consists of the Scaler, ADC convertor and LVDS transmitter. The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V, and one 1.8V regulators to convert power which is provided 5V in Power board. 12V is provided for inverter, 12V is provided for LCD panel and 5V for micom. Also, 5V is converted 3.3V and 1.8V by regulator. Converted power is provided for IC in the main board. The inverter converts from DC12V to AC 700Vrms and operates back-light lamps of module. 3. MICOM Part. This part is include video controller part. And this part consists of EEPROM IC which stores control data, Reset IC and the Micom. The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable. The controlled data of each modes is stored in EEPROM. - 11 - EMI COMPONENTS LINE 100 ~ 240V INPUT RECTIFIER AND FILTER ENERGY TRANSFER OUTPUT RECTIFIER AND FILTER 12V 5V GND SIGNAL COLLENT- ION PHOTO- COUPLER ISOLATION HVDC 100KHz PRIMARY SECONDARY 50 ~ 60Hz PWM COMTROL CIRCUIT Operation description_LIPS LIPS Board Block Diagram 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achive the dc output stablize, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the dc output changing status through a photo transistor to primary controller to achieve the stabilized dc output voltage. 6. Signal collection. This part function is to collect the any change from the dc output and feed back to the primary through photo transistor. - 12 - ADJUSTMENT Windows EDID V1.0 User Manual Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Don’t need setup Windows 2000, XP => Need to Port Setup. This program is available to LCD Monitor only. 1. Port Setup a) Copy “UserPort.sys” file to “c:\WINNT\system32\drivers” folder b) Run Userport.exe c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. 2. EDID Read & Write 1) Run WinEDID.exe 2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button - 13 - 220 IBM Compatible PC Video Signal Generator PARALLEL PORT Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E E V-Sync On/Off Switch (Switch must be ON.) F F A A B B C C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Figure 1. Cable Connection SERVICE OSD 1) Turn off the power switch at the front side of the display. 2) Wait for about 5 seconds and press MENU, POWER switch with 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) Auto Color : W/B balance and Automatically sets the gain and offset value. b) NVRAM INIT : EEPROM initialize.(24C08) c) CLEAR ETI : To initialize using time. d) AGING : Select Aging mode(on/off). e) R/G/B-9300K : Allows you to set the R/G/B-9300K value manually. f) R/G/B-6500K : Allows you to set the R/G/B-6500K value manually. g) R/G/B-Offset : Allows you to set the R/G/B-Offset value manually.(Analog Only) h) R/G/B-Gain : Allows you to set the R/G/B-Gain value manually.(Analog Only) i) MODULE : To select applied module. - 14 - TROUBLESHOOTING GUIDE 1. NO POWER NO POWER (POWER INDICATOR OFF) CHECK KEY CONTROL CONNECTOR ROUTINE CHECK U201 NO NO NO CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK 5VS LINE (OPEN CHECK) CHECK 3.3V LINE NO CHECK X-TAL YES YES YES YES CHECK J705 VOLTAGE PIN5, PIN6 (5V)? CHECK U501 PIN 8 Voltage (5V) ? IS U201 PIN90 (3.3V) VOLTAGE ? CHECK U201 PIN 96 PULSE 1 NO PROBLEM 1 Waveforms U201-#96 - 15 - 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS NO RASTER (OSD IS NOT DISPLAYED) NO NO NO NO REPLACE CCFL LAMP IN THE LCD MODULE CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK MICOM INV ON/OFF PORT. 1. CONFIRM BRIGHTNESS OSD CONTRL STATE. 2. CHECK MICOM DIM-ADJ PORT LIPS YES YES YES YES J705 PIN5, PIN6 5V? J705 PIN9 2.5V? J705 PIN10 5V? CHECK PULSE AS CONTACTING SCOPE PROBE TO CAUTION LABEL. (CONTACT PROBE TO CAUTION LABEL. CAN YOU SEE PULSE AT YOUR SCOPE? - 16 - 3. NO RASTER (OSD IS NOT DISPLAYED) – MSTAR NO RASTER (OSD IS NOT DISPLAYED) NO NO NO TROUBLE IN CABLE OR LCD MODULE CHECK U801 (17", 19") CHECK U803 (15") 1. CHECK PIN122, 123 SOLDERING CONDITION 2. CHECK X501 3. TROUBLE IN U201 CHECK CONNECTION LINE FROM D-SUB TO U501 YES YES YES U201 PIN 18, 90 3.3V? U201 PIN96, 97 OSCILLATE AS 12MHZ? U501 PIN43 IS 48KHz H-SYNC? PIN44 IS 60Hz V-SYNC? IS PULSE APPEARED AT SIGNAL PINS? AT MODE 12? 1 2 1 2 Waveforms U201-#96, 97 U501-#43 H-SYNC 2 U501-#44 V-SYNC - 17 - 4. TROUBLE IN DPM TROUBLE IN DPM NO NO TROUBLE IN U501 CHECK PC PC IS NOT GOING INTO DPM OFF MODE CHECK H/V SYNC LINE YES YES CHECK R216, R217 R778, R781 CHECK U501 PIN 43.44 SYNC PULSE ? 3 3 Waveforms R216, R778 H-Sync 3 R217, R781 V-Sync - 18 - WIRING DIAGRAM Connector Ass’y P/N: 6631T11017X Connector Ass’y P/N: 6631T20034M or 6631T20023A Connector Ass’y P/N: 6631T11012W or 6631T11020W EXPLODED VIEW - 19 - 010 020 070 080 090 100 030 110 040 050 060 - 20 - EXPLODED VIEW PARTS LIST 010 020 030 040 050 060 070 080 090 100 110 3091TKL168C CABINET ASSEMBLY, L1750SQ BRAND L122 SILVER ABS350 89483 TCO03 8MS 3091TKL168T CABINET ASSEMBLY, L1750SQ BRAND L122 SILVER ABS TCO03 8MS LIFE GOOD AU-Austrailia 3091TKL181A CABINET ASSEMBLY, L1750SQ BRAND L122 SILVER ABS TCO03+8MS CHINA VER-C/SKD 3091TKL168E CABINET ASSEMBLY, L1750SQ BRAND L122 BLACK ABS350 9930 TCO99 8MS 3091TKL168X CABINET ASSEMBLY, L1750SQ BRAND L122 WHITE ABS TCO03 8MS JP-VER 6304FLP200A LCD(LIQUID CRYSTAL DISPLAY), LM170E01-A6K4 LG PHILPS TFT COLOR 8MS,LPL NJ/KUMI,PB FREE,EGI,TI S D-IC,SXGA,LVDS or 6304FLP199A LCD(LIQUID CRYSTAL DISPLAY), LM170E01-A6K3 LG PHILPS TFT COLOR 8MS,LPL NJ/KUMI,PB FREE,EGI,SS S D-IC,EGI,250NITS,SXGA,LVDS 3809TKL100A BACK COVER ASSEMBLY, L1750S L100 ABS350 9930(BK)-SILVER,BLACK 3809TKL100J BACK COVER ASSEMBLY, L1750S L100 ABS 8B656(WHITE) ANALOGUE JP-VER 3043TKK227A TILT SWIVEL ASSEMBLY, L1750S - TILT STAND BODY-SILVER,BLACK 3043TKK227E TILT SWIVEL ASSEMBLY, L1750S - TILT STAND BODY NT-LOCAL-SILVER 3043TKK227L TILT SWIVEL ASSEMBLY, L1750S - TILT STAND BODY JP-VER-WHITE 3043TKK228A TILT SWIVEL ASSEMBLY, L1750S - TILT STAND BASE-SILVER,BLACK 3043TKK228C TILT SWIVEL ASSEMBLY, LX 50S - TILT STAND BASE NT LOCAL-SILVER 3043TKK228F TILT SWIVEL ASSEMBLY, LX 50S - TILT STAND BASE WHITE COLOR-JP-VER 6871TST798A PWB(PCB) ASSEMBLY,SUB, L1750 CONTROL TOTAL BRAND KEY 6871TST798B PWB(PCB) ASSEMBLY,SUB, L1750 CONTROL TOTAL BRAND NT C/SKD 4951TKS199A METAL ASSEMBLY, FRAME MAIN L1750 LPL-A5 KUMI 6871TPT282C PWB(PCB) ASSEMBLY,POWER, M-CHASSIS 1720 DOCKING,2PIN,450V POWER TOTAL LIEN CHANG PB FREE 3313TL7100A MAIN TOTAL ASSEMBLY, L1750SN TSU16AL - LPL BRAND CL-82-SILVER 3313TL7100D MAIN TOTAL ASSEMBLY, L1750SN.KNCNEPT BRAND CL-82 LF-C/SKD 3313TL7100B MAIN TOTAL ASSEMBLY, L1750SN TSU16AL LPL BRAND 4-LANGUAGE CL-82-BLACK,WHITE 4951TKS203A METAL ASSEMBLY, REAR SHIELD LX50 KUMI 3550TKK740A COVER, L1750 BACK DOOR BRAND-SILVER,BLACK 3550TKK740C COVER, L1750 BACK DOOR BRAND WHITE JP-VER Description Part No. Ref. No. - 21 - DATE: 2005. 03. 15. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C205 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C211 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C213 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C214 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C215 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C216 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C217 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C218 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C219 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C220 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C221 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C222 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C223 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C224 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C225 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C226 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C232 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C233 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C240 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C251 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C503 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C504 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C506 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP NP C507 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C508 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C701 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C707 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C708 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C709 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C717 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C718 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C727 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C732 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C733 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C734 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C735 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C744 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C803 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C805 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C809 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C812 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C814 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C819 0CK105CD56A 1UF 1608 10V 10% R/TP X7R D701 0DS226009AA KDS226 TP KEC - 80V - - 4NSE DATE: 2005. 03. 15. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION D702 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D706 0DS226009AA KDS226 TP KEC - 80V - - 4NSE ZD701 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD702 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD703 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD704 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD711 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD712 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" U201 0IPRPM3017A "TSU16AL-LF MSTAR 100P,QFP TR" U501 0IZZTSZ595A L1750SN MSTAR MICOM ASSY - 1 U501 0IZZTSZ595B L1750SN MSTAR MICOM ASSY-C/SKD U502 0ICS240813B "CAT24WC08J-TE13 8P,SOIC R/TP" U801 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V Q502 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT Q503 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q504 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q505 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q703 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q704 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q801 0TR127309AA KTA1273-Y(KTA966A) TP KEC TO Q802 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q803 0TR127309AA KTA1273-Y(KTA966A) TP KEC TO R201 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R202 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R203 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R207 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R208 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R209 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R210 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R216 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R217 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R220 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R240 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R501 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R503 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R506 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R508 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R520 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R521 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R522 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R523 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R530 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R534 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R535 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R537 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS DIODEs ICs TRANSISTOR RESISTORs DATE: 2005. 03. 15. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R543 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R544 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R545 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R547 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R548 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R549 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R555 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R557 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R560 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R701 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R702 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R704 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R706 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R708 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R709 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R712 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R716 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R717 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R720 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R722 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R723 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R724 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R726 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R727 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R737 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R744 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R747 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R751 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R752 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R753 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R754 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R755 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R769 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R778 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R781 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R803 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R804 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R805 0RH2000D622 200 OHM 1 / 10 W 5% D R/TP R806 0RH2000D622 200 OHM 1 / 10 W 5% D R/TP R808 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R816 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R820 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R821 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R824 0RJ0272D677 27 OHM 1/10 W 5% 1608 R/TP R825 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP X501 6212AA2004A HC-49U TXC 12.0MHZ +/- 30 PP C1 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R LED1 0DLLT0208AA LITEON LTST-C155KGJSKT R/TP R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R2 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R3 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R4 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R5 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP SW1 6600TR1002A SKQGACE010 J-ALPS NON 12V 50 DATE: 2005. 03. 15. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION SW2 6600TR1002A SKQGACE010 J-ALPS NON 12V 50 SW3 6600TR1002A SKQGACE010 J-ALPS NON 12V 50 SW4 6600TR1002A SKQGACE010 J-ALPS NON 12V 50 SW5 6600TR1002A SKQGACE010 J-ALPS NON 12V 50 ZD1 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD2 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" - 22 - OTHERs CONTROL BOARD SCHEMATIC DIAGRAM - 23 - 1. TSU56AL / TSU16AL 1 Waveforms U201-#96, 97 3 R216, R778 H-Sync 3 R217, R781 V-Sync 1 3 - 24 - 2. MICOM 2 U501-#43 H-SYNC 2 U501-#44 V-SYNC Waveforms 2 - 25 - 3.POWER - 26 - 4. CONNECTOR & JACKS 3 Waveforms R216, R778 H-Sync 3 R217, R781 V-Sync 3 Mar. 2005 P/NO : 3828TSL094K Printed in Korea
