LG L172WT显示器电路原理图

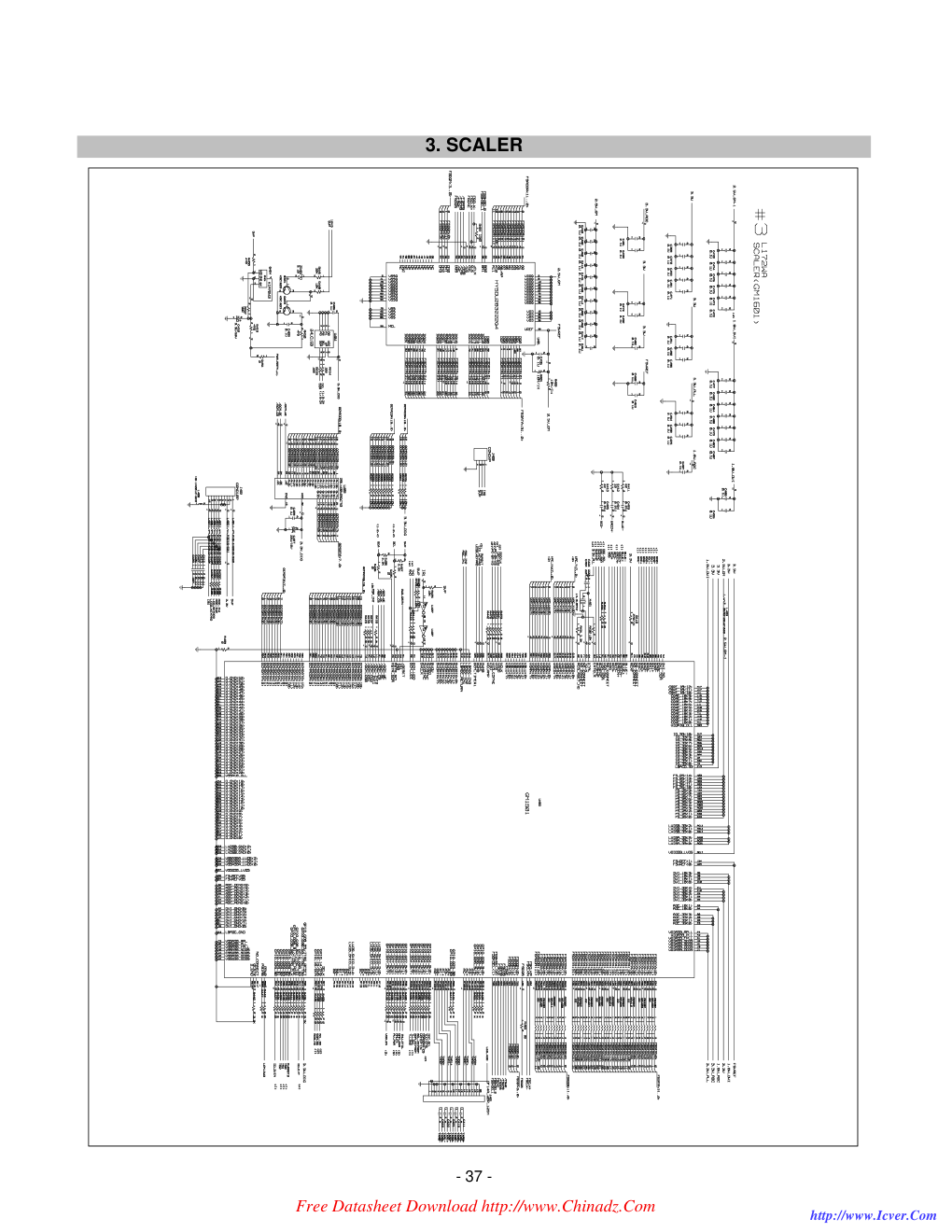

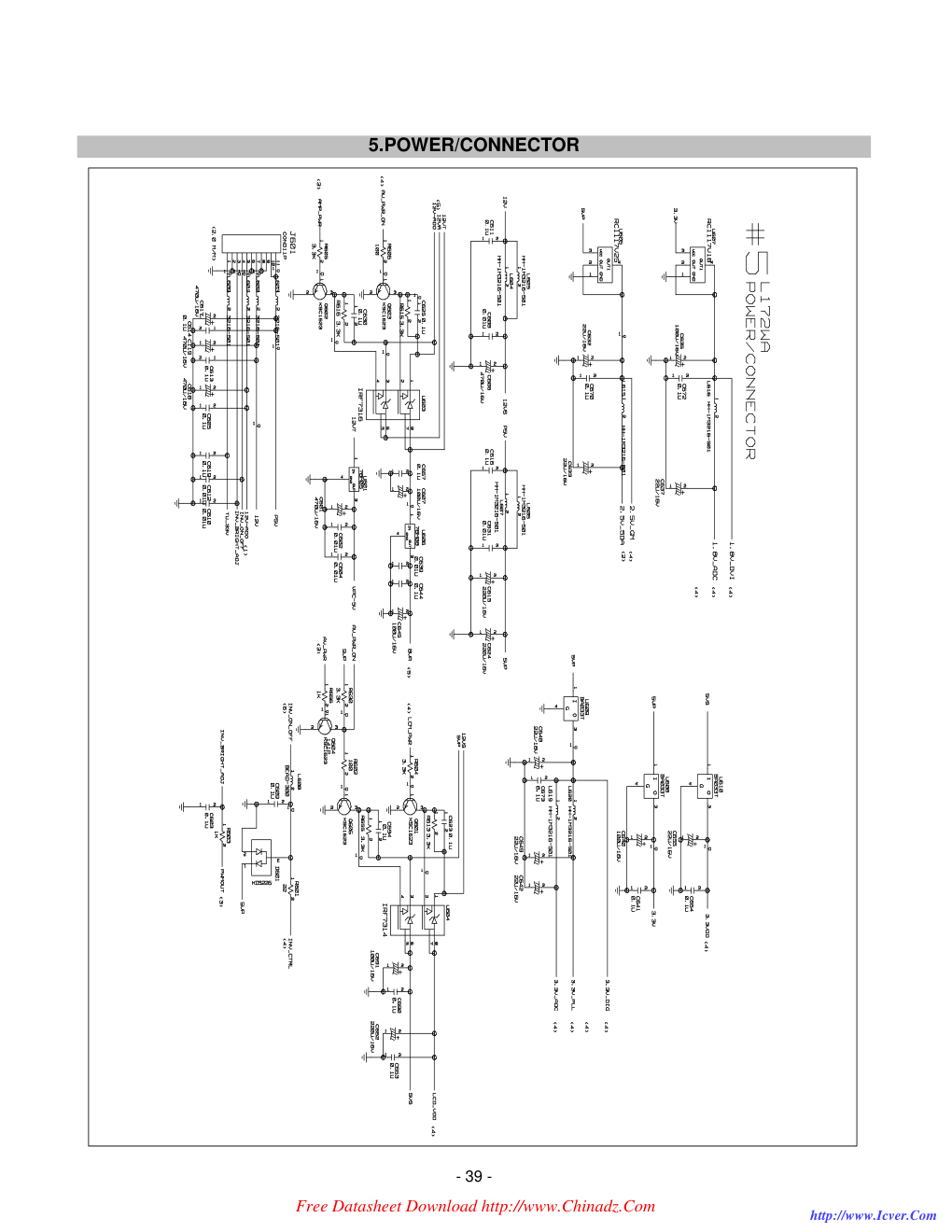

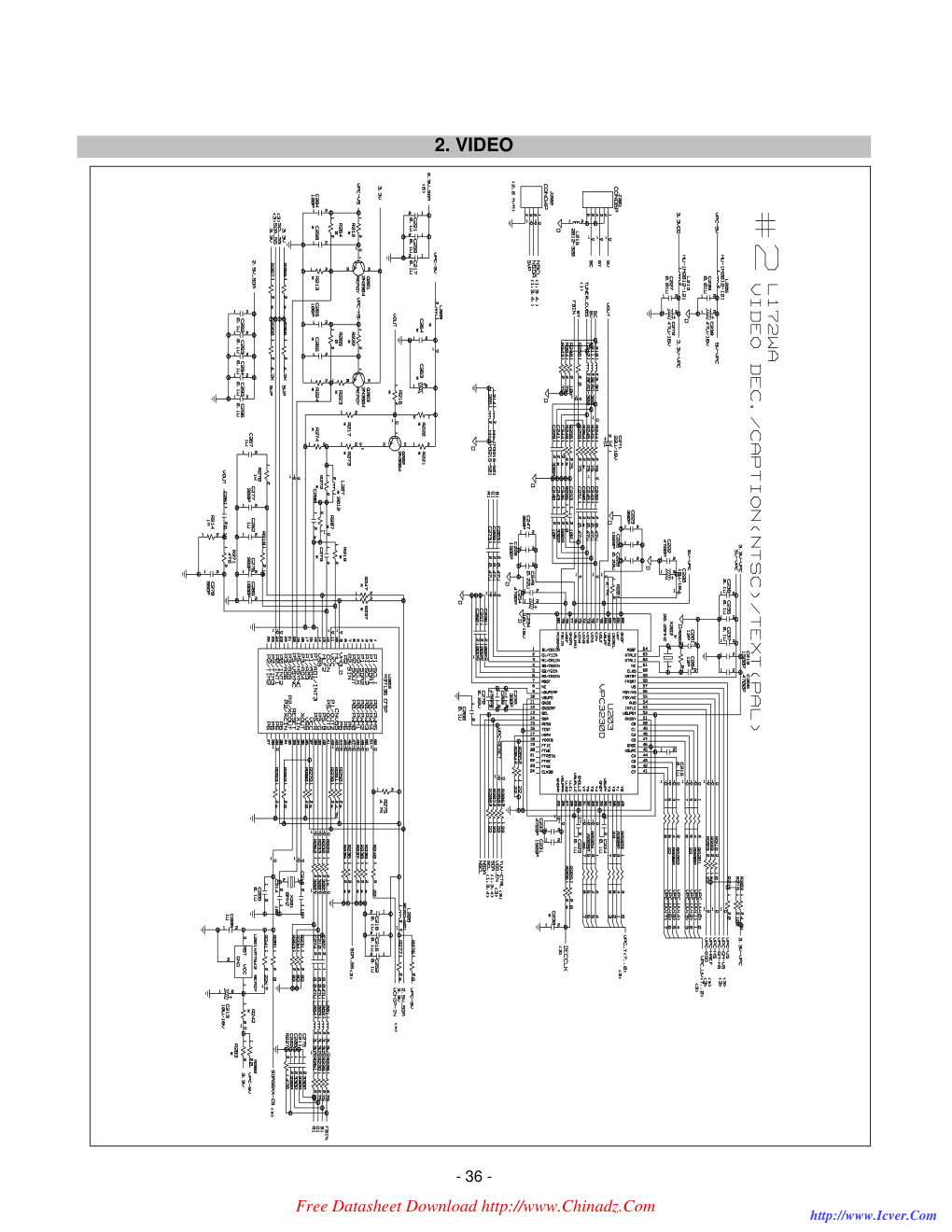

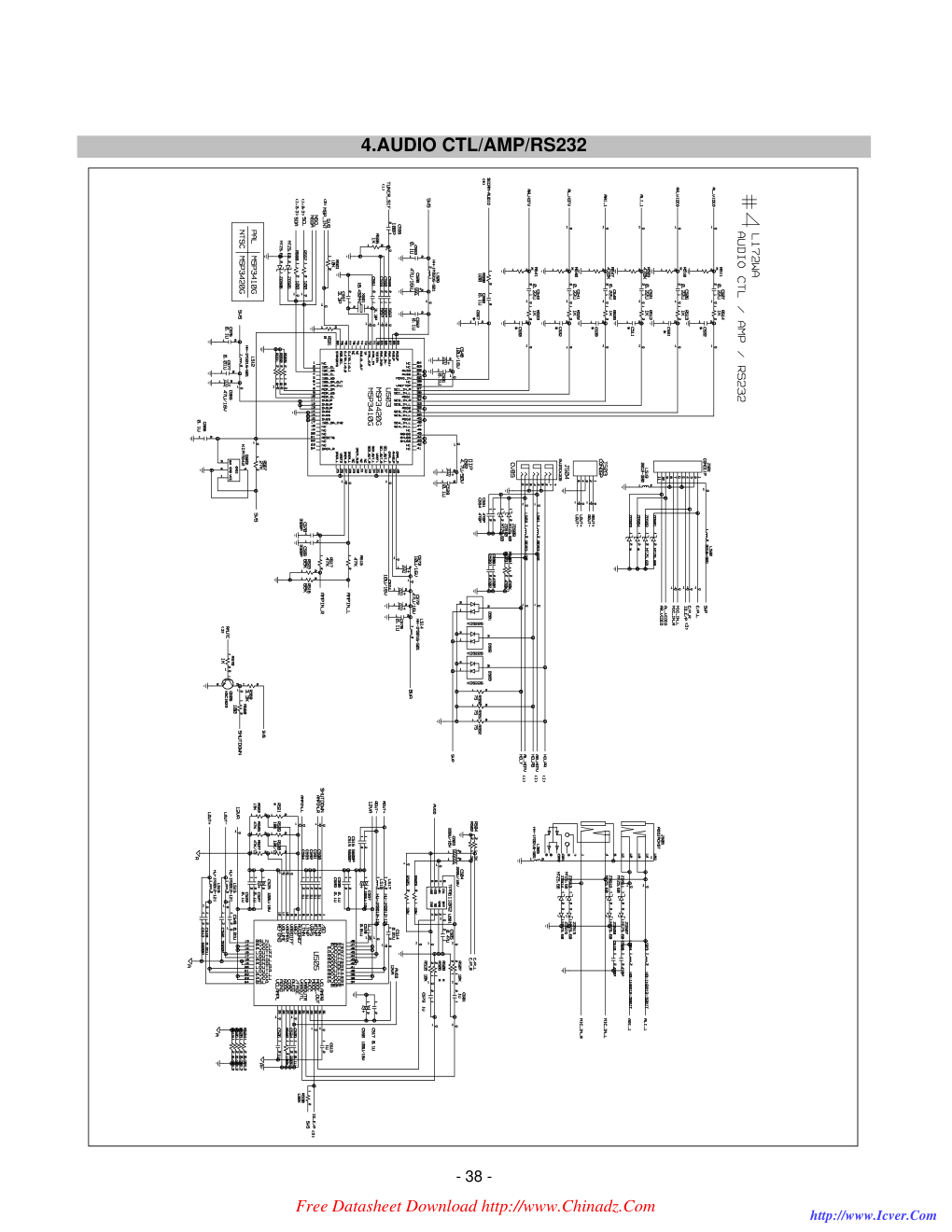

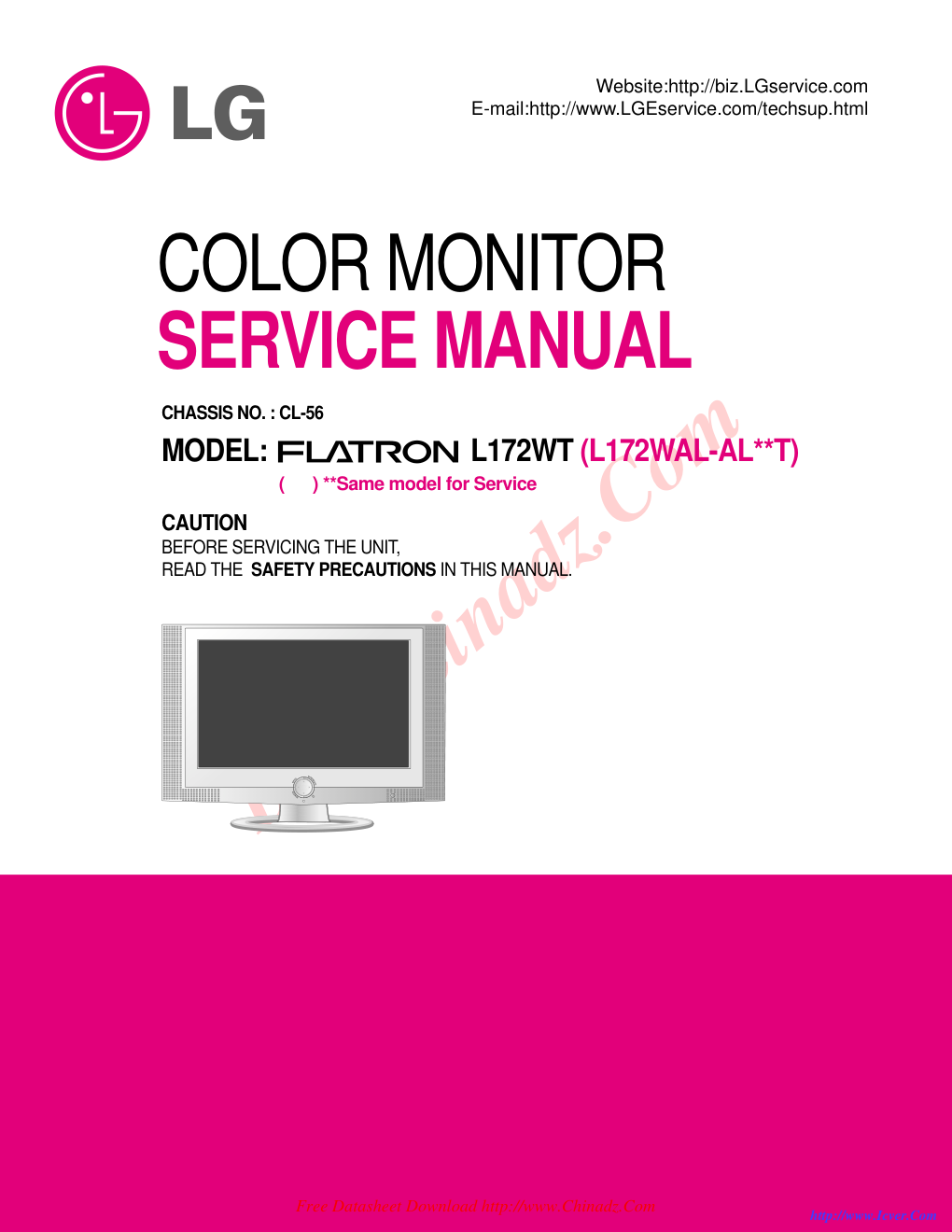

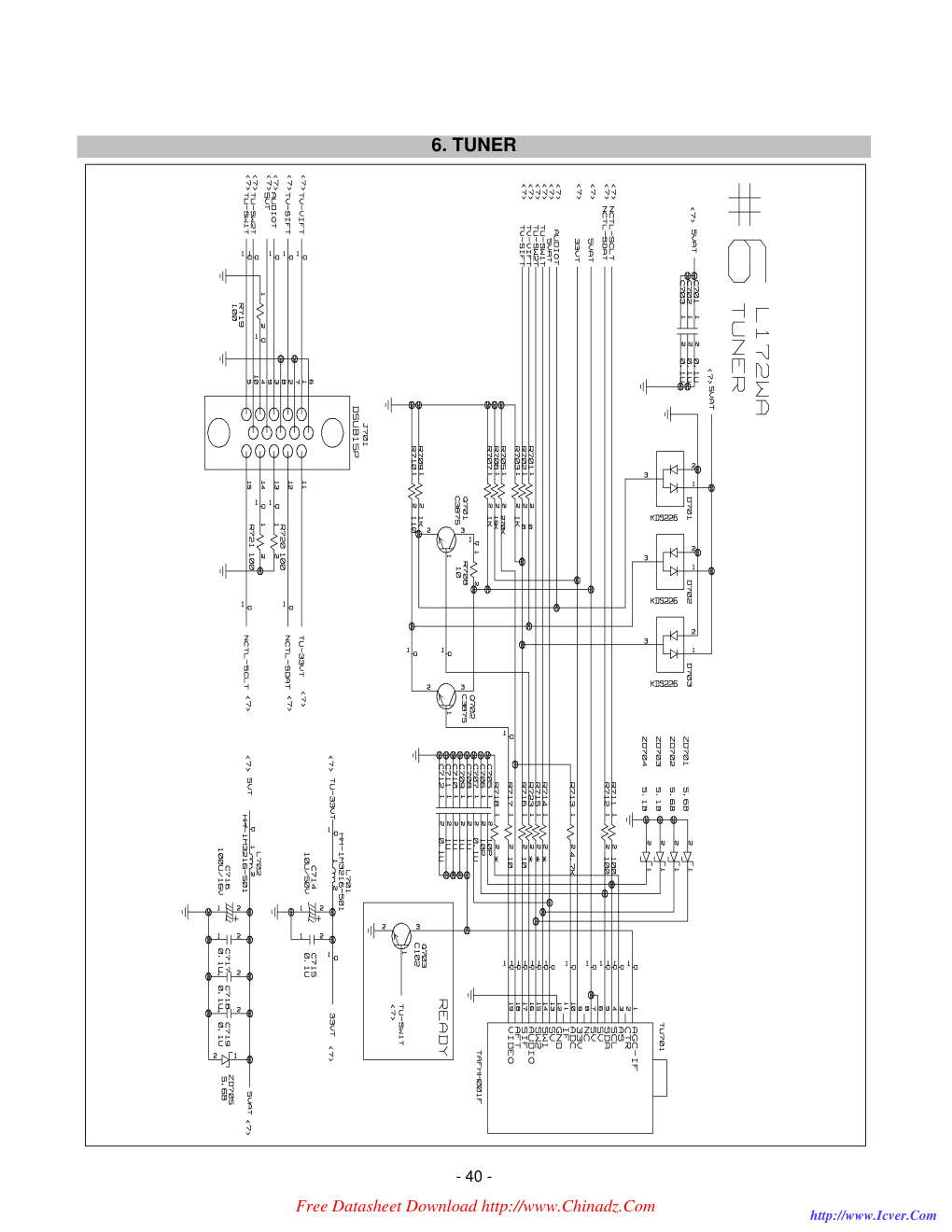

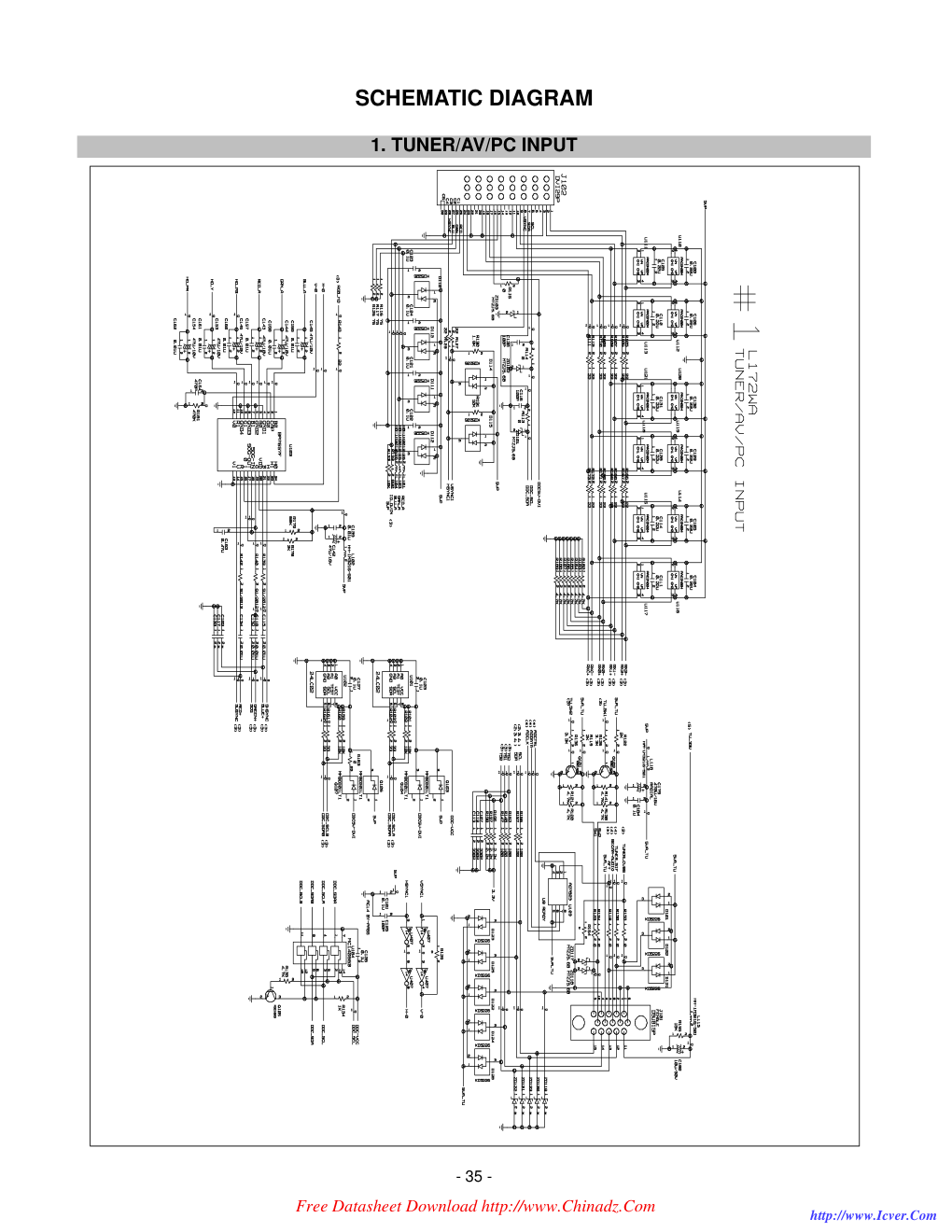

Bbs.Chinadz.Com COLOR MONITOR SERVICE MANUAL Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : CL-56 MODEL: L172WT (L172WAL-AL**T) ( ) **Same model for Service Free Datasheet Download http://www.Chinadz.Com http://www.Icver.Com Bbs.Chinadz.Com SCHEMATIC DIAGRAM - 35 - 1. TUNER/AV/PC INPUT Free Datasheet Download http://www.Chinadz.Com http://www.Icver.Com Bbs.Chinadz.Com - 36 - 2. VIDEO Free Datasheet Download http://www.Chinadz.Com http://www.Icver.Com Bbs.Chinadz.Com - 37 - 3. SCALER Free Datasheet Download http://www.Chinadz.Com http://www.Icver.Com Bbs.Chinadz.Com - 38 - 4.AUDIO CTL/AMP/RS232 Free Datasheet Download http://www.Chinadz.Com http://www.Icver.Com Bbs.Chinadz.Com - 39 - 5.POWER/CONNECTOR Free Datasheet Download http://www.Chinadz.Com http://www.Icver.Com Bbs.Chinadz.Com - 40 - 6. TUNER Free Datasheet Download http://www.Chinadz.Com http://www.Icver.Com Bbs.Chinadz.Com Dec. 2003 P/NO : 3828TSL093E Printed in Korea Free Datasheet Download http://www.Chinadz.Com http://www.Icver.Com
