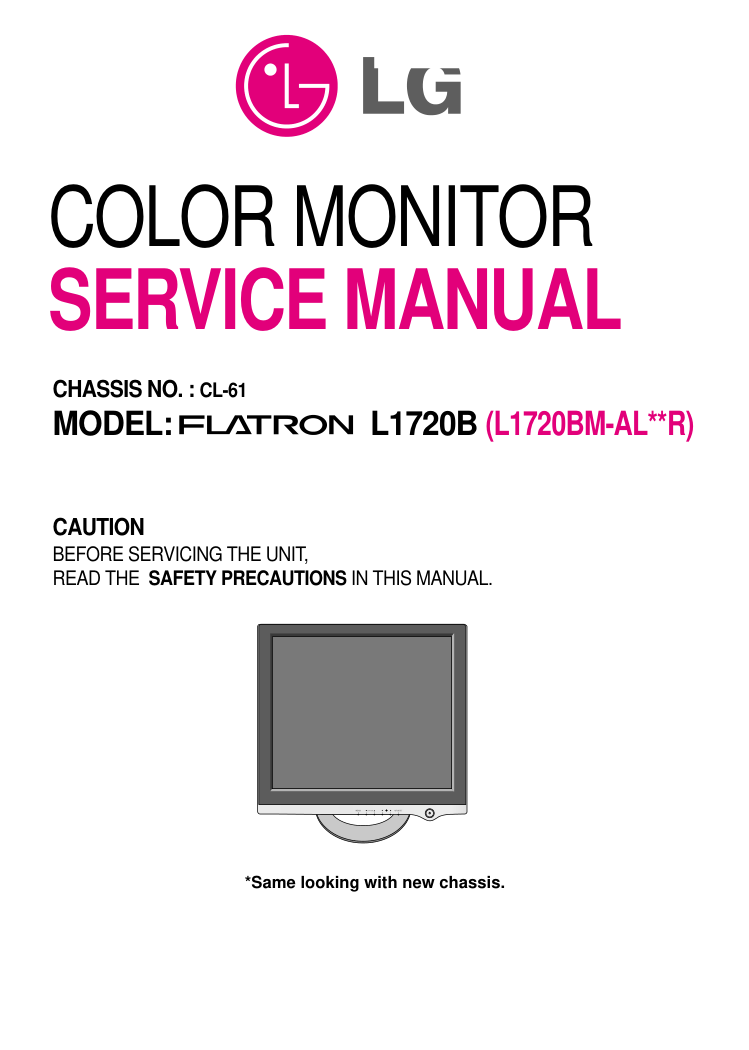

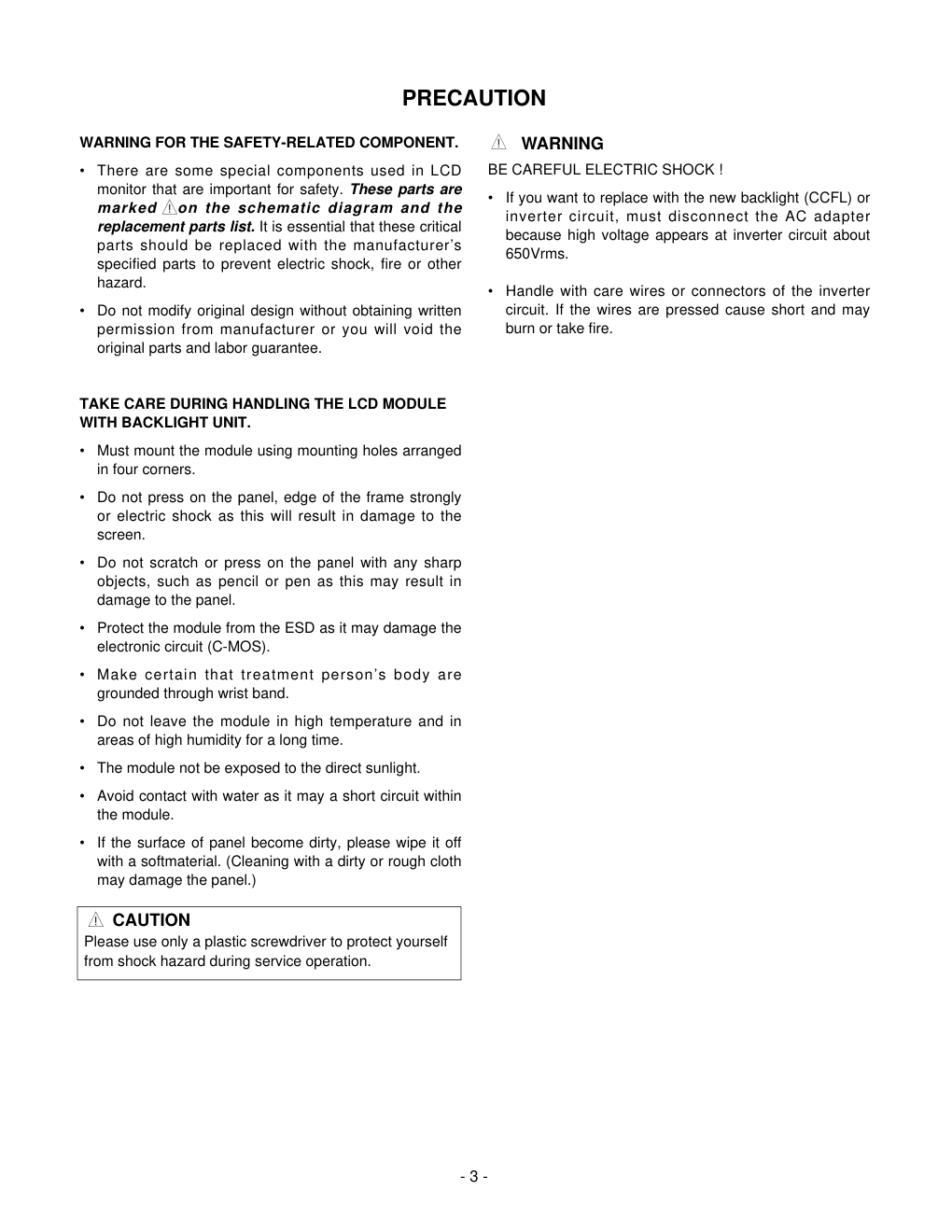

COLOR MONITOR SERVICE MANUAL CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : CL-61 MODEL: L1720B (L1720BM-AL**R) *Same looking with new chassis. 1. LCD CHARACTERISTICS Type : TFT SXGA LCD Size : 17 inch Pixel Pitch : 0.264 (H) x 0.264 (V) Color Depth : 16.2M colors Electrical Interface : LVDS Surface Treatment : Hard-coating(3H), Anti-Glare Operating Mode : Normally White, Transmissive mode Backlight Unit : Top/Bottom edge side 4-CCFL (Cold Cathode Fluorescent Lamp) 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : -60° min., -70°(Typ) Right : +60° min., +70°(Typ) Top :+45° min., +60°(Typ) Bottom : -45°min., -60°(Typ) 2-2. Luminance : 200(min), 250(Typ) 2-3. Contrast Ratio : 300(min), 450(Typ) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal • Type : Separate Sync, SOG (Sync On Green) Composite Sync 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.71 V a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.467 Vp-p c) Color 15, 0 : 0.714 Vp-p 3) Input Impedance : 75 Ω 3-3. Operating Frequency Horizontal : 30 ~ 83kHz Vertical : 56 ~ 75Hz 4. Max. Resolution Analog : 1280 x 1024 / 75Hz 5. POWER SUPPLY 5-1. Power : AC 100-240V~, 50/60Hz , 1.0A 5-2. Power Consumption 6. ENVIRONMENT 6-1. Operating Temperature: 10°C~35°C (50°F~95°F) (Ambient) 6-2. Relative Humidity : 10%~80% (Non-condensing) 6-3. MTBF : 50,000 Hours(Min) 7. DIMENSIONS (with TILT/SWIVEL) FullUp Position Width : 394 mm (15.51'') Depth : 232 mm (9.13'') Height : 379 mm (14.92'') Folded Position Width : 394mm (15.51'') Depth : 127mm (9.13'') Height : 412mm (14.92'') 8. WEIGHT (with TILT/SWIVEL) Net. Weight : 4.5 kg (9.92 lbs) Gross Weight : 7.6 kg (16.76 lbs) CONTENTS SPECIFICATIONS - 2 - SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 3 TIMING CHART ....................................................... 4 OPERATING INSTRUCTIONS ................................ 5 WIRING DIAGRAM ................................................. 6 BLOCK DIAGRAM ................................................... 7 DESCRIPTION OF BLOCK DIAGRAM.....................8 ADJUSTMENT ...................................................... 10 TROUBLESHOOTING GUIDE .............................. 12 EXPLODED VIEW...................................................16 REPLACEMENT PARTS LIST ...............................18 PIN CONFIGURAION..............................................20 SCHEMATIC DIAGRAM......................................... 21 MODE POWER ON (NORMAL) STAND-BY SUSPEND DPMS OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF POWER CONSUMPTION less than 43 W less than 1 W less than 1 W less than 1 W LED COLOR BLUE AMBER AMBER AMBER VIDEO ACTIVE OFF OFF OFF - 3 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. TIMING CHART - 4 - VIDEO SYNC B D C F E A << Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >> H + 31.469 800 640 16 96 48 V – 70.8Hz 449 350 37 2 60 H – 31.469 840 640 16 96 48 V – 59.94 525 480 10 2 33 H – 37.5 840 640 16 64 120 V – 75 500 480 1 3 16 H – 31.468 900 720 18 108 54 V + 70.09 449 400 12 2 35 H + 37.879 1056 800 40 128 88 V + 60.317 628 600 1 4 23 H + 46.875 1056 800 16 80 160 V + 75.0 625 600 1 3 21 H +/– 49.725 1152 832 32 64 224 V +/– 74.55 667 624 1 3 39 H – 48.363 1344 1024 24 136 160 V – 60.0 806 768 3 6 29 H – 60.123 1312 1024 16 96 176 V – 75.029 800 768 1 3 28 H +/– 68.681 1456 1152 32 128 144 V +/– 75.062 915 870 3 3 39 H +/– 61.805 1504 1152 18 134 200 V +/– 65.96 937 900 2 4 31 H + 63.981 1688 1280 48 112 248 V + 60.02 1066 1024 1 3 38 H + 79.976 1688 1280 16 144 248 V + 75.035 1066 1024 1 3 38 Mode H/V Sort 1 2 3 4 5 6 7 8 9 10 11 12 13 25.175 28.321 25.175 31.5 40.0 49.5 57.283 65.0 78.75 100.0 92.978 108.0 135.0 640x350 70Hz 640x480 60Hz 640x480 75Hz 720x400 70Hz 800x600 60Hz 800x600 75Hz 832x624 75Hz 1024x768 60Hz 1024x768 75Hz 1152x870 75Hz 1152x900 65Hz 1280x1024 60Hz 1280x1024 75Hz Sync Polarity Frequency Dot Clock Total Period (E) Video Active Time (A) Sync Duration (D) Back Porch (F) Front Porch (C) Resolution OPERATING INSTRUCTIONS FRONT VIEW REAR VIEW Front Control Panel 1. Power Button Use this button to turn the display on or off. This Indicator lights up blue when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. 2. Button Use these buttons to choose or adjust items in the On Screen Display. 3. Menu Button Use this button to enter or exit the On Screen Display. 4. AUTO/SELECT Button Use this button to enter a selection in the On Screen Display. When adjusting your display settings, always press the AUTO/SELECT button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is 1024x768/60Hz. See front control panel D-sub Connect Power Connect 1 4 3 2 This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc.). • DAY : Bright ambient illumination • NIGHT : Dark ambient illumination • TEXT : For text images (Word processing etc.) • MOVIE : For animation images in videos or movies • PHOTO : For pictures or drawings • USER MODE : For use under user setup image conditions (Brightness, contrast and color tint are selected by the user in OSD Screen Setup Menu.) 100 100 Bring up Contrast and Brightness adjustment. : J707 J702 CN1 CN2 CN4 CN5 CN3 Connector Ass’y : P/N: 6631T11016C Connector Ass’y : P/N: 6631T20024C Connector Ass’y : P/N: 6631T20008G Connector Ass’y : P/N: 6631T20023A D-SUB MST9111B including (ADC/LVDS/SCALER ) MTV312 Micom LCD Module R,G,B differential LLLLVVVVDDDDSSSS ((((LLLLoooowwww VVVVoooollllttttaaaaggggeeee DDDDiiiiffffffffeeeerrrreeeennnnttttiiiiaaaallll SSSSiiiiggggnnnnaaaalllliiiinnnngggg)))) LIPS 5V 5V AC Input 3.3V Reg. Diode KDS184 5V 3.3V 12V R,G,B, H/V Sync 3.3V 2.5V 3.3V 2.5V DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 135MHz. This part consists of the Scaler, ADC, LVDS transmitter. The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V regulator, and two 2.5V drop diodes to convert power which is provided 12V, 5V in Power board. 5V is provided for LCD panel and Micom. Also, 5V is converted 3.3V by regulator and 3.3V is converted 2.5V by drop diode. Converted power is provided for IC in the main board. 3. MICOM Part. This part consists of EEPROM IC which stores control data, Reset IC and the Micom. The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable. The controlled data of each modes is stored in EEPROM. EMI COMPONENTS LINE 100 ~ 240V INPUT RECTIFIER AND FILTER ENERGY TRANSFER OUTPUT RECTIFIER AND FILTER 12V 5V GND SIGNAL COLLECTI ON PHOTO- COUPLER ISOLATION PWM CONTROL CIRCUIT HVDC 100KHz PRIMARY SECONDARY 50 ~ 60Hz Operation description_LIPS LIPS Board Block Diagram 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achive the dc output stablize, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the dc output changing status through a photo transistor to primary controller to achieve the stabilized dc output voltage. 6. Signal collection. This part function is to collect the any change from the dc output and feed back to the primary through photo transistor. ADJUSTMENT Windows EDID V1.0 User Manual Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Don’t need setup Windows 2000, XP => Need to Port Setup. This program is available to LCD Monitor only. 1. Port Setup a) Copy “UserPort.sys” file to “c:\WINNT\system32\drivers” folder b) Run Userport.exe c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. 2. EDID Read & Write 1) Run WinEDID.exe 2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button 220 IBM Compatible PC PARALLEL PORT Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E E V-Sync On/Off Switch (Switch must be ON.) F F A A B B C C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Video Signal Generator Figure 1. Cable Connection SERVICE OSD 1) Turn off the power switch at the front side of the display. 2) Wait for about 3 seconds and press MENU, POWER switch with 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) MODULE : To select applied module. b) NVRAM INIT : EEPROM initialize(24C08) c) ADC OFFSET : The lowest value of input leves sets to digitally 0(zero). d) ADC GAIN : The highest value of input levels sets to digitally 255. e) ADC CAL : W/B balance sets the gain and offset value. f) ELAPSED CLEAR : To initialize using time. - 12 - TROUBLESHOOTING GUIDE 1. NO POWER NO POWER (POWER INDICATOR OFF) CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK J705 VOLTAGE PIN5, PIN6 (5V)? NO CHECK 5VS LINE (OPEN CHECK) CHECK U501 PIN 8 Voltage (5V) ? NO NO NO CHECK U201 PIN 122 PULSE CHECK U201 CHECK 3.3V LINE CHECK X-TAL IS U201 PIN114 (3.3V) VOLTAGE ? YES YES NO PROBLEM YES CHECK KEY CONTROL CONNECTOR ROUTINE YES - 13 - 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS CHECK MICOM INV ON/OFF PORT. J705 PIN9 5V? NO NO RASTER (OSD IS NOT DISPLAYED) CHECK LIPS J705 PIN5, PIN6 5V? NO 1. CONFIRM BRIGHTNESS OSD CONTRL STATE. 2. CHECK MICOM DIM-ADJ PORT J705 PIN10 5V? NO LIPS CHECK PULSE AS CONTACTING SCOPE PROBE TO CAUTION LABEL. (CONTACT PROBE TO CAUTION LABEL. CAN YOU SEE PULSE AT YOUR SCOPE? NO REPLACE CCFL LAMP IN THE LCD MODULE YES YES YES YES - 14 - 1. CHECK PIN122, 123 SOLDERING CONDITION 2. CHECK X501 3. TROUBLE IN U201 U201 POWER PIN 8,114 3.3V? NO CHECK U801 U201 PIN122, 123 OSCILLATE AS 12MHZ? CHECK CONNECTION LINE FROM D-SUB TO U501 TROUBLE IN CABLE OR LCD MODULE YES YES YES 3. NO RASTER (OSD IS NOT DISPLAYED) – MST9111B NO RASTER (OSD IS NOT DISPLAYED) U501 PIN43 IS 64KHz H-SYNC? PIN44 IS 60Hz V-SYNC? IS PULSE APPEARED AT SIGNAL PINS? AT MODE 12? NO NO - 15 - 4. TROUBLE IN DPM TROUBLE IN DPM TROUBLE IN U501 CHECK PC PC IS NOT GOING INTO DPM OFF MODE NO CHECK H/V SYNC LINE NO YES YES CHECK R773, R775 (SYNC) ? CHECK U501 PIN 43.44 SYNC PULSE ? EXPLODED VIEW 4 1 2 3 12 10 11 13 5 6 8 9 7 - 17 - EXPLODED VIEW PARTS LIST Ref. No. 1 2 3 4 5 6 7 8 9 10 11 12 13 Part No. 3091TKL086A 6304FLP086A 6304FLP085A 6304FLP082A 6304FLP076A 6304FLP058A 3809TKL059A 3043TKK134E 6871TST430A 4951TKS111E 6631T11012W 6871TPT271C 3313TL7038A 4951TKK139A 3550TKK398A 3550TKK400A 6850TD9004M Description CABINET ASSEMBLY, L1720 BRAND . . LCD(LIQUID CRYSTAL DISPLAY), LM170E01-A5K6 LG PHILPS TFT COLOR LVDS SXGA OKI GATE D-IC LCD(LIQUID CRYSTAL DISPLAY), LM170E01-A4K4 LG PHILPS TFT COLOR SXGA LVDS OKI GATE D-IC LCD(LIQUID CRYSTAL DISPLAY), LM170E01-A5M1 LG PHILPS TFT COLOR SXGA LVDS PEM-NUT LCD(LIQUID CRYSTAL DISPLAY), LM170E01-A5 LG PHILPS TFT COLOR LVDS SXGA LCD(LIQUID CRYSTAL DISPLAY), LM170E01-A4 LG PHILPS TFT COLOR 17" TFT LCD BACK COVER ASSEMBLY, L1720 . SILVER SPRAY TILT SWIVEL ASSEMBLY, L1720B/PL M/BASE-SPRAY_NEW SCREW/RUBBER PWB(PCB) ASSEMBLY,SUB, L1720BL CONTROL TOTAL BRAND CL-43 METAL ASSEMBLY, FRAME MAIN L1720BM LPL CONNECTOR ASSEMBLY, 30P H-H 200MM UL20276 LG708G PWB(PCB) ASSEMBLY, POWER, 19"+17" M-CHASSIS POWER TOTAL LIEN CHANG "INTEGRATED LIPS" FOR DOCKING TYPE MAIN TOTAL ASSEMBLY, L1720BM BRAND CL-61 METAL ASSEMBLY, REAR L1720BL COVER, L1720 BACK CAP COVER, L1720BL HINGE CAP CABLE, D-SUB, UL2990-9C(5.8MM) DT 1500MM GRAY 20 MODEL DM - 18 - DATE: 2004. 1. 9. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C205 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C209 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C210 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C211 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C214 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C215 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C217 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C218 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C219 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C220 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C221 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C222 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C223 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C225 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C226 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C227 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C232 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C233 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C240 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C251 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C501 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C502 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C503 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C504 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C506 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP NP C507 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C508 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C701 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C703 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C708 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C709 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C710 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C711 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C717 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C718 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C719 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C720 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C721 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C727 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C732 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C733 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C734 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C735 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C760 0CE107EF610 100UF KMG,RD 16V 20% FL BULK C801 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y DATE: 2003. 1. 9. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C803 0CE107EF610 100UF KMG,RD 16V 20% FL BULK C804 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C805 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C806 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C807 0CE107EF610 100UF KMG,RD 16V 20% FL BULK C808 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C809 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C810 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C812 0CE107EF610 100UF KMG,RD 16V 20% FL BULK C814 0CE107EF610 100UF KMG,RD 16V 20% FL BULK C815 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C816 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y D701 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D702 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D706 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D804 0DD184009AA KDS184 TP KEC - 85V - - - 30 D805 0DD184009AA KDS184 TP KEC - 85V - - - 30 ZD701 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD702 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD703 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD704 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD705 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD711 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 U201 0IPRPM3008B MST9111B(ANALOG) MSTAR 128P, U501 0IZZTSZ355A MTV312MV64 MYSON 44P , PLCC U502 0ISG240860B M24C08W6 SGS-THOMSON 8SOP R/ U801 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V Q502 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT Q503 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q504 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q505 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q703 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q704 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q706 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q707 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q801 0TR127309AA KTA1273-Y(KTA966A) TP KEC TO Q802 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP R201 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R202 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R203 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R207 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R208 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS DIODEs ICs TRANSISTOR RESISTORs DATE: 2003. 1. 9. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R209 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R210 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R213 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R214 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R220 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R240 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R506 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R508 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R512 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R513 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R514 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R515 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R516 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R518 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R519 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R520 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R521 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R522 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R523 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R524 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R525 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R526 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R527 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R528 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R529 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R531 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R532 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R534 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R535 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R537 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R541 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R542 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R543 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R544 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R545 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R546 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R547 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R548 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R549 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R555 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R556 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R557 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R560 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R561 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R563 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R564 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R565 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R566 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R701 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R706 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R708 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R709 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R716 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R717 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R720 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R722 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R723 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R724 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R726 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R727 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R737 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP DATE: 2003. 1. 9. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R744 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R745 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R747 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R748 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R769 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R772 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R773 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R774 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R775 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R779 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R780 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R781 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R782 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R783 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R803 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R804 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R805 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R806 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R807 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R808 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R810 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R818 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R819 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R821 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R822 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R824 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP X501 6212AA2004A HC-49U TXC 12.0MHZ +/- 30 PP LED1 0DLBE0048AA BRIGHT LED ELECTRONICS BL-HK R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R2 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R3 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R4 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R5 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R6 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R7 0RJ9101D677 9.1K OHM 1/10 W 5% 1608 R/TP SW1 6600R00004A JTP1138A6EM JEIL 12VDC 50MA SW2 6600R00004A JTP1138A6EM JEIL 12VDC 50MA SW3 6600R00004A JTP1138A6EM JEIL 12VDC 50MA SW4 6600R00004A JTP1138A6EM JEIL 12VDC 50MA SW5 6600R00004A JTP1138A6EM JEIL 12VDC 50MA SW6 6600R00004A JTP1138A6EM JEIL 12VDC 50MA SW7 6600R00004A JTP1138A6EM JEIL 12VDC 50MA ZD1 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD2 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD3 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD4 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 - 19 - CONTROL BOARD OTHERs PIN CONFIGURATION - 20 - MST9111B(ANALOG) MSTAR 128P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 NC VSYNC0 HSYNC0 AVSS_PLL AVDD_PLL XOUT XIN HWRESETZ DDCROM_DAT DDCROM_CLK DDC1_CLK DDC1_DAT NC NC VDDP GNDP GNDC VDDC NC NC NC VDDP GNDP NC NC BYPASS 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 NC AVSS NC NC AVSS NC NC AVDD NC NC AVSS NC NC AVDD REXT AVDD_PLL AVSS_PLL AVDD AVSS NC NC NC NC NC NC NC BIN0M BIN0 GIN0M GIN0 SOGIN0 RIN0M RIN0 AVSS AVDD RMID REFP REFM AVSS_PLL NC NC NC NC LVB0M LVB0P GNDP VDDP LVB1M LVB1P LVB2M LVB2P LVBCKM LVBCKP LVB3M LVB3P VDDC GNDC GNDP VDDP LVA0M LVA0P LVA1M LVA1P LVA2M LVA2P LVACKM LVACKP GNDP VDDP LVA3M LVA3P NC NC NC NC NC AVSS CSZ SDA SCL INT PWM0 PWM1 NC NC NC NC NC NC NC NC NC VDDP GNDP GNDC VDDC NC NC VDDP GNDP GNDC VDDC MST9111 VC646960210F Pin 1 PIN DIAGRAM 1 2. MICOM 2 3 4
