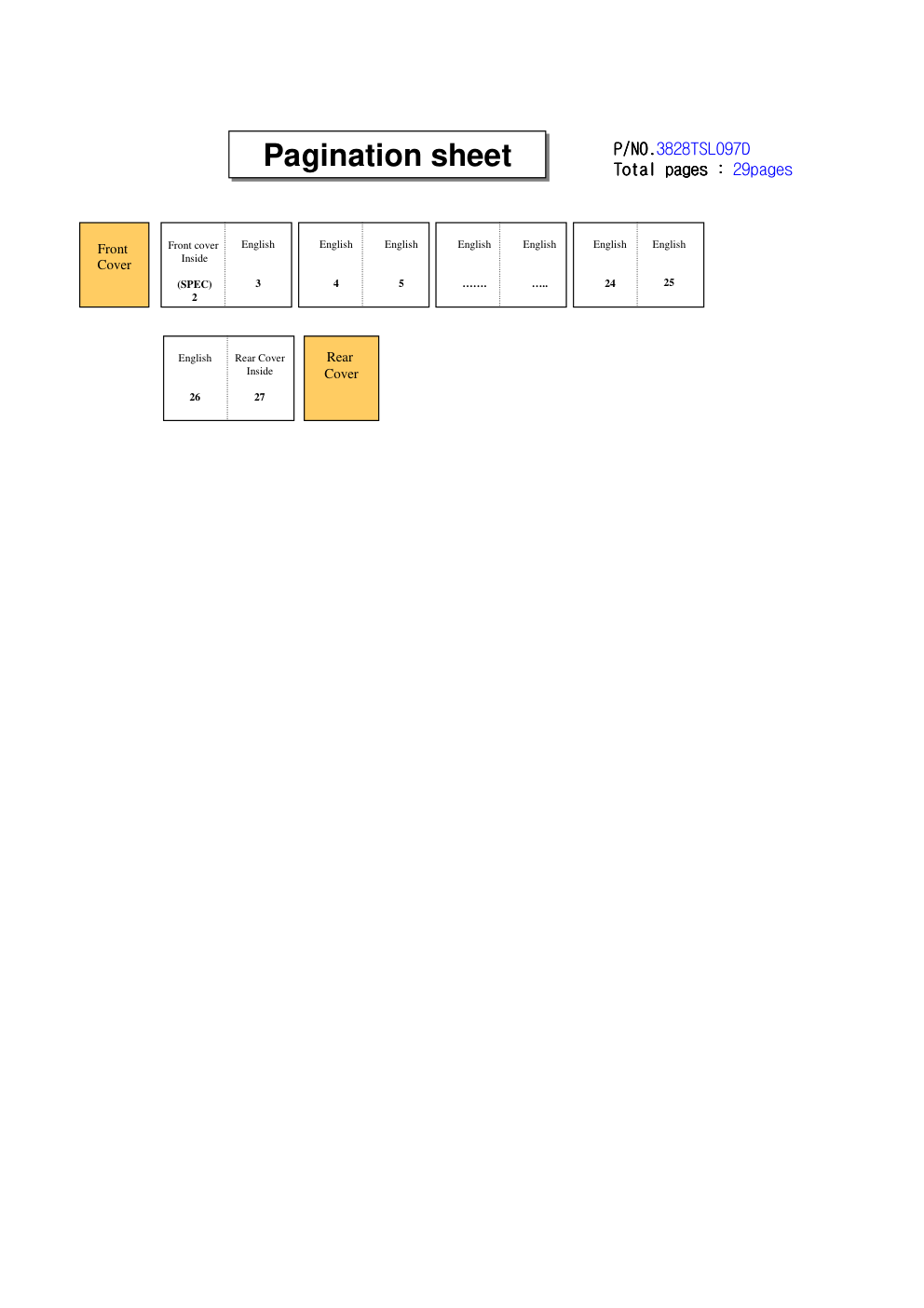

Pagination sheet
Pagination sheet
�����
�����
�����
����������������
�������������
�������������
�������������
������������� �������
Front
Cover
Front cover
Inside
(SPEC)
2
English
3
English
4
English
5
English
…….
English
…..
English
24
English
25
English
26
Rear Cover
Inside
27
Rear
Cover
COLOR MONITOR
SERVICE MANUAL
Website:http://biz.LGservice.com
E-mail:http://www.LGEservice.com/techsup.html
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS NO. : CL-48
MODEL: L1520P(L1520PL-AL**R)
( ) **Same model for Service
*To apply the Mstar Chip.

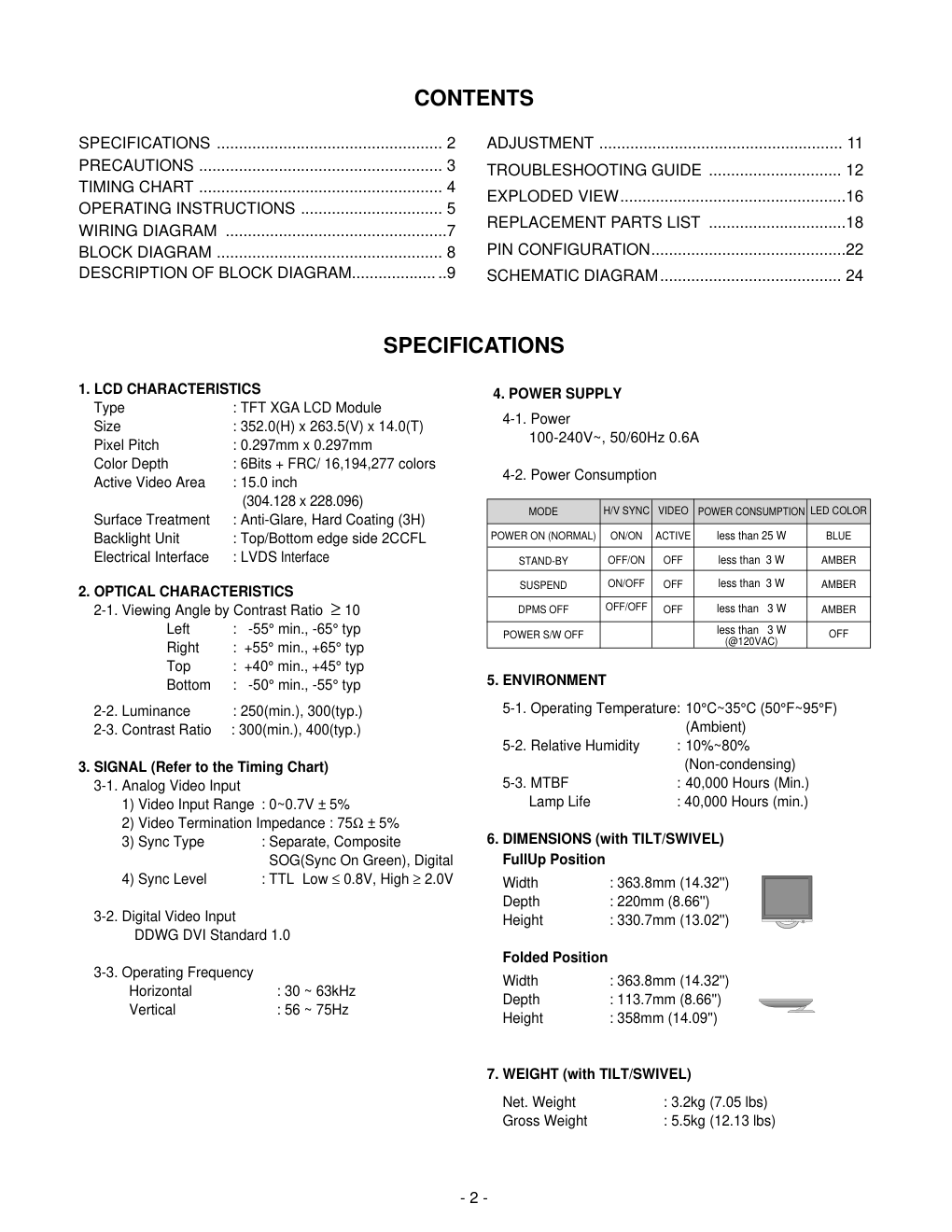

CONTENTS
SPECIFICATIONS
- 2 -
1. LCD CHARACTERISTICS
Type
: TFT XGA LCD Module
Size
: 352.0(H) x 263.5(V) x 14.0(T)
Pixel Pitch
: 0.297mm x 0.297mm
Color Depth
: 6Bits + FRC/ 16,194,277 colors
Active Video Area
: 15.0 inch
(304.128 x 228.096)
Surface Treatment
: Anti-Glare, Hard Coating (3H)
Backlight Unit
: Top/Bottom edge side 2CCFL
Electrical Interface
: LVDS Interface
2. OPTICAL CHARACTERISTICS
2-1. Viewing Angle by Contrast Ratio ≥ 10
Left
: -55° min., -65° typ
Right
: +55° min., +65° typ
Top
: +40° min., +45° typ
Bottom
: -50° min., -55° typ
2-2. Luminance
: 250(min.), 300(typ.)
2-3. Contrast Ratio : 300(min.), 400(typ.)
3. SIGNAL (Refer to the Timing Chart)
3-1. Analog Video Input
1) Video Input Range : 0~0.7V ± 5%
2) Video Termination Impedance : 75Ω ± 5%
3) Sync Type
: Separate, Composite
SOG(Sync On Green), Digital
4) Sync Level
: TTL Low ≤ 0.8V, High ≥ 2.0V
3-2. Digital Video Input
DDWG DVI Standard 1.0
3-3. Operating Frequency
Horizontal
: 30 ~ 63kHz
Vertical
: 56 ~ 75Hz
4. POWER SUPPLY
4-1. Power
100-240V~, 50/60Hz 0.6A
4-2. Power Consumption
5. ENVIRONMENT
5-1. Operating Temperature: 10°C~35°C (50°F~95°F)
(Ambient)
5-2. Relative Humidity
: 10%~80%
(Non-condensing)
5-3. MTBF
: 40,000 Hours (Min.)
Lamp Life
: 40,000 Hours (min.)
6. DIMENSIONS (with TILT/SWIVEL)
FullUp Position
Width
: 363.8mm (14.32'')
Depth
: 220mm (8.66'')
Height
: 330.7mm (13.02'')
Folded Position
Width
: 363.8mm (14.32'')
Depth
: 113.7mm (8.66'')
Height
: 358mm (14.09'')
7. WEIGHT (with TILT/SWIVEL)
Net. Weight
: 3.2kg (7.05 lbs)
Gross Weight
: 5.5kg (12.13 lbs)
SPECIFICATIONS ................................................... 2
PRECAUTIONS ....................................................... 3
TIMING CHART ....................................................... 4
OPERATING INSTRUCTIONS ................................ 5

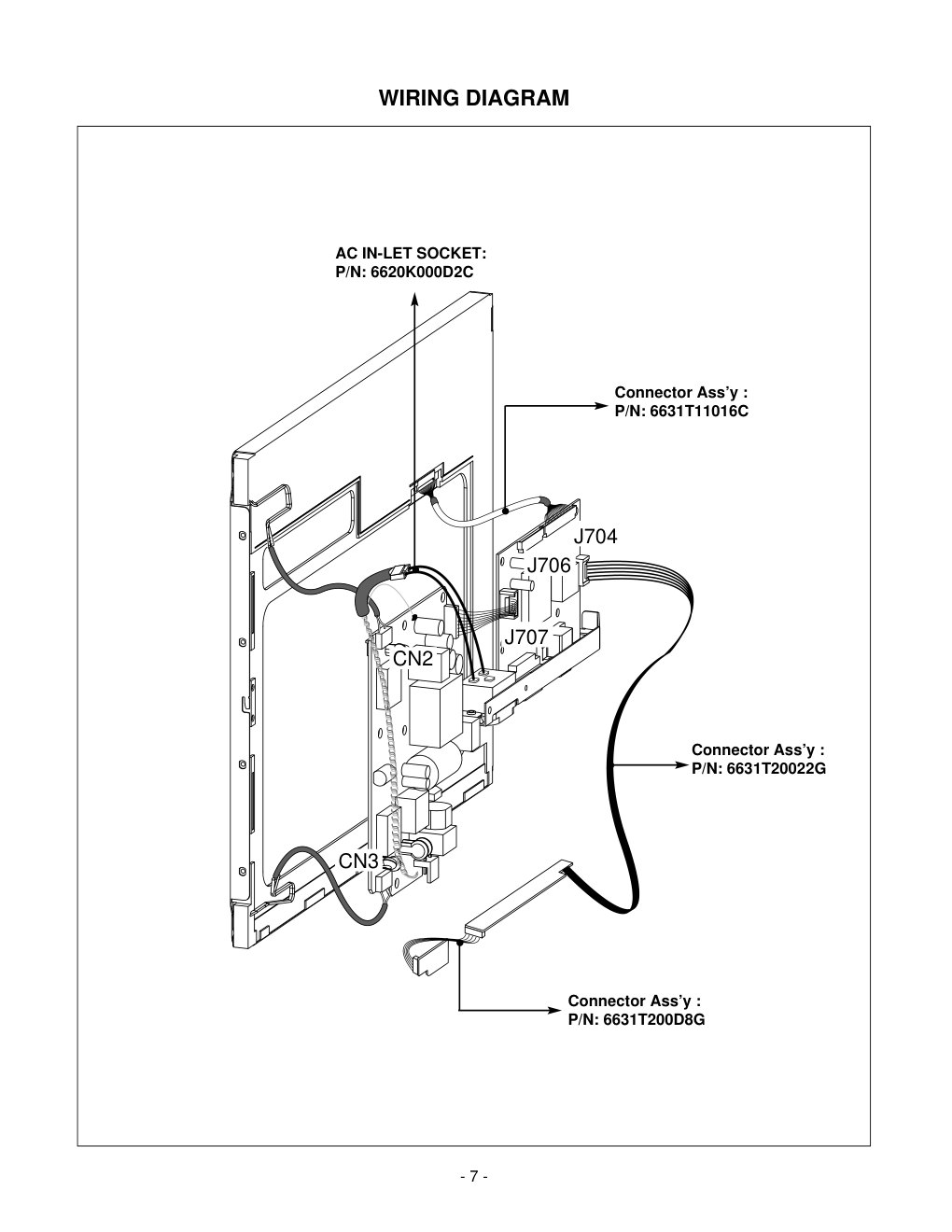

WIRING DIAGRAM ..................................................7

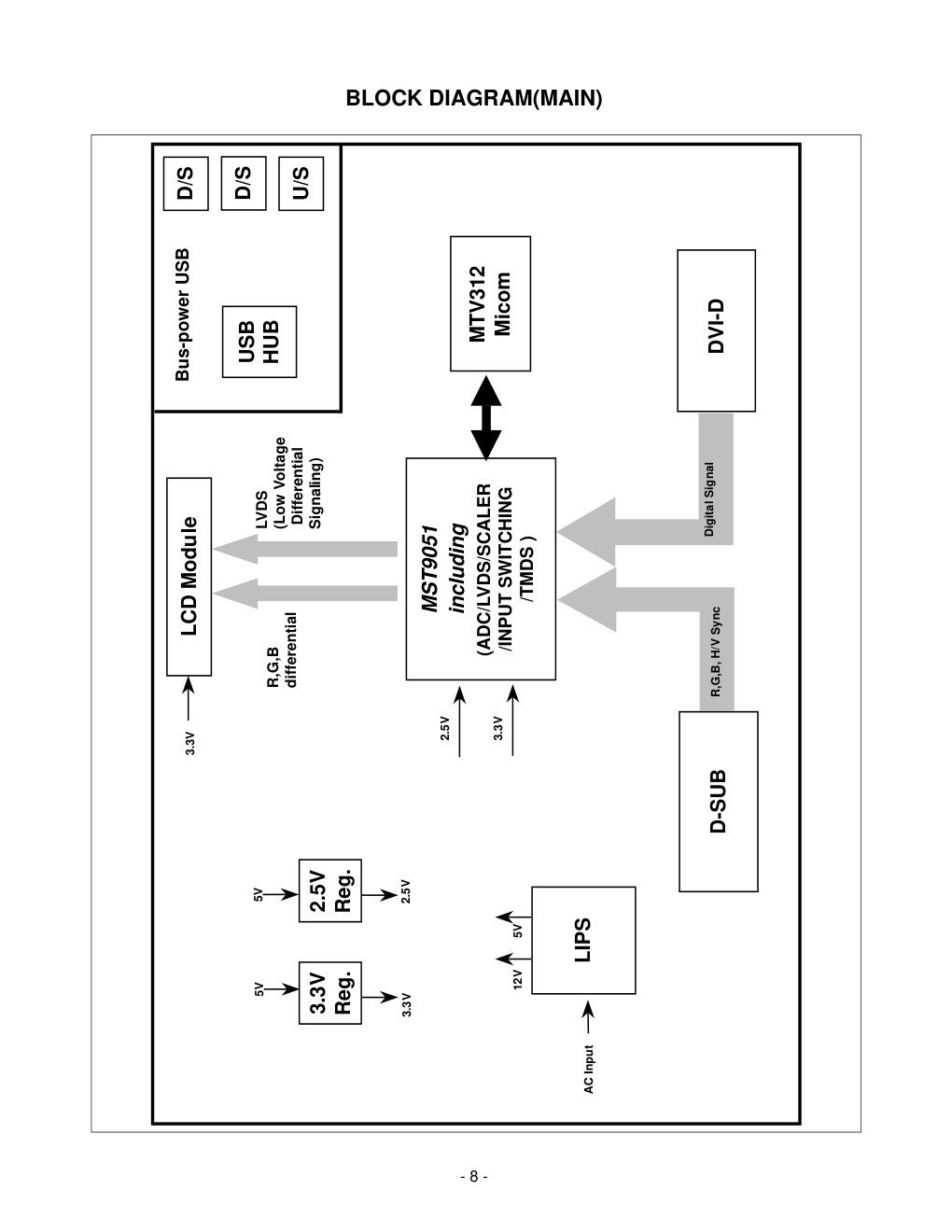

BLOCK DIAGRAM ................................................... 8
DESCRIPTION OF BLOCK DIAGRAM.....................9
ADJUSTMENT ....................................................... 11
TROUBLESHOOTING GUIDE .............................. 12
EXPLODED VIEW...................................................16
REPLACEMENT PARTS LIST ...............................18
PIN CONFIGURATION............................................22
SCHEMATIC DIAGRAM......................................... 24
MODE
POWER ON (NORMAL)
STAND-BY
SUSPEND
DPMS OFF
POWER S/W OFF
H/V SYNC
ON/ON
OFF/ON
ON/OFF
OFF/OFF
POWER CONSUMPTION
less than 25 W
less than 3 W
less than 3 W
less than 3 W
less than 3 W
(@120VAC)
LED COLOR
BLUE
AMBER
AMBER
AMBER
OFF
VIDEO
ACTIVE
OFF
OFF
OFF
- 3 -

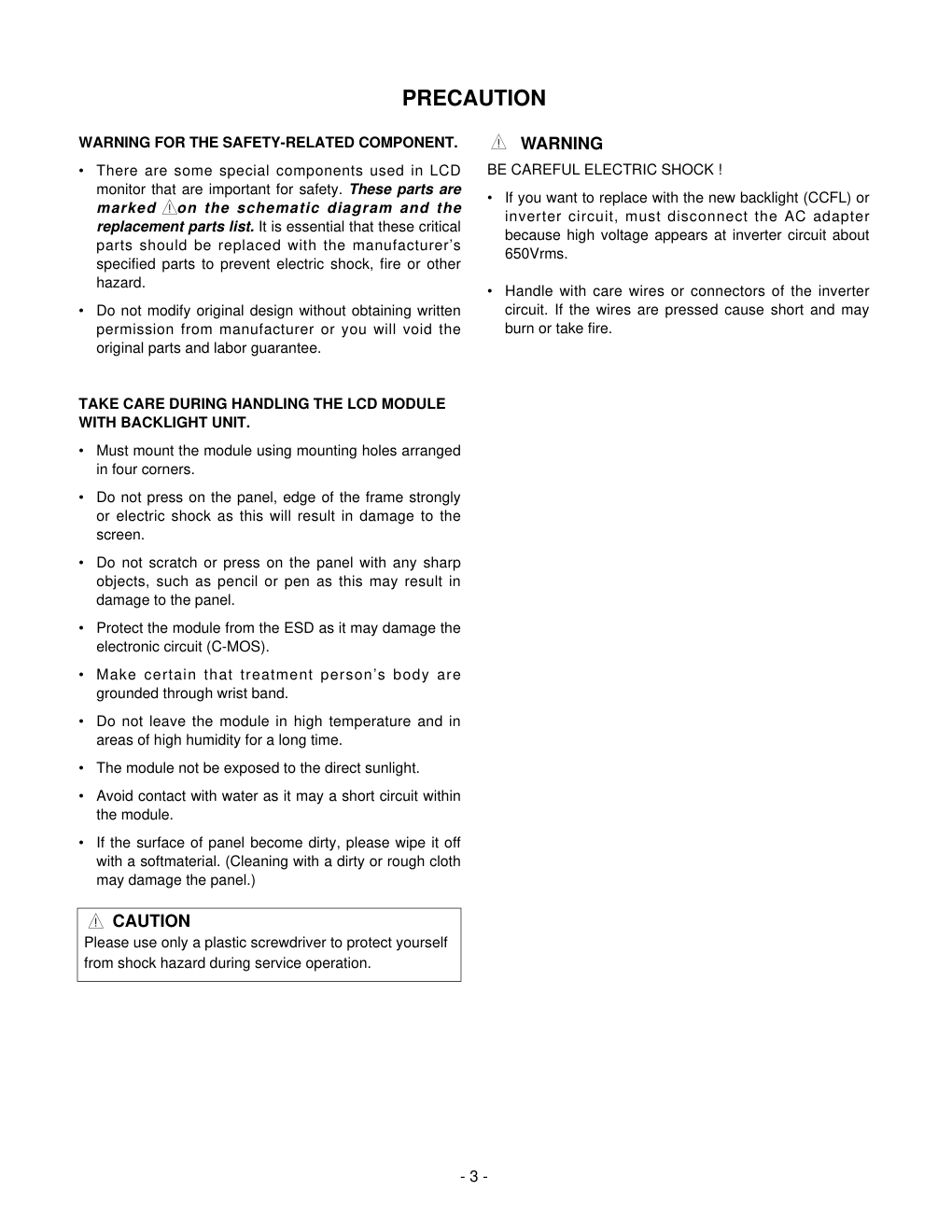

WARNING FOR THE SAFETY-RELATED COMPONENT.
•
There are some special components used in LCD
monitor that are important for safety. These parts are
marked on the schematic diagram and the
replacement parts list. It is essential that these critical
parts should be replaced with the manufacturer’s
specified parts to prevent electric shock, fire or other
hazard.
•
Do not modify original design without obtaining written
permission from manufacturer or you will void the
original parts and labor guarantee.
TAKE CARE DURING HANDLING THE LCD MODULE
WITH BACKLIGHT UNIT.
•
Must mount the module using mounting holes arranged
in four corners.
•
Do not press on the panel, edge of the frame strongly
or electric shock as this will result in damage to the
screen.
•
Do not scratch or press on the panel with any sharp
objects, such as pencil or pen as this may result in
damage to the panel.
•
Protect the module from the ESD as it may damage the
electronic circuit (C-MOS).
•
Make certain that treatment person’s body are
grounded through wrist band.
•
Do not leave the module in high temperature and in
areas of high humidity for a long time.
•
The module not be exposed to the direct sunlight.
•
Avoid contact with water as it may a short circuit within
the module.
•
If the surface of panel become dirty, please wipe it off
with a softmaterial. (Cleaning with a dirty or rough cloth
may damage the panel.)
WARNING
BE CAREFUL ELECTRIC SHOCK !
•
If you want to replace with the new backlight (CCFL) or
inverter circuit, must disconnect the AC adapter
because high voltage appears at inverter circuit about
650Vrms.
•
Handle with care wires or connectors of the inverter
circuit. If the wires are pressed cause short and may
burn or take fire.
PRECAUTION
CAUTION
Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

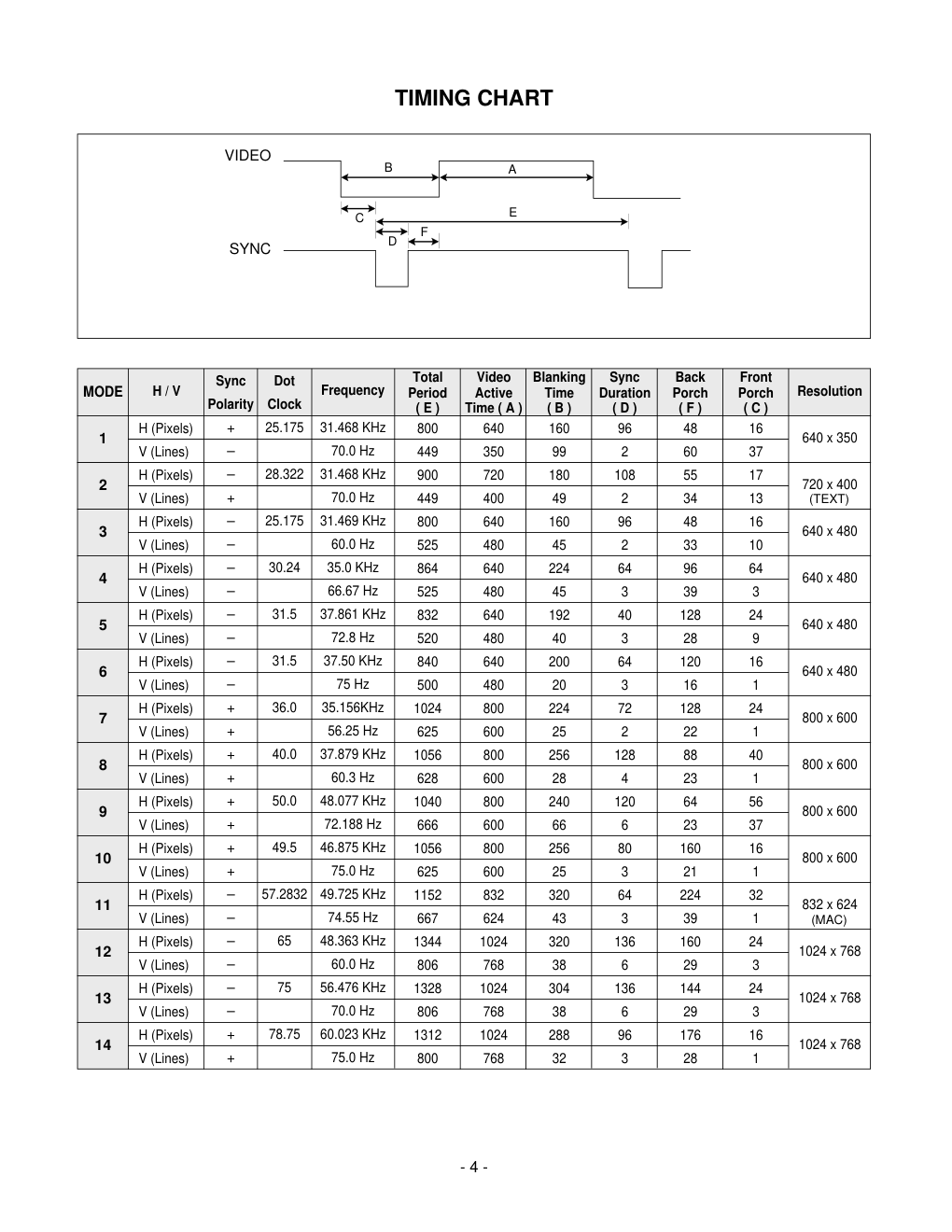

TIMING CHART
- 4 -
VIDEO
SYNC
B
D
C
F
E
A
H / V
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
Sync
Polarity
+
–
–
+
–
–
–
–
–
–
–
–
+
+
+
+
+
+
+
+
–
–
–
–
–
–
+
+
Dot
Clock
25.175
28.322
25.175
30.24
31.5
31.5
36.0
40.0
50.0
49.5
57.2832
65
75
78.75
Frequency
31.468 KHz
70.0 Hz
31.468 KHz
70.0 Hz
31.469 KHz
60.0 Hz
35.0 KHz
66.67 Hz
37.861 KHz
72.8 Hz
37.50 KHz
75 Hz
35.156KHz
56.25 Hz
37.879 KHz
60.3 Hz
48.077 KHz
72.188 Hz
46.875 KHz
75.0 Hz
49.725 KHz
74.55 Hz
48.363 KHz
60.0 Hz
56.476 KHz
70.0 Hz
60.023 KHz
75.0 Hz
Resolution
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
Total
Period
( E )
800
449
900
449
800
525
864
525
832
520
840
500
1024
625
1056
628
1040
666
1056
625
1152
667
1344
806
1328
806
1312
800
Video
Active
Time ( A )
640
350
720
400
640
480
640
480
640
480
640
480
800
600
800
600
800
600
800
600
832
624
1024
768
1024
768
1024
768
Blanking
Time
( B )
160
99
180
49
160
45
224
45
192
40
200
20
224
25
256
28
240
66
256
25
320
43
320
38
304
38
288
32
Sync
Duration
( D )
96
2
108
2
96
2
64
3
40
3
64
3
72
2
128
4
120
6
80
3
64
3
136
6
136
6
96
3
Back
Porch
( F )
48
60
55
34
48
33
96
39
128
28
120
16
128
22
88
23
64
23
160
21
224
39
160
29
144
29
176
28
Front
Porch
( C )
16
37
17
13
16
10
64
3
24
9
16
1
24
1
40
1
56
37
16
1
32
1
24
3
24
3
16
1
MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
(MAC)
(TEXT)
- 5 -

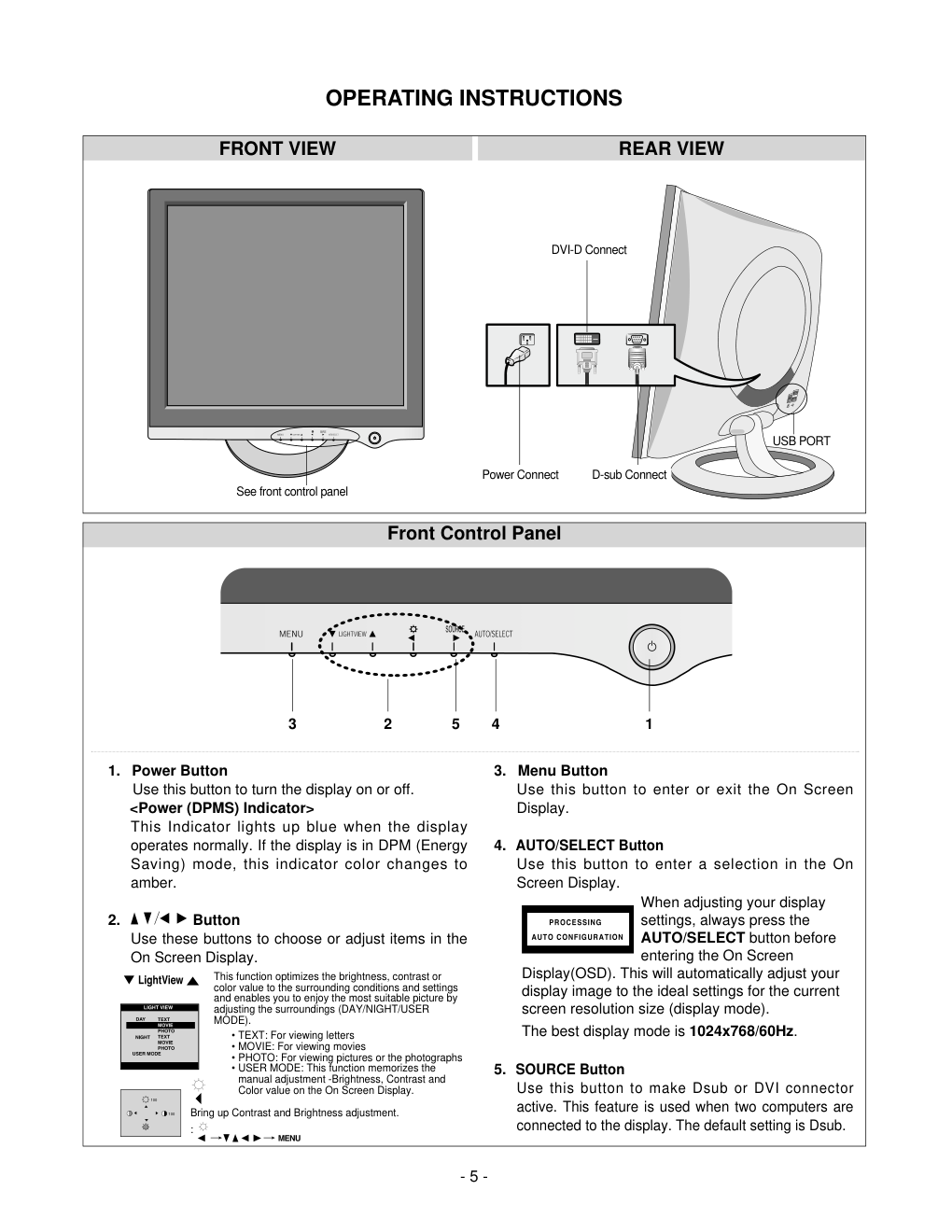

OPERATING INSTRUCTIONS
FRONT VIEW
REAR VIEW
Front Control Panel
1. Power Button
Use this button to turn the display on or off.
This Indicator lights up blue when the display
operates normally. If the display is in DPM (Energy
Saving) mode, this indicator color changes to
amber.
2.
Button
Use these buttons to choose or adjust items in the
On Screen Display.
3. Menu Button
Use this button to enter or exit the On Screen
Display.
4. AUTO/SELECT Button
Use this button to enter a selection in the On
Screen Display.
5. SOURCE Button
Use this button to make Dsub or DVI connector
active. This feature is used when two computers are
connected to the display. The default setting is Dsub.
When adjusting your display
settings, always press the
AUTO/SELECT button before
entering the On Screen
Display(OSD). This will automatically adjust your
display image to the ideal settings for the current
screen resolution size (display mode).
The best display mode is 1024x768/60Hz.
See front control panel
D-sub Connect
USB PORT
DVI-D Connect
Power Connect
1
4
5
3
2
This function optimizes the brightness, contrast or
color value to the surrounding conditions and settings
and enables you to enjoy the most suitable picture by
adjusting the surroundings (DAY/NIGHT/USER
MODE).
• TEXT: For viewing letters
• MOVIE: For viewing movies
• PHOTO: For viewing pictures or the photographs
• USER MODE: This function memorizes the
manual adjustment -Brightness, Contrast and
Color value on the On Screen Display.
100
100
Bring up Contrast and Brightness adjustment.
:
- 6 -

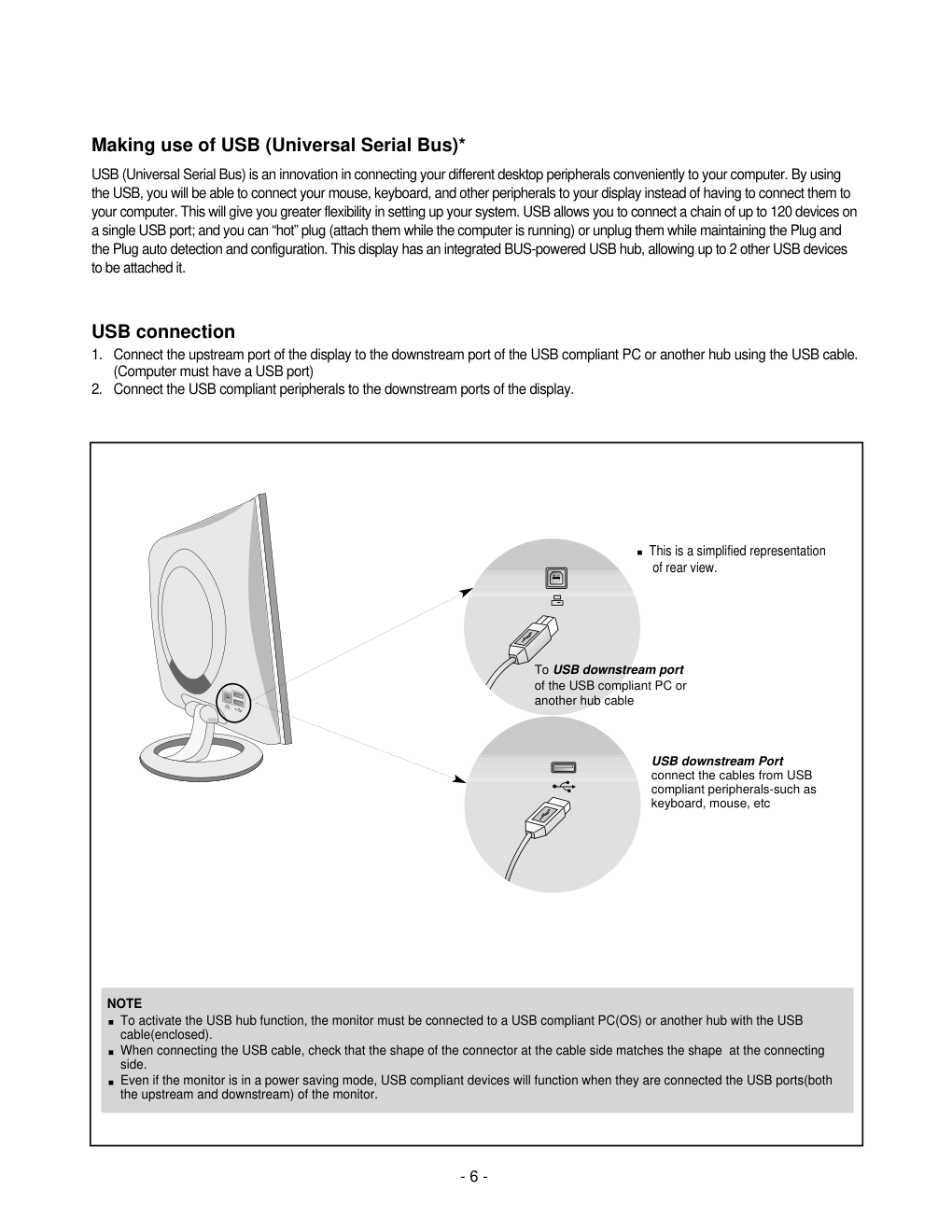

Making use of USB (Universal Serial Bus)*
USB (Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your computer. By using
the USB, you will be able to connect your mouse, keyboard, and other peripherals to your display instead of having to connect them to
your computer. This will give you greater flexibility in setting up your system. USB allows you to connect a chain of up to 120 devices on
a single USB port; and you can “hot” plug (attach them while the computer is running) or unplug them while maintaining the Plug and
the Plug auto detection and configuration. This display has an integrated BUS-powered USB hub, allowing up to 2 other USB devices
to be attached it.
USB connection
1. Connect the upstream port of the display to the downstream port of the USB compliant PC or another hub using the USB cable.
(Computer must have a USB port)
2. Connect the USB compliant peripherals to the downstream ports of the display.
NOTE
To activate the USB hub function, the monitor must be connected to a USB compliant PC(OS) or another hub with the USB
cable(enclosed).
When connecting the USB cable, check that the shape of the connector at the cable side matches the shape at the connecting
side.
Even if the monitor is in a power saving mode, USB compliant devices will function when they are connected the USB ports(both
the upstream and downstream) of the monitor.
USB downstream Port
connect the cables from USB
compliant peripherals-such as
keyboard, mouse, etc
This is a simplified representation
of rear view.
To USB downstream port
of the USB compliant PC or
another hub cable
- 7 -
WIRING DIAGRAM
J704
J706
J707
CN3
CN2
AC IN-LET SOCKET:
P/N: 6620K000D2C
Connector Ass’y :
P/N: 6631T11016C
Connector Ass’y :
P/N: 6631T20022G
Connector Ass’y :
P/N: 6631T200D8G
- 8 -
BLOCK DIAGRAM(MAIN)
D-SUB
MST9051
including
(ADC/LVDS/SCALER
/INPUT SWITCHING
/TMDS )
MTV312
Micom
LCD Module
R,G,B
differential
LVDS
(Low Voltage
Differential
Signaling)
LIPS
5V
3.3V
AC Input
3.3V
Reg.
3.3V
2.5V
Reg.
2.5V
5V
5V
12V
DVI-D
R,G,B, H/V Sync
Digital Signal
U/S
D/S
USB
HUB
D/S
Bus-power USB
3.3V
2.5V
DESCRIPTION OF BLOCK DIAGRAM
- 9 -
1. Video Controller Part.
This part amplifies the level of video signal for the digital conversion and converts from the analog video signal
to the digital video signal using a pixel clock.
The pixel clock for each mode is generated by the PLL.
The range of the pixel clock is from 25MHz to 80MHz.
This part consists of the Scaler, ADC, TMDS receiver and LVDS transmitter .
The Scaler gets the video signal converted analog to digital, interpolates input to 1024 X 768 resolution signal
and outputs 8-bit R, G, B signal to transmitter.
2. Power Part.
This part consists of the one 5V, two 3.3V, and one 2.5V regulators to convert power which is provided 12V,
5V in Power board.
3.3V is provided for LCD panel and inverter, 5V is provided for micom.
Also, 5V is converted 3.3V and 2.5V by regulator. Converted power is provided for IC in the main board.
3. MICOM Part.
This part consists of EEPROM IC which stores control data, Reset IC and the Micom.
The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable.
The controlled data of each modes is stored in EEPROM.
- 10 -
POWER BLOCK DIAGRAM
EMI
COMPONENTS
LINE
100 ~ 240V
INPUT RECTIFIER
AND FILTER
ENERGY
TRANSFER
OUTPUT RECTIFIER
AND FILTER
12V
5V
GND
SIGNAL
COLLENTION
PHOTO-COUPLER
ISOLATION
PWM CONTROL
CIRCUIT
HVDC
100KHz
PRIMARY
SECONDARY
50 ~ 60Hz
1. EMI components.
This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR,
the circuit included a line-filter, across line capacitor and of course the primary protection fuse.
2. Input rectifier and filter.
This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk
capacitor.
3. Energy Transfer.
This part function is transfer the primary energy to secondary through a power transformer.
4. Output rectifier and filter.
This part function is to make a pulse width modulation control and to provide the driver signal to power switch,
to adjust the duty cycle during different AC input and output loading condition to achive the dc output stablize,
and also the over power protection is also monitor by this part.
5. Photo-Coupler isolation.
This part function is to feed back the dc output changing status through a photo transistor to primary controller
to achive the stablized dc output voltage.
6. Signal collection.
This part function is to collect the any change from the dc output and feed back to the primary through photo
transistor
DESCRIPTION OF BLOCK DIAGRAM
- 11 -
ADJUSTMENT
All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several minor adjustment may be required.
Adjustment should be following procedure and after
warming up for a minimum of 10 minutes.
Alignment appliances and tools.
- IBM Compatible PC
- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)
- E(E)PROM with each mode data saved.
- Alignment Adapter and Software.
1. Adjustment for Factory Preset Mode
1) Run alignment program for L1520PLon the IBM
compatible PC.
2) Select EEPROM All Init. command and Enter.
3) Display cross hatch pattern at Mode 1.
4) Select EDID WRITE command and Enter.
2. Adjustment for White Balance
1) Display color 0,0 pattern at Mode 12.
2) Set External Bright to MAX position and Contrast to
MAX Position.
3) Select PRESET START → BIAS CAL command
and Enter.
4) No attempt to manually adjust, BIAS data is auto-
matically adjusted and saved to the EEPROM.
5) Display color 15,0 pattern at Mode 13.
6) Select DRIVE CAL command and Enter.
7) Color 1 (9300K) and Color 2 (6500K) are
automatically adjusted and saved to the EEPROM.
8) Select PRESET EXIT command and Enter.
Figure 1. Cable Connection
220
IBM
Compatible PC
PARALLEL PORT
Power inlet (required)
Power LED
ST Switch
Power Select Switch
(110V/220V)
Control Line
Not used
RS232C
PARALLEL
V-SYNC
POWER
ST
VGS
MONITOR
E
E
V-Sync On/Off Switch
(Switch must be ON.)
F
F
A
A
B
B
C
C
15
10
5
5
6
9
1
1
1
14
13
25
6
5V
5V
5V
4.7K
4.7K
4.7K
74LS06
74LS06
OFF
ON
OFF
ON
11
Video Signal
Generator
- 12 -
TROUBLESHOOTING GUIDE
1. NO POWER
CHECK U801.
CHECK
U801 PIN 1& U803
PIN 3 VOLTAGE
(5V) ?
NO
NO POWER
(POWER INDICATOR OFF)
CHECK POWER
BOARD, AND FIND
OUT A SHORT POINT
AS OPENING
EACH POWER LINE
CHECK J707
VOLTAGE
PIN5, PIN6 (5V)?
NO
CHECK 5VR LINE
(OPEN CHECK)
CHECK
U802 PIN 3(3V) &
U803 PIN 4 (2.5V)?
NO
CHECK IIC LINE
CONNECTION
(U501, U502)
CHECK U201 VCC,
XTAL, RESET
IS U201
PIN42
VOLTAGE REPEATED
AS PULSE
SHAPE ?
NO
YES
YES
YES
NO PROBLEM
YES
CHECK KEY CONTROL
CONNECTOR ROUTINE
- 13 -
2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS
CHECK MICOM INV
ON/OFF PORT.
(U501 PIN25)
J707 PIN2
5V?
NO
NO RASTER
(OSD IS NOT DISPLAYED)
CHECK LIPS
J707
PIN5, PIN 6
5V?
NO
1. CONFIRM BRIGHTNESS
OSD CONTRL STATE.
2. CHECK MICOM DIM-ADJ
PORT(U501 PIN41)
J707 PIN1
5V?
NO
LIPS
CHECK
PULSE AS
CONTACTING SCOPE
PROBE TO CAUTION LABEL.
(CONTACT PROBE TO
CAUTION LABEL.
CAN YOU SEE PULSE
AT YOUR
SCOPE?
NO
REPLACE CCFL LAMP
IN THE LCD MODULE
YES
YES
YES
YES
- 14 -
1. CHECK PIN122, 123
SOLDERING CONDITION
2. CHECK X501
3. TROUBLE IN U201
U201
POWER PINS
3.3V?
NO
CHECK U803, U801
U201
PIN122, 123
OSCILLATE AS
12MHZ?
CHECK CONNECTION LINE
FROM U201 TO U501
TROUBLE IN CABLE
OR LCD MODULE
CHECK 5VR LINE
U501 PIN8
5V?
YES
YES
YES
YES
3. NO RASTER (OSD IS NOT DISPLAYED) – MST9051
NO RASTER
(OSD IS NOT DISPLAYED)
U501
PIN41 IS 48KHz H-SYNC?
PIN42 IS 60Hz V-SYNC?
IS PULSE APPEARED
AT SIGNAL PINS?
NO
NO
NO
- 15 -
CHECK U803, U801
U201
POWER PIN114(3.3V)
PIN111(2.5V)
?
NO
1. CHECK PC
2. CHECK SIGNAL CABLE
& D-SUB CONNECTOR
LINE
CHECK
R,G,B INPUT?
U201 PIN 33,30,28
NO
CHECK H-SYNC LINE
(D-SUB→U501 →U201
PIN126)
CHECK
H-SYNC INPUT
U201 PIN 126?
NO
YES
YES
YES
CHECK V-SYNC LINE
(D-SUB→U501 →U201
PIN127)
CHECK
V-SYNC INPUT
U201 PIN 127?
NO
YES
NO RASTER
(OSD IS DISPLAYED)
4. NO RASTER (OSD IS DISPLAYED) – MST9051
TROUBLE IN
LCD MODULE
YES
- 16 -
EXPLODED VIEW
1
2
3
4
5
7
9
10
12
8
13
14
6
15
11
16
17
- 17 -
EXPLODED VIEW PARTS LIST
Ref. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Part No.
3091TKL085G
6304FLP070A
3809TKL058F
3043TKK133D
3550TKK395A
6871TST436C
4951TKS112B
6631T11016C
6871TPT234F
6871TPT236F
3313TL5076C
6871TUT035B
4951TKK141D
3550TKK397B
3550TKK399B
6850TD9004H
6866TDU002D
6866TDV004R
Description
CABINET ASSEMBLY, L1520PL BRAND F_CKD
LCD(LIQUID CRYSTAL DISPLAY), LM150X06-D4 LG PHILPS TFT COLOR 300NIT
BACK COVER ASSEMBLY, L1520PL CKD
TILT SWIVEL ASSEMBLY, L1520 . M/BASE-SPRAY-CKD
COVER, L1520 PIECE DECO
PWB(PCB) ASSEMBLY, SUB, L1520BL CONTROL TOTAL BRAND CL-32
METAL ASSEMBLY, FRAME CKD
CONNECTOR ASSEMBLY, 20P H-H 100MM UL20276 I/FACE CABLE LB500K
PWB(PCB) ASSEMBLY,POWER, L1520SL PWI1502S(B) POWER TOTAL POWERNET 12V/1.2A,5V/1A PWI1502S(L)-B LIPS FOR LPL
PWB(PCB) ASSEMBLY, POWER, ADP-30CF POWER TOTAL DELTA L1520PL FOR LPL
MAIN TOTAL ASSEMBLY, L1520PL NT/WA BRAND CL-48
PWB(PCB) ASSEMBLY, USB, L15,17,1920PL SUB TOTAL BRAND USB NT USB
METAL ASSEMBLY, REAR (L1520, CKD)
COVER, L1520BL, BACK CKD(NT)
COVER, L1520BL HINGE CKD(NT)
CABLE, D-SUB, UL2990-9C(5.8MM) DT 1500MM GLAY 20 MODEL DM
CABLE, D-SUB, UL20276SB10P+2C AWG#30 DT 1870MM GRAY(85964) BRAND DM
CABLE, DVI, UL20276(7.5MM) DT 2000MM GRAY(85964) 20 MODEL DM
- 18 -
DATE: 2003. 3. 3.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
C204
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C205
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C206
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C207
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C208
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C209
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C210
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C214
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C215
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C216
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C217
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C218
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C219
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C220
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C221
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C222
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C223
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C224
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C225
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C226
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C227
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C230
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C231
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C232
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C233
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C240
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C244
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C245
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C246
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C247
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C248
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C249
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C250
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C501
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C502
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C503
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C505
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C506
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C507
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C508
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C509
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C512
0CC180CK41A
18PF 1608 50V 5% R/TP NP0
C513
0CC030CK01A
3PF 1608 50V 0.25 PF R/TP NP
C514
0CH8106F611
10UF 16V M 85STD(CYL) R/TP
C516
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C530
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C550
0CC102CK41A
1000PF 1608 50V 5% R/TP NP0
C703
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C704
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C705
0CC680CK41A
68PF 1608 50V 5% R/TP NP0
C706
0CC680CK41A
68PF 1608 50V 5% R/TP NP0
C707
0CC680CK41A
68PF 1608 50V 5% R/TP NP0
DATE: 2003. 10. 7.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
C708
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C709
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C710
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C711
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C712
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C713
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C714
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C727
0CK105CD56A
1UF 1608 10V 10% R/TP X7R
C730
0CC101CK41A
100PF 1608 50V 5% R/TP NP0
C731
0CC680CK41A
68PF 1608 50V 5% R/TP NP0
C732
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C733
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C734
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C735
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C737
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C738
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C739
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C740
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C741
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C742
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C743
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C760
0CE107EF610
"100UF KMG,RD 16V 20% FL BULK"
C801
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C802
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C803
0CK105CD56A
1UF 1608 10V 10% R/TP X7R
C804
0CC102CK41A
1000PF 1608 50V 5% R/TP NP0
C809
0CK105CD56A
1UF 1608 10V 10% R/TP X7R
C810
0CC102CK41A
1000PF 1608 50V 5% R/TP NP0
C817
0CE107EF610
"100UF KMG,RD 16V 20% FL BULK"
C818
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C819
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C820
0CE107EF610
"100UF KMG,RD 16V 20% FL BULK"
C821
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C822
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C828
0CK104CK56A
0.1UF 1608 50V 10% R/TP X7R
C829
0CK103CK51A
0.01UF 1608 50V 10% R/TP B(Y
C831
0CE107EF610
"100UF KMG,RD 16V 20% FL BULK"
C832
0CE107EF610
"100UF KMG,RD 16V 20% FL BULK"
D701
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D702
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D706
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D707
0DD184009AA
KDS184 TP KEC - 85V - - - 30
D708
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D709
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D710
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D711
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D712
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D713
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D714
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D715
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D716
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
REPLACEMENT PARTS LIST
CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,
READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.
* NOTE : S
SAFETY Mark
AL ALTERNATIVE PARTS
MAIN BOARD
CAPACITORS
DIODEs
DATE: 2003. 10. 7.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
D717
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D718
0DS226009AA
KDS226 TP KEC SOT-23 80V 30
D719
0DD184009AA
KDS184 TP KEC - 85V - - - 30
ZD701
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD702
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD703
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD704
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD705
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD706
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD707
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD708
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD709
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD711
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
U201
0IPRPM3005A
MST9051 DUAL DVI-I MSTAR 128
U501
0IZZTSZ312A
MYSON 44P PLCC ST OPT L1520P
U502
0ISG240860B
M24C08W6 SGS-THOMSON 8SOP R/
U503
0IPH740800H
"74F08D 14P,SOIC TP QUAD 2-IN"
U702
0ICS240213A
CAT24WC02J-TE13 8P SOP TP 2K
U703
0ICS240213A
CAT24WC02J-TE13 8P SOP TP 2K
U801
0IPMGKE011A
KIA78D33F KEC DPAK R/TP 3.3V
U802
0TFVI80023A
VISHAY SI3865DV R/TP TSOP-6
U803
0IPMGNS001D
LM1117MPX-2.5 NATIONAL SEMIC
U805
0TFVI80023A
VISHAY SI3865DV R/TP TSOP-6
Q502
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q503
0IKE704200H
KIA7042AP TO-92 TP 4.2 VOLT
Q504
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q505
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q506
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q507
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q508
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q509
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q701
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q702
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q703
0TR390609FA
KST3906-MTF TP SAMSUNG SOT2
Q704
0TR390609FA
KST3906-MTF TP SAMSUNG SOT2
Q705
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q706
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
Q707
0TR390409AE
FAIRCHILD KST3904(LGEMTF) TP
R201
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R202
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R203
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R205
0RJ0000D677
0 OHM 1/10 W 5% 1608 R/TP
R207
0RJ3900D677
390 OHM 1/10 W 5% 1608 R/TP
R208
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R209
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R210
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R211
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R212
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R213
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R214
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R215
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R216
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R217
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
DATE: 2003. 10. 7.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
R240
0RJ1500D677
150 OHM 1/10 W 5% 1608 R/TP
R501
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R502
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R504
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R509
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R510
0RJ4700D677
470 OHM 1/10 W 5% 1608 R/TP
R511
0RJ4700D677
470 OHM 1/10 W 5% 1608 R/TP
R515
0RJ1002D677
10K OHM 1/10 W 5% 1608 R/TP
R520
0RJ1003D677
100K OHM 1/10 W 5% 1608 R/TP
R522
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R523
0RJ0332D677
33 OHM 1/10 W 5% 1608 R/TP
R524
0RJ0332D677
33 OHM 1/10 W 5% 1608 R/TP
R525
0RJ1002D677
10K OHM 1/10 W 5% 1608 R/TP
R528
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R529
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R530
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R531
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R532
0RJ3301D677
3.3K OHM 1/10 W 5% 1608 R/TP
R533
0RJ0332D677
33 OHM 1/10 W 5% 1608 R/TP
R534
0RJ0332D677
33 OHM 1/10 W 5% 1608 R/TP
R535
0RJ3301D677
3.3K OHM 1/10 W 5% 1608 R/TP
R537
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R538
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R540
0RJ1002D677
10K OHM 1/10 W 5% 1608 R/TP
R541
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R551
0RJ4702D677
47000 OHM 1/10 W 5% 1608 R/T
R552
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R553
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R554
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R555
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R556
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R557
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R558
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R559
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R560
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R561
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R562
0RJ4700D677
470 OHM 1/10 W 5% 1608 R/TP
R571
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R581
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R590
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R591
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R592
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R593
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R595
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R596
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R701
0RJ0752D677
75 OHM 1/10 W 5% 1608 R/TP
R703
0RJ0752D677
75 OHM 1/10 W 5% 1608 R/TP
R705
0RJ4700D677
470 OHM 1/10 W 5% 1608 R/TP
R706
0RJ0752D677
75 OHM 1/10 W 5% 1608 R/TP
R707
0RJ0272D677
27 OHM 1/10 W 5% 1608 R/TP
R708
0RJ4700D677
470 OHM 1/10 W 5% 1608 R/TP
R709
0RJ4700D677
470 OHM 1/10 W 5% 1608 R/TP
R716
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R717
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R722
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R723
0RJ0332D677
33 OHM 1/10 W 5% 1608 R/TP
R724
0RJ0332D677
33 OHM 1/10 W 5% 1608 R/TP
R725
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R726
0RJ1002D677
10K OHM 1/10 W 5% 1608 R/TP
R727
0RJ1002D677
10K OHM 1/10 W 5% 1608 R/TP
R728
0RJ0222D677
22 OHM 1/10 W 5% 1608 R/TP
R729
0RJ0222D677
22 OHM 1/10 W 5% 1608 R/TP
- 19 -
ICs
TRANSISTOR
RESISTORs
DATE: 2003. 10. 7.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
R730
0RJ1000D677
100 OHM 1/10 W 5% 1608 R/TP
R731
0RJ4700D677
470 OHM 1/10 W 5% 1608 R/TP
R732
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R733
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R734
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R735
0RJ0000D677
0 OHM 1/10 W 5% 1608 R/TP
R740
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R741
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R744
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R745
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R747
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R748
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R749
0RJ0000D677
0 OHM 1/10 W 5% 1608 R/TP
R750
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R751
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R753
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R754
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R755
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R756
0RJ0272D677
27 OHM 1/10 W 5% 1608 R/TP
R757
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R758
0RJ0752D677
75 OHM 1/10 W 5% 1608 R/TP
R759
0RJ0752D677
75 OHM 1/10 W 5% 1608 R/TP
R761
0RJ0752D677
75 OHM 1/10 W 5% 1608 R/TP
R762
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R763
0RJ1002D677
10K OHM 1/10 W 5% 1608 R/TP
R764
0RJ1002D677
10K OHM 1/10 W 5% 1608 R/TP
R765
0RJ0332D677
33 OHM 1/10 W 5% 1608 R/TP
R766
0RJ0332D677
33 OHM 1/10 W 5% 1608 R/TP
R767
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R768
0RJ1001D677
1K OHM 1/10 W 5% 1608 R/TP
R771
0RJ0000D677
0 OHM 1/10 W 5% 1608 R/TP
R772
0RJ0102D677
10 OHM 1/10 W 5% 1608 R/TP
R773
0RJ0102D677
10 OHM 1/10 W 5% 1608 R/TP
R774
0RJ0102D677
10 OHM 1/10 W 5% 1608 R/TP
R775
0RJ0102D677
10 OHM 1/10 W 5% 1608 R/TP
R776
0RJ0102D677
10 OHM 1/10 W 5% 1608 R/TP
R777
0RJ0102D677
10 OHM 1/10 W 5% 1608 R/TP
R779
0RJ1002D677
10K OHM 1/10 W 5% 1608 R/TP
R802
0RJ0000D677
0 OHM 1/10 W 5% 1608 R/TP
R803
0RJ0000D677
0 OHM 1/10 W 5% 1608 R/TP
R811
0RJ2202D677
22K OHM 1/10 W 5% 1608 R/TP
R812
0RJ5600D677
560 OHM 1/10 W 5% 1608 R/TP
R813
0RJ2202D677
22K OHM 1/10 W 5% 1608 R/TP
R814
0RJ5600D677
560 OHM 1/10 W 5% 1608 R/TP
R840
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R841
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R842
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R843
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R844
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R845
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R846
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R847
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R848
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
R849
0RJ0471D677
4.7 OHM 1/10 W 5% 1608 R/TP
X501
6212AA2004A
HC-49U TXC 12.0MHZ +/- 30 PP
LED1
0DLBE0048AA
BRIGHT LED ELECTRONICS BL-HK
DATE: 2003. 10. 7.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
R1
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R2
0RJ4701D677
4.7K OHM 1/10 W 5% 1608 R/TP
R3
0RJ1501D677
1.5K OHM 1/10 W 5% 1608 R/TP
R4
0RJ1501D677
1.5K OHM 1/10 W 5% 1608 R/TP
R5
0RJ3301D677
3.3K OHM 1/10 W 5% 1608 R/TP
R6
0RJ3301D677
3.3K OHM 1/10 W 5% 1608 R/TP
R7
0RJ9101D677
9.1K OHM 1/10 W 5% 1608 R/TP
SW1
6600R00004A
JTP1138A6EM JEIL 12VDC 50MA
SW2
6600R00004A
JTP1138A6EM JEIL 12VDC 50MA
SW3
6600R00004A
JTP1138A6EM JEIL 12VDC 50MA
SW4
6600R00004A
JTP1138A6EM JEIL 12VDC 50MA
SW5
6600R00004A
JTP1138A6EM JEIL 12VDC 50MA
SW6
6600R00004A
JTP1138A6EM JEIL 12VDC 50MA
SW7
6600R00004A
JTP1138A6EM JEIL 12VDC 50MA
ZD1
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD2
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD3
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
ZD4
0DZ560009GB
BZT52C5V6S DIODES R/TP SOD32
C801
0CE1074F638
"100UF SRA,SS 16V M FM5 TP 5"
C803
0CE1074F638
"100UF SRA,SS 16V M FM5 TP 5"
C805
0CH6330K416
33PF 50V J NP0 2012 R/TP
C806
0CE1074F638
"100UF SRA,SS 16V M FM5 TP 5"
C807
0CE1054K638
"1 UF SRA,SS 50V M FM5 TP 5"
C809
0CH6330K416
33PF 50V J NP0 2012 R/TP
C810
0CE1054K638
"1 UF SRA,SS 50V M FM5 TP 5"
C812
0CH3103K516
10000PF 50V 10% B(Y5P) 2012
C813
0CK1030K945
0.01UF 50V Z F TR
C820
0CH6470K416
47PF 50V 5% NP0 2012 R/TP
C821
0CH6470K416
47PF 50V 5% NP0 2012 R/TP
C822
0CH6470K416
47PF 50V 5% NP0 2012 R/TP
C823
0CH6470K416
47PF 50V 5% NP0 2012 R/TP
C831
0CH6470K416
47PF 50V 5% NP0 2012 R/TP
C832
0CH6470K416
47PF 50V 5% NP0 2012 R/TP
C850
0CH3104K946
100000PF 50V Z F 2012 R/TP
C851
0CH3104K946
100000PF 50V Z F 2012 R/TP
IC801
0IPH112200C
"ISP1122ABD 32P,LQFP R/TP USB"
IC802
0ITI204200B
TPS2042ADR TEXAS INSTRUMENT
L801
125-155P
BFS2550R2FG SAMWHA 2.5*5.0MM
L802
125-155H
BFS3510A0FG SAMWHA 3.5*10MM
L803
971-0054
TIN 50MM TAPING
L804
6210TCE001H
HB-1T2012-301JT CERATEC 2012
L805
6210TCE001H
HB-1T2012-301JT CERATEC 2012
L807
6210TCE001H
HB-1T2012-301JT CERATEC 2012
L808
6210TCE001H
HB-1T2012-301JT CERATEC 2012
L809
6210TCE001H
HB-1T2012-301JT CERATEC 2012
L810
6210TCE001H
HB-1T2012-301JT CERATEC 2012
L812
125-155D
BFS3514A0FG SAMHWA 3.5*14MM
R801
0RH1502D622
15K 1/10W 5 D.R/TP
R802
0RH1502D622
15K 1/10W 5 D.R/TP
R803
0RH1502D622
15K 1/10W 5 D.R/TP
R804
0RD0222Q609
22 1/4W(3 5% TA52
R805
0RD0222Q609
22 1/4W(3 5% TA52
R806
0RD0222Q609
22 1/4W(3 5% TA52
R807
0RH1502D622
15K 1/10W 5 D.R/TP
R808
0RH0222D622
22 OHM 1 / 10 W 2012 5.00% D
R809
0RH1004D622
1.0M 1/10W 5 D.R/TP
R810
0RH1004D622
1.0M 1/10W 5 D.R/TP
R811
0RH1003D622
100K 1/10W 5 D.R/TP
R812
0RH1003D622
100K 1/10W 5 D.R/TP
- 20 -
OTHERs
CONTROL BOARD
USB BOARD
DATE: 2003. 10. 7.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
R813
0RH1004D622
1.0M 1/10W 5 D.R/TP
R814
0RH1004D622
1.0M 1/10W 5 D.R/TP
R817
0RH0222D622
22 OHM 1 / 10 W 2012 5.00% D
R821
0RH1501D622
1.5K OHM 1 / 10 W 2012 5.00%
R828
0RH0222D622
22 OHM 1 / 10 W 2012 5.00% D
R829
0RH1002D622
10K OHM 1 / 10 W 2012 5.00%
R830
0RH1002D622
10K OHM 1 / 10 W 2012 5.00%
R835
0RH1003D622
100K 1/10W 5 D.R/TP
R836
0RH1004D622
1.0M 1/10W 5 D.R/TP
R837
0RH3301D622
3.3K 1/10W 5 D.R/TP
R841
0RH1502D622
15K 1/10W 5 D.R/TP
R842
0RH1502D622
15K 1/10W 5 D.R/TP
R850
0RH1502D622
15K 1/10W 5 D.R/TP
R851
0RH1502D622
15K 1/10W 5 D.R/TP
X801
6202TTB002B
ATS-49/U SUNNY RADIAL 6MHZ 3
ZD801
0DZ510009EE
UDZ S 5.1B TP ROHM-K SOD323
ZD802
0DZ510009EE
UDZ S 5.1B TP ROHM-K SOD323
ZD803
0DZ510009EE
UDZ S 5.1B TP ROHM-K SOD323
ZD804
0DZ510009EE
UDZ S 5.1B TP ROHM-K SOD323
ZD805
0DZ510009EE
UDZ S 5.1B TP ROHM-K SOD323
ZD806
0DZ510009EE
UDZ S 5.1B TP ROHM-K SOD323
ZD807
0DZ510009EE
UDZ S 5.1B TP ROHM-K SOD323
ZD811
0DZ560009DA
UDZ S 5.6B TP ROHM-K SOD323
ZD812
0DZ560009DA
UDZ S 5.6B TP ROHM-K SOD323
- 21 -
PIN CONFIGURATION
- 22 -
CAT24WC02J-TE13 8P
A0
A1
A2
VSS
VCC
WP
SCL
SDA
A0
A1
A2
VSS
VCC
WP
SCL
SDA
1
2
3
4
8
7
6
5
1
2
3
4
8
7
6
5
A0
A1
A2
VSS
VCC
WP
SCL
SDA
1
2
3
4
8
7
6
5
EXTERNAL LOAD
SDA
WP
DOUT
SENSE AMPS
SHIFT REGISTERS
WORD ADDRESS
BUFFERS
COLUMN
DECODERS
START/STOP
LOGIC
XDEC
DATA IN STORAGE
HIGH VOLTAGE/
TIMING CONTROL
STATE COUNTERS
SLAVE
SCL
A0
A1
VCC
VSS
A2
ADDRESS
COMPARATORS
CONTROL
LOGIC
ACK
E PROM
2
PIN CONFIGURATION
DIP Package(p)
SOIX Package(J)
TSSOP Package(U)
BLOCK DIAGRAM
PIN FUNCTION
Pin Name
A0, A1, A2
SDA
SCL
WP
Vcc
Vss
Function
Device Adress Inputs
Serial Data/Address
Serial Clock
Write Protect
+1.8V to + 6.0V power Supply
Ground
- 23 -
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
HSYNC1
VSYNC0
HSYNC0
AVSS_PLL
AVDD_PLL
XOUT
XIN
HWRESETZ
DDCROM_DAT
DDCROM_CLK
DDC1_CLK
DDC1_DAT
DDC2_CLK
DDC2_DAT
VDDP
GNDP
GNDC
VDDC
NC
NC
NC
VDDP
GNDP
NC
NC
BYPASS
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
VSYNC1
AVSS_DVI
R+
R-
AVSS_DVI
G+
G-
AVDD_DVI
B+
B-
AVSS_DVI
CK+
CK-
AVDD_DVI
REXT
AVDD_PLL
AVSS_PLL
AVDD
AVSS
BIN1
BIN1M
SOGIN1
GIN1
GIN1M
RIN1
RIN1M
BIN0M
BIN0
GIN0M
GIN0
SOGIN0
RIN0M
RIN0
AVSS
AVDD
RMID
REFP
REFM
AVSS_PLL
NC
NC
NC
NC
LVB0M
LVB0P
GNDP
VDDP
LVB1M
LVB1P
LVB2M
LVB2P
LVBCKM
LVBCKP
LVB3M
LVB3P
VDDC
GNDC
GNDP
VDDP
LVA0M
LVA0P
LVA1M
LVA1P
LVA2M
LVA2P
LVACKM
LVACKP
GNDP
VDDP
LVA3M
LVA3P
NC
NC
NC
NC
NC
AVSS
CSZ
SDA
SCL
INT
PWM0
PWM1
NC
NC
NC
NC
NC
NC
NC
NC
NC
VDDP
GNDP
GNDC
VDDC
NC
NC
VDDP
GNDP
GNDC
VDDC
MST9051
VC646960210F
Pin 1
MST9051 DUAL MSTAR 128P
SCHEMATIC DIAGRAM
- 24 -
1. MST9151
- 25 -
2. MICOM
- 26 -
3. POWER
- 27 -
4. CONNECT & JACK
Oct. 2003
P/NO : 3828TSL097D
Printed in Korea
