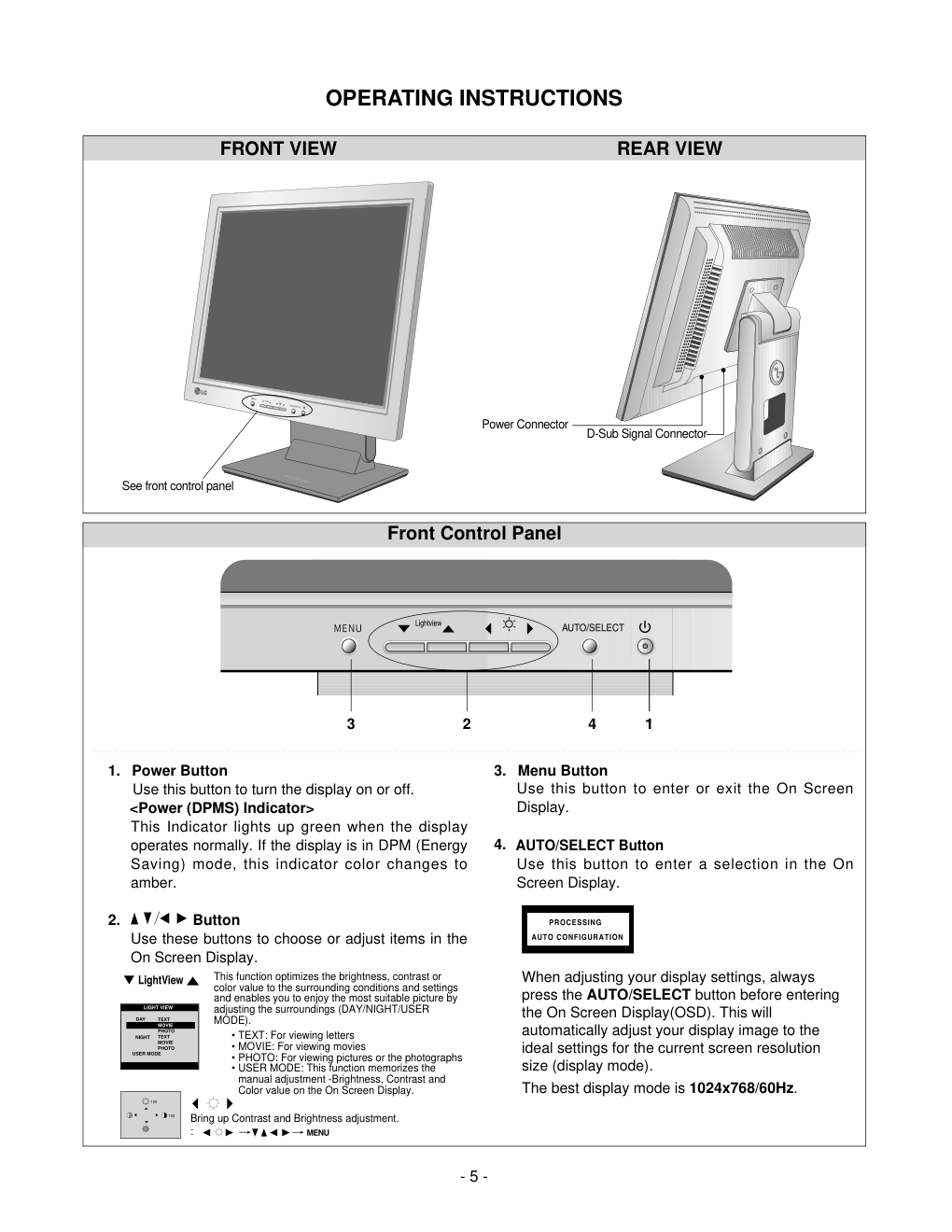

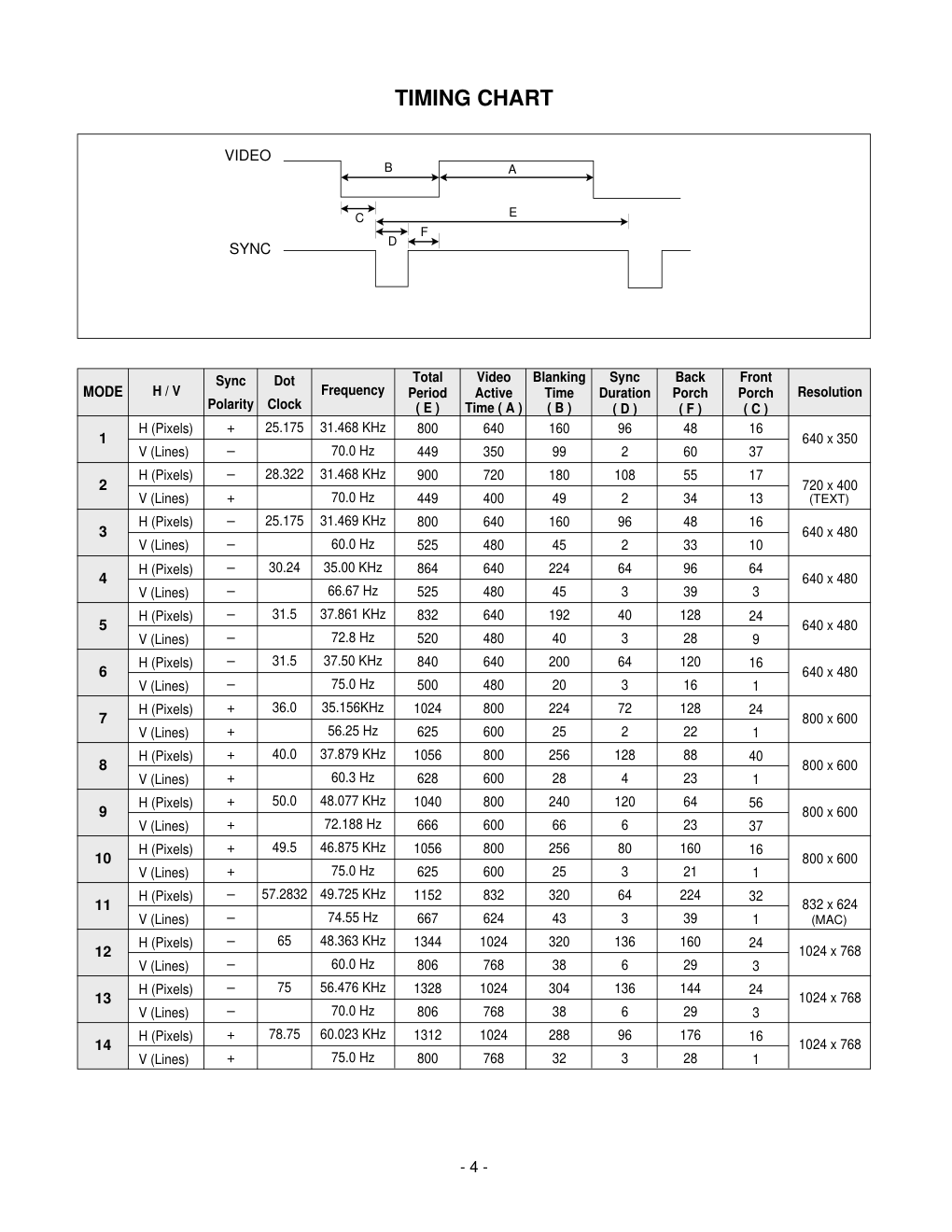

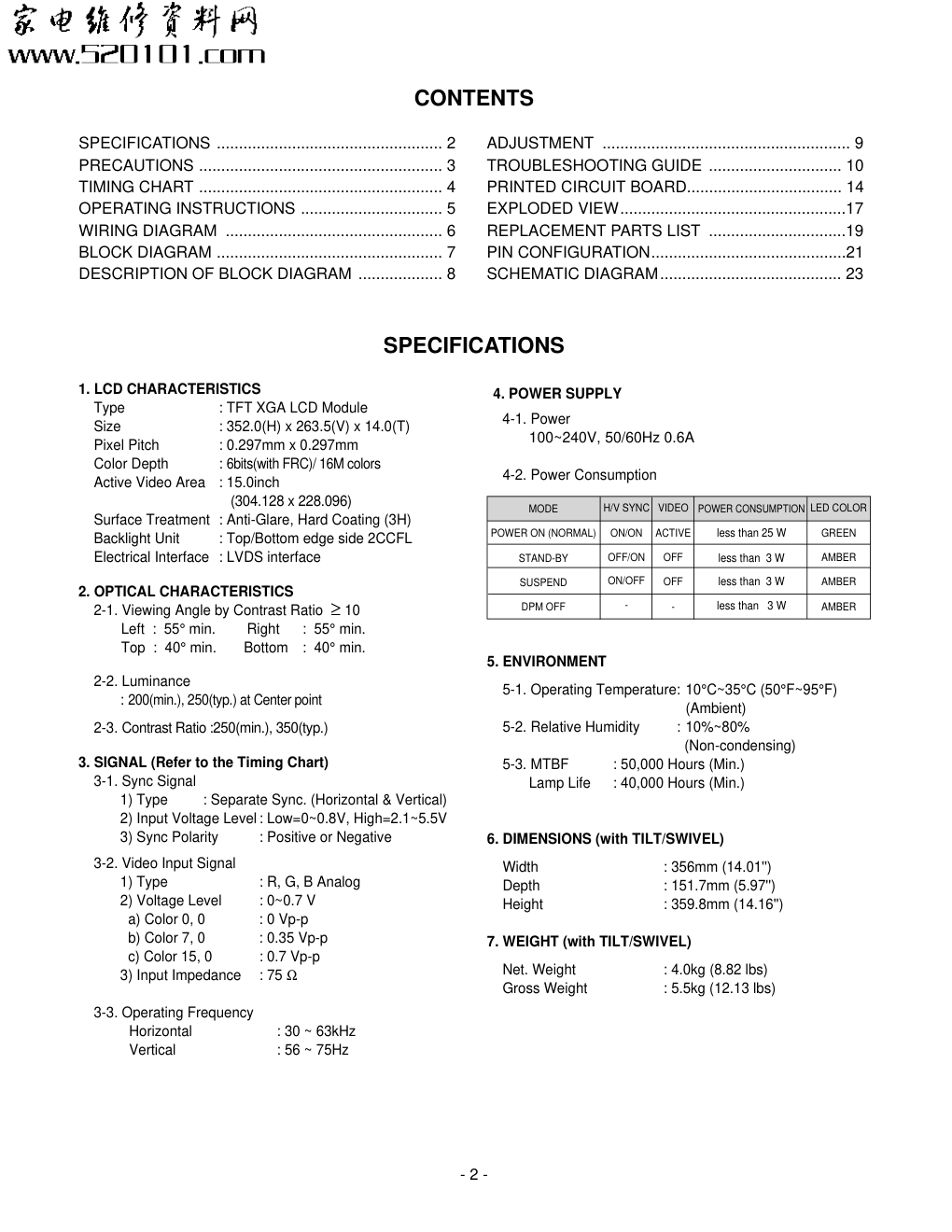

MENU AUTO/SELECT COLOR MONITOR SERVICE MANUAL CHASSIS NO. : CL-32 MODEL: L1511S (L1511SL-AL**R) L1511SK (L1511SL-AL**B) *To apply the Mstar Chip. CONTENTS SPECIFICATIONS - 2 - 1. LCD CHARACTERISTICS Type : TFT XGA LCD Module Size : 352.0(H) x 263.5(V) x 14.0(T) Pixel Pitch : 0.297mm x 0.297mm Color Depth : 6bits(with FRC)/ 16M colors Active Video Area : 15.0inch (304.128 x 228.096) Surface Treatment : Anti-Glare, Hard Coating (3H) Backlight Unit : Top/Bottom edge side 2CCFL Electrical Interface : LVDS interface 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : 55° min. Right : 55° min. Top : 40° min. Bottom : 40° min. 2-2. Luminance : 200(min.), 250(typ.) at Center point 2-3. Contrast Ratio :250(min.), 350(typ.) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal 1) Type : Separate Sync. (Horizontal & Vertical) 2) Input Voltage Level : Low=0~0.8V, High=2.1~5.5V 3) Sync Polarity : Positive or Negative 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.7 V a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.35 Vp-p c) Color 15, 0 : 0.7 Vp-p 3) Input Impedance : 75 Ω 3-3. Operating Frequency Horizontal : 30 ~ 63kHz Vertical : 56 ~ 75Hz 4. POWER SUPPLY 4-1. Power 100~240V, 50/60Hz 0.6A 4-2. Power Consumption 5. ENVIRONMENT 5-1. Operating Temperature: 10°C~35°C (50°F~95°F) (Ambient) 5-2. Relative Humidity : 10%~80% (Non-condensing) 5-3. MTBF : 50,000 Hours (Min.) Lamp Life : 40,000 Hours (Min.) 6. DIMENSIONS (with TILT/SWIVEL) Width : 356mm (14.01'') Depth : 151.7mm (5.97'') Height : 359.8mm (14.16'') 7. WEIGHT (with TILT/SWIVEL) Net. Weight : 4.0kg (8.82 lbs) Gross Weight : 5.5kg (12.13 lbs) SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 3 TIMING CHART ....................................................... 4 OPERATING INSTRUCTIONS ................................ 5 WIRING DIAGRAM ................................................. 6 BLOCK DIAGRAM ................................................... 7 DESCRIPTION OF BLOCK DIAGRAM ................... 8 ADJUSTMENT ........................................................ 9 TROUBLESHOOTING GUIDE .............................. 10 PRINTED CIRCUIT BOARD................................... 14 EXPLODED VIEW...................................................17 REPLACEMENT PARTS LIST ...............................19 PIN CONFIGURATION............................................21 SCHEMATIC DIAGRAM......................................... 23 MODE POWER ON (NORMAL) STAND-BY SUSPEND DPM OFF H/V SYNC ON/ON OFF/ON ON/OFF - POWER CONSUMPTION less than 25 W less than 3 W less than 3 W less than 3 W LED COLOR GREEN AMBER AMBER AMBER VIDEO ACTIVE OFF OFF - - 3 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. TIMING CHART - 4 - VIDEO SYNC B D C F E A H / V H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) Sync Polarity + – – + – – – – – – – – + + + + + + + + – – – – – – + + Dot Clock 25.175 28.322 25.175 30.24 31.5 31.5 36.0 40.0 50.0 49.5 57.2832 65 75 78.75 Frequency 31.468 KHz 70.0 Hz 31.468 KHz 70.0 Hz 31.469 KHz 60.0 Hz 35.00 KHz 66.67 Hz 37.861 KHz 72.8 Hz 37.50 KHz 75.0 Hz 35.156KHz 56.25 Hz 37.879 KHz 60.3 Hz 48.077 KHz 72.188 Hz 46.875 KHz 75.0 Hz 49.725 KHz 74.55 Hz 48.363 KHz 60.0 Hz 56.476 KHz 70.0 Hz 60.023 KHz 75.0 Hz Resolution 640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1024 x 768 Total Period ( E ) 800 449 900 449 800 525 864 525 832 520 840 500 1024 625 1056 628 1040 666 1056 625 1152 667 1344 806 1328 806 1312 800 Video Active Time ( A ) 640 350 720 400 640 480 640 480 640 480 640 480 800 600 800 600 800 600 800 600 832 624 1024 768 1024 768 1024 768 Blanking Time ( B ) 160 99 180 49 160 45 224 45 192 40 200 20 224 25 256 28 240 66 256 25 320 43 320 38 304 38 288 32 Sync Duration ( D ) 96 2 108 2 96 2 64 3 40 3 64 3 72 2 128 4 120 6 80 3 64 3 136 6 136 6 96 3 Back Porch ( F ) 48 60 55 34 48 33 96 39 128 28 120 16 128 22 88 23 64 23 160 21 224 39 160 29 144 29 176 28 Front Porch ( C ) 16 37 17 13 16 10 64 3 24 9 16 1 24 1 40 1 56 37 16 1 32 1 24 3 24 3 16 1 MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 (MAC) (TEXT) OPERATING INSTRUCTIONS - 5 - FRONT VIEW REAR VIEW Front Control Panel 1. Power Button Use this button to turn the display on or off. This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. 2. Button Use these buttons to choose or adjust items in the On Screen Display. 3. Menu Button Use this button to enter or exit the On Screen Display. 4. AUTO/SELECT Button Use this button to enter a selection in the On Screen Display. MENU AUTO/SELECT Power Connector When adjusting your display settings, always press the AUTO/SELECT button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is 1024x768/60Hz. See front control panel D-Sub Signal Connector 1 4 3 2 This function optimizes the brightness, contrast or color value to the surrounding conditions and settings and enables you to enjoy the most suitable picture by adjusting the surroundings (DAY/NIGHT/USER MODE). • TEXT: For viewing letters • MOVIE: For viewing movies • PHOTO: For viewing pictures or the photographs • USER MODE: This function memorizes the manual adjustment -Brightness, Contrast and Color value on the On Screen Display. 100 100 Bring up Contrast and Brightness adjustment. : - 6 - WIRING DIAGRAM J1 CN2 CN3 J706 J704 J705 Connector Ass’y : P/N: 6631T11016C Connector Ass’y : P/N: 6631T20022G - 7 - BLOCK DIAGRAM D-SUB MST9011 including (ADC/LVDS/SCALER ) MTV312 Micom LCD Module R,G,B differential LVDS (Low Voltage Differential Signaling) LIPS 5V 5V AC Input 3.3V Reg. 2.5V Reg. 5V 5V 12V R,G,B, H/V Sync 3.3V 2.5V 3.3V 2.5V DESCRIPTION OF BLOCK DIAGRAM - 8 - 1. Video Controller Part & Display Data Transmitter Part.(MST9011) This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 80MHz. This part consists of the Scaler. The Scaler gets the video signal converted analog to digital, interpolates input to 1024 x 768 resolution signal and outputs 8-bit R, G, B signal to transmitter. Especially pre-amp / ADC / Video controller/ Transmitter are merged to one chip “MST9011” by MSTAR. This part transmit digital signal from the Scaler to the receiver of module. 2. Micom Part This Part consists of EEPROM IC which stores control data, Reset IC and the Micom. The Micom distinguishes polarity and frequency of the H/V Sync are supplied from signal cable. The controlled data of each modes is stored in EEPROM. 3. Power Part This part consists of the one 3.3V and one 2.5 regulators to convert power which is provided 5V in LIPS Board. 5V is provided for LCD Panel and Micom part. Also, 5V is converted 3.3V and 2.5V by regulator. Converted power is provided for IC in the main board. - 9 - ADJUSTMENT All adjustment are thoroughly checked and corrected when the monitor leaves the factory, but sometimes several minor adjustment may be required. Adjustment should be following procedure and after warming up for a minimum of 10 minutes. Alignment appliances and tools. - IBM Compatible PC - Programmable Signal Generator. (eg. VG-819 made by Astrodesign Co.) - E(E)PROM with each mode data saved. - Alignment Adapter and Software. 1. Adjustment for Factory Preset Mode 1) Run alignment program for L1511SL on the IBM compatible PC. 2) Select EEPROM All Init. command and Enter. 3) Display cross hatch pattern at Mode 1. 4) Select EDID WRITE command and Enter. 2. Adjustment for White Balance 1) Display color 0,0 pattern at Mode 12. 2) Set External Bright to MAX position and Contrast to MAX Position. 3) Select PRESET START → BIAS CAL command and Enter. 4) No attempt to manually adjust, BIAS data is auto- matically adjusted and saved to the EEPROM. 5) Display color 15,0 pattern at Mode 13. 6) Select DRIVE CAL command and Enter. 7) Color 1 (9300K) and Color 2 (6500K) are automatically adjusted and saved to the EEPROM. 8) Select PRESET EXIT command and Enter. Figure 1. Cable Connection 220 IBM Compatible PC PARALLEL PORT Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E E V-Sync On/Off Switch (Switch must be ON.) F F A A B B C C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Video Signal Generator - 10 - TROUBLESHOOTING GUIDE 1. NO POWER CHECK U801. CHECK U801 PIN 1& U803 PIN 3 VOLTAGE (5V) ? NO NO POWER (POWER INDICATOR OFF) CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK J707 VOLTAGE PIN5, PIN6 (5V)? NO CHECK 5VR LINE (OPEN CHECK) CHECK U802 PIN 3(3V) & U803 PIN 4 (2.5V)? NO CHECK IIC LINE CONNECTION (U501, U502) CHECK U201 VCC, XTAL, RESET IS U201 PIN42 VOLTAGE REPEATED AS PULSE SHAPE ? NO YES YES YES NO PROBLEM YES CHECK KEY CONTROL CONNECTOR ROUTINE - 11 - 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS CHECK MICOM INV ON/OFF PORT. (U501 PIN25) J705 PIN2 5V? NO NO RASTER (OSD IS NOT DISPLAYED) CHECK LIPS J705 PIN5, PIN 6 5V? NO 1. CONFIRM BRIGHTNESS OSD CONTRL STATE. 2. CHECK MICOM DIM-ADJ PORT(U501 PIN41) J705 PIN1 5V? NO LIPS CHECK PULSE AS CONTACTING SCOPE PROBE TO CAUTION LABEL. (CONTACT PROBE TO CAUTION LABEL. CAN YOU SEE PULSE AT YOUR SCOPE? NO REPLACE CCFL LAMP IN THE LCD MODULE YES YES YES YES - 12 - 1. CHECK PIN122, 123 SOLDERING CONDITION 2. CHECK X501 3. TROUBLE IN U201 U201 POWER PINS 3.3V? NO CHECK U803, U801 U201 PIN122, 123 OSCILLATE AS 12MHZ? CHECK CONNECTION LINE FROM U201 TO U501 TROUBLE IN CABLE OR LCD MODULE CHECK 5VR LINE U501 PIN8 5V? YES YES YES YES 3. NO RASTER (OSD IS NOT DISPLAYED) – MST9011 NO RASTER (OSD IS NOT DISPLAYED) U501 PIN41 IS 48KHz H-SYNC? PIN42 IS 60Hz V-SYNC? IS PULSE APPEARED AT SIGNAL PINS? NO NO NO - 13 - CHECK U803, U801 U201 POWER PIN114(3.3V) PIN111(2.5V) ? NO 1. CHECK PC 2. CHECK SIGNAL CABLE & D-SUB CONNECTOR LINE CHECK R,G,B INPUT? U201 PIN 33,30,28 NO CHECK H-SYNC LINE (D-SUB→U501 →U201 PIN126) CHECK H-SYNC INPUT U201 PIN 126? NO YES YES YES CHECK V-SYNC LINE (D-SUB→U501 →U201 PIN127) CHECK V-SYNC INPUT U201 PIN 127? NO YES NO RASTER (OSD IS DISPLAYED) 4. NO RASTER (OSD IS DISPLAYED) – MST9011 TROUBLE IN LCD MODULE YES PRINTED CIRCUIT BOARD - 14 - R708 C711 C708 C709 J706 Q703 R709 C710 C803 R812 U802 C828 J704 C821 C822 R769 J705 Q704 R747 R748 U801 1 R744 R745 R811 R801 R802 R804 C804 C829 R749 C832 C818 1 C820 R770 R840 R846 R847 R841 U804 R803 C230 C801 C817 C221 C831 100 C819 C222 C217 90 80 C227 70 U201 J707 1 R735 U502 C516 C760 R842 R848 R844 R845 R843 R849 U803 R511 C225 C226 C219 C802 110 C223 C218 60 C727 Q705 R753 R779 C732 R533 R534 R537 Q506 R510 X501 Q503 R535 R532 R550 C550 X201 C228 C229 120 R739 C220 J702 50 R502 R750 R751 U501 R501 C512 C502 C503 15 R536 C513 10 Q502 C501 C514 5 R592 R593 R204 R205 C211 10 1 C212 C215 20 C207 30 C208 1 40 Q505 R525 R541 20 R581 R571 R531 D707 R530 R580 R570 R520 R504 R509 R590 R591 Q701 R207 R733 R522 C216 A Q702 R716 R740 C201 C712 C202 C203 C209 C713 C210 C714 1 R528 R529 25 C703 40 D703 R725 R705 R722 ZD702 C505 C715 D706 R717 ZD701 D701 D702 R701 R703 R706 R202 R203 R208 R209 R210 R240 C205 C206 C232 C233 C240 C231 R201 C204 MODEL:L-CHASSIS-ANALOG P/N :6870T628A11 DATE :2003.02.24 Q504 R515 30 R734 R540 R551 35 A R707 R741 U702 C707 C731 C730 R723 R724 R726 R727 R523 R524 ZD703 ZD704 C506 J703 1. MAIN BOARD (Component Side) - 15 - SW2 LED1 MODEL:L1510SL P/N:6870T628C10 DATA:2003.01.22 SW6 SW3 SW4 R6 R4 SW7 R7 SW5 R3 R5 R1 R2 ZD1 SW1 ZD2 J1 3.CONTROL BOARD (Component Side) 2. MAIN BOARD (Solder Side) 1 C214 C224 C213 - 16 - 4.POWER BOARD (Component Side) 5.POWER BOARD (Solder Side) - 17 - EXPLODED VIEW 3 2 4-A 4-B 10 a 11 6 5 9 7 1 b 8 - 18 - EXPLODED VIEW PARTS LIST Ref. No. 1 2 3 4-A 4-B 5 6 7 8 9 10 11 a b Part No. 3091TKL066F 3091TKL066H 6304FLP025A or 6304FLP063A 3809TKL026Y 3809TKL045N 3043TKK097A 3043TKK097M 3043TKK092A 3043TKK092K 4951TKS091R 6871TPT242B or 6871TPT236B or 6871TPT235B or 6871TPT234D 3313TL5061A 4950TKK424F 6631T11016C 6871TST383A 6850TD9004D or 6850TD9004A 332-068U 332-105H Description CABINET ASSEMBLY, L1511SL BRAND . 3090TKL040 -L1511S CABINET ASSEMBLY, L1511SL BRAND L040A BK SPRAY-L1511SK LCD(LIQUID CRYSTAL DISPLAY), LM150X06-A3M1 LG PHILPS TFT COLOR 15.0 INCH XGA LVDS SMM LCD(LIQUID CRYSTAL DISPLAY), LM150X06-A4M1 LG PHILPS TFT COLOR 6BIT LVDS BACK COVER ASSEMBLY, L1510SL 3808TKL029 . -L1511S BACK COVER ASSEMBLY, L1511SL L029 HF350U(BK), 9930 -L1511SK TILT SWIVEL ASSEMBLY LB500J . (BASE) -L1511S TILT SWIVEL ASSEMBLY LB501J BASE BK -L1511SK TILT SWIVEL ASSEMBLY LB500J . . -L1511S TILT SWIVEL ASSEMBLY LB501J . BK -L1511SK METAL ASSEMBLY, FRAME MAIN (L1510SL,LPL P4) PWB(PCB) ASSEMBLY, POWER, 15" LPL(L1510SL) POWER TOTAL SPI FSP017-2PI02 PWB(PCB) ASSEMBLY, POWER, ADP-30EP POWER TOTAL DELTA L1510SL LIPS PWB(PCB) ASSEMBLY, POWER, LI1510SL POWER TOTAL SANKEN 3L038WK PWB(PCB) ASSEMBLY, POWER, L1510SL POWER TOTAL POWERNET PWI1510LG 12V/1.2A 5V/1A LIPS FOR L-CHASSIS LPL MAIN TOTAL ASSEMBLY L1510SL BRAND CL-32 METAL SHIELD REAR(LB504N) CONNECTOR ASSEMBLY, 20P H-H 100MM UL20276 I/FACE CABLE LB500K PWB(PCB) ASSEMBLY, SUB, L1510SL CONTROL TOTAL BRAND CL-32 CABLE, D-SUB, UL20276-9C(5.8MM) DT 1560MM GRAY(85964) LB500L DM CABLE, D-SUB, UL20276-9C(5.8MM) DT 1870MM GRAY(85964) LB500K DM SCREW, PPB+3*8 (MSWR/FZMW1) SCREW, DRAWING, D4.0 L12.0 MSWR/BK - - 19 - DATE: 2003. 3. 11. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C201 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C202 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C203 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C205 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C209 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C210 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C211 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C212 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C215 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C217 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C218 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C219 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C220 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C221 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C222 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C223 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C225 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C226 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C227 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C232 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C233 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C240 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C501 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C502 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C503 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C505 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C506 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C512 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C513 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP NP C514 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C516 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C550 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C703 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C707 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C708 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C709 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C710 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C711 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C712 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C713 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C714 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C715 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C727 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C730 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C731 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 DATE: 2003. 3. 11. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C732 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C760 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK” C801 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C802 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C803 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C804 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C817 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK” C818 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C819 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C820 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK” C821 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C822 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C828 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C829 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C831 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK” C832 0CE107EF610 “100UF KMG,RD 16V 20% FL BULK” D701 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D702 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D703 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D706 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D707 0DD184009AA KDS184 TP KEC - 85V - - - 30 ZD701 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD702 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD703 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD704 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 U201 0IPRPM3003A MST9011 ANALOG MSTAR 128P LQ U501 0IZZTSZ250B MYSON 44P PLCC ST OTP L1510S U502 0ISG240860B M24C08W6 SGS-THOMSON 8SOP R/ U702 0ICS240213A CAT24WC02J-TE13 8P SOP TP 2K U801 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V U802 0TFVI80023A VISHAY SI3865DV R/TP TSOP-6 U803 0IPMGNS001D LM1117MPX-2.5 NATIONAL SEMIC Q502 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q503 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT Q504 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q505 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q506 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q701 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q702 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q703 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q704 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q705 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS ICs DIODEs TRANSISTOR DATE: 2003. 3. 11. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R201 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R202 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R203 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R204 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R205 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R207 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R208 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R209 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R210 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R240 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R501 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R502 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R504 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R509 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R510 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R511 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R515 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R520 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R522 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R523 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R524 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R525 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R528 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R529 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R530 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R531 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R532 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R533 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R534 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R535 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R537 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R540 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R541 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R551 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T R571 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R581 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R590 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R591 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R592 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R593 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R701 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R705 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R706 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R707 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R708 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R709 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R716 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R717 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R722 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R723 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R724 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R725 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R726 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R727 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R733 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R734 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R735 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R740 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R741 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R744 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP DATE: 2003. 3. 11. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R745 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R747 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R748 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R749 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R750 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R751 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R753 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R779 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R802 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R803 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R811 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R812 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R840 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R841 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R842 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R843 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R844 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R845 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R846 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R847 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R848 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R849 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP X501 6212AA2004A HC-49U TXC 12.0MHZ +/- 30 PP LED1 0DLLT0208AA LITEON LTST-C155KGJSKT R/TP R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R2 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R3 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R4 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R5 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R6 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R7 0RJ9101D677 9.1K OHM 1/10 W 5% 1608 R/TP SW1 140-058E SKHV10910B LGEC NON 12V 20A SW2 140-058E SKHV10910B LGEC NON 12V 20A SW3 140-058E SKHV10910B LGEC NON 12V 20A SW4 140-058E SKHV10910B LGEC NON 12V 20A SW5 140-058E SKHV10910B LGEC NON 12V 20A SW6 140-058E SKHV10910B LGEC NON 12V 20A SW7 140-058E SKHV10910B LGEC NON 12V 20A ZD1 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD2 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 - 20 - RESISTORs OTHERs CONTROL BOARD PIN CONFIGURATION - 21 - CAT24WC02J-TE13 8P A0 A1 A2 VSS VCC WP SCL SDA A0 A1 A2 VSS VCC WP SCL SDA 1 2 3 4 8 7 6 5 1 2 3 4 8 7 6 5 A0 A1 A2 VSS VCC WP SCL SDA 1 2 3 4 8 7 6 5 EXTERNAL LOAD SDA WP DOUT SENSE AMPS SHIFT REGISTERS WORD ADDRESS BUFFERS COLUMN DECODERS START/STOP LOGIC XDEC DATA IN STORAGE HIGH VOLTAGE/ TIMING CONTROL STATE COUNTERS SLAVE SCL A0 A1 VCC VSS A2 ADDRESS COMPARATORS CONTROL LOGIC ACK E PROM 2 PIN CONFIGURATION DIP Package(p) SOIX Package(J) TSSOP Package(U) BLOCK DIAGRAM PIN FUNCTION Pin Name A0, A1, A2 SDA SCL WP Vcc Vss Function Device Adress Inputs Serial Data/Address Serial Clock Write Protect +1.8V to + 6.0V power Supply Ground - 22 - 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 HSYNC1 VSYNC0 HSYNC0 AVSS_PLL AVDD_PLL XOUT XIN HWRESETZ DDCROM_CLK DDCROM_DAT DDC1_CLK DDC1_DAT NC NC VDDP GNDP GNDC VDDC NC NC NC VDDP GNDP NC NC AVDD_PLL 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 VSYNC1 TESTPIN NC NC AVSS NC NC AVDD NC NC AVSS NC NC AVDD REXT AVDD_PLL AVSS_PLL AVDD AVSS BIN1 BIN1M SOGIN1 GIN1 GIN1M RIN1 RIN1M BIN0M BIN0 GIN0M GIN0 SOGIN0 RIN0M RIN0 AVSS AVDD RMID REFP REFM AVSS_PLL NC NC NC NC NC NC GNDP VDDP NC NC NC NC NC NC NC NC VDDC GNDC GNDP VDDP LVA0M LVA0P LVA1M LVA1P LVA2M LVA2P LVACKM LVACKP GNDP VDDP LVA3M LVA3P NC NC NC NC NC AVSS CSZ SDA SCL INT PWM0 PWM1 NC NC NC NC NC NC NC NC NC VDDP GNDP GNDC VDDC NC NC VDDP GNDP GNDC VDDC MST9011 VC646960210F Pin 1 MST9011 ANALOG MSTAR 128P SCHEMATIC DIAGRAM - 23 - 1. SCALER - 24 - 2. MICOM - 25 - 3. POWER - 26 - 4. CONNECTOR & JACKS - 27 - 5. KEY PART Mar. 2003 P/NO : 3828TSL083T Printed in Korea
