LG L1510SFK液晶显示器维修手册

分类：电子电工 日期： 点击：0
LG L1510SFK液晶显示器维修手册-0 LG L1510SFK液晶显示器维修手册-1 LG L1510SFK液晶显示器维修手册-2 LG L1510SFK液晶显示器维修手册-3 LG L1510SFK液晶显示器维修手册-4 LG L1510SFK液晶显示器维修手册-5 LG L1510SFK液晶显示器维修手册-6 LG L1510SFK液晶显示器维修手册-7 LG L1510SFK液晶显示器维修手册-8 LG L1510SFK液晶显示器维修手册-9

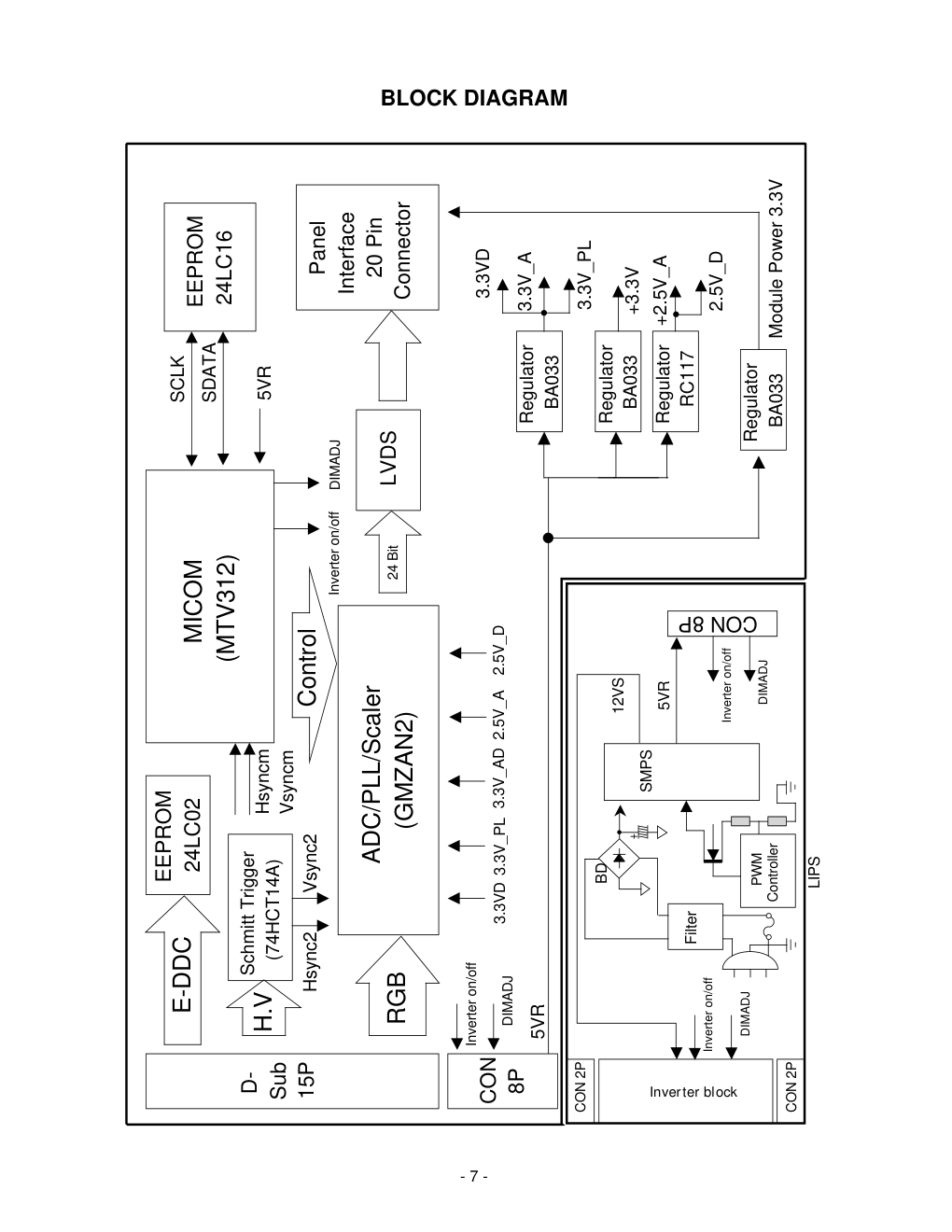

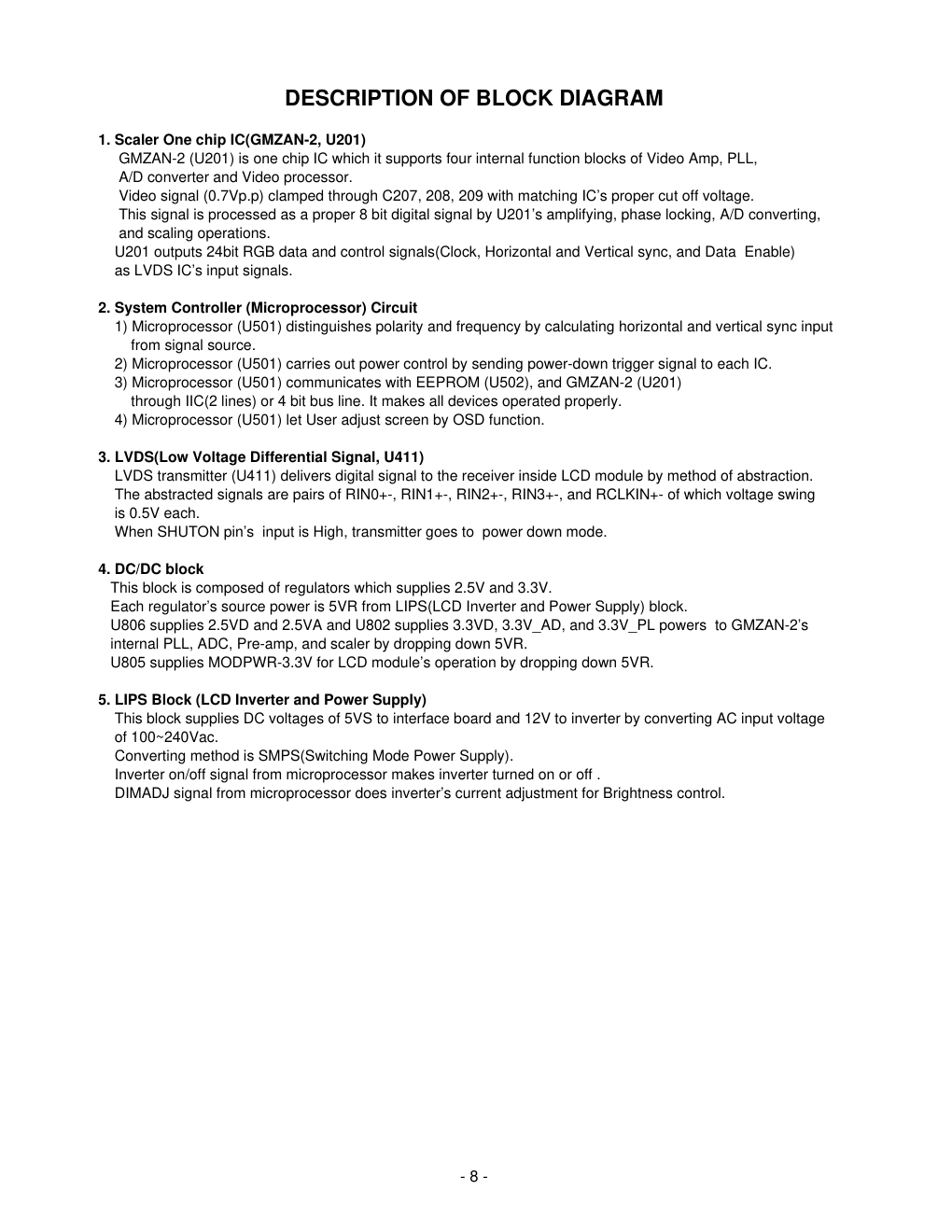

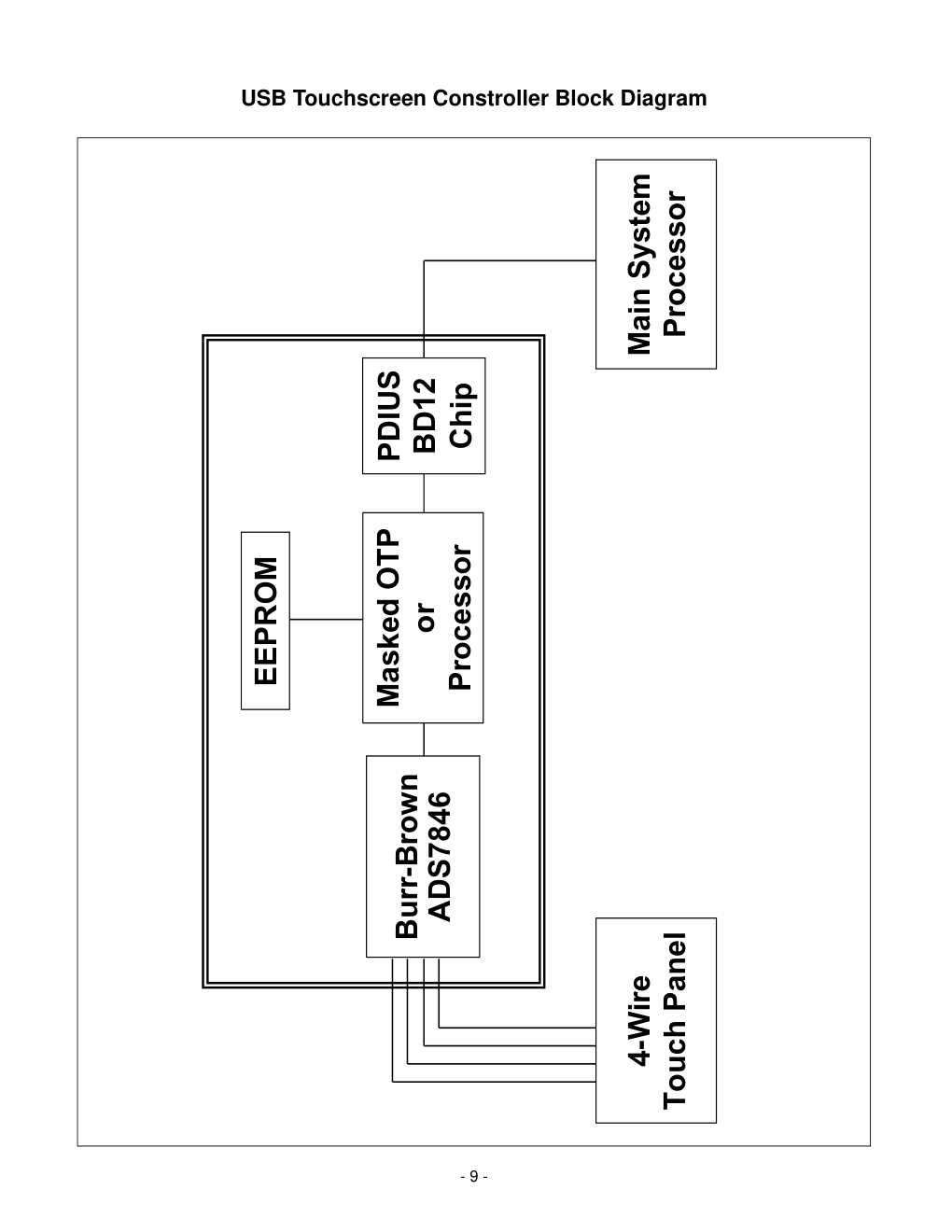

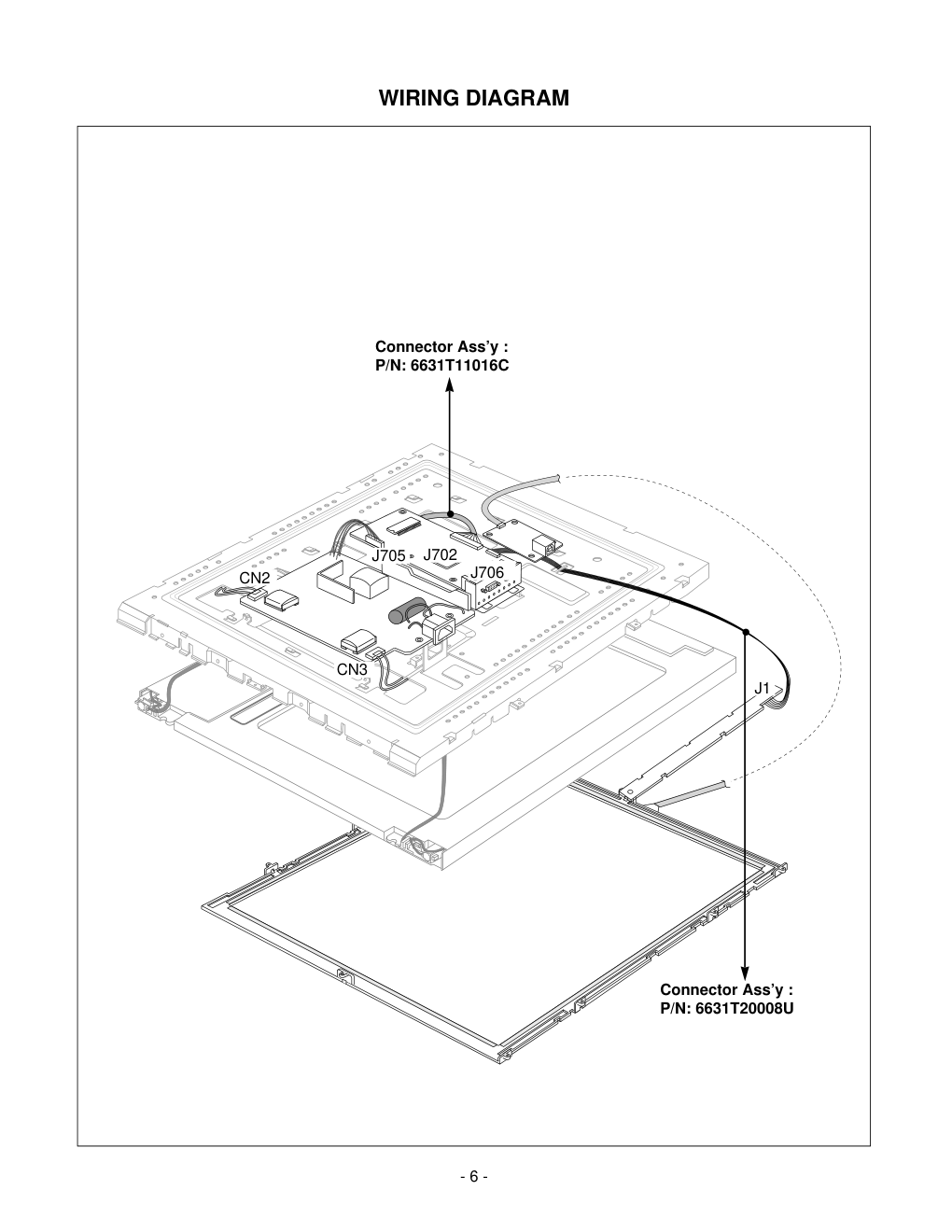

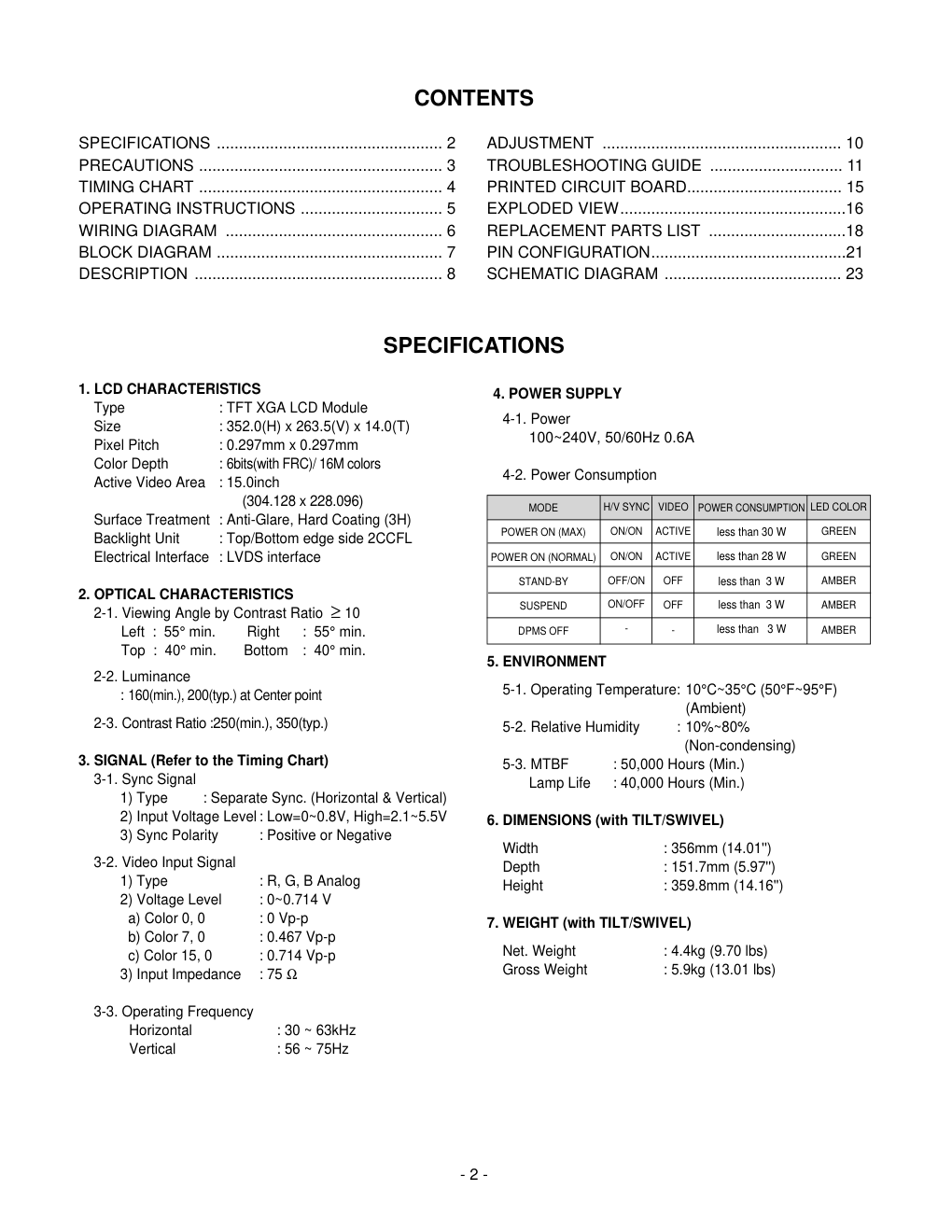

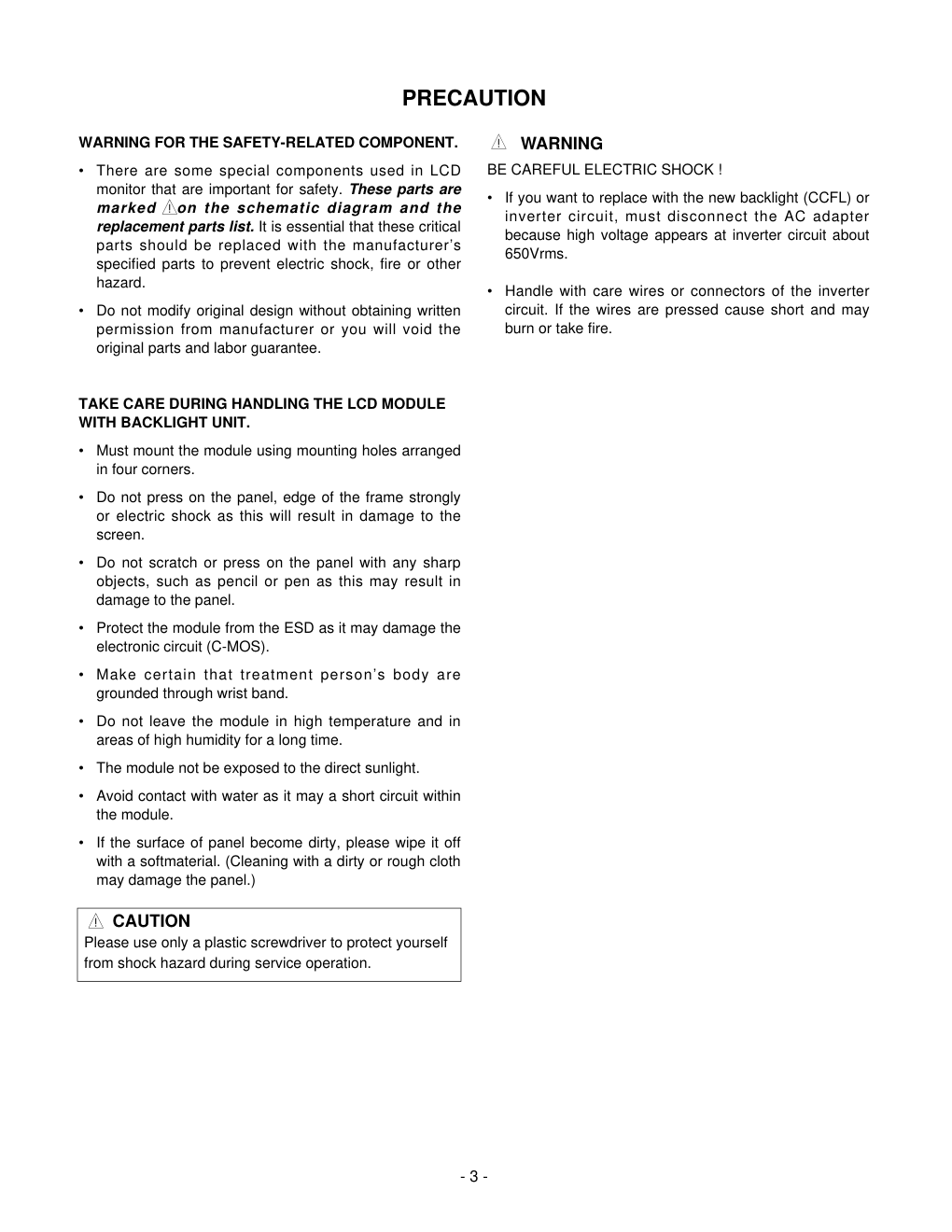

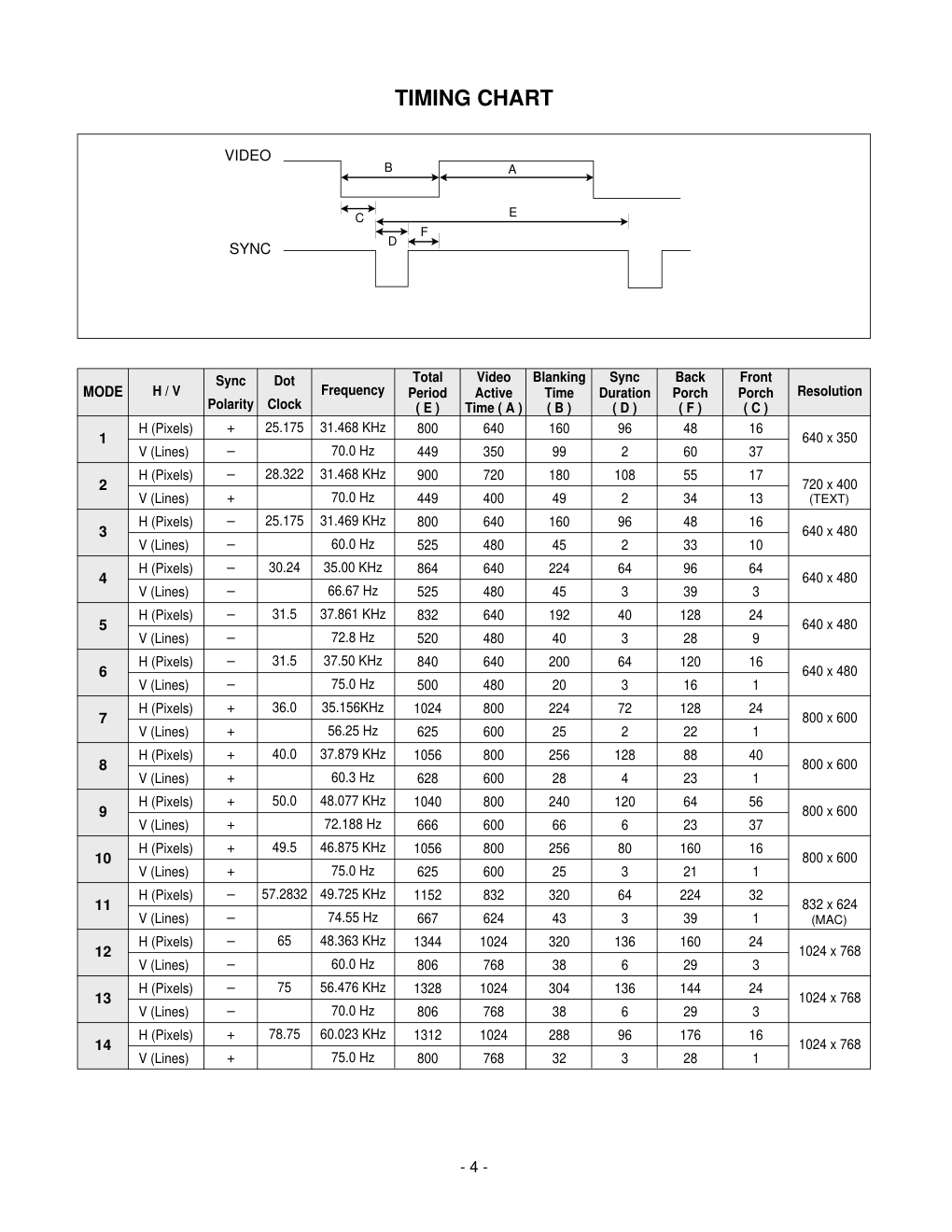

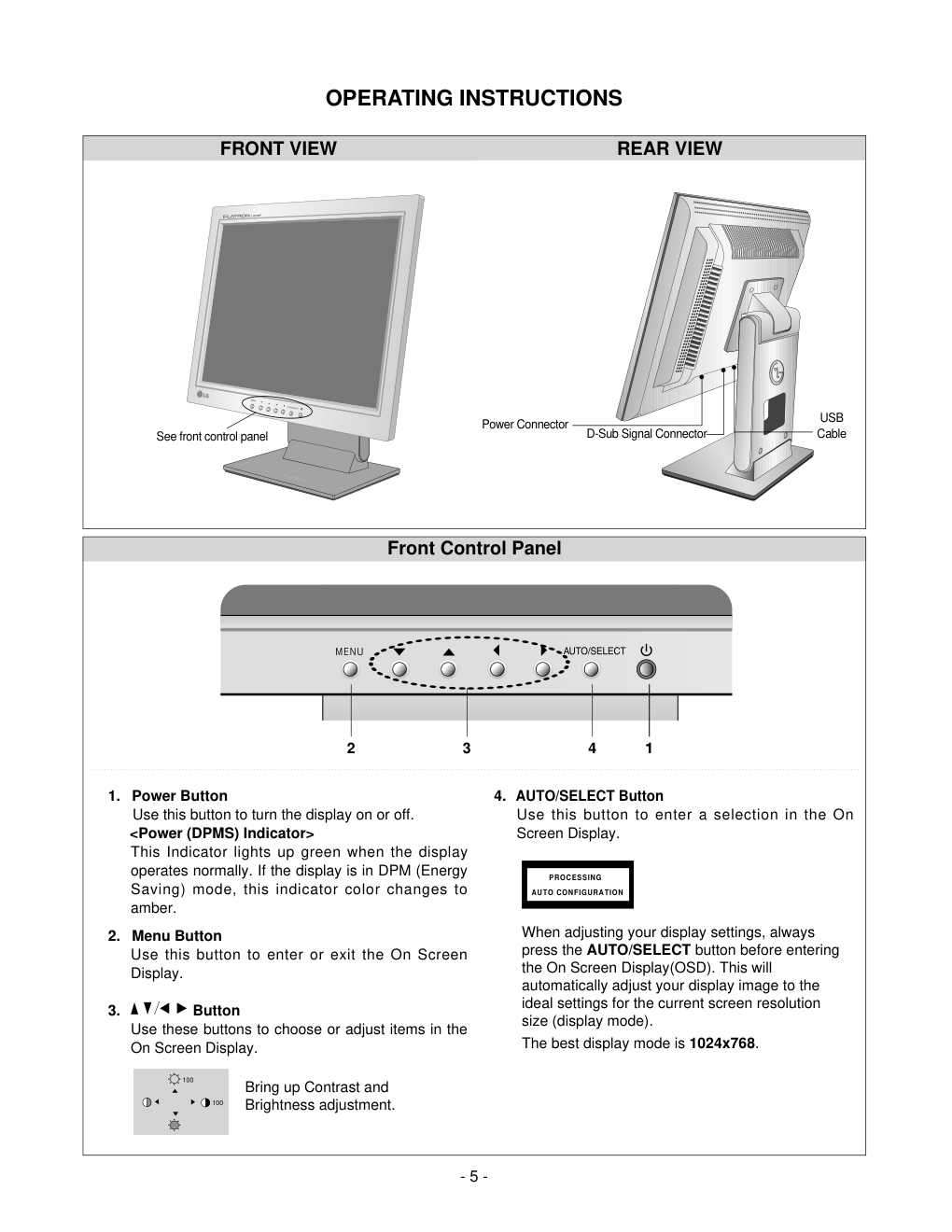

MENU AUTO/SELECT L1510SF COLOR MONITOR SERVICE MANUAL Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : CL-32 FACTORY MODEL: L1510SFK MODEL: L1510SF (LB500K-VL) *( ) ID LABEL MODEL No. CONTENTS SPECIFICATIONS - 2 - 1. LCD CHARACTERISTICS Type : TFT XGA LCD Module Size : 352.0(H) x 263.5(V) x 14.0(T) Pixel Pitch : 0.297mm x 0.297mm Color Depth : 6bits(with FRC)/ 16M colors Active Video Area : 15.0inch (304.128 x 228.096) Surface Treatment : Anti-Glare, Hard Coating (3H) Backlight Unit : Top/Bottom edge side 2CCFL Electrical Interface : LVDS interface 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : 55° min. Right : 55° min. Top : 40° min. Bottom : 40° min. 2-2. Luminance : 160(min.), 200(typ.) at Center point 2-3. Contrast Ratio :250(min.), 350(typ.) 3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal 1) Type : Separate Sync. (Horizontal & Vertical) 2) Input Voltage Level : Low=0~0.8V, High=2.1~5.5V 3) Sync Polarity : Positive or Negative 3-2. Video Input Signal 1) Type : R, G, B Analog 2) Voltage Level : 0~0.714 V a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.467 Vp-p c) Color 15, 0 : 0.714 Vp-p 3) Input Impedance : 75 Ω 3-3. Operating Frequency Horizontal : 30 ~ 63kHz Vertical : 56 ~ 75Hz 4. POWER SUPPLY 4-1. Power 100~240V, 50/60Hz 0.6A 4-2. Power Consumption 5. ENVIRONMENT 5-1. Operating Temperature: 10°C~35°C (50°F~95°F) (Ambient) 5-2. Relative Humidity : 10%~80% (Non-condensing) 5-3. MTBF : 50,000 Hours (Min.) Lamp Life : 40,000 Hours (Min.) 6. DIMENSIONS (with TILT/SWIVEL) Width : 356mm (14.01'') Depth : 151.7mm (5.97'') Height : 359.8mm (14.16'') 7. WEIGHT (with TILT/SWIVEL) Net. Weight : 4.4kg (9.70 lbs) Gross Weight : 5.9kg (13.01 lbs) SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 3 TIMING CHART ....................................................... 4 OPERATING INSTRUCTIONS ................................ 5 WIRING DIAGRAM ................................................. 6 BLOCK DIAGRAM ................................................... 7 DESCRIPTION ........................................................ 8 ADJUSTMENT ...................................................... 10 TROUBLESHOOTING GUIDE .............................. 11 PRINTED CIRCUIT BOARD................................... 15 EXPLODED VIEW...................................................16 REPLACEMENT PARTS LIST ...............................18 PIN CONFIGURATION............................................21 SCHEMATIC DIAGRAM ........................................ 23 MODE POWER ON (MAX) POWER ON (NORMAL) STAND-BY SUSPEND DPMS OFF H/V SYNC ON/ON ON/ON OFF/ON ON/OFF - POWER CONSUMPTION less than 30 W less than 28 W less than 3 W less than 3 W less than 3 W LED COLOR GREEN GREEN AMBER AMBER AMBER VIDEO ACTIVE ACTIVE OFF OFF - - 3 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. TIMING CHART - 4 - VIDEO SYNC B D C F E A H / V H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) Sync Polarity + – – + – – – – – – – – + + + + + + + + – – – – – – + + Dot Clock 25.175 28.322 25.175 30.24 31.5 31.5 36.0 40.0 50.0 49.5 57.2832 65 75 78.75 Frequency 31.468 KHz 70.0 Hz 31.468 KHz 70.0 Hz 31.469 KHz 60.0 Hz 35.00 KHz 66.67 Hz 37.861 KHz 72.8 Hz 37.50 KHz 75.0 Hz 35.156KHz 56.25 Hz 37.879 KHz 60.3 Hz 48.077 KHz 72.188 Hz 46.875 KHz 75.0 Hz 49.725 KHz 74.55 Hz 48.363 KHz 60.0 Hz 56.476 KHz 70.0 Hz 60.023 KHz 75.0 Hz Resolution 640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1024 x 768 Total Period ( E ) 800 449 900 449 800 525 864 525 832 520 840 500 1024 625 1056 628 1040 666 1056 625 1152 667 1344 806 1328 806 1312 800 Video Active Time ( A ) 640 350 720 400 640 480 640 480 640 480 640 480 800 600 800 600 800 600 800 600 832 624 1024 768 1024 768 1024 768 Blanking Time ( B ) 160 99 180 49 160 45 224 45 192 40 200 20 224 25 256 28 240 66 256 25 320 43 320 38 304 38 288 32 Sync Duration ( D ) 96 2 108 2 96 2 64 3 40 3 64 3 72 2 128 4 120 6 80 3 64 3 136 6 136 6 96 3 Back Porch ( F ) 48 60 55 34 48 33 96 39 128 28 120 16 128 22 88 23 64 23 160 21 224 39 160 29 144 29 176 28 Front Porch ( C ) 16 37 17 13 16 10 64 3 24 9 16 1 24 1 40 1 56 37 16 1 32 1 24 3 24 3 16 1 MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 (MAC) (TEXT) OPERATING INSTRUCTIONS - 5 - FRONT VIEW REAR VIEW Front Control Panel 1. Power Button Use this button to turn the display on or off. This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. 2. Menu Button Use this button to enter or exit the On Screen Display. 3. Button Use these buttons to choose or adjust items in the On Screen Display. 4. AUTO/SELECT Button Use this button to enter a selection in the On Screen Display. MENU AUTO/SELECT L1510SF Power Connector When adjusting your display settings, always press the AUTO/SELECT button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is 1024x768. See front control panel D-Sub Signal Connector USB Cable Bring up Contrast and Brightness adjustment. 100 100 PROCESSING AUTO CONFIGURATION 1 4 2 3 - 6 - WIRING DIAGRAM J706 J702 J705 CN2 CN3 J1 Connector Ass’y : P/N: 6631T11016C Connector Ass’y : P/N: 6631T20008U - 7 - BLOCK DIAGRAM EEPROM 24LC16 ADC/PLL/Scaler (GMZAN2) MICOM (MTV312) Schmitt Trigger (74HCT14A) Panel Interface 20 Pin Connector RGB H.V D- Sub 15P E-DDC Control SCLK SDATA CON 8P 3.3VD 3.3V_PL Module Power 3.3V 3.3V_PL 3.3VD 5VR 3.3V_AD Regulator BA033 Regulator BA033 3.3V_A +3.3V Regulator BA033 Hsync2 Vsync2 Hsyncm Vsyncm 2.5V_A 2.5V_D Regulator RC117 +2.5V_A 2.5V_D 5VR LVDS Filter BD SMPS 5VR CON 8P Inverter block 12VS LIPS CON 2P EEPROM 24LC02 24 Bit Inverter on/off DIMADJ Inverter on/off DIMADJ Inverter on/off DIMADJ Inverter on/off DIMADJ CON 2P PWM Controller DESCRIPTION OF BLOCK DIAGRAM - 8 - 1. Scaler One chip IC(GMZAN-2, U201) GMZAN-2 (U201) is one chip IC which it supports four internal function blocks of Video Amp, PLL, A/D converter and Video processor. Video signal (0.7Vp.p) clamped through C207, 208, 209 with matching IC’s proper cut off voltage. This signal is processed as a proper 8 bit digital signal by U201’s amplifying, phase locking, A/D converting, and scaling operations. U201 outputs 24bit RGB data and control signals(Clock, Horizontal and Vertical sync, and Data Enable) as LVDS IC’s input signals. 2. System Controller (Microprocessor) Circuit 1) Microprocessor (U501) distinguishes polarity and frequency by calculating horizontal and vertical sync input from signal source. 2) Microprocessor (U501) carries out power control by sending power-down trigger signal to each IC. 3) Microprocessor (U501) communicates with EEPROM (U502), and GMZAN-2 (U201) through IIC(2 lines) or 4 bit bus line. It makes all devices operated properly. 4) Microprocessor (U501) let User adjust screen by OSD function. 3. LVDS(Low Voltage Differential Signal, U411) LVDS transmitter (U411) delivers digital signal to the receiver inside LCD module by method of abstraction. The abstracted signals are pairs of RIN0+-, RIN1+-, RIN2+-, RIN3+-, and RCLKIN+- of which voltage swing is 0.5V each. When SHUTON pin’s input is High, transmitter goes to power down mode. 4. DC/DC block This block is composed of regulators which supplies 2.5V and 3.3V. Each regulator’s source power is 5VR from LIPS(LCD Inverter and Power Supply) block. U806 supplies 2.5VD and 2.5VA and U802 supplies 3.3VD, 3.3V_AD, and 3.3V_PL powers to GMZAN-2’s internal PLL, ADC, Pre-amp, and scaler by dropping down 5VR. U805 supplies MODPWR-3.3V for LCD module’s operation by dropping down 5VR. 5. LIPS Block (LCD Inverter and Power Supply) This block supplies DC voltages of 5VS to interface board and 12V to inverter by converting AC input voltage of 100~240Vac. Converting method is SMPS(Switching Mode Power Supply). Inverter on/off signal from microprocessor makes inverter turned on or off . DIMADJ signal from microprocessor does inverter’s current adjustment for Brightness control. USB Touchscreen Constroller Block Diagram - 9 - 4-Wire Touch Panel EEPROM Burr-Brown ADS7846 Masked OTP or Processor Main System Processor PDIUS BD12 Chip - 10 - ADJUSTMENT All adjustment are thoroughly checked and corrected when the monitor leaves the factory, but sometimes several minor adjustment may be required. Adjustment should be following procedure and after warming up for a minimum of 10 minutes. Alignment appliances and tools. - IBM Compatible PC - Programmable Signal Generator. (eg. VG-819 made by Astrodesign Co.) - E(E)PROM with each mode data saved. - Alignment Adapter and Software. 1. Adjustment for Factory Preset Mode 1) Run alignment program for L1510SFK on the IBM compatible PC. 2) Select EEPROM All Init. command and Enter. 3) Display cross hatch pattern at Mode 1. 4) Select EDID WRITE command and Enter. 2. Adjustment for White Balance 1) Display color 0,0 pattern at Mode 13. 2) Set External Bright to MAX position and Contrast to MAX Position. 3) Select PRESET START → BIAS CAL command and Enter. 4) No attempt to manually adjust, BIAS data is auto- matically adjusted and saved to the EEPROM. 5) Display color 15,0 pattern at Mode 13. 6) Select DRIVE CAL command and Enter. 7) Color 1 (9300K) and Color 2 (6500K) are automatically adjusted and saved to the EEPROM. 8) Select PRESET EXIT command and Enter. Figure 1. Cable Connection 220 IBM Compatible PC PARALLEL PORT Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E E V-Sync On/Off Switch (Switch must be ON.) F F A A B B C C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Video Signal Generator - 11 - TROUBLESHOOTING GUIDE 1. NO POWER CHECK U803. CHECK U802 PIN 1 VOLTAGE (5V) ? NO NO POWER (POWER INDICATOR OFF) CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK J705 VOLTAGE PIN5, PIN6 (5V)? NO CHECK 5VS LINE (OPEN CHECK) CHECK U805 PIN 1 Voltage (5V) ? NO CHECK IIC LINE CONNECTION (U501, U502) CHECK U201 VCC, XTAL, RESET IS U201 PIN12 (3.3V) VOLTAGE REPEATED AS PULSE SHAPE ? NO YES YES YES NO PROBLEM NO CHECK KEY CONTROL CONNECTOR ROUTINE - 12 - 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS CHECK MICOM INV ON/OFF PORT. J705 PIN2 5V? NO NO RASTER (OSD IS NOT DISPLAYED) CHECK LIPS J705 PIN5, PIN 6 5V? NO 1. CONFIRM BRIGHTNESS OSD CONTRL STATE. 2. CHECK MICOM DIM-ADJ PORT J705 PIN1 5V? NO LIPS CHECK PULSE AS CONTACTING SCOPE PROBE TO CAUTION LABEL. (CONTACT PROBE TO CAUTION LABEL. CAN YOU SEE PULSE AT YOUR SCOPE? NO REPLACE CCFL LAMP IN THE LCD MODULE YES YES YES YES - 13 - 1. CHECK PIN141, 142 SOLDERING CONDITION 2. CHECK X201 3. TROUBLE IN U201 U201 POWER PINS 3.3V? NO CHECK U802, U806 U201 PIN141, 142 OSCILLATE AS 20MHZ? CHECK CONNECTION LINE FROM U201 TO U401 NO TROUBLE IN CABLE OR LCD MODULE CHECK U805 U401 PIN1 3.3V? NO YES YES YES YES 3. NO RASTER (OSD IS NOT DISPLAYED) – gmZAN2 NO RASTER (OSD IS NOT DISPLAYED) U401/U411 PIN31 IS 65MHz CLOCK? PIN27 IS 48KHz H-SYNC? PIN28 IS 60Hz V-SYNC? PIN30 IS 48KHz DEN? IS PULSE APPEARED AT SIGNAL PINS? NO - 14 - CHECK U802, U806 U201 POWER PIN 3.3V? NO 1. CHECK PC 2. CHECK SIGNAL CABLE & D-SUB CONNECTOR LINE CHECK R,G,B INPUT? U201 PIN 87, 91, 95 NO CHECK H-SYNC LINE (D-SUB→U701→MICOM →U201 PIN150) CHECK H-SYNC INPUT U201 PIN 150? NO YES YES YES NO RASTER (OSD IS DISPLAYED) 4. NO RASTER (OSD IS DISPLAYED) – gmZAN2 PRINTED CIRCUIT BOARD - 15 - C514 U502 R561 R807 L701 R537 R533 R534 R571 R581 C503 C502 R529 R525 R560 R570 R580 U805 C820 C816 C706 C813 1 J702 X201 C832 L710 J706 R541 R726 C713 Q506 Q505 R532 Q502 C516 R510 R530 R531 R528 R511 C835 R805 C818 L802 C819 L401 R403 R404 C403 C410 C409 C408 C407 C406 C249 C248 C224 C223 C210 C829 L804 R712 R713 R715 R551 R727 U701 R723 R724 U702 R725 C703 ZD501 R539 Q501 R535 C501 C511 R512 R515 R518 R540 U802 C401 C402 C817 LPL PANNEL R401 C404 C243 C242 160 150 C212 C235 R206 C215 C828 C270 120 R709 R708 C708 C709 C710 C711 L704 L705 L702 L703 R710 R711 R714 C712 R705 R716 R733 R722 D707 D708 X501 Q503 R536 C512 C513 R517 R516 R526 C505 U807 C227 C234 C237 C238 C218 C231 C233 C229 C241 C245 C246 C247 C217 C244 U401 C405 BA205 C236 C206 10 5 110 R202 C214 L803 R734 C707 Q701 ZD701 C731 D703 D704 D705 R501 R502 R503 R538 R523 R524 R527 C506 C507 U806 C802 C228 C239 C240 C219 C221 C222 BA202 C226 BA206 C232 L201 20 100 R201 C821 C827 R205 C824 R717 R707 ZD702 R504 R505 R506 R507 R508 R509 R519 R520 R521 C508 C801 L805 R207 C261 C225 C230 L204 C262 C205 30 90 C258 C259 C269 R720 R513 C504 L706 L707 C715 C509 U501 RA502 RA501 C515 R813 R522 C826 C825 C831 BA201 BA203 C250 L203 BA204 C204 L202 40 U201 50 60 70 80 C201 C202 C203 C254 C255 C256 C257 D701 D702 D706 R203 R204 R208 R209 R210 C207 C208 C209 R701 R703 R706 C717 L708 C716 J705 L801 P/N :6870T534A12 MODEL:LB500K DATE :2002.07.20 C220 C271 C211 C216 L205 J703 1. MAIN BOARD (Component Side) 3.TOUCHSCREEN CONTROL BOARD (Solder Side) 2.TOUCHSCREENCONTROL BOARD (Component Side) - 16 - 3 4-A 4-B a 13 12 7 11 8 1 10 9 9 2 6 5 EXPLODED VIEW - 17 - EXPLODED VIEW PARTS LIST Ref. No. 1 2 3 4-A 4-B 5 6 7 8 9 10 11 12 13 a Part No. 3091TKL055R 6304FLP025A 3809TKL026W 3043TKK097A 3043TKK092A 3911TKK419A 4951TKS091G 6634B00051A or 6634B00053A 3313TL5054A 6871TST371A 4951TKS086D 6631T11016C 6866TDU002D 6850TD9004A or 6850TD9001A 332-105H Description CABINET ASSEMBLY, L1510SFK BRAND 3090TKL038 (T/SCREEN) LCD(LIQUID CRYSTAL DISPLAY) LM150X06-A3M1 LG PHILPS TFT COLOR BACK COVER ASSEMBLY, L1510SFK 3808TKL029 TILT SWIVEL ASSEMBLY, LB500J . (BASE) TILT SWIVEL ASSEMBLY, LB500J PACKAGE ASSEMBLY, L1510SFK BRACKET ASSY(TOUCH SCREEN) METAL ASSEMBLY, FRAME MAIN,L1510SFK ADAPTER, AC-DC, PWI1502LG 5V/12A 1A/1A LIPS FOR K-CHASSIS (POWER NET) ADATER, AC-DC, ADP-30EP 5V/12A 1A/1A LIPS FOR K-CHASSIS (DELTA) MAIN TOTAL ASSEMBLY LB500K LPL BRAND CL-32 PWB(PCB) ASSEMBLY, SUB, L1510SFK(TOUCH SCREEN) CONTROL TOTAL BRAND METAL ASSEMBLY, FRAME REAR(L1510SFK) CONNECTOR ASSEMBLY, 20P H-H 100MM UL20276 I/FACE CABLE LB500K CABLE, D-SUB, UL20276SB10P+2C AWG#30 DT 1870MM GRAY(85964) BRAND DM CABLE, D-SUB, UL 2990-9C(5.5) DT 1870MM GRAY(85964) LB500K DM CABLE, D-SUB, UL 2990-9C(7.5) DT 1870MM GRAY(85964) BRAND DM SCREW, DRAWING, D4.0 L12.0 MSWR/BK - 18 - DATE: 2002. 12. 16. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C201 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C202 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C203 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C205 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C207 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C208 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C209 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C210 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C211 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C212 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C214 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C215 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C217 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C218 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C219 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C221 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C222 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C223 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C224 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C226 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C227 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C228 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C229 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C230 0CC080CK11A 8PF 1608 50V 0.5 PF R/TP NP0 C231 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C233 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C234 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C237 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C238 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C239 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C240 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C241 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C242 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C243 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C244 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C245 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C246 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C247 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C248 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C249 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C254 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C255 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C256 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C257 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C258 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C259 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C261 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C262 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C269 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y DATE: 2002. 12. 16. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C270 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C271 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C401 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C402 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C403 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C404 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C405 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C501 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C502 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C503 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C504 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C505 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C506 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C507 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C508 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C509 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C512 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C513 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C514 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C515 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C516 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C703 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C706 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C707 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C712 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C713 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C715 0CH3105F946 1UF 16V Z F 2012 R/TP C731 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C801 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C802 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C813 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C816 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C817 0CE107CF610 100UF SHL,SD 16V 20% BULK FL C818 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C819 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C820 0CE107CF610 100UF SHL,SD 16V 20% BULK FL C821 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C824 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C825 0CE107CF610 100UF SHL,SD 16V 20% BULK FL C826 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C827 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C828 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C829 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C831 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C832 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C835 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R D701 0DSDI00038A BAV99 DIODES R/TP SOT23 100V D702 0DSDI00038A BAV99 DIODES R/TP SOT23 100V D703 0DSDI00038A BAV99 DIODES R/TP SOT23 100V D704 0DSDI00038A BAV99 DIODES R/TP SOT23 100V D705 0DSDI00038A BAV99 DIODES R/TP SOT23 100V REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS DIODEs DATE: 2002. 12. 16. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION D706 0DSDI00038A BAV99 DIODES R/TP SOT23 100V D707 0DSDI00018A BAT54 DIODES R/TP SOT23 30V D708 0DSDI00018A BAT54 DIODES R/TP SOT23 30V ZD701 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD702 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 U201 0IPRPGA002A GMZAN2-160P GENESIS MICROCHI U401 0ITH638300B THC63LVDM83R THINE 56P,TSSOP U501 0IZZTSZ199A MYSON 42PIN BK OTP LB500K U502 0ISG240860B M24C08W6 SGS-THOMSON 8SOP R/ U701 0IMO741420B MC74HCT14ADR2 14P,SOIC TP LE U702 0ICS240213A CAT24WC02J-TE13 8P SOP TP 2K U802 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V U805 0IRH033000A BA033SFP P/MOLD-5 TP REGULAT U806 0IPMGON007A NCP1117ST25T3 ON SEMI SOT223 L201 6210TCE001P HB-1S2012-121JT CERATECH 201 L202 6210TCE001P HB-1S2012-121JT CERATECH 201 L203 6210TCE001P HB-1S2012-121JT CERATECH 201 L204 6210TCE001P HB-1S2012-121JT CERATECH 201 L205 6210TCE001P HB-1S2012-121JT CERATECH 201 L401 6210TCE001G HH-1M3216-501 CERATEC 3216MM L701 6210TCE001S HU-1M2012-121 CERATECH 2012M L702 6210TCE001P HB-1S2012-121JT CERATECH 201 L703 6210TCE001P HB-1S2012-121JT CERATECH 201 L704 6210TCE001P HB-1S2012-121JT CERATECH 201 L705 6210TCE001P HB-1S2012-121JT CERATECH 201 L706 6210TCE001P HB-1S2012-121JT CERATECH 201 L707 6210TCE001P HB-1S2012-121JT CERATECH 201 L710 6210TCE001G HH-1M3216-501 CERATEC 3216MM L801 6210TCE001G HH-1M3216-501 CERATEC 3216MM L802 6210TCE001G HH-1M3216-501 CERATEC 3216MM L803 6210TCE001G HH-1M3216-501 CERATEC 3216MM L804 6210TCE001G HH-1M3216-501 CERATEC 3216MM L805 6210TCE001G HH-1M3216-501 CERATEC 3216MM Q502 0TRDI80002A MMBT3904 DIODES R/TP SOT23 6 Q503 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT Q701 0TRDI80002A MMBT3904 DIODES R/TP SOT23 6 R201 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R202 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R203 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R204 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R205 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R206 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP R207 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R208 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R209 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R210 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R401 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R403 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R404 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R501 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP DATE: 2002. 12. 16. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R502 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R503 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R504 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R505 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R506 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R507 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R508 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R509 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R510 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R511 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R512 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R513 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R515 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R516 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R517 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R518 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R519 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R520 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R521 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R522 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R523 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R524 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R525 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R526 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R527 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R528 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R529 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R530 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R531 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R532 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R533 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R534 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R535 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R536 0RJ1004D677 1000000 OHM 1/10 W 5% 1608 R R537 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R540 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R541 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R551 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R561 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R571 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R581 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R701 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R705 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R706 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R707 0RJ0272D677 27 OHM 1/10 W 5% 1608 R/TP R708 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R709 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R711 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R712 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R713 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R714 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R715 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R716 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R717 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R722 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R723 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R724 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R725 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R726 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R727 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R733 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP - 19 - COILs & COREs TRANSISTOR ICs RESISTORs DATE: 2002. 12. 16. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R734 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R805 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R807 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/TP R813 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP RA501 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP RA502 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP X201 6212AA2004B HC-49U TXC 20.0MHZ +/- 30 PP X501 6212AA2004A HC-49U TXC 12.0MHZ +/- 30 PP LED1 0DLLT0148AA LITEON LTST-C195KGJSKT R/TP R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R2 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R3 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R4 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R5 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R6 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R7 0RJ9101D677 9.1K OHM 1/10 W 5% 1608 R/TP SW1 140-058E SKHV10910B LGEC NON 12V 20A SW2 140-058E SKHV10910B LGEC NON 12V 20A SW3 140-058E SKHV10910B LGEC NON 12V 20A SW4 140-058E SKHV10910B LGEC NON 12V 20A SW5 140-058E SKHV10910B LGEC NON 12V 20A SW6 140-058E SKHV10910B LGEC NON 12V 20A SW7 140-058E SKHV10910B LGEC NON 12V 20A ZD1 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 ZD2 0DZ560009GB BZT52C5V6S DIODES R/TP SOD32 - 20 - OTHERs CONTROL BOARD PIN CONFIGURATION - 21 - CAT24WC02J-TE13 8P MC74HCT14ADR2 14P A0 A1 A2 VSS VCC WP SCL SDA A0 A1 A2 VSS VCC WP SCL SDA 1 2 3 4 8 7 6 5 1 2 3 4 8 7 6 5 A0 A1 A2 VSS VCC WP SCL SDA 1 2 3 4 8 7 6 5 EXTERNAL LOAD SDA WP DOUT SENSE AMPS SHIFT REGISTERS WORD ADDRESS BUFFERS COLUMN DECODERS START/STOP LOGIC XDEC DATA IN STORAGE HIGH VOLTAGE/ TIMING CONTROL STATE COUNTERS SLAVE SCL A0 A1 VCC VSS A2 ADDRESS COMPARATORS CONTROL LOGIC ACK E PROM 2 PIN CONFIGURATION DIP Package(p) SOIX Package(J) TSSOP Package(U) BLOCK DIAGRAM PIN FUNCTION Pin Name A0, A1, A2 SDA SCL WP Vcc Vss Function Device Adress Inputs Serial Data/Address Serial Clock Write Protect +1.8V to + 6.0V power Supply Ground V A1 Y1 AS A2 Y6 Y2 A5 A3 Y5 Y3 A4 GND Y4 CC 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1 2 A1 Y1 3 4 A2 Y2 5 6 A3 Y3 9 8 A4 Y4 11 10 A5 Y5 13 12 A6 PIN 14=V PIN 7=GND CC Y6 PIN CONFIGURATION BLOCK DIAGRAM - 22 - THC63LVDM83R 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 56 55 54 53 52 51 50 49 48 47 46 45 44 39 38 37 36 35 34 33 32 31 30 29 43 42 41 40 RS TD1 TA5 TA6 GND TB0 TB1 TD2 VCC TD3 TB2 TB3 GND TB4 TB5 TD4 R/F TD5 TB6 TC0 GND TC1 TC2 TC3 TD6 VCC TC4 TC5 TA4 TA3 TA2 GND TA1 TA0 TD0 LVDS GND TA- TA+ TB- TB+ LVDS VCC LVDS GND TC- TC+ TCLK - TCLK+ TD- TD+ LVDS GND PLL GND PLL VCC PLL GND /PDWN CLK IN TC6 GND THC63LVDM83R DATA (LVDS) TA0-6 TB0-6 TC0-6 TD0-6 7 7 7 7 TRANSMITTER CLOCK IN (20 to 85MHz) R/F /PDWN RS TB +/- TA +/- TC +/- TD +/- (140-595Mbit/On Each LVDS Channel) TCLK +/- CLOCK (LVDS) 20~85MHz TTL PARALLEL TO SERIAL PLL THC63LVDM83R PIN CONFIGURATION BLOCK DIAGRAM SCHEMATIC DIAGRAM - 23 - 1. GMZAN2 - 24 - 2. LVDS - 25 - 3. MICOM - 26 - 4. DC/DC BLOCK - 27 - 5. CONNECTOR & JACKS Dec. 2002 P/NO : 3828TSL083Q Printed in Korea
