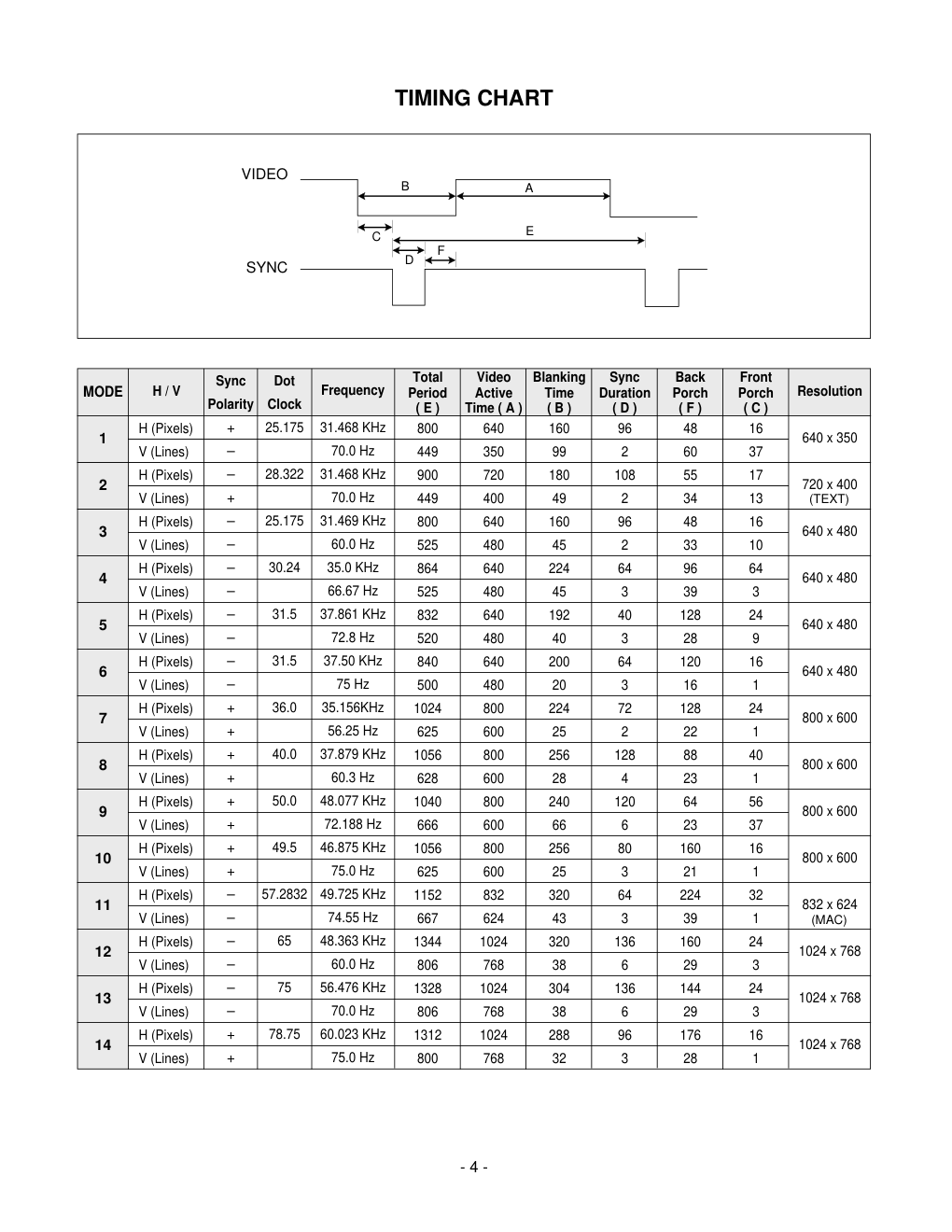

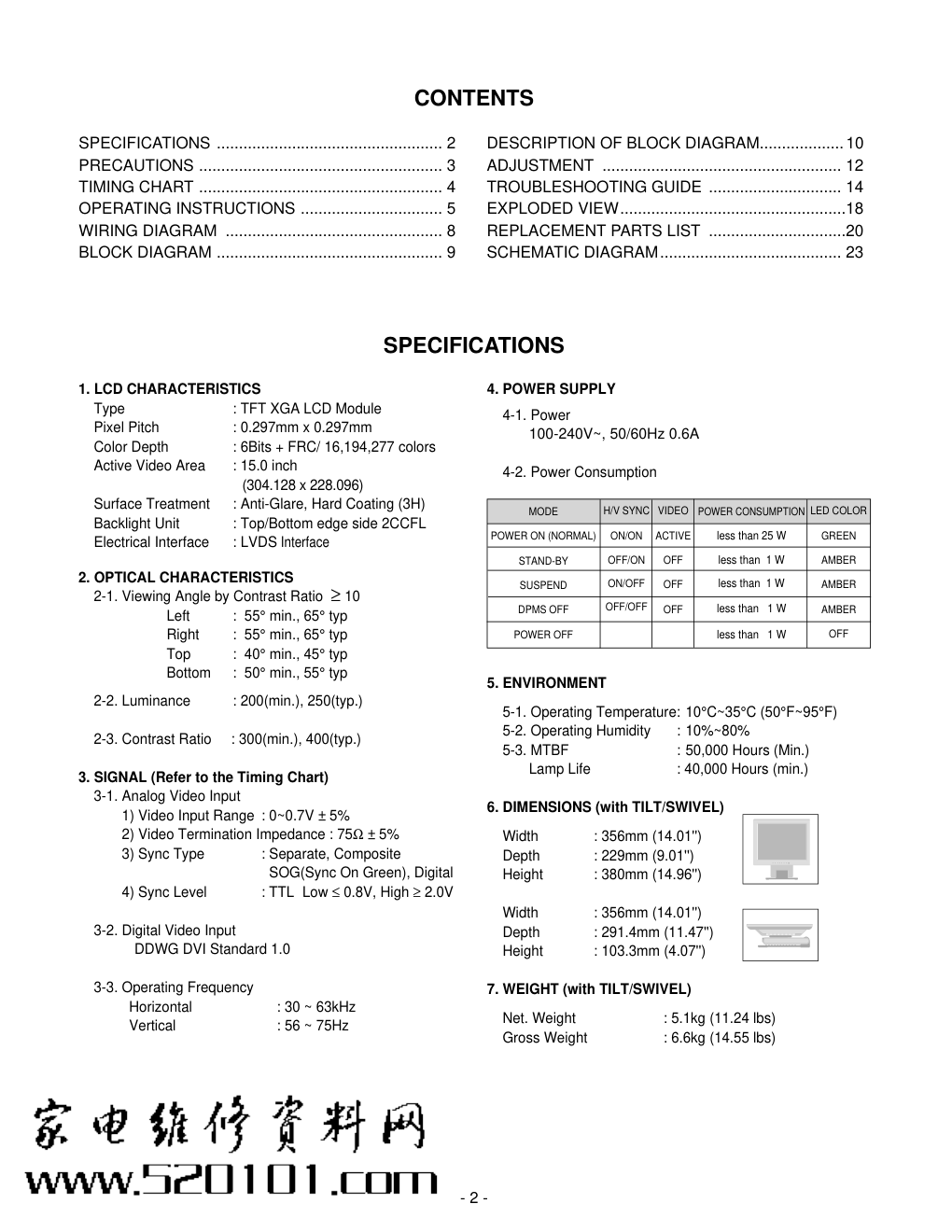

MENU Lightview /SOURCE AUTO/SELECT COLOR MONITOR SERVICE MANUAL Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS NO. : CL-62 MODEL: L1510P (L1510PM-AL**R) *( ) **Same model for Service *Same looking with new chasis - 1 - CONTENTS SPECIFICATIONS - 2 - 1. LCD CHARACTERISTICS Type : TFT XGA LCD Module Pixel Pitch : 0.297mm x 0.297mm Color Depth : 6Bits + FRC/ 16,194,277 colors Active Video Area : 15.0 inch (304.128 x 228.096) Surface Treatment : Anti-Glare, Hard Coating (3H) Backlight Unit : Top/Bottom edge side 2CCFL Electrical Interface : LVDS Interface 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio ≥ 10 Left : 55° min., 65° typ Right : 55° min., 65° typ Top : 40° min., 45° typ Bottom : 50° min., 55° typ 2-2. Luminance : 200(min.), 250(typ.) 2-3. Contrast Ratio : 300(min.), 400(typ.) 3. SIGNAL (Refer to the Timing Chart) 3-1. Analog Video Input 1) Video Input Range : 0~0.7V ± 5% 2) Video Termination Impedance : 75Ω ± 5% 3) Sync Type : Separate, Composite SOG(Sync On Green), Digital 4) Sync Level : TTL Low ≤ 0.8V, High ≥ 2.0V 3-2. Digital Video Input DDWG DVI Standard 1.0 3-3. Operating Frequency Horizontal : 30 ~ 63kHz Vertical : 56 ~ 75Hz 4. POWER SUPPLY 4-1. Power 100-240V~, 50/60Hz 0.6A 4-2. Power Consumption 5. ENVIRONMENT 5-1. Operating Temperature: 10°C~35°C (50°F~95°F) 5-2. Operating Humidity : 10%~80% 5-3. MTBF : 50,000 Hours (Min.) Lamp Life : 40,000 Hours (min.) 6. DIMENSIONS (with TILT/SWIVEL) Width : 356mm (14.01'') Depth : 229mm (9.01'') Height : 380mm (14.96'') Width : 356mm (14.01'') Depth : 291.4mm (11.47'') Height : 103.3mm (4.07'') 7. WEIGHT (with TILT/SWIVEL) Net. Weight : 5.1kg (11.24 lbs) Gross Weight : 6.6kg (14.55 lbs) SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 3 TIMING CHART ....................................................... 4 OPERATING INSTRUCTIONS ................................ 5 WIRING DIAGRAM ................................................. 8 BLOCK DIAGRAM ................................................... 9 DESCRIPTION OF BLOCK DIAGRAM...................10 ADJUSTMENT ...................................................... 12 TROUBLESHOOTING GUIDE .............................. 14 EXPLODED VIEW...................................................18 REPLACEMENT PARTS LIST ...............................20 SCHEMATIC DIAGRAM......................................... 23 MODE POWER ON (NORMAL) STAND-BY SUSPEND DPMS OFF POWER OFF H/V SYNC ON/ON OFF/ON ON/OFF OFF/OFF POWER CONSUMPTION less than 25 W less than 1 W less than 1 W less than 1 W less than 1 W LED COLOR GREEN AMBER AMBER AMBER OFF VIDEO ACTIVE OFF OFF OFF - 3 - WARNING FOR THE SAFETY-RELATED COMPONENT. • There are some special components used in LCD monitor that are important for safety. These parts are marked on the schematic diagram and the replacement parts list. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard. • Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee. TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT. • Must mount the module using mounting holes arranged in four corners. • Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen. • Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel. • Protect the module from the ESD as it may damage the electronic circuit (C-MOS). • Make certain that treatment person’s body are grounded through wrist band. • Do not leave the module in high temperature and in areas of high humidity for a long time. • The module not be exposed to the direct sunlight. • Avoid contact with water as it may a short circuit within the module. • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) WARNING BE CAREFUL ELECTRIC SHOCK ! • If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms. • Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire. PRECAUTION CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. TIMING CHART - 4 - VIDEO SYNC B D C F E A H / V H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) H (Pixels) V (Lines) Sync Polarity + – – + – – – – – – – – + + + + + + + + – – – – – – + + Dot Clock 25.175 28.322 25.175 30.24 31.5 31.5 36.0 40.0 50.0 49.5 57.2832 65 75 78.75 Frequency 31.468 KHz 70.0 Hz 31.468 KHz 70.0 Hz 31.469 KHz 60.0 Hz 35.0 KHz 66.67 Hz 37.861 KHz 72.8 Hz 37.50 KHz 75 Hz 35.156KHz 56.25 Hz 37.879 KHz 60.3 Hz 48.077 KHz 72.188 Hz 46.875 KHz 75.0 Hz 49.725 KHz 74.55 Hz 48.363 KHz 60.0 Hz 56.476 KHz 70.0 Hz 60.023 KHz 75.0 Hz Resolution 640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1024 x 768 Total Period ( E ) 800 449 900 449 800 525 864 525 832 520 840 500 1024 625 1056 628 1040 666 1056 625 1152 667 1344 806 1328 806 1312 800 Video Active Time ( A ) 640 350 720 400 640 480 640 480 640 480 640 480 800 600 800 600 800 600 800 600 832 624 1024 768 1024 768 1024 768 Blanking Time ( B ) 160 99 180 49 160 45 224 45 192 40 200 20 224 25 256 28 240 66 256 25 320 43 320 38 304 38 288 32 Sync Duration ( D ) 96 2 108 2 96 2 64 3 40 3 64 3 72 2 128 4 120 6 80 3 64 3 136 6 136 6 96 3 Back Porch ( F ) 48 60 55 34 48 33 96 39 128 28 120 16 128 22 88 23 64 23 160 21 224 39 160 29 144 29 176 28 Front Porch ( C ) 16 37 17 13 16 10 64 3 24 9 16 1 24 1 40 1 56 37 16 1 32 1 24 3 24 3 16 1 MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 (MAC) (TEXT) 1. Power Button Use this button to turn the display on or off. This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. 2. Button Use these buttons to choose or adjust items in the On Screen Display. 3. Menu Button Use this button to enter or exit the On Screen Display. 4. AUTO/SELECT Button Use this button to enter a selection in the On Screen Display. OPERATING INSTRUCTIONS - 5 - FRONT VIEW REAR VIEW Front Control Panel MENU Lightview /SOURCE AUTO/SELECT Power Connector See front control panel D-Sub Signal Connector DVI-l Connector 1 4 3 2 When adjusting your display settings, always press the AUTO/SELECT button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is 1024x768. PROCESSING AUTO CONFIGURATION This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc.). • DAY : Bright ambient illumination • NIGHT : Dark ambient illumination • TEXT : For text images (Word processing etc.) • MOVIE : For animation images in videos or movies • PHOTO : For pictures or drawings • USER MODE : For use under user setup image conditions (Brightness, contrast and color tint are selected by the user in OSD Screen Setup Menu.) 100 100 Bring up Contrast and Brightness adjustment. : Use this button to make Dsub or DVI connector active. This feature is used when two computers are connected to the display. The default setting is Dsub. SOURCE - 6 - 6. Control Lock(Menu button, button) Press the hold the MENU button and button for 3 seconds: the message “CONTROLS LOCKED” appears. You can unlock the OSD controls at any time by pushing the MENU, button for 3 seconds: the message “CONTROLS UNLOCKED” will appear. CONTROLS LOCKED CONTROLS UNLOCKED Ergonomic It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees. Height Range : maximun 3.39inch (86.1mm) Landscape & Portrait : You can rotate the panel 90o clockwise. (* For detailed information, please refer to the Pivot Sofeware CD provided.) Adjust the position of the panel in various ways for maximum comfort. Tilt Range : -24˚~145˚ 145˚ -24˚ * Make sure not to touch the floor when the head rotates to use the Pivot function. Positioning your display - 7 - Making use of USB (Universal Serial Bus)* USB (Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your computer. By using the USB, you will be able to connect your mouse, keyboard, and other to your monitor instead of having to connect them to your computer. This will give you greater flexibility in setting up your system. USB allows you to connect chain up to 120 devices on a single USB port, and you can “hot” plug (attach them while the computer is running) or unplug them while maintaining Plug and Play auto detection and configuration. This monitor has an integrated BUS-powered USB hub, allowing up to 2 other USB devices to be attached it. USB connection 1. Connect the upstream port of the Display to the downstream port of the USB compliant PC or another hub using the USB cable. (Computer must have a USB port) 2. Connect the USB compliant peripherals to the downstream ports of the monitor. NOTE To activate the USB hub function, the monitor must be connected to a USB compliant PC(OS) or another hub with the USB cable(enclosed). When connecting the USB cable, check that the shape of the connector at the cable side matches the shape at the connecting side. Even if the monitor is in a power saving mode, USB compliant devices will function when they are connected the USB ports(both the upstream and downstream) of the monitor. IMPORTANT: These USB connectors are not designed for use with high-power USB devices such as a video camera, scanner, etc. LGE recommends connecting high-power USB devices directly to the computer. USB downstream Port connect the cables from USB compliant peripherals-such as keyboard, mouse, etc This is a simplified representation of rear view. To USB downstream port of the USB compliant PC or another hub cable - 8 - WIRING DIAGRAM J706 J1 CN2 CN3 J704 J705 Connector Ass’y : P/N: 6631T11016C Connector Ass’y : P/N: 6631T20008U - 9 - BLOCK DIAGRAM(MAIN) D-SUB MST9131B including (ADC/LVDS/SCALER /INPUT SWITCHING /TMDS ) MTV312 Micom LCD Module R,G,B differential LLLLVVVVDDDDSSSS ((((LLLLoooowwww VVVVooollllttttaaaaggggeeee DDDDiiiiffff ffffeeeerrrreeeennnnttttiiiiaaaallll SSSSiiiiggggnnnnaaaalllliiiinnnngggg)))) LIPS 5V 5V AC Input 3.3V Reg. Diode KDS184 5V 3.3V 12V DVI-D R,G,B, H/V Sync Digital Signal U/S D/S USB HUB D/S Bus-power USB 3.3V 2.5V 3.3V 2.5V DESCRIPTION OF BLOCK DIAGRAM - 10 - 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 135MHz. This part consists of the Scaler, ADC and TMDS receiver . The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signal and outputs 8-bit R, G, B signal to transmitter. 2. Power Part. This part consists of the one 3.3V regulator, and two 2.5V drop diodes to convert power which is provided 12V, 5V in Power board. 5V is provided for LCD panel and Micom. Also, 5V is converted 3.3V by regulator and 3.3V is converted 2.5V by drop diode. Converted power is provided for IC in the main board. 3. MICOM Part. This part consists of EEPROM IC which stores control data, Reset IC and the Micom. The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable. The controlled data of each modes is stored in EEPROM. - 11 - POWER BLOCK DIAGRAM EMI COMPONENTS LINE 100 ~ 240V INPUT RECTIFIER AND FILTER ENERGY TRANSFER OUTPUT RECTIFIER AND FILTER 12V 5V GND SIGNAL COLLENTION PHOTO-COUPLER ISOLATION PWM CONTROL CIRCUIT HVDC 100KHz PRIMARY SECONDARY 50 ~ 60Hz 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor. 3. Energy Transfer. This part function is transfer the primary energy to secondary through a power transformer. 4. Output rectifier and filter. This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achive the dc output stablize, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the dc output changing status through a photo transistor to primary controller to achive the stablized dc output voltage. 6. Signal collection. This part function is to collect the any change from the dc output and feed back to the primary through photo transistor DESCRIPTION OF BLOCK DIAGRAM - 12 - ADJUSTMENT Windows EDID V1.0 User Manual Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Don’t need setup Windows 2000, XP => Need to Port Setup. This program is available to LCD Monitor only. 1. Port Setup a) Copy “UserPort.sys” file to “c:\WINNT\system32\drivers” folder b) Run Userport.exe c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. 2. EDID Read & Write 1) Run WinEDID.exe 2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button - 13 - Figure 1. Cable Connection 220 IBM Compatible PC PARALLEL PORT Power inlet (required) Power LED ST Switch Power Select Switch (110V/220V) Control Line Not used RS232C PARALLEL V-SYNC POWER ST VGS MONITOR E E V-Sync On/Off Switch (Switch must be ON.) F F A A B B C C 15 10 5 5 6 9 1 1 1 14 13 25 6 5V 5V 5V 4.7K 4.7K 4.7K 74LS06 74LS06 OFF ON OFF ON 11 Video Signal Generator SERVICE OSD 1) Turn off the power switch at the front side of the display. 2) Wait for about 3 seconds and press MENU, POWER switch with 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) MODULE : To select applied module. b) NVRAM INIT : EEPROM initialize(24C08) c) ADC OFFSET : The lowest value of input leves sets to digitally 0(zero). d) ADC GAIN : The highest value of input levels sets to digitally 255. e) ADC CAL : W/B balance sets the gain and offset value. f) ELAPSED CLEAR : To initialize using time. - 14 - TROUBLESHOOTING GUIDE 1. NO POWER NO POWER (POWER INDICATOR OFF) CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE CHECK J705 VOLTAGE PIN5, PIN6 (5V)? NO CHECK 5VS LINE (OPEN CHECK) CHECK U501 PIN 8 Voltage (5V) ? NO NO NO CHECK U201 PIN 122 PULSE CHECK U201 CHECK 3.3V LINE CHECK X-TAL IS U201 PIN114 (3.3V) VOLTAGE ? YES YES NO PROBLEM YES CHECK KEY CONTROL CONNECTOR ROUTINE YES - 15 - 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS CHECK MICOM INV ON/OFF PORT. J705 PIN9 5V? NO NO RASTER (OSD IS NOT DISPLAYED) CHECK LIPS J705 PIN5, PIN6 5V? NO 1. CONFIRM BRIGHTNESS OSD CONTRL STATE. 2. CHECK MICOM DIM-ADJ PORT J705 PIN10 5V? NO LIPS CHECK PULSE AS CONTACTING SCOPE PROBE TO CAUTION LABEL. (CONTACT PROBE TO CAUTION LABEL. CAN YOU SEE PULSE AT YOUR SCOPE? NO REPLACE CCFL LAMP IN THE LCD MODULE YES YES YES YES - 16 - 1. CHECK PIN122, 123 SOLDERING CONDITION 2. CHECK X501 3. TROUBLE IN U201 U201 POWER PIN8, 114 3.3V? NO CHECK U801 U201 PIN122, 123 OSCILLATE AS 12MHZ? CHECK CONNECTION LINE FROM D-SUB TO U501 TROUBLE IN CABLE OR LCD MODULE YES YES YES 3. NO RASTER (OSD IS NOT DISPLAYED) – MST9031B NO RASTER (OSD IS NOT DISPLAYED) U501 PIN43 IS 48KHz H-SYNC? PIN44 IS 60Hz V-SYNC? IS PULSE APPEARED AT SIGNAL PINS? AT MODE 12? NO NO - 17 - 4. TROUBLE IN DPM TROUBLE IN DPM TROUBLE IN U501 CHECK PC PC IS NOT GOING INTO DPM OFF MODE NO CHECK H/V SYNC LINE NO YES YES CHECK R756, R760 (SYNC) ? CHECK U501 PIN 43.44 SYNC PULSE ? - 18 - EXPLODED VIEW 1 3 4 9 11 a b 14 15 16 22 19 17 18 20 12 10 5 8 7 21 13 23 2 6 - 19 - EXPLODED VIEW PARTS LIST Ref. No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 a b Part No. 3091TKL055T 6304FLP025A 3809TKL026Z 3043TKK095A 4951TKS091S 6871TPT242B or 6871TPT236B or 6871TPT234D or 6871TPT235B 3313TL5062A 4950TKK424F 6631T11016C 6871TST385A 6850TD9004D 6866TDU002D 6866TDV004C 3550TKK264A 3550TKK266A 3550TKK268A 6871TUT015A 3550TKK267A 3550TKK265A 4950TKK444A 4950TKK443A 4951TKK089A 4951TKK088A 332-068U 332-105G Description CABINET ASSEMBLY, L1510PL BRAND 3090TKL038 . LCD(LIQUID CRYSTAL DISPLAY), LM150X06-A3M1 LG PHILPS TFT COLOR 15.0 INCH XGA LVDS SMM BACK COVER ASSEMBLY, L1510PL 3808TKL029 TILT SWIVEL ASSEMBLY LB504J . PIVOT&2-HINGE METAL ASSEMBLY, FRAME MAIN (L1510PL,LPL P4) PWB(PCB) ASSEMBLY, POWER, 15" LPL(L1510SL) POWER TOTAL SPI FSP017-2PI02 PWB(PCB) ASSEMBLY, POWER, ADP-30EP POWER TOTAL DELTA L1510SL LIPS PWB(PCB) ASSEMBLY, POWER, L1510SL POWER TOTAL POWERNET PWI1510LG 12V/1.2A 5V/1A LIPS FOR L-CHASSIS LPL PWB(PCB) ASSEMBLY, POWER, LI1510SL POWER TOTAL SANKEN 3L038WK MAIN TOTAL ASSEMBLY, L1510PL BRAND CL-48 METAL, SHIELD REAR(LB504N) CONNECTOR ASSEMBLY, 20P H-H 100MM UL20276 I/FACE CABLE LB500K PWB(PCB) ASSEMBLY, SUB, L1510PL CONTROL TOTAL BRAND CL-48 CABLE, D-SUB, UL20276-9C(5.8MM) DT 1560MM GRAY(85964) LB500L DM CABLE, D-SUB, UL20276SB10P+2C AWG#30 DT 1870MM GRAY(85964) BRAND DM CABLE, DVI, UL20276 DT 2000MM GRAY(85964) LB885C DM COVER, LB504J HINGE ROTATE COVER, LB504J STAND REAR COVER, LB504J HINGE BASE PWB(PCB) ASSEMBLY, USB, LB886F SUB TOTAL BRAND CL-29 COVER, LB504J BASE TOP COVER, LB504J STAND FRONT WITH USB METAL BASE LB504J METAL STAND LB504J METAL ASSEMBLY, TILT UNIT BASE HINGE METAL ASSEMBLY, TILT UNIT PORTRAIT & UPPER HINGE SCREW, PPB+3*8 (MSWR/FZMW1) SCREW, DRAWING, PVS+4*10(MSWR/BK) - 20 - DATE: 2004. 3. 2. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C204 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C205 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C209 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C210 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C211 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C213 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C214 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C215 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C217 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C218 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C219 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C220 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C221 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C222 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C223 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C224 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C225 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C226 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C227 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C232 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C233 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C240 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C251 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C501 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C502 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C503 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C504 0CH8106F611 10UF 16V M 85STD(CYL) R/TP C506 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP NP0 C507 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C508 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C701 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C703 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C707 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C708 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C709 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C710 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C711 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C712 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C713 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C714 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C717 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C718 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C719 0CC680CK41A 68PF 1608 50V 5% R/TP NP0 C720 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C721 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C722 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 DATE: 2004. 3. 2. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C723 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C724 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C725 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C726 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C727 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C728 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C732 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C733 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C734 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C735 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C737 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C738 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C739 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C740 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C741 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C742 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C743 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C760 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C801 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C803 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C804 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C805 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C806 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C807 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C808 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C809 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C810 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C812 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C814 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C815 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C816 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 D701 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D702 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D706 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D708 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D709 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D710 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D711 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D712 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D713 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D714 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D715 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D719 0DD184009AA KDS184 TP KEC - 85V - - - 300 D720 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D721 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D722 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D723 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D724 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D725 0DS226009AA KDS226 TP KEC SOT-23 80V 300 D804 0DD184009AA KDS184 TP KEC - 85V - - - 300 D805 0DD184009AA KDS184 TP KEC - 85V - - - 300 REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE : S SAFETY Mark AL ALTERNATIVE PARTS MAIN BOARD CAPACITORS DIODEs DATE: 2004. 3. 2. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION ZD701 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD702 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD703 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD704 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD705 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD706 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD709 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD711 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD712 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 U201 0IPRPM3009B "MST9031B(DUAL) MSTAR 128P,LQF" U501 0IZZTSZ329A MYSON 44P MTV312 L1510PM - E U502 0ISG240860B M24C08W6 SGS-THOMSON 8SOP R/T U703 0IMMRSG036A "M24C02-WMN6T SGS-THOMSON 8P,S" U801 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V U803 0IPMGK2001B AIC1117A-33CYTR(BS33) AIC SOT Q502 0IKE704200H KIA7042AP TO-92 TP 4.2 VOLT. Q503 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q504 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q505 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q703 0TR390609FA KST3906-MTF TP SAMSUNG SOT23 Q704 0TR390609FA KST3906-MTF TP SAMSUNG SOT23 Q706 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q707 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q801 0TR127309AA KTA1273-Y(KTA966A) TP KEC TO9 Q802 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP R201 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R202 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R203 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R207 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R208 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R209 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R210 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R216 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R217 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R220 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R240 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R501 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R506 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R508 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R512 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R513 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R514 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R515 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R516 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R518 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R519 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R520 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R521 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R522 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R523 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R524 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R525 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R526 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP DATE: 2004. 3. 2. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R527 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R528 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R529 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R530 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R531 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R532 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R534 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R535 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R537 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R541 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R542 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R543 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R544 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R545 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R546 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R547 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R548 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R549 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R555 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R556 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R557 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R560 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R561 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R562 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R563 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R564 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R701 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R702 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R704 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R706 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R708 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R709 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R712 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R713 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R716 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R717 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R722 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R723 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R724 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R726 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R727 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R728 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R729 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R730 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R731 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R735 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R737 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R744 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R745 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R747 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R748 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R749 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R755 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R756 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R759 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R760 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R762 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R763 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R764 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R765 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R766 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP - 21 - ICs TRANSISTOR RESISTORs DATE: 2004. 3. 2. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R770 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R771 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R772 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R773 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R774 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R775 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R776 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R777 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R778 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R779 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R802 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R804 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R805 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP R806 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP R807 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R808 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R823 0RX0470J609 0.47 OHM 1 W 5% TA52 X501 6212AA2004A HC-49U TXC 12.0MHZ +/- 30 PPM LED1 0DLBE0028AA BRIGHT LED ELECTRONICS BL-HKB R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R2 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R3 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R4 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R5 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R6 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R7 0RJ9101D677 9.1K OHM 1/10 W 5% 1608 R/TP SW1 140-058E SKHV10910B LGEC NON 12V 20A H SW2 140-058E SKHV10910B LGEC NON 12V 20A H SW3 140-058E SKHV10910B LGEC NON 12V 20A H SW4 140-058E SKHV10910B LGEC NON 12V 20A H SW5 140-058E SKHV10910B LGEC NON 12V 20A H SW6 140-058E SKHV10910B LGEC NON 12V 20A H SW7 140-058E SKHV10910B LGEC NON 12V 20A H ZD1 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 ZD2 0DZ560009GB BZT52C5V6S DIODES R/TP SOD323 C1 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C18 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C23 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C24 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C25 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C27 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C28 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5 C31 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C32 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C37 0CH8107F611 100UF 16V M 85STD(CYL) R/TP C38 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C39 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C6 0CH3105F946 1UF 16V Z F 2012 R/TP C8 0CC150CK41A 15PF 1608 50V 5% R/TP NP0 C9 0CC150CK41A 15PF 1608 50V 5% R/TP NP0 D1 0DS181009AA KDS181 TP KEC SOT-23 80V 30 L13 6210TCE001B HH-1H3216-500JT CERATEC 3216M DATE: 2004. 3. 2. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L14 6210TCE001P HB-1S2012-121JT CERATECH 2012 L15 6210TCE001P HB-1S2012-121JT CERATECH 2012 L16 6210TCE001P HB-1S2012-121JT CERATECH 2012 L17 6210TCE001P HB-1S2012-121JT CERATECH 2012 L18 6210TCE001B HH-1H3216-500JT CERATEC 3216M L19 6210TCE001P HB-1S2012-121JT CERATECH 2012 L20 6210TCE001P HB-1S2012-121JT CERATECH 2012 L4 6210TCE001P HB-1S2012-121JT CERATECH 2012 L5 6210TCE001P HB-1S2012-121JT CERATECH 2012 R1 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R19 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R2 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R21 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R22 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R23 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R24 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R25 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R26 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R28 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R30 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R31 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R32 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R34 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R35 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R37 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R40 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R41 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R8 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R9 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP U1 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATO U2 0IPRPTI007A TUSB2036 TEXAS INSTRUMENT 32P U3 0ITI204200B TPS2042ADR TEXAS INSTRUMENT 8 X1 6202TST001C "SX-1, SUNNY SMD, 6.0MHZ ,50PP" ZD1 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD11 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD12 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD4 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD7 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 ZD8 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 2 - 22 - OTHERs CONTROL BOARD USB BOARD SCHEMATIC DIAGRAM - 23 - 1. MST9031B . 11. 18 - 24 - 2. MICOM . 11. 18 - 25 - 3. POWER . 11. 18 - 26 - 4. CONNECT & JACK Mar. 2004 P/NO : 3828TSL097M Printed in Korea
