COLOR MONITOR
SERVICE MANUAL
Website:http://biz.LGservice.com
E-mail:http://www.LGEservice.com/techsup.html
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
MODEL:
F700B (FB770H-EL)
CHASSIS NO. : CA-124
FACTORY MODEL: FB770H
*( ) ID LABEL Model No.
1. PICTURE TUBE
Size
: 17 inch
DefIection Angle
: 90°
Neck Diameter
: 29.1 mm
Stripe Pitch
: 0.24 mm
Face Treatment
: W-ARASC (Anti-Reflection and
Anti-Static Coating)
Internal
: Anti-Glare
2. SIGNAL
2-1. Horizontal & Vertical Sync
1) Input Voltage Level : Low=0~1.2V, High=2.5~5.5V
2) Sync Polarity
: Positive or Negative
2-2. Video Input Signal
1) Voltage Level
: 0 ~ 0.7 Vp-p
a) Color 0, 0
: 0 Vp-p
b) Color 7, 0
: 0.467 Vp-p
c) Color 15, 0
: 0.7 Vp-p
2) Input Impedance
: 75 Ω
3) Video Color
: R, G, B Analog
4) Signal Format
: Refer to the Timing Chart
2-3. Signal Connector
3 row 15-pin Connector (Attached)
2-4. Scanning Frequency
Horizontal
: 30 ~ 70 kHz
Vertical
: 50 ~ 160 Hz
3. POWER SUPPLY
3-1. Power Range
AC 110~220V (Free Voltage), 60Hz, 2.0A Max.
3-2. Power Consumption
4. DISPLAY AREA
4-1. Active Video Area :
• Max Image Size - 325.4 x 244.1 mm (12.81" x 9.61")
• Preset Image Size - 310 x 230 mm (12.20" x 9.06")
4-2. Display Color
: Full Colors
4-3. Display Resolution
: 1280 x 1024 / 60Hz(Max)
(Non-Interlace)
4-4. Video Bandwidth
: 110 MHz
5. ENVIRONMENT
5-1. Operating Temperature: 0°C ~ 40°C
(Ambient)
5-2. Relative Humidity
: 10%~ 90%
(Non-condensing)
5-3. Altitude
: 5,000 m
6. DIMENSIONS (with TILT/SWIVEL)
Width
: 415 mm (16.34 inch)
Depth
: 432 mm (17.00 inch)
Height
: 413 mm (16.25 inch)
7. WEIGHT (with TILT/SWIVEL)
Net Weight
: 17.0 kg (37.48 lbs.)
Gross Weight
: 19.5 kg (42.99 lbs.)

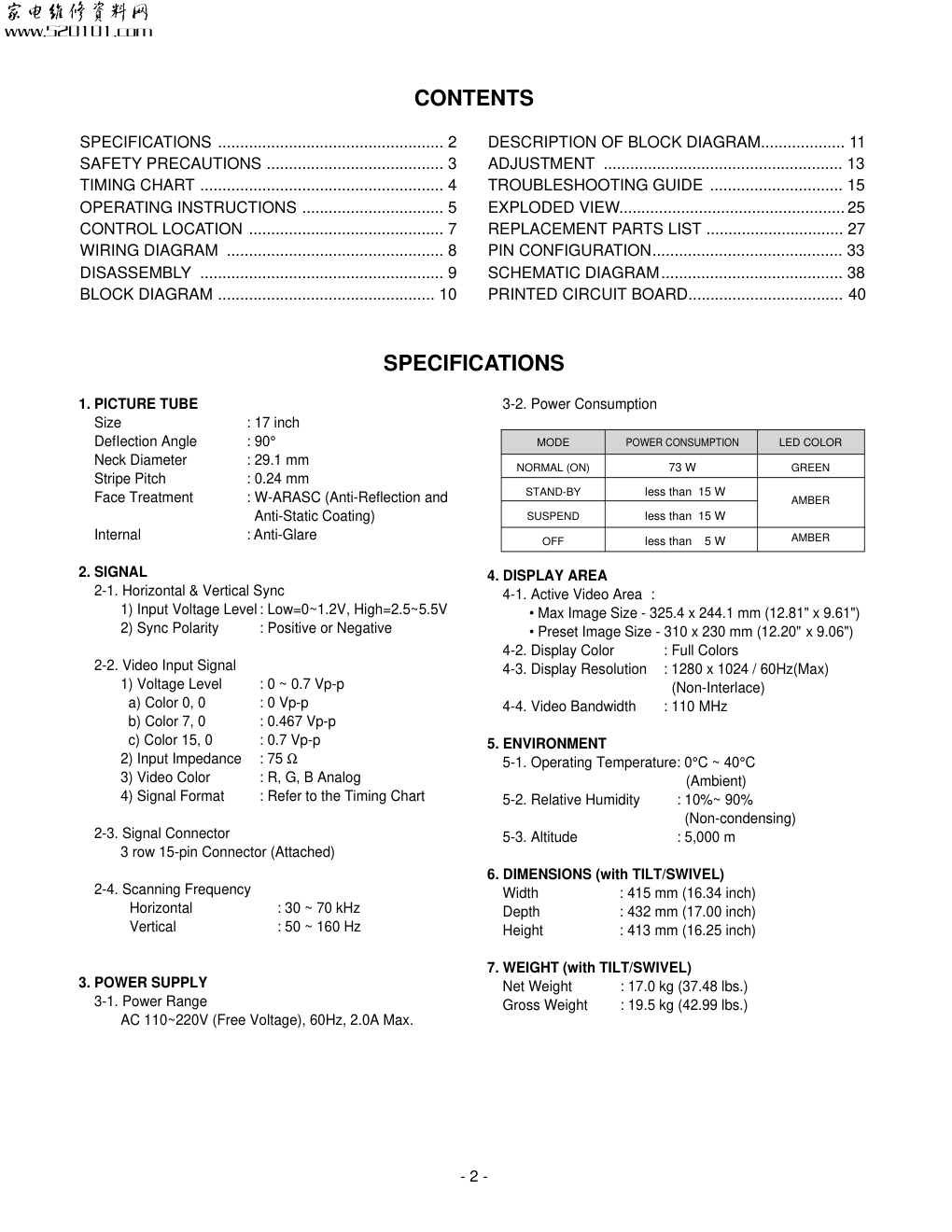

CONTENTS
- 2 -
SPECIFICATIONS ................................................... 2
SAFETY PRECAUTIONS ........................................ 3
TIMING CHART ....................................................... 4
OPERATING INSTRUCTIONS ................................ 5
CONTROL LOCATION ............................................ 7
WIRING DIAGRAM ................................................. 8
DISASSEMBLY ....................................................... 9
BLOCK DIAGRAM ................................................. 10
DESCRIPTION OF BLOCK DIAGRAM................... 11
ADJUSTMENT ...................................................... 13
TROUBLESHOOTING GUIDE .............................. 15
EXPLODED VIEW................................................... 25
REPLACEMENT PARTS LIST ............................... 27
PIN CONFIGURATION........................................... 33
SCHEMATIC DIAGRAM......................................... 38
PRINTED CIRCUIT BOARD................................... 40
SPECIFICATIONS
MODE
NORMAL (ON)
STAND-BY
SUSPEND
OFF
POWER CONSUMPTION
73 W
less than 15 W
less than 15 W
less than 5 W
LED COLOR
GREEN
AMBER
AMBER
SAFETY-RELATED COMPONENT WARNING!
There are special components used in this color monitor
which are important for safety. These parts are marked
on the schematic diagram and the replacement
parts list. It is essential that these critical parts should be
replaced with the manufacturer's specified parts to
prevent X-radiation, shock, fire, or other hazards. Do not
modify the original design without obtaining written
permission from manufacturer or you will void the original
parts and labor guarantee.
CAUTION: No modification of any circuit should be
attempted.
Service work should be performed only after
you are thoroughly familiar with all of the
following safety checks and servicing
guidelines.
SAFETY CHECK
Care should be taken while servicing this color monitor
because of the high voltage used in the deflection circuits.
These voltages are exposed in such areas as the
associated flyback and yoke circuits.
FIRE & SHOCK HAZARD
An isolation transformer must be inserted between the
color monitor and AC power line before servicing the
chassis.
•
In servicing, attention must be paid to the original lead
dress specially in the high voltage circuit. If a short
circuit is found, replace all parts which have been
overheated as a result of the short circuit.
•
All the protective devices must be reinstalled per the
original design.
•
Soldering must be inspected for the cold solder joints,
frayed leads, damaged insulation, solder splashes, or
the sharp points. Be sure to remove all foreign
materials.
IMPLOSION PROTECTION
All used display tubes are equipped with an integral
implosion protection system, but care should be taken to
avoid damage and scratching during installation. Use only
same type display tubes.
X-RADIATION
The only potential source of X-radiation is the picture tube.
However, when the high voltage circuitry is operating
properly there is no possibility of an X-radiation problem.
The basic precaution which must be exercised is keep the
high voltage at the factory recommended level; the normal
high voltage is about 25.8kV. The following steps describe
how to measure the high voltage and how to prevent X-
radiation.
Note : It is important to use an accurate high voltage
meter calibrated periodically.
• To measure the high voltage, use a high impedance
high voltage meter, connect (–) to chassis and (+) to
the CDT anode cap.
• Set the brightness control to maximum point at full
white pattern.
• Measure the high voltage. The high voltage meter
should be indicated at the factory recommended level.
• If the meter indication exceeds the maximum level,
immediate service is required to prevent the possibility
of premature component failure.
•
To prevent X-radiation possibility, it is essential to use
the specified picture tube.
CAUTION:
Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.
SAFETY PRECAUTIONS
- 3 -
TIMING CHART
- 4 -
VIDEO
SYNC
C
E
D
F
A
B
* Mode 1~Mode 4: Basic Mode
H
–
37.50
26.67
20.32
6.35
2.03
3.81
0.51
V
–
74.99
13.335
12.802
0.533
0.080
0.427
0.026
H
+
46.88
21.33
16.16
5.17
1.62
3.23
0.32
V
+
75.01
13.331
12.798
0.533
0.064
0.448
0.021
H
+
53.68
18.63
14.22
4.41
1.14
2.70
0.57
V
+
85.07
11.755
11.178
0.577
0.056
0.503
0.018
H
+
68.677
14.561
10.836
3.725
1.016
2.201
0.508
V
+
85.00
11.764
11.182
0.582
0.044
0.524
0.014
Mode
H/V
Sort
1
2
3
4
640x480
75Hz
800x600
85Hz
1024x768
85Hz
800x600
75Hz
<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>
Sync
Polarity
Frequency
Total Period
(A)
Video Active
Time (B)
Sync Duration
(E)
Blanking Time
(C)
Back Porch
(F)
Front Porch
(D)
Resolution
- 5 -
OPERATING INSTRUCTIONS
REAR VIEW
FRONT VIEW
Front Control Panel
See Front Control Panel
Power Button
D-Sub Signal Connector
AC Power Socket
100
100
1
2
5
4
3
Button
Button
Bring up Contrast adjustment
Bring up Brightness adjustment
1. Power Button
This button is used to turn the monitor ON and
OFF.
2. Power Indicator
This Indicator lights up green when the monitor
operates normally. If the monitor is in DPM (Energy
Saving) mode, this indicator color changes to
amber.
3. MENU (or OSD) Button
Use this button to enter or exit the on screen
display.
4.
Button
Use these buttons to choose or adjust items in
the on screen display.
5. SELECT (or SET) Button
Use this button to enter a selection in the on
screen display.
The Contrast and Brightness functions are also available in
the On Screen Display (OSD) menu.

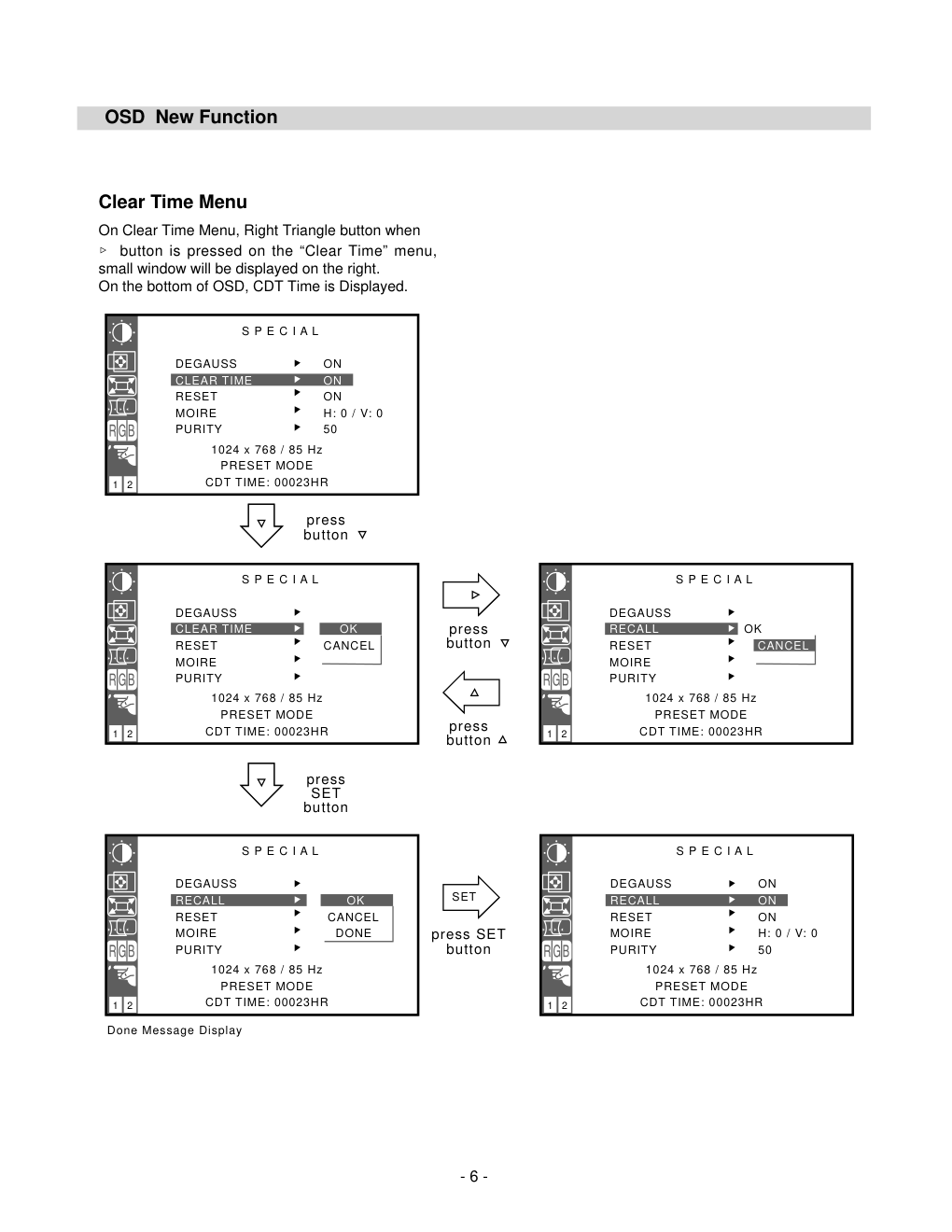

OSD New Function
- 6 -
2
1
S P E C I A L
DEGAUSS
ON
CLEAR TIME
ON
RESET
ON
MOIRE
H: 0 / V: 0
PURITY
50
1024 x 768 / 85 Hz
PRESET MODE
CDT TIME: 00023HR
2
1
S P E C I A L
DEGAUSS
RECALL
OK
RESET
CANCEL
MOIRE
DONE
PURITY
1024 x 768 / 85 Hz
PRESET MODE
CDT TIME: 00023HR
2
1
S P E C I A L
DEGAUSS
ON
RECALL
ON
RESET
ON
MOIRE
H: 0 / V: 0
PURITY
50
1024 x 768 / 85 Hz
PRESET MODE
CDT TIME: 00023HR
press
button
press
SET
button
press
button
press
button
press SET
button
2
1
S P E C I A L
DEGAUSS
CLEAR TIME
OK
RESET
CANCEL
MOIRE
PURITY
1024 x 768 / 85 Hz
PRESET MODE
CDT TIME: 00023HR
2
1
S P E C I A L
DEGAUSS
RECALL
OK
RESET
CANCEL
MOIRE
PURITY
1024 x 768 / 85 Hz
PRESET MODE
CDT TIME: 00023HR
SET
Done Message Display
Clear Time Menu
On Clear Time Menu, Right Triangle button when
▷
button is pressed on the “Clear Time” menu,
small window will be displayed on the right.
On the bottom of OSD, CDT Time is Displayed.
- 7 -
CONTROL LOCATIONS
VR901: B Adjustment
(50V Line)
+

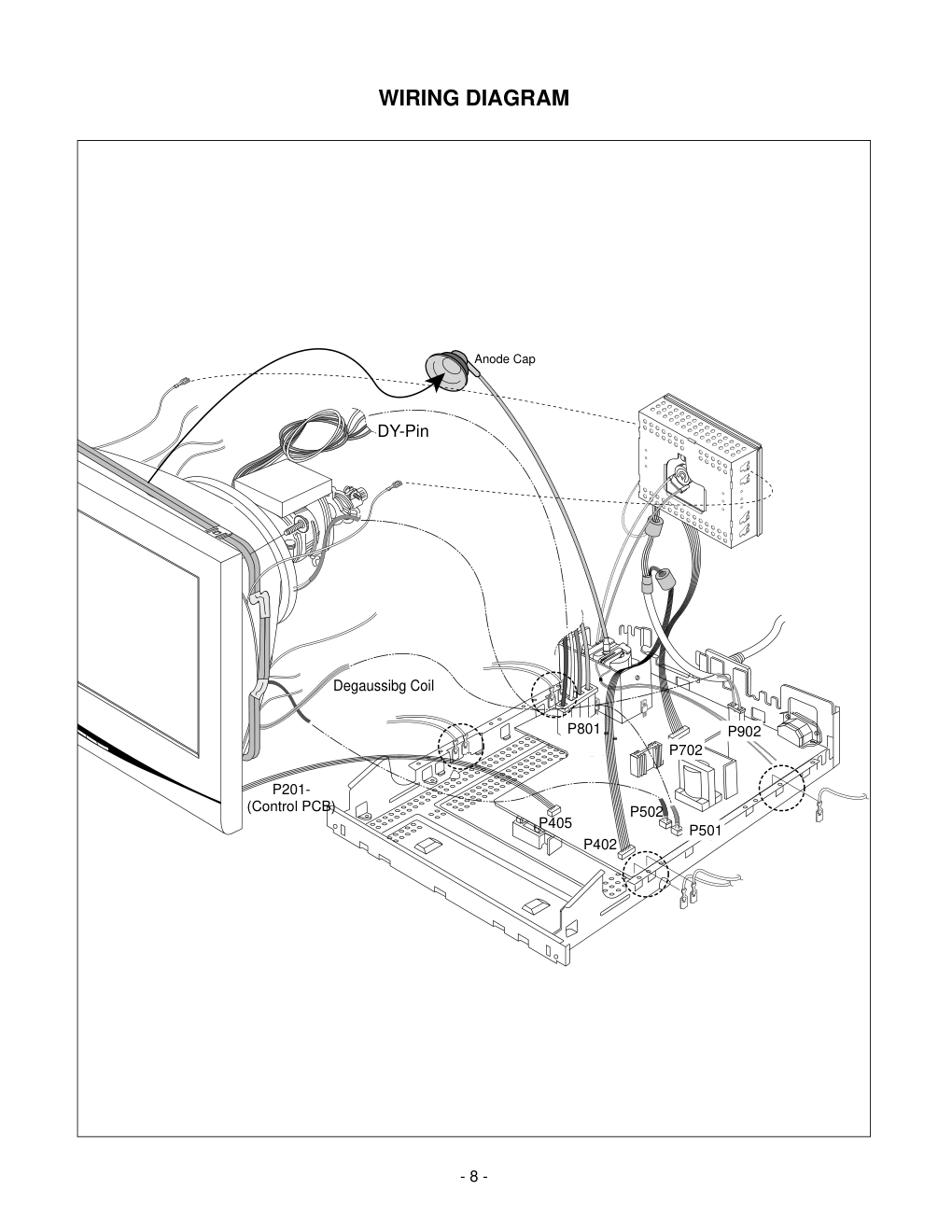

WIRING DIAGRAM
- 8 -
DY-Pin
Anode Cap
P801
P902
P702
P501
P502
P402
P405
Degaussibg Coil
P201-
(Control PCB)
- 9 -
DISASSEMBLY
1. TILT/SWIVEL & BACK COVER REMOVAL
1) Set the monitor face downward.
2) Carefully remove the Tilt/Swivel by pulling it upward.
3) Remove tne two screws (a).
4) Pressing the latch (b), Back cover by pushing it upward. (See Figure. 1)
4) Release the latch (c). (See Figure. 2 and Tip Spec.)
5) Slide the Back Cover away from the Front Cabinet of the monitor.
Figure.2
Back Cover
Cabinet
(c)
Figure.1
(a)
(a)
(b)
Tip
C
B
A
Tip Spec.
A(Width) : 5.0~15.0mm
B(Depth) : 0.6~0.9mm
C(Height) : 12.0mm
BLOCK DIAGRAM
- 10 -
POWER INPUT
100~240VAC
(50/60Hz)
Line
Filter
Degaussing
Circuit
SMPS
TRANS
(T901)
SMPS
CONTROL
(IC901)
DPM
CONTROL
CIRCUIT
Voltage
Regulating
Circuit
105V
50V
13V
6.3V
TILT
Control
Circuit
Purity
Control
Circuit
6.3V
13V
E2PROM
(IC402)
5V
OSD IC
(IC301)
WT6805
H-Sync Sig
V-Sync Sig
I2C DATA(SDA)
I2C CLOCK(SCL)
VIDEO
STV9211
PRE-AMP
(IC302)
Signal
Cable
R
G
B
VIDEO
STV9556
MAIN AMP
(IC303)
5V
5V
H/V Sync Processor
( IC701 )
STV6888
V-OUT
( IC601)
STV9302
H-OUT
( Q706)
H-Linearity
Correction
DC/DC Converter
X-RAY
Protection
Circuit
FBT
( T701 )
Dynamic
Focus
Circuit
Auto
Beam
Limit
Vertical Blanking,
Brightness Control
- 160V
40V
400V
STEP UP
13V
D/D Feed Back
13V
MICOM
(IC401)
SCL / SDA
H/V Sync,
PWM Control
12V
5V
13V
105V
13V
-10V
50V
DY
CDT
Heater ( 6.3V )
I2C
I2C
I2C
H/V
Sync
G1
Screen(G2)
Dynamic Focus
Static Focus
H.V
R/G/B
Drive/Contrast
Cut-Off
H-DRV
B-DRV
B+
13V
TILT
COIL
DEGAUSSING
COIL
I2C
6.3V
13V
-10V
Purity
COIL
Vout 1
Vout 2
OSD CONTROL
BRIGHTNESS
CONTRAST
H/V POSITION
H/V SIZE
SPCC
TRAPEZOID
PIN BALANCE
PARALLELOGRAM
ROTATION
RECALL
DEGAUSS
OSD TIME
COLOR CURVE
MOIRE
LANGUAGE
RESET
VIDEO LEVEL
DESCRIPTION OF BLOCK DIAGRAM
- 11 -
1. Line Filter & Associated Circuit.
This is used for suppressing noise of power input line
flowing into the monitor and/or some noise generated in
this monitor flowing out through the power input line.
That is to say, this circuit prevents interference between
the monitor and other electric appliances.
2. Degauss Circuit & Coil.
The degauss circuit consists of the degaussing coil, the
PTC(Positive Temperature Coefficient) thermistor(TH901),
and the relay(RL901). This circuit eliminates abnormal
color of the screen automatically by degaussing the
shadow mask in the CRT during turning on the power
switch. When you need to degauss in using the monitor,
select DEGAUSS on the OSD menu.
3. SMPS(Switching Mode Power Supply).
This circuit is working of 90~264V AC(50/60Hz).
The operation procedure is as follows:
1) AC input voltage is rectified and smoothed by the bridge
diodes (D900) and the capacitor (C908).
2) The rectified voltage(DC) is applied to the primary coil
of the transformer(T901).
3) The control IC(IC901) generates switching pulse to turn
on and off the primary coil of the transformer (T901)
repeatedly.
4) Depending on turn ratio of the transformer, the
secondary voltages appear at the secondary coils of the
transformer(T901).
5) These secondary voltages are rectified by each
diode(D941, D942, D951, D961, D971) and operate other
circuit. (horizontal and vertical deflection, video amplifier,
...etc.)
4. X-ray Protection.
If the high voltage of the FBT reaches up to 29kV (abnormal
state), IC401(MICOM) pin 35 Sensing from FBT directly.
Then MICOM control IC701 (Deflection controller) to stop
Horizontal drive pulse and stop Horizontal Deflection.
5. Micom(Microprocessor) Circuit.
The operating procedure of Micom(Microprocessor) and
its associated circuit is as follows:
1) H and V sync signal is supplied from the signal cable.
2) The Micom(IC401) distinguishes polarity and
frequency of H and V sync.
3) The Micom sets operating mode and offers the
controlled data. (H-size, H-position, V-size, ... etc.)
4) The controlled data of each mode is stored in itself.
5) User can adjust screen condition by each OSD
function. The data of the adjusted condition is stored
in EEPROM(IC402).
6. Horizontal and Vertical Oscillation.
This circuit generates the horizontal pulse and the vertical
pulse by taking the H and V sync signal.
This circuit consists of the STV9302(IC601) and the
associated circuit.
7. D/D(DC to DC) Converter.
This circuit supplies DC voltage to the horizontal deflection
output circuit by increasing DC 50V which is the
secondary voltage of the SMPS in accordance with the
input horizontal sync signal.
8. Side-Pincushion & Trapezoid Correction Cirucit.
This circuit improves the side-pincushion and the
trapezoid distortion of the screen by mixing parabola and
saw-tooth wave to output of the horizontal deflection D/D
converter which is used for the supply voltage(B + ) of the
deflection circuit.
9. Horizontal Deflection Output Circuit.
This circuit makes the horizontal deflection by supplying
the saw-tooth current to the horizontal deflection yoke.
10. High Voltage Output & FBT(Flyback Transformer).
The high voltage output circuit is used for generating pulse
to the primary coil of the FBT(Flyback Transformer
secondary of the FBT and it is supplied to the anode,
focus, and screen voltage of the CRT.
11. H-Linearity Correction Circuit.
This circuit corrects the horizontal linearity for each
horizontal sync frequency.
12. Vertical Output Circuit.
This circuit takes the vertical ramp wave from the
STV6888(IC701) and performs the vertical deflection by
supplying the saw-tooth current to the vertical deflection
yoke.
13. Dynamic Focus Output Circuit.
This circuit takes the horizontal and the vertical parabola
waves from the STV6888(IC701) and amplifies it to
maintain constant focus on center and corners in the
screen.
14. H& V Blanking and Brightness Control.
Blanking circuit eliminates retrace line by supplying
negative pulse to the G1 of the CRT. And Brightness
circuit is used for control of the screen brightness by
changing DC level of the G1.
- 12 -
15. Image Rotation (Tilt) Circuit.
This circuit corrects the tilt of the screen by supplying the
image rotation signal to the tilt coil which is attached near
the deflection yoke of the CRT.
16. Video Pre-Amp Circuit.
This circuit amplifies the analog video signal from 0-0.7V
to 0-4V. It is operated by taking the clamp, R, G, B drive
and contrast signal from the Micom(IC401).
17. Video Output Amp Circuit.
This circuit amplifies the video signal which comes from
the video pre-amp circuit and amplified it to applied the
CRT cathode.
- 13 -
ADJUSTMENT
GENERAL INFORMATION
All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several adjustments may be required.
Adjustment should be following procedure and after
warming up for a minimum of 30 minutes.
• Alignment appliances and tools.
- IBM compatible PC.
- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)
- EPROM or EEPROM with saved each mode data.
- Alignment Adaptor and Software.
- Digital Voltmeter.
- White Balance Meter.
- Luminance Meter.
- High-voltage Meter.
AUTOMATIC AND MANUAL DEGAUSSING
The degaussing coil is mounted around the CDT so that
automatic degaussing when turn on the monitor. But a
monitor is moved or faced in a different direction, become
poor color purity cause of CDT magnetized, then press
DEGAUSS on the OSD menu.
ADJUSTMENT PROCEDURE & METHOD
- Install the cable for adjustment such as Figure 1and run
the alignment program on the DOS for IBM compatible PC.
- Set external Brightness and Contrast volume to max position.
1. Adjustment for High-Voltage.
1) Display cross hatch pattern at Mode 4.
2) DIST.ADJ→CTRL PWM → High Voltage Command.
3) Adjust High Voltage to 25.8kV±0.1 kVdc.
4) Press Enter Key.
2. Adjustment for Factory Mode (Preset Mode).
1) Display cross hatch pattern at Mode 1.
2) Run alignment program for FB770H on the IBM
compatible PC.
3) EEPROM → ALL CLEAR → Y(Yes) command.
Do not run this procedure unless the
EEPROM is changed. All data in EEPROM (mode
data and color data) will be erased.
4) Power button of the monitor turn off → turn on.
5) COMMAND→PRESET START→Y(Yes) command.
6) DIST. ADJ. → CTRL PWM → TILT command.
7) Adjust tilt as arrow keys to be the best condition.
8) DIST. ADJ. → BALANCE command.
9) Adjust parallelogram as arrow keys to be the best
condition.
10) Adjust balance of pin-balance as arrow keys to be
the best condition.
11) DIST. ADJ. → FOS. ADJ command.
12) Adjust V-SIZE as arrow keys to 230±2mm.
13) Adjust V-POSITION as arrow keys to center of the
screen.
14) Adjust H-SIZE as arrow keys to 310±2mm.
15) Adjust H-POSITION as arrow keys to center of the
screen.
16) Adjust S-PCC (Side-Pincushion) as arrow keys to be
the best condition.
17) Adjust TRAPEZOID as arrow keys to be the best
condition.
18) Save of the Mode 1.
19) Display from Mode 2 to 4 and repeat above from
number 12) to 19)
20) PRESET EXIT → Y (Yes) command.
3. Adjustment for White Balance and Luminance.
1) Set the White Balance Meter.
2) Press the DEGAUSS on the OSD menu for
demagnetization of the CDT.
3) COLOR ADJ. → LUMINANCE command of the
alignment program.
4) Set Brightness and Contrast to Max position.
5) Display color 0,0 pattern at Mode 4.
6) COLOR ADJ.→ BIAS ADJ.→ COLOR No. → 1
command of the alignment program.
7) Check whether green color or not at R-BIAS and G-
BIAS to min position and B-BIAS to 250(CD) and
Sub-Brightness to 127(2F) position. Adjust G2
(screen) command to 0.4± 0.05FL of the raster
luminance.
8) Adjust R-BIAS and G-BIAS command to x=0.283±
0.005 and y=0.298±0.005 on the White Balance
Meter with PC arrow keys.
9) Adjust SUB-Brightness command to 0.4±0.1FL of the
raster luminance.
10) Adjust repeat number 8).
11) After push the “ENTER” key.
11-1) COMMAND → PRESET START → Y(Yes) command.
12) Display color 15,0 full white pattern at Mode 4.
13) DRIVE ADJ.→ No 1. command.
14) Set Brightness and Contrast to Max position.
15) Set SUB-CONTRAST 220(CD) (decimal) position.
16) Set B-DRIVE to 150(96) at DRIVE of the alignment
program.
- 14 -
17-1) Adjust R-DRIVE and G-DRIVE command to white
balance x=0.283±0.003 and y=0.298±0.003 on the
White Balance Meter with PC arrow keys.
17-2) Display color 15,0 window pattern (70x70mm) at mode 4.
18) Adjust SUB-CONTRAST command to 50±2FL .
19) Display color 15,0 full white patten at Mode 4.
20) Set Brightness and Contrast to Max position.
21) COLOR ADJ. → LUMINANCE → ABL command.
22) Adjust ABL to 32±1FL of the luminance.
23) After push the “ENTER” key, and “COMMAND →
PRESET EXIT → Y(Yes)” command.
24) Exit from the program.
4. Input EDID Data.
1) Display color 15,0 cross hatch pattern at Mode 4.
2) EEPROM → Write EDID command and confirm
“EDID Write OK!!” message of monitor.
3) Exit from the alignment program.
4) Power switch OFF/ON for EDID data save.
5. Adjustment for Focus.
1) Set the Brightness and Contrast to max position.
2) Display H character in full screen at Mode 4.
3) Adjust two Focus control on the FBT that focus
should be the best condition.
TROUBLESHOOTING GUIDE
- 15 -
1. NO POWER
NO POWER
(POWER INDICATOR OFF)
TROUBLE IN
D900
TROUBLE IN FUSE
(F901)
TROUBLE IN
Q901
TROUBLE IN
D941, D942,
D951, D961, D971
TROUBLE IN
Q903, Q952,
Q951, Q942, Q941
CHECK
FUSE OK?
CHECK
C908 VOLTAGE?
(AC120V: 160VDC,
AC220V: 304VDC)
NO
YES
YES
YES
YES
NO
NO
NO
CHECK
Q901 PIN 6
WAVEFORM
(SQUARE WAVE
COMES OUT?)
CHECK
D941, D942, D951,
D961, D971
VOLTAGE?
- 16 -
2. NO CHARACTER
NO CHARACTER
CHECK
IC302
PIN 7(5V) ?
CHECK
IC302 PIN 1, 3, 5?
CHECK
IC302 PIN 14, 16, 18 ?
CHECK
IC303
PIN 1, 2, 4 ?
CHECK
IC303 PIN 7 (105V)
PIN 3 (13V) ?
TROUBLE IN
P302 5V LINE
TROUBLE IN
PC SIGNAL,
P301 SIGNAL CABLE
TROUBLE IN
IC302
TROUBLE IN
P303 12V LINE/
80V LINE
TROUBLE IN IC303
NO
YES
NO
NO
YES
YES
YES
YES
NO
NO
CHECK
R, G, B CATHODE
VOLTAGE?
TROUBLE IN
R331~R333, L311~L313
D307~D312
TROUBLE IN
CRT SOCKET
YES
NO
- 17 -
3. NO RASTER
NO VIDEO
(POWER INDICATOR ON)
CHECK
POWER INDICATOR
GREEN or AMBER?
CHECK
D712 ANODE
(-160V)?
CHECK
G1 VOLTAGE?
(-55V~ -15V)
TROUBLE IN
D712
TROUBLE IN
Q799
DPM MODE
(NO H and/or V SYNC)
AMBER
NO
GREEN
YES
NO
CHECK
CDT HEAT
VOLTAGE? (6.3V)
TROUBLE IN
D941, Q942, Q941
YES
NO
TROUBLE IN
CDT
YES
- 18 -
4. NO HORIZONTAL DEFLECTION
NO H-DEFLECTION
(ONE VERTICAL LINE)
CHECK
Q706?
CHECK
B+ VOLTAGE
(50V)?
CHECK
T701(FBT) PIN 2
(31KHZ 60V,
69KHZ 140V) ?
CHECK
Q705 COLLECTOR
WAVEFORM?
TROUBLE IN
Q706
TROUBLE IN
50V LINE
TROUBLE IN
Q719, Q703, D704, D710
TROUBLE IN
Q705
TROUBLE IN
T701, P701
NO
NO
YES
YES
YES
YES
NO
NO
0V
T
- 19 -
5. TROUBLE IN H-LINEARITY
UNBALANCED OF H-LIN.
CHECK
IC401
PIN 5, 6, 7 ?
CHECK
Q711~Q716?
CHECK
L703?
TROUBLE IN
IC401 (MICOM)
TROUBLE IN
Q711 ~ Q716
TROUBLE IN
L703
TROUBLE IN
C722, C723, C726, C729
NO
NO
NO
YES
YES
YES
Cs SIGNAL TABLE
HORIZONTAL
FREQUENCY(fH)
30K ~ 33.9K
34K ~ 38.9K
39K ~ 44.9K
45K ~ 48.9K
49K ~ 51.9K
52K ~ 57.9K
58K ~ 61.9K
62K ~ 65.9K
66K ~ 70K
Cs1
L
L
H
H
H
H
H
H
H
Cs3
L
L
L
L
H
H
L
L
H
Cs2
L
H
L
L
L
L
H
H
H
- 20 -
6. NO VERTICAL DEFLECTION
NO V-DEFLECTION
(ONE HORIZONTAL LINE)
CHECK
IC601 PIN 2
(13V+)?
CHECK
IC701 PIN 23?
TROUBLE IN
D610 13V+ LINE
TROUBLE IN
IC701
TROUBLE IN
IC601, V-CIRCUIT
NO
YES
YES
NO
3V
- 21 -
7. TROUBLE IN OSD
TROUBLE IN
OSD PERIPHERAL
CIRCUIT
NO OSD
TROUBLE IN
5V LINE
TROUBLE IN
IC601 PIN1 (V-FBP),
T701 40V LINE (H-FBP)
TROUBLE IN
IC302, IC301
TROUBLE IN
IC301, IC302
NO
YES
DC 5V
YES
YES
YES
NO
NO
NO
Pin 5
5V
Pin 10
5V
H+V
5V
H+V
CHECK
IC301 B+
(5V) ?
CHECK
IC301 PIN 12
WAVEFORM ?
(ENTER BUTTON MUST BE PRESSED.)
CHECK
IC301 PIN 5, 10
WAVEFORM?
CHECK
IC301 PIN 13, 14, 15 ?
- 22 -
8. TROUBLE IN DPM
CHECK
IC401 (MICOM)
PIN 30, 31 (H/V INPUT)
SIGNAL?
CHECK
IC401 PIN 13
WAVEFORM?
CHECK
IC401 (MICOM)
PIN 19, 27 ?
CHECK
B+ LINE
(6.3V,13V+, 105V) ?
CHECK PC,
(PC IS NOT GOING INTO
DPM OFF MODE)
TROUBLE IN
X401
TROUBLE IN
IC401 (MICOM)
TROUBLE IN
Q941, Q942, Q951, Q952,
TROUBLE IN PC
OFF MODE FAILURE
INPUT H/V SYNC SIGNAL
H/V SYNC
(NO OFF MODE.)
NO
NO
NO
NO (DPMF: 0V)
DPM TABLE
Mode Item
NORMAL
STAND-BY
SUSPEND
OFF
DPMF
H
L
L
L
LED
GREEN
AMBER
AMBER
AMBER
DPMS
H
H
H
L
YES
YES
SEE DPM TABLE
YES
YES
5V
24MHz
- 23 -
9. NO DEGAUSSING
CHECK
IC401 PIN 1
(0V)?
CHECK
Q953 COLLECTOR
(15V) VOLTAGE?
CHECK
P902 ?
CHECK
RL901?
TROUBLE IN
IC401 (MICOM)
TROUBLE IN
Q953
TROUBLE IN
P902
TROUBLE IN
RL901
TROUBLE IN
TH901,
DEGAUSSING COIL
NO DEGAUSSING
DC 15V
NO
NO
NO
NO
YES
YES
YES
YES
(DEGAUSS ON THE OSD MENU MUST BE PRESSED.)
- 24 -
10. NO TILT (NO ROTATION)
NO TILT (NO ROTATION)
TROUBLE IN
IC401 (MICOM)
TROUBLE IN
15V LINE, 6.3V LINE
TROUBLE IN
Q501~Q503
TROUBLE IN
P501, TILT COIL
NO
YES
YES
YES
CHECK
13V LINE
AND 6.3V LINE ?
CHECK
Q503 EMITTER
VOLTAGE ?
NO
NO
CHECK
IC401 PIN21
WAVE FORM ?
EXPLODED VIEW
- 25 -
2
5
6
12
11
11
7
B
A
8
9
10
13
13
1
16
15
14
3
4
a
a
b
c
b
EXPLODED VIEW PARTS LIST
- 26 -
Ref. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A
B
a
b
c
Part No.
3091TKC074F
3091TKC074A
6318L17013A
6318L17013B
3809TKC042A
3043TKK103B
3043TKK103A
339-002H
6140TC2014B
6871TST319C
6871TST319D
6871TST319B
6174T11004A
6620TKB002A
6850TA9010A
4930TKK031C
4950TKK368F
4950TKK368E
4810TKK204C
4810TKK204A
4930TKK036A
332-102E
3313T17266C
3313T17266D
3313T17266B
6871TMT327C
6871TMT327D
6871TMT327B
332-112F
4001TKK004E
332-095B
Description
CABINET ASSEMBLY, FB770G BRAND 068 DI F700B For Europe, Israel, S.Africa, India
CABINET ASSEMBLY, FB770G BRAND 068 For IOMG, USA, Russia
CDT(CIRC), M41QBF423X 41NPLD LG-PHILIPS 70KHZ 29.1MM FLATRON TCO- Northern hemisphere
CDT(CIRC), M41QBF423X 41QPLD LG-PHILIPS 70KHZ 29.1MM FLATRON TCO- Equatorial
BACK COVER ASSEMBLY, 2ND FLATRON 3808TKC041A
TILT SWIVEL ASSEMBLY, FB770H T060 B058 DI CKD For Europe, Israel, S.Africa, India
TILT SWIVEL ASSEMBLY, FB770H T060 B058 For IOMG, USA, Russia
SCREW ASSY, PHP+5*20(FZMY)+GW18 NEW TYPE
COIL,DEGAUSSING, - GET D-COIL,0.5*130TS,1410,WITH PURITY,FB770G
PWB(PCB) ASSEMBLY,SUB, FB770H CONTROL TOTAL BRAND LGEDI CKD For Europe, Israel, S.Africa, India
PWB(PCB) ASSEMBLY,SUB, FB770H CONTROL TOTAL IOMG CA-124 For IOMG
PWB(PCB) ASSEMBLY,SUB, FB770H CONTROL TOTAL BRAND LGENT For USA, Russia
FBT (FLY BACK TRANSFORMER), 1055A, CB777H LG-PHILIPS 17"/70KHZ FST
SOCKET(CIRC),POWER BAE EUN AC UNIVERSAL 3PIN BLACK
CABLE,D-SUB, UL2990-9C(5.8) AT 1560MM GRAY(85964) FB770H DM
HOLDER, PCB FIX , PC+ABS
METAL, SHIELD BOTTOM "E" CKD For Europe, Israel, S.Africa, India, IOMG
METAL, SHIELD BOTTOM FB770H-NO PEMNUT For USA, Russia
BRACKET, H-CHASSIS HOLDER FBT, A-CKD For Europe, Israel, S.Africa, India
BRACKET, CB777H HOLDER FBT For IOMG, USA, Russia
HOLDER, PCB FIX FB770G 2ND FLATRON
SCREW, PTP+4*16(MSWR/FZMY)
MAIN TOTAL ASSEMBLY, FB770H BRAND CA-124 For Europe, Israel, S.Africa, India
MAIN TOTAL ASSEMBLY, FB770H IOMG CA-124 For IOMG
MAIN TOTAL ASSEMBLY, FB770H BRAND CA-119 LGENT For USA, Russia
PWB(PCB) ASSEMBLY,MAIN, FB770H KLEUED BRAND CA-124 TOTAL For Europe, Israel, S.Africa, India
PWB(PCB) ASSEMBLY,MAIN, FB770H SLIOEI IOMG CA-124 TOTAL For IOMG
PWB(PCB) ASSEMBLY,MAIN, FB770H KLRDET BRAND CA-119 TOTAL For USA, Russia
SCREW,DRAWING, D3.5 L10.0 MSWR/FZMY +SW3.5+RW3.5
SCREW ASSEMBLY, TAPTITE P TYPE D3.0 L10.0 MSWR/FZMY SW3+RW10
SCREW,DRAWING, PZP+3*10(MSWR/FZMY)
- 27 -
DATE: 2002. 10 . 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
C201
0CN1040K949
0.1M 50V Z F TA52
C301
0CK1040K945
0.1UF 50V Z F TR
C302
0CK1040K945
0.1UF 50V Z F TR
C303
0CK1040K945
0.1UF 50V Z F TR
C305
181-288C
MKT 100V 224JTR PHS 26224
C306
0CE107CF638
100UF SHL,SD 16V M FM5 TP 5
C307
0CK1040K945
0.1UF 50V Z F TR
C308
0CK1040K945
0.1UF 50V Z F TR
C309
0CK1040K945
0.1UF 50V Z F TR
C310
0CE106CF638
10UF SHL,SD 16V M FM5 TP 5
C311
0CK1040K945
0.1UF 50V Z F TR
C312
0CK1040K945
0.1UF 50V Z F TR
C313
0CE476CF638
47UF SHL,SD 16V M FM5 TP 5
C314
0CK1010K515
100PF 50V K B TR
C315
0CK10202515
1000PF D 2KV 10% TR B(Y5P)
C325
0CK1040K945
0.1UF 50V Z F TR
C326
0CK4710W515
470P 500V K B TS
C327
0CK10302940
0.01M 2KV Z F S
C328
0CK10302945
0.01UF 2KV Z F TR
C330
181-288E
MKT 100V 474JTR PHS 26474
C331
0CC2200W415
22PF 500V J NP0 TR
C332
0CK10301945
10000PF D 1KV Z F(Y5V) TR
C346
0CE475CP638
4.7UF SHL,SD 160V M FM5 TP 5
C380
0CE107CF638
100UF SHL,SD 16V M FM5 TP 5
C383
0CE475CK638
4.7UF SHL,SD 50V M FM5 TP 5
C389
0CE475CP638
4.7UF SHL,SD 160V M FM5 TP 5
C390
0CK10301945
10000PF D 1KV Z F(Y5V) TR
C394
0CN1520F569
1500P 16V K X TA52
C395
0CK1520K515
1500P 50V K B TS
C396
0CK1520K515
1500P 50V K B TS
C397
0CE107CF638
100UF SHL,SD 16V M FM5 TP 5
C401
0CK1040K945
0.1UF 50V Z F TR
C402
0CE476CF638
47UF SHL,SD 16V M FM5 TP 5
C403
0CK1040K945
0.1UF 50V Z F TR
C406
0CK1010K515
100PF 50V K B TR
C407
0CK1010K515
100PF 50V K B TR
C408
0CK1040K945
0.1UF 50V Z F TR
C409
0CK1010K515
100PF 50V K B TR
C410
0CK1010K515
100PF 50V K B TR
C416
0CE475CK638
4.7UF SHL,SD 50V M FM5 TP 5
C501
0CE106CF638
10UF SHL,SD 16V M FM5 TP 5
C510
0CE225CK638
2.2UF SHL,SD 50V M FM5 TP 5
C511
0CE106CF638
10UF SHL,SD 16V M FM5 TP 5
C599
0CE225CK638
2.2UF SHL,SD 50V M FM5 TP 5
C601
0CE477CF618
470UF SHL 16V M FL TP5
C603
0CE227CK618
220U SHL 50V M FL TP5
C605
181-288T
MKT 100V 223KTR PHS85223
C606
0CQ4721N419
0.0047U 100V J POLY NI TP5
DATE: 2002. 10 . 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
C611
0CE477CF618
470UF SHL 16V M FL TP5
C613
181-288Q
MKT 100V 154JTR PHS26154
C614
0CE475CK638
4.7UF SHL,SD 50V M FM5 TP 5
C615
0CQ4721N419
0.0047U 100V J POLY NI TP5
C617
0CK1040K945
0.1UF 50V Z F TR
C618
0CK1040K945
0.1UF 50V Z F TR
C701
181-288B
MKT 100V 104JTR PHS26104
C702
0CE476CK638
47UF SHL,SD 50V M FM5 TP 5
C703
0CK8210K515
820P 50V K B TS
C704
0CQ1031N419
0.01U 100V J POLY NI TP
C705
0CE475CK638
4.7UF SHL,SD 50V M FM5 TP 5
C706
0CE105CK638
1UF SHL,SD 50V 20% FM5 TP 5
C708
0CE227CH638
220UF SHL,SD 25V M FM5 TP 5
C709
0CE225CK638
2.2UF SHL,SD 50V M FM5 TP 5
C710
181-288Q
MKT 100V 154JTR PHS26154
C711
181-288E
MKT 100V 474JTR PHS 26474
C712
181-288B
MKT 100V 104JTR PHS26104
C713
0CK2210K515
220P 50V K B TS
C714
0CE107CH638
100UF SHL,SD 25V M FM5 TP 5
C715
181-288N
MKT 100V 103JTR PHS86103
C717
0CE476CF638
47UF SHL,SD 16V M FM5 TP 5
C719
0CZZTAB001F
SHL-BP SYE / SWE 50V 3.3UF 20%
C722
181-303D
184J 30.0*18.5*11.0*20.0 250V
C723
181-305A
MPP 250V 104J S=10.0
C724
0CK1040K945
0.1UF 50V Z F TR
C725
0CK6810W515
680P 500V K B TS
C726
181-305Y
MPP 250 204J S=10.0
C727
0CN1040K949
0.1M 50V Z F TA52
C728
0CQ5621N419
5600P 100V J POLY NI TP
C729
181-305V
514J 26.0*18.0*11.0*15.0 250V
C730
0CN1040K949
0.1M 50V Z F TA52
C731
0CBZTBU004D
542J 29.0*20.5*9.5*20.0 2.5KV
C732
181-288N
MKT 100V 103JTR PHS86103
C733
0CBZTBU003J
392J 20.0*12.5*7.5*10.0 800V J
C734
0CE2266F618
22M SMS 16V M FM5 TP(5)
C736
0CQ4721N419
0.0047U 100V J POLY NI TP5
C737
0CK10102515
100PF D 2KV 10% B(Y5P) TR
C738
181-302V
393J 19.5*14.0*8.0*10.0 250V J
C739
0CE106EK638
10UF KMG 50V M FM5 TP 5
C740
0CE337CL618
330UF SHL 63V M FL TP5
C741
0CZZTFT002B
ECQV1H154JZ3 154J 50V TP5.0 MA
C742
181-288K
MKT 100V 683JTR PHS26683
C743
0CE334CK638
0.33UF SHL,SD 50V 20% TP 5 FM5
C744
181-305L
684J 26.0*19.0*12.5*15.0 250V
C745
0CK5610W515
560P 500V K B TS
C746
0CK3310W515
330P 500V K B TS
C747
181-288D
MKT 100V 473JTR PHS26473
C748
0CK1510W515
150PF 500V K B TR
C749
0CE106CQ618
10UF SHL 200V M FL TP5
REPLACEMENT PARTS LIST
CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,
READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.
* NOTE : S
SAFETY Mark
AL ALTERNATIVE PARTS
CAPACITORS
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
C750
0CK1040K945
0.1UF 50V Z F TR
C751
181-288J
MKT 100V 563JTR PHS26563
C752
0CQ4721N419
0.0047U 100V J POLY NI TP5
C753
0CQ1021N419
1000P 100V J POLY NI TP
C754
0CC4700W405
47PF 500V J SL TP
C759
0CQ1821N419
1800P 100V J POLY NI TP
C767
0CK10301945
10000PF D 1KV Z F(Y5V) TR
C771
0CK10301945
10000PF D 1KV Z F(Y5V) TR
C781
0CK1030K945
0.01UF 50V Z F TR
C801
0CK1040K945
0.1UF 50V Z F TR
C802
0CE106CK638
10UF SHL,SD 50V M FM5 TP 5
C805
0CE106CK638
10UF SHL,SD 50V M FM5 TP 5
C810
0CE106CK638
10UF SHL,SD 50V M FM5 TP 5
C821
0CK1040K945
0.1UF 50V Z F TR
C822
0CN1040K949
0.1M 50V Z F TA52
C830
0CK10102515
100PF D 2KV 10% B(Y5P) TR
C901
0CBZTBU002A
BULK PCX2 335 224K
C902
0CBZTBU002A
BULK PCX2 335 224K
C903
0CZZTCB003D
BULK 7.5 CS E 102M 8.0 250V TD
C904
0CKZTTA003A
SC E 222M 10.0FF7 250V TP7.5 S
C905
0CKZTTA003A
SC E 222M 10.0FF7 250V TP7.5 S
C906
0CZZTCB003D
BULK 7.5 CS E 102M 8.0 250V TD
C907
0CZZTCB003C
BULK 7.5 CS E 472M 14.5 250V T
C908
181-124R
220UF SMG(25.4*40) 400V M VNSN
C909
0CK10301510
0.01M 1KV K B S
C910
0CK27101515
270P 1KV K B TS
C911
0CE475CK638
4.7UF SHL,SD 50V M FM5 TP 5
C913
0CE476CK638
47UF SHL,SD 50V M FM5 TP 5
C914
0CZZTFT001P
ECQB1H153JM3 153J 50V TP5.0 MA
C915
0CK6810K515
680P 50V K B TS
C917
0CK1020K515
1000PF 50V K B TR
C918
0CN1040K949
0.1M 50V Z F TA52
C940
0CKZTTA003A
SC E 222M 10.0FF7 250V TP7.5 S
C941
0CE108CD618
1000UF SHL 10V M FL TP5
C942
0CE107CF638
100UF SHL,SD 16V M FM5 TP 5
C943
0CK56101515
560P 1KV K B TS
C944
0CKZTTA003B
SC E 332M 12.5FF7 250V TP7.5 S
C946
0CK1010W515
100P 500V K B TS
C951
0CE108CF630
1000UF SHL 16V M FM5 BULK
C952
0CE227CH638
220UF SHL,SD 25V M FM5 TP 5
C953
0CE107CF638
100UF SHL,SD 16V M FM5 TP 5
C954
0CE108CF630
1000UF SHL 16V M FM5 BULK
C971
0CE476CN618
47UF SHL 100V M FL TP5
C999
0CE337CL618
330UF SHL 63V M FL TP5
D201
0DLLT0089AA
LITEON LTL-1BEDJ-0C2 TP GREEN/
D301
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D302
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D303
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D304
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D305
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D306
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D307
0DS124409AA
1SS244 TP ROHM KOREA
D308
0DS124409AA
1SS244 TP ROHM KOREA
D309
0DS124409AA
1SS244 TP ROHM KOREA
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
D310
0DS124409AA
1SS244 TP ROHM KOREA
D311
0DS124409AA
1SS244 TP ROHM KOREA
D312
0DS124409AA
1SS244 TP ROHM KOREA
D313
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D399
0DR140059DA
1N4005TB52 TP LITEON DO41 600V
D402
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D404
971-0016
TIN HDC 0.60H
D501
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D511
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D512
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D602
0DRGF00069A
SB140 GULF TP DO41 40V 1A 40A
D610
0DR100009CD
RGP10G-1021 TIWAN SEMI TP DO41
D610
0DR100009CD
RGP10G-1021 TIWAN SEMI TP DO41
D701
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D702
0DS124409AA
1SS244 TP ROHM KOREA
D703
0DRTW00050A
MUR460L-1121 TIWAN SEMI BK DO2
D704
0DR150001AA
DTV1500MFP ST SGS-THOMSON TO22
D705
0DRGF00069A
SB140 GULF TP DO41 40V 1A 40A
D706
0DRGF00110A
GRD07-15GP GULF BK DO201AD 150
D709
971-0016
TIN HDC 0.60H
D710
0DR400409AC
UF4004 GULF TP DO41 400V 1A 30
D711
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D712
0DR100009CD
RGP10G-1021 TIWAN SEMI TP DO41
D712
0DR100009CD
RGP10G-1021 TIWAN SEMI TP DO41
D713
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D714
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D715
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D716
0DR140059DA
1N4005TB52 TP LITEON DO41 600V
D717
0DR140059DA
1N4005TB52 TP LITEON DO41 600V
D718
0DR140059DA
1N4005TB52 TP LITEON DO41 600V
D719
0DR100009DA
RGP10J TP GULF SEMICONDUCTOR L
D720
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D721
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D723
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D724
0DR140059DA
1N4005TB52 TP LITEON DO41 600V
D767
0DR100009DA
RGP10J TP GULF SEMICONDUCTOR L
D768
971-0016
TIN HDC 0.60H
D801
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D802
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D803
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D821
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D900
0DRTW00071A
TS4B05G-1021 TIWAN SEMI ST NON
D902
0DR153979AA
1N5397GP TP G.I DO201AD 600V 1
D904
0DR100009CD
RGP10G-1021 TIWAN SEMI TP DO41
D904
0DR100009CD
RGP10G-1021 TIWAN SEMI TP DO41
D905
0DD400709CB
UF4007 TP G.I DO204AL 1000V 1
D906
0DR100009CD
RGP10G-1021 TIWAN SEMI TP DO41
D906
0DR100009CD
RGP10G-1021 TIWAN SEMI TP DO41
D908
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D910
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D911
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D941
0DR100009LA
UG1D TP G.I DO204AL 200V 1A 40
D942
0DR400409AC
UF4004 GULF TP DO41 400V 1A 30
D951
0DRTW00044B
UG2DL-1021 TIWAN SEMI BK DO15
D952
0DS141489AB
1N4148 TP GRANDE DO-34 500MW 1
D961
0DRTW00060A
SF38GL-1121 TIWAN SEMI BK DO20
- 28 -
DIODEs
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
D971
0DR100009DA
RGP10J TP GULF SEMICONDUCTOR L
ZD402
0DZ560009AG
GDZJ5.6B TP GRANDE DO-34 500MW
ZD403
0DZ560009AG
GDZJ5.6B TP GRANDE DO-34 500MW
ZD404
0DZ560009AG
GDZJ5.6B TP GRANDE DO-34 500MW
ZD405
0DZ560009AG
GDZJ5.6B TP GRANDE DO-34 500MW
ZD407
0DZ560009AG
GDZJ5.6B TP GRANDE DO-34 500MW
ZD410
0DZ560009AG
GDZJ5.6B TP GRANDE DO-34 500MW
ZD701
0DZ120009BF
GDZJ12B TP GRANDE DO34 0.5W 12
ZD702
971-0016
TIN HDC 0.60H
ZD902
0DZ510009BE
GDZ5.1B TP GRANDE DO34 500MW 5
IC301
0IPRPWL001A
6805-N160WT-87A WELTREND 16, P
IC302
0IPRPSG014A
STV9211 SGS-THOMSON 20P,DIP ST
IC303
0IPRPSG004B
STV9556 SGS-THOMSON 11P,CLIPWA
IC401
0IZZTSZ219A
SS 42PIN ST H6 STM
IC402
0ISG240860A
M24C08-BN6 8DIP BK 8K SERIAL I
IC601
0IPRPSG016A
STV9302A SGS-THOMSON TO220,7P
IC701
0IPRPSG017A
STV6888 SGS-THOMSON 32P,SDIP S
IC901
0ISS384200A
KA3842B (PWM)
L301
0LA0560K119
0.56UH K 2.3*3.4 TP
L302
0LA0560K119
0.56UH K 2.3*3.4 TP
L303
0LA0560K119
0.56UH K 2.3*3.4 TP
L304
0LA1000K119
100UH K 2.3*3.4 TP
L702
6140TBZ025C
DR14*20 150UH 0.12*25MM 51T H-
L703
6140TYZ011G
- GET DR14*25,4.0UH,EB770H
L705
6140TBZ026C
DR15*18-C9.8 100UH 0.1*30MM 40
L901
6200TZZ004A
SQE2626 NAMYANG BK L/FILTER 15
L903
125-159A
FERRITE KQ-1 (RADIAL TAPPING)
FB201
6210TCE003J
BAS2550T BO SUNG 2550MM AXIAL5
FB303
6210TCE003A
BRD3510B BO SUNG 3510MM RADIAL
FB304
6210TCE003J
BAS2550T BO SUNG 2550MM AXIAL5
FB305
6210TCE003A
BRD3510B BO SUNG 3510MM RADIAL
FB306
6210TCE003A
BRD3510B BO SUNG 3510MM RADIAL
FB314
6210TCZ001J
BAS3550T0(125-022J) BO SUNG RH
FB315
6210TCZ001J
BAS3550T0(125-022J) BO SUNG RH
FB316
6210TCZ001J
BAS3550T0(125-022J) BO SUNG RH
FB401
6210TCE003J
BAS2550T BO SUNG 2550MM AXIAL5
FB402
6210TCE003L
BAS3580T BO SUNG 3580MM AXIAL5
FB403
6210TCE003J
BAS2550T BO SUNG 2550MM AXIAL5
FB501
6210TCE003P
BRS2550B BO SUNG 2550MM RADIAL
FB502
6210TCE003J
BAS2550T BO SUNG 2550MM AXIAL5
FB701
6210TCE003L
BAS3580T BO SUNG 3580MM AXIAL5
FB703
6210TCE003B
BRS3580B BO SUNG 3580MM RADIAL
FB705
6210TCE003L
BAS3580T BO SUNG 3580MM AXIAL5
FB903
6210TCE003P
BRS2550B BO SUNG 2550MM RADIAL
FB904
6210TCE003K
BAS3550T BO SUNG 3550MM AXIAL5
FB905
6210TCE003P
BRS2550B BO SUNG 2550MM RADIAL
FB921
6210TCE003A
BRD3510B BO SUNG 3510MM RADIAL
FB922
6210TCE003L
BAS3580T BO SUNG 3580MM AXIAL5
FB951
6210TCE003J
BAS2550T BO SUNG 2550MM AXIAL5
FB952
6210TCE003G
BRS3550B BO SUNG 3550MM RADIAL
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
Q501
0TR320209AA
KTC3202-Y(KTC1959) TP KEC TO92
Q502
0TR127009AA
KTA1270-Y(KTA562TM) TP KEC TO9
Q503
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
Q510
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
Q511
0TR320509AB
KTC3205-Y(KTC2236A) TP KEC TO9
Q512
0TR127509AC
KTA1275-Y(KTA1013) TP KEC TO92
Q701
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
Q703
0TR127009AA
KTA1270-Y(KTA562TM) TP KEC TO9
Q704
0TR320209AA
KTC3202-Y(KTC1959) TP KEC TO92
Q705
0TR100809AA
KSC1008C-Y TP SAMSUNG TO92 NP
Q706
0TRFC10007A
FJAF6815 FAIRCHILD ST TO3PF 15
Q707
0TR127009AA
KTA1270-Y(KTA562TM) TP KEC TO9
Q708
0TR127009AA
KTA1270-Y(KTA562TM) TP KEC TO9
Q709
0TR141300AB
KTD1413 BK KEC TO220I S NPN
Q710
0TR440009CA
KSP44 TP SAMSUNG
Q711
0TF630000DA
IRF630A BK SAMSUNG 200V 9A TO2
Q712
0TF630000DA
IRF630A BK SAMSUNG 200V 9A TO2
Q713
0TF630000DA
IRF630A BK SAMSUNG 200V 9A TO2
Q714
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
Q715
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
Q716
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
Q717
0TR100809AA
KSC1008C-Y TP SAMSUNG TO92 NP
Q719
0TF630000DA
IRF630A BK SAMSUNG 200V 9A TO2
Q799
0TR920009AB
KSP92 TP SAMSUNG TO92 HIGH VOL
Q821
0TRFC10003A
FAIRCHILD KSD882Y-S ST TO126 4
Q901
0TF760000AD
SSS7N60B FAIRCHILD ST TO220F 6
Q903
0TR100809AA
KSC1008C-Y TP SAMSUNG TO92 NP
Q941
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
Q942
0TR928009AB
KSA928A-Y TP SAMSUNG TO92L PNP
Q951
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
Q952
0TR928009AB
KSA928A-Y TP SAMSUNG TO92L PNP
Q953
0TR319809AA
KTC3198-Y(KTC1815) TP KEC TO92
R201
0RD1001Q609
1K 1/4W(3 5% TA52
R202
0RD0912Q609
91 OHM 1/4 W (3.4) 5% TA52
R203
0RD2200Q609
220 1/4W(3 5% TA52
R204
0RD4300Q609
430 OHM 1/4 W(3.4) 5.00% TA52
R205
0RD1001Q609
1K 1/4W(3 5% TA52
R206
0RD0912Q609
91 OHM 1/4 W (3.4) 5% TA52
R207
0RD4300Q609
430 OHM 1/4 W(3.4) 5.00% TA52
R208
0RD2200Q609
220 1/4W(3 5% TA52
R209
0RD9100Q609
910 1/4W(3 5% TA52
R210
0RD2200Q609
220 1/4W(3 5% TA52
R211
0RD2200Q609
220 1/4W(3 5% TA52
R301
0RD0752Q609
75 1/4W(3 5% TA52
R302
0RD0752Q609
75 1/4W(3 5% TA52
R303
0RD0752Q609
75 1/4W(3 5% TA52
R304
0RD3001Q609
3K 1/4W(3 5% TA52
R305
0RD1001Q609
1K 1/4W(3 5% TA52
R307
0RD1001Q609
1K 1/4W(3 5% TA52
R309
0RN6201F409
6.20K 1/6W 1% TA52
R311
0RD0271Q609
2.70 1/4W(3 5% TA52
R312
0RD2001Q609
2K 1/4W(3 5% TA52
- 29 -
COILs & COREs
ICs
TRANSISTORs
RESISTORs
- 30 -
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
R313
0RD1000Q609
100 1/4W(3 5% TA52
R314
0RD6800Q609
680 1/4W(3 5% TA52
R317
0RD2001Q609
2K 1/4W(3 5% TA52
R319
0RD1000Q609
100 1/4W(3 5% TA52
R320
0RD1000Q609
100 1/4W(3 5% TA52
R321
0RD0152Q609
15 1/4W(3 5% TA52
R322
0RD0152Q609
15 1/4W(3 5% TA52
R323
0RD0152Q609
15 1/4W(3 5% TA52
R324
0RD3300Q609
330 1/4W(3 5% TA52
R325
0RD3300Q609
330 1/4W(3 5% TA52
R326
0RD3300Q609
330 1/4W(3 5% TA52
R327
0RD3300Q609
330 1/4W(3 5% TA52
R331
0RD0512Q609
51 1/4W(3 5% TA52
R332
0RD0512Q609
51 1/4W(3 5% TA52
R333
0RD0512Q609
51 1/4W(3 5% TA52
R335
0RD0271Q609
2.70 1/4W(3 5% TA52
R336
0RD1000Q609
100 1/4W(3 5% TA52
R337
0RD1000Q609
100 1/4W(3 5% TA52
R341
0RD2000Q609
200 1/4W(3 5% TA52
R342
0RD2000Q609
200 1/4W(3 5% TA52
R343
0RD2000Q609
200 1/4W(3 5% TA52
R344
0RD1000Q609
100 1/4W(3 5% TA52
R351
0RD2200A609
220 OHM 1/2 W (7.0) 5% TA52
R352
0RD2200A609
220 OHM 1/2 W (7.0) 5% TA52
R353
0RD2200A609
220 OHM 1/2 W (7.0) 5% TA52
R354
0RD0392A609
39 OHM 1/2 W (7.0) 5% TA52
R382
0RD1000Q609
100 1/4W(3 5% TA52
R383
0RD1000Q609
100 1/4W(3 5% TA52
R401
0RD1000Q609
100 1/4W(3 5% TA52
R402
0RD5600Q609
560 1/4W(3 5% TA52
R404
0RD3002Q609
30K 1/4W(3 5% TA52
R405
0RD2001Q609
2K 1/4W(3 5% TA52
R406
0RD2001Q609
2K 1/4W(3 5% TA52
R407
0RD1300Q609
130 1/4W(3 5% TA52
R408
0RD1300Q609
130 1/4W(3 5% TA52
R409
0RD1000Q609
100 1/4W(3 5% TA52
R410
0RD1000Q609
100 1/4W(3 5% TA52
R412
0RD1004Q609
1M OHM 1/4 W (3.4) 5% TA52
R414
0RD4701Q609
4.70K 1/4W(3 5% TA52
R417
0RD1000Q609
100 1/4W(3 5% TA52
R418
0RD1002Q609
10K 1/4W(3 5% TA52
R419
0RD1004Q609
1M OHM 1/4 W (3.4) 5% TA52
R424
0RD2200Q609
220 1/4W(3 5% TA52
R425
0RD4701Q609
4.70K 1/4W(3 5% TA52
R426
0RD4701Q609
4.70K 1/4W(3 5% TA52
R429
0RD1000Q609
100 1/4W(3 5% TA52
R430
0RD1000Q609
100 1/4W(3 5% TA52
R431
0RD4701Q609
4.70K 1/4W(3 5% TA52
R432
0RD1000Q609
100 1/4W(3 5% TA52
R433
0RD1000Q609
100 1/4W(3 5% TA52
R434
0RD1000Q609
100 1/4W(3 5% TA52
R438
0RD1001Q609
1K 1/4W(3 5% TA52
R439
0RD1001Q609
1K 1/4W(3 5% TA52
R444
0RD1002Q609
10K 1/4W(3 5% TA52
R445
0RD5101Q609
5.10K 1/4W(3 5% TA52
R446
0RD1002Q609
10K 1/4W(3 5% TA52
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
R447
0RD1001Q609
1K 1/4W(3 5% TA52
R448
0RD1801Q609
1.80K 1/4W(3 5% TA52
R501
0RD0102A609
10 OHM 1/2 W (7.0) 5% TA52
R508
0RD4702Q609
47K 1/4W(3 5% TA52
R509
0RD1502Q609
15K 1/4W(3 5% TA52
R510
0RD4702Q609
47K 1/4W(3 5% TA52
R511
0RD3902Q609
39K 1/4W(3 5% TA52
R512
0RD5601Q609
5.60K 1/4W(3 5% TA52
R513
0RD0472A609
47 OHM 1/2 W (7.0) 5% TA52
R514
0RD0101A609
1 OHM 1/2 W (7.0) 5% TA52
R515
0RD1502Q609
15K 1/4W(3 5% TA52
R597
0RD3902Q609
39K 1/4W(3 5% TA52
R598
0RD5601Q609
5.60K 1/4W(3 5% TA52
R599
0RD0202A609
20 OHM 1/2 W (7.0) 5% TA52
R602
0RN1300F409
130 1/6W 1% TA52
R604
0RN2001F409
2K 1/6W 1% TA52
R607
0RN5101F409
5.10K 1/6W 1% TA52
R608
0RN2002F409
20K 1/6W 1% TA52
R609
0RN1102F409
11K 1/6W 1% TA52
R611
0RD0151A609
1.5 OHM 1/2 W (7.0) 5% TA52
R612
0RD2700A609
270 OHM 1/2 W (7.0) 5% TA52
R614
0RD0101A609
1 OHM 1/2 W (7.0) 5% TA52
R615
0RN1202F409
12K 1/6W 1% TA52
R619
0RN2001F409
2K 1/6W 1% TA52
R700
971-0016
TIN HDC 0.60H
R701
0RN6201F409
6.20K 1/6W 1% TA52
R702
0RD2001Q609
2K 1/4W(3 5% TA52
R703
0RD1001Q609
1K 1/4W(3 5% TA52
R704
0RD4302Q609
43K 1/4W(3 5% TA52
R705
0RD3902Q609
39K 1/4W(3 5% TA52
R706
0RD1002Q609
10K 1/4W(3 5% TA52
R707
0RD1001Q609
1K 1/4W(3 5% TA52
R708
0RD1102Q609
11K 1/4W(3 5% TA52
R709
0RN1002F409
10K 1/6W 1 TA52
R710
0RD1000Q609
100 1/4W(3 5% TA52
R711
0RD1000Q609
100 1/4W(3 5% TA52
R712
0RD1501Q609
1.50K 1/4W(3 5% TA52
R713
0RN8202F409
82K 1/6W 1% TA52
R714
0RN1102F409
11K 1/6W 1% TA52
R715
0RD1004Q609
1M OHM 1/4 W (3.4) 5% TA52
R716
0RD1002Q609
10K 1/4W(3 5% TA52
R717
0RD2701Q609
2.70K 1/4W(3 5% TA52
R718
0RD0242Q609
24 1/4W(3 5% TA52
R719
0RN1001F409
1K 1/6W 1% TA52
R720
0RD1803Q609
180K 1/4W(3 5% TA52
R721
971-0016
TIN HDC 0.60H
R722
0RD1001Q609
1K 1/4W(3 5% TA52
R723
0RD1001Q609
1K 1/4W(3 5% TA52
R724
0RD1001Q609
1K 1/4W(3 5% TA52
R726
0RD7502A609
75K OHM 1/2 W (7.0) 5% TA52
R727-1
0RX0242K665
24 OHM 2 W 5% SF
R728
0RD1001Q609
1K 1/4W(3 5% TA52
R729
0RD1002Q609
10K 1/4W(3 5% TA52
R731
0RD1002Q609
10K 1/4W(3 5% TA52
R732
0RD5102Q509
51K OHM 1/4 W (3.4) 2% TA52
R733
971-0016
TIN HDC 0.60H
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
R735
0RD1002Q609
10K 1/4W(3 5% TA52
R736
0RX2201J609
2.2KOHM 1 W 5% TA52
R737
0RN0560H609
0.56 1/2W 5 TA52
R738
0RN0560H609
0.56 1/2W 5 TA52
R739
0RD1503Q609
150K 1/4W(3 5% TA52
R740
0RD0271A609
2.7 OHM 1/2 W (7.0) 5% TA52
R741
0RD1000Q609
100 1/4W(3 5% TA52
R742
0RD3601Q609
3.60K 1/4W(3 5% TA52
R743
0RD4701Q609
4.70K 1/4W(3 5% TA52
R744
0RX2200K607
220 OHM 2 W 5% TA62
R745
0RD4702Q609
47K 1/4W(3 5% TA52
R746
0RD2201Q609
2.20K 1/4W(3 5% TA52
R747
0RD3001Q609
3K 1/4W(3 5% TA52
R748
0RD4702Q609
47K 1/4W(3 5% TA52
R749
0RD2201Q609
2.20K 1/4W(3 5% TA52
R750
0RD3001Q609
3K 1/4W(3 5% TA52
R751
0RN2001F409
2K 1/6W 1% TA52
R752
0RD2201Q609
2.20K 1/4W(3 5% TA52
R753
0RD3001Q609
3K 1/4W(3 5% TA52
R754
0RD1002Q609
10K 1/4W(3 5% TA52
R755
0RD3301Q609
3.30K 1/4W(3 5% TA52
R756
0RD2202A609
22K OHM 1/2 W (7.0) 5% TA52
R757
0RD1003Q609
100K 1/4W(3 5% TA52
R758
0RN1303F409
130K 1/6W 1% TA52
R759
0RD1302Q509
13K OHM 1/4 W (3.4) 2% TA52
R760
0RD5103Q609
510K 1/4W(3 5% TA52
R761
0RD3001Q609
3K 1/4W(3 5% TA52
R762
0RD3001Q609
3K 1/4W(3 5% TA52
R763
0RD3001Q609
3K 1/4W(3 5% TA52
R764
971-0016
TIN HDC 0.60H
R765
0RD3000A609
300 OHM 1/2 W (7.0) 5% TA52
R766
0RD6200A609
620 OHM 1/2 W(7.0) 5.00% TA52
R767
971-0016
TIN HDC 0.60H
R768
0RD5103A609
510K OHM 1/2 W (7.0) 5% TA52
R769
0RN1001F409
1K 1/6W 1% TA52
R771
0RN2001F409
2K 1/6W 1% TA52
R772
0RN2401F409
2.40K 1/6W 1% TA52
R773
0RD6202A609
62K OHM 1/2 W (7.0) 5% TA52
R779
0RD3601Q509
3.6K OHM 1/4 W(3.4) 2% TA52
R782
0RD3301A609
3.3K OHM 1/2 W(7.0) 5.00% TA52
R783
971-0016
TIN HDC 0.60H
R784
0RD1000Q609
100 1/4W(3 5% TA52
R786
0RD4302Q609
43K 1/4W(3 5% TA52
R790
0RD1002Q609
10K 1/4W(3 5% TA52
R793
0RD4702Q609
47K 1/4W(3 5% TA52
R797
0RD1501Q609
1.50K 1/4W(3 5% TA52
R798
0RD2001Q609
2K 1/4W(3 5% TA52
R799
0RD1502Q609
15K 1/4W(3 5% TA52
R801
0RD4702Q609
47K 1/4W(3 5% TA52
R802
0RD1502Q609
15K 1/4W(3 5% TA52
R803
0RD2001Q609
2K 1/4W(3 5% TA52
R804
971-0016
TIN HDC 0.60H
R808
0RD6802Q609
68K 1/4W(3 5% TA52
R809
0RX0101K665
1 OHM 2 W 5% SF
R813
0RD6802Q609
68K 1/4W(3 5% TA52
R814
0RD1202Q609
12K 1/4W(3 5% TA52
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
R816
0RN3001F409
3K 1/6W 1% TA52
R818
0RN6202F409
62KOHM 1/6 W 1% TA52
R821
0RD3001Q609
3K 1/4W(3 5% TA52
R822
0RX0152J609
15 OHM 1 W 5% TA52
R823
0RX0432K665
43OHM 2 W 5% SF
R824
0RD2400A609
240 OHM 1/2 W (7.0) 5% TA52
R901
0RD4703A609
470K OHM 1/2 W (7.0) 5% TA52
R902
0RD0511Q609
5.1 OHM 1/4 W (3.4) 5% TA52
R904
0RX3902K665
39K OHM 2 W 5% SF
R906
0RD6200Q609
620 1/4W(3 5% TA52
R908
0RN0220H609
0.22 1/2W 5% TA52
R910
0RX4702J609
47K OHM 1 W 5% TA52
R911
0RD0202Q609
20 1/4W(3 5% TA52
R912
0RD1802Q609
18K 1/4W(3 5% TA52
R913
0RD2201Q609
2.20K 1/4W(3 5% TA52
R915
0RD0102Q609
10 1/4W(3 5% TA52
R916
0RD1002Q609
10K 1/4W(3 5% TA52
R918
0RD1001Q609
1K 1/4W(3 5% TA52
R923
0RD1003Q609
100K 1/4W(3 5% TA52
R925
0RB0180K607
0.18OHM 2 W 5% TA62
R926
0RD4301Q609
4.30K 1/4W(3 5% TA52
R927
0RD2002Q609
20K 1/4W(3 5% TA52
R928
0RD1800Q609
180 1/4W(3 5% TA52
R929
0RD0332Q609
33 1/4W(3 5% TA52
R941
0RN0220H609
0.22 1/2W 5% TA52
R944
0RD4700A609
470 OHM 1/2 W (7.0) 5% TA52
R945
0RD4701Q609
4.70K 1/4W(3 5% TA52
R951
0RN0221H609
2.2 1/2W 5 TA52
R952
0RD1202A609
12K OHM 1/2 W(7.0) 5.00% TA52
R953
0RD1001A609
1K OHM 1/2 W (7.0) 5% TA52
R954
0RD4701Q609
4.70K 1/4W(3 5% TA52
R955
0RD4701Q609
4.70K 1/4W(3 5% TA52
R956
0RD6802A609
68K OHM 1/2 W (7.0) 5% TA52
R957
0RD0472A609
47 OHM 1/2 W (7.0) 5% TA52
R960
0RD6200A609
620 OHM 1/2 W(7.0) 5.00% TA52
F901
0FZZTTH001B
TIME LAG HBC 5A/250V,215 005,L
J302
0RD0471Q609
4.70 1/4W(3 5% TA52
J47
0RD1001Q609
1K 1/4W(3 5% TA52
RL901
6920TBB005A
ALA2PF12 MATSUSHITA 250V 5A 12
RL901
6920TBB005A
ALA2PF12 MATSUSHITA 250V 5A 12
SC301
6620TBD003A
PCS701E PARK ELEC. 10PIN 14/36
SC901
6620TKB002A
BAE EUN AC UNIVERSAL 3PIN BLAC
SG301
6918TAT005E
MTAS-201M GIGA AXIAL TAPING
SG302
6918TAT005E
MTAS-201M GIGA AXIAL TAPING
SG303
6918TAT005E
MTAS-201M GIGA AXIAL TAPING
SG305
6918TRT005A
SSG-102-A0,1KV SMART RADIAL TA
SG701
6918TRT005A
SSG-102-A0,1KV SMART RADIAL TA
SW201
140-058D
SKHV10911A LGEC NON 12 20 HORI
SW202
140-058D
SKHV10911A LGEC NON 12 20 HORI
SW203
140-058D
SKHV10911A LGEC NON 12 20 HORI
SW204
140-058D
SKHV10911A LGEC NON 12 20 HORI
SW205
140-058D
SKHV10911A LGEC NON 12 20 HORI
SW206
140-058D
SKHV10911A LGEC NON 12 20 HORI
- 31 -
OTHERs
DATE: 2002. 10. 10.
*S
*AL LOC. NO.
PART NO.
DESCRIPTION / SPECIFICATION
SW207
140-058D
SKHV10911A LGEC NON 12 20 HORI
T701
6174T11004A
“1055A, CB777H LG-PHILIPS 17””/7”
T702
6170TCZ013A
EI2218 26UH D/FOCUS,FB775G
T703
6170TCZ001D
EI2218 4.0MH H-DRIVE,EB770G
T901
6170TMZ138A
EER3940 230UH V-16PIN FB770H S
TH901
163-053E
J502P61D4R5Q270 JA HWA 4.5OHM
TH902
6322TA080BA
SCK-084 THINKING 8 OHM 15% 264
VR901
180-035G
EVN-DJAA03B13 (MEC),1KB
X401
6202TTB003B
HC-49/U HARMONY RADIAL 12MHZ 3
- 32 -
PIN CONFIGURATION
- 33 -
STV6888
LOW-COST I2C CONTROLLED DEFLECTION PROCESSOR FOR MULTISYNC MONITORS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
H/HVSyn
VSyn
HLckVBk
HPLL2C
CO
HGND
RO
HPLL1F
HPosF
HMoirØ
HFly
RefOut
BComp
BRegIn
BISense
HOscF
HEHTIn
VEHTIn
VOscF
VAGCCap
VGND
VCap
VOut
EWOut
XRay
HOut
GND
BOut
Vcc
SCL
SDA
VDyCor
- 34 -
Horizontal position
S-correction
C-correction
Pin cushion asymm.
Parallelogram
Hor. duty cycle
H-moirØ amplitude
VDyCor amplitude
B+ ref.
Vertical size
Vertical position
Vertical moirØ
Pin cushion
Keystone
Top corners
Bottom corners
:
Functions controlled via I2C Bus
H size
Control voltage level
STV6888
Block Diagram
- 35 -
STV9211
Pin Configuration
Pin Description
- 36 -
BLOCK DIAGRAM
STV9211
- 37 -
STV9556
1
2
3
4
5
6
7
8
9
10
11
OUT1
OUT2
OUT3
GNDP
GNDA
IN3
VDD
GNDS
VCC
IN2
IN1
BLOCK DIAGRAM
Pin Configuration
1050V
IIC-SDA
IIC-SCL
DDC-SDA
DDC-SCL
- 38 -
- 39 -
SCHEMATIC DIAGRAM
NOTICE
Since this is a basic schematic diagram.
The value of components and some partial connection are
sucject to be changed for improvement without notice.
- 40 -
- 41 -
PRINTED CIRCUIT BOARD
3. MAIN BOARD (Component Side)
4. MAIN BOARD (Solder Side)
1. CONTROL BOARD (Component Side)
2. CONTROL BOARD (Solder Side)
Oct. 2002
P/NO : 3828TSL091F
Printed in Korea
