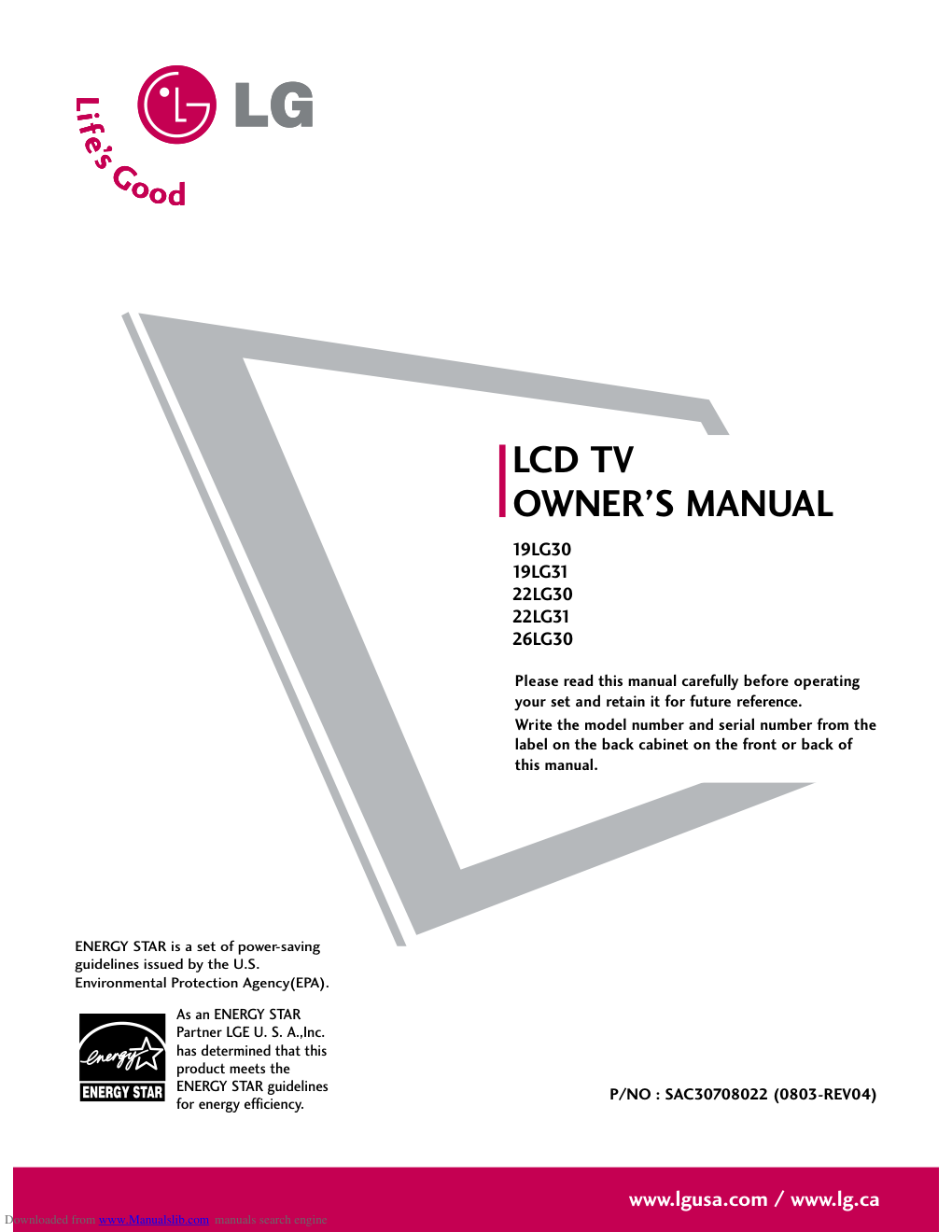

Please read this manual carefully before operating your set and retain it for future reference. Write the model number and serial number from the label on the back cabinet on the front or back of this manual. LCD TV OWNER’S MANUAL 19LG30 19LG31 22LG30 22LG31 26LG30 P/NO : SAC30708022 (0803-REV04) www.lgusa.com / www.lg.ca As an ENERGY STAR Partner LGE U. S. A.,Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA). Downloaded from www.Manualslib.com manuals search engine Downloaded from www.Manualslib.com manuals search engine 1 WARNING / CAUTION WARNING / CAUTION To prevent fire or shock hazards, do not expose this product to rain or moisture. FCC NOTICE Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the litera- ture accompanying the appliance. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. WARNING/CAUTION TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. NOTE TO CABLE/TV INSTALLER This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. Downloaded from www.Manualslib.com manuals search engine 2 IMPORTANT SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)that produce heat. When mounting a TV it on the wall, make sure not to install TV by the hanging power and sig- nal cables on the back of the TV. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Unplug this apparatus when unused for long periods of time. 1 2 3 4 5 6 7 8 9 Downloaded from www.Manualslib.com manuals search engine 3 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Never touch this apparatus or antenna during a thunder or lighting storm. Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped. CAUTION concerning the Power Cord : Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates dam- age or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Outdoor use marking : WARNING - To reduce the risk of fire or elec- tric shock, do not expose this appliance to rain or moisture. Wet Location Marking : Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on or over apparatus. GROUNDING Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes. DISCONNECTING DEVICE FROM MAINS Mains plug is the disconnecting device. The plug must remain readily operable. 12 10 11 14 13 15 16 17 18 Power Supply Short-circuit Breaker Downloaded from www.Manualslib.com manuals search engine 4 CONTENTS WARNING / CAUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .2 PREPARATION Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Front Panel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Back Panel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Desktop Pedestal Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Swivel Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 VESA Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Protection Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Attaching the TV to a Desk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Positioning your Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Kensington Security System . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Antenna or Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . .17 EXTERNAL EQUIPMENT SETUP HD Receiver Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Headphone Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Other A/V Source Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Audio out Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 WATCHING TV / CHANNEL CONTROL Remote Control Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Turning On TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Quick Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Initial Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 On-Screen Menus Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Channel Setup - Auto Scan (Auto Tuning) . . . . . . . . . . . . . . . . . . . . . . . . . . .45 - Add / Delete Channel (Manual Tuning) . . . . . .46 - Channel Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47 Input List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 PICTURE CONTROL Picture Size (Aspect Ratio) Control . . . . . . . . . . . . . . . . . .50 Preset Picture Settings - Picture Mode - Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 - Color Tone - Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Manual Picture Adjustment - Picture Mode - User Mode . . . . . . . . . . . . . . . . . . . . . . . .54 Picture Improvement Technology . . . . . . . . . . . . . . . . . . . . .55 Advanced Control - Black (Darkness) Level . . . . . . .56 Advanced Control - Eye Care . . . . . . . . . . . . . . . . . . . . . . . . . . .57 Advanced Control - Real Cinema . . . . . . . . . . . . . . . . . . . . . .58 Picture Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 SOUND & LANGUAGE CONTROL Auto Volume Leveler (Auto Volume) . . . . . . . . . . . . . . . . .61 Preset Sound Setting (Sound Mode) . . . . . . . . . . . . . . . .62 Sound Setting Adjustment - User Mode . . . . . . . . . . .63 Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 TV Speakers On/Off Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 Audio Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66 Stereo/SAP Broadcasts Setup . . . . . . . . . . . . . . . . . . . . . . . . . .67 Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 On-Screen Menus Language Selection . . . . . . . . . . . . .69 Caption Mode - Analog Broadcasting System Captions . . . . . . .70 - Digital Broadcasting System Captions . . . . . . . .71 - Caption Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 Downloaded from www.Manualslib.com manuals search engine 5 TIME SETTING Clock Setting - Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73 - Manual Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 Auto On/Off Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75 Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76 Auto Shut-off Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77 PARENTAL CONTROL / RATINGS Set Password & Lock System . . . . . . . . . . . . . . . . . . . . . . . . . . .78 Channel Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81 Movie & TV Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82 Downloadable Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 External Input Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88 Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89 APPENDIX Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93 External Control Through RS-232C . . . . . . . . . . . . . . . . . .94 Open Source License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 Downloaded from www.Manualslib.com manuals search engine 6 I If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV. I Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance. I Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen. On Disposal The fluorescent lamp used in this product contains a small amount of mercury.Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority. Manufactured under license from Dolby Laboratories. “Dolby “and the double-D symbol are trademarks of Dolby Laboratories. Downloaded from www.Manualslib.com manuals search engine PREPARATION 7 PREPARATION ACCESSORIES Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV. The accessories included may differ from the images below. Copyright© 2007 LGE, All Rights Reserved. 1.5V 1.5V Owner’s Manual Power Cord Remote Control, Batteries 1 2 3 4 5 6 7 8 0 - 9 VOL CH ENTER POWER MUTE Q.MENU MENU FLASHBK RETURN CC FAV PICTURE SOUND SAP RATIO TV INPUT CD Manual Option Extras * Wipe spots on the exterior only with the polishing cloth. * Do not wipe roughly when removing stain. Please be cautions of that excessive pressure may cause scratch or discoloration. Polishing Cloth (This feature is not available for all models.) D-sub 15 pin Cable When using the VGA (D-sub 15 pin cable) PC connection, the user must use shielded signal interface cables with ferrite cores to maintain standards compliance. Only 19/22LG30, 19/22LG31 Cable Management Clip Protection Cover Only 26LG30 Bolts for stand assembly (Refer to P.12) Screw for stand fixing (Refer to P.16) Protection Cover x 4 x 4 Downloaded from www.Manualslib.com manuals search engine PREPARATION 8 FRONT PANEL INFORMATION PREPARATION I Image shown may differ from your TV. I NOTE: If your TV has a protection tape attached, remove the tape. And then wipe the TV with a cloth (If a polishing cloth is included with your product, use it). INPUT MENU VOL CH ENTER CHANNEL (-, +) Buttons VOLUME (-, +) Buttons MENU Button ENTER Button INPUT Button POWER Button Remote Control Sensor Power/Standby Indicator Illuminates red in standby mode. Illuminates blue when the TV is switched on. 19/22LG30, 19/22LG31 Downloaded from www.Manualslib.com manuals search engine PREPARATION 9 POWER Button Power/Standby Indicator Illuminates red in standby mode. Illuminates blue when the TV is switched on. (Can be adjusted Power Indicator in the OPTION menu. G p.60) CH VOL MENU INPUT ENTER CHANNEL (+, -) Buttons VOLUME (+, -) Buttons ENTER Button MENU Button INPUT Button 26LG30 Remote Control Sensor Downloaded from www.Manualslib.com manuals search engine PREPARATION 10 BACK PANEL INFORMATION PREPARATION I Image shown may differ from your TV. COMPONENT IN ANTENNA/CABLE IN RS-232C IN (SERVICE ONLY) AUDIO IN (RGB/DVI) RGB(PC) IN AV IN VIDEO AUDIO HDMI/DVI IN VIDEO L(MONO) R L R AUDIO S-VIDEO SERVICE ONLY 3 1 6 9 2 RGB IN COMPONENT IN AUDIO (RGB/DVI) RGB(PC) REMOTE CONTROL IN ANTENNA/ CABLE IN 1 2 RS-232C IN (CONTROL & SERVICE) VIDEO AUDIO DIGITAL AUDIO OUT OPTICAL AUDIO OUT AV IN 1 R VIDEO MONO ( ) AUDIO S-VIDEO 2 1 HDMI/DVI IN 1 3 4 6 7 8 2 9 5 AV IN 2 L/MONO R AUDIO VIDEO USB SERVUCE ONLY HDMI IN 3 9 10 10 1 26LG30 19/22LG30, 19/22LG31 HEADPHONE 11 12 Downloaded from www.Manualslib.com manuals search engine PREPARATION 11 HDMI/DVI IN, HDMI IN Digital Connection. Supports HD video and Digital audio. Doesn’t support 480i. Accepts DVI video using an adapter or HDMI to DVI cable (not included) COMPONENT IN Analog Connection. Supports HD. Uses a red, green, and blue cable for video & red and white for audio. RGB (PC) Analog PC Connection. Uses a D-sub 15 pin cable (VGA cable). AUDIO (RGB/DVI) 1/8” headphone jack for analog PC audio input. REMOTE CONTROL PORT For a wired remote control. RS-232C IN (CONTROL & SERVICE) PORT Used by third party devices. ANTENNA/CABLE IN Connect over-the air signals to this jack. Connect cable signals to this jack. DIGITAL AUDIO OUT OPTICAL Digital audio output for use with amps and home theater systems. Includes an optical connection. Note: In standby mode, these ports do not work. AUDIO OUT Analog audio output for use with amps and home theater systems. AV (Audio/Video) IN Analog composite connection. Supports standard definition video only (480i). S-VIDEO Better quality than standard composition. Supports standard definition video only (480i). USB SERVICE ONLY SERVICE ONLY RS-232C IN (SERVICE ONLY) Used for software updates. Headphone INPUT Plug the headphone into the headphone socket. Power Cord Socket For operation with AC power. Caution: Never attempt to operate the TV on DC power. 1 2 3 4 5 6 7 9 10 11 12 8 Downloaded from www.Manualslib.com manuals search engine PREPARATION 12 PREPARATION STAND INSTALLATION I Image shown may differ from your TV Assemble the parts of the STAND BODY with COVER BASE of the TV. Insert the STAND BODY into a COVER BASE until clicking sound. 2 Assemble the TV as shown. 3 For 19/22LG30, 19/22LG31 For 26LG30 STAND BODY COVER BASE Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. 1 Assemble the parts of the STAND BODY with COVER BASE of the TV. 2 Assemble the TV as shown. 3 Fix the 4 bolts securely using the holes in the back of the TV. 4 STAND BODY COVER BASE Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. 1 Downloaded from www.Manualslib.com manuals search engine PREPARATION 13 CABLE MANAGEMENT I Image shown may differ from your TV Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section. Install the CABLE MANAGEMENT CLIP as shown. CABLE MANAGEMENT CLIP 1 2 Fit the CABLE MANAGEMENT CLIP as shown. 3 Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section. Install the CABLE MANAGEMENT CLIP as shown. CABLE MANAGEMENT CLIP 1 2 Put the cables inside the CABLE MANAGEMENT CLIP and snap it closed. 3 For 26LG30 For 19/22LG30, 19/22LG31 G Do not hold the CABLE MANAGEMENT CLIP when moving the TV. - If the TV is dropped, you may be injured or the product may be broken. NOTE ! How to remove the CABLE MANAGEMENT CLIP G Hold the CABLE MANAGE- MENT CLIP with both hands and pull it backward. Downloaded from www.Manualslib.com manuals search engine PREPARATION 14 DESKTOP PEDESTAL INSTALLATION PREPARATION G Ensure adequate ventilation by following the clearance recommendations. CAUTION 4 inches 4 inches 4 inches 4 inches For proper ventilation, allow a clearance of 4 inches on all four sides from the wall. I Image shown may differ from your TV. SWIVEL STAND (Only 26LG30) After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit your viewing position. VESA WALL MOUNTING R 19/22LG30, 19/22LG31: 100 mm 26LG30: 200 mm 100 mm This TV accepts VESA FDMI compliant mounts via the four screw holes on the back of the TV. We recommend that you use a wall mounting bracket of LG brand when mounting the TV to a wall. G Screw length needed depends on the wall mount used. For further information, refer to the instructions included with the mount. NOTE ! Downloaded from www.Manualslib.com manuals search engine PREPARATION 15 PROTECTION COVER For 19/22LG30, 19/22LG31 For 26LG30 HINGE BODY I Image shown may differ from your TV. You can remove the stand before installing the TV on a wall mount by performing the previous stand instructions in reverse. After removing the stand, install the included protection cover over the hole for the stand. Insert the PROTECTION COVER into the TV until clicking sound. Loose the bolts from TV. 1 Insert the PROTECTION COVER into the TV. 3 PROTECTION COVER PROTECTION COVER Bend the HINGE BODY and pull it backward. 2 Fix the 4 bolts securely using the holes in the back of the TV. 4 Downloaded from www.Manualslib.com manuals search engine PREPARATION 16 ATTACHING THE TV TO A DESK (Only 26LG30) PREPARATION POSITIONING YOUR DISPLAY (Only 19/22LG30, 19/22LG31) I Here shown may be somewhat different from your TV. I Adjust the position of the panel in various ways for maximum comfort. • Tilt range 12 0 3 0 The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product. G To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury. WARNING 1-Screw (provided as parts of the product) Desk Stand KENSINGTON SECURITY SYSTEM (Only 19/22LG30, 19/22LG31) - The TV is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below. - For the detailed installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System. For further information, contact http://www.kensington.com, the internet homepage of the Kensington company. Kensington sells security systems for expensive electronic equipment such as note- book PCs and LCD projectors. NOTE: The Kensington Security System is an optional accessory. Downloaded from www.Manualslib.com manuals search engine PREPARATION 17 ANTENNA OR CABLE CONNECTION 1. Antenna (Analog or Digital) Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections. For optimum picture quality, adjust antenna direction if needed. 2. Cable Wall Antenna Socket Outdoor Antenna (VHF, UHF) Cable TV Wall Jack Multi-family Dwellings/Apartments (Connect to wall antenna socket) RF Coaxial Wire (75 ohm) RF Coaxial Wire (75 ohm) Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna) Be careful not to bend the bronze wire when connecting the antenna. Copper Wire I To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly. I If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter. I If the antenna is not installed properly, contact your dealer for assistance. Antenna UHF Signal Amplifier VHF ANTENNA/CABLE IN ANTENNA/CABLE IN ANTENNA/CABLE IN I To prevent damage do not connect to the power outlet until all connections are made between the devices. I Image shown may differ from your TV. Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 18 EXTERNAL EQUIPMENT SETUP HD RECEIVER SETUP This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below. Component Connection 1. How to connect Connect the video outputs (Y, PB, PR) of the digital set- top box to the COMPONENT IN VIDEO jacks on the TV. Match the jack colors (Y = green, PB = blue, and PR = red). Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO jacks on the TV. 2 1 2. How to use I Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box. operation) I Select the Component input source on the TV using the INPUT button on the remote control. I To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment. ANTENNA/CABLE IN IN NLY) AUDIO IN (RGB/DVI) IN AV IN VIDEO L(MONO) R AUDIO S-VIDEO VIDEO AUDIO L R COMPONENT IN Y L R PB PR 1 2 Y, CB/PB, CR/PR Horizontal Vertical Frequency(KHz) Frequency(Hz) 15.73 59.94 15.73 60.00 31.47 59.94 31.50 60.00 44.96 59.94 45.00 60.00 33.72 59.94 33.75 60.00 27.00 24.00 33.75 30.00 67.43 59.94 67.50 60.00 Resolution 720x480i 720x480p 1280x720p 1920x1080i 1920x1080p Signal 480i 480p 720p 1080i 1080p Component Yes Yes Yes Yes Yes HDMI No Yes Yes Yes Yes 19/22LG30, 19/22LG31 Supported Resolutions Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 19 26LG30 1. How to connect Connect the video outputs (Y, PB, PR) of the digital set- top box to the COMPONENT IN VIDEO 1 jacks on the TV. Match the jack colors (Y = green, PB = blue, and PR = red). Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO 1 jacks on the TV. 2 1 2. How to use I Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box. operation) I Select the Component 1 input source on the TV using the INPUT button on the remote control. I If connected to COMPONENT IN2 input, select the Component 2 input source on the TV. Y, CB/PB, CR/PR Supported Resolutions Horizontal Vertical Frequency(KHz) Frequency(Hz) 15.73 59.94 15.73 60.00 31.47 59.94 31.50 60.00 44.96 59.94 45.00 60.00 33.72 59.94 33.75 60.00 26.97 23.976 27.00 24.00 33.71 29.97 33.75 30.00 67.432 59.94 67.50 60.00 Resolution 720x480i 720x480p 1280x720p 1920x1080i 1920x1080p Signal 480i 480p 720p 1080i 1080p Component Yes Yes Yes Yes Yes HDMI No Yes Yes Yes Yes RGB IN AUDIO (RGB/DVI) RGB(PC) REMOTE CONTROL IN RS (CONTR I IN S- COMPONENT IN 1 2 VIDEO L Y PB PR R AUDIO Y L R PB PR 1 2 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 20 EXTERNAL EQUIPMENT SETUP RS-232C IN (SERVICE ONLY) A (R RGB(PC) IN SERVICE ONLY HDMI/DVI IN HDMI-DTV OUTPUT HDMI Connection Connect the digital set-top box to HDMI/DVI IN jack on the TV. No separate audio connection is necessary. HDMI supports both audio and video. 1. How to connect 2. How to use I Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) I Select the HDMI input source on the TV using the INPUT button on the remote control. 2 1 1 HDMI-DTV Horizontal Vertical Frequency(KHz) Frequency(Hz) 31.47 59.94 31.50 60.00 44.96 59.94 45.00 60.00 33.72 59.94 33.75 60.00 27.00 24.00 33.75 30.00 67.43 59.94 67.50 60.00 Resolution 720x480p 1280x720p 1920x1080i 1920x1080p 19/22LG30, 19/22LG31 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 21 26LG30 Connect the digital set-top box to HDMI/DVI IN1, 2, or 3 jack on the TV. No separate audio connection is necessary. HDMI supports both audio and video. 1. How to connect 2. How to use I Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) I Select the HDMI1, HDMI2, or HDMI3 input source on the TV using the INPUT button on the remote control. 2 1 HDMI-DTV Horizontal Vertical Frequency(KHz) Frequency(Hz) 31.47 59.94 31.50 60.00 44.96 59.94 45.00 60.00 33.72 59.94 33.75 60.00 26.97 23.976 27.00 24.00 33.71 29.97 33.75 30.00 67.432 59.939 67.50 60.00 Resolution 720x480p 1280x720p 1920x1080i 1920x1080p RGB IN COMPONE RGB(PC) 1 2 VIDEO Y PB PR HDMI/DVI IN 2 1 HDMI-DTV OUTPUT 1 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 22 EXTERNAL EQUIPMENT SETUP DVI to HDMI Connection COMPONENT IN RS-232C IN (SERVICE ONLY) AUDIO IN (RGB/DVI) RGB(PC) IN VIDE S-VID SERVICE ONLY HDMI/DVI IN L R DVI-DTV OUTPUT 1 2 RGB IN COMPONENT IN AUDIO (RGB/DVI) RGB(PC) REMO CONTRO 1 2 VIDEO L Y PB PR R AUDIO HDMI/DVI IN 2 1 L R DVI-DTV OUTPUT 1 2 Connect the DVI output of the digital set-top box to the HDMI/DVI IN or HDMI/DVI IN 1/2/3 jack on the TV. Connect the PC audio output to the AUDIO IN (RGB/DVI) or AUDIO (RGB/DVI) jack on the TV. 1. How to connect 2. How to use I Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) I Select the HDMI or HDMI1/2/3 input source on the TV using the INPUT button on the remote control. 2 1 G A DVI to HDMI cable or adapter is required for this connection. DVI doesn't support audio, so a separate audio connection is necessary. NOTE ! 19/22LG30, 19/22LG31 26LG30 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 23 DVD SETUP Component Connection Component Input ports To get better picture quality, connect a DVD player to the component input ports as shown below. Component ports on the TV Y PB PR Video output ports on DVD player Y Y Y Y PB B-Y Cb Pb PR R-Y Cr Pr Connect the video outputs (Y, PB, PR) of the DVD to the COMPONENT IN VIDEO or COMPONENT IN VIDEO1 jacks on the TV. Match the jack colors (Y = green, PB = blue, and PR = red). Connect the audio outputs of the DVD to the COMPONENT IN AUDIO or COMPONENT IN AUDIO1 jacks on the TV. 1. How to connect 2. How to use I Turn on the DVD player, insert a DVD. I Select the Component or Component 1 input source on the TV using the INPUT button on the remote control. I If connected to COMPONENT IN 2 input, select the Component 2 input source on the TV. I Refer to the DVD player's manual for operating instructions. 2 1 ANTENNA/CABLE IN AUDIO IN (RGB/DVI) AV IN VIDEO L(MONO) R AUDIO S-VIDEO VIDEO AUDIO L R COMPONENT IN Y L R PB PR 1 2 RGB IN AUDIO (RGB/DVI) RGB(PC) REMOTE CONTROL IN RS (CONTRO VI IN S-V COMPONENT IN 1 2 VIDEO L Y PB PR R AUDIO Y L R PB PR A O 1 2 19/22LG30, 19/22LG31 26LG30 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 24 EXTERNAL EQUIPMENT SETUP S-Video Connection COMPONENT IN ANTENNA/CABLE IN AUDIO IN (RGB/DVI) AV IN VIDEO AUDIO VIDEO L(MONO) R L R AUDIO S-VIDEO L R S-VIDEO AUDIO 1 2 IN UDIO B/DVI) REMOTE CONTROL IN ANTENNA/ CABLE IN RS-232C IN (CONTROL & SERVICE) L R AUDIO AUDIO OUT AV IN 1 VIDEO L R (MONO) AUDIO S-VIDEO L R S-VIDEO AUDIO DIGITAL AUDIO OUT OPTICAL 1 2 19/22LG30, 19/22LG31 26LG30 Connect the S-VIDEO output of the DVD to the S -VIDEO input on the TV. Connect the audio outputs of the DVD to the AUDIO input jacks on the TV. 1. How to connect 2. How to use I Turn on the DVD player, insert a DVD. I Select the AV or AV1 input source on the TV using the INPUT button on the remote control. I Refer to the DVD player's manual for operating instructions. 2 1 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 25 HDMI Connection RS-232C IN (SERVICE ONLY) A ( RGB(PC) IN SERVICE ONLY HDMI/DVI IN HDMI-DVD OUTPUT 1 19/22LG30, 19/22LG31 RGB IN COMPON RGB(PC) 1 2 VIDEO Y PB HDMI/DVI IN 2 1 HDMI-DVD OUTPUT 1 26LG30 Connect the HDMI output of the DVD to the HDMI/DVI IN or HDMI/DVI IN 1/2/3 jack on the TV. No separated audio connection is necessary. HDMI supports both audio and video. 1. How to connect 2. How to use I Select the HDMI or HDMI1/2/3 input source on the TV using the INPUT button on the remote control. I Refer to the DVD player's manual for operating instructions. 2 1 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 26 VCR SETUP EXTERNAL EQUIPMENT SETUP Antenna Connection I To avoid picture noise (interference), leave an adequate distance between the VCR and TV. I If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen. This phenomenon is common to all TVs and is not covered by warranty. Connect the RF antenna out socket of the VCR to the ANTENNA/CABLE IN socket on the TV. Connect the antenna cable to the RF antenna in socket of the VCR. 1. How to connect I Set VCR output switch to 3 or 4 and then tune TV to the same channel number. I Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.) 2. How to use 2 1 ANTENNA/CABLE IN AV IN AUDIO VIDEO L(MONO) R L R AUDIO L R S-VIDEO VIDEO OUTPUT SWITCH ANT IN ANT OUT Wall Jack Antenna 1 2 ANTENNA/ CABLE IN 32C IN & SERVICE) AUDIO OUT AV IN 1 VIDEO L R (MONO) AUDIO EO L R S-VIDEO VIDEO OUTPUT SWITCH ANT IN ANT OUT GITAL DIO OUT PTICAL Wall Jack Antenna 1 2 19/22LG30, 19/22LG31 26LG30 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 27 Connect the AUDIO/VIDEO jacks between TV and VCR. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red) 1. How to connect I Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.) I Select the AV or AV1 input source on the TV using the INPUT button on the remote control. I If connected to AV IN2, select AV2 input source on the TV. 2. How to use 1 19/22LG30, 19/22LG31 26LG30 Composite (RCA) Connection G If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV. NOTE ! COMPONENT IN N LY) AUDIO IN (RGB/DVI) IN AV IN VIDEO AUDIO VIDEO L(MONO) R L R AUDIO S-VIDEO L R S-VIDEO VIDEO OUTPUT SWITCH ANT IN ANT OUT 1 IO DVI) REMOTE CONTROL IN ANTENNA/ CABLE IN RS-232C IN (CONTROL & SERVICE) R AUDIO AUDIO OUT AV IN 1 VIDEO L R (MONO) AUDIO S-VIDEO DIGITAL AUDIO OUT OPTICAL L R S-VIDEO VIDEO OUTPUT SWITCH ANT IN ANT OUT 1 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 28 EXTERNAL EQUIPMENT SETUP G The picture quality is improved: compared to normal composite (RCA cable) input. NOTE ! S-Video Connection L R S-VIDEO VIDEO OUTPUT SWITCH ANT IN ANT OUT COMPONENT IN ) AUDIO IN (RGB/DVI) AV IN VIDEO AUDIO VIDEO L(MONO) R L R AUDIO S-VIDEO 1 2 19/22LG30, 19/22LG31 26LG30 IN AUDIO GB/DVI) REMOTE CONTROL IN ANTENNA/ CABLE IN RS-232C IN (CONTROL & SERVICE) L R AUDIO AUDIO OUT AV IN 1 VIDEO L R (MONO) AUDIO S-VIDEO DIGITAL AUDIO OUT OPTICAL L R S-VIDEO VIDEO OUTPUT SWITCH ANT IN ANT OUT 1 2 Connect the S-VIDEO output of the VCR to the S -VIDEO input on the TV. Connect the audio outputs of the VCR to the AUDIO input jacks on the TV. 1. How to connect 2. How to use I Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.) I Select the AV or AV1 input source on the TV using the INPUT button on the remote control. 2 1 G Do not connect to both Video and S-Video at the same time. In the event that you connect both Video and the S-Video cables, only the S-Video will work. CAUTION Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 29 HEADPHONE SETUP (Only 19/22LG30, 19/22LG31) OTHER A/V SOURCE SETUP (Only 26LG30) AV IN 2 L/MONO R AUDIO VIDEO HDMI IN 3 USB IN L R VIDEO Camcorder Video Game Set Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colors. (Video = yellow, Audio Left = white, and Audio Right = red) 1. How to connect 2. How to use I Select the AV2 input source on the TV using the INPUT button on the remote control. I If connected to AV IN1 input, select the AV1 input source on the TV. I Operate the corresponding external equipment. 1 1 You can listen to the sound through the headphone. Plug the headphone into the headphone socket. To adjust the headphone volume, press the VOL + or - button. If you press the MUTE button, the sound from the headphone is switched off. 1. How to connect 2 1 HEADPHONE Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 30 AUDIO OUT CONNECTION (Only 26LG30) EXTERNAL EQUIPMENT SETUP Send the TV’s audio to external audio equipment via the Audio Output port. RS-232C IN (CONTROL & SERVICE) R AUDIO AUDIO OUT AV IN 1 VIDEO L R (MONO) AUDIO S-VIDEO L R AUDIO 1 DIO /DVI) REMOTE CONTROL IN ANTENNA/ CABLE IN RS-232C IN (CONTROL & SERVICE) R AUDIO AUDIO OUT AV IN 1 VIDEO L R (MONO) AUDIO S-VIDEO DIGITAL AUDIO OUT OPTICAL 1 2 G When connecting with external audio equipments, such as amplifiers or speakers, you can turn the TV speakers off in the menu. (G p.65) NOTE ! G Do not look into the optical output port. Looking at the laser beam may damage your vision. G Block the SPDIF out (optical) about the contents with ACP(Audio Copy Protection) function. CAUTION Connect one end of the optical or coaxial cable to the TV’s OPTICAL port of DIGITAL AUDIO OUT. Connect the other end of the optical cable to the digital audio input on the audio equipment. Set the “TV Speaker option - Off” in the AUDIO menu. (G p.65). See the external audio equipment instruction manu- al for operation. 1. How to connect 2 3 1 Connect audio outputs to the TV’s AUDIO OUT jacks. Set the “TV Speaker option - Off” in the AUDIO menu. (G p.65). See the external audio equipment instruction manual for operation. 1. How to connect 2 1 Analog Digital Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 31 PC SETUP This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. VGA (D-Sub 15 pin) Connection COMPONENT IN RS-232C IN (SERVICE ONLY) AUDIO IN (RGB/DVI) RGB(PC) IN VIDEO DMI/DVI IN S-VIDEO SERVICE ONLY RGB OUTPUT AUDIO 1 2 COMPONENT IN REMOTE CONTROL I 1 2 (CO VIDEO L Y PB PR R AUDIO MI/DVI IN RGB IN AUDIO (RGB/DVI) RGB(PC) RGB OUTPUT AUDIO 1 2 Connect the VGA output of the PC to the RGB (PC) IN or RGB (PC) jack on the TV. Connect the PC audio output to the AUDIO IN (RGB/DVI) or AUDIO (RGB/DVI) jack on the TV. 1. How to connect 2. How to use I Turn on the PC and the TV. I Select the RGB-PC input source on the TV using the INPUT button on the remote control. 2 1 19/22LG30, 19/22LG31 26LG30 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 32 EXTERNAL EQUIPMENT SETUP DVI to HDMI Connection COMPONENT IN REMO CONTRO 1 2 VIDEO L Y PB PR R AUDIO HDMI/DVI IN 2 1 RGB IN AUDIO (RGB/DVI) RGB(PC) DVI-PC OUTPUT AUDIO 1 2 COMPONENT IN RS-232C IN (SERVICE ONLY) AUDIO IN (RGB/DVI) RGB(PC) IN VID S-V SERVICE ONLY HDMI/DVI IN AUDIO DVI-PC OUTPUT 1 2 Connect the DVI output of the PC to the HDMI/DVI IN or HDMI/DVI IN 1/2/3 jack on the TV. Connect the PC audio output to the AUDIO IN (RGB/DVI) or AUDIO (RGB/DVI) jack on the TV. 1. How to connect 2. How to use I Turn on the PC and the TV. I Select the HDMI or HDMI1/2/3 input source on the TV using the INPUT button on the remote control. 2 1 19/22LG30, 19/22LG31 26LG30 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 33 G To get the the best picture quality, adjust the PC graphics card to 1440x900 (19LG30/31), 1680x1050 (22LG30/31), 1360x768 (26LG30). G Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use. G In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or bright- ness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. G Avoid keeping a fixed image on the screen for a long period of time. The fixed image may become permanently imprinted on the screen. G The synchronization input form for Horizontal and Vertical frequencies is separate. NOTES ! For 19/22LG30, 19/22LG31 Horizontal Vertical Frequency(KHz) Frequency(Hz) 31.469 70.08 31.469 70.08 31.469 59.94 37.879 60.31 48.363 60.00 47.776 59.87 47.712 60.01 47.720 59.799 55.5 59.90 64.744 59.948 65.290 59.954 Resolution 720x400 1360x768 RGB-PC 1360x768 HDMI-PC 640x480 800x600 1024x768 640x350 1280x768 1440x900 1400x1050 (22LG30/31 only) 1680x1050 (22LG30/31 only) Supported Display Specifications (RGB-PC, HDMI-PC) Horizontal Vertical Frequency(KHz) Frequency(Hz) 31.469 70.08 31.469 70.08 31.469 59.94 37.879 60.31 48.363 60.00 47.776 59.87 47.720 59.799 47.130 59.65 Resolution 720x400 1360x768 640x350 640x480 800x600 1024x768 1280x768 1366x768 For 26LG30 * Only RGB-PC mode * Only RGB-PC mode Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 34 EXTERNAL EQUIPMENT SETUP Screen Setup for PC mode Selecting Resolution You can choose the resolution in RGB-PC mode. The Position, Phase, and Size can also be adjusted. Select PICTURE. Select Screen (RGB-PC). Select Resolution. Select the desired resolution. 1024 x 768 1280 x 768 1360 x 768 1366 x 768 Auto config. Resolution G Position Size Phase Reset SCREEN Move Prev. MENU 1 MENU 3 4 2 ENTER ENTER ENTER 5 ENTER Enter Move PICTURE • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) R G E Only 26LG30 Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 35 Auto Configure Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still not correct, try using the manual settings or a different resolution or refresh rate on the PC. Select Screen (RGB-PC). Select Auto config.. Auto config. G Resolution Position Size Phase Reset SCREEN Move Prev. MENU To Set 3 2 ENTER ENTER Select Yes. 4 ENTER Start Auto Configuration. 5 ENTER Select PICTURE. 1 MENU I If the position of the image is still not correct, try Auto adjustment again. I If picture needs to be adjusted again after Auto adjustment in RGB-PC, you can adjust the Position, Size or Phase. Enter Move PICTURE • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) R G E Yes No Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 36 EXTERNAL EQUIPMENT SETUP Adjustment for screen Position, Size, and Phase If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picture phase manually. This feature operates only in RGB-PC mode. Select Position, Size, or Phase. Make appropriate adjustments. Auto config. Resolution Position G Size Phase Reset G F D E SCREEN Move Prev. MENU 3 ENTER 4 ENTER I Position: This function is to adjust pic- ture to left/right and up/down as you prefer. I Size: This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size will also change. I Phase: This function allows you to remove any horizontal noise and clear or sharpen the image of characters. Select PICTURE. Select Screen (RGB-PC). 1 MENU 2 ENTER Enter Move PICTURE • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) R G E 5 ENTER Downloaded from www.Manualslib.com manuals search engine EXTERNAL EQUIPMENT SETUP 37 Screen Reset (Reset to original factory values) Returns Position, Size, and Phase to the default factory settings. This feature operates only in RGB-PC mode. Auto config. Position Resolution Size Phase Reset G SCREEN Move Prev. MENU To set Select Reset. 3 ENTER Select PICTURE. Select Screen (RGB-PC). 1 MENU 2 ENTER Select Yes. 4 ENTER 5 ENTER Enter Move PICTURE • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) R G E Yes No Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 38 REMOTE CONTROL FUNCTIONS WATCHING TV / CHANNEL CONTROL When using the remote control, aim it at the remote control sensor on the TV. 1 2 3 4 5 6 7 8 0 - 9 VOL CH ENTER POWER MUTE Q.MENU MENU FLASHBK RETURN CC FAV PICTURE SOUND SAP RATIO TV INPUT PICTURE SOUND SAP RATIO VOLUME UP /DOWN FAV CC MUTE CHANNEL UP/DOWN Q.MENU MENU RETURN THUMBSTICK (Up/Down/Left Right/ENTER) Selects the factory preset picture depend on the viewing environment. Gp.52 Selects the factory preset sound for type of program. G p.62 Analog mode: Selects MTS sound (Mono, Stereo, or a SAP) G p.67 DTV mode: Changes the audio language. Change the aspect ratio.G p.50 Increase/decrease the sound level. Scroll through the programmed Favorite channels. G p.41 Select a closed caption. G p.70 Switch the sound on or off. G p.40 Select available channels. Select the desired quick menu source. G p.41 Displays the main menu. Allows the user to move return one step in an interactive application or other user interaction function. Navigate the on-screen menus and adjust the system set- tings to your preference. Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 39 I Open the battery compartment cover on the back side and install the batteries matching correct polarity (+ with +, - with -). I Install two 1.5V AAA batteries. Don’t mix old or used batteries with new ones. I Close cover. Installing Batteries NUMBER button Turns your TV on or off. Returns to the last TV channel. External input modes rotate in regular sequence Used to enter a program number for multiple program channels such as 2-1, 2-2, etc. Tune to the last channel viewed. POWER TV INPUT — (DASH) FLASHBK NUMBER button Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 40 TURNING ON TV WATCHING TV / CHANNEL CONTROL NOTE ! G If you intend to be away on vacation, disconnect the power plug from the wall power outlet. First, connect power cord correctly. At this moment, the TV switches to standby mode. I In standby mode to turn TV on, press the , INPUT, CH (+ or -) button on the TV or press the POWER, INPUT, TV, CH (+ or -), Number (0~9) button on the remote control. Select the viewing source by using the INPUT button on the remote con- trol. I This TV is programmed to remember which power state it was last set to, even if the power cord is out. When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode. 1 2 3 Press the CH (+ or -) or NUMBER buttons to select a channel number. 1 VOLUME ADJUSTMENT CHANNEL SELECTION Press the VOL (+ or -) button to adjust the volume. If you want to switch the sound off, press the MUTE button. You can cancel the Mute function by pressing the MUTE or VOL (+ or -) button. Adjust the volume to suit your personal preference. 1 2 3 Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 41 QUICK MENU Display each menu. Make appropriate adjustments. I Aspect Ratio: Selects your desired picture format. I Backlight: Adjust the brightness of LCD panel to control the brightness of the screen. I Picture Mode: Selects the factory preset picture depend on the viewing environment. I Sound Mode: Selects the factory preset sound for type of program. I Caption: Select on or off. I Multi Audio: Changes the audio language (Digital signal). SAP: Selects MTS sound (Analog signal). I Sleep Timer: Select the amount of time before your TV turns off automatically. I Del/Add/Fav: Select channel you want to add/delete or add the channel to the Favorite List. Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual. Q.Menu (Quick Menu) is a menu of features which users might use frequently. 1 Q.MENU 2 3 Q.MENU Return to TV viewing Q.Menu 3 F 16:9 G Standard Vivid Off English Off Add Aspect Ratio Backlight Picture Mode Sound Mode Caption Multi Audio Sleep Timer Del/Add/Fav CH Close Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 42 INITIAL SETTING WATCHING TV / CHANNEL CONTROL This Function guides the user to easily set the essential items for viewing the TV for the first time when pur- chasing the TV. If will be displayed on the screen when turning the TV on for the first time. It can also be acti- vated from the user menus. Select Home Mode. 1 2 ENTER Select Auto or Manual. Select desired time option. 1 3 ENTER 2 Year Current Time Setting 2007 Month 11 Date 15 Hour 5 PM Minute 52 Time Zone Eastern Daylight Saving Off F Auto G Exit Enter RETURN Step2. Time Setting Selecting the environment. Choose the setting mode you want. In Store Home Exit Enter RETURN Step1. Mode Setting Step1. Mode setting Step2. Time setting I Default selection is “Home”. We recommend setting the TV to “Home” mode for the best picture in your home environment. I “In-store” Mode is only intended for use in retail environments. Customers can adjust the “Picture menu - Picture mode” manually while inspecting the TV, but the TV will automatically return to preset in-store mode after 5 minutes. ! Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 43 • You can also adjust Initial Setting in the OPTION menu. NOTE ! Select OSD Language Setting or Audio Language Setting. Start Auto Tuning. Select your desired language. 1 3 ENTER 1 ENTER 2 Auto Tuning can change channel map. Do you want to start Auto Tuning? Enter Exit Enter RETURN Step4. Auto Tuning Exit Enter RETURN Step3. Option Setting 1. OSD Language Setting F English G 2. Audio Language Setting French Step3. Option setting Step4. Auto Tuning Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 44 ON-SCREEN MENUS SELECTION WATCHING TV / CHANNEL CONTROL Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual. Display each menu. Select a menu item. Enter to the pop up menu. 1 MENU 3 2 ENTER ENTER Return to TV viewing. 4 MENU NOTE G Auto Volume, TV Speaker, Set ID, Power Indicator: Only 26LG30. Enter Move Auto Tuning Manual Tuning Channel Edit CHANNEL CHANNEL TIME PICTURE OPTION AUDIO LOCK Enter Move Auto Volume : Off Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On AUDIO L R Enter Move Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off TIME Enter Move Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block LOCK Enter Move Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home OPTION Lock System : Off Set Password Block Channel TV Rating-English TV Rating-French Downloadable Rating Input Block For USA For Canada Enter Move Aspect Ratio : 16:9 Picture Mode : Standard • Backlight 80 • Contrast 90 • Brightness 50 • Sharpness 60 • Color 60 • Tint 0 PICTURE E R G Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 45 CHANNEL SETUP Auto Scan (Auto Tuning) Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list. Run Auto Tuning again after any Antenna/Cable connection changes. Select CHANNEL. Select Auto Tuning. Select Yes. Run Auto tuning. 1 MENU 3 2 ENTER ENTER 4 ENTER I A password is required to gain access to Auto Tuning menu if the Lock System is turned on. 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move CHANNEL Auto Tuning Manual Tuning Channel Edit Enter Move CHANNEL Auto Tuning Manual Tuning Channel Edit Press ‘Yes’ button to begin auto tuning. Yes No Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 46 WATCHING TV / CHANNEL CONTROL Select CHANNEL. 1 MENU 2 ENTER If selecting DTV or CADTV input signal, you can view the on-screen signal strength monitor to see the quality of the signal being received. Add/Delete Channel (Manual Tuning) Select Manual Tuning. Select DTV, TV, CADTV, or CATV. Select channel you want to add or delete. 3 ENTER 4 Select Add or Delete. 5 ENTER I A password is required to gain access to Manual Tuning menu if the Lock System is turned on. 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move CHANNEL Auto Tuning Manual Tuning Channel Edit Enter Move CHANNEL Auto Tuning Manual Tuning Channel Edit Channel Select channel type and RF-channel number. F DTV G 2 Close Delete DTV 2-1 Bad Normal Good Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 47 A custom list can be created by toggling each channel on or off with ENTER button. The channels in the Custom List are displayed in black and the channels deleted from the Custom List are displayed in gray. Once a channel is highlighted you can add or delete the channel by referring to the small window at the top- right corner of the screen. Channel Editing Select a channel. Select channel you want to add or delete. 3 ENTER 4 ENTER Select CHANNEL. 1 MENU 2 ENTER Select Channel Edit. RETURN Return to TV viewing. Return to the previous menu. 5 MENU Enter Move CHANNEL Auto Tuning Manual Tuning Channel Edit Add/Delete Move Page CH Move Previous MENU Exit RETURN + - Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 48 INPUT LIST WATCHING TV / CHANNEL CONTROL TV AV Component HDMI RGB-PC I Antenna: Select it to watch over-the-air broadcasts. I Cable: Select it to watch cable and digital cable. I TV: Select it to watch over-the-air, cable and dig- ital cable broadcasts. I AV: Select them to watch a VCR or other external equipment. I Component: Select them to watch DVD or a Digital set-top box. I RGB-PC: Select it to view PC input. I HDMI: Select them to watch high definition devices. 19/22LG30, 19/22LG31 26LG30 Antenna Cable AV1 AV2 Component1 HDMI3 HDMI2 HDMI1 RGB-PC Component2 Select the desired input source. 19/22LG30, 19/22LG31: 26LG30: 1 INPUT ENTER TV AV Component RGB-PC HDMI Input Label Q.MENU Exit RETURN Select a desired input source (except Antenna, Cable or TV). Then, you can select your desired Input Label with using Q.MENU button. G p.49 ie) Antenna Cable AV1 AV2 Component1 TV AV Component RGB-PC HDMI Downloaded from www.Manualslib.com manuals search engine WATCHING TV / CHANNEL CONTROL 49 INPUT LABEL You can set a label for each input source when it's not in use. Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home AV Component RGB-PC HDMI F G Close AV1 AV2 Component1 Component2 RGB-PC HDMI1 HDMI2 HDMI3 F G Close Select OPTION. Select Input Label. Select the label. 1 MENU 2 ENTER Select the source. 3 ENTER 4 5 RETURN Return to the previous menu. MENU Return to TV viewing With using OPTION menu Select the source. Select the label. 1 INPUT 2 Q.MENU 3 RETURN Return to the previous menu. MENU Return to TV viewing With using INPUT button 19/22LG30, 19/22LG31 26LG30 Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 50 PICTURE SIZE (ASPECT RATIO) CONTROL PICTURE CONTROL This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV. I RGB-PC input source use 4:3 or 16:9 aspect ratio. NOTE ! G If a fixed image is displayed on the screen for a long time, the image could become imprinted on the screen and remain visible. This phenomenon is common to all manufacturers and is not covered by warranty. Although, after watch- ing video that did not fill the screen, any after-image from the black bars will normally dissipate after a few minutes. 1 RATIO Set By Program 4:3 Just Scan Zoom1 16:9 Zoom2 Just Scan Zoom1 Zoom2 Set By Program 4:3 16:9 Full Select the desired picture format. Q.Menu 3 F 16:9 G Standard Vivid Off English Off Add Aspect Ratio Backlight Picture Mode Sound Mode Caption Multi Audio Sleep Timer Del/Add/Fav CH Close 19/22LG30, 19/22LG31 26LG30 Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 51 Set by program Selects the proper picture proportion to match the source’s image. 4:3 Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio. 16:9 Adjust the picture horizontally, in a linear pro- portion to fill the entire screen. Full (19/22LG30, 19/22LG31 only) When TV receives the wide screen signal, it will lead you to adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully. Zoom 1 Choose Zoom 1 when you want to view the pic- ture without any alteration. However, the top and bottom portions of the picture will be cropped. Zoom 2 Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture taking a halfway trade off between alteration and screen coverage. Just Scan Following selection will lead to you view the pic- ture of best quality without loss of original pic- ture in high resolution image. Notes: If there are noise in original picture, you can see the noise at the edge. Just Scan operates only in DTV/CADTV/Component/HDMI-DTV/DVI-DTV (720p/1080i/1080p) input source. (4:3 4:3) 26LG30 (16:9 16:9) 19/22LG30, 19/22LG31 (16:9 16:9) 26LG30 19/22LG30, 19/22LG31 Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 52 PRESET PICTURE SETTINGS PICTURE CONTROL Picture Mode - Preset There are factory presets for picture settings available in the user menus. You can use a preset, change each setting manually. 1 PICTURE Vivid Standard Game Sport Cinema Select Vivid, Standard, Cinema, Sport, or Game. 2 RETURN Return to TV viewing. I Vivid, Standard, Cinema, Sport, or Game Settings are preset for the opti- mum picture quality at the factory and are not adjustable. Q.Menu 3 16:9 Standard F Vivid G Off English Off Add Aspect Ratio Backlight Picture Mode Sound Mode Caption Multi Audio Sleep Timer Del/Add/Fav CH Close Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 53 Color Tone - Preset Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue. Select PICTURE. Select Color Temperature. 1 MENU 3 ENTER Select Cool, Medium, or Warm. 4 Select Advanced Control. 2 ENTER 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Color Temperature F Medium G Fresh Contrast Off Fresh Color Off Noise Reduction Off Gamma Medium Black Level Low Eye Care Off Real Cinema Off Close Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 54 MANUAL PICTURE ADJUSTMENT PICTURE CONTROL Picture Mode - User Mode Adjust the picture appearance to suit your preference and viewing situations. Select PICTURE. Make appropriate adjustments. Select Backlight, Contrast, Brightness, Sharpness, Color, or Tint. 1 MENU Select Picture Mode. 2 ENTER Select Vivid, Standard, Cinema, Sport, or Game. 3 ENTER 4 ENTER 5 ENTER 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move PICTURE E R G Aspect Ratio : 16:9 Picture Mode : Standard • Backlight 80 • Contrast 90 • Brightness 50 • Sharpness 60 • Color 60 • Tint 0 • Backlight 80 E E E E Enter Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 55 PICTURE IMPROVEMENT TECHNOLOGY Fresh Contrast: Optimizes the contrast automatically according to the brightness of the reflection. Fresh Color: Adjusts the color of the reflection automatically to reproduce as close as possible natural colors. Noise Reduction: Removes interference up to the point where it does not damage the original picture. Gamma: High gamma values display whitish images and low gamma values display high contrast images. Select PICTURE. Select Advanced Control. Select Fresh Contrast, Fresh Color, Noise Reduction, or Gamma. 1 MENU 3 2 ENTER ENTER 5 RETURN Return to the previous menu. MENU Return to TV viewing. Select your desired options. 4 Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Color Temperature Medium Fresh Contrast F Off G Fresh Color Off Noise Reduction Off Gamma Medium Black Level Low Eye Care Off Real Cinema Off Close Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 56 ADVANCED CONTROL - BLACK (DARKNESS) LEVEL PICTURE CONTROL Adjusting the contrast and the brightness of the screen using the black level of the screen. This feature is disable in DTV and RGB-PC mode. Select PICTURE. Select Advanced Control. Select Black Level. 1 MENU 3 2 ENTER ENTER Select Low or High. 4 I Low: The reflection of the screen gets darker. I High: The reflection of the screen gets brighter. I Auto: Realizing the black level of the screen and set it to High or Low auto- matically. 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Color Temperature Medium Fresh Contrast Off Fresh Color Off Noise Reduction Off Gamma Medium Black Level F Low G Eye Care Off Real Cinema Off Close Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 57 ADVANCED CONTROL - EYE CARE - Only 26LG30 Dims extremely bright pictures. This feature is disable in “Picture Mode-Vivid, Cinema”. Select PICTURE. Select Advanced Control. Select Eye Care. 1 MENU 3 2 ENTER ENTER Select On or Off. 4 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Color Temperature Medium Fresh Contrast Off Fresh Color Off Noise Reduction Off Gamma Medium Black Level Low Eye Care F Off G Real Cinema Off Close Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 58 ADVANCED CONTROL - REAL CINEMA PICTURE CONTROL Set up the TV for the best picture appearance for viewing movies. When you operate Real Cinema (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will adjust 24 fps video from movies to 30 fps video for display. This feature operates only in TV (Analog TV/CATV, Digital DTV/CADTV), AV1, AV2, Component 480i/1080i, and HDMI 1080i mode. Select PICTURE. Select Advanced Control. Select Real Cinema. 1 MENU 3 2 ENTER ENTER Select On or Off. 4 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Color Temperature Medium Fresh Contrast Off Fresh Color Off Noise Reduction Off Gamma Medium Black Level Low Eye Care Off Real Cinema F Off G Close Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 59 PICTURE RESET Settings of the selected picture modes return to the default factory settings. Select PICTURE. Select Reset. Initialize the adjusted value. 1 MENU 3 2 ENTER ENTER 4 MENU Return to TV viewing. Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Enter Move PICTURE E R G • Contrast 50 • Brightness 50 • Sharpness 50 • Color 50 • Tint 0 • Advanced Control • Reset Screen (RGB-PC) Resetting video configuration... i Downloaded from www.Manualslib.com manuals search engine PICTURE CONTROL 60 POWER INDICATOR - Only 26LG30 PICTURE CONTROL Select OPTION. Select Power Indicator. 1 MENU 2 ENTER Select Standby Light or Power Light. 3 ENTER Select your desired options. 4 5 RETURN Return to the previous menu. MENU Return to TV viewing. I Off: Power/Standby indicator will turn off. I On: Power/Standby indicator will turn on. Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Power Light Standby Light On Close F On G Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 61 AUTO VOLUME LEVELER (AUTO VOLUME) - Only 26LG30 SOUND & LANGUAGE CONTROL Auto Volume makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program. Select AUDIO. Select Auto Volume. Select On or Off. 1 MENU 3 2 ENTER ENTER 4 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move AUDIO L R Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On Enter Move AUDIO L R Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On Off On Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 62 SOUND & LANGUAGE CONTROL PRESET SOUND SETTINGS (SOUND MODE) Sound Mode lets you enjoy the best sound without any special adjustment as the TV sets the appropriate sound options based on the program content. Standard, Music, Cinema, Sport, and Game are preset for optimum sound quality at the factory and are not adjustable. 1 SOUND Standard Music Game Sport Cinema Select Standard, Music, Cinema, Sport, or Game. 2 RETURN Return to TV viewing. Q.Menu 3 16:9 F Standard G Vivid Off English Off Add Aspect Ratio Backlight Picture Mode Sound Mode Caption Multi Audio Sleep Timer Del/Add/Fav CH Close Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 63 SOUND SETTING ADJUSTMENT - USER MODE Adjust the sound to suit your taste and room situations. Select AUDIO. Select Sound Mode. Select Treble or Bass. Make appropriate adjustments. 1 MENU 4 2 ENTER Select Standard, Music, Cinema, Sport, or Game. 3 ENTER ENTER 5 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move AUDIO L R Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On Enter Move AUDIO L R Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On Close E E Treble 50 Bass 50 Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 64 SOUND & LANGUAGE CONTROL BALANCE Select AUDIO. Select Balance. Make appropriate adjustments. 1 MENU 3 2 ENTER ENTER Adjust the left/right sound of speaker to suit your taste and room situations. 4 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move AUDIO Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On L R Enter Move AUDIO Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On L R Close E E Balance 0 L R Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 65 TV SPEAKERS ON/OFF SETUP - Only 26LG30 Turn the TV speakers off if using external audio equipment. Select AUDIO. Select TV Speaker. Select On or Off. 1 MENU 3 2 ENTER ENTER 4 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move AUDIO L R Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On Enter Move AUDIO L R Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On Off On Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 66 AUDIO RESET SOUND & LANGUAGE CONTROL Settings of the selected Sound Mode return to the default factory settings. Select AUDIO. Select Reset. 1 MENU 2 ENTER Initialize the adjusted value. 3 ENTER 4 MENU Return to TV viewing. Enter Move AUDIO L R Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On Enter Move AUDIO L R Auto Volume : On Balance 0 Sound Mode : Standard • Treble 50 • Bass 50 • Reset TV Speaker : On Resetting audio configuration. i Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 67 STEREO/SAP BROADCAST SETUP For Analog only: This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accom- panies the stereo program if the station transmits an additional sound signal. Mono sound is automatically used if the broadcast is only in Mono. Q.Menu 3 16:9 Standard Vivid Off F English G Off Add Aspect Ratio Backlight Picture Mode Sound Mode Caption Multi Audio Sleep Timer Del/Add/Fav CH Close Select SAP. Select Mono, Stereo, or SAP. Return to TV viewing. 1 Q.MENU 3 2 Q.MENU Select Multi Audio. Select other languages. Return to TV viewing. 1 Q.MENU 3 2 Q.MENU Analog TV Digital TV Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 68 AUDIO LANGUAGE SOUND & LANGUAGE CONTROL Other languages may be available if a digital signal is provided by the broadcasting station. This feature operates only in DTV/CADTV mode. Select OPTION. Select Language. Select Audio. 1 MENU 3 2 ENTER ENTER Select your desired language: English, Spanish, or French 4 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Menu English Audio F English G Close Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 69 ON-SCREEN MENUS LANGUAGE SELECTION The menus can be shown on the screen in the selected language. Select OPTION. Select Language. Select Menu. 1 MENU 3 2 ENTER ENTER Select your desired language. From this point on, the on-screen menus will be shown in the selected language. 4 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Menu F English G Audio English Close Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 70 CAPTION MODE SOUND & LANGUAGE CONTROL Caption must be provided to help people with hearing loss watch TV. Select a caption mode for displaying cap- tioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog. Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable. This TV is programmed to memorize the caption/text mode which was last set when you turned the power off. This function is only available when Caption Mode is set On. Select OPTION. Select Caption Select On. 1 MENU 3 2 ENTER ENTER Select CC1-4 or Text1-4. 4 Analog Broadcasting System Captions I CAPTION The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the pro- gram provided for the hearing impaired. I TEXT The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provid- ed by the broadcaster. I When selecting Off, Sub-menus for Analog, DTV, and Digital Option become disabled. 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : Off Caption : CC1 Set ID : 1 Power Indicator Initial Setting : Home Mode CC1 Close Digital Option F On G Caption must be provided to help people with hearing loss watch TV. Select Caption On or Off. 1 CC Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 71 Digital Broadcasting System Captions Choose the language you want the DTV/CADTV Captions to appear in. Other Languages can be chosen for digital sources only if they are included on the program. This function in only available when Caption Mode is set On. Select OPTION. Select Caption. Select On. 1 MENU 3 2 ENTER ENTER Select CC1-4, Text1-4, or Service1 - 6. 4 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : Off Caption : CC1 Set ID : 1 Power Indicator Initial Setting : Home Mode CC1 Close Digital Option F On G Downloaded from www.Manualslib.com manuals search engine SOUND & LANGUAGE CONTROL 72 SOUND & LANGUAGE CONTROL Caption Option Customize the DTV/CADTV captions that appear on your screen. This function in only available when Caption Mode is set On. Select OPTION. Select Caption. Select On. 1 MENU 3 2 ENTER ENTER Select Custom. 5 ENTER Customize the Style, Font, etc., to your preference. A preview icon is provided at the bottom of the screen, use it to see the caption language. 6 Select Digital Option. 4 Size A Standard Font Font 1 Text Color White Text Opacity Solid Edge Type None Edge Color Black Bg Color Black Bg Opacity Solid Close F Custom G I Size: Set the word size. I Font: Select a typeface for the text. I Text Color: Choose a color for the text. I Text Opacity: Specify the opacity for the text color. I Bg (Background) Color: Select a background color. I Bg (Background) Opacity: Select the opacity for the background color. I Edge Type: Select an edge type. I Edge Color: Select a color for the edges. 7 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : Off Caption : CC1 Set ID : 1 Power Indicator Initial Setting : Home Mode CC1 Close Digital Option On Only for 26LG30 Downloaded from www.Manualslib.com manuals search engine TIME SETTING 73 CLOCK SETTING TIME SETTING Auto Clock Setup The time is set automatically from a digital channel signal. The digital channel signal includes information for the current time provided by the broadcasting station. Set the clock manually if the current time is set incorrectly by the auto clock function. Select TIME. Select Clock. Select Auto. 1 MENU 3 2 ENTER ENTER Select your viewing area time zone. • U.S.A: Eastern, Central, Mountain, Pacific, Alaska, or Hawaii. • Canada: Eastern, Central, Mountain, Pacific, New F.land, or Atlantic. 4 Select Auto, Off, or On (depending on whether or not your viewing area observes Daylight Saving time). 5 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off Year Month 2 Date 21 Hour 2 AM 2008 Minute 10 Time Zone Eastern Daylight Saving Auto Close F Auto G Downloaded from www.Manualslib.com manuals search engine TIME SETTING 74 TIME SETTING Manual Clock Setup If the current time setting is wrong, reset the clock manually. Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off Year Month 2 Date 21 Hour 2 AM 2008 Minute 10 Time Zone Eastern Daylight Saving Auto Close F Manual G Select TIME. Select Clock. Select Manual. 1 MENU 3 2 ENTER ENTER Select the Year, Month, Date, Hour, or Minutes option. 4 Set the Year, Month, Date, Hour, or Minutes option. 5 6 RETURN Return to the previous menu. MENU Return to TV viewing. Downloaded from www.Manualslib.com manuals search engine TIME SETTING 75 AUTO ON/OFF TIME SETTING This function operates only if the current time has been set. The Off Time function overrides the On Time function if they are both set to the same time. The TV must be in standby mode for the On Time to work. If you do not press any button within 2 hours after the TV turns on with the On Time function, the TV will automatically revert to standby mode. I To cancel On/Off Time function, select Off. I Only for On Time function Select Input. 19/22LG30, 19/22LG31: Select TV, AV, Component, RGB-PC, or HDMI. 26LG30: Select TV, AV1-2, Component1-2, RGB-PC, or HDMI1-3. Select TIME. Select Off time or On time. Select Repeat. 1 MENU 3 2 ENTER ENTER Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Weekend, or Sunday. 4 Select and set Hour or Minute. 5 1 ENTER 3 4 2 When Selecting TV: set the channel at turn-on. Adjust to sound level at turn-on. 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : 6:30 AM (Once) Sleep Timer : Off Auto Sleep : Off Repeat F Once G Hour 6 AM Minute 30 Input TV Channel TV 2-0 Volume 30 Close Downloaded from www.Manualslib.com manuals search engine TIME SETTING 76 TIME SETTING SLEEP TIMER SETTING The Sleep Time turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off. I You can also adjust Sleep Timer in the Q.Menu. Select TIME. Select Sleep Timer. Select Off, 10, 20, 30, 60, 90, 120, 180, or 240 minutes. 1 MENU 3 2 ENTER ENTER 4 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off Close F Off G Downloaded from www.Manualslib.com manuals search engine TIME SETTING 77 AUTO SHUT-OFF SETTING TV will be automatically turned off, in case of no signal for 10 minutes. Select TIME. Select Auto Sleep. Select On or Off. 1 MENU 3 2 ENTER ENTER 4 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : Off Enter Move TIME Clock : Feb/21/2008 2:10 AM Off Time : Off On Time : Off Sleep Timer : Off Auto Sleep : On Off On TV will be automatically turned off, in case of No Signal for 10 minutes. Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 78 PARENTAL CONTROL / RATINGS Parental Control can be used to block specific channels, ratings and other viewing sources. The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broad- casting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible to block all program viewing for a time period. To use this function, the following must be done : 1. Set ratings and categories to be blocked. 2. Specify a password 3. Enable the lock V-Chip rating and categories Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to- video movies use the Movie Rating System (MPAA) only. Ratings for Television programs including made-for-TV movies: I TV-G (General audience) I TV-PG (Parental guidance suggested) I TV-14 (Parents strongly cautioned) I TV-MA (Mature audience only) I TV-Y (All children) I TV-Y7 (Children 7 years older) Set up blocking schemes to block specific channels, ratings, and external viewing sources. A password is required to gain access to this menu. Setting up Your Password For USA For Canada Close Enter Password * * * * Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 I Enter the password as requested. I The TV is set up with the initial password “0-0-0-0”. SET PASSWORD & LOCK SYSTEM Enter Move Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block LOCK Enter Move Lock System : Off Set Password Block Channel TV Rating-English TV Rating-French Downloadable Rating Input Block LOCK Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 79 Enables or disables the blocking scheme you set up previously. Lock System Select Lock System. Select On or Off. 4 3 ENTER I When you select On, the Lock System is enable. Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Enter Move LOCK Lock System : On Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Off On Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 80 PARENTAL CONTROL / RATINGS Change the password by inputting a new password twice. Set Password Select Set password. Choose any 4 digits for your new password. As soon as the 4 digits are entered, re-enter the same 4 digits on the Confirm. 4 3 ENTER 1 4 5 6 7 8 0 9 2 3 Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Close New * * * * Confirm * * * * Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 81 CHANNEL BLOCKING Blocks any channels that you do not want to watch or that you do not want your children to watch. Select Block Channel. Select a channel to block or unblock it. 4 3 ENTER Block or unblock a channel. 5 ENTER Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 6 MENU Return to the previous menu. RETURN Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block + - Block/Unblock Move Page CH Move Previous MENU Exit RETURN Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 82 MOVIE & TV RATING PARENTAL CONTROL / RATINGS Movie Rating (MPAA) - Only for USA Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas. Select Movie Rating. Select G, PG, PG-13, R, NC-17 or X. 4 3 ENTER Blocking off : Permits all programs G PG PG-13 R NC-17 X Blocking Off I G (General audience) I PG (Parental guidance suggested) I PG-13 (Parents strongly cautioned) I R (Restricted) I NC-17 (No one 17 and under admitted) I X (Adult only) I Blocking Off (Permits all programs) G If you set PG-13: G and PG movies will be available, PG-13, R, NC-17 and X will be blocked. Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 83 Select TV Rating-Children. Select Age or Fantasy Violence. 4 3 ENTER Select block options. 5 ENTER I Age (applies to TV-Y, TV-Y7) I Fantasy Violence (applies to TV-Y7) TV Rating Children - Only for USA Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audi- ences in the TV Rating - sub menu, your children can view those programs. Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Close Age Fantasy Violence Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 84 PARENTAL CONTROL / RATINGS TV Rating General - Only for USA Based on the ratings, blocks certain TV programs that you and your family do not want to view. Select TV Rating-General. Select Age, Dialogue, Language, Sex or Violence. 4 3 ENTER Select block options. 5 ENTER I Age (applies to TV-G,TV-PG,TV-14,TV- MA). I Dialogue-sexual dialogue (applies to TV-PG,TV-14). I Language-adult language (applies to TV-PG, TV-14, TV-MA). I Sex-sexual situations (applies to TV-PG, TV-14, TV-MA). I Violence (applies to TV-PG, TV-14, TV- MA). Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Close Age Dialogue Language Sex Violence Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 85 TV Rating English - Only for CANADA Selecting canadian english language rating system. Select TV Rating-English. Select E, C, C8+, G, PG, 14+, 18+, or Blocking Off. 4 3 ENTER Blocking off : Permits all programs E C C8+ G PG 14+ 18+ Blocking Off I E (Exempt) I C (Children) I C8+ (Children eight years and older) I G (General programming, suitable for all audiences) I PG (Parental Guidance) I 14+ (Viewers 14 years and older) I 18+ (Adult programming) I Blocking Off (Permits all programs) Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel TV Rating-English TV Rating-French Downloadable Rating Input Block Enter Move LOCK Lock System : Off Set Password Block Channel TV Rating-English TV Rating-French Downloadable Rating Input Block Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 86 PARENTAL CONTROL / RATINGS TV Rating French - Only for CANADA Selecting canadian french language rating system. Select TV Rating-French. Select E, G, 8ans+, 13ans+, 16ans+, 18ans+, or Blocking off. 4 3 ENTER Blocking off : Permits all programs E G 8ans+ 13ans+ 16ans+ 18ans+ Blocking Off I E (Exempt) I G (General) I 8ans+ (General-Not convenient for lit- tle children) I 13ans+ (Not convenient for children of 13 years and younger) I 16ans+ (Not convenient for children of 16 years and younger) I 18ans+ (This programs is only for adults) I Blocking off (Permits all programs) Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 5 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel TV Rating-English TV Rating-French Downloadable Rating Input Block Enter Move LOCK Lock System : Off Set Password Block Channel TV Rating-English TV Rating-French Downloadable Rating Input Block Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 87 DOWNLOADABLE RATING This function may become available in the future and will be available only for digital channel signal. This function operates only when TV has received Region5 Rating data. Select Downloadable Rating. Select desired Downloadable Rating option. 4 3 ENTER Select desired option and block it. 5 ENTER Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Humor Sports Cruelty Language Sadness Genre Age Close E E I Based on rating table, your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual. Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 88 PARENTAL CONTROL / RATINGS EXTERNAL INPUT BLOCKING Enables you to block an input. Select Input Block. Select input source. 4 3 Select On or Off. 5 ENTER Select LOCK. 1 MENU ENTER Input the password. 2 1 4 5 6 7 8 0 9 2 3 6 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Enter Move LOCK Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block AV F Off G Component Off RGB-PC Off HDMI Off Close AV1 F Off G AV2 Off Component1 Off HDMI1 Off RGB-PC Off Component2 Off HDMI2 Off HDMI3 Off Close 19/22LG30, 19/22LG31 26LG30 Downloaded from www.Manualslib.com manuals search engine PARENTAL CONTROL / RATING 89 KEY LOCK The TV can be set up so that it can only be used with the remote control. This feature can be used to prevent unauthorized viewing by locking out the front panel controls. This TV is programmed to remember which option it was last set to even if you turn the TV off. Select OPTION. Select Key Lock. 1 MENU 2 ENTER Select On or Off. 3 ENTER I In Key Lock ‘On’, if the TV is turned off, press the r / I, INPUT, CH (+ or -) button on the TV or POWER, INPUT, CH(+ or -) or NUMBER buttons on the remote control. I With the Key Lock On, the display ‘ Key Lock’ appears on the screen if any button on the front panel is pressed while viewing the TV. 4 RETURN Return to the previous menu. MENU Return to TV viewing. Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : On Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Off On ! Downloaded from www.Manualslib.com manuals search engine APPENDIX 90 APPENDIX TROUBLESHOOTING The operation does not work normally. The video function does not work. No picture &No sound No or poor color or poor picture Poor reception on some channels Lines or streaks in pictures No picture when connecting HDMI Horizontal/vertical bars or picture shaking Picture appears slowly after switching on The remote control doesn’t work Power is suddenly turned off I Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV. I Ensure that the batteries are installed with correct polarity (+ to +, - to -). I Ensure that the correct remote operating mode is set: TV, VCR etc. I Install new batteries. I Is the sleep timer set? I Check the power control settings. Power interrupted. I Check whether the product is turned on. I Try another channel. The problem may be with the broadcast. I Is the power cord inserted into wall power outlet? I Check your antenna direction and/or location. I Test the wall power outlet, plug another product’s power cord into the outlet where the product’s power cord was plugged in. I This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes. I Adjust Color in menu option. I Keep a sufficient distance between the product and the VCR. I Try another channel. The problem may be with the broadcast. I Are the video cables installed properly? I Activate any function to restore the brightness of the picture. I Check for local interference such as an electrical appliance or power tool. I Station or cable product experiencing problems, tune to another station. I Station signal is weak, reorient antenna to receive weaker station. I Check for sources of possible interference. I Check antenna (Change the direction of the antenna). I Check HDMI cable over version 1.3. The HDMI cables don’t support HDMI version 1.3, it cause flickers or no screen display. In this case use the latest cables that support HDMI version 1.3. Downloaded from www.Manualslib.com manuals search engine APPENDIX 91 There is a problem in PC mode. (Only PC mode applied) I Adjust resolution, horizontal frequency, or vertical frequency. I Check the input source. I Work the Auto configure or adjust clock, phase, or H/V position. (Option) I Check the signal cable. I Reinstall the PC video card. The signal is out of range Screen color is unstable or single color Vertical bar or stripe on background & Horizontal Noise & Incorrect position Picture OK & No sound Unusual sound from inside the product No sound when connecting HDMI or USB No output from one of the speakers The audio function does not work. I Press the VOL or VOLUME button. I Sound muted? Press MUTE button. I Try another channel. The problem may be with the broadcast. I Are the audio cables installed properly? I Adjust Balance in menu option. I A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product. I Check HDMI cable over version 1.3. I Check USB cable over version 2.0. I Use normal MP3 file. *This feature is not available for all models. Downloaded from www.Manualslib.com manuals search engine APPENDIX 92 APPENDIX MAINTENANCE Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV. Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV. Cleaning the Cabinet I To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. I Please be sure not to use a wet cloth. Extended Absence G If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges. CAUTION 2 1 Downloaded from www.Manualslib.com manuals search engine APPENDIX 93 PRODUCT SPECIFICATIONS I The specifications shown above may be changed without prior notice for quality improvement. MODELS AC100-240V ~ 50/60Hz NTSC-M, ATSC, 64 & 256 QAM VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135 75 ohm 32 ~ 104°F (0 ~ 40°C) Less than 80% -4 ~ 140°F (-20 ~ 60°C) Less than 85% Dimensions (Width x Height x Depth) Weight Power requirement Television System Program Coverage External Antenna Impedance Environment condition With stand Without stand With stand Without stand Operating Temperature Operating Humidity Storage Temperature Storage Humidity 19LG30 (19LG30-UA) 19LG31 (19LG31-UB) 22LG30 (22LG30-UA) 22LG31 (22LG31-UB) 26LG30 (26LG30-UA) (26LG30-UD) 18.0 x 15.3 x 7.4 inches 458.8 x 391.0 x 189.2 mm 18.0 x 13.5 x 3.3 inches 458.8 x 344.5 x 85.4 mm 11.0 pounds / 5.0 kg 10.3 pounds / 4.7 kg 20.5 x 16.9 x 7.4 inches 522.2 x 431.5 x 189.2 mm 20.5 x 15.1 x 3.3 inches 522.2 x 384.2 x 84.2 mm 12.3 pounds / 5.6 kg 11.6 pounds / 5.3 kg 26.1 x 20.0 x 8.9 inches 663.3 x 508.2 x 227.3 mm 26.1 x 17.6 x 3.1 inches 663.3 x 449.8 x 80.0 mm 22.2 pounds / 10.1 kg 18.9 pounds / 8.6 kg Downloaded from www.Manualslib.com manuals search engine APPENDIX 94 EXTERNAL CONTROL THROUGH RS-232C - Only 26LG30 APPENDIX RS-232C Setup The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the TV’s functions externally. I Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and software. The instructions below are provided to help with programming software or to test functionality using telenet software. IN ONENT IN AUDIO (RGB/DVI) REMOTE CONTROL IN RS-232C IN (CONTROL & SERVICE) L PR R AUDIO AUDIO OUT AV IN 1 VIDEO L R (MONO) AUDIO S-VIDEO DIGITAL AUDIO OUT OPTICAL Type of Connector; D-Sub 9-Pin Male No. Pin Name 1 No connection 2 RXD (Receive data) 3 TXD (Transmit data) 4 DTR (DTE side ready) 5 GND 6 DSR (DCE side ready) 7 RTS (Ready to send) 8 CTS (Clear to send) 9 No Connection 1 6 5 9 PC Communication Parameters I Baud rate : 9600 bps (UART) I Data length : 8 bits I Parity : None I Stop bit : 1 bit I Communication code : ASCII code I Use a crossed (reverse) cable. NOTE ! G This product has command echo back in the RS-232C Command. Downloaded from www.Manualslib.com manuals search engine APPENDIX 95 RS-232C Configurations Use this function to specify a TV ID number. Refer to ‘Real Data Mapping1’. G p.98. Either cable below can be used. Set ID PC TV RXD 2 3 TXD TXD 3 2 RXD GND 5 5 GND DTR 4 6 DSR DSR 6 4 DTR RTS 7 8 CTS CTS 8 7 RTS D-Sub 9 D-Sub 9 PC TV RXD 2 3 TXD TXD 3 2 RXD GND 5 5 GND DTR 4 6 DTR DSR 6 4 DSR RTS 7 7 RTS CTS 8 8 CTS D-Sub 9 D-Sub 9 7-Wire Configuration (Serial female-female NULL modem cable) 3-Wire Configurations (Not standard) Select OPTION. Select Set ID. Choose the desired TV ID number. The adjustment range of Set ID is 1~99. 1 MENU 3 2 ENTER ENTER 4 RETURN Return to the previous menu. MENU Return to TV viewing Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home Enter Move OPTION Language : English Input Label Key Lock : Off Caption : Off Set ID : 1 Power Indicator Initial Setting : Home F 1 G Close Downloaded from www.Manualslib.com manuals search engine APPENDIX 96 Command Reference List APPENDIX COMMAND1 COMMAND2 19. Channel Tuning DATA (Hexadecimal) COMMAND1 COMMAND2 DATA (Hexadecimal) COMMAND1 COMMAND2 DATA00 (Hexadecimal) DATA01 (Hexadecimal) DATA02 (Hexadecimal) DATA03 (Hexadecimal) DATA04 (Hexadecimal) DATA05 (Hexadecimal) physical major major low minor high minor low attribute program high program low m a 01. Power k a 00 ~ 01 02. Input Select x b (G p.97) 03. Aspect Ratio k c (G p.97) 04. Screen Mute k d 00 ~ 01 05. Volume Mute k e 00 ~ 01 06. Volume Control k f 00 ~ 64 07. Contrast k g 00 ~ 64 08. Brightness k h 00 ~ 64 09. Color k i 00 ~ 64 10. Tint k j 00 ~ 64 11. Sharpness k k 00 ~ 64 12. OSD Select k l 00 ~ 01 13. Remote Control Lock Mode Transmission / Receiving Protocol Transmission [Command 1] : First command to control the set.(j, k, m or x) [Command 2] : Second command to control the set. [Set ID] : You can adjust the set ID to choose desired TV ID number in Setup menu. Adjustment range is 1~ 99. When selecting Set ID ‘0’, every connected the TV is controlled. Set ID is indicated as decimal (1~ 99) on menu and as Hexa decimal (0x0~ 0x63) on transmission /receiving protocol. [DATA] : To transmit the command data. Transmit the ‘FF’ data to read status of command. [Cr] : Carriage Return ASCII code ‘0x0D’ [ ] : ASCII code ‘space (0x20)’ * In this model, TV will not send the status during the standby mode. OK Acknowledgement The TV transmits ACK (acknowledgement) based on this for- mat when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer. * In this model, TV will not send the status during the standby mode. * Data Format [Command 2] : Use as command. [Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’. [DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’. [OK] : Use the large character. Error Acknowledgement The TV transmits ACK (acknowledgement) based on this for- mat when receiving abnormal data from non-viable functions or communication errors. Data1: Illegal Code Data2: Not supported function Data3: Wait more time * In this model, TV will not send the status during the standby mode. * Data Format [Command 2] : Use as command. [Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’. [DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’. [NG] : Use the large character [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command2][ ][Set ID][ ][OK][Data][x] [Command2][ ][Set ID][ ][NG][Data][x] 14. Treble k r 00 ~ 64 15. Bass k s 00 ~ 64 16. Balance k t 00 ~ 64 17. Color Temperature k u 00 ~ 02 18. Auto Configuration j u (G p.98) 20. Channel Add/Del m b 00 ~ 01 21. Key m c (G p.99) 22. Backlight m g 00 ~ 64 00 ~ 01 k m Downloaded from www.Manualslib.com manuals search engine APPENDIX 97 01. Power (Command: k a) To control Power On/Off of the TV. Transmission [k][a][ ][Set ID][ ][Data][Cr] Data 00: Power Off Data 01: Power On Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x] * In a like manner, if other functions transmit ‘FF’ data based on this format, Acknowledgement data feedback presents status about each function. * Note: In this model, TV will send the Acknowledge after power on processing completion. There might be a time delay between command and acknowledge. 02. Input Select (Command: x b) To select input source for TV. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data 00: DTV (Antenna) Data 01: DTV (Cable) Data 10: Analog (Antenna) Data 11: Analog (Cable) Data 20: AV1 Data 21: AV2 Data 40: Component 1 Data 41: Component 2 Data 60: RGB-PC Data 90: HDMI1 Data 91: HDMI2 Data 92: HDMI3 Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x] 03. Aspect Ratio (Command: k c) To adjust the screen format. Transmission [k][c][ ][Set ID][ ][Data][Cr] Data 01: 4:3 05: Zoom 2 02: 16:9 06: Set by program 04: Zoom 1 09: Just scan Reserved Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x] 04. Screen Mute (Command: k d) To select screen mute on/off. Transmission [k][d][ ][Set ID][ ][Data][Cr] Data 00: Screen mute off (Picture on) Data 01: Screen mute on (Picture off) Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x] 05. Volume Mute (Command: k e) To control volume mute on/off. You can also adjust mute using the MUTE button on remote control. Transmission [k][e][ ][Set ID][ ][Data][Cr] Data 00: Volume mute on (Volume off) Data 01: Volume mute off (Volume on) Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x] 06. Volume Control (Command: k f) To adjust volume. You can also adjust volume with the volume buttons on remote control. Transmission [k][f][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’. See page 98. Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x] 07. Contrast (Command: k g) To adjust screen contrast. You can also adjust contrast in the PICTURE menu. Transmission [k][g][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’. See page 98. Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x] 08. Brightness (Command: k h) To adjust screen brightness. You can also adjust brightness in the PICTURE menu. Transmission [k][h][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’. See page 98. Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x] 09. Color (Command: k i) To adjust screen color. You can also adjust color in the PICTURE menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’. See page 98. Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x] 10. Tint (Command: k j) To adjust screen tint. You can also adjust tint in the PICTURE menu. Transmission [k][j][ ][Set ID][ ][Data][Cr] Data Red: 00 ~ Green: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’. See page 98. Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x] 11. Sharpness (Command: k k) To adjust screen sharpness. You can also adjust sharpness in the PICTURE menu. Transmission [k][k][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’. See page 98. Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x] Downloaded from www.Manualslib.com manuals search engine APPENDIX 98 APPENDIX 12. OSD Select (Command: k l) To select OSD (On Screen Display) on/off. Transmission [k][l][ ][Set ID][ ][Data][Cr] Data 00: OSD off Data 01: OSD on Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x] 13. Remote Control Lock Mode (Command: k m) To lock the remote control and the front panel controls on the set. Transmission [k][m][ ][Set ID][ ][Data][Cr] Data 00: Lock off Data 01: Lock on Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x] If you’re not using the remote control and front panel controls on the TV, use this mode. When main power is on/off, remote control lock is released. 14. Treble (Command: k r) To adjust treble. You can also adjust treble in the AUDIO menu. Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’ as shown. Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x] 15. Bass (Command: k s) To adjust bass. You can also adjust bass in the AUDIO menu. Transmission [k][s][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’ as shown. Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x] 16. Balance (Command: k t) To adjust balance. You can also adjust balance in the AUDIO menu. Transmission [k][t][ ][Set ID][ ][Data][Cr] Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’ as shown. Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x] 17. Color Temperature (Command: k u) To adjust color temperature. You can also adjust color temperature in the PICTURE menu. Transmission [k][u][ ][Set ID][ ][Data][Cr] Data 00: Medium 01: Cool 02: Warm Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x] 18. Auto Configuration (Command: j u) To adjust picture position and minimize image shaking automatically. Auto configuration only works in RGB-PC mode. Transmission [ j ][u][ ][Set ID][ ][Data][Cr] Data 01: To set Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x] 19. Channel Tuning (Command: m a) To tune channel to following physical/major/minor number. Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01] [ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr] Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel to the Major number, the Physical number is not required when sending a command. Data 00: Physical Channel Number NTSC air: 02~45, NTSC cable: 01, 0E~7D ATSC air: 01~45, ATSC cable: 01~87 Data 01 & 02: Major Channel Number Data 01: High byte Data 02: Low byte Two bytes are available for the Major and Minor, nor- mally only the second byte is used. Data 03 & 04: Minor Channel Number Not needed for NTSC. *Real data mapping 0 : Step 0 A : Step 10 (SET ID 10) F : Step 15 (SET ID 15) 10 : Step 16 (SET ID 16) 63 : Step 99 (SET ID 99) 64 : Step 100 Downloaded from www.Manualslib.com manuals search engine APPENDIX 99 Data5: The table above lists the binary code which must be converted to Hexadecimal before sending. For example: The binary code to tune the sub source to an NTSC cable channel is “1000 0001”, which translates to “81” in Hex. * 7th bit : For which source do you want to change the channel. * 6th bit: Use a two part or one part channel. Most cases just use 0 since it’s ignored when using NTSC. * 5th bit: Use 0 with NTSC since it can only use the phys- ical channel number. Normally use 1 for ATSC since most times it doesn’t matter what the physical number is. * 4th bit: Set to 0. * 3-0 bits: Choose signal type. * Tune Command Examples: 1. Tune to the analog (NTSC) cable channel 35. Data 00 = Physical of 35 = 23 Data 01 & 02 = No Major = 00 00 Data 03 & 04 = No Minor = 00 00 Data 05 = 0000 0001 in binary = 01 Total = ma 00 23 00 00 00 00 01 2. Tune to the digital (ATSC) local channel 30-3. Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Minor is 3 = 00 03 Data 05 = 0010 0010 in binary = 22 Total = ma 00 00 00 1E 00 03 22 Acknowledgement[a][ ][Set ID][ ][OK][Data00][Data01] [Data02][Data03][Data04][x][a][ ][Set ID] [ ][NG][Data00][x] 20. Channel Add/Del (Command: m b) To add and delete the channels. Transmission [m][b][ ][Set ID][ ][Data][Cr] Data 00: Channel Delete Data 01: Channel Add Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x] 21. Key (Command: m c) To send IR remote key code. Transmission [m][c][ ][Set ID][ ][Data][Cr] Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x] 22. Backlight (Command: m g) To adjust screen backlight. Transmission [m][g][ ][Set ID][ ][Data][Cr] Data Min:00 ~ Max:64 (*transmit by Hexadecimal code) *Refer to ‘Real data mapping’. See page 98. Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x] Step NTSC Air NTSC Cable ATSC Air ATSC Cable_std ATSC Cable_hrc ATSC Cable_irc ATSC cable_auto Reserved ... Reserved 1 0 0 1 1 0 0 1 1 x 1 2 0 0 0 0 1 1 1 1 x 1 3 0 0 0 0 0 0 0 0 x 1 4 x x x x x x x x x x Reserved 5 0 1 Use No Use Using Physical Channel 6 0 1 Two One Two/One Part Channel 7 0 1 Main Sub Main/Sub Picture 0 0 1 0 1 0 1 0 1 x 1 Code (Hexa) Remote control Code (Hexa) Remote control 0F TV 0B INPUT 08 POWER 79 RATIO 10-19 Number Key 0-9 4C - (Dash) 09 MUTE 02 VOL + 03 VOL - 00 CH + 01 CH - 1E FAV 39 CC 40 41 07 06 44 ENTER 43 MENU 45 Q.MENU 52 SOUND 4D PICTURE 5B RETURN 0A SAP 1A FLASHBK Downloaded from www.Manualslib.com manuals search engine APPENDIX 100 OPEN SOURCE LICENSE - This feature is not available for all models. APPENDIX Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other free software foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the soft- ware, and (2) offer you this license which gives you legal permis- sion to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make cer- tain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow. GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This license applies to any program or other work which con- tains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work con- taining the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you". Activities other than copying, distribution and modification are not covered by this license; they are outside its scope. The act of running the Program is not restricted, and the out- put from the program is covered only if its contents constitute a work based on the program (independent of having been made by running the program). Whether that is true depends on what the program does. 1. You may copy and distribute verbatim copies of the program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this license and to the absence of any warranty; and give any other recipients of the program a copy of this license along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Downloaded from www.Manualslib.com manuals search engine APPENDIX 101 b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part there of, to be licensed as a whole at no charge to all third parties under the terms of this license. c) If the modified program normally reads commands interac- tively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this license. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this license, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the dis- tribution of the whole must be on the terms of this license, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or con- test your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the program. In addition, mere aggregation of another work not based on the program with the Program (or with a work based on the program) on a volume of a storage or distribution medium does not bring the other work under the scope of this license. 3. You may copy and distribute the program (or a work based on it, under section 2) in object code or executable form under the terms of sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine- readable source code, which must be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alter- native is allowed only for noncommercial distribution and only if you received the program in object code or exe- cutable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all mod- ules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offer- ing access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this license. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this license. However, parties who have received copies, or rights, from you under this license will not have their licens- es terminated so long as such parties remain in full compli- ance. 5. You are not required to accept this license, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this license. Therefore, by modifying or distributing the program (or any work based on the program), you indicate your accep- tance of this license to do so, and all its terms and conditions for copying, distributing or modifying the program or works based on it. 6. Each time you redistribute the program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforc- ing compliance by third parties to this license. Downloaded from www.Manualslib.com manuals search engine APPENDIX 102 APPENDIX 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con- ditions of this license, they do not excuse you from the con- ditions of this license. If you cannot distribute so as to satis- fy simultaneously your obligations under this license and any other pertinent obligations, then as a consequence you may not distribute the program at all. For example, if a patent license would not permit royalty-free redistribution of the program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this license would be to refrain entirely from distribution of the program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest valid- ity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution sys- tem, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this license. 8. If the distribution and/or use of the program is restricted in certain countries either by patents or by copyrighted inter- faces, the original copyright holder who places the program under this license may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this license incorporates the limitation as if written in the body of this license. 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present ver- sion, but may differ in detail to address new problems or con- cerns. Each version is given a distinguishing version number. If the program specifies a version number of this license which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the program does not specify a version number of this license, you may choose any version ever published by the Free Software Foundation. 10.If you wish to incorporate parts of the program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copy- righted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of pro- moting the sharing and reuse of software generally. NO WARRANTY 11.BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD- ERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 12.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRO- GRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUS- TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Downloaded from www.Manualslib.com manuals search engine APPENDIX 103 END OF TERMS AND CONDITIONS How to apply these terms to your new programs If you develop a new program, and you want it to be of the great- est possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effective- ly convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found. one line to give the program's name and a brief idea of what it does. Copyright (C) This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the license, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR- POSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA. Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type ‘show w’. This is free software, and you are welcome to redistribute it under certain conditions; type ‘show c’ for details. The hypothetical commands ‘show w’ and ‘show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than ‘show w’ and ‘show c’; they could even be mouse-clicks or menu items-whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the pro- gram, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the pro- gram ‘Gnomovision’ (which makes passes at compilers) written by James Hacker. signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subrou- tine library, you may consider it more useful to permit linking pro- prietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this license. Downloaded from www.Manualslib.com manuals search engine APPENDIX 104 APPENDIX Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, ver- sion 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages - typically libraries - of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think careful- ly about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free soft- ware (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is mod- ified by someone else and passed on, the recipients should know that what they have is not the original version, so that the origi- nal author's reputation will not be affected by problems that might be introduced by others. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company can- not effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to per- mit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software devel- opers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license pro- vides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system. GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Downloaded from www.Manualslib.com manuals search engine APPENDIX 105 Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library. The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run. GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This license agreement applies to any software library or other program which contains a notice placed by the copyright hold- er or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this license”). Each license is addressed as "you". A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.) “Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it con- tains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library. Activities other than copying, distribution and modification are not covered by this license; they are outside its scope. The act of running a program using the Library is not restrict- ed, and output from such a program is covered only if its con- tents constitute a work based on the library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the library does and what the program that uses the library does. 1. You may copy and distribute verbatim copies of the library's complete source code as you receive it, in any medium, pro- vided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this license and to the absence of any warranty; and distribute a copy of this license along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this license. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any appli- cation-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the library, and can be reasonably considered independent and separate works in themselves, then this license, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the library, the dis- tribution of the whole must be on the terms of this license, whose permissions for other licenses extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or con- test your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the library. In addition, mere aggregation of another work not based on the library with the library (or with a work based on the library) on a volume of a storage or distribution medium does not bring the other work under the scope of this license. Downloaded from www.Manualslib.com manuals search engine APPENDIX 106 APPENDIX 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices. Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the library into a program that is not a library. 4. You may copy and distribute the library (or a portion or deriv- ative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine- readable source code, which must be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange. If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code. 5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this license. However, linking a “work that uses the library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the library), rather than a “work that uses the library”. The executable is therefore cov- ered by this license. Section 6 states terms for distribution of such executable. When a “work that uses the library” uses material from a head- er file that is part of the library, the object code for the work may be a derivative work of the library even though the source code is not. Whether this is true is especially significant if the work can be linked without the library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. If such an object file uses only numerical parameters, data structure layouts and accessories, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legal- ly a derivative work. (Executable containing this object code plus portions of the library will still fall under Section 6.) Otherwise, if the work is a derivative of the library, you may distribute the object code for the work under the terms of Section 6. Any executable containing that work also fall under Section 6, whether or not they are linked directly with the library itself. 6. As an exception to the sections above, you may also combine or link a "work that uses the library" with the library to pro- duce a work containing portions of the library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications. You must give prominent notice with each copy of the work that the library is used in it and that the Library and its use are covered by this license. You must supply a copy of this license. If the work during execution displays copyright notices, you must include the copyright notice for the library among them, as well as a reference directing the user to the copy of this license. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the library and then relink to produce a modified executable containing the modified library. (It is understood that the user who changes the contents of definitions files in the library will not necessarily be able to recompile the appli- cation to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the exe- cutable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with. c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy. Downloaded from www.Manualslib.com manuals search engine APPENDIX 107 For an executable, the required form of the "work that uses the library" must include any data and utility programs need- ed for reproducing the executable from it. However, as a spe- cial exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the exe- cutable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normal- ly accompany the operating system. Such a contradiction means you cannot use both them and the library together in an executable that you distribute. 7. You may place library facilities that are a work based on the library side-by-side in a single library together with other library facilities not covered by this license, and distribute such a combined library, provided that the separate distribu- tion of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the library, and explaining where to find the accompanying uncombined form of the same work. 8. You may not copy, modify, sublicense, link with, or distribute the library except as expressly provided under this license. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the library is void, and will automatically termi- nate your rights under this license. However, parties who have received copies, or rights, from you under this license will not have their licenses terminated so long as such parties remain in full compliance. 9. You are not required to accept this license, since you have not signed it. However, nothing else grants you permission to mod- ify or distribute the library or its derivative works. These actions are prohibited by law if you do not accept this license. Therefore, by modifying or distributing the library (or any work based on the library), you indicate your acceptance of this license to do so, and all its terms and conditions for copying, distributing or modifying the library or works based on it. 10.Each time you redistribute the library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or mod- ify the library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this license. 11.If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con- ditions of this license, they do not excuse you from the con- ditions of this license. If you cannot distribute so as to satis- fy simultaneously your obligations under this license and any other pertinent obligations, then as a consequence you may not distribute the library at all. For example, if a patent license would not permit royalty-free redistribution of the library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this license would be to refrain entirely from distribution of the library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest valid- ity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution sys- tem which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a license cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this license. 12.If the distribution and/or use of the library is restricted in cer- tain countries either by patents or by copyrighted interfaces, the original copyright holder who places the library under this license may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this license incorporates the limitation as if written in the body of this license. 13.The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the library specifies a version number of this license which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. Downloaded from www.Manualslib.com manuals search engine APPENDIX 108 APPENDIX If the library does not specify a license version number, you may choose any version ever published by the Free Software Foundation. 14.If you wish to incorporate parts of the library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make excep- tions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY 15.BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD- ERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 16.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUS- TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS How to apply these terms to your new libraries If you develop a new library, and you want it to be of the great- est possible use to the public, we recommend making it free soft- ware that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. one line to give the library's name and a brief idea of what it does. Copyright (C) This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the license, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR- POSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking knobs) written by James Random Hacker. signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice Downloaded from www.Manualslib.com manuals search engine APPENDIX 109 1.Definitions. 1.0.1. “Commercial use” means distribution or otherwise making the covered code available to a third party. 1.1. “Contributor” means each entity that creates or con- tributes to the creation of modifications. 1.2. “Contributor version” means the combination of the orig- inal code, prior modifications used by a contributor, and the modifications made by that particular contributor. 1.3. “Covered code” means the original code or modifications or the combination of the original code and modifications, in each case including portions thereof. 1.4. “Electronic distribution mechanism” means a mechanism generally accepted in the software development communi- ty for the electronic transfer of data. 1.5. “Executable” means covered code in any form other than source code. 1.6. “Initial developer” means the individual or entity identified as the initial Developer in the Source Code notice required by exhibit A. 1.7. “Larger work” means a work which combines covered code or portions thereof with code not governed by the terms of this License. 1.8. “License” means this document. 1.8.1. “Licensable” means having the right to grant, to the maxi- mum extent possible, whether at the time of the initial grant or subsequently acquired, any and all of the rights conveyed herein. 1.9. “Modifications” means any addition to or deletion from the substance or structure of either the original code or any previous modifications. When covered code is released as a series of files, a modification is: A. Any addition to or deletion from the contents of a file containing original code or previous modifications. B. Any new file that contains any part of the original code or previous modifications. 1.10. “Original code” means source code of computer software code which is described in the source code notice required by exhibit as original code, and which, at the time of its release under this license is not already covered code governed by this license. 1.10.1.“Patent claims” means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and apparatus claims, in any patent licensable by grantor. 1.11. “Source code” means the preferred form of the covered code for making modifications to it, including all modules it contains, plus any associated interface definition files, scripts used to control compilation and installation of an executable, or source code differential comparisons against either the original code or another well known, available covered code of the contributor's choice. The source code can be in a compressed or archival form, pro- vided the appropriate decompression or de-archiving soft- ware is widely available for no charge. 1.12. “You” (or “Your”) means an individual or a legal entity exercising rights under, and complying with all of the terms of, this license or a future version of this license issued under section 6.1. For legal entities, “You” includes any entity which controls, is controlled by, or is under common control with You. For purposes of this definition, “control” means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) own- ership of more than fifty percent (50%) of the outstand- ing shares or beneficial ownership of such entity. 2. Source Code License. 2.1. The initial developer grant. The initial developer hereby grants You a world-wide, roy- alty-free, non-exclusive license, subject to third party intel- lectual property claims: a) under intellectual property rights (other than patent or trademark) licensable by initial developer to use, repro- duce, modify, display, perform, sublicense and distrib- ute the original code (or portions thereof) with or with- out modifications, and/or as part of a larger work; and (b) under patents claims infringed by the making, using or selling of original code, to make, have made, use, prac- tice, sell, and offer for sale, and/or otherwise dispose of the original code (or portions there of). MOZILLA PUBLIC LICENSE Version 1.1 --------------- Downloaded from www.Manualslib.com manuals search engine APPENDIX 110 APPENDIX (c) the licenses granted in this section 2.1(a) and (b) are effective on the date Initial developer first distributes original code under the terms of this license. (d) Notwithstanding section 2.1(b) above, no patent license is granted: 1) for code that You delete from the original Code; 2) separate from the original code; or 3) for infringements caused by: i) the modification of the original code or ii) the combination of the original code with other software or devices. 2.2. Contributor Grant. Subject to third party intellectual property claims, each contributor hereby grants You a world-wide, royalty-free, non-exclusive license (a) under intellectual property rights (other than patent or trademark) licensable by contributor, to use, reproduce, modify, display, perform, sublicense and distribute the modifications created by such contribu- tor (or portions thereof) either on an unmodified basis, with other modifications, as covered code and/or as part of a larger work; and (b) under patent claims infringed by the making, using, or selling of modifications made by that contributor either alone and/or in combination with its contributor version (or portions of such combination), to make, use, sell, offer for sale, have made, and/or otherwise dispose of: 1) modifications made by that contributor (or portions thereof); and 2) the combination of mod- ifications made by that contributor with its contributor version (or portions of such combination). (c) the licenses granted in sections 2.2(a) and 2.2(b) are effective on the date contributor first makes commer- cial use of the covered code. (d) Notwithstanding section 2.2(b) above, no patent license is granted: 1) for any code that contributor has deleted from the contributor version; 2) separate from the contributor version; 3) for infringements caused by: i) third party modifications of contributor version or ii) the combination of modifications made by that contributor with other software (except as part of the contributor version) or other devices; or 4) under patent claims infringed by covered code in the absence of modifications made by that contributor. 3. Distribution Obligations. 3.1. Application of license. The modifications which You create or to which you con- tribute are governed by the terms of this license, including without limitation section 2.2. The source code version of covered code may be distributed only under the terms of this license or a future version of this license released under section 6.1, and you must include a copy of this license with every copy of the source code you distribute. You may not offer or impose any terms on any source code version that alters or restricts the applicable version of this license or the recipients' rights hereunder. However, you may include an additional document offering the additional rights described in section 3.5. 3.2. Availability of source code. Any modification which you create or to which you con- tribute must be made available in source code form under the terms of this license either on the same media as an executable version or via an accepted electronic distribu- tion mechanism to anyone to whom you made an exe- cutable version available; and if made available via elec- tronic distribution mechanism, must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months after a subsequent version of that particular modification has been made available to such recipients. You are responsible for ensur- ing that the source code version remains available even if the electronic distribution mechanism is maintained by a third party. 3.3. Description of modifications. You must cause all covered code to which you contribute to contain a file documenting the changes You made to create that covered code and the date of any change. You must include a prominent statement that the modification is derived, directly or indirectly, from original code provided by the initial developer and including the name of the initial developer in (a) the source code, and (b) in any notice in an executable version or related documentation in which you describe the origin or ownership of the covered code. 3.4. Intellectual property matters (a) Third party claims. If contributor has knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such contributor under sections 2.1 or 2.2, contributor must include a text file with the source code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient detail that a recipient will know whom to contact. If contributor obtains such knowledge after the modification is made available as described in section 3.2, contributor shall promptly modi- fy the LEGAL file in all copies contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calcu- lated to inform those who received the covered code that new knowledge has been obtained. (b) Contributor APIs. If contributor's modifications include an application programming interface and contributor has knowledge of patent licenses which are reasonably necessary to implement that API, contributor must also include this information in the LEGAL file. Downloaded from www.Manualslib.com manuals search engine APPENDIX 111 (c) Representations. contributor represents that, except as disclosed pursuant to section 3.4(a) above, contributor believes that contributor's modifications are contributor's original creation(s) and/or contributor has sufficient rights to grant the rights conveyed by this license. 3.5. Required notices. You must duplicate the notice in exhibit A in each file of the source code. If it is not possible to put such notice in a particular source code file due to its structure, then You must include such notice in a location (such as a relevant directory) where a user would be likely to look for such a notice. If You created one or more modification(s), you may add your name as a contributor to the notice described in exhibit A. you must also duplicate this license in any documentation for the source code where You describe recipients' rights or ownership rights relating to covered code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of covered code. However, you may do so only on your own behalf, and not on behalf of the Initial developer or any contributor. You must make it absolutely clear than any such warranty, support, indemni- ty or liability obligation is offered by you alone, and You hereby agree to indemnify the Initial developer and every contributor for any liability incurred by the Initial develop- er or such contributor as a result of warranty, support, indemnity or liability terms you offer. 3.6. Distribution of executable versions. You may distribute covered code in executable form only if the requirements of section 3.1-3.5 have been met for that covered code, and if you include a notice stating that the source code version of the covered code is available under the terms of this license, including a description of how and where you have fulfilled the obligations of section 3.2. The notice must be conspicuously included in any notice in an executable version, related documentation or collateral in which you describe recipients' rights relating to the covered code. You may distribute the executable version of covered code or ownership rights under a license of your choice, which may contain terms different from this license, provided that you are in compliance with the terms of this license and that the license for the exe- cutable version does not attempt to limit or alter the recip- ient's rights in the source code version from the rights set forth in this license. If you distribute the executable ver- sion under a different license you must make it absolutely clear that any terms which differ from this license are offered by you alone, not by the Initial developer or any contributor. You hereby agree to indemnify the initial developer and every contributor for any liability incurred by the initial developer or such contributor as a result of any such terms You offer. 3.7. Larger works. You may create a larger work by combining covered code with other code not governed by the terms of this license and distribute the larger work as a single product. In such a case, you must make sure the requirements of this license are fulfilled for the covered code. 4. Inability to comply due to statute or regulation. If it is impossible for you to comply with any of the terms of this license with respect to some or all of the covered code due to statute, judicial order, or regulation then you must: (a) comply with the terms of this license to the max- imum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the LEGAL file described in section 3.4 and must be included with all distributions of the source code. Except to the extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to understand it. 5. Application of this license. This license applies to code to which the initial developer has attached the notice in exhibit A and to related covered code. 6. Versions of the license. 6.1. New versions. Netscape communications corporation (“Netscape”) may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number. 6.2. Effect of new versions. Once covered code has been published under a particular version of the license, you may always continue to use it under the terms of that version. You may also choose to use such covered code under the terms of any subsequent version of the license published by netscape. No one other than netscape has the right to modify the terms applicable to covered code created under this license. 6.3. Derivative works. If You create or use a modified version of this license (which you may only do in order to apply it to code which is not already covered code governed by this license), You must (a) rename Your license so that the phrases "Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL", "NPL" or any confusingly similar phrase do not appear in your license (except to note that your license differs from this license) and (b) otherwise make it clear that Your version of the license contains terms which differ from the Mozilla Public license and netscape Public License. (Filling in the name of the initial developer, original code or con- tributor in the notice described in exhibit A shall not of themselves be deemed to be modifications of this license.) Downloaded from www.Manualslib.com manuals search engine APPENDIX 112 APPENDIX 7. DISCLAIMER OF WARRANTY. COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN “AS IS” BASIS, WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COV- ERED CODE IS FREE OF DEFECTS, MERCHANTABLE, FIT FOR A PARTICULAR PURPOSE OR NON-INFRINGING. THE ENTIRE RISK AS TO THE QUALITY AND PERFOR- MANCE OF THE COVERED CODE IS WITH YOU. SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION. THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER. 8. TERMINATION. 8.1. This license and the rights granted hereunder will terminate automatically if you fail to comply with terms herein and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the covered code which are properly granted shall survive any termination of this license. Provisions which, by their nature, must remain in effect beyond the termination of this license shall survive. 8.2. If you initiate litigation by asserting a patent infringement claim (excluding declatory judgment actions) against ini- tial developer or a contributor (the initial developer or contributor against whom you file such action is referred to as “Participant”) alleging that: (a) such participant's contributor version directly or indi- rectly infringes any patent, then any and all rights granted by such participant to you under sections 2.1 and/or 2.2 of this license shall, upon 60 days notice from Participant terminate prospectively, unless if within 60 days after receipt of notice you either: (i) agree in writing to pay participant a mutually agreeable reasonable royalty for your past and future use of modifications made by such participant, or (ii) withdraw your litigation claim with respect to the contributor version against such participant. If within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation claim is not withdrawn, the rights granted by partici- pant to you under sections 2.1 and/or 2.2 automati- cally terminate at the expiration of the 60 day notice period specified above. (b) any software, hardware, or device, other than such par- ticipant's contributor Version, directly or indirectly infringes any patent, then any rights granted to You by such participant under sections 2.1(b) and 2.2(b) are revoked effective as of the date you first made, used, sold, distributed, or had made, modifications made by that participant. 8.3. If you assert a patent infringement claim against partici- pant alleging that such participant's contributor version directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the rea- sonable value of the licenses granted by such participant under sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license. 8.4. In the event of termination under sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and resellers) which have been validly granted by you or any distributor hereunder prior to termination shall survive termination. 9. LIMITATION OF LIABILITY. UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE), CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DIS- TRIBUTOR OF COVERED CODE,OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUEN- TIAL DAMAGES OF ANY CHARACTER INCLUDING, WITH- OUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNC- TION, OR ANY AND ALL OTHER COMMERCIAL DAM- AGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAM- AGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULT- ING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAM- AGES, SO THIS EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU. 10. U.S. GOVERNMENT END USERS. The covered code is a "commercial item," as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation," as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S. Government end users acquire cov- ered code with only those rights set forth herein. Downloaded from www.Manualslib.com manuals search engine APPENDIX 113 11. MISCELLANEOUS. This license represents the complete agreement concerning subject matter hereof. If any provision of this license is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This License shall be governed by California law provisions (except to the extent applicable law, if any, provides oth- erwise), excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity chartered or registered to do business in the united states of america, any litigation relating to this License shall be subject to the jurisdiction of the federal courts of the northern district of california, with venue lying in santa clara county, california, with the losing party responsible for costs, including without limitation, court costs and reasonable attorneys' fees and expenses. The application of the united nations convention on contracts for the International sale of goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed against the drafter shall not apply to this license. 12. RESPONSIBILITY FOR CLAIMS. As between initial developer and the contributors, each party is responsible for claims and damages arising, directly or indirectly, out of its utilization of rights under this license and you agree to work with initial developer and contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any admission of liability. 13. MULTIPLE-LICENSED CODE. Initial developer may designate portions of the covered code as "Multiple-Licensed". "Multiple-Licensed" means that the initial developer permits you to utilize portions of the covered code under your choice of the NPL or the alternative licenses, if any, specified by the initial developer in the file described in exhibit A. EXHIBIT A -Mozilla Public License. The contents of this file are subject to the Mozilla Public License Version 1.1 (the “license”); you may not use this file except in compliance with the License. You may obtain a copy of the license at http://www.mozilla.org/MPL/ Software distributed under the license is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the license for the specific language governing rights and limitations under the License. The Original Code is ______________________________________. The Initial Developer of the Original Code is___________________. Portions created by ______________________ are Copyright (C) _______________________. All Rights Reserved. Contributor(s): ______________________________________. Alternatively, the contents of this file may be used under the terms of the _____ license (the "[___] License"), in which case the provisions of [______] license are applicable instead of those above. If you wish to allow use of your version of this file only under the terms of the [____] license and not to allow others to use your version of this file under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other provisions required by the [___] license. If you do not delete the provisions above, a recipient may use your version of this file under either the MPL or the [___] license." NOTE: The text of this exhibit A may differ slightly from the text of the notices in the source code files of the original code. You should use the text of this exhibit A rather than the text found in the original code/source code for Your modifications. Downloaded from www.Manualslib.com manuals search engine Downloaded from www.Manualslib.com manuals search engine
