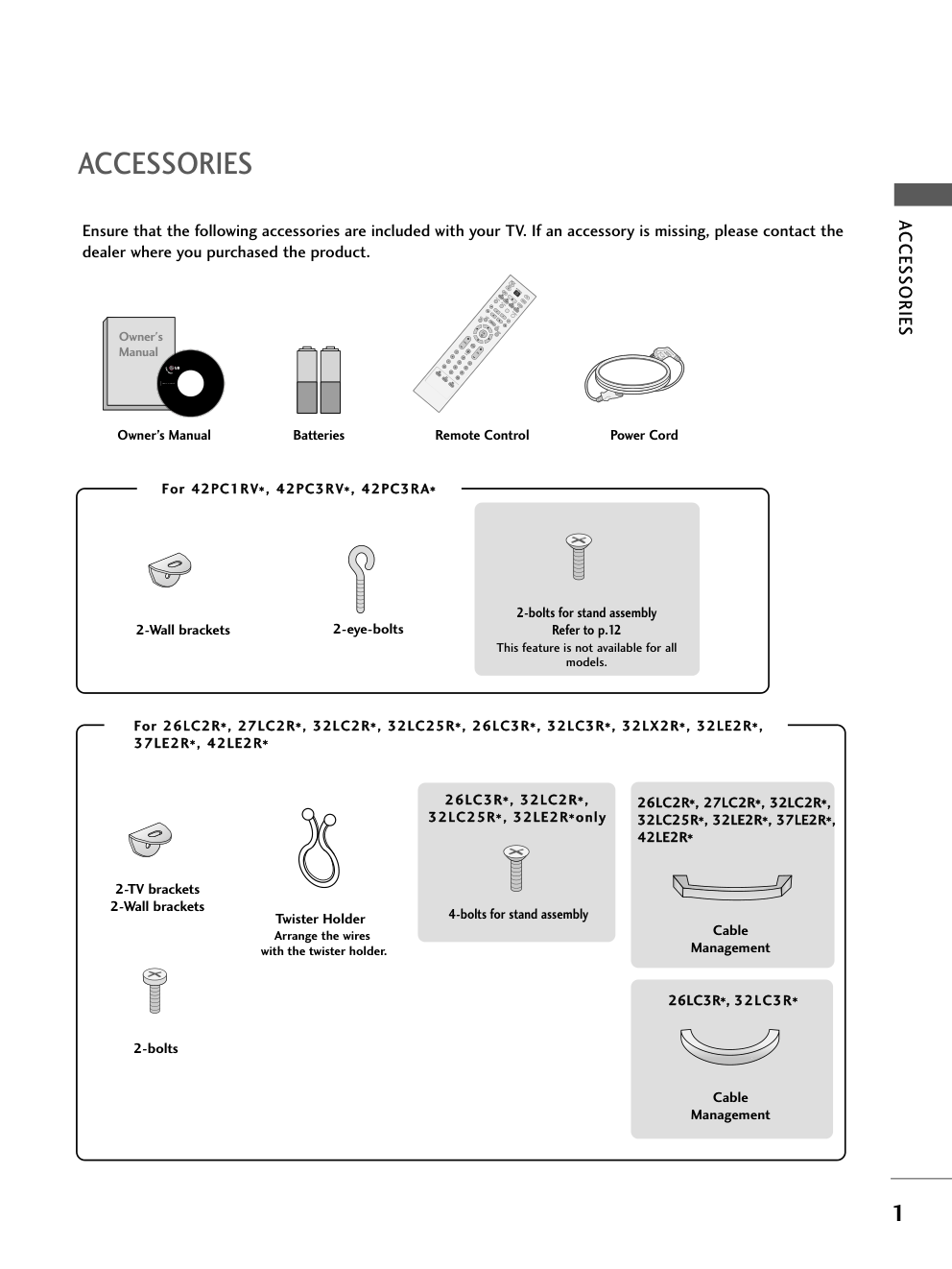

Please rread Information MManual included ttogether before rreading tthis mmanual aand ooperating yyour sset. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service. LCD TV PLASMA TV OWNER’S MANUAL LCD TV MODELS 26LC2R* 27LC2R* 32LC2R* 32LC25R* 26LC3R* 32LC3R* 32LX2R* 32LE2R* 37LE2R* 42LE2R* PLASMA TV MODELS 42PC1RV* 42PC3RV* 42PC3RA* ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL PORTUGUÊS NEDERLANDS ∂ÏÏËÓÈο 1 ACCESSORIES ACCESSORIES Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the product. Owner's Manual Owner’s manual Owner’s Manual Batteries OK INPUT TV TV PIP PR- PIP PR+ PIP INPUT DVD ARC EXIT VOL TIME REVEAL INDEX Q.VIEW PR SLEEP LIST I/II MENU PIP SIZE POSTION VCR POWER 1 2 3 4 5 6 7 8 9 * FAV ? 0 TEXT INPUT MUTE Remote Control Power Cord 2-Wall brackets 2-eye-bolts 2-TV brackets 2-Wall brackets 2-bolts For 26LC2R*, 27LC2R*, 32LC2R*, 32LC25R*, 26LC3R*, 32LC3R*, 32LX2R*, 32LE2R*, 37LE2R*, 42LE2R* For 42PC1RV*, 42PC3RV*, 42PC3RA* 4-bolts for stand assembly Twister Holder Arrange the wires with the twister holder. 2-bolts for stand assembly Refer to p.12 This feature is not available for all models. Cable Management 26LC2R*, 27LC2R*, 32LC2R*, 32LC25R*, 32LE2R*, 37LE2R*, 42LE2R* Cable Management 26LC3R*, 32LC3R* 26LC3R*, 32LC2R*, 32LC25R*, 32LE2R*only 2 CONTENTS CONTENTS ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 INTRODUCTION Controls / Connection Options . . . . . . . . . . . . . . . . . . . . . . . .4-10 Remote Control Key Functions . . . . . . . . . . . . . . . . . . . . . . . . .11-12 Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . .12 TV MENU On Screen Menus Selection and Adjustment . . . . .36 Setting up TV stations Auto programme tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Manual programme tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Fine tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Assigning a station name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Programme edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Favourite programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Calling the programme table . . . . . . . . . . . . . . . . . . . . . . . . .43 Picture Menu Options PSM (Picture Status Memory) . . . . . . . . . . . . . . . . . . . . . .44 Picture Adjustment (PSM-User option) . . . . . . . . .45 CSM (Colour Status Memory) . . . . . . . . . . . . . . . . . . . . . .46 Manual Colour Temperature Control (CSM - User option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 ADVANCED-CINEMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 ADVANCED-BLACK LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51 Sound Menu Options SSM (Sound Status Memory) . . . . . . . . . . . . . . . . . . . . . . .52 Sound Frequency Adjustment (SSM - User option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Balance Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55 Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Stereo/Dual Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 NICAM Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Speaker Sound Output Selection . . . . . . . . . . . . . . . . . .58 Time Menu Options Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 On/Off Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Auto Sleep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61 Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61 Special Menu Options Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 ISM (Image Sticking Minimization) Method . . .63 Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 XD Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 INSTALLATION Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-14 Basic Connection / How to Remove the Cable Management . . . . . . . . . . .15-17 How to join the product assembly to the wall to protect the set tumbling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 CONNECTIONS & SETUP Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-22 External Equipment Connections . . . . . . . . . . . . . . . . . . . . . . . . . .23 DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25 STB Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-27 PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-29 Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30-31 SPECIAL FUNCTIONS PIP (Picture-In-Picture) Watching PIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Programme Selection for Sub Picture . . . . . . . . . . . .32 Input Source Selection for Sub Picture . . . . . . . . . .32 Sub Picture Size Adjustment (PIP mode only) . .32 Moving the Sub Picture (PIP mode only) . . .32 Teletext Switch on/off . . . . . . . . . . . . . . . . . . . . . . . . .33 SIMPLE Text . . . . . . . . . . . . . . . . . . . . . . . . . .33 TOP Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 FASTEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Special Teletext Functions . . . . . . . . . . . . . . .35 3 CONTENTS TV MENU Screen Menu Options Auto Configure (RGB [PC] mode only) . . . . . . . . . . . .66 Manual Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67 Setting the Picture Format . . . . . . . . . . . . . . . . . . . . . .68-69 Selecting Wide VGA/XGA mode . . . . . . . . . . . . . . . . . . .69 Initializing (Reset to original factory settings) . . . . . . . . . . . . . . . .70 APPENDIX Programming the Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71 Programming code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71-72 Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . .73-74 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76-79 4 CONTROLS INTRODUCTION INTRODUCTION This is the front panel of models 42PC1RV* TVs. I This is a simplified representation of the front panel. Here shown may be somewhat different from your TV. Front Panel Controls VOL OK MENU INPUT PROGRAMME Buttons VOLUME Buttons MENU Button OK Button INPUT Button POWER Button PR VOL OL OK MENU MENU INPUT Power/Standby Indicator • illuminates red in standby mode. • illuminates white when the set is switched on. PR VOL OK MENU INPUT 5 INTRODUCTION This is the front panel of models 42PC3RV*, 42PC3RA* TVs. I This is a simplified representation of the front panel. Here shown may be somewhat different from your TV. Front Panel Controls PR VOL OK MENU INPUT Remote Control Sensor Power/Standby Indicator • illuminates red in standby mode. • illuminates white when the set is switched on. PROGRAMME Buttons VOLUME Buttons OK Button MENU Button INPUT Button ON/OFF Button 6 CONNECTION OPTION INTRODUCTION INTRODUCTION This is the back panel of models 42PC1RV*, 42PC3RV*, 42PC3RA* TVs. Back Connection Panel 42PC1RV* only REMOTE CONTROL IN AUDIO IN (RGB) AC IN AV 1 V 1 AV 2 MONO ( ) AUDIO UDIO RGB IN (PC/DTV) RS-232C IN RS-232C IN (CONTROL & SERVICE) HDMI IN ANTENNA IN VIDEO VIDEO S-VIDEO S-VIDEO AV IN 3 AUDIO OUT VARIABLE VIDEO VIDEO AUDIO UDIO COMPONENT IN COMPONENT IN AV IN 4 L/MONO R AUDIO AUDIO VIDEO VIDEO AUDIO Input Connections are available for listening stereo sound from an external device. VIDEO Input Connects the video signal from a video device. 7 8 2 1 4 3 9 5 10 11 6 Euro Scart Socket (AV1/AV2) Connect scart socket input or output from an external device to these jacks. Component Input Connect a component video/audio device to these jacks. Remote Control Port Connect your wired remote control here. RGB/Audio Input Connect the monitor output from a PC to the appropriate input port. HDMI Input Connect a HDMI signal to HDMI port with HDMI cable. Power Cord Socket This TV operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power. S-Video Input Connect S-Video out from an S-VIDEO device. Audio/Video Input Connect audio/video output from an external device to these jacks. RS-232C Input (CONTROL&SERVICE) Port Connect the serial port of the control devices to the RS-232C jack. Variable Audio Output Connect an external amplifier or add a subwoofer to your surround sound system. Antenna Input Connect over-the-air signals to this jack. 1 2 3 4 5 6 7 8 9 10 11 7 INTRODUCTION This is the front panel of models 26LC2R*, 26LC3R*, 27LC2R*, 32LC2R*, 32LC25R*, 32LC3R*, 32LE2R*, 37LE2R*, 42LE2R* TVs. I This is a simplified representation of the front panel. Here shown may be somewhat different from your TV. Front Panel Controls R Remote Control Sensor Power/Standby Indicator • illuminates red in standby mode. • illuminates white when the set is switched on. 26LC2R*, 27LC2R*, 32LC2R*, 32LC25R*, 32LE2R*, 37LE2R*, 42LE2R* R Remote Control Sensor Power/Standby Indicator • illuminates red in standby mode. • illuminates white when the set is switched on. 26LC3R*, 32LC3R* PR VOL OK MENU INPUT /I PROGRAMME Buttons VOLUME Buttons OK Button MENU Button INPUT Button ON/OFF Button 8 CONTROLS INTRODUCTION INTRODUCTION This is the front panel of models 32LX2R* TV. I This is a simplified representation of the front panel. Here shown may be somewhat different from your TV. Front Panel Controls PR VOL MENU OK INPUT ON/OFF PR VOL MENU OK INPUT ON/OFF PROGRAMME Buttons VOLUME Buttons MENU Button OK Button INPUT Button POWER Button Remote Control Sensor Power/Standby Indicator • illuminates red in standby mode. • illuminates white when the set is switched on. 9 CONTROLS INTRODUCTION REMOTE CONTROL IN AUDIO IN (RGB) AC IN AV 1 V 1 AV 2 V 2 MONO ( ) AUDIO UDIO RGB IN (PC/DTV) RS-232C IN RS-232C IN (CONTROL & SERVICE) HDM IN ANTENNA IN VIDEO VIDEO S-VIDEO S-VIDEO AV IN 3 AUDIO OUT VARIABLE VIDEO VIDEO AUDIO UDIO COMPONENT IN COMPONENT IN AV IN 4 AUDIO AUDIO VIDEO VIDEO L/MONO R AC IN AV IN 4 AUDIO AUDIO VIDEO VIDEO L/MONO R This is the back panel of models 26LC2R*, 26LC3R*, 27LC2R* TVs. Back Connection Panel AUDIO Input Connections are available for listening stereo sound from an external device. VIDEO Input Connects the video signal from a video device. Power Cord Socket This TV operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power. Euro Scart Socket (AV1/AV2) Connect scart socket input or output from an external device to these jacks. Component Input Connect a component video/audio device to these jacks. Remote Control Port Connect your wired remote control here. RGB/Audio Input Connect the monitor output from a PC to the appropriate input port. HDMI Input Connect a HDMI signal to HDMI port with HDMI cable. S-Video Input Connect S-Video out from an S-VIDEO device. Audio/Video Input Connect audio/video output from an external device to these jacks. RS-232C Input (CONTROL&SERVICE) Port Connect the serial port of the control devices to the RS-232C jack. Variable Audio Output Connect an external amplifier or add a subwoofer to your surround sound system. Antenna Input Connect over-the-air signals to this jack. 1 2 3 4 5 6 7 8 9 10 11 7 8 3 1 2 5 4 9 6 10 11 26LC3R* 26LC2R* 27LC2R* 10 INTRODUCTION INTRODUCTION REMOTE CONTROL IN AUDIO IN (RGB) AC IN AV 1 V 1 AV 2 MONO ( ) AUDIO UDIO RGB IN (PC/DTV) RS-232C IN RS-232C IN (CONTROL & SERVICE) HDM IN ANTENNA IN VIDEO VIDEO S-VIDEO S-VIDEO AV IN 3 AUDIO OUT VARIABLE VIDEO VIDEO AUDIO UDIO COMPONENT IN COMPONENT IN AC IN AV IN 4 L/MONO R AUDIO AUDIO VIDEO VIDEO AV IN 4 L/MONO MONO R AUDIO AUDIO VIDEO VIDEO AV IN 4 AUDIO AUDIO VIDEO VIDEO L/MONO R This is the back panel of models 32LC2R*, 32LC25R*, 32LC3R*, 32LX2R*, 32LE2R*, 37LE2R*, 42LE2R* TVs. Back Connection Panel AUDIO Input Connections are available for listening stereo sound from an external device. VIDEO Input Connects the video signal from the video device. Power Cord Socket This TV operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power. Euro Scart Socket (AV1/AV2) Connect scart socket input or output from an external device to these jacks. Component Input Connect a component video/audio device to these jacks. Remote Control Port Connect your wired remote control here. RGB/Audio Input Connect the monitor output from a PC to the appropriate input port. HDMI Input Connect a HDMI signal to HDMI port with HDMI cable. S-Video Input Connect S-Video out from an S-VIDEO device. Audio/Video Input Connect audio/video output from an external device to these jacks. RS-232C Input (CONTROL&SERVICE) Port Connect the serial port of the control devices to the RS-232C jack. Variable Audio Output Connect an external amplifier or add a subwoofer to your surround sound system. Antenna Input Connect over-the-air signals to this jack. 1 2 3 4 7 5 6 8 9 10 11 7 8 3 1 2 5 4 9 6 10 11 32LC3R* 37LE2R* 42LE2R* CONTROLS 32LC2R* 32LC25R* 32LX2R* 32LE2R* 11 INTRODUCTION REMOTE CONTROL KEY FUNCTIONS When using the remote control, aim it at the remote control sensor on the TV. OK INPUT TV TV PIP PR- PIP PR+ PIP INPUT DVD ARC EXIT VOL TIME REVEAL INDEX Q.VIEW PR SLEEP LIST I/II MENU PIP SIZE POSTION VCR POWER 1 2 3 4 5 6 7 8 9 * 0 FAV ? TEXT INPUT MUTE POWER TV INPUT INPUT Switches the set on from standby or off to standby. Returns to the TV viewing from any mode. Switches the set on from standby. If you press the button once, the input source OSD will appear on screen as shown. Press the D / E but- ton and then OK button to select the desired input source (TV, AV1 , AV2, S-Video2 , AV3 , AV4 (except 42PC3RV*, 42PC3RA*), Component , RGB, or HDMI). ARC Brightness adjustment Selects your desired picture format. Adjusts screen brightness. It returns to the default settings brightness by changing mode source. PIP SIZE POSITION PIP PR - /+ PIP INPUT Coloured buttons Switches the sub picture PIP, DW mode. Adjusts the sub picture size. Moves the sub picture. Selects a programme for the sub picture. Selects the input source for the sub picture in PIP/Twin picture mode. These buttons are used for teletext (only TELETEXT models) or Programme edit. VCR/DVD control buttons Controls some video cassette recorders or DVD players when you have already selected DVD or VCR mode button. EXIT LIST MENU I/II SLEEP Clears all on-screen displays and returns to TV viewing from any menu. Displays the programme table. Selects a menu. Selects the sound output. Sets the sleep timer. 12 INTRODUCTION INTRODUCTION OK INPUT TV TV PIP PR- PIP PR+ PIP INPUT DVD ARC EXIT VOL TIME REVEAL INDEX Q.VIEW PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION VCR POWER 1 2 3 4 5 6 7 8 9 * FAV ? 0 INPUT MUTE 1 1 1 IOpen the battery compartment cover on the back side and install the batteries matching correct polarity (+ with +, - with -). IInstall two 1.5V AA batteries. Don’t mix old or used batteries with new ones. IClose cover. INSTALLING BATTERIES MODE Selects the remote operating modes. TELETEXT BUTTONS These buttons are used for teletext. For further details, see the ‘Teletext’ section. THUMBSTICK (Up/Down/Left Right) OK Allows you to navigate the on-screen menus and adjust the system settings to your preference. Accepts your selection or displays the current mode. VOLUME UP /DOWN Q.VIEW MUTE Programme UP/DOWN 0~9 number button FAV * Adjusts the volume. Returns to the previously viewed programme. Switches the sound on or off. Selects a programme. Selects a programme. Selects numbered items in a menu. Displays the selected favourite programme. No function INSTALLATION 13 STAND INSTALLATION INSTALLATION Figures shown here may be slightly different from your set. When closing the stand for storage First remove the screws in the holes (B)on the bottom of the stand.And then pull two Hooks (D)of the stand bottom and fold the stand into the back of the set. After folding,push two Locks (A)of the stand bottom outward. NOTE ! I Place the set with the screen facing down on a cushion or soft cloth as shown in Figures 1. Before unfolding the stand,please make sure two locks (A)on the bottom of the stand push outward. I Pull the stand out as shown above in Figures 2 ~ 3. After unfolding the stand,please insert and tighten the screws in the holes (B)on the bottom of the stand. I When connecting cables to the set,Do not disengage the lock (C). This may cause the set to fall,causing serious bodily injury and serious damage to the set. A C B 1 2 3 4 I This feature is not available for all models. A D B 14 STAND INSTALLATION (Only 26LC3R*, 32LC2R*, 32LC25R*, 32LE2R*) INSTALLATION INSTALLATION 1 2 3 Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage. Place the product stand on the product as shown. Install the 4 bolts securely, in the back of the product in the holes provided. INSTALLATION 15 BASIC CONNECTION (42PC1RV*, 42PC3RV*, 42PC3RA*) Arrange the cables as shown picture. Hold the CABLE MMANAGEMENT with both hands and push it as shown. Connect the cables as necessary. To connect an additional equipment, see the External equipment Connections section. Reinstall the CABLE MMANAGEMENT as shown. 1 2 3 CABLE MANAGEMENT I These models have two cable arrangement methods according to the stand type. Stand type 1 Stand type 2 16 BASIC CONNECTION (Only 26LC2R*, 27LC2R*, 32LC2R*, 32LC25R*, 26LC3R*, 32LC3R*, 32LE2R*, 37LE2R*, 42LE2R*) INSTALLATION INSTALLATION Connect the cables as necessary. After connecting the cables neatly, arrange the cables to the Cable Holder. To connect an additional equipment, see the External eequipment Connections sec- tion. 1 Install the CABLE MMANAGEMENT as shown. 2 Bundle the cables using the supplied twister holder. 3 NOTE ! G Do not hold the CABLE MANAGEMENT when moving the product. - If the product is dropped, you may be injured or the product may be broken. HOW TO REMOVE THE CABLE MANAGEMENT CABLE MANAGEMENT - Hold the CABLE MMANAGEMENT with both hands and pull it upward. - Hold the CABLE MMANAGEMENT with both hands and pull it downward. (Only 32LC3R*) INSTALLATION 17 BASIC CONNECTION (32LX2R*) Hold the cover with both hands and pull it backward. 1 Connect the cables as necessary. To connect an additional equipment, see the External equipment Connections section. 2 Bundle the cables using the supplied twister holder. 3 Antenna The TV can be conveniently swiveled on its stand 30° to the left or right to provide the optimum viewing angle. SWIVEL STAND (32LX2R*) 18 INSTALLATION INSTALLATION Desktop Pedestal Installation 4 inches 4 inches 4 inches 4 inches For proper ventilation, allow a clearance of 4" on each side and from the wall. Wall Mount: Horizontal installation 4 inches 4 inches 4 inches 4 inches 4 inches For proper ventilation, allow a clearance of 4" on each side and from the wall. Detailed installation instruc- tions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide. GROUNDING Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods are not pos- sible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes. Power Supply Short-circuit Breaker I The TV can be installed in various ways such as on a wall, or on a desktop etc. I The TV is designed to be mounted horizontally. Remove two screws of the backside of the set before installing the wall mounting bracket. INSTALLATION 19 HOW TO JOIN THE PRODUCT ASSEMBLY TO THE WALL TO PROTECT THE SET TUMBLING Plasma TV models LCD TV models 2 1 I Set it up close to the wall so the product doesn’t fall over when it is pushed backwards. I The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the product doesn’t fall over when it is pulled in the forward direction. It will prevent the product from falling for-ward and hurting people. It will also prevent the product from damage caused by fall. Please make sure that children don’t climb on or hang from the product. NOTE ! G When moving the product to another place undo the ropes first. G Use a product holder or a cabinet that is big and strong enough for the size and weight of the product. G To use the product safely make sure that the height of the bracket that is mounted on the wall is same as that of the product. 2 3 1 1 2 Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture. (If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.) * Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes. Secure the wall brackets with the bolts (not provided as parts of the product, must purchase sepa- rately) on the wall. Match the height of the bracket that is mounted on the wall. 3 Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product. It is safer to tie the rope so it becomes horizontal between the wall and the product. 20 ANTENNA CONNECTION CONNECTIONS & SETUP CONNECTIONS & SETUP I To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment. I For optimum picture quality, adjust antenna direction. I An antenna cable and converter are not supplied. I In poor signal areas, to get better picture quality, install a signal amplifier to the antenna as shown to the right. I If signal needs to be split for two TVs, use an antenna signal splitter for connection. Signal Amplifier UHF VHF ANTENNA IN Multi-family Dwellings/Apartments (Connect to wall antenna socket) Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna) Outdoor Antenna Wall Antenna Socket VHF Antenna UHF Antenna RF Coaxial Wire (75 ohm) Turn clockwise to tighten. ANTENNA IN ANTENNA IN ANTENNA IN ANTENNA IN CONNECTIONS & SETUP 21 VCR SETUP I To avoid picture noise (interference), leave an adequate distance between the VCR and TV. I Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen. S-VIDEO OUT IN (R) AUDIO (L) VIDEO 3 4 OUTPUT SWITCH ANT OUT ANT IN VIDEO S-VIDEO ( ) AUDIO AV IN 3 VIDEO S-VIDEO ( ) AUDIO AV IN 3 HDMI IN HDMI IN AUDIO OUT UDIO OUT VARIABLE ANTENNA ANTENNA IN VCR 1 2 When connecting with an antenna Connect the ANT OUT socket of the VCR to the ANTENNA IN socket on the set. Connect the antenna cable to the ANT IN socket of the VCR. Press the PLAY button on the VCR and match the appropriate programme between the TV and VCR for viewing. S-VIDEO OUT IN (R) AUDIO (L) VIDEO 3 4 OUTPUT SWITCH ANT OUT ANT IN VIDEO AUDIO COMPONENT IN AV 1 AV 2 VIDEO S-VIDEO MONO ( ) AUDIO AV IN 3 HDMI IN AUDIO OUT VARIABLE ANTENNA IN VCR 1 1 2 3 When connecting with a RCA cable Connect the AUDIO/VIDEO jacks between TV and VCR. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.) Select AV3 input source using the INPUT button on the remote control. - If connected to AV IN 4, select AV4 input source. (except 42PC3RV*, 42PC3RA*) 1 2 3 NOTE ! G If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the set. 22 VCR SETUP CONNECTIONS & SETUP CONNECTIONS & SETUP S-VIDEO OUT IN (R) AUDIO (L) VIDEO 3 4 OUTPUT SWITCH ANT OUT ANT IN VIDEO AUDIO COMPONENT IN AV 1 AV 2 VIDEO S-VIDEO MONO ( ) AUDIO AV IN 3 VIDEO S-VIDEO ( ) AUDIO AV IN 3 HDMI IN AUDIO OUT VARIABLE ANTENNA IN VCR VIDEO AUDIO COMPONENT IN AV 1 V 1 AV 2 MONO ( ) AUDIO VIDEO S-VIDEO AV IN 3 (R) AUDIO (L) AUDIO/ VIDEO VCR 1 1 2 When connecting with a Euro Scart Connect the Euro scart socket of the VCR to the AV1 Euro scart socket on the set. Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.) Select AV1 input source with using the INPUT button on the remote control. - If connected to AV2 Euro scart socket, select AV2 input source. 1 2 3 NOTE ! G If the S-VIDEO(Y/C) signal is received through the Euro scart socket 2 (AV2), you must change to the S- Video2 mode. G If you want to use the EURO scart cable, you have to use the signal shielded Euro scart cable. When connecting with an S-Video cable Connect the S-VIDEO output of the VCR to the S-VIDEO input on the set. The picture quality is improved; com- pared to normal composite (RCA cable) input. Connect the audio outputs of the VCR to the AUDIO input jacks on the set. Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.) 1 2 3 Select AV3 input source with using the INPUT button on the remote control. 4 NOTE ! G If both S-VIDEO and VIDEO sockets have been conneced to the S-VHS VCR simultaneously, only the S- VIDEO can be received. CONNECTIONS & SETUP 23 EXTERNAL EQUIPMENT CONNECTIONS AV IN 4 V IN 4 L/MONO MONO R AUDIO AUDIO VIDEO VIDEO R L AUDIO VIDEO Camcorder Video Game Set 1 Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red) Select AV4 input source with using the INPUT button on the remote control. (except 42PC3RV*, 42PC3RA*) - If connected to AV IN3 input, select AV3 input source. Operate the corresponding external equipment. Refer to external equipment operating guide. 1 2 3 24 DVD SETUP CONNECTIONS & SETUP CONNECTIONS & SETUP ( ) AUDIO VIDEO S-VIDEO AV IN 3 MONO ( ) AUDIO VIDEO S-VIDEO AV IN 3 AV 1 AV 2 VIDEO AUDIO COMPONENT IN B R (R) AUDIO (L) DVD VIDEO AUDIO COMPONENT IN AV 1 V 1 AV 2 MONO ( ) AUDIO VIDEO S-VIDEO AV IN 3 (R) AUDIO (L) AUDIO/ VIDEO DVD 1 1 2 When connecting with a component cable Connect the video outputs (Y, PB, PR) of the DVD to the COMPONENT IN VIDEO jacks on the set. Connect the audio outputs of the DVD to the COMPO- NENT IN AUDIO jacks on the set. Turn on the DVD player, insert a DVD. 1 2 3 Select Component input source with using the INPUT button on the remote control. 4 Refer to the DVD player's manual for operating instruc- tions. 5 NOTE ! G Component Input ports To get better picture quality, connect a DVD player to the component input ports as shown below. Y PB PR Component ports on the TV Y Y Y Y Pb B-Y Cb PB Pr R-Y Cr PR Video output ports on DVD player When connecting with a Euro Scart Connect the Euro scart socket of the DVD to the AV1 Euro scart socket on the set. Turn on the DVD player, insert a DVD. Select AV1 input source with using the INPUT button on the remote control. - If connected to AV2 Euro scart socket, select AV2 input source. 1 2 3 NOTE ! G Please use the shield scart cable. CONNECTIONS & SETUP 25 AV 1 AV 2 VIDEO AUDIO COMPONENT IN MONO ( ) AUDIO VIDEO S-VIDEO AV IN 3 VIDEO AUDIO COMPONENT IN S-VIDEO (R) AUDIO (L) DVD 1 2 REMOTE CONTROL IN AUDIO IN (RGB) RGB IN RGB IN (PC/DTV) RS-232C IN RS-232C IN (CONTR (CONTROL & SERVICE) VICE) AUDIO OUT UDIO OUT VARIABLE HDMI IN ( ) AUDIO VIDEO S-VIDEO AV IN 3 VIDEO AUDIO COMPONENT IN HDMI-DVD OUTPUT DVD 1 When connecting with a S-Video cable Connect the S-VIDEO output of the DVD to the S-VIDEO input on the set. Connect the audio outputs of the DVD to the AUDIO input jacks on the set. Turn on the DVD player, insert a DVD. 1 2 3 Select AV3 input source with using the INPUT button on the remote control. 4 Refer to the DVD player's manual for operating instruc- tions. 5 When connecting with a HDMI cable Connect the HDMI output of the DVD to the HDMI IN jack on the set. Select HDMI input source with using the INPUT button on the remote control. Refer to the DVD player's manual for operating instruc- tions. 1 2 3 NOTE ! G TV can receive the video and audio signal simultaneously with using a HDMI cable. G If the DVD supports Auto HDMI function, the DVD output resolution will be automatically set to 1280x720p. G If the DVD does not support Auto HDMI, you need to set the output resolution appropriately. To get the best picture quality, adjust the output resolution of the DVD to 1280x720p. 26 STB (SET-TOP BOX) SETUP CONNECTIONS & SETUP CONNECTIONS & SETUP ( ) AUDIO VIDEO S-VIDEO AV IN 3 MONO ( ) AUDIO VIDEO S-VIDEO AV IN 3 AV 1 AV 2 VIDEO AUDIO COMPONENT IN B R (R) AUDIO (L) Digital Set-top Box HDMI IN AUDIO OUT VARIABLE RGB IN (PC/DTV) RGB IN (PC/DTV) (PC/DTV) RS-232C IN (CONTROL & SERVICE) AUDIO OUT UDIO OUT VARIABLE HDMI IN HDMI IN REMOTE CONTROL IN AUDIO IN (RGB) (R) AUDIO (L) DVI-DTV OUTPUT Digital Set-top Box 1 1 2 2 When connecting with a component cable Connect the video outputs (Y, PB, PR) of the digital set-top box to the COMPONENT IN VIDEO jacks on the set. Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO jacks on the set. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) 1 2 3 Select Component input source with using the INPUT button on the remote control. 4 NOTE ! Signal 480i/576i 480p/576p/720p/1080i Component Yes Yes RGB-DTV No Yes HDMI No Yes When connecting with a HDMI to DVI cable Connect the DVI output of the digital set-top box to the HDMI IN jack on the set. Connect the audio outputs of the set-top box to the AUDIO IN (RGB) jack on the set. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) 1 2 3 Select HDMI input source with using the INPUT button on the remote control. 4 G If the digital set-top box has a DVI output and no HDMI output, a separated audio connection is neces- sary. G If the digital set-top box supports Auto DVI function, the output resolution of the digital set-top box will be automatically set to 1280x720p. G If the digital set-top box does not support Auto DVI, you need to set the output resolution appropriately. To get the best picture quality, adjust the output resolution of the digital set-top box to 1280x720p. NOTE ! CONNECTIONS & SETUP 27 (R) AUDIO (L) RGB-DTV OUTPUT REMOTE CONTROL IN RS-232C IN RS-232C IN (CONTROL & SER SERVICE) HDMI IN AUDIO OUT UDIO OUT VARIABLE RGB IN RGB IN (PC/DTV) AUDIO IN (RGB) RS-232C IN (CONTROL & SERVICE) Digital Set-top Box 1 2 When connecting with a D-sub 15 pin cable Connect the RGB output of the digital set-top box to the RGB IN (PC/DTV) jack on the set. Connect the audio outputs of the set-top box to the AUDIO IN (RGB) jack on the set. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) 1 2 3 Select RGB-DTV input source with using the INPUT button on the remote control. 4 REMOTE CONTROL IN AUDIO IN (RGB) RGB IN RGB IN (PC/DTV) RS-232C IN RS-232C IN (CONTR (CONTROL OL & SER SERVICE) VICE) AUDIO OUT UDIO OUT VARIABLE HDMI IN ( ) AUDIO VIDEO S-VIDEO AV IN 3 VIDEO AUDIO COMPONENT IN HDMI-DVD OUTPUT 1 When connecting with a HDMI cable Connect the HDMI output of the digital set-top box to the HDMI IN jack on the set. Select HDMI input source with using the INPUT button on the remote control. Turn on the digital set-top box. (Refer to the owner’s man- ual for the digital set-top box.) 1 2 3 NOTE ! G TV can receive the video and audio signal simultaneously with using a HDMI cable. G If the digital set-top box supports Auto HDMI function, output resolution of the digital set-top box will be automatically set to 1280x720p. G If the digital set-top box does not support Auto HDMI, you need to set the output resolution appropri- ately. To get the best picture quality, adjust the output resolution of the digital set-top box to 1280x720p. Digital Set-top Box 28 PC SETUP CONNECTIONS & SETUP CONNECTIONS & SETUP I This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. NOTE ! To enjoy vivid picture and sound, connect a PC to the set. Avoid keeping a fixed image on the set’s screen for a long period of time. The fixed image may become permanently imprinted on the screen; use a screen saver when possible. Connect PC to the RGB INPUT(PC INPUT) port of the set; change the resolution output of PC accordingly. There might be a noise according to some reso- lution, vertical pattern, contrast or brightness in PC mode. Then change the PC mode into other resolution or change the refresh rate into other rate or adjust the brightness and contrast on the menu until the picture is clean. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult it to the manufacturer of the PC graphic card. The synchronization input form for Horizontal and Vertical frequencies is separate. We recommend using 640x480, 60Hz (42PC1RV*, 42PC3RV*) /1360x768, 60Hz (26LC2R*, 27LC2R*, 32LC2R*, 32LC25R*, 26LC3R*, 32LC3R*, 32LX2R*, 32LE2R*, 37LE2R*, 42LE2R*) /1024x768, 60Hz (42PC3RA*) for the PC mode, they provide the best picture quality. If the resolution of PC is over SXGA, there will be no picture on the set. Connect the audio cable from the PC to the Audio input on the set. (Audio cables are not included with the set). When you use too long RGB-PC cable, there might be a noise on the screen. We recommend using under 5m of the cable. It provides the best picture quality. 4 5 1 2 3 6 7 8 9 When connecting with a D-sub 15 pin cable REMOTE CONTROL IN RS-232C IN RS-232C IN (CONTR (CONTROL & SER SERVICE) VICE) HDMI IN AUDIO OUT UDIO OUT VARIABLE RGB IN RGB IN (PC/DTV) AUDIO IN (RGB) RGB-PC OUTPUT PC SOUND PC 1 2 Connect the TV to the PC with the PC cable. Connect the PC audio putput to the TV’s AUDIO IIN (RGB) input. Turn on the PC. 1 2 3 Select RGB [PC] input source with using the INPUT but- ton on the remote control. 4 CONNECTIONS & SETUP 29 Horizontal Vertical Frequency(KHz) Frequency(Hz) 31.5 70.8 31.5 70.8 31.5 59.9 37.9 60.3 48.4 60.0 47.8 59.9 47.7 59.8 47.7 59.8 Resolution 640x350 720x400 640x480 800x600 1024x768 1280x768 1360x768 1366x768 Supported Display Resolution (RGB[PC] mode) (26LC2R*/ 27LC2R*/ 32LC2R*/ 32LC25R*/ 26LC3R*/ 32LC3R*/ 32LX2R*/ 32LE2R*/ 37LE2R*/ 42LE2R*/ 42PC3RA*) Supported Display Resolution (RGB[PC] mode) (42PC1RV*/ 42PC3RV*) Horizontal Vertical Frequency(KHz) Frequency(Hz) 31.5 70.8 31.5 70.8 31.5 59.9 31.5 60.0 31.5 60.0 37.9 60.3 48.4 60.0 Resolution 640x350 720x400 640x480 848x480 852x480 800x600 1024x768 30 CONNECTIONS & SETUP CONNECTIONS & SETUP TURNING THE TV ON OK INPUT TV TV INPUT PIP PR- PIP PR+ PIP INPUT DVD ARC EXIT VOL TIME REVEAL INDEX Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION VCR POWER 1 2 3 4 5 6 7 8 9 * 0 FAV ? NOTE ! G If you intend to be away on vacation, disconnect the power plug from wall power outlet. If your TV will be turned on, you will be able to use its features. First, connect power cord correctly. At this moment, the TV switches to standby mode. I In standby mode to turn TV on, press the , INPUT, PR D / E but- ton on the TV or press the POWER, TV, INPUT, PR +/-, Number(0~9) button on the remote control and then the TV will switch on. Turing on the TV Press the VOL +/- button to adjust the volume. If you want to switch the sound off, press the MUTE button. You can cancel this function by pressing the MUTE, VOL +/- or I/II button. Volume Adjustment Press the PR +/- or NUMBER button to select a programme number. Programme selection 1 1 1 2 CONNECTIONS & SETUP 31 Press the MENU button and then use D / E button to select the Special menu. Press the G button and then use D / E button to select Language. The menus can be shown on the screen in the selected language. Or, Press the G button and then use D / E button to select Country. Press the G button and then use D / E button to select your desired language or country. On-Screen Menu Language / Country Selection 1 2 3 Press the OK button 4 5 Press the EXIT button to return to normal TV viewing. Installation guide menu appears on TV screen when it is turned on for the first time. Press the D / E / F / G button and then, OK button to select your desired language. Press the D / E / F / G button and then, OK button to select your country. 1 2 * If you want to change Language/ Country selection NOTE ! G If you don’t finish set up Installation Guide by pressing EXIT but- ton or time out of OSD (On Screen Display) display, it will continuously appear until completing set up whenever the set is turned on. G If you select wrong local country, the teletext may not appear correctly on the screen and some problem may happen during teletext operation. G Arab and Hebrew are added to Country of Installation Guide according to the countries which using Arab and Hebrew languages. 32 SPECIAL FUNCTIONS SPECIAL FUNTIONS PIP (Picture-In-Picture) INPUT TV TV INPUT PIP PR- PIP PR+ PIP INPUT DVD ARC TEXT PIP SIZE POSTION VCR POWER Watching PIP Press the PIP button to access the sub picture. Each press of PIP changes the PIP options. PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other source will show a smaller inset image. PIP function is available in the Component, RGB, HDMI mode. (But, it can’t adjust 480i/576i resolution of Component, RGB, HDMI mode.) PIP Mode DW2 Mode PIP Off Programme Selection for Sub Picture Press the PIP PR +/- button to select a programme for the sub picture. The selected programme number is displayed just below the programme number of main picture. Input Source Selection for Sub Picture Press the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button is pressed, each input source for the sub picture is displayed. (Sub picture can be selected only TV, AV1 (Video), AV2, S-Video2, AV3, AV4.) Sub Picture Size Adjustment (PIP mode only) Press the SIZE button to adjust the sub picture size. With SIZE button in PIP mode, sub picture is adjusted. Moving the Sub Picture (PIP mode only) Press the POSITION button. Repeatedly press the POSITION button then sub picture moves left. SPECIAL FUNTIONS 33 TELETEXT Press the TEXT button to switch to teletext. The initial page or last page appears on the screen. Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number indicates your selection, while the second shows the current page displayed. Press the TEXT or EXIT button to switch off teletext. The previous mode reappears. Switch on/off A Page selection Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you press a wrong number, you must complete the three digit number and then re-enter the correct page number. The PR+/- button can be used to select the preceding or following page. SIMPLE Text 1 2 This feature is not available in all countries. Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard tele- text) consists of a number of pages which are selected by directly entering the corresponding page number. TOP and FASTEXT are more modern methods allowing quick and easy selection of teletext information. 34 TELETEXT SPECIAL FUNCTIONS SPECIAL FUNTIONS TOP Text The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field denotes the next group and the blue field indicates the next block. A Block / group / ppage sselection With the blue button you can progress from block to block. Use the yellow button to proceed to the next group with automatic overflow to the next block. With the green button you can proceed to the next existing page with automatic overflow to the next group. Alternatively the PR+ button can be used. The red button permits to return to previous selection. Alternatively the PR- button can be used. A Direct page selection Corresponding to the SIMPLE teletext mode, you can select a page by entering it as a three digit number using the NUMBER buttons in TOP mode. FASTEXT The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corre- sponding coloured button. A Page selection Press the button to select the index page. You can select the pages which are colour coded along the bottom line with the same coloured buttons. Corresponding to the SIMPLE teletext mode, you can select a page by entering its three digit page number with the NUMBER buttons in FASTEXT mode. The PR+/- button can be used to select the preceding or following page. i 4 4 1 2 3 1 2 3 SPECIAL FUNTIONS 35 Special Teletext Functions A REVEAL Press this button to display concealed information, such as solutions of riddles or puzzles. Press this button again to remove the information from the display. A SIZE Selects double height text. Press this button to enlarge the top half of the page. Press this button again to enlarge the bottom half of the page. Press this button again to return to the normal display. A UPDATE Displays the TV picture on the screen while waiting for the new teletext page. The display will appear at the top left hand corner of the screen. When the updated page is available then display will change to the page number. Press this button to view the updated teletext page. A TIME When viewing a TV programme, press this button to display the time at the top right hand corner of the screen. Press this button again to remove the display. In the teletext mode, press this button to select a sub page num- ber. The sub page number is displayed at the bottom of the screen. To hold or change the sub page, press the RED/GREEN, PR+/- or NUMBER buttons. Press again to exit this function. A HOLD Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages. The num- ber of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this button is pressed the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change is inhibited. To continue press this button again. ? TV MENU 36 TV MENU Press the MENU button and then D / E button to display each menu. Press the G button and then D / E button to select a menu item. Change the setting of an item in the sub or pull-down menu with F / G button. You can move to the higher level menu by pressing the OK or MENU button. ON SCREEN MENUS SELECTION AND ADJUSTMENT Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual. The OSD mainly use pictures for the 42PC1RV*, 42PC3RV*, 42PC3RA*. NOTE ! a. The OSD (On Screen Display) function enables you to adjust the screen status conveniently since it provides graphical presentation. b. In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help the TV operation. c. In the teletext mode, menus are not displayed Station menu Picture menu Sound menu Time menu Special menu Screen menu Auto programme Manual programme Programme edit Favourite programme Station PSM CSM Advanced Reset Picture SSM AVL Balance 0 Speaker Sound Clock Off time On time Auto sleep Time Language Country Child lock ISM Method Low Power Set ID Demo Special Auto config. Manual config. VGA Mode ARC Reset Screen 1 2 3 DE F G OK MENU DE F G OK MENU DE F G OK MENU DE F G OK MENU DE F G OK MENU DE F G OK MENU * 42PC1RV*, 42PC3RV*, 42PC3RA* only * This menu differ with the model. TV MENU 37 Setting up TV stations AUTO PROGRAMME TUNING OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION Up to 100 TV stations can be stored by programme numbers (0 to 99). Once you have preset the stations, you will be able to use the PR +/-. or NUMBER buttons to scan the stations you have programmed. Stations can be tuned using automatic or manual modes. All stations that can be received are stored by this method. It is recom- mended that you use auto programme during installation of this set. Press the MENU button and then D / E button to select the Station menu. Press the G button and then D / E button to select Auto programme. Press the G button and then D / E button to select System. Press the D / E button to select a TV system menu; BG : PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia) I : PAL I/II (U.K. / Ireland / Hong Kong / South Africa) DK : PAL D/K, SECAM D/K (East Europe / China / Africa / CIS) L : SECAM L/L’ (France) M : (USA / Korea / Philippines) (option) Press the D / E button to select Storage from. Press the F / G button or NUMBER buttons to select the beginning programme number. If you use NUMBER buttons, any number under 10 is entered with a numeric ‘0’ in front of it, i.e.‘05’ for 5. Press the D / E button to select Search. Press the G button to begin auto programming. All receivable stations are stored. The station name is stored for stations which broadcast VPS (Video Programme Service), PDC (Programme Delivery Control) or TELETEXT data. If no station name can be assigned to a station, the channel number is assigned and stored as C (V/UHF 01-69) or S (Cable 01-47), followed by a number. To stop auto programming, press the MENU button. When auto programming is completed, the Programme edit menu appears on the screen. See the Programme edit section to edit the stored programme. Press the EXIT button to return to normal TV viewing. Auto programme DE F G OK MENU BG I DK L System G Storage from Search 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 Station DE F G OK MENU Auto programme Manual programme Programme edit Favourite programme Station DE F G OK MENU Auto programme G Manual programme Programme edit Favourite programme Auto programme C 05 BG 5 35% MENU Stop To set Press the MENU button and then D / E button to select the Station menu. Press the G button and then D / E button to select Manual programme. Press the G button and then D / E button to select Storage. Press the F / G button or NUMBER buttons to select the desired programme number (0 to 99). If you use NUMBER buttons, any number under 10 is entered with a numeric ‘0’ in front of it, i.e. ‘05’ for 5. Press the D / E button to select System. Press the D / E button to select a TV system menu; BG : PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia) I : PAL I/II (U.K. / Ireland / Hong Kong / South Africa) DK : PAL D/K, SECAM D/K (East Europe / China / Africa / CIS) L : SECAM L/L’ (France) M : (USA / Korea / Philippines) (option) Press the D / E button to select Band. Press the D / E button to select V/UHF or Cable. Press the D / E button to select Channel. You can select the desired programme number with the F / G button or number buttons. If possible, select the programme number directly with the number buttons. Any number under 10 is entered with a numeric ‘0’ in front of it, i.e. ‘05’ for 5. Press the D / E button to select Search. Press the F / G button to commence searching. If a station is found the search will stop. Press the OK button to store it. To store another station, repeat steps 3 to 13. Press the EXIT button to return to normal TV viewing. TV MENU 38 TV MENU Setting up TV stations MANUAL PROGRAMME TUNING Manual programme lets you manually tune and arrange the stations in whatever order you desire. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 Manual programme DE F G OK MENU 20 Storage G System Band Channel Fine Search Name 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 7 3 4 5 6 8 9 10 11 12 Auto programme Manual programme Programme edit Favourite programme Station DE F G OK MENU Station DE F G OK MENU Auto programme Manual programme G Programme edit Favourite programme To set 2 TV MENU 39 FINE TUNING Press the MENU button and then D / E button to select the Station menu. Press the G button and then D / E button to select Manual programme. Press the G button and then D / E button to select Fine. Press the F / G button to to fine tune for the best picture and sound. Press the OK button to store it. Press the EXIT button to return to normal TV viewing. OK PIP PR- PIP PR+ PIP INPUT ARC EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION VCR 1 2 3 4 5 6 Manual programme DE F G OK MENU F/G Storage System Band Channel Fine G Search Name 1 2 3 4 5 6 3 4 5 1 Auto programme Manual programme Programme edit Favourite programme Station DE F G OK MENU Station DE F G OK MENU Auto programme Manual programme G Programme edit Favourite programme To set 2 Normally fine tuning is only necessary if reception is poor. TV MENU 40 TV MENU Setting up TV stations ASSIGNING A STATION NAME You can assign a station name with five characters to each programme number. Press the MENU button and then D / E button to select the Station menu. Press the G button and then D / E button to select Manual programme. Press the G button and then D / E button to select Name. Press the G button and then D / E button. You can use a blank, +, -, the number 0 to 9 and the alphabet A to Z. Press the F / G button to select the position and make your choice of the second character, and so on. Press the OK button to store it. Press the EXIT button to return to normal TV viewing. OK PIP PR- PIP PR+ PIP INPUT ARC EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION VCR 1 2 3 4 5 6 Manual programme DE F G OK MENU C 05 Storage System Band Channel Fine Search Name G 1 2 3 4 5 6 7 3 4 5 6 1 Auto programme Manual programme Programme edit Favourite programme Station DE F G OK MENU Station DE F G OK MENU Auto programme Manual programme G Programme edit Favourite programme To set 2 TV MENU 41 PROGRAMME EDIT 1 Auto programme Manual programme Programme edit Favourite programme Station DE F G OK MENU Station DE F G OK MENU Auto programme Manual programme Programme edit G Favourite programme To set 2 This function enables you to delete or skip the stored pro- grammes. Also you can move some stations to other programme numbers or copy a blank station data into the selected pro- gramme number. Press the MENU button and then D / E button to select the Station menu. Press the G button and then D / E button to select Programme edit. Press the G button to display the Programme edit menu. A Deleting a programme 1.Select a programme to be deleted with the D / E / F / G button. 2.Press the RED button twice. The selected programme is deleted, all the following programmes are shifted up one position. A Copying a programme 1.Select a programme to be copied with the D / E / F / G button. 2.Press the GREEN button. All the following programmes are shifted down one position. A Moving a programme 1.Select a programme to be moved with the D / E / F / G button. 2.Press the YELLOW button. 3.Move the programme to the desired programme number with the D / E / F / G button. 4.Press the YELLOW button again to release this function. A Skipping a programme number 1.Select a programme number to be skipped with the D / E / F / G button. 2.Press the BLUE button. The skipped programme turns to blue. 3.Press the BLUE button again to release the skipped programme. When a programme number is skipped it means that you will be unable to select it using the D / E button during normal TV viewing. If you want to select the skipped pro gramme, directly enter the programme number with the NUMBER buttons or select it in the programme edit or table menu. Press the EXIT button to return to normal TV viewing. OK PIP PR- PIP PR+ PIP INPUT ARC EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION VCR 1 2 3 1 2 3 4 3 Programme edit DE F G OK MENU 0 C 03 5 S 69 1 BLN 03 6 S 17 2 C 12 7 S 22 3 S 66 8 C 09 4 S 67 9 C 11 Delete Move Copy Skip TV MENU 42 TV MENU Setting up TV stations Press the MENU button and then D / E button to select the Station menu. Press the G button and then D / E button to select Favourite programme. Press the G button. Press the D / E button to select - - - - - - -. Select a desired programme with the F / G button or NUMBER buttons. Any number under 10 is entered with a numeric ‘0’in front of it, i.e.‘05’ for 5. To store another programme, repeat steps 4 to 5. You can store up to 8 programmes. Press the EXIT button to return to normal TV viewing. This function lets you select your favourite programmes directly. Repeatedly press the FAV button to select stored favourite programmes. FAVOURITE PROGRAMME OK EXIT VOL TIME REVEAL INDEX Q.VIEW MUTE PR SLEEP LIST I/II MENU 1 2 3 4 5 6 7 8 9 * 10 FAV ? 1 2 3 4 5 6 7 2 3 4 5 1 Auto programme Manual programme Programme edit Favourite programme Station DE F G OK MENU Station DE F G OK MENU Auto programme Manual programme Programme edit Favourite programme G - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - TV MENU 43 You can check the programmes stored in the memory by displaying the programme table. CALLING THE PROGRAMME TABLE OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 A Displaying programme table Press the LIST button to display the Programme table menu. The programme table appears on the screen. One programme table contains ten programmes as shown. A Selecting a programme in the programme ttable Select a programme with the D / E / F / G button. Then press the OK button. The set switches to the chosen programme number. A Paging through a programme table There are 10 programme table pages in which contain 100 programmes. Pressing the D / E / F / G button repeatedly turns the pages. Press the LIST button to return to normal TV viewing. NOTE ! a. You may find some blue programmes. They have been set up to be skipped by auto programming or in the programme edit mode. b. Some programmes with the channel number shown in the pro- gramme table indicate there is no station name assigned. Programme List F G DE OK 0 C 03 5 S 69 1 BLN 03 6 S 17 2 C 12 7 S 22 3 S 66 8 C 09 4 S 67 9 C 11 TV MENU 44 TV MENU Picture Menu Options PSM (Picture Status Memory) OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 Dynamic Select this option to display with a sharp image. Standard The most general and natural screen display status. Mild Select this option to display with a mild image. User 1/2 Select this option to use the user-defined setting. Press the MENU button and then D / E button to select the Picture menu. Press the G button and then D / E button to select PSM. Press the G button and then D / E button to select Dynamic, Standard, Mild, User 1, or User 2. Press the EXIT button to return to normal TV viewing. A PSM adjusts the TV for the best picture appearance. Select the preset value in the PSM menu based on the programme category. A Dynamic, Standard and Mild, are programmed for optimum picture reproduction at the factory and cannot be changed. 1 2 3 4 1 2 3 PSM CSM Advanced Reset Picture DE F G OK MENU Picture DE F G OK MENU PSM G CSM Advanced Reset Dynamic Standard Mild User 1 User 2 TV MENU 45 Press the MENU button and then D / E button to select the Picture menu. Press the G button and then D / E button to select PSM. Press the G button and then D / E button to select User 1, or User 2. Press the G button and then D / E button to select the desired picture option (Contrast, Brightness, Colour, Sharpness, and Tint). Press the F / G button to make appropriate adjustments. Press the EXIT button to return to normal TV viewing. Picture Adjustment (PSM-User option) Contrast Adjusts the difference between the light and dark levels in the picture. Brightness Increases or decreases amount of white in the your picture. Colour Adjusts intensity of all colours. Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image. Tint Adjusts the balance between red and green levels. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION NOTE ! G You can’t adjust colour, sharpness and tint in the RGB- PC mode to the levels you prefer. User 1 DE F G OK MENU Contrast 100 G Brightness 50 Colour 50 Sharpness 50 Tint 0 Contrast 85 F G E 1 2 3 4 5 6 4 5 1 2 3 PSM CSM Advanced Reset Picture DE F G OK MENU Picture DE F G OK MENU PSM G CSM Advanced Reset Dynamic Standard Mild User 1 User 2 TV MENU 46 TV MENU Picture Menu Options CSM (Colour Status Memory) To initialize values (reset to default settings), select the Normal option. Choose one of three automatic colour adjustments. Set to warm to enhance hotter colours such as red, or set to cool to see less intense colours with more blue. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 Press the MENU button and then D / E button to select the Picture menu. Press the G button and then D / E button to select CSM. Press the G button and then D / E button to select either Cool, Normal, Warm, or User. Press the EXIT button to return to normal TV viewing. 1 2 3 4 1 2 3 PSM CSM Advanced Reset Picture DE F G OK MENU Picture DE F G OK MENU PSM CSM G Advanced Reset Cool Normal Warm User TV MENU 47 To adjust red, green, blue to any colour temperature you prefer. Manual Colour Temperature Control (CSM - User option) Press the MENU button and then D / E button to select the Picture menu. Press the G button and then D / E button to select CSM. Press the G button and then D / E button to select User. Press the G button and then D / E button to select Red, Green, or Blue. Press the F / G button to make appropriate adjustments. Press the EXIT button to return to normal TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 User DE F G OK MENU Red +30 G Green 0 Blue 0 Red +25 F G E 4 5 1 2 3 4 5 6 1 2 3 PSM CSM Advanced Reset Picture DE F G OK MENU Picture DE F G OK MENU PSM CSM G Advanced Reset Cool Normal Warm User TV MENU 48 TV MENU Picture Menu Options Press the MENU button and then D / E button to select the Picture menu. Press the G button and then D / E button to select XD. Press the G button and then D / E button to select Auto or Manual. Press the EXIT button to return to TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 * Selecting the Manual This menu is activatived after selecting the User1 or User2 of PSM. Press the G button and then D / E button to select XD Contrast, XD Colour or XD NR. Press the G button and then D / E button to select On or Off. Press the EXIT button to return to normal TV viewing. XD is LG electronic's unique picture improving technology to display a real HD source through an advanced digital signal processing algo- rithm. It’s not available to use this function in RGB-PC mode. FUNCTION Manual DE F G OK MENU On Off XD Contrast G XD Colour XD NR A XD Contrast : Optimizing the contrast automatically according to the brightness of the reflection. A XD Colour : Adjusting the colors of the reflection automatically to reproduce as closely as possible to the natural colors. A XD NR : Removing the noise up to the point where it does not damage the original picture. (It’s not available to use this function in HDMI, Component (except 480i/576i), RGB-PC mode.) 1 2 3 4 1 2 3 1 2 1 2 3 PSM CSM Advanced Reset Picture DE F G OK MENU Picture DE F G OK MENU PSM CSM Advanced Reset Auto Manual G TV MENU 49 ADVANCED-CINEMA Set up the TV for the best picture appearance for viewing movies. This feature operates only in Analog TV, AV, S-Video and Component 480i/576i mode. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 Press the MENU button and then D / E button to select the Picture menu. Press the G button and then D / E button to select Advanced. Press the G button and then D / E button to select Cinema. Press the G button and then D / E button to select On or Off. Press the EXIT button to return to normal TV viewing. 1 2 3 4 5 4 1 2 3 PSM CSM Advanced Reset Picture DE F G OK MENU Picture DE F G OK MENU To set PSM CSM Advanced G Reset Advanced DE F G OK MENU On Off Cinema G Black Level TV MENU 50 ADVANCED-BLACK LEVEL OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 When you watch the movie, this function adjusts the set to the best picture appearance. Adjusting the contrast and the bright- ness of the screen using the black level of the screen. This function works in the following mode: AV (NTSC-M), S- Video (NTSC-M) or HDMI. Press the MENU button and then D / E button to select the Picture menu. Press the G button and then D / E button to select Advanced. Press the G button and then D / E button to select Black Level. Press the G button and then D / E button to select Low or High. A Low : The reflection of the screen gets darker. A High : The reflection of the screen gets brighter. Press the EXIT button to return to normal TV viewing. 1 2 3 4 5 2 3 1 2 3 PSM CSM Advanced Reset Picture DE F G OK MENU Picture DE F G OK MENU To set PSM CSM Advanced G Reset Advanced DE F G OK MENU Low High Cinema Black Level G TV MENU 51 RESET 1 2 3 PSM CSM Advanced Reset Picture DE F G OK MENU Picture DE F G OK MENU PSM CSM Advanced Reset G Press the MENU button and then D / E button to select the Picture menu. Press the G button and then D / E button to select Reset. Press the G button to initialize the adjusted value. • Returns to the default settings PSM, CSM, XD, Advanced at the factory. To set OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 1 2 3 TV MENU 52 TV MENU Sound Menu Options SSM (Sound Status Memory) You can select your preferred sound setting; Surround MAX, Flat, Music, Movie or Sports and you can also adjust the sound fre- quency of the equalizer. SSM lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound options based on the programme content. Surround Max, Flat, Music, Movie, and Sports are preset for good sound quality at the factory and are not adjustable. Surround M Max Select this option to sound realistic. Flat The most commanding and natural audio. Music Select this option to enjoy the original sound when lis tening to the music. Movie Select this option to enjoy sublime sound. Sports Select this option to watch sports broadcasting. User Select this option to use the user-defined audio set- tings. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 Press the MENU button and then D / E button to select the Sound menu. Press the G button and then D / E button to select SSM. Press the G button and then D / E button to select Surround Max, Flat, Music, Movie, Sports or User. Press the EXIT button to return to normal TV viewing. 1 2 3 4 1 2 3 SSM AVL Balance 0 Speaker Sound DE F G OK MENU Surround MAX Flat Music Movie Sports User Sound DE F G OK MENU SSM G AVL Balance 0 Speaker TV MENU 53 Sound Frequency Adjustment (SSM - User option) Press the MENU button and then D / E button to select the Sound menu. Press the G button and then D / E button to select SSM. Press the G button and then D / E button to select User. Press the G button. Select a sound band by pressing the F / G button. Make appropriate sound level with the D / E button. Press the EXIT button to return to normal TV viewing. Adjust the sound equalizer. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION User DE F G OK MENU 0.1 0.5 1.5 5.0 10 kHz 1 2 3 4 5 6 2 3 4 5 1 SSM AVL Balance 0 Speaker Sound DE F G OK MENU Surround MAX Flat Music Movie Sports User Sound DE F G OK MENU SSM G AVL Balance 0 Speaker TV MENU 54 TV MENU Sound Menu Options AVL (Auto Volume Leveler) OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 Press the MENU button and then D / E button to select the Sound menu. Press the G button and then D / E button to select AVL. Press the G button and then D / E button to select On or Off. Press the EXIT button to return to normal TV viewing. AVL automatically keeps on an equal volume level even if you change programmes. 1 2 3 4 1 2 3 SSM AVL Balance 0 Speaker Sound DE F G OK MENU On Off Sound DE F G OK MENU SSM AVL G Balance 0 Speaker TV MENU 55 OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION BALANCE ADJUSTMENT You can adjust the sound balance of speaker to the levels you prefer. Press the MENU button and then D / E button to select the Sound menu. Press the G button and then D / E button to select Balance. Press the G button and then F / G button to make desired adjustment. Press the EXIT button to return to normal TV viewing. 1 2 3 4 1 1 2 3 SSM AVL Balance 0 Speaker Sound DE F G OK MENU Sound DE F G OK MENU SSM AVL Balance R15 G Speaker TV MENU 56 TV MENU Sound Menu Options You can adjust the internal speaker status. In AV, COMPONENT, RGB[PC], RGB[DTV] and HDMI mode, inter- nal speaker audio can be outputted even though there is no video signal. If you want to use your external hi-fi stereo system, turn off the internal speakers of the set. SPEAKER Press the MENU button and then D / E button to select the Sound menu. Press the G button and then D / E button to select Speaker. Press the G button and then D / E button to select On or Off. Press the EXIT button to return to normal TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 1 1 2 3 SSM AVL Balance 0 Speaker Sound DE F G OK MENU On Off Sound DE F G OK MENU SSM AVL Balance 0 Speaker G TV MENU 57 A Mono sound selection If the stereo signal is weak in stereo reception, you can switch to mono by pressing the I/II button twice. In mono reception, the depth of sound is improved. To switch back to stereo, press the I/II button twice again. A Language selection for dual language broadcast If a programme received two languages (dual language), you can switch to DUAL I, DUAL II or DUAL I+II by pressing the I/II button repeatedly. OK INPUT TV TV INPUT PIP PR- PIP PR+ PIP INPUT DVD ARC EXIT VOL Q.VIEW PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION VCR POWER When a programme is selected, the sound information for the station appears after the programme number and station name disappear. DUAL I Sends the primary broadcast language to the loud- speakers. DUAL II Sends the secondary broadcast language to the loudspeakers. DUAL I+II Sends a separate language to each loudspeaker. STEREO/DUAL RECEPTION Broadcast Mono Stereo Dual On Screen Display MONO STEREO DUAL I TV MENU 58 TV MENU Sound Menu Options When NICAM mono is received, you can select NICAM MONO or FM MONO. When NICAM stereo is received, you can select NICAM STEREO or FM MONO. If the stereo signal is weak, switch to FM mono. When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL I+II or MONO. NICAM RECEPTION If the set is equipped with the receiver for NICAM reception, the high quality NICAM (Near Instantaneous Companding Audio Multiplex) digital sound can be received. Sound output can be selected according to the type of received broadcast as follows by pressing the I/II button repeatedly. SPEAKER SOUND OUTPUT SELECTION In AV, S-Video, Component, RGB and HDMI mode, you can select output sound for the left and right loudspeakers. Repeatedly press the I/II button to select the sound output. L+R: Audio signal from audio L input is sent to the left loud speaker and audio signal from audio R input is sent to the right loud speaker. L+L: Audio signal from audio L input is sent to left and right loud speakers. R+R: Audio signal from audio R input is sent to left and right loud speakers. 1 2 3 TV MENU 59 TV MENU Time Menu Options Press the MENU button and then D / E button to select the Time menu. Press the G button and then D / E button to select Clock. Press the G button and then D / E button to set the hour. Press the G button and then D / E button to set the minutes. Press the EXIT button to return to normal TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 7 8 9 You must set the time correctly before using on/off time function. If current time setting is erased by a power failure or the set is unplugged, reset the clock. CLOCK SETUP 1 2 3 4 5 1 2 3 Time DE F G OK MENU - - : - - Clock Off time On time Auto sleep Time DE F G OK MENU Clock G Off time On time Auto sleep 4 TV MENU 60 TV MENU Time Menu Options Press the MENU button and then D / E button to select the Time menu. Press the G button and then D / E button to select Off time/On time. Press the G button and then D / E button to select On. • To cancel On/Off timer function, select Off. Press the G button and then D / E button to set the hour. Press the G button and then D / E button to set the minutes. For only On timer function • Programme: Press the G button and then D / E but- ton to select the programme. • Volume: Press the G button and then D / E button to adjust volume level at turn-on. Press the EXIT button to return to normal TV viewing. ON/OFF TIME The Off time automatically switches the set to standby at the preset time. Two hours after the set is switched on by the on time function it will automatically switch back to standby mode unless a button has been pressed. Once the on time/off time is set, these functions operate daily at the preset time. Off time function overrides On timer function if they are set both to the same time. The set must be in standby mode for the On timer to work. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 1 2 3 4 5 6 7 1 4 5 6 2 3 Time DE F G OK MENU - - : - - Clock Off time On time Auto sleep Time DE F G OK MENU Clock Off time G On time Auto sleep Off Time DE F G OK MENU 07:00 Clock Off time On time G Auto sleep PR 1 Vol. 8 On TV MENU 61 If set to on and there is no input signal, the TV turns off automat- ically after 10 minutes. AUTO SLEEP Press the MENU button and then D / E button to select the Time menu. Press the G button and then D / Ebutton to select Auto sleep. Press the G button and then D / Ebutton to select On or Off.. Press the EXIT button to return to normal TV viewing. 1 1 2 3 4 2 3 Time DE F G OK MENU Clock Off time On time Auto sleep Time DE F G OK MENU Clock Off time On time Auto sleep G On Off You don’t have to remember to switch the set off before you go to sleep. The sleep timer automatically switches the set to stand- by after the preset time has elapsed. SLEEP TIMER OK EXIT VOL Q.VIEW PR SLEEP LIST I/II MENU Press the SLEEP button repeatedly to select the number of minutes. The display ‘ - - - ’ will appear on the screen, followed by 10, 20, 30, 60, 90, 120, 180 and 240. When the number of minutes you want is displayed on the screen, the timer begins to count down from the number of minutes selected. 1 2 NOTE ! G To view the remaining sleep time, press the SLEEP button once. G To cancel the sleep time, repeatedly press the SLEEP button until the display ‘ - - - ’ appears. G When you switch the set off, the set releases the preset sleep time. TV MENU 62 TV MENU Special Menu Options CHILD LOCK The TV can be set so that the remote control is needed to con- trol it. This feature can be used to prevent unauthorized viewing. This set is programmed to remember which option it was last set to even if you turn the set off. Press the MENU button and then D / E button to select the Special menu. Press the G button and then D / E button to select Child lock. Press the G button and then D / E button to select On or Off. Press the EXIT button to return to normal TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 NOTE ! G In Child lock ‘On’, if the set is turned off, press the r / I, INPUT, PR D / E button on the set or POWER, INPUT, TV, PR +/- or NUMBER buttons on the remote control. G With the Child lock On, the display ‘Child lock on’ appears on the screen if any button on the front panel is pressed while viewing the set. 1 2 3 4 1 2 3 SPECIAL DE F G OK MENU On Off Language Country Child lock ISM Method Low Power Set ID Demo SPECIAL DE F G OK MENU Language Country Child lock ISM Method Low Power Set ID Demo TV MENU 63 ISM (Image Sticking Minimization) METHOD Press the MENU button and then D / E button to select the Special menu. Press the G button and then D / E button to select ISM Method. Press the G button and then D / E button to select either Normal, White wash, Orbiter or Inversion. If you unnecessary to set this function, set Normal. Press the EXIT button to return to TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 7 8 9 A frozen of still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image remaining even when you change the image. Avoid allowing a fixed image to remain on the set's screen for a long period of time. It’s not available to use this function in LCD models. White wash White wash removes permanent images from the screen. Note: An excessive permanent image may be impossible to clear entirely with White Wash. Orbiter Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a permanent image on the screen, the screen will move every 2 minutes. Inversion This is the function to invert the panel color of the screen. The panel color is automatically inverted every 30 minutes. 1 2 3 4 1 2 3 Special DE F G OK MENU Normal White wash Orbiter Inversion Language Country Child lock ISM Method G Low Power Set ID Demo Language Country Child lock ISM Method Low Power Set ID Demo SPECIAL DE F G OK MENU TV MENU 64 TV MENU Special Menu Options LOW POWER This is the function to reduce the power consumption of the set. It’s not available to use this function in LCD models. Press the MENU button and then D / E button to select the Special menu. Press the G button and then D / E button to select Low power. Press the G button and then D / E button to select On or Off. Press the EXIT button to return to TV viewing. 1 2 3 4 1 2 3 Special DE F G OK MENU On Off Language Country Child lock ISM Method Low Power G Set ID Demo OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 Language Country Child lock ISM Method Low Power Set ID Demo SPECIAL DE F G OK MENU TV MENU 65 XD DEMO Use it to see the difference between XD Demo on and XD Demo off. It’s not available to use this function in RGB[PC] mode. Press the MENU button and then use D / E button to select the Special menu. Press the G button and then use D / E button to select XD Demo. Press the G button to begin XD Demo. To stop XD Demo, press the MENU button. 1 2 3 4 • XD Demo XD™Off XD™On Exit Menu 1 2 3 Special DE F G OK MENU To start Language Country Child lock ISM Method Low Power Set ID Demo G OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 Language Country Child lock ISM Method Low Power Set ID Demo SPECIAL DE F G OK MENU TV MENU 66 TV MENU Screen Menu Options Press the MENU button and then use D / E button to select the Screen menu. Press the G button and then use D / E button to select Auto config.. Press the G button to start Auto config.. • When Auto config. has finished, OK will be shown on screen. • If the position of the image is still not correct, try Auto adjustment again. • If picture needs to be adjusted more after Auto adjust- ment in RGB (PC), you can adjust the Manual config.. Press the EXIT button to return to TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 7 8 9 Automatically adjusts picture position and minimizes image shaking. After adjustment, if the image is still not correct, your set is functioning properly but needs further adjustment. Auto configure This function is for the automatic adjustment of the screen posi- tion, clock, and phase. The displayed image will unstable for a few seconds while the auto configuration is in progress. AUTO CONFIGURE (RGB [PC] mode only) 1 2 3 4 1 2 3 Auto config. Manual config. VGA Mode ARC Reset Screen DE F G OK MENU Screen DE F G OK MENU To set Auto config. G Manual config. VGA Mode ARC Reset TV MENU 67 MANUAL CONFIGURE If the picture isn’t clear after auto adjustment and especially if characters are still trembling, adjust the picture phase manually. To correct the screen size, adjust Clock. This function works in the following mode : RGB[PC], RGB[DTV], COMPONENT (480p/576p/720p/1080i), HDMI (480p/576p/720p/1080i). It’s not available to use Phase, Clock function in RGB[DTV], COMPONENT (480p/576p/720p/1080i), HDMI (480p/576p/720p/1080i). Clock This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size will also change. Phase This function allows you to remove any horizontal noise and clear or sharpen the image of characters. Press the MENU button and then use D / E button to select the Screen menu. Press the G button and then D / E button to select Manual config.. Press the G button and then D / E button to select Phase, Clock, H-Position or V-Position. Press the F / G button to make appropriate adjustments. Press the EXIT button to return to TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 1 2 3 4 5 1 2 3 4 Auto config. Manual config. VGA Mode ARC Reset Screen DE F G OK MENU Screen DE F G OK MENU Auto config. Manual config. G VGA Mode ARC Reset Phase 50 Clock + 10 H-Position 0 V-Position 0 TV MENU 68 Press the MENU button and then use D / E button to select the Screen menu. Press the G button and then use D / E button to select ARC. Press the G button and then use D / E button to select Spectacle, Full, Original, 4:3, 16:9, 14:9, Zoom1 or Zoom2. • Spectacle When your TV receives the wide screen signal, when selected it will adjust the picture horizontally, in non-linear proportion, to fill the entire screen. • Full When your TV receives the wide screen signal, when selected it will adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully. (This feature is not available in NTSC signal.) • Original When your TV receives the wide screen signal, it will be automatically changed to the picture format to be sent. • 4:3 Following selection will lead you to view a picture with an original 4:3 aspect ratio, with gray bars appearing at both the left and right sides. • 16:9 Following selection will lead you to adjust the picture hor izontally, in a linear proportion, to fill the entire screen (useful for viewing 4:3 formatted DVDs). • 14:9 You can enjoy the picture format of 14:9 or general TV programme through the 14:9 mode. The screen 14:9 is viewed just like that the screen 4:3 is magnified to the left / right. OK INPUT TV TV INPUT PIP PR- PIP PR+ PIP INPUT DVD ARC EXIT SLEEP LIST I/II MENU TEXT PIP SIZE POSTION VCR POWER You can watch the screen in various picture formats; Spectacle, Full, Original, 4:3, 16:9, 14:9 and Zoom. If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and remain visible. There might be uncomfortable in full mode. Then change into other mode. You can adjust the enlarge proportion using D / E button. This function works in the following signal. SETTING THE PICTURE FORMAT 1 2 3 1 2 3 Auto config. Manual config. VGA Mode ARC Reset Screen DE F G OK MENU Screen DE F G OK MENU Spectacle Full Original 4:3 16:9 14:9 Zoom1 Zoom2 Auto config. Manual config. VGA Mode ARC G Reset TV MENU 69 NOTE ! G You can only select 4:3, 16:9 (Wide) in Component, RGB, HDMI mode only. • Zoom1 Following selection will lead you to view the picture without any alternation, while filling the entire screen. However, the top and bottom portions of the picture will be cropped. • Zoom2 Choose Zoom2 when you want the picture to be altered, both horizontally extended and vertically cropped. The pic ture taking a halfway trade off between alteration and screen coverage. Press the EXIT button to return to TV viewing. 4 To see a normal picture, match the resolution of RGB mode and selection of VGA/XGA mode. This function works in the following mode: RGB[PC] mode. VGA Mode: 42PC1RV, 42PC3RV* XGA Mode: 26C2R*, 27LC2R*, 32LC2R*, 32LC25R*, 26LC3R*, 32LC3R*, 32LX2R*, 32LE2R*, 37LE2R*, 42LE2R*, 42PC3RA* Press the MENU button and then use D / E button to select the Screen menu. Press the G button and then use D / E button to select VGA Mode (or XGA Mode). Press the G button and then use D / E button to select the desired VGA/XGA resolution. Press the EXIT button to return to TV viewing. OK PIP PR- PIP PR+ PIP INPUT EXIT Q.VIEW SLEEP LIST I/II MENU TEXT PIP SIZE POSTION SELECTING WIDE VGA/XGA MODE 1 2 3 4 1 2 3 Auto config. Manual config. VGA Mode ARC Reset Screen DE F G OK MENU Screen DE F G OK MENU 640x480 848x480 852x480 Auto config. Manual config. VGA Mode G ARC Reset TV MENU 70 TV MENU Screen Menu Options This function operates in current mode. To initialize the adjusted value Press the MENU button and then D / E button to select the Screen menu. Press the G button and then D / Ebutton to select Reset. Press the G button. • You can initialize Position, PIP size, PIP position. INITIALIZING (RESET TO ORIGINAL FACTORY SETTINGS) 1 2 3 OK PIP PR- PIP PR+ PIP INPUT EXIT VOL Q.VIEW MUTE PR SLEEP LIST I/II MENU TEXT PIP SIZE POSTION 1 2 3 4 5 6 7 8 9 1 2 3 Auto config. Manual config. VGA Mode ARC Reset Screen DE F G OK MENU Screen DE F G OK MENU To set Auto config. Manual config. VGA Mode ARC Reset G APPENDIX 71 APPENDIX PROGRAMMING THE REMOTE Programming a code into a remote mode Test your remote control. To find out whether your remote control can operate the component without programming, turn on the component such as a VCR and press the corresponding mode button (such as a DVD or VCR) on the remote control, while pointing at the component. Test the POWER and PR + / - buttons to see if the component responds properly. If not, the remote requires programming to operate the device. Turn on the component to be programmed, then press the corresponding mode button (such as a DVD or VCR) on the remote control. The remote control button of desired device is lighted. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code. Enter a code number using the number buttons on the remote control. Programming code numbers for the corresponding component can be found on the following pages. Again, if the code is correct, the device will turn off. Press the MENU button to store the code. Test the remote control functions to see if the component responds properly. If not, repeat from step 2. The remote is a multi-brand or a universal remote. It can be programmed to operate most remote-con- trollable devices of other manufacturers. Note that the remote may not control all models of other brands. 1 2 3 4 5 6 Programming code Brand Codes Brand Codes Brand Codes DVD APEX DIGITAL 022 DENON 020 014 GE 005 006 HARMAN KARDON 027 JVC 012 LG 001 010 016 025 MAGNAVOX 013 MARANTZ 024 MITSUBISHI 002 NAD 023 ONKYO 008 017 PANASONIC 003 009 PHILIPS 013 PIONEER 004 026 PROCEED 021 PROSCAN 005 006 RCA 005 006 SAMSUNG 011 015 SONY 007 THOMPSON 005 006 TOSHIBA 019 008 YAMAHA 009 018 ZENITH 010 016 025 72 APPENDIX APPENDIX VCRs Brand Codes Brand Codes Brand Codes AIWA 034 AKAI 016 043 046 124 125 146 AMPRO 072 ANAM 031 033 103 AUDIO DYNAMICS 012 023 039 043 BROKSONIC 035 037 129 CANON 028 031 033 CAPEHART 108 CRAIG 003 040 135 CURTIS MATHES 031 033 041 DAEWOO 005 007 010 064 065 108 110 111 112 116 117 119 DAYTRON 108 DBX 012 023 039 043 DYNATECH 034 053 ELECTROHOME 059 EMERSON 006 017 025 027 029 031 034 035 036 037 046 101 129 131 138 153 FISHER 003 008 009 010 FUNAI 034 GE 031 033 063 072 107 109 144 147 GO VIDEO 132 136 HARMAN KARDON 012 045 HITACHI 004 018 026 034 043 063 137 150 INSTANTREPLAY 031 033 JCL 031 033 JCPENNY 012 013 015 033 040 066 101 JENSEN 043 JVC 012 031 033 043 048 050 055 060 130 150 152 KENWOOD 014 034 039 043 047 048 LG (GOLDSTAR) 001 012 013 020 101 106 114 123 LLOYD 034 LXI 003 009 013 014 017 034 101 106 MAGIN 040 MAGNAVOX 031 033 034 041 067 068 MARANTZ 012 031 033 067 069 MARTA 101 MATSUI 027 030 MEI 031 033 MEMOREX 003 010 014 031 033 034 053 072 101 102 134 139 MGA 045 046 059 MINOLTA 013 020 MITSUBISHI 013 020 045 046 049 051 059 061 151 MTC 034 040 MULTITECH 024 034 NEC 012 023 039 043 048 NORDMENDE 043 OPTONICA 053 054 PANASONIC 066 070 074 083 133 140 145 PENTAX 013 020 031 033 063 PHILCO 031 034 067 PHILIPS 031 033 034 054 067 071 101 PILOT 101 PIONEER 013 021 048 PORTLAND 108 PULSAR 072 QUARTZ 011 014 QUASAR 033 066 075 145 RCA 013 020 033 034 040 041 062 063 107 109 140 144 145 147 REALISTIC 003 008 010 014 031 033 034 040 053 054 101 RICO 058 RUNCO 148 SALORA 014 SAMSUNG 032 040 102 104 105 107 109 112 113 115 120 122 125 SANSUI 022 043 048 135 SANYO 003 007 010 014 102 134 SCOTT 017 037 112 129 131 SEARS 003 008 009 010 013 014 017 020 031 042 073 081 101 SHARP 031 054 149 SHINTOM 024 SONY 003 009 031 052 056 057 058 076 077 078 149 SOUNDESIGN 034 STS 013 SYLVANIA 031 033 034 059 067 SYMPHONIC 034 TANDY 010 034 TATUNG 039 043 TEAC 034 039 043 TECHNICS 031 033 070 TEKNIKA 019 031 033 034 101 THOMAS 034 TMK 006 TOSHIBA 008 013 042 047 059 082 112 131 TOTEVISION 040 101 UNITECH 040 VECTOR RESEARCH 012 VICTOR 048 VIDEO CONCEPTS 012 034 046 VIDEOSONIC 040 WARDS 003 013 017 024 031 033 034 040 053 054 131 YAMAHA 012 034 039 043 ZENITH 034 048 056 058 072 080 101 APPENDIX 73 TROUBLESHOOTING CHECKLIST The operation does not work normally. The remote control doesn’t work Power is suddenly turned off The video function does not work. No picture & No sound No or poor color or poor picture Poor reception on some channels Lines or streaks in pictures Horizontal/vertical bars oor picture shaking Picture appears slow- ly after switching on I Check whether the product is turned on. I Try another channel. The problem may be with the broadcast. I Is the power cord inserted into wall power outlet? I Check your antenna direction and/or location. I Test the wall power outlet, plug another product’s power cord into the outlet where the product’s power cord was plugged in. I This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes. I Adjust Color in menu option. I Keep a sufficient distance between the product and the VCR. I Try another channel. The problem may be with the broadcast. I Are the video cables installed properly? I Activate any function to restore the brightness of the picture. I Check for local interference such as an electrical appliance or power tool. I Station or cable product experiencing problems, tune to another station. I Station signal is weak, reorient antenna to receive weaker station. I Check for sources of possible interference. I Check antenna (Change the direction of the antenna). I Check to see if there is any object between the product and the remote control causing obstruction. I Are batteries installed with correct polarity (+ to +, - to -)? I Correct remote operating mode set: TV, VCR etc.? I Install new batteries. I Is the sleep timer set? I Check the power control settings. Power interrupted I No broadcast on station tuned with Auto off activated. 74 APPENDIX APPENDIX TROUBLESHOOTING CHECKLIST I Press the VOL+/- (or Volume) button. I Sound muted? Press MUTE button. I Try another channel. The problem may be with the broadcast. I Are the audio cables installed properly? I Adjust Balance in menu option. I A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product. Picture OK & No sound Unusual sound from inside the product No output from one of tthe sspeakers There is a problem in PC mode. (Only PC mode applied) I Adjust resolution, horizontal frequency, or vertical frequency. I Check the input source. I Work the Auto configure or adjust clock, phase, or H/V position. I Check the signal cable. I Reinstall the PC video card. The signal is out of range. Screen colour is unstable or single colour Vertical bar or stripe on back- ground & Horizontal Noise & Incorrect position The audio function does not work. APPENDIX 75 MAINTENANCE Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV. Cleaning the Cabinet I To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. I Please be sure not to use a wet cloth. Extended Absence If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges. CAUTION 1 2 76 APPENDIX APPENDIX PRODUCT SPECIFICATIONS 26LC2R* 26LC2R-ZJ 26LC2RB-ZJ 26LC2RA-ZJ 26LC3R* 26LC3R-ZJ MODELS PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L’ VHF: E2 ~ E12, UHF: E21 ~ E69, CATV: S1 ~ S20, HYPER: S21 ~ S47 75 Ω 0 ~ 40°C / 32 ~ 104°F Less than 80% -20 ~ 60°C / -4 ~ 140°F Less than 85% Dimensions (Width x Height x Depth) Weight Power requirement Power Consumption Television System Program Coverage External Antenna Impedance Environment condition with stand without stand with stand without stand Operating Temperature Operating Humidity Storage Temperature Storage Humidity 681.0 x 542.0 x 172.0 mm 26.8 x 21.3 x 6.8 inches 681.0 x 490.8 x 119.0 mm 26.8 x 19.3 x 4.6 inches 18.5 kg / 40.8 lbs 15.2 kg / 33.5 lbs AC100-240V~ 50/60Hz 1.3A 130W 680.0 x 550.0 x 235.0 mm 26.8 x 21.7 x 9.3 inches 680.0x 436.6 x 119.4 mm 26.8 x 17.2 x 4.7 inches 12.4 kg / 27.3 lbs 11.5 kg / 25.3 lbs AC100-240V~50/60Hz 1.3A 130W 27LC2R* 27LC2R-ZJ 686.0 x 550.0 x 235.0 mm 27.0 x 21.7 x 9.3 inches 686.0 x 493.5 x 119.4 mm 27.0 x 19.4 x 4.7 inches 14.5 kg / 32.0 lbs 11.4 kg / 25.1 lbs AC100-240V~ 50/60Hz 1.3A 130W I The specifications shown above may be changed without prior notice for quality improvement. APPENDIX 77 PRODUCT SPECIFICATIONS 32LC2R* 32LC2R-ZJ 32LC2RB-ZJ 32LC2RA-ZJ 32LC3R* 32LC3R-ZJ MODELS PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L’ VHF: E2 ~ E12, UHF: E21 ~ E69, CATV: S1 ~ S20, HYPER: S21 ~ S47 75 Ω 0 ~ 40°C / 32 ~ 104°F Less than 80% -20 ~ 60°C / -4 ~ 140°F Less than 85% Dimensions (Width x Height x Depth) Weight Power requirement Power Consumption Television System Program Coverage External Antenna Impedance Environment condition with stand without stand with stand without stand Operating Temperature Operating Humidity Storage Temperature Storage Humidity 811.0 x 630.0 x 235.0 mm 31.9 x 24.8 x 9.3 inches 811.0 x 566.8 x 123.5 mm 31.9 x 22.3 x 4.9 inches 21.9 kg / 48.2 lbs 18.5 kg / 40.8 lbs AC100-240V~50/60Hz 1.5A 150W 935.0 x 570.0 x 244.0 mm 36.8 x 22.4 x 9.6 inches 923.0 x 522.0 x 124.0 mm 36.4 x 20.6 x 4.9 inches 19.8 kg / 43.7 lbs 17.9 kg / 39.5 lbs AC100-240V~50/60Hz 1.5A 150W 32LX2R* 32LX2R-ZJ 917.5 x 614.3 x 287.5 mm 36.1 x 24.2 x 11.3 inches 917.5 x 522.0 x 124.0 mm 36.1 x 20.6 x 4.9 inches 25.2 kg / 55.6 lbs 17.9 kg / 39.5 lbs AC100-240V~50/60Hz 2.0A 140W 32LC25R* 32LC25R-ZJ I The specifications shown above may be changed without prior notice for quality improvement. 78 PRODUCT SPECIFICATIONS APPENDIX APPENDIX I The specifications shown above may be changed without prior notice for quality improvement. 32LE2R* 32LE2R-ZJ 37LE2R* 37LE2R-ZJ MODELS PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L’ VHF: E2 ~ E12, UHF: E21 ~ E69, CATV: S1 ~ S20, HYPER: S21 ~ S47 75 Ω 0 ~ 40°C / 32 ~ 104°F Less than 80% -20 ~ 60°C / -4 ~ 140°F Less than 85% Dimensions (Width x Height x Depth) Weight Power requirement Power Consumption Television System Program Coverage External Antenna Impedance Environment condition with stand without stand with stand without stand Operating Temperature Operating Humidity Storage Temperature Storage Humidity 811.0 x 630.0 x 235.0 mm 31.9 x 24.8 x 9.3 inches 811.0 x 566.8 x 123.5 mm 31.9 x 22.3 x 4.9 inches 21.9 kg / 48.2 lbs 18.5 kg / 40.8 lbs AC100-240V~50/60Hz 1.5A 150W 943.9 x 286.0 x 734.6 mm 37.2 x 11.3 x 28.9 inches 943.9 x 152.2 x 695.5 mm 37.2 x 6.0 x 27.4 inches 28.6 kg/63.0 lbs 24.0 kg /52.9 lbs AC100-240V~50/60Hz 2.0A 190W 42LE2R* 42LE2R-ZJ 1054.0 x 813.5 x286.0 mm 41.5 x 32.0x 11.2 inches 1054.0 x 746.0 x 136.8mm 41.5 x 29.3 x 5.3 inches 36.9kg/81.3 lbs 31.3kg/69.0 lbs AC100-240V~50/60Hz 2.5A 240W APPENDIX 79 PRODUCT SPECIFICATIONS I The specifications shown above may be changed without prior notice for quality improvement. MODELS PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L’ VHF: E2 ~ E12, UHF: E21 ~ E69, CATV: S1 ~ S20, HYPER: S21 ~ S47 75 Ω 0 ~ 40°C / 32 ~ 104°F Less than 80% -20 ~ 60°C / -4 ~ 140°F Less than 85% Dimensions (Width x Height x Depth) Weight Power requirement Power Consumption Television System Program Coverage External Antenna Impedance Environment condition with stand without stand with stand without stand Operating Temperature Operating Humidity Storage Temperature Storage Humidity 1129.0 x 748.5 x 380.0 mm 44.4 x 29.5 x 15.0 inches 1129.0 x 695.0 x 103.7 mm 44.4 x 27.4 x 4.1 inches 27.7 kg / 61.1 lbs 24.2 kg / 53.4 lbs AC100-240V~ 50/60Hz 3.0A 260W 1129.0 x 748.5 x 333.6 mm 44.4 x 29.5 x 13.1 inches 1129.0 x 695.0 x 103.7 mm 44.4 x 27.4 x 4.1 inches 31.5 kg / 69.4 lbs 24.2 kg / 53.3 lbs AC100-240V~ 50/60Hz 3.0A 260W 1129.0 x 748.5 x 333.6 mm 44.4 x 29.5 x 13.1 inches 1129.0 x 695.0 x 103.7 mm 44.4 x 27.4 x 4.1 inches 31.5 kg / 69.4 lbs 24.2 kg / 53.3 lbs AC100-240V~ 50/60Hz 3.5A 310W 42PC1RV* 42PC1RV-ZJ 42PC1RVA-ZJ 42PC3RV* 42PC3RV-ZJ 42PC3RA* 42PC3RA-ZJ
