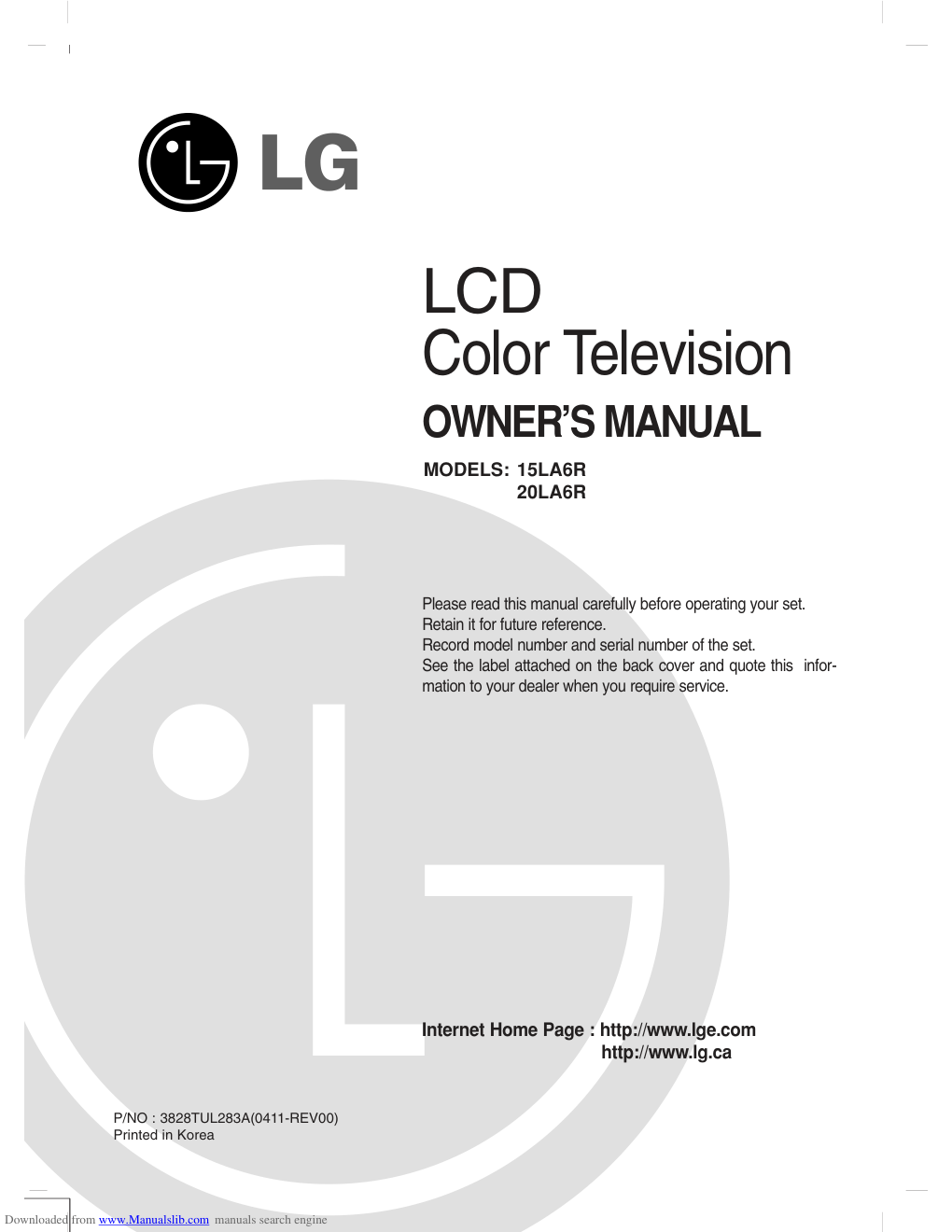

LCD Color Television OWNER’S MANUAL Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this infor- mation to your dealer when you require service. MODELS: 15LA6R 20LA6R Internet Home Page : http://www.lge.com http://www.lg.ca P/NO : 3828TUL283A(0411-REV00) Printed in Korea Downloaded from www.Manualslib.com manuals search engine Warning 2 W Warning arning WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appli- ance. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac- tical. REGULATORY INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product. U.S.A. only ----------------------------------------------- COMPLIANCE: The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Phone: 1-201-816-2000 http://www.lgusa.com --------------------------------------------------------------- CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Downloaded from www.Manualslib.com manuals search engine 3 Safety Instructions WARNING : To reduce the risk of fire or electric shock, DO NOT expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. CAUTION : These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use the attachments / accessories specified by the manufacturer. Safety Instructions Safety Instructions Downloaded from www.Manualslib.com manuals search engine 4 Safety Instructions Safety Instructions continued Safety Instructions continued 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. On Disposal a. The fluorescent lamp used in this product contains a small amount of mercury. b. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority. Downloaded from www.Manualslib.com manuals search engine 5 Contents Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4 Introduction Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Connection Options . . . . . . . . . . . . . . . . . . . . . . 7 Remote Control Key Functions . . . . . . . . . . . . . .8 Installation Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Kensington Security System . . . . . . . . . . . . . . . .9 Installation Instruction . . . . . . . . . . . . . . . . . . . . . .10 External Equipment Connections . . . . . . . . . .11~14 Antenna Connection . . . . . . . . . . . . . . . . . . . . .11 VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Cable TV Setup . . . . . . . . . . . . . . . . . . . . . . . .12 External A/V Source Setup . . . . . . . . . . . . . . . .12 DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 DTV Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Using Headphones . . . . . . . . . . . . . . . . . . . . . .13 PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Operation PC Menu Options . . . . . . . . . . . . . . . . . . . . . . . . .15 TV Operation Overview . . . . . . . . . . . . . . . . . . . .16 Menu Language Selection . . . . . . . . . . . . . . . . . .16 Channel Menu Options Memorizing the Channels with EZ Scan . . . . . .17 Add/Delete Channels with Manual Program . . .17 Favorite Channels Setup . . . . . . . . . . . . . . . . . .17 Picture Menu Options EZ Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Manual Picture Control (User option) . . . . . . . .18 Sound Menu Options EZ Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Equalizer Adjustments . . . . . . . . . . . . . . . . . . .19 AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . .19 Sound Balance . . . . . . . . . . . . . . . . . . . . . . . . .19 Stereo/SAP Broadcasts Setup . . . . . . . . . . . . .19 Time Menu Options Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .20 Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .20 On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .21 Sleep Timer Setup . . . . . . . . . . . . . . . . . . . . . .21 Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Special Menu Options Closed Captions . . . . . . . . . . . . . . . . . . . . . . . .22 Caption/Text . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Lock Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Lock Menu Setup . . . . . . . . . . . . . . . . . . . . . . .25 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .26 Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .27 Contents Contents Downloaded from www.Manualslib.com manuals search engine 6 Introduction Introduction Introduction Controls Controls Remote Control Sensor Power/Standby Indicator Glows red in Standby mode, Glows green when the TV is turned on. Side Control Panel Side Control Panel CH VOL MENU ENTER ON/OFF TV VIDEO / I Channel Buttons Volume Buttons Enter Button Menu Button TV/Video Button On/Off Button Downloaded from www.Manualslib.com manuals search engine 7 Introduction - This manual mainly explains the features for the 15LA6R. Connection Options Connection Options 15LA6R 15LA6R 20LA6R 20LA6R AC Input S-Video Input Headphone Jack DVD/DTV Input Audio / Video Input Antenna Input * Kensington Security System Connector (Refer to P.9) 20LA6R 15LA6R PC sound Input AC Input PC Input Service Jack Downloaded from www.Manualslib.com manuals search engine 8 Introduction - When using the remote control, aim it at the remote control sensor on the TV. power mute tv/video multimedia mts fcr ch ch vol enter 1 2 3 4 5 6 7 8 9 0 vol exit menu audio flashbk cc sleep video mute Switches the sound on or off. enter ch D / E (Channel button) vol F / G (Volume button) power mts (Refer to p.19) exit menu multimedia Selects: TV, Component or PC(only 15LA6R) mode. video (Refer to p.18) sleep (Refer to p.21) flashbk Press the flashbk button to return to the last channel you were watching. audio (Refer to p.19) cc (Refer to p.23) tv/video Selects: TV, Video, S-Video, Component or PC(only 15LA6R) mode. fcr (Refer to p.17) number buttons • Open the battery compartment cover on the back side and insert the batteries with correct polarity. • Install two 1.5V batteries of AAA type. Don’t mix used batteries with new batteries. Installing Batteries Installing Batteries Remote Control Key Functions Remote Control Key Functions Downloaded from www.Manualslib.com manuals search engine 9 Installation Installation Installation Owner’s Manual 1.5V 1.5V AAA Batteries Power Cord Remote Control power mute tv/video multimedia mts fcr ch ch vol enter 1 2 3 4 5 6 7 8 9 0 vol exit menu audio flashbk cc sleep video NOTES a. If the TV feels cold to the touch, there may be a small “flicker” when when it is turned on. This is normal, there is nothing wrong with TV. b. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance. c. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen. K K Kensington Security System Kensington Security System Accessories Accessories - The TV is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below. - For the detailed installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System. For further information, contact http://www.kensington.com, the internet homepage of the Kensington company. Kensington sells security systems for expensive electronic equipment such as note- book PCs and LCD projectors. - Note: The Kensington Security System is an optional accessory. PC Signal Cable (15LA6R Only) PC Sound Cable (15LA6R Only) Tie Bands - Arrange the wires with the tie bands. 15LA6R 20LA6R Downloaded from www.Manualslib.com manuals search engine 10 Installation W Wire Holders ire Holders Adjusting the Adjusting the TV V TV Viewing iewing Angle Angle Installation Instruction Installation Instruction - Thread, then pull the wires through the hole on the TV stand. K - You can adjust the vertical angle of the TV between -3° and 12°. Rear Rear A/V Cover A/V Cover * The connection panel is hidden behind the A/V cover. a. Remove the cover. b. Install wires as necessary. c. Reinstall the cover. Align the holes on the TV back panel with the two tabs on the rear A/V cover as shown. d. Close cover. 0° Approx. -3° Approx. 12° Downloaded from www.Manualslib.com manuals search engine 11 Installation External Equipment Connections External Equipment Connections - For optimum picture quality, adjust antenna direction. - Typical wall antenna jack used in apartment buildings, connect the antenna cable as shown below. (Use the correct type of antenna cable for the type of wall antenna jack.) Wall Connection Jack Apartment Buildings Antenna Jack Bronze Wire Turn clockwise to tighten. Antenna Converter 300Ω Flat Wire 75Ω Round Cable - This type of antenna is commonly used in single family dwellings. UHF Antenna VHF Antenna - If you have a 75Ω round cable, insert the bronze wire and then tighten the connection nut. If you have a 300Ω flat wire, connect the twisted wire to the antenna converter and then connect the converter to the antenna jack on the TV. - If using 75Ω round cable, do not bend the bronze wire. It may cause poor picture quality. - In poor signal areas, to get better picture quality, install a signal amplifier to the antenna as shown to the right. - If signal needs to be split for two TVs, use an antenna signal splitter for connection. Signal Amplifier UHF VHF Single Family Home Connecting to an Inside Antenna Setup Connecting to an Outdoor Antenna Setup +75 Ω ANT IN PC INPUT +75 Ω ANT IN PC INPUT Antenna Jack Bronze Wire Turn clockwise to tighten. Antenna Converter 300Ω Flat Wire 75Ω Round Cable +75 Ω ANT IN PC INPUT Antenna Connection Antenna Connection - This manual mainly explains the features for the 15LA6R. Downloaded from www.Manualslib.com manuals search engine 12 Installation Cable Cable TV Setup TV Setup External External A/V Source Setup A/V Source Setup VCR Setup VCR Setup - In Video mode, TV automatically reverts to TV mode if the fcr button or flashbk buttons are pressed. Connection 1 Set VCR switch to 3 or 4 and then tune TV to the same channel number. Connection 2 1. Connect the audio/video output jacks on VCR to the corre- sponding input jacks on the TV. When connecting the TV to a VCR, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). 2. Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.) 3. Use the tv/video button on the remote control to select Video. (If connected to S-VIDEO on side panel, select the S-Video external input source.) Connection 1 1. Select 3 or 4 with channel switch on cable box. 2. Tune the TV channel to the same selected output channel of cable box. 3. Select channels at the cable box or with the cable box remote control. Connection 2 1. Connect the audio/video output jacks on Cable Box to the corresponding input jacks on the TV. When connecting the TV to Cable Box, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). 2. Use the tv/video button on the remote control to select Video. 3. Select channels with the cable box remote control. Connections Connect the audio/video output jacks on the external A/V equipment to the corresponding input jacks on the TV. When connecting the TV to external A/V equipment, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). Viewing Setup 1. Turn on the external A/V equipment. 2. Use the tv/video button on the remote control to select Video. 3. Operate the corresponding external equipment. Refer to external equipment operating guide. VIDEO IN DVD/DTV IN R L VIDEO PR PB Y AUDIO (MONO) H/P +75 Ω ANT IN S-VIDEO AC INPUT PC SOUND PC INPUT COMPONENT(480i/480p/720p/1080i) OUT IN CH3 CH4 S-VIDEO ANT IN ANT OUT (R) (L) AUDIO VIDEO 1 Typical Antennas VCR Direct Connection 2 - After subscribing to a local cable TV service and installing a converter, you can watch cable TV programming. - For further cable TV information, contact a local cable service provider. 1 Cable Box 2 Camcorder Video Game set VIDEO IN R L VIDEO AUDIO (MONO) +75 Ω ANT IN S-VIDEO PC SOUND PC INPUT R AUDIO VIDEO L External Equipment External Equipment Connections Continued External Equipment Connections Continued Downloaded from www.Manualslib.com manuals search engine 13 Installation DVD Setup DVD Setup DTV Setup DTV Setup Connections 1. Connect the DVD video outputs to the COMPONENT (Y, PB, PR) jacks and connect the DVD audio outputs to the AUDIO jacks. 2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure. NOTE: If your DVD player does not have component video output, use S-Video. Viewing Setup 1. Turn on the DVD player, insert a DVD. 2. Use the tv/video or multimedia button on the remote con- trol to select Component (If connected to S-VIDEO, select the S-Video input source.) 3. Refer to the DVD player's manual for operating instructions. - To watch digitally broadcast programs, purchase and connect a digital set-top box. Connections Connect the digital set-top box video outputs to the COMPONENT (Y, PB, PR) jacks and connect the digital set-top box audio outputs to the AUDIO jacks. Viewing Setup 1. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) 2. Use the tv/video or multimedia button on the remote control to select Component. DVD VIDEO IN DVD/DTV IN R L VIDEO PR PB Y AUDIO (MONO) H/P +75 Ω ANT IN S-VIDEO AC INPUT PC SOUND PC INPUT COMPONENT(480i/480p/720p/1080i) AUDIO Y PB PR (L) (R) AUDIO S-VIDEO (L) (R) DTV Receiverr (Set-top Box) VIDEO IN DVD/DTV IN R L VIDEO PR PB Y AUDIO (MONO) H/P +75 Ω ANT IN S-VIDEO AC INPUT PC SOUND PC INPUT COMPONENT(480i/480p/720p/1080i) AUDIO Y PB PR (L) (R) Component ports of the TV Y PB PR Video output ports of DVD player Y Y Y Y Pb B-Y Cb PB Pr R-Y Cr PR Using Headphones Using Headphones - Plug headphones in to H/P jack as shown. - Adjust sound level to a headphone using the volume (F, G) buttons. While you are listening to sound through a head- phone(s), TV speakers will not be heard. • Component Input ports To get better picture quality, connect a DVD player to the component input ports as shown below. COMPONENT(480i/480p/720p/1080i) VIDEO IN DVD/DTV IN L VIDEO PR PB Y (MONO) H/P S-VIDEO AC INPUT Downloaded from www.Manualslib.com manuals search engine 14 Installation - After setup, be sure to select PC source on TV. PC Setup PC Setup (15LA6R Only) (15LA6R Only) Connections 1. Set the monitor output resolution on the PC before connecting to the TV. 2. Connect the TV to the PC with the PC cable. 3. Connect the PC audio output to the TV's PC SOUND input. Viewing Setup 1. Turn on the PC. 2. Use the tv/video or multimedia button on the remote control to select PC. NOTES a. For optimum picture quality, use standard XGA (1024x768) computer output at a 60Hz refresh rate. Using other formats (VGA, SVGA, etc.) or refresh rates may result in reduced picture quality. (To change the computer video output format, please refer to the operating manual for the computer you are using). b. If the message “Out of range” appears on the screen, adjust the PC output to a format listed in the ‘Displayable Monitor Output Format Specifications' chart above. c. The synchronization input form for Horizontal and Vertical frequencies is separate. DPM (Display Power Management) mode If the PC goes to power saving mode, the monitor automatically switches to DPM mode. DPM mode may not work if you don’t use the PC cable provided. Resolution 640x480 800x600 Horizontal Frequency(kHz) 31.47 35.00 37.50 35.16 37.88 48.08 46.88 60 66.67 75 56.25 60 72.19 75 48.36 56.48 60.02 60 70 75 Vertical Frequency(Hz) 1024x768 Monitor Display Specifications Downloaded from www.Manualslib.com manuals search engine 15 Operation 1. Press the menu button and then use D / E button to select the PC menu. 2. Press the G button and then use D / E button to select desired item. 3. Use the F / G button to make appropriate adjustments. • H-position/V-position Adjusts picture left/right and up/down. The adjustment ranges of H-Position is 0~100. (Based on the input mode, the adjustment range may change.) • Clock Minimizes any vertical bars or stripes appearing on the screen background. The adjustment range is 0~100. (Based on the input mode, the adjustment range may change.) • Phase Remove any horizontal noise and clear up or sharpen the character images. The range adjustment is 0~100. (Based on the input mode, the adjustment range may change.) • Auto-configure Automatically adjusts the screen position, clock, and clock phase. (The displayed image will disappear for a few seconds while Auto-configuration is in progress.) • Reset Returns to the default settings programmed at the factory; default settings cannot be changed. 4. Press the enter button to save. PC H-Position V-Position Clock Phase Auto Configure Reset F OK MENU D E - After setup, be sure to select PC source to see the PC image on TV screen. PC Menu Options (15LA6R Only) PC Menu Options (15LA6R Only) 85 Operation Operation Downloaded from www.Manualslib.com manuals search engine 16 Operation Menu Language Selection Menu Language Selection TV Operation Overview TV Operation Overview - The menus can be shown on the screen in the selected language. First select your language. 1. Press the menu button and then use D / E button to select the Special menu. 2. Press the G button and then use D / E button to select Language. 3. Press the G button and then use D / E button to select your desired language. From this point on, the on-screen menus will be shown in the language of your choice. 4. Press the exit button to save and return to TV viewing. 1. First, make all equipment connections. Plug the AC Adapter into the TV, then plug the AC Adapter into a power outlet. At this time, the TV is switched to standby mode. • In standby mode, press the power, ch (D,E), tv/video, multimedia or number button on the remote con- trol or on/off, ch (D,E), tv/video located on the TV to turn the TV on. 2. Select the viewing source by pressing tv/video or multimedia repeatedly. • Note: See page 16 if you have not auto programmed the TV to receive channels in your local broadcast area. 3. After viewing, press the power button on the remote control or on/off located on the TV. The TV reverts to standby mode. NOTE • If you want to turn the TV off, press the on/off button located on the TV. If you intend to be away on vacation, disconnect the power plug from the wall power outlet. Downloaded from www.Manualslib.com manuals search engine 17 Operation Channel Menu Options Channel Menu Options - You can manually include or erase individual channels. 1. Press the menu button and then use D / E button to select the Channel menu. 2. Press the G button and then use D / E button to select Manual prog. 3. Press the G button and then use F / G button to select a channel you want to add to memory or erase. 4. Press the E button and then use F / G button to select Memory (add) or Erase (delete). 5. Press the enter button to save. The current channel is added to Memory or Erased from the channel list. Add/Delete Channels with Manual Program Add/Delete Channels with Manual Program 1. Press the menu button and then use D / E button to select the Channel menu. 2. Press the G button and then use D / E button to select EZ Scan. 3. Press the G button to begin the channel search. • Wait for auto program to complete the channel search cycle before choosing a channel. The TV scans for over-the-air channels and then channels provided by a cable service. Memorizing the Channels with EZ Scan Memorizing the Channels with EZ Scan - For Auto program to work, the programming source must be connected to the TV and the TV must be receiving programming sig- nals either over-the-air or from a cable-type service provider. NOTES • When the channel search is complete, use the D / E buttons to review the memorized channels. • If you press the enter button in auto programming, the function will stop and only channels programming up to that time will remain. • Auto program function can memorize only the channels which are being received at that time. Channel To start EZ Scan Manual prog. Favorite ch. F G OK MENU D E Channel EZ Scan Manual prog. Favorite ch. F G OK MENU  EXIT D E TV 30 Memory The current channel number is displayed. - Favorite Channel lets you quickly tune in up to 8 channels of your choice without having to wait for the TV to scan through all the in-between channels. 1. Press the menu button and then use D / E button to select the Channel menu. 2. Press the G button and then use D / E button to select Favorite ch.. 3. Press the G button and then use D / E button to select the first favorite channel position. 4. Use the F / G button to set the desired channel number for first favorite channel. 5. Repeat steps 3 to 4 to memorize other channels. 6. Press the enter button to save. • To tune to a favorite channel, press the fcr (Favorite Channel Review) button repeatedly. The 8 favorite channels appear on the screen one-by-one. Favorite Channels Setup Favorite Channels Setup Channel Favorite Ch. EZ Scan Manual prog. Favorite ch. F G OK MENU D E To set - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - D E F G OK MENU  EXIT Downloaded from www.Manualslib.com manuals search engine 18 Operation Picture Menu Options Picture Menu Options - You can adjust picture contrast, brightness, color, sharpness and tint to the levels you prefer. 1. Press the menu button and then use D / E button to select the Picture menu. 2. Press the G button and then use D / E button to select the desired picture option (Contrast, Brightness, Color, Sharpness, Tint). 3. Use the F / G button to make appropriate adjustments. • Contrast, Brightness, Color, and Sharpness are adjustable from 0 to 100. • Tint is adjustable from - 50 to + 50. 4. Press the enter button to save. 1. Press the video button repeatedly to select the picture appearance setup option as shown below. EZ V EZ Video ideo Manual Picture Control ( Manual Picture Control (User option) option) - This function adjusts the TV for the best picture appearance. • You can also adjust EZ Video in the Picture menu. • Clear, Optimum and Soft are preset for good picture quality at the factory and cannot be changed. Clear Optimum Soft User Picture Contrast 85 EZ Video Contrast Brightness Color Sharpness Tint F G OK MENU D E Downloaded from www.Manualslib.com manuals search engine 19 Operation Sound Menu Options Sound Menu Options 1. Use the audio button to select the appropriate sound setup as shown below. EZ EZ Audio Audio 1. Press the menu button and then use D / E button to select the Sound menu. 2. Press the G button and then use D / E button to select Balance. 3. Press the G button and then use F / G button to adjust the sound balance. • Balance is adjustable from Left 50 to Right 50. 4. Press the enter button to save. Sound Balance Sound Balance 1. Press the menu button and then use D / E button to select the Sound menu. 2. Press the G button and then use D / E button to select EZ Audio. 3. Press the G button and then use D / E button to select User. 4. Press the G button and then use F / G button to select the band you want to adjust. Then, use D / E button to adjust the band level. 5. Press the enter button to save. Equalizer Equalizer Adjustments Adjustments - This function lets you enjoy the best sound without any special adjustment because the TV selects the appropriate sound option based on the program content. • You can also adjust EZ Audio in the Sound menu. Flat Music Movie Sports User D E F G Move Adjust  Exit 0.1 0.5 1 5 10 KHz Sound EZ Audio AVL Balance F G OK MENU D E Flat Music Movie Sports User G Sound EZ Audio AVL Balance F G OK MENU D E - AVL maintains an equal volume level automatically even if the channel is changed. 1. Press the menu button and then use D / E button to select the Sound menu. 2. Press the G button and then use D / E button to select AVL. 3. Press the G button and then use D / E button to to select On or Off. 4. Press the enter button to save. AAVL VL (Auto V (Auto Volume Leveler) olume Leveler) Sound EZ Audio AVL Balance F OK MENU D E On Off 1. Press the mts button repeatedly. Stereo/SAP Stereo/SAP Broadcasts Setup Broadcasts Setup • Select mono sound mode if the signal is not clear or in poor signal reception areas. • Stereo, SAP mode are available only if included on the broadcast signal. Mono Stereo SAP - The TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program, if the broadcaster transmits an additional sound signal as well as the original one. - Mono: The primary language is heard from left and right speakers. Signal mode is mono. - Stereo: The primary language is heard from left and right speakers. Signal mode is stereo. - SAP: The secondary language is heard from left and right speakers. 0 Downloaded from www.Manualslib.com manuals search engine 20 Operation TTimer Menu Options imer Menu Options Auto Clock Setup Auto Clock Setup - If the time on the clock is incorrect, reset the clock manually. 1. Press the menu button and then use D / E button to select the Timer menu. 2. Press the G button and then use D / E button to select Clock. 3. Press the G button and then use D / E button to select Auto. 4. Press the G button and then use D / E button to select the time zone for your viewing area. Your choices are: Auto, E.S.T. (Eastern Standard Time), C.S.T. (Central Standard Time), M.S.T. (Mountain Standard Time), P.S.T. (Pacific Standard Time), Alaska, and Hawaii. 5. Press the G button and then use D / E button to set PBS channel. 6. Press the G button and then use D / E button to set D.S.T. (Daylight Savings Time) Auto, Off or On, depending on whether or not your viewing area observes Daylight Savings Time. 7. Press the enter button to save. - The time is set automatically through from a PBS broadcast signal. - The PBS channel signal includes information for the correct time and daylight saving time. Manual Clock Setup Manual Clock Setup 1. Press the menu button and then use D / E button to select the Timer menu. 2. Press the G button and then use D / E button to select Clock. 3. Press the G button and then use D / E button to select Manual. 4. Press the G button and then use D / E button to set the hour. 5. Press the G button and then use D / E button to set the minutes. 6. Press the enter button to save. Timer Auto G Manual Clock Off timer On timer Auto off F G OK MENU D E Timer Auto Manual G - - : - - AM Clock Off timer On timer Auto off F G OK MENU D E Auto Clock Time zone Auto PBS Ch. TV 1 D.S.T. Auto D E F G Move Adjust  Exit Downloaded from www.Manualslib.com manuals search engine 21 Operation - Timer function operates only if current time is set. - Off-Timer function overrides On-Timer function if they are set to the same time. - The TV must be in standby mode for the On-Timer to work. - If you don’t press any button within 2 hours after turning on the TV with the On-Timer function, the TV will automatically revert to standby mode. On/Of On/Offf TTimer Setup imer Setup 1. Press the menu button and then use D / E button to select the Timer menu. 2. Press the G button and then use D / E button to select Off timer or On timer. 3. Press the G button and then use D / E button to set the hour. 4. Press the G button and then use D / E button to set the minutes. 5. For On timer function only: Press the G button and then use D / E button to set the channel at turn-on. Then, press the G button and then use D / E button to set the turn-on sound level. 6. Press the G button and then use D / E button to select Run or Hold. • Hold: Off timer/On timer will not work. Run: Off timer/On timer are active. 7. Press the enter button to save. Timer Clock Off timer On timer Auto off F G OK MENU D E - - : - - AM TV 2 Volume 30 Run Sleep Sleep TTimer Setup imer Setup - The Sleep Timer turns the TV off at a preset time. 1. Press the sleep button repeatedly to select the number of minutes. First the Sleep --- option appears on the screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes. 2. When the number of minutes you want is displayed on the screen, press the enter button. The timer begins to count down from the number of minutes selected. 3. To check the remaining minutes before the TV turns off, press the sleep button once. 4. To cancel the Sleep Timer, press the sleep button repeatedly until Sleep --- appears. Auto Of Auto Offf - If Auto Off is active and there is no input signal, the TV switches to Standby mode automatically after 10 minutes. 1. Press the menu button and then use D / E button to select the Timer menu. 2. Press the G button and then use D / E button to select Auto off. 3. Press the G button and then use D / E button to select On or Off. 4. Press the enter button to save. Timer Clock Off timer On timer Auto off F OK MENU D E On Off Downloaded from www.Manualslib.com manuals search engine 22 Operation Special Menu Options Special Menu Options Closed Captions Closed Captions 2. An old, bad, or illegally recorded tape is being played. 3. Strong, random signals from a car or airplane interfere with the TV signal. 4. The signal from the antenna is weak. 5. The program wasn’t captioned when it was produced, transmitted, or taped. Closed captioning is a process which converts the audio portion of a television program into written words which then appear as sub- titles on the television screen. Closed captions allow viewers to read the dialogue and narration of television programs. Captions are the subtitles of the dialogue and narration of television programs. For prerecorded programs, program dialogue can be arranged into captions in advance. Its possible to caption a live program by using a process called real-time captioning, which creates captions instantly. Real-time captioning is normally done by professional reporters using a machine shorthand sys- tem and computer for translation into English. Captioning is an effective system for the hearing-impaired, and it can also aid in teaching lan- guage skills. • The picture at left shows a typical caption. • IGNITION: Picture may flutter, drift, suffer from black spots, or horizontal streaking. Usually caused by inter- ference from automobile ignition systems, neon lamps, electrical drills, and other electrical appli- ances. • GHOSTS: Ghosts are caused when the TV signal splits and follows two paths. One is the direct path and the other is reflected off tall buildings, hills or other objects. Changing the direction or position of the antenna may improve reception. • SNOW: If your receiver is located at the weak, fringe area of a TV signal, your picture may be marred by small dots. It may be necessary to install a special antenna to improve the picture. Caption Tips FOLLOW ME Using Closed Captions • Not all TV broadcasts include closed caption signals. • Sometimes TV stations broadcast four different caption signals on the same channel. By selecting From CC 1 to CC 4, you can choose which signal you view. CC 1 is usually the signal with the captions, while Another mode might show demonstration or programming information. • Your TV might not receive caption signals normally in the following situations. 1. Poor reception conditions are encountered: Downloaded from www.Manualslib.com manuals search engine 23 Operation Key Lock Key Lock - The TV can be set up so that it can only be used with the remote control. - This feature can prevent unauthorized viewing. 1. Press the menu button and then use D / E button to select the Special menu. 2. Press the G button and then use D / E button to select Key lock. 3. Press the G button and then use D / E button to select On or Off. 4. Press the enter button to save. Special Language Caption/Text Captions Key lock Parental F OK MENU D E On Off Special Language Caption/Text Captions Key lock Parental F OK MENU D E CC1 CC2 CC3 CC4 Text1 Text2 Text3 Text4 Caption/T Caption/Text ext 1. Press the menu button and then use D / E button to select the SPECIAL menu. 2. Press the G button and then use D / E button to select Caption / Text. 3. Press the G button and then use D / E button to select caption: CC1, CC2, CC3, CC4, Text1, Text2, Text3, or Text4. • CAPTION The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired. • TEXT The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster. 4. Press the enter button to save. Captions Captions 1. Use the cc button repeatedly to select Caption Off, EZ Mute, or On. • EZ Mute shows the selected captions option (if available on program) when the TV sound is muted 2. Press the enter button to save. Downloaded from www.Manualslib.com manuals search engine 24 Operation Lock Options Lock Options Parental Control can be used to block specific channels, ratings and other viewing sources. The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcast station. The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories chosen to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be set : 1. Ratings and categories to be blocked. 2. Set a password 3. Enable the lock V-Chip rating and categories Rating guidelines are provided by broadcast stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System (MPAA) only. For Movies previously shown in theaters : Movie Ratings : • Unblocked • G and Above (general audience) • PG and Above (parental guidance suggested) • PG-13 and Above (13 years and older) • R and above (restricted) • NC-17 and Above (18 years and older) • X (adult) If you set PG-13 and Above : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked. For Television programs including made-for-TV movies: General TV Ratings: • Unblocked • TV-G and Above (general audience) (individual categories do not apply) • TV-PG and Above (parental guidance suggested) • TV-14 and Above (14 years and older) • TV-MA (mature audience) Children TV Ratings: • Unblocked • TV-Y and Above (youth) (individual content categories do not apply) • TV-Y7 (youth, 7 years and up) Content Categories: • Dialog - sexual dialogue (applies to TV-PG and Above, TV-14) • Language - adult language (applies to TV-PG and Above, TV-14 and Above, TV-MA) • Sex scenes - sexual situations (applies to TV-PG and Above, TV-14 and Above, TV-MA) • Violence (applies to TV-PG and Above, TV-14 and Above, TV-MA) • F Violence - fantasy violence (applies only to TV-Y7) • No Rating (blocks all viewing) For Canadian English/French language rating system: Canadian English language rating system: • C & Above (Children) • C8+ (8 years and older) • G & Above (General programming. Suitable for all audiences.) • PG & Above (Parental guidance suggested) • 14+ (Viewer 14 years and older) • 18+ (Adult programming) Canadian French language rating system: • G & Above (General) • 8 ans+ (8 years and older) • 13 ans+ (13 years and older) • 16 ans+ (16 years and older) • 18 ans+ (Adults only) Downloaded from www.Manualslib.com manuals search engine 25 Operation Lock Menu Setup Lock Menu Setup 1. Press the menu button and then use D / E button to select the Special menu. 2. Press the G button and then use D / E button to select Parental. Then, press the G button. • If Lock is already set, enter the password requested. • The TV is set with the initial password “0-0-0-0”. 2. Setting Lock on/off: Press the D / E button to select Lock on/off. Press the G button and then use D / E button to select on or off. 3. Set password: Press the D / E button to select Set password. Press the G button and then enter a four digit password. Enter it again when requested. 4. Press the D / E button to select type of blocking to be set . 5. Press the G button and then use D / E button to select type of ratings to block . • Age block, and Content block, and Canadian (option) menus, also have sub menus. So, repeat steps 4 and 5 in the sub menu, to set the types of blocking and ratings. Special Language Caption / Text Captions Key lock Parental F G OK MENU D E To set Parental Lock Set password MPAA Age block Content block Aux. block Canadian F G OK MENU D E On Off Downloaded from www.Manualslib.com manuals search engine 26 1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen. 2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV. To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth. If you leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges. - Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen Cleaning the Screen Cleaning the Cabinet Cleaning the Cabinet Extended Extended Absence Absence Maintenance Maintenance Product Specifications Product Specifications Maintenance & Product Specification MODEL Power Requirement Power Consumption Audio Output Television System Television Channel Television Screen External Antenna Impedance 15LA6R 20LA6R AC100-240V~ 50/60Hz 0.9A AC100-240V~ 50/60Hz 1.2A 55W 65W 3 W + 3 W 5 W + 5 W NTSC VHF : 2 ~ 13, UHF : 14 ~ 69, Cable : 01 ~ 125 LCD Panel 75 Ω Downloaded from www.Manualslib.com manuals search engine 27 Troubleshooting Checklist TTroubleshooting Checklist roubleshooting Checklist SYMPTOMS No power No picture or sound Poor picture but good sound Poor reception Lines in picture Ghosts (multiple images) Remote control does not work. Cannot tune desired channel. CHECK THESE THINGS Is power cord plugged in ? Is television turned on ? Check batteries in remote control. Try another channel (station trouble). Check antenna connectings. Check for local interference. Adjust the antenna. Adjust the picture control. Program channel using EZ Scan. Downloaded from www.Manualslib.com manuals search engine Downloaded from www.Manualslib.com manuals search engine
