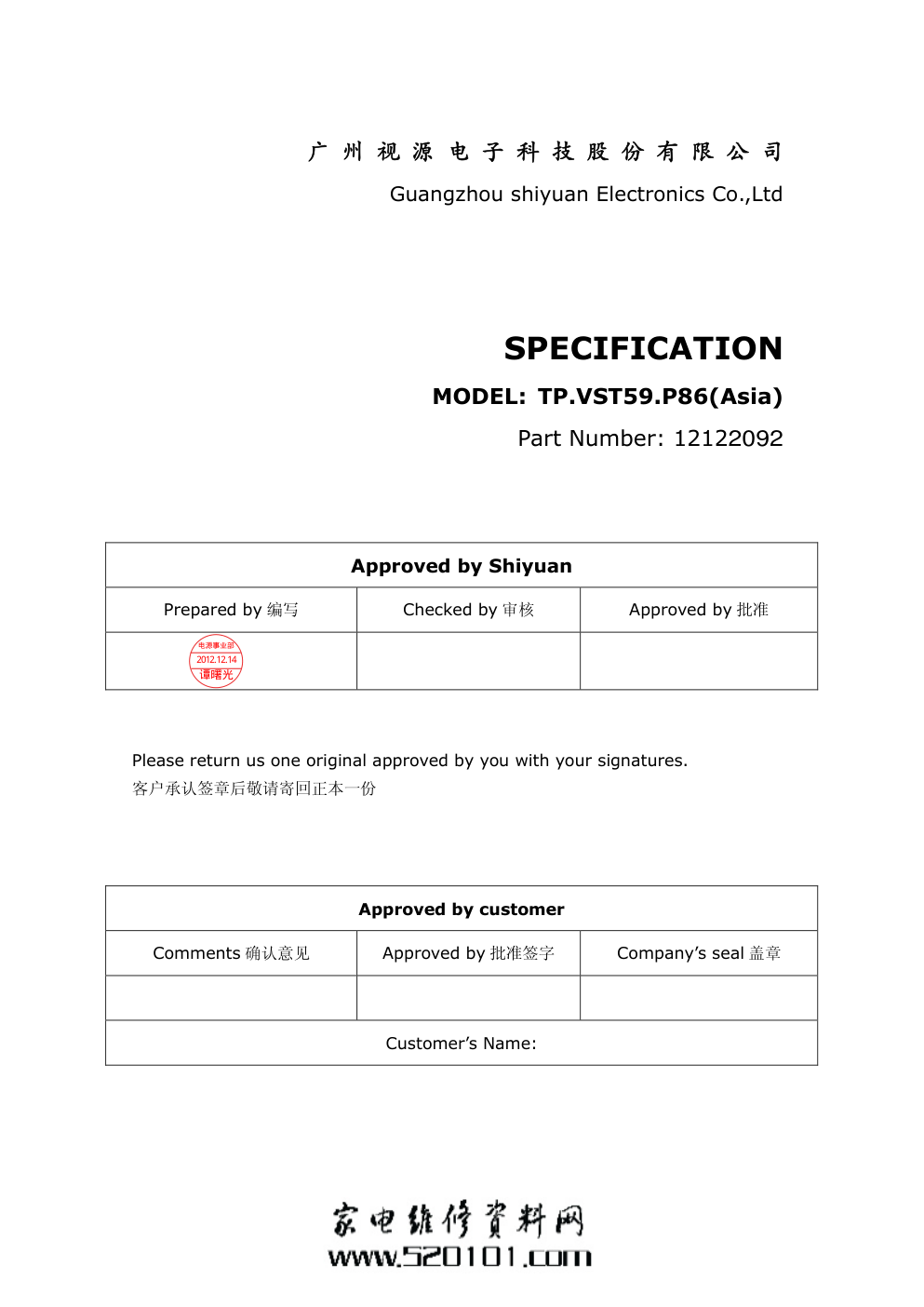

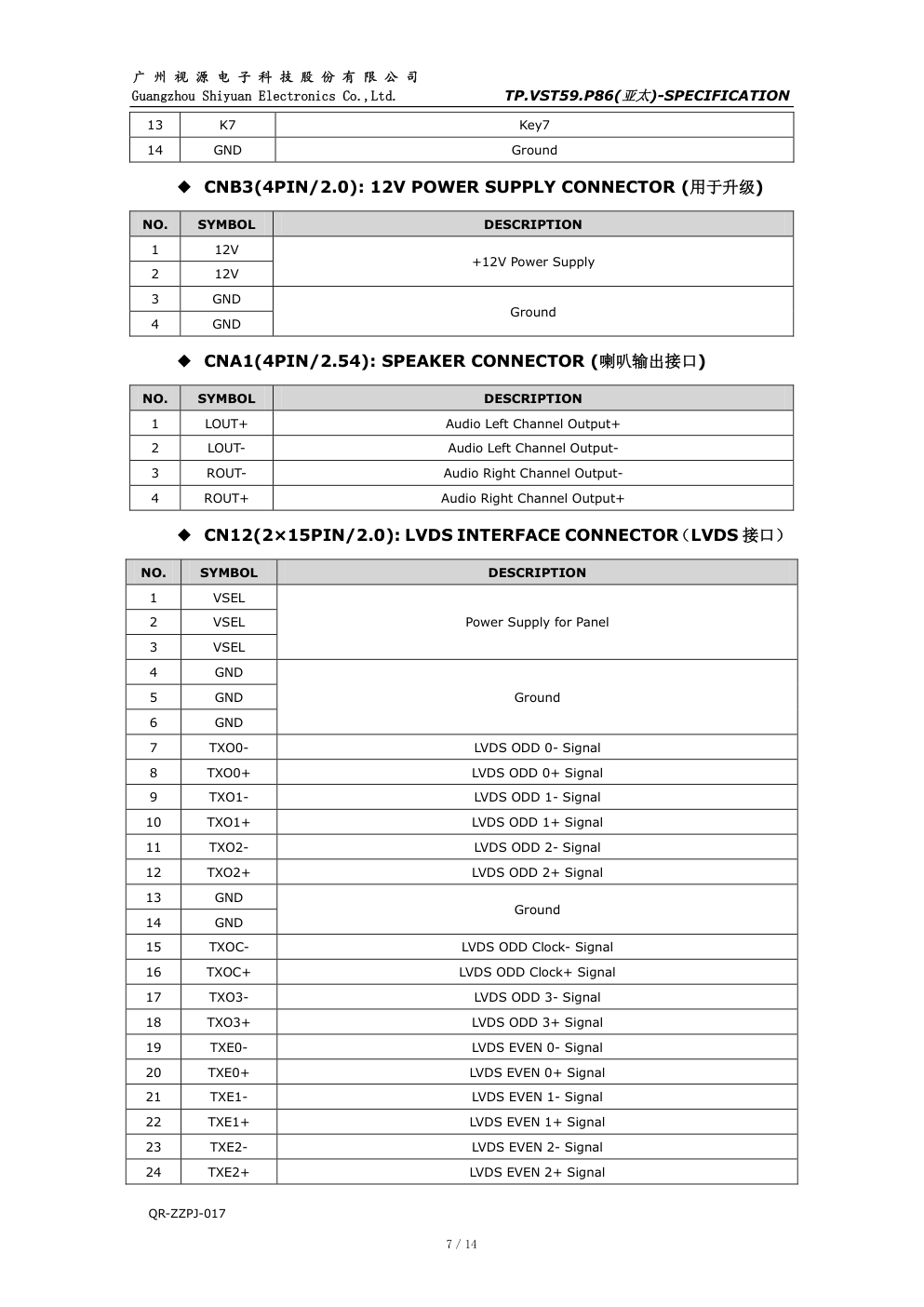

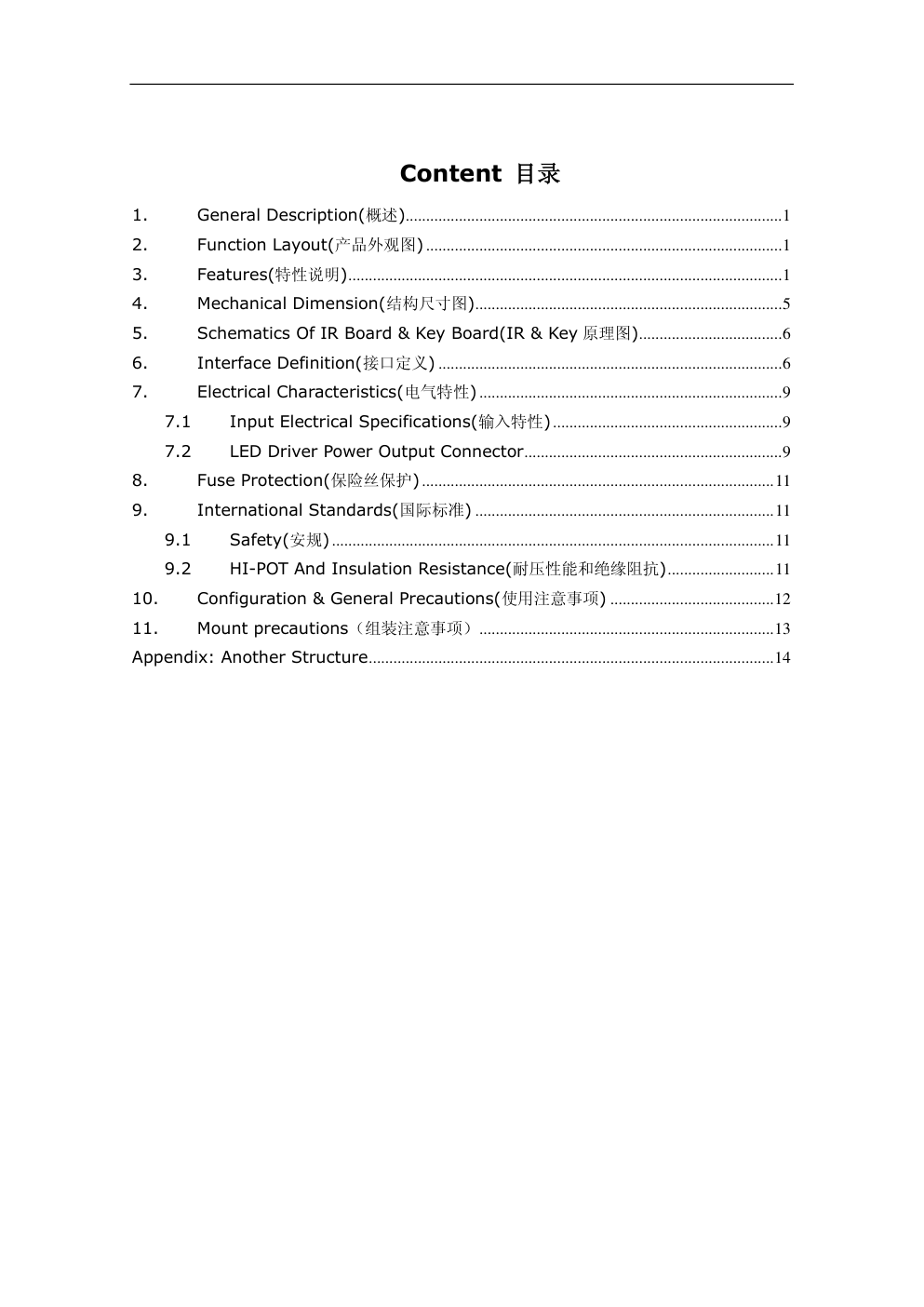

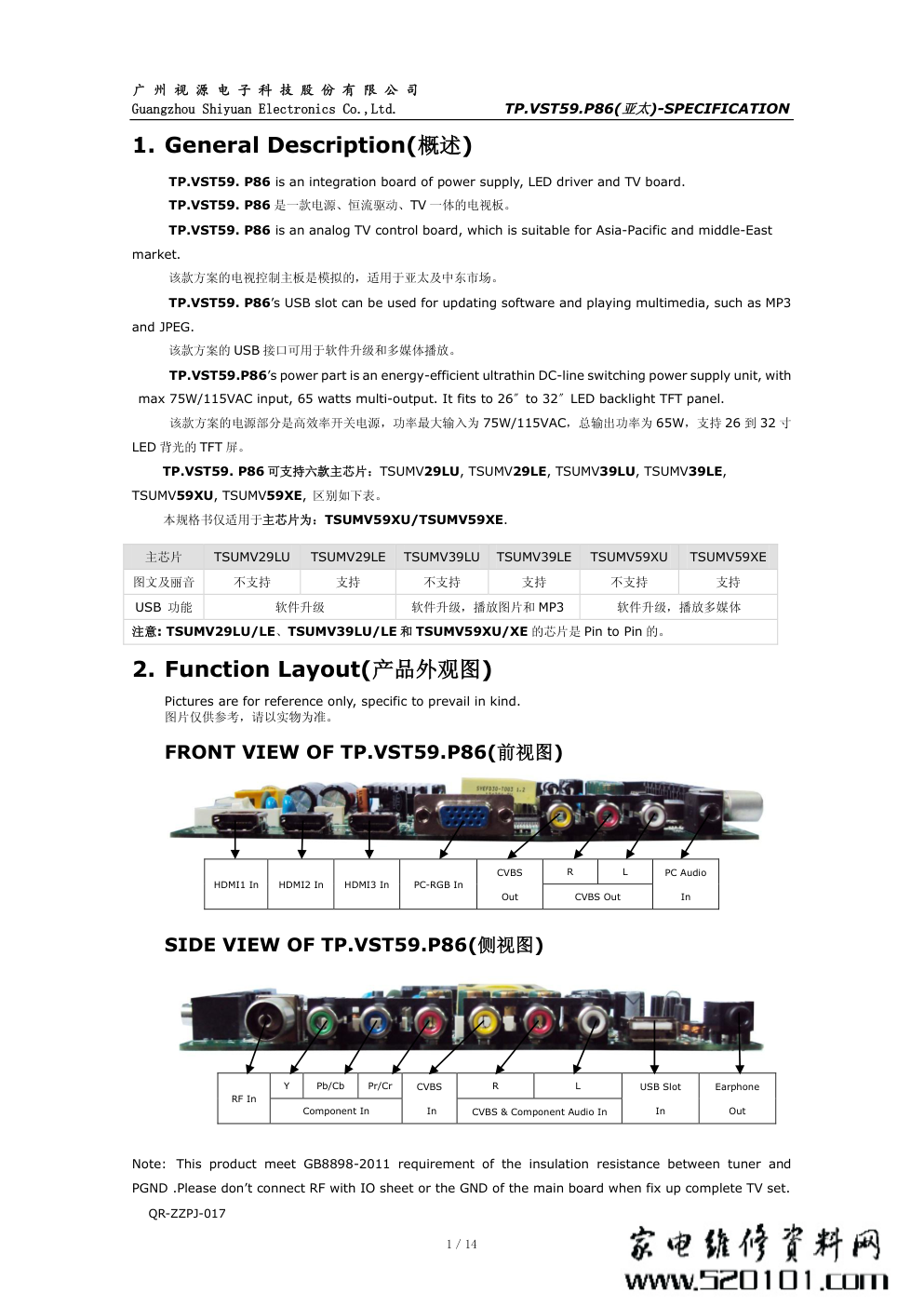

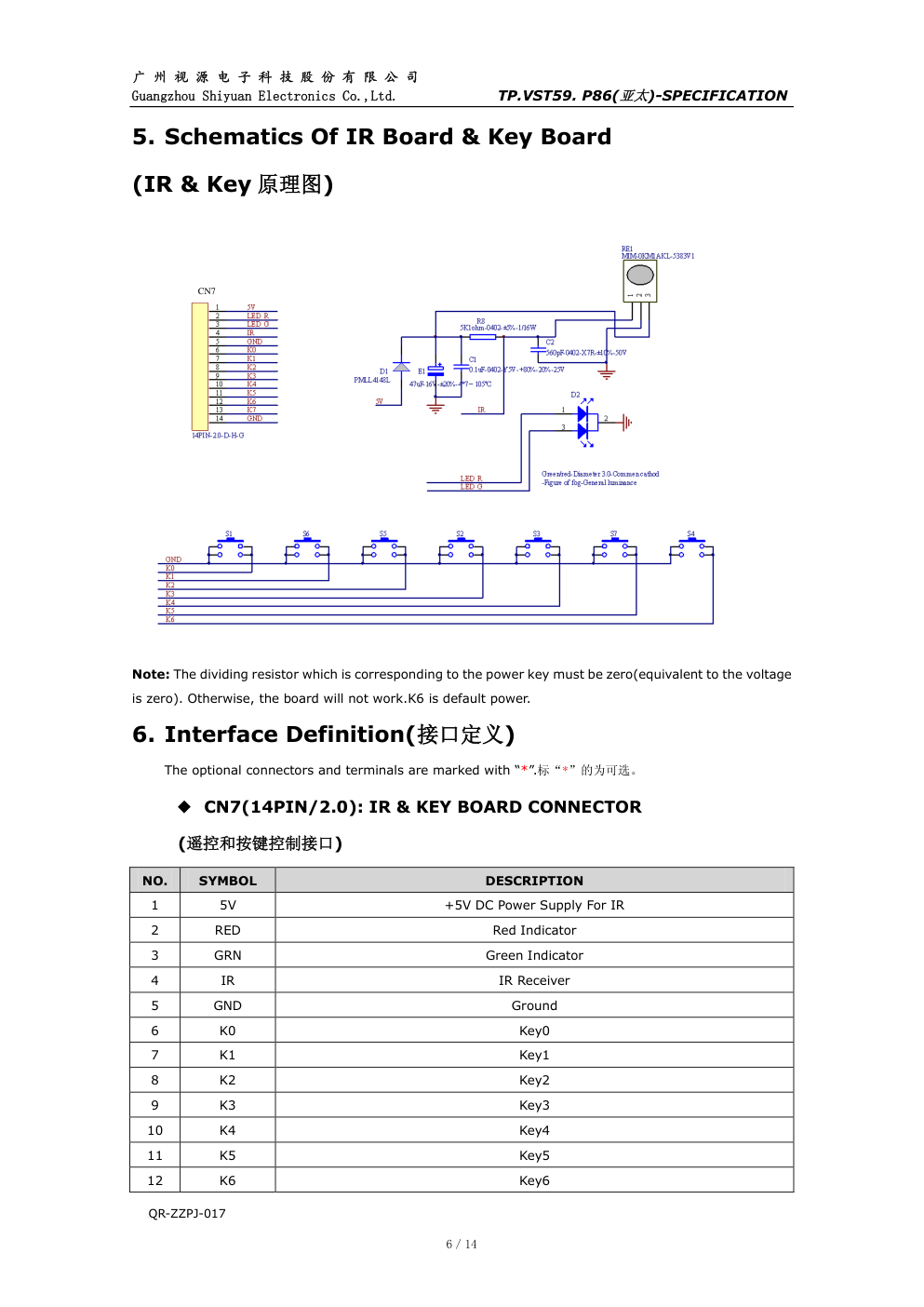

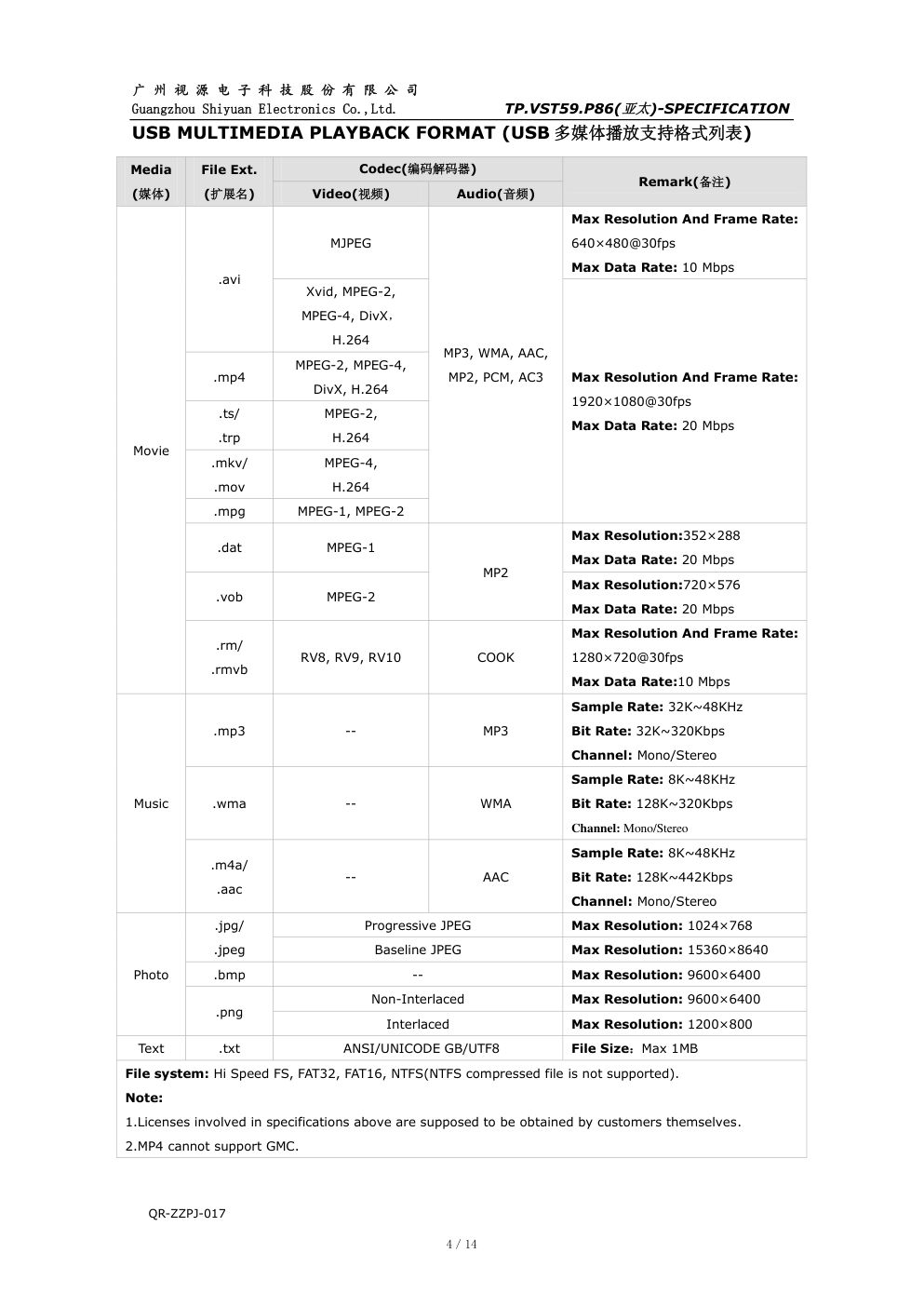

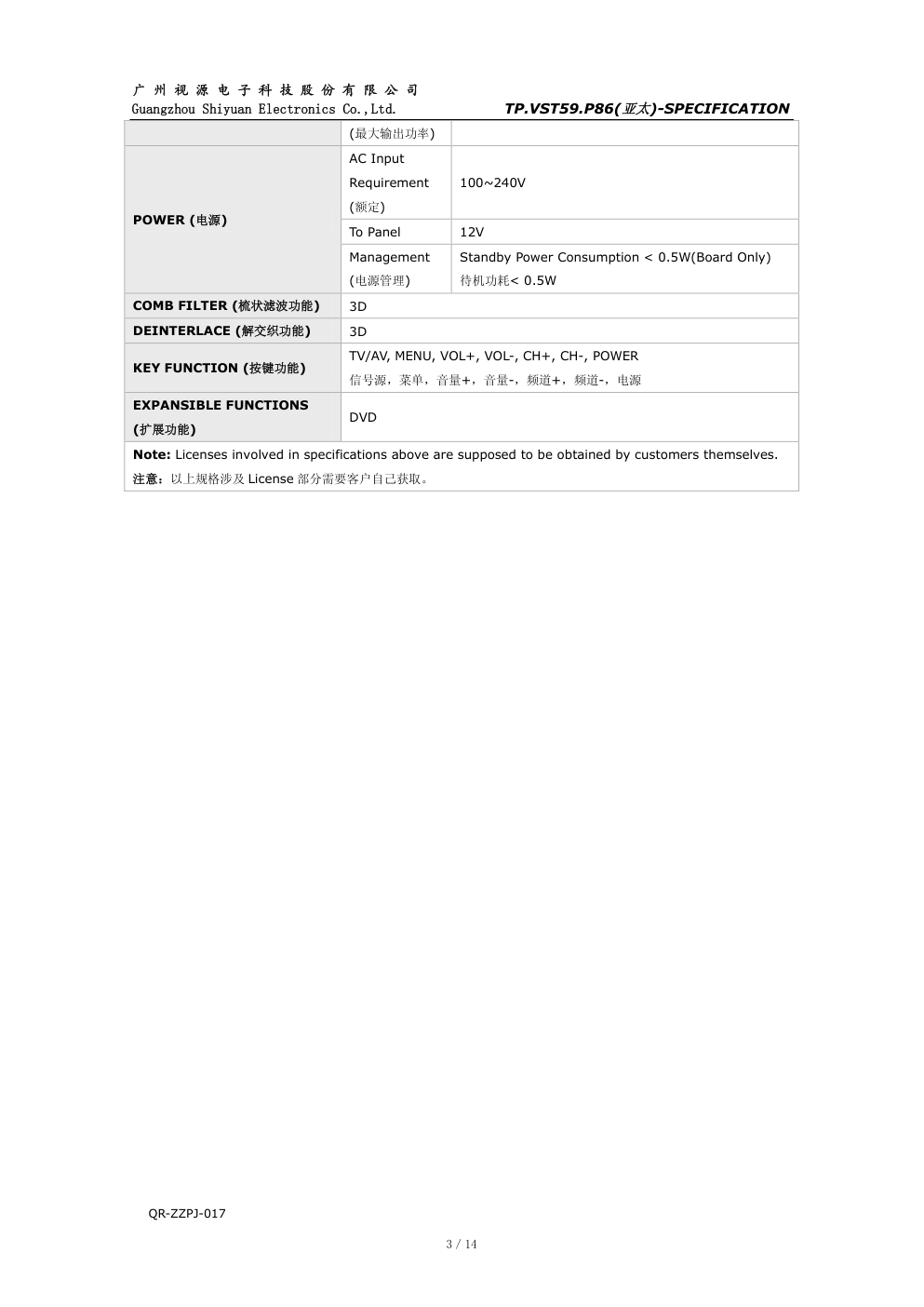

广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou shiyuan Electronics Co.,Ltd SPECIFICATION MODEL: TP.VST59.P86(Asia) Part Number: 12122092 Approved by Shiyuan Prepared by 编写 Checked by 审核 Approved by 批准 Please return us one original approved by you with your signatures. 客户承认签章后敬请寄回正本一份 Approved by customer Comments 确认意见 Approved by 批准签字 Company’s seal 盖章 Customer’s Name: 2012.12.14 电源事业部 谭曙光 Content 目录 1. General Description(概述) ............................................................................................ 1 2. Function Layout(产品外观图) ....................................................................................... 1 3. Features(特性说明) .......................................................................................................... 1 4. Mechanical Dimension(结构尺寸图) ........................................................................... 5 5. Schematics Of IR Board & Key Board(IR & Key 原理图) ................................... 6 6. Interface Definition(接口定义) .................................................................................... 6 7. Electrical Characteristics(电气特性) .......................................................................... 9 7.1 Input Electrical Specifications(输入特性) ........................................................ 9 7.2 LED Driver Power Output Connector ............................................................... 9 8. Fuse Protection(保险丝保护) ...................................................................................... 11 9. International Standards(国际标准) ......................................................................... 11 9.1 Safety(安规) ............................................................................................................ 11 9.2 HI-POT And Insulation Resistance(耐压性能和绝缘阻抗) .......................... 11 10. Configuration & General Precautions(使用注意事项) ........................................ 12 11. Mount precautions（组装注意事项） ........................................................................ 13 Appendix: Another Structure ................................................................................................... 14 Revision History VERSION DATE BOARD ID PAGE DESCRIPTION AUTHOR A0 2012.12.20 TP.VST59.P86 C12501 All First issued. Lily 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 1. General Description(概述) TP.VST59. P86 is an integration board of power supply, LED driver and TV board. TP.VST59. P86 是一款电源、恒流驱动、TV 一体的电视板。 TP.VST59. P86 is an analog TV control board, which is suitable for Asia-Pacific and middle-East market. 该款方案的电视控制主板是模拟的，适用于亚太及中东市场。 TP.VST59. P86’s USB slot can be used for updating software and playing multimedia, such as MP3 and JPEG. 该款方案的 USB 接口可用于软件升级和多媒体播放。 TP.VST59.P86’s power part is an energy-efficient ultrathin DC-line switching power supply unit, with max 75W/115VAC input, 65 watts multi-output. It fits to 26〞to 32〞LED backlight TFT panel. 该款方案的电源部分是高效率开关电源，功率最大输入为 75W/115VAC，总输出功率为 65W，支持 26 到 32 寸 LED 背光的 TFT 屏。 TP.VST59. P86 可支持六款主芯片：TSUMV29LU, TSUMV29LE, TSUMV39LU, TSUMV39LE, TSUMV59XU, TSUMV59XE, 区别如下表。 本规格书仅适用于主芯片为：TSUMV59XU/TSUMV59XE. 2. Function Layout(产品外观图) Pictures are for reference only, specific to prevail in kind. 图片仅供参考，请以实物为准。 FRONT VIEW OF TP.VST59.P86(前视图) SIDE VIEW OF TP.VST59.P86(侧视图) Note: This product meet GB8898-2011 requirement of the insulation resistance between tuner and PGND .Please don’t connect RF with IO sheet or the GND of the main board when fix up complete TV set. 主芯片 TSUMV29LU TSUMV29LE TSUMV39LU TSUMV39LE TSUMV59XU TSUMV59XE 图文及丽音 不支持 支持 不支持 支持 不支持 支持 USB 功能 软件升级 软件升级，播放图片和 MP3 软件升级，播放多媒体 注意: TSUMV29LU/LE、TSUMV39LU/LE 和 TSUMV59XU/XE 的芯片是 Pin to Pin 的。 HDMI1 In HDMI2 In HDMI3 In PC-RGB In CVBS Out R L PC Audio In CVBS Out RF In Y Pb/Cb Pr/Cr CVBS In R L USB Slot In Earphone Out Component In CVBS & Component Audio In 1／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 3. Features(特性说明) CHIPSET(主芯片) TSUMV59XU-Z1(without TELETEXT and NICAM) TSUMV59XE-Z1 (with TELETEXT and NICAM) MARKET AREA(销售区域) Asia-Pacific, Middle-East OSD LANGUAGE(OSD 语言) Chinese, English PANEL(面板) Panel Type(面 板类型) TFT LCD With LED Backlight Interface(接口) Dual/Single LVDS Interface Resolution(最 高分辨率) 1920×1080 VIDEO INPUT(视频输入) TV Receiving Range (接收范围) 48.25MHz ~ 863.25MHz Input impedance (输入抗阻) 75Ω Video System (视频制式) PAL, SECAM Sound System (声音制式) BG, DK, I NICAM/A2 (Only for TSUMV59XE-Z1) TELETEXT (Only for TSUMV59XE-Z1) 1000Pages Max Storage Channels 199CH PC-RGB Format(格式) Up to 1920×1080@60Hz CVBS Video System (视频制式) PAL/NTSC/SECAM Video level (视频信号幅度) 1.0 VP-P±5% Component 480i, 480p, 576i, 576p, 720p, 1080i, 1080p HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p AUDIO INPUT(音频输入) PC Audio Earphone Input 0.2 ~ 2.0 VRMS CVBS Audio L/R RCA Input 0.2 ~ 2.0 VRMS Component Audio VIDEO OUTPUT(视频输出) CVBS Video System PAL/NTSC/SECAM Video level 1.0 VP-P±5% AUDIO OUTPUT(音频输出) CVBS Audio L/R RCA Input 0.2 ~ 2.0 VRMS Frequency response (频率响应) 100Hz-15KHz @±3dB (1KHz 0dB reference signal, 参 考信号频率为 0dB, 1KHZ) Max Output power 2×8W(8Ω) THD+N<10%@1KHz (Audio Input: 0.5VRMS, 音频输入：0.5VRMS) 2／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 (最大输出功率) POWER (电源) AC Input Requirement (额定) 100~240V To Panel 12V Management (电源管理) Standby Power Consumption < 0.5W(Board Only) 待机功耗< 0.5W COMB FILTER (梳状滤波功能) 3D DEINTERLACE (解交织功能) 3D KEY FUNCTION (按键功能) TV/AV, MENU, VOL+, VOL-, CH+, CH-, POWER 信号源，菜单，音量+，音量-，频道+，频道-，电源 EXPANSIBLE FUNCTIONS (扩展功能) DVD Note: Licenses involved in specifications above are supposed to be obtained by customers themselves. 注意：以上规格涉及 License 部分需要客户自己获取。 3／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 USB MULTIMEDIA PLAYBACK FORMAT (USB 多媒体播放支持格式列表) Media (媒体) File Ext. (扩展名) Codec(编码解码器) Remark(备注) Video(视频) Audio(音频) Movie .avi MJPEG MP3, WMA, AAC, MP2, PCM, AC3 Max Resolution And Frame Rate: 640×480@30fps Max Data Rate: 10 Mbps Xvid, MPEG-2, MPEG-4, DivX， H.264 Max Resolution And Frame Rate: 1920×1080@30fps Max Data Rate: 20 Mbps .mp4 MPEG-2, MPEG-4, DivX, H.264 .ts/ .trp MPEG-2, H.264 .mkv/ .mov MPEG-4, H.264 .mpg MPEG-1, MPEG-2 .dat MPEG-1 MP2 Max Resolution:352×288 Max Data Rate: 20 Mbps .vob MPEG-2 Max Resolution:720×576 Max Data Rate: 20 Mbps .rm/ .rmvb RV8, RV9, RV10 COOK Max Resolution And Frame Rate: 1280×720@30fps Max Data Rate:10 Mbps Music .mp3 -- MP3 Sample Rate: 32K~48KHz Bit Rate: 32K~320Kbps Channel: Mono/Stereo .wma -- WMA Sample Rate: 8K~48KHz Bit Rate: 128K~320Kbps Channel: Mono/Stereo .m4a/ .aac -- AAC Sample Rate: 8K~48KHz Bit Rate: 128K~442Kbps Channel: Mono/Stereo Photo .jpg/ .jpeg Progressive JPEG Max Resolution: 1024×768 Baseline JPEG Max Resolution: 15360×8640 .bmp -- Max Resolution: 9600×6400 .png Non-Interlaced Max Resolution: 9600×6400 Interlaced Max Resolution: 1200×800 Text .txt ANSI/UNICODE GB/UTF8 File Size：Max 1MB File system: Hi Speed FS, FAT32, FAT16, NTFS(NTFS compressed file is not supported). Note: 1.Licenses involved in specifications above are supposed to be obtained by customers themselves. 2.MP4 cannot support GMC. 4／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59. P86(亚太)-SPECIFICATION QR-ZZPJ-017 RF IN YPbPr-Pb IN YPbPr-Y IN PC AUDIO IN YPbPr-Pr IN CVBS IN VGA IN EARPHONE OUT HDMI1 HDMI2 USB IN CVBS/YPBPR RIN CVBS/YPBPR LIN HDMI3 14 15 11 3 4 6 5 2 7 9 8 10 12 13 1 NO. Description Ver. V1.1 开模请以红色孔位为准 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 CVBS OUT CVBS ROUT CVBS LOUT 16 17 4. Mechanical Dimension(结构尺寸图) The size of TP.VST59.P86 is 188mm(L)*162mm(W)*18mm(H). AV OUT 5／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59. P86(亚太)-SPECIFICATION QR-ZZPJ-017 5. Schematics Of IR Board & Key Board (IR & Key 原理图) Note: The dividing resistor which is corresponding to the power key must be zero(equivalent to the voltage is zero). Otherwise, the board will not work.K6 is default power. 6. Interface Definition(接口定义) The optional connectors and terminals are marked with “*”.标“*”的为可选。 ◆ CN7(14PIN/2.0): IR & KEY BOARD CONNECTOR (遥控和按键控制接口) NO. SYMBOL DESCRIPTION 1 5V +5V DC Power Supply For IR 2 RED Red Indicator 3 GRN Green Indicator 4 IR IR Receiver 5 GND Ground 6 K0 Key0 7 K1 Key1 8 K2 Key2 9 K3 Key3 10 K4 Key4 11 K5 Key5 12 K6 Key6 CN7 6／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 13 K7 Key7 14 GND Ground ◆ CNB3(4PIN/2.0): 12V POWER SUPPLY CONNECTOR (用于升级) NO. SYMBOL DESCRIPTION 1 12V +12V Power Supply 2 12V 3 GND Ground 4 GND ◆ CNA1(4PIN/2.54): SPEAKER CONNECTOR (喇叭输出接口) NO. SYMBOL DESCRIPTION 1 LOUT+ Audio Left Channel Output+ 2 LOUT- Audio Left Channel Output- 3 ROUT- Audio Right Channel Output- 4 ROUT+ Audio Right Channel Output+ ◆ CN12(2×15PIN/2.0): LVDS INTERFACE CONNECTOR（LVDS 接口） NO. SYMBOL DESCRIPTION 1 VSEL Power Supply for Panel 2 VSEL 3 VSEL 4 GND Ground 5 GND 6 GND 7 TXO0- LVDS ODD 0- Signal 8 TXO0+ LVDS ODD 0+ Signal 9 TXO1- LVDS ODD 1- Signal 10 TXO1+ LVDS ODD 1+ Signal 11 TXO2- LVDS ODD 2- Signal 12 TXO2+ LVDS ODD 2+ Signal 13 GND Ground 14 GND 15 TXOC- LVDS ODD Clock- Signal 16 TXOC+ LVDS ODD Clock+ Signal 17 TXO3- LVDS ODD 3- Signal 18 TXO3+ LVDS ODD 3+ Signal 19 TXE0- LVDS EVEN 0- Signal 20 TXE0+ LVDS EVEN 0+ Signal 21 TXE1- LVDS EVEN 1- Signal 22 TXE1+ LVDS EVEN 1+ Signal 23 TXE2- LVDS EVEN 2- Signal 24 TXE2+ LVDS EVEN 2+ Signal 7／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 NO. SYMBOL DESCRIPTION 25 GND Ground 26 GND 27 TXEC- LVDS EVEN Clock- Signal 28 TXEC+ LVDS EVEN Clock+ Signal 29 TXE3- LVDS EVEN 3- Signal 30 TXE3+ LVDS EVEN 3+ Signal ◆ *CNB2(6PIN/2.0): INVERTER CONNECTOR（INVERTER 接口） NO. SYMBOL DESCRIPTION 1 V+ Power Supply 2 V+ 3 BLO Back-Light ON/OFF Control for Panel 4 ADJ Brightness Adjustment for Panel 5 GND Ground 6 GND ◆ *CN4(8PIN/2.0): DVD POWER SUPPLY & CONTROL CONNECTOR NO. SYMBOL DESCRIPTION 1 D5V +5V DC Power Supply for DVD 2 D5V 3 GND Ground 4 GND 5 D12 +12V DC Power Supply for DVD 6 DIR IR Data Transfer to DVD 7 NC No Connection 8 NC ◆ *CN11(11PIN/2.0): DVD SIGNAL INPUT CONNECTOR NO. SYMBOL DESCRIPTION 1 NC No Connection 2 GND Ground 3 DRI DVD Audio Right Channel Input 4 GND Ground 5 DLI DVD Audio Left Channel Input 6 DPB DVD Component-Pb Input 7 GND Ground 8 DPR DVD Component-Pr Input 9 GND Ground 10 DY DVD Component-Y Input 11 GND Ground 8／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 7. Electrical Characteristics(电气特性) 7.1 Input Electrical Specifications(输入特性) Input Minimum Nominal Rating Maximum Unit Voltage 90 115/230 100~240 264 Vac Current —— —— —— 1.5 A Frequency 47 60/50 —— 63 Hz Efficiency ≥80%min(Full load with input AC voltage of 115Vac @ 60Hz and 230Vac @ 50Hz) Standby Power Consumption ≦0.5W At 240Vac input and no load condition Inrush current (cold start) 70 Amperes @ 230Vac / 50Hz input Leakage Current Less Than 0.35mA, 240Vac input Input Fuse T3.15AH/250Vac 7.2 LED Driver Power Output Connector (LED 背光供电控制接口) CNB807-12PIN-2.0 NO. Signal Name Voltage (Volts) Current (mA) Max Nom Min Max Nom Min 1,12 LED+ / / 3 LED1- 36 32 28 0.3 0.28 0.26 5 LED2- 36 32 28 0.3 0.28 0.26 8 LED3- / 32 28 / 0.28 0.26 10 LED4- 36 32 28 0.3 0.28 0.26 2,4,6,7,9,11 NC / / CNB804-12PIN-2.0 NO. Signal Name Voltage (Volts) Current (mA) Max Nom Min Max Nom Min 4,5,9,10,11,12 LED+ / / 1 LED1- 2 LED2- 3 LED3- 6 LED4- 7 LED5- 8 LED6- 9／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 CNB801,CN802-3PIN-2.0 NO. Signal Name Voltage (Volts) Current (mA) Max Nom Min Max Nom Min 2 LED+ / / 1 LED1- 3 LED2- CNB806-2PIN-2.0 NO. Signal Name Voltage (Volts) Current (mA) Max Nom Min Max Nom Min 2 LED+ / / 1 LED- CNB803-2PIN-2.0 NO. Signal Name Voltage (Volts) Current (mA) Max Nom Min Max Nom Min 2 LED+ / / 1 LED- 3 NC CNB811/CN812/CN813-2PIN-2.0 NO. Signal Name Voltage (Volts) Current (mA) Max Nom Min Max Nom Min 2 LED+ / / 1 LED- CNB808 -8PIN-2.0 NO. Signal Name Voltage (Volts) Current (mA) Max Nom Min Max Nom Min 2,4,6,8 LED+ / / 1 LED1- 3 LED2- 5 LED3- 7 LED4- CONB11,CONB12-6PIN-0.5 FFC 座 NO. Signal Name Voltage (Volts) Current (mA) Max Nom Min Max Nom Min 3,4 LED+ / / 1,2,5,6 LED- 10／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 备注：TP.VST59.P86 恒流部分功率在 35W 以下，最多可以支持 6 路输出，每路电流最大为 280mA。 Note: With Power of constant current part less than35W, TP.VST59.P86B up to support 6 channel output, and current of each channel is up to 280mA. Output Protection Specification（输出保护） Signal Name LED Short Protection LED Open Protection Specification Specification LED output Auto restart Shut down or auto restart 8. Fuse Protection(保险丝保护) The Fuse inside the power supply shall open when the AC input current is over the rated current of fuse. This Fuse protection will cause switching power supply to fail. 当输入交流电流超过保险丝的额定工作电流时，电源保险丝将断开，关闭电源供应以 保护电源模块。 9. International Standards(国际标准) 9.1 Safety(安规) Conforming： UL60950/UL60065; EN60950-1/EN60065; GB4943-2011/ GB8898-2011; IEC 60950/IEC 60065. 9.2 HI-POT And Insulation Resistance(耐压性能和绝缘阻抗) HI-POT(耐压性能) Primary to secondary（一次侧对二次侧）：3000VAC, 10mA for 60s. Insulation resistance(绝缘阻抗) between primary and secondary（一次侧与二次侧之间）：500VDC/60s, ≥50MΩ. 11／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 10. Configuration & General Precautions(使用注意事 项)  Relative humidity: ≤ 80%.  相对湿度： ≤ 80%。  Storage temperature: -10~60°C.  存储温度： -10~60°C。  Operation temperature: 0~40°C.  使用温度：0~40°C。  Protect the board from static electricity in case of damage to the IC.  请使板卡远离静电。  Keep the board away from conductor when it is working.  请确保板卡工作时远离导体。  Don’t push or pull the connectors when the board is working.  板卡工作时请勿按压和扭曲。  Don’t press, distort or disassemble the board.  请勿拆解板卡。  Clean the board with soft dry cloth when it’s dirty.  如果板卡脏了，请用干布擦拭。  Don’t wire in the board to power supply before panel is correctly connected.  正确接好驱屏线前请勿接通电源。 12／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59.P86(亚太)-SPECIFICATION QR-ZZPJ-017 11. Mount precautions（组装注意事项） Note1: The H should be greater than or equal 8mm, otherwise you must add the mylar under PCB bottom. H 的高度必须大于等于 8mm,如果小于 8mm,则必须在 PCB 底层加麦拉片绝缘. Note2: The D should be less than8mm .Mount the power supply unit to the screw fixing column using M3 screw. The maximum value of the tightening torque is 0.4N-M. D 的直径须小于 8mm，将电源锁在螺丝柱上需使用 M3 的螺丝。最大扭力为 0.4N-M。 Note3: The Power supply unit is usually designed without the case. Please take care about ESD at anytime. 因为本产品为无外壳之设计, 故在任何时候均应注意静电防护。 13／14 广 州 视 源 电 子 科 技 股 份 有 限 公 司 Guangzhou Shiyuan Electronics Co.,Ltd. TP.VST59. P86(亚太)-SPECIFICATION QR-ZZPJ-017 RF IN YPbPr-Pb IN YPbPr-Y IN PC AUDIO IN YPbPr-Pr IN CVBS2 IN VGA IN EARPHONE OUT HDMI1 HDMI2 USB IN CVBS2/YPBPR RIN CVBS2/YPBPR LIN HDMI3 14 15 11 3 4 6 5 2 7 9 8 10 12 13 1 NO. Description Ver. V1.1 开模请以红色孔位为准 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 CVBS1 IN CVBS1 RIN CVBS1 LIN 16 17 Appendix: Another Structure 2AV IN 14／14
