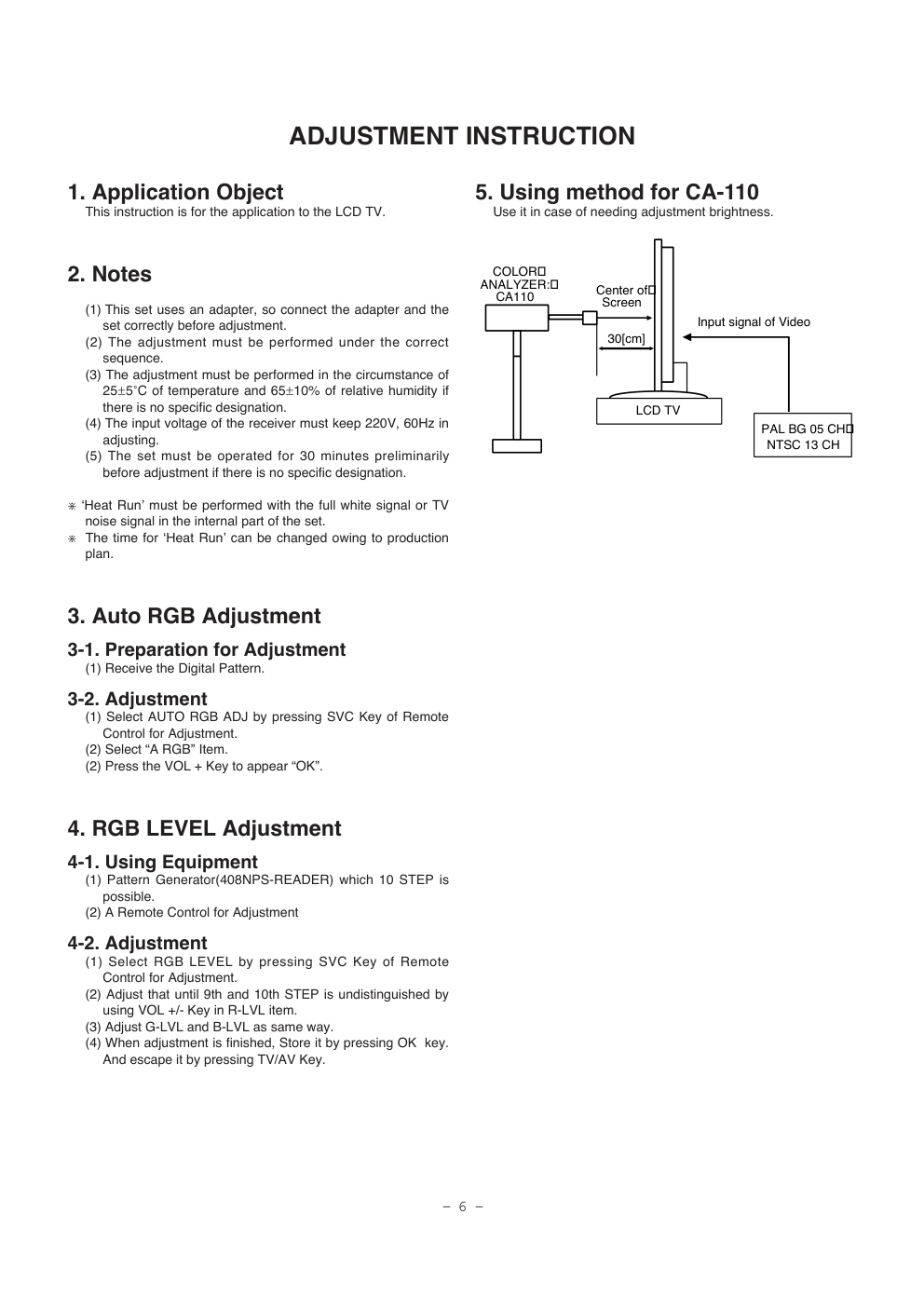

- 6 - 1. Application Object This instruction is for the application to the LCD TV. 2. Notes (1) This set uses an adapter, so connect the adapter and the set correctly before adjustment. (2) The adjustment must be performed under the correct sequence. (3) The adjustment must be performed in the circumstance of 25!5cC of temperature and 65!10% of relative humidity if there is no specific designation. (4) The input voltage of the receiver must keep 220V, 60Hz in adjusting. (5) The set must be operated for 30 minutes preliminarily before adjustment if there is no specific designation. [ ÔHeat RunÕ must be performed with the full white signal or TV noise signal in the internal part of the set. [ The time for ÔHeat RunÕ can be changed owing to production plan. 3. Auto RGB Adjustment 3-1. Preparation for Adjustment (1) Receive the Digital Pattern. 3-2. Adjustment (1) Select AUTO RGB ADJ by pressing SVC Key of Remote Control for Adjustment. (2) Select ÒA RGBÓ Item. (2) Press the VOL + Key to appear ÒOKÓ. 4. RGB LEVEL Adjustment 4-1. Using Equipment (1) Pattern Generator(408NPS-READER) which 10 STEP is possible. (2) A Remote Control for Adjustment 4-2. Adjustment (1) Select RGB LEVEL by pressing SVC Key of Remote Control for Adjustment. (2) Adjust that until 9th and 10th STEP is undistinguished by using VOL +/- Key in R-LVL item. (3) Adjust G-LVL and B-LVL as same way. (4) When adjustment is finished, Store it by pressing OK key. And escape it by pressing TV/AV Key. 5. Using method for CA-110 Use it in case of needing adjustment brightness. ADJUSTMENT INSTRUCTION COLOR� ANALYZER:� CA110 30[cm] LCD TV Center of� Screen Input signal of Video PAL BG 05 CH� NTSC 13 CH Troubleshooting - 7 - 4 No sound Defective Reset IC of IC902 1) Check volume and speaker - Speaker Defective MSP3410D of IC901 - Sound comes out only when being inputted into Audio - Earphone Defective B+(8V,5V) of IC903,904. L/R 2) Check after replacing IC902 3) Replace IC901 4) Check and replace B+ of IC903,904. 5 Video color beat noise Soldering IC201 and IC502,IC501 Check and resoldering. or masking it short. 6 Video Jitter P501B Pin20 connector defective. Check the P501B Pin20 connector and repair. 1 No screen Input error of inverter connector 1) Bend the pin legs of P802B connector -> recheck them 2) Check and repair the IC806,807 SI4925,IC801 SI786,IC803 SI4808. P502 and Pin 21 connector 1) Check and fix P503B connector being slipped out 2) Check and fix the components at P502 LCD module and at main board. 3) Check Pin50. Cracked components and 1) Check and repair tuner board and main board soldering at tuner board 2) Solder Q101. 2 Dark screen 1) Defective LCD lamp 1) Replace the inverter 2) Defective inverter 2) Replace the LCD lamp 3) Input error of inverter connector 3) Check the connector input. 3 Broken OSD display Defective the font rom of IC501 Check and replace the font rom of IC508 1. General Features No. Symptom Cause Check Point Check Point 2. TV and external input No. Symptom Cause - 8 - EXPLODED VIEW 112 A3 A4 530 570 520 121 120 530 310 401 410 http://www.wjel.net - 9 - 112 6304VT2011A LCD,LC201V1-A1 20.1Ó LGPHILIPS-LCD 120 6400VA0030B SPEAKER,FULLRANGE C080L30K145X ESTEC 4OHM 3W/4W 121 6400VG0005A SPEAKER,TWEETER C050D10K1452 ESTEC 4 OHM 10/15 300 3091V00A13B CABINET ASSEMBL 310 5020V00568A BUTTON,KEY 320 320-070E SPRING,COIL 330 5020V00569A BUTTON,POWER 400 3809V00276B BACK COVER ASSEMBLY 401 3550V00193A COVER,A/V 410 4811V00018A BRACKET ASSEMBLY,STAND 520 6871VMMA78A PCB ASSEMBLY,MAIN MF002A 530 6871VSMA93A PCB ASSEMBLY,SUB MF-002A MX 540 6871VSMA57A PCB ASSEMBLY,SUB MF-002A CONT 570 6633VA0003D INVERTER ASSEMBLY,15VOLT KUBNKM022AVOLT 850VOLT 580 6871VSMB03A PCB ASSEMBLY,SUB MF002A TUNER EXPLODED VIEW PARTS LIST No. PART NO. DESCRIPTION http://www.wjel.net REPLACEMENT PARTS LIST LOCA. NO PART NO DESCRIPTION Q205 Q206 Q207 Q208 Q209 Q210 Q211 Q212 Q213 Q214 Q215 Q216 Q301 Q302 Q303 Q304 Q305 Q306 Q401 Q402 Q403 Q404 Q460 Q501 Q801 Q901 Q902 Q903 Q1001 D1 D801 D802 D804 D806 D807 D901 D902 LD1001 ZD101 C2 C3 C5 C7 C10 C11 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA 0TR387500AA 0TR387500AA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR150400BA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR150400BA 0TR150400BA 0TR150400BA 0TR126609AA 0DD181009AB 0DL112100AB 0DL112100AA 0DD100009AM 0DD181009AB 0DD181009AB 0DD181009AB 0DD181009AB 162-002B 0DZ330009BA 0CQ6821N509 0CQ6831N509 0CE107BF618 0CE107DF618 0CQ3321N509 0CQ6831N509 CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC CHIP 2SA1504S(ASY) KEC KTA1266-TP-Y (KTA1015) KEC KDS181 TP KEC - 85V - - - 300M LED,SM3411(DL-11S2GN1) BK Y-GREEN LED,SR3411(DL-11S2RN1) BK RED - EU1ZV(1) TP SANKEN KDS181 TP KEC - 85V - - - 300M KDS181 TP KEC - 85V - - - 300M KDS181 TP KEC - 85V - - - 300M KDS181 TP KEC - 85V - - - 300M LED ASSY (MC51A,M-8.9) ZENER,HZT33(TP) HITACHI 0.0068U 100V K 0.068U 100V K 100UF KME 16V M 100UF STD 16V M 0.0033U 100V K 0.068U 100V K LOCA. NO PART NO DESCRIPTION IC1 IC2 IC3 IC4 IC10 IC201 IC301 IC302 IC401 IC402 IC501 IC502 IC505 IC507 IC508 IC509 IC801 IC809 IC850 IC851 IC852 IC853 IC854 IC901 IC902 IC903 IC904 IC905 L1 L2 IC506 IC802 IC803 IC806 IC807 IC808 Q1 Q3 Q50 Q90 Q101 Q103 Q201 Q202 Q203 0IZZVC0034A 0IAL241610B 0ICTMZI001A 0IFA752700A 0ISA721700C 0IIT323000D 0IHY100100A 0ISM941000A 0ISO210100B 0ISH092100B 0ITI808300B 0IMR882840B 0ISS416162B 0IKE702700D 0ICTMMO003A 0IKE703300E 0ITC786000A 0IKE781200P 0ISH092100B 0ISH323422A 0IKE780500P 0ISH052100C 0ISH122100B 0IMCRMN002A 0IKE703300E 0IKE780800J 0IKE780500Q 0ISA428200A 0IFA270000A 0IFA270000A 0TF492509AA 0TFVI80001A 0TFVI80001A 0TF492509AA 0TF492509AA 0TF492509AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA 0TR387500AA SDA555X 52PIN ST MICOM RN-20LA AT24C16-10PC-2.7 8PIN DIP ST E Z8622912SSC ZILOG 18PIN-SOIC R KA75270Z 3 TP RE-SET IC MC-007 LA7217M MFP14 TP SYNC SEPARATO VPC3230D QA B4 80P QFP TRAY SO LGTV1001 64P QFP BK PROGRESSIV SDA9410 100QFP BK SCAN CONVERT CXA2101AQ 80P,QFP BK VIDEO SIG PQ09RD21 4SIP ST REGULATOR THS8083 100QFP BK ADC IC PD-40 MX88L284-V 208QFP BK SCALE MF0 K4S161622D-TC80 50 TSOP BK SDR KIA7027AF 3, SOT-89 TP RESET I SC786107DWR2 MOTOROLA 16 SOP R KIA7033AF 3P SOT-89 ST BIPOLAR SI786 28SSOP TP DUAL-OUTPUT PO KIA7812API TO220 ST 3P 12V REG PQ09RD21 4SIP ST REGULATOR PQ3RF23 4P(TO-220) 3.3V REGUL KIA78L05BP(AT) 3P 5V,150MA PQ05RD21 4SIP ST REGULATOR PQ12RD21 4SIP ST REGULATOR MSP3400G QA B6 MICRONAS 80 QFP KIA7033AF 3P SOT-89 ST BIPOLAR KIA7808API 3 ST REGULATOR . KIA7805API 3P TO-220 ST REGULA LA4282 12S 2CHX10W AUDIO AMP 2N7000TA TO-92, 3P TP LEVEL SH 2N7000TA TO-92, 3P TP LEVEL SH FET,SI4925DY TP TEMIC 30V 6.1A SO FETS,VISHAY SI4808DY R/TP SO-8 30V FETS,VISHAY SI4808DY R/TP SO-8 30V FET,SI4925DY TP TEMIC 30V 6.1A SO FET,SI4925DY TP TEMIC 30V 6.1A SO FET,SI4925DY TP TEMIC 30V 6.1A SO CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC IC DIODE - 10 - TRANSISTOR For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible CAPACITOR RUN DATE : 2002.1.28 http://www.wjel.net - 11 - LOCA. NO PART NO DESCRIPTION C12 C16 C24 C25 C92 C94 C95 C101 C102 C104 C107 C112 C205 C209 C210 C231 C232 C238 C240 C241 C242 C244 C248 C249 C250 C251 C253 C254 C255 C256 C257 C262 C263 C273 C274 C312 C313 C314 C315 C320 C321 C343 C349 C359 C402 C408 C417 C418 C419 C422 C423 C431 0CE227DD618 0CQ1041N509 0CE106DF618 0CE106DF618 0CE105DK618 0CE476DF618 0CE105CK636 0CE476DH618 0CQ1031N509 0CE108DD618 0CE106DK618 0CE475DK618 0CE107DF618 0CE106DF618 0CE106DF618 0CE476DF618 0CE107DF618 0CE476DF618 0CK224DF56A 0CK224DF56A 0CE226DF618 0CE107DF618 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CE105DK618 0CK224DF56A 0CE105DK618 0CK224DF56A 0CE4741K636 0CE224DK618 0CE4741K636 0CE4741K636 0CE107DF618 0CE107DF618 0CE107DF618 0CE107DF618 0CE107DF618 0CE107DF618 0CE476DF618 0CE106DF618 0CE107DF618 0CE476DF618 181-007H 0CE476DF618 0CE106DF618 0CE105BK618 181-007H 0CE106DF618 0CE476BK618 220UF STD 10V M 0.1U 100V K 10UF STD 16V M 10UF STD 16V M 1UF STD 50V M 47UF STD 16V M 1UF SHL,SD 50V M 47UF STD 25V 20% 0.01U 100V K 1000UF STD 10V M 10UF STD 50V M 4.7UF STD 50V 20% 100UF STD 16V M 10UF STD 16V M 10UF STD 16V M 47UF STD 16V M 100UF STD 16V M 47UF STD 16V M 220000PF 2012 16V 10% 220000PF 2012 16V 10% 22UF STD 16V M 100UF STD 16V M 220000PF 2012 16V 10% 220000PF 2012 16V 10% 220000PF 2012 16V 10% 220000PF 2012 16V 10% 220000PF 2012 16V 10% 1UF STD 50V M 220000PF 2012 16V 10% 1UF STD 50V M 220000PF 2012 16V 10% 0.47UF SM,SA 50V 20% 0.22UF STD 50V M 0.47UF SM,SA 50V 20% 0.47UF SM,SA 50V 20% 100UF STD 16V M 100UF STD 16V M 100UF STD 16V M 100UF STD 16V M 100UF STD 16V M 100UF STD 16V M 47UF STD 16V M 10UF STD 16V M 100UF STD 16V M 47UF STD 16V M MPE ECQ-V1H474JL3(TR), 50V 0.4 47UF STD 16V M 10UF STD 16V M 1UF KME 50V M MPE ECQ-V1H474JL3(TR), 50V 0.4 10UF STD 16V M 47UF KME 50V M LOCA. NO PART NO DESCRIPTION C435 C439 C604 C606 C607 C627 C631 C640 C641 C801 C802 C803 C804 C805 C806 C807 C812 C814 C816 C819 C820 C826 C827 C828 C871 C872 C880 C881 C882 C904 C908 C909 C910 C914 C916 C922 C926 C927 C928 C930 C932 C933 C935 C936 C937 C938 C940 C943 C944 C945 C951 C954 0CE107BF618 0CE477BF618 0CE107SF6DC 0CE107SF6DC 0CE106SH6DC 0CE107SF6DC 0CE107SF6DC 0CE227SC6DC 0CE227SC6DC 0CE476DK618 0CE107DF618 0CE477BF618 0CE477BF618 0CE477BF618 0CE477BF618 0CE227BH618 0CE227BH618 0CE475DK618 0CE107DH618 0CE106DF618 0CE227DH618 0CE337DH618 0CE477BF618 0CE477BF618 0CE477DF618 0CE337DH618 0CE477BF618 0CE107DF618 0CE227DH618 0CE476BK618 0CE107BF618 0CE225BK618 0CQ1031N509 0CE107BH618 0CE107DF618 0CE106DF618 0CE107DF618 0CE107BF618 0CE225BK618 0CE107BF618 0CK224DF56A 0CK224DF56A 0CE106DF618 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CK224DF56A 0CE335DK618 0CE106DF618 0CE477DF618 0CQ1031N509 0CE477DH618 100UF KME 16V M 470UF KME 16V M 100UF MVG 16V M 100UF MVG 16V M 10UF MVG 25V M 100UF MVG 16V M 100UF MVG 16V M 220UF MVG 6.3V M 220UF MVG 6.3V M 47UF STD 50V M 100UF STD 16V M 470UF KME 16V M 470UF KME 16V M 470UF KME 16V M 470UF KME 16V M 220UF KME 25V M 220UF KME 25V M 4.7UF STD 50V 20% 100UF STD 25V M 10UF STD 16V M 220UF STD 25V M 330UF STD 25V M 470UF KME 16V M 470UF KME 16V M 470UF STD 16V 20% 330UF STD 25V M 470UF KME 16V M 100UF STD 16V M 220UF STD 25V M 47UF KME 50V M 100UF KME 16V M 2.2UF KME TYPE 50V 20% 0.01U 100V K 100UF KME 25V M 100UF STD 16V M 10UF STD 16V M 100UF STD 16V M 100UF KME 16V M 2.2UF KME TYPE 50V 20% 100UF KME 16V M 220000PF 2012 16V 10% 220000PF 2012 16V 10% 10UF STD 16V M 220000PF 2012 16V 10% 220000PF 2012 16V 10% 220000PF 2012 16V 10% 220000PF 2012 16V 10% 3.3UF STD 50V 20% 10UF STD 16V M 470UF STD 16V 20% 0.01U 100V K 470UF STD 25V M For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible http://www.wjel.net - 12 - LOCA. NO PART NO DESCRIPTION C955 C959 C960 C1001 C1002 DJ201 EJ201 F801 F802 MJ201 PJ801 SJ201 L103 L214 L215 L216 L217 L218 L801 L802 L804 L1001 T801 R250 R253 R321 R322 R803 R804 R880 R932 R1001 R1003 R1004 R1006 R1007 R1008 R1009 R1010 R1011 RA501 RA502 RA503 RA504 RA505 RA506 0CE476BK618 0CE477DH618 0CE477DH618 0CE107DD618 0CK1030K945 380-362K 6613V00008F 0FS6300B84B 0FT2001A86B 6613V00004P 6612VAH001C 6612VJH008D 0LA0272K139 0LA0331K119 0LA0331K119 0LA0331K119 0LA0331K119 0LA0331K119 6140VB0004B 6140VB0004B 6140VB0004A 0LA0222K119 6170VTCA30A 0RD1200H609 0RD1200H609 0RN2202F409 0RN5602F409 0RHZVTA001A 0RHZVTA001A 0RHZVTA001A 0RF0561K607 0RD4701F609 0RD1201F609 0RD3300F609 0RD4701F609 0RD4701F609 0RD4701F609 0RD4701F609 0RD4701F609 0RD4701F609 0RRZVTA001A 0RRZVTA001A 0RRZVTA001A 0RRZVTA001A 0RRZVTA001A 0RRZVTA001A 47UF KME 50V M 470UF STD 25V M 470UF STD 25V M 100UF STD 10V M 0.01UF 50V Z JACK,RCA PJ 6035K 2P(S/HOLE3.4 JACK ASSY,PMJ014F E/P(ST)+S-VH FUSE,SLOW BLOW 630MA 250V FUSE,TIME LAG 2000MA 125V JACK ASSY,PJ6054P RCA 3P GOLD JACK,PHONE DC-003 UNITOP 4PIN POWER JACK JACK,RCA PJ6063D DVD IN 3P GN- INDUCTOR,27UH K INDUCTOR,3.3UH K INDUCTOR,3.3UH K INDUCTOR,3.3UH K INDUCTOR,3.3UH K INDUCTOR,3.3UH K COIL,CHOKE 26UH 1UEWPHY 22.5TURN COIL,CHOKE 26UH 1UEWPHY 22.5TURN COIL,CHOKE 9.5UH 1UEWPHY 13.5TURN INDUCTOR,22UH K TRANSFORMER,SMPS[COIL] EPC 13-Z 320UH DC-DC CONV 120 OHM 1/2 W 5.00% 120 OHM 1/2 W 5.00% 22K OHM 1/6 W 1.00% 56K OHM 1/6 W 1.00% 0.025 OHM 1W 2% 2512 R/TP, IRC 0.025 OHM 1W 2% 2512 R/TP, IRC 0.025 OHM 1W 2% 2512 R/TP, IRC 5.6 OHM 2 W 5.00% 4.7K OHM 1/6 W 5.00% 1.2K OHM 1/6 W 5.00% 330 OHM 1/6 W 5.00% 4.7K OHM 1/6 W 5.00% 4.7K OHM 1/6 W 5.00% 4.7K OHM 1/6 W 5.00% 4.7K OHM 1/6 W 5.00% 4.7K OHM 1/6 W 5.00% 4.7K OHM 1/6 W 5.00% MNR-14-E0A-J-101 R OHM 100 OH MNR-14-E0A-J-101 R OHM 100 OH MNR-14-E0A-J-101 R OHM 100 OH MNR-14-E0A-J-101 R OHM 100 OH MNR-14-E0A-J-101 R OHM 100 OH MNR-14-E0A-J-101 R OHM 100 OH LOCA. NO PART NO DESCRIPTION SW1001 SW1002 SW1003 SW1004 SW1005 SW1006 SW1007 SW1008 IC303 IC305 L90 L91 L101 L102 L207 L209 L210 L211 L212 L305 L306 L307 L308 L309 L310 L311 L312 L401 L402 L403 L511 L512 L519 L601 L602 L603 L803 L805 L806 L807 L901 L902 L903 L910 LA801 LA802 LA803 LA804 6600VZ3002B 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 6200VKR001A 6200VKR001A 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001A 6210TCE001A 6210TCE001G 6210TCE001A 6210TCE001A 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001A 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001A 6210TCE001A 6210TCE001E 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210TCE001G 6210VC0004A 6210VC0004A 6210VC0004A 6210VC0004A SWITCH,HOOK SDKLA11100 250V 5A/80A SWITCH,TACT SKHV17910B NON 12V SWITCH,TACT SKHV17910B NON 12V SWITCH,TACT SKHV17910B NON 12V SWITCH,TACT SKHV17910B NON 12V SWITCH,TACT SKHV17910B NON 12V SWITCH,TACT SKHV17910B NON 12V SWITCH,TACT SKHV17910B NON 12V FILTER,B.P. LPF 1EA SMD H354LAI-K5206 FILTER,B.P. LPF 1EA SMD H354LAI-K5206 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HB-1S2012-080JT FILTER,EMC HB-1S2012-080JT FILTER,EMC HH-1M3216-501 FILTER,EMC HB-1S2012-080JT FILTER,EMC HB-1S2012-080JT FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HB-1S2012-080JT FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HB-1S2012-080JT FILTER,EMC HB-1S2012-080JT FILTER,EMC HB-1M2012-800JT FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC HH-1M3216-501 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 SWITCH CRYSTAL & FILTER For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible RESISTOR COIL & TRANSFORMER FUSE & JACK http://www.wjel.net - 13 - LOCA. NO PART NO DESCRIPTION LA805 LA806 LA811 LA812 LA813 LA814 LA815 RA507 SY302 SY525 SY526 SY527 SY532 X1 X90 X301 X302 X501 X601 X901 P1001 P1002 PA1001 TU301 A1 A2 A3 A4 6210VC0004A 6210VC0004A 6210VC0004A 6210VC0004A 6210VC0004A 6210VC0004A 6210VC0004A 6210VC0004A 6200VKR001B 6210VC0004A 6210VC0004A 6210VC0004A 6210VC0004A 156-A01L 166-E02F 156-A02X 6202VDB007B 6202VDT002B 6202VDT002B 156-A02M 6631V20014G 6631V25049J 6726VV0006J 6700VNF019C 3828VA0251N 6710V00072A 6410VUH003A 6634VBW002P FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,B.P.LPF 2EA SMD FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 FILTER,EMC BK3216 4S600 RESONATOR,CRYSTAL HC49U 6.000MHZ 30 FILTER,B.P.CSBLA500KECZF09-B0 RESONATOR,CRYSTAL HC49U 27.000MHZ 2 RESONATOR,CRYSTAL HC49U 20.250MHZ 3 RESONATOR,CRYSTAL SX-1SMD 14.318MHZ RESONATOR,CRYSTAL SX-1SMD 14.318MHZ RESONATOR,CRYSTAL HC49U 18.432MHZ 30P CONNECTOR ASSY,12P 450MM CONNECTOR ASSY,4P 450MM REMOTE CONTROLLER RECEIVER,TSOP2238MQ1 38KHZ TUNER,TAFC-H101P LG PRECISION CO., L MANUAL,OWNERS MF002A PHILIPS EN/FR REMOTE CONTROLLER,LCD 26KEY POWER CORD,PS204-001 VOLEX UL/CSA 1800MM ADAPTER,RF CAM-1550 CHANGNAM 75 OHM PHILI LOCA. NO PART NO DESCRIPTION MISCELLANEOUS For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible ACCESSORIES http://www.wjel.net BLOCK DIAGRAM TUNER TUNER ... . DC Output (12V) PC Input DVD/DTV Input (480I/480P) H/P S-Input VIDEO Input VIDEO Output � DC Input (12V) ANT (RF) Input Y PB PR L R V L R V L R SCART JACK R/G/B/FB L/ Rin TV/L/R out Y/U/V in VIDEO RAM 2M EEP ROM EEP ROM SCALER(Format Converter) MX88L-284FC-V 14.318MHz AD Converter THS8083 Multi-Component Processor(BBVSP) CXA 2101AQ YCrCb : 2 / 4 RGB : 4 / 2 OUT RGB :1, TUV : 1 Audio Processor MSP-34XX RF : 2, SCART : 4 MONO : 1 I2S : 2 ------18.432MHz--- L-SPK/WOOFER H/P, I2S SCART OUT : 2 IC302 SCAN Converter SDA-9410 27.0MHz IC301 H- FILTER (DRP Processor) LGTV-1001 IC201 Color Decoder/ A/D Converter VPC-3230D . COMB/FIL : 4H INPUT . 4 CVBS . 1 S-VHS . 2 RGB/YCrCb . 1 F/B . 1 CVBS OUTPUT . Y/Cr/Cb OUTPUT IC1 MICOM / TXT 6.0MHz Caption Processor POWER DC to DC Converter (SI786,SI4808DY,T801) 30V 5V SCL SDA CVBS SIF IF AGC 5V 3.3V 33V X2 Y/U/V (480P) Y/U/V (480P) 0.5-0.7 Y/U/V 4:2:2 4:2:2 Y/U/V Analog R/G/B/H/V Dual Audio AMP LA4282 SCL/SDA L-SPK R-SPK R/G/B OSD H/V (2H) VIDEO H/V CLK 5V 3.3V 3.3V 9V 3.3V 3.3V 5V(FOR RESET IC 3,3V) 3.3V 3.3V 8.0V 15V 5V 15V H-sync H-Sync. SEP 3.3V 5.0V SCART(R/G/B/FB) YUV IN(VIN4 : H-CHECK)480I A/V2(VIN2 : CVBS) S-VHS(VIN1 : Y/C)) M/O(CVBS) RF(VIN3 : CVBS) SCL1/SDA1 R/G/B 24 RESET 4.2V SCL/SDA SCL/SDA SCL/SDA SCL/SDA SCL/SDA SCL/SDA . 20.25MHz DC to AC INVEERTER BRI-ADJ TO MICOM POWER-ON/OFF TO MICOM 15V 15V CAPTION R/G/B 480I/P ÆÇ´Ü R / G / B 8 /8 /8bit L C 2 0 1 V 1 - A 3 LCD PANNEL PRINTED CIRCUIT BOARD MAIN(TOP) MX(TOP) MX(BOTTOM) TUNER(TOP) TUNER(BOTTOM) MAIN(BOTTOM) CONTROL http://www.wjel.net
