COLOR TV SERVICE MANUAL CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS : MC-049B MODEL: RT-21FB45VQ/VT website:http://biz.LGservice.com e-mail:http://www.LGEservice.com/techsup.html - 2 - CONTENTS Contents...................................................................................................................2 Safety Precautions..............................................................................................3 Control Descriptions..........................................................................................4 Specifications........................................................................................................6 Adjustment Instructions..................................................................................7 Trouble Shooting .................................................................................................11 Printed circuit board.........................................................................................16 Block Diagram......................................................................................................19 Exploded View....................................................................................................20 Exploded View Parts List ..............................................................................21 Replacement Parts List .................................................................................22 SVC. Sheet.................................................................................................................. - 3 - SAFETY PRECAUTIONS Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation. If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified. When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB. Keep wires away from high voltage or high temperature parts. Due to high vacuum and large surface area of picture tube, extreme care should be used in handling the Picture Tube. Do not lift the Picture tube by it's Neck. X-RAY Radiation Warning: To determine the presence of high voltage, use an accurate high impedance HV meter. Adjust brightness, color, contrast controls to minimum. Measure the high voltage. The meter reading should indicate 23.5 ¡ 1.5KV: 14-19 inch, 26 ¡ 1.5KV: 19-21 inch, 29.0 ¡ 1.5KV: 25-29 inch, 30.0 ¡ 1.5KV: 32 inch If the meter indication is out of tolerance, immediate service and correction is required to prevent the possibility of premature component failure. Before returning the receiver to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock. Leakage Current Cold Check(Antenna Cold Check) With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. Do not use a line Isolation Transformer during this check. Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer. Leakage Current Hot Check circuit The source of X-RAY RADIATION in this TV receiver is the High Voltage Section and the Picture Tube. For continued X-RAY RADIATION protection, the replacement tube must be the same type tube as specified in the Replacement Parts List. 1.5 Kohm/10W To Instrument's exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter IMPORTANT SAFETY NOTICE 0.15uF - 4 - DESCRIPTION OF CONTROLS All the functions can be controlled with the remote control handset. Some functions can also be adjusted with the buttons on the front panel of the set. Remote control handset Before you use the remote control handset, please install the bat- teries. See the next page. 1. POWER switches the set on from standby or off to standby. 2. NUMBER BUTTONS switches the set on from standby or directly select a number. 3. MENU (or INDEX) selects a menu. selects an index page in the teletext mode (only TELETEXT models). (option) 4. EYE/* (option) switches the eye function on or off. 5. D / E (Programme Up/Down) selects a programme or a menu item. switches the set on from standby. scans programmes automatically. F / G (Volume Up/Down) adjusts the volume. adjusts menu settings. OK accepts your selection or displays the current mode. 6. Q.VIEW returns to the previously viewed programme. 7. TELETEXT BUTTONS (option) These buttons are used for teletext. For further details, see the ‘Teletext’ section. 8. PSM (Picture Status Memory) recalls your preferred picture setting. 9. FAVOURITE selects a favorite programme. 10. TURBO PICTURE / SOUND BUTTON (option) selects Turbo picture and sound. 11. MUTE switches the sound on or off. 12. TV/AV selects TV or AV mode. switches the set on from standby. OK PR VOL PR VOL PLAY P/STILL STOP REC REW FF I/II/ SSM/ LIST PSM PIP FAVOURITE Q.VIEW SLEEP ? MIX TIME SWAP INPUT REVEAL MODE SIZE STILL POSITION 9/4PIP i M 0 TV/AV MENU PICTURE SOUND 1 2 3 4 5 6 7 8 9 POWER MUTE EYE/ PR PR T U R B O / TEXT/ ( ) ( ) 1 2 10 5 18 13 15 11 12 3 14 6 4 16 9 8 19 7 - 5 - 13. I/II/* (option) selects the language during dual language broadcast. (option) selects the sound output. 14. LIST displays the programme table. 15. SLEEP sets the sleep timer. 16. SSM/* (option) (Sound Status Memory) recalls your preferred sound setting. 17. SURROUND (º/*) (option) selects surround sound. 18. VCR BUTTONS control a LG video cassette recorder. 19. PIP BUTTONS (option) PIP switches the sub picture on or off. PR +/- selects a programme for the sub picture. SWAP alternates between main and sub picture. INPUT selects the input mode for the sub picture. SIZE adjusts the sub picture size. STILL freezes motion of the sub picture. POSITION relocates the sub picture in clockwise direction. 9/4 PIP switches on or off the 9 or 4 sub pictures. * : No function COLOURED BUTTONS : These buttons are used for teletext (only TELETEXT models) or programme edit. (Without TELETEXT / PIP) POWER MUTE 1 2 3 4 5 6 7 8 9 MENU/INDEX TV/AV 0 EYE/ Q.VIEW LIST I / II / ( ) PR ( ) PR OK VOL VOL PSM SSM/ SLEEP PICTURE SOUND / TURBO/ FAVOURITE TV 1 2 3 4 5 6 8 10 11 12 13 14 15 17 16 9 TEXT/MIX/ SIZE/ HOLD/ Q.VIEW LIST UPDATE/ PSM SSM/ SLEEP/ M X TIME/ REVEAL/ ? PICTURE SOUND / TURBO/ FAVOURITE 7 (With TELETEXT / Without PIP) - 6 - SPECIFICATIONS Note : Specification and others are subject to change without notice for improvement. FScope This specification can be applied to all the television related to MC-049B Chassis. FTest and Inspection Method 1) Capacity : Follow LG electronics TV testing Standard. 2) Another Required Standard - EMI : Following CE Standard (EN55020, EN55013) - Safety : Following CB Standard (EN55013) FRequirement for Test Testing for standard of each par must be followed in below condition 1) Temperature : 20 ± 5°C (CST must be tested 40 ± 5°C . Humidity : 50%) 2) Relative Humidity : 65 ± 10% 3) Power : Standard input Voltage (110-240V~, 50/60Hz) 4) Measurement must be performed after heat-run more than 20min. 5) Adjusting Standard for this chassis is followed a special standard. No 1 2 3 4 5 6 7 8 Item Receiving System Receiving Channel Input Voltage Market Screen Size Tuning System Operating Environment Storage Environment Remark For EU/ For Non EU For EU/ For Non EU NTSC-M (Multi - model) Non EU EU FLAT / CONVENTIONAL 200 PR. (OPTION) Specification 1) PAL/SECAM BG 2) PAL/SECAM DK 3) PAL I/I 4) NTSC M 5) SECAM-L/L’ 6) NTSC 4.43(AV) 1) VHF : E2 ~ E12 UHF : E21 ~ E69 CATV : S1 ~ S20 HYPER : S21 ~ S41 2) L/L’ : B,C,D 3) VHF : 02 ~ 13 UHF : 14~ 69 CATV : 02 ~ 71 110-240V~, 50/60Hz 240V~, 50Hz EU,CIS, China, Asia, Africa 14” ~ 21” FVS 100Program 1) Temp. : 0 ~ 45 deg 2) Humidity: 85% under 1) Temp. : -20 ~ 60 deg 2) Humidity: 85% under FGeneral Specification 1. Application Object These instructions are applied to all of the color TV, MC-049B. 2. Notes (1) Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation transformer will help protect test instrument. (2) Adjustment must be done in the correct order.But the adjustment can be changed by consideration of mass production. (3) The adjustment must be performed in the circumstance of 25±5°C of temperature and 65±10% of relative humidity if there is no specific designation. (4) The input AC voltage of the receiver must keep rating voltage in adjusting. (5) The receiver must be operated for about 15 minutes prior to the adjustment. 3. Focus adjustment 3.1. Preliminary steps Tune the TV set to receive a digital pattern. (SVC mode:Automatically mode change the STANDARD MODE) 3.2. Adjustment Method 1) Single Focus CPT Adjust the upper Focus volume of FBT for the best focus of horizontal line A,vertical line B. 4. Purity & Convergence adjustment 4.1. Color purity adjustment (1) It makes CPT enough to demagnetization. (2) Receive the signal of red raster. (3) Loosen fixed screw of DY and closely to CPT funnel part. (4) Check the center of screen that PURITY MAGNET of CPT by crossing adjustment. At this time, 4 & 6 pole magnet is located to magnet of nothing. (5) Move the DY to make equal red on whole screen and it does not to make the DY by fixed screw after check a simple color of Red/Green/Blue and white raster whether or not it is a pollution of color. (At this time, take care raster of screen and DY must fixing in the condition which maintains a horizontality.) (6) Check the receiver by move direction. When adjustment is not working, adjust with the assisted MAGNET. 4.2. Convergence adjustment These adjustments can the best condition of focus after finished purity adjustment. (1) Receive the signal of CROSS HATCH that BACK RASTER is black. (2) Adjust brightness and luminosity till dot appear 9 ~12. (3) Open angle of the two tab of 4 pole MAGNET by isogonic angle and accord with vertical line of red and blue color in the middle of screen. - 7 - ADJUSTMENT INSTRUCTIONS A B Assembling DY to CPT CPT Assembling As preparatory operations before assembling CPT, wind cotton Tape for protecting to CPT NECK and DY, CPT connection parts. At this moment, end of tape should be over-lapped and wound in direct route to the NECK. Let the screen Standard condition. Operate Heat-Run at least 15 minutes. Torque is to be 9-11 kg f.cm when fixing DY. Fix the Magnet to the position as shown picture below. Be careful not to make CPT neck shadow while adjusting DY. HEAT RUN Degaussing STC Adjustment PURITY Adjustment DY Fixing SCREEN Voltage adj. W/B Fixing FOCUS not yet ADJ. STC not yet ADJ. DYC not yet ADJ. Convergence Magnet 15 ~ 20mm ¢‚ ¢‚ 6Pole 4 2 (4) Maintain as angle of (3) and rotate the tab to accord with vertical line of Red and Blue color in the middle of screen. (5) Open angle of the two tab of 6 pole magnet by isogonic angle and accord with vertical line of Red/Blue and Green. (6) Maintain as angle of (5) and rotate the tab to accord with horizontal line. In case of twisted horizontal line,repeat adjustment of (3) ~ (5) remembering the movement of Red/Green/Blue color. (7) Move the DY to best condition of convergence and attach the CPT to a rubber-chock for fixed DY. 5. Screen voltage adjustment (1) Receive the PAL or SECAM(NTSC) signal into RF mode regardless of channel. (2) If you press the “ADJ”button in LINE SVC mode(IN-START button),the LINE SVC mode changes to screen adjustment mode. (3) Adjust the screen volume of FBT jack,When width line is seen turn the FBT screen volume at the position of disappearance it. (4) Press the TV/AV button to exit SVC mode. 6. White balance adjustment NOTE : When adjusting white balance automatically,connect the adjustment JIG in SVC mode.(When pressing ,MUTE button on remote control, it changes to CPU OFF MODE and screen displays “AUTO”.) (1) Receive 100% white pattern. (2) Adjust LOW Light status(4.5FL) of CUT R,CUT B at CG:60. (3) Adjust HIGH LIght status(35FL) of WDR R,WDR B at WDR G:450. (4) Repeat above step (2) and (3) for the best condition each status of High Light and Low Light. * Auto adjustment W/B Program “Twbeng_v049” - W/B adjustment after Cutoff : Instart -> adj. -> mute(cutoff)-> tv/av(wb) Release key is EXIT key - W/B adjustment : Instart -> mute(cpuoff) Release key is TV/AV key 7.Deflection setting Data Adjustment 7.1 Adjustment preparation (1) Tune the TV set to receive an Digital pattern(EU05CH). (2) Deflection setting data adjustment is operate by SVC communicator. (3) Enter the deflection adjustment mode by selection SERVICE1 on SERVICE MENU after pressing LINE SVC MODE(IN-START KEY). (4) Use the CH D ,E key to select adjustment item. (5) Use the VOL F ,G key to increase/decrease data. (1) When adjusting a deflection, adjust N50Hz of PAL signal first and adjust a deflection at Normal 60Hz(NTSC). (2) Adjust a deflection as shown below. PAL 4:3 -> NTSC 4:3 (3) After finishing deflection adjustment, press the ENTER key to exit in adjustment mode. * Before adjusting the PIP P(PIP Position), store the deflection data in the EEPROM by using the “ENTER” key. 7.2 Adjustment (1) VL(Vertical Linearity) adjustment: Adjust the top & bottom size of inner circle to be equal. (2) VA (Vertical Amplitude) adjustment: Adjust so that the circle of a digital circle pattern should be located interval of 6~7mm from the effective screen of the CPT. (3) SC (S correction) adjustment: Adjust so that all distance between each lattice width of top/center/bottom are to be the same. * Setting the CPT Default(Initial data) value like that, because it is decide by CPT DY value 2. White balance IIC Parameter Program Sub Add Start Bit Stop Bit Offset Polarity EP_Rom_S R_Amp TWBeng_v049 1C8 12 4 0 1 9091 R_Cut TWBeng_v049 1C3 12 4 0 1 8A8B B_Amp TWBeng_v049 1CA 12 4 0 1 9495 - 8 - Menu X Y Color Temperature 288 295 9000°K 266 273 13000°K EU N-EU

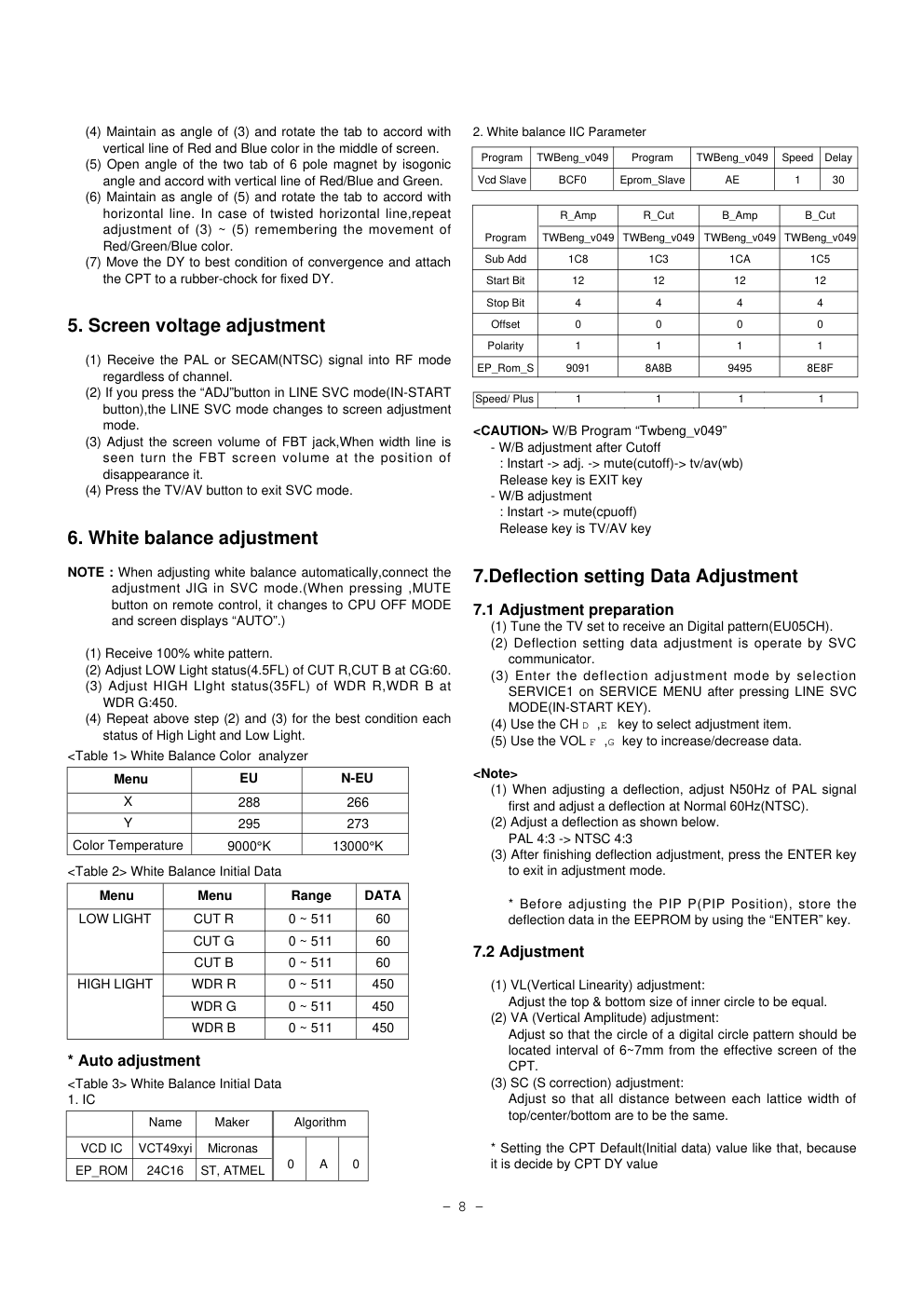

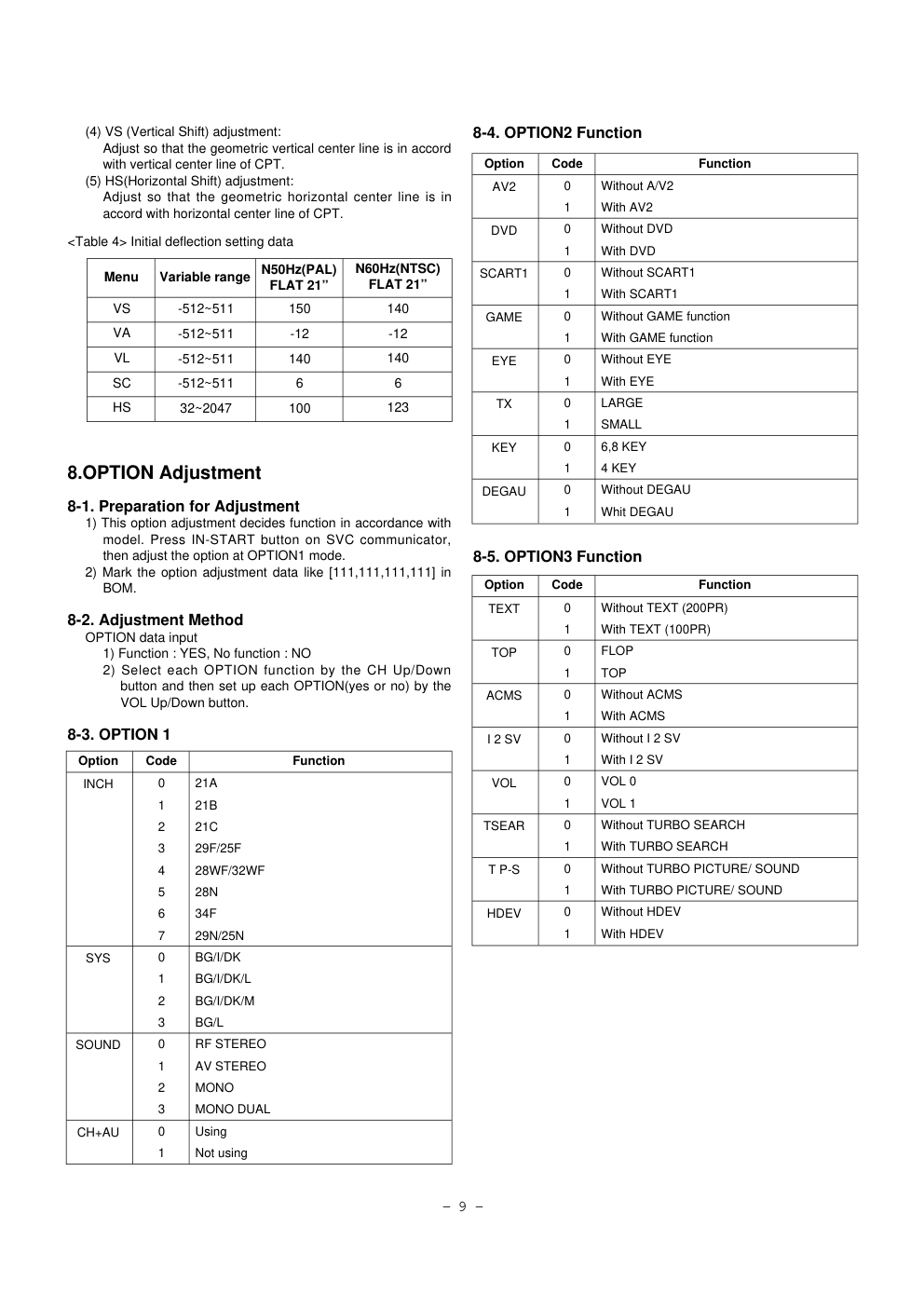

White Balance Color analyzer Menu CUT R CUT G CUT B WDR R WDR G WDR B LOW LIGHT HIGH LIGHT 0 ~ 511 0 ~ 511 0 ~ 511 0 ~ 511 0 ~ 511 0 ~ 511 60 60 60 450 450 450 Range DATA White Balance Initial Data White Balance Initial Data 1. IC VCD IC EP_ROM VCT49xyi 24C16 Micronas ST, ATMEL 0 A 0 Name Maker Algorithm Program Vcd Slave TWBeng_v049 BCF0 Program Eprom_Slave TWBeng_v049 AE Speed 1 Delay 30 B_Cut TWBeng_v049 1C5 12 4 0 1 8E8F Speed/ Plus 1 1 1 1 Menu (4) VS (Vertical Shift) adjustment: Adjust so that the geometric vertical center line is in accord with vertical center line of CPT. (5) HS(Horizontal Shift) adjustment: Adjust so that the geometric horizontal center line is in accord with horizontal center line of CPT. 8.OPTION Adjustment 8-1. Preparation for Adjustment 1) This option adjustment decides function in accordance with model. Press IN-START button on SVC communicator, then adjust the option at OPTION1 mode. 2) Mark the option adjustment data like [111,111,111,111] in BOM. 8-2. Adjustment Method OPTION data input 1) Function : YES, No function : NO 2) Select each OPTION function by the CH Up/Down button and then set up each OPTION(yes or no) by the VOL Up/Down button. 8-3. OPTION 1 8-4. OPTION2 Function 8-5. OPTION3 Function - 9 - Menu VS VA VL SC HS -512~511 -512~511 -512~511 -512~511 32~2047 150 -12 140 6 100 140 -12 140 6 123 Variable range N50Hz(PAL) FLAT 21” N60Hz(NTSC) FLAT 21” INCH SYS SOUND CH+AU Option Code 0 1 2 3 4 5 6 7 0 1 2 3 0 1 2 3 0 1 Function 21A 21B 21C 29F/25F 28WF/32WF 28N 34F 29N/25N BG/I/DK BG/I/DK/L BG/I/DK/M BG/L RF STEREO AV STEREO MONO MONO DUAL Using Not using Initial deflection setting data AV2 DVD SCART1 GAME EYE TX KEY DEGAU Option Code 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 Function Without A/V2 With AV2 Without DVD With DVD Without SCART1 With SCART1 Without GAME function With GAME function Without EYE With EYE LARGE SMALL 6,8 KEY 4 KEY Without DEGAU Whit DEGAU TEXT TOP ACMS I 2 SV VOL TSEAR T P-S HDEV Option Code 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 Function Without TEXT (200PR) With TEXT (100PR) FLOP TOP Without ACMS With ACMS Without I 2 SV With I 2 SV VOL 0 VOL 1 Without TURBO SEARCH With TURBO SEARCH Without TURBO PICTURE/ SOUND With TURBO PICTURE/ SOUND Without HDEV With HDEV - 10 - 8-6. OPTION4 Function OSD L TXT L HOTEL MAX V Option Code 0 1 2 3 4 5 6 7 8 9 10 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 0 1 0~ 100 Function ENG ONLY EU-5EA EU ETC GREECE EU-ALL FARSI ARAB URDU E+HINDI E+I+M+V E+THAI E+CHINA WEST EU EAST EU1 TURKEY EU EAST EU2 CYRILLIC1 CYRILLIC2 CYRILLIC3 TURK GRE1 TURK GRE2 TURK GRE3 ARAB FRA ARAB ENG ARAB HEB1 ARAB HEB2 FARS ENG FARS FA FARS ALL AUTO WITHOUT HDEV WITH HDEV SETTING VOL MAX TROUBLE SHOOTING - 11 - RF- STEREO MODEL Selected correct system In m enu Check the waveform IF 1 of TU101 Check the waveform At pin 4, 5 of IC11 Check the waveform At pin 6 of IC601 Check the waveform At pin 2, 4 of IC601 Check the waveform At pin 8, 9, 11, 12 of IC601 Check the waveform At pin 5, 6 of IC601 Check / Replace Q601 Check The voltage At pin of IC821, IC822, Q807 Check / Replace C821, IC822, Q807 Check The Voltage At pin 2, 19, 20, 21, 24 of IIC11 Check / Replace TU 101 Check / Replace F806, D828(D805) OK OK OK OK OK OK NO NO NO NO NO NO No Raster / Sound OK (1/ 2) Check the Heater voltage of CPT (6~ 6. 4Vrm s) Check HV, Screen Voltage of CPT Check the Heater pulse of FBT T402 Check R, G, B out of CPT Board Check FBT T402 Check 185V line of CPT Board & if no problem check and Replace Check IC901, P903A Check RF901, P402 P402B, FR401 Check FBT T402 PICTURE O.K / NO SOUND - 12 - CHECK B+ At D829 cathode Is the voltage at each pin volage of IC11 Check Fuse of AC line OK Check the In/ out of regulator (IC821, IC822 IC823, IC824 IC825) Check pin 60 Of IC11(H Out) Check Q401 Collector waveform Check Q402 Collector waveform Check T401 & each pin voltage Check & Replace T402 Check the Voltage Of C803 Check the Voltage Pin 4 OF IC801 Check / Replace IC801, IC802, IC826 Check Fuse and Diode of secondary Load of SMPS trans(T803) Check / Replace IC11 Check & Replace IC11 Check & Replace Q402 Check & Replace T401 Check & Replace Q401 Check / Replace Fuse Check / Replace DB801 Check / Replace Fuse IC801 NO OK OK OK NO Open NO 18~20V Normal Yes Yes Yes Yes NO NO NO NO Abnormal No Raster (2/ 2) - - 13 - NO Picture No Sound Is Any OSD displayed? Check IC11 pin71, 72, 73 (R, G, B out) OK Store on m anual - program MENU Does the auto Program Operate properly Check pin40(V out 1) 1Vp-p Check 1 8V 3. 3V 5V DC Voltage Check SMPS Trans Secondary Voltage Check pin18 Reset Voltage Check IC13 (Reset IC) Check pin57, 58 SCL, SDA Check IC12(EEPROM) & SCL SDA Line Relace IC11 Q501, Q503, Q504 (R, G, B out of IC11) Check / Replace CPT Board com ponent Go to No Sound Picture OK OK OK OK OK NO NO NO NO NO NO 3 3V DC OK OK 3 3V DC Check receiving system in MENU & execute Auto Program . - - / , , . / . . , - 14 - AV STERRO / MONO MODEL Select correct system In m enu OK Check the connection Of AV equipm ent Check TU101 Tuner Check the waveform At pin4, 5 of IC11 Check the waveform At pin16, 17 of IC11 Check the voltage Of pin2, 19, 20, 21, 24 of IC11 Check the signal line of SPK- L, R Check pin 55(m ute) of IC11 Check the waveform At pin2, 4 of IC601 Check the waveform At pin6 of IC601 Check the waveform At pin8, 9, 11, 12 of IC601 Check the vpltage At pin7, 5 of IC601 Check/ Replace D828, D805, F806 Check the connection of side or Front AV Board P603A Replace IC601 AV OK OK OK OK NO NO OK OK NO NO NO NO Correct the Board NO OK OK MEMO - 15 - - 16 - PRINTED CIRCUIT BOARD MAIN - 17 - ffdf COMPONENT LOCATION GUIDE C10 ........C4 C11 ........C4 C12 ........C4 C13 ........C3 C14.........F1 C16 ........C2 C21.........E1 C22.........B2 C23.........A4 C24.........A3 C25.........B4 C101.......A5 C102.......F1 C103 ......C1 C104.......A5 C105.......A5 C106.......B4 C107.......B5 C108.......B5 C109.......B4 C110.......B4 C111.......A5 C126.......A4 C185 ......C1 C201 ......D5 C202 ......D5 C203 ......C5 C204 ......C5 C205.......E5 C206 ......C5 C207.......B5 C209.......B5 C210.......E5 C211 ......D5 C214 ......D5 C215 ......D5 C216 ......C5 C217 ......D5 C224 ......D5 C225 ......D5 C226 ......D5 C251 ......C1 C252.......B1 C253 ......C1 C254 ......C1 C255 ......C1 C256 ......C1 C259 ......C1 C260 ......C1 C261 ......C1 C301.......E4 C302.......E4 C303.......E4 C304 ......D4 C306.......F4 C307 ......D4 C308 ......D3 C401 ......D3 C402 ......G4 C403 ......G3 C404.......F3 C405 ......G3 C409.......F4 C410.......F3 C411.......F3 C412.......F4 C414.......E5 C415.......E4 C416.......E5 C417.......E5 C419.......E4 C421.......E5 C422.......E5 C450.......E5 C457 ......D5 C501.......B4 C502.......B4 C503 ......D4 C504.......B4 C505 ......C3 C506 ......C3 C507 ......C3 C508 ......C3 C509.......B4 C510.......B3 C511 ......C4 C512.......B3 C513 ......C4 C514 ......C5 C515.......B3 C516.......B3 C517 ......C4 C518.......B3 C519 ......C4 C520 ......C4 C521 ......C4 C522 ......C4 C523 ......C4 C524 ......C5 C525 ......C4 C526 ......C4 C527 ......C4 C528 ......C4 C529 ......C4 C530 ......C4 C531 ......C3 C532 ......C4 C533 ......C4 C534.......B4 C535.......B4 C536.......B4 C537.......B4 C538.......B4 C539 ......C5 C540.......B4 C541 ......C3 C542.......B5 C543 ......C5 C544 ......C3 C545 ......C4 C546.......B2 C547.......B2 C548 ......C4 C549 ......C1 C550 ......C4 C551 ......C4 C601.......A3 C602.......B2 C603.......A3 C604.......A3 C605.......A2 C606.......B2 C607.......A3 C608.......B2 C609.......A4 C610.......A3 C611.......A3 C612.......B2 C613.......B2 C614.......B2 C615.......B4 C616.......A4 C617.......B4 C618.......A4 C619.......A4 C620.......A4 C621.......A3 C622.......A3 C623.......A2 C625 ......D5 C626 ......D5 C627.......A2 C632 ......D4 C636 ......D4 C801 ......G1 C803.......F2 C804 ......G2 C806 ......G2 C807.......F3 C808.......F3 C809.......F2 C810.......F2 C811.......F2 C815.......F3 C816.......F1 C817 ......G3 C818 ......G1 C819 ......G3 C820 ......D1 C821.......E2 C822.......E2 C823.......E1 C824 ......D1 C826 ......D1 C827 ......D2 C828 ......D2 C829 ......D2 C830 ......D2 C831 ......D3 C833 ......D3 C834 ......D3 C835.......E3 C836.......E3 C837.......E3 C838.......E3 C839 ......D2 C840.......E2 C841 ......G3 C842 ......G3 C843 ......G3 C844.......F2 C845 ......D1 C846.......E3 C847 ......D3 C848 ......D3 C849 ......D3 C868 ......D3 C901.......B1 C902.......A1 C903.......A2 C904.......B2 C905.......A1 C906.......B1 D101.......A4 D301.......E4 D402 ......G3 D403.......F3 D405.......E4 D406.......E5 D407.......E5 D444.......E5 D501.......B3 D502.......B2 D503.......B3 D504 ......D4 D601.......B2 D602.......A3 D603.......A2 D604.......A3 D801.......F3 D802.......F3 D803.......F3 D805.......E3 D815 ......G2 D821.......E2 D823.......E1 D827 ......D2 D828 ......D2 D829 ......D3 D830.......E3 D854.......E1 D901.......A1 D902.......A1 D903.......A1 D904.......B2 DB801....G2 HIC01.....C2 IC11........B4 IC12........A4 IC13........B4 IC301......E4 IC601......A3 IC801 .....G2 IC802......F3 IC821 .....D2 IC822......E1 IC824......E1 IC825 .....D1 IC826 .....D3 IC853......E1 IC901......A1 J11 .........A4 J102 .......B4 J103 .......C1 J104 .......A5 J105 .......B5 J107 .......A5 J108 .......B1 J109 .......A5 J110 .......B3 J111 .......B4 J112 .......B5 J113 .......A5 J114 .......C2 J115 .......C1 J116 .......A5 J117 .......A5 J118 .......B5 J119 .......B5 J120 .......C1 J121 .......C2 J181 .......C1 J182 .......C1 J183 .......C1 J201 .......D5 J202 .......D5 J203 .......D5 J204 .......D5 J205 .......D5 J206 .......C3 J207 .......D5 J208 .......C1 J209 .......D4 J210 .......C5 J211 .......C5 J212 .......E5 J213 .......D5 J214 .......D5 J215 .......B5 J216 .......D5 J217 .......B5 J219 .......D4 J220 .......D5 J221 .......D5 J222 .......D5 J223 .......B5 J224 .......B5 J225 .......E5 J226 .......C1 J230 .......C1 J231 .......C1 J232 .......D1 J233 .......C1 J234 .......C1 J235 .......C1 J242 .......D1 J261 .......C5 J301 .......C4 J302 .......D4 J303 .......E4 J306 .......D4 J308 .......B2 J309 .......B2 J310 .......B2 J311 .......E4 J313 .......E4 J314 .......E4 J315 .......D4 J317 .......C3 J318 .......C3 J334 .......C1 J401 .......E5 J402 .......E5 J403 .......E5 J404........F5 J405 .......D3 J408 .......E4 J409........F4 J410........F5 J412........F4 J413 .......E5 J414 .......E4 J415 .......E3 J416.......G3 J417 .......E3 J501 .......C2 J502 .......C3 J503 .......C3 J504 .......C3 J505 .......D4 J506 .......D4 J507 .......C2 J508 .......A4 J509 .......D4 J510 .......D4 J511 .......B3 J512 .......C4 J513 .......C2 J514 .......C2 J515 .......C2 J516 .......B4 J517 .......C2 J518 .......C2 J519 .......C3 J520 .......B3 J521 .......C3 J522 .......B3 J523 .......C3 J524 .......C3 J525 .......C3 J526 .......C3 J527 .......C3 J528 .......C3 J529 .......B3 J530 .......B3 J531 .......B3 J532 .......B3 J533 .......B2 J534 .......C2 J535 .......C1 J536 .......B4 J537 .......C5 J538 .......C4 J539 .......C4 J540 .......B2 J541 .......B3 J542 .......B3 J543 .......B3 J544 .......B3 J545 .......C2 J546 .......B3 J547 .......B3 J548 .......B3 J549 .......C2 J550 .......B3 J551 .......B3 J552 .......B3 J553 .......B3 J554 .......B3 J555 .......B3 J556 .......B3 J557 .......B3 J558 .......C3 J559 .......B3 J560 .......B3 J561 .......C5 J562 .......C5 J564 .......C4 J565 .......C4 J566 .......C4 J567 .......C4 J568 .......C4 J569 .......B4 J570 .......C4 J571 .......B4 J572 .......C3 J573 .......C4 J574 .......B3 J575 .......D1 J576 .......B3 J577 .......B3 J578 .......B3 J579 .......B3 J580 .......D4 J581 .......C2 J582 .......C3 J583 .......D2 J584 .......D2 J585 .......B2 J586 .......C5 J587 .......C4 J588 .......C4 J589 .......B4 J590 .......B4 J591 .......C4 J601 .......A3 J602 .......A3 J603 .......A4 J604 .......A3 J605 .......B4 J606 .......A2 J607 .......A2 J608 .......B2 J609 .......A4 J610 .......B2 J611 .......B2 J613 .......B2 J614 .......B2 J615 .......A2 J616 .......B4 J617 .......B4 J801 .......D2 J802.......G1 J803.......G1 J804.......G1 J805.......G1 J806........F1 J807........F1 J808........F1 J809........F2 J810 .......D2 J811 .......D2 J812 .......E2 J813 .......D2 J814 .......D3 J815.......G3 J816........F3 J817 .......D3 J819........F3 J820 .......D3 J821 .......D2 J822 .......E2 J823 .......E1 J824 .......D2 J825 .......D2 J826 .......D2 J827 .......D2 J828 .......D1 J829 .......D2 J830 .......E1 J832 .......E1 J833 .......D3 J834 .......D3 J835 .......D3 J836 .......D2 J838 .......D1 J840 .......D2 J841 .......E2 J842 .......E2 J901 .......A1 J902 .......A2 J903 .......B1 J904 .......B1 JK202.....C5 JP1.........G2 JP2 .........F2 JW1........G1 JW2........B5 Q11 ........E1 Q41 ........C2 Q42 ........C2 Q102 ......A5 Q103 ......A5 Q104 ......B4 Q105 ......A4 Q106 ......A4 Q301 ......D4 Q401......G4 Q402......G3 Q403 ......D4 Q501 ......B3 Q502 ......B2 Q503 ......C2 Q504 ......C2 Q505 ......C5 Q507 ......B5 Q508 ......B2 Q510 ......B2 Q601 ......A2 Q801 ......D3 Q802 ......D1 Q803 ......D1 Q804 ......D2 Q805 ......E1 Q807 ......D2 Q808 ......D2 R10 ........C2 R11 ........C2 R12 ........C4 R13.........E1 R14 ........D1 R15.........F1 R16.........E1 R17.........E1 R18 ........D1 R19 ........D1 R20 ........D1 R24.........B3 R25.........B3 R26 ........C2 R27 ........C2 R28.........A5 R29 ........C3 R30 ........C3 R31 ........C3 R32 ........D1 R33 ........C3 R34 ........C5 R35 ........C4 R36 ........C2 R37 ........D1 R38.........B4 R39 ........C2 R42 ........D1 R101.......A5 R102.......A5 R103.......A4 R104.......A4 R105.......A5 R106.......B5 R107.......A5 R108.......A5 R109.......B4 R110.......B4 R111.......B4 R112.......B5 R113.......B5 R114.......A5 R115.......A5 R124.......A4 R125.......B5 R126.......A5 R127.......A5 R202.......B5 R203 ......C5 R204 ......C5 R205 ......C5 R207 ......D5 R212 ......C5 R213 ......C5 R215 ......D5 R217 ......D5 R218 ......D5 R219 ......D5 R251 ......C1 R252.......B1 R253.......B1 R302.......E4 R303 ......D4 R304.......E4 R305 ......D4 R306 ......D4 R307 ......D4 R308 ......D3 R309 ......D4 R310 ......D4 R312 ......D4 R313.......F4 R314.......F4 R315.......F4 R328.......E4 R403 ......G4 R404 ......G4 R405.......F3 R409.......F4 R410.......F4 R412 ......D4 R418.......E5 R419.......E5 R420.......E5 R421.......F3 R422 ......G3 R501.......B3 R502.......B4 R503.......B4 R504.......B3 R505.......B3 R506.......B3 R507.......B4 R508.......B4 R509.......B3 R510 ......C2 R511 ......C2 R512.......B3 R513 ......C3 R514 ......C3 R515.......B3 R516 ......C3 R517 ......C3 R518.......B3 R519.......B3 R520.......B4 R521 ......C4 R522 ......C2 R523 ......C2 R524 ......C2 R525 ......D4 R526.......B4 R527 ......C4 R528 ......D4 R529 ......D4 R532 ......C4 R534.......B2 R535.......B2 R536.......B2 R539.......B5 R540 ......C5 R542 ......C5 R543.......B5 R545 ......C3 R555 ......C5 R557.......B3 R558.......B3 R560 ......C2 R561 ......C2 R562 ......C4 R563 ......C4 R601.......A2 R602.......A2 R603.......A2 R604.......A2 R605.......A4 R606.......A4 R607.......A2 R608.......B2 R609.......A2 R610.......A3 R611.......A3 R612.......A4 R613.......B3 R614.......A4 R615.......A3 R616.......A4 R617.......B5 R618.......B5 R619.......B5 R620.......A4 R621.......B5 R623.......B5 R624.......B5 R626.......B5 R664.......B5 R802.......F1 R803.......E2 R804 ......G2 R805 ......G2 R806 ......G3 R807 ......G3 R808.......F3 R809.......F3 R810.......F3 R811.......E3 R812 ......G3 R813.......E3 R814 ......G3 R816 ......D1 R817 ......D1 R818.......F1 R823 ......D1 R824 ......D3 R825.......E1 R827 ......D3 R828.......E3 R831 ......D2 R838 ......D1 R840 ......D3 R841 ......D3 R842 ......D3 R843 ......D3 R844 ......D3 R845 ......D2 R846 ......D3 R847 ......D3 R858 ......D1 R901.......B1 R902.......B1 R903.......B1 R904.......B1 R905.......B1 R906.......A1 R907.......A1 R908.......A1 R909.......A1 R910.......A1 R911.......A2 R912.......B1 R914.......B1 RL801.....E1 T401.......G4 T402 .......F5 T802 .......F1 T803 .......F3 TH801.....F1 TH802.....F2 TU101 ....B5 VD801....G1 X11.........C4 Z101.......B4 ZD10 ......C2 ZD101 ....C1 ZD122 ....A4 ZD401 ....D4 ZD402 ....E3 ZD447 ....D5 ZD501 ....A4 ZD601 ....B4 ZD801....G3 ZD803 ....D3 ZD902 ....B1 ZD903 ....B1 ZD904 ....B1 PIP SIDE A/V - 18 - BLOCK DIAGRAM - 19 - MICOM( IC 11 ) VCT49* * TUNER (TU101) AV-OUT (JK202) * SCART/ PHONE/ DVD FBT (T402) AUDIO AMP ( IC601) RGB AMP ( TDA6107Q ) STR-W6754 (IC801) AUDIO-OUT RGB HV SCREEN H/ T H-DRIVE ( Q401 ) VERTICAL AMP (IC301) TDA4863A 14V -14V VA H-OUT 35V(H-Vcc/ TU-33V) S-Vcc 6.5V 12V B+ SAW FILTER (Z101) PIP_BOARD ( SDA9489X ) S1117-18 (IC825) S111 7 - 33 (IC853) KIA78S06P (IC824) KA78R33 KA78R05C ST-5V ST-3.3V ST-1.8V 3.3V GAME HIC (HIC01) 190V VB H-FLB IIC 33V 5V TV / MONITOR OUT SCART RGB-IN Y/Cb/Cr-IN AV-IN H-Vcc 5V S-Vcc PIP-RGB PIP-VIDEO IIC VS H-FLB 5V ST-5V ON / OFF DATA/CLOCK RESET VIDEO/AUDIO 190V - 20 - EXPLODED VIEW P801 520 943 400 913 170 150 112 300 104 330 320 310 700 121 122 120 600 601 550 - 21 - EXPLODED VIEW PARTS LIST LOCA. No. PART No. DESCRIPTIONS 104 343-B52A SUPPORTER, PCB(CF-14F20) 112 6335V21019A CPT ASSEMBLY, A51QDJ420X 01MDDR M(+0.30G) 0G ITC AK MASK 120 120-C77G SPEAKER,FULLRANGE C122P02K1459 8 OHM 10/15W 130 57*117 121 6400VG0002A SPEAKER,TWEETER T0520101(C76G) 8 OHM 10/20W 88DB D52X74X17.5MM 122 4810V00498A BRACKET, SPEAKER RT-21FA20 NON PP 150 150-D02T COIL,DEGAUSSING ,AL 21” 56T 12 OHM 170 170-A01N CPT EARTH, 21” 64T 2LUG 1P HSG CL-21Q20ET(PC-99DA) 300 3091V00465E CABINET ASSEMBLY, RT-21FB45VT.LMLLKS8 STEREO MC049B SHAHAB LOCAL 310 5020V00732B BUTTON, CONTROL RT-21FB45VQ ABS, HF-380 6KEY SHAHAB LOCAL 320 320-062E SPRING, KNOB 330 5020V00733B BUTTON, POWER RT-21FB45VQ ABS, HF-380 1KEY SHAHAB LOCAL 400 3809V00A24G BACK COVER ASSEMBLY, RT-21FB45VQ.LMLLKS8 DVD(1PHONE) SHAHAB 520 6871VMM901H PWB(PCB) ASSEMBLY,MAIN MC-049B RT-21FB45VQ.LMLLKS8 6871VMM901J PWB(PCB) ASSEMBLY,MAIN MC-049B RT-21FB45VT.LMLLKS8 550 6871VSML08A PWB(PCB) ASSEMBLY,SUB PIP MC049B . 600 6871VSMAANB PWB(PCB) ASSEMBLY,SUB A/V MC049B 21FB45(SIDE-AV) 601 4810V00735C BRACKET, SIDE AV RT-21FB45VQ MC049B HIPS 60HR SHAHAB LOCAL 700 0IGL120104A IC,LG SEMICONDUCTOR CDS SENSOR MODULE(P1201-04) 913 332-057B SCREW,DRAWING ASSY,HEXAGON HEAD 943 1PTF0403116 SCREW TAP TITE(P),TRUSS HEAD + D4.0 L16.0 MSWR3/FZB P801 174-009U POWER CORD, POWER(W/HOLD,HOUSING)L=350,4.0 The components identified by mark is critical for safety. Replace only with part number specified. - 22 - REPLACEMENT PARTS LIST LOCA. NO PART NO DESCRIPTION D601 D602 D603 D604 D801 D802 D803 D815 D821 D827 D828 D829 D830 D854 D901 D902 D903 D904 DB801 ZD10 ZD101 ZD122 ZD401 ZD402 ZD501 ZD601 ZD801 ZD803 ZDP01 C10 C101 C103 C104 C106 C107 C108 C109 C11 C110 C111 C12 C126 C1260 C13 C14 C201 C202 0DD414809ED 0DD414809ED 0DD414809ED 0DD414809ED 0DD100009AM 0DD100009AM 0DD100009AM 0DD060009AC 0DRTW00164A 0DRTW00141A 0DRTW00141A 0DD300009AC 0DRTW00164A 0DD060009AC 0DR210009AC 0DR210009AC 0DR210009AC 0DR140049AC 0DRTW00131A 0DZ910009BD 0DZ510009BF 0DZ330009DG 0DZ510009BF 0DZ240009CG 0DZ110009AD 0DZ820009AH 0DZ620009AH 0DZ510009BF 0DZ510009BF 0CX2200K409 0CQ2721N409 0CN1040K949 0CN1030F679 0CN1030F679 0CN1030F679 0CN1030F679 0CN1030F679 0CX2200K409 0CN1030F679 0CE227DD618 0CE107DD618 0CE475DK618 0CE226DF618 0CN1040K949 0CN1020K519 0CN1010K519 0CN1010K519 1N4148 TP GRANDE 1N4148 TP GRANDE 1N4148 TP GRANDE 1N4148 TP GRANDE EU1ZV(1) TP SANKEN EU1ZV(1) TP SANKEN EU1ZV(1) TP SANKEN TVR06J TP - 600V 250NSEC RGP10J TP52 DO41 .V 1A 30A .SEC 5UA SFAF504G ST ITO220 200V 5A .A .SEC 10UA SFAF504G ST ITO220 200V 5A .A .SEC 10UA RU3AMV(1) TP SANKEN RGP10J TP52 DO41 .V 1A 30A .SEC 5UA TVR06J TP - 600V 250NSEC BAV21 TP DO35 200V 0.2A 1A 50SEC 100A BAV21 TP DO35 200V 0.2A 1A 50SEC 100A BAV21 TP DO35 200V 0.2A 1A 50SEC 100A 1N4004A T-81 TP DO41 500V 1.0A 30A - 10UA D2SB60 ST GBL 600V 1.5A .A .SEC 10UA GDZJ9.1B TP GRANDE DO34 0.5W 9.1V GDZ5.1B TP GRANDE DO34 0.5W 5.1V 0.02A GDZJ33B TP GRANDE DO34 0.5W 33.0V GDZ5.1B TP GRANDE DO34 0.5W 5.1V 0.02A MTZJ24B TP ROHM-K DO34 - 24V 5UA MTZJ11B TP ROHM-K DO34 - 11V 5UA MTZJ8.2B TP ROHM-K DO34 - 8.2V 5UA MTZJ6.2A TP ROHM-K DO34 0.5W 6.2V 150UA GDZ5.1B TP GRANDE DO34 0.5W 5.1V 0.02A GDZ5.1B TP GRANDE DO34 0.5W 5.1V 0.02A 22P 50V J SL TA52 0.0027UF D 100V 5% PE TP5 0.1UF D 50V 80%,-20% F(Y5V) TA52 10000PF D 16V 20% X5R TA52 10000PF D 16V 20% X5R TA52 10000PF D 16V 20% X5R TA52 10000PF D 16V 20% X5R TA52 10000PF D 16V 20% X5R TA52 22P 50V J SL TA52 10000PF D 16V 20% X5R TA52 220UF STD 10V M FL TP5 100UF STD 10V M FL TP5 4.7UF STD 50V 20% FL TP 5 22UF STD 16V M FL TP5 0.1UF D 50V 80%,-20% F(Y5V) TA52 1000PF D 50V 10% B(Y5P) TA52 100PF D 50V 10% B(Y5P) TA52 100PF D 50V 10% B(Y5P) TA52 LOCA. NO PART NO DESCRIPTION IC12 IC13 IC301 IC601 IC801 IC802 IC821 IC822 IC822 IC824 IC825 IC826 IC853 IC901 ICP01 ICP02 Q104 Q11 Q301 Q401 Q402 Q501 Q502 Q503 Q504 Q505 Q507 Q508 Q510 Q601 Q802 Q803 QP01 QP02 D301 D403 D405 D406 D407 D501 D502 D503 D504 0IMMRSG036C 0IFA752700A 0IPMGPH002A 0IPMGSA021C 0IPMGSK016B 0ILI817000G 0IMCRAU004A 0IMCRKE018A 0IMCRKE018A 0IMCRKE020A 0IMCRAU003A 0ISK110000A 0IMCRAU004A 0IPH610700B 0ISM948900B 0IMCRAU004A 0TR319709AB 0TR126609AA 0TR198009BA 0TRSA10004A 0TR233109AA 0TR198009BA 0TR198009BA 0TR198009BA 0TR198009BA 0TR534309AA 0TR198009BA 0TR534309AA 0TR534309AA 0TR198009BA 0TR534309AA 0TR102009AB 0TR387500AA 0TR387500AA 0DD400509AA 0DRTW00164B 0DD060009AC 0DD060009AC 0DRTW00164A 0DD414809ED 0DD414809ED 0DD414809ED 0DD414809ED M24C16-WBN6 8PIN PDIP ST 16M EERROM KA75270Z 3 TP RE-SET IC MC-007 TDA4863A 7P SOT524-1 ST LA42152 13P ST 15W 2CH AUDIO AMP STR-W6754 7PIN T0220F ST SWITCHING LTV817M-VB 4P,DIP BK PHOTO COUPLER S1117-33PIC 3P TO220F ST 3.3V 1A KIA78R05API KEC 4P TO220 ST 5V 1A KIA78R05API KEC 4P TO220 ST 5V 1A KIA78S06P KEC 3P TO-92 TP 6V 0.15A S1117-18PIC 3P TO220F ST 1.8V 1A SE110N(LF12) 3P 110V ERROR AMP S1117-33PIC 3P TO220F ST 3.3V 1A TDA6107JF/N3 9P ST RGB AMP SDA9489 B31 28P SOP R/TP PIP S1117-33PIC 3P TO220F ST 3.3V 1A KTC3197,TP(KTC388A),KEC KTA1266-Y(KTA1015) KEC TP TO92 50V 150MA 2SA1980Y TP AUK TT2170LS-YB11 SANYO ST TO-220FM 1500V 5A KSC2331-Y TP SAMSUNG TO-92L 2SA1980Y TP AUK 2SA1980Y TP AUK 2SA1980Y TP AUK 2SA1980Y TP AUK 2SC5343Y TP AUK 2SA1980Y TP AUK 2SC5343Y TP AUK 2SC5343Y TP AUK 2SA1980Y TP AUK 2SC5343Y TP AUK KRC102M(KRC1202) KEC TP NA NA NA CHIP 2SC3875S(ALY) KEC CHIP 2SC3875S(ALY) KEC 1N4005 TP KEC RGP15J TP52 DO15 .V 1.5A 50A 250NSEC 100UA TVR06J TP - 600V 250NSEC - TVR06J TP - 600V 250NSEC - RGP10J TP52 DO41 .V 1A 30A .SEC 5UA 1N4148 TP GRANDE 1N4148 TP GRANDE 1N4148 TP GRANDE 1N4148 TP GRANDE IC For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible TRANSISTOR DIODE CAPACITOR - 23 - LOCA. NO PART NO DESCRIPTION C205 C205 C21 C211 C211 C214 C215 C216 C217 C23 C24 C25 C253 C260 C303 C304 C306 C402 C403 C404 C405 C409 C410 C411 C414 C415 C416 C417 C419 C421 C422 C501 C502 C503 C504 C505 C506 C508 C509 C510 C511 C512 C513 C514 C515 C516 C517 C518 C519 C520 C521 C523 0CN1010K519 0CN4710K519 0CE107DD618 0CN1010K519 0CN4710K519 0CN4710K519 0CN4710K519 0CE226DF618 0CE226DF618 0CN1040K949 0CE226DD618 0CE105DK618 0CN1010K519 0CN1010K519 0CQ1041N409 0CE107DJ618 0CQ3331N509 0CE475DK618 0CQ1521N509 181-015E 181-091Y 0CK8210W515 0CE475DP618 181-013P 0CK2710W515 0CE477DH618 181-009R 0CK2710W515 0CE477DH618 0CK2710W515 0CE475DR618 0CQ6831N509 0CQ6831N509 0CE475DK618 0CN1040K949 0CN2710K519 0CN2710K519 0CE107DD618 0CN1040K949 0CE475DK618 0CN1040K949 0CE107DD618 0CN1040K949 0CE107DD618 0CN1040K949 0CN1040K949 0CN1040K949 0CN1040K949 0CN1010K519 0CE107DD618 0CN1040K949 0CN1040K949 100PF D 50V 10% B(Y5P) TA52 470P 50V K B TA52 100UF STD 10V M FL TP5 100PF D 50V 10% B(Y5P) TA52 470P 50V K B TA52 470P 50V K B TA52 470P 50V K B TA52 22UF STD 16V M FL TP5 22UF STD 16V M FL TP5 0.1UF D 50V 80%,-20% F(Y5V) TA52 22UF STD 10V 20% FL TP 5 1UF STD 50V M FL TP5 100PF D 50V 10% B(Y5P) TA52 100PF D 50V 10% B(Y5P) TA52 0.1000UF 100V J PE TP 100UF STD 35V M FL TP5 0.033UF D 100V 10% PE TP5 4.7UF STD 50V 20% FL TP 5 0.0015UF D 100V 10% PE TP5 MPP 1600V 0.0068UF H R 680PF 2KV 10%,-10% R/TP TP7.5 820P 500V K B TS 4.7UF STD 160V 20% FL TP 5 MPP 400V 0.33UF J 270P 500V K B TS 470UF STD 25V M FL TP5 PP 200V 0.022UF K 270P 500V K B TS 470UF STD 25V M FL TP5 270P 500V K B TS 4.7UF STD 250V 20% FL TP 5 0.068UF D 100V 10% PE TP5 0.068UF D 100V 10% PE TP5 4.7UF STD 50V 20% FL TP 5 0.1UF D 50V 80%,-20% F(Y5V) TA52 270P 50V K B TA52 270P 50V K B TA52 100UF STD 10V M FL TP5 0.1UF D 50V 80%,-20% F(Y5V) TA52 4.7UF STD 50V 20% FL TP 5 0.1UF D 50V 80%,-20% F(Y5V) TA52 100UF STD 10V M FL TP5 0.1UF D 50V 80%,-20% F(Y5V) TA52 100UF STD 10V M FL TP5 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 100PF D 50V 10% B(Y5P) TA52 100UF STD 10V M FL TP5 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 LOCA. NO PART NO DESCRIPTION C524 C525 C526 C527 C528 C529 C530 C531 C532 C533 C534 C535 C536 C537 C538 C540 C541 C542 C543 C545 C546 C547 C548 C550 C602 C603 C604 C605 C606 C607 C608 C609 C610 C611 C612 C613 C614 C615 C616 C617 C618 C619 C620 C625 C626 C627 C632 C636 C803 C804 C806 C807 0CE107DD618 0CN3310K519 0CN1040K949 0CN1040K949 0CN1040K949 0CN1040K949 0CN1010K519 0CN1010K519 0CN1040K949 0CE107DD618 0CN1040K949 0CN1040K949 0CN1040K949 0CN1040K949 0CN1040K949 0CE107DD618 0CE107DD618 0CE107DD618 0CE107DD618 0CX2200K409 0CN1510K519 0CN2710K519 0CN1040K949 0CN1040K949 0CE477DH618 0CE475DK618 0CQ1041N509 0CE476DF618 181-007C 0CE106DF618 0CE106DF618 0CQ1041N509 0CE475DK618 0CE476DH618 181-007C 181-007C 181-007C 0CN1040K949 0CE476DD618 0CN1040K949 0CN1010K519 0CE335DK618 0CN1010K519 0CQ5631N409 0CQ5631N409 0CK1030K945 0CQ5631N409 0CQ5631N409 181-001V 0CK10201515 0CK10201515 181-091X 100UF STD 10V M FL TP5 330P 50V K B TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 100PF D 50V 10% B(Y5P) TA52 100PF D 50V 10% B(Y5P) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 100UF STD 10V M FL TP5 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 100UF STD 10V M FL TP5 100UF STD 10V M FL TP5 100UF STD 10V M FL TP5 100UF STD 10V M FL TP5 22P 50V J SL TA52 150P 50V K B TA52 270P 50V K B TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 0.1UF D 50V 80%,-20% F(Y5V) TA52 470UF STD 25V M FL TP5 4.7UF STD 50V 20% FL TP 5 0.1UF D 100V 10% PE TP5 47UF STD 16V M FL TP5 MPE ECQ-V1H104JL3(TR), 50V 0.1UF 10UF STD 16V M FL TP5 10UF STD 16V M FL TP5 0.1UF D 100V 10% PE TP5 4.7UF STD 50V 20% FL TP 5 47UF STD 25V 20% FL TP 5 MPE ECQ-V1H104JL3(TR), 50V 0.1UF MPE ECQ-V1H104JL3(TR), 50V 0.1UF MPE ECQ-V1H104JL3(TR), 50V 0.1UF 0.1UF D 50V 80%,-20% F(Y5V) TA52 47UF STD 10V 20% FL TP 5 0.1UF D 50V 80%,-20% F(Y5V) TA52 100PF D 50V 10% B(Y5P) TA52 3.3UF STD 50V 20% FL TP 5 100PF D 50V 10% B(Y5P) TA52 0.056UF D 100V 5% PE TP5 0.056UF D 100V 5% PE TP5 0.01UF 50V Z F TR 0.056UF D 100V 5% PE TP5 0.056UF D 100V 5% PE TP5 CE 450V 220UF M LUG(85) 1000P 1KV K B TS 1000P 1KV K B TS R 560PF 2KV 10%,-10% R/TP TP7.5 For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible - 24 - LOCA. NO PART NO DESCRIPTION C808 C809 C810 C811 C815 C816 C817 C818 C819 C820 C821 C822 C823 C824 C826 C827 C828 C828 C829 C830 C831 C833 C834 C835 C837 C838 C840 C843 C901 C902 C903 C904 CP01 CP02 CP03 CP04 CP07 CP08 CP10 CP11 CP12 CP13 CP19 CP20 CP21 CP22 CP23 CP24 CP25 CP26 CP27 CP28 181-091P 0CE105DK618 0CE336DK618 181-011B 0CK8210K515 0CQZVBK002A 0CK1040K945 0CQZVBK002C 0CK1520K515 0CN1040K949 0CK4710W515 0CE477DH618 0CE107DD618 0CE477DD618 0CE227DD618 0CE477DD618 0CE477BF618 0CE477DD618 0CE335CK636 0CE108DH618 0CE227DP61A 0CE476CP618 181-091X 0CK4710W515 0CQ4731N509 0CE227DK618 0CE228BF618 181-120K 0CE475DR618 0CQ1044R539 181-033S 0CE475DR618 0CH5220K416 0CH5220K416 0CX4700K409 0CX4700K409 0CH2103K516 0CE476DF618 0CE337DD618 0CN1030F679 0CN1030F679 0CN1030F679 0CH2103K516 0CH2103K516 0CE476DF618 0CE476DF618 0CH2103K516 0CH2103K516 0CE476DF618 0CE105DK618 0CE105DK618 0CH2103K516 SL 270PF 1KV 10%,-10% R/TP TP5 1UF STD 50V M FL TP5 33UF STD 50V M FL TP5 0.001UF D 1.6KV J M/PP NI FM20 820P 50V K B TS A.C 275V 0.1UF M (S=15) 0.1UF 50V Z F TR A.C 275V 0.22UF K (S=22.5) 1500P 50V K B TS 0.1UF D 50V 80%,-20% F(Y5V) TA52 470PF 500V K B TR 470UF STD 25V M FL TP5 100UF STD 10V M FL TP5 470UF STD 10V M FL TP5 220UF STD 10V M FL TP5 470UF STD 10V M FL TP5 470UF KME 16V M FL TP5 470UF STD 10V M FL TP5 3.3UF SHL,SD 50V 20% FM5 BP(D) TP 1000UF STD 25V M FL TP5 220UF STD 160V 20% FL TP 7.5 47UF SHL,SD 160V 20% FL TP 5 R 560PF 2KV 10%,-10% R/TP TP7.5 470PF 500V K B TR 0.047UF D 100V 10% PE TP5 220UF STD 50V M FL TP5 2200UF KME 16V M FL TP5 2200PF 4KV M E FMTW LEAD 4.5 4.7UF STD 250V 20% FL TP 5 0.1UF TE 250V 10% M/PE NI TP5 2KV B 122K TP7.5 4.7UF STD 250V 20% FL TP 5 22PF 50V 5% NP0 2012 R/TP 22PF 50V 5% NP0 2012 R/TP 47P 50V J SL TA52 47P 50V J SL TA52 10000P 50V K B 2.0X1.25 R/TP 47UF STD 16V M FL TP5 330UF STD 10V M FL TP5 10000PF D 16V 20% X5R TA52 10000PF D 16V 20% X5R TA52 10000PF D 16V 20% X5R TA52 10000P 50V K B 2.0X1.25 R/TP 10000P 50V K B 2.0X1.25 R/TP 47UF STD 16V M FL TP5 47UF STD 16V M FL TP5 10000P 50V K B 2.0X1.25 R/TP 10000P 50V K B 2.0X1.25 R/TP 47UF STD 16V M FL TP5 1UF STD 50V M FL TP5 1UF STD 50V M FL TP5 10000P 50V K B 2.0X1.25 R/TP LOCA. NO PART NO DESCRIPTION CP29 CP30 CP32 L101 L103 L11 L12 L202 L208 L211 L213 L251 L252 L401 L402 L501 L502 L503 L504 L505 L506 L507 L508 L509 L510 L801 LP01 LP12 LP13 LP14 T401 T803 P1205 P1206 P551B P552B P902 F802 F804 F805 F806 FR401 FR406 FR407 FR408 FR901 181-442Z 181-442Z 0CH5471K416 0LA0102K139 0LA0101K119 0LA0102K119 0LA0101K119 0LA0102K119 0LA0102K119 0LA0102K119 0LA0102K119 0LA0102K119 0LA0102K119 6140VE0001V 6140VB0001F 0LA0102K119 0LA0102K119 0LA0102K119 0LA0101K119 0LA0102K119 0LA0102K119 0LA0101K119 0LA0101K119 0LA0102K119 0LA0821K119 150-C02F 0LA0472K119 0LA0102K119 0LA0102K119 0LA0102K119 151-C02F 6170VMCA13V 387-A10F 387-A05F 6932V25002H 6932V25002H 387-603E 0RP0050H709 0RP0050H709 0RP0020J809 0RP0020J809 0RF0141K607 0RF0101J607 0RF0470J607 0RF0470J607 0RF0141K607 PE,ECQ-B1H104KF3(TR) PE,ECQ-B1H104KF3(TR) 470PF 50V 5% NP0 2012 R/TP INDUCTOR,AXIAL LEAD 10UH K 4*10.5 TP INDUCTOR,AXIAL LEAD 1.0UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 1.0UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP COIL,LINEARITY 60UH 0.6PHY 69.5TURN COIL,CHOKE 130UH 0.45PHY 55.5TURN INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 1.0UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 1.0UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 1.0UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 8.2UH K 2.3*3.4 TP COIL,CHOKE 82UH PHY TURN INDUCTOR,AXIAL LEAD 47UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP TRANSFORMER, H-DRIVE,EI-19,BULK TRANSFORMER,SMPS[COIL] EER4215 300UH 10P 2.5MM 350MM H-B UL1007AWG26 5P 2.5MM 350MM H-B UL1007AWG26 35238-1010 MOLEX 10 2.5 . 35238-1010 MOLEX 10 2.5 . 9P 2.5MM 430MM B-B UL1007AWG26 0.05 OHM 1/2 W 10% TA52 0.05 OHM 1/2 W 10% TA52 0.02 OHM 1 W 20% TA52 0.02 OHM 1 W 20% TA52 1.4 OHM 2 W 5.00% TA62 1 OHM 1 W 5.00% TA62 0.47 OHM 1 W 5.00% TA62 0.47 OHM 1 W 5.00% TA62 1.4 OHM 2 W 5.00% TA62 For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible RESISTOR COIL & INDUCTOR CONNECTOR - 25 - LOCA. NO PART NO DESCRIPTION J202 J203 J204 J211 J402 R102 R109 R11 R110 R111 R112 R113 R12 R124 R124 R125 R1254 R1255 R126 R127 R13 R14 R15 R16 R17 R18 R19 R20 R202 R204 R205 R212 R213 R24 R25 R26 R28 R29 R30 R302 R303 R304 R305 R306 R307 R308 R309 R31 R310 R312 R313 R314 0RD1000F609 0RD1000F609 0RD1000F609 0RD1000F609 0RD0752F609 0RD6801F609 0RD0562F609 0RD1000F609 0RD8200F609 0RD0682F609 0RD1501F609 0RD3000F609 0RD1000F609 0RD2202F609 0RD6801F609 0RD4700A609 0RD2200H609 0RD2200H609 0RD1000F609 0RD1000F609 0RD1301F609 0RD4701F609 0RD3300F609 0RD2200F609 0RD3000F609 0RD3300F609 0RD3900F609 0RD4300F609 0RD0752F609 0RD0752F609 0RD0752F609 0RD0752F609 0RD0752F609 0RD1000F609 0RD1000F609 0RD2700F609 0RD1000F609 0RD1000F609 0RD3301F609 0RN3602F409 0RD2400A609 0RD0561A609 0RD1002F609 0RD1002F609 0RD3601F609 0RN4702F409 0RD2001F609 0RD3301F609 0RN4702F409 0RD4701F609 0RN0471H609 0RN0471H609 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 75 OHM 1/6 W 5.00% TA52 6.8K OHM 1/6 W 5.00% TA52 56 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5% TA52 820 OHM 1/6 W 5.00% TA52 68 OHM 1/6 W 5.00% TA52 1.5K OHM 1/6 W 5% TA52 300 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5% TA52 22K OHM 1/6 W 5% TA52 6.8K OHM 1/6 W 5.00% TA52 470 OHM 1/2 W(7.0) 5.00% TA52 220 OHM 1/2 W 5.00% TA52 220 OHM 1/2 W 5.00% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 1.3K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5% TA52 330 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 300 OHM 1/6 W 5.00% TA52 330 OHM 1/6 W 5.00% TA52 390 OHM 1/6 W 5% TA52 430 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 270 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 3.3K OHM 1/6 W 5.00% TA52 36K OHM 1/6 W 1.00% TA52 240 OHM 1/2 W(7.0) 5.00% TA52 5.6 OHM 1/2 W(7.0) 5.00% TA52 10K OHM 1/6 W 5% TA52 10K OHM 1/6 W 5% TA52 3.6K OHM 1/6 W 5.00% TA52 47K OHM 1/6 W 1.00% TA52 2K OHM 1/6 W 5% TA52 3.3K OHM 1/6 W 5.00% TA52 47K OHM 1/6 W 1.00% TA52 4.7K OHM 1/6 W 5% TA52 4.7 OHM 1/2 W 5.00% TA52 4.7 OHM 1/2 W 5.00% TA52 LOCA. NO PART NO DESCRIPTION R315 R32 R328 R33 R35 R37 R38 R403 R404 R405 R409 R410 R412 R42 R421 R422 R501 R502 R503 R505 R506 R507 R508 R509 R510 R511 R512 R513 R514 R515 R516 R517 R518 R519 R520 R521 R522 R522 R523 R524 R525 R526 R527 R532 R534 R535 R536 R539 R540 R542 R543 R545 0RS2700K607 0RD3301F609 0RN3602F409 0RD1000F609 0RD1000F609 0RD1000F609 0RD1002F609 0RD5600A609 0RD0332A609 0RS8200K607 0RD1501A609 0RS2702K607 0RD7501A609 0RD4701F609 0RD3600F609 0RD1002F609 0RD3301F609 0RN6801F409 0RN6801F409 0RD1000F609 0RD2202F609 0RD3300F609 0RD1201F609 0RD3600F609 0RD3600F609 0RD3600F609 0RD0332F609 0RD0332F609 0RD0332F609 0RD1600F609 0RD1600F609 0RD1600F609 0RD0222F609 0RD2701F609 0RD1001F609 0RD3002F609 0RD0152F609 0RD0472F609 0RD1000F609 0RD1000F609 0RD3300A609 0RD1201F609 0RD2702F609 0RD1000F609 0RD1201F609 0RD2200F609 0RD1801F609 0RD1002F609 0RD4702F609 0RD8200F609 0RD9100F609 0RD1002F609 270 OHM 2 W 5.00% TA62 3.3K OHM 1/6 W 5.00% TA52 36K OHM 1/6 W 1.00% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 10K OHM 1/6 W 5% TA52 560 OHM 1/2 W(7.0) 0.05 TA52 33 OHM 1/2 W(7.0) 5.00% TA52 820 OHM 2 W 5.00% TA62 1.5K OHM 1/2 W(7.0) 5.00% TA52 27K OHM 2 W 5.00% TA62 7.5K OHM 1/2 W(7.0) 5.00% TA52 4.7K OHM 1/6 W 5% TA52 360 OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5% TA52 3.3K OHM 1/6 W 5.00% TA52 6.8K OHM 1/6 W 1.00% TA52 6.8K OHM 1/6 W 1.00% TA52 100 OHM 1/6 W 5% TA52 22K OHM 1/6 W 5% TA52 330 OHM 1/6 W 5.00% TA52 1.2K OHM 1/6 W 5% TA52 360 OHM 1/6 W 5.00% TA52 360 OHM 1/6 W 5.00% TA52 360 OHM 1/6 W 5.00% TA52 33 OHM 1/6 W 5.00% TA52 33 OHM 1/6 W 5.00% TA52 33 OHM 1/6 W 5.00% TA52 160 OHM 1/6 W 5.00% TA52 160 OHM 1/6 W 5.00% TA52 160 OHM 1/6 W 5.00% TA52 22 OHM 1/6 W 5.00% TA52 2.7K OHM 1/6 W 5% TA52 1K OHM 1/6 W 5% TA52 30K OHM 1/6 W 5.00% TA52 15 OHM 1/6 W 5.00% TA52 47 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 330 OHM 1/2 W(7.0) 5.00% TA52 1.2K OHM 1/6 W 5% TA52 27K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5% TA52 1.2K OHM 1/6 W 5% TA52 220 OHM 1/6 W 5.00% TA52 1.8K OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5% TA52 47K OHM 1/6 W 5% TA52 820 OHM 1/6 W 5.00% TA52 910 OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5% TA52 For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible - 26 - LOCA. NO PART NO DESCRIPTION R555 R557 R558 R562 R563 R601 R602 R603 R604 R605 R606 R607 R608 R609 R610 R611 R612 R613 R614 R615 R616 R617 R618 R619 R620 R621 R624 R664 R803 R804 R805 R806 R807 R808 R809 R810 R814 R816 R817 R818 R823 R827 R828 R838 R840 R903 R904 R905 R906 R907 R908 R909 0RD6800F609 0RD3301F609 0RD3001F609 0RD0752F609 0RD0752F609 0RD0221A609 0RD0221A609 0RD0221A609 0RD0221A609 0RD1101F609 0RD3301F609 0RD1002F609 0RD1001F609 0RD1000F609 0RD1802F509 0RD1101F609 0RD3301F609 0RD0221F609 0RD1000F609 0RD1001F609 0RD2700F609 0RD6801F609 0RD6801F609 0RD6801F609 0RD1000F609 0RD6801F609 0RD6801F609 0RD6801F609 180-822N 0RS4702K619 0RS4702K619 180-A01N 0RD2200A609 0RD1501F609 0RD1001F609 0RD0182F609 0RK8204H609 0RD1001F609 0RD0152F609 0RKZVTA001K 0RD4701F609 0RD1001F609 0RD1501F609 0RD4701F609 0RF0141K607 0RD2200F609 0RD2200F609 0RD2200F609 0RD1000F609 0RD1000F609 0RD1000F609 0RCZVTA002D 680 OHM 1/6 W 5% TA52 3.3K OHM 1/6 W 5.00% TA52 3K OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 2.2 OHM 1/2 W(7.0) 5.00% TA52 2.2 OHM 1/2 W(7.0) 5.00% TA52 2.2 OHM 1/2 W(7.0) 5.00% TA52 2.2 OHM 1/2 W(7.0) 5.00% TA52 1.1K OHM 1/6 W 5.00% TA52 3.3K OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5% TA52 1K OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 18K OHM 1/6 W 2.00% TA52 1.1K OHM 1/6 W 5.00% TA52 3.3K OHM 1/6 W 5.00% TA52 2.2 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5% TA52 1K OHM 1/6 W 5% TA52 270 OHM 1/6 W 5% TA52 6.8K OHM 1/6 W 5.00% TA52 6.8K OHM 1/6 W 5.00% TA52 6.8K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5% TA52 6.8K OHM 1/6 W 5.00% TA52 6.8K OHM 1/6 W 5.00% TA52 6.8K OHM 1/6 W 5.00% TA52 RWR 7W 1.0 OHM J PD 47K OHM 2 W 5% TR 47K OHM 2 W 5% TR 0.18 OHM 2 W 5% TA62 PRW 220 OHM 1/2 W(7.0) 5.00% TA52 1.5K OHM 1/6 W 5% TA52 1K OHM 1/6 W 5% TA52 18 OHM 1/6 W 5.00% TA52 8.2M OHM 1/2 W 5.00% TA52 1K OHM 1/6 W 5% TA52 15 OHM 1/6 W 5.00% TA52 0.47M OHM 1/2 W 5% TA52 4.7K OHM 1/6 W 5% TA52 1K OHM 1/6 W 5% TA52 1.5K OHM 1/6 W 5% TA52 4.7K OHM 1/6 W 5% TA52 1.4 OHM 2 W 5.00% TA62 220 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 1/2 W 1.5K,10%,PLIKOR(HIGH SURGE) LOCA. NO PART NO DESCRIPTION R910 R911 R912 R914 RP01 RP03 RP04 RP06 RP11 RP12 RP13 RP14 SW11 SW12 SW13 SW14 SW15 SW16 SW801 FB801 FB802 FB803 FB825 T802 X11 XP01 Z101 JK202 PJ1202 PJ1203 A2 A3 F801 PA01 SK901 T402 TH801 TU101 VD801 0RCZVTA002D 0RCZVTA002D 0RD2204A609 0RD0102F609 0RD2200F609 0RD1000F609 0RD1000F609 0RD1000F609 0RD1000F609 0RD0102F609 0RD0102F609 0RD0102F609 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 6600VM2002A 125-022K 125-022K 125-022K 125-022K 150-F06W 6202VDB007B 6202VDB007B 6200QL3001Z 6612VJH023D 6613V00004F 380-068D 6710V00112V 5010V00004B 0FS4001B53C 6712SCA226B 6620VBC003A 6174V-6006M 163-051F 6700VS0002F 164-003G 1/2 W 1.5K,10%,PLIKOR(HIGH SURGE) 1/2 W 1.5K,10%,PLIKOR(HIGH SURGE) 2.2M OHM 1/2 W(7.0) 5.00% TA52 10 OHM 1/6 W 5% TA52 220 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 100 OHM 1/6 W 5% TA52 10 OHM 1/6 W 5% TA52 10 OHM 1/6 W 5% TA52 10 OHM 1/6 W 5% TA52 TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V TACT SKHV17910B LG C&D 12V SDKEA3 ALPS IEC 250V 8A HORIZONTAL 480G FERRITE AXIAL 62MM 1UH NY 3.5X6.0MM FERRITE AXIAL 62MM 1UH NY 3.5X6.0MM FERRITE AXIAL 62MM 1UH NY 3.5X6.0MM FERRITE AXIAL 62MM 1UH NY 3.5X6.0MM SQE2930 36MH 0.5PHY 105TURN . RESONATOR,CRYSTAL HC49U 20.250MHZ RESONATOR,CRYSTAL HC49U 20.250MHZ B39361-X6966-D100 EPCOS ST PPJ 126-04 PARK ELEC. PIN JACK PPJ107F A/V 3P DOUBLE S/W UEJ-CV-003 E/P WITH S/W STEREO(068B) D3.5 REMOTE CONTROLLER, MC049B FULL SPEC ANTENNA, 3SECTION 750MM NTSC W/ADP FUSE,SLOW BLOW 4000MA 250 V 5.2X20 REMOTE CONTROLLER RECEIVER,KSM-913LG1T SOCKET (CIRC),CPT PCS030A 8PIN 14/360 FBT, BSC25-N1648 21 YY . THERMISTOR,PTC J503P84D140M290Q TUNER, TAEW-G002D W/W LGIT MULTI VS ALL IN VARISTOR, TVR621D14A THINKING 620V 10% SWITCH ACCESSORIES MISCELLANEOUS FILTER & CRYSTAL JACK For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible P/NO: 3854VA0162A - S1 2004.6.12 SVC. SHEET : 3854VA0162A-S Oct., 2004 Printed in Korea P/NO : 3828VD0196E
