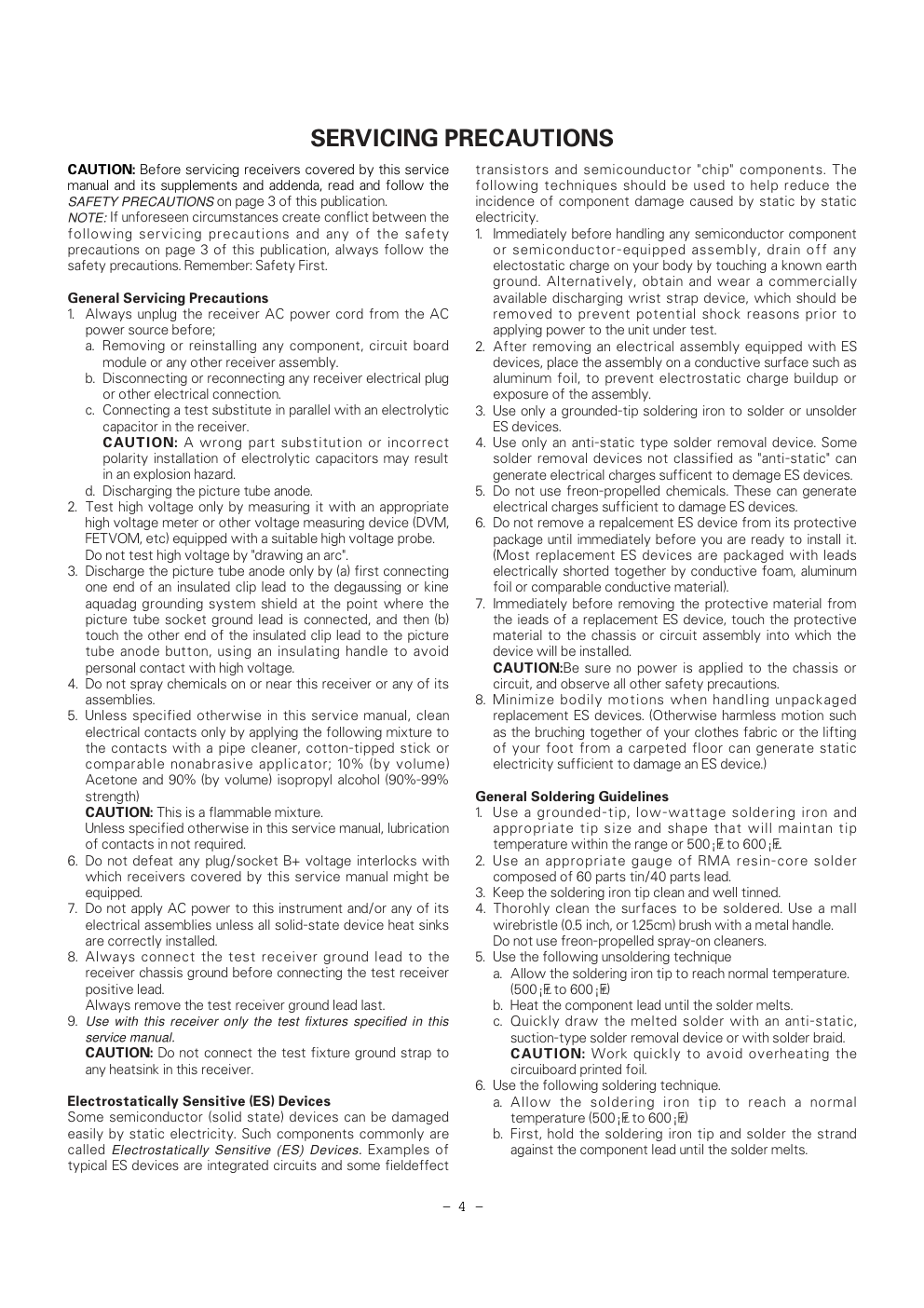

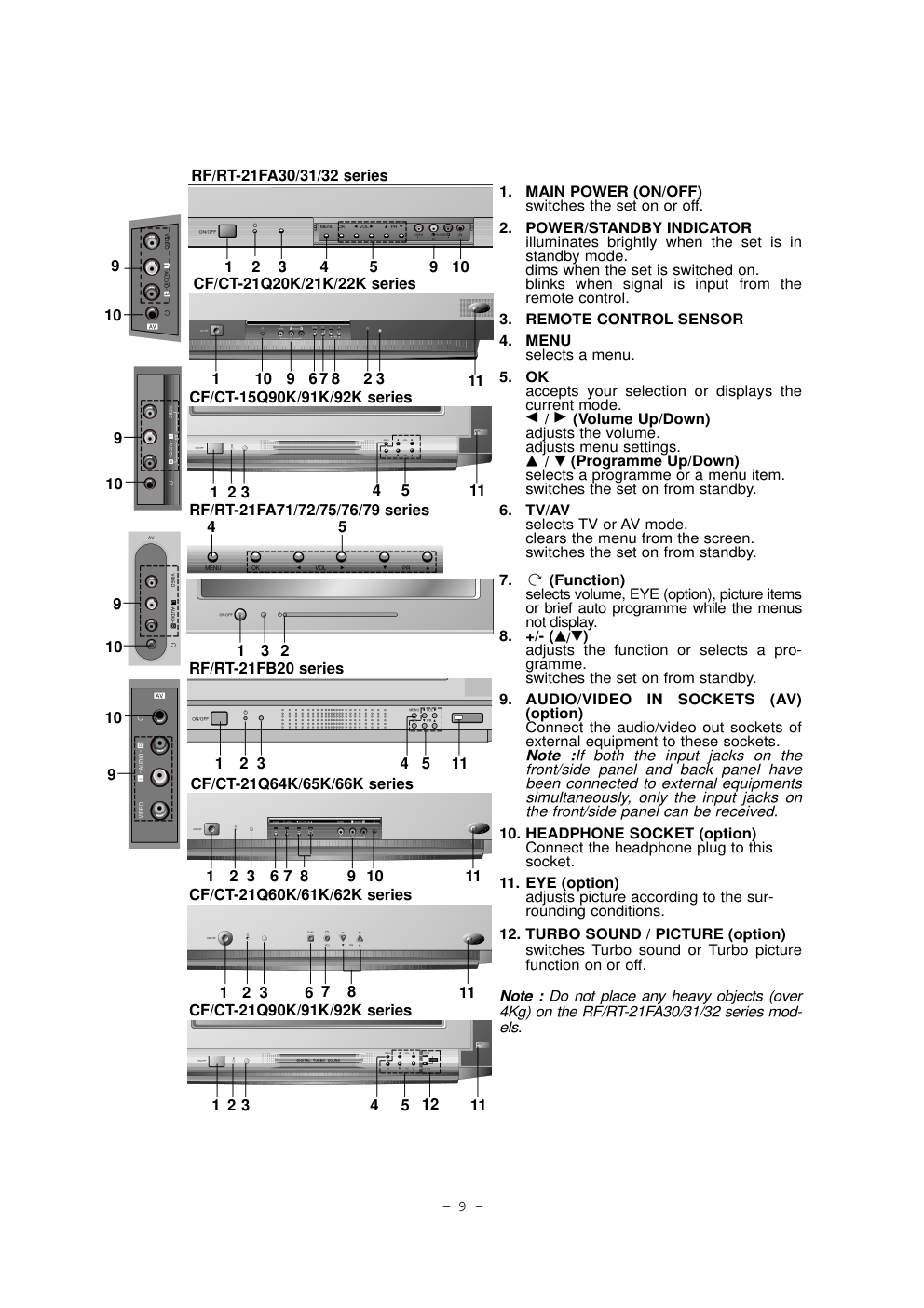

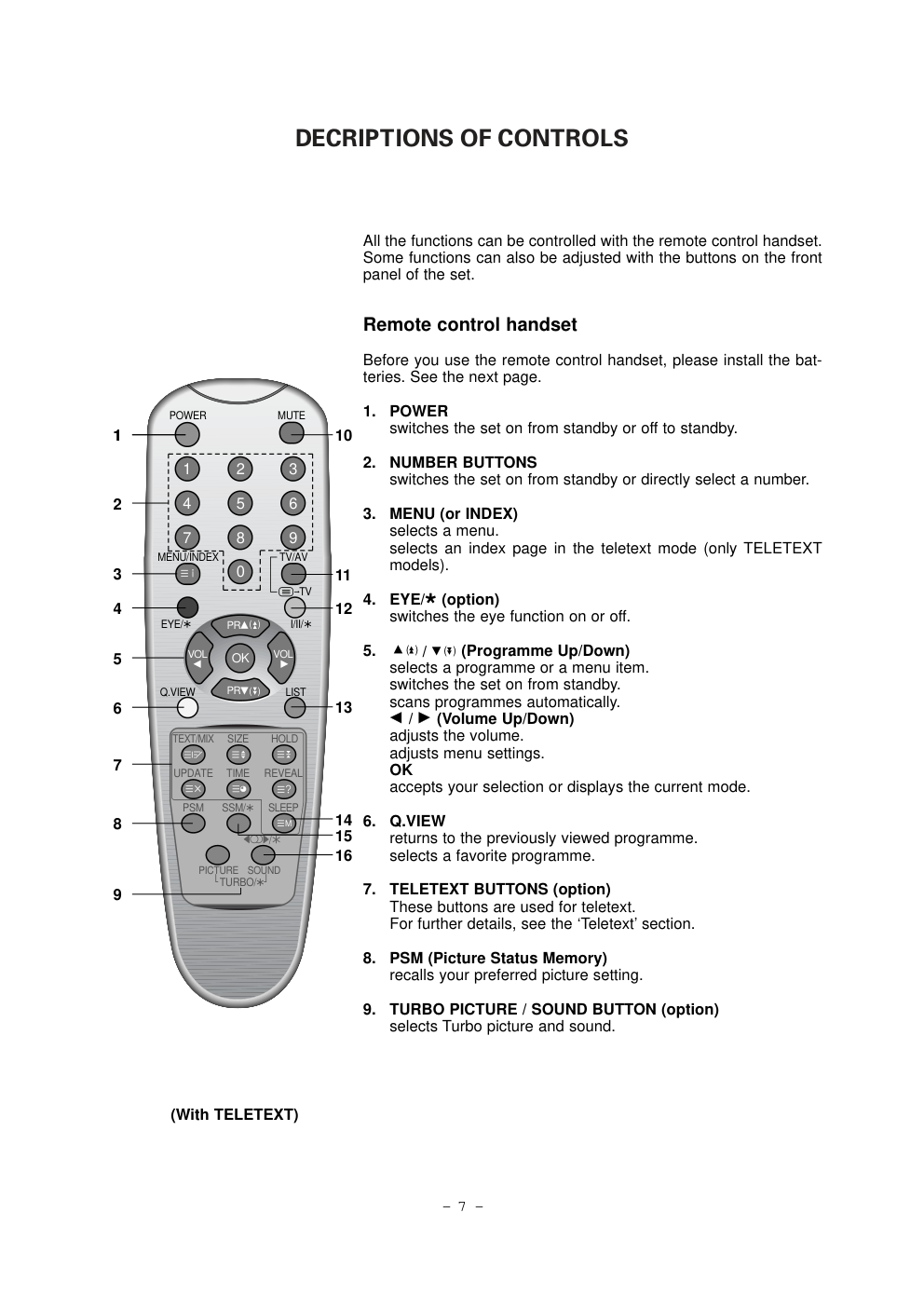

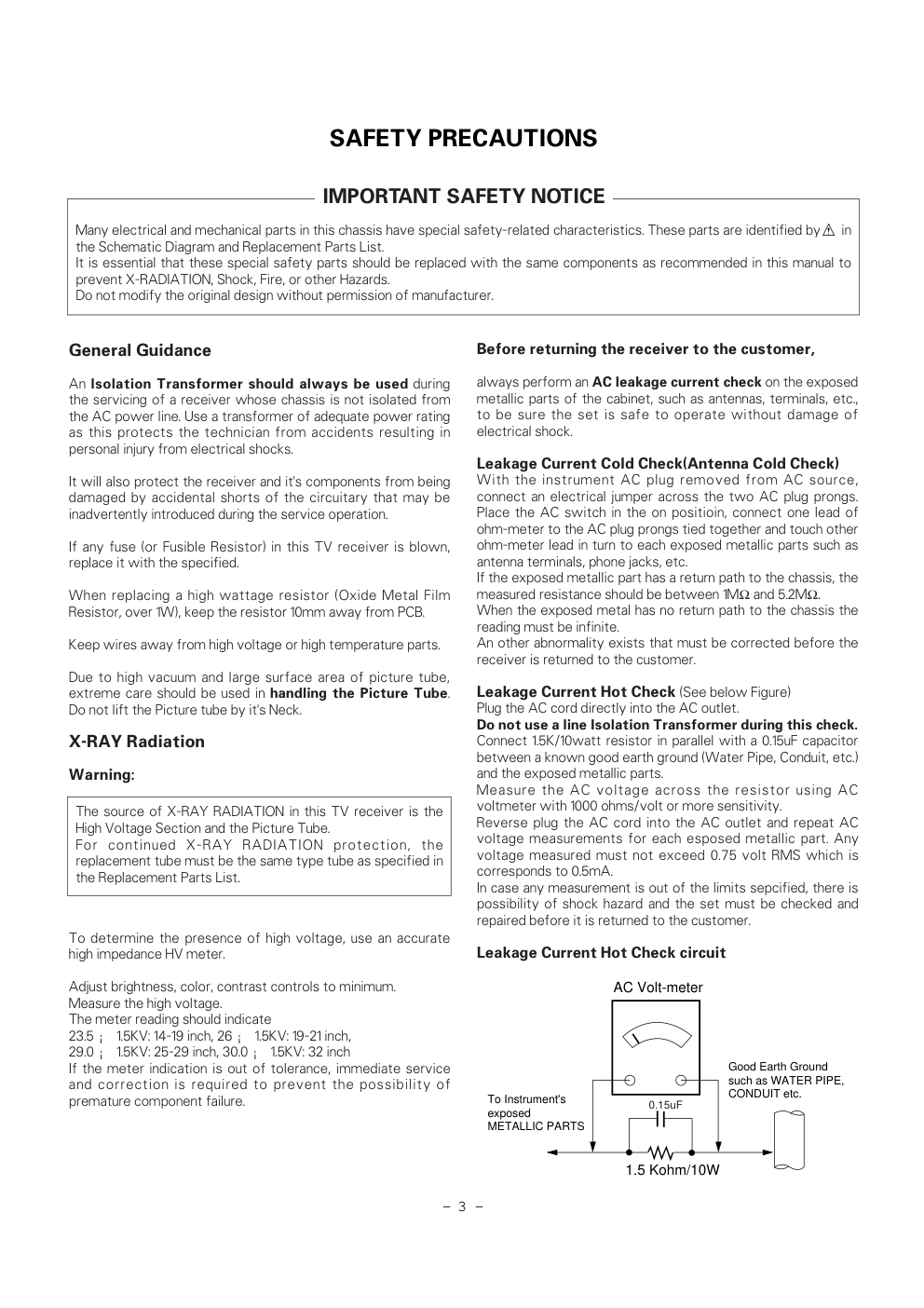

COLOR TV SERVICE MANUAL CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS : MC-019A MODEL : RF-21FB30VX MODEL : RT-21FB30V/VX/M/MX website:http://biz.LGservice.com e-mail:http://www.LGEservice.com/techsup.html - 2 - CONTENTS Contents ................................................................................................................. 2 Safety Precautions ............................................................................................3 Servicing Precautions ..................................................................................... 4 Specifications ..................................................................................................... 6 Description of Controls .................................................................................. 7 Disassembly Instructions .............................................................................10 Adjustment ............................................................................................................11 Purity & Convergence Adjustment ..........................................................14 Block Diagram ......................................................................................................17 Exploded View .................................................................................................. 18 Exploded View Parts List ..............................................................................19 Replacement Parts List ............................................................................... 20 SVC. Sheet ................................................................................................................ - 3 - SAFETY PRECAUTIONS Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance An lsolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitary that may be inadvertently introduced during the service operation. If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified. When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB. Keep wires away from high voltage or high temperature parts. Due to high vacuum and large surface area of picture tube, extreme care should be used in handling the Picture Tube. Do not lift the Picture tube by it's Neck. X-RAY Radiation Warning: To determine the presence of high voltage, use an accurate high impedance HV meter. Adjust brightness, color, contrast controls to minimum. Measure the high voltage. The meter reading should indicate 23.5 ¡ 1.5KV: 14-19 inch, 26 ¡ 1.5KV: 19-21 inch, 29.0 ¡ 1.5KV: 25-29 inch, 30.0 ¡ 1.5KV: 32 inch If the meter indication is out of tolerance, immediate service and correction is required to prevent the possibility of premature component failure. Before returning the receiver to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock. Leakage Current Cold Check(Antenna Cold Check) With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on positioin, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. Do not use a line Isolation Transformer during this check. Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each esposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits sepcified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer. Leakage Current Hot Check circuit The source of X-RAY RADIATION in this TV receiver is the High Voltage Section and the Picture Tube. For continued X-RAY RADIATION protection, the replacement tube must be the same type tube as specified in the Replacement Parts List. 1.5 Kohm/10W To Instrument's exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter IMPORTANT SAFETY NOTICE 0.15uF - 4 - CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First. General Servicing Precautions 1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board module or any other receiver assembly. b. Disconnecting or reconnecting any receiver electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard. d. Discharging the picture tube anode. 2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc". 3. Discharge the picture tube anode only by (a) first connecting one end of an insulated clip lead to the degaussing or kine aquadag grounding system shield at the point where the picture tube socket ground lead is connected, and then (b) touch the other end of the insulated clip lead to the picture tube anode button, using an insulating handle to avoid personal contact with high voltage. 4. Do not spray chemicals on or near this receiver or any of its assemblies. 5. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable nonabrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required. 6. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped. 7. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. 8. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. 9. Use with this receiver only the test fixtures specified in this service manual. CAUTION: Do not connect the test fixture ground strap to any heatsink in this receiver. Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some fieldeffect transistors and semicounductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficent to demage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a repalcement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the ieads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION:Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the bruching together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.) General Soldering Guidelines 1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintan tip temperature within the range or 500¡£F to 600¡£F. 2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead. 3. Keep the soldering iron tip clean and well tinned. 4. Thorohly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners. 5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500¡£F to 600¡£F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuiboard printed foil. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature (500¡£F to 600¡£F) b. First, hold the soldering iron tip and solder the strand against the component lead until the solder melts. SERVICING PRECAUTIONS - 5 - c. Qulckly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil. d. Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush. IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in parapraphs 5 and 6 above. Removal 1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts. 2. Draw away the melted solder with an anti-static suction- type solder removal device (or with solder braid) before removing the IC. Replacement 1. Carefully insert the replacement IC in the circuit boare. 2. Carefully bend each IC lead against the circuit foil pad and solder it. 3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas). "Small-Signal" Discrete Transistor Removal/Replacement 1. Remove the defective transistor by clipping its leads as close as possible to the component body. 2. Bend into a "U" shape the end of each of three leads remaining on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection. Power Output, Transistor Device Removal/Replacement 1. Heat and remove all solder from around the transistor leads. 2. Remove the heatsink mounting screw (if so equipped). 3. Carefully remove the transistor from the heat sink of the circuit board. 4. Insert new transistor in the circuit board. 5. Solder each transistor lead, and clip off excess lead. 6. Replace heatsink. Diode Removal/Replacement 1. Remove defective diode by clipping its leads as close as possible to diode body. 2. Bend the two remaining leads perpendicula y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered. At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections). 1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection. 4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involoves the installation of a jumper wire on the component side of the circuit board. 1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens. 2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern. 3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges. - 6 - SPECIFICATIONS Note : Specification and others are subject to change without notice for improvement. O Video input system: PAL-B/G, D/K, I/I SECAM-B/G, D/K,L/L’ NTSC M NTSC 4.43 O Intermediate Frequency (Unit : MHz) VISION IF : 38.9MHz COLOR IF : 34.47MHz(4.43) 35.32MHz(3.58) : NTSC-M VIF-4.25000MHz VIF-4.40625MHz SOUND IF : 33.4MHz (B/G) 32.9MHz (I/I) 32.4MHz (D/K) 34.4MHz (M) O Power requirement : 110~240V, 50/60Hz O Power consumption : 95 O STAND-BY : 3W O Tuning system : FVS 100 Programme memory 200 Programme memory(W/O TXT) O Antenna input impedance : VHF/UHF 75 ohm, unbalanced O OSD (On Screen Display) : EASY-MENU O Voice coil impedance : 8 ohm O Sound output : 7W¡¿2(MAX) Dual/Stereo : A2/NICAM(Option) O External connection : Head Phone Jack A/V in : 2 PERI Connector(Full Scart) : 1 DVD in O External In/Output Audio-In:0.5Vrms!3dB,over 10Kohm Audio-Out:0.5Vrms!3dBb,below 1Kohm Video-In/Out:1Vp-p!3dB,75ohm DVD In Y: 1Vp-p!3dB Pb,Pr : 0.7Vp-p!3dB O Feature : Auto programme/Manual programme CSM (Color Status Memory) Auto Sleep Turbo Picture & Sound Programme Editing PSM (Picture Status Memory) Teletext (TOP/FLOF/LIST) ACMS Auto Volume Level Game SSM(Sound Status Memory) Favorite Program O Tuning range Band VHF-Low VHF-High Hyper UHF S1'-S3', S1 S2-S10, S11-S20 S21-S41 For TV For CATV B/G Ch2-4 Ch5-12 D/K Ch1-5 Ch6-12 I/I Ch4-13 NTSC Ch2-13 Ch21-69 Ch14-69 ( ): SECAM - 7 - All the functions can be controlled with the remote control handset. Some functions can also be adjusted with the buttons on the front panel of the set. Remote control handset Before you use the remote control handset, please install the bat- teries. See the next page. 1. POWER switches the set on from standby or off to standby. 2. NUMBER BUTTONS switches the set on from standby or directly select a number. 3. MENU (or INDEX) selects a menu. selects an index page in the teletext mode (only TELETEXT models). 4. EYE/* (option) switches the eye function on or off. 5. / (Programme Up/Down) selects a programme or a menu item. switches the set on from standby. scans programmes automatically. F / G (Volume Up/Down) adjusts the volume. adjusts menu settings. OK accepts your selection or displays the current mode. 6. Q.VIEW returns to the previously viewed programme. selects a favorite programme. 7. TELETEXT BUTTONS (option) These buttons are used for teletext. For further details, see the ‘Teletext’ section. 8. PSM (Picture Status Memory) recalls your preferred picture setting. 9. TURBO PICTURE / SOUND BUTTON (option) selects Turbo picture and sound. POWER MENU/INDEX Q.VIEW LIST 0 PR OK VOL VOL PR 2 3 1 5 6 4 8 9 7 TV/AV TV I/II/ MUTE TEXT/MIX SIZE HOLD UPDATE TIME REVEAL PSM SSM/ SLEEP M EYE/ TURBO/ ( ) ( ) PICTURE SOUND / 1 10 11 12 13 14 15 16 2 3 4 5 6 7 8 9 ( ) ( ) (With TELETEXT) DECRIPTIONS OF CONTROLS - 8 - 10. MUTE switches the sound on or off. 11. TV/AV selects TV or AV mode. clears the menu from the screen. switches the set on from standby. 12. I/II/* (option) selects the language during dual language broadcast. (option) selects the sound output. 13. LIST displays the programme table. 14. SLEEP sets the sleep timer. 15. SSM/* (option) (Sound Status Memory) recalls your preferred sound setting. 16. SURROUND (º/*) (option) selects surround sound. COLOURED BUTTONS : These buttons are used for teletext (only TELETEXT models) or programme edit. Battery installation The remote control handset is powered by two AAA type batteries. To load the batteries, turn the remote control handset over and open the battery compartment. Install two batteries as indicated by the polarity symbols ( and ) marked inside the compartment. Note : To avoid damage from possible battery leakage, remove the batteries if you do not plan to use the remote control handset for an extended period of time. + - POWER MENU Q.VIEW LIST 0 PR ( ) ( ) OK VOL VOL PR 2 3 1 5 6 4 8 9 7 TV/AV I/II/ MUTE PSM SSM/ SLEEP PICTURE SOUND EYE/ TURBO/ / 1 10 11 12 13 14 15 16 2 3 4 5 6 8 9 (Without TELETEXT) - 9 - 1. MAIN POWER (ON/OFF) switches the set on or off. 2. POWER/STANDBY INDICATOR illuminates brightly when the set is in standby mode. dims when the set is switched on. blinks when signal is input from the remote control. 3. REMOTE CONTROL SENSOR 4. MENU selects a menu. 5. OK accepts your selection or displays the current mode. F / G (Volume Up/Down) adjusts the volume. adjusts menu settings. D / E (Programme Up/Down) selects a programme or a menu item. switches the set on from standby. 6. TV/AV selects TV or AV mode. clears the menu from the screen. switches the set on from standby. 7. (Function) selects volume, EYE (option), picture items or brief auto programme while the menus not display. 8. +/- (D/E) adjusts the function or selects a pro- gramme. switches the set on from standby. 9. AUDIO/VIDEO IN SOCKETS (AV) (option) Connect the audio/video out sockets of external equipment to these sockets. Note :If both the input jacks on the front/side panel and back panel have been connected to external equipments simultaneously, only the input jacks on the front/side panel can be received. 10. HEADPHONE SOCKET (option) Connect the headphone plug to this socket. 11. EYE (option) adjusts picture according to the sur- rounding conditions. 12. TURBO SOUND / PICTURE (option) switches Turbo sound or Turbo picture function on or off. Note : Do not place any heavy objects (over 4Kg) on the RF/RT-21FA30/31/32 series mod- els. ON/OFF MENU OK VOL PR 1 3 4 5 9 10 ON/OFF MENU VOL OK PR RF/RT-21FA30/31/32 series CF/CT-21Q60K/61K/62K series CF/CT-21Q20K/21K/22K series CF/CT-21Q64K/65K/66K series CF/CT-15Q90K/91K/92K series VIDEO TV/AV VOL PR AUDIO AV L R ON/OFF TV/AV (VOL) PR VIDEO AUDIO AV L R ( ) ( ) ON/OFF ON/OFF TV/AV VOL PR 1 2 10 9 67 8 2 3 1 2 3 6 7 8 11 1 2 3 6 7 9 10 11 2 3 4 5 1 11 11 ON/OFF MENU VOL SOUND OK PR PICTURE TURBO DIGITAL TURBO SOUND DIGITAL TURBO SOUND CF/CT-21Q90K/91K/92K series 1 2 3 4 11 5 8 VIDEO R L AUDIO AV 10 9 VIDEO L R AUDIO AV 10 9 PR VOL OK MENU RF/RT-21FA71/72/75/76/79 series ON/OFF VIDEO AUDIO AV R L 10 9 1 3 2 4 5 12 ON/OFF MENU OK VOL PR RF/RT-21FB20 series 1 2 3 4 11 5 VIDEO L R AUDIO AV 10 9 - 10 - Fig. 2-1 Fig. 2-2 CPT board Remove Screws Main PCB DISASSEMBLY INSTRUCTIONS Important note This set is disconnected from the power supply through the converter transformer. An isolating transformer is necessary for service operations on the primary side of the converter transformer. Back Cabinet Removal Remove the screws residing on the back cabinet and carefully separate the back cabinet from the front cabinet. (Fig. 2-1). Chassis Assy Removal Grasp both side of Frame and pull it backward smoothly. CPT Removal 1. Pull out the CPT board from the CPT neck. 2. Place the front cabinet on soft material not to mar the front surface or damage control knobs. 3. Remove 5 screws securing the picture tube mounting brackets to the front cabinet. 4. Carefully separate CPT from the front cabinet. PICTURE TUBE HANDLING CAUTION Due to high vacuum and large surface area of picture tube, great care must be exercised when handling picture tube. Always lift picture tube by grasping it firmly around faceplate. NEVER LIFT TUBE BY ITS NECK! The picture tube must not be scratched or subjected to excessive pressure as fracture of glass may result in an implosion of considerable violence which can cause personal injury or property damage. - 11 - ¡ Safety Precautions 1. It is safe to adjust after using insulating transformer between the power supply line and chassis input to prevent the risk of electric shock and protect the instrument. 2. Never disconnect leads while the TV receiver is on. 3. Don't short any portion of circuits while power is on. 4. The adjustment must be done by the correct appliances. But this is changeable in view of productivity. 5. Unless otherwise noted, set the line voltage to 110~240Vac¡ 10%, 50/60Hz. 6. The adjustment of TV should be performed afther warming up for 20 minutes. ¡ Test Equipment required 1. Multimeter (volt meter) 2. Oscilloscope 3. 10:1 PROBE 4. Color Analyzer ¡ CDL Data Adjustment(LINE SVC-0) 1) Press the SVC button to get into the SVC-0 Mode. 2) Press the Channel UP/DOWN button to select CDL12. 3) Press the Volume UP/DOWN button until the CDL data is the same as the Table below. 4) Press the OK(¡Æ) button to memorize the data. ¡ OPTION Data Adjustment(OPTION-1,OPTION-2) 1) Press OK buttons on both TV set and Remote Controller at the same time to get into SVC mode. 2) Press the Yellow button several times to find OPTION-1 or OPTION-2. 3) Input the correspond OPTION data referring to Table below with the numeric buttons. 4) Press the OK(¡Æ) button to memorize the data. Table 1. OPTION 1 Function Table 2. OPTION 2 Function Table 3. OPTION 3 Function ADJUSTMENT 21” FCD 12 FLAT 14,16” CPT 8 15” CPT 10 FLAT 20,21” CPT 12 CDL Data Remark 0 1 0 1 0 1 0 1 0 1 SCART TOP 2 IN 1 DVD C MUTE Option Code Function Remark ACTIVE NOT ACTIVE W/O DVD DVD(REAR JACK) W/O 2 IN 1TUNER WITH 2 IN 1TUNER FLOF TXT TOP TXT PHONO JACK SCART JACK 0 1 0 1 0 1 0 1 EYE TBS MONO 4 KEY Option Code Function Remark W/O TBS WITH TBS W/O EYE WITH EYE W/O 4 KEY WITH 4 KEY FORCED MONO 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 ACMS T-SCH T-P/S CURVE DUAL CHA + AU 200 PRO GAME BCF Option Code Function Remark Auto Abnormal ON Not Used W/O GAME PACK WITH GAME PACK 100 PRO 200 PRO Except China,Austrailia China,Austrailia W/O DUAL WITH DUAL Austrailia Except Austrailia W/O TURBO SEARCH WITH TURBO SEARCH W/O TURBO P/S WITH TURBO P/S NORMAL VOLUME CURVE M-A,India VOLUME CURVE 0 1 0 1 0 1 2 3 4 5 6 7 SYSTEM HOTEL RESER VED Option Code Function Remark * * * * * * W/O HOTEL W/HOTEL BG/L BG/I/DK BG/I/DK/M BG/I/DK DUAL BG/I/DK/M DUAL 2nd IF BG 2nd IF I 2nd IF DK ¡ AGC Adjustment (SERVICE 1) 1) Connect RF signal (70dB¡ 0.2dB) and turn on the TV. ¡ Standard adjustment Channel - EU 05 Ch. (frf = 175.25MHz) 2) Press the OK buttons on TV set and Remote Controller at the same time to get into SVC-0 mode. 3) Press the Channel UP/DOWN button on the Remote Controller several times to find AGC??. 4) Press the Volume UP/DOWN button until the AGC Voltage is the same as the Table below. 5) Press the OK(¡Æ) button to memorize the data. ¡ FOCUS Adjustment 1) Tune the TV set to receive a PAL 05CH. 2) Adjust the Focus Volume of FBT for best focus. ¡ Screen Voltage Adjustment 1) Connect the probe of oscilloscope to the RK (Red Cathode) of CPT Board. 2) Set the oscilloscope to 50V/div and 20Us/div and after putting GND line upon the lowest grid line of the scope by pressing GND button,enter into DC mode. 3) Tune the TV set to receive a PAL-B/G 05CH. 4) Adjust Screen Volume of FBT so that the waveform is the same as below figure (DC 140¡ 3V). ¡ White Balance Adjustment.(LINE SVC-0) NOTE : This adjustment should be performed after screen voltage adjustment. 1) Tune the TV set to receive an 100% white pattern. 2) Press OK(¡Æ) buttons on TV set and remote controller at the same time to get into SVC mode. 3) Press Yellow button on remote controller. (Standard mode) 4) Press Channel UP/DOWN button for desirous function adjustment. 5) Adjust VOL+ or VOL-button in each status of "RG--"/"BG--" for X=272¡ 8, Y=288¡ 8 with color analyzer.(Europe Model: X=288¡ 8, Y=295¡ X=272¡ 8, 11,000K) 7) Press the OK(¡Æ) button to memorize the data. Test Point : AGC TP (C101) Adjust : Remote Controller - 12 - Tuner P/N Marker AGC Voltage 6700VPF009G LG Innotek(W/S TUNER) 2.7¡ 0.05V 6700VPF016A DAEWOO(W/S TUNER) 2.7¡ 0.05V Tuner P/N Marker AGC Voltage 6700VPF009S LG Innotek(TBS TUNER) 2.5¡ 0.05V Test Point : Observing Display Adjust : Focus Volume of FBT Test Point : RK (Red Cathode of CPT Board) Adjust : Screen Volume of FBT Horizontal FlyBack Time Black level White level GND for dc 150Vp-p Status RG GG BG BLO-R BLO-G Initial Data 31 31 31 31 31 Remark 0 1 2 3 0 1 2 3 0 1 0 1 2 0 1 2 3 0 0 1 0 1 OSD-L (E-ASIA) OSD-L (CH+HI) English English,Deutsch,Francais,Italiano,Espanol English,Nederlands,Svenska,Dansk,Suomi,Por tugues,Romaneste,Polski,Cesky,Pyccknn English,Romaneste,Polski,Cesky,Pyccknn,Magyar English English,Arab,,Urdu,French English,Parsi,Urdu,French English,French,Arab,Urdu,Parsi English English,Malay,Vietnam,Indonesian,Thai English English,Chinese English,Hindi TXT-L (EU) TXT-L (E-ASIA) TXT-L (ARAB) TXT-L (FARSI) OSD-L (EU) OSD-L (M- ASIA) Option Code Function Remark ENG. ONLY EU-7EA EU ALL EU EAST ENG. ONLY ARABIC PARSI ARAB,FARSI,URDE ENG.ONLY ASIA-ALL ENG.ONLY E+CHINA E+HINDI W-EU E-EU CYRILLIC UKRAINIAN WEST-EU WEST-EU ARABIC WEST-EU FARSI 14” DC 130V¡ 3 V OTHERS DC 140V¡ 3 V - 13 - ¡ Deflection Data Adjustment (Line SVC-1) NOTE: To enter SVC mode, press "OK" buttons on both TV set and the Remote control at the same time. 1. Preparation for Deflection Adjustment 1) At SVC mode, press the Yellow colored button. And then, deflection data adjustment OSD (SVC1 mode) will be displayed. 2) Tune the TV set to receive a PAL 05 CH. 2. Deflection Initial Setup Data 3. Deflection Adjustment Procedure VL (Vertical Linearity) Adjust so that the boundary line between upper and lower half is in accord with geometric horizontal center of the CPT. VA (Vertical Amplitude) Adjust so that the circle of a digital circle pattern may be located within the effective screen of the CPT. SC (Vertical “S” Correction) Adjust so that all distance between each horizontal lines are to be the same. VS (Vertical Shift) Adjust so that the horizontal center line of a digital circle pattern is in accord with geometric horizontal center of the CPT. HS (Horizontal Shift) Adjust so that the vertical center line of a digital circle pattern is in accord with geometric vertical center of the CPT. Press the OK(¡Æ) button to memorize the data. VL VA VS HS SC 31 31 31 31 25 31 31 31 31 25 31 31 31 31 25 Status Default 21" FLAT S/S 21" FLAT LG - 14 - PURITY & CONVERGENCE ADJUSTMENT Caution: Convergence and Purity have been factory aligned. Do not attempt to tamper with these alignments. However, the effects of adjacent receiver components, or replacement of picture tube or deflection yoke may require the need to readjust purity any convergence. ¡ Purity Adjustment This procedure DOES NOT apply to bonded yoke and picture tube assemblies. The instrument should be at room temperature (60 degrees F or above) for six (6) hours and be operating at low beam current (dark background) for approximately 20 to 30 minutes before performing purity adjustments. CAUTION: Do not remove any trim magnets that may be attached to the bell of the picture tube. 1. Remove the AC power and disconnect the internal degaussing coil. 2. Remove the yoke from the neck of the picture tube. 3. If the yoke has the tape version beam bender, remove it and replace it with a adjustable type beam bender (follow the instructions provided with the new beam bender) 4. Replace the yoke on the picture tube neck, temporarily remove the three (3) rubber wedges from the bell of the picture tube and then slide the yoke completely forward. 5. Reconnect the internal degaussing coil. 6. Position the beam bender locking rings at the 9 o'clock position and the other three pairs of tabs (2,4 and 6 pole magnets) at the 12 o'clock position. 7. Perform the following steps, in the order given, to prepare the receiver for the purity adjustment procedure. a. Face the receiver in the "magnetic north" direction. b. Externally degauss the receiver screen with the television power turned off. c. Turn the television on for approximately 10 seconds to perform internal degaussing and then turn the TV off. d. Unplug the internal degaussing coil. This allows the thermistor to cool down while you are performing the purity adjustment. DO NOT MOVE THE RECEIVER FROM ITS "MAGNETIC NORTH" POSITION. e. Turn the receiver on and obtain a red raster by increasing the red bias control (CW) and decreasing the bias controls for the remaining two colors (CCW). f. Attach two round magnets on the picture tube screen at 3 o'clock and 9 o'clock positions, approximately one (1) inch from the edge of the mask (use double-sided tape). DEFLECTION YOKE PURITY &CONVERGENCE MAGNET ASSEMBLY RUBBER WEDGES GLASS CLOTH TAPE ���� ���� ����� ���� ���� �� �� ��� ��� �� ����� ����� ����� ������ ����� ����� ����� ����� �� PURITY MAGNET 6-POLE 4-POLE 4-POLE MAGNET CONVERGENCE MAGNET ASSEMBLY 6-POLE MAGNES PURITY MAGNET(2-POLE) X-AXIS YOKE POSITIONING (L/R PURITY) 6-POLE MAGNETS CONVERGENCE MAGNET ASSEMBLY - 15 - 8. Referring to above, perform the following two steps: a. Adjust the yoke Z-axis to obtain equal blue circles. b. Adjust the appropriate beam bender tabs to obtain correct purity (four equal circles). 9. After correct purity is set, tighten the yoke clamp screw and remove the two screen magnets. 10. Remove the AC power and rotate the receiver 180 degrees (facing "magnetic south"). 11. Reconnect the internal degaussing coil. 12. Turn the receiver on for 10 seconds (make sure the receiver came on) to perform internal degaussing, and then turn the receiver off. 13. Unplug the internal degaussing coil. 14. Turn on the receiver and check the purity by holding one (1) round magnet at the 3 o'clock and a second round magnet at 9 o'clock position. If purity is not satisfactory, repeat steps 8 through 14. 15. Turn off the receiver and reconnect the internal degaussing coil. ¡ Convergence Adjustment Caution: This procedure DOES NOT apply to bonded yoke and picture tube assemblies. Do not use screen magnets during this adjustment procedure. Use of screen magnets will cause an incorrect display. 1. Remove AC power and disconnect the internal degaussing coil. 2. Apply AC Power and set the brightness to the Picture Reset condition. Set the Color control to minimum. 3. Make a horizontal line. 4. Adjust the Red, Green and Blue Bias controls to get a dim white line. 5. Restore the screen by removing the horizontal line. 6. Reconnect the internal degaussing coil and apply AC power. 7. Turn the receiver on for 10 seconds to perform internal degaussing and then turn the receiver off again. 8. Unplug the internal degaussing-coil. 9. Turn on the receiver, connect a signal generator to the VHF antenna terminal and apply a crosshatch signal. Caution: During the convergence adjustment procedure, be very careful not to disturb the purity adjustment tabs are accidentally move, purity should be confirmed before proceeding with the convergence adjustments. Note: Make sure the focus is set correctly on this instrument before proceeding with the following adjustment. 10. Converge the red and blue vertical lines to the green vertical line at the center of the screen by performing the following steps (below TABLE). a. Carefully rotate both tabs of the 4-pole ring magnet simultaneously in opposite directions from the 12 o'clock position to converge the red and blue vertical lines. b. Carefully rotate both tabs of the 6-pole ring magnet simultaneously in opposite directions form the 12 o'clock position to converge the red and blue (now purple) vertical lines with the green vertical line. 11. Converge the red and blue horizontal with the green line at the center of the screen by performing the following steps. (below TABLE) a. Carefully rotate both tabs of the 4-pole ring magnet simultaneously in the same direction (keep the spacing between the two tabs the same) to converge the red and blue horizontal lines. b. Carefully rotate both tabs of the 6-pole ring magnet simultaneously in same direction (keep the spacing between the two tabs the same) to converge the red and blue (now purple) horizontal lines with the green horizontal line. c. Secure the tabs previsouly adjusted by locking them in place with the locking tabs on the beam bender. MAGNETS RED RED 1.ADJUST YOKE Z-AXIS FIRST TO GET EQUAL BLUE COLOR CIRCLES 2 .ADJUST BEAM BENDER 2 POLE MAGNET TO GET FOUR EQUAL COLOR CIRCLES - 16 - RING PAIRS 4 POLE ROTATION DIRECTION OF BOTH TABS OPPOSITE SAME OPPOSITE SAME MOVEMENT OF RED AND BLUE BEAMS B B R R OR OR B R B R OR B R B R B R OR B R 6 POLE 12. While watching the 6 o'clock positions on the screen, rock the front of the yoke in a vertical (up/down) direction to converge the red and blue vertical lines. (Fig upper left) 13. Temporarily place a rubber wedge at the 12 o'clock position to hold the vertical position or the yoke. 14. Check the 3 o'clock and 9 o'clock areas to confirm that the red and blue horizontal lines are converged. If the lines are not converged, slightly offset the vertical tilt of the yoke (move the rubber wedge if necessary) to equally balance the convergence error of the horizontal lines at 3 o'clock and 9 o'clock and the vertical lines at 6 o'clock and 12 o'clock. 15. Place a 1.5 inch piece of glass tape over the rubber foot at the rear of the 12 o'clock wedge. 16. While watching the 6 o'clock and 12 o'clock areas of the screen, rock the front of the yoke in the horizontal (left to right) motion to converge the red and blue horizontal lines. (Fig. upper right) 17. Temporarily place a rubber wedge at the 5 o'clock and 7 o'clock positions to hold the horizontal position of the yoke. 18. Check the 3 o'clock and 9 o'clock areas to confirm that the red and blue vertical lines are converged. If the lines are not converged, slightly offset the horizontal tilt of the yoke (move the temporary rubber wedges if necessary) to equally balance the convergence error of the horizontal lines at 6 o'clock and 12 o'clock and the vertical lines at 3 o'clock and 9 o'clock. 19. Using a round magnet confirm purity at the center, right and left sides and corners. See Purity Adjustment Procedure. 20. Reconfirm convergence and apply a 1.5 inch piece of glass tape over the rubber foot at the rear of the 5 o'clock and the 7 o'clock wedges. RED BLUE RED BLUE BLUE RED GREEN GREEN BLUE RED GREEN GREEN ADJUSTMENT VIEWING AREA UP/DOWN ROCKING OF THE YOKE CAUSES OPPOSITE ROTATION OF RED AND BLUE RASTERS ADJUSTMENT VIEWING AREA RED RED GREEN TV SCREEN LEET/RIGHT ROCKING OF THE YOKE CAUSES OPPOSITE SIZE CHANGE OF THE RED AND BLUE RASTERS UP/DOWN ROCKING OF THE YOKE CAUSES OPPOSITE ROTATION OF RED AND BLUE RASTERS LEFT/RIGHT ROCKING OF THE YOKE CAUSES OPPOSITE SIZE CHANGE OF THE RED AND BLUE RASTERS - 17 - BLOCK DIAGRAM DVD (FLAT OPT.) R.G.B AMP. & CPT DRIVE (TDA6107Q) FBT 185V -14V AFC ABL HEATER B+ HDT Collector A1(R/L)-IN SPK(R/L)-OUT UOC TDA9361(TXT) H/P AV-IN AUDIO B+ B+ (110/115V) (14/17V) SMPS TRANS SPK. Front-AV(2) (MNT/TV-OUT) 14V H-out IFout Int. CVBS SCL SDA EXT Video-in RGB OUT IK H-Vcc VIDEO TUNER V_DY VERTICAL AMP LA7840 Va Rear_AV(1) SCART / PHONE) ( IC03 EEPROM 24C08/16 A(R/L)-OUT V-OUT EXT.RGB Vb Va Vb SPK. 9.5V 5V From IC131 A1/A2(R/L)-IN Y/Pb/Pr DVD(R/L)-IN / Game Audio MNT/TV-A(R/L)-OUT SIF FM-SIF-IN SW1 SW2 SDA SCL MSP3410D TDA9859 AV STEREO RF STEREO MONO SOUND AMP TDA2006 AC INPUT (110~240V) STEREO, Sound Max SOUND AMP. TDA7266/97 STEREO, Sound Max SOUND AMP. TDA7266/97 IC131 5V REG Option Part IIC Bus Line TDA9381(Non-TXT) Audio(Mono) (TV OUT) 28 33 21 22 38 Sound Trap Part Video-OUT(TV/MNT OUT) 50 42 51~53 °‹ °‹ °‹ °‹ °‹ STEREO ( ~B01K ~ A13P) MONO ( ~B01L ) 10 12 9 5 3 9 8 10 2 6 14V 1 ST-BY TRANS (3W Opt) °‹ SPK(L)-OUT °‹ 24 25 47 44 AUDIO AM-IN (L/L Only) 30 39 31 40 28 30 14 39 8V From IC844 14 39 39 3.3V Reg. 5V From IC842 3.3V °‹ °‹ 8V From IC844 IC844 8V REG IC842 5V REG 41 42 1 32 IC02 IC631 IC661 5V 5V 5.1V SFE 5.74M 32 SIF SIF(CE Mono) From Tuner °‹ 35 EXT Audio-in °‹ IC651 LA7016(Mono Opt) 7 2 TV Audio(From UOC #28) / Game Audio (From HIC01) 4 MNT Audio Out(Mono) TV Audio Out (CL Mono) °‹ °‹ LA7016(DVD / GameOpt) IC591 ) 2 DVD Y / Game Video 4 7 EXT Video PJ201 EXT Video(To UOC #42) HIC01 Game Pack(Game Opt) 3, 4, 5 1 2 From UOC Video(Game) Audio(Game) PJ202 15 18 44 Audio Out TO IC631 #1,#5 Thai Opt. °‹ - 18 - EXPLODED VIEW 300 120 120 943 400 913 170 150 153 112 330 320 310 174 520 104 - 19 - EXPLODED VIEW PARTS LIST LOCA. NO PART NO DESCRIPTIONS 104 343-B40A SUPPORTER,PCB 112 6334V21004B CPT A51QDX992X 0G[V] 0G[H] SSDI BA 6341V21009B CPT ASSY A51QDX992X 120 6400GESS01B SPEAKER,FULLRANGE F27C6380-1 6400GESS01A SPEAKER,FULLRANGE C070P01K1450 121 4810V00576A BRACKET,SPEAKER 150 150-D02N COIL,DEGAUSSING,CU 21” 60T 12 OHM 150-D02X COIL,DEGAUSSING 153 6150V-1019C DY DIF-2192AA(NF5) 21” SAMSUNG . 6150V-1014G DY QPC-E5409A 170 170-A01N CPT EARTH 21” 64T 2LUG 1P HSG 174 6410VEH001D POWER CORD VCTFK(2.1M) DOOPUNG VDE/SEMKO 174-009E POWER CORD 300 3091V00435F CABINET ASSY CKD STEREO MC019A 3091V00435G CABINET ASSY MONO 310 5020V00669C BUTTON,CONTROL 320 320-062E SPRING,KNOB 330 5020V00668B BUTTON,POWER 400 3809V00295F BACK COVER ASSY CKD DVD(1PHONE) . 3809V00295G BACK COVER ASSY 1PHONE 3809V00295C BACK COVER ASSY 520 6871VMM765S PWB ASSY,MAIN 019A 6871VMM767E PWB ASSY,MAIN 019A(LGEMT,COM) 6871VMM886L PWB ASSY,MAIN 019A RT-21FB30M 6871VMM886H PWB ASSY,MAIN 019A RT-21FB30M 6871VMM886M PWB ASSY,MAIN 019A RT-21FB30M 913 332-057B SCREW ASSY,HEXAGON HEAD 943 1PTF0403116 SCREW,TAP TITE(P) D4.0 L16.0 MSWR3/FZB The components identified by mark is critical for safety. Replace only with part number specified. REPLACEMENT PARTS LIST LOCA. NO PART NO DESCRIPTION IC01 “ “ IC02 IC03 IC301 IC591 IC601 IC602 IC603 IC621 IC631 IC801 IC802 IC803 IC804 IC842 “ IC844 IC901 D101 D102 D301 D401 D441 D442 D443 D501 D571 D802 D803 D804 D805 D806 D807 D808 D824 D901 D902 D903 D904 DB801 LD01 ZD01 ZD101 ZD441 ZD442 ZD443 ZD501 0ICTMPH004D 0ICTMPH010A 0ICTMPH005C 0IMCRNS005A 0IAL241600B 0ISA784070A 0ISA701600A 0ISA701600A 0ISG726600A 0IFA754207A 0ISG200600A 0IMCRPH010A 0ILI817000G 0ILI817000G 0ISK665413C 0ISK110000A 0ISS780500J 0IMCRUK002A 0IMCRKE001A 0IPH610700A 0DD414809ED 0DSVH00019A 0DD400509AA 0DD150009CA 0DD060009AC 0DD060009AC 0DD060009AC 0DD414809ED 0DD414809ED 0DD100009AM 0DD414809ED 0DD360009AA 0DD200009AH 0DD100009AM 0DD300009AC 0DD060009AC 0DD420000BB 0DR210009AC 0DR210009AC 0DR210009AC 0DR140049AC 0DD260000BB 4930V00183B 0DZ910009AJ 0DZ510009AK 0DZ620009AK 0DZ820009BF 0DZ330009DG 0DZ820009BF IC,TDA9381PS/N2/3I,0782 PHILIPS 6 IC,TDA9381PS/N2/3I,0792 PHILIPS 6 IC,TDA9381PS/N2/3I,0838 IC,LM1117T-3.3 NATIONAL SEMICONDU IC,AT24C16-10PC 8D EEPROM 16K IC,LA7840 7S VERTICAL IC,LA7016 8S ANALOG S/W IC,LA7016 8S ANALOG S/W IC,TDA7266S 15 SIP ST SOUND AMP M IC,KA75420ZTA(KA7542ZTA) 3P,TO-92 IC,TDA2006 15 SDIP ST IC,TDA9859 PHILIPS 32P SDIP ST UN IC,LTV817M-VB 4P,DIP BK PHOTO COU IC,LTV817M-VB 4P,DIP BK PHOTO COU IC,STR-F6654R(LF1352) 5 SIP BK ST IC,SE110N(LF12) 3P 110V ERROR AMP IC,KA78L05AZ TO-92 TP 5V REGULATO IC,S78DL05 AUK 3P IC,KIA78R08PI KEC 4PIN,TO220IS-4 IC,TDA6107Q SIP9 BK VIDEO OUT AMP DIODE,1N4148 TA DIODE,SWITCHING BA282 DIODE,RECTIFIERS 1N4005 DIODE,RECTIFIERS RGP15J DIODE,RECTIFIERS TVR06J DIODE,RECTIFIERS TVR06J DIODE,RECTIFIERS TVR06J DIODE,1N4148 TA DIODE,1N4148 TA DIODE,RECTIFIERS EU1ZV(1) DIODE,1N4148 TA DIODE,RECTIFIERS BYW36 (2A/600V) DIODE,RECTIFIERS RU2AMV(1) DIODE,RECTIFIERS EU1ZV(1) DIODE,RECTIFIER RU3AMV(1) DIODE,RECTIFIERS TVR06J DIODE,D4L20U SHINDENGEN DIODE,RECTIFIERS BAV21 DO35 200V 0.2 DIODE,RECTIFIERS BAV21 DO35 200V 0.2 DIODE,RECTIFIERS BAV21 DO35 200V 0.2 DIODE,RECTIFIERS 1N4004A T-81 TP DIODE,RECTIFIERS BRIDGE D2SBA60(STK) HOLDER LED MODULE ASSY . 4PIN DIODE,ZENERS MTZJ9.1B TP ROHM-K DO34 0.5W 9 DIODE,ZENERS GDZJ5.1B TP GRANDE DO34 0.5W 5 DIODE,ZENERS GDZJ6.2B TP GRANDE DO34 0.5W 6 DIODE,ZENERS GDZJ8.2B TP GRANDE DO34 0.5W 8 DIODE,ZENERS GDZJ33B TP GRANDE DO34 0.5W 33 DIODE,ZENERS GDZJ8.2B TP GRANDE DO34 0.5W 8 LOCA. NO PART NO DESCRIPTION ZD601 ZD901 Q01 Q102 Q103 Q211 Q212 Q213 Q214 Q215 Q216 Q301 Q402 Q442 Q551 Q552 Q553 Q554 Q555 Q571 Q621 Q651 Q801 Q802 Q806 C01 C02 C03 C04 C05 C07 C21 C51 C101 C102 C107 C109 C110 C111 C112 C113 C201 C208 C209 C210 C221 C222 C223 C253 0DZ910009BD 0DZ750009BE 0TR198009BA 0TR319709AB 0TR102009AB 0TR198009BA 0TR534309AA 0TR534309AA 0TR534309AA 0TR534309AA 0TR534309AA 0TR198009BA 0TR570200AA 0TR233109AA 0TR198009BA 0TR198009BA 0TR198009BA 0TR534309AA 0TR534309AA 0TR198009BA 0TR534309AA 0TR534309AA 0TR102009AB 0TR102009AB 0TR102009AB 0CN1020K519 0CN1030F679 0CE107DD618 0CC2400K415 0CC2400K415 0CE107DD618 0CE107DD618 0CN1030F679 0CN1030F679 0CE106DF618 0CE107DD618 0CE476DK618 0CN1030F679 0CN1030F679 0CN1030F679 0CN1020K519 0CE227DD618 0CE226DF618 0CE226DF618 0CN1030F679 0CE475DK618 0CE475DK618 0CE475DK618 0CN2230H949 DIODE,ZENERS GDZJ9.1B TP GRANDE DO34 0.5W 9 DIODE,ZENERS GDZJ7.5B TP GRANDE DO34 0.5W 7 TR,2SA1980Y TP AUK - - TR,KTC3197,TP(KTC388A),KEC TR,KRC102M,TP(KRC1202),KEC TR,2SA1980Y TP AUK - - TR,2SC5343Y TP AUK - - TR,2SC5343Y TP AUK - - TR,2SC5343Y TP AUK - - TR,2SC5343Y TP AUK - - TR,2SC5343Y TP AUK - - TR,2SA1980Y TP AUK - - TR,KSD5702 BK SAMSUNG TO3PF H-OUT TR,KSC2331-Y TP SAMSUNG TO-92L TR,2SA1980Y TP AUK - - TR,2SA1980Y TP AUK - - TR,2SA1980Y TP AUK - - TR,2SC5343Y TP AUK - - TR,2SC5343Y TP AUK - - TR,2SA1980Y TP AUK - - TR,2SC5343Y TP AUK - - TR,2SC5343Y TP AUK - - TR,KRC102M,TP(KRC1202),KEC TR,KRC102M,TP(KRC1202),KEC TR,KRC102M,TP(KRC1202),KEC 1000P 50V K B TA52 10000P 16V M Y TA52 100UF STD 10V M FL TP5 24P 50V J NP0 TP 24P 50V J NP0 TP 100UF STD 10V M FL TP5 100UF STD 10V M FL TP5 10000P 16V M Y TA52 10000P 16V M Y TA52 10UF STD 16V M FL TP5 100UF STD 10V M FL TP5 47UF STD 50V M FL TP5 10000P 16V M Y TA52 10000P 16V M Y TA52 10000P 16V M Y TA52 1000P 50V K B TA52 220UF STD 10V M FL TP5 22UF STD 16V M FL TP5 22UF STD 16V M FL TP5 10000P 16V M Y TA52 4.7UF STD 50V 20% FL TP 5 4.7UF STD 50V 20% FL TP 5 4.7UF STD 50V 20% FL TP 5 22000P 25V Z FTA52 IC DIODE TRANSISTOR - 20 - The components identified by mark are critical for safety. Replace only with part number specified. CAPACITOR - 21 - LOCA. NO PART NO DESCRIPTION C255 C259 C260 C301 C302 C303 C304 C307 C401 C402 C403 C404 C405 C441 C443 C444 C446 C447 C449 C452 C501 “ C502 C503 C504 C505 C506 C507 C508 C509 C511 C512 C513 C514 C515 C516 C517 C524 C529 C530 C532 C534 C538 “ C540 C541 C542 C548 C549 C551 “ C561 0CN2230H949 0CN1030F679 0CE226DF618 0CQ1041N509 0CQ3931N509 0CK1810W515 0CE107DJ618 0CQ6821N509 181-013Q 0CE475DP618 181-015E 0CK8210W515 181-091U 0CQ1531N509 0CE477DH618 0CE475DR618 0CE477DH618 0CQ3321N509 181-009V 0CE106DK618 181-007F 0CF2241L438 0CN1030F679 0CE107DD618 0CE225DK618 0CQ2221N509 0CE105DK618 0CQ2221N509 0CE476DF618 0CE106DF618 0CE105DK618 0CN1020K519 0CN1020K519 0CQ1041N455 0CQ2231N509 0CQ2721N409 0CE106DF618 0CN1030F679 0CE225CK636 0CQ1041N509 0CE225DK618 0CN1030F679 181-007H 0CF4741L438 0CN2230H949 0CN2230H949 0CN2230H949 0CN8210K519 0CQ4721N509 0CN2210K519 0CX4700K409 0CE107DD618 22000P 25V Z FTA52 10000P 16V M Y 22UF STD 16V M FL TP5 0.1U 100V K POLY TP 0.0390UF 100V K PE TP 180P 500V K B TS 100UF STD 35V M FL TP5 0.0068U 100V K POLY TP MPP 400V 0.36UF J 4.7UF STD 160V 20% FL TP 5 MPP 1600V 0.0068UF H 820P 500V K B TS R 220PF 2KV 10%,-10% R/TP TP7. 0.015U 100V K POLY TP 470UF STD 25V M FL TP5 4.7UF STD 250V 20% FL TP 5 470UF STD 25V M FL TP5 0.0033U 100V K POLY TP PP 200V 0.047UF K 10UF STD 50V M FL TP5 MPE ECQ-V1H224JL3(TR), 50V 0.2 0.22UF D 63V 5% 10000P 16V M Y TA52 100UF STD 10V M FL TP5 2.2UF STD 50V 20% FL TP 5 0.0022U 100V K POLY TP 1UF STD 50V M FL TP5 0.0022U 100V K POLY TP 47UF STD 16V M FL TP5 10UF STD 16V M FL TP5 1UF STD 50V M FL TP5 1000P 50V K B TA52 1000P 50V K B TA52 0.1000UF 100V J PP NI FM7.5 0.022U 100V K POLY TP 0.0027M 100V J POLY TP 10UF STD 16V M FL TP5 10000P 16V M Y TA52 2.2UF SHL SD 50V 20% 0.1U 100V K POLY TP 2.2UF STD 50V 20% 10000P 16V M Y TA52 MPE ECQ-V1H474JL3(TR), 50V 0.4 0.47UF D 63V 5% 22000P 25V Z FTA52 22000P 25V Z FTA52 22000P 25V Z FTA52 820P 50V K B TA52 0.0047U 100V K POLY TP 220P 50V K B TA52 47P 50V J SL 100UF STD 10V M FL TP5 LOCA. NO PART NO DESCRIPTION C573 C574 C593 C594 C595 C601 C602 C603 C605 C606 C607 C612 “ C621 C622 C623 C624 C625 C626 C631 C632 C633 C634 C635 C636 C637 C638 C639 C640 C641 C642 C643 C644 C645 C646 C653 C655 “ C801 C802 C803 C804 C806 “ C807 C808 C809 C811 C812 “ C813 C815 0CE107DF618 0CQ1021N509 0CE475DK618 0CQ1041N509 0CE475DK618 0CE226DF618 181-007F 0CQ6821N509 0CQ6821N509 181-007F 0CN1030F679 0CE477DH618 0CE477DJ618 0CQ6821N509 0CE225DK618 0CE106DH618 0CE477DJ618 0CQ1041N509 0CE226DK618 181-007H 181-007H 0CE107DD618 0CN1030F679 0CE476DF618 0CQ6821N509 181-007D 0CQ5621N509 0CQ5621N509 181-007D 0CQ6821N509 0CQ5621N509 181-007H 0CQ4731N509 181-007H 181-007H 0CE475DK618 0CE476DF618 0CE475DK618 0CE107BJ618 181-091U 0CK4710W515 0CQ1041N509 181-001V 0CE337KV6A0 0CK10201515 0CK10201515 0CQZVBK002C 181-120K 0CE108DH618 0CE477DJ618 0CK4710W515 0CK4710W515 100UF STD 16V M FL TP5 0.001U 100V K POLY TP 4.7UF STD 50V 20% FL TP 5 0.1U 100V K POLY TP 4.7UF STD 50V 20% FL TP 5 22UF STD 16V M FL TP5 MPE ECQ-V1H224JL3(TR), 50V 0.2 0.0068U 100V K POLY TP 0.0068U 100V K POLY TP MPE ECQ-V1H224JL3(TR), 50V 0.2 10000P 16V M Y TA52 470UF STD 25V M FL TP5 470UF STD 35V 20% FL TP5 0.0068U 100V K 2.2UF STD 50V 20% FL TP 5 10UF STD 25V M 470UF STD 35V 20% FL TP5 0.1U 100V K POLY TP 22UF STD 50V M MPE ECQ-V1H474JL3(TR), 50V 0.4 MPE ECQ-V1H474JL3(TR), 50V 0.4 100UF STD 10V M FL TP5 10000P 16V M Y TA52 47UF STD 16V M FL TP5 0.0068U 100V K POLY TP MPE ECQ-V1H154JL3(TR), 50V 0.1 0.0056U 100V K POLY TP 0.0056U 100V K POLY TP MPE ECQ-V1H154JL3(TR), 50V 0.1 0.0068U 100V K POLY TP 0.0056U 100V K POLY TP MPE ECQ-V1H474JL3(TR), 50V 0.4 0.047U 100V K POLY TP MPE ECQ-V1H474JL3(TR), 50V 0.4 MPE ECQ-V1H474JL3(TR), 50V 0.4 4.7UF STD 50V 20% FL TP 5 47UF STD 16V M FL TP5 4.7UF STD 50V 20% FL TP 5 100UF KME 35V M FL TP5 R 220PF 2KV 10%,-10% R/TP TP7. 470PF 500V K B TR 0.1U 100V K POLY TP CE 450V 220UF M LUG(85) 330UF SLT 450V M 1000P 1KV K B TS 1000P 1KV K B TS A.C 275V 0.22UF K (S=22.5) 2200PF 4KV M E FMTW LEAD 4.5 1000UF STD 25V M FL TP5 470UF STD 35V 20% FL TP5 470PF 500V K B TR 470PF 500V K B TR For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible The components identified by mark are critical for safety. Replace only with part number specified. - 22 - LOCA. NO PART NO DESCRIPTION C816 C817 C818 C819 C820 C821 C823 C825 C828 C829 C830 C831 C832 C834 C835 C841 C901 C902 C903 C904 C905 R655 F801 F812 FR803 J57 L04 L05 L102 L210 L401 L402 L501 L502 L503 L506 L551 L552 L611 L801 R443 R545 R546 R547 T401 T402 T802 “ 0CN1030F679 0CK4710W515 0CE107BH618 181-091Y 0CE227DP650 181-120N 0CK4710K515 181-091P 0CE107DF618 0CF1021047A 0CE475DK618 0CE108BF618 181-091P 0CE476CP618 0CE107DF618 0CE477DD618 0CE475DR618 0CQ1044R539 0CK12202510 0CE475DR618 0CN5610K519 0CN1030F679 0FS4001B53C 131-096N 131-096N 0LA0102K119 0LA1000K119 0LA0102K119 0LA0680K119 0LA0102K119 6140VE0001V 6140VB0001F 0LA0102K119 0LA0102K119 0LA0102K119 0LA0102K119 0LA0681K119 0LA0561K119 0LA0102K049 150-C02F 0LA0101K119 0LA0681K119 0LA0681K119 0LA0681K119 6174V-6006E 6170VC0003A 6170VMCB01K 6170VMCB01L 10000P 16V M Y TA52 470PF 500V K B TR 100UF KME 25V M FL TP5 R 680PF 2KV 10%,-10% R/TP TP7. 220UF STD 160V M FM7.5 BULK 1000PF 4KV M E FMTW LEAD4.5 470PF 50V K B TR SL 270PF 1KV 10%,-10% R/TP TP5 100UF STD 16V M FL TP5 1000PF D 800V 5% TP 7.5 M/PP N 4.7UF STD 50V 20% FL TP 5 1000UF KME 16V M FL TP5 SL 270PF 1KV 10%,-10% R/TP TP5 47UF SHL,SD 160V 20% FL TP 5 100UF STD 16V M FL TP5 470UF STD 10V M FL TP5 4.7UF STD 250V 20% FL TP 5 0.1UF TE 250V K M/PE NI TP5 1200P 2KV K B S 4.7UF STD 250V 20% FL TP 5 560P 50V K B TA52 10000P 16V M Y TA52 FUSE,SLOW BLOW 4000MA 250V 5.2X20 CY/CE FUSE,FAST BLOE 4000MA 125V 2.5X7.6 CY/CE FUSE,FAST BLOE 4000MA 125V 2.5X7.6 CY/CE INDUCTOR,10UH K 2.3*3.4 TP INDUCTOR,100UH K 2.3*3.4 TP INDUCTOR,10UH K 2.3*3.4 TP INDUCTOR,0.68UH K 2.3*3.4 TP INDUCTOR,10UH K 2.3*3.4 TP COIL,LINEARITY 60UH 0.6PHY 69.5TURN COIL,CHOKE 130UH 0.45PHY 55.5TURN INDUCTOR,10UH K 2.3*3.4 TP INDUCTOR,10UH K 2.3*3.4 TP INDUCTOR,10UH K 2.3*3.4 TP INDUCTOR,10UH K 2.3*3.4 TP INDUCTOR,6.8UH K 2.3*3.4 TP INDUCTOR,5.6UH K 2.3*3.4 TP INDUCTOR,10UH 10% TP 5.0X14 TA52 COIL,CHOKE 82UH PHY TURN INDUCTOR,1.0UH K 2.3*3.4 TP INDUCTOR,6.8UH K 2.3*3.4 TP INDUCTOR,6.8UH K 2.3*3.4 TP INDUCTOR,6.8UH K 2.3*3.4 TP FBT BSC23-N0107 20”/21” YINYANG 61 TRANSFORMER,H-DRIVER DRUM 10*12 JSUH BASE 10MM TRANSFORMER,SMPS EER4215 340UH MC019A TRANSFORMER,SMPS EER3940 500UH LOCA. NO PART NO DESCRIPTION P01A P301 P601 P802 P902 P903 C531 C546 D813 FR441 FR442 FR443 FR802 FR803 FR901 J30 J33 J39 J67 “ J81 J149 J154 L01 L10 L251 L252 L631 R01 R03 R04 R05 R06 R07 R09 R10 R11 R12 R15 R16 R17 R19 R21 R22 R23 R25 R26 R27 366-932B 366-043K 366-932B 366-043B 387-603E 366-009D 0RD1103F609 0RD1103F609 0RS0272H609 0RF0470J607 0RF0151J607 0RF0470J607 0RF0470H609 0RF0470K607 0RF0151J607 0RD2200F609 0RD2200F609 0RD2200F609 0RD1000F609 0RD2200F609 0RD1000F609 0RD1001F609 0RD6800F609 0RD1500F609 0RD0102F609 0RD2200F609 0RD2200F609 0RD2200F609 0RD1002F609 0RD1000F609 0RD3301F609 0RD3301F609 0RD4701F609 0RD4701F609 0RD1000F609 0RD1000F609 0RD1001F609 0RD1001F609 0RD1001F609 0RD4701F609 0RD1000F609 0RD1000F609 0RD2201F609 0RD3902F609 0RD2200F609 0RD1201F609 0RD1601F609 0RD3601F609 CONNECTOR,2.5MM 3P GIL-G LG CABLE S CONNECTOR,PLUG(4P) CONNECTOR,2.5MM 3P GIL-G LG CABLE S CONNECTOR,ASSY,PLUG(2P) CONNECTOR ASSY 9PIN (IL-J) CONNECTOR,2.36PAI 1P . K/M AUTO 110K OHM 1/6 W 5.00% TA52 110K OHM 1/6 W 5.00% TA52 27 OHM 1/2 W 5.00% TA52 0.47 OHM 1 W 5.00% TA62 1.5 OHM 1 W 5.00% TA62 0.47 OHM 1 W 5.00% TA62 0.47 OHM 1/2 W 5.00% TA52 0.47 OHM 2 W 5.00% TA52 1.5 OHM 1 W 5.00% TA62 220 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 680 OHM 1/6 W 5.00% TA52 150 OHM 1/6 W 5.00% TA52 10 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 3.3K OHM 1/6 W 5.00% TA52 3.3K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 2.2K OHM 1/6 W 5.00% TA52 39K OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 1.2K OHM 1/6 W 5.00% TA52 1.6K OHM 1/6 W 5.00% TA52 3.6K OHM 1/6 W 5.00% TA52 The components identified by mark are critical for safety. Replace only with part number specified. For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible RESISTOR CONNECTOR COIL & TRANSFORMER FUSE - 23 - LOCA. NO PART NO DESCRIPTION R29 R41 R51 R52 R101 R102 R103 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 R117 R118 R201 R204 R205 R206 R207 R208 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R251 R254 R255 R301 R302 R304 R305 R306 R307 R310 0RD1201F609 0RD6200F609 0RD1000F609 0RD1000F609 0RD1002F609 0RD1202F609 0RD1802F609 0RS0272J607 0RD0392F609 0RD0562F609 0RD1201F609 0RD3601F609 0RD1000F609 0RD6800F609 0RD0272F609 0RD1000F609 0RD6801F609 0RD2201F609 0RD2201F609 0RD0912F609 0RD0752F609 0RD0752F609 0RD0752F609 0RD0752F609 0RD1001F609 0RD5101F609 0RD5101F609 0RD5101F609 0RD5101F609 0RD2202F609 0RD2201F609 0RD1001F609 0RD1801F609 0RD4702F609 0RD1201F609 0RD4701F609 0RD3901F609 0RD1201F609 0RD3901F609 0RD4701F609 0RD1201F609 0RD1801F609 0RD1300F609 0RD2200H609 0RD2200H609 0RD0101F609 0RN1501F409 0RD0221H609 0RD0221H609 0RS2700K607 0RD1501F609 0RD1801F609 1.2K OHM 1/6 W 5.00% TA52 620 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5.00% TA52 12K OHM 1/6 W 5.00% TA52 18K OHM 1/6 W 5.00% TA52 27 OHM 1 W 5.00% TA62 39 OHM 1/6 W 5.00% TA52 56 OHM 1/6 W 5.00% TA52 1.2K OHM 1/6 W 5.00% TA52 3.6K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 680 OHM 1/6 W 5.00% TA52 27 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 6.8K OHM 1/6 W 5.00% TA52 2.2K OHM 1/6 W 5.00% TA52 2.2K OHM 1/6 W 5.00% TA52 91 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 75 OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 5.1K OHM 1/6 W 5.00% TA52 5.1K OHM 1/6 W 5.00% TA52 5.1K OHM 1/6 W 5.00% TA52 5.1K OHM 1/6 W 5.00% TA52 22K OHM 1/6 W 5.00% TA52 2.2K OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 1.8K OHM 1/6 W 5.00% TA52 47K OHM 1/6 W 5.00% TA52 1.2K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 3.9K OHM 1/6 W 5.00% TA52 1.2K OHM 1/6 W 5.00% TA52 3.9K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 1.2K OHM 1/6 W 5.00% TA52 1.8K OHM 1/6 W 5.00% TA52 130 OHM 1/6 W 5.00% TA52 220 OHM 1/2 W 5.00% TA52 220 OHM 1/2 W 5.00% TA52 1 OHM 1/6 W 5.00% TA52 1.5K OHM 1/6 W 1.00% TA52 2.2 OHM 1/2 W 5.00% TA52 2.2 OHM 1/2 W 5.00% TA52 270 OHM 2 W 5.00% TA62 1.5K OHM 1/6 W 5.00% TA52 1.8K OHM 1/6 W 5.00% TA52 LOCA. NO PART NO DESCRIPTION R311 R312 R313 R401 R402 R442 R444 R446 R447 R450 R451 R453 R455 R456 R501 R502 R503 R504 R505 R506 R518 R521 R522 R523 R524 R525 R526 R537 R538 R539 R540 R542 R544 R548 R551 R552 R553 R554 R555 R556 R557 R558 R572 R573 R601 R602 R604 R608 R608 R610 R611 R621 0RD4701H609 0RD2201F609 0RD1002F609 0RD1501H609 0RS2702K607 0RD5100H609 0RD0392H609 0RD1001F609 0RD2401F609 0RD4701H609 0RD1200H609 0RS5602H609 0RS2702K607 0RS2202H609 0RD2202F609 0RD1002F609 0RD2200F609 0RN3902F409 0RD6800F609 0RD1001F609 0RD3302F609 0RD1000F609 0RD2702F609 0RD1003F609 0RD3001F609 0RD3900F609 0RD2001F609 0RD1000F609 0RD1000F609 0RD1000F609 0RD1000F609 0RD1002F609 0RD2701F609 0RD2200F609 0RD1200F609 0RD1200F609 0RD3300F609 0RD4701F609 0RD1800F609 0RD1500F609 0RD4701F609 0RD4701F609 0RD5600F609 0RD2403F609 0RD4701F609 0RD1002F609 0RD3301F609 0RD2401F609 0RD3301F609 0RD4702F609 0RD4702F609 0RD9102F609 4.7K OHM 1/2 W 5.00% TA52 2.2K OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5.00% TA52 1.5K OHM 1/2 W 5.00% TA52 27K OHM 2 W 5.00% TA62 510 OHM 1/2 W 5.00% TA52 39 OHM 1/2 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 2.4K OHM 1/6 W 5.00% TA52 4.7K OHM 1/2 W 5.00% TA52 120 OHM 1/2 W 5.00% TA52 56K OHM 1/2 W 5.00% TA52 27K OHM 2 W 5.00% TA62 22K OHM 1/2 W 5.00% TA52 22K OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 39K OHM 1/6 W 1.00% TA52 680 OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 33K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 27K OHM 1/6 W 5.00% TA52 100K OHM 1/6 W 5.00% TA52 3K OHM 1/6 W 5.00% TA52 390 OHM 1/6 W 5.00% TA52 2K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5.00% TA52 2.7K OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 120 OHM 1/6 W 5.00% TA52 120 OHM 1/6 W 5.00% TA52 330 OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 180 OHM 1/6 W 5.00% TA52 150 OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 560 OHM 1/6 W 5.00% TA52 240K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 10K OHM 1/6 W 5.00% TA52 3.3K OHM 1/6 W 5.00% TA52 2.4K OHM 1/6 W 5.00% TA52 3.3K OHM 1/6 W 5.00% TA52 47K OHM 1/6 W 5.00% TA52 47K OHM 1/6 W 5.00% TA52 91K OHM 1/6 W 5.00% TA52 The components identified by mark are critical for safety. Replace only with part number specified. For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible - 24 - LOCA. NO PART NO DESCRIPTION R622 R623 R624 R625 R626 R627 R628 R631 R632 R633 R634 R651 R657 R801 R802 R803 R804 R805 “ R806 R808 R809 R812 “ R813 R814 R815 R816 R903 R904 R905 R906 R907 R908 R909 R910 R911 R912 RC801 SW01 SW02 SW03 SW04 SW05 SW06 SW801 FB801 FB802 0RD6801F609 0RD1003F609 0RD1003F609 0RD1003F609 0RD5601F609 0RD3601F609 0RD0331H609 0RD1302F609 0RD1000F609 0RD1000F609 0RD1302F609 0RD1500F609 0RD1001F609 0RD2701F609 0RD2201F609 0RD1001F609 0RD4701F609 180-A01P 180-A01M 0RD2401F609 0RD4701F609 0RS4702K607 0RKZVTA001C 0RK8204H609 0RD1002F609 0RD0221H609 0RD0751H609 0RD2001F609 0RD2200F609 0RD2200F609 0RD2200F609 0RD1000F609 0RD1000F609 0RD1000F609 0RS1501H609 0RS1501H609 0RS1501H609 0RD2204H609 180-822N 140-315A 140-315A 140-315A 140-315A 140-315A 140-315A 6600VM2002A 125-022R 125-022R 6.8K OHM 1/6 W 5.00% TA52 100K OHM 1/6 W 5.00% TA52 100K OHM 1/6 W 5.00% TA52 100K OHM 1/6 W 5.00% TA52 5.6K OHM 1/6 W 5.00% TA52 3.6K OHM 1/6 W 5.00% TA52 3.3 OHM 1/2 W 5.00% TA52 13K OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 13K OHM 1/6 W 5.00% TA52 150 OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 2.7K OHM 1/6 W 5.00% TA52 2.2K OHM 1/6 W 5.00% TA52 1K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 0.13 OHM 2 W 5% TA62 RWR 0.22 OHM 2 W 5% TA62 RWR 2.4K OHM 1/6 W 5.00% TA52 4.7K OHM 1/6 W 5.00% TA52 47K OHM 2 W 5.00% TA62 8.2M OHM 1/2 W 5% TA52 UL PILK 8.2M OHM 1/2 W 5% TA52 10K OHM 1/6 W 5.00% TA52 2.2 OHM 1/2 W 5.00% TA52 7.5 OHM 1/2 W 5.00% TA52 2K OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 220 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 100 OHM 1/6 W 5.00% TA52 1.5K OHM 1/2 W 5.00% TA52 1.5K OHM 1/2 W 5.00% TA52 1.5K OHM 1/2 W 5.00% TA52 2.2M OHM 1/2 W 5.00% TA52 RWR 7W 1.0 OHM J PD SWITCH,TACT SKHV17910B LG C&D NON 12V SWITCH,TACT SKHV17910B LG C&D NON 12V SWITCH,TACT SKHV17910B LG C&D NON 12V SWITCH,TACT SKHV17910B LG C&D NON 12V SWITCH,TACT SKHV17910B LG C&D NON 12V SWITCH,TACT SKHV17910B LG C&D NON 12V SWITCH,PUSH SDKEA3 ALPS IEC 250V 8A HORIZO FILTER(CIRC),EMC BI3857 FEELUX 5.7X3.6MM FILTER(CIRC),EMC BI3857 FEELUX 5.7X3.6MM LOCA. NO PART NO DESCRIPTION FB803 T551 T552 T553 T801 X01 Z102 “ Z551 “ A1 A2 A2 A3 A3 A4 PA01 PJ201 “ PJ202 “ SK901 TH801 TU101 “ “ VD801 125-022R 6200VST001E 6200VST001H 6200VST001C 150-F06W 156-A02B 6200VQS001L 6200VQS004A 166-198B 6200VCT001D 3828VA0262A 6710V00061G 6710V00070B 5010V00005D 5010V00005F 450-018C 6726VV0006H 6612VJH023A 6612VJH004F 6613V00006E 6613V00006C 6620VBC003A 163-051F 6700VPF009T 6700VPF009Z 6700VPF016A 164-003G FILTER(CIRC),EMC BI3857 FEELUX 5.7X3.6MM FILTER(CIRC),BAND PASS XT6.0MB BAOTONG 6.0MHZ FILTER(CIRC),BAND PASS XT565MB BAOTONG 5.5/6.5MHZ FILTER(CIRC),BAND PASS XT4.5MB BAOTONG 4.5MHZ FILTER(CIRC),EMC SQE2930 36MH 0.5PHY 105TURN . RESONATOR,CRYSTAL HC49U KJE RADIAL 12.000MHZ 30P FILTER,SAW OFWK2971M 39.90MHZ INT FILTER,SAW OFWK7252M EPCOS 38.9 FILTER,BAND PASS SFE5.74MB-TF21 SFE5.74MB-TF21 FILTER,LT6.5MH BAOTONG MANUAL,OWNERS MC019A NON LG EN REMOTE CONTROLLER MC-019A REMOTE CONTROLLER MC-019A W/O TXT ANTENNA,2 POLE 3 SECTION 700 ANTENNA,2 POLE 4 SECTION ADAPTER,RF 1.5KV REMOTE CONTROLLER RECEIVER 38KHZ JACK,RCA PPJ126A A/V 11P DVD/ JACK,RCA PJ6056F JACK ASSY,PJ6062E A/V 3P+E/P W JACK ASSY,PJ6062C A/V 2P SOCKET (CIRC),CPT PCS030A 8PIN 14/360 THERMISTOR,J503P84D140M290Q TUNER TUMLF4EG-775F2 MURATA MULTI FS TUNER TAEM-G001D LG PAL FS TUNER DT5-BF70D VARISTOR TVR621D14A THINKING 620V 10% U The components identified by mark are critical for safety. Replace only with part number specified. For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN : Ceramic CQ : Polyestor CE : Electrolytic RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RF : Fusible SWITCH FILTER & CRYSTAL ACCESSORIES MISCELLANEOUS P/NO:3854VA0083B-S 2001.04.20 PRINTED CIRCUIT BOARD MAIN & CPT NO RASTER CHECK +B at D807 cathode Is the voltage at pin14 & 39 of IC01 8V? Check FUSE of AC line Check the voltage of C806 Check the voltage pin3 of IC803 Check pin33 of IC01(H-out) Check Q402 collector waveform Check T402 & each pin voltage Check &replace T402 Check &replace IC01 Check &replace Q402 Check &replace T402 Check the in/out of IC844 Check IC01 pin1 high? Check /replace IC801,IC803,IC804 Check /replace Fuse,DB801 Check /replace DB801 Normal Abnormal Yes Yes Yes Yes No No No No No No No No No OK 254~380V Open 0V Is the voltage at pin61,56 & 54 of IC01 3.3V? Yes Is the voltage at pin3 of IC02 5V? Check the In/Out of IC842 Check the voltage at D805 or D815 cathode Check / Replace F812 Check / Replace IC01,IC02 Yes Select correct system in menu Check / Replace IC01 Check the voltage at pin 6 of IC631 NO OK Check the waveform at pin 44 of IC01 Check the waveform at pin 4,12 of IC602 Check the voltage at pin 6,7 of IC602 Check the waveform at pin 1,2,14,15 of IC602 Check the voltage at pin 3,13 of IC602 Check the waveform at pin 15,18 of IC631 Check/Replace F811,D824 Check/Replace Q621,IC603 Check/Replace IC602 OK OK OK OK OK NO NO AV STEREO NO NO NO SOUND / PICTURE OK Select correct system in menu Check the waveform at pin 35 of IC501 Check the waveform at pin 4 of IC651 Check the waveform at pin 44 of IC01 Check the waveform at pin 4 of IC601 Check the voltage at pin 5 of IC601 Check the waveform at pin 1 of IC601 Check/Replace Q621 Check/Replace FR803,D804 Check/Replace IC601 OK OK OK Check the waveform at pin 2,7 of IC651 OK NO NO Check / Replace IC651 Check/Replace IC01 Check the waveform at pin28 IC01 NO NO MONO Select correct system in menu Check / Replace TU101 Check the voltage at pin 16,33,46 of IC661 NO OK Check the waveform at pin 16 of TU101 Check the waveform at pin 4,12 of IC602 Check the voltage at pin 6,7 of IC602 Check the waveform at pin 1,2,14,15 of IC602 Check the voltage at pin 3,13 of IC602 Check the waveform at pin 24,25 of IC661 Check/Replace F811,D824 Check/Replace Q621,IC603 Check/Replace Q671,Q672 OK OK OK OK OK NO NO Check the voltage at pin1 of IC131 RF STEREO NO NO NO NO NO NO NO NO OK Check/Replace IC131,IC661 NO PICTURE / NO SONUD Is any OSD displayed? Check receiving system in MENU & excute Auto-program. OK OK NO Check/ Replace IC01 No Go to NO SOUND / PICTURE OK Does the Auto-program operate properly. Store in manual-program MENU Check 5V, 33V & IIC Bus Line of TUNER Is the CVBS signal OK. ( IC01 pin40 ) Check R,G,B signal at IC501 pin51,52,53 Check 5V, 33V & IIC Bus Line OK NO NO OK OK Check / Replace IC01,TUNER NO OK Check / Replace CPT Board component Check CVBS singal Line & IC01 Check IK signal at IC01 pin50 (similar to CVBS) Check IC01 pin50,51,52,53 (IK,R,G,B) OK NO NO RASTER / SOUND OK Check the Heater voltage of CPT (6 ~ 6.5Vrms) Check FR404,FR902,P302 Check FBT T401 Check the Heater pulse of FBT T401 Check Ik Current of IC01,pin50 Not OK OK Not OK Check/Replace CPT Board Components Check IC01,ZD901 IC901,P902,P541 OK Not OK OK Check HV, Screen voltage of CPT Check FBT T401 Not OK TROUBLESHOOTING COMPONENT LOCATION GUIDE WIRING DIAGRAM "D" POINT : SPEAKER(L) LEAD & D-COIL 1. CONNECTOR LEAD JW2 P602 SPK(R) P01A P601 SPK(L) P541 SPK(R) 4 " C " P302 MAIN PWB POINT 1 P802 JW1 " A " P902 1 P301 P801 BN BL POWER CORD POINT " D " SPK(L) 3 CPT PWB POINT " B " "C" POINT : D-COIL HOLDER SPEAKER(L) JW1, FOCUS & SCREEN LEAD P802 D-COIL HOLDER 1 TWISTER HOLDER "B" POINT : TWISTER HOLDER "A" POINT : P541, P301, P302, CPT EARTH, ,JW2 LEAD C01.........B4 C02.........B4 C03.........B3 C04.........B4 C05.........B4 C06 ........C4 C07.........B3 C09 ........C4 C10.........B3 C11.........B4 C16.........F1 C21.........E1 C51.........B4 C101.......A5 C102.......A5 C103.......B5 C104.......B5 C105.......B5 C106.......A5 C107.......A5 C108.......A5 C109.......A4 C110.......B5 C111.......B5 C112.......B5 C113.......A4 C114.......A4 C121.......A4 C123.......A4 C131.......A4 C132.......A4 C201 ......C5 C202.......B5 C203 ......C5 C204.......B5 C205 ......C5 C206 ......D5 C207 ......D5 C208 ......D5 C209 ......D5 C210.......E5 C211 ......D5 C212 ......D5 C221 ......D5 C222 ......D5 C223 ......D5 C224.......E5 C251 ......D1 C253 ......C1 C255 ......C1 C256.......B1 C257.......B1 C258 ......C1 C259 ......C1 C260 ......C1 C261 ......C1 C262 ......C1 C301.......F4 C302.......E4 C303.......E4 C304.......E4 C305.......E4 C306.......E4 C307.......F4 C401 ......G4 C402.......F3 C403 ......G4 C404 ......G4 C405 ......G4 C441 ......G3 C442.......E5 C443.......E5 C444 ......G5 C445.......E5 C446.......E5 C449.......F5 C450 ......G5 C452 ......G3 C453.......E4 C457 ......G5 C501 ......C4 C502.......B5 C503 ......C5 C504 ......C4 C505 ......C4 C506 ......C5 C507 ......C5 C508 ......C3 C509 ......C4 C510 ......C4 C511 ......C5 C512 ......D4 C513 ......D4 C514 ......C4 C515 ......C5 C516 ......C5 C517 ......C4 C518 ......D4 C519 ......C4 C524 ......D4 C529 ......D4 C530 ......C4 C531 ......C4 C532.......B2 C534 ......C4 C535 ......C4 C536 ......C4 C538 ......C3 C540 ......C4 C541 ......C4 C542 ......C4 C543 ......C3 C544 ......C3 C545 ......C3 C546 ......C3 C548 ......D4 C549 ......C4 C551 ......D4 C552 ......D4 C553 ......D3 C561 ......C4 C573.......E5 C574.......E5 C593 ......C3 C594 ......C4 C595 ......C1 C601.......B3 C602.......B2 C603.......B2 C604.......B3 C605.......B2 C606.......A2 C607.......B3 C611.......B3 C612.......B3 C621.......A2 C622.......A3 C623.......A3 C624.......B2 C625.......A2 C626.......A2 C631 ......D1 C632 ......D2 C633 ......D1 C634 ......C1 C635 ......D1 C636 ......C1 C637 ......C1 C638 ......C1 C639 ......C2 C640 ......C2 C641 ......C2 C642 ......D2 C643 ......D2 C644 ......D1 C645 ......D2 C646 ......D1 C653 ......D2 C654 ......D3 C655 ......C1 C661 ......C3 C662 ......C3 C663 ......C3 C664 ......C3 C665 ......D3 C666 ......D2 C667 ......D3 C668 ......D3 C669 ......D3 C670 ......D2 C671 ......D2 C672 ......D2 C673 ......D2 C674 ......D2 C675 ......C2 C676 ......D2 C677 ......D2 C678 ......C2 C679 ......C2 C680 ......C2 C681 ......C2 C682 ......C2 C683 ......C2 C684 ......C2 C685 ......C2 C686 ......C2 C687 ......C2 C688 ......C2 C689 ......C2 C690 ......C2 C801.......F2 C802.......F2 C803 ......G2 C804.......F3 C806.......F2 C807.......F2 C808 ......G2 C809 ......G1 C811 ......G3 C812.......E2 C813 ......D2 C814 ......D1 C815.......E3 C816.......E3 C817.......E3 C818 ......D3 C819.......E4 C820.......E3 C821.......E2 C822.......E3 C823 ......G3 C824 ......D1 C825 ......G3 C826 ......D1 C828 ......D2 C829 ......G2 C830.......E2 C831.......E3 C832.......F3 C833.......F4 C834.......F4 C835 ......D1 C841 ......D3 C901.......B1 C902.......A1 C903.......A2 C904.......B2 C905.......A1 C906.......B1 D101.......B5 D102 ......C5 D301.......E4 D302.......E4 D401 ......G4 D403.......F4 D441 ......G4 D442.......E5 D443.......E5 D444 ......G5 D501.......B3 D571.......F5 D602.......B3 D621.......A3 D801.......E2 D802.......F3 D803.......F3 D804.......E2 D805.......E2 D806.......F2 D807.......E4 D808.......E3 D809 ......D1 D810.......E1 D811 ......D1 D812.......E1 D813 ......D2 D814.......E2 D901.......A1 D902.......A1 D903.......A1 D904.......B2 DB801....G2 F802.......G2 F811.......E2 F812.......E2 F801A ....G2 F801B ....G1 FB801.....F2 FB802.....F2 FB803.....E3 FR441 ....E5 FR442 ....E5 FR443 ....E5 FR802 ....E3 FR803 ....E2 FR901 ....B1 HIC01.....D3 IC01........B4 IC02........B3 IC03........B4 IC130......A4 IC301......E4 IC591 .....C3 IC601 .....D1 IC602......A3 IC603......B3 IC621......A3 IC631 .....D1 IC661 .....C2 IC662 .....C2 IC801......F3 IC802......F3 IC803 .....G2 IC804......F3 IC842 .....D2 IC844......E3 IC901......A1 L01 .........E1 L04 .........B4 L05 .........B3 L10 .........B3 L102 .......B5 L201.......C5 L202 .......B5 L203.......C5 L204.......D5 L205.......D5 L210 .......E5 L251.......C1 L252.......C1 L253 .......B1 L254 .......B1 L255.......C1 L260.......C1 L401 .......F4 L402 .......F4 L501.......C5 L502.......D4 L503.......D4 L506.......D4 L551.......D3 L552.......D3 L553.......D4 L601.......D2 L611.......D3 L621.......D3 L631.......D2 L661 .......B2 L662.......D3 L663.......C2 L801 .......E4 L802 .......E3 LD01.......F1 P102.......B5 P302.......E5 P541.......C3 P601.......B2 P602.......B2 P701.......B2 P901.......A2 P902.......B1 P903.......B2 P01A ......A4 P02A ......D1 P03A ......D1 P05A ......C1 P06A ......B2 P301A.....F4 P301B.....F4 P301C ....F4 P301D....G4 P801A....G1 P801B....G1 P802A.....F1 P802B.....F1 PA01.......F1 PJ201.....C5 PJ202.....C1 Q01 ........E1 Q11 ........B5 Q101 ......B5 Q102 ......B5 Q103 ......C5 Q123 ......A4 Q211 ......D4 Q212 ......D4 Q213 ......E5 Q214 ......D5 Q215 ......E4 Q216 ......E5 Q301 ......E4 Q402......G4 Q442......G3 Q443......G5 Q551 ......C3 Q552 ......D4 Q553 ......D3 Q554 ......D3 Q555 ......C3 Q571 ......E5 Q621 ......A3 Q651 ......D5 Q652 ......D5 Q653 ......D4 Q671 ......D3 Q672 ......D3 Q801 ......E4 Q802 ......E4 Q803 ......E2 Q804.......F4 Q805 ......E4 Q806 ......E4 R01.........B4 R02.........B4 R03.........B4 R04.........B4 R05.........B4 R06.........B3 R07.........B3 R08.........B4 R09.........B4 R10.........B4 R11.........B4 R12.........B4 R13.........B4 R14.........B5 R15.........B5 R16.........B4 R17.........B4 R18.........B5 R19.........B4 R20.........A4 R21.........E1 R22.........E1 R23.........E1 R25.........E1 R26 ........D1 R27 ........D1 R28.........B5 R29 ........D1 R30.........B5 R31.........B5 R32.........E1 R41.........A4 R51.........B4 R52.........B4 R101.......B5 R102.......B5 R103.......B5 R105.......B5 R106.......B5 R107.......A5 R108.......B5 R109.......B5 R110.......B5 R111.......B5 R112.......B5 R113.......B5 R114.......B5 R115 ......C5 R116 ......C5 R117 ......C5 R118 ......C5 R121.......A4 R122.......A4 R123.......A5 R124.......A5 R132.......A4 R133.......A4 R134.......A4 R201 ......C5 R204 ......C5 R205 ......C5 R206 ......C5 R207 ......C5 R208.......E5 R212 ......D5 R213 ......D5 R214.......E5 R215.......E5 R216 ......D5 R217 ......D5 R218 ......D5 R219 ......D5 R220 ......D5 R221 ......D5 R222 ......D5 R223 ......D5 R224 ......D5 R225 ......D5 R226.......E5 R227 ......D5 R228 ......D5 R251 ......C1 R254.......B2 R255.......B2 R301.......E4 R302.......E4 R304.......E4 R305.......E4 R306.......F4 R307.......E4 R308.......E4 R310 ......D4 R311.......E4 R312.......E4 R313.......E4 R401.......F4 R402.......F4 R442 ......G3 R443.......F3 R444 ......G4 R446.......F5 R447.......E5 R448 ......G5 R450.......E5 R451.......F3 R453.......F5 R454 ......G3 R455.......E5 R456.......F5 R501 ......C5 R502 ......D3 R503 ......C3 R504 ......C4 R505 ......C5 R506 ......D5 R518 ......D4 R521 ......D4 R522 ......D4 R523 ......D4 R524 ......D4 R525 ......D4 R526 ......C4 R537 ......C3 R538 ......C3 R539 ......C3 R540 ......C3 R541 ......C3 R542 ......C3 R544 ......D4 R545 ......C3 R546 ......C3 R547 ......C3 R548 ......C3 R551 ......C4 R552 ......C4 R553 ......C4 R554 ......D4 R555 ......D4 R556 ......D4 R557 ......D3 R558 ......C4 R559 ......C3 R560 ......D4 R561 ......D4 R572.......E5 R573.......E5 R601.......B3 R602.......B3 R603.......B3 R604.......B2 R606.......B2 R608.......B2 R609.......B2 R610 ......C3 R611 ......C3 R621.......A3 R622.......A3 R623.......A3 R624.......A3 R625.......A3 R626.......A3 R627.......A3 R628.......A2 R631 ......C1 R632 ......C2 R633 ......C2 R634 ......C2 R651 ......D5 R652 ......D4 R653.......E5 R654 ......D5 R655 ......D5 R656 ......D5 R657 ......D4 R662.......B2 R663.......B2 R664 ......C3 R665 ......D3 R666 ......D3 R667 ......D2 R668 ......D2 R669 ......D2 R670 ......C2 R671 ......C2 R672 ......C3 R801.......F3 R802.......F3 R803 ......G2 R804 ......G3 R805 ......G2 R806.......F3 R807 ......D2 R808.......E4 R809 ......G2 R810.......E2 R811 ......D1 R812 ......G3 R813.......E3 R814.......E3 R815.......F3 R816.......F3 R819.......F4 R820.......F4 R822.......F4 R823.......E4 R824.......E4 R901.......B1 R902.......B1 R903.......B1 R904.......B1 R905.......B1 R906.......A1 R907.......A1 R908.......A1 R909.......A1 R910.......A1 R911.......A2 R912.......B1 RC801 ....F2 RL801.....E2 SG901....A1 SG902....A1 SG903....A2 SG904....A2 SW01 .....D1 SW02 .....D1 SW03 .....D1 SW04 .....D1 SW05 .....E1 SW06 .....E1 SW801...G1 T101.......B5 T401 .......F5 T402.......G4 T551.......D3 T552.......D3 T553.......D3 T801 .......F1 T802 .......F3 T803.......E1 TH801 ....E1 TH802.....F2 TU101 ....B5 VD801....G1 X01.........B4 X661.......C2 Z102.......C5 Z551.......D4 ZD01 ......A4 ZD101 ....A5 ZD441.....F4 ZD442 ....E5 ZD443 ....E4 ZD447....G5 ZD501 ....C3 ZD601 ....B3 ZD801 ....E4 ZD901 ....B1 ZD902 ....B1 ZD903 ....B1 ZD904 ....B1 SVC. SHEET : 3854VA0083A-S SVC. SHE Aug.,2002 Printed in Korea P/NO : 3828VD0126E
