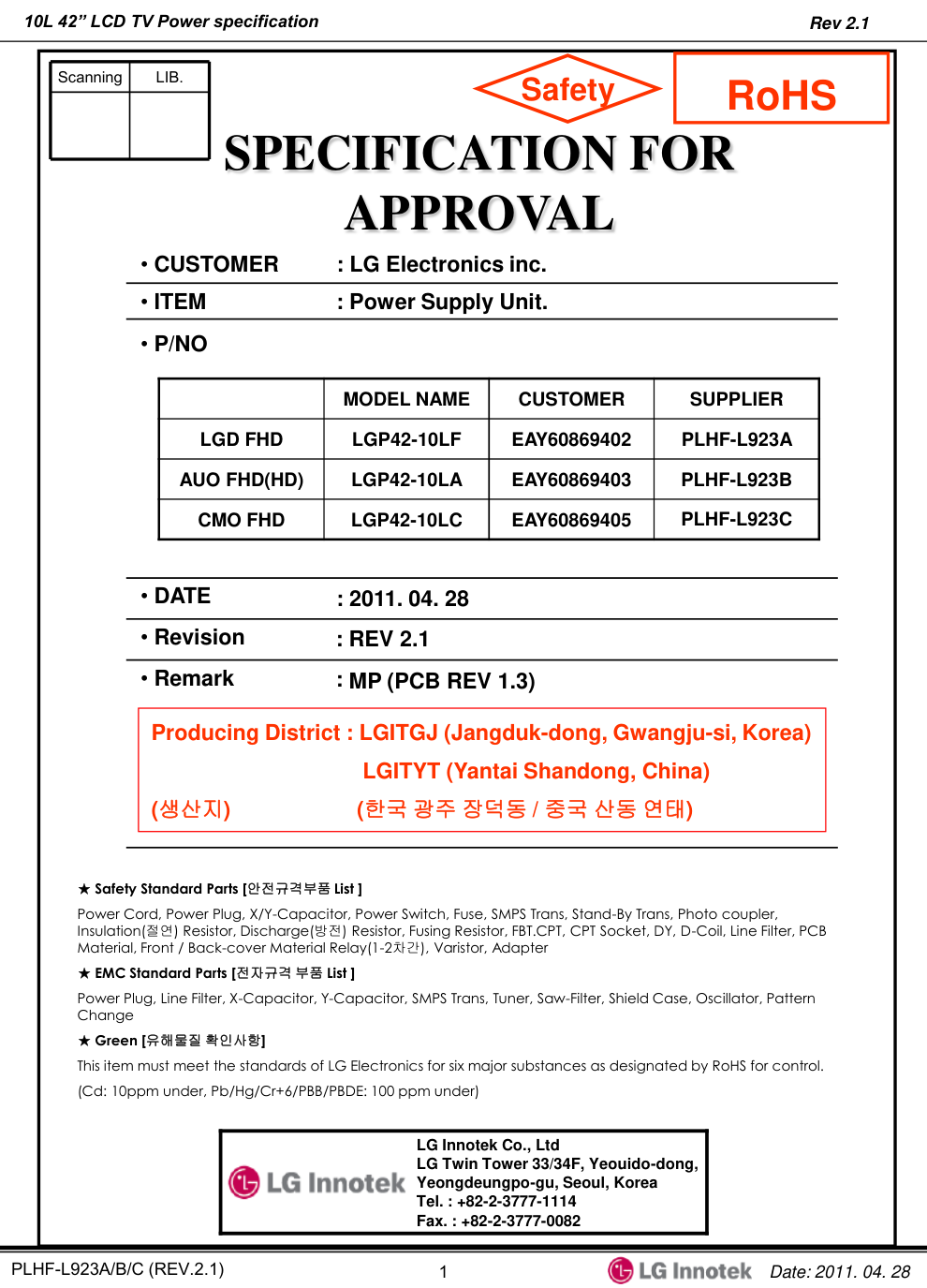

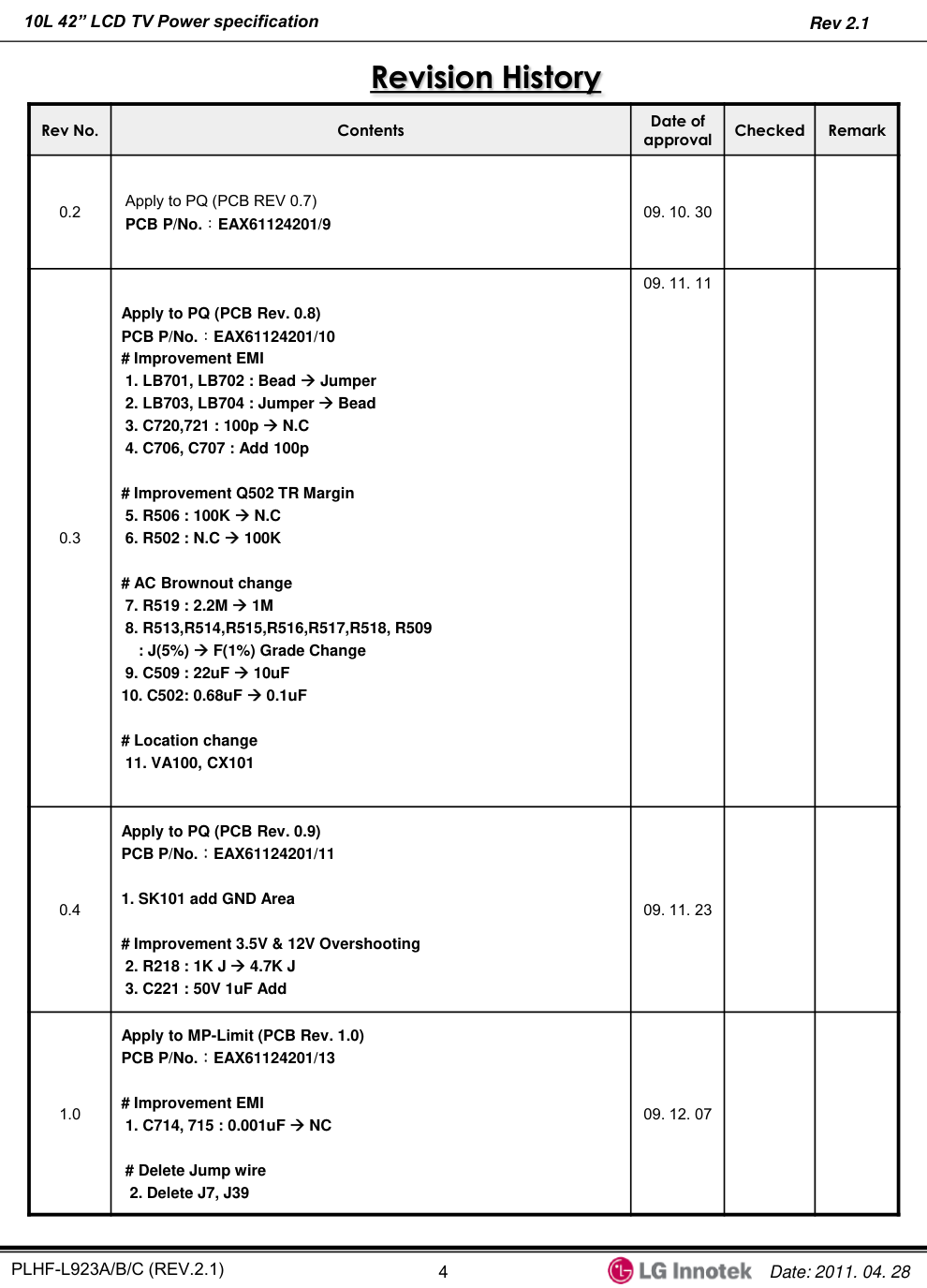

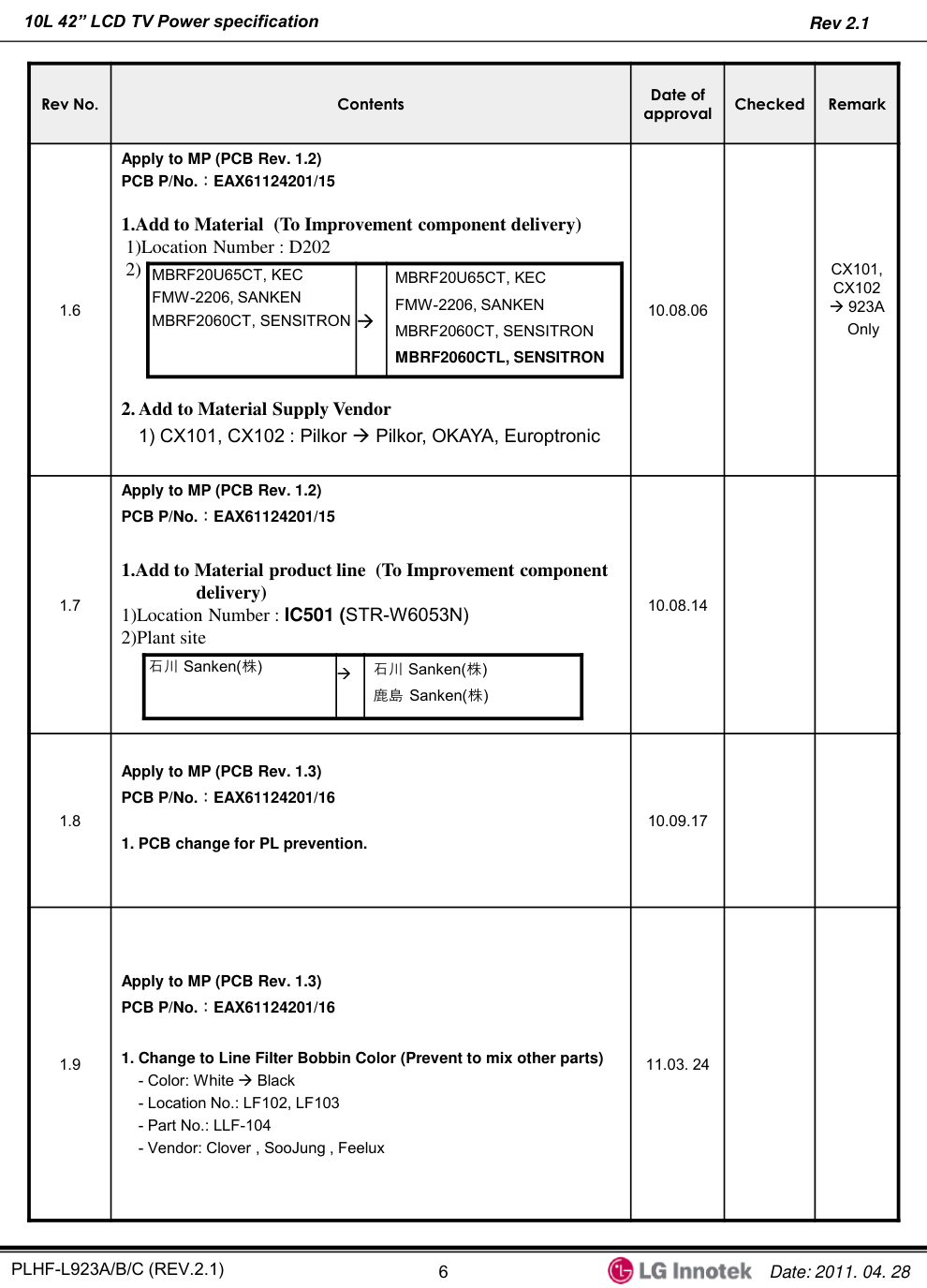

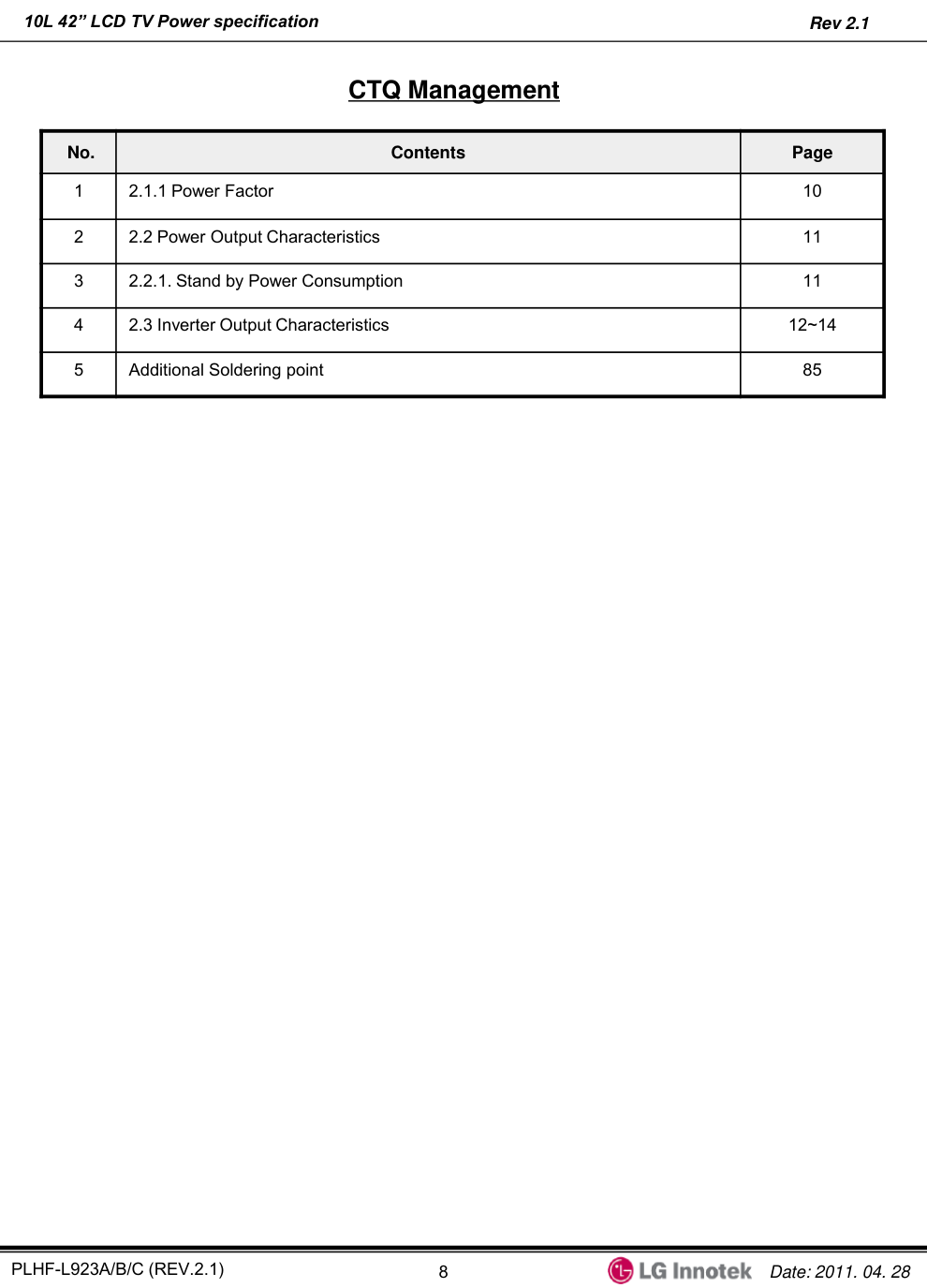

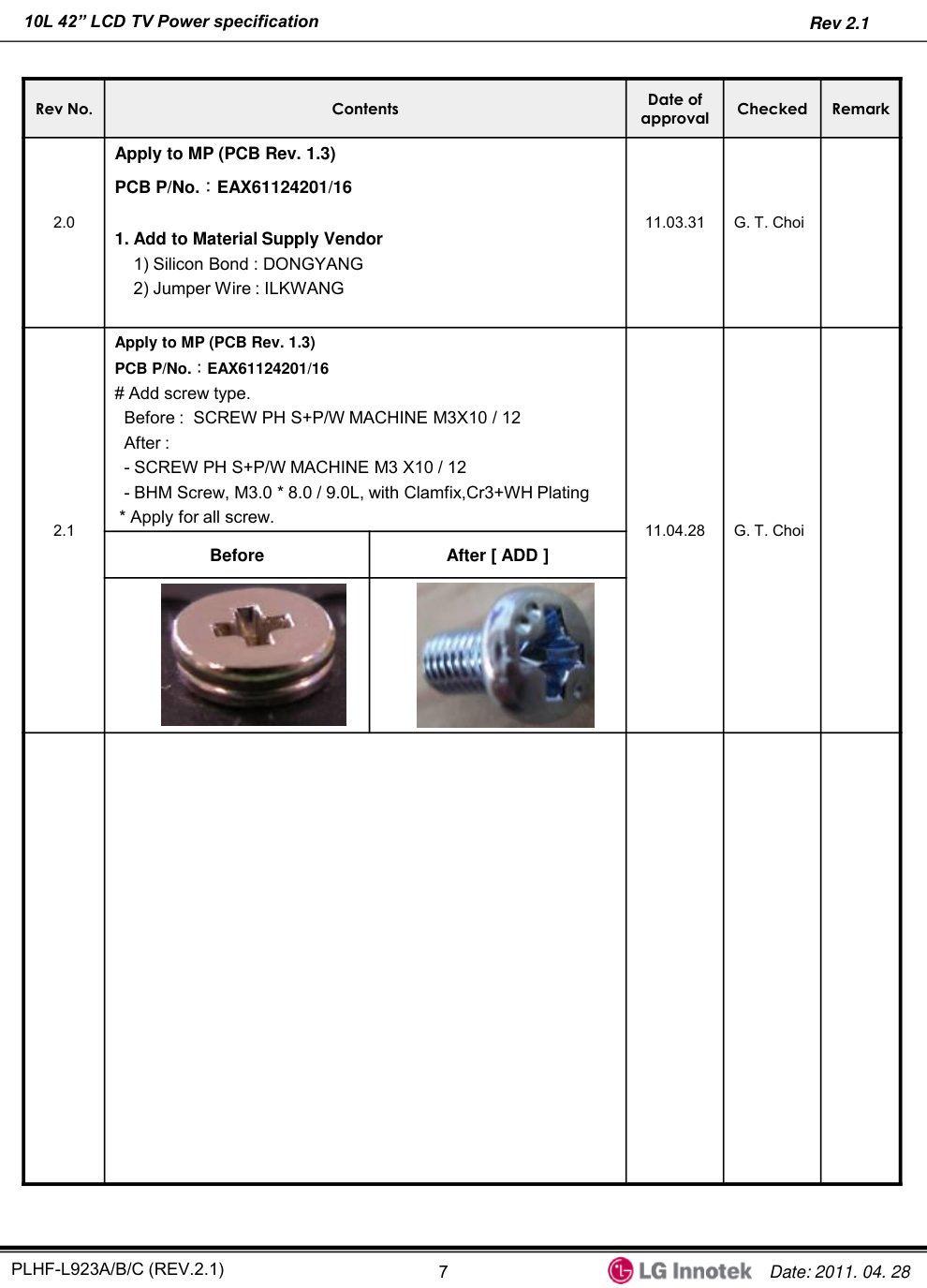

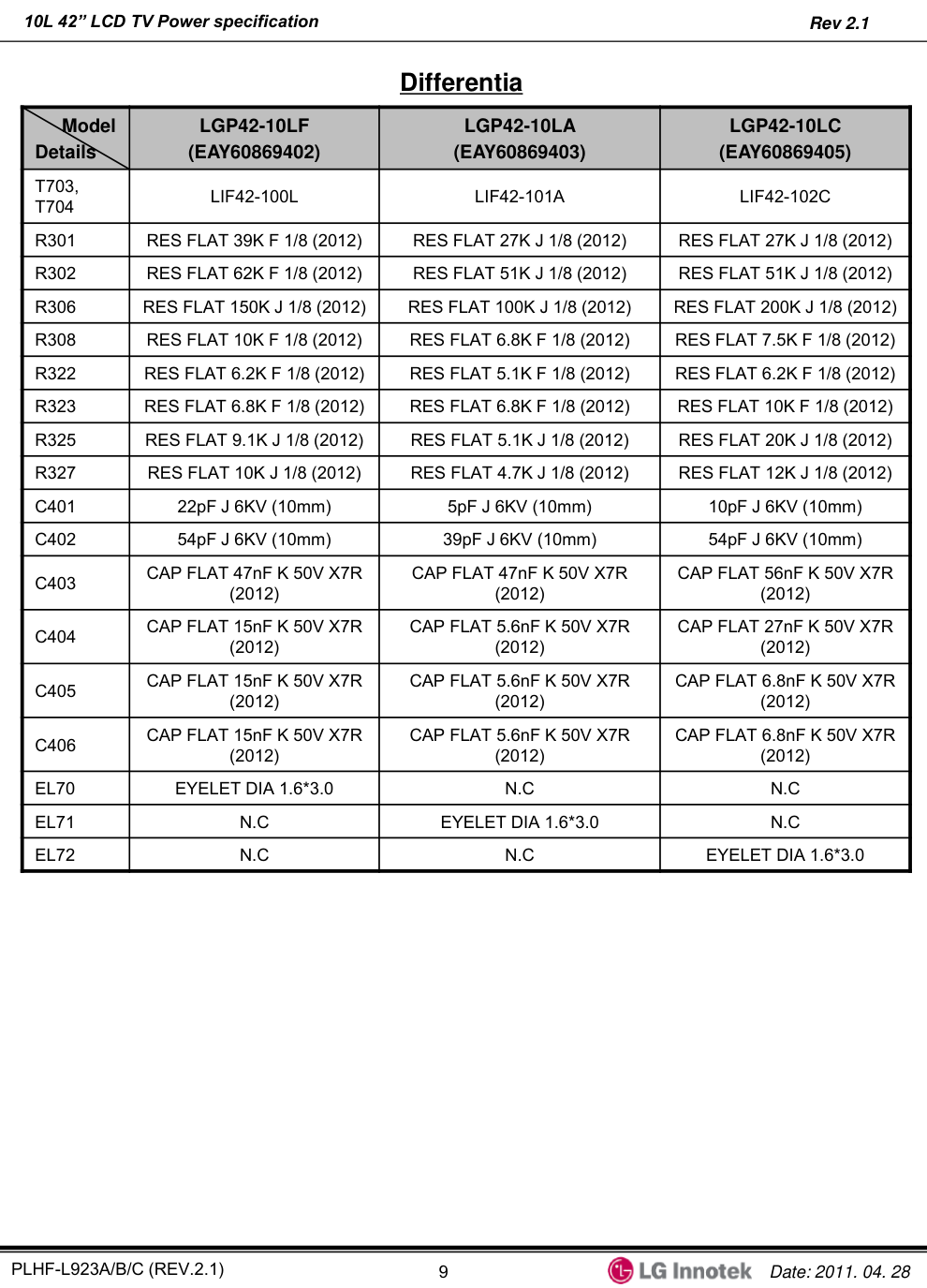

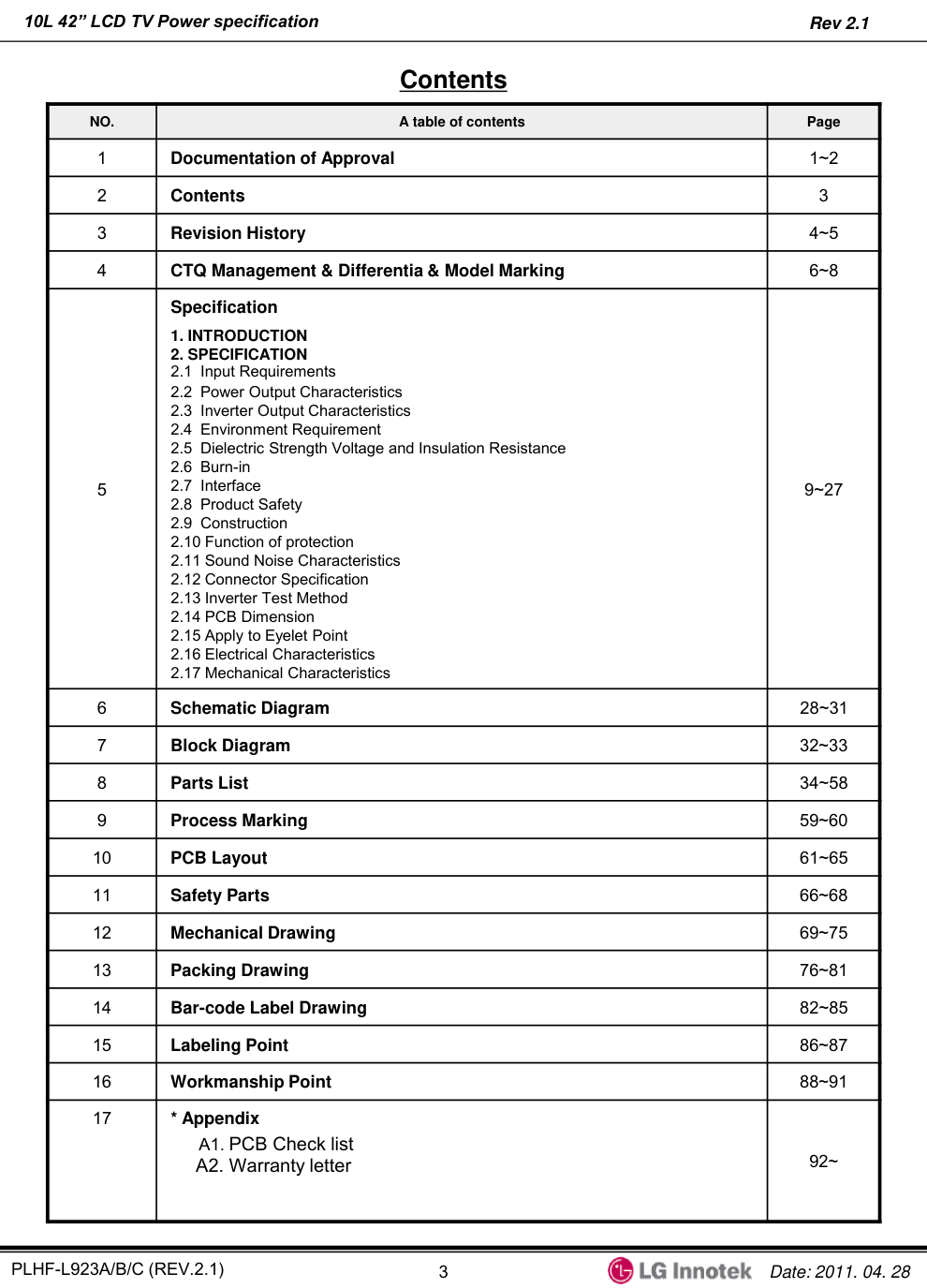

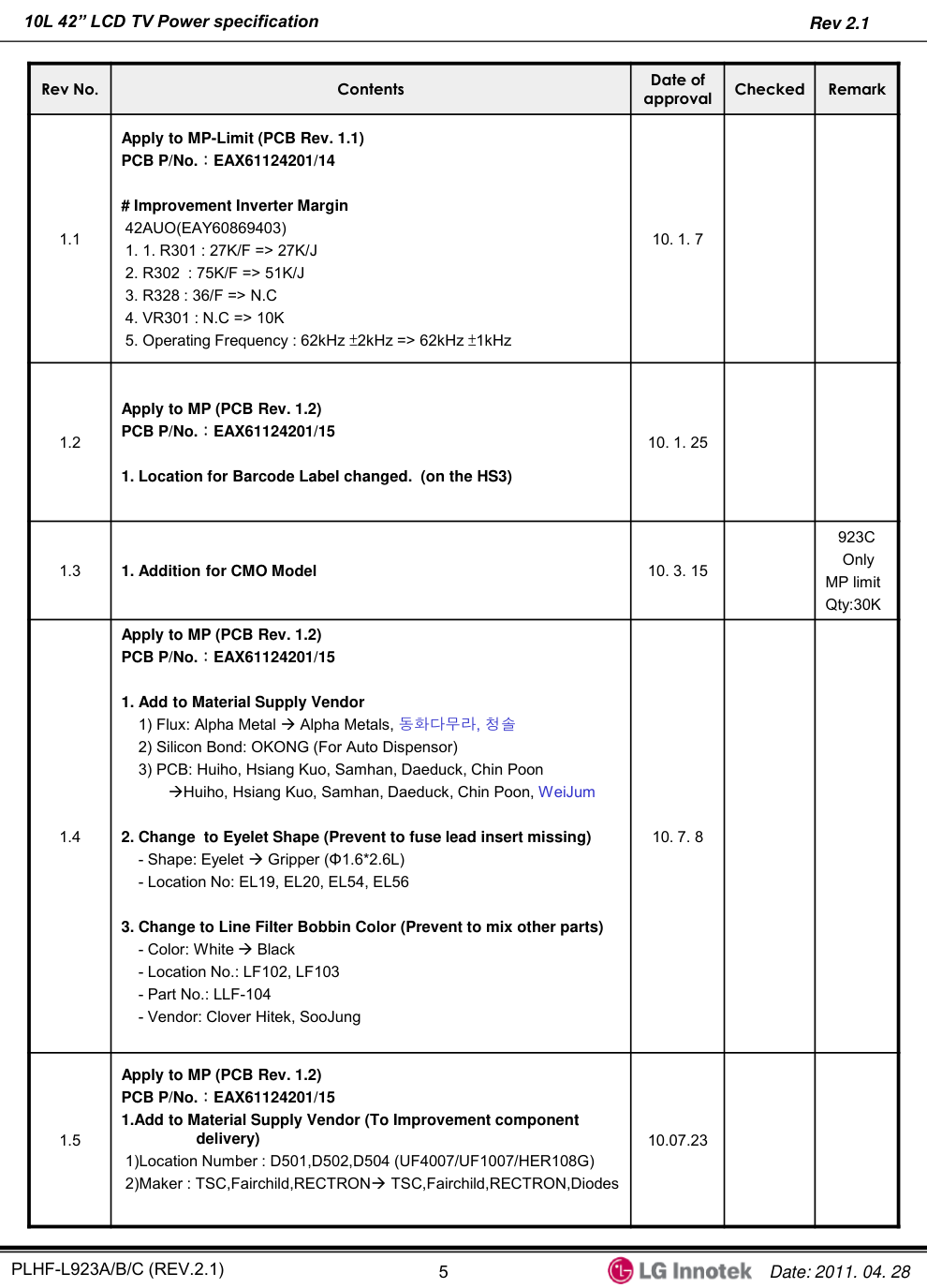

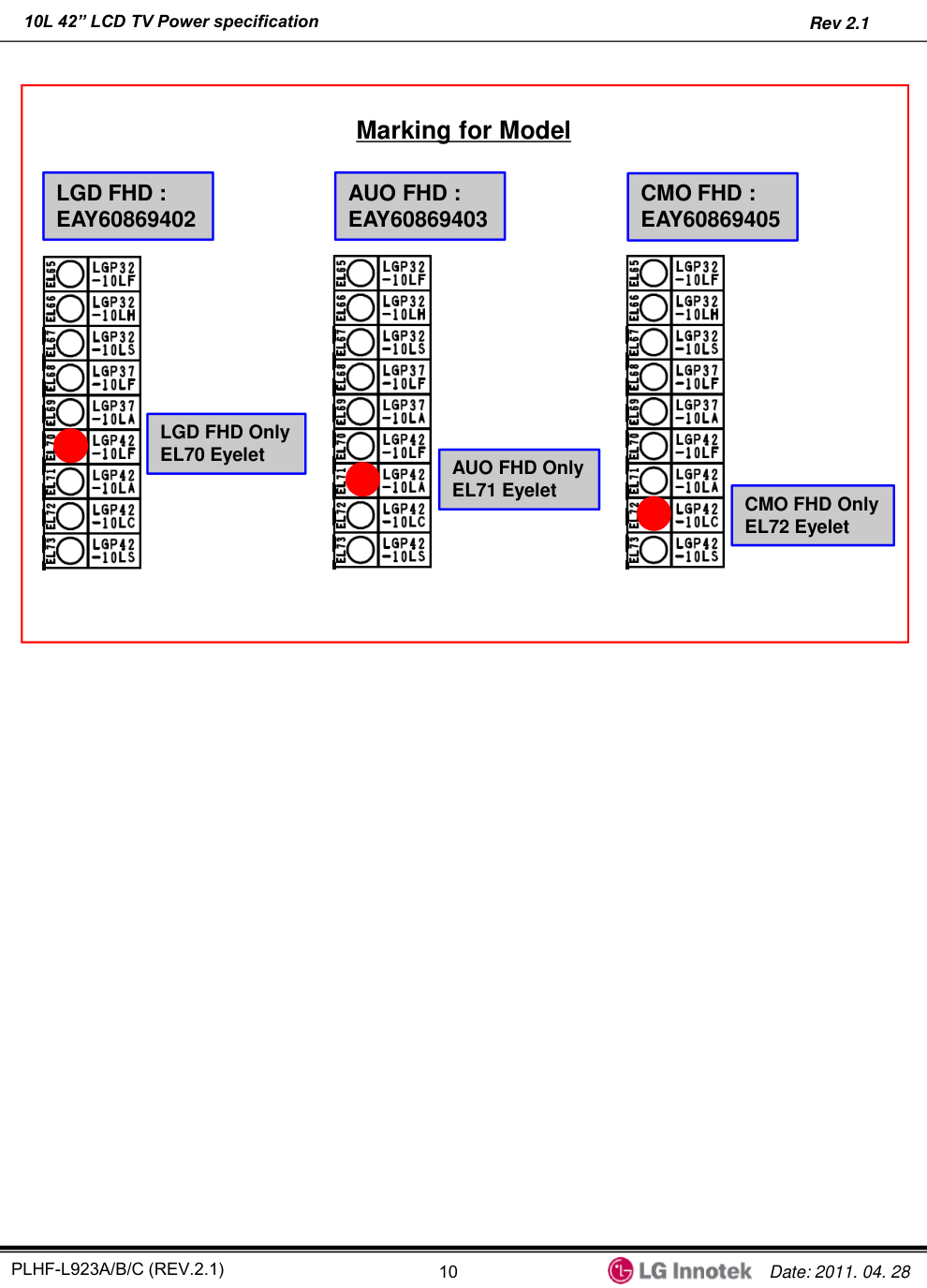

PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 1 Date: 2011. 04. 28 LIB. Scanning SPECIFICATION FOR APPROVAL • P/NO : Power Supply Unit. • ITEM : LG Electronics inc. • CUSTOMER ★ Safety Standard Parts [안전규격부품 List ] Power Cord, Power Plug, X/Y-Capacitor, Power Switch, Fuse, SMPS Trans, Stand-By Trans, Photo coupler, Insulation(절연) Resistor, Discharge(방전) Resistor, Fusing Resistor, FBT.CPT, CPT Socket, DY, D-Coil, Line Filter, PCB Material, Front / Back-cover Material Relay(1-2차간), Varistor, Adapter ★ EMC Standard Parts [전자규격 부품 List ] Power Plug, Line Filter, X-Capacitor, Y-Capacitor, SMPS Trans, Tuner, Saw-Filter, Shield Case, Oscillator, Pattern Change ★ Green [유해물질 확인사항] This item must meet the standards of LG Electronics for six major substances as designated by RoHS for control. (Cd: 10ppm under, Pb/Hg/Cr+6/PBB/PBDE: 100 ppm under) RoHS LG Innotek Co., Ltd LG Twin Tower 33/34F, Yeouido-dong, Yeongdeungpo-gu, Seoul, Korea Tel. : +82-2-3777-1114 Fax. : +82-2-3777-0082 Safety MODEL NAME CUSTOMER SUPPLIER LGD FHD LGP42-10LF EAY60869402 PLHF-L923A AUO FHD(HD) LGP42-10LA EAY60869403 PLHF-L923B CMO FHD LGP42-10LC EAY60869405 PLHF-L923C : 2011. 04. 28 • DATE : REV 2.1 • Revision • Remark : MP (PCB REV 1.3) Producing District : LGITGJ (Jangduk-dong, Gwangju-si, Korea) LGITYT (Yantai Shandong, China) (생산지) (한국 광주 장덕동 / 중국 산동 연태) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 2 Date: 2011. 04. 28 DOCUMENT NO : PLHF-L923A/B/C Documentation For Approval Written Checked Approved 신광철 최광탁 이영수 Description Model Name LGE P/No. LGD FHD LGP42-10LF EAY60869402 AUO FHD(HD) LGP42-10LA EAY60869403 CMO FHD LGP42-10LC EAY60869405 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 3 Date: 2011. 04. 28 Contents NO. A table of contents Page 1 Documentation of Approval 1~2 2 Contents 3 3 Revision History 4~5 4 CTQ Management & Differentia & Model Marking 6~8 5 Specification 1. INTRODUCTION 2. SPECIFICATION 2.1 Input Requirements 2.2 Power Output Characteristics 2.3 Inverter Output Characteristics 2.4 Environment Requirement 2.5 Dielectric Strength Voltage and Insulation Resistance 2.6 Burn-in 2.7 Interface 2.8 Product Safety 2.9 Construction 2.10 Function of protection 2.11 Sound Noise Characteristics 2.12 Connector Specification 2.13 Inverter Test Method 2.14 PCB Dimension 2.15 Apply to Eyelet Point 2.16 Electrical Characteristics 2.17 Mechanical Characteristics 9~27 6 Schematic Diagram 28~31 7 Block Diagram 32~33 8 Parts List 34~58 9 Process Marking 59~60 10 PCB Layout 61~65 11 Safety Parts 66~68 12 Mechanical Drawing 69~75 13 Packing Drawing 76~81 14 Bar-code Label Drawing 82~85 15 Labeling Point 86~87 16 Workmanship Point 88~91 17 * Appendix A1. PCB Check list A2. Warranty letter 92~ PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 4 Date: 2011. 04. 28 Revision History Rev No. Contents Date of approval Checked Remark 0.2 Apply to PQ (PCB REV 0.7) PCB P/No.：EAX61124201/9 09. 10. 30 0.3 Apply to PQ (PCB Rev. 0.8) PCB P/No.：EAX61124201/10 # Improvement EMI 1. LB701, LB702 : Bead  Jumper 2. LB703, LB704 : Jumper  Bead 3. C720,721 : 100p  N.C 4. C706, C707 : Add 100p # Improvement Q502 TR Margin 5. R506 : 100K  N.C 6. R502 : N.C  100K # AC Brownout change 7. R519 : 2.2M  1M 8. R513,R514,R515,R516,R517,R518, R509 : J(5%)  F(1%) Grade Change 9. C509 : 22uF  10uF 10. C502: 0.68uF  0.1uF # Location change 11. VA100, CX101 09. 11. 11 0.4 Apply to PQ (PCB Rev. 0.9) PCB P/No.：EAX61124201/11 1. SK101 add GND Area # Improvement 3.5V & 12V Overshooting 2. R218 : 1K J  4.7K J 3. C221 : 50V 1uF Add 09. 11. 23 1.0 Apply to MP-Limit (PCB Rev. 1.0) PCB P/No.：EAX61124201/13 # Improvement EMI 1. C714, 715 : 0.001uF  NC # Delete Jump wire 2. Delete J7, J39 09. 12. 07 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 5 Date: 2011. 04. 28 Revision History Rev No. Contents Date of approval Checked Remark 1.1 Apply to MP-Limit (PCB Rev. 1.1) PCB P/No.：EAX61124201/14 # Improvement Inverter Margin 42AUO(EAY60869403) 1. 1. R301 : 27K/F => 27K/J 2. R302 : 75K/F => 51K/J 3. R328 : 36/F => N.C 4. VR301 : N.C => 10K 5. Operating Frequency : 62kHz ±2kHz => 62kHz ±1kHz 10. 1. 7 1.2 Apply to MP (PCB Rev. 1.2) PCB P/No.：EAX61124201/15 1. Location for Barcode Label changed. (on the HS3) 10. 1. 25 1.3 1. Addition for CMO Model 10. 3. 15 923C Only MP limit Qty:30K 1.4 Apply to MP (PCB Rev. 1.2) PCB P/No.：EAX61124201/15 1. Add to Material Supply Vendor 1) Flux: Alpha Metal  Alpha Metals, 동화다무라, 청솔 2) Silicon Bond: OKONG (For Auto Dispensor) 3) PCB: Huiho, Hsiang Kuo, Samhan, Daeduck, Chin Poon Huiho, Hsiang Kuo, Samhan, Daeduck, Chin Poon, WeiJum 2. Change to Eyelet Shape (Prevent to fuse lead insert missing) - Shape: Eyelet  Gripper (Φ1.6*2.6L) - Location No: EL19, EL20, EL54, EL56 3. Change to Line Filter Bobbin Color (Prevent to mix other parts) - Color: White  Black - Location No.: LF102, LF103 - Part No.: LLF-104 - Vendor: Clover Hitek, SooJung 10. 7. 8 1.5 Apply to MP (PCB Rev. 1.2) PCB P/No.：EAX61124201/15 1.Add to Material Supply Vendor (To Improvement component delivery) 1)Location Number : D501,D502,D504 (UF4007/UF1007/HER108G) 2)Maker : TSC,Fairchild,RECTRON TSC,Fairchild,RECTRON,Diodes 10.07.23 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 6 Date: 2011. 04. 28 Revision History Rev No. Contents Date of approval Checked Remark 1.6 Apply to MP (PCB Rev. 1.2) PCB P/No.：EAX61124201/15 1.Add to Material (To Improvement component delivery) 1)Location Number : D202 2) 2. Add to Material Supply Vendor 1) CX101, CX102 : Pilkor  Pilkor, OKAYA, Europtronic 10.08.06 CX101, CX102  923A Only 1.7 Apply to MP (PCB Rev. 1.2) PCB P/No.：EAX61124201/15 1.Add to Material product line (To Improvement component delivery) 1)Location Number : IC501 (STR-W6053N) 2)Plant site 10.08.14 1.8 Apply to MP (PCB Rev. 1.3) PCB P/No.：EAX61124201/16 1. PCB change for PL prevention. 10.09.17 1.9 Apply to MP (PCB Rev. 1.3) PCB P/No.：EAX61124201/16 1. Change to Line Filter Bobbin Color (Prevent to mix other parts) - Color: White  Black - Location No.: LF102, LF103 - Part No.: LLF-104 - Vendor: Clover , SooJung , Feelux 11.03. 24 MBRF20U65CT, KEC FMW-2206, SANKEN MBRF2060CT, SENSITRON  MBRF20U65CT, KEC FMW-2206, SANKEN MBRF2060CT, SENSITRON MBRF2060CTL, SENSITRON 石川 Sanken(株)  石川 Sanken(株) 鹿島 Sanken(株) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 7 Date: 2011. 04. 28 Rev No. Contents Date of approval Checked Remark 2.0 Apply to MP (PCB Rev. 1.3) PCB P/No.：EAX61124201/16 1. Add to Material Supply Vendor 1) Silicon Bond : DONGYANG 2) Jumper Wire : ILKWANG 11.03.31 G. T. Choi 2.1 Apply to MP (PCB Rev. 1.3) PCB P/No.：EAX61124201/16 # Add screw type. Before : SCREW PH S+P/W MACHINE M3X10 / 12 After : - SCREW PH S+P/W MACHINE M3 X10 / 12 - BHM Screw, M3.0 * 8.0 / 9.0L, with Clamfix,Cr3+WH Plating * Apply for all screw. 11.04.28 G. T. Choi Before After [ ADD ] PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 8 Date: 2011. 04. 28 CTQ Management No. Contents Page 1 2.1.1 Power Factor 10 2 2.2 Power Output Characteristics 11 3 2.2.1. Stand by Power Consumption 11 4 2.3 Inverter Output Characteristics 12~14 5 Additional Soldering point 85 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 9 Date: 2011. 04. 28 Differentia Model Details LGP42-10LF (EAY60869402) LGP42-10LA (EAY60869403) LGP42-10LC (EAY60869405) T703, T704 LIF42-100L LIF42-101A LIF42-102C R301 RES FLAT 39K F 1/8 (2012) RES FLAT 27K J 1/8 (2012) RES FLAT 27K J 1/8 (2012) R302 RES FLAT 62K F 1/8 (2012) RES FLAT 51K J 1/8 (2012) RES FLAT 51K J 1/8 (2012) R306 RES FLAT 150K J 1/8 (2012) RES FLAT 100K J 1/8 (2012) RES FLAT 200K J 1/8 (2012) R308 RES FLAT 10K F 1/8 (2012) RES FLAT 6.8K F 1/8 (2012) RES FLAT 7.5K F 1/8 (2012) R322 RES FLAT 6.2K F 1/8 (2012) RES FLAT 5.1K F 1/8 (2012) RES FLAT 6.2K F 1/8 (2012) R323 RES FLAT 6.8K F 1/8 (2012) RES FLAT 6.8K F 1/8 (2012) RES FLAT 10K F 1/8 (2012) R325 RES FLAT 9.1K J 1/8 (2012) RES FLAT 5.1K J 1/8 (2012) RES FLAT 20K J 1/8 (2012) R327 RES FLAT 10K J 1/8 (2012) RES FLAT 4.7K J 1/8 (2012) RES FLAT 12K J 1/8 (2012) C401 22pF J 6KV (10mm) 5pF J 6KV (10mm) 10pF J 6KV (10mm) C402 54pF J 6KV (10mm) 39pF J 6KV (10mm) 54pF J 6KV (10mm) C403 CAP FLAT 47nF K 50V X7R (2012) CAP FLAT 47nF K 50V X7R (2012) CAP FLAT 56nF K 50V X7R (2012) C404 CAP FLAT 15nF K 50V X7R (2012) CAP FLAT 5.6nF K 50V X7R (2012) CAP FLAT 27nF K 50V X7R (2012) C405 CAP FLAT 15nF K 50V X7R (2012) CAP FLAT 5.6nF K 50V X7R (2012) CAP FLAT 6.8nF K 50V X7R (2012) C406 CAP FLAT 15nF K 50V X7R (2012) CAP FLAT 5.6nF K 50V X7R (2012) CAP FLAT 6.8nF K 50V X7R (2012) EL70 EYELET DIA 1.6*3.0 N.C N.C EL71 N.C EYELET DIA 1.6*3.0 N.C EL72 N.C N.C EYELET DIA 1.6*3.0 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 10 Date: 2011. 04. 28 Marking for Model LGD FHD : EAY60869402 AUO FHD : EAY60869403 LGD FHD Only EL70 Eyelet AUO FHD Only EL71 Eyelet CMO FHD : EAY60869405 CMO FHD Only EL72 Eyelet PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 11 Date: 2011. 04. 28 Specification PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 12 Date: 2011. 04. 28 1. INTRODUCTION 1.1 Scope This approval is the description related to every electrical and structural specifications and reliability For Power Supply Unit (LGD FHD : LGP42-10LF, AUO FHD(HD) : LGP42-10LA, CMO FHD : LGP42-10LC ) used on 42 inch LGE LCD TV. 1.2 Customers product related items Product : Power Supply Unit Part code : LGD FHD : EAY60869402, AUO FHD(HD) : EAY60869403, CMO FHD : EAY60869405 1.3 Product name Product name : LGD FHD : PLHF-L923A, AUO FHD(HD) : PLHF-L923B, CMO FHD : PLHF-L923C Revision code : 2.0 2. SPECIFICATION 2.1 Input Requirements Nominal Input Voltage AC 100V to AC 240V Input Voltage Variation AC 90V to AC 264V Input Current Under 3.5Arms . (at 100Vac & Nominal Load) Under 1.5Arms . (at 240Vac & Nominal Load) Nominal Frequency 50 / 60 Hz Frequency Variation Range 47 Hz to 63 Hz Phase Single Leakage Current 0.7mA_peak. (100Vac ~ 240Vac) Surge Immunity ± 4kV / 1000ns / 0˚ to 360˚ Hold-up Time More than 20ms at 100Vac and maximum output load Lightning Surge 2kA Normal, Common Mode Inrush Current 80A zero-pk max at cold start and any specified line, load, and temperature conditions. 2.1.1 Power Factor Over than 0.9 at 90 – 264Vac & max load condition PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 13 Date: 2011. 04. 28 Output Voltage Variable range [V] Rated Current (Min, Max) [Amean] Voltage Regulation [V] Ripple Voltage [mVp_p] 3.5V (ST-BY) 3.23V ~ 3.57V 0.3W Under(15mA) - - 1.9A (0.8~1.9) (ON condition) - 250 mVp_p 12V 11.4V ~ 12.6V 2.8A (0.35~2.8) ± 5% 350 mVp_p 20V 17V ~ 25.2V 1.1A (0.07~1.1) -15% ~ +26% 500 mVp_p * Total regulation for each output circuit includes the results of input voltage variation, load variation, warm-up drift and temperature change. * The following instruments shall be used for measuring ripple noise. 1. Probe having impedance ratio of 1:1. 2. Oscilloscope having frequency characteristic of 100MHz or more. 2.2 Power Output Characteristics Test Point : power output 각 pin Power Supply Unit Output Voltage Load 700mm Add Electrolytic Capacitor 47㎌ + 0.1㎌ Oscilloscope Measurement point + ※ Ripple and noise are measured at the end of output cable which are added a 0.1uF ceramic capacitor and 47uF electrolytic capacitor. ( connected parallel ) * On Condition : In a moment of Power_ON Signal activated, the current of 3.5V output should be limited within 40mA(Max) at LCD TV condition for stability. Do not turn “Power_ON” Signal on at the load condition of 3.5V output, more than 40mA. Output Voltage 3.5V (STBY) 12V 20V Load [A] 0.015 Don’t Care (Power-Off) Wattage [W] Less than 0.3 Under (230Vac / 50Hz) 2.2.1 Stand By Power Consumption PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 14 Date: 2011. 04. 28 Item Symbol Condition Min Typ Max Unit Remarks PFC Voltage VPFC - 380 390 400 Vdc 1차측(HOT) Control Voltage VC - 11.4 12 12.6 2차측(COLD) Input Current Iin (Max) Vin=390V, A-DIM=1.65V B-DIM=3.3V - 0.4 - Arms - Input Power Pin Vin=390V, A-DIM=1.65V, B-DIM=3.3V - 154 - W - Back light ON/OFF Control VON/OFF Lamp ON=High 3.0 3.3 5.0 Vdc - Lamp OFF=Low 0.0 - 0.8 Analog Dimming Control A-DIM - - 1.65 3.3 Vdc 1.65V : Normal 3.3V : 매장mode Lamp Voltage Vout (Normal) A-DIM=1.65V B-DIM=3.3V 840 1040 1240 Vrms One side 2시간 Aging후 Lamp Current Iout (Normal) A-DIM=1.65V B-DIM=3.3V 123 136 149 mArms EEFL:16ea PWM Duty Ratio Iout (Min) B-DIM=3.3V (Input Duty : 20%) 5 10 15 % Output Current 기준 (120Hz) Iout (Max) B-DIM=3.3V (Input Duty : 100%) 100 - - Operating Frequency Fo A-DIM=1.65V B-DIM=3.3V 47 48.5 50 KHz - Open Lamp Voltage Vopen No load, Vin=390V, A-DIM=1.65V B-DIM=3.3V 1125 - - Vrms One side Striking time Ts 1.5 - 3.0 sec - 2.3 Inverter Output Characteristics “When doing inverter test, GND should be reinforced” 2.3.1 LGD FHD LGP42-10LF (EAY60869402) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 15 Date: 2011. 04. 28 Item Symbol Condition Min Typ Max Unit Remarks PFC Voltage VPFC - 380 390 400 Vdc 1차측(HOT) Control Voltage VC - 11.4 12 12.6 2차측(COLD) Input Current Iin (Max) Vin=390V, A-DIM=1.65V B-DIM=3.3V - 0.8 - Arms - Input Power Pin Vin=390V, A-DIM=1.65V, B-DIM=3.3V - 108 - W - Back light ON/OFF Control VON/OFF Lamp ON=High 3.0 3.3 5.0 Vdc - Lamp OFF=Low 0.0 - 0.8 Analog Dimming Control A-DIM - - 1.65 3.3 Vdc 1.65V : Normal 3.3V : 매장mode Lamp Voltage Vout (Normal) A-DIM=1.65V B-DIM=3.3V 750 950 1150 Vrms One side 2시간 Aging후 Lamp Current Iout (Normal) A-DIM=1.65V B-DIM=3.3V 125 135 145 mArms EEFL:14ea PWM Duty Ratio Iout (Min) B-DIM=3.3V (Input Duty : 20%) 5 10 15 % Output Current 기준 (120Hz) Iout (Max) B-DIM=3.3V (Input Duty : 100%) 100 - - Operating Frequency Fo A-DIM=1.65V B-DIM=3.3V 61 62 63 KHz - Open Lamp Voltage Vopen No load, Vin=390V, A-DIM=1.65V B-DIM=3.3V 1480 - - Vrms One side Striking time Ts 1.5 - 3.0 sec - “When doing inverter test, GND should be reinforced” 2.3.2 AUO FHD(HD) LGP42-10LA (EAY60869403) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 16 Date: 2011. 04. 28 Item Symbol Condition Min Typ Max Unit Remarks PFC Voltage VPFC - 380 390 400 Vdc 1차측(HOT) Control Voltage VC - 10.8 12 13.2 2차측(COLD) Input Current Iin (Max) Vin=390V, A-DIM=1.65V B-DIM=3.3V - 0.52 - Arms - Input Power Pin Vin=390V, A-DIM=1.65V, B-DIM=3.3V - 130 150 W - Back light ON/OFF Control VON/OFF Lamp ON=High 3.0 3.3 5.0 Vdc - Lamp OFF=Low 0.0 - 0.8 Analog Dimming Control A-DIM - - 1.65 3.3 Vdc 1.65V : Normal 3.3V : 매장mode Lamp Voltage Vout (Normal) A-DIM=1.65V B-DIM=3.3V 890 1060 1290 Vrms One side 2시간 Aging후 Lamp Current Iout (Normal) A-DIM=1.65V B-DIM=3.3V 115 125 135 mArms EEFL:14ea PWM Duty Ratio Iout (Min) B-DIM=3.3V (Input Duty : 20%) 5 10 15 % Output Current 기준 (120Hz) Iout (Max) B-DIM=3.3V (Input Duty : 100%) 100 - - Operating Frequency Fo A-DIM=1.65V B-DIM=3.3V 61 62 63 KHz - Open Lamp Voltage Vopen No load, Vin=390V, A-DIM=1.65V B-DIM=3.3V 1600 - - Vrms One side Striking time Ts 1.5 - 3.0 sec - “When doing inverter test, GND should be reinforced” 2.3.3 CMO FHD LGP42-10LC (EAY60869405) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 17 Date: 2011. 04. 28 2.4 Environment Requirement Operating Temperature Range -10℃ to 40℃ (60℃:No Hardware Failure, TV SET Condition) Operating Humidity Range 30 to 85 % Storage Temperature Range -25 to 85 deg. Storage humidity Range 5 to 90 % MTBF (Mean Time Between Failure) 50,000 hour Cooling Condition Natural Air Shock 98 ㎨ Shock test consists of pivoting the power supply, from one edge of it’s bottom side, on a flat surface (such as wood having thickness of 10mm or more) and allowing the opposite edge to fall from a height of 50mm to this surface. The test is performed three times on each edge of the bottom side of the power supply 2.5 Dielectric Strength Voltage and Insulation Resistance Dielectric Strength Voltage AC-DC 1.5K VAC 3 SEC 10 mA. Between Primary and All Secondary Circuits. * Above tests are performed at room temperature in non-condensing atmospheric conditions * Frame grounds are connected to secondary circuits. 2.6 Burn-in More than 1 hours at 45℃(±5℃), Normal input voltage. AC on/off must be test 1 time after burn-in. 80% Load of specification. Insulation Resistance Insulation resistance shall be more than 8M ohm (at DC 500V) Between Primary Live, Neutral line and Secondary. Safety Load 부가 순서 : T1T2T3T4 T2 : Min 10ms T3 : Min 5ms 10L Aging Sequence 0.1A Full load 80% 3.5V 20V 12V 인버터 Full load 80% Full load 80% Full load 80% T1 T2 T3 T4 Ac Power ON Load 부가 순서 : T1T2T3T4 T2 : Min 10ms T3 : Min 5ms 10L Aging Sequence 0.1A Full load 80% 3.5V 20V 12V 인버터 Full load 80% Full load 80% Full load 80% T1 T2 T3 T4 Ac Power ON PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 18 Date: 2011. 04. 28 2.8 Product Safety Safety Standards to be applied Design to meet the requirements as follows UL60950, IEC60950, IEC60065 and 60950 EMI/RFI Standards to be applied Design to meet the requirements as follows FCC and EN55020, EN55013 Class B with 4dB minimum margin. 2.9 Construction Weight Less than 1.0kg Unit Size 196(W) X 246(D) X 21(H, Max, Tolerance ±2mm) Appellation Explanation Signal Direction Action POWER ON Vcc Circuit ON/OFF Input Hi : Vcc ON Low : Vcc OFF 2.7 Interface Safety * This Power Supply has above-mentioned protections. * Short circuit protection between different output terminals is not considered. * Trip point for over voltage indicates the operating point when the output voltage slowly increases. * The conditions of Over Current measurement Multi output(3.5V,12V,20V) is nominal load state except an over current measurement. 2.10 Function of protection Protection Output Circuit Trip point Notes Over Current STBY 3.5V 12A ~ Latch 12V 6A ~ Latch 20V 3A ~ Latch Short Circuit STBY 3.5V - Latch 12V - Latch 20V - Latch PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 19 Date: 2011. 04. 28 2.12 Connector Specification 2.12.1 Connectors Usage SK102 (Option 2) Type : (YW396-03AV) Maker : (YEONHO) Pin No. Signal 1 LIVE 2 NC 3 NEUTRAL P201 Type : (FW20020-24SB), Maker : (FOOSUNG/Yeonho) Pin No. Signal Pin No. Signal 1 Power-ON 2 20V 3 20V 4 20V 5 GND 6 GND 7 GND 8 GND 9 3.5V 10 3.5V 11 3.5V 12 3.5V 13 GND 14 GND 15 GND 16 GND 17 12V 18 INV ON/OFF 19 12V 20 A-DIM 21 12V 22 P-DIM 23 NC 24 ERROR 2.11 Sound Noise Characteristics PSU Noise Specification 22.5 dB(a) / 20.u Pa 2.0E-5 Pa (1/1 octave, A-weighting, to 1khz ~ 16khz Total overall Measure Location : Anechoic Room Measure Condition : At a distance of 60cm mic Full white pattern, at AC 110V/220V The max specification (measure 3 points, at PSU center and left & right on the side) SK101 (Option 1) Type : (DAC – 11PM1) Maker : (Dongil) Pin No. Signal 1 LIVE 2 F.G 3 NEUTRAL PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 20 Date: 2011. 04. 28 2.12.2.2 Output Connector P401 : Yeonho 35002WR-02L(BK) Pin No. Symbol Color Description P401 1 HV_1 Black High Voltage Terminal 2 HV_1 High Voltage Terminal Pin No. Symbol Color Description P402 1 HV_2 White High Voltage Terminal 2 HV_2 High Voltage Terminal 2.12.2.1 Output Connector P402 : Yeonho 35002WR-02L(P) 2.12.2 Connector Usage PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 21 Date: 2011. 04. 28 2.13 Inverter Test Method. P201 SK101 AC INPUT PWR ON : 3.3V INV ON : 3.3V PDIM : 0~3.3V ADIM : 1.65V(Max 3.3V) 10LF : 500pF 6KV 10LA : 350pF 6KV 10LC : 300pF 6KV 10LF : 500pF 6KV 10LA : 350pF 6KV 10LC : 300pF 6KV 2.3㏀ / 500W 2.3㏀ / 500W VOLTAGE PROBE P6015A 또는 동등품 INVERTER + POWER BOARD CONTROL SIGNAL INVERTER CONNECTION WIRE CURRENT PROBE : P6022A 또는 동등품 VOLTAGE PROBE P6015A 또는 동등품 P401 P402 INVERTER TRANSFORMER INVERTER TRANSFORMER PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 22 Date: 2011. 04. 28 2.14 PCB Dimension ▶ Components Height Max 21mm (Tolerance ±2mm) PCB : 1.6mm ▶ PCB Bending : Under 3.0mm ▶ Lead Cutting : Under 3.0mm 196mm 246mm 10mm 4.5mm 4.5mm 4.5mm ø4 ø4 ø4.5 4.5mm 4.5mm ø4 10mm ø4 ø4 4.5mm PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 23 Date: 2011. 04. 28 2.15 Apply to Eyelet Point ▶ LGP42-10LF ▶ Apply to Eyelet Point 2.3ø : EL1, EL4, EL5, EL6, EL7, EL8, EL9, EL10, EL11, EL12, EL13, EL15, EL17, EL37, EL40, EL51, EL52 (17EA) ▶ Apply to Small Eyelet 1.6ø : EL14, EL16, EL21, EL22, EL23, EL24, EL26, EL27, EL28, EL29, EL30, EL31, EL32, EL33, EL34, EL35, EL36, EL38, EL39, EL41, EL42, EL43, EL44, EL45, EL46, EL47, EL48, EL49, EL50, EL53, EL55, EL57, EL58, EL63, EL64, EL70 (36EA) ▶ Apply to Griper Point 1.6ø * 2.6L: EL18, EL19, EL20, EL25, EL54, ,EL56 (6EA) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 24 Date: 2011. 04. 28 ▶ LGP42-10LA ▶ Apply to Eyelet Point 2.3ø : EL1, EL4, EL5, EL6, EL7, EL8, EL9, EL10, EL11, EL12, EL13, EL15, EL17, EL37, EL40, EL51, EL52 (17EA) ▶ Apply to Small Eyelet 1.6ø : EL14, EL16, EL21, EL22, EL23, EL24, EL26, EL27, EL28, EL29, EL30, EL31, EL32, EL33, EL34, EL35, EL36, EL38, EL39, EL41, EL42, EL43, EL44, EL45, EL46, EL47, EL48, EL49, EL50, EL53, EL55, EL57, EL58, EL63, EL64, EL71 (36EA) ▶ Apply to Griper Point 1.6ø * 2.6L: EL18, EL19, EL20, EL25, EL54, ,EL56 (6EA) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 25 Date: 2011. 04. 28 ▶ LGP42-10LC ▶ Apply to Eyelet Point 2.3ø : EL1, EL4, EL5, EL6, EL7, EL8, EL9, EL10, EL11, EL12, EL13, EL15, EL17, EL37, EL40, EL51, EL52 (17EA) ▶ Apply to Small Eyelet 1.6ø : EL14, EL16, EL21, EL22, EL23, EL24, EL26, EL27, EL28, EL29, EL30, EL31, EL32, EL33, EL34, EL35, EL36, EL38, EL39, EL41, EL42, EL43, EL44, EL45, EL46, EL47, EL48, EL49, EL50, EL53, EL55, EL57, EL58, EL63, EL64, EL72 (36EA) ▶ Apply to Griper Point 1.6ø * 2.6L: EL18, EL19, EL20, EL25, EL54, ,EL56 (6EA) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 26 Date: 2011. 04. 28 No. Test Item Test method 1 Intermittent Operation stability Test The switching regulator shall ON/OFF for 20,000 time at an Interval of 10 sec at maximum load, after that electrical Characteristics shall be satisfied. 2 Low temperature operation The switching regulator is left at the operating guarantee Minimum temperature for 2 hours without applying electricity. After that power shall be turned on, and then the electrical Characteristics shall be satisfied. 3 Low temperature Storage test Leave At low temperature The switching regulator is left at minimum storage Temperature for 96 hours or more. Then the switching regulator is left at a room temperature and humidity for 1 hour or more, after that electrical characteristics shall be satisfied. 4 Heat cycle storage test The switching regulator is 10 consecutive temperature cycle that shown below is performed and then leave them at room temperature and humidity for 1 hour or more. After that, electrical characteristics shall be satisfied. Time Temperature 30 minutes 25℃ 30 minutes 25℃ -> -20℃ 60 minutes Minimum storage temperature (-20℃) 30 minutes -20℃ -> 25℃ 30 minutes 25℃ 30 minutes 25℃ -> 70℃ 60 minutes Maximum storage temperature (70℃) 30 minutes 70℃ -> 25℃ 5 Heat shock test Heat shock test performed under following conditions without applying electricity and then leave them at room temperature and humidity for 1 hour or more. After that, electrical characteristics shall be satisfied. Condition : -45℃(30minutes), 120℃(30minutes), Switching time : Less than 5 minutes, 200 cycles. 2.16 Electrical Characteristics PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 27 Date: 2011. 04. 28 No. Test Item Test method 1 Appearance There shall be no contaminant or dirt on the switching regulator which has adverse effect on electrical characteristics. There shall be no excessive unevenness or scratches on the plated or painted surface. 2 Vibration While applying electricity : Vibration frequency : 5 ~ 100Hz Acceleration : 4.9 m/s∧2 Vibration in X,Y,Z direction for 30 minutes While applying electricity : Vibration frequency : 5 ~ 100Hz Acceleration : 14.7 m/s∧2 Vibration in X,Y,Z direction for 30 minutes After that electrical characteristics shall be satisfied. There shall be no damage to appearance and construction. 3 Shock Shock : 98 m/s∧2 On the oak more than 10mm thickness with the flat face, raise the one side for 50mm, and it carries out each side free fail for three sides. There shall be no damage to appearance and construction. 2.17 Mechanical Characteristics PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 28 Date: 2011. 04. 28 Schematic Diagram THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. PFC_INV R621 10K CY103 470pF CY104 470pF CY101 470pF CY102 470pF LB601 D603 F501 TH600 VA100 VCC C606 0.1uF 50V C603 1000pF 50V R614 2.2 LB603 JUMPER C607 1000pF 50V D604 R622 10K A-DIM 3.5V 12V P-DIM POWER-ON ERROR 3.5V 3.5V 20V 20V 3.5V ON/OFF TH601 C216 1uF 50V C207 0.1uF 50V CY105 470pF C204 1000uF 10V POWER-ON VCC L202 0.6uH R225 47K R224 10K R232 10K C203 470pF 1KV R506 N.C 3.5V C205 1000uF 10V Q204 E B C R210 2.2K 1% R203 51K IC202 A K R C213 0.1uF 50V Q502 KTC3551T E B C R505 1K R209 9.1K 1% ZD205 18V R211 180 1% IC503 EL817MB-DT 1 1 2 2 4 4 3 3 R206 180 Q201 E B C PFC_MULTI R214 820 2W R205 51K 3.5V R207 10K C211 N.C R501 100K 2W 20V C206 N.C R213 N.C 12V POWER-ON D501 1KV IC502 EL817MB-DT 1 1 2 2 4 4 3 3 R208 300 1% C230 0.1uF 50V R222 47K PFC_MULTI D205 N.C R602 2W C614 3216 N.C 20V 12V 12V HS5 R100 1M 1/2W R231 470 R615 3.3K 1% LB602 0 3216 LB604 0 3216 HS1 HS3 HS4 R223 470 SK102 N.C 1 3 HS2 C503 N.C LB101 LB102 LB103 R512 2.2 1/2W C504 N.C ZD506 N.C Q503 N.C E B C ZD505 N.C R510 0 R511 N.C R609 10K R608 20K R504 22 1/2W J101 J102 R230 270 C506 N.C R256 N.C C231 N.C C232 N.C R601 2W ZD201 N.C R620 30 R605 30 R212 2.2K 1% C214 N.C EL65 EL66 EL67 EL68 EL69 EL70 EL71 EL72 EL73 R201 22 R229 22 R234 22 R228 22 R226 22 R233 22 R204 22 R227 22 L101 N.C R507 2.7M R517 750K 1% R513 750K 1% R514 750K 1% R515 750K 1% R516 750K 1% R518 750K 1% CY107 N.C LB104 N.C R221 430 1% R220 820 1% C212 0.33uF 50V R216 1.2K 1% R215 1K 1% Q605 N.C E B C D610 N.C C609 N.C R618 N.C R619 N.C R613 750K 1% R611 750K 1% R612 750K 1% R610 750K 1% R616 750K 1% R617 240K 1% R603 27K 1% J104 J103 J106 J105 R502 100K R519 1M 1/4W R509 820K 1% R202 22 1W R217 330 R219 3.3K R235 0.05 5W R508 2.2M R606 200 R604 200 C513 0.1uF 50V C601 0.1uF 50V C201 470pF 1KV C209 470pF 1KV C208 220uF 25V C215 470uF 10V C217 100uF 50V C602 0.047uF 50V C505 4700pF 50V C502 0.1uF 50V C501 1000pF 1KV C604 100pF 50V C605 22pF 50V C612 82uF 450V C611 82uF 450V CX101 0.22uF 275V CX102 0.47uF 275V CY106 330pF D204 A2 C A1 D502 D504 ZD501 6.8V ZD502 16V ZD504 16V ZD503 5.6V Q603 E B C Q604 E B C F100 R218 4.7K R503 0.43 1W C210 680uF 50V C220 680uF 50V C219 680uF 35V C218 680uF 35V C509 10uF 50V C510 22uF 50V C608 220pF 1KV P201 19 14 9 4 18 13 8 3 17 12 7 2 16 11 6 1 20 15 10 5 21 22 23 24 D201 MBRF10150CT A2 C A1 D203 MBRF10150CT A2 C A1 D202 A2 C A1 D600 1KV D606 1KV D601 STTH10LCD06FP IC201 A K R IC501 5 GND 7 BL 6 FB 3 S/OCP 4 VCC 1 D/ST IC600 3 2 CT 4 CS 1 FB 5 ZCD 6 GND 7 DRV 8 VCC Q203 FDD5614P G D S Q202 FQPF30N06L G D S LF101 1 2 3 4 T501 LPM-100 3 2 5 7 8 9 10 12 13 14 SK101 DAC-11PM1 L E N L600 2 4 6 7 8 9 10 11 BD101 1 C 2 AC1 3 AC2 4 A LF102 1 2 3 4 LF103 1 2 3 4 1 2 3 4 Q601 S G D Q602 S G D C221 1uF 50V P602 1 P603 1 P604 1 P601 1 C600 0.82uF 500V PFC&MULTI 10L 32"37"42"NOR 1 3 1N5408 1N4148W MMBT2907A F3.15A H 250V INR14D621 KMF KMF LLP-100 HS01G COMP 1N4148W 12.5x20*2 RD 1.1A 10x20*2 2.8A UF4007 1.9A RS 32’ 5D-15 37’ TH600 TH601 JUMPER 42’ 32’,37’ LLP-101 42’ 37’, 42’ USING 32’ N.C OPTION3 LF101 37’ LF102,103 32’ LLF-100 LLF-102 42’ OPTION3 OPTION2 OPTION2 OPTION1 OPTION1 OPTION1 OPTION1 Q602 STF13NM60 32" STF13NM60 37" N.C 42" STF13NM60 Q601 OPTION4 OPTION4 OPTION4 32": T3.15A H 250V 37",42":T5A H 250V BD101 32",37":RS405M 42":RS1005M R601,R602 32",37":0.12 42":0.1 1N5408 C611,C612 32":68uF*2 37":82uF*2 42":82uF*2 2010. 9. 13 B+ D JUMPER 72*25 28*12 96*15 72*25 MMBT2907A MMBT2222A MMBT2222A J101,102 N.C N.C N.C LLF-103 LLF-101 17mH 9mH MBRF2060CT MBRF10200CT 7.7mH 30mH LLF-103 23mH 30mH LGP42-10LS �Sharp FHD LGP42-10LC �CMO FHD LGP42-10LA �AUO FHD (HD) LGP37-10LF� LGD FHD LGP42-10LF �LGD FHD LGP37-10LA �AUO FHD(HD) LGP32-10LS �Sharp FHD 120Hz LGP32-10LH �LGD HD LGP32-10LF� LGD FHD AZ431LANTR-1.24V LLF-104 5D-15 2.5D-15 2.5D-15 HS3 32":84*20 42",37":84*25 R-TYPE R-TYPE R-TYPE R-TYPE FW20020-24SB AS431AN-2.5V UF4007 UF4007 STR-W6053N REV 1.3 PCB P/N : EAX61124201 TK10A60 TK10A60 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. R727 270 R726 270 D401 BAV99 A AC C D402 BAV99 A AC C PFC_INV 12V A-DIM C314 1000pF 50V R303 1K C313 1uF 25V C308 1uF 25V C713 1000pF 50V R712 270 T701 LIP-001 4 1 5 6 7 8 R342 10K C319 0.022uF 50V R343 10K C321 68pF 50V R305 1K R711 10K VR302 N.C C318 1000pF 50V C710 1uF 25V C711 1uF 25V C322 N.C R335 N.C D404 BAV99 A AC C C304 1000pF 50V LB702 JUMPER C309 0.047uF 50V D703 D302 100V 1N4148W R306 C311 4700pF 50V D701 LB701 JUMPER ON/OFF Q306 N.C E B C C306 N.C R326 470K 1% D303 100V 1N4148W R724 10K C320 68pF 50V D403 BAV99 A AC C 12V Q305 N.C E B C C312 0.1uF 50V R334 N.C C712 1000pF 50V R336 N.C P-DIM LB703 R313 39K R309 10K C323 N.C C315 1000pF 50V D702 R304 100K ERROR D704 R710 270 VR301 R314 100K C302 0.01uF 50V R725 10K C303 0.1uF 50V T702 LIP-001 4 1 5 6 7 8 R713 10K R341 0 C310 0.01uF 50V C718 N.C C703 N.C C716 N.C C717 N.C R324 22K C307 N.C ZD301 N.C R347 N.C R307 20K R344 150K R310 100K C316 N.C C325 N.C R319 10 R312 2.2 R311 2.2 C324 0.1uF 50V HS6 R340 0 C305 0.1uF 50V C715 N.C C714 N.C C317 0.47uF LB704 Q709 2SK3868 S G D Q707 2SK3868 S G D Q708 2SK3868 S G D Q710 2SK3868 S G D R316 110K 1% R315 110K 1% R317 75K 1% R318 68K 1% C720 N.C C721 N.C IC301 BD9270F-E2 3 HFN2 2 LN2 4 CT_SYNC_OUT 1 PGND 6 GND 5 CT_SYNC_IN 7 SRT 8 RT 9 REF4V 10 DUTY 11 FAIL 12 STB 13 CP 14 VREF 15 VS 16 IS 17 FB 18 SS 19 STRK 20 COMPSD 21 COMP 22 VCC 23 HFN1 24 LN1 P402 1 2 3 R301 R302 R308 R322 R325 R327 C706 C707 R406 12 2W 1% R403 12 2W 1% C401 6KV C402 6KV C403 50V C404 50V C405 50V C406 50V R323 P401 1 2 3 T703 3 2 1 4 T704 3 2 1 4 C719 0.82uF 500V R328 2010. 9. 13 3 2 INVERTER 10L 32"37"42"NOR 1N4148W OPTION:N.C 1N4148W C404 RS C406 C405 1N4148W C403 54pF RS 1N4148W 72*20 C402 Module Inch 32HD 32FHD 37FHD 42FHD 37FHD 42FHD 32FHD 42FHD 42FHD CMO SHARP AUO LGD 54pF 54pF 54pF 0.047uF AUO R325 42FHD Inch 32HD LGD Module 42FHD 32FHD SHARP CMO 42FHD 42FHD 37FHD R323 R308 37FHD 32FHD 3.9K/F 1.5K/F 18K/F 10K/F 6.8K/F 6.2K/F 6.2K/F 6.2K/F 6.8K/F 6.8K/F 8.2K/J 8.2K/J 8.2K/J 9.1K/J 51K/J R302 27K/J R301 39K/J R328 62K/J 5.1K/J R327 13K/F 10K/F 6.8K/F 15K/F 4.7K/J 10K/J 10K/J 10K/J 10K/J 10K/J 10K/J 22pF C401 22pF 22pF 22pF 5pF 22pF 39pF 0.047uF 0.047uF 0.047uF 0.047uF 0.015uF 0.01uF 0.015uF 0.015uF 0.015uF 0.015uF 0.015uF 0.015uF 0.015uF 0.015uF 0.015uF 0.015uF 2200pF 5600pF 4700pF 0.056uF 37FHD 37FHD 32FHD 42FHD 42FHD Inch 42FHD SHARP 32FHD CMO Module R403 R406 AUO 32HD LGD 20/F 20/F 20/F 20/F 12/F 12/F 12/F 12/F 12/F 12/F 12/F 12/F 12/F 12/F 6.2K/F 5.1K/F 6.2K/F 6.2K/F 6.2K/F 6.2K/F 6.2K/F R322 42FHD CMO Inch 32HD SHARP 42FHD 42FHD AUO 42FHD 32FHD 37FHD LGD 37FHD Module 32FHD 62K/J 39K/J 62K/J 39K/J 51K/J 27K/J 27K/J 27K/J VR301 N.C N.C N.C 10K 39pF 0.068uF N.C 0.015uF 0.015uF 22pF 54pF 0.068uF N.C 0.015uF 0.015uF 12/F 12/F 10K/F 4.7K/F 10K/J 6.2K/F 10K/J 42FHD 27K/J N.C (BLACK) A-TYPE N.C N.C N.C 10K 10K 10K C707 32FHD 42FHD 37FHD AUO CMO Inch 37FHD 42FHD 32HD Module 42FHD 32FHD LGD C706 SHARP 42FHD 100pF 100pF 100pF 100pF 100pF 100pF 100pF 100pF 100pF 100pF 100pF 100pF 100pF R-TYPE REV 1.3 PCB P/N : EAX61124201 35002WR-02L(BK) 35002WR-02L(P) Inch SHARP AUO CMO 32FHD T703, 42FHD 32FHD T704 LGD 42FHD Module 42FHD 37FHD 32HD 42FHD 37FHD LIH32-100L LIF32-100L LIF37-100L LIF42-100L LIF37-101A LIF42-101A LIF32-101S LIF42-103S LIF42-102C UU1654 UU1654 5pF 39pF 5600pF 5600pF 5.1K/J 4.7K/J 25V 100pF 100pF 100pF R306 150K/J 150K/J 150K/J 150K/J 150K/J 100K/J 200K/J 150K/J 5600pF N.C 10K 51K/J 51K/J 51K/J 10K 10K 10K 10K N.C 27K/J 51K/J 200K/J 10pF 54pF 0.056uF 0.027uF 6800pF 6800pF 12/F 12/F 7.5K/F 6.2K/F 10K/F 20K/J 12K/J 100pF 100pF THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. BD101-*1 RS405M 4 C 2 AC1 3 AC2 1 A 30mH LF102-*1 1 2 3 4 30mH LF103-*1 1 2 3 4 17mH LF101-*2 1 2 3 4 TH601-*1 5-ohm DSD 5D-15 MSST C611-*1 68uF 450V C612-*1 68uF 450V R601-*1 0.12 2W 5% R602-*1 0.12 2W 5% Q601-*1 TK10A60D G D S Q602-*1 TK10A60D G D S R301-*1 27K R302-*1 51K R308-*1 3.9K R308-*2 1.5K R308-*3 18K R308-*4 13K R322-*1 5.1K R323-*1 6.2K R323-*2 15K R323-*3 4.7K R325-*1 8.2K R325-*2 4.7K R325-*4 10K R327-*1 5.1K C401-*1 5pF 6KV C403-*1 0.056uF 50V C403-*2 0.068uF 50V C404-*2 4700pF 50V C404-*3 5600pF 50V C405-*1 5600pF 50V C406-*1 2200pF 50V T703-*1 LIF32-100L 3 2 1 4 T703-*2 LIF32-100L 3 2 1 4 T703-*3 LIF32-101S 3 2 1 4 T703-*4 LIF37-100L 3 2 1 4 T703-*5 LIF37-101A 3 2 1 4 T703-*6 LIF42-101A 3 2 1 4 T703-*7 LIF42-103S 3 2 1 4 T704-*2 LIF32-100L 3 2 1 4 T704-*4 LIF37-100L 3 2 1 4 T704-*7 LIF42-103S 3 2 1 4 T704-*5 LIF37-101A 3 2 1 4 T704-*1 LIF32-100L 3 2 1 4 T704-*6 LIF42-101A 3 2 1 4 T704-*3 LIF32-101S 3 2 1 4 F100-*1 0215 3.15MXK C404-*1 0.01uF 50V R306-*1 200K R308-*5 6800 R325-*3 5.1K R327-*2 4.7K C406-*2 5600pF 50V R306-*2 100K L600-*1 LLP-100 3 1 5 6 7 8 9 10 C402-*1 39pF 6KV 3 Multi Option REV 1.3 3 10L 32"37"42"NOR 2010. 9. 13 PCB P/N : EAX61124201 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 29 Date: 2011. 04. 28 Block Diagram PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 30 Date: 2011. 04. 28 EMI Filter Common x 2ea SQE x 1ea Multi Block (Flyback) EFD3634 Control IC STR-W6053N Control IC - SCY99102 Control IC - BD9270 Bridge Diode D10XB60 PFC Block EER3618 450V 82uF x 2 Inverter Block (F/Bridge) UU1654 EE3370 2SK3868 x 4ea (N) 3.5V 12V 20V MBRF2060 MBRF10150 FQPF30N06L (Linear) MBRF10200 FDD5614P (Load S/W) Inv. Lamp AC Input : 90~264V Vcc PWR On/Off Inv. On/Off ■ Block Diagram PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 31 Date: 2011. 04. 28 Parts List PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 32 Date: 2011. 04. 28 LGP42-10LF(EAY60869402) No. LEVEL Q'TY Unit Location Specification Description Maker 1 1 2 g EF-9301(g) EC-19S-8 CS-9111LF-LGIT FLUX ALPHA METALS 동화다무라 청솔 2 1 0.018 ㎏ HSE-11 B20 BAR(SN:99%, AG:0.3%, CU:0.7%) SOLDER BAR 서브원 HEESUNG METAL 3 1 0.0012 ㎏ HSE-11 B20 WIRE(SN:99%, AG:0.3%, CU:0.7%) SOLDER WIRE 서브원 HEESUNG METAL 4 1 0.025 ㎖ HT-130A-106 BOND-SMD HI-TECH KOREA 5 1 0.05 ㎖ H-828W OKE-410 (FOR AUTO DISPENSER) TSE3854D EA-4100 DS-818 SILICON OKONG OKONG GE TOSHIBA DOW CORNING DONGYANG 6 1 1 Pcs BUBBLE SHEET (220W*720L 4+/- 1.5H) BUBBLE SHEET 서브원 JAEIL A-TEK 7 1 1 Pcs LABEL FOR BOARD (40*8) LABEL 서브원 JAEIL 8 1 0.0625 Pcs LABEL FOR BOX LABEL-BOX 서브원 JAEIL 9 1 0.0031 Pcs TAPE 50*50K TAPE 서브원 JAEIL 10 1 0.0625 Pcs BOX(196W*246L*22H) BOX 서브원 JAEIL HUAXING PACKING TAILI PACKING 11 1 0.125 Pcs Tray Board (470*373) BOX_PAD 서브원 JAEIL HUAXING PACKING TAILI PACKING 12 1 0.1875 Pcs Cross Board A (472*250) PARTITION-A 서브원 JAEIL HUAXING PACKING TAILI PACKING 13 1 0.125 Pcs Cross Board B (375*250) PARTITION-B 서브원 JAEIL HUAXING PACKING TAILI PACKING 14 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 15 4 1 Pcs HS1 HEAT SINK, 96*15*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 16 4 1 Pcs BD101 DIODE BRIDGE D10XB60 DIODE BRIDGE RS1005M DIODE BRIDGE TS10B05G DIODE-BRIDGE SHINDENGEN RECTRON TSC 17 4 1 Pcs FOR BD101 SEMS 3*12 SCREW,SPRING WASHER BHM Screw, M3.0 *9.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 18 4 0.00001 kg FOR BD101 HC300 SILICON GLEASE 서브원 A-TEK 19 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 20 4 1 Pcs HS2 HEAT SINK, 72*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 21 4 1 Pcs IC501 STR-W6053N IC SANKEN 22 4 1 Pcs FOR IC501 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 23 4 0.00001 kg FOR IC501 HC300 SILICON GLEASE 서브원 A-TEK 24 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 25 4 1 Pcs HS3 HEAT SINK, 84*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 26 4 2 Pcs Q601 Q602 STF13NM60N SD14N60 TK13A60D FET ST INFINEON TOSHIBA 27 4 1 Pcs D601 STTH10LCD06FP BYV29FX-600 DIODE ST NXP 28 4 3 Pcs FOR Q601, Q602, D601 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 29 4 0.00003 kg FOR Q601, Q602, D601 HC300 SILICON GLEASE 서브원 A-TEK 30 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 31 4 1 Pcs HS4 HEAT SINK, 72*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 32 4 2 Pcs D201 D203 DIODE MBRF10150CT 10A 150V, TO-220FP DIODE MBRF10U150CT 10A 150V, TO-220FP DIODE FME-210B 10A 150V, TO-220FP DIODE SENSITRON KEC SANKEN 33 4 1 Pcs D204 DIODE MBRF10200CT 10A 200V, TO-220FP DIODE MBRF10U200CT 10A 200V, TO-220FP DIODE FMX-22S 10A 200V, TO-220FP DIODE SENSITRON KEC SANKEN 34 4 1 Pcs Q202 AP9972GI FQPF30N06L STP36NF06FP TK30A06J3A FET APEC FAIRCHILD STM TOSHIBA PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 33 Date: 2011. 04. 28 35 4 4 Pcs FOR D201, D203, D204, Q202 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 36 4 0.00004 kg FOR D201, D203, D204, Q202 HC300 SILICON GLEASE 서브원 A-TEK 37 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 38 4 1 Pcs HS5 HEAT SINK, 20*11.5*28.75 HEATSINK YUWON NRT HUAPENG GUO TAI 39 4 1 Pcs D202 DIODE MBRF2060CT 20A 60V, TO-220FP DIODE MBRF2060CTL 20A 60V, TO-220FP DIODE MBRF20U65CT 20A 65V, TO-220FP DIODE FMW-2206 20A 60V, TO-220FP DIODE SENSITRON SENSITRON KEC SANKEN 40 4 1 Pcs FOR D202 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 41 4 0.00001 kg FOR D202 HC300 SILICON GLEASE 서브원 A-TEK 42 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 43 4 1 Pcs HS6 HEAT SINK, 72*20*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 44 4 4 Pcs Q707 Q708 Q709 Q710 2SK3868 FDPF5N50NZFT KF5N50FS FET TOSHIBA FAIRCHILD KEC 45 4 4 Pcs FOR Q707 Q708 Q709 Q710 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 46 4 0.00004 kg FOR Q707 Q708 Q709 Q710 HC300 SILICON GLEASE 서브원 A-TEK 47 3 1 Pcs C401 EC 22pF J 6.3KV SL (10mm) DM3JSL220J617 (10mm) CC 3J SL 220J (10mm) CC81 LY 22J (10mm) High CAPACITOR SAMWHA APEX 동일전자 YINANDON 48 3 1 Pcs C402 EC 54pF J 6.3KV SL (10mm) DM3JSL540J617 (10mm) CC 3J SL 54J (10mm) CC81 LY 54J (10mm) High CAPACITOR SAMWHA APEX 동일전자 YINANDON 49 3 2 Pcs C600 C719 MPP 500V 824J 15F (15mm) PCMP 372FL3824 500V 824J(15mm) CAPACITOR-M/F SUNGHO PILKOR 50 3 2 Pcs C611 C612 KMF 450V 82uF LB(18x31.5mm) SK 450V 82uF LR (18x32mm) CAPACITOR-ELEC SAMYOUNG SUSCON 51 3 1 Pcs CX101 M.P.P PCX2 337 0.22uF K 100℃ AC275V P=15mm, SLIM-7T CAPACITOR-X PILKOR OKAYA Europtronic 52 3 1 Pcs CX102 M.P.P PCX2 337 0.47uF K 100℃ AC275V P=15mm, SLIM- 10T CAPACITOR-X PILKOR OKAYA Europtronic 53 3 5 Pcs CY101 CY102 CY103 CY104 CY105 SD B 2G 471K 08 BW, Y1, 105℃, P=10mm DA2GYB471KK617(G), 105℃, P=10mm DA2GYB471KBKC04, 105℃, P=10mm CT81 471K 400V/AC, 105℃, P=10mm CAPACITOR-Y SAMWHA APEX 동일전자 YINANDON 54 3 1 Pcs CY106 SD B 2G 331K 08 BW, Y1, 105℃, P=10mm DA2GYB331KK617(G), 105℃, P=10mm DA2GYB331KBKC04, 105℃, P=10mm CT81 331K 400V/AC, 105℃, P=10mm CAPACITOR-Y SAMWHA APEX 동일전자 YINANDON 55 3 2 Pcs D600 D606 S3V60 , 20mm 1N5408 , 20mm 1N5408 , 20mm 30PDA60, 20mm DIODE SHINDENGEN RECTRON TSC NI 56 3 1 Pcs F100 T5A H 250V, 215, LEAD RED (1 LINE) T5A H 250V, 50CT, LEAD RED (1 LINE) FUSE LITTEL FUSE DAIN 57 3 1 Pcs F501 F3.15A H 250V, 216, LEAD VIOLET (2 LINE) F3.15A H 250V, 50CF, LEAD VIOLET (2 LINE) FUSE LITTEL FUSE DAIN 58 3 2 Pcs IC502 IC503 EL817M(DT) B TYPE(10mm) LTV817M-BN TYPE(10mm) PHOTO COUPLER EVERLIGHT LITEON 59 3 1 Pcs L202 LB-001,0.6uH(3*10), P6mm CHOKE-BAR NAMYANG CLOVER SOOJUNG LIENCHANG 60 3 1 Pcs L600 LLP-101 EER3618, 220uH PFC CHOKE CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 61 3 1 Pcs LF101 LLF-102, SQE2828 9mH LINE FILTER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 62 3 2 Pcs LF102 LF103 LLF-104, CH935230 23mH LINE FILTER CLOVER SOOJUNG KYOUNGIN FEELUX LIENCHANG TNC DONGIL TECH 63 3 1 Pcs P201 SMW200-24CF(B) FW20020-24SB CONNECTOR YEONHO FOOSUNG 64 3 1 Pcs P401 35002WR-02L(BK), Black, LOCKING TYPE CONNECTOR YEONHO 65 3 1 Pcs P402 35002WR-02L(P), White, LOCKING TYPE CONNECTOR YEONHO PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 34 Date: 2011. 04. 28 66 3 3 Pcs PG102 PG103 PG104 Rug GND, SPCC 0.4t, CuSn Plating, 16.15L*7.4W*3.6H GROUND PLATE ST TELECOM LEZHI SAMSUNG JS DOSUNG 67 3 1 Pcs R235 MPR 5W 0.05 ohm J MPR 5W 0.05 ohm J RESISTOR-CEMENT SMART ABCO 68 3 1 Pcs SK101 DAC-11PM1 ST-A01-002LT INLET DONGIL TECH BEJ 69 3 1 Pcs T501 LPM-100, EFD3634H, 1mH TRANSFORMER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 70 3 2 Pcs T701 T702 LIP-001 TRANSFORMER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 71 3 2 Pcs T703 T704 LIF42-100L, UU1654 TRANSFORMER CLOVER NAMYANG KYOUNGIN FEELUX LIENCHANG 72 3 2 Pcs TH600 TH601 MF72-2.5D15 DSC2.5D15 THERMISTOR NSE DSC 73 3 1 Pcs VA100 INR14D621K(7.5mm),073C( BLACK TUBE) SVC621D-14A,073C( BLACK TUBE) VARISTOR AMOTECH SAMHWA 74 4 11 Pcs C207 C213 C230 C303 C305 C312 C324 C502 C513 C601 C606 CAP FLAT 100NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 75 4 1 Pcs C212 CAP FLAT 0.33UF K 50V X7R 2012 CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 76 4 1 Pcs C216 CAP FLAT 1UF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 77 4 2 Pcs C302 C310 CAP FLAT 10NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 78 4 8 Pcs C304 C314 C315 C318 C603 C607 C712 C713 CAP FLAT 1NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 79 4 5 Pcs C221 C308 C313 C710 C711 CAP FLAT 1UF K 25V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 80 4 3 Pcs C309 C403 C602 CAP FLAT 47NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 81 4 2 Pcs C311 C505 CAP FLAT 4.7NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 82 4 1 Pcs C317 CAP FLAT 0.47UF K 25V X7R 2012 CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 83 4 3 Pcs C404 C405 C406 CAP FLAT 15NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 35 Date: 2011. 04. 28 84 4 1 Pcs C604 CAP FLAT 100PF J 50V CG(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 85 4 1 Pcs C605 CAP FLAT 22PF J 50V CG(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 86 4 4 Pcs D401 D402 D403 D404 BAV99 SOT-23 CHIP-DIODE ON SEMI NXP DIODES 87 4 6 Pcs D603 D604 D701 D702 D703 D704 MMSD4148T, SOD-123 1N4148W, SOD-123 1N4148W, SOD-123 CHIP-DIODE ON SEMI DIODES RECTRON 88 4 1 Pcs IC201 TLV431BSN1T1G, SOT-23, 1.24V±0.5% AZ431LANTR-E1, SOT-23, 1.24V±0.5% IC-SMD ONSEMI BCD 89 4 1 Pcs IC202 KIA431BM, SOT-23, 2.5V±0.5% KA431SL, SOT-23, 2.5V±0.5% AS431AN, SOT-23, 2.5V±0.5% IC-SMD KEC FAIRCHILD BCD 90 4 1 Pcs IC301 BD9270F, SOP-24 IC-SMD ROHM 91 4 1 Pcs IC600 SCY99102BDR2G, HS01G, SO-8 IC-SMD ONSEMI 92 4 2 Pcs LB602 LB604 RES FLAT 0J 1/4W(3216) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 93 4 2 Pcs Q201 Q204 MMBT2222A , SOT-23 KTN2222AS, SOT-23 KST2222A , SOT-23 CHIP-TR ONSEMI KEC FAIRCHILD 94 4 1 Pcs Q203 FDD5614P TO-252 NTD20P06L TO-252 FET-SMD FAIRCHILD ONSEMI 95 4 1 Pcs Q502 KTC3551, SOT-23 BCW66GL, SOT-23 CHIP-TR KEC ONSEMI 96 4 2 Pcs Q603 Q604 MMBT2907A, SOT-23 KTN2907AS, SOT-23 KST2907A, SOT-23 CHIP-TR ONSEMI KEC FAIRCHILD 97 4 8 Pcs R201 R204 R226 R227 R228 R229 R233 R234 RES FLAT 22 J 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 98 4 2 Pcs R203 R205 RES FLAT 51K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 99 4 1 Pcs R206 RES FLAT 180 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 100 4 12 Pcs R207 R224 R232 R309 R327 R609 R621 R622 R711 R713 R724 R725 RES FLAT 10K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 101 4 1 Pcs R208 RES FLAT 300 F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 102 4 1 Pcs R209 RES FLAT 9.1K F 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 103 4 2 Pcs R210 R212 RES FLAT, 2.2K, F, 1/8, 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 104 4 1 Pcs R211 RES FLAT 180 F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 105 4 1 Pcs R215 RES FLAT 1K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 106 4 1 Pcs R216 RES FLAT 1.2K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 107 4 1 Pcs R217 RES FLAT 330 J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 36 Date: 2011. 04. 28 108 4 3 Pcs R303 R305 R505 RES FLAT 1K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 109 4 1 Pcs R219 RES FLAT 3.3K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 110 4 1 Pcs R220 RES FLAT 820 F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 111 4 1 Pcs R221 RES FLAT 430 F 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 112 4 1 Pcs R218 RES FLAT 4.7K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 113 4 2 Pcs R222 R225 RES FLAT 47K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 114 4 2 Pcs R223 R231 RES FLAT 470 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 115 4 5 Pcs R230 R710 R712 R726 R727 RES FLAT 270 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 116 4 1 Pcs R301 RES FLAT, 39K, F, 1/8, 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 117 4 1 Pcs R302 RES FLAT 62K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 118 4 3 Pcs R304 R314 R502 RES FLAT 100K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 119 4 2 Pcs R306 R344 RES FLAT 150K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 120 4 2 Pcs R307 R608 RES FLAT 20K J 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 121 4 1 Pcs R308 RES FLAT 10K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 122 4 1 Pcs R310 RES FLAT 100K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 123 4 3 Pcs R311 R312 R614 RES FLAT 2.2 J 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 124 4 1 Pcs R313 RES FLAT 39K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 125 4 2 Pcs R315 R316 RES FLAT 110K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 126 4 1 Pcs R317 RES FLAT 75K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 127 4 1 Pcs R318 RES FLAT 68K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 37 Date: 2011. 04. 28 128 4 1 Pcs R319 RES FLAT 10 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 129 4 1 Pcs R322 RES FLAT 6.2K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 130 4 1 Pcs R323 RES FLAT 6.8K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 131 4 1 Pcs R324 RES FLAT 22K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 132 4 1 Pcs R325 RES FLAT 9.1K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 133 4 1 Pcs R326 RES FLAT, 470K, F, 1/8, 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 134 4 2 Pcs R340 R510 RES FLAT 0 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 135 4 1 Pcs R507 RES FLAT 2.7M J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 136 4 1 Pcs R508 RES FLAT 2.2M F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 137 4 1 Pcs R509 RES FLAT 820K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 138 4 11 Pcs R513 R514 R515 R516 R517 R518 R610 R611 R612 R613 R616 RES FLAT 750K F 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 139 4 1 Pcs R603 RES FLAT 27K F 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 140 4 2 Pcs R604 R606 RES FLAT 200 J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 141 4 2 Pcs R605 R620 RES FLAT 30 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 142 4 1 Pcs R615 RES FLAT 3.3K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 143 4 1 Pcs R617 RES FLAT 240K F 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 144 4 1 Pcs ZD205 MM3Z18VST1G 18V, SOD323 MMSZ5248BS, 18V, SOD323 BZT52C18S,18V, SOD323 KDZ18V-RTK/P, SOD323 DIODE-ZENER-SMD ON-SEMI RECTRON DIODES KEC 145 4 1 Pcs ZD501 MM3Z6V8ST1G, SOD323 MMSZ5235BS, 6.8V, SOD323 BZT52C6V8S,6.8V, SOD323 KDZ 6.8V-RTK/P, SOD323 DIODE-ZENER-SMD ON-SEMI RECTRON DIODES KEC PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 38 Date: 2011. 04. 28 146 5 3 Pcs C201 C203 C209 EK R 3A 471K 07 FK5, 125℃, 1KV, P=5MM DG3AHR471K959, 125℃, 1KV, P=5MM CK3AYR471KFK, 125℃, 1KV, P=5MM CC81 1KV 471K 470PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 147 5 2 Pcs C204 C205 NXB 1000uF 10V (10x16mm) SG 1000uF 10V (10x16mm) CAPACITOR-ELEC SAMYOUNG SUSCON 148 5 1 Pcs C208 NXB 220uF 25V (8x11.5mm) SG 220uF 25V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 149 5 2 Pcs C210 C220 KMG 50V 680uF (12.5x20mm) SK 50V 680uF (12.5x20mm) CAPACITOR-ELEC SAMYOUNG SUSCON 150 5 1 Pcs C215 NXB 470UF 10V (8x11.5mm) SG 470uF 10V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 151 5 1 Pcs C217 NXB 100uF 50V (8*11.5mm) SG 100uF 50V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 152 5 2 Pcs C218 C219 NXB 35V 680M (10x20mm) SG 35V 680M (10x20mm) CAPACITOR-ELEC SAMYOUNG SUSCON 153 5 1 Pcs C501 EK R 3A 102K 09 FK5, 125℃, 1KV, P=5MM DG3AHR102K959, 125℃, 1KV, P=5MM CK3AYR102KFK, 125℃, 1KV, P=5MM CC81 1KV 102K 1000PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 154 5 1 Pcs C509 NXB 10uF 50V (5*11mm) SG 10uF 50V (5x11mm) CAPACITOR-ELEC SAMYOUNG SUSCON 155 5 1 Pcs C510 NXB 22uF 50V (5*11mm) SG 22uF 50V (5x11mm) CAPACITOR-ELEC SAMYOUNG SUSCON 156 5 1 Pcs C608 EK R 3A 221K 06 FK5, 125℃, 1KV, P=5MM DG3AHR221K959, 125℃, 1KV, P=5MM CK3AYR221KFK, 125℃, 1KV, P=5MM CC81 1KV 221K 220PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 157 5 2 Pcs C706 C707 EK R 3A 101K 06 FK5, 125℃, 1KV, P=5MM DG3AHR101K959, 125℃, 1KV, P=5MM CK3AYR101KFK, 125℃, 1KV, P=5MM CC81 1KV 101K 100PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 158 5 3 Pcs D501 D502 D504 DIODE FRD UF4007 1A 1000V 75ns DO-41 T&R UF4007,DO-41 HER108G,DO-41 UF1007,DO_41 DIODE TSC Fairchild RECTRON Diodes 159 5 17 Pcs EL1 EL10 EL11 EL12 EL13 EL15 EL17 EL37 EL4 EL40 EL5 EL51 EL52 EL6 EL7 EL8 EL9 EYE-LET DIA 2.3*.3.1L EYELET DARIN LEZHI SAMSUNG JS DOSUNG 160 5 36 Pcs EL14 EL16 EL21 EL22 EL23 EL24 EL26 EL27 EL28 EL29 EL30 EL31 EL32 EL33 EL34 EL35 EL36 EL38 EL39 EL41 EL42 EL43 EL44 EL45 EL46 EL47 EL48 EL49 EL50 EL53 EL55 EL57 EL58 EL63 EL64 EL70 EYELET DIA 1.6*3.0 EYELET DARIN LEZHI SAMSUNG JS DOSUNG 161 5 6 Pcs EL18 EL19 EL20 EL25 EL54 EL56 GRIPER DIA 1.6*2.6L GRIPER DARIN LEZHI SAMSUNG JS DOSUNG 162 5 53 Pcs J1 J10 J103 J104 J105 J106 J12 J13 J14 J15 J16 J17 J18 J19 J20 J21 J22 J23 J24 J25 J27 J28 J29 J3 J30 J31 J32 J33 J34 J35 J36 J37 J38 J4 J40 J41 J43 J44 J45 J46 J47 J48 J49 J5 J50 J51 J52 J6 J8 J9 LB603 LB701 LB702 LEAD WIRE DΦ=0.6mm ROLL TYPE(UNIT:Kg) JUMPER Tianjin Hongyuan, ST TELECOM TPI DM TPC ILKWANG 163 5 5 Pcs LB101 LB102 LB103 LB601 LB704 BFS3550R2F SER3550050BA BEAD SAMWHA SCC 164 5 1 Pcs LB703 BFS3550A0L SEB3550050BA BEAD SAMHWA SCC 165 5 4 Pcs P601 P602 P603 P604 PIN 5.5 * Φ2.3 (right angle in the edge) GT PIN ST TELECOM LEZHI SAMSUNG JS DOSUNG 166 5 1 Pcs R100 MSR37 1/2W 1M ohm J Surge PRC 1M J 1/2W Surge RESISTOR-SURGE PILKOR SMART 167 5 1 Pcs R202 MORS 1N 22 ohm J RSD 1W 22 ohm J PR01 1W 22R ohm J RESISTOR-M/O ABCO SMART PILKOR 168 5 1 Pcs R214 MORS 2W 820 ohm J TC, MINI RSD 2W 820Ω J TA63 PR02 2W 820R ohm J RESISTOR-M/O ABCO SMART PILKOR 169 5 2 Pcs R403 R406 MORS 2W 12R ohm F TC RSD 12Ω F 2W TA63 PR02 2W 12R ohm F RESISTOR-M/O ABCO SMART PILKOR 170 5 1 Pcs R501 MORS 2W 100K ohm J RSD 2W 100KΩ J TA63 PR02 2W 100K ohm J RESISTOR-M/O ABCO SMART PILKOR 171 5 1 Pcs R503 WNPS 1N 0.43 ohm J PRN 1W 0.43 ohm J WWR 1N 0.43 ohm J RESISTOR-W/W ABCO SMART PILKOR 172 5 1 Pcs R504 CRS 1/2W 22R ohm J TC RDM 22Ω J 1/2W SFR25H 1/2W 22R ohm J RESISTOR-M/O ABCO SMART PILKOR 173 5 1 Pcs R512 CRS 1/2W 2.2R ohm J TC RDM 2.2Ω J 1/2W SFR25H 1/2W 2R2 ohm J RESISTOR-M/O ABCO SMART PILKOR 174 5 1 Pcs R519 CR 1/4W 1M ohm J TC RD 1MΩ J 1/4W SFR25 1/4W 1M ohm J RESISTOR-M/O ABCO SMART PILKOR 175 5 2 Pcs R601 R602 WNPS 2N 0.1 ohm J PRN 2W 0.1 ohm J WWR 2N 0.1ohm J RESISTOR-W/W ABCO SMART PILKOR PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 39 Date: 2011. 04. 28 176 5 1 Pcs VR301 NVZ6TLTA 10㏀ RES VARIABLE EVM-AASA01B14 10K 1/10W RESISTOR-VR HOKURIKU PANASONIC 177 5 2 Pcs ZD502 ZD504 1N5246B, 16V, DO-35 MTZJ16B, DO-34 1N5246, 16V, DO-35 DIODE-ZENER VISHAY ROHM RECTRON 178 5 1 Pcs ZD503 1N5232B, 5.6V, DO-35 MTZJ5.6B, DO-34 1N5232, 5.6V, DO-35 DIODE-ZENER VISHAY ROHM RECTRON 179 6 1 Pcs LGP323742-10L, (196x246),FR-1 1oz 1.6t (REV 1.3) [DS:DS-1108, KB: KB-3152, CC:CCP-6440(SM)] PCB HUIHO HSIANG KUO SAMHAN DAEDUCK GDS (TIANJIN DAEDUCK) CHIN POON WEIJUN PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 40 Date: 2011. 04. 28 LGP42-10LA(EAY60869403) No. LEVEL Q'TY Unit Location Specification Description Maker 1 1 2 g EF-9301(g) EC-19S-8 CS-9111LF-LGIT FLUX ALPHA METALS 동화다무라 청솔 2 1 0.018 ㎏ HSE-11 B20 BAR(SN:99%, AG:0.3%, CU:0.7%) SOLDER BAR 서브원 HEESUNG METAL 3 1 0.0012 ㎏ HSE-11 B20 WIRE(SN:99%, AG:0.3%, CU:0.7%) SOLDER WIRE 서브원 HEESUNG METAL 4 1 0.025 ㎖ HT-130A-106 BOND-SMD HI-TECH KOREA 5 1 0.05 ㎖ H-828W OKE-410 (FOR AUTO DISPENSER) TSE3854D EA-4100 DS-818 SILICON OKONG OKONG GE TOSHIBA DOW CORNING DONGYANG 6 1 1 Pcs BUBBLE SHEET (220W*720L 4+/- 1.5H) BUBBLE SHEET 서브원 JAEIL A-TEK 7 1 1 Pcs LABEL FOR BOARD (40*8) LABEL 서브원 JAEIL 8 1 0.0625 Pcs LABEL FOR BOX LABEL-BOX 서브원 JAEIL 9 1 0.0031 Pcs TAPE 50*50K TAPE 서브원 JAEIL 10 1 0.0625 Pcs BOX(196W*246L*22H) BOX 서브원 JAEIL HUAXING PACKING TAILI PACKING 11 1 0.125 Pcs Tray Board (470*373) BOX_PAD 서브원 JAEIL HUAXING PACKING TAILI PACKING 12 1 0.1875 Pcs Cross Board A (472*250) PARTITION-A 서브원 JAEIL HUAXING PACKING TAILI PACKING 13 1 0.125 Pcs Cross Board B (375*250) PARTITION-B 서브원 JAEIL HUAXING PACKING TAILI PACKING 14 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 15 4 1 Pcs HS1 HEAT SINK, 96*15*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 16 4 1 Pcs BD101 DIODE BRIDGE D10XB60 DIODE BRIDGE RS1005M DIODE BRIDGE TS10B05G DIODE-BRIDGE SHINDENGEN RECTRON TSC 17 4 1 Pcs FOR BD101 SEMS 3*12 SCREW,SPRING WASHER BHM Screw, M3.0 *9.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 18 4 0.00001 kg FOR BD101 HC300 SILICON GLEASE 서브원 A-TEK 19 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 20 4 1 Pcs HS2 HEAT SINK, 72*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 21 4 1 Pcs IC501 STR-W6053N IC SANKEN 22 4 1 Pcs FOR IC501 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 23 4 0.00001 kg FOR IC501 HC300 SILICON GLEASE 서브원 A-TEK 24 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 25 4 1 Pcs HS3 HEAT SINK, 84*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 26 4 2 Pcs Q601 Q602 STF13NM60N SD14N60 TK13A60D FET ST INFINEON TOSHIBA 27 4 1 Pcs D601 STTH10LCD06FP BYV29FX-600 DIODE ST NXP 28 4 3 Pcs FOR Q601, Q602, D601 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 29 4 0.00003 kg FOR Q601, Q602, D601 HC300 SILICON GLEASE 서브원 A-TEK 30 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 31 4 1 Pcs HS4 HEAT SINK, 72*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 32 4 2 Pcs D201 D203 DIODE MBRF10150CT 10A 150V, TO-220FP DIODE MBRF10U150CT 10A 150V, TO-220FP DIODE FME-210B 10A 150V, TO-220FP DIODE SENSITRON KEC SANKEN 33 4 1 Pcs D204 DIODE MBRF10200CT 10A 200V, TO-220FP DIODE MBRF10U200CT 10A 200V, TO-220FP DIODE FMX-22S 10A 200V, TO-220FP DIODE SENSITRON KEC SANKEN PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 41 Date: 2011. 04. 28 34 4 1 Pcs Q202 AP9972GI FQPF30N06L STP36NF06FP TK30A06J3A FET APEC FAIRCHILD STM TOSHIBA 35 4 4 Pcs FOR D201, D203, D204, Q202 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 36 4 0.00004 kg FOR D201, D203, D204, Q202 HC300 SILICON GLEASE 서브원 A-TEK 37 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 38 4 1 Pcs HS5 HEAT SINK Extrued Al6063 20*11.5*28.75 HEATSINK YUWON NRT HUAPENG GUO TAI 39 4 1 Pcs D202 DIODE MBRF2060CT 20A 60V, TO-220FP DIODE MBRF2060CTL 20A 60V, TO-220FP DIODE MBRF20U65CT 20A 65V, TO-220FP DIODE FMW-2206 20A 60V, TO-220FP DIODE SENSITRON SENSITRON KEC SANKEN 40 4 1 Pcs FOR D202 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 41 4 0.00001 kg FOR D202 HC300 SILICON GLEASE 서브원 A-TEK 42 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 43 4 1 Pcs HS6 HEAT SINK, 72*20*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 44 4 4 Pcs Q707 Q708 Q709 Q710 2SK3868 FDPF5N50NZFT KF5N50FS FET TOSHIBA FAIRCHILD KEC 45 4 4 Pcs FOR Q707 Q708 Q709 Q710 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 46 4 0.00004 kg FOR Q707 Q708 Q709 Q710 HC300 SILICON GLEASE 서브원 A-TEK 47 3 1 Pcs C401 EC 5pF J 6.3KV SL (10mm) DM3JSL050J617 (10mm) CC 3J SL 050J (10mm) CC81 LY 5D (10mm) High CAPACITOR SAMWHA APEX 동일전자 YINANDON 48 3 1 Pcs C402 EC 39pF J 6.3KV SL (10mm) DM3JSL390J617 (10mm) CC 3J SL 39J (10mm) CC81 LY 39J (10mm) High CAPACITOR SAMWHA APEX 동일전자 YINANDON 49 3 2 Pcs C600 C719 MPP 500V 824J 15F (15mm) PCMP 372FL3824 500V 824J(15mm) CAPACITOR-M/F SUNGHO PILKOR 50 3 2 Pcs C611 C612 KMF 450V 82uF LB(18x31.5mm) SK 450V 82uF LR (18x32mm) CAPACITOR-ELEC SAMYOUNG SUSCON 51 3 1 Pcs CX101 M.P.P PCX2 337 0.22uF K 100℃ AC275V P=15mm CAPACITOR-X PILKOR 52 3 1 Pcs CX102 M.P.P PCX2 337 0.47uF K 100℃ AC275V P=15mm CAPACITOR-X PILKOR 53 3 5 Pcs CY101 CY102 CY103 CY104 CY105 SD B 2G 471K 08 BW,Y1, 105℃, P=10mm DA2GYB471KK617(G), 105℃, P=10mm DA2GYB471KBKC04, 105℃, P=10mm CT81 471K 400V/AC, 105℃, P=10mm CAPACITOR-Y SAMWHA APEX 동일전자 YINANDON 54 3 1 Pcs CY106 SD B 2G 331K 08 BW,Y1, 105℃, P=10mm DA2GYB331KK617(G), 105℃, P=10mm DA2GYB331KBKC04, 105℃, P=10mm CT81 331K 400V/AC, 105℃, P=10mm CAPACITOR-Y SAMWHA APEX 동일전자 YINANDON 55 3 2 Pcs D600 D606 S3V60 , 20mm 1N5408 , 20mm 1N5408 , 20mm 30PDA60, 20mm DIODE SHINDENGEN RECTRON TSC NI 56 3 1 Pcs F100 T5A H 250V, 215, LEAD RED T5A H 250V, 50CT, LEAD RED FUSE LITTEL FUSE DAIN 57 3 1 Pcs F501 F3.15A H 250V, 216, LEAD VIOLET F3.15A H 250V, 50CF, LEAD VIOLET FUSE LITTEL FUSE DAIN 58 3 2 Pcs IC502 IC503 EL817M(DT) B TYPE(10mm) LTV817M-BN TYPE(10mm) PHOTO COUPLER EVERLIGHT LITEON 59 3 1 Pcs L202 LB-001,0.6uH(3*10), P6mm CHOKE-BAR NAMYANG CLOVER SOOJUNG LIENCHANG 60 3 1 Pcs L600 LLP-101 EER3618, 220uH PFC CHOKE CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 61 3 1 Pcs LF101 LLF-102, SQE2828 9mH LINE FILTER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 62 3 2 Pcs LF102 LF103 LLF-104, CH935230 23mH LINE FILTER CLOVER SOOJUNG KYOUNGIN FEELUX LIENCHANG TNC DONGIL TECH PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 42 Date: 2011. 04. 28 63 3 1 Pcs P201 SMW200-24CF(B) FW20020-24SB CONNECTOR YEONHO FOOSUNG 64 3 1 Pcs P401 35002WR-02L(BK), Black, LOCKING TYPE CONNECTOR YEONHO 65 3 1 Pcs P402 35002WR-02L(P), White, LOCKING TYPE CONNECTOR YEONHO 66 3 3 Pcs PG102 PG103 PG104 Rug GND, SPCC 0.4t, CuSn Plating, 16.15L*7.4W*3.6H GROUND PLATE ST TELECOM LEZHI SAMSUNG JS DOSUNG 67 3 1 Pcs R235 MPR 5W 0.05 ohm J MPR 5W 0.05 ohm J RESISTOR-CEMENT SMART ABCO 68 3 1 Pcs SK101 DAC-11PM1 ST-A01-002LT INLET DONGIL TECH BEJ 69 3 1 Pcs T501 LPM-100, EFD3634H, 1mH TRANSFORMER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 70 3 2 Pcs T701 T702 LIP-001 TRANSFORMER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 71 3 2 Pcs T703 T704 LIF42-101A, UU1654 TRANSFORMER CLOVER NAMYANG KYOUNGIN FEELUX LIENCHANG 72 3 2 Pcs TH600 TH601 MF72-2.5D15 DSC2.5D15 THERMISTOR NSE DSC 73 3 1 Pcs VA100 INR14D621K(7.5mm),073C (BLACK TUBE) SVC621D-14A,073C (BLACK TUBE) VARISTOR AMOTECH SAMHWA 74 4 11 Pcs C207 C213 C230 C303 C305 C312 C324 C502 C513 C601 C606 CAP FLAT 100NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 75 4 1 Pcs C212 CAP FLAT 0.33UF K 50V X7R 2012 CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 76 4 1 Pcs C216 CAP FLAT 1UF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 77 4 2 Pcs C302 C310 CAP FLAT 10NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 78 4 8 Pcs C304 C314 C315 C318 C603 C607 C712 C713 CAP FLAT 1NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 79 4 5 Pcs C221 C308 C313 C710 C711 CAP FLAT 1UF K 25V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 80 4 3 Pcs C309 C403 C602 CAP FLAT 47NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 81 4 2 Pcs C311 C505 CAP FLAT 4.7NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 43 Date: 2011. 04. 28 82 4 1 Pcs C317 CAP FLAT 0.47UF K 25V X7R 2012 CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 83 4 3 Pcs C404 C405 C406 CAP FLAT 5.6NF K 50V X7R 2012 T&R CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 84 4 1 Pcs C604 CAP FLAT 100PF J 50V CG(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 85 4 1 Pcs C605 CAP FLAT 22PF J 50V CG(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 86 4 4 Pcs D401 D402 D403 D404 BAV99 SOT-23 CHIP-DIODE ON SEMI NXP DIODES 87 4 6 Pcs D603 D604 D701 D702 D703 D704 MMSD4148T, SOD-123 1N4148W, SOD-123 1N4148W, SOD-123 CHIP-DIODE ON SEMI DIODES RECTRON 88 4 1 Pcs IC201 TLV431BSN1T1G, SOT-23, 1.24V±0.5% AZ431LANTR-E1, SOT-23, 1.24V±0.5% IC-SMD ONSEMI BCD 89 4 1 Pcs IC202 KIA431BM, SOT-23, 2.5V±0.5% KA431SL, SOT-23, 2.5V±0.5% AS431AN, SOT-23, 2.5V±0.5% IC-SMD KEC FAIRCHILD BCD 90 4 1 Pcs IC301 BD9270F, SOP-24 IC-SMD ROHM 91 4 1 Pcs IC600 SCY99102BDR2G, HS01G, SO-8 IC-SMD ONSEMI 92 4 2 Pcs LB602 LB604 RES FLAT 0J 1/4W(3216) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 93 4 2 Pcs Q201 Q204 MMBT2222A , SOT-23 KTN2222AS, SOT-23 KST2222A , SOT-23 CHIP-TR ONSEMI KEC FAIRCHILD 94 4 1 Pcs Q203 FDD5614P TO-252 NTD20P06L TO-252 FET-SMD FAIRCHILD ONSEMI 95 4 1 Pcs Q502 KTC3551, SOT-23 BCW66GL, SOT-23 CHIP-TR KEC ONSEMI 96 4 2 Pcs Q603 Q604 MMBT2907A, SOT-23 KTN2907AS, SOT-23 KST2907A, SOT-23 CHIP-TR ONSEMI KEC FAIRCHILD 97 4 8 Pcs R201 R204 R226 R227 R228 R229 R233 R234 RES FLAT 22 J 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 98 4 2 Pcs R203 R205 RES FLAT 51K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 99 4 1 Pcs R206 RES FLAT 180 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 100 4 11 Pcs R207 R224 R232 R309 R609 R621 R622 R711 R713 R724 R725 RES FLAT 10K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 101 4 1 Pcs R208 RES FLAT 300 F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 102 4 1 Pcs R209 RES FLAT 9.1K F 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 44 Date: 2011. 04. 28 103 4 2 Pcs R210 R212 RES FLAT, 2.2K, F, 1/8, 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 104 4 1 Pcs R211 RES FLAT 180 F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 105 4 1 Pcs R215 RES FLAT 1K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 106 4 1 Pcs R216 RES FLAT 1.2K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 107 4 1 Pcs R217 RES FLAT 330 J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 108 4 3 Pcs R303 R305 R505 RES FLAT 1K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 109 4 1 Pcs R219 RES FLAT 3.3K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 110 4 1 Pcs R220 RES FLAT 820 F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 111 4 1 Pcs R221 RES FLAT 430 F 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 112 4 2 Pcs R222 R225 RES FLAT 47K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 113 4 2 Pcs R223 R231 RES FLAT 470 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 114 4 5 Pcs R230 R710 R712 R726 R727 RES FLAT 270 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 115 4 2 Pcs R301 RES FLAT 27K J 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 116 4 2 Pcs R603 RES FLAT 27K F 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 117 4 1 Pcs R302 RES FLAT 51K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 118 4 4 Pcs R304 R306 R314 R502 RES FLAT 100K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 119 4 1 Pcs R344 RES FLAT 150K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 120 4 2 Pcs R307 R608 RES FLAT 20K J 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 121 4 2 Pcs R308 R323 RES FLAT 6.8K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 45 Date: 2011. 04. 28 122 4 1 Pcs R322 RES FLAT 5.1K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 123 4 1 Pcs R310 RES FLAT 100K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 124 4 3 Pcs R311 R312 R614 RES FLAT 2.2 J 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 125 4 1 Pcs R313 RES FLAT 39K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 126 4 2 Pcs R315 R316 RES FLAT 110K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 127 4 1 Pcs R317 RES FLAT 75K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 128 4 1 Pcs R318 RES FLAT 68K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 129 4 1 Pcs R319 RES FLAT 10 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 130 4 1 Pcs R324 RES FLAT 22K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 131 4 2 Pcs R218 R327 RES FLAT 4.7K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 132 4 1 Pcs R325 RES FLAT 5.1K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 133 4 1 Pcs R326 RES FLAT, 470K, F, 1/8, 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 134 4 2 Pcs R340 R510 RES FLAT 0 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 135 4 1 Pcs R507 RES FLAT 2.7M J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 136 4 1 Pcs R508 RES FLAT 2.2M F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 137 4 1 Pcs R509 RES FLAT 820K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 46 Date: 2011. 04. 28 138 4 11 Pcs R513 R514 R515 R516 R517 R518 R610 R611 R612 R613 R616 RES FLAT 750K F 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 139 4 2 Pcs R604 R606 RES FLAT 200 J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 140 4 2 Pcs R605 R620 RES FLAT 30 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 141 4 1 Pcs R615 RES FLAT 3.3K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 142 4 1 Pcs R617 RES FLAT 240K F 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 143 4 1 Pcs ZD205 MM3Z18VST1G 18V, SOD323 MMSZ5248BS, 18V, SOD323 BZT52C18S,18V, SOD323 KDZ18V-RTK/P, SOD323 DIODE-ZENER-SMD ON-SEMI RECTRON DIODES KEC 144 4 1 Pcs ZD501 MM3Z6V8ST1G, SOD323 MMSZ5235BS, 6.8V, SOD323 BZT52C6V8S,6.8V, SOD323 KDZ 6.8V-RTK/P, SOD323 DIODE-ZENER-SMD ON-SEMI RECTRON DIODES KEC 145 5 3 Pcs C201 C203 C209 EK R 3A 471K 07 FK5, 125℃, 1KV, P=5MM DG3AHR471K959, 125℃, 1KV, P=5MM CK3AYR471KFK, 125℃, 1KV, P=5MM CC81 1KV 471K 470PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 146 5 2 Pcs C204 C205 NXB 1000uF 10V (10x16mm) SG 1000uF 10V (10x16mm) CAPACITOR-ELEC SAMYOUNG SUSCON 147 5 1 Pcs C208 NXB 220uF 25V (8x11.5mm) SG 220uF 25V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 148 5 2 Pcs C210 C220 KMG 50V 680uF (12.5x20mm) SK 50V 680uF (12.5x20mm) CAPACITOR-ELEC SAMYOUNG SUSCON 149 5 1 Pcs C215 NXB 470UF 10V (8x11.5mm) SG 470uF 10V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 150 5 1 Pcs C217 NXB 100uF 50V (8*11.5mm) SG 100uF 50V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 151 5 2 Pcs C218 C219 NXB 35V 680M (10x20mm) SG 35V 680M (10x20mm) CAPACITOR-ELEC SAMYOUNG SUSCON 152 5 1 Pcs C501 EK R 3A 102K 09 FK5, 125℃, 1KV, P=5MM DG3AHR102K959, 125℃, 1KV, P=5MM CK3AYR102KFK, 125℃, 1KV, P=5MM CC81 1KV 102K 1000PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 153 5 1 Pcs C509 NXB 10uF 50V (5*11mm) SG 10uF 50V (5x11mm) CAPACITOR-ELEC SAMYOUNG SUSCON 154 5 1 Pcs C510 NXB 22uF 50V (5*11mm) SG 22uF 50V (5x11mm) CAPACITOR-ELEC SAMYOUNG SUSCON 155 5 1 Pcs C608 EK R 3A 221K 06 FK5, 125℃, 1KV, P=5MM DG3AHR221K959, 125℃, 1KV, P=5MM CK3AYR221KFK, 125℃, 1KV, P=5MM CC81 1KV 221K 220PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 156 5 2 Pcs C706 C707 EK R 3A 101K 06 FK5, 125℃, 1KV, P=5MM DG3AHR101K959, 125℃, 1KV, P=5MM CK3AYR101KFK, 125℃, 1KV, P=5MM CC81 1KV 101K 100PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 157 5 3 Pcs D501 D502 D504 DIODE FRD UF4007 1A 1000V 75ns DO-41 T&R UF4007,DO-41 HER108G,DO-41 UF1007,DO_41 DIODE TSC Fairchild RECTRON Diodes 158 5 17 Pcs EL1 EL10 EL11 EL12 EL13 EL15 EL17 EL37 EL4 EL40 EL5 EL51 EL52 EL6 EL7 EL8 EL9 EYE-LET DIA 2.3*.3.1L EYELET DARIN LEZHI SAMSUNG JS DOSUNG 159 5 36 Pcs EL14 EL16 EL21 EL22 EL23 EL24 EL26 EL27 EL28 EL29 EL30 EL31 EL32 EL33 EL34 EL35 EL36 EL38 EL39 EL41 EL42 EL43 EL44 EL45 EL46 EL47 EL48 EL49 EL50 EL53 EL55 EL57 EL58 EL63 EL64 EL71 EYELET DIA 1.6*3.0 EYELET DARIN LEZHI SAMSUNG JS DOSUNG 160 5 6 Pcs EL18 EL19 EL20 EL25 EL54 EL56 GRIPER DIA 1.6*2.6L GRIPER DARIN LEZHI SAMSUNG JS DOSUNG PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 47 Date: 2011. 04. 28 161 5 53 Pcs J1 J10 J103 J104 J105 J106 J12 J13 J14 J15 J16 J17 J18 J19 J20 J21 J22 J23 J24 J25 J27 J28 J29 J3 J30 J31 J32 J33 J34 J35 J36 J37 J38 J4 J40 J41 J43 J44 J45 J46 J47 J48 J49 J5 J50 J51 J52 J6 J8 J9 LB603 LB701 LB702 LEAD WIRE DΦ=0.6mm ROLL TYPE(UNIT:Kg) JUMPER Tianjin Hongyuan, ST TELECOM TPI DM TPC ILKWANG 162 5 5 Pcs LB101 LB102 LB103 LB601 LB704 BFS3550R2F SER3550050BA BEAD SAMWHA SCC 163 5 1 Pcs LB703 BFS3550A0L SEB3550050BA BEAD SAMHWA SCC 164 5 4 Pcs P601 P602 P603 P604 PIN 5.5 * Φ2.3 (right angle in the edge) GT PIN ST TELECOM LEZHI SAMSUNG JS DOSUNG 165 5 1 Pcs R100 MSR37 1/2W 1M ohm J Surge PRC 1M J 1/2W Surge RESISTOR-SURGE PILKOR SMART 166 5 1 Pcs R202 MORS 1N 22 ohm J RSD 1W 22 ohm J PR01 1W 22R ohm J RESISTOR-M/O ABCO SMART PILKOR 167 5 1 Pcs R214 MORS 2W 820 ohm J TC, MINI RSD 2W 820Ω J TA63 PR02 2W 820R ohm J RESISTOR-M/O ABCO SMART PILKOR 168 5 2 Pcs R403 R406 MORS 2W 12R ohm F TC RSD 12Ω F 2W TA63 PR02 2W 12R ohm F RESISTOR-M/O ABCO SMART PILKOR 169 5 1 Pcs R501 MORS 2W 100K ohm J RSD 2W 100KΩ J TA63 PR02 2W 100K ohm J RESISTOR-M/O ABCO SMART PILKOR 170 5 1 Pcs R503 WNPS 1N 0.43 ohm J PRN 1W 0.43 ohm J WWR 1N 0.43 ohm J RESISTOR-W/W ABCO SMART PILKOR 171 5 1 Pcs R504 CRS 1/2W 22R ohm J TC RDM 22Ω J 1/2W SFR25H 1/2W 22R ohm J RESISTOR-M/O ABCO SMART PILKOR 172 5 1 Pcs R512 CRS 1/2W 2.2R ohm J TC RDM 2.2Ω J 1/2W SFR25H 1/2W 2R2 ohm J RESISTOR-M/O ABCO SMART PILKOR 173 5 1 Pcs R519 CR 1/4W 1M ohm J TC RD 1MΩ J 1/4W SFR25 1/4W 1M ohm J RESISTOR-M/O ABCO SMART PILKOR 174 5 2 Pcs R601 R602 WNPS 2N 0.1 ohm J PRN 2W 0.1 ohm J WWR 2N 0.1ohm J RESISTOR-W/W ABCO SMART PILKOR 175 5 1 Pcs VR301 NVZ6TLTA 10㏀ RES VARIABLE EVM-AASA01B14 10K 1/10W RESISTOR-VR HOKURIKU PANASONIC 176 5 2 Pcs ZD502 ZD504 1N5246B, 16V, DO-35 MTZJ16B, DO-34 1N5246, 16V, DO-35 DIODE-ZENER VISHAY ROHM RECTRON 177 5 1 Pcs ZD503 1N5232B, 5.6V, DO-35 MTZJ5.6B, DO-34 1N5232, 5.6V, DO-35 DIODE-ZENER VISHAY ROHM RECTRON 178 6 1 Pcs LGP323742-10L, (196x246),FR-1 1oz 1.6t (REV 1.3) [DS:DS-1108, KB: KB-3152, CC:CCP-6440(SM)] PCB HUIHO HSIANG KUO SAMHAN DAEDUCK GDS (TIANJIN DAEDUCK) CHIN POON WEIJUN PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 48 Date: 2011. 04. 28 LGP42-10LC(EAY60869405) No. LEVEL Q'TY Unit Location Specification Description Maker 1 1 2 g EF-9301(g) EC-19S-8 CS-9111LF-LGIT FLUX ALPHA METALS 동화다무라 청솔 2 1 0.018 ㎏ HSE-11 B20 BAR(SN:99.7%, AG:0.3%, CU:0.7%) SOLDER BAR 서브원 HEESUNG METAL 3 1 0.0012 ㎏ HSE-11 B20 WIRE(SN:99%, AG:0.3%, CU:0.7%) SOLDER WIRE 서브원 HEESUNG METAL 4 1 0.025 ㎖ HT-130A-106 BOND-SMD HI-TECH KOREA 5 1 0.05 ㎖ H-828W OKE-410 (FOR AUTO DISPENSER) TSE3854D EA-4100 DS-818 SILICON OKONG OKONG GE TOSHIBA DOW CORNING DONGYANG 6 1 1 Pcs BUBBLE SHEET (220W*720L 4+/- 1.5H) BUBBLE SHEET 서브원 JAEIL A-TEK 7 1 1 Pcs LABEL FOR BOARD (40*8) LABEL 서브원 JAEIL 8 1 0.0625 Pcs LABEL FOR BOX LABEL-BOX 서브원 JAEIL 9 1 0.0031 Pcs TAPE 50*50K TAPE 서브원 JAEIL 10 1 0.0625 Pcs BOX(196W*246L*22H) BOX 서브원 JAEIL HUAXING PACKING TAILI PACKING 11 1 0.125 Pcs Tray Board (470*373) BOX_PAD 서브원 JAEIL HUAXING PACKING TAILI PACKING 12 1 0.1875 Pcs Cross Board A (472*250) PARTITION-A 서브원 JAEIL HUAXING PACKING TAILI PACKING 13 1 0.125 Pcs Cross Board B (375*250) PARTITION-B 서브원 JAEIL HUAXING PACKING TAILI PACKING 14 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 15 4 1 Pcs HS1 HEAT SINK, 96*15*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 16 4 1 Pcs BD101 DIODE BRIDGE D10XB60 DIODE BRIDGE RS1005M DIODE BRIDGE TS10B05G DIODE-BRIDGE SHINDENGEN RECTRON TSC 17 4 1 Pcs FOR BD101 SEMS 3*12 SCREW,SPRING WASHER BHM Screw, M3.0 *9.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 18 4 0.00001 kg FOR BD101 HC300 SILICON GLEASE 서브원 A-TEK 19 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 20 4 1 Pcs HS2 HEAT SINK, 72*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 21 4 1 Pcs IC501 STR-W6053N IC SANKEN 22 4 1 Pcs FOR IC501 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 23 4 0.00001 kg FOR IC501 HC300 SILICON GLEASE 서브원 A-TEK 24 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 25 4 1 Pcs HS3 HEAT SINK, 84*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 26 4 2 Pcs Q601 Q602 STF13NM60N SD14N60 TK13A60D FET ST INFINEON TOSHIBA 27 4 1 Pcs D601 STTH10LCD06FP BYV29FX-600 DIODE ST NXP 28 4 3 Pcs FOR Q601, Q602, D601 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 29 4 0.00003 kg FOR Q601, Q602, D601 HC300 SILICON GLEASE 서브원 A-TEK 30 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 31 4 1 Pcs HS4 HEAT SINK, 72*25*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 32 4 2 Pcs D201 D203 DIODE MBRF10150CT 10A 150V, TO-220FP DIODE MBRF10U150CT 10A 150V, TO-220FP DIODE FME-210B 10A 150V, TO-220FP DIODE SENSITRON KEC SANKEN 33 4 1 Pcs D204 DIODE MBRF10200CT 10A 200V, TO-220FP DIODE MBRF10U200CT 10A 200V, TO-220FP DIODE FMX-22S 10A 200V, TO-220FP DIODE SENSITRON KEC SANKEN PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 49 Date: 2011. 04. 28 34 4 1 Pcs Q202 AP9972GI FQPF30N06L STP36NF06FP TK30A06J3A FET APEC FAIRCHILD STM TOSHIBA 35 4 4 Pcs FOR D201, D203, D204, Q202 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 36 4 0.00004 kg FOR D201, D203, D204, Q202 HC300 SILICON GLEASE 서브원 A-TEK 37 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 38 4 1 Pcs HS5 HEAT SINK Extrued Al6063 28.75L*11.5W*20H HEATSINK YUWON NRT HUAPENG GUO TAI 39 4 1 Pcs D202 DIODE MBRF2060CT 20A 60V, TO-220FP DIODE MBRF2060CTL 20A 60V, TO-220FP DIODE MBRF20U65CT 20A 65V, TO-220FP DIODE FMW-2206 20A 60V, TO-220FP DIODE SENSITRON SENSITRON KEC SANKEN 40 4 1 Pcs FOR D202 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 41 4 0.00001 kg FOR D202 HC300 SILICON GLEASE 서브원 A-TEK 42 3 1 Pcs HEAT SINK Ass'y HEATSINK ASS'Y 43 4 1 Pcs HS6 HEAT SINK, 72*20*18.3(H) HEATSINK YUWON NRT HUAPENG GUO TAI 44 4 4 Pcs Q707 Q708 Q709 Q710 2SK3868 FDPF5N50NZFT KF5N50FS FET TOSHIBA FAIRCHILD KEC 45 4 4 Pcs FOR Q707 Q708 Q709 Q710 SEMS 3*10 SCREW,SPRING WASHER BHM Screw, M3.0 *8.0L, with Clamfix, Cr3+WH Plating SCREW SEOUL METAL ASEA BOLT SUNGHO METAL 46 4 0.00004 kg FOR Q707 Q708 Q709 Q710 HC300 SILICON GLEASE 서브원 A-TEK 47 3 1 Pcs C401 EC 10pF J 6.3KV SL (10mm) DM3JSL100J617 (10mm) CC 3J SL 100J (10mm) CC81 LY 10D (10mm) High CAPACITOR SAMWHA APEX 동일전자 YINANDON 48 3 1 Pcs C402 EC 54pF J 6.3KV SL (10mm) DM3JSL540J617 (10mm) CC 3J SL 54J (10mm) CC81 LY 54J (10mm) High CAPACITOR SAMWHA APEX 동일전자 YINANDON 49 3 2 Pcs C600 C719 MPP 500V 824J 15F (15mm) PCMP 372FL3824 500V 824J(15mm) CAPACITOR-M/F SUNGHO PILKOR 50 3 2 Pcs C611 C612 KMF 450V 82uF LB(18x31.5mm) SK 450V 82uF LR (18x32mm) CAPACITOR-ELEC SAMYOUNG SUSCON 51 3 1 Pcs CX101 M.P.P PCX2 337 0.22uF K 100℃ AC275V P=15mm CAPACITOR-X PILKOR 52 3 1 Pcs CX102 M.P.P PCX2 337 0.47uF K 100℃ AC275V P=15mm CAPACITOR-X PILKOR 53 3 5 Pcs CY101 CY102 CY103 CY104 CY105 SD B 2G 471K 08 BW,Y1, 105℃, P=10mm DA2GYB471KK617(G), 105℃, P=10mm DA2GYB471KBKC04, 105℃, P=10mm CT81 471K 400V/AC, 105℃, P=10mm CAPACITOR-Y SAMWHA APEX 동일전자 YINANDON 54 3 1 Pcs CY106 SD B 2G 331K 08 BW,Y1, 105℃, P=10mm DA2GYB331KK617(G), 105℃, P=10mm DA2GYB331KBKC04, 105℃, P=10mm CT81 331K 400V/AC, 105℃, P=10mm CAPACITOR-Y SAMWHA APEX 동일전자 YINANDON 55 3 2 Pcs D600 D606 S3V60 , 20mm 1N5408 , 20mm 1N5408 , 20mm 30PDA60, 20mm DIODE SHINDENGEN RECTRON TSC NI 56 3 1 Pcs F100 T5A H 250V, 215, LEAD RED T5A H 250V, 50CT, LEAD RED FUSE LITTEL FUSE DAIN 57 3 1 Pcs F501 F3.15A H 250V, 216, LEAD VIOLET F3.15A H 250V, 50CF, LEAD VIOLET FUSE LITTEL FUSE DAIN 58 3 2 Pcs IC502 IC503 EL817M(DT) B TYPE(10mm) LTV817M-BN TYPE(10mm) PHOTO COUPLER EVERLIGHT LITEON 59 3 1 Pcs L202 LB-001,0.6uH(9*15), P6mm CHOKE-BAR NAMYANG CLOVER SOOJUNG LIENCHANG 60 3 1 Pcs L600 LLP-101 EER3618, 220uH PFC CHOKE CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 61 3 1 Pcs LF101 LLF-102, SQE2828 9mH LINE FILTER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 50 Date: 2011. 04. 28 62 3 2 Pcs LF102 LF103 LLF-104, CH935230 23mH LINE FILTER CLOVER SOOJUNG KYOUNGIN FEELUX LIENCHANG TNC DONGIL TECH 63 3 1 Pcs P201 SMW200-24CF(B) FW20020-24SB CONNECTOR YEONHO FOOSUNG 64 3 1 Pcs P401 35002WR-02L(BK), Black, LOCKING TYPE CONNECTOR YEONHO 65 3 1 Pcs P402 35002WR-02L(P), White, LOCKING TYPE CONNECTOR YEONHO 66 3 3 Pcs PG102 PG103 PG104 Rug GND, SPCC 0.4t, CuSn Plating, 16.15L*7.4W*3.6H GROUND PLATE ST TELECOM LEZHI SAMSUNG JS DOSUNG 67 3 1 Pcs R235 MPR 5W 0.05 ohm J MPR 5W 0.05 ohm J RESISTOR-CEMENT SMART ABCO 68 3 1 Pcs SK101 DAC-11PM1 ST-A01-002LT INLET DONGIL TECH BEJ 69 3 1 Pcs T501 LPM-100, EFD3634H, 1mH TRANSFORMER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 70 3 2 Pcs T701 T702 LIP-001 TRANSFORMER CLOVER NAMYANG SOOJUNG KYOUNGIN FEELUX LIENCHANG 71 3 2 Pcs T703 T704 LIF42-102C, UU1654 TRANSFORMER CLOVER NAMYANG KYOUNGIN FEELUX LIENCHANG 72 3 2 Pcs TH600 TH601 MF72-2.5D15 DSC2.5D15 THERMISTOR NSE DSC 73 3 1 Pcs VA100 INR14D621K(7.5mm),073C (BLACK TUBE) SVC621D-14A,073C (BLACK TUBE) VARISTOR AMOTECH SAMHWA 74 4 11 Pcs C207 C213 C230 C303 C305 C312 C324 C502 C513 C601 C606 CAP FLAT 100NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 75 4 1 Pcs C212 CAP FLAT 0.33UF K 50V X7R 2012 CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 76 4 1 Pcs C216 CAP FLAT 1UF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 77 4 2 Pcs C302 C310 CAP FLAT 10NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 78 4 8 Pcs C304 C314 C315 C318 C603 C607 C712 C713 CAP FLAT 1NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 79 4 5 Pcs C221 C308 C313 C710 C711 CAP FLAT 1UF K 25V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 80 4 2 Pcs C309 C602 CAP FLAT 47NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 81 4 1 Pcs C403 CAP FLAT 56NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 51 Date: 2011. 04. 28 82 4 2 Pcs C311 C505 CAP FLAT 4.7NF K 50V X7R(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 83 4 1 Pcs C317 CAP FLAT 0.47UF K 25V X7R 2012 CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 84 4 1 Pcs C404 CAP FLAT 27NF K 50V X7R 2012 T&R CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 85 4 1 Pcs C405 CAP FLAT 6.8NF K 50V X7R 2012 T&R CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 86 4 1 Pcs C406 CAP FLAT 6.8NF K 50V X7R 2012 T&R CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 87 4 1 Pcs C604 CAP FLAT 100PF J 50V CG(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 88 4 1 Pcs C605 CAP FLAT 22PF J 50V CG(2012) CAPACITOR-SMD PILKOR SAMSUNG TDK MURATA TAIYOYUDEN YAGEO 89 4 4 Pcs D401 D402 D403 D404 BAV99 SOT-23 CHIP-DIODE ON SEMI NXP DIODES 90 4 6 Pcs D603 D604 D701 D702 D703 D704 MMSD4148T, SOD-123 1N4148W, SOD-123 1N4148W, SOD-123 CHIP-DIODE ON SEMI DIODES RECTRON 91 4 1 Pcs IC201 TLV431BSN1T1G, SOT-23, 1.24V±0.5% AZ431LANTR-E1, SOT-23, 1.24V±0.5% IC-SMD ONSEMI BCD 92 4 1 Pcs IC202 KIA431BM, SOT-23, 2.5V±0.5% KA431SL, SOT-23, 2.5V±0.5% AS431AN, SOT-23, 2.5V±0.5% IC-SMD KEC FAIRCHILD BCD 93 4 1 Pcs IC301 BD9270F, SOP-24 IC-SMD ROHM 94 4 1 Pcs IC600 SCY99102BDR2G, HS01G, SO-8 IC-SMD ONSEMI 95 4 2 Pcs LB602 LB604 RES FLAT 0J 1/4W(3216) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 96 4 2 Pcs Q201 Q204 MMBT2222A , SOT-23 KTN2222AS, SOT-23 KST2222A , SOT-23 CHIP-TR ONSEMI KEC FAIRCHILD 97 4 1 Pcs Q203 FDD5614P TO-252 NTD20P06L TO-252 FET-SMD FAIRCHILD ONSEMI 98 4 1 Pcs Q502 KTC3551, SOT-23 BCW66GL, SOT-23 CHIP-TR KEC ONSEMI 99 4 2 Pcs Q603 Q604 MMBT2907A, SOT-23 KTN2907AS, SOT-23 KST2907A, SOT-23 CHIP-TR ONSEMI KEC FAIRCHILD 100 4 8 Pcs R201 R204 R226 R227 R228 R229 R233 R234 RES FLAT 22 J 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 101 4 2 Pcs R203 R205 RES FLAT 51K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 102 4 1 Pcs R206 RES FLAT 180 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 103 4 11 Pcs R207 R224 R232 R309 R609 R621 R622 R711 R713 R724 R725 RES FLAT 10K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 104 4 1 Pcs R327 RES FLAT 12K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 105 4 1 Pcs R208 RES FLAT 300 F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 52 Date: 2011. 04. 28 106 4 1 Pcs R209 RES FLAT 9.1K F 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 107 4 2 Pcs R210 R212 RES FLAT, 2.2K, F, 1/8, 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 108 4 1 Pcs R211 RES FLAT 180 F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 109 4 1 Pcs R215 RES FLAT 1K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 110 4 1 Pcs R216 RES FLAT 1.2K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 111 4 1 Pcs R217 RES FLAT 330 J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 112 4 3 Pcs R303 R305 R505 RES FLAT 1K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 113 4 1 Pcs R219 RES FLAT 3.3K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 114 4 1 Pcs R220 RES FLAT 820 F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 115 4 1 Pcs R221 RES FLAT 430 F 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 116 4 2 Pcs R222 R225 RES FLAT 47K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 117 4 2 Pcs R223 R231 RES FLAT 470 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 118 4 5 Pcs R230 R710 R712 R726 R727 RES FLAT 270 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 119 4 2 Pcs R301 RES FLAT 27K J 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 120 4 2 Pcs R603 RES FLAT 27K F 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 121 4 1 Pcs R302 RES FLAT 51K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 122 4 3 Pcs R304 R314 R502 RES FLAT 100K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 123 4 1 Pcs R306 RES FLAT 200K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 124 4 1 Pcs R344 RES FLAT 150K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 125 4 2 Pcs R307 R608 RES FLAT 20K J 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 53 Date: 2011. 04. 28 126 4 1 Pcs R308 RES FLAT 7.5K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 127 4 1 Pcs R322 RES FLAT 6.2K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 128 4 1 Pcs R323 RES FLAT 10K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 129 4 1 Pcs R310 RES FLAT 100K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 130 4 3 Pcs R311 R312 R614 RES FLAT 2.2 J 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 131 4 1 Pcs R313 RES FLAT 39K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 132 4 2 Pcs R315 R316 RES FLAT 110K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 133 4 1 Pcs R317 RES FLAT 75K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 134 4 1 Pcs R318 RES FLAT 68K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 135 4 1 Pcs R319 RES FLAT 10 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 136 4 1 Pcs R324 RES FLAT 22K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 137 4 1 Pcs R218 RES FLAT 4.7K J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 138 4 1 Pcs R325 RES FLAT 20K J 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 139 4 1 Pcs R326 RES FLAT, 470K, F, 1/8, 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 140 4 2 Pcs R340 R510 RES FLAT 0 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 141 4 1 Pcs R507 RES FLAT 2.7M J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 142 4 1 Pcs R508 RES FLAT 2.2M F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 143 4 1 Pcs R509 RES FLAT 820K F 1/8W 2012 RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 54 Date: 2011. 04. 28 144 4 11 Pcs R513 R514 R515 R516 R517 R518 R610 R611 R612 R613 R616 RES FLAT 750K F 1/8W 2012 T&R RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 145 4 2 Pcs R604 R606 RES FLAT 200 J 1/8W(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 146 4 2 Pcs R605 R620 RES FLAT 30 J 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 147 4 1 Pcs R615 RES FLAT 3.3K F 1/8(2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 148 4 1 Pcs R617 RES FLAT 240K F 1/8 (2012) RESISTOR-SMD YAGEO KAMAYA PILKOR SAMSUNG ROHM 149 4 1 Pcs ZD205 MM3Z18VST1G 18V, SOD323 MMSZ5248BS, 18V, SOD323 BZT52C18S,18V, SOD323 KDZ18V-RTK/P, SOD323 DIODE-ZENER-SMD ON-SEMI RECTRON DIODES KEC 150 4 1 Pcs ZD501 MM3Z6V8ST1G, SOD323 MMSZ5235BS, 6.8V, SOD323 BZT52C6V8S,6.8V, SOD323 KDZ 6.8V-RTK/P, SOD323 DIODE-ZENER-SMD ON-SEMI RECTRON DIODES KEC 151 5 3 Pcs C201 C203 C209 EK R 3A 471K 07 FK5, 125℃, 1KV, P=5MM DG3AHR471K959, 125℃, 1KV, P=5MM CK3AYR471KFK, 125℃, 1KV, P=5MM CC81 1KV 471K 470PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 152 5 2 Pcs C204 C205 NXB 1000uF 10V (10x16mm) SG 1000uF 10V (10x16mm) CAPACITOR-ELEC SAMYOUNG SUSCON 153 5 1 Pcs C208 NXB 220uF 25V (8x11.5mm) SG 220uF 25V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 154 5 2 Pcs C210 C220 KMG 50V 680uF (12.5x20mm) SK 50V 680uF (12.5x20mm) CAPACITOR-ELEC SAMYOUNG SUSCON 155 5 1 Pcs C215 NXB 470UF 10V (8x11.5mm) SG 470uF 10V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 156 5 1 Pcs C217 NXB 100uF 50V (8*11.5mm) SG 100uF 50V (8x12mm) CAPACITOR-ELEC SAMYOUNG SUSCON 157 5 2 Pcs C218 C219 NXB 35V 680M (10x20mm) SG 35V 680M (10x20mm) CAPACITOR-ELEC SAMYOUNG SUSCON 158 5 1 Pcs C501 EK R 3A 102K 09 FK5, 125℃, 1KV, P=5MM DG3AHR102K959, 125℃, 1KV, P=5MM CK3AYR102KFK, 125℃, 1KV, P=5MM CC81 1KV 102K 1000PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 159 5 1 Pcs C509 NXB 10uF 50V (5*11mm) SG 10uF 50V (5x11mm) CAPACITOR-ELEC SAMYOUNG SUSCON 160 5 1 Pcs C510 NXB 22uF 50V (5*11mm) SG 22uF 50V (5x11mm) CAPACITOR-ELEC SAMYOUNG SUSCON 161 5 1 Pcs C608 EK R 3A 221K 06 FK5, 125℃, 1KV, P=5MM DG3AHR221K959, 125℃, 1KV, P=5MM CK3AYR221KFK, 125℃, 1KV, P=5MM CC81 1KV 221K 220PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 162 5 2 Pcs C706 C707 EK R 3A 101K 06 FK5, 125℃, 1KV, P=5MM DG3AHR101K959, 125℃, 1KV, P=5MM CK3AYR101KFK, 125℃, 1KV, P=5MM CC81 1KV 101K 100PF, 125℃, 1KV, P=5MM CAPACITOR-CER SAMWHA APEX 동일전자 YINANDON 163 5 3 Pcs D501 D502 D504 DIODE FRD UF4007 1A 1000V 75ns DO-41 T&R UF4007,DO-41 HER108G,DO-41 UF1007,DO_41 DIODE TSC Fairchild RECTRON Diodes 164 5 17 Pcs EL1 EL10 EL11 EL12 EL13 EL15 EL17 EL37 EL4 EL40 EL5 EL51 EL52 EL6 EL7 EL8 EL9 EYE-LET DIA 2.3*.3.1L EYELET DARIN LEZHI SAMSUNG JS DOSUNG 165 5 36 Pcs EL14 EL16 EL21 EL22 EL23 EL24 EL26 EL27 EL28 EL29 EL30 EL31 EL32 EL33 EL34 EL35 EL36 EL38 EL39 EL41 EL42 EL43 EL44 EL45 EL46 EL47 EL48 EL49 EL50 EL53 EL55 EL57 EL58 EL63 EL64 EL72 EYELET DIA 1.6*3.0 EYELET DARIN LEZHI SAMSUNG JS DOSUNG 166 5 6 Pcs EL18 EL19 EL20 EL25 EL54 EL56 GRIPER DIA 1.6*2.6L GRIPER DARIN LEZHI SAMSUNG JS DOSUNG 167 5 53 Pcs J1 J10 J103 J104 J105 J106 J12 J13 J14 J15 J16 J17 J18 J19 J20 J21 J22 J23 J24 J25 J27 J28 J29 J3 J30 J31 J32 J33 J34 J35 J36 J37 J38 J4 J40 J41 J43 J44 J45 J46 J47 J48 J49 J5 J50 J51 J52 J6 J8 J9 LB603 LB701 LB702 LEAD WIRE DΦ=0.6mm ROLL TYPE(UNIT:Pcs) JUMPER Tianjin Hongyuan, ST TELECOM TPI DM TPC ILKWANG PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 55 Date: 2011. 04. 28 168 5 5 Pcs LB101 LB102 LB103 LB601 LB704 BFS3550R2F SER3550050BA BEAD SAMWHA SCC 169 5 1 Pcs LB703 BFS3550A0L SEB3550050BA BEAD SAMHWA SCC 170 5 4 Pcs P601 P602 P603 P604 PIN 5.5 * Φ2.3 (right angle in the edge) GT PIN ST TELECOM LEZHI SAMSUNG JS DOSUNG 171 5 1 Pcs R100 MSR37 1/2W 1M ohm J Surge PRC 1M J 1/2W Surge RESISTOR-SURGE PILKOR SMART 172 5 1 Pcs R202 MORS 1N 22 ohm J RSD 1W 22 ohm J PR01 1W 22R ohm J RESISTOR-M/O ABCO SMART PILKOR 173 5 1 Pcs R214 MORS 2W 820 ohm J TC, MINI RSD 2W 820Ω J TA63 PR02 2W 820R ohm J RESISTOR-M/O ABCO SMART PILKOR 174 5 2 Pcs R403 R406 MORS 2W 12R ohm F TC RSD 12Ω F 2W TA63 PR02 2W 12R ohm F RESISTOR-M/O ABCO SMART PILKOR 175 5 1 Pcs R501 MORS 2W 100K ohm J RSD 2W 100KΩ J TA63 PR02 2W 100K ohm J RESISTOR-M/O ABCO SMART PILKOR 176 5 1 Pcs R503 WNPS 1N 0.43 ohm J PRN 1W 0.43 ohm J WWR 1N 0.43 ohm J RESISTOR-W/W ABCO SMART PILKOR 177 5 1 Pcs R504 CRS 1/2W 22R ohm J TC RDM 22Ω J 1/2W SFR25H 1/2W 22R ohm J RESISTOR-M/O ABCO SMART PILKOR 178 5 1 Pcs R512 CRS 1/2W 2.2R ohm J TC RDM 2.2Ω J 1/2W SFR25H 1/2W 2R2 ohm J RESISTOR-M/O ABCO SMART PILKOR 179 5 1 Pcs R519 CR 1/4W 1M ohm J TC RD 1MΩ J 1/4W SFR25 1/4W 1M ohm J RESISTOR-M/O ABCO SMART PILKOR 180 5 2 Pcs R601 R602 WNPS 2N 0.1 ohm J PRN 2W 0.1 ohm J WWR 2N 0.1ohm J RESISTOR-W/W ABCO SMART PILKOR 181 5 1 Pcs VR301 NVZ6TLTA 10㏀ RES VARIABLE EVM-AASA01B14 10K 1/10W RESISTOR-VR HOKURIKU PANASONIC 182 5 2 Pcs ZD502 ZD504 1N5246B, 16V, DO-35 MTZJ16B, DO-34 1N5246, 16V, DO-35 DIODE-ZENER VISHAY ROHM RECTRON 183 5 1 Pcs ZD503 1N5232B, 5.6V, DO-35 MTZJ5.6B, DO-34 1N5232, 5.6V, DO-35 DIODE-ZENER VISHAY ROHM RECTRON 184 6 1 Pcs LGP323742-10L, (196x246),FR-1 1oz 1.6t (REV 1.3) [DS:DS-1108, KB: KB-3152, CC:CCP-6440(SM)] PCB HUIHO HSIANG KUO SAMHAN DAEDUCK GDS (TIANJIN DAEDUCK) CHIN POON WEIJUN PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 56 Date: 2011. 04. 28 Process Marking PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 57 Date: 2011. 04. 28 공정 표시 MARK (PCB SILK) ► D : AUTO INSERT ► M : SMD ► H : HAND INSERT ► I : ICT CHECK ► F : FUNCTION CHECK ► A : AGING ► P : HI-POT CHECK ► T : FINAL CHECK ► S : SET JIG CHECK ► Q : QA INSPECTION ► R : REPAIR ► RT : RELIABILITY TEST D M H I F A P T S Q R RT Min. 3mm Min. 3mm D M H I F A P T S Q R RT Min. 3mm Min. 3mm PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 58 Date: 2011. 04. 28 PCB Layout PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 59 Date: 2011. 04. 28 TOP Silk PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 60 Date: 2011. 04. 28 Bottom Silk PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 61 Date: 2011. 04. 28 Bottom Pattern PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 62 Date: 2011. 04. 28 Bottom Solder Mask PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 63 Date: 2011. 04. 28 Safety Parts (VER 1.0 / 091207) PLHF-L923A/B/C (REV.1.9) 10L 42” LCD TV Power specification Rev 1.9 63 Date: 2011. 03.24 Obj ect /part No. Manuf act urer / Trademark Type / Model Val ue / Rat i ng 부품 Marki ng ( 실물) st andard mark( s) of conf ormi t y1) zhej i angbei erj i a ST- A01- 002LT 250V / 10A ST- A01- 002LT I EC320 Li t t el f use Lt d. 215 Seri es LF. T5AH250VP I EC 60127- 1 WALTER FUSE TSC TSC5A250V( P) I EC 60127 Dai nf use 50CT T5AH250V I EC 60127 Li t t el f use Lt d. 216. XXXX LF. F3. 15AH250VP I EC 60127- 1 WALTER FUSE FSC FSC3. 15A250V( P) I EC 60127 Dai nf use 50CF F3. 15AH250V I EC 60127 SOOJ UNG KYUNGI N Cl over Hi TECH NAMYANG FEELUX LI ENCHANG SOOJ UNG KYUNGI N Cl over Hi TECH TNC Feel ux Li enchang Dongi l Tech Samwha SVC621D- 14 SVC621- 14 Amot ech Co. , Lt d. I NR 14D621 I NR 14D621 Thi nki ng I ndust ri al Co. Lt d. TVR14621 TVR14621 HUAXI NG MYG20G14K621 87- CS 14K621 Rect ron RS1005M RS1005M E94233 TSC TS10B05G TS10B05G E96005 SHI NDENGEN D10XB60 D10XB60 E142422 Pi l kor PCX2 337 PCX2 337 I EC 60384- 14 UL1414 SUN- I L 436D 436D E199061/ E311052 I EC 60384- 14- 2' nd edi t i on Europt roni c NPX MPX I EC 60384- 14 UL 1414 OKAYA LE LE I EC 60384- 14 UL 1414 DSC DSC- 2. 5D- 15 DSC 2. 5D- 15 Thi nki ng I ndust ri al Co. Lt d. SCK 2R58 SCK 2R58 NANJ I NG SHI HENG ELECTRONI CS CO. , LTD MF72- 2. 5D15 MF72- 2. 5D15 SAMYOUNG KMF KMF450V82uF SUSCON SK SK450V82uF SAMWHA LT LT450V82uF STMI CRO STF13NM60N 13NM60N I NFI NEON SD14N60 SD14N60 TOSHI BA TK12A60D K12A60D TOSHI BA TK13A60D K13A60D POWER DEVI CES PFF13N60 PFF13N60 Fl yback I C, ( I C501) SANKEN STR- W6053N Mi n. 650 V / Mi n 9. 5A STR- W6053N I EC 60950- 1 Test i n appl i ance FAI RCHI LD FDPF5N50NZFT FDPF5N50NZFT KEC KF5N50FS KF5N50 STMI CRO STF5N52U F5N52U TOSHI BA 2SK3868 K3868 POWER DEVI CES PFF5N50 PFF5N50 Samwha SD SD471K Apex i nt ec NK NK471K DONG I L DA DA471k YI NANDON CT81 CT81 471K HONGMI NG DCF DCF471k MURATA KX KX471K TDK CD CD471K F3. 15A H / 250V 2. 5ohm at 25 ° C Mi n. 600V / 10A Test i n appl i ance LLF- 104 620V, Mi n. Test i n appl i ance Test i n appl i ance Vari st or, ( VA100) Rat ed 130℃ Thermi st or. ( TH600, TH601) Li ne Fi l t er, ( LF101 ) Bri dge Di ode, ( BD101) Li ne Fi l t er, ( LF102, LF103) I EC 60065 I EC61051- 2 AC i nput connect or, ( SK101) AC i nput connect or, ( SK102) - Opt i onal Yeon Ho Fuse, ( F501) Dongi l Tech Fuse, ( F100) DAC- 11PM1 250V / 10A YW396 Seri es Test i n appl i ance Test i n appl i ance 250V / 7. 5A T5A H / 250V LLF- 102 LLF- 104 Rat ed 130 ℃ I EC 60065 I EC 60950- 1 I EC 60950- 1 I EC 60950- 1 I EC 60384- 14 LLF- 102 I EC 60065 I EC 60065 DAC- 11PM1 I EC320 Test i n appl i ance X- cap. ( CX101, CX102) 275V ( CX101= Max 0. 22uF, CX102= Max 0. 47uF) Swi t chi ng TR, ( Q601, Q602) El ec. Cap. , ( C611, C612) 450V / Max 82uF / 105℃ Mi n 250V / Max 470pF Mi n. 600V / Mi n 11A Mi n. 500V/ Mi n 4. 0A Swi t chi ng TR, ( Q707, Q708, Q709, Q710) Y Cap. , Opt i onal ( CY101, CY102, CY103, CY104) PLHF-L923A/B/C (REV.1.9) 10L 42” LCD TV Power specification Rev 1.9 64 Date: 2011. 03.24 Samwha SD SD331K Apex i nt ec NK NK331K DONG I L DA DA331k YI NANDON CT81 CT81 331K GUANGDONG SOUTH HONGMI NG F F331k MURATA KX KX331K TDK CD CD331K SOOJ UNG NAMYANG KYUNGI N Cl over Hi TECH FEELUX LI ENCHANG Nam Yang Cl over Hi TECH Kyung- I n FEELUX LI ENCHANG Nam Yang Cl over Hi TECH Kyung- I n FEELUX LI ENCHANG Nam Yang Cl over Hi TECH Kyung- I n FEELUX LI ENCHANG Nam Yang Cl over Hi TECH Kyung- I n FEELUX LI ENCHANG Nam Yang Soo J ung Cl over Hi TECH Kyung- I n FEELUX LI ENCHANG SOOJ UNG NAMYANG KYUNGI N CLOVER FEELUX LI ENCHANG Everl i ght EL817 EL817 Li t e- on LTV817. . . 817BN Smart PRC I EC 60065 Pi l kor SR37, MSR37 I EC 60065 DSCOM DS 4 94V- 0 DONGMYUNG CI R. DM5- V- 0 94V- 0 J OONGWON NR- F NR- D 94V- 0 SHANGHAI WANZHENG SWZ- 1 94V- 0 SHENG KHUANG( WEI J UN) 03V0- C 94V- 0 SHANGHAI AREX 02V0 94V- 0 NEW TRI UNI ON TU- 3 94V- 0 CHI N POON E5 94V- 0 Daeduck GDS Co. , Lt d. DC- 1 DC- 2 94V- 0 HUI HO 4B- 5 94V- 0 HSI ANG KUO 07V0 94V- 0 Duck sung DS8- V- 0 94V- 0 TI S KOREA TIS-3 94V- 0 SAMHAN SH7 94V- 0 HT CI RCUI T( QI NGDAO) 1994V0 94V- 0 Bri dgi ng Cap. , Opt i onal ( CY106) Mi n 250V / Max 330pF LI F42- 103S I NV. Transf ormer ( T703, T704) LGP42- 10LC LI F42- 102C Cl ass B LI F42- 102C I NV. Transf ormer ( T703, T704) LGP42- 10LS LI F42- 103S PFC Coi l , ( L600) 94V- 0, mi n. 105oC I EC 60065 I EC 60065 I EC 60065 VDE 0884 I EC60384- 16 I EC 60950- 1 Cl ass B Cl ass A I EC 60065 Transf ormer, ( T701, T702) LI P- 001 I NV. Transf ormer ( T703, T704) LGP42- 10LF LI F42- 100L I NV. Transf ormer ( T703, T704) LGP42- 10LA LI F42- 101A LPM- 100 Cl ass B I EC 60065 I EC 60065 LI P- 001 LPM- 100 Cl ass B Test i n appl i ance Test i n appl i ance Test i n appl i ance Test i n appl i ance Test i n appl i ance Test i n appl i ance Test i n appl i ance I EC 60384- 14 1) an ast eri sk i ndi cat es a mark whi ch assures t he agreed l evel of survei l l ance Remarks: *) Large vol ume capaci t ors exceedi ng vol ume 1750㎣ Sung- Ho 1/2W, 1Mohm, 5% Capaci t or ( C600, C719) Di scharge Resi st or, ( R100) BMPP PCMP 372 PCB Opt o- coupl er, ( I C502, I C503) 0. 82uF / 500V LLP- 101 LI F42- 100L >0, 4mm / Rat ed 6000Vac Pi l kor LI F42- 101A Cl ass B Rat ed 130℃ LLP- 101 Swi t chi ng Transf ormer, ( T501) 824J 500V BMPP SH 0. 82uF / 500V 820n J 500V372MKP PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 66 Date: 2011. 04. 28 Mechanical Drawing PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 67 Date: 2011. 04. 28 HS1 LG Innotek Co., Ltd. PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 68 Date: 2011. 04. 28 HS2 LG Innotek Co., Ltd. PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 69 Date: 2011. 04. 28 HS3 LG Innotek Co., Ltd. PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 70 Date: 2011. 04. 28 HS4 LG Innotek Co., Ltd. PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 71 Date: 2011. 04. 28 HS5 LG Innotek Co., Ltd. PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 72 Date: 2011. 04. 28 HS6 LG Innotek Co., Ltd. PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 73 Date: 2011. 04. 28 Packing Drawing PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 74 Date: 2011. 04. 28 10 LG Innotek LG Innotek - - - PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 75 Date: 2011. 04. 28 LG Innotek FRAGILE FRAGILE - - - LG Innotek 10 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 76 Date: 2011. 04. 28 - - - PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 77 Date: 2011. 04. 28 LG Innotek - - - PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 78 Date: 2011. 04. 28 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 79 Date: 2011. 04. 28 Bar-Code Label Drawing PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 80 Date: 2011. 04. 28 LGP42-10LF (EAY60869402) 34mm min 5mm min 2~3mm 2~3mm 40 mm min 8 mm LADVB608694020001(Rev.no) Label Form ※ Bar Code Size는 그림의 size가 최소size이며, 업체 기준 및 PCB공간에 따라 변경 할 수 있으나, 그림의 size보다 줄일 수 는 없음. ※ Label P/N : 3320KE0008B Ribbon Black R300 P/N : 5250KR0011A ※ BARCODE PRINTING : DO NOT ERASE, WHEN RUB BY HAND. LADVB608694020001(Rev.no) Code Barcode Specification Remark Manufacturing code L (L : LGIT) Manufacturing Year A (A : 2010) Manufacturing Month 2 (1,2,3,… 10:O, 11:N, 12:D) Manufacturing Date 1 (1~9,… A:10, B:11, C:12, …V) Manufacturing Line A~D : Gwangju , E~N, 0~9 : Yantai LG Part No. 60869402 (EAY60869402) Serial. No. 0001 (10Digit, 0001~9999) Rev. No Approval Sheet Revision Number Barcode type : 93 code Barcode length : 17 digit Label size : 8 X 36 mm (minimize) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 81 Date: 2011. 04. 28 LGP42-10LA (EAY60869403) 34mm min 5mm min 2~3mm 2~3mm 40 mm min 8 mm LADVB608694030001(Rev.no) Label Form ※ Bar Code Size는 그림의 size가 최소size이며, 업체 기준 및 PCB공간에 따라 변경 할 수 있으나, 그림의 size보다 줄일 수 는 없음. ※ Label P/N : 3320KE0008B Ribbon Black R300 P/N : 5250KR0011A ※ BARCODE PRINTING : DO NOT ERASE, WHEN RUB BY HAND. LADVB608694030001(Rev.no) Code Barcode Specification Remark Manufacturing code L (L : LGIT) Manufacturing Year A (A : 2010) Manufacturing Month 2 (1,2,3,… 10:O, 11:N, 12:D) Manufacturing Date 1 (1~9,… A:10, B:11, C:12, …V) Manufacturing Line A~D : Gwangju , E~N, 0~9 : Yantai LG Part No. 60869403 (EAY60869403) Serial. No. 0001 (10Digit, 0001~9999) Rev. No Approval Sheet Revision Number Barcode type : 93 code Barcode length : 17 digit Label size : 8 X 36 mm (minimize) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 82 Date: 2011. 04. 28 LGP42-10LC (EAY60869405) 34mm min 5mm min 2~3mm 2~3mm 40 mm min 8 mm LADVB608694050001(Rev.no) Label Form ※ Bar Code Size는 그림의 size가 최소size이며, 업체 기준 및 PCB공간에 따라 변경 할 수 있으나, 그림의 size보다 줄일 수 는 없음. ※ Label P/N : 3320KE0008B Ribbon Black R300 P/N : 5250KR0011A ※ BARCODE PRINTING : DO NOT ERASE, WHEN RUB BY HAND. LADVB608694050001(Rev.no) Code Barcode Specification Remark Manufacturing code L (L : LGIT) Manufacturing Year A (A : 2010) Manufacturing Month 2 (1,2,3,… 10:O, 11:N, 12:D) Manufacturing Date 1 (1~9,… A:10, B:11, C:12, …V) Manufacturing Line A~D : Gwangju , E~N, 0~9 : Yantai LG Part No. 60869405 (EAY60869405) Serial. No. 0001 (10Digit, 0001~9999) Rev. No Approval Sheet Revision Number Barcode type : 93 code Barcode length : 17 digit Label size : 8 X 36 mm (minimize) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 83 Date: 2011. 04. 28 Labeling Point PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 84 Date: 2011. 04. 28 LABELING POINT PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 85 Date: 2011. 04. 28 Workmanship Point PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 86 Date: 2011. 04. 28 Silicon Bonding Point ( ) C611 & C612 VR301 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 87 Date: 2011. 04. 28 Additional Soldering Point Resolder (IC501, 1Pin) PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 88 Date: 2011. 04. 28 # Appendix List No. Contents 1 PCB Check list 2 Warranty letter PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 89 Date: 2011. 04. 28 PCB CHECK LIST # Appendix 1. PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 90 Date: 2011. 04. 28 Revision History Rev DATE REMARK 1 Power Point로 양식 변경 1.2 2005.07.15 승인원 첨부용 2 기타 3항 추가 1.3 2005.09.28 3 Safety GND marking 기준 변경 1.4 2006.04.06 4 1. 2page : CTV Location No. 800번대 회로번호 표준 제정(2007.04.16) 2. 3page : PCB pattern Primary <-> Secondary 6.5mm -> 규격 Creepage Table : 첨부화일 참조 3. 4 page No.1 : Surge Test Pattern : 주석 추가. 4. 4 page No.3 : Lug Type Capacitor : Power부가 수직으로 장착 모델에 한함. 5. 4 page No.6 : 규격 Gr. 확인 필요. 6. 5 page No.5 : Inverter 출력부 Marking 추가 7. 5 page No.6 : 안전 규격 check List 입수 8. 5 page No.7 : Inverter 출력부 Marking 9. 6 page No.1 : varistor 15 pi 이상 -> 14 pi 이상10. 6 page No.4 : 4mm -> 3.5mm 11. 6 page No.3(온도) : Solder면 관리 기준 변경 12. 7 page No.4 : Litz wire 사용 금지 추가 13. 양산 문제점 추가 - PFC : Bypass Diode 추가 - Relay : Fusing 저항 사용 - Control IC 저온 기동 불 : Vcc 정류 cap. High Ripple/Low Impedance 적용 - 기구 Dead space 확인 - Conducted Emission Test항목 :110Vac/ 220Vac/50Hz/60Hz/안테나 GND 유/무 - RN Type (Metal Film Type) Resistor 14. Revised PL법 1.5 2007.09.17 5 1. 5 page No. 1 : AC socket L/N 표기 주의 추가 2. 7 page No. 9 : TO-220 forming 확인 추가 3. 4 page No. 6 : Trans 이격 spec 변경 (78mm) 1.6 2008.03.25 6 1. 7 page No. 8 : Metal film 저항 불량 이력 추가 2. 7 page No. 10 : lead 길이 special 관리 품 주의 1.7 2008.06.24 7 1. 6 page No. 3 : Inverter 고압 CAP touch 방지 추가 1.8 2008.11.06 8 부품 LOCATION NO. 기준 변경 1. 3 page No.33 : Y_CAP -> CY*** 2. 3 page No.34 : X-CAP -> CX*** 3. 3 page No.29 : Line Filter -> LF*** 4. 2 page No.16 : Bead -> LB*** 5. 2 page No. 25 : EYELET -> EL*** 6. 3 page No.35 : Fusible Resistor -> R*** 1.9 2009.10.07 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 91 Date: 2011. 04. 28 Details Check Item RESULT REMARK ▶ 부품 LOCATION NO. OK NG 1 Power 1차측 회로 Location No.가 100번대 일 것(Multi 1차 측 포함) O 2 Power 2차측 회로 Location No.가 200번대 일 것(Stand by 2차측,Multi 2차 포함) O 3 Inverter 1차측 회로 Location No.가 300번대 일 것 O 4 Inverter 2차측 회로(F/B,OVP회로부 포함) Location No.가 400번대 일 것 O 5 Stand by 1차측은 Location No.가 500번대 일 것 O 6 PFC단은 Location No.가 600번대 일 것 O 7 MICOM 주위는 Location No.가 700번대 일 것 해당 없음 8 PDP Vs,Va 1차단은 Location No.가 800번대 일 것 해당 없음 9 PDP Vs,Va 2차단은 Location No.가 900번대 일 것 해당 없음 9’ CTV Power Block은 Location No. 800번대 일 것 해당 없음 10 Resistor의 회로Location No.는 R***로 시작할 것 O 11 Capacitor의 회로Location No.는 C***로 시작할 것 O 12 Diode의 회로Location No.는 D***로 시작할 것 O 13 Zener Diode의 회로Location No는 ZD***로 시작할 것 O 14 Coil의 회로Location No.는 L***로 시작할 것 (PFC 포함) O 15 Transformer의 회로Location No.는 T***로 시작할 것(Drive Trans 포함) O 16 Bead의 회로Location No.는 LB***로 시작할 것 O 17 Fuse의 회로Location No.는 F***로 시작할 것 O 18 TR/FET/Thyristor의 회로Location No.는 Q***로 시작할 것 O 19 Varistor의 회로Location No.는 VA***로 시작할 것 O 20 Volume Resistor의 회로Location No.는 VR***로 시작할 것 O 21 Jumper의 회로Location No.는 J***로 시작할 것 O 22 H/S의 회로Location No.는 HS***로 시작할 것 O 23 IC의 회로Location No.는 IC***로 시작할 것 O 2007.04.16 DDC 표준 24 Connector wafer / Ass`y (Board in type)의 회로 Location No.는 P***로 시작할 것 O 25 Eyelet의 회로Location No.는 EL***로 시작할 것 O 25 Gripper의 회로Location No.는 G***로 시작할 것 해당 없음 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 92 Date: 2011. 04. 28 Details Check Item RESULT REMARK ▶ 부품 LOCATION NO. OK NG 26 Holder의 회로Location No.는 HD***로 시작할 것 해당 없음 27 Thermistor의 회로Location No는 TH***로 시작할 것 O 28 Metal Ground의 회로Location No.는 PG***로 시작할 것 O 29 Line Filter의 회로Location No.는 LF***로 시작할 것 O 30 AC Socket(Inlet)의 회로 Location No.는 SK***로 시작할 것 (AC전원 Docking용 Wafer 포함) O 2007.04.16 DDC 표준 31 Photo Coupler의 회로Location No는 IC***로 시작할 것 O 2007.04.16 DDC 표준 32 Relay의 회로 Location No.는 RL***로 시작할 것 해당 없음 33 Y-Capacitor의 회로Location No는 CY***로 시작할 것 O 34 X-Capacitor의 회로Location No는 CX***로 시작할 것 O 35 Fuseble Resistor의 회로Location No는 R***로 시작 할 것 해당 없음 ▶ PCB Pattern 간격 OK NG 1 Primary ⇔ Secondary(GND,Y-Cap,Photo Coupler) 간격 이 Creepage 기준을 만족할 것.(규격Gr. 안전규격 Check List 참조.Note 0) (단, Working Voltage가 350V이상일 때 규격 요청 거리에 따 른다.) O 첨부화일 참조. (Creepage) 2 Primary(L,N) ⇔ Safety GND 간격이 3mm이상일 것 O 3 Live ⇔ Neutral 간격이 3mm이상일 것 O 4 Primary ⇔ Secondary 부품간 공간 거리는 6mm이상일 것 (6mm 이하일 경우에는 insulation sheet 추가) O 5 1차측 Main Current loop는 Pattern 두께 3mm 이상일 것 (BD ↔ 1차 평활 Cap까지 중점 Check) O 6 2차측은 40V이상일 경우 전압에 따라 Pattern 거리 이격 시켜야 함. * 50V : 0.5 mm, 50V ~ 150V: 1.5mm, 150V ~300V : 2mm, 300V~600V : 4mm DC 기준.) O 7 PFC Coil 밑으로 소신호 Line이 지나가지 말 것. DC는 문제 없음 O NOTE 0 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 93 Date: 2011. 04. 28 Details Check Item RESULT REMARK ▶ Component OK NG 1 Surge Test 시 1~2차간 간격이 6.0mm㈜ 이상일 것(safety GND와 2차 GND의 구별 주의 (절연 Y-Cap사용) 공간확보 주의, 절연Sheet) O (주) 3심:3.5mm (내압 test 必) 2심:6.0mm (Y-cap 포함) 2 전해 Cap(전수) 부품 주위 발열 부품과 3mm이상 이격 시킬 것 (공간거리) O 3 1차 평활 전해 Cap 부품 upper 영역은 1mm이상 Bottom 영 역은 5mm 이상 이격 시킬 것 (Vertical type Capacitor에 한함) (Note 1) 해당 없음 4 1차 평활 Cap 3mm 영역 내 아래로 Pattern이 지나가지는 않을 것 (양면 PCB 상측 Pattern에 한함) 해당 없음 5 높이가 낮은 코어를 사용할 경우 절연 tape를 사용할 것 (PCB와의 이격거리 확보) O 6 Trans의 경우 300V 기준으로 Barrier 8mm이상 사용하고 있 을 것 (Note 0) (Barrier를 줄이기 위해 Wire에 Tube 사용가능, 규격 GR. 필 확인 사항) O 첨부화일 참조. (Creepage) 7 AC Inlet의 경우 Yellow - Green wire의 Screw 3.5Φ 이상일 것. * Y/G wire를 사용하지 않을 경우, PCB Pattern으로만 대응 시엔 200A Test통과할 것 [예)Safety GND 방향은 9.5mm + Jump Wire 8개) 예) 양면 PCB는 반드시 상,하측 GND Pattern 9.5mm 이상] * Safety GND는 독립적으로 GND역할만 하도록 할 것. UL Test의뢰 / 미리 설계된 Pattern사용. Pattern 대응 시엔 반드시 규격 확인을 필할 것 O 8 부품에 힘을 가했을 때 1~2차 부품간 6mm 공간 거리 확보할 것. Core에 절대로 부품이 접촉되면 안됨 O 9 Box type Capacitor 사용 시 Forming type이 적용할 것. RTV Bond가 되어 있을 것 (X-capacitor 포함.) 단, PDP Sony 모델에 한함 해당 없음 10 CORE(Trans류 All 포함) 주위에는 2mm 이상 전 부품을 이격 시킨다. * 유기전압 1kV (peak to peak) 이상 시엔 4mm 이상 (1000:1 Probe 기준) O 11 Inverter Trans와 Metal Frame(shield)과 4mm 이상 이격을 시 킨다. (적용이 어려울 경우, 반드시 Insulation sheet 추가한 다.) O 12 발열 부품과 전해 Cap.은 3mm 이상 이격 시킨다. (특히, Heat Sink) * 불가 시 이격 시켜서 Bonding 처리할 것 O NOTE 1 NOTE 0 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 94 Date: 2011. 04. 28 Details Check Item RESULT REMARK ▶ 필수 Marking 사항 OK NG 1 AC Socket, AC입력용 Wafer에 L/N표시는 되어 있을 것. (Docking Type도 L/N 표시(QA 요청), 상,하측 모두 표시) 특히, Socket B/D-in type의 경우, AC socket 자체에 L/N 표기가 되어 있으므로, 반드시 PCB L/N 마킹과 동일한지 확인한다. (Note 3-2) O 2 Safety GND는 Chassis로 부터 분리될 때 작업자가 확인 가 능한 위치일 것. (Note 2) * 추후, PCB 상,하면에 모두 표기, 상세한 내용은 하단의 유첨 파일 참조 요망, 그리고, 반드시 규격에 최종 확인 받을 것. O 3 Fuse rating(전압,T,전류,H), caution(규격 문구), UL Mark는 입력되어 있을 것 * caution: UL에 등록되어있는 문구가 그대로 입력되어야 함 (For ~ , Replace ~ ) O 4 Fuse가 보이는 곳에 위치할 것 (Fuse Marking도 보이는 곳 에.) O 5 High Voltage warning mark가 입력되어 있을 것. - Inverter 출력부 : LIPS에 한함 Inverter 출력부 영역 표시하고 Warning mark 추가. - Primary측 Metal.(H/Sink), High Voltage가 open된 곳. (Fuse) : 공통 O 6 입력/출력 전압, 전류 Spec표기는 되어 있을 것 (Note 3) - 안전규격 check list 입수할 것. O 7 1차측과 2차측 구분하는 Marking 표시할 것. (상측면 / 하측면) O 8 각 부품의 회로No.가 부품에 가려지지 않을 것 O 9 Solder pattern에 하측 회로No./부품 형상 등 겹쳐지지 말 것 O 10 기구 Dead Space가 고려되어 PCB Marking할 것. PCB 고정용 Metal 영역 표시할 것. O NOTE 2 NOTE 3 NOTE 3-2 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 95 Date: 2011. 04. 28 Details Check Item RESULT REMARK ▶ EMI OK NG 1 Lightning Surge가 L/N Test 시 Varistor를 14Φ 이상 사용할 것 O 2 Lightning Surge가 L/G, G/N간 : 3KV이상 시 Y-Cap. Y1급 사 용할 것 O 3 Lightning Surge 로 인해 Fuse Dead시만 OK. (대책 : arcing을 방지,Varistor는 Fuse와 가까운 곳에 위치할 것) O 4 GND Arcing pattern Slit은 1.2mm일 것 Arcing Pattern 양단 거리는 safety규정은 최소 3.5mm일 것 (L/N 사이) O 5 Conducted Emission 측정조건 : 110Vac/220Vac & 50Hz/60Hz TV Model : GND 有/無 O ▶ INVERTER (LIPS에 한함) OK NG 1 Ballaster capacitor 사용할 것 O 2 Inverter Trans로 부터 주변 4mm 이내에 소신호 AC pattern이 지나갈 시에는 OVP/OLP 등 Worst 상태를 반드시 확인하여 이 상이 없을 것 (Feed Back Line 포함) [ AC입력으로 부터 Inverter에 간섭 되는 noise 를 줄이기 위해 POWER FET의 Heat Sink 를 형상 변경하여 AC 입력부와 Inverter Trans 간 Shield로 사용. (CE 규제사항) - Design 상 고려되어야 함.] O 3 Inverter 출력부에 적용한 고압 Capacitor의 Lead는 인위적 힘을 가하여도 주변 부품과 Touch 되지 않도록 절연 거리 확보 or Bodning 적용할 것. (특히, 다른 고압 Capacitor의 body와 touch 되지 않도록 할 것) O ▶ 온도 OK NG 1 Inverter 측의 FET(SOT-8)의 방열이 40도 일 때 Solder 온도 기준 → 100도 이하. (실온일 때 → 85도 이하를 만족할 것) LIPS에 한함. O 2 I-V특성곡선을 기준으로 측정한 부분의 전류,전압이 높을 경우 Eyelet 또는 추가 Soldering 를 하고 있을 것’ * Bridge Diode의 경우 Eyelet을 추가하기 어려우므로 추가 Soldering 필수, (LIPS :Solder Pattern 보강 PDP : 단면 PCB인 경우 반드시 Eyelet 또는 추가 납 추진) O 3. PCB Solder면 온도 - Phenol/CEM : 100℃ - Epoxy : 105℃ 단, PCB 가공 Maker에서 130도급으로 규격 승인을 받은 경 우에 한함. (PCB 원판에 대한 승인 제외) Eyelet/Gripper 적용 시 : +5℃ O PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 96 Date: 2011. 04. 28 Details Check Item RESULT REMARK ▶ 기타 OK NG 1 Fuse 깡통(CAN)Type 을 사용하지 말 것. LBC : 50~500A HBC : 1500A (현재 사용) 해당 없음 2 Heat Sink , Screw는 6가 크롬(Cr) 적용 불가 O 3 Main Board/Power Board(LIPS 포함) 연결 Connector의 Housing과 Wafer의 Maker가 일치할 것. *일치가 안될 경우, Spec.확인 및 QA 인증 시험이 요구됨.(특히,Board in connector는 Terminal도 확인) O 4 Litz Wire 사용하지 말 것. 해당 없음 5 PFC Bypass Diode가 적용되어 있을 것. (Note 4) O 첨부 파일 참조(Bypass) 6 Relay 적용 모델인 경우, Fusing Resistor 적용 확인할 것.(Note 5) 해당 없음 7 1차 Control IC의 IC Vcc 정류Cap.은 High Ripple, Low Impedance Cap. 사용할 것. O 8 RN Type (Metal Film Type) Resistor는 100kohm이상 사용 하지 말 것. O 08년 6월 26”MNT ND 분 양산 문제 발생. (여러 차례 재발됨) 9 TO-220, TO-3P type FET, Diode, IC 적용 시, Forming type 을 적용했을 때 forming 후 cutting을 하기 때문에 길이가 짧아진다. 따라서 반드시 Heatsink 와 PDM 등록 승인원, 부품 현물을 3자 확인 후 lead 길이, pitch 확인할 것. (LGEAZ, LGEND 관련하여 사전 협의 필요 LGEND 에서는 forming type 을 전수 원함) O 08년 3월 LGEAZ CKD 분 PQ 이전 문제 발생하여 지급 조처 한 이력 있음. 10 PCB하측 lead 길이 special 관리 모델의 경우 ( 예를 들어 2.0mm 관리 품) H/Sink, wafer, 각종 부품 도면 받아서 lead 길이 check 할 것 O NOTE 4 NOTE 5 PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 97 Date: 2011. 04. 28 Details Check Item RESULT REMARK ▶ Attachment OK NG 1 PL check List PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 98 Date: 2011. 04. 28 WARRANTY LETTER # Appendix 2. PLHF-L923A/B/C (REV.2.1) 10L 42” LCD TV Power specification Rev 2.1 99 Date: 2011. 04. 28 구분 승인용 양산용 제출일자 회사명 LG 이노텍 결재 담당자 부서장 연락처 Tel 062-950-0232 성명 김 인 재 김 형 성 e-mail ijkim@lginnotek.com 서명 LG전자 P/No. EAY60869402 EAY60869403 EAY60869405 부품제조일자 Maker P/No. PLHF-L923A PLHF-L923B PLHF-L923C 생산 공장 부품명(품명) LIPS 당사가 납품하는 납입품 및 당사 제조 공정상 사용되는 물질이 아래 Check 항목에 대해 만족함을 증명합니다. ROHS 규제 6대 물질(Pb, Cd, Cr6+, Hg, PBBs, PBDEs)이 LG전자 Display 사업부 기준을 만족함 ※ 아래 항목은 PCB(Printed Circuit Board)에 장착되는 부품일 경우 기록 요망 최대 내열성 온도 : 260 ℃ 최대 내열성 시간 : 10 sec. Pb-Free Soldering (Solder Cream, Bar, Wire 모두 포함) 적용이 가능함 Note. 1. 본 자료 상의 모든 기재 내용은 사실에 근거하여 작성하여야 하며, LG전자가 근거 자료를 요구 시, 관련 Data를 제출하여야 한다. 2. 본 자료가 승인용으로 사용될 경우 Sample과 함께 제출하고, 양산용으로 사용될 경우 초품 입고시 제출하여야 한다. 3. LG 전자 Display 사업부에 공급되는 PCB 장착 부품의 내열 기준은 다음과 같음. Flow 부품 : 260℃/10 sec , Reflow 부품 : 250℃/10 sec Soldering Type : Flow Reflow 협력회사 ──── 아 래 ──── 2009 . 12 . 07 부품정보 LGIT Yantai 비사용 증명서 비사용 증명서
