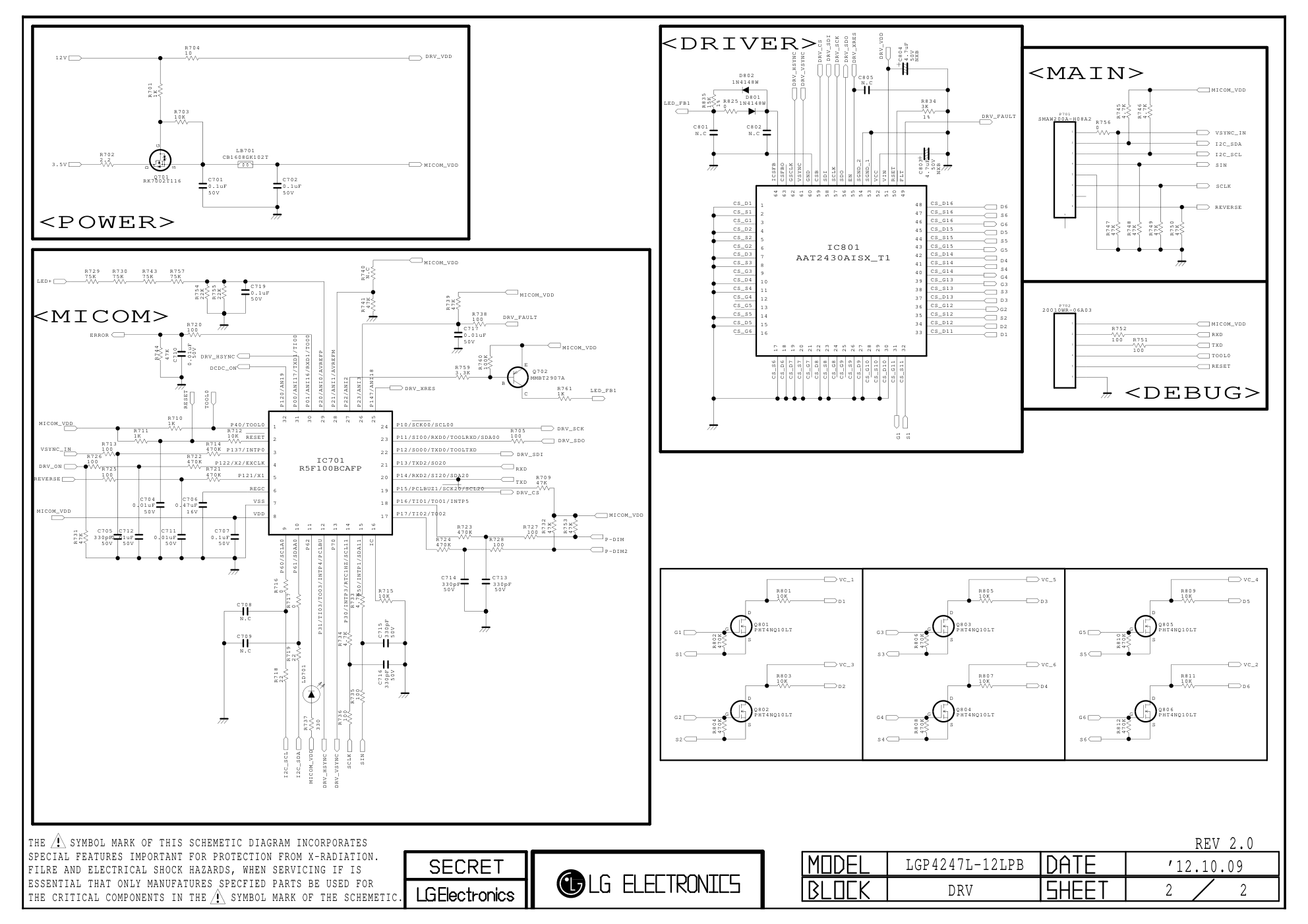

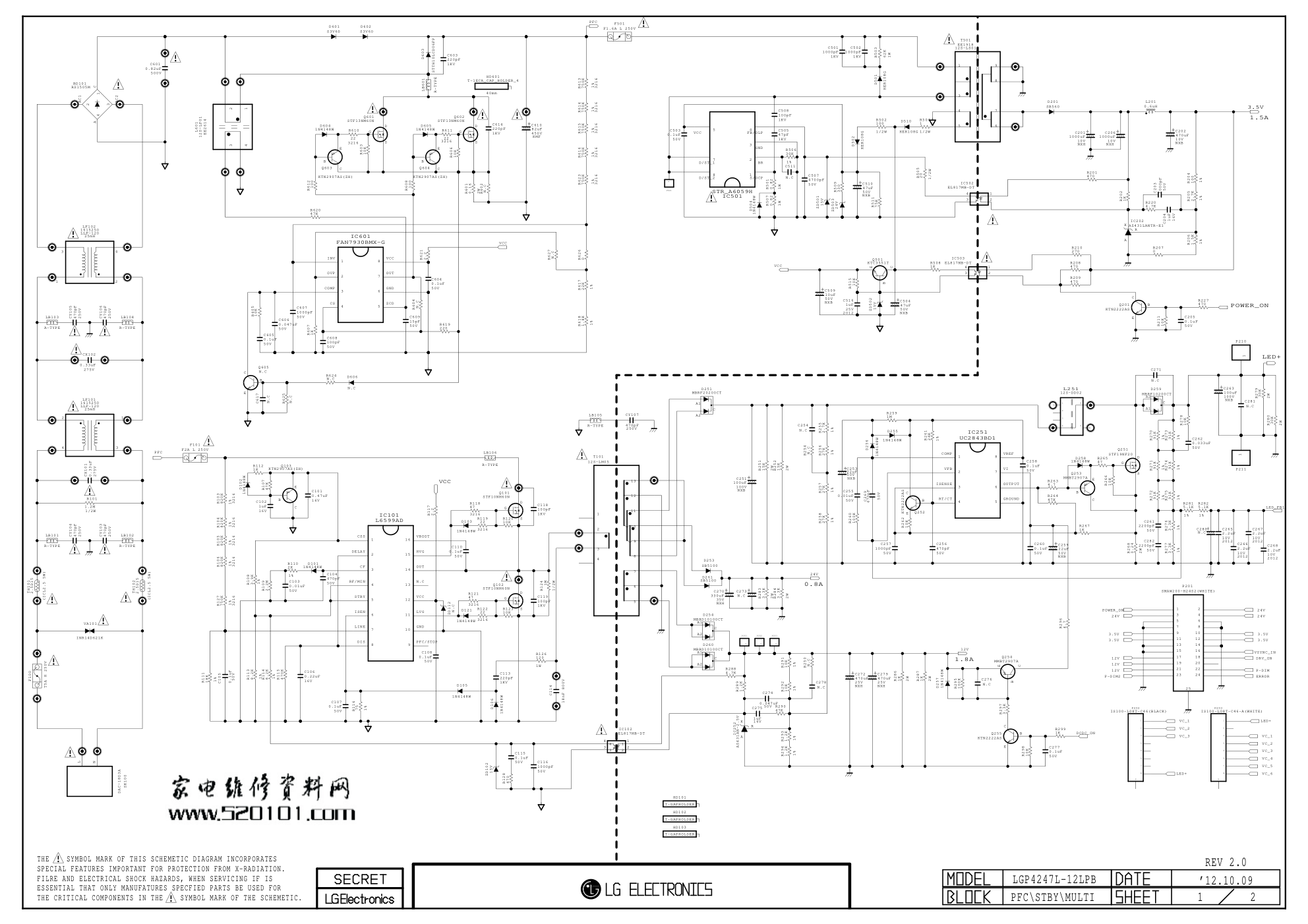

LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图

分类：电子电工 日期： 点击：0

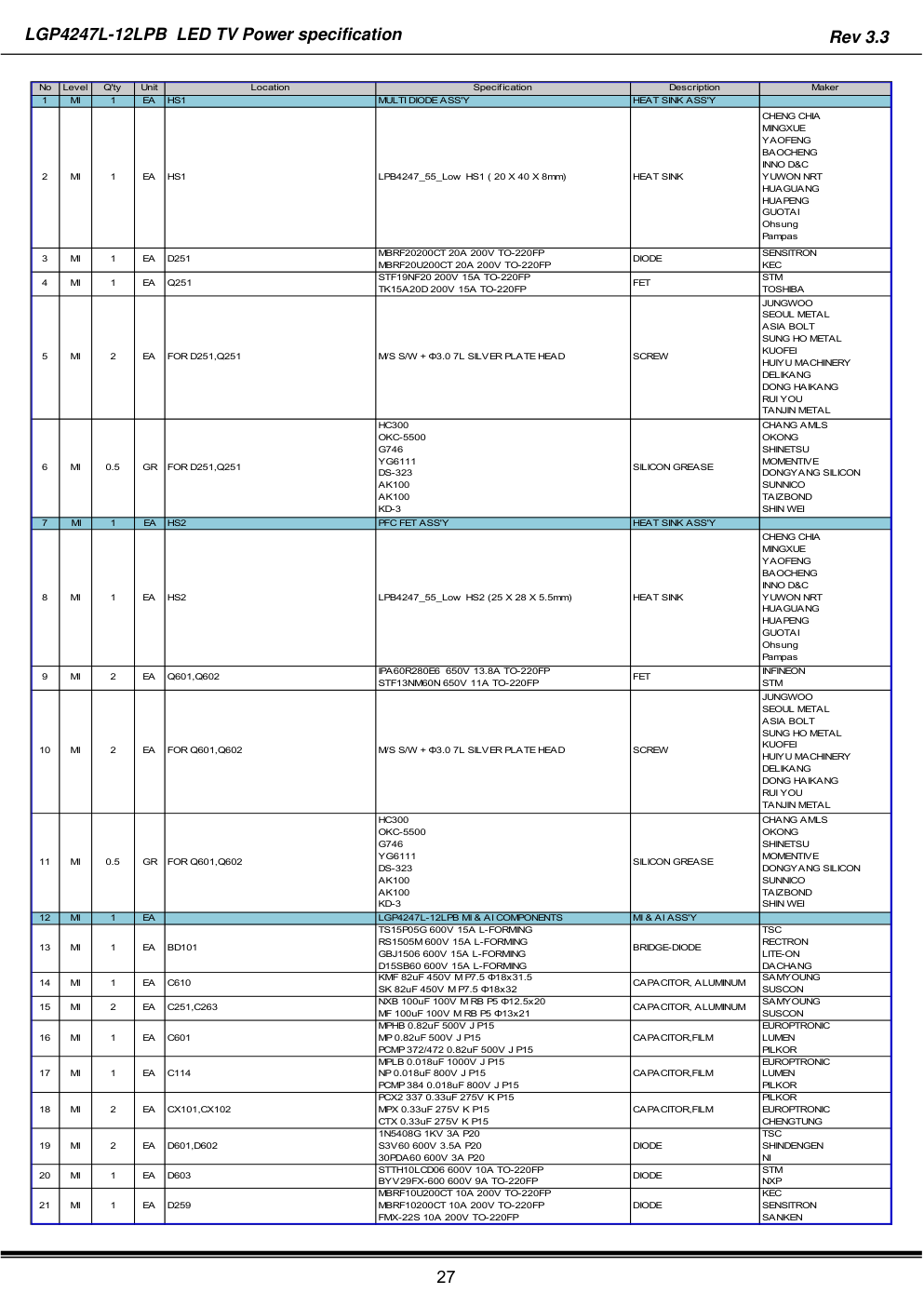

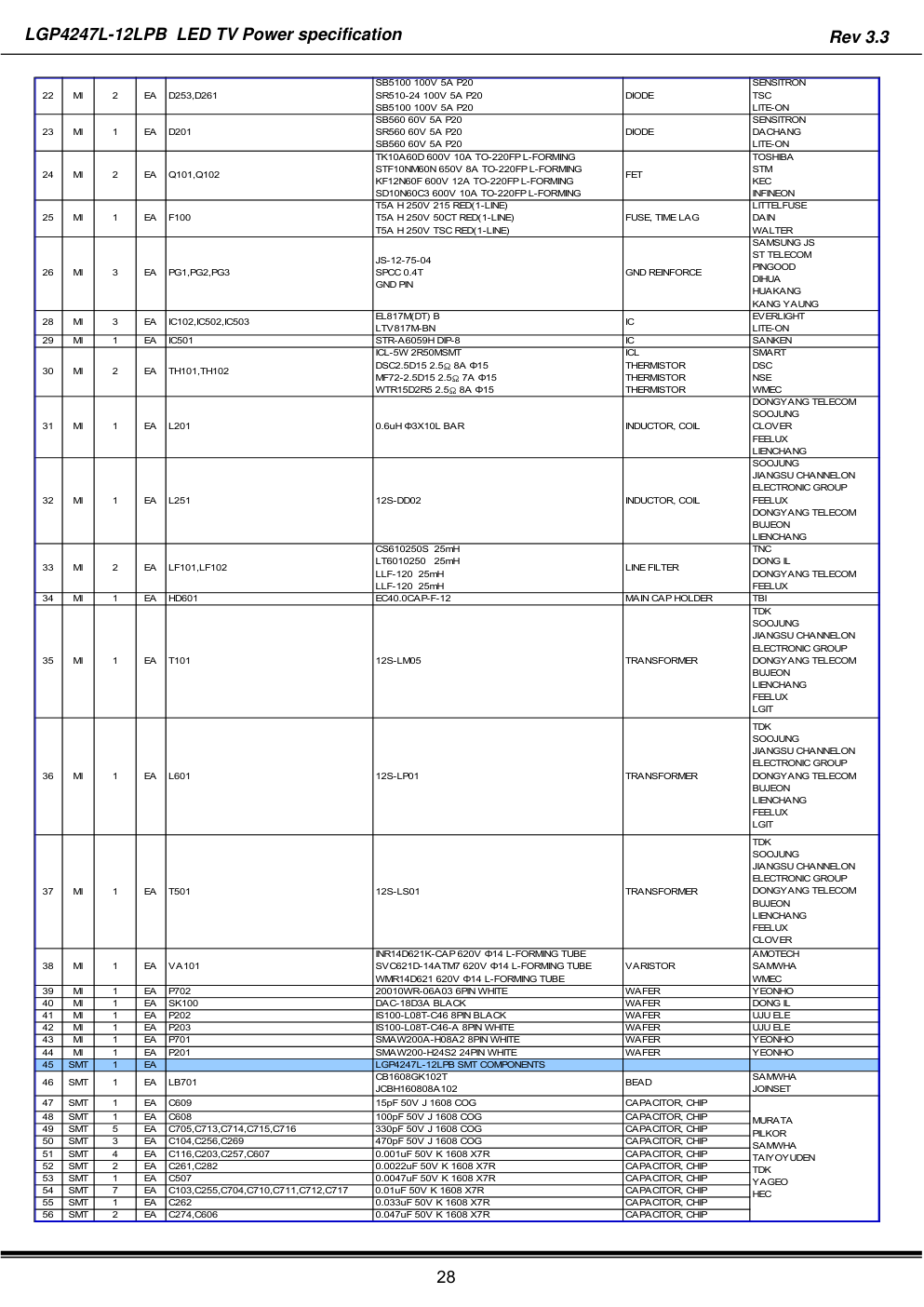

LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-0 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-1 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-2 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-3 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-4 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-5 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-6 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-7 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-8 LG LED TV EAY62608901 EAX64427101_LGP4247L-12LPB电源板电路图-9

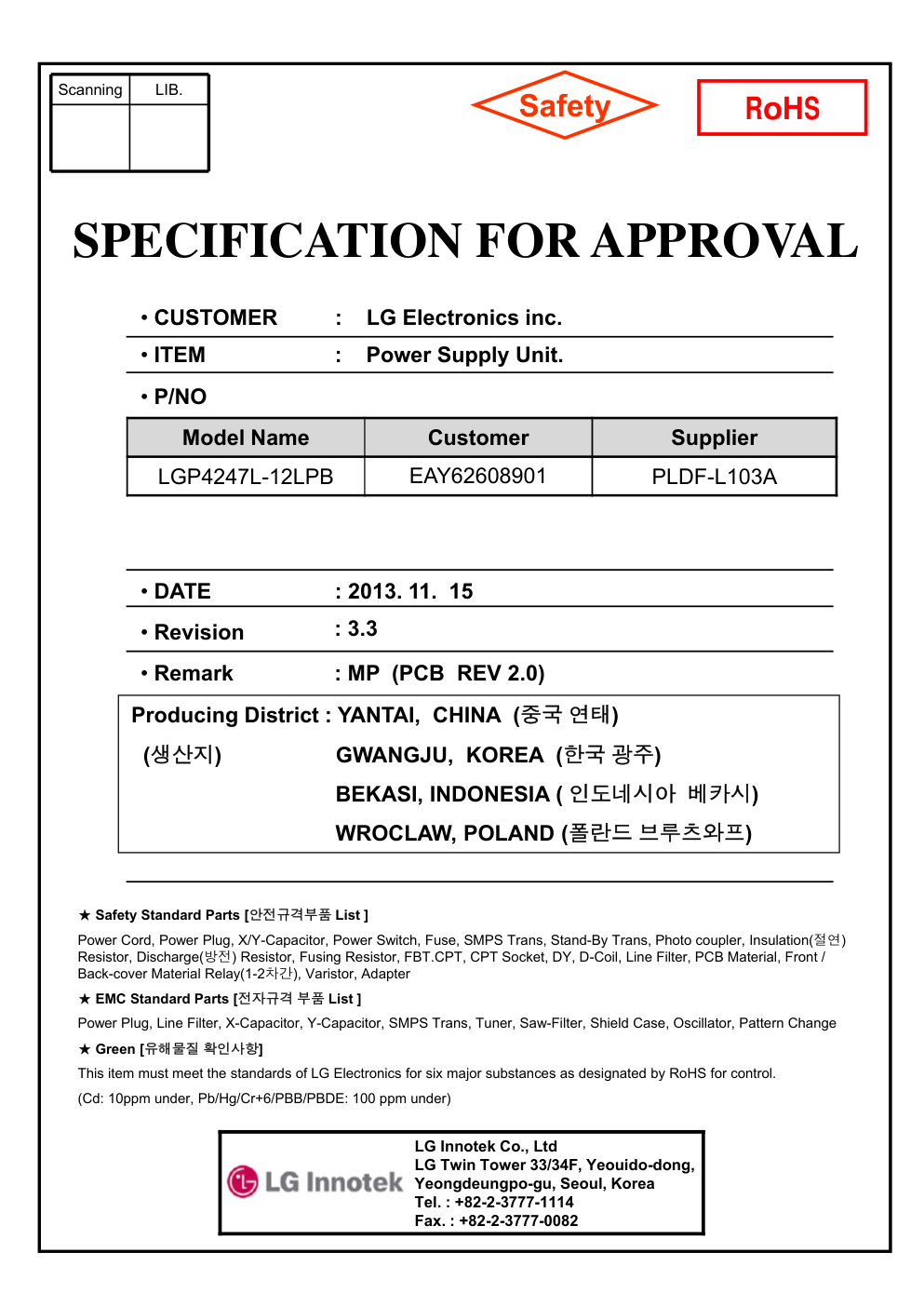

LIB. Scanning SPECIFICATION FOR APPROVAL • P/NO : Power Supply Unit. • ITEM : 2013. 11. 15 • DATE : LG Electronics inc. • CUSTOMER : 3.3 ★ Safety Standard Parts [안전규격부품 List ] Power Cord, Power Plug, X/Y-Capacitor, Power Switch, Fuse, SMPS Trans, Stand-By Trans, Photo coupler, Insulation(절연) Resistor, Discharge(방전) Resistor, Fusing Resistor, FBT.CPT, CPT Socket, DY, D-Coil, Line Filter, PCB Material, Front / Back-cover Material Relay(1-2차간), Varistor, Adapter ★ EMC Standard Parts [전자규격 부품 List ] Power Plug, Line Filter, X-Capacitor, Y-Capacitor, SMPS Trans, Tuner, Saw-Filter, Shield Case, Oscillator, Pattern Change ★ Green [유해물질 확인사항] This item must meet the standards of LG Electronics for six major substances as designated by RoHS for control. (Cd: 10ppm under, Pb/Hg/Cr+6/PBB/PBDE: 100 ppm under) Safety Model Name Customer Supplier LGP4247L-12LPB EAY62608901 PLDF-L103A • Revision • Remark : MP (PCB REV 2.0) RoHS Producing District : YANTAI, CHINA (중국 연태) (생산지) GWANGJU, KOREA (한국 광주) BEKASI, INDONESIA ( 인도네시아 베카시) WROCLAW, POLAND (폴란드 브루츠와프) LG Innotek Co., Ltd LG Twin Tower 33/34F, Yeouido-dong, Yeongdeungpo-gu, Seoul, Korea Tel. : +82-2-3777-1114 Fax. : +82-2-3777-0082 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. F100 VA101 C601 0.82uF 500V R101 1/2W 1.2M TH101 2.5D15 IC102 EL817MB-DT 1 1 2 2 4 4 3 3 D255 1N4148W D256 1N4148W D257 1N4148W D258 1N4148W IC252 A K R Q252 KTN2222AS E B C Q253 MMBT2907A E B C Q254 MMBT2907A E B C C253 22uF 50V C259 22uF 50V LED+ LED_FB1 R283 3.3K 2W R284 3.3K 2W R286 1K 2W R287 1K 2W Q255 KTN2222AS E B C 24V 12V DCDC_ON POWER_ON ERROR 12V 12V VSYNC_IN 3.5V 24V 3.5V 3.5V P201 19 14 9 4 18 13 8 3 17 12 7 2 16 11 6 1 20 15 10 5 21 22 23 24 25 LED+ 24V VC_3 24V 12V P-DIM VC_2 VC_1 3.5V DRV_ON P-DIM2 R210 270 IC503 EL817MB-DT 1 2 4 3 VCC C203 1000pF 50V L201 0.6uH 3.5V Q201 KTN2222AS E B C R206 1.5K 1% POWER_ON R220 4.7K ZD502 15V C205 0.1uF 50V R508 1K R515 10K IC202 A K R C202 470uF 10V R207 0 R211 10K IC502 EL817MB-DT 1 2 4 3 R227 470 R202 1K R209 470 R208 470 R201 470 Q501 KTC3551T E B C PFC R618 1.8K 1% C610 82uF 450V D602 LB601 D601 R617 22K 1% D253 D261 R254 N.C C255 0.01uF 50V C269 470pF 50V R259 1M R261 24K 1% R262 10K C257 1000pF 50V C256 470pF 50V C258 0.1uF 50V C260 0.1uF 50V R263 4.7 R264 47K R267 1K R265 47 R266 10K R270 1% 91K R271 1% 91K R272 1% 91K R273 1% 91K R274 1% 91K R275 1% 91K R278 10K C262 0.033uF 50V R288 4.7K R289 1.2K C274 0.047uF 50V R290 47K R291 10K 1% R292 10K 1% R295 100K C276 N.C C277 0.1uF 50V R297 3.3K R298 10K R299 1K R296 4.7 C254 N.C R260 100K LB105 C617 N.C R624 N.C C607 1000pF 50V C604 0.1uF 50V Q605 N.C E B C C608 100pF 50V VCC R625 N.C R621 2.2 R604 N.C D606 N.C R505 20 1/2W D501 HER108G R502 100 1/2W D502 HER108G R504 1 1/2W R506 30K 1% ZD501 15V D510 HER108G R509 330 ZD503 24V IC501 STR_A6059H 2 BR 4 FB/OLP 1S/OCP 5 VCC 3 GND 7 D/ST_1 8 D/ST_2 C271 N.C R280 2W 30K R279 2W 30K R250 N.C C278 N.C R293 1.2K 1% R294 1.2K 1% C507 4700pF 50V C503 0.1uF 50V R204 100 1% R205 2.7K 1% LB101 LB102 LB104 LB103 SK100 DAC-18D3A L N C270 330uF 35V C279 470uF 25V C272 470uF 25V C201 1000uF 10V C206 1000uF 10V C263 100V 100uF R503 62K 1W C273 N.C CX101 0.33uF 275V CY104 470pF 250V CY105 470pF 250V CY103 470pF 250V CY106 470pF 250V CX102 0.33uF 275V R613 750K 1% 3216 R616 750K 1% 3216 R623 750K 1% 3216 R615 750K 1% 3216 R614 750K 1% 3216 R507 0.82 1W R501 0.82 1W C502 1000pF 1KV C501 1000pF 1KV D260 MBRD10100CT A1 C A2 D254 MBRD10100CT A1 C A2 C509 10uF 50V C510 47uF 50V C504 47uF 50V IC251 UC2843BD1 3 ISENSE 2 VFB 4 RT/CT 1 COMP 5 GROUND 6 OUTPUT 7 VI 8 VREF R511 75K D201 C280 N.C C105 0.1uF 50V C108 0.1uF 50V C107 0.1uF 50V R119 22 3216 C113 220pF 1KV R107 47K R126 120 1W C104 470pF 50V IC101 3 CF 2 DELAY 4 RF/MIN 1 CSS 6 ISEN 5 STBY 7 LINE 8 DIS 9 PFC/STOP 10 GND 11 LVG 12 VCC 13 N.C 14 OUT 15 HVG 16 VBOOT D121 Q103 KTN2907AS(ZH) E B C R111 18K 1% R109 2.2M C103 0.01uF 50V R118 47 3216 C110 0.1uF 50V R121 47 3216 R124 1M 1/2W D102 R117 2.2 PFC R103 820K 1% 3216 R115 470K R105 820K 1% 3216 ZD102 15V D101 R127 750K 1% 3216 C115 0.1uF 50V D105 R123 10K LB106 R104 820K 1% 3216 D106 VCC C119 100pF 1KV R122 22 3216 C116 1000pF 50V D103 R128 470 R112 1K R116 1% 75 C114 18nF 800V R120 10K C118 100pF 1KV R106 820K 1% 3216 C102 1uF 16V C101 0.47uF 16V C106 0.22uF 16V C204 1uF 16V C275 1uF 16V R268 0.24 2W T501 EE1918 4 3 1 5 6 7 8 9 C603 220pF 1KV C281 N.C L601 3 4 2 1 F501 Q251 STF19NF20 S G D C508 100pF 1KV P202 1 2 3 4 5 6 7 8 9 D504 T-GAPHOLDER HD101 T-GAPHOLDER HD102 T-GAPHOLDER HD103 F101 D251 A2 C A1 C251 100V 100uF R252 15K 2W R251 15K 2W R257 27K 1% R258 27K 1% R256 27K 1% R255 2.7K 1% LED+ P203 1 2 3 4 5 6 7 8 9 R612 100 R602 N.C R610 3216 22 D605 Q603 KTN2907AS(ZH) E B C R603 10K R606 10K C614 220pF 1KV R611 3216 22 R608 100 D604 Q604 KTN2907AS(ZH) E B C R601 2W 0.16 T-1ECA_CAP_HOLDER_4 HD601 BD101 1 C 2 AC1 3 AC2 4 A TH102 2.5D15 VC_5 VC_6 VC_4 VC_1 VC_3 VC_2 Q601 STF13NM60N S G D Q602 STF13NM60N S G D Q101 STF10NM60N S G D Q102 STF10NM60N S G D R281 5.1K 1% R282 5.1K 1% R277 3.3K 1% R276 3.3K 1% R110 2K 1% R108 3.9K 1% R113 8.2K 1% R114 8.2K 1% C261 2200pF 50V C282 2200pF 50V D259 A2 C A1 LF101 1 2 3 4 LF102 1 2 3 4 P211 1 P210 1 T101 1 2 3 4 5 6 7 9 10 11 12 13 8 IC601 FAN7930BMX-G 3 COMP 2 OVP 4 CS 1 INV 5 ZCD 6 GND 7 OUT 8 VCC R605 10K C605 0.1uF 50V C606 0.047uF 50V R620 47K C609 15pF 50V R607 1K R619 220 L251 3 2 4 1 5 8 CY107 470pF R626 0 R627 N.C C516 1uF 25V 2012 C266 2.2uF 10V 2012 C267 2.2uF 10V 2012 C265 2.2uF 10V 2012 C268 2.2uF 10V 2012 P251 1 P253 1 P252 1 C511 N.C P501 1 C505 47pF 1KV ZD112 N.C D603 STTH10LCD06FP ’12.10.09 LGP4247L-12LPB PFC\STBY\MULTI 1 2 T5A H 250V 25mH 25mH INR14D621K REV 2.0 AS431AN-2.5V NXH SMAW200-H24S2(WHITE) RS1505M NXB 1.5A NXH AZ431LANTR-E1 S3V60 R-TYPE S3V60 F1.6A L 250V 0.8A 1.8A SB5100 SB5100 NXB NXB R-TYPE R-TYPE A-TYPE R-TYPE NXH NXH NXH EE2614 NXB KMF NXB NXB NXB SB560 12S-LP01 12S-LS01 12S-LM05 1N4148W R-TYPE 1N4148W L6599AD F2A L 250V 1N4148W 1N4148W 1N4148W 1N4148W (ICL2.5 5W) IS100-L08T-C46(BLACK) 1615250 1615250 1N4148W MBRF20200CT NXB 40mm IS100-L08T-C46-A(WHITE) 1N4148W 1N4148W (ICL2.5 5W) 12S-DD02 MBRF10200CT R-TYPE LLF-120 LLF-120 250V THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. R801 10K LB701 VC_3 R703 10K G4 R810 470K R811 10K S5 D2 R701 1K G2 S6 Q806 PHT4NQ10LT G D S DRV_SCK C804 4.7uF 50V MICOM_VDD C801 N.C DRV_VDD D2 DRV_SDO DRV_FAULT G1 VC_5 S5 R808 470K G2 VC_4 D802 1N4148W D6 C701 0.1uF 50V S3 C803 4.7uF 50V D5 D3 DRV_XRES Q805 PHT4NQ10LT G D S R804 470K G3 D1 R835 15K 1% LED_FB1 C802 N.C S4 R803 10K DRV_HSYNC R802 470K S1 R805 10K IC801 AAT2430AISX_T1 1 CS_D1 2 CS_S1 3 CS_G1 4 CS_D2 5 CS_S2 6 CS_G2 7 CS_D3 8 CS_S3 9 CS_G3 10 CS_D4 11 CS_S4 12 CS_G4 13 CS_G5 14 CS_S5 15 CS_D5 16 CS_G6 17 CS_S6 18 CS_D6 19 CS_D7 20 CS_S7 21 CS_G7 22 CS_D8 23 CS_S8 24 CS_G8 25 CS_G9 26 CS_S9 27 CS_D9 28 CS_G10 29 CS_S10 30 CS_D10 31 CS_G11 32 CS_S11 33 CS_D11 34 CS_D12 35 CS_S12 36 CS_G12 37 CS_D13 38 CS_S13 39 CS_G13 40 CS_G14 41 CS_S14 42 CS_D14 43 CS_G15 44 CS_S15 45 CS_D15 46 CS_G16 47 CS_S16 48 CS_D16 49 FLT 50 RSET 51 VIN 52 VCC 53 SGND_1 54 SGND_2 55 EN 56 SDO 57 SCLK 58 SDI 59 CSB 60 GND 61 VSYNC 62 GSCLK 63 CSFBO 64 ICSFB 3.5V R702 2.2 D4 R809 10K Q802 PHT4NQ10LT G D S VC_2 D4 D801 1N4148W VC_6 D6 D5 S1 DRV_VSYNC S4 12V G1 G5 C702 0.1uF 50V G3 Q803 PHT4NQ10LT G D S S2 Q701 RK7002T116 S D G G6 G5 Q804 PHT4NQ10LT G D S R834 3K R806 470K DRV_CS DRV_SDI DRV_VDD D1 VC_1 R704 10 R807 10K D3 S2 R812 470K S6 Q801 PHT4NQ10LT G D S S3 G4 C805 N.C G6 R709 47K R710 1K R711 1K R712 10K R713 100 R714 470K R715 10K R720 100 R721 470K R722 470K R723 470K R724 470K R725 100 R726 100 R727 100 R728 100 R731 47K R733 4.7K R734 4.7K R735 100 R736 100 R738 100 R739 47K C704 0.01uF 50V C705 330pF 50V C706 0.47uF 16V C707 0.1uF 50V C708 N.C C709 N.C C710 0.01uF 50V C713 330pF 50V C714 330pF 50V C715 330pF 50V C716 330pF 50V C717 0.01uF 50V C719 0.1uF 50V LED+ RXD TXD MICOM_VDD TOOL0 RESET VSYNC_IN DCDC_ON MICOM_VDD I2C_SDA I2C_SCL ERROR DRV_ON REVERSE P-DIM R744 47K DRV_HSYNC SCLK SIN MICOM_VDD DRV_SDO DRV_SCK DRV_SDI DRV_CS DRV_VSYNC DRV_FAULT MICOM_VDD P-DIM2 DRV_XRES C712 0.01uF 50V C711 0.01uF 50V R732 47K R753 47K R754 22K DRV_HSYNC R755 22K R737 330 MICOM_VDD R705 100 R716 0 R717 0 R743 75K R757 75K R729 75K R730 75K LD701 IC701 R5F100BCAFP 1 P40/TOOL0 3 P137/INTP0 7 VSS 9 P60/SCLA0 10 P61/SDAA0 11 P62 12 P31/TI03/TO03/INTP4/PCLBU 13 P70 14 P30/INTP3/RTC1HZ/SCL11 15 P50/INTP1/SDA11 16 IC 17 P17/TI02/TO02 18 P16/TI01/TO01/INTP5 19 P15/PCLBUZ1/SCK20/SCL20 20 P14/RXD2/SI20/SDA20 21 P13/TXD2/SO20 22 P12/SO00/TXD0/TOOLTXD 23 P11/SI00/RXD0/TOOLRXD/SDA00 24 P10/SCK00/SCL00 25 P147/ANI18 26 P23/ANI3 27 P22/ANI2 28 P21/ANI1/AVREFM 29 P20/ANI0/AVREFP 30 P01/ANI16/RXD1/TO00 31 P00/ANI17/TXD1/TI00 32 P120/AN19 5 P121/X1 8 VDD 6 REGC 4 P122/X2/EXCLK 2 RESET R761 1K LED_FB1 Q702 MMBT2907A E B C R760 100K R759 3.3K MICOM_VDD P702 1 2 3 4 5 6 REVERSE I2C_SCL VSYNC_IN SCLK I2C_SDA SIN R747 47K R748 47K R749 47K R750 47K R751 100 R752 100 TOOL0 RESET TXD RXD MICOM_VDD MICOM_VDD R745 4.7K R746 4.7K P701 1 2 3 4 5 6 7 8 9 R756 0 R825 0 R741 47K R740 N.C MICOM_VDD R718 22 R719 22 ’12.10.09 2 2 REV 2.0 DRV LGP4247L-12LPB NXB NXB CB1608GK102T 1%

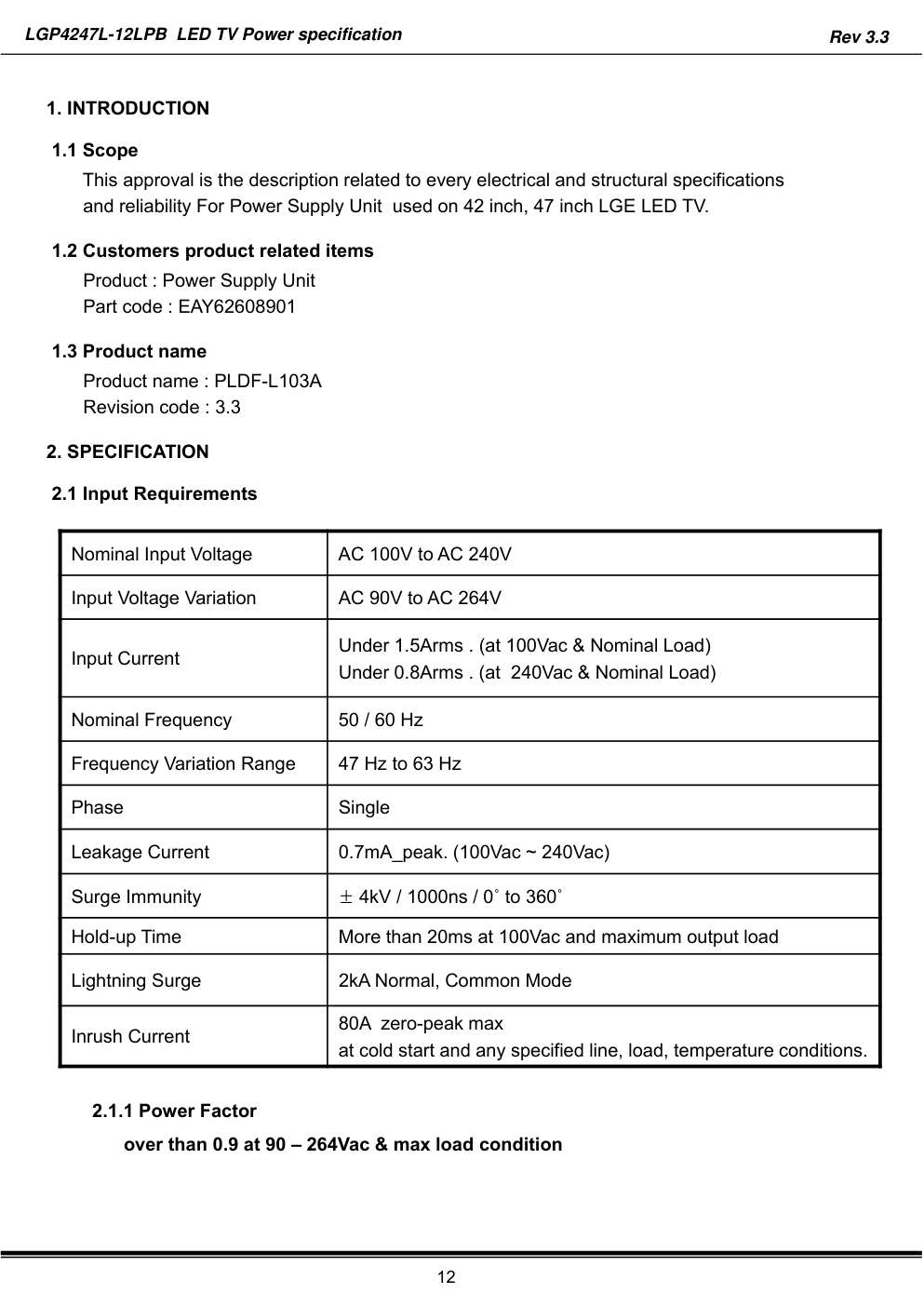

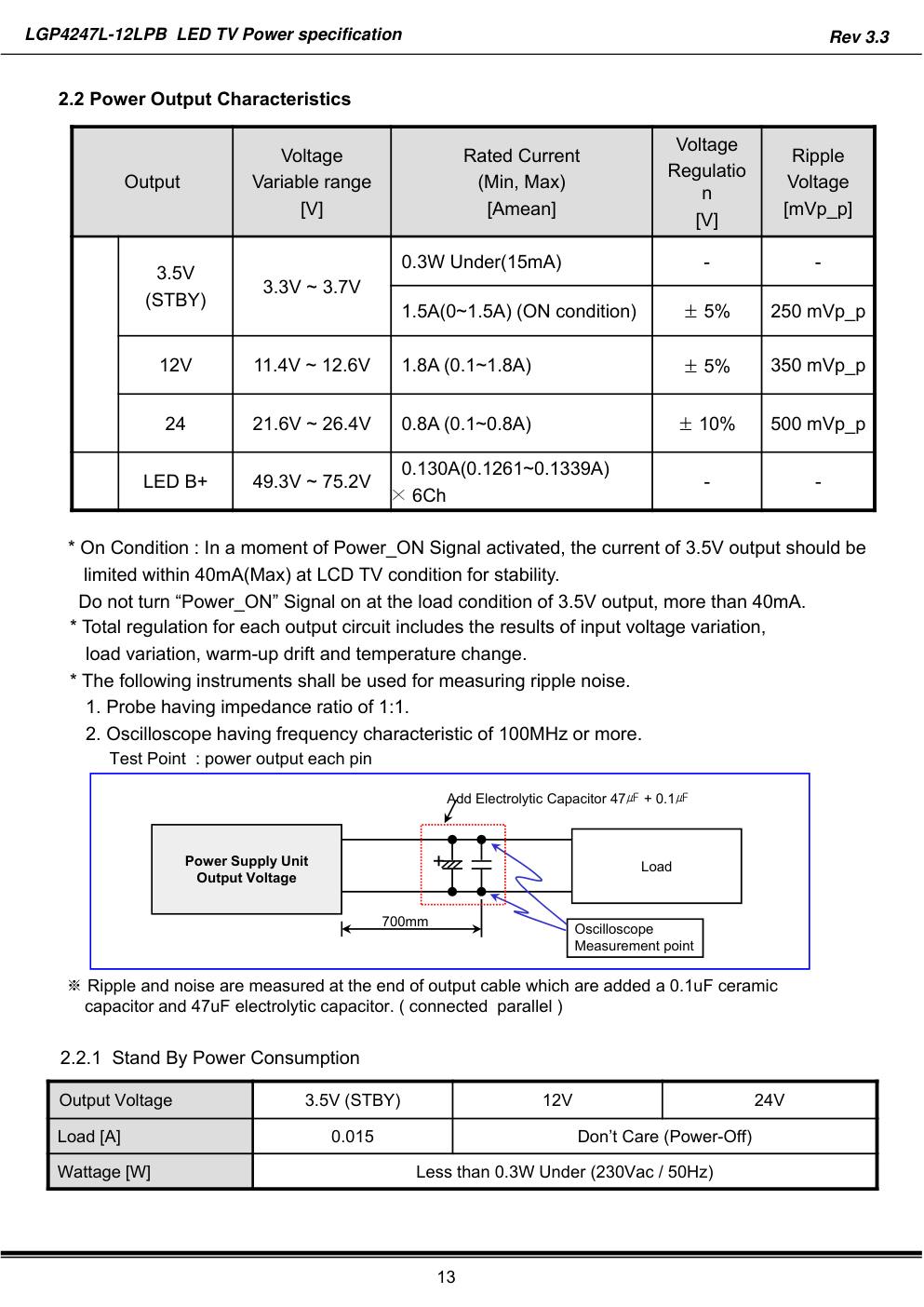

SMAW200A-H08A2 20010WR-06A03 LGP4247L-12LPB LED TV Power specification Rev 3.3 25 LGP4247L-12LPB LED TV Power specification Rev 3.3 12 1. INTRODUCTION 1.1 Scope This approval is the description related to every electrical and structural specifications and reliability For Power Supply Unit used on 42 inch, 47 inch LGE LED TV. 1.2 Customers product related items Product : Power Supply Unit Part code : EAY62608901 1.3 Product name Product name : PLDF-L103A Revision code : 3.3 2. SPECIFICATION 2.1 Input Requirements 2.1.1 Power Factor over than 0.9 at 90 – 264Vac & max load condition Nominal Input Voltage AC 100V to AC 240V Input Voltage Variation AC 90V to AC 264V Input Current Under 1.5Arms . (at 100Vac & Nominal Load) Under 0.8Arms . (at 240Vac & Nominal Load) Nominal Frequency 50 / 60 Hz Frequency Variation Range 47 Hz to 63 Hz Phase Single Leakage Current 0.7mA_peak. (100Vac ~ 240Vac) Surge Immunity ± 4kV / 1000ns / 0˚ to 360˚ Hold-up Time More than 20ms at 100Vac and maximum output load Lightning Surge 2kA Normal, Common Mode Inrush Current 80A zero-peak max at cold start and any specified line, load, temperature conditions. LGP4247L-12LPB LED TV Power specification Rev 3.3 13 * Total regulation for each output circuit includes the results of input voltage variation, load variation, warm-up drift and temperature change. * The following instruments shall be used for measuring ripple noise. 1. Probe having impedance ratio of 1:1. 2. Oscilloscope having frequency characteristic of 100MHz or more. 2.2 Power Output Characteristics Test Point : power output each pin Power Supply Unit Output Voltage Load 700mm Add Electrolytic Capacitor 47㎌ + 0.1㎌ Oscilloscope Measurement point + ※ Ripple and noise are measured at the end of output cable which are added a 0.1uF ceramic capacitor and 47uF electrolytic capacitor. ( connected parallel ) * On Condition : In a moment of Power_ON Signal activated, the current of 3.5V output should be limited within 40mA(Max) at LCD TV condition for stability. Do not turn “Power_ON” Signal on at the load condition of 3.5V output, more than 40mA. Output Voltage 3.5V (STBY) 12V 24V Load [A] 0.015 Don’t Care (Power-Off) Wattage [W] Less than 0.3W Under (230Vac / 50Hz) 2.2.1 Stand By Power Consumption Output Voltage Variable range [V] Rated Current (Min, Max) [Amean] Voltage Regulatio n [V] Ripple Voltage [mVp_p] 3.5V (STBY) 3.3V ~ 3.7V 0.3W Under(15mA) - - 1.5A(0~1.5A) (ON condition) ± 5% 250 mVp_p 12V 11.4V ~ 12.6V 1.8A (0.1~1.8A) ± 5% 350 mVp_p 24 21.6V ~ 26.4V 0.8A (0.1~0.8A) ± 10% 500 mVp_p LED B+ 49.3V ~ 75.2V 0.130A(0.1261~0.1339A) × 6Ch - - LGP4247L-12LPB LED TV Power specification Rev 3.3 15 2.7 Product Safety Safety Standards to be applied Design to meet the requirements as follows UL60950, IEC60950, IEC60065 and 60950 EMI/RFI Standards to be applied Design to meet the requirements as follows FCC and EN55020, EN55013 Class B with 4dB minimum margin. 2.8 Construction Weight Less than 900g Unit Size (typ.) 176(W) X 245(D) X 18.9(H) Appellation Explanation Signal Direction Action POWER ON Vcc Circuit ON/OFF Input High : Vcc ON Low : Vcc OFF 2.6 Interface Safety 2.9 Function of protection Protection Output Circuit Trip point Notes Min Max Over Current STBY 3.5V 2.5A 8.0A Auto Re-start 12V 3A 20.0A Latch 24V 1.5A 12.0A Latch Short Circuit STBY 3.5V - - Auto Re-start 12V - - Latch 24V - - Latch * This Power Supply has above-mentioned protections. * Short circuit protection between different output terminals is not considered. * Trip point for over voltage indicates the operating point when the output voltage slowly increases. * The conditions of Over Current measurement Multi output(3.5V,12V,24V) is nominal load state except an over current measurement. LGP4247L-12LPB LED TV Power specification Rev 3.3 26 Parts List LGP4247L-12LPB LED TV Power specification Rev 3.3 27 No Level Q'ty Unit Location Specification Description Maker 1 MI 1 EA HS1 MULTI DIODE ASS'Y HEAT SINK ASS'Y 2 MI 1 EA HS1 LPB4247_55_Low HS1 ( 20 X 40 X 8mm) HEAT SINK CHENG CHIA MINGXUE YAOFENG BAOCHENG INNO D&C YUWON NRT HUAGUANG HUAPENG GUOTAI Ohsung Pampas 3 MI 1 EA D251 MBRF20200CT 20A 200V TO-220FP MBRF20U200CT 20A 200V TO-220FP DIODE SENSITRON KEC 4 MI 1 EA Q251 STF19NF20 200V 15A TO-220FP TK15A20D 200V 15A TO-220FP FET STM TOSHIBA 5 MI 2 EA FOR D251,Q251 M/S S/W + Φ3.0 7L SILVER PLATE HEAD SCREW JUNGWOO SEOUL METAL ASIA BOLT SUNG HO METAL KUOFEI HUIYU MACHINERY DELIKANG DONG HAIKANG RUI YOU TANJIN METAL 6 MI 0.5 GR FOR D251,Q251 HC300 OKC-5500 G746 YG6111 DS-323 AK100 AK100 KD-3 SILICON GREASE CHANG AMLS OKONG SHINETSU MOMENTIVE DONGYANG SILICON SUNNICO TAIZBOND SHIN WEI 7 MI 1 EA HS2 PFC FET ASS'Y HEAT SINK ASS'Y 8 MI 1 EA HS2 LPB4247_55_Low HS2 (25 X 28 X 5.5mm) HEAT SINK CHENG CHIA MINGXUE YAOFENG BAOCHENG INNO D&C YUWON NRT HUAGUANG HUAPENG GUOTAI Ohsung Pampas 9 MI 2 EA Q601,Q602 IPA60R280E6 650V 13.8A TO-220FP STF13NM60N 650V 11A TO-220FP FET INFINEON STM 10 MI 2 EA FOR Q601,Q602 M/S S/W + Φ3.0 7L SILVER PLATE HEAD SCREW JUNGWOO SEOUL METAL ASIA BOLT SUNG HO METAL KUOFEI HUIYU MACHINERY DELIKANG DONG HAIKANG RUI YOU TANJIN METAL 11 MI 0.5 GR FOR Q601,Q602 HC300 OKC-5500 G746 YG6111 DS-323 AK100 AK100 KD-3 SILICON GREASE CHANG AMLS OKONG SHINETSU MOMENTIVE DONGYANG SILICON SUNNICO TAIZBOND SHIN WEI 12 MI 1 EA LGP4247L-12LPB MI & AI COMPONENTS MI & AI ASS'Y 13 MI 1 EA BD101 TS15P05G 600V 15A L-FORMING RS1505M 600V 15A L-FORMING GBJ1506 600V 15A L-FORMING D15SB60 600V 15A L-FORMING BRIDGE-DIODE TSC RECTRON LITE-ON DACHANG 14 MI 1 EA C610 KMF 82uF 450V M P7.5 Φ18x31.5 SK 82uF 450V M P7.5 Φ18x32 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 15 MI 2 EA C251,C263 NXB 100uF 100V M RB P5 Φ12.5x20 MF 100uF 100V M RB P5 Φ13x21 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 16 MI 1 EA C601 MPHB 0.82uF 500V J P15 MP 0.82uF 500V J P15 PCMP 372/472 0.82uF 500V J P15 CAPACITOR,FILM EUROPTRONIC LUMEN PILKOR 17 MI 1 EA C114 MPLB 0.018uF 1000V J P15 NP 0.018uF 800V J P15 PCMP 384 0.018uF 800V J P15 CAPACITOR,FILM EUROPTRONIC LUMEN PILKOR 18 MI 2 EA CX101,CX102 PCX2 337 0.33uF 275V K P15 MPX 0.33uF 275V K P15 CTX 0.33uF 275V K P15 CAPACITOR,FILM PILKOR EUROPTRONIC CHENGTUNG 19 MI 2 EA D601,D602 1N5408G 1KV 3A P20 S3V60 600V 3.5A P20 30PDA60 600V 3A P20 DIODE TSC SHINDENGEN NI 20 MI 1 EA D603 STTH10LCD06 600V 10A TO-220FP BYV29FX-600 600V 9A TO-220FP DIODE STM NXP 21 MI 1 EA D259 MBRF10U200CT 10A 200V TO-220FP MBRF10200CT 10A 200V TO-220FP FMX-22S 10A 200V TO-220FP DIODE KEC SENSITRON SANKEN LGP4247L-12LPB LED TV Power specification Rev 3.3 28 22 MI 2 EA D253,D261 SB5100 100V 5A P20 SR510-24 100V 5A P20 SB5100 100V 5A P20 DIODE SENSITRON TSC LITE-ON 23 MI 1 EA D201 SB560 60V 5A P20 SR560 60V 5A P20 SB560 60V 5A P20 DIODE SENSITRON DACHANG LITE-ON 24 MI 2 EA Q101,Q102 TK10A60D 600V 10A TO-220FP L-FORMING STF10NM60N 650V 8A TO-220FP L-FORMING KF12N60F 600V 12A TO-220FP L-FORMING SD10N60C3 600V 10A TO-220FP L-FORMING FET TOSHIBA STM KEC INFINEON 25 MI 1 EA F100 T5A H 250V 215 RED(1-LINE) T5A H 250V 50CT RED(1-LINE) T5A H 250V TSC RED(1-LINE) FUSE, TIME LAG LITTELFUSE DAIN WALTER 26 MI 3 EA PG1,PG2,PG3 JS-12-75-04 SPCC 0.4T GND PIN GND REINFORCE SAMSUNG JS ST TELECOM PINGOOD DIHUA HUAKANG KANG YAUNG 28 MI 3 EA IC102,IC502,IC503 EL817M(DT) B LTV817M-BN IC EVERLIGHT LITE-ON 29 MI 1 EA IC501 STR-A6059H DIP-8 IC SANKEN 30 MI 2 EA TH101,TH102 ICL-5W 2R50MSMT DSC2.5D15 2.5Ω 8A Φ15 MF72-2.5D15 2.5Ω 7A Φ15 WTR15D2R5 2.5Ω 8A Φ15 ICL THERMISTOR THERMISTOR THERMISTOR SMART DSC NSE WMEC 31 MI 1 EA L201 0.6uH Φ3X10L BAR INDUCTOR, COIL DONGYANG TELECOM SOOJUNG CLOVER FEELUX LIENCHANG 32 MI 1 EA L251 12S-DD02 INDUCTOR, COIL SOOJUNG JIANGSU CHANNELON ELECTRONIC GROUP FEELUX DONGYANG TELECOM BUJEON LIENCHANG 33 MI 2 EA LF101,LF102 CS610250S 25mH LT6010250 25mH LLF-120 25mH LLF-120 25mH LINE FILTER TNC DONG IL DONGYANG TELECOM FEELUX 34 MI 1 EA HD601 EC40.0CAP-F-12 MAIN CAP HOLDER TBI 35 MI 1 EA T101 12S-LM05 TRANSFORMER TDK SOOJUNG JIANGSU CHANNELON ELECTRONIC GROUP DONGYANG TELECOM BUJEON LIENCHANG FEELUX LGIT 36 MI 1 EA L601 12S-LP01 TRANSFORMER TDK SOOJUNG JIANGSU CHANNELON ELECTRONIC GROUP DONGYANG TELECOM BUJEON LIENCHANG FEELUX LGIT 37 MI 1 EA T501 12S-LS01 TRANSFORMER TDK SOOJUNG JIANGSU CHANNELON ELECTRONIC GROUP DONGYANG TELECOM BUJEON LIENCHANG FEELUX CLOVER 38 MI 1 EA VA101 INR14D621K-CAP 620V Φ14 L-FORMING TUBE SVC621D-14ATM7 620V Φ14 L-FORMING TUBE WMR14D621 620V Φ14 L-FORMING TUBE VARISTOR AMOTECH SAMWHA WMEC 39 MI 1 EA P702 20010WR-06A03 6PIN WHITE WAFER YEONHO 40 MI 1 EA SK100 DAC-18D3A BLACK WAFER DONG IL 41 MI 1 EA P202 IS100-L08T-C46 8PIN BLACK WAFER UJU ELE 42 MI 1 EA P203 IS100-L08T-C46-A 8PIN WHITE WAFER UJU ELE 43 MI 1 EA P701 SMAW200A-H08A2 8PIN WHITE WAFER YEONHO 44 MI 1 EA P201 SMAW200-H24S2 24PIN WHITE WAFER YEONHO 45 SMT 1 EA LGP4247L-12LPB SMT COMPONENTS 46 SMT 1 EA LB701 CB1608GK102T JCBH160808A102 BEAD SAMWHA JOINSET 47 SMT 1 EA C609 15pF 50V J 1608 COG CAPACITOR, CHIP 48 SMT 1 EA C608 100pF 50V J 1608 COG CAPACITOR, CHIP 49 SMT 5 EA C705,C713,C714,C715,C716 330pF 50V J 1608 COG CAPACITOR, CHIP 50 SMT 3 EA C104,C256,C269 470pF 50V J 1608 COG CAPACITOR, CHIP 51 SMT 4 EA C116,C203,C257,C607 0.001uF 50V K 1608 X7R CAPACITOR, CHIP 52 SMT 2 EA C261,C282 0.0022uF 50V K 1608 X7R CAPACITOR, CHIP 53 SMT 1 EA C507 0.0047uF 50V K 1608 X7R CAPACITOR, CHIP 54 SMT 7 EA C103,C255,C704,C710,C711,C712,C717 0.01uF 50V K 1608 X7R CAPACITOR, CHIP 55 SMT 1 EA C262 0.033uF 50V K 1608 X7R CAPACITOR, CHIP 56 SMT 2 EA C274,C606 0.047uF 50V K 1608 X7R CAPACITOR, CHIP MURATA PILKOR SAMWHA TAIYOYUDEN TDK YAGEO HEC LGP4247L-12LPB LED TV Power specification Rev 3.3 29 57 SMT 16 EA C105,C107,C108,C110,C115,C205,C258, C260,C277,C503,C604,C605,C701,C702, C707,C719 0.1uF 50V K 1608 X7R CAPACITOR, CHIP 58 SMT 1 EA C106 0.22uF 16V K 1608 X7R CAPACITOR, CHIP 59 SMT 2 EA C101,C706 0.47uF 16V K 1608 X7R CAPACITOR, CHIP 60 SMT 3 EA C102,C204,C275 1uF 16V K 1608 X7R CAPACITOR, CHIP 61 SMT 1 EA C516 1uF 25V K 2012 X7R or 1uF 50V K 2012 X7R(PILKOR 삭제) CAPACITOR, CHIP 62 SMT 4 EA C265,C266,C267,C268 2.2uF 10V K 2012 X7R or 2.2uF 16V K 2012 X7R CAPACITOR, CHIP 63 SMT 15 EA D101,D102,D103,D105,D106,D121, D255,D256,D257,D258,D504,D604, D605,D801,D802 1N4148W 100V 150mA SOD-123 1N4148W 100V 150mA SOD-123 MMSD4148T1 100V 200mA SOD-123 SDS4148G 100V 150mA SOD-123 DIODE RECTRON DIODES ONSEMI AUK 64 SMT 2 EA D254,D260 MBRD10100CT 10A 100V D-PACK MBRD10U100CT 10A 100V D-PACK SPEN-210A 10A 100V D-PACK DIODE SENSITRON KEC SANKEN 65 SMT 6 EA Q801,Q802,Q803,Q804,Q805,Q806 PHT4NQ10LT 100V 3.5A SOT-223 MDHT4N20Y 200V 0.85A SOT-223 FET NXP MAGNACHIP 66 SMT 1 EA IC101 L6599AD SO-16N IC STM 67 SMT 1 EA IC202 SJ432BS 1.24V ±0.5% SOT-23 TLV431BSN1T1G, 1.24V±0.5%, SOT-23 AZ431LANTR-E1, 1.24V±0.5%, SOT-23 IC AUK ON SEMI BCD 68 SMT 1 EA IC251 UC2843B SO-8 AP3843CM SO-8 UC2843B SO-8 IC ONSEMI BCD STM 69 SMT 1 EA IC252 SNF431BS 2.5V ±0.5% SOT-23 AS431AN, 2.5V±0.5%, SOT-23 KA431SLMF2, 2.5V±0.5%, SOT-23 IC AUK BCD FAIRCHILD 70 SMT 1 EA IC601 FAN7930BMX_G SOIC-8 IC FAIRCHILD 71 SMT 1 EA IC701 R5F100BCAFP IC Renesas 72 SMT 1 EA IC801 AAT2430AISX_T1 IC AATI 73 SMT 20 EA J14,J17,J18,J20,J27,J36,J37,J38,J39, J42,J47,J48,J49,J50,J53,J54,J55,J68, J69,J70 0Ω J 3216 RESISTOR, CHIP 74 SMT 4 EA R119,R122,R610,R611 22Ω J 3216 RESISTOR, CHIP 75 SMT 2 EA R118,R121 47Ω J 3216 RESISTOR, CHIP 76 SMT 6 EA R127,R613,R614,R615,R616,R623 750KΩ F 3216 RESISTOR, CHIP 77 SMT 4 EA R103,R104,R105,R106 820KΩ F 3216 RESISTOR, CHIP 78 SMT 6 EA R207,R626,R716,R717,R756,R825 0Ω J 1608 RESISTOR, CHIP 79 SMT 1 EA R289 1.2KΩ J 1608 RESISTOR, CHIP 80 SMT 3 EA R260,R295,R760 100KΩ J 1608 RESISTOR, CHIP 81 SMT 14 EA R608,R612,R705,R713,R720,R725,R726, R727,R728,R735,R736,R738,R751,R752 100Ω J 1608 RESISTOR, CHIP 82 SMT 20 EA R120,R123,R211,R262,R266,R278,R298, R515,R603,R605,R606,R703,R712,R715, R801,R803,R805,R807,R809,R811 10KΩ J 1608 RESISTOR, CHIP 83 SMT 1 EA R704 10Ω J 1608 RESISTOR, CHIP 84 SMT 10 EA R112,R202,R267,R299,R508,R607, R701,R710,R711,R761 1KΩ J 1608 RESISTOR, CHIP 85 SMT 1 EA R259 1MΩ J 1608 RESISTOR, CHIP 86 SMT 1 EA R109 2.2MΩ J 1608 RESISTOR, CHIP 87 SMT 3 EA R117,R621,R702 2.2Ω J 1608 RESISTOR, CHIP 88 SMT 2 EA R718,R719 22Ω J 1608 RESISTOR, CHIP 89 SMT 1 EA R619 220Ω J 1608 RESISTOR, CHIP 90 SMT 2 EA R754,R755 22KΩ J 1608 RESISTOR, CHIP 91 SMT 1 EA R210 270Ω J 1608 RESISTOR, CHIP 92 SMT 2 EA R297,R759 3.3KΩ J 1608 RESISTOR, CHIP 93 SMT 1 EA R108 3.9KΩ F 1608 RESISTOR, CHIP 94 SMT 2 EA R509,R737 330Ω J 1608 RESISTOR, CHIP 95 SMT 6 EA R220,R288,R733,R734,R745,R746 4.7KΩ J 1608 RESISTOR, CHIP 96 SMT 2 EA R263,R296 4.7Ω J 1608 RESISTOR, CHIP 97 SMT 12 EA R115,R714,R721,R722,R723,R724, R802,R804,R806,R808,R810,R812 470KΩ J 1608 RESISTOR, CHIP 98 SMT 5 EA R128,R201,R208,R209,R227 470Ω J 1608 RESISTOR, CHIP 99 SMT 15 EA R107,R264,R290,R620,R709,R731,R732, R739,R741,R744,R747,R748,R749,R750, R753 47KΩ J 1608 RESISTOR, CHIP 100 SMT 1 EA R265 47Ω J 1608 RESISTOR, CHIP 101 SMT 5 EA R511,R729,R730,R743,R757 75KΩ J 1608 RESISTOR, CHIP 102 SMT 2 EA R293,R294 1.2KΩ F 1608 RESISTOR, CHIP 103 SMT 1 EA R206 1.5KΩ F 1608 RESISTOR, CHIP 104 SMT 1 EA R618 1.8KΩ F 1608 RESISTOR, CHIP 105 SMT 1 EA R204 100Ω F 1608 RESISTOR, CHIP 106 SMT 2 EA R291,R292 10KΩ F 1608 RESISTOR, CHIP 107 SMT 1 EA R835 15KΩ F 1608 RESISTOR, CHIP 108 SMT 1 EA R111 18KΩ F 1608 RESISTOR, CHIP 109 SMT 2 EA R205,R255 2.7KΩ F 1608 RESISTOR, CHIP 110 SMT 1 EA R617 22KΩ F 1608 RESISTOR, CHIP 111 SMT 1 EA R261 24KΩ F 1608 RESISTOR, CHIP 112 SMT 3 EA R256,R257,R258 27KΩ F 1608 RESISTOR, CHIP 113 SMT 1 EA R110 2KΩ F 1608 RESISTOR, CHIP 114 SMT 2 EA R276,R277 3.3KΩ F 1608 RESISTOR, CHIP 115 SMT 1 EA R506 30KΩ F 1608 RESISTOR, CHIP 116 SMT 1 EA R834 3KΩ F 1608 RESISTOR, CHIP 117 SMT 2 EA R281,R282 5.1KΩ F 1608 RESISTOR, CHIP 118 SMT 1 EA R116 75Ω F 1608 RESISTOR, CHIP 119 SMT 2 EA R113,R114 8.2KΩ F 1608 RESISTOR, CHIP 120 SMT 6 EA R270,R271,R272,R273,R274,R275 91KΩ F 1608 RESISTOR, CHIP 121 SMT 3 EA HD101,HD102,HD103 3X2.45X2.5H SUPPORTER POWER VALLEY MURATA PILKOR SAMWHA TAIYOYUDEN TDK YAGEO HEC KAMAYA PILKOR ROHM SAMSUNG YAGEO TZAI YUAN LGP4247L-12LPB LED TV Power specification Rev 3.3 30 122 SMT 1 EA Q701 2N7002K 60V 300mA SOT-23 2N7002K 60V 380mA SOT-23 RK7002 60V 115mA SOT-23 SSM3K7002F 60V 200mA SOT-23 TRANSISTOR DIODES ONSEMI ROHM TOSHIBA 123 SMT 1 EA Q501 KTC3551T 80V 1A TSM NPN BCW66GLT1 45V 800mA SOT-23 NPN 2SC5865 SOT-23 NPN TRANSISTOR KEC ONSEMI ROHM 124 SMT 3 EA Q201,Q252,Q255 MMBT2222A 40V 600mA SOT-23 NPN KTN2222AS 40V 600mA SOT-23 NPN PMBT2222A 40V 600mA SOT-23 NPN SBT2222A 40V 600mA SOT-23 NPN TRANSISTOR ONSEMI KEC NXP AUK 125 SMT 6 EA Q103,Q253,Q254,Q603,Q604, Q702 MMBT2907A -60V -600mA SOT-23 PNP KTN2907AS -60V -600mA SOT-23 PNP PMBT2907 -60V -600mA SOT-23 PNP SBT2907A -60V -600mA SOT-23 PNP TRANSISTOR ONSEMI KEC NXP AUK 126 SMT 0.5 GR HT-130A-106 HT-130D-7 LOCTITE 3609 NE8800T BOND (SMD) HITECH KOREA HITECH KOREA LOCTITE FUJI 127 AI 1 EA LGP4247L-12LPB AI COMPONENTS 128 AI 1 EA C509 NXB 10uF 50V M P5 Φ5X11 SG 10uF 50V M P5 Φ5X11 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 129 AI 2 EA C253,C259 NXB 22uF 50V M P5 Φ5X11 SG 22uF 50V M P5 Φ5X11 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 130 AI 2 EA C803,C804 NXB 4.7uF 50V M P5 Φ5X11 SG 4.7uF 50V M P5 Φ5X11 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 131 AI 1 EA C202 NXB 470uF 10V M P5 Φ8X11.5 SG 470uF 10V M P5 Φ8X12 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 132 AI 2 EA C504,C510 NXB 47uF 50V M P5 Φ6.3X11 SG 47uF 50V M P5 Φ6.3X11 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 133 AI 2 EA C201,C206 NXH 1000uF 10V M P5 Φ10X12.5 MG 1000uF 10V M P5 Φ10X13 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 134 AI 1 EA C270 NXH 330uF 35V M P5 Φ10X12.5 MG 330uF 35V M P5 Φ10X13 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 135 AI 2 EA C272,C279 NXH 470uF 25V M P5 Φ10X12.5 MG 470uF 25V M P5 Φ10X13 CAPACITOR, ALUMINUM SAMYOUNG SUSCON 136 AI 3 EA C113,C603,C614 DG 220pF 1KV K P5 125℃ CK 220pF 1KV K P5 125℃ CT81 220pF 1KV K P5 125℃ CK45 220pF 1KV K P5 125℃ CAPACITOR, CERAMIC APEX INTEC DONGIL ELEC. YINANDON TDK 137 AI 3 EA C118,C119,C508 DG 100pF 1KV K P5 125℃ CK 100pF 1KV K P5 125℃ CT81 100pF 1KV K P5 125℃ CK45 100pF 1KV K P5 125℃ CAPACITOR, CERAMIC APEX INTEC DONGIL ELEC. YINANDON TDK 138 AI 1 EA C505 DG 47pF 1KV K P5 125℃ CC 47pF 1KV K P5 125℃ CC81 47pF 1KV K P5 125℃ CC45 47pF 1KV K P5 125℃ CAPACITOR, CERAMIC APEX INTEC DONGIL ELEC. YINANDON TDK 139 AI 2 EA C501,C502 DG 1000pF 1KV K P5 125℃ CK 1000pF 1KV K P5 125℃ CT81 1000pF 1KV K P5 125℃ CK45 1000pF 1KV K P5 125℃ CAPACITOR, CERAMIC APEX INTEC DONGIL ELEC. YINANDON TDK 140 AI 5 EA CY103,CY104,CY105,CY106,CY107 DA 470pF 400V K P10 105℃ DA 470pF 400V K P10 105℃ CT81 470pF 400V K P10 105℃ CD 470pF 400V K P10 105℃ CAPACITOR, CERAMIC APEX INTEC DONGIL ELEC. YINANDON TDK 141 AI 3 EA D501,D502,D510 UF1007 1KV 1A DO-41 UF4007 1KV 1A DO-41 HER108G 1KV 1A DO-41 UF4007 1KV 1A DO-41 DIODE DIODES DACHANG RECTRON TSC 142 AI 3 EA ZD102,ZD501,ZD502 1N5245B 15V DO-35 1N5245B 15V DO-35 MTZJ15B 15V DO-34 DIODE, ZENER VISHAY RECTRON ROHM 143 AI 1 EA ZD503 1N5252B 24V DO-35 1N5252B 24V DO-35 MTZJ24B 24V DO-34 DIODE, ZENER VISHAY RECTRON ROHM 144 AI 27 EA EL3, EL4, EL7, EL8, EL13, EL14,EL21,EL22,EL29,EL30, EL35,EL36,EL37,EL38,EL39, EL43,EL44,EL45,EL46,EL49, EL50,EL51,EL52,EL58,EL59, EL60,EL61 1.6X3.0 EYELET SAMSUNG JS DOSUNG DAERIN HUAKANG DELIKANG SEJIN LEZHI Avico 145 AI 20 EA EL1, EL2, EL9, EL10,EL11, EL12,EL15,EL16,EL17,EL18, EL19,EL20,EL23,EL24,EL25, EL26,EL31,EL32,EL33,EL34, 2.0X3.0 EYELET SAMSUNG JS DOSUNG DAERIN HUAKANG DELIKANG SEJIN LEZHI Avico 146 AI 1 EA F501 F1.6A L 250V 876 FUSE, FAST ACTING LITTELFUSE LGP4247L-12LPB LED TV Power specification Rev 3.3 31 149 AI 1 EA LB103 BFS3550A0L SINGLE AXIAL SEB3550050BA SINGLE AXIAL INDUCTOR, BEAD FILTER LEAD SAMWHA SCC 150 AI 6 EA LB101,LB102,LB104,LB105,LB106, LB601 BFS3550R2F SINGLE RADIAL SER3550050BA SINGLE RADIAL INDUCTOR, BEAD FILTER LEAD SAMWHA SCC 151 AI 39 EA J1, J3, J4, J5, J6,J7, J8, J9, J10,J11,J12,J13,J15,J16,J19, J21,J22,J23,J24,J25,J28,J29, J30,J31,J32,J33,J34,J35,J40, J41,J43,J44,J45,J46,J51,J59, J65,J66,J67 Φ0.6 JUMPER WIRE DIELEC DAPcsLPcsD TPI TZAI YUAN UNI-OHM ILKWANG DM Seungw on RLC 152 AI 1 EA LD701 LTL-1CHY-001A, 5mm Pitch Type (Yellow ) 204-10UYC-S530, 5mm Pitch Type (Yellow ) LED LITE-ON EVERLIGHT 153 AI 1 EA R502 CRS 100Ω 1/2W J SMALL RDM92 100Ω 1/2W J SMALL SFR25H 100Ω 1/2W J SMALL CF 100Ω 1/2W J SMALL RESISTOR, CARBON FILM ABCO SMART PILKOR TZAI YUAN 154 AI 1 EA R504 CRS 1Ω 1/2W J SMALL RDM92 1Ω 1/2W J SMALL SFR25H 1Ω 1/2W J SMALL CF 1Ω 1/2W J SMALL RESISTOR, CARBON FILM ABCO SMART PILKOR TZAI YUAN 155 AI 1 EA R505 CRS 20Ω 1/2W J SMALL RDM92 20Ω 1/2W J SMALL SFR25H 20Ω 1/2W J SMALL CF 20Ω 1/2W J SMALL RESISTOR, CARBON FILM ABCO SMART PILKOR TZAI YUAN 156 AI 1 EA R101 PRC 1.2MΩ 1/2W J SURGE MSR37 1.2MΩ 1/2W J SURGE RESISTOR, FIXED CARBON COMPOSITION SMART PILKOR 157 AI 1 EA R124 PRC 1MΩ 1/2W J SURGE MSR37 1MΩ 1/2W J SURGE RESISTOR, FIXED CARBON COMPOSITION SMART PILKOR 158 AI 2 EA R251,R252 MORS 15KΩ 2W J SMALL RSD02 15KΩ 2W J SMALL PR02 15KΩ 2W J SMALL MOF 15KΩ 2W J SMALL RESISTOR, METAL OXIDE FILM ABCO SMART PILKOR TZAI YUAN 159 AI 1 EA R126 MORS 120Ω 1W J SMALL RSD01 120Ω 1W J SMALL PR01 120Ω 1W J SMALL MOF 120Ω 1W J SMALL RESISTOR, METAL OXIDE FILM ABCO SMART PILKOR TZAI YUAN 160 AI 2 EA R286,R287 MORS 1KΩ 2W J SMALL RSD02 1KΩ 2W J SMALL PR02 1KΩ 2W J SMALL MOF 1KΩ 2W J SMALL RESISTOR, METAL OXIDE FILM ABCO SMART PILKOR TZAI YUAN 161 AI 2 EA R279,R280 MORS 30KΩ 2W J SMALL RSD02 30KΩ 2W J SMALL PR02 30KΩ 2W J SMALL MOF 30KΩ 2W J SMALL RESISTOR, METAL OXIDE FILM ABCO SMART PILKOR TZAI YUAN 162 AI 2 EA R283,R284 MORS 3.3KΩ 2W J SMALL RSD02 3.3KΩ 2W J SMALL PR02 3.3KΩ 2W J SMALL MOF 3.3KΩ 2W J SMALL RESISTOR, METAL OXIDE FILM ABCO SMART PILKOR TZAI YUAN 163 AI 1 EA R503 MORS 62KΩ 1W J SMALL RSD01 62KΩ 1W J SMALL PR01 62KΩ 1W J SMALL MOF 62KΩ 1W J SMALL RESISTOR, METAL OXIDE FILM ABCO SMART PILKOR TZAI YUAN 164 AI 2 EA R501,R507 WNPS 0.82Ω 1W J SMALL PRN 0.82Ω 1W J SMALL RESISTOR, WIRE WOUND ABCO SMART 165 AI 1 EA R601 WNPS 0.16Ω 2W J SMALL PRN 0.16Ω 2W J SMALL RESISTOR, WIRE WOUND ABCO SMART 166 AI 1 EA R268 WNPS 0.24Ω 2W J SMALL PRN 0.24Ω 2W J SMALL RESISTOR, WIRE WOUND ABCO SMART 167 AI 1 EA EAX64427101 LGP4247L-12LPB 176 x 245 1.6T FR1 KB,DS,L,R-8700 CTI-600 PCB DUCK SUNG HT CIRCUIT(QINGDAO) DONGMYUNG CIR SHANGHAI WANZHENG SHENG KHUANG NEW TRIUNION TIANJIN DEA DUCK HUIHO HSIANG KUO TIAN FENG TIS KOREA Wellbest Cosmotech Kyosha 168 ETC SUBSIDIARY MATERIALS 169 ETC 0.0625 EA 509 * 344 * 204 * 8T BOX CARTON NEWEA IND DAESAN. HANYOUNG JAEIL QXBW TAILI PACKING HUAXING PACK SOONGSAN WUJIANG ZHENLONG SUZHOU JIADELONG KUNSHAN KUNHONG Dongju Yumi LGP4247L-12LPB LED TV Power specification Rev 3.3 32 170 ETC 0.5625 EA 341 * 180 * 8T (Cross board A) BOX PARTITION NEWEA IND DAESAN. HANYOUNG JAEIL QXBW TAILI PACKING HUAXING PACK SOONGSAN WUJIANG ZHENLONG SUZHOU JIADELONG KUNSHAN KUNHONG Dongju Yumi 171 ETC 0.3125 EA 506 * 180 * 8T (Cross board B) BOX PARTITION NEWEA IND DAESAN. HANYOUNG JAEIL QXBW TAILI PACKING HUAXING PACK SOONGSAN WUJIANG ZHENLONG SUZHOU JIADELONG KUNSHAN KUNHONG Dongju Yumi 172 ETC 0.1875 EA 506 * 341 * 8T PAD NEWEA IND DAESAN. HANYOUNG JAEIL QXBW TAILI PACKING HUAXING PACK SOONGSAN WUJIANG ZHENLONG SUZHOU JIADELONG KUNSHAN KUNHONG Dongju Yumi 173 ETC 1 EA Min 460 * 180 BUBBLE SHEET DUCKJIN S&P JAEIL QXBW CHUMDAN A-TEK KUNSHANKUNHONG LIYUANG SERVEONE 174 ETC 1 EA 42 X 8 NY WHITE 93CODE 19DIGIT BAR CODE SHUN JIN HANA. AIT SERVEONE WUJIANG SUNGLING GUNGGAOQI ZHI XIN 175 ETC 1 EA 19 X 9 NY WHITE MICOM CHECKSUM LABEL SHUN JIN HANA. AIT SERVEONE WUJIANG SUNGLING GUNGGAOQI ZHI XIN 176 ETC 12.0 GR EF-9301(g) ILF-714(kg) TF328-2-2(Kg) EC-19S-8 CS-9111LF FLUX ALPHA ION ELEC TONGFANG 동화다무라 청솔 177 ETC 20.0 GR HSE-11 B20 BAR (SN:99%,AG:0.3%,CU:0.7%) SN:99%, AG:0.3%, CU:0.7% SAC0307 A+ SN:99%, AG:0.3%, CU:0.7% YW9-0307 SN:99%, AG:0.3%, CU:0.7% M35E-BAR SN:99%, AG:0.3%, CU:0.7% SOLDER BAR HEESUNG METAL SEOUL ALLOYMETAL DYFENCO YUNNAN TIN SOLNET 178 ETC 5.0 GR HSE-11 B20 BAR (SN:99%,AG:0.3%,CU:0.7%) SN:99%, AG:0.3%, CU:0.7% SAC0307 A+ SN:99%, AG:0.3%, CU:0.7% YW9-0307 SN:99%, AG:0.3%, CU:0.7% M35E-BAR SN:99%, AG:0.3%, CU:0.7% SOLDER WIRE HEESUNG METAL SEOUL ALLOYMETAL DYFENCO YUNNAN TIN SOLNET 179 ETC 10.0 GR H-828W OKE-410 QS9112 RTV SS7945W TSE3854DS-W BN707 RTV KE402RTV ES 2044H & 2S2482W UB-5601 EA-4100 DS-818 BOND (RTV) OKONG OKONG KCC KCC MOMENTIVE BONIC SHINETSU CANADA U-BOND DOW CORNING DONGYANG
