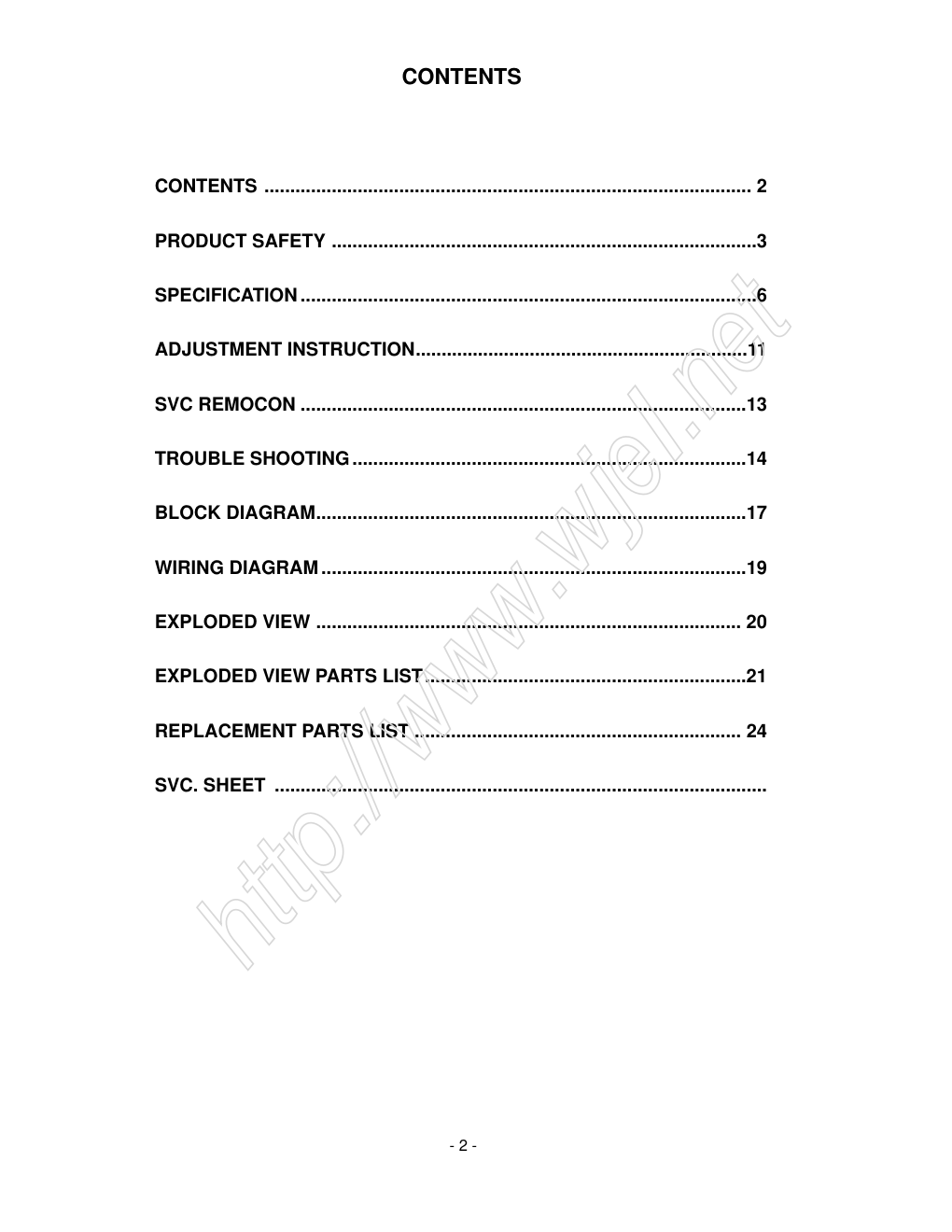

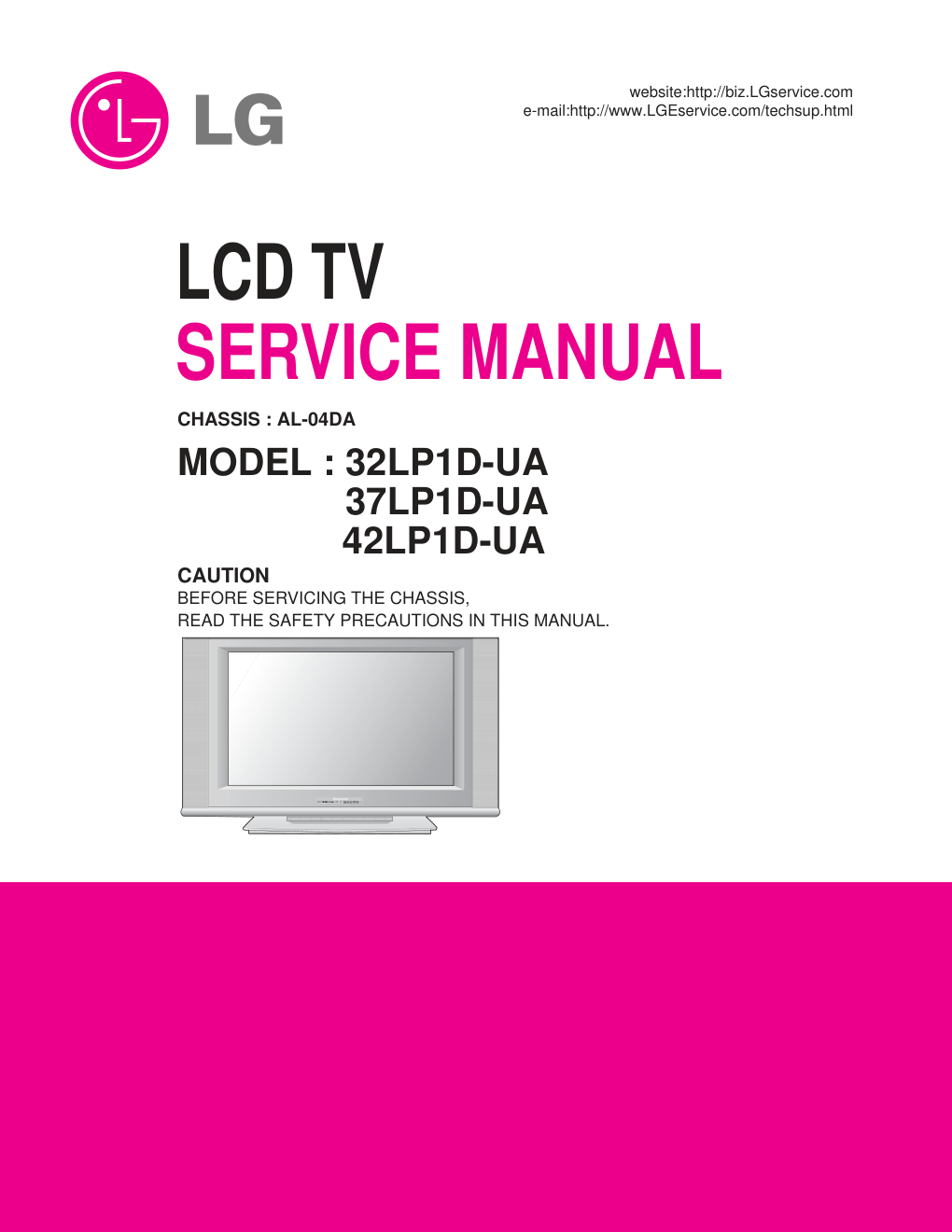

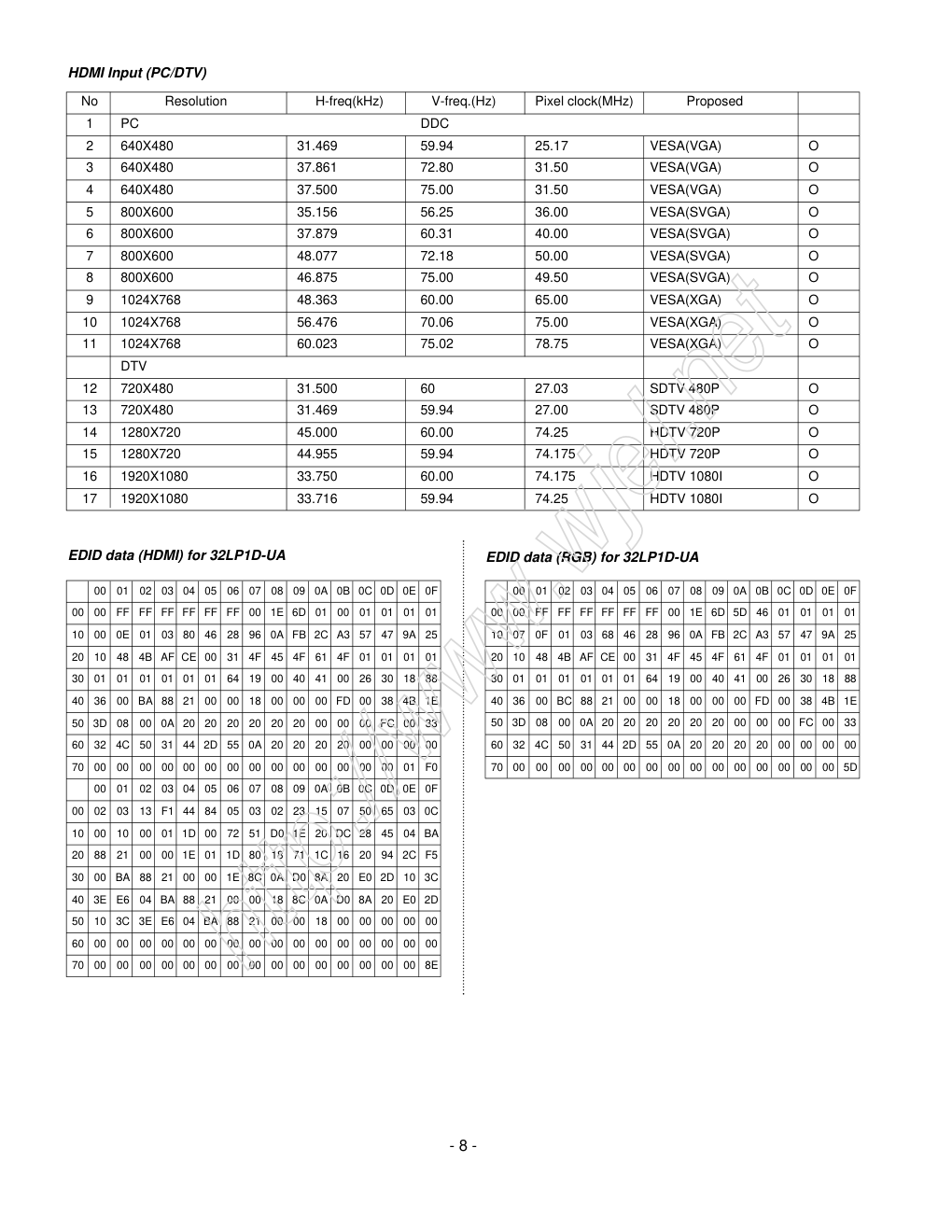

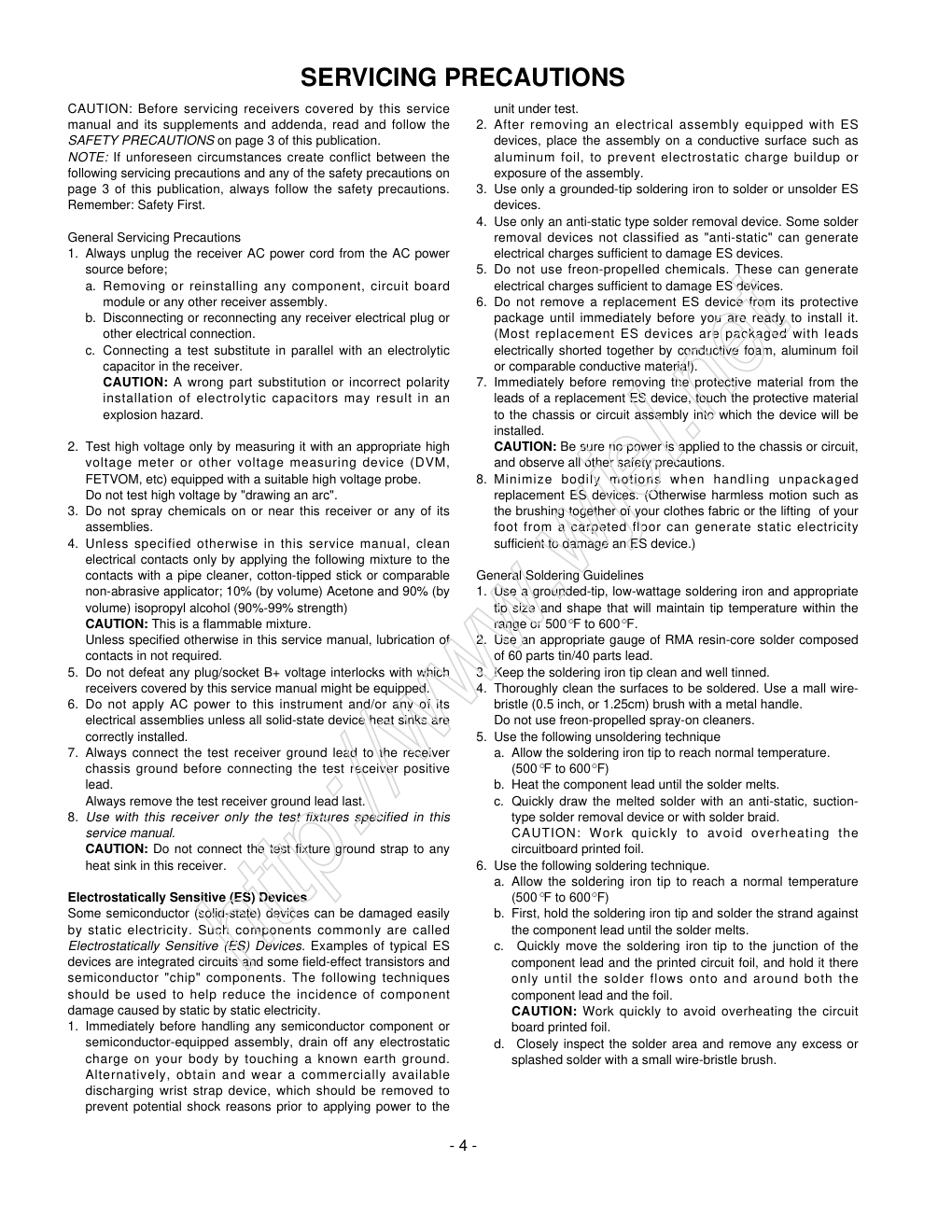

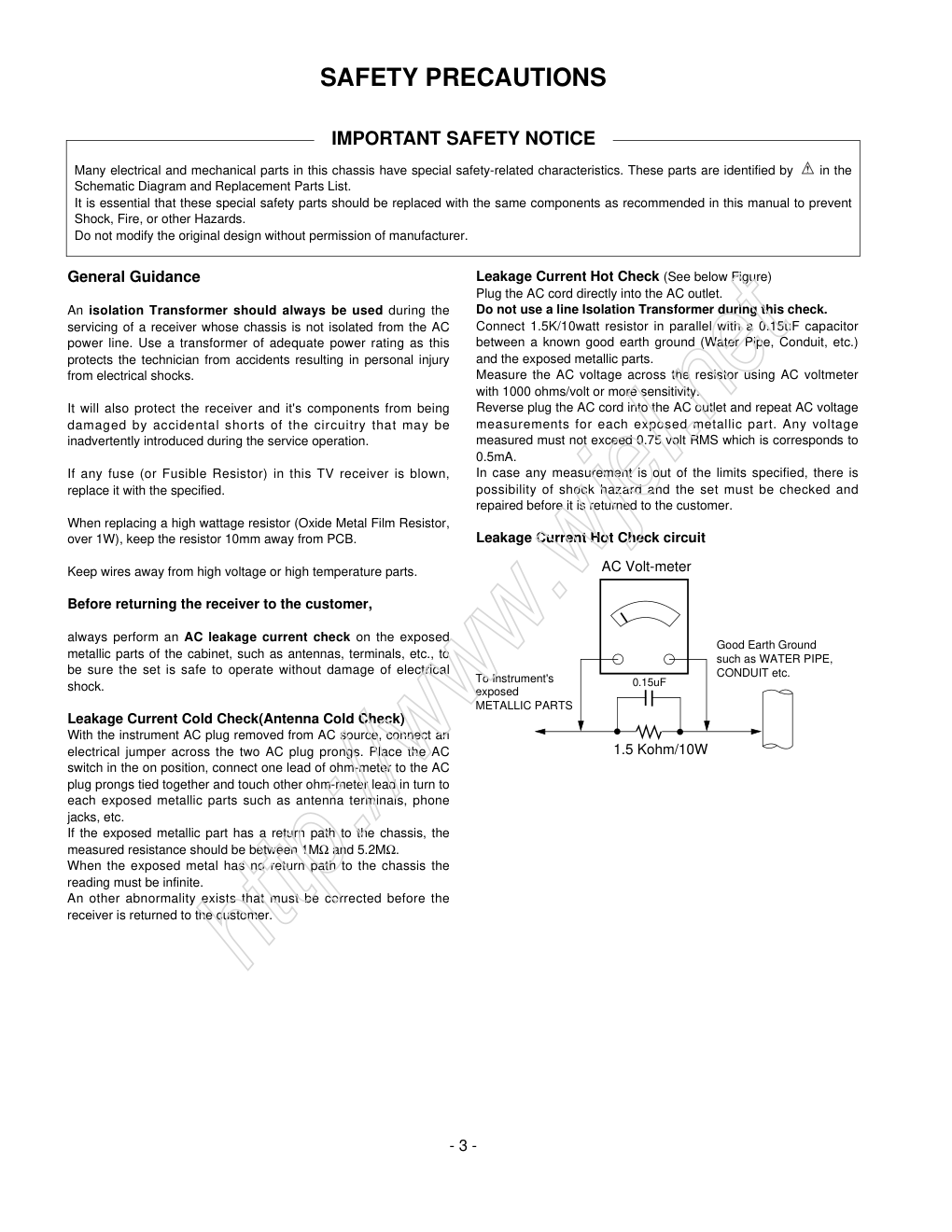

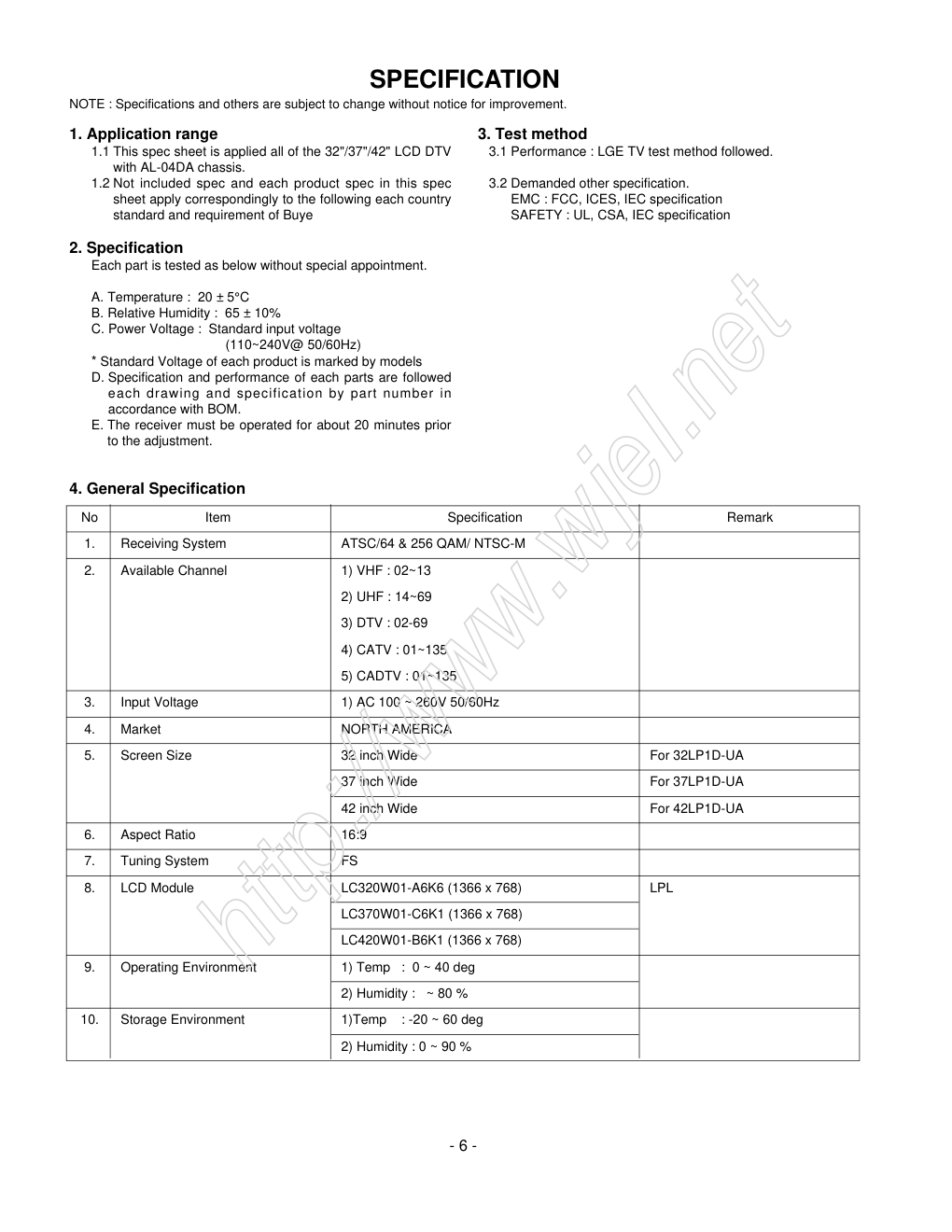

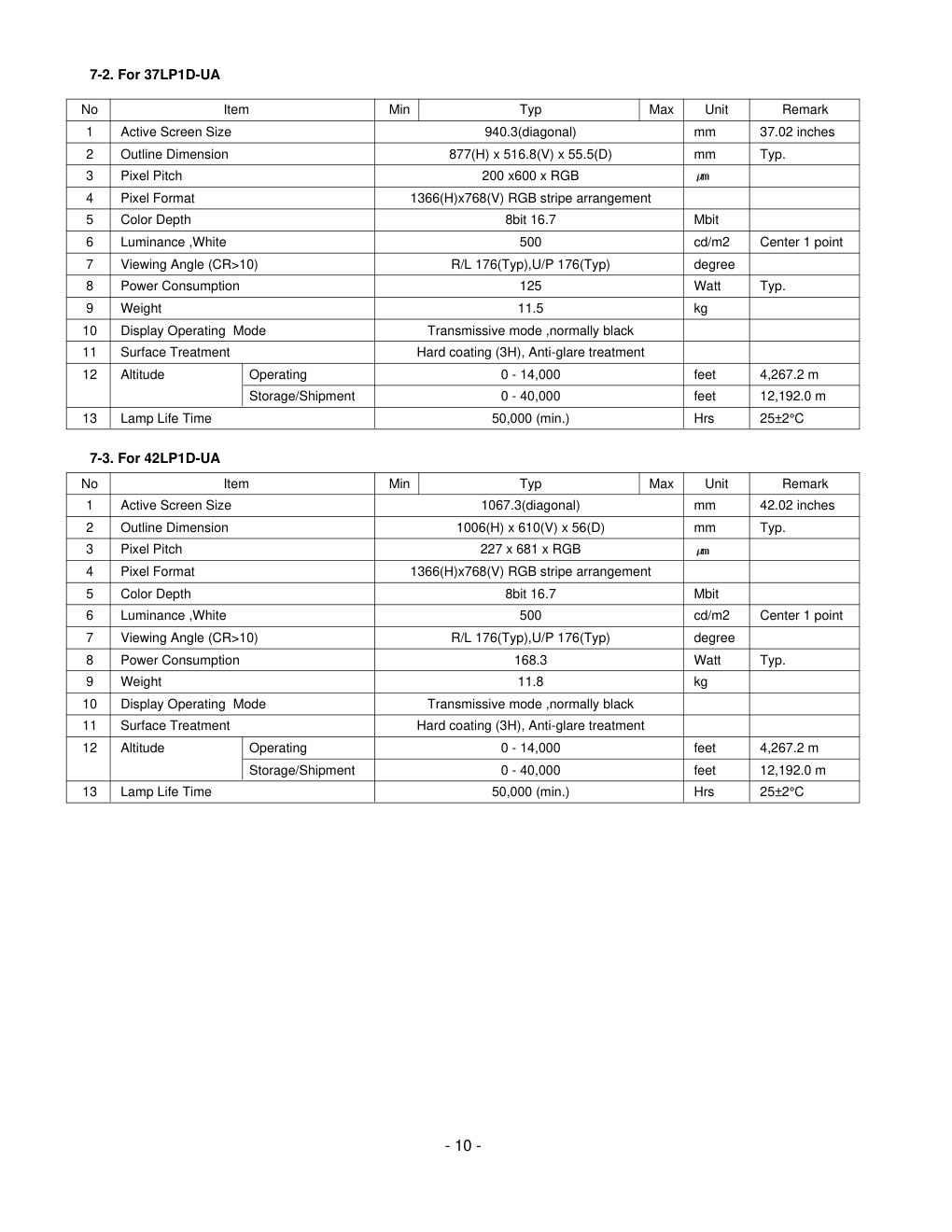

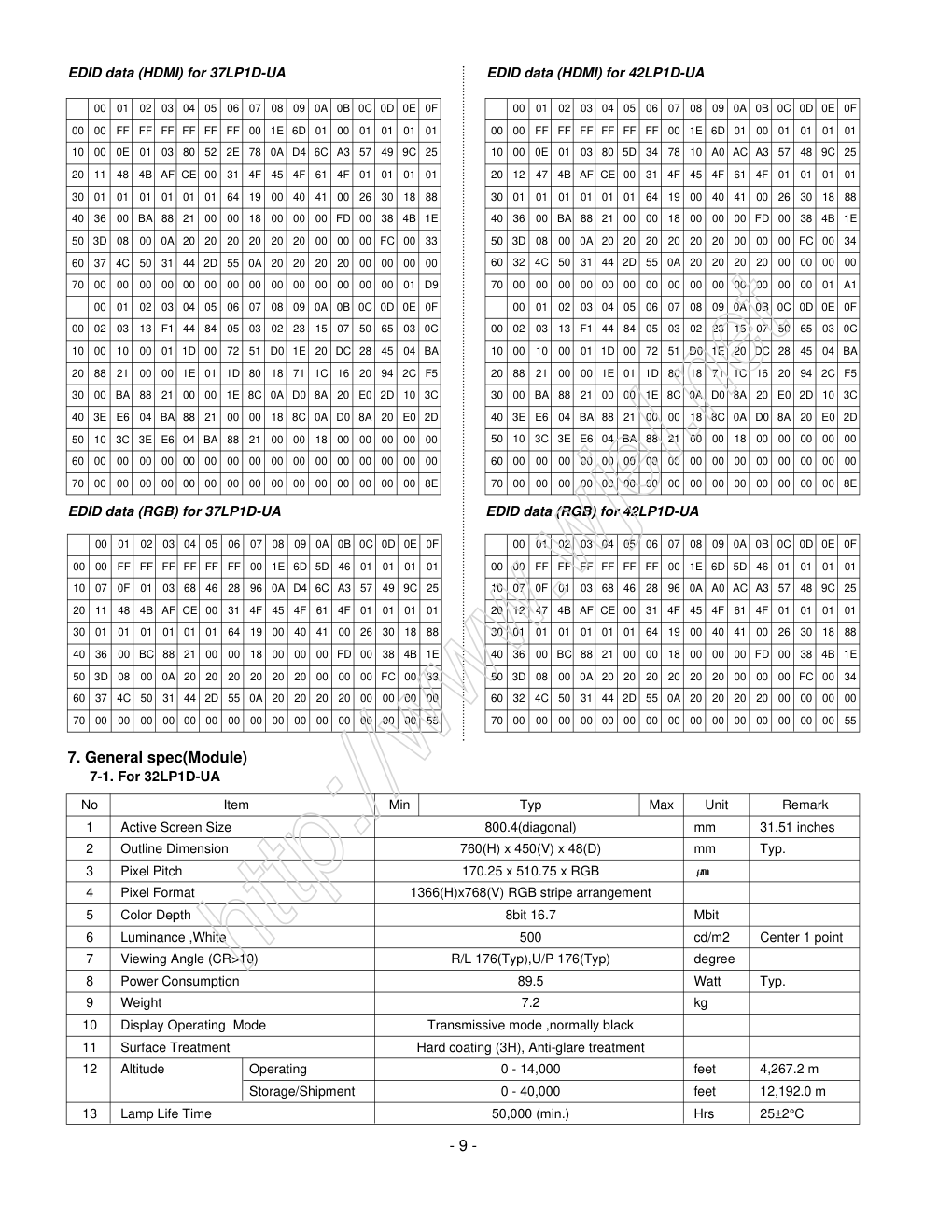

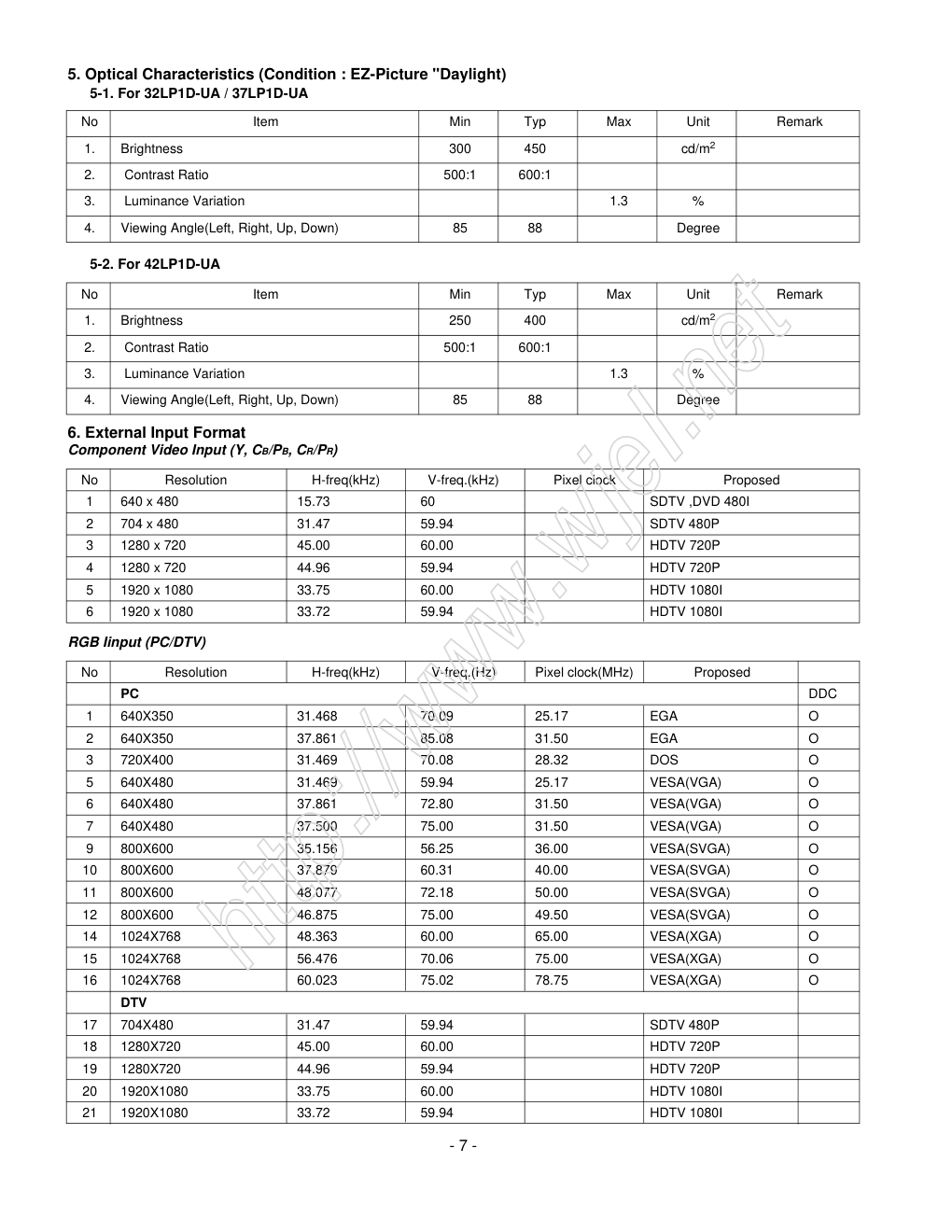

LCD TV SERVICE MANUAL CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS : AL-04DA MODEL : 32LP1D-UA 37LP1D-UA 42LP1D-UA website:http://biz.LGservice.com e-mail:http://www.LGEservice.com/techsup.html - 2 - CONTENTS CONTENTS .............................................................................................. 2 PRODUCT SAFETY ..................................................................................3 SPECIFICATION ........................................................................................6 ADJUSTMENT INSTRUCTION................................................................11 SVC REMOCON ......................................................................................13 TROUBLE SHOOTING............................................................................14 BLOCK DIAGRAM...................................................................................17 WIRING DIAGRAM..................................................................................19 EXPLODED VIEW .................................................................................. 20 EXPLODED VIEW PARTS LIST..............................................................21 REPLACEMENT PARTS LIST ............................................................... 24 SVC. SHEET ............................................................................................... http://www.wjel.net - 3 - SAFETY PRECAUTIONS Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation. If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified. When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB. Keep wires away from high voltage or high temperature parts. Before returning the receiver to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock. Leakage Current Cold Check(Antenna Cold Check) With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. Do not use a line Isolation Transformer during this check. Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer. Leakage Current Hot Check circuit 1.5 Kohm/10W To Instrument's exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter IMPORTANT SAFETY NOTICE 0.15uF http://www.wjel.net - 4 - CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First. General Servicing Precautions 1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board module or any other receiver assembly. b. Disconnecting or reconnecting any receiver electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard. 2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc". 3. Do not spray chemicals on or near this receiver or any of its assemblies. 4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required. 5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped. 6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. 7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. 8. Use with this receiver only the test fixtures specified in this service manual. CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver. Electrostatically Sensitive (ES) Devices Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.) General Soldering Guidelines 1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 F to 600 F. 2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead. 3. Keep the soldering iron tip clean and well tinned. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire- bristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners. 5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500 F to 600 F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction- type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuitboard printed foil. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature (500 F to 600 F) b. First, hold the soldering iron tip and solder the strand against the component lead until the solder melts. c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil. d. Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush. SERVICING PRECAUTIONS http://www.wjel.net - 5 - IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above. Removal 1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts. 2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC. Replacement 1. Carefully insert the replacement IC in the circuit board. 2. Carefully bend each IC lead against the circuit foil pad and solder it. 3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas). "Small-Signal" Discrete Transistor Removal/Replacement 1. Remove the defective transistor by clipping its leads as close as possible to the component body. 2. Bend into a "U" shape the end of each of three leads remaining on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection. Power Output, Transistor Device Removal/Replacement 1. Heat and remove all solder from around the transistor leads. 2. Remove the heat sink mounting screw (if so equipped). 3. Carefully remove the transistor from the heat sink of the circuit board. 4. Insert new transistor in the circuit board. 5. Solder each transistor lead, and clip off excess lead. 6. Replace heat sink. Diode Removal/Replacement 1. Remove defective diode by clipping its leads as close as possible to diode body. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered. At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections). 1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection. 4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board. 1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens. 2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern. 3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges. http://www.wjel.net - 6 - 1. Application range 1.1 This spec sheet is applied all of the 32"/37"/42" LCD DTV with AL-04DA chassis. 1.2 Not included spec and each product spec in this spec sheet apply correspondingly to the following each country standard and requirement of Buye 2. Specification Each part is tested as below without special appointment. A. Temperature : 20 ± 5°C B. Relative Humidity : 65 ± 10% C. Power Voltage : Standard input voltage (110~240V@ 50/60Hz) * Standard Voltage of each product is marked by models D. Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM. E. The receiver must be operated for about 20 minutes prior to the adjustment. 3. Test method 3.1 Performance : LGE TV test method followed. 3.2 Demanded other specification. EMC : FCC, ICES, IEC specification SAFETY : UL, CSA, IEC specification SPECIFICATION NOTE : Specifications and others are subject to change without notice for improvement. 4. General Specification No Item Specification Remark 1. Receiving System ATSC/64 & 256 QAM/ NTSC-M 2. Available Channel 1) VHF : 02~13 2) UHF : 14~69 3) DTV : 02-69 4) CATV : 01~135 5) CADTV : 01~135 3. Input Voltage 1) AC 100 ~ 260V 50/60Hz 4. Market NORTH AMERICA 5. Screen Size 32 inch Wide For 32LP1D-UA 37 inch Wide For 37LP1D-UA 42 inch Wide For 42LP1D-UA 6. Aspect Ratio 16:9 7. Tuning System FS 8. LCD Module LC320W01-A6K6 (1366 x 768) LPL LC370W01-C6K1 (1366 x 768) LC420W01-B6K1 (1366 x 768) 9. Operating Environment 1) Temp : 0 ~ 40 deg 2) Humidity : ~ 80 % 10. Storage Environment 1)Temp : -20 ~ 60 deg 2) Humidity : 0 ~ 90 % http://www.wjel.net 5. Optical Characteristics (Condition : EZ-Picture "Daylight) 5-1. For 32LP1D-UA / 37LP1D-UA - 7 - No Item Min Typ Max Unit Remark 1. Brightness 300 450 cd/m2 2. Contrast Ratio 500:1 600:1 3. Luminance Variation 1.3 % 4. Viewing Angle(Left, Right, Up, Down) 85 88 Degree 5-2. For 42LP1D-UA No Item Min Typ Max Unit Remark 1. Brightness 250 400 cd/m2 2. Contrast Ratio 500:1 600:1 3. Luminance Variation 1.3 % 4. Viewing Angle(Left, Right, Up, Down) 85 88 Degree 6. External Input Format Component Video Input (Y, CB/PB, CR/PR) No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 1 640 x 480 15.73 60 SDTV ,DVD 480I 2 704 x 480 31.47 59.94 SDTV 480P 3 1280 x 720 45.00 60.00 HDTV 720P 4 1280 x 720 44.96 59.94 HDTV 720P 5 1920 x 1080 33.75 60.00 HDTV 1080I 6 1920 x 1080 33.72 59.94 HDTV 1080I RGB Iinput (PC/DTV) No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed PC DDC 1 640X350 31.468 70.09 25.17 EGA O 2 640X350 37.861 85.08 31.50 EGA O 3 720X400 31.469 70.08 28.32 DOS O 5 640X480 31.469 59.94 25.17 VESA(VGA) O 6 640X480 37.861 72.80 31.50 VESA(VGA) O 7 640X480 37.500 75.00 31.50 VESA(VGA) O 9 800X600 35.156 56.25 36.00 VESA(SVGA) O 10 800X600 37.879 60.31 40.00 VESA(SVGA) O 11 800X600 48.077 72.18 50.00 VESA(SVGA) O 12 800X600 46.875 75.00 49.50 VESA(SVGA) O 14 1024X768 48.363 60.00 65.00 VESA(XGA) O 15 1024X768 56.476 70.06 75.00 VESA(XGA) O 16 1024X768 60.023 75.02 78.75 VESA(XGA) O DTV 17 704X480 31.47 59.94 SDTV 480P 18 1280X720 45.00 60.00 HDTV 720P 19 1280X720 44.96 59.94 HDTV 720P 20 1920X1080 33.75 60.00 HDTV 1080I 21 1920X1080 33.72 59.94 HDTV 1080I http://www.wjel.net - 8 - HDMI Input (PC/DTV) EDID data (HDMI) for 32LP1D-UA EDID data (RGB) for 32LP1D-UA No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 1 PC DDC 2 640X480 31.469 59.94 25.17 VESA(VGA) O 3 640X480 37.861 72.80 31.50 VESA(VGA) O 4 640X480 37.500 75.00 31.50 VESA(VGA) O 5 800X600 35.156 56.25 36.00 VESA(SVGA) O 6 800X600 37.879 60.31 40.00 VESA(SVGA) O 7 800X600 48.077 72.18 50.00 VESA(SVGA) O 8 800X600 46.875 75.00 49.50 VESA(SVGA) O 9 1024X768 48.363 60.00 65.00 VESA(XGA) O 10 1024X768 56.476 70.06 75.00 VESA(XGA) O 11 1024X768 60.023 75.02 78.75 VESA(XGA) O DTV 12 720X480 31.500 60 27.03 SDTV 480P O 13 720X480 31.469 59.94 27.00 SDTV 480P O 14 1280X720 45.000 60.00 74.25 HDTV 720P O 15 1280X720 44.955 59.94 74.175 HDTV 720P O 16 1920X1080 33.750 60.00 74.175 HDTV 1080I O 17 1920X1080 33.716 59.94 74.25 HDTV 1080I O 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 00 0E 01 03 80 46 28 96 0A FB 2C A3 57 47 9A 25 20 10 48 4B AF CE 00 31 4F 45 4F 61 4F 01 01 01 01 30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88 40 36 00 BA 88 21 00 00 18 00 00 00 FD 00 38 4B 1E 50 3D 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 33 60 32 4C 50 31 44 2D 55 0A 20 20 20 20 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 F0 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 02 03 13 F1 44 84 05 03 02 23 15 07 50 65 03 0C 10 00 10 00 01 1D 00 72 51 D0 1E 20 DC 28 45 04 BA 20 88 21 00 00 1E 01 1D 80 18 71 1C 16 20 94 2C F5 30 00 BA 88 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 3C 40 3E E6 04 BA 88 21 00 00 18 8C 0A D0 8A 20 E0 2D 50 10 3C 3E E6 04 BA 88 21 00 00 18 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 8E 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 5D 46 01 01 01 01 10 07 0F 01 03 68 46 28 96 0A FB 2C A3 57 47 9A 25 20 10 48 4B AF CE 00 31 4F 45 4F 61 4F 01 01 01 01 30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88 40 36 00 BC 88 21 00 00 18 00 00 00 FD 00 38 4B 1E 50 3D 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 33 60 32 4C 50 31 44 2D 55 0A 20 20 20 20 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5D http://www.wjel.net - 9 - EDID data (HDMI) for 37LP1D-UA EDID data (RGB) for 37LP1D-UA 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 00 0E 01 03 80 52 2E 78 0A D4 6C A3 57 49 9C 25 20 11 48 4B AF CE 00 31 4F 45 4F 61 4F 01 01 01 01 30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88 40 36 00 BA 88 21 00 00 18 00 00 00 FD 00 38 4B 1E 50 3D 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 33 60 37 4C 50 31 44 2D 55 0A 20 20 20 20 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 D9 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 02 03 13 F1 44 84 05 03 02 23 15 07 50 65 03 0C 10 00 10 00 01 1D 00 72 51 D0 1E 20 DC 28 45 04 BA 20 88 21 00 00 1E 01 1D 80 18 71 1C 16 20 94 2C F5 30 00 BA 88 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 3C 40 3E E6 04 BA 88 21 00 00 18 8C 0A D0 8A 20 E0 2D 50 10 3C 3E E6 04 BA 88 21 00 00 18 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 8E 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 5D 46 01 01 01 01 10 07 0F 01 03 68 46 28 96 0A D4 6C A3 57 49 9C 25 20 11 48 4B AF CE 00 31 4F 45 4F 61 4F 01 01 01 01 30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88 40 36 00 BC 88 21 00 00 18 00 00 00 FD 00 38 4B 1E 50 3D 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 33 60 37 4C 50 31 44 2D 55 0A 20 20 20 20 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 55 EDID data (HDMI) for 42LP1D-UA EDID data (RGB) for 42LP1D-UA 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 00 0E 01 03 80 5D 34 78 10 A0 AC A3 57 48 9C 25 20 12 47 4B AF CE 00 31 4F 45 4F 61 4F 01 01 01 01 30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88 40 36 00 BA 88 21 00 00 18 00 00 00 FD 00 38 4B 1E 50 3D 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 34 60 32 4C 50 31 44 2D 55 0A 20 20 20 20 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 A1 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 02 03 13 F1 44 84 05 03 02 23 15 07 50 65 03 0C 10 00 10 00 01 1D 00 72 51 D0 1E 20 DC 28 45 04 BA 20 88 21 00 00 1E 01 1D 80 18 71 1C 16 20 94 2C F5 30 00 BA 88 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 3C 40 3E E6 04 BA 88 21 00 00 18 8C 0A D0 8A 20 E0 2D 50 10 3C 3E E6 04 BA 88 21 00 00 18 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 8E 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 5D 46 01 01 01 01 10 07 0F 01 03 68 46 28 96 0A A0 AC A3 57 48 9C 25 20 12 47 4B AF CE 00 31 4F 45 4F 61 4F 01 01 01 01 30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88 40 36 00 BC 88 21 00 00 18 00 00 00 FD 00 38 4B 1E 50 3D 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 34 60 32 4C 50 31 44 2D 55 0A 20 20 20 20 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 55 7. General spec(Module) 7-1. For 32LP1D-UA No Item Min Typ Max Unit Remark 1 Active Screen Size 800.4(diagonal) mm 31.51 inches 2 Outline Dimension 760(H) x 450(V) x 48(D) mm Typ. 3 Pixel Pitch 170.25 x 510.75 x RGB 4 Pixel Format 1366(H)x768(V) RGB stripe arrangement 5 Color Depth 8bit 16.7 Mbit 6 Luminance ,White 500 cd/m2 Center 1 point 7 Viewing Angle (CR>10) R/L 176(Typ),U/P 176(Typ) degree 8 Power Consumption 89.5 Watt Typ. 9 Weight 7.2 kg 10 Display Operating Mode Transmissive mode ,normally black 11 Surface Treatment Hard coating (3H), Anti-glare treatment 12 Altitude Operating 0 - 14,000 feet 4,267.2 m Storage/Shipment 0 - 40,000 feet 12,192.0 m 13 Lamp Life Time 50,000 (min.) Hrs 25±2°C http://www.wjel.net - 10 - No Item Min Typ Max Unit Remark 1 Active Screen Size 940.3(diagonal) mm 37.02 inches 2 Outline Dimension 877(H) x 516.8(V) x 55.5(D) mm Typ. 3 Pixel Pitch 200 x600 x RGB 4 Pixel Format 1366(H)x768(V) RGB stripe arrangement 5 Color Depth 8bit 16.7 Mbit 6 Luminance ,White 500 cd/m2 Center 1 point 7 Viewing Angle (CR>10) R/L 176(Typ),U/P 176(Typ) degree 8 Power Consumption 125 Watt Typ. 9 Weight 11.5 kg 10 Display Operating Mode Transmissive mode ,normally black 11 Surface Treatment Hard coating (3H), Anti-glare treatment 12 Altitude Operating 0 - 14,000 feet 4,267.2 m Storage/Shipment 0 - 40,000 feet 12,192.0 m 13 Lamp Life Time 50,000 (min.) Hrs 25±2°C No Item Min Typ Max Unit Remark 1 Active Screen Size 1067.3(diagonal) mm 42.02 inches 2 Outline Dimension 1006(H) x 610(V) x 56(D) mm Typ. 3 Pixel Pitch 227 x 681 x RGB 4 Pixel Format 1366(H)x768(V) RGB stripe arrangement 5 Color Depth 8bit 16.7 Mbit 6 Luminance ,White 500 cd/m2 Center 1 point 7 Viewing Angle (CR>10) R/L 176(Typ),U/P 176(Typ) degree 8 Power Consumption 168.3 Watt Typ. 9 Weight 11.8 kg 10 Display Operating Mode Transmissive mode ,normally black 11 Surface Treatment Hard coating (3H), Anti-glare treatment 12 Altitude Operating 0 - 14,000 feet 4,267.2 m Storage/Shipment 0 - 40,000 feet 12,192.0 m 13 Lamp Life Time 50,000 (min.) Hrs 25±2°C 7-2. For 37LP1D-UA 7-3. For 42LP1D-UA - 11 - 1. Applicability These specifications are applicable for all LCD TV models with an AL-04DA chassis that are manufactured by the Manufacturing Group of the Display Business Division, or any of its related manufacturers. 2. Specifications 2.1 This chassis is the non-charging type chassis for which the power unit is insulated. Therefore, the insulated type transformer is not required but it is recommended that it be used between the power supply line and chassis input side before running the chassis, in order to protect the adjustment equipment. 2.2 Adjustment should be made in the correct sequence. However, the order can be changed for mass production purposes. 2.3 The suggested surrounding temperature is 25±5°C, and suggested relative humidity is 65±10% for the adjustment of the chassis, unless specified. 2.4 The input voltage should be maintained at 110V and 60MHz. 2.5 The receiver should run for about 15 minutes before starting adjustment, unless specified. - Run prior operation after receiving 100% White pattern (06CH). (OR, 9. White Pattern state in Ez-Adjust.) - How to enter into the White Pattern 1) Press the Power ON key in the adjustment remote control. 2) Or, press the ADJ key on the adjustment remote control to enter into Ez-Adjust and select 9. White Pattern using CH +/- key. Then, press the OK ( ) key to display 100% Full White Pattern. * In this mode, the SET can be put on HEAT RUN without a separate signal generator. Note) If you leave the stop image on for more than 20 minutes, you must be careful because an afterimage will appear on the black level section. (Applies to internal digital pattern (13CH) and cross hatch pattern (09CH) with clear black/white contrast, in particular). 3. Full assembly process adjustment Each PCB assembly must be checked using the check jig set before the full assembly process. (The power PCB assembly can damage the LCD module irreparably.) 3.1. Extended Display Identification Data (EDID) and Display Data Channel (DDC) download 3.1.1 Overview Developed by VESA, the EDID function is designed to support the "plug & play" function, which enables the computer to configure the user environment automatically through communication with the monitor. 3.1.2 Entering the HDMI EDID Data 1) Equipment - PC and DDC adjustment jig (PC serial to D-sub connection device) - DDC recording software (EDID data write & read) - D-Sub terminal - Need separate HDMI cable connection jig. 3.2. Adjusting AD9883A-Set 3.2.1. Overview AD9883A-Set adjustment automatically sets the optimal black level, and readjusts the RGB differences in analog -> digital converter. Adjustment is made separately for the component mode and RGB-DTV mode input. 3.2.2. Equipment Adjustment remote control: 801GF (802B, 802F, 802R) or MSPG925FA Pattern Generator(It should support 720P horizontal 100% color bar patter display, and the output level should be accurately corrected to 0.7±0.1Vp-p.) Adjustment pattern: 720P/60Hz HozBar Pattern (Format No. 217, Pattern No. 65) 3.2.3 Signal input method Connect the component output and RGB D-Sub output of the Pattern Generator to the component 1 and RGB D-Sub jack of the set. ADJUSTMENT INSTRUCTION http://www.wjel.net - 12 - 3.2.4. Adjustment method A) When entering the component, input 100% Horizontal Color Bar Pattern (HozTV30Bar) of the supportable 720P mode, and select Component 1 or Component 2 input, and select Normal image. B) Wait for at least one second after receiving the signal and press the ADJ key on the adjustment remote control to enter into Ez-Adjust. Then, select "1. AD9883A-Set" and press the + key for automatic adjustment. C) If adjustment is completed successfully, the "AD9883A Component Success" message will be displayed. Otherwise, the "AD9883A Configuration Error" message will be displayed. D) If the adjustment for component AD9883A is finished, it will automatically switch to RGB-DTV mode, and the above-mentioned pattern will be displayed. If adjustment is successfully completed, "AD9883A RGB_DTV Success" message will be displayed. E) If adjustment is not completed successfully, check the pattern or adjustment condition and try again. F) If adjustment is completed successfully, press the ADJ key to exit from the adjustment mode. 3.3. Adjusting White Balance 3.3.1 Equipment - Color Analyzer (CA-100 or equivalent item) - Automatic adjustment device (Needed for automatic adjustment. It should support RS-232C communication, Baud rate: 115,600) - Pattern Generator (MSPG-925FA): Equipment with DVI output. - Pattern: High light 80% Full White 3.3.2 Measurer Connection Diagram (Automatic adjustment) Connection diagram for 32LX1D-U automatic adjustment Note) RS-232C Commands used for automatic adjustment. 3.3.3. Manual White Balance Adjustment When adjusting after carrying out zero calibration for CA-100, the sensor should be tightly fixed on the LCD module surface. Take the following steps for manual adjustment. A) Press the ADJ key on the adjustment remote control to enter into "Ez-Adjust." B) Select "9. White Pattern" using CH +/- key and press the OK key. Then, perform Heat Run for more than 30 minutes. C) Make the Digital Pattern Generator supply Full White Pattern signal. (Connect the external input to "HDMI".) D) Fix the sensor to the screen center and press the ADJ key on the adjustment remote control to select "6. White balance" in "Ez-Adjust". Then, press the right direction key ( ) to enter into the adjustment mode. E) Adjust the high light using R Gain, G Gain, and B Gain. F) Use Volume +/- key for adjustment. 3.3.4. Adjustment Target value - Brightness value - Target value X coordinate value / Y coordinate value / White Balanc / Special items. 3.4 Video (uPD) - Automatic Set Adjustment This automatic adjustment function narrows the color difference between the main and sub screen of the RF and video signal. Adjustment is made for both RF mode and video 1 mode. The signal source of RF is internal 02Ch, and the signal source for video 1 is 100% full color bar. 3.5 RS232C Operation Check Press In-start in the adjustment remote control and enter '6. Baud Rate' menu. Then, change the baud rate to 9600 and check RS232C operation. http://www.wjel.net - 13 - SVC REMOCON NO KEY FUNTION REAMARK 1 POWER 2 POWER ON 3 MUTE 4 P-CHECK 5 S-CHECK 6 ARC 7 CAPTION 8 TXT 9 TV/AV 10 TURBO SOUND 11 TURBO PICTURE 12 IN-START 13 ADJ 14 MPX 15 EXIT 16 APC(PSM) 17 ASC(SSM) 18 MULTIMIDIA 19 FRONT-AV 20 CH 21 VOL 22 ENTER 23 PIP CH-(OP1) 24 PIP CH+(OP2) 25 PIP SWAP(OP3) 26 PIP INPUT(OP4) 27 EYE 28 MENU 29 IN-STOP 30 STILL 31 TIME 32 SIZE 33 MULTI PIP 34 POSITION 35 MODE 36 PIP 37 TILT 38 0~9 To turn the TV on or off To turn the TV on automatically if the power is supplied to the TV. (Use the POWER key to deactivate): It should be deactivated when delivered. To activate the mute function. To check TV screen image easily. To check TV screen sound easily To select size of the main screen (Normal, Spectacle, Wide or Zoom) Switch to closed caption broadcasting To toggle on/off the teletext mode To select an external input for the TV screen To start turbo sound To start turbo picture To enter adjustment mode when manufacturing the TV sets. To adjust the screen voltage (automatic): In-start mute Adjust AV(Enter into W/B adjustment mode) W/B adjustment (automatic): After adjusting the screen W/B adjustment Exit two times (Adjustment completed) To enter into the adjustment mode. To adjust horizontal line and sub-brightness. To select the multiple sound mode (Mono, Stereo or Foreign language) To release the adjustment mode To easily adjust the screen according to surrounding brightness To easily adjust sound according to the program type To check component input To check the front AV To move channel up/down or to select a function displayed on the screen. To adjust the volume or accurately control a specific function. To set a specific function or complete setting. To move the channel down in the PIP screen. To use as a red key in the teletext mode To move the channel in the PIP screen To use as a green key in the teletext mode To switch between the main and sub screens To use as a yellow key in the teletext mode To select the input status in the PIP screen To use as a blue key in the teletext mode To set a function that will automatically adjust screen status to match the surrounding brightness so natural color can be displayed. To select the functions such as video, voice, function or channel. To set the delivery condition status after manufacturing the TV set. To halt the main screen in the normal mode, or the sub screen at the PIP screen. Used as a hold key in the teletext mode (Page updating is stopped.) Displays the teletext time in the normal mode Enables to select the sub code in the teletext mode Used as the size key in the PIP screen in the normal mode Used as the size key in the teletext mode Used as the index key in the teletext mode (Top index will be displayed if it is the top text.) To select the position of the PIP screen in the normal mode Used as the update key in the teletext mode (Text will be displayed if the current page is updated.) Used as Mode in the teletext mode To select the simultaneous screen To adjust screen tilt To manually select the channel. Shortcut keys Shortcut keys Shortcut keys Use the AV key to enter the screen W/B adjustment mode. Shortcut keys Shortcut keys Shortcut keys http://www.wjel.net - 14 - TROUBLESHOOTING No power O.K Connect the connectors Replace Power_board Replace the Power_board Replace D_board Push the POWER ON key Check the condition of power Related connectors. Measure the stand_by voltage : D_board P1401 5 th pin ST_ 6V Measure D_board Standby voltage: D_board P1401 8th 6V Dose the set turn on normally? Check Power_board analog ref. voltage A_board P801 1th pin 24V Measure Power On signal level : A_board P801 2nd pin > 5V Measure D_board supply voltage : P1401 1th pin 3V 8th 6V, 10th 12V FAIL FAIL FAIL FAIL FAIL FAIL FAIL PASS PASS PASS PASS PASS Replace Power board Check the power board Digital ref. voltage : Power board CN804 1th pin 24V http://www.wjel.net - 15 - No raster Replace D_board Standby voltage check : D_board P1401 5th 6V Check No power (Go to No power) Measure Standby voltage : A_board P804 7th 6V Measure Standby voltage : A_board P801 2 nd pin 5V Measure module T-con voltage : D_board C933 12V FAIL Replace A_board Replace A_board Check No power (Go to No power) FAIL Replace D_board Check No power (Go to No power) FAIL FAIL Replace D_board FAIL Measure Analog supply : A_board P804 7th 6V, 10,11th 3.3V Replace A_board FAIL PASS PASS PASS PASS PASS PASS Measure D_board supply voltage : P1401 1th pin 3V 8th 6V, 10th 12V PASS PASS http://www.wjel.net - 16 - No sound Replace power board Check Sound supply : A_board P804 #1 18V Check output to the Speaker : Dose P601 No.1 waveform exist? Check If A_board 18V is short-circuited. Resistance btween A_board P821 Pin No.2 and 3 infnity? FAIL FAIL FAIL Replace A_board Replace A_board Replace Speaker PASS PASS Measure A_power board trans output: 18V at power_board CN803 #1 http://www.wjel.net BLOCK DIAGRAM - 17 - http://www.wjel.net BLOCK DIAGRAM DESCRIPTION - 18 - In this system there are 2 tuners - ATSC/NTSC tuner(TDVS-H701P) and NTSC-only tuner.(TAFM-H103P) So it is impossible to have a digital (main)/digital (sub) PIP. CXA2181Q is the AV switch for the component signals and CXA2069Q is the AV switch for the composite signals. The audio signals which separated by CXA2069 are sent to MSP4440. AD9883 is AD converter and there are 2 NT decoders (uPD64011B) for main and sub NT signals each. Gemstar is TV Guide On Screen system which provides program listings for cable-ready, cable box, and digital cable services as well as over-the-air broadcast. And it needs 2 micoms (PIC18F242 is for IR blast and PIC18F1220 is for VBI slicing). HD2.3 can receive TP data, MPEG2 video decoding and image processing. IEP2 chip enhances the output image quality. Main CPU (PPC405GPr-266) is the central processing IC, which controls most of the ICs. CPLD (XC95288, XC95144) implements the glue-logic. SATA Link(Sil3512) converts the SATA I/F to PCI for the EPF(memory card I/F) data. This TV will display images or play music from a memory card(CF,SD,xD, MMC etc.) 1394 communicates to either direction and can give and take image, sound, or each control commands with only one cable (this TV can communicate with DVHS / Camcoder). HDMI port can receive video data via High-Definition Multimedia Interface (HDMI) or the Digital Visual Interface (DVI). Sil9012 is HDMI receiver IC and TSB43DA42 controls the 1394 I/F. This TV is capable of receiving basic analog, digital basic and digital premium cable television programming by direct connection to a cable system providing such programming. A security card provided by cable operator (CableCard) is required to view encrypted digital programming. Channel informations can receive in the OOB channel. LGDT3701A demodulates the VSB/QAM signals and also OOB signal (QPSK). LGDT3502B generates the CableCard I/F signals and decodes copy protected stream. http://www.wjel.net - 19 - 1 1 1 2 3 15 16 5 4 14 7 9 8 13 17 10 12 6 11 18 19 WIRING DIAGRAM Wiring Part List NO. PART NO. 1 2 3 6631T11022A 6631900001A-32LP1D 6631900001C-37LP1D 6631900001E-42LP1D 6631900001B-32LP1D 3 4 5 6631900001D-37LP1D 6631900001F-42LP1D 6631T11023F 6631T20037D-32/37LP1D 6631T20041A-42LP1D 6 7 8 6631T20037E-32LP1D 6631T20041C-37LP1D 6631T20041B-42LP1D 6631T25019B 6631T25019V 9 10 11 12 13 13 14 15 16 17 18 19 6631T20037V-42LP1D 6631T25023Z-37LP1D 6631T25023R-37/42LP1D 6631T25023H-32LP1D 6631T25025C-37/42LP1D 6631T25023V-32LP1D 6631T25019C-37/42LP1D 6631T25025D 6631T20037H 6631T20034H 6631T25024E 6631T12006Q 6631T20028H 6631T20036F 6631T20037L-32/37LP1D NO. PART NO. NO. PART NO. NO. PART NO. NO. PART NO. NO. PART NO. http://www.wjel.net - 20 - EXPLODED VIEW 010 020 040 190 220 190 130 140 160 161 060 080 090 170 200 210 101 100 110 120 030 050 150 151 070 http://www.wjel.net - 21 - EXPLODED VIEW PARTS LIST(32LP1D-UA) No. PART NO. DESCRIPTION 3091TKE023B CABINET ASSEMBLY, 32LP10 BRAND 3090TKE019 BLACK, FOR DU 3091TKE023G CABINET ASSEMBLY, 32LP1D-UA BRAND 3090TKE019 BLACK, FOR CKD 6304FLP290A LCD(LIQUID CRYSTAL DISPLAY), LC320W01-A6K6 LG PHILPS TFT COLOR WXGA AIODC or 6304FLP181A LCD(LIQUID CRYSTAL DISPLAY), LC320W01-A6K3 LG PHILPS TFT COLOR AI ODC 3809TKE022D BACK COVER ASSEMBLY, 32LP1D 3808TKE020 DARK GRAY(WHITH HOLDER) 3809TKE022E BACK COVER ASSEMBLY, 32LP1D 3808TKE020 DARK GRAY, FOR CKD(WHITH HOLDER) 3043TKK214B TILT SWIVEL ASSEMBLY, 32LP10 . FOR DU 3043TKK214E TILT SWIVEL ASSEMBLY, 32LP1D-UA . FOR CKD 3550TKK714A COVER, 32LP10 REAR A/V 3550TKK714B COVER, 32LP10 REAR A/V FOR CKD 4951TKS193B METAL ASSEMBLY, FRAME 32LP10-DU 4951TKS193F METAL ASSEMBLY, FRAME 32LP1D-UA FOR CKD 6871TPT303B PWB(PCB) ASSEMBLY,POWER, DU/DN/DI-32LP10 POWER TOTAL BRAND DU(DCR) COMM - SH(D112) 3313TD3049A MAIN TOTAL ASSEMBLY, 32LP1D-UA DIGITAL BRAND AL-04DA 3313TD3047A MAIN TOTAL ASSEMBLY, 32LP1D-UA ANALOG BRAND AL-04DA 4951TKK228B METAL ASSEMBLY, FRAME SIDE R(32LP10) 4951TKK228B METAL ASSEMBLY, FRAME SIDE R(32LP10) 4951TKK238G METAL ASSEMBLY, FRAME REAR 32LP1D 4951TKK238H METAL ASSEMBLY, FRAME REAR 32LP1D, CKD 6871TSTB40A PWB(PCB) ASSEMBLY,SUB, 32LP1D-UA SIDE AV ETC TOTAL BRAND . 4951TKK263B METAL ASSEMBLY, REAR 32LP1D-UA SHIELD 3551TKK561B COVER ASSEMBLY, 32LP10-DU REAR AV BRACKET 3551TKK561G COVER ASSEMBLY, 32LP1D-UA REAR AV BRACKET, CKD 3551TKS058B COVER ASSEMBLY, 32LP10 SPEAKER . BLACK(32LP1D-UA/DC-UA) 3551TKS058B COVER ASSEMBLY, 32LP10 SPEAKER . BLACK(32LP1D-UA/DC-UA) 4950TKA058A METAL, PLATE AL DECO REAR SPEAKER L (32LP10) 4950TKA058A METAL, PLATE AL DECO REAR SPEAKER L (32LP10) 6871TST754A PWB(PCB) ASSEMBLY,SUB, DU-32LP10 ETC TOTAL BRAND TUNER 3141TZZ173A CHASSIS ASSEMBLY, 32LP1D-U EPF BOARD 6871TSTA93A PWB(PCB) ASSEMBLY,SUB, 32LP1D-UA LOGO ETC TOTAL BRAND . 6871TSTA73A PWB(PCB) ASSEMBLY,SUB, 32LP1D-U IR SUB TOTAL BRAND . 6871TSTB39A PWB(PCB) ASSEMBLY,SUB, 32LP1D-UA FRONT CONTROL TOTAL BRAND . 6871TSTA24A PWB(PCB) ASSEMBLY,SUB, 37LP1D-UA VFD LED & P/SW TOTAL BRAND . 010 020 030 040 050 060 070 080 090 100 101 110 120 130 140 150 151 160 161 170 180 190 200 210 220 - 22 - EXPLODED VIEW PARTS LIST(37LP1D-UA) No. PART NO. DESCRIPTION 3091TKE028C CABINET ASSEMBLY, 37LP1D-UA BRAND . CABINET ASSY 3091TKE028F CABINET ASSEMBLY, 37LP1D-UA BRAND . CABINET ASSY(C/SKD) 6304FLP291A LCD(LIQUID CRYSTAL DISPLAY), LC370W01-C6K1 LG PHILPS TFT COLOR ODC or 6304FLP178A LCD(LIQUID CRYSTAL DISPLAY), LC370W01-C6 LG PHILPS TFT COLOR P6 PLANT, ODC 3809TKE026A BACK COVER ASSEMBLY, 37LP10 . BACK COVER ASSY 3809TKE026D BACK COVER ASSEMBLY, 37LP10 . BACK COVER ASSY, 37LP1D-UA(C/SKD) 3043TKK224B TILT SWIVEL ASSEMBLY, 37LP1D-UA . STAND ASSY(SET) 3043TKK224D TILT SWIVEL ASSEMBLY, 37LP1D-UA . STAND ASSY(C/SKD) 3550TKK768A COVER, 37LP10 REAR . 3550TKK768B COVER, 37LP10 REAR C/SKD 4951TKS213B METAL ASSEMBLY, FRAME 37LP1D-UA, 37LP1D-NA 4951TKS213D METAL ASSEMBLY, FRAME MAIN FRAME ASSY, 37LP1D-UA(C/SKD) 6871TPT315A PWB(PCB) ASSEMBLY,POWER, 37-42 DCR POWER TOTAL BRAND KNPOWERTEK 3313TD3050A MAIN TOTAL ASSEMBLY, 37LP1D-UA DIGITAL BRAND AL-04DA 3313TD3048A MAIN TOTAL ASSEMBLY, 37LP1D-UA ANALOG BRAND AL-04DA 4951TKK262C METAL ASSEMBLY, SUPPORT FAN ASSY 5900V05005A(37LP10 ONLY) 4951TKK262C METAL ASSEMBLY, SUPPORT FAN ASSY 5900V05005A(37LP10 ONLY) 4951TKS240A METAL ASSEMBLY, REAR SHIELD ASSY 4951TKS240B METAL ASSEMBLY, REAR SHIELD ASSY(C/SKD) 6871TSTA23A PWB(PCB) ASSEMBLY,SUB, 37LP1D-UA SIDE A/V ETC TOTAL BRAND . 4950TKA120B METAL, SHIELD REAR, AV, 37LP1D-UA/ 37LP1D-NA 3551TKK586B COVER ASSEMBLY, 37LP1D-U REAR . BRACKET AV 3551TKS063B COVER ASSEMBLY, 37LP1D-UA SPEAKER . BLACK 3551TKS063B COVER ASSEMBLY, 37LP1D-UA SPEAKER . BLACK 4950TKA131A METAL, SUPPORT METAL AL DECO SPK REAR LEFT, 37LP10 4950TKA132A METAL, SUPPORT METAL AL DECO SPK REAR RIGHT, 37LP10 6871TSTA25A PWB(PCB) ASSEMBLY,SUB, 37LP1D-UA TUNER ETC TOTAL BRAND . 3141TZZ177A CHASSIS ASSEMBLY, 37LP1D-U EPF ASSY 6871TSTB31A PWB(PCB) ASSEMBLY,SUB, 37LP1D-UA LOGO ETC TOTAL BRAND . 6871TSTA73A PWB(PCB) ASSEMBLY,SUB, 32LP1D-U IR SUB TOTAL BRAND . 6871TSTB41A PWB(PCB) ASSEMBLY,SUB, 37LP1D-UA FRONT CONTROL TOTAL BRAND .. 6871TSTA24A PWB(PCB) ASSEMBLY,SUB, 37LP1D-UA VFD LED & P/SW TOTAL BRAND . 010 020 030 040 050 060 070 080 090 100 101 110 120 130 140 150 151 160 161 170 180 190 200 210 220 http://www.wjel.net - 23 - EXPLODED VIEW PARTS LIST(42LP1D-UA) No. PART NO. DESCRIPTION 3091TKE031B CABINET ASSEMBLY, 42LP10 BRAND 3090TKE023A (UA) 3091TKE031F CABINET ASSEMBLY, 42LP10 BRAND 3090TKE023A (UA-SKD) 6304FLP286A LCD(LIQUID CRYSTAL DISPLAY), LC420W02-B4K4 LG PHILPS TFT COLOR B4K3 REV. or 6304FLP216A LCD(LIQUID CRYSTAL DISPLAY), LC420W02-B4K3 LG PHILPS TFT COLOR LEAD FREE 6304FLP295A LCD(LIQUID CRYSTAL DISPLAY), LC420W02-B6K1 LG PHILPS TFT COLOR B6+STATUS PIN 3809TKE028B BACK COVER ASSEMBLY, 42LP10 3808TKE023 (NO SERVICE LABEL) 3809TKE028C BACK COVER ASSEMBLY, 42LP10 3808TKE023 (SKD-NO SERVICE LABEL) 3043TKK238B TILT SWIVEL ASSEMBLY, 42LP1D . STAND(UA) 3043TKK238D TILT SWIVEL ASSEMBLY, 42LP1D . STAND(UA), SKD 3550TKK812A COVER, 42LP10 REAR (DECO) 3550TKK812B COVER , 42LP10 REAR (DECO-SKD) 4951TKS210B METAL ASSEMBLY, FRAME (42LP10,UA) 6871TPT315A PWB(PCB) ASSEMBLY,POWER, 37-42 DCR POWER TOTAL BRAND KNPOWERTEK 3313TD4015A MAIN TOTAL ASSEMBLY, 42LP1D-UA DIGITAL BRAND AL-04DA 3313TD4014A MAIN TOTAL ASSEMBLY, 42LP1D-UA ANALOG BRAND AL-04DA 4951TKK262A METAL ASSEMBLY, SUPPORT FAN ASSY 5900V05005A 4951TKK262A METAL ASSEMBLY, SUPPORT FAN ASSY 5900V05005A 4951TKK276K METAL ASSEMBLY, SHIELD AV ASSY, 42LP1D-UA 6871TSTA27A PWB(PCB) ASSEMBLY,SUB, 42LP1D-UA SIDE A/V ETC TOTAL BRAND . 4950TKA120F METAL, SHIELD REAR AV, 42LP1D-UA,NA 3551TKK597B COVER ASSEMBLY, 42LP1D REAR . A/V COVER(UA) 3551TKS061B COVER ASSEMBLY, 42LP1D SPEAKER . LEFT(UA,BLACK) 3551TKS062B COVER ASSEMBLY, 42LP1D SPEAKER . RIGHT(UA,BLACK) 4950TKA189A METAL, FIX AL DECO REAR PIECE 4950TKA189A METAL, FIX AL DECO REAR PIECE 6871TSTA29A PWB(PCB) ASSEMBLY,SUB, 42LP1D-UA TUNER ETC TOTAL BRAND . 3141TZZ178A CHASSIS ASSEMBLY, 42LP1D-U EPF ASSY 6871TSTB32A PWB(PCB) ASSEMBLY,SUB, 42LP1D-UA LOGO ETC TOTAL BRAND . 6871TSTA73A PWB(PCB) ASSEMBLY,SUB, 32LP1D-U IR SUB TOTAL BRAND . 6871TSTB42A PWB(PCB) ASSEMBLY,SUB, 42LP1D-UA FRONT CONTROL TOTAL BRAND .. 6871TSTA24A PWB(PCB) ASSEMBLY,SUB, 37LP1D-UA VFD LED & P/SW TOTAL BRAND . 010 020 030 040 050 060 070 080 090 100 101 110 120 130 140 150 151 160 161 170 180 190 200 210 220 http://www.wjel.net - 24 - DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C646 0CH8106J611 10UF 35V M 85STD(CYL) R/TP C102 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C103 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C106 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C111 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C118 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C203 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C217 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C218 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C219 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C401 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C405 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C407 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C411 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C412 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C601 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C602 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C603 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C604 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C605 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C607 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C609 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C610 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C611 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C612 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C624 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C626 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C629 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C631 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C633 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C634 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C635 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C637 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C644 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C645 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C647 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C648 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C658 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C659 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C660 0CH3105H946 "1UF 2012 25V 80%,-20% F(Y5V" C701 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C703 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C705 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C706 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C708 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C712 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C713 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C715 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C717 0CH3334K946 "0.33UF 50V 80%,-20% F(Y5V)" C718 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C720 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C721 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C723 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C725 0CH3334K946 "0.33UF 50V 80%,-20% F(Y5V)" C728 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C729 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C739 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C740 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C742 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C803 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C804 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C806 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C808 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C810 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C812 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C814 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C815 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C817 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C819 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C822 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C823 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C825 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C827 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C828 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C830 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C833 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C837 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C109 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C120 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C122 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C613 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP" C614 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C615 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C616 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP" C623 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C625 0CK333CK56A 33000PF 1608 50V 10% R/TP X C627 0CK333CK56A 33000PF 1608 50V 10% R/TP X C628 0CK333CK56A 33000PF 1608 50V 10% R/TP X C630 0CK333CK56A 33000PF 1608 50V 10% R/TP X C638 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C639 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C640 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C641 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C663 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C664 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C665 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C710 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C726 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C843 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C114 0CH6150K416 15PF 2012 50V 5% NP0 R/TP C115 0CH6150K416 15PF 2012 50V 5% NP0 R/TP C205 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C206 0CH6220K416 22PF 2012 50V 5% NP0 - C207 0CH6220K416 22PF 2012 50V 5% NP0 - C208 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C408 0CH6100K116 10PF 2012 50V 0.5 PF C0G R/ C409 0CH6100K116 10PF 2012 50V 0.5 PF C0G R/ C107 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C110 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C113 0CC561CK41A 560PF 1608 50V 5% NP0 R/TP REPLACEMENT PARTS LIST MAIN BOARD(Analog) CAPACITOR For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN, CH : Ceramic CQ : Polyestor CE : Electrolytic CF : Fixed Film RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RH : CHIP, Metal Glazed(Chip) RR : Drawing http://www.wjel.net - 25 - DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C214 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C215 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C216 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C662 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C642 0CE108EJK18 "1000UF KMG,RD 35V 20%,-20%" C643 0CE108EJK18 "1000UF KMG,RD 35V 20%,-20%" C101 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C105 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C108 0CE105SK6DC 1UF MVG 50V 20% SMD R/TP C117 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C119 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C121 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C204 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C403 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C404 0CE476VK6DC 47UF MV 50V 20% R/TP(SMD) S C406 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C410 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C413 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C606 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C608 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C650 0CE336VF6DC 33UF MV 16V 20% R/TP(SMD) S C657 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C661 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C702 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C704 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C707 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C709 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C711 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C714 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C716 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C719 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C722 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C724 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C727 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C730 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C741 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C743 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C801 0CE476VK6DC 47UF MV 50V 20% R/TP(SMD) S C802 0CE476VK6DC 47UF MV 50V 20% R/TP(SMD) S C805 0CE107VH6DC 100UF MV 25V 20% R/TP(SMD) C807 0CE107VH6DC 100UF MV 25V 20% R/TP(SMD) C809 0CE107VH6DC 100UF MV 25V 20% R/TP(SMD) C811 0CE107VH6DC 100UF MV 25V 20% R/TP(SMD) C813 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C816 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C818 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C820 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C821 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C824 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C826 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C829 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C831 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C832 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C834 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C835 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C836 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C838 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C840 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C841 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C842 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C844 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C632 0CF4741L438 0.47UF D 63V 5% TP 5 M/PE N DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C636 0CF4741L438 0.47UF D 63V 5% TP 5 M/PE N D201 0DRSE00038A SDC15 TVS DIODE ARRAY SEMTE D202 0DRSE00038A SDC15 TVS DIODE ARRAY SEMTE D203 0DRSE00038A SDC15 TVS DIODE ARRAY SEMTE D101 0DS181009AA KDS181 TP KEC SOT-23 80V D701 0DS226009AA KDS226 TP KEC - 80V - - 4NS D702 0DS226009AA KDS226 TP KEC - 80V - - 4NS ZD205 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD221 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD222 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD224 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD225 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD228 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD229 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD215 0DZ820009AK UDZS 8.2B ROHM R/TP SOD323 ZD216 0DZ820009AK UDZS 8.2B ROHM R/TP SOD323 ZD217 0DZ820009AK UDZS 8.2B ROHM R/TP SOD323 ZD218 0DZ820009AK UDZS 8.2B ROHM R/TP SOD323 ZD219 0DZ820009AK UDZS 8.2B ROHM R/TP SOD323 ZD401 0DZ330009DF MTZJ33B TP ROHM-K DO34 0.5W IC103 0IKE704200J KIA7042AF SOT-89 TP 4.2V VO IC601 0ILNR00015A "NSP-2100A,LF NEOFIDELITY TQ" IC102 0IMCRAL006A "AT24C16AN-10SU-2.7,LF ATMEL" IC201 0IMMRAL014B AT24C02N-10SI-2.7 ATMEL 8P IC602 0IMCRTI028C "TAS5122DCARG4,LF TEXAS INS" IC701 0IMCRSH001A "PQ05DZ1U SHARP 5, SMD TYPE" IC702 0IMCRSH001A "PQ05DZ1U SHARP 5, SMD TYPE" IC704 0IMCRFA010A "KA7809R, FAIRCHILD 2P D-PAK" IC705 0IMCRSJ001A SC1565IST-1.8 SEMTECH 3P SO L602 6140VB0022A CPS-0810 GET 22UH 21.5TURNS L603 6140VB0022A CPS-0810 GET 22UH 21.5TURNS L604 6140VB0022A CPS-0810 GET 22UH 21.5TURNS L605 6140VB0022A CPS-0810 GET 22UH 21.5TURNS L101 6210TCE001G HH-1M3216-501 CERATEC 3216M L103 6210TCE001G HH-1M3216-501 CERATEC 3216M L235 6210TCE001G HH-1M3216-501 CERATEC 3216M L401 6210TCE001G HH-1M3216-501 CERATEC 3216M L601 6210TCE001G HH-1M3216-501 CERATEC 3216M L606 6210TCE001G HH-1M3216-501 CERATEC 3216M L607 6210TCE001G HH-1M3216-501 CERATEC 3216M L701 6210TCE001G HH-1M3216-501 CERATEC 3216M L702 6210TCE001G HH-1M3216-501 CERATEC 3216M L703 6210TCE001G HH-1M3216-501 CERATEC 3216M L816 6210TCE001G HH-1M3216-501 CERATEC 3216M L819 6210TCE001G HH-1M3216-501 CERATEC 3216M L820 6210TCE001G HH-1M3216-501 CERATEC 3216M L821 6210TCE001G HH-1M3216-501 CERATEC 3216M L823 6210TCE001G "HH-1M3216-501 CERATEC 3216M-32LP1D-UA L826 6210TCE001G HH-1M3216-501 CERATEC 3216M GT10 6210TCE001G HH-1M3216-501 CERATEC 3216M GT2 6210TCE001G HH-1M3216-501 CERATEC 3216M GT3 6210TCE001G HH-1M3216-501 CERATEC 3216M GT5 6210TCE001G HH-1M3216-501 CERATEC 3216M DIODEs IC COIL & CORE & & FILTER & INDUCTOR http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION GT8 6210TCE001G HH-1M3216-501 CERATEC 3216M GT9 6210TCE001G HH-1M3216-501 CERATEC 3216M L102 6210TCE001G HH-1M3216-501 CERATEC 3216M L203 6210TCE001G HH-1M3216-501 CERATEC 3216M L704 6210TCE001G HH-1M3216-501 CERATEC 3216M L705 6210TCE001G HH-1M3216-501 CERATEC 3216M L706 6210TCE001G HH-1M3216-501 CERATEC 3216M L707 6210TCE001G HH-1M3216-501 CERATEC 3216M L708 6210TCE001G HH-1M3216-501 CERATEC 3216M L711 6210TCE001G HH-1M3216-501 CERATEC 3216M L801 6210TCE001A HB-1S2012-080JT CERATEC 201 L804 6210TCE001A HB-1S2012-080JT CERATEC 201 L805 6210TCE001A HB-1S2012-080JT CERATEC 201 L806 6210TCE001A HB-1S2012-080JT CERATEC 201 L807 6210TCE001A HB-1S2012-080JT CERATEC 201 L808 6210TCE001G HH-1M3216-501 CERATEC 3216M L809 6210TCE001G HH-1M3216-501 CERATEC 3216M L810 6210TCE001G HH-1M3216-501 CERATEC 3216M L811 6210TCE001G HH-1M3216-501 CERATEC 3216M L812 6210TCE001G HH-1M3216-501 CERATEC 3216M L813 6210TCE001G HH-1M3216-501 CERATEC 3216M L814 6210TCE001G HH-1M3216-501 CERATEC 3216M L818 6210TCE001G HH-1M3216-501 CERATEC 3216M L825 6210TCE001G HH-1M3216-501 CERATEC 3216M L829 6210TCE001A HB-1S2012-080JT CERATEC 201 L830 6210TCE001S HU-1M2012-121 CERATECH 2012 L831 6210TCE001S HU-1M2012-121 CERATECH 2012 L832 6210TCE001S HU-1M2012-121 CERATECH 2012 L833 6210TCE001S HU-1M2012-121 CERATECH 2012 R805 6210TCE001A HB-1S2012-080JT CERATEC 201 L201 0LC2000005J "FI-C2012-682,6.8UH CERATECH" L202 0LC2000005J "FI-C2012-682,6.8UH CERATECH" L402 0LC2000005J "FI-C2012-682,6.8UH CERATECH" L403 0LC2000005J "FI-C2012-682,6.8UH CERATECH" Q101 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q103 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q105 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q401 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q402 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q403 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q404 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q806 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q807 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q808 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q102 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q104 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q701 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q809 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q810 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q811 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - IC707 0TF492509AA SI4925DY TP TEMIC 30V 6.1A R128 0RH1004D422 1M OHM 1 / 10 W 1% D R/TP R101 0RH3300D622 330 OHM 1 / 10 W 2012 5.00% R102 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R104 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R105 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R107 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R109 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R111 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R115 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R120 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R121 0RH3300D622 330 OHM 1 / 10 W 2012 5.00% R122 0RH0000D622 "0 OHM 1 / 10 W 2012 5.00% D-32LP1D-UA R123 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R124 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R125 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R127 0RH4700D622 470 OHM 1 / 10 W 2012 5.00% R131 0RH2001D622 2K OHM 1 / 10 W 2012 5.00% R132 0RH2001D622 2K OHM 1 / 10 W 2012 5.00% R133 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R135 0RH6202D622 62K OHM 1 / 10 W 2012 5.00% R136 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R140 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R141 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R143 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R144 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R145 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R147 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R151 0RH4702D622 47K OHM 1 / 10 W 2012 5.00% R152 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R154 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R156 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R163 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R172 0RH1202D622 12K OHM 1 / 10 W 2012 5.00% R173 0RH0222D622 "22 OHM 1 / 10 W 2012 5.00%-32LP1D-UA R201 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R202 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R203 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R204 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R205 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R206 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R207 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R208 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R209 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R210 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R211 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R213 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R214 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R215 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R216 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R217 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R218 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R219 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R220 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R221 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R222 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R223 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R224 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R225 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R226 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R228 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R229 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R233 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R234 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R236 0RH1202D622 12K OHM 1 / 10 W 2012 5.00% R237 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R238 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R239 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% - 26 - TRANSISTOR RESISTORs http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R240 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R241 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R242 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R243 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R244 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R245 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R247 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R248 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R249 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R250 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R251 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R255 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R261 0RH0272D622 27 OHM 1 / 10 W 2012 5.00% R262 0RH0272D622 27 OHM 1 / 10 W 2012 5.00% R263 0RH0272D622 27 OHM 1 / 10 W 2012 5.00% R401 0RH4700D622 470 OHM 1 / 10 W 2012 5.00% R402 0RH1202D622 12K OHM 1 / 10 W 2012 5.00% R403 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R405 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R406 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R407 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R408 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R410 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R411 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R419 0RH1201D622 1.2K OHM 1 / 10 W 2012 5.00 R422 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R423 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R424 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R426 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R427 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R428 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R429 0RH0102D622 10 OHM 1 / 10 W 2012 5.00% R616 0RH0201D622 2 OHM 1 / 10 W 2012 5.00% D R618 0RH0331D622 3.3 OHM 1 / 10 W 2012 5.00% R619 0RH0201D622 2 OHM 1 / 10 W 2012 5.00% D R624 0RH0201D622 2 OHM 1 / 10 W 2012 5.00% D R625 0RH0201D622 2 OHM 1 / 10 W 2012 5.00% D R634 0RH0331D622 3.3 OHM 1 / 10 W 2012 5.00% R649 0RH0102D622 10 OHM 1 / 10 W 2012 5.00% R652 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R701 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R806 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R824 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R825 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R826 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R827 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R828 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R829 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R830 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R831 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R832 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R845 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R846 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R847 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R849 0RH4701D622 "4.7K OHM 1 / 10 W 2012 5.00-37/42LP1D-UA R850 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 L802 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP L803 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R100 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R103 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R108 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R110 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R112 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R113 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R114 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R116 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R117 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R118 0RJ4701D677 "4.7K OHM 1/10 W 5% 1608 R/T-32/42LP1D-UA R119 0RH0000D622 "0 OHM 1 / 10 W 2012 5.00% D-37LP1D-UA R126 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R129 0RJ1004D477 1M OHM 1/10 W 1% 1608 R/TP R130 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R134 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R137 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R138 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R139 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R142 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R146 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R148 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R149 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R150 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R153 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R155 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R157 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R158 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R159 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R160 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R161 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R162 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R164 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R166 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R230 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R231 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R256 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R257 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R259 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R260 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R604 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R605 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R606 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R607 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R608 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R609 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R610 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R611 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R612 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R614 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R617 0RJ0471D677 4.7 OHM 1/10 W 5% 1608 R/TP R620 0RJ0201D677 2 OHM 1/10 W 5% 1608 R/TP R621 0RJ0201D677 2 OHM 1/10 W 5% 1608 R/TP R622 0RJ0201D677 2 OHM 1/10 W 5% 1608 R/TP R623 0RJ0201D677 2 OHM 1/10 W 5% 1608 R/TP R626 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R627 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R628 0RJ0101D677 1 OHM 1/10 W 5% 1608 R/TP R629 0RJ0101D677 1 OHM 1/10 W 5% 1608 R/TP R630 0RJ0101D677 1 OHM 1/10 W 5% 1608 R/TP R631 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R632 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R633 0RJ0101D677 1 OHM 1/10 W 5% 1608 R/TP R636 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R637 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R650 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/T R651 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T - 27 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R653 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R654 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R655 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R658 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R659 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R660 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R661 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R662 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R703 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R705 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R706 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R801 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R802 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R803 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R804 0RJ0000D677 "0 OHM 1/10 W 5% 1608 R/TP-37/42LP1D-UA R807 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R808 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R809 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R810 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R811 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R836 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R837 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/T R838 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R839 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R840 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/T R841 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R842 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R843 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/T R844 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP X101 6202VDT002D SX-1SMD SUNNY RADIAL 8.0MHZ IC101 381-204B 42PIN(1.78-15.24AMMON) IC101 3850TVZ003B 11X11(4-1R) BRAND MICOM EAN TU402 6634D00010B TASA-H301P LG INNOTEK 75 OH TU401 6700NF0019B TAFM-H103P LGIT NTSC FS PHO C1013 0CH6152K406 1500PF 50V J SL 2012 R/TP C1018 0CH6152K406 1500PF 50V J SL 2012 R/TP C100 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1000 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1005 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1007 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1008 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1009 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1012 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1016 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1017 0CH3822K516 8200PF 2012 50V 10% B(Y5P) C1020 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1021 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1029 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C103 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1030 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C1031 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C1032 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C1034 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C1035 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C1037 0CH3222K516 2200PF 2012 50V 10% B(Y5P) DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1038 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C1039 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C104 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1041 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C1042 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C1043 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C1045 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C1046 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C1047 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C1048 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C1049 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C1050 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1055 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1059 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1065 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1068 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1069 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C107 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C108 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C109 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C110 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1101 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1102 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1104 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1106 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1107 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1108 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1109 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C111 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1110 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1111 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1112 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1113 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1114 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1115 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1116 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1117 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C112 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1121 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1122 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1123 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1124 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C113 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1131 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1132 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1134 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1136 0CH3105F946 "1UF 16V 80%,-20% F(Y5V) 201" C1137 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C114 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1145 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1146 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1147 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1148 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1149 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C115 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1150 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1151 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1154 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1155 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1156 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C116 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1160 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP - 28 - OTHERs MAIN BOARD(Digital) CAPACITOR http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1163 0CH3105F946 "1UF 16V 80%,-20% F(Y5V) 201" C1164 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1165 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1168 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1169 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C117 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1170 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1171 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1172 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1173 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1174 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1175 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1176 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1177 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1178 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1179 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C118 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1180 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1187 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1189 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C119 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1191 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1193 0CH5100K416 10PF 50V 5% NP0 2012 R/TP C1195 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1196 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C120 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1201 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C121 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1212 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1214 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1215 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1217 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C122 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1220 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C123 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C124 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C125 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C126 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C127 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C128 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C129 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C130 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1301 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1302 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1303 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1304 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1305 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1306 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1307 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1308 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1309 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C131 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1311 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1312 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1313 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1314 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1315 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1317 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1319 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C132 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1320 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1322 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1326 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C133 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1333 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1334 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1335 0CH3105F946 "1UF 16V 80%,-20% F(Y5V) 201" C1336 0CH3105F946 "1UF 16V 80%,-20% F(Y5V) 201" C1337 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1338 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C134 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1401 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1403 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1404 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1406 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1410 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1412 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1413 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1415 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1418 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1419 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1429 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1431 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1433 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1434 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1436 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1437 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1445 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1446 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1447 0CH3334K946 "0.33UF 50V 80%,-20% F(Y5V)" C1448 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1450 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1451 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1602 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1603 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1604 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1606 0CH3822K516 8200PF 2012 50V 10% B(Y5P) C1608 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1609 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1610 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1611 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1612 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1613 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1614 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1615 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1616 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1617 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1618 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1619 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1623 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1627 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1628 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1629 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1631 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1633 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1634 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1635 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1638 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1640 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1643 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1645 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1646 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1648 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1649 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP - 29 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1700 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1701 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1702 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1703 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1704 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1707 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1708 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1710 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1711 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1712 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1713 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1714 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1715 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1716 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1717 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1718 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1719 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1724 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1725 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1726 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1727 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1735 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1736 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1744 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1746 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1750 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1751 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1753 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C200 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C201 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C212 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C213 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C214 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C215 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C216 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C217 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C218 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C219 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C220 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C221 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C222 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C223 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C224 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C225 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C226 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C227 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C229 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C230 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C232 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C233 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C234 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C235 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C236 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C237 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C238 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C240 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C241 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C304 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C305 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C306 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C307 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C308 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C309 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C310 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C311 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C312 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C313 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C314 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C315 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C316 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C317 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C318 0CK226FF67A 22UF 3225 16V 20% X5R R/TP C319 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C320 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C321 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C322 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C323 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C325 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C326 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C327 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C328 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C329 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C330 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C331 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C332 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C333 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C334 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C335 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C336 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C338 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C339 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C340 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C348 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C400 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C401 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C402 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C403 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C404 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C405 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C406 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C407 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C408 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C409 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C410 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C411 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C412 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C413 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C414 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C415 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C416 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C417 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C418 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C419 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C420 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C421 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C422 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C423 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C424 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C425 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C426 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C427 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C428 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C429 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C430 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP - 30 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C431 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C432 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C433 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C434 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C435 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C436 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C437 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C438 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C439 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C440 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C441 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C442 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C443 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C445 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C446 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C447 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C448 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C449 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C450 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C451 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C452 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C453 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C454 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C455 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C456 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C457 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C458 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C460 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C463 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C464 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C466 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C467 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C468 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C469 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C470 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C471 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C472 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C473 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C474 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C475 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C476 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C477 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C478 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C479 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C480 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C481 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C482 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C483 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C484 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C485 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C487 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C500 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C501 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C502 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C503 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C504 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C505 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C506 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C507 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C508 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C510 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C511 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C512 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C513 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C517 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C518 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C520 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C521 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C522 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C523 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C524 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C525 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C527 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C528 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C529 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C530 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C536 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C538 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C539 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C555 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C557 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C600 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C601 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C602 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C603 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C604 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C606 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C610 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C614 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C615 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C618 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C619 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C620 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C621 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C622 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C623 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C624 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C625 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C626 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C628 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C629 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C630 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C631 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C632 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C633 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C634 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C635 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C636 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C637 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C638 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C639 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C640 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C641 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C642 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C643 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C647 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C649 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C650 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C654 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C655 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C657 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C677 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C679 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C685 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP - 31 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C687 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C696 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C697 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C698 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C702 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C703 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C706 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C707 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C710 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C712 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C714 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C716 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C717 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C718 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C720 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C721 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C722 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C723 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C724 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C725 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C726 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C727 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C728 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C729 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C730 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C731 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C732 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C733 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C734 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C738 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C739 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C740 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C741 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C742 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C743 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C744 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C745 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C746 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C747 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C752 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C753 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C754 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C755 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C758 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C763 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C764 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C772 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C773 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C776 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C779 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C781 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C783 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C785 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C787 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C790 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C791 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C792 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C793 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C794 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C795 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C796 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C797 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C798 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C799 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C805 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C810 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C811 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C812 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C821 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C824 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C827 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C828 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C841 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C842 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C846 0CH3105F946 "1UF 16V 80%,-20% F(Y5V) 201" C855 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C856 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C857 0CH3474H946 "0.47UF 25V 80%,-20% F(Y5V)" C858 0CH3105F946 "1UF 16V 80%,-20% F(Y5V) 201" C859 0CH3105F946 "1UF 16V 80%,-20% F(Y5V) 201" C861 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C901 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C902 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C903 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C905 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C908 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C909 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C910 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C911 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C912 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C913 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C914 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C915 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C916 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C918 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C920 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C922 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C923 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C925 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C928 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C929 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C930 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C931 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C932 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C934 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C935 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C936 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C937 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C938 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C940 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C941 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C942 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C943 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C944 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1004 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1025 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1036 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1040 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C1053 0CK472CK51A 4700PF 1608 50V 10% R/TP B( C1056 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C1058 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1062 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C1063 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C1064 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( - 32 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1103 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1105 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1129 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1130 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1139 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C1140 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1143 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1144 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1152 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1153 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1157 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C1158 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C1159 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1161 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C1162 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C1166 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1167 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1181 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1182 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1183 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1185 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1186 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1197 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1198 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1199 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1213 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1216 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C1221 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1316 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1323 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1327 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1332 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C1600 0CK823CK56A 82NF 1608 50V 10% R/TP X7R C1621 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1650 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1651 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1652 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1656 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1657 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1658 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1709 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1730 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1731 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1732 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1733 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1734 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1737 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1738 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1739 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1740 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1741 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1747 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1748 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1756 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C205 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C209 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C210 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C211 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C231 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C300 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C301 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C302 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C303 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C324 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C337 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C346 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C347 0CK476FD67A 47UF 3225 10V 20% X5R R/TP C461 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C462 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C509 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C519 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C526 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C540 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C560 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C561 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C656 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C691 0CK473CK56A 47000PF 1608 50V 10% R/TP X C692 0CK473CK56A 47000PF 1608 50V 10% R/TP X C693 0CK473CK56A 47000PF 1608 50V 10% R/TP X C699 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C737 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C757 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C760 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C761 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C762 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C765 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C766 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C767 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C768 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C769 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C770 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C774 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C777 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C801 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C815 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C825 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C826 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C829 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C830 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C831 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C832 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C833 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C834 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C835 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C836 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C837 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C838 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C839 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C840 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C843 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C844 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C847 0CK472CK51A 4700PF 1608 50V 10% R/TP B( C1003 0CH6470K416 47PF 2012 50V 5% NP0 R/TP C1011 0CH6470K416 47PF 2012 50V 5% NP0 R/TP C1023 0CH6020K116 2PF 2012 50V 0.5 PF C0G R/T C1024 0CH6020K116 2PF 2012 50V 0.5 PF C0G R/T C1027 0CH6560K416 56PF 2012 50V 5% NP0 - C1070 0CH6560K416 56PF 2012 50V 5% NP0 - C1203 0CH2392K516 3900PF 50V 10% B(Y5P) 2012 C1204 0CH6561K416 560PF 2012 50V 5% NP0 R/TP C1207 0CH6561K416 560PF 2012 50V 5% NP0 R/TP C1210 0CH6471K416 470PF 2012 50V 5% NP0 R/TP - 33 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1219 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C1224 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C1226 0CH6220K416 22PF 2012 50V 5% NP0 - C1329 0CH6221K416 220PF 2012 50V 5% NP0 - C1331 0CH6221K416 220PF 2012 50V 5% NP0 - C1722 0CH6221K416 220PF 2012 50V 5% NP0 - C1723 0CH6331K416 330PF 2012 50V 5% NP0 R/TP C344 0CC270DK41A 27PF 2012 50V 5% NP0 R/TP C345 0CC270DK41A 27PF 2012 50V 5% NP0 R/TP C556 0CH6330K416 33PF 50V 5% NP0 2012 R/TP C558 0CH6330K416 33PF 50V 5% NP0 2012 R/TP C688 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C750 0CH6221K416 220PF 2012 50V 5% NP0 - C751 0CH6331K416 330PF 2012 50V 5% NP0 R/TP C806 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C807 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C808 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C809 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C816 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C817 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C1026 0CC560CK41A 56PF 1608 50V 5% R/TP NP0 C1044 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C1051 0CC471CK41A 470PF 1608 50V 5% R/TP NP0 C1127 0CC200CK41A 20PF 1608 50V 5% R/TP NP0 C1128 0CC200CK41A 20PF 1608 50V 5% R/TP NP0 C1205 0CC200CK41A 20PF 1608 50V 5% R/TP NP0 C1206 0CC200CK41A 20PF 1608 50V 5% R/TP NP0 C1211 0CC271CK41A 270PF 1608 50V 5% R/TP NP0 C1222 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C1223 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C1225 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C1227 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C1228 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C1229 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C1324 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C1325 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C1705 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C1706 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C1720 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C1721 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C204 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C239 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C243 0CC330CK41A 33PF 1608 50V 5% R/TP NP0 C3129 0CC330CK41A 33PF 1608 50V 5% R/TP NP0 C341 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C342 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C612 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C613 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C735 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C736 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C748 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C749 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C845 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C904 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C1001 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1002 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1006 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C1010 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C1014 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1015 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1019 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C102 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1022 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1028 0CE335VK6DC 3.3UF MV 50V 20% R/TP(SMD) C1033 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C105 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1052 0CE335VK6DC 3.3UF MV 50V 20% R/TP(SMD) C1054 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C1057 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C106 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1060 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C1061 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C1066 0CE475VK6DC 4.7UF MV 50V 20% R/TP(SMD) C1067 0CE475VK6DC 4.7UF MV 50V 20% R/TP(SMD) C1138 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1188 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1190 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1194 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1200 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1208 0CE475VK6DC 4.7UF MV 50V 20% R/TP(SMD) C1209 0CE105VK6DC 1UF MV 50V 20% R/TP(SMD) SM C1218 0CE335VK6DC 3.3UF MV 50V 20% R/TP(SMD) C1300 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1310 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1318 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1321 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1402 0CE477VF6DC 470UF MV 16V 20% R/TP(SMD) C1405 0CE477VF6DC 470UF MV 16V 20% R/TP(SMD) C1411 0CE477VF6DC 470UF MV 16V 20% R/TP(SMD) C1414 0CE477VF6DC 470UF MV 16V 20% R/TP(SMD) C1417 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1420 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1430 0CE476VH6DC 47UF MV 25V 20% R/TP(SMD) S C1432 0CE476VH6DC 47UF MV 25V 20% R/TP(SMD) S C1435 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1438 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1449 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C1452 0CE476VH6DC 47UF MV 25V 20% R/TP(SMD) S C1601 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1607 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C1622 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1630 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1636 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C1647 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C1655 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C1743 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C1745 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C1749 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C1752 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C202 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C203 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C206 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C343 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C459 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C486 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C488 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C534 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C537 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C548 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C549 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C550 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C559 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C605 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C609 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S - 34 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C678 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C684 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C686 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C689 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C694 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C695 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C701 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C704 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C705 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C708 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C709 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C711 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C713 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C715 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C719 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C771 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C775 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C778 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C780 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C782 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C784 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C786 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C789 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C800 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C802 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C813 0CE105VK6DC 1UF MV 50V 20% R/TP(SMD) SM C814 0CE105VK6DC 1UF MV 50V 20% R/TP(SMD) SM C818 0CE105VK6DC 1UF MV 50V 20% R/TP(SMD) SM C819 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C820 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C822 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C823 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C848 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C849 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C860 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C862 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C863 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C864 0CE106VF6DC 10UF MV 16V 20% R/TP(SMD) S C917 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP C919 0CE476WF6DC 47UF MVK 16V 20% R/TP(SMD) C921 0CE476WF6DC 47UF MVK 16V 20% R/TP(SMD) C924 0CE476WF6DC 47UF MVK 16V 20% R/TP(SMD) C926 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C927 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C933 0CE476VH6DC 47UF MV 25V 20% R/TP(SMD) S C939 0CE476SF6DC 47UF MVG 16V 20% SMD R/TP D1202 0DRSE00038A SDC15 TVS DIODE ARRAY SEMTE D1203 0DRSE00038A SDC15 TVS DIODE ARRAY SEMTE D1204 0DRSE00038A SDC15 TVS DIODE ARRAY SEMTE IC1304 0DRSE00048A RLCAMP0504M SEMTECH R/TP MS IC1406 0DRSE00048A RLCAMP0504M SEMTECH R/TP MS IC606 0DRSE00048A RLCAMP0504M SEMTECH R/TP MS IC607 0DRSE00048A RLCAMP0504M SEMTECH R/TP MS D1200 0DD184009AA KDS184 TP KEC - 85V - - - 3 D1201 0DD184009AA KDS184 TP KEC - 85V - - - 3 D600 0DD184009AA KDS184 TP KEC - 85V - - - 3 D801 0DD184009AA KDS184 TP KEC - 85V - - - 3 D802 0DD184009AA KDS184 TP KEC - 85V - - - 3 ZD1000 0DZ820009AK UDZS 8.2B ROHM R/TP SOD323 DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION IC1001 0ICB533100A CS5331A-KSR 8SOIC TP ADC - IC1005 0ICB841500B CS8415A-CZR 28P TSSOP R/TP IC1101 0ICTMLG017A LGDT3502B LG IC 208P/PBGA T IC1102 0ICTM00006A LGDT3701 LG SYSTEM IC 128P/ IC401 0ICTMLG009C LGDT1102C HD2.3 LG IC SBGA- IC504 0ICTMLG013B LGDT1901B LG IC SSOP 24P TR IC902 0ICTMLG018B LGDP4411 IEP2 LG IC 208P LQ IC101 0IZZTSZ672A "32LP1D-U MICOM 48P-32LP1D-UA IC101 0IZZTSZ726A "37LP1D-UA MICOM 48P-37LP1D-UA IC101 0IZZTSZ729A "42LP1D-UA MICOM 48P-42LP1D-UA IC202 0IZZTSZ670A "32LP1D-U FLASH 48P-32LP1D-UA IC202 0IZZTSZ727A "37LP1D-UA FLASH 48P-37LP1D-UA IC202 0IZZTSZ730A "42LP1D-UA FLASH 49P-42LP1D-UA IC203 0IZZTSZ671A "32LP1D-U FLASH 48P IC203-32LP1D-UA IC203 0IZZTSZ728A "37LP1D-UA FLASH 48P-37LP1D-UA IC203 0IZZTSZ731A "42LP1D-UA FLASH 48P-42LP1D-UA IC209 0IZZTSZ754A "32LP1D-U FLASH AUTO DEMO 48-32LP1D-UA IC209 0IZZTSZ775A "37LP1D-UA AUTODEMO 48P 1-37LP1D-UA IC209 0IZZTSZ777A "42LP1D-UA AUTODEMO 48P 1-42LP1D-UA IC210 0IZZTSZ755A "32LP1D-U FLASH AUTO DEMO 48-32LP1D-UA IC210 0IZZTSZ776A "37LP1D-UA AUTODEMO 48P 2-37LP1D-UA IC210 0IZZTSZ778A "42LP1D-UA AUTODEMO 48P 2-42LP1D-UA IC204 0IKE702900G KIA7029AF SOT-89 TP 2.9V VO IC200 0IMMRHY038C HY57V561620CT-H HYNIX 54PIN IC201 0IMMRHY038C HY57V561620CT-H HYNIX 54PIN IC301 0IMMRMP008A 24LC512 MICRO CHIP TECHNOLO IC500 0IMMRSS041D K4S641632H-TL75 SAMSUNG ELE IC501 0IMMRSS041D K4S641632H-TL75 SAMSUNG ELE IC502 0IMMRSS041D K4S641632H-TL75 SAMSUNG ELE IC503 0IMMRSS041D K4S641632H-TL75 SAMSUNG ELE IC603 0IMMRSG036A "M24C02-WMN6T(P),LF SGS-THOM" IC701 0IMMREB006A M12L16161A-7T-TI ELITE MEMO IC702 0IMMREB006A M12L16161A-7T-TI ELITE MEMO IC1003 0IMCRMN027B MSP4440G-QA-C13-101WITH SRS IC1200 0IMCRMT003A MM1108XFFE MITSUMI 8P SOP R IC1201 0IMCRMP007A PIC18F242T-I/SO MICRO CHIP IC1204 0IMCRMP006A PIC18F1220T-I/SO MICRO CHIP IC206 0IMCRCY002A CY2309SXC-1HT CYPRESS SOIC IC207 0IMCRCY001A CY2305SXC-1HT CYPRESS SOIC IC208 0IMCRXL004A "XC95288XL-10TQG144C,LF XIL" IC300 0IMCRPH026A PCA9516PW PHILIPS 16P TSSOP IC302 0IMCRSG010A ST3232CDR SGS-THOMSON SOP16 IC304 0IMCRXL003B XC95144XL-10TQG144C XILINX IC801 0ISO206900A CXA2069Q QFP64 BK I2C BUS A IC804 0IMCRSO025A CXA2181Q SONY 48P QFP TRAY IC1002 0IMO330780B MC33078D 8/SOIC TP LINEAR + IC100 0IPRPBM001B PPC405GPR-3JB266C IBM E-PBG IC1300 0IPRP00018A "TSB43DA42AZHCR,LF TEXAS INS" IC305 0IPRP00032A "SIL3512ECTU128,LF SILICON I" IC601 0IPRPS5006A SIL9021CTU(PB FREE) SILICON IC604 0IPRPAD008B "AD9883AKST(Z)-110,LF ANALOG" IC608 0IPRPFA016A FMS6407MTC20X-NL(PB-FREE) F IC705 0IPRPNE008A "UPD64011BGM-8ED-A NEC 160,L" IC706 0IPRPNE008A "UPD64011BGM-8ED-A NEC 160,L" IC707 0IPRPFA015A FMS6410CSX-NL(PB-FREE) FAIR IC708 0IPRPFA015A FMS6410CSX-NL(PB-FREE) FAIR IC903 0ITH638300C "THC63LVDM83R(F),LF THINE EL" IC101 0IMCRSJ001A SC1565IST-1.8 SEMTECH 3P SO IC1103 0IMCRSJ001B SC1565IST-2.5TR 2.5V 1.5A S IC1104 0IPMGLT008A LTC1470CS8TRPBF LINEAR TECH IC1108 0IMCRSJ001A SC1565IST-1.8 SEMTECH 3P SO - 35 - DIODEs IC http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION IC1203 0IPMGNS026A LM311MX NATIONAL SEMICONDUC IC1303 0IPMGRH001D "BA15BC0FP-E2 ROHM 3P,TO252" IC1401 0IMCRSH001A "PQ05DZ1U SHARP 5, SMD TYPE" IC1404 0IMCRFA010A "KA7809R, FAIRCHILD 2P D-PAK" IC1405 0IMCRSH001A "PQ05DZ1U SHARP 5, SMD TYPE" IC306 0IMCRSJ001A SC1565IST-1.8 SEMTECH 3P SO IC400 0IMCRSJ001A SC1565IST-1.8 SEMTECH 3P SO IC600 0IMCRSJ001A SC1565IST-1.8 SEMTECH 3P SO IC704 0IPMGRH001D "BA15BC0FP-E2 ROHM 3P,TO252" IC905 0IMCRSJ001A SC1565IST-1.8 SEMTECH 3P SO IC1107 0IRH033200A BA033FP-E2 MOLD-3 TP REGULA IC605 0IRH033200A BA033FP-E2 MOLD-3 TP REGULA IC703 0IRH033200A BA033FP-E2 MOLD-3 TP REGULA IC1000 0IMCRFA013A 74LCX244MTC FAIRCHILD 20P T IC1004 0ITO741570C "TC74LCX157FT 16P,TSSOP TP Q" IC1106 0IMCRFA013A 74LCX244MTC FAIRCHILD 20P T IC1202 0ISTL00024A "MC14053BDR2G,LF ON SEMI 16P" IC205 0ISTLPH026A 74LVC14APW PHILIPS 14PIN TS IC303 0ISTL00024A "MC14053BDR2G,LF ON SEMI 16P" L1401 6140VB0004B 26UH 1UEWPHY 22.5TURN YL-9N L1402 6140VB0004B 26UH 1UEWPHY 22.5TURN YL-9N L1403 6140VB0004B 26UH 1UEWPHY 22.5TURN YL-9N L1411 6140VB0004B 26UH 1UEWPHY 22.5TURN YL-9N L1413 6140VB0004B 26UH 1UEWPHY 22.5TURN YL-9N CH1300 6140VB0021A 944CM-0004=P3 TOKO 4TURN 8P CH1301 6140VB0021A 944CM-0004=P3 TOKO 4TURN 8P L816 6210TCE001P HB-1S2012-121JT CERATECH 20 L805 6210TCE001P HB-1S2012-121JT CERATECH 20 L806 6210TCE001P HB-1S2012-121JT CERATECH 20 L808 6210TCE001P HB-1S2012-121JT CERATECH 20 L810 6210TCE001P HB-1S2012-121JT CERATECH 20 L812 6210TCE001P HB-1S2012-121JT CERATECH 20 L814 6210TCE001P HB-1S2012-121JT CERATECH 20 L100 6210TCE001G HH-1M3216-501 CERATEC 3216M L1000 6210TCE001G HH-1M3216-501 CERATEC 3216M L1001 6210TCE001G HH-1M3216-501 CERATEC 3216M L1002 6210TCE001G HH-1M3216-501 CERATEC 3216M L1005 6210TCE001G HH-1M3216-501 CERATEC 3216M L1006 6210TCE001G HH-1M3216-501 CERATEC 3216M L1007 6210TCE001G HH-1M3216-501 CERATEC 3216M L1008 6210TCE001G HH-1M3216-501 CERATEC 3216M L1103 6210TCE001G HH-1M3216-501 CERATEC 3216M L1107 6210TCE001G HH-1M3216-501 CERATEC 3216M L1111 6210TCE001G HH-1M3216-501 CERATEC 3216M L1112 6210TCE001G HH-1M3216-501 CERATEC 3216M L1114 6210TCE001G HH-1M3216-501 CERATEC 3216M L1201 6210TCE001G HH-1M3216-501 CERATEC 3216M L1203 6210TCE001G HH-1M3216-501 CERATEC 3216M L1300 6210TCE001G HH-1M3216-501 CERATEC 3216M L1301 6210TCE001G HH-1M3216-501 CERATEC 3216M L1302 6210TCE001G HH-1M3216-501 CERATEC 3216M L1303 6210TCE001G HH-1M3216-501 CERATEC 3216M L1405 6210TCE001G HH-1M3216-501 CERATEC 3216M L1406 6210TCE001G HH-1M3216-501 CERATEC 3216M L1409 6210TCE001G HH-1M3216-501 CERATEC 3216M L1410 6210TCE001G HH-1M3216-501 CERATEC 3216M L200 6210TCE001G HH-1M3216-501 CERATEC 3216M L300 6210TCE001G HH-1M3216-501 CERATEC 3216M L301 6210TCE001G HH-1M3216-501 CERATEC 3216M DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L302 6210TCE001G HH-1M3216-501 CERATEC 3216M L401 6210TCE001G HH-1M3216-501 CERATEC 3216M L501 6210TCE001G HH-1M3216-501 CERATEC 3216M L600 6210TCE001G HH-1M3216-501 CERATEC 3216M L601 6210TCE001G HH-1M3216-501 CERATEC 3216M L602 6210TCE001G HH-1M3216-501 CERATEC 3216M L603 6210TCE001G HH-1M3216-501 CERATEC 3216M L604 6210TCE001G HH-1M3216-501 CERATEC 3216M L605 6210TCE001G HH-1M3216-501 CERATEC 3216M L606 6210TCE001G HH-1M3216-501 CERATEC 3216M L607 6210TCE001G HH-1M3216-501 CERATEC 3216M L610 6210TCE001G HH-1M3216-501 CERATEC 3216M L702 6210TCE001G HH-1M3216-501 CERATEC 3216M L703 6210TCE001G HH-1M3216-501 CERATEC 3216M L704 6210TCE001G HH-1M3216-501 CERATEC 3216M L705 6210TCE001G HH-1M3216-501 CERATEC 3216M L707 6210TCE001G HH-1M3216-501 CERATEC 3216M L708 6210TCE001G HH-1M3216-501 CERATEC 3216M L709 6210TCE001G HH-1M3216-501 CERATEC 3216M L710 6210TCE001G HH-1M3216-501 CERATEC 3216M L715 6210TCE001G HH-1M3216-501 CERATEC 3216M L801 6210TCE001G HH-1M3216-501 CERATEC 3216M L901 6210TCE001G HH-1M3216-501 CERATEC 3216M L902 6210TCE001G HH-1M3216-501 CERATEC 3216M L903 6210TCE001G HH-1M3216-501 CERATEC 3216M L904 6210TCE001G HH-1M3216-501 CERATEC 3216M L905 6210TCE001G HH-1M3216-501 CERATEC 3216M FL1200 6200VJT001A BMK400 TA NIIGATA 50VOLT 1A L101 6210TCE001G HH-1M3216-501 CERATEC 3216M L1113 6210TCE001G HH-1M3216-501 CERATEC 3216M L1115 6210TCE001G HH-1M3216-501 CERATEC 3216M L400 6210TCE001G HH-1M3216-501 CERATEC 3216M L506 6210TCE001G HH-1M3216-501 CERATEC 3216M L714 6210TCE001G HH-1M3216-501 CERATEC 3216M R523 6200J000012 NFL21SP207X1C3 MURATA R/TP L1003 0LC1020101A 1UH 10% 2012 R/TC FI-B2012- L1004 0LC1020101A 1UH 10% 2012 R/TC FI-B2012- L608 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L609 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L701 0LCTA00006E "LEM2520T390J, 39UH TAIYOYUD" L706 0LCTA00006E "LEM2520T390J, 39UH TAIYOYUD" L712 0LCTA00006E "LEM2520T390J, 39UH TAIYOYUD" L717 0LCTA00006E "LEM2520T390J, 39UH TAIYOYUD" L800 0LC2000005K "FI-D2012-223, 22UH CERATECH" L804 0LC2000005K "FI-D2012-223, 22UH CERATECH" L1108 0LC2000005K "FI-D2012-223, 22UH CERATECH" L1109 0LC2000005K "FI-D2012-223, 22UH CERATECH" L711 0LCTA00006E "LEM2520T390J, 39UH TAIYOYUD" L718 0LCTA00006E "LEM2520T390J, 39UH TAIYOYUD" L802 0LC2000005K "FI-D2012-223, 22UH CERATECH" Q1204 0TR390609FA KST3906-MTF TP SAMSUNG SOT Q603 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q604 0TR102009AJ KRC102S NPN SOT-23 TP KEC Q1203 0TR390609FA KST3906-MTF TP SAMSUNG SOT Q1000 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1001 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q1002 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q1003 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q1004 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - - 36 - COIL & CORE & & FILTER & INDUCTOR TRANSISTOR DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION Q1101 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q1102 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1200 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1202 0TR390409AE FAIRCHILD KST3904(LGEMTF) T Q703 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q704 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q708 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q709 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q710 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q711 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q712 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q800 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q801 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q802 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q803 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q804 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q806 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q807 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q808 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q809 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q812 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q813 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q814 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q815 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q816 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q817 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q821 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q822 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q823 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q824 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q901 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q902 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1005 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1006 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1007 0TR102008AA KRA102S R/TP KEC SOT23 CHIP Q600 0TR830009BA BSS83 TP PHILIPS NON N-CHAN Q601 0TR830009BA BSS83 TP PHILIPS NON N-CHAN Q602 0TR830009BA BSS83 TP PHILIPS NON N-CHAN Q702 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q707 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q805 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q825 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - IC904 0TF492509AA SI4925DY TP TEMIC 30V 6.1A AR100 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR101 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR102 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR103 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR104 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR105 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR106 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR107 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR108 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR109 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR110 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR1101 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR1102 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR1103 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR1104 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR1105 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION AR111 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR112 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR113 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR114 0RHZTCZ001F RCA SMART 4.7KOHM 1/16 W 5% AR300 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR301 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR302 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR303 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR401 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR402 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR403 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR404 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR405 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR406 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR601 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR602 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR603 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR604 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR605 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR606 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR608 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR609 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR610 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR611 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR612 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR613 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR700 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR701 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR702 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR703 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR704 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR705 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR706 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR707 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR708 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR709 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR710 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR711 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% AR901 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR902 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR903 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR904 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR905 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 AR906 0RHZTCZ001D RCA SMART 22OHM 1/16 W 5% 3 R100 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1001 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R1002 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1003 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R1004 0RH2700D622 270 OHM 1 / 10 W 2012 5.00% R1006 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1007 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1008 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1009 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R101 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1010 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1011 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1013 0RH4702D622 47K OHM 1 / 10 W 2012 5.00% R1018 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1019 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1020 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R1021 0RH2700D622 270 OHM 1 / 10 W 2012 5.00% R1022 0RH3300D622 330 OHM 1 / 10 W 2012 5.00% - 37 - RESISTORs http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R1023 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R1024 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1026 0RH1202D622 12K OHM 1 / 10 W 2012 5.00% R1027 0RH3901D622 3.9K OHM 1 / 10 W 2012 5.00 R1029 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1030 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1032 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1033 0RH0432D622 43 OHM 1 / 10 W 2012 5.00% R1034 0RH0432D622 43 OHM 1 / 10 W 2012 5.00% R1041 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1042 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1043 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1044 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1045 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1046 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1047 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1050 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1051 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1052 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1053 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1057 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1058 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1059 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1060 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1063 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1064 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1065 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1066 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1067 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R1068 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R1070 0RH0272D622 27 OHM 1 / 10 W 2012 5.00% R1071 0RH0272D622 27 OHM 1 / 10 W 2012 5.00% R1072 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1073 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1074 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1075 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1076 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R1077 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R1078 0RH2001D622 2K OHM 1 / 10 W 2012 5.00% R1079 0RH2001D622 2K OHM 1 / 10 W 2012 5.00% R108 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1082 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R109 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1113 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1114 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1140 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1141 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1144 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1145 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1146 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1148 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1155 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1157 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1158 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1159 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1160 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1168 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1172 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1173 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1184 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1185 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1200 0RH0152D622 15 OHM 1 / 10 W 2012 5.00% DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R1203 0RH1003D622 100K OHM 1 / 10 W 2012 5.00 R1205 0RH5600D622 560 OHM 1 / 10 W 2012 5.00% R1206 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1207 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1208 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1209 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R1211 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1212 0RH3303D622 330K OHM 1 / 10 W 2012 5.00 R1213 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1214 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1215 0RH4702D622 47K OHM 1 / 10 W 2012 5.00% R1219 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1221 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1222 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1224 0RH4702D622 47K OHM 1 / 10 W 2012 5.00% R1225 0RH2202D622 22K OHM 1 / 10 W 2012 5.00% R1226 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1227 0RH8200D622 820 OHM 1 / 10 W 2012 5.00% R1228 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R1229 0RH5600D622 560 OHM 1 / 10 W 2012 5.00% R1230 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1231 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1232 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1233 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1234 0RH0152D622 15 OHM 1 / 10 W 2012 5.00% R1235 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1236 0RH4700D622 470 OHM 1 / 10 W 2012 5.00% R1237 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1238 0RH4702D622 47K OHM 1 / 10 W 2012 5.00% R1239 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1240 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R1242 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1243 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1245 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1247 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R1248 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1249 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1250 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R1252 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1253 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1254 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1255 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1300 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1301 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1305 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1312 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1313 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1314 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1315 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1316 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1317 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1318 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R1319 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R132 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1320 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R1321 0RH5101D622 5.1K OHM 1 / 10 W 2012 5.00 R1322 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R1323 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R1324 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R1325 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R1326 0RH5101D622 5.1K OHM 1 / 10 W 2012 5.00 R1327 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% - 38 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R1328 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1329 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R1330 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1332 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1404 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1405 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1406 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1408 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1410 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1601 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1706 0RH2402D622 24K OHM 1 / 10 W 2012 5.00% R1707 0RH2402D622 24K OHM 1 / 10 W 2012 5.00% R1708 0RH3300D622 330 OHM 1 / 10 W 2012 5.00% R1709 0RH3300D622 330 OHM 1 / 10 W 2012 5.00% R1712 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1714 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R1715 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R1720 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1801 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R1802 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R1803 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R1804 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R1805 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1806 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1807 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1812 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1813 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1815 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1816 0RH1003D622 100K OHM 1 / 10 W 2012 5.00 R1819 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R210 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R212 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R213 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R214 0RH3300D622 330 OHM 1 / 10 W 2012 5.00% R215 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R216 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R242 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R262 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R272 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R273 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R275 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R281 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R304 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R305 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R306 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R307 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R3118 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R3119 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R3120 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R3121 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R3122 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R314 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R315 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R319 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R320 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R335 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R343 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R344 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R345 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R350 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R351 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R352 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R353 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R354 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R355 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R402 0RH0272D622 27 OHM 1 / 10 W 2012 5.00% R403 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R404 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R405 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R406 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R407 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R408 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R409 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R410 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R411 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R412 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R423 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R427 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R428 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R429 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R430 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R431 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R432 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R433 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R434 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R435 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R436 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R437 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R439 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R440 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R441 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R442 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R443 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R444 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R445 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R446 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R447 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R451 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R500 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R501 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R511 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R512 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R513 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R514 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R518 0RH6202D622 62K OHM 1 / 10 W 2012 5.00% R521 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R525 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R528 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R535 0RH0682D622 68 OHM 1 / 10 W 2012 5.00% R536 0RH0682D622 68 OHM 1 / 10 W 2012 5.00% R537 0RH0682D622 68 OHM 1 / 10 W 2012 5.00% R544 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R545 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R546 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R548 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R600 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R602 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R604 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R609 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R611 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R623 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R624 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R625 0RH0332D622 33 OHM 1 / 10 W 2012 5.00% R628 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% - 39 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R629 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R630 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R647 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R648 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R650 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R654 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R655 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R656 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R665 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R667 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R683 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R684 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R685 0RH2001D622 2K OHM 1 / 10 W 2012 5.00% R687 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R688 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R689 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R694 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R695 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R696 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R697 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R710 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R711 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R715 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R716 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R717 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R718 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R720 0RH3600D622 CHIP 360-J 1/10 W R723 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R731 0RH0682D622 68 OHM 1 / 10 W 2012 5.00% R748 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R751 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R752 0RH0682D622 68 OHM 1 / 10 W 2012 5.00% R767 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R768 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R769 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R771 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R772 0RH3600D622 CHIP 360-J 1/10 W R775 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R800 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R801 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R802 0RH1501D622 1.5K OHM 1 / 10 W 2012 5.00 R803 0RH1501D622 1.5K OHM 1 / 10 W 2012 5.00 R804 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R806 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R807 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R809 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R810 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R811 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R812 0RH2700D622 270 OHM 1 / 10 W 2012 5.00% R815 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R816 0RH5601D622 5.6K OHM 1 / 10 W 2012 5.00 R817 0RH5601D622 5.6K OHM 1 / 10 W 2012 5.00 R818 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R819 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R820 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R821 0RH4702D622 47K OHM 1 / 10 W 2012 5.00% R822 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R823 0RH5601D622 5.6K OHM 1 / 10 W 2012 5.00 R824 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R825 0RH5601D622 5.6K OHM 1 / 10 W 2012 5.00 R826 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R827 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R828 0RH4702D622 47K OHM 1 / 10 W 2012 5.00% R829 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R830 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R831 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R832 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R833 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R834 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R835 0RH0682D622 68 OHM 1 / 10 W 2012 5.00% R836 0RH3300D622 330 OHM 1 / 10 W 2012 5.00% R837 0RH3300D622 330 OHM 1 / 10 W 2012 5.00% R838 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R839 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R840 0RH7500D622 750 OHM 1 / 10 W 5% D R/TP R841 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R842 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R844 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00 R854 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R855 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R856 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R859 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R863 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R864 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R869 0RH4700D622 470 OHM 1 / 10 W 2012 5.00% R871 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R873 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R880 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R881 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R883 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R884 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R886 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R887 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R898 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R905 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R911 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R912 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R913 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R914 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R915 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R916 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R917 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R918 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R919 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R920 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R921 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R922 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R923 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R924 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R925 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R929 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R930 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R931 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R932 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R933 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R934 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R937 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R938 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R939 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R952 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 L807 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D L809 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D L811 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D L813 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D - 40 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L815 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1012 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1015 0RJ0512D677 51 OHM 1/10 W 5% 1608 R/TP R1016 0RJ0512D677 51 OHM 1/10 W 5% 1608 R/TP R1017 0RJ0512D677 51 OHM 1/10 W 5% 1608 R/TP R102 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1028 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R103 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1035 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1036 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1037 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R1038 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R1039 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R104 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1049 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R105 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1054 0RJ1201D677 1200 OHM 1/10 W 5% 1608 R/T R1055 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1056 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R106 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1061 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/ R1062 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1069 0RJ0272D677 27 OHM 1/10 W 5% 1608 R/TP R107 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1080 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/T R1081 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/T R1083 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R110 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1105 0RJ5101D677 5.1K OHM 1/10 W 5% 1608 R/T R1109 0RJ3002D677 30000 OHM 1/10 W 5% 1608 R/ R111 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1110 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1111 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1112 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1115 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1116 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1117 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1118 0RJ1004D677 1000000 OHM 1/10 W 5% 1608 R1119 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R112 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1120 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1121 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1129 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R113 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1130 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1131 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1132 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1133 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1135 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1136 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1137 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1138 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1139 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R114 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1142 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1143 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1147 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1149 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R115 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1150 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R1151 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1152 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R1153 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1154 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R1156 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R1161 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1162 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1163 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1164 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/T R1166 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1167 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R117 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1175 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1176 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1177 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1178 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1179 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R118 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1181 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1186 0RJ3001D677 3K OHM 1/10 W 5% 1608 R/TP R1187 0RJ3001D677 3K OHM 1/10 W 5% 1608 R/TP R119 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1190 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1191 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1192 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1193 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1194 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R1195 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R1196 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1197 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R1198 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R1199 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R120 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1202 0RJ8252D477 82.5K OHM 1/10 W 1% 1608 R/ R121 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1217 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1218 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1220 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1223 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R123 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R124 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1241 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1244 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R125 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1251 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R1256 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1257 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1258 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R126 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R127 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R128 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R130 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1302 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1303 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1304 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1306 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R1307 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1308 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R1309 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R131 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1310 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R1311 0RJ6341D477 6.34K OHM 1/10 W 1% 1608 R/ R133 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1331 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP - 41 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R134 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R135 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R136 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R137 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R138 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R139 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R140 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1401 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1402 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R1403 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R1407 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R141 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R142 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R144 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R148 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R149 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R150 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R151 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R152 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R153 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R154 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R156 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R157 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R1700 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R1703 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R1704 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R1713 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1721 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1817 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/T R1818 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1820 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R1821 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R1822 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/T R200 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R201 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R202 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R203 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R204 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R205 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R206 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R207 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R208 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R209 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R211 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R217 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R218 0RJ1602D677 16K OHM 1/10 W 5% 1608 R/TP R219 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R230 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R231 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R232 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R234 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R235 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R236 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R237 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R238 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R239 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R240 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R243 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R244 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R245 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R246 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R247 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R248 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R249 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R250 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R251 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R252 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R253 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R254 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R255 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R256 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R257 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R258 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R259 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R263 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R264 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R265 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R266 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R267 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R269 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R270 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R271 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R274 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R276 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R277 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R283 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R300 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R301 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R302 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R303 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/T R308 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R309 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R3101 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R3102 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R3103 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R3108 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3109 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3112 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3113 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3114 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3115 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3116 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3117 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R3123 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R3124 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R3125 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R3126 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R3127 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3128 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R3129 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R316 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R317 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R318 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R321 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R323 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R324 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R325 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R327 0RJ1005D677 10M OHM 1/10 W 5% 1608 R/TP R328 0RJ1001D477 1K OHM 1/10 W 1% 1608 R/TP R329 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R334 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R336 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R337 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R338 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP - 42 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R339 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R340 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R341 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R342 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R346 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R347 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R348 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R349 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R356 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R413 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R414 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R415 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R416 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R417 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R420 0RJ1800D677 180 OHM 1/10 W 5% 1608 R/TP R421 0RJ1800D677 180 OHM 1/10 W 5% 1608 R/TP R424 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R425 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R426 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R448 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R449 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R452 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R522 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R527 0RJ0272D677 27 OHM 1/10 W 5% 1608 R/TP R529 0RJ0272D677 27 OHM 1/10 W 5% 1608 R/TP R530 0RJ0272D677 27 OHM 1/10 W 5% 1608 R/TP R531 0RJ0272D677 27 OHM 1/10 W 5% 1608 R/TP R532 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R533 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R547 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R606 0RJ1004D677 1000000 OHM 1/10 W 5% 1608 R614 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R615 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R616 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R619 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R620 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R621 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R622 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R626 0RJ1800D677 180 OHM 1/10 W 5% 1608 R/TP R635 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/T R636 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/T R637 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/ R639 0RJ0331D677 3.3 OHM 1/10 W 5% 1608 R/TP R640 0RJ0331D677 3.3 OHM 1/10 W 5% 1608 R/TP R641 0RJ0331D677 3.3 OHM 1/10 W 5% 1608 R/TP R642 0RJ0331D677 3.3 OHM 1/10 W 5% 1608 R/TP R643 0RJ0331D677 3.3 OHM 1/10 W 5% 1608 R/TP R644 0RJ0331D677 3.3 OHM 1/10 W 5% 1608 R/TP R645 0RJ0331D677 3.3 OHM 1/10 W 5% 1608 R/TP R646 0RJ0331D677 3.3 OHM 1/10 W 5% 1608 R/TP R663 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R664 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R669 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R670 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R671 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R672 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R673 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R674 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/T R675 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R679 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R680 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R681 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R690 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R700 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R701 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R702 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R703 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R704 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R705 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R706 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R707 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R708 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R709 0RJ3600D477 360 OHM 1/10 W 1% 1608 R/TP R712 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R713 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R714 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R722 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R724 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R732 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R733 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R734 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R735 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R736 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R737 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R738 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R739 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R740 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R741 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R742 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R743 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R744 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R745 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R746 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R757 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R758 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R759 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R760 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R761 0RJ3600D477 360 OHM 1/10 W 1% 1608 R/TP R764 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R765 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R766 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R774 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R776 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R778 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R784 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R785 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R786 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R787 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R788 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R789 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R790 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R791 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R792 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R793 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R794 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R795 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R796 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R797 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R798 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R813 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R814 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R848 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R849 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R850 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP - 43 - http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R851 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R852 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R853 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R857 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R858 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R860 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R861 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R862 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R865 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R866 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R867 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R868 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R870 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R872 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R874 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R875 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R876 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R877 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R878 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R879 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R882 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R885 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R888 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R900 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R901 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R902 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R903 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R904 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R906 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R907 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R908 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R909 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R910 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R928 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R935 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R936 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R940 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP IC202 3850TAZ028C LM295B BRAND UL/CSA LGMNT M IC203 3850TAZ028C LM295B BRAND UL/CSA LGMNT M IC209 3850TAZ028C LM295B BRAND UL/CSA LGMNT M IC210 3850TAZ028C LM295B BRAND UL/CSA LGMNT M DL1101 0DL233309AC SAM2333 TP KWANG GREEN/RED DL1102 0DL233309AC SAM2333 TP KWANG GREEN/RED DL1401 0DL233309AC SAM2333 TP KWANG GREEN/RED DL1402 0DL233309AC SAM2333 TP KWANG GREEN/RED DL1403 0DL233309AC SAM2333 TP KWANG GREEN/RED DL200 0DL233309AC SAM2333 TP KWANG GREEN/RED DL201 0DL233309AC SAM2333 TP KWANG GREEN/RED IC1301 6204B47985M SCO-103 SUNNY 13.5MHZ +/- 3 X1102 6204B47985K BMS-873R BUBANG 25MHZ +/- 5 X200 6204B47985L SCO-103 SUNNY 33.33HZ +/- 3 X500 6204B60001B VCXO BUBANG 27MHZ +/- 100 P X801 6212AB3004D CSALF2M69G4ZF01-A3 MURATA 2 X1000 6202VDT002H SX-1 SUNNY 18.432000MHZ +/- X1101 6212AB2015F HC-49/SM BUBANG 14MHZ +/- 3 X1200 6212AB2015E HC-49/SM BUBANG 10.0MHZ +/- X1201 6212AB2015A HC-49/SM4H BUBANG 4MHZ +/- X1300 6212AB2806A SX-1 SUNNY 24.576MHZ +/- 50 X300 6212AB2015C HC-49/SM4H BUBANG 25MHZ +/- DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION X600 6202TST001H SX-1 SUNNY 27MHZ +/- 30 PPM X700 6212AB2806A SX-1 SUNNY 24.576MHZ +/- 50 X701 6212AB2806A SX-1 SUNNY 24.576MHZ +/- 50 X800 6212AB2015A HC-49/SM4H BUBANG 4MHZ +/- P201 6600VR1004A SKHMPW 5P CHIP TACT J-ALPS TU401 6852TAZ012J "COAXIAL, UL 1365 AWG 26 70M" C1210 0CE3363F618 "33UF SRE,SE 16V 20% FL TP 5" C1211 0CE3363F618 "33UF SRE,SE 16V 20% FL TP 5" C1214 0CE3363F618 "33UF SRE,SE 16V 20% FL TP 5" L1201 0LA0102K119 10UH K 2.3*3.4 TP L1202 0LA0102K119 10UH K 2.3*3.4 TP C1201 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1202 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1203 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1204 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1206 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1207 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1208 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1209 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C1215 0CH6101K416 100PF 50V 5% NP0 2012 R/TP IC1201 0INE163110A UPD16311GC-AB6 FIP DRIV 52P IC1202 0IKE657830B KID65783AF 20PIN SOP TRAY T IC1203 0IMI623200B "M62320FP,I/O EXPANDER 16P S" L1205 6210TCE001A HB-1S2012-080JT CERATEC 201 L1206 6210TCE001A HB-1S2012-080JT CERATEC 201 L1207 0LCTA00006C "LBC2518T100M, 10UH TAIYOYUD" Q1201 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1202 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1203 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1204 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1205 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1206 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1207 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1208 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1210 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1212 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1213 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1214 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1215 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - R1202 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1204 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1205 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1207 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1208 0RH5100D622 510 OHM 1 / 10 W 2012 5.00% R1210 6210TCE001A HB-1S2012-080JT CERATEC 201 R1211 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R1212 6210TCE001A HB-1S2012-080JT CERATEC 201 R1213 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1216 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1217 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1218 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1220 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1221 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1226 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1228 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1229 6210TCE001A HB-1S2012-080JT CERATEC 201 R1230 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1233 6210TCE001A HB-1S2012-080JT CERATEC 201 R1234 6210TCE001A HB-1S2012-080JT CERATEC 201 - 44 - OTHERs LED & P/SW BOARD http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R1235 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1236 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1237 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1238 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R1239 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1240 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1241 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1242 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1243 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1244 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1245 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1246 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1247 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1248 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1250 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1253 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1257 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1258 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1260 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1261 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1262 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R1263 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1264 6210TCE001A HB-1S2012-080JT CERATEC 201 R1266 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1267 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1268 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R1272 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1275 0RH3302D622 33K OHM 1 / 10 W 2012 5.00% R1277 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1278 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1279 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1280 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1281 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1282 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1283 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1284 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1285 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1286 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1287 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1288 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1289 0RH0392D622 39 OHM 1 / 10 W 2012 5.00% R1290 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1291 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1292 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R1293 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1295 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D IC1204 6301T00008B "YANGWOO LED ASSEMBLY D-TV," C1000 0CN1010K519 100PF D 50V 10% B(Y5P) TA52 C1001 0CE475DK618 4.7UF STD 50V 20% FL TP 5 L1000 0RD1000F609 100 OHM 1/6 W 5% TA52 R1000 0RD0102F609 10 OHM 1/6 W 5% TA52 PA1000 6712R1538GG TSOP2438MQ1 VISHAY 38KHZ DU SW1201 6600R00001B JTP1289 JEIL 12V DC 1MA VER SW1202 6600R00001B JTP1289 JEIL 12V DC 1MA VER SW1203 6600R00001B JTP1289 JEIL 12V DC 1MA VER SW1204 6600R00001B JTP1289 JEIL 12V DC 1MA VER DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION SW1205 6600R00001B JTP1289 JEIL 12V DC 1MA VER SW1206 6600R00001B JTP1289 JEIL 12V DC 1MA VER SW1207 6600R00001B JTP1289 JEIL 12V DC 1MA VER SW1208 6600R00001B JTP1289 JEIL 12V DC 1MA VER C2103 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP L2101 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D L2102 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D L2104 6210TCE001A HB-1S2012-080JT CERATEC 201 L2105 6210TCE001A HB-1S2012-080JT CERATEC 201 R2101 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R2102 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R2103 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R2104 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R2105 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R2107 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R2110 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 ZD1201 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD1202 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD1203 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD1204 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD1205 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD1206 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD2101 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD2102 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD2103 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 LED801 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED802 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED803 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED804 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED805 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED806 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED807 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED808 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED809 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED810 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED811 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED812 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED813 0DLNC0058AA NICHIA NSCW215T R/TP WHITE LED814 0DLNC0058AA "NICHIA NSCW215T R/TP WHITE-37/42LP1D-UA LED815 0DLNC0058AA "NICHIA NSCW215T R/TP WHITE-37/42LP1D-UA LED816 0DLNC0058AA "NICHIA NSCW215T R/TP WHITE-37/42LP1D-UA C2004 0CH2103K666 0.01UF 50V 20% X7R 2012 R/T C2007 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2009 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2013 0CH2334F566 0.33UF 16V 10% X7R 2012 R/T C2014 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2016 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2017 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2018 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2019 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2023 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2024 0CH2103K666 0.01UF 50V 20% X7R 2012 R/T C2025 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C2027 0CH2103K666 0.01UF 50V 20% X7R 2012 R/T C2029 0CH3224K946 0.22UF 50V Z F 2012 R/TP C2041 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP L2003 6210TCE001G HH-1M3216-501 CERATEC 3216M L2004 6210TCE001G HH-1M3216-501 CERATEC 3216M L2005 6210TCE001G HH-1M3216-501 CERATEC 3216M - 45 - TUNER BOARD IR BOARD CONTROL BOARD http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L2006 0LC2000005K "FI-D2012-223, 22UH CERATECH" R2001 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R2002 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R2003 0RH0102D622 10 OHM 1 / 10 W 2012 5.00% R2011 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R2012 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R2014 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R2016 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R2017 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R2018 0RH0682D622 68 OHM 1 / 10 W 2012 5.00% F2001 6200QL3002E X9650M EPCOS ST 44MHZ 5PIN TU1501 6700AN0002A TDVS-H701P LGIT ATSC/NTSC D TU2002 6700NC0001B TAEU-H018P LGIT NTSC OOB CA C2003 0CE476VF6DC 47UF MV 16V 20% R/TP(SMD) S C2005 0CE476VF6DC 47UF MV 16V 20% R/TP(SMD) S C2008 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C2010 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C2011 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2012 0CE476VF6DC 47UF MV 16V 20% R/TP(SMD) S C2015 0CE107SF6DC 100UF MVG 16V 20% SMD R/TP C2022 0CE476VK6DC 47UF MV 50V 20% R/TP(SMD) S C2026 0CE476VF6DC 47UF MV 16V 20% R/TP(SMD) S C2028 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C2030 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C2031 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C2032 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2033 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C2034 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7 C2035 0CE226VF6DC 22UF MV 16V 20% R/TP(SMD) S C2036 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2054 0CE106WH6DC 10UF MVK 25V 20% R/TP(SMD) C2055 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R IC2001 0IMCRFA010A "KA7809R, FAIRCHILD 2P D-PAK" IC2002 0IMCRSH001A "PQ05DZ1U SHARP 5, SMD TYPE" IC2003 0IMCRTI035A "TL592B-8DR,LF TEXAS INSTRU" IC2004 0IMCRFA004A KA2904DTF FAIRCHILD 8SOP R/ IC2006 0IPRP00538A FSA1156P6X-NL FAIRCHILD 6P/ L2001 6210TCE001G HH-1M3216-501 CERATEC 3216M L2002 6210TCE001G HH-1M3216-501 CERATEC 3216M L2007 0LC2000005K "FI-D2012-223, 22UH CERATECH" L2008 0LC2000005K "FI-D2012-223, 22UH CERATECH" Q2001 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - R2004 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R2006 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R2007 0RJ1502D677 15K OHM 1/10 W 5% 1608 R/TP R2010 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R2020 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R2021 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R2022 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R2023 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R2024 0RJ0512D677 51 OHM 1/10 W 5% 1608 R/TP R2025 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R2040 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R2041 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R2042 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP TU1501 6852TAZ012S "COAXIAL,LINK R/A-S/T UL 136-32LP1D-UA TU1501 6852TAZ012T "COAXIAL,LINK R/A-S/T UL 136-37/42LP1D-UA TU2002 6852TAZ012K "COAXIAL,R/A-S/T UL 1365 AWG-32LP1D-UA TU2002 6852TAZ012M "COAXIAL,R/A-S/T UL 1365 AWG-37/42LP1D-UA DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L5101 6210TCE001A HB-1S2012-080JT CERATEC 201 L5102 6210TCE001A HB-1S2012-080JT CERATEC 201 R5101 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R5102 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R5103 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R5104 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R5105 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R5106 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R5107 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R5108 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R5109 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R5110 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% C3100 0CE106SF6DC "10UF MVG 16V 20% R/TP(SMD)-37/42LP1D-UA C3101 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C3102 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C3103 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C3104 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C3105 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C3106 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C3107 0CE106SF6DC 10UF MVG 16V 20% R/TP(SMD) C3108 0CK104CK56A "0.1UF 1608 50V 10% R/TP X7R--37/42LP1D-UA C3109 0CK104CK56A "0.1UF 1608 50V 10% R/TP X7R-37/42LP1D-UA C3110 0CK104CK56A "0.1UF 1608 50V 10% R/TP X7R-37/42LP1D-UA C3111 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C3112 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C3113 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C3114 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C3115 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C3116 0CK104CK56A "0.1UF 1608 50V 10% R/TP X7R-32LP1D-UA C3117 0CK104CK56A "0.1UF 1608 50V 10% R/TP X7R-32LP1D-UA Q3101 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3102 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3103 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3104 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3105 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3106 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3107 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3108 0TR387500AA "CHIP 2SC3875S(ALY) BK KEC -37/42LP1D-UA R3101 0RJ2000D677 "200 OHM 1/10 W 5% 1608 R/TP-32LP1D-UA R3101 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-37LP1D-UA R3101 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-42LP1D-UA R3102 0RJ2000D677 "200 OHM 1/10 W 5% 1608 R/TP-32LP1D-UA R3102 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-37LP1D-UA R3102 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-42LP1D-UA R3103 0RJ2000D677 "200 OHM 1/10 W 5% 1608 R/TP-32LP1D-UA R3103 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-37LP1D-UA R3103 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-42LP1D-UA R3104 0RJ2000D677 "200 OHM 1/10 W 5% 1608 R/TP-32LP1D-UA R3104 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-37LP1D-UA R3104 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-42LP1D-UA R3105 0RJ2000D677 "200 OHM 1/10 W 5% 1608 R/TP-32LP1D-UA R3105 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-37LP1D-UA R3105 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-42LP1D-UA R3106 0RJ2000D677 "200 OHM 1/10 W 5% 1608 R/TP-32LP1D-UA R3106 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-37LP1D-UA R3106 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-42LP1D-UA R3107 0RJ2000D677 "200 OHM 1/10 W 5% 1608 R/TP-32LP1D-UA R3107 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-37LP1D-UA - 46 - SIDE A/V BOARD LOGO BOARD http://www.wjel.net DATE: 2005. 06. 13. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R3107 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-42LP1D-UA R3108 0RJ2200D677 "220 OHM 1/10 W 5% 1608 R/TP-37/42LP1D-UA R3109 0RJ0000D677 "0 OHM 1/10 W 5% 1608 R/TP-37/42LP1D-UA R3110 0RJ0000D677 "0 OHM 1/10 W 5% 1608 R/TP-37/42LP1D-UA R3111 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3112 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3113 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3114 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3115 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3116 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R3117 0RJ0000D677 "0 OHM 1/10 W 5% 1608 R/TP-32LP1D-UA R3120 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP - 47 - http://www.wjel.net http://www.wjel.net http://www.wjel.net http://www.wjel.net http://www.wjel.net Jun, 2005 Printed in Korea P/NO : 38289S0004C http://www.wjel.net
