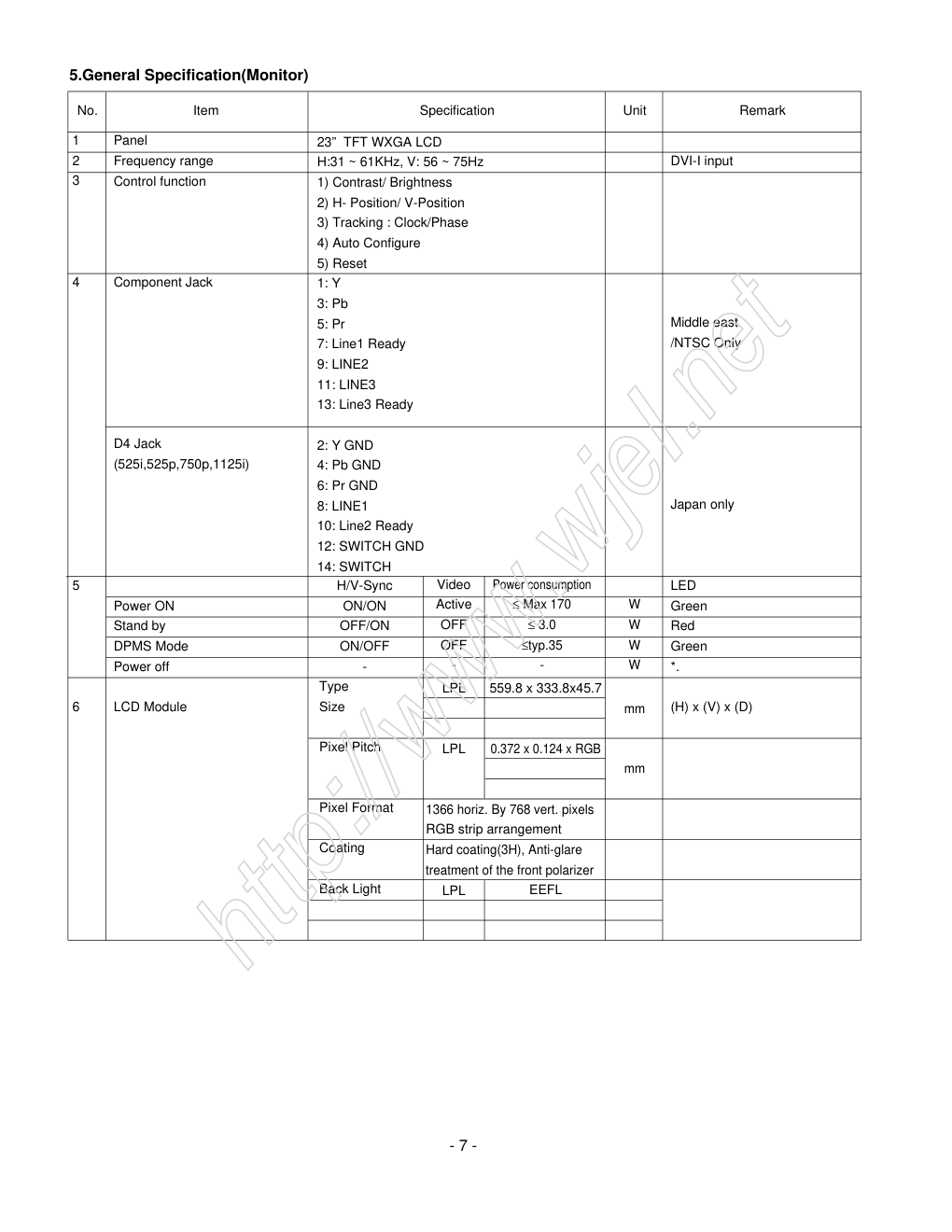

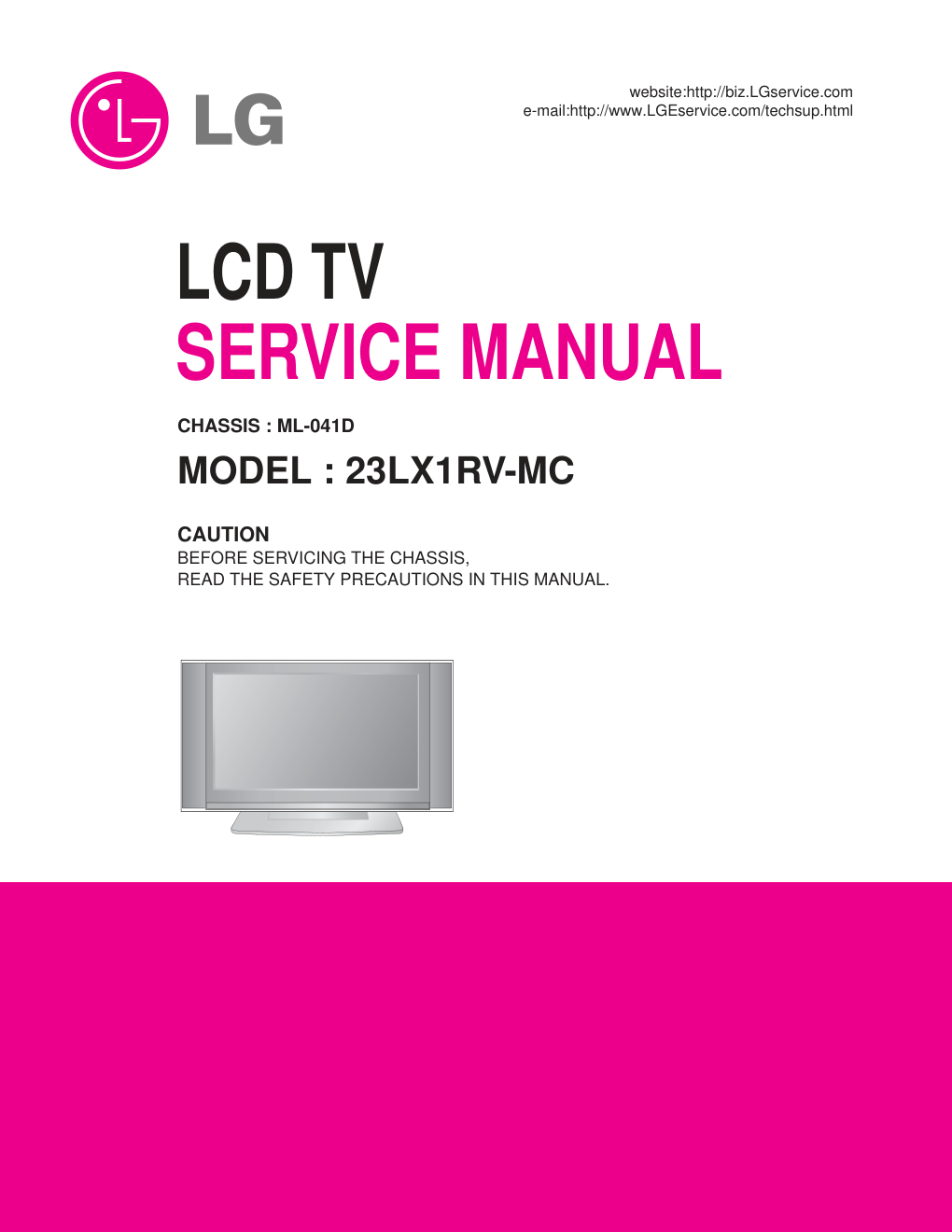

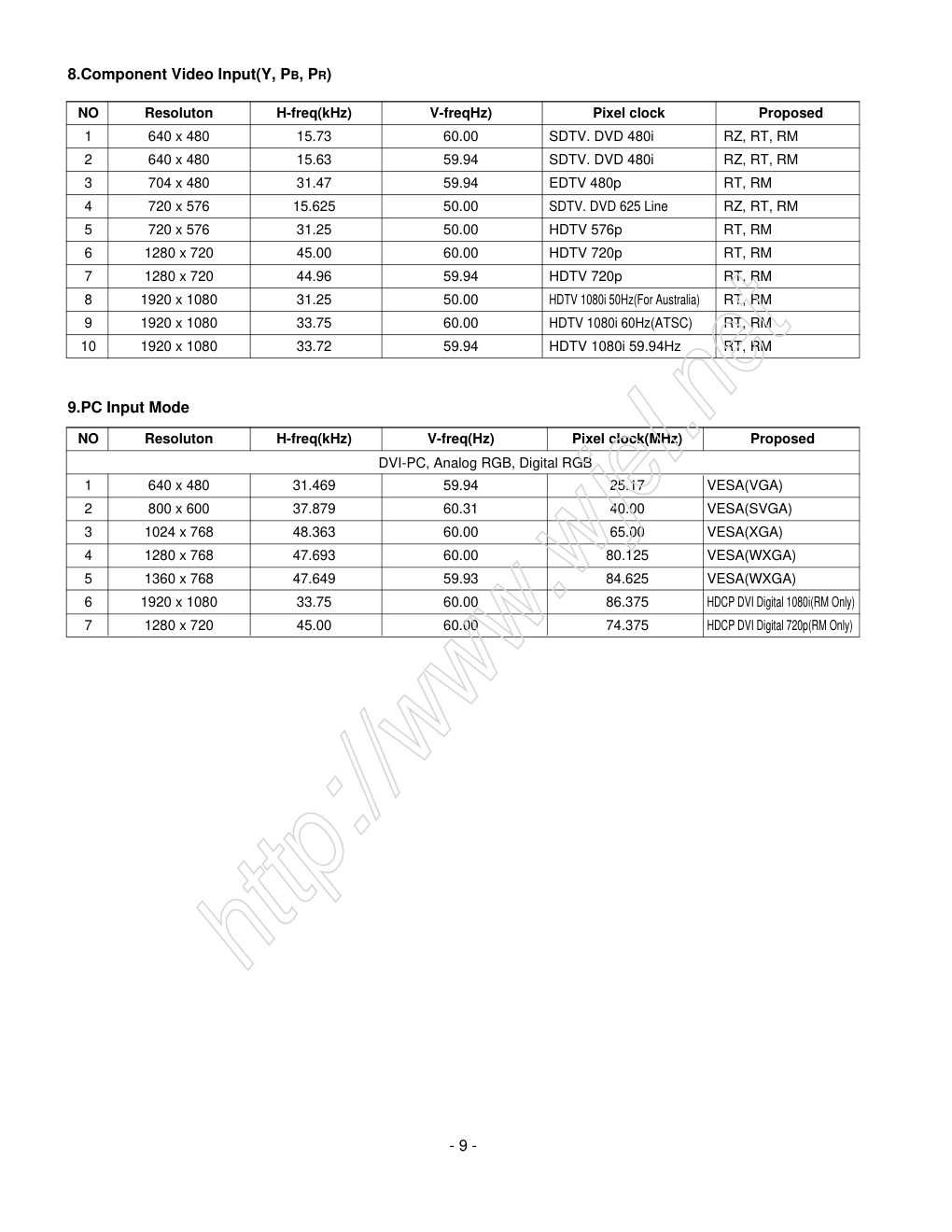

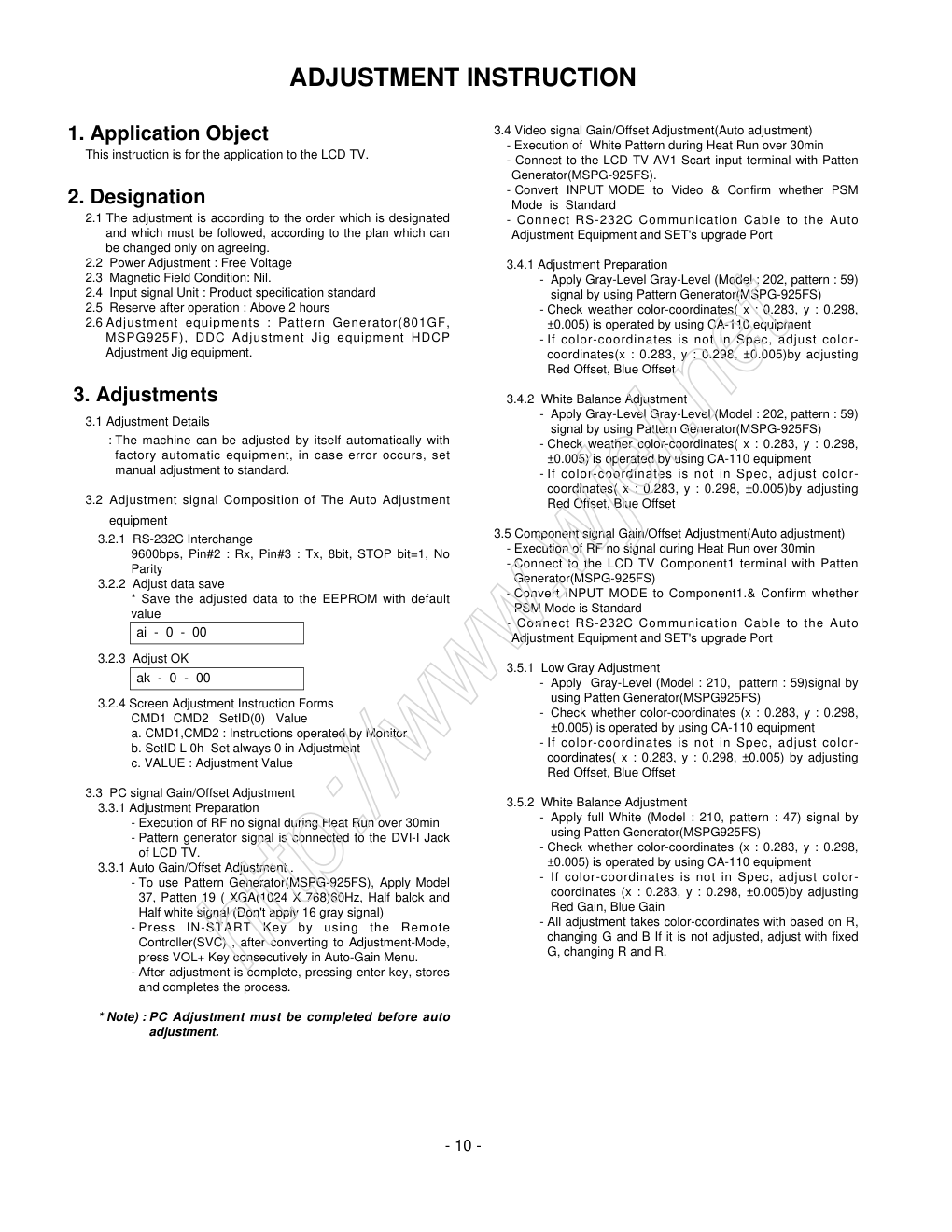

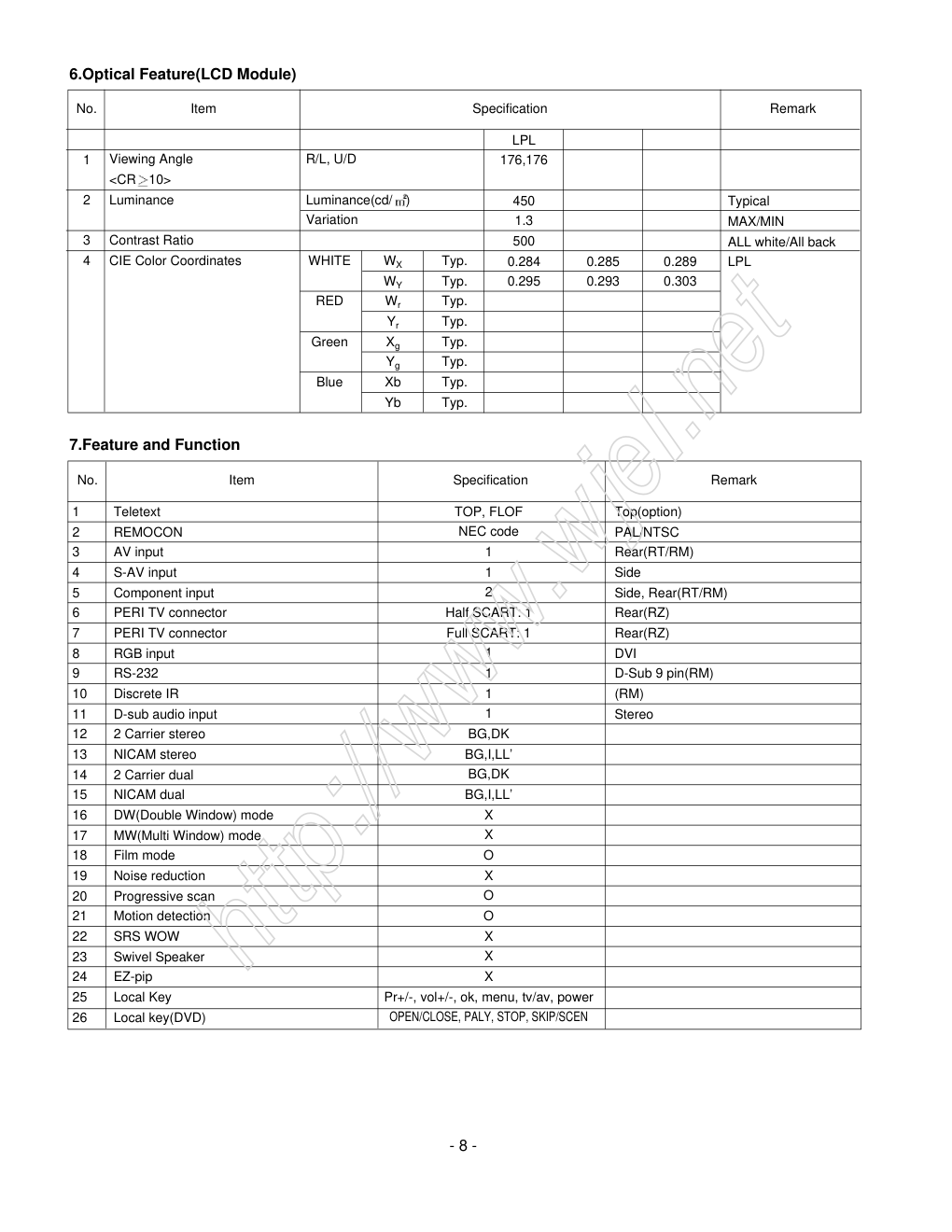

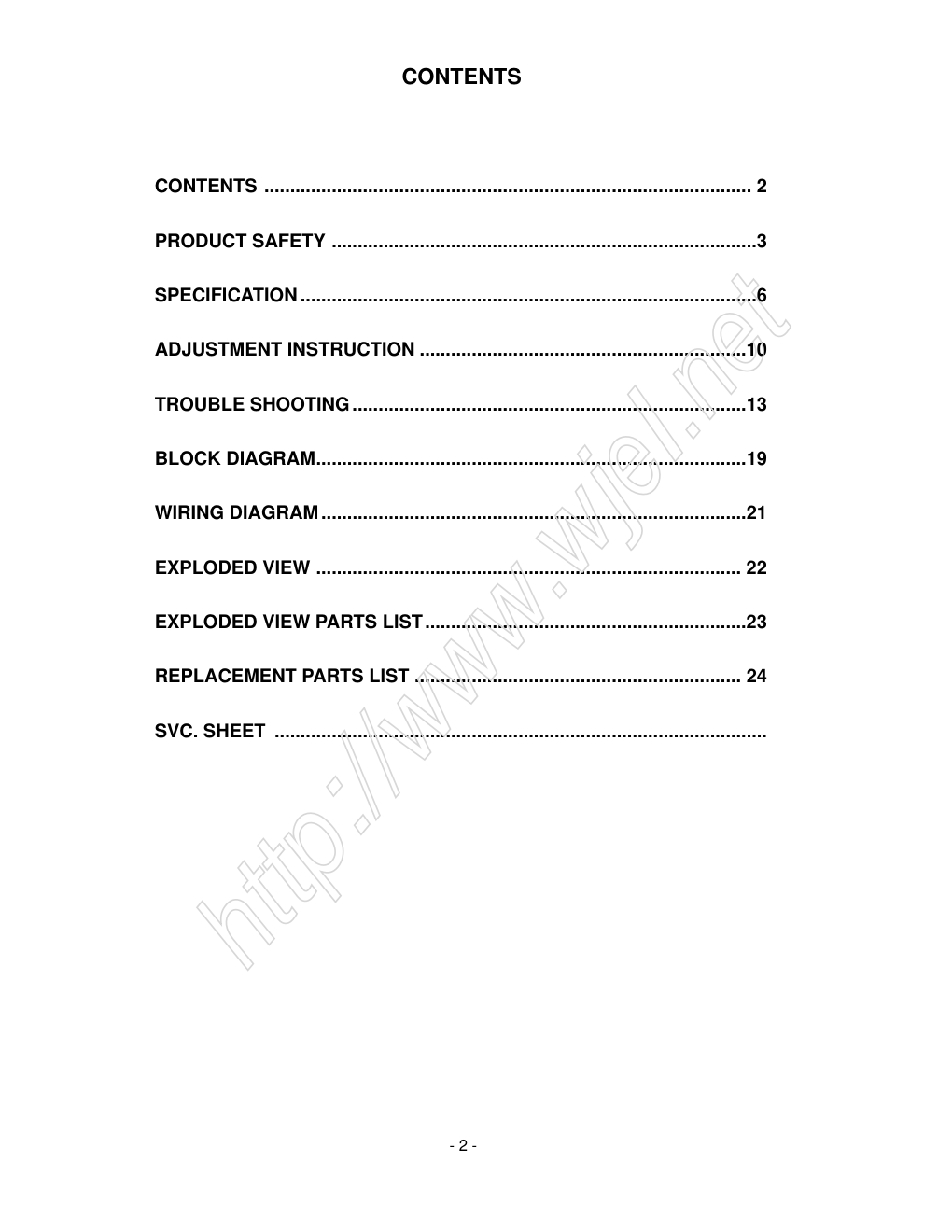

LCD TV SERVICE MANUAL CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. CHASSIS : ML-041D MODEL : 23LX1RV-MC website:http://biz.LGservice.com e-mail:http://www.LGEservice.com/techsup.html - 2 - CONTENTS CONTENTS .............................................................................................. 2 PRODUCT SAFETY ..................................................................................3 SPECIFICATION ........................................................................................6 ADJUSTMENT INSTRUCTION ...............................................................10 TROUBLE SHOOTING............................................................................13 BLOCK DIAGRAM...................................................................................19 WIRING DIAGRAM..................................................................................21 EXPLODED VIEW .................................................................................. 22 EXPLODED VIEW PARTS LIST..............................................................23 REPLACEMENT PARTS LIST ............................................................... 24 SVC. SHEET ............................................................................................... http://www.wjel.net - 3 - SAFETY PRECAUTIONS Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation. If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified. When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB. Keep wires away from high voltage or high temperature parts. Before returning the receiver to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock. Leakage Current Cold Check(Antenna Cold Check) With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. Do not use a line Isolation Transformer during this check. Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer. Leakage Current Hot Check circuit 1.5 Kohm/10W To Instrument's exposed METALLIC PARTS Good Earth Ground such as WATER PIPE, CONDUIT etc. AC Volt-meter IMPORTANT SAFETY NOTICE 0.15uF http://www.wjel.net - 4 - CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First. General Servicing Precautions 1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board module or any other receiver assembly. b. Disconnecting or reconnecting any receiver electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard. 2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc". 3. Do not spray chemicals on or near this receiver or any of its assemblies. 4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required. 5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped. 6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. 7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. 8. Use with this receiver only the test fixtures specified in this service manual. CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver. Electrostatically Sensitive (ES) Devices Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.) General Soldering Guidelines 1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 F to 600 F. 2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead. 3. Keep the soldering iron tip clean and well tinned. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire- bristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners. 5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500 F to 600 F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction- type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuitboard printed foil. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature (500 F to 600 F) b. First, hold the soldering iron tip and solder the strand against the component lead until the solder melts. c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil. d. Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush. SERVICING PRECAUTIONS - 5 - IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above. Removal 1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts. 2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC. Replacement 1. Carefully insert the replacement IC in the circuit board. 2. Carefully bend each IC lead against the circuit foil pad and solder it. 3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas). "Small-Signal" Discrete Transistor Removal/Replacement 1. Remove the defective transistor by clipping its leads as close as possible to the component body. 2. Bend into a "U" shape the end of each of three leads remaining on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection. Power Output, Transistor Device Removal/Replacement 1. Heat and remove all solder from around the transistor leads. 2. Remove the heat sink mounting screw (if so equipped). 3. Carefully remove the transistor from the heat sink of the circuit board. 4. Insert new transistor in the circuit board. 5. Solder each transistor lead, and clip off excess lead. 6. Replace heat sink. Diode Removal/Replacement 1. Remove defective diode by clipping its leads as close as possible to diode body. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered. At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections). 1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection. 4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board. 1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens. 2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern. 3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges. http://www.wjel.net - 6 - 1. Application range This specification is applied to ML-041D chassis. 2. Requirement for Test Testing for standard of each part must be followed in below condition. (1) Temperature: 25°C ± 2°C (2) Humidity: 65% ± 10% (3) Power: Standard input voltage (AC 100-240V, 50/60Hz) (4) Measurement must be performed after heat-run more than 30min. (5) Adjusting standard for this chassis is followed a special standard. SPECIFICATION NOTE : Specifications and others are subject to change without notice for improvement. 3.General Specification(TV) 1 2 3 4 5 6 7 8 9 Video input applicable system Receivable broadcasting system RF input channel Input voltage Picture size Tuning system Operting environment Storage environment Display 1)PAL-D/K,B/G,I 2)NTSC-M 3)SECAM NTSC 4.43’ 1)PAL/SECAM BG 2)PAL/SECAM DK 3)PAL I/I 4)SECAM L/L’ 5)NTSC M 6)PAL-N/M 7)NTSC M VHF : E2 ~ E12 UHF : E21 ~ E69 CATV : S1 ~ S20 HYPER : S21 ~ S41 L/L’ : B,C,D VHF : 2 ~ 13 UHF : 14 ~ 69 CATV : 1 ~ 125 VHF Low : 1~M10 VHF High : 4~S22 UHF : S23~62 AC 100 - 240V/ 50Hz,60HZ 583mm FVS 100 program FS 1)Temp : 0 ~ 40 deg 2)Humidity : 85% 3)Temp : -20 ~ 60 deg 4)Humidity : 85% LCD Module Item Specification Remark No. South America Market Except South America NTSC Market (RM) PAL FRANCE NTSC JAPAN 23” PAL, 200PR.(Option) NTSC http://www.wjel.net - 7 - 5.General Specification(Monitor) 1 2 3 4 5 6 Panel Frequency range Control function Component Jack D4 Jack (525i,525p,750p,1125i) Power ON Stand by DPMS Mode Power off LCD Module 23” TFT WXGA LCD H:31 ~ 61KHz, V: 56 ~ 75Hz 1) Contrast/ Brightness 2) H- Position/ V-Position 3) Tracking : Clock/Phase 4) Auto Configure 5) Reset 1: Y 3: Pb 5: Pr 7: Line1 Ready 9: LINE2 11: LINE3 13: Line3 Ready 2: Y GND 4: Pb GND 6: Pr GND 8: LINE1 10: Line2 Ready 12: SWITCH GND 14: SWITCH 1366 horiz. By 768 vert. pixels RGB strip arrangement Hard coating(3H), Anti-glare treatment of the front polarizer Item Specification Remark Unit No. DVI-I input Middle east /NTSC Only Japan only LED Green Red Green *. (H) x (V) x (D) H/V-Sync ON/ON OFF/ON ON/OFF - Video Active OFF OFF - LPL LPL Power consumption ≤ Max 170 ≤ 3.0 ≤typ.35 - W W W W mm mm Type Size Pixel Pitch Pixel Format Coating Back Light 559.8 x 333.8x45.7 0.372 x 0.124 x RGB LPL EEFL http://www.wjel.net - 8 - 7.Feature and Function 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Teletext REMOCON AV input S-AV input Component input PERI TV connector PERI TV connector RGB input RS-232 Discrete IR D-sub audio input 2 Carrier stereo NICAM stereo 2 Carrier dual NICAM dual DW(Double Window) mode MW(Multi Window) mode Film mode Noise reduction Progressive scan Motion detection SRS WOW Swivel Speaker EZ-pip Local Key Local key(DVD) TOP, FLOF NEC code 1 1 2 Half SCART: 1 Full SCART: 1 1 1 1 1 BG,DK BG,I,LL’ BG,DK BG,I,LL’ X X O X O O X X X Pr+/-, vol+/-, ok, menu, tv/av, power OPEN/CLOSE, PALY, STOP, SKIP/SCEN Item Specification Remark No. Top(option) PAL/NTSC Rear(RT/RM) Side Side, Rear(RT/RM) Rear(RZ) Rear(RZ) DVI D-Sub 9 pin(RM) (RM) Stereo 6.Optical Feature(LCD Module) Item Remark Specification Viewing Angle Luminance Contrast Ratio CIE Color Coordinates Typical MAX/MIN ALL white/All back LPL R/L, U/D Luminance(cd/ ) Variation LPL 176,176 450 1.3 500 0.284 0.295 0.285 0.293 0.289 0.303 WHITE RED Green Blue WX WY Wr Yr Xg Yg Xb Yb Typ. Typ. Typ. Typ. Typ. Typ. Typ. Typ. No. 1 2 3 4 http://www.wjel.net - 9 - NO 1 2 3 4 5 6 7 8 9 10 Resoluton 640 x 480 640 x 480 704 x 480 720 x 576 720 x 576 1280 x 720 1280 x 720 1920 x 1080 1920 x 1080 1920 x 1080 H-freq(kHz) 15.73 15.63 31.47 15.625 31.25 45.00 44.96 31.25 33.75 33.72 V-freqHz) 60.00 59.94 59.94 50.00 50.00 60.00 59.94 50.00 60.00 59.94 Proposed RZ, RT, RM RZ, RT, RM RT, RM RZ, RT, RM RT, RM RT, RM RT, RM RT, RM RT, RM RT, RM Pixel clock SDTV. DVD 480i SDTV. DVD 480i EDTV 480p SDTV. DVD 625 Line HDTV 576p HDTV 720p HDTV 720p HDTV 1080i 50Hz(For Australia) HDTV 1080i 60Hz(ATSC) HDTV 1080i 59.94Hz NO 1 2 3 4 5 6 7 Resoluton 640 x 480 800 x 600 1024 x 768 1280 x 768 1360 x 768 1920 x 1080 1280 x 720 H-freq(kHz) 31.469 37.879 48.363 47.693 47.649 33.75 45.00 V-freq(Hz) 59.94 60.31 60.00 60.00 59.93 60.00 60.00 Proposed VESA(VGA) VESA(SVGA) VESA(XGA) VESA(WXGA) VESA(WXGA) HDCP DVI Digital 1080i(RM Only) HDCP DVI Digital 720p(RM Only) Pixel clock(MHz) 25.17 40.00 65.00 80.125 84.625 86.375 74.375 8.Component Video Input(Y, PB, PR) 9.PC Input Mode DVI-PC, Analog RGB, Digital RGB http://www.wjel.net - 10 - 1. Application Object This instruction is for the application to the LCD TV. 2. Designation 2.1 The adjustment is according to the order which is designated and which must be followed, according to the plan which can be changed only on agreeing. 2.2 Power Adjustment : Free Voltage 2.3 Magnetic Field Condition: Nil. 2.4 Input signal Unit : Product specification standard 2.5 Reserve after operation : Above 2 hours 2.6 Adjustment equipments : Pattern Generator(801GF, MSPG925F), DDC Adjustment Jig equipment HDCP Adjustment Jig equipment. 3. Adjustments 3.1 Adjustment Details : The machine can be adjusted by itself automatically with factory automatic equipment, in case error occurs, set manual adjustment to standard. 3.2 Adjustment signal Composition of The Auto Adjustment equipment 3.2.1 RS-232C Interchange 9600bps, Pin#2 : Rx, Pin#3 : Tx, 8bit, STOP bit=1, No Parity 3.2.2 Adjust data save * Save the adjusted data to the EEPROM with default value 3.2.3 Adjust OK 3.2.4 Screen Adjustment Instruction Forms CMD1 CMD2 SetID(0) Value a. CMD1,CMD2 : Instructions operated by Monitor b. SetID L 0h Set always 0 in Adjustment c. VALUE : Adjustment Value 3.3 PC signal Gain/Offset Adjustment 3.3.1 Adjustment Preparation - Execution of RF no signal during Heat Run over 30min - Pattern generator signal is connected to the DVI-I Jack of LCD TV. 3.3.1 Auto Gain/Offset Adjustment . - To use Pattern Generator(MSPG-925FS), Apply Model 37, Patten 19 ( XGA(1024 X 768)60Hz, Half balck and Half white signal (Don't apply 16 gray signal) - Press IN-START Key by using the Remote Controller(SVC) , after converting to Adjustment-Mode, press VOL+ Key consecutively in Auto-Gain Menu. - After adjustment is complete, pressing enter key, stores and completes the process. * Note) : PC Adjustment must be completed before auto adjustment. 3.4 Video signal Gain/Offset Adjustment(Auto adjustment) - Execution of White Pattern during Heat Run over 30min - Connect to the LCD TV AV1 Scart input terminal with Patten Generator(MSPG-925FS). - Convert INPUT MODE to Video & Confirm whether PSM Mode is Standard - Connect RS-232C Communication Cable to the Auto Adjustment Equipment and SET's upgrade Port 3.4.1 Adjustment Preparation - Apply Gray-Level Gray-Level (Model : 202, pattern : 59) signal by using Pattern Generator(MSPG-925FS) - Check weather color-coordinates( x : 0.283, y : 0.298, ±0.005) is operated by using CA-110 equipment - If color-coordinates is not in Spec, adjust color- coordinates(x : 0.283, y : 0.298, ±0.005)by adjusting Red Offset, Blue Offset 3.4.2 White Balance Adjustment - Apply Gray-Level Gray-Level (Model : 202, pattern : 59) signal by using Pattern Generator(MSPG-925FS) - Check weather color-coordinates( x : 0.283, y : 0.298, ±0.005) is operated by using CA-110 equipment - If color-coordinates is not in Spec, adjust color- coordinates( x : 0.283, y : 0.298, ±0.005)by adjusting Red Offset, Blue Offset 3.5 Component signal Gain/Offset Adjustment(Auto adjustment) - Execution of RF no signal during Heat Run over 30min - Connect to the LCD TV Component1 terminal with Patten Generator(MSPG-925FS) - Convert INPUT MODE to Component1.& Confirm whether PSM Mode is Standard - Connect RS-232C Communication Cable to the Auto Adjustment Equipment and SET's upgrade Port 3.5.1 Low Gray Adjustment - Apply Gray-Level (Model : 210, pattern : 59)signal by using Patten Generator(MSPG925FS) - Check whether color-coordinates (x : 0.283, y : 0.298, ±0.005) is operated by using CA-110 equipment - If color-coordinates is not in Spec, adjust color- coordinates( x : 0.283, y : 0.298, ±0.005) by adjusting Red Offset, Blue Offset 3.5.2 White Balance Adjustment - Apply full White (Model : 210, pattern : 47) signal by using Patten Generator(MSPG925FS) - Check whether color-coordinates (x : 0.283, y : 0.298, ±0.005) is operated by using CA-110 equipment - If color-coordinates is not in Spec, adjust color- coordinates (x : 0.283, y : 0.298, ±0.005)by adjusting Red Gain, Blue Gain - All adjustment takes color-coordinates with based on R, changing G and B If it is not adjusted, adjust with fixed G, changing R and R. ADJUSTMENT INSTRUCTION ai - 0 - 00 ak - 0 - 00 http://www.wjel.net 3.3 EDID (The Extended Display Identification Data) - Connect D-Sub to DVI-I Cable to DVI-I Jack. - Confirm the pc display by inputting the Analog signal. - After displayed, input the Analog EDID data. - Connect DVI D Cable to DVI Jack. - Confirm the pc display by inputting the Digital signal. - After displayed, input the Digital EDID data. 3.3.1 EDID DATA < DDC DATA Digital Set> 3.4 HDCP (High-Bandwidth Digital Contents Protection) Setting 3.4.1 When transmitting HD video source of HD STB through DVI(Digital Visual Interface), HDCP function is to execute Display & copy protection for securing contents security. 3.4.2 Confirm whether HDCP function is operated properly by connecting DVI Cable, after storing HDCP Key value on EEPROM(AT24C16)[address 0x4EE] (Refer to Working Order for Detailed work content ). * Reference : HDCP adjustment is not use. We are planning HDCP adjustment from NTSC. Note. : HDCP will temporarily exclude in spec. HDCP will apply from USA Product later. - 11 - 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF FF 1E 6D 17 56 01 01 01 01 10 00 0F 01 03 01 40 26 78 08 B1 DA A1 56 48 98 24 20 13 48 4B A1 08 00 31 40 01 01 01 01 45 40 01 01 30 61 40 81 80 01 01 4E 1F 00 90 51 00 1B 30 40 88 40 13 00 A2 0B 32 00 00 18 1B 21 50 0 51 00 1E 30 50 48 88 35 00 A2 0B 32 00 00 1C 00 00 00 FD 00 3B 60 3D 1F 30 09 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 32 33 4C 58 31 52 56 0A 20 20 20 20 20 00 46 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 18 56 01 01 01 01 10 00 0F 01 03 81 40 26 78 0A B1 DA A1 56 48 98 24 20 13 48 4B A1 08 00 31 40 01 01 01 01 45 40 01 01 30 61 40 81 80 01 01 4E 1F 00 90 51 00 1B 30 40 88 40 13 00 A2 0B 32 00 00 18 1B 21 50 A0 51 00 1E 30 50 48 88 35 00 A2 0B 32 00 00 1C 00 00 00 FD 00 3B 60 3D 1F 30 09 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 32 33 4C 58 31 52 56 0A 20 20 20 20 20 01 C2 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 02 01 04 00 01 1D 00 72 51 D0 1E 20 6E 28 55 00 10 C4 8E 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 20 96 00 C4 8E 21 00 00 18 01 1D 80 18 71 1C 16 20 30 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 00 00 00 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 BF http://www.wjel.net - 12 - SVC REMOCON 1 POWER 2 POWER ON 3 MUTE 4 P-CHECK 5 S-CHECK 6 ARC 7 CAPTION 8 TXT 9 TV/AV 10 TURBO SOUND 11 TURBO PICTURE 12 IN-START 13 ADJ 14 MPX 15 EXIT 16 APC(PSM) 17 ASC(SSM) 18 MULTIMIDIA 19 FRONT-AV 20 CH 21 VOL 22 ENTER 23 PIP CH-(OP1) 24 PIP CH+(OP2) 25 PIP SWAP(OP3) 26 PIP INPUT(OP4) 27 EYE 28 MENU 29 IN-STOP 30 STILL 31 TIME 32 SIZE 33 MULTI PIP 34 POSITION 35 MODE 36 PIP 37 TILT 38 0~9 To turn the TV on or off To turn the TV on automatically if the power is supplied to the TV. (Use the POWER key to deactivate): It should be deactivated when delivered. To activate the mute function. To check TV screen image easily. To check TV screen sound easily To select size of the main screen (Normal, Spectacle, Wide or Zoom) Switch to closed caption broadcasting To toggle on/off the teletext mode To select an external input for the TV screen To start turbo sound To start turbo picture To enter adjustment mode when manufacturing the TV sets. To adjust the screen voltage (automatic): In-start mute Adjust AV(Enter into W/B adjustment mode) W/B adjustment (automatic): After adjusting the screen W/B adjustment Exit two times (Adjustment completed) To enter into the adjustment mode. To adjust horizontal line and sub-brightness. To select the multiple sound mode (Mono, Stereo or Foreign language) To release the adjustment mode To easily adjust the screen according to surrounding brightness To easily adjust sound according to the program type To check component input To check the front AV To move channel up/down or to select a function displayed on the screen. To adjust the volume or accurately control a specific function. To set a specific function or complete setting. To move the channel down in the PIP screen. To use as a red key in the teletext mode To move the channel in the PIP screen To use as a green key in the teletext mode To switch between the main and sub screens To use as a yellow key in the teletext mode To select the input status in the PIP screen To use as a blue key in the teletext mode To set a function that will automatically adjust screen status to match the surrounding brightness so natural color can be displayed. To select the functions such as video, voice, function or channel. To set the delivery condition status after manufacturing the TV set. To halt the main screen in the normal mode, or the sub screen at the PIP screen. Used as a hold key in the teletext mode (Page updating is stopped.) Displays the teletext time in the normal mode Enables to select the sub code in the teletext mode Used as the size key in the PIP screen in the normal mode Used as the size key in the teletext mode Used as the index key in the teletext mode (Top index will be displayed if it is the top text.) To select the position of the PIP screen in the normal mode Used as the update key in the teletext mode (Text will be displayed if the current page is updated.) Used as Mode in the teletext mode To select the simultaneous screen To adjust screen tilt To manually select the channel. Shortcut keys Shortcut keys Shortcut keys Use the AV key to enter the screen W/B adjustment mode. Shortcut keys Shortcut keys Shortcut keys http://www.wjel.net - 13 - TROUBLESHOOTING No power (LED indicator off) No Power (LED indicator off) Change IC1300, IC4 or IC6 Change LED Assy Check 24V or 12V of Power B/D Check Output of IC1300, IC4 or IC6 Check LED Assy Check P101 Connector Faill Faill Change L3, L1300 Check Output of L3, L1300 Faill Faill Pass Pass Pass :[A]Process http://www.wjel.net - 14 - No Raster Check LED Status on display unit Check the input/ Output of IC901 Check L900,L901 L902,L903 Check inverter Connector or inverter Check input source cable and jack Repeat A PROCESS Faill Change L900,L901, L902,L903 Faill Change IC901 Faill Change inverter connector or inverter Faill Change panel link cable or module Faill Change module Faill Check panel link Cable or module Pass Pass Pass Pass :[B]Process http://www.wjel.net - 15 - No Raster on Component signal Change Q310,Q315,Q316 Check the signal of Q310,Q315,Q316 Repeat [A] Process Check the input/ output of IC800 Check the input/ output of IC500 Check input source cable and jack Faill Re-soldering or Change the defect part Check IC800 Faill Re-soldering or Change the defect part Check IC500,X500,IC501 Faill Pass Pass Pass Check the input/ output of IC901 Re-soldering or Change the defect part Check X900 Faill Pass Check the input/ output of IC600 Re-soldering or Change the defect part Check IC600 Faill Pass Pass :[C]Process - 16 - No Raster on AV Signa (AV1 S-Video) No Raster on TV(RF) signal Change Q317,Q318,Q308, Q313 Check the signal of Q317,Q318,Q308,Q313 Repeat [A] Process Check the output of TU1000 Faill Faill Faill Check 5V,33V of TU1000, Re-soldering of Change the defect part Pass Pass :[C]Process http://www.wjel.net - 17 - No Raster on DVD Signal Check the signal of R1211,R1212,R1213 Repeat [A] Process Faill Check P1200,P1202 or DVD Cable Pass Pass :[C]Process http://www.wjel.net - 18 - No Sound(RF,SIDE AV) No Sound(AV, COMP1,DVD,PC) Check the speaker wire Change source input Check the input source Faill Pass Re-soldering or Change the defect part Check X11 Check the input/output of IC1 Faill Pass Re-soldering or Change the defect part Check IC403,X601 Re-soldering or Change the defect part Check IC400 Check the input/ output of IC401 Faill Pass Check the input/ output of IC400 Faill Pass Change the speaker Check the speaker Faill Pass http://www.wjel.net BLOCK DIAGRAM - 19 - Tuner TU1000 Tuner TU1000 GM5221 IC901 GM5221 IC901 DVI DVI IF+,- PC SIDE_Comp. AUDIO V Y Pb Pr L R LVDS 30 pin POWER FLI2300 IC500 FLI2300 IC500 SIDE_L,R VCTI IC1 VCTI IC1 AN15865A IC800 AN15865A IC800 RAM IC501 RAM IC501 MST9883 IC600 MST9883 IC600 S-VHS ROM IC900 ROM IC900 MSP4410K IC401 MSP4410K IC401 DVD_POWER & Y,Pb,Pr R L VCTI sound_ LR Comp 1_L,R PC_L,R AV_L,R DVD_ LR R,G,B DVD_Y,Pb,Pr TPA3008 AMP TPA3008 AMP SIDE_Y,Pb,Pr(Comp2) Comp1_Y,Pb,Pr PC_R,G,B & H/V sync R,G,B R/8 G/8 B/8 ADC_H/V_sync R,G,B FLI_H/V_sync R,G,B H/V_sync DVI L R http://www.wjel.net - 20 - BLOCK DIAGRAM DESCRIPTION 1. Video Controller Unit & Display Data Conversion Unit The video controller unit receives the video signals inputted through the tuner, AV port, and converts them into an ITU656 signal through the microcomputer (VCTI) combined with the video decoder that integrates various functions in one chip. Either the analog RGB(FLI2300) signal or PC RGB signal is selected by the switching IC and inputted to a scaler (GM2221), which is sent to the LCD module after being modified to an RGB signal through the integrated LVDS Cable. VCTi is the main microprocessor that handles video signal processing and sound signal processing. It also manages the RF signals received from the tuner. The scaler can control timing to fit into the LCD panel, and can also control the size and position of the inputsignal. 2. Power Supply Unit The power supply unit provides 24V, 12V and 5V DC power to the mainboard. The PWM Step-Up DC/DC Converter circuit is used to generate the 33V used for the tuner. Supplied 24V power is descended by the 13.5V step-down DDC. 13.5V provides source to sound amplifier IC. 24V power is also used to generate 5V and 3.3V power through the Step-Down DC/DC Converter and supplied 12V. 5V power is converted to 3.3V and 1.8V power through the regulator, which in turn supplies electrical power for ICs such as VCTI and scaler. http://www.wjel.net 30P-6631T11020N 9P-6631T20037K 5P-6631T20033T 14P-6631T20033E 12P-6631T20034Y 5P-6631T25023Y 12P-6631T25019K 10P-6631T20033F 3P-6631T20033D 4P-6631T25023X 12P-6631T20034Z 30P-6631T20040A 30P-6631T20040B 3P-6631T20031G WIRING DIAGRAM http://www.wjel.net - 22 - 010 071 072 020 080 090 100 110 030 050 060 040 160 150 140 130 120 EXPLODED VIEW - 23 - EXPLODED VIEW PARTS LIST No. PART NO. DESCRIPTION 3091TKE035A CABINET ASSEMBLY, 23LX1R BRAND 3090TKE025A USA V0 AUTOBAHN 3091TKE035B CABINET ASSEMBLY, 23LX1R BRAND 3090TKE025A USA V0 AUTOBAHN C/SKD 6304FLP283A LCD(LIQUID CRYSTAL DISPLAY), RESET CIRCUIT ADDITION 3809TKE024D BACK COVER ASSEMBLY, 23LX1R-MA 3808TKE017 FOR USA, V0, NTSC, PHONE JACK 3809TKE024E BACK COVER ASSEMBLY, 23LX1R 3808TKE017 FOR USA, V0, NTSC, C/SKD 3043TKK239D TILT SWIVEL ASSEMBLY, 23LX1RV 3043TKK239 DVDP STAND,KUMI 3043TKK239B TILT SWIVEL ASSEMBLY, 23LX1RV 3043TKK239 DVDP STAND 3550TKK838A COVER, RZ-23LG10 REAR CAP 3550TKK822A COVER, KZ-23LG10 REAR DVDP 6401TZZ063A SPEAKER ASSEMBLY, KZ-26LZ51 R 4P 6401TZZ063B SPEAKER ASSEMBLY, KZ-26LZ51 L 5P 4951TKS236A METAL ASSEMBLY, FRAME 23INCH MAIN 4951TKS236B METAL ASSEMBLY, FRAME 23INCH MAIN, CKD 6871TPT287J PWB(PCB) ASSEMBLY,POWER, RZ-23LZ50 POWER TOTAL BRAND DVD(23LX1RV) or 6871TPT287E PWB(PCB) ASSEMBLY,POWER, RZ-23LZ50 POWER TOTAL BRAND AUTOBAHN 23" (PB-FREE) 3313TN2038A MAIN TOTAL ASSEMBLY, 23LX1RV-MC BRAND ML-041D MAIN CHASSIS ASSY 4951TKK174D METAL ASSEMBLY, REAR ML-041A RZ-23LZ50S 4951TKK174E METAL ASSEMBLY, REAR C/SKD ML-041A RZ-23LZ50S 6871TSTA01A PWB(PCB) ASSEMBLY,SUB, 23LX1R LOGO ASSY LED & P/SW TOTAL BRAND LF 6871TST630B PWB(PCB) ASSEMBLY,SUB, RZ-23LZ50 KEY CONTROL TOTAL BRAND LF 6871TVT370C PWB(PCB) ASSEMBLY,VIDEO, RM-32/26/23LZ50 SIDE A/V SUB TOTAL BRAND LF 6871TST763C PWB(PCB) ASSEMBLY,SUB, 23LX1R LED & P/SW TOTAL BRAND LF 3551TKK530F COVER ASSEMBLY, 23KX1R REAR A/V BRACKET ASSY FOR USA DARK SILVER(7227S00112A) 010 020 030 040 050 060 071 072 080 090 100 110 120 130 140 150 160 http://www.wjel.net - 24 - DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C1102 0CE107EK638 100UF KMG 50V M FM5 TP 5 C407 0CH6152K406 1500PF 50V J SL 2012 R/TP C410 0CH6152K406 1500PF 50V J SL 2012 R/TP C1001 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1002 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1003 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1004 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1007 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1010 0CK273DK51A 27000PF 2012 50V 10% B(Y5P) C11 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C12 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1209 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1210 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1211 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1212 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1213 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C1300 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP" C1302 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C1305 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP" C1307 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C15 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C16 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C18 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C19 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C23 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C3 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C4 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C411 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C412 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C417 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C42 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C421 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C426 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C428 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C431 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C432 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C434 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C436 0CH3222K516 2200PF 2012 50V 10% B(Y5P) C44 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C440 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP" C441 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C444 0CK105DK94A "1UF 2012 50V 80%,-20% R/TP" C447 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C45 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C459 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C460 0CK225DH94A "2.2UF 2012 25V 80%,-20% F(Y" C461 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C462 0CK225DH94A "2.2UF 2012 25V 80%,-20% F(Y" C469 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C471 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C472 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C473 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C474 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C477 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C478 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C480 0CK225DH94A "2.2UF 2012 25V 80%,-20% F(Y" C481 0CK225DH94A "2.2UF 2012 25V 80%,-20% F(Y" C49 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C490 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C491 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C494 0CK225DH94A "2.2UF 2012 25V 80%,-20% F(Y" C500 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C505 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C506 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C507 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C508 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C509 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C510 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C511 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C512 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C513 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C514 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C517 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C518 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C519 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C521 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C522 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C523 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C526 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C527 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C528 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C529 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C530 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C531 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C532 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C533 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C534 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C535 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C536 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C537 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C538 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C539 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C540 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C541 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C544 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C545 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C546 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C547 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C550 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C551 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C553 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C554 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C555 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C556 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C557 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C558 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C559 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C6 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP REPLACEMENT PARTS LIST CAPACITOR For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows; CC, CX, CK, CN, CH : Ceramic CQ : Polyestor CE : Electrolytic CF : Fixed Film RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RH : CHIP, Metal Glazed(Chip) RR : Drawing http://www.wjel.net - 25 - DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C60 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C606 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C608 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C609 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C61 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C614 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C616 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C619 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C620 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C621 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C622 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C623 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C624 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C625 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C627 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C628 0CH3822K516 8200PF 2012 50V 10% B(Y5P) C629 0CH3823K516 82000PF 2012 50V 10% B(Y5P) C632 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C633 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C634 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C635 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C636 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C637 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C638 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C639 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C64 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C640 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C65 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C66 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C67 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C700 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C705 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C75 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C751 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C76 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C760 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C761 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C77 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C79 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C80 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C803 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C804 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C807 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C808 0CK273DK51A 27000PF 2012 50V 10% B(Y5P) C81 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C82 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C821 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C822 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C823 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C824 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C826 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C827 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C828 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C84 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C841 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C843 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C857 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C858 0CK474DH56A 0.47UF 2012 25V 10% R/TP X7 C891 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C894 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C908 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C909 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C910 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C911 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C912 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C913 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C914 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C915 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C916 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C917 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C918 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C919 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C920 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C921 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C922 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C923 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C926 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C927 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C928 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C929 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C930 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C931 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C935 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C936 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C938 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C939 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C940 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C941 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C942 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C943 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C944 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C945 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C946 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C947 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C948 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C949 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C950 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C951 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C952 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C958 0CK225DH94A "2.2UF 2012 25V 80%,-20% F(Y" C960 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C963 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C969 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C970 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C973 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C983 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C984 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C10 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1301 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C1306 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C25 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C26 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C27 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C29 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C31 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C35 0CK334CF94A "0.33UF 1608 16V 80%,-20% F(" C37 0CK334CF94A "0.33UF 1608 16V 80%,-20% F(" C40 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C405 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C406 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C408 0CK222CK51A 2200PF 1608 50V 10% R/TP B( C409 0CK222CK51A 2200PF 1608 50V 10% R/TP B( C41 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C413 0CK222CK51A 2200PF 1608 50V 10% R/TP B( http://www.wjel.net DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C414 0CK222CK51A 2200PF 1608 50V 10% R/TP B( C415 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C420 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C424 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C425 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C429 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C437 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C438 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C439 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C453 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C455 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C456 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C458 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7 C463 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7 C464 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C466 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C470 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP" C476 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7 C479 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7 C483 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C484 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C485 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C486 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C487 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C5001 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C5004 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C5005 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C504 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C524 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C542 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C611 0CK473CK56A 47000PF 1608 50V 10% R/TP X C612 0CK473CK56A 47000PF 1608 50V 10% R/TP X C613 0CK473CK56A 47000PF 1608 50V 10% R/TP X C626 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C7 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C70 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C704 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C71 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C72 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C73 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C750 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C752 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C753 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C759 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C78 0CK106EF56A 10UF 3216 16V 10% X7R R/TP C8 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C801 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C802 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C806 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C817 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C818 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C819 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C820 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C825 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C829 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C840 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C842 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C844 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C845 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C846 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C847 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C848 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C850 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C851 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C853 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C856 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C859 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C860 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C861 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C862 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C863 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C892 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C893 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C9 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C901 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C902 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C903 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C904 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C905 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C906 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C907 0CK103CK51A 0.01UF 1608 50V 10% R/TP B( C96 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C981 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R R851 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/" C1017 0CC390DK41A 39PF 2012 50V 5% NP0 R/TP C1018 0CC390DK41A 39PF 2012 50V 5% NP0 R/TP C13 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C1303 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C1308 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C14 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C2 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C20 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C237 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C238 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C319 0CH6120K416 12PF 2012 50V 5% NP0 - C321 0CH6120K416 12PF 2012 50V 5% NP0 - C324 0CH6120K416 12PF 2012 50V 5% NP0 - C326 0CH6120K416 12PF 2012 50V 5% NP0 - C327 0CH6120K416 12PF 2012 50V 5% NP0 - C329 0CH6120K416 12PF 2012 50V 5% NP0 - C331 0CH6150K416 15PF 2012 50V 5% NP0 R/TP C333 0CH6150K416 15PF 2012 50V 5% NP0 R/TP C336 0CH6150K416 15PF 2012 50V 5% NP0 R/TP C338 0CH6150K416 15PF 2012 50V 5% NP0 R/TP C339 0CH6150K416 15PF 2012 50V 5% NP0 R/TP C341 0CH6150K416 15PF 2012 50V 5% NP0 R/TP C43 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C451 0CH6020K116 2PF 2012 50V 0.5 PF C0G R/T C452 0CH6020K116 2PF 2012 50V 0.5 PF C0G R/T C46 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C50 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C515 0CH6330K416 33PF 50V 5% NP0 2012 R/TP C516 0CH6330K416 33PF 50V 5% NP0 2012 R/TP C53 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C59 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C701 0CH6120K416 12PF 2012 50V 5% NP0 - C702 0CH6120K416 12PF 2012 50V 5% NP0 - C74 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C755 0CH6471K416 470PF 2012 50V 5% NP0 R/TP C756 0CH6471K416 470PF 2012 50V 5% NP0 R/TP C757 0CH6471K416 470PF 2012 50V 5% NP0 R/TP C758 0CH6101K416 100PF 50V 5% NP0 2012 R/TP C83 0CH6102K406 1000PF 50V 5% SL 2012 R/TP C86 0CH6102K406 1000PF 50V 5% SL 2012 R/TP - 26 - http://www.wjel.net DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C924 0CH6080K116 8PF 2012 50V 0.5 PF C0G R/T C925 0CH6080K116 8PF 2012 50V 0.5 PF C0G R/T C98 0CC390DK41A 39PF 2012 50V 5% NP0 R/TP C99 0CC390DK41A 39PF 2012 50V 5% NP0 R/TP C203 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C21 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C214 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C22 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C24 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C343 0CC270CK41A 27PF 1608 50V 5% R/TP NP0 C345 0CC270CK41A 27PF 1608 50V 5% R/TP NP0 C348 0CC270CK41A 27PF 1608 50V 5% R/TP NP0 C350 0CC270CK41A 27PF 1608 50V 5% R/TP NP0 C351 0CC270CK41A 27PF 1608 50V 5% R/TP NP0 C353 0CC270CK41A 27PF 1608 50V 5% R/TP NP0 C465 0CC221CK41A 220PF 1608 50V 5% R/TP NP0 C47 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C48 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C501 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C600 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C601 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C602 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C603 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C610 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C754 0CC471CK41A 470PF 1608 50V 5% R/TP NP0 C85 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C1100 0CE106BF618 10UF KME TYPE 16V 20% FL TP C1112 0CE108EF618 1000UF KMG 16V 20% FL TP 5 C1113 0CE108EF618 1000UF KMG 16V 20% FL TP 5 C1114 0CE108EF618 1000UF KMG 16V 20% FL TP 5 C1115 0CE108EF618 1000UF KMG 16V 20% FL TP 5 C1201 0CE477BF618 470UF KME TYPE 16V 20% FL T C1204 0CE477EJ618 470UF KMG 35V 20% FL TP 5 C1214 0CE477EJ618 470UF KMG 35V 20% FL TP 5 C1304 0CE477EJ618 470UF KMG 35V 20% FL TP 5 C890 0CE337ZF638 330UF SEP 16V 20% FM5 TP 5 C100 0CH8476F691 47UF 16V 20% 105STD (CYL) R C1006 0CH8106J691 10UF 35V 20% 105STD (CYL) R C1008 0CE227WF6DC 220UF MVK 16V 20% R/TP(SMD) C103 0CH8476F691 47UF 16V 20% 105STD (CYL) R C107 0CE107WH6DC 100UF MVK 25V 20% R/TP(SMD) C1215 0CE477WF6DC 470UF MVK 16V 20% SMD R/TP( C1216 0CE477WF6DC 470UF MVK 16V 20% SMD R/TP( C17 0CH8106J691 10UF 35V 20% 105STD (CYL) R C201 0CH8106F691 10UF 16V 20% 105STD (CYL) R C212 0CH8106F691 10UF 16V 20% 105STD (CYL) R C213 0CH8106F691 10UF 16V 20% 105STD (CYL) R C216 0CH8106F691 10UF 16V 20% 105STD (CYL) R C307 0CH8106F691 10UF 16V 20% 105STD (CYL) R C309 0CH8106F691 10UF 16V 20% 105STD (CYL) R C312 0CH8106F691 10UF 16V 20% 105STD (CYL) R C314 0CH8106F691 10UF 16V 20% 105STD (CYL) R C315 0CH8106F691 10UF 16V 20% 105STD (CYL) R C317 0CH8106F691 10UF 16V 20% 105STD (CYL) R C404 0CH8476F691 47UF 16V 20% 105STD (CYL) R C416 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C418 0CH8106F691 10UF 16V 20% 105STD (CYL) R C419 0CH8106F691 10UF 16V 20% 105STD (CYL) R C422 0CE335WK6D8 "3.3UF MVK,RC 50V 20% SMD TA" C423 0CE477WF6DC 470UF MVK 16V 20% SMD R/TP( C442 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C445 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION C454 0CH8476F691 47UF 16V 20% 105STD (CYL) R C457 0CE476WK6DC 47UF MVK 50V 20% R/TP(SMD) C482 0CE226WJ6DC 22UF MVK 35V 20% R/TP(SMD) C488 0CE227WJ6DC 220UF MVK/RC 35V 20% SMD TA C493 0CE476WK6DC 47UF MVK 50V 20% R/TP(SMD) C5 0CE475WJ6DC 4.7UF MVK 35V 20% R/TP(SMD) C5000 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C502 0CH8476F691 47UF 16V 20% 105STD (CYL) R C503 0CH8476F691 47UF 16V 20% 105STD (CYL) R C52 0CH8476F691 47UF 16V 20% 105STD (CYL) R C520 0CH8106F691 10UF 16V 20% 105STD (CYL) R C525 0CH8106F691 10UF 16V 20% 105STD (CYL) R C54 0CH8476F691 47UF 16V 20% 105STD (CYL) R C543 0CH8476F691 47UF 16V 20% 105STD (CYL) R C560 0CH8476F691 47UF 16V 20% 105STD (CYL) R C604 0CH8476F691 47UF 16V 20% 105STD (CYL) R C605 0CH8476F691 47UF 16V 20% 105STD (CYL) R C607 0CH8476F691 47UF 16V 20% 105STD (CYL) R C62 0CH8476F691 47UF 16V 20% 105STD (CYL) R C63 0CH8476F691 47UF 16V 20% 105STD (CYL) R C68 0CH8476F691 47UF 16V 20% 105STD (CYL) R C703 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) C805 0CE475WK6DC "4.7UF MVK,RC 50V 20% SMD TA" C836 0CE477WF6DC 470UF MVK 16V 20% SMD R/TP( C837 0CE477WF6DC 470UF MVK 16V 20% SMD R/TP( C839 0CE477WF6DC 470UF MVK 16V 20% SMD R/TP( C864 0CE227WF6DC 220UF MVK 16V 20% R/TP(SMD) C866 0CE227WF6DC 220UF MVK 16V 20% R/TP(SMD) C87 0CH8476F691 47UF 16V 20% 105STD (CYL) R C88 0CH8476H691 47UF 25V 20% 105STD (CYL) R C888 0CE227WJ6DC 220UF MVK/RC 35V 20% SMD TA C889 0CE227VH6DC 220UF MV 25V 20% R/TP(SMD) C900 0CH8476F691 47UF 16V 20% 105STD (CYL) R C953 0CH8476F691 47UF 16V 20% 105STD (CYL) R C956 0CH8476H691 47UF 25V 20% 105STD (CYL) R C957 0CH8476F691 47UF 16V 20% 105STD (CYL) R C959 0CH8476F691 47UF 16V 20% 105STD (CYL) R C97 0CH8476H691 47UF 25V 20% 105STD (CYL) R C972 0CH8476H691 47UF 25V 20% 105STD (CYL) R C980 0CE227WJ6DC 220UF MVK/RC 35V 20% SMD TA C982 0CE476WK6DC 47UF MVK 50V 20% R/TP(SMD) ZD1300 0DR340009AA MBRS340 TP FAIRCHILD NON 40 ZD1301 0DR340009AA MBRS340 TP FAIRCHILD NON 40 ZD1302 0DR340009AA MBRS340 TP FAIRCHILD NON 40 IC751 0DRSE00018B "SRV05-4.TCT, SEMTECH R/TP S" IC754 0DRSE00018B "SRV05-4.TCT, SEMTECH R/TP S" D107 0DS226009AA KDS226 TP KEC - 80V - - 4NS D400 0DS181009AA KDS181 TP KEC SOT-23 80V D711 0DD184009AA KDS184 TP KEC - 85V - - - 3 D703 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 D704 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD220 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD222 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 D700 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 D701 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 D702 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 D705 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 D706 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD209 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 - 27 - DIODEs http://www.wjel.net DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION ZD221 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD5001 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD5002 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD5003 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD1000 0DZ330009DF MTZJ33B TP ROHM-K DO34 0.5W ZD10 0DZ910009FE UDZS 9.1B TP ROHM - - 9.1V IC501 0IMMREB010A "M12L64322A-6T ESMT 86P,TSOP" IC749 0IMMRSG036A "M24C02-WMN6T(P),LF SGS-THOM" IC753 0IMMRSG036A "M24C02-WMN6T(P),LF SGS-THOM" IC907 0IMCRAL006A "AT24C16AN-10SU-2.7,LF ATMEL" IC918 0IMCRAL006A "AT24C16AN-10SU-2.7,LF ATMEL" IC1201 0IMCRNS007E LMS1587CS-3.3 NATIONAL SEMI IC401 0IMCRMN028B MSP4410K MICRONAS 80P/PQFP IC500 0IMCRGN002D "FLI2300BD-LF,PB FREE GENESI" IC750 0IMCRSG010A ST3232CDR SGS-THOMSON SOP16 IC808 0IMCRNS007C LMS1587CS-ADJ NATIONAL SEMI IC1 0IPRPMN003C VCT49XYF C7(NTSC+PAL) MICRO IC2001 0IPRPJR017A "NJU26901E2 JRC 8P,EMP R/TP" IC400 0IPRP00522A "TPA3008D2PHPRG4,LF TEXAS IN" IC600 0IPRPM3002D "MST9883C-LF-110 MSTAR 80P,L" IC800 0IPRPMA013A "AN15865AAVT,PB FREE MATSUSH" IC901 0IPRPGN014C "GM5221H-BC-LF,PB FREE GENES" IC1300 0IPMG00063A MP1593DN-LF-Z MONOLITHIC PO IC1301 0IPMG00063A MP1593DN-LF-Z MONOLITHIC PO IC2 0IPMGK2001B AIC1117A-33CYTR(BS33) AIC S IC3 0IKE702700D "KIA7027AF 3, SOT-89 TP RESE" IC4 0IPMGK2001B AIC1117A-33CYTR(BS33) AIC S IC4007 0IPMGK2001C AIC1117A-25CYTR(BS25) AIC 3 IC402 0IPMGK2001B AIC1117A-33CYTR(BS33) AIC S IC403 0IKE704200J KIA7042AF SOT-89 TP 4.2V VO IC6 0IPMGSG018D LD1086DT18TR-LF SGS-THOMSON IC8 0IMCRFA015A KA7805R FAIRCHILD 2P D-PAK IC888 0IMCRNS007A LM2940S 8V NATIONAL SEMICON IC9 0IMCRFA010A "KA7809R, FAIRCHILD 2P D-PAK" IC905 0IPMGFA061A "FAN1587AD33X FAIRCHILD 3P,D" IC906 0IPMGSG018D LD1086DT18TR-LF SGS-THOMSON IC950 0IPMGNS004B LM2676S-ADJ NATIONAL SEMICO IC2000 0ISTL00026A "MC14066BDR2G,LF ON SEMI 14P" IC702 0ISTL00024A "MC14053BDR2G,LF ON SEMI 16P" IC752 0IMCRTI001A "SN74HCT157DR,LF TEXAS INST" L910 6200TEZ012L SLF12575T-680M2R0 TDK R/TP L1300 6140VR0008B SLF12575T-150M3R2 15UH SMD L1301 6140VR0008B SLF12575T-150M3R2 15UH SMD L414 6140VR0008A SLF12575T-330M4R7 33UH SMD L415 6140VR0008A SLF12575T-330M4R7 33UH SMD L416 6140VR0008A SLF12575T-330M4R7 33UH SMD L417 6140VR0008A SLF12575T-330M4R7 33UH SMD L100 6210TCE001G HH-1M3216-501 CERATEC 3216M L1002 6210TCE001G HH-1M3216-501 CERATEC 3216M L101 6210TCE001G HH-1M3216-501 CERATEC 3216M L1205 6210TCE001G HH-1M3216-501 CERATEC 3216M L1206 6210TCE001G HH-1M3216-501 CERATEC 3216M L1207 6210TCE001G HH-1M3216-501 CERATEC 3216M L1208 6210TCE001G HH-1M3216-501 CERATEC 3216M L1209 6210TCE001G HH-1M3216-501 CERATEC 3216M L1210 6210TCE001G HH-1M3216-501 CERATEC 3216M DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION L3 6210TCE001G HH-1M3216-501 CERATEC 3216M L301 6210TCE001A HB-1S2012-080JT CERATEC 201 L302 6210TCE001A HB-1S2012-080JT CERATEC 201 L311 6210TCE001G HH-1M3216-501 CERATEC 3216M L4 6210TCE001G HH-1M3216-501 CERATEC 3216M L401 6210TCE001G HH-1M3216-501 CERATEC 3216M L404 6210TCE001G HH-1M3216-501 CERATEC 3216M L407 6210TCE001G HH-1M3216-501 CERATEC 3216M L410 6210TCE001G HH-1M3216-501 CERATEC 3216M L413 6210TCE001G HH-1M3216-501 CERATEC 3216M L418 6210TCE001G HH-1M3216-501 CERATEC 3216M L420 6210TCE001G HH-1M3216-501 CERATEC 3216M L422 6210TCE001G HH-1M3216-501 CERATEC 3216M L425 6210TCE001G HH-1M3216-501 CERATEC 3216M L426 6210TCE001G HH-1M3216-501 CERATEC 3216M L500 6210TCE001G HH-1M3216-501 CERATEC 3216M L5000 6210TCE001G HH-1M3216-501 CERATEC 3216M L501 6210TCE001G HH-1M3216-501 CERATEC 3216M L502 6210TCE001G HH-1M3216-501 CERATEC 3216M L503 6210TCE001G HH-1M3216-501 CERATEC 3216M L505 6210TCE001G HH-1M3216-501 CERATEC 3216M L600 6210TCE001G HH-1M3216-501 CERATEC 3216M L601 6210TCE001G HH-1M3216-501 CERATEC 3216M L602 6210TCE001G HH-1M3216-501 CERATEC 3216M L701 6210TCE001G HH-1M3216-501 CERATEC 3216M L802 6210TCE001G HH-1M3216-501 CERATEC 3216M L900 6210TCE001G HH-1M3216-501 CERATEC 3216M L901 6210TCE001G HH-1M3216-501 CERATEC 3216M L902 6210TCE001G HH-1M3216-501 CERATEC 3216M L903 6210TCE001G HH-1M3216-501 CERATEC 3216M L907 6210TCE001G HH-1M3216-501 CERATEC 3216M L202 6210TCE001A HB-1S2012-080JT CERATEC 201 L203 6210TCE001A HB-1S2012-080JT CERATEC 201 L207 6210TCE001A HB-1S2012-080JT CERATEC 201 L208 6210TCE001A HB-1S2012-080JT CERATEC 201 L211 6210TCE001A HB-1S2012-080JT CERATEC 201 L212 6210TCE001A HB-1S2012-080JT CERATEC 201 L504 6210TCE001G HH-1M3216-501 CERATEC 3216M L603 6210TCE001A HB-1S2012-080JT CERATEC 201 L801 6210TCE001G HH-1M3216-501 CERATEC 3216M Z1000 6200QL3002F "X6966M EPCOS ST SIP5K, 6200" L1 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L1001 0LC1020101A 1UH 10% 2012 R/TC FI-B2012- L11 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L13 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L14 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L15 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L17 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L2 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L403 0LC1532101A 15UH 10% 3216 R/TC FI-C3216 L7 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L10 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L12 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L16 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L306 0LC1532101A 15UH 10% 3216 R/TC FI-C3216 L307 0LC1532101A 15UH 10% 3216 R/TC FI-C3216 L308 0LC1532101A 15UH 10% 3216 R/TC FI-C3216 L309 0LC1532101A 15UH 10% 3216 R/TC FI-C3216 L310 0LC1532101A 15UH 10% 3216 R/TC FI-C3216 L8 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 L9 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 - 28 - COIL & CORE & INDUCTOR IC http://www.wjel.net DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION Q1000 0TR388109AA KTC3881 CHIP TP KEC - - Q1101 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1102 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q318 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q410 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q411 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q412 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q700 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q12 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q13 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q14 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q15 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q16 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q17 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q210 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q211 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q213 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q308 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q310 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q313 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q315 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q316 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q401 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q402 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q403 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q404 0TR150400BA CHIP 2SA1504S(ASY) BK KEC - Q500 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q805 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q806 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q807 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q901 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - IC1101 0TF492509AA SI4925DY TP TEMIC 30V 6.1A IC902 0TF492509AA SI4925DY TP TEMIC 30V 6.1A RA600 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 RA601 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 RA602 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 RA603 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 RA604 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 RA605 0RRZVTA001A MNR-14-E0A-J-101 R OHM 100 R10 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R1001 0RH0562D622 56 OHM 1 / 10 W 2012 5.00% R1002 0RH1501D622 1.5K OHM 1 / 10 W 2012 5.00 R1003 0RH8200D622 820 OHM 1 / 10 W 2012 5.00% R1004 0RH3000D622 300 OHM 1 / 10 W 2012 5.00% R1005 0RH0682D622 68 OHM 1 / 10 W 2012 5.00% R1010 0RH7501D622 7.5K OHM 1 / 10 W 2012 5.00 R1011 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1012 0RH7502D622 75K OHM 1 / 10 W 2012 5.00% R1014 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1026 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R104 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R106 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R11 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R1100 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1101 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1102 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R1105 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1106 0RH1202D622 12K OHM 1 / 10 W 2012 5.00% DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R1107 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R1108 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R118 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R12 0RH6801D622 6.8K OHM 1 / 10 W 2012 5.00 R1203 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1204 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1205 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R1206 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R1207 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R1210 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1211 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1212 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1213 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R1220 0RH2003D622 200K OHM 1 / 10 W 2012 5.00 R1221 0RH2003D622 200K OHM 1 / 10 W 2012 5.00 R1290 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R13 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1301 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1304 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R1350 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R154 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R156 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R158 0RH0822D622 82 OHM 1 / 10 W 2012 5.00% R162 0RH2701D622 2.7K OHM 1 / 10 W 2012 5.00 R201 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R202 0RH2402D622 24K OHM 1 / 10 W 2012 5.00% R203 0RH2402D622 24K OHM 1 / 10 W 2012 5.00% R204 0RH4703D622 470K OHM 1 / 10 W 2012 5.00 R22 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R223 0RH2702D622 27K OHM 1 / 10 W 2012 5.00% R226 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R227 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R229 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R230 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R232 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R233 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R24 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R25 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R338 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R339 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R342 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R343 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R348 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R349 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R352 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R353 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R354 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R355 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R363 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R367 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R373 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R377 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R379 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R383 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R395 0RH6800D622 680 OHM 1 / 10 W 5% D R/TP R403 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R418 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R421 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R435 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R44 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R45 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R451 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D - 29 - TRANSISTOR RESISTORs DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R453 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R455 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R46 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R460 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R461 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R462 0RH1503D622 150K OHM 1 / 10 W 2012 5.00 R463 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R464 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R465 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R467 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R468 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R5006 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R5008 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R5014 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R502 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R5032 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R505 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R506 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R516 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R517 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R519 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R520 0RH1800D622 180 OHM 1 / 10 W 2012 5.00% R527 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R530 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R532 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% R607 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R61 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R610 0RH2701D622 2.7K OHM 1 / 10 W 2012 5.00 R703 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R705 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R712 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R713 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R715 0RH1202D622 12K OHM 1 / 10 W 2012 5.00% R716 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R719 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R725 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R726 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R729 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R730 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R731 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R737 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R738 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R753 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R755 0RH0102D622 10 OHM 1 / 10 W 2012 5.00% R756 0RH0102D622 10 OHM 1 / 10 W 2012 5.00% R758 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R761 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R809 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R810 0RH7502D622 75K OHM 1 / 10 W 2012 5.00% R83 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R835 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R836 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R837 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R838 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R839 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R848 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R849 0RH0752D622 75 OHM 1 / 10 W 2012 5.00% R85 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R852 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R853 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R87 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R89 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R930 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R931 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 R941 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R960 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R963 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R964 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R969 0RH1202D622 12K OHM 1 / 10 W 2012 5.00% R971 0RH1502D622 15K OHM 1 / 10 W 2012 5.00% R974 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R976 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R977 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R980 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 R990 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R991 0RH9101D622 9.1K OHM 1 / 10 W 2012 5.00 R992 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R999 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D R100 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1013 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R1015 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R102 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1027 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R1028 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R108 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R109 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R110 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1109 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R111 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1110 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R112 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R113 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R114 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R115 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R116 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R117 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R120 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1202 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP R121 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R122 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R123 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R1300 0RJ6801D477 6.8K OHM 1/10 W 1% 1608 R/T R1302 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R1303 0RJ6801D477 6.8K OHM 1/10 W 1% 1608 R/T R1305 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R15 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R152 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R153 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R155 0RJ2700D677 270 OHM 1/10 W 5% 1608 R/TP R157 0RJ2700D677 270 OHM 1/10 W 5% 1608 R/TP R159 0RJ2700D677 270 OHM 1/10 W 5% 1608 R/TP R16 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R160 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R161 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R163 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R164 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R17 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R173 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/T R175 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/T R206 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R207 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R210 0RJ3902D677 39K OHM 1/10 W 5% 1608 R/TP R211 0RJ5102D677 51K OHM 1/10 W 5% 1608 R/TP R212 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/T - 30 - http://www.wjel.net - 31 - DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R213 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R214 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R215 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/T R222 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R224 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/ R225 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R228 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R231 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R234 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R238 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R239 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R242 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R243 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R250 0RJ3902D677 39K OHM 1/10 W 5% 1608 R/TP R251 0RJ5102D677 51K OHM 1/10 W 5% 1608 R/TP R252 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R255 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R260 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R261 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R262 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/T R263 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/T R326 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R329 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R34 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R35 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R358 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R359 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R385 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R387 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R390 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R392 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R393 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R401 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R402 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R405 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R406 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R407 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R408 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R409 0RJ3901D677 3.9K OHM 1/10 W 5% 1608 R/T R410 0RJ3901D677 3.9K OHM 1/10 W 5% 1608 R/T R411 0RJ3901D677 3.9K OHM 1/10 W 5% 1608 R/T R412 0RJ3901D677 3.9K OHM 1/10 W 5% 1608 R/T R413 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R414 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R415 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R416 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R417 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R419 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R423 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R424 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R426 0RJ1004D677 1000000 OHM 1/10 W 5% 1608 R427 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R428 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R429 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R430 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/T R432 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R436 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/T R438 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/T R439 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R456 0RJ1203D677 120K OHM 1/10 W 5% 1608 R/T R50 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R500 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R5002 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R5007 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R5009 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R501 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R5013 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R5015 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R5016 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R5017 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R5019 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R5020 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R5021 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R5030 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/ R5031 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/T R504 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R51 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R514 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R515 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/T R518 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R52 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R521 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R522 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R523 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R524 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R525 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R526 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R528 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R529 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R53 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R533 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R534 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R54 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R55 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R56 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R57 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R58 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R59 0RJ1201D677 1200 OHM 1/10 W 5% 1608 R/T R60 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R600 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R601 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R602 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R603 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R604 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R606 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R608 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R609 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R62 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R63 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R64 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R66 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R68 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R70 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R700 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R701 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R702 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R706 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R71 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R711 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R717 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R718 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R72 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R720 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R721 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP http://www.wjel.net DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R722 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R727 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R728 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R73 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R739 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R740 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R751 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R752 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R754 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R757 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R759 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R760 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R79 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R801 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R802 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R803 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R804 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R805 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R806 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R807 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R808 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R81 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R811 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R812 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R813 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R814 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R815 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R816 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R817 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R820 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R822 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R826 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R827 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R828 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R830 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R831 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R832 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R834 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R840 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R841 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R842 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R843 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R845 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R846 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R847 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R850 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R854 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R855 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R856 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R857 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R86 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R867 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R868 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R88 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R90 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R901 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R902 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R903 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R904 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R906 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R908 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R909 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R910 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R913 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R917 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R918 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R920 0RJ4990D477 499 OHM 1/10 W 1% 1608 R/TP R921 0RJ4990D477 499 OHM 1/10 W 1% 1608 R/TP R929 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R93 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R933 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R934 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R935 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R936 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R938 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R939 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R940 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R942 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R944 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R945 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R946 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R947 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R948 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R949 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R95 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R950 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R952 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R953 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R970 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R972 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R975 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R981 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R982 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R983 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R984 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R985 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R986 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R987 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R988 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R989 0RH4701D622 4.7K OHM 1 / 10 W 2012 5.00 X11 6202VDT002E SX-1SMD SUNNY RADIAL 202500 X500 6202VDT002J SX-1 SUNNY 13.500000MHZ +/- X601 6202VDT002H SX-1 SUNNY 18.432000MHZ +/- X900 6202VDT002B SX-1 SUNNY SC14.3MHZ +/- 30 IC900 6620F00017A CCSD-32T-SM WOOYOUNG 32P PL TU1000 6700VS0003D TAEW-G052P LGIT MULTI VS RC L1700 0LA0102K119 10UH K 2.3*3.4 TP R1700 0RN8200F409 820 1/6W 1% TA52 R1701 0RN6200F409 620 1/6W 1% TA52 R1702 0RN5100F409 510 OHM 1/6 W 1.00% TA52 R1703 0RN4300F409 430 OHM 1/6 W 1.00% TA52 R1704 0RN3300F409 330 1/6W 1% TA52 R1705 0RN2700F409 270 1/6W 1% TA52 R1706 0RN2701F409 2.7K OHM 1/6 W 1.00% TA52 SW1700 140-313A TACT 2LEAD 100G(TA) LG C&D SW1701 140-313A TACT 2LEAD 100G(TA) LG C&D SW1702 140-313A TACT 2LEAD 100G(TA) LG C&D SW1703 140-313A TACT 2LEAD 100G(TA) LG C&D - 32 - OTHERs CONTROL BOARD http://www.wjel.net DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION SW1704 140-313A TACT 2LEAD 100G(TA) LG C&D SW1705 140-313A TACT 2LEAD 100G(TA) LG C&D SW1706 140-313A TACT 2LEAD 100G(TA) LG C&D R3201 0RD7501F609 7.5K OHM 1/6 W 5.00% TA52 R3202 0RD2401F609 2.4K OHM 1/6 W 5.00% TA52 R3203 0RD9100F609 910 OHM 1/6 W 5.00% TA52 R3204 0RD6200F609 620 OHM 1/6 W 5.00% TA52 R3205 0RD2400F609 240 OHM 1/6 W 5.00% TA52 R3206 0RD3301F609 3.3K OHM 1/6 W 5.00% TA52 R3207 0RD6201F609 6.2K OHM 1/6 W 5.00% TA52 SW3201 140-313A TACT 2LEAD 100G(TA) LG C&D SW3202 140-313A TACT 2LEAD 100G(TA) LG C&D SW3203 140-313A TACT 2LEAD 100G(TA) LG C&D SW3204 140-313A TACT 2LEAD 100G(TA) LG C&D SW3205 140-313A TACT 2LEAD 100G(TA) LG C&D C1600 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP L1600 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 R1600 0RH3301D622 3.3K OHM 1 / 10 W 2012 5.00 C2100 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C3111 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C3112 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C3113 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C3114 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C3115 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C3116 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C3117 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP L2100 6210TCE001G HH-1M3216-501 CERATEC 3216M L2101 0LC1032101A 10UH 10% 3216 R/TC FI-C3216 Q1601 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1602 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q1603 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3101 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3102 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3103 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3104 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3105 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3106 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3107 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - Q3108 0TR387500AA CHIP 2SC3875S(ALY) BK KEC - R1601 0RH2701D622 2.7K OHM 1 / 10 W 2012 5.00 R1602 0RH2700D622 270 OHM 1 / 10 W 2012 5.00% R1603 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1604 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1605 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% R1606 0RH1500D622 150 OHM 1 / 10 W 2012 5.00% R3101 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R3102 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R3103 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R3104 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R3105 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R3106 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R3107 0RH2200D622 220 OHM 1 / 10 W 2012 5.00% R3121 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R3122 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R3123 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R3124 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% DATE: 2005. 6. 28. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R3125 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R3126 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R3127 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R3137 0RH1000D622 100 OHM 1 / 10 W 2012 5.00% R3138 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% SW1600 140-313A TACT 2LEAD 100G(TA) LG C&D LED1600 0DL200000CA SAM5670(DL-2LRG) BK Y-GREEN PA2101 6726TV0001A TSOP4838SO1 VISHAY 38.0KHZ LED801 0DLBE0158AA BRIGHT LED ELECTRONICS BL-H LED802 0DLBE0158AA BRIGHT LED ELECTRONICS BL-H LED803 0DLBE0158AA BRIGHT LED ELECTRONICS BL-H LED804 0DLBE0158AA BRIGHT LED ELECTRONICS BL-H LED805 0DLBE0158AA BRIGHT LED ELECTRONICS BL-H LED806 0DLBE0158AA BRIGHT LED ELECTRONICS BL-H LED807 0DLBE0158AA BRIGHT LED ELECTRONICS BL-H C2006 0CN4710K519 470PF D 50V 10% B(Y5P) TA52 C2007 0CN4710K519 470PF D 50V 10% B(Y5P) TA52 R2001 0RD0752Q609 75 1/4W(3 5% TA52 R2002 0RD0752Q609 75 1/4W(3 5% TA52 R2003 0RD0752Q609 75 1/4W(3 5% TA52 R2004 0RD0752Q609 75 1/4W(3 5% TA52 R2005 0RD0752Q609 75 1/4W(3 5% TA52 R2006 0RD4703Q609 470K 1/4W(3 5% TA52 R2007 0RD4703Q609 470K 1/4W(3 5% TA52 - 33 - VIDEO BOARD LED & P/SW BOARD DVD BOARD http://www.wjel.net http://www.wjel.net Jun., 2005 Printed in Korea P/NO : 38289S0004G http://www.wjel.net
